Code de correction NEW REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps forfaitaire ci-dessus représentent tout le travail à être fait pour cette procédure, notamment les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez Temps forfaitaires pour en apprendre plus à propos des temps forfaitaires et de leur création. Vous pouvez transmettre par courriel vos commentaires relatifs aux valeurs des temps forfaitaires à ServiceManualFeedback@tesla.com. REMARQUE : Consultez Protection individuelle pour vous assurer de porter l’équipement de protection individuelle adéquat lors vous effectuez la procédure ci-dessous.

1. Raise and support vehicle
   Remarque

   Set air suspension to "Jack Mode"





2. Open LH front door
   Remarque

   Push LH B-pillar door trigger to release





3. Lower LH front window



4. Connect to vehicle using Toolbox 3
   Remarque

   OBD-II connection is integrated into drivers lower IP cover, Open Toolbox 3 website and establish connection to vehicle, https://toolbox.teslamotors.com, Select connection status icon at top right corner then select connect locally, Icon will turn green when connected, Successful connection will automatically unlock vehicle gateway and place UI in Service Mode Plus







5. Exécutez la routine ODIN PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox: (link)
6. Unlock vehicle gateway
   Remarque

   After vehicle has been put into "Service Mode", place keycard on center console to turn on drive rails, hold down the brake pedal, while keep pressing right hand signal button simultaneously for at least 10 seconds, "GTW UNLOCKING" should pop up on the UI right next to the VIN during these 10 seconds, once gateway is unlocked "GTW UNLOCKED 5400" will be displayed on the UI next to the VIN, the gateway will remain unlocked for 90 minutes, follow steps on Toolbox article #5582900 for any additional information







7. Exécutez la routine ODIN PROC_HVBATT_X_DEVICE-CLUSTER-REPLACEMENT-BACKUPvia Toolbox: (link)via Service Mode Plus: High Voltage Battery ➜ Device Cluster Assembly (DCA) Replacement ➜ Backup Old DCA
8. Open powered front trunk
   Remarque

   Via exterior switch or UI





9. Remove fastener covers from bed floor assembly
   Remarque

   14x covers











10. Remove bed floor assembly
    Remarque

    10x short bolts, 15mm, 56 Nm, 2x long bolts, 15mm, 46Nm, Lift front edge with trim tool then remove panel, Recommend assistance









11. Power down vehicle via UI
    Remarque

    Verify EPBs are engaged, Select charge port icon to ensure drive state is disengaged then power down vehicle via Controls > Safety > Power Off



12. Remove rear underhood apron
    Remarque

    9x clips





13. Disconnect FRL connector then disconnect MV battery connector
    Remarque

    2x connectors, Release locking tab then disconnect FRL connector, Slide eCPA to left then lift lever to release MV battery connector, Early production trucks may have black FRL connector, Release eCPA by pushing down to unlock and slide red locking tab, Wait 2 minutes for electrical circuits to discharge before disconnecting modules







14. Verify operation of multimeter
    Remarque

    Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing MV battery, Touch lightly and do not damage terminals





15. Raise vehicle fully
    Remarque

    Set to a comfortable working height, Lower to locks, Ensure locks engage on both sides to prevent tilting





16. Remove rear skid plate
    Remarque

    6x clips, 3x bolts, 15mm, 42 Nm, 5x bolts, 13mm, 28 Nm, 2x bolts, 10mm, 6 Nm











17. Remove all items from pockets and ensure not wearing metal items



18. Inspect HV insulating gloves
    Remarque

    Check gloves for damage prior to use, Refer to service document TN-15-92-003



19. Put on HV insulating gloves and leather over gloves



20. Verify no HV - Install amp clamp to RDU HV harness
    Remarque

    Verify meter is zeroed out before performing measurement, Measure single cable. Verify ammeter is installed in correct direction. If current > 0.5A do not proceed with disconnecting HV connector. In this case, start vehicle electrical isolation again to make sure that all was properly shut down. Escalate for assistance as requiredIf current < 0.5A, Ok to disconnect and check voltage at HV plug on the battery side.Release locking tab and rotate the release lever up to disengage the connector, Release harness clip, Do not force the release lever up, Ensure the alignment tabs on the RDU header are not damagedMake sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering













21. Remove pyro fuse access cover
    Remarque

    4x bolts, E-Torx 5 lobe, 10 Nm



22. Remove primary pyro fuse
    Remarque

    2x bolts, 13mm, 5 Nm + 60 Degrees, Support pyro fuse while removing bolts





23. Remove secondary pyro fuse
    Remarque

    2x bolts, 13mm, 5 Nm + 60 Degrees, Support pyro fuse while removing bolts





24. Release connectors at 2x4 header (AC compressor and Inductive Charger headers)
    Remarque

    2x connectors, Fully release red lock tab, Pull black latch down to release connector





25. Release 2x4 header assembly
    Remarque

    4x bolts, 5-lobe 10mm, 6 Nm





26. Release drive unit connectors from ancillary headers
    Remarque

    3x connectors, Release blue lock tab, Rotate black latch







27. Remove bolts securing HC-Stak HV Headers for LHRDU, FDU, RHRDU from ancillary flange
    Remarque

    6x bolts, 5-lobe 10mm, 10 Nm





28. Remove LHRDU, FDU, RHRDU headers from ancillary flange
    Remarque

    3x headers, No tools required, inspect header seals, Replace header if damaged





29. Lower vehicle until tires are touching the ground
    Remarque

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered

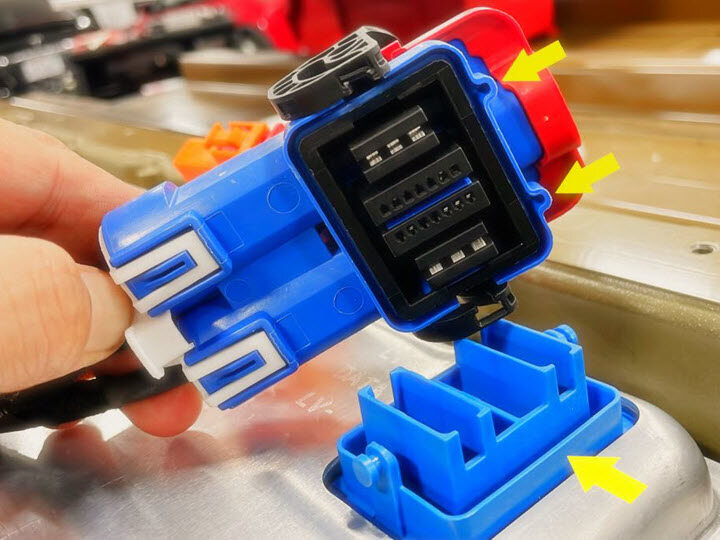

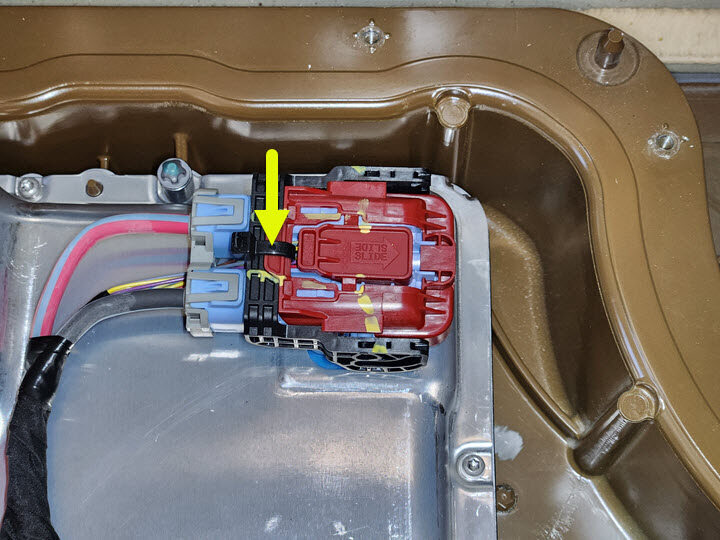

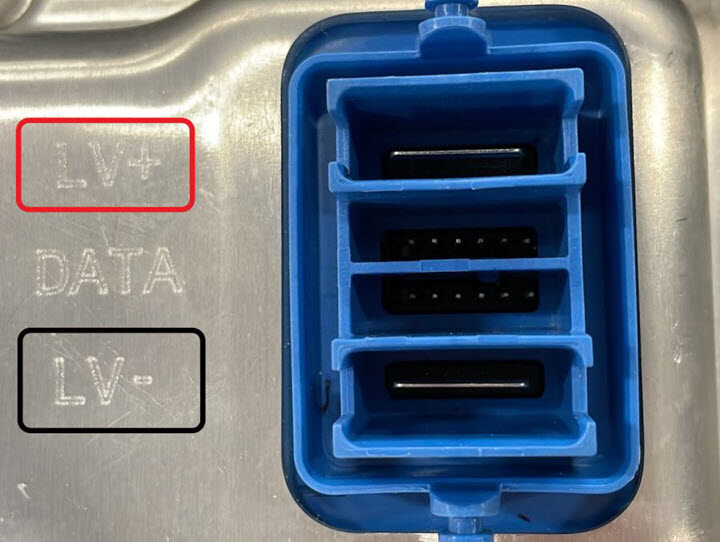

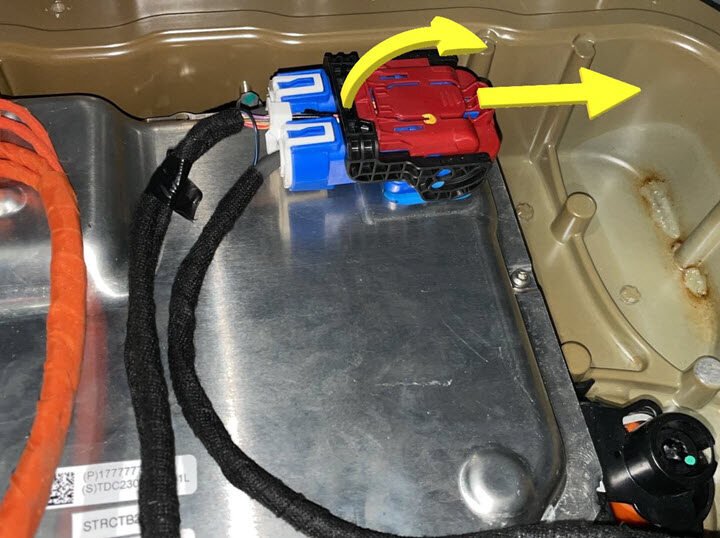

30. Disconnect ancillary bay MV connector
    Remarque

    1x connector, Double locking, Release tab then pivot lever, Release second tab to disengage connector, Wait 1 second between locking tab release to discharge and prevent arcing











31. Remove bolt securing busbar HV connector lid
    Remarque

    1x bolt, EP10, 9 Nm



32. Remove bolts securing HV connector to DC FC header
    Remarque

    2x bolts, 10mm, 9 Nm



33. Release HV connector from DC FC header
    Remarque

    1x connector, Use inflatable airbag to suspend busbar assembly above ancillary assembly



34. Support HV Busbar assembly
    Remarque

    Suspend assembly to maintain clearance



35. Remove fast charger header doubler
    Remarque

    2x bolts, E10 5 Lobe Torx, 10 Nm





36. Release low voltage header
    Remarque

    2x bolts, EP10, 6 Nm



37. Release fasteners securing ancillary cover to HV battery
    Remarque

    22x bolts, E10 5-Lobe, 6 Nm, Use E10 5-Lobe socket without magnet, The fasteners are captive and will stay attached to the penthouse cover, Follow fastening order







38. Remove ancillary cover
    Remarque

    Use suction cup and maneuver around busbar and tonneau cage







39. Remove DC header
    Remarque

    Slide header off DC bus links, Inspect seal, Replace header if damaged







40. Disconnect PCS MV connector
    Remarque

    1x connector, 1x zip tie, Slide red lock off of lever, Rotate lever to release connector, Remove zip tie as needed





41. Release PCS MV harness
    Remarque

    1x bolt, EP10, 6 Nm, 2x clips, Move aside as needed



42. Release MV header
    Remarque

    4x datums, 1x edge clip, 1x fir tree clip







43. Release HVC connectors
    Remarque

    2x clips, 3x connectors, Release connector locks, Depress levers and pull at connector, Do not pull from harnessIf RTV is present at 2 connectors, using a ceramic knife cut through and remove RTV until connector can be disconnected











44. Release BMB passthrough connectors
    Remarque

    2x connectors, Release connector locks, Depress levers and pull at connector, Do not pull from harness







45. Release ACJB LV connector & ACJB to device cluster HV connector
    Remarque

    2x clips, 2x connectors, Release connector locks, Depress levers and pull at connectors, Do not pull at harness







46. Remove MV ancillary harness





47. Release HVC harness from PCS
    Remarque

    1x connectors, Release connector lock, Depress lever and pull at connector, Do not pull at harness



48. Release device cluster busbar fasteners
    Remarque

    4x bolts, Torx Plus 55, 5Nm + 60 Degrees, Captured bolts with insulated covers









49. Remove device cluster assembly fasteners
    Remarque

    4x bolts, E10 5 Lobe Torx, 6Nm









50. Remove device cluster from ancillary tray
    Remarque

    Place device cluster on stand to protect headers at bottom of assembly, Remove lifting/install tool, Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component





51. Install device cluster to ancillary tray
    Remarque

    Align datums and headers to ancillary and slowly lower into place, Avoid contact of drive unit headers to ancillary tray, Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component







52. Secure device cluster assembly fasteners
    Remarque

    4x bolts, E10 5 Lobe Torx, 6Nm









53. Secure device cluster busbar fasteners
    Remarque

    4x bolts, Torx Plus 55, 5Nm + 60 Degrees, Captured bolts with insulated covers









54. Perform Hioki measurements from device cluster assembly and busbar bolts
    Remarque

    1x bolts, E10 5 Lobe Torx, 6Nm, 4x bolts, Torx Plus 55, 5Nm + 60 Degrees, Perform zero adjust to Hioki meter prior to testingUse diagram in images to find probing locations and the reading specifications to look forLSL means: Lower Specification LimitUSL means: Upper Specification Limit1020_301 | T1 LSL 0.002 mΩ (2 μΩ) - USL 0.05 mΩ (50 μΩ)1020_304 | POS Contactor LSL 0.002 mΩ (2 μΩ) - USL 0.05 mΩ (50 μΩ)1010_603 | HVC Ground strap LSL 0.35 mΩ (350 μΩ) - USL 0.78 mΩ (780 μΩ)1020_303 | Shunt2 LSL 0.003 mΩ (3 μΩ) - USL 0.05 mΩ (50 μΩ)1020_302 | Shunt1 LSL 0.003 mΩ (3 μΩ) - USL 0.05 mΩ (50 μΩ)If readings are lower than the LSL numbers you are not probing correctlyIf readings are higher than USL numbers you have bolts that are not torqued correctly or connectors that may be softset or have internal connector issues



















55. Secure HVC harness to PCS
    Remarque

    1x connectors, Secure connector lock



56. Poistion MV ancillary harness for install





57. Secure ACJB LV and HV connectors
    Remarque

    2x clips, 2x connectors, Secure connector locks







58. Secure BMB passthrough connectors
    Remarque

    2x connectors, Secure connector locks, Connectors are poke yoked do not force engagement, Ensure locking tabs are facing front of vehicle when connecting







59. Secure HVC connectors
    Remarque

    2x clips, 3x connectors, Release connector locks, Depress levers and pull at connector, Do not pull from harness, Apply sealant to connectors at device cluster if it was present during disassembly











60. Secure MV header
    Remarque

    4x datums, 1x edge clip, 1x fir tree clip





61. Secure PCS MV harness
    Remarque

    1x bolt, EP10, 6 Nm, 2x clips



62. Connect PCS MV connector
    Remarque

    1x connector, 1x zip tie, Install zip tie onto ECPA latch, PCS header not datumed, Ensure correct orientation and polarity of connection, Harness color red for LV+ and black for LV-, Swing down locking lever, Slide lock fully to engage on top of lever









63. Install DC header
    Remarque

    Slide header on to DC bus links, Inspect seal, Replace header if damaged







64. Install ancillary cover
    Remarque

    Use suction cup and maneuver around busbar and tonneau cage









65. Secure fasteners of cover to HV battery
    Remarque

    22x bolts, E10 5-Lobe, 6 Nm, Use E10 5-Lobe socket without magnet, The fasteners are captive and will stay attached to the penthouse cover, Follow fastening order







66. Secure low voltage header
    Remarque

    2x bolts, EP10, 6 Nm



67. Secure fast charger header doubler
    Remarque

    2x bolts, E10 5 Lobe Torx, 10Nm





68. Clean HV connector contact surface of residual Penetrox
    Remarque

    Allow 1 minute dry time after removing Penetrox, New busbar comes with Penetrox applied to HV connector



69. Clean busbar HV connector contact surface of residual Penetrox
    Remarque

    Allow 1 minute dry time after removing Penetrox, It is necessary to clean HV connector during re-use of busbar



70. Apply Penetrox onto HV connector joints
    Remarque

    Apply 2 drops of Penetrox A-13 about 5mm in diameter to either side of the hole on both leads, Spread evenly to verify the contact surface is fully covered



71. Position busbar connector and lower onto HV header
    Remarque

    Release bungee cord



72. Install bolts securing charge port busbar kit to HV Header
    Remarque

    2x bolts, 10mm, 9 Nm



73. Perform Hioki resistance test at each HV joint from HV busbar lead to bolt head
    Remarque

    2x HV joints, When using Hioki tester, verify the meter has been properly adjusted and set prior to usageThe acceptable resistance is between 0.050 mΩ (50 μΩ) and 0.195 mΩ (195 μΩ).If the resistance is greater than 0.195 mΩ (195 μΩ), stop work and escalate the Toolbox session.If the resistance is lower than 0.050 mΩ (50 μΩ), reposition the probes and measure again.If the resistance is repeatedly between 0.00 mΩ and 0.050 mΩ (50 μΩ), hioki test passed, proceed to next step





74. Install bolt securing busbar HV connector lid
    Remarque

    1x bolt, EP10, 9 Nm



75. Remove leather over gloves and HV insulating gloves

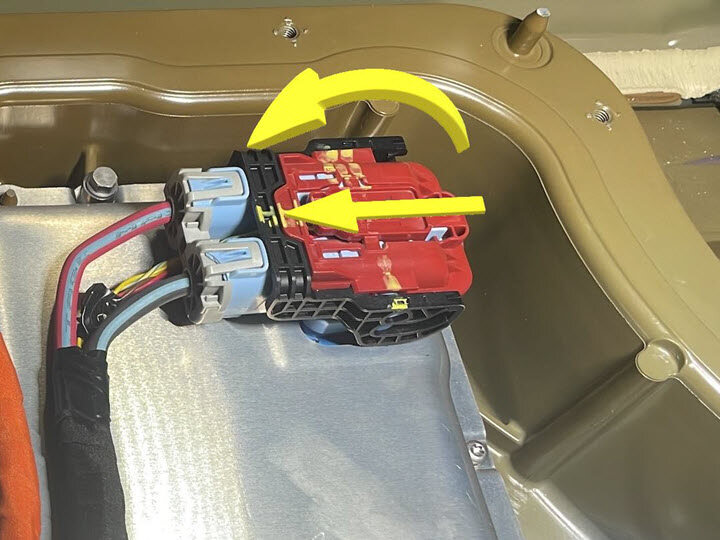

76. Connect Ancillary bay MV connector
    Remarque

    1x connector, double locking, Rotate lever into 2nd lock, Perform a pull test to ensure connector engaged correctly











77. Raise vehicle fully



78. Inspect HV insulating gloves
    Remarque

    Check gloves for damage prior to use, Refer to service document TN-15-92-003



79. Put on HV insulating gloves and leather over gloves



80. Install LHRDU, FDU, RHRDU headers to ancillary flange
    Remarque

    3x headers, No tools required, inspect header seals, Replace header if damaged





81. Secure bolts to HC-Stak HV Headers for LHRDU, FDU, RHRDU to ancillary flange
    Remarque

    6x bolts, 5-lobe 10mm, 10 Nm





82. Secure 2x4 header assembly
    Remarque

    4x bolts, 5-lobe 10mm, 6 Nm, Confirm alignment of assembly with fastener openings







83. Secure connectors at 2x4 header (AC compressor and Inductive Charger headers)
    Remarque

    2x connectors, Fully engage red lock tab





84. Secure drive unit connectors to ancillary headers
    Remarque

    3x connectors, Rotate black latch, Ensure blue locking tab is fully engaged







85. Install secondary pyro fuse
    Remarque

    2x bolts, 13mm, 5 Nm + 60 degrees, Support pyro fuse while installing bolts





86. Install primary pyro fuse
    Remarque

    2x bolts, 13mm, 5 Nm + 60 degrees, Support pyro fuse while installing bolts





87. Perform Hioki resistance test at each HV joint from HV busbar lead to pyro fuse busbar
    Remarque

    4x HV joints, When using Hioki tester, verify the meter has been properly adjusted and set prior to usageThe acceptable resistance is between 0.050 mΩ (50 μΩ) and 0.195 mΩ (195 μΩ).If the resistance is greater than 0.195 mΩ (195 μΩ), stop work and escalate the Toolbox session.If the resistance is lower than 0.050 mΩ (50 μΩ), reposition the probes and measure again.If the resistance is repeatedly between 0.00 mΩ and 0.050 mΩ (50 μΩ), hioki test passed, proceed to next step





88. Install pyro fuse access cover
    Remarque

    4x bolts, E-Torx 5 lobe, 10 Nm, Ensure seal is fully seated and undamaged, If HV pack is being shipped then pyro fuses must be removed





89. Remove leather over gloves and HV insulating gloves
90. Install Mid-aero shield
    Remarque

    6x clips, 3x bolts, 15mm, 70 Nm, 3x bolts, 13mm, 28 Nm, 2x bolts, 10mm, 6 Nm











91. Lower vehicle until tires are touching the ground
    Remarque

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered

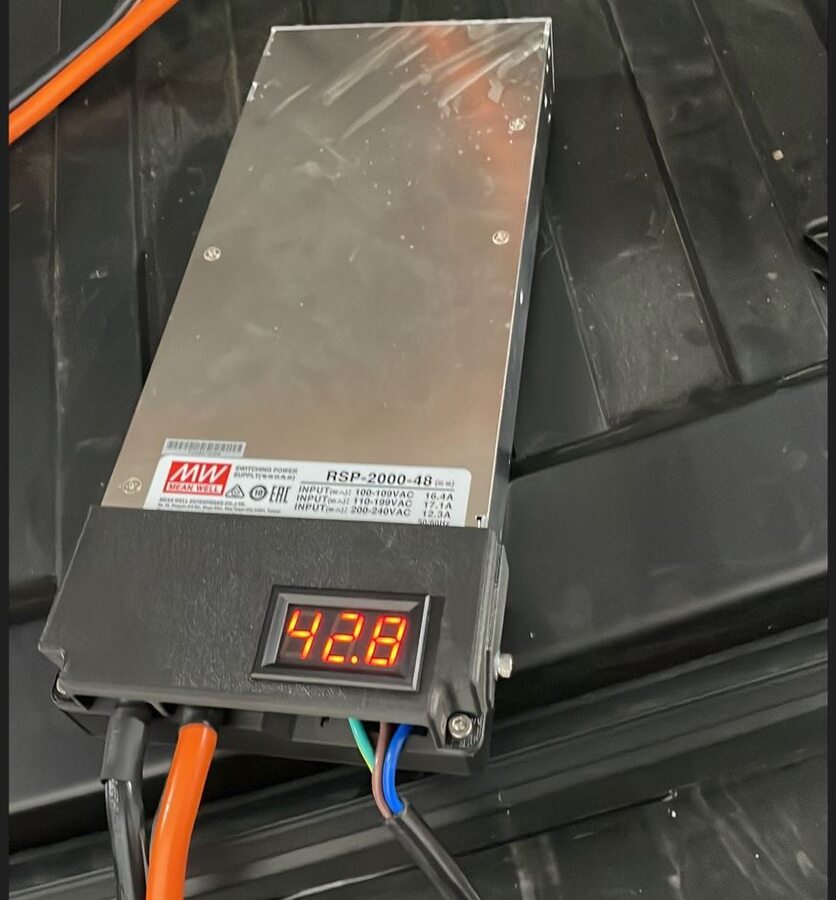

92. Secure MV battery maintainer and support vehicle
    Remarque

    1x cover, Secure MV maintainer but leave the Li-ion battery disconnected, Secure positive terminal to jump post, Secure negative terminal to bolt located between brake fluid reservoir and front trunk, Connect maintainer to power supply, DO NOT allow positive cable to make contact with other metal components, Prevent shorting the cables,Do not have a MV maintainer and the Li-ion battery simultaneously connected for any extended period of time









93. Restore Device Cluster Assembly
    Remarque

    Via Service UI> High Voltage Tab > Procedures > Device Cluster Assembly Replacement > Restore New DCA > Run, Laptop must be connected via Toolbox 3 for duration of routine, Follow all on screen instructions and requirements, Do not disconnect Toolbox 3 until routine completes successfully









94. Power down vehicle via UI
    Remarque

    Verify EPBs are engaged, Select charge port icon to ensure drive state is disengaged then power down vehicle via Controls > Safety > Power Off



95. Remove MV battery maintainer
    Remarque

    1x cover, Unplug the maintainer first, then remove positive and negative leads from jump posts, Re-secure any jump post covers







96. Connect FRL connector then connect MV battery connector
    Remarque

    2x connectors, Connect FRL connector then secure locking tab, Position lever to secure MV battery connector then slide eCPA to right, Early production trucks may have black FRL connector, If power cycling vehicle then ensure at least 60 seconds has passed since powering down







97. Install rear underhood apron
    Remarque

    9x clips, Adjust windshield seal as required





98. Close powered front trunk
    Remarque

    Via exterior switch or UI



99. Install bed floor assembly
    Remarque

    10x short bolts, 15mm, 56 Nm, 2x long bolts, 15mm, 46Nm, Recommend assistance











100. Install fastener covers onto bed floor assembly
     Remarque

     14x covers









101. Exécutez la routine ODIN PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox: (link)
102. Raise LH front window



103. Close LH front door



104. Remove vehicle from lift
     Remarque

     Lower rack arms fully and remove them from under vehicle, Remove air suspension from "Jack Mode"
