Closeout Panel - Rear Door - LH (Remove and Replace)

Code de correction 1150040112 0.48 REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps forfaitaire ci-dessus représentent tout le travail à être fait pour cette procédure, notamment les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez Temps forfaitaires pour en apprendre plus à propos des temps forfaitaires et de leur création. Vous pouvez transmettre par courriel vos commentaires relatifs aux valeurs des temps forfaitaires à ServiceManualFeedback@tesla.com. REMARQUE : Consultez Protection individuelle pour vous assurer de porter l’équipement de protection individuelle adéquat lors vous effectuez la procédure ci-dessous.

Warning IconA warning icon, calling your attention to a possibly risky situation
Avertissement
Cette procédure est une PREMIÈRE VERSION. Bien qu'elle ait été validée, des avertissements et des mises en garde pourraient manquer. Respectez les exigences de sécurité et faites preuve d’une extrême prudence lorsque vous travaillez sur ou près des systèmes et des composants haute tension. Transmettez toute correction ou remarque à ServiceDevelopment@teslamotors.com.
Warning IconA warning icon, calling your attention to a possibly risky situation
Avertissement
Les composants électroniques du Cybertruck sont alimentés par une architecture  moyenne tension » ou « MT » de 48 V conçue pour améliorer l'efficacité. L'entretien des composants MT nécessite des connaissances et des soins supplémentaires afin d'éviter tout dommage corporel ou au véhicule. Lisez et comprenez les précautions relatives à la MT dans Précautions en électricité et assurez-vous que tous les cours de formation requis liés à la MT ont été suivis, le cas échéant.
  • 2025-05-27: Released new procedure.

Retirer

  1. Open LH doors and lower all the windows.
  2. Remove the LH rear door panel beltline assembly. See Beltline Assembly - Door Panel - Rear - LH (Remove and Install).
  3. Remove the LH rear door inner waist belt seal. See Waist Belt Seal - Inner - Rear Door - LH (Remove and Install).
  4. Remove the LH rear door outer waist belt seal. See Waist Belt Seal - Outer - Rear Door - LH (Remove and Install).
  5. Raise the LH rear window.
  6. Use a pocket screwdriver to manually latch the LH front door.
  7. Remove the LH rear door moving glass. See Moving Glass - Door - Rear - LH (Remove and Install).
  8. Retirez le tablier arrière situé sous le capot. Voir Underhood Apron - Rear (Remove and Install),
  9. Débranchez l’alimentation MT. Voir Disconnect MV Power (Modify),
  10. Release the locking tabs and disconnect the LH rear door harness connectors (x4), and then release the clips (x5) that attach the harness to the LH rear door closeout panel.
  11. Disconnect the impact sensor electrical connector, and then turn impact sensor counterclockwise to release it from the door.
  12. Remove the bolt that attaches the LH rear door controller to the door, and then remove the controller from the vehicle.
    3.5 Nm (2.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Embout Torx T25
  13. Remove the bolts (x13) and release the datums (x2) that attach the LH rear door closeout panel to the door assembly, and then remove the closeout panel from the door assembly.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Gently pry the panel to release the datums (x2).
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Pull the bottom portion of the panel away from the door assembly, and then lower the assembly to allow clearance for the regulator rails.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Douille de 8 mm
    • Douille de 10 mm

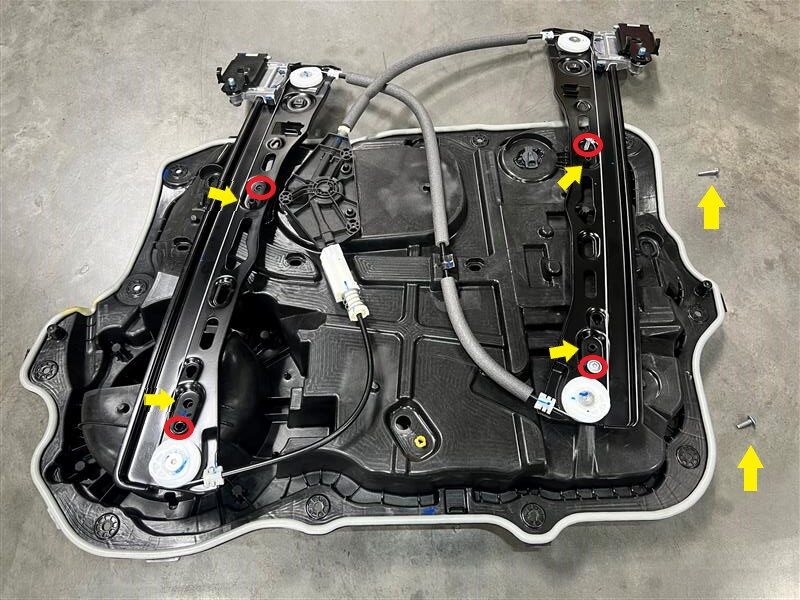

  14. Remove the bolts (x4) and release the datums (x4) that attach the LH rear window regulator to the closeout panel.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Douille Torx T25

Installer

  1. Position the LH rear window regulator to the closeout panel, and then install the bolts (x4) and secure the datums (x4) that attach window regulator to the closeout panel.
    Informational PurposesAn informational icon, calling your attention
    Remarque

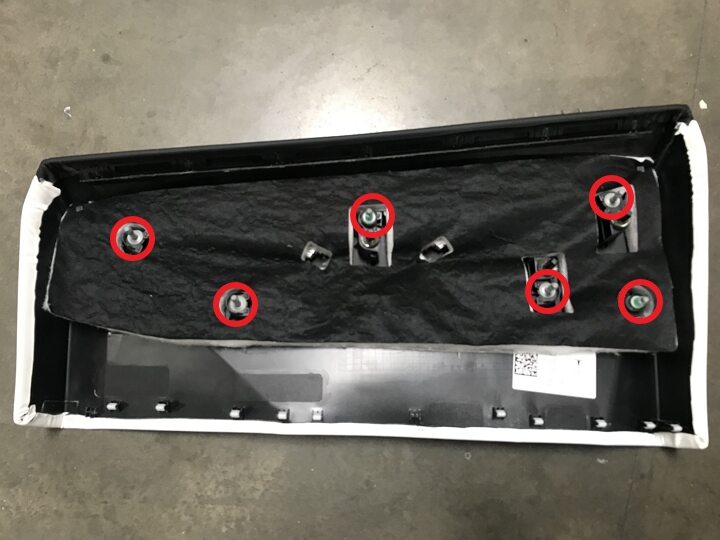

    Refer to image for bolt length placement
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Douille Torx T25
  2. Position the LH rear door closeout panel to the door assembly, and then install the bolts (x13) and datums (x2) that attach the closeout panel to the door assembly.
    4 Nm (2.9 lbs-ft)
    12 Nm (8.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Torque the 8mm bolts (x11) to 4 Nm, and the 10 mm bolts (x2) to 12 Nm.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Douille de 8 mm
    • Douille de 10 mm
  3. Position the LH rear door controller into the LH rear door, and then install the bolt that attaches the controller to the door.
    3.5 Nm (2.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Embout Torx T25
  4. Install the LH front door impact sensor into the LH front door, turn the sensor clockwise to secure it, and then connect the electrical connector.
  5. Connect the LH rear door harness connectors (x4) and secure the connector locks, and then install the clips (x5) that attach the harness to the LH rear door closeout panel.
  6. Connect the external window switch to the LH rear window regulator.
  7. Position the LH rear door glass into the vehicle, and then install and hand tighten the bolts (x2) that attach the glass to the vehicle.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    ATTENTION
    Be careful of the glass slipping off the mount.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Douille de 10 mm
  8. Install the LH rear door outer waist belt seal. See Waist Belt Seal - Outer - Rear Door - LH (Remove and Install).
  9. Install the LH rear door inner waist belt seal. See Waist Belt Seal - Inner - Rear Door - LH (Remove and Install).
  10. Pull the emergency cable to manually unlatch the LH rear door.
  11. Branchez l'alimentation électrique MT. Voir Disconnect MV Power (Modify),
  12. Close LH rear door
  13. Check and adjust gap and flushness.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Reference CVIS for specifications.
  14. Ouvrez la porte arrière gauche.
  15. Torque the bolts (x2) that secures the LH rear window to the regulator.
    13 Nm (9.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Douille de 10 mm
  16. Install the LH rear door grommets (x4).
  17. Disconnect the external window switch.
  18. Replace the clips (x15) on the LH rear door trim panel.
  19. Install the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Install).
  20. Replace the lower clips (x6) on the LH rear beltline assembly.
  21. Install the LH rear door panel beltline assembly. See Beltline Assembly - Door Panel - Rear - LH (Remove and Install).
  22. Raise all the windows.
  23. Installez le tablier sous le capot. Voir Underhood Apron - Rear (Remove and Install),
  24. Close the LH doors.
