Gearbox Fluid - Rear Drive Unit (Dual Motor) (Top Off)

Code de correction 40300135 FRT 0.54 REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps forfaitaire ci-dessus représentent tout le travail à être fait pour cette procédure, notamment les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez Temps forfaitaires pour en apprendre plus à propos des temps forfaitaires et de leur création. Vous pouvez transmettre par courriel vos commentaires relatifs aux valeurs des temps forfaitaires à LaborTimeFeedback@tesla.com. REMARQUE : Consultez Protection individuelle pour vous assurer de porter l’équipement de protection individuelle adéquat lors vous effectuez la procédure ci-dessous.

  • 2025-02-04: Added steps for Service Mode and rearranged steps for better flow.
  • 2025-01-14: Noted that additional diagnosis may be necessary if over 300 mL of fluid was added.
Warning IconA warning icon, calling your attention to a possibly risky situation
Avertissement
Cette procédure est une PREMIÈRE VERSION. Bien qu'elle ait été validée, des avertissements et des mises en garde pourraient manquer. Respectez les exigences de sécurité et faites preuve d’une extrême prudence lorsque vous travaillez sur ou près des systèmes et des composants haute tension. Transmettez toute correction ou remarque à ServiceDevelopment@teslamotors.com.
  1. Soulevez et soutenez le véhicule. Voir Soulever le véhicule - pont élévateur à 2 poteaux.
  2. Ouvrez la porte avant gauche et abaissez la vitre avant gauche.
  3. Mettez le véhicule en mode Entretien. Voir Mode Entretien.

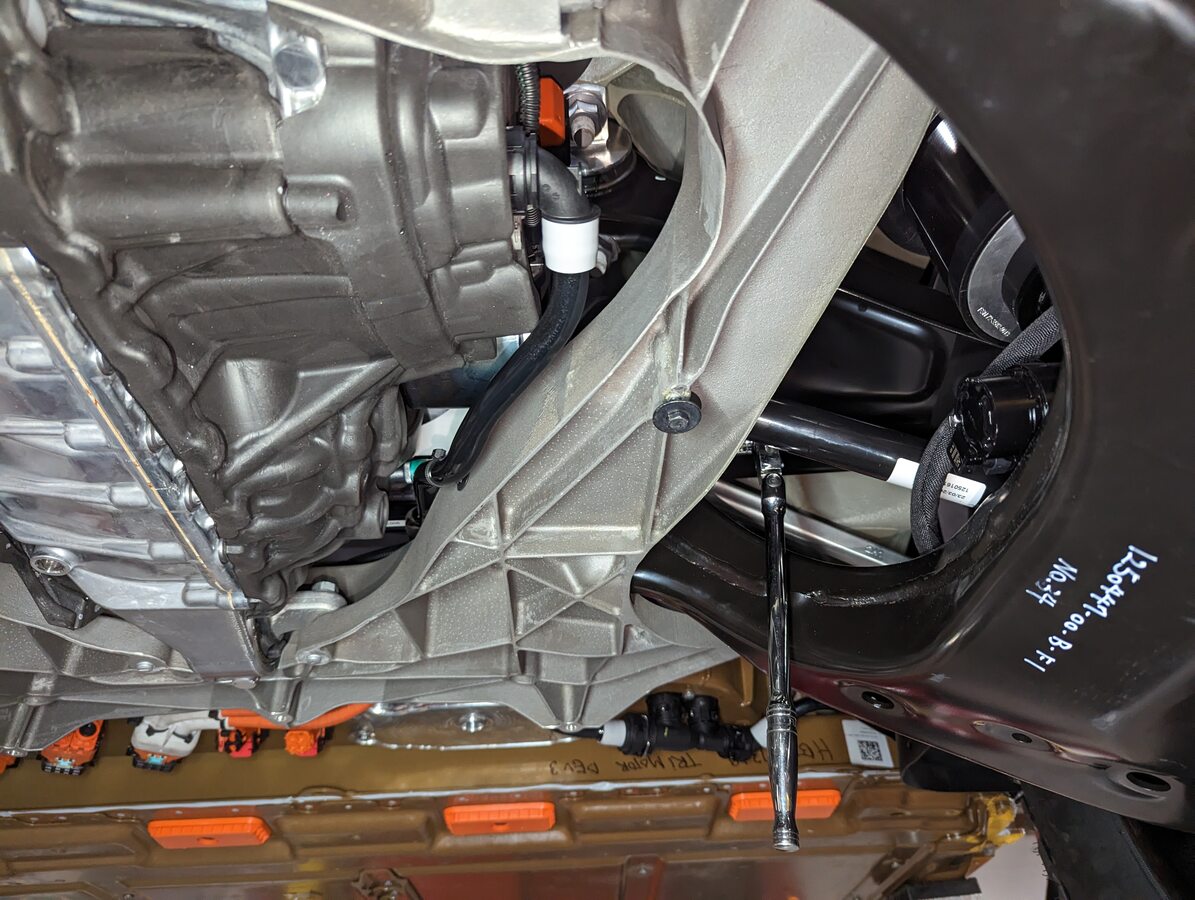

  4. Remove the mid aeroshield. See Plateau inférieur – bouclier aérodynamique central (retirer et installer).

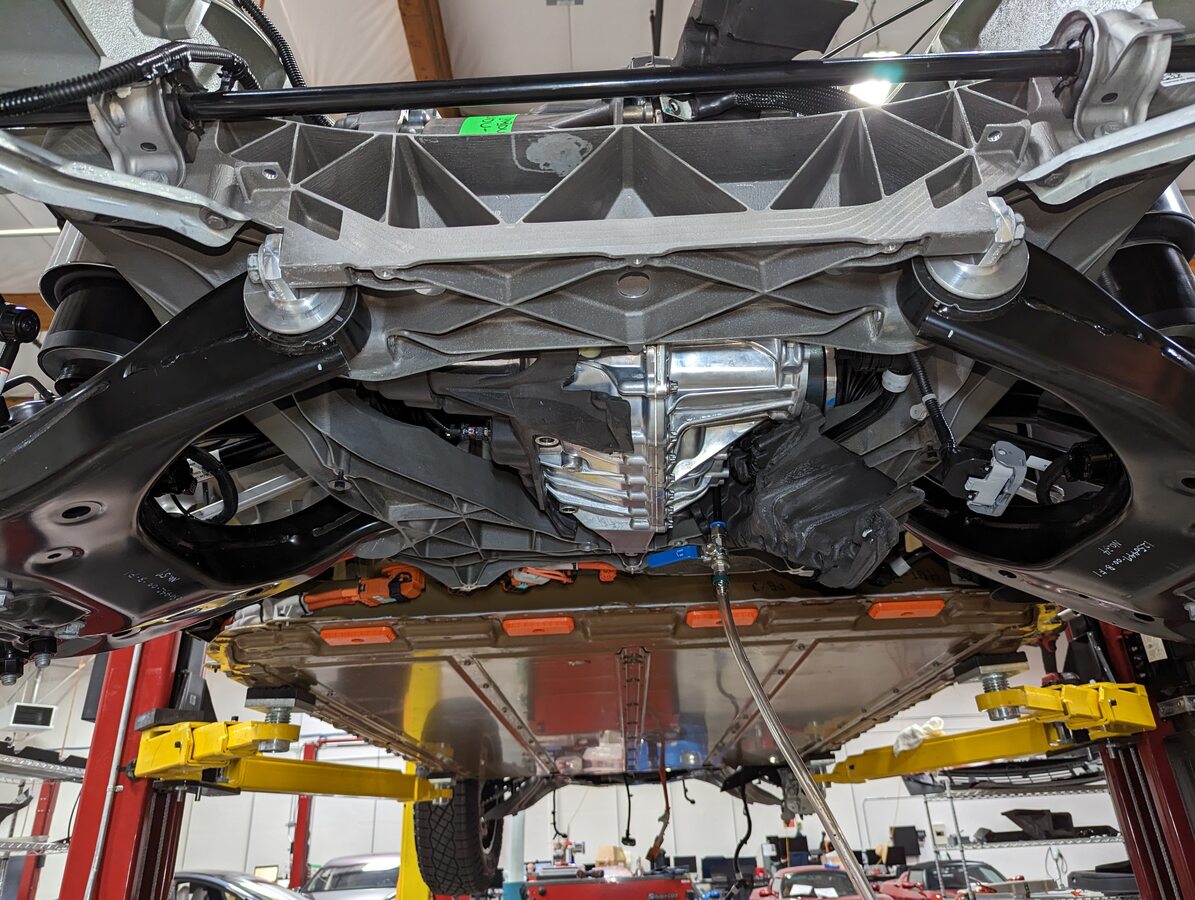

  5. Position an oil drain container underneath the rear drive unit.

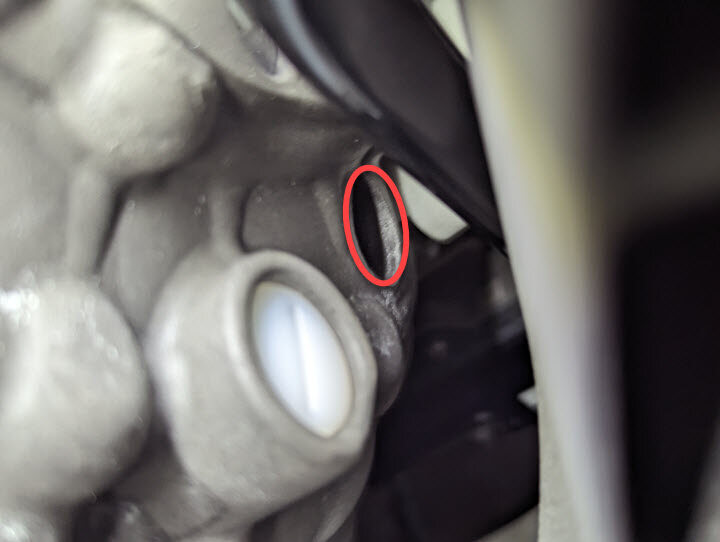

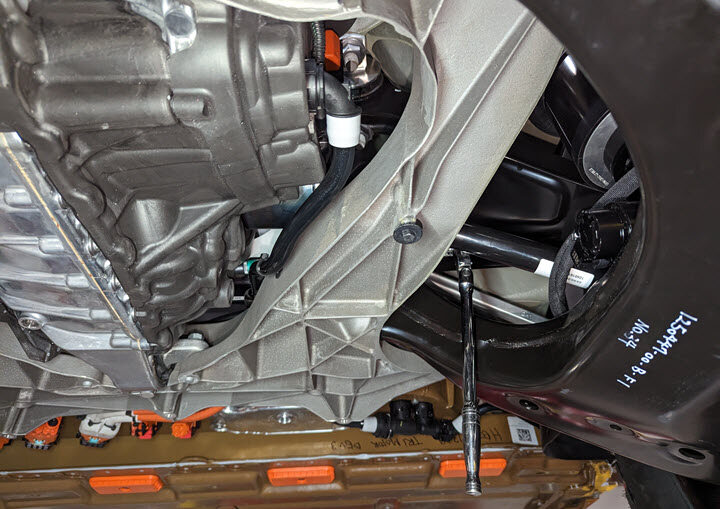

  6. Remove oil fill plug from RDU
    Informational PurposesAn informational icon, calling your attention
    Remarque

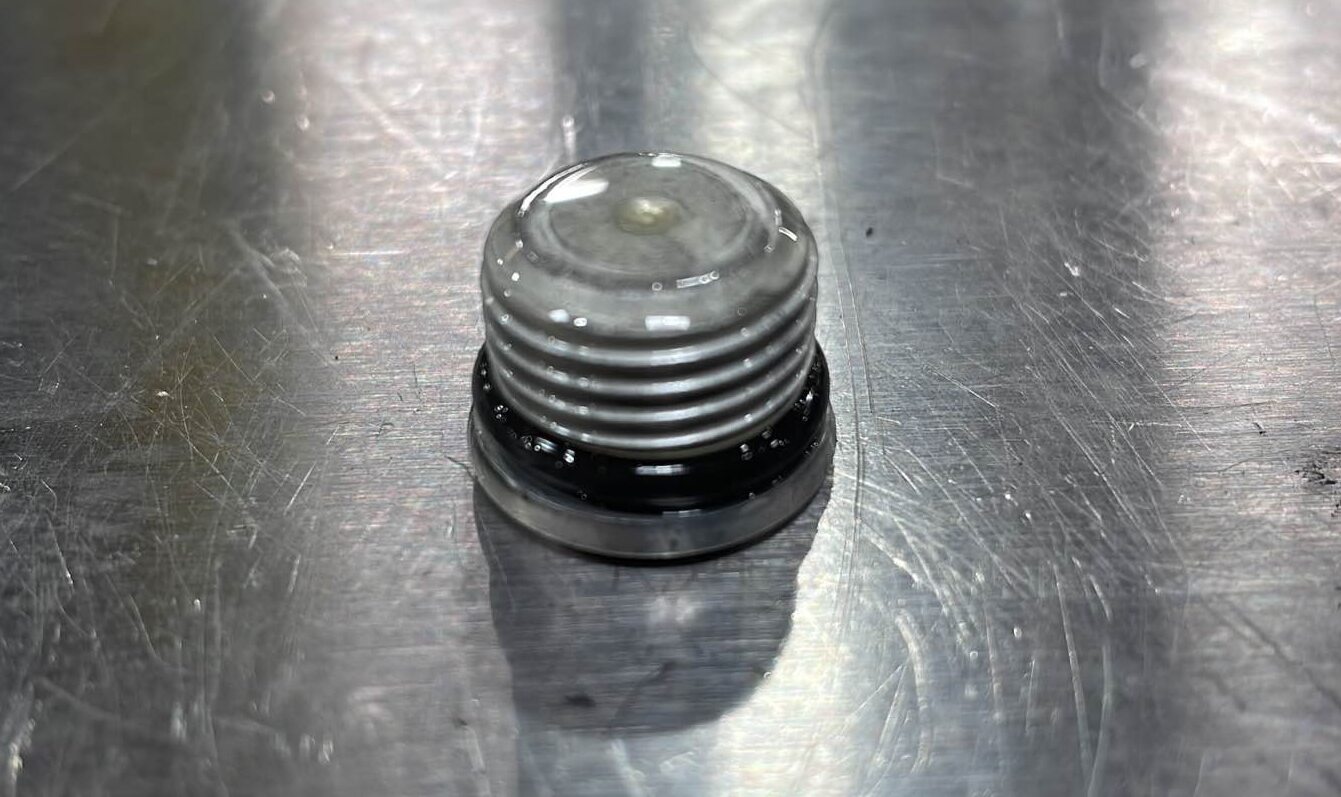

    1x plug, 8mm Allen, 15 Nm, Verify the O-ring is not damaged, Replace O-ring as needed
  7. Release the clips (x3) that attach the RH side of the acoustic cover to the lower portion of the acoustic cover.

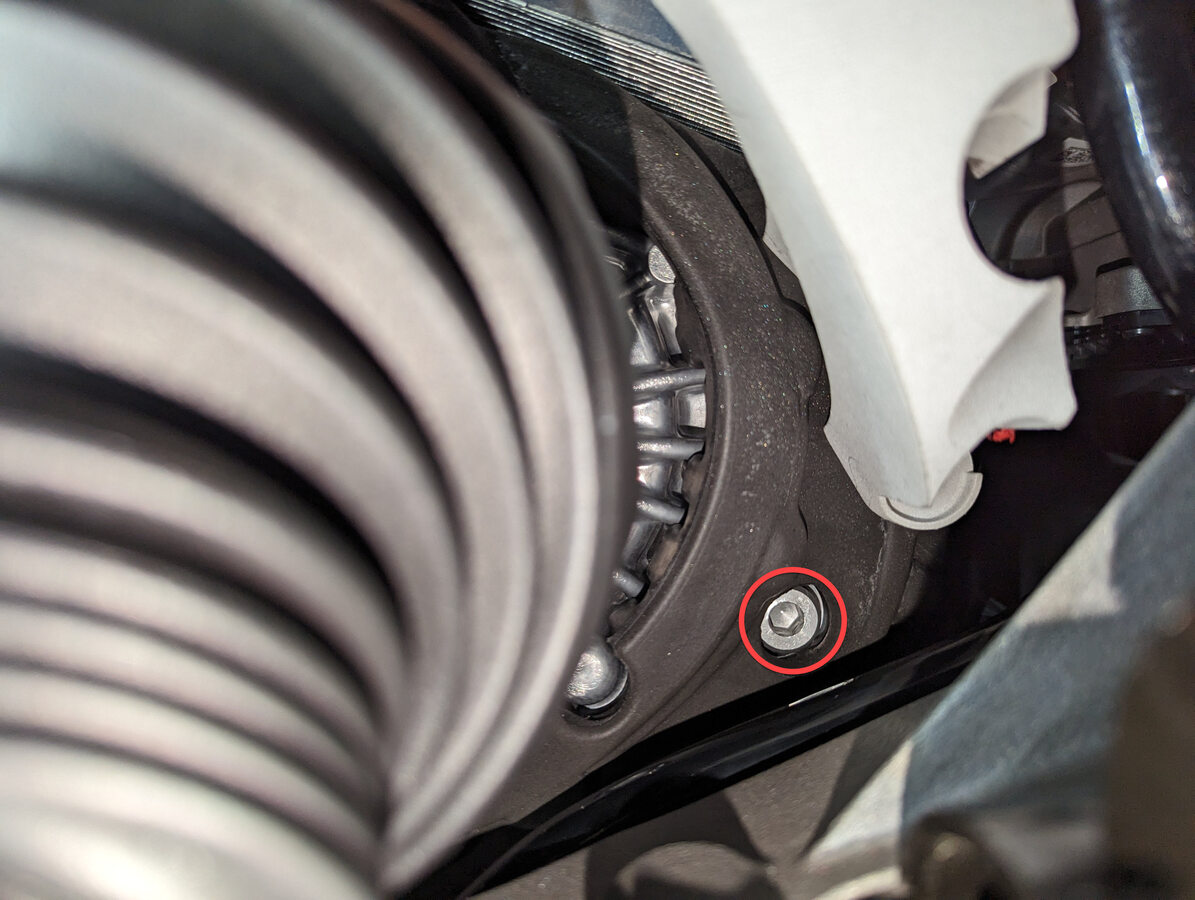

  8. Release the clips (x2) that attach the RH side of the acoustic cover to the drive unit assembly.

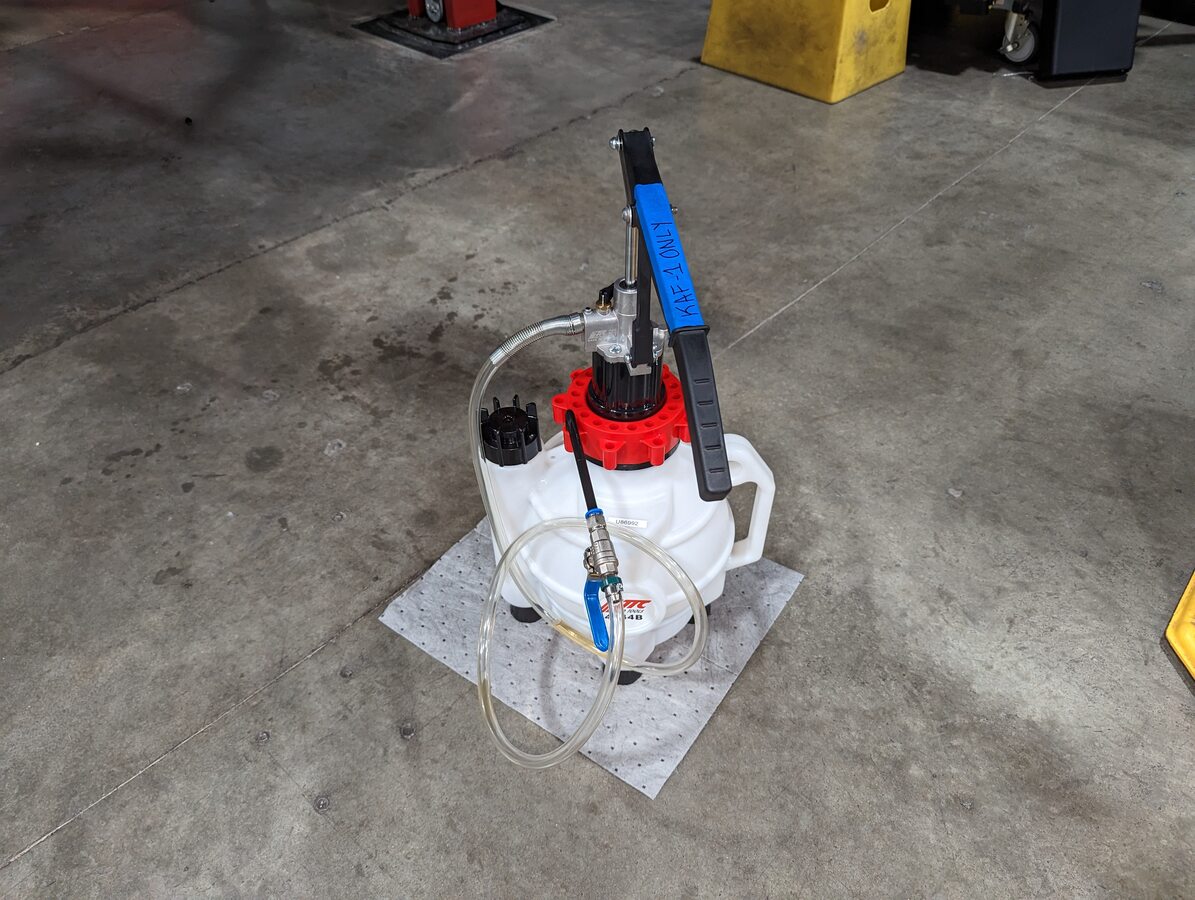

  9. Set up fill kit with KAF1
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Add extra oil to container as it will prevent underfill and additional air being injected. Only use KAF1 fluid, Do not interchange or mix oil types

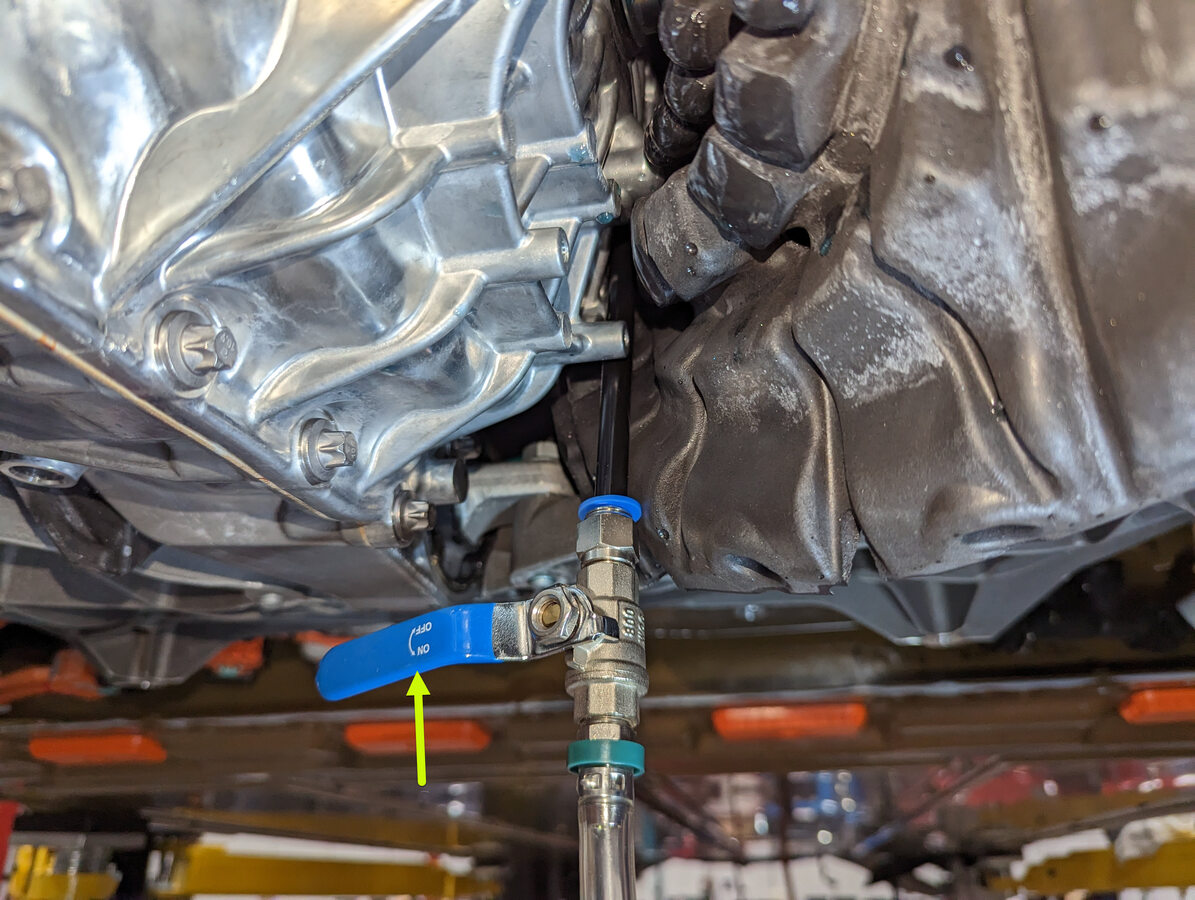

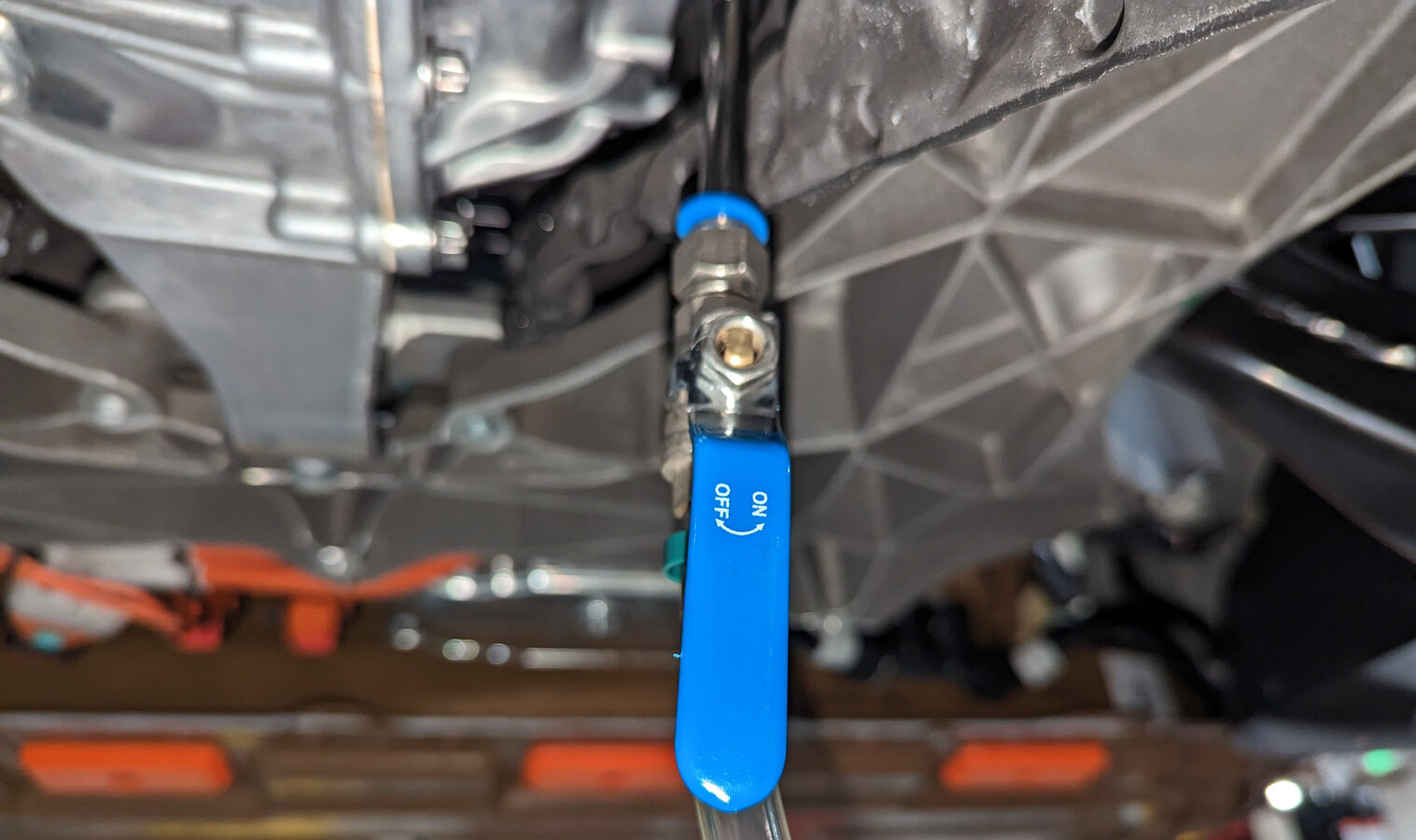

  10. Position oil pump hose into fill hole

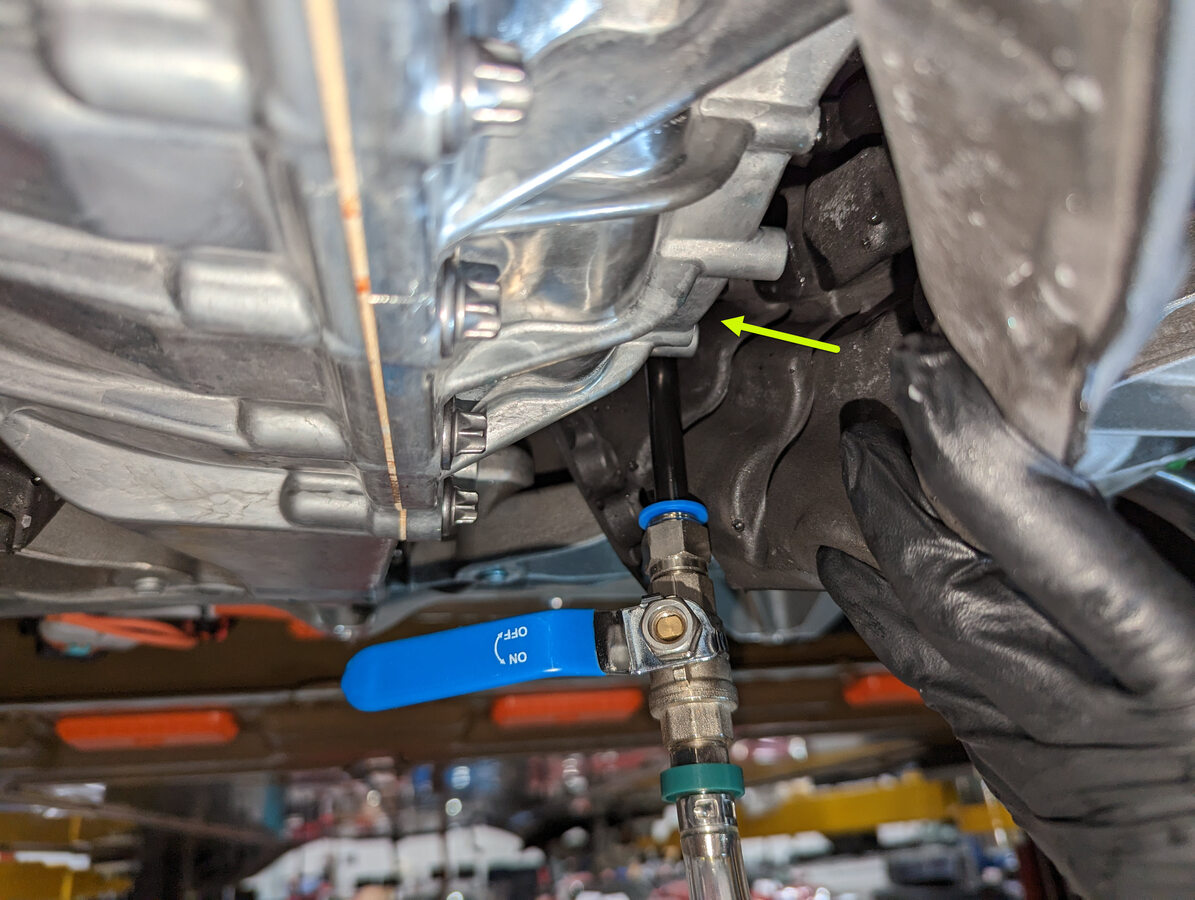

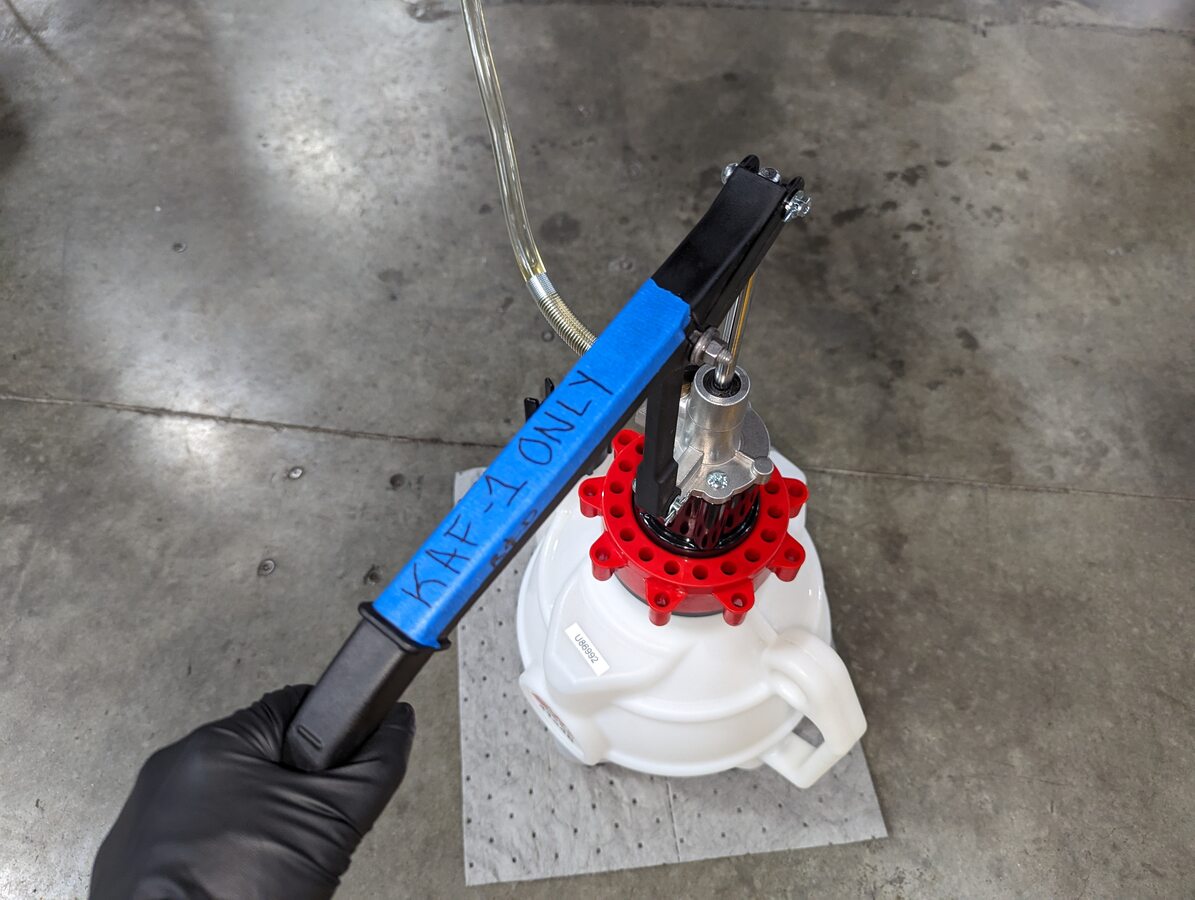

  11. Pump fluid into rear drive unit
    Warning IconA warning icon, calling your attention to a possibly risky situation
    ATTENTION
    Si plus de 500 mL de liquide de transmission ont été ajoutés à l'unité d'entraînement, un diagnostic supplémentaire peut être nécessaire.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Pump fluid into drive unit until fluid spills out. Use excess gearbox fluid in fill container to allow oil pump to dispense fluid without drawing air
  12. Remove oil pump hose from fill port
    Informational PurposesAn informational icon, calling your attention
    Remarque

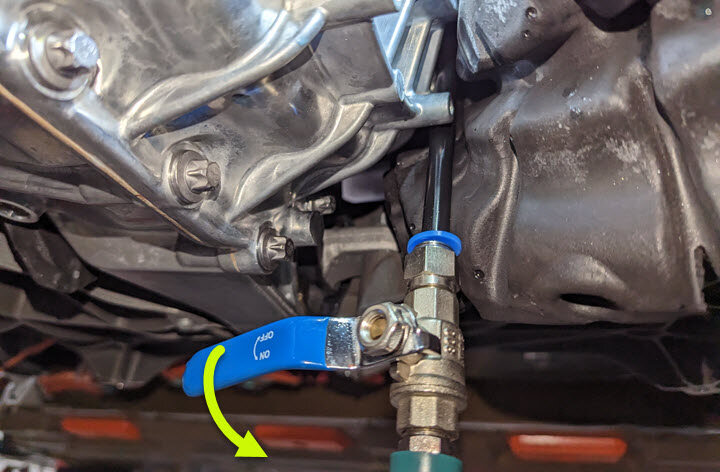

    Turn knob to off and remove from fill hole
  13. Secure oil fill plug onto RDU
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x plug, 8mm Allen, 15 Nm, Verify the O-ring is not damaged, Replace O-ring as needed
  14. Spray area with brake cleaner and wipe any residual fluid
  15. Secure the clips (x2) that attach the RH side of the acoustic cover to the drive unit.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Route the cover between subframe and axle.
  16. Remove the oil drain container from underneath the vehicle.
  17. Install the mid aero shield. See Plateau inférieur – bouclier aérodynamique central (retirer et installer).
  18. Lower the vehicle fully.
  19. Quitter mode Entretien. Voir Mode Entretien.
  20. Retirez le véhicule du pont élévateur. Voir Soulever le véhicule - pont élévateur à 2 poteaux.
  21. Remontez la glace avant gauche et fermez la porte avant gauche.
