Harness - RH - Frunk (Long Range) (Remove and Install)

Code de correction 1710066032 4.50 REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps forfaitaire ci-dessus représentent tout le travail à être fait pour cette procédure, notamment les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez Temps forfaitaires pour en apprendre plus à propos des temps forfaitaires et de leur création. Vous pouvez transmettre par courriel vos commentaires relatifs aux valeurs des temps forfaitaires à ServiceManualFeedback@tesla.com. REMARQUE : Consultez Protection individuelle pour vous assurer de porter l’équipement de protection individuelle adéquat lorsque vous effectuez la procédure ci-dessous. REMARQUE : Voir Précautions ergonomiques pour consulter les pratiques de travail sécuritaires et saines.

Warning IconA warning icon, calling your attention to a possibly risky situation
Avertissement
Les composants électroniques du Cybertruck sont alimentés par une architecture  moyenne tension » ou « MT » de 48 V conçue pour améliorer l'efficacité. L'entretien des composants MT nécessite des connaissances et des soins supplémentaires afin d'éviter tout dommage corporel ou au véhicule. Lisez et comprenez les précautions relatives à la MT dans Précautions en électricité et assurez-vous que tous les cours de formation requis liés à la MT ont été suivis, le cas échéant.
  • 2025-06-21: Released new procedure.

Remove

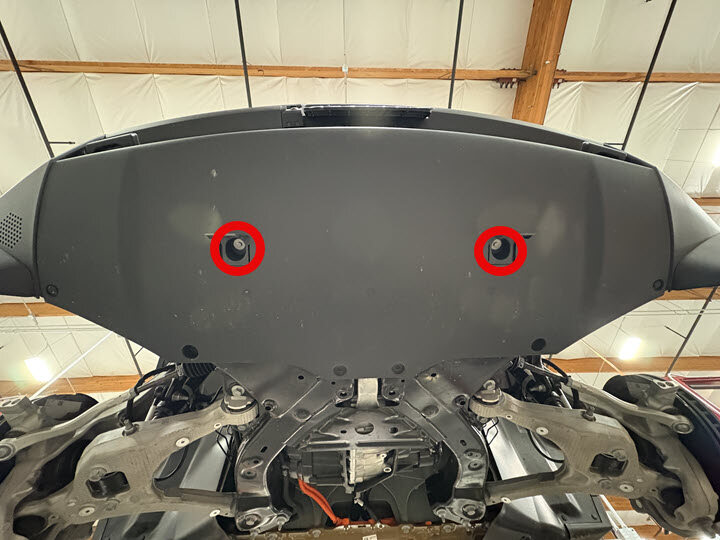

  1. Raise and support the vehicle. See Soulever le véhicule - pont élévateur à 2 poteaux.

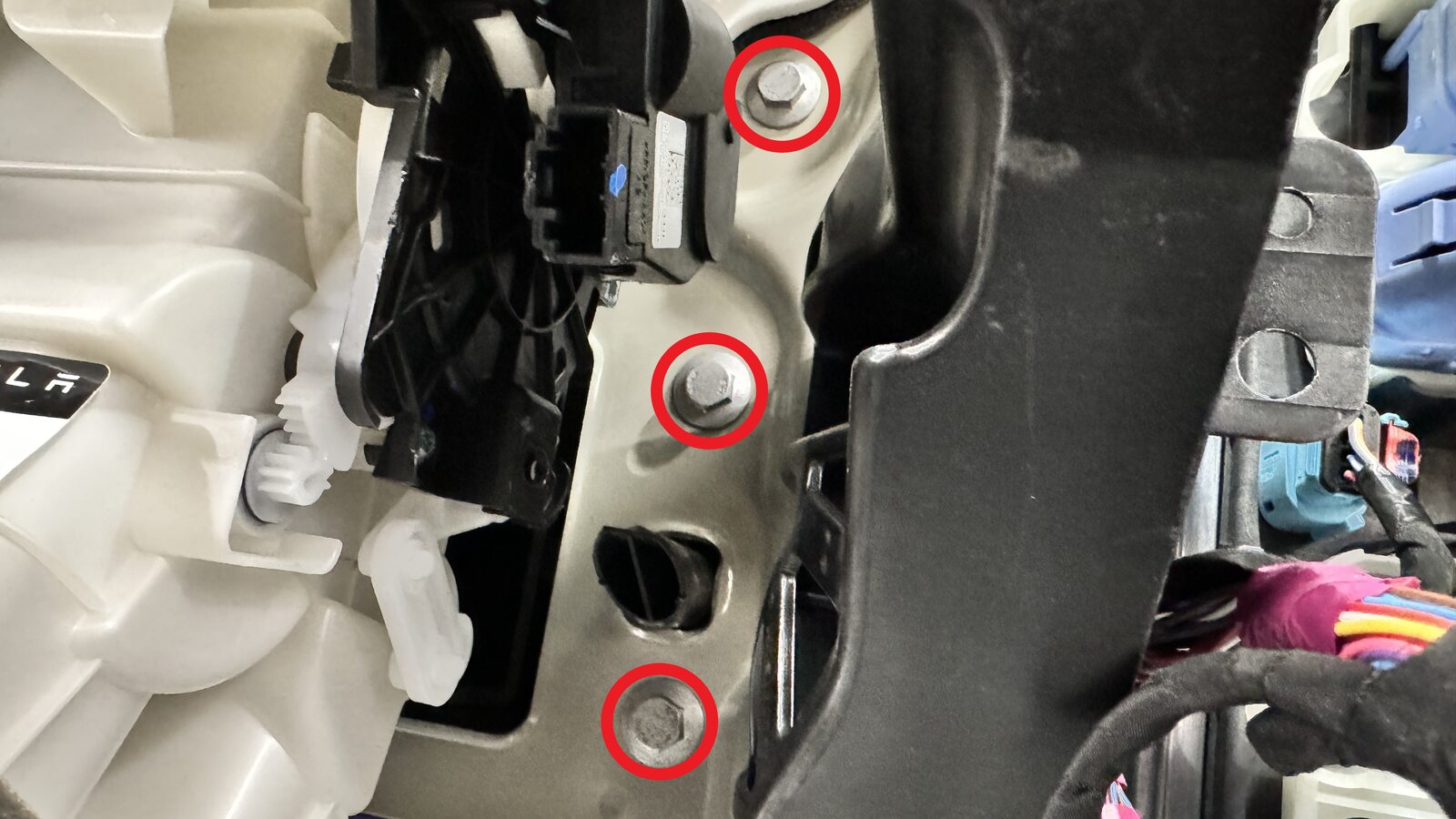

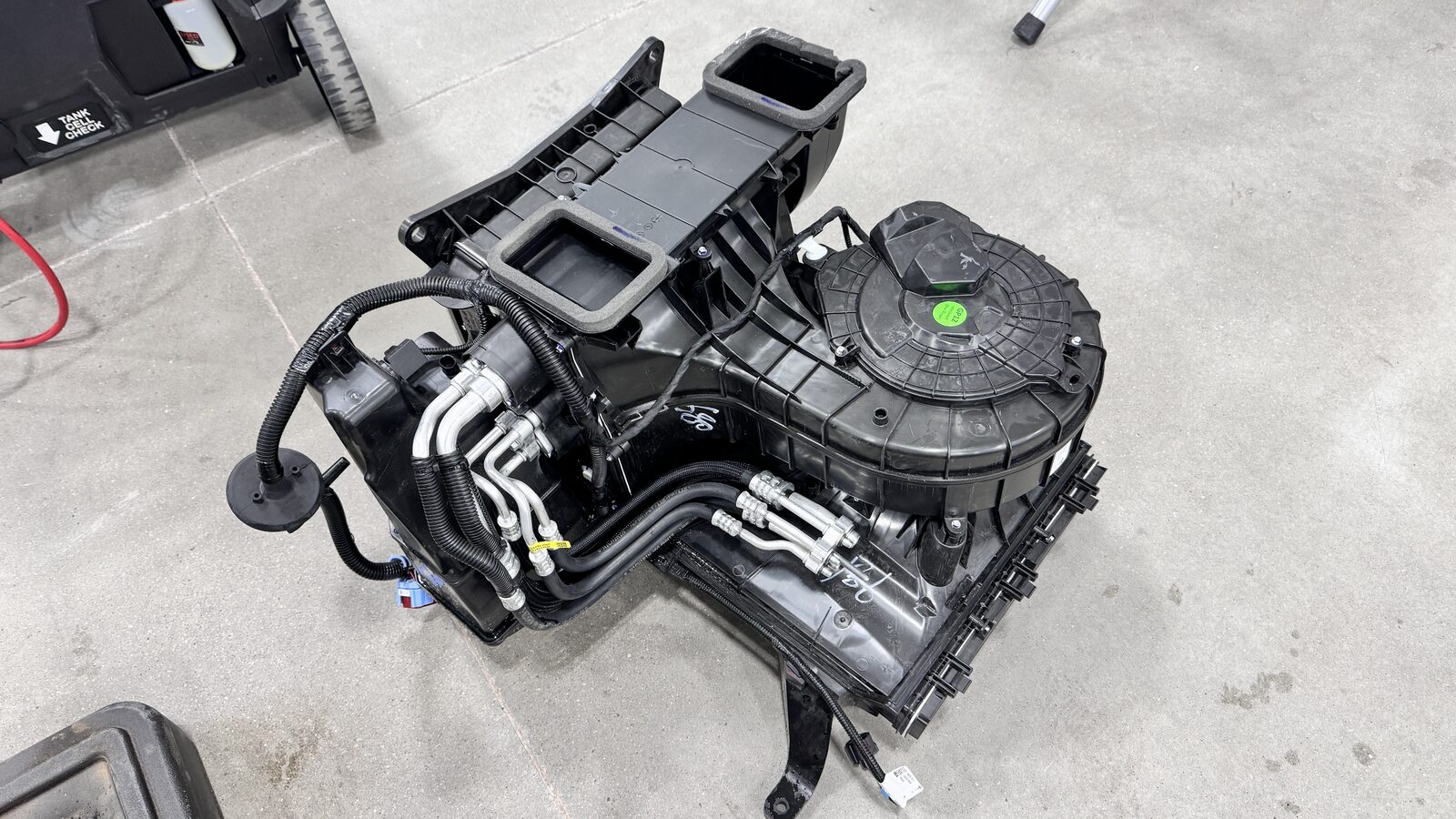

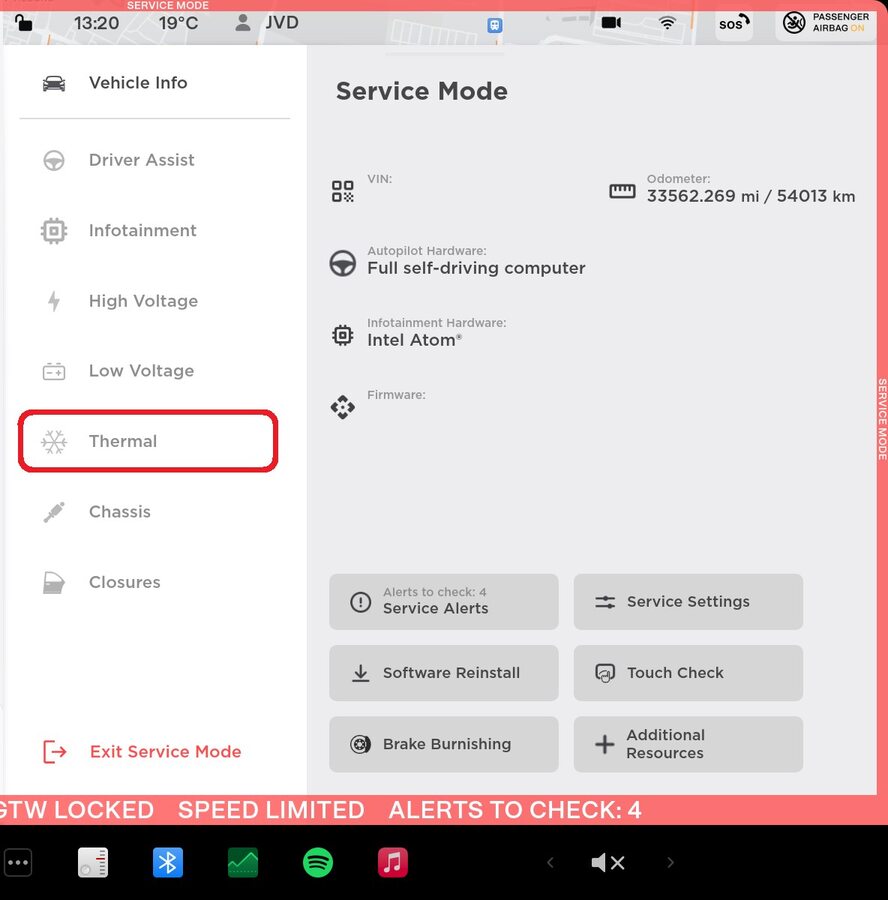

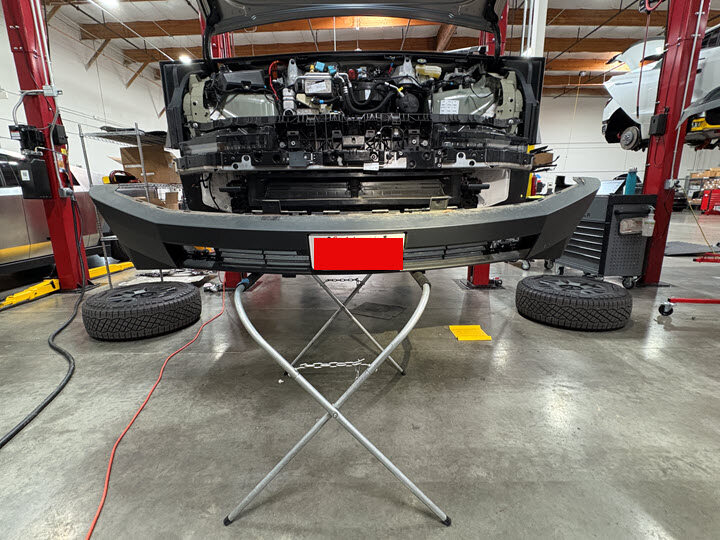

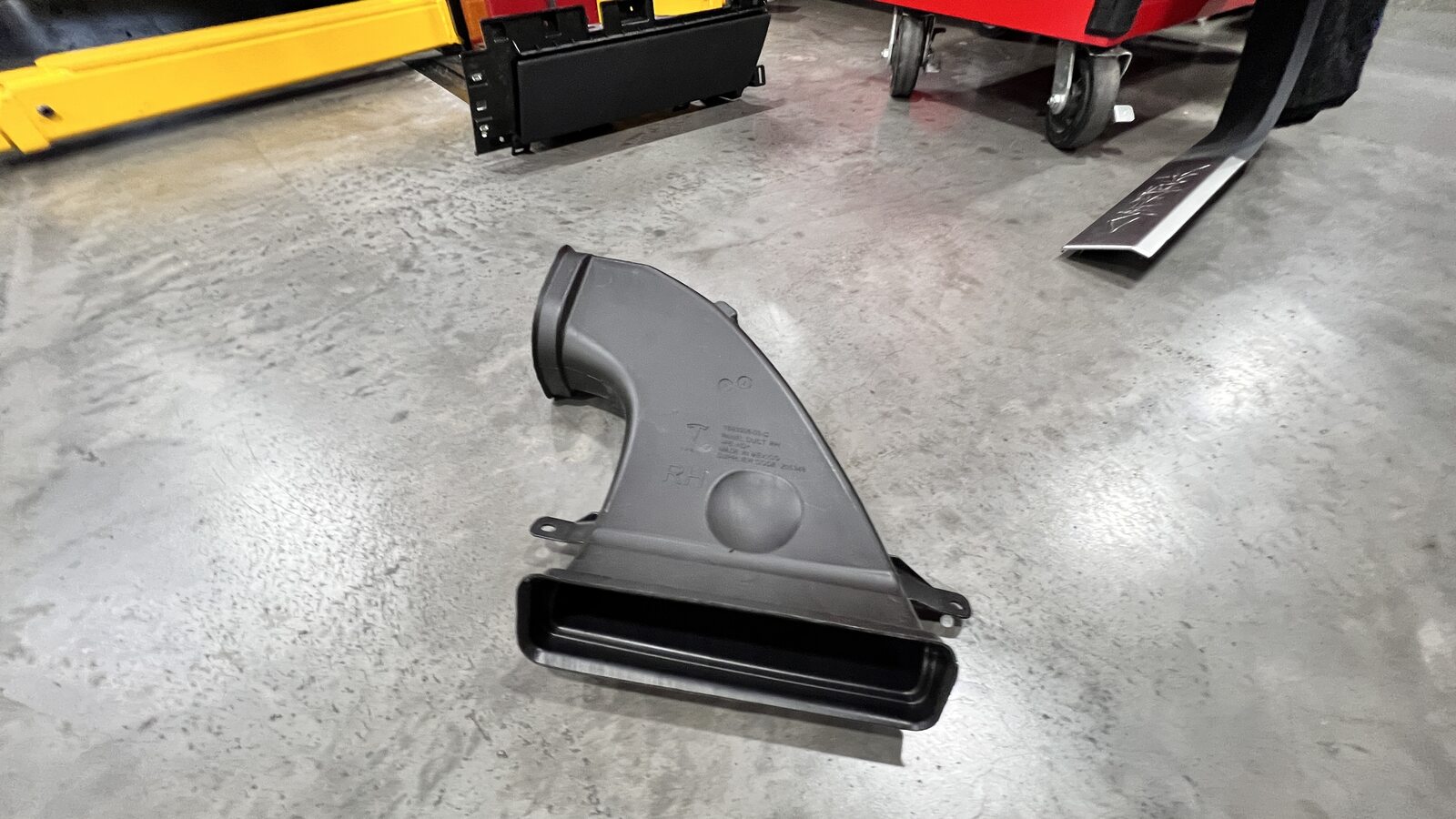

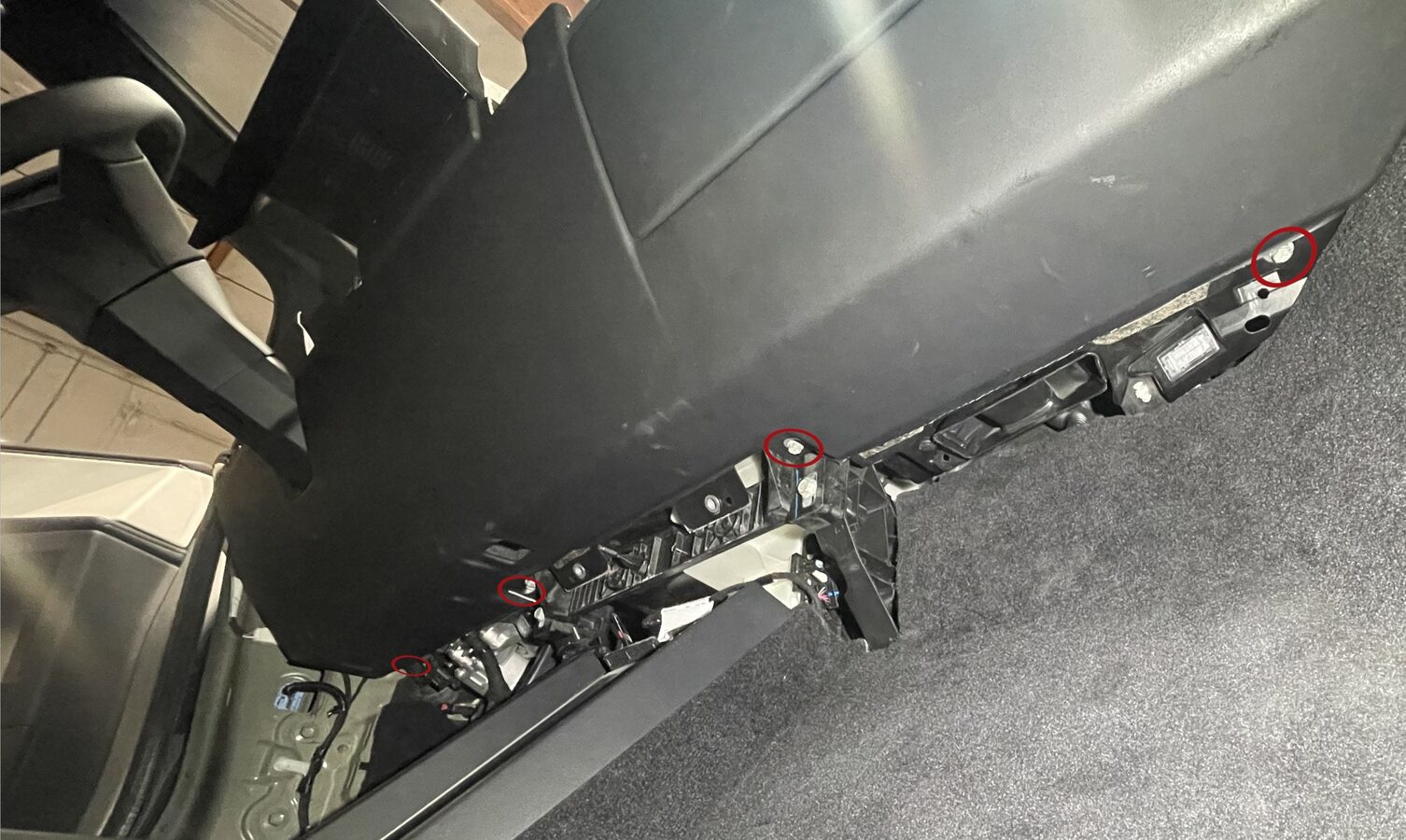

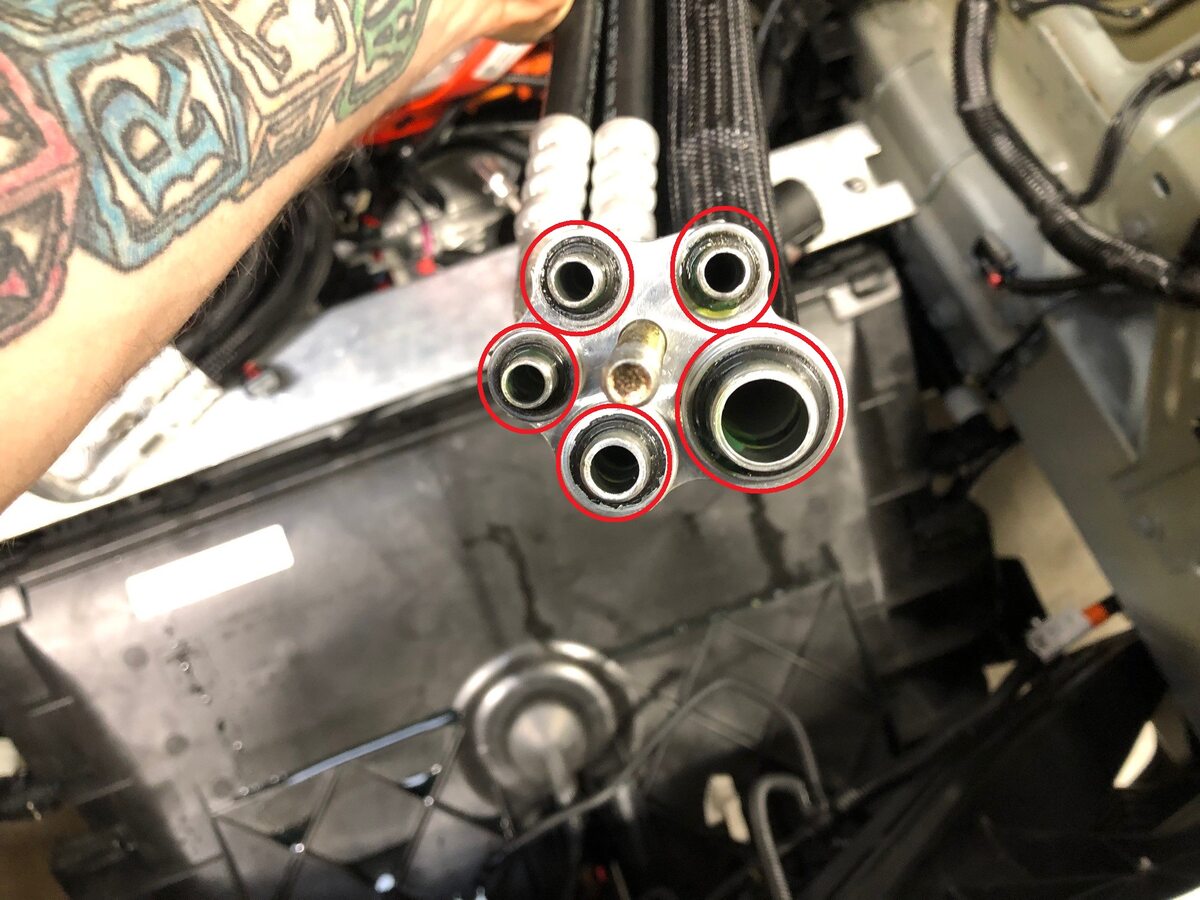

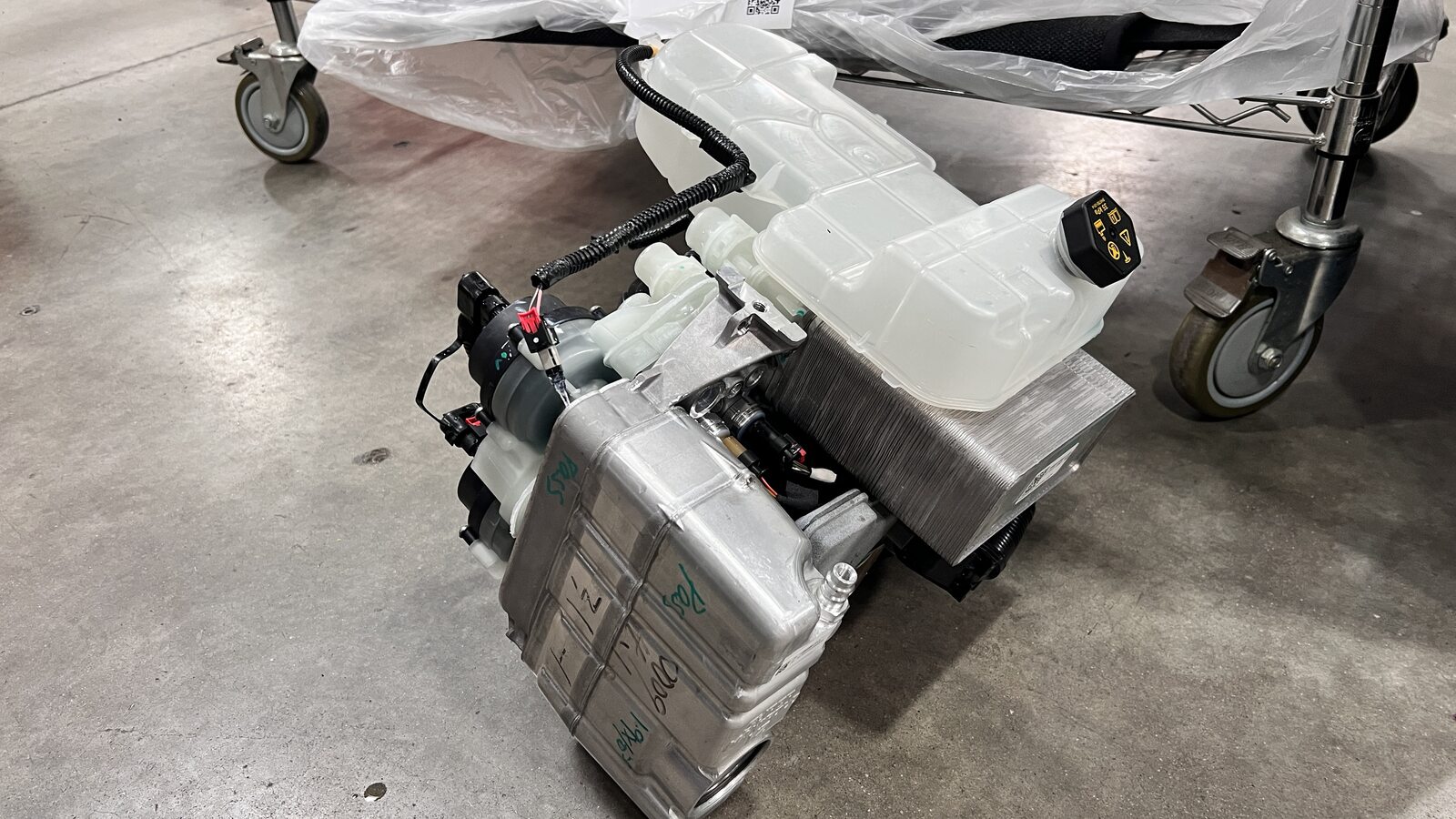

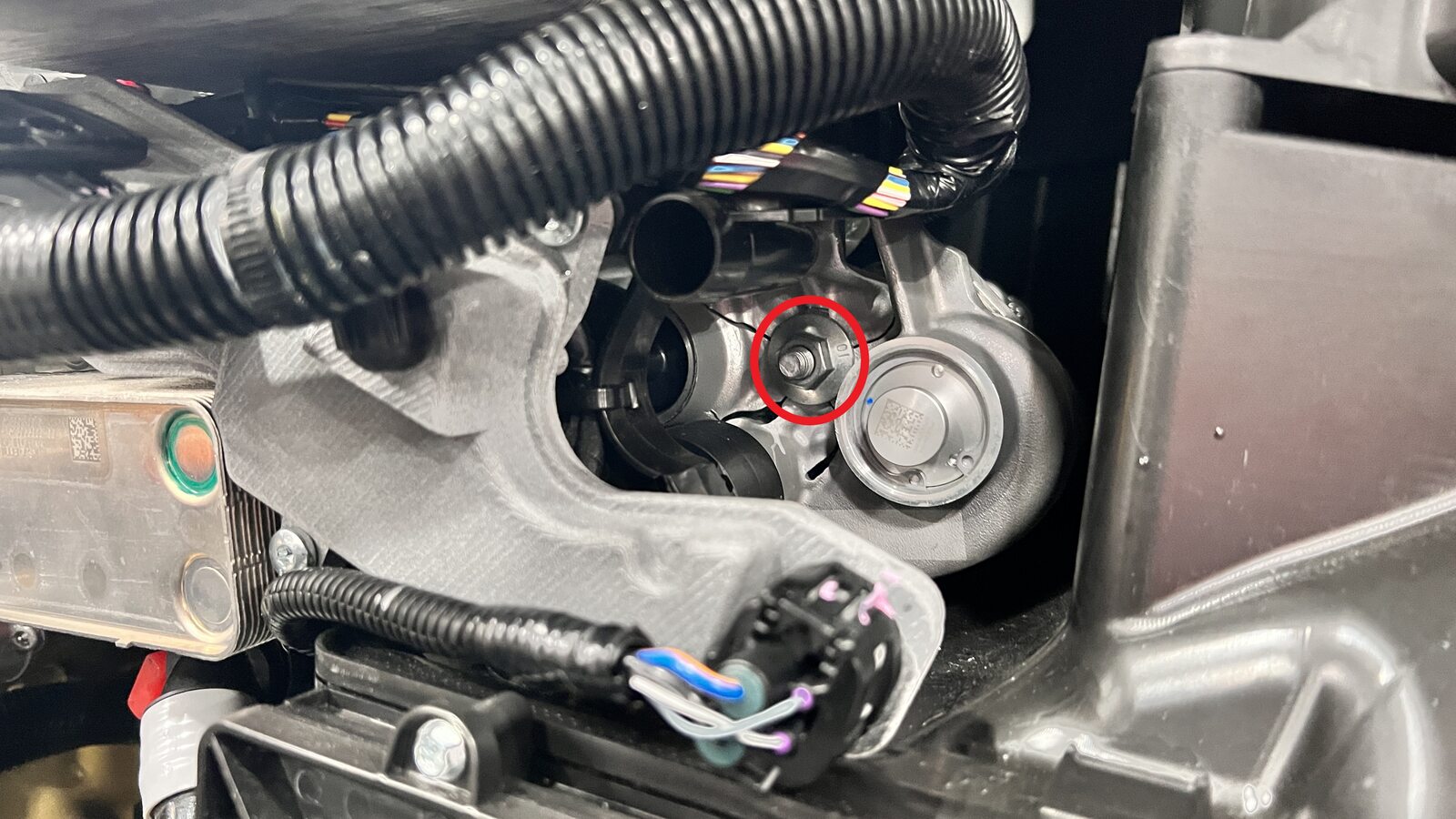

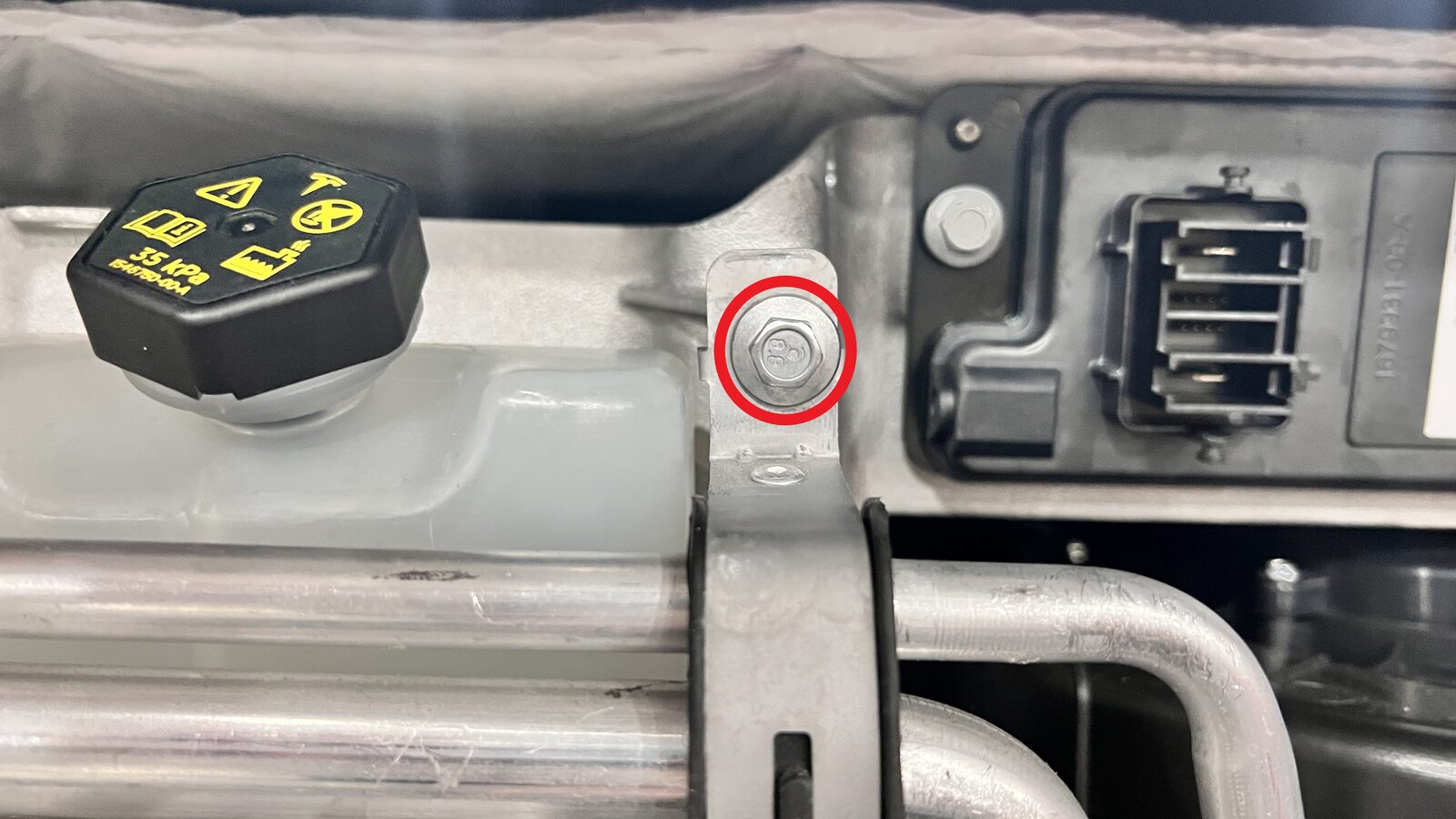

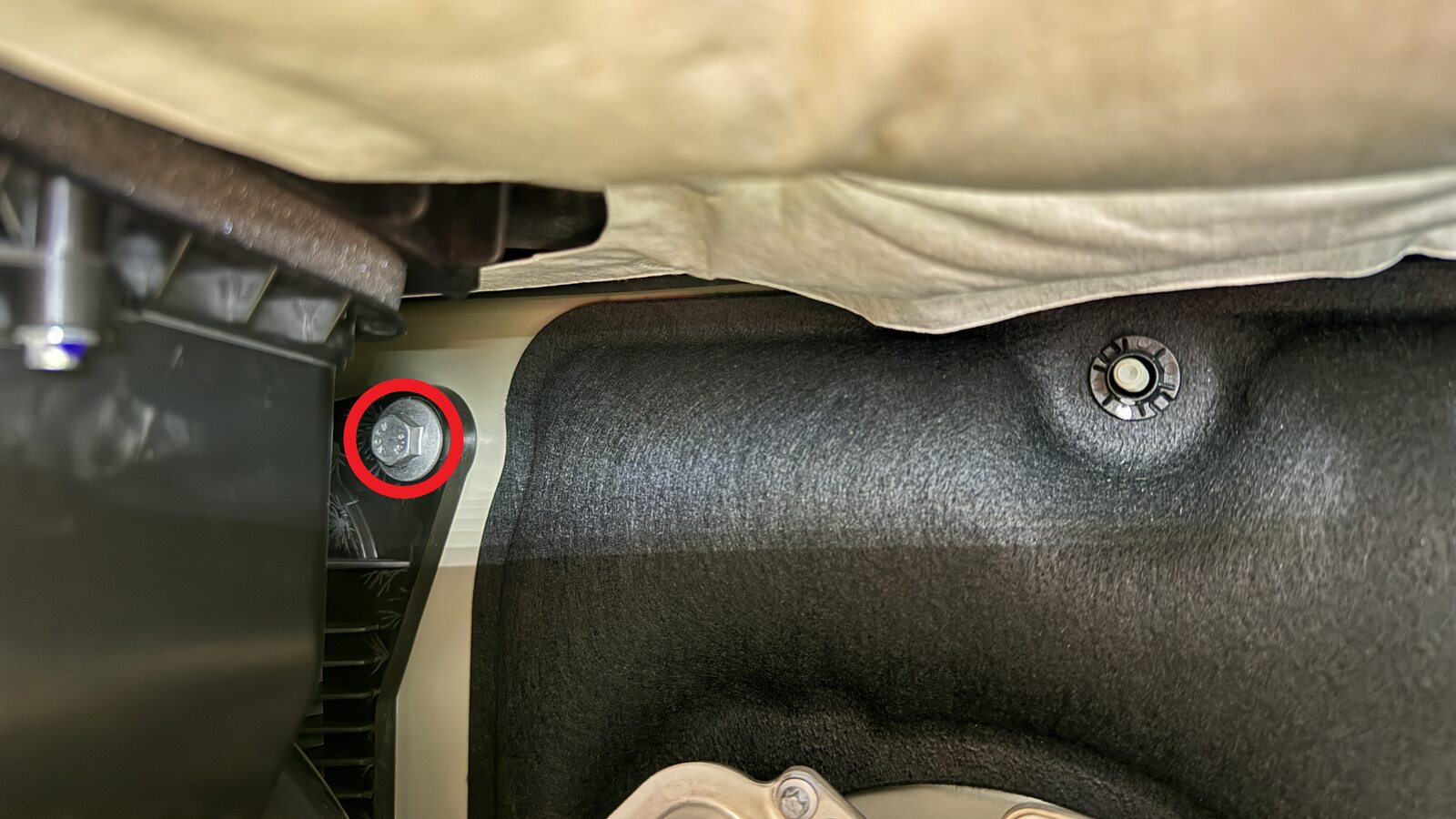

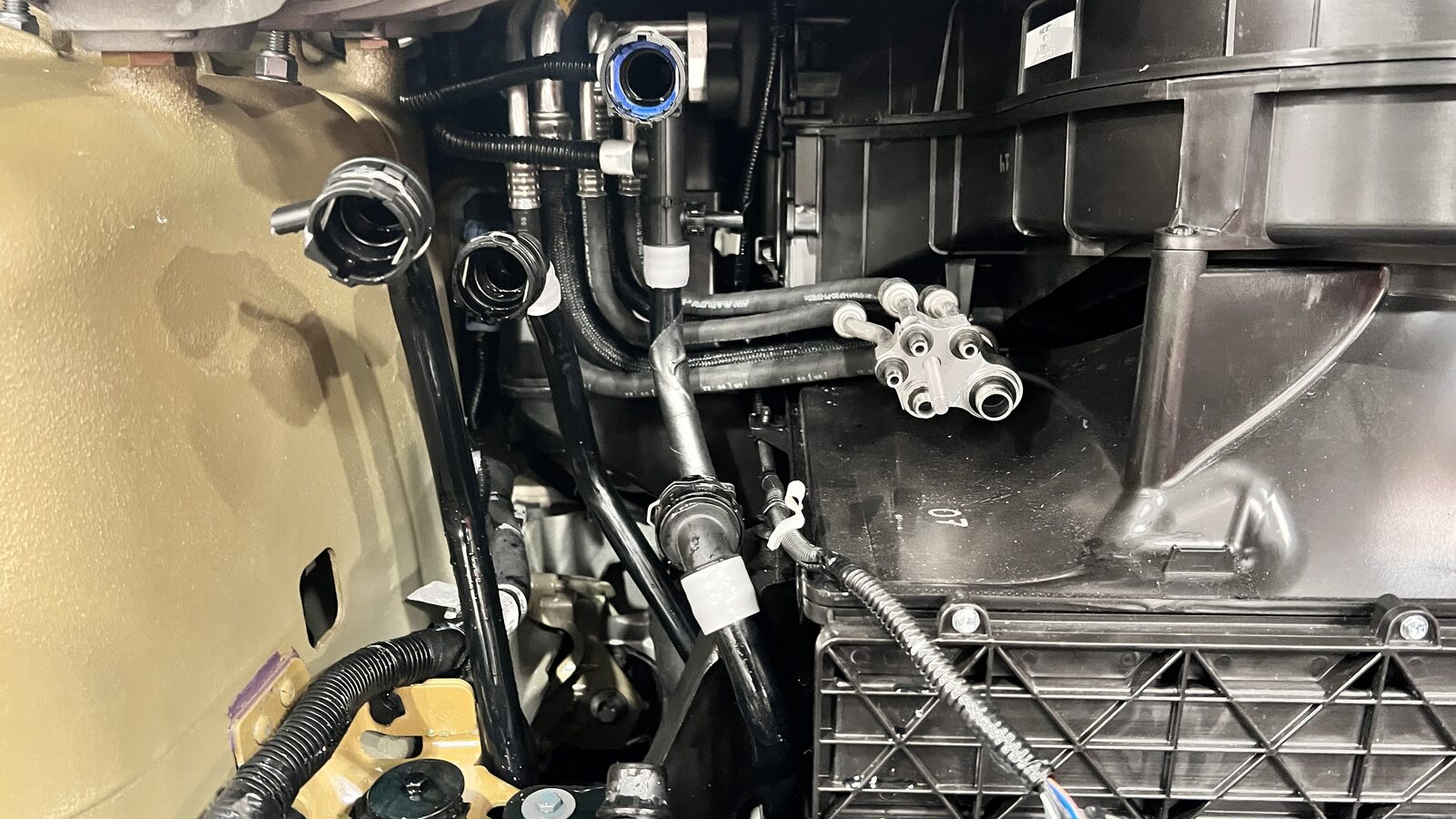

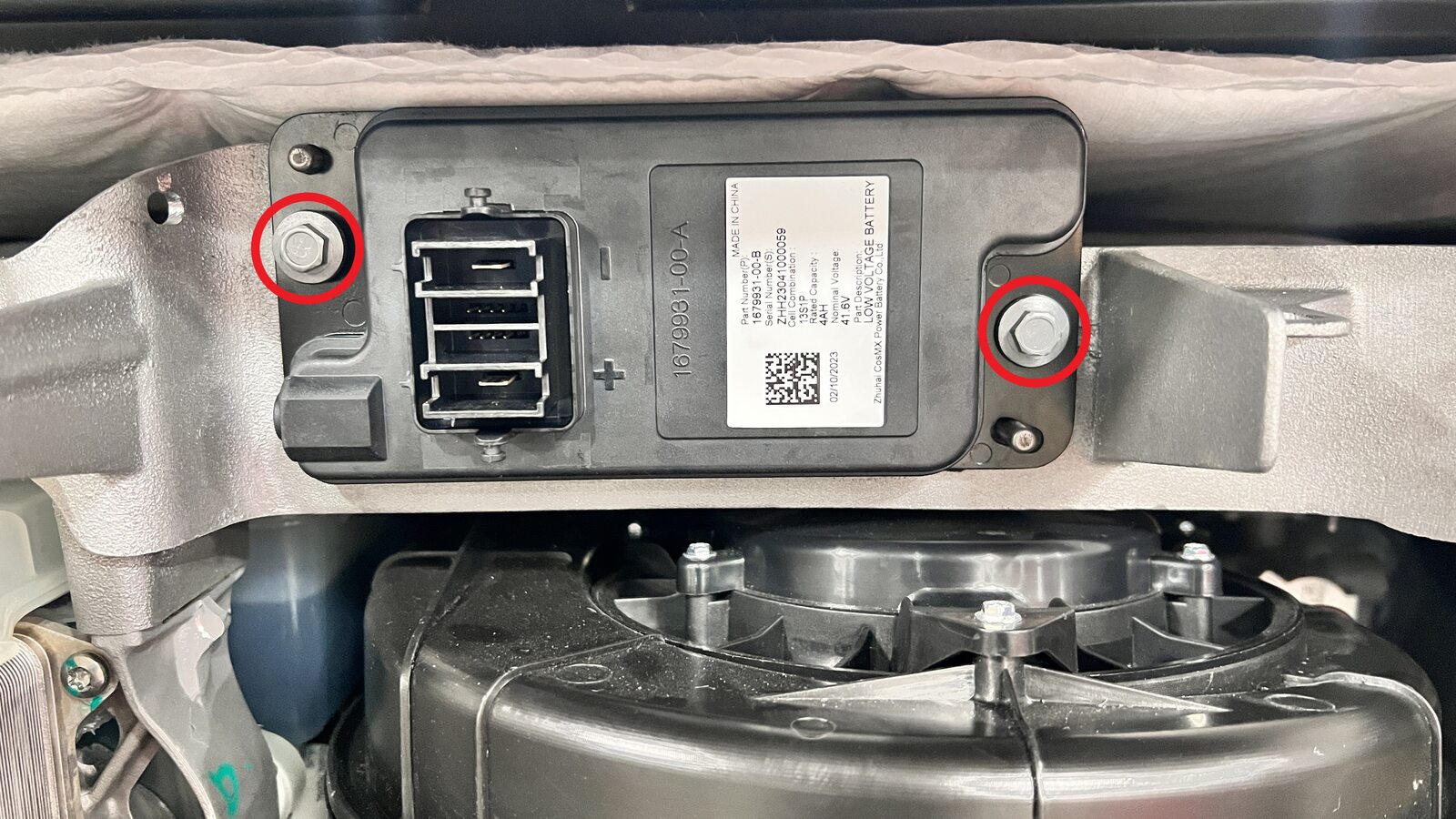

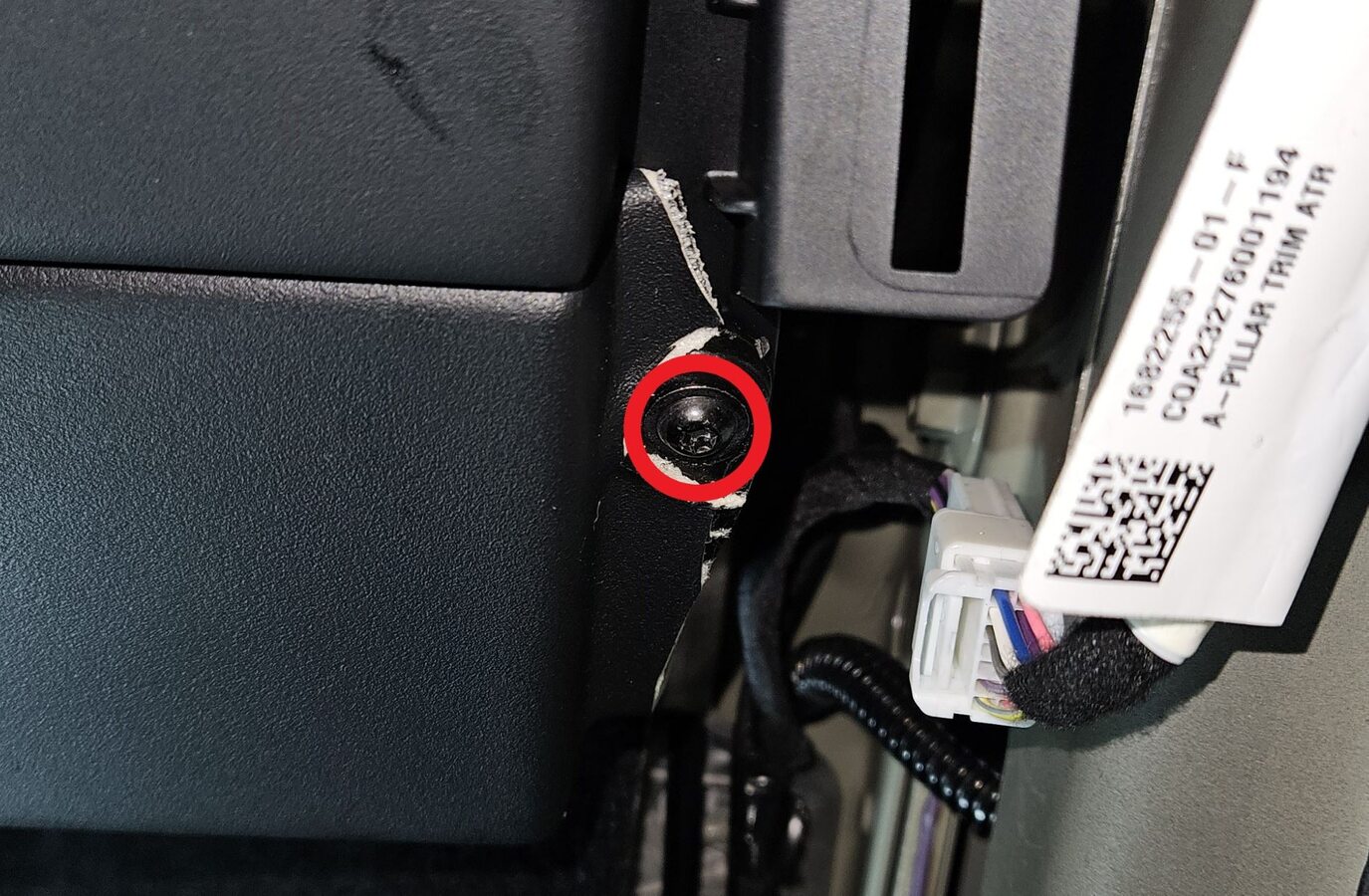

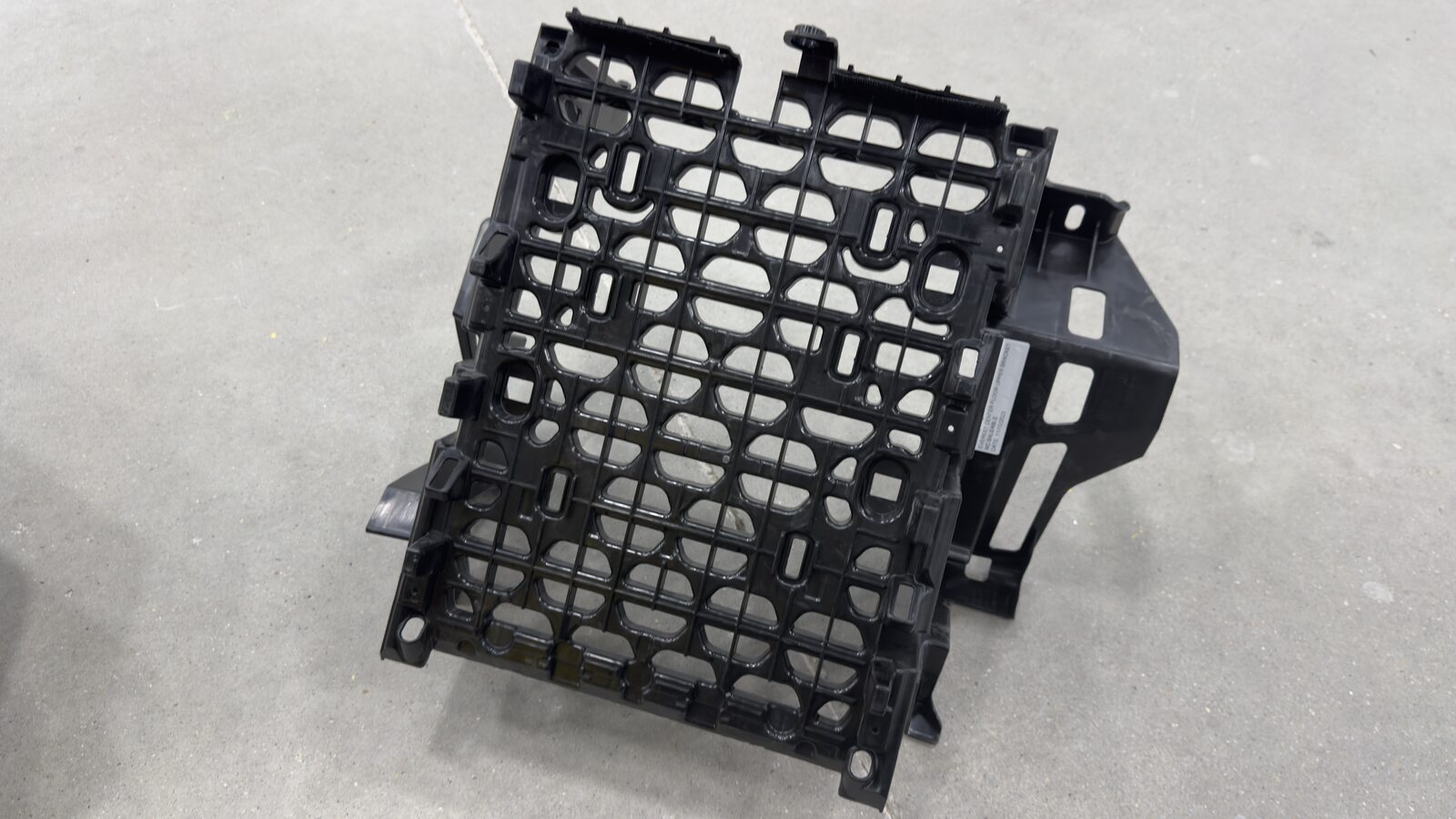

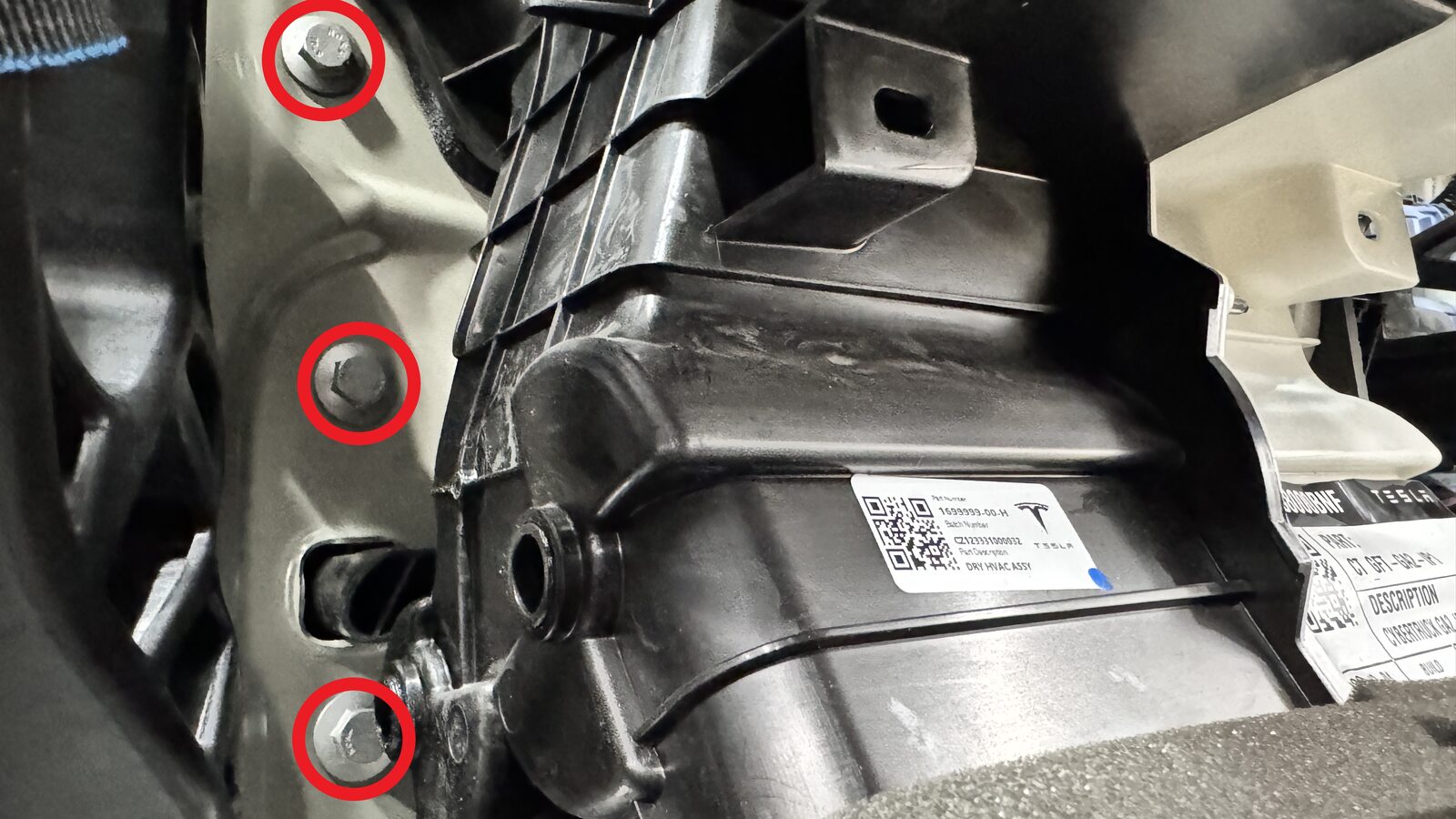

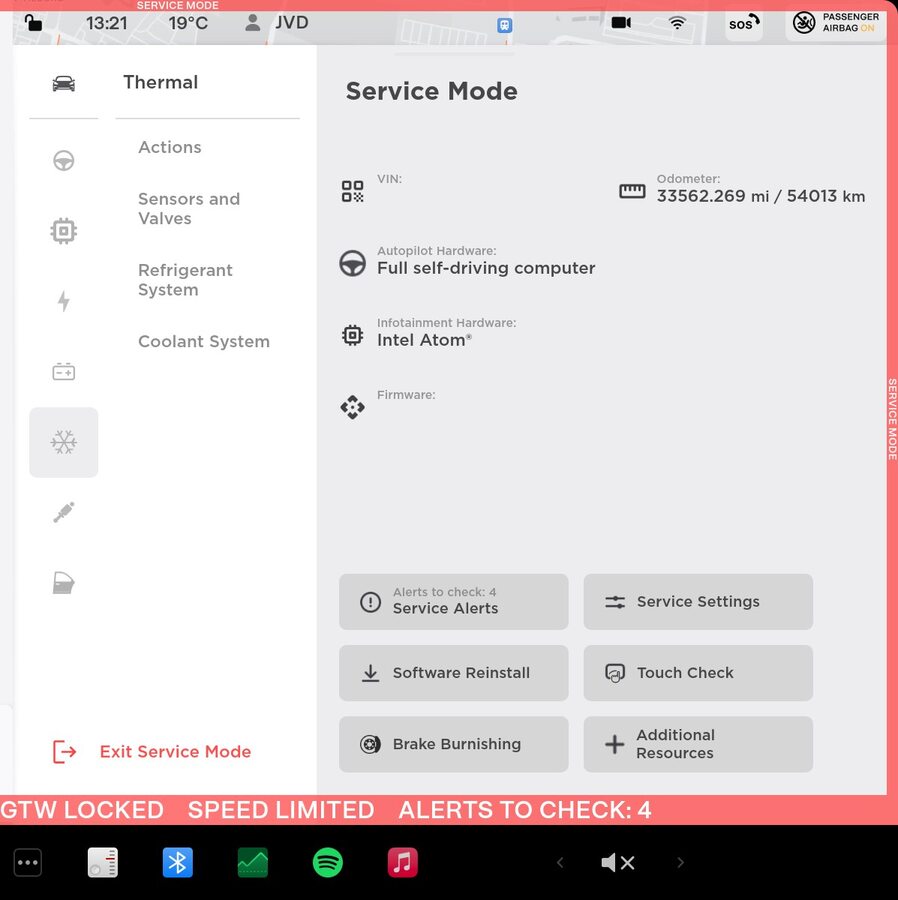

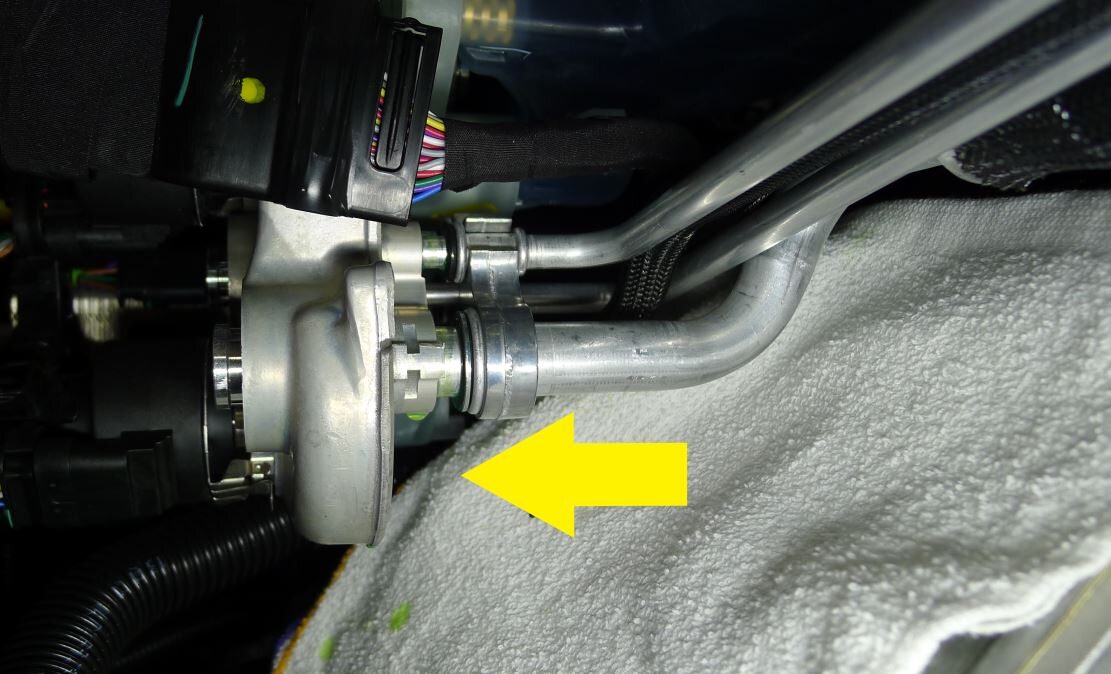

  2. Remove the wet side HVAC assembly. See Wet Side - HVAC (Remove and Install).

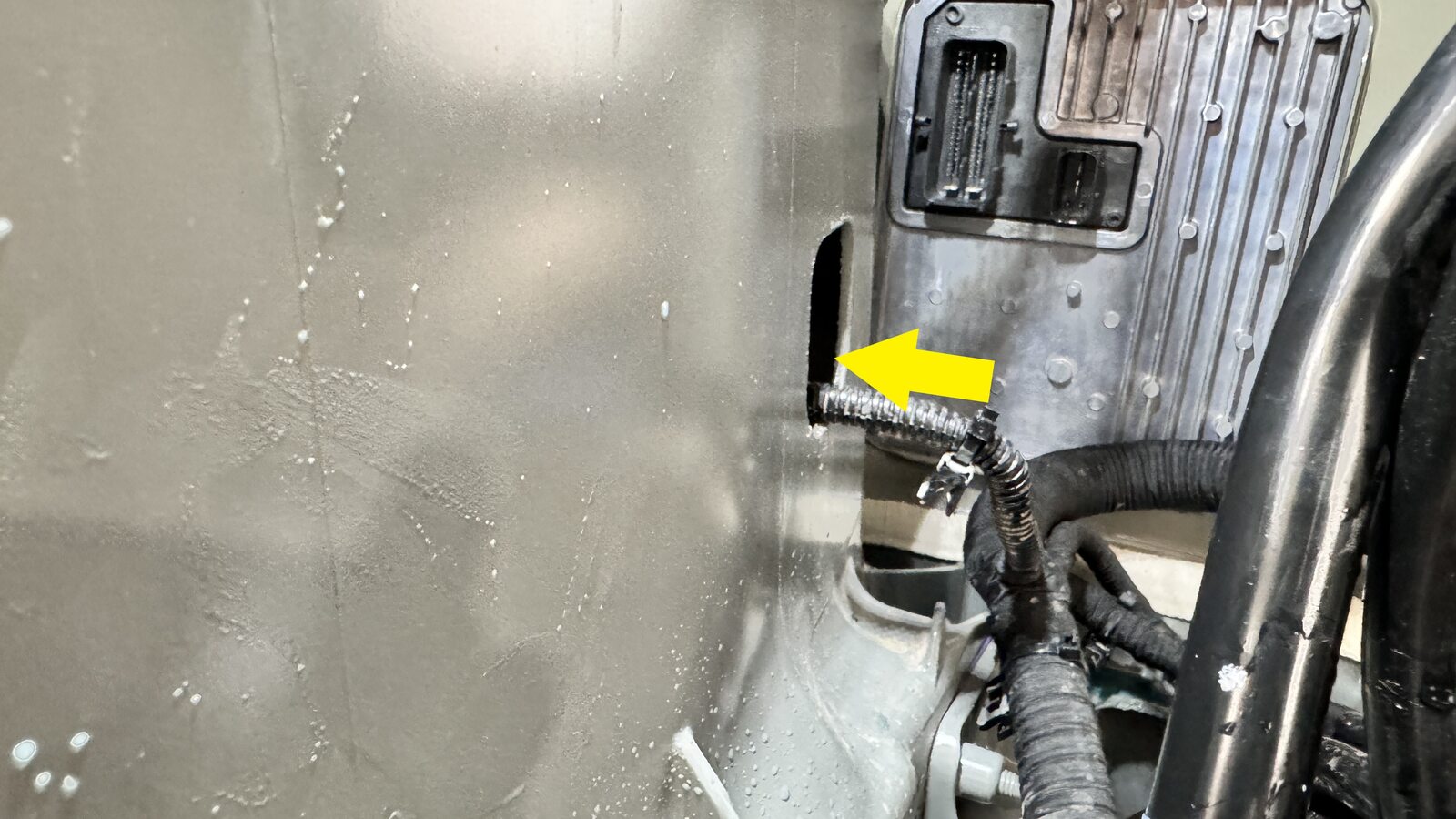

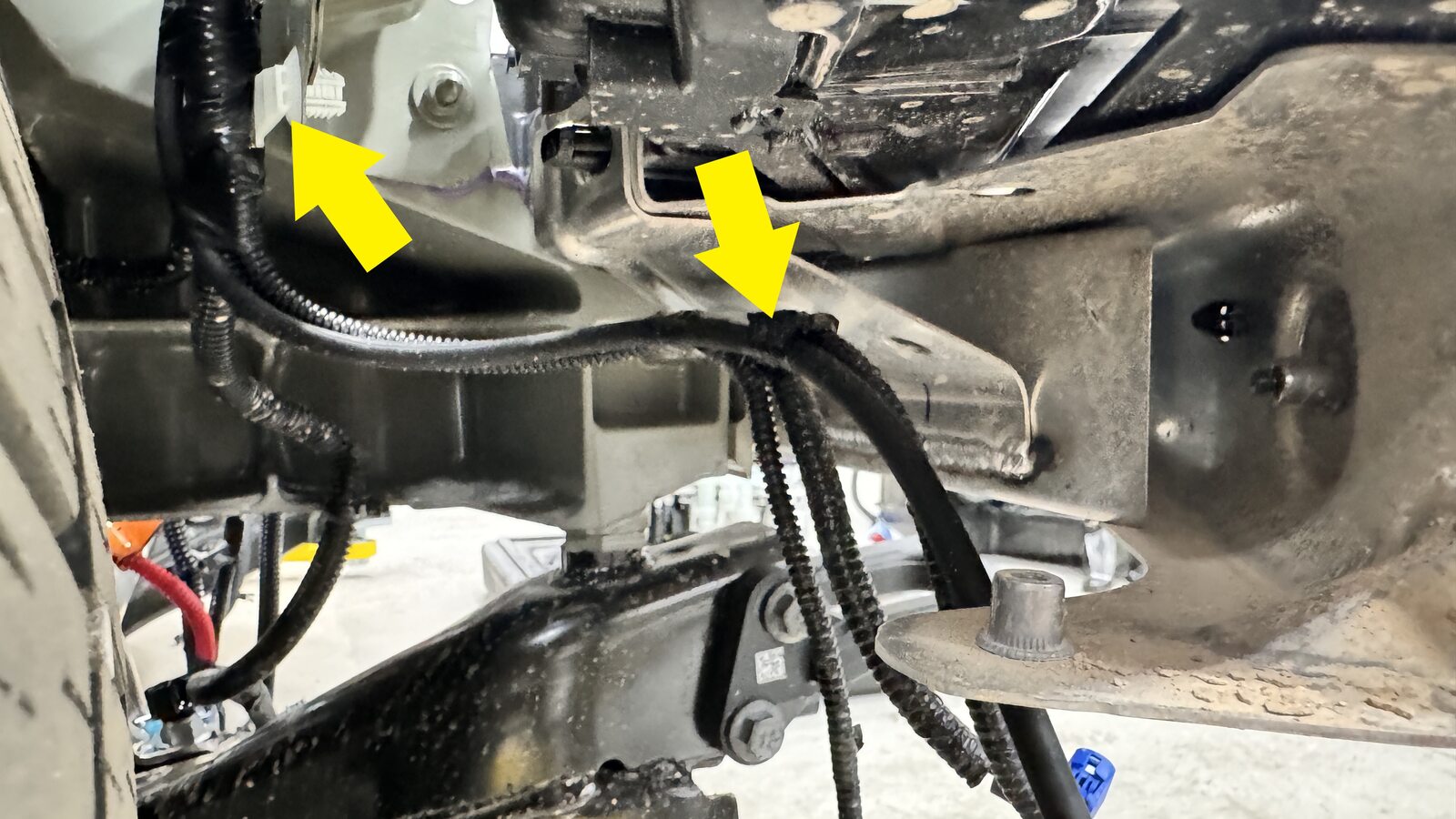

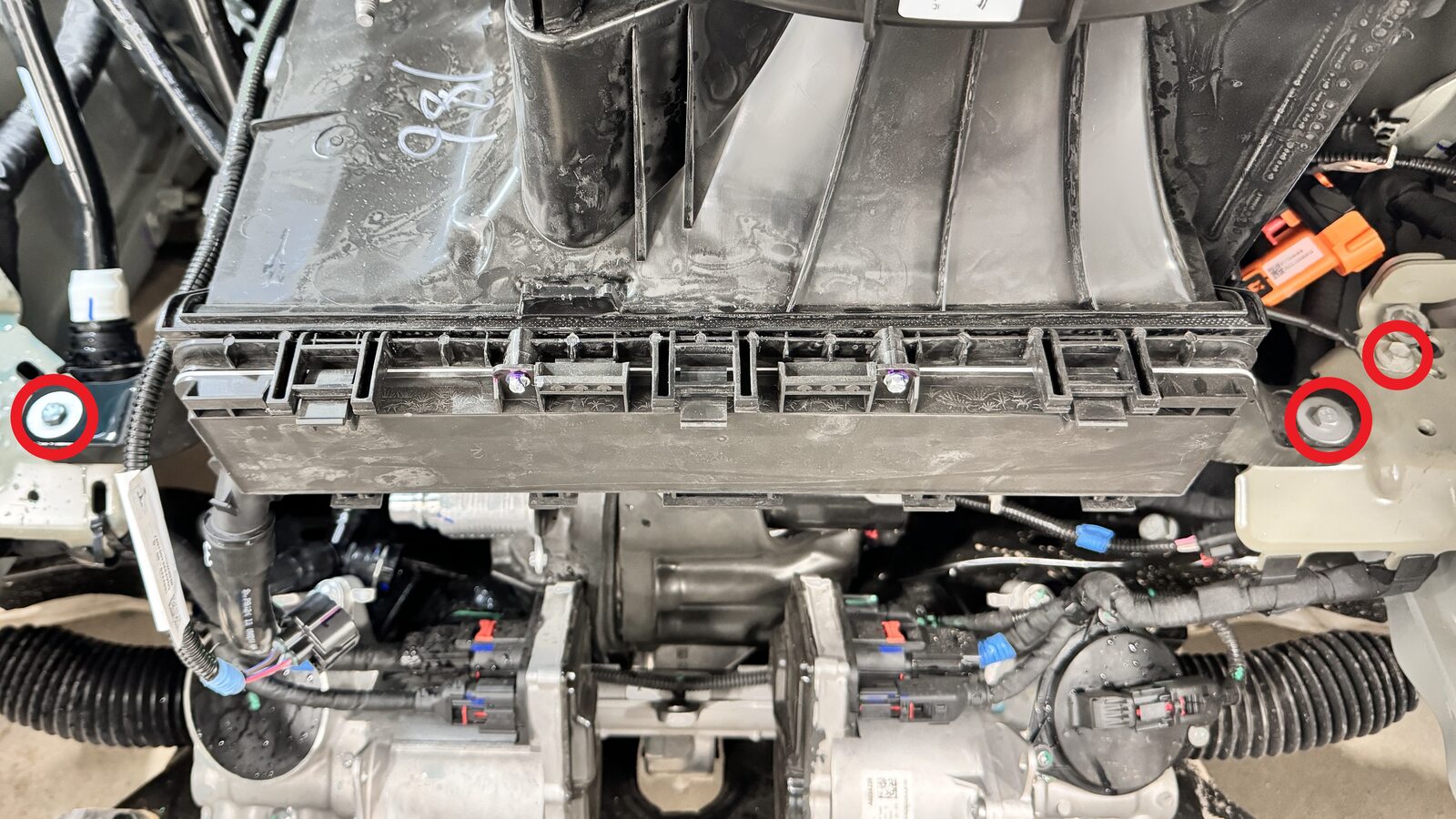

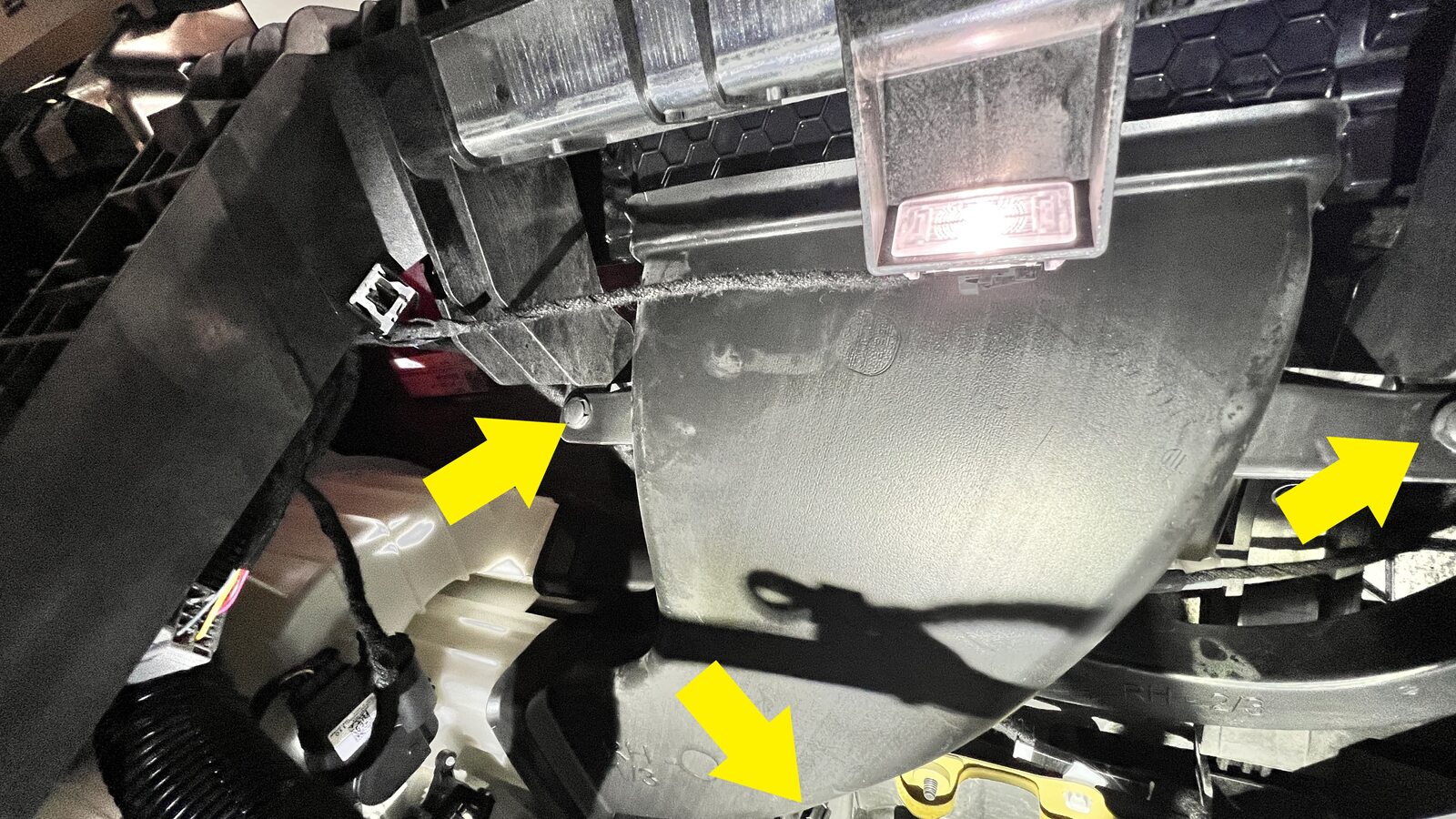

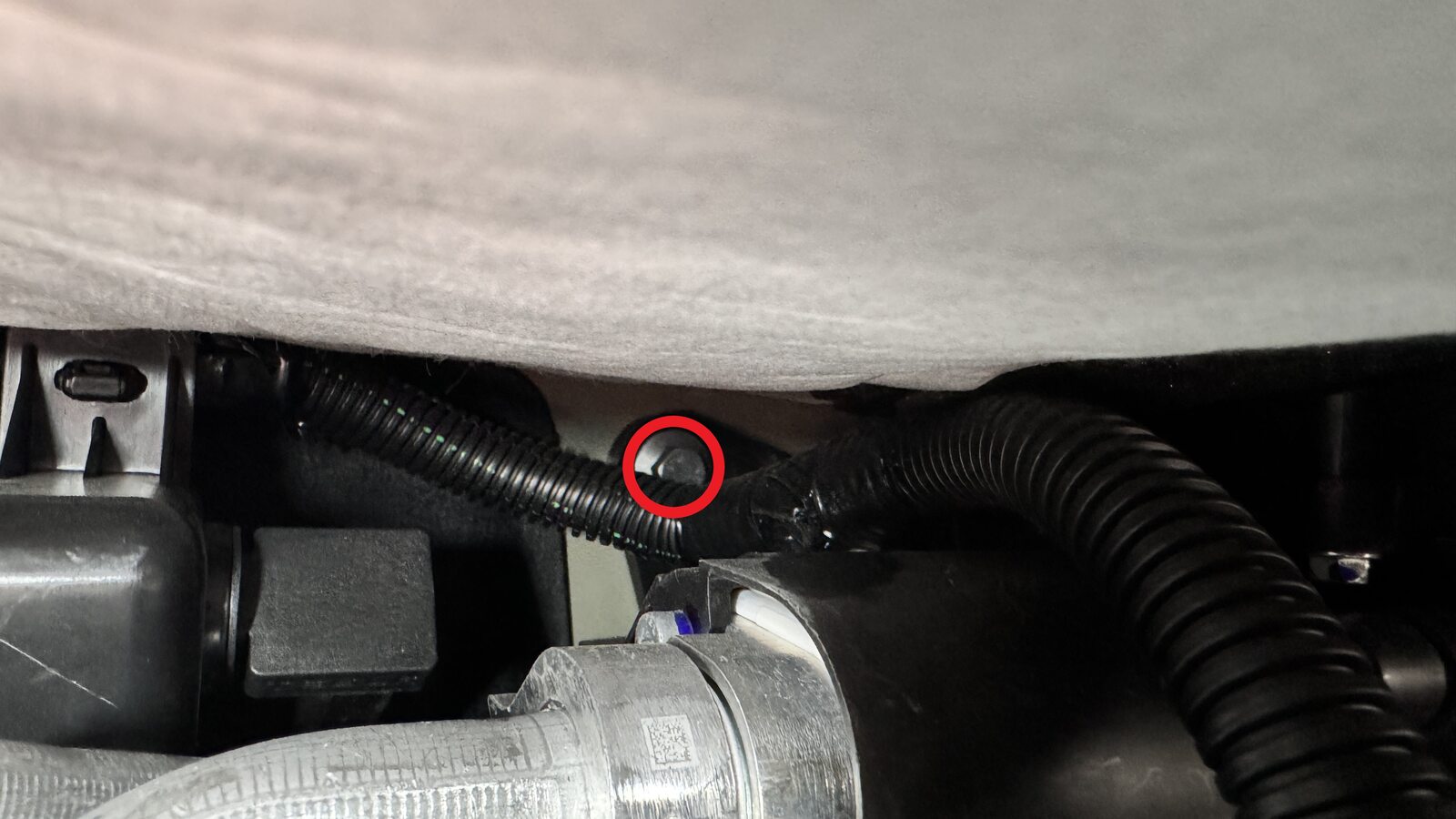

  3. Pull the frunk harness through from the RH front wheel well.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    ATTENTION
    Be careful not to damage the harness,

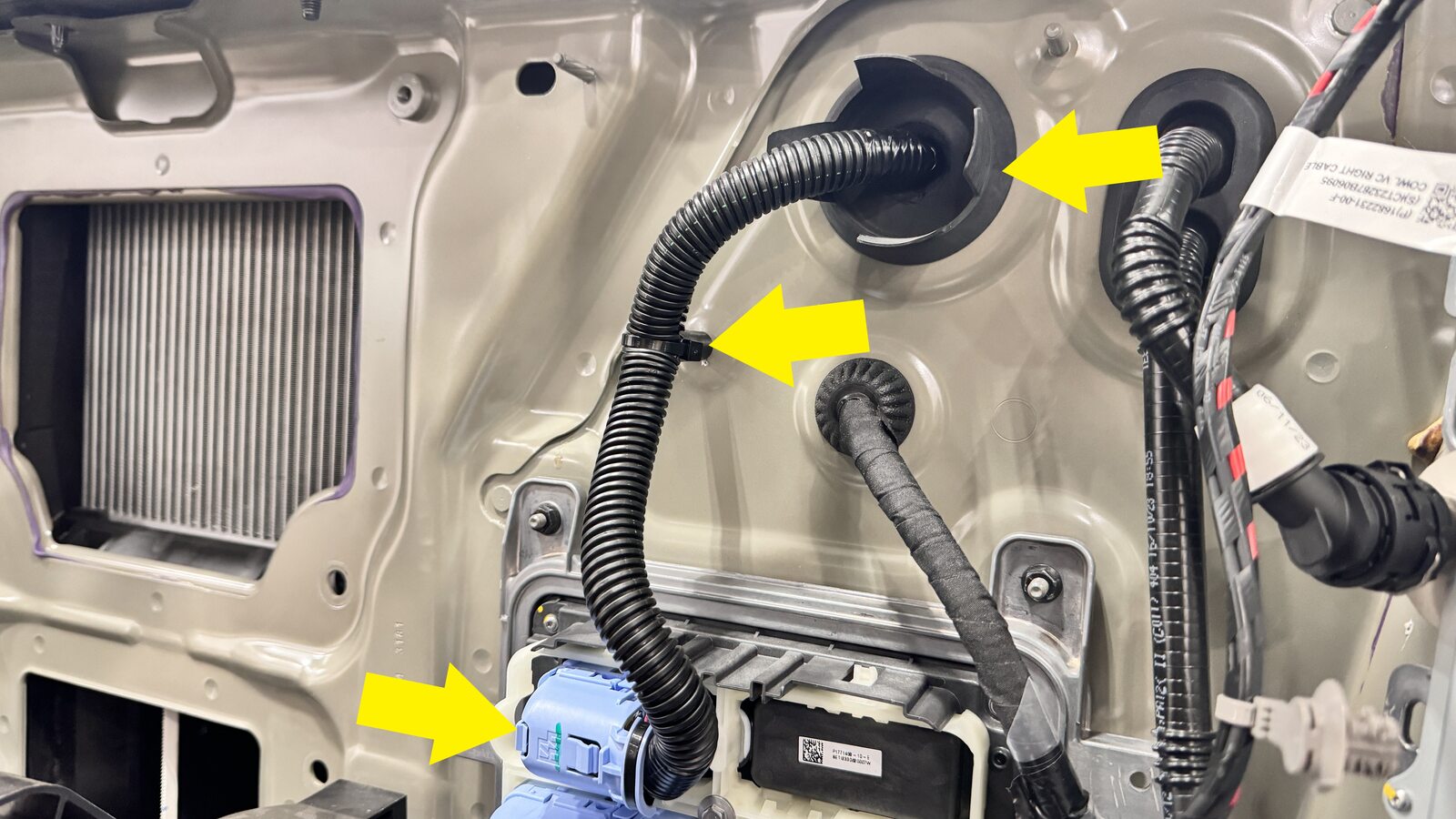

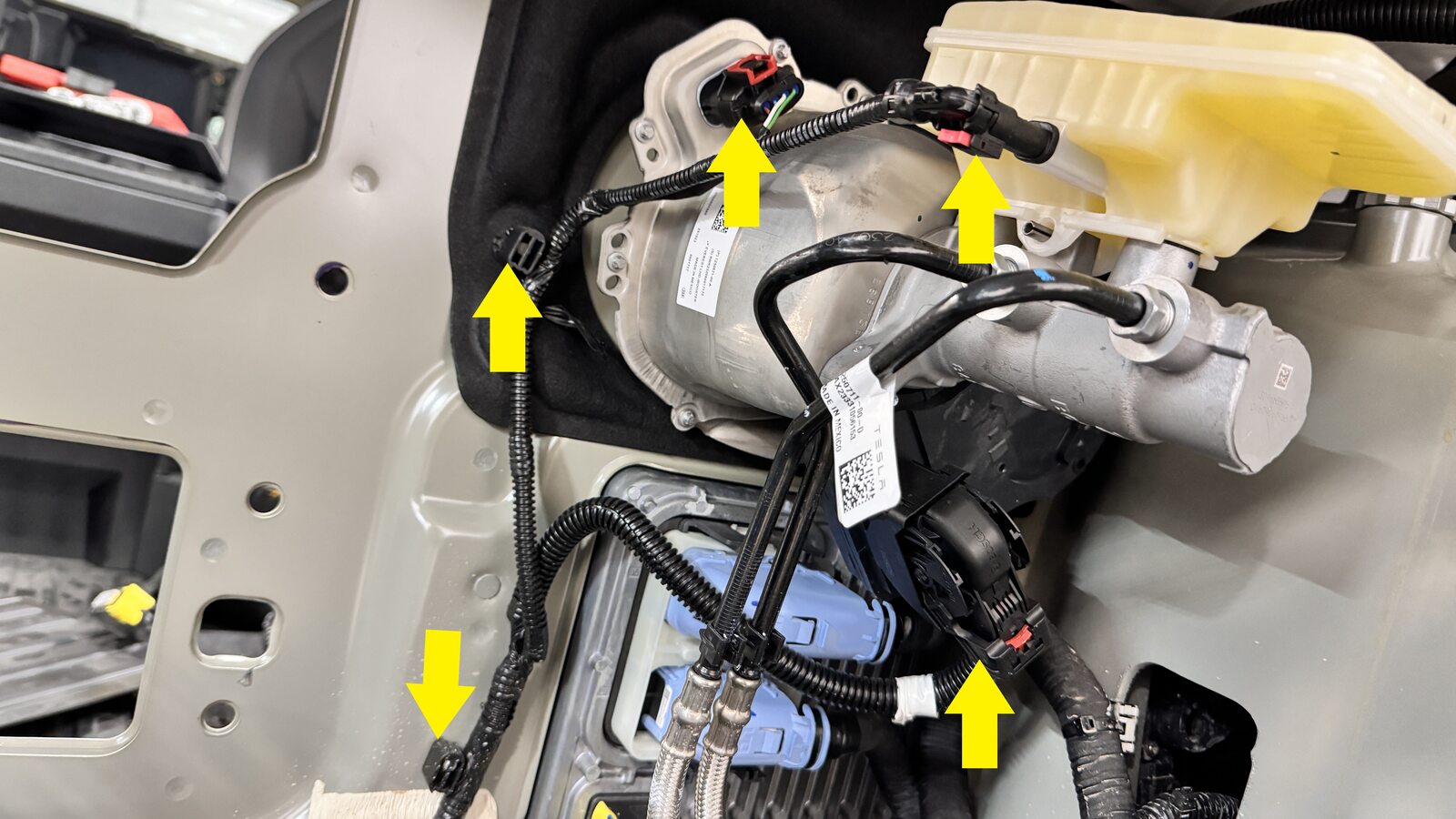

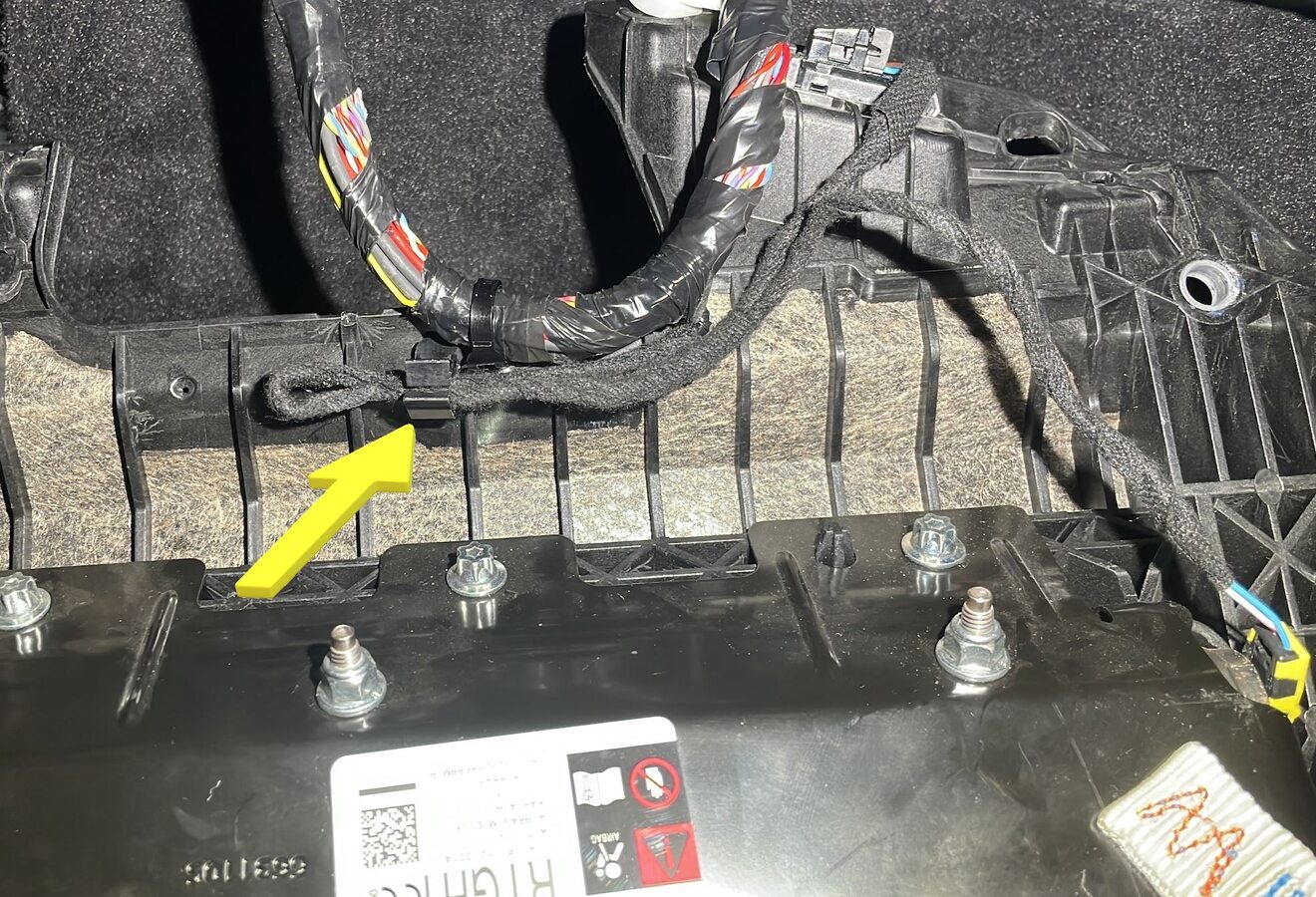

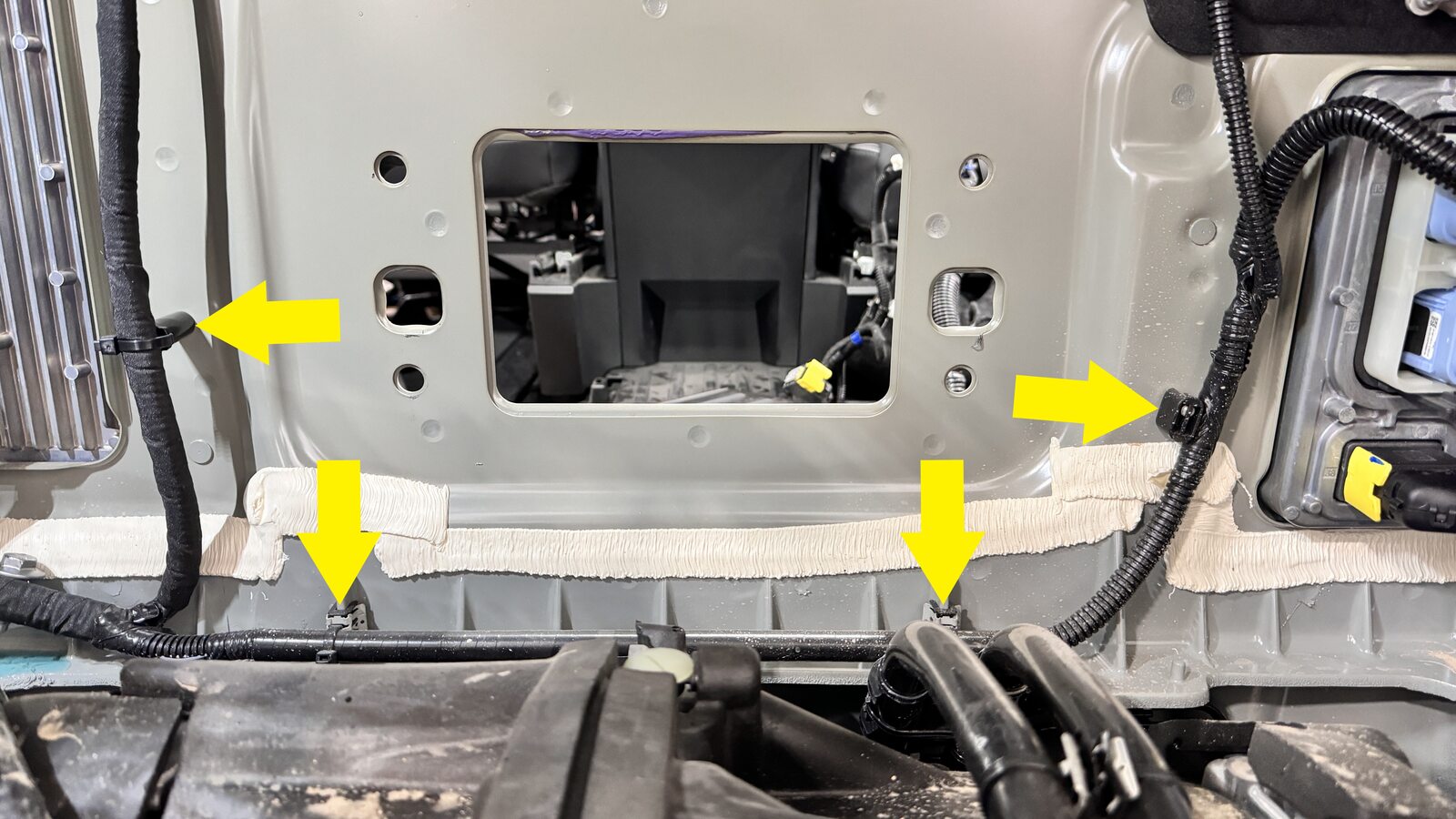

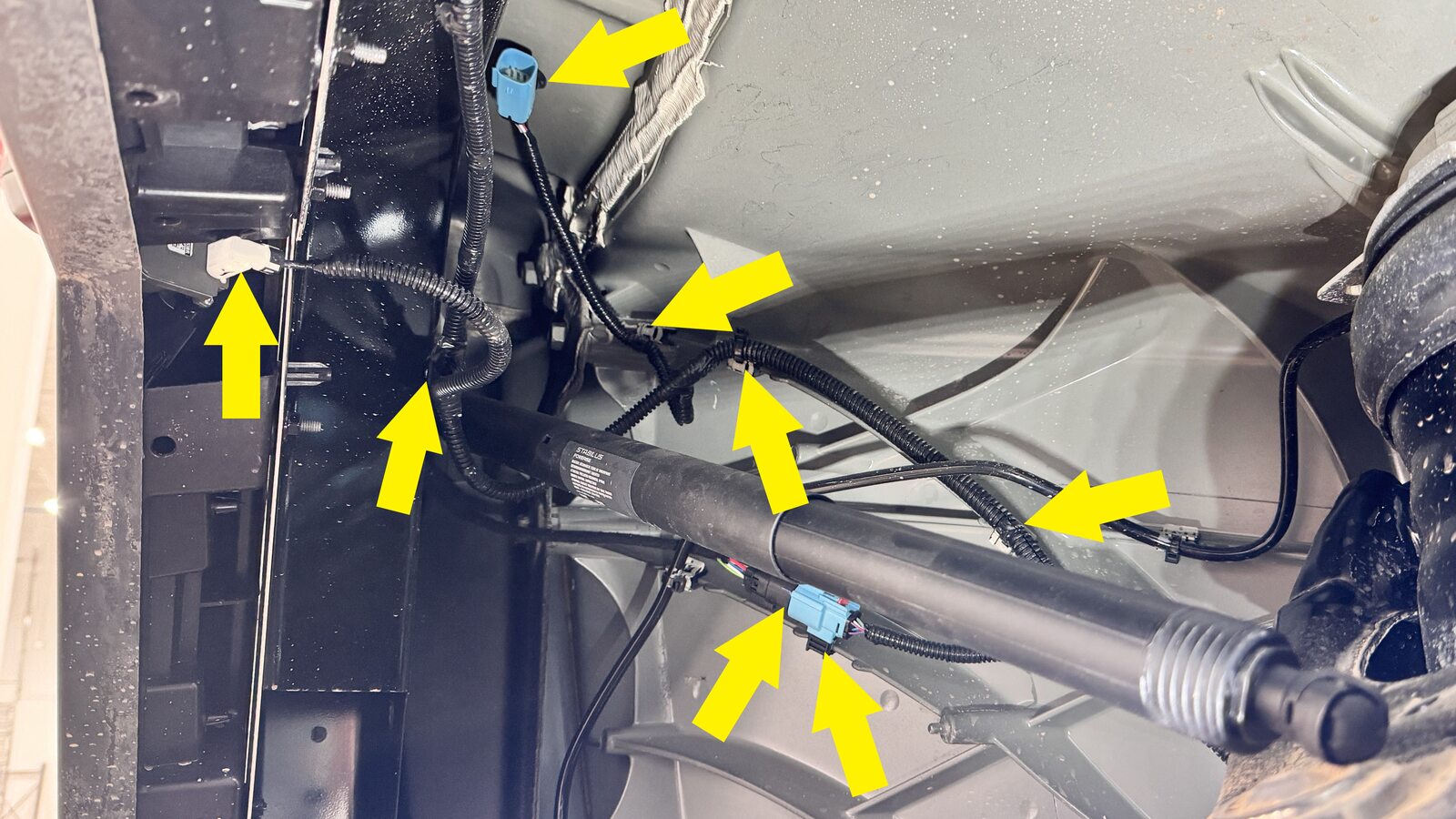

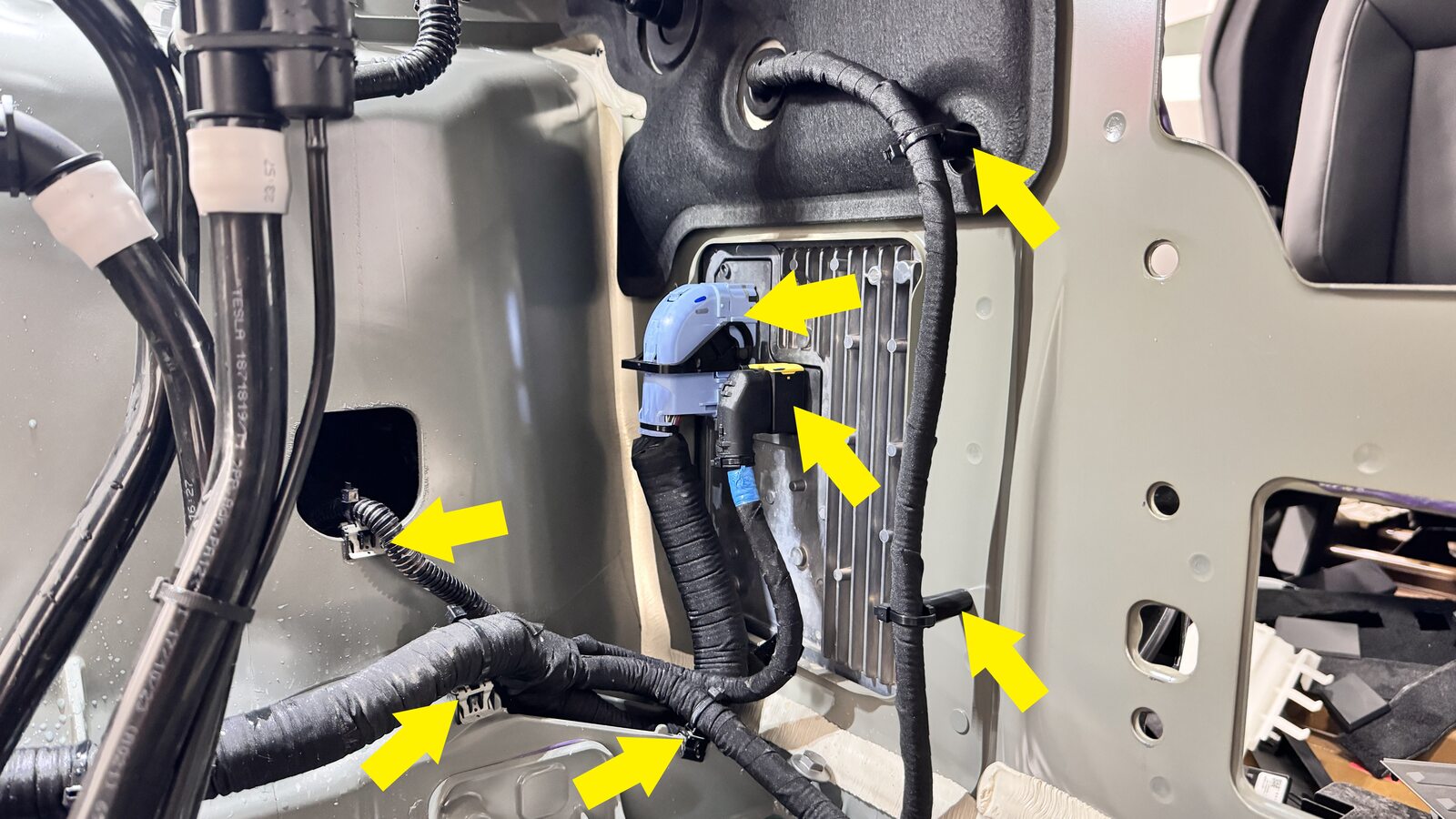

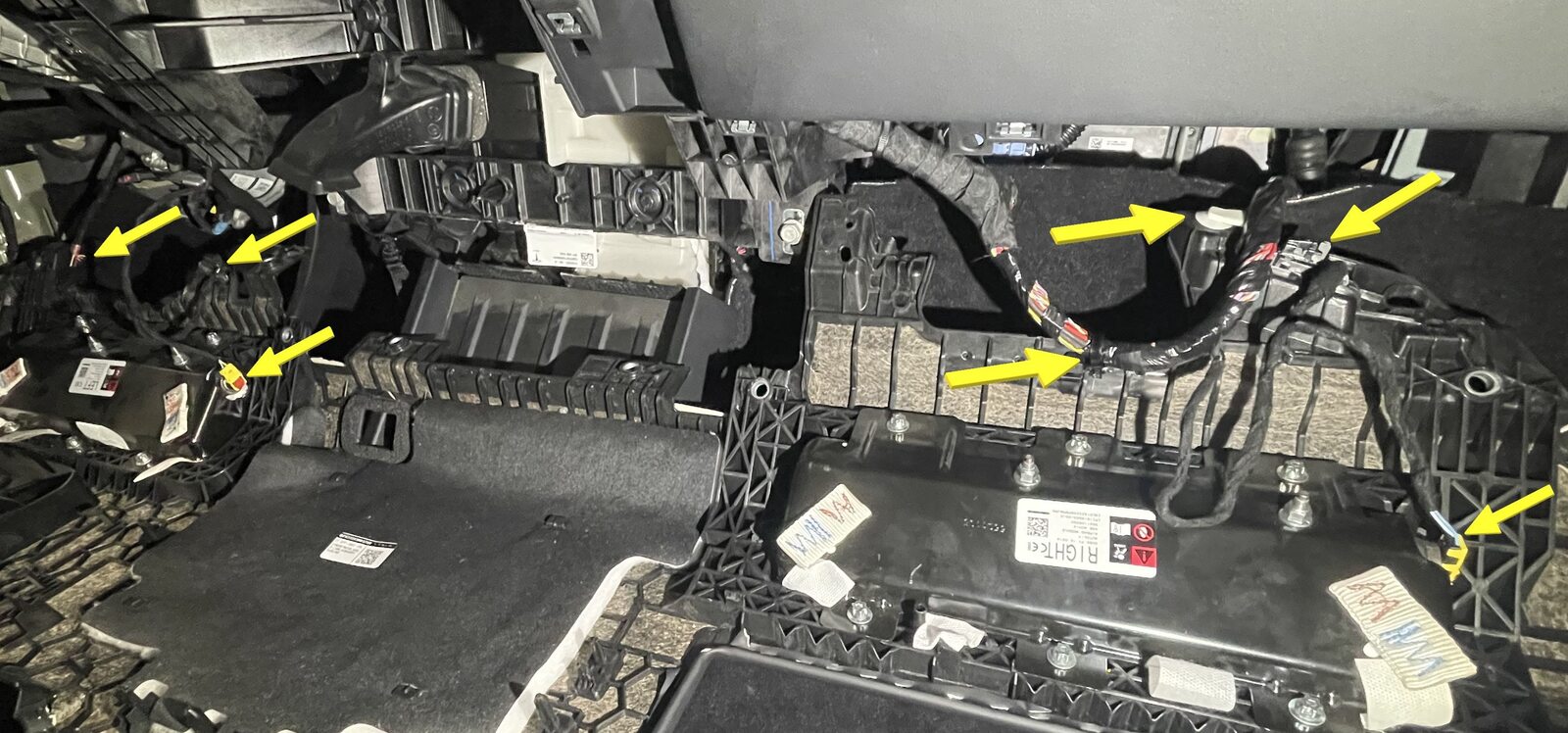

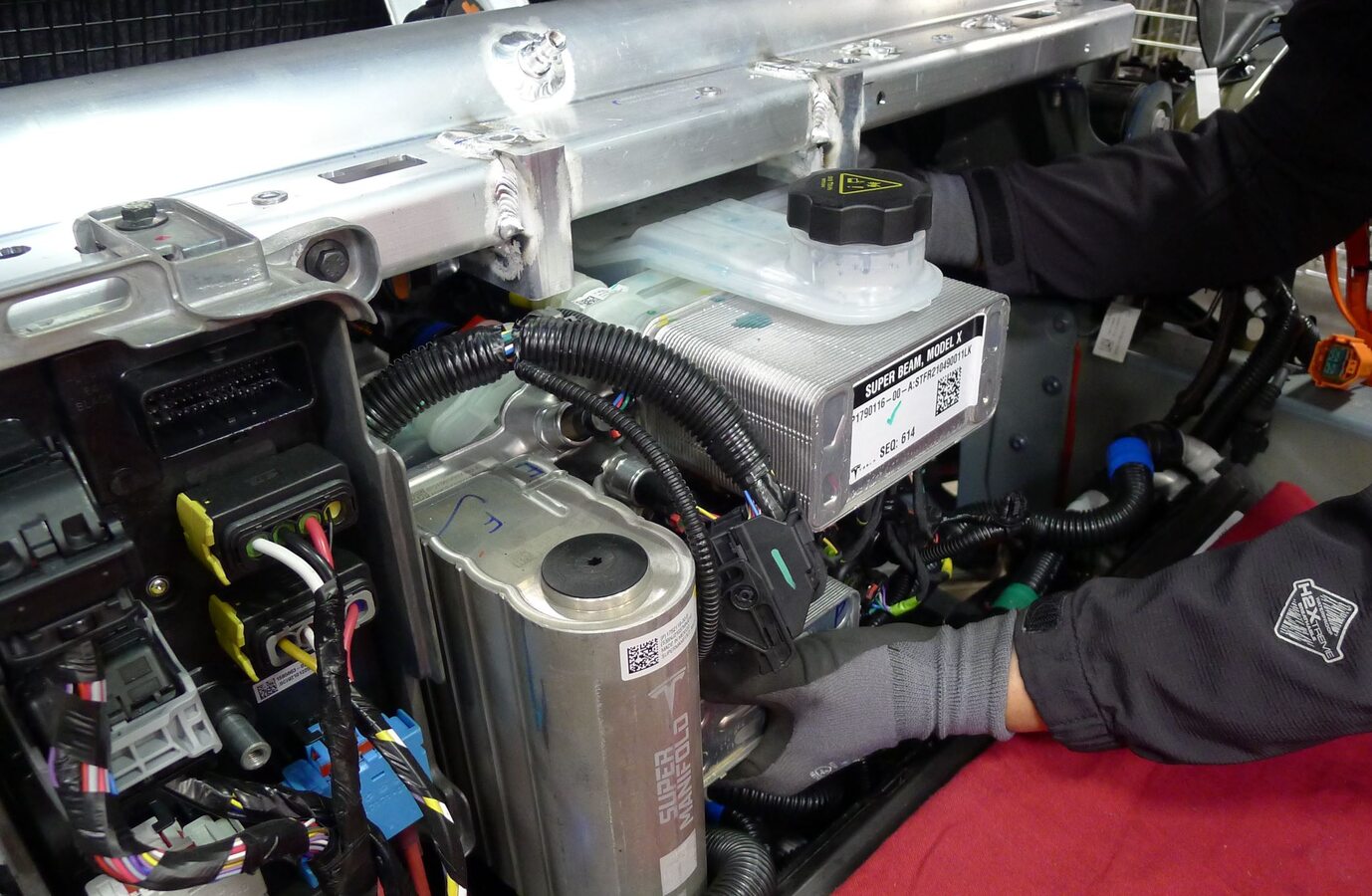

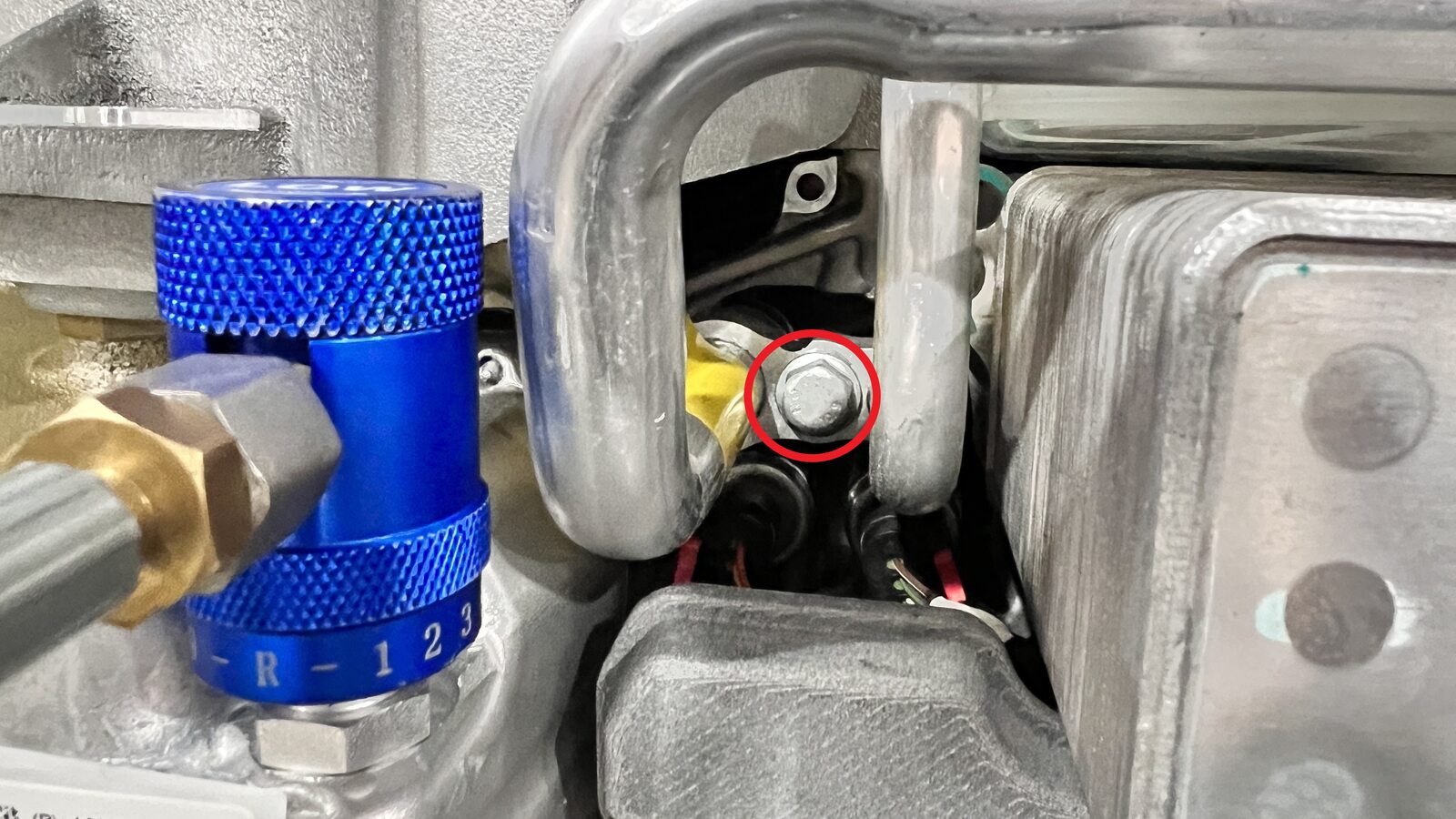

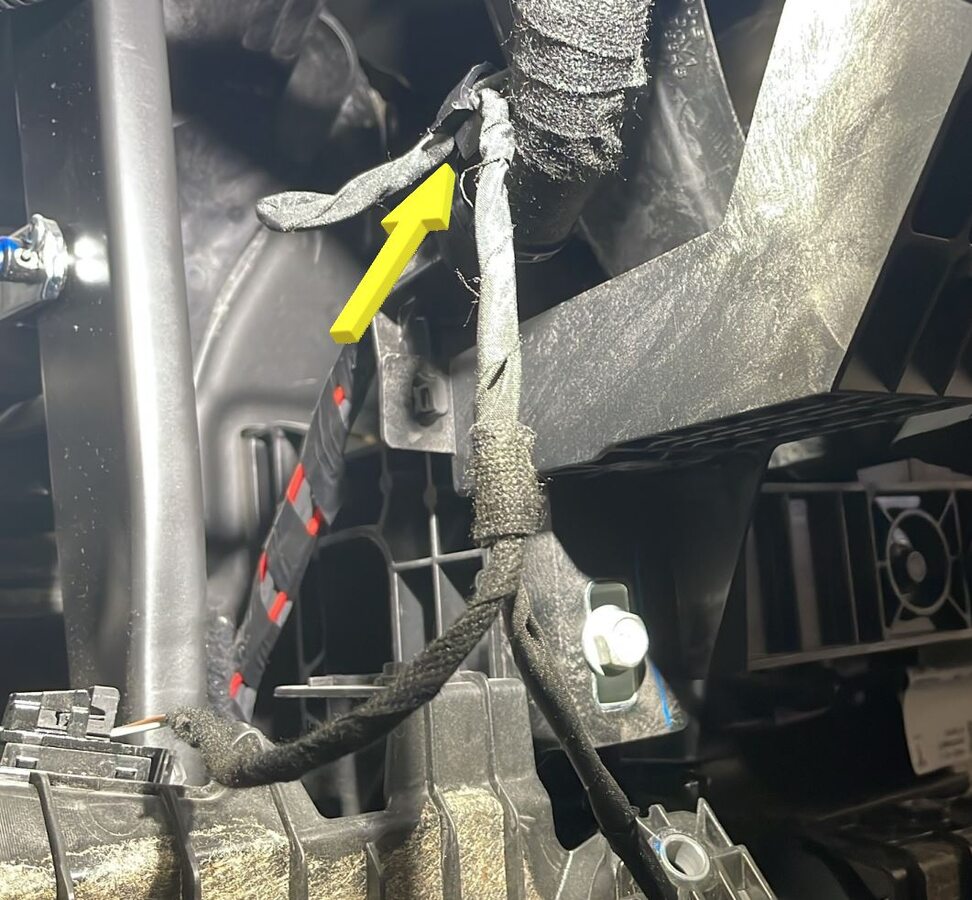

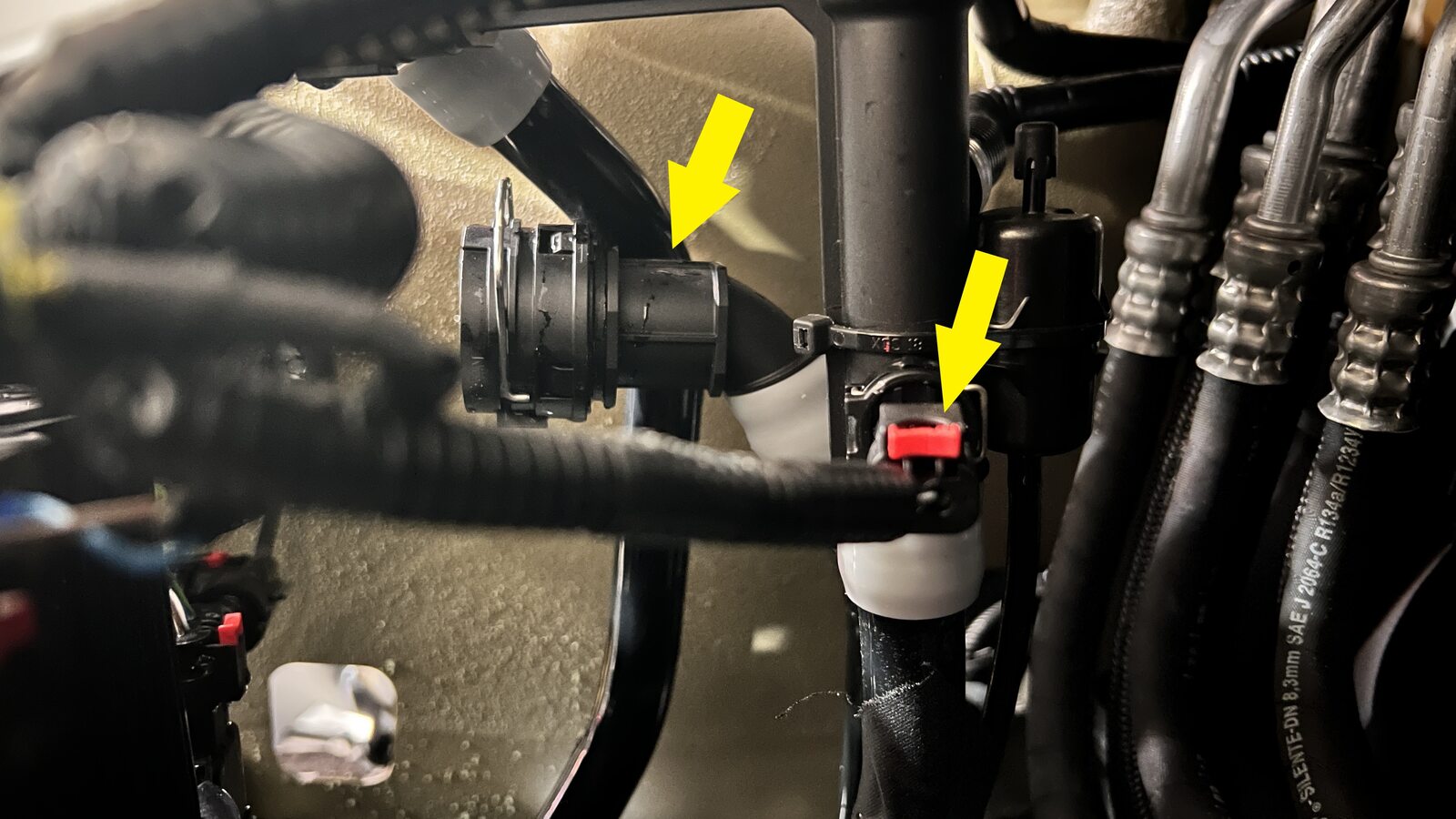

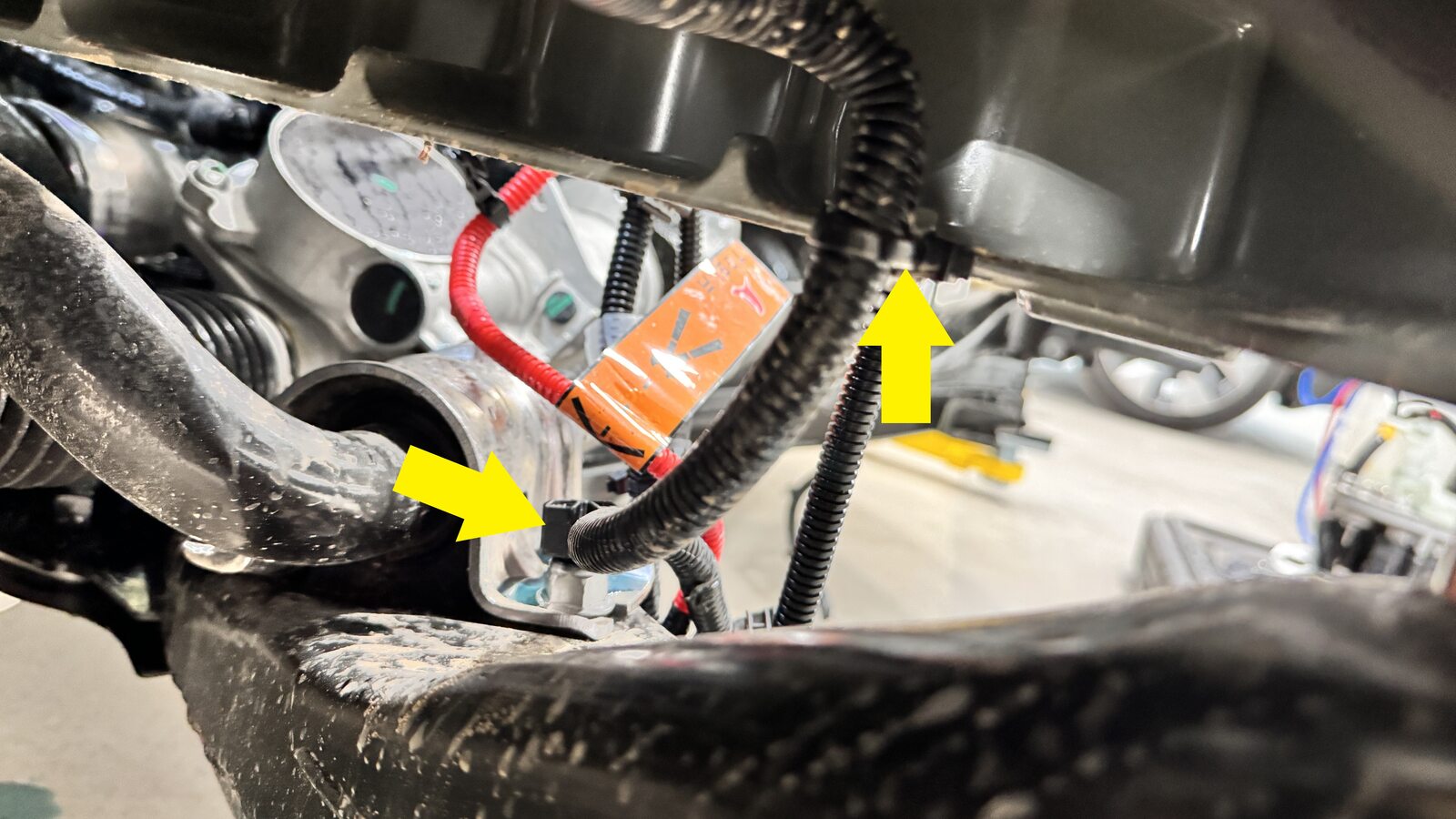

  4. Release the connectors (x7) and clips (x15) the rear section of the RH frunk harness.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Release the locking tab on each connector.

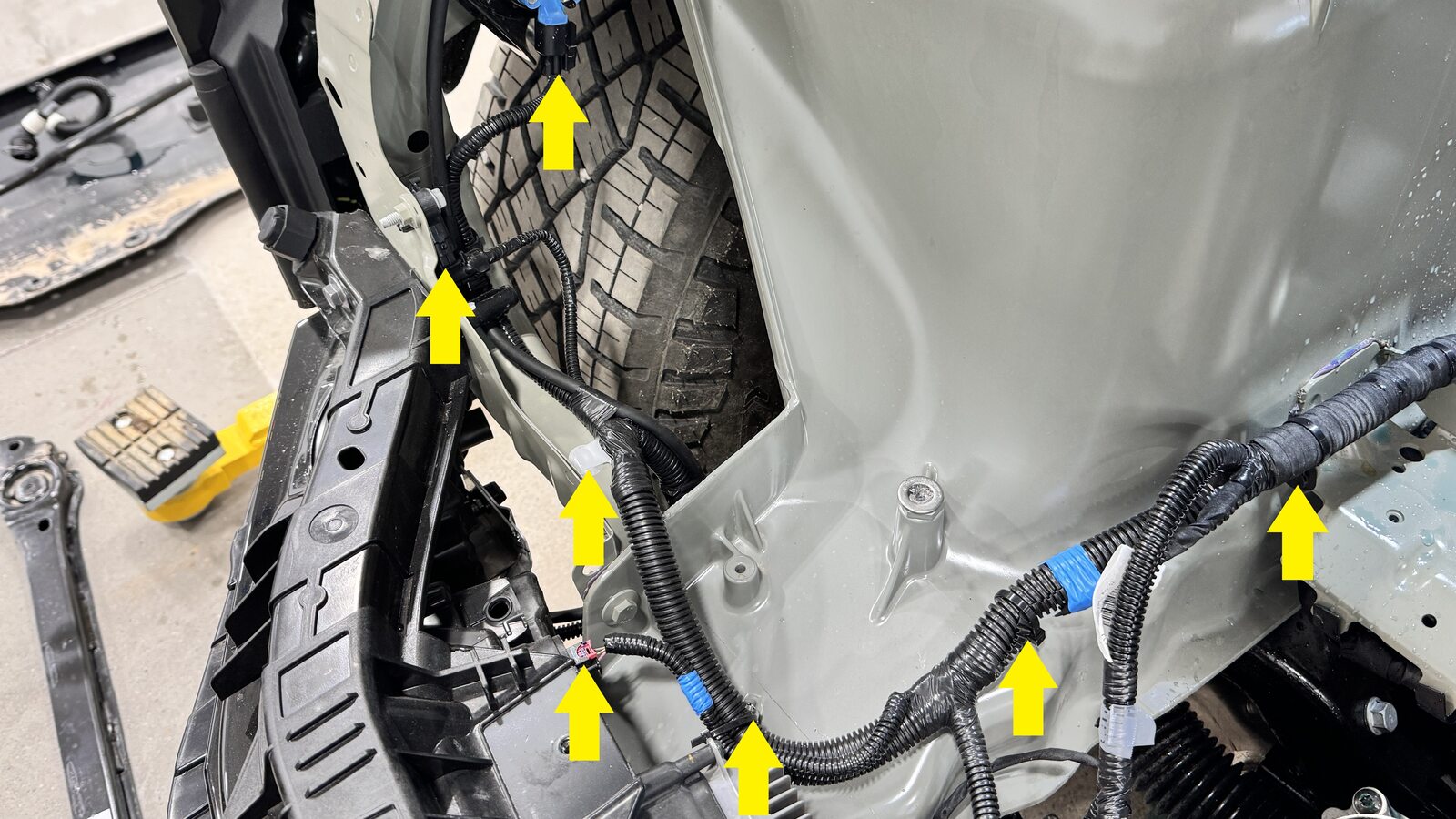

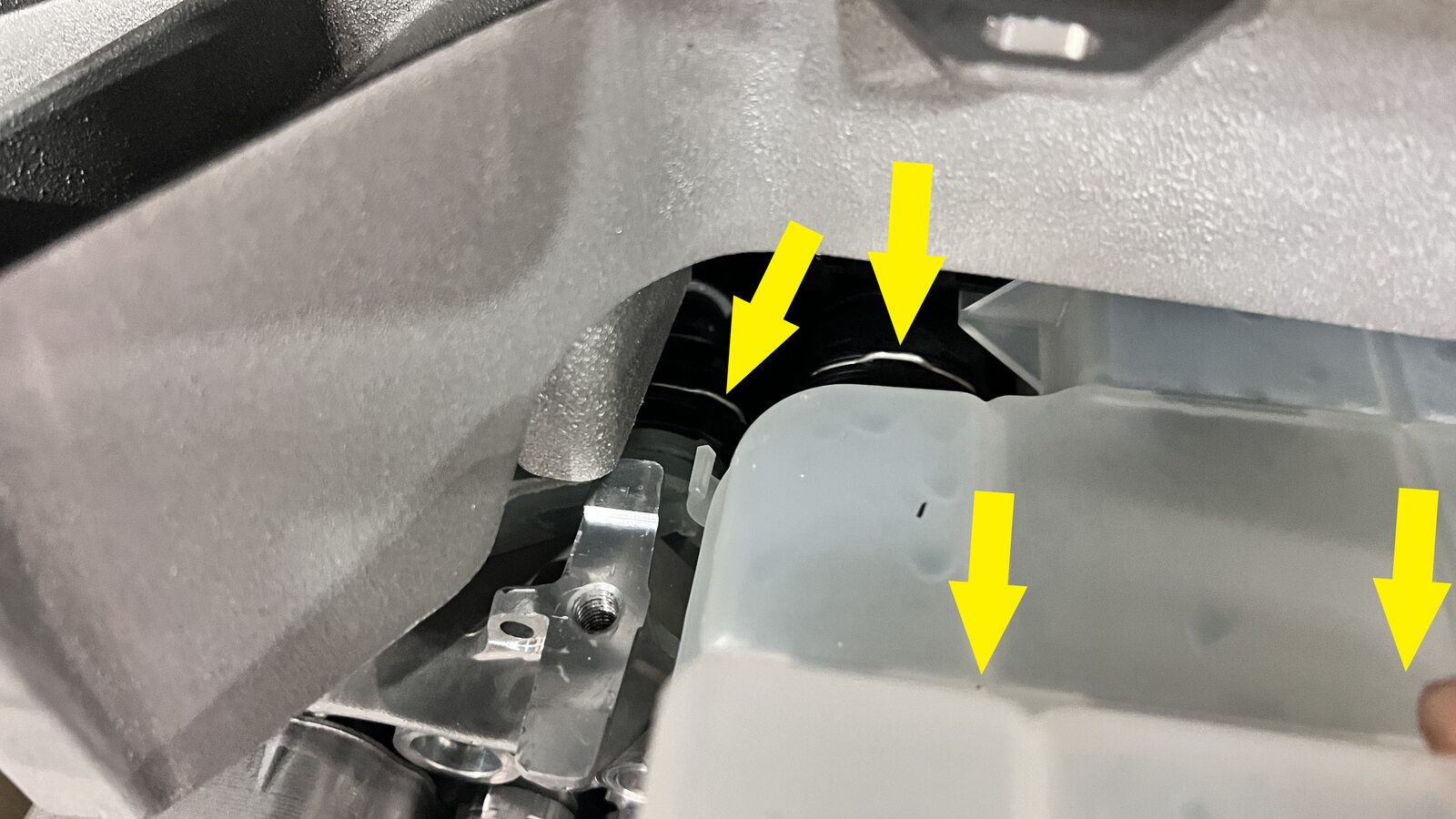

  5. Disconnect the remaining connectors (x4) and release the remaining clips (x4), then remove the RH frunk harness.
    Informational PurposesAn informational icon, calling your attention
    Remarque

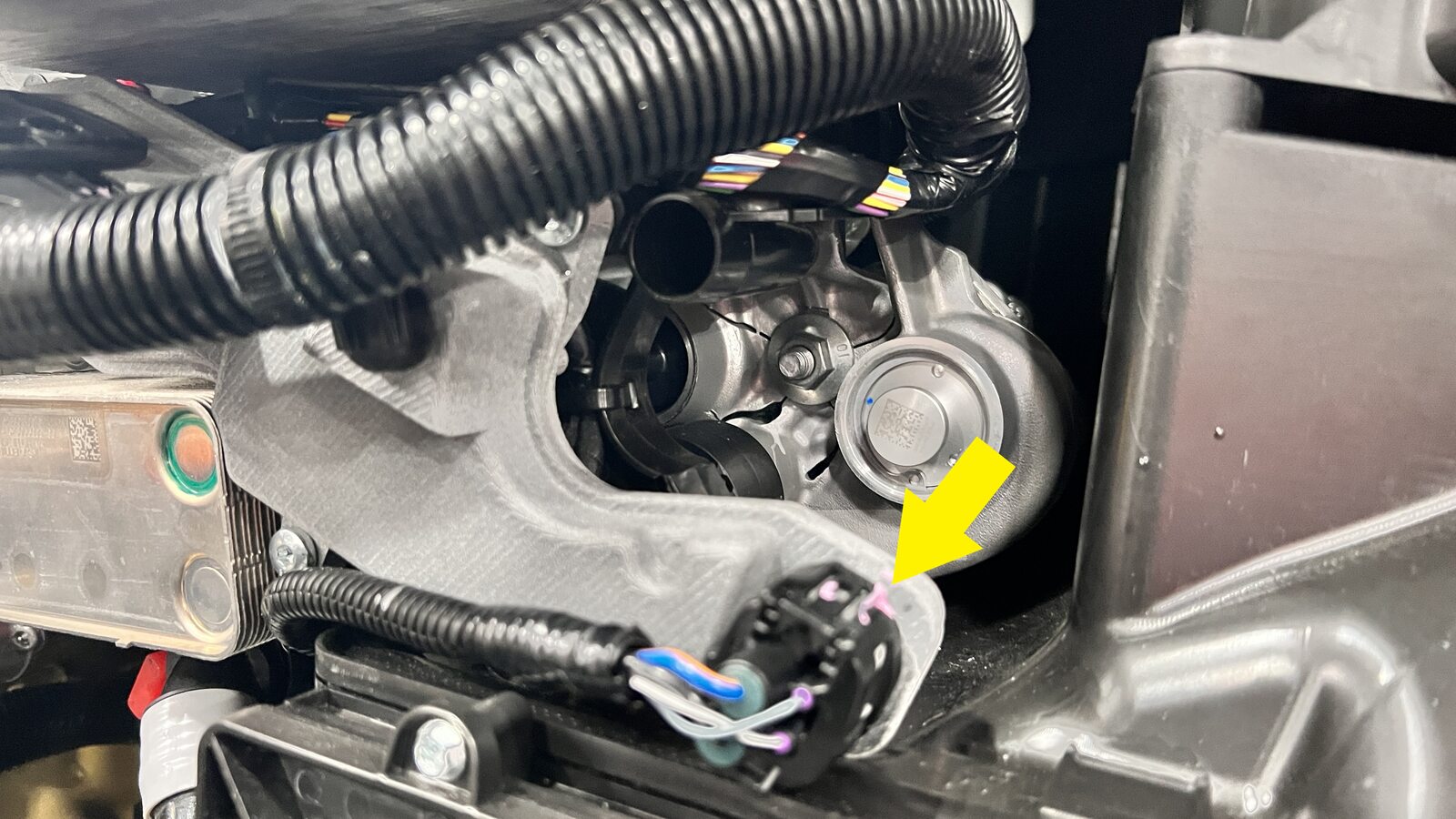

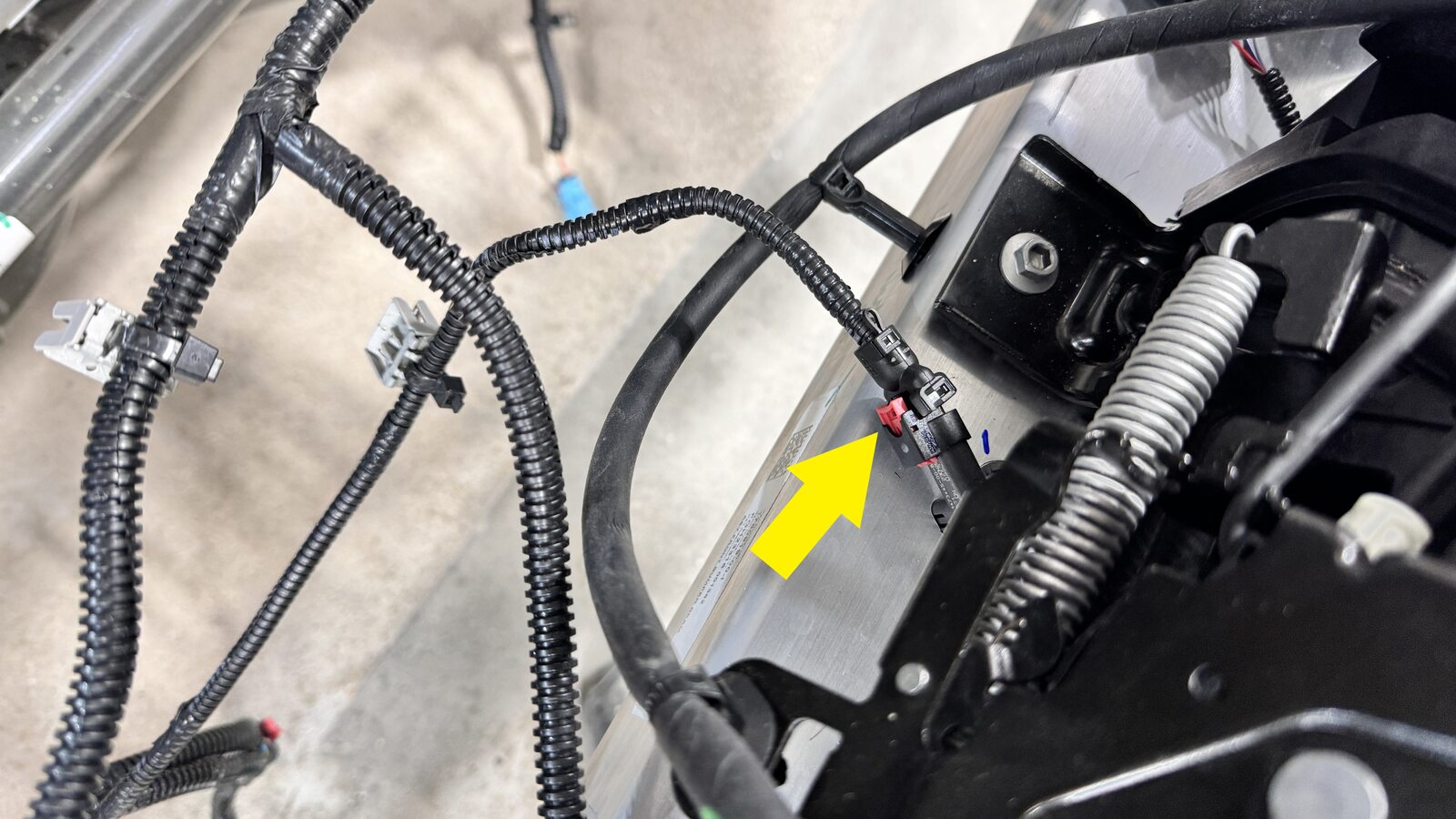

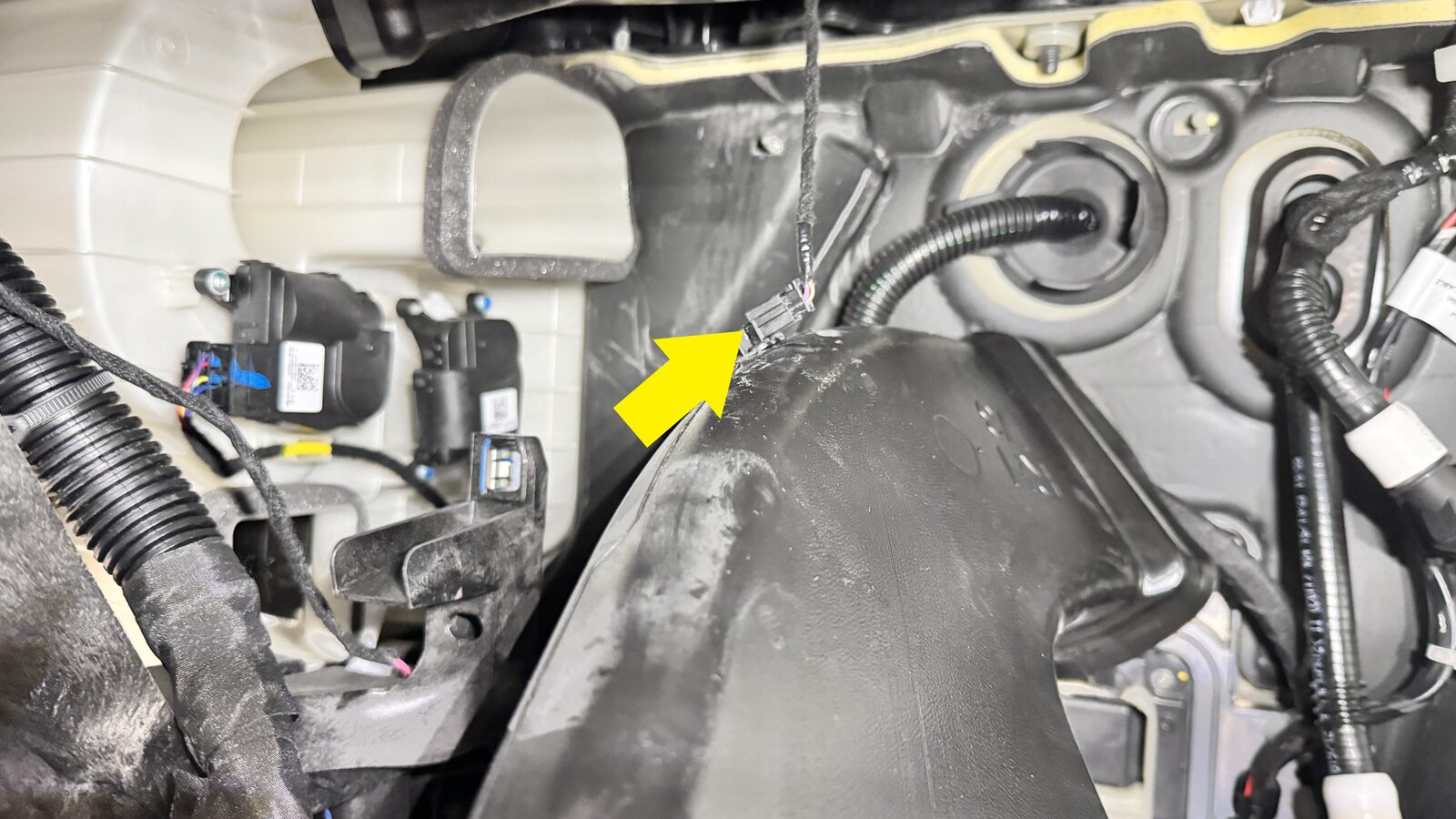

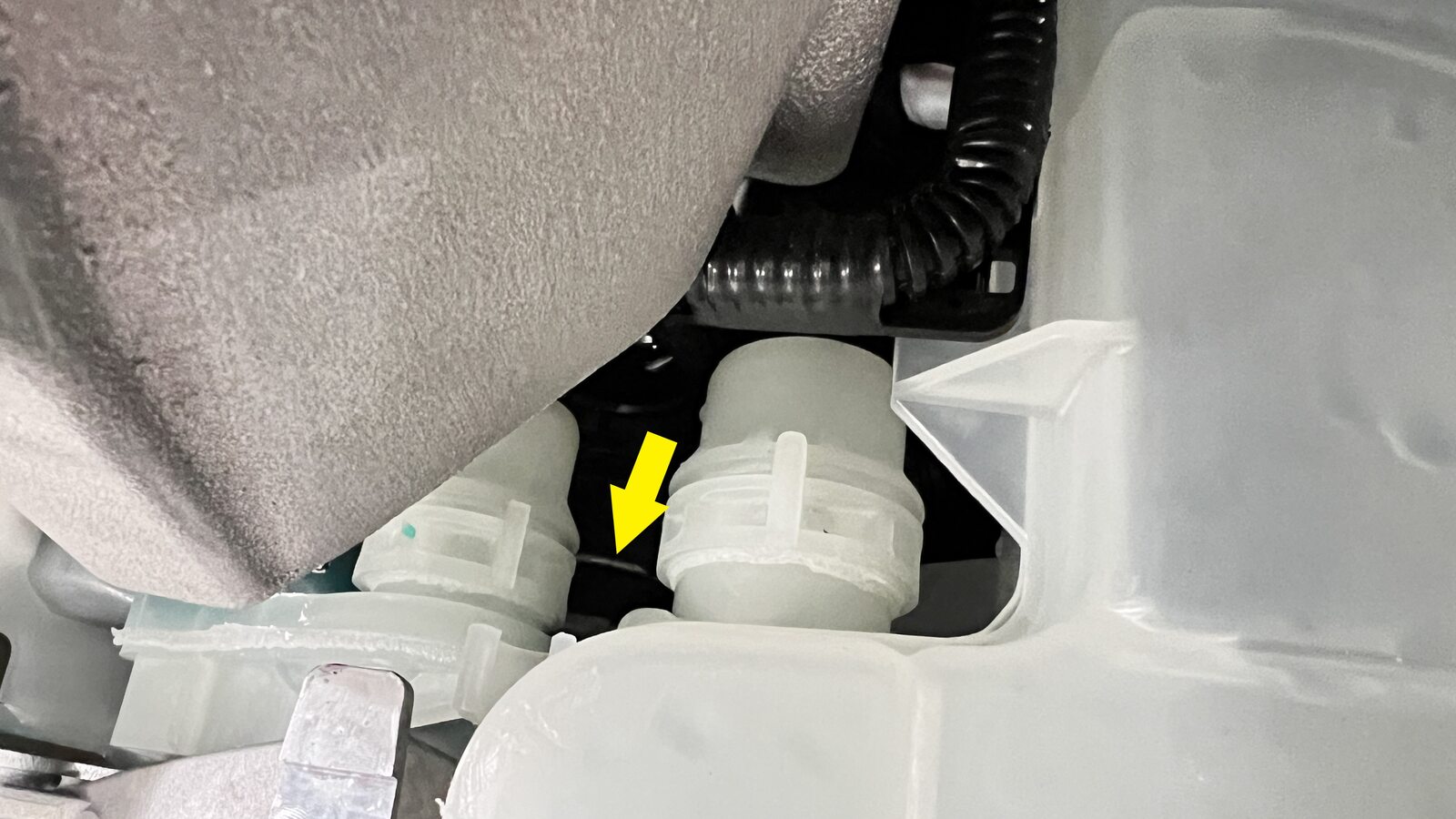

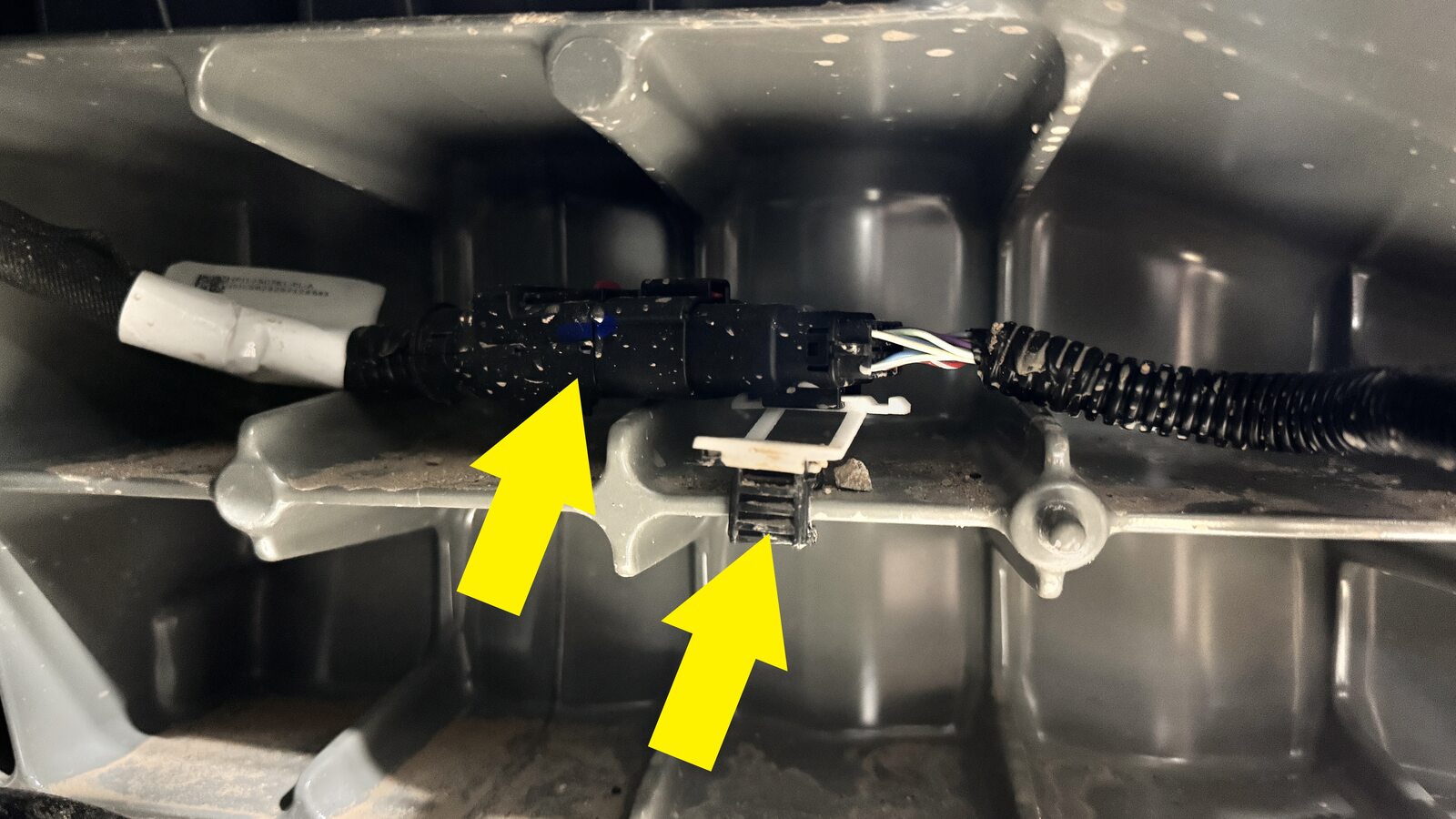

    Release the locking tab on each connector. The impact sensor connector is located under the hood latch.

Install

  1. Position the RH frunk harness around the wheel well. Install the connectors (x4) and secure the clips (x4).
    Informational PurposesAn informational icon, calling your attention
    Remarque
    The connector for the impact sensor located under hood latch. Engage the locking tab on each connector.
  2. Insert the connectors (x7) and clips (x15) for the rear section of the RH frunk harness.
    Informational PurposesAn informational icon, calling your attention
    Remarque

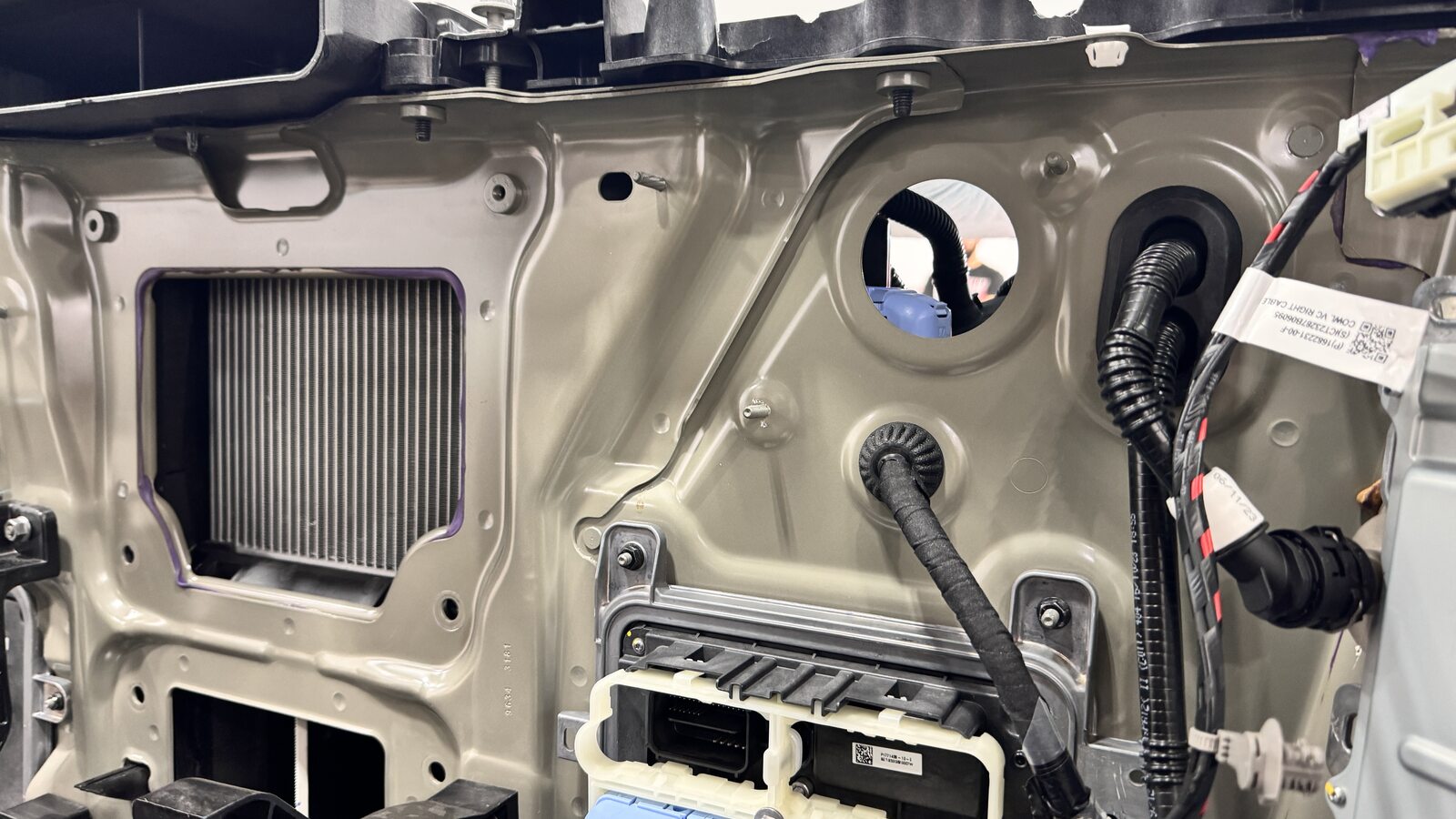

    Feed the interior section through the bulkhead opening. Engage the locking tab on each connector.
  3. Feed the RH frunk harness through the RH front wheel well.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    ATTENTION
    Be careful not to damage the harness,
  4. Install the wet side HVAC assembly. See Wet Side - HVAC (Remove and Install).
  5. Remove the vehicle from the lift. See Soulever le véhicule - pont élévateur à 2 poteaux.
