Code de correction 0.72 REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps forfaitaire ci-dessus représentent tout le travail à être fait pour cette procédure, notamment les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez Temps forfaitaires pour en apprendre plus à propos des temps forfaitaires et de leur création. Vous pouvez transmettre par courriel vos commentaires relatifs aux valeurs des temps forfaitaires à LaborTimeFeedback@tesla.com. REMARQUE : Consultez Protection individuelle pour vous assurer de porter l’équipement de protection individuelle adéquat lors vous effectuez la procédure ci-dessous.

1. Use the vehicle touchscreen to depressurize the TAS system. See Air Suspension - Pressurize / Depressurize - Full System (Test/Adjust).
2. Remove the bed floor assembly. See Truck Bed - Bed Floor Assembly (Remove and Install).
3. Release ANC air line from pressurized pack valve block
   Remarque

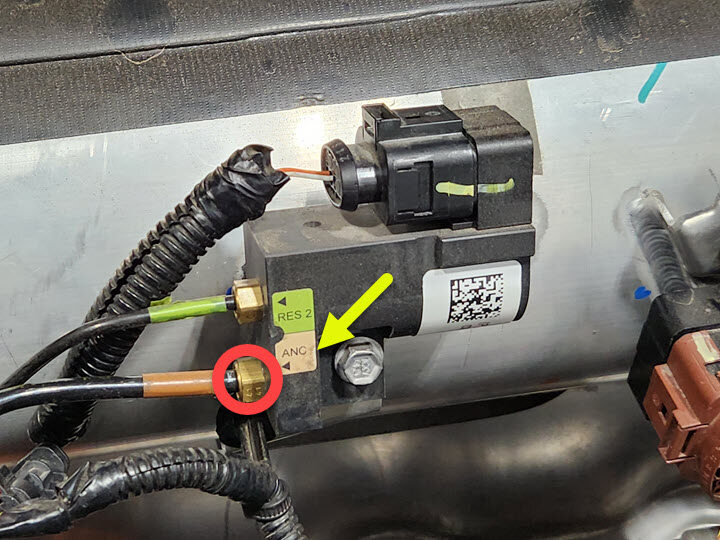

   1x VOSS fitting, 12mm, 8 Nm, Do not release air line to reservoir, Rapid loss of pressure will result if wrong air line is released



4. Remove VOSS air fitting from ANC air line
   Remarque

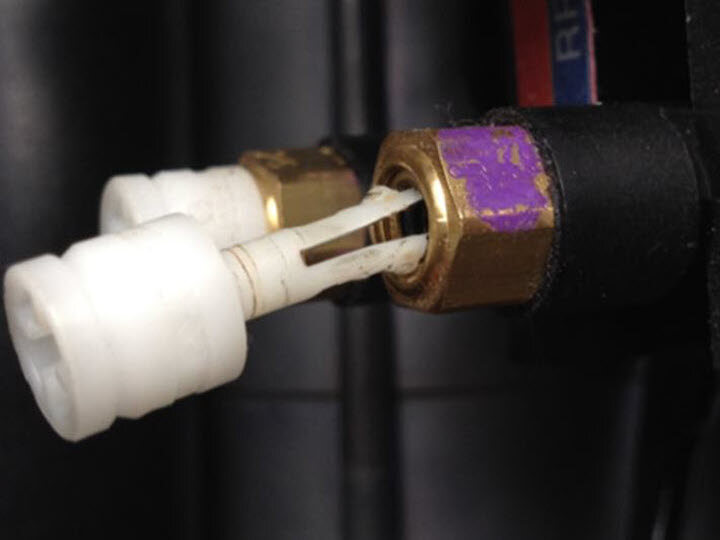

   1x VOSS fitting, Slide threaded section back, Remove collet, Then slide threaded section off of air line, Discard after removal





5. Release RES 2 air line from pressurized pack valve block
   Remarque

   1x VOSS fitting, 10mm, 8 Nm



6. Remove VOSS air fitting from RES 2 air line
   Remarque

   1x VOSS fitting, Slide threaded section back, Remove collet, Then slide threaded section off of air line, Discard after removal





7. Remove pressurized pack valve block
   Remarque

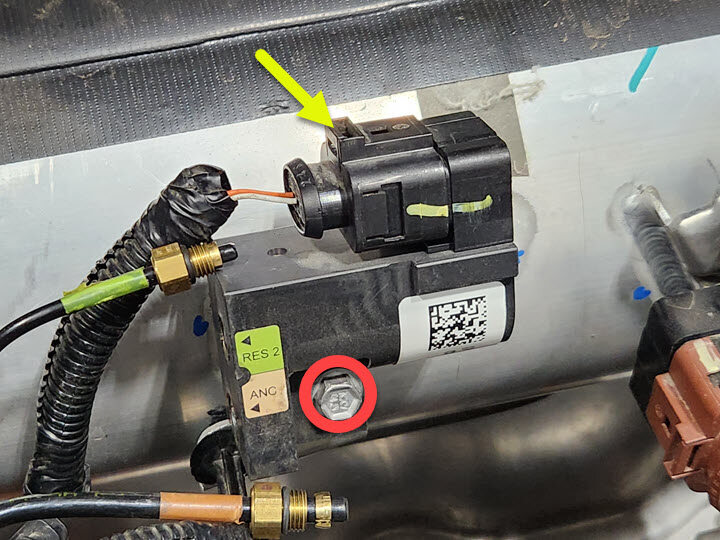

   1x bolt, 10mm, 5 Nm, 1x connector, 2x datums





8. Install pressurized pack valve block
   Remarque

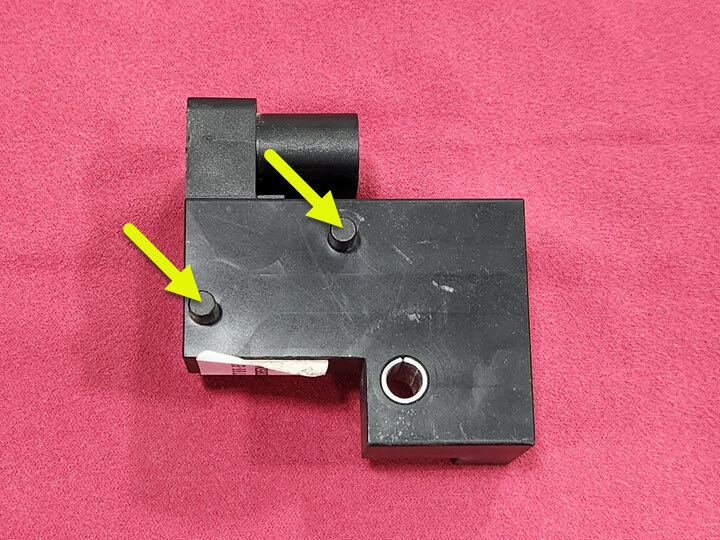

   1x bolt, 10mm, 5 Nm, 1x connector, 2x datums





9. Install new VOSS air fitting onto RES 2 air line
   Remarque

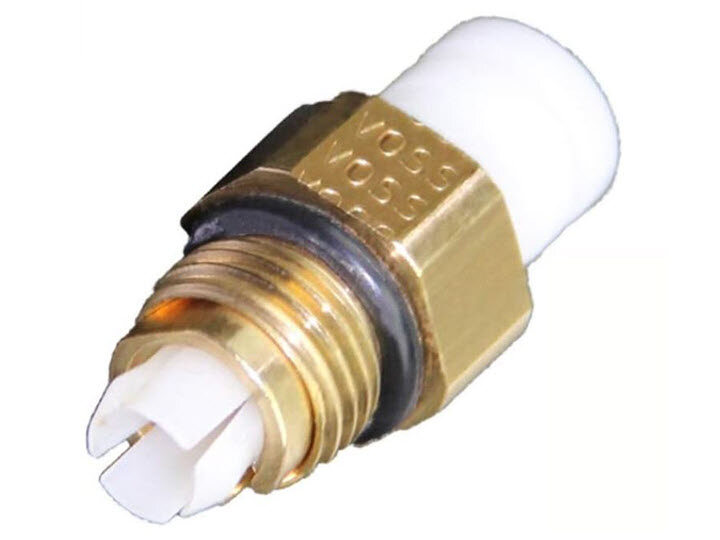

   1x VOSS fitting, 10mm, 8 Nm, Do not remove VOSS plastic plug until pressurized pack line is installed





10. Secure RES 2 air line onto pressurized pack valve block
    Remarque

    1x line, Remove plastic cap from VOSS fittings, Press air lines onto fitting until mark aligns with top of fitting, Verify line is properly secured by performing push and pull test





11. Install new VOSS air fitting onto ANC air line
    Remarque

    1x VOSS fitting, 12mm, 8 Nm, Do not remove VOSS plastic plug until pressurized pack line is installed





12. Secure ANC air line onto pressurized pack valve block
    Remarque

    1x line, Remove plastic cap from VOSS fittings, Press air lines onto fitting until mark aligns with top of fitting, Verify line is properly secured by performing push and pull test





13. Install the bed floor assembly. See Truck Bed - Bed Floor Assembly (Remove and Install).
14. Pressurize the TAS system but do not exit Service Mode. See Air Suspension - Pressurize / Depressurize - Full System (Test/Adjust).
15. Connect a laptop with Toolbox 3 to the vehicle. See Toolbox 3.0 (connecter et déconnecter).
16. Click the Actions tab and search for "Pressurize".
17. Click Tesla Air Suspension Pressurize HV Pack, click Run, and allow routine to complete.
    Remarque

    Select "X" at top right of window to close once complete, If reservoir air pressure is not ~16 bar then proceed to full system pressurize procedure, If pack is not able to maintain pressure post test then proceed to Pressurized Pack Not Holding Pressure inspection procedure, If pack is taking too long to pressurize then proceed to find leak
18. Disconnect Toolbox and remove the laptop from the vehicle. See Toolbox 3.0 (connecter et déconnecter).
19. Quitter mode Entretien. Voir Mode Entretien.
20. Remontez la glace avant gauche et fermez la porte avant gauche.
