Code de correction NA REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps forfaitaire ci-dessus représentent tout le travail à être fait pour cette procédure, notamment les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez Temps forfaitaires pour en apprendre plus à propos des temps forfaitaires et de leur création. Vous pouvez transmettre par courriel vos commentaires relatifs aux valeurs des temps forfaitaires à ServiceManualFeedback@tesla.com. REMARQUE : Consultez Protection individuelle pour vous assurer de porter l’équipement de protection individuelle adéquat lors vous effectuez la procédure ci-dessous. REMARQUE : Voir Précautions ergonomiquespour consulter les pratiques de travail sécuritaires et saines.

1. Open tailgate
   Remarque

   Press button to release



2. Open LH front door
   Remarque

   Push LH B-pillar door trigger to release





3. Lower LH front window



4. Open powered front trunk
   Remarque

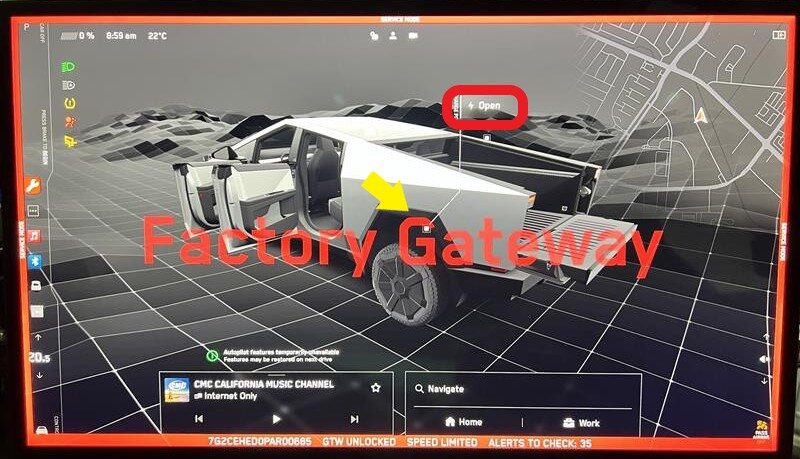

   Via exterior switch or UI





5. Using MCU open charge port door



6. Power down vehicle via UI
   Remarque

   Verify EPBs are engaged, Select charge port icon to ensure drive state is disengaged then power down vehicle via Controls > Safety > Power Off



7. Remove rear underhood apron
   Remarque

   9x clips

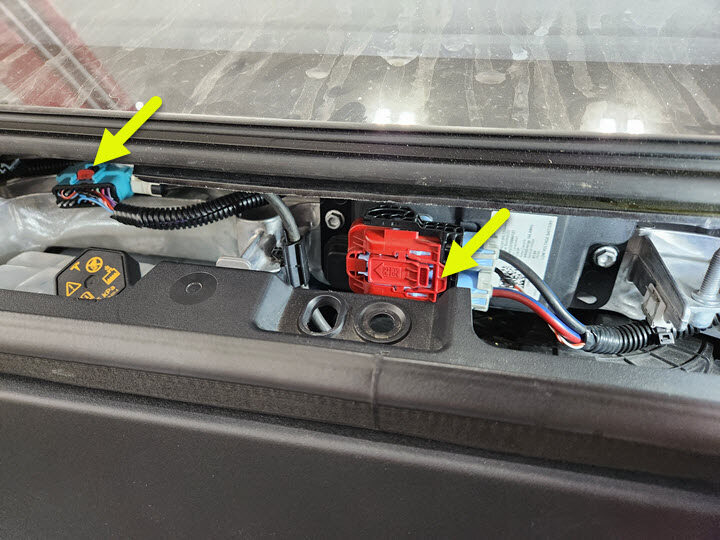

8. Disconnect FRL connector then disconnect MV battery connector
   Remarque

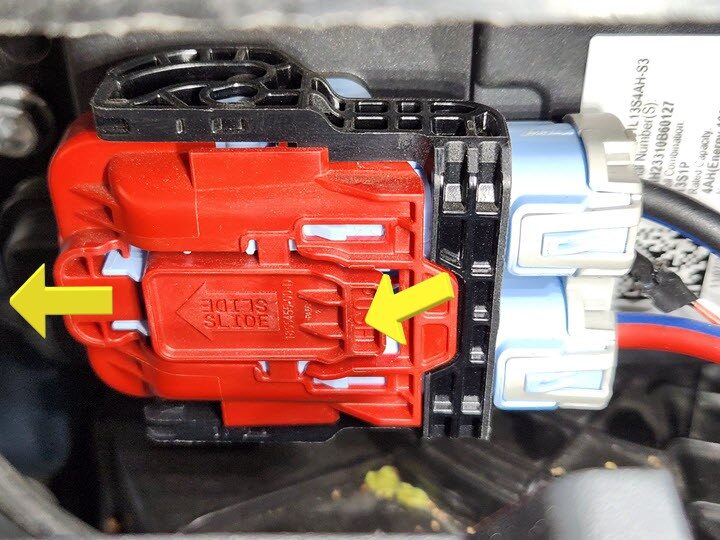

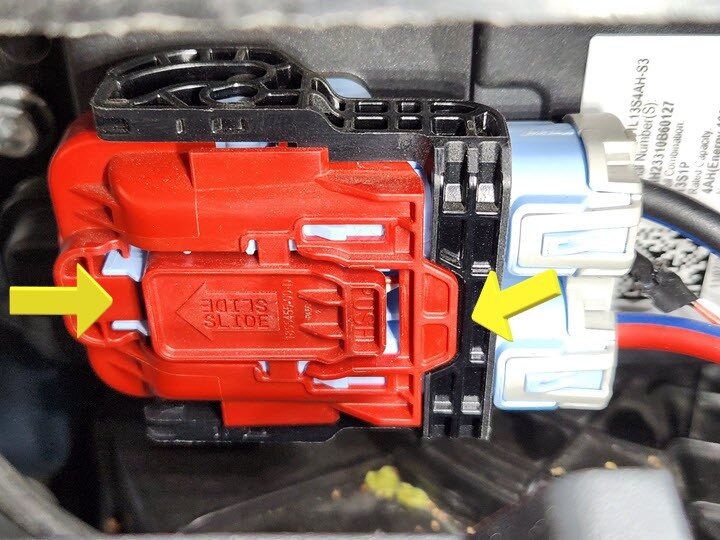

   2x connectors, Release locking tab then disconnect FRL connector, Slide eCPA to left then lift lever to release MV battery connector, Early production trucks may have black FRL connector, Release eCPA by pushing down to unlock and slide red locking tab, Wait 2 minutes for electrical circuits to discharge before disconnecting modules







9. Verify operation of multimeter
   Remarque

   Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing MV battery, Touch lightly and do not damage terminals





10. Remove all items from pockets and ensure not wearing metal items

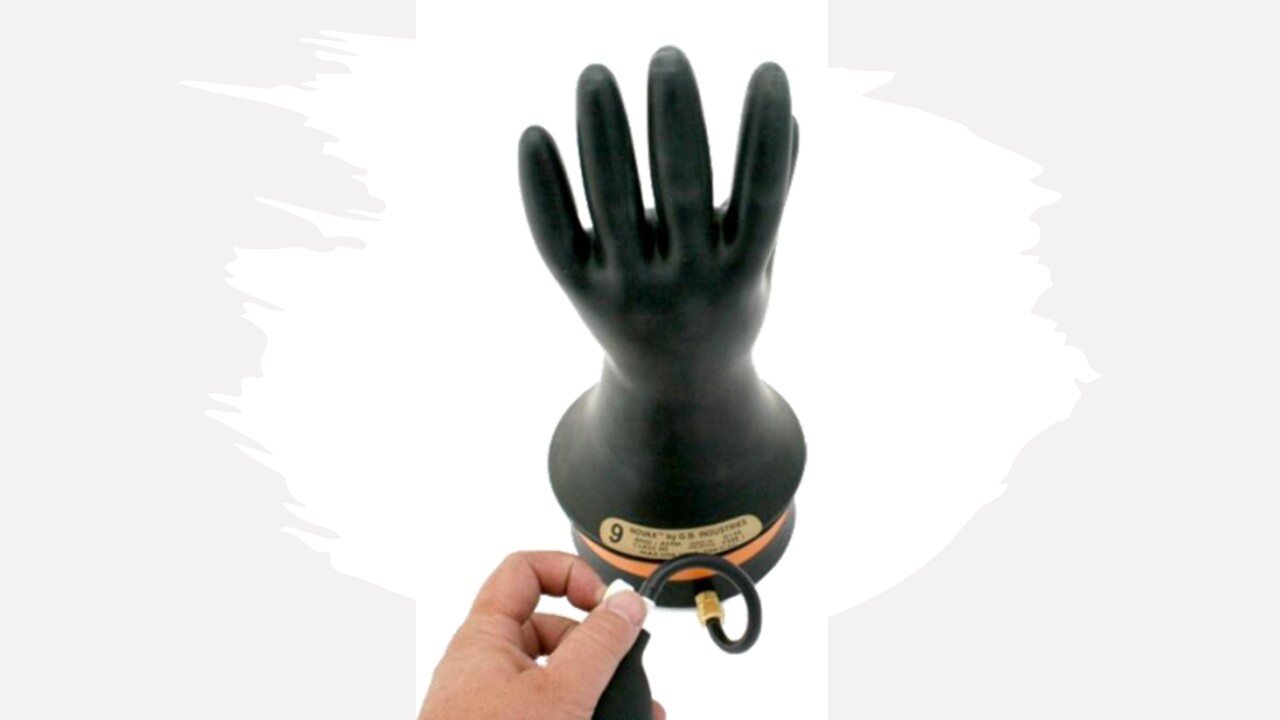

11. Inspect HV insulating gloves
    Remarque

    Check gloves for damage prior to use, Refer to service document TN-15-92-003



12. Put on HV insulating gloves and leather over gloves



13. Verify there is no high voltage present at the charge port
    Remarque

    Measure B+ to B-, and B+ to Ground and B - to Ground, Place Alligator clip onto body panel









14. Remove leather over gloves and HV insulating gloves

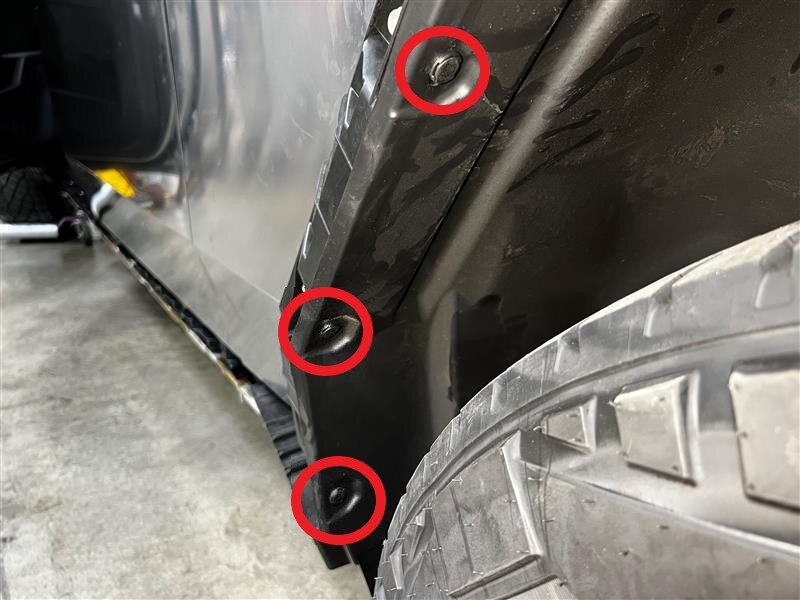

15. Remove both LH rear fore and aft fender flares
    Remarque

    12 clips, 9x tabs



16. Remove clips securing LH rear wheel liner to aft fender flare carrier
    Remarque

    2x clips

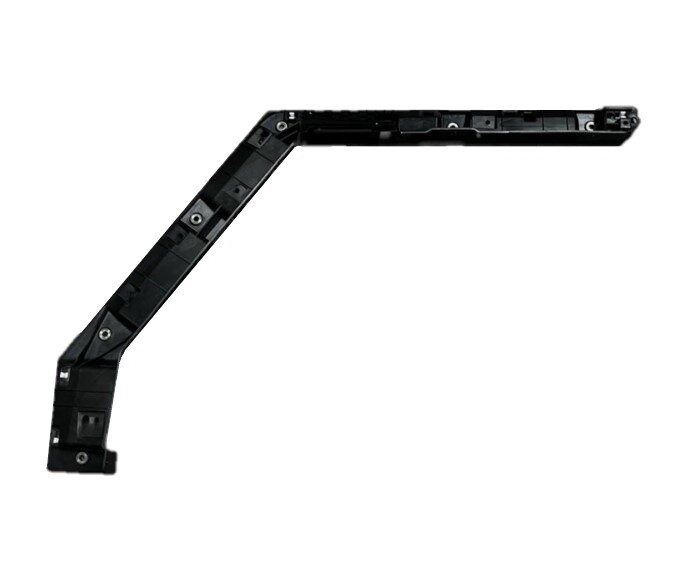

17. Remove LH rear aft fender flare carrier
    Remarque

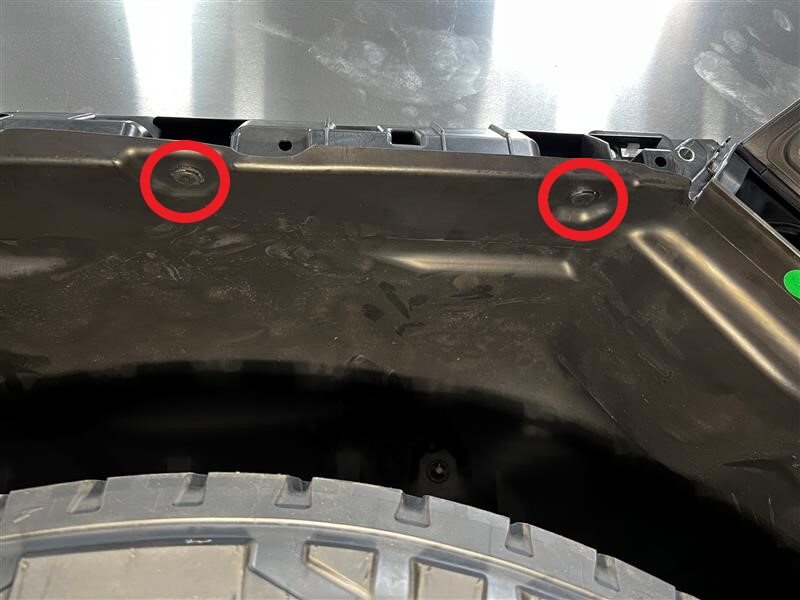

    2x bolts, 10mm, 7 Nm, 2x datum





18. Remove clips securing LH rear wheel liner to fore fender flare carrier
    Remarque

    5x clips





19. Remove LH rear fore fender flare carrier
    Remarque

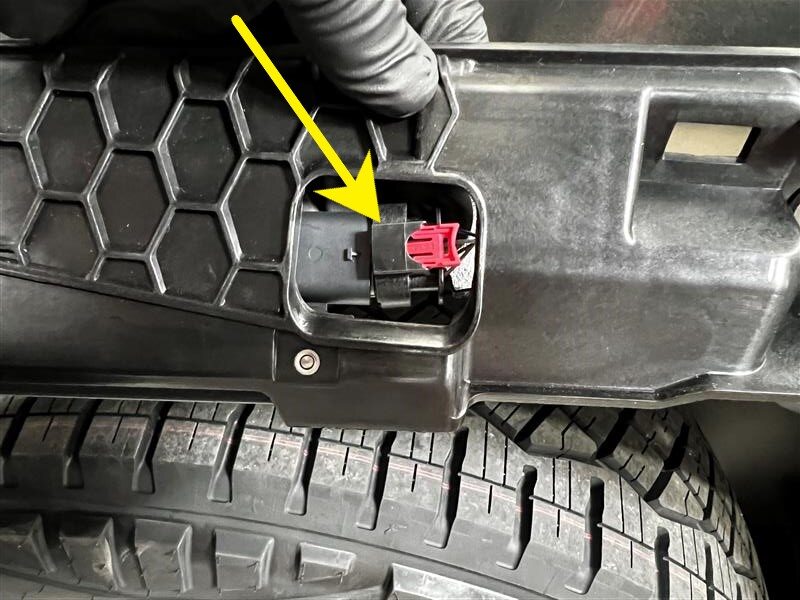

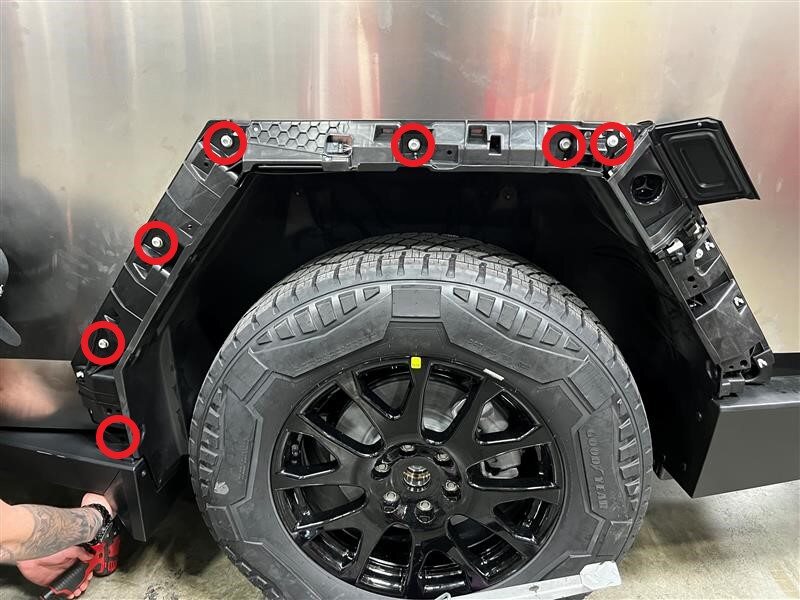

    6x bolts, 10mm, 7 Nm, 1x connector, Disconnect BLE module then remove carrier, Release locking tab

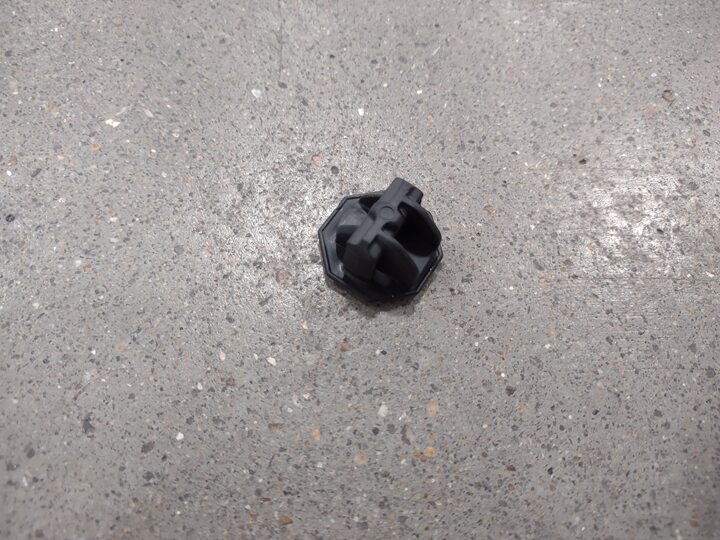

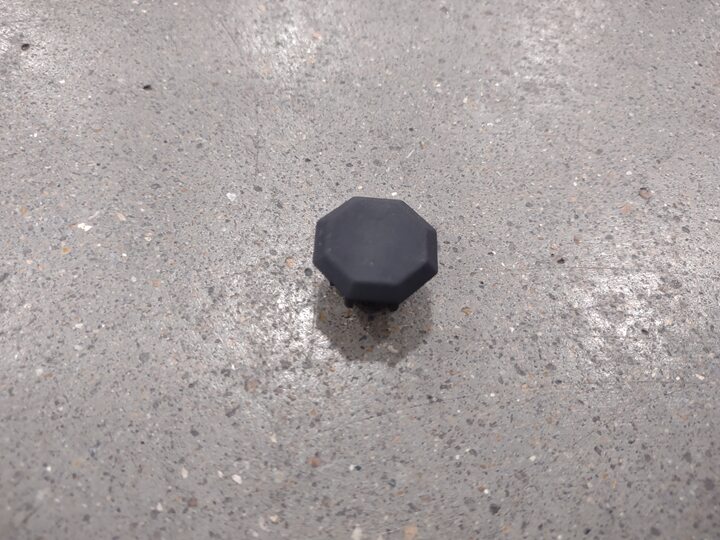

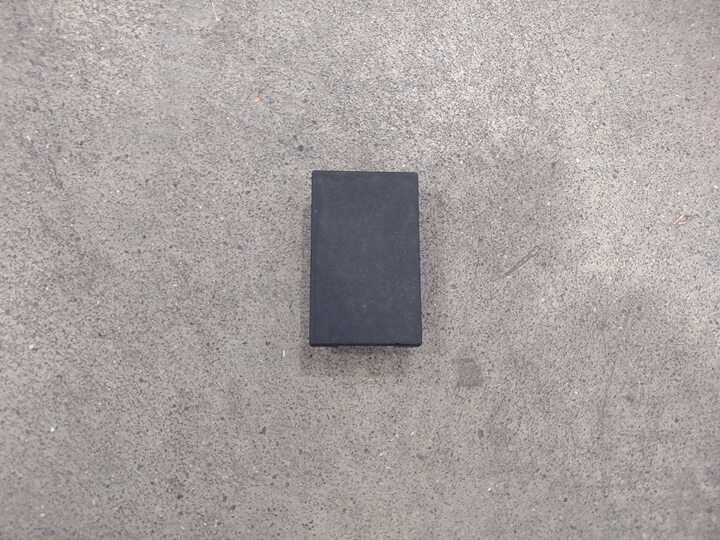

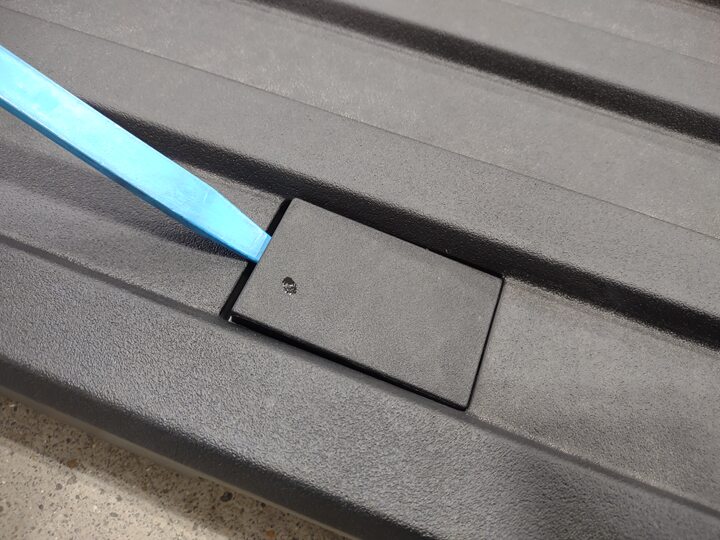

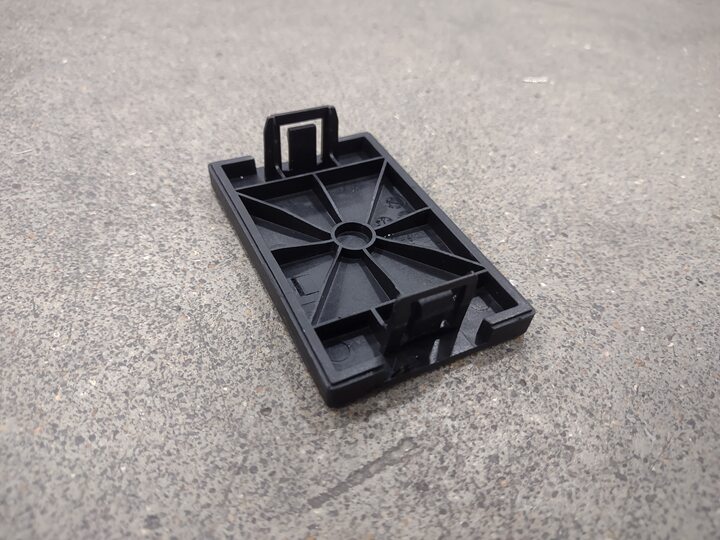

20. Remove fastener covers from bed floor assembly
    Remarque

    14x covers

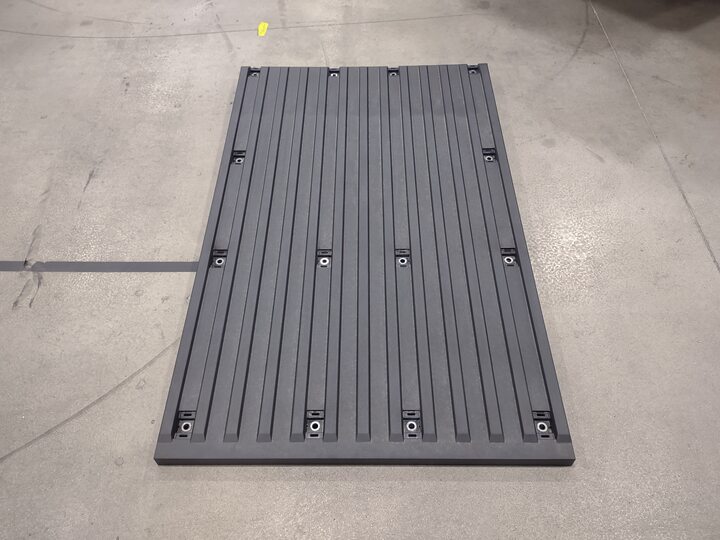

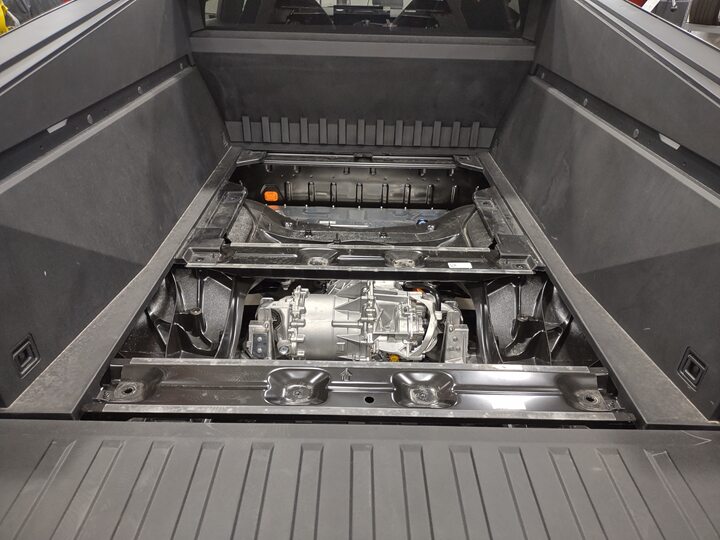

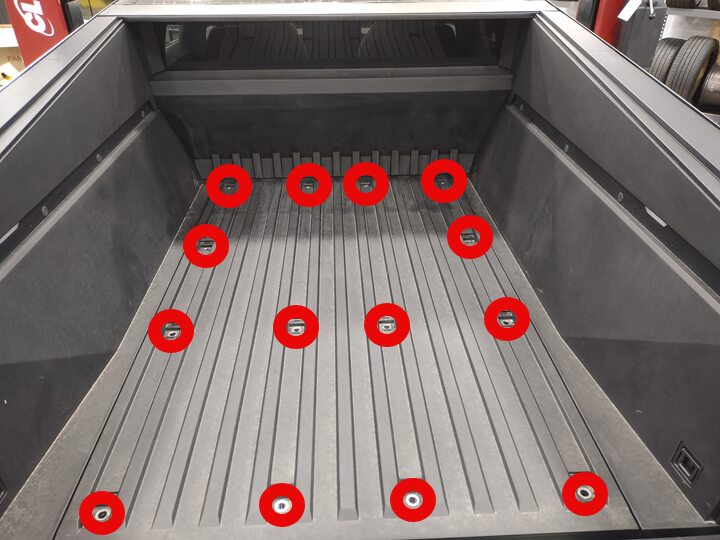

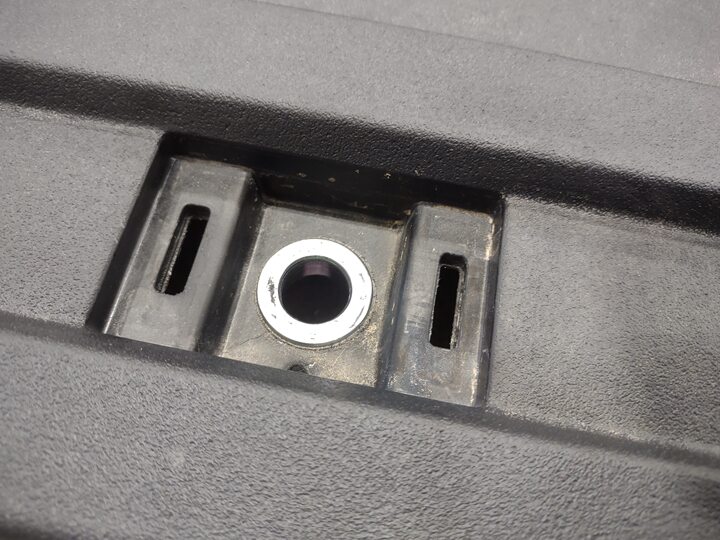

21. Remove bed floor assembly
    Remarque

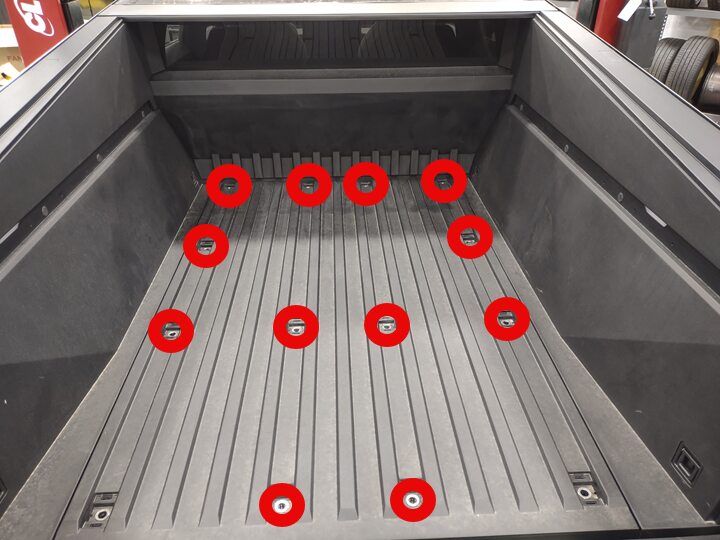

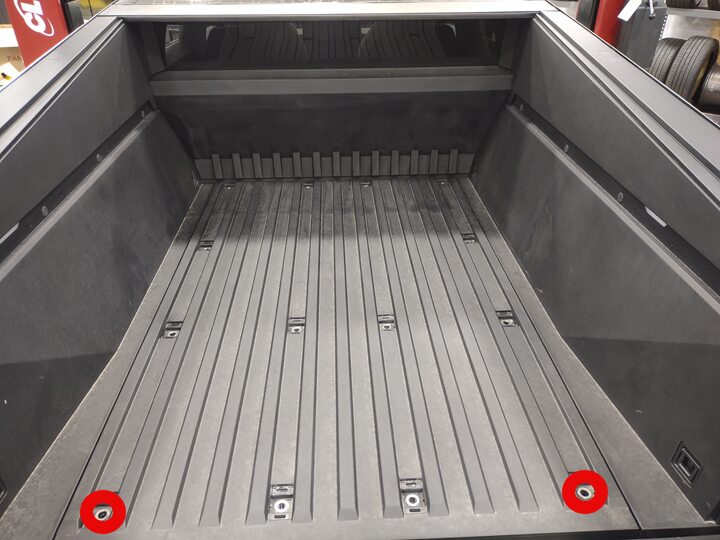

    10x short bolts, 15mm, 56 Nm, 2x long bolts, 15mm, 46Nm, Lift front edge with trim tool then remove panel, Recommend assistance

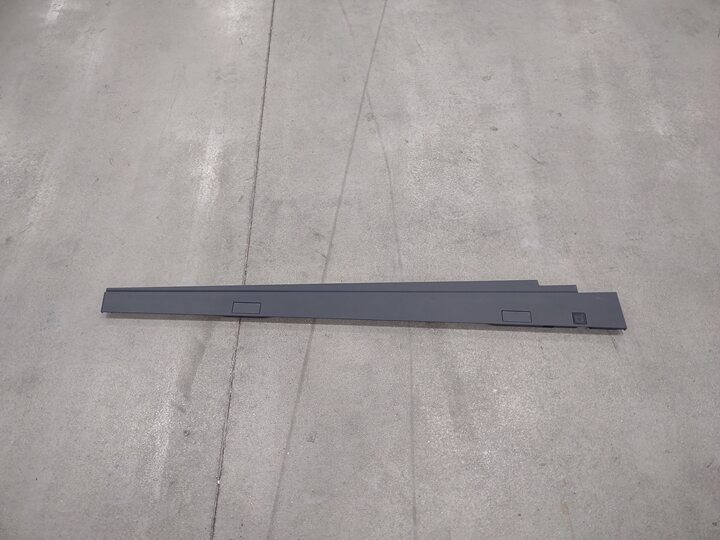

22. Remove LH sail applique
    Remarque

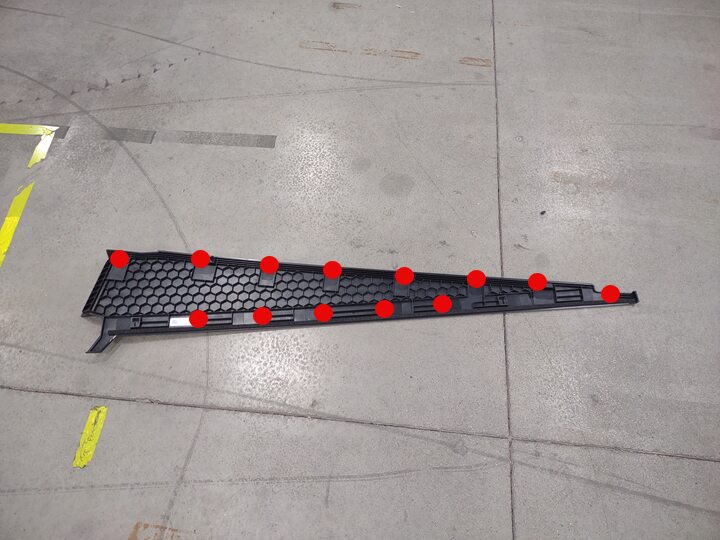

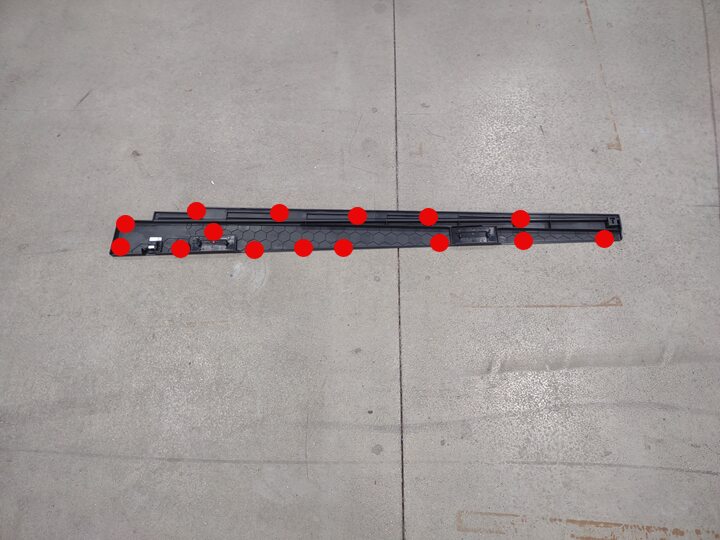

    15x clips, 1x connector, 1x harness clip, Lift rear edge first to remove connector and harness clip

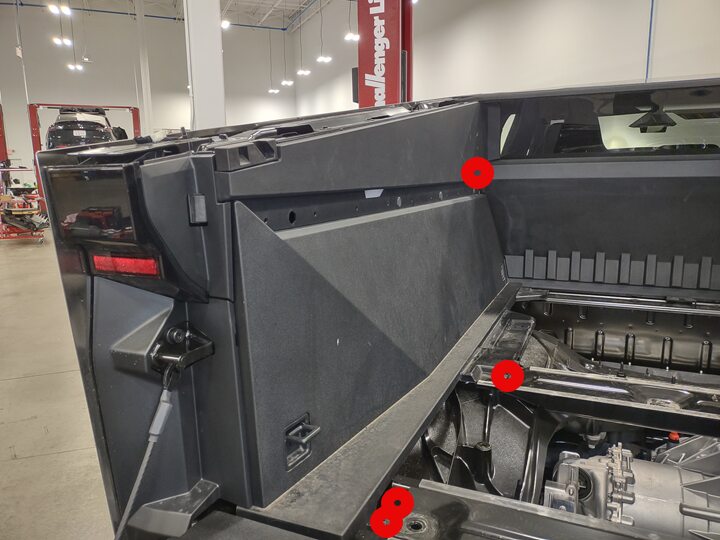

23. Remove LH upper bed side wall assembly
    Remarque

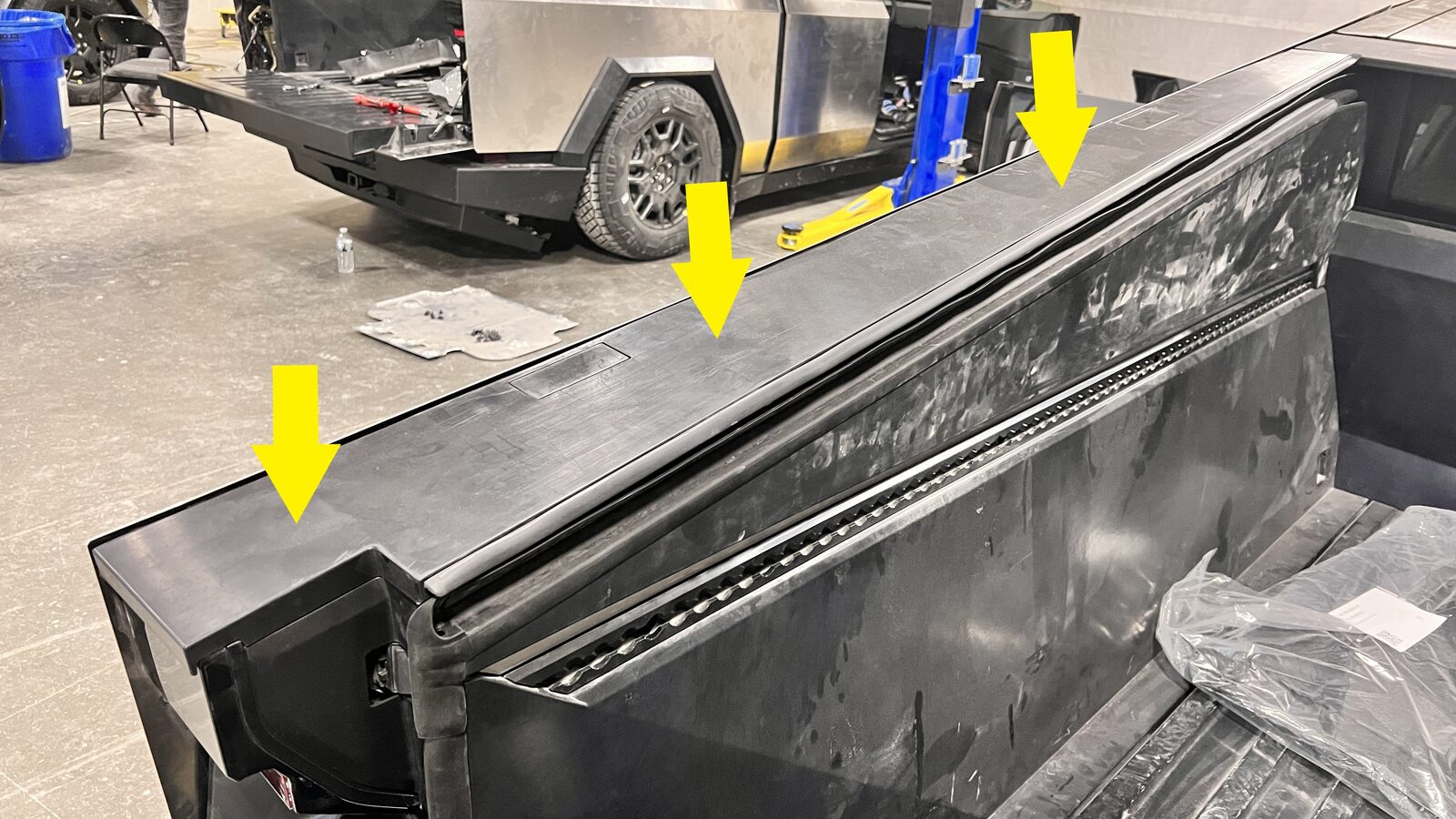

    13x clips, Start from rear, Pull from the bottom downwards





24. Remove LH bed closeout panel
    Remarque

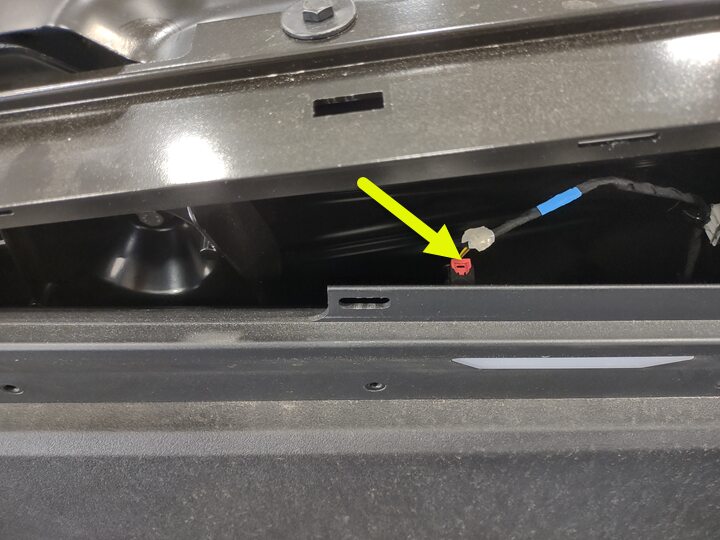

    6x clips, 1x tab, Release LH tailgate cable by disengaging lock spring from bolt and sliding cable eyelet off to allow removal of bed closeout panel from vehicle

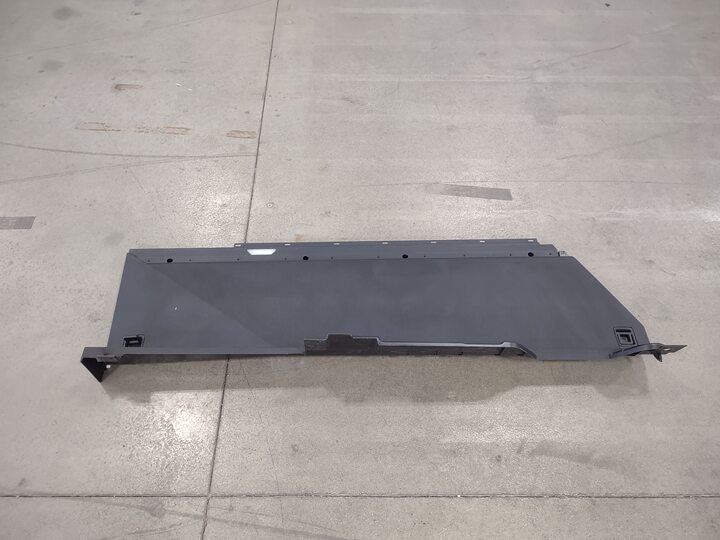

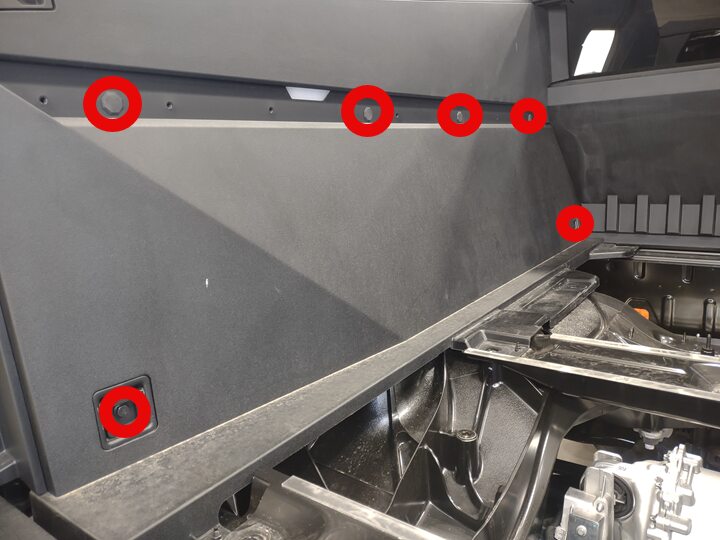

25. Remove LH lower bed side wall
    Remarque

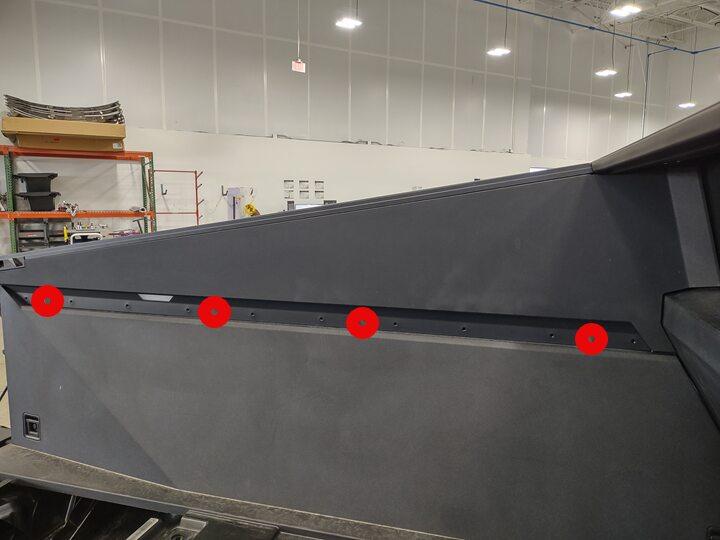

    2x bolt, 15mm, 25 Nm, 4x bolts, 10mm, 11 Nm, 4x nuts, 10mm, 10 Nm, 1x connector, 4x L track fastener covers















26. Remove bolt securing busbar HV connector lid
    Remarque

    1x bolt, EP10, 9 Nm



27. Remove bolts securing HV connector to DC FC header
    Remarque

    2x bolts, 10mm, 9 Nm



28. Release HV connector from DC FC header
    Remarque

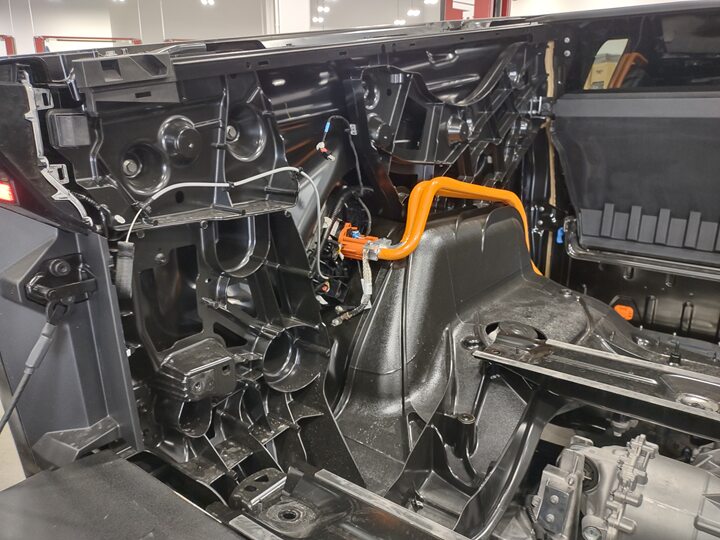

    1x connector, Use inflatable airbag to suspend busbar assembly above ancillary assembly

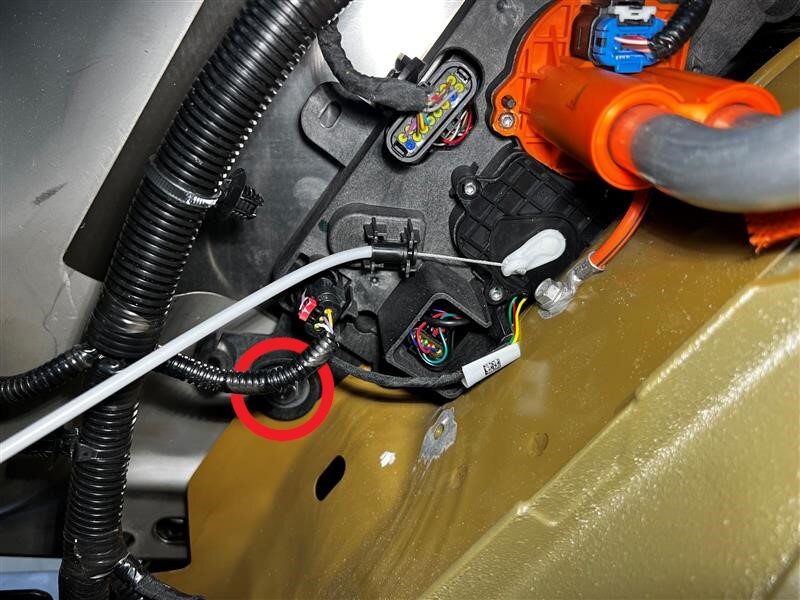

29. Remove connector from chargeport assembly
    Remarque

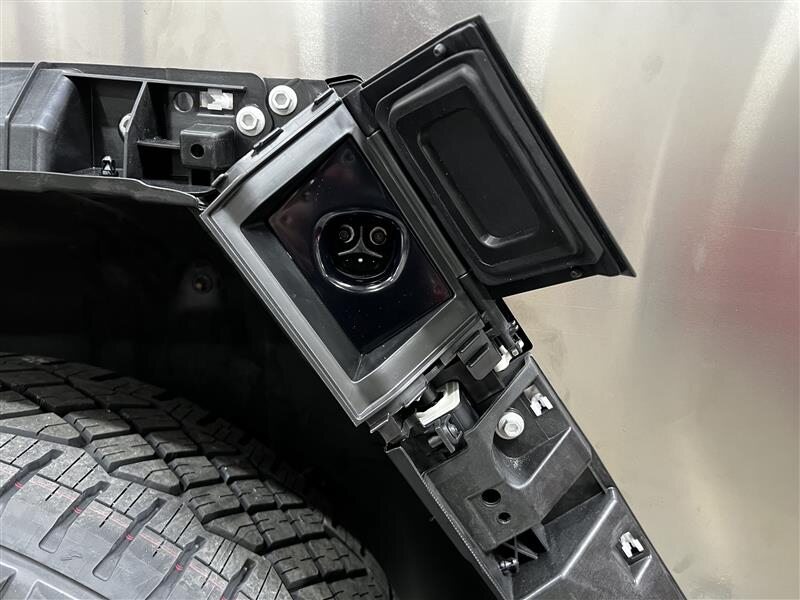

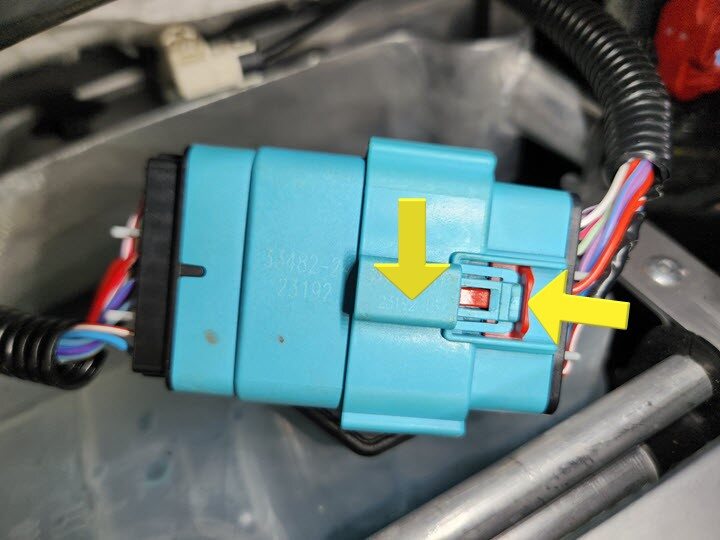

    1x connectors, Remove white locking tab, Depress tab to release connection from the charge port, Continue to pull off connector, The charge port connection is intended to disengage safety cap when released, Do not push down on red tab, Pull red tab to disengage lock, Pull again to release connector



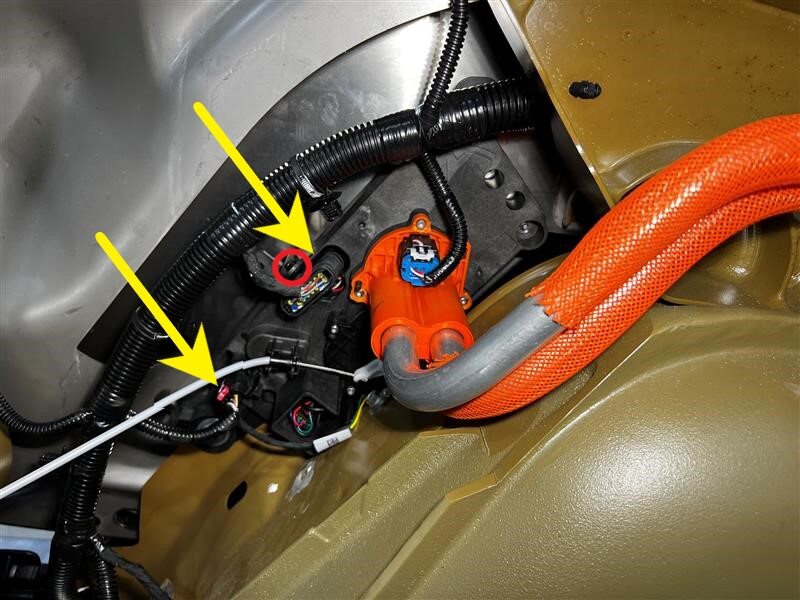

30. Remove chargeport door and LV connector
    Remarque

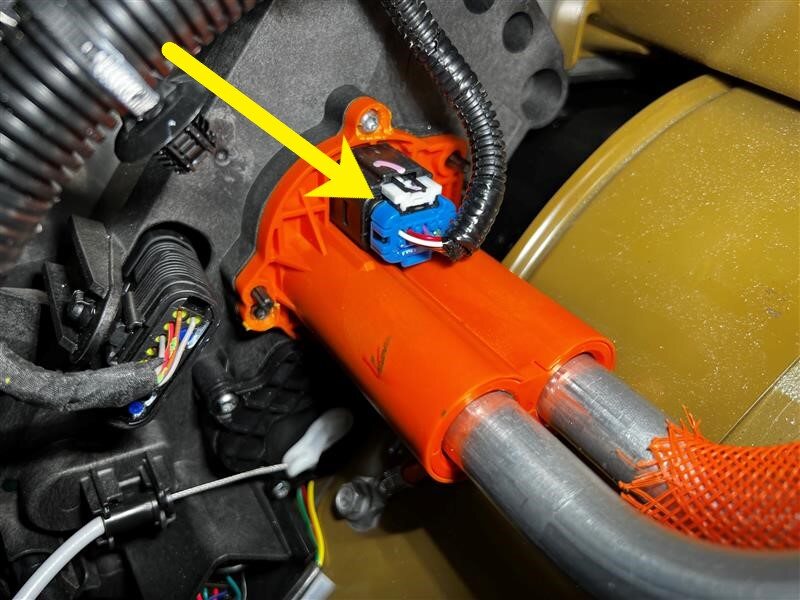

    2x connector, 1x clip

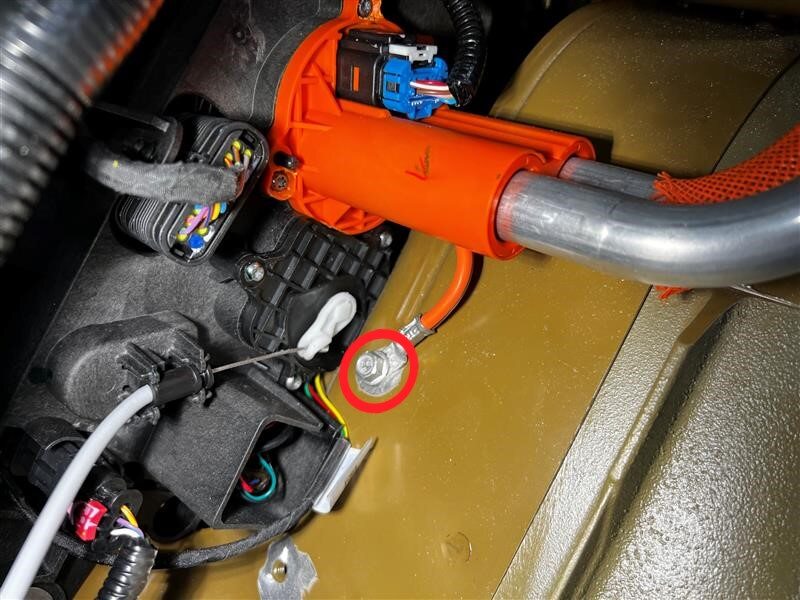

31. Remove bolt securing ground cable to busbar assembly
    Remarque

    1x bolt, 10mm, 6.5 Nm



32. Release chargeport from outer sail
    Remarque

    1x bolt, 10mm, 6.5 Nm

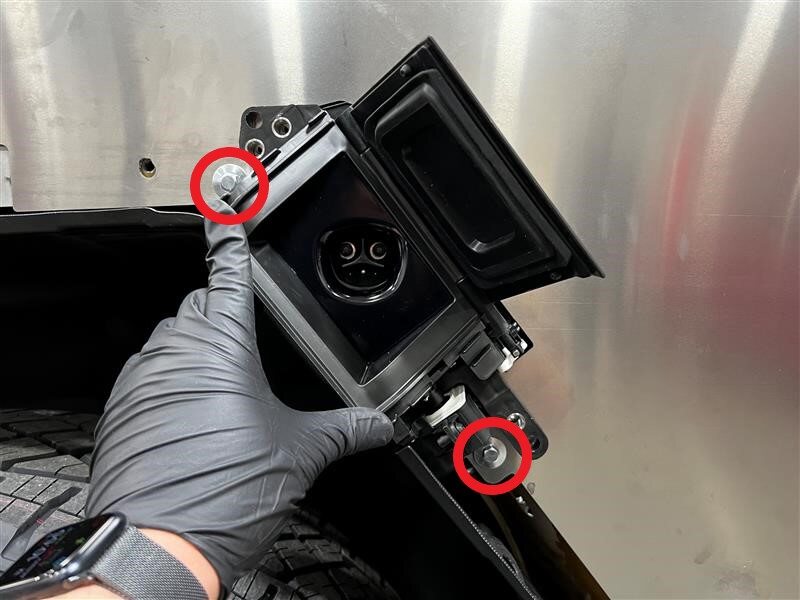

33. Remove bolts securing chargeport assembly onto body
    Remarque

    2x bolts, 10mm, 6 Nm, Use only hand tools, Risk of galling if power tools used on stainless fasteners

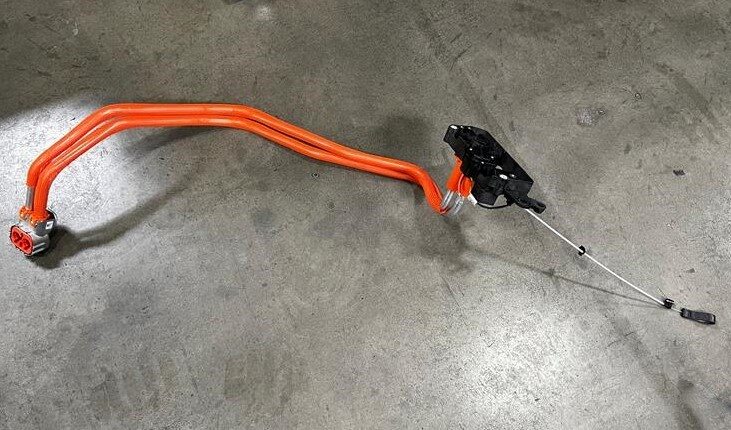

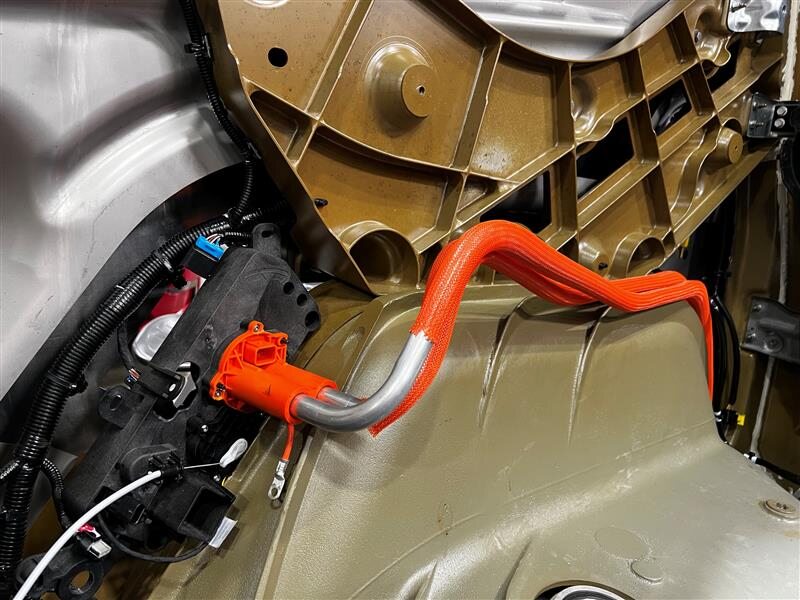

34. Remove chargeport and busbar from vehicle





35. Clean HV connector contact surface of residual Penetrox
    Remarque

    Allow 1 minute dry time after removing Penetrox, New busbar comes with Penetrox applied to HV connector



36. Apply Penetrox onto HV connector joints
    Remarque

    Apply 2 drops of Penetrox A-13 about 5mm in diameter to either side of the hole on both leads, Spread evenly to verify the contact surface is fully covered



37. Position chargeport busbar assembly onto vehicle





38. Install bolts securing charge port busbar kit to HV Header
    Remarque

    2x bolts, 10mm, 9 Nm



39. Perform Hioki resistance test at each HV joint from HV busbar lead to bolt head
    Remarque

    2x HV joints, When using Hioki tester, verify the meter has been properly adjusted and set prior to usageThe acceptable resistance is between 0.050 mΩ (50 μΩ) and 0.195 mΩ (195 μΩ).If the resistance is greater than 0.195 mΩ (195 μΩ), stop work and escalate the Toolbox session.If the resistance is lower than 0.050 mΩ (50 μΩ), reposition the probes and measure again.If the resistance is repeatedly between 0.00 mΩ and 0.050 mΩ (50 μΩ), hioki test passed, proceed to next step





40. Install bolts securing chargeport assembly onto body
    Remarque

    2x bolts, 10mm, 6 Nm, Use only hand tools, Risk of galling if power tools are used on stainless fasteners



41. Install chargeport to outer sail
    Remarque

    1x bolt, 10mm, 6.5 Nm



42. Install busbar ground bolt
    Remarque

    1x bolt, 10mm, 6.5 Nm



43. Install chargeport door and LV connector
    Remarque

    2x connectors, 1x clip



44. Engage charge port connector
    Remarque

    1x connector, Fully engage connection and white locking tab, The connector is intended to lock the safety cap in place



45. Install LH lower bed side wall
    Remarque

    2x bolt, 15mm, 25 Nm, 4x bolts, 10mm, 11 Nm, 4x nuts, 10mm, 10 Nm, 1x connector, 4x L track fastener covers

















46. Install LH bed closeout panel
    Remarque

    6x clips, 1x tab, Secure LH tailgate cable once closeout installed







47. Install LH upper bed side wall assembly
    Remarque

    13x clips, Replace any missing or damaged clips, Lift tonneau seal as required





48. Install LH sail applique
    Remarque

    15x clips, 1x connector, 1x harness clip, Replace any broken clips





49. Install bed floor assembly
    Remarque

    10x short bolts, 15mm, 56 Nm, 2x long bolts, 15mm, 46Nm, Recommend assistance











50. Install fastener covers onto bed floor assembly
    Remarque

    14x covers









51. Install LH rear fore fender flare carrier
    Remarque

    6x bolts, 10mm, 7 Nm, 1x connector, Connect BLE then install carrier, Engage locking tab







52. Install clips securing LH rear wheel liner to fore fender flare carrier
    Remarque

    5x clips





53. Install clips securing LH rear wheel liner to aft fender flare carrier
    Remarque

    2x clips



54. Install both LH rear fore and aft fender flares
    Remarque

    12 clips, 9x tabs



55. Connect FRL connector then connect MV battery connector
    Remarque

    2x connectors, Connect FRL connector then secure locking tab, Position lever to secure MV battery connector then slide eCPA to right, Early production trucks may have black FRL connector, If power cycling vehicle then ensure at least 60 seconds has passed since powering down







56. Install rear underhood apron
    Remarque

    9x clips, Adjust windshield seal as required





57. Close powered front trunk
    Remarque

    Via exterior switch or UI



58. Raise LH front window



59. Close LH front door



60. Close tailgate
