Code de correction NEW REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps forfaitaire ci-dessus représentent tout le travail à être fait pour cette procédure, notamment les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez Temps forfaitaires pour en apprendre plus à propos des temps forfaitaires et de leur création. Vous pouvez transmettre par courriel vos commentaires relatifs aux valeurs des temps forfaitaires à ServiceManualFeedback@tesla.com. REMARQUE : Consultez Protection individuelle pour vous assurer de porter l’équipement de protection individuelle adéquat lors vous effectuez la procédure ci-dessous.

1. Open LH front door
   Remarque

   Push LH B-pillar door trigger to release
2. Lower LH front window
3. Raise and support vehicle
   Remarque

   Set air suspension to "Jack Mode"
4. Remove LH front wheel cap
   Remarque

   1x cap, 8x clips, Use both hands to firmly pull wheel cap to release clips, Cap may remove with or without mounting ring attached

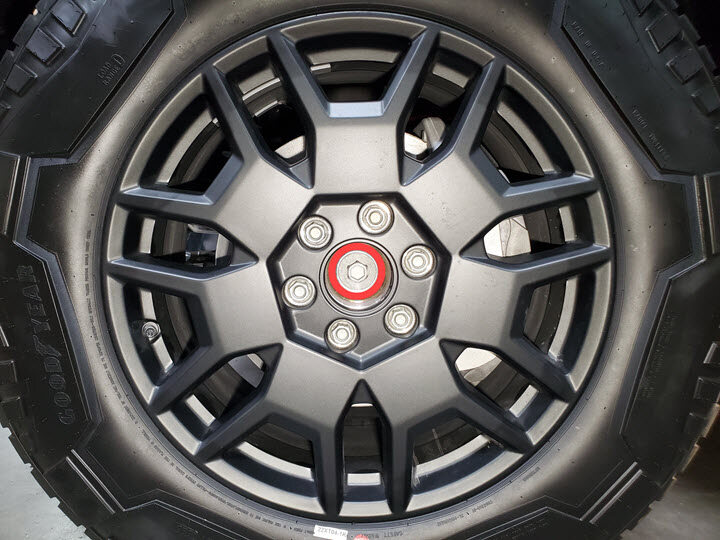

5. Loosen LH front wheel nuts
   Remarque

   6x nuts, 21mm, 205 Nm



6. Loosen LH front halfshaft bolt
   Remarque

   1x bolt, 24mm, 300 Nm



7. Raise vehicle fully
   Remarque

   Set to a comfortable working height, Lower to locks, Ensure locks engage on both sides to prevent tilting
8. Remove LH front wheel
   Remarque

   6x nuts, 21mm, 205 Nm



9. Remove LH front brake hose bracket
   Remarque

   1x bolt, 10mm, 10 Nm



10. Remove LH front caliper and set aside
    Remarque

    2x bolts, 24mm, 315 Nm, Rotor will be loose until caliper is installed, Use lug nut to secure rotor as needed







11. Remove LH front brake rotor



12. Remove nut securing LH tie rod end to knuckle
    Remarque

    1x nut, 21mm, 170 Nm



13. Remove LH tie rod end from knuckle

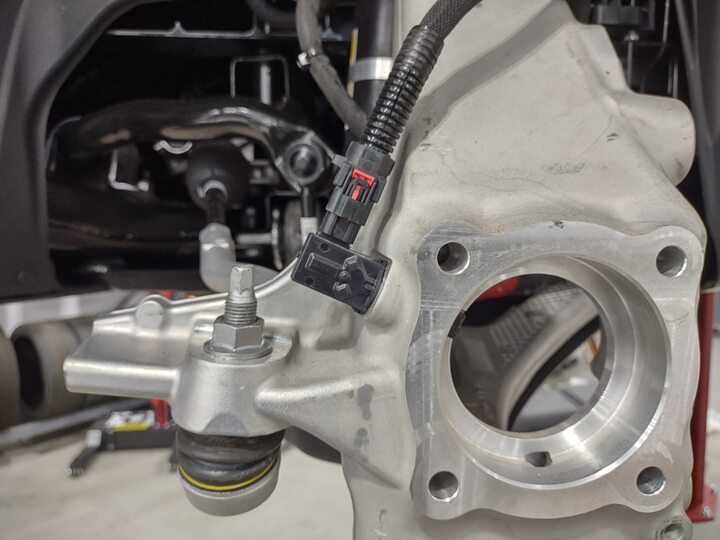

14. Disconnect LH front wheel speed sensor connector
    Remarque

    1x connector





15. Remove clips securing LH front chassis jumper harness to knuckle
    Remarque

    2x clips

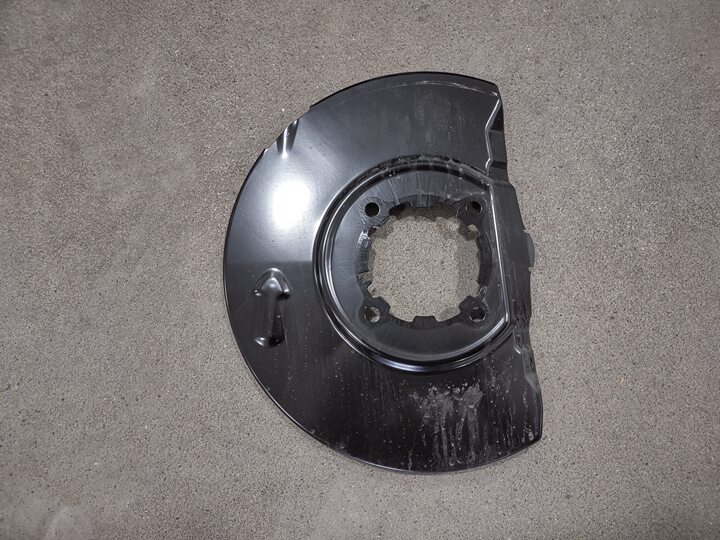

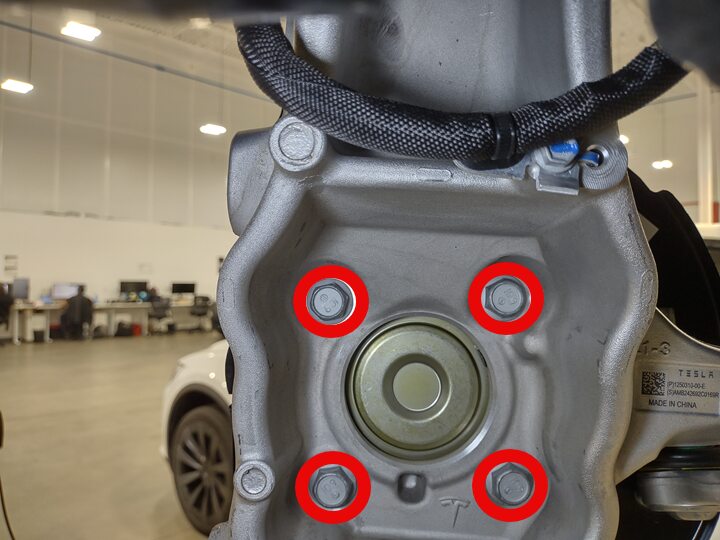

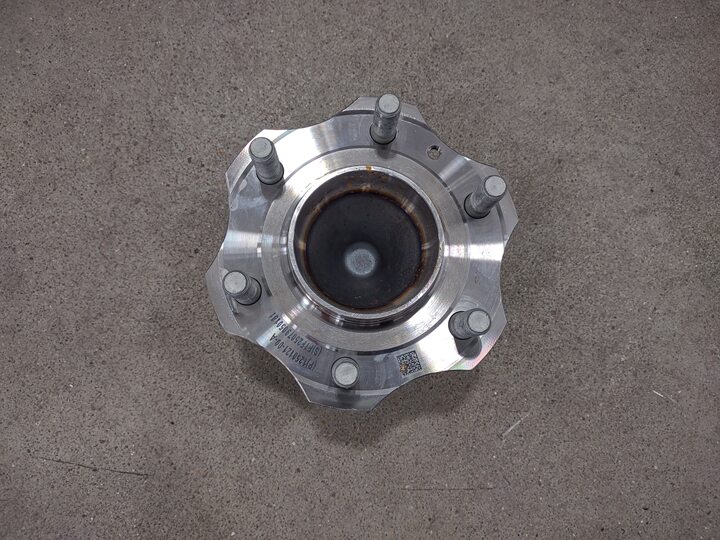

16. Remove LH front hub and brake shield
    Remarque

    4x bolts, 18mm, 105 Nm, 1x tab, Remove brake shield with hub,

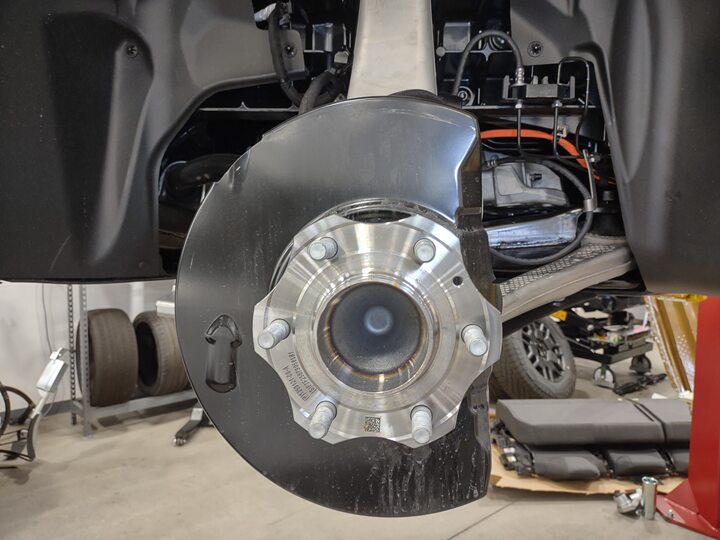

17. Install LH front hub and brake shield
    Remarque

    4x bolts, 18mm, 105 Nm, 1x tab, Position shield onto hub,











18. Install clips securing LH front chassis jumper harness to knuckle
    Remarque

    2x clips



19. Connect LH front wheel speed sensor connector
    Remarque

    1x connector





20. Position LH tie rod end onto knuckle



21. Install nut securing LH tie rod end to knuckle
    Remarque

    1x nut, 21mm, 170 Nm



22. Install LH front brake rotor
    Remarque

    Rotor will be loose until caliper is installed



23. Install LH front caliper
    Remarque

    2x bolts, 24mm, 315 Nm, Rotor will be loose until caliper is installed, Use lug nut to secure rotor as needed





24. Install LH front brake hose bracket
    Remarque

    1x bolt, 10mm, 10 Nm



25. Install LH front wheel
    Remarque

    6x nuts, 21mm, 205 Nm



26. Lower vehicle until tires are touching the ground
    Remarque

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
27. Torque LH front wheel nuts
    Remarque

    6x nuts, 21mm, 205 Nm, Use star pattern



28. Install LH front wheel cap
    Remarque

    1x cap, 8x clips, Partially secure wheel cap to wheel, While partially installed wheel cover can be rotated to align with tire design, When aligned press inward from center of cap then secure all clips to mounting ring







29. Remove vehicle from lift
    Remarque

    Lower rack arms fully and remove them from under vehicle, Remove air suspension from "Jack Mode"
30. Raise LH front window
31. Close LH front door
