Steering Gear - Rear (Long Range) (Remove and Install)

Code de correction NEW REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps forfaitaire ci-dessus représentent tout le travail à être fait pour cette procédure, notamment les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez Temps forfaitaires pour en apprendre plus à propos des temps forfaitaires et de leur création. Vous pouvez transmettre par courriel vos commentaires relatifs aux valeurs des temps forfaitaires à ServiceManualFeedback@tesla.com. REMARQUE : Consultez Protection individuelle pour vous assurer de porter l’équipement de protection individuelle adéquat lors vous effectuez la procédure ci-dessous.

  • 2025-06-21: New procedure released.
Warning IconA warning icon, calling your attention to a possibly risky situation
Avertissement
Cette procédure est une PREMIÈRE VERSION. Bien qu'elle ait été validée, des avertissements et des mises en garde pourraient manquer. Respectez les exigences de sécurité et faites preuve d’une extrême prudence lorsque vous travaillez sur ou près des systèmes et des composants haute tension. Transmettez toute correction ou remarque à ServiceDevelopment@teslamotors.com.
Warning IconA warning icon, calling your attention to a possibly risky situation
Avertissement
Les composants électroniques du Cybertruck sont alimentés par une architecture  moyenne tension » ou « MT » de 48 V conçue pour améliorer l'efficacité. L'entretien des composants MT nécessite des connaissances et des soins supplémentaires afin d'éviter tout dommage corporel ou au véhicule. Lisez et comprenez les précautions relatives à la MT dans Précautions en électricité et assurez-vous que tous les cours de formation requis liés à la MT ont été suivis, le cas échéant.
  • 2025-05-15: Released new procedure.
  1. Open LH front door
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Push LH B-pillar door trigger to release
  2. Lower LH front window
  3. Raise and support vehicle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Set air suspension to "Jack Mode"
  4. Exécutez la routine ODIN PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox: (link)
  5. Open tailgate
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Press button to release
  6. Open powered front trunk
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Via exterior switch or UI
  7. Power down vehicle via UI
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Verify EPBs are engaged, Select charge port icon to ensure drive state is disengaged then power down vehicle via Controls > Safety > Power Off

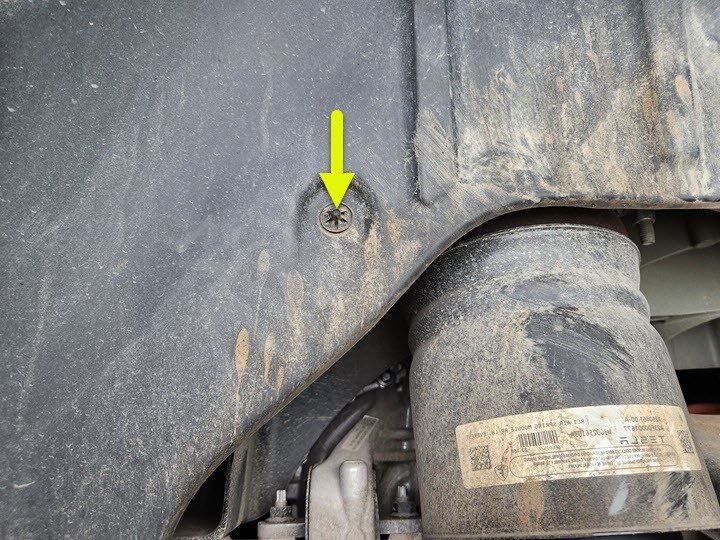

  8. Remove rear underhood apron
    Informational PurposesAn informational icon, calling your attention
    Remarque
    9x clips
  9. Disconnect FRL connector then disconnect MV battery connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors, Release locking tab then disconnect FRL connector, Slide eCPA to left then lift lever to release MV battery connector, Early production trucks may have black FRL connector, Release eCPA by pushing down to unlock and slide red locking tab, Wait 2 minutes for electrical circuits to discharge before disconnecting modules
  10. Remove fastener covers from bed floor assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    14x covers
  11. Remove bed floor assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    10x short bolts, 15mm, 56 Nm, 2x long bolts, 15mm, 46Nm, Lift front edge with trim tool then remove panel, Recommend assistance
  12. Remove LH rear wheel cap
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x cap, 8x clips, Use both hands to firmly pull wheel cap to release clips, Cap may remove with or without mounting ring attached
  13. Loosen LH rear wheel nuts
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x nuts, 21mm, 205 Nm
  14. Remove RH rear wheel cap
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x cap, 8x clips, Use both hands to firmly pull wheel cap to release clips, Cap may remove with or without mounting ring attached
  15. Loosen RH rear wheel nuts
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x nuts, 21mm, 205 Nm
  16. Raise vehicle partially and lower onto locks
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
  17. Remove RH rear wheel
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x nuts, 21mm, 205 Nm

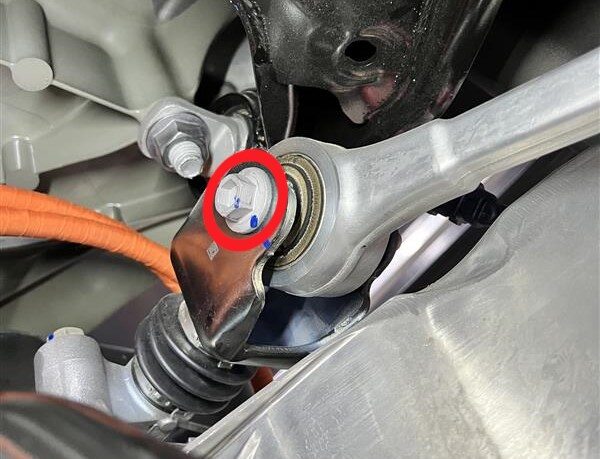

  18. Remove bolt securing RH rear tie rod to rear steering actuator
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 18 mm, 180 Nm

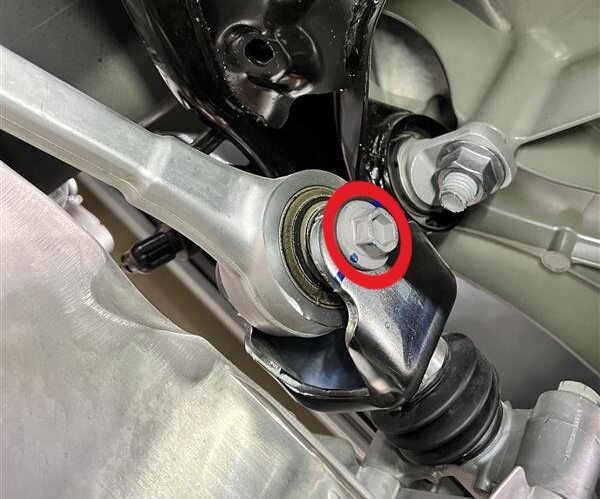

  19. Remove RH rear toe link from RH rear knuckle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 21mm, 170 Nm, Counter hold ball joint, Discard nyloc nut after removal
  20. Remove LH rear wheel
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x nuts, 21mm, 205 Nm
  21. Remove LH rear toe link from rear steering actuator
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 18 mm, 180 Nm
  22. Remove LH rear toe link from LH rear knuckle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 21mm, 170 Nm, Counter hold ball joint, Discard nyloc nut after removal
  23. Lower vehicle partially and set lift onto locks
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height
  24. Disconnect rear steering actuator connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, Release locking tab, 1x harness clip, Place harness aside for access

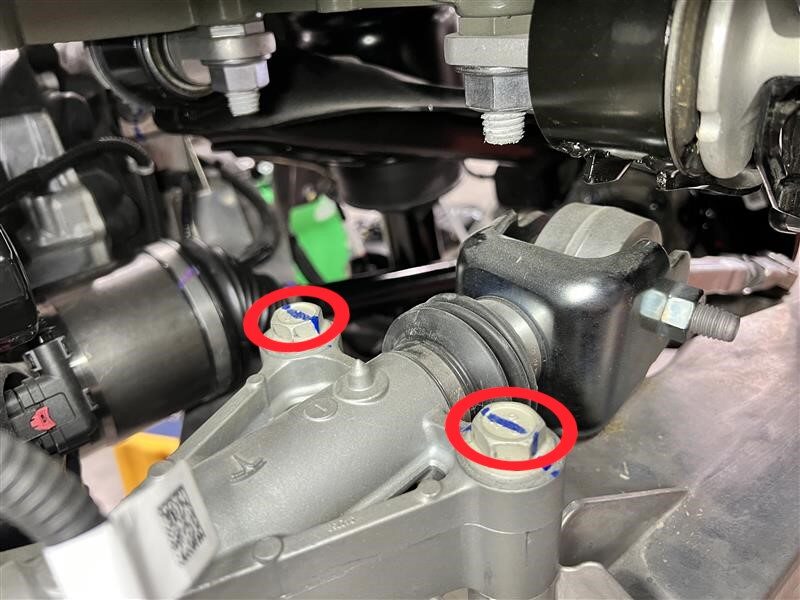

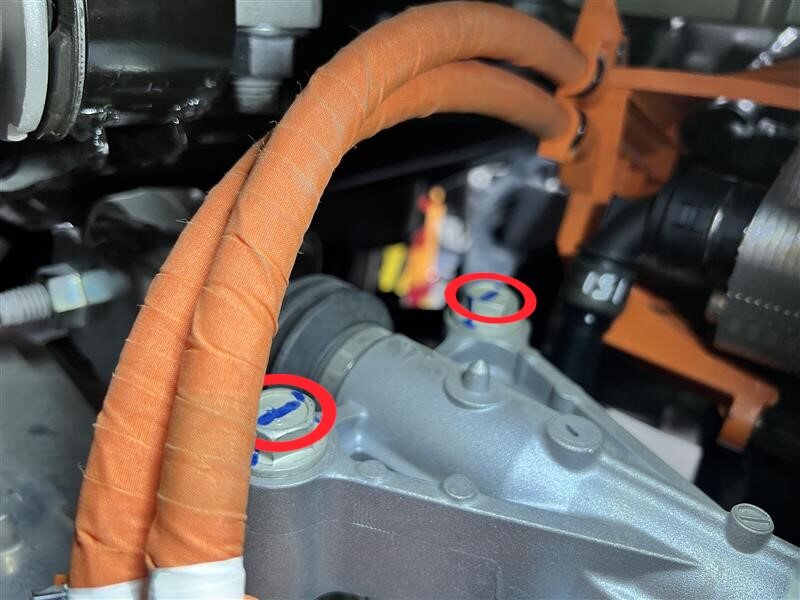

  25. Remove bolts securing RH side of rear steering actuator onto rear subframe
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolt, 18 mm, 120 Nm

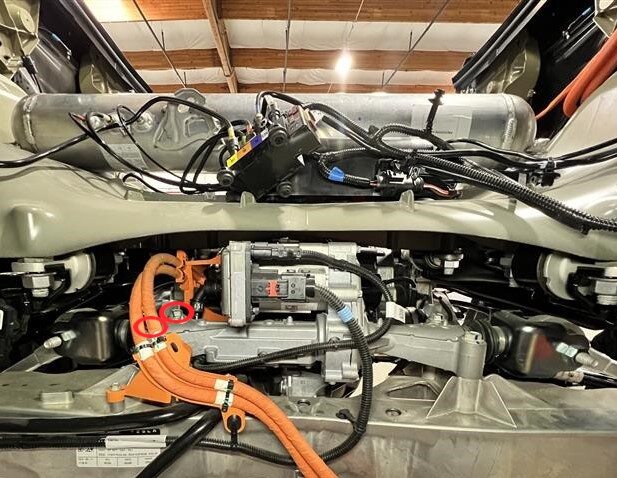

  26. Remove bolts securing LH side of rear steering actuator to rear subframe
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolt, 18 mm, 120 Nm

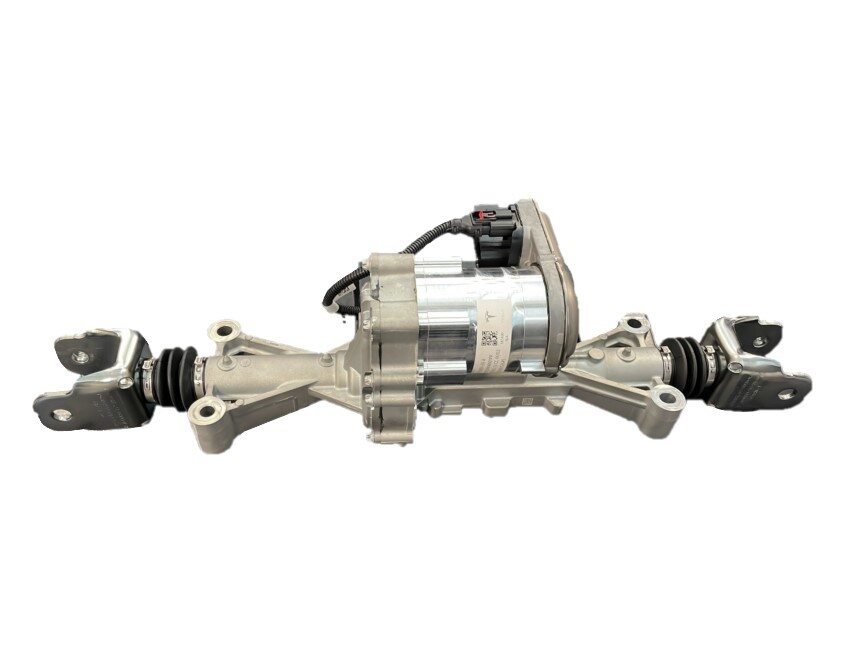

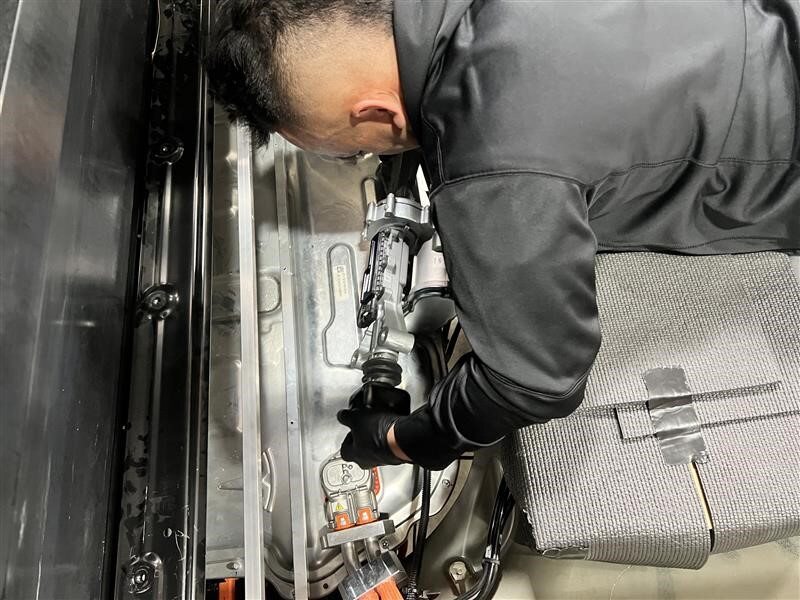

  27. Remove rear steering actuator from vehicle
    Informational PurposesAn informational icon, calling your attention
    Remarque

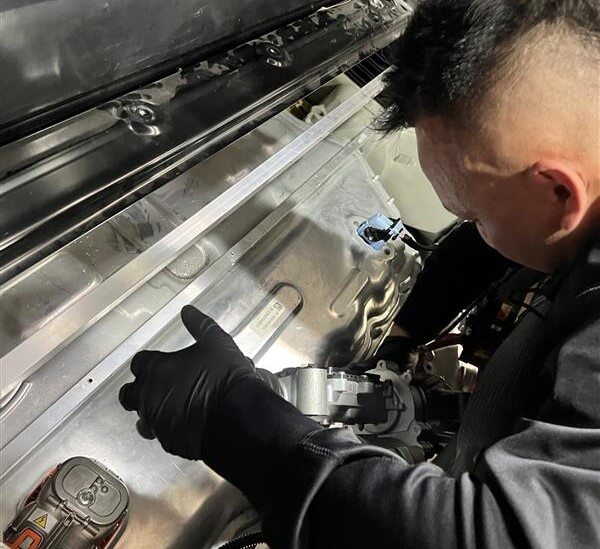

    Rotate rear steering actuator onto side and pivot to the left side to release actuator out from rear subframe, Use caution when removing rear steering actuator from rear subframe, Avoid damaging any HV cable, body harness and ride height sensor
  28. Position rear steering actuator into vehicle for installation
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Rotate rear steering actuator onto side, Insert the right side of steering actuator to position onto rear subframe, Use caution when installing rear steering actuator onto rear subframe, Avoid damaging any HV cable, body harness and ride height sensor
  29. Install bolts securing LH side of rear steering actuator to rear subframe
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolt, 18 mm, 120 Nm
  30. Install bolts securing RH side of rear steering actuator to rear subframe
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolt, 18 mm, 120 Nm
  31. Install rear steering actuator connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, Secure locking tab, 1x harness clip, Position harness into place for installation
  32. Connect FRL connector then connect MV battery connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors, Connect FRL connector then secure locking tab, Position lever to secure MV battery connector then slide eCPA to right, Early production trucks may have black FRL connector, If power cycling vehicle then ensure at least 60 seconds has passed since powering down

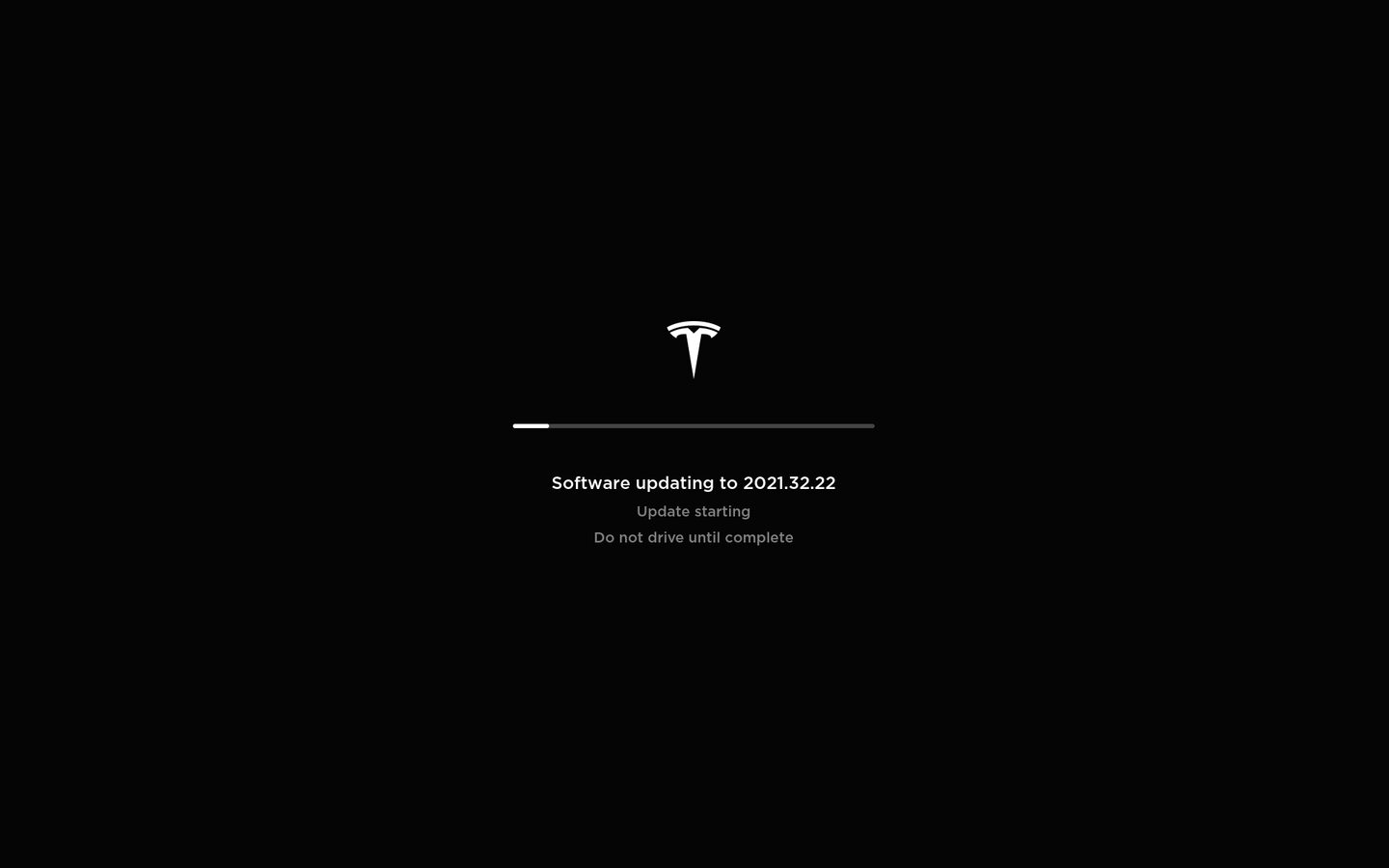

  33. Perform software reinstall
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Via UI > Service Mode > Software Reinstall > CAN ECU > Reinstall, Reinstall will begin immediately, Once firmware redeploy is complete, Verify release notes are present via UI

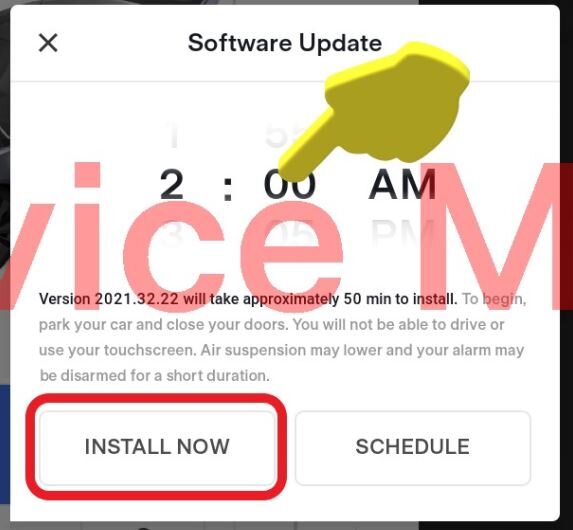

  34. Select "Install Now" to start firmware update
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Tap center display next to software update window until clock runs down to 0,After displayed installation time, Check the center display and ensure the firmware package was successfully installed

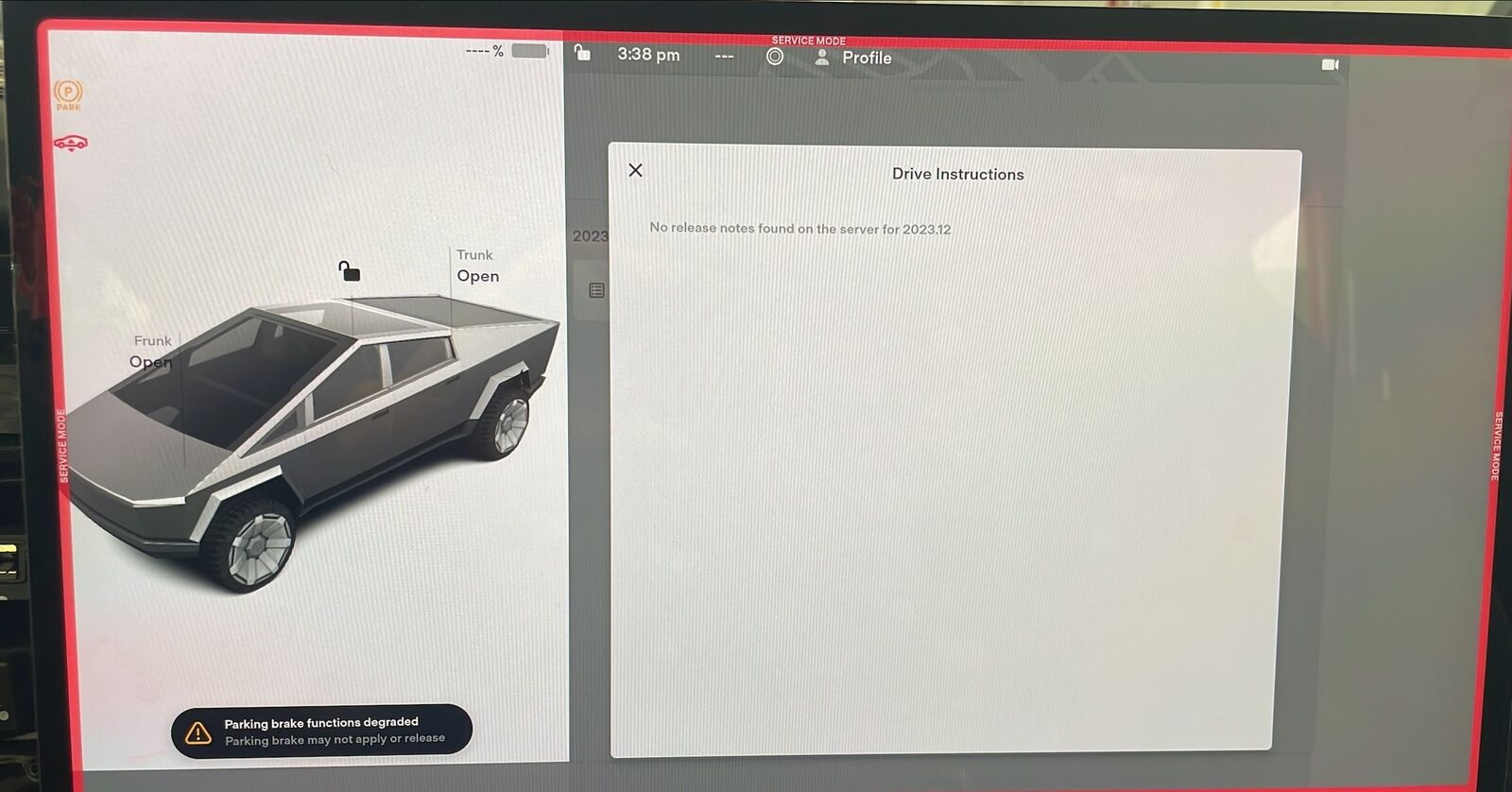

  35. Once firmware redeploy is complete, Verify release notes are present on center display
    Informational PurposesAn informational icon, calling your attention
    Remarque
    If the redeploy fails you may receive an error message on UI
  36. Install bed floor assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    10x short bolts, 15mm, 56 Nm, 2x long bolts, 15mm, 46Nm, Recommend assistance
  37. Install fastener covers onto bed floor assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    14x covers
  38. Close tailgate
  39. Disconnect FRL connector then disconnect MV battery connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors, Release locking tab then disconnect FRL connector, Slide eCPA to left then lift lever to release MV battery connector, Early production trucks may have black FRL connector, Release eCPA by pushing down to unlock and slide red locking tab, Wait 2 minutes for electrical circuits to discharge before disconnecting modules
  40. Raise vehicle partially and lower lift onto locks
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
  41. Position LH rear toe link onto rear steering actuator
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 18 mm, Hand tight, Torque at later step
  42. Install LH rear toe link onto LH rear knuckle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 21mm, 170 Nm, Install new Nyloc nut
  43. Position RH rear toe link onto rear steering actuator
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 18 mm, Hand tight, Torque at later step
  44. Install RH rear toe link onto RH rear knuckle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 21mm, 170 Nm, Install new Nyloc nut

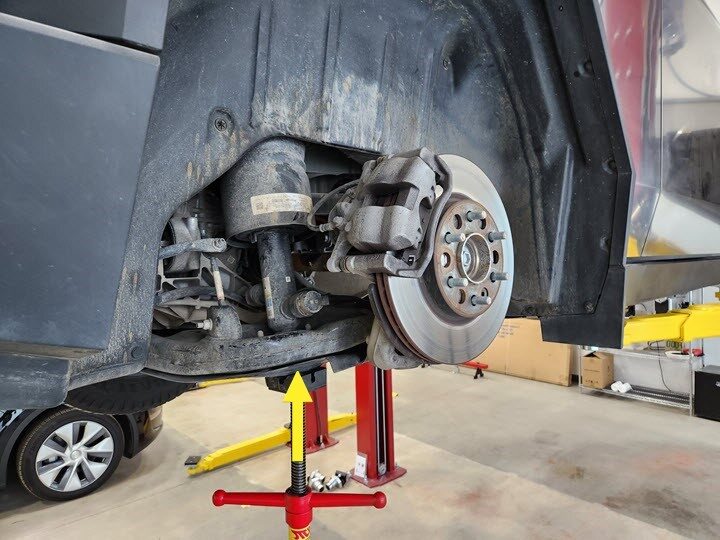

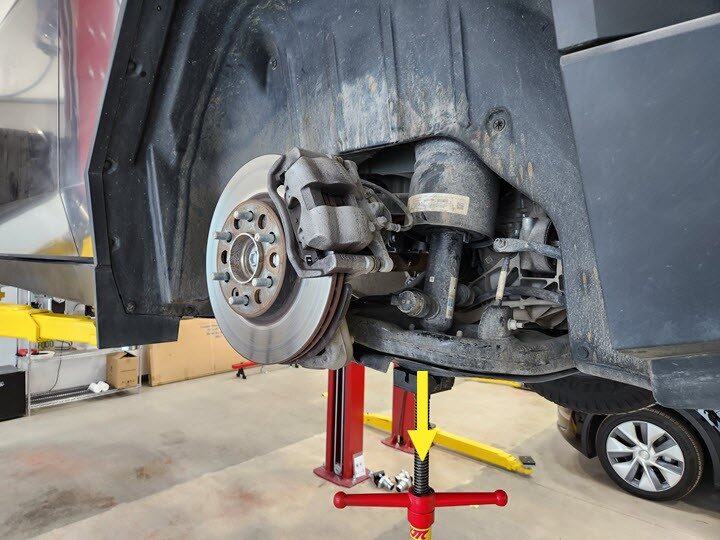

  45. Position and raise pole jack onto LH rear lower control arm

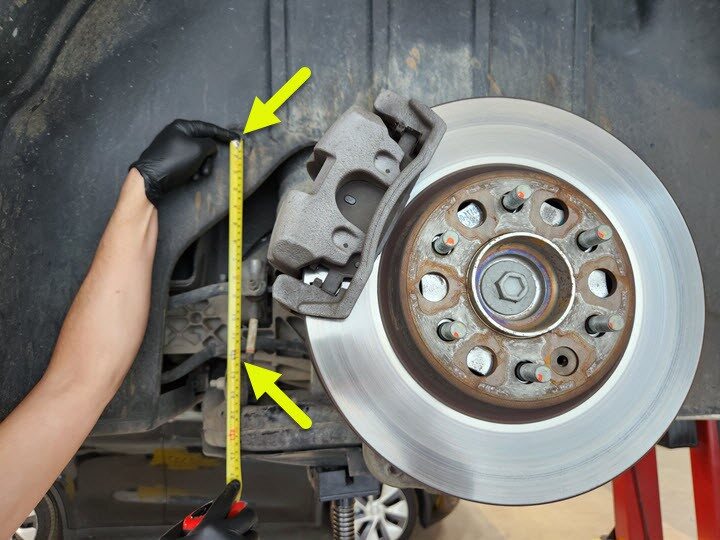

  46. Adjust LH rear suspension to ride height specification
    Informational PurposesAn informational icon, calling your attention
    Remarque

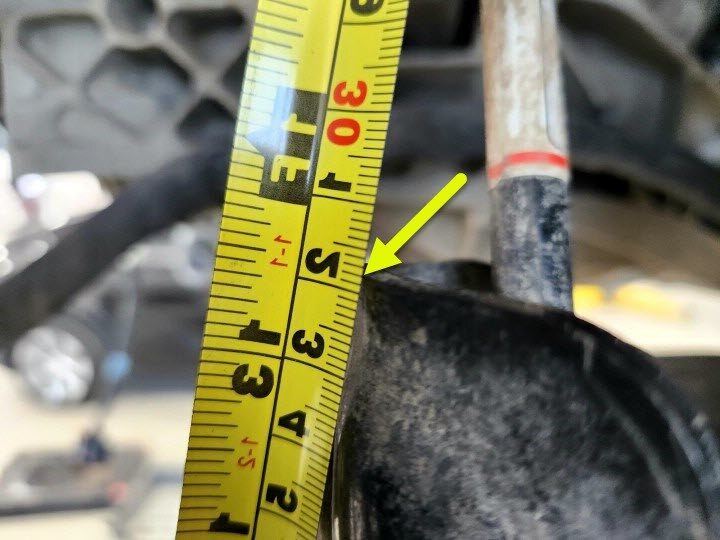

    Measure from wheel housing stud to stabar link mount, Distance should be 31.8 cm, Adjust pole jack as needed
  47. Torque bolt securing LH rear toe link to rear steering actuator
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 18 mm, 180 Nm
  48. Lower and remove pole jack from LH rear lower control arm
  49. Position and raise pole jack onto RH rear lower control arm
  50. Adjust RH rear suspension to ride height specification
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Measure from wheel housing stud to stabar link mount, Distance should be 31.8 cm, Adjust pole jack as needed
  51. Torque bolt securing RH rear toe link to rear steering actuator
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 18 mm, 180 Nm
  52. Lower and remove pole jack from RH rear lower control arm
  53. Install LH rear wheel
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x nuts, 21mm, 205 Nm
  54. Install RH rear wheel
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x nuts, 21mm, 205 Nm
  55. Lower vehicle until tires are touching the ground
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
  56. Torque RH rear wheel nuts
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x nuts, 21mm, 205 Nm, Use star pattern
  57. Torque LH rear wheel nuts
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x nuts, 21mm, 205 Nm, Use star pattern
  58. Install LH rear wheel cap
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x cap, 8x clips, Partially secure wheel cap to wheel, While partially installed wheel cover can be rotated to align with tire design, When aligned press inward from center of cap then secure all clips to mounting ring
  59. Install RH rear wheel cap
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x cap, 8x clips, Partially secure wheel cap to wheel, While partially installed wheel cover can be rotated to align with tire design, When aligned press inward from center of cap then secure all clips to mounting ring
  60. Connect FRL connector then connect MV battery connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors, Connect FRL connector then secure locking tab, Position lever to secure MV battery connector then slide eCPA to right, Early production trucks may have black FRL connector, If power cycling vehicle then ensure at least 60 seconds has passed since powering down
  61. Install rear underhood apron
    Informational PurposesAn informational icon, calling your attention
    Remarque
    9x clips, Adjust windshield seal as required
  62. Close powered front trunk
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Via exterior switch or UI
  63. Remove vehicle from lift
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Lower rack arms fully and remove them from under vehicle, Remove air suspension from "Jack Mode"
  64. Exécutez la routine ODIN PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox: (link)
  65. Raise LH front window
  66. Close LH front door
  67. Review wheel alignment requirements and add correction code as needed
