Code de correction TBD FRT 1.62 REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps forfaitaire indiqués ci-dessus représentent tout le travail à être fait pour cette procédure, notamment les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez Temps forfaitaires pour en apprendre plus à propos des temps forfaitaires et de leur création. NOTE : Consultez Protection individuelle pour vous assurer de porter l’équipement de protection individuelle adéquat lorsque vous effectuez la procédure ci-dessous. REMARQUE : Voir Précautions ergonomiques pour consulter les pratiques de travail sécuritaires et saines.

1. Open all four doors



2. Lower all four windows



3. Move LH front seat forward
   Remarque

   Adjust seat back if needed to avoid contacting headliner



4. Move RH front seat forward
   Remarque

   Adjust seatback if needed to avoid contacting headliner



5. Move 60 seat to easy entry position
   Remarque

   Press shoulder switch then push seat forward





6. Partially remove lower portion of LH rear door seal



7. Remove LH 7s lower C-pillar trim
   Remarque

   8x clips, Rear edge secures onto trunk side trim, Release front clips then rear clips





8. Move 60 seat to original position
   Remarque

   Press shoulder switch then pull seat backward



9. Fold 2nd row 60 seatback down
   Remarque

   Via seat switch or manual tether, Protect seat back upholstery if necessary





10. Disconnect 2nd row 60 seat connector
    Remarque

    1x connector,





11. Move 60 seat forward using towel bar
    Remarque

    With one hand on towel bar pull up and slide the seat forward with your other hand





12. Remove 60 seat rear outboard track fastener
    Remarque

    1x patch bolt, 11mm, 37 Nm, Discard after removal



13. Remove 60 seat rear inboard track fasteners
    Remarque

    2x patch bolts, 11mm, 37 Nm, Discard after removal



14. Move 60 seat fully rearward using towel bar
    Remarque

    pull up bar, slide seat forward



15. Remove 60 seat outboard track cover
    Remarque

    1x clip, Slide covers forward to release from 60 seat tracks







16. Remove center track cover from 2nd row seats
    Remarque

    2x clips, Slide covers forward to release from 2nd row seat tracks







17. Release cabin carpet from 60 seat
    Remarque

    Pull cabin carpet towards front of vehicle





18. Remove 60 seat front inboard track fasteners
    Remarque

    1x bolts, 11mm, 37 Nm, Discard after removal



19. Remove 2nd row 60 seat frame front outboard track fasteners
    Remarque

    1x bolts, 11mm, 37 Nm, Discard after removal



20. Remove 2nd row 60 seat assembly from vehicle
    Remarque

    Recommend assistance, Note: If seat that is not being replaced does not have ISOFIX flag for child locks, the seat cover will also require replacement





21. Move RH front seat forward
    Remarque

    Adjust seatback if needed to avoid contacting headliner



22. Move 60 seat to easy entry position
    Remarque

    Press shoulder switch then push seat forward





23. Partially remove RH rear door seal
    Remarque

    Pillar and sill trim have tabs seated underneath seal



24. Remove RH C-pillar lower trim
    Remarque

    5x clips, Rear edge is mated with groove in trunk side trim, Release clips at front of LH Lower C-Pillar trim working your way back towards rear of sill trim, trim part may slightly differ by vehicle build location, and the number of clips may also varyt, by vehicle build location, Confirm each installation with push-pull test, Clip position should not be adjusted after bracket is removed or will result in bracket not seating properly, if clip position is changed or push-pull action shows bracket not secure, remove clip from tab and seat clip into doghouse on bracket and reinstall





25. Move 40 seat to original position
    Remarque

    Press shoulder switch then pull seat backward



26. Fold 2nd row 40 seatback down
    Remarque

    Via seat switch or manual tether, Protect seat back upholstery if necessary





27. Remove 40 seat outboard track cover
    Remarque

    1x clip, Slide cover forward to release from 40 seat track



28. Remove bolts securing 40 seat podium to vehicle
    Remarque

    2x patch bolts, 11mm, 37 Nm, Discard bolts after removal



29. Move 40 seat forward using towel bar
    Remarque

    With one hand on towel bar pull up and slide the seat forward with your other hand



30. Remove bolts securing 40 seat inner and outer tracks to vehicle
    Remarque

    2x patch bolts, 11mm, 37 Nm, Discard bolts after removal



31. Move 40 seat fully rearward using towel bar
    Remarque

    pull bar, slide seat forward



32. Disconnect 2nd row 40 seat connector
    Remarque

    1x connector, Newer models may have red locking tab





33. Remove 40 seat from vehicle
    Remarque

    Recommend assistance, Do not support 40 seat by cushion pan, Support 40 seat by podium, Note: If seat that is not being replaced does not have ISOFIX flag for child locks, the seat cover will also require replacement





34. Remove 3rd row seat cushion
    Remarque

    2x clips, 1x connector, 2x circular hooks, Press tabs backward then pull front edge up, Press rear seat cushion and lift the front seat cushion











35. Remove 3rd row LH seat cushion bolster
    Remarque

    1x bolt, 11mm, 37 Nm, 1x location pin, 1x tab, Slide LH seat cushion bolster towards front of vehicle to remove



36. Remove 3rd row RH seat cushion bolster
    Remarque

    1x bolt, 11mm, 37 Nm, 1x location pin, 1x tab, Slide RH seat cushion bolster towards front of vehicle to remove







37. Release LH side of 3rd row rear carpet
    Remarque

    2x clips, 2x location pins, 1x bolt, H11, Lift trim to access bolt, Remove bolt then release carpet









38. Release RH side of 3rd row rear carpet
    Remarque

    2x clips, 2x location pins, 1x bolt, H11, Lift trim to access bolt, Remove bolt then release carpet









39. Remove 3rd row rear cabin carpet





40. Open hood





41. Power off vehicle from center display
    Remarque

    Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box





42. Remove rear apron
    Remarque

    16x trim clips, 3x datums, 2x clips









43. Remove HEPA filter assembly
    Remarque

    2x bolts, 10mm, 10 Nm, Pivot rear edge up past brake reservoir then lift up to clear frunk assembly









44. Disconnect LV battery and first responder loop
    Remarque

    2x connectors, Ensure that one minute has passed after window movement before performing the power-off, Release green locking tab, Press black tab then pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge











45. Verify operation of multimeter
    Remarque

    Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing the 16v battery



46. Remove 3rd row NVH insulator
    Remarque

    1x connector, Disconnect connector then remove insulator









47. Install HVC logic cap
    Remarque

    1x logic cap



48. Remove all items from pockets and ensure not wearing metal items



49. Inspect HV insulating gloves
    Remarque

    Check gloves for damage prior to use, Refer to service document TN-15-92-003, for information on inspecting HV gloves. https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC



50. Put on HV insulating gloves and leather over gloves
    Remarque

    Use HV cut resistant insulated gloves or HV insulating gloves and leather over gloves, HV Insulating gloves must be worn any time a Hioki Tester or Hi-Pot Tester is used, Refer to service document TN-15-92-003 R5 for PPE requirements depending on vehicle configuration.



51. Release positive LV output cover from PCS cable
    Remarque

    1x cover





52. Remove PCS cable from LV passthrough output
    Remarque

    1x nut, 13mm, 9 Nm, Discard nut after removal



53. Remove bolts securing ancillary bay probe lid cover
    Remarque

    2x bolts, EP10 5-Lobe, 6 Nm, Discard after removal



54. Remove ancillary bay probe lid cover





55. Verify no high voltage
    Remarque

    Make sure to wear PPE (HV gloves, Safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering









56. Wipe ancillary bay cover with IPA to clean surface
    Remarque

    Allow to 1 minute dry time



57. Inspect ancillary bay probe lid cover gasket then position onto ancillary bay cover
    Remarque

    Confirm no visual damage present, Wipe ancillary bay with IPA to clean surface, Allow to 1 minute dry time





58. Install bolts securing ancillary bay probe lid cover to ancillary bay cover
    Remarque

    2x bolts, EP10 5-Lobe, 6 Nm, Install new bolts



59. Remove bolts securing ancillary bay cover to HVC
    Remarque

    3x bolts, E10, 5 Nm + 30 degrees



60. Remove bolts securing ancillary bay cover to HV battery
    Remarque

    18x bolts, E10 5-Lobe, 8 Nm, Use E10 5-Lobe socket without magnet, The fasteners are captive and will stay attached to the ancillary bay cover





61. Remove HVC logic cap
    Remarque

    1x logic cap



62. Remove ancillary bay cover from HV battery





63. Install HVC logic cap
    Remarque

    1x logic cap



64. Inspect ancillary bay for any missing insulators
    Remarque

    Install service insulator kit before continuing to next step

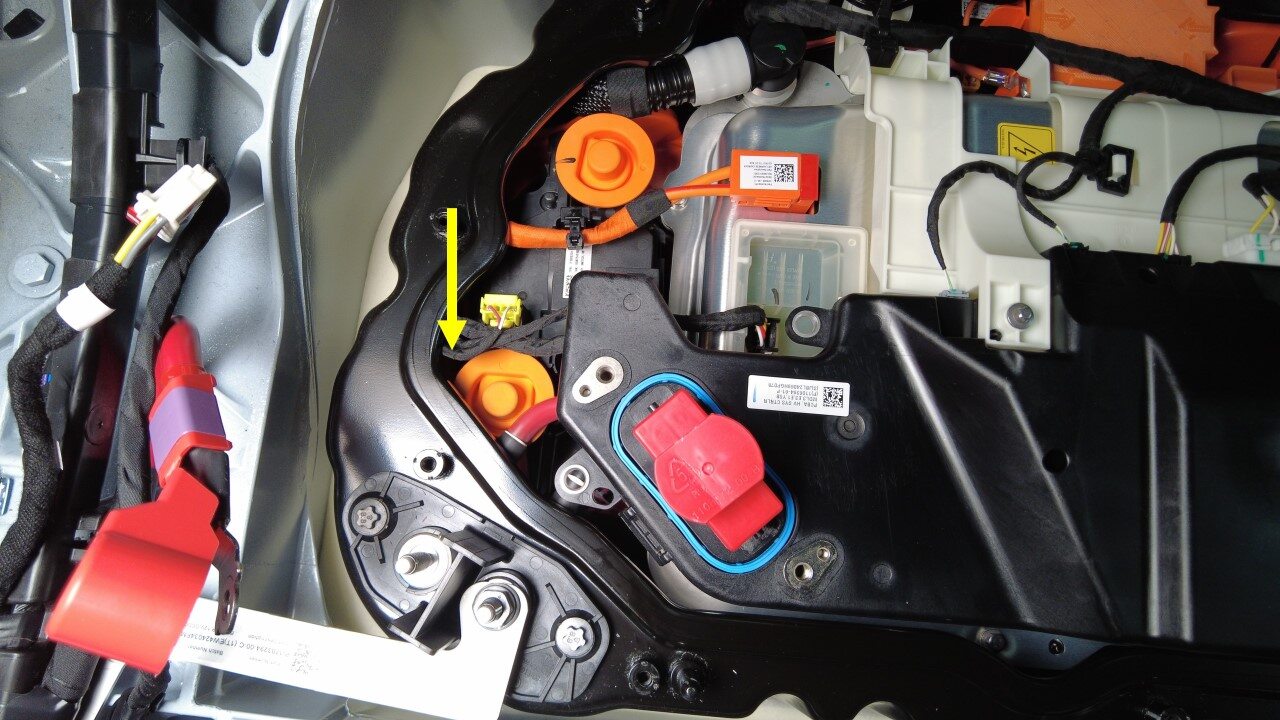

65. Remove bolts securing pyro disconnect to ancillary bay
    Remarque

    1x insulator, 2x patch bolts, 13mm, 9 Nm, Discard after removal





66. Remove pyro disconnect from ancillary bay
    Remarque

    1x connector, From the bottom, Lift pyro disconnect straight up and out of the ancillary bay





67. Install pyro disconnect dummy



68. Lift HV Controller up
    Remarque

    Hold HVC assembly and tray in upward positition with rubber bungee



69. Disconnect PCS to DC bus HV connector
    Remarque

    1x connector, Release the locking tab by pulling upward, May need plastic trim tool to help lift the connector upward



70. Disconnect PCS logic connector from PCS
    Remarque

    1x connector



71. Disconnect PCS LV connector from PCS
    Remarque

    1x connector, Release the locking tab by pulling upward, May need plastic trim tool to help lift the connector upward



72. Remove nut securing DCDC ground busbar to HV battery
    Remarque

    1x nut, 13mm, 9 Nm, Discard nut after removal



73. Gently lift the DCDC ground busbar upwards



74. Remove bolts securing DCDC pass through to ancillary bay
    Remarque

    2x bolts, E10 5-Lobe, 10 Nm



75. Remove DCDC pass through from ancillary bay
    Remarque

    Attention: To avoid metal damage to the cable insulation layer





76. Disconnect ancillary bay harness connectors from positive pack contactor
    Remarque

    2x connectors



77. Remove HV PCS to DC Bus harness clip from positive pack contactor
    Remarque

    1x clip



78. Remove HV joint insulators from positive HV switch
    Remarque

    2x insulators



79. Remove bolt securing positive pack contactor to positive busbar
    Remarque

    1x patch bolt, 13mm, 9 Nm, Discard after removal



80. Remove nut securing positive pack contactor to module 4 rear terminal
    Remarque

    1x patch nut, 13mm, 9 Nm, Discard after removal



81. Remove nuts securing positive pack contactor to ancillary bay
    Remarque

    3x nuts, 10mm, 8 Nm, Use insulated magnet to retrieve the nuts after removal, The number of nuts on newer vehicles may vary



82. Remove positive pack contactor from ancillary bay
    Remarque

    2x guide pins







83. Position positive pack contactor to ancillary bay for installation
    Remarque

    2x guide pins







84. Install nuts securing positive pack contactor to ancillary bay
    Remarque

    3x nuts, 10mm, 8 Nm, Use insulated magnet as needed to position nuts onto studs, The number of nuts on newer vehicles may vary



85. Install bolt securing positive pack contactor to positive busbar
    Remarque

    1x patch bolt, 13mm. 9 Nm, Install new patch bolt, Mark after torque



86. Install nut securing positive pack contactor to HV battery tall terminal to module 4 rear terminal
    Remarque

    1x patch nut, 13mm, 9 Nm, Install new patch nut, Mark after torque



87. Measure resistance from HV joint between HV battery positive contactor and center of HV battery positive terminal
    Remarque

    1x HV joint, 110μΩ or less





88. Perform Hioki impedance test at HV joint of positive pack contactor to DC link busbar
    Remarque

    1x HV joint, The acceptable resistance is between 0.020 mΩ (20 μΩ) and 0.060 mΩ (60 μΩ), If the resistance is greater than 0.060 mΩ (60 μΩ), stop work and escalate a Toolbox session. If the resistance is less than 0.020 mΩ (20 μΩ), reposition the probes and measure again.





89. Install HV joint insulators onto positive pack contactor
    Remarque

    2x insulators



90. Install ancillary bay harness clip to positive pack contactor
    Remarque

    1x clip



91. Connect ancillary bay harness connectors to positive pack contactor
    Remarque

    2x connectors



92. Position DCDC pass through to ancillary bay for installation
    Remarque

    Attention: To avoid metal damage to the cable insulation layer





93. Install bolts securing DCDC pass through to ancillary bay
    Remarque

    2x bolts, E10 5-Lobe, 10 Nm, Mark the bolts after torque



94. Install DCDC ground busbar to HV battery
    Remarque

    Gently press down



95. Install nut securing DCDC ground busbar to HV battery
    Remarque

    1x nut, 13mm, 9 Nm, Install new nut



96. Connect PCS LV connector to PCS
    Remarque

    1x connector, Push connector downward then push the locking tab downward to install connector, Make sure the connector is fully seated



97. Connect PCS logic connector to PCS
    Remarque

    1x connector



98. Connect PCS to DC bus HV connector
    Remarque

    1x connector, Push connector downward then push the locking tab downward to install connector, Make sure the connector is fully seated



99. Lower HV Controller back into place
    Remarque

    Remove bungee and slowly lower controller



100. Disconnect ancillary bay harness connectors from negative pack contactor
     Remarque

     2x connectors



101. Remove HV joint insulators from negative pack contactor
     Remarque

     2x insulators



102. Remove bolt securing negative pack contactor to DC link busbar joint
     Remarque

     1x patch bolt, 13mm, 9 Nm, Discard after removal



103. Remove nut securing negative pack contactor to HV battery tall silicon terminal
     Remarque

     1x patch nut, 13mm, 9 Nm, Discard after removal



104. Remove nuts securing negative pack contactor to ancillary bay
     Remarque

     3x nuts, 10mm, 8 Nm, Use insulated magnet to retrieve the nuts after removal, The number of nuts on newer vehicles may vary



105. Remove negative pack contactor from ancillary bay
     Remarque

     2x guide pins







106. Position negative pack contactor to ancillary bay for installation
     Remarque

     2x guide pins







107. Install nuts securing negative pack contactor to ancillary bay
     Remarque

     3x nuts, 10mm, 8 Nm, Use insulated magnet as needed to position nuts onto studs



108. Install nut securing negative pack contactor to HV battery tall terminal
     Remarque

     1x patch nut, 13mm, 9 Nm, Install new patch nut, Mark after torque



109. Install bolt securing negative pack contactor to DC link busbar joint
     Remarque

     1x patch bolt, 13mm, 9 Nm, Install new patch bolt, Mark after torque



110. Perform Hioki impedance test at HV joint of negative pack contactor to negative DC link busbar
     Remarque

     1x HV joint, The acceptable resistance is between 0.020 mΩ (20 μΩ) and 0.060 mΩ (60 μΩ), If the resistance is greater than 0.060 mΩ (60 μΩ), stop work and escalate a Toolbox session. If the resistance is less than 0.020 mΩ (20 μΩ), reposition the probes and measure again.





111. Perform Hioki impedance test at negative pack contactor to module 1 rear terminal
     Remarque

     1x HV joint, 110μΩ or less





112. Install HV joint insulators to negative pack contactor
     Remarque

     2x insulators



113. Connect ancillary bay harness connectors to negative pack contactor
     Remarque

     2x connectors



114. Remove pyro disconnect dummy



115. Clean mating surface of pyro
     Remarque

     Allow to 1 minute dry time, Use an IPA wipe to clean the HV mating surfaces of the shunt, Busbar, And the pyrotechnic battery disconnect







116. Set multimeter to "LoZ" (low impedance) mode



117. Measure voltage between busbar and shunt
     Remarque

     Measure the voltage between the busbar (left) and shunt (right) for at least 10 seconds, so as to balance the voltage across the pyrotechnic battery disconnect mount points, Note: The voltage displayed on the multimeter is not as important as balancing the mount points





118. Position pyro disconnect to ancillary bay for installation
     Remarque

     1x connector, While still measuring the voltage, Have an assistant position the pyrotechnic battery disconnect into the HV battery for installation. Make sure to align the pins of the connector with the new pyrotechnic battery disconnect, And then press the pyrotechnic battery disconnect down onto the busbars, The pyro disconnect can only be installed one way









119. Install bolts securing pyro disconnect to ancillary bay
     Remarque

     2x patch bolts, 13mm, 9 Nm, Install new patch bolt, Mark with paint pen



120. Measure resistance from module 2 busbar to pyro disconnect
     Remarque

     1x HV joint, 60μΩ or less, Perform zero adjust to Hioki meter prior to testing





121. Measure resistance from pyro disconnect to shunt
     Remarque

     1x HV joint, 45μΩ or less, Perform zero adjust to Hioki meter prior to testing





122. Remove service insulator kit









123. Remove HVC logic cap
     Remarque

     1x logic cap



124. Inspect ancillary bay walls for damage
     Remarque

     Any dent or depression in the sealing surface that causes it to not be flat will result in a leak, Any paint that comes off the ancillary bay wall, Whether or not it sticks to the seal, Will require enclosure leak test when reassembled, It can still be reused



125. Inspect ancillary bay cover seal to confirm it has no visual damage
     Remarque

     Image up close for clarity, Delaminated and torn seals cannot be reused











126. Wipe ancillary bay cover with IPA to clean surface
     Remarque

     Allow to 1 minute dry time



127. Position ancillary bay cover to HV battery for installation
     Remarque

     Ensure all accessible insulators are present, Wearing Electrical Protective Gloves is not necessary once all HV components are covered.





128. Remove leather over gloves and HV insulating gloves



129. Install bolts securing ancillary bay cover to HV battery
     Remarque

     18x bolts, EP10 5-Lobe, 8 Nm, Fasteners are captive, Follow torque sequence per image





130. Install bolts securing ancillary bay cover to HVC
     Remarque

     3x bolts, E10, 5 Nm + 30 degrees



131. Install positive LV output from PCS cable and torque nut securing it
     Remarque

     1x nut, 13mm, 9 Nm, Install new nut, Mark the nut after torque



132. Install positive LV output cover to PCS cable
     Remarque

     1x cover



133. Remove HVC logic cap
     Remarque

     1x logic cap



134. Install 3rd row NVH insulator
     Remarque

     1x connector, Install insulator then connect connector









135. Position 3rd row rear cabin carpet





136. Secure RH side of 3rd row rear carpet
     Remarque

     2x clips, 2x location pins, 1x bolt, H11, Lift trim to access bolt, Secure carpet then install bolt









137. Secure LH side of 3rd row rear carpet
     Remarque

     2x clips, 2x location pins, 1x bolt, H11, Lift trim to access bolt, Secure carpet then install bolt









138. Install 3rd row LH seat cushion bolster
     Remarque

     1x bolt, 11mm, 37 Nm, 1x location pin, 1x tab, Slide LH seat cushion bolster into seat frame complete





139. Install 3rd row RH seat cushion bolster
     Remarque

     1x bolt, 11mm, 37 Nm, 1x location pin, 1x tab, Slide RH seat cushion bolster into seat frame complete







140. Install 3rd row seat cushion and connect harness
     Remarque

     1x connector, Secure 3rd row seat cushion into RH and LH latches





141. Connect first responder loop and LV battery
     Remarque

     2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated











142. Install HEPA filter assembly
     Remarque

     2x bolts, 10mm, 10 Nm, Pivot forward edge down past frunk assembly, Then carefully move rear edge past brake reservoir and into position, Gently press on RH side of filter to seat seal onto duct, Do not pinch washer hose inbetween HEPA filter assembly and body













143. Install rear apron
     Remarque

     16x trim clips, 3x locator pins, 2x clips, Replace any missing or damaged clips, Ensure pyrotechnic hood actuators are aligned with openings in apron







144. Close hood





145. Install 40 seat into vehicle
     Remarque

     Recommend assistance, Do not support 40 seat by cushion pan, Support 40 seat by podium





146. Connect 2nd row 40 seat connector
     Remarque

     1x connector,





147. Install bolts securing 40 seat podium to vehicle hand tight
     Remarque

     2x patch bolts, 11mm, 37 Nm, Install new bolts, Torque at later step



148. Move 40 seat forward using towel bar
     Remarque

     pull up bar, slide seat forward



149. Install bolts securing 40 seat inner and outer tracks to vehicle
     Remarque

     2x patch bolts, 11mm, 37 Nm, Install new bolts



150. Move 40 seat to original position
     Remarque

     Press shoulder switch then pull seat backward



151. Install cabin carpet to 40 seat



152. Torque bolts securing 40 seat podium to vehicle
     Remarque

     2x patch bolts, 11mm, 37 Nm



153. Install center track cover to 2nd row seats
     Remarque

     2x clip, Slide cover straight on to clip to 2nd row seat tracks







154. Install 40 seat outboard track cover
     Remarque

     1x clip



155. Position 40 seat into easy entry mode
     Remarque

     Press shoulder switch and push 40 seat forward





156. Install RH rear sill trim
     Remarque

     4x tabs, 3x clips, 5x location pins, Install rear edge of RH rear sill trim into trunk side trim and work your way forward securing clips





157. Reseat RH rear door seal
     Remarque

     Seat pillar and sill trim tabs underneath seal



158. Move 40 seat to original position
     Remarque

     Press shoulder switch then pull seat backward



159. Move RH front seat to original position



160. Install 2nd row 60 seat assembly
     Remarque

     Recommend assistance







161. Connect 2nd row 60 seat connector
     Remarque

     1x connector,





162. Install fasteners securing 60 seat frame to body
     Remarque

     5x patch bolts, 11mm, 37 Nm, Install new patch bolts, bottom seat bolts located in rear









163. Secure cabin carpet to 60 seat
     Remarque

     Strap velcro on





164. Return 2nd row 60 seatback to vertical position
     Remarque

     Via trunk seat switch, Remove seatback protection if necessary





165. Install 60 seat outboard track cover
     Remarque

     1x clip







166. Position 60 seat into easy entry mode
     Remarque

     Press shoulder switch and push 60 seat forward to position into easy entry mode





167. Install LH 7s lower C-pillar trim
     Remarque

     8x clips, Rear edge is secures onto trunk side trim, Secure rear clips then front clips





168. Reseat LH rear door seal
     Remarque

     Seat pillar and sill trim tabs underneath seal



169. Move 60 seat to original position



170. Move RH front seat to original position



171. Move LH front seat to original position



172. Raise all four windows
     Remarque

     Via LH front door switch



173. Exécutez la routine ODIN PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox:(link)
174. Unlock the vehicle gateway. See Passerelle (déverrouiller).
175. Exécutez la routine ODIN PROC_VCLEFT_X_2R-SEAT-RECLINE-CALIBRATIONvia Service Mode:Low Voltage ➜ Second Row Seats ➜ Calibratevia Toolbox:(link)
176. Exécutez la routine ODIN PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox:(link)
177. Close all four doors
     Remarque

     If LV is powered up then unlatch rear doors before closing
