Clean Forward Camera View (Precision Cleaning of Inboard Glass) (Restore)

Code de correction 10200348 0.48 REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps forfaitaire ci-dessus représentent tout le travail à être fait pour cette procédure, notamment les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez Temps forfaitaires pour en apprendre plus à propos des temps forfaitaires et de leur création. Vous pouvez transmettre par courriel vos commentaires relatifs aux valeurs des temps forfaitaires à LaborTimeFeedback@tesla.com. REMARQUE : Consultez Protection individuelle pour vous assurer de porter l’équipement de protection individuelle adéquat lors vous effectuez la procédure ci-dessous.

  • 2025-03-20: Added step to check for THS alerts and connector.
  • 2024-10-24: Added a video demonstrating precision cleaning of windshield.
  • 2024-09-04: Added step to clean wiper blades.
Warning IconA warning icon, calling your attention to a possibly risky situation
Avertissement
Cette procédure est une PREMIÈRE VERSION. Bien qu'elle ait été validée, des avertissements et des mises en garde pourraient manquer. Respectez les exigences de sécurité et faites preuve d’une extrême prudence lorsque vous travaillez sur ou près des systèmes et des composants haute tension. Transmettez toute correction ou remarque à ServiceDevelopment@teslamotors.com.
Informational PurposesAn informational icon, calling your attention
Remarque
The following video demonstrates precision cleaning of the windshield for all vehicles:

Procédure

  1. Gently lift the wiper arms away from the windshield to access the wiper blades, and then clean the wiper blades (x2) with isopropyl (rubbing) alcohol, especially the edge of the wiper blades.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    ATTENTION
    If wiper blades show degradation and need to be replaced, recommend customers to replace the wiper blades to prevent reduced camera visibility performance.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    ATTENTION
    Do not lift a wiper arm beyond its intended position.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Remind customers to periodically clean the edge of the wiper blades as instructed in the Owner's Manual.
  2. Clean the exterior surface of front windshield.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Use 2 microfiber cloths and Zep windshield cleaner.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    When cleaning, wipe in a circular motion.
    1. Apply zep windshield cleaner onto one microfiber towel.
    2. Clean outside surface.
    3. While the surface is still wet, wipe the windshield with the 2nd microfiber towel thoroughly until it is dry.
    4. Verify windshield has no stains or residue.
    5. Allow 1 minute dry time
  3. Inspect the exterior surface of the triple camera area.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Perform the inspection indoors.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Use an LED flashlight to illuminate the windshield around the front camera area. Inspect and verify that the entire area is free of any hazing, fogginess, stains and residue. If NOT confident about the presence of haze, smudges or residue, then proceed to removing components to inspect inside surface.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    If necessary, have an assistant hold the flashlight in position for the inspection.
  4. Ouvrez la porte avant gauche et abaissez la vitre avant gauche.
  5. Remove the rear view mirror. See Rearview Mirror - Rear View Miror (Remove and Install).
  6. Remove the rear view mirror beauty cover. See Rearview Mirror - Beauty Cover (Remove and Install).
    Informational PurposesAn informational icon, calling your attention
    Remarque
    It is not necessary to remove the interior camera from the beauty cover. Remove the beauty cover as an assembly.
  7. Release the locking tab, and then disconnect the GNSS antenna electrical connector.
  8. Remove the rear view mirror glare shield assembly. See Rearview Mirror - Glare Shield (Remove and Install).
  9. Preview all forward facing cameras and assess visual clarity.
    1. On the vehicle touchscreen, navigate to UI > Service > Driver Assist > Cameras > Camera preview > Main/Wide/Narrow to preview all forward facing cameras.
    2. Make sure no residue and/or dirt is visible across all camera lenses.
      • If the images are clear and free of any dirt, then skip step 11 to reinstall components.
      • If the image is blurry and visuals are impeded, then proceed to cleaning windshield and camera lenses.
  10. Clean the windshield interior surface.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Use new microfiber towels and Zep windshield cleaner.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Make sure to clean the corners and edges. Clean the notch if applicable. Make sure the towel goes over camera FOV via camera preview.
    1. Apply Zep windshield cleaner onto one microfiber towel.
    2. Use the wet microfiber towel to wipe the area thoroughly.
    3. Use the dry microfiber towel to wipe off area thoroughly.
    4. Inspect that the windshield area is clean and no lint residuals remain. Verify the interior and exterior of the windshield is not hazy, foggy, stained or has any residue like lint from microfiber towels.
  11. Clean the forward facing camera lenses.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Use new microfiber towels and Zep windshield cleaner.
    1. Apply Zep windshield cleaner onto one microfiber towel.
    2. Use the wet microfiber towel to wipe the lenses thoroughly.
    3. Use the dry microfiber towel to wipe off the lenses thoroughly.
    4. Make sure the lenses have no stains or lint residue from the microfiber towels.
  12. Install the rear view mirror glare shield assembly. See Rearview Mirror - Glare Shield (Remove and Install).
  13. Install the rear view mirror beauty cover. See Rearview Mirror - Beauty Cover (Remove and Install).
  14. Install rear view mirror. See Rearview Mirror - Rear View Miror (Remove and Install).
  15. Connect a laptop with Toolbox 3 to the vehicle. See Toolbox 3.0 (connecter et déconnecter).
  16. Déverrouillez la passerelle du véhicule. Voir Passerelle (déverrouiller).
  17. Clear the camera FOV residue alert: On the vehicle touchscreen, navigate to Service Mode Plus > Driver Assist > Cameras > Main Pitch > Windshield clean complete, tap Run and allow the routine to complete.

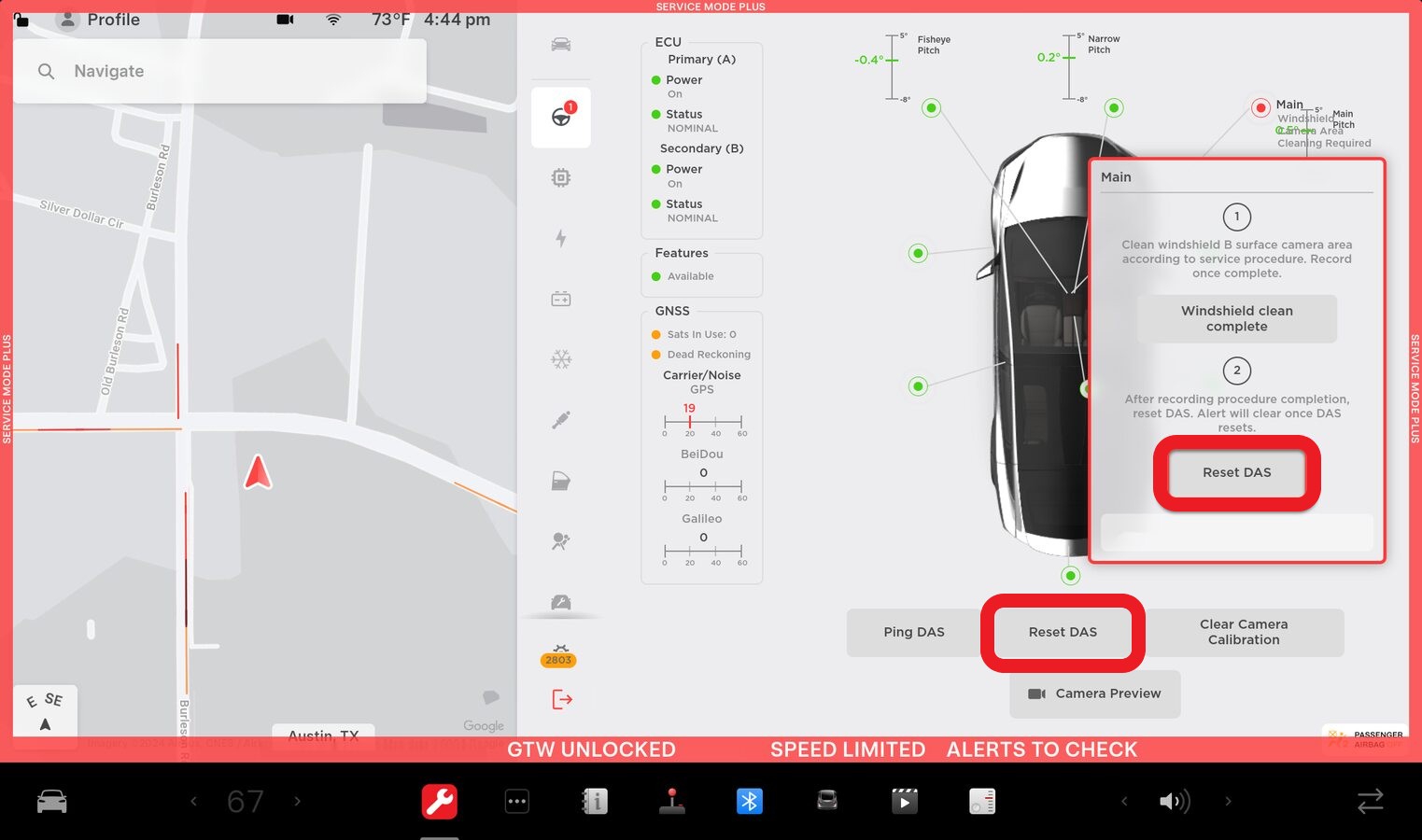

  18. Reset DAS ECU: On the vehicle touchscreen, navigate to Service Mode Plus > Driver Assist > Cameras > Cameras > Main Pitch > Reset DAS, tap Run and allow the routine to complete.
  19. Record windshield cleaning completion: On the vehicle touchscreen, navigate to UI > Service Mode > Driver Assist > Cameras > Main Pitch > Record windshield cleaning procedure completion, tap Run and allow the routine to complete.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    If the camera FOV residue alert has been cleared previously, then skip this step.

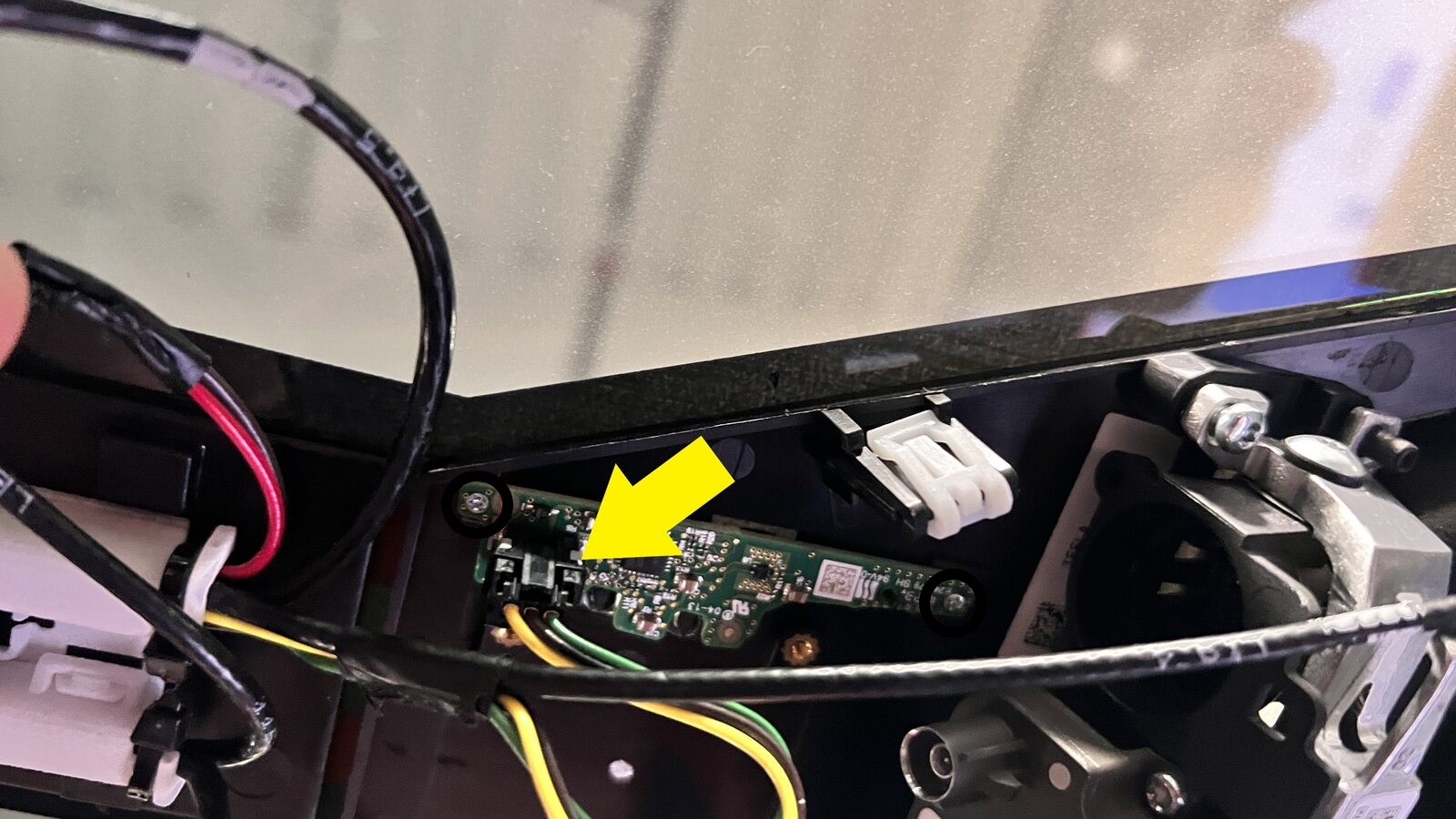

  20. On the vehicle touchscreen, check for the presence of the alerts below. If any of the alerts are present, make sure the temperature and humidity sensor electrical connector is properly connected. See Windshield - Temperature and Relative Humidity Sensor (Remove and Install). If the alerts are not present, continue to the next step.
    • • VCRIGHT_a271_THSSensorFault
    • • VCRIGHT_a257_THSMIA
    • • GTW_a043_THSversionMismatch
  21. Quitter mode Entretien. Voir Mode Entretien.
  22. Remontez la glace avant gauche et fermez la porte avant gauche.
