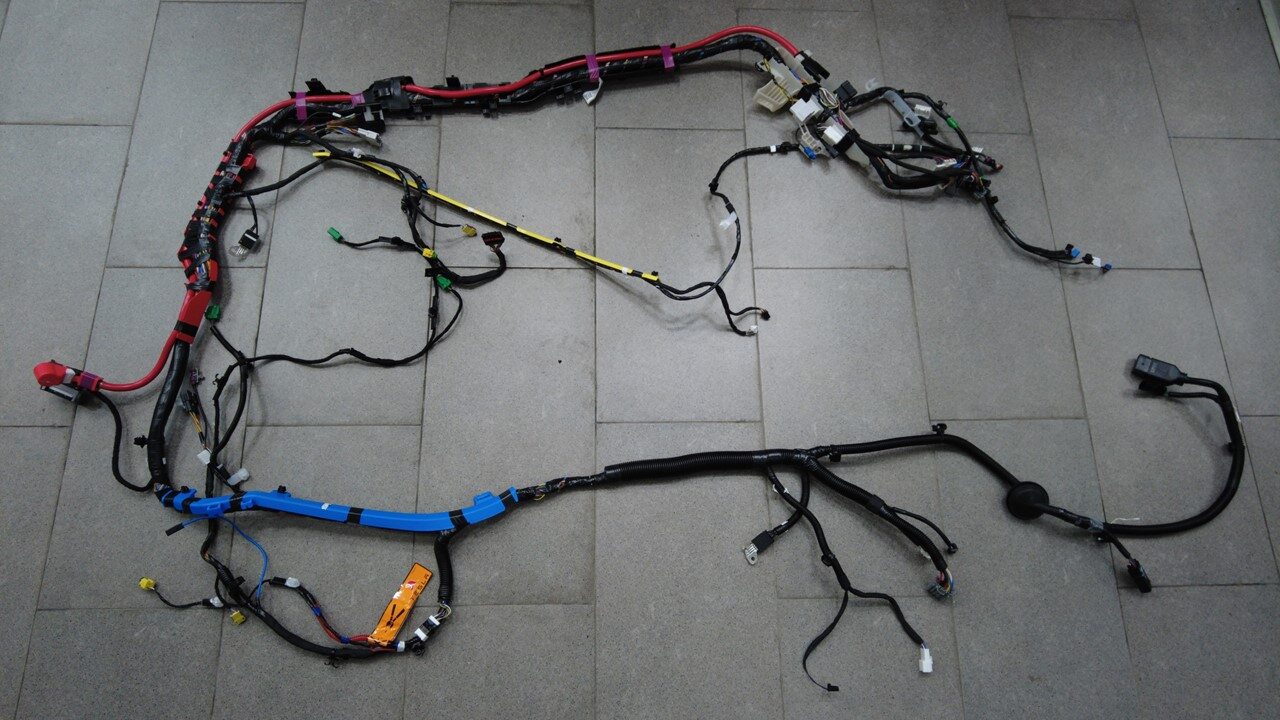

Harness - Main Body - RH (RHD) (Remove and Replace)

Code de correction 1710101062 3.78 REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps forfaitaire ci-dessus représentent tout le travail à être fait pour cette procédure, notamment les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez Temps forfaitaires pour en apprendre plus à propos des temps forfaitaires et de leur création. Vous pouvez transmettre par courriel vos commentaires relatifs aux valeurs des temps forfaitaires à ServiceManualFeedback@tesla.com. REMARQUE : Consultez Protection individuelle pour vous assurer de porter l’équipement de protection individuelle adéquat lors vous effectuez la procédure ci-dessous.

Warning IconA warning icon, calling your attention to a possibly risky situation
Avertissement
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.

Retirer

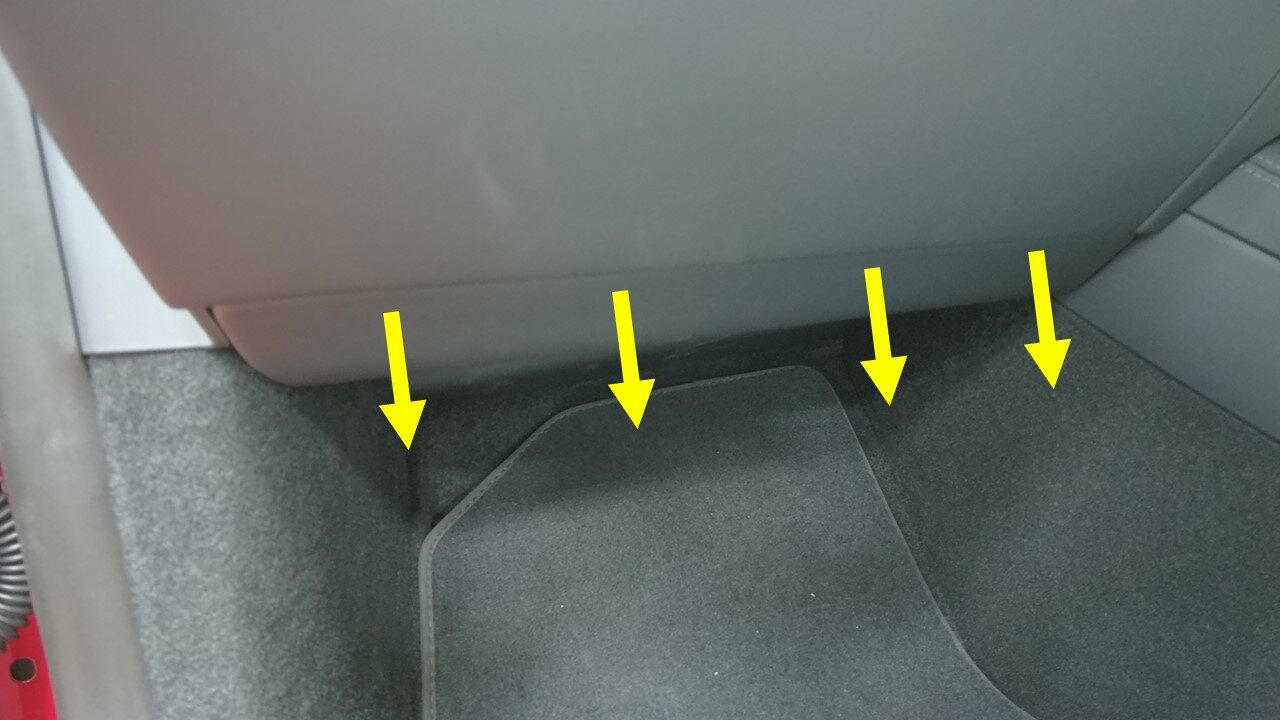

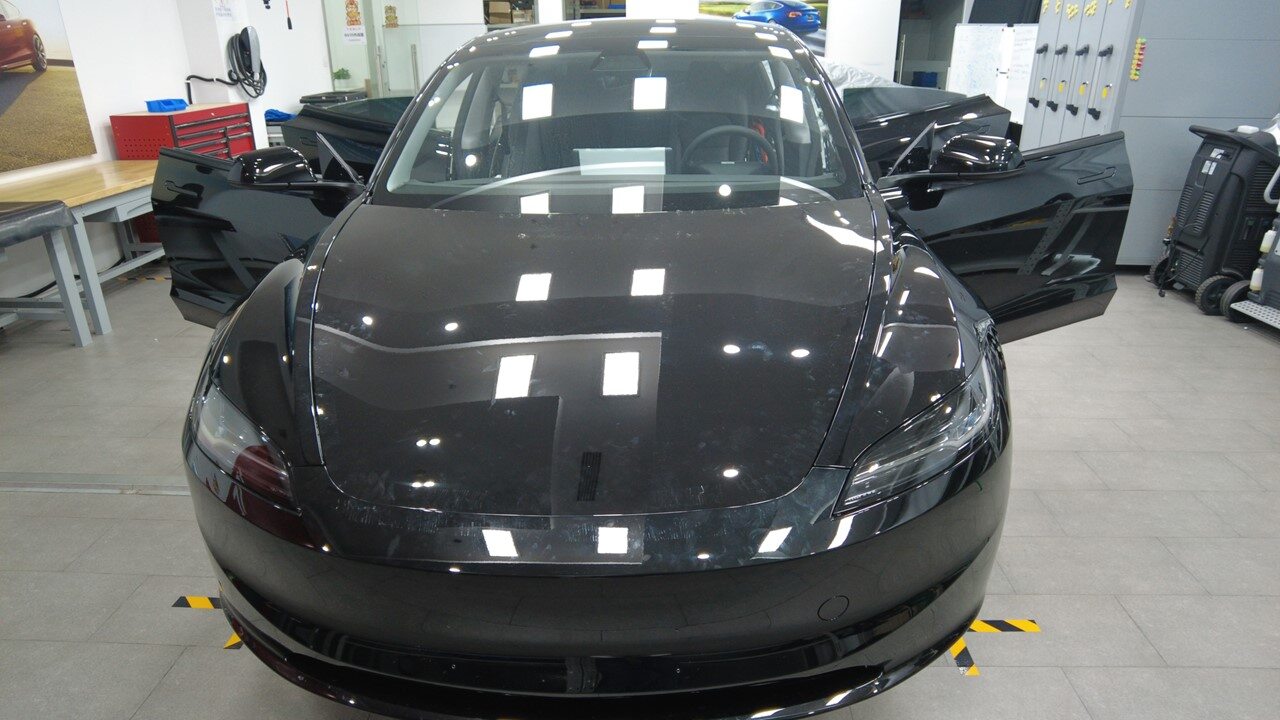

  1. Open all four doors
    Informational PurposesAn informational icon, calling your attention
    Remarque
    If vehicle is being powered down, Latch rear doors to prevent accidental closure

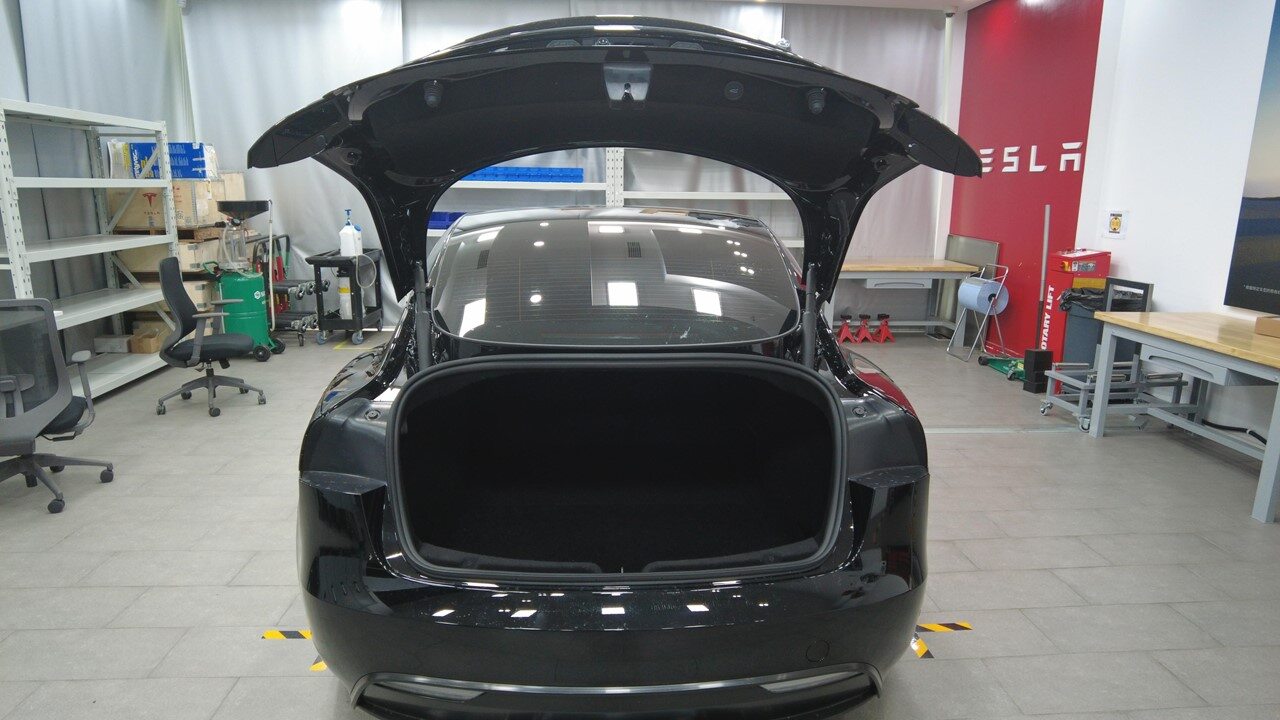

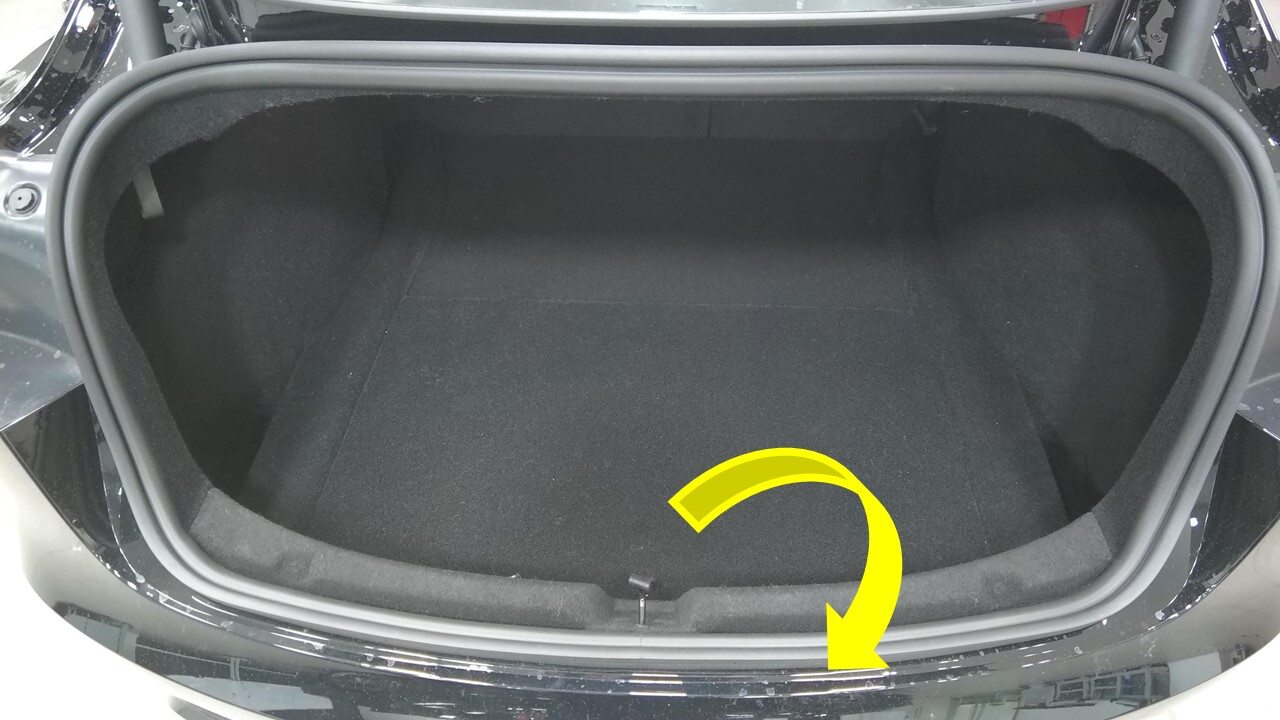

  2. Open trunk from exterior switch

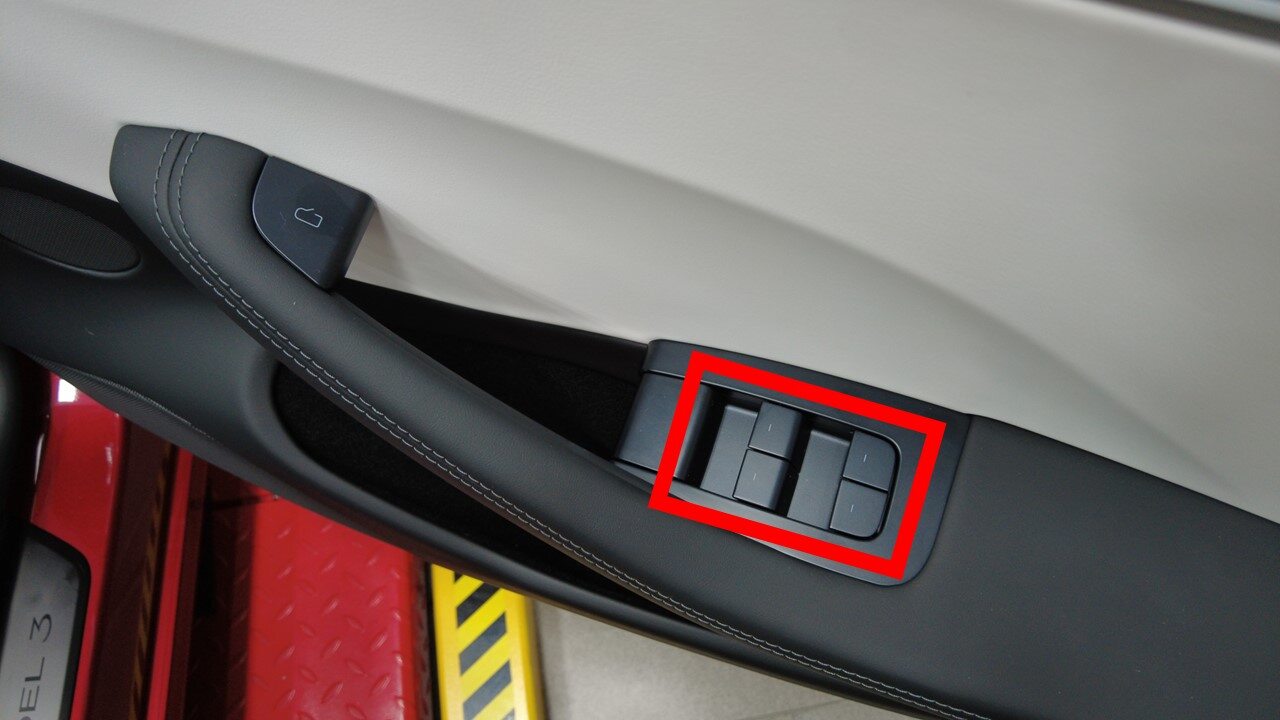

  3. Lower all four windows

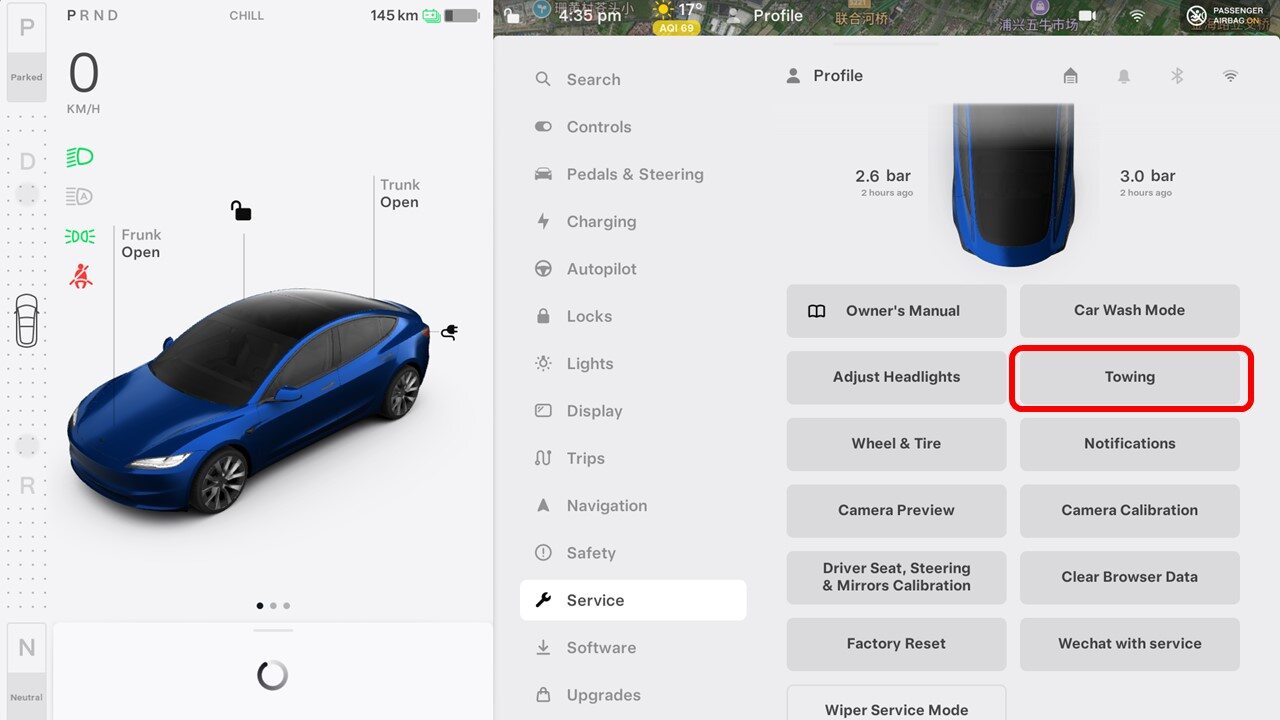

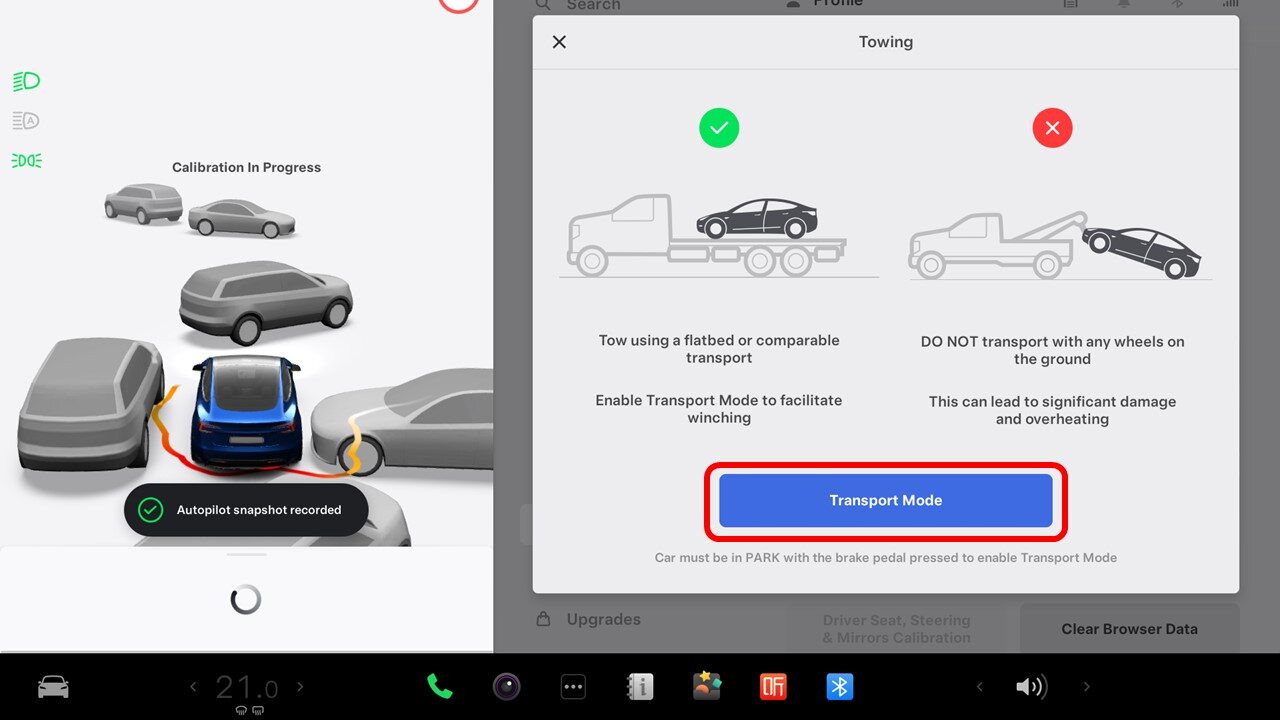

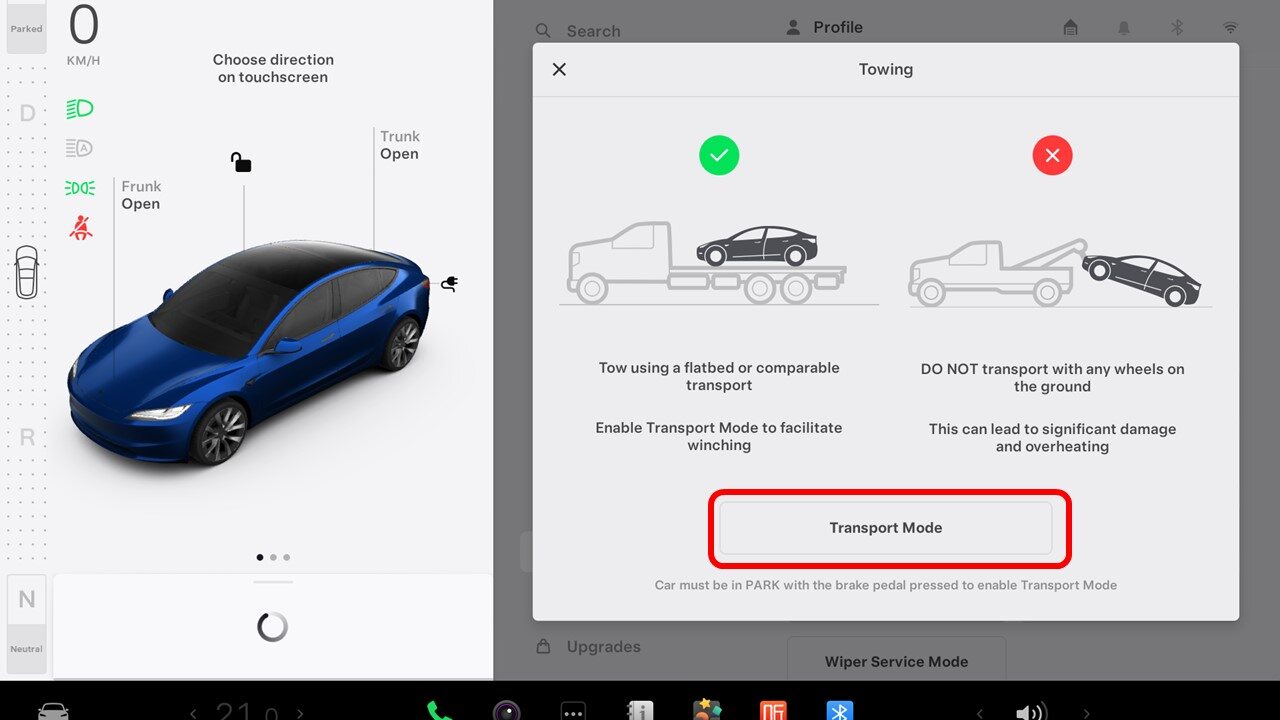

  4. Place vehicle into tow mode
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Via Controls > Service > ''Towing''

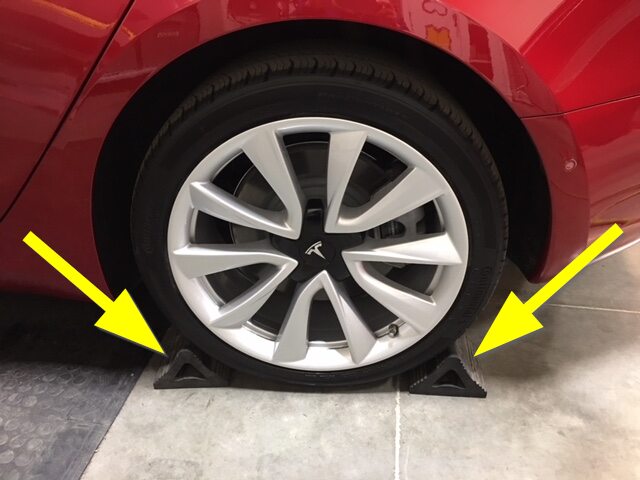

  5. Place wheel chocks to keep vehicle from moving

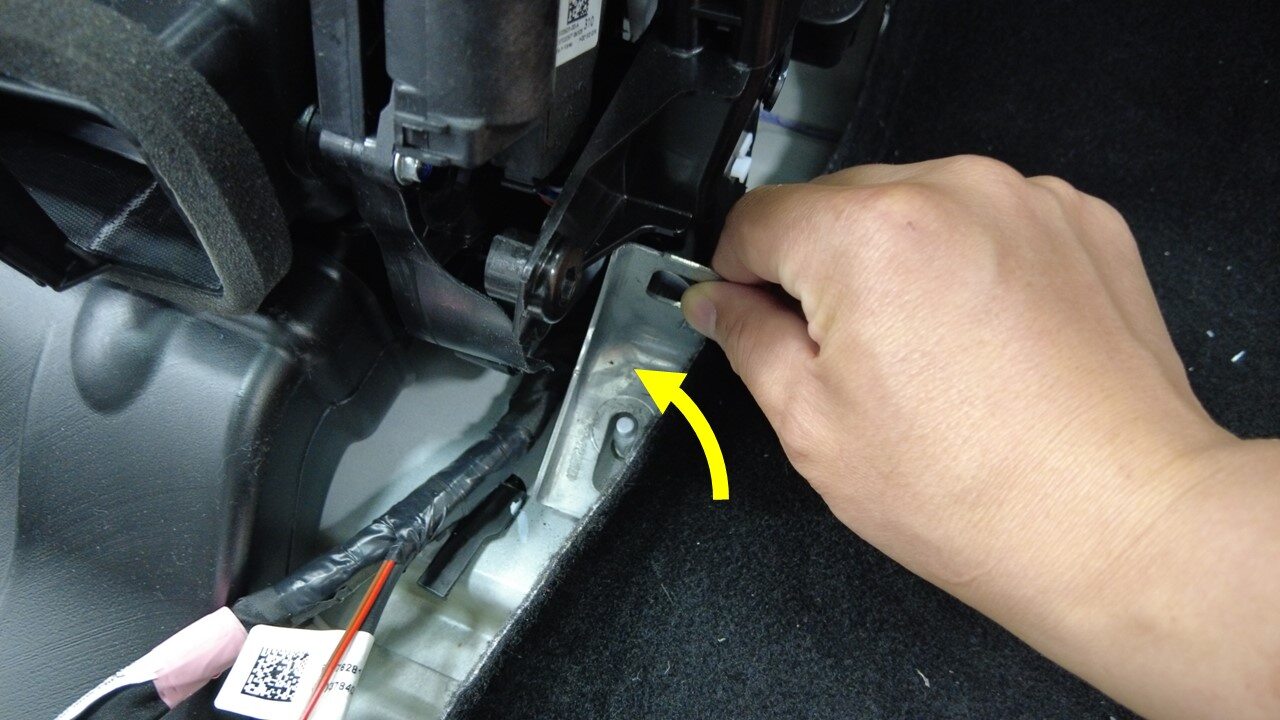

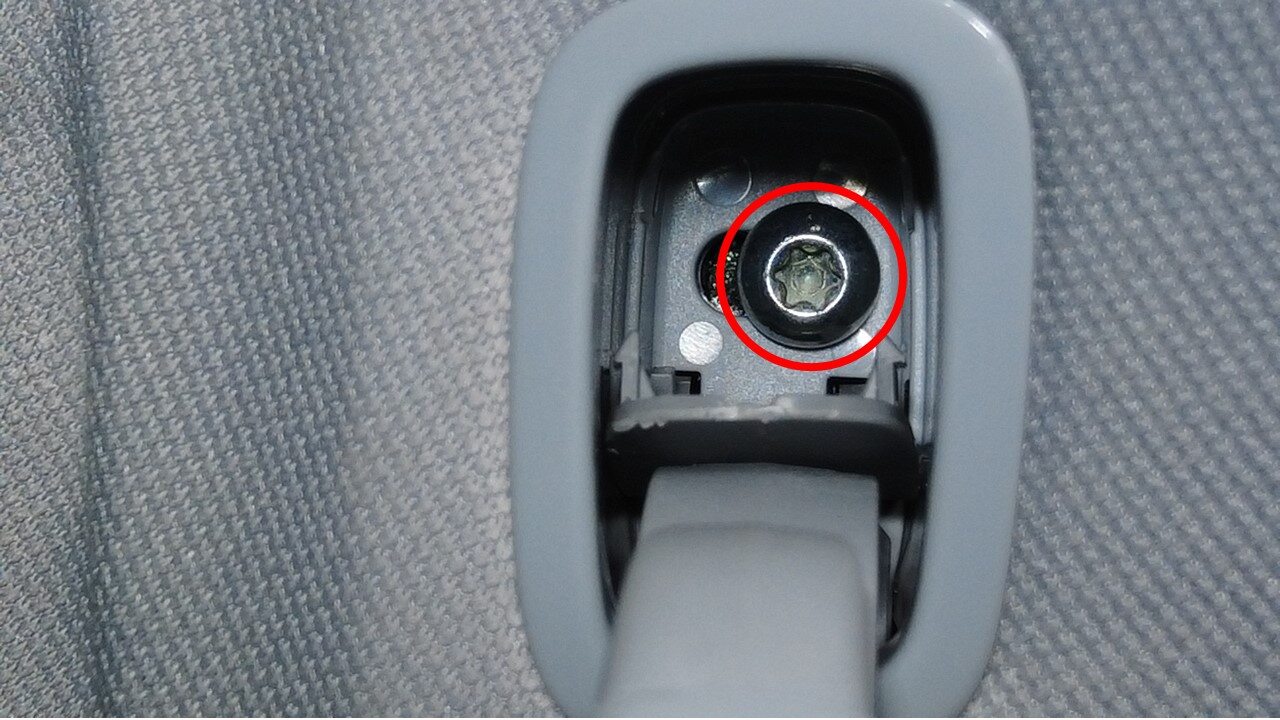

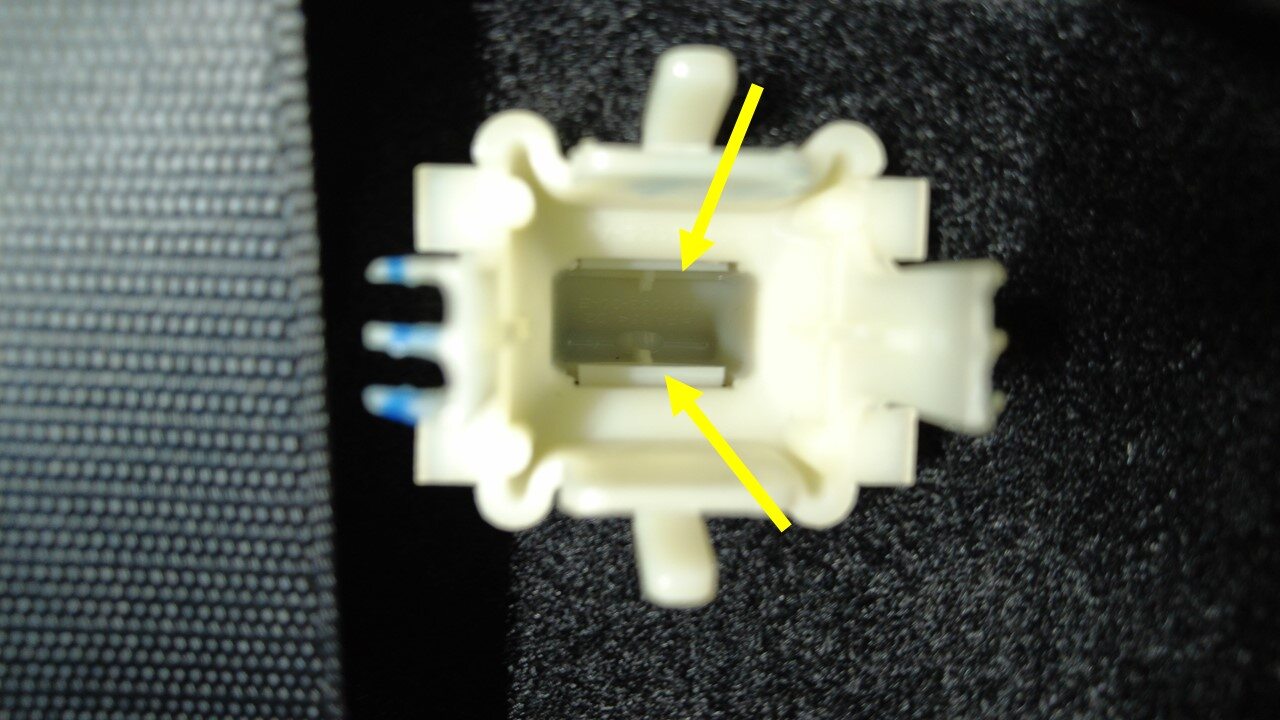

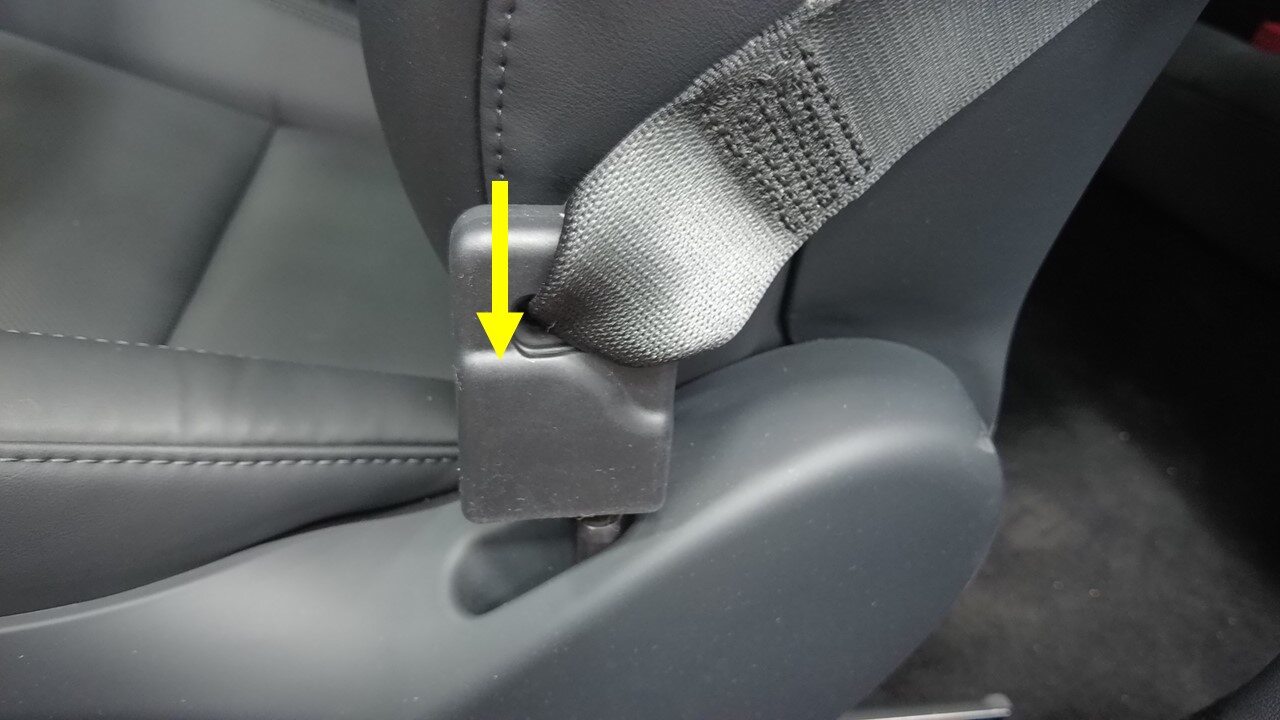

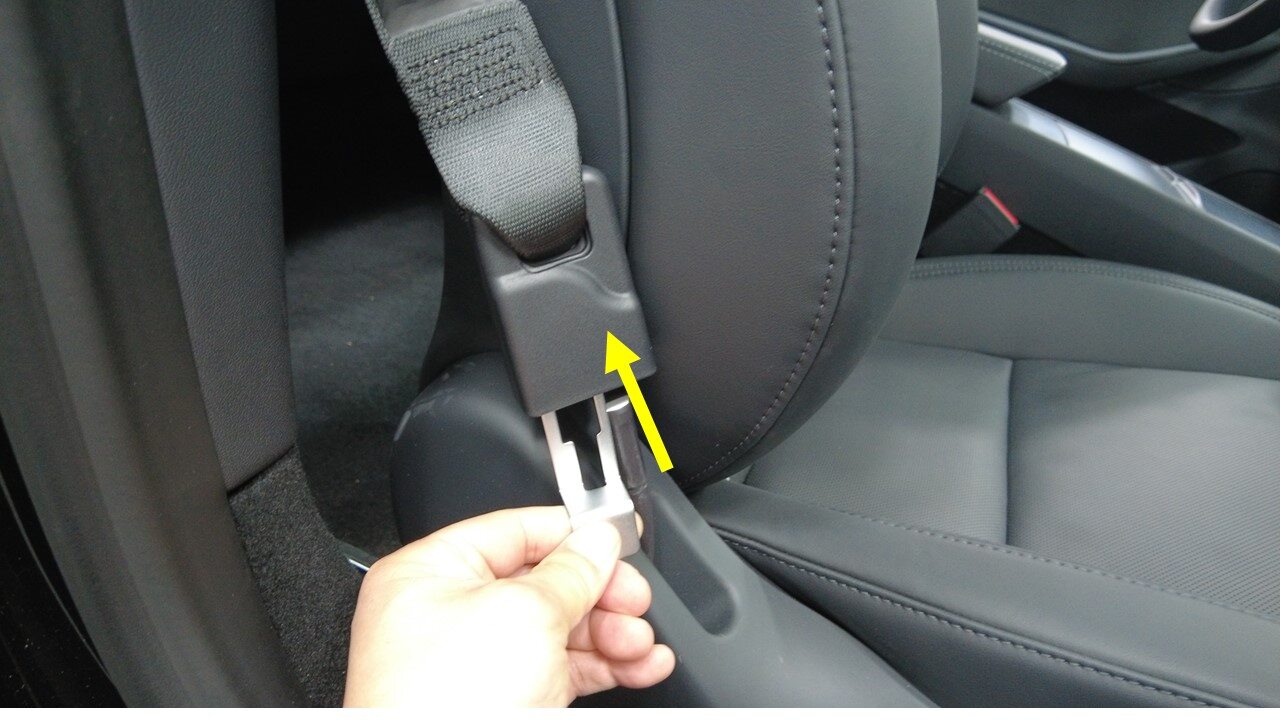

  6. Release seat belt retractor from RH front seat
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Insert special removal tool into the bottom of the retractor to release

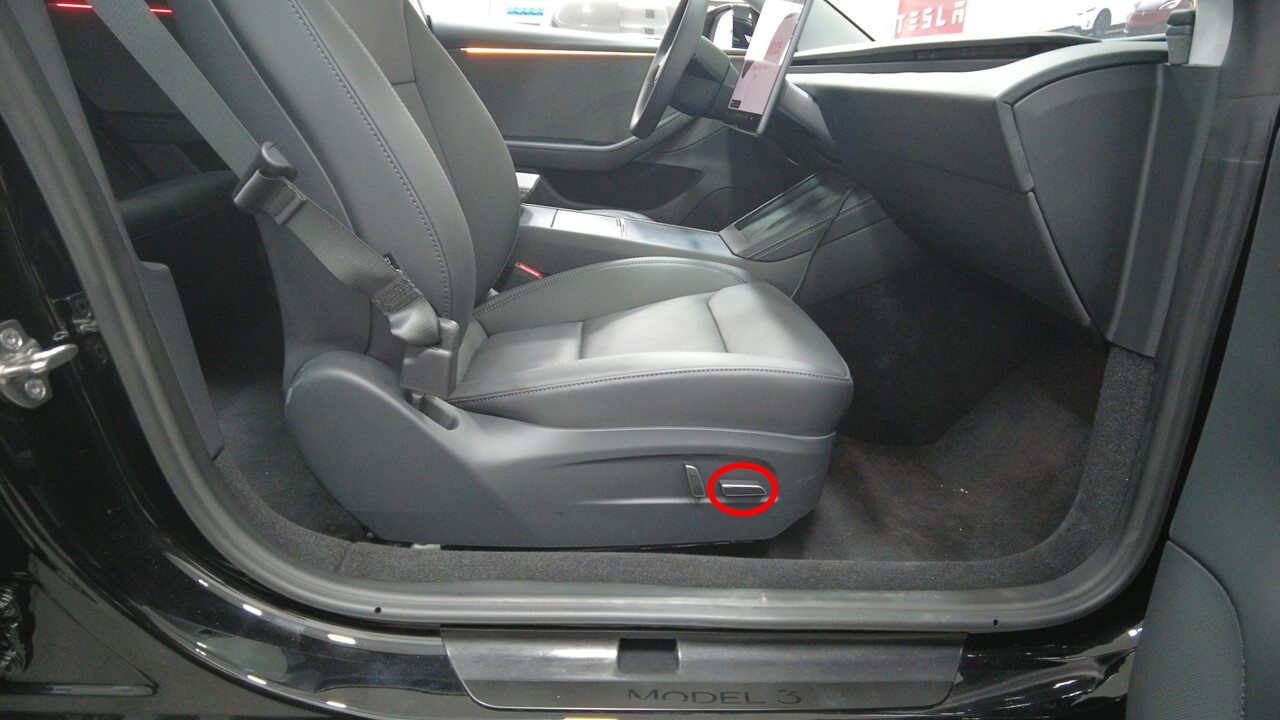

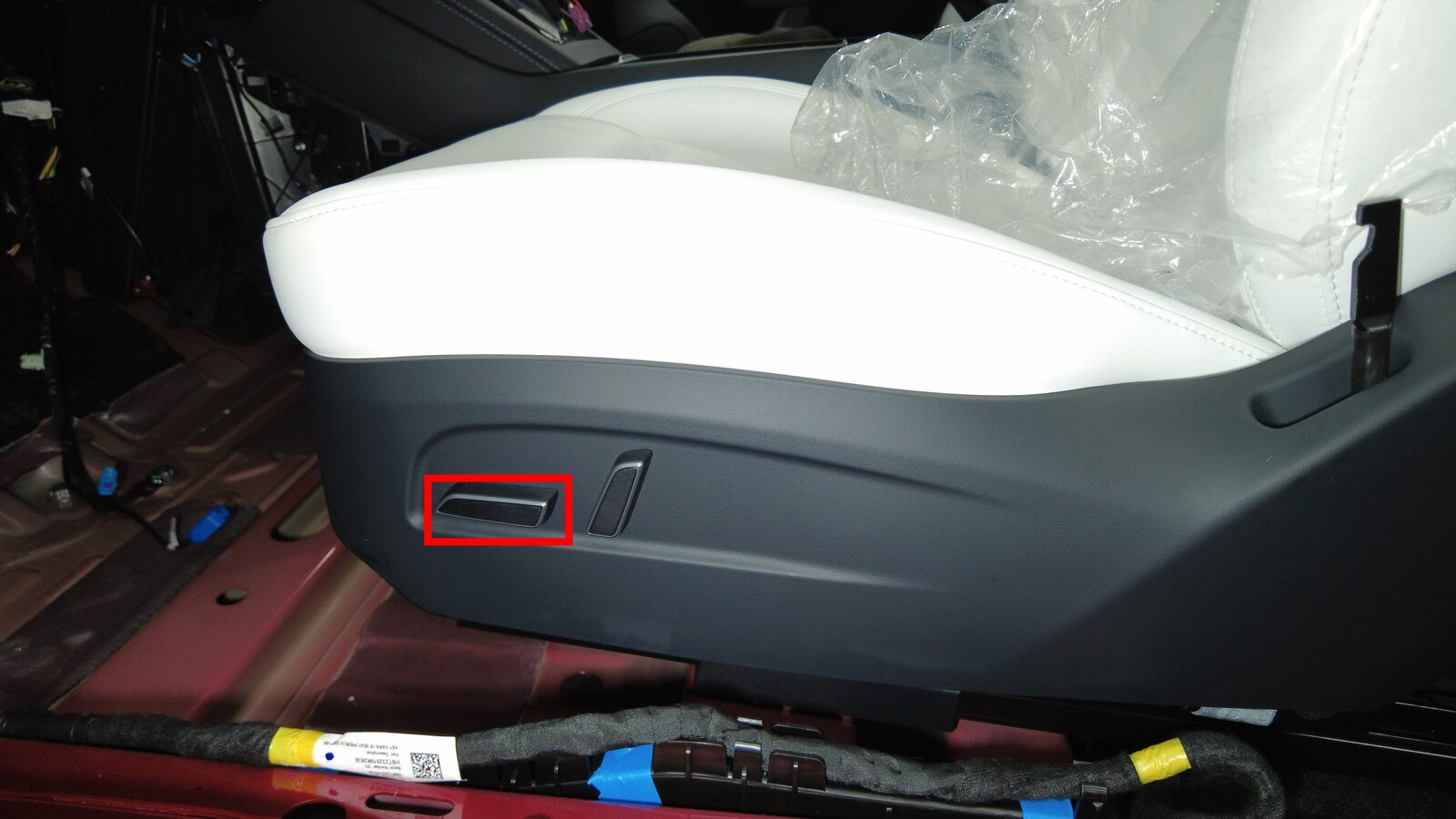

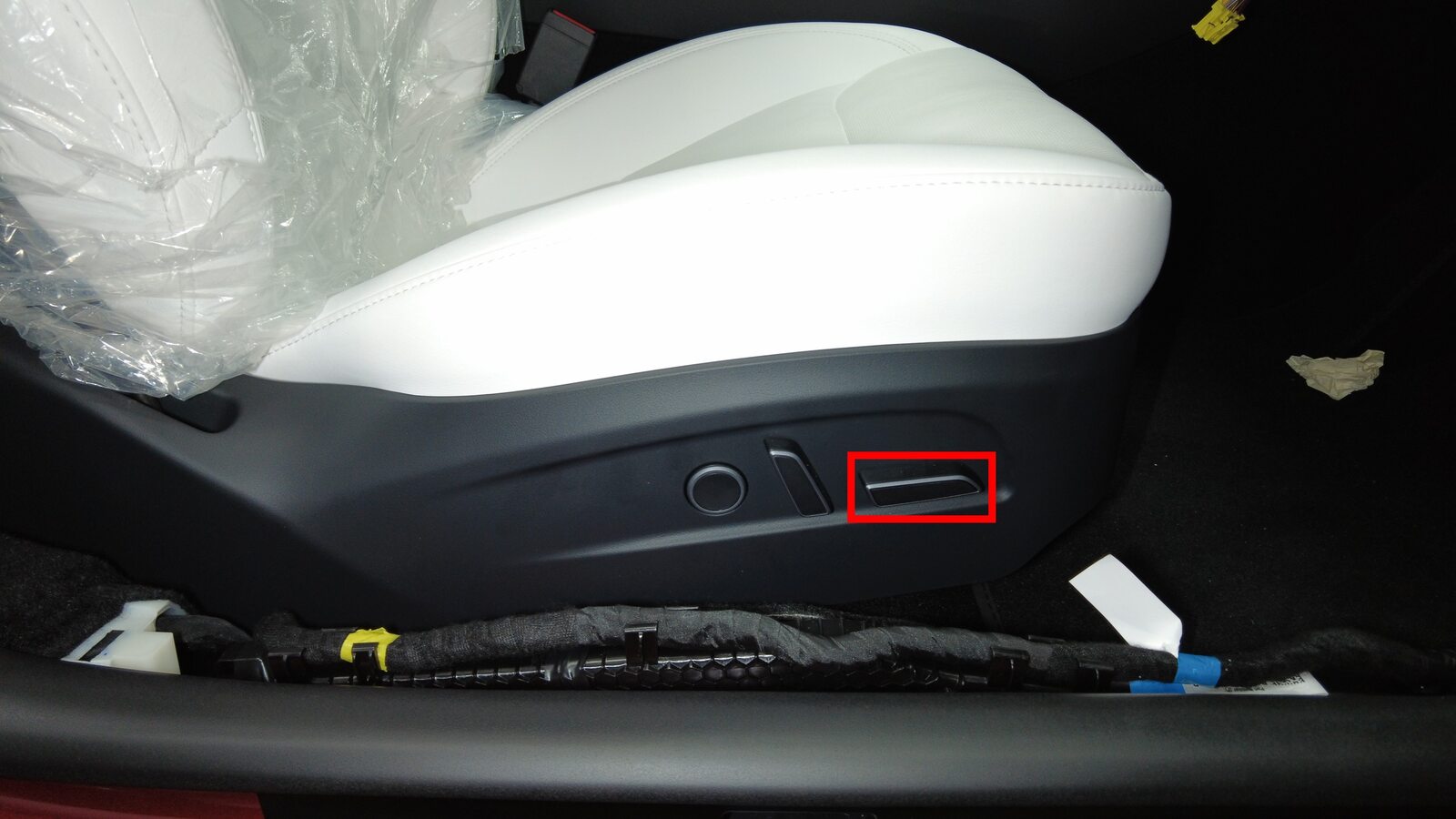

  7. Move RH front seat forward

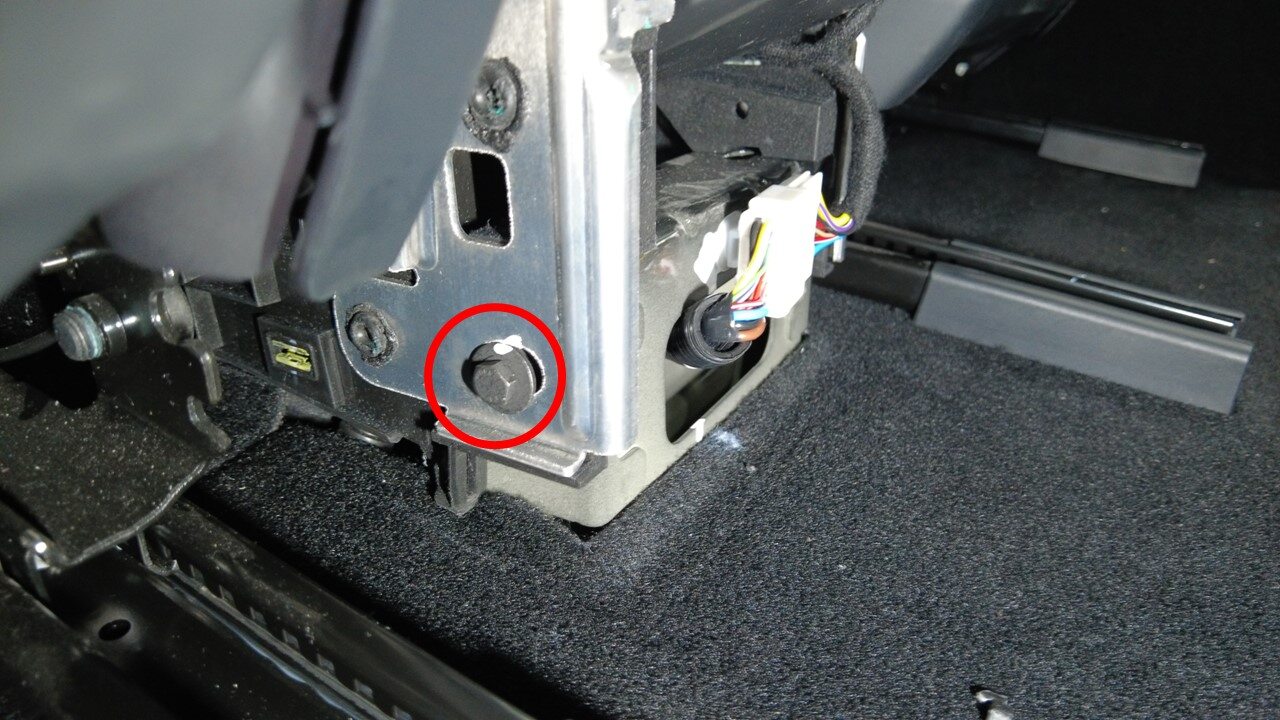

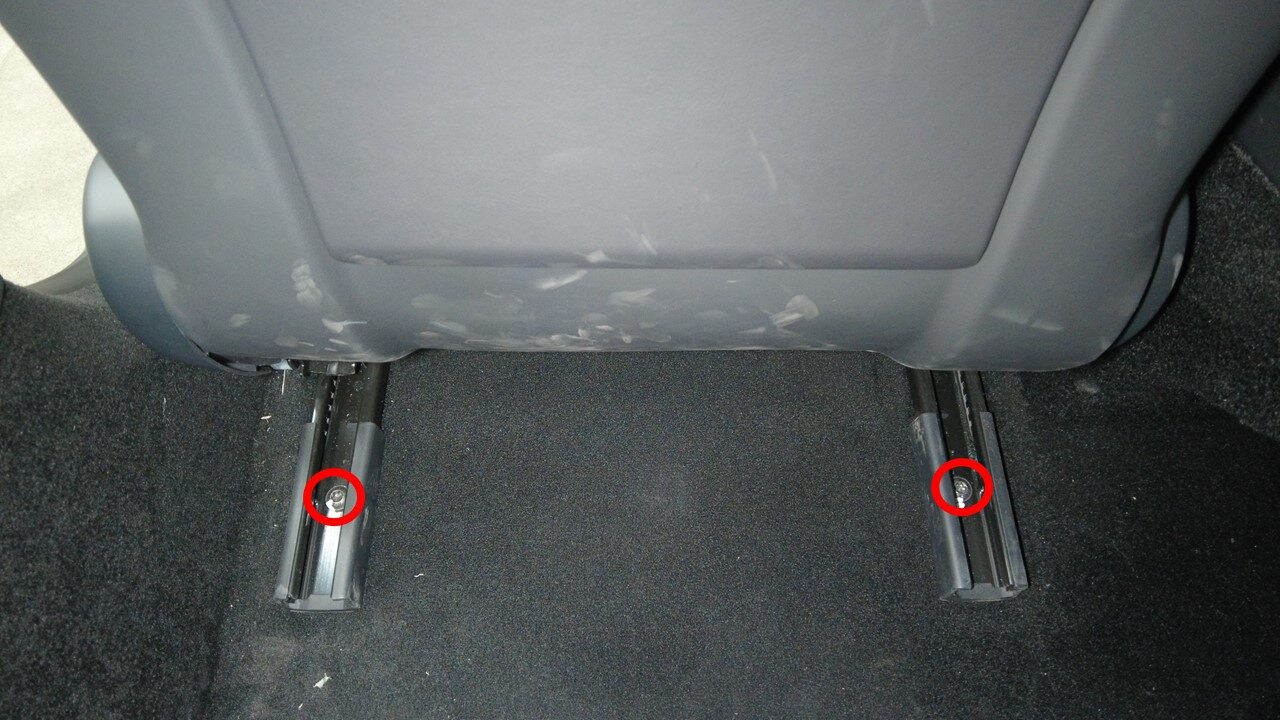

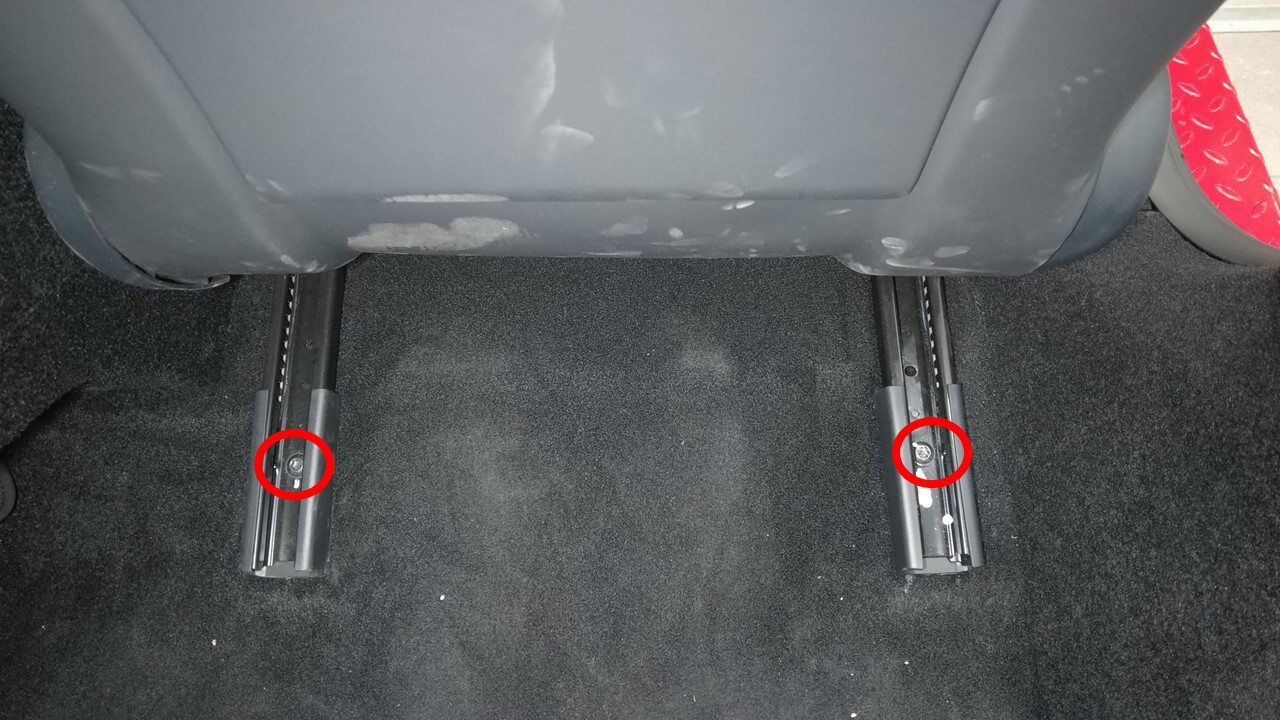

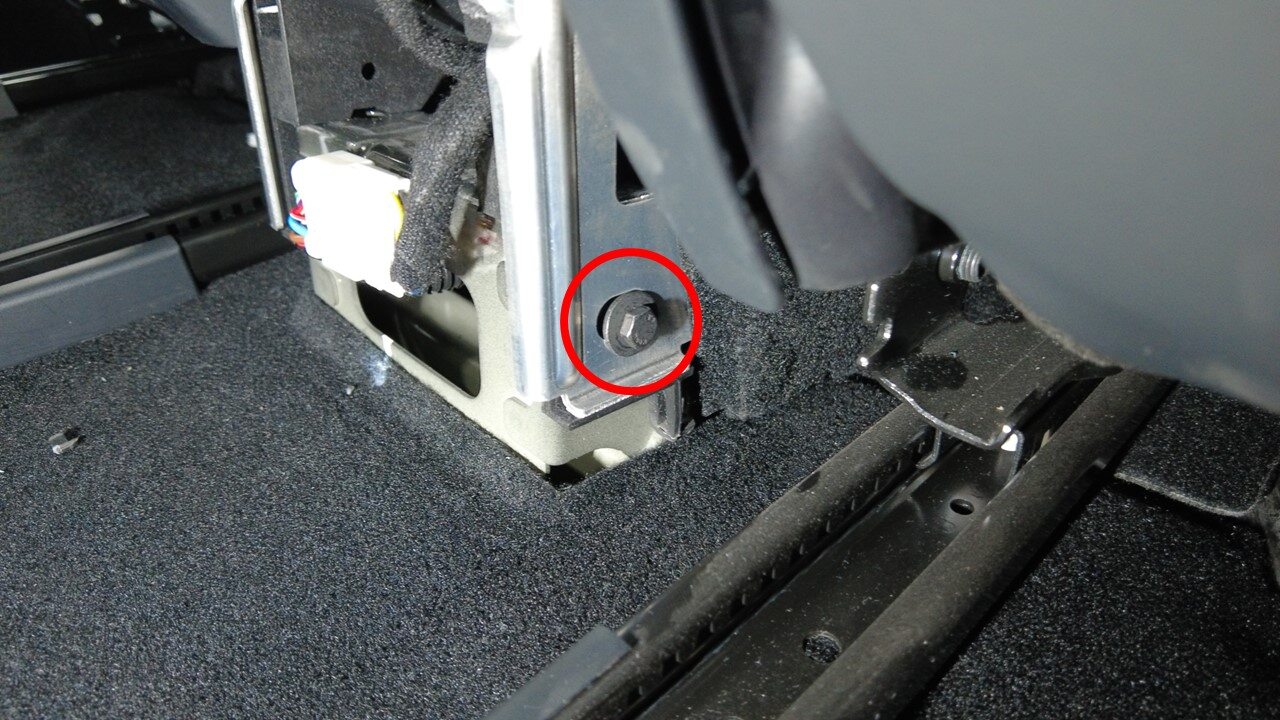

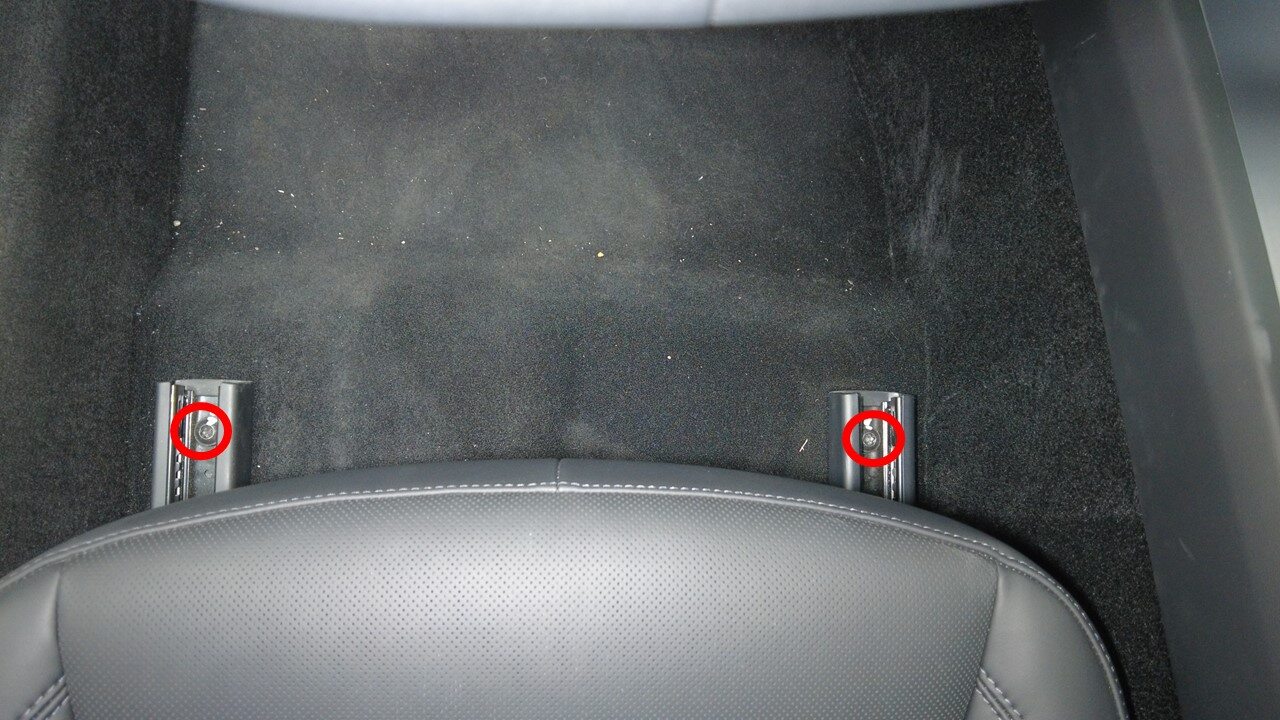

  8. Remove RH front seat rear fasteners
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x patch bolts, T45, 33.5 Nm, Discard after removal
  9. Move RH front seat backward
  10. Remove RH front seat front fasteners
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x patch bolts, T45, 33.5 Nm, Discard after removal

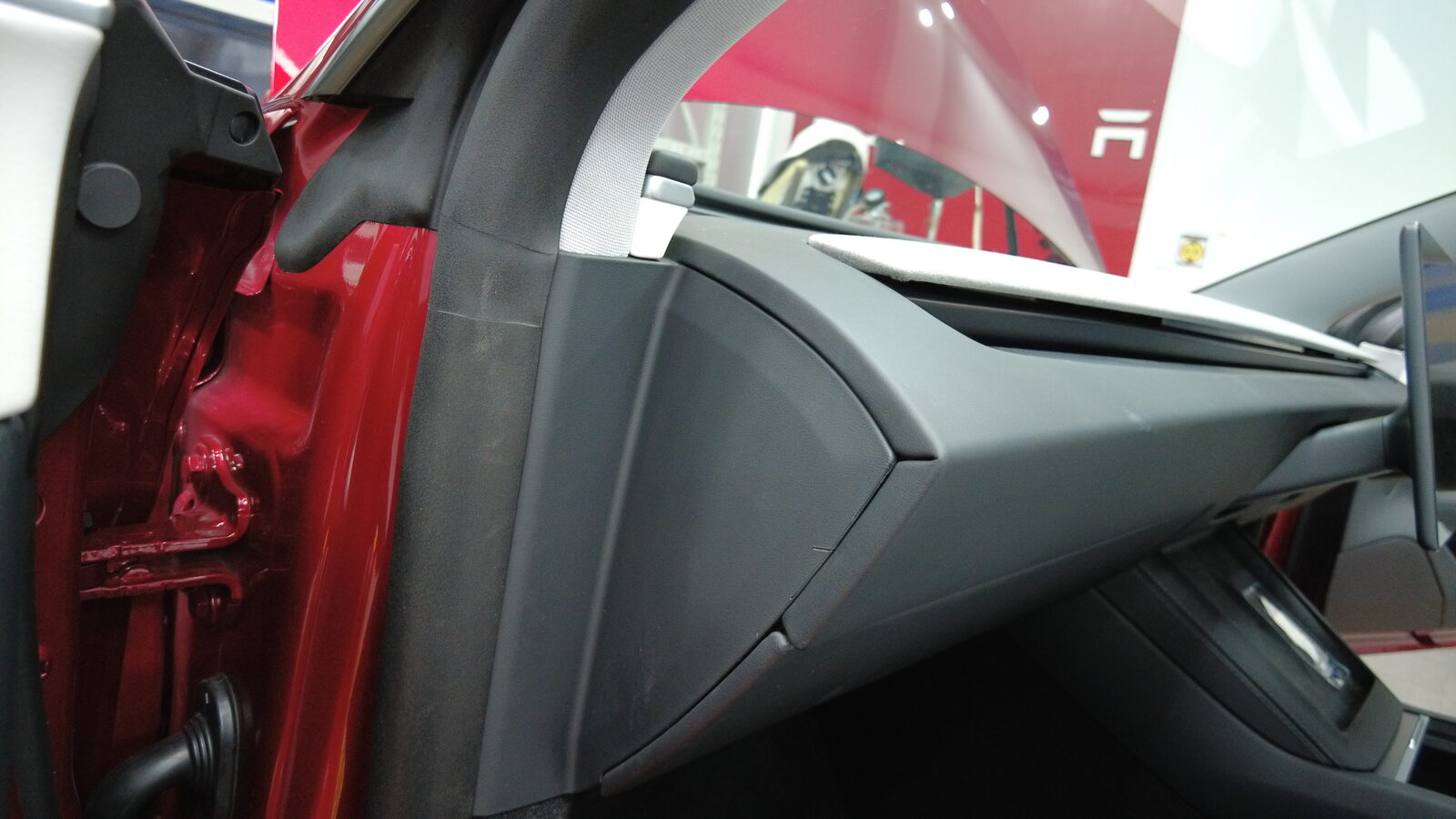

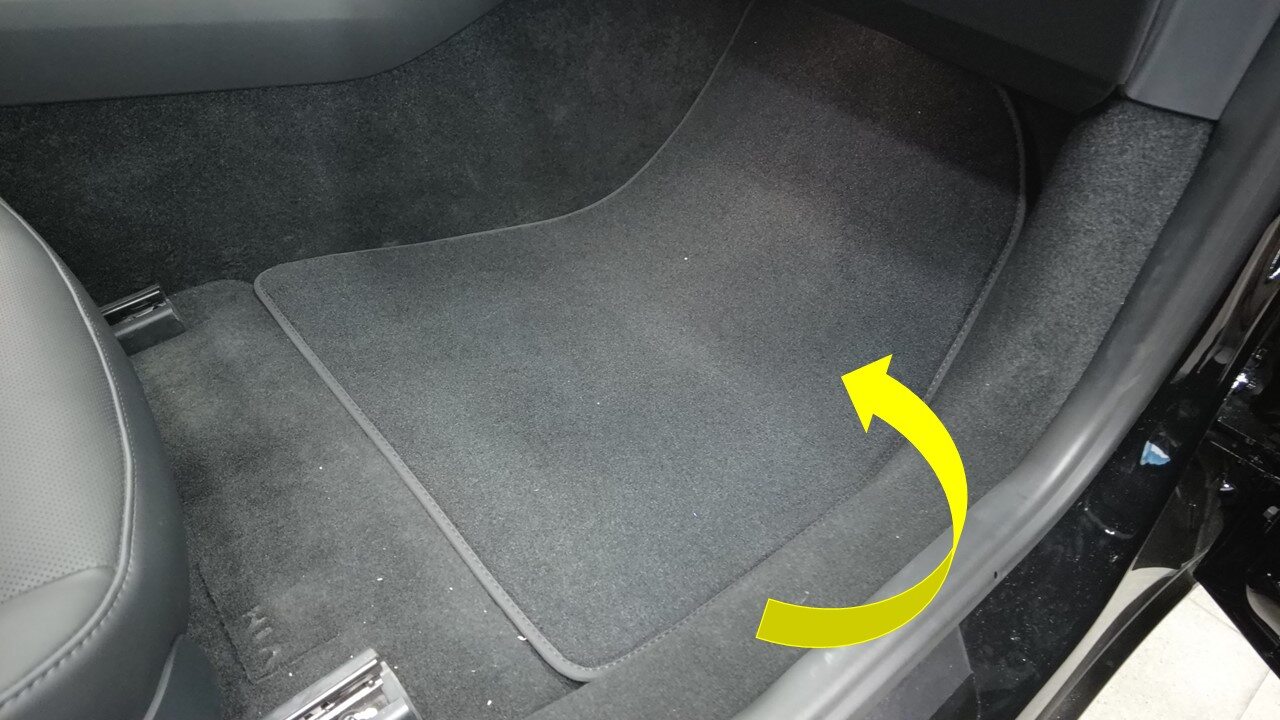

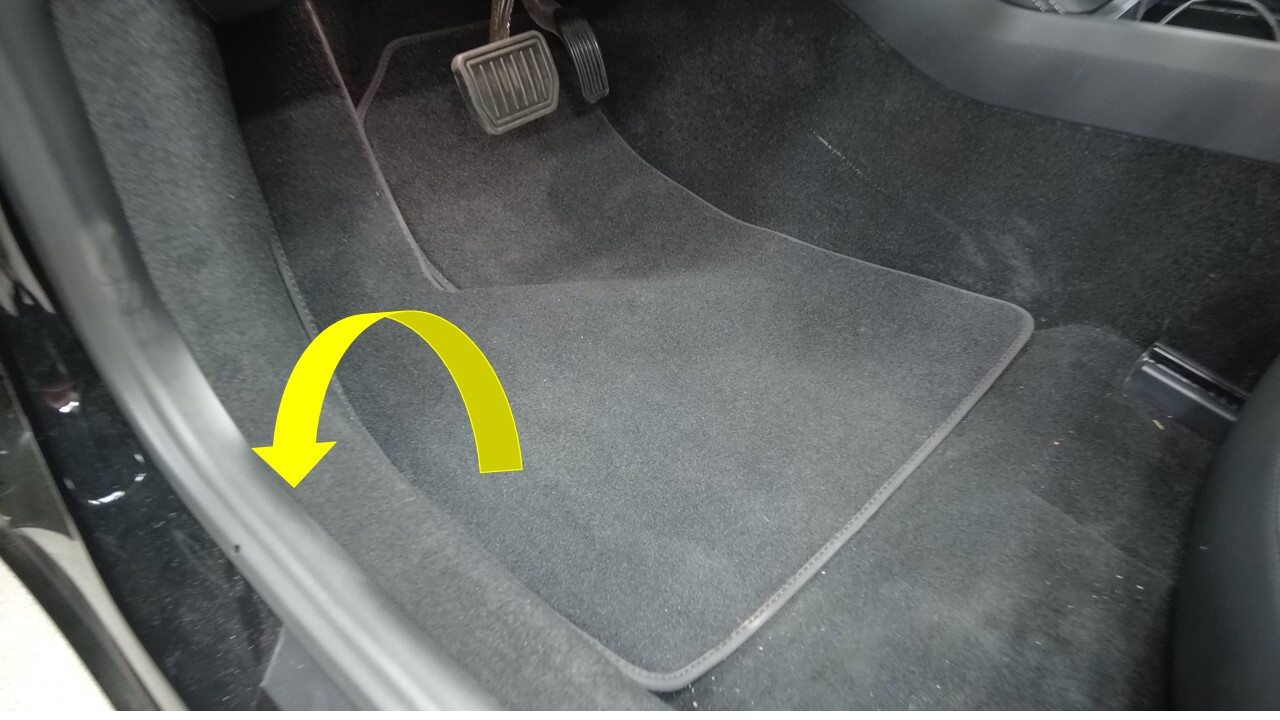

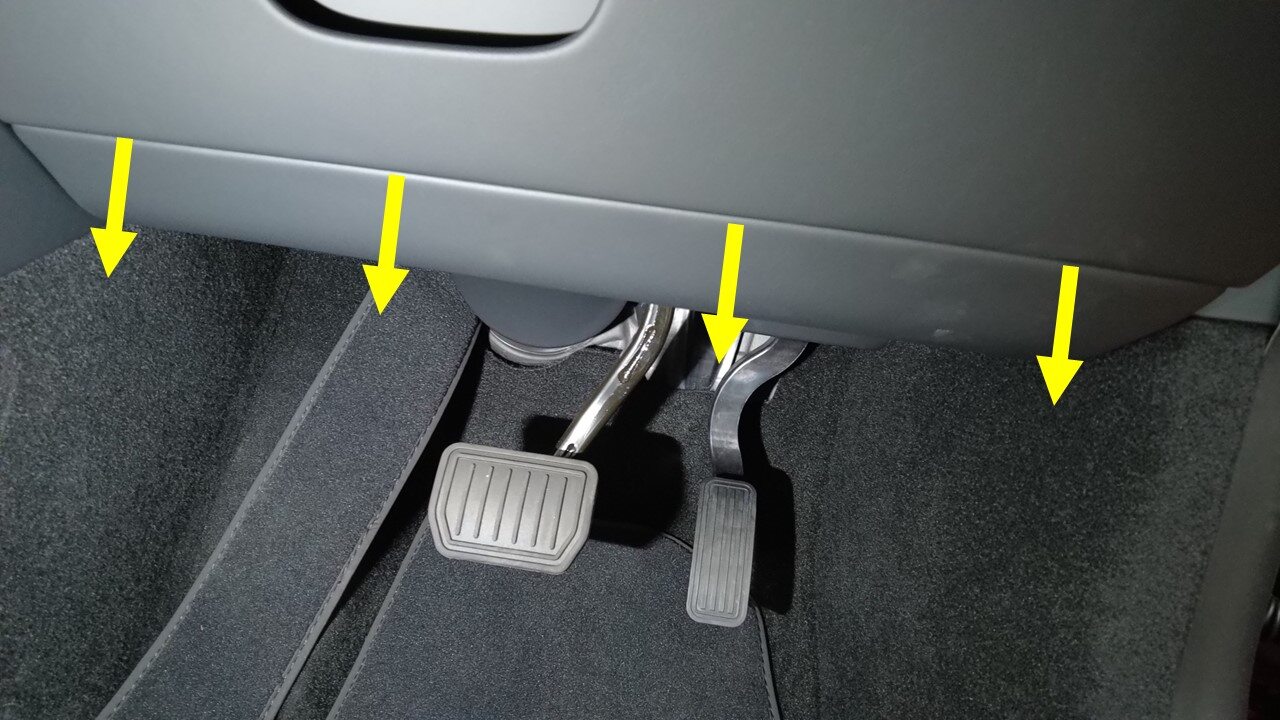

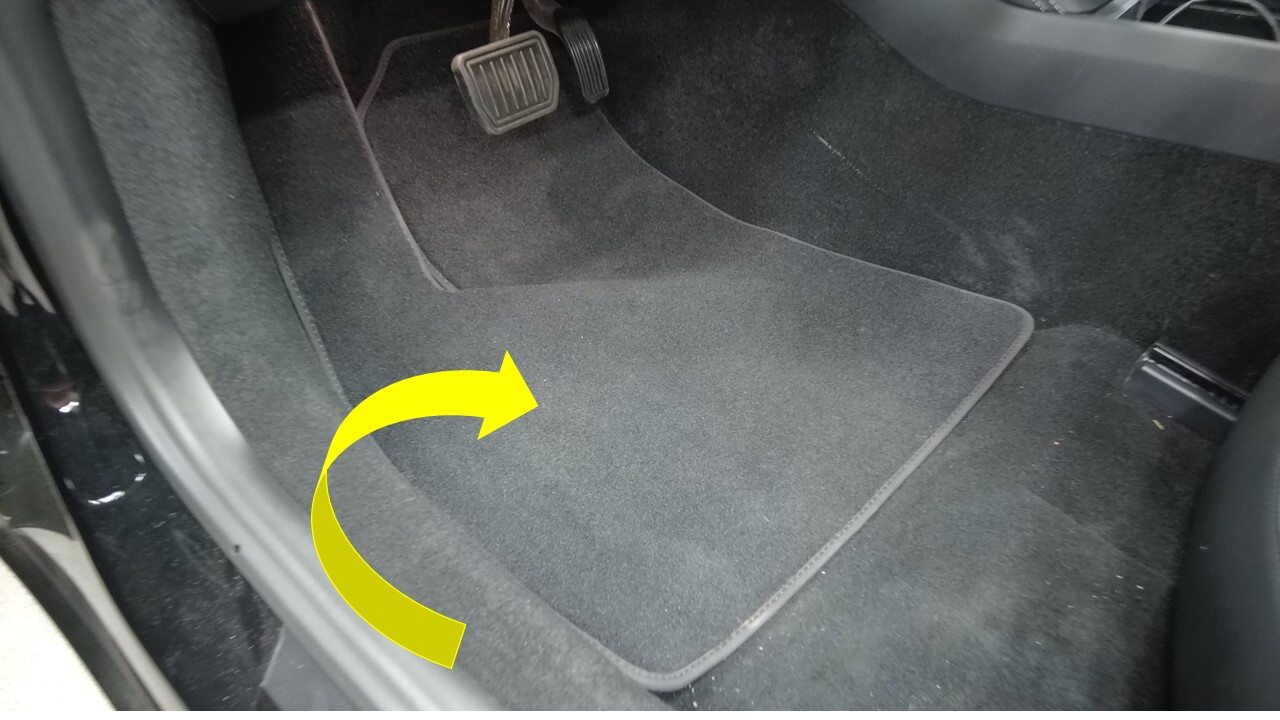

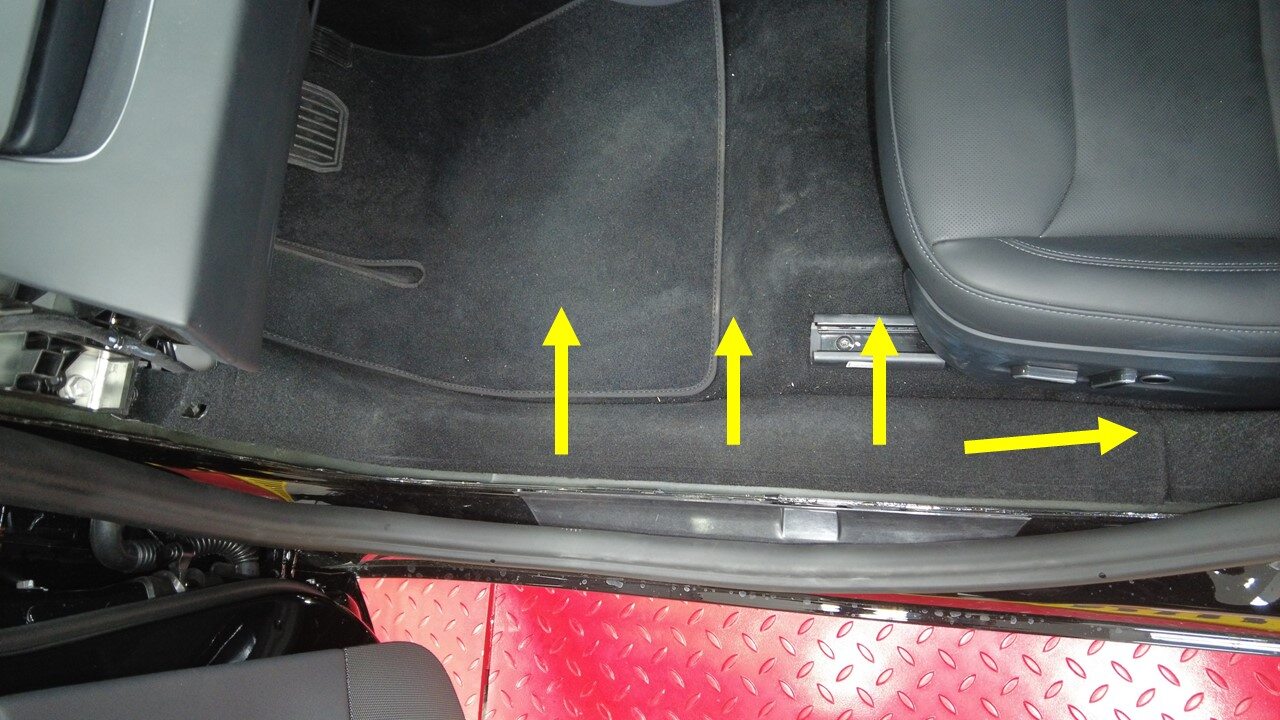

  11. Remove LH front floor mat

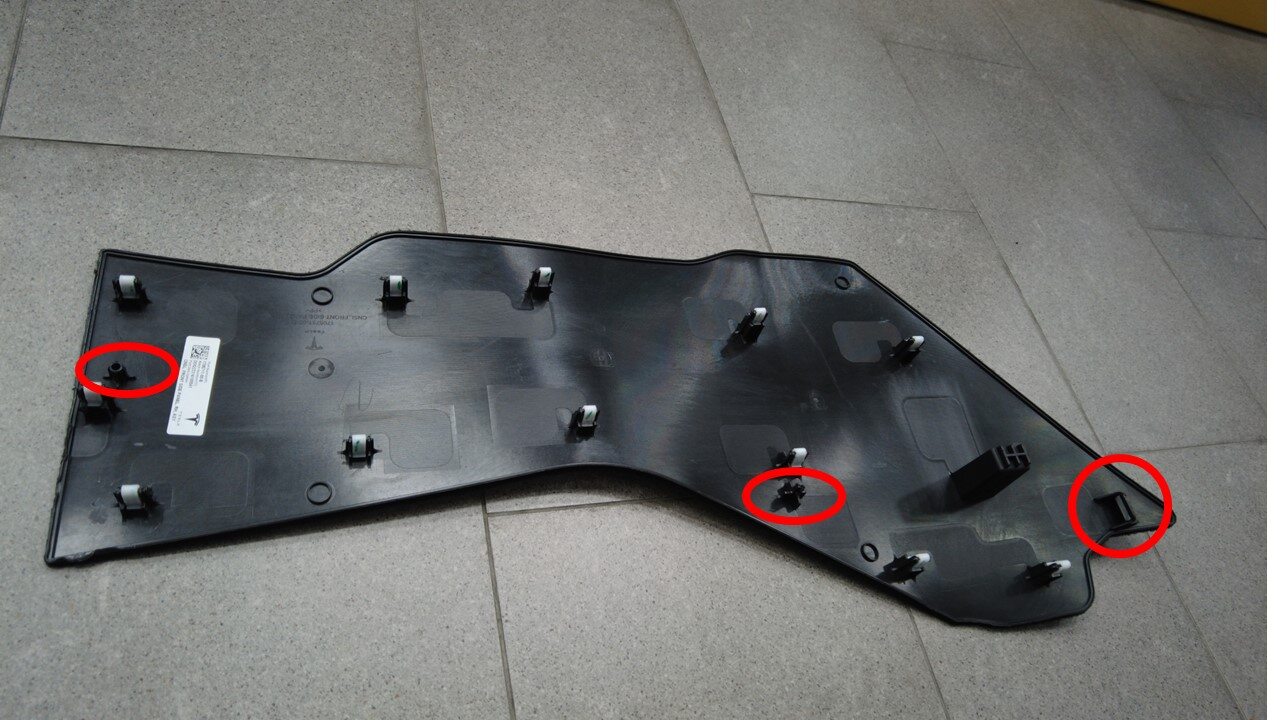

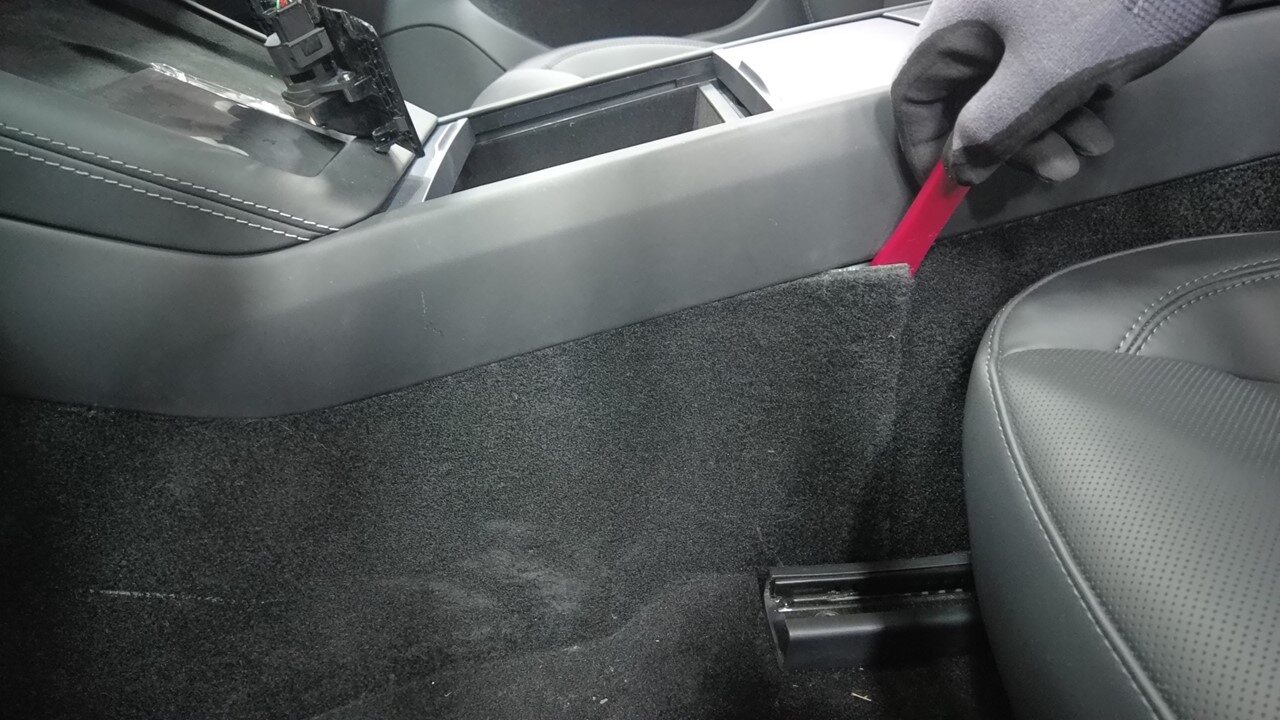

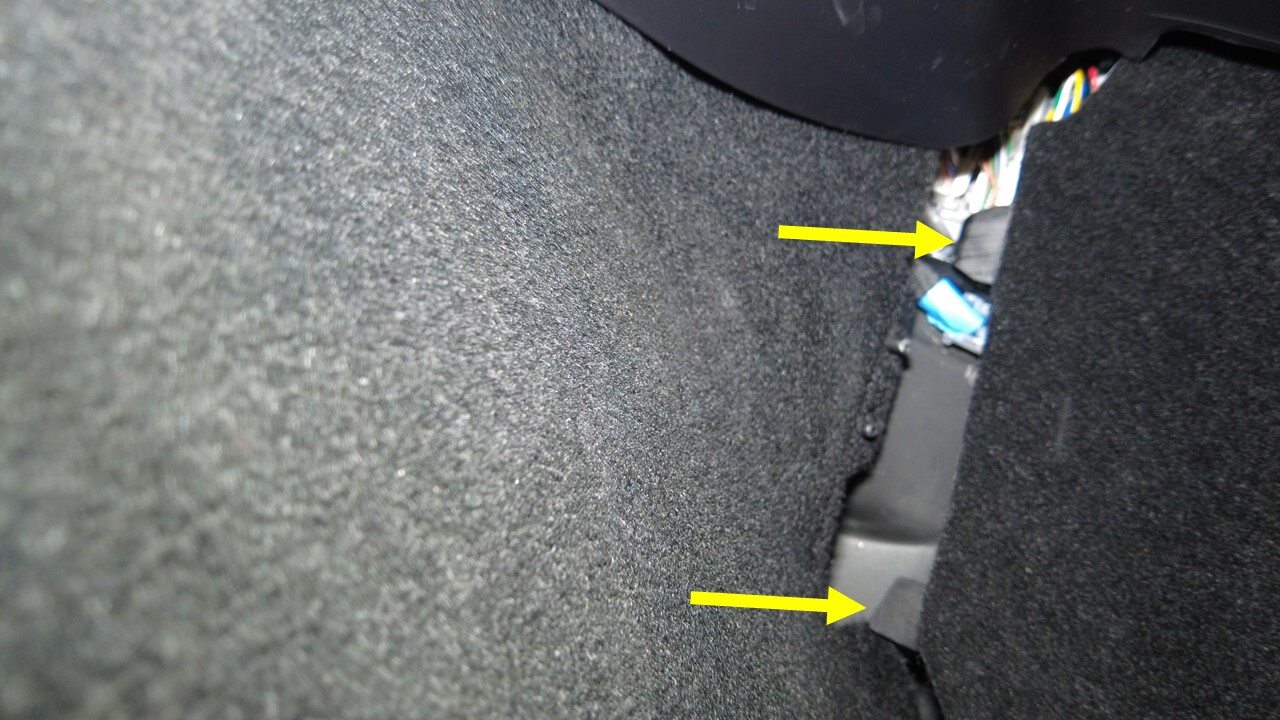

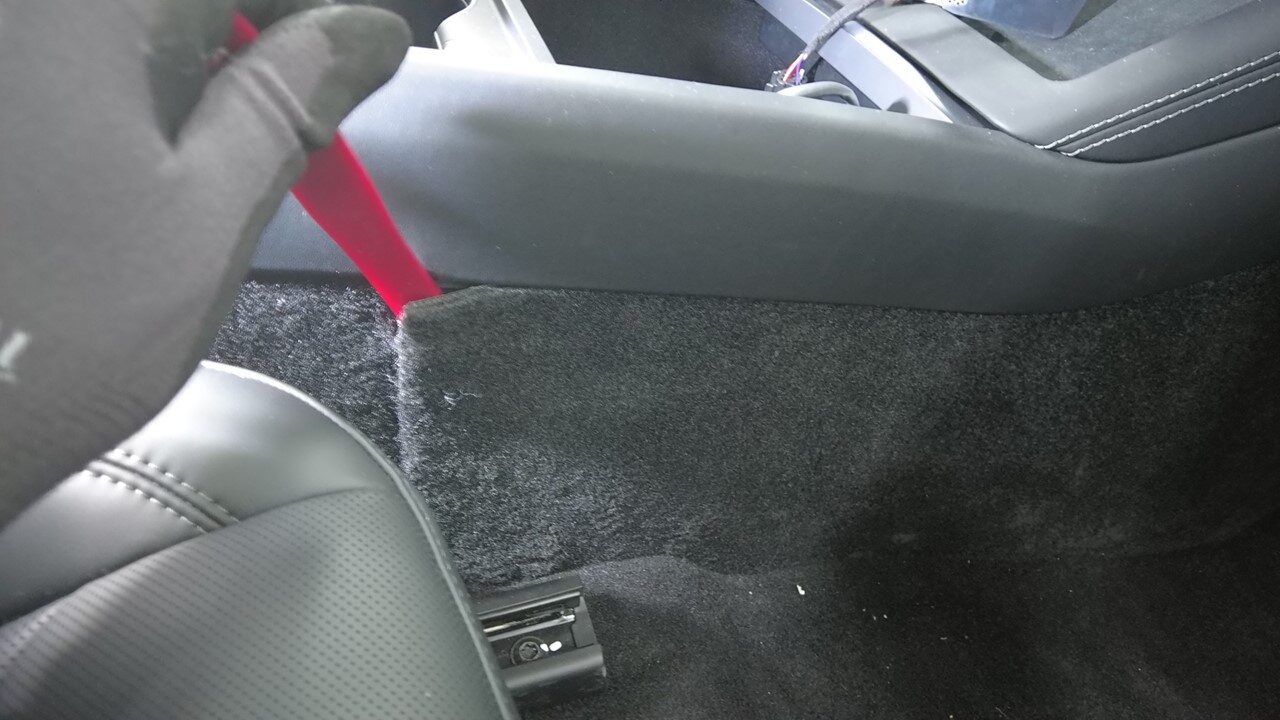

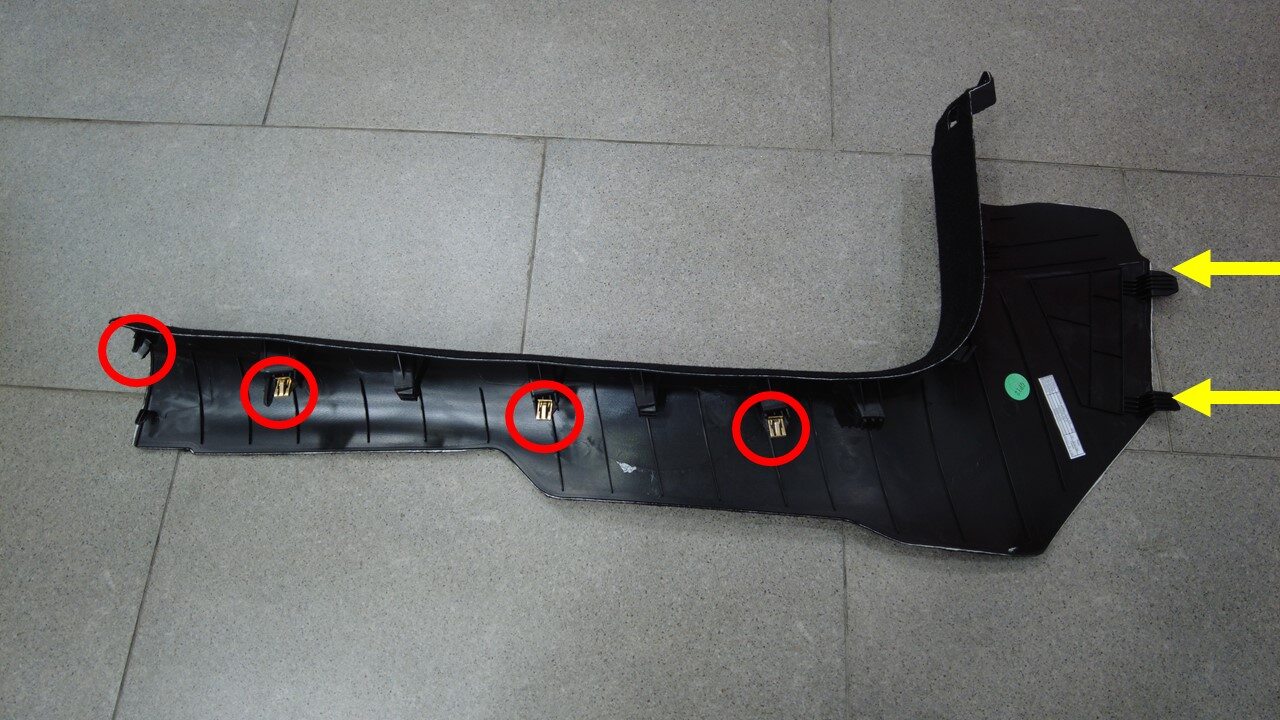

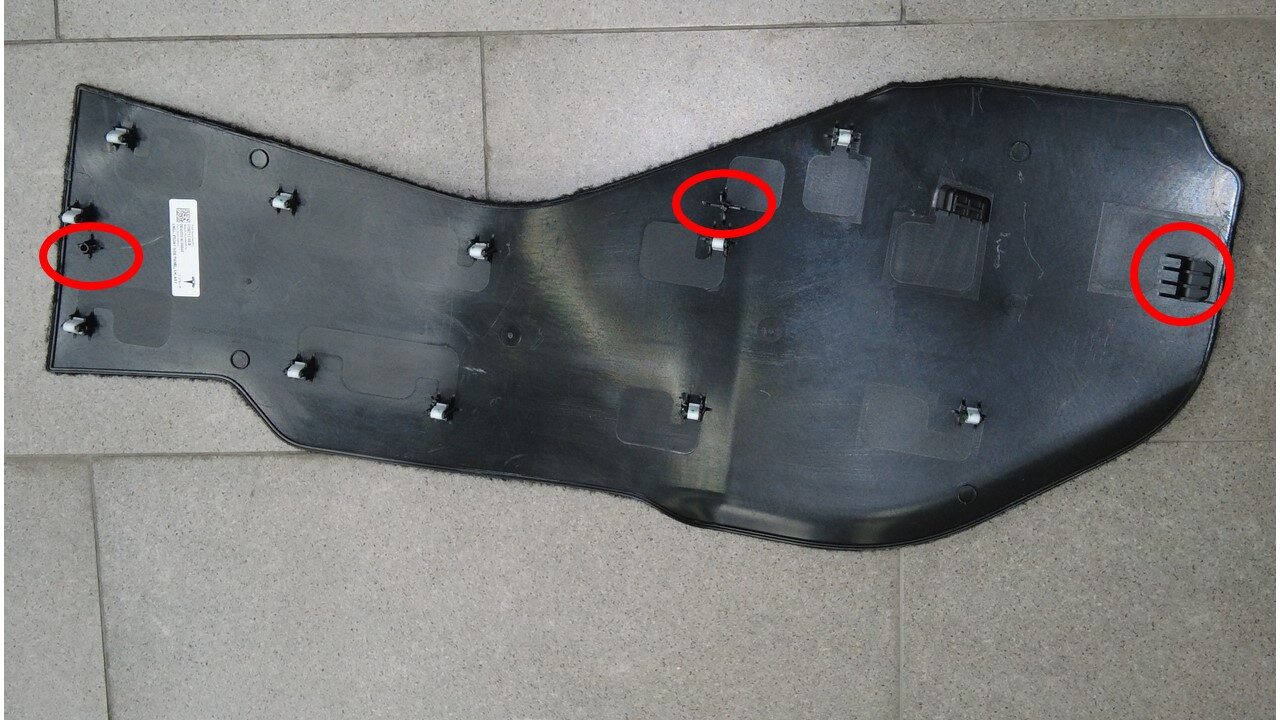

  12. Remove LH console side panel carpet
    Informational PurposesAn informational icon, calling your attention
    Remarque
    11x clips, 2x positioning clips, 1x tab, Use trim tool starting at rear edge to release upper clips, If clips is too tight, Use prytool to remove clips, Then pull bottom to release remaining clips, Finally, release tab and pull out side panel backward, Replace clips if it is damaged

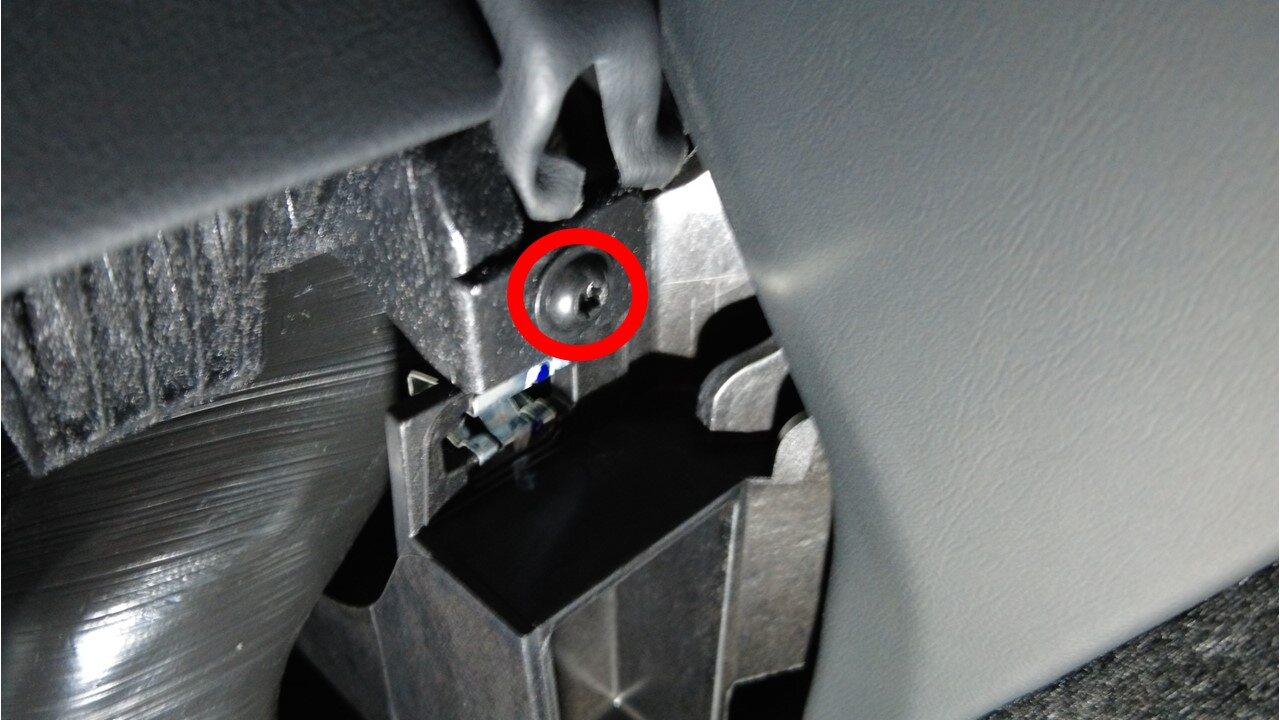

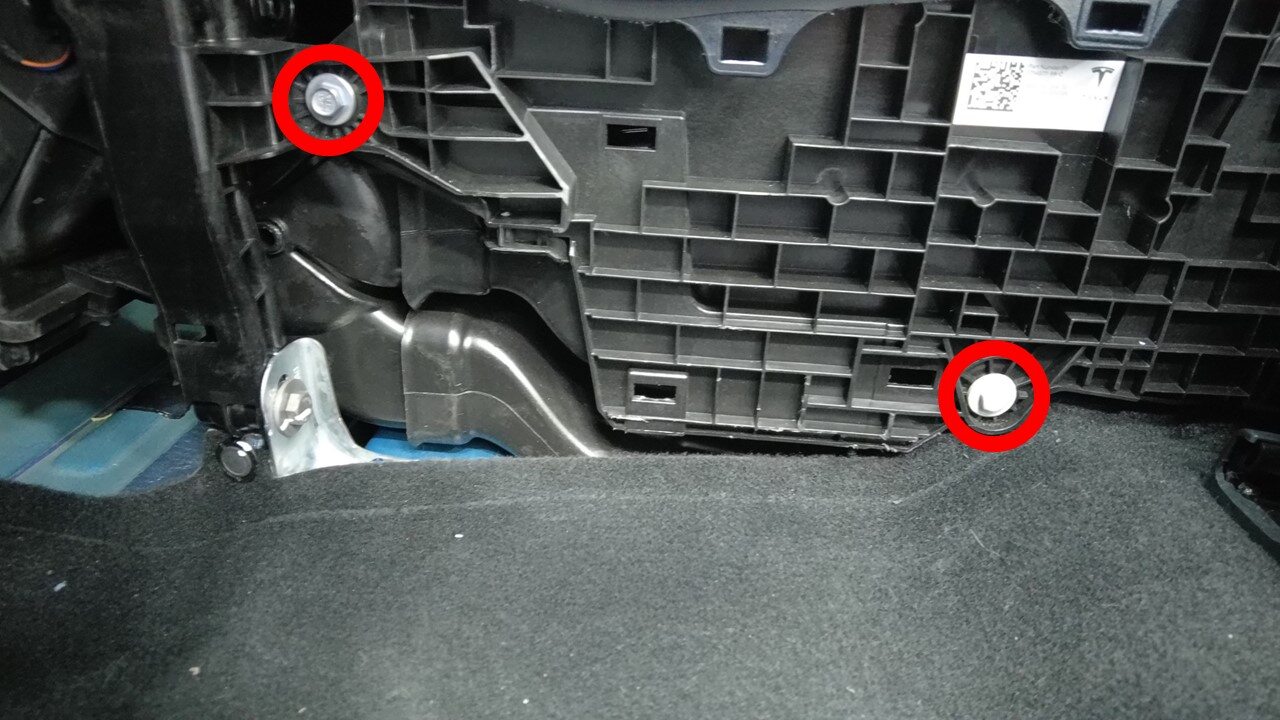

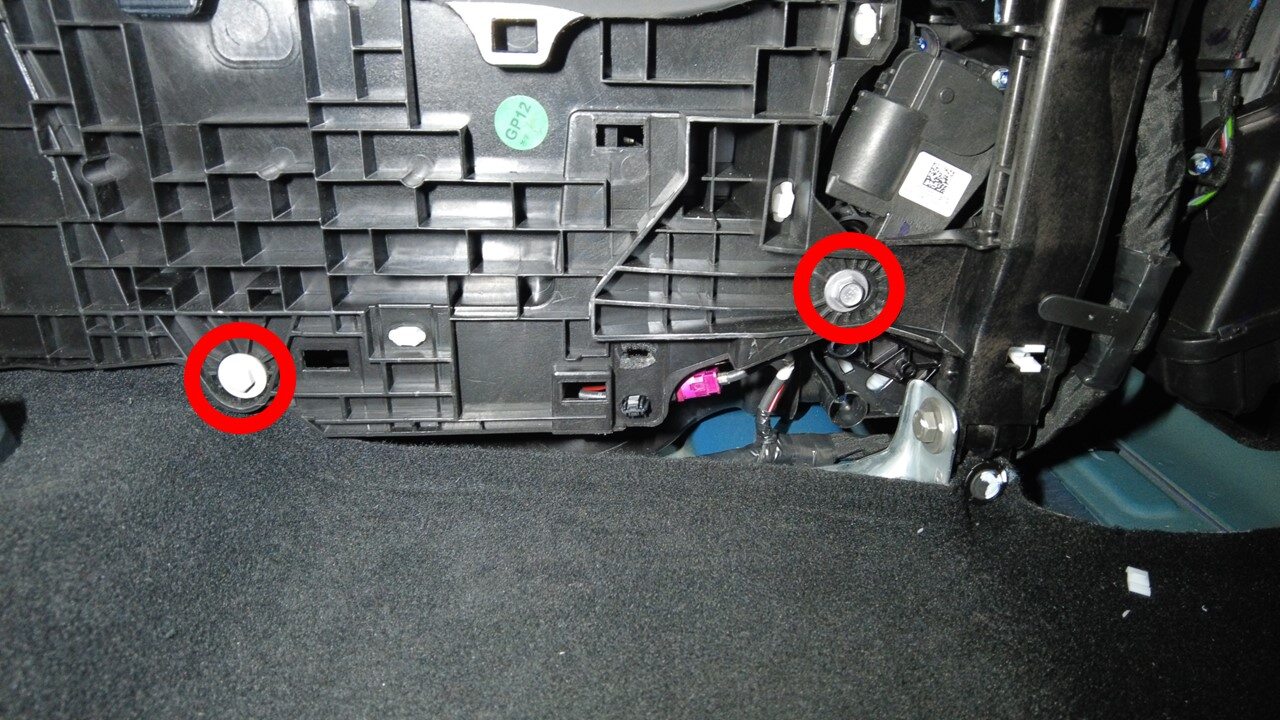

  13. Remove LH front exterior bolts from center console
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 10mm, 7 Nm

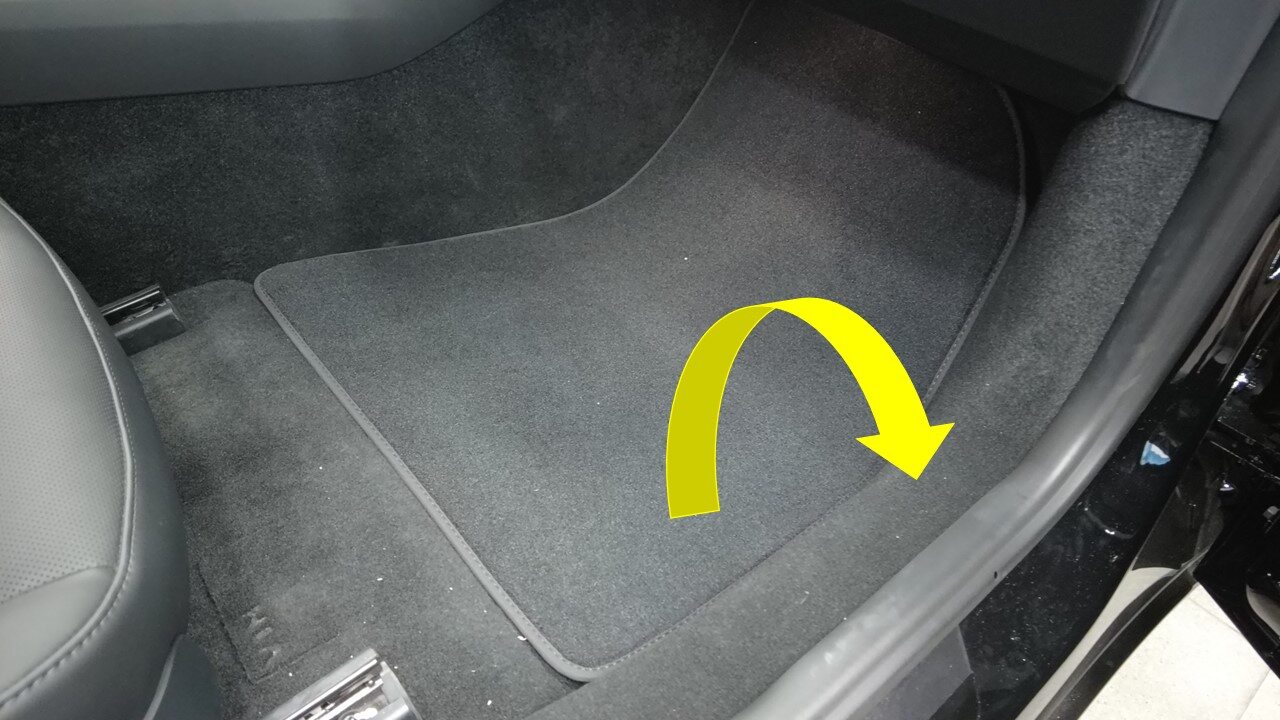

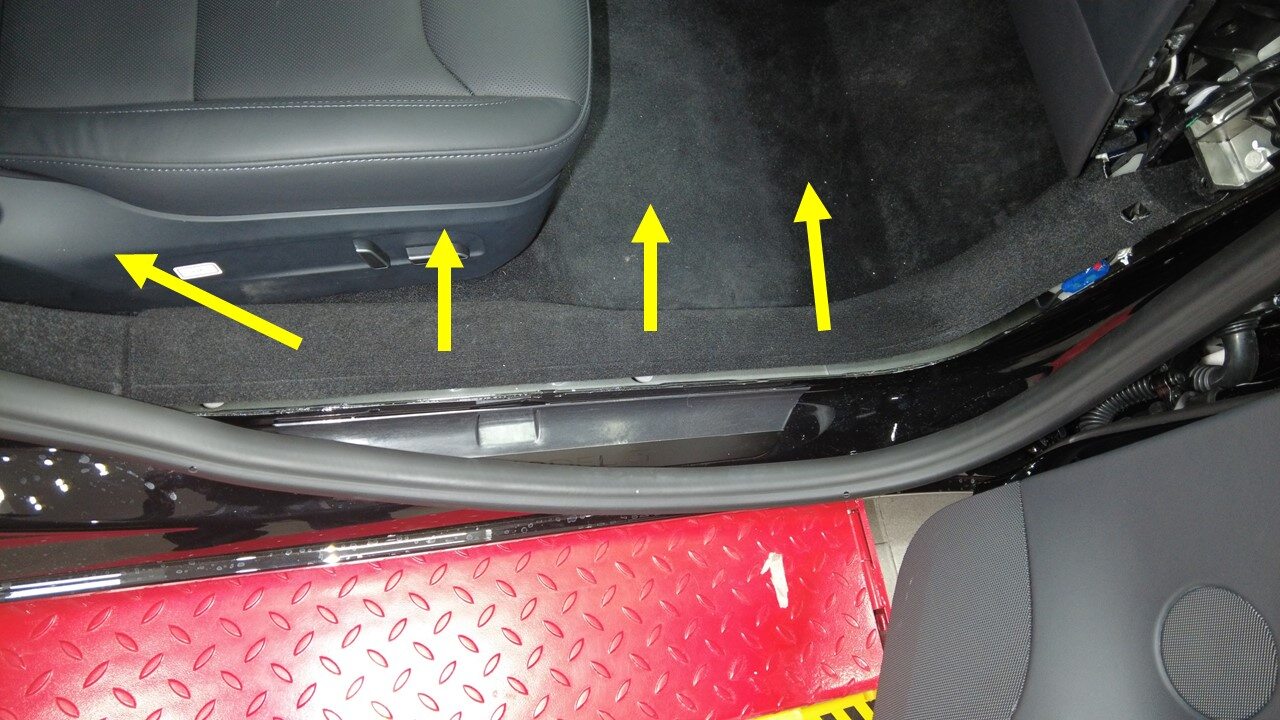

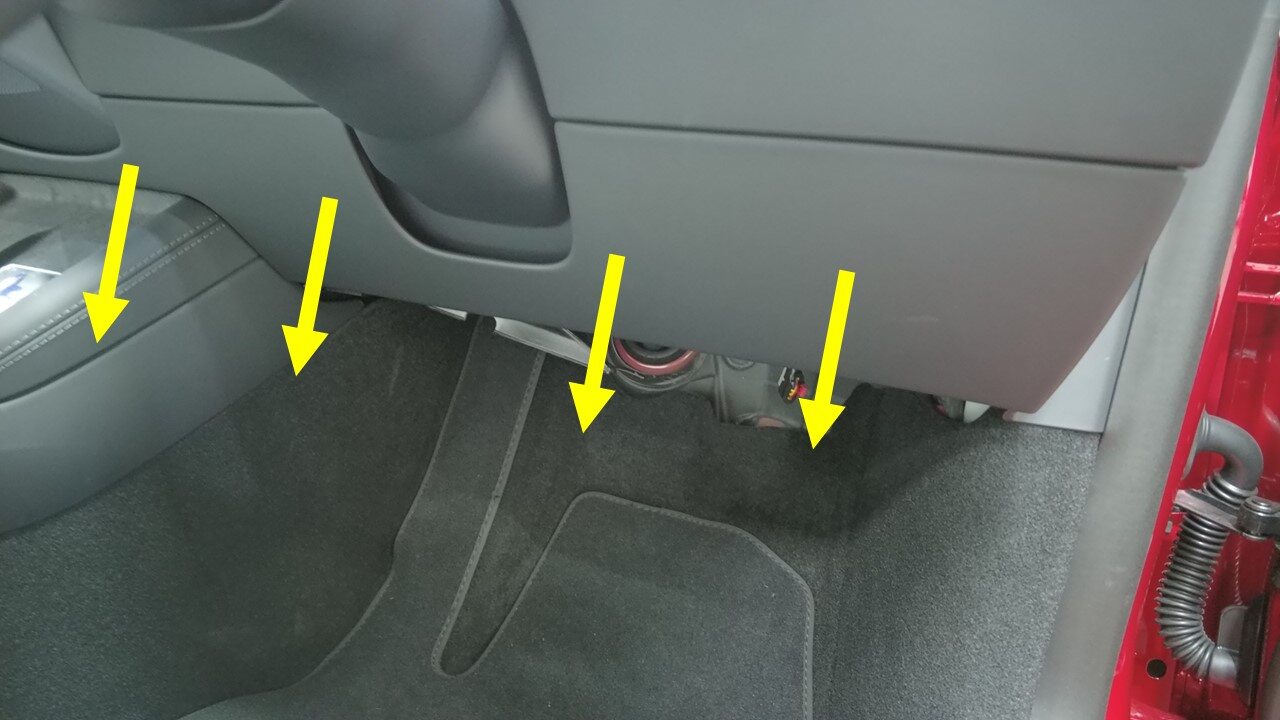

  14. Remove RH front floor mat

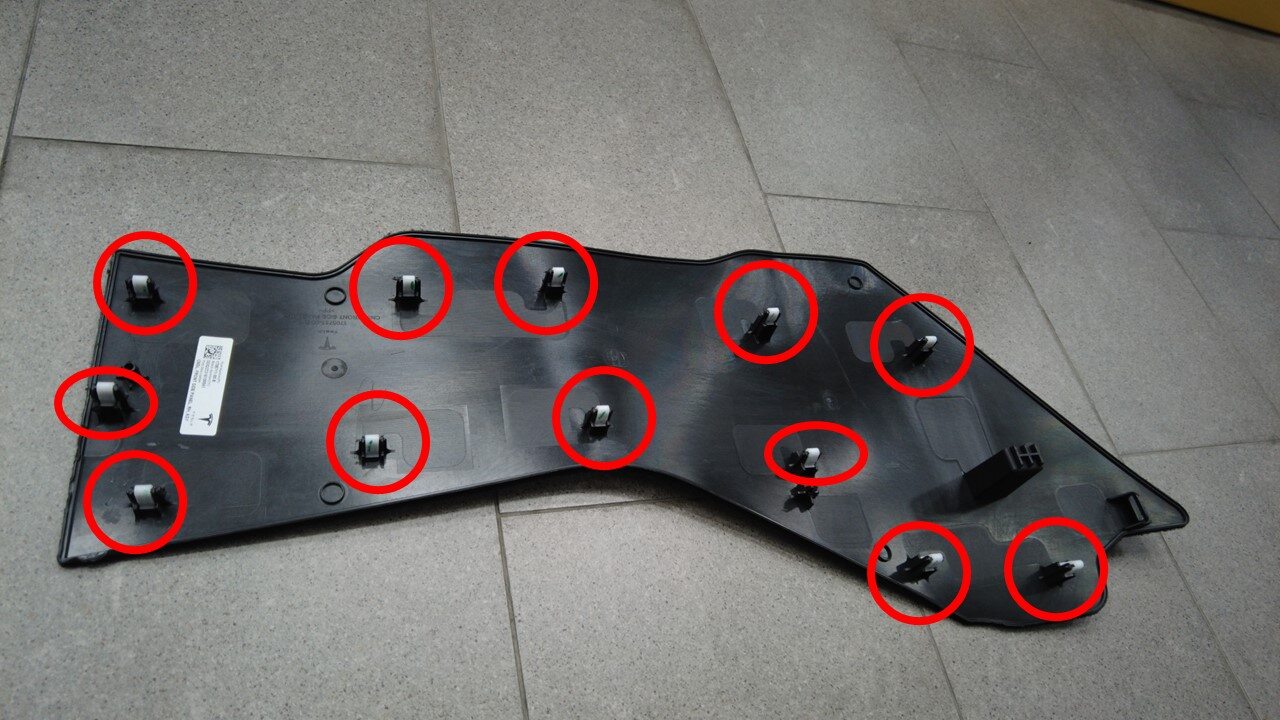

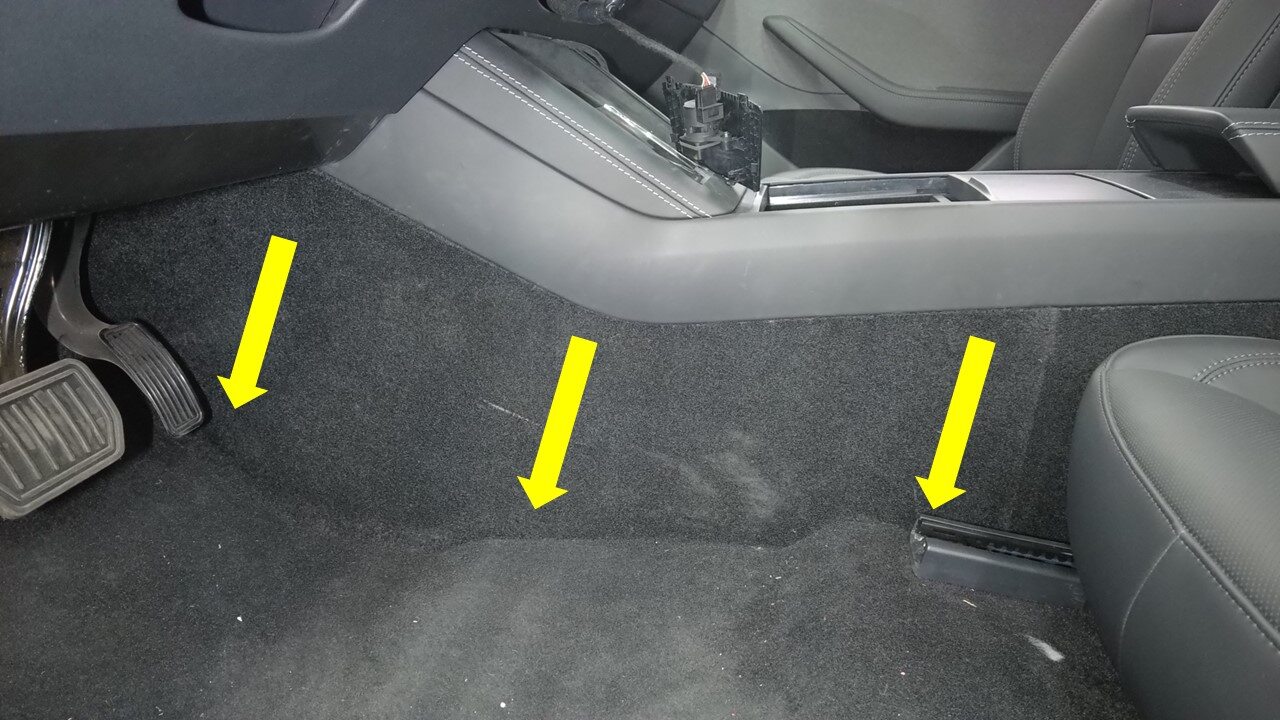

  15. Remove RH console side panel carpet
    Informational PurposesAn informational icon, calling your attention
    Remarque
    12x clips, 2x positioning clips, 1x datum, Use trim tool starting at rear edge to release upper clips, If clips is too tight, Useprytool to remove clips, Then pull bottom to release remaining clips, Finally, release the datum and pull out side panel backward, Replace clips if it is damaged

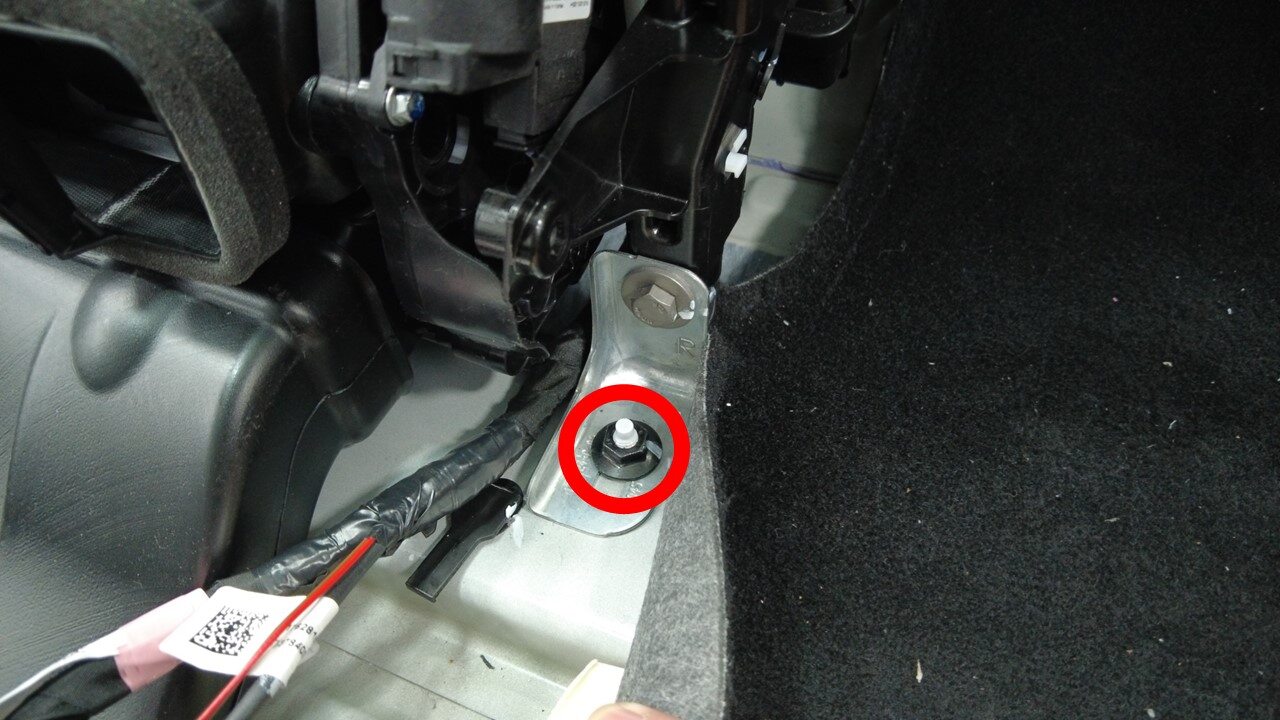

  16. Remove RH front exterior bolts from center console
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 10mm, 7 Nm

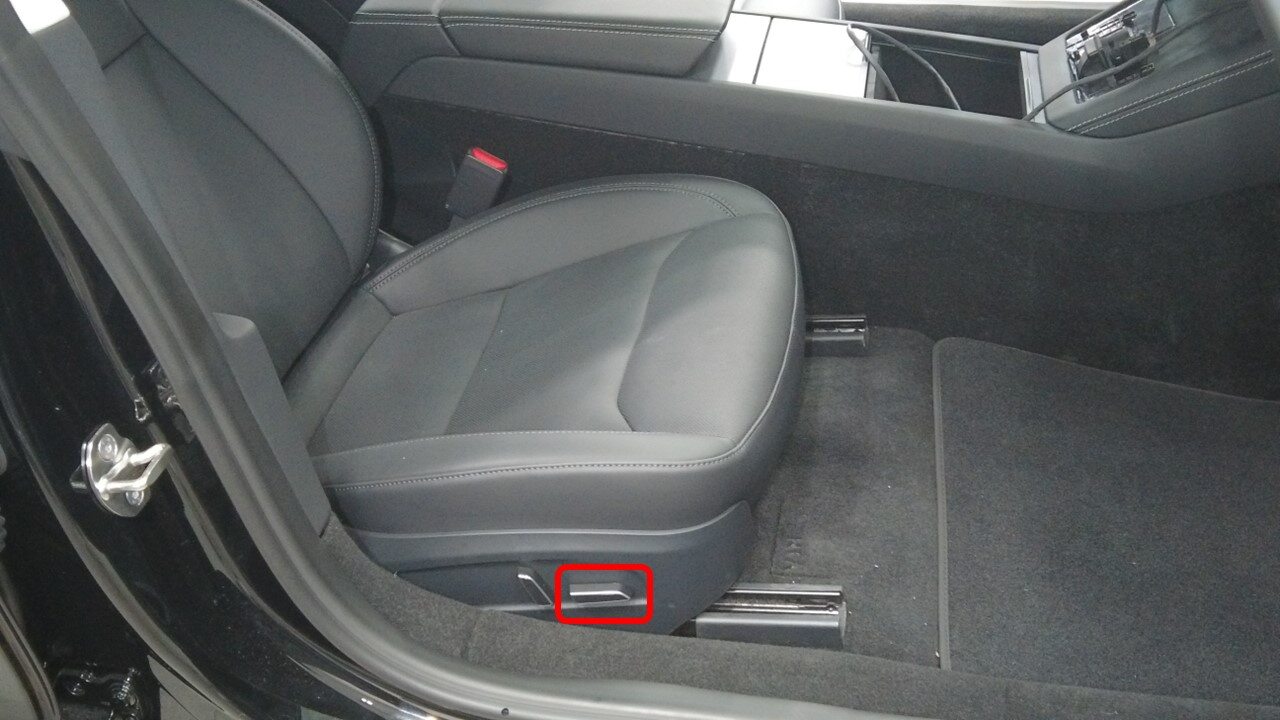

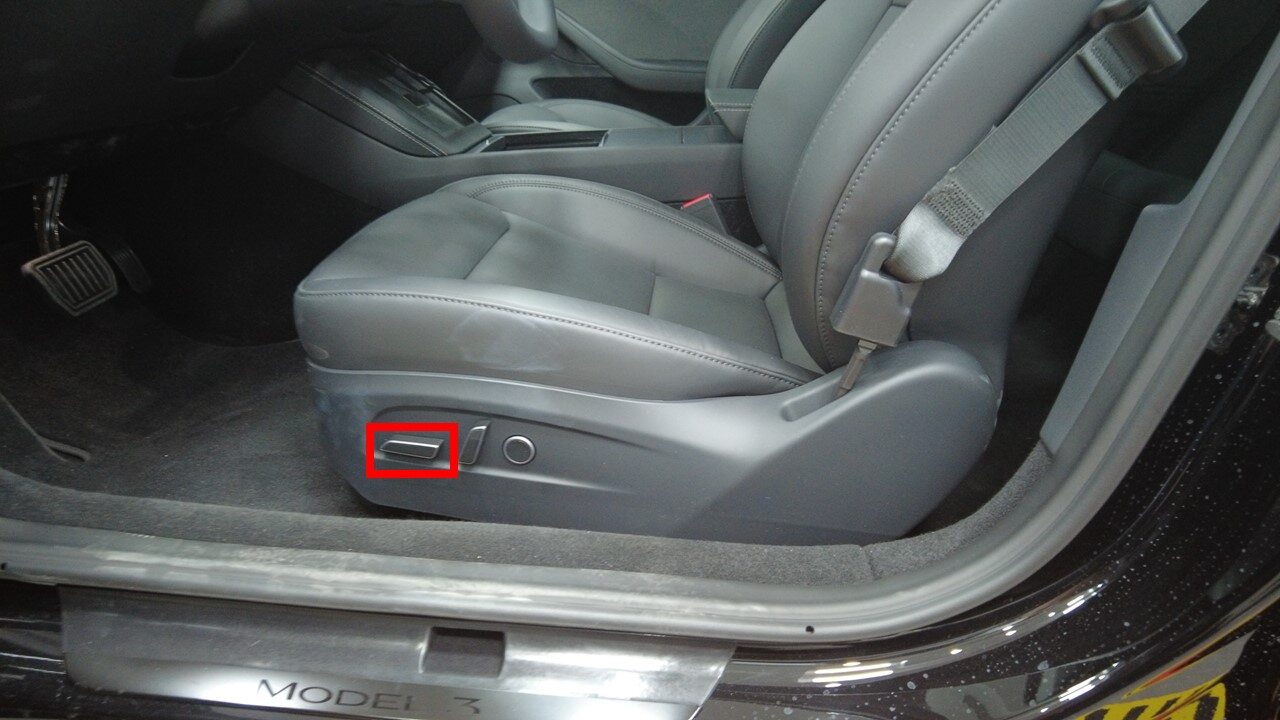

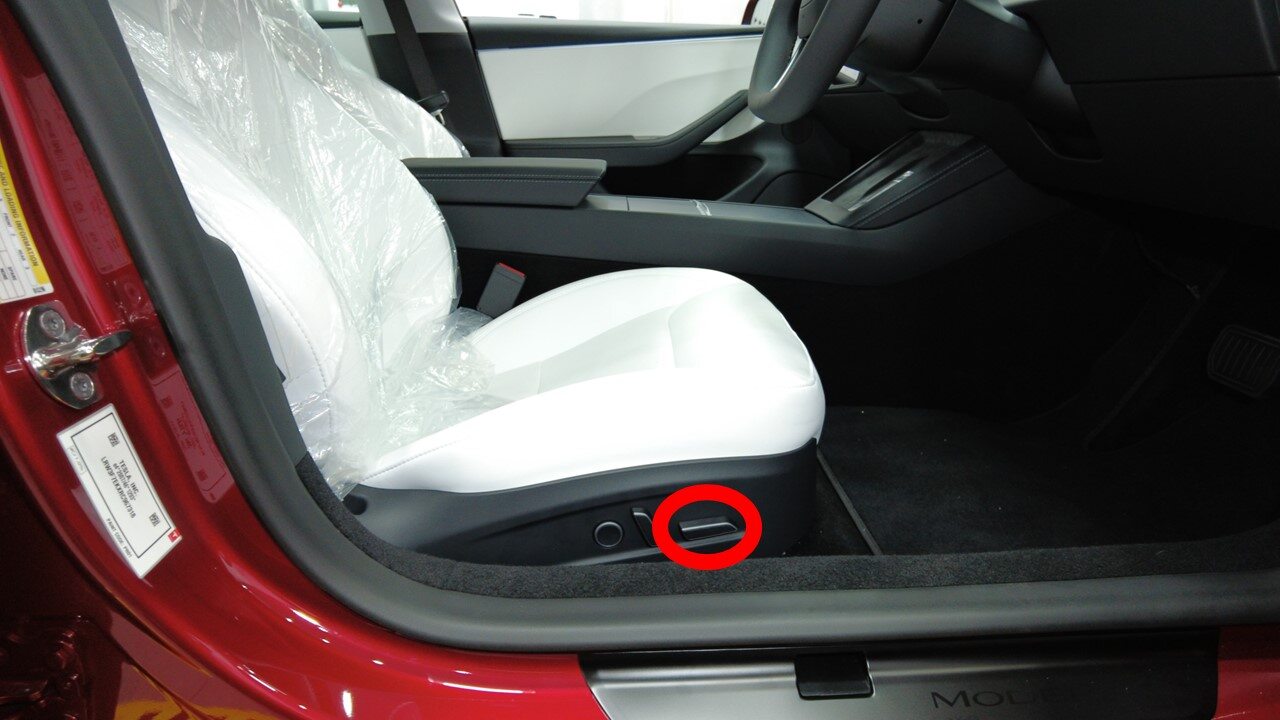

  17. Move LH front seat forward

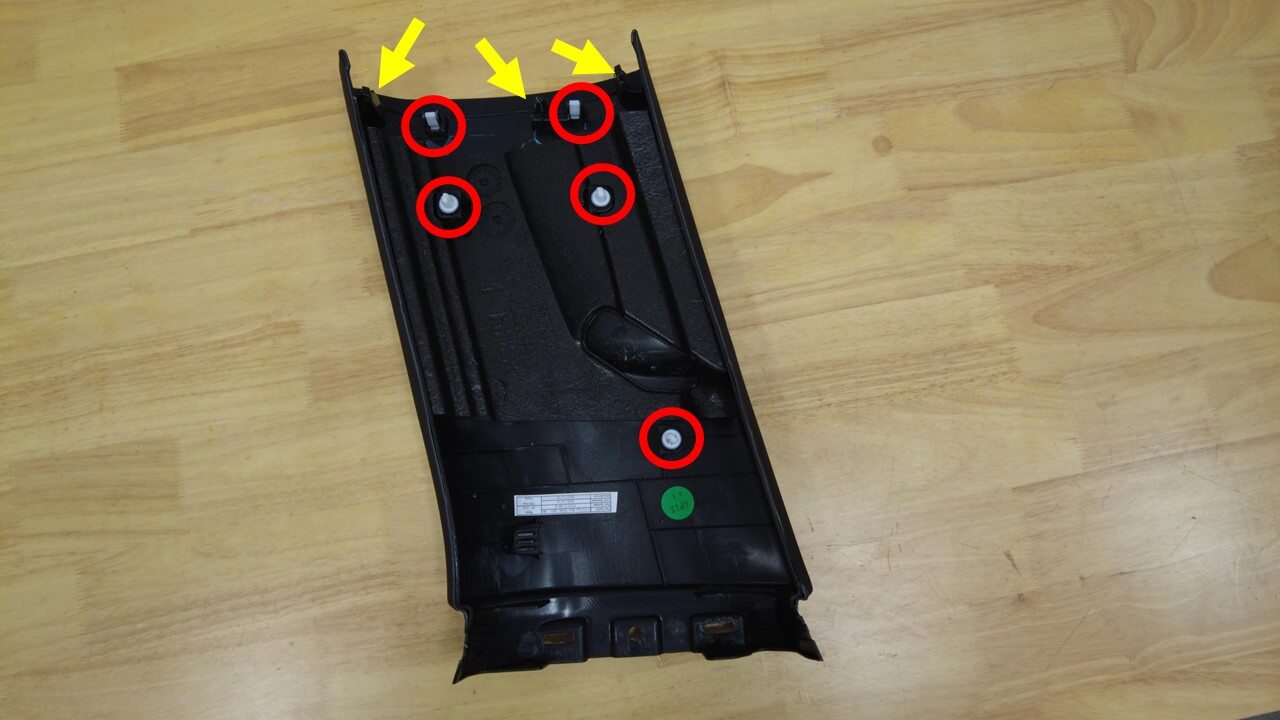

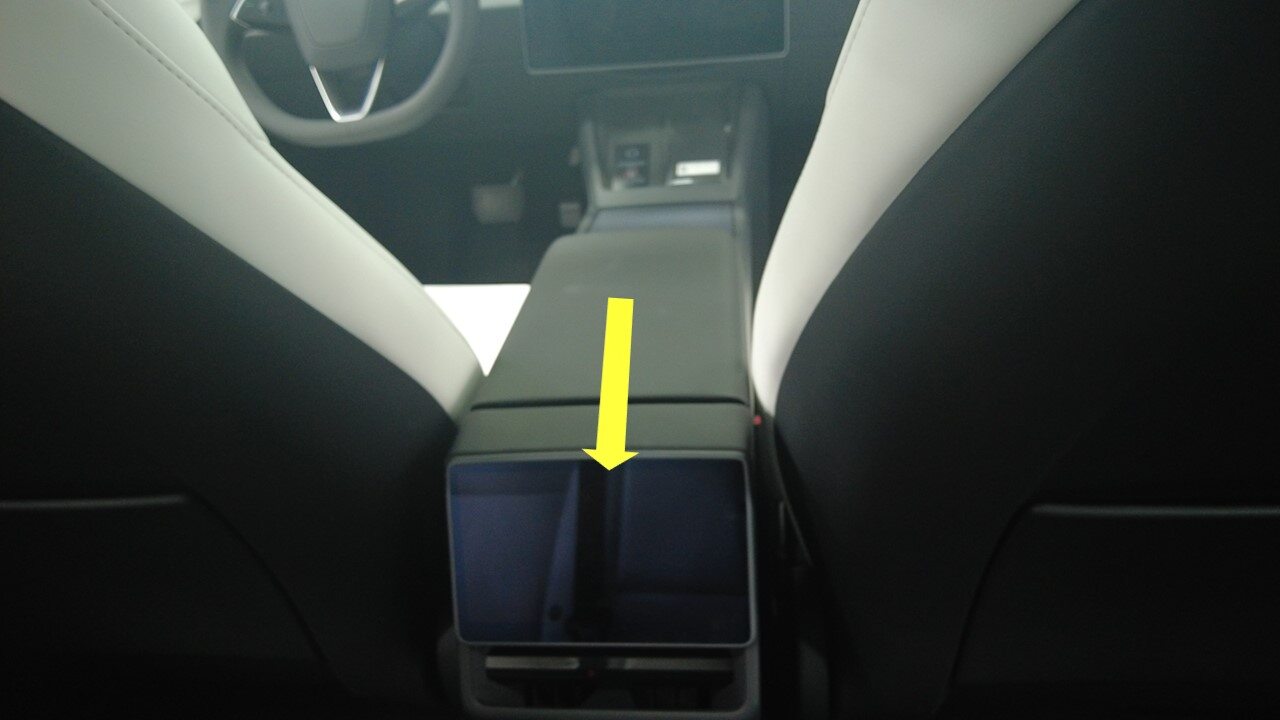

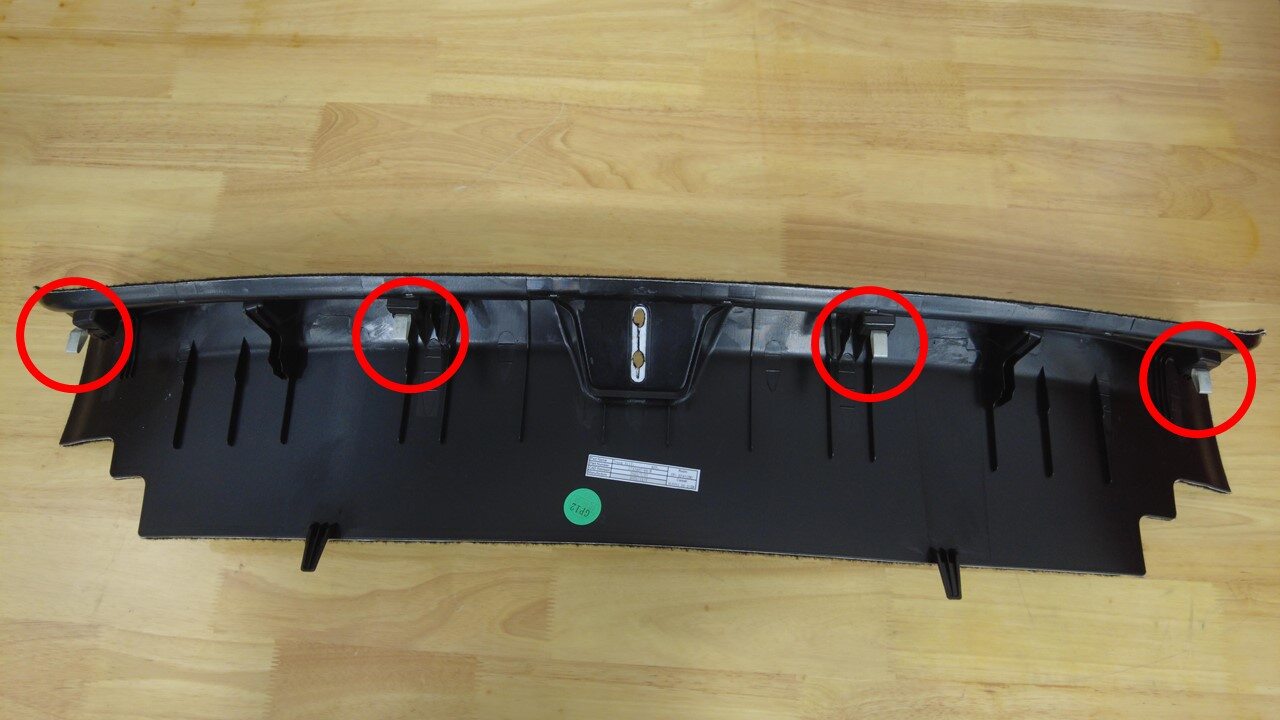

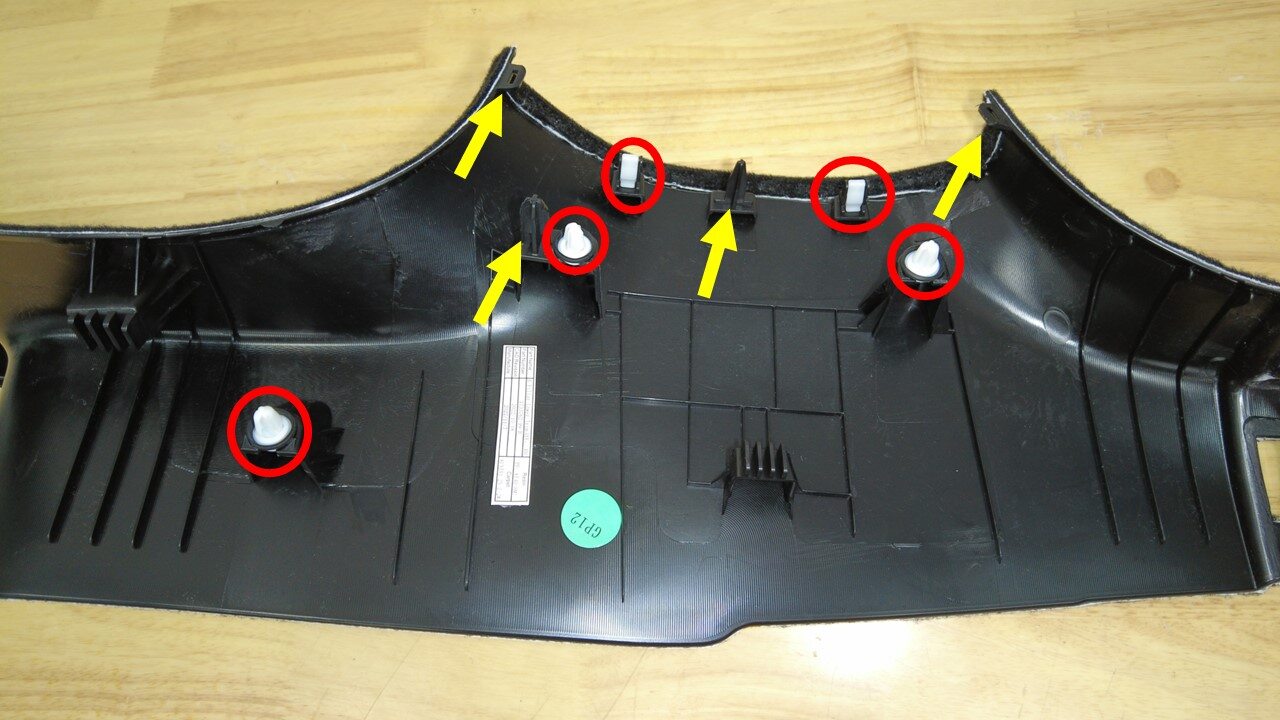

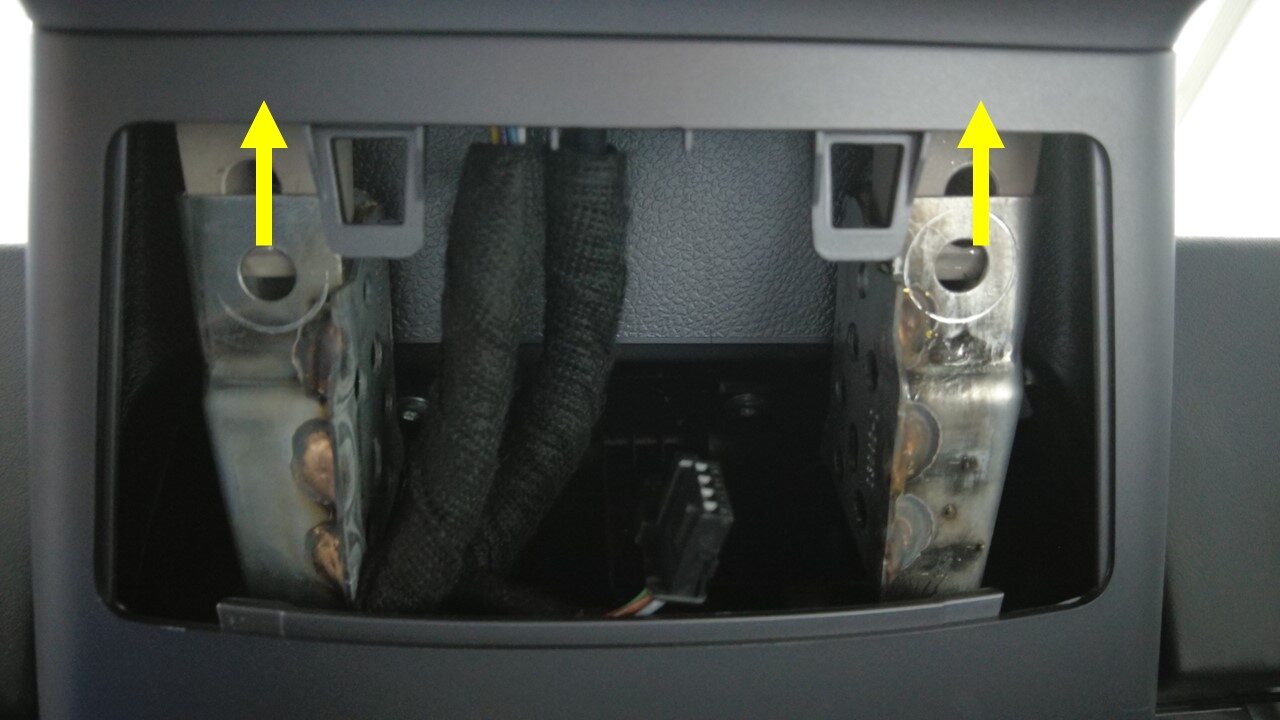

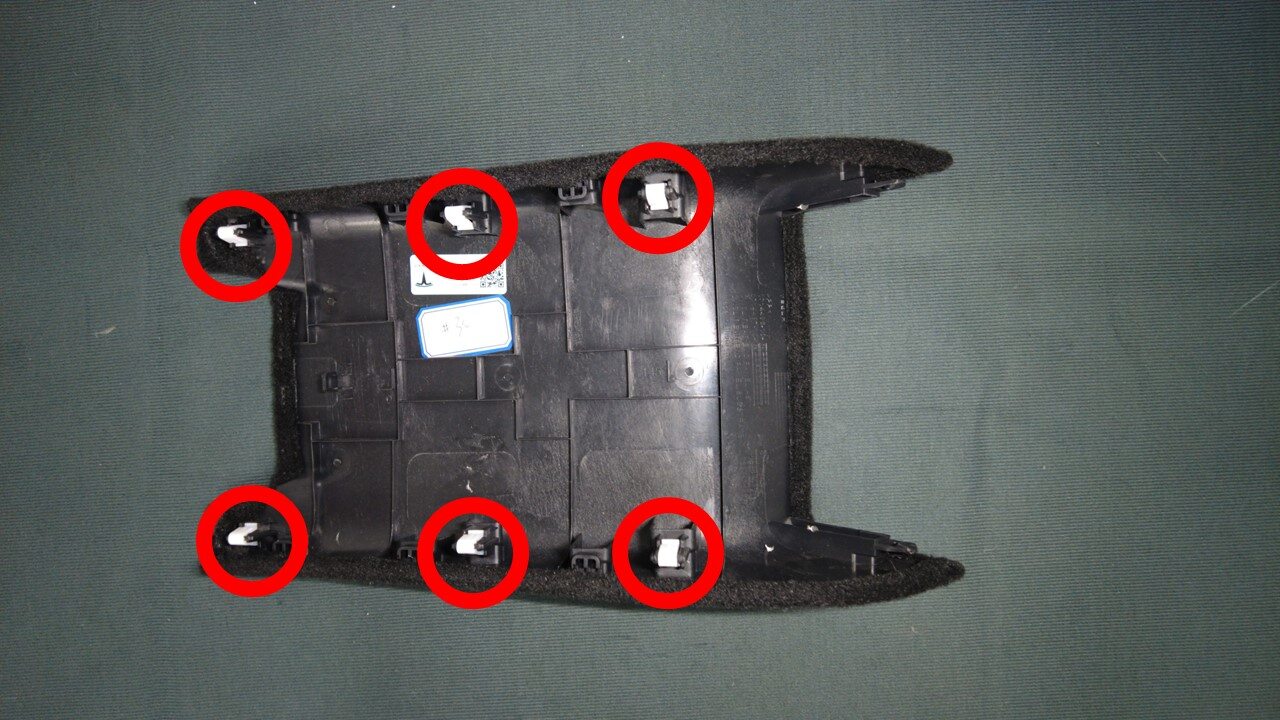

  18. Remove console rear end panel from center console assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x clips, 2x tabs, First release the upper clips and then release the lower tabs to remove rear end panel

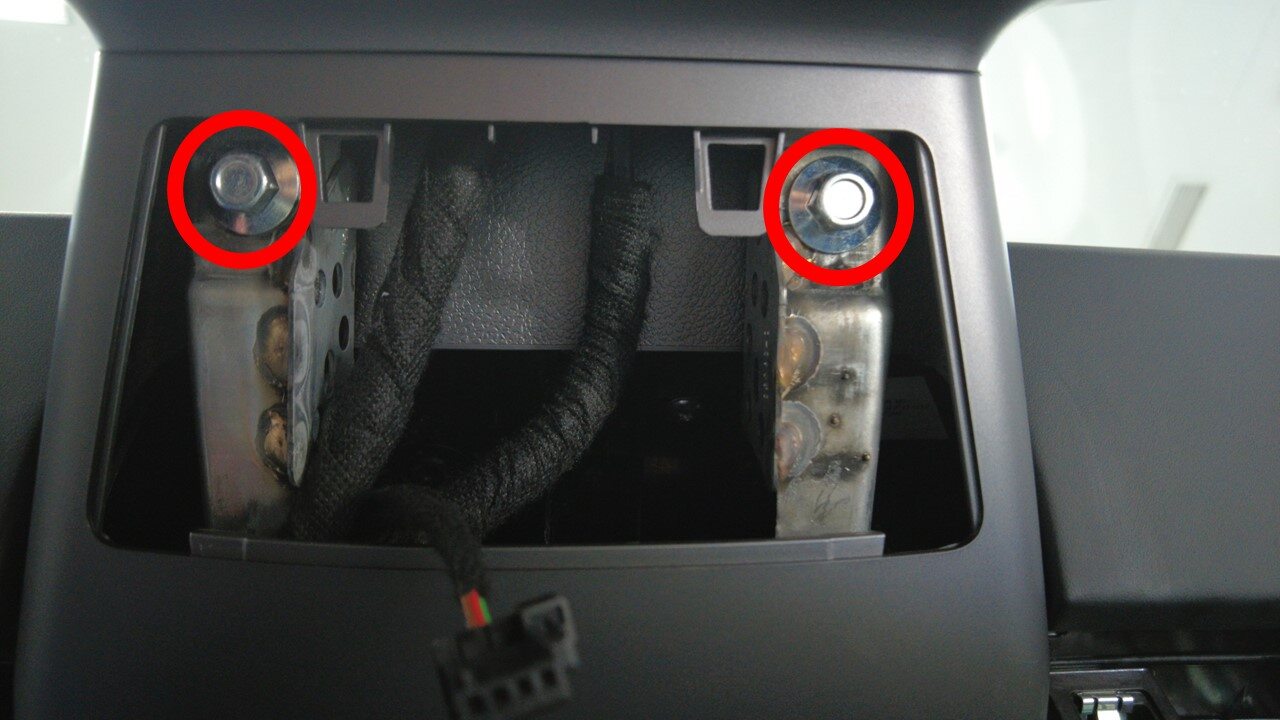

  19. Remove rear bolts securing center console to vehicle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 10mm, 7 Nm

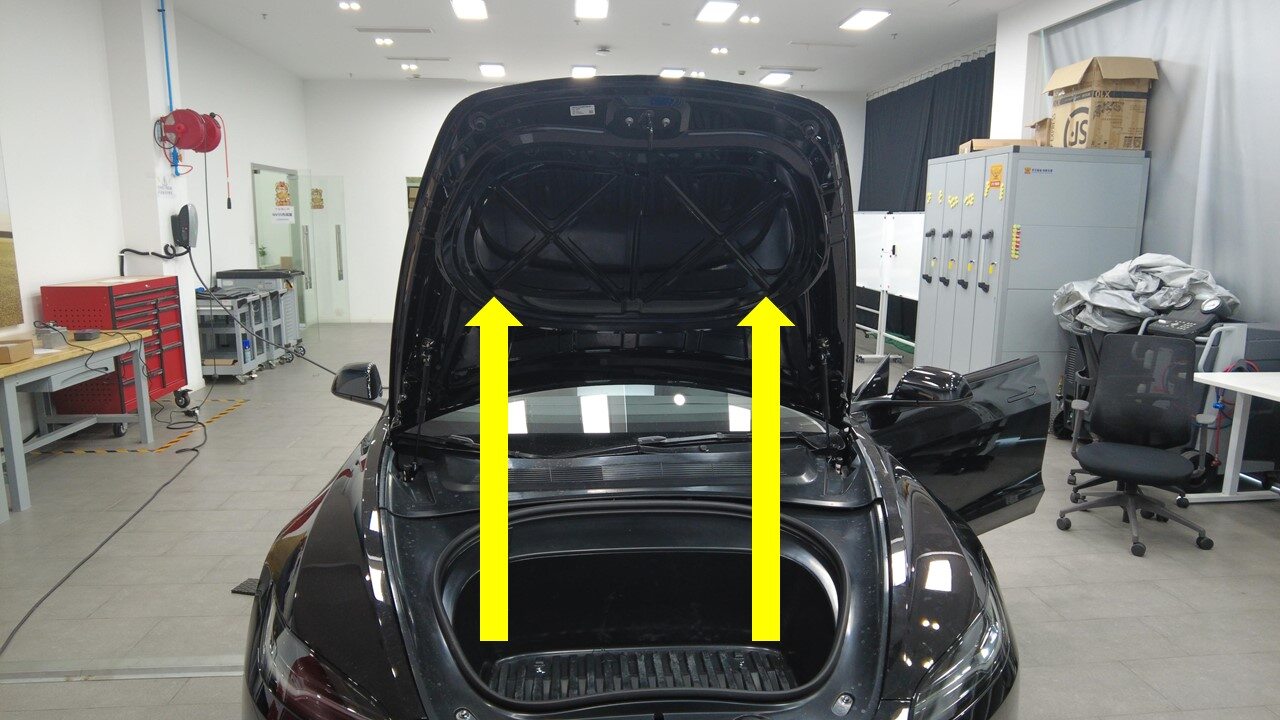

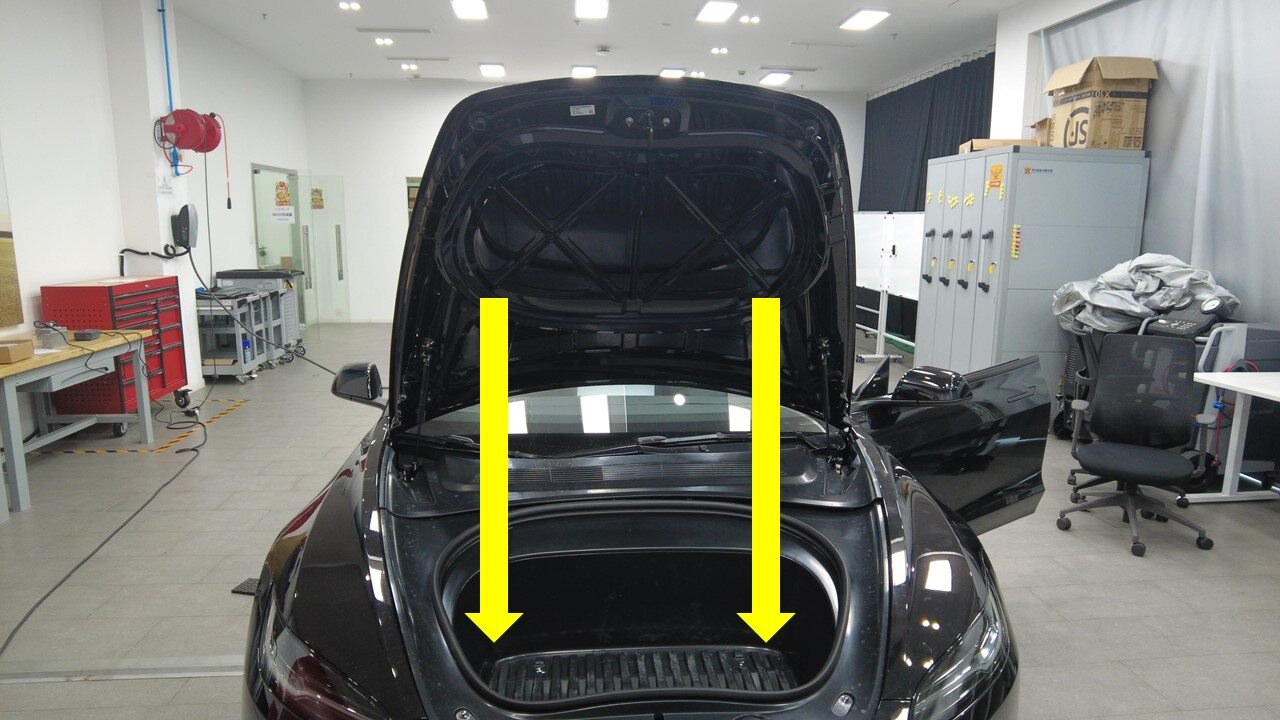

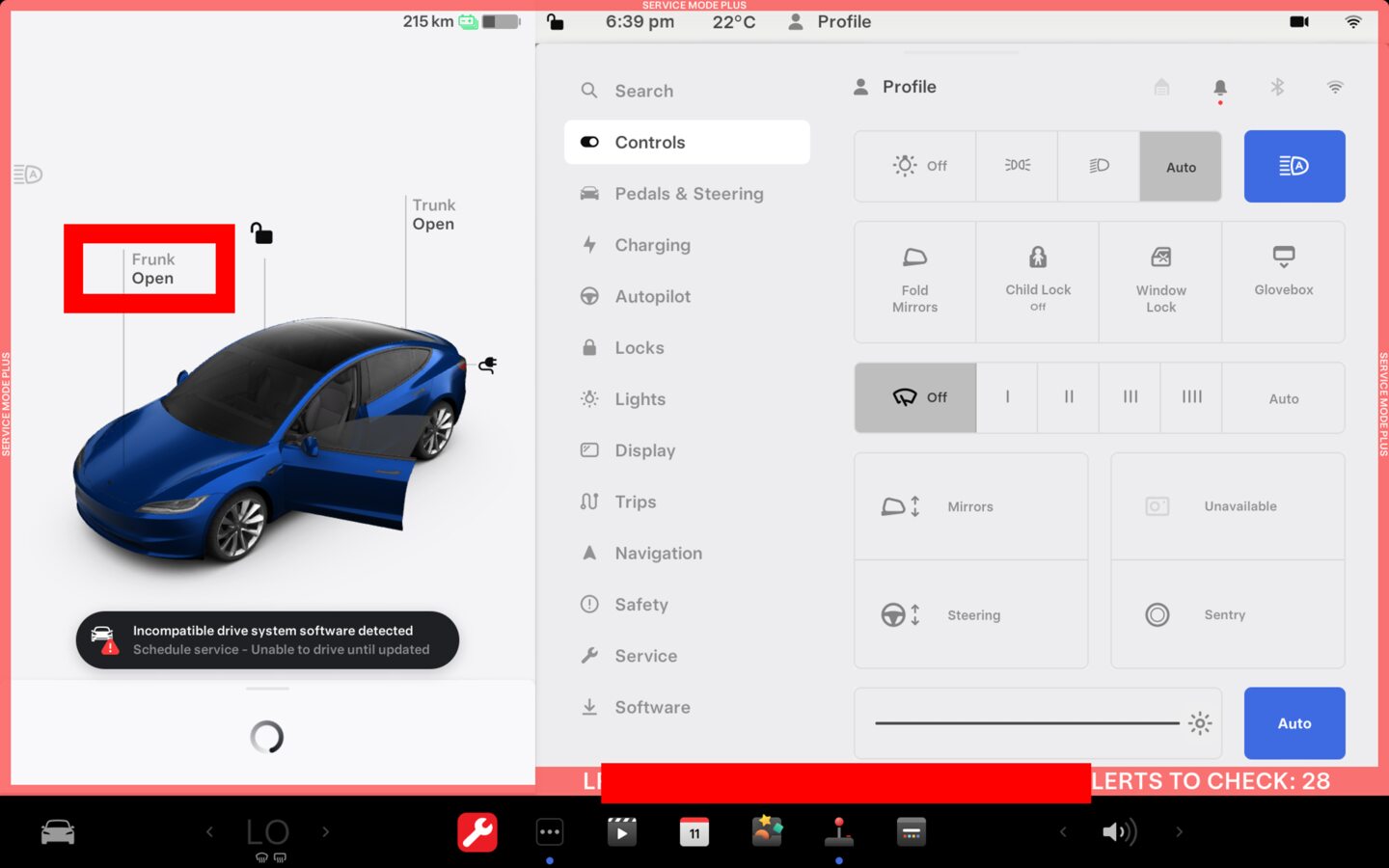

  20. Open hood

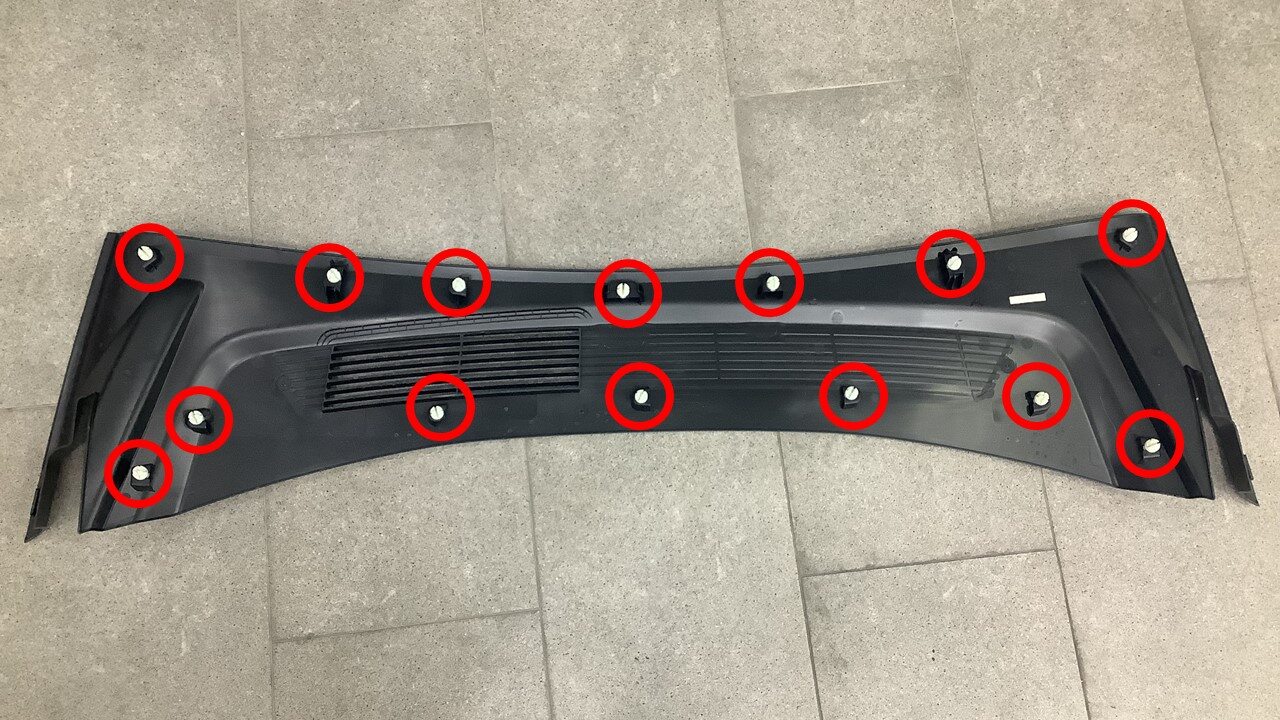

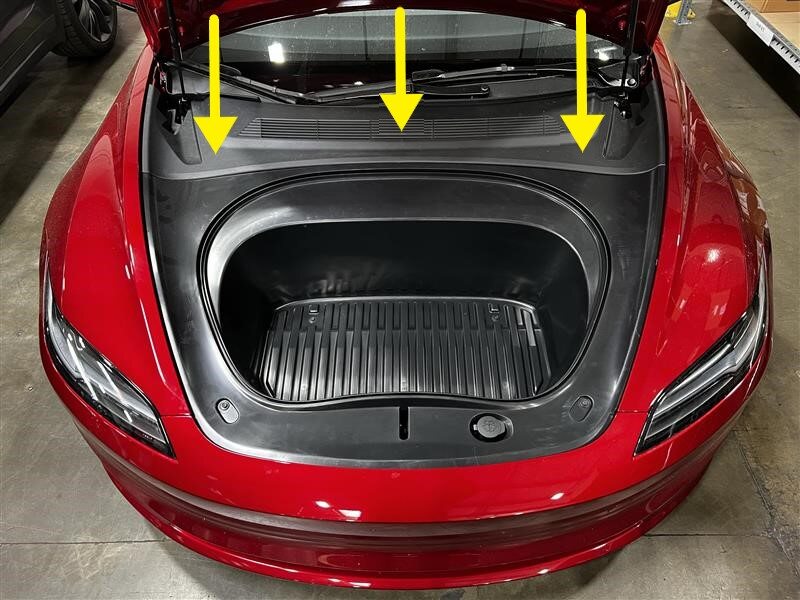

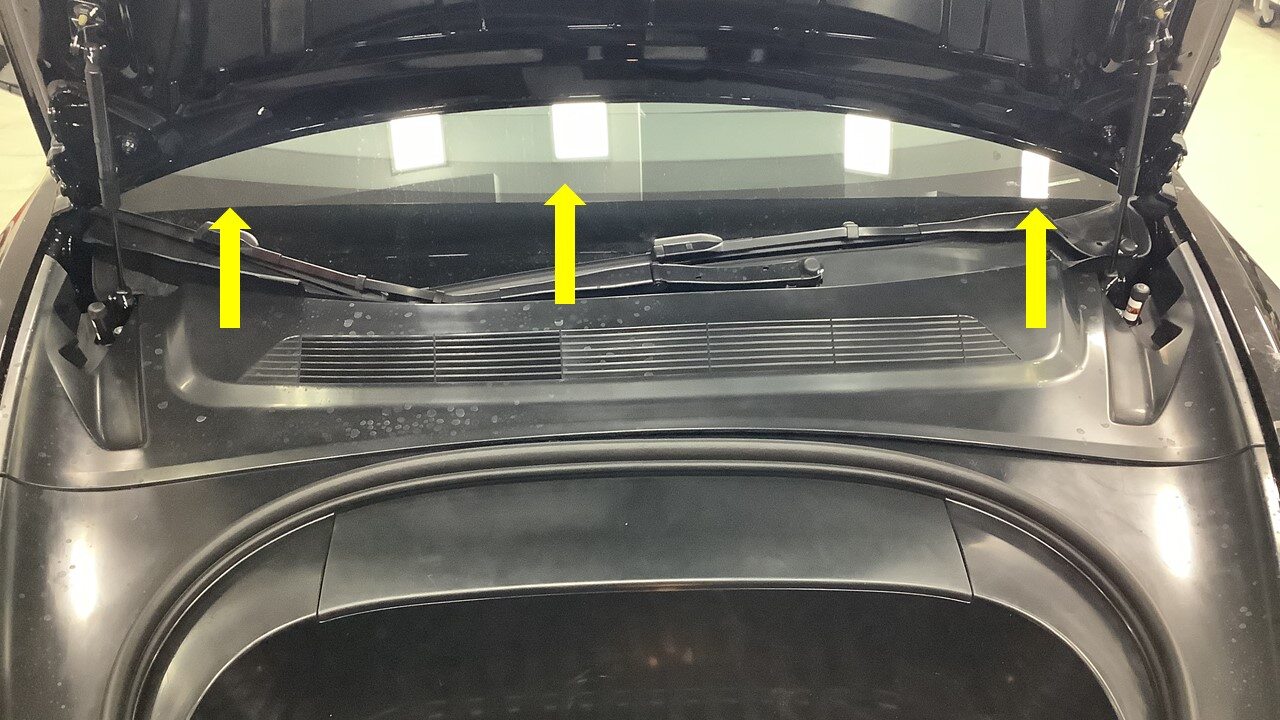

  21. Remove rear underhood apron
    Informational PurposesAn informational icon, calling your attention
    Remarque
    14x clips

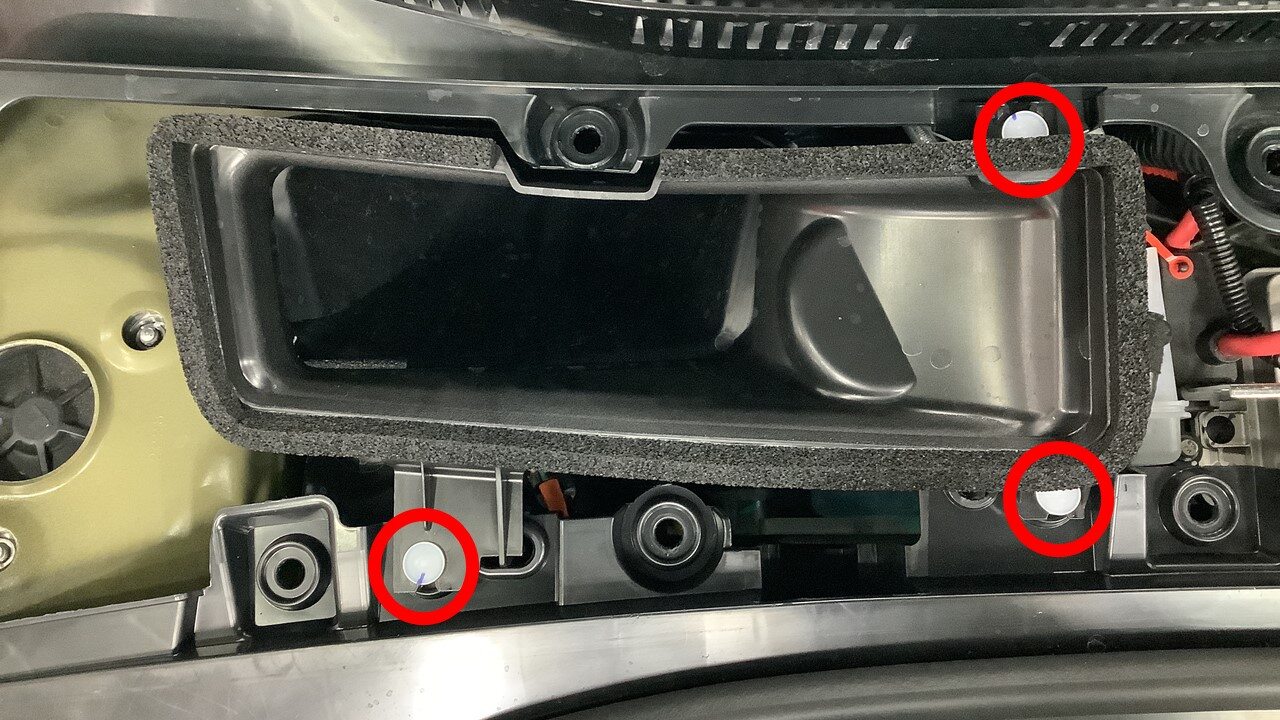

  22. Remove fresh air gutter assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x clips

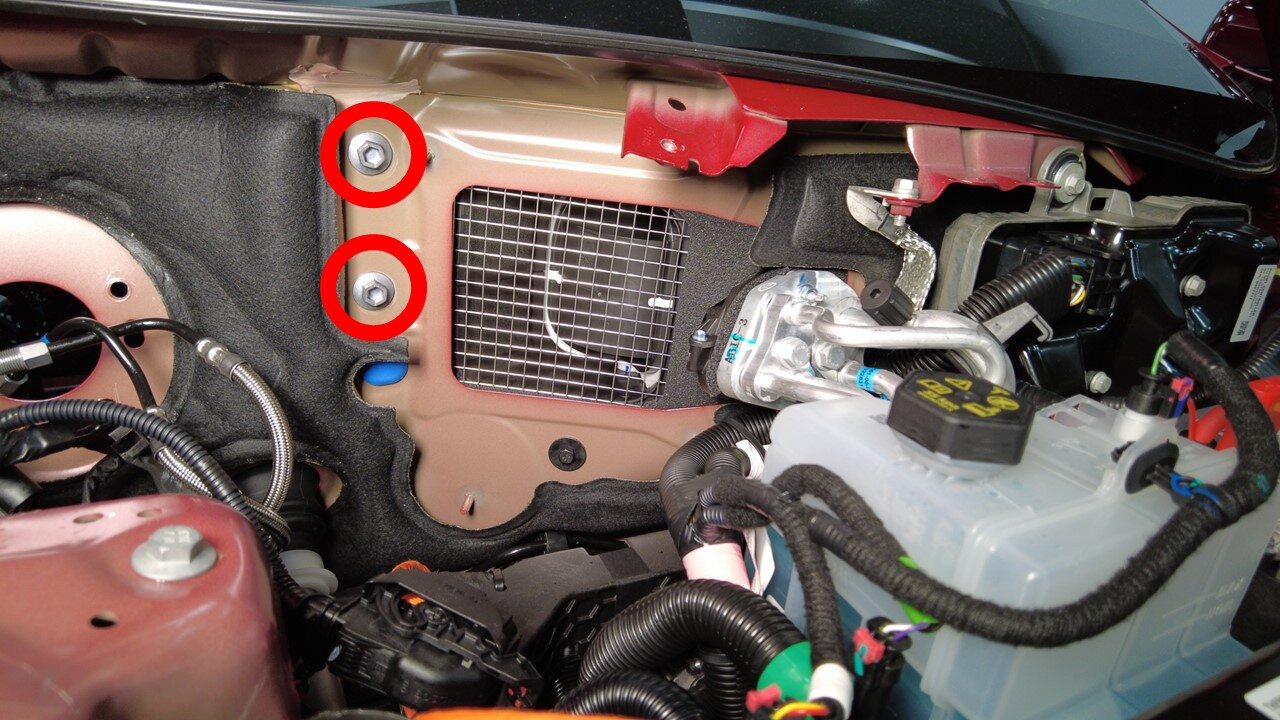

  23. Remove fresh air intake assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x studs, Lift cowl as needed

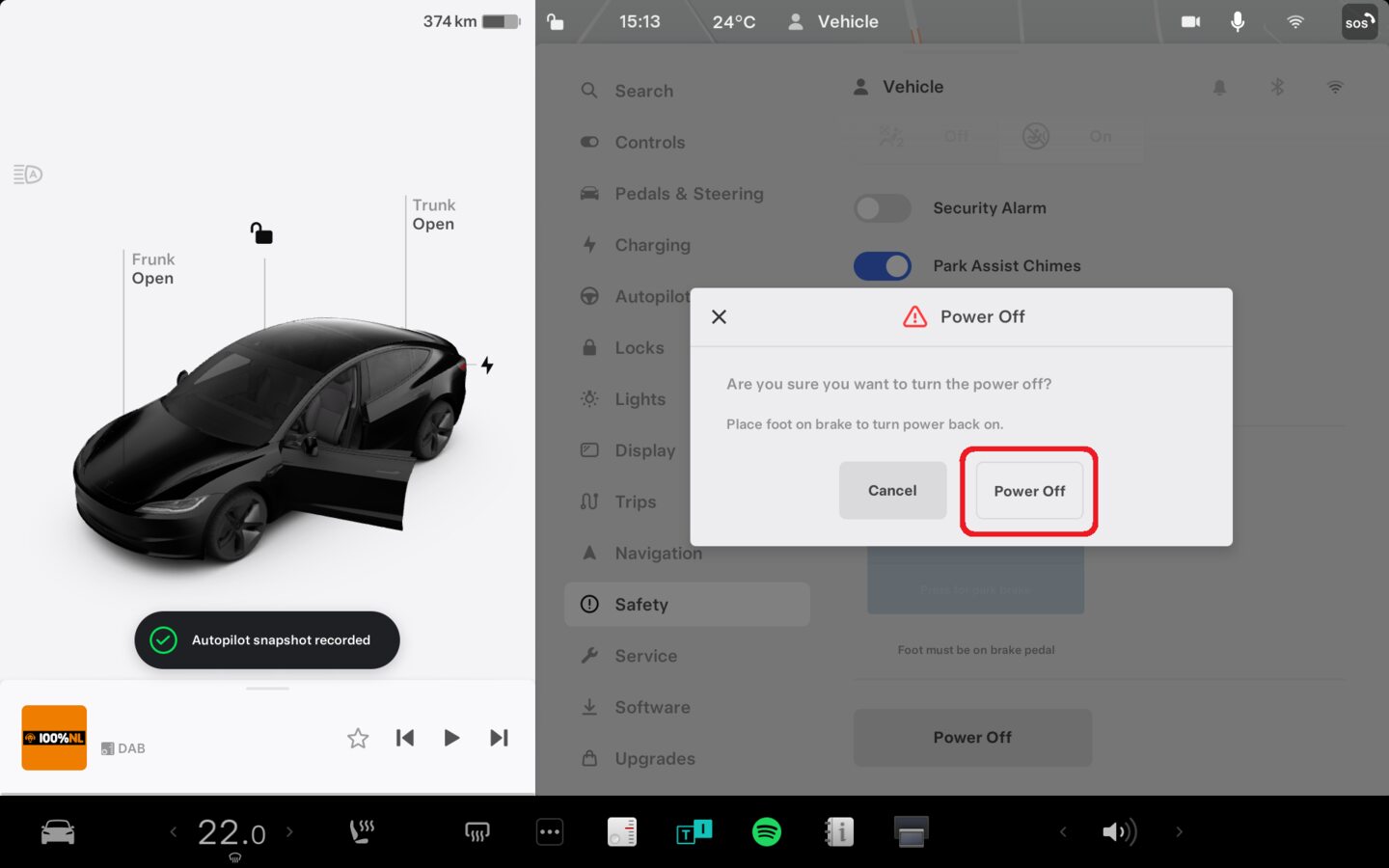

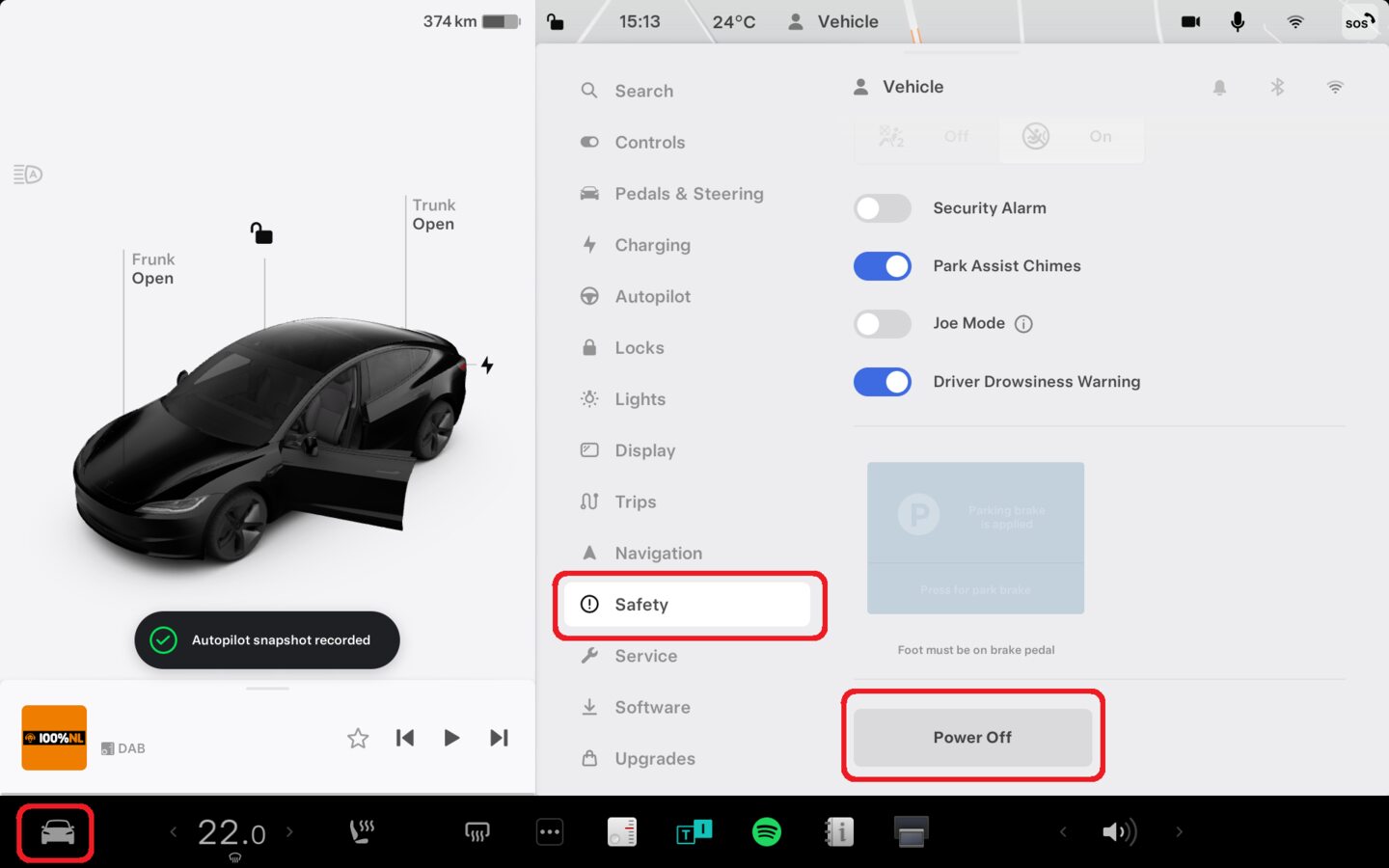

  24. Power off vehicle from center display
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box

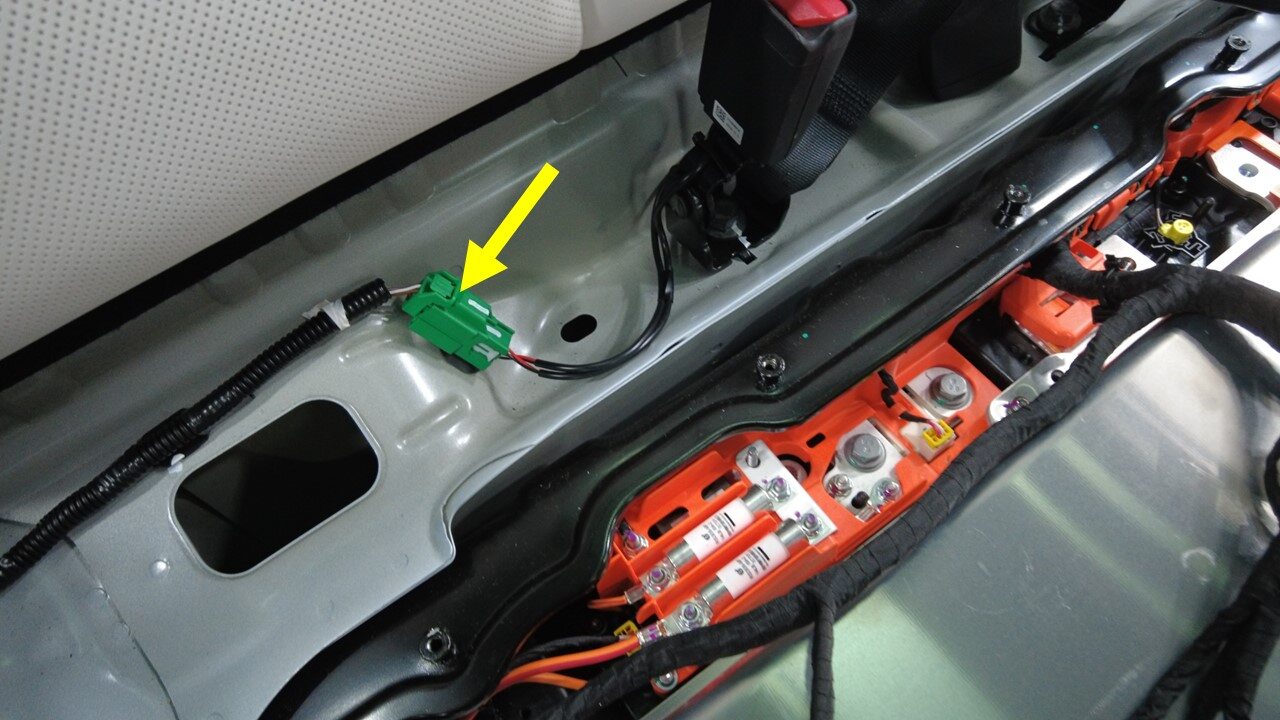

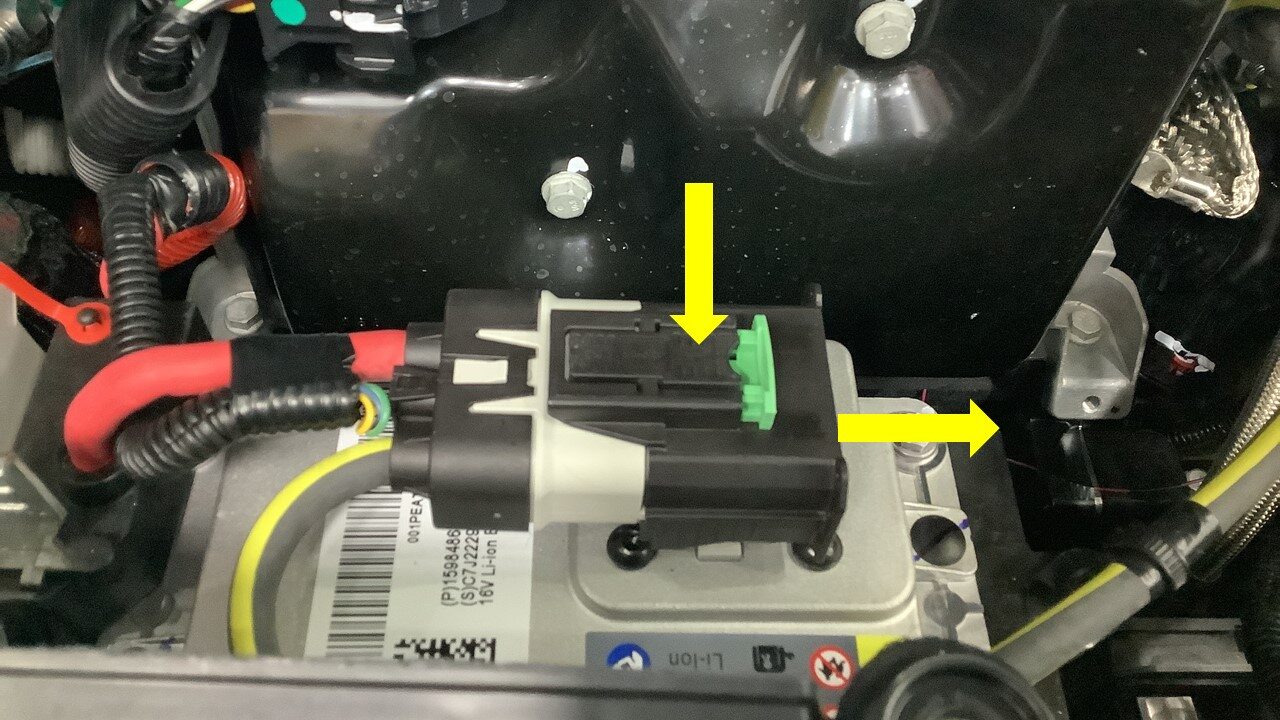

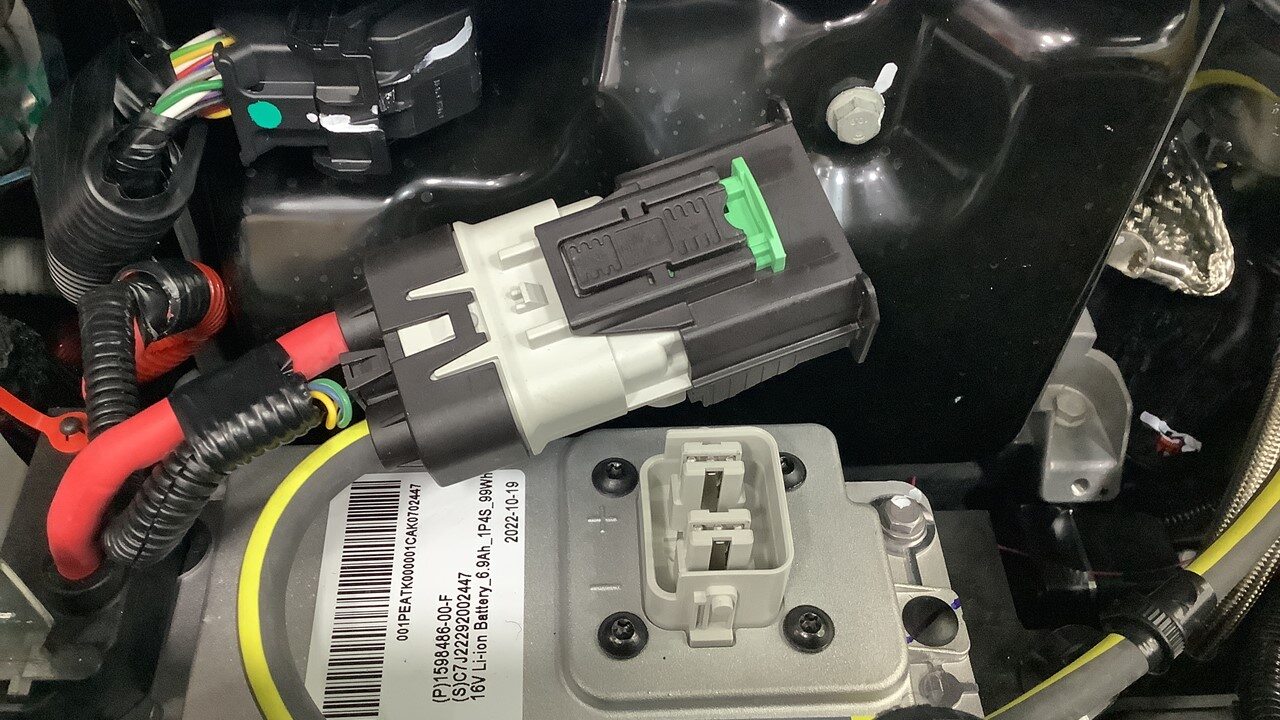

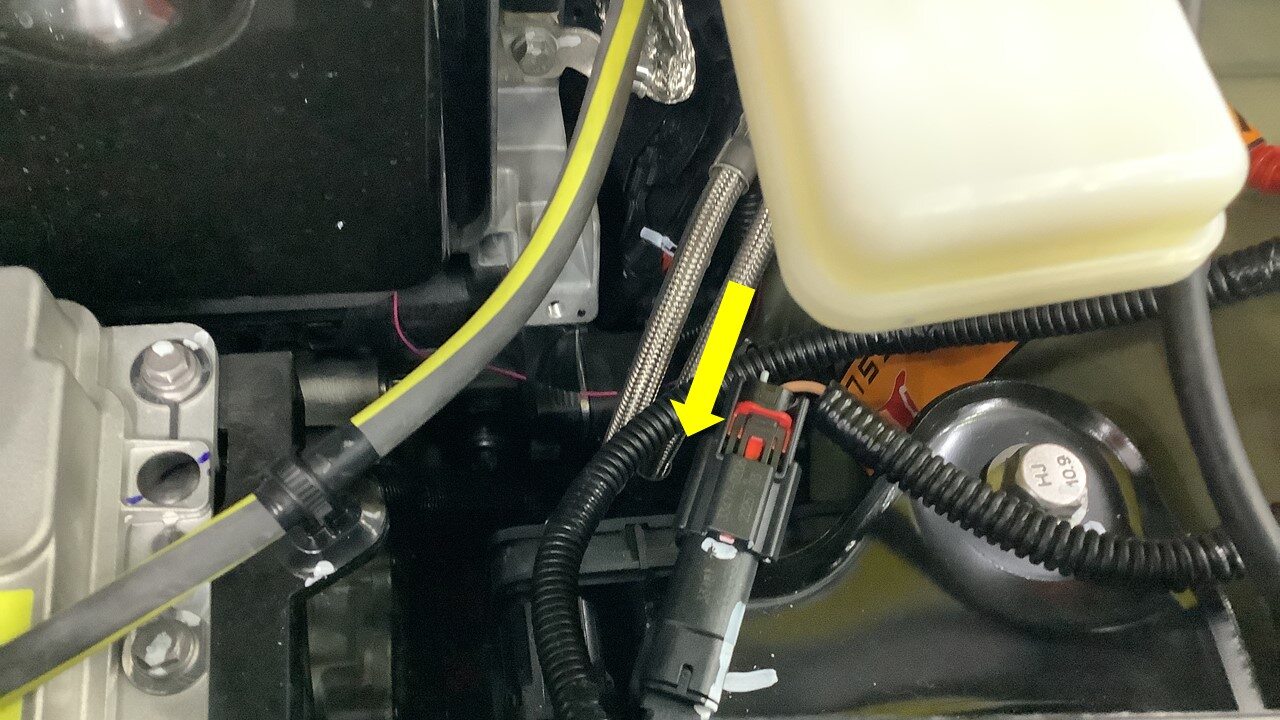

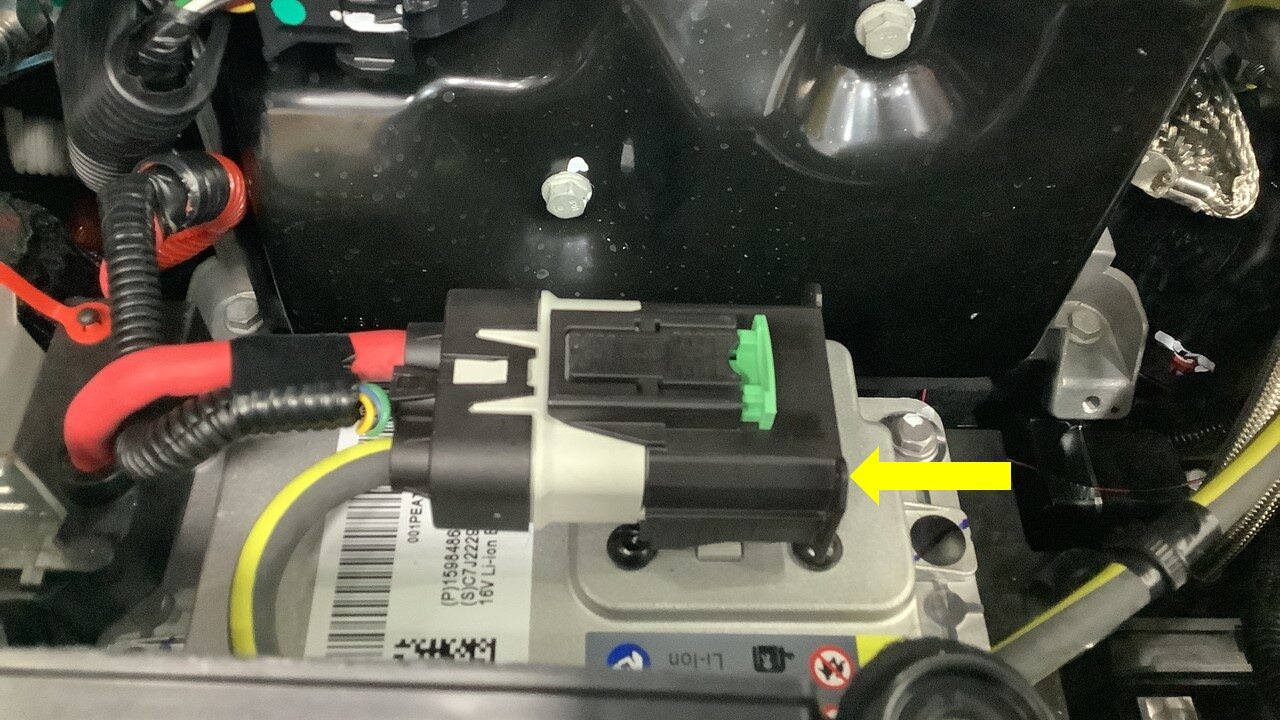

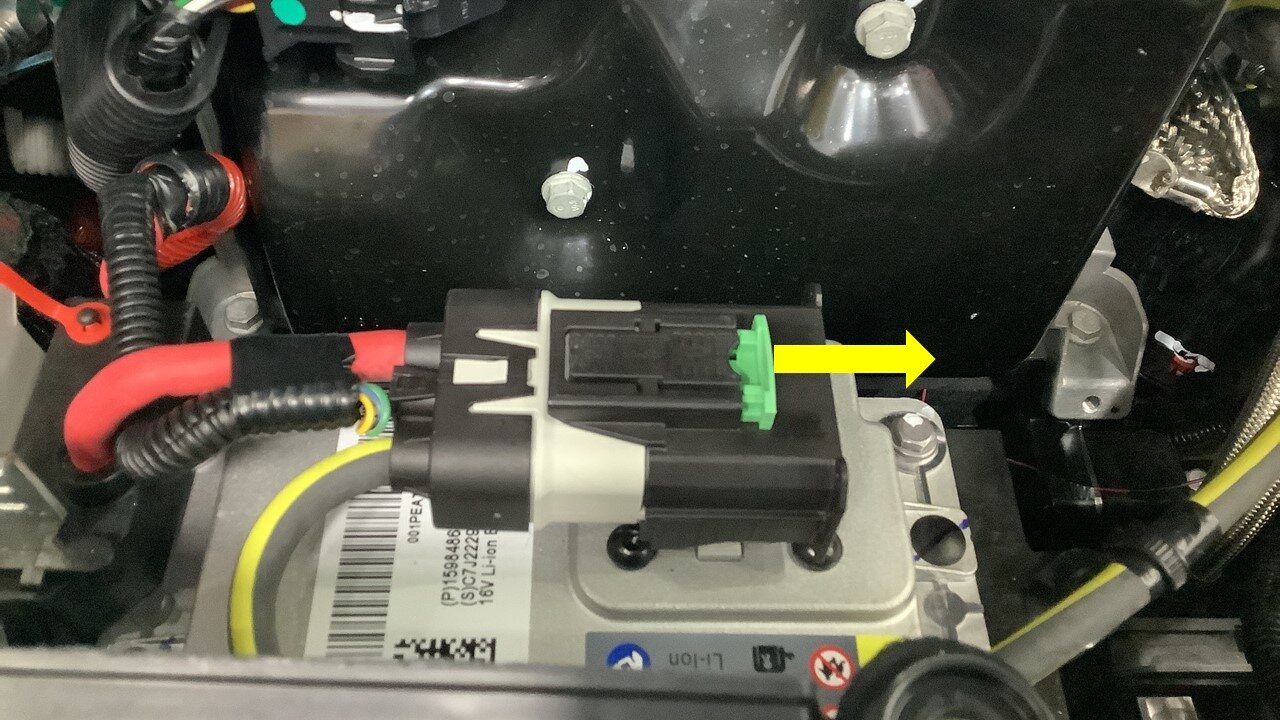

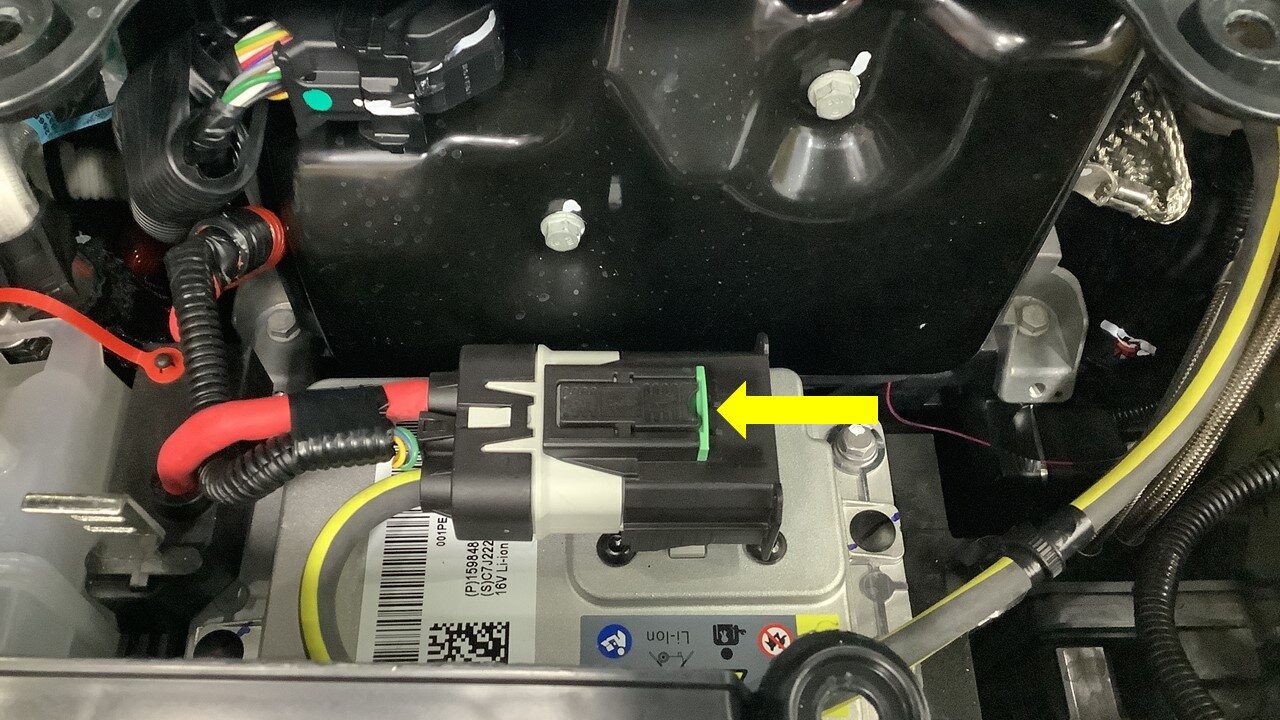

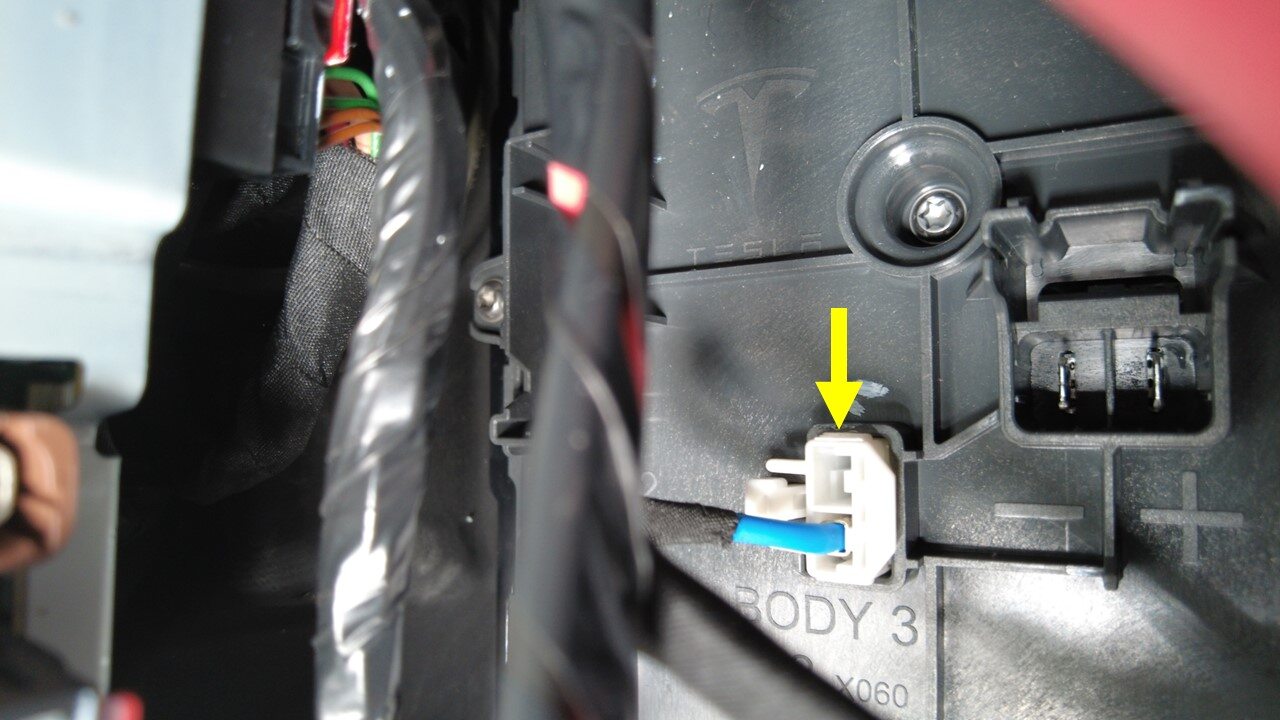

  25. Disconnect LV battery and first responder loop
    Informational PurposesAn informational icon, calling your attention
    Remarque

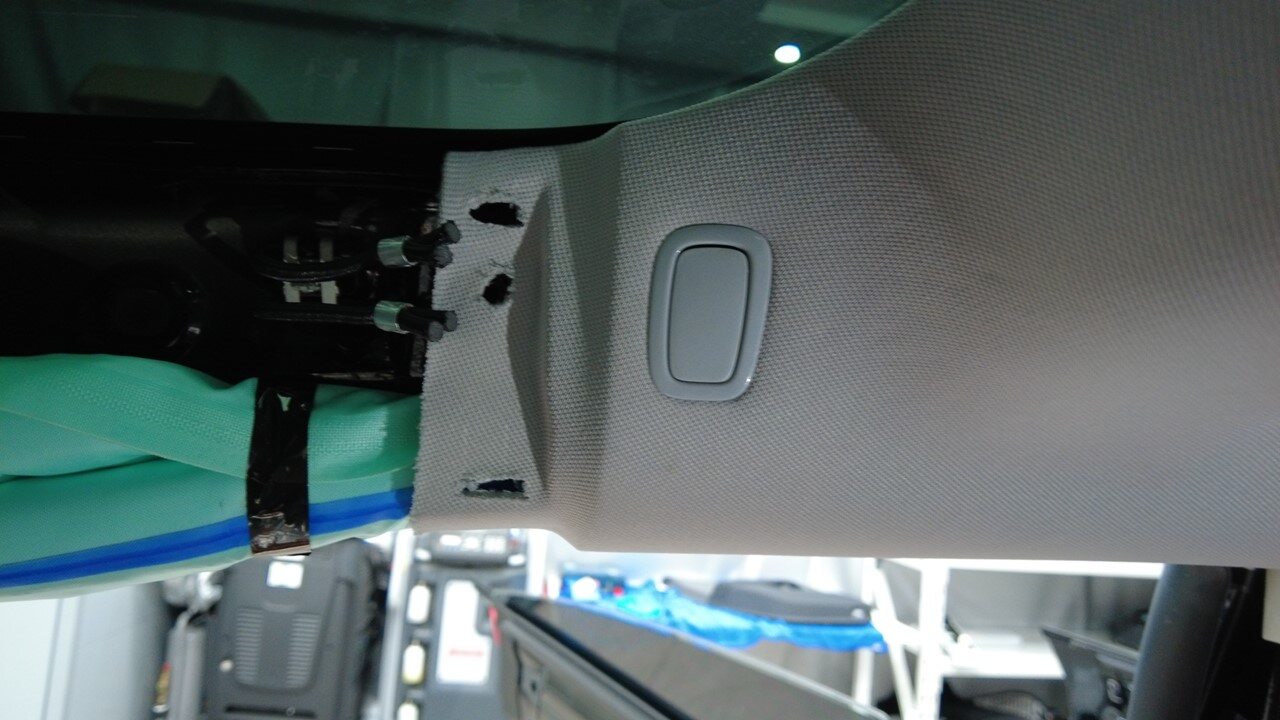

    2x connectors, Release green locking tab, Press black tab then pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge

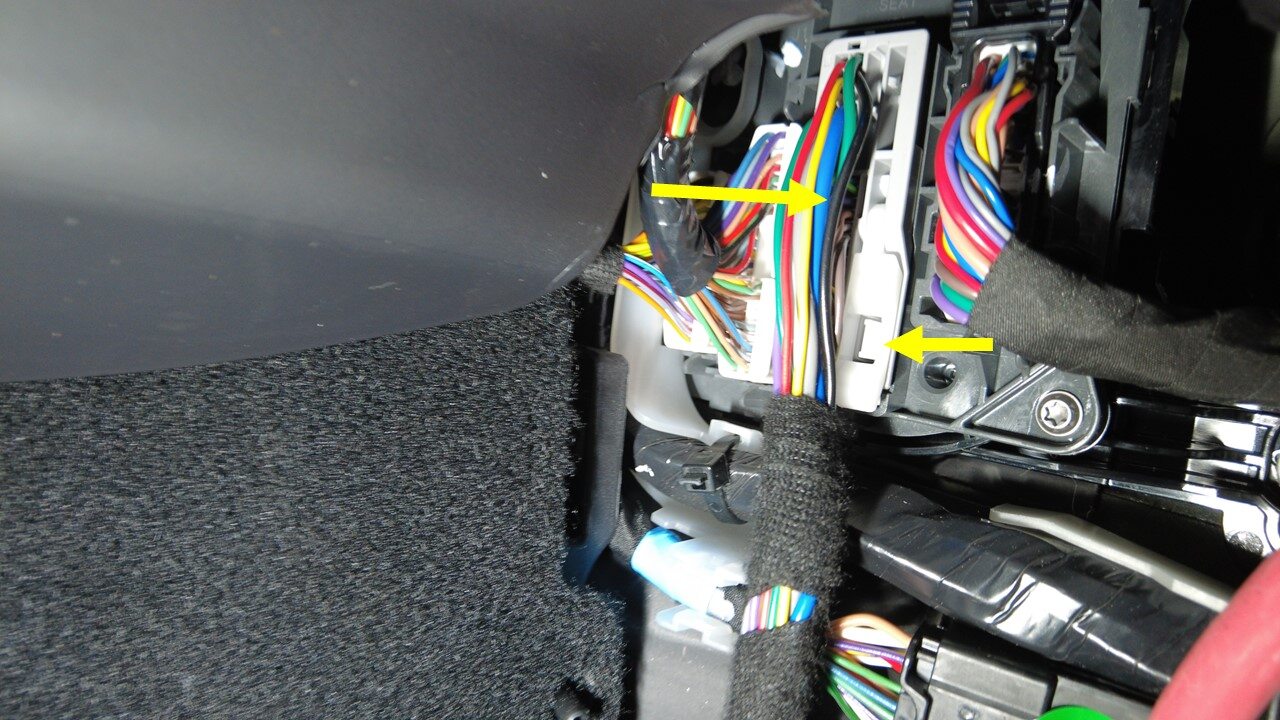

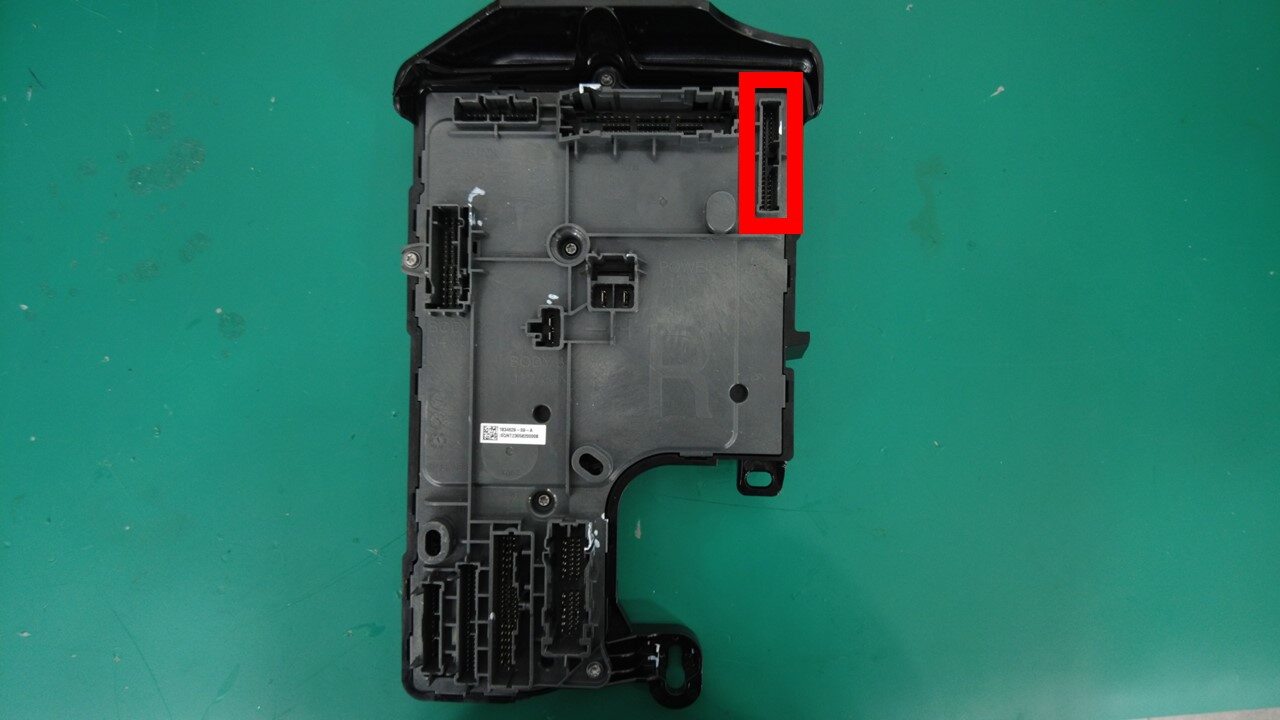

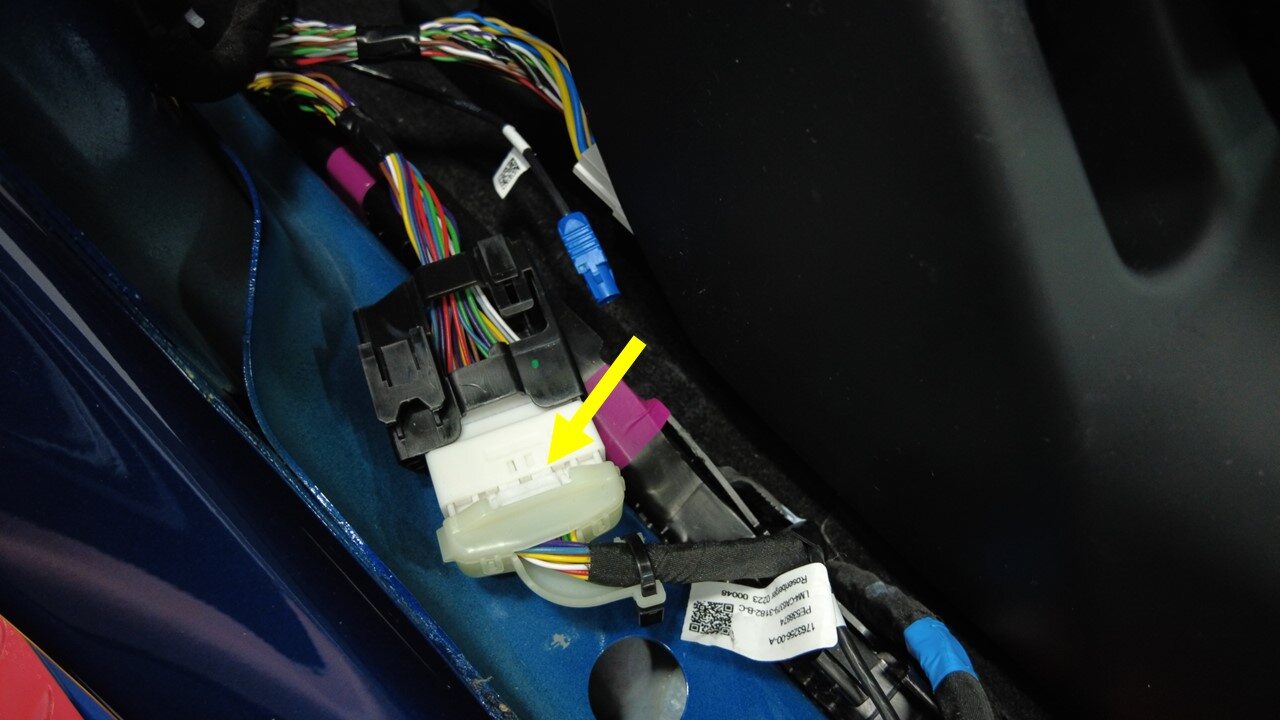

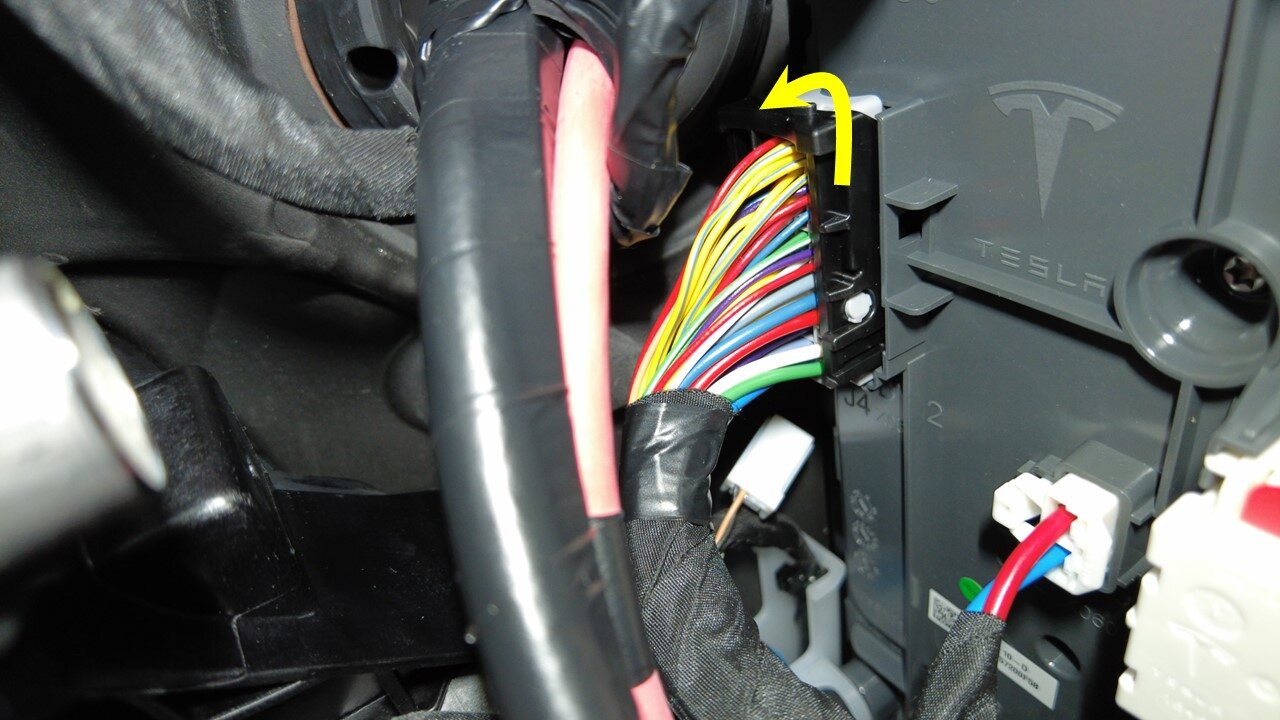

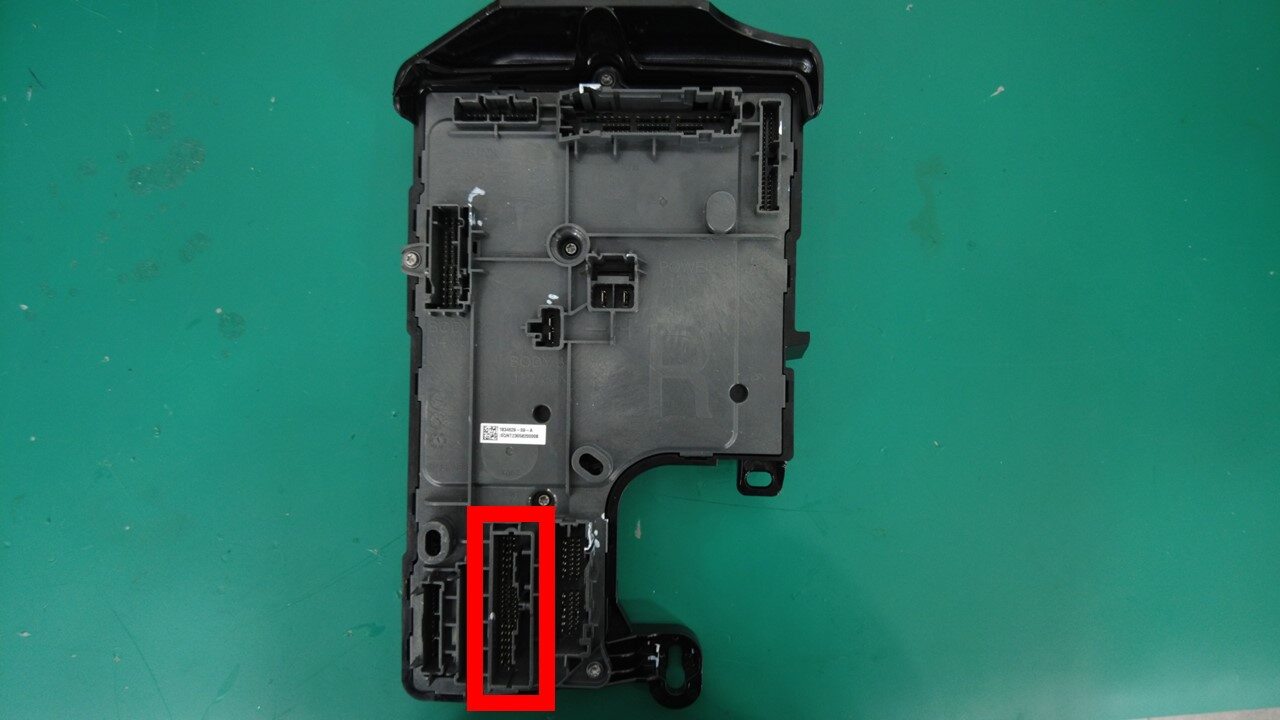

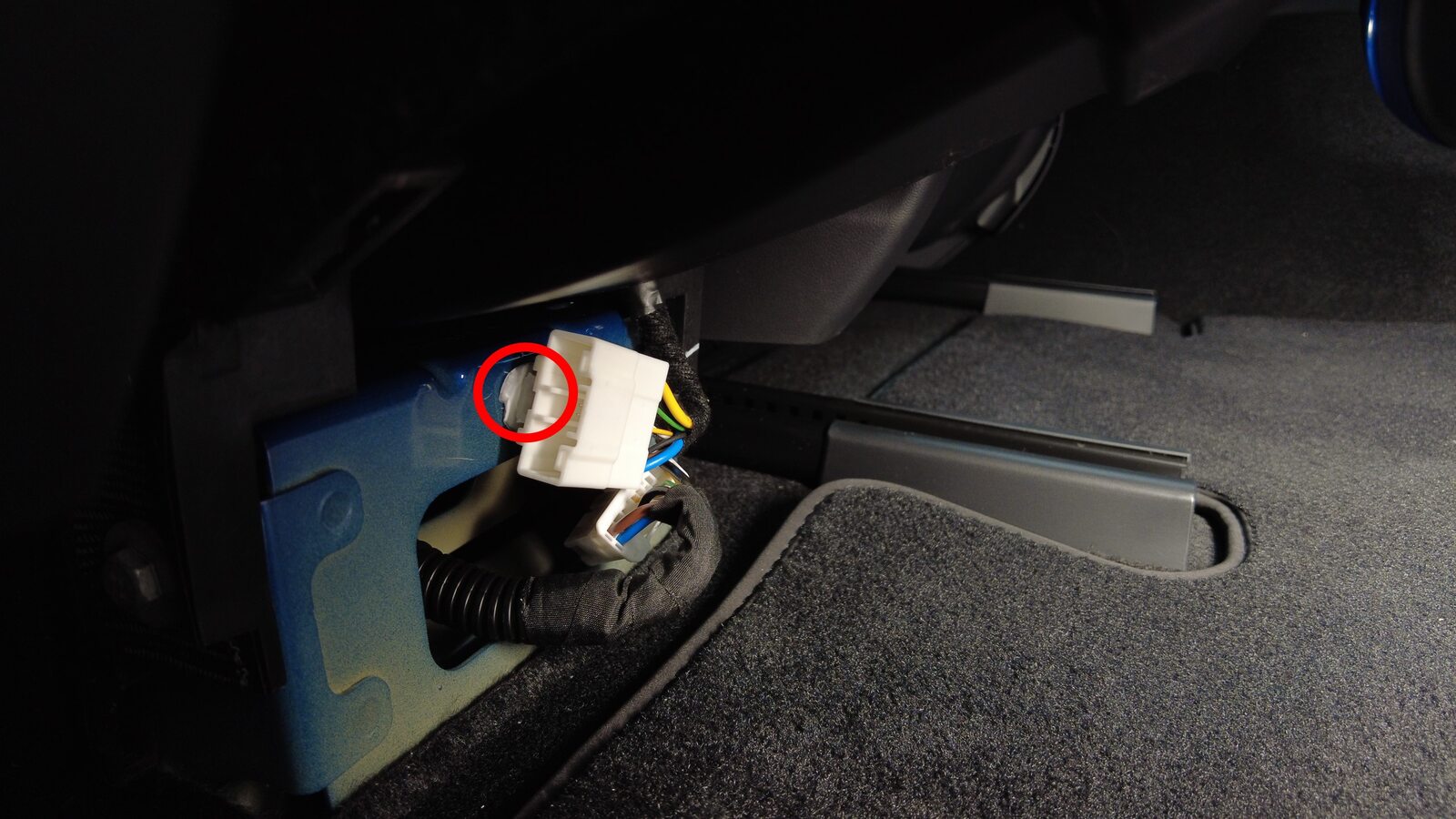

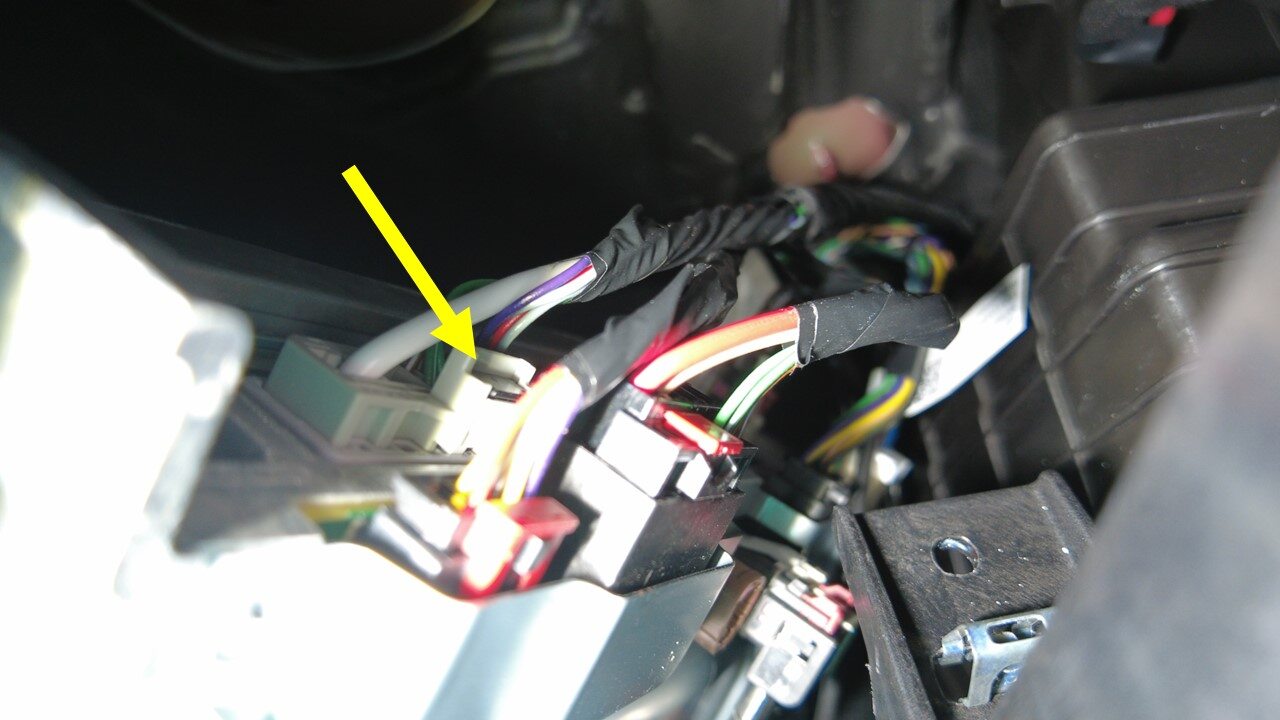

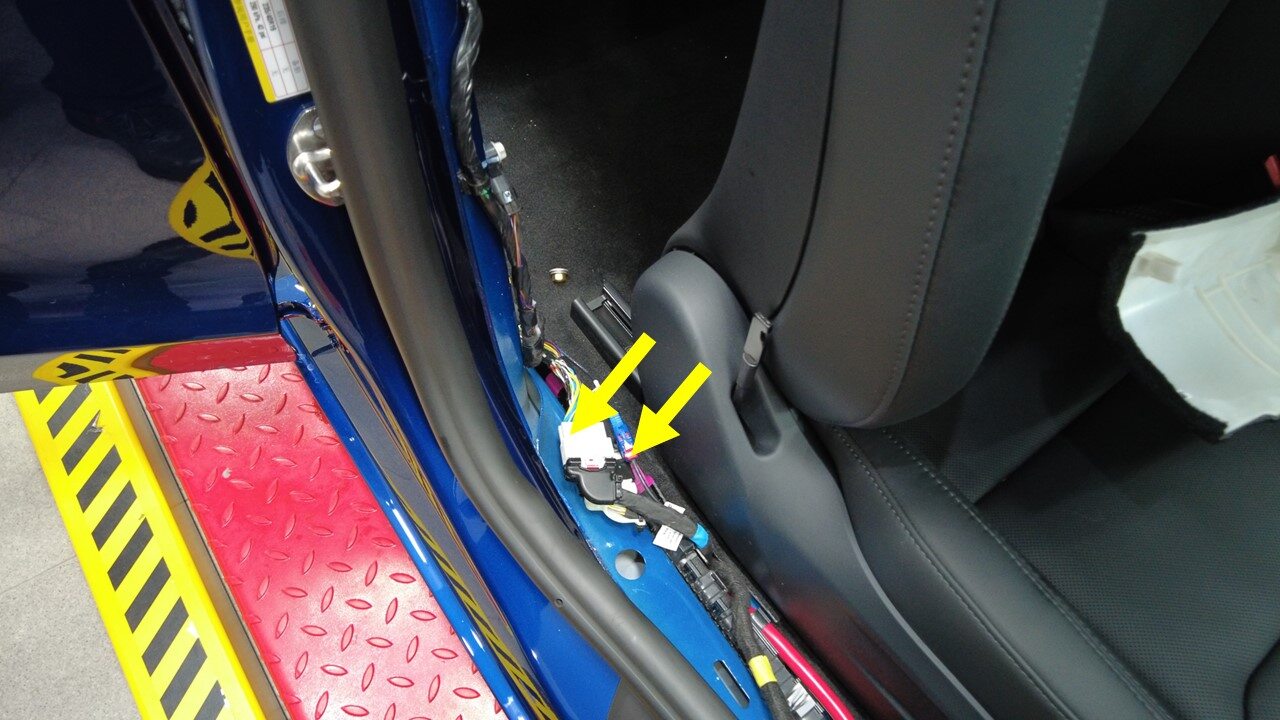

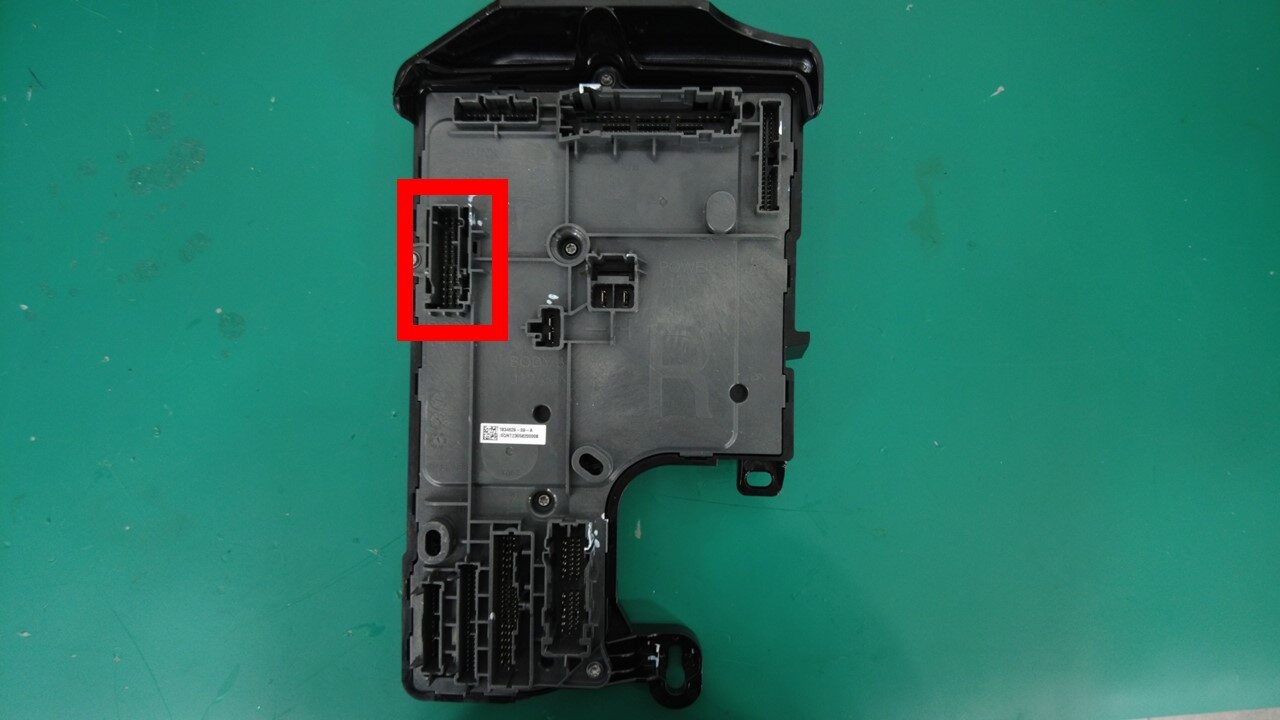

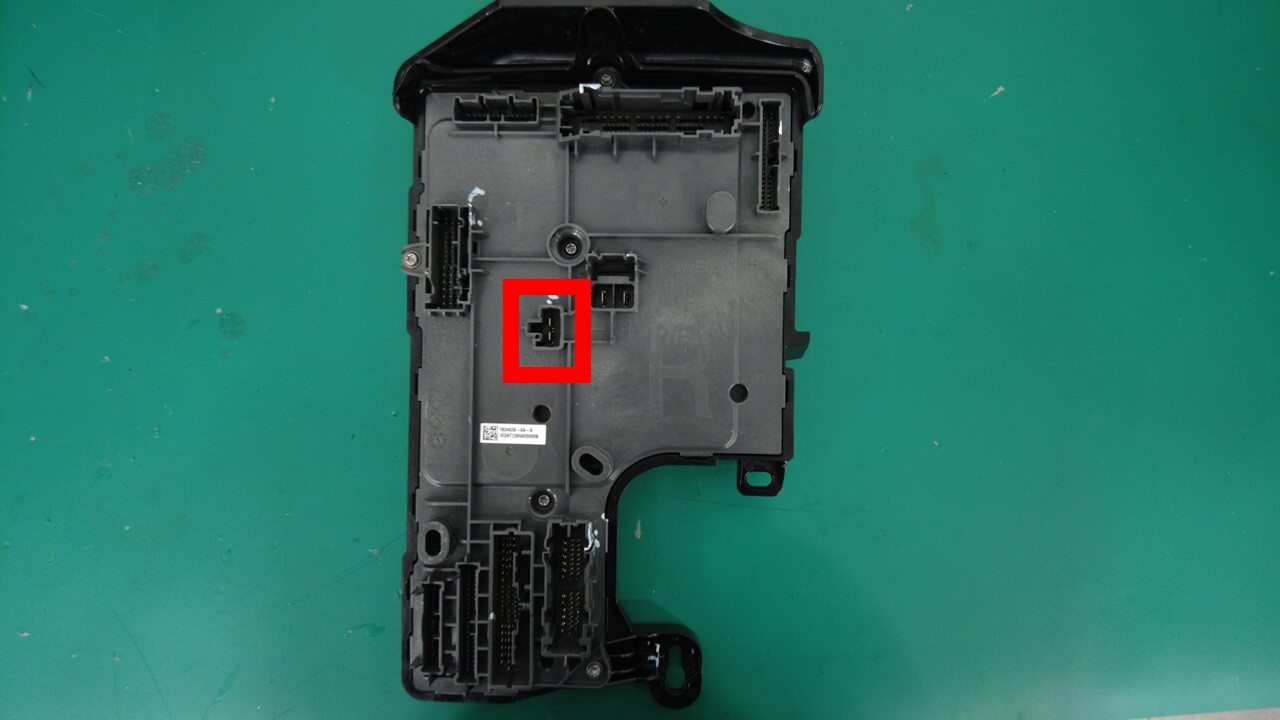

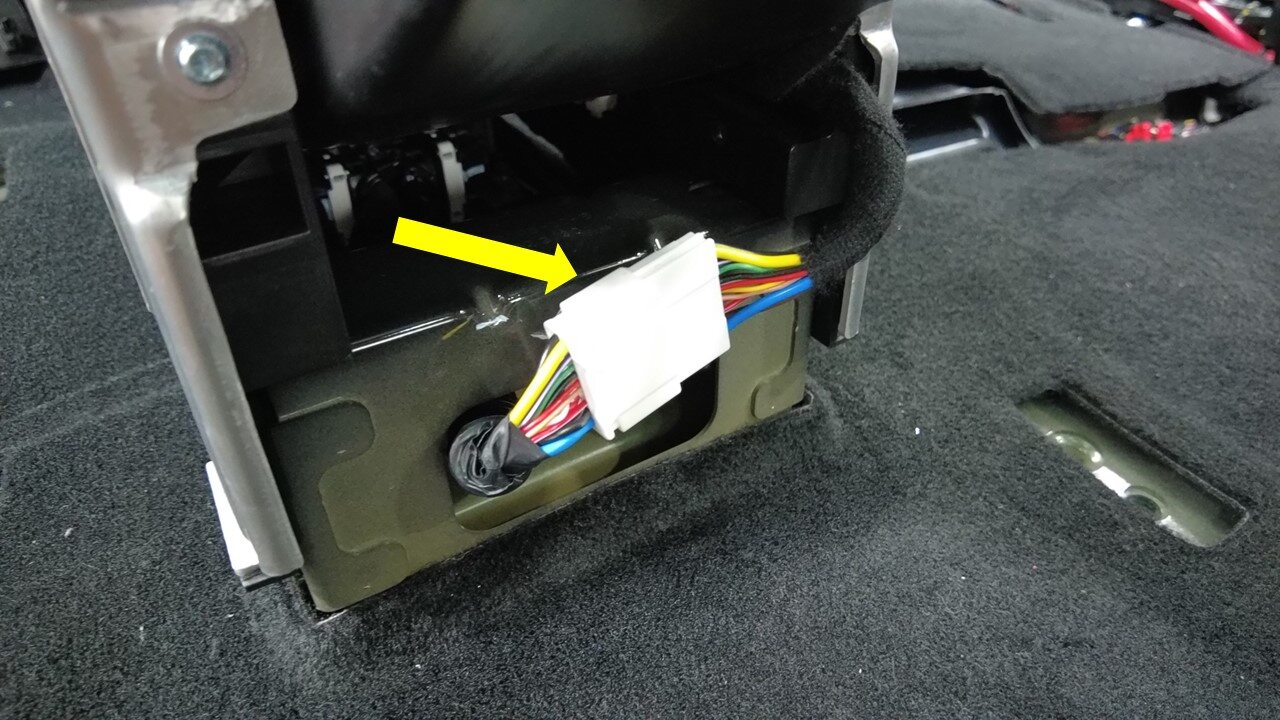

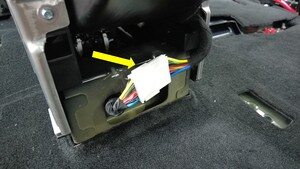

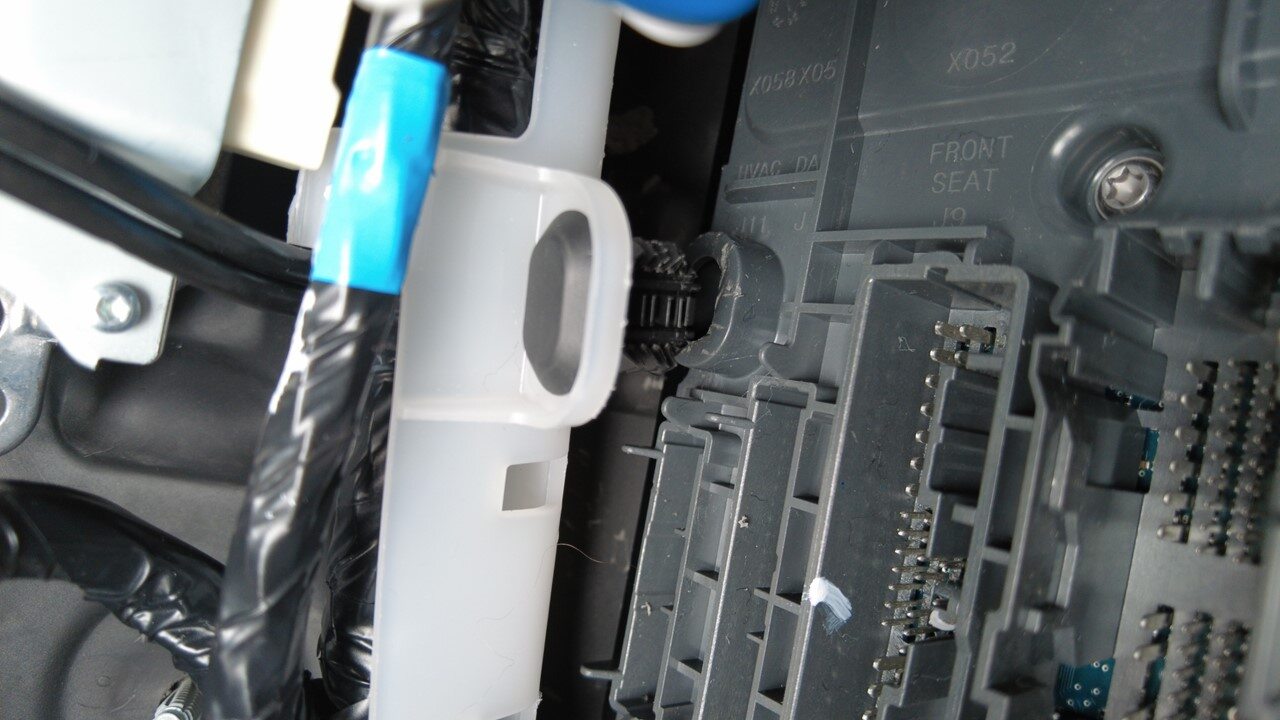

  26. Disconnect seat connector from RH body controller
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, 1x locking tab, J9

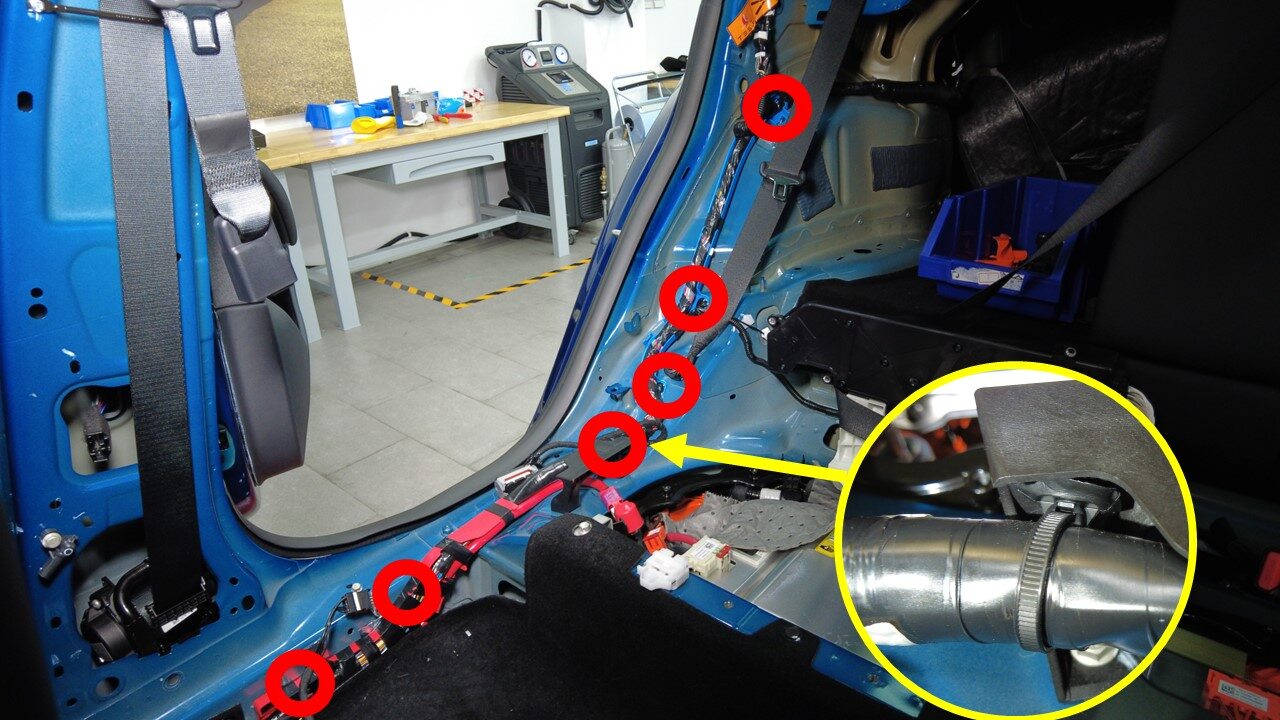

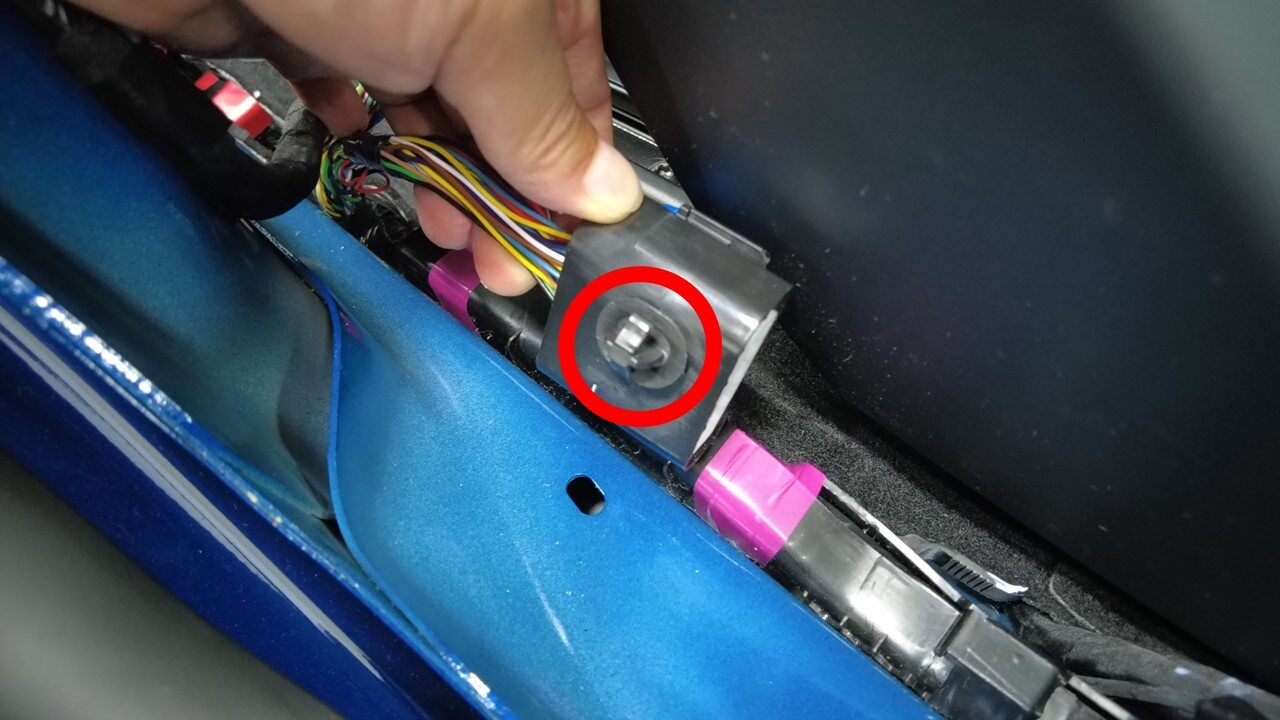

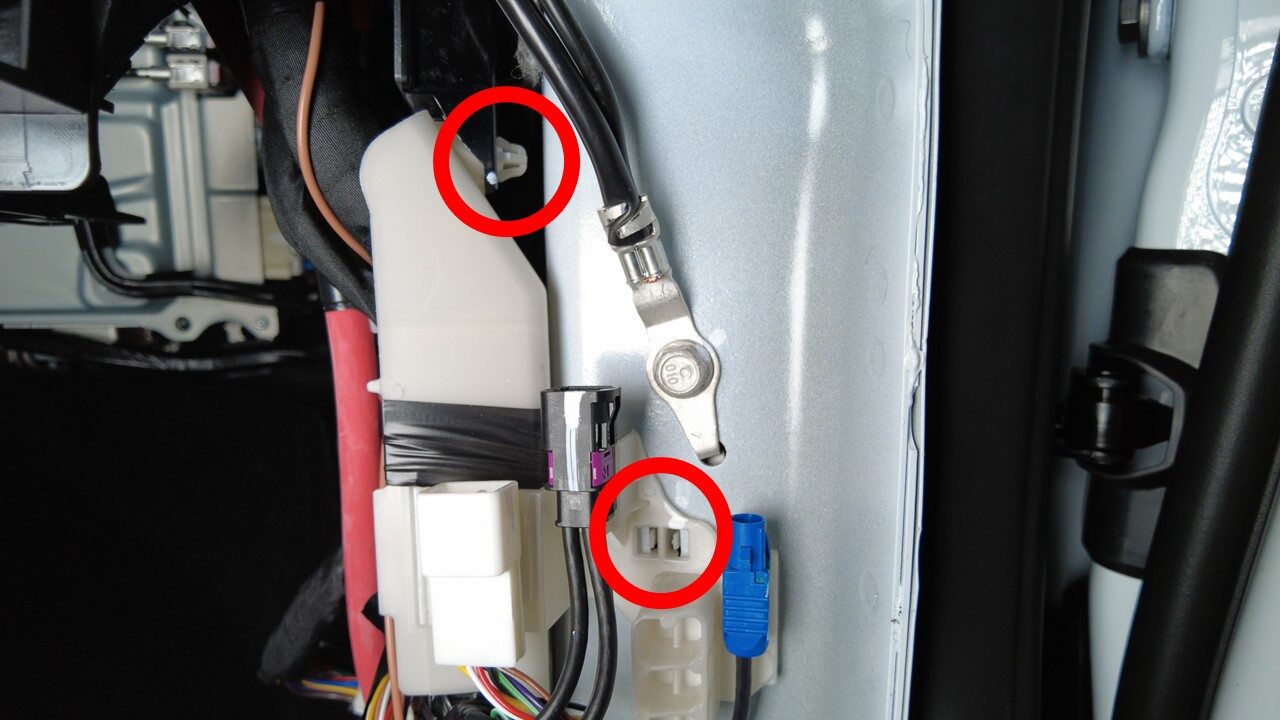

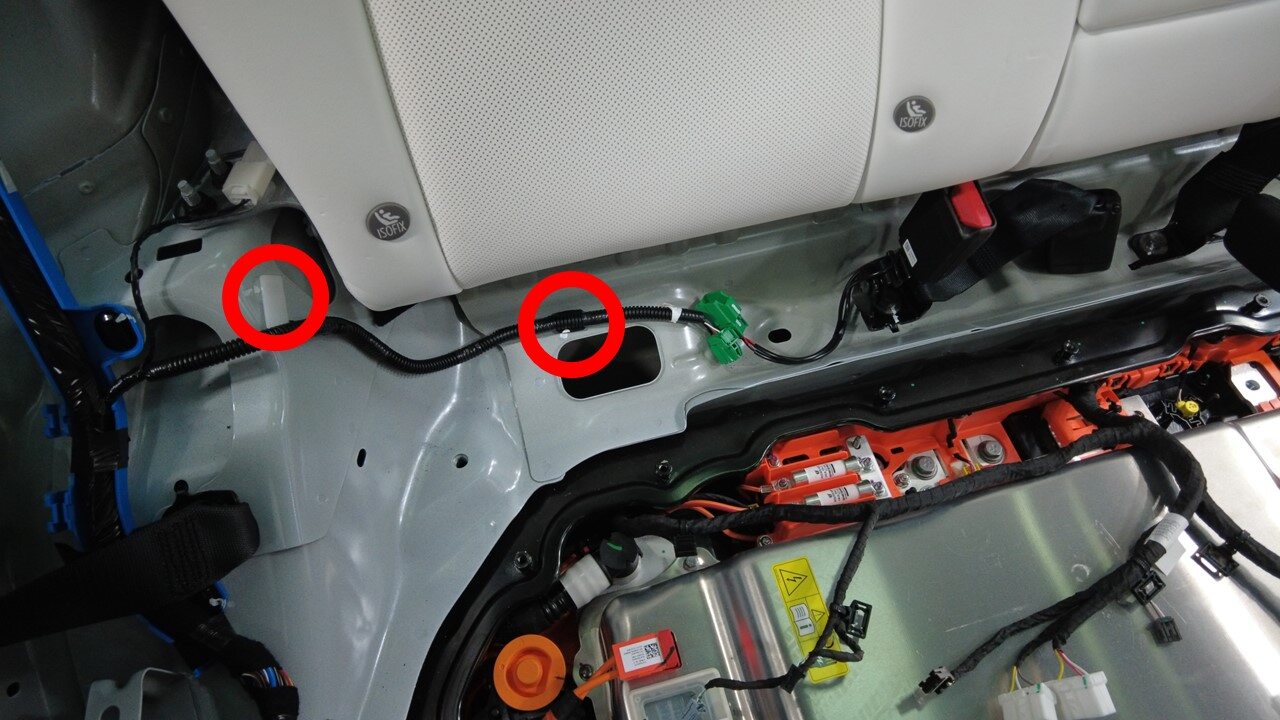

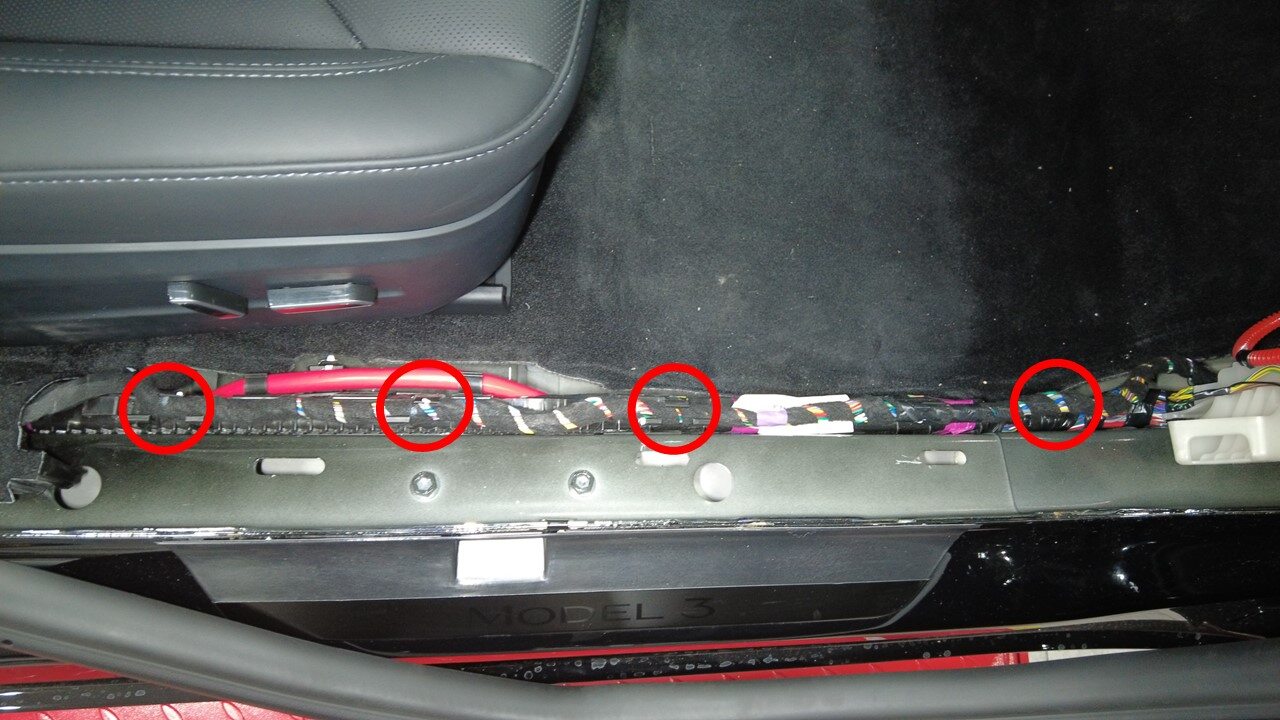

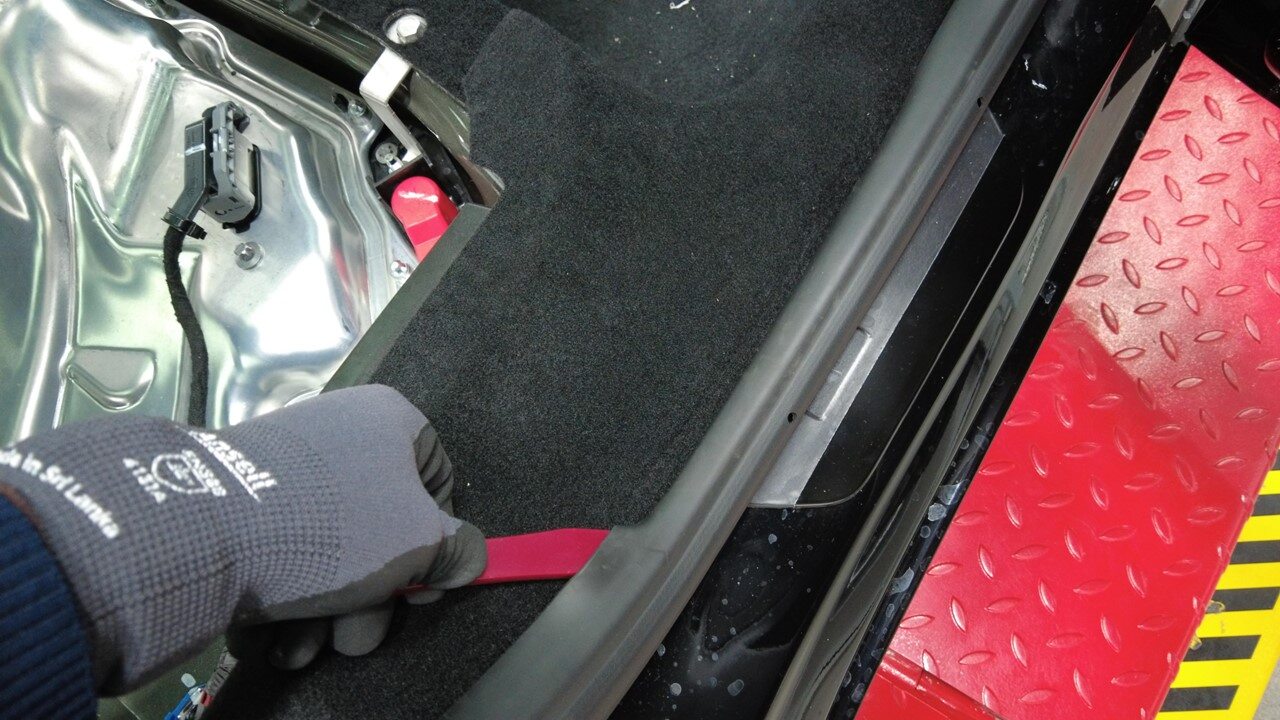

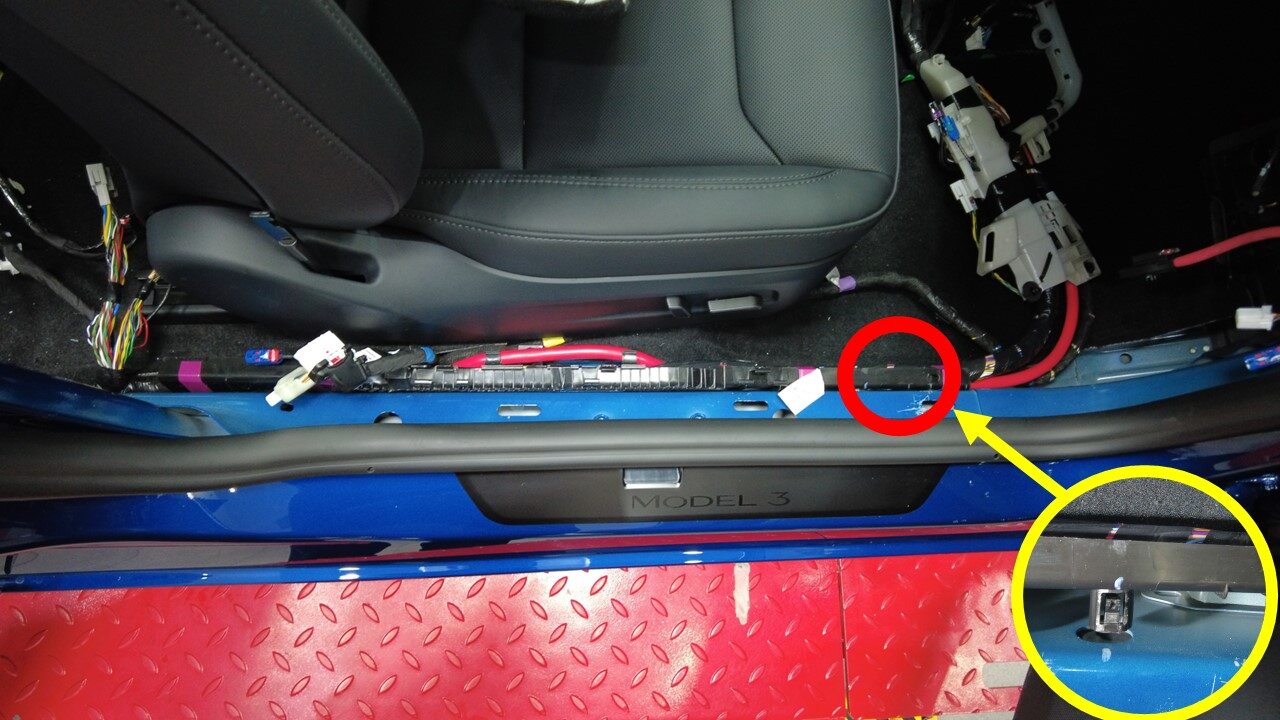

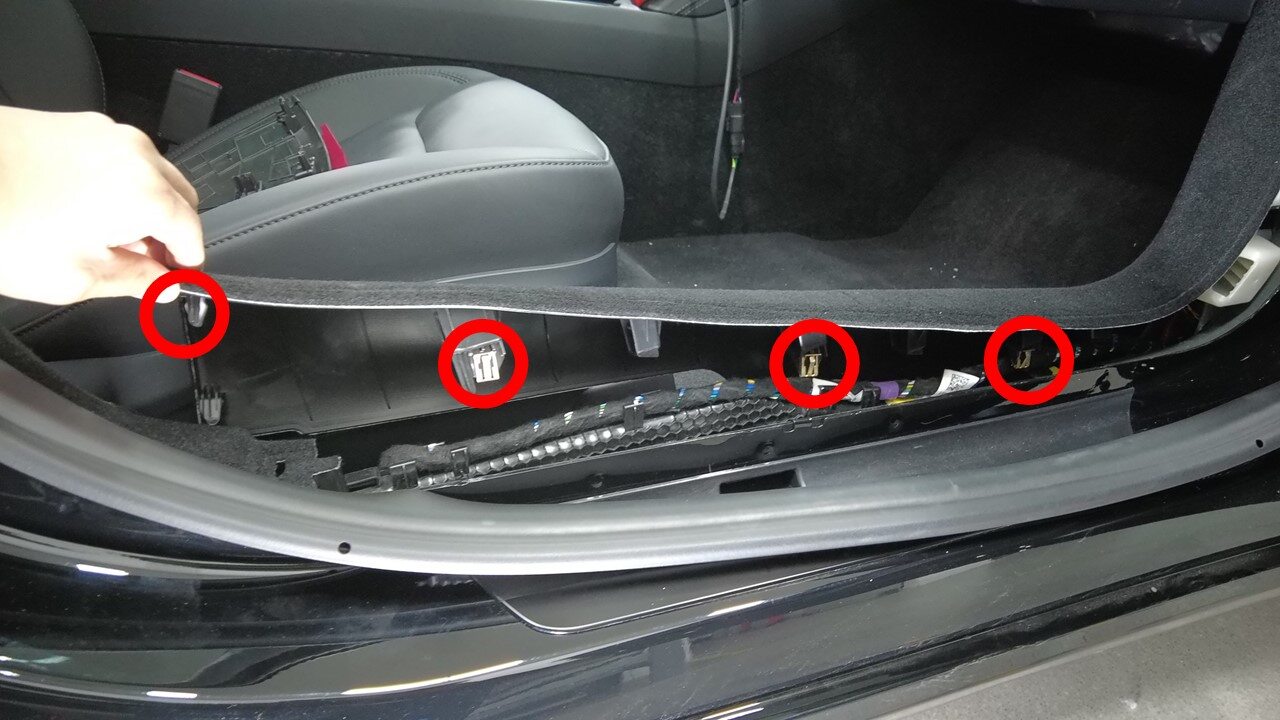

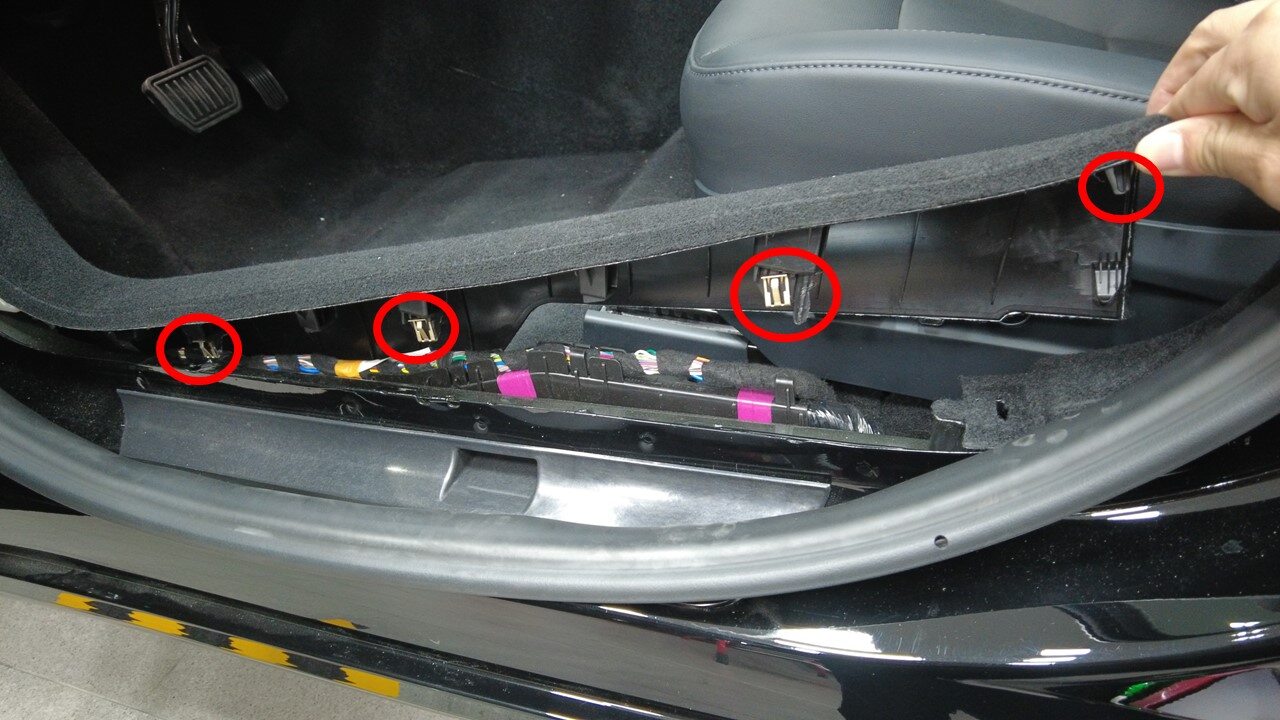

  27. Release RH front seat harness from sill trim clips
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x clips

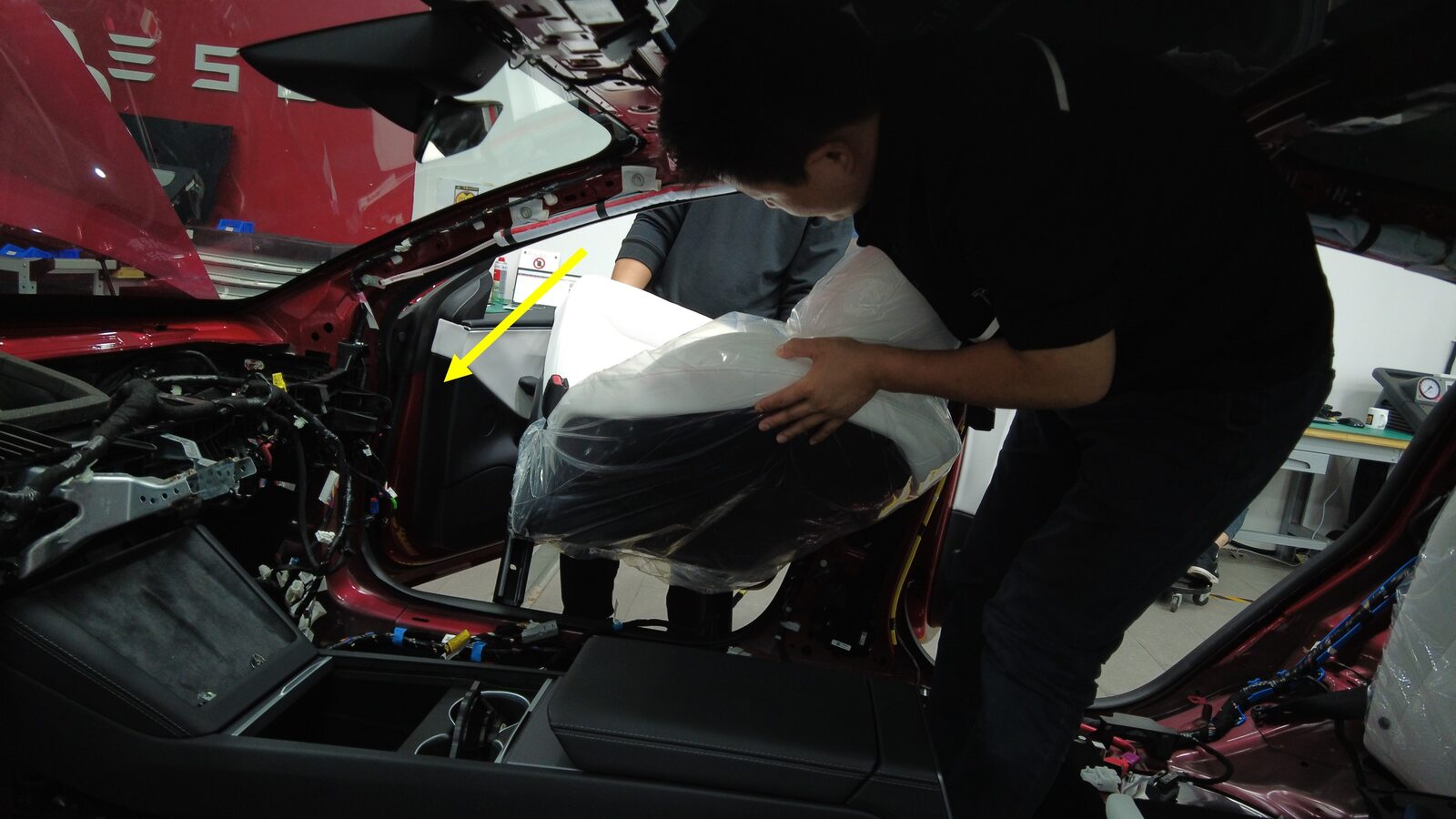

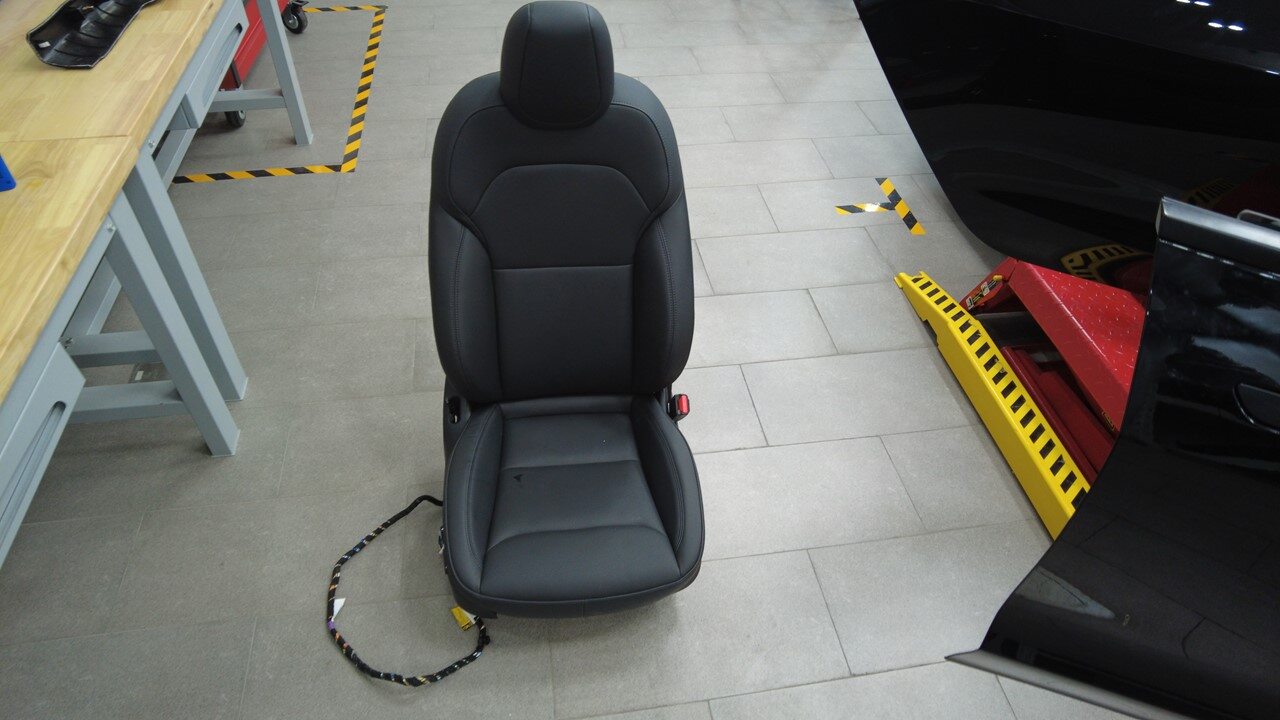

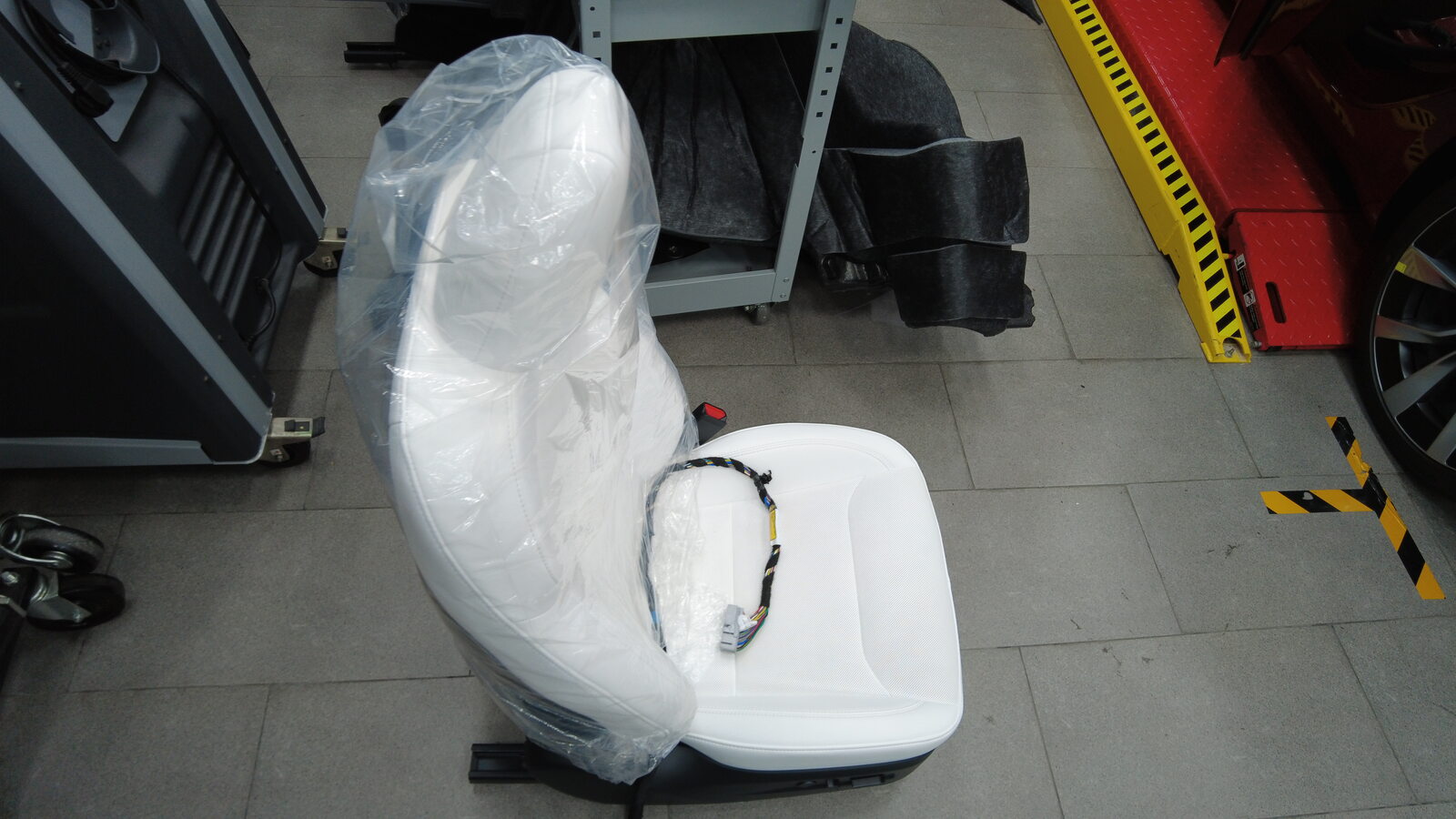

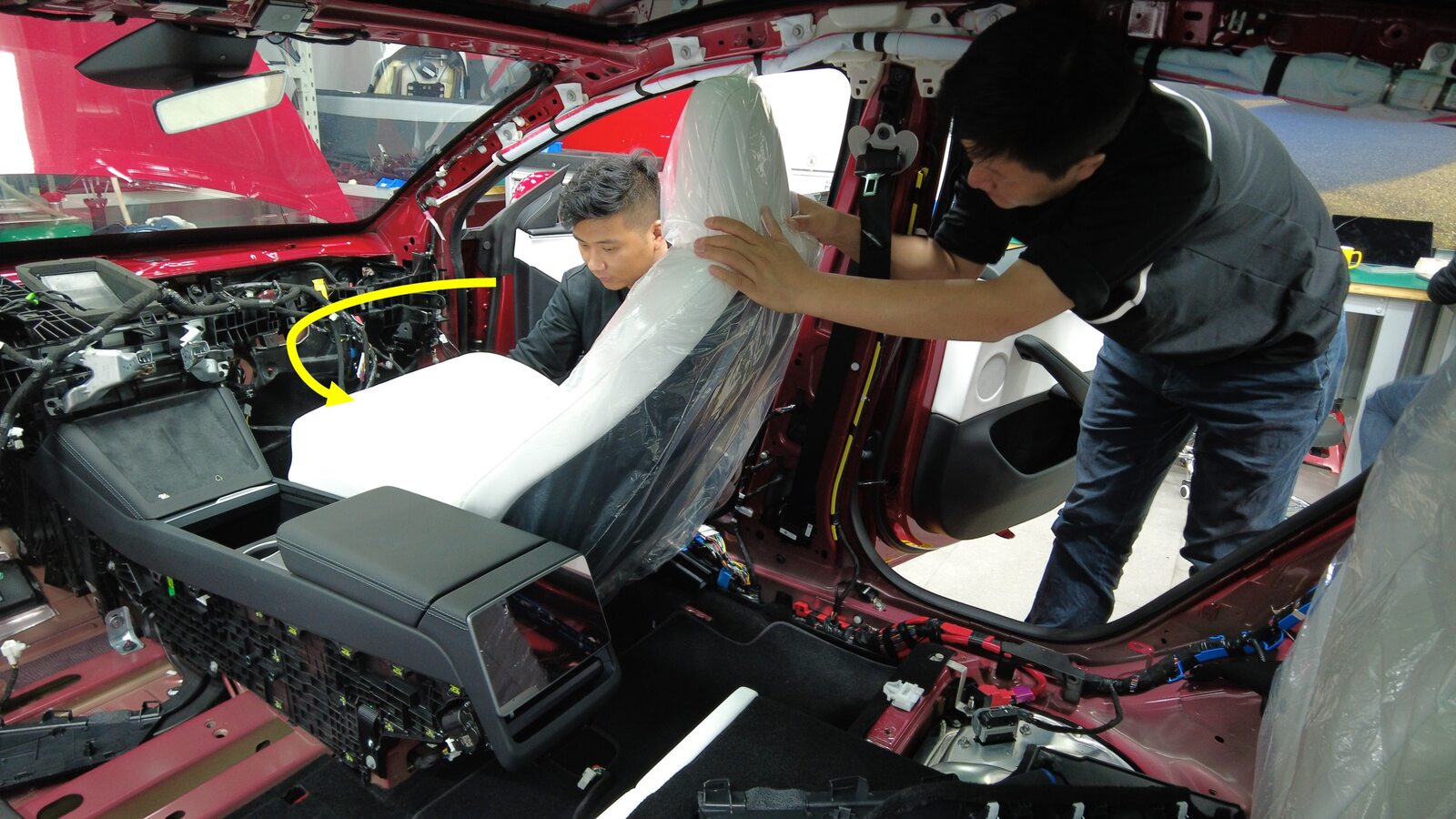

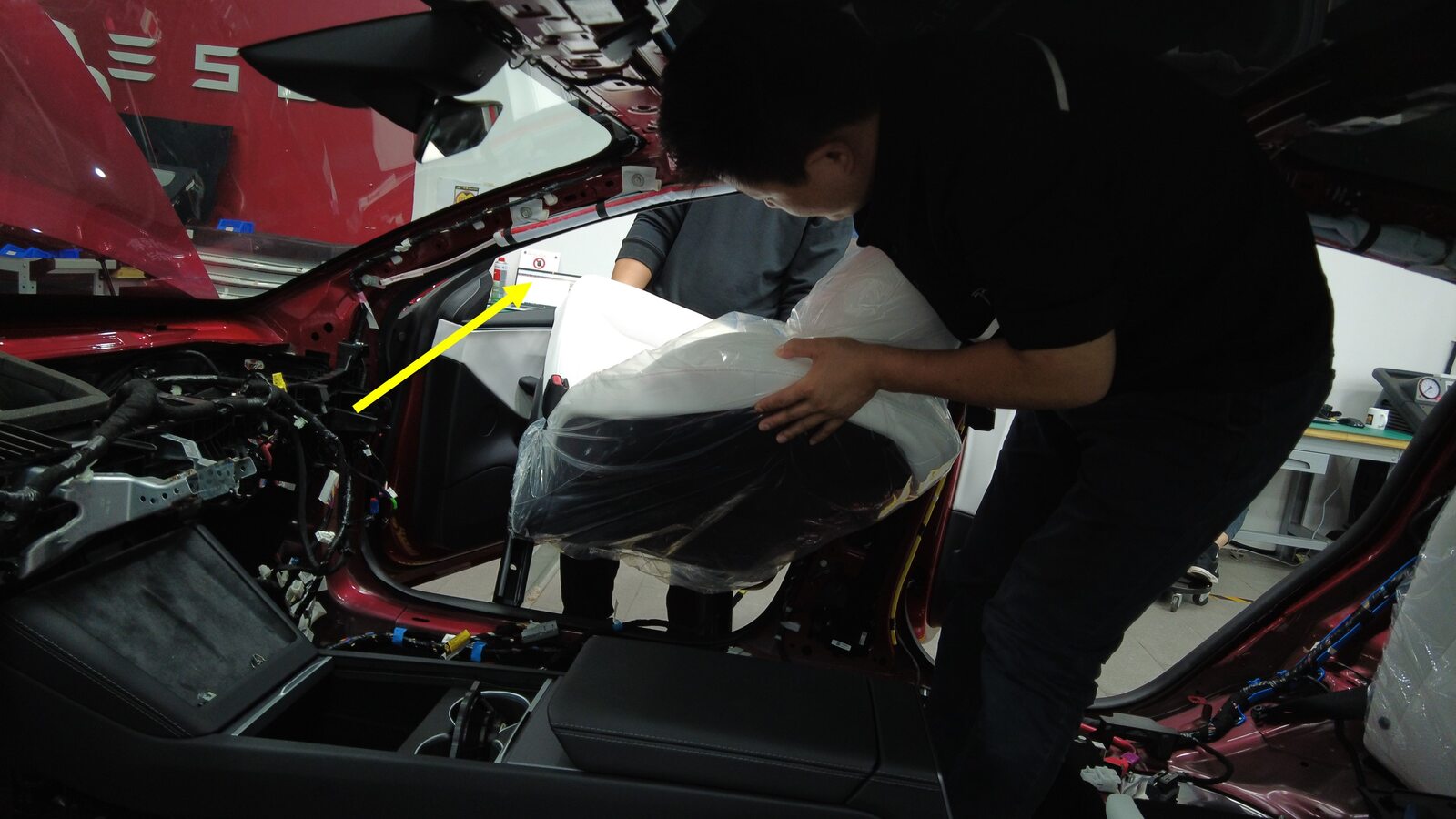

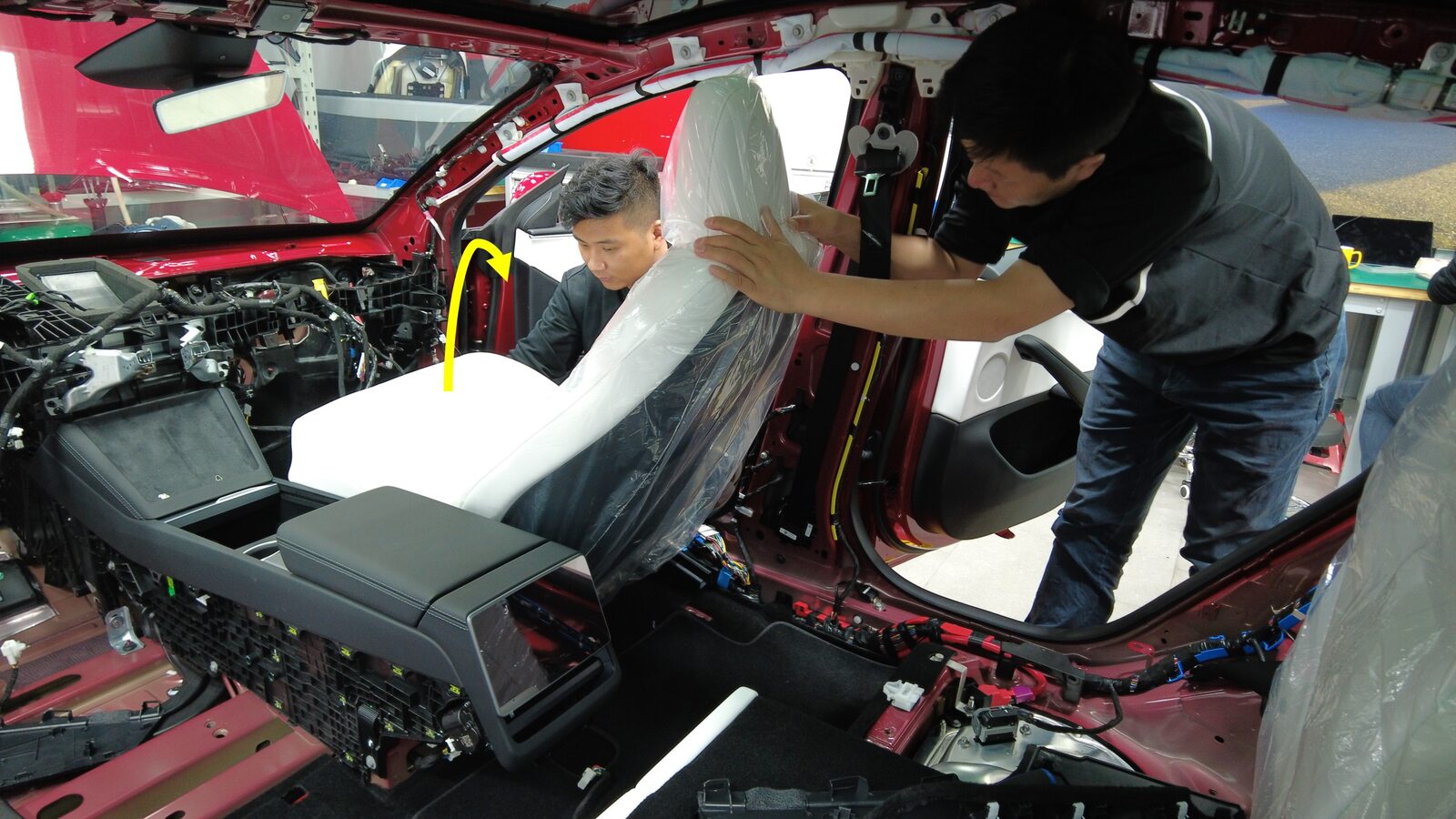

  28. Remove RH front seat from vehicle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Recommend assistance, With assistant supporting seat back from 2nd row seat, Remove seat from front RH door opening, Caution not to damage any trim, Protect the seat upholstery when the seat is outside of the vehicle
  29. Disconnect harness from rear of center console
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, 1x clip

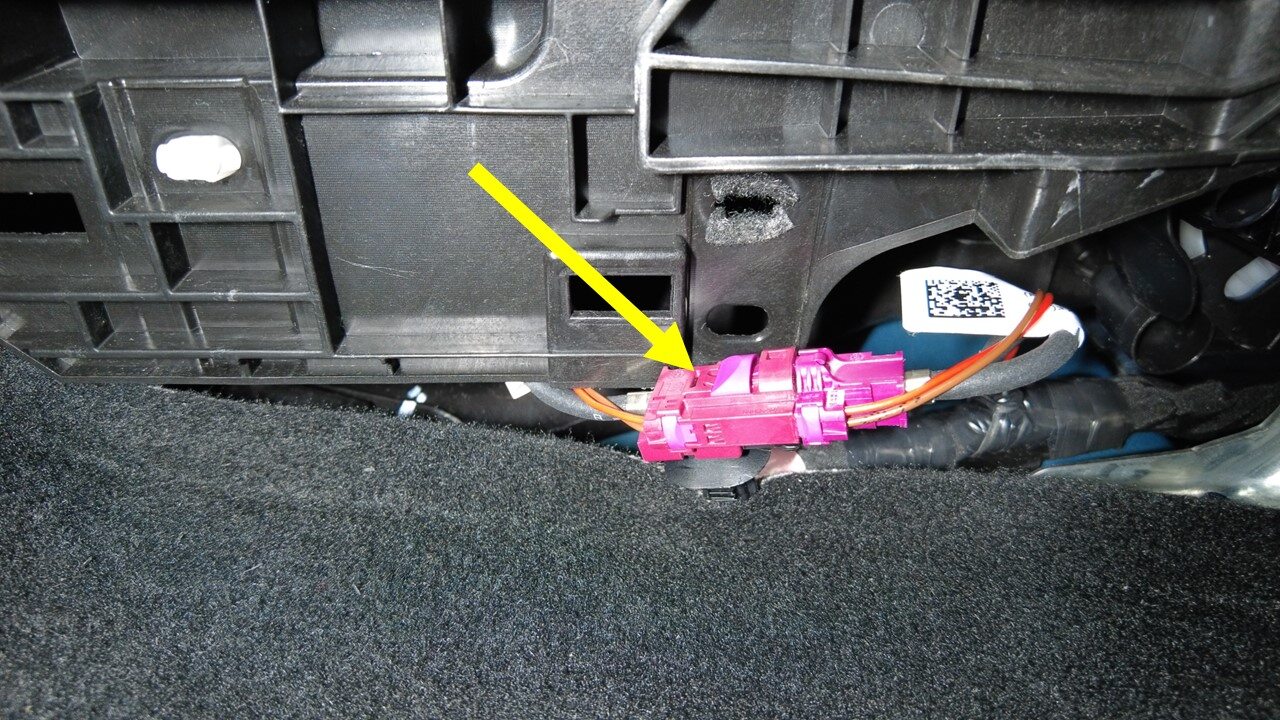

  30. Disconnect harness connector from right front of center console
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, 1x clip

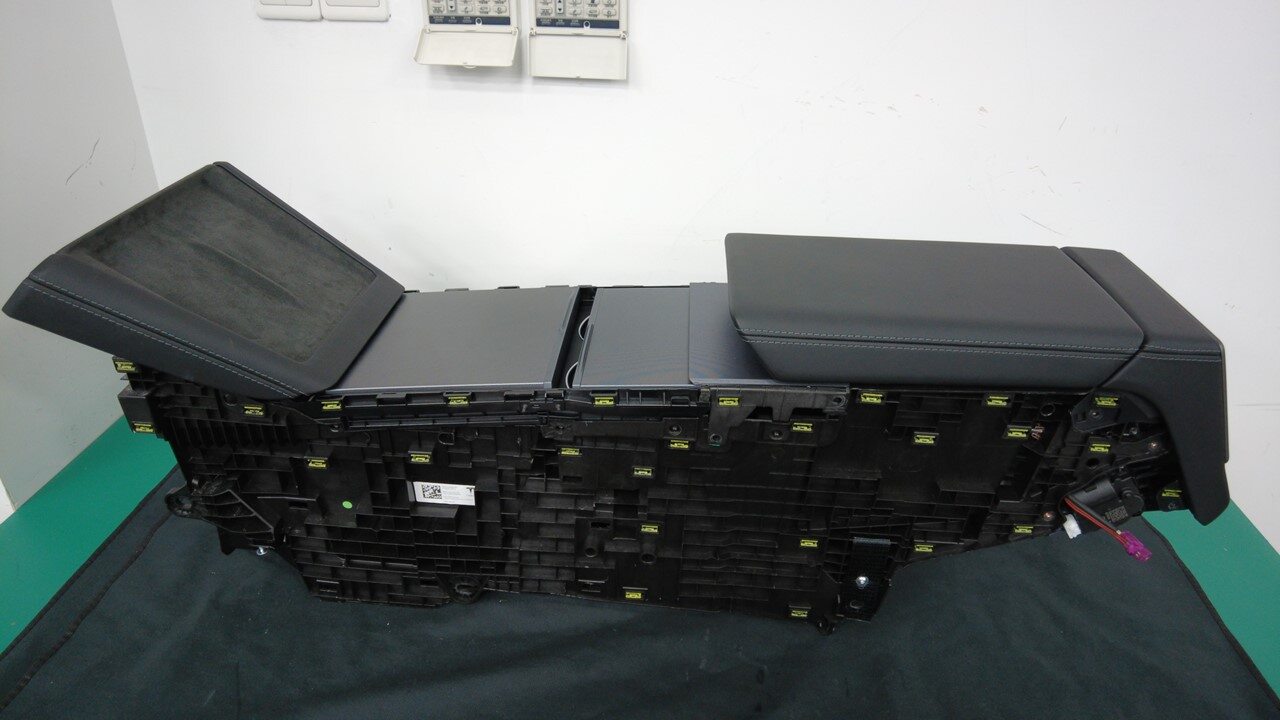

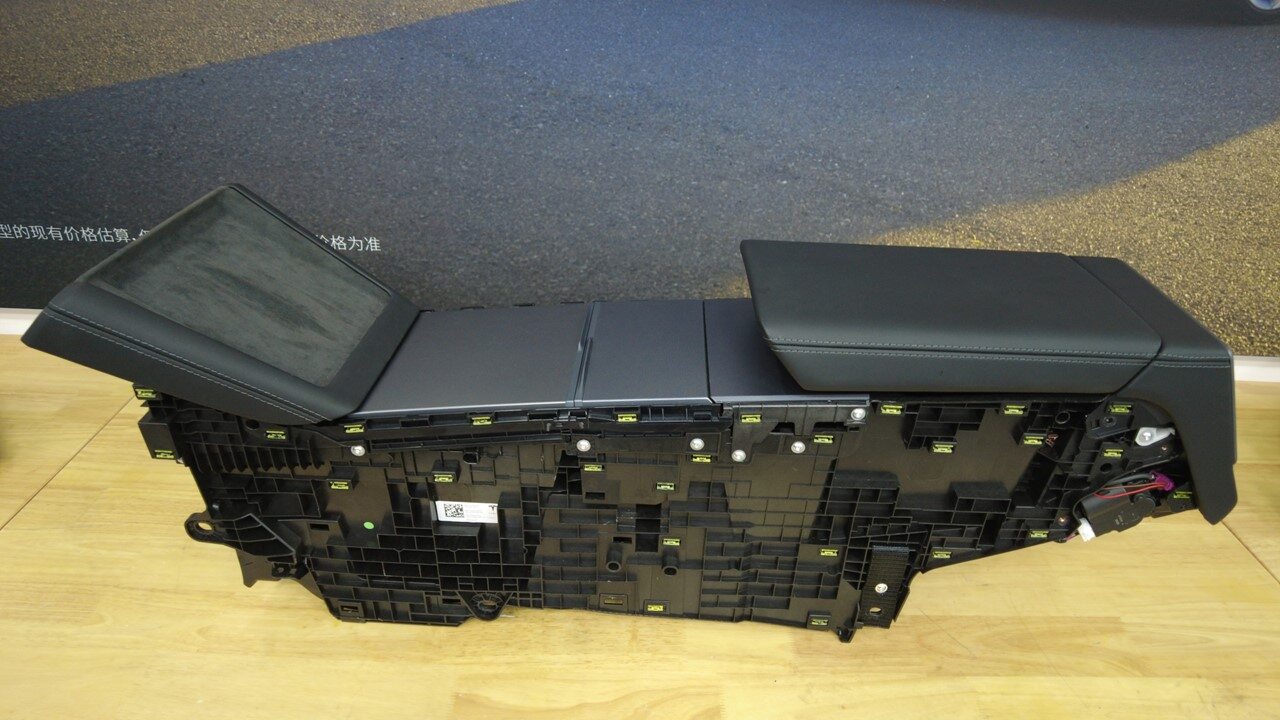

  31. Remove center console assembly from vehicle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Recommend assistance, Tilt rear of console upward, pull assembly towards rear of vehicle, then tilt front of console upward and remove through passenger side, Then Place on the work table

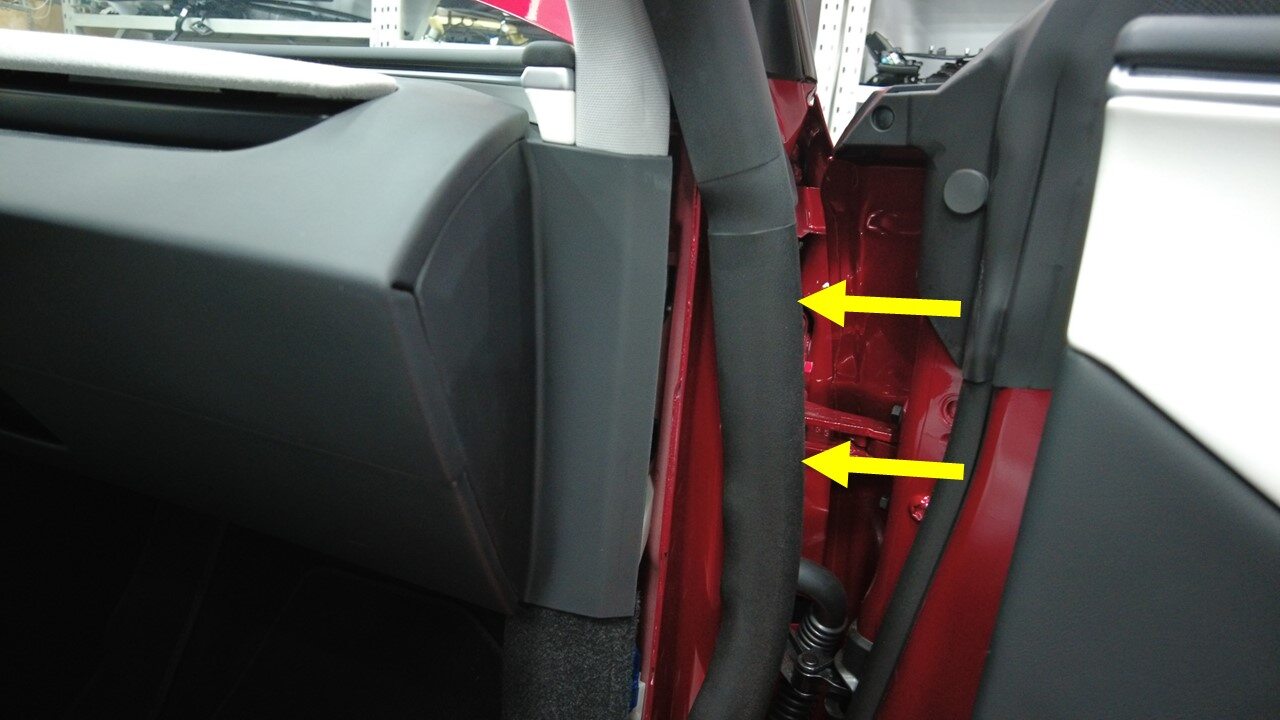

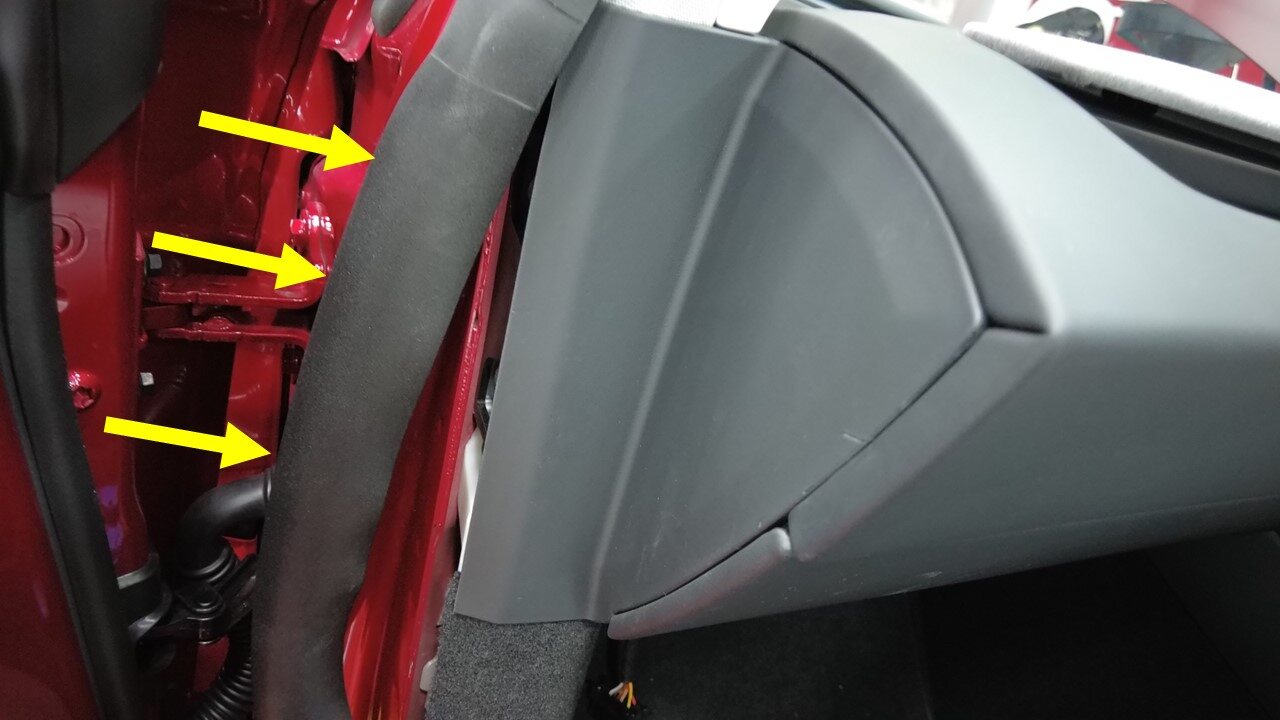

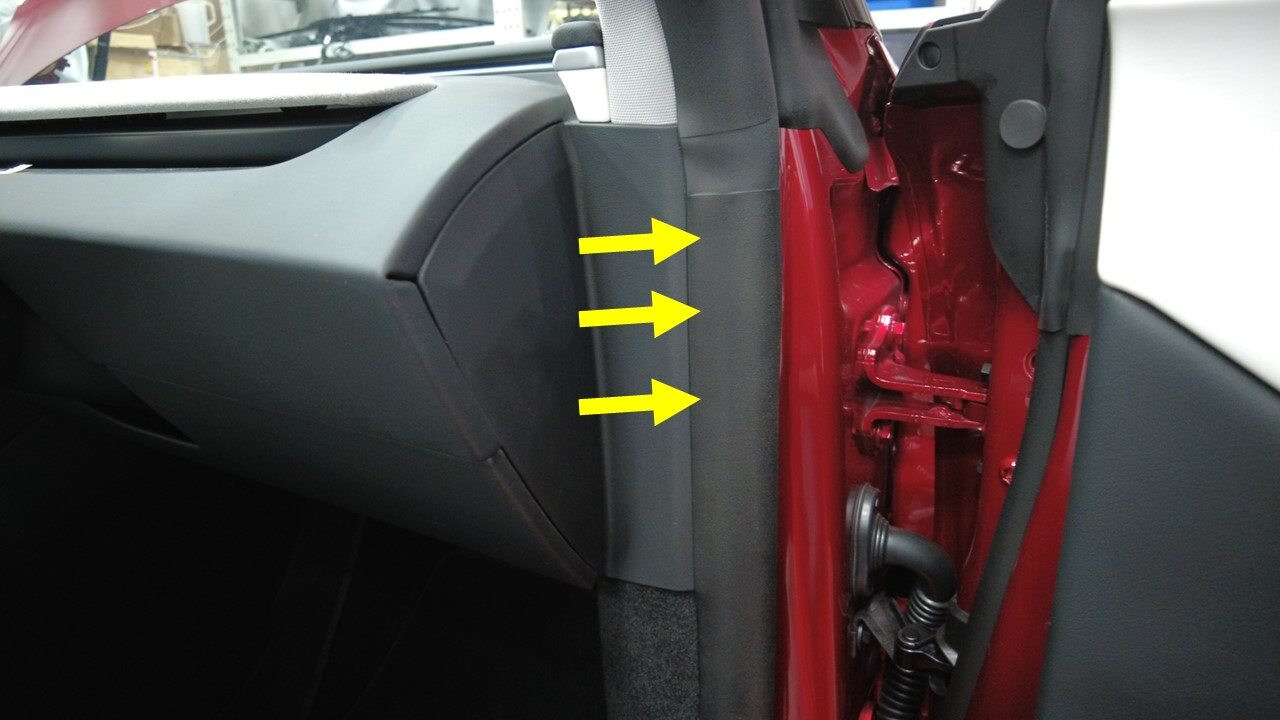

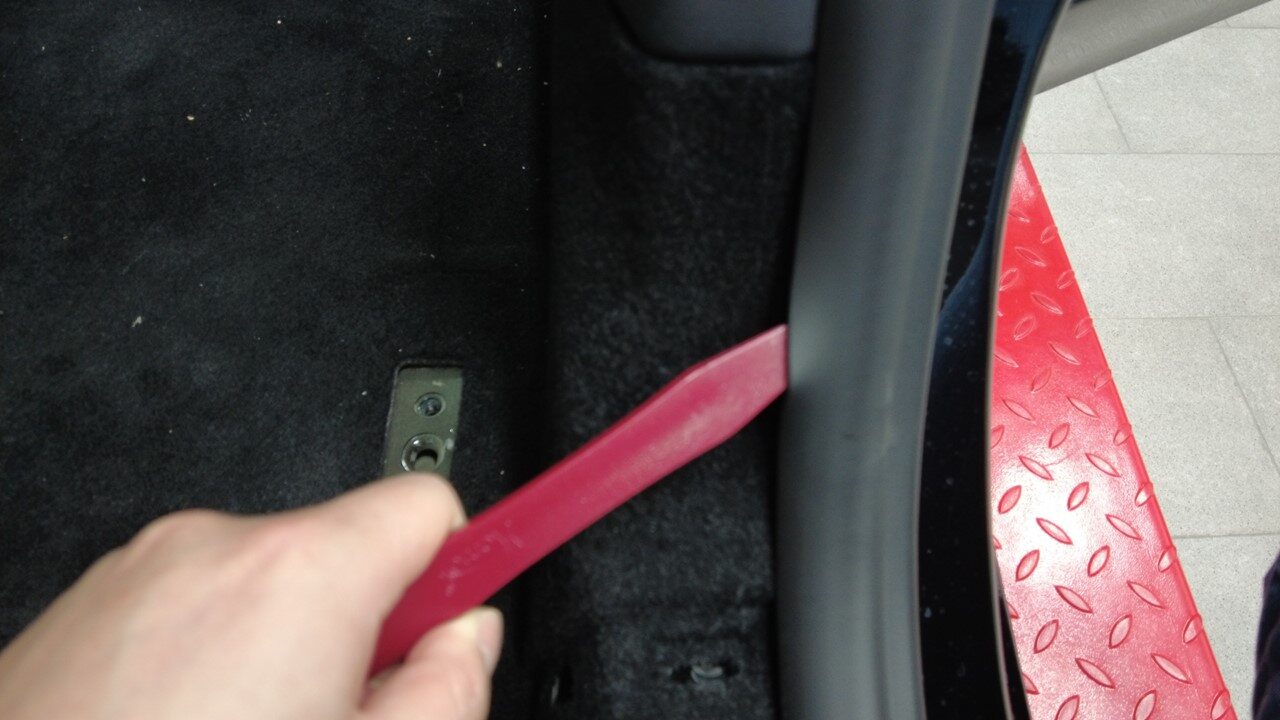

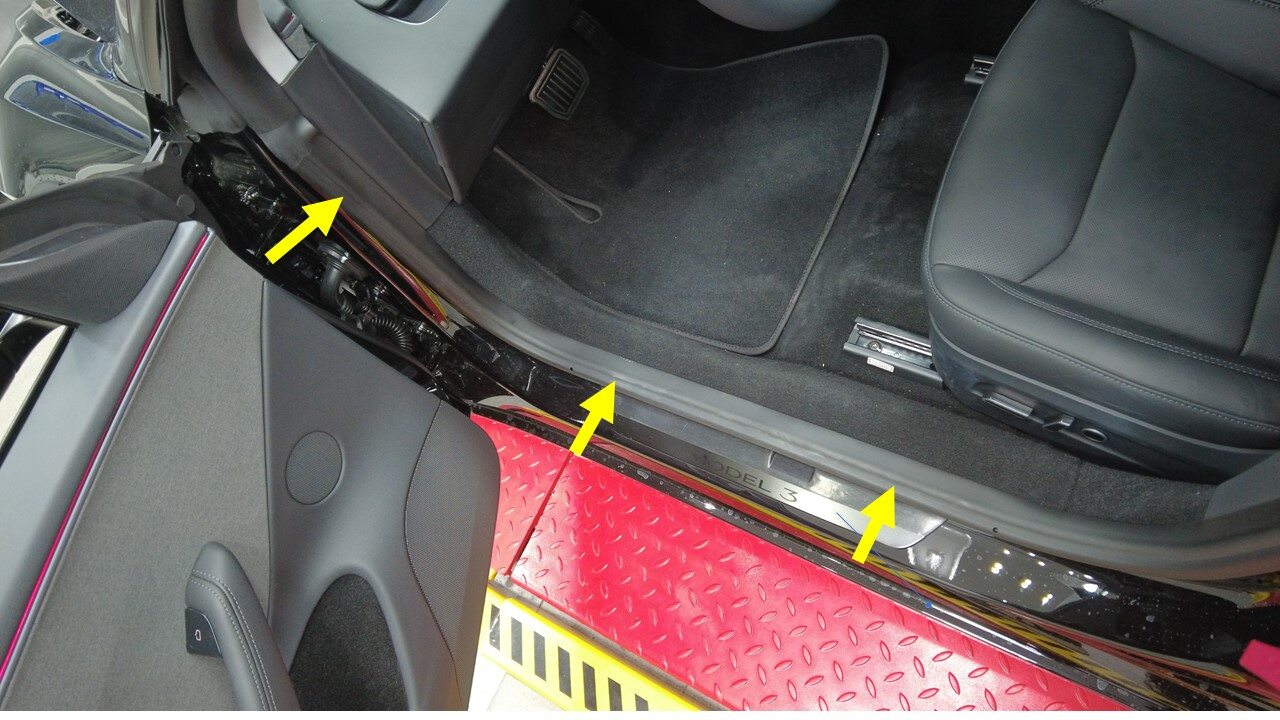

  32. Partially release RH front primary door seal
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Release the lower section of RH front primary door seal

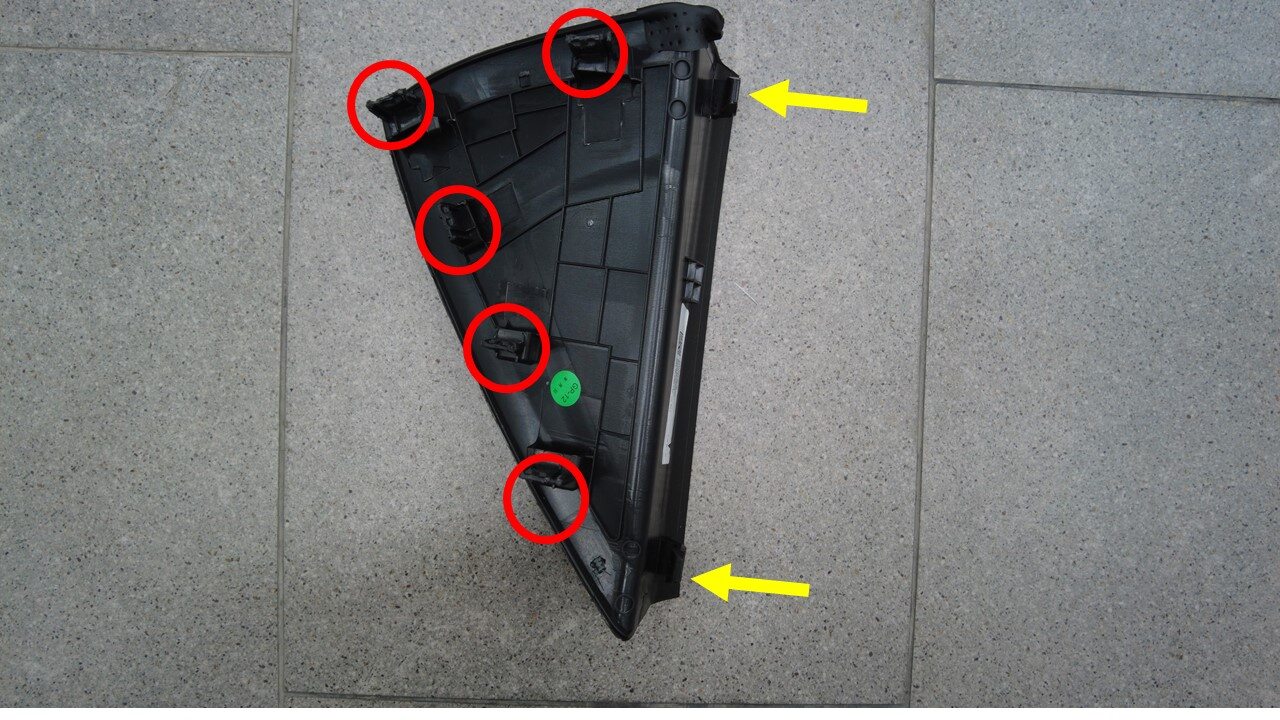

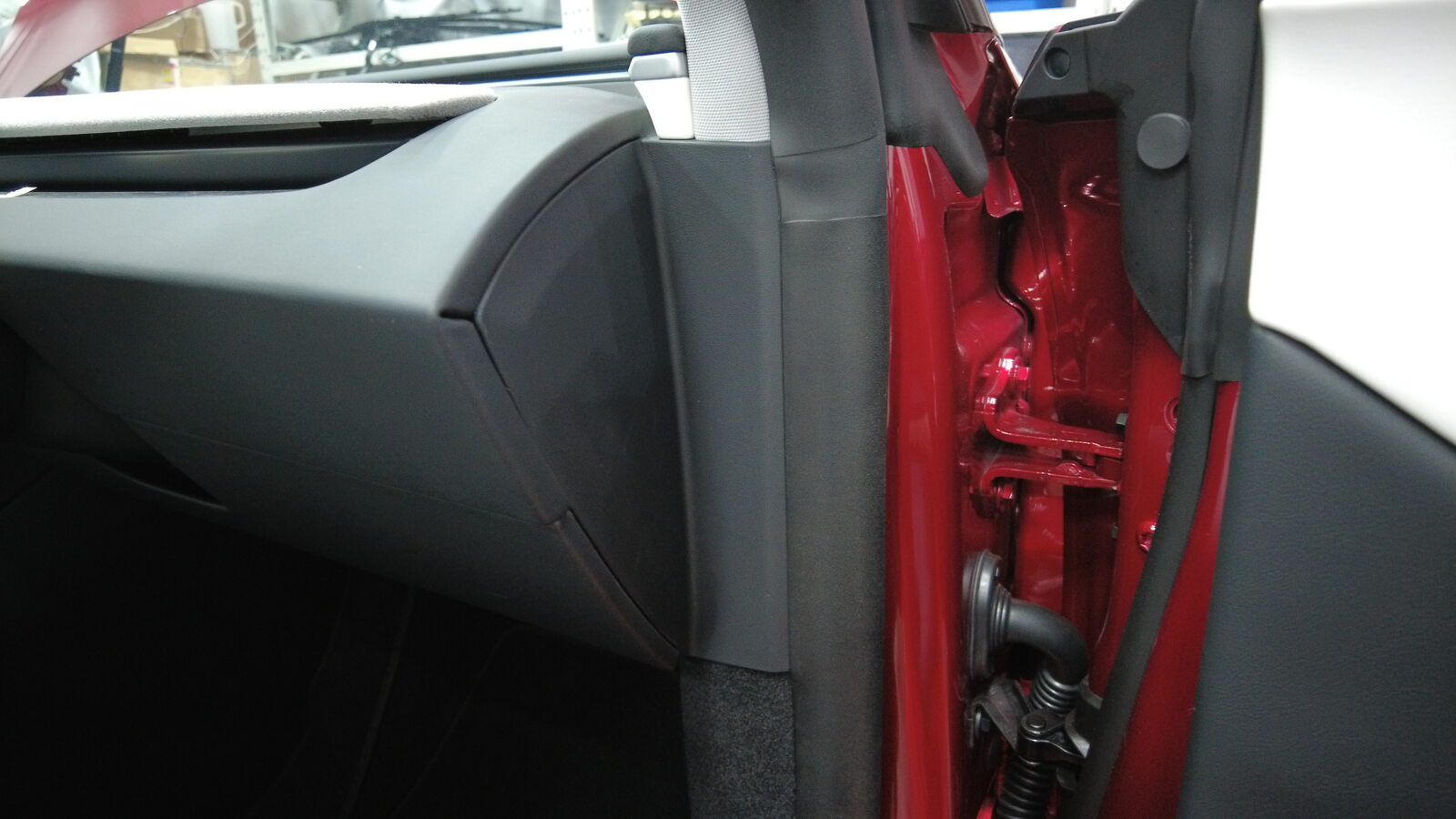

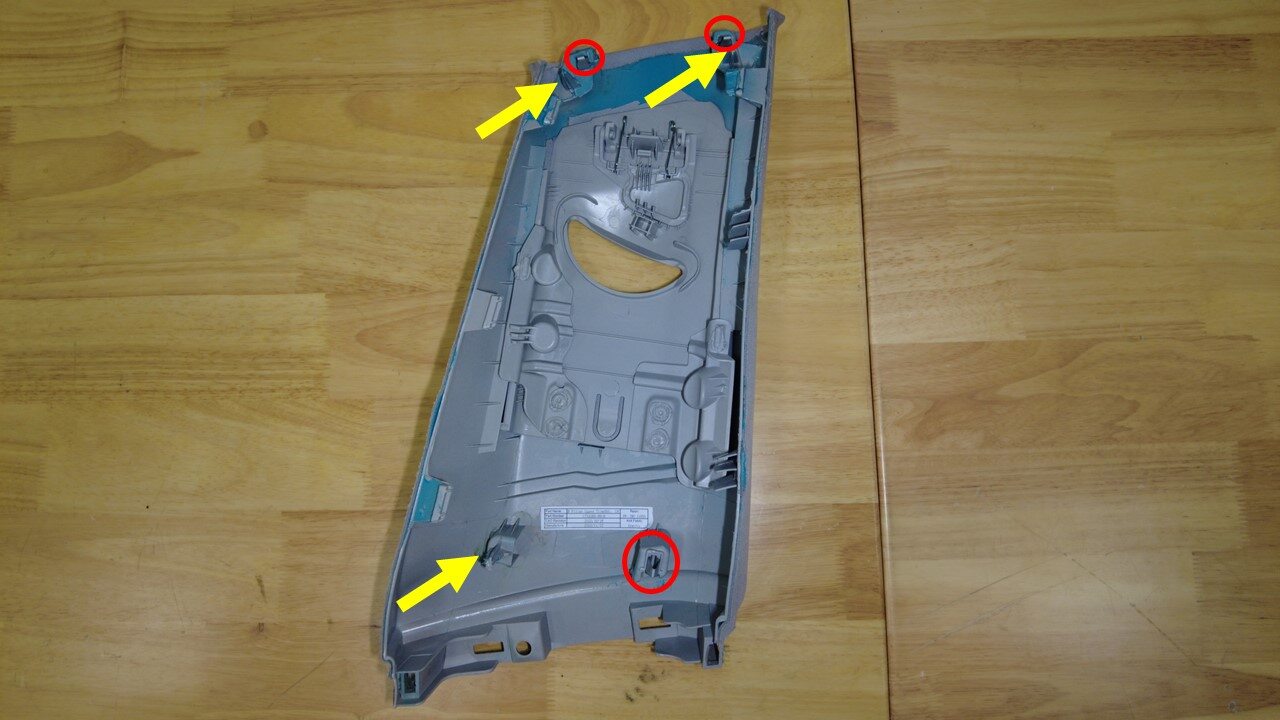

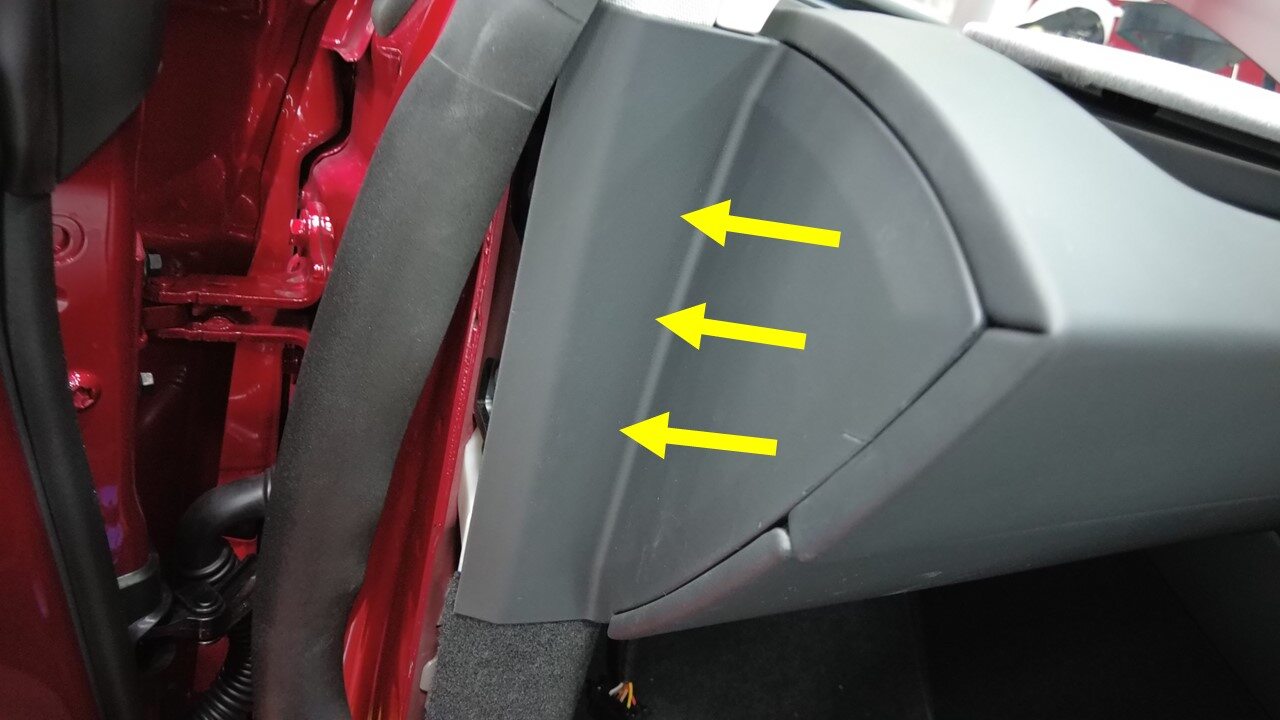

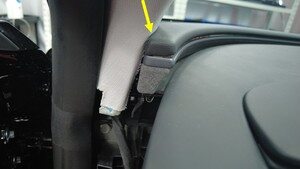

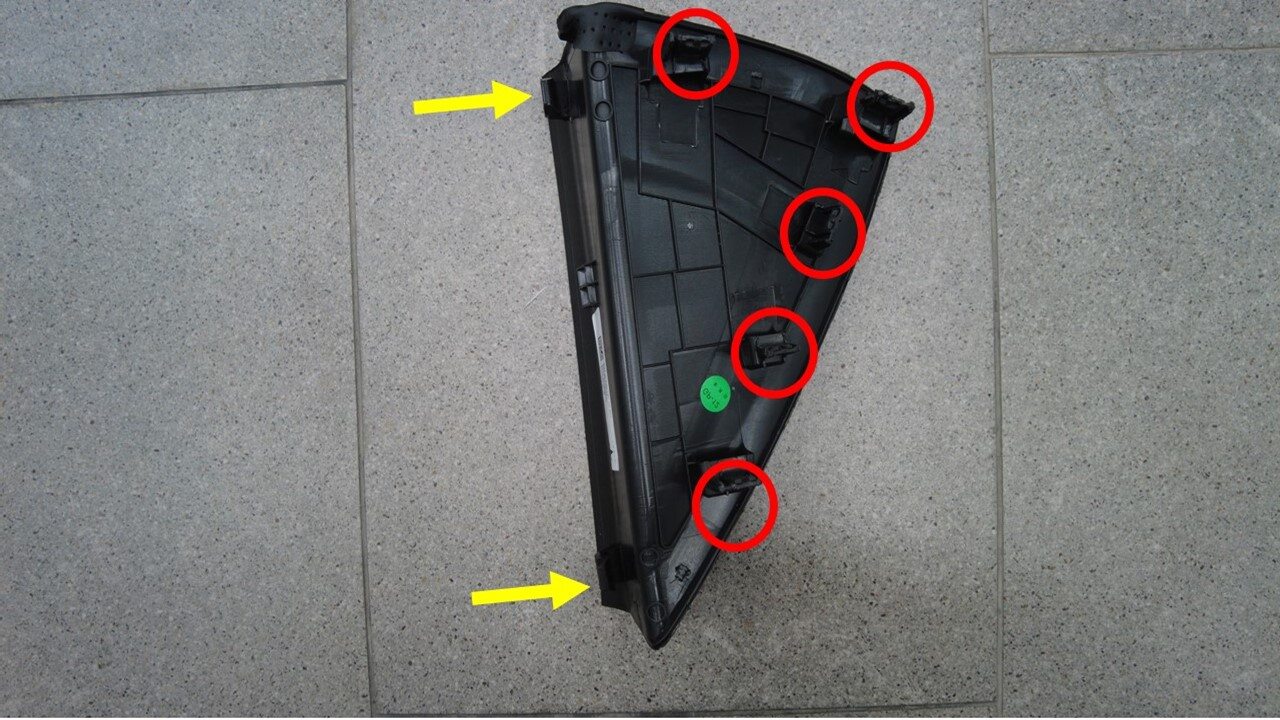

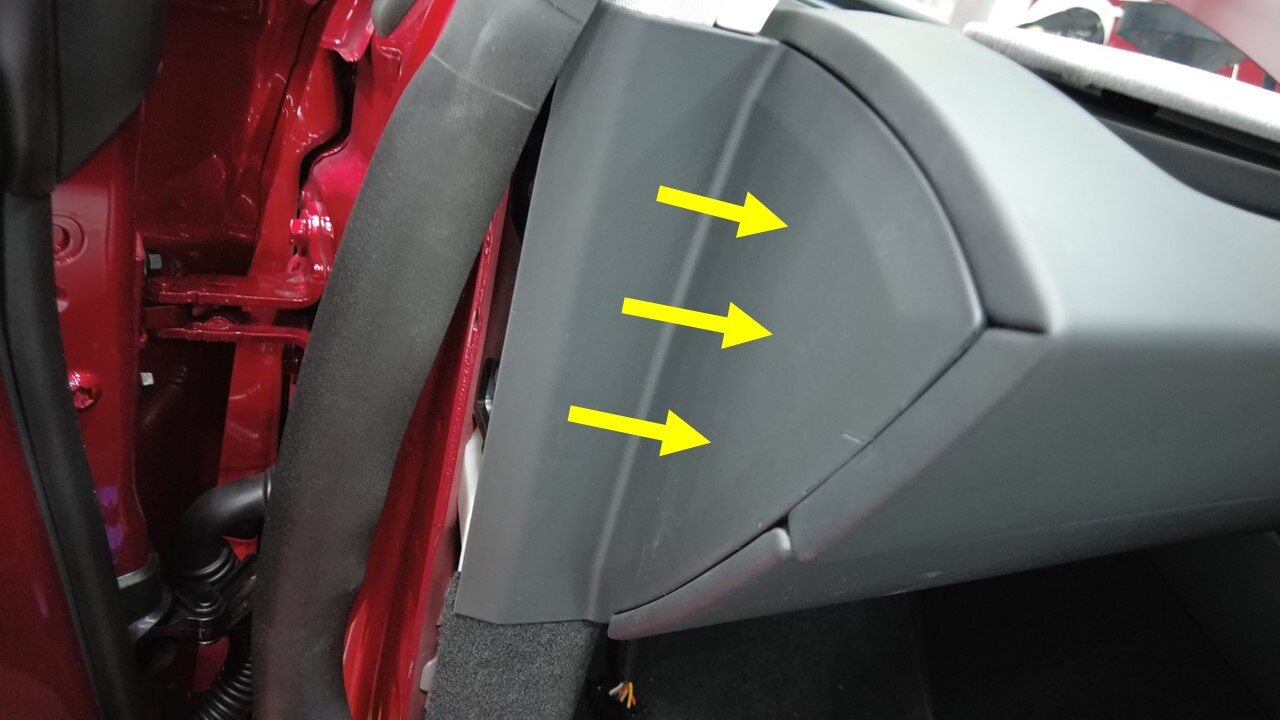

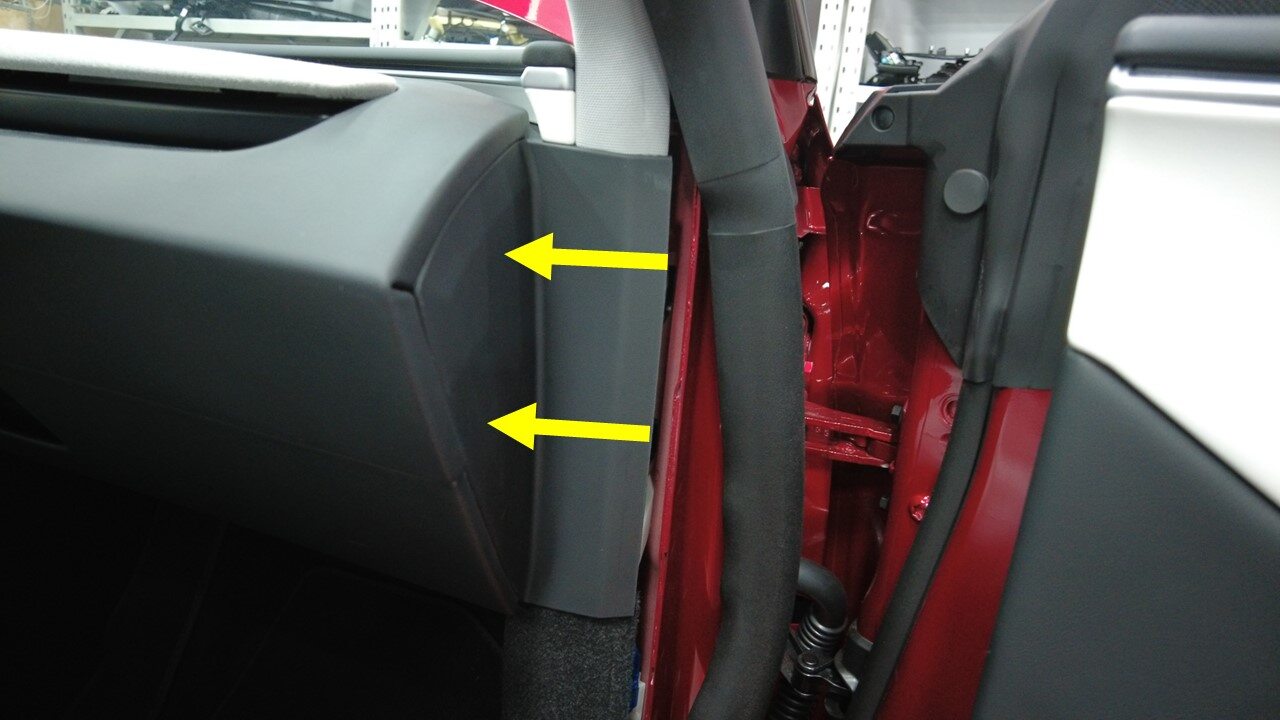

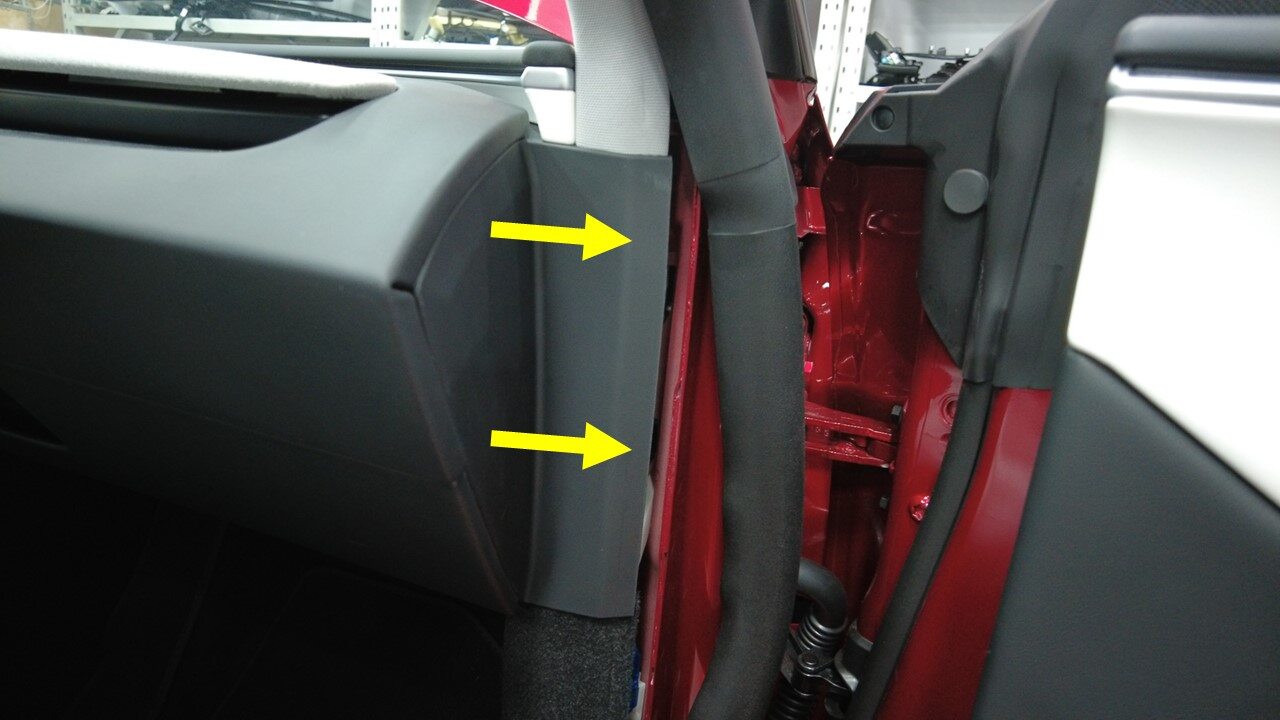

  33. Remove RH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x clips, 2x guide tabs

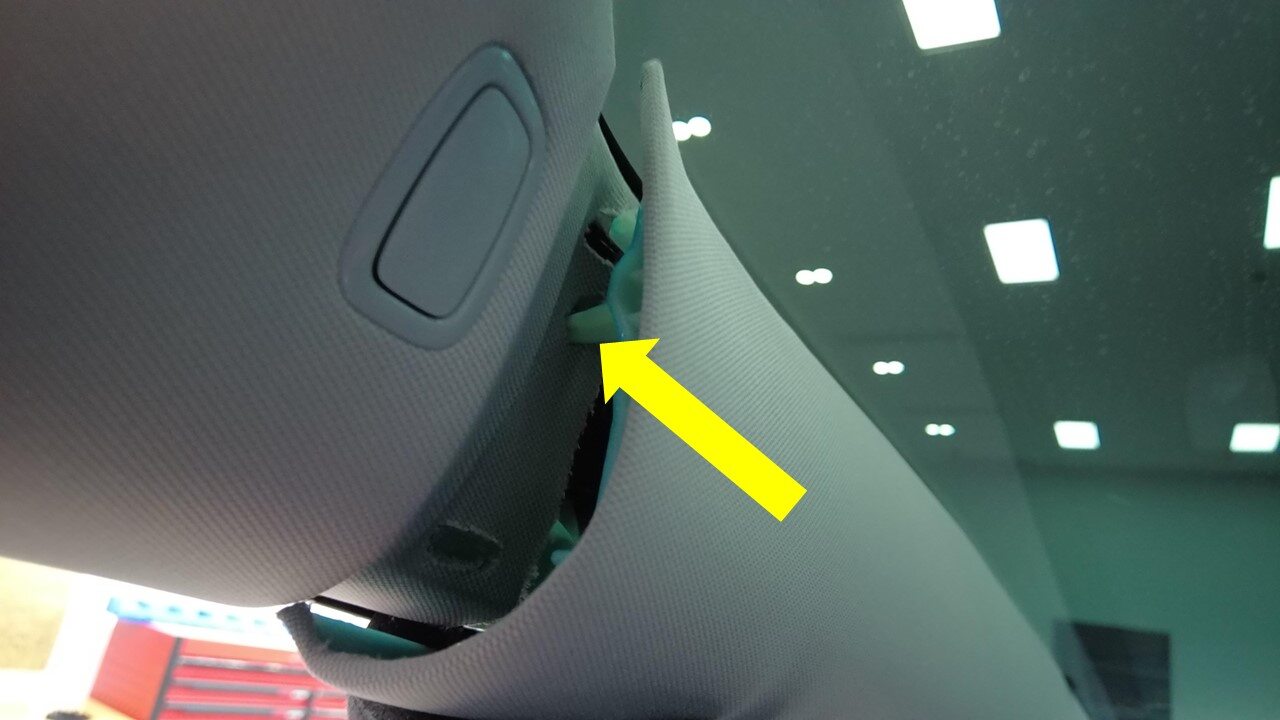

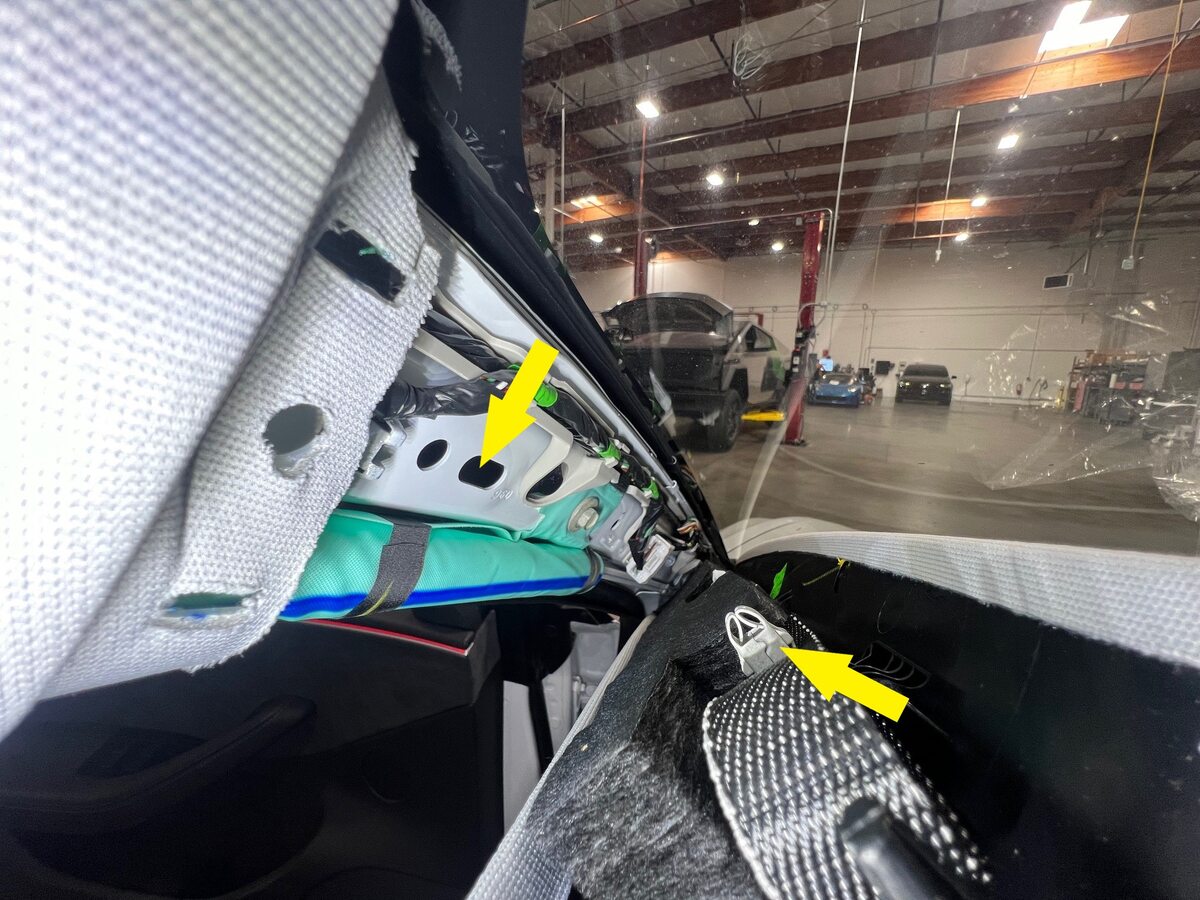

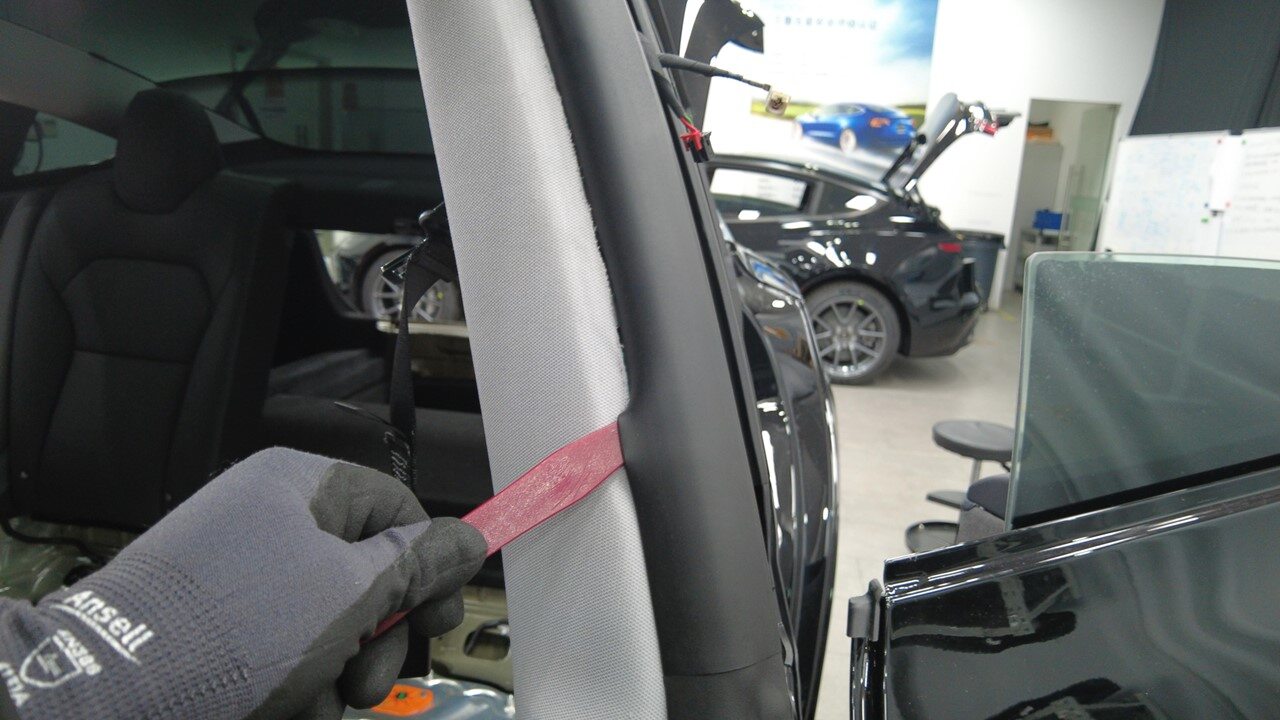

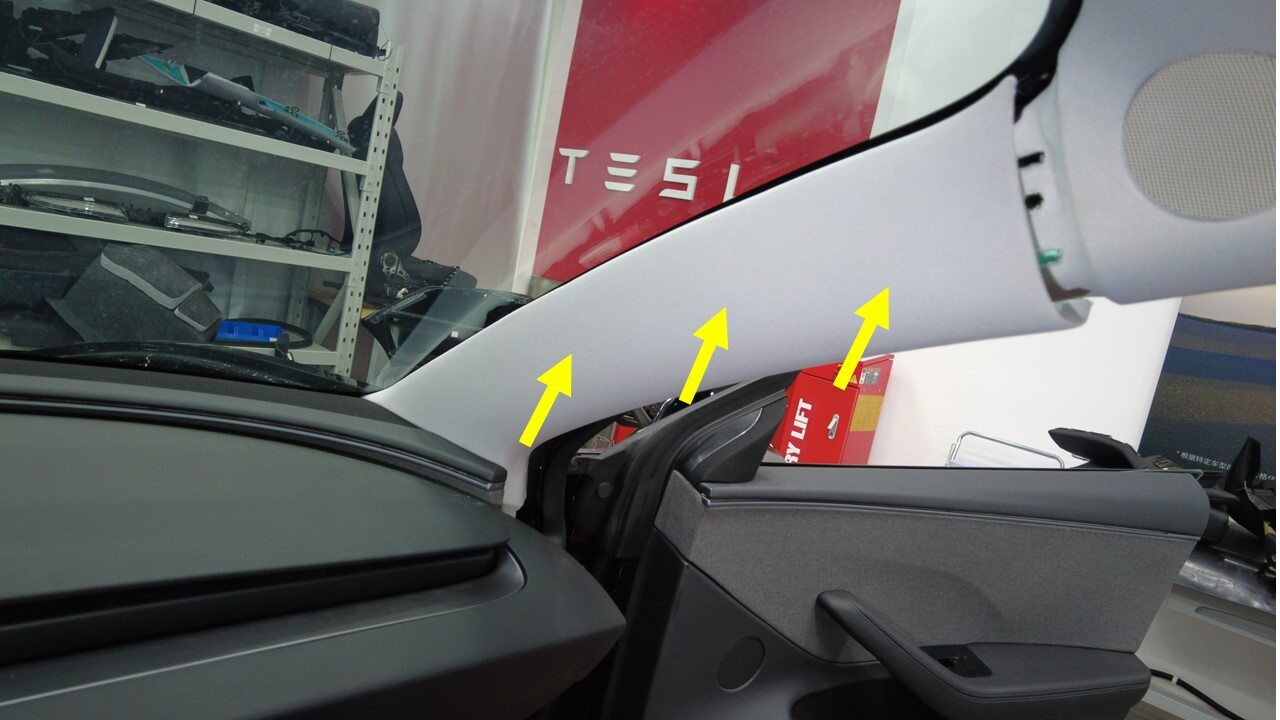

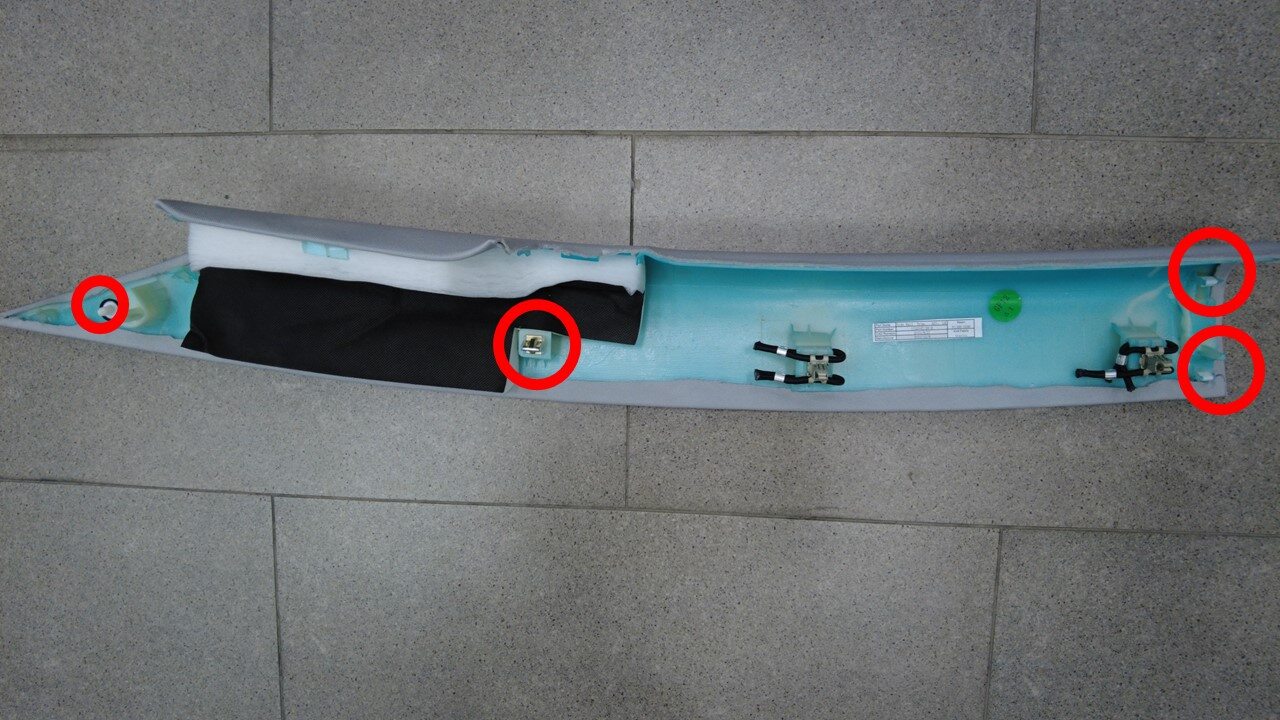

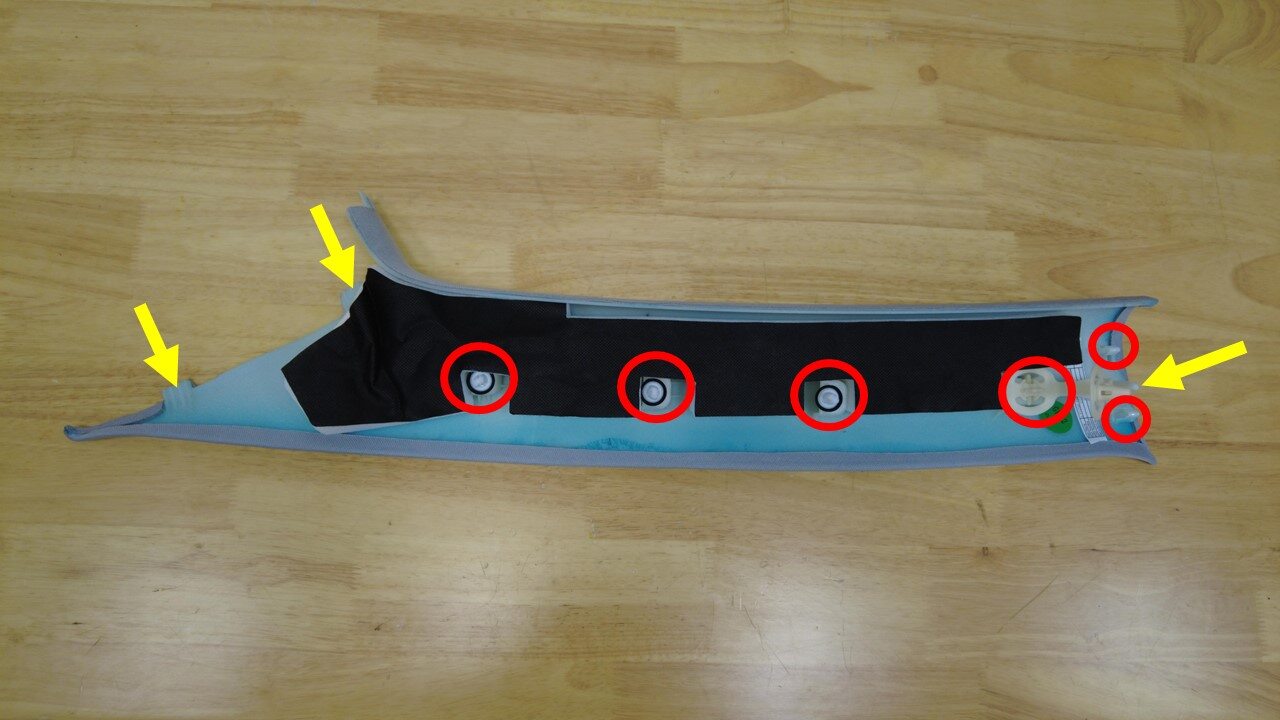

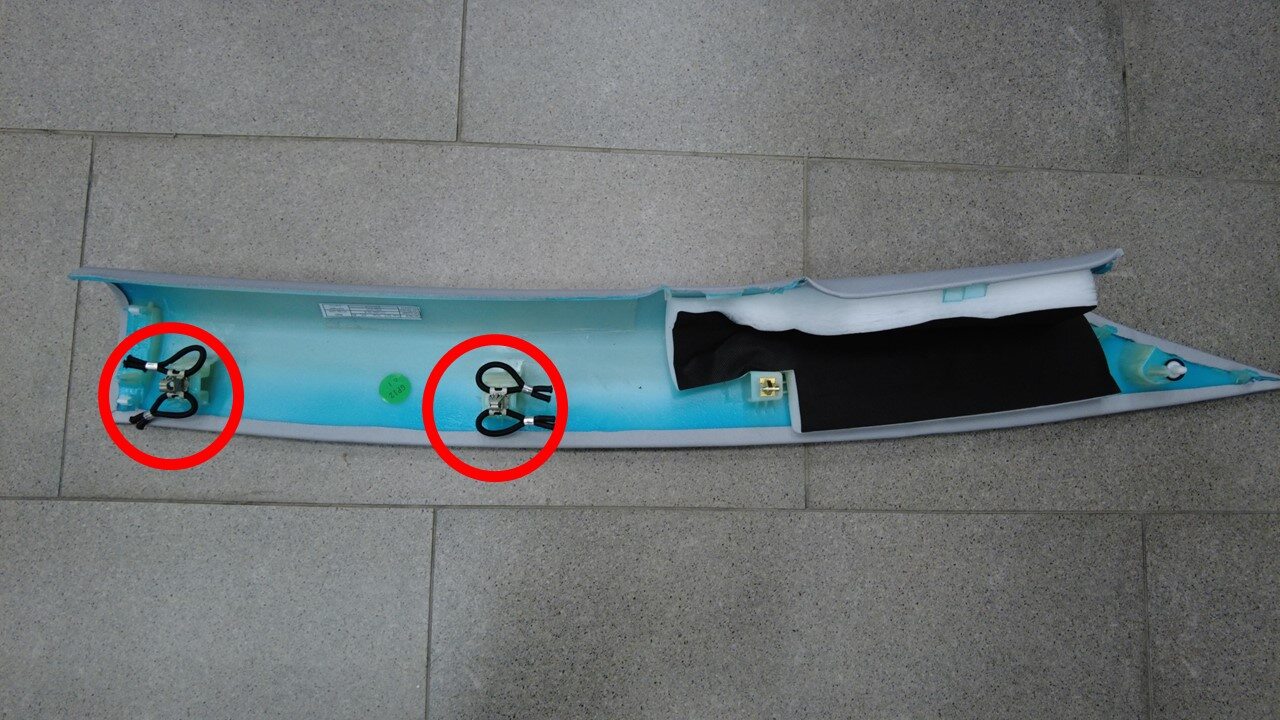

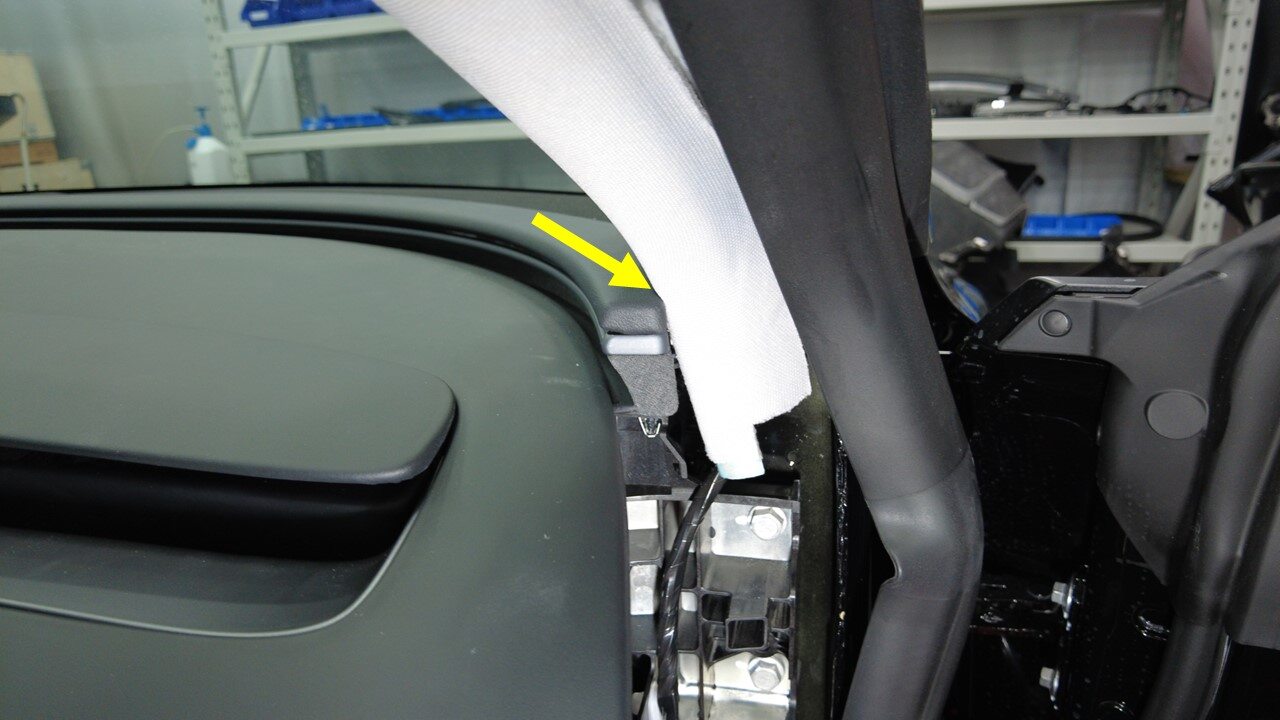

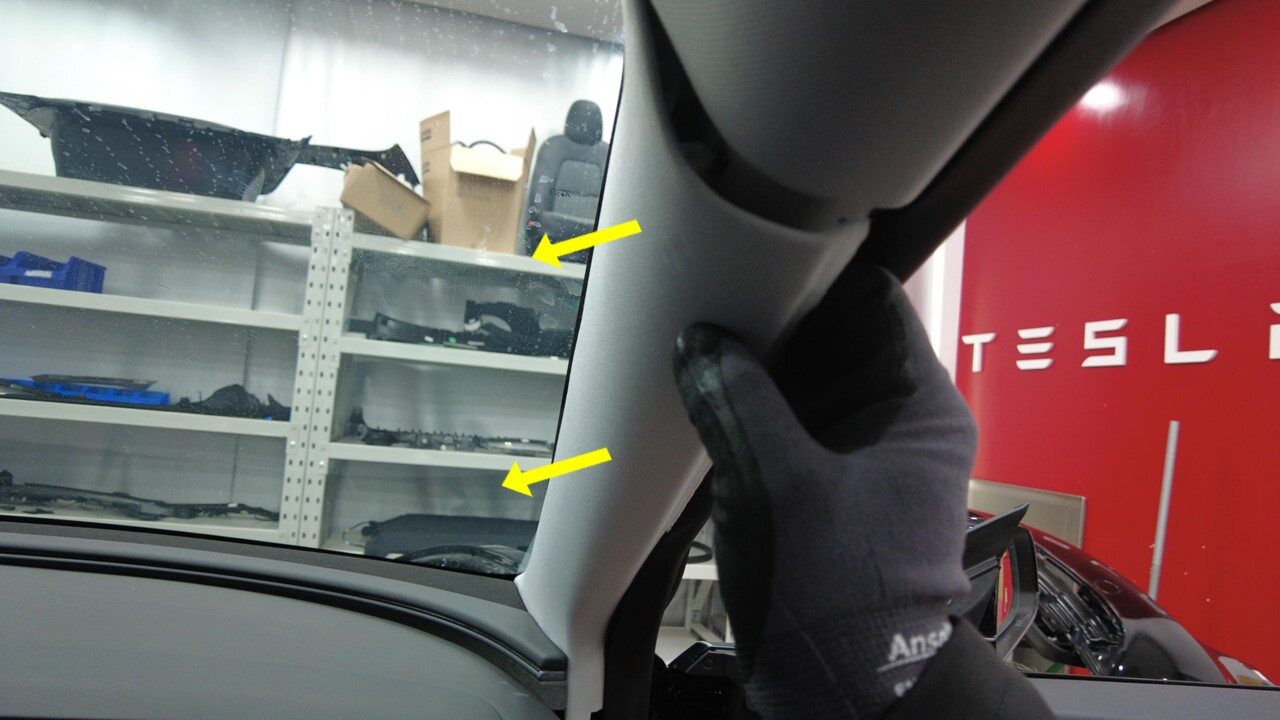

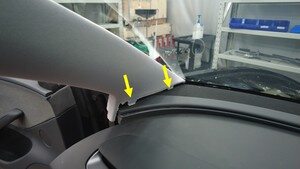

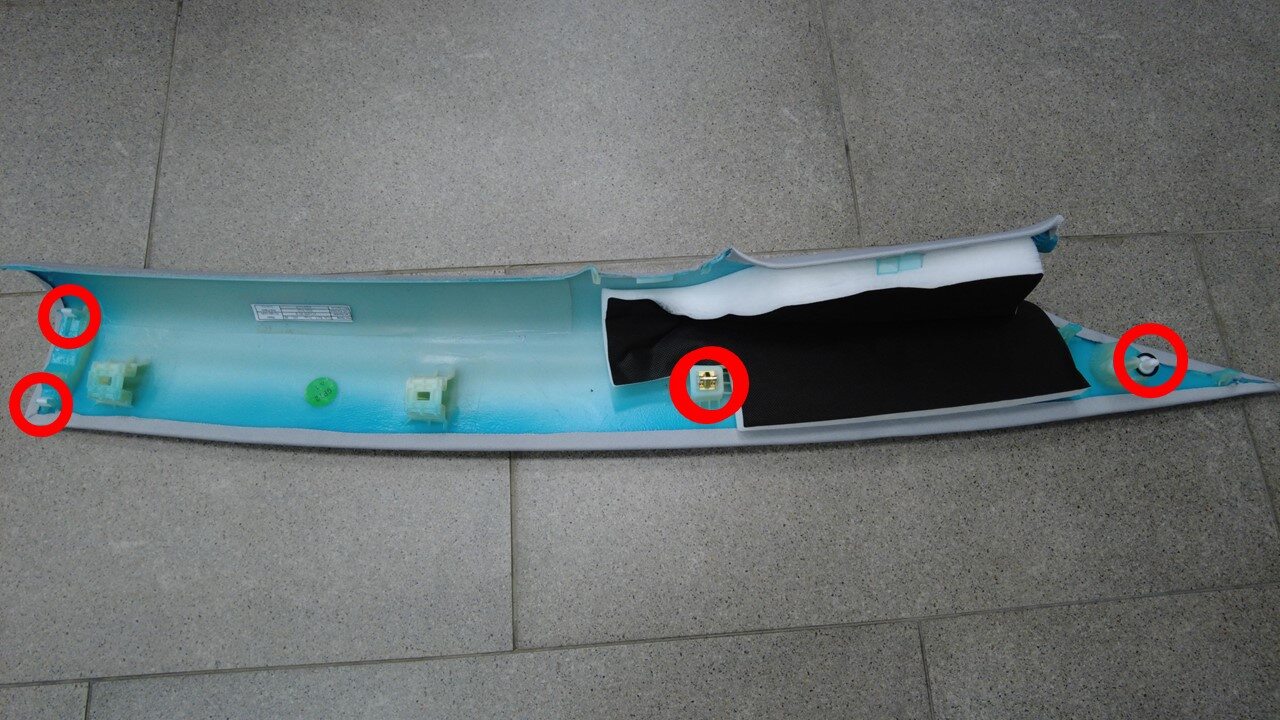

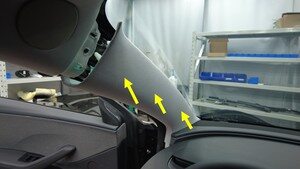

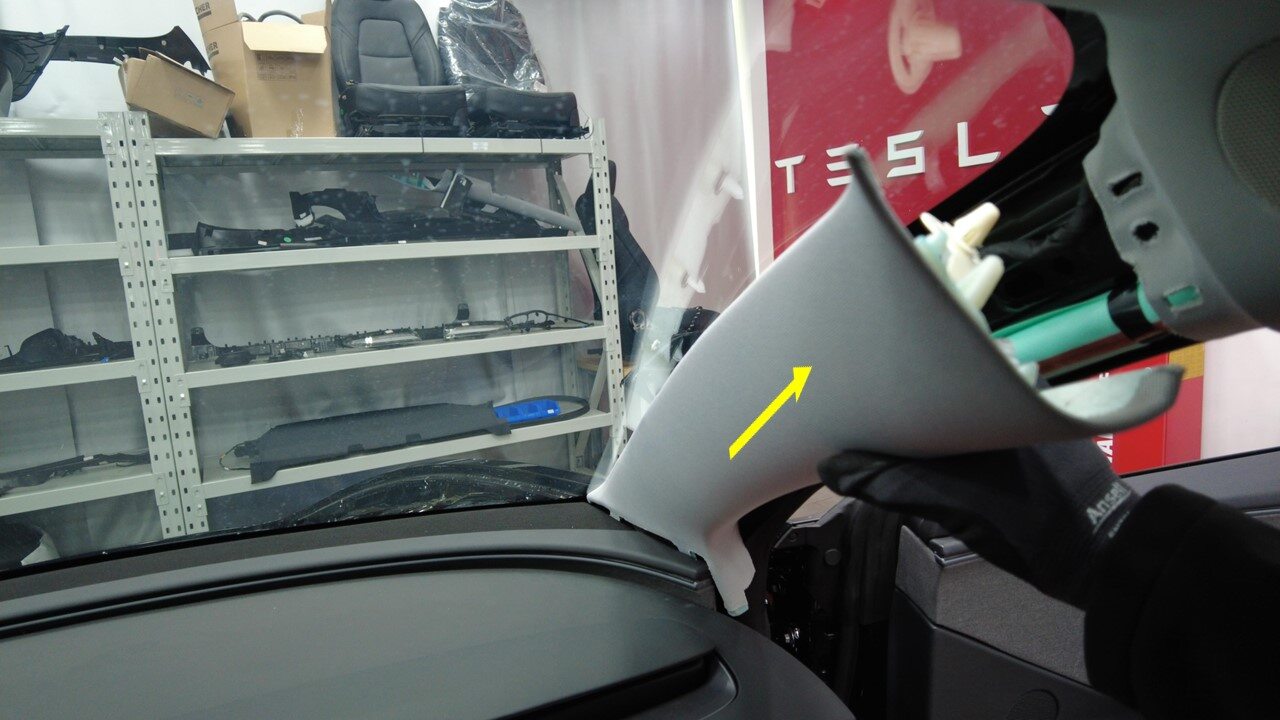

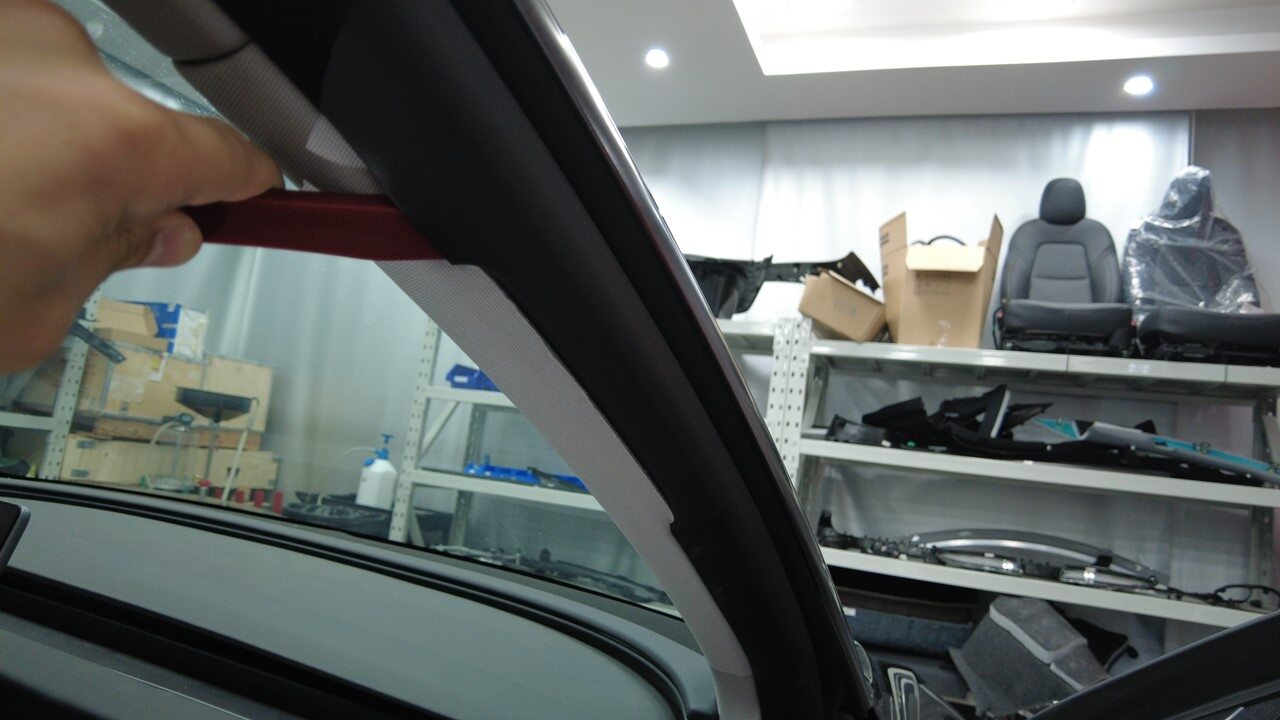

  34. Remove RH upper A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x clips, 1x tether, 2x guide tabs,1x alignment pin, Pull inside of the upper portion of upper A-pillar, Depress 2x tabs to remove tether from body side, Then pull upper A-pillar upward to remove

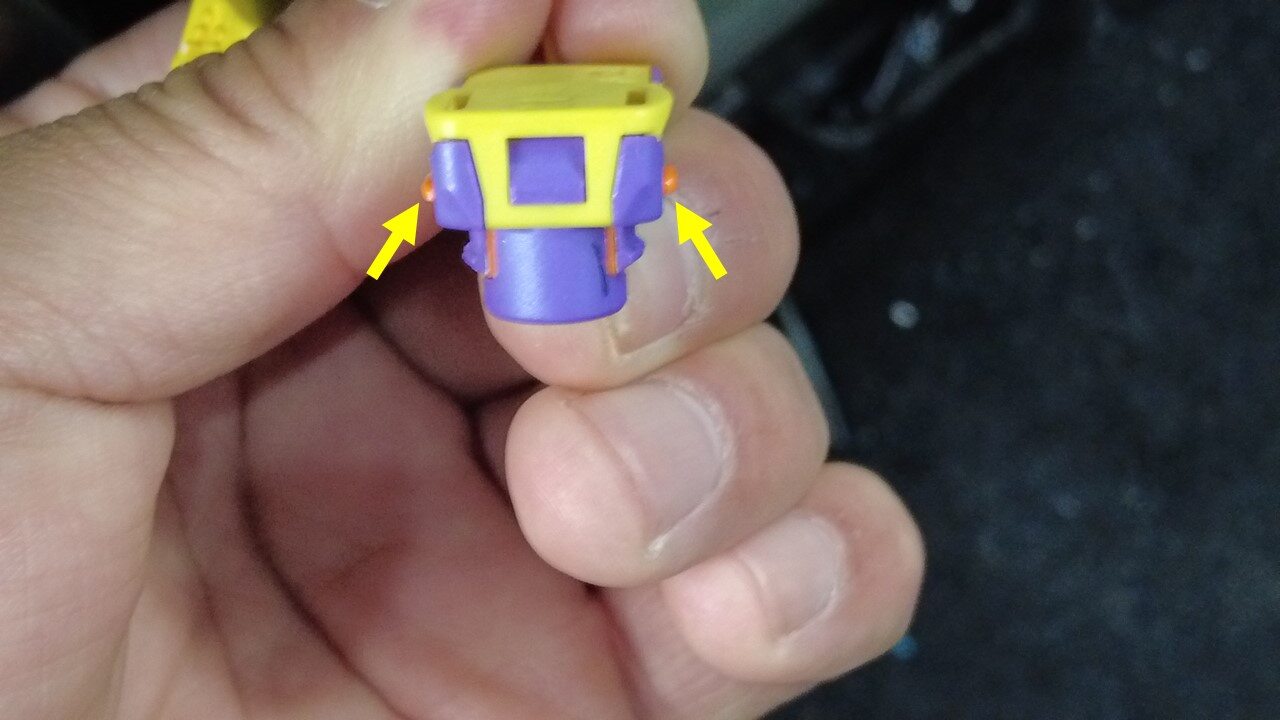

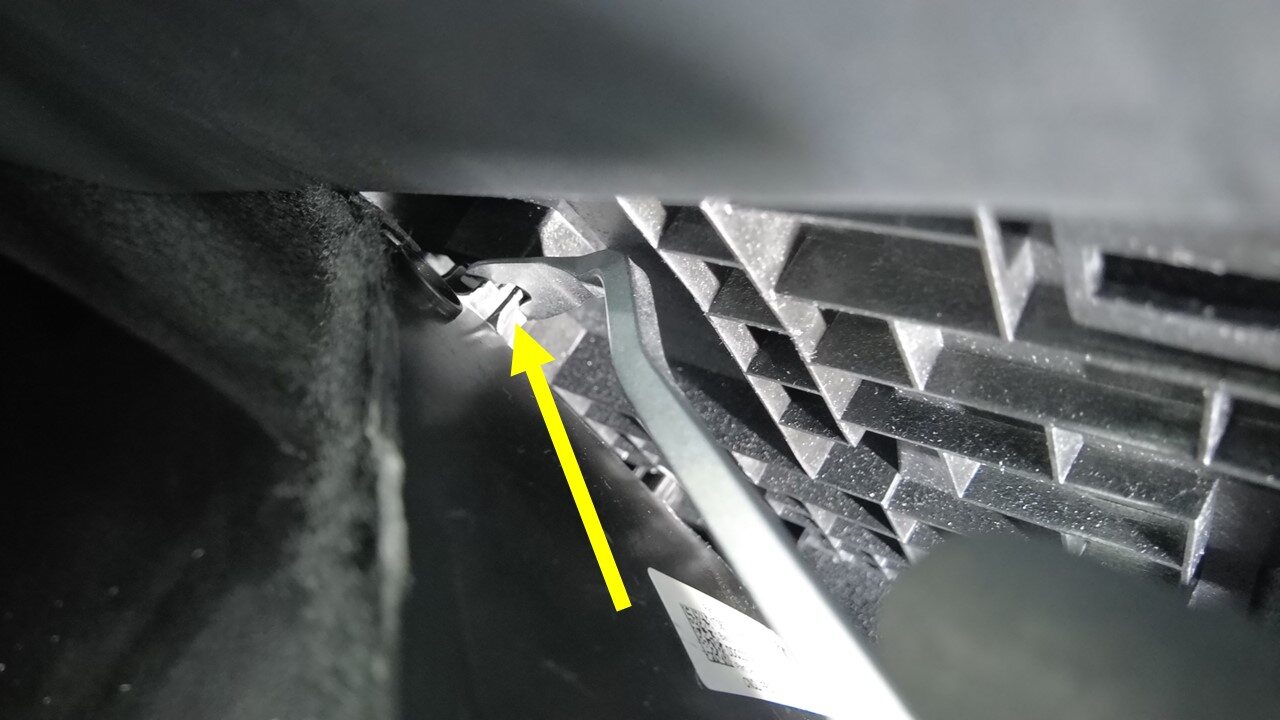

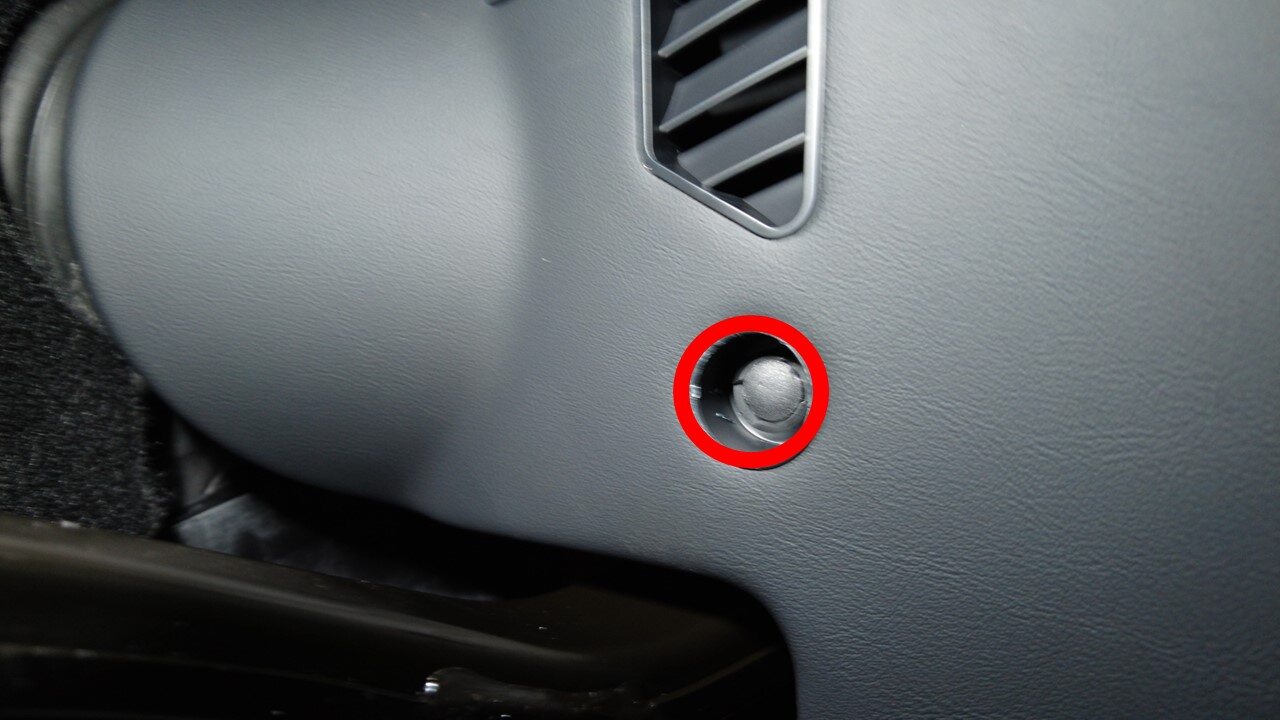

  35. Remove push clip securing RH footwell duct from RH footwell cover
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x push clip

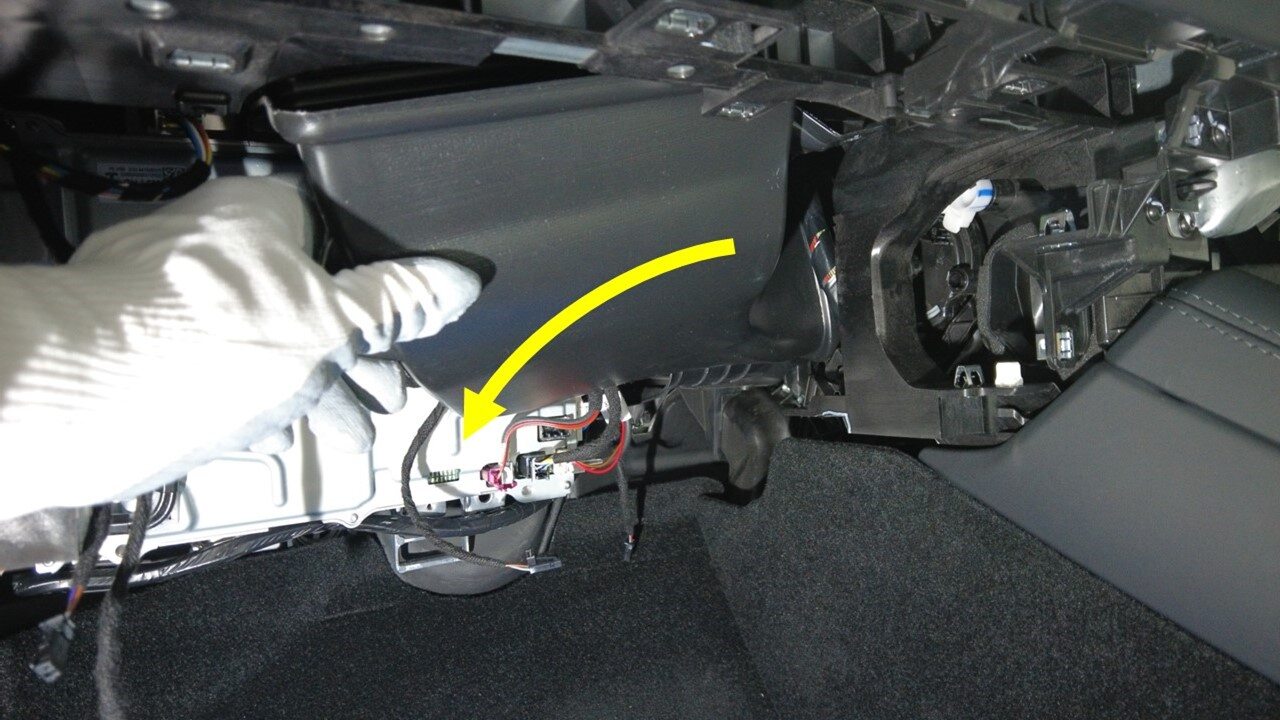

  36. Release RH footwell cover
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x clips, 1x guide tab

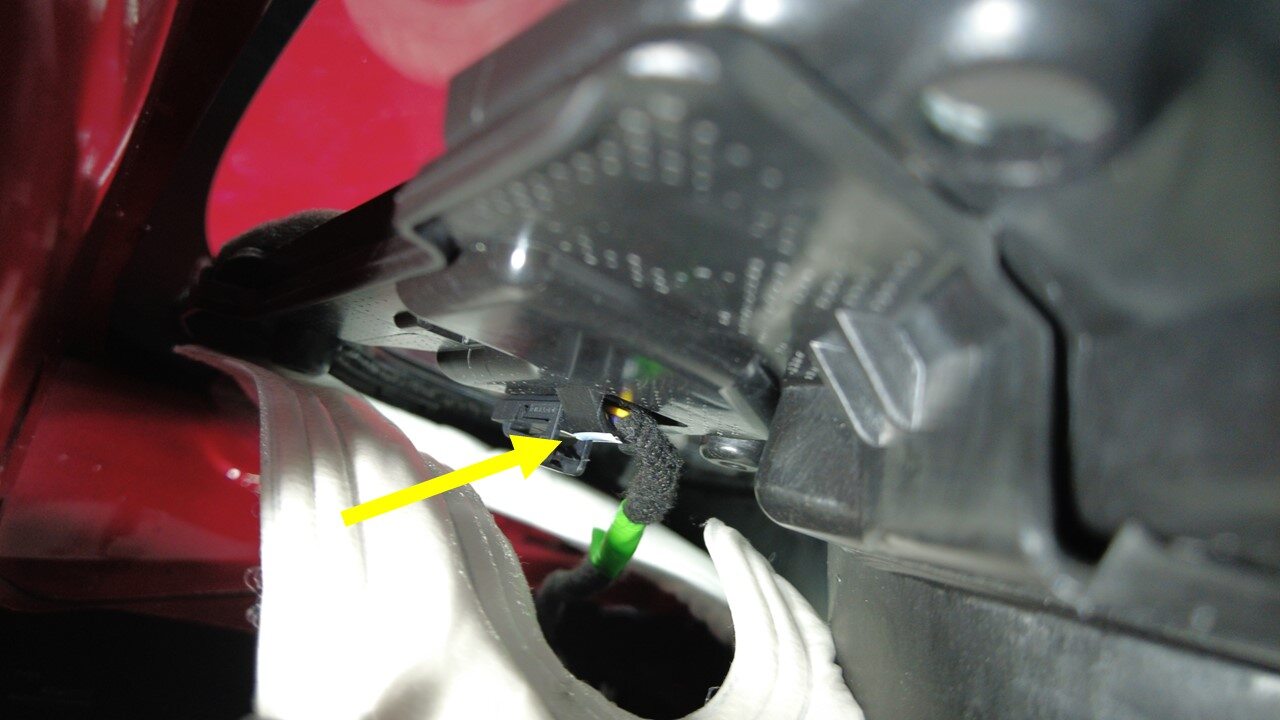

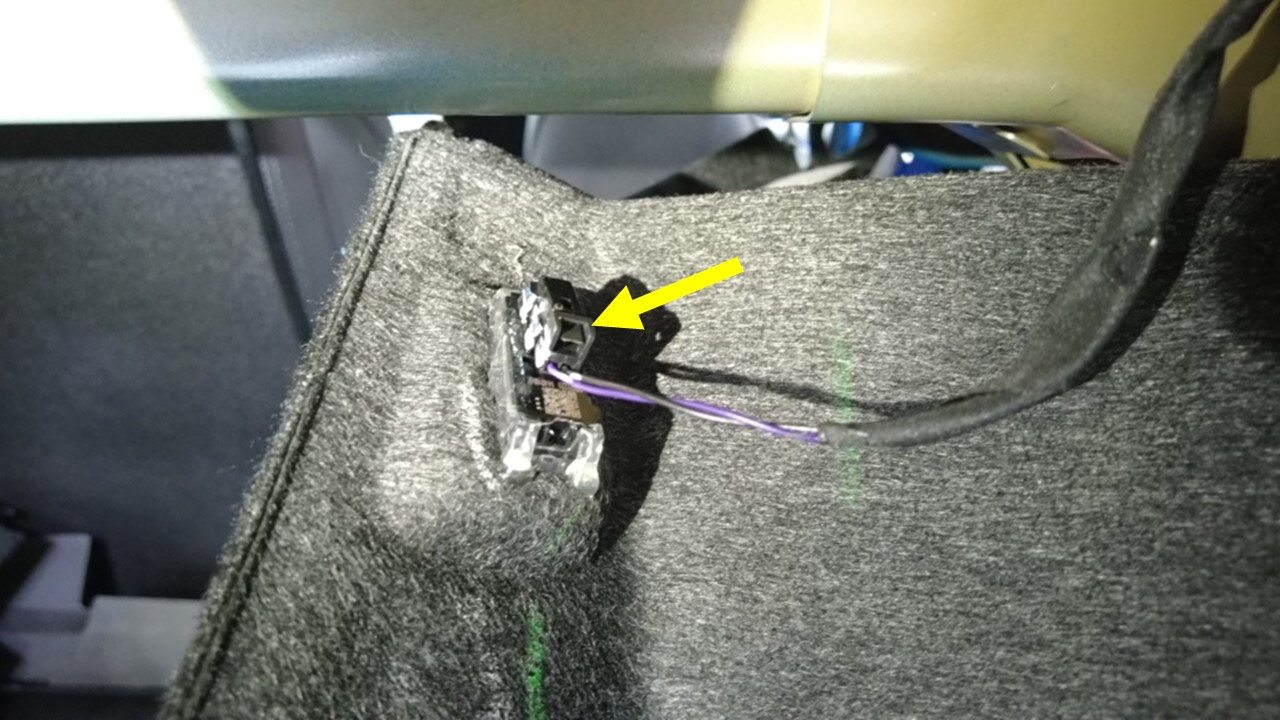

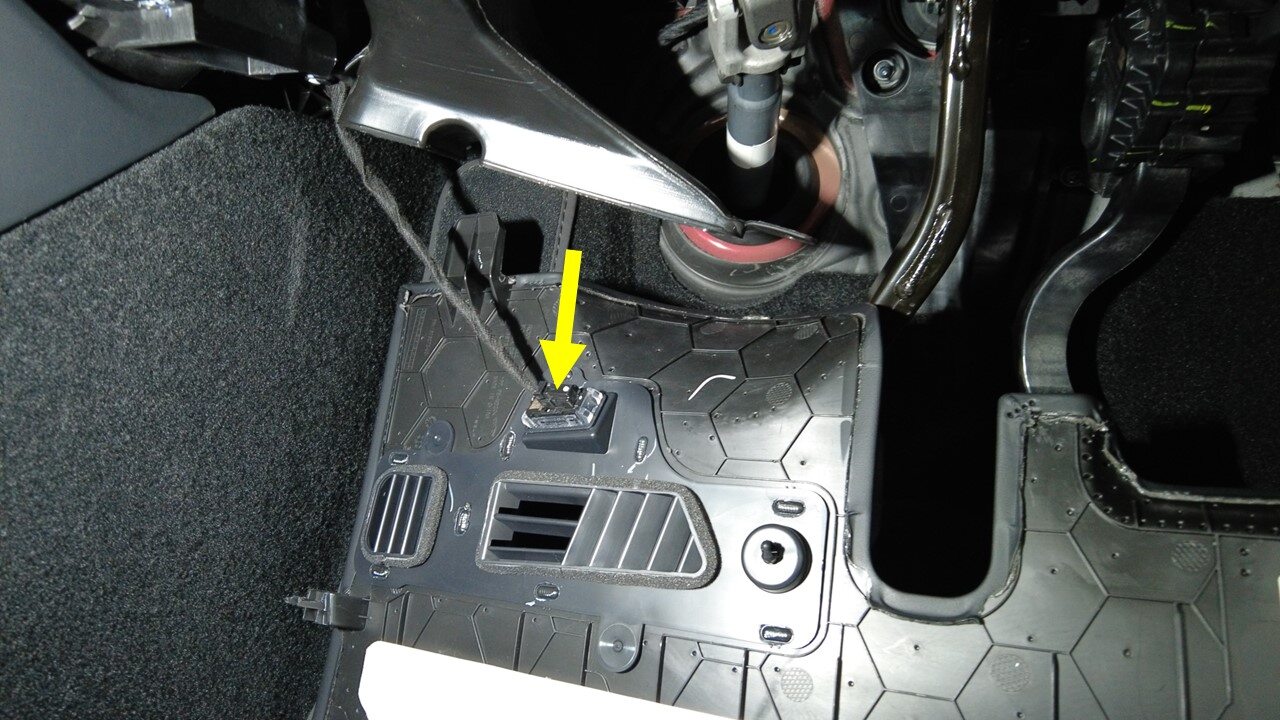

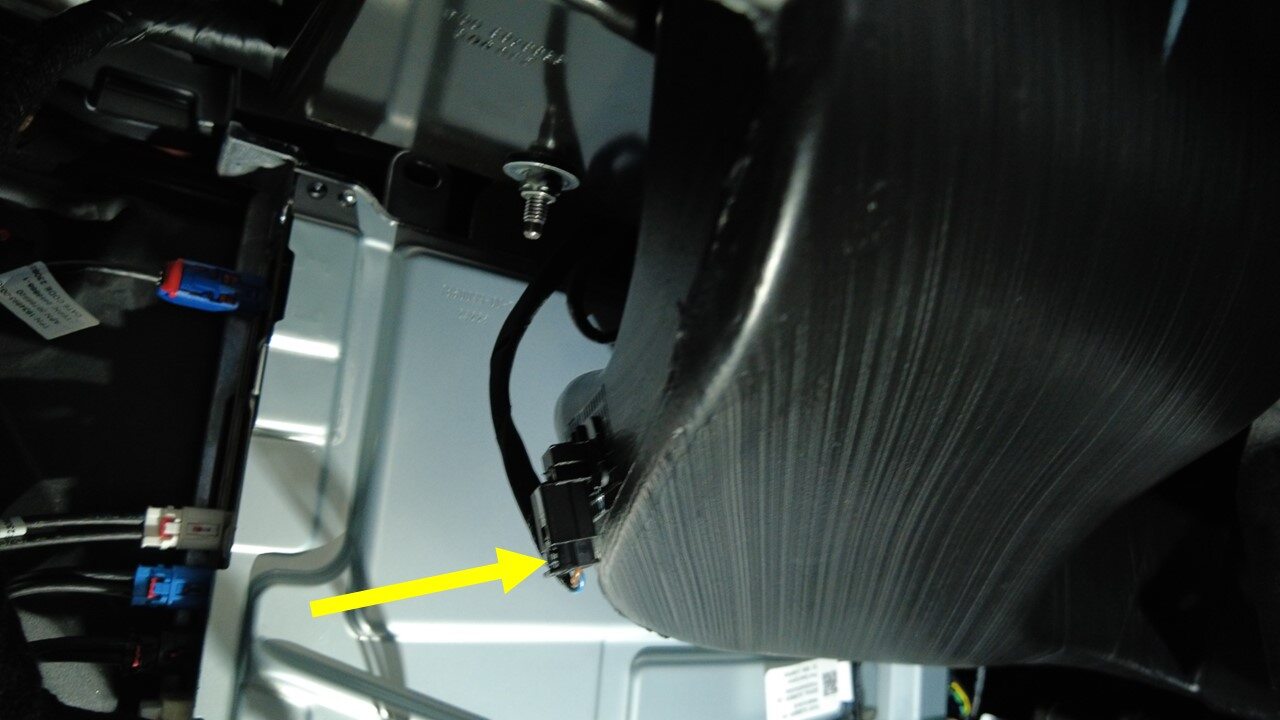

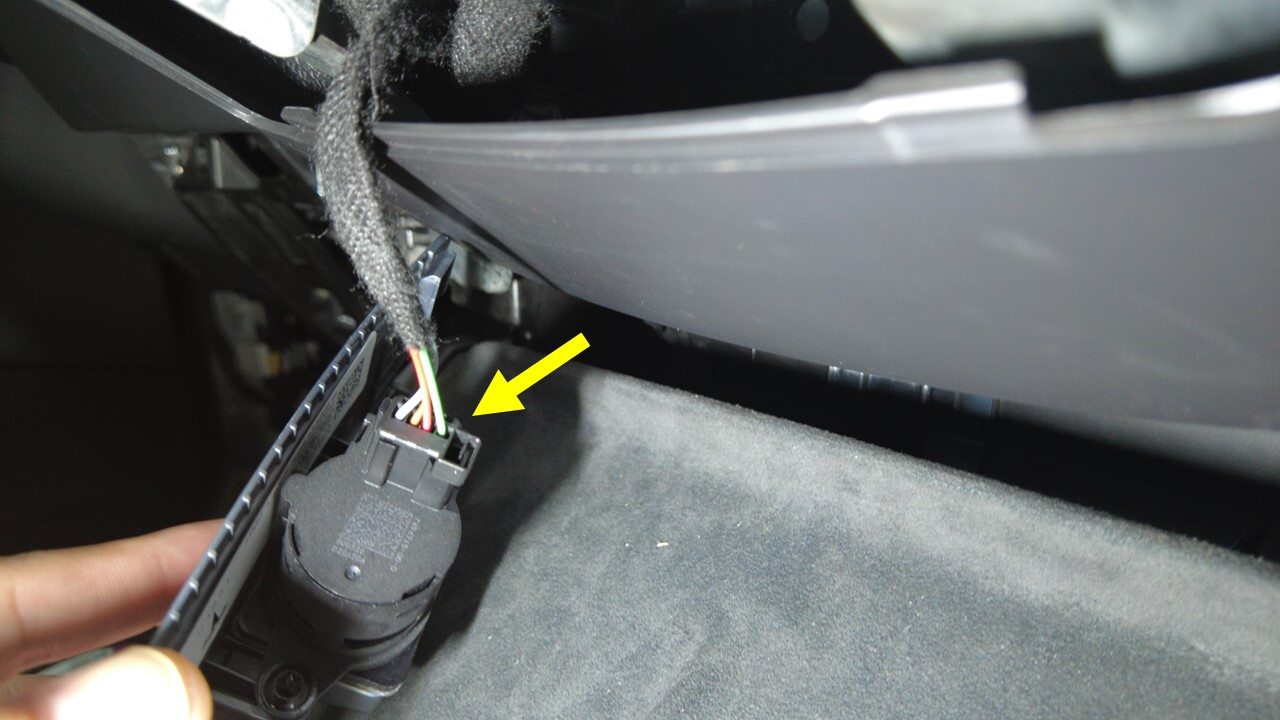

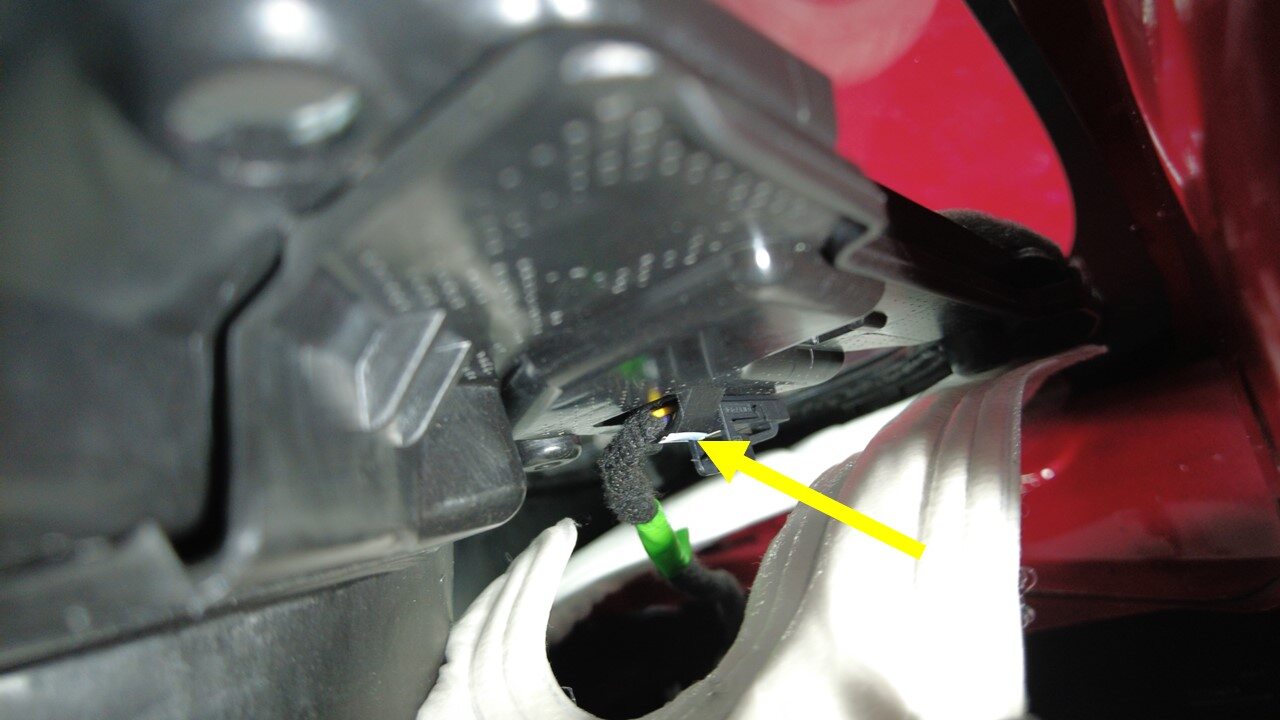

  37. Remove connector from RH footwell cover
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x puddle light connector

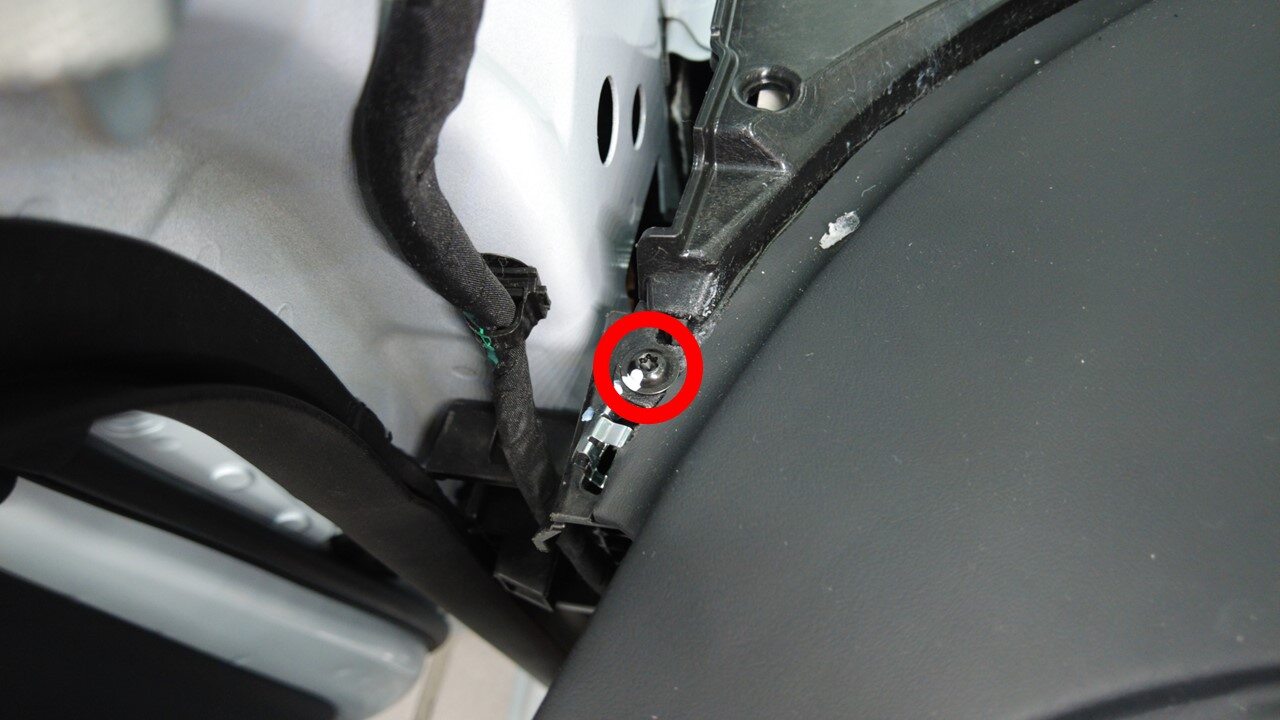

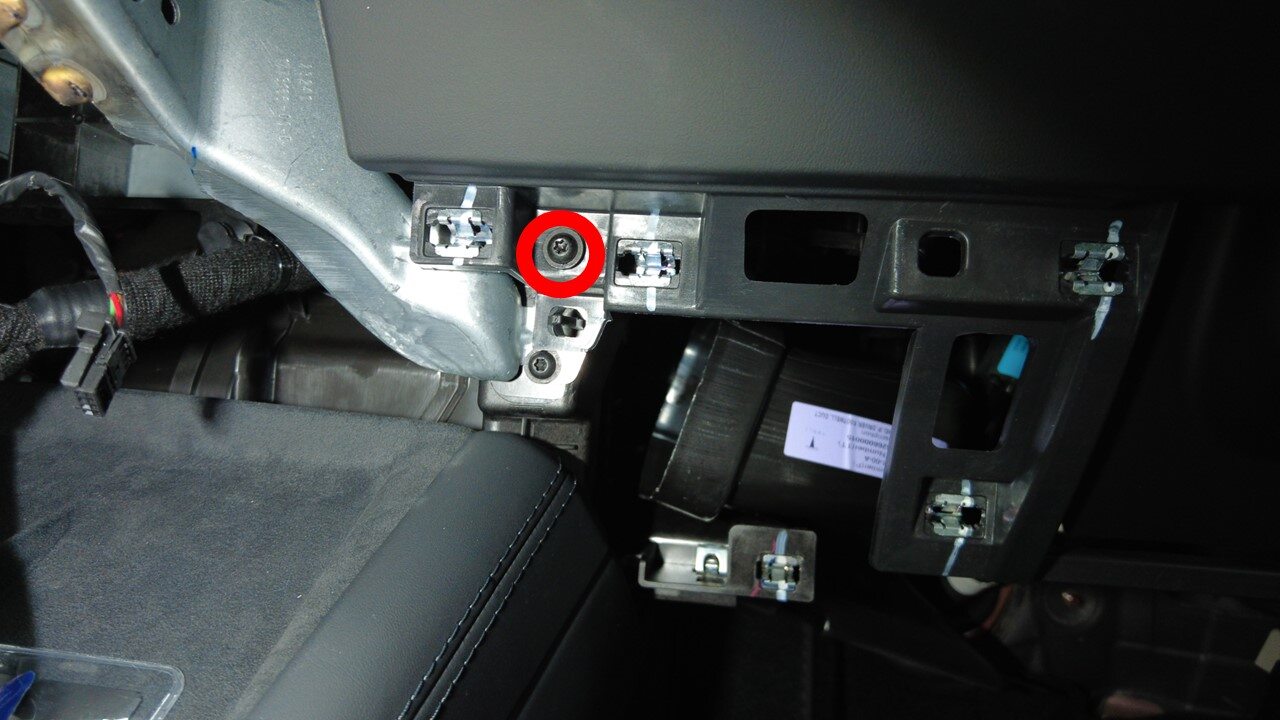

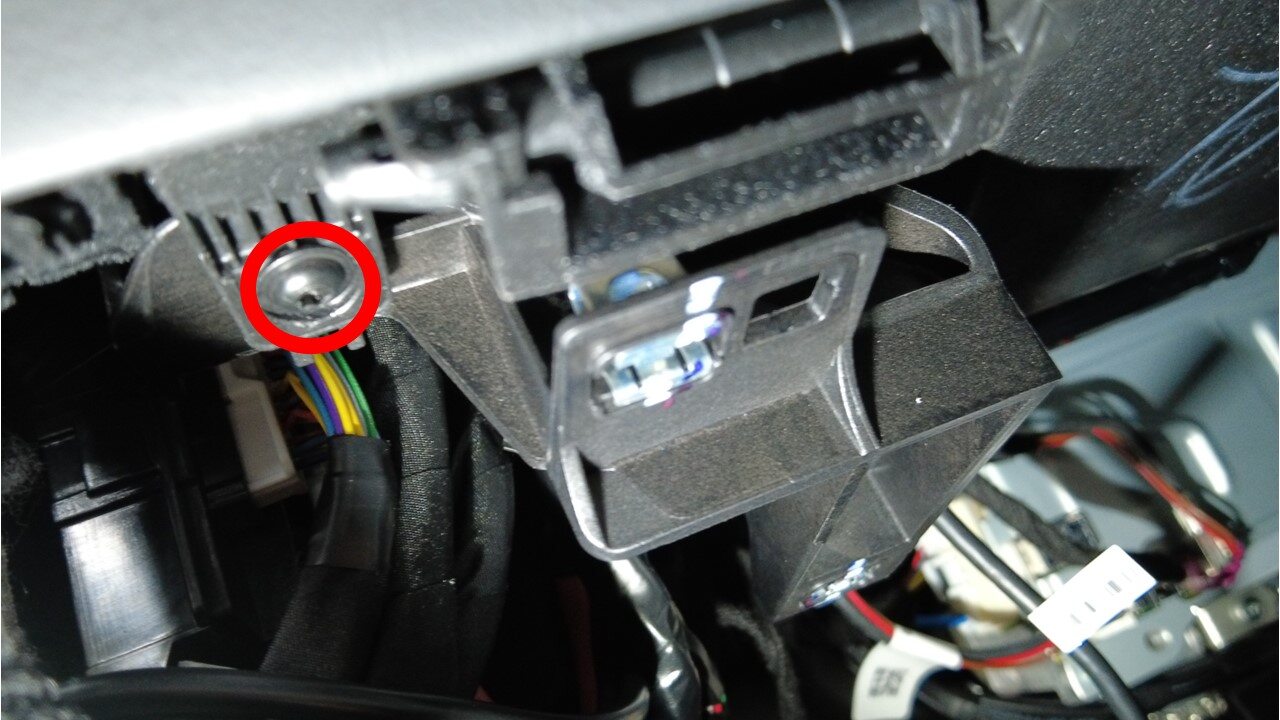

  38. Remove screws securing IP lower assembly to IP carrier
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x screw, T20, 2.3 Nm

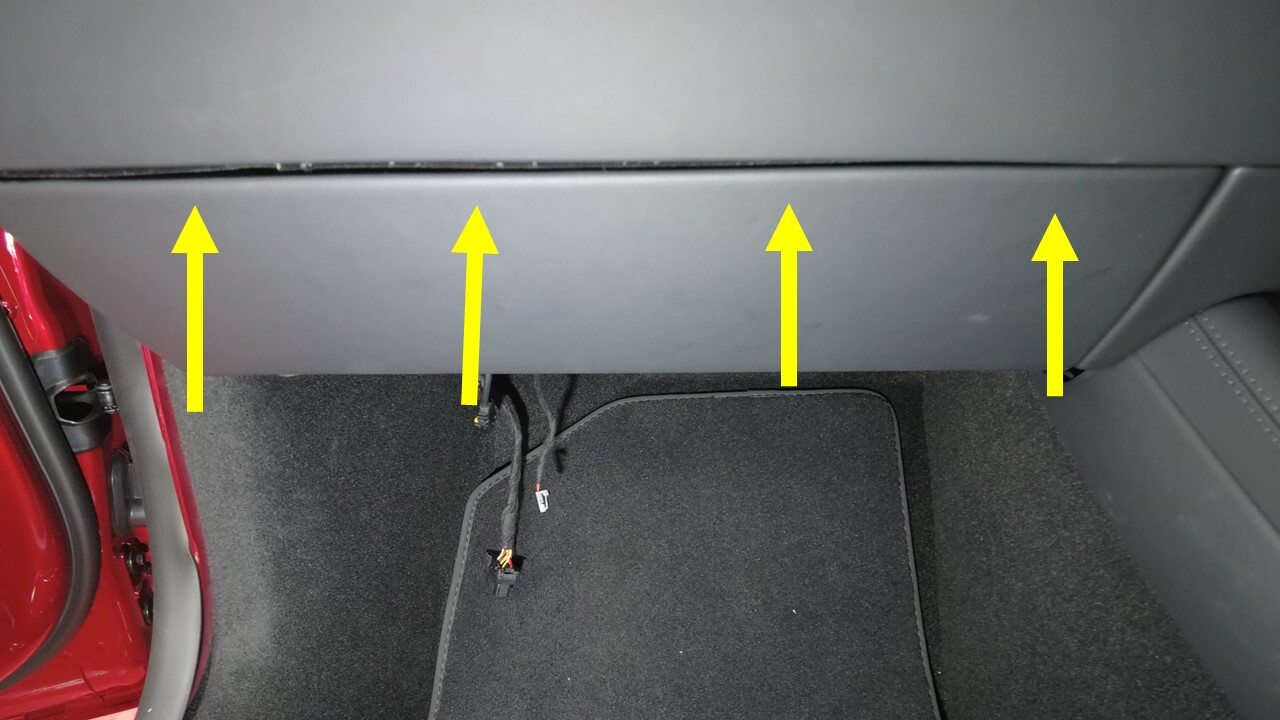

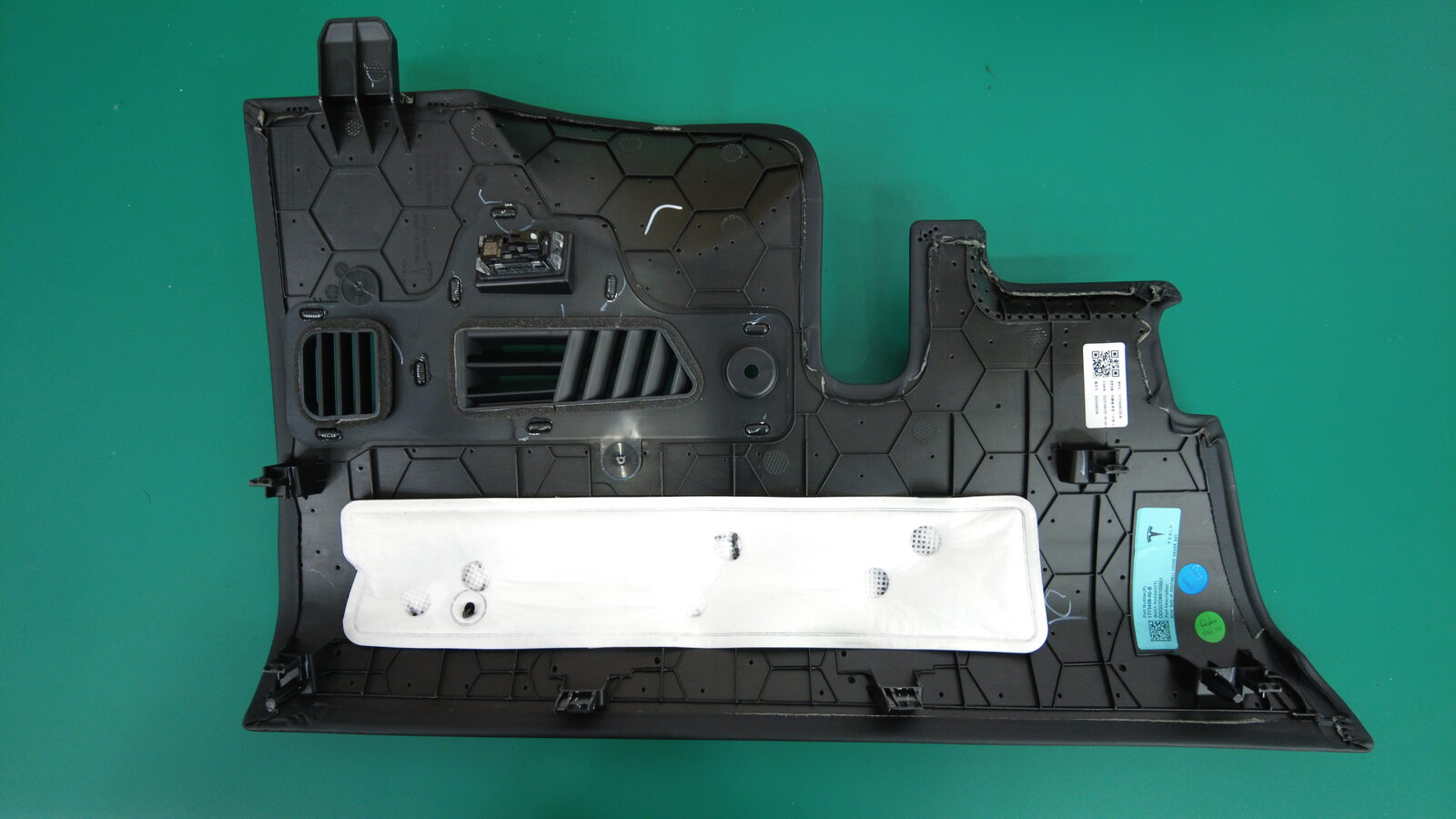

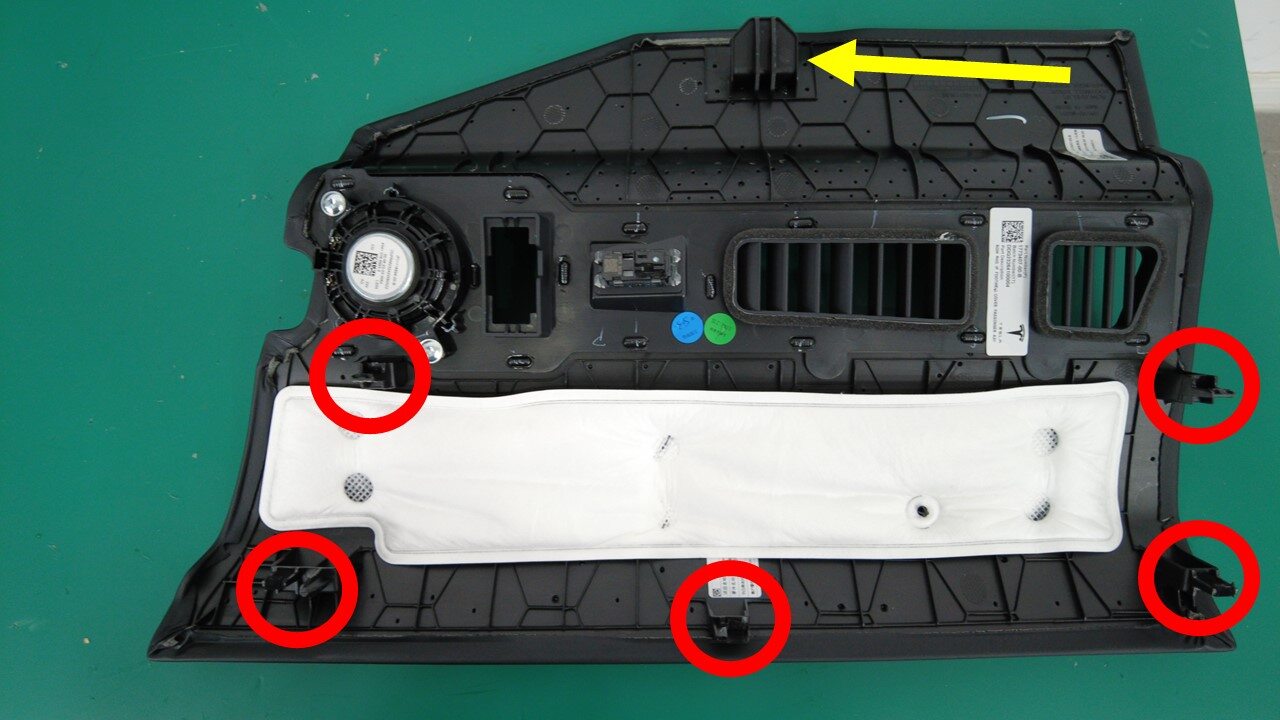

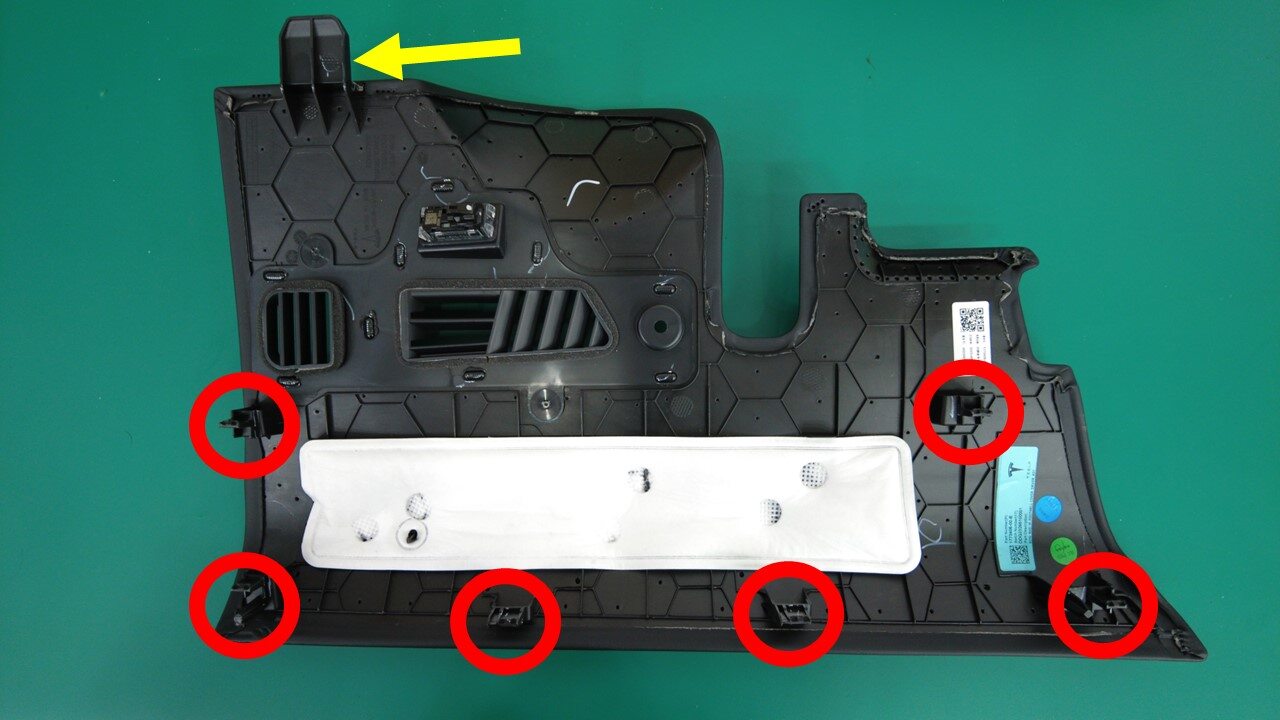

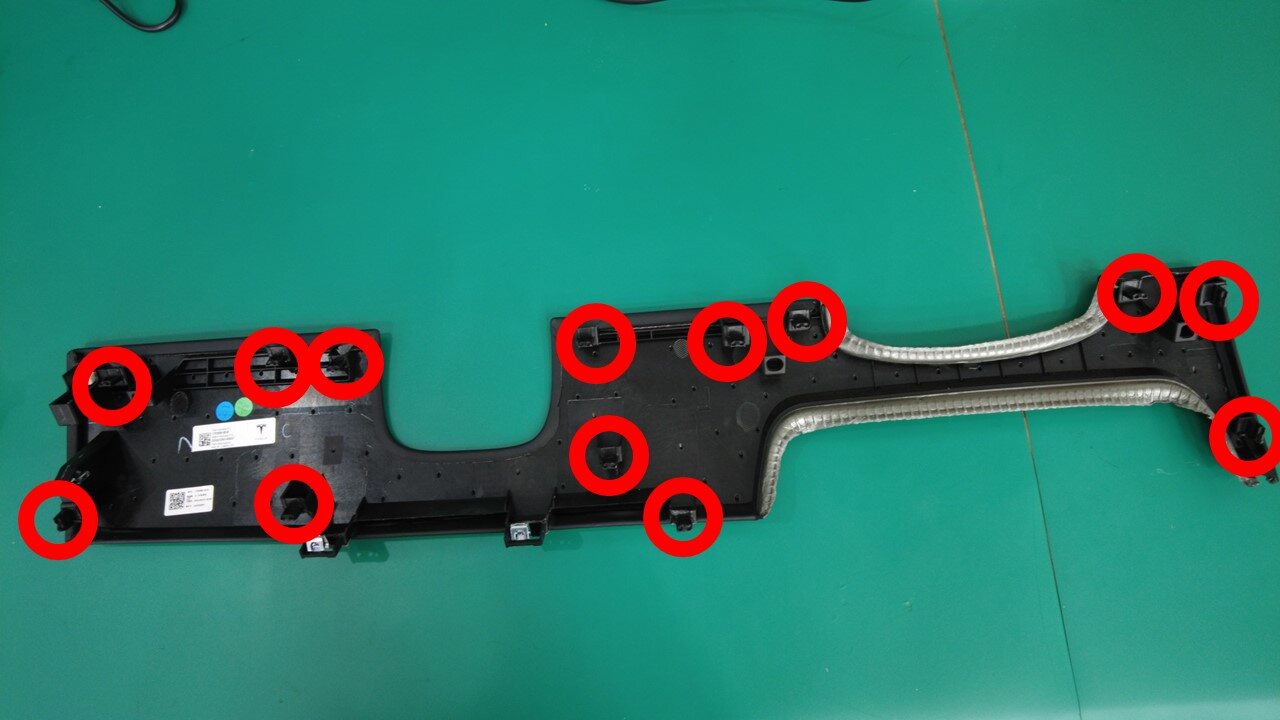

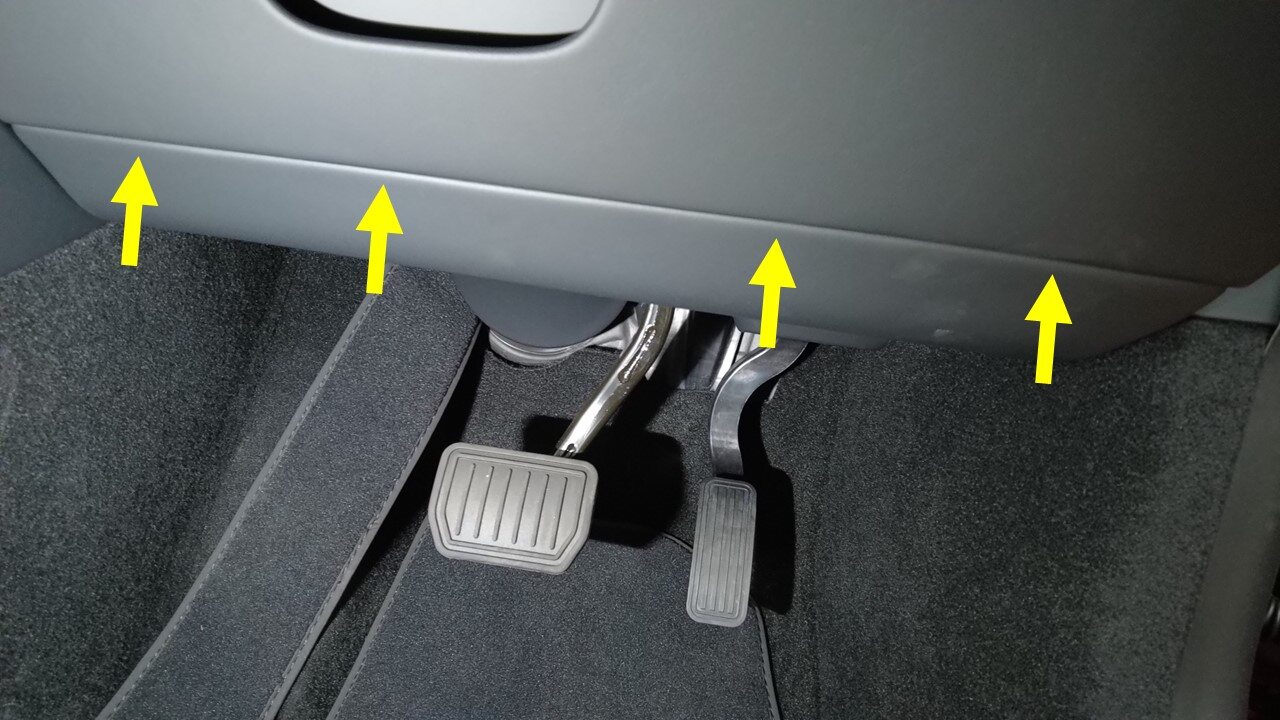

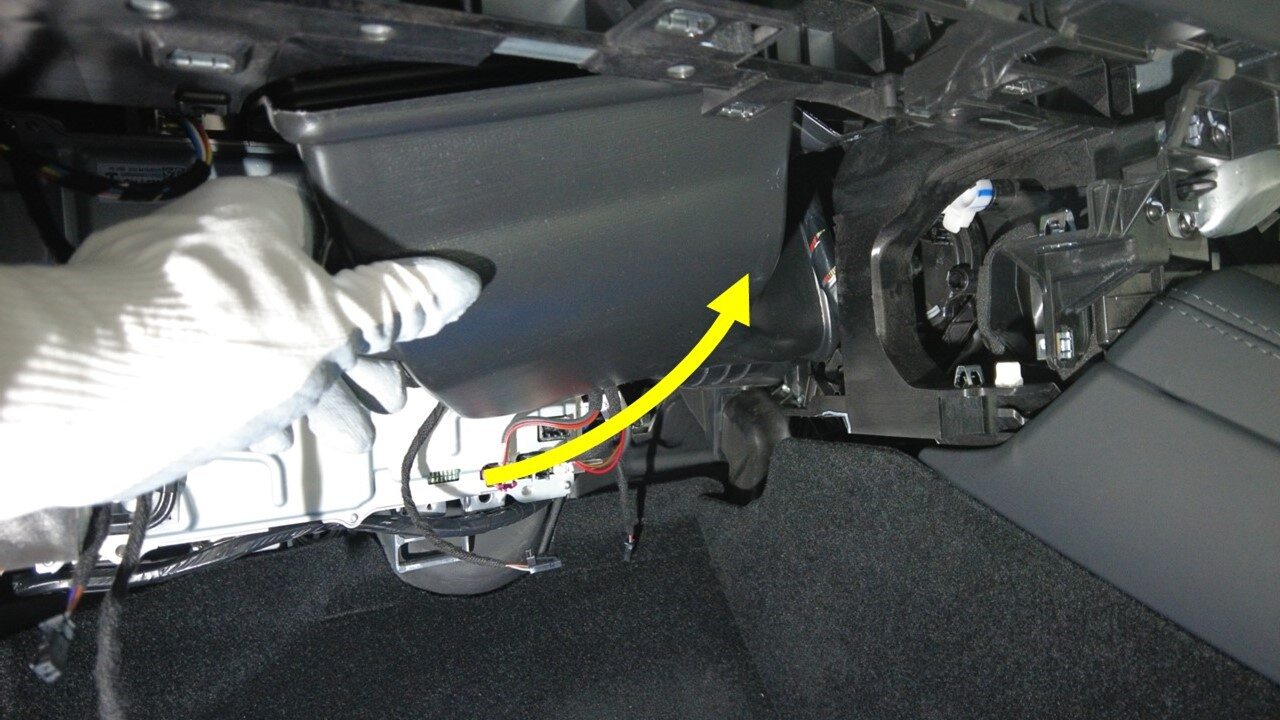

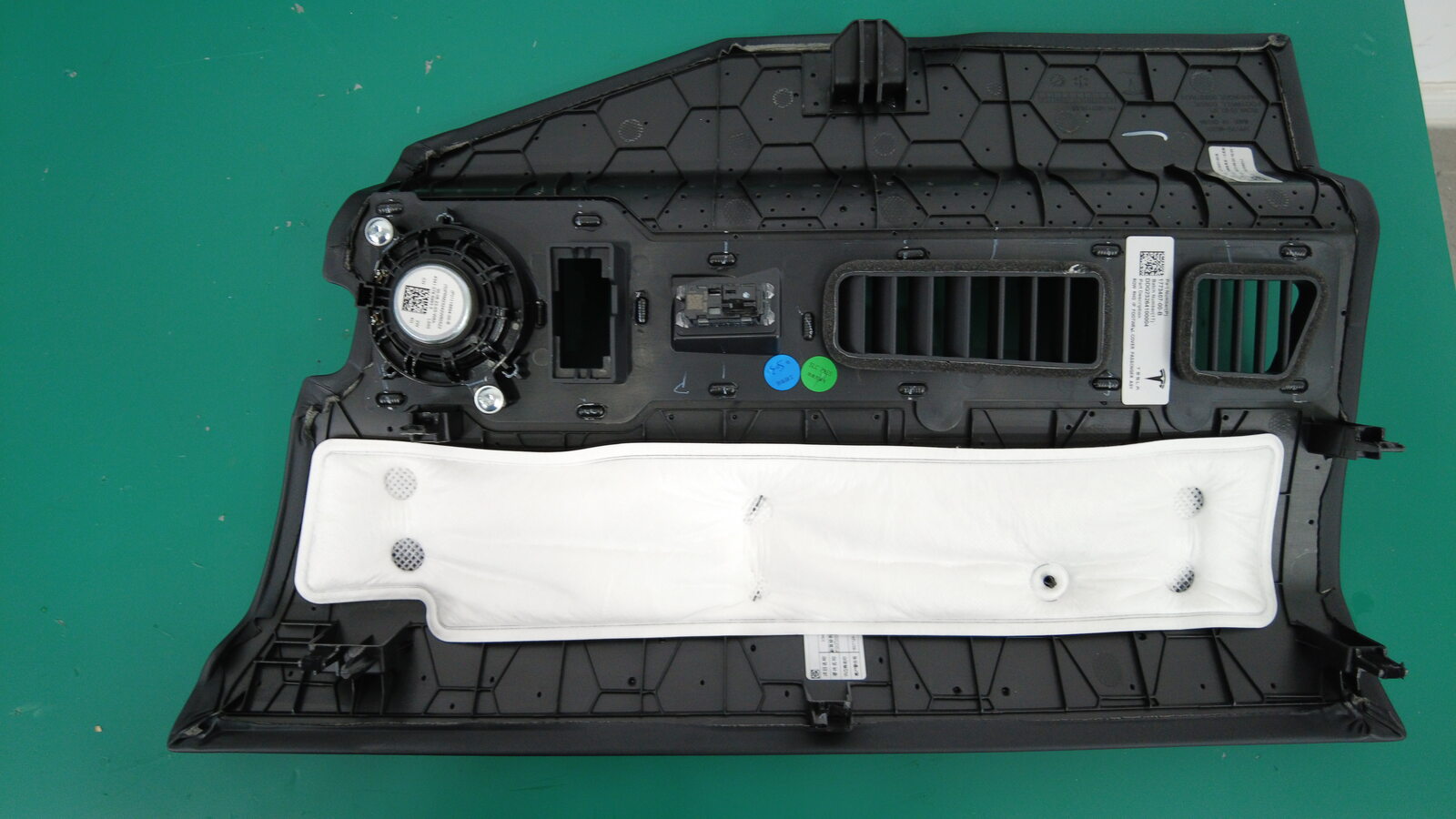

  39. Remove IP lower assembly from IP carrier
    Informational PurposesAn informational icon, calling your attention
    Remarque
    13x tabs

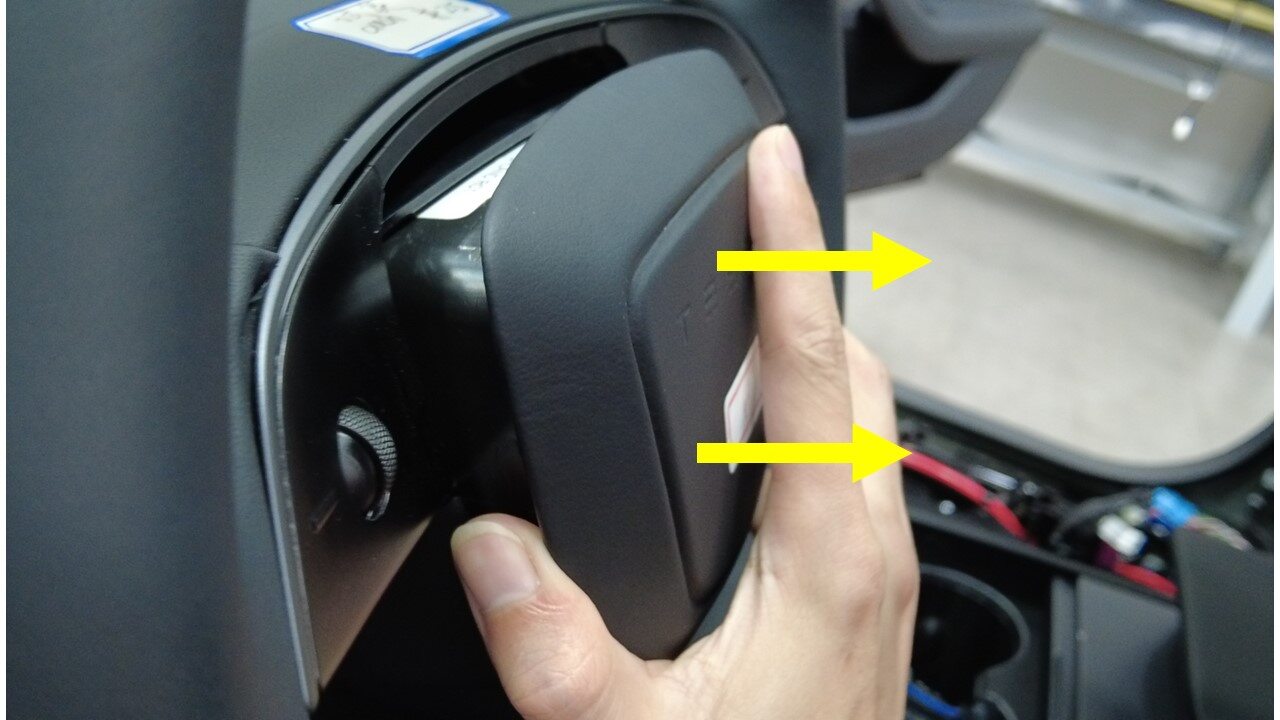

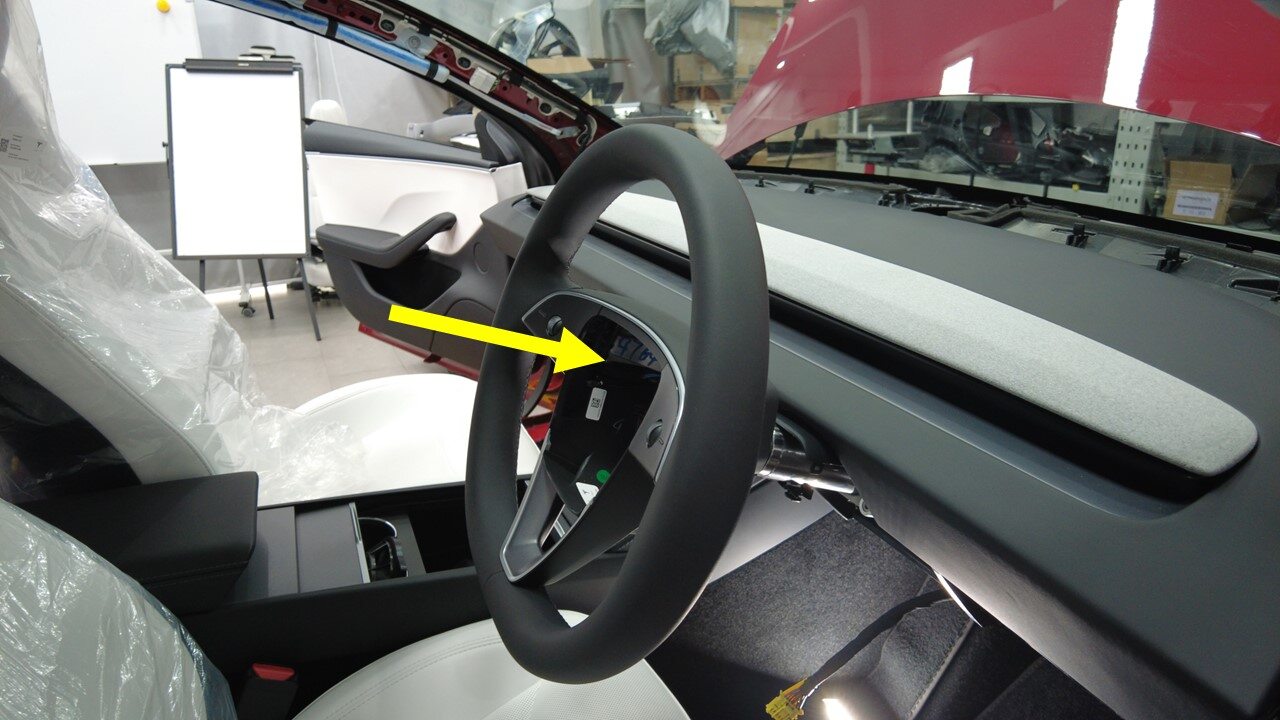

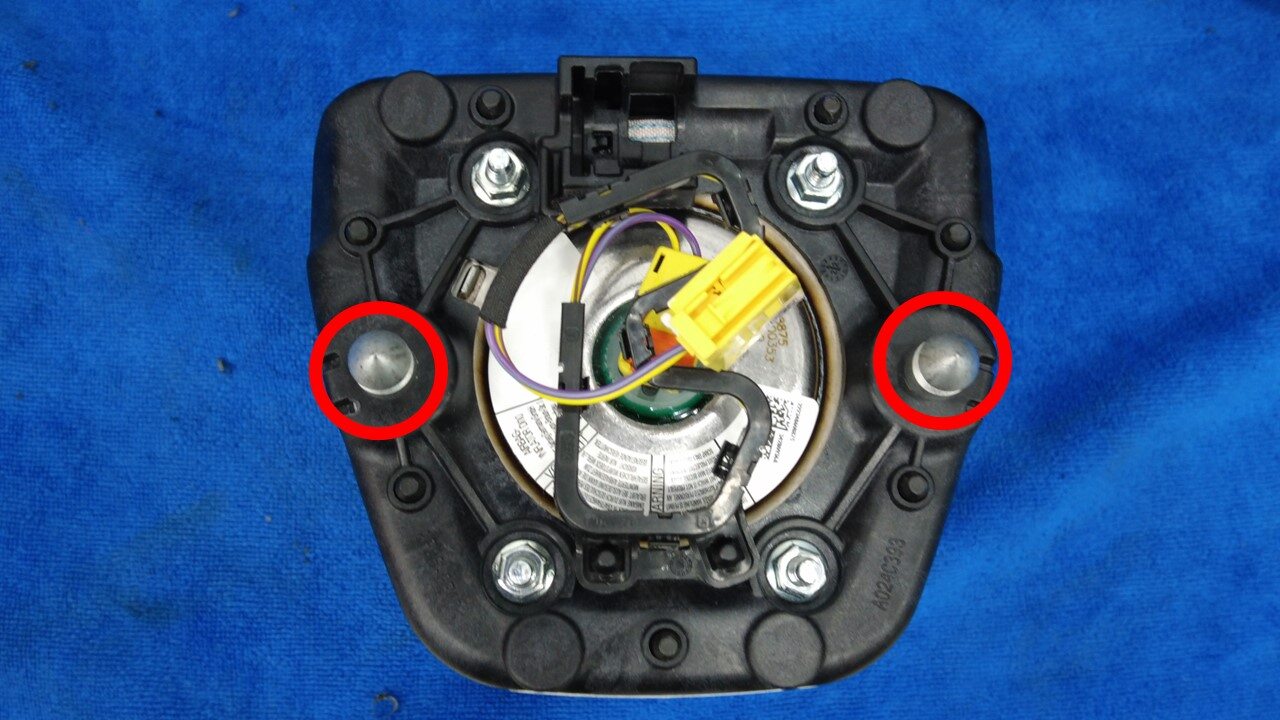

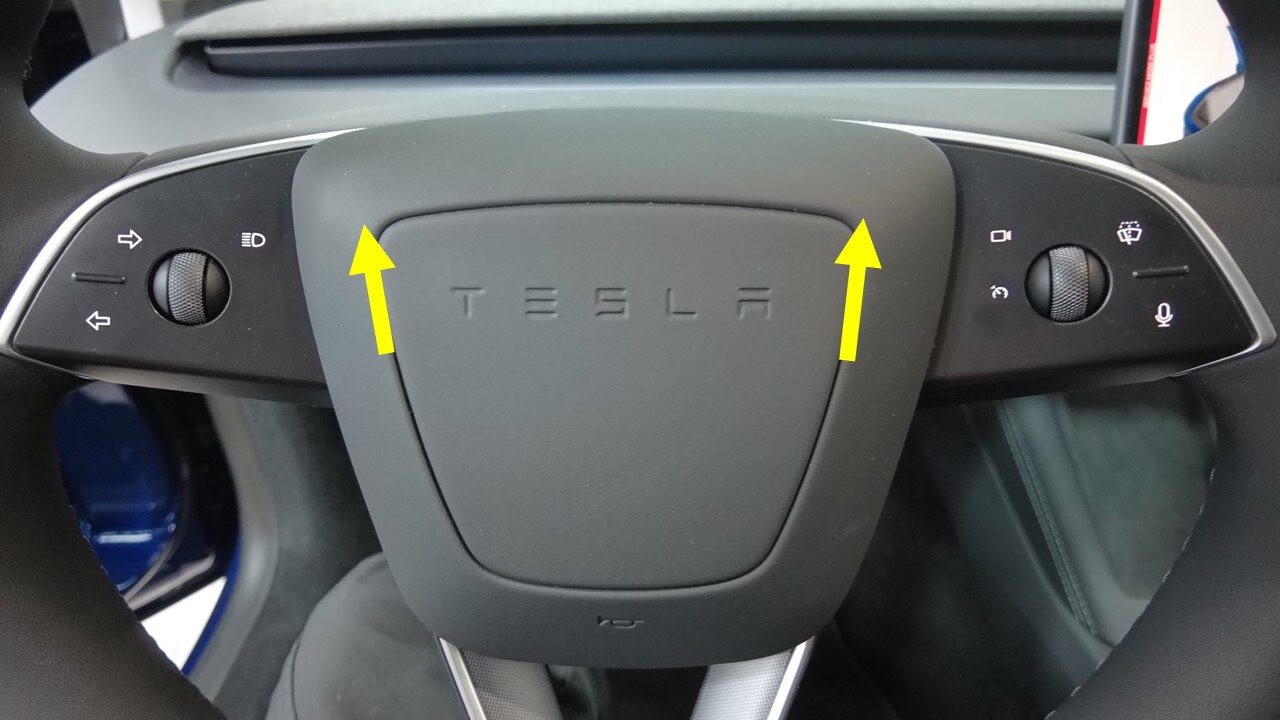

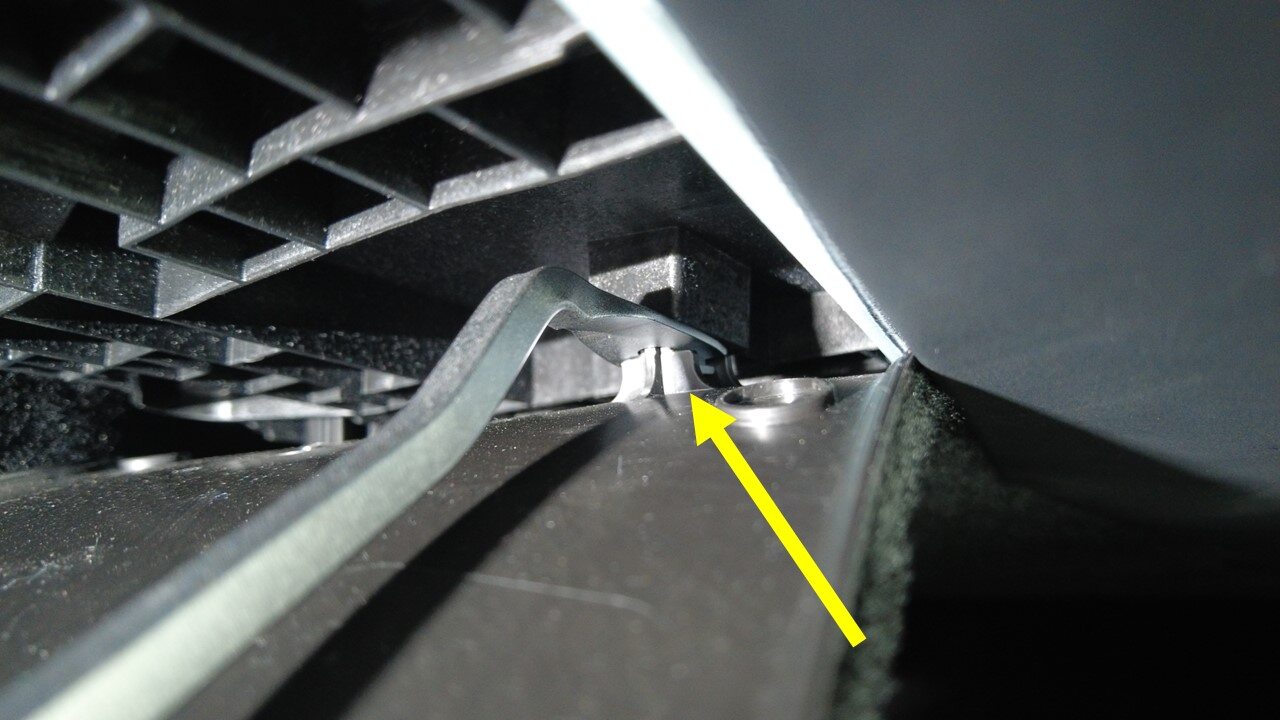

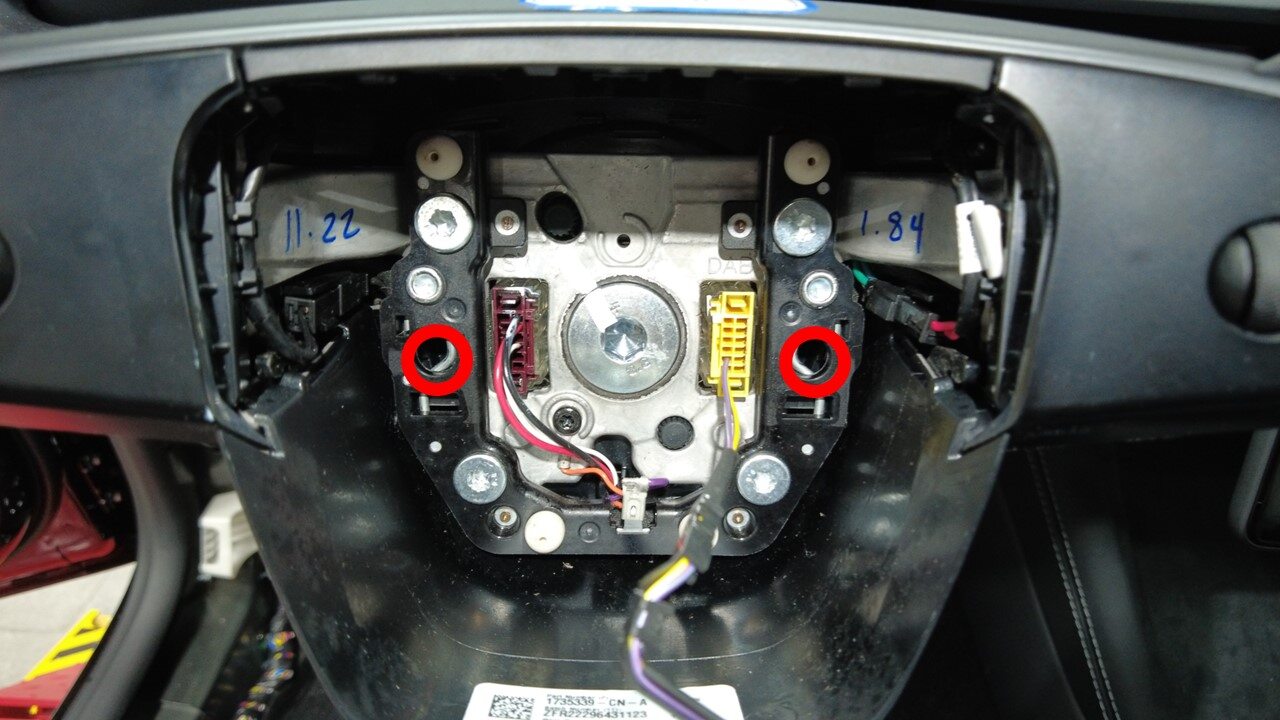

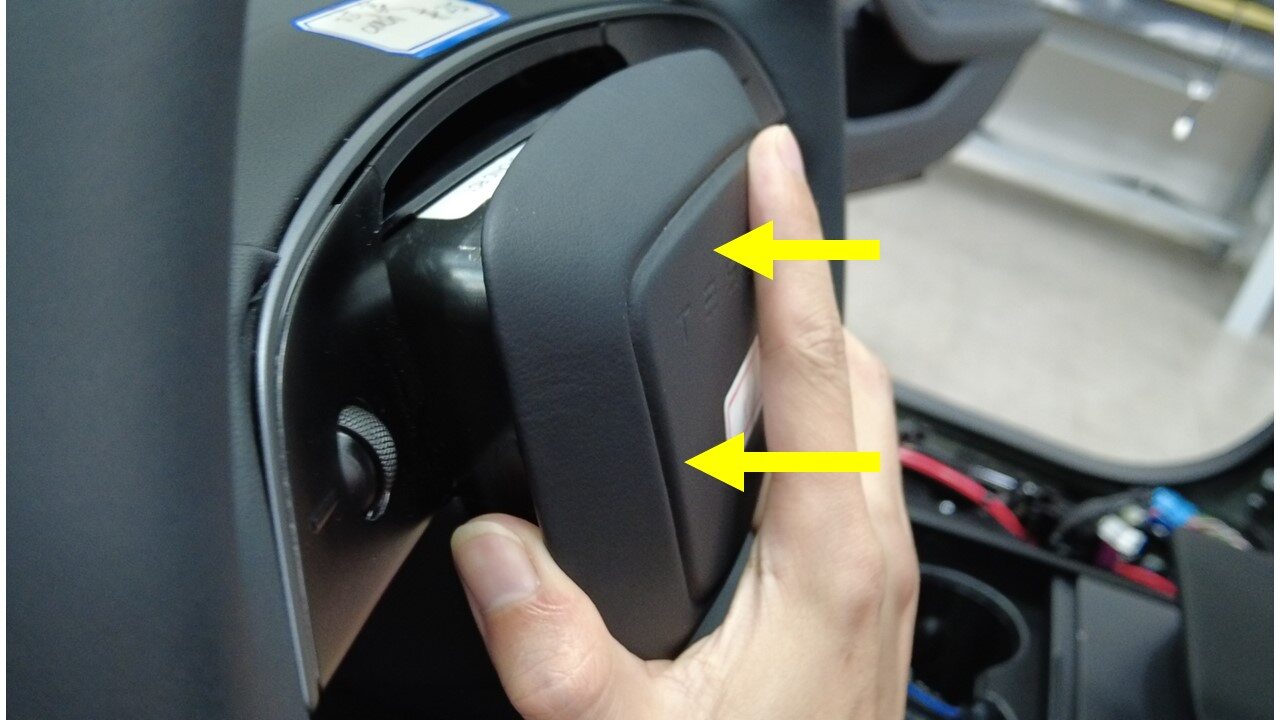

  40. Release spring clip securing driver air bag assembly to steering wheel and pull driver air bag assembly away from steering wheel
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x spring clips, 2x datums, Press the spring simultaneously from two access holes to release, Access holes located at 4 and 8 o’clock position, Do not insert tool too far as air bag connector could be damaged

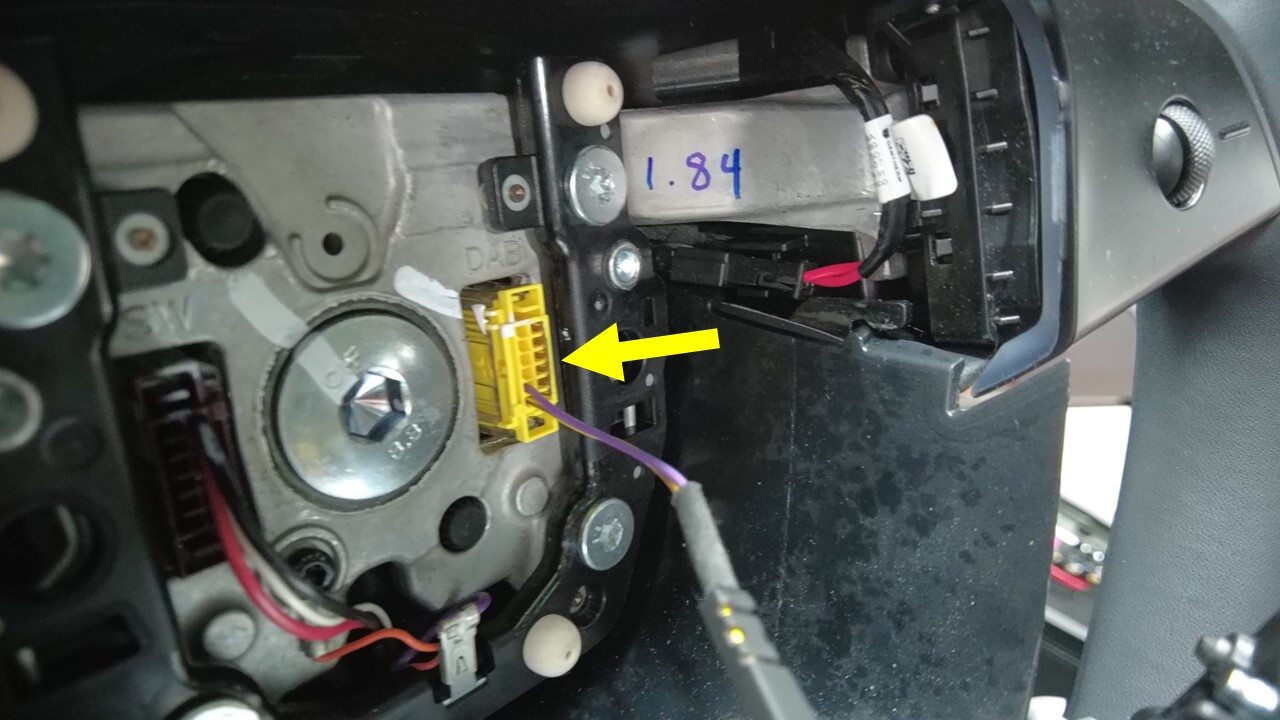

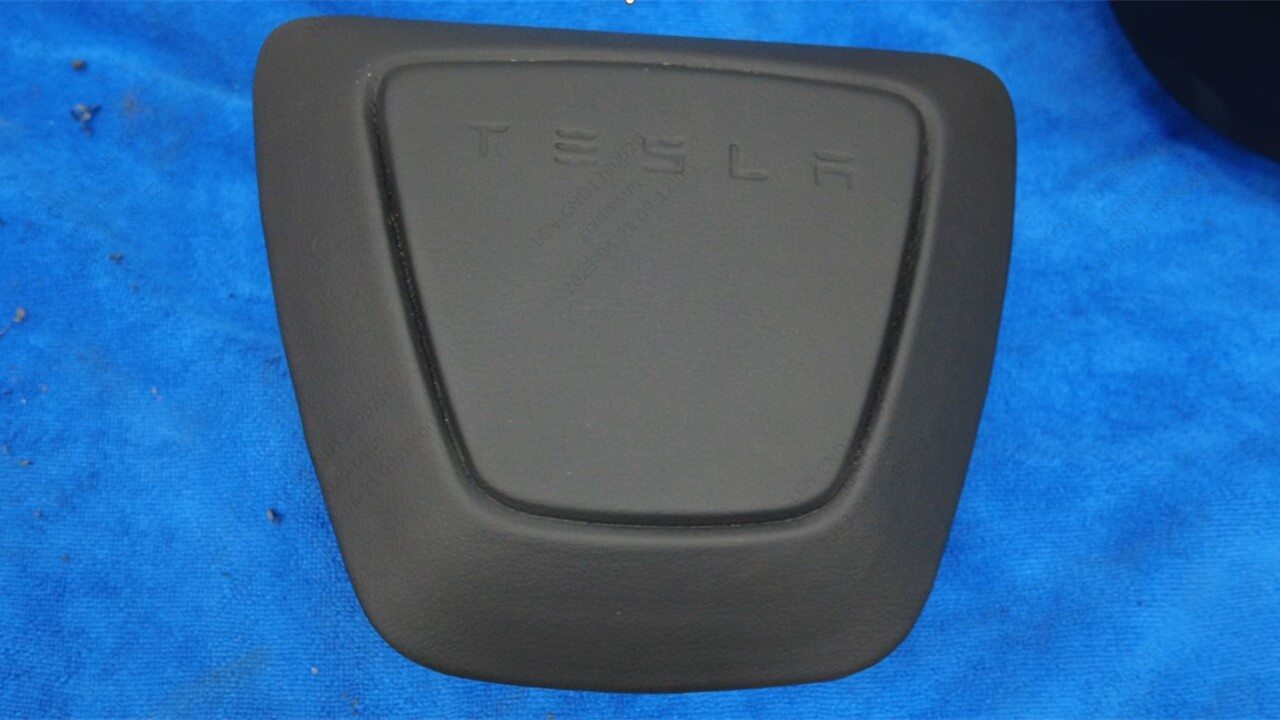

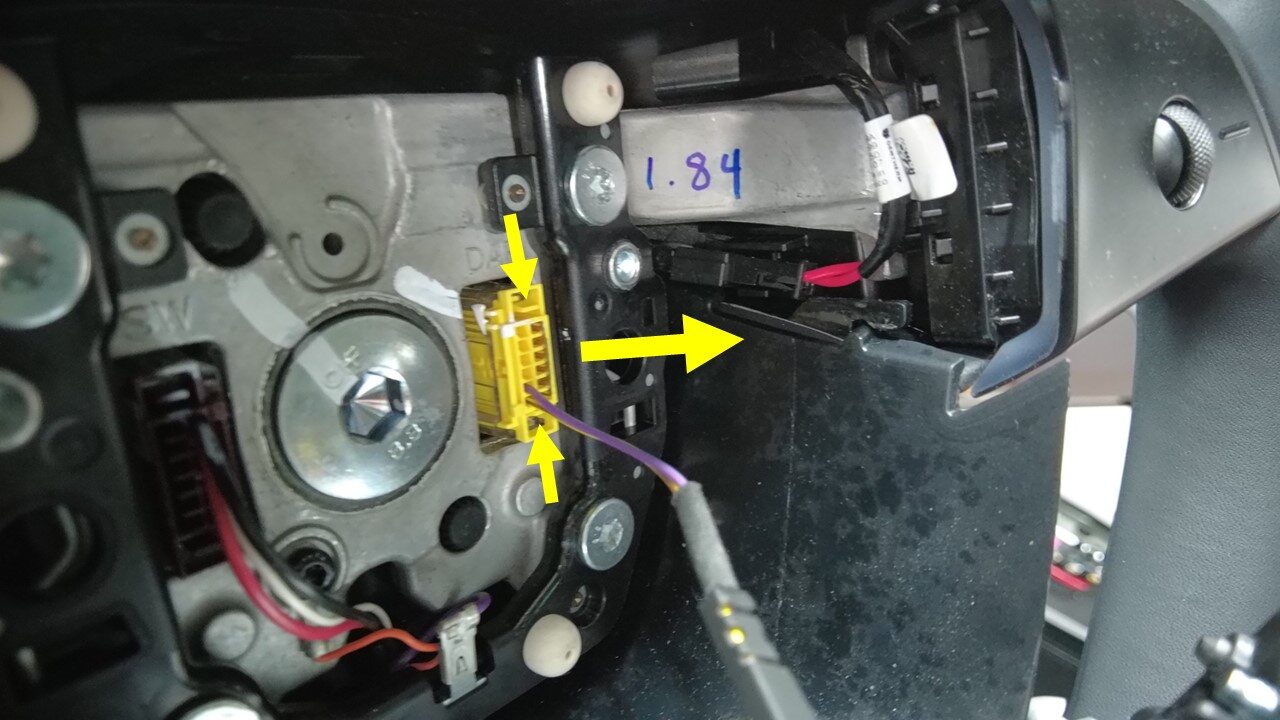

  41. Disconnect driver airbag connector and removal airbag assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector

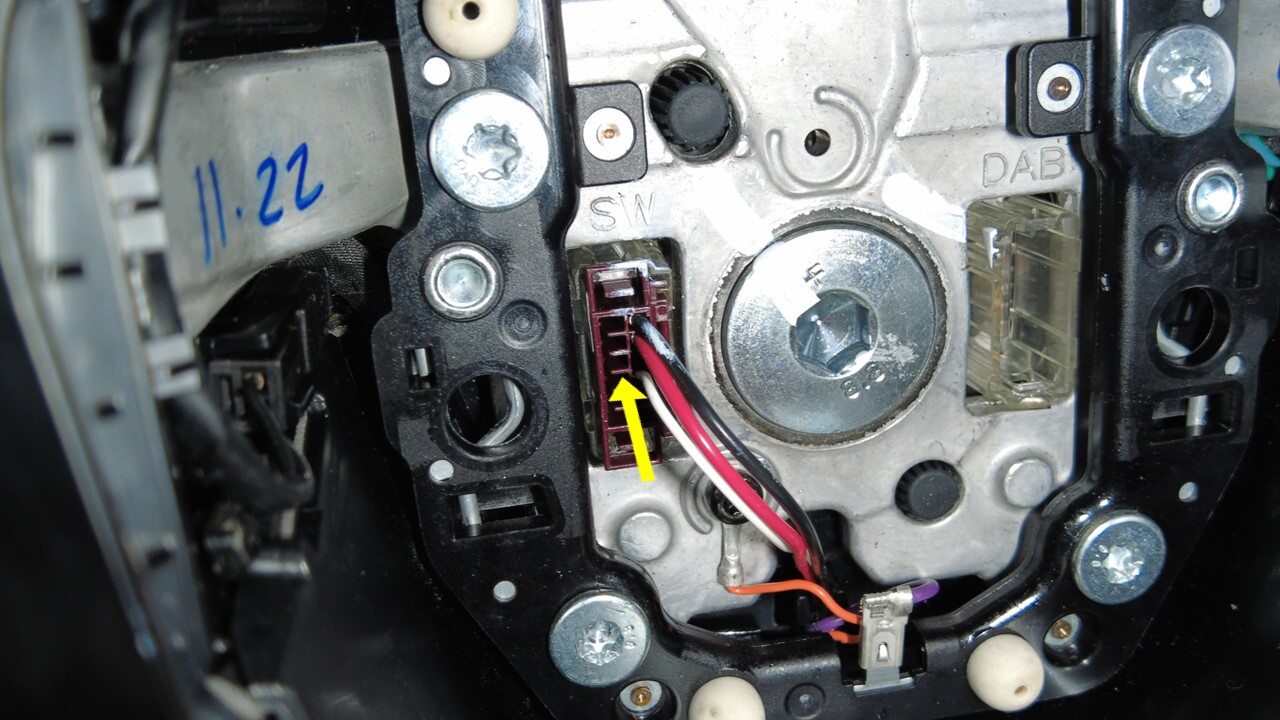

  42. Disconnect steering wheel connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector

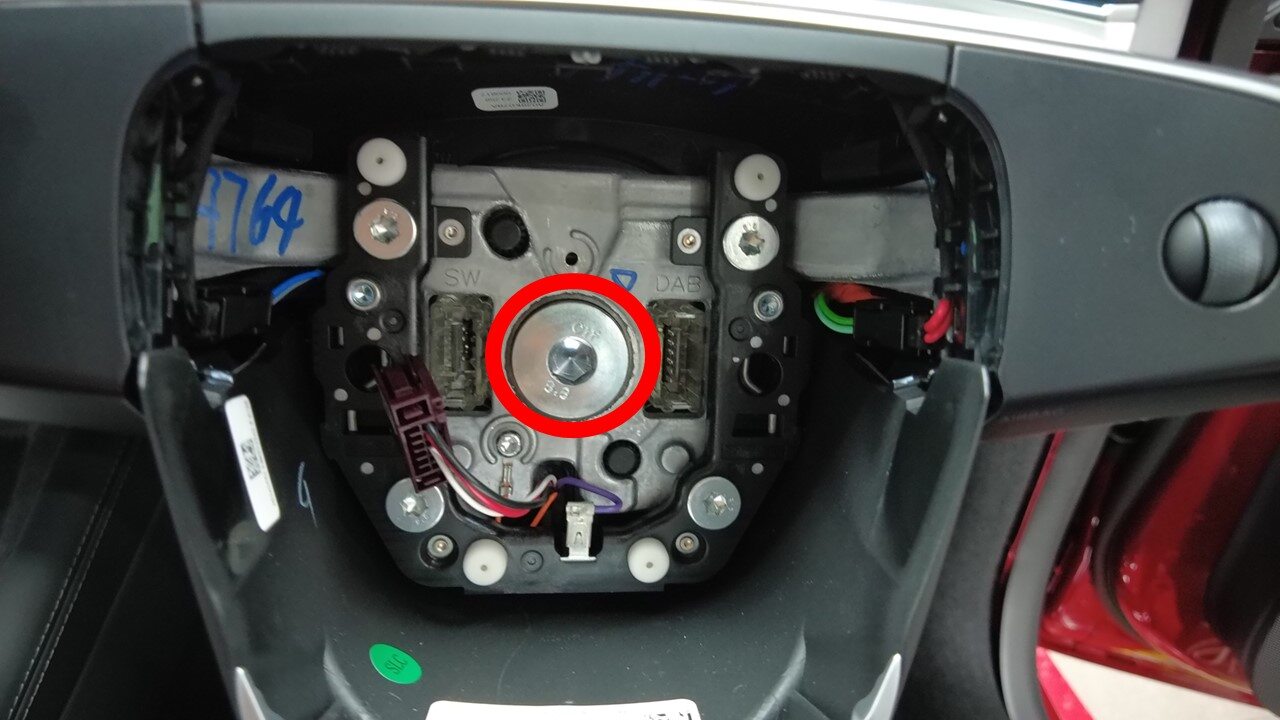

  43. Remove bolt securing steering wheel to steering column
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x patch bolt, 10mm hex, 80 Nm, Discard after removal, Counter hold the steering wheel when breaking bolt loose

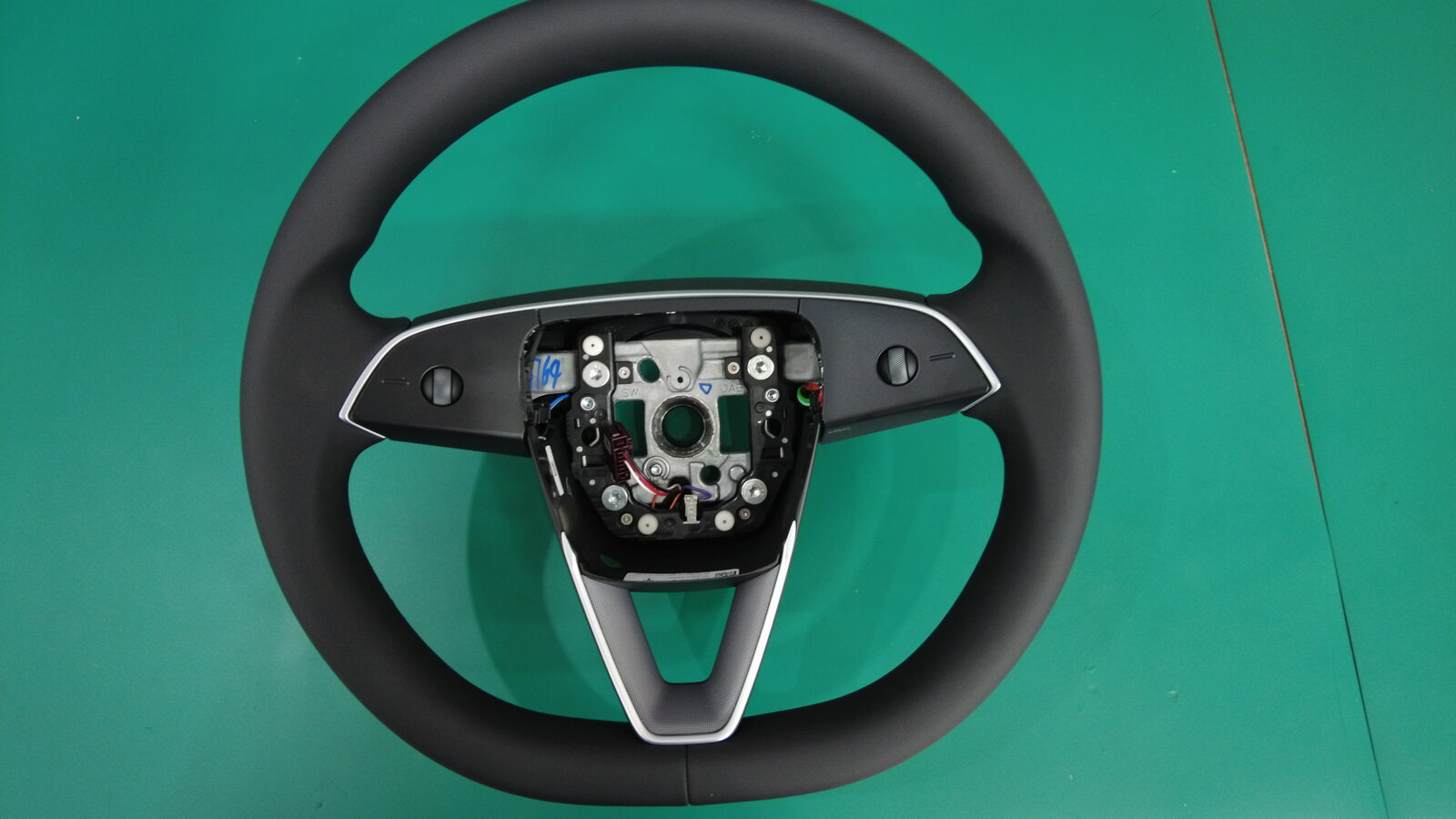

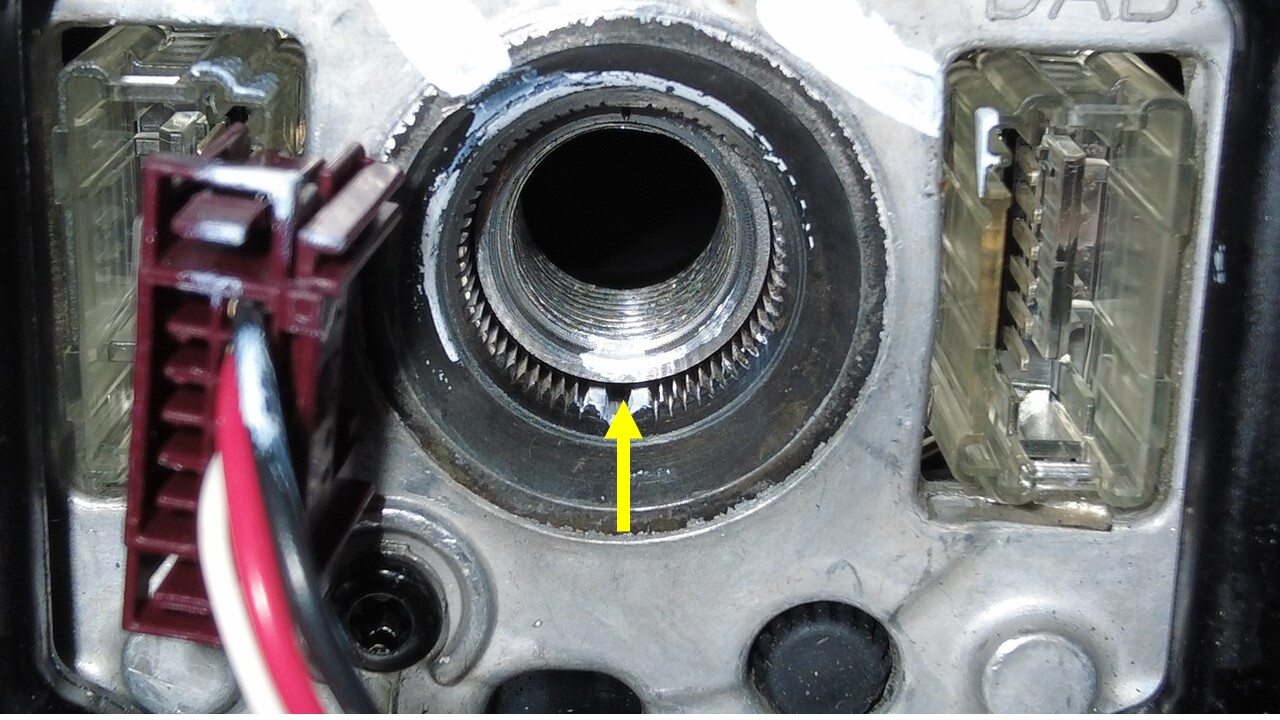

  44. Mark steering wheel to steering column
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Align the marking during installation

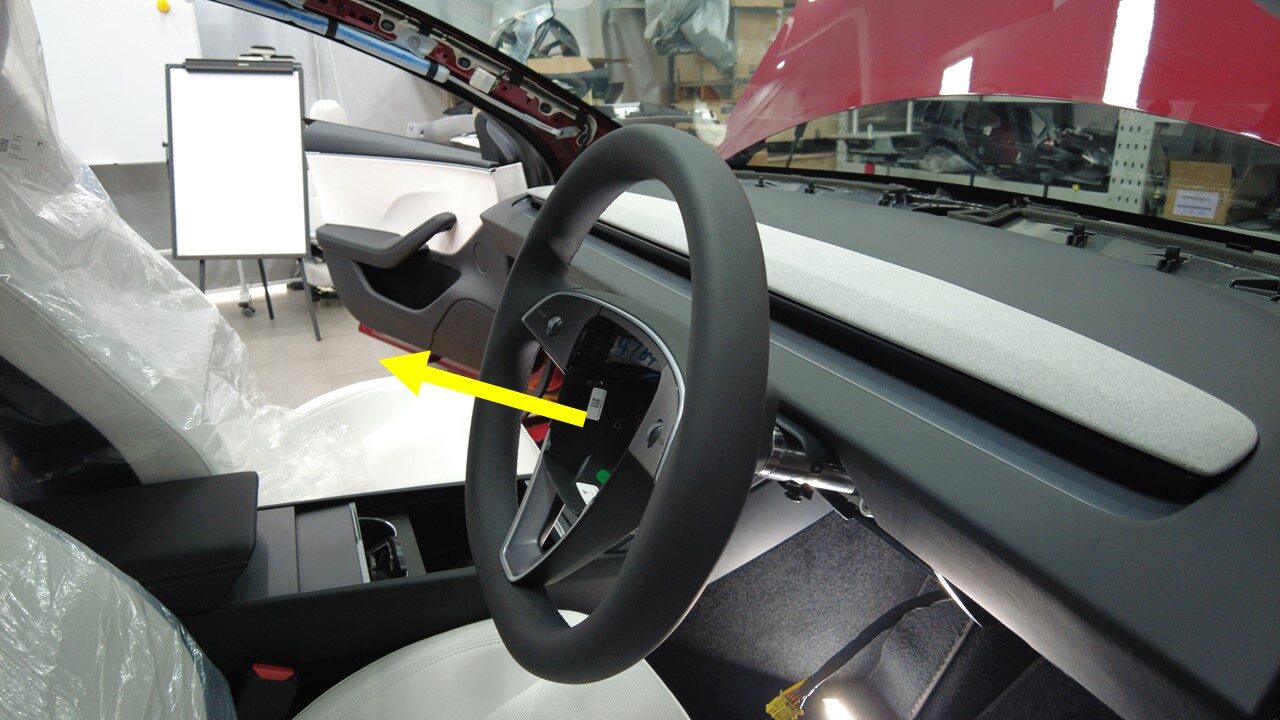

  45. Remove steering wheel from steering column

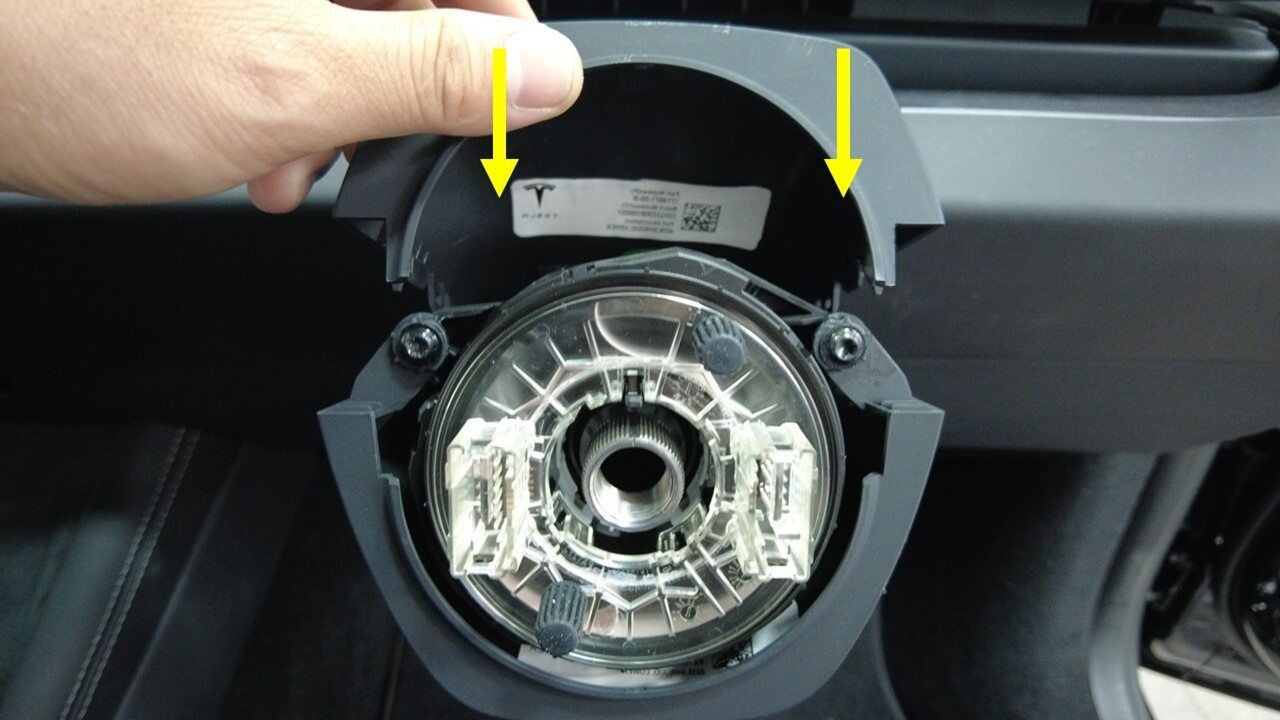

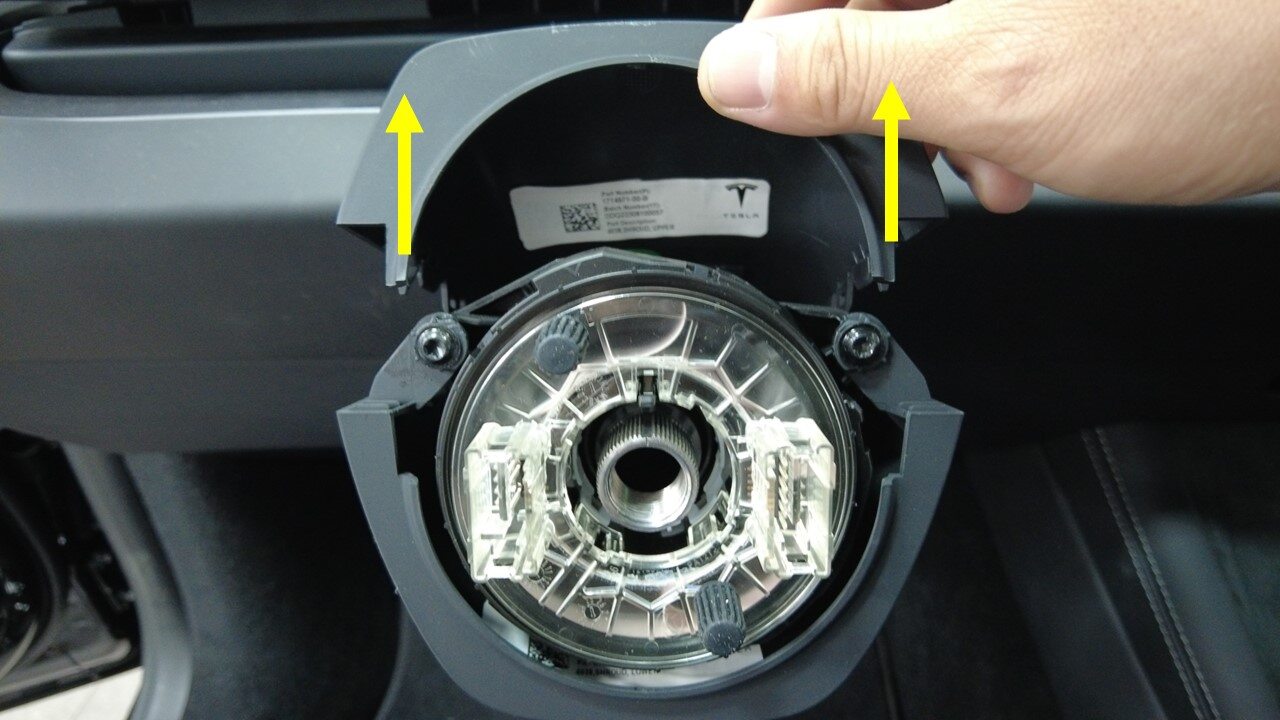

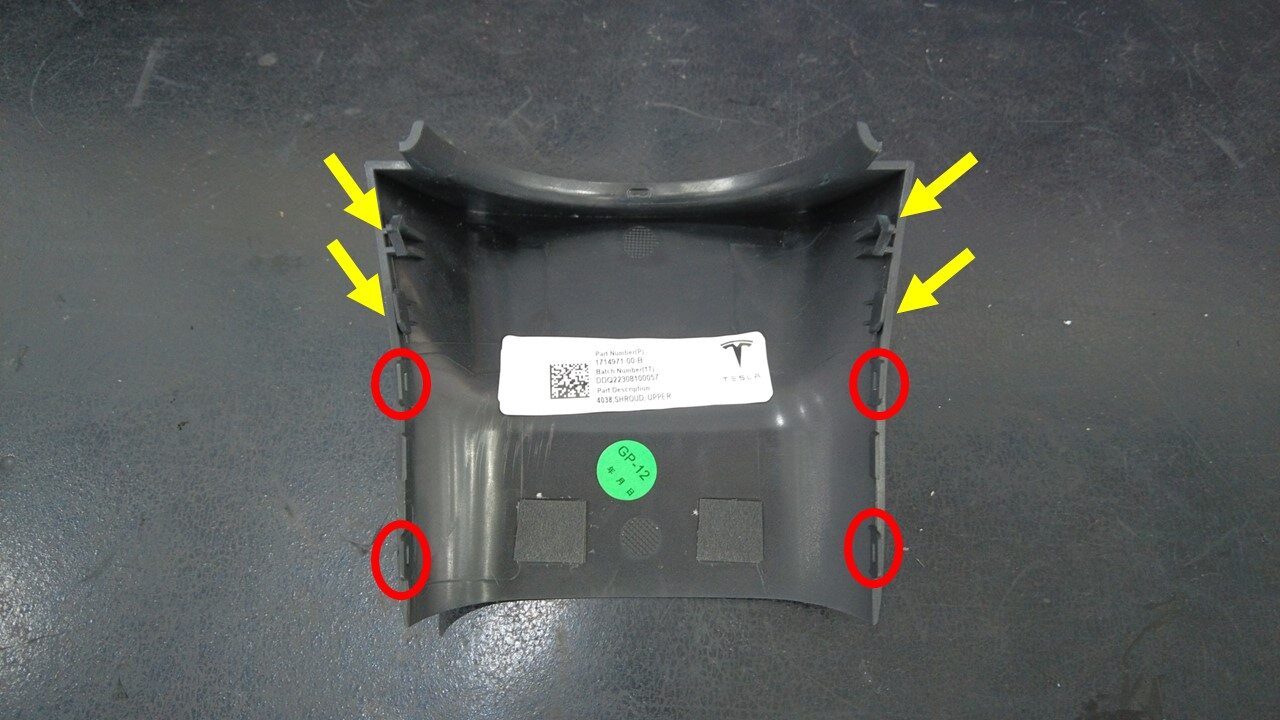

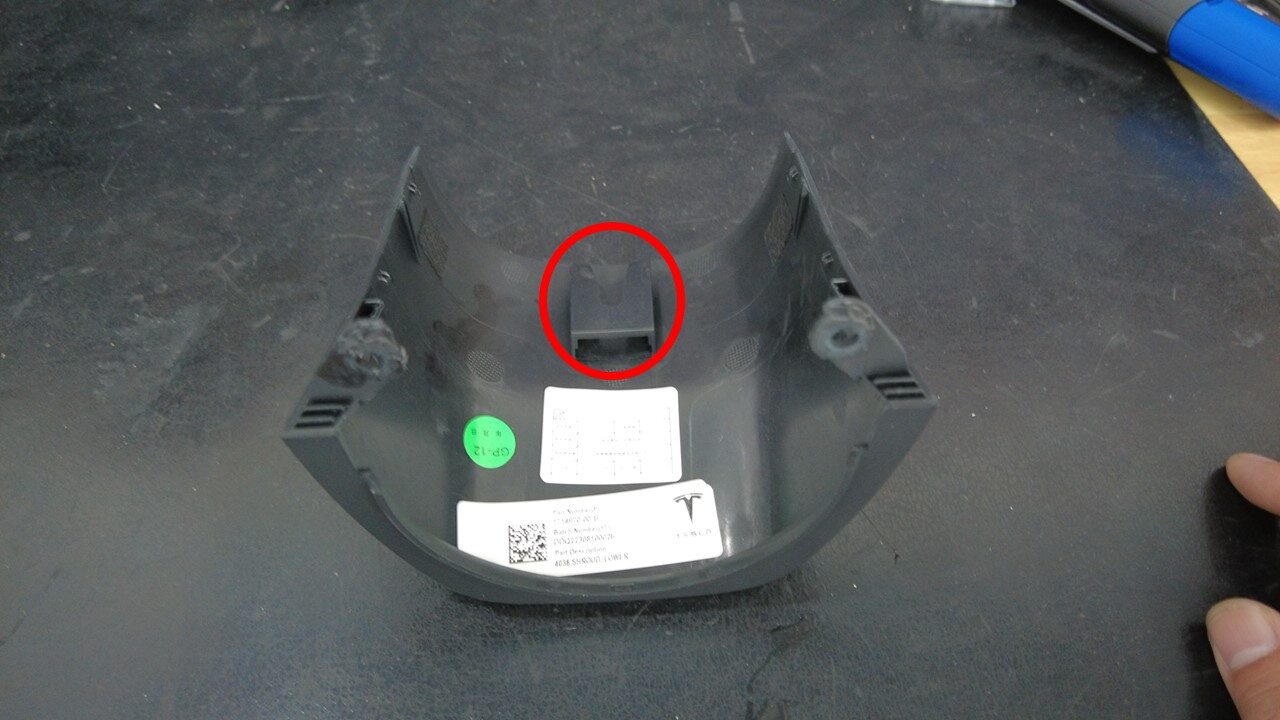

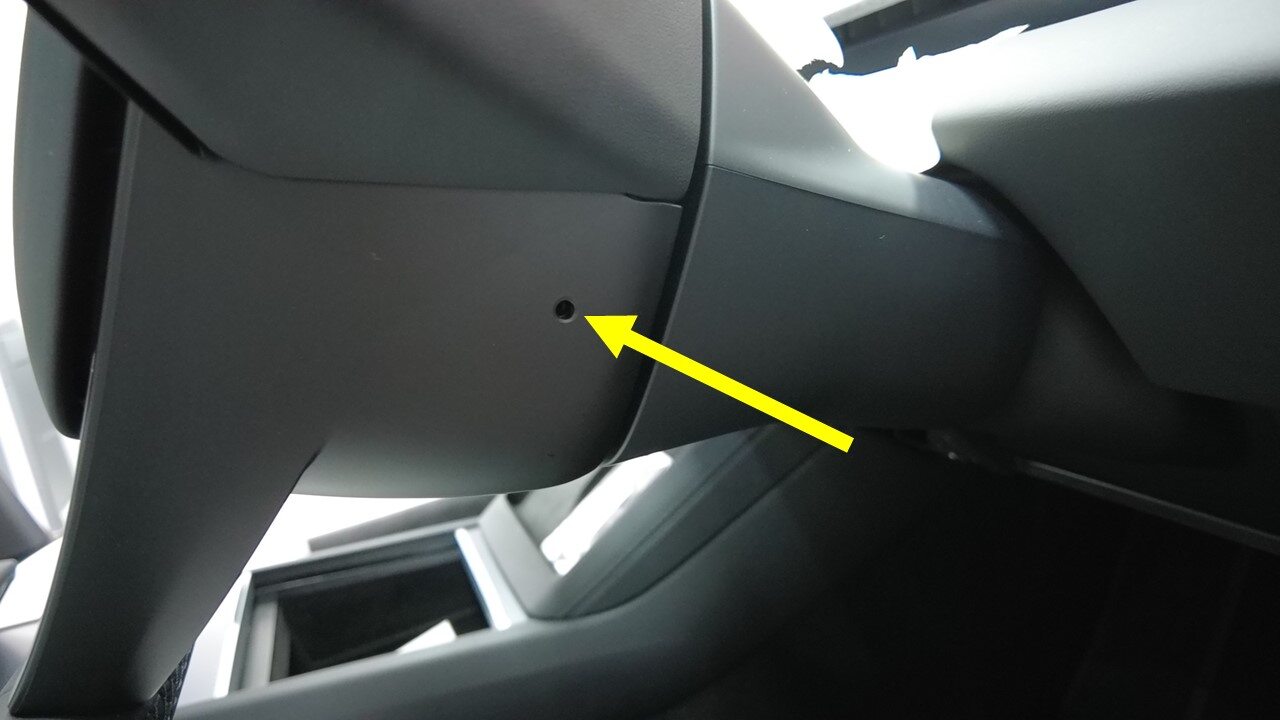

  46. Release steering column upper shroud from lower shroud
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x alignment clips,4x guide tabs

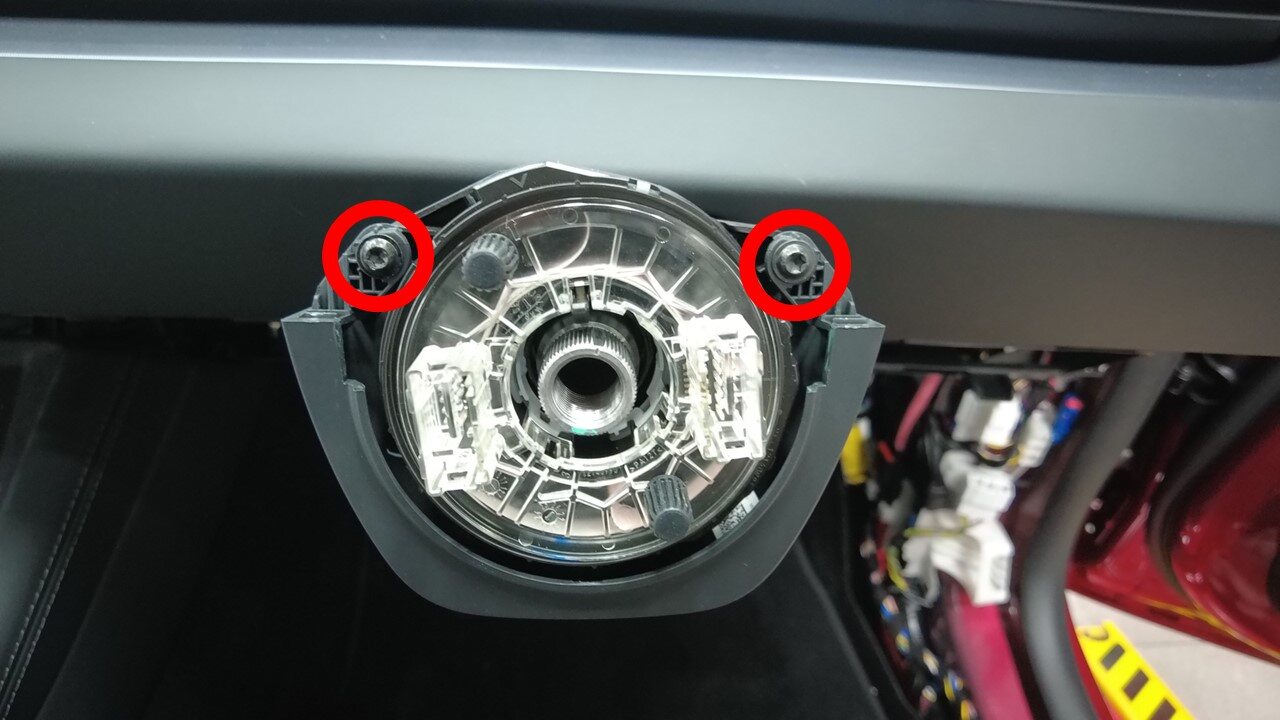

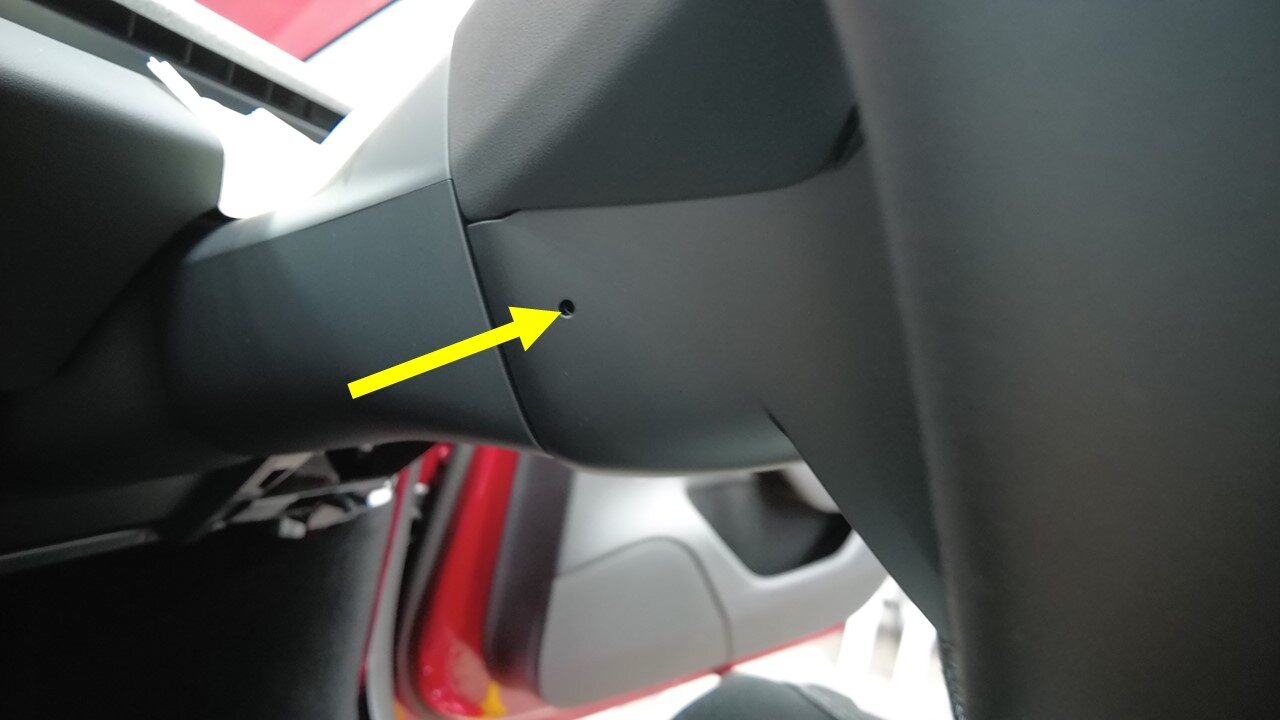

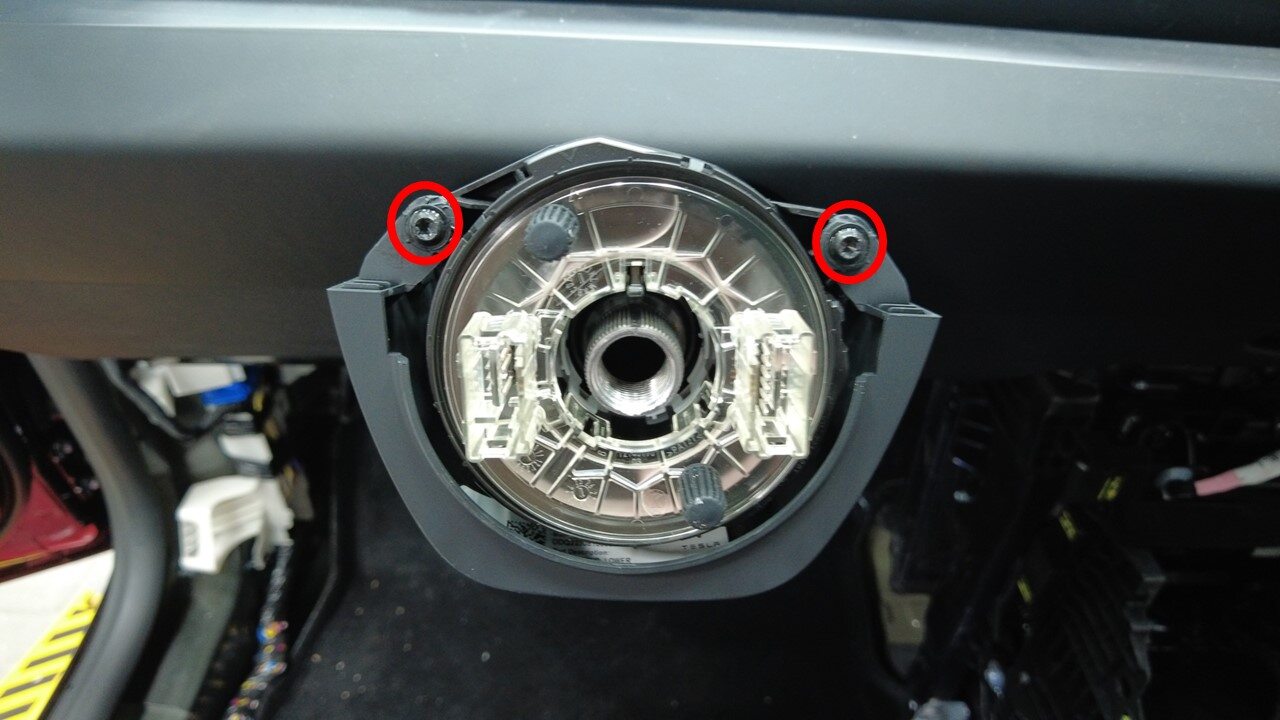

  47. Remove upper screws securing lower shroud to steering column module
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x screws, T20, 1.5 Nm

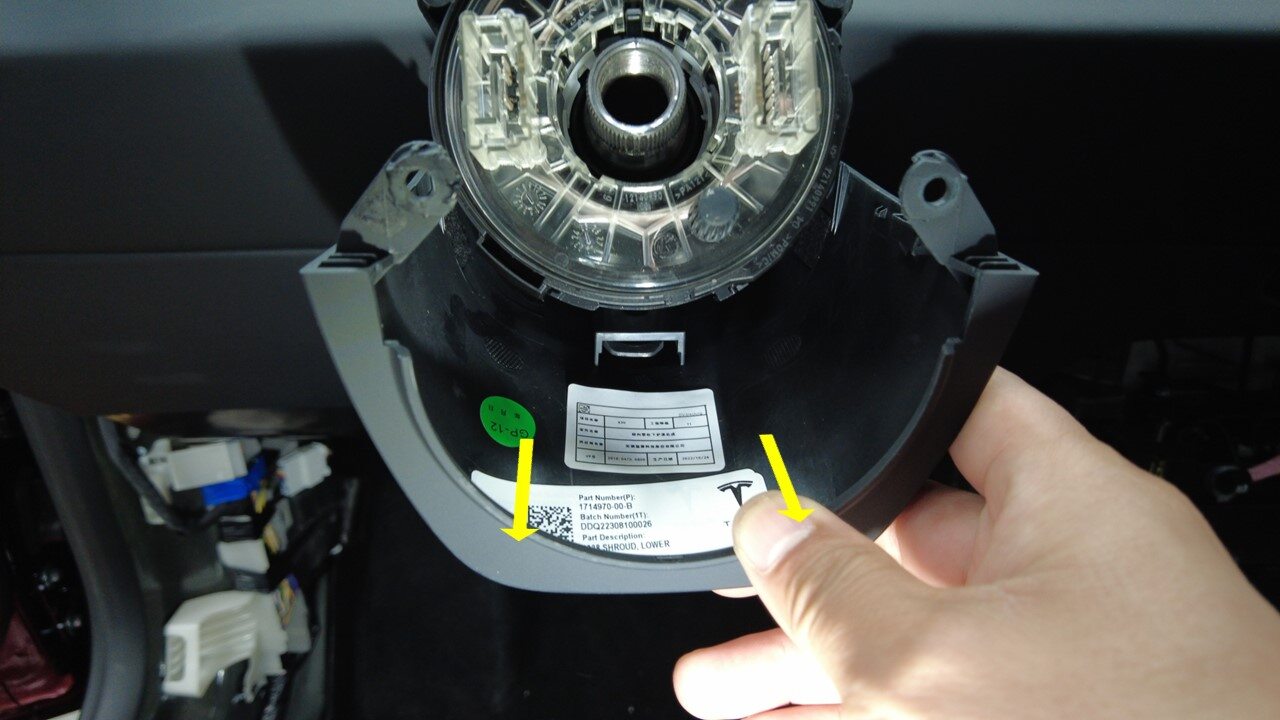

  48. Remove lower shroud from steering column
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x screws, T20, 1.5 Nm, 1x location slot

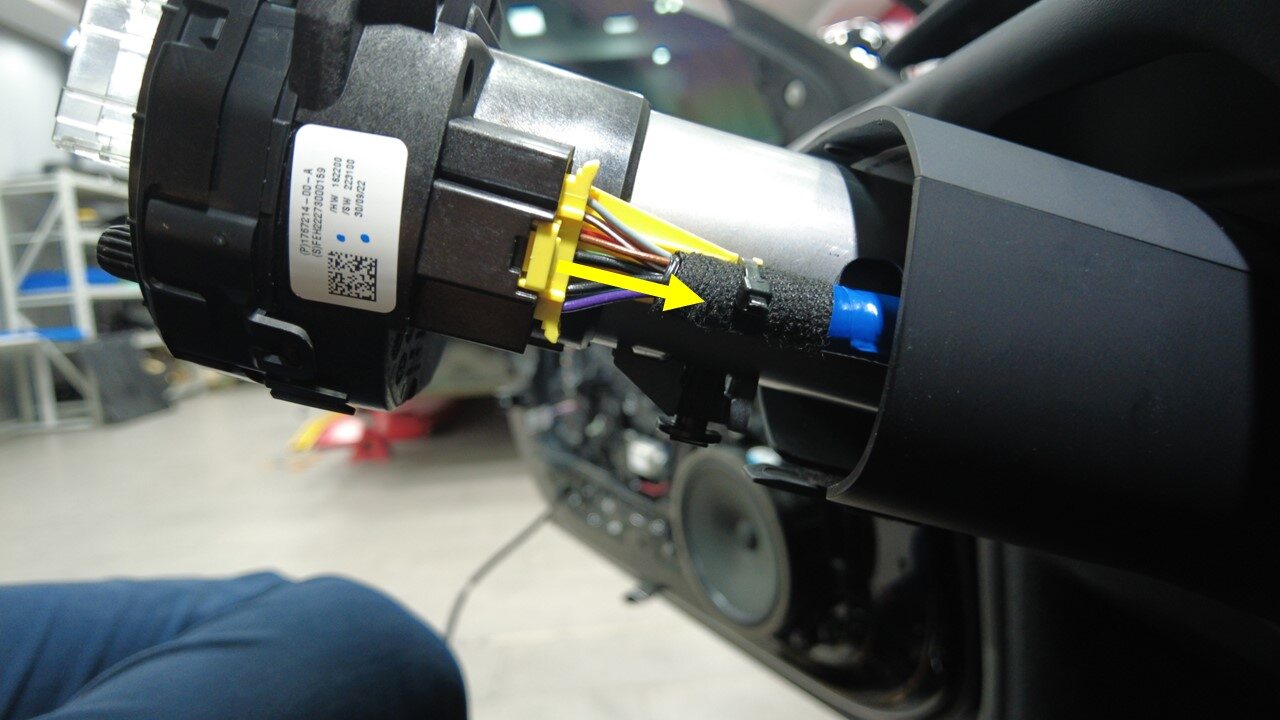

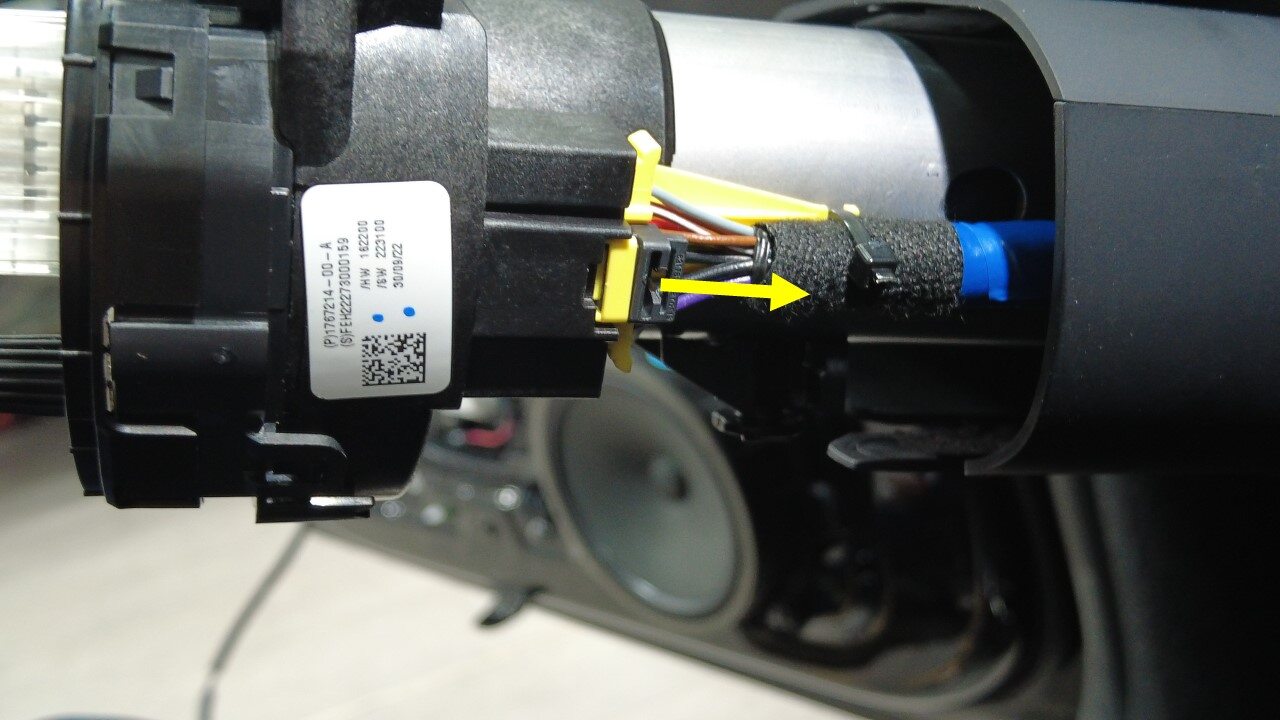

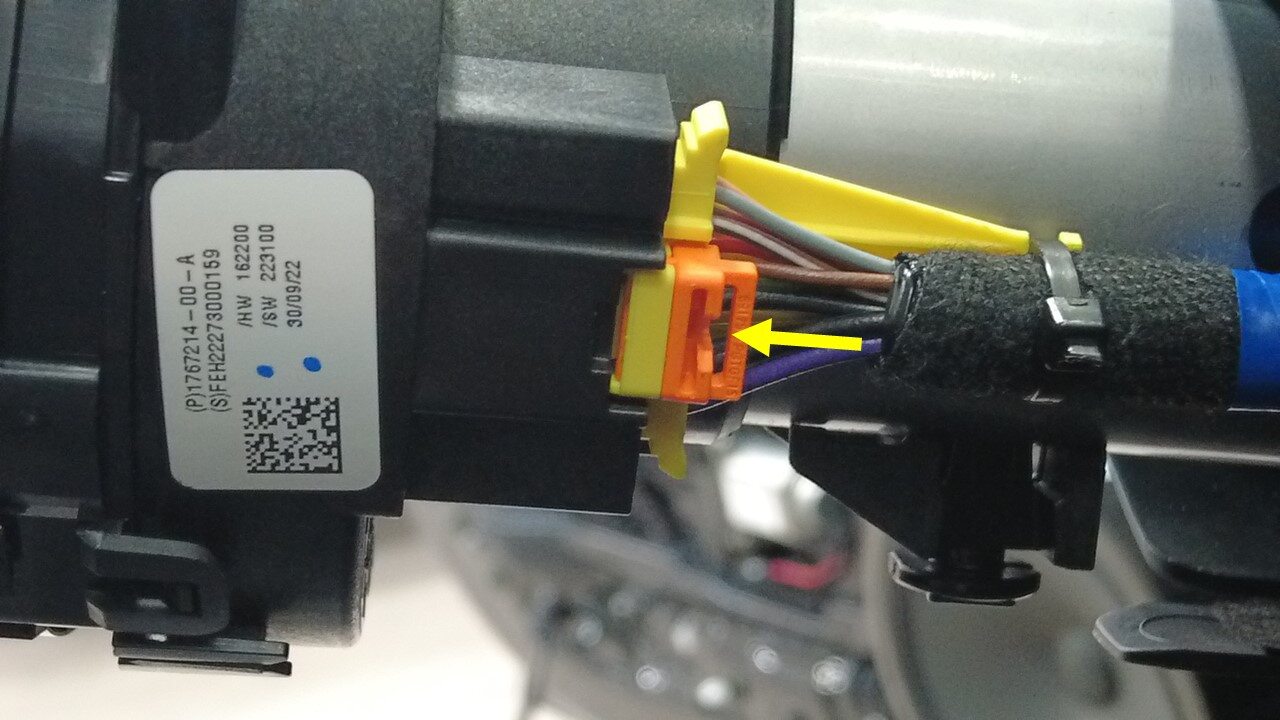

  49. Disconnect SCCM assembly connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, Remove retaining clip on the connector, Release connector, Then remove the remaining broken clip from connector, Discard retaining clip after removal, Originally installed clip is black, Replacement clip is orange

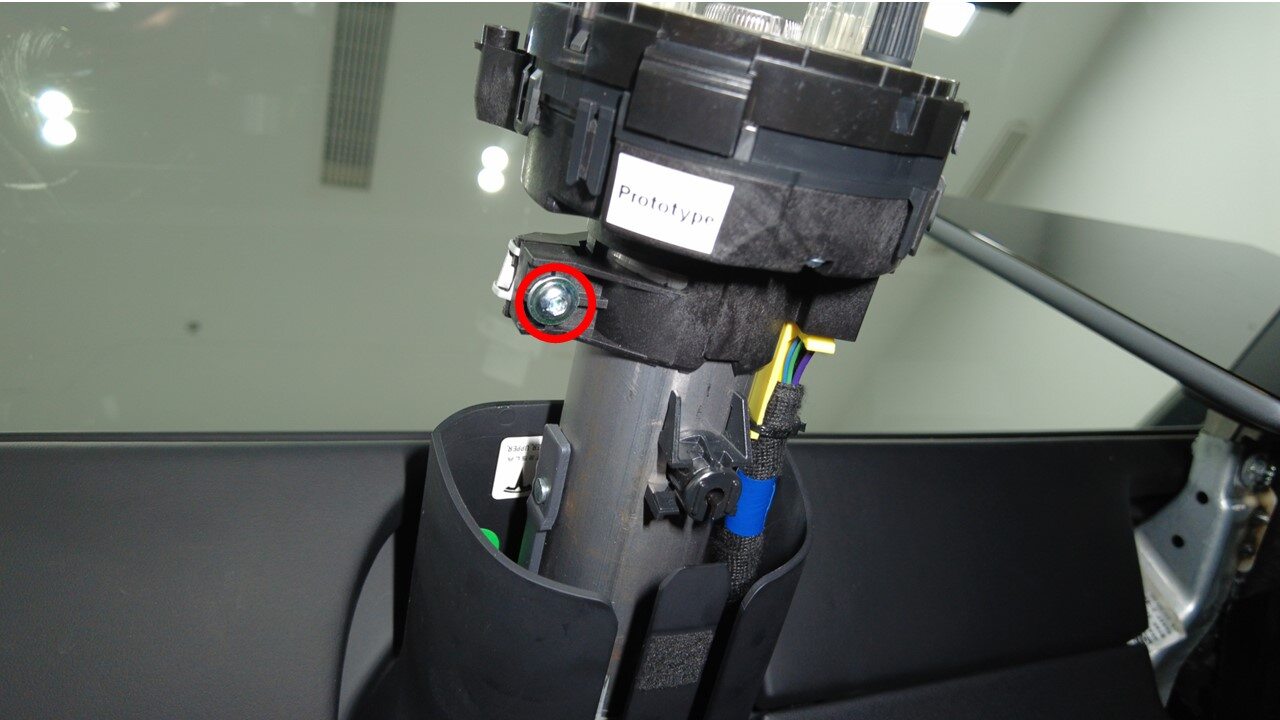

  50. Loosen bolt securing SCCM to steering column
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, T20, 2.3 Nm, Loosen only, Do not remove

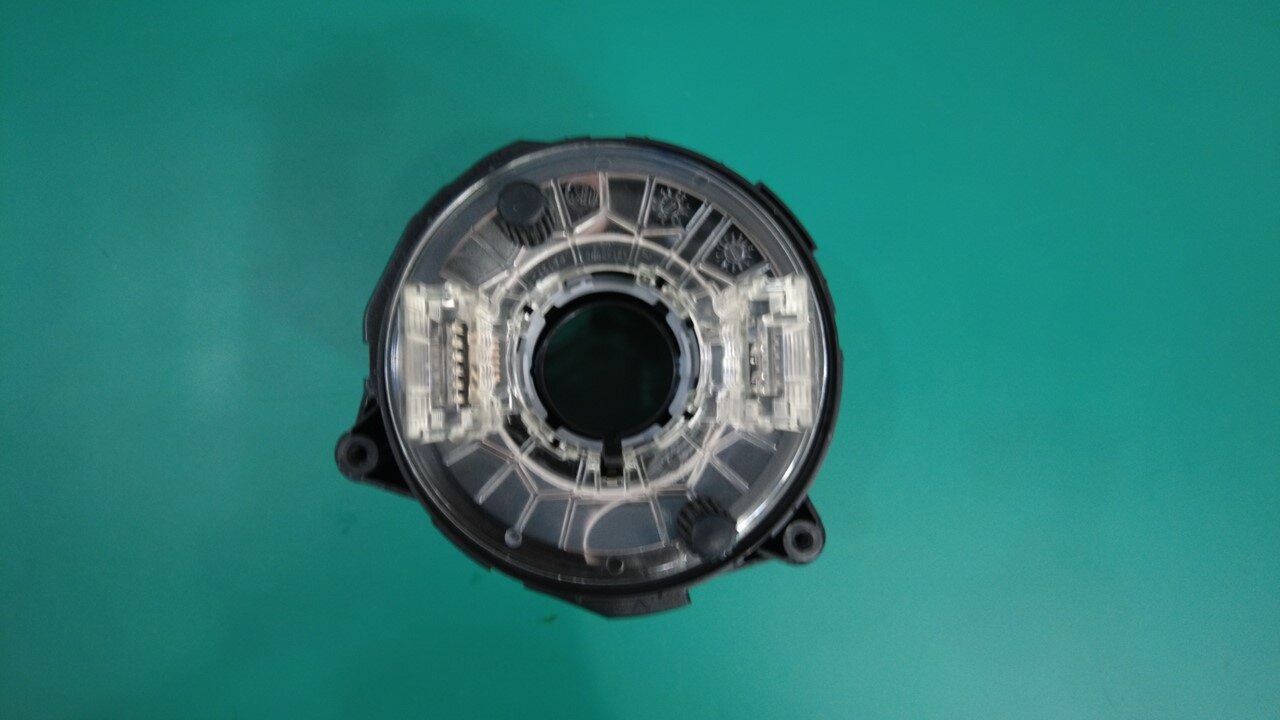

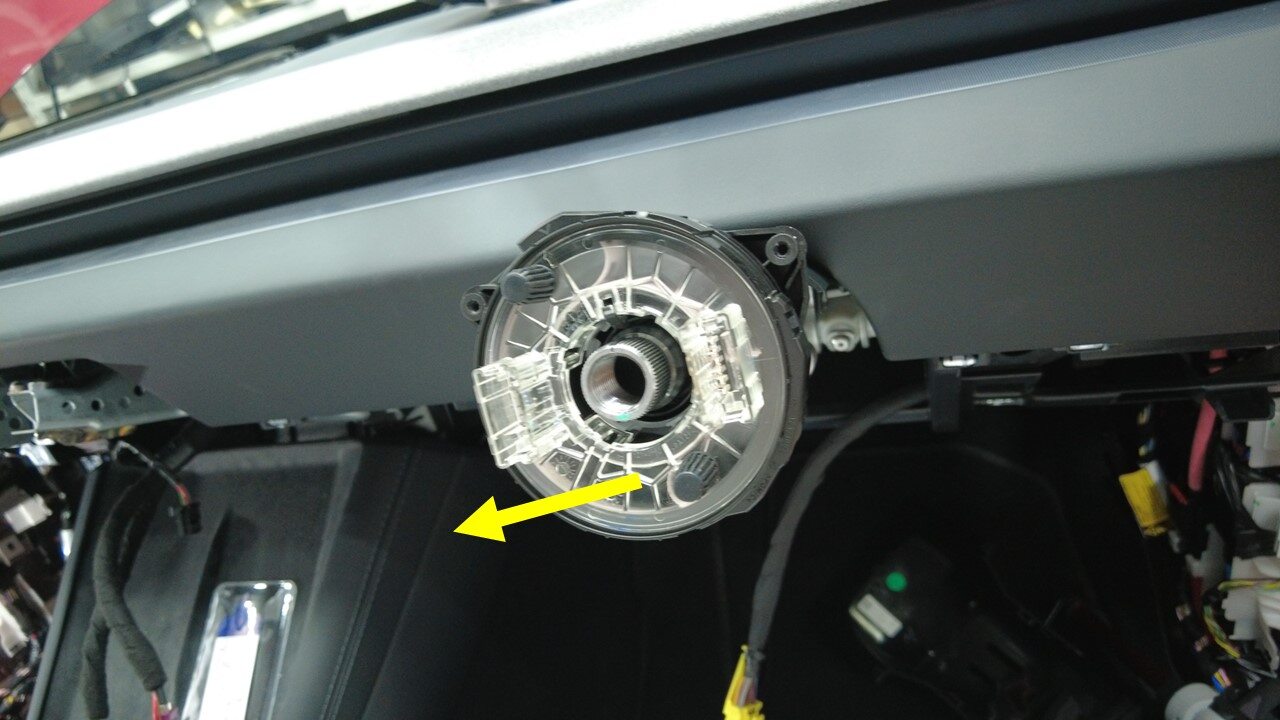

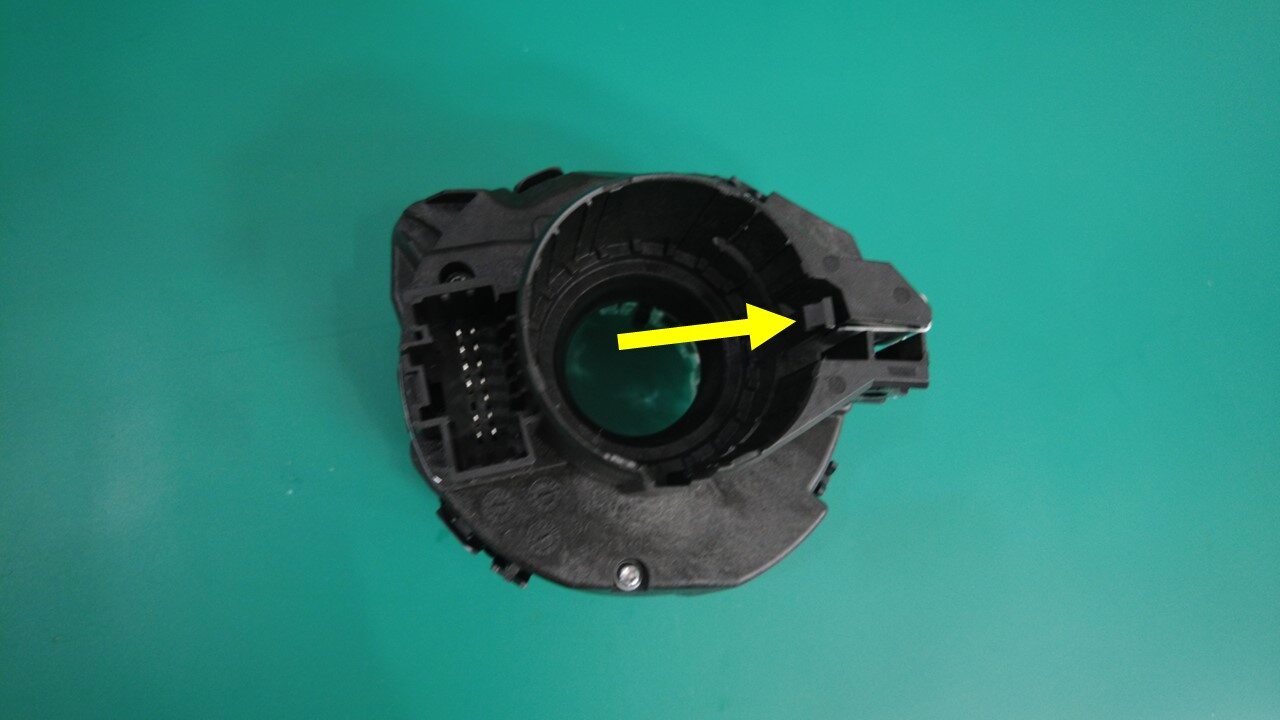

  51. Remove SCCM from steering column
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x tab

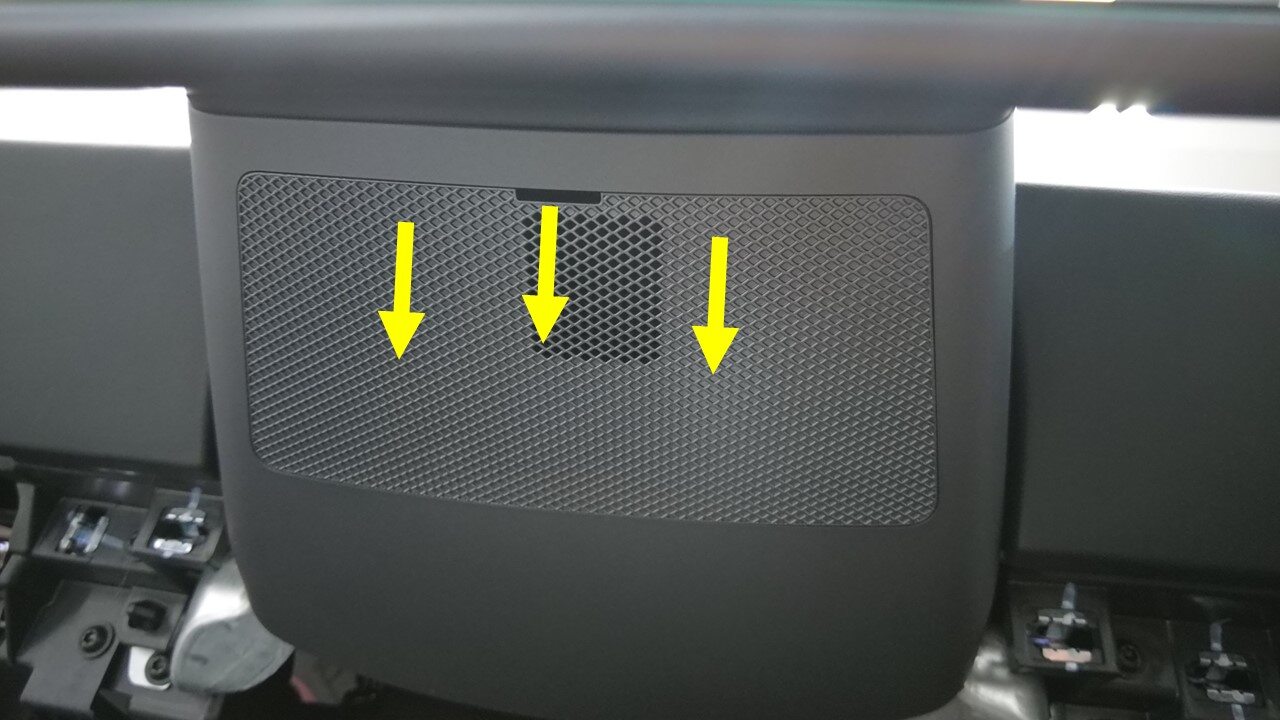

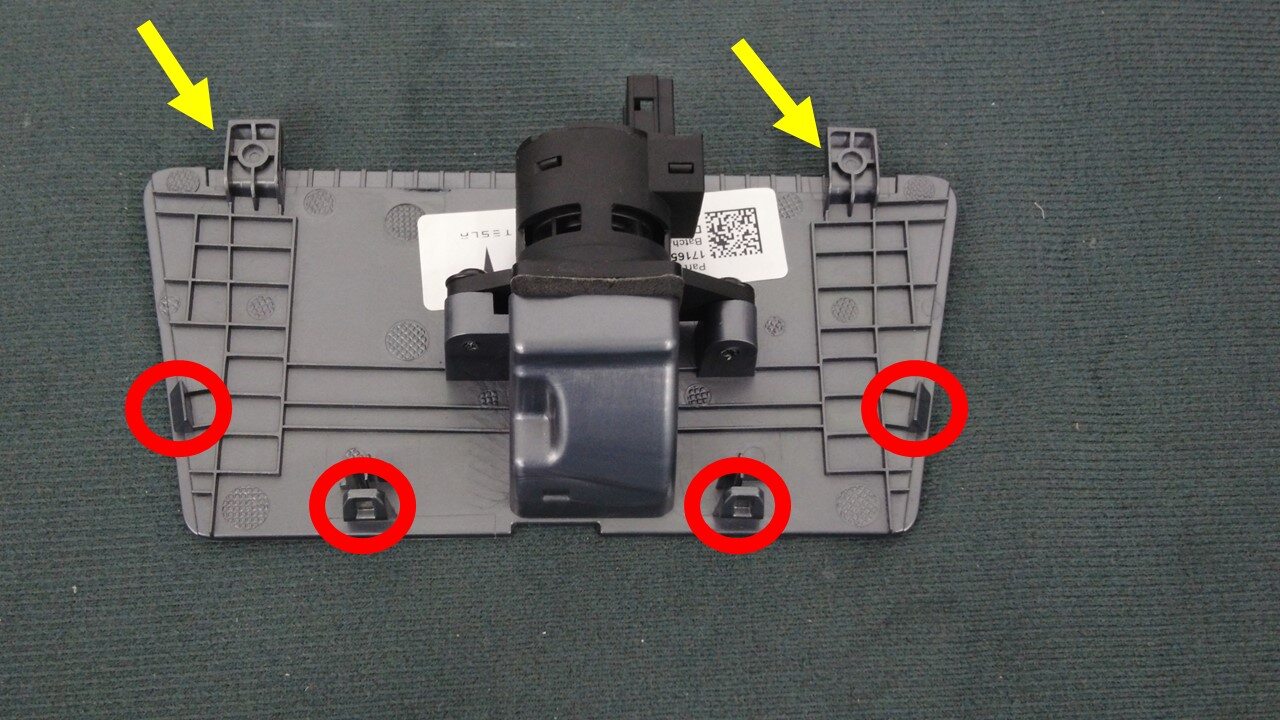

  52. Release IP service panel from IP
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x tabs, 2x guide pins
  53. Disconnect temperature sensor connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector

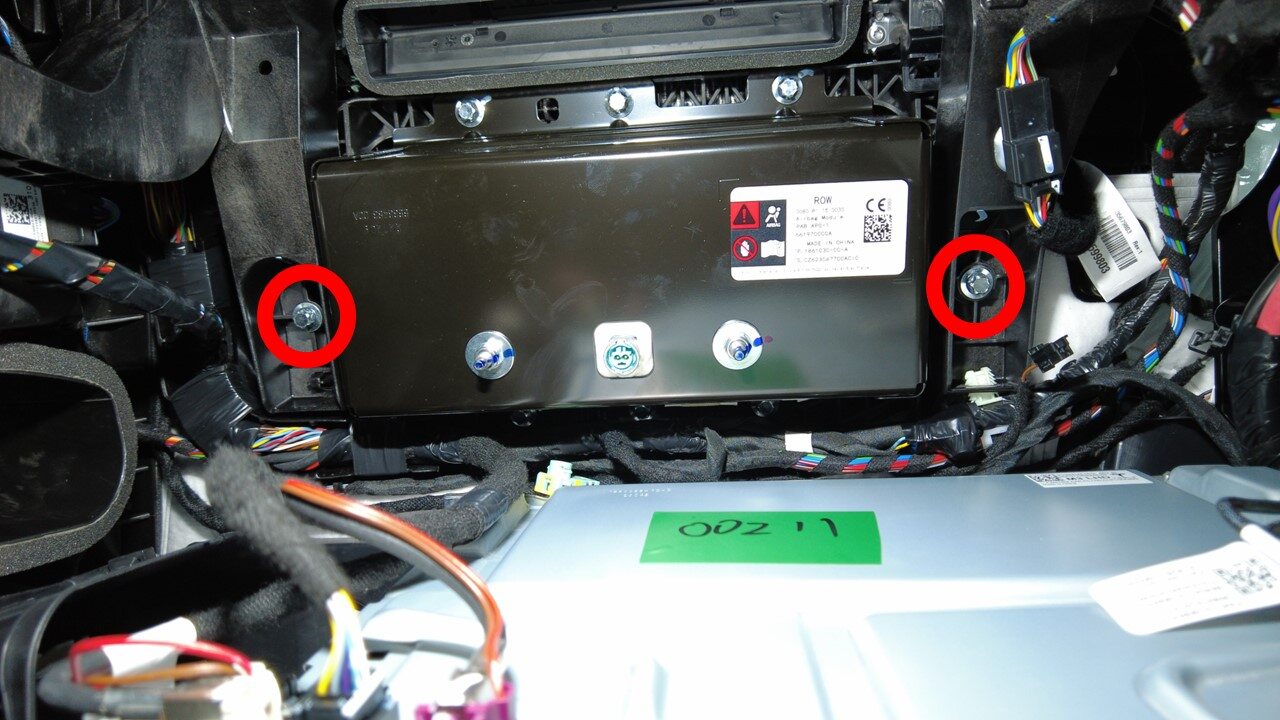

  54. Remove bolts securing center display to IP assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x patch bolts, 10mm, 16 Nm, Discard after removal, Slide towards rear of vehicle to remove
  55. Disconnect harness connectors from center display
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors

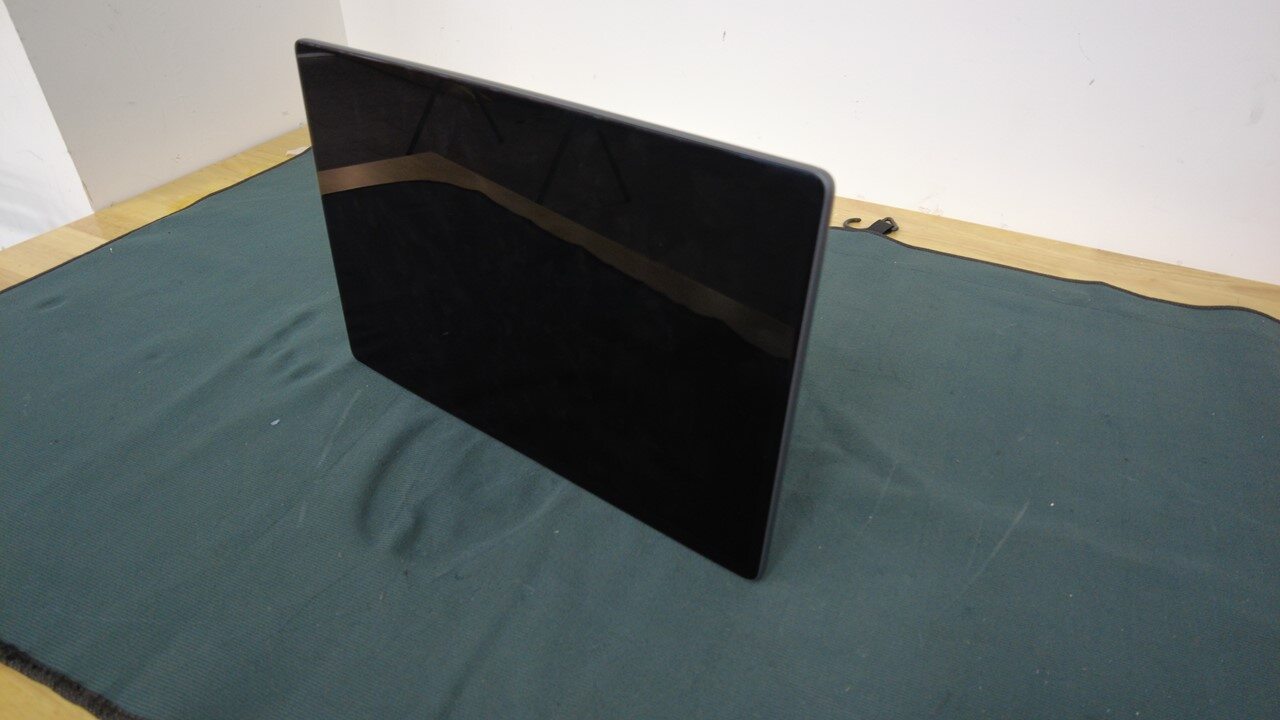

  56. Remove center display from vehicle

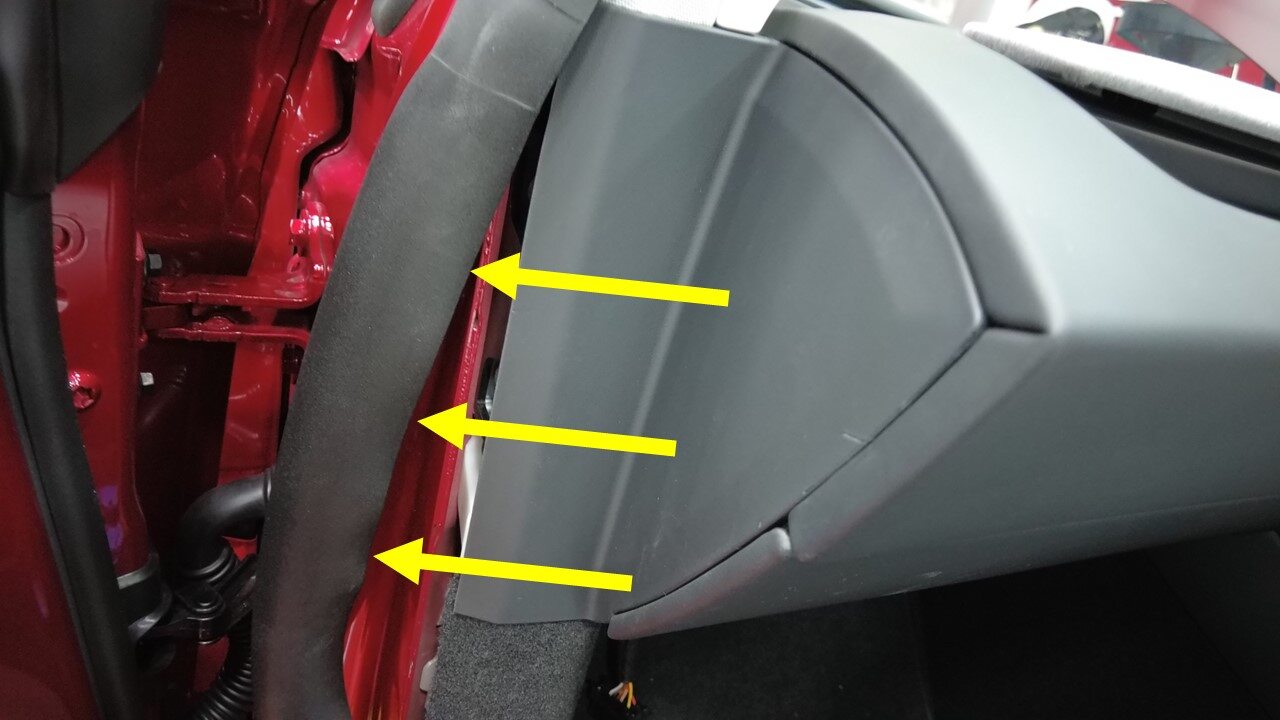

  57. Partially release LH front primary door seal
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Release the lower section of LH front primary door seal

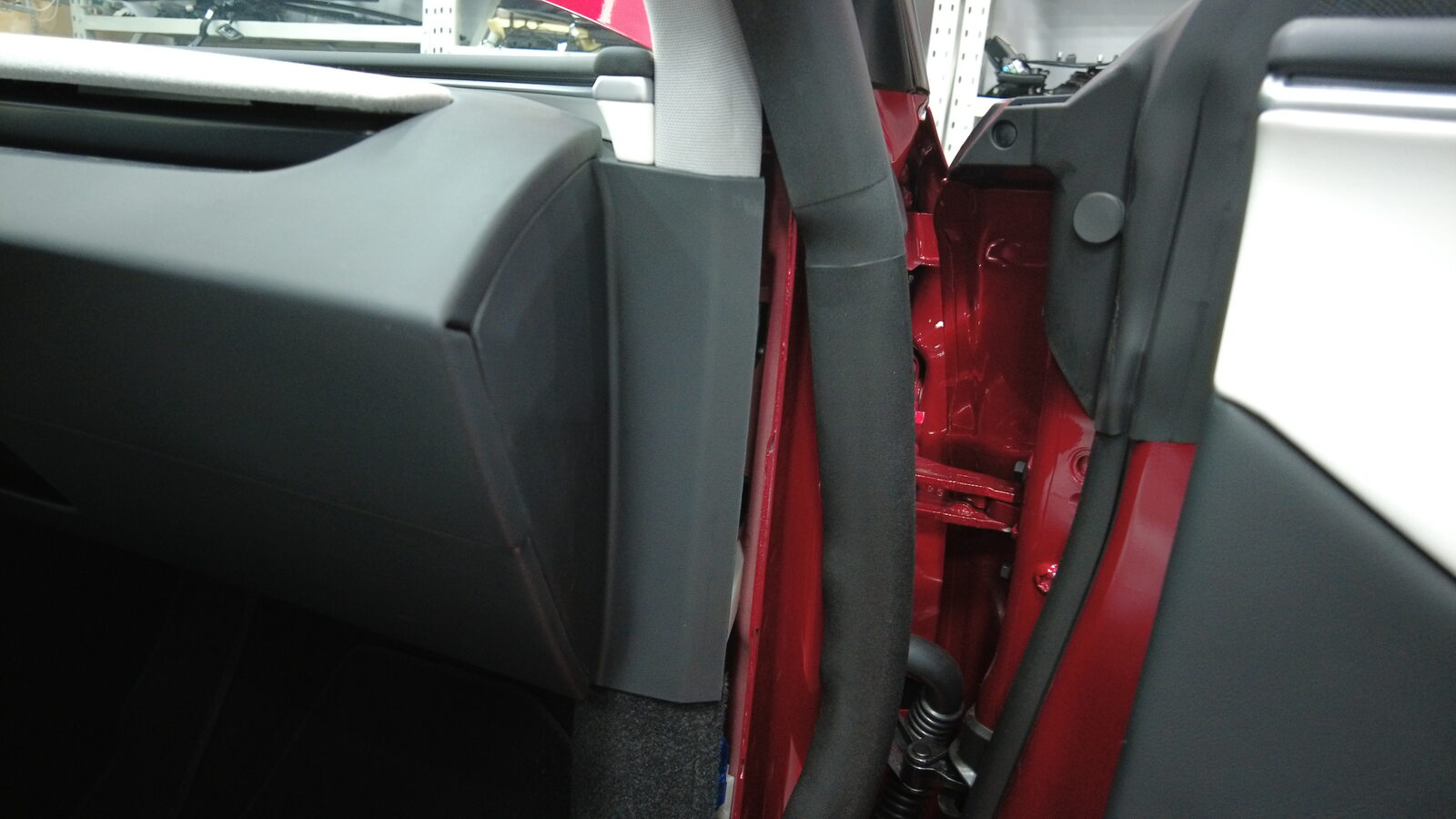

  58. Remove LH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x clips, 2x guide tabs

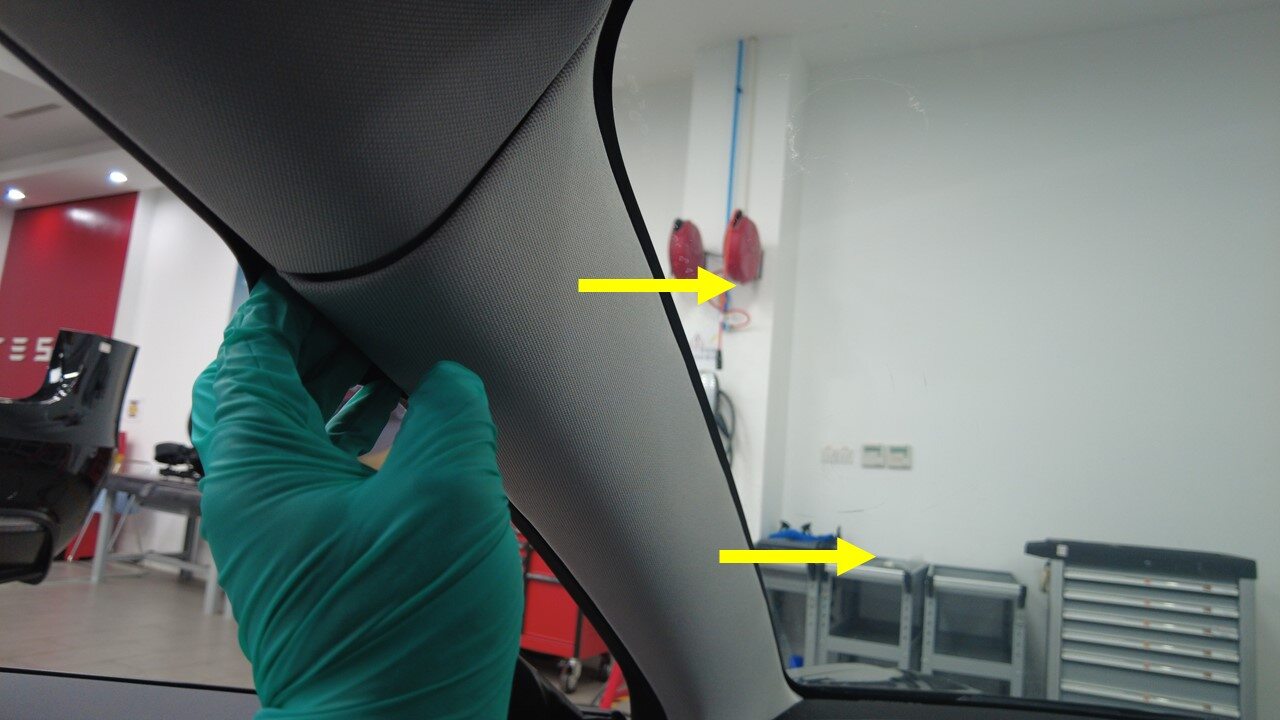

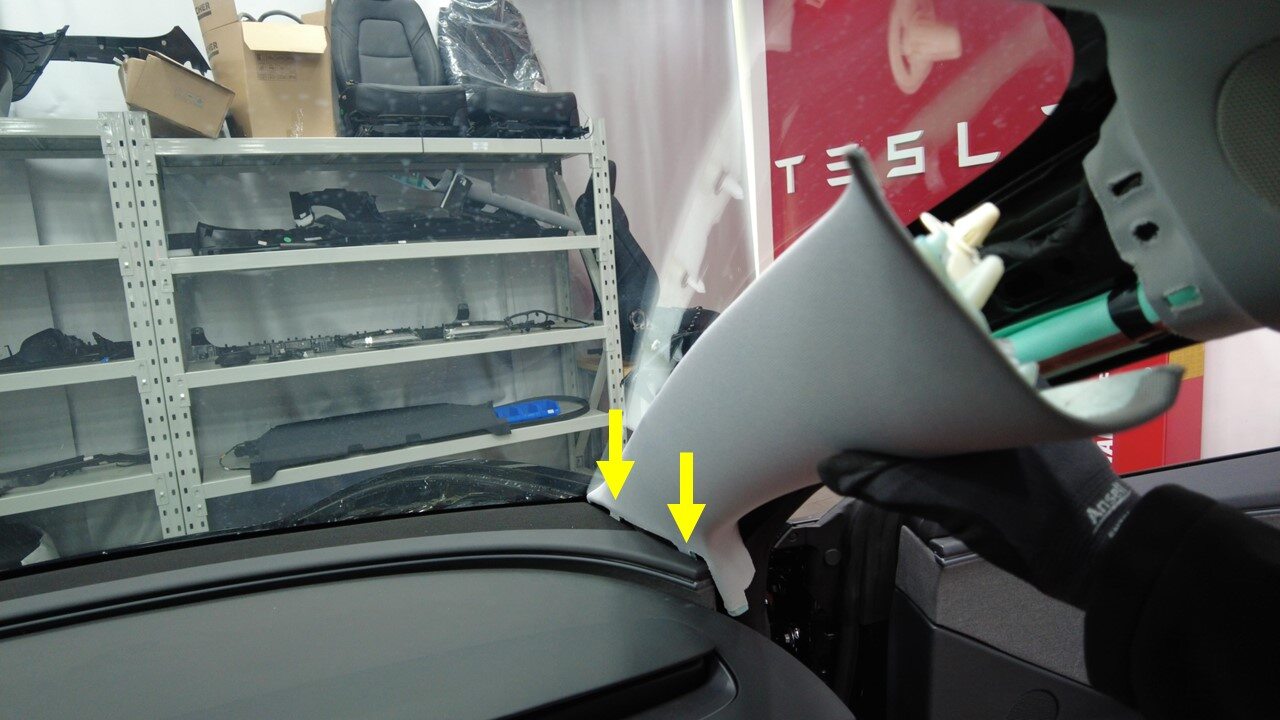

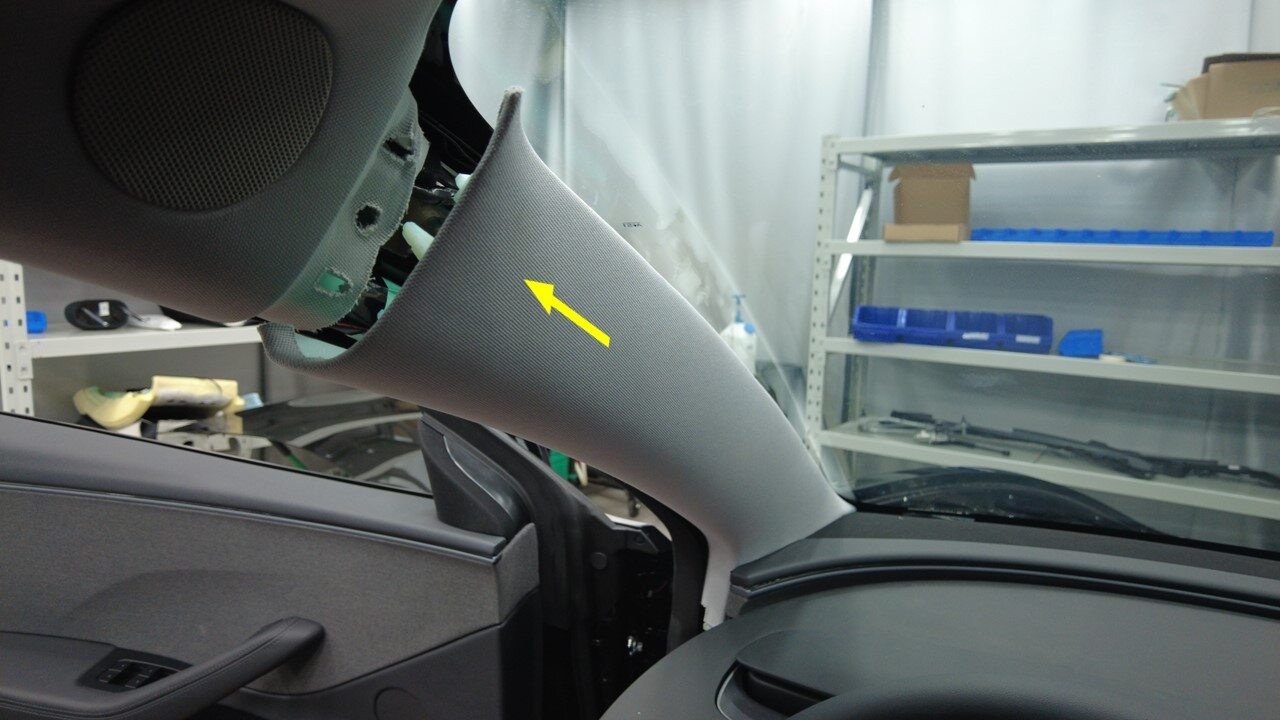

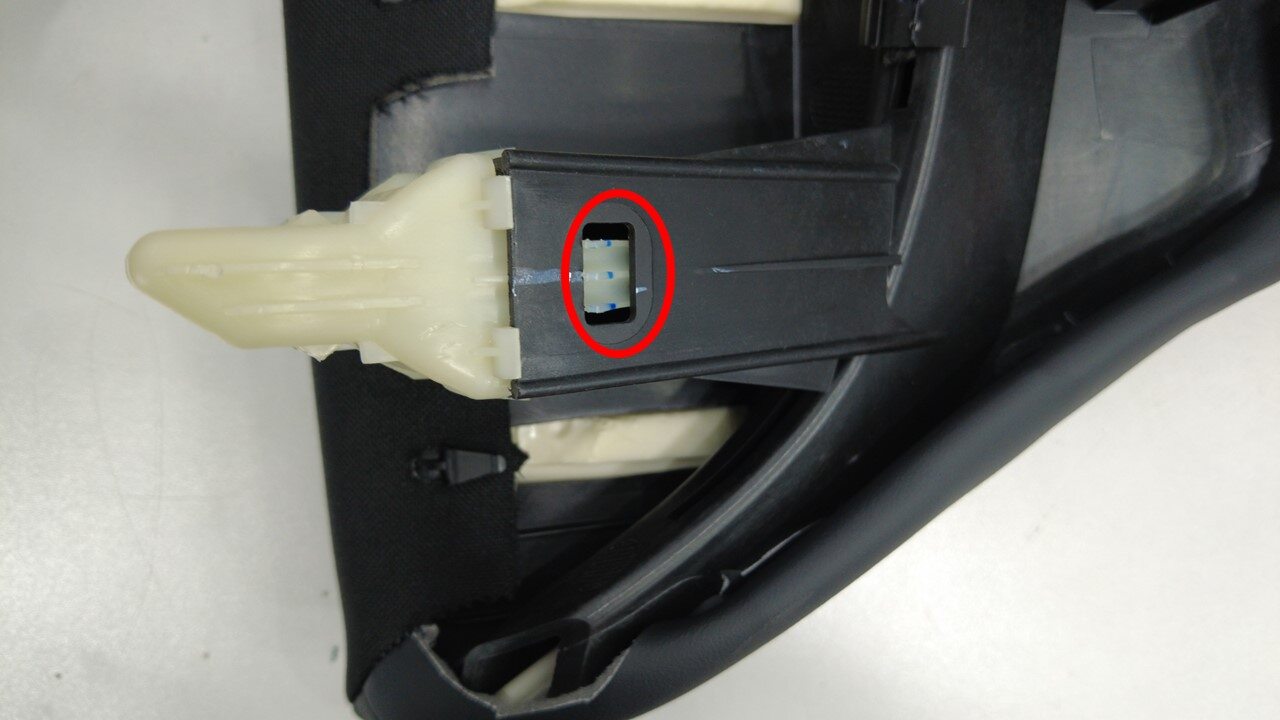

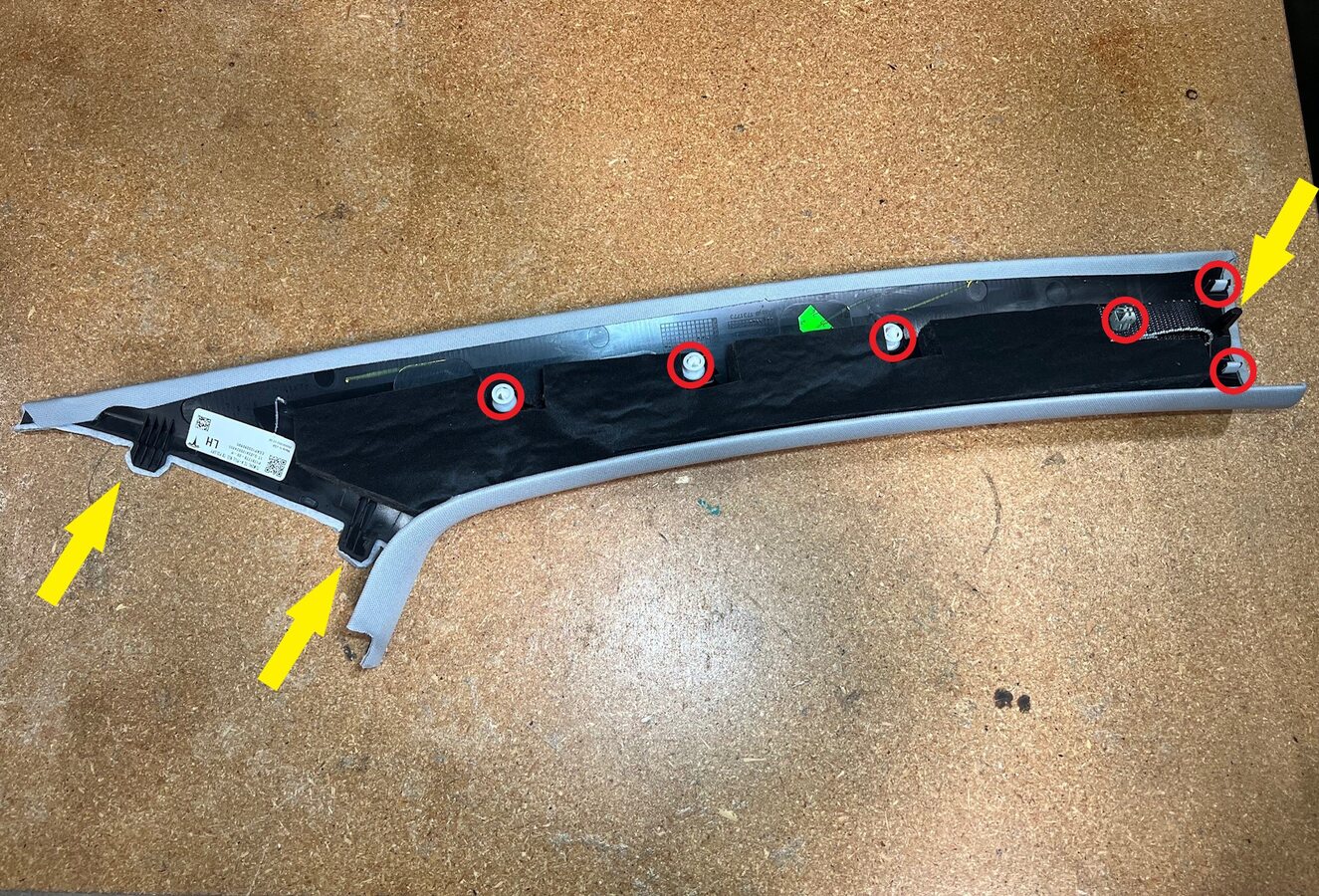

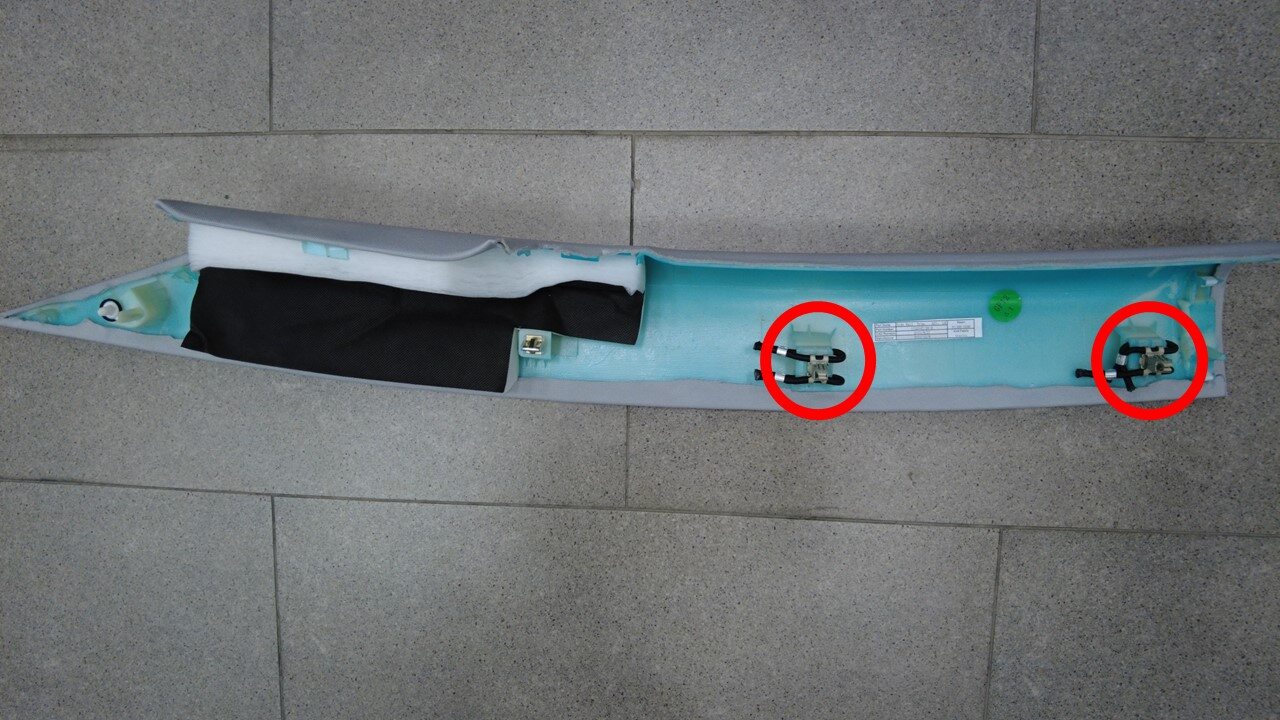

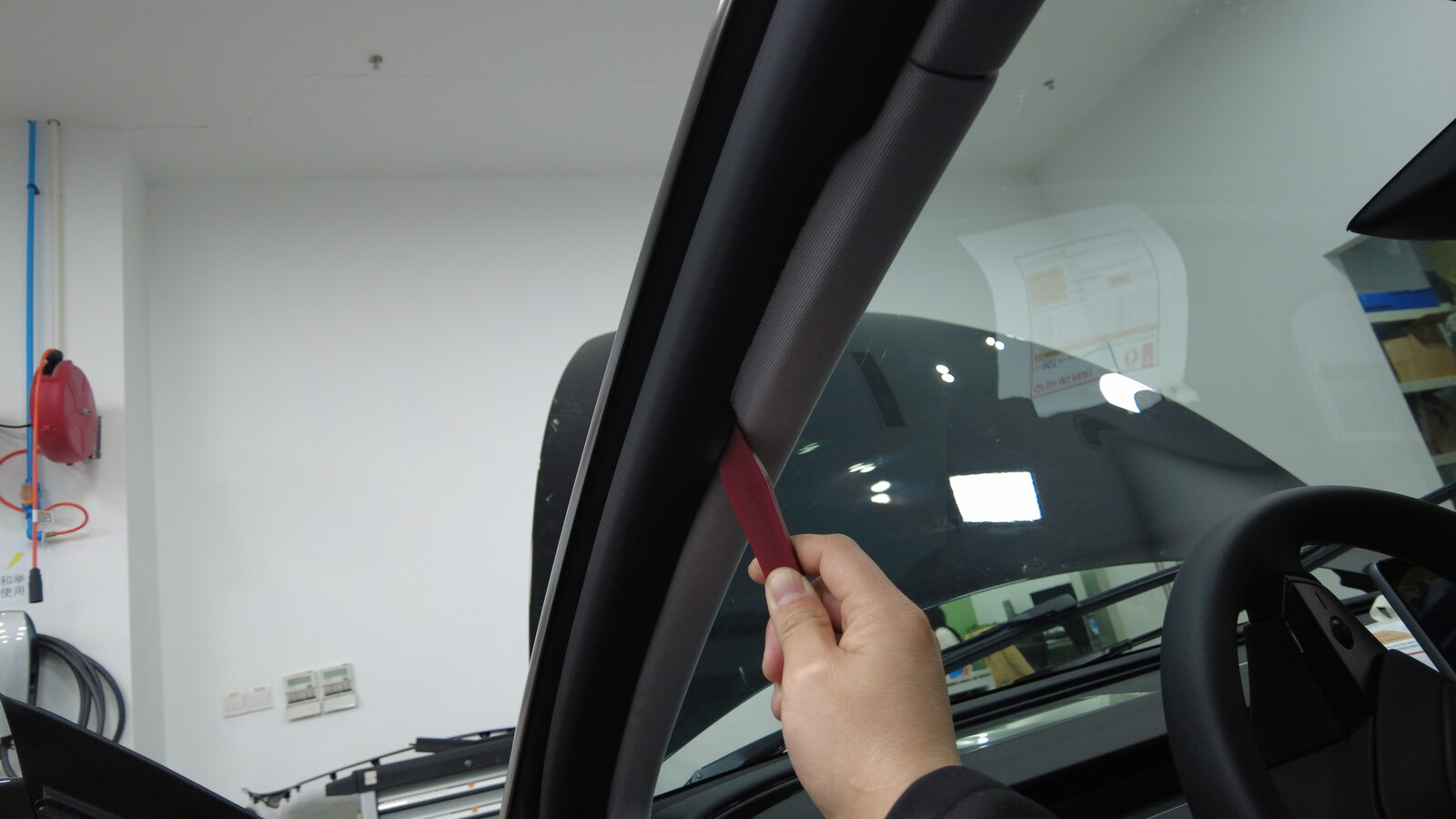

  59. Remove LH upper A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x clips, 1x metal clip, 2x guide tabs, 1x alignment pin, Pull inside of upper portion of upper A-pillar, Then pull upper A-pillar upward to remove
  60. Release LH footwell cover
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x clips, 1x guide tab

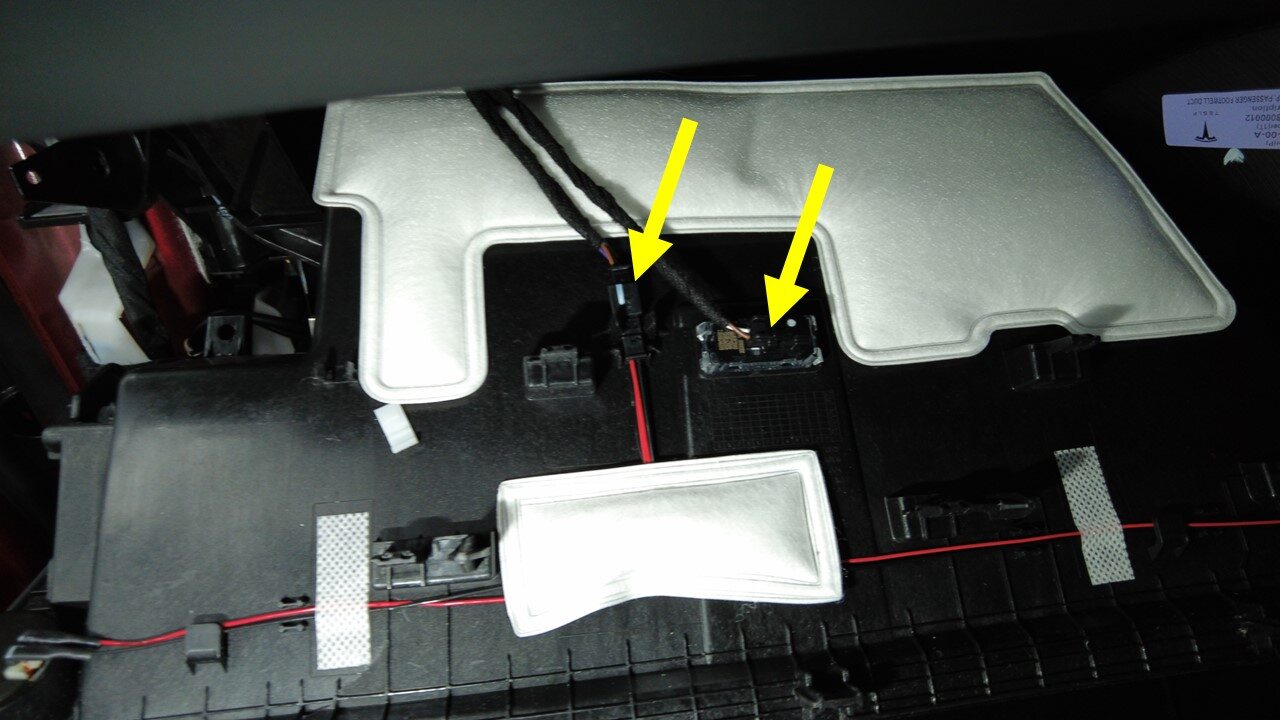

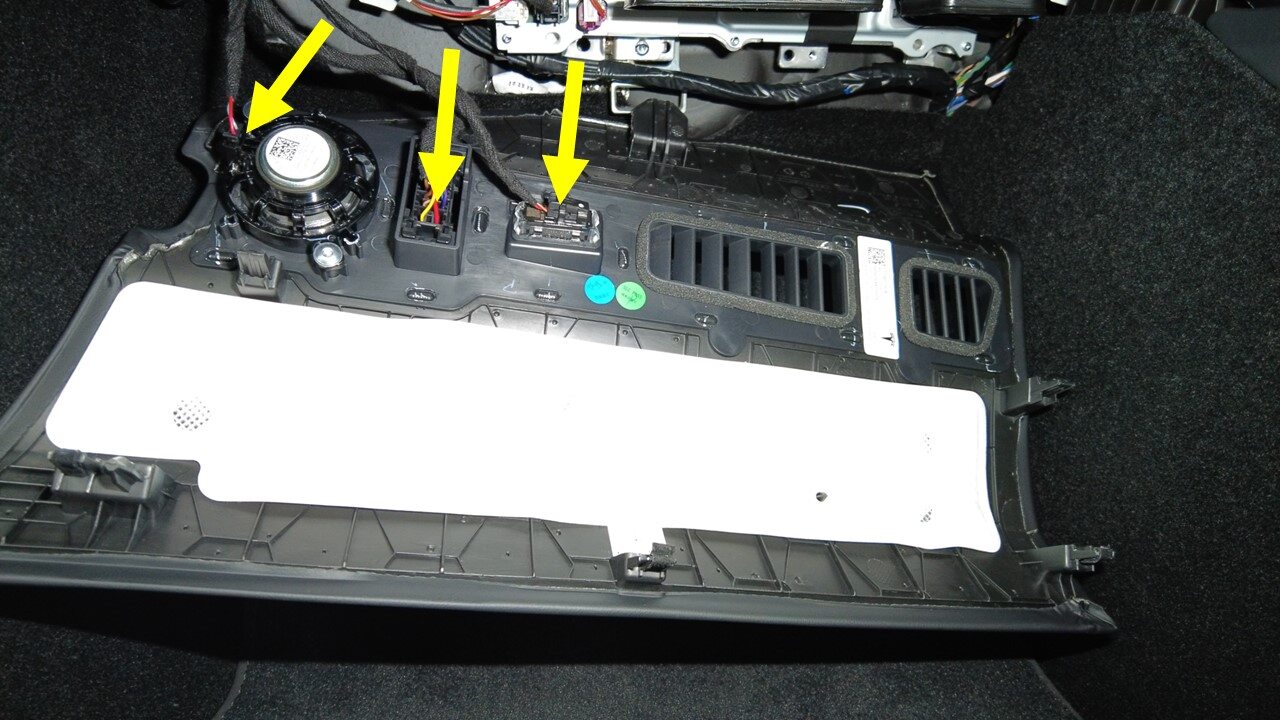

  61. Remove connectors from LH footwell cover
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x connectors

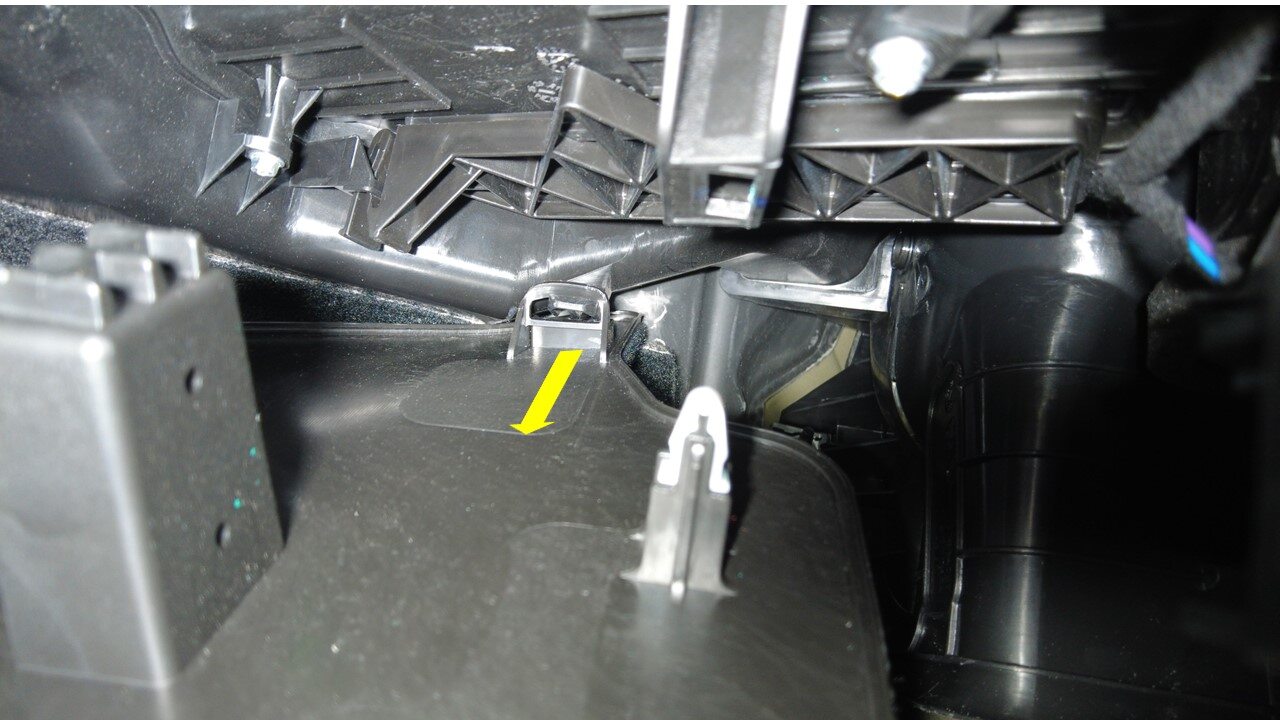

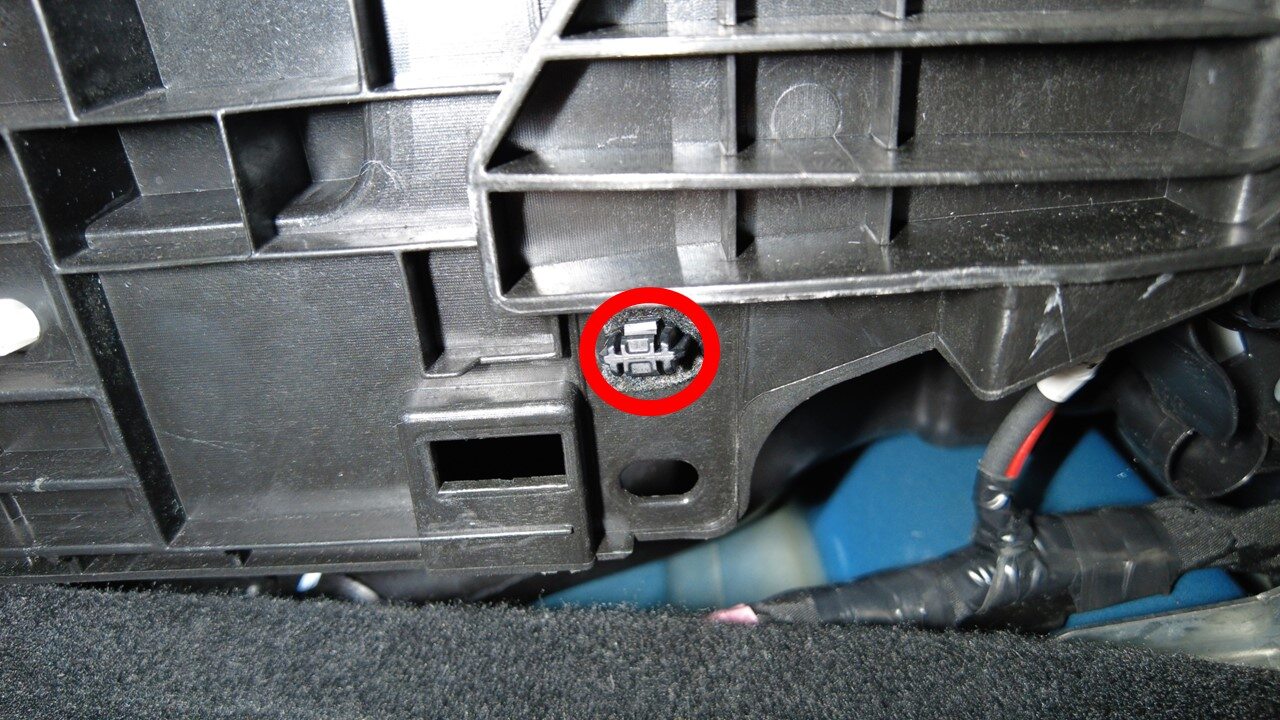

  62. Remove clip securing passenger footwell duct
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x clip
  63. Remove clip securing passenger footwell duct
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x Clip

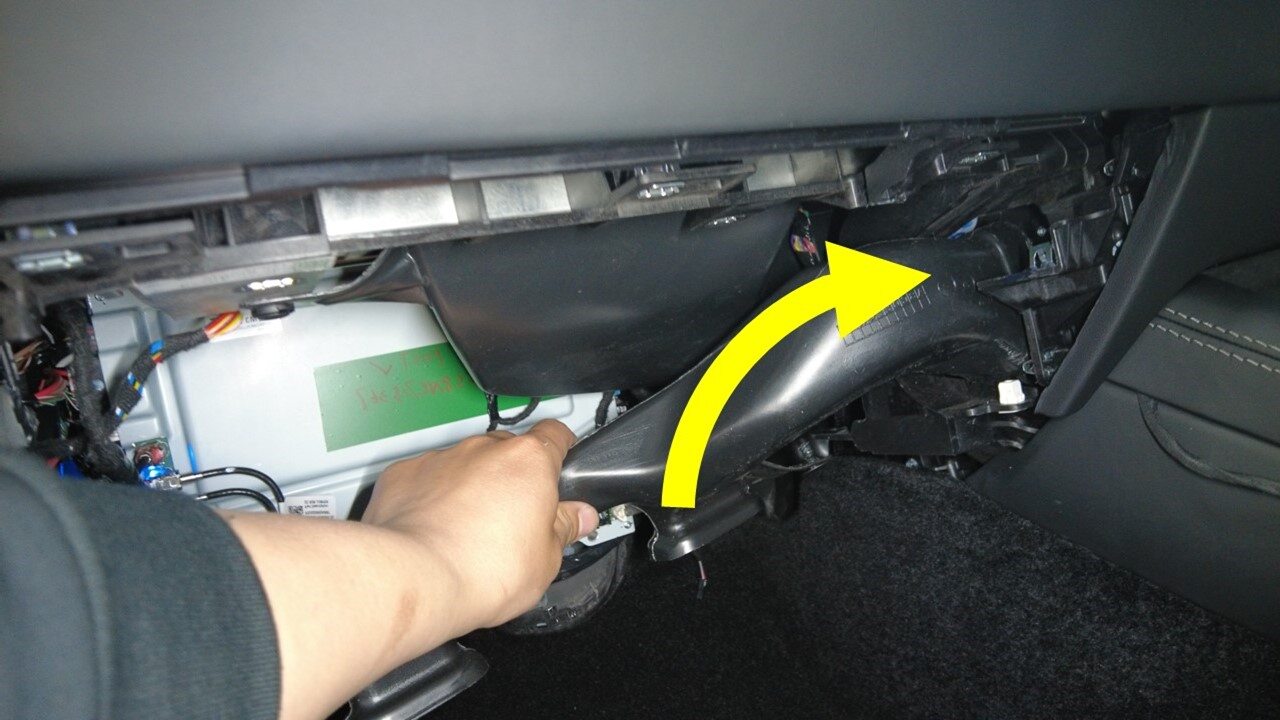

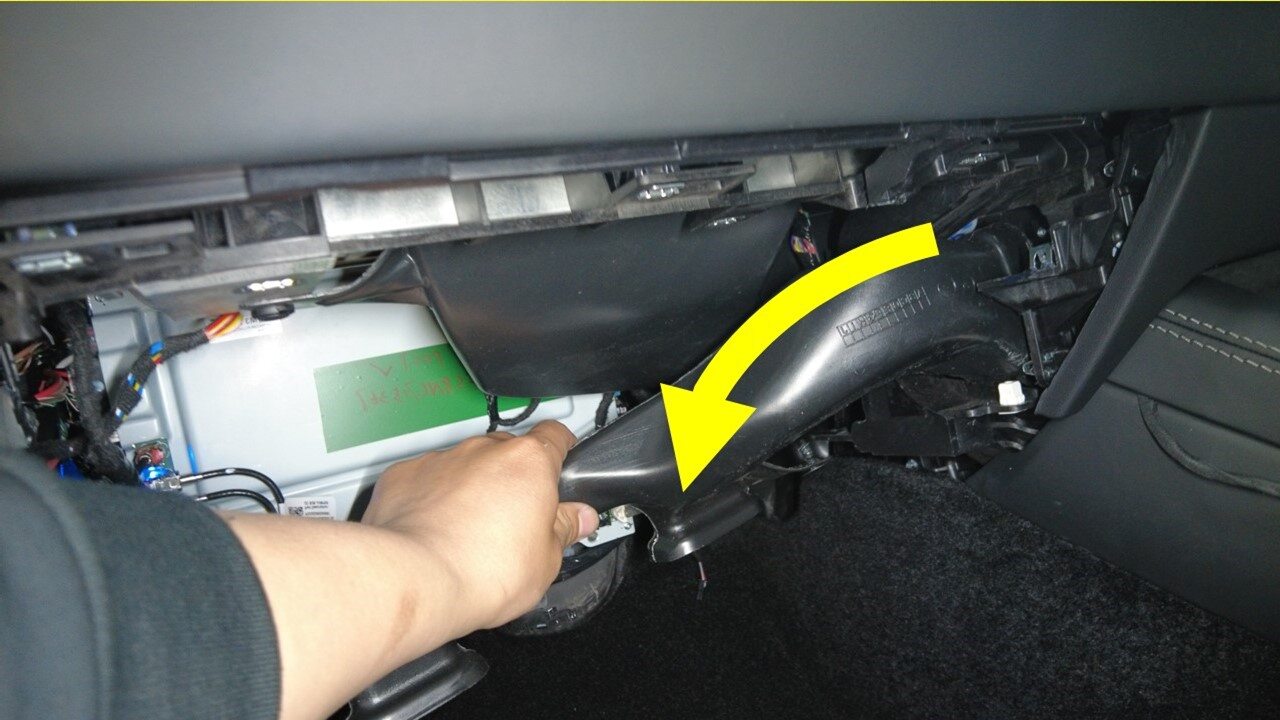

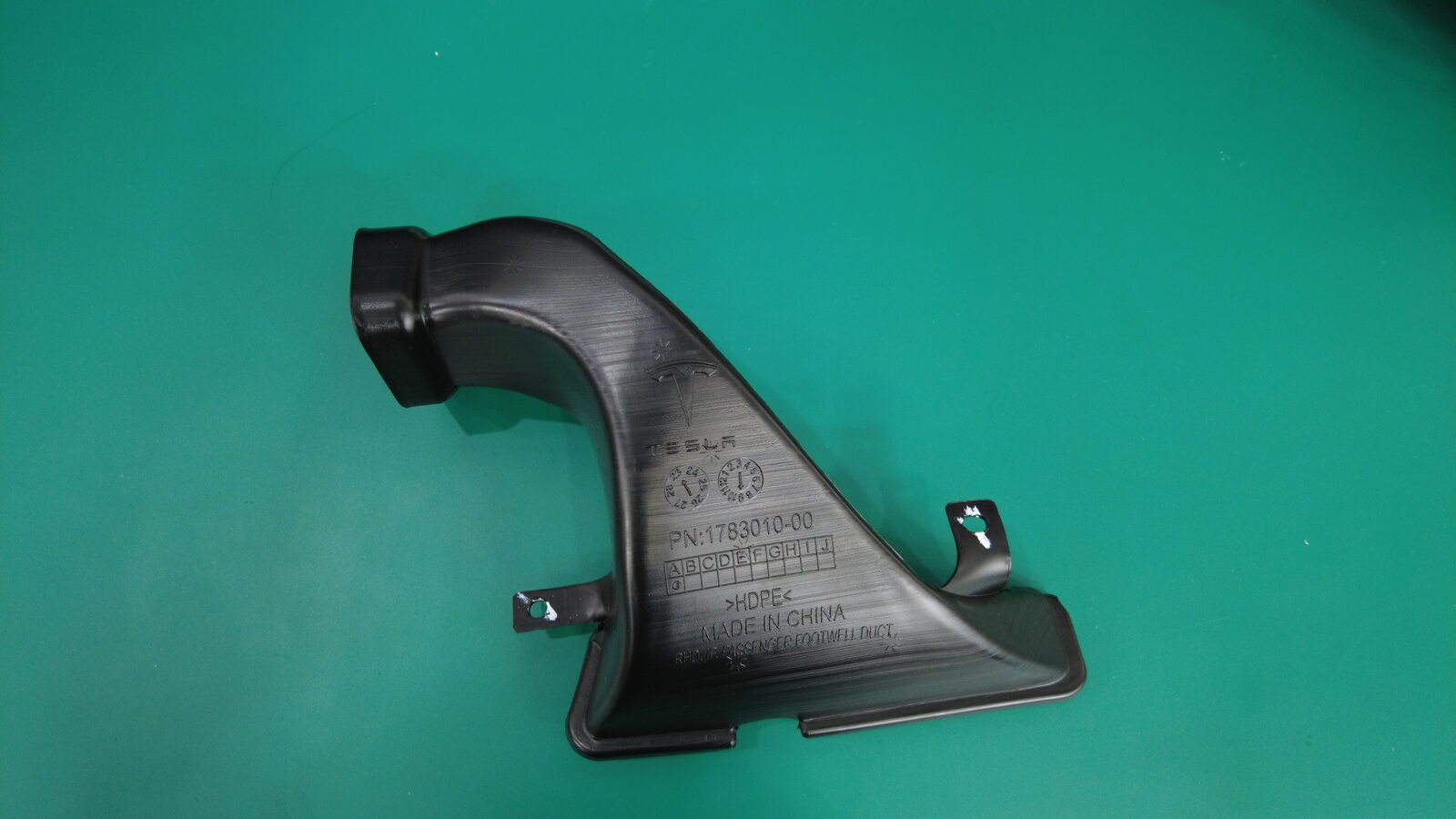

  64. Remove LH passenger footwell duct from HVAC module

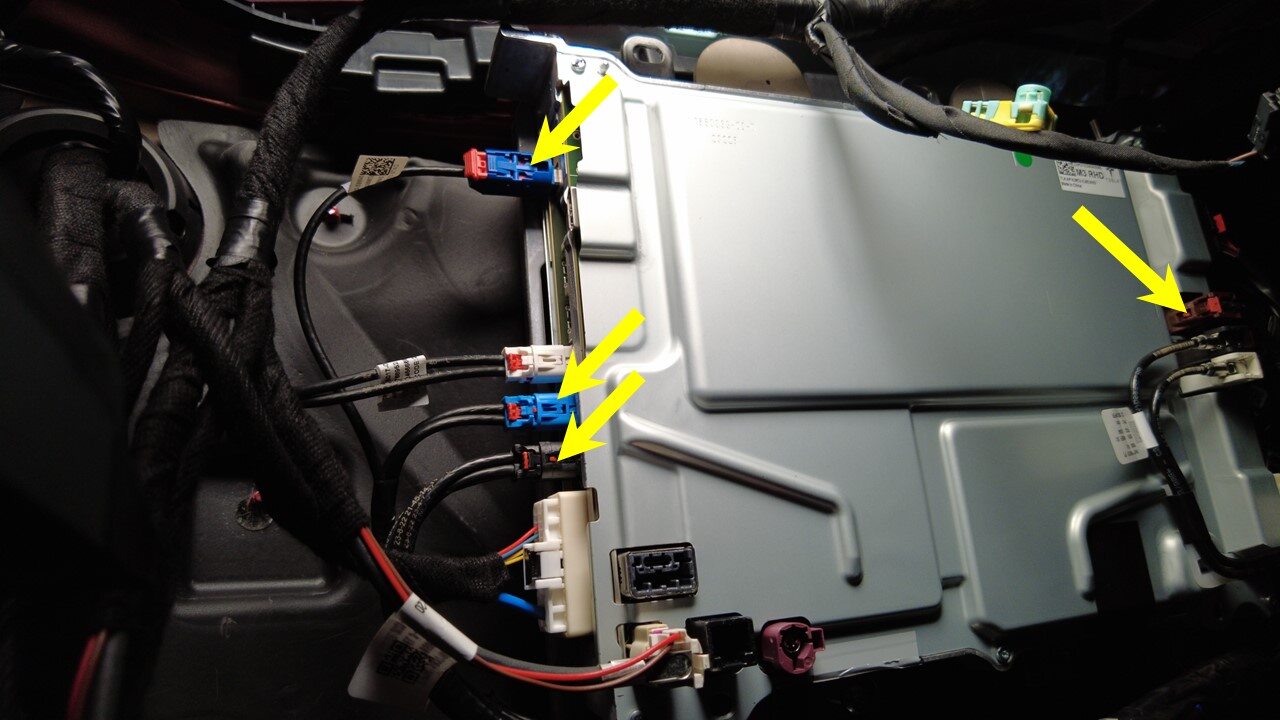

  65. Disconnect glove box USB cable connector from car computer
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, Release locking tab then release connector
  66. Remove screws securing glove box to IP
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x screws, T20, 2.3 Nm

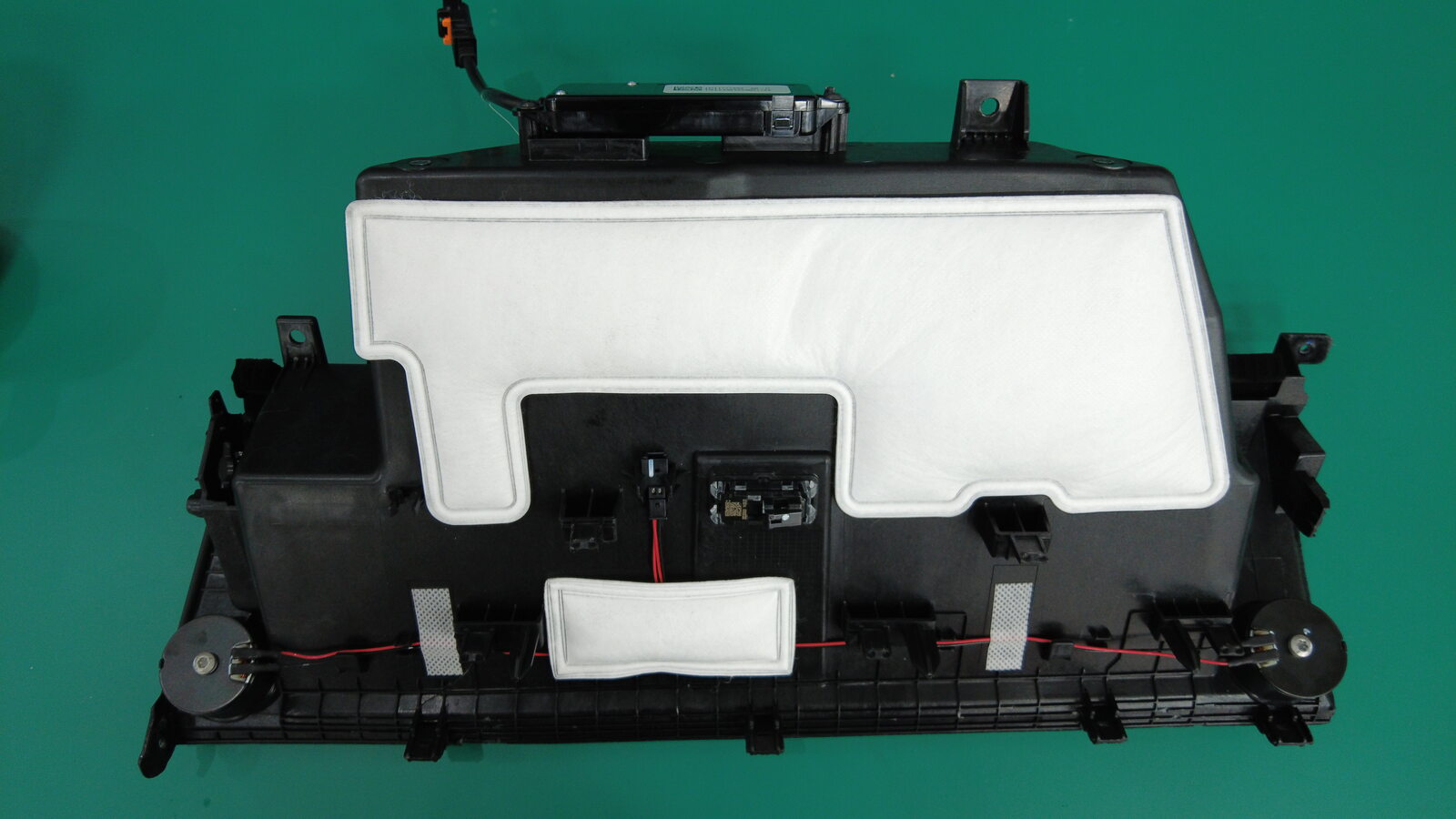

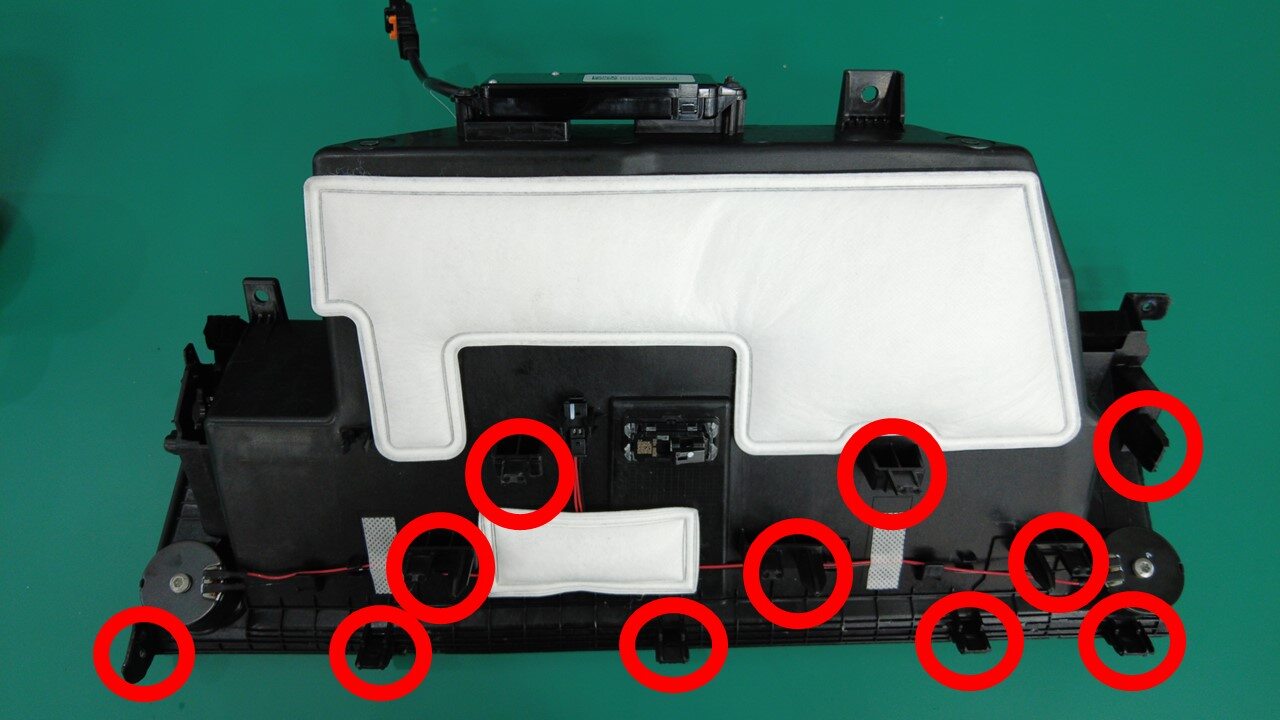

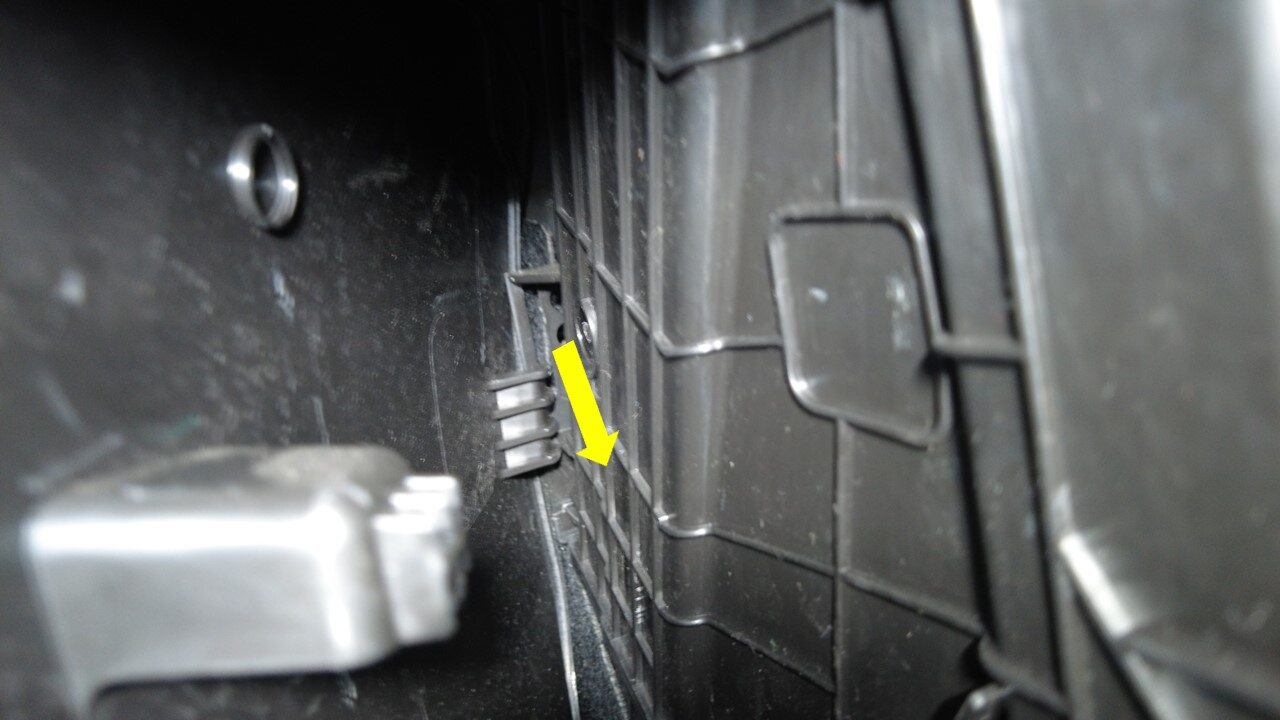

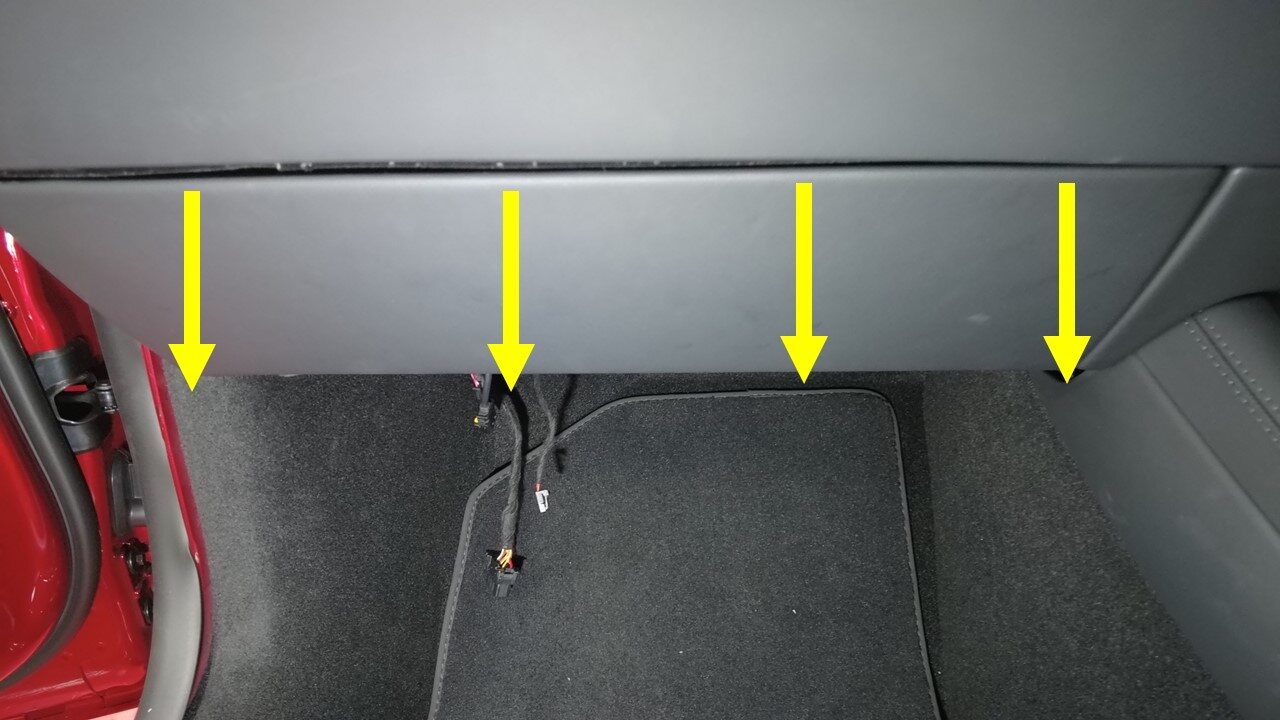

  67. Release glove box from IP carrier
    Informational PurposesAn informational icon, calling your attention
    Remarque
    10x clips, 3x locator pins, 1x datum, Avoid damage to electromagnetic switch
  68. Disconnect glove box connectors
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors
  69. Remove glovebox from vehicle

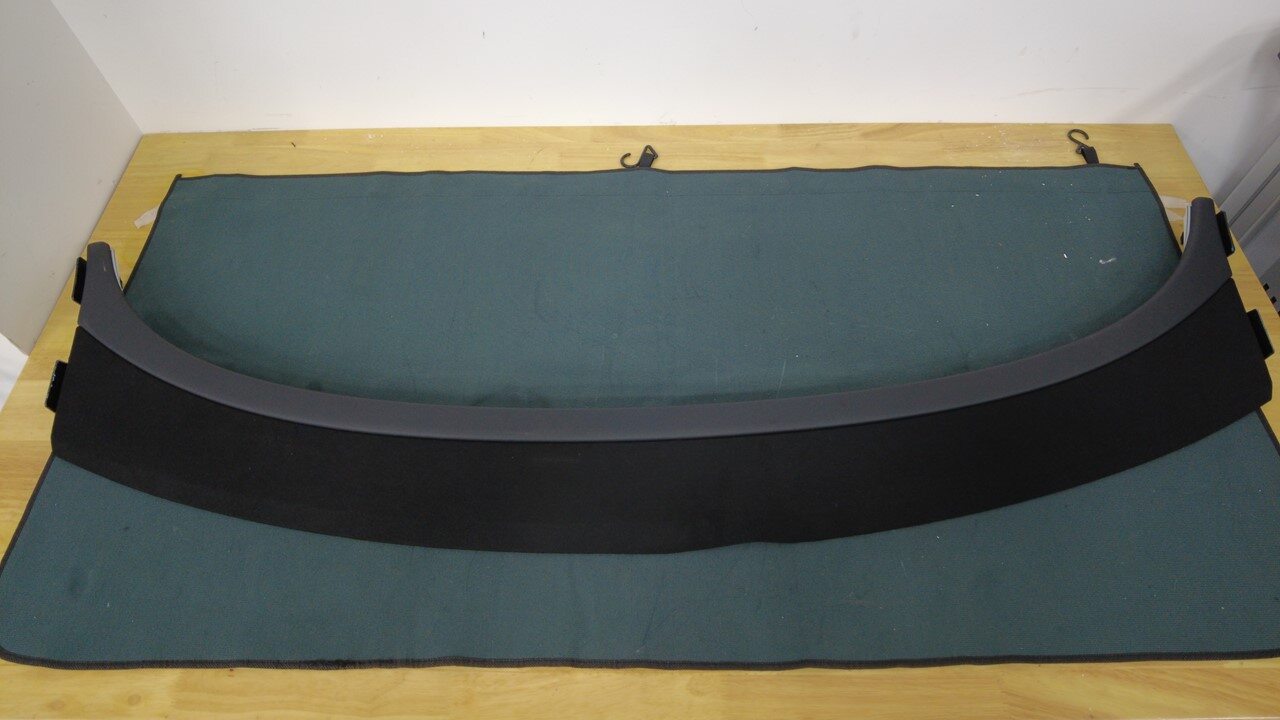

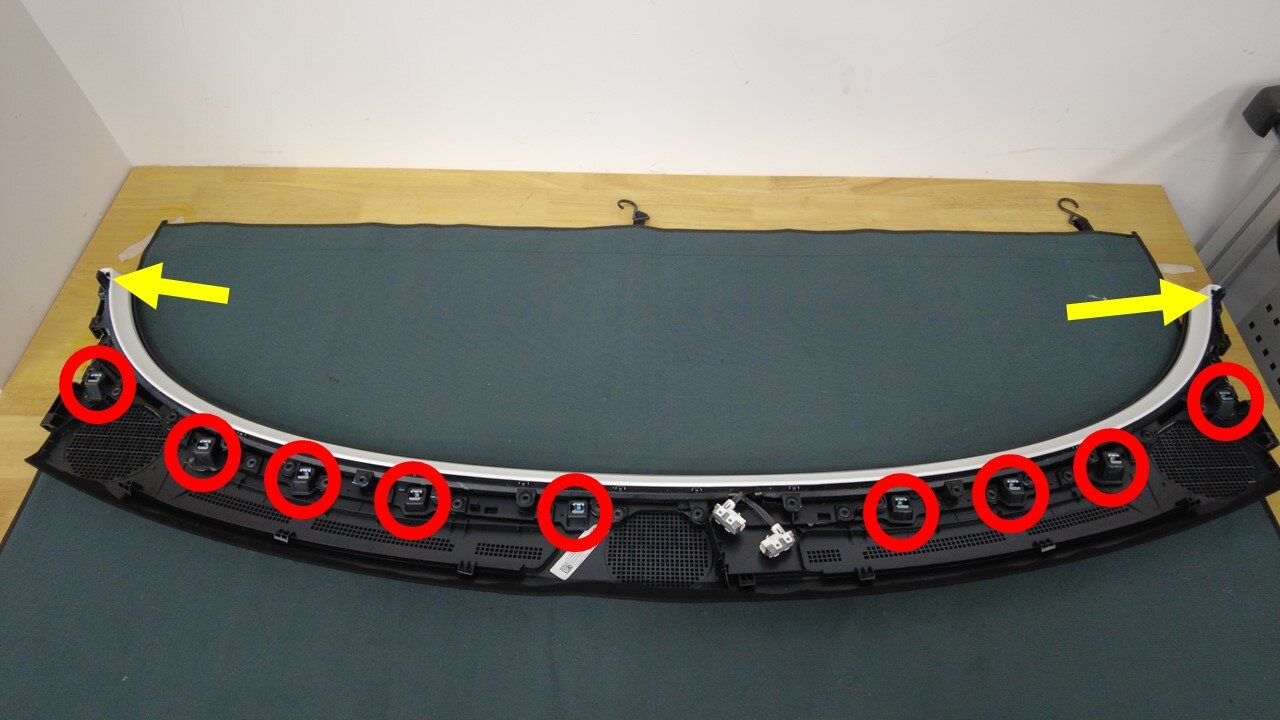

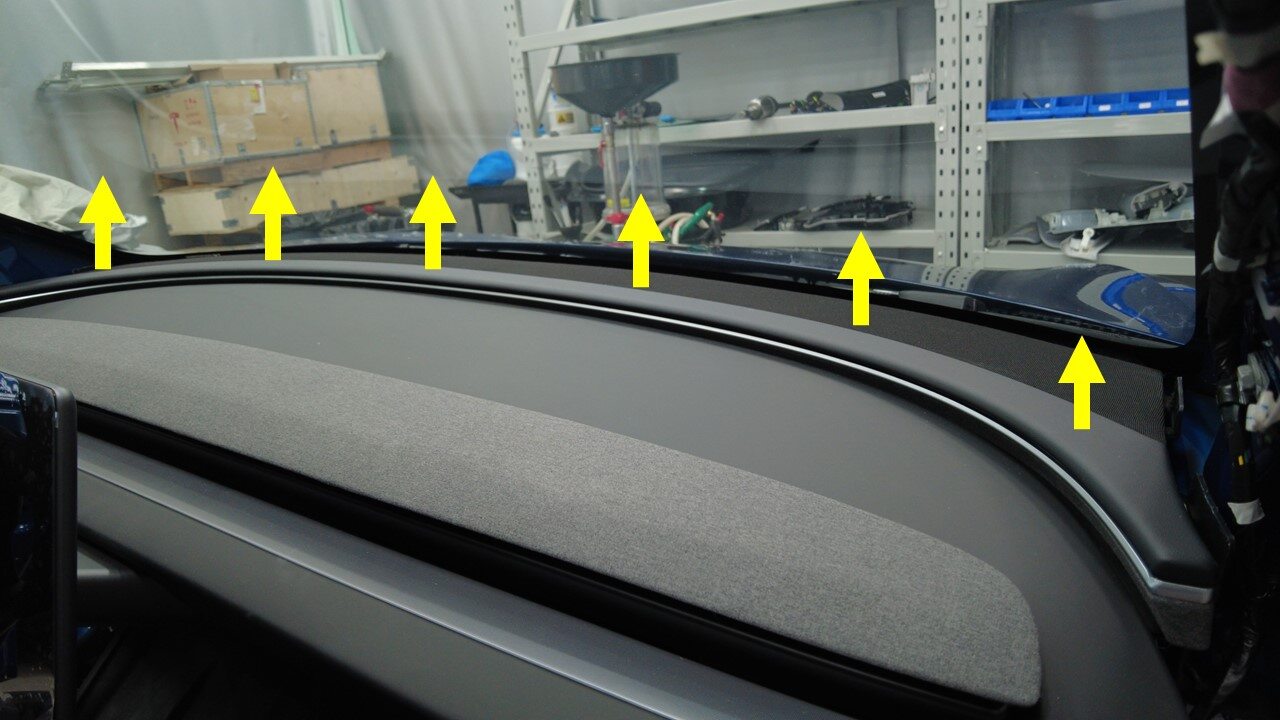

  70. Release defroster grill
    Informational PurposesAn informational icon, calling your attention
    Remarque
    9x metal clips, 2x guide tabs

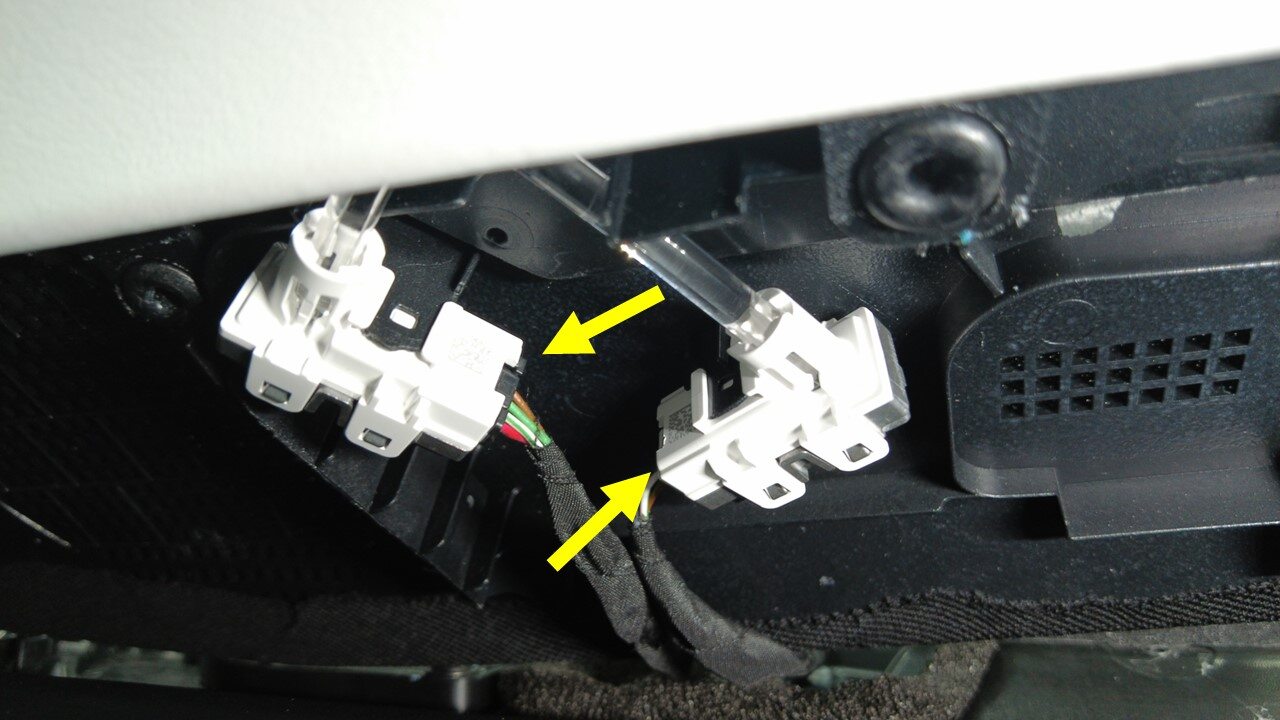

  71. Disconnect defroster grill ambient light connectors
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors

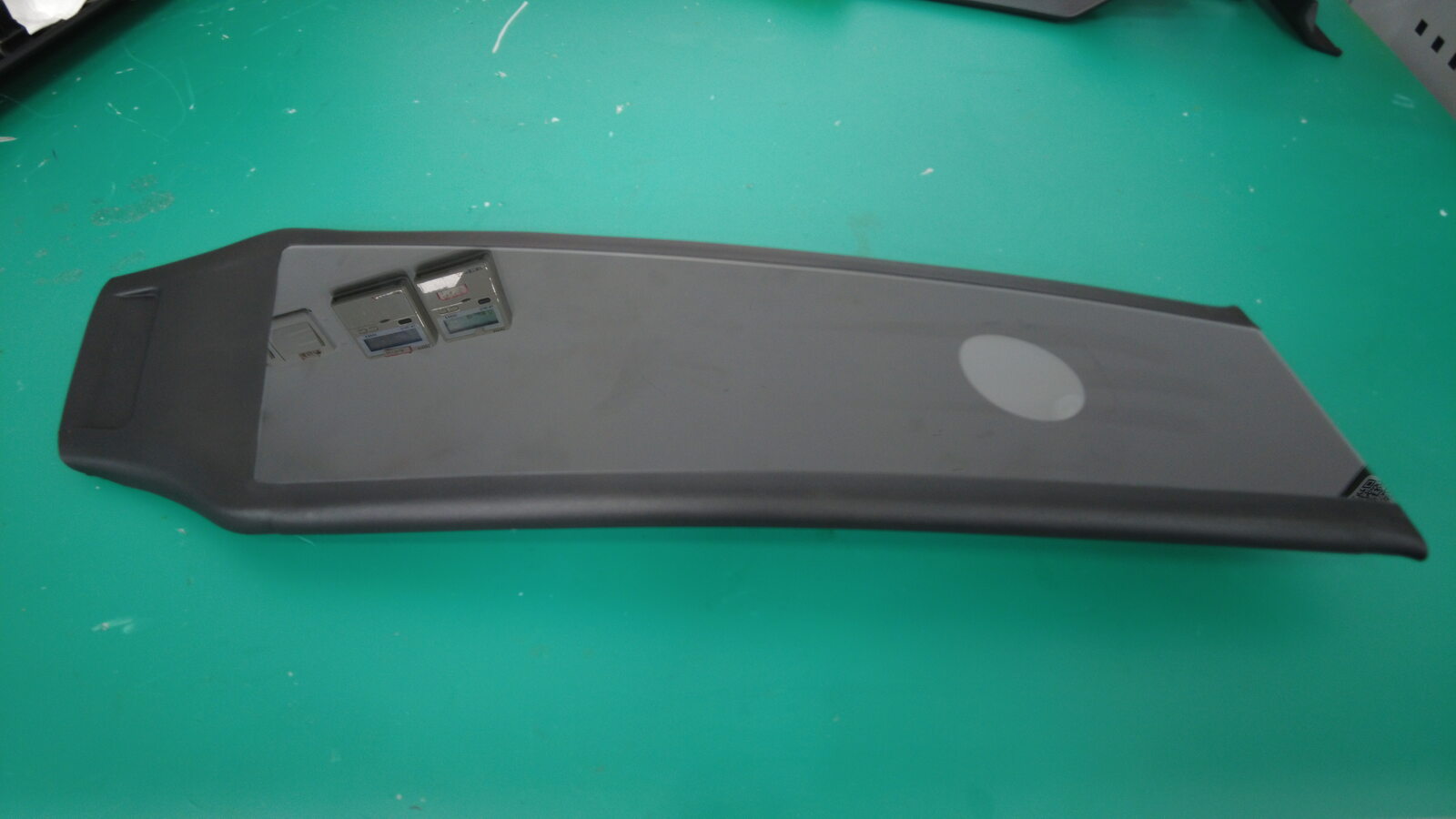

  72. Remove defroster grill from vehicle

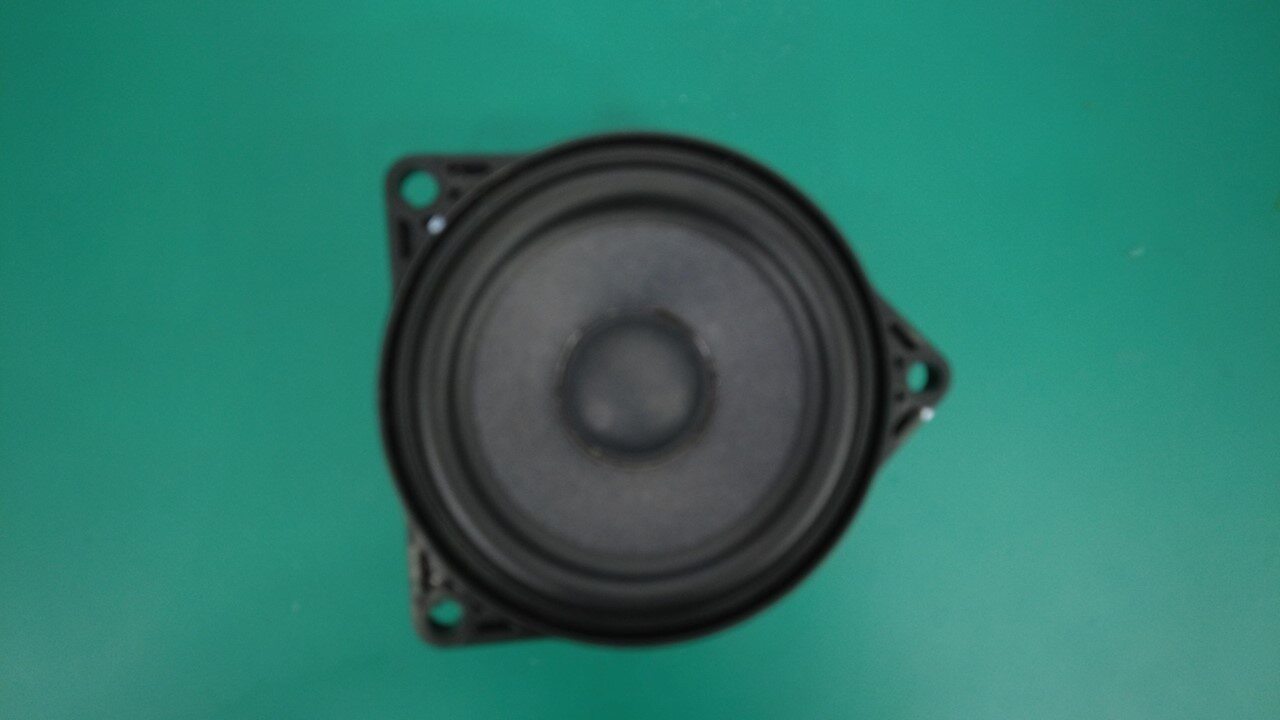

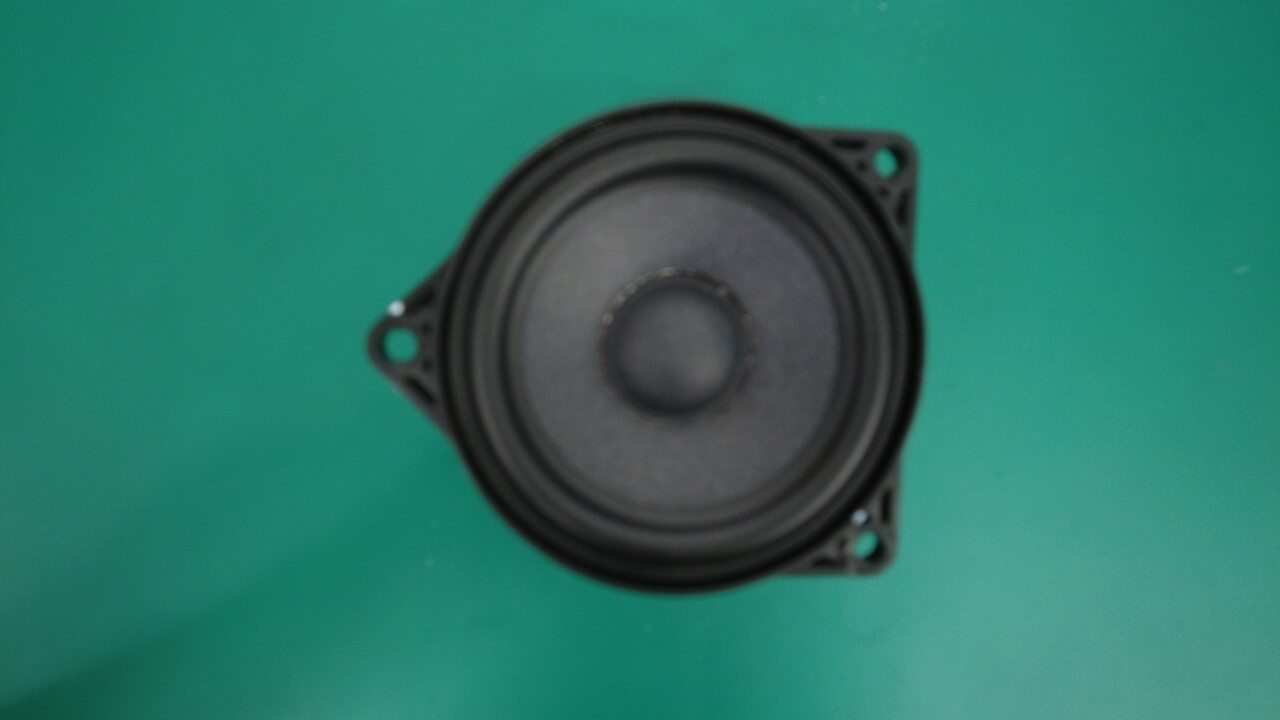

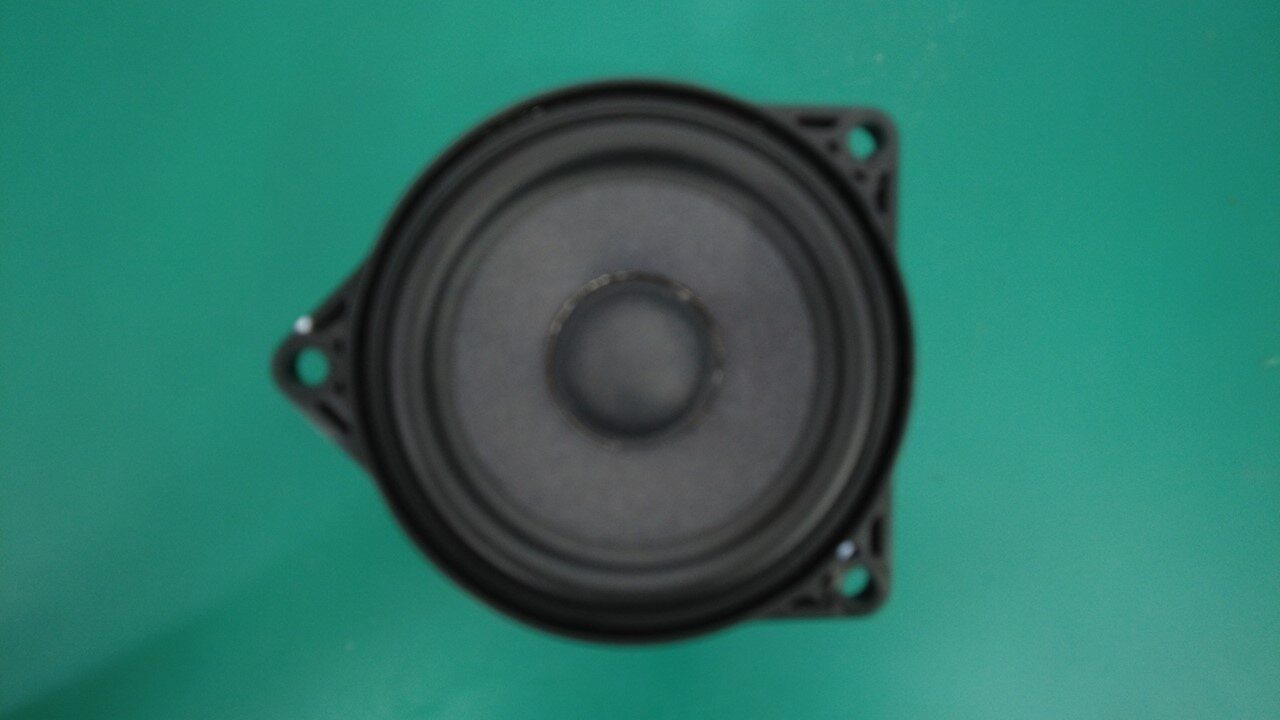

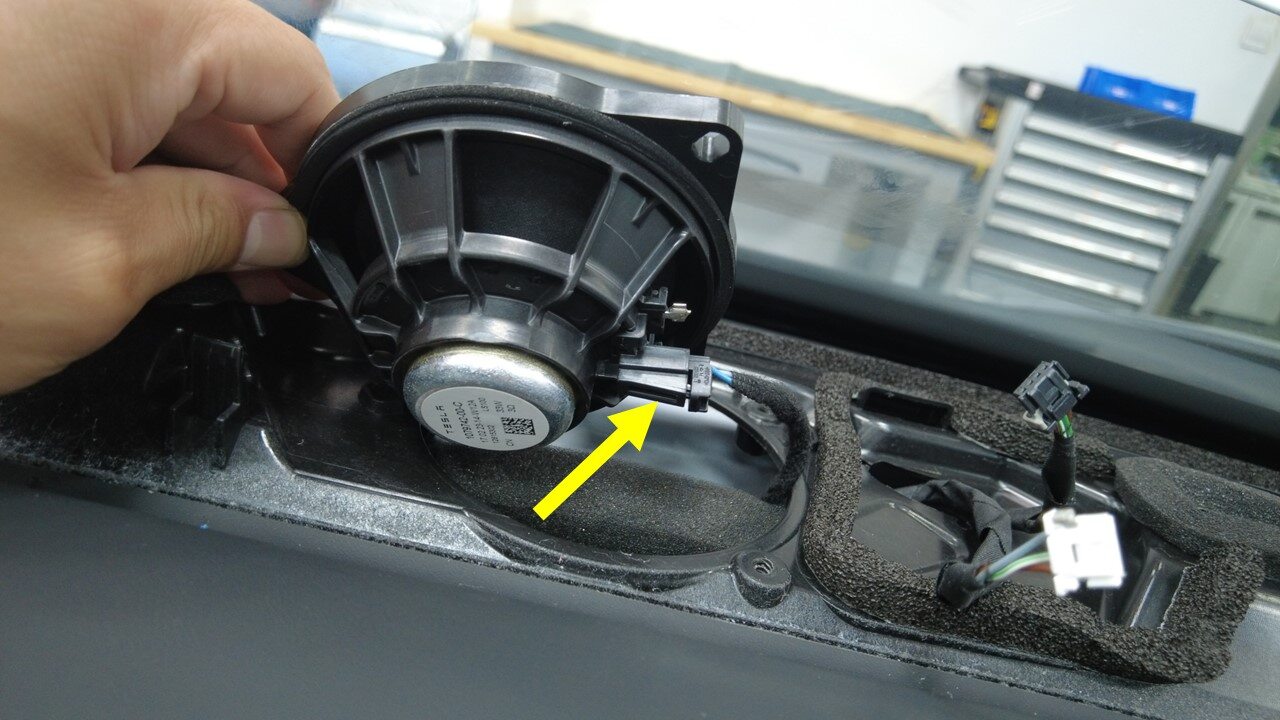

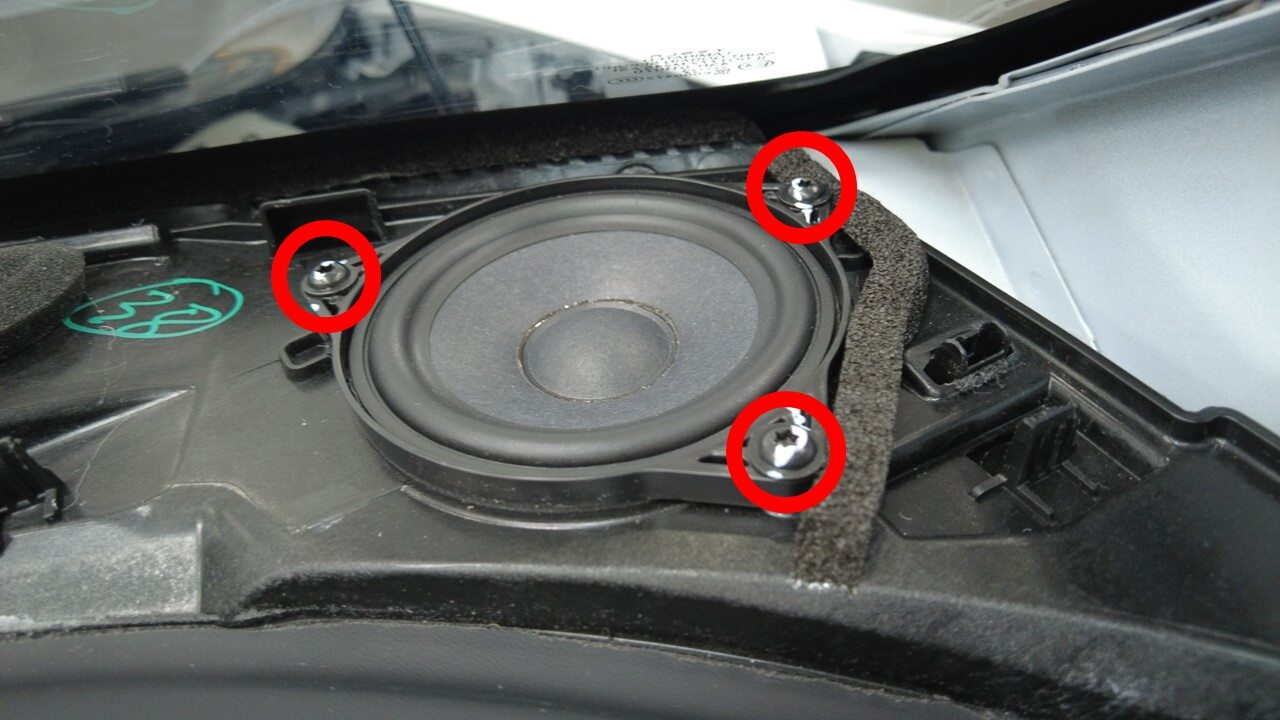

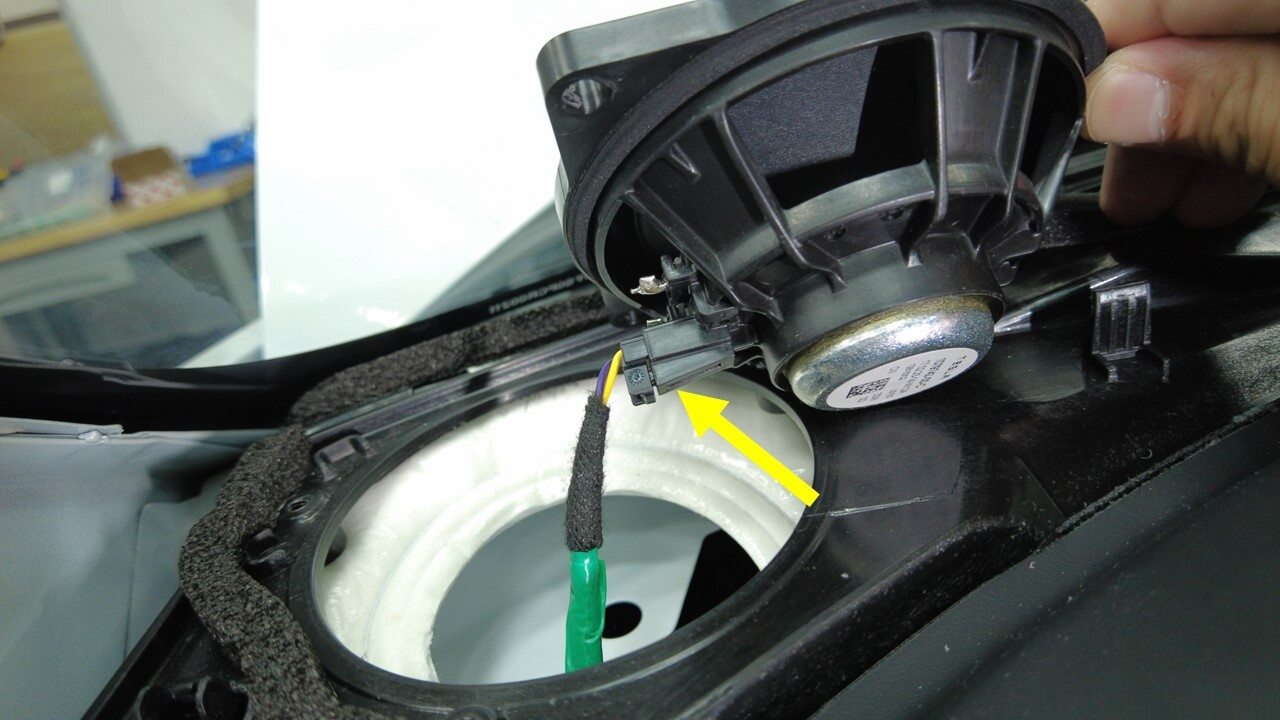

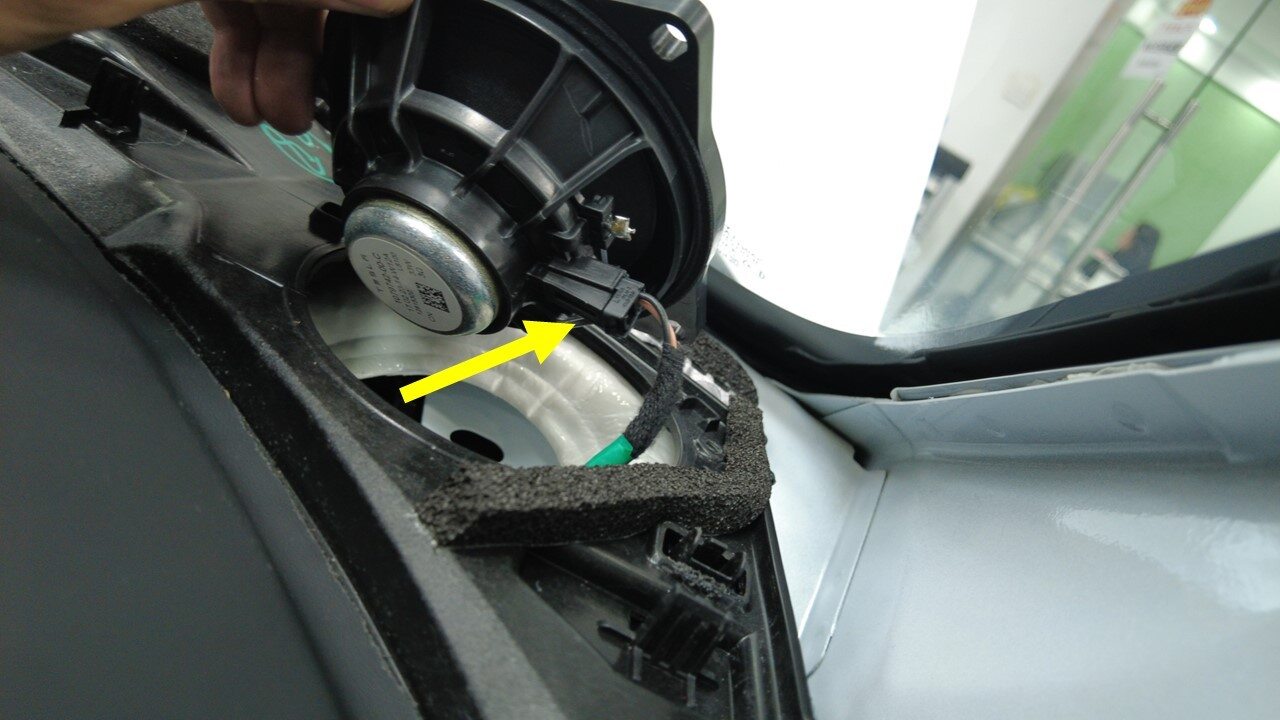

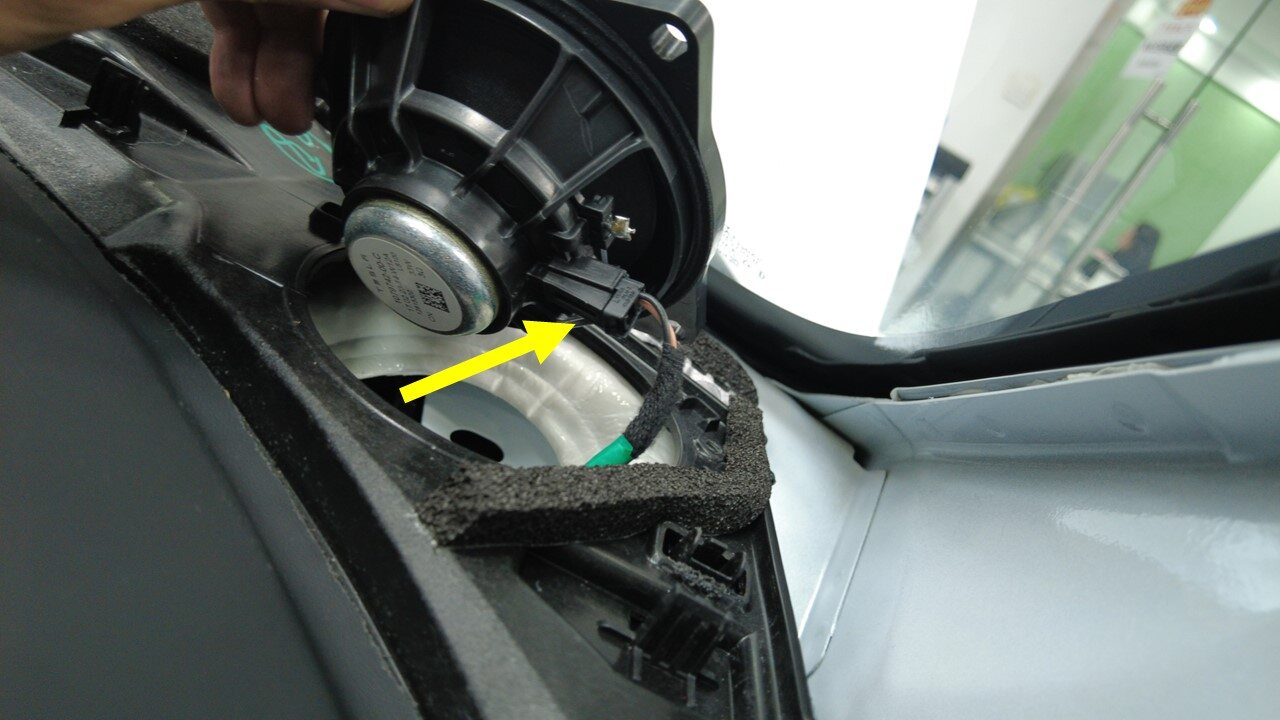

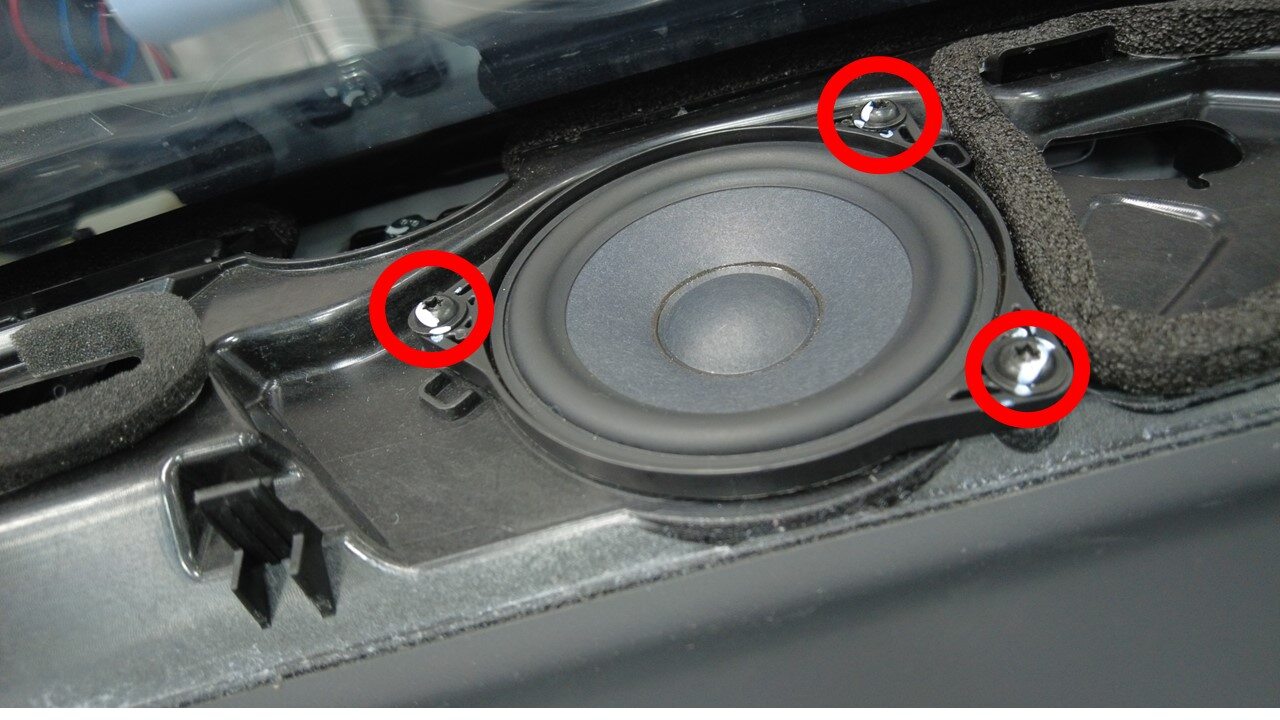

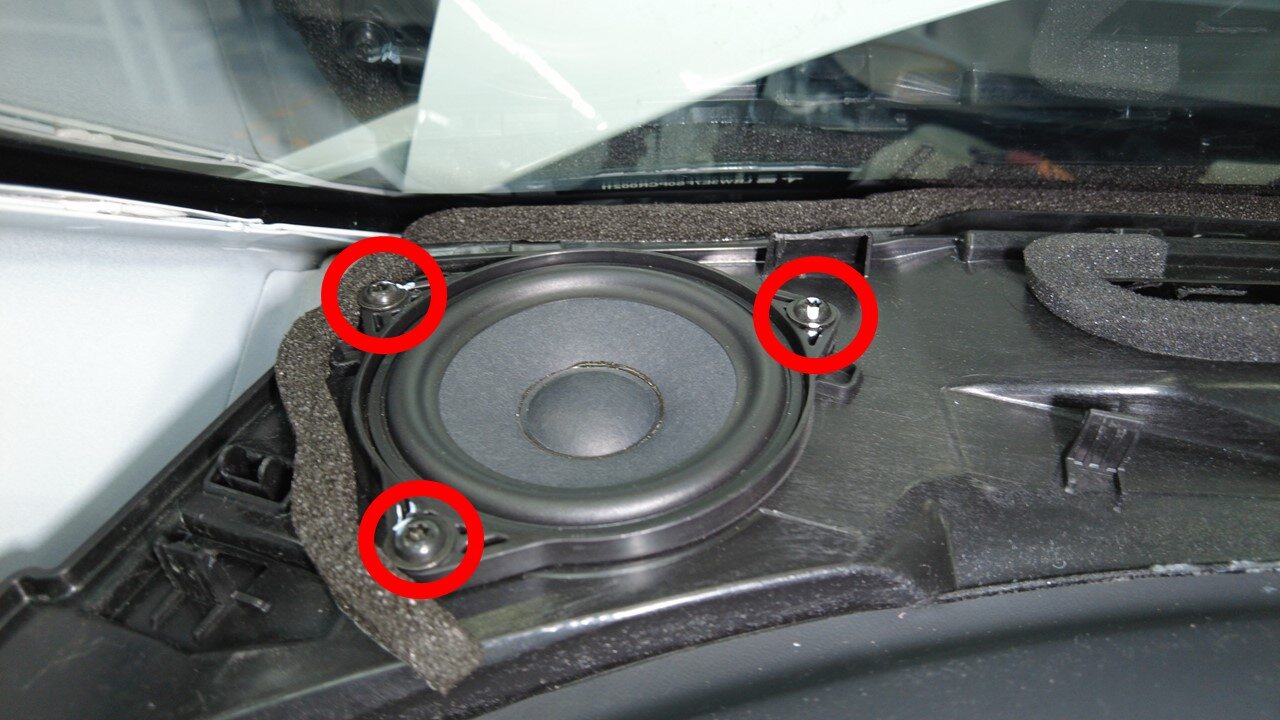

  73. Remove LH IP speaker
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x screws, T20, 2.3 Nm, 1x connector
  74. Remove center IP speaker
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x screws, T20, 2.3 Nm, 1x connector
  75. Remove RH IP speaker
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x screws, T20, 2.3 Nm, 1x connector

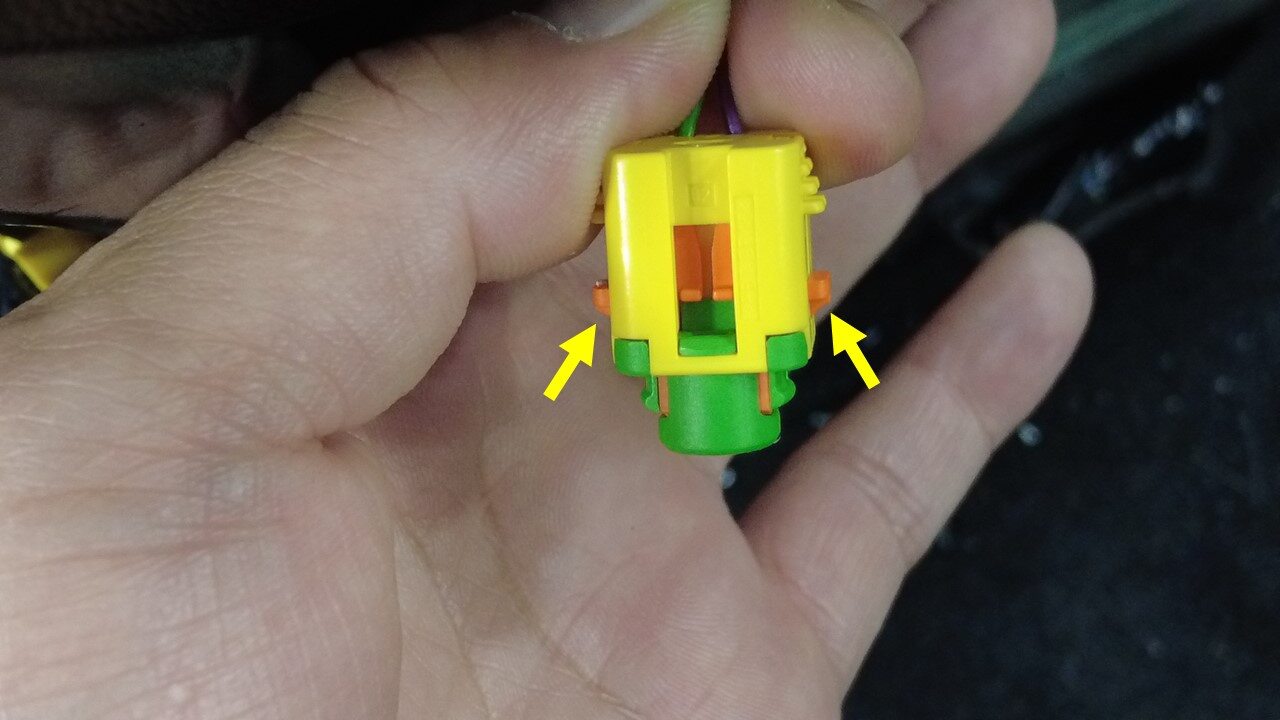

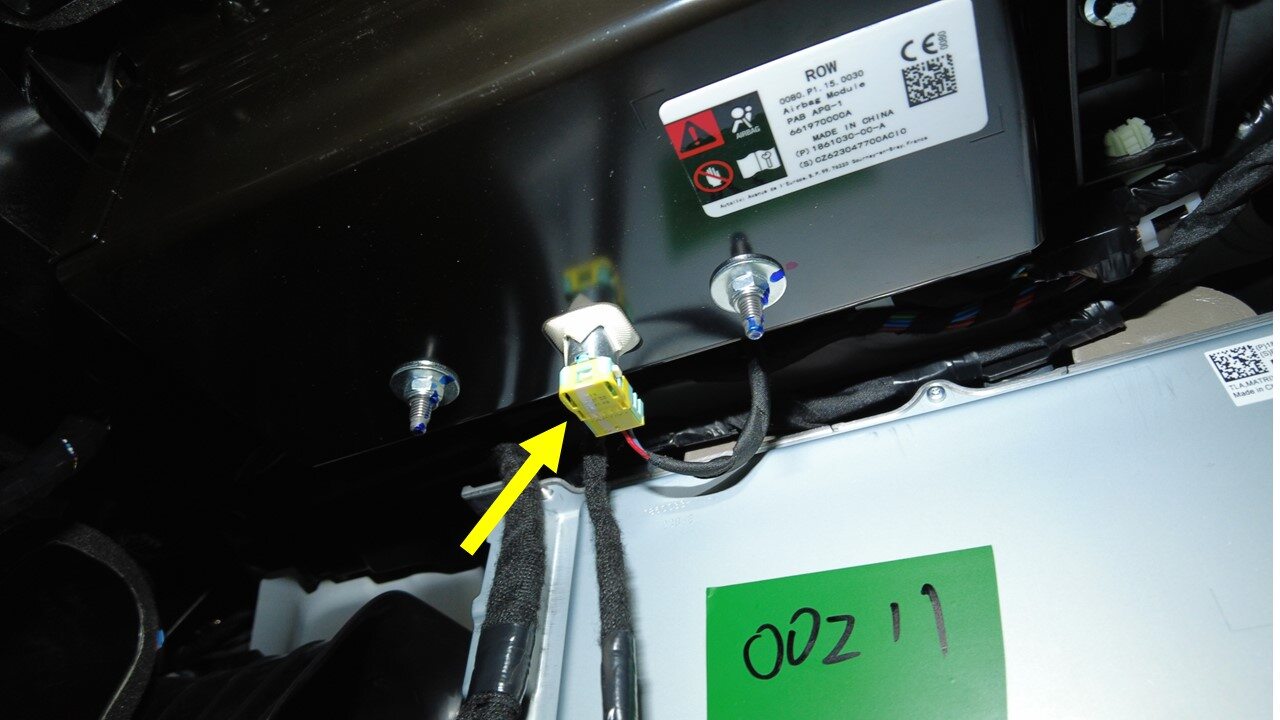

  76. Disconnect connector for passenger air bag
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, 2 stage locking connectors, Lift the white tab to release the connector

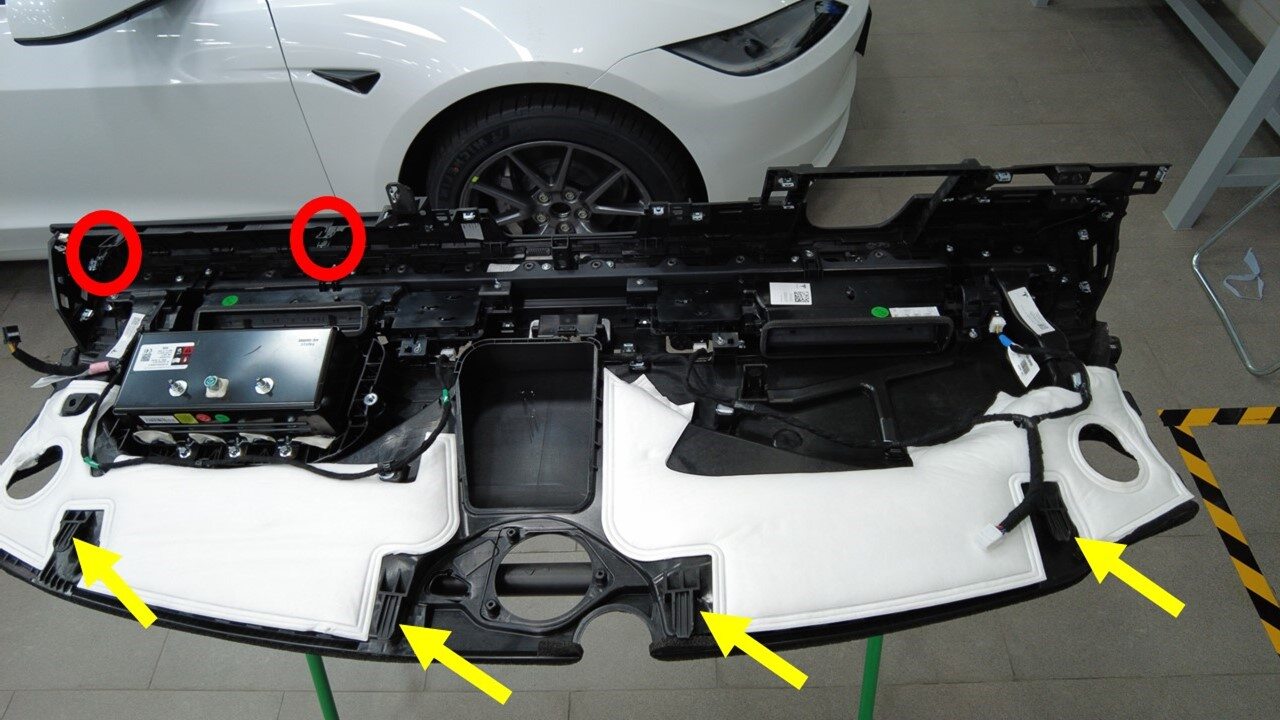

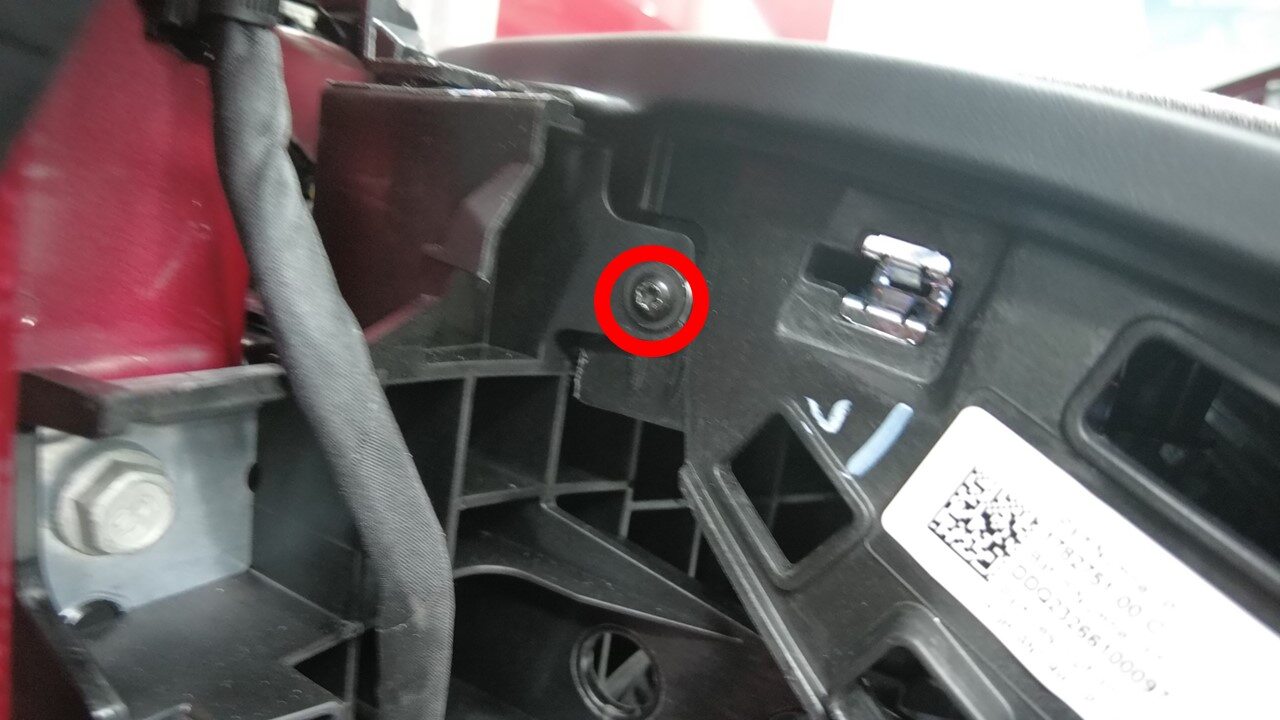

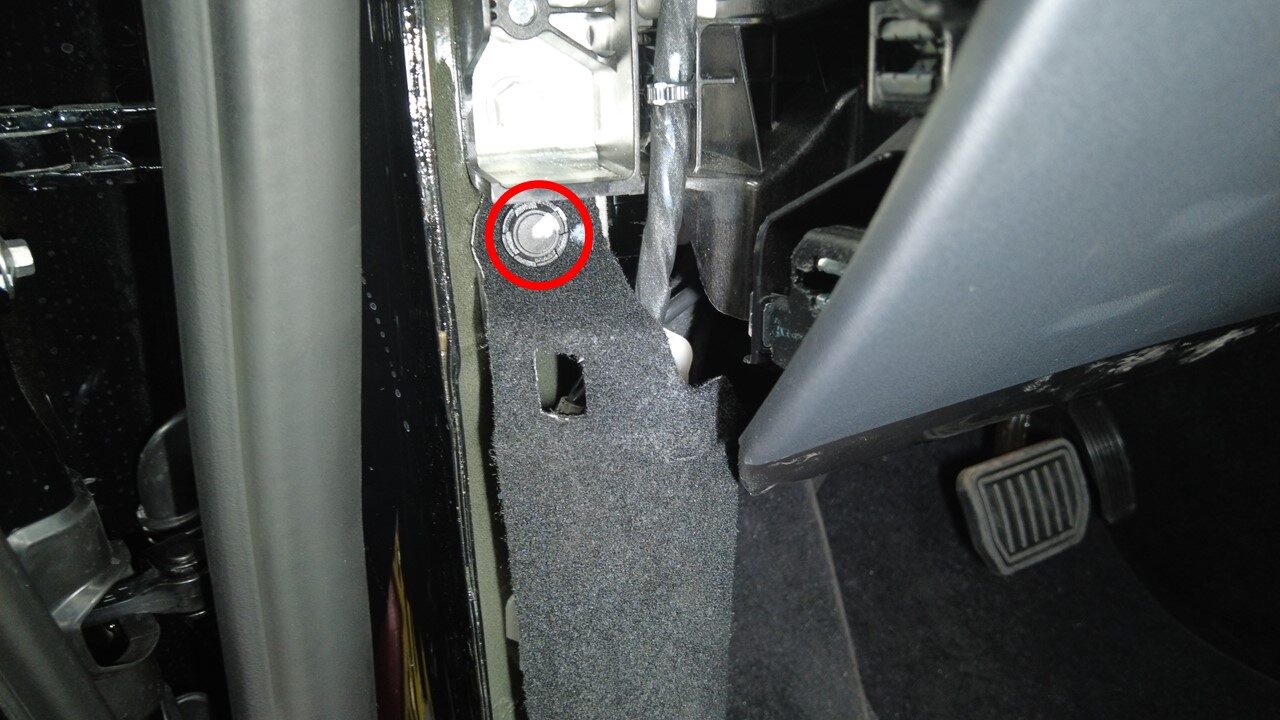

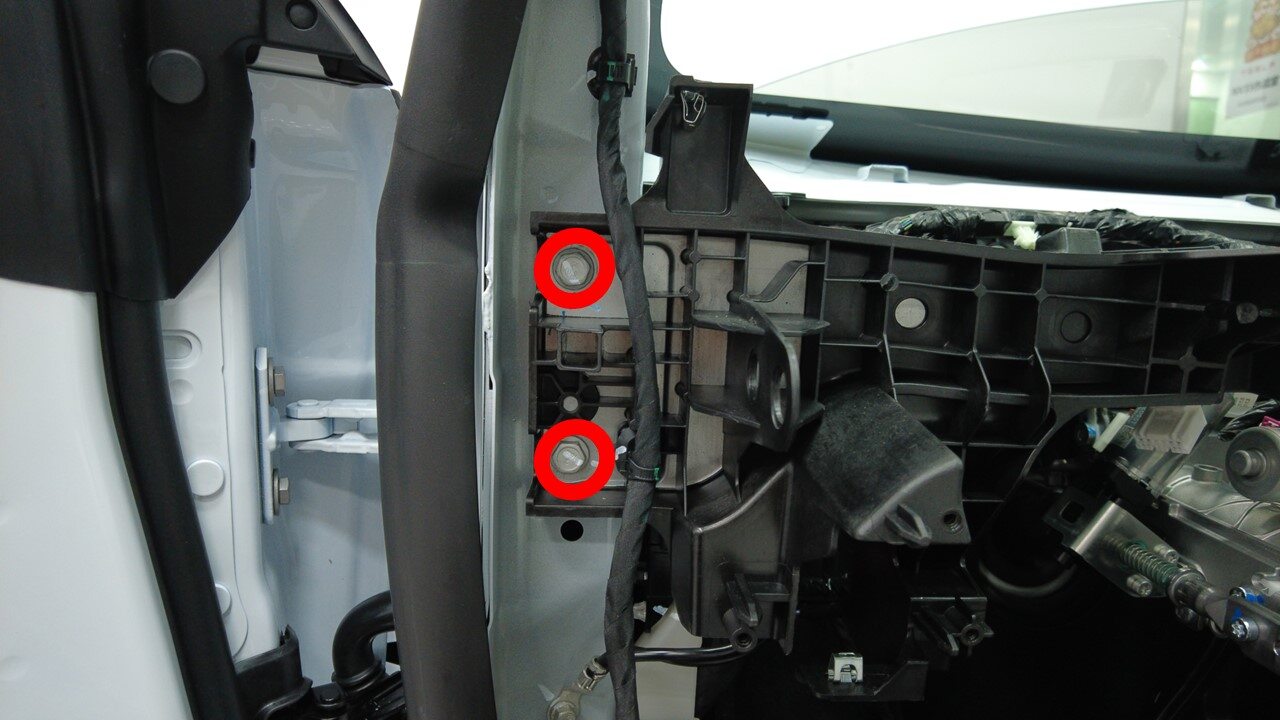

  77. Remove screws securing IP assembly to cross car beam near passenger air bag
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x patch bolts, E10, 8 Nm, Discard after removal

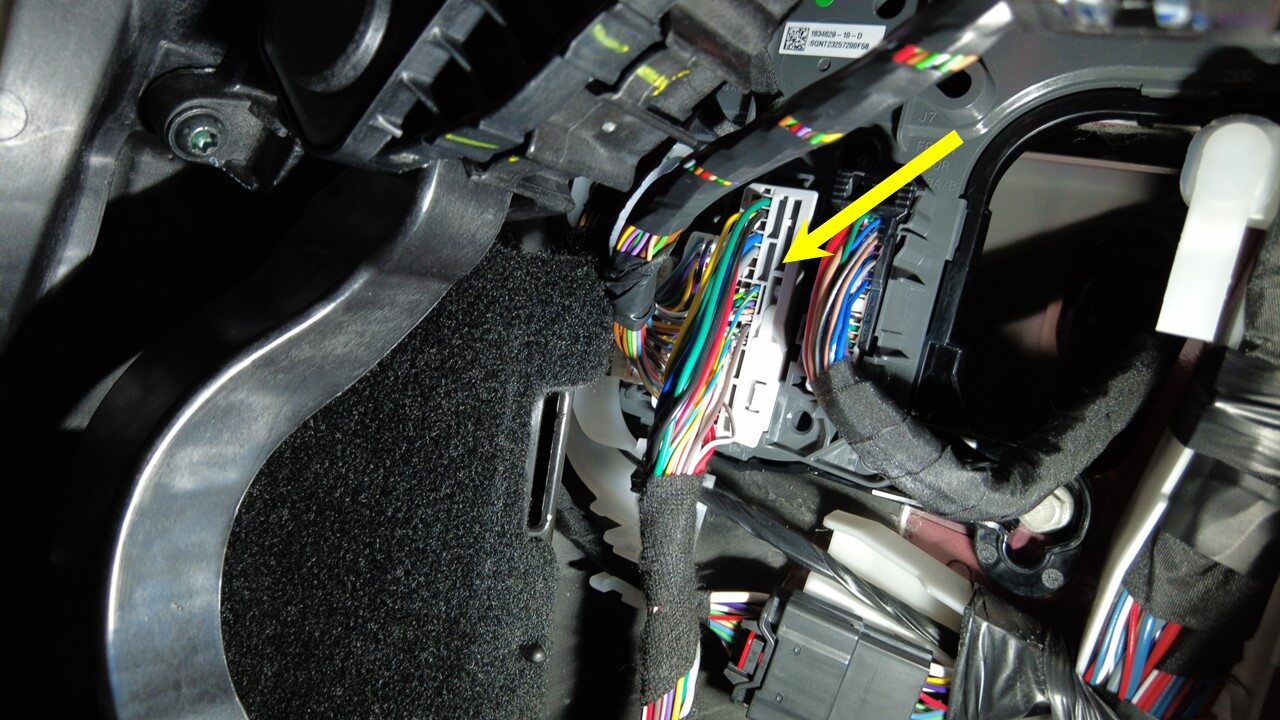

  78. Disconnect IP harness connector from IP LH side
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector
  79. Disconnect IP harness connector from IP RH side
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector

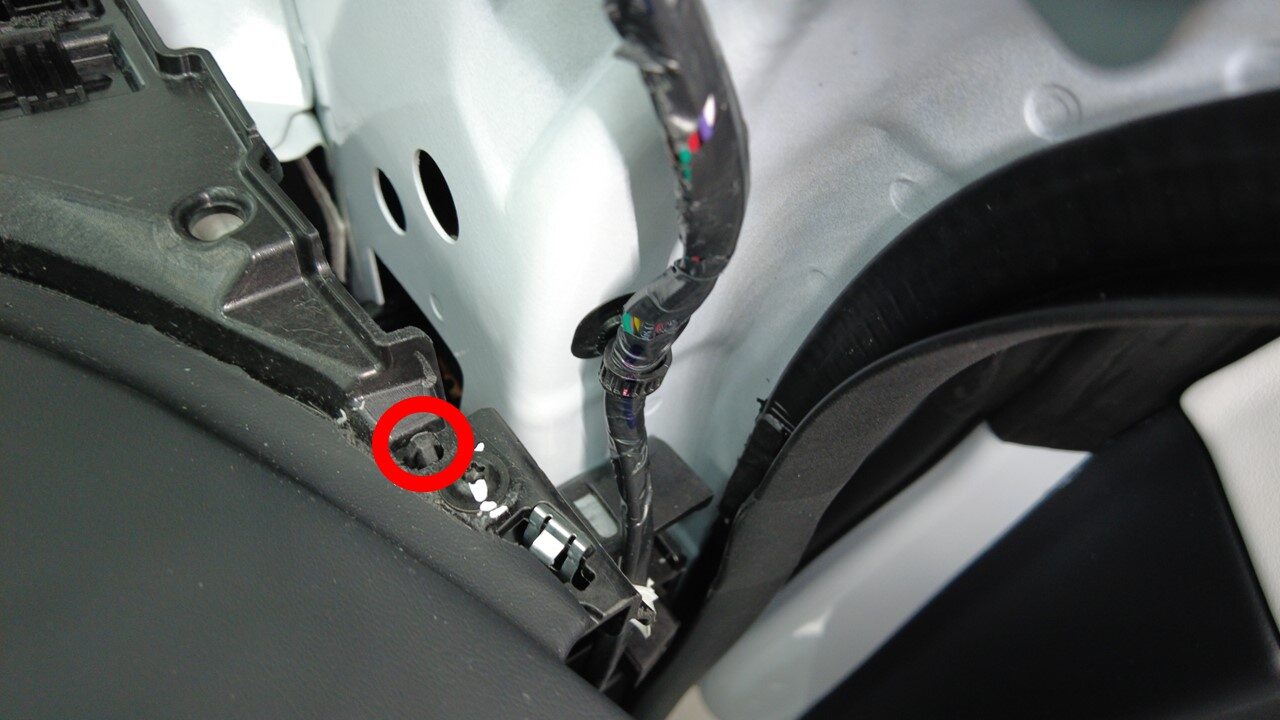

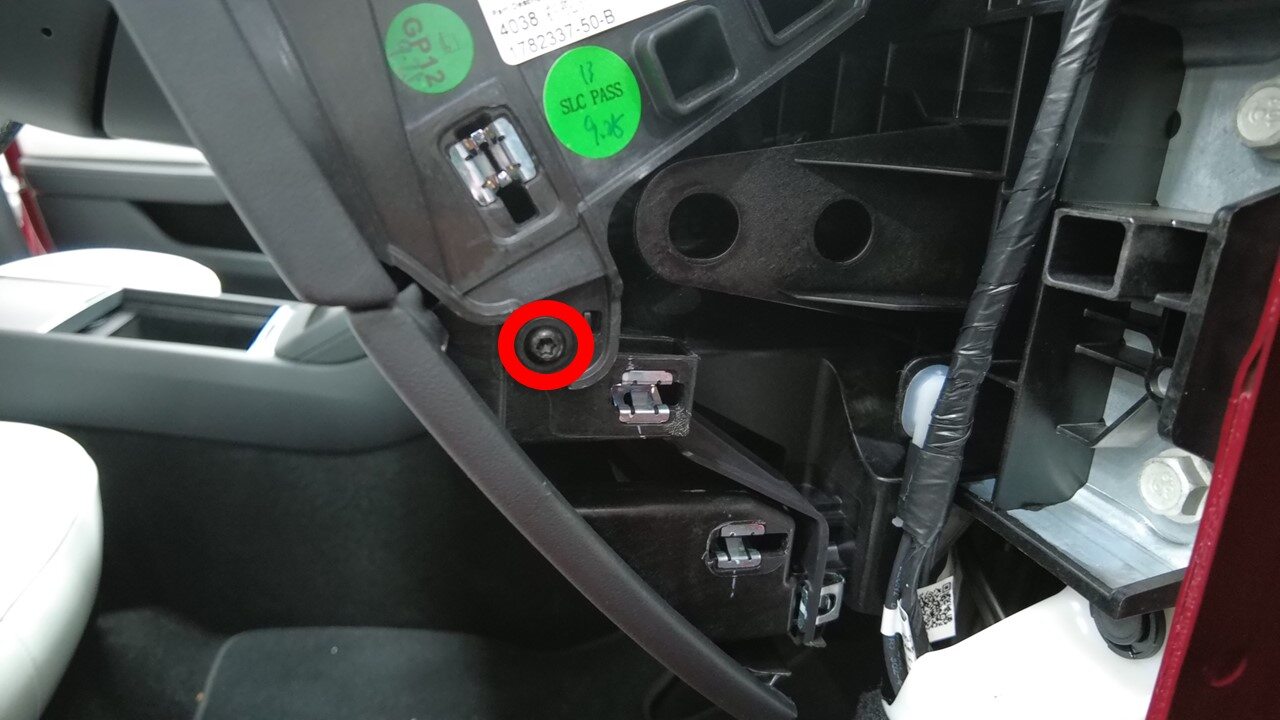

  80. Remove screw securing IP assembly to cross car beam on upper LH side
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x screw, T20, 2.3 Nm, 1x datum

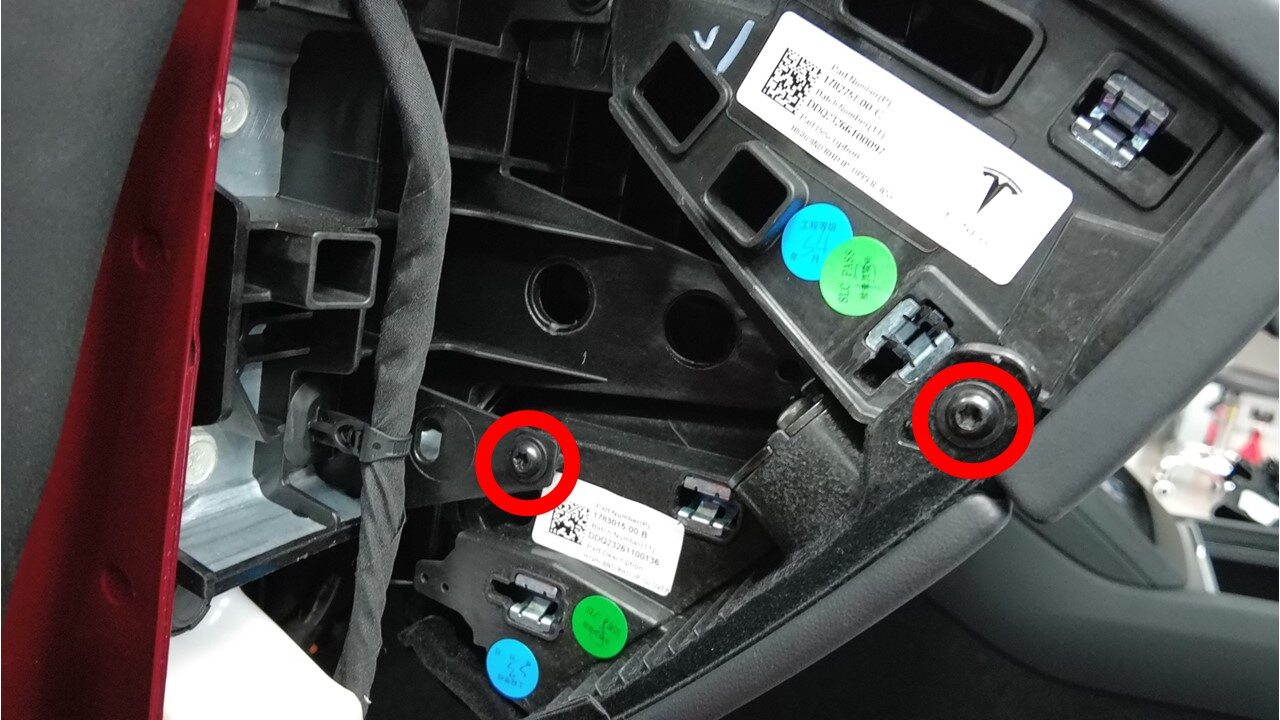

  81. Remove screws securing IP carrier to cross car beam on LH side
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x screws, T20, 2.3 Nm

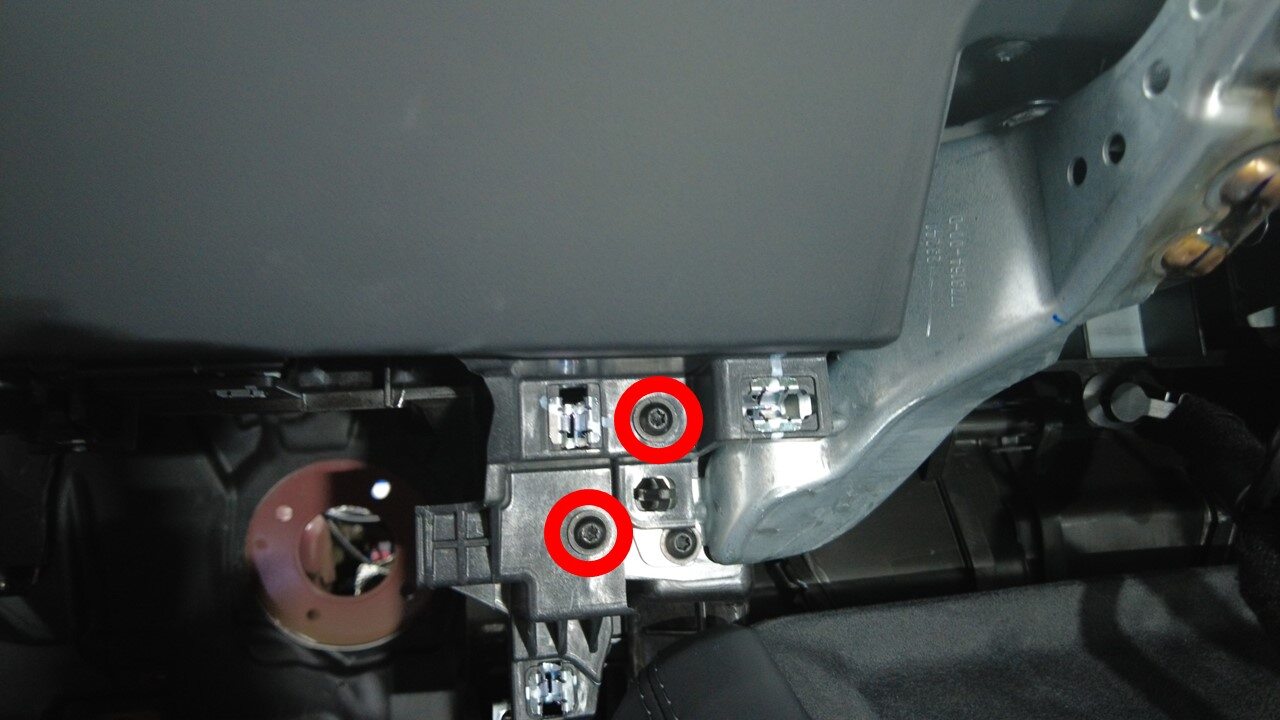

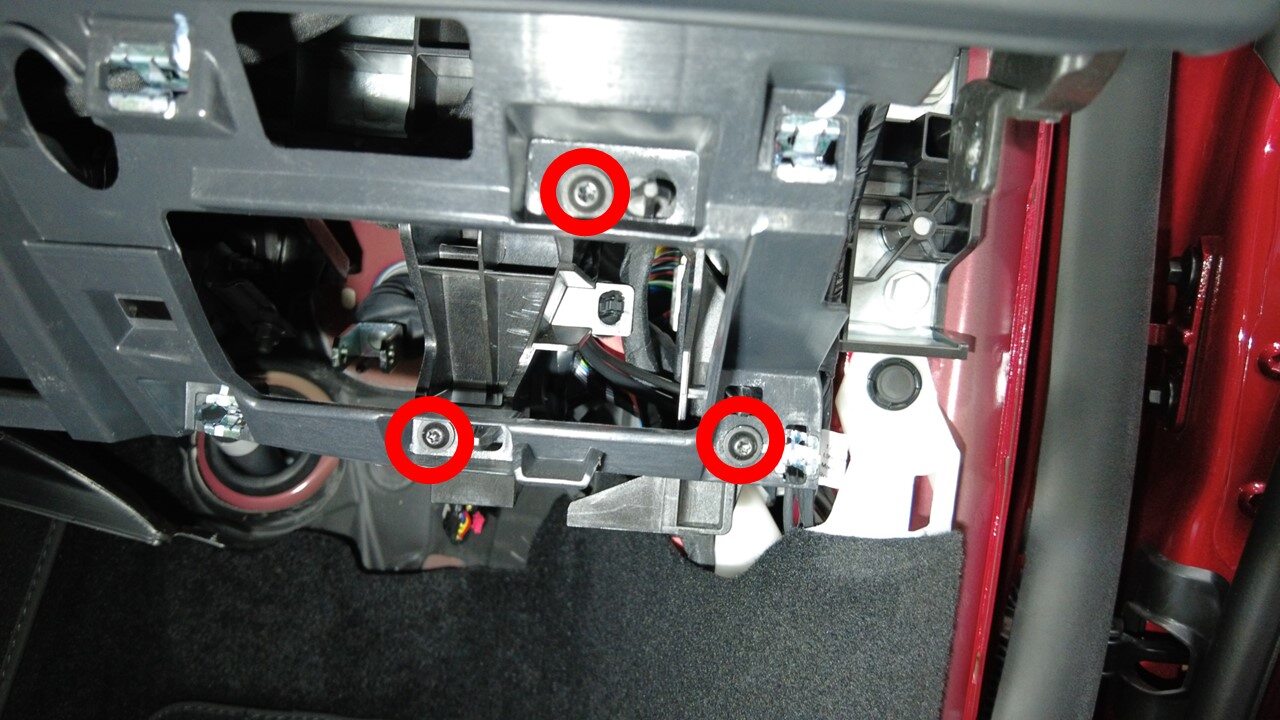

  82. Remove screws securing IP carrier to cross car beam at lower center
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x screws, T20, 2.3 Nm
  83. Remove screws securing IP carrier to cross car beam on RH side
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x screws, T20, 2.3 Nm
  84. Remove screw securing IP assembly to cross car beam on upper RH side
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x screw, T20, 2.3 Nm, 1x datum
  85. Remove RH IP speaker harness from IP
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Gently pull out the instrument panel and lift it to facilitate removing the harness.
  86. Remove LH IP speaker harness from IP
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Gently pull out the instrument panel and lift it to facilitate removing the harness.

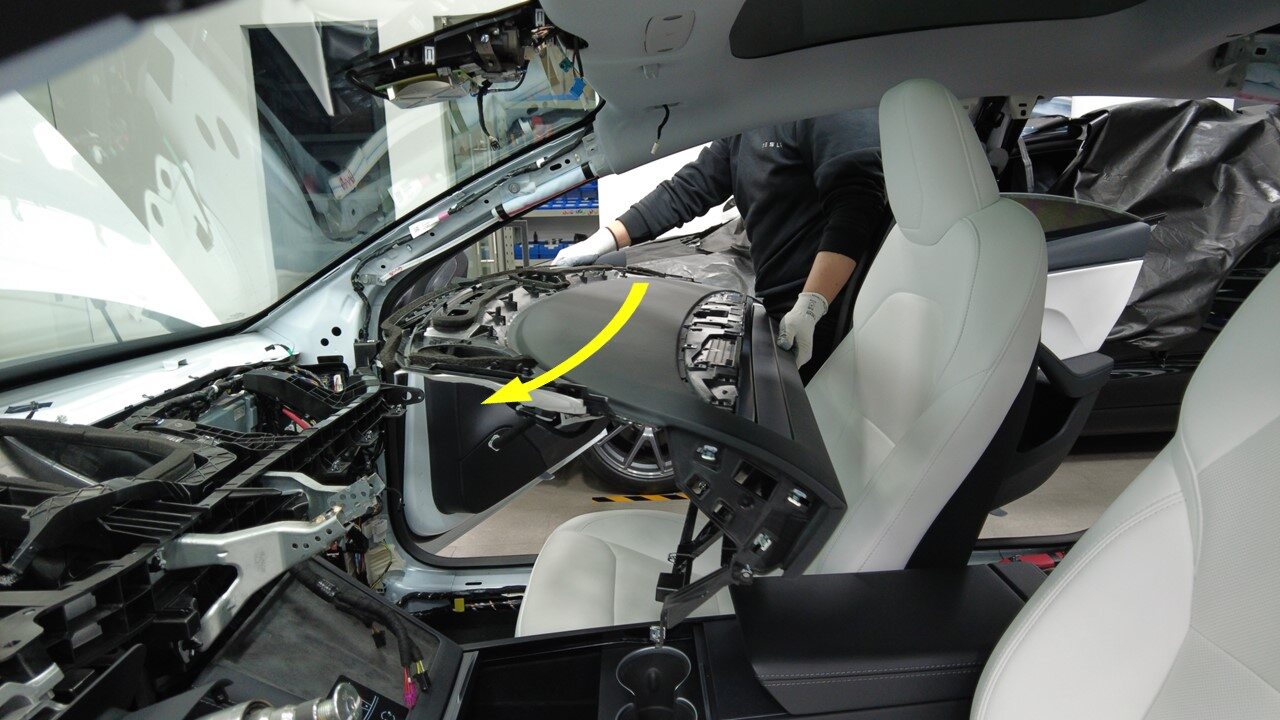

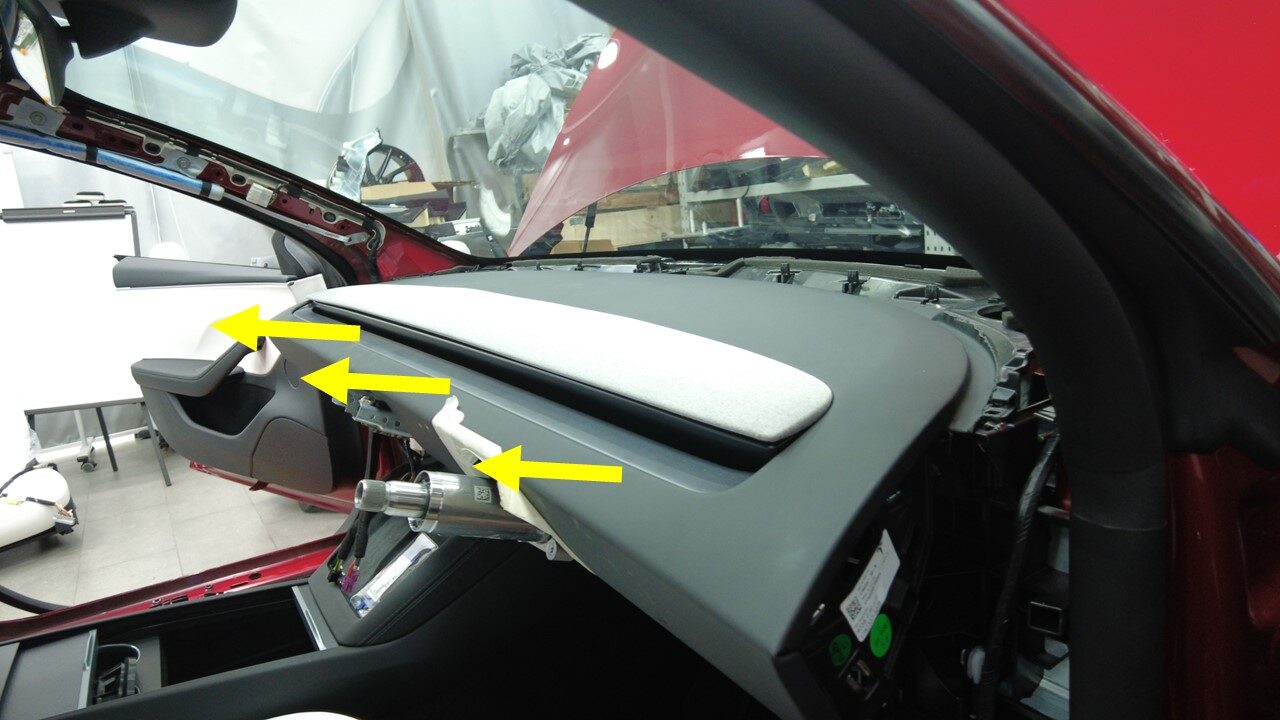

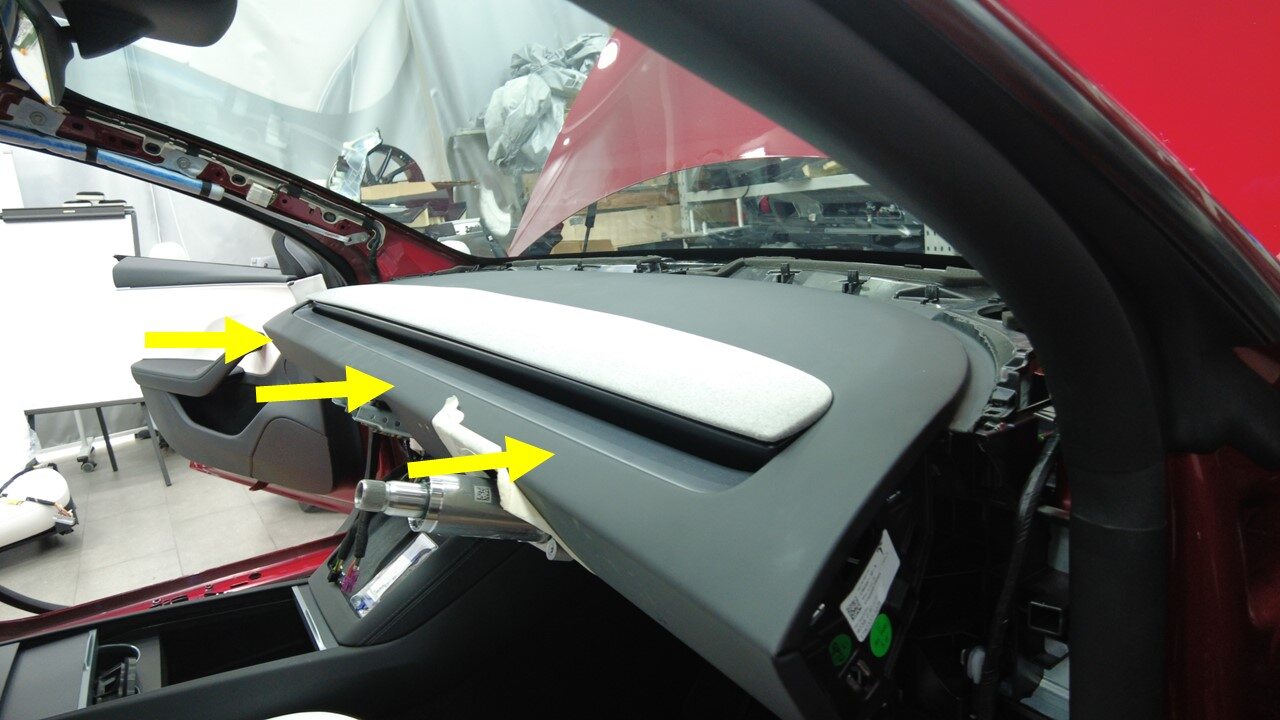

  87. Remove IP carrier from vehicle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x guide tabs, 2x tabs, Recommend assistance
  88. Disconnect LH IP air wave duct thermistor connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector
  89. Remove clips securing LH air wave duct to IP
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x push clips

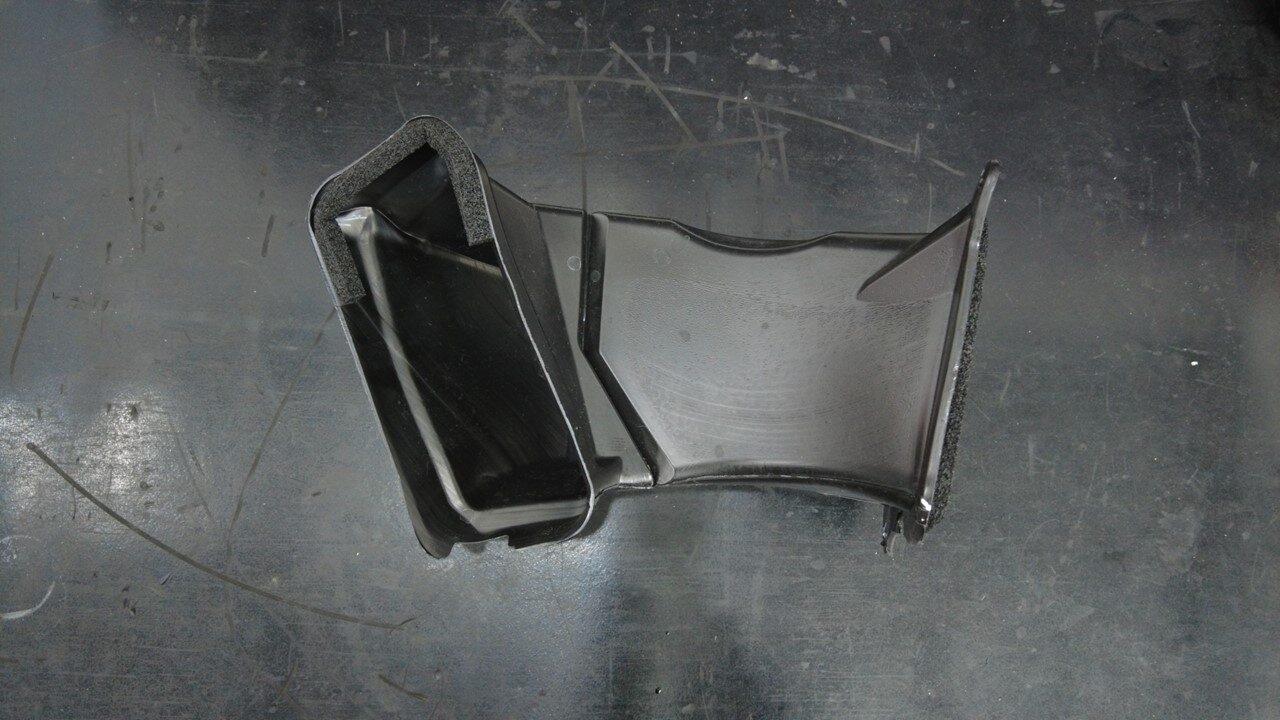

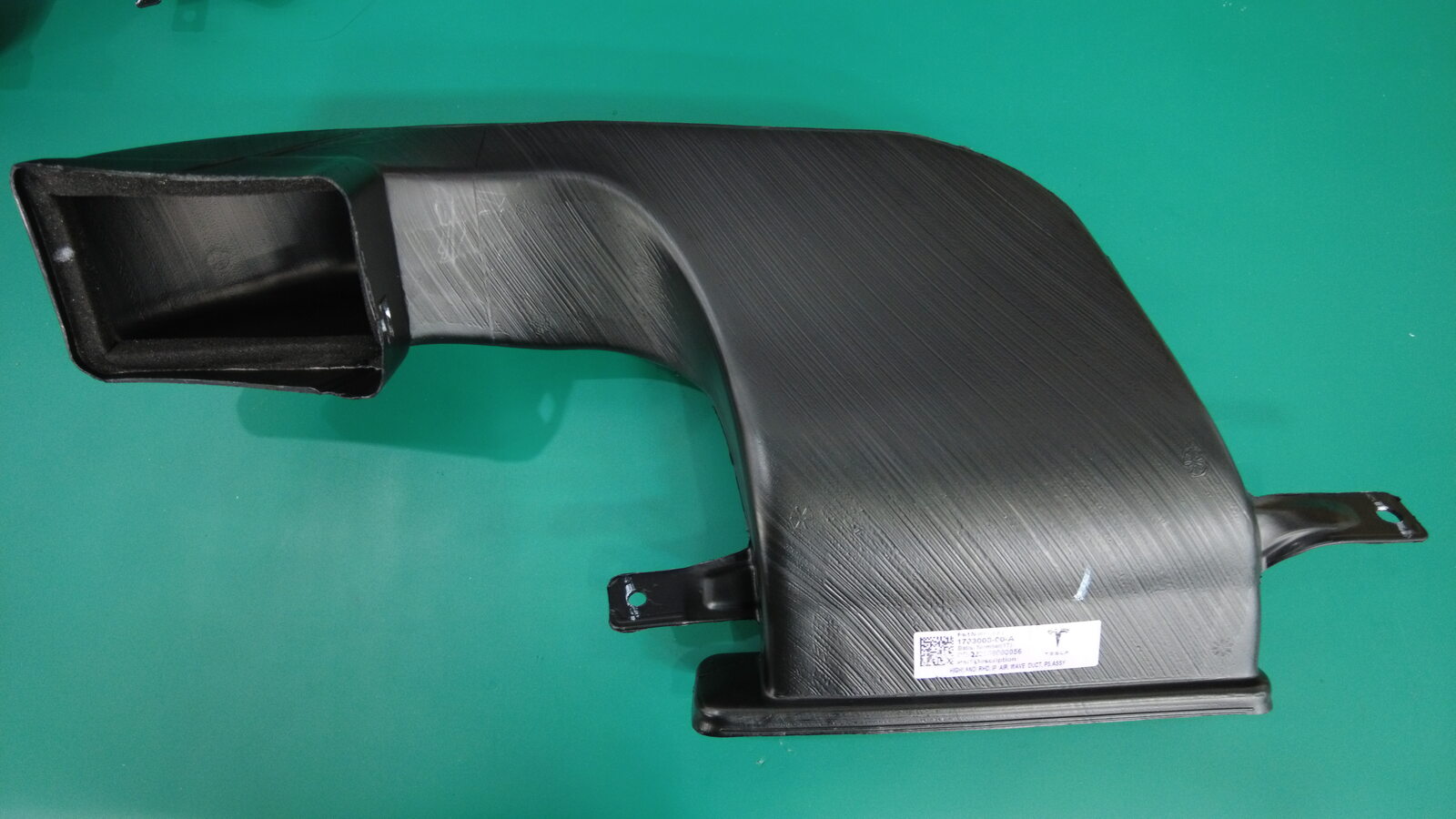

  90. Remove LH IP air wave duct from HVAC module

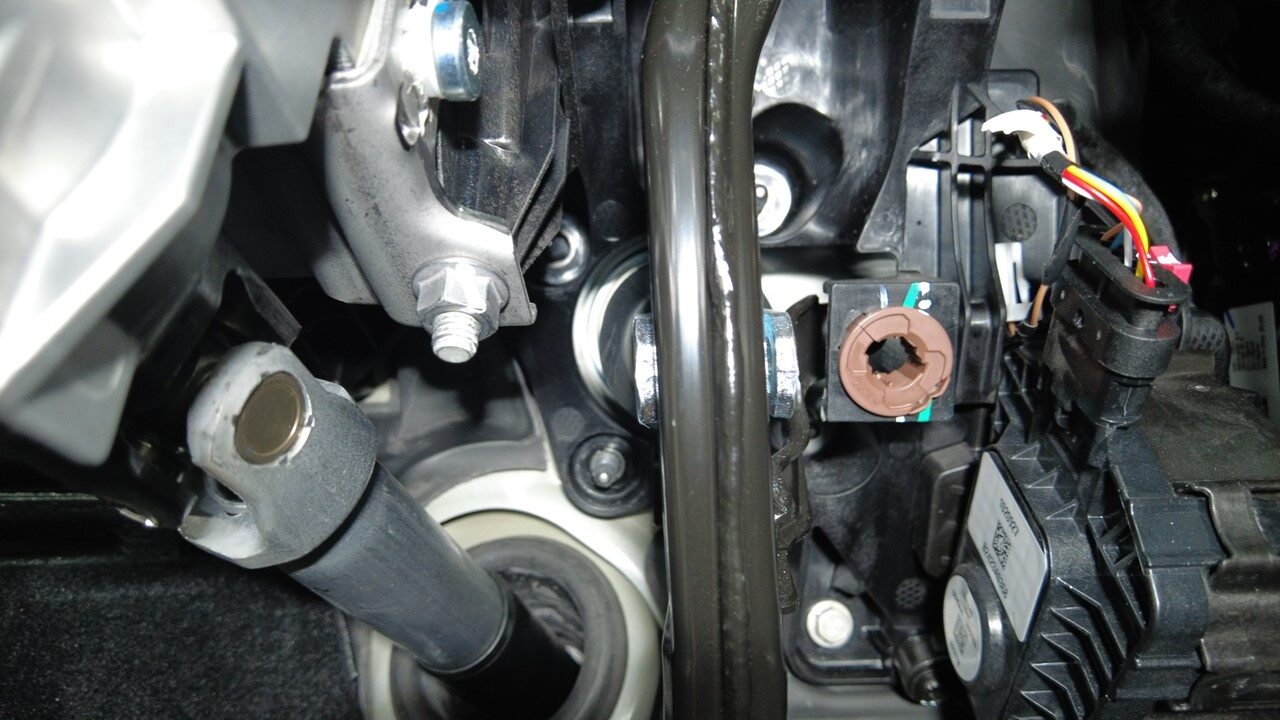

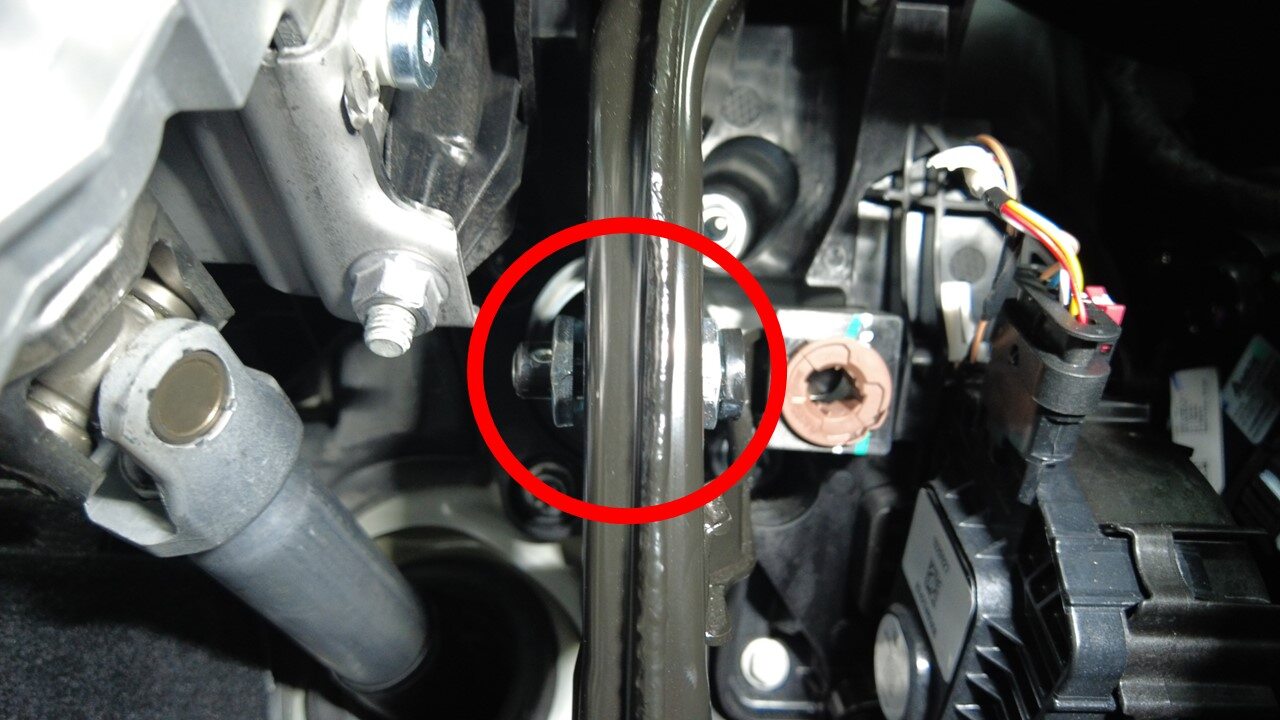

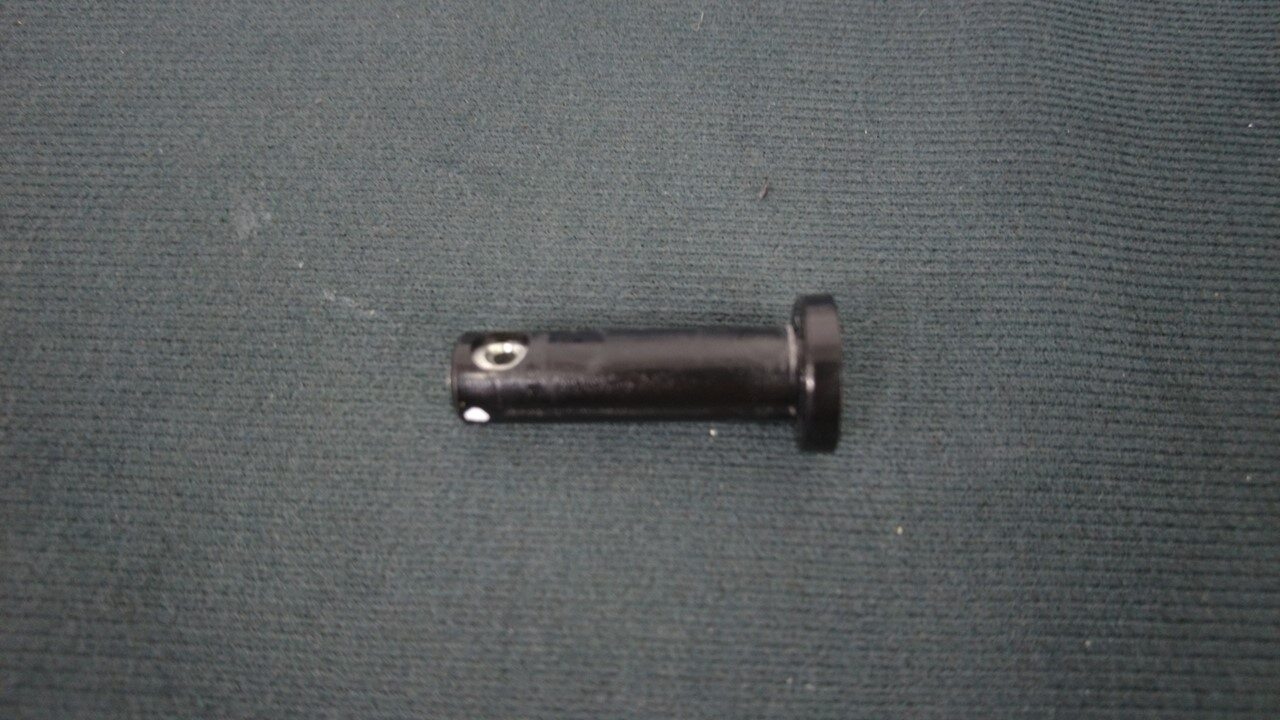

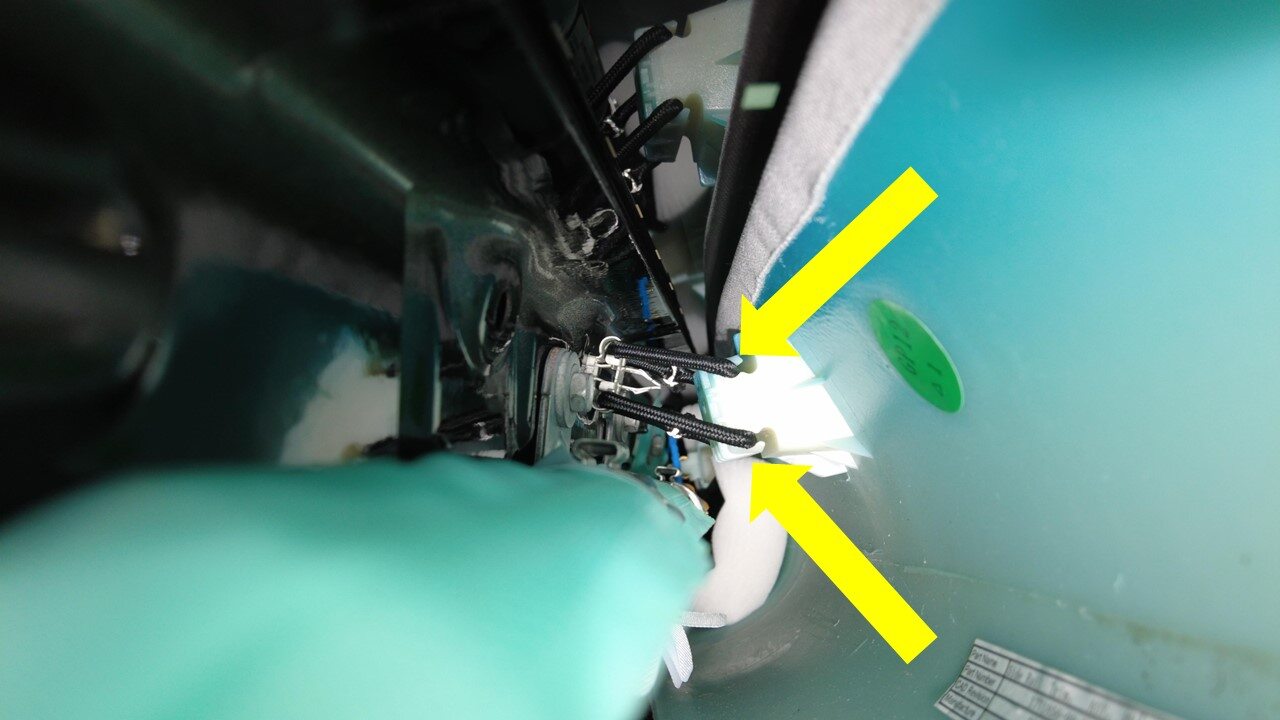

  91. Remove clevis pin from brake pedal assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x pin

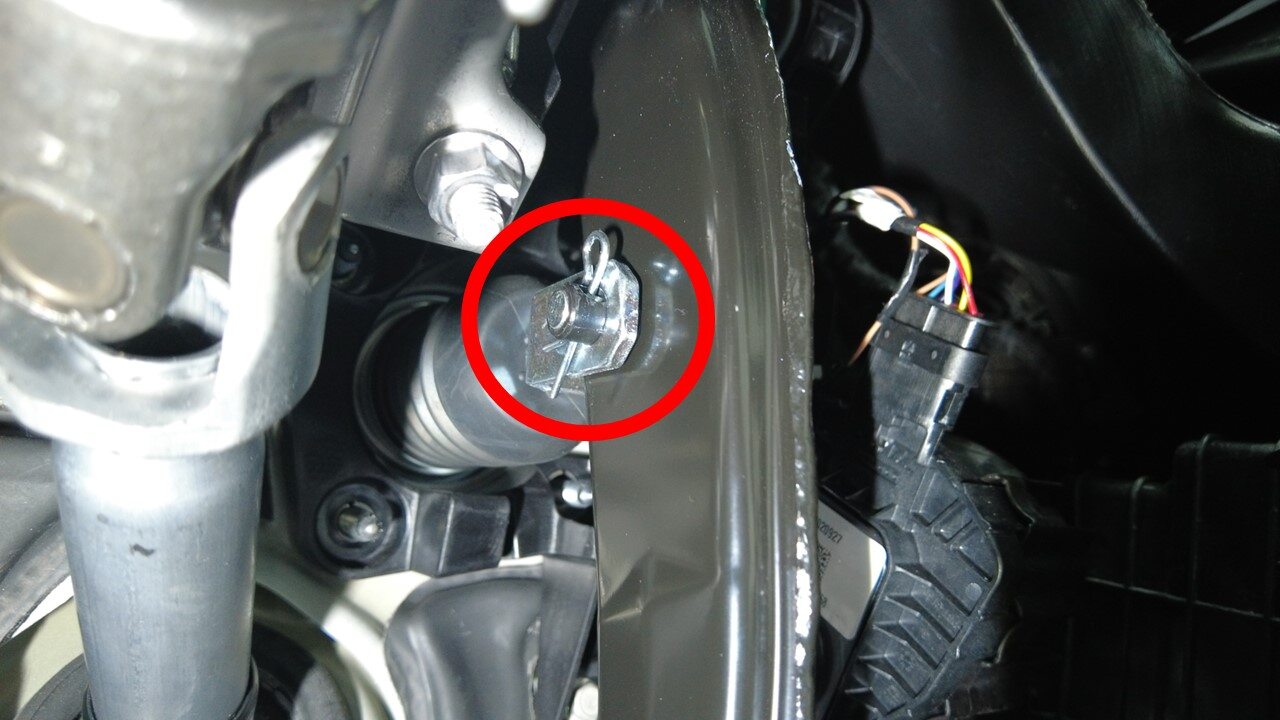

  92. Remove cotter clip from clevis pin on brake pedal assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x clip

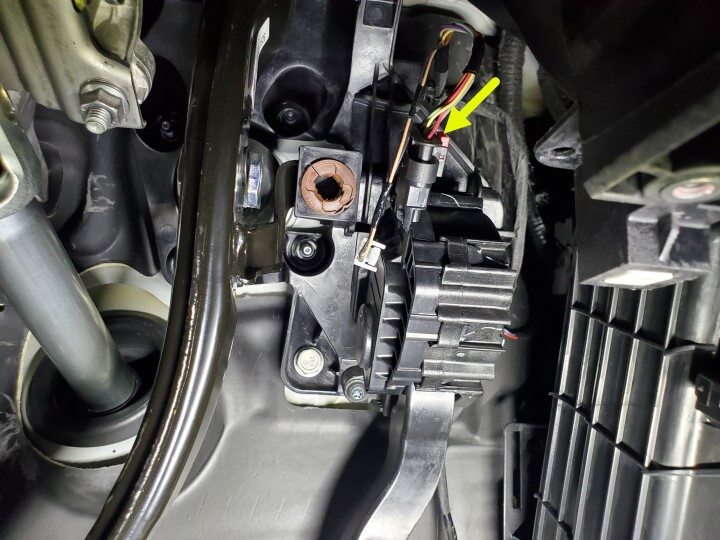

  93. Disconnect accelerator pedal connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, Do not push down on red tab, Pull red tab to disengage lock, Pull again to release connector

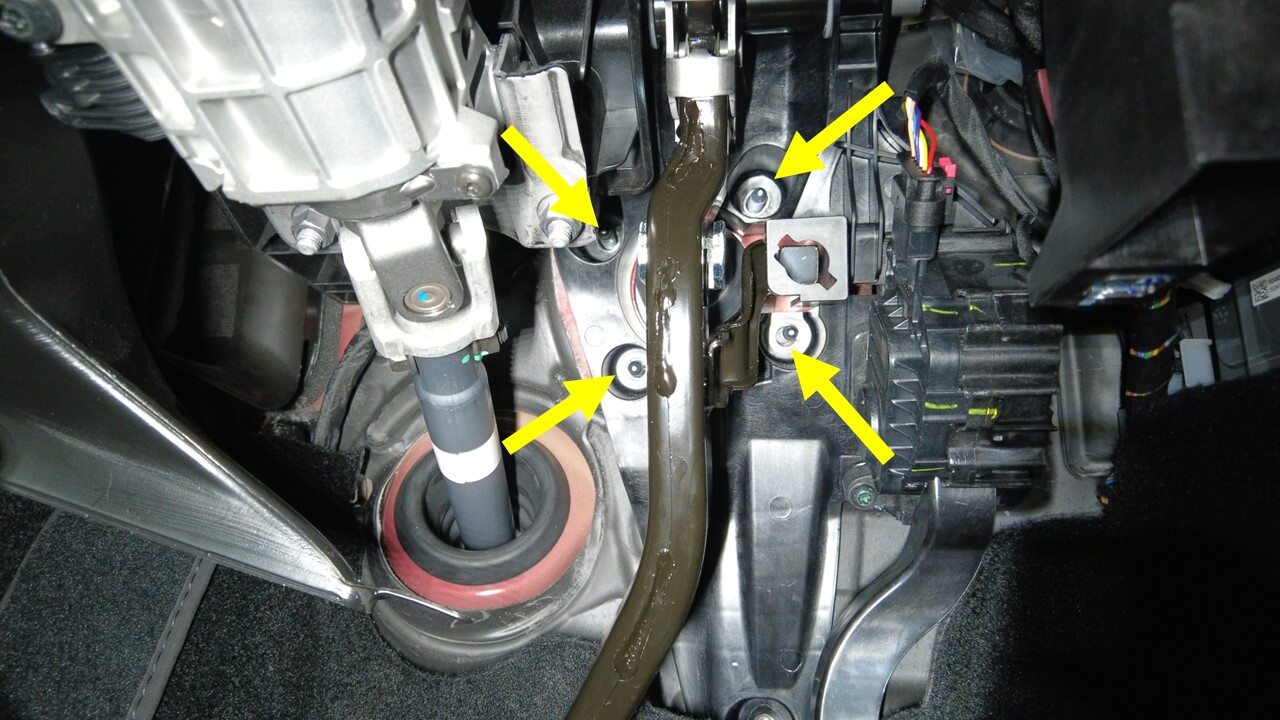

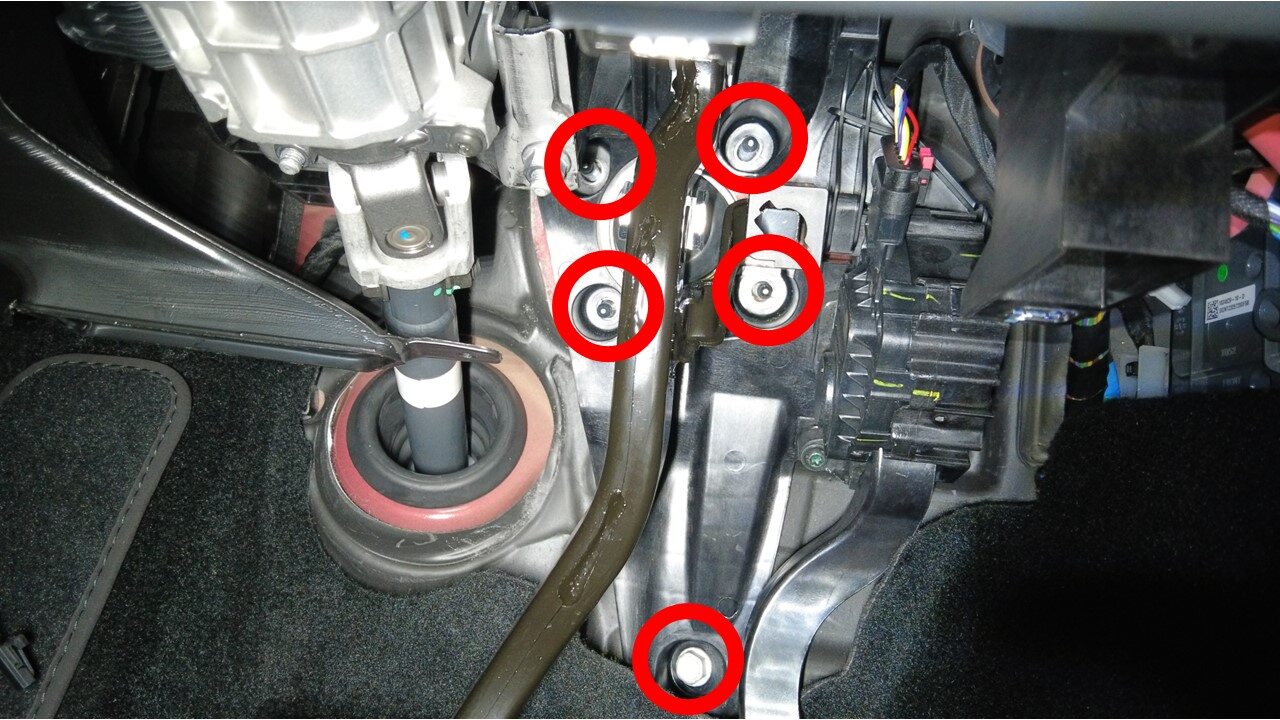

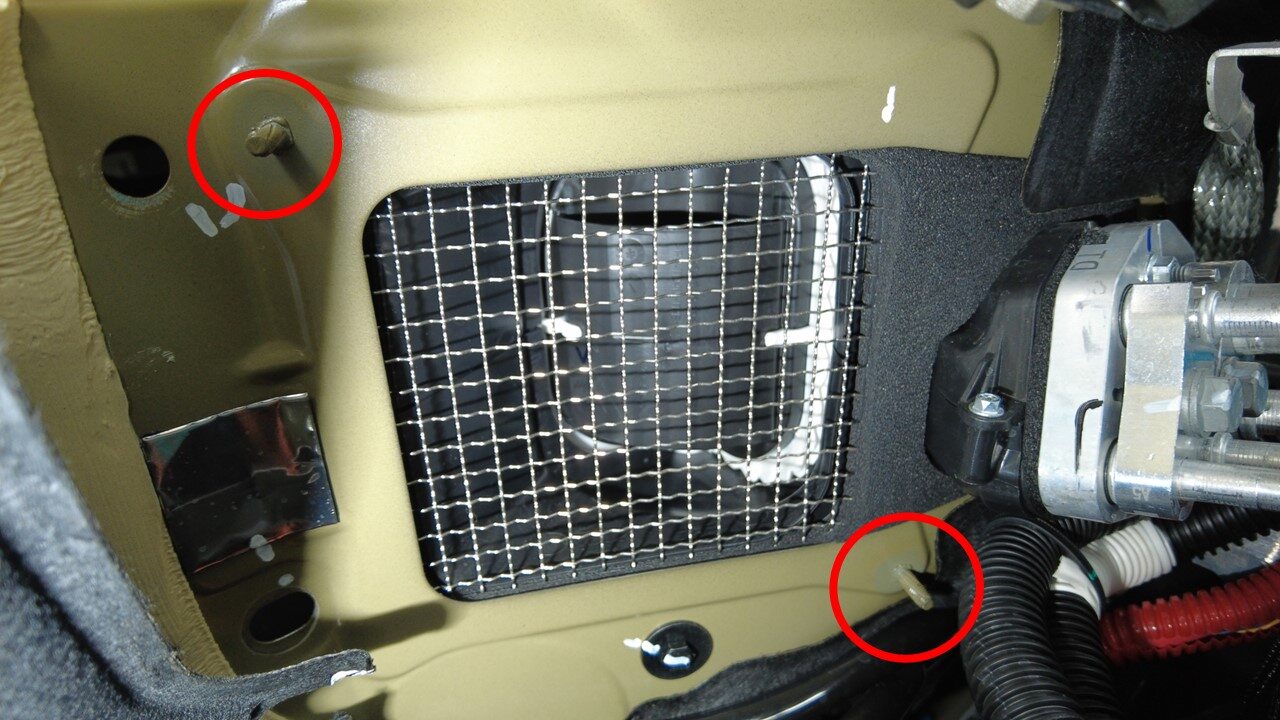

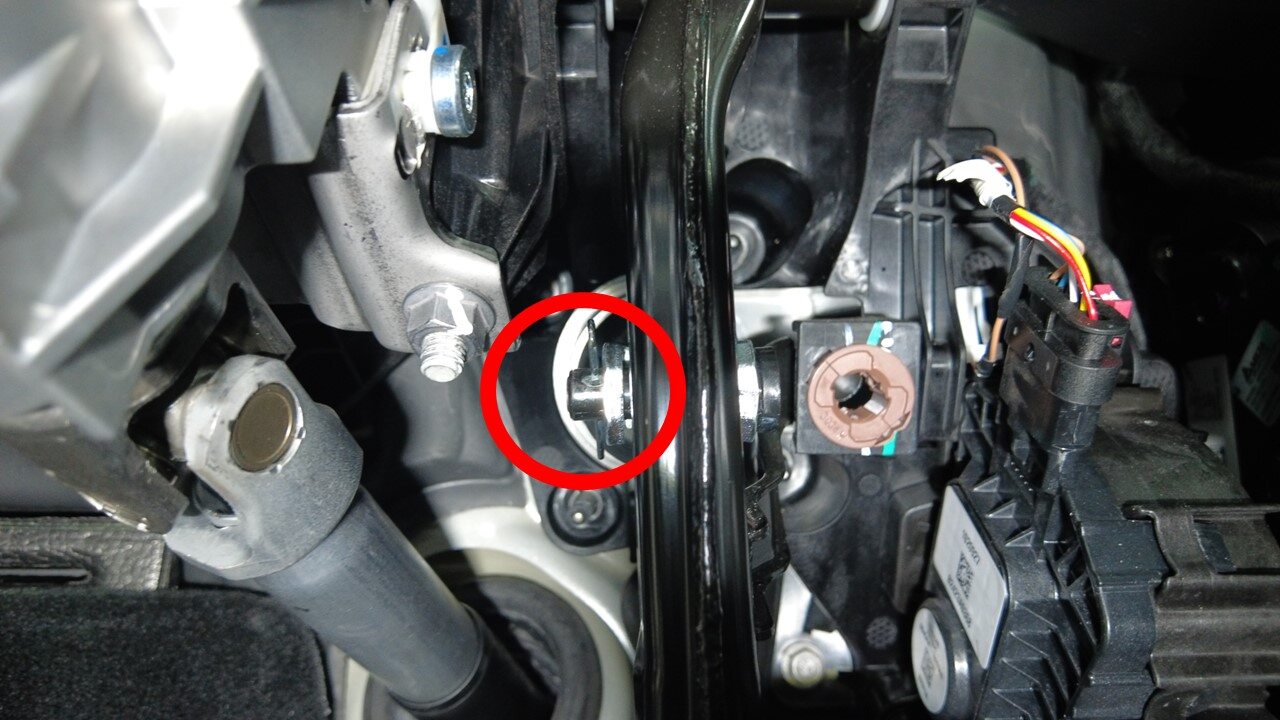

  94. Remove fasteners securing pedal assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x nyloc nuts, 13mm, 16.5 Nm, 1x bolt, 13mm, 13 Nm, Discard nyloc nuts after removal

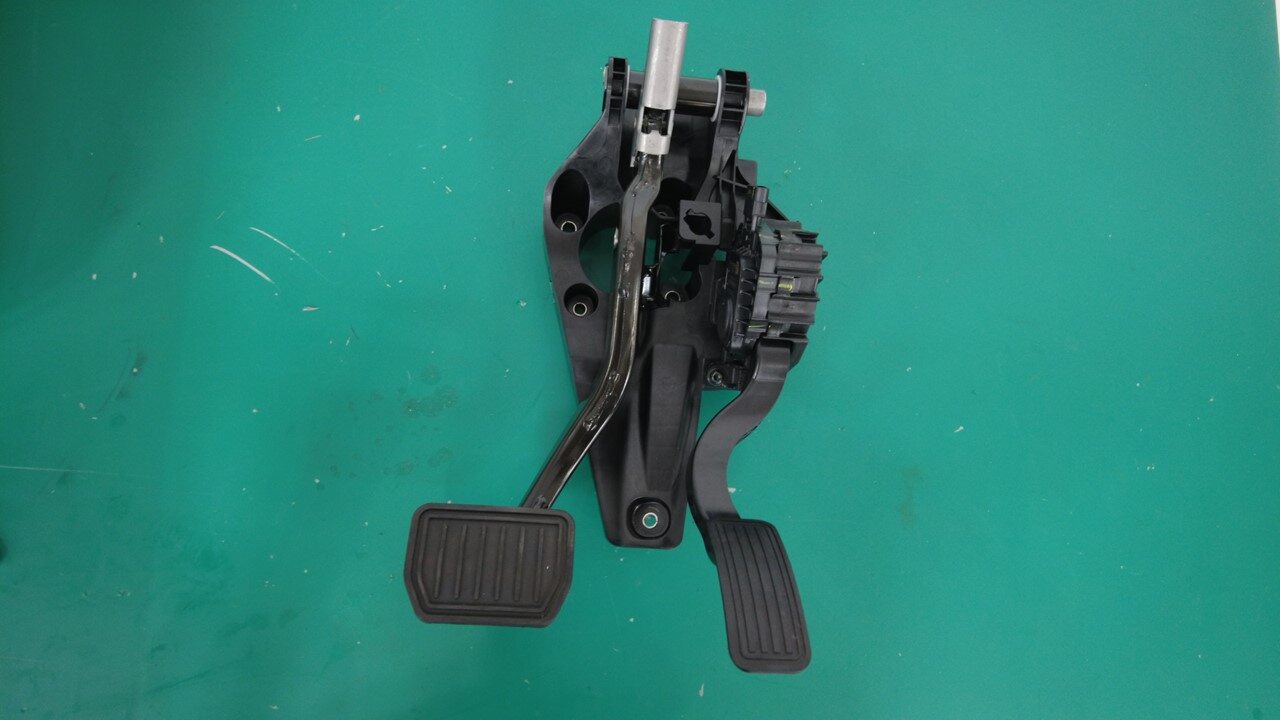

  95. Remove pedal assembly from vehicle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x studs, Release from iBooster studs then negotiate around iBooster rod

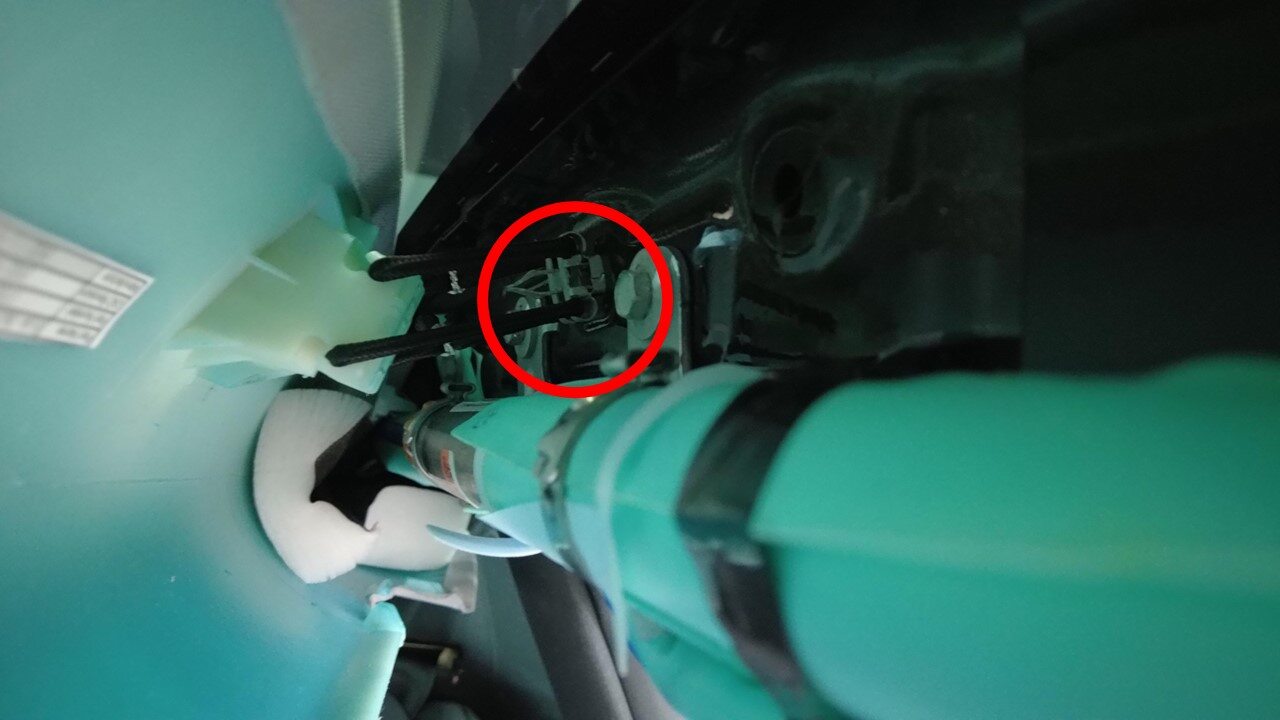

  96. Remove clip for RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x push clip

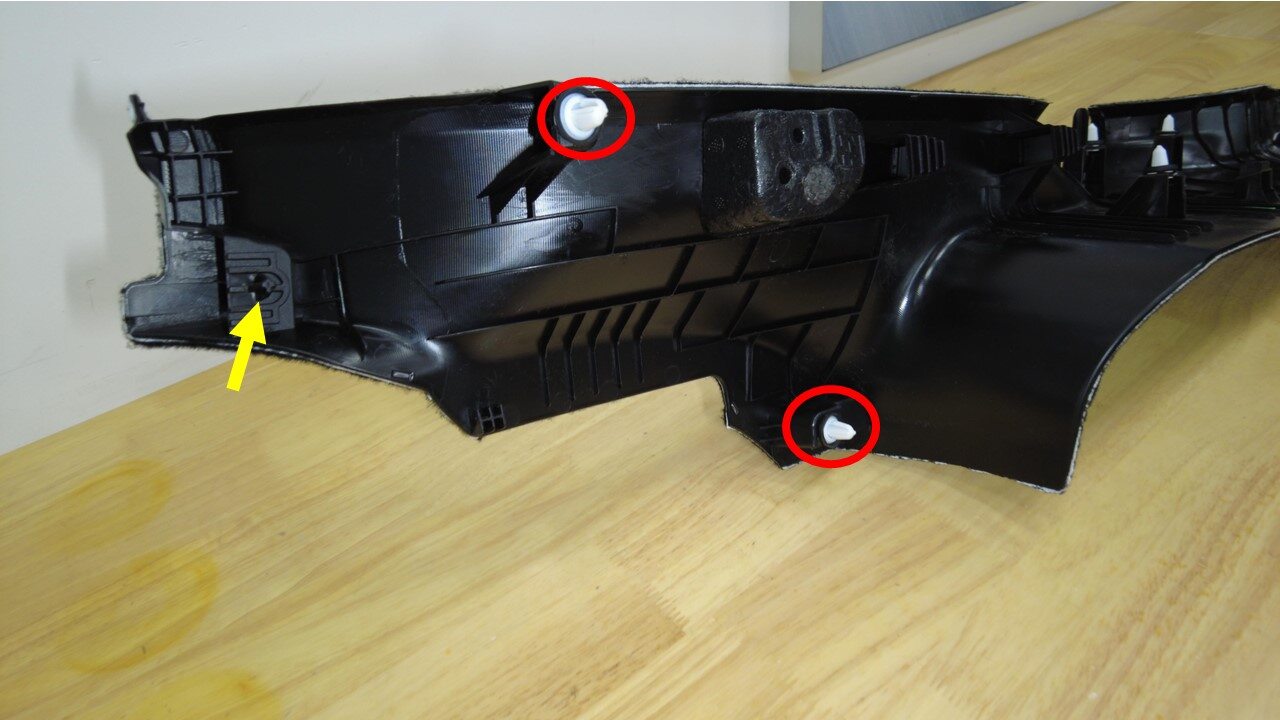

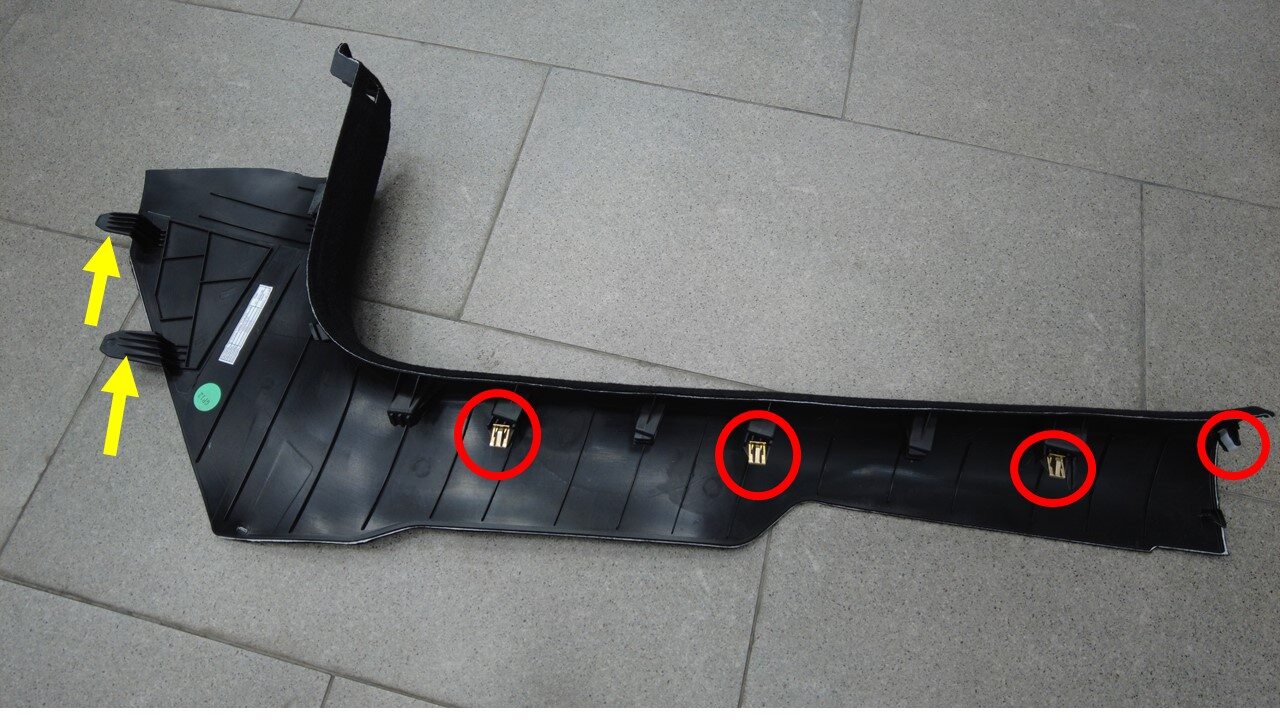

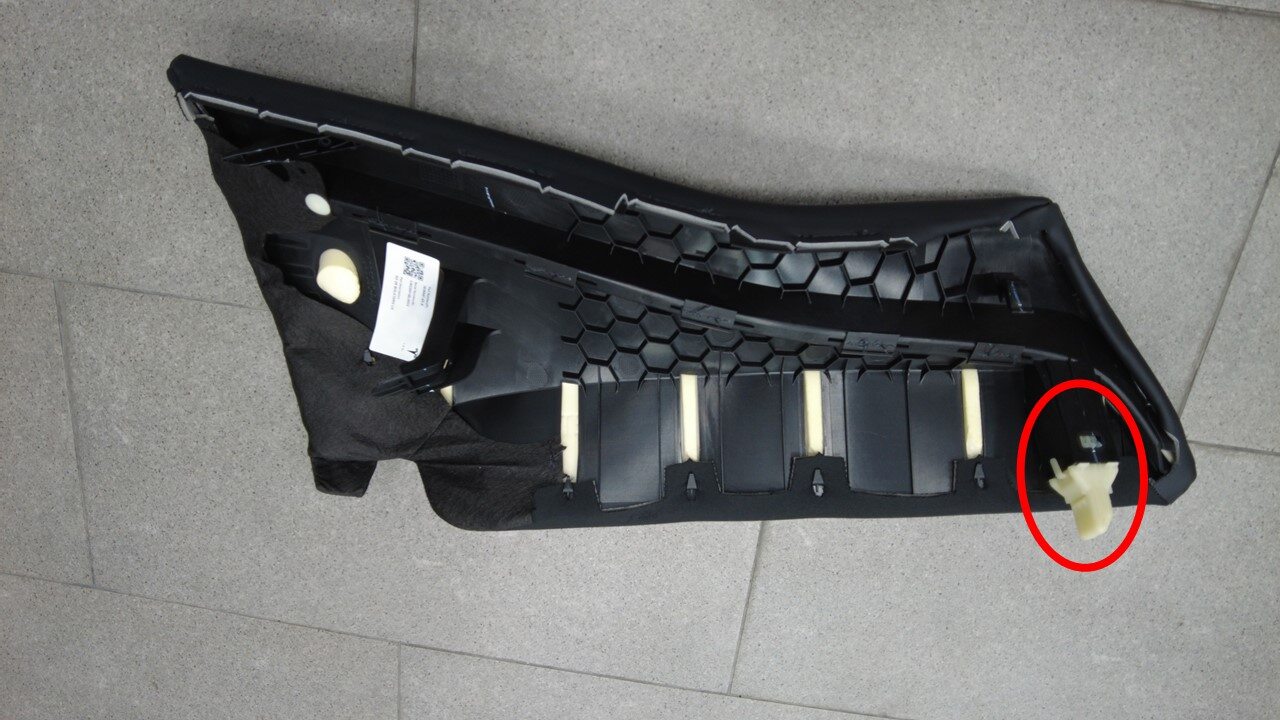

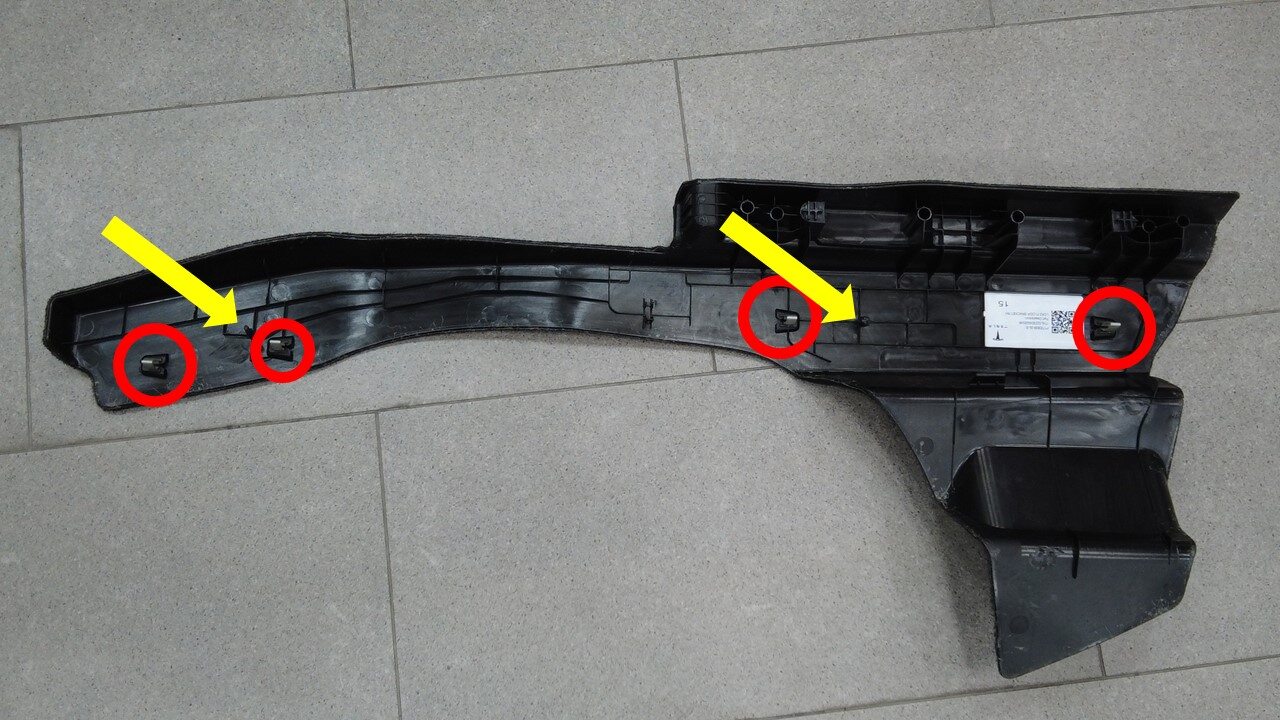

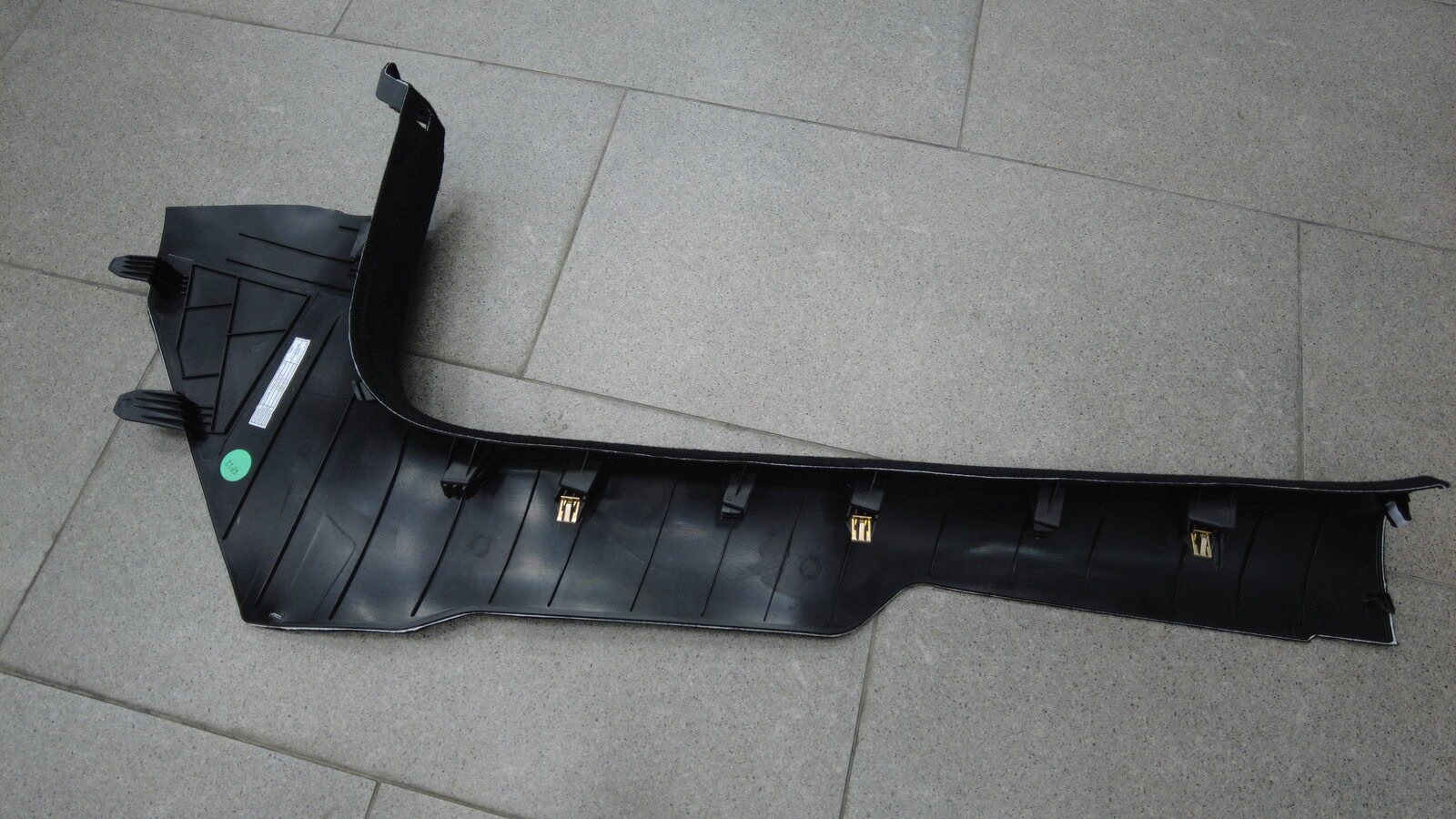

  97. Remove RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Remarque

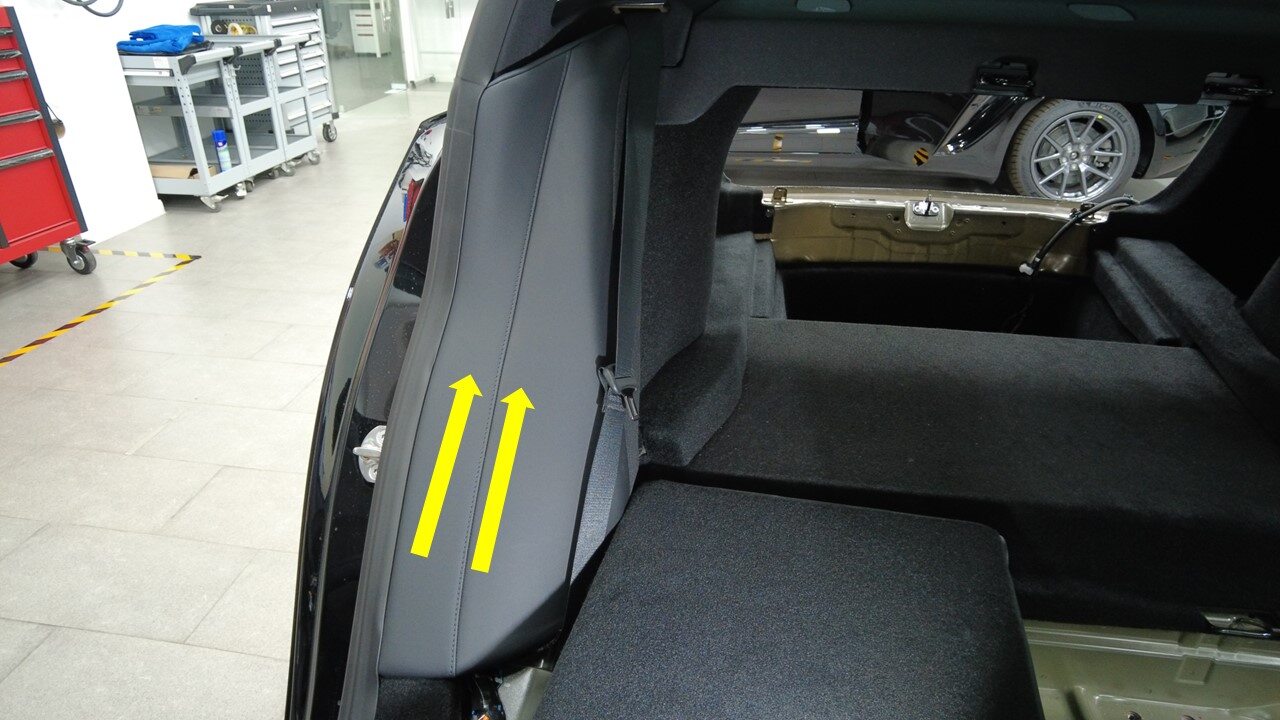

    4x clips, 2x guide tabs, Pull rear of lower A-pillar upward to release clip then pull rearward to release front tabs from carpet

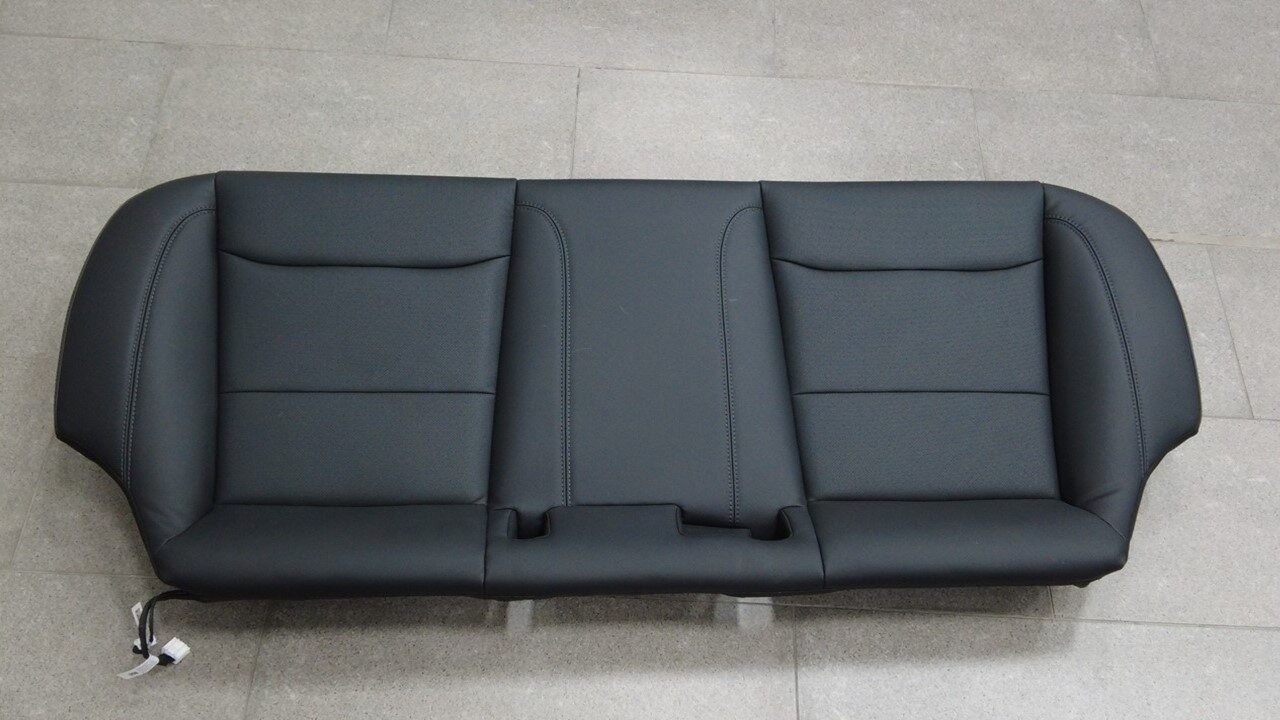

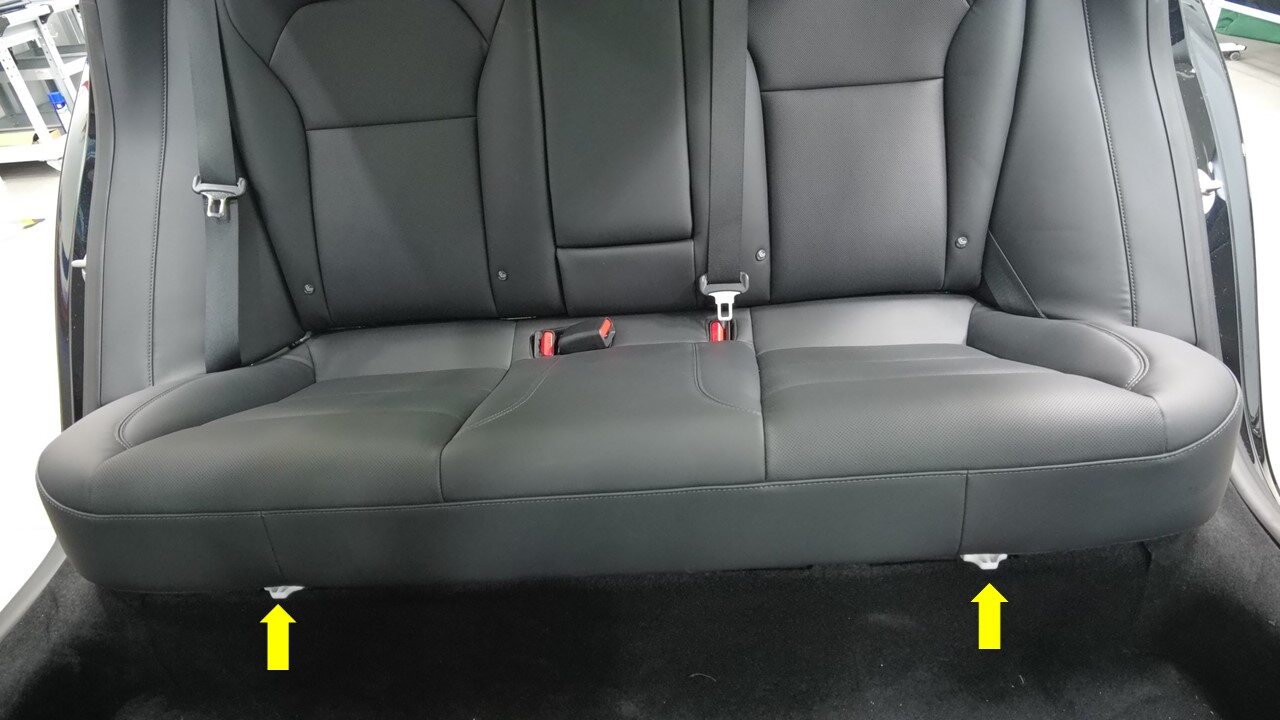

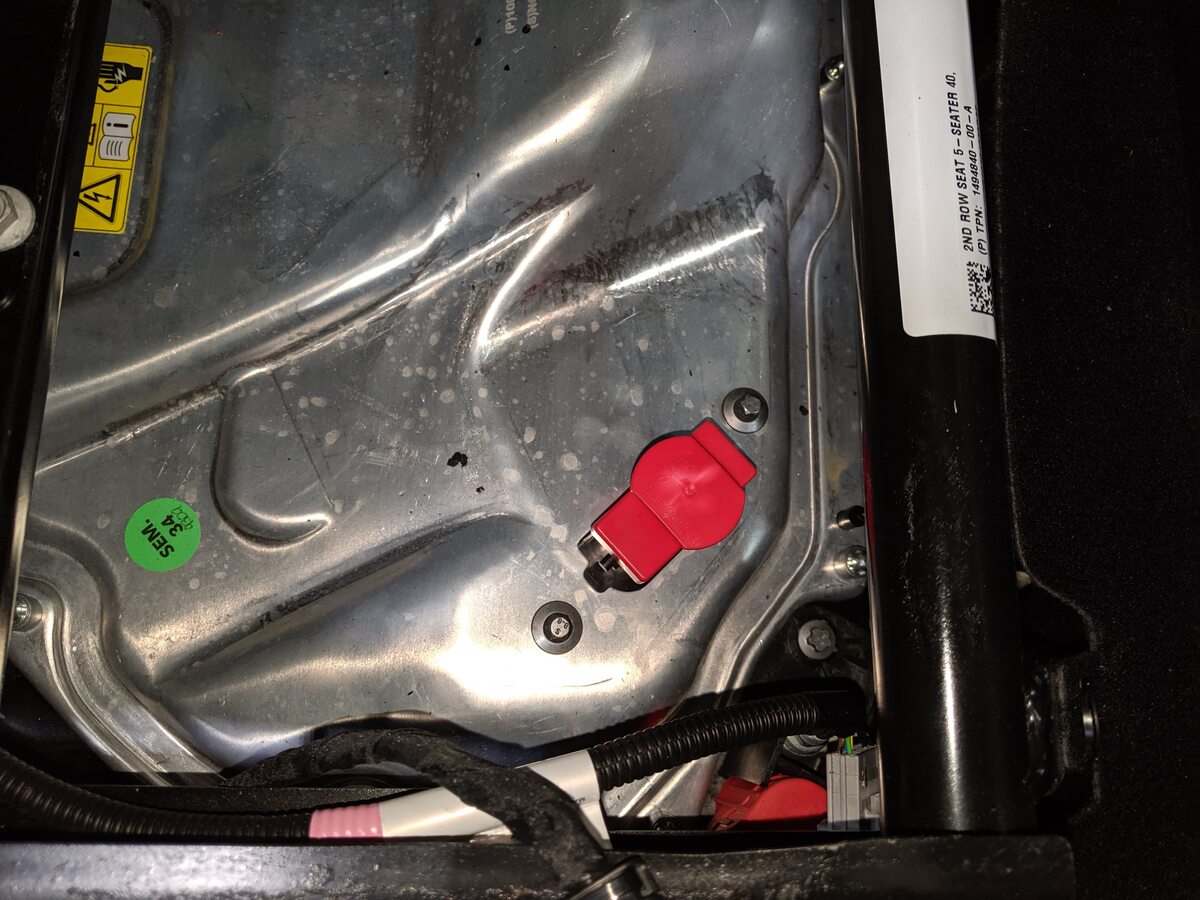

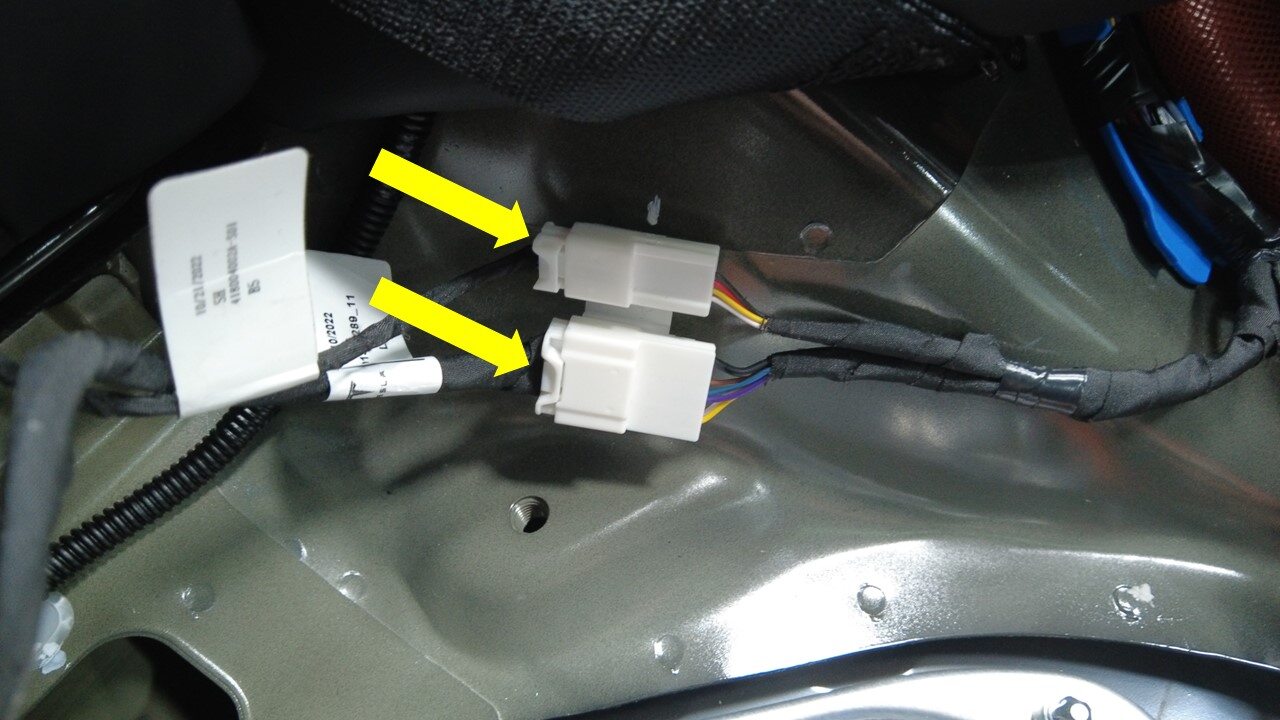

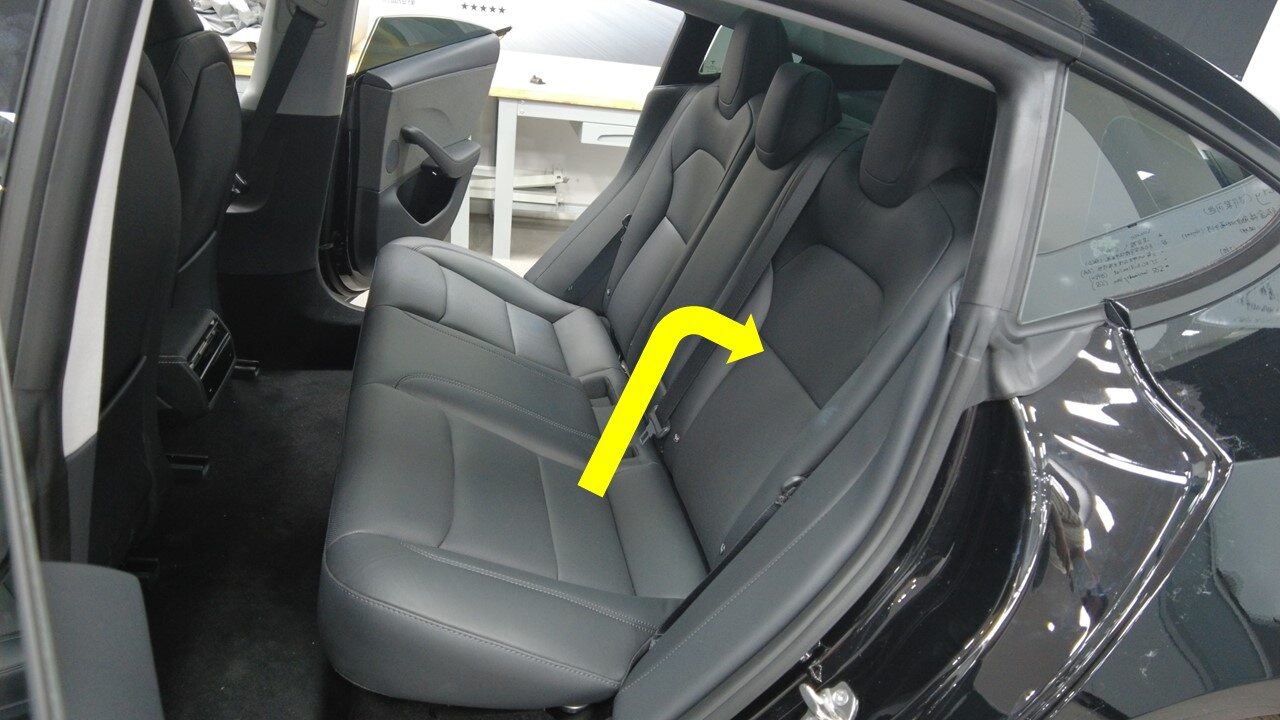

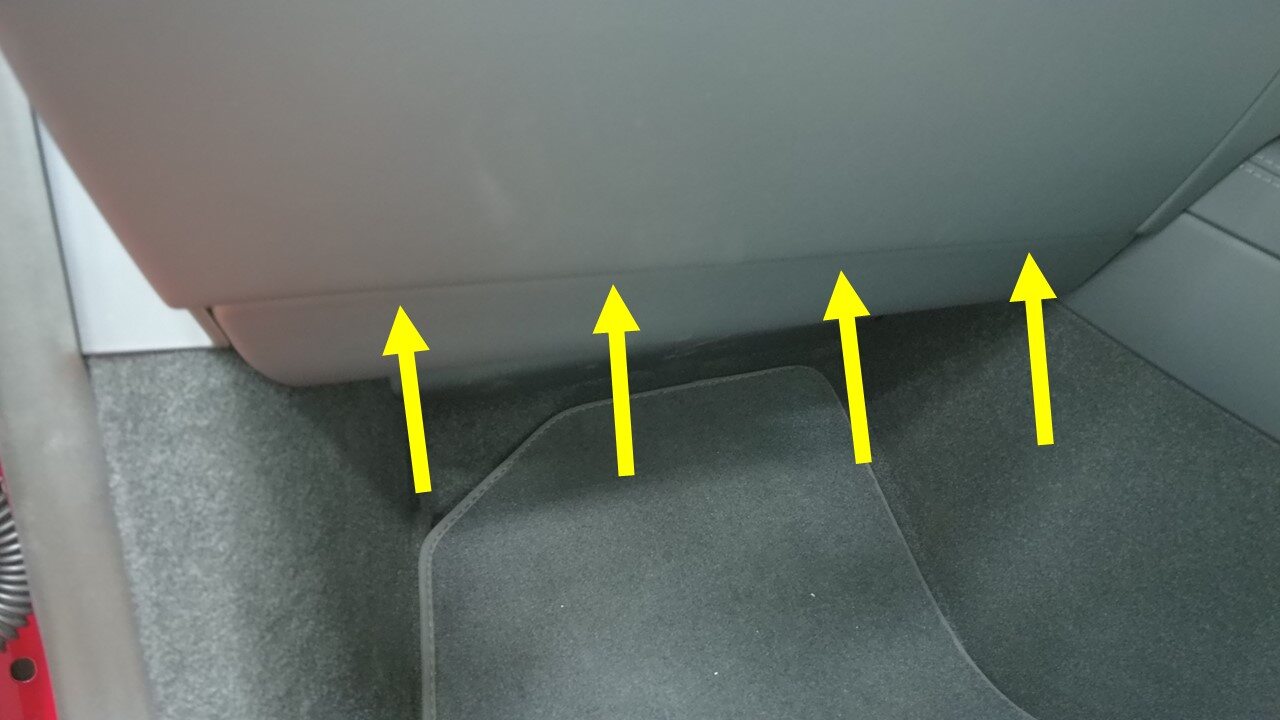

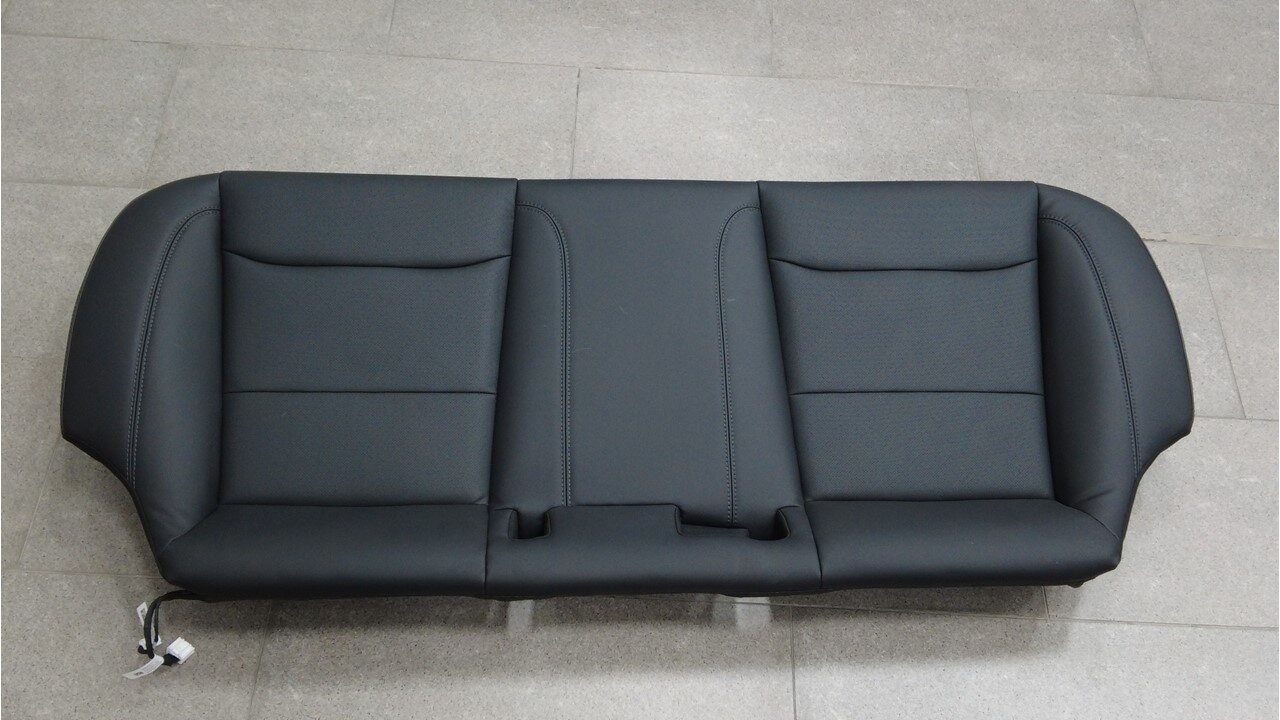

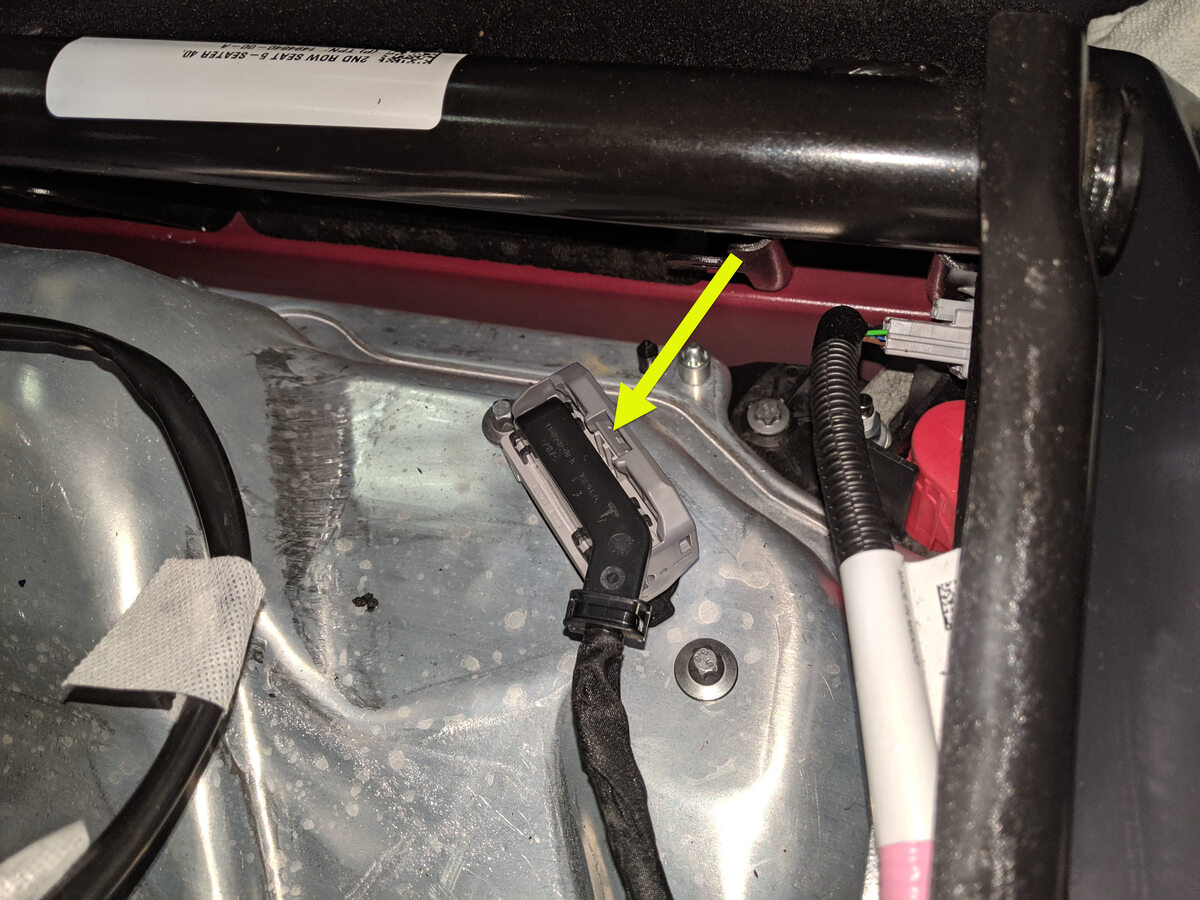

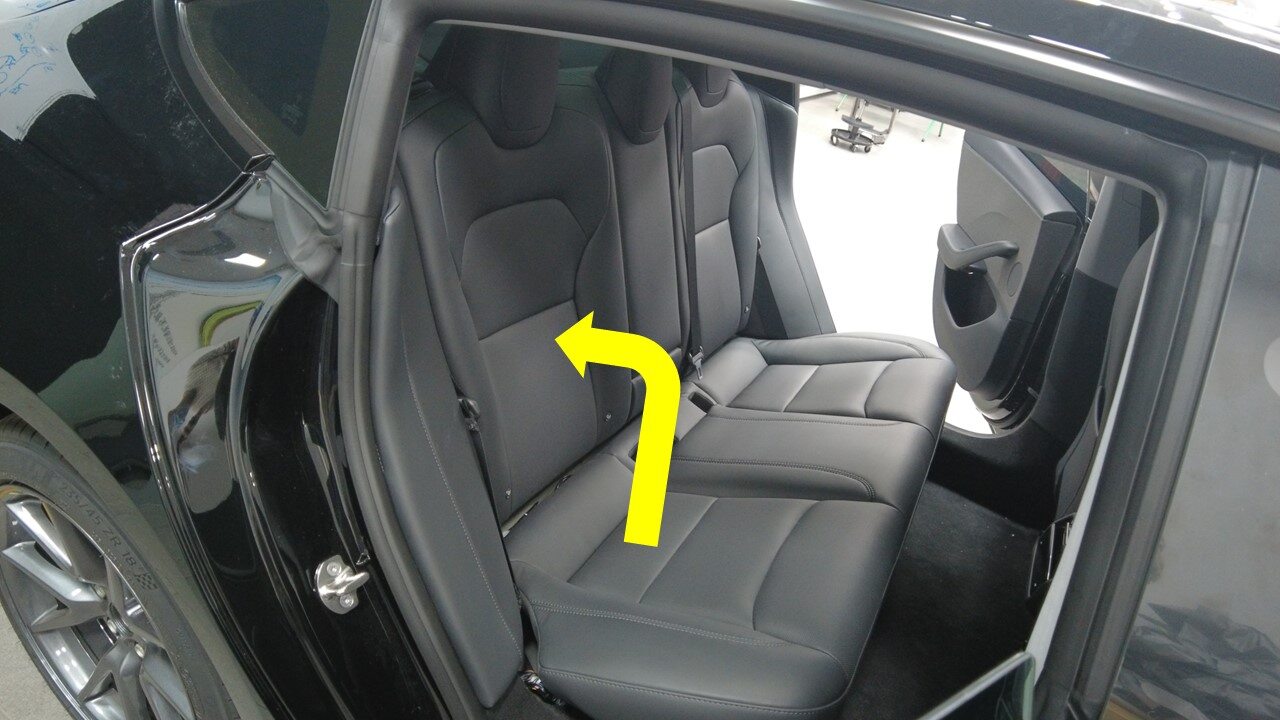

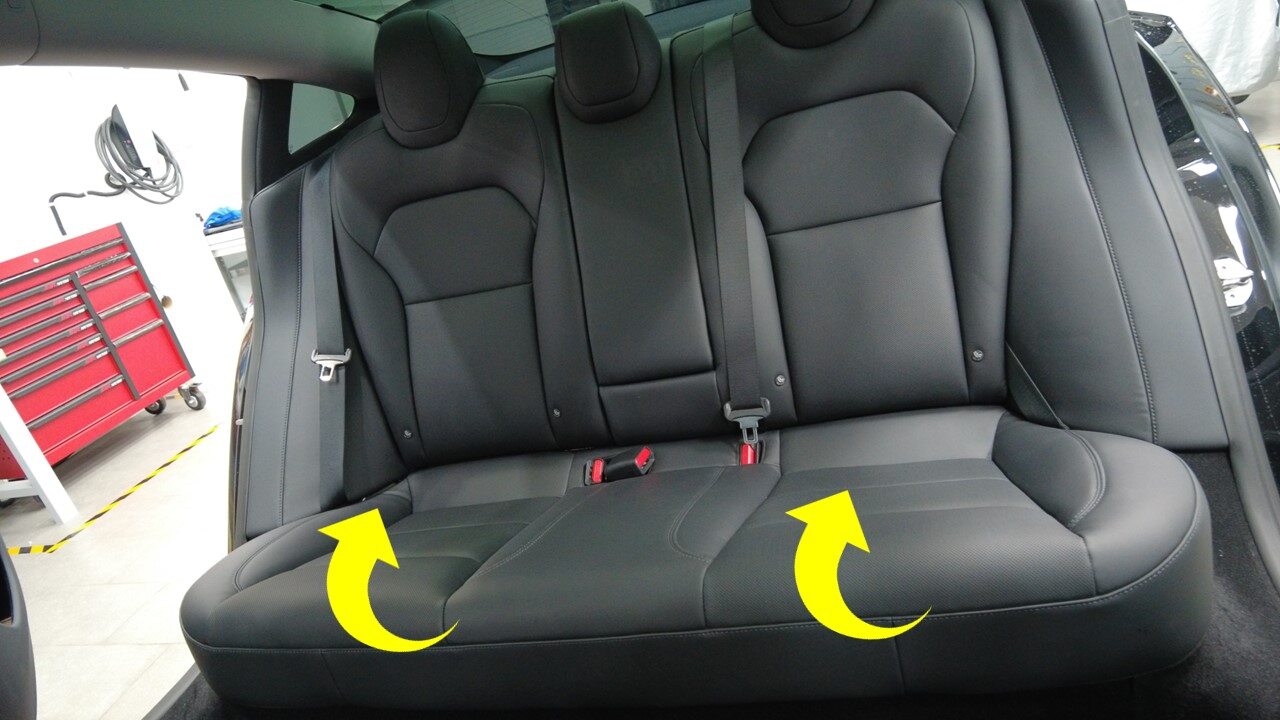

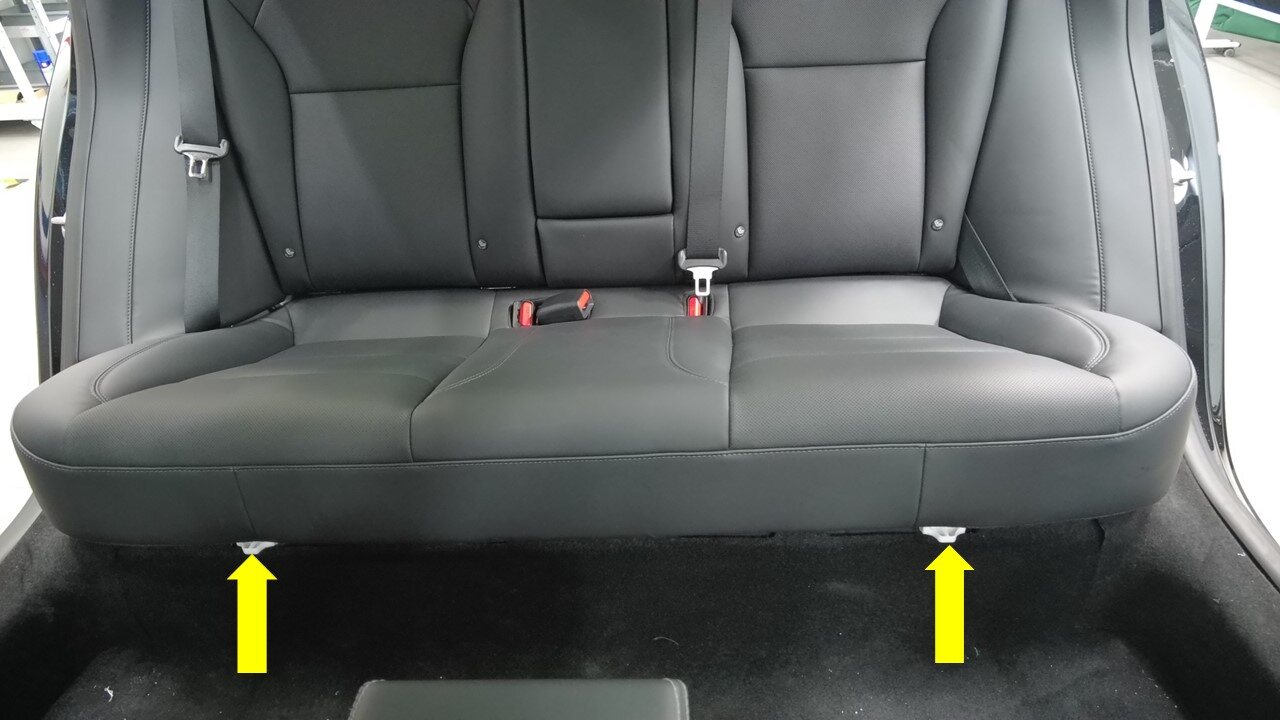

  98. Release 2nd row seat cushion and disconnect harness connectors
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x clips, 2x connectors, Press tabs backward then pull front edge up

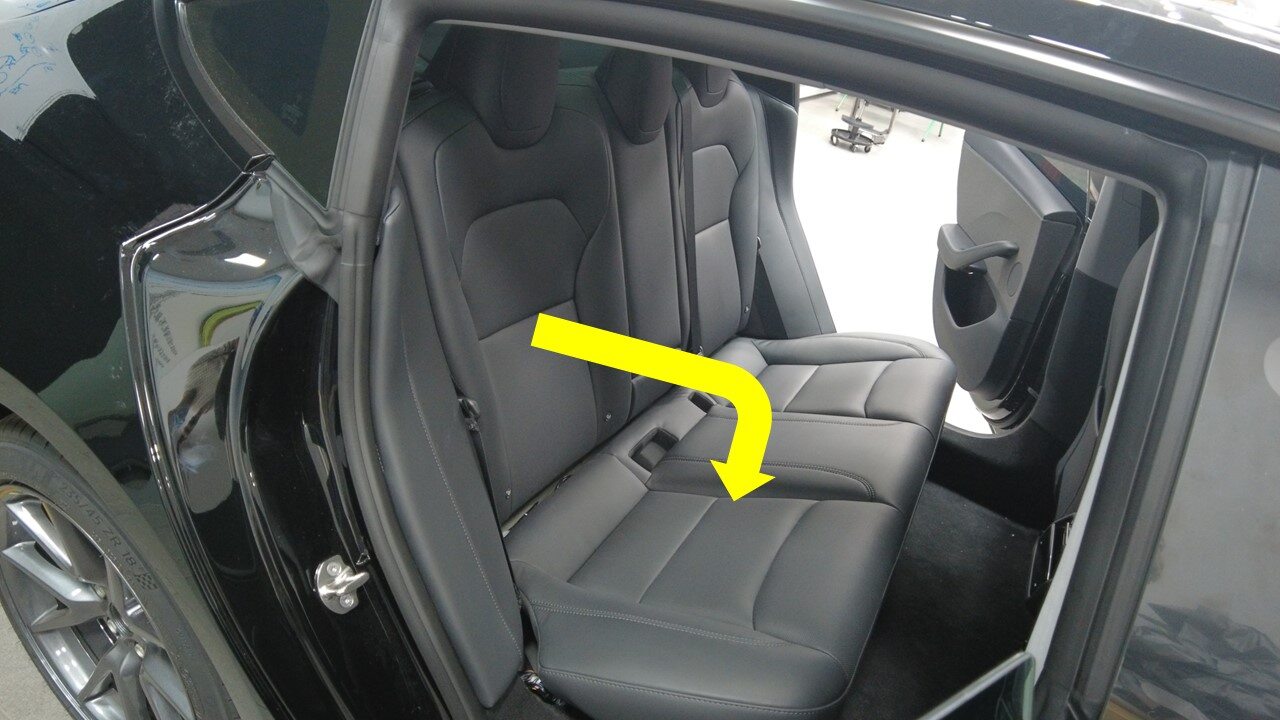

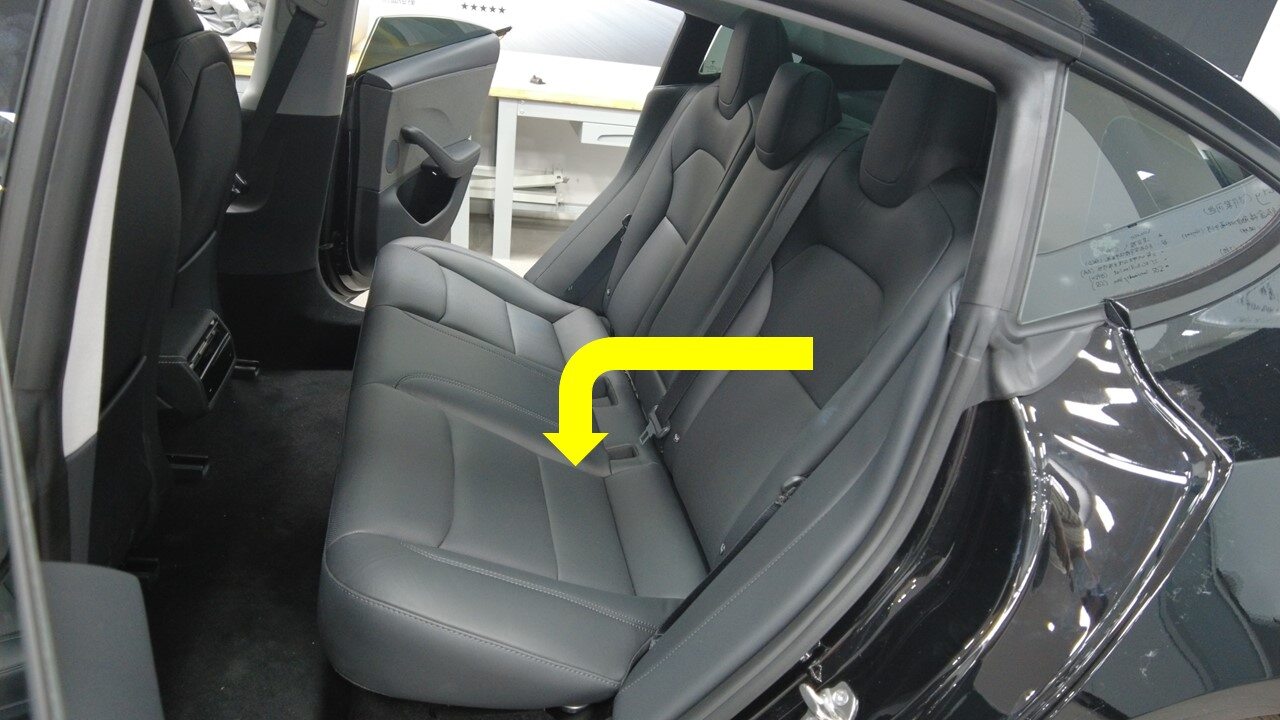

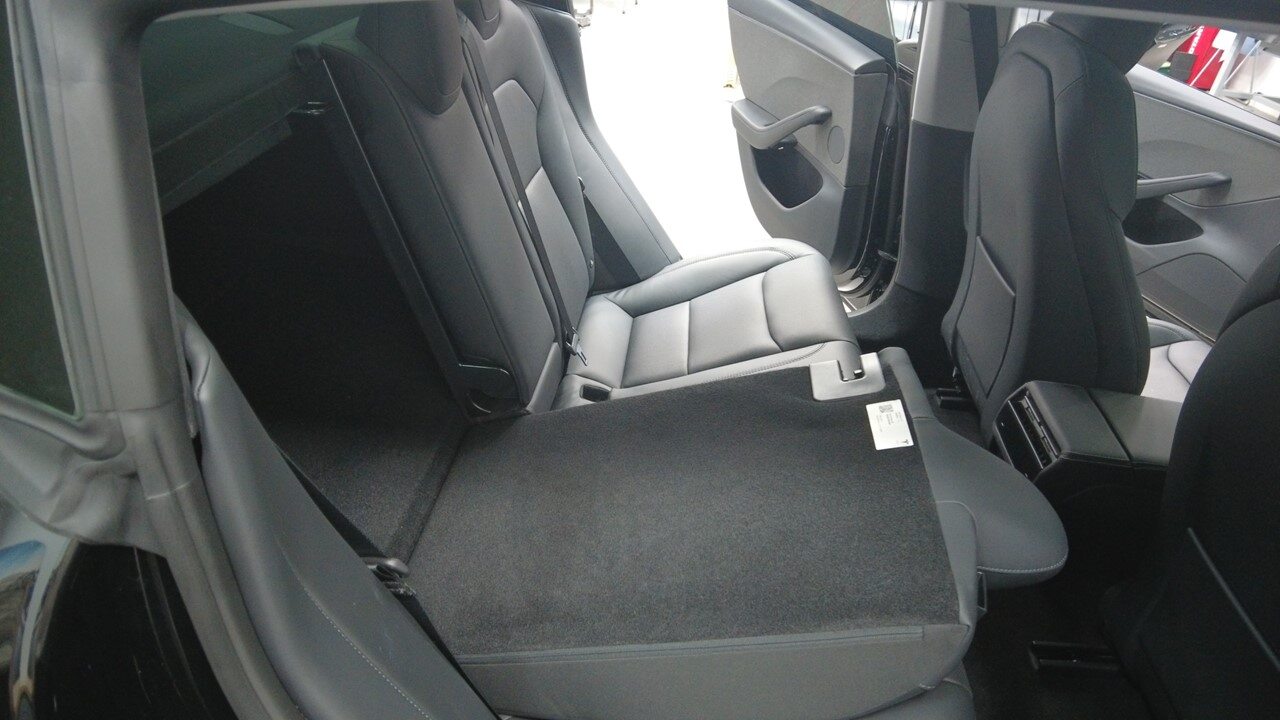

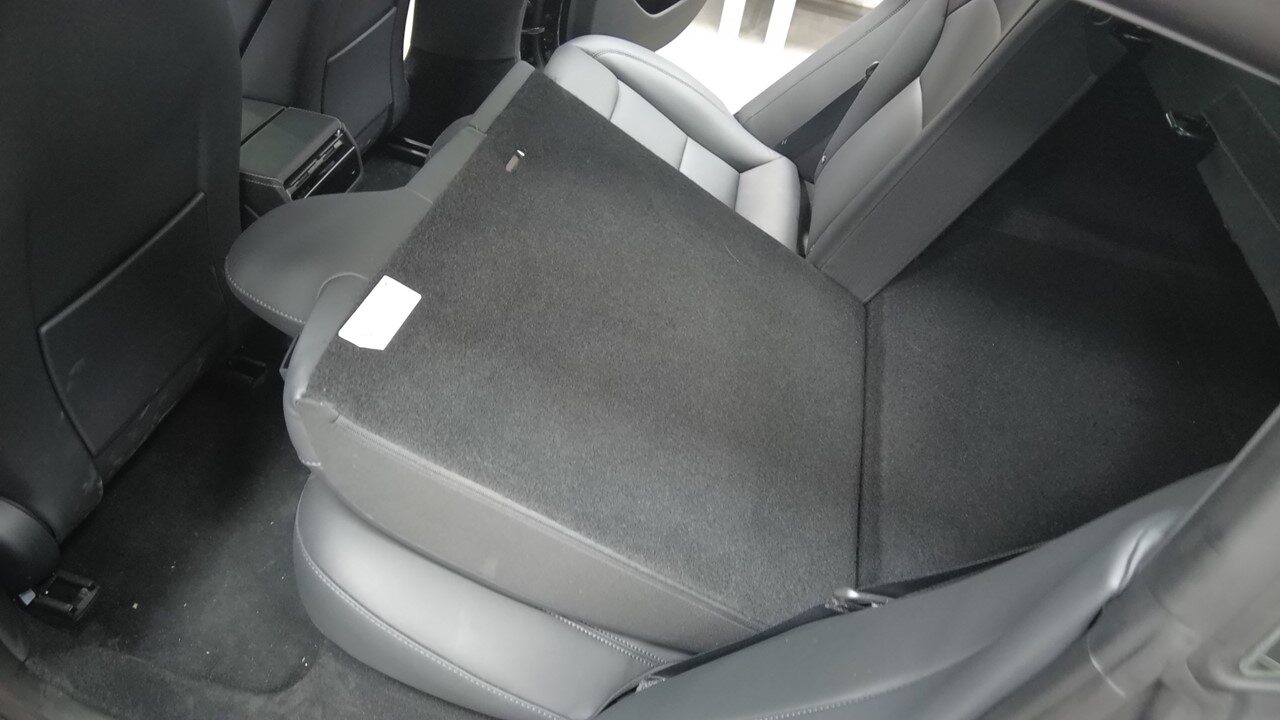

  99. Fold 2nd row 40 seatback down

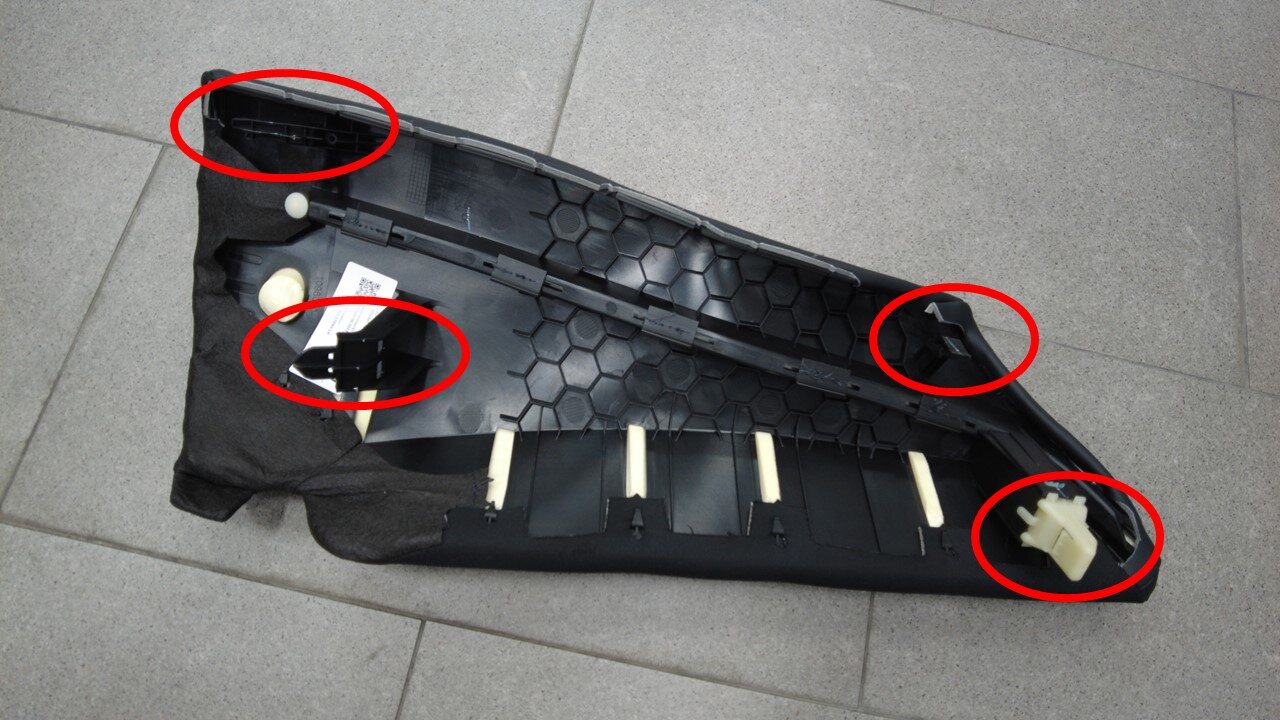

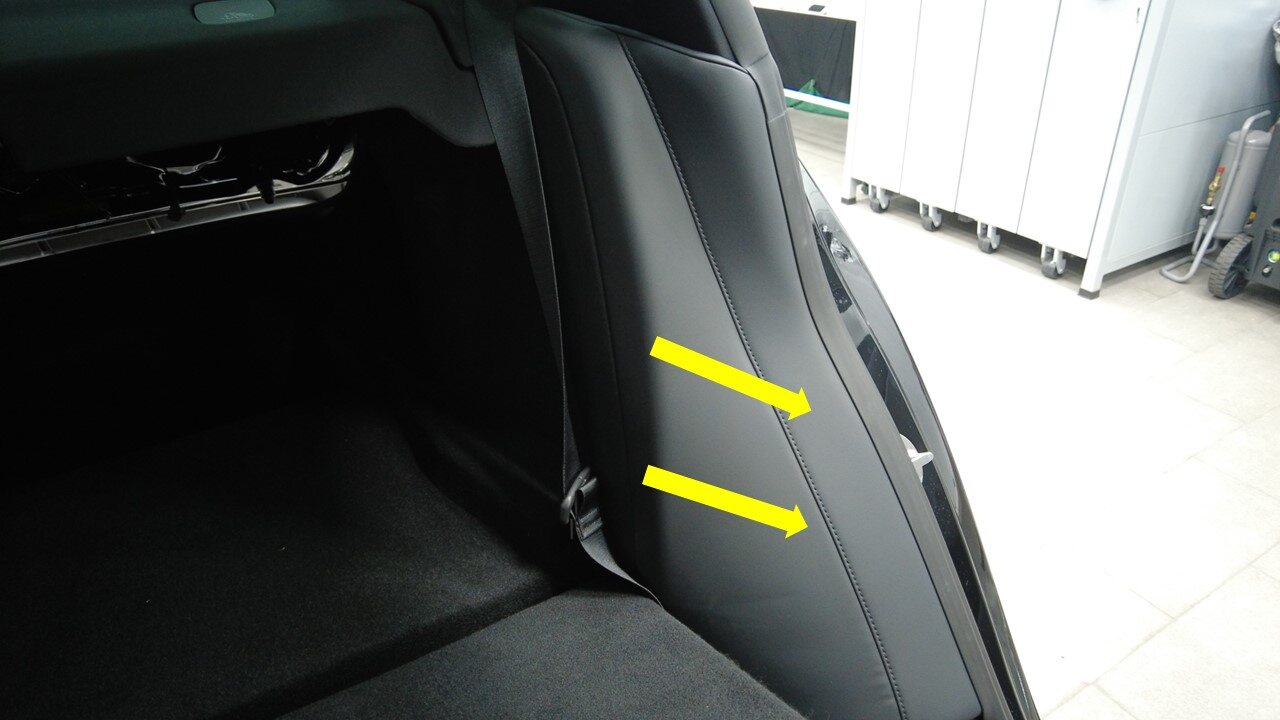

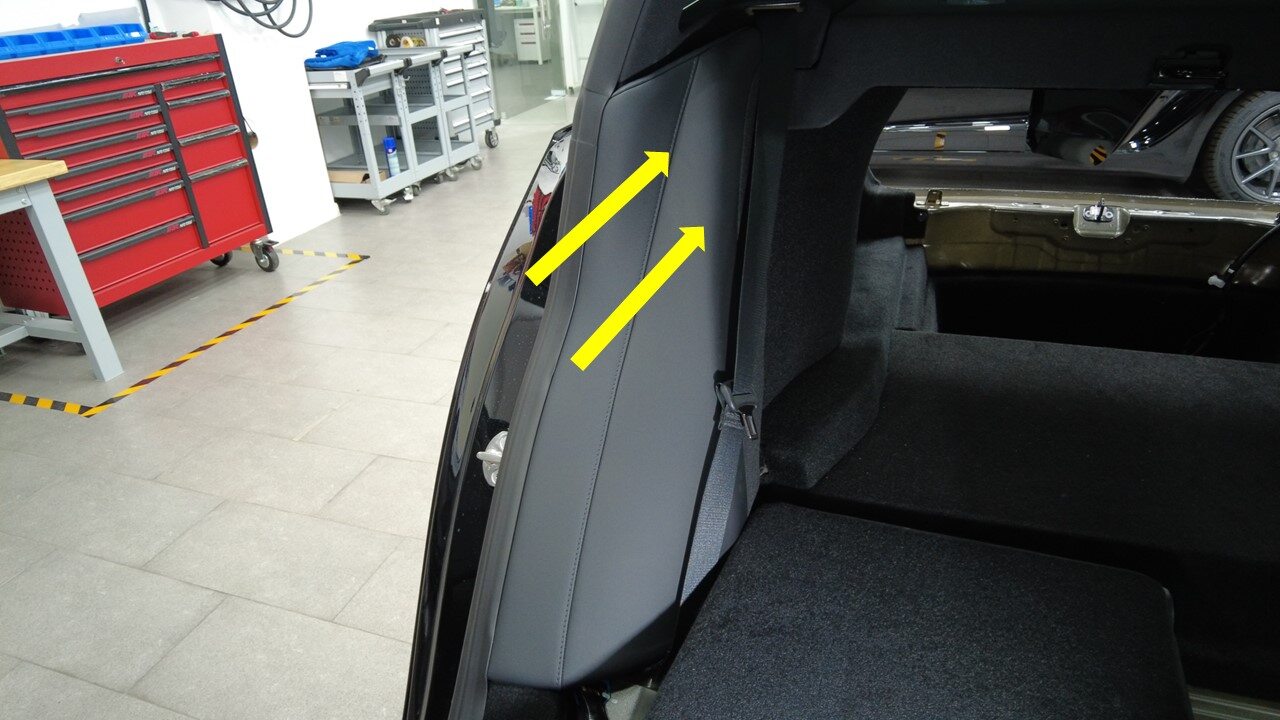

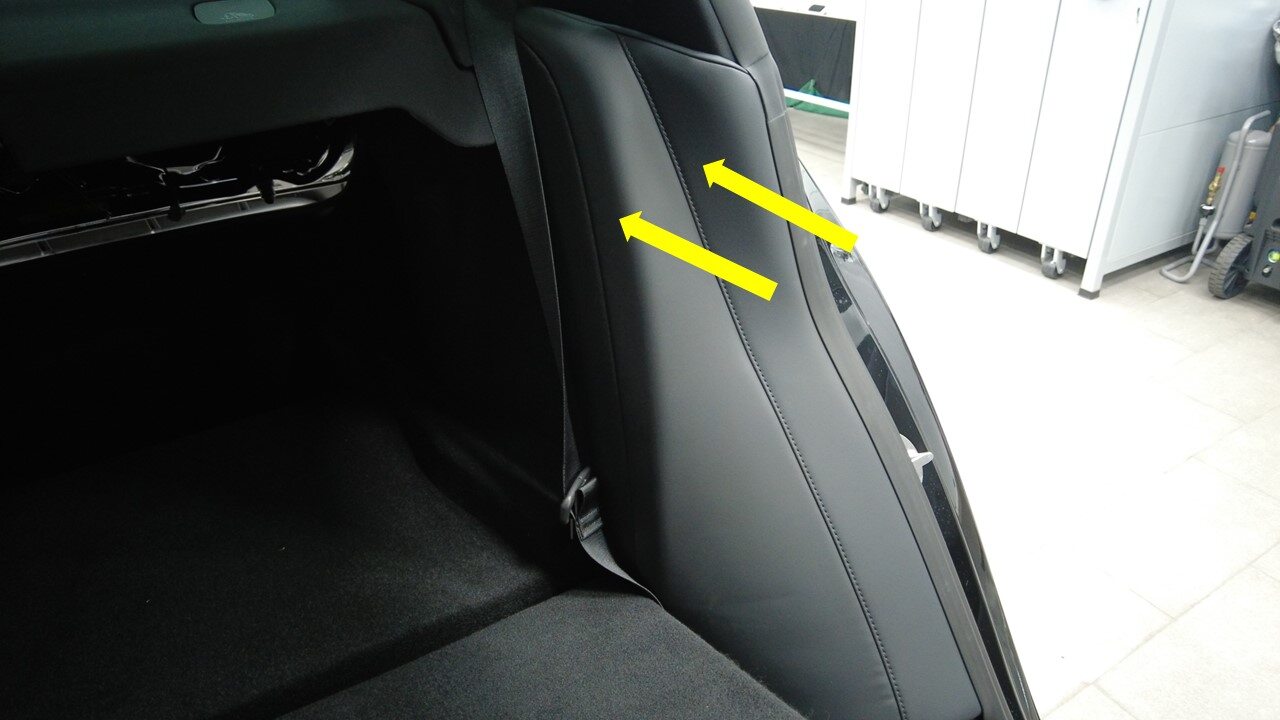

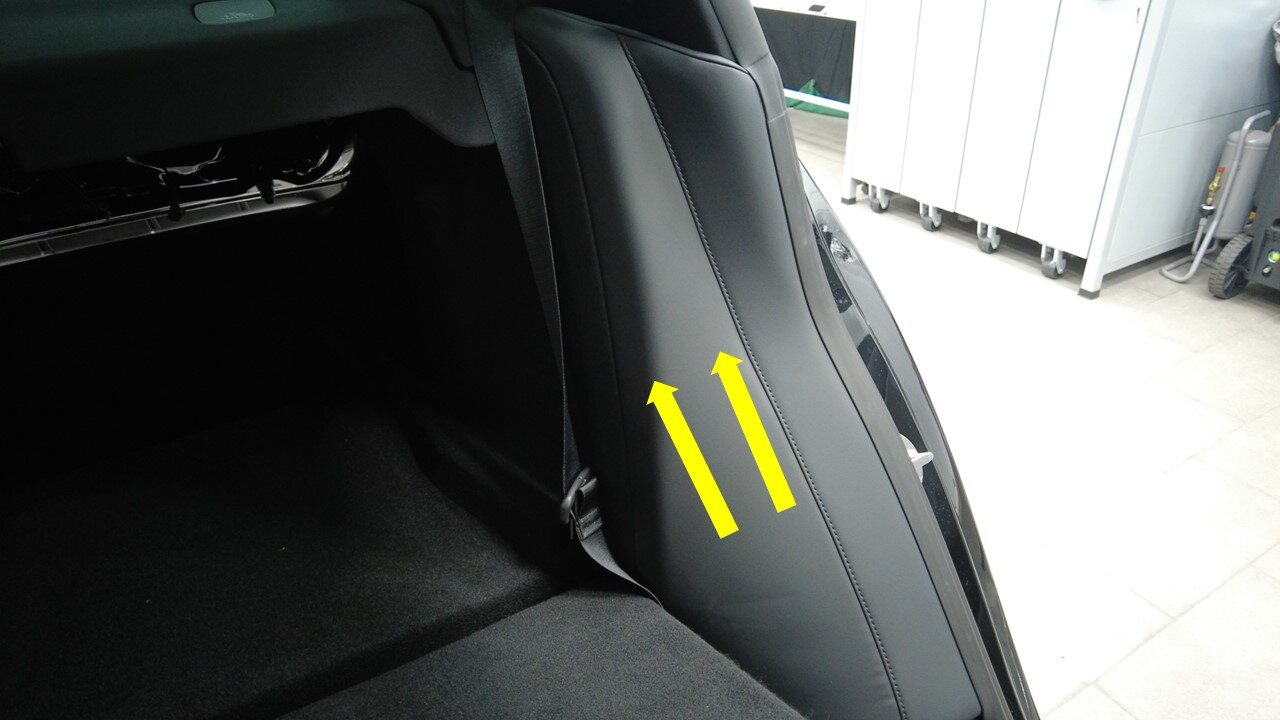

  100. Remove RH side bolster
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x locator clip, 3x guide tabs, Pull outward then slightly upward to remove
  101. Remove bolster plastic bracket from RH side body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x clips, If necessary, depress the clips from behind, this bracket may come out with bolster. Discard after removal

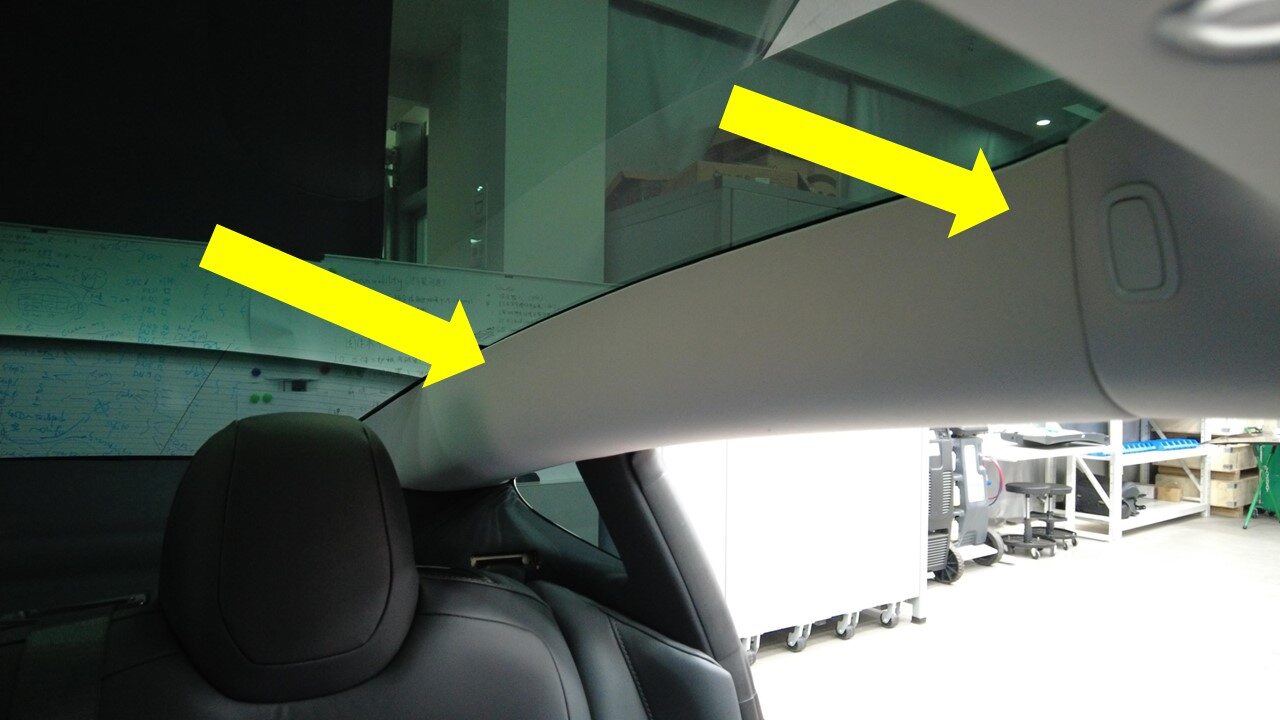

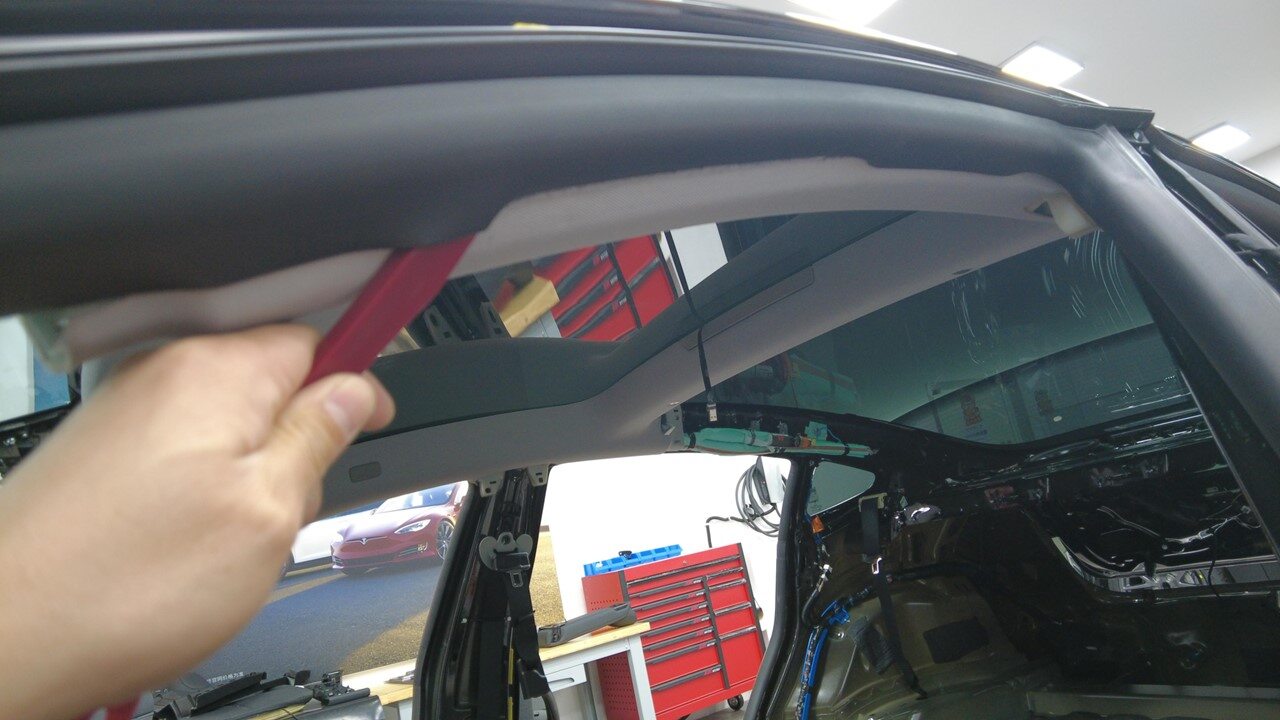

  102. Remove RH side rail assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x clips, 2x locations, 4x tethers, Pull the upper corner of the side rail then work your way to bottom, Pull the lower side rail toward RH to release clips, Release tethers from bolted bungee tether

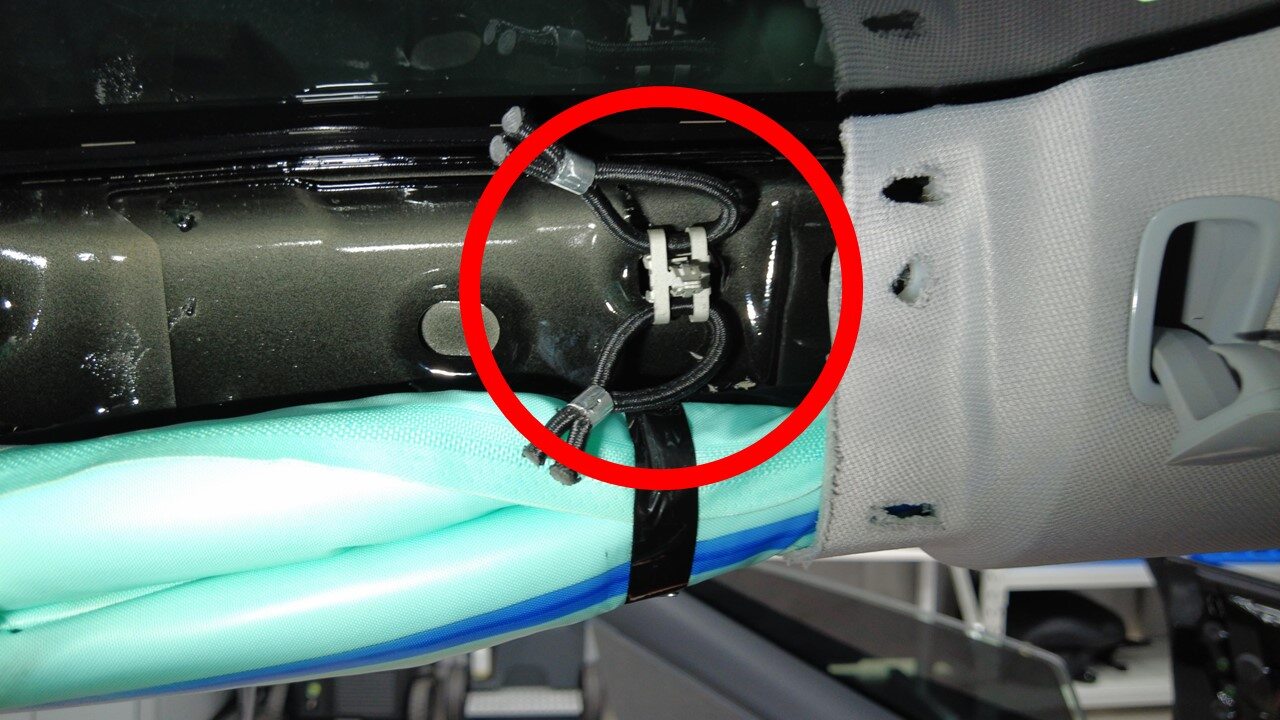

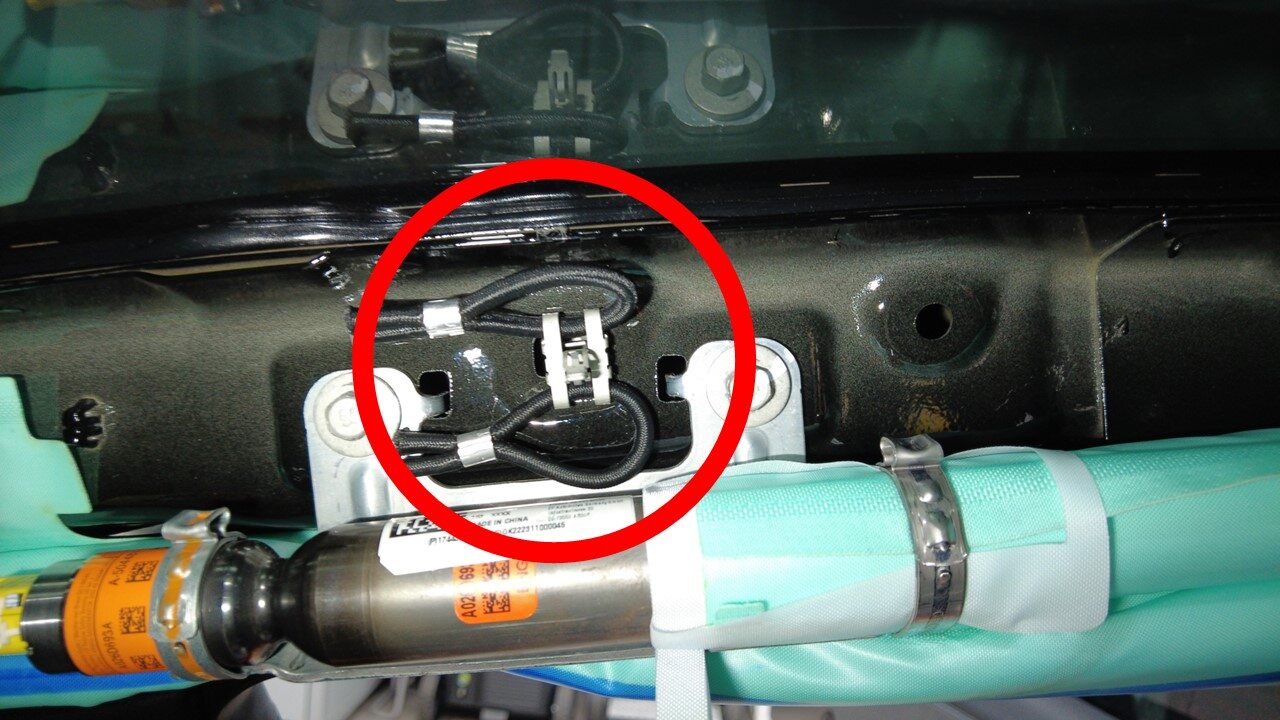

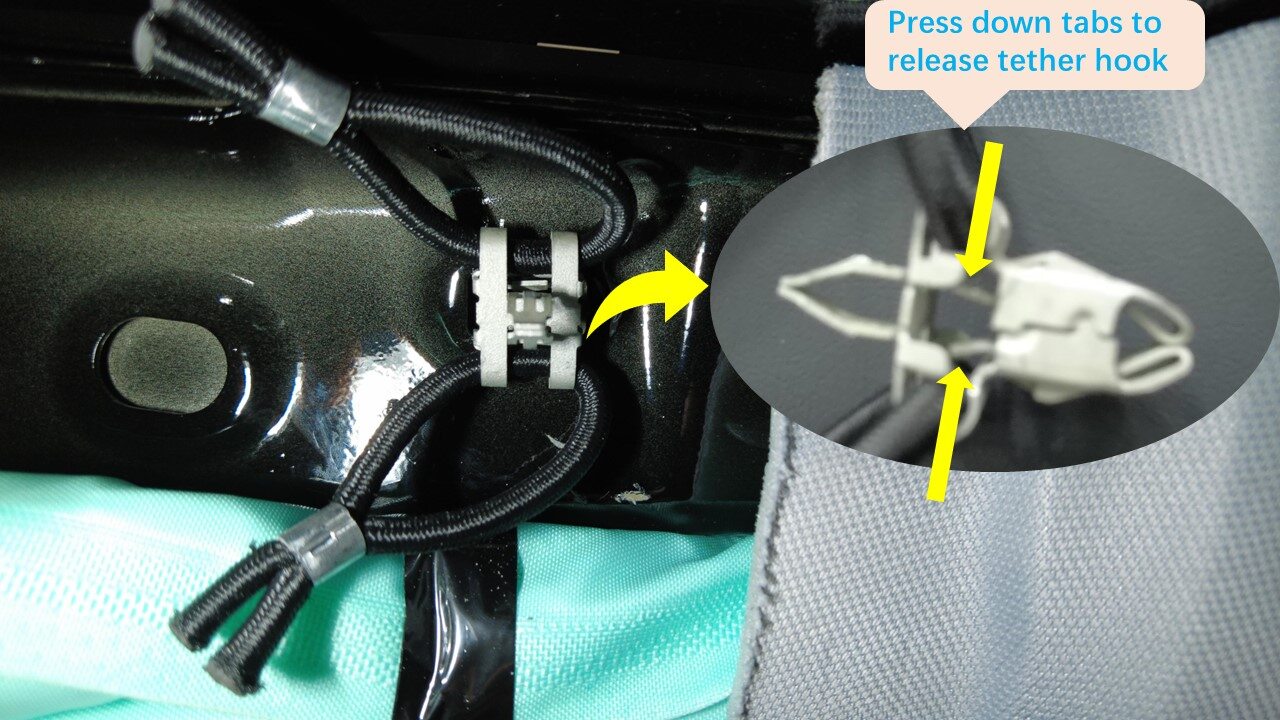

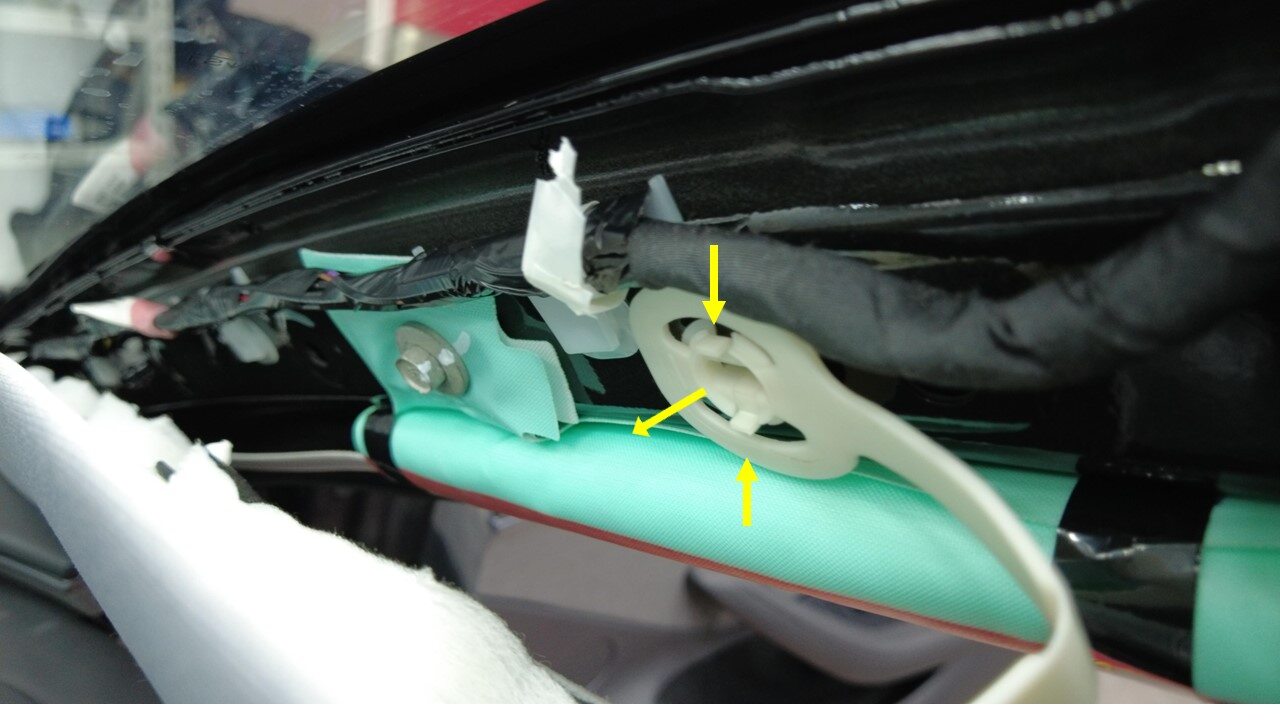

  103. Remove tether hooks from RH body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x tether hooks, Discard after removal

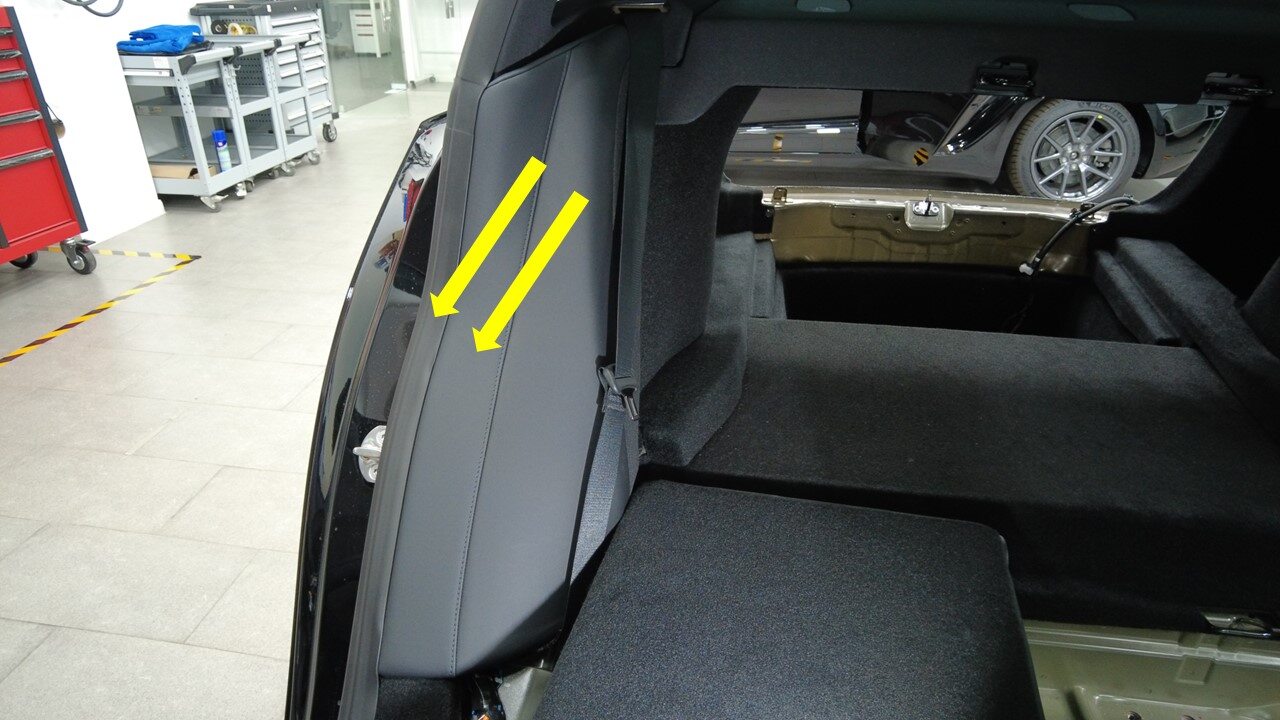

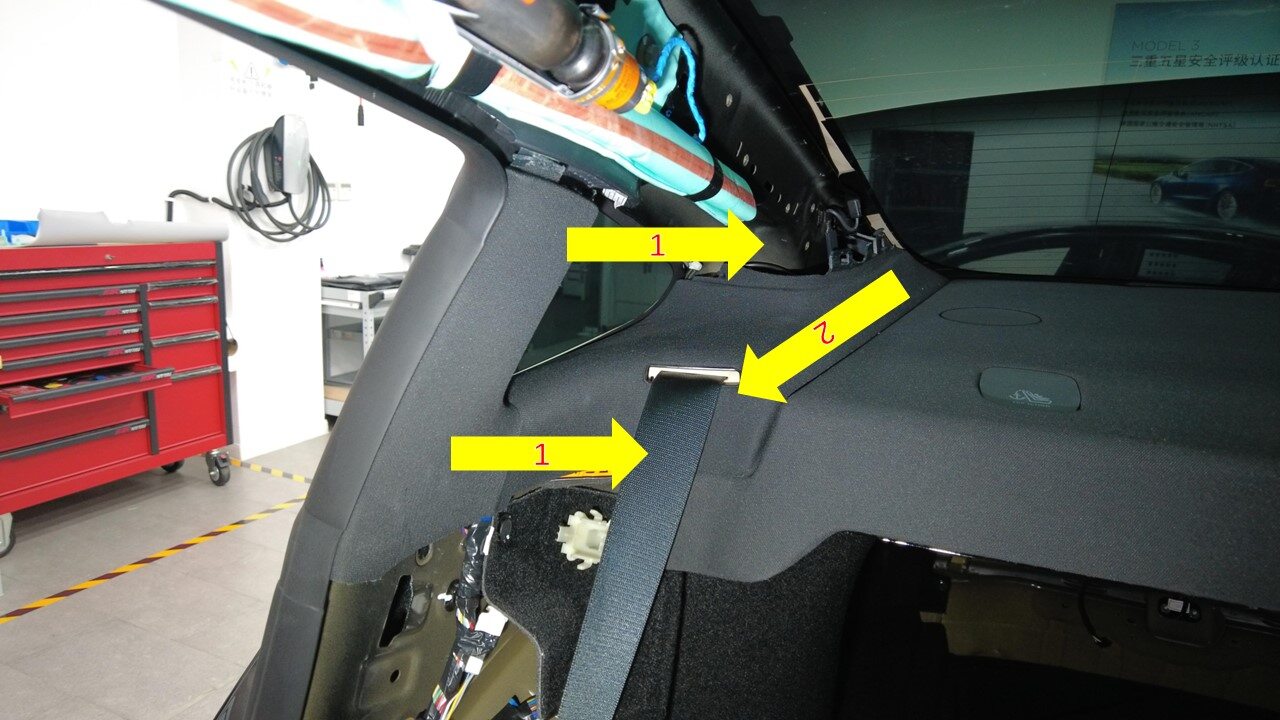

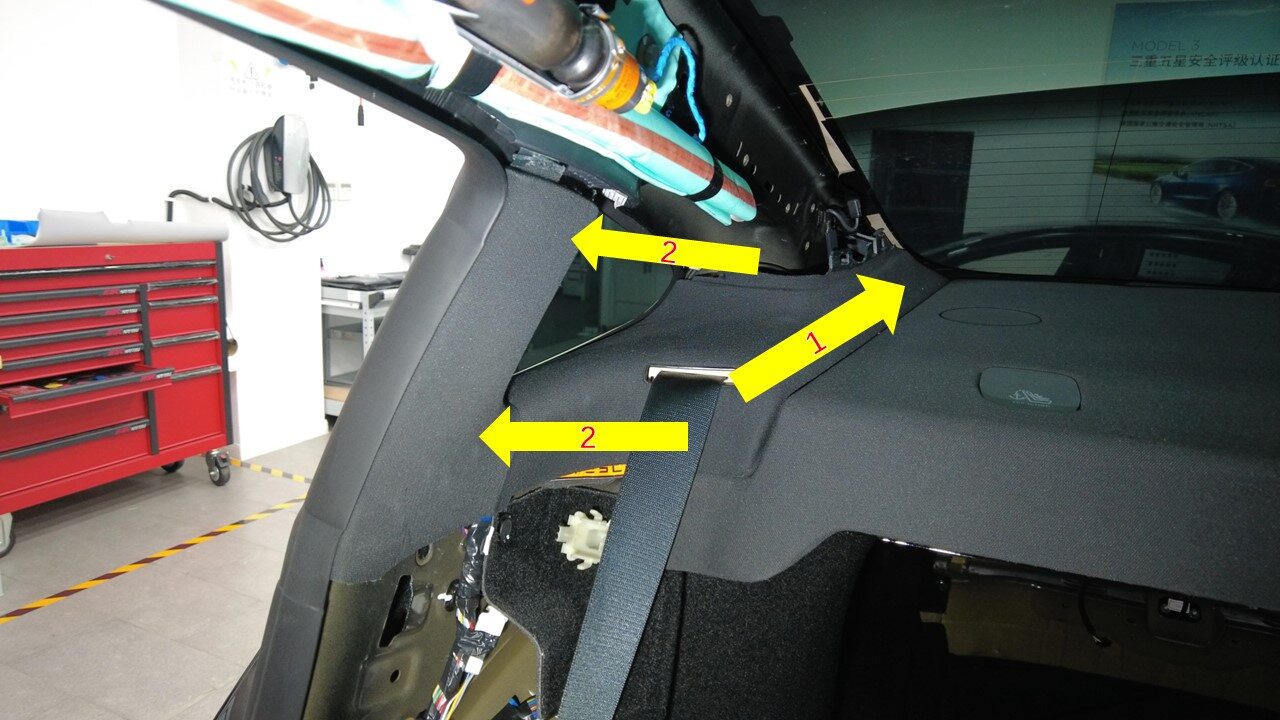

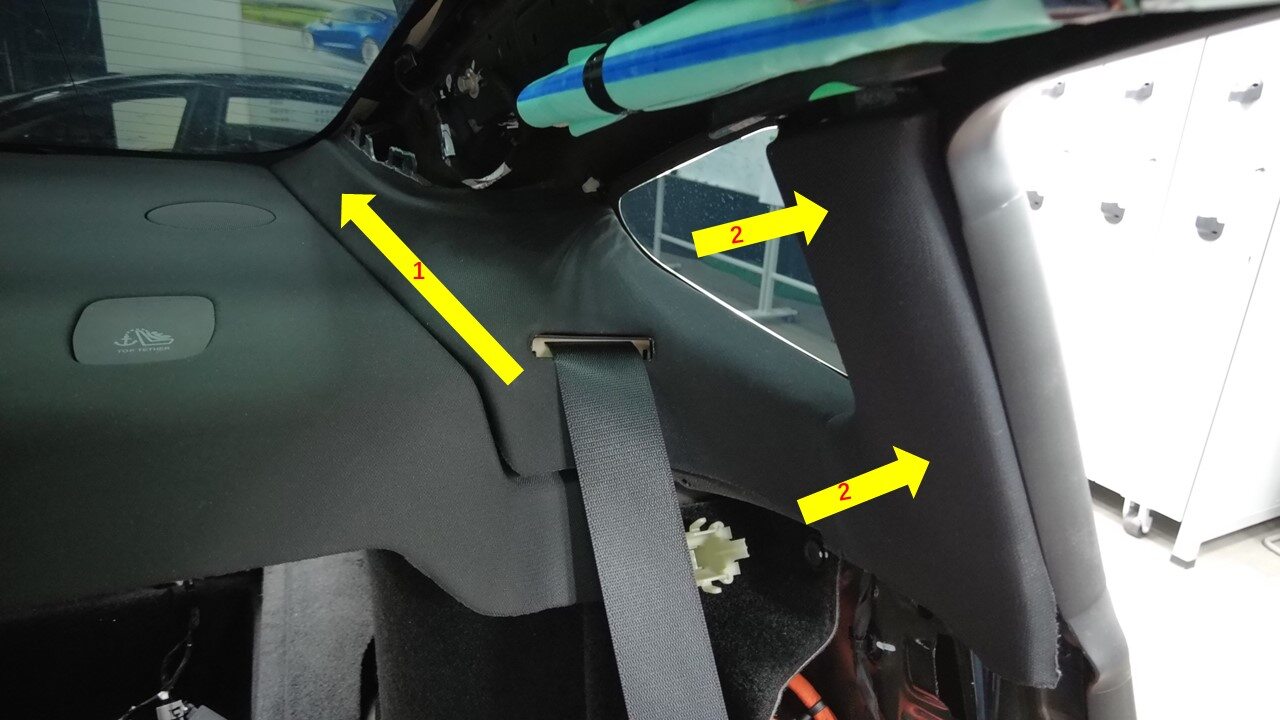

  104. Remove RH C pillar assembly and move it aside
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x clips, 3x tabs, Pull rear C-pillar inward then forward to remove

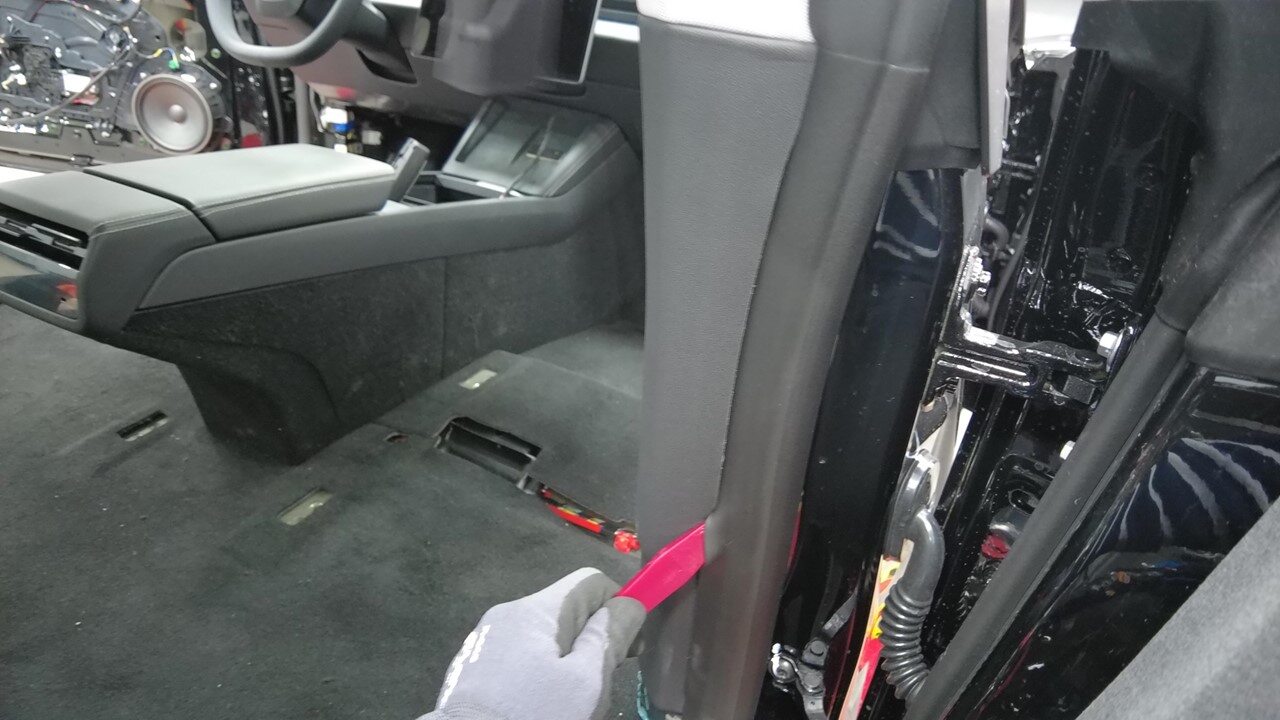

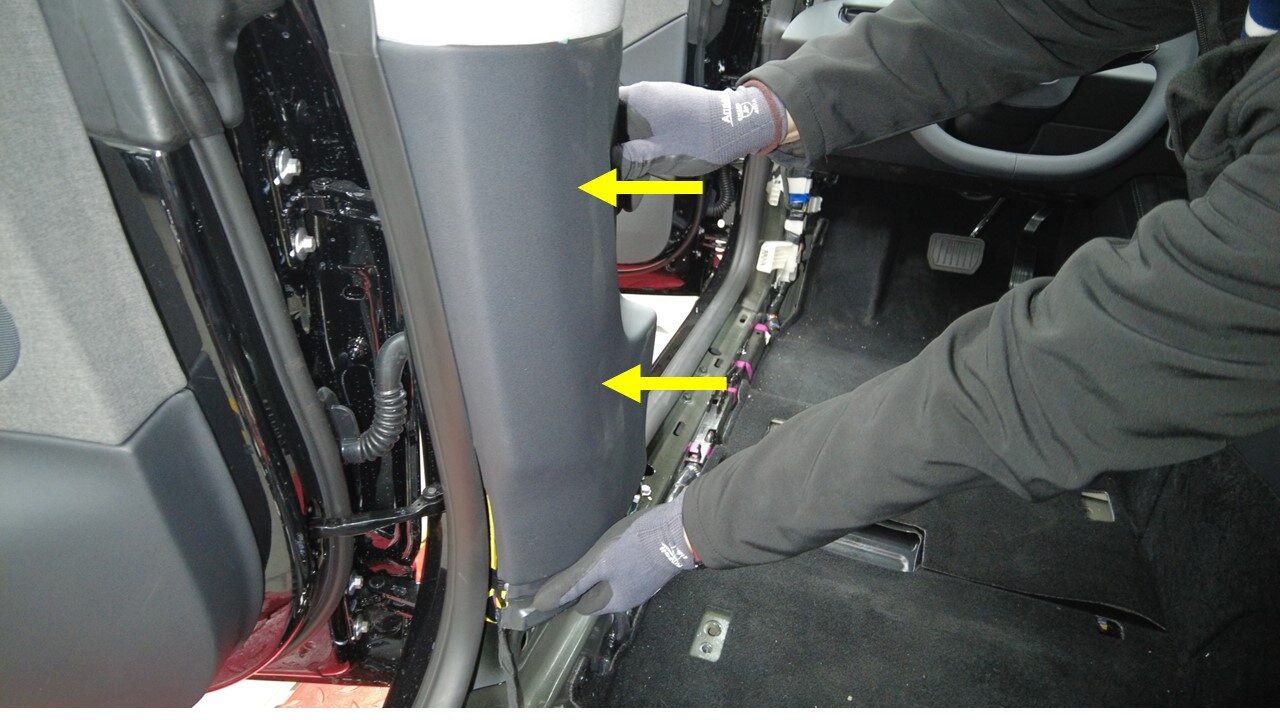

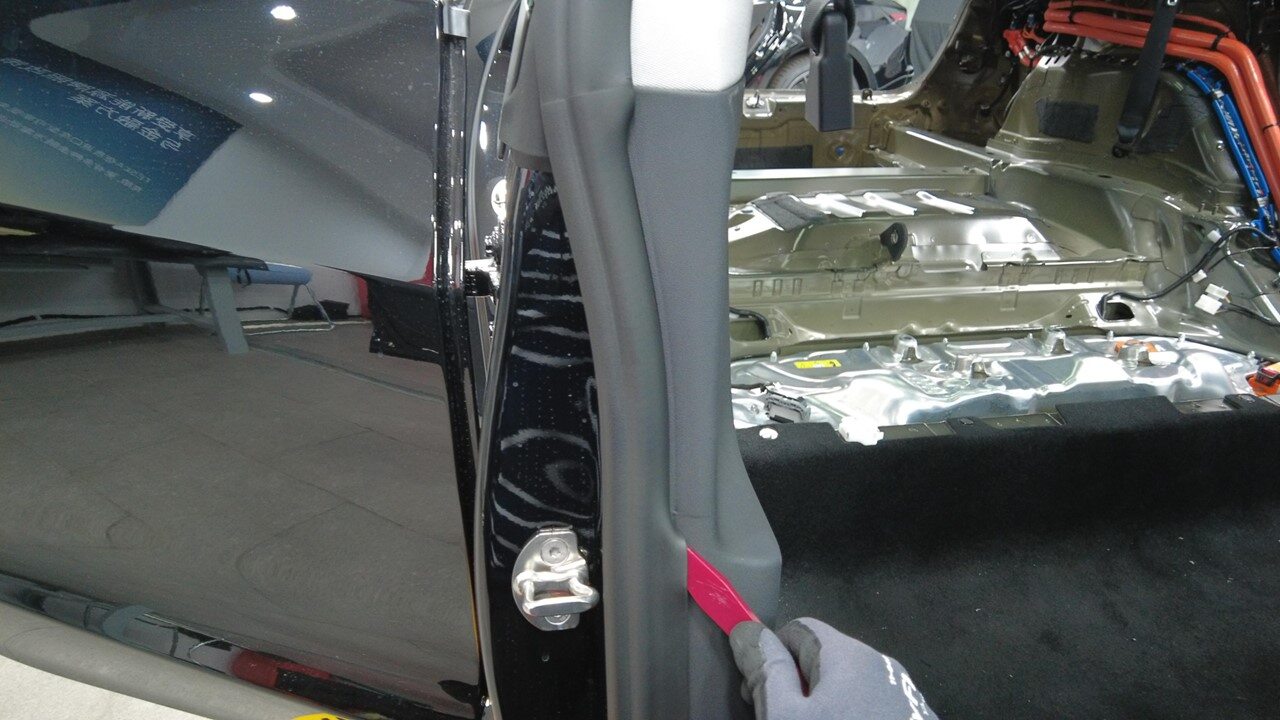

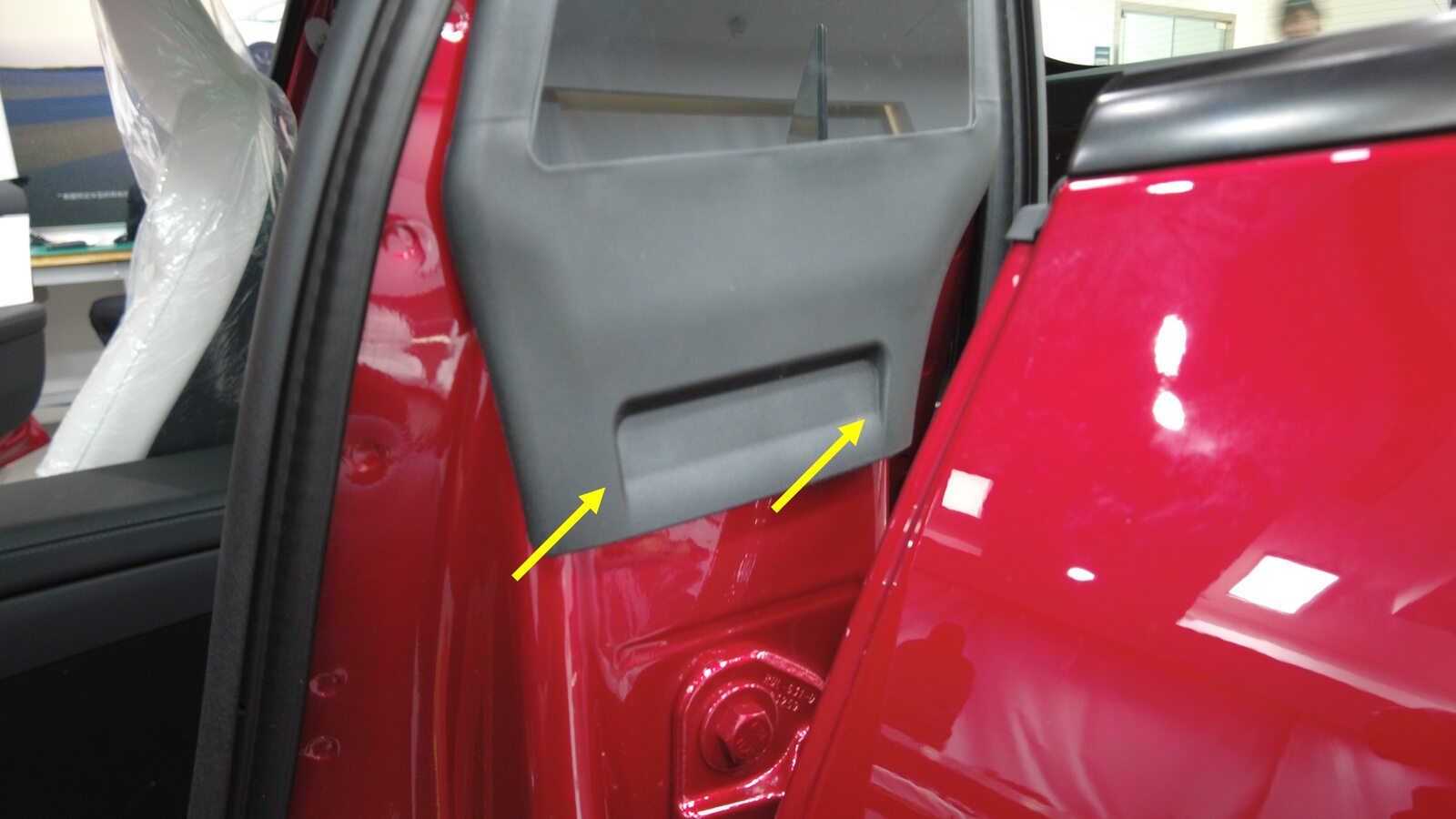

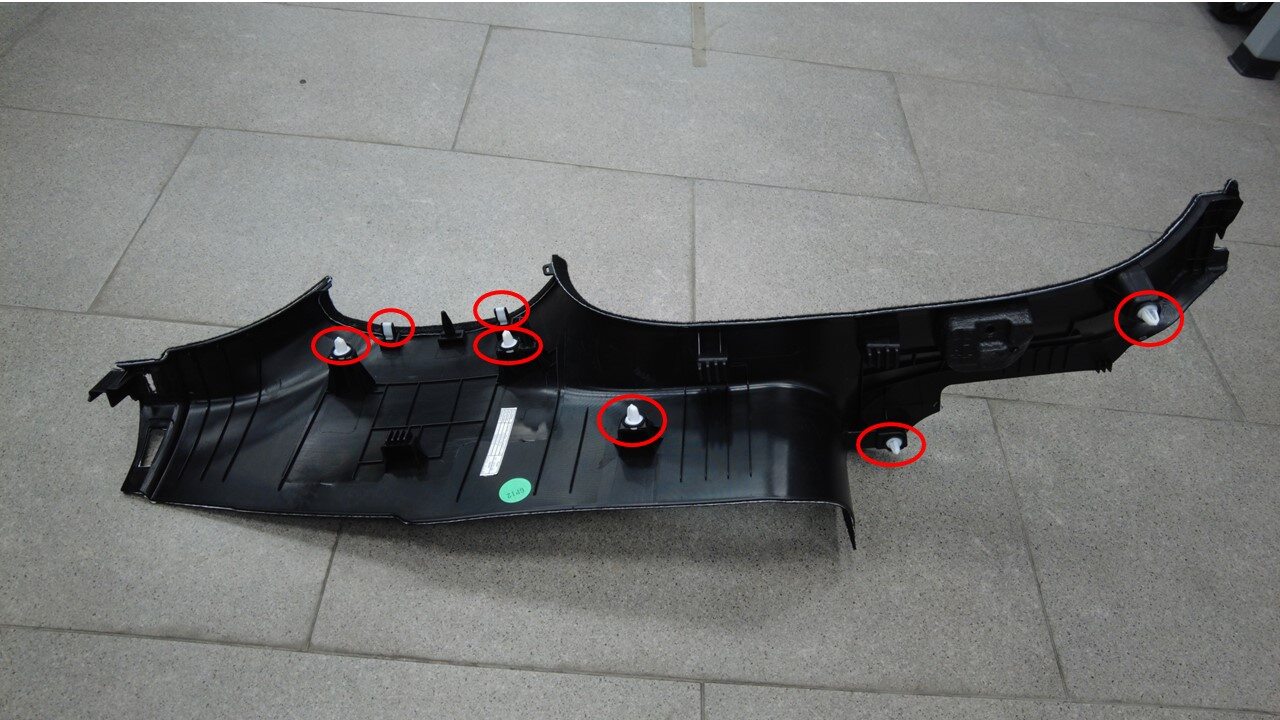

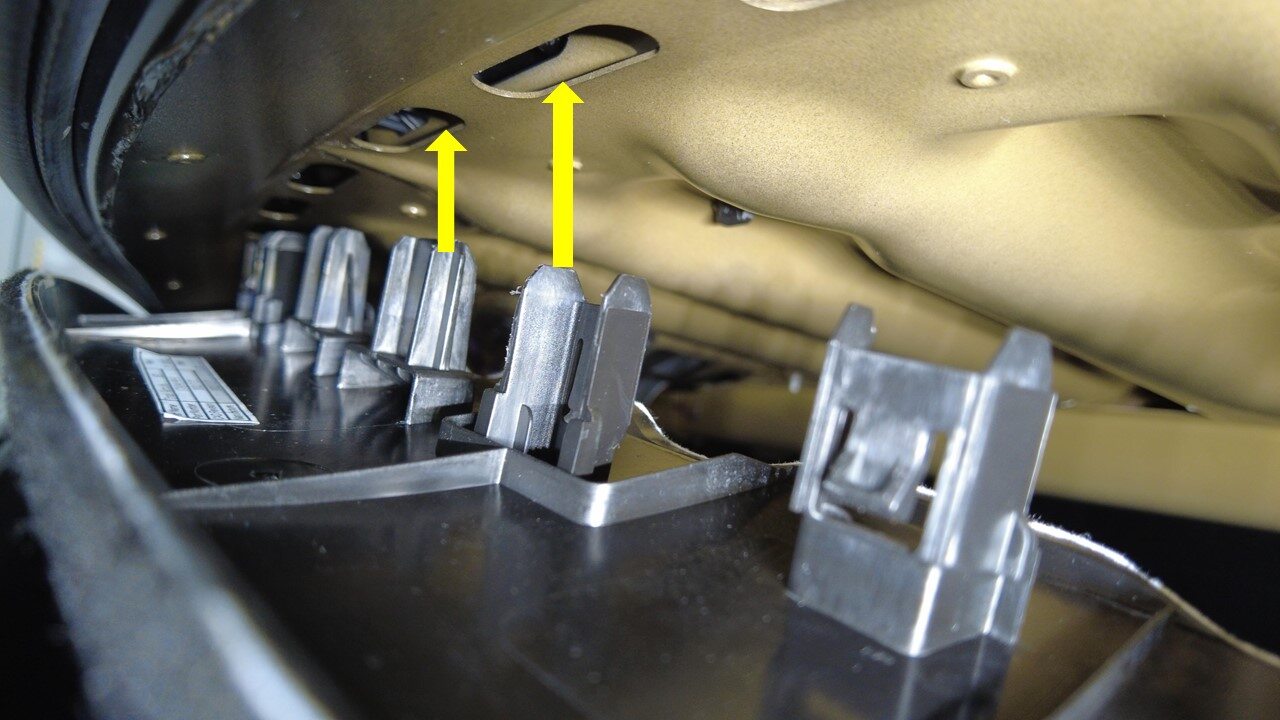

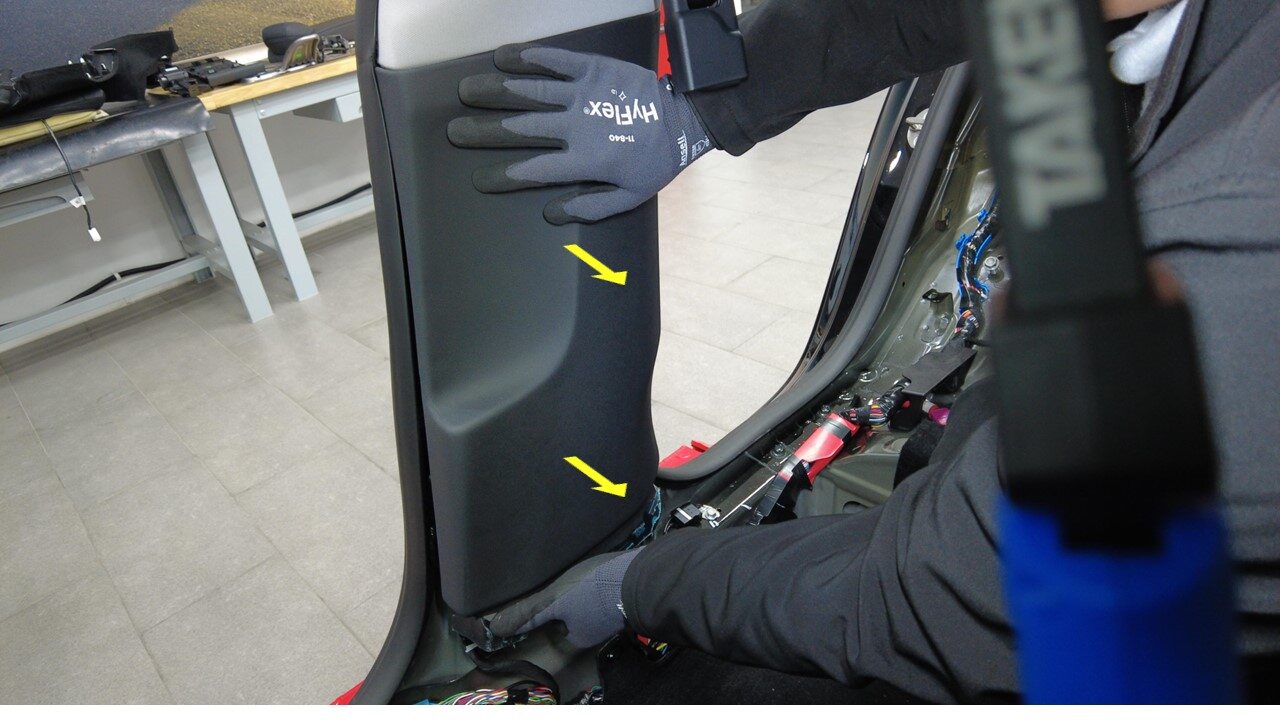

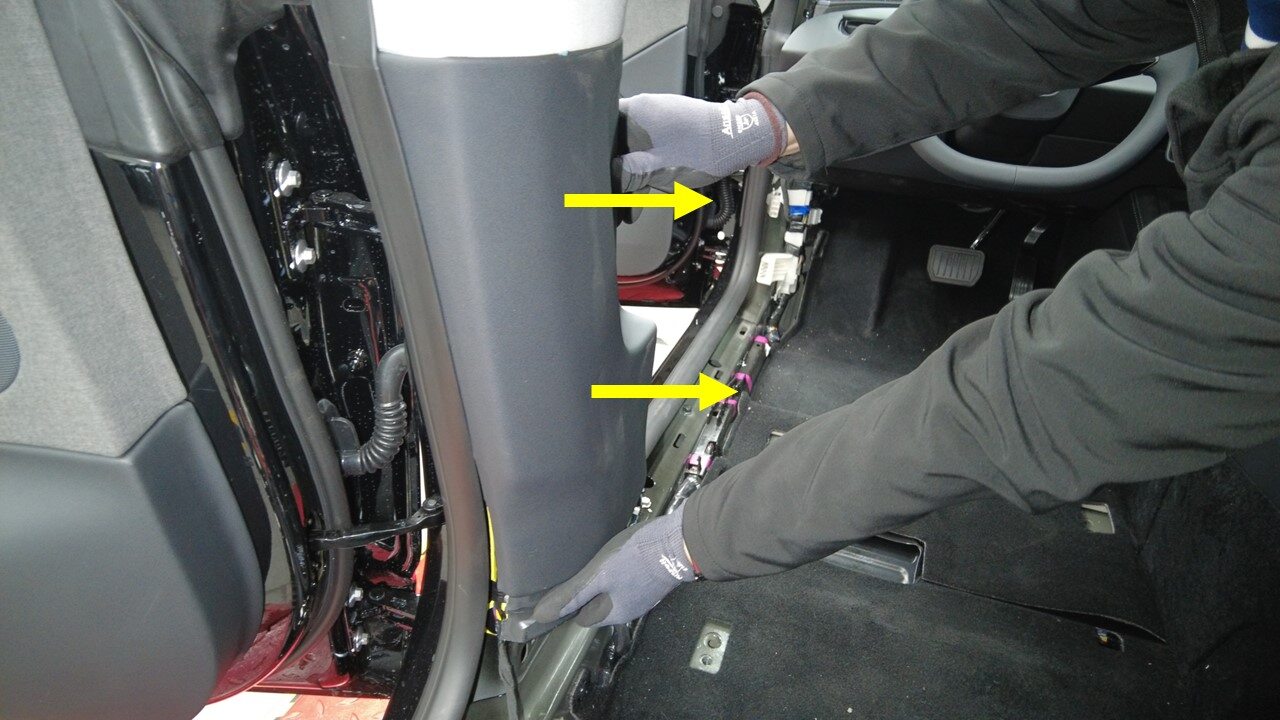

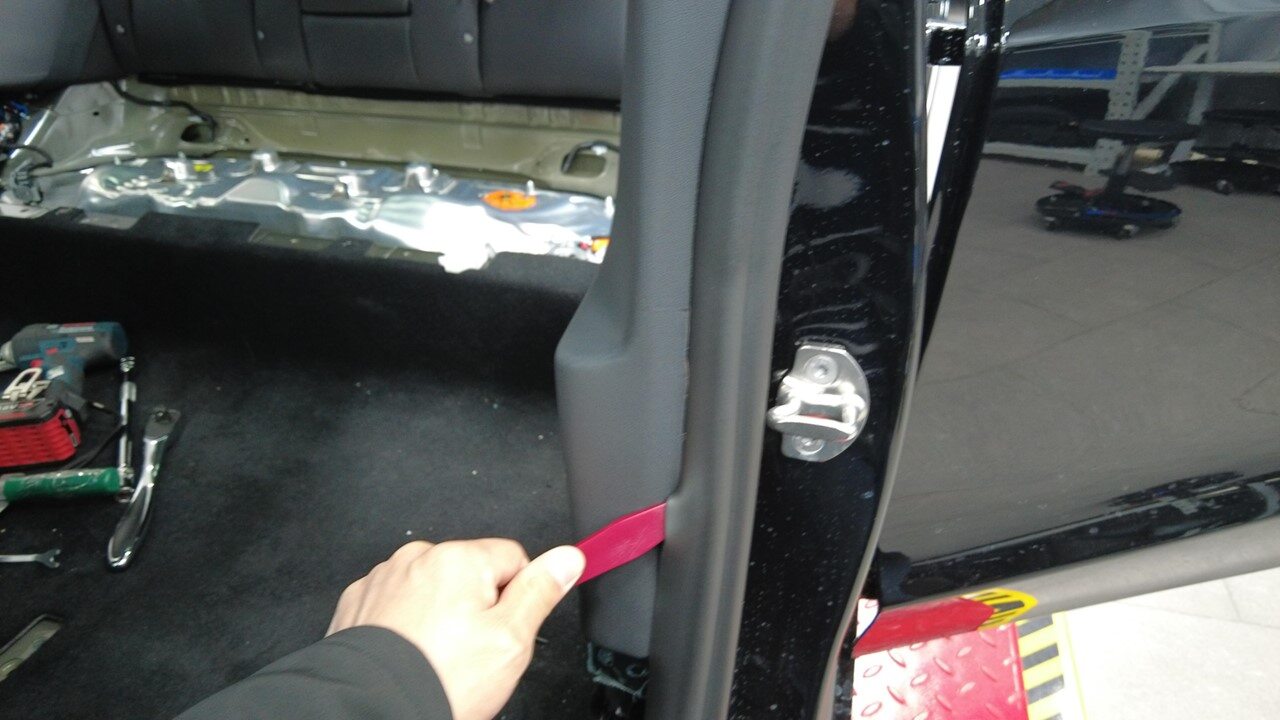

  105. Remove RH lower B-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    7x clips, 5x locator clips, Pull the trim panel outward in the direction of the arrow to release clip from lower B-pillar

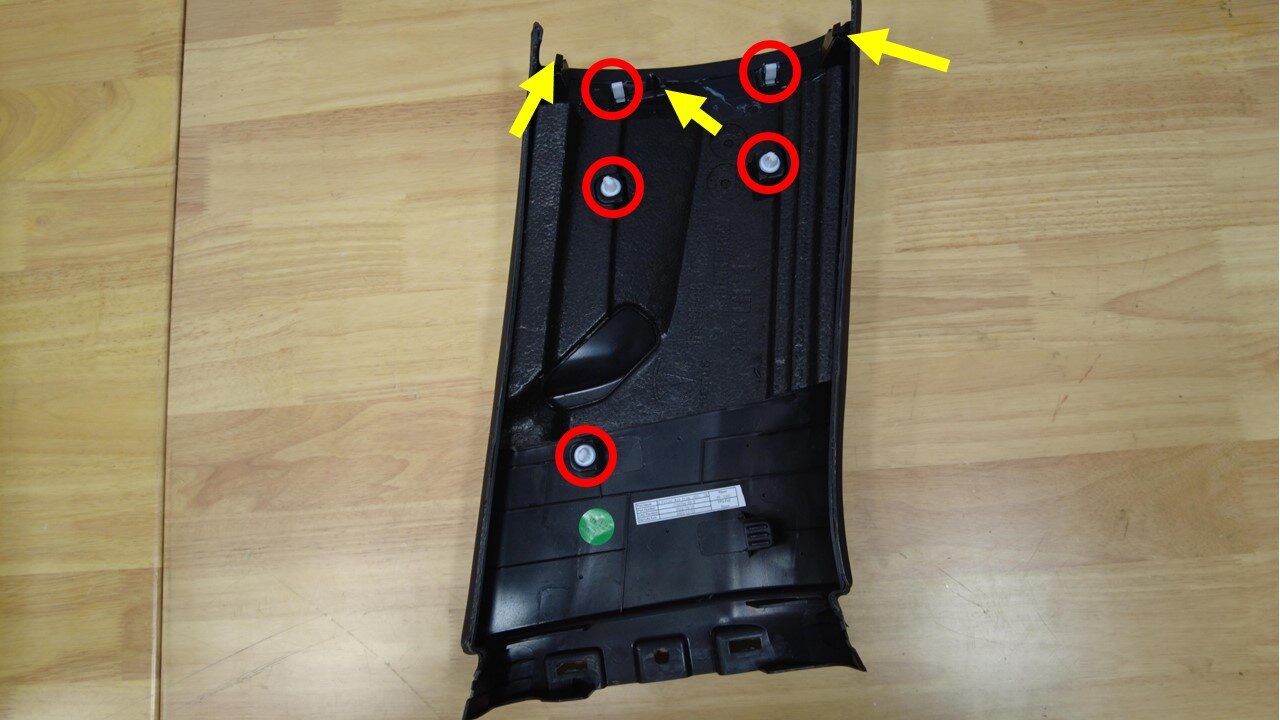

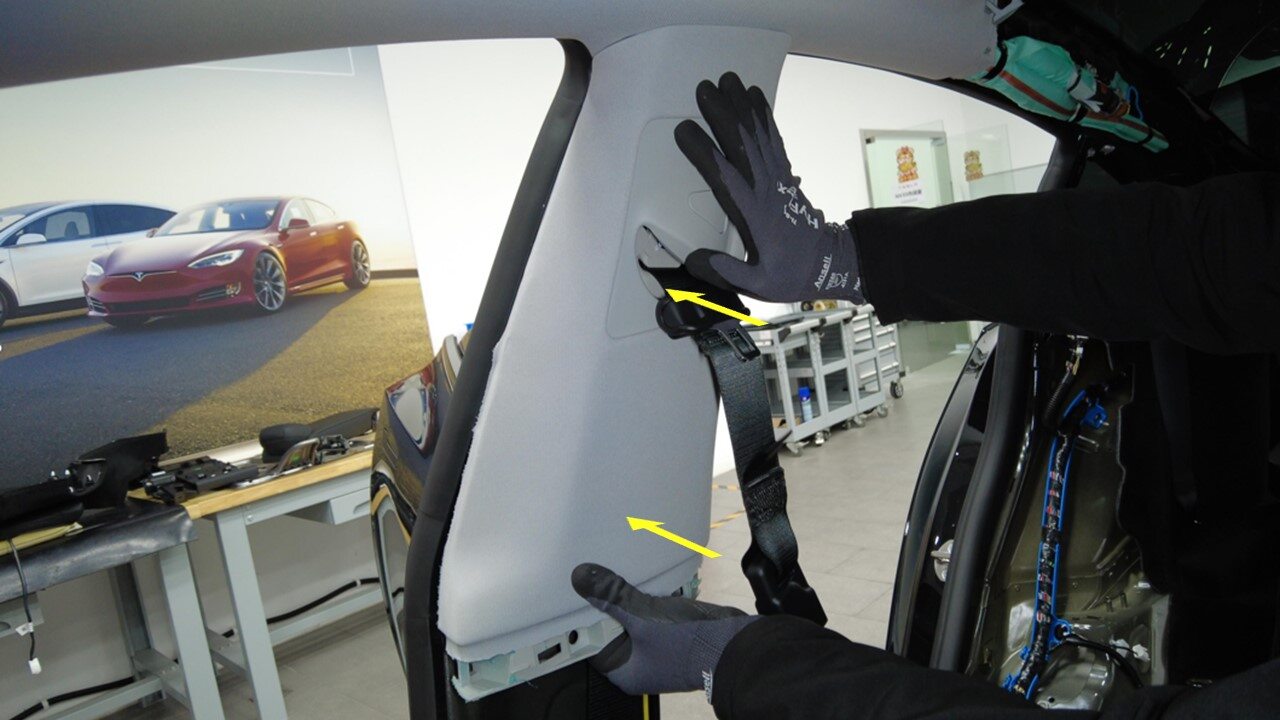

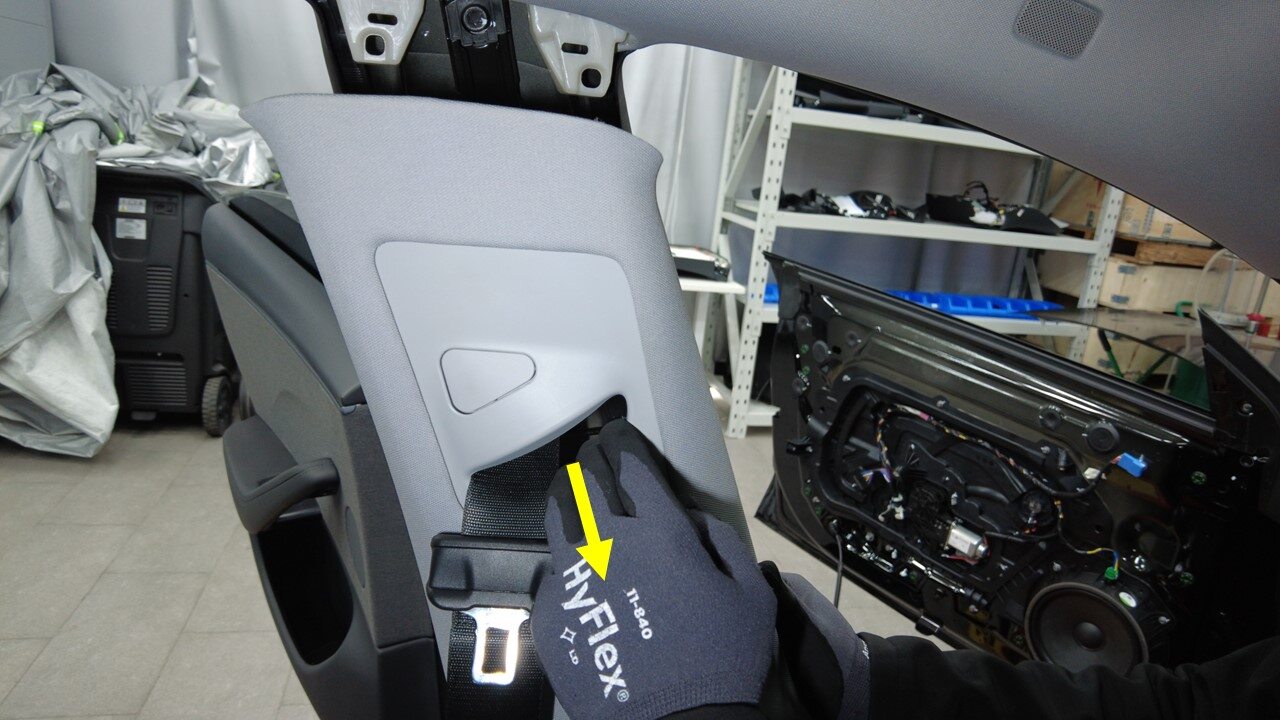

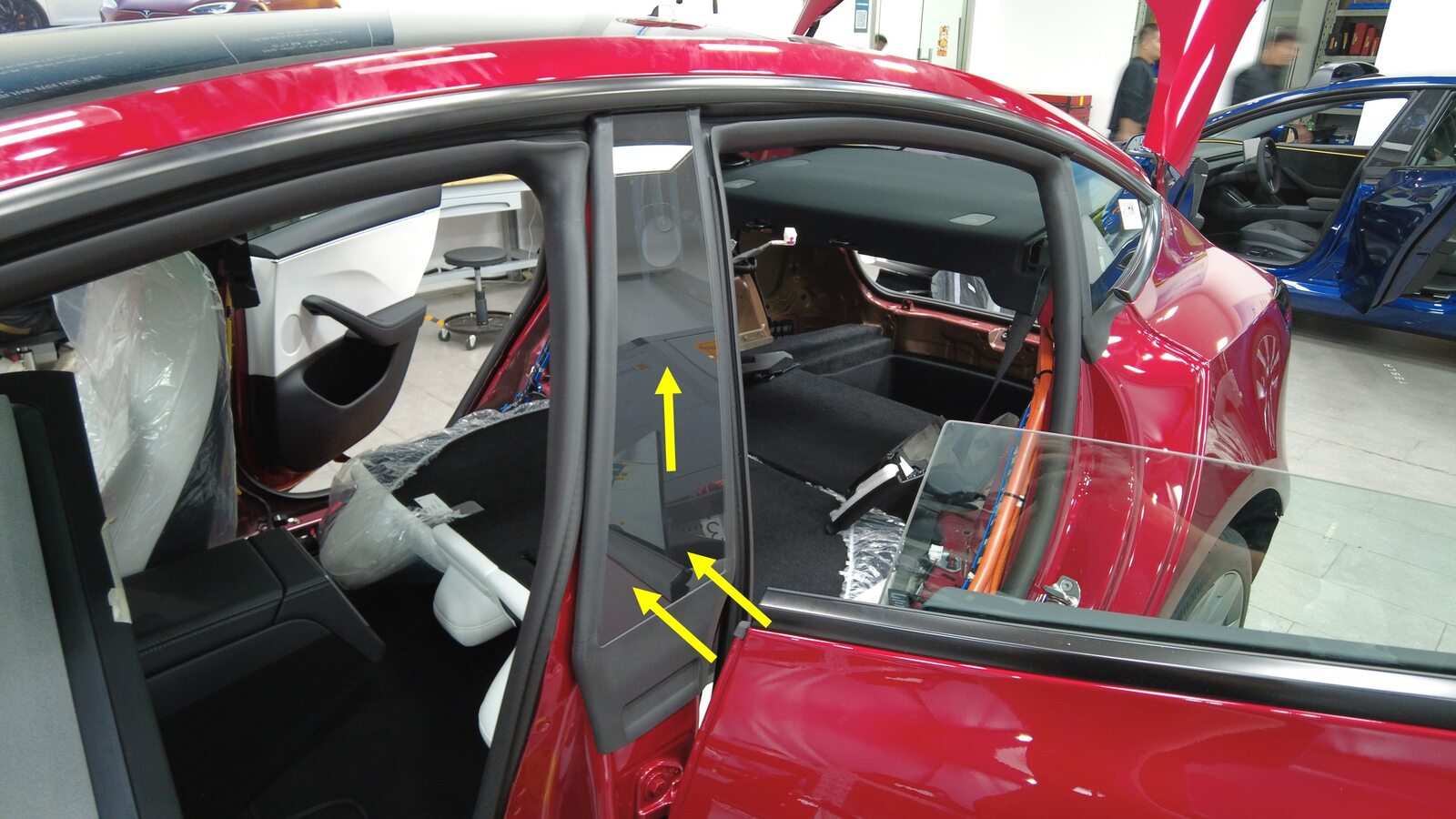

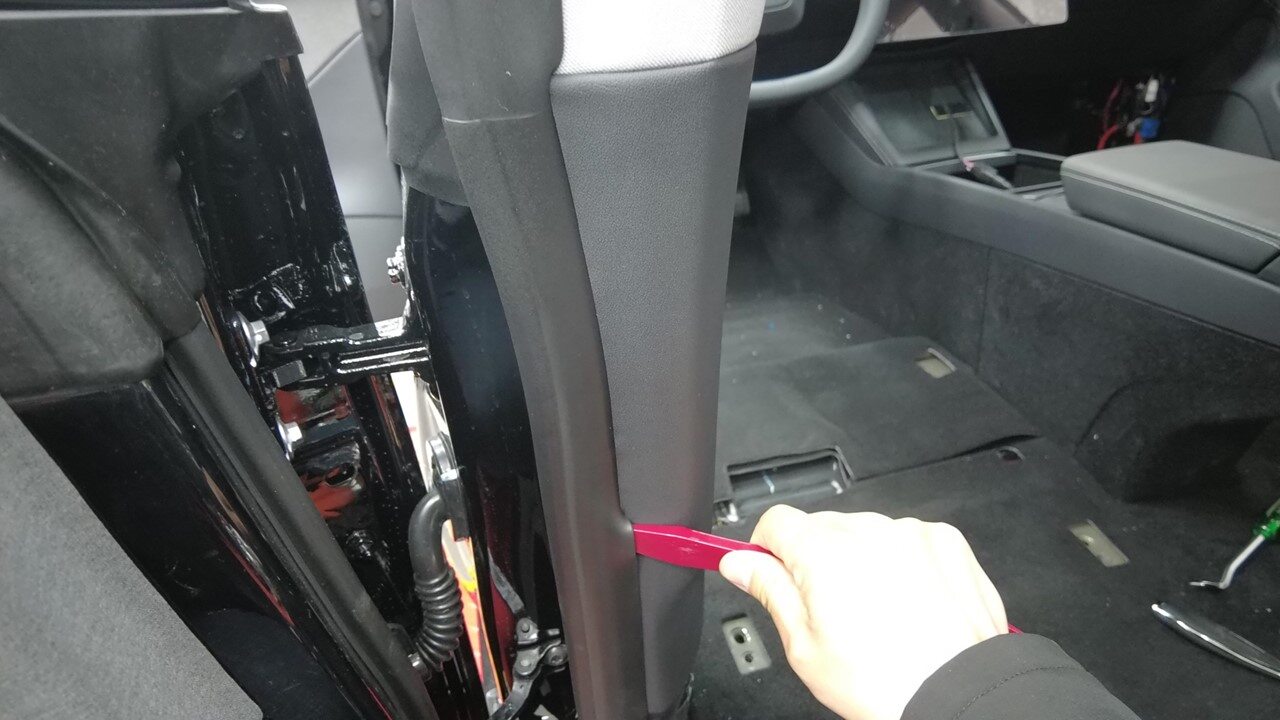

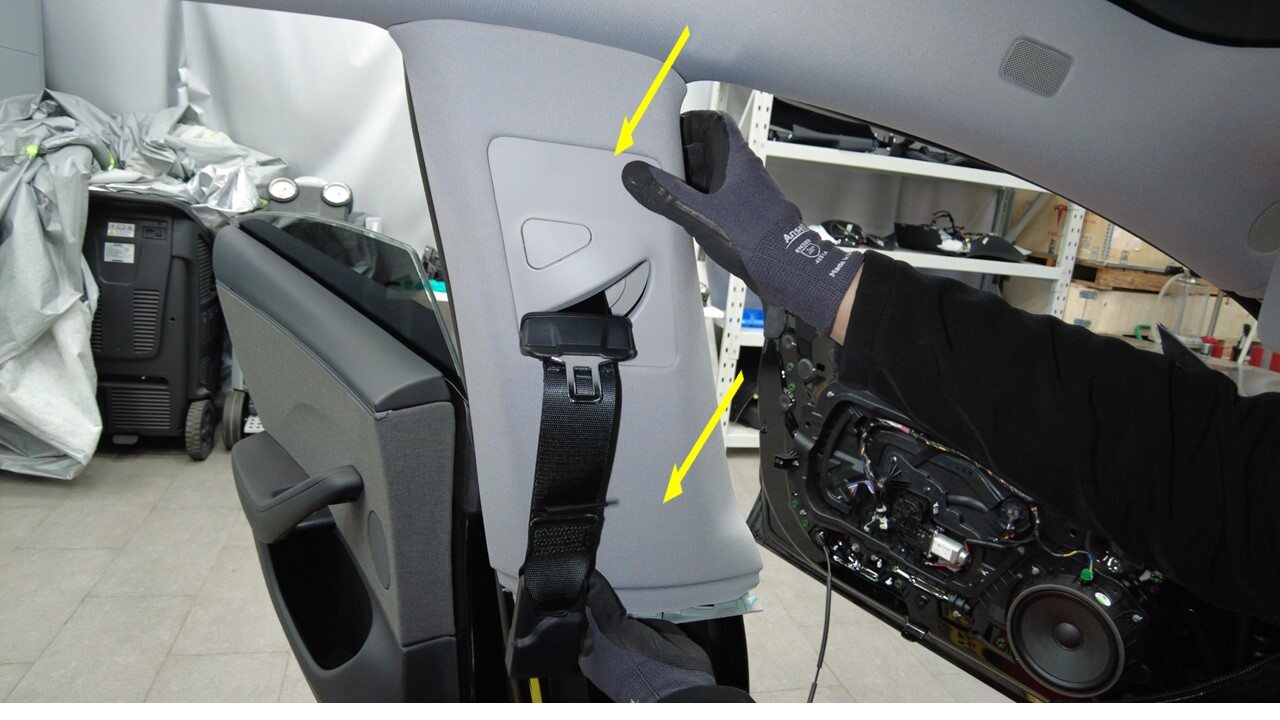

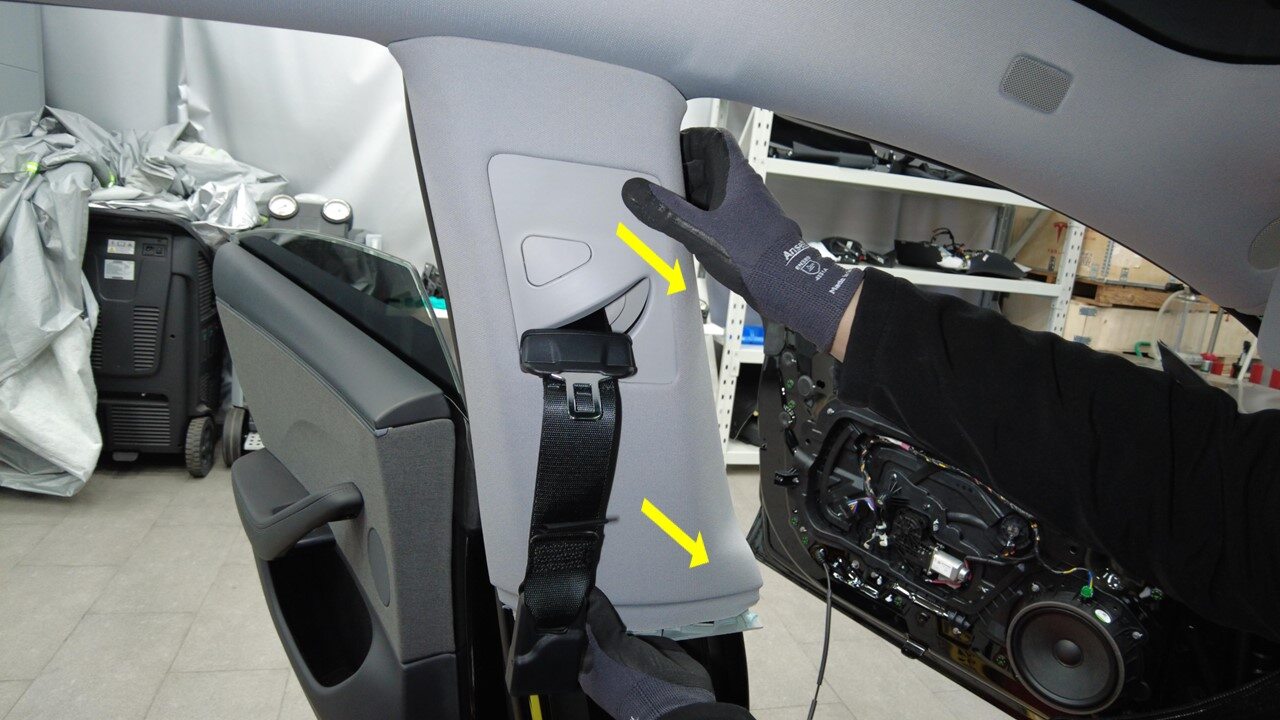

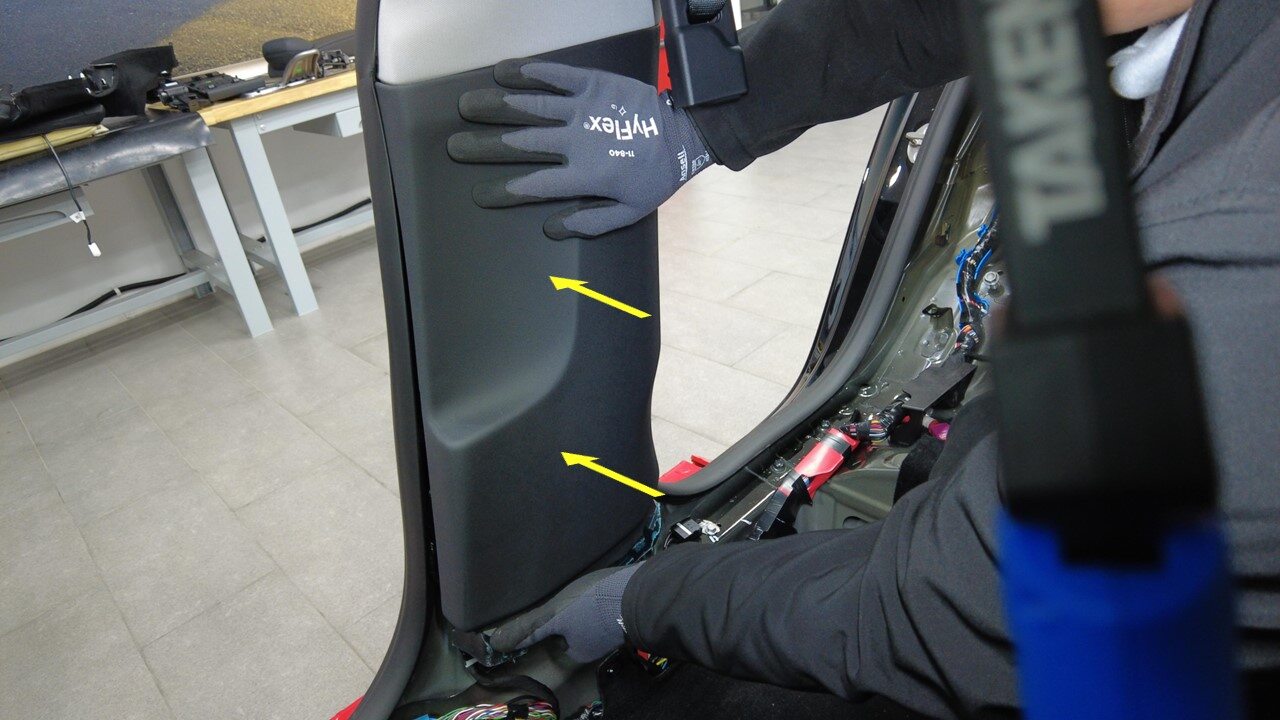

  106. Remove RH middle B-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x clips, 3x locator clips, Pull the bottom of the B-pillar middle trim panel into the vehicle, and then pull the upper part to release the remaining clips

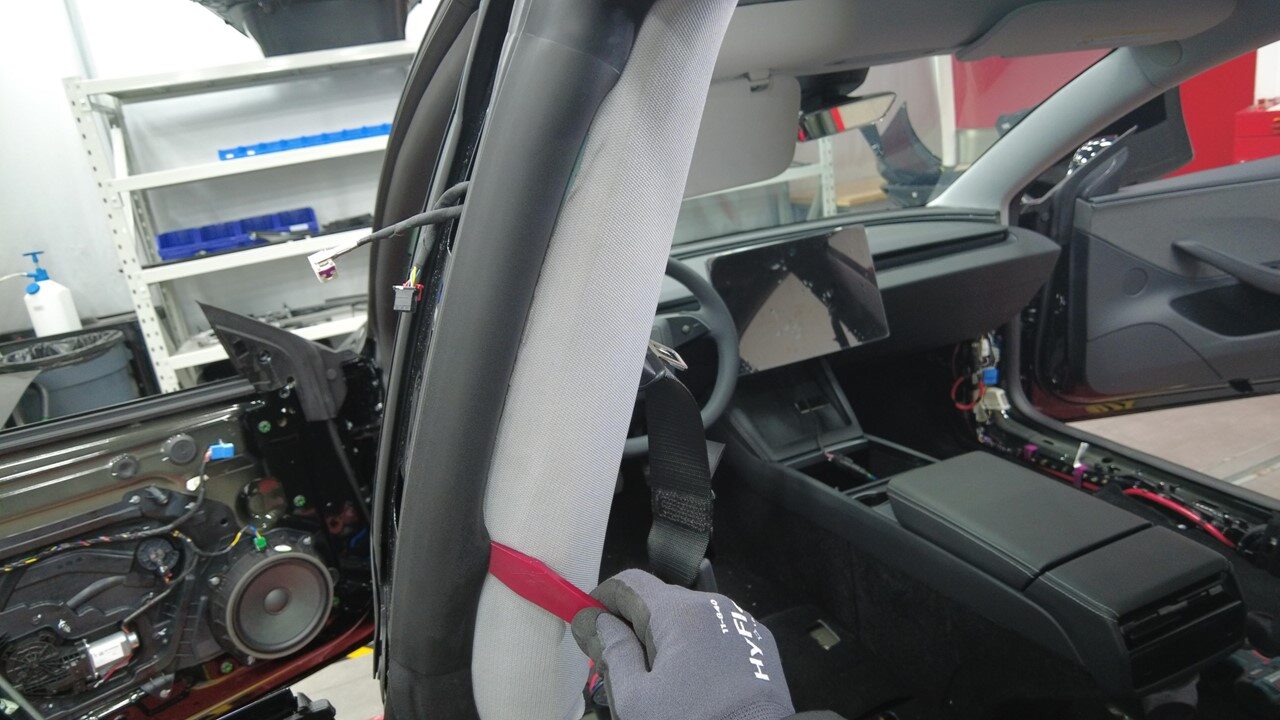

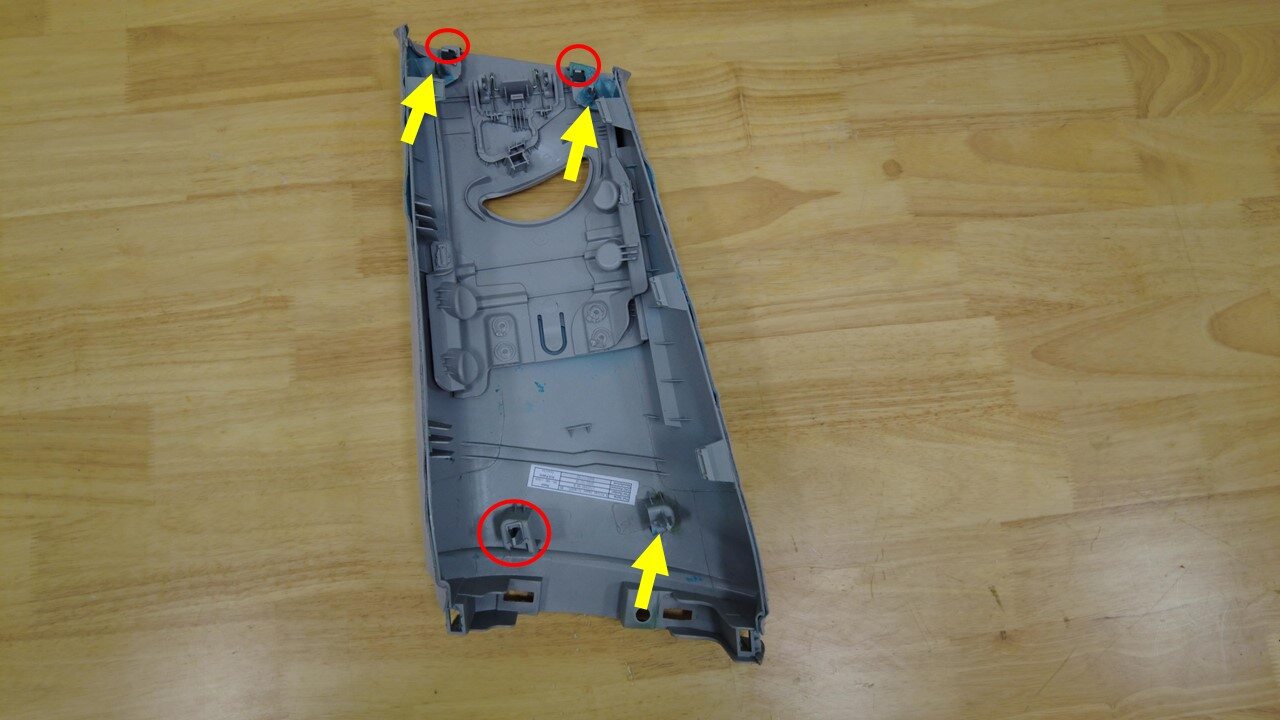

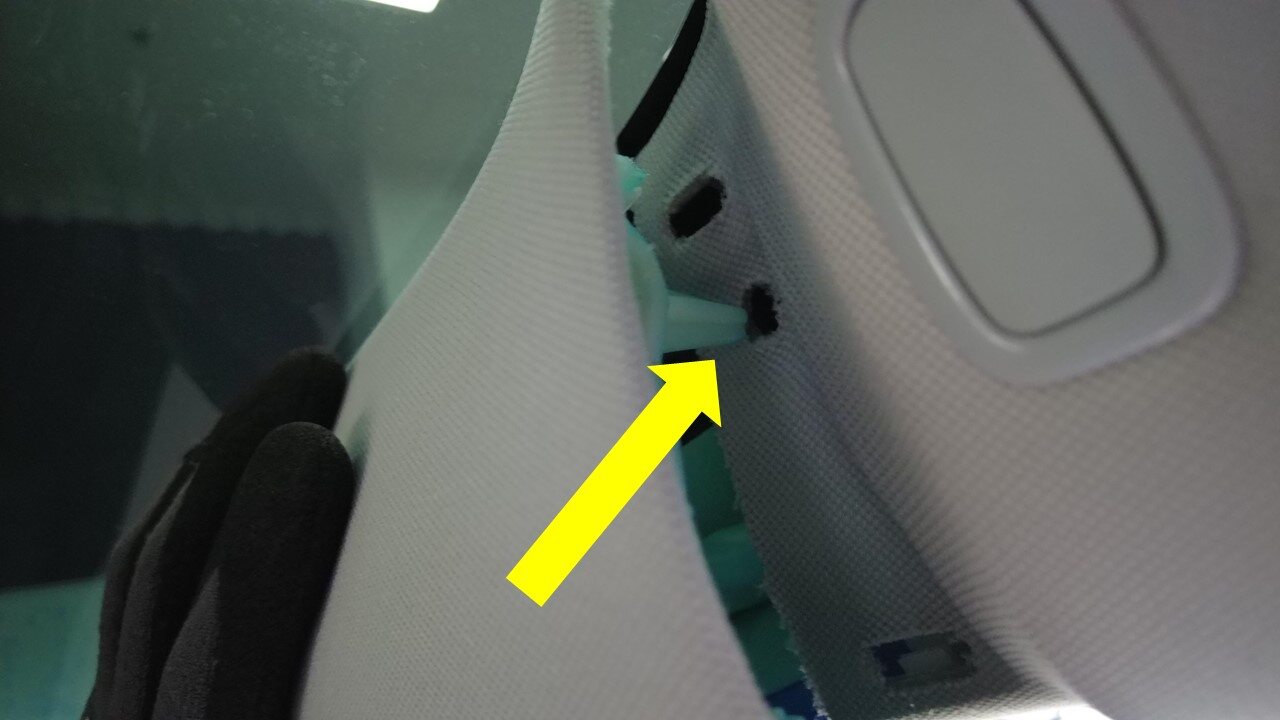

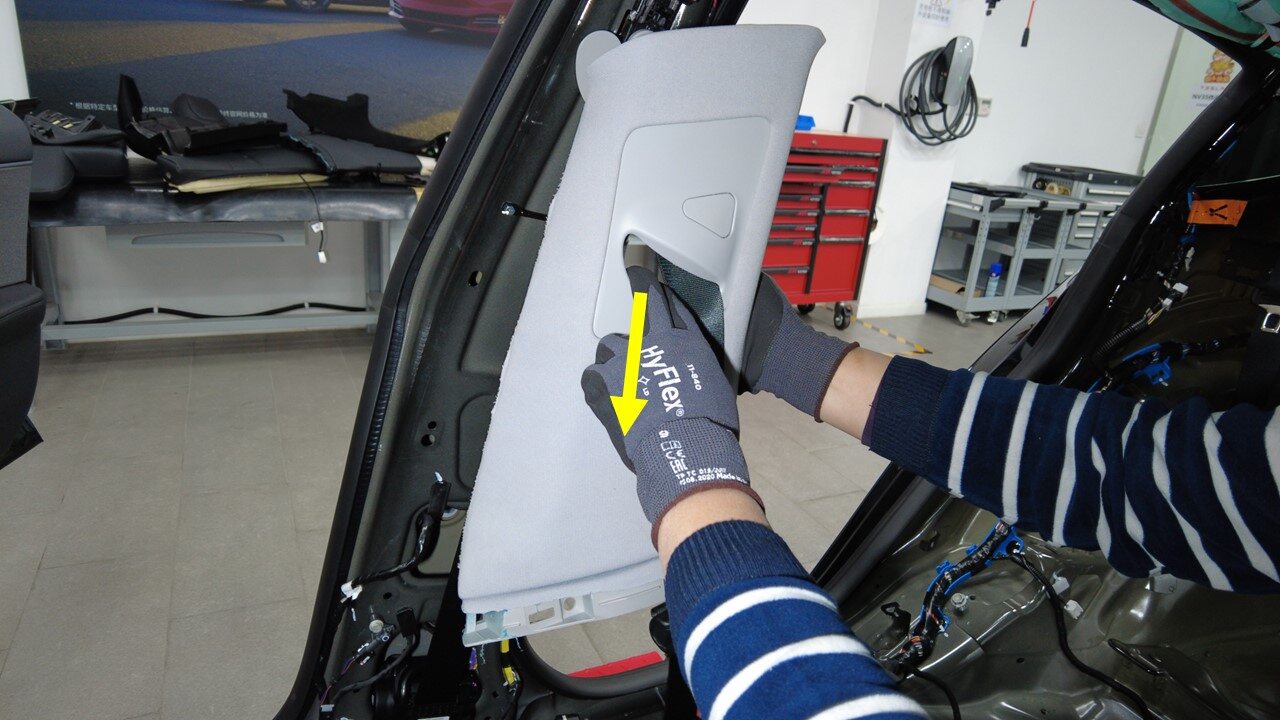

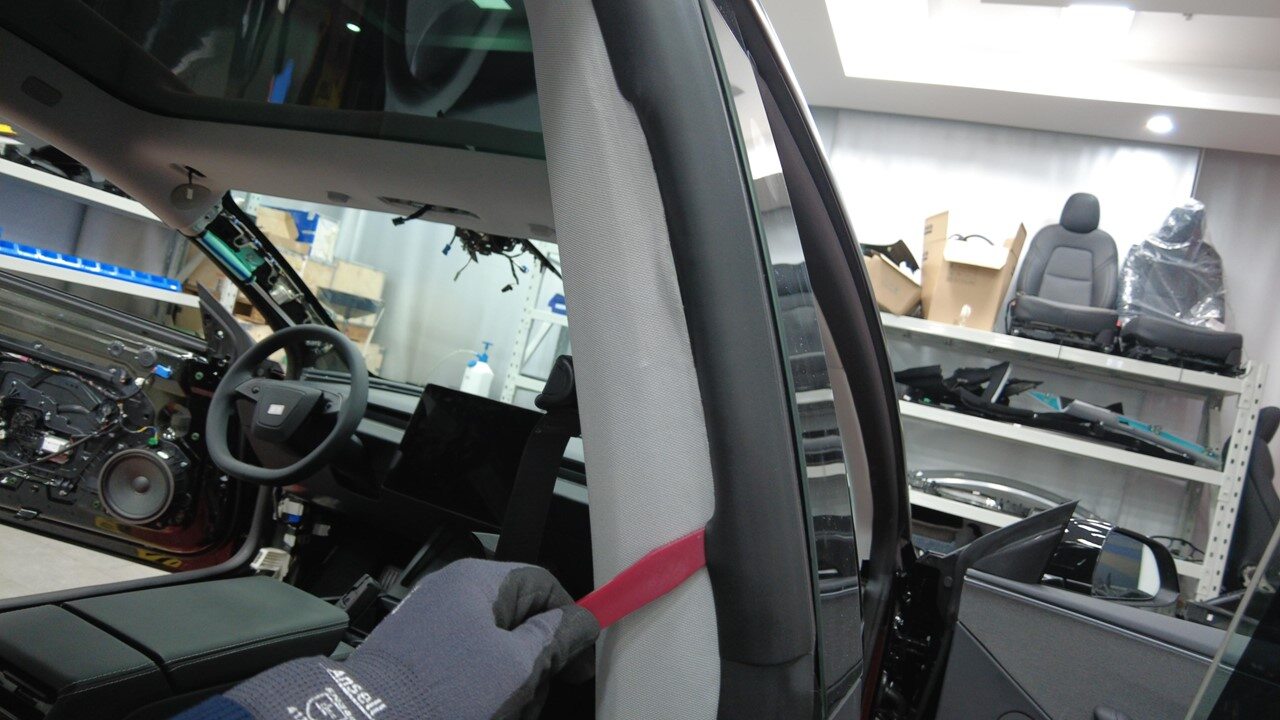

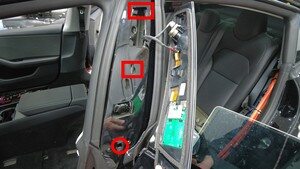

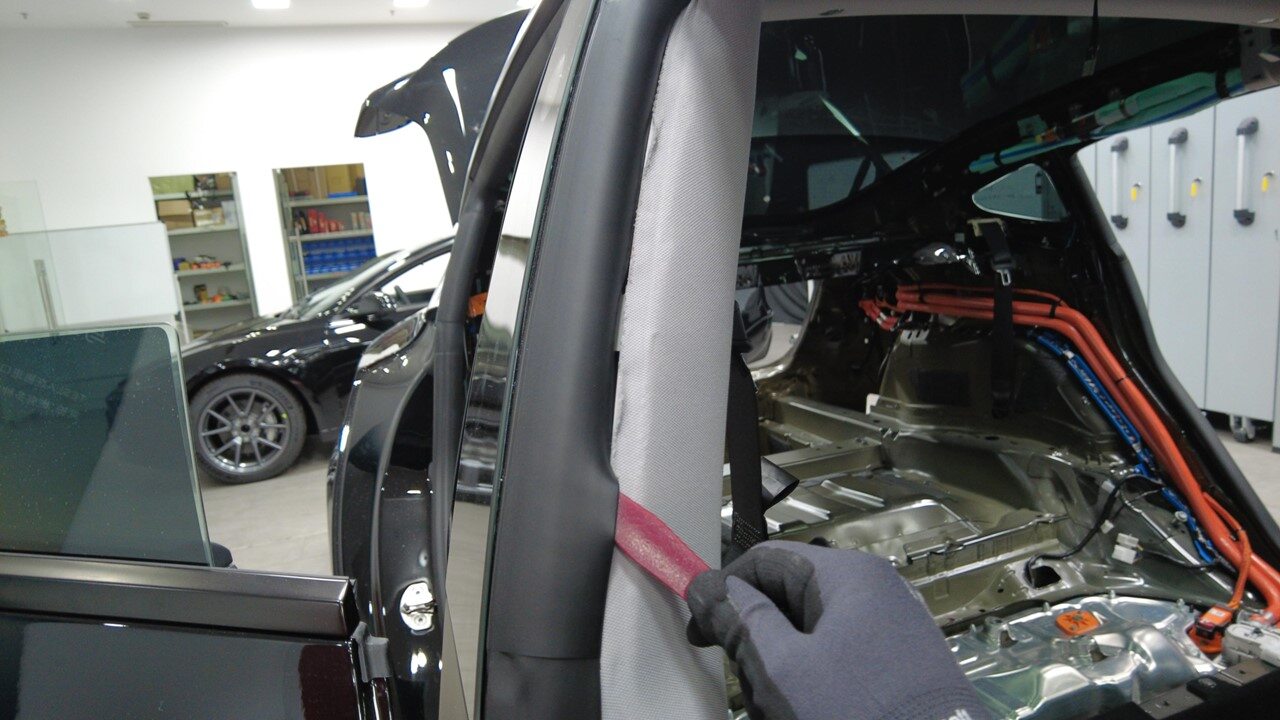

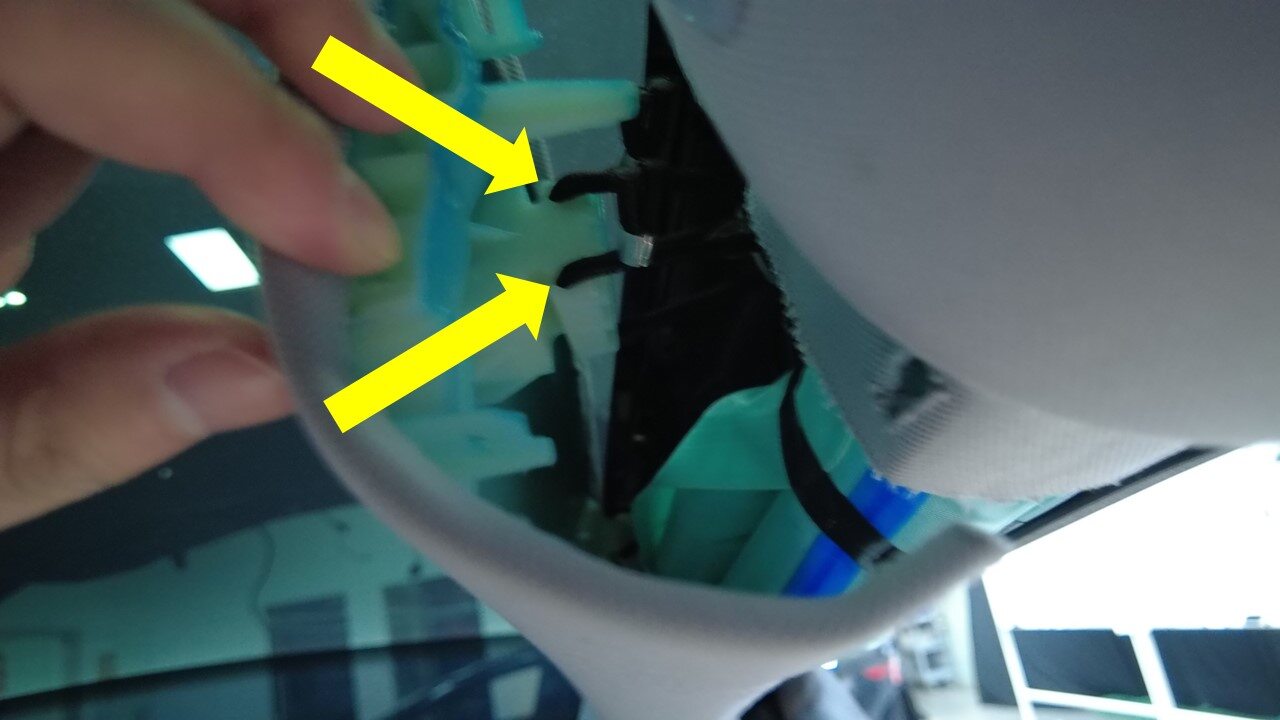

  107. Release clips securing RH upper B-pillar assembly and move aside
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x clips,3x locator pins,Pull the bottom of the upper B-pillar toward inside of the car, then pull the top to release the remaining clips

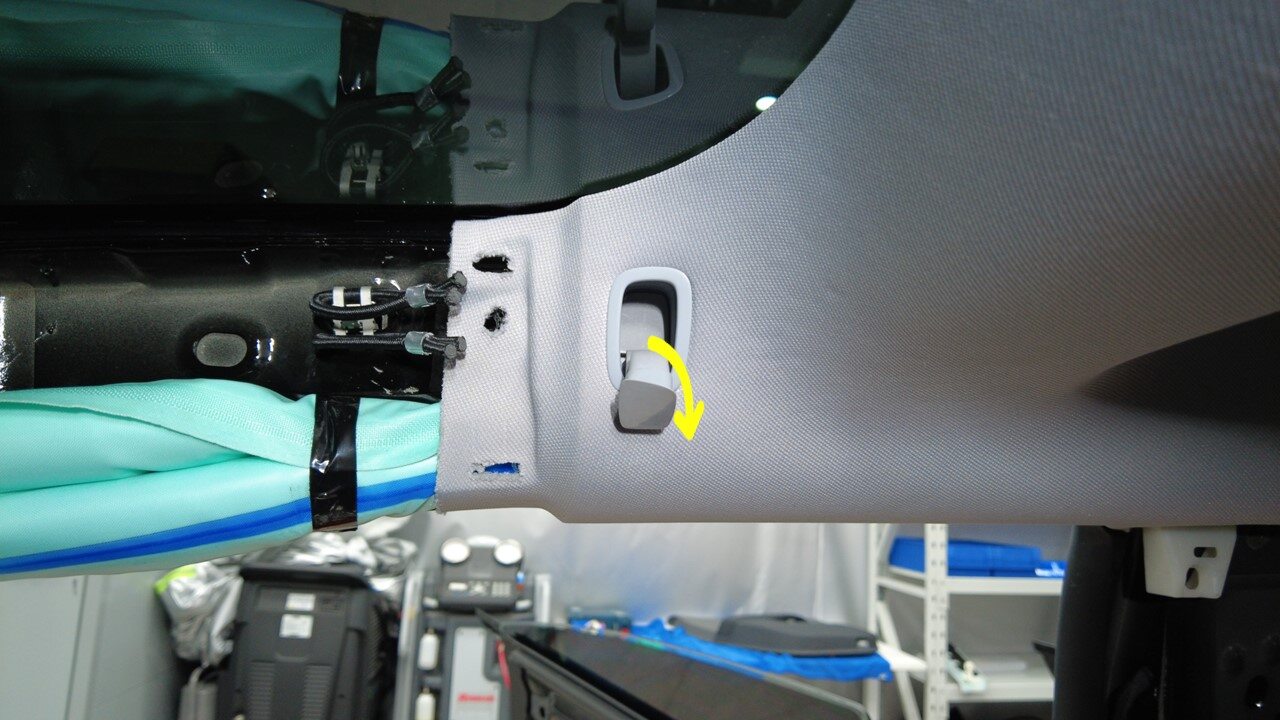

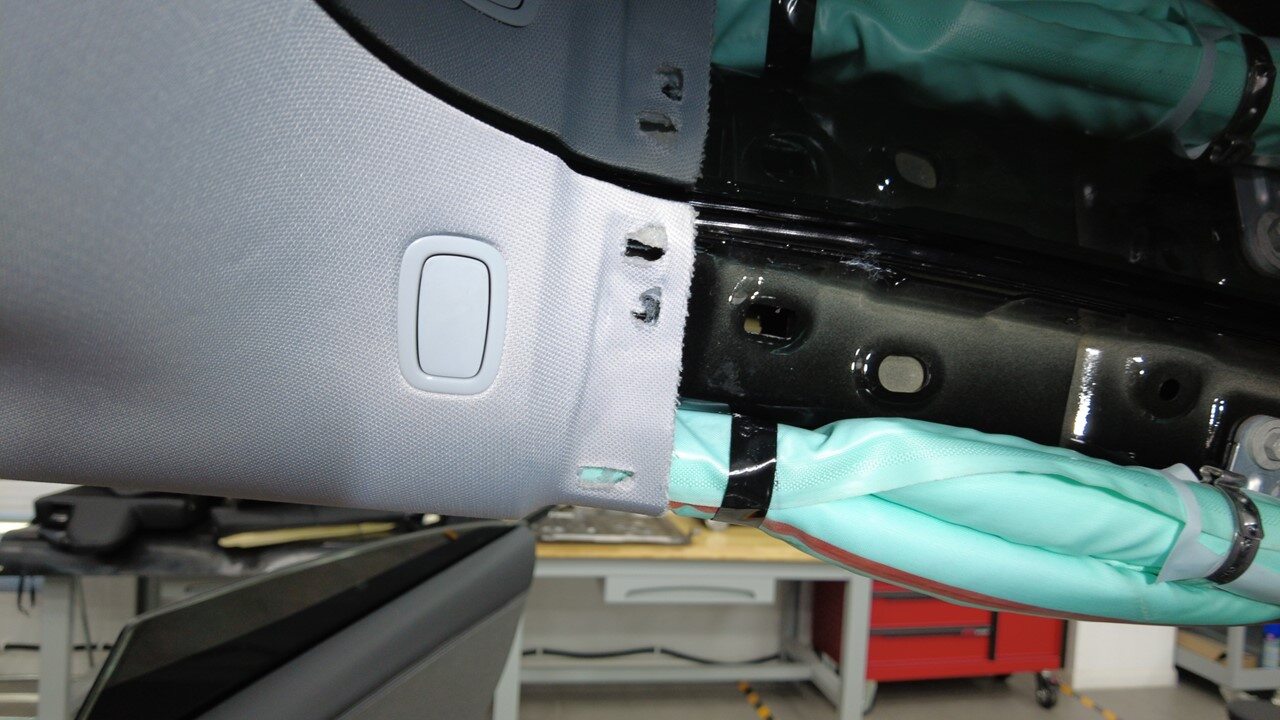

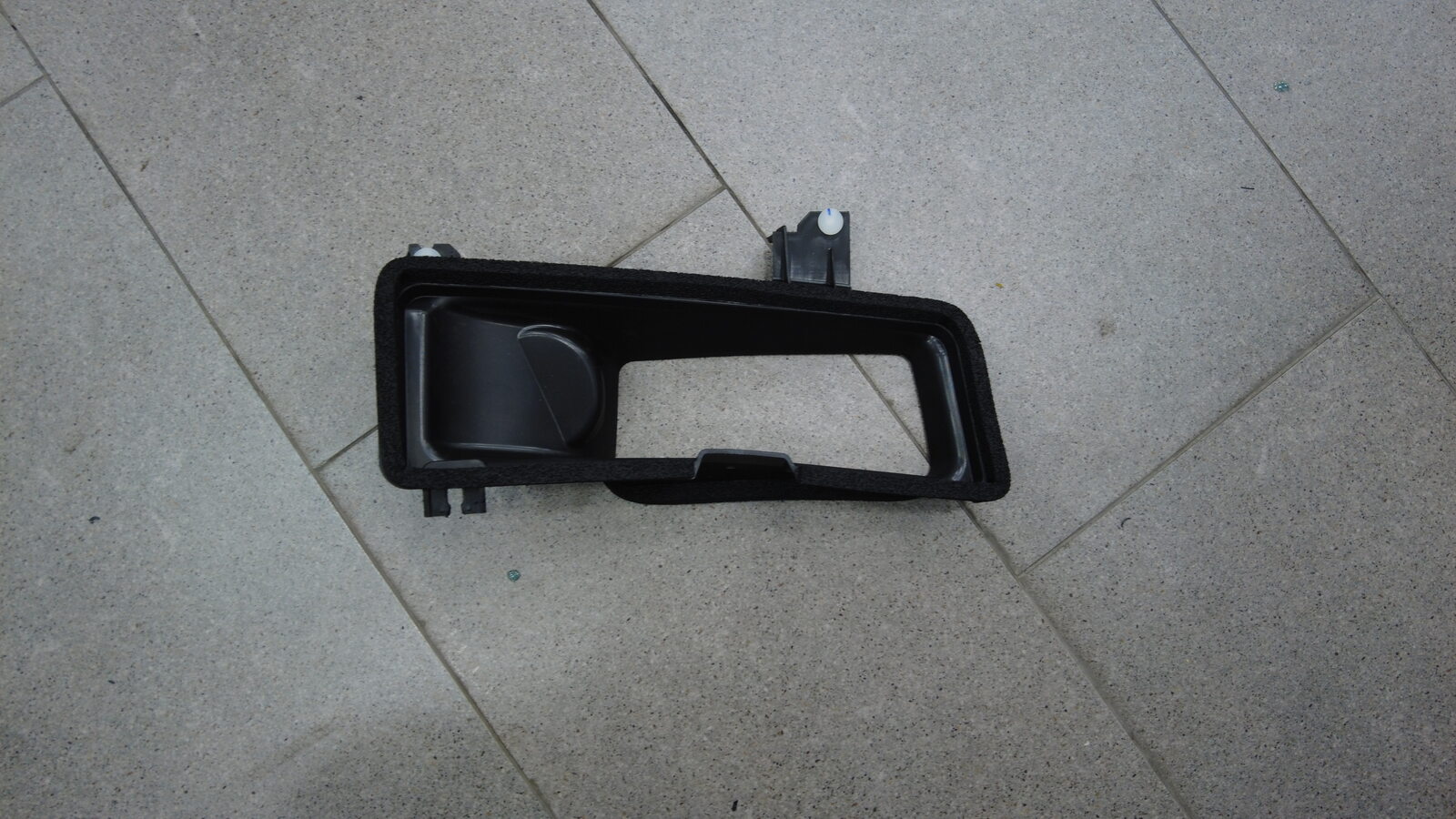

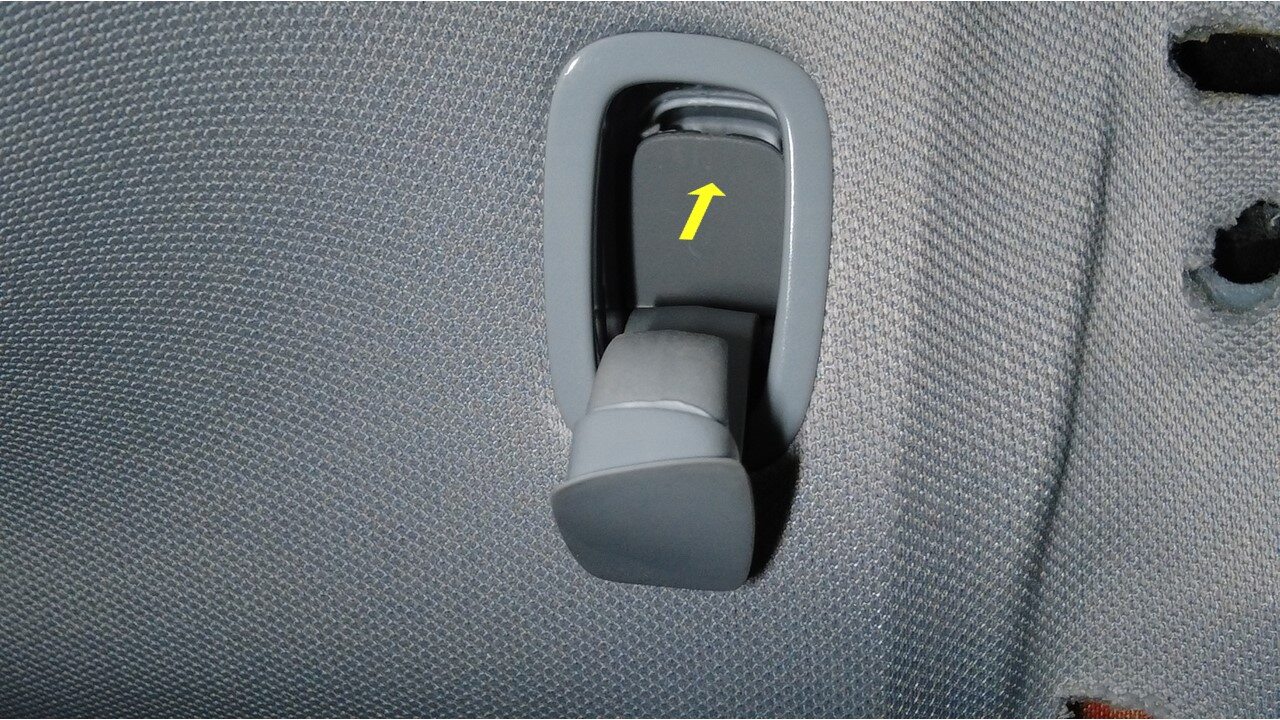

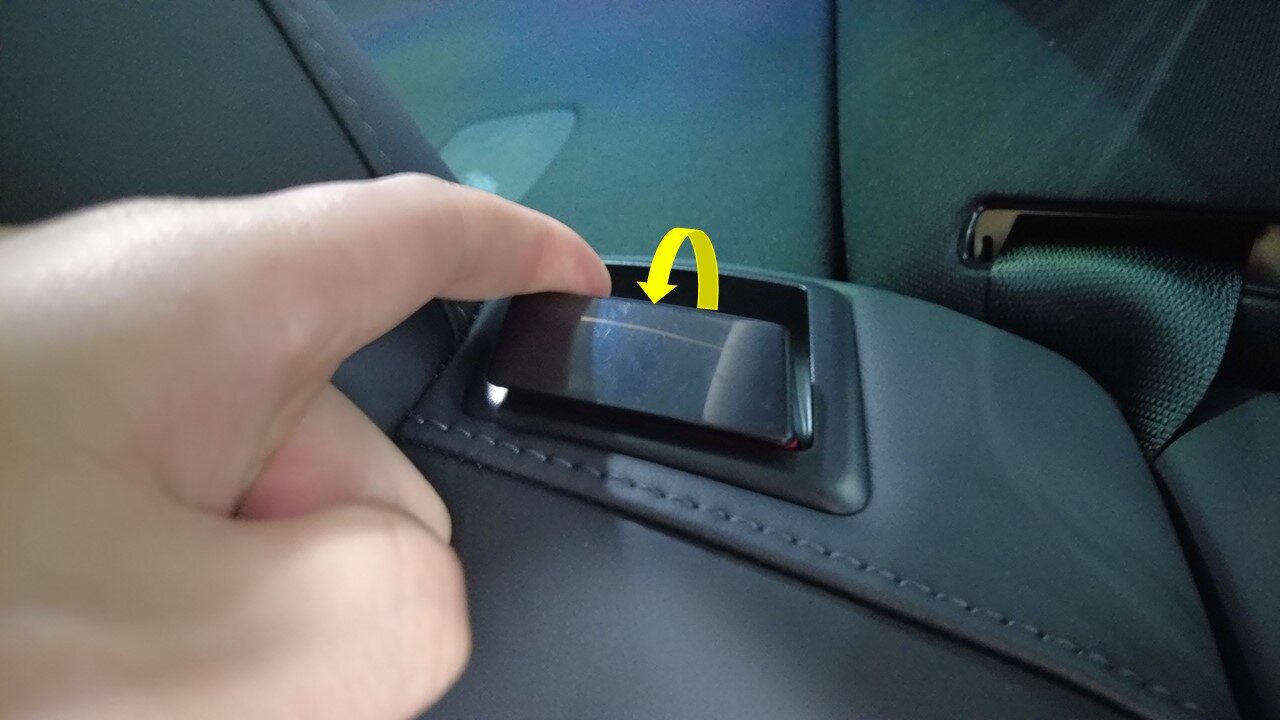

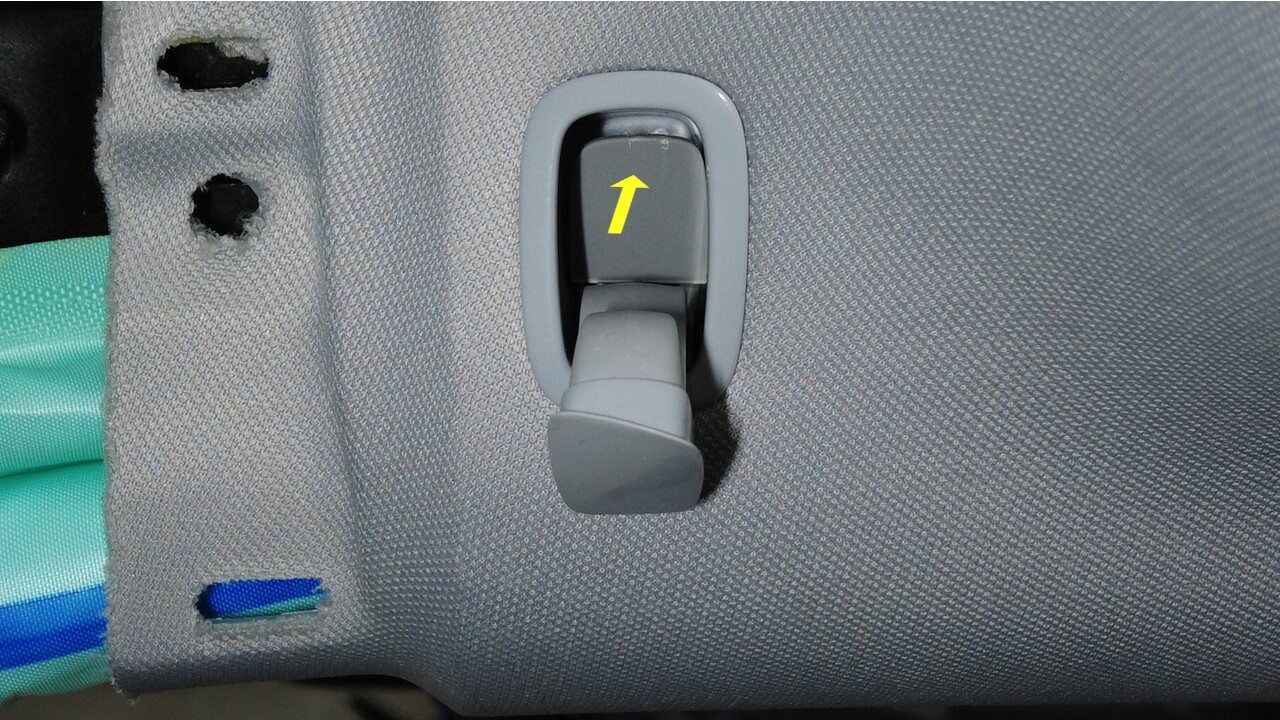

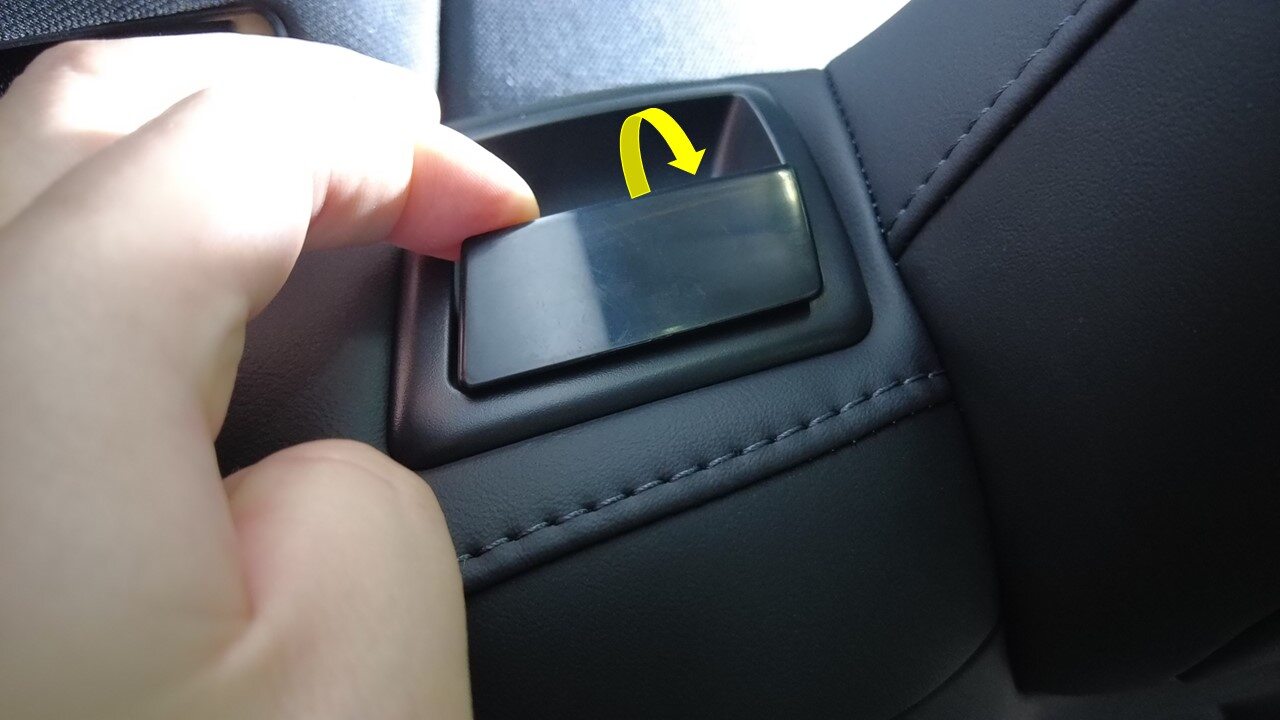

  108. Push open RH coat hook

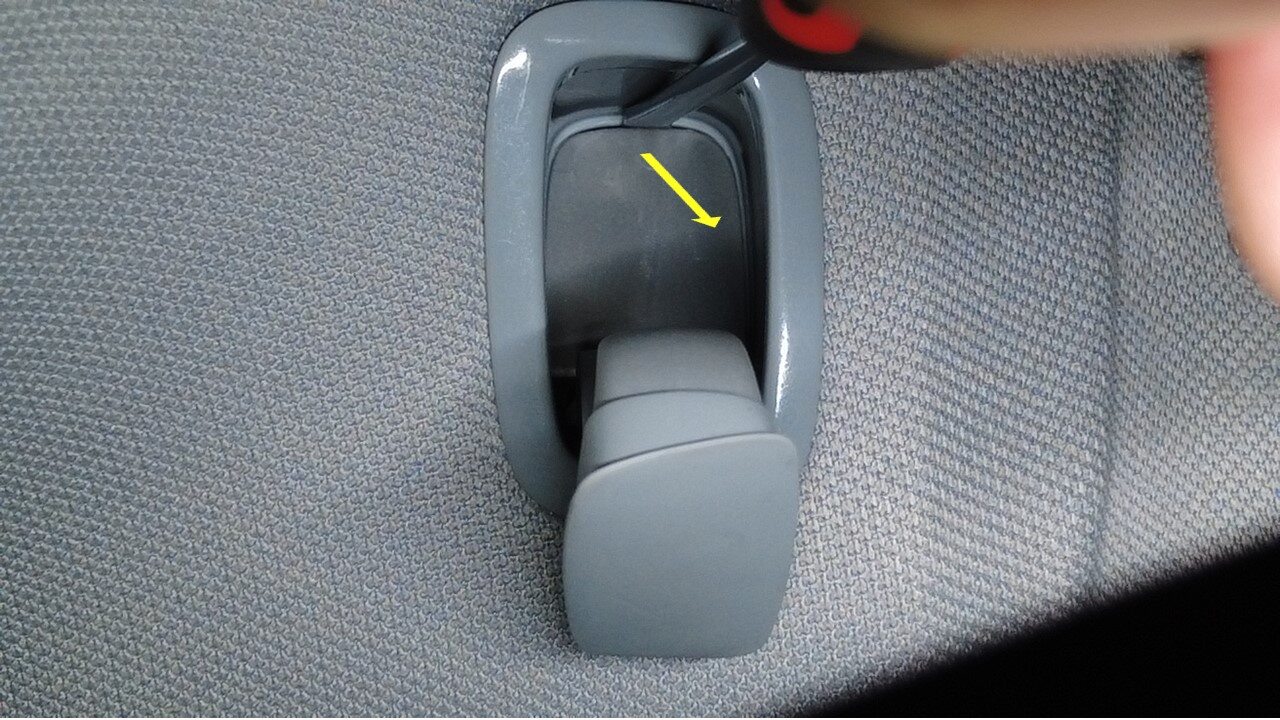

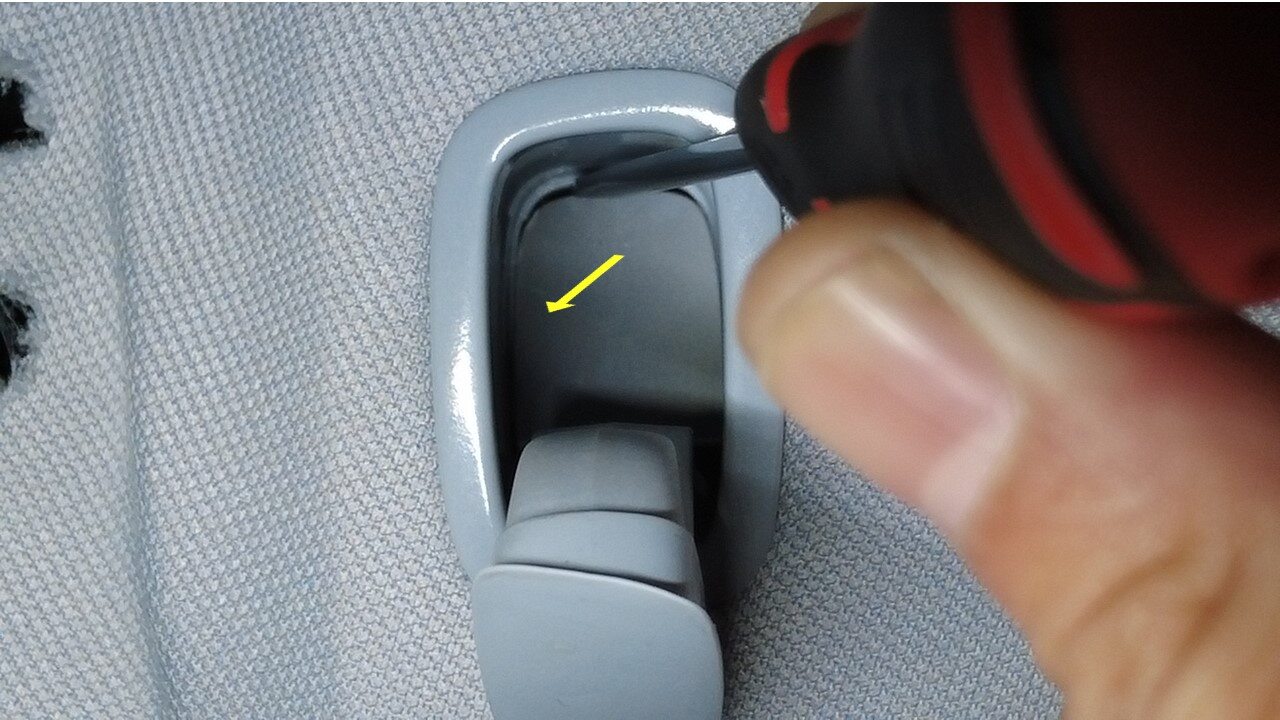

  109. Pry open RH coat hook screw cover
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x clips
  110. Remove RH coat hook screw
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x screw, T25, 2.5 Nm
  111. Remove LH side rail assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x clips, 2x locations, 2x tethers, Pull the upper corner of the side rail then work your way to bottom, Pull the lower side rail toward RH to release clips, Release tethers from bolted bungee tether
  112. Remove tether hooks from LH body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x tether hooks, Discard after removal

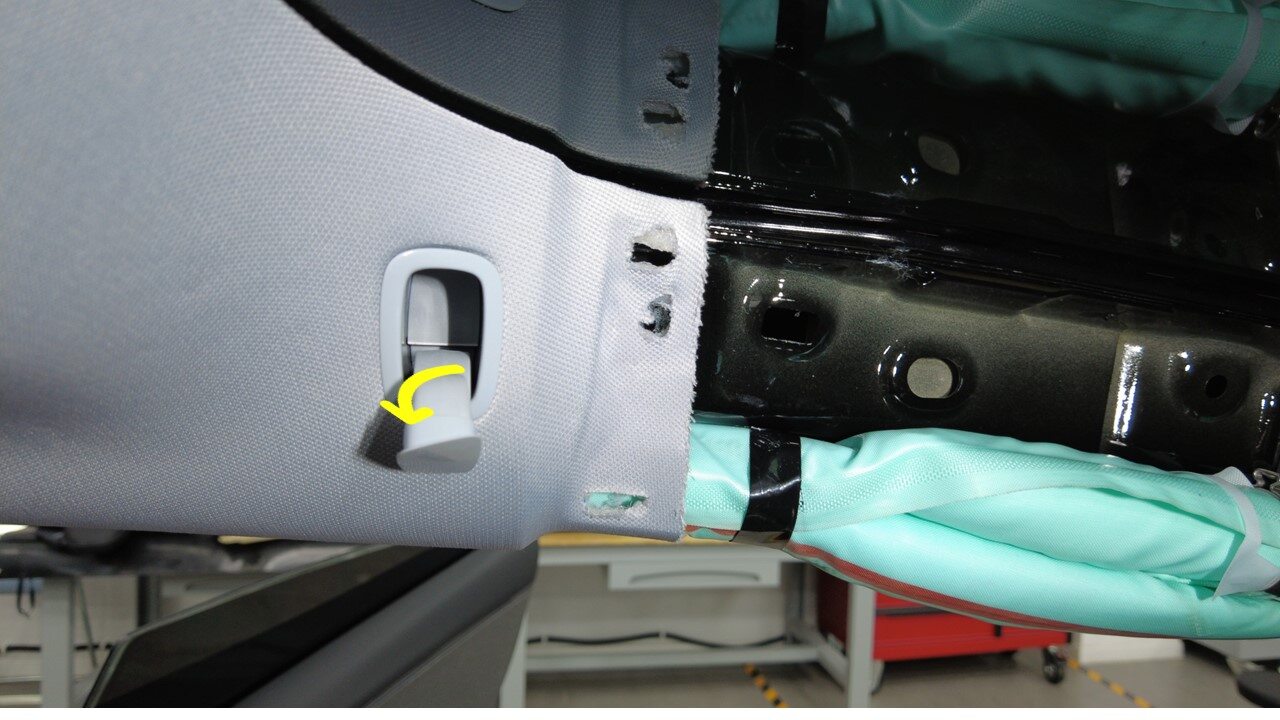

  113. Push open LH coat hook
  114. Pry open LH coat hook screw cover
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x clips

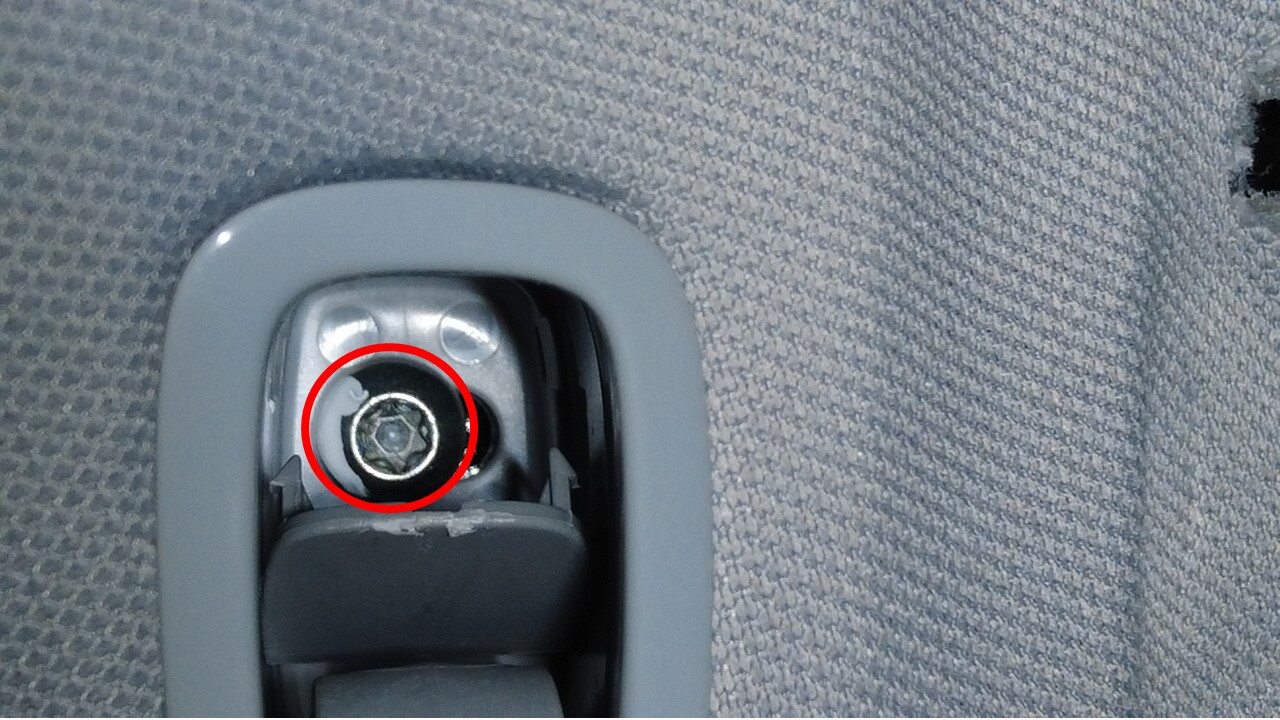

  115. Remove LH coat hook screw
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x screw, T25, 2.5 Nm

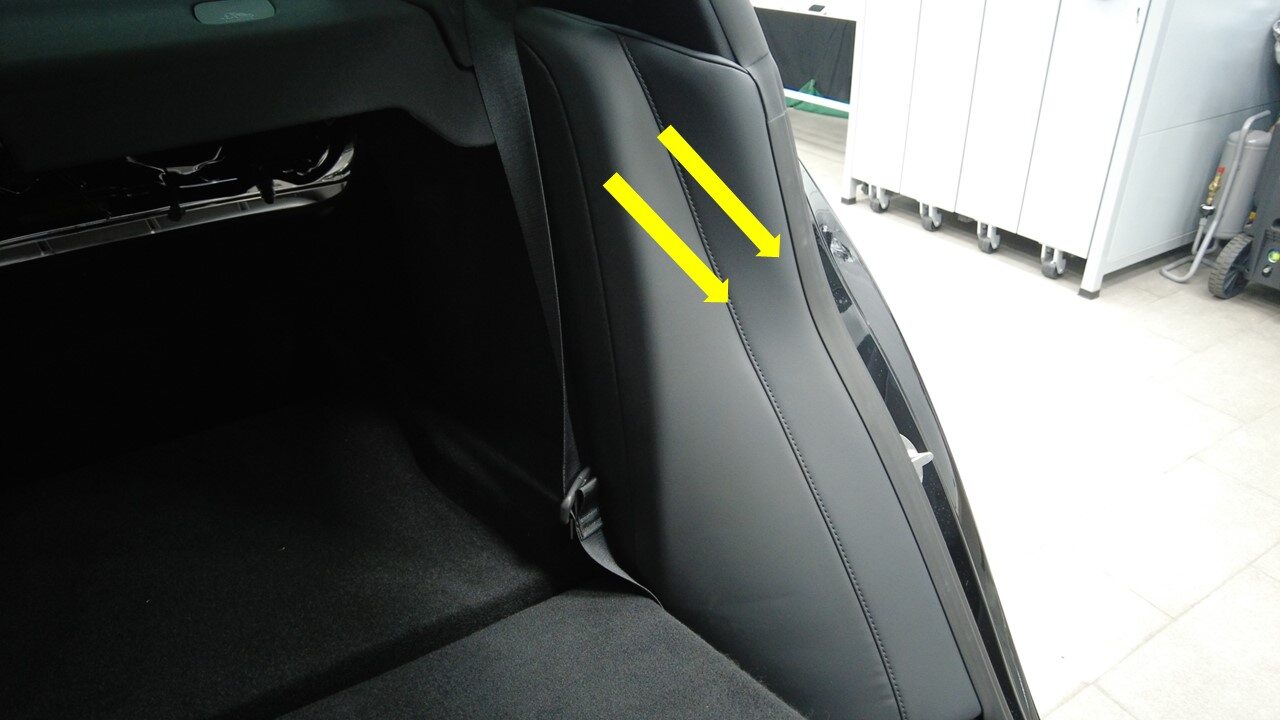

  116. Fold 2nd row 60 seatback down
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Pull release, Fold down, Protect seat cushion if necessary

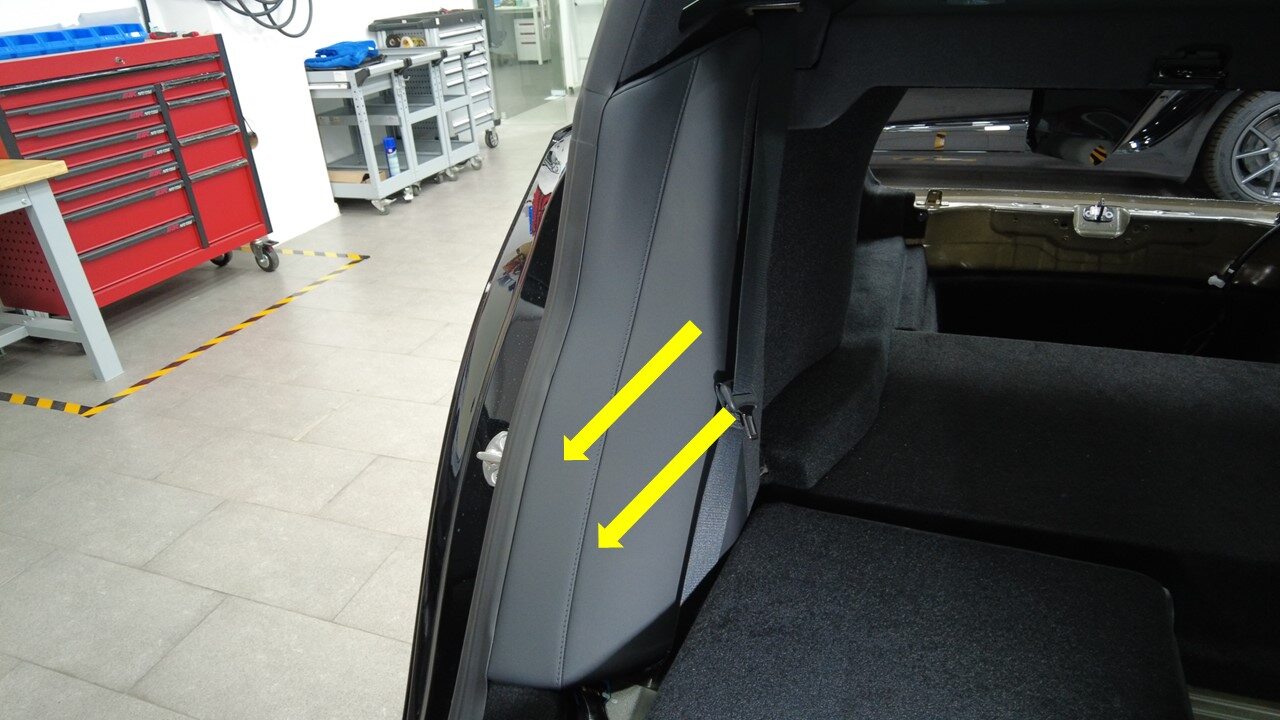

  117. Remove LH side bolster
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x locator clip, 3x guide tabs, Pull outward then slightly upward to remove
  118. Remove bolster plastic bracket from LH side body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x clips, If necessary, Depress clips from behind, this bracket may come out with bolster, Discard after removal
  119. Remove LH C pillar assembly and move it aside
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x clips, 3x tabs, Pull rear C-pillar inward then forward to remove
  120. Remove clip securing LH lower A-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x push clip
  121. Remove LH lower A-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x clips, 2x guide tabs, Pull rear of lower A-pillar upward to release clip then pull rearward to release front tabs from carpet
  122. Remove LH lower B-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    7x clips, 4x locator clips, Pull the trim panel outward in the direction of the arrow to release clip from lower B-pillar
  123. Remove LH middle B-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x clips, 3x locator clips, Pull the bottom of the B-pillar middle trim panel into the vehicle, and then pull the upper part to release the remaining clips
  124. Release clips securing LH upper B-pillar assembly and move aside
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x clips,3x locator pins,Pull the bottom of the upper B-pillar toward inside of the car, then pull the top to release the remaining clips

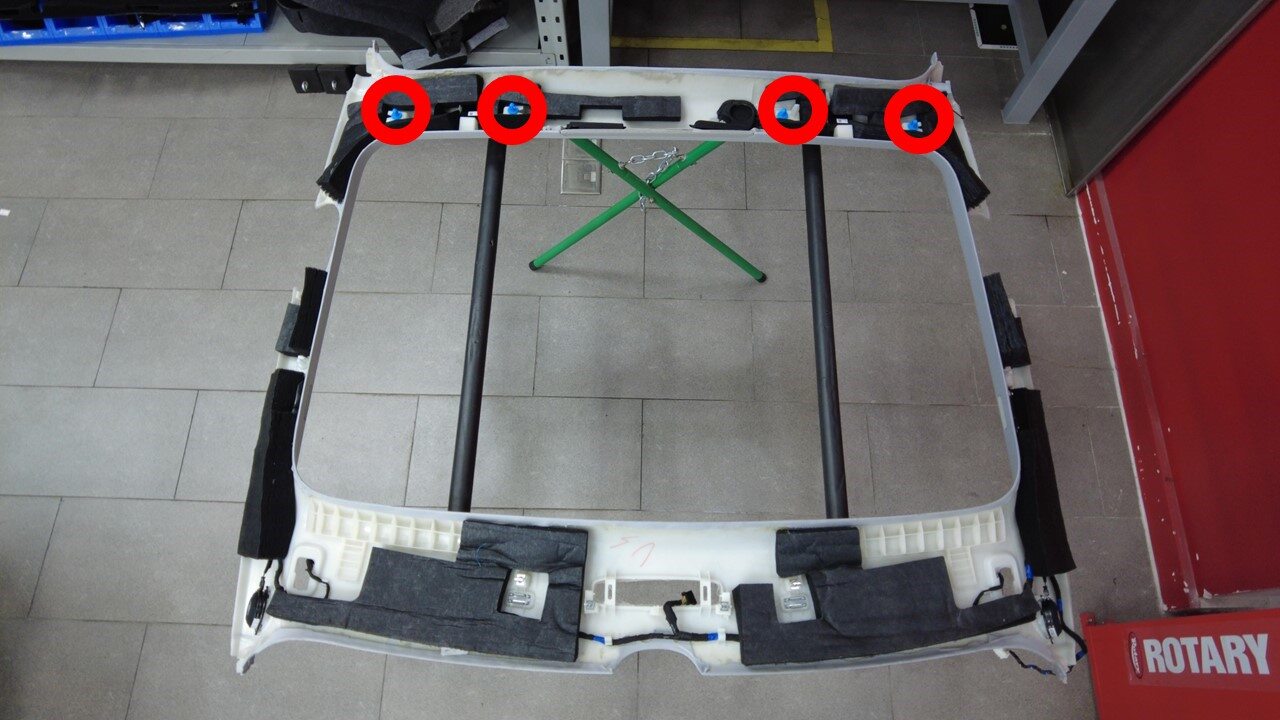

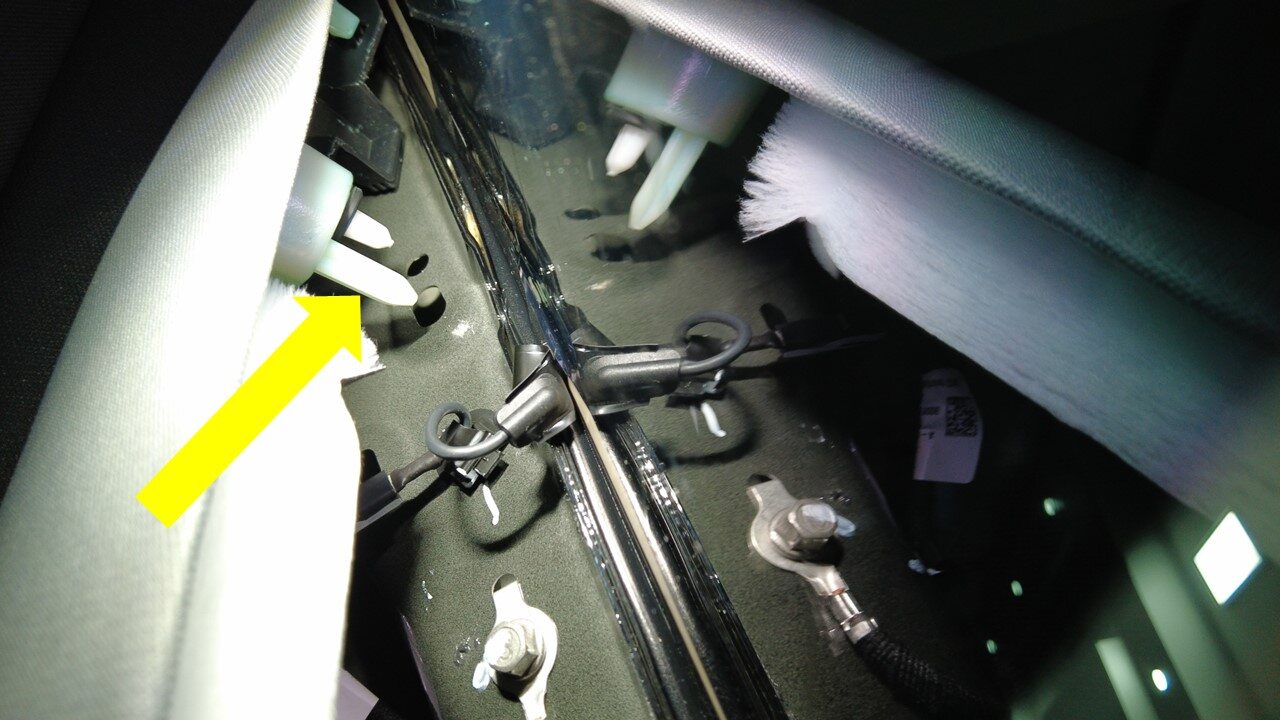

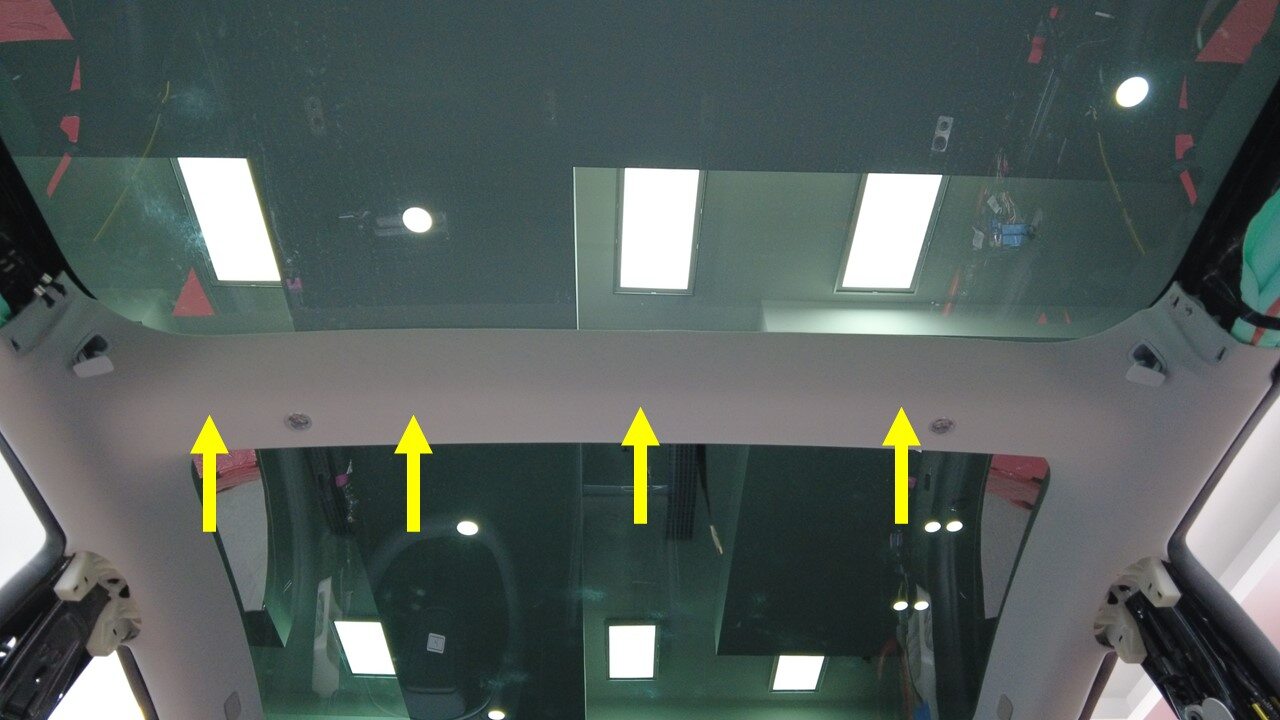

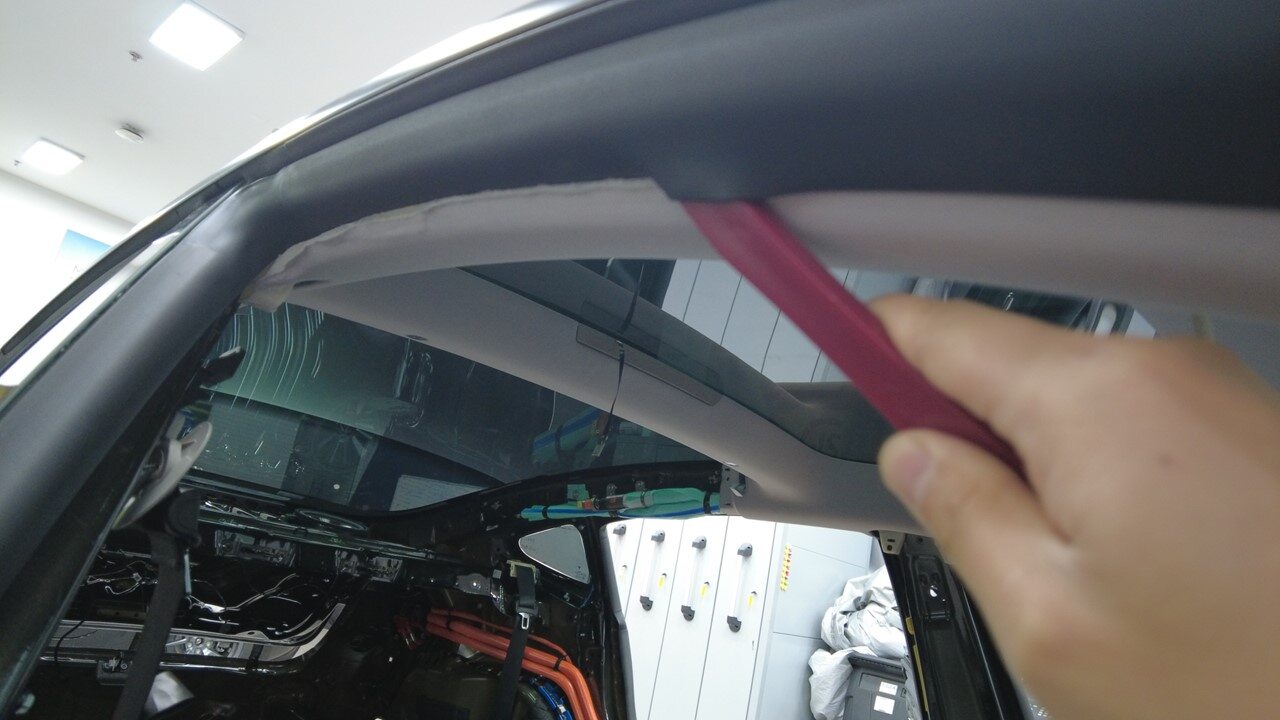

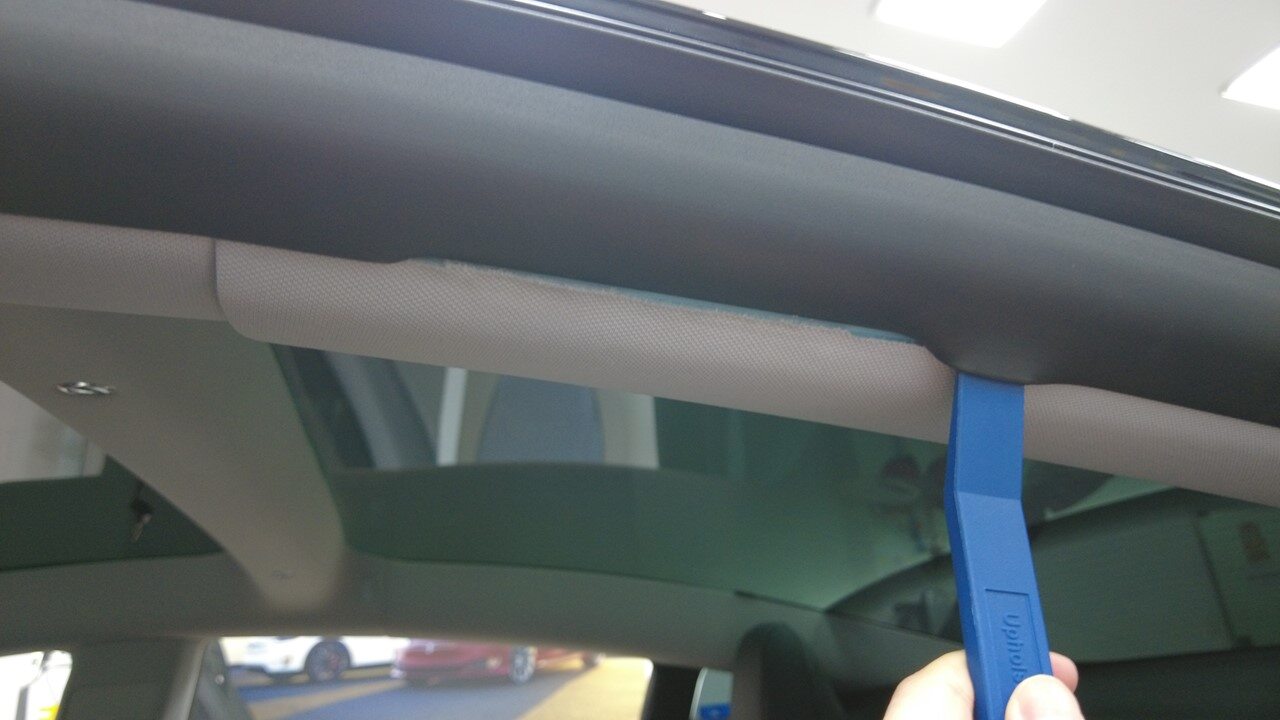

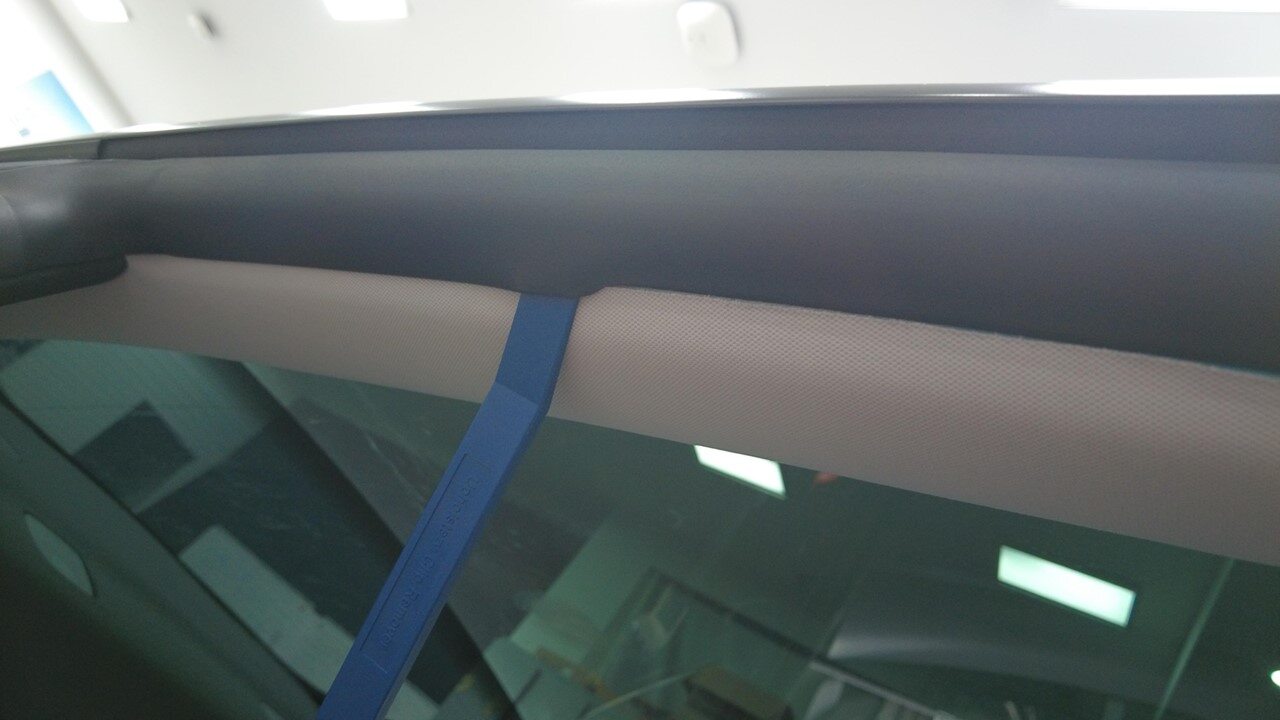

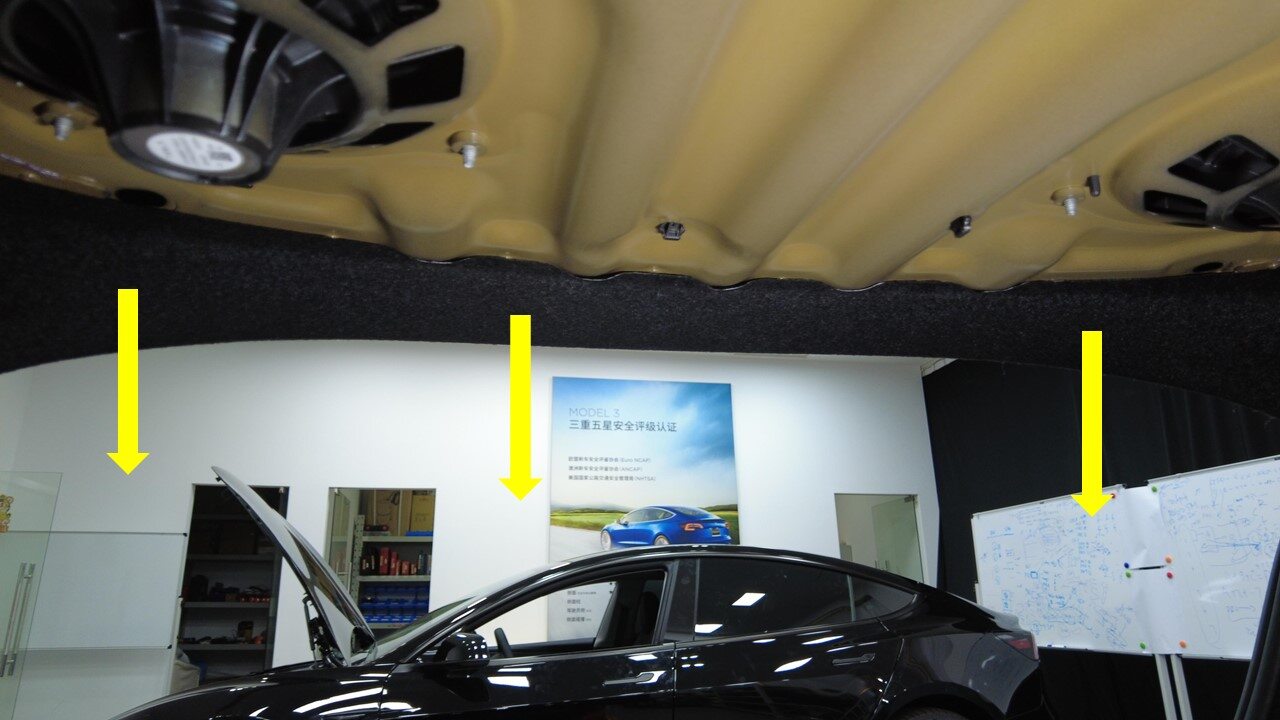

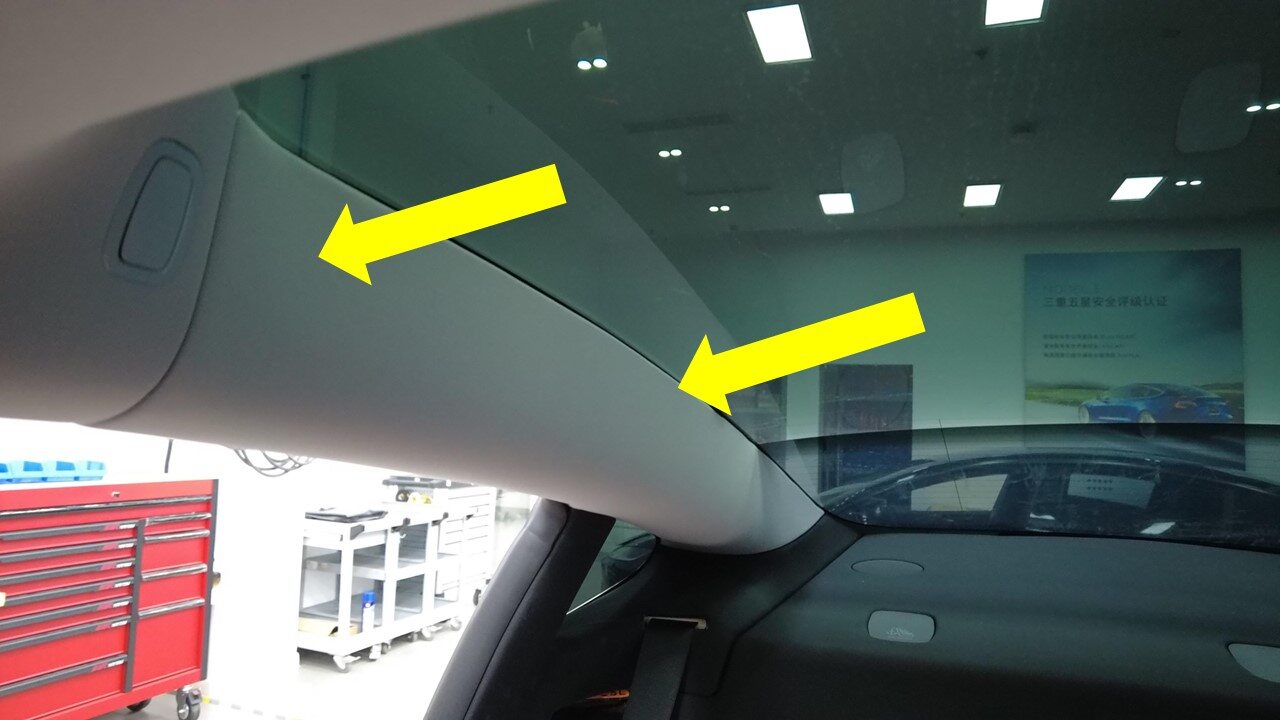

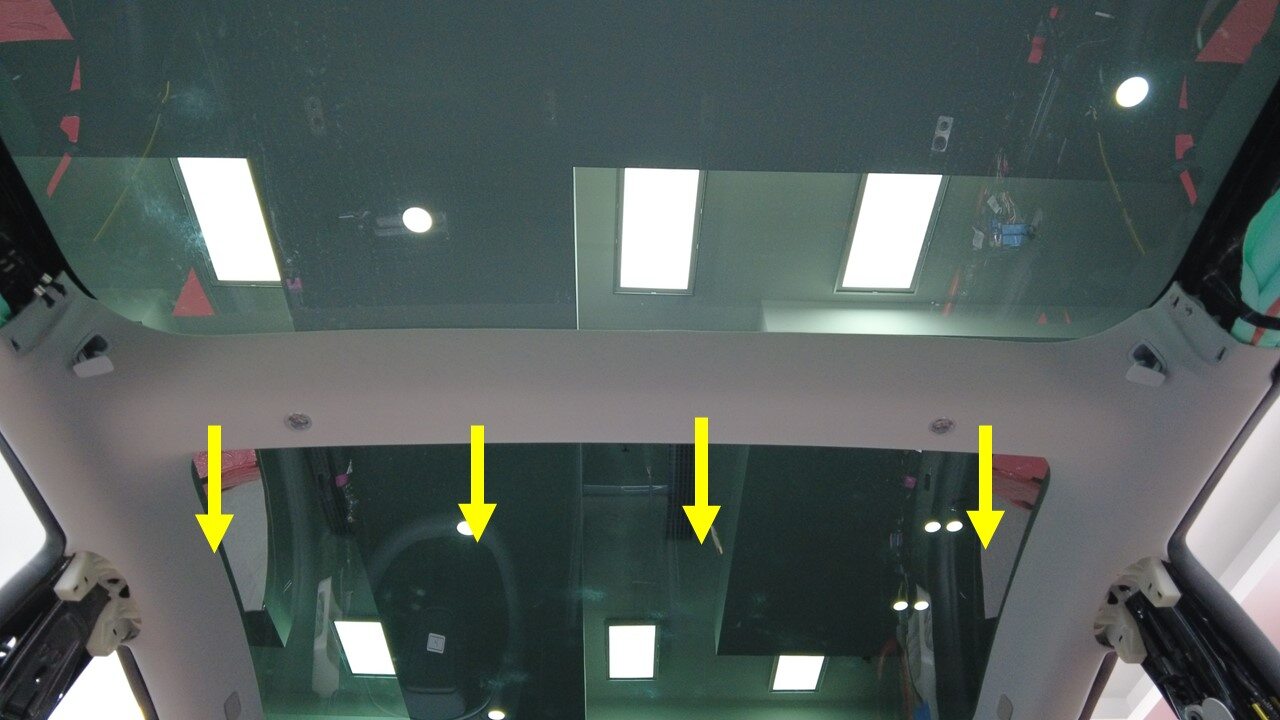

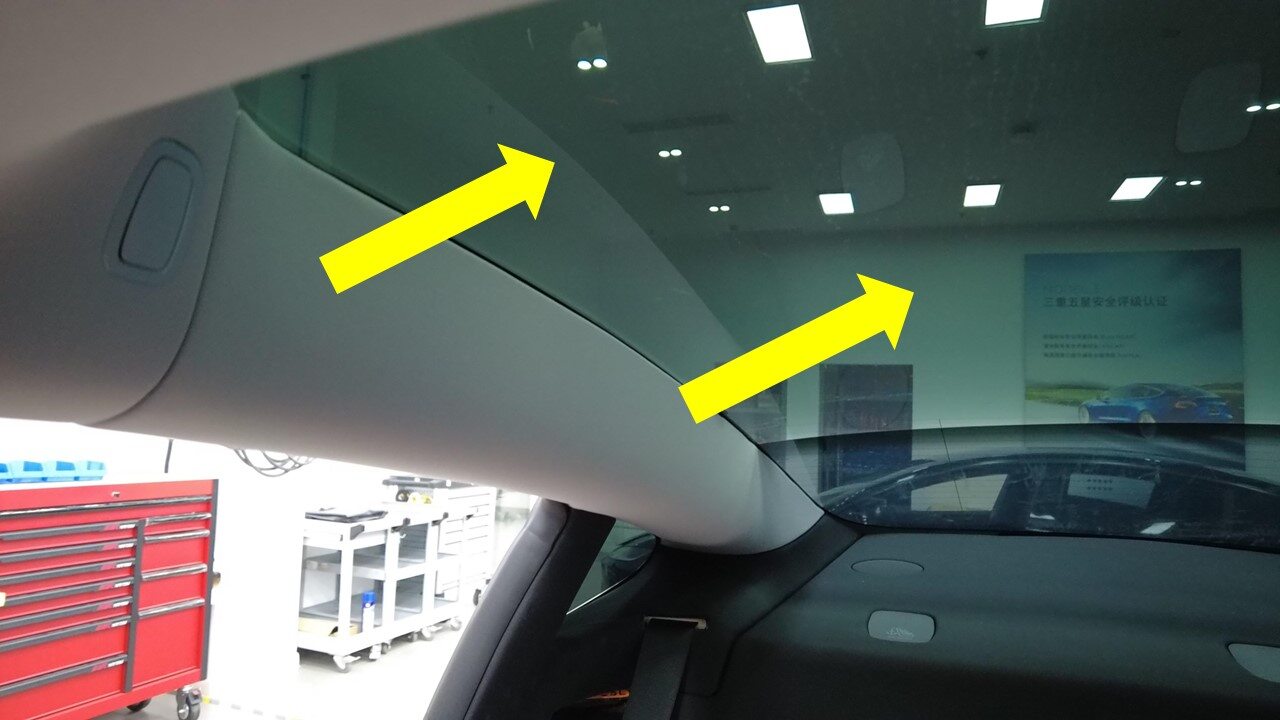

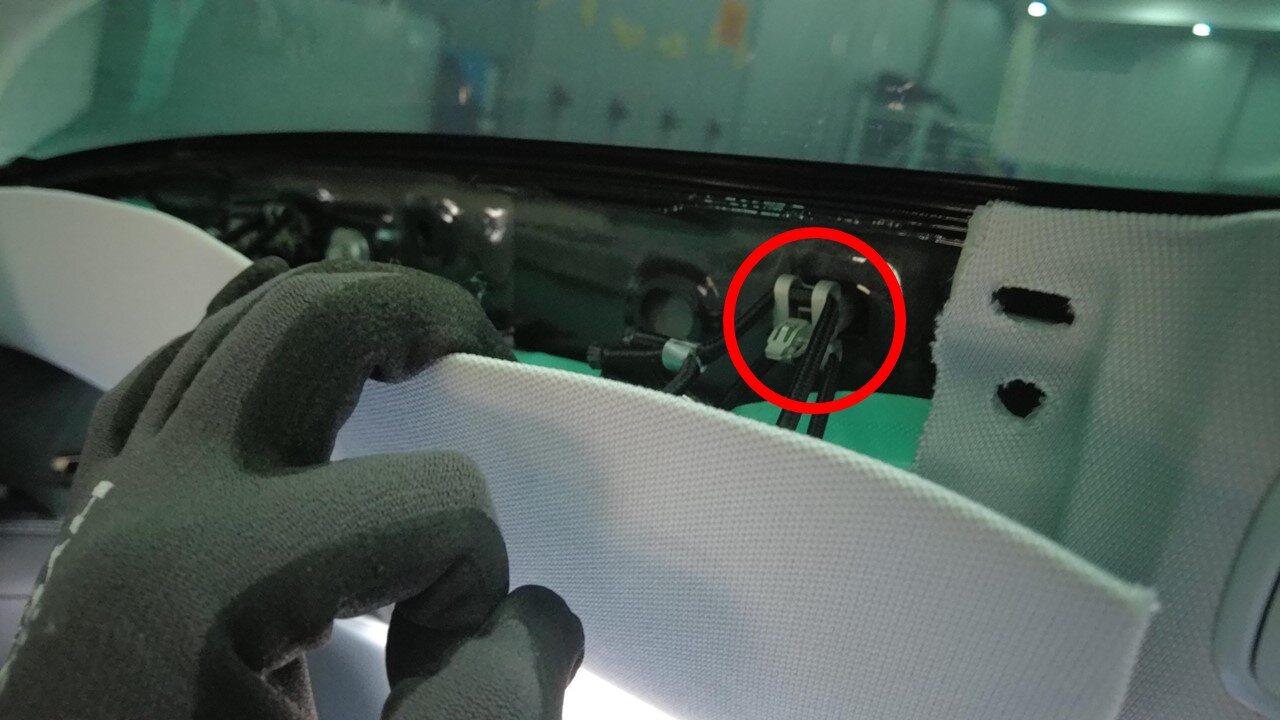

  125. Release rear headliner from body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x clips, 2x locator pins,loosen the rear of the headliner to facilitate the next step

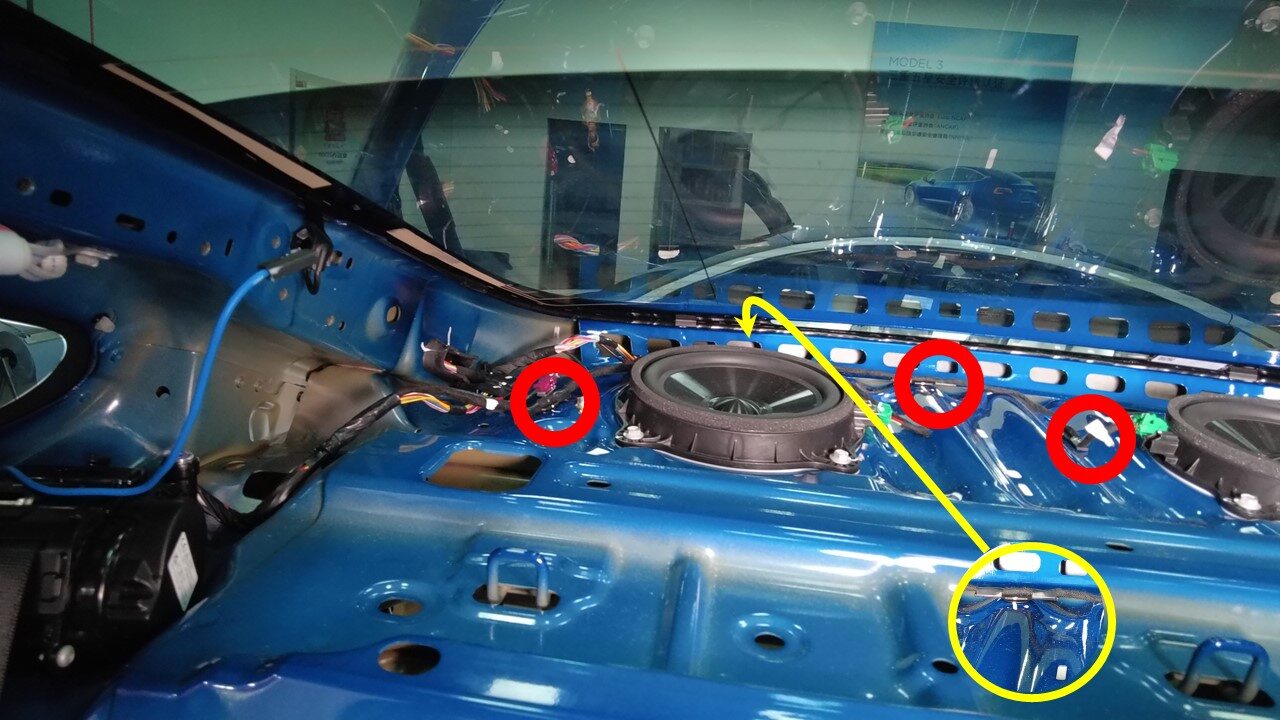

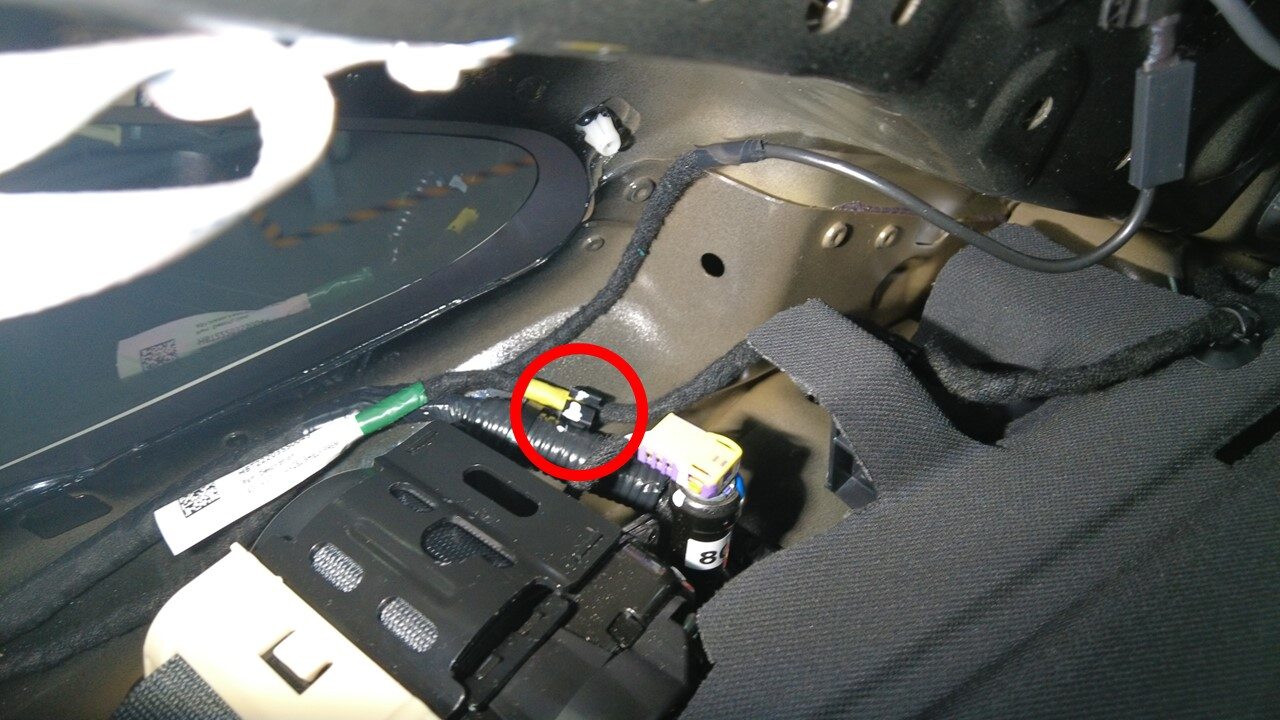

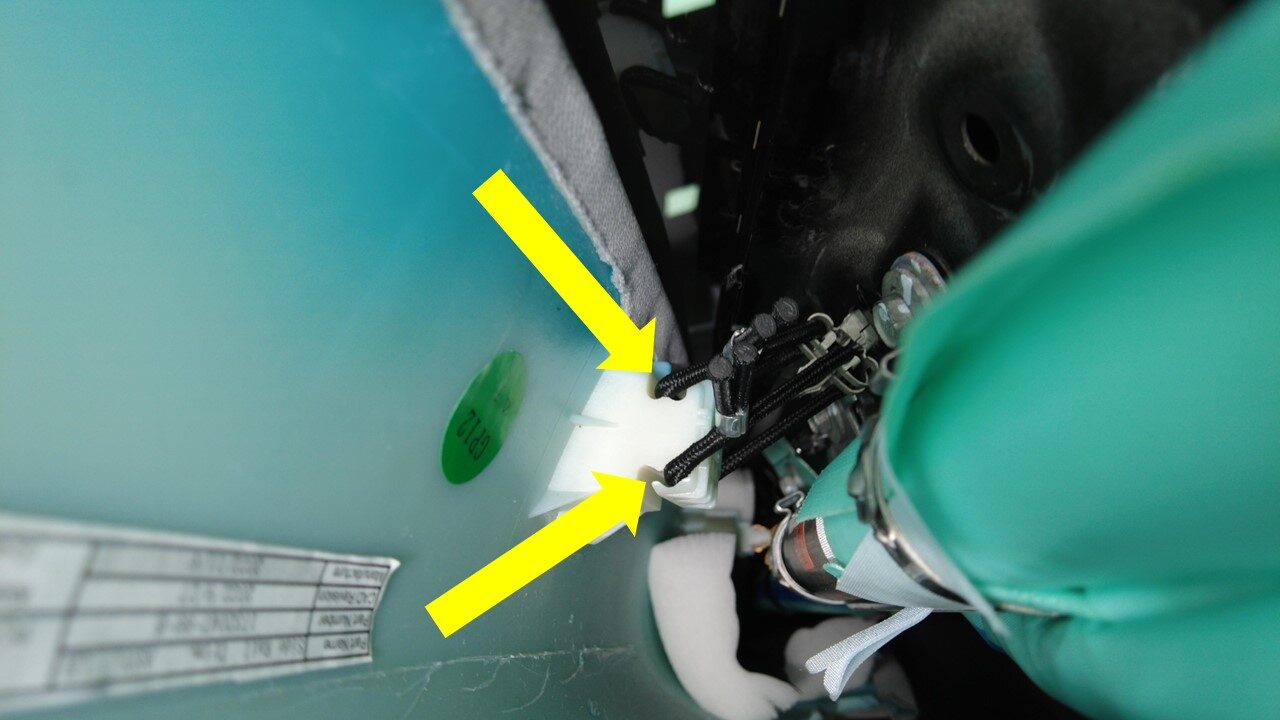

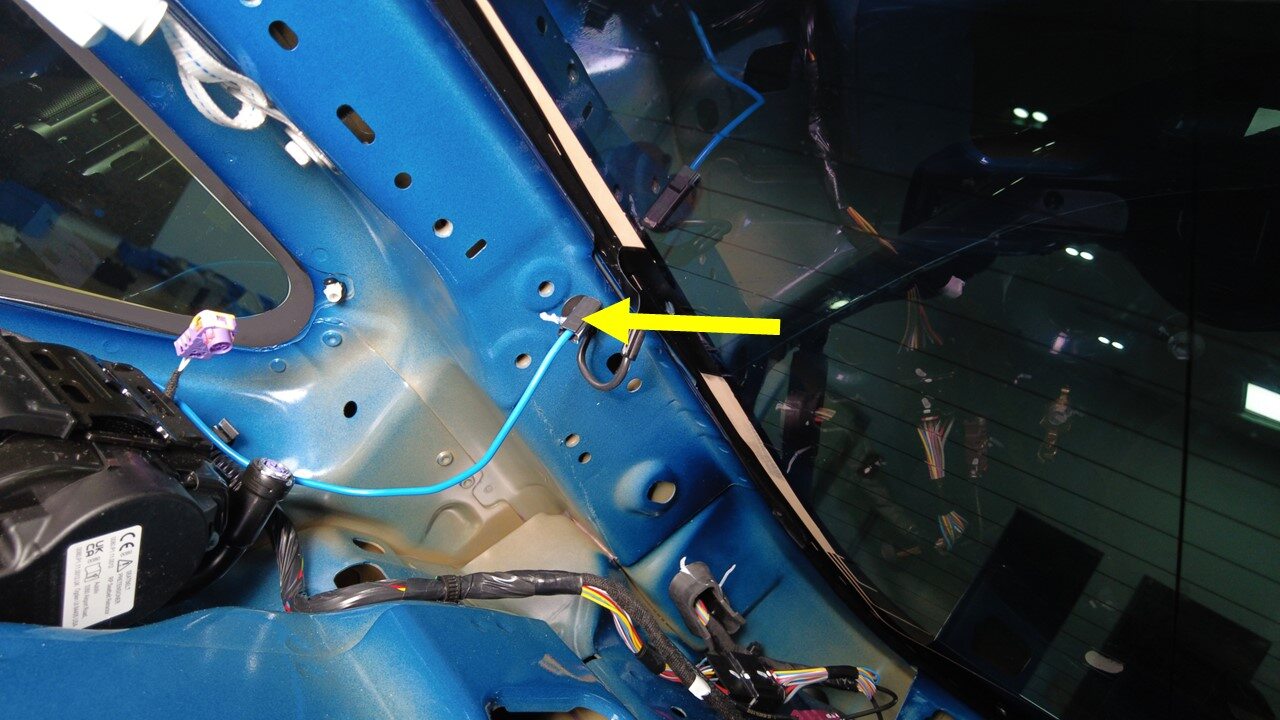

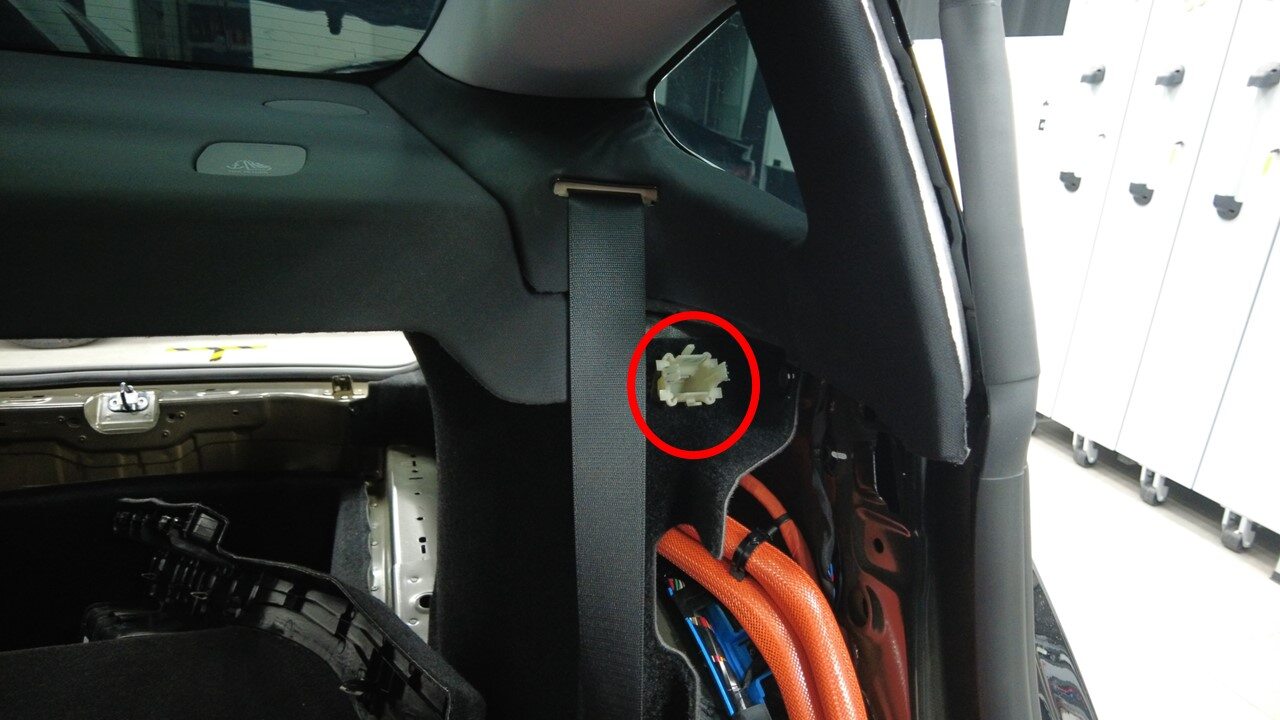

  126. Remove package tray harness clips around C-pillar area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x clips

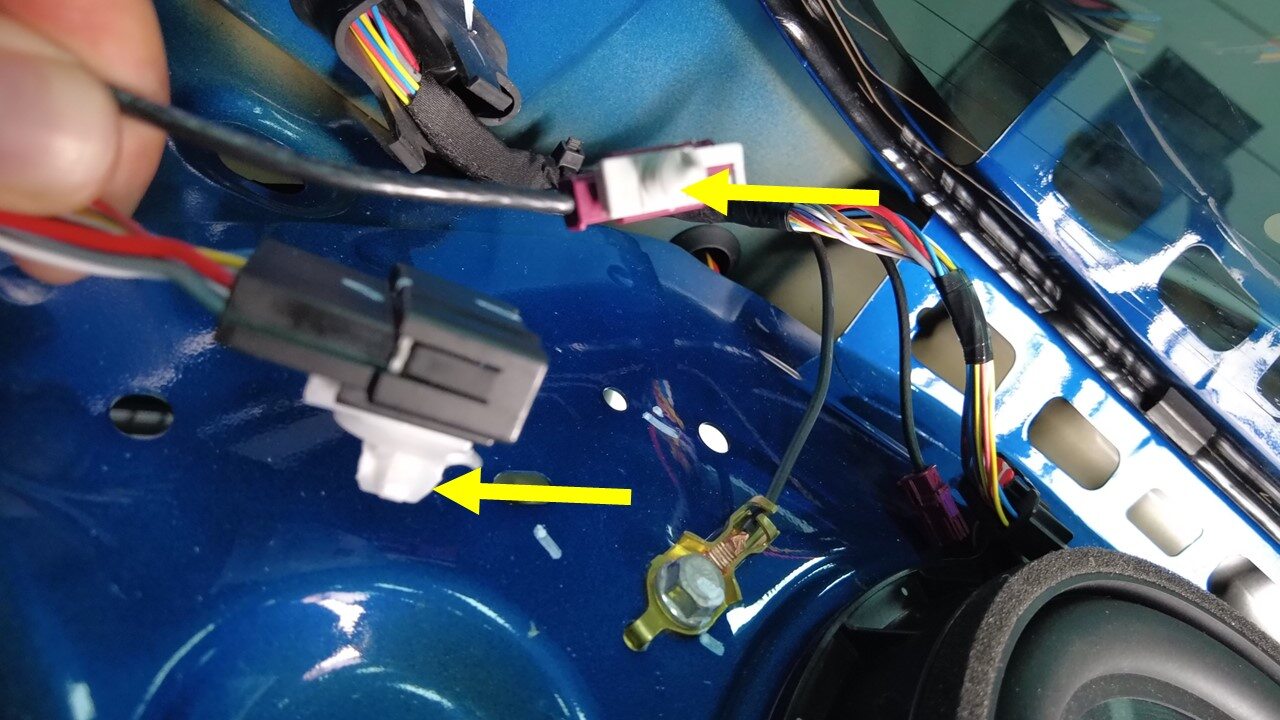

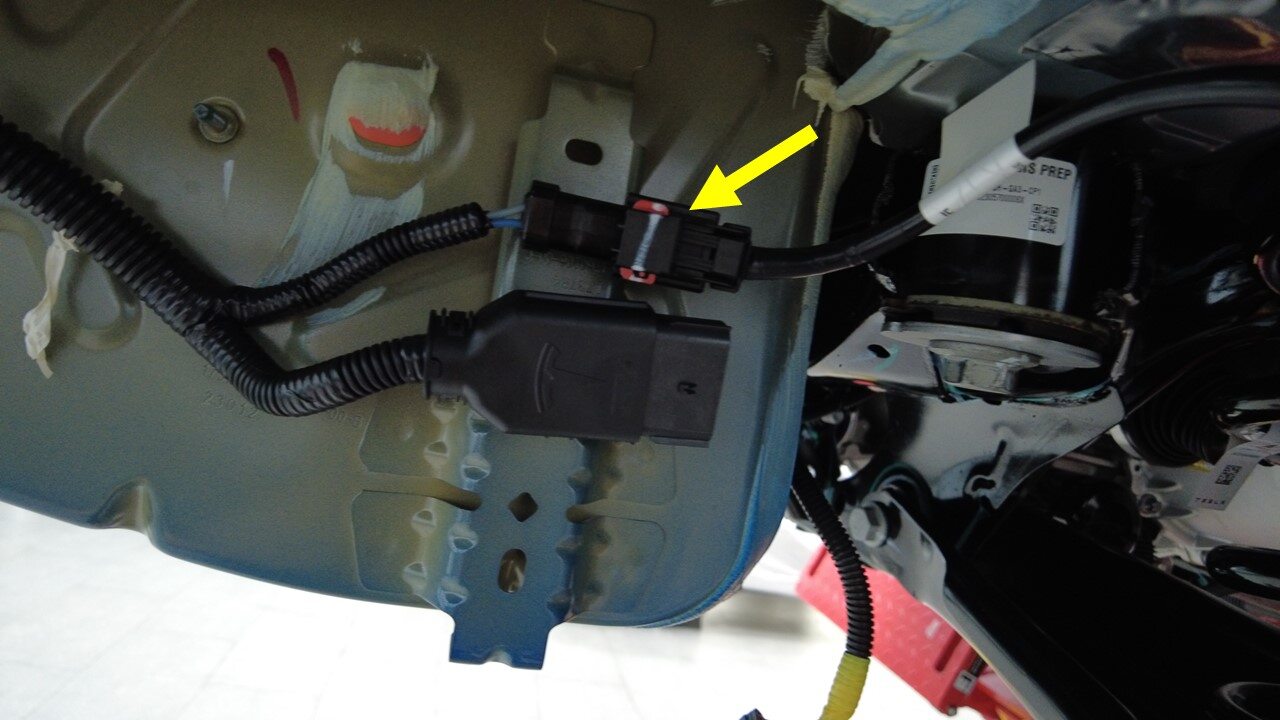

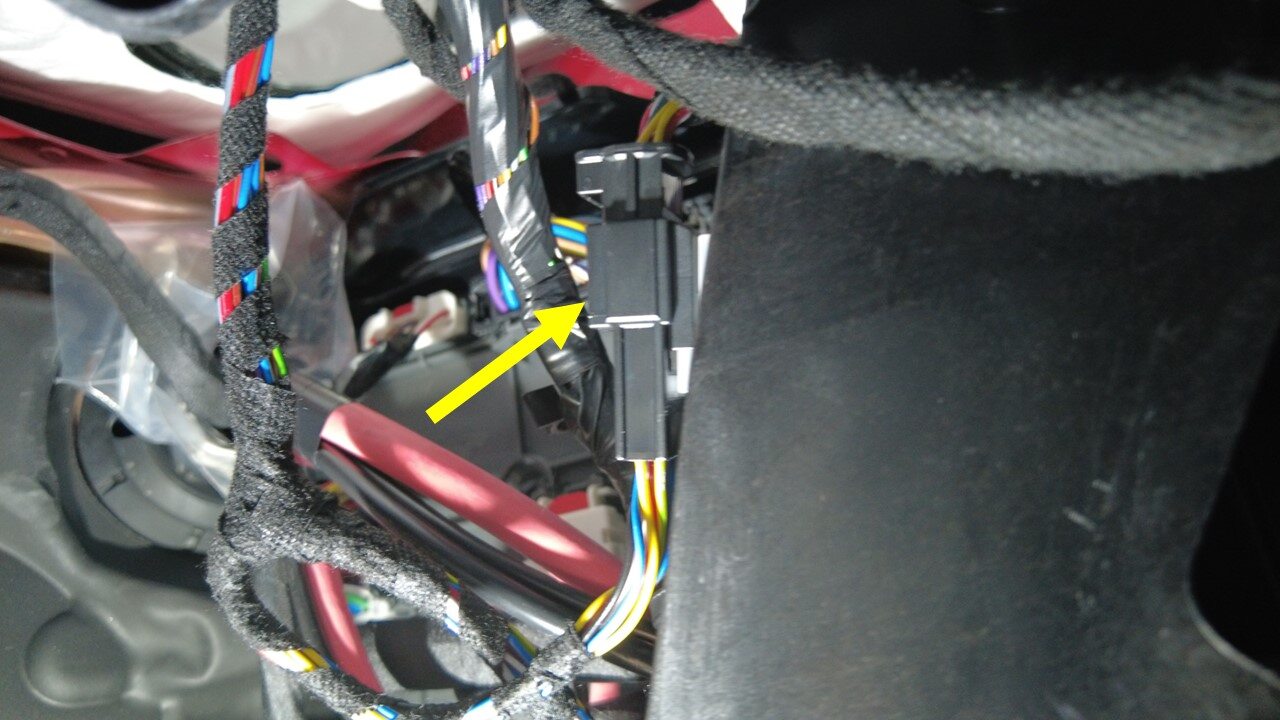

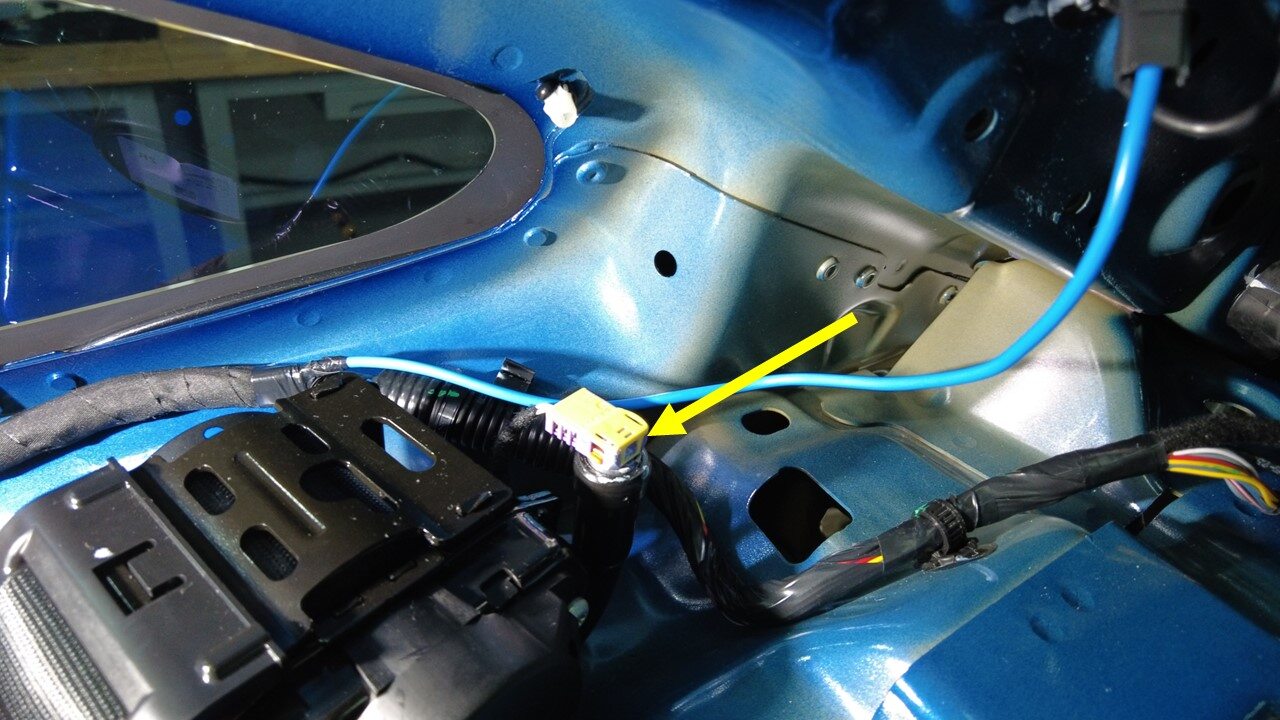

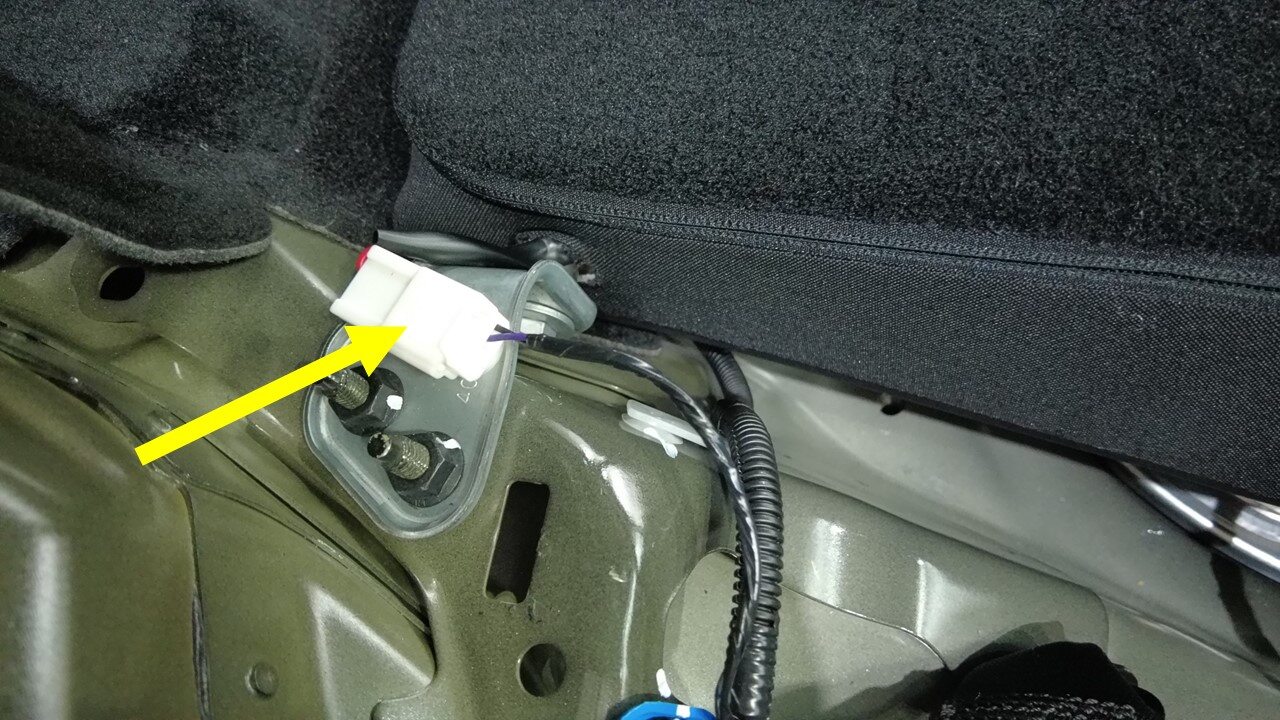

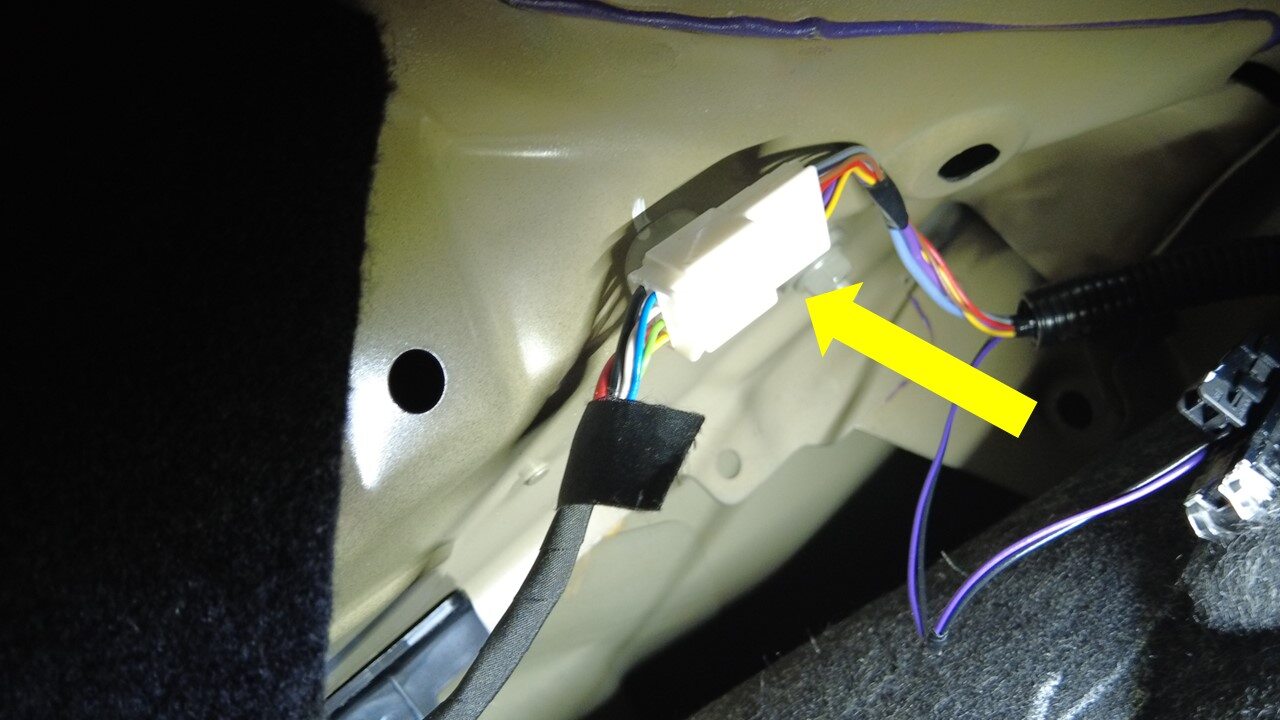

  127. Disconnect package tray harness connector from RH body harness
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector

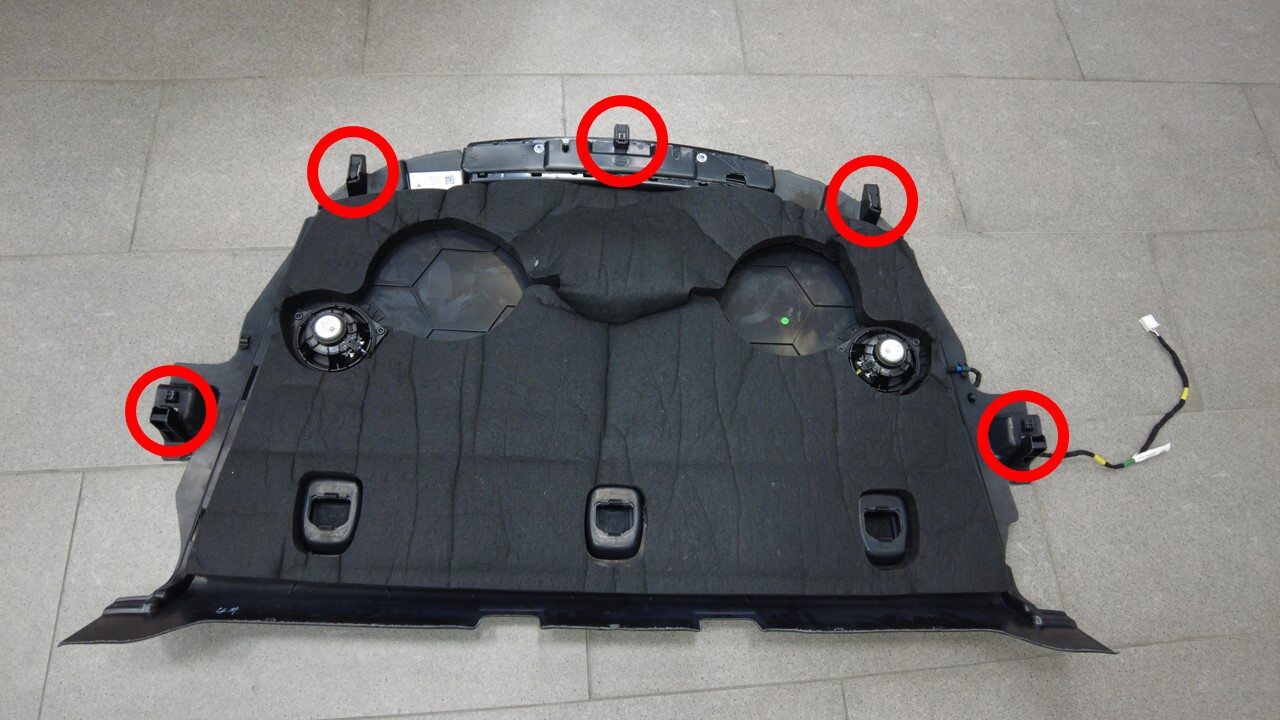

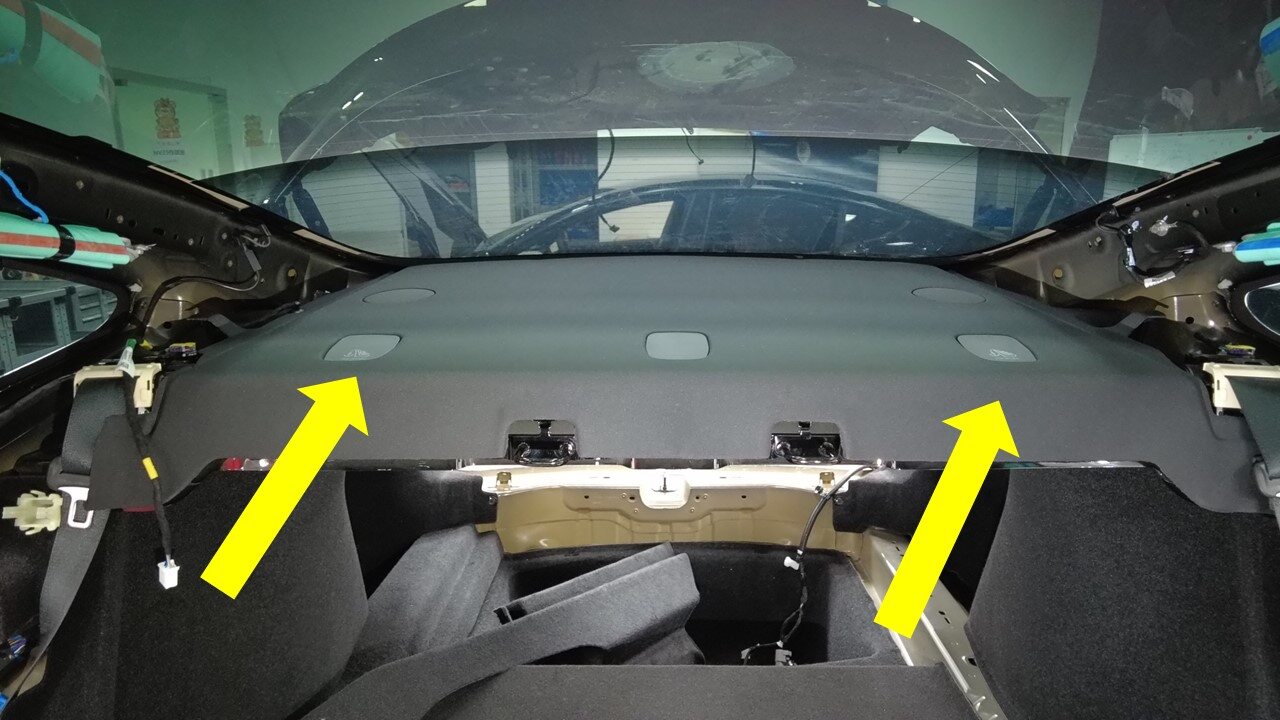

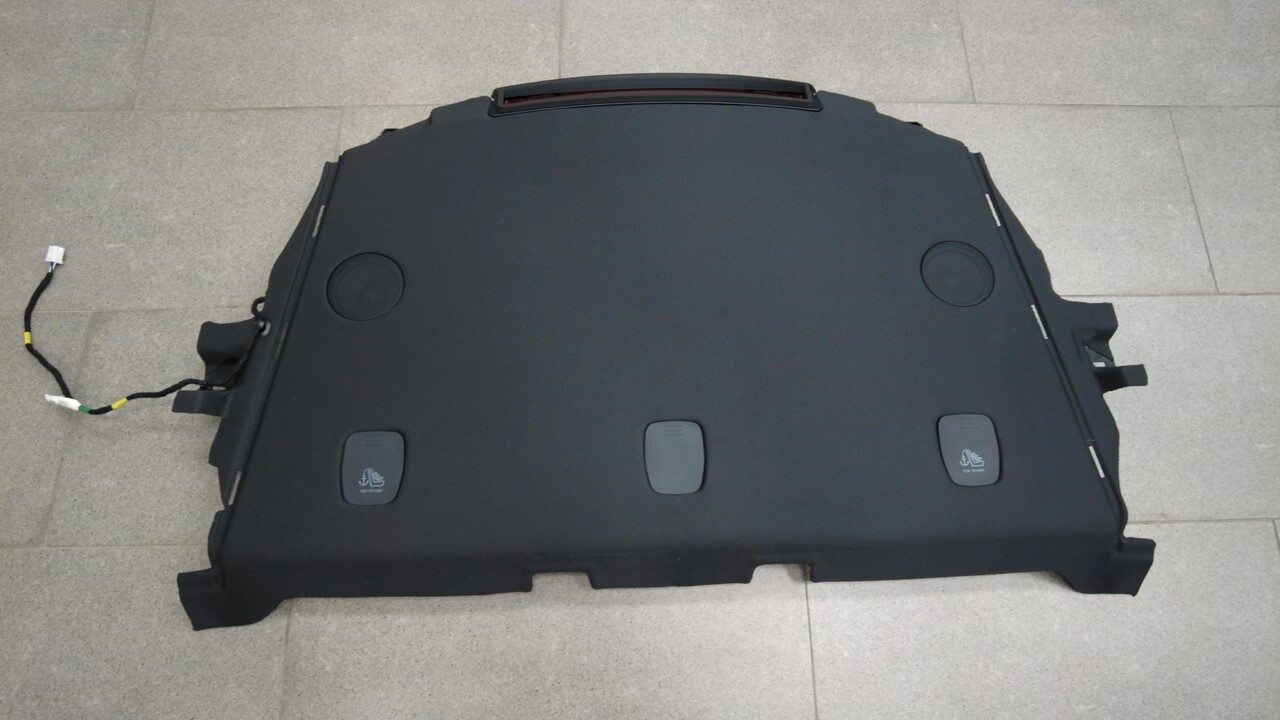

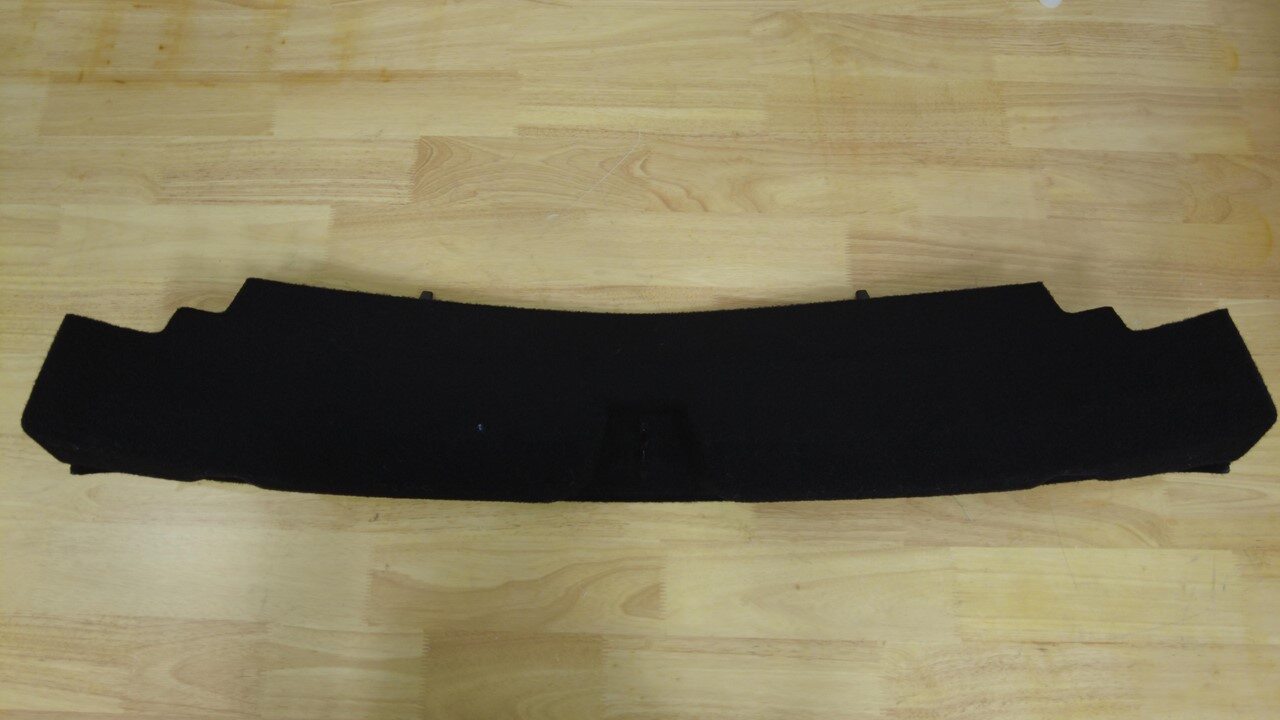

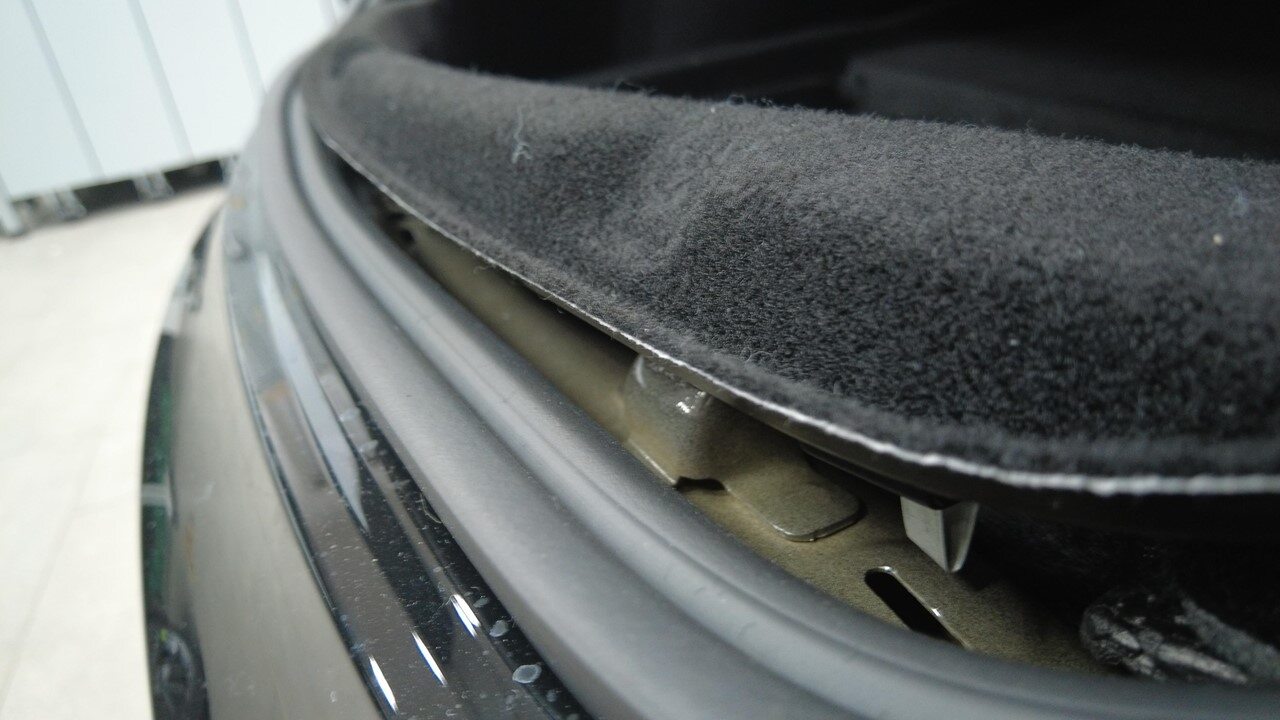

  128. Remove package tray
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x tabs, 3 at the rear of panel and 2 on the sides, Slide towards front of vehicle to remove

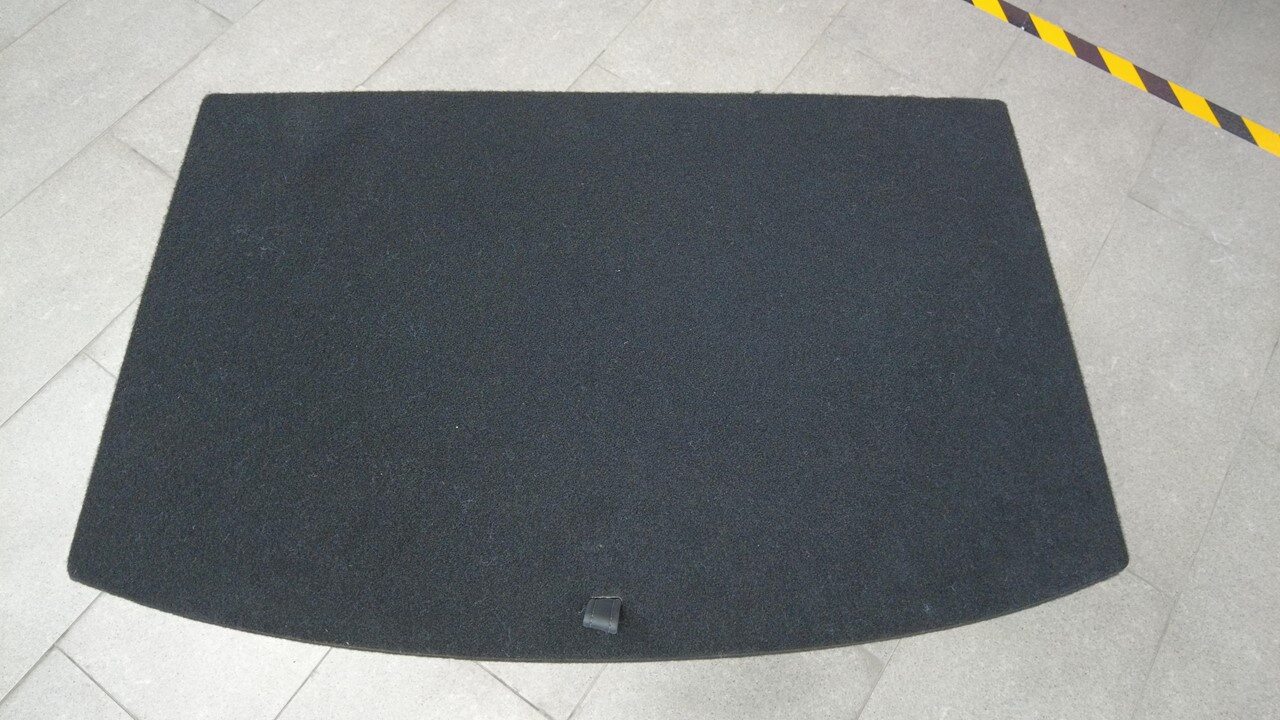

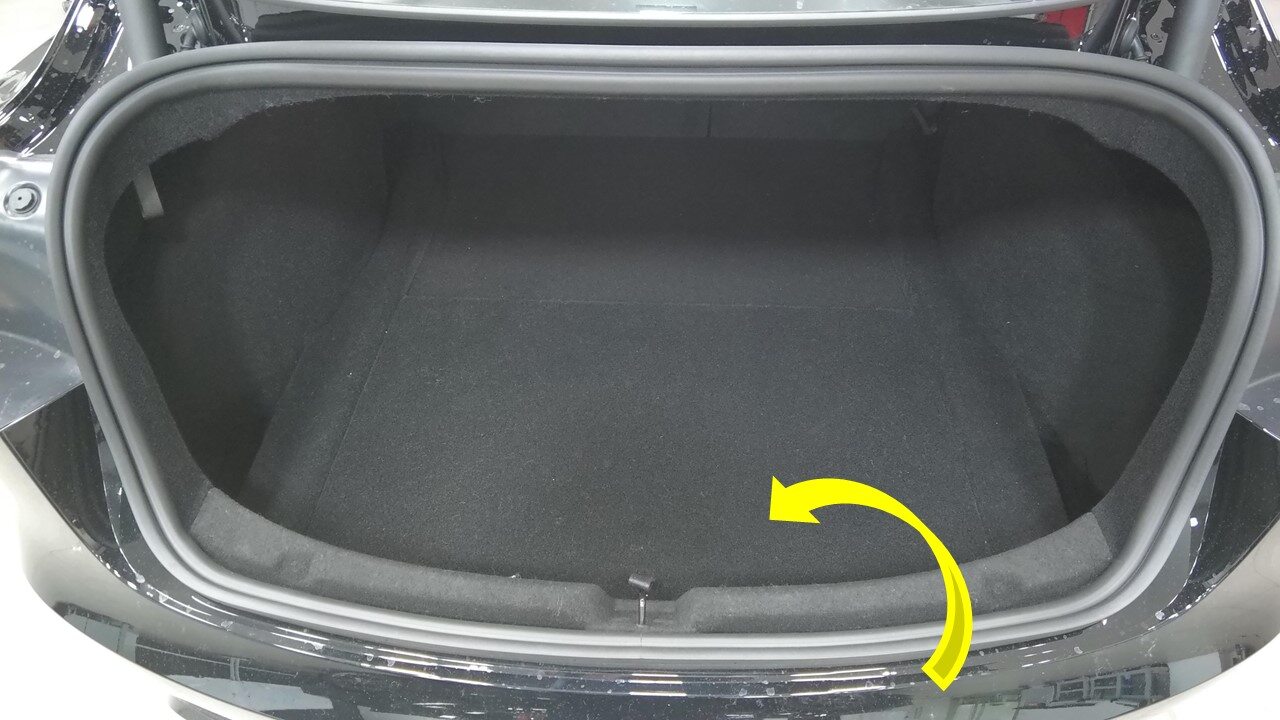

  129. Remove load floor
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Use pull tab located at rear edge of panel

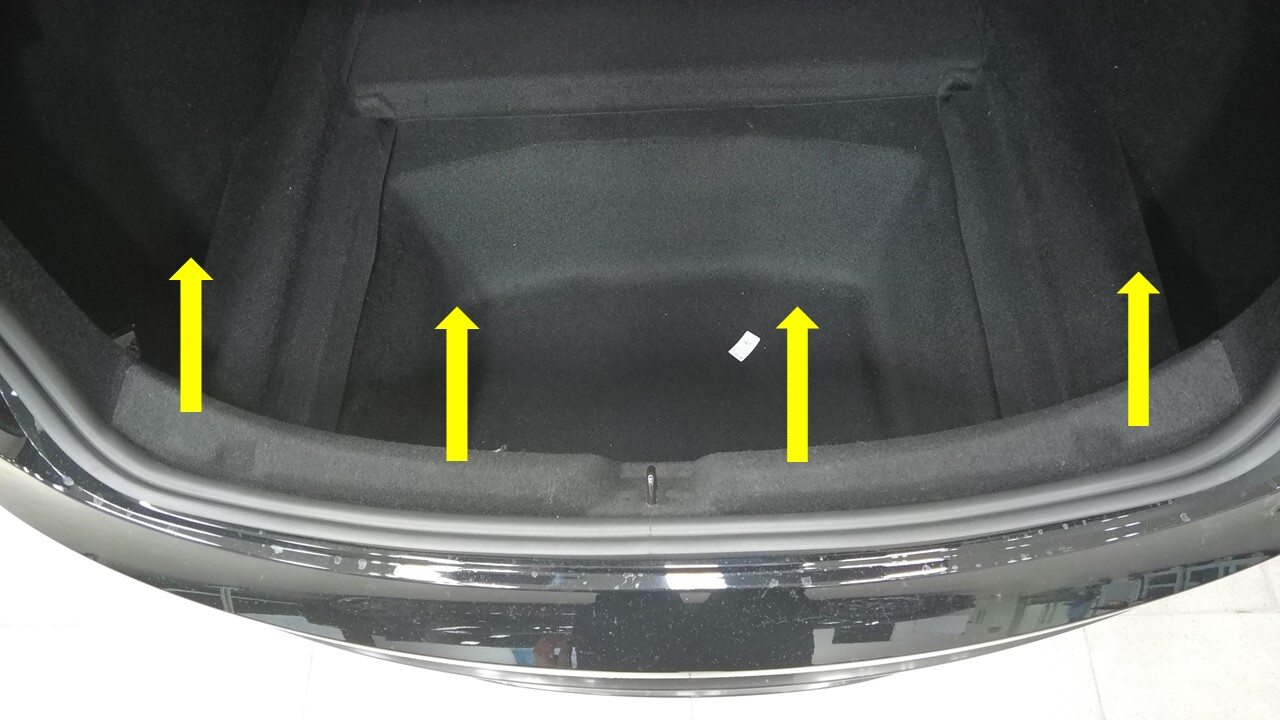

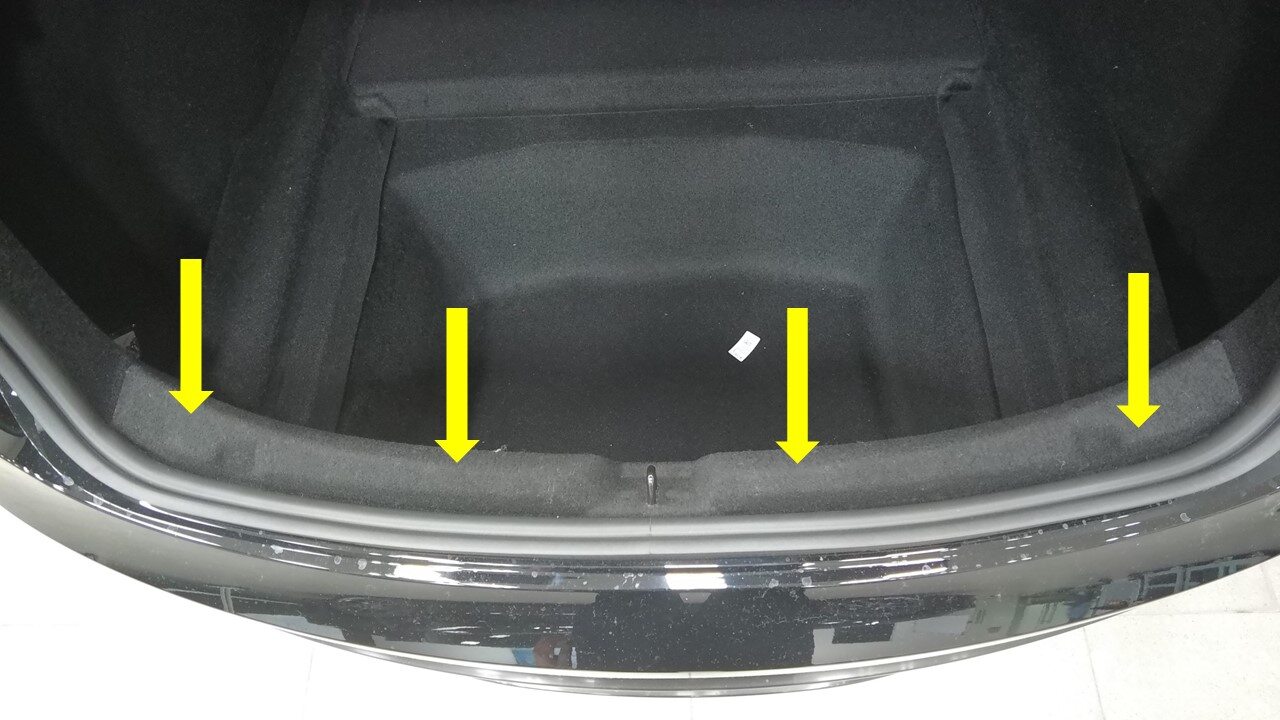

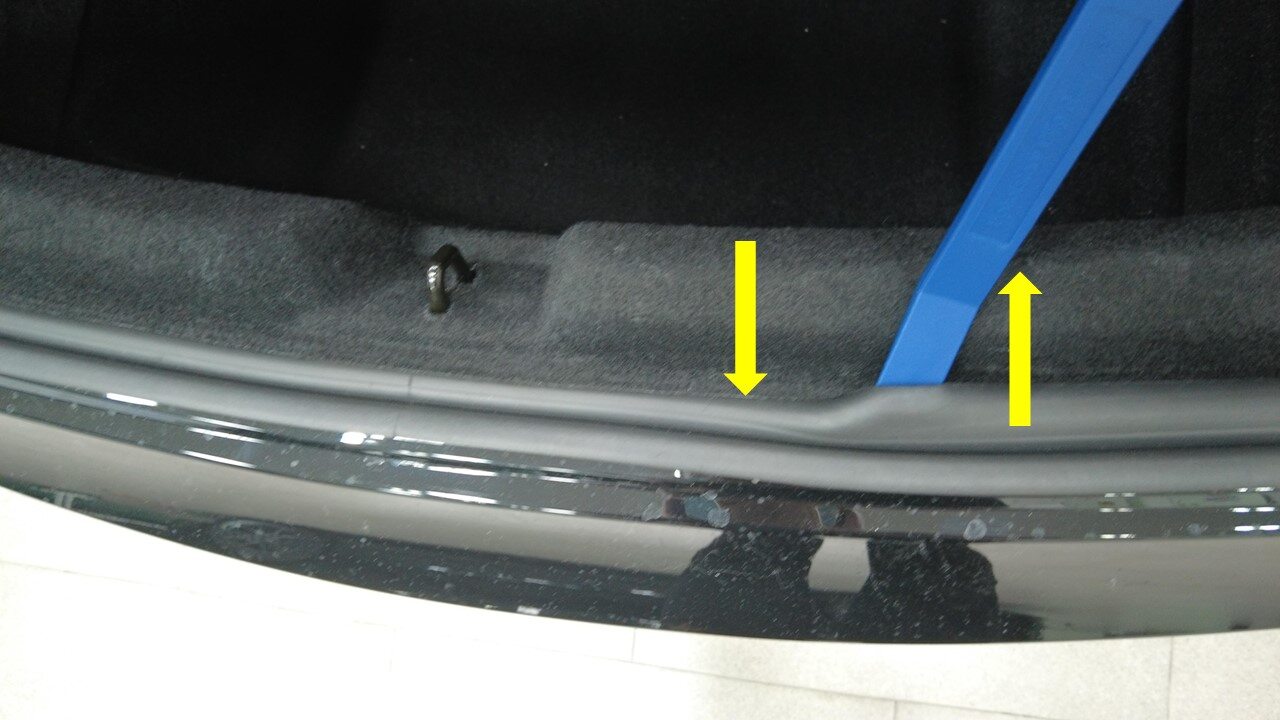

  130. Remove trunk sill trim assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x clips, Pull corner upward to release clip on end then pull away from body for remaining clips
  131. Remove RH load floor bracket
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x clips, 2x locations, Release bracket front clips, then release clips at the bracket rear, and remove the floor bracket

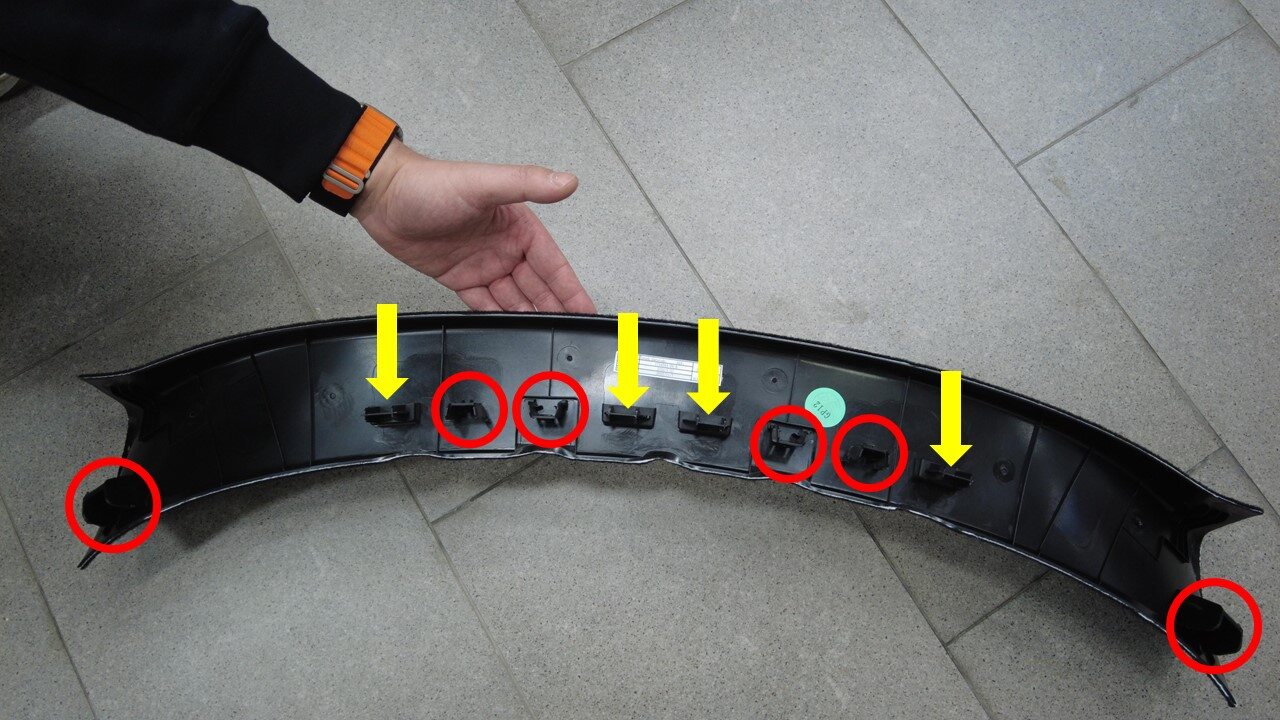

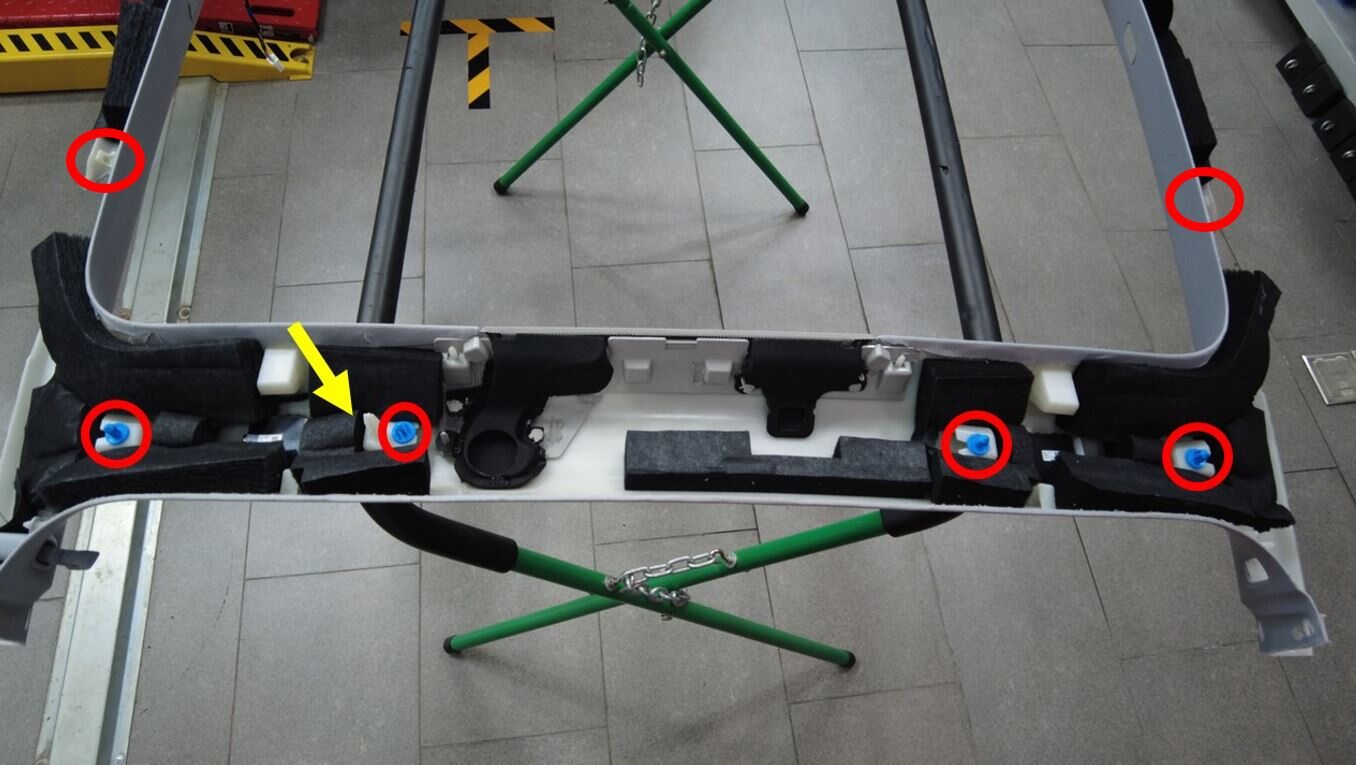

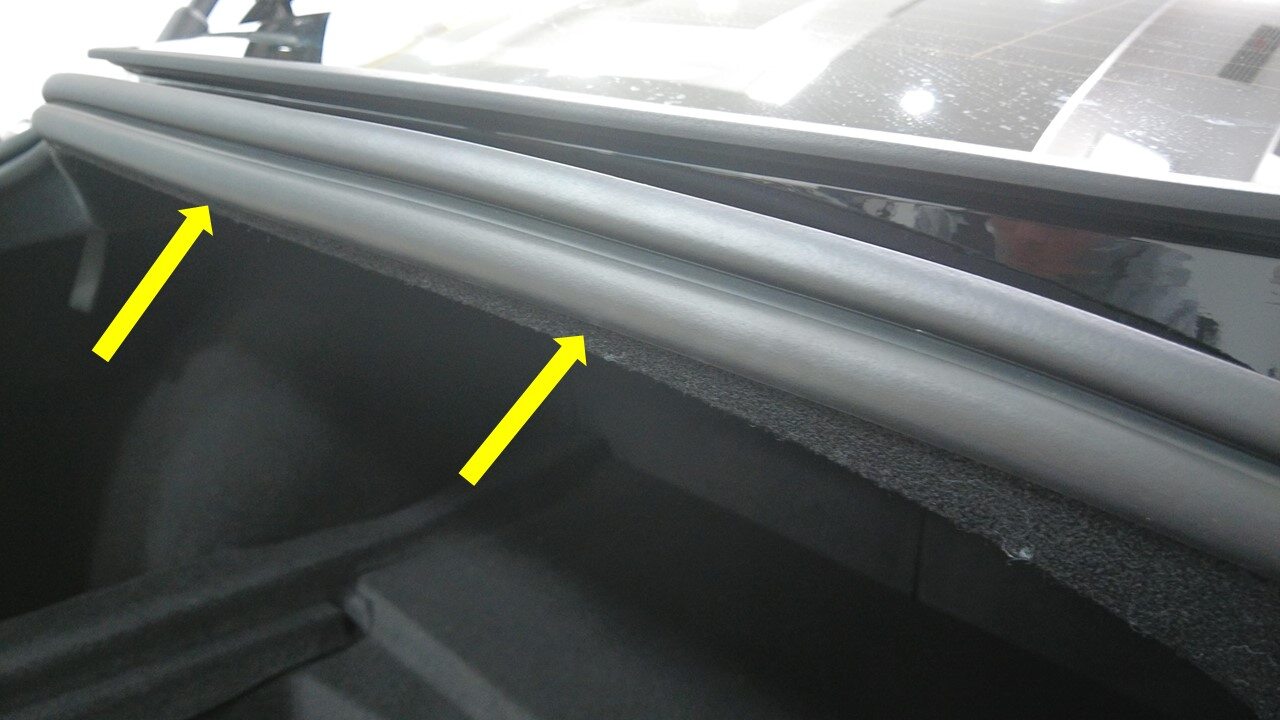

  132. Remove trunk garnish assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x clips, 4x locating tabs
  133. Remove clips for RH trunk side trim
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x clips
  134. Disconnect RH trunk task light connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector

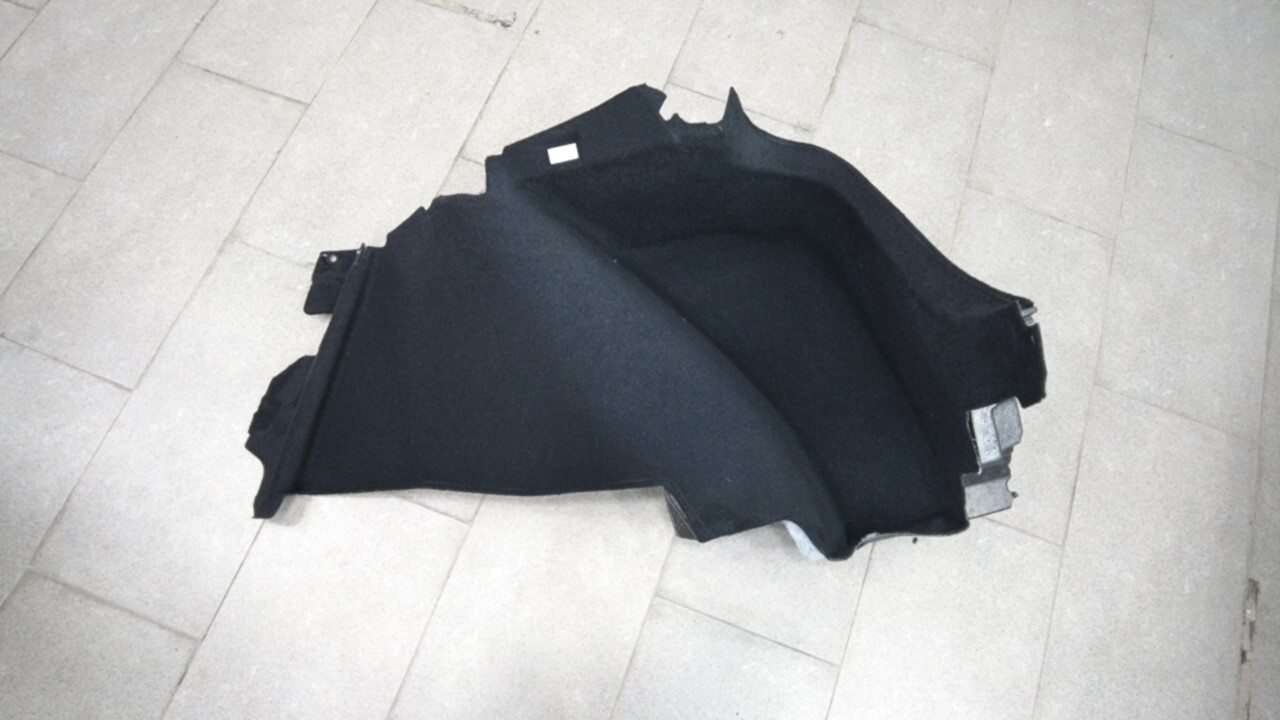

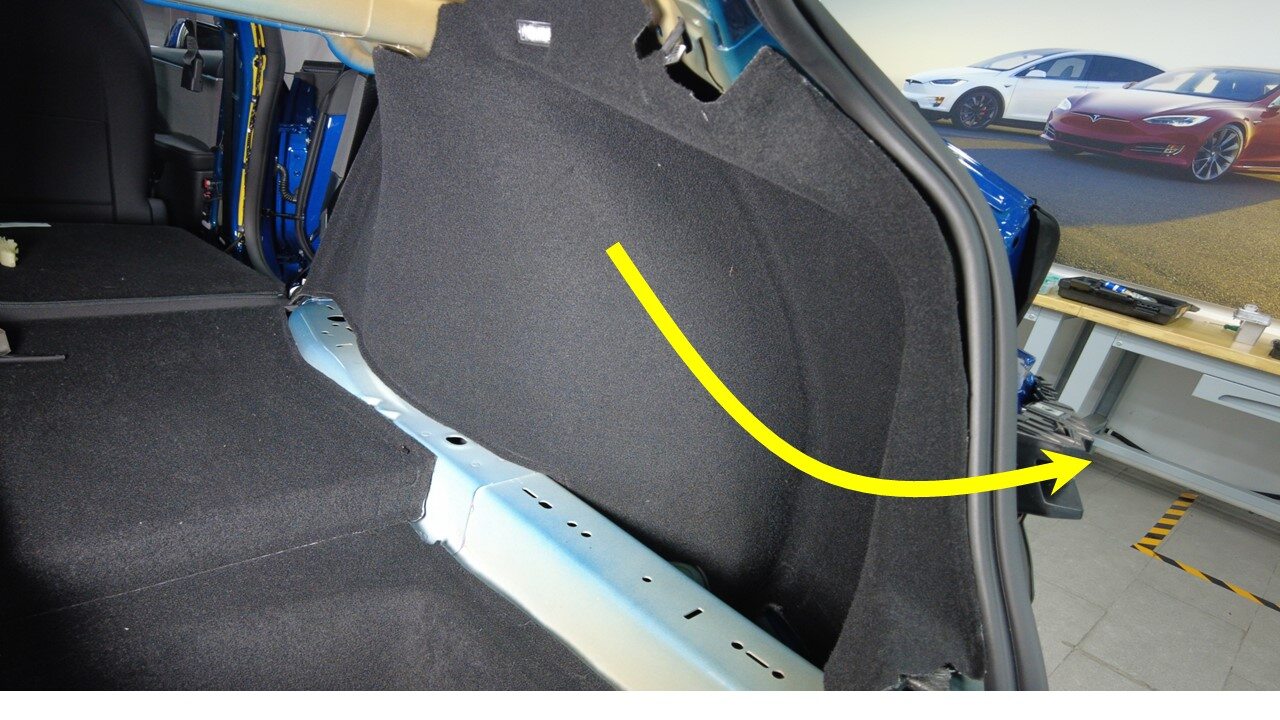

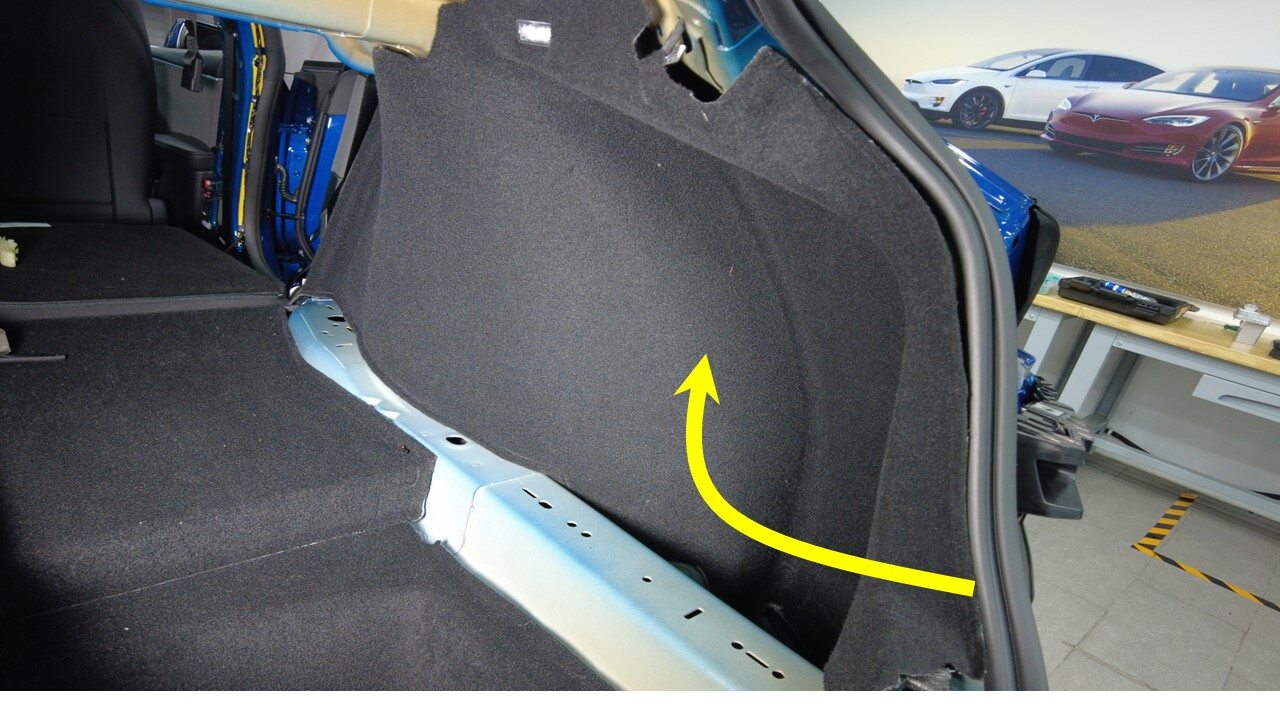

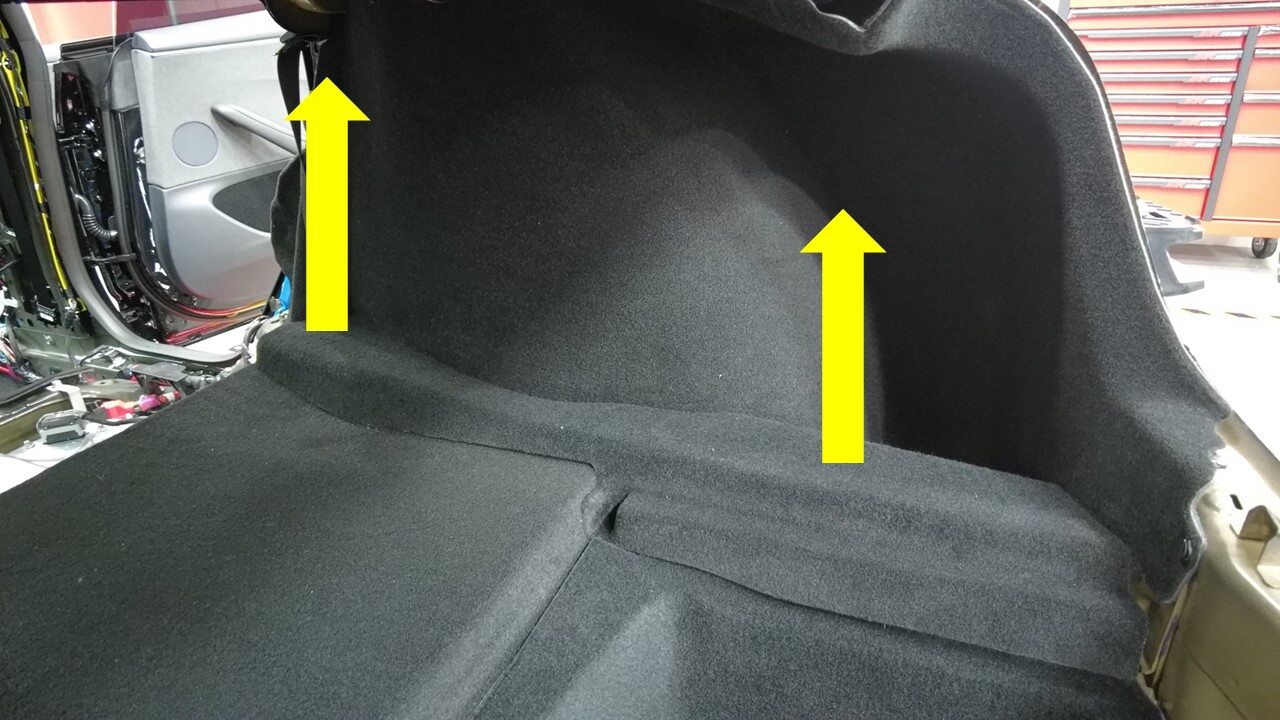

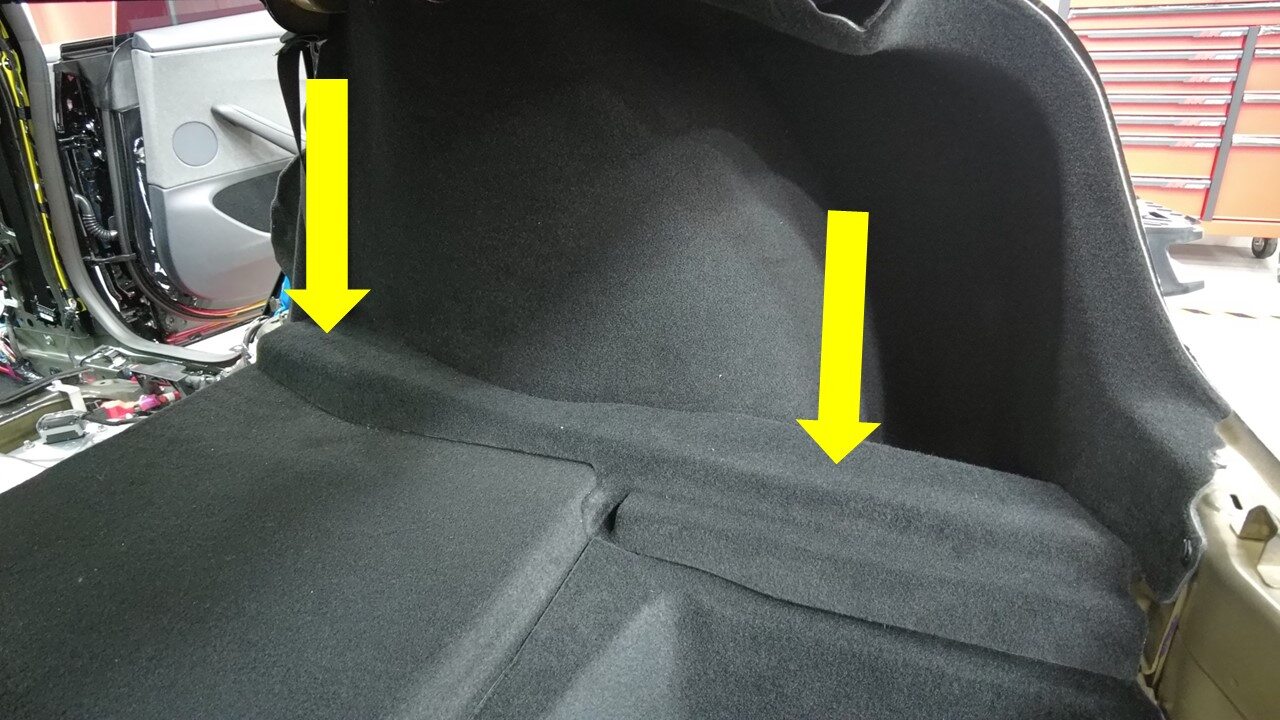

  135. Remove RH trunk side trim

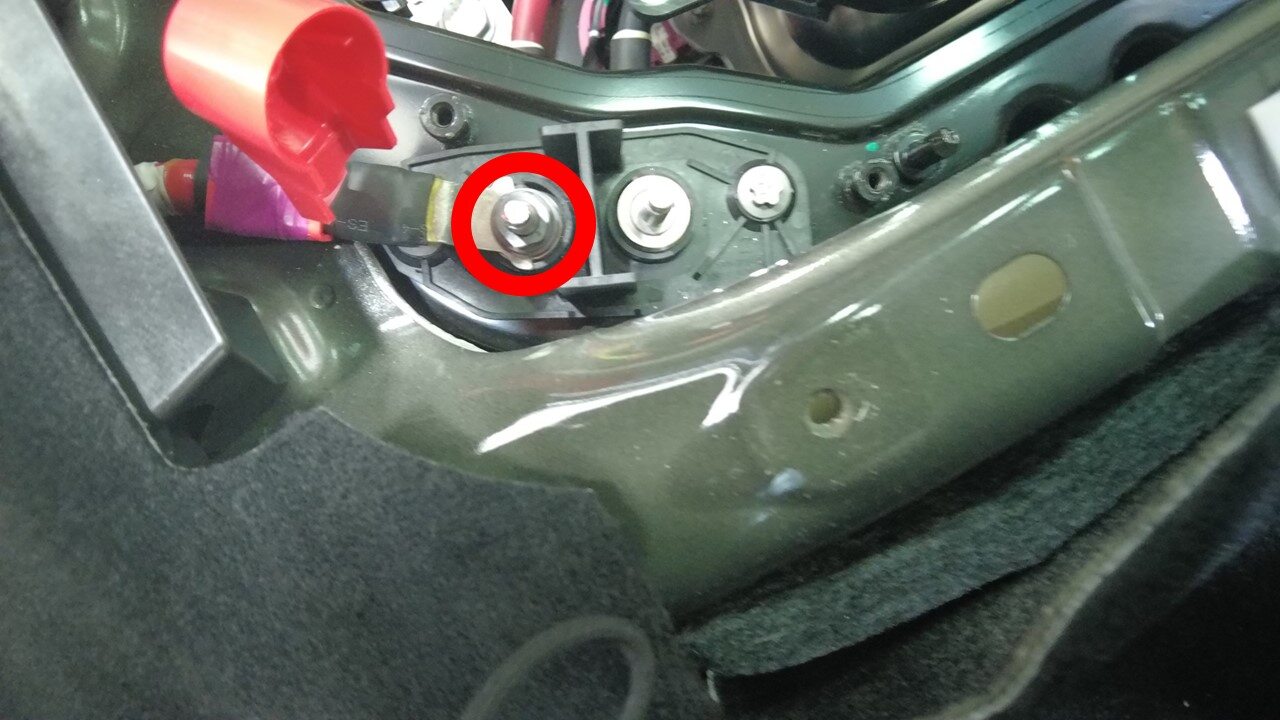

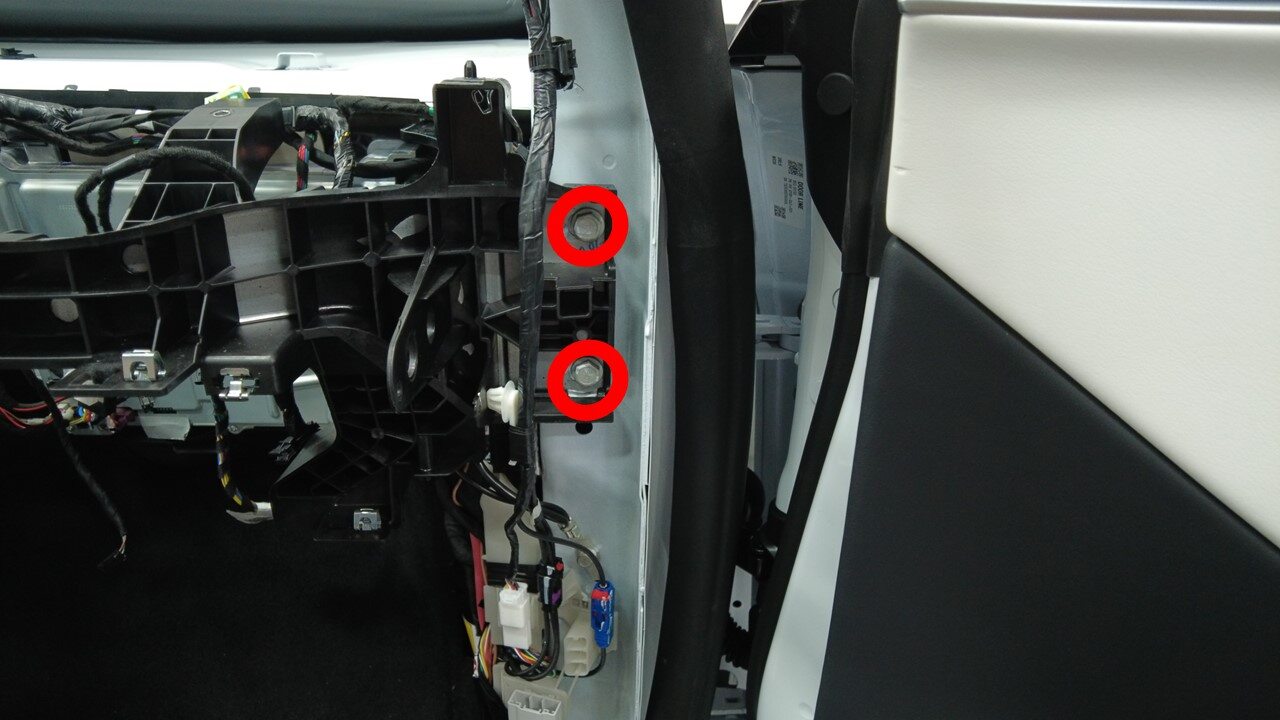

  136. Remove bolts securing RH cross car beam to body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 15mm, 29 Nm
  137. Remove bolt securing RH cross car beam bracket to cross beam
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 13mm, 25 Nm

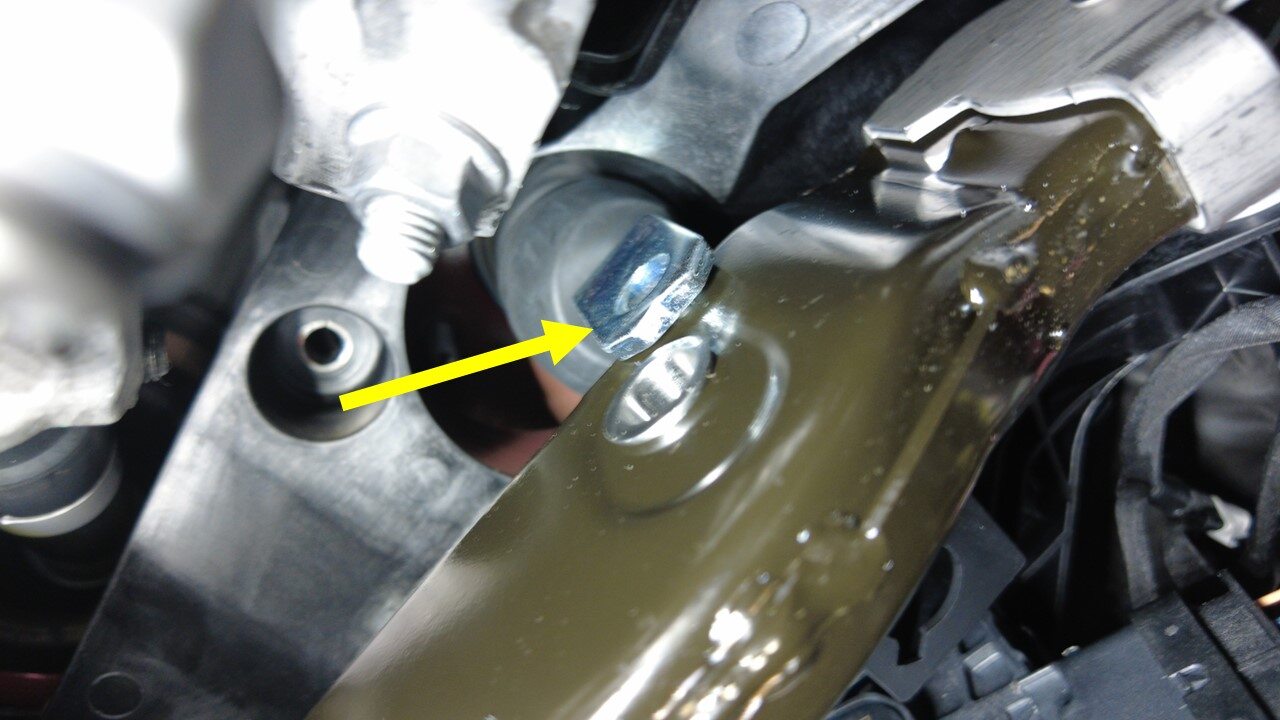

  138. Remove nut securing RH cross car beam bracket to body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 13mm, 25 Nm
  139. Remove RH cross car beam bracket from vehicle
  140. Loosen bolt securing cross car beam to upper cowl
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 13mm, 25 Nm
  141. Remove bolts securing LH cross car beam to body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 15mm, 29 Nm
  142. Remove bolt securing LH cross car beam bracket to cross beam
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 13mm, 25 Nm
  143. Remove nut securing LH cross car beam bracket to body
  144. Remove LH cross car beam bracket from vehicle

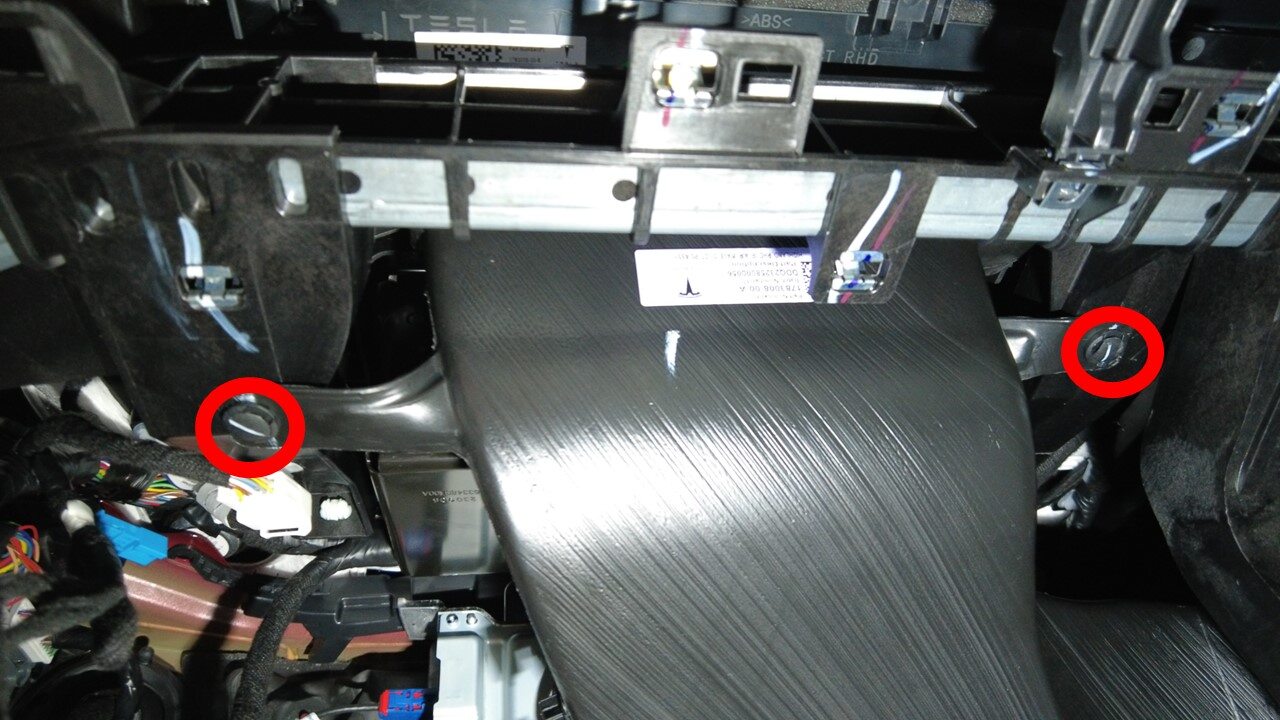

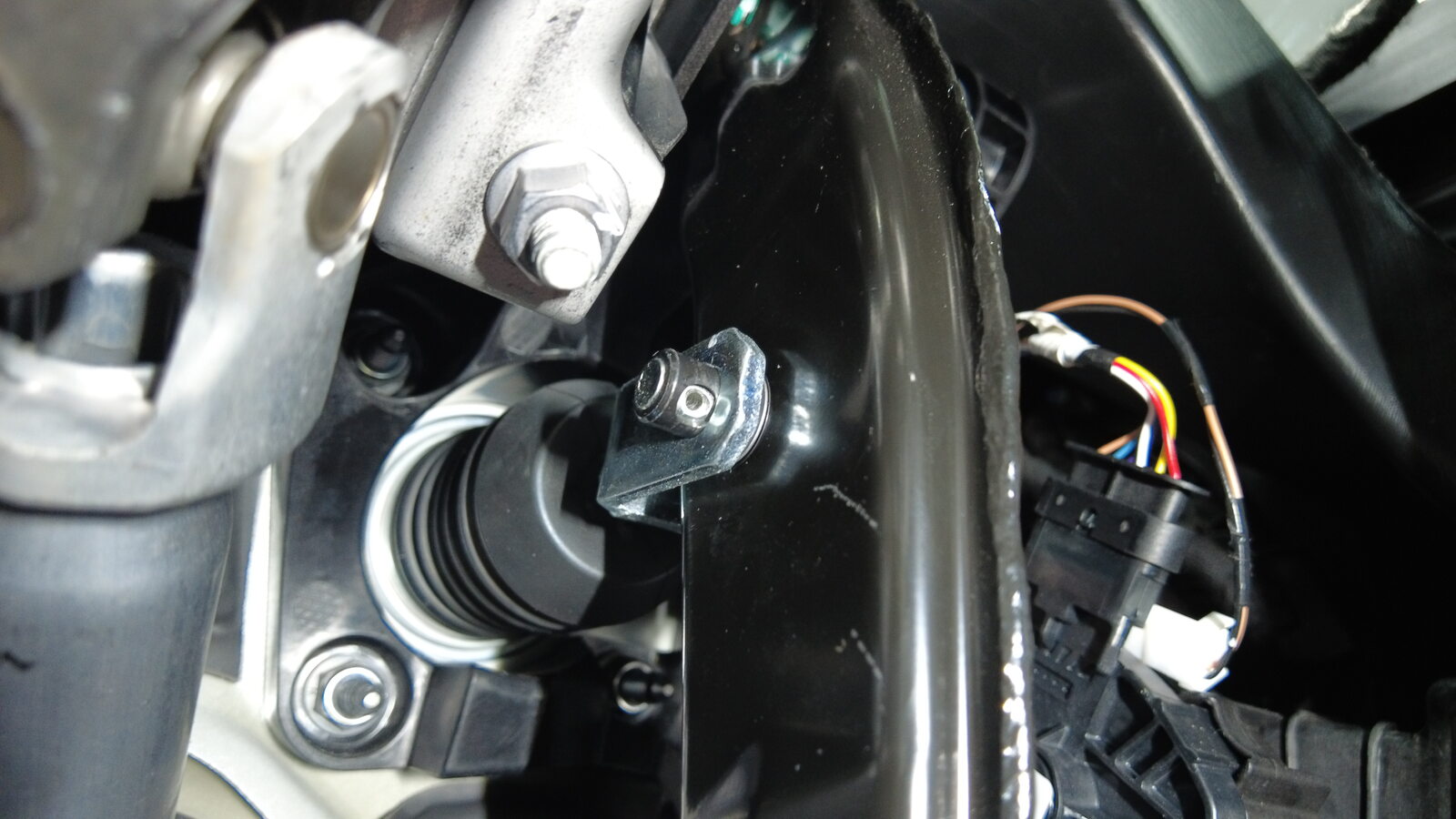

  145. Remove bolts securing steering column to body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 13mm, 25 Nm

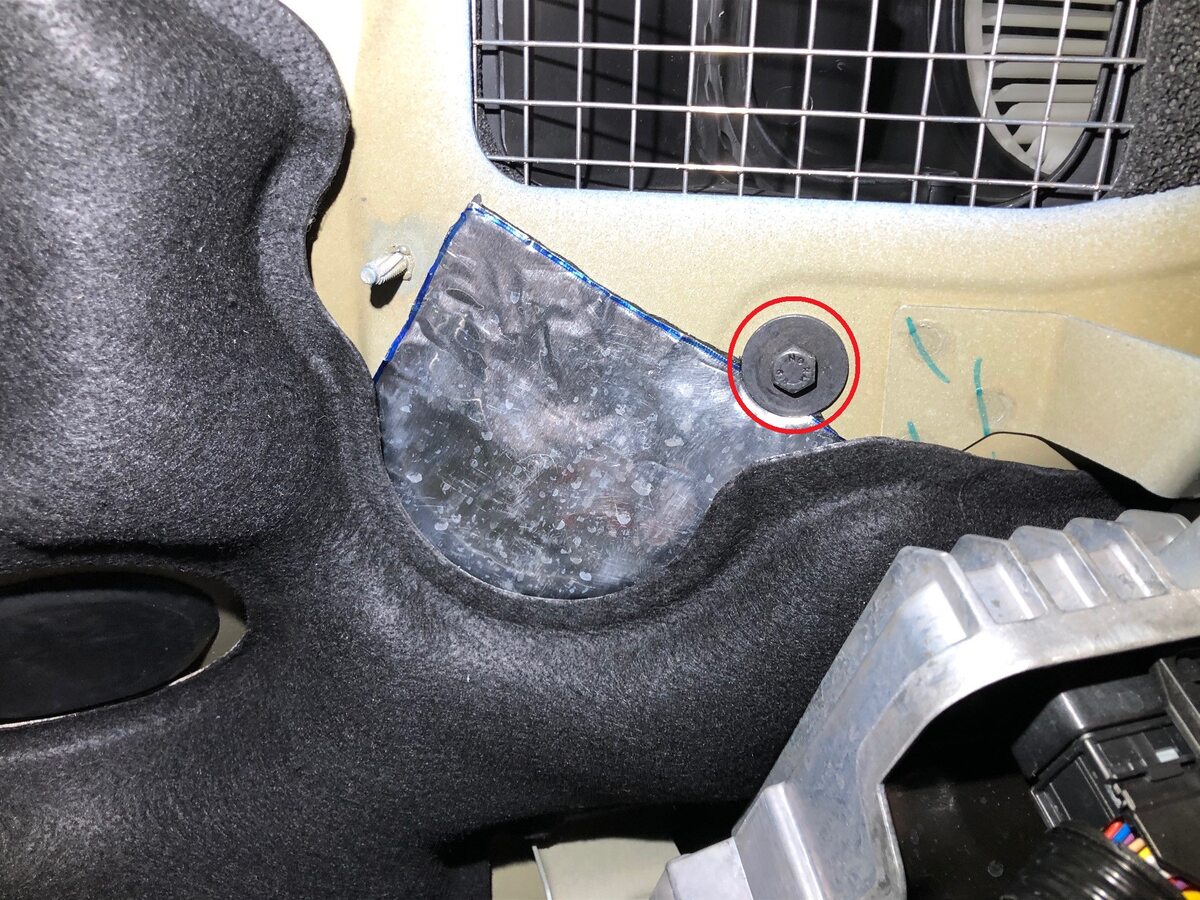

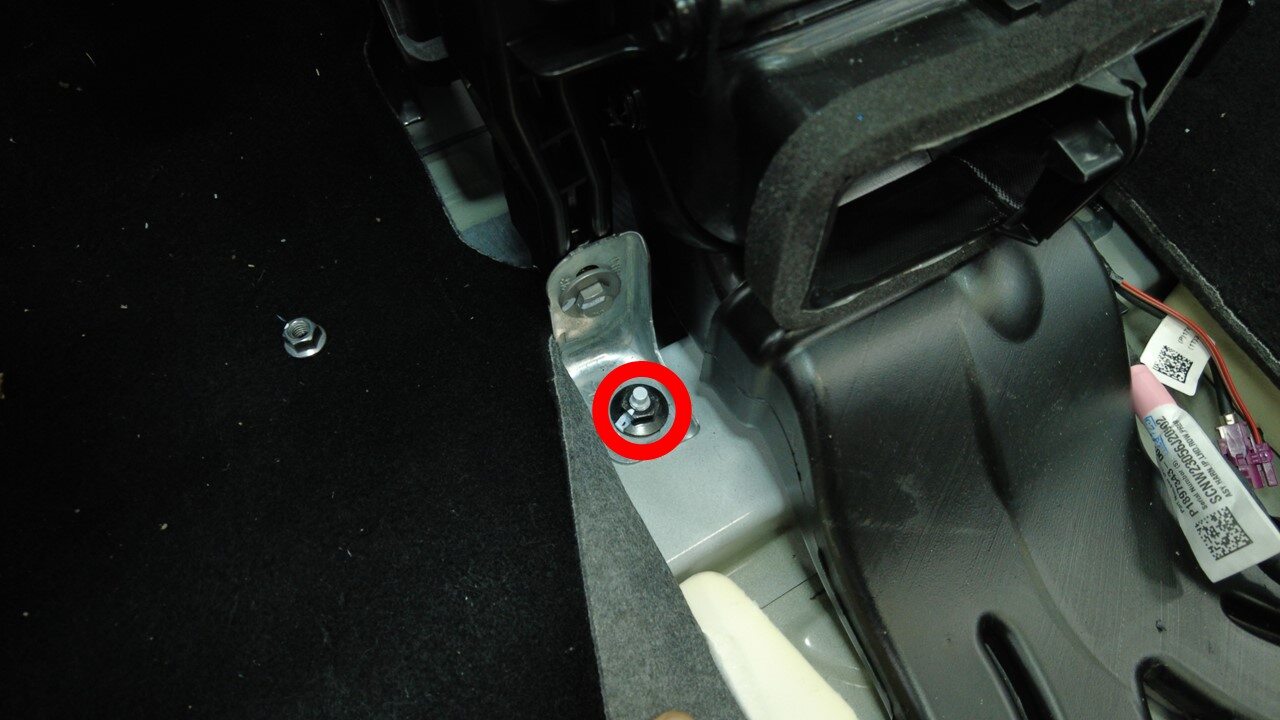

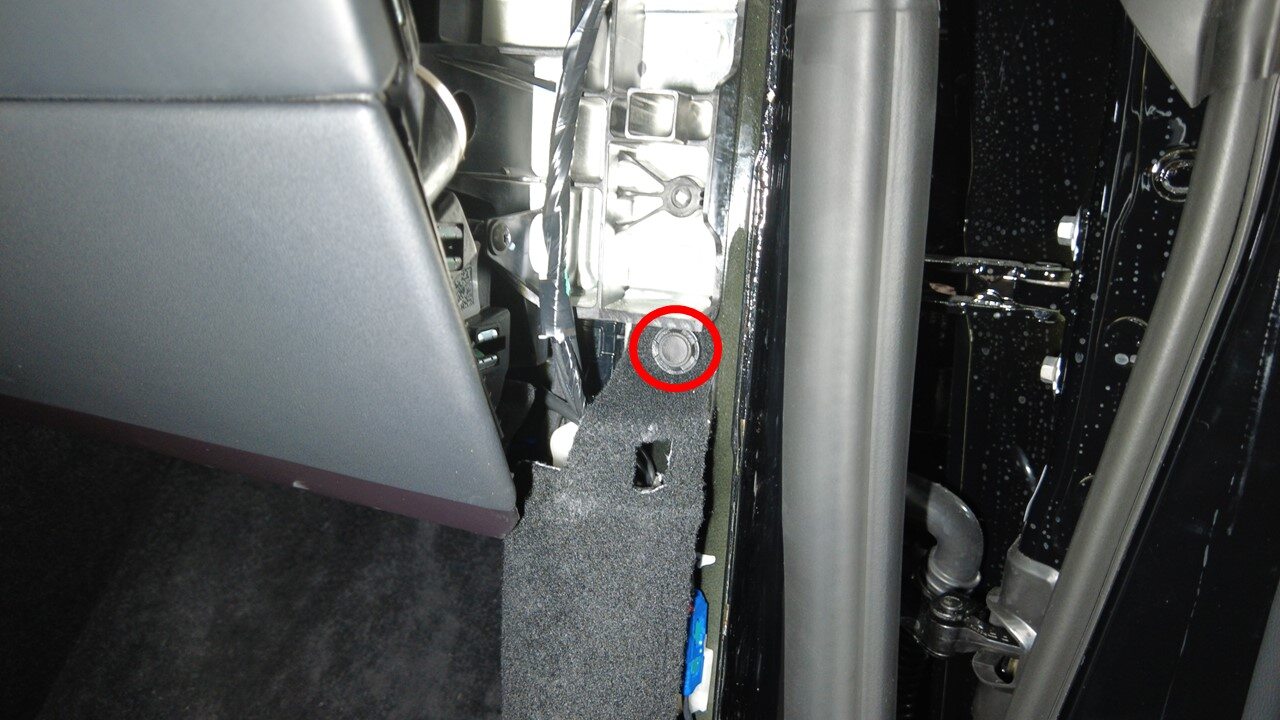

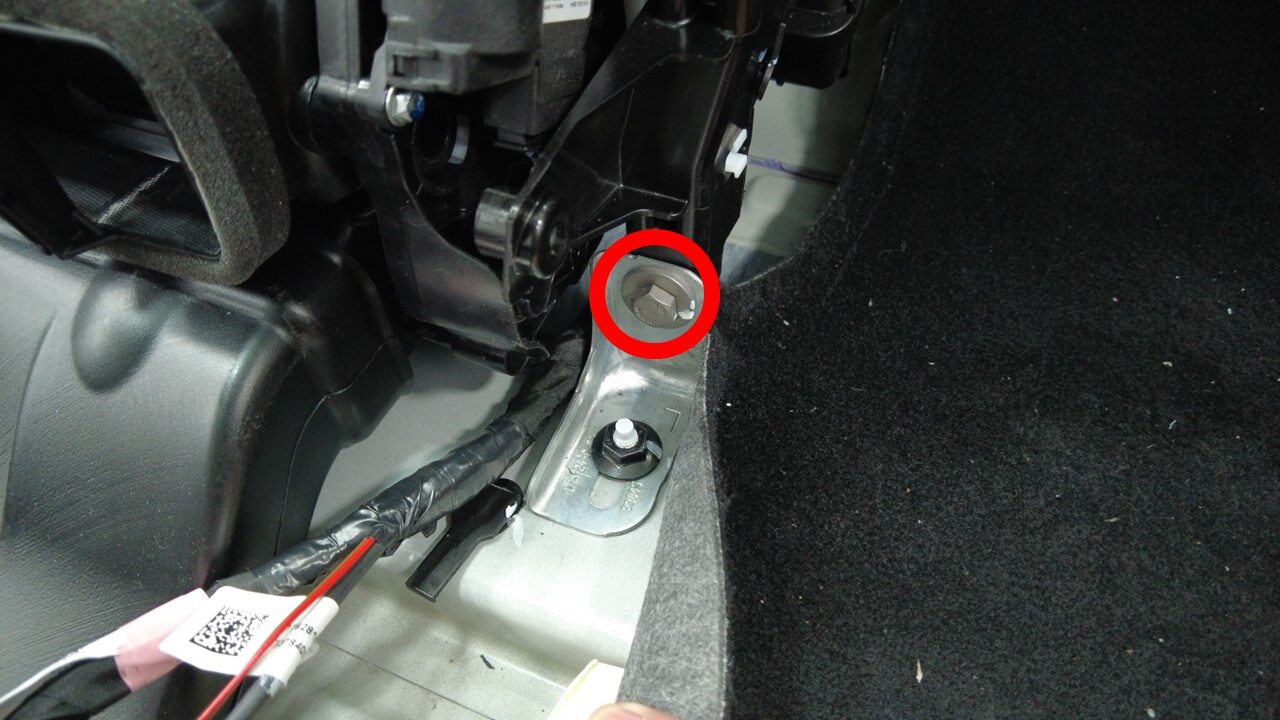

  146. Remove bolt securing HVAC assembly to RH side of bulkhead
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 10mm, 5.5 Nm, Recommend assistance to support HVAC assembly during removal

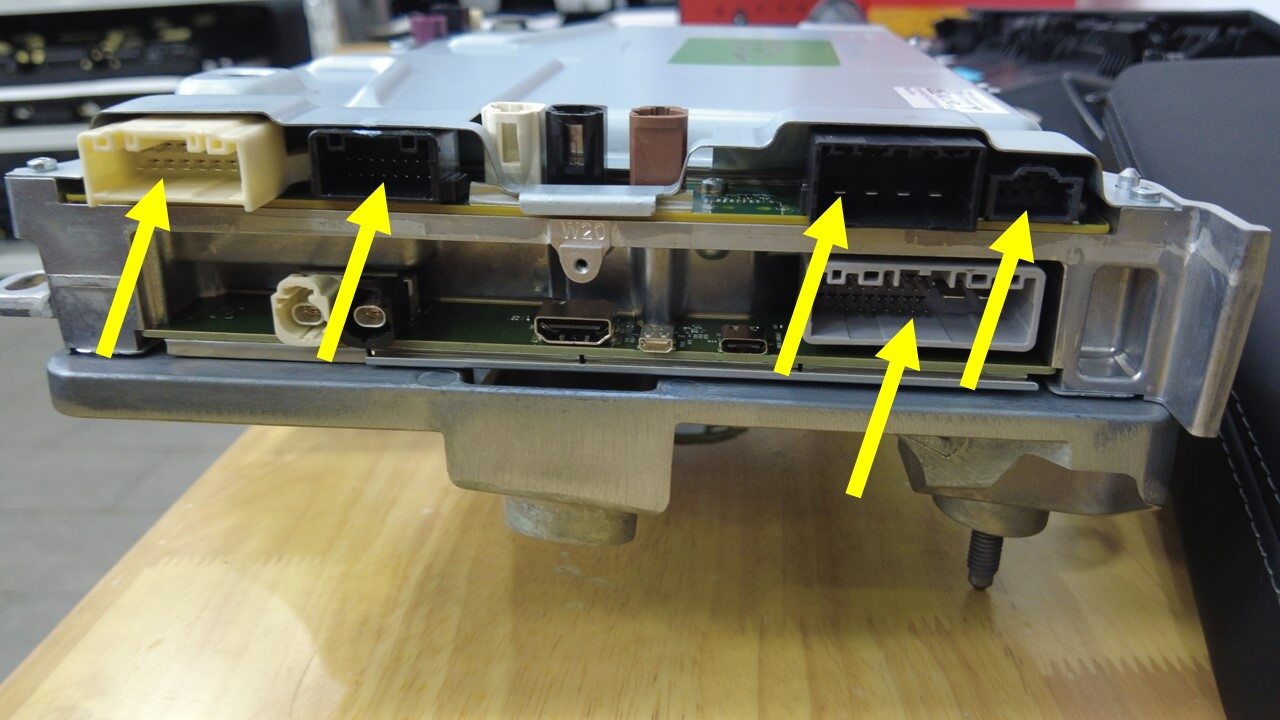

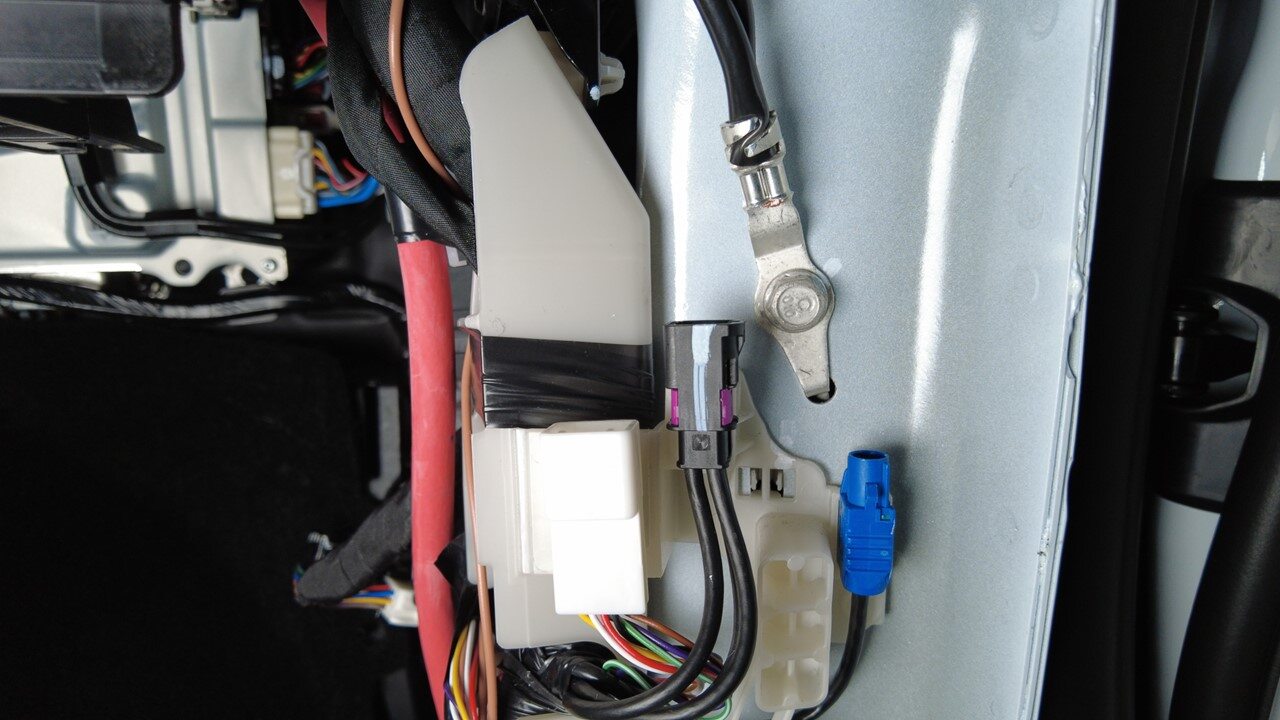

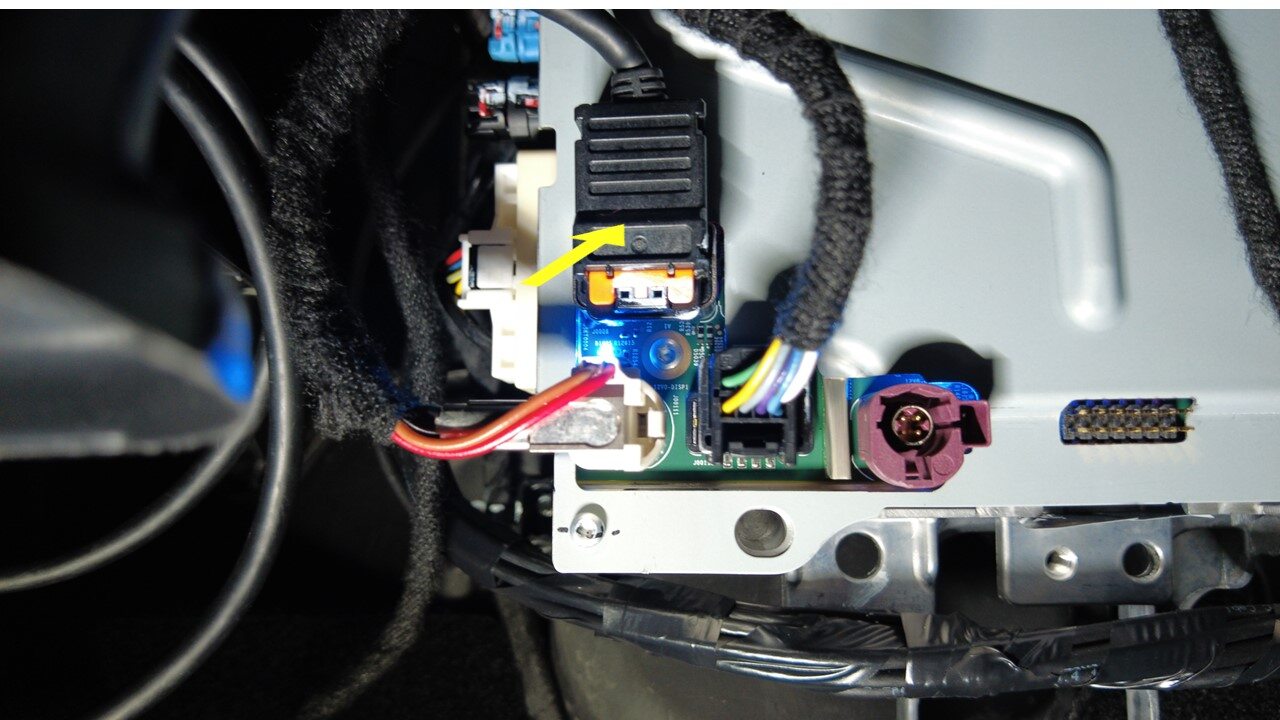

  147. Release connectors from right side of car computer
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x connectors

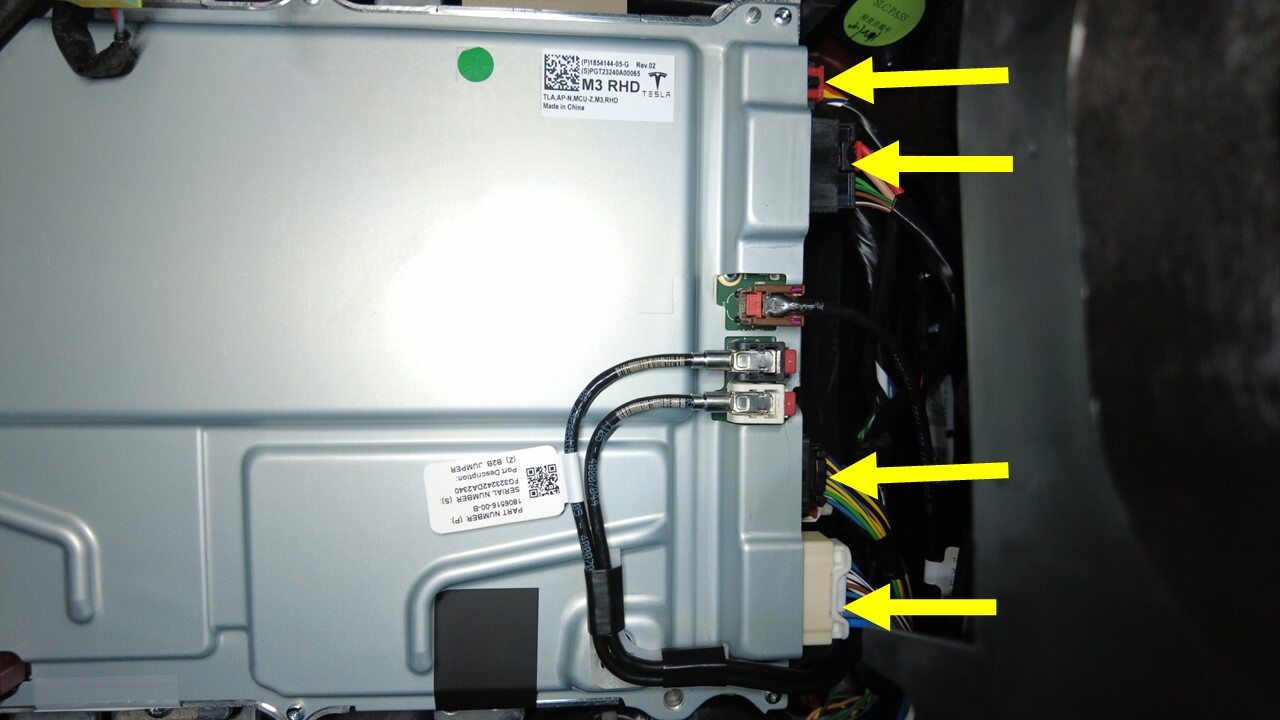

  148. Release harness connectors on left side of car computer
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x connectors, If equipped, release locking tab, then remove connector body

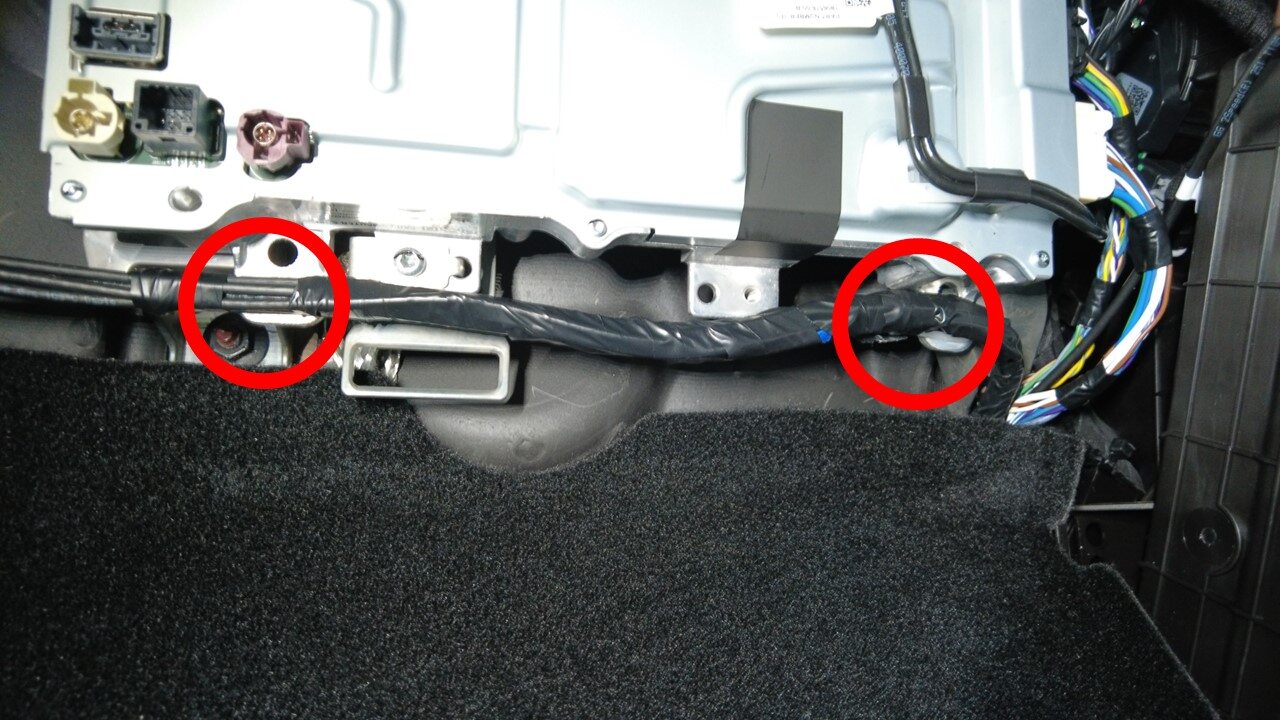

  149. Release harness clips from lower of car computer
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x clips

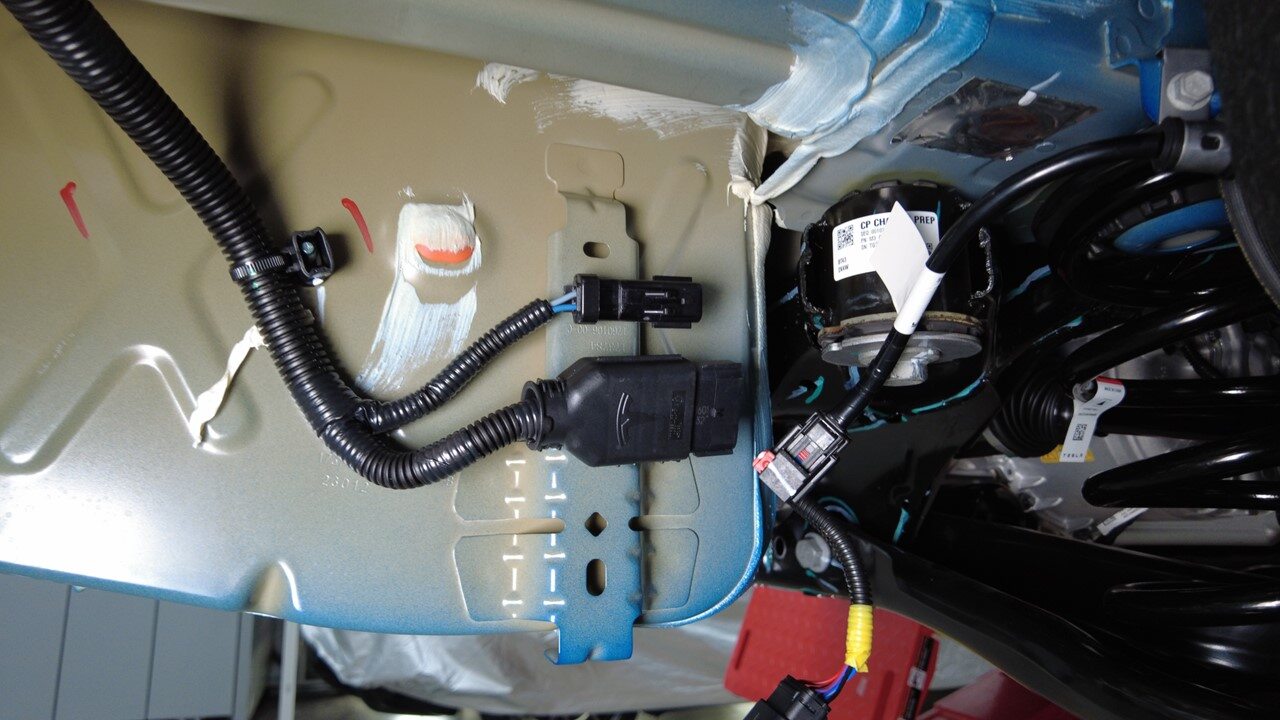

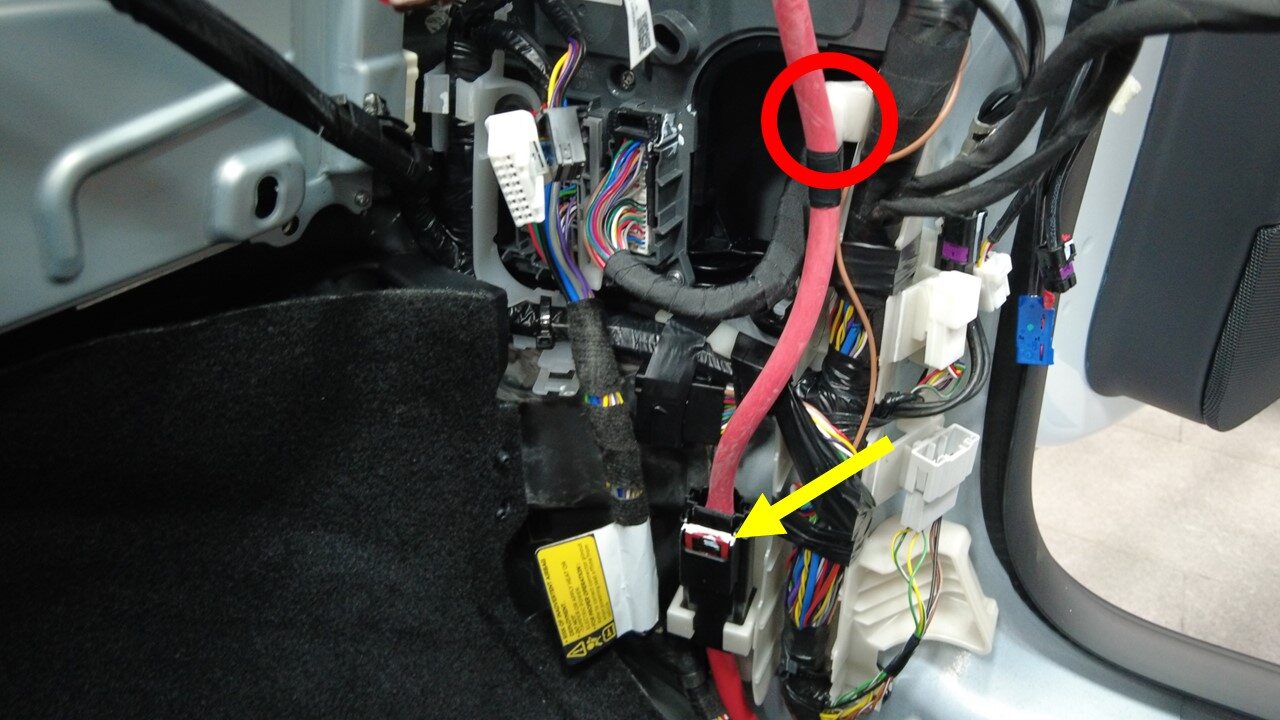

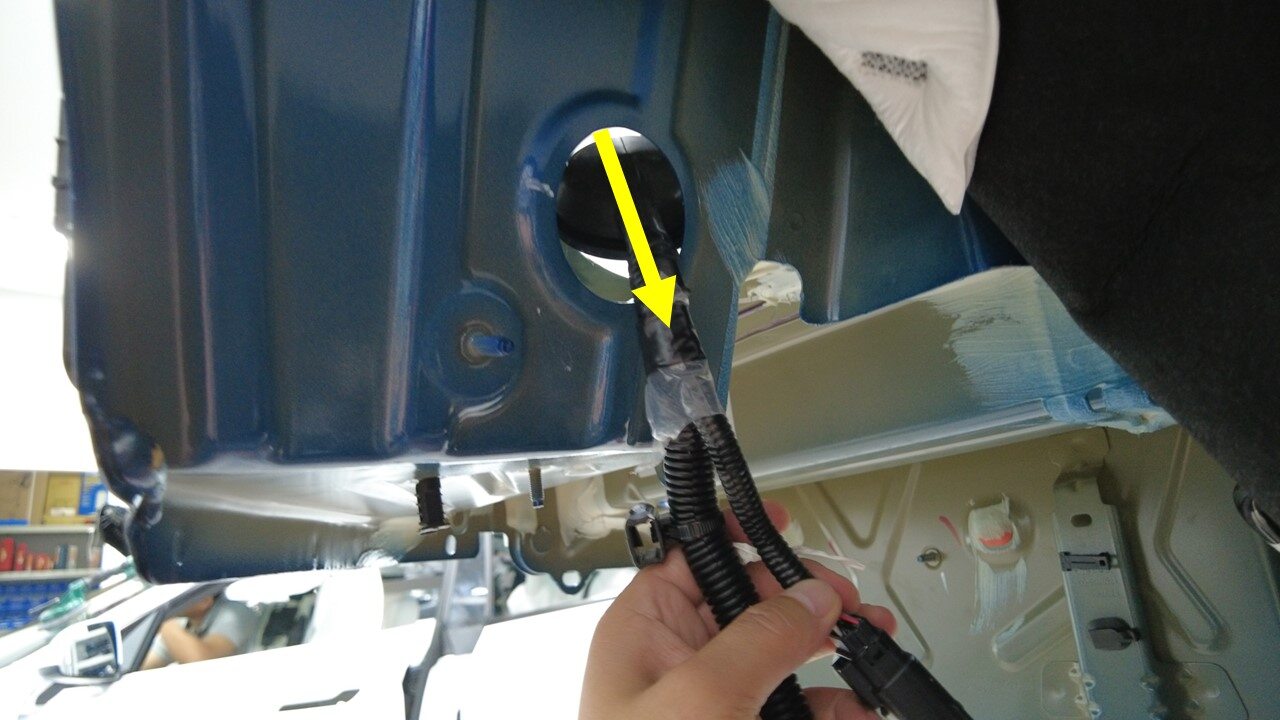

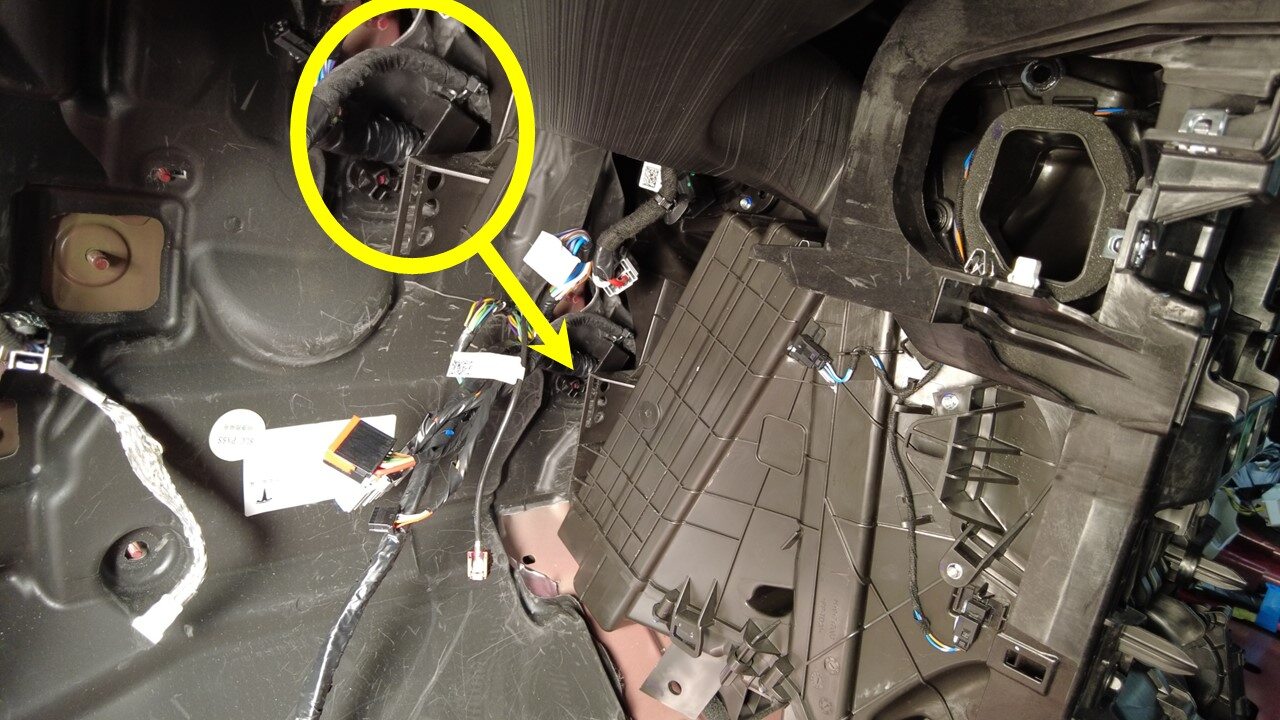

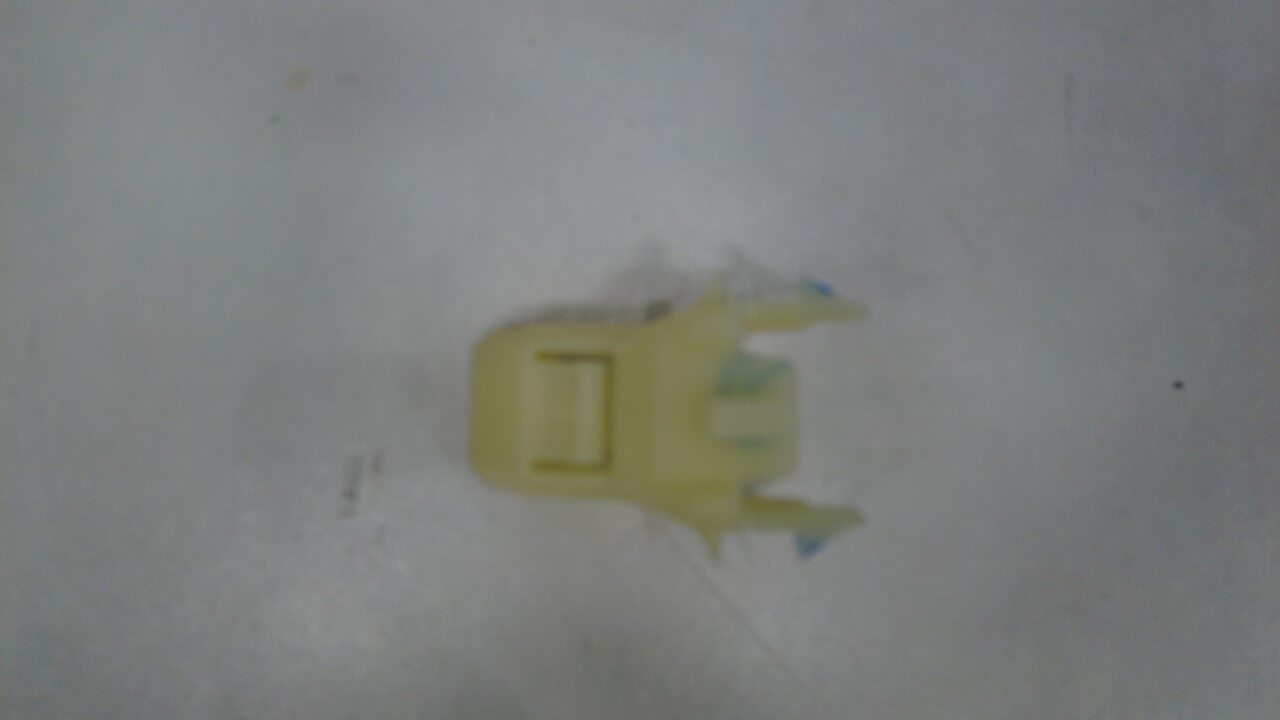

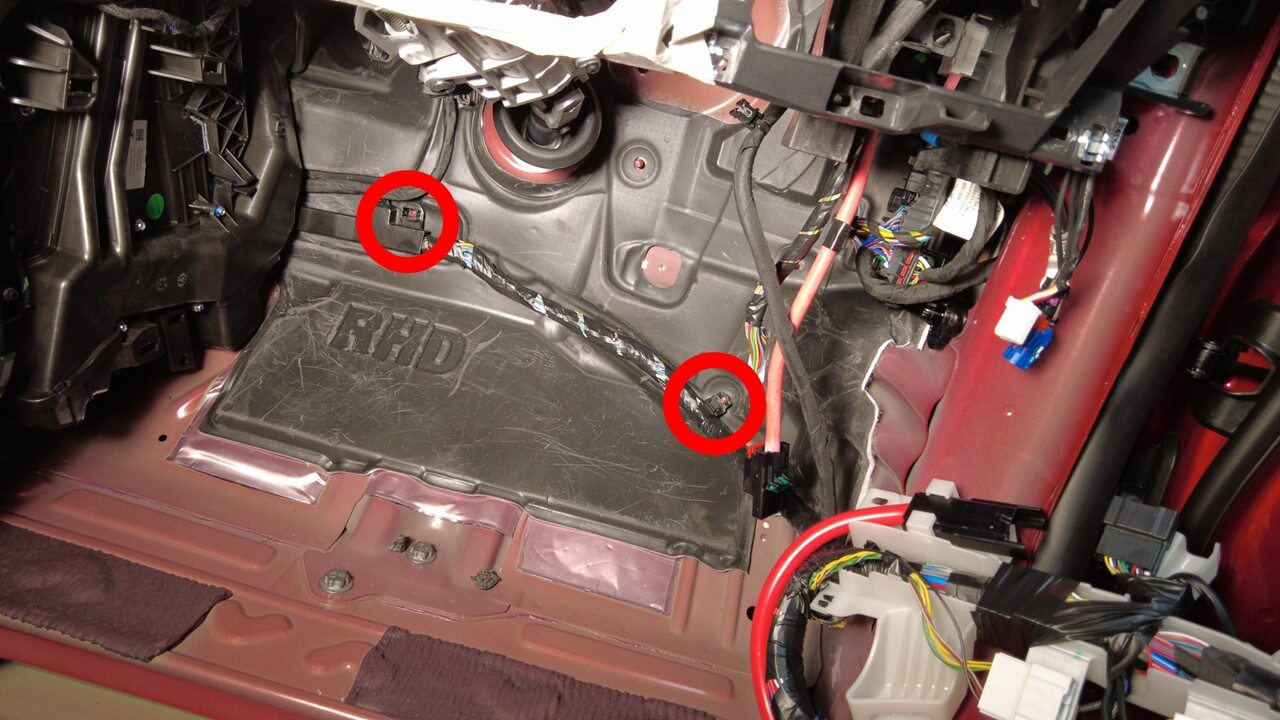

  150. Remove the right body wiring harness fixing clip from the front floor of the vehicle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    This wiring harness leads to the car PC end and passes through HVAC

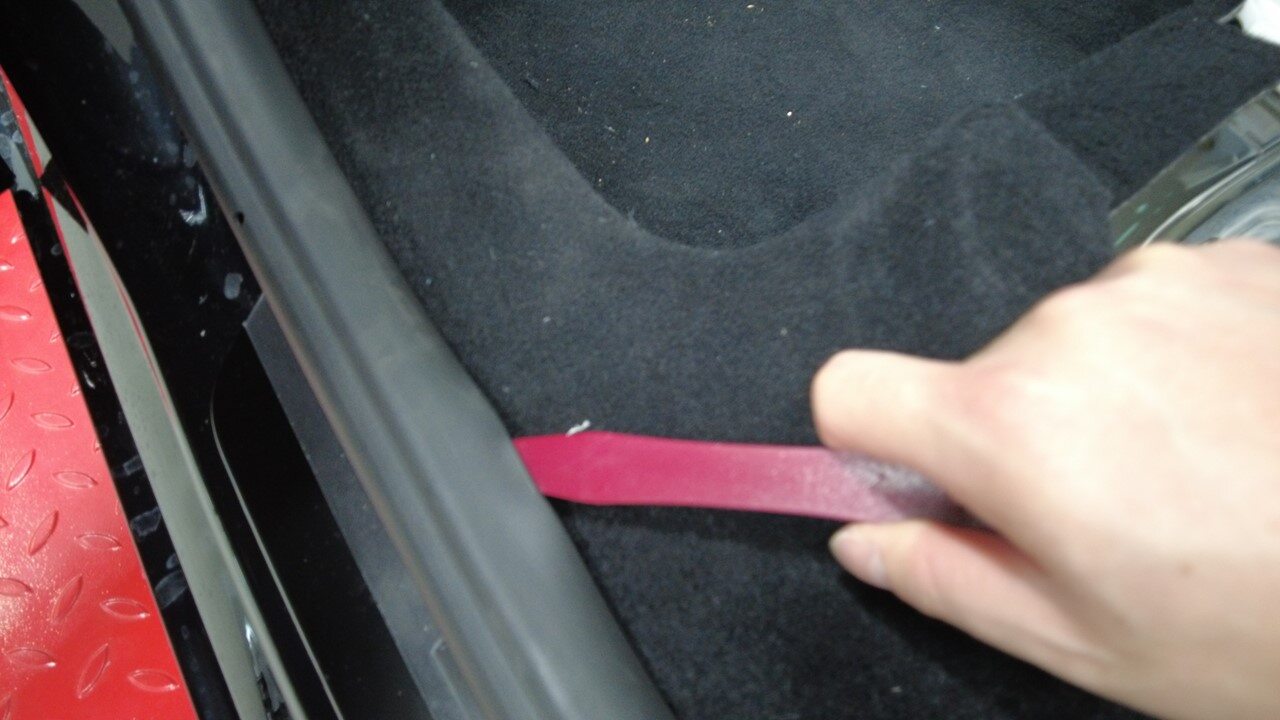

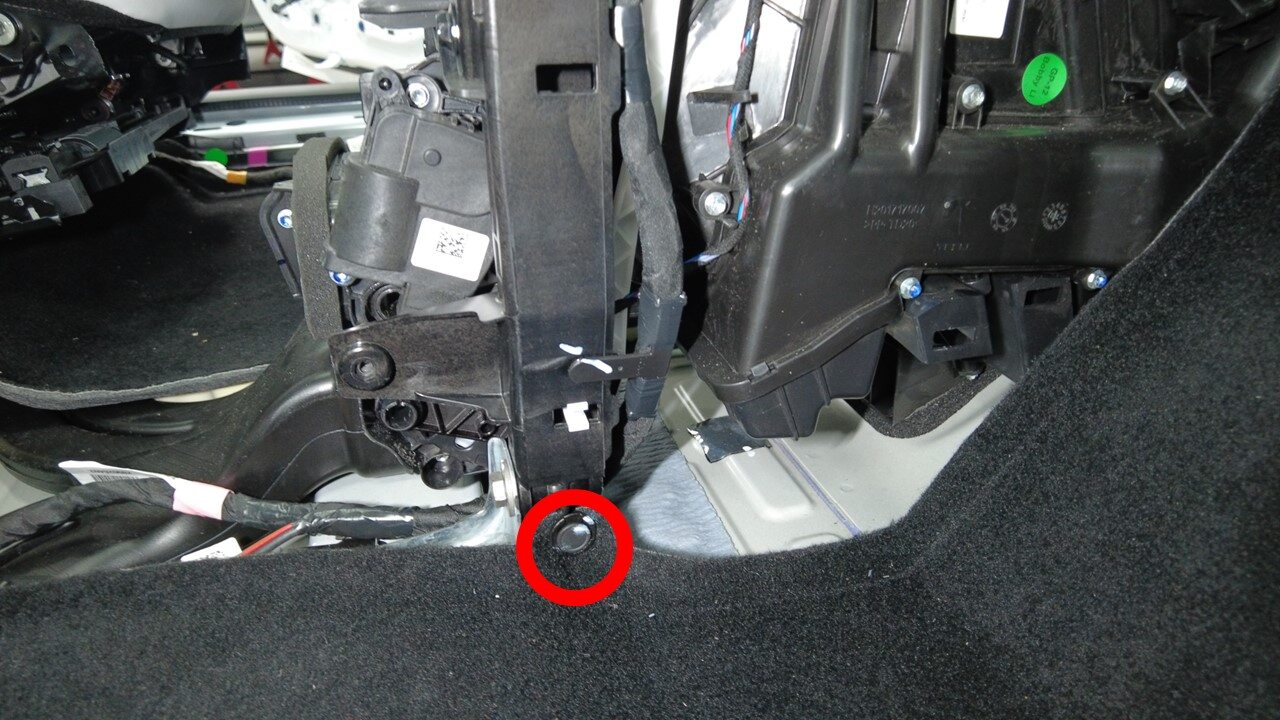

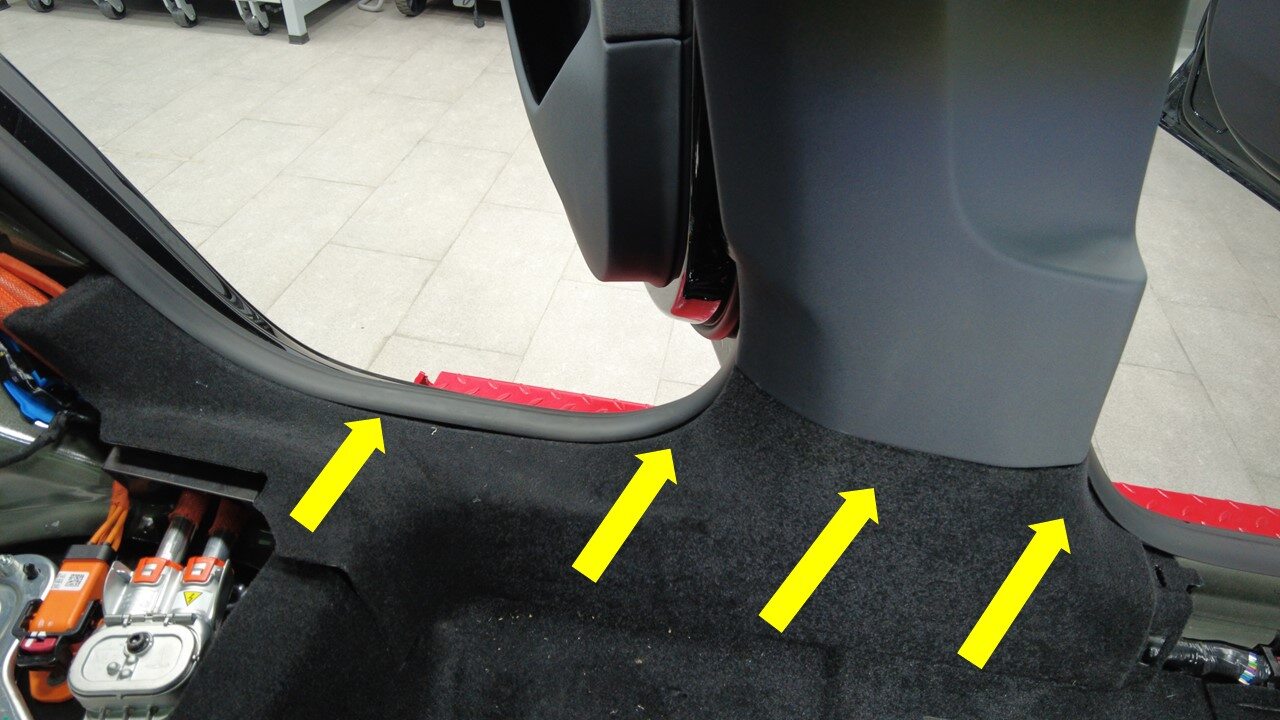

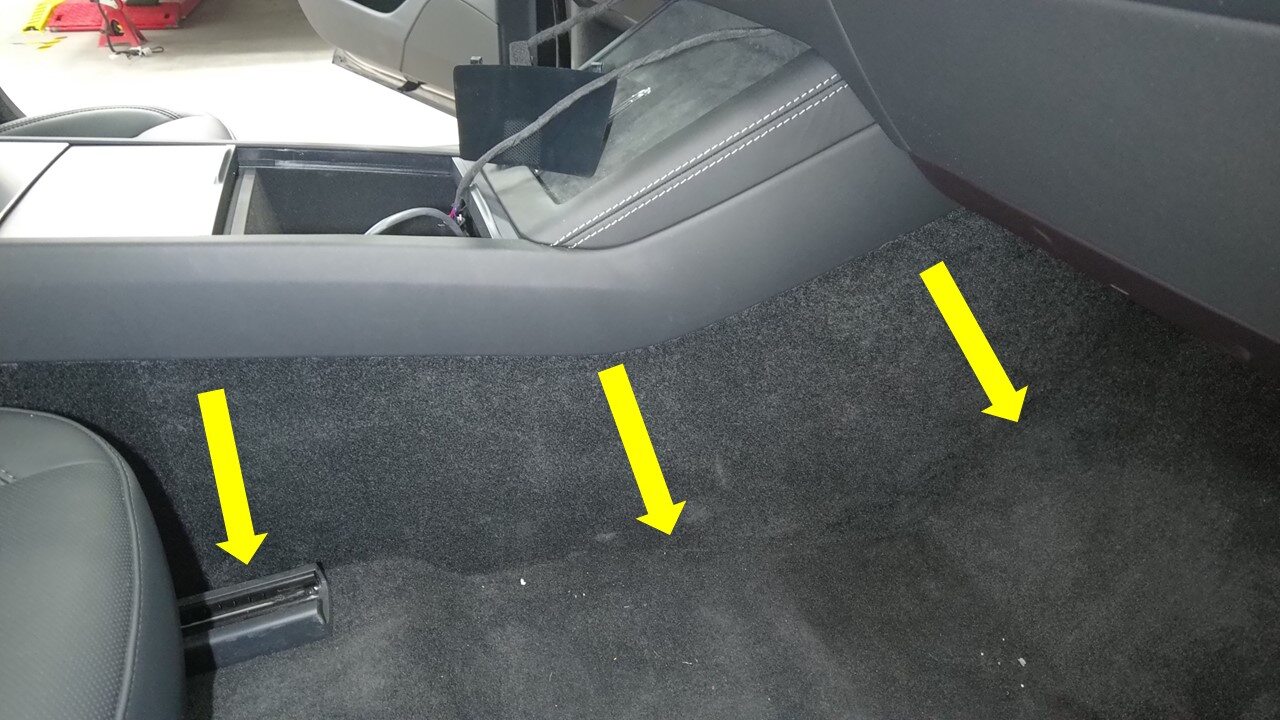

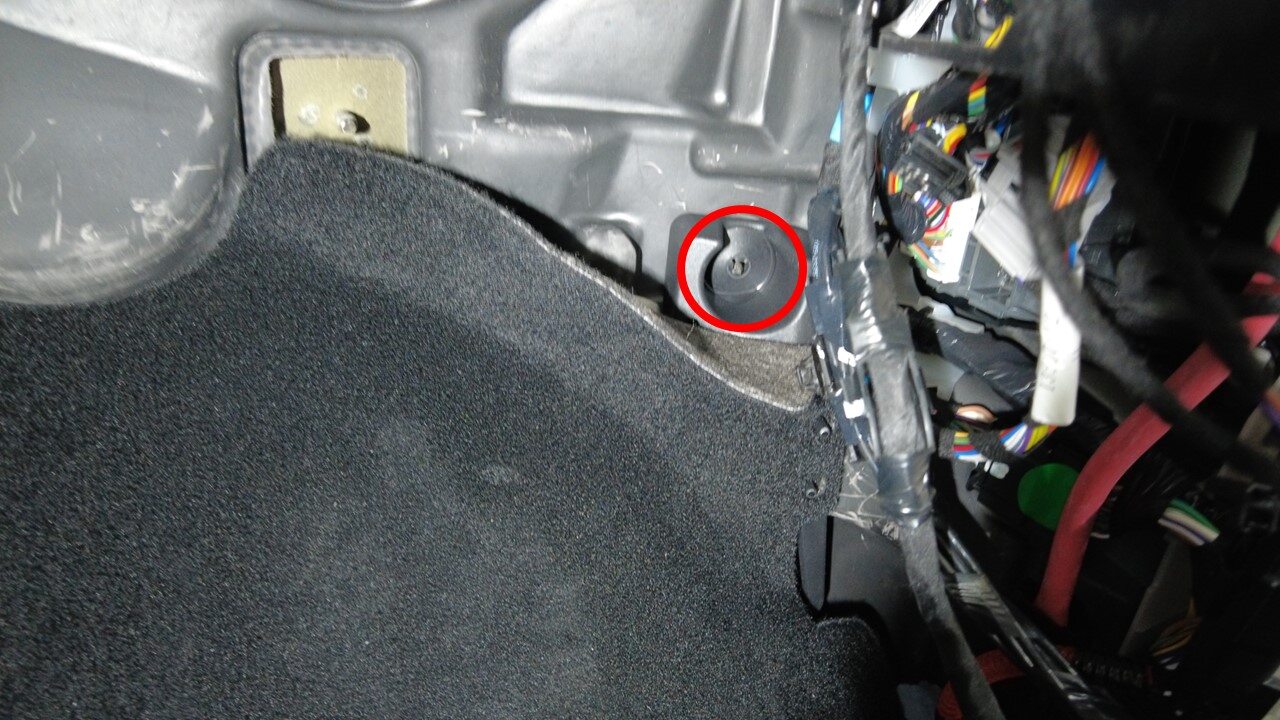

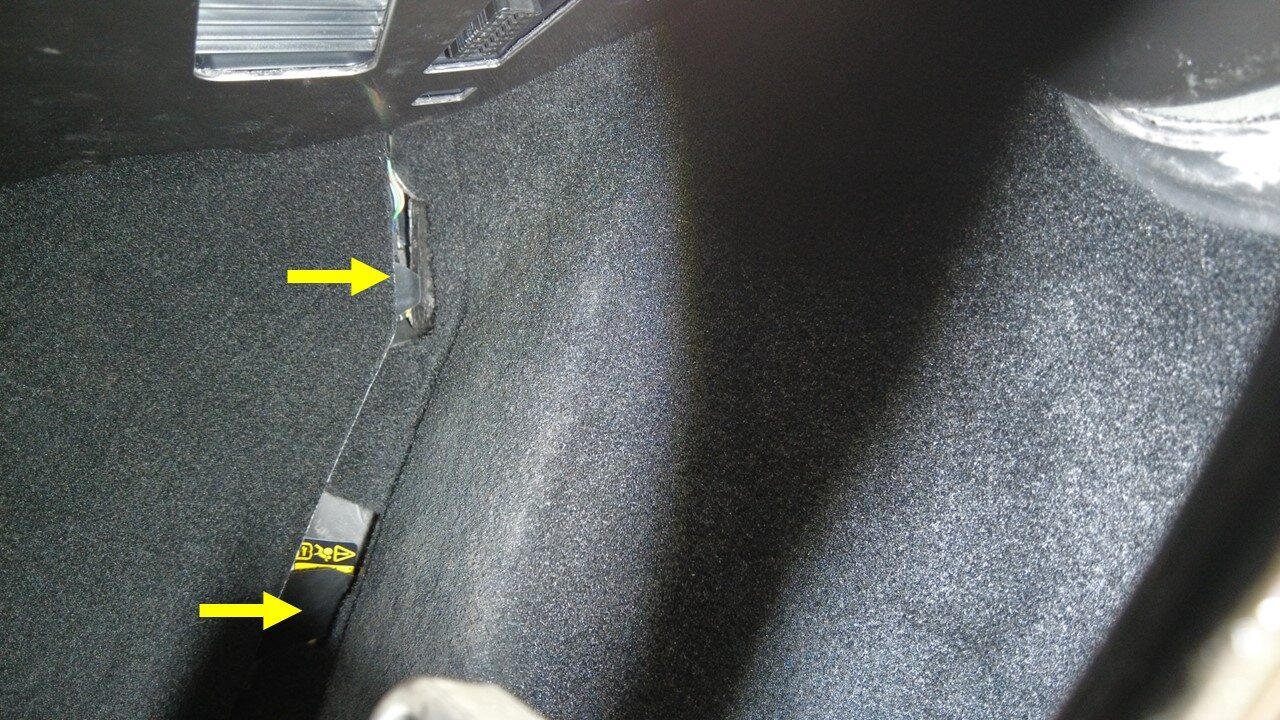

  151. Remove clips securing RH front main carpet to vehicle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x push clip, 1x locator clip, Number of clips on new vehicles may vary

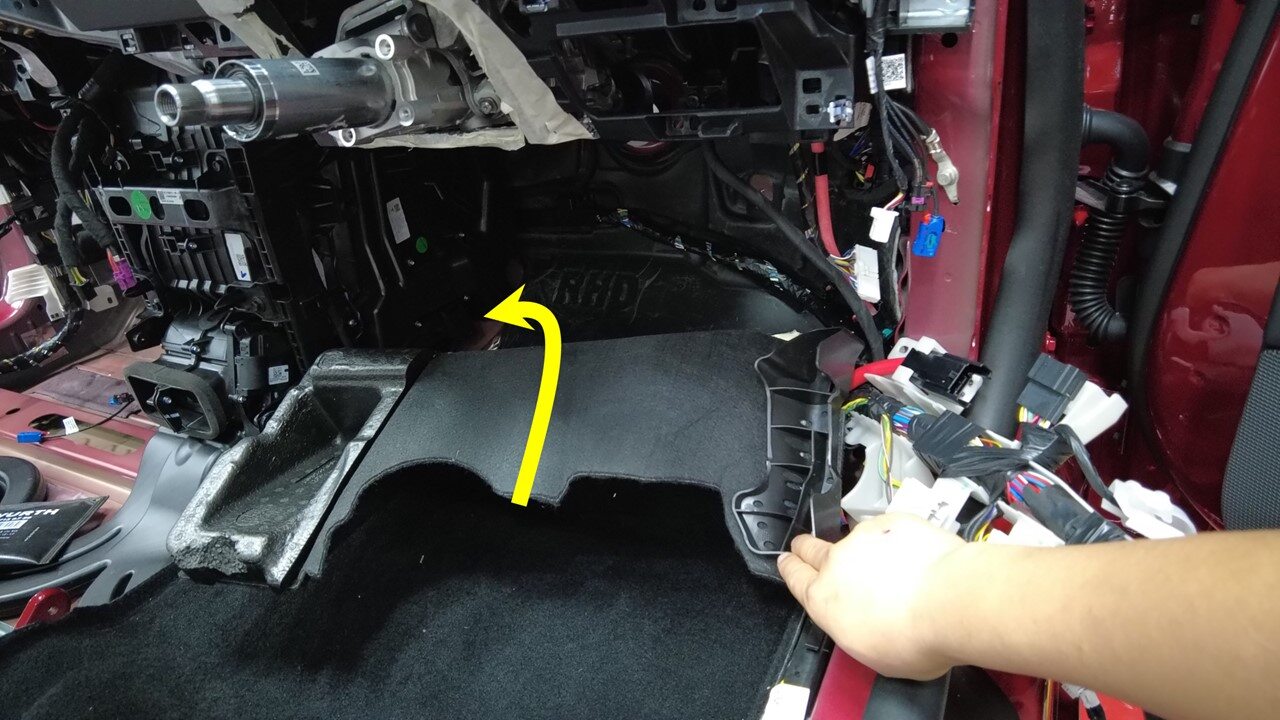

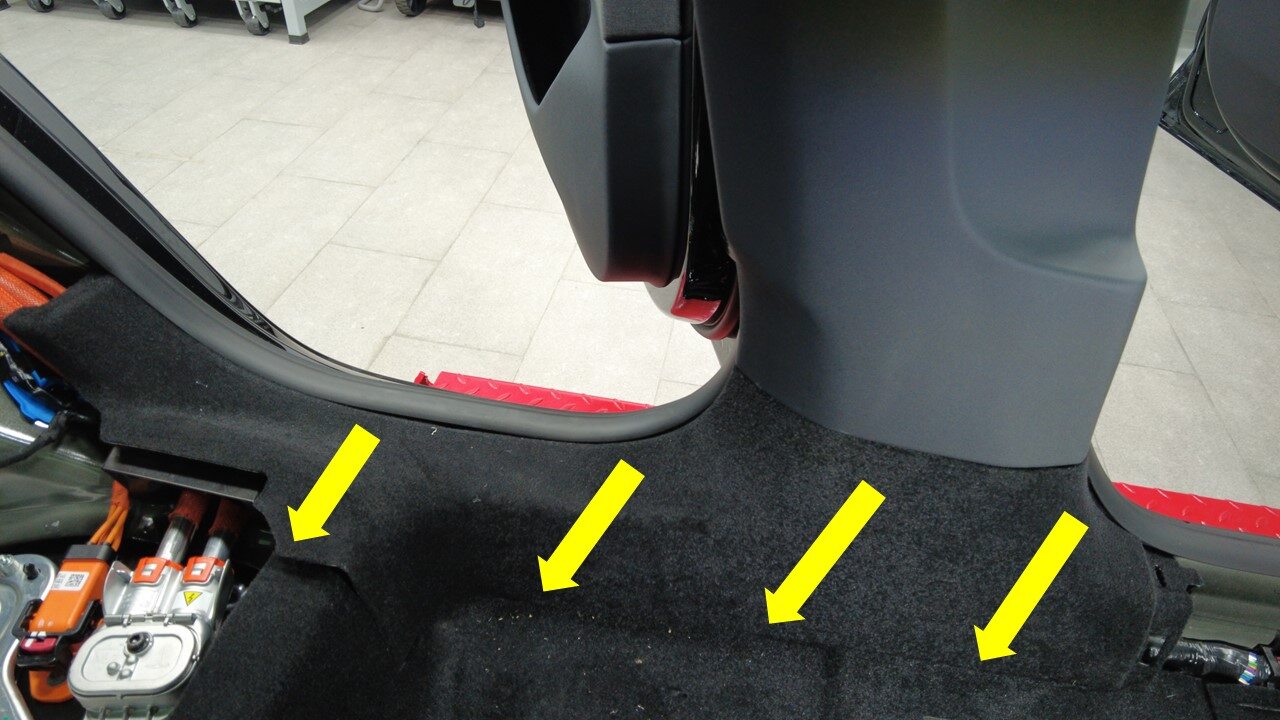

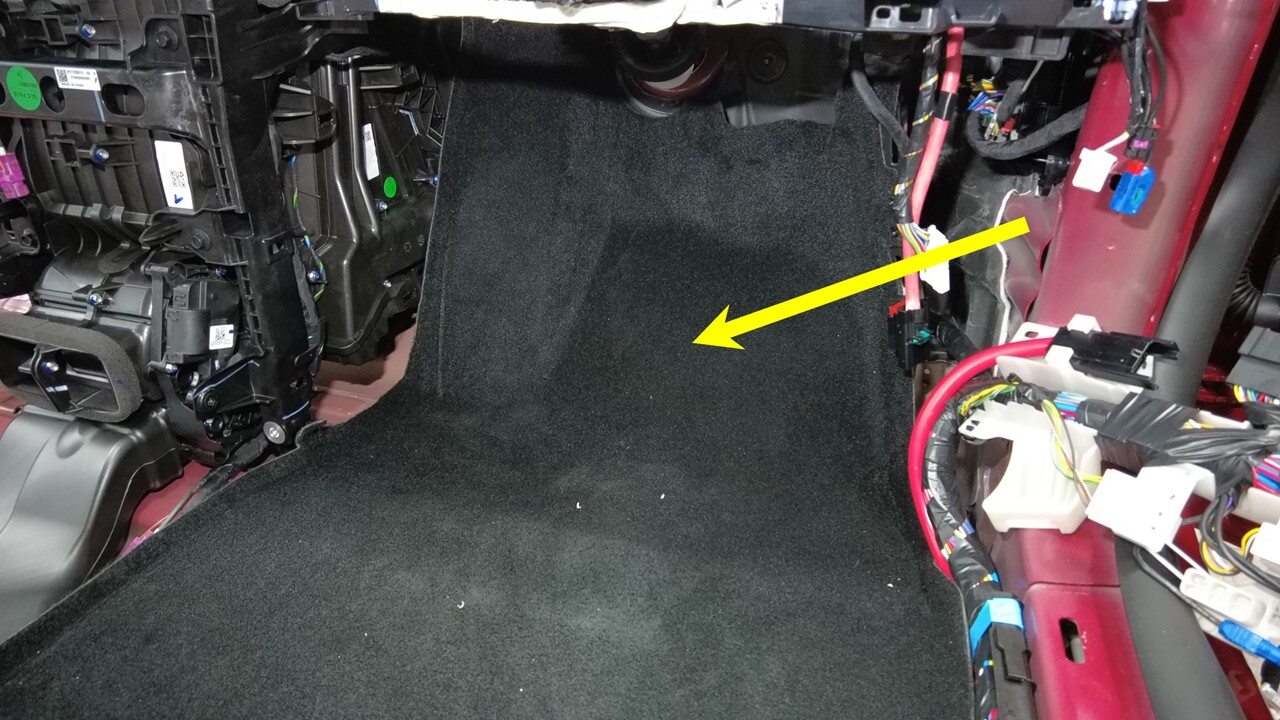

  152. Fold the driver's side carpet back

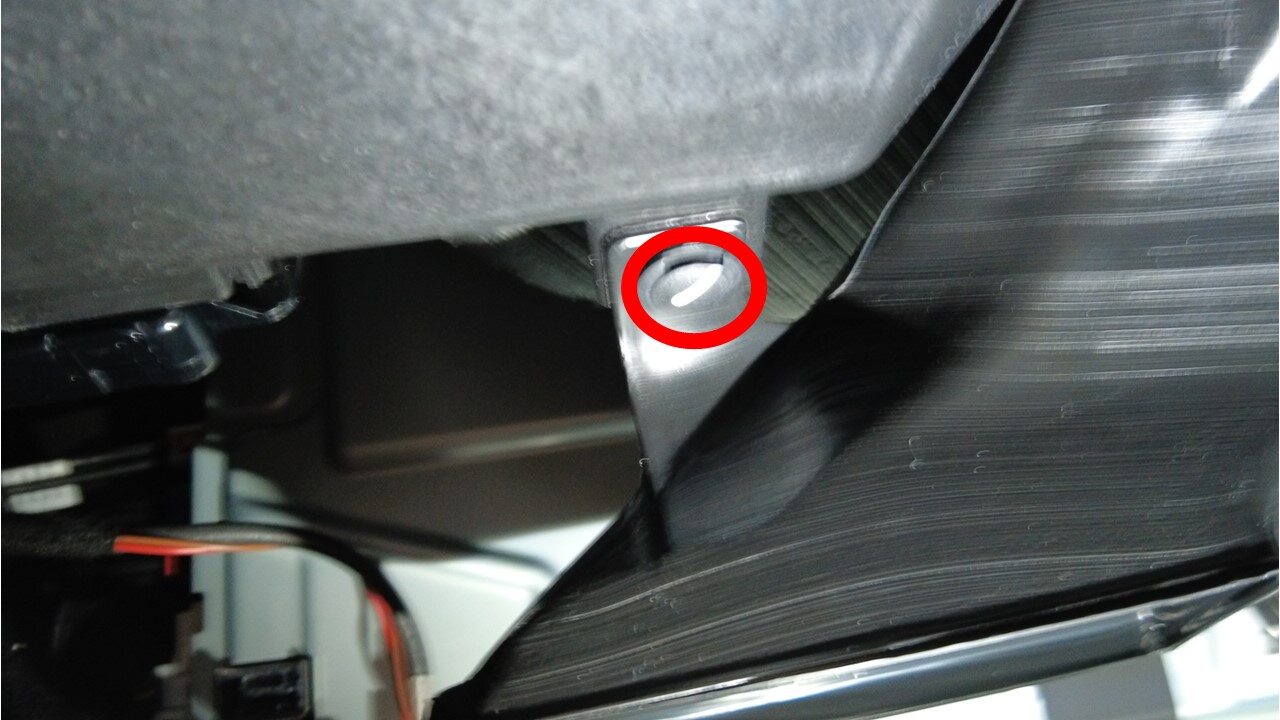

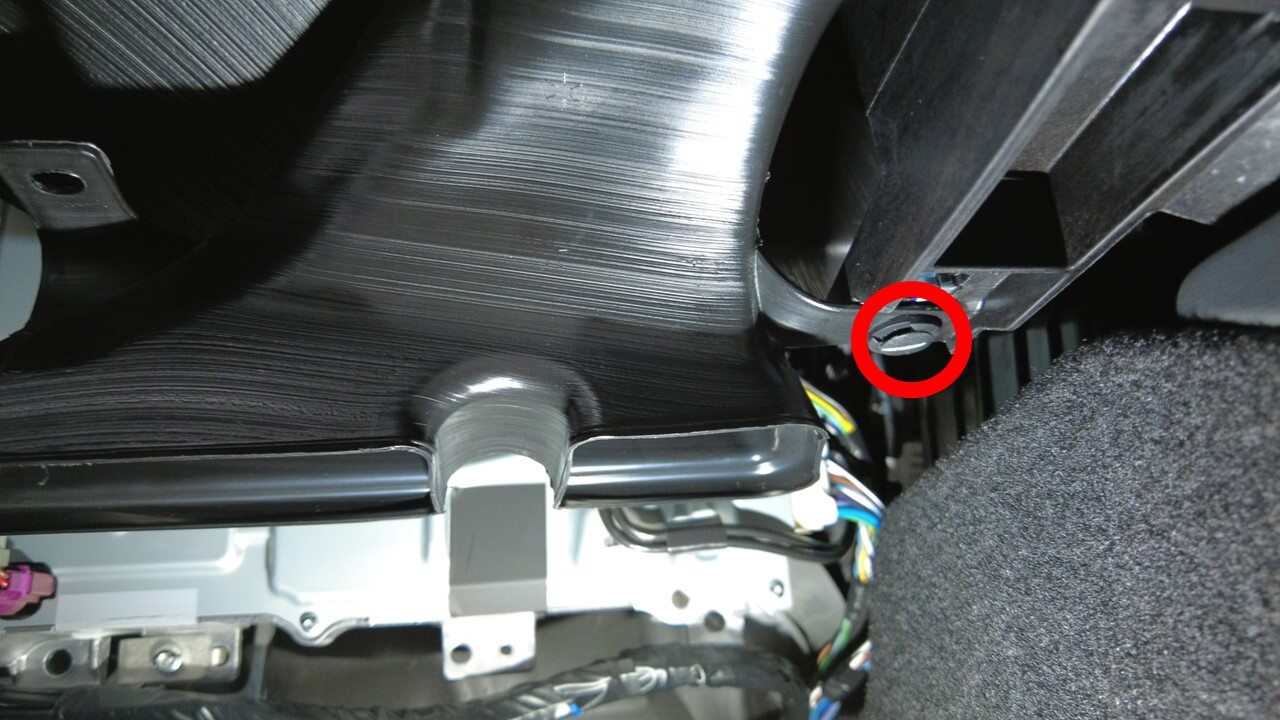

  153. Remove the body harness fixing clip
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x Clips

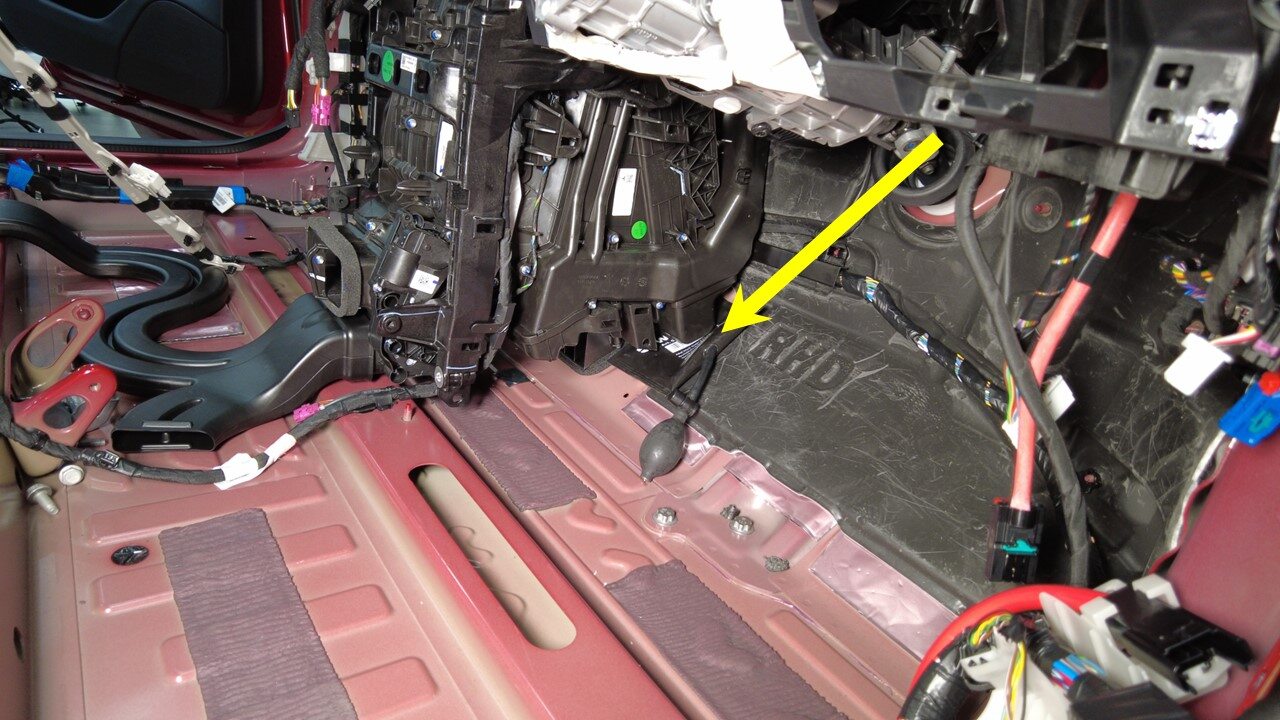

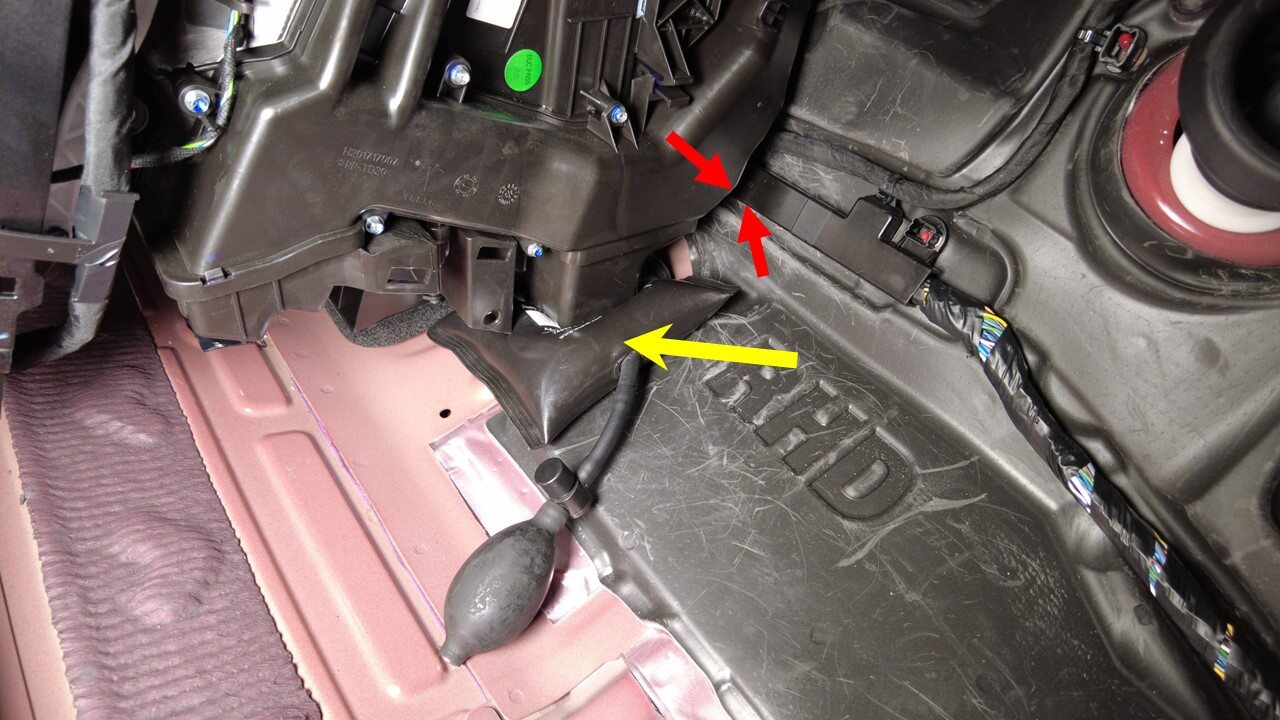

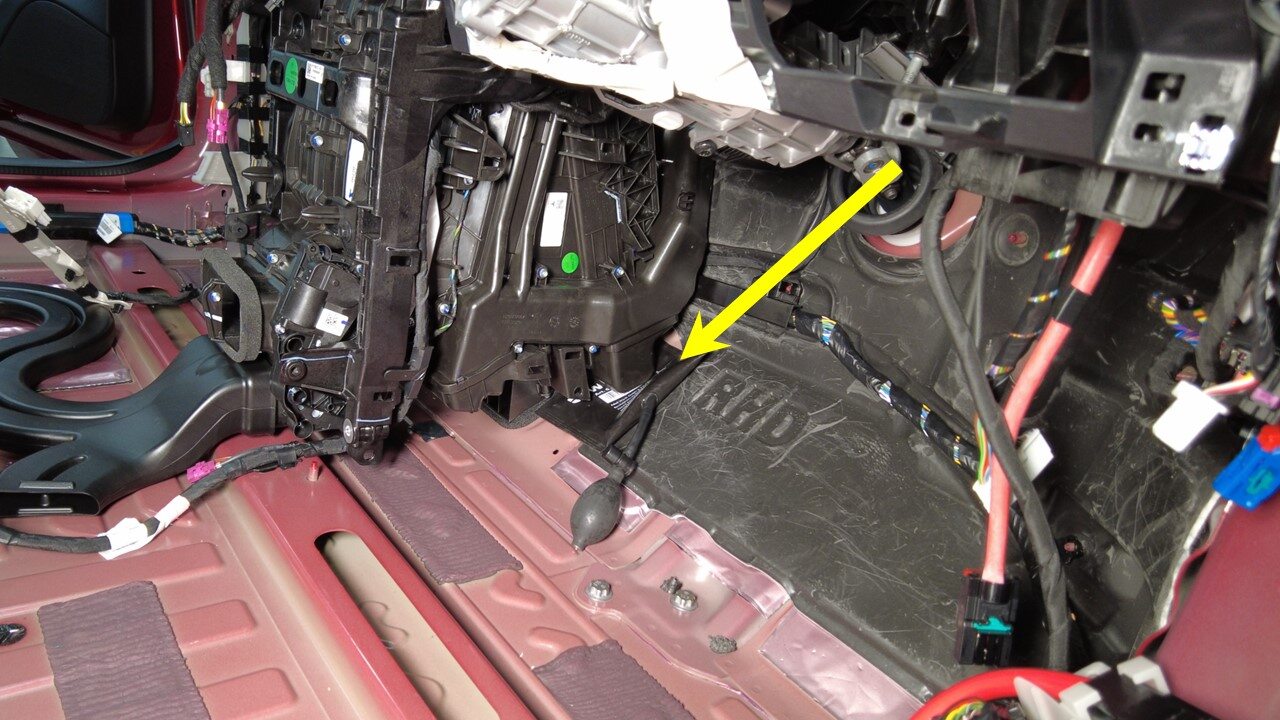

  154. Move IP and HVAC module upwards
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Place the airbag between the HVAC system and the center floor to apply air, leaving enough space for the HVAC system and the center floor to remove the wiring harness

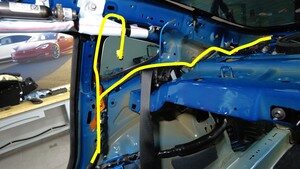

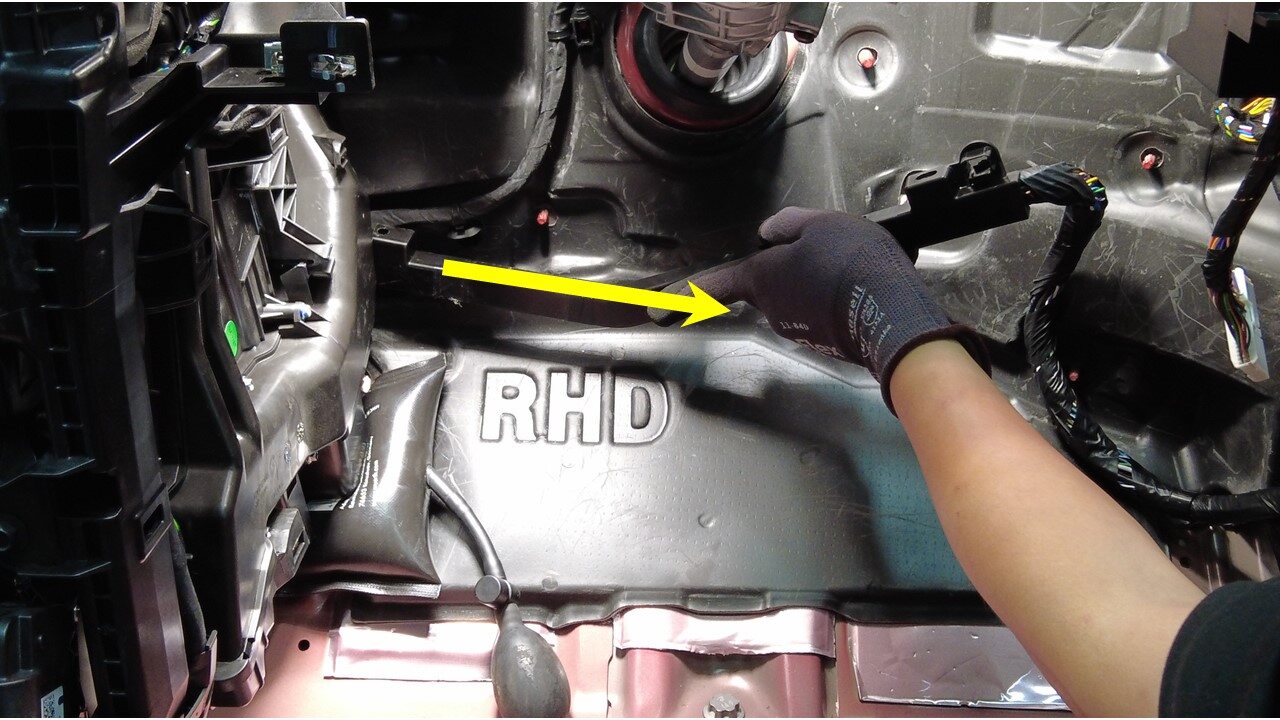

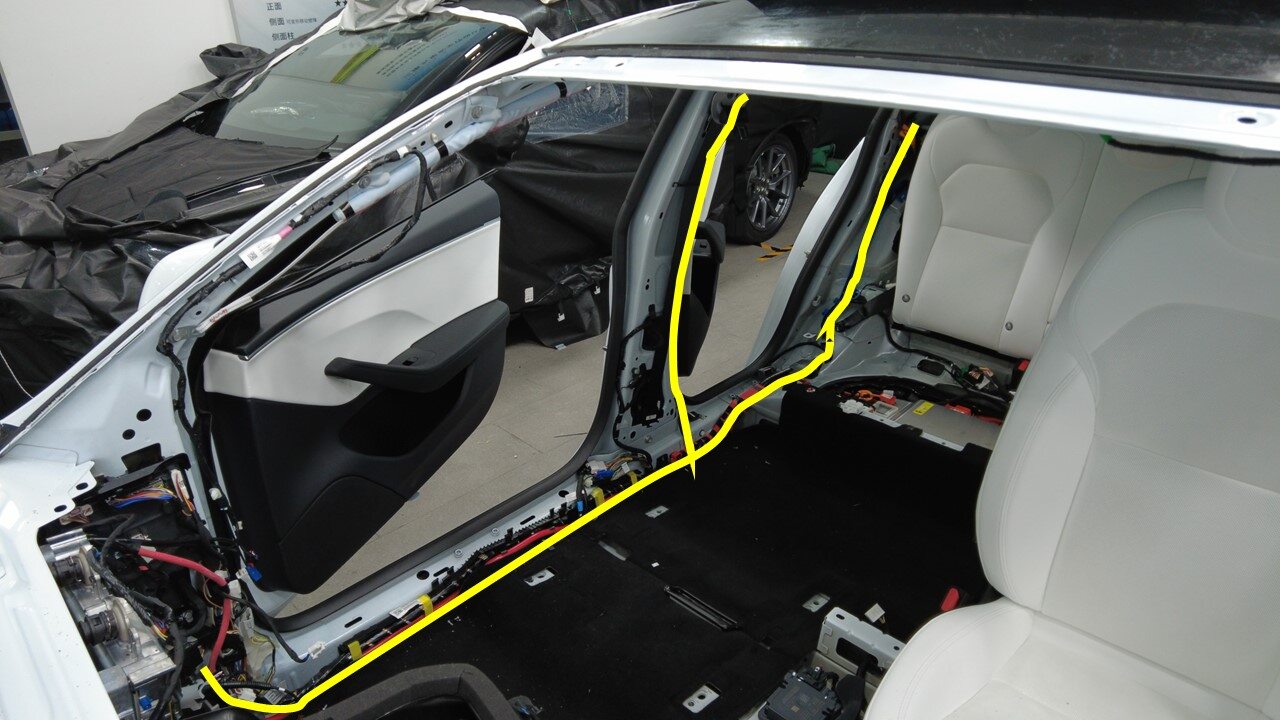

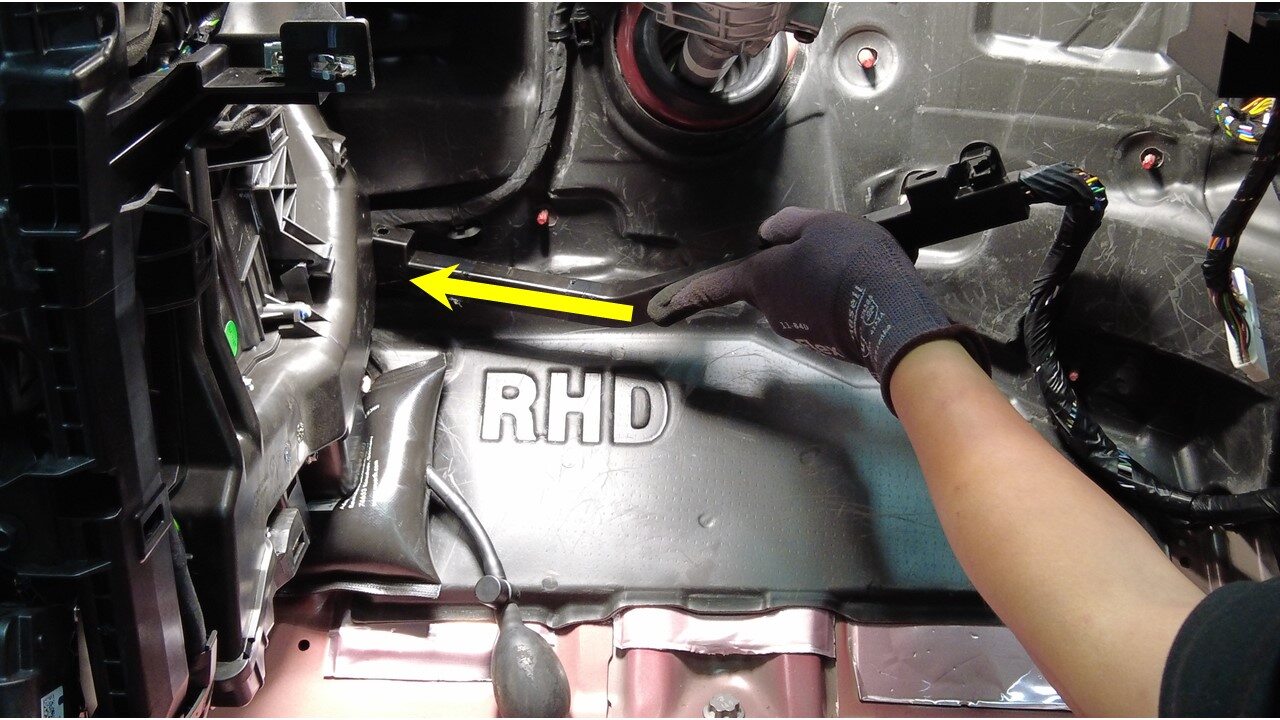

  155. Remove RH body harness
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Remove the right body wiring harness from the HVAC and floor areas

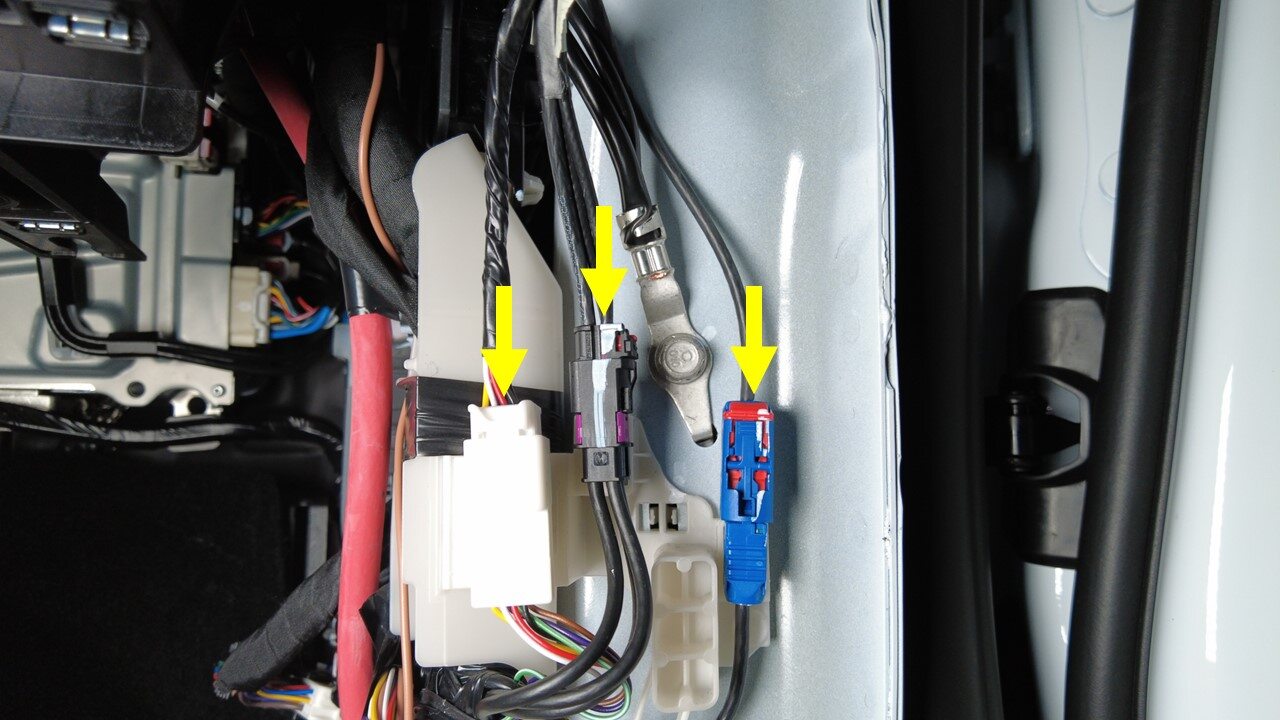

  156. Disconnect connectors from harness clip at RH lower A-pillar area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x connectors

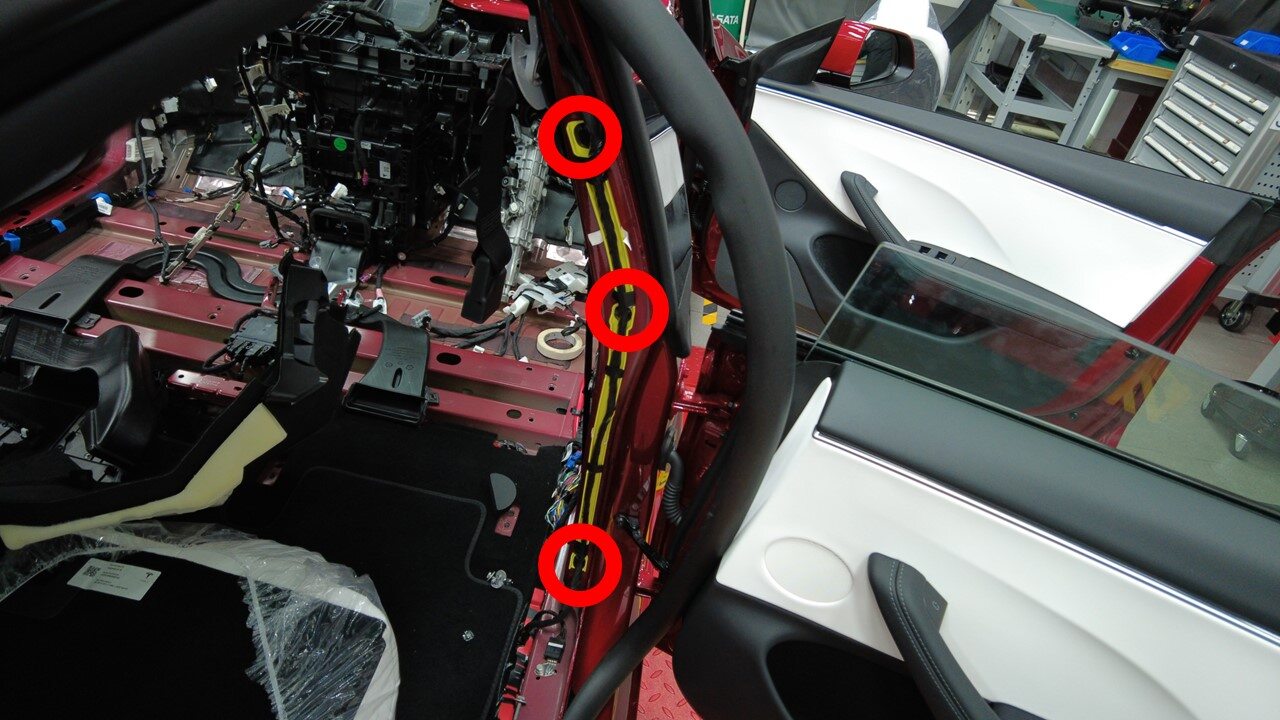

  157. Release RH body harness from RH body controller and A-pillar and move aside
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x clips

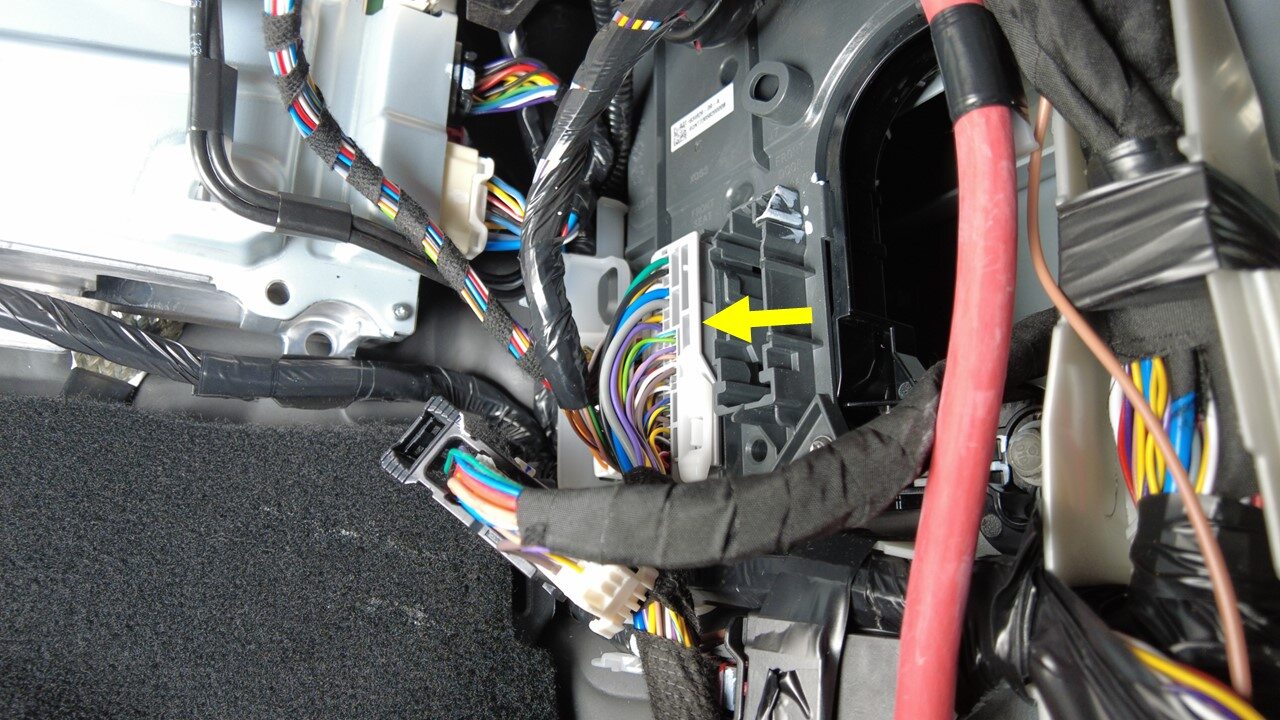

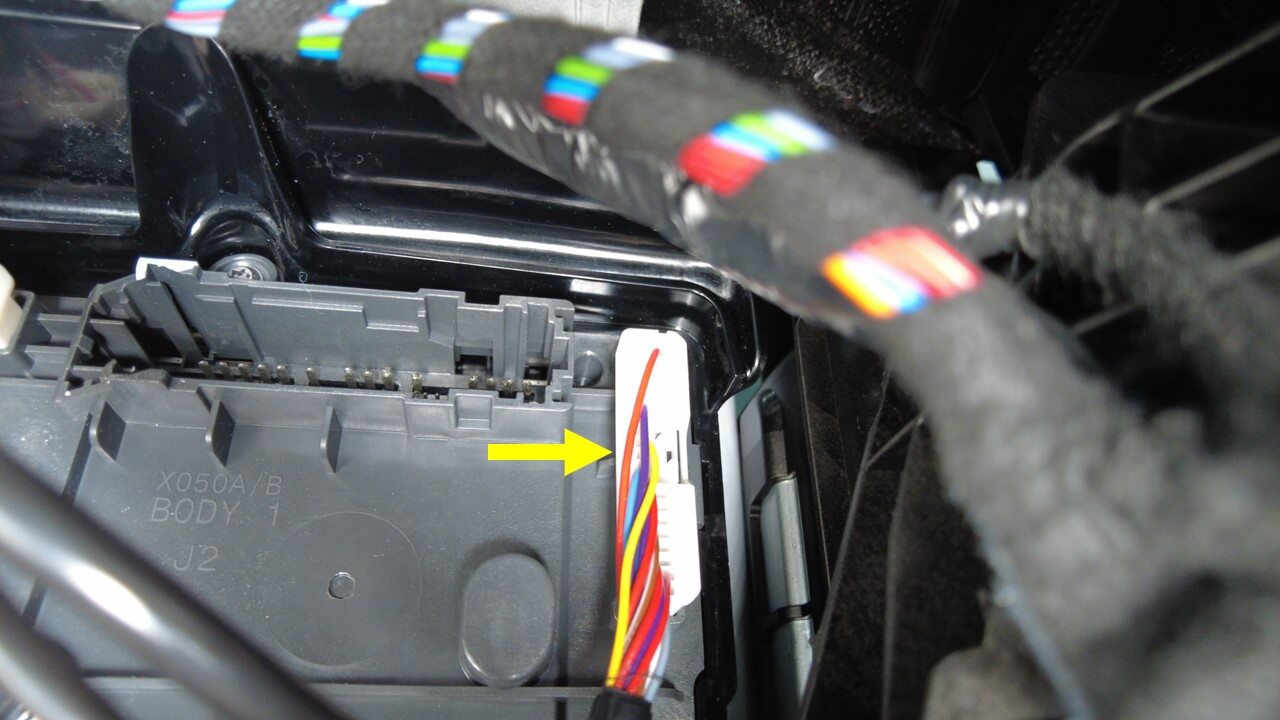

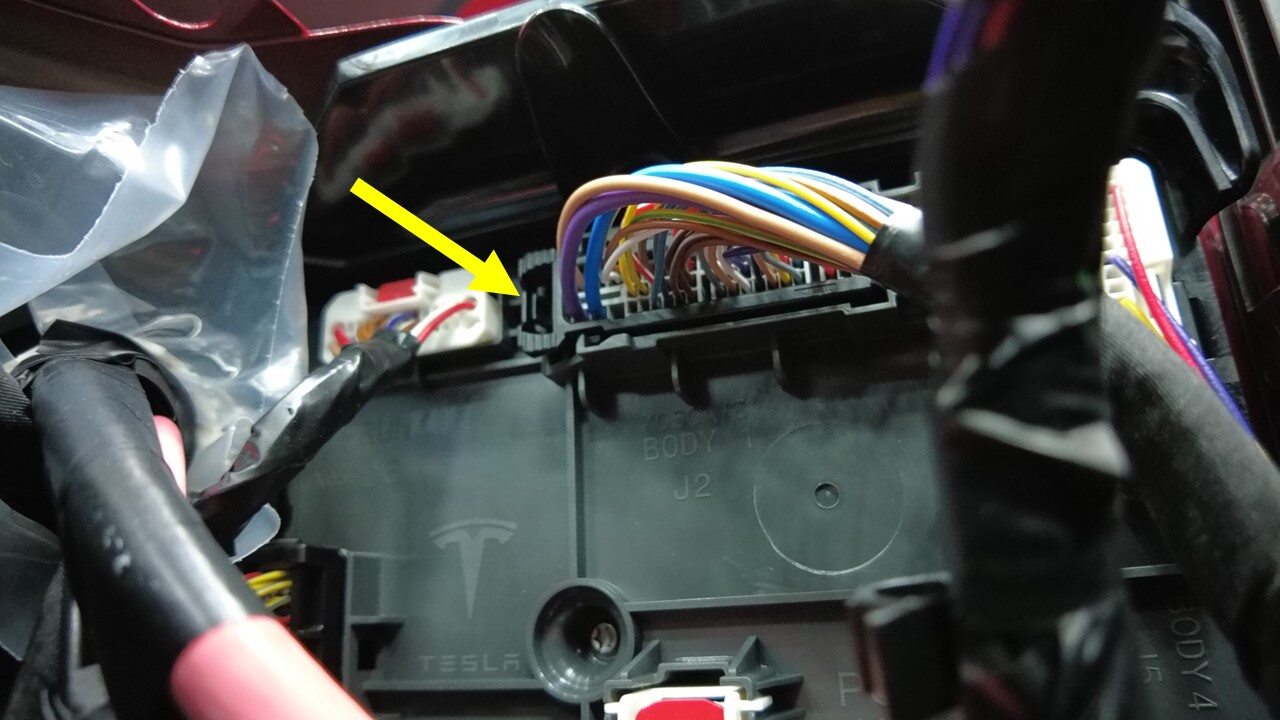

  158. Disconnect J2 connector from RH body controller
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, 1x locking tab, J2
  159. Disconnect J4 connector from RH body controller
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, 1x locking tab, J4
  160. Disconnect J5 connector from RH body controller
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, J5
  161. Disconnect J12 connector from RH body controller
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, J12

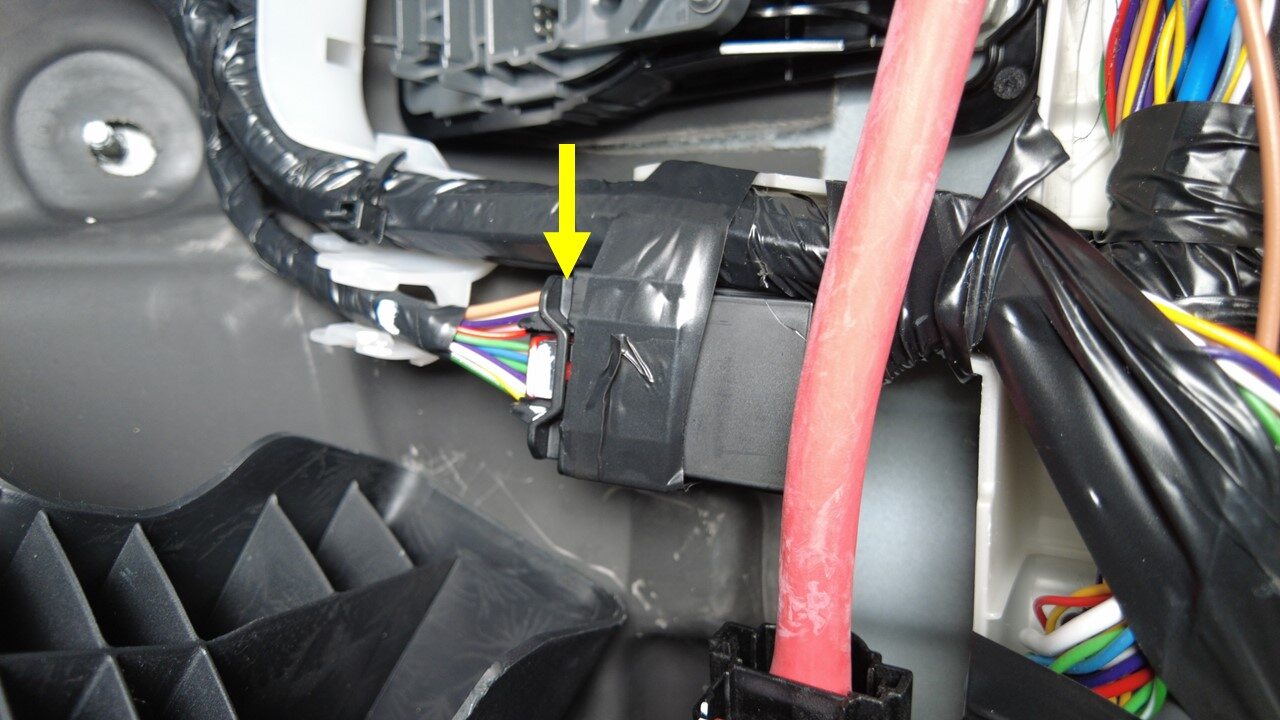

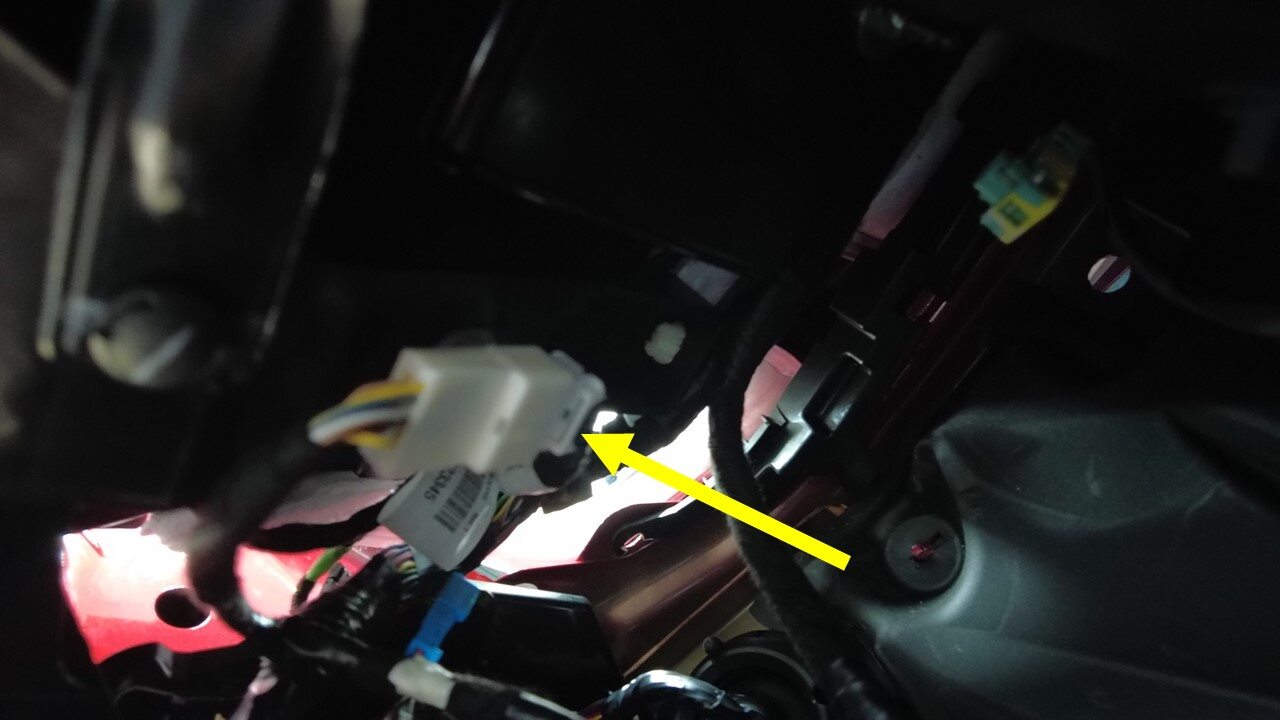

  162. Disconnect connector from right body harness
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector

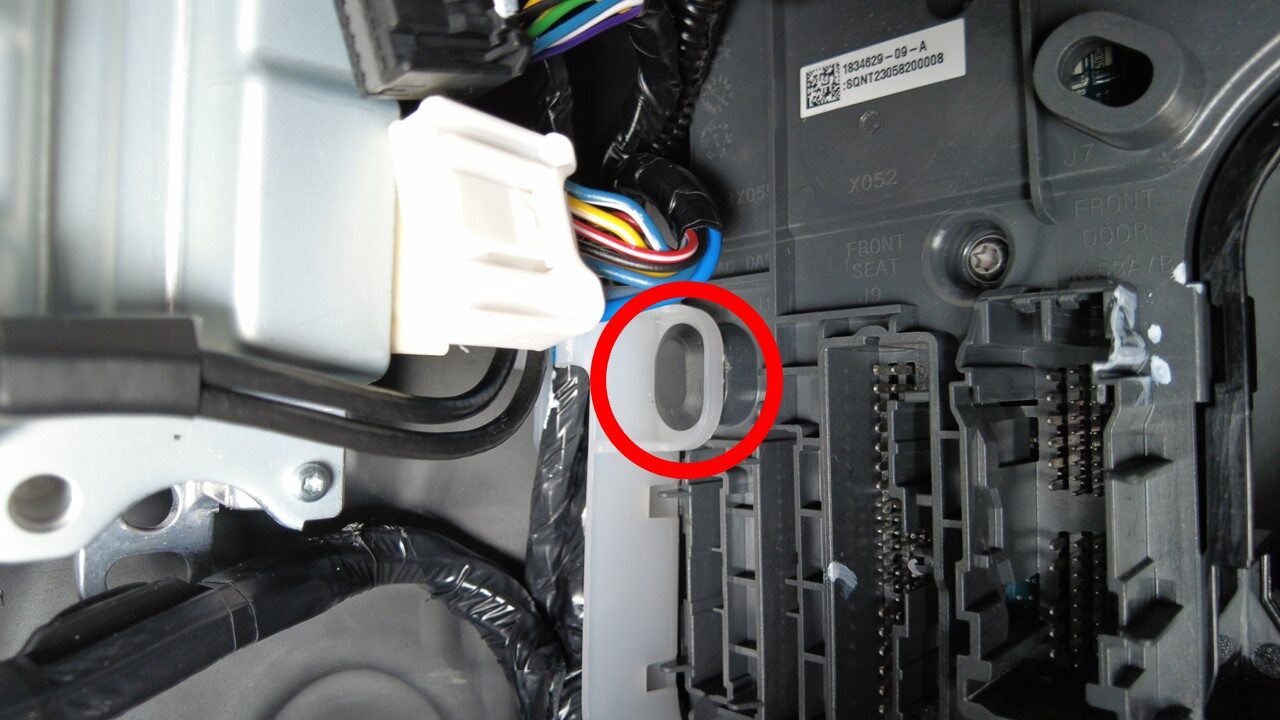

  163. Release harness clip from RH body controller
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x clip
  164. Disconnect DCDC positive cable from right body harness
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, 1x clipPull up the red locking tab and then press
  165. Release RH front seat harness from sill trim clips
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x clips

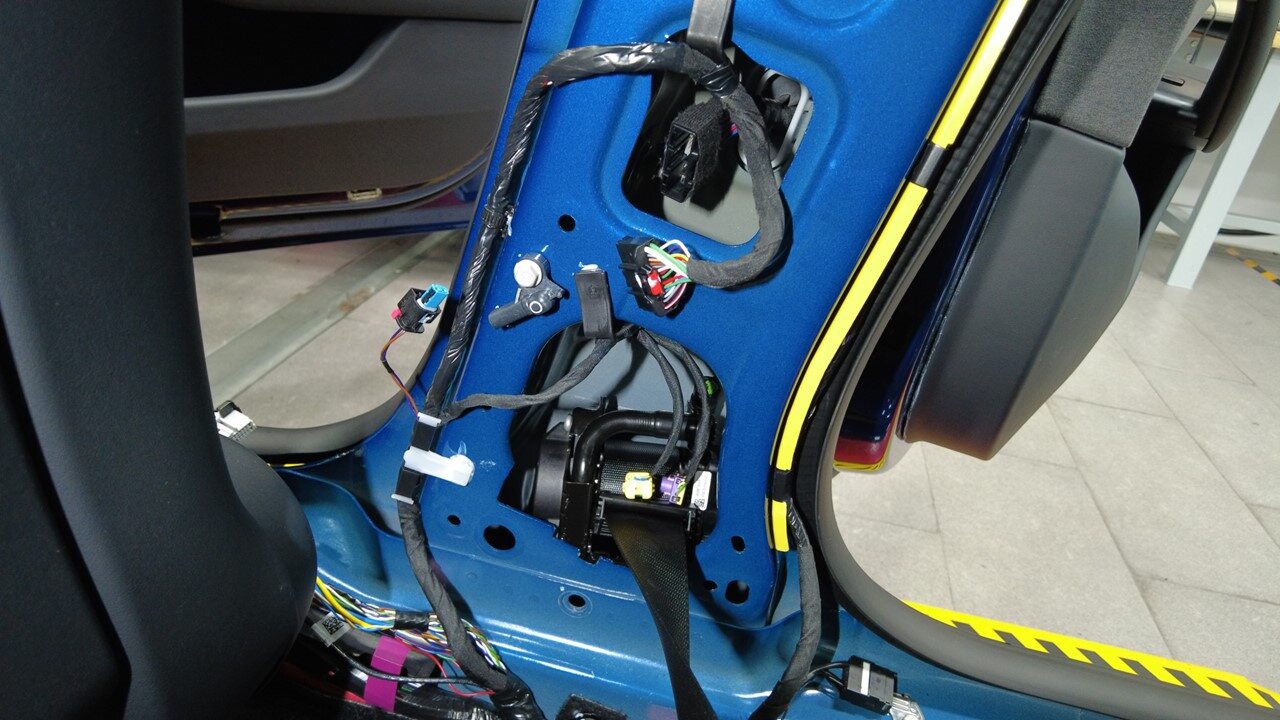

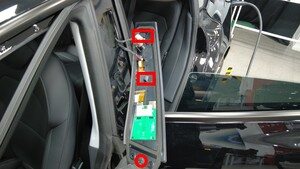

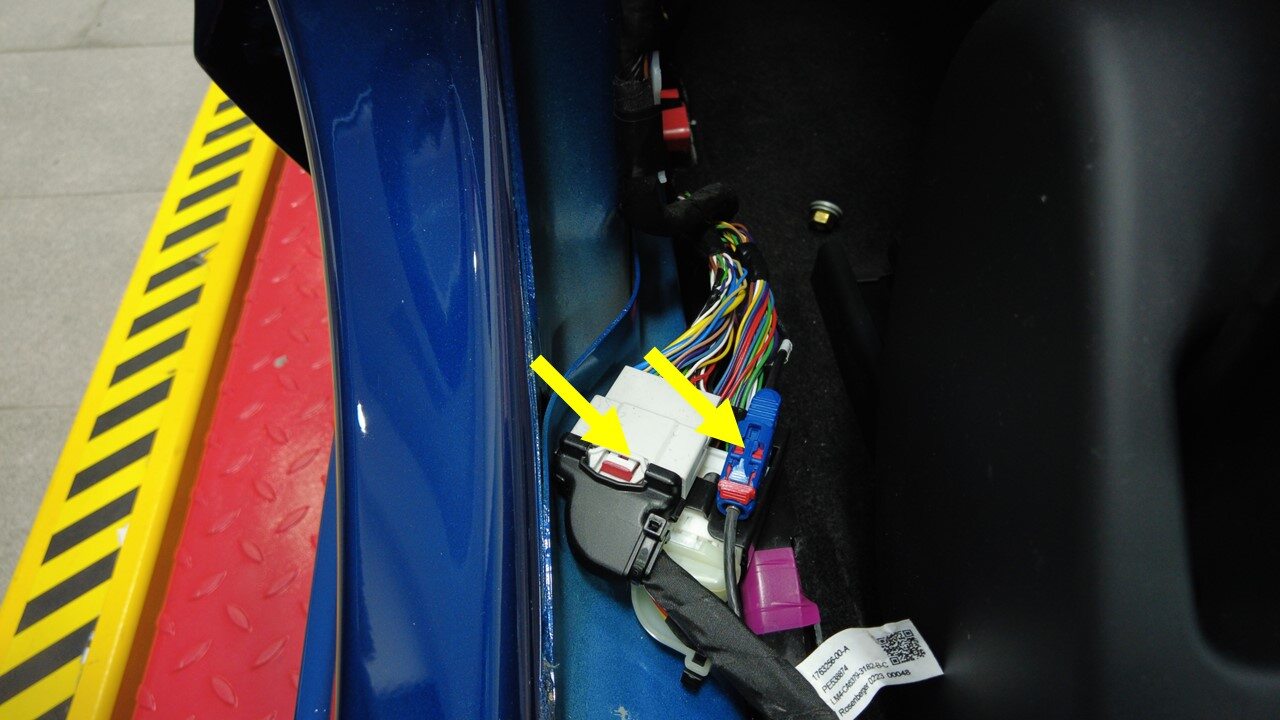

  166. Disconnect LH harness connectors around RH lower B-pillar area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x connectors

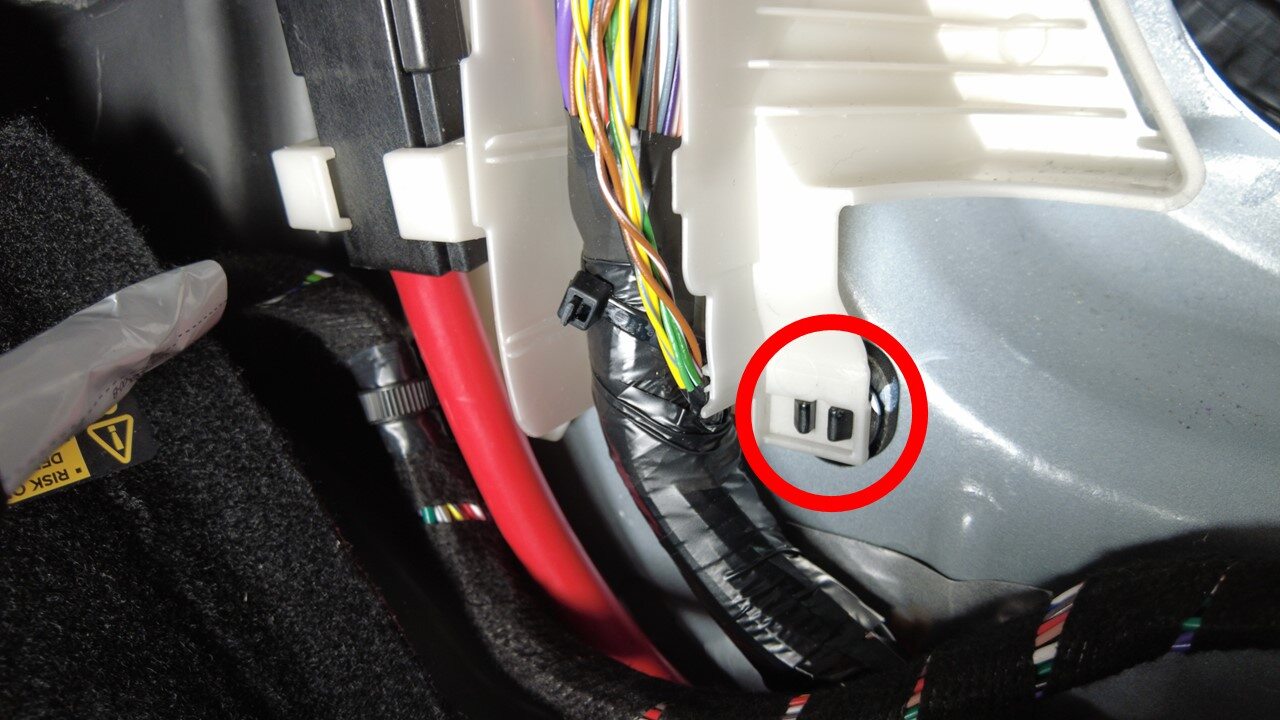

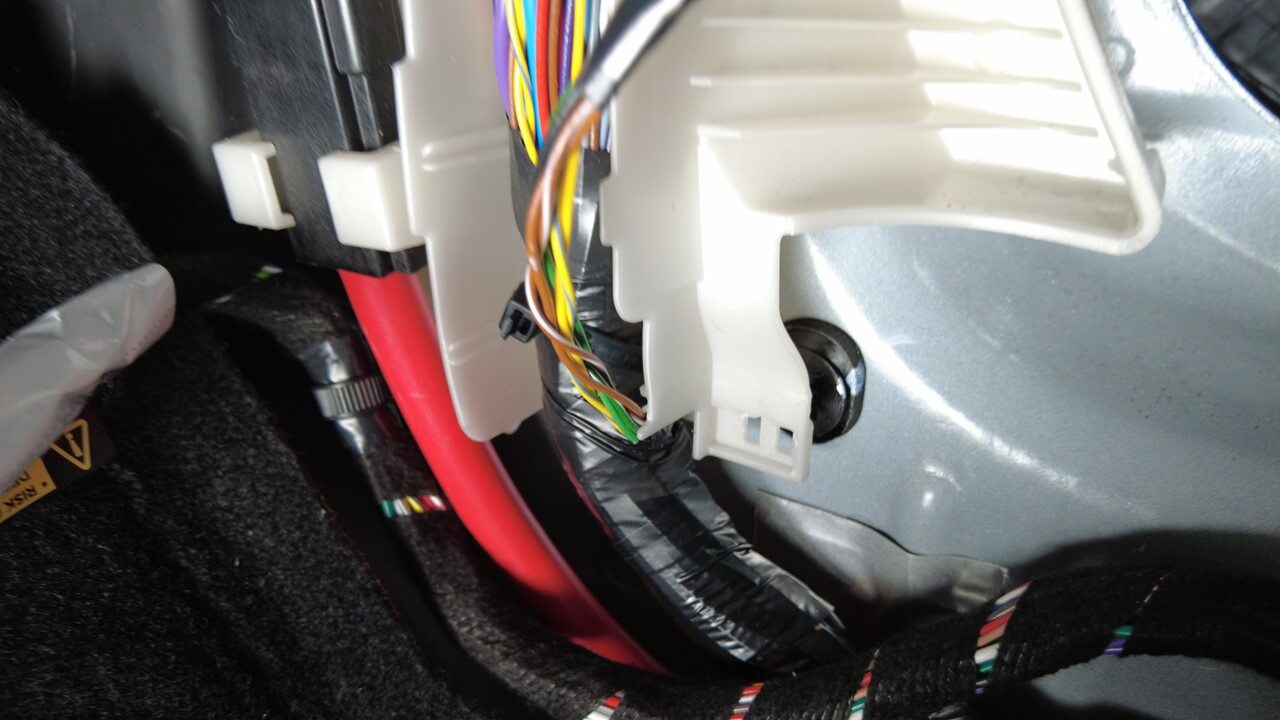

  167. Remove fixed harness connector bracket from RH b pillar area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector bracket

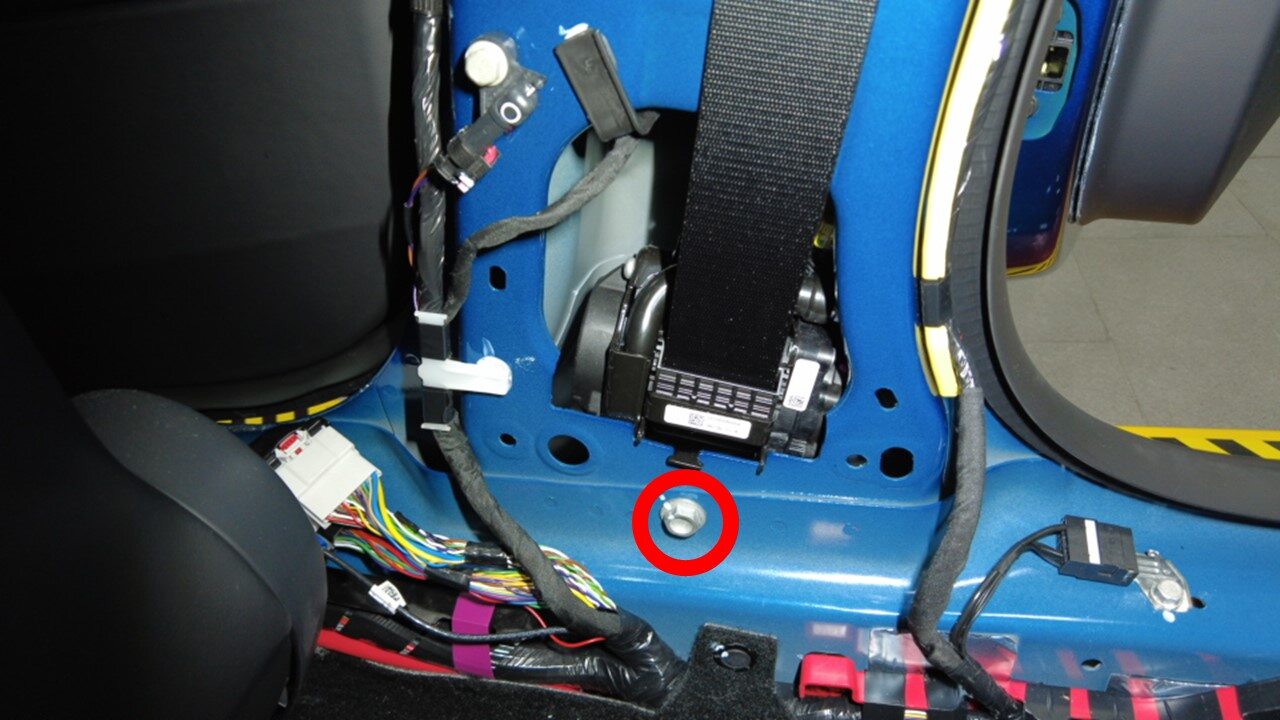

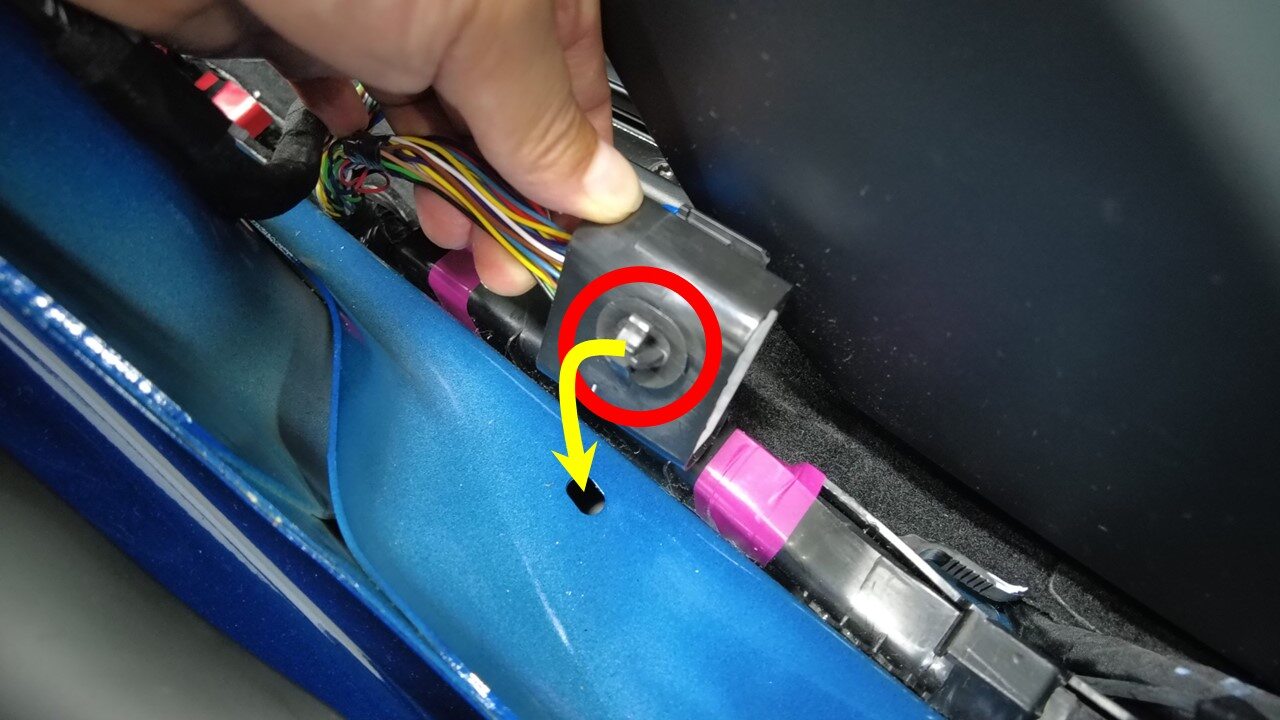

  168. Remove bolt securing RH retractor to base of B-pillar
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x patch bolt, 15mm, 40 Nm, Discard patch bolt

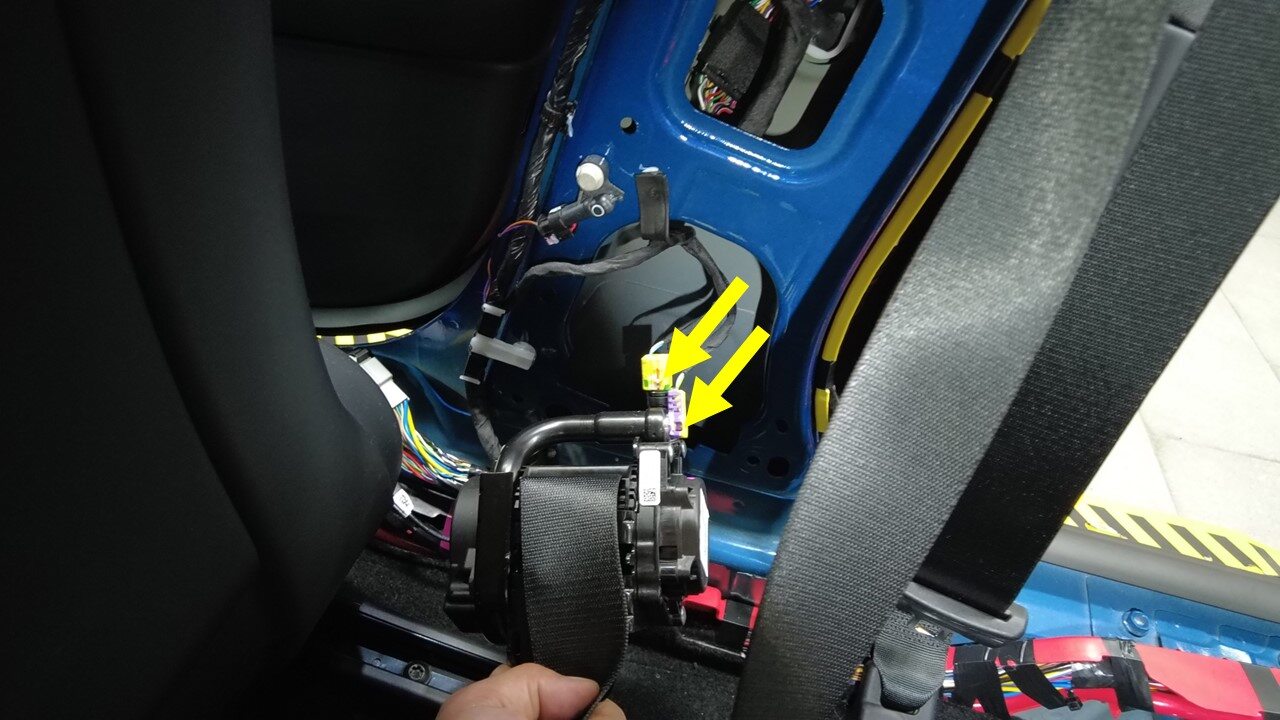

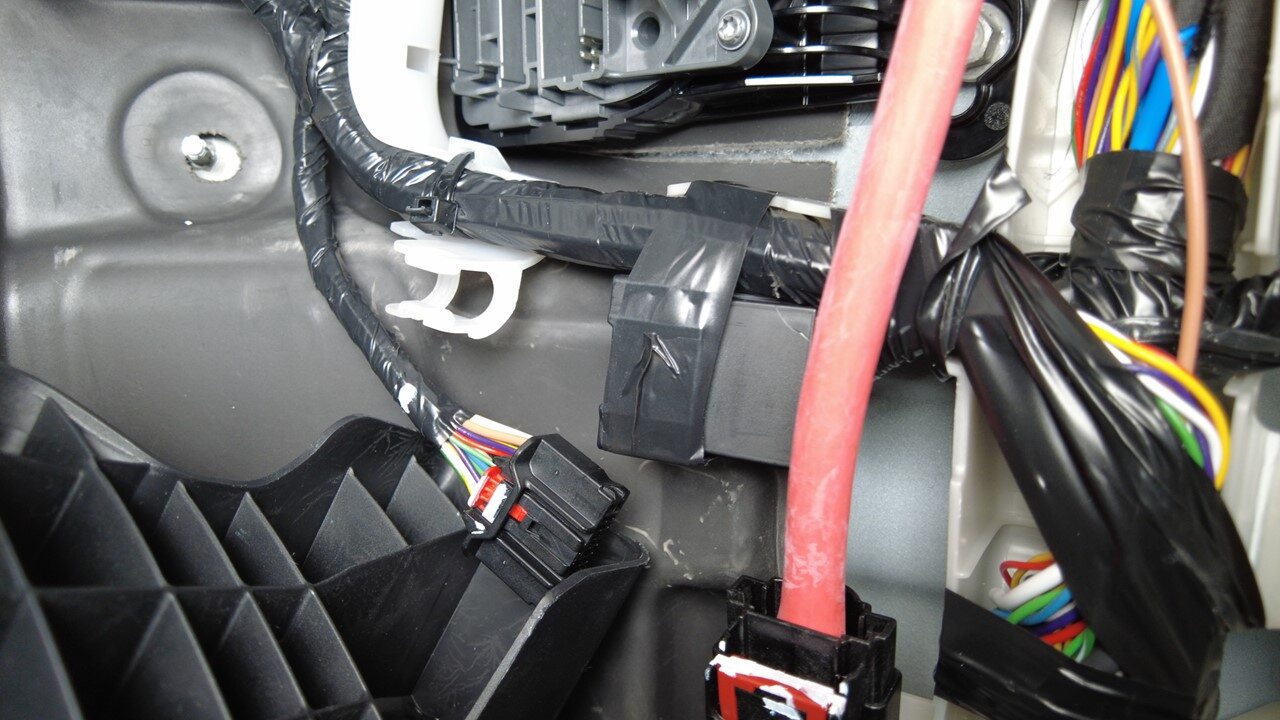

  169. Disconnect harness connectors from RH retractor
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors, 2 stage locking connectors, Lift the red tab to release the connector Disconnect connector after removing retractor from B-pillar

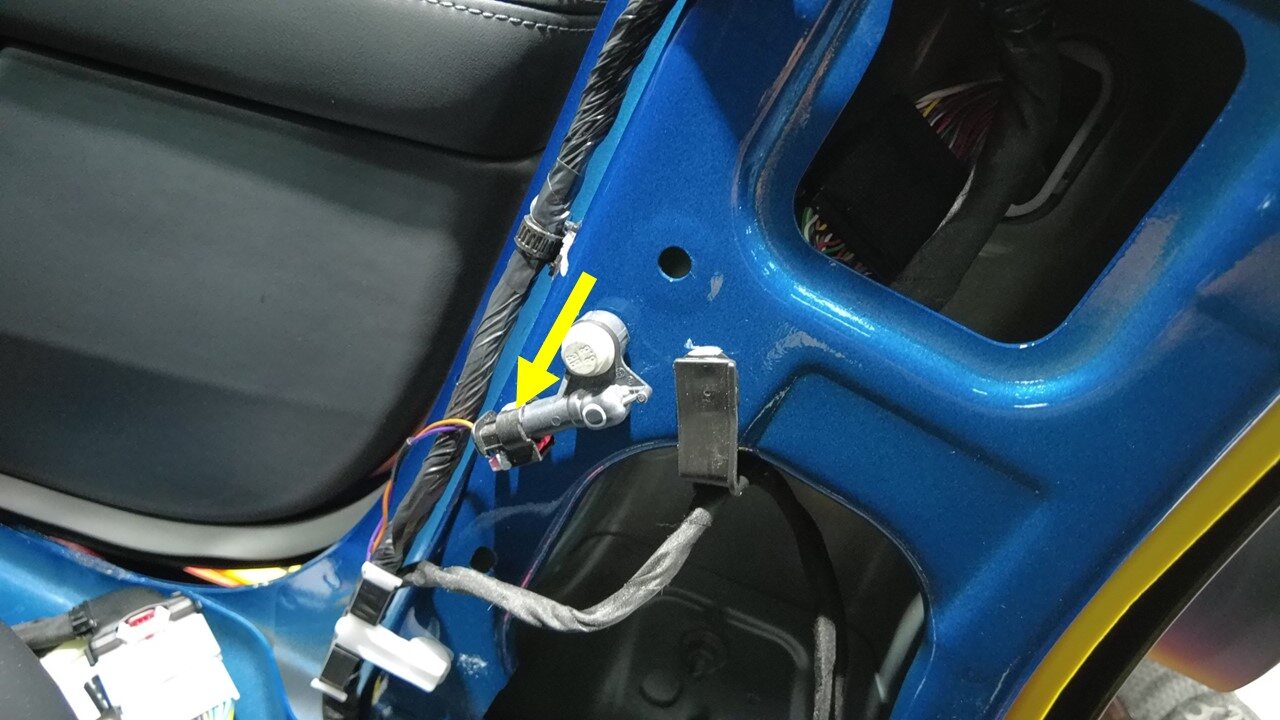

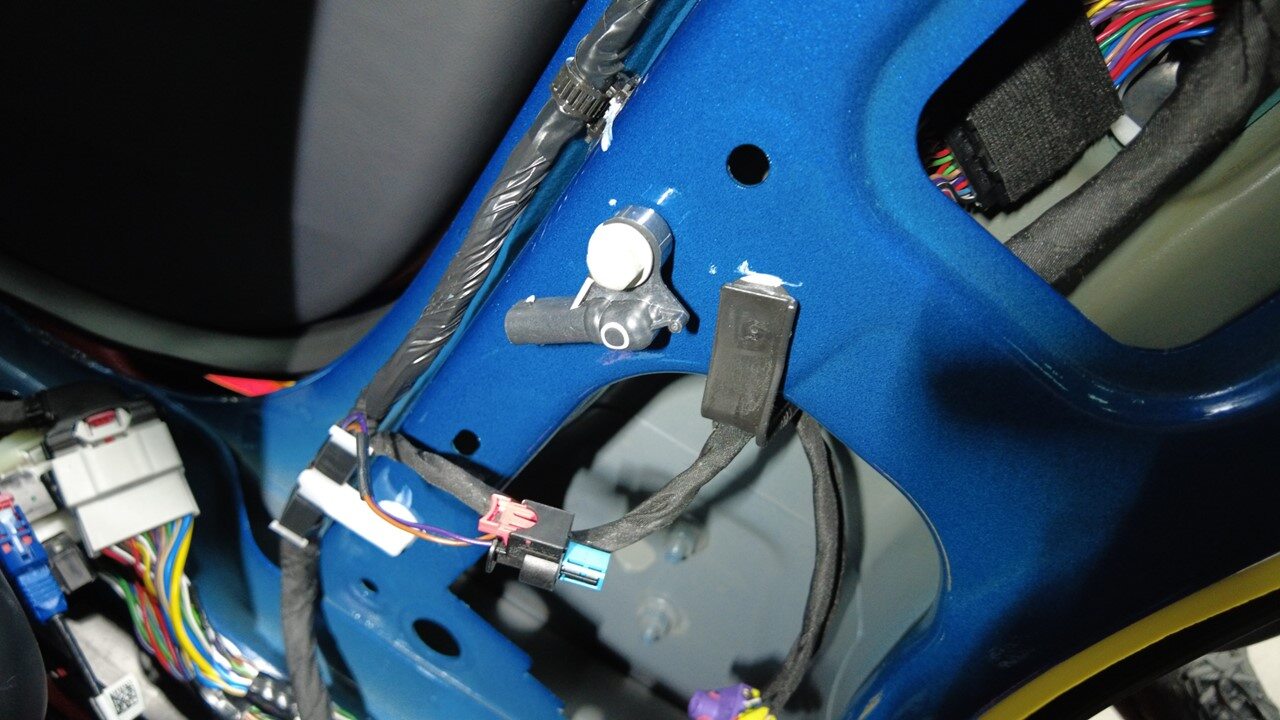

  170. Remove RH B-pillar impact accelerometer sensor
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector

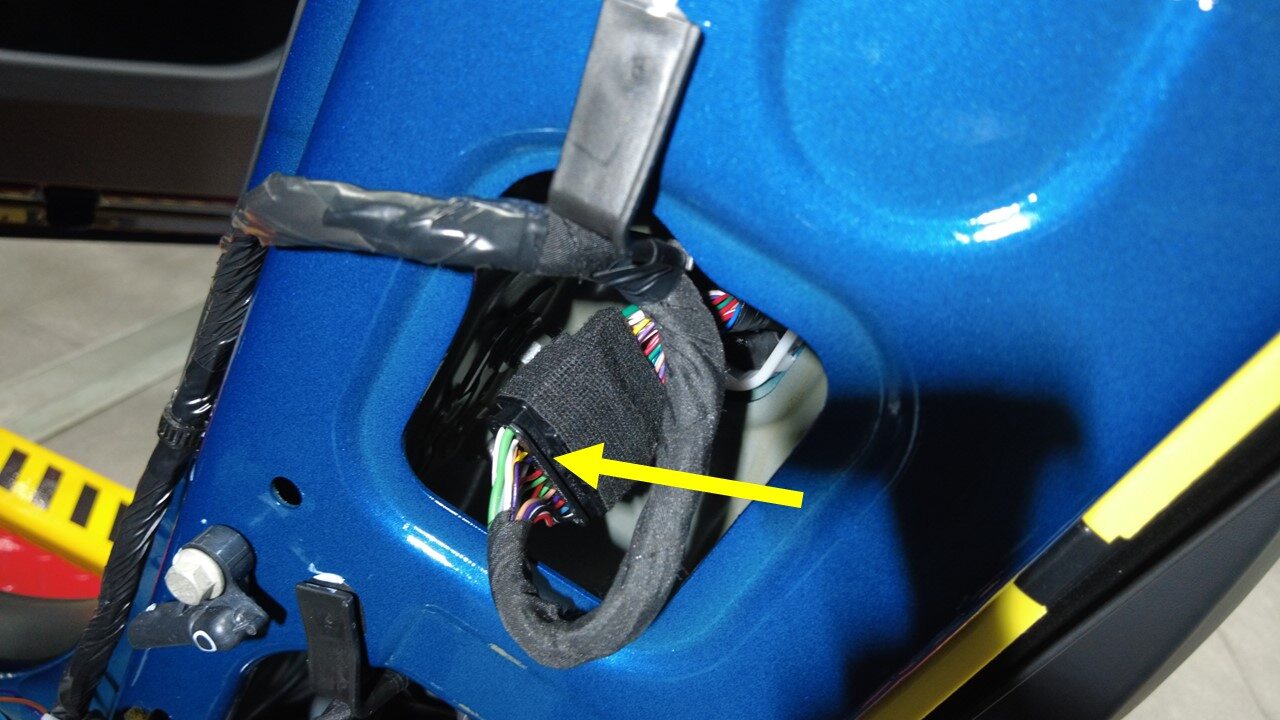

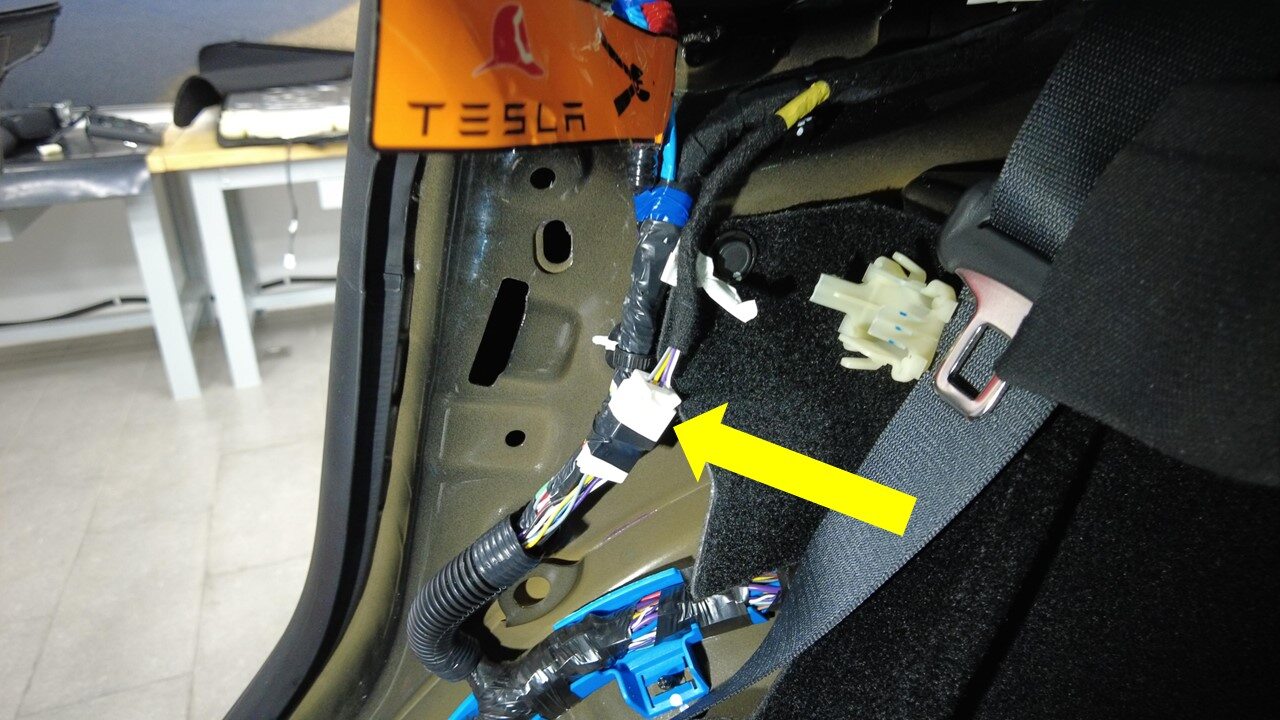

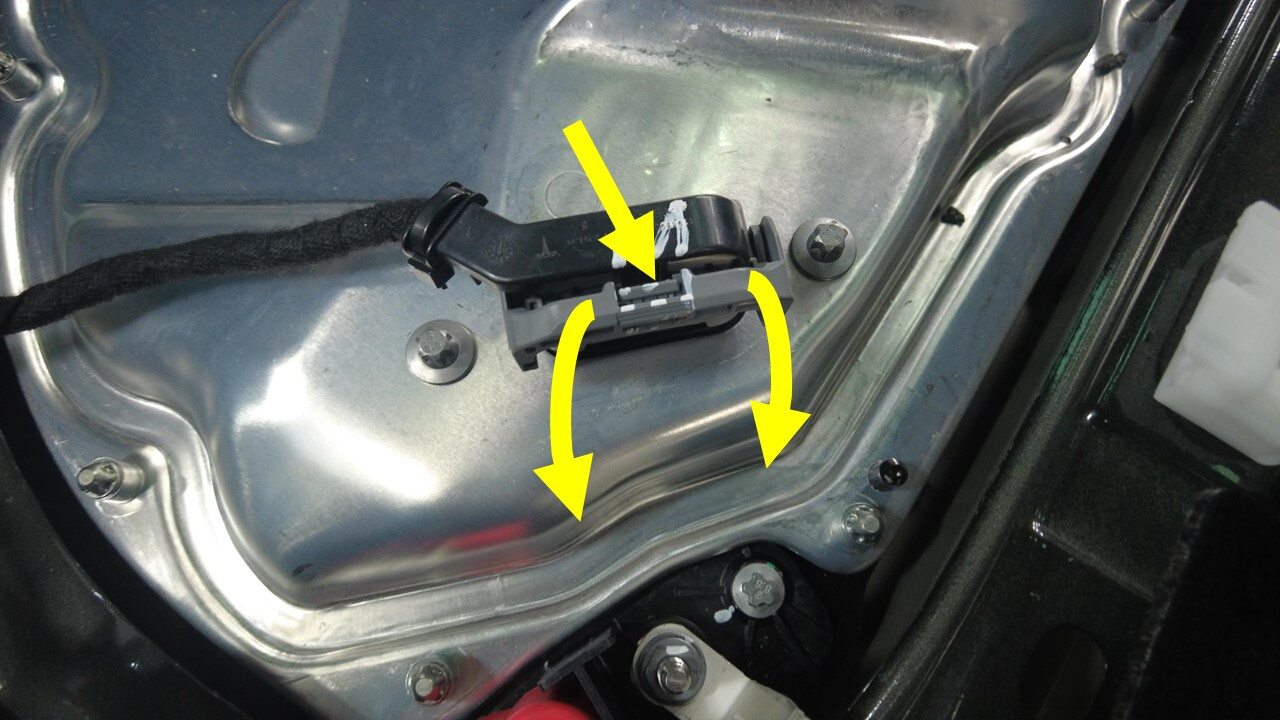

  171. Disconnect RH body wiring harness and RH rear door wiring harness connectors from RH B-pillar area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector

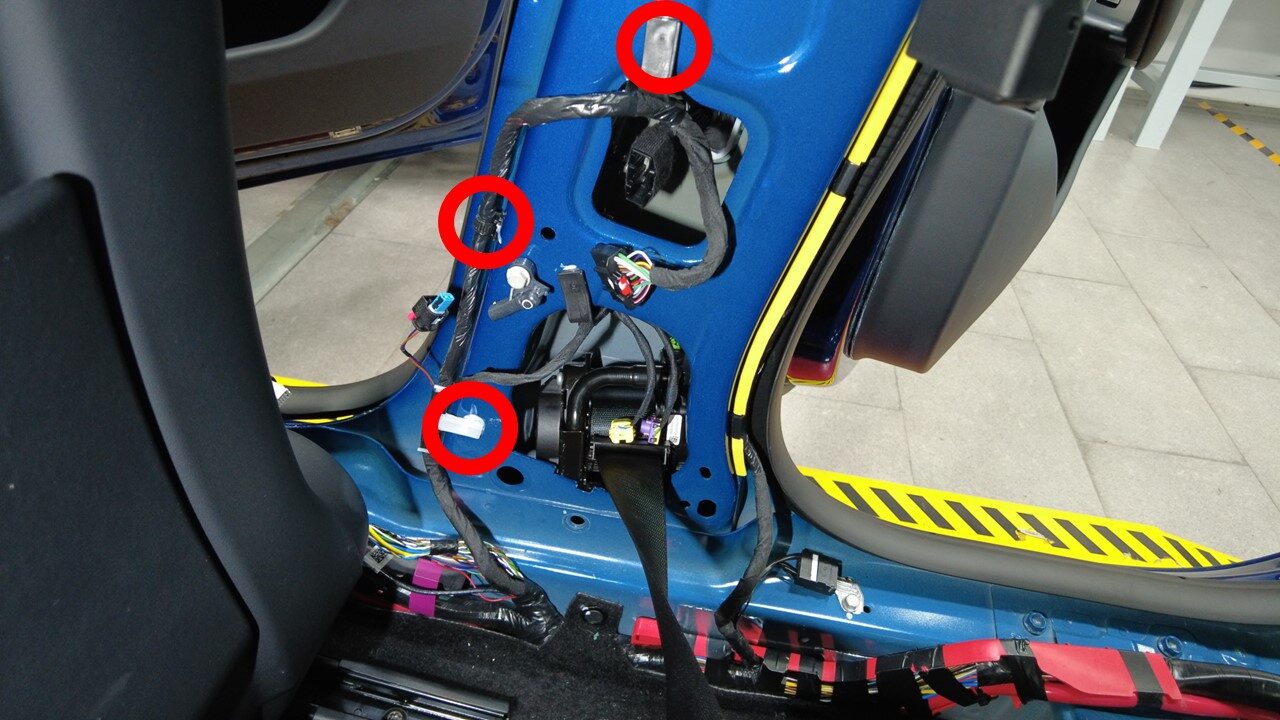

  172. Remove RH body harness clips from B-pillar area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x clips

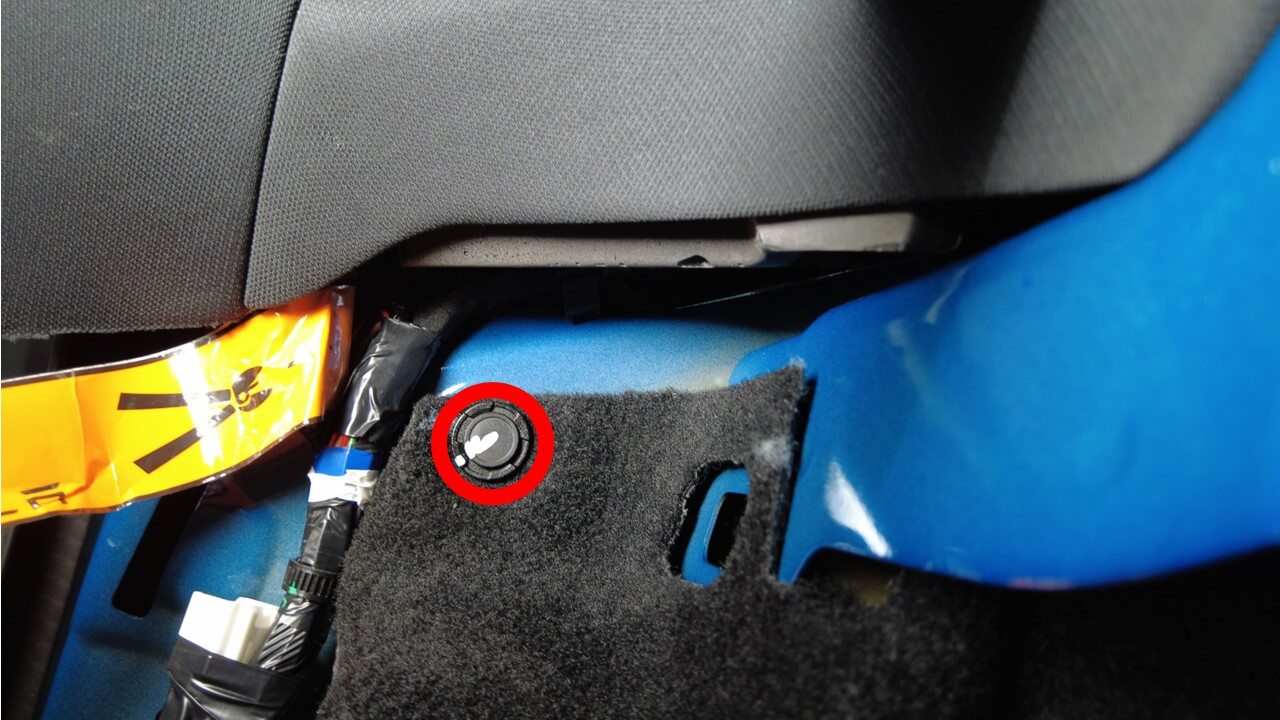

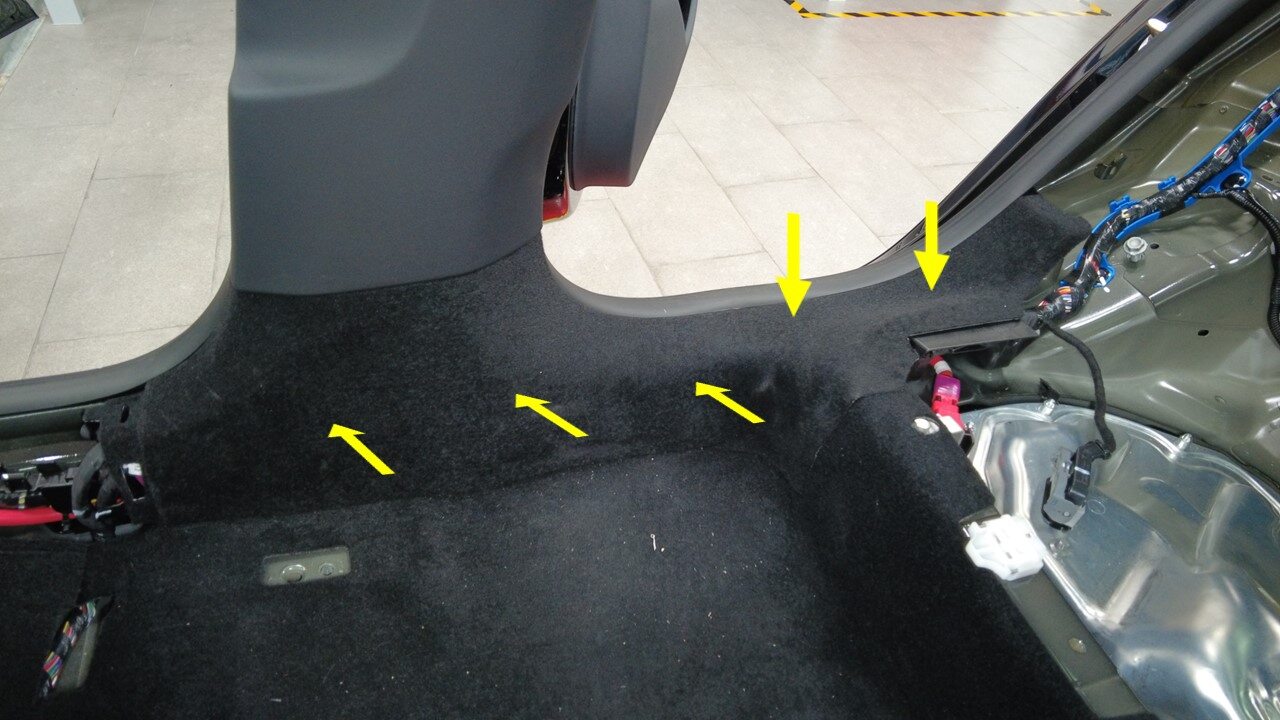

  173. Remove clip securing RH rear carpet of vehicle to body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x clip

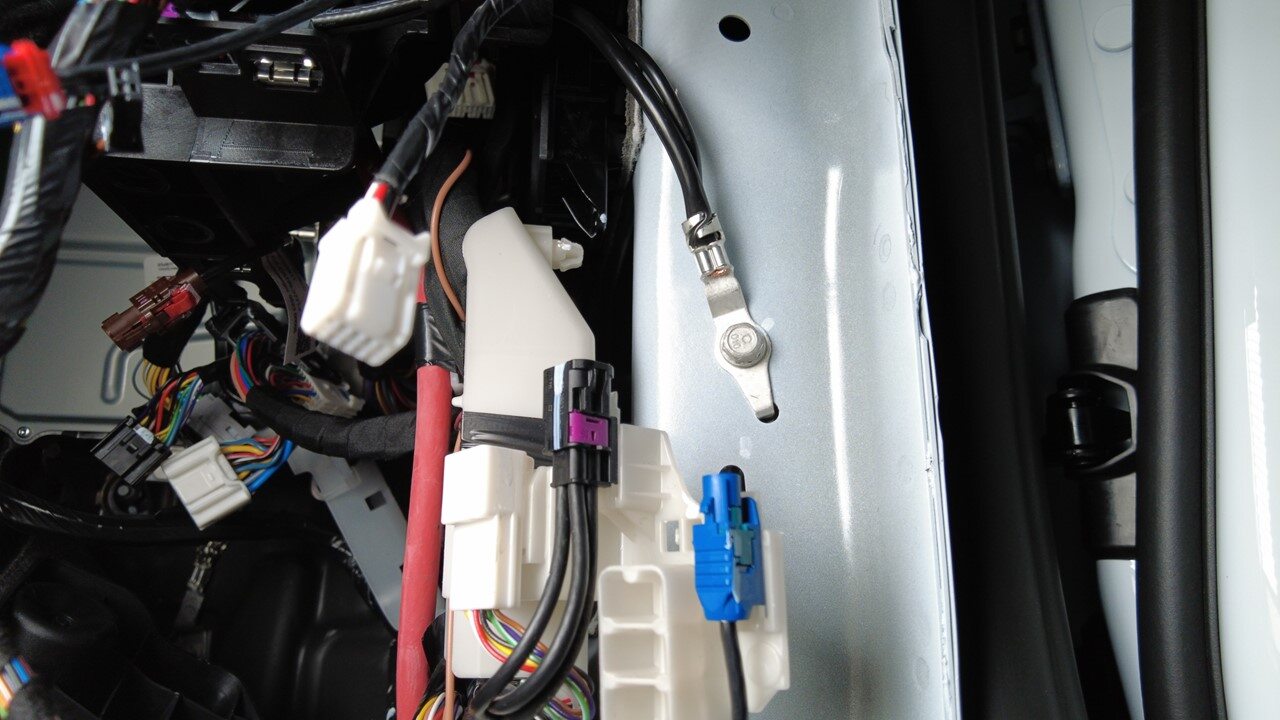

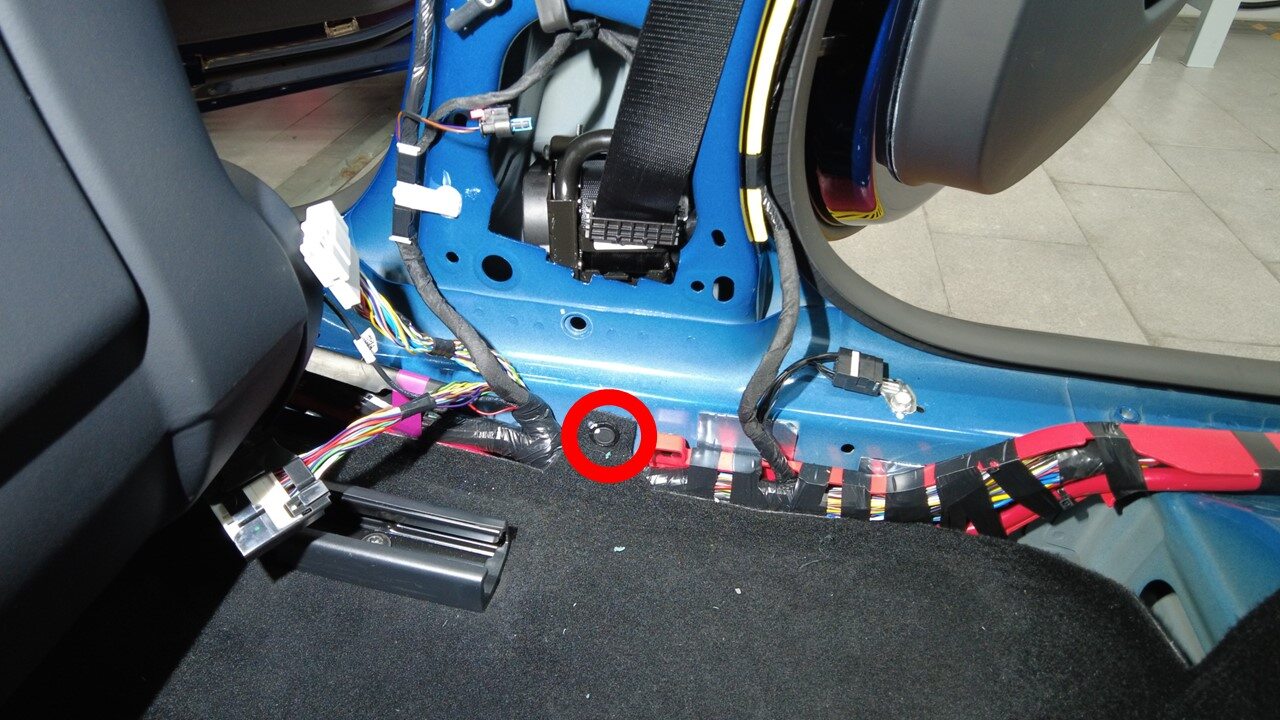

  174. Remove RH body harness ground strap around lower B-pillar
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 10mm, 10 Nm

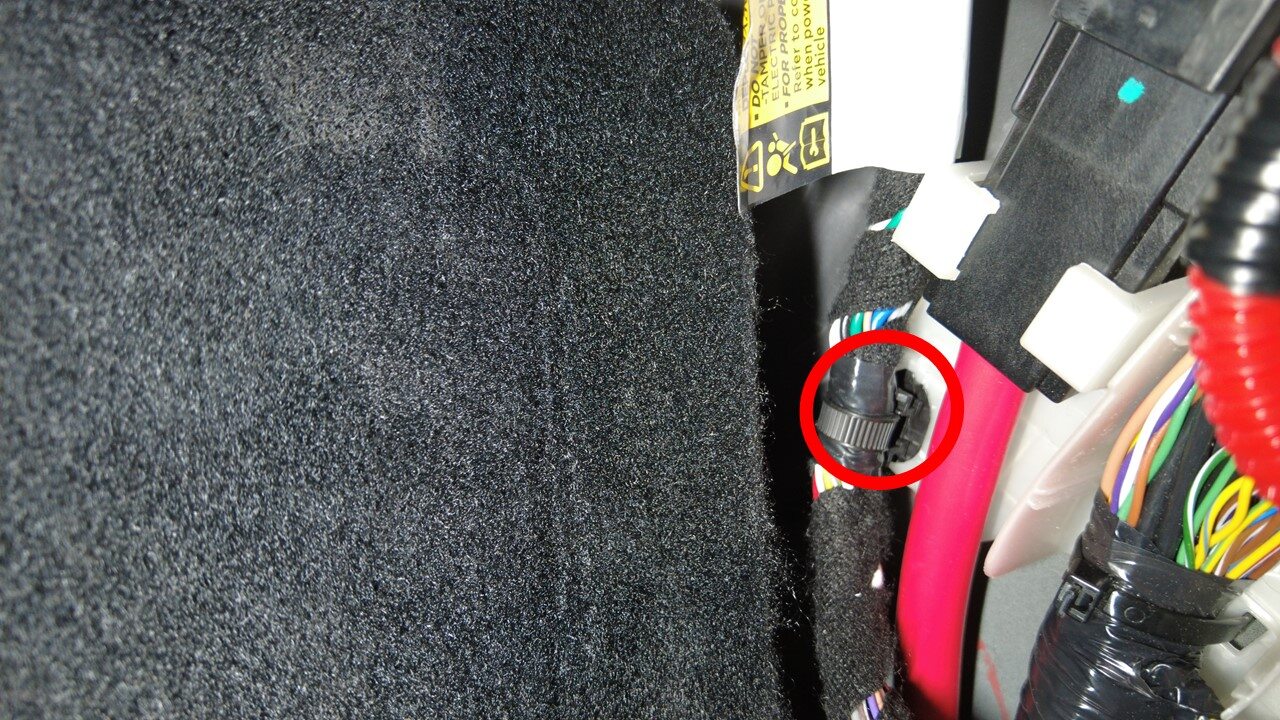

  175. Release RH body harness clips along RH front sill area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x clip
  176. Release the RH B-pillar applique fasteners cover
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x clips, Be careful not to damage the car paint

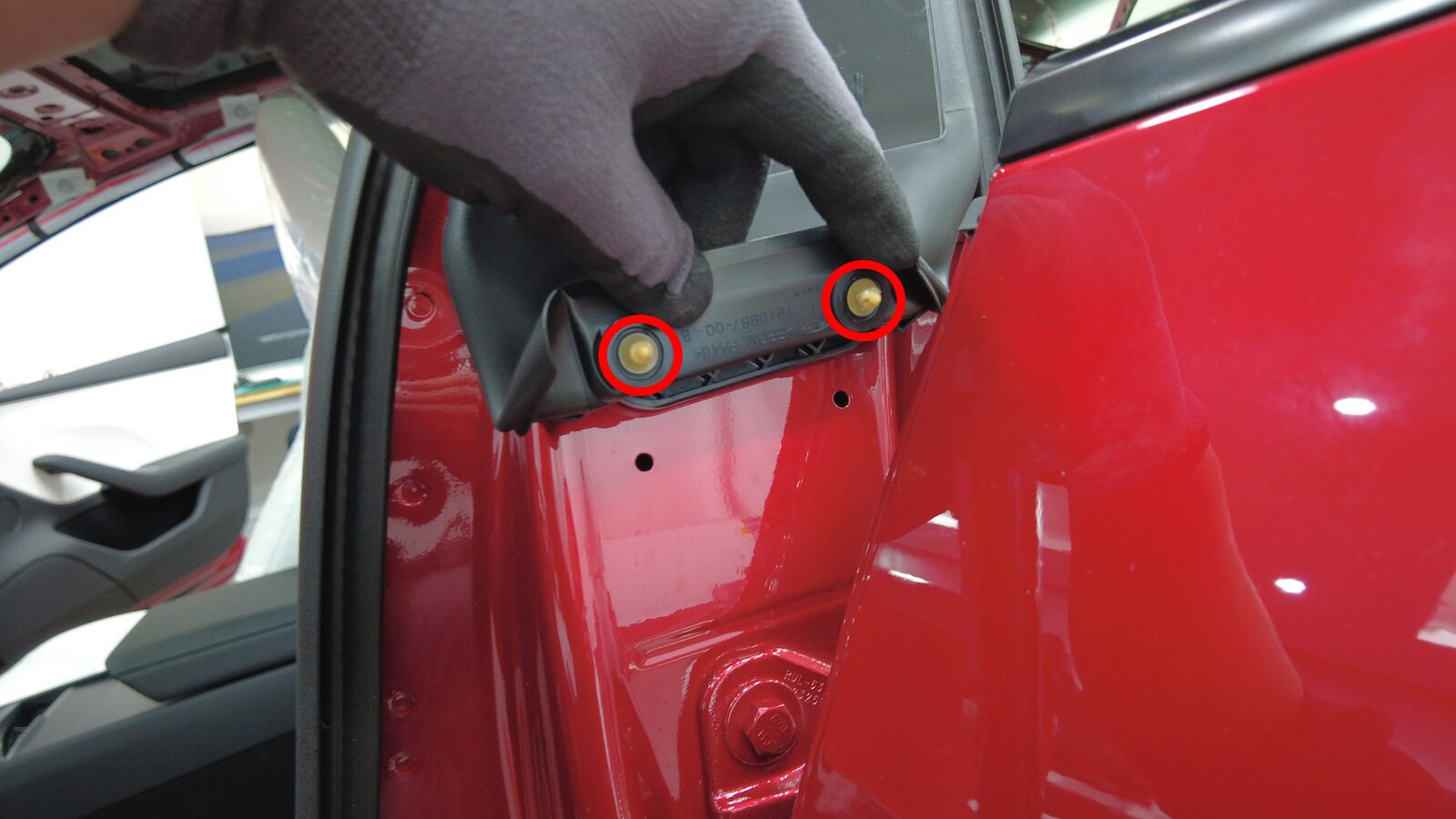

  177. Remove bolts securing RH B-pillar applique to body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 8mm, 5 Nm

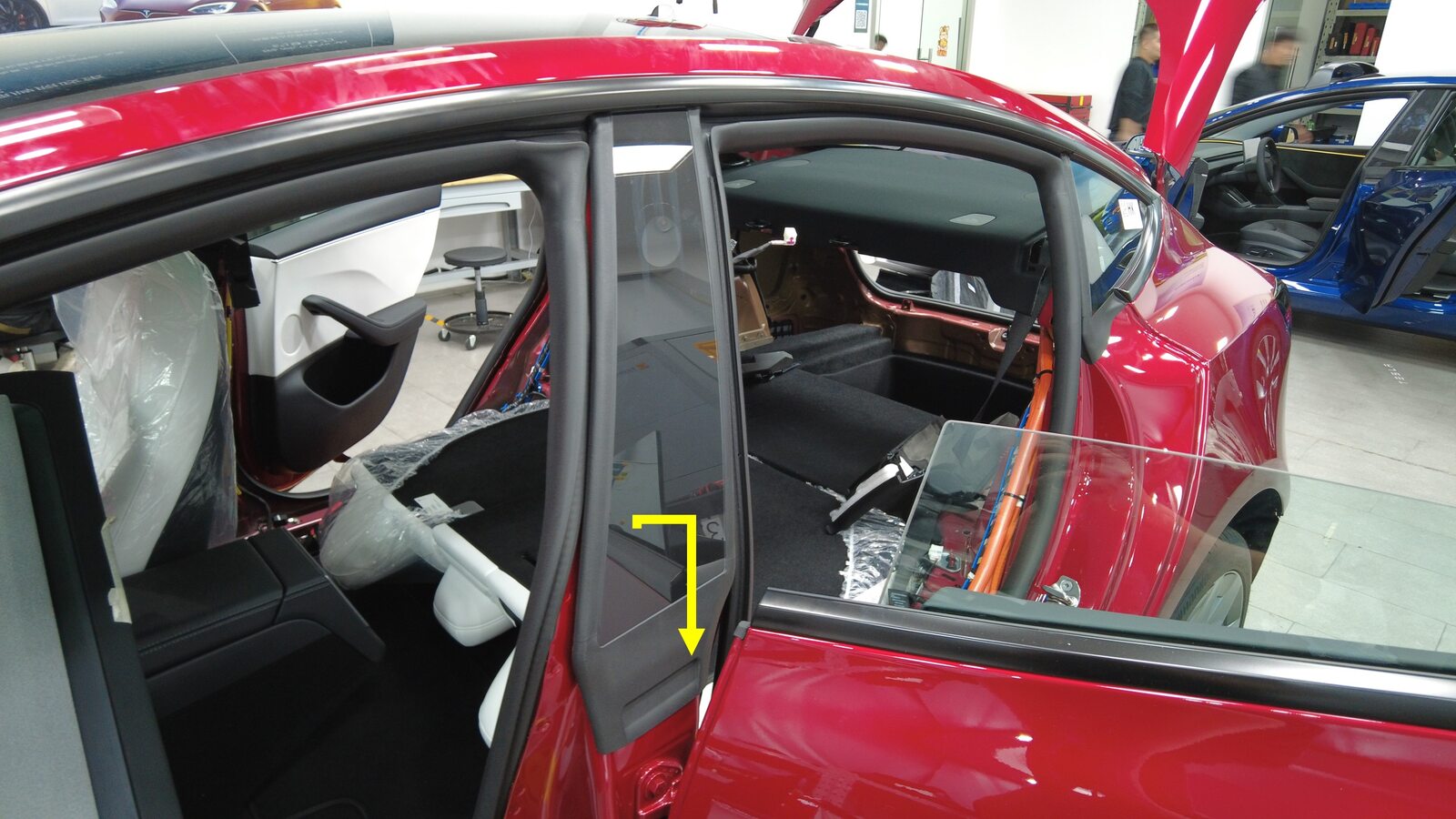

  178. Release RH B-pillar applique from vehicle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x clip, 2x tabs, Release the bottom of the applique and slide the applique downward to remove, Use caution not to damage the connectors

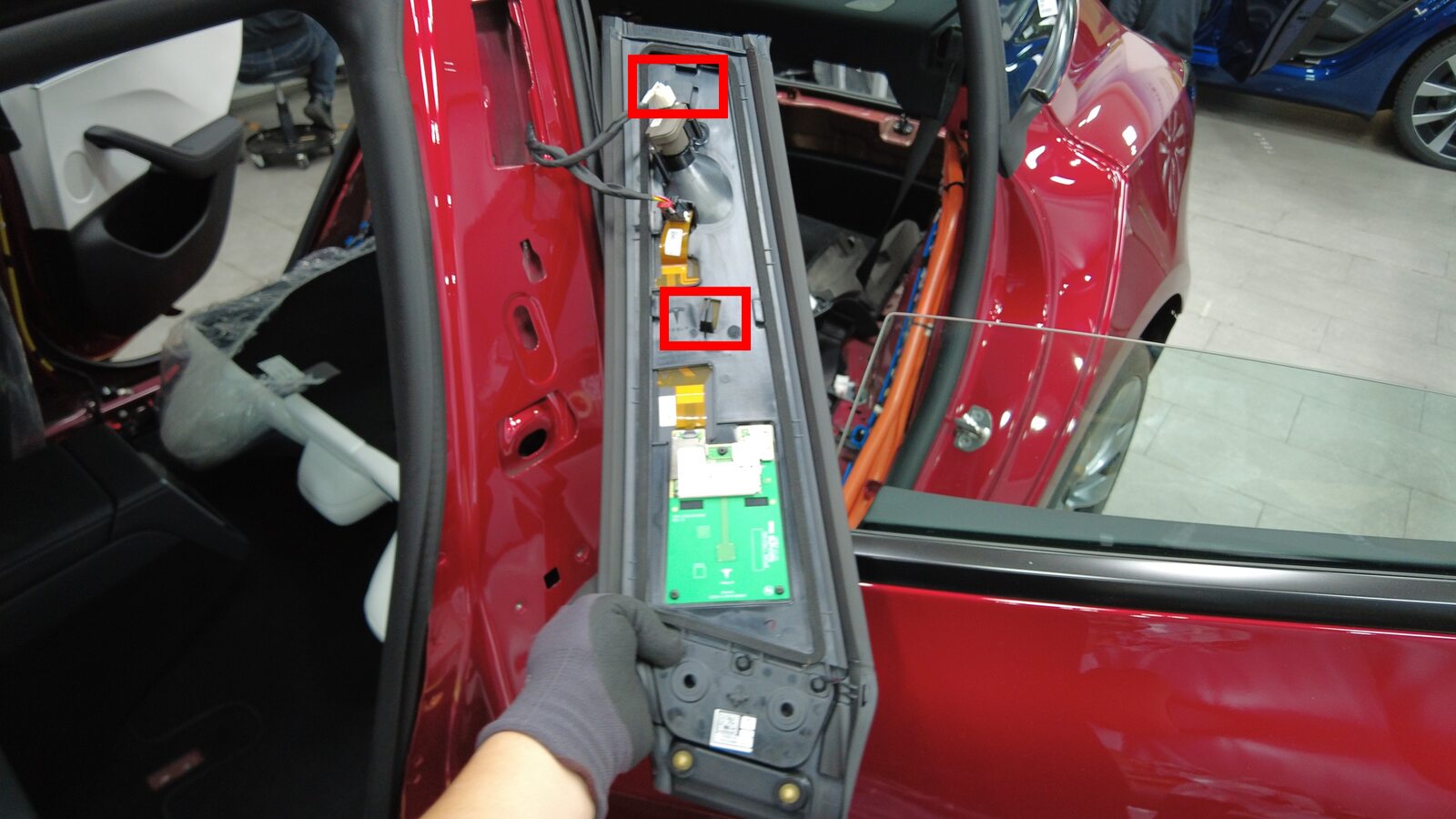

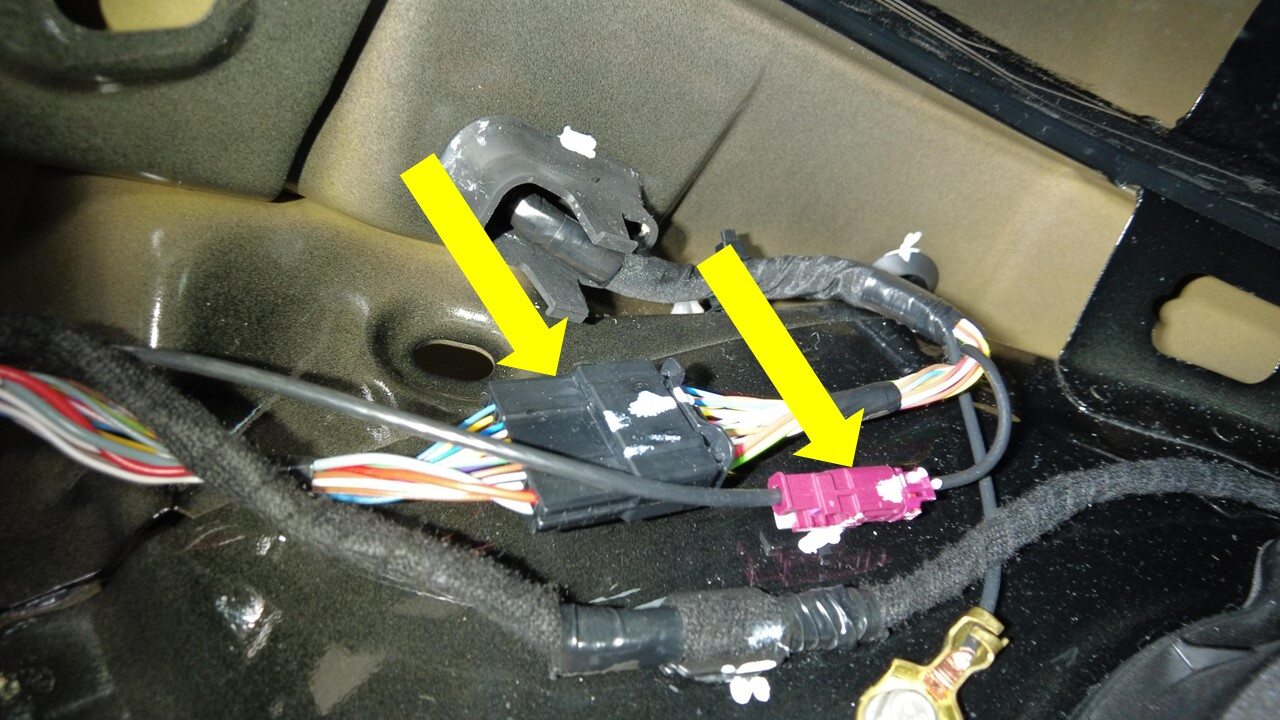

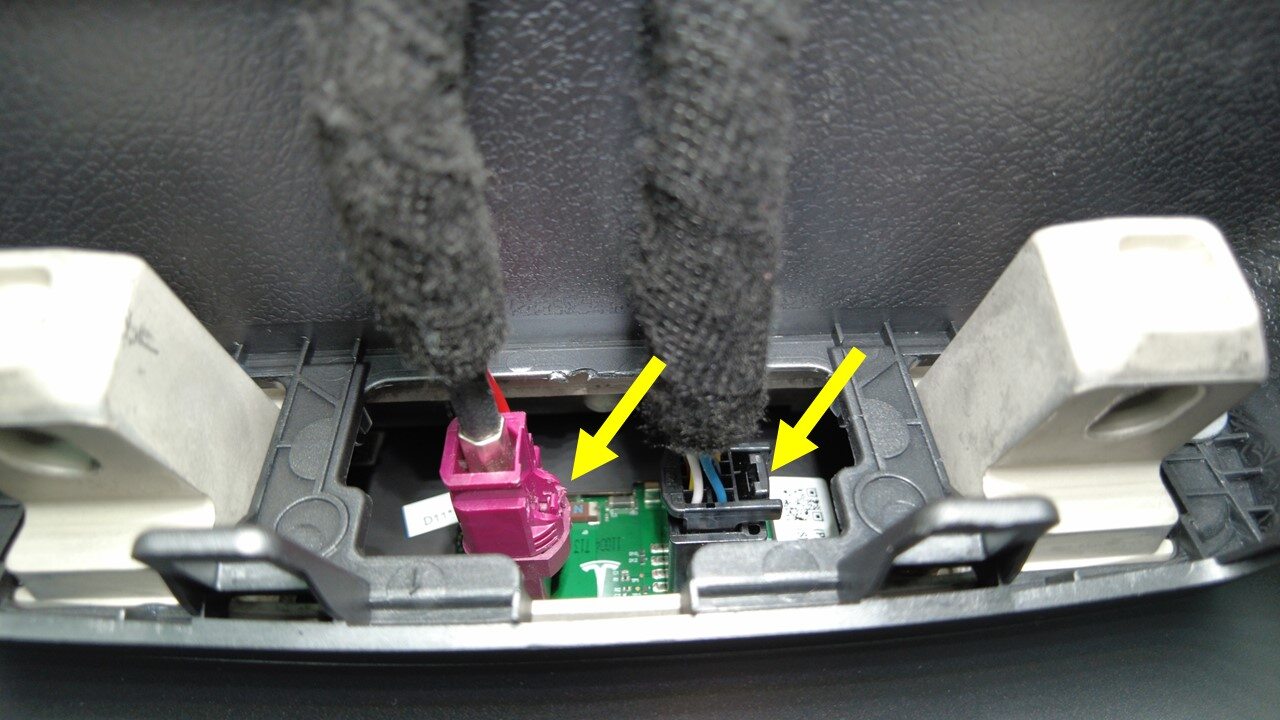

  179. Disconnect B-pillar camera and RH antenna connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors, Release red locking tab first before removing connector

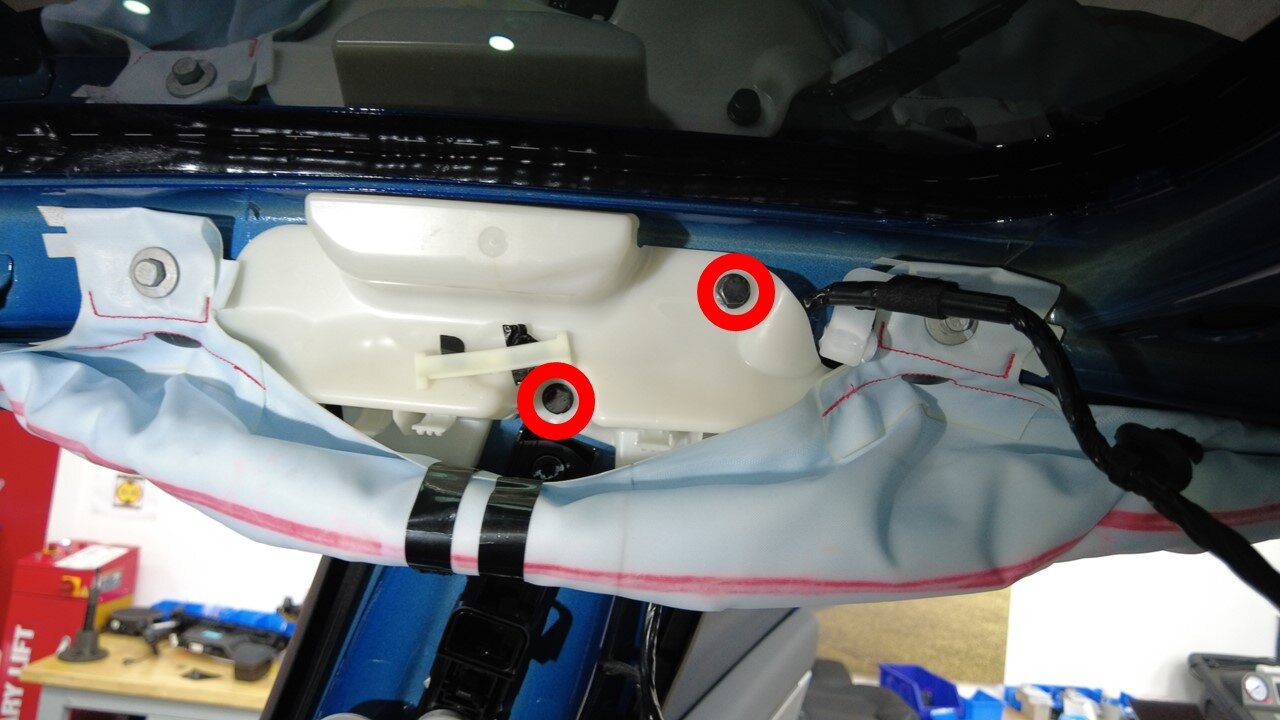

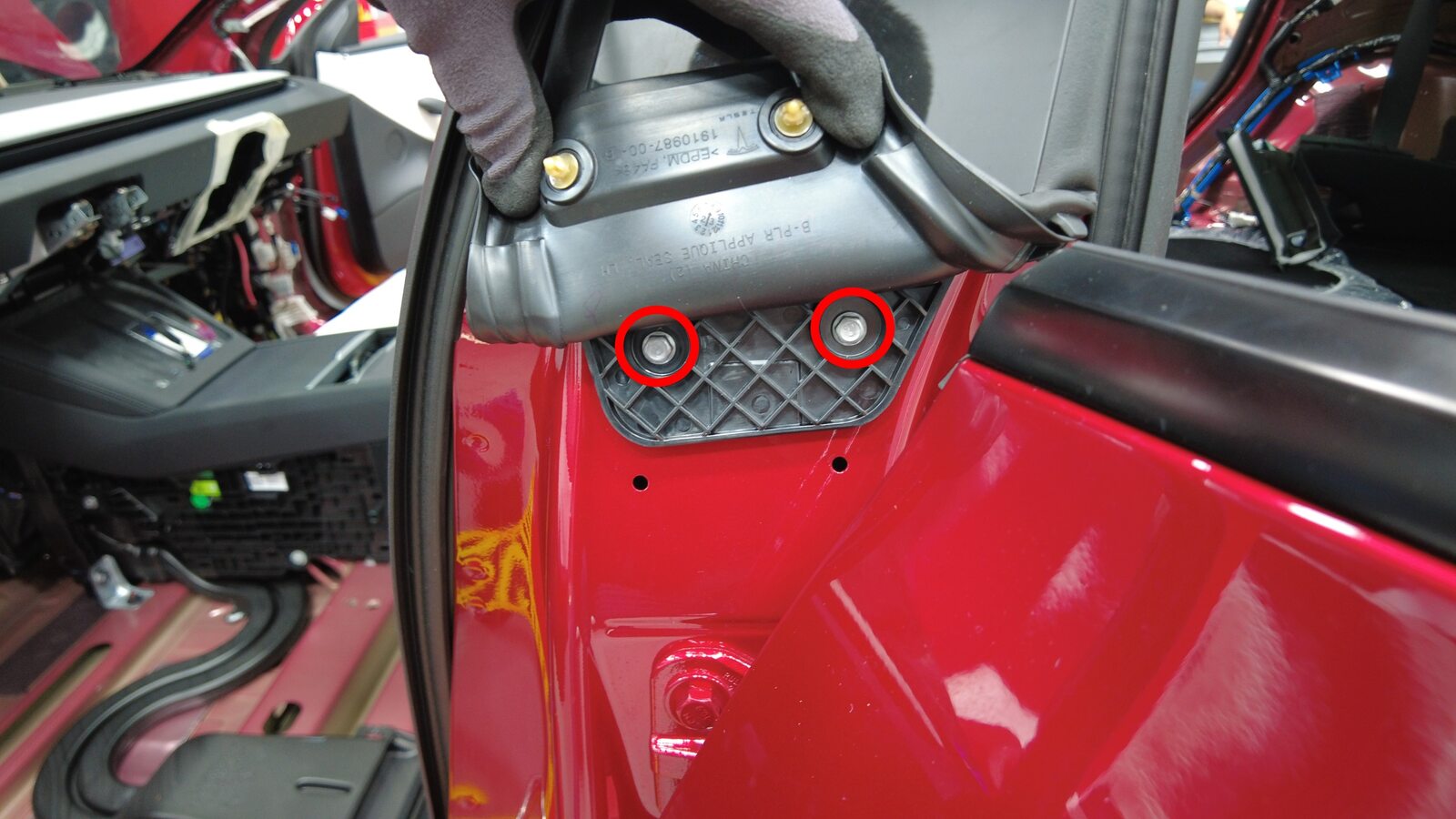

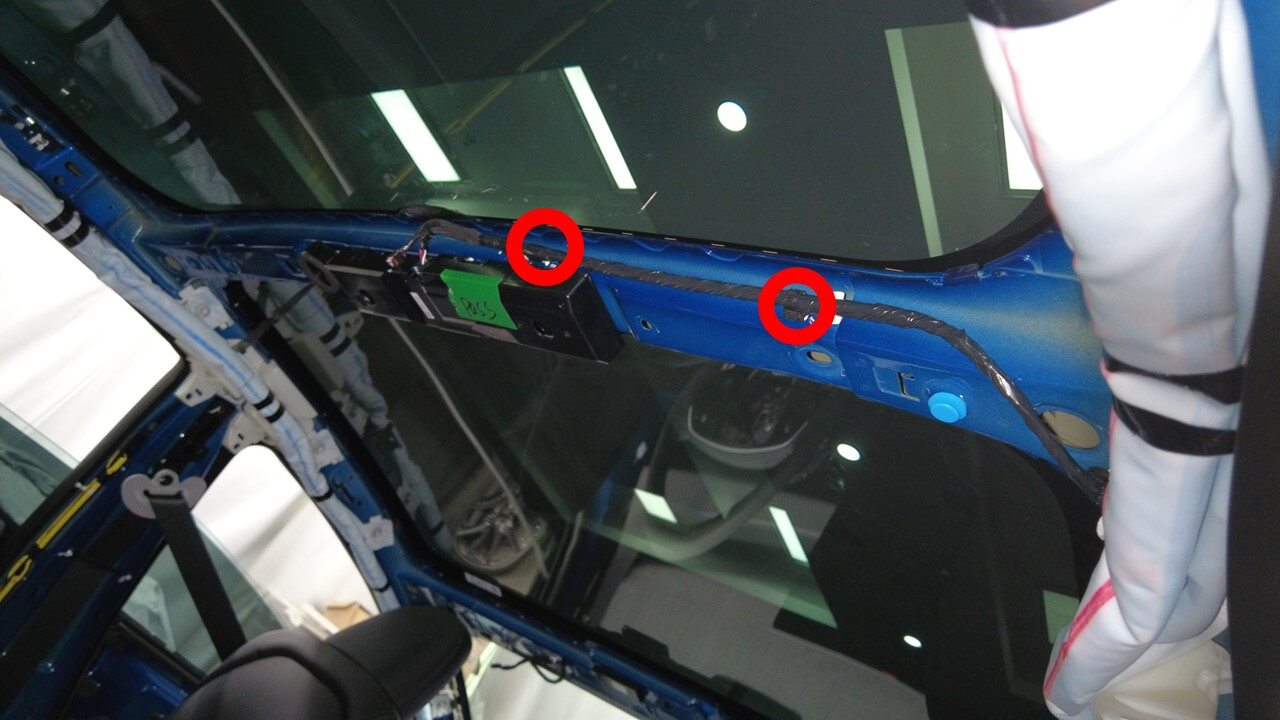

  180. Release RH upper B-pillar bracket form body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts 10mm2.5 Nm

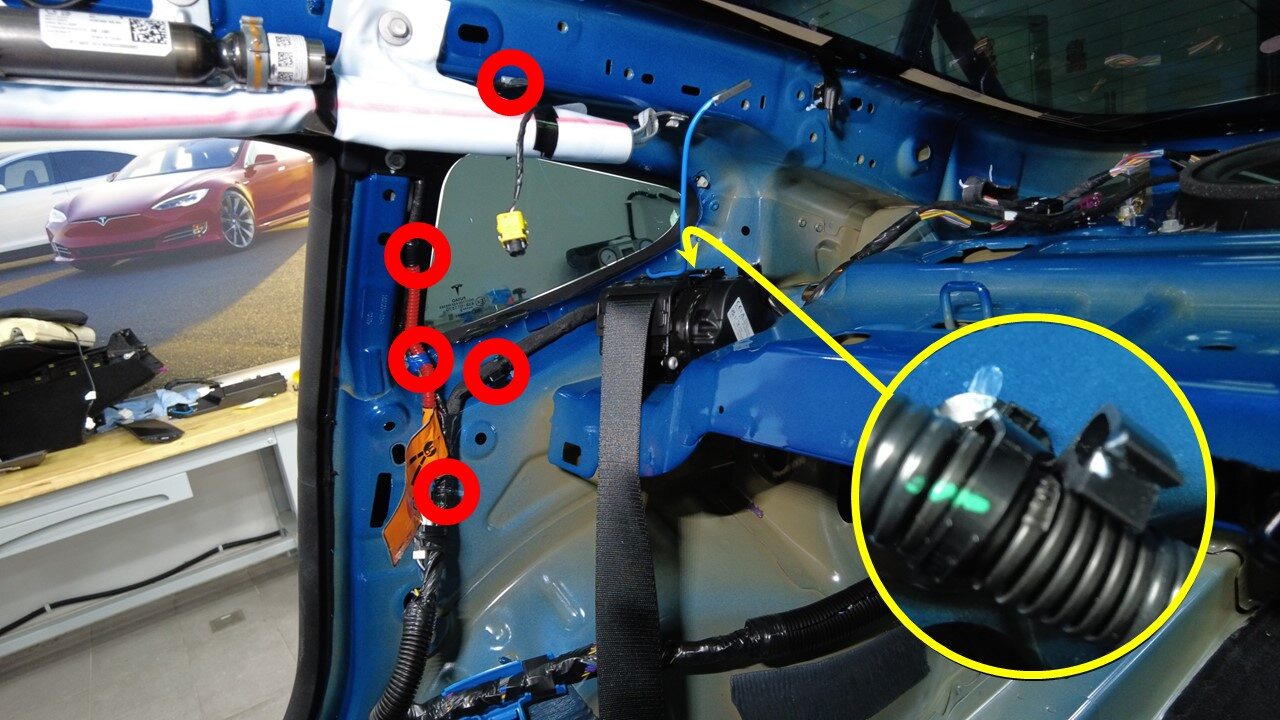

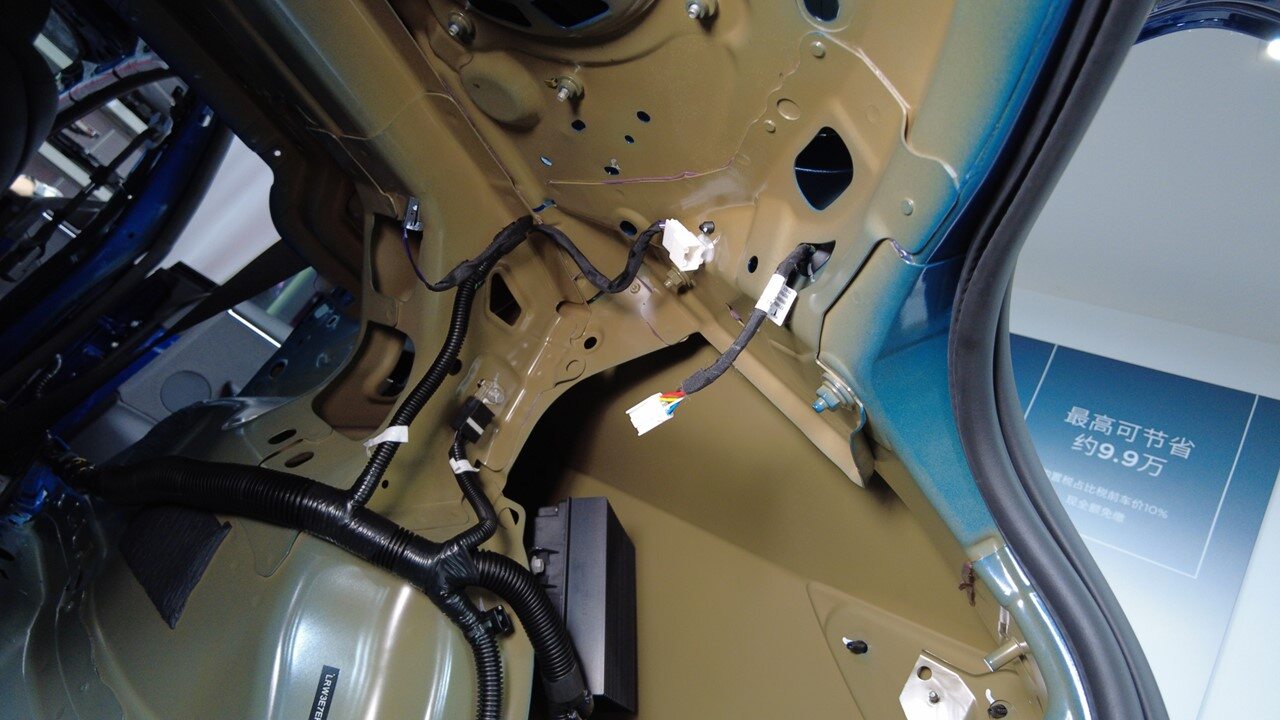

  181. Remove the RH body harness clips from B-pillar area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    7x clips
  182. Disconnect RH body harness from TCU
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors, release locking tab
  183. Disconnect HVC logic connector and install logic cap
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, 1x cap, Release locking tab then push the handle downward to release connector

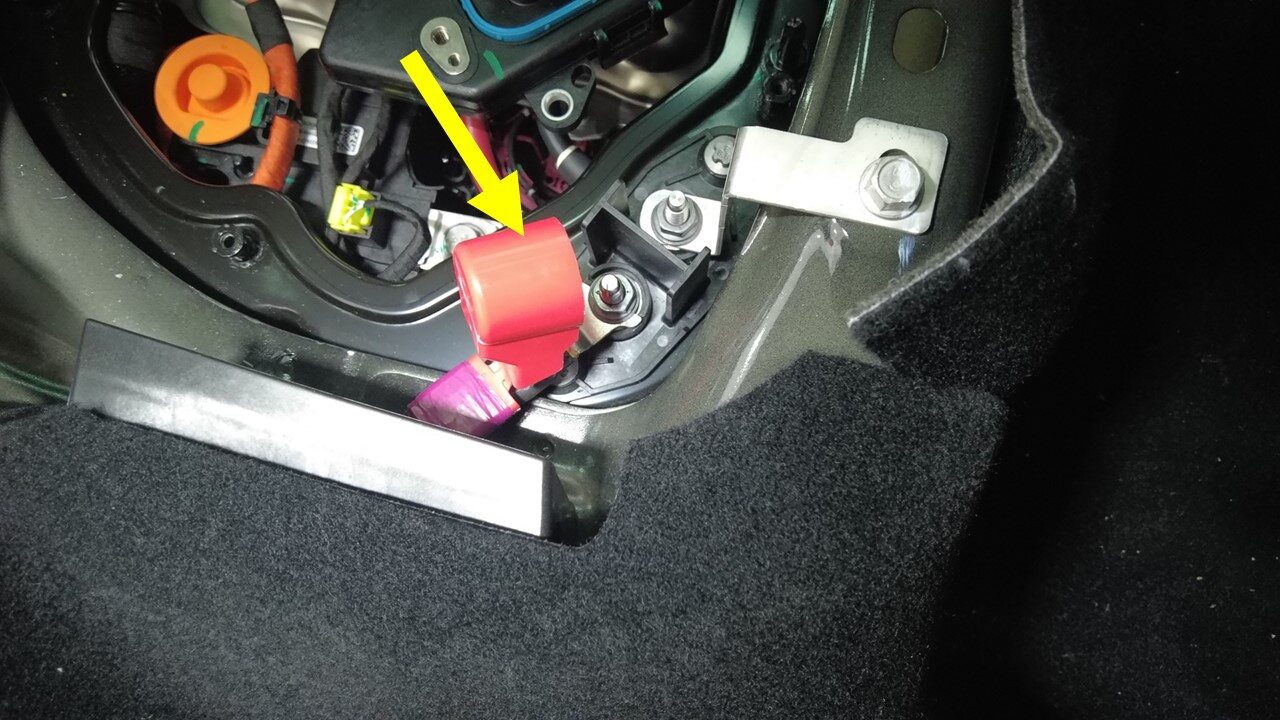

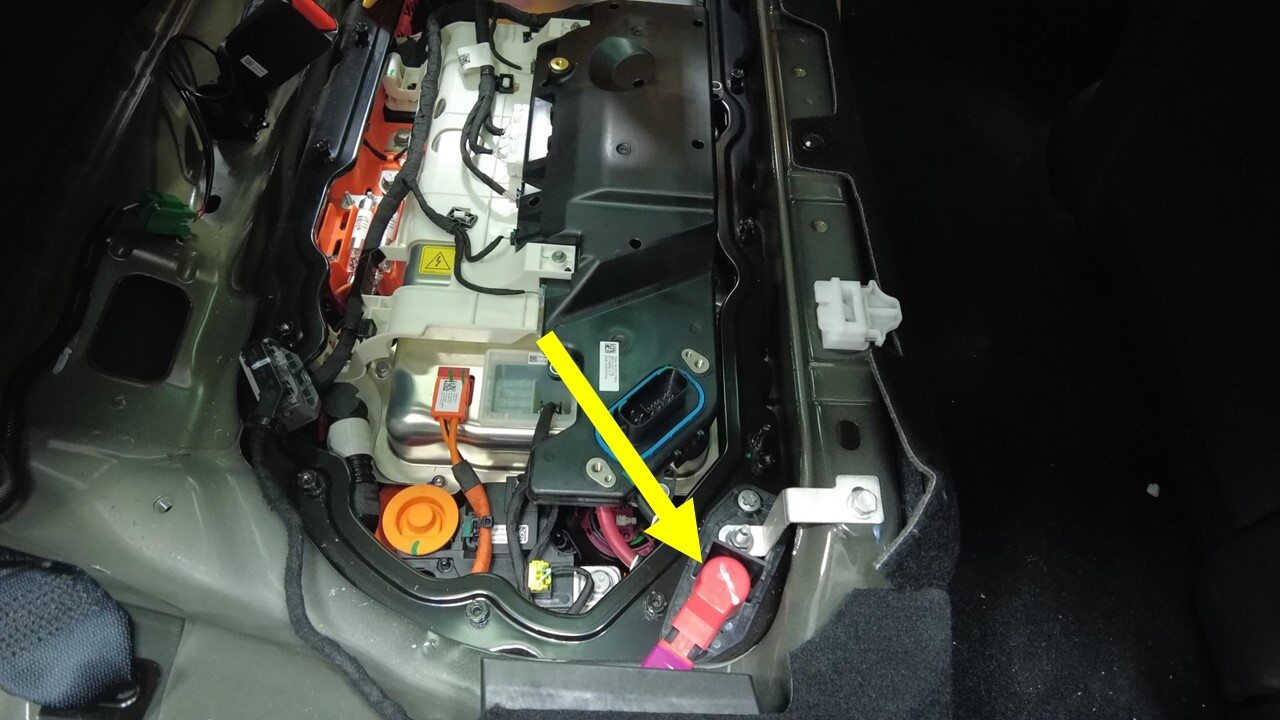

  184. Release positive LV output cover from PCS cable
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x cover
  185. Remove nut securing positive LV output from PCS cable and move cable aside
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 13mm, 9 Nm, Discard after removal

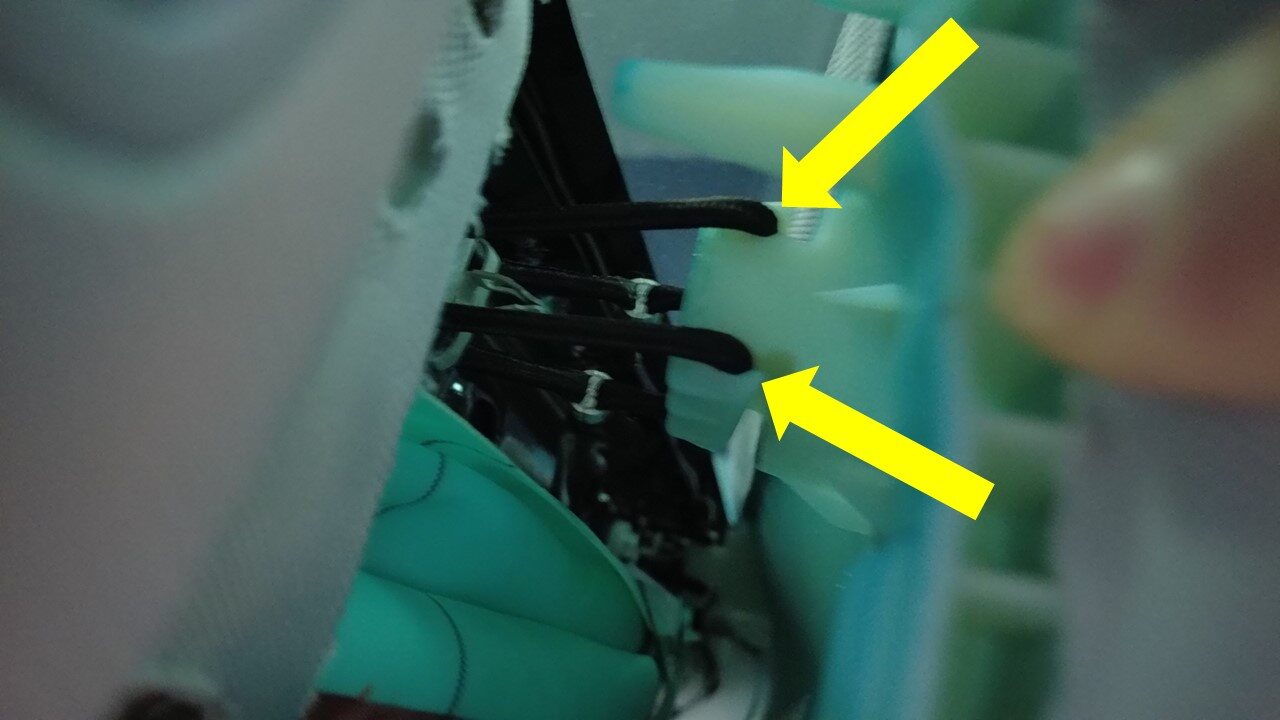

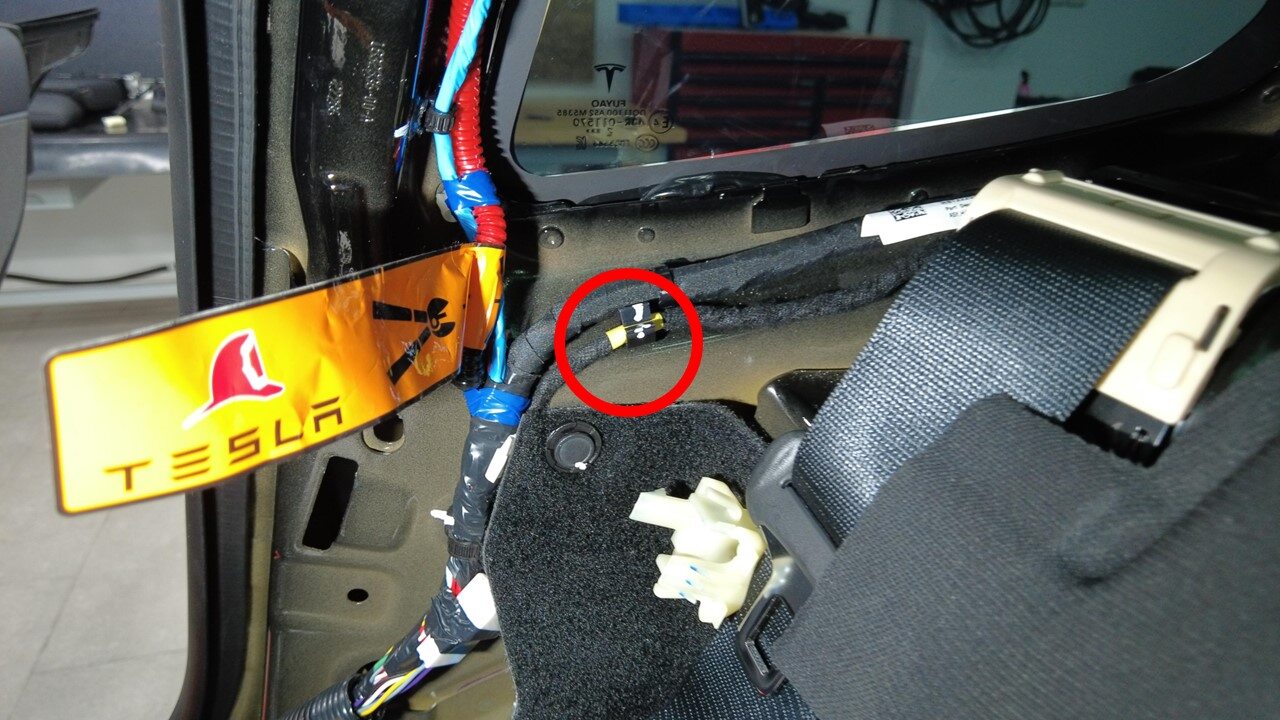

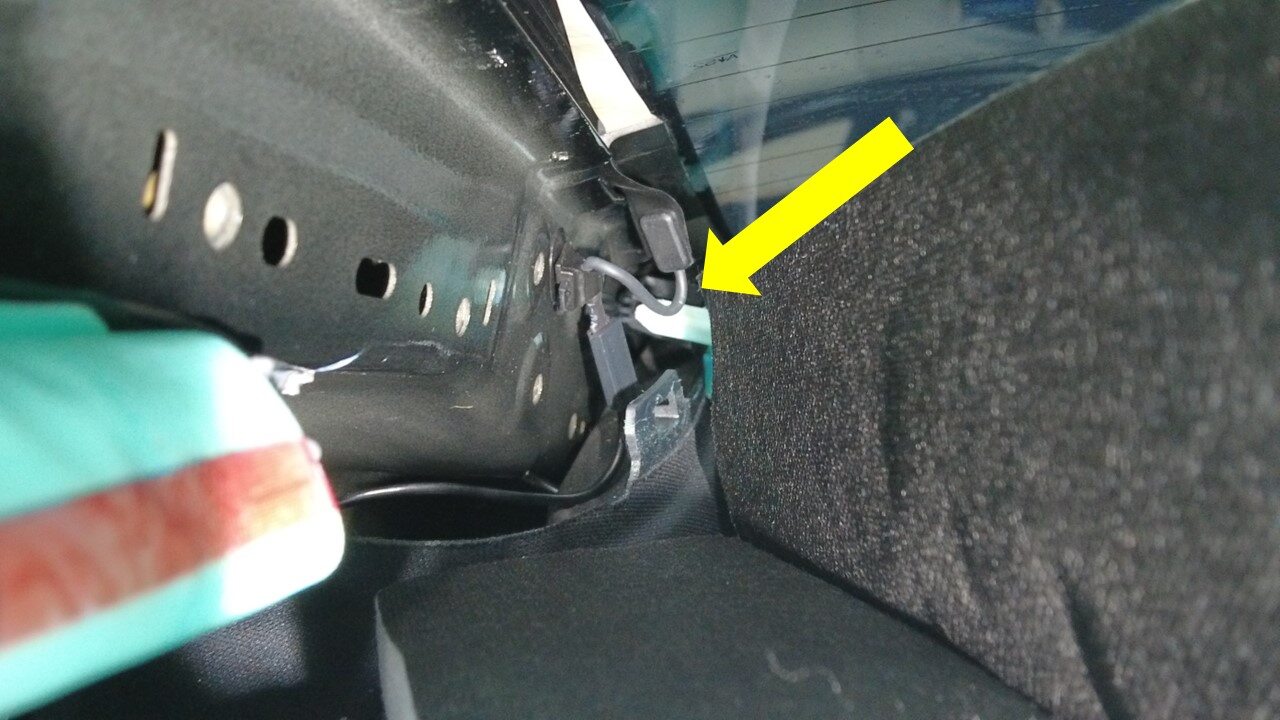

  186. Disconnect 40 seat back heater harness
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector
  187. Disconnect RH rear seat belt buckle connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector
  188. Remove clip securingRH rear seatbelt buckle harness to vehicle body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x clips
  189. Remove RH body harness clips around lower C-pillar area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x clips

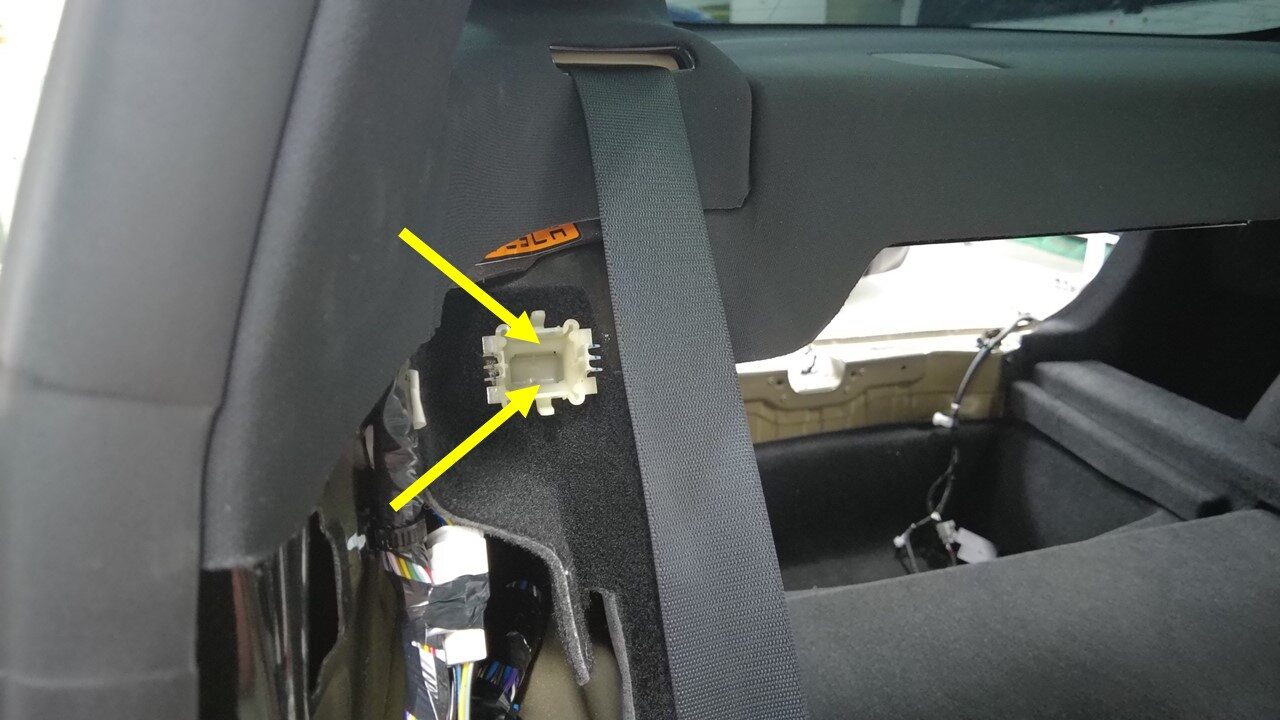

  190. Disconnect RH 2nd row seat belt retractor connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, 2 stage locking connectors, Lift the red tab to release the connector

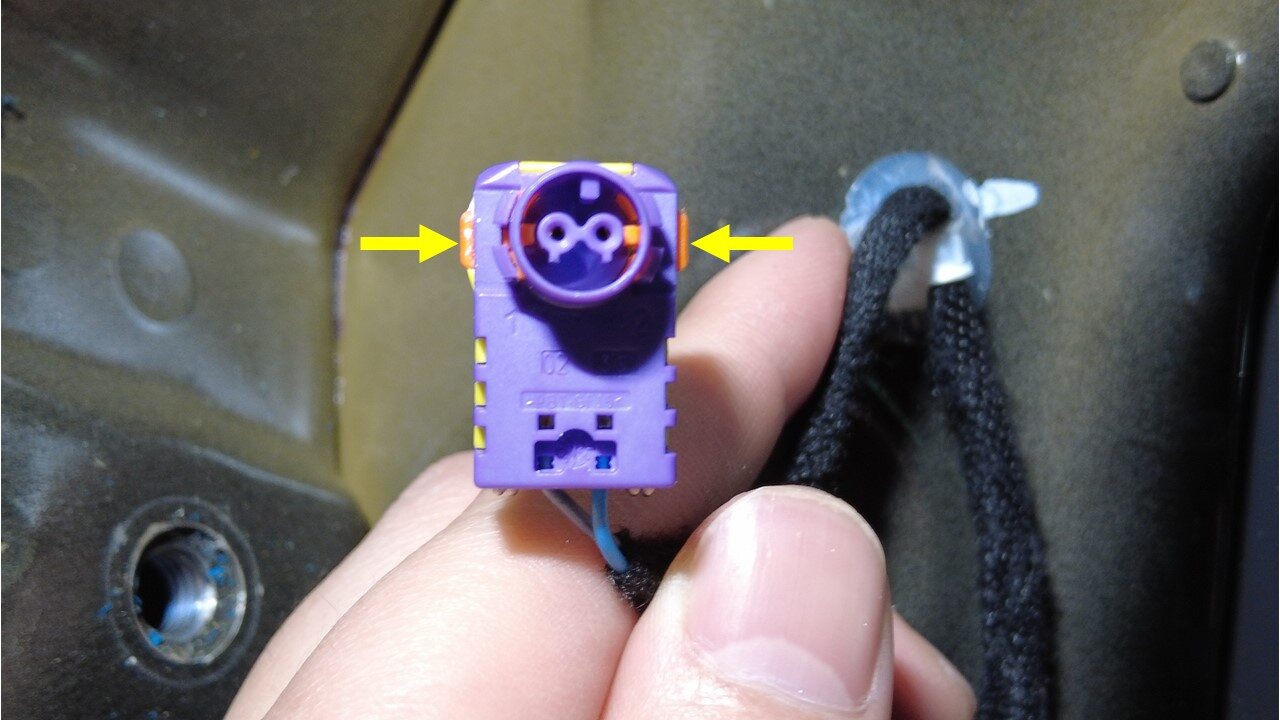

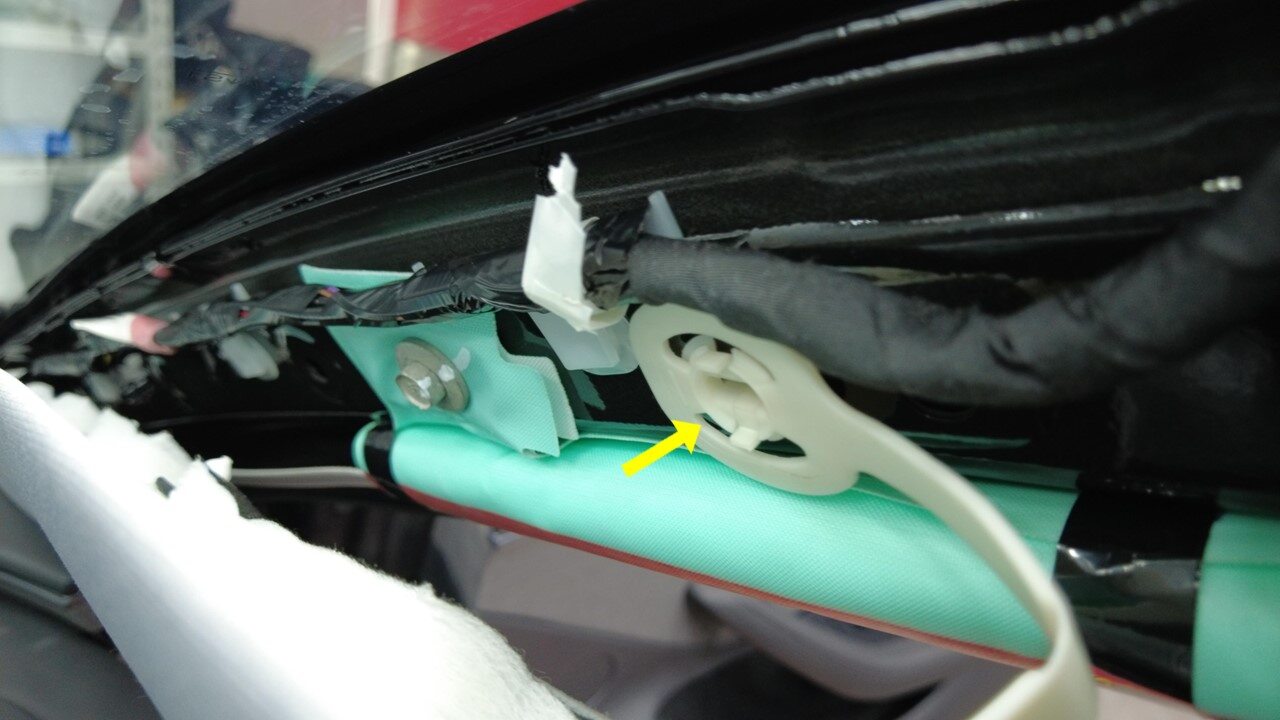

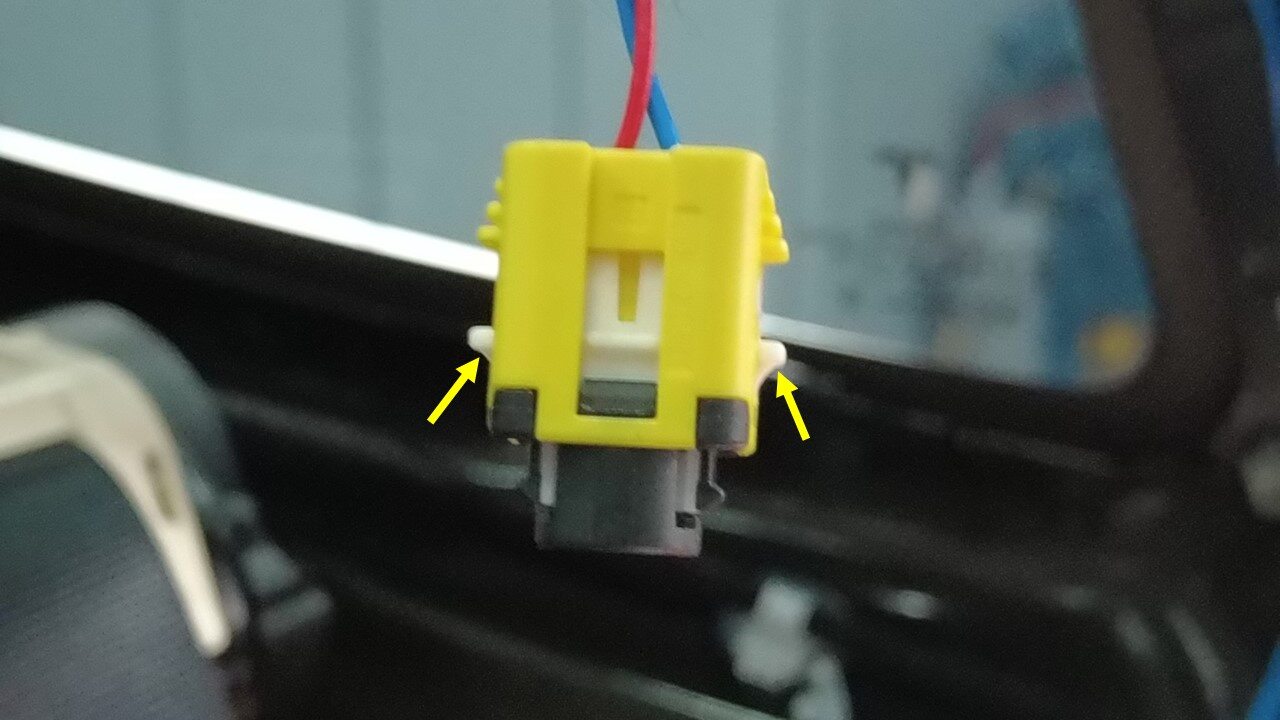

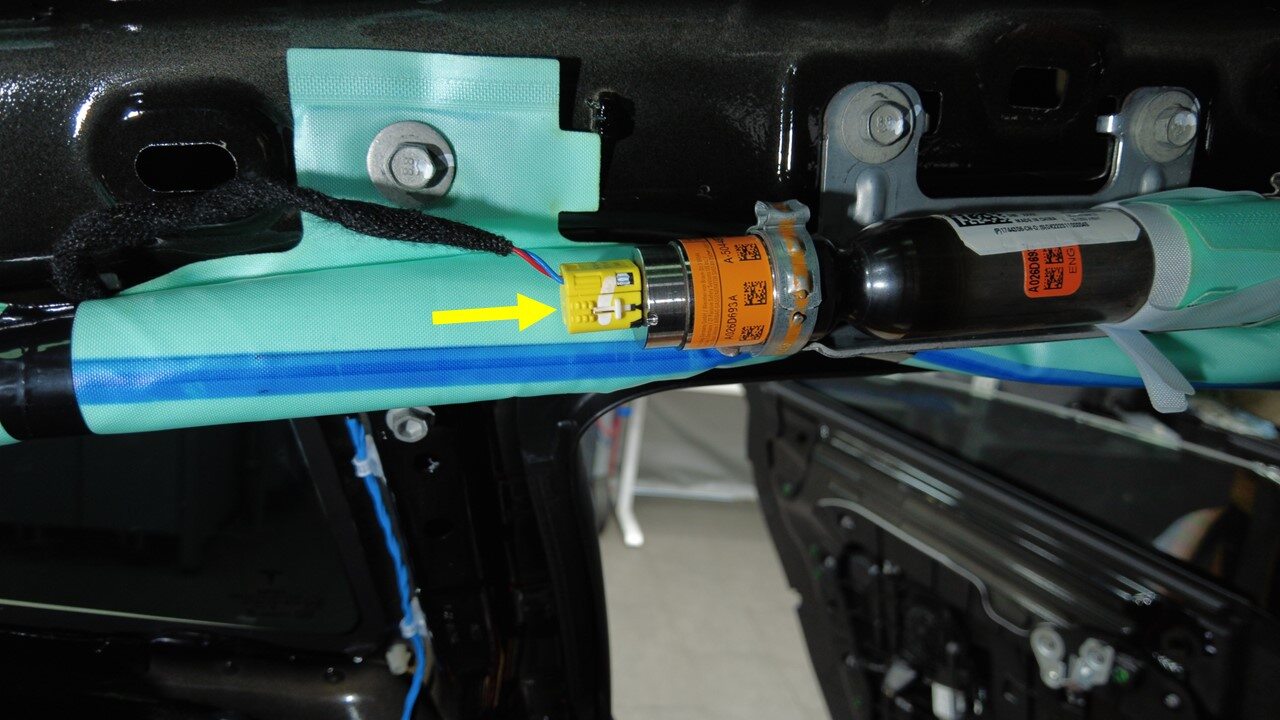

  191. Disconnect harness connector for RH side curtain airbag
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector，2 stage locking connectors, Lift the white tab to release the connector
  192. Disconnect RH antenna filter harness connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connectorGently disconnect the harness. Do not damage the heater grid

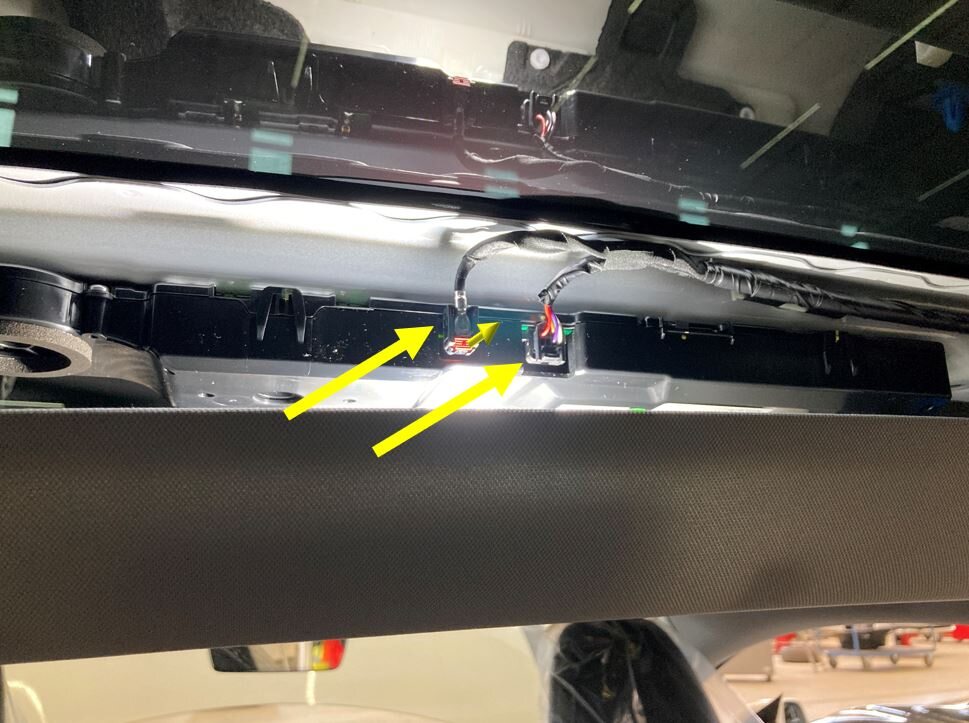

  193. Release the trunk harness connectors under package tray area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors

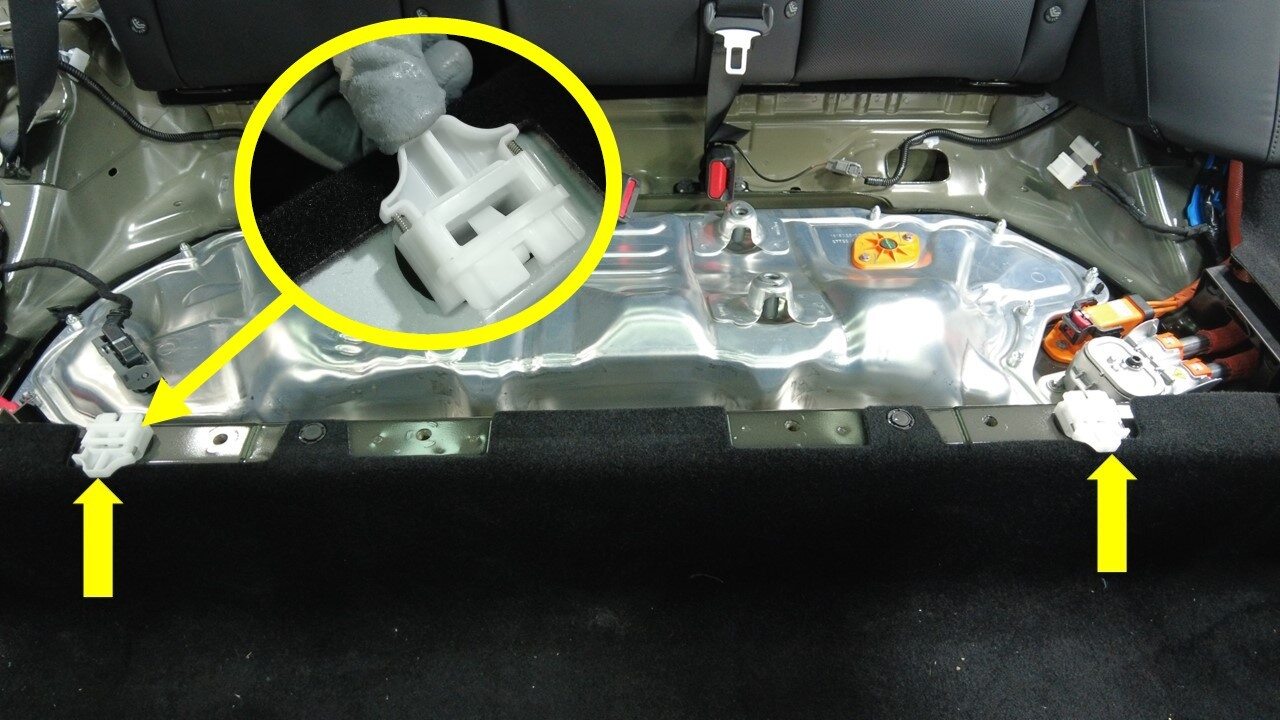

  194. Release trunk harness connectors bracket under package tray area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connector bracket

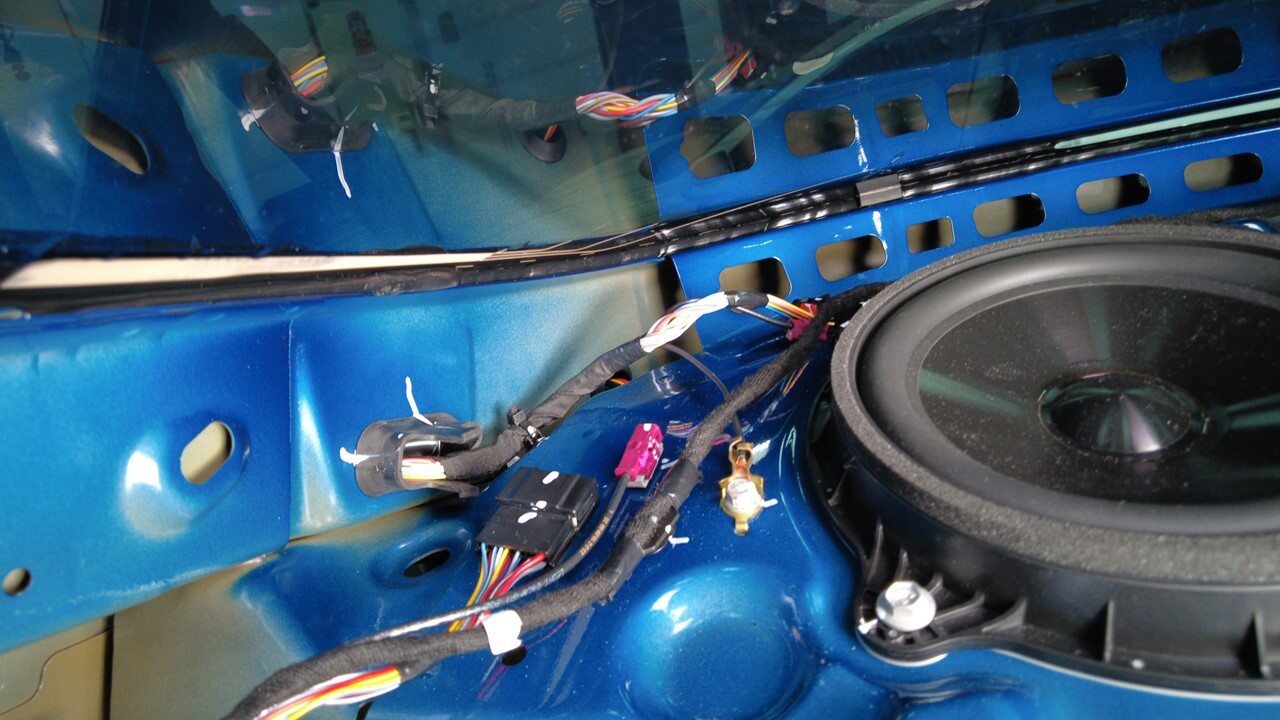

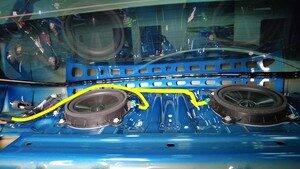

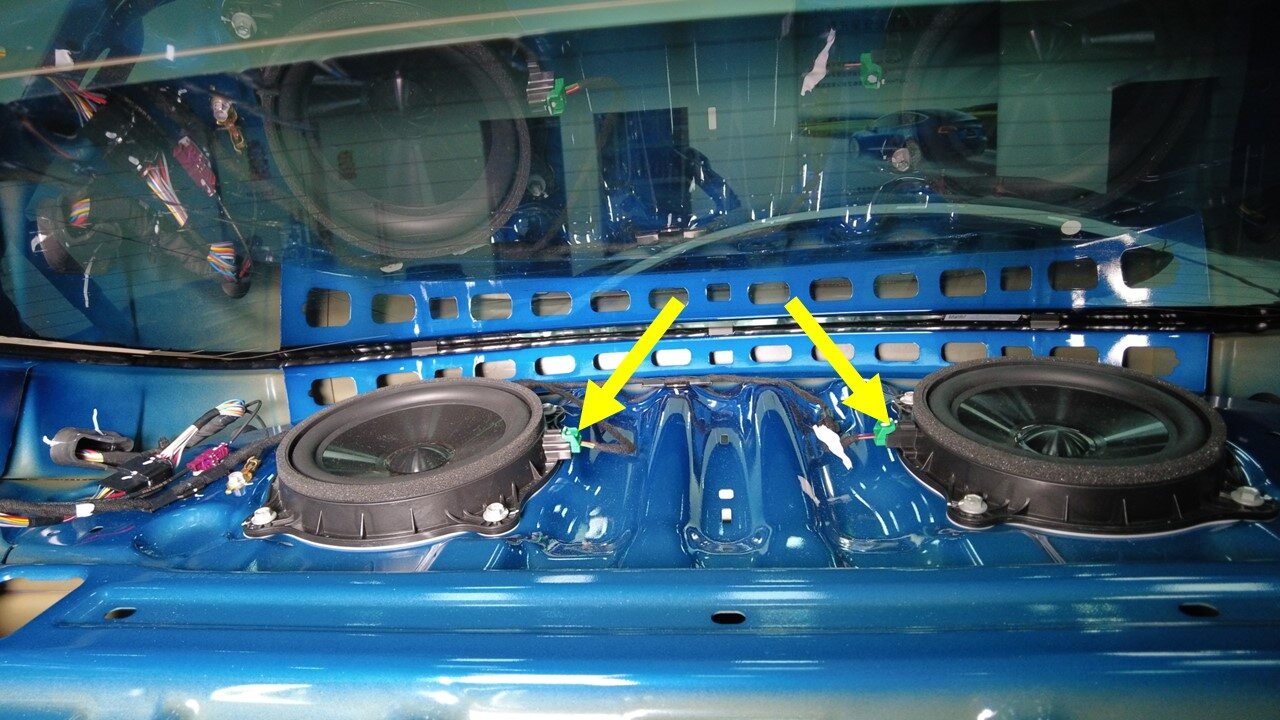

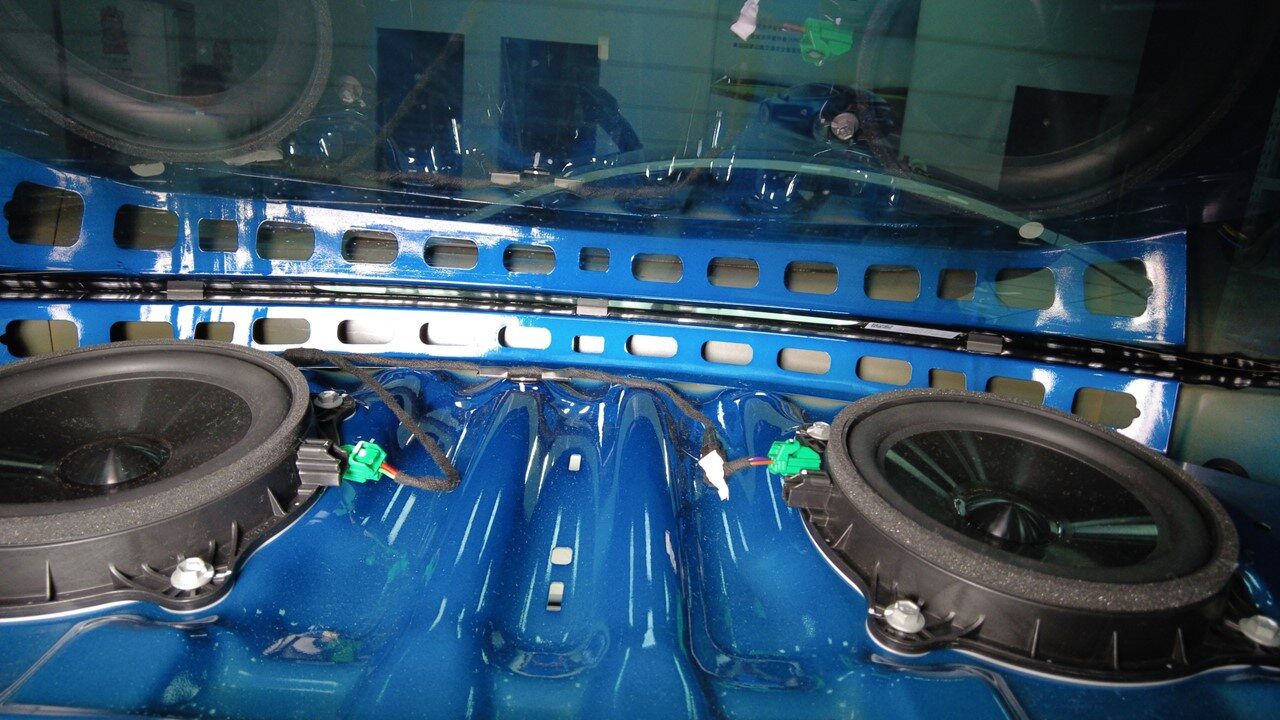

  195. Disconnect LH and RH parcel shelf speaker connectors
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connector

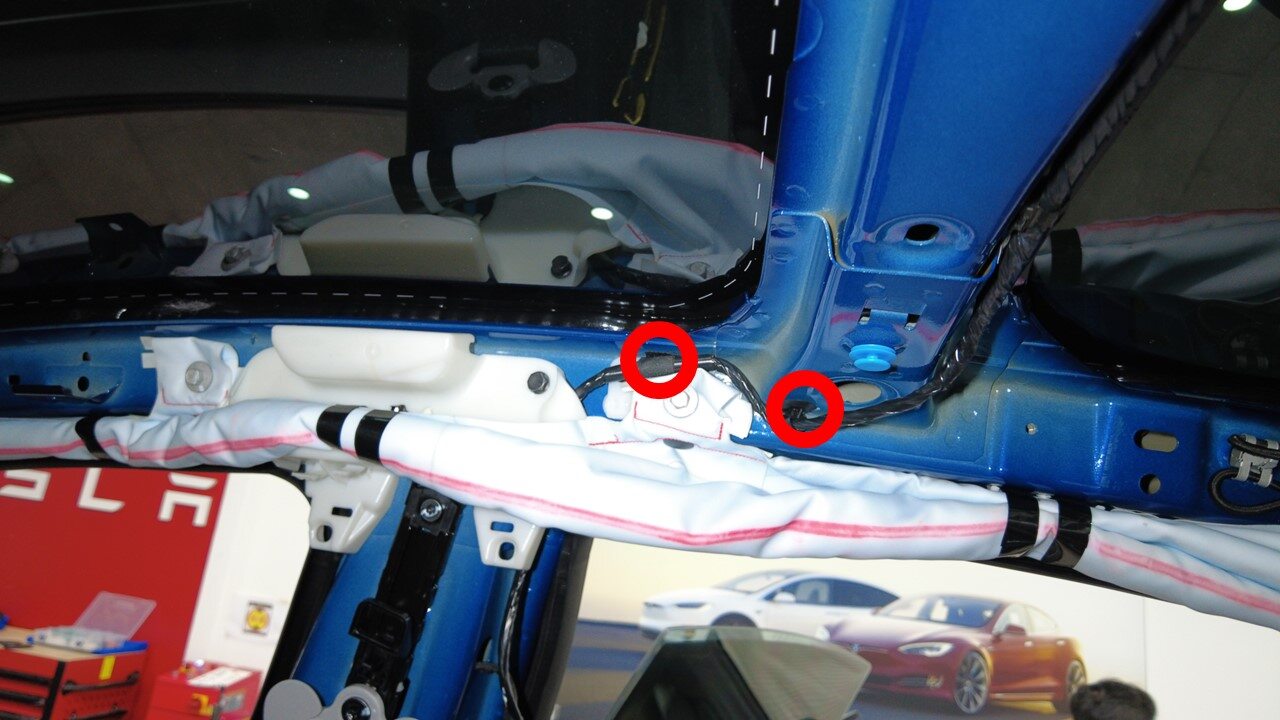

  196. Remove the RH body harness clips around the upper C-pillar area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    10x clips

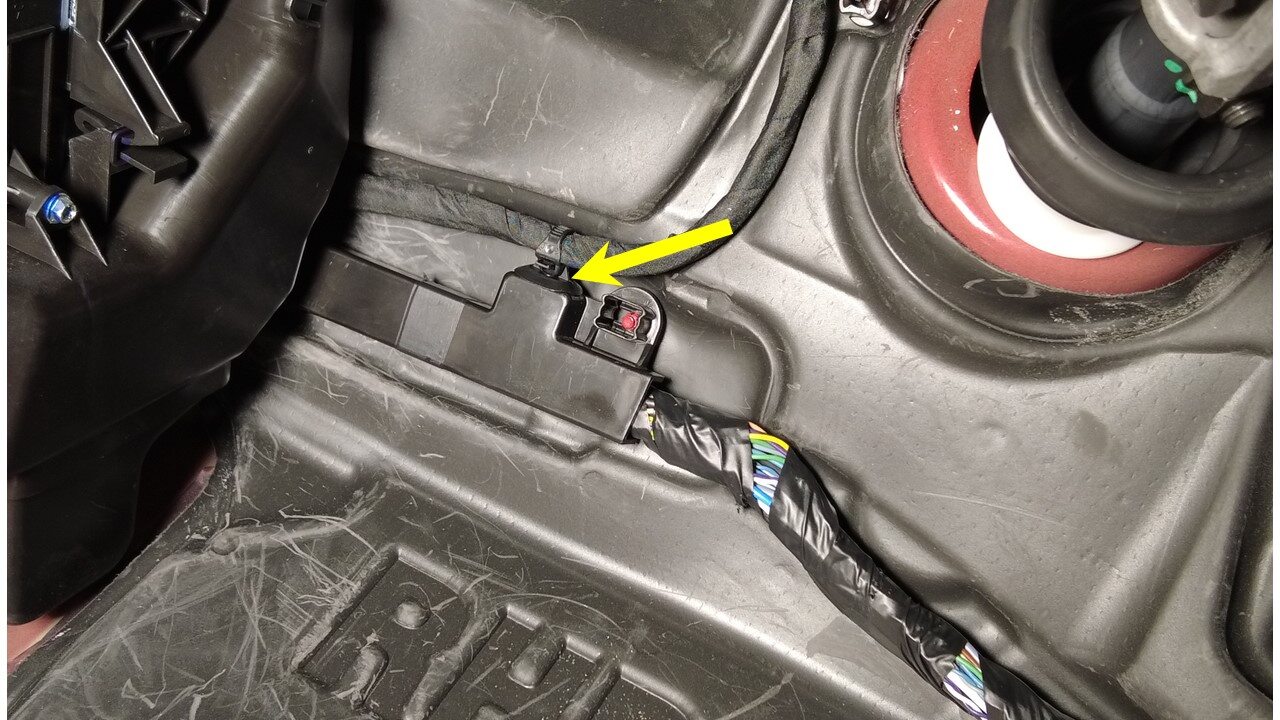

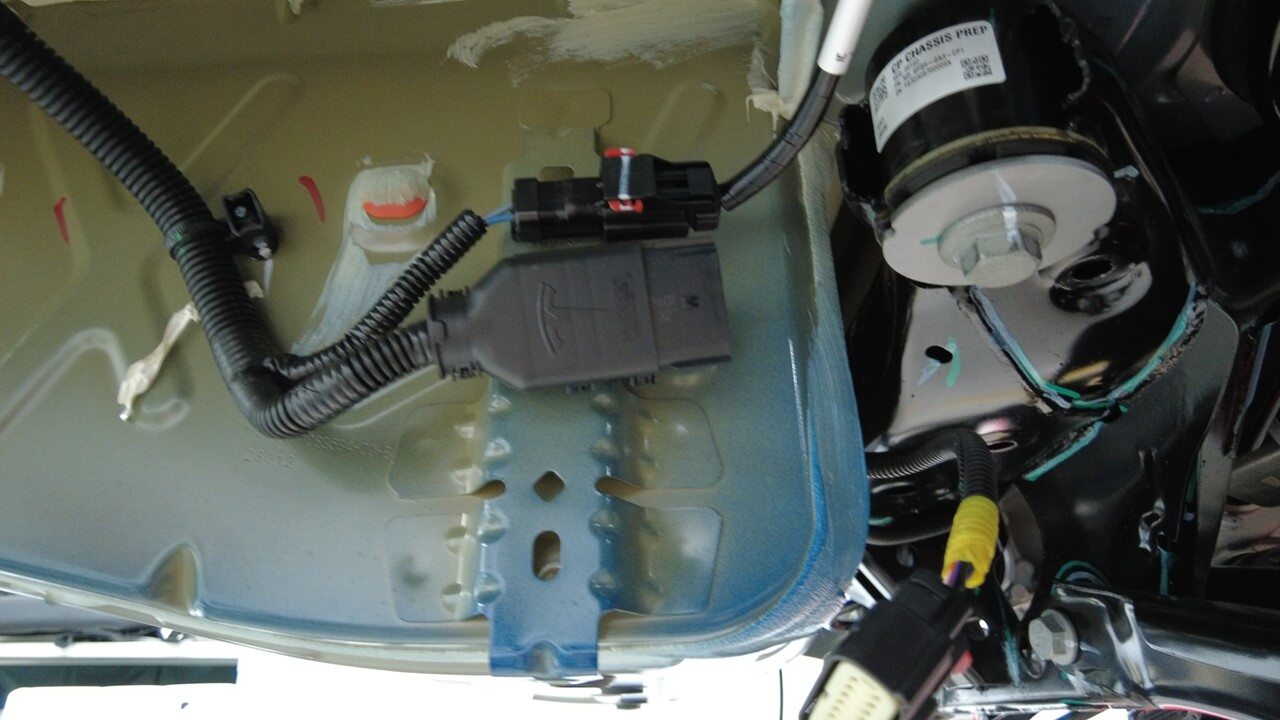

  197. Disconnect RH power strut connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector

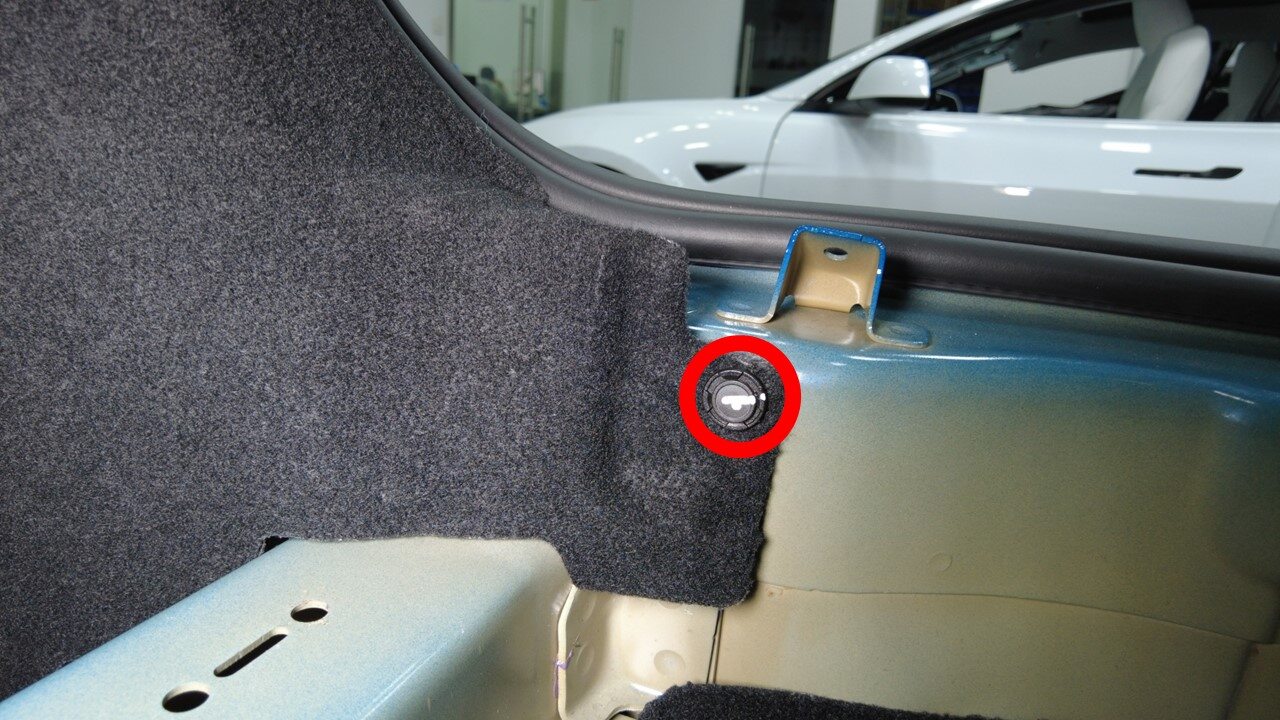

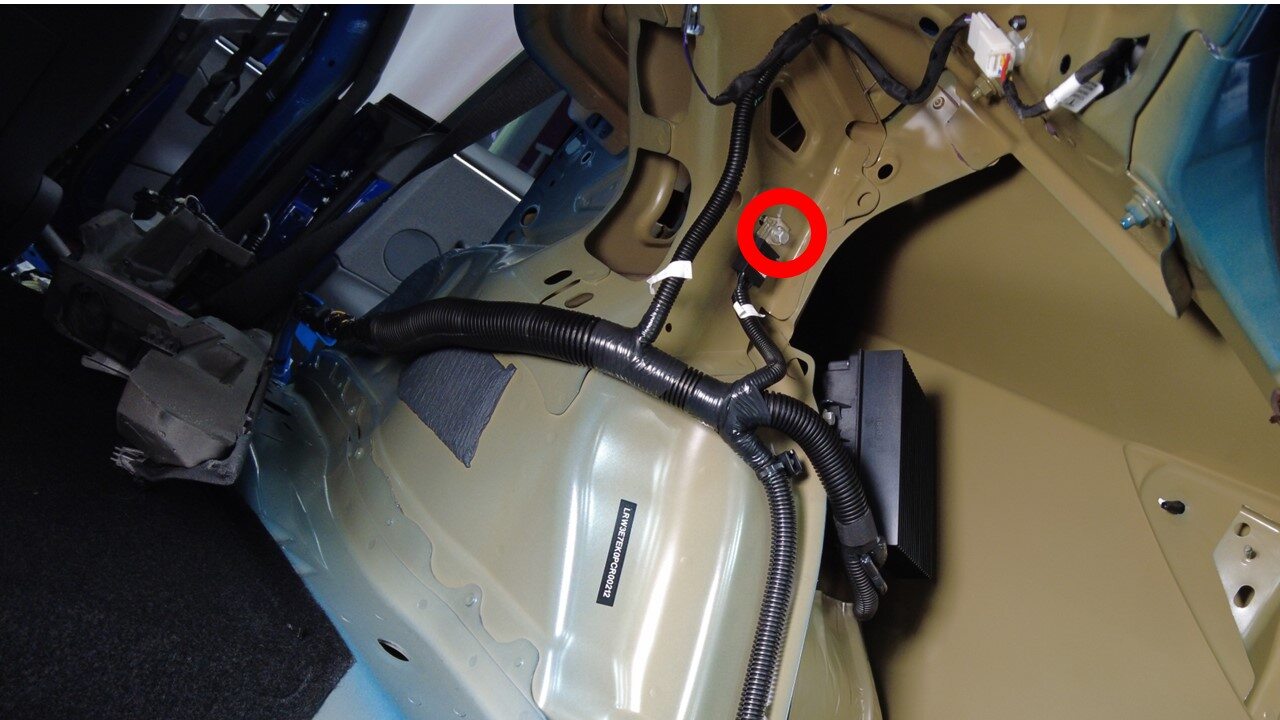

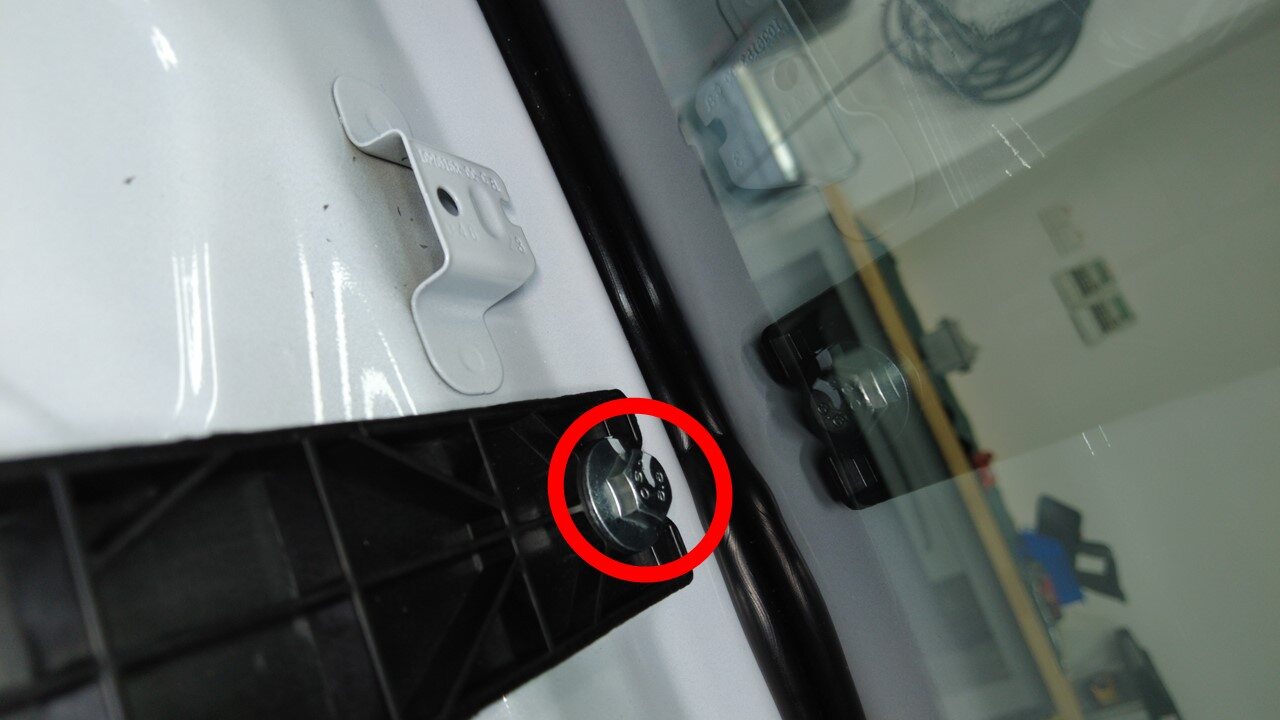

  198. Remove ground strap of body harness in RH area of the trunk
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 10mm, 10 Nm

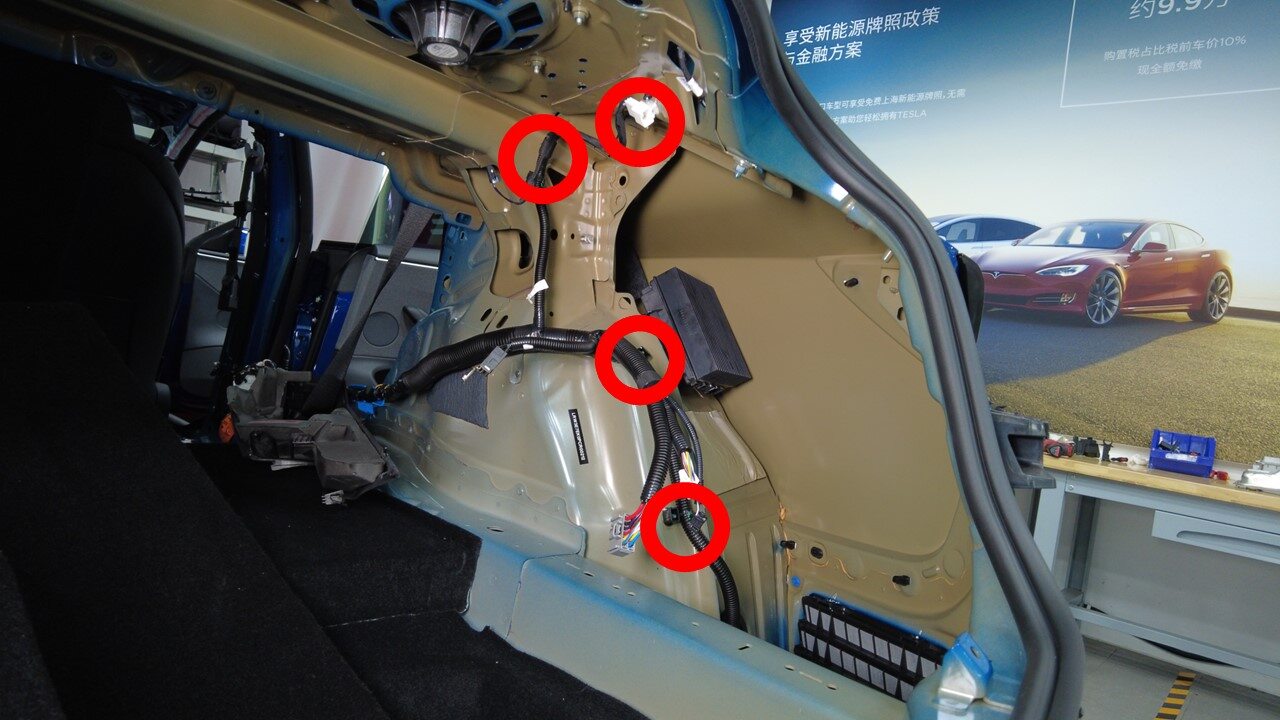

  199. Remove RH body harness clips around RH side of trunk area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector bracket3x harness clips

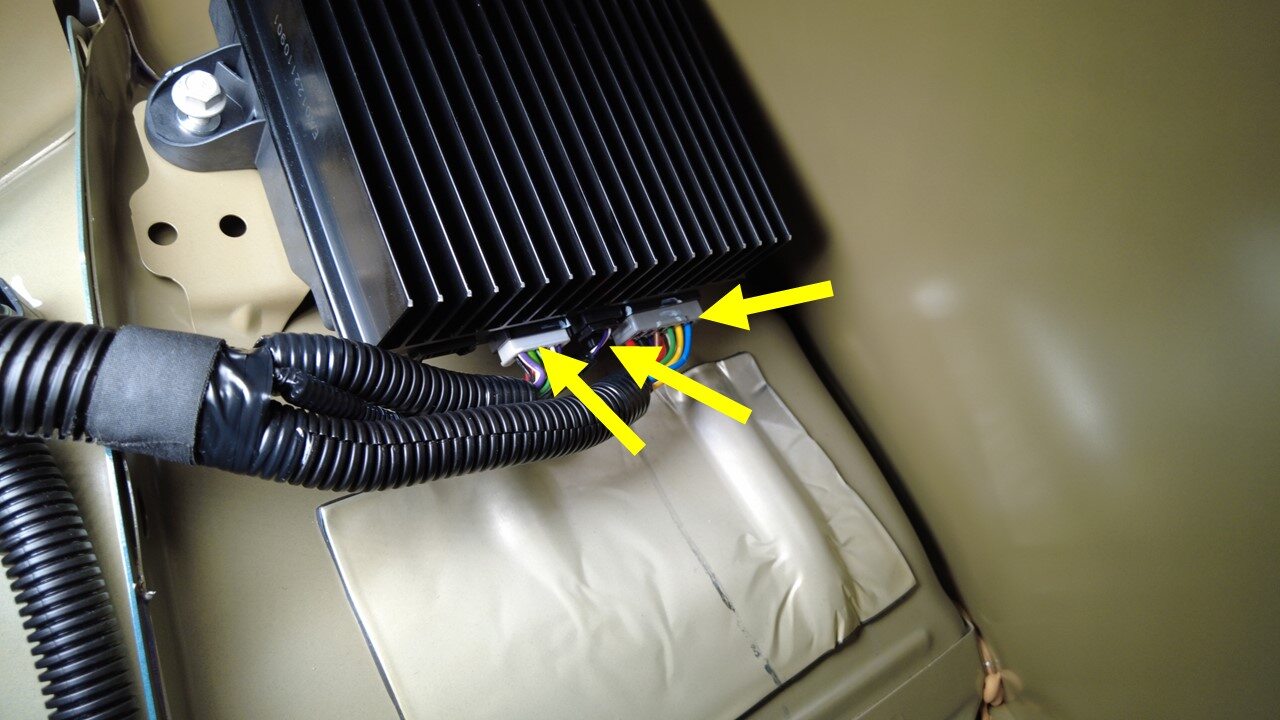

  200. Disconnect connector from RH rear audio amplifier
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x connectors
  201. Remove wheel chocks

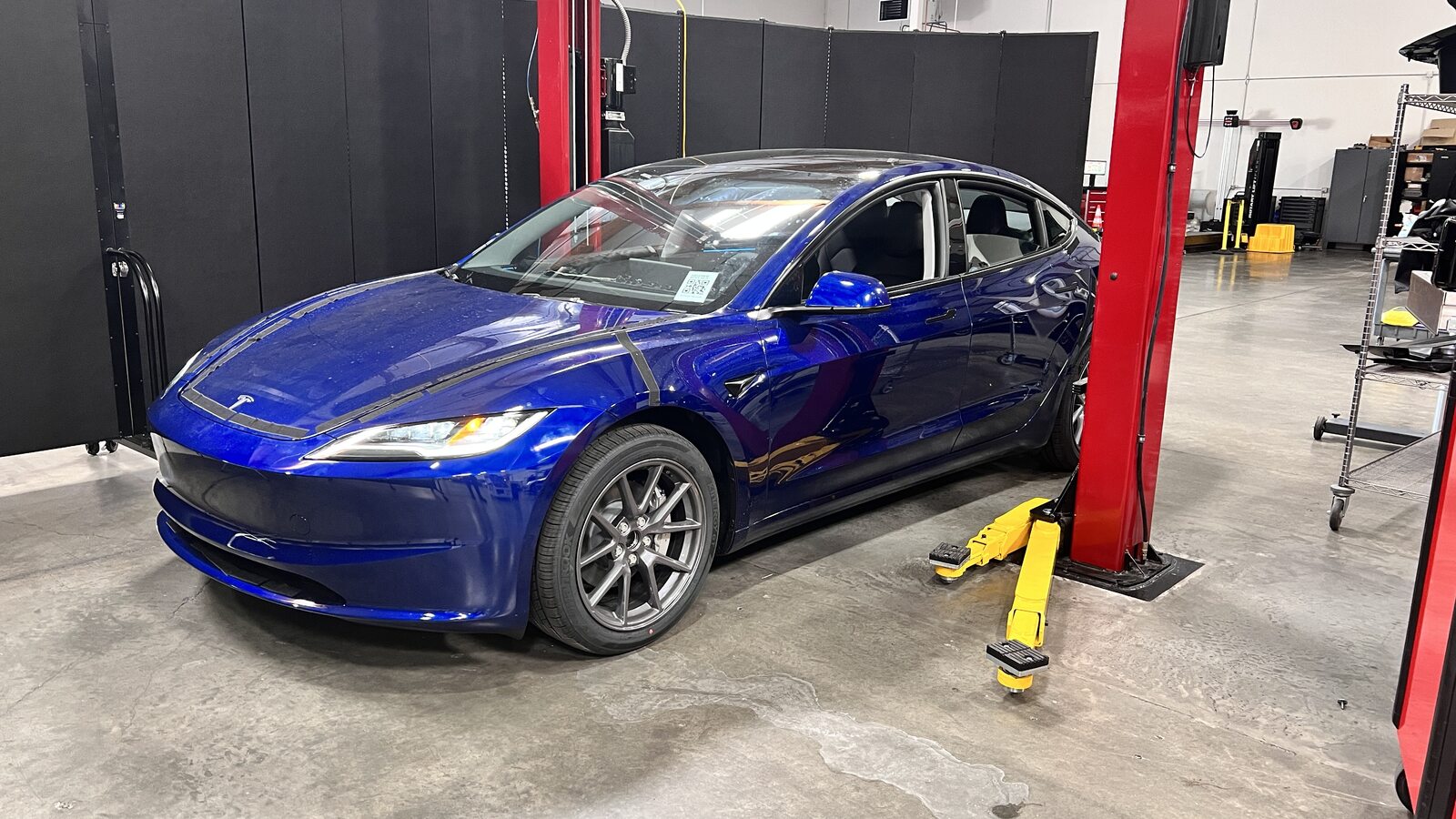

  202. Push vehicle onto lift
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Recommend assistance, Note this vehicle can only be safely pushed for a very short distance and at very slow speed

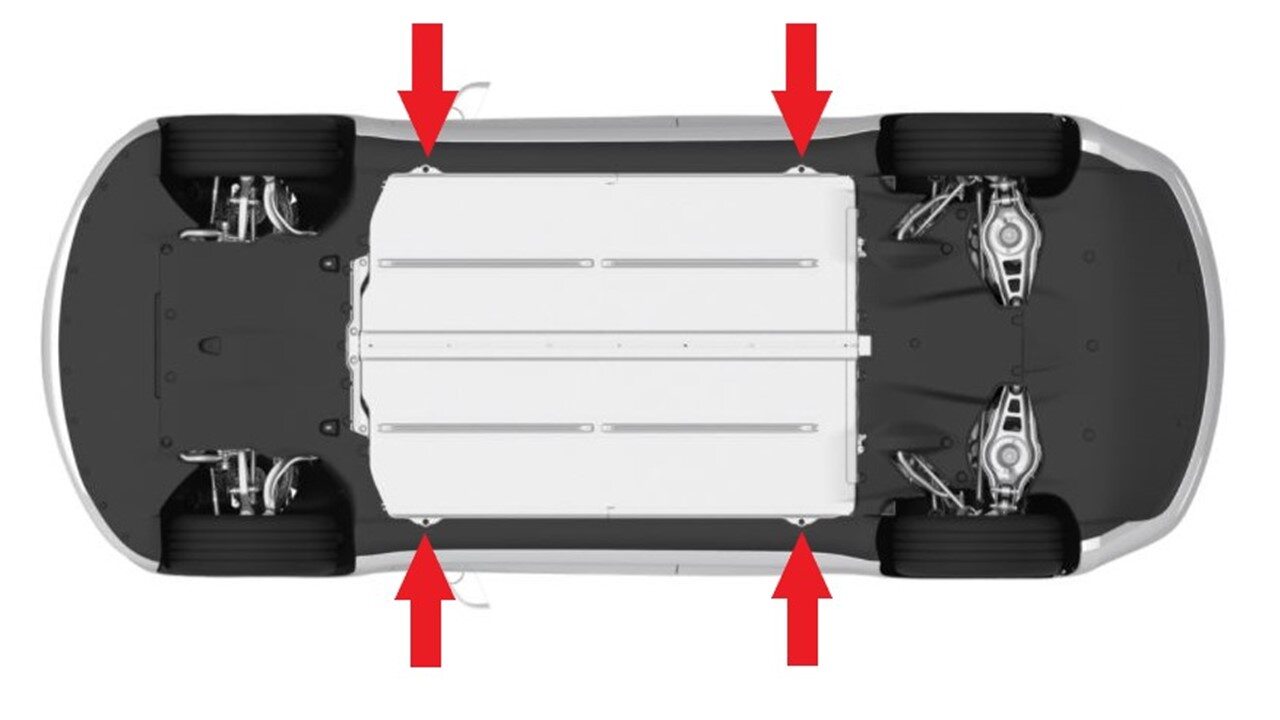

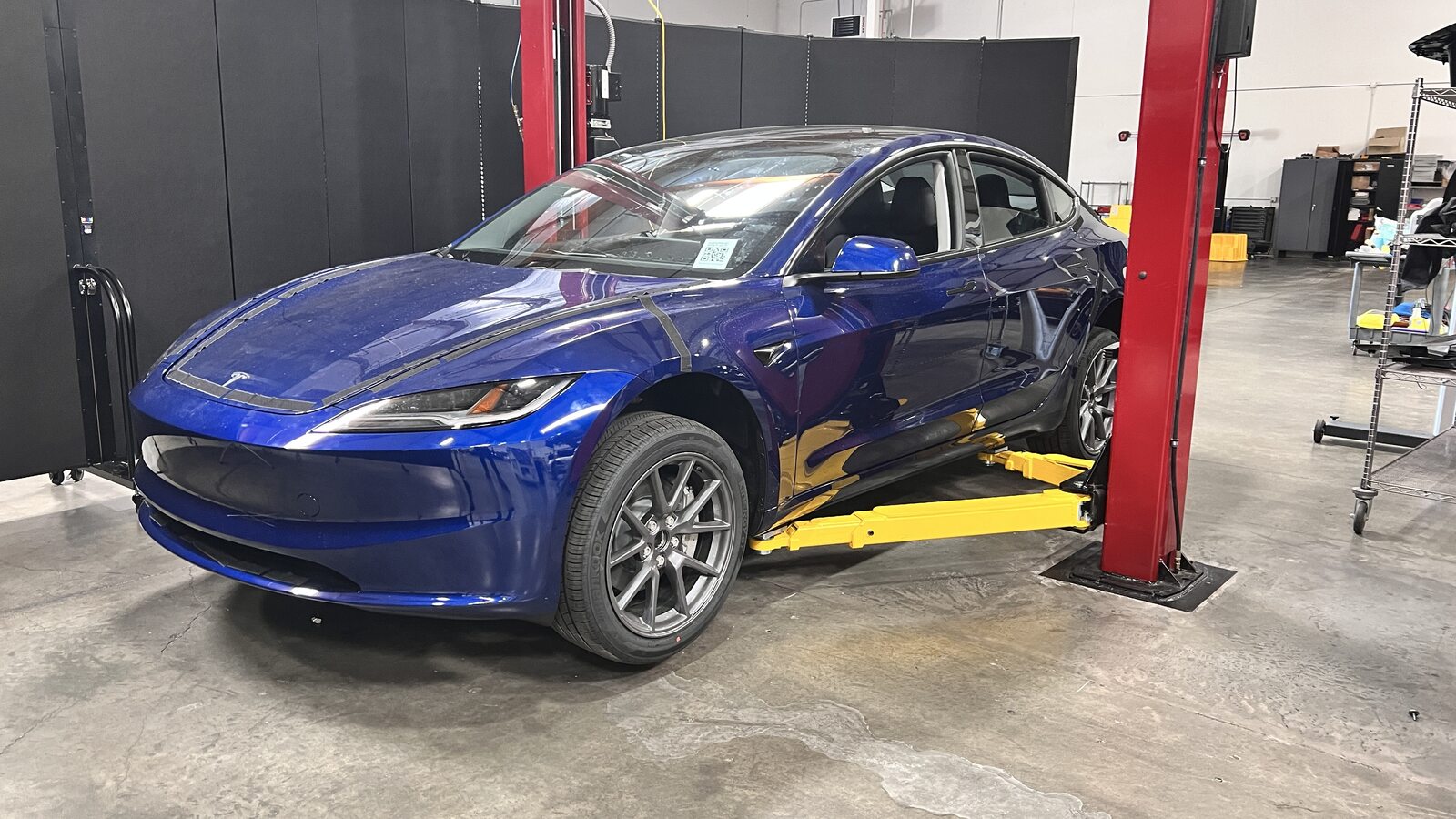

  203. Raise and support vehicle
    Informational PurposesAn informational icon, calling your attention
    Remarque

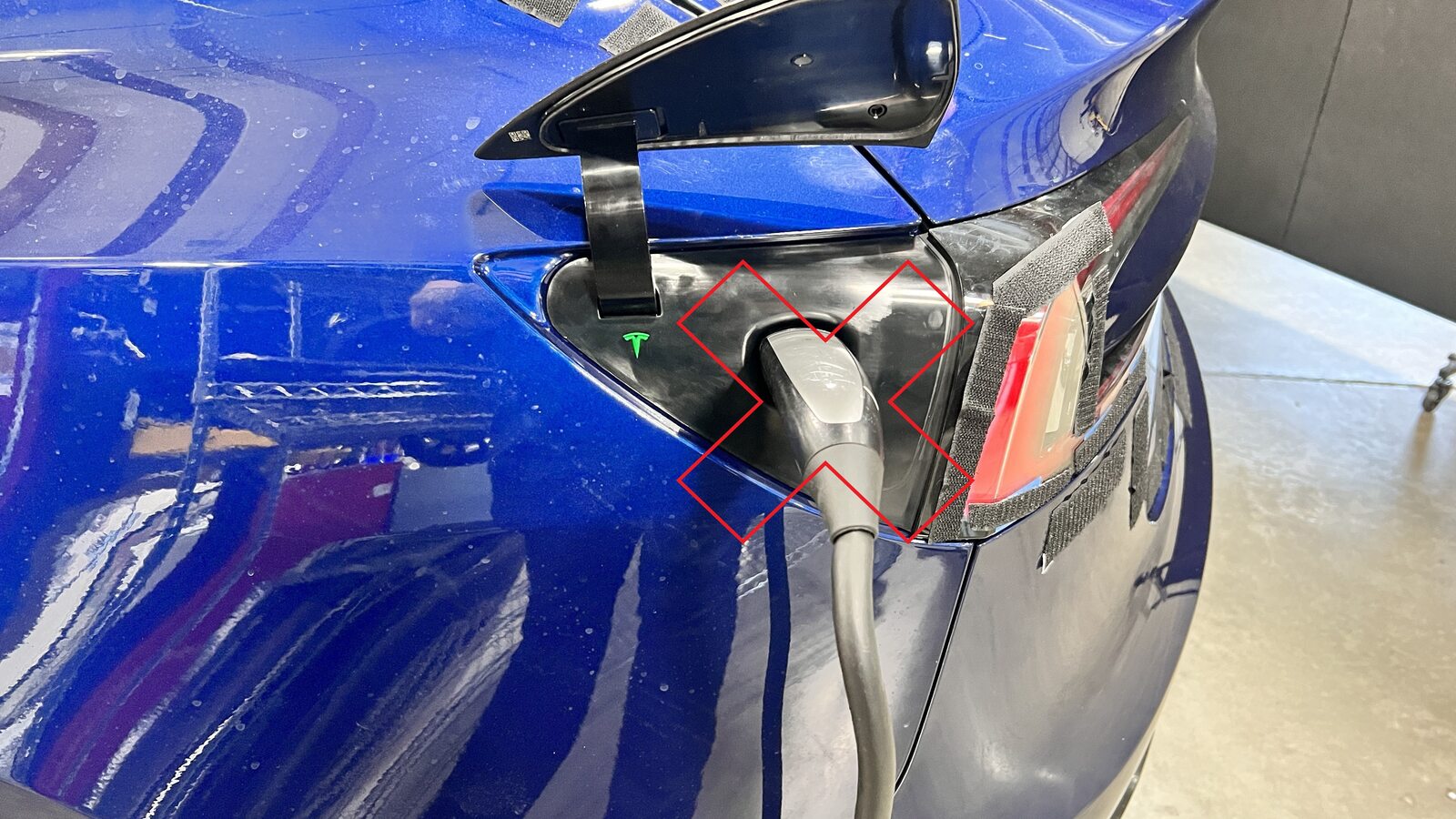

    Ensure vehicle is not charging

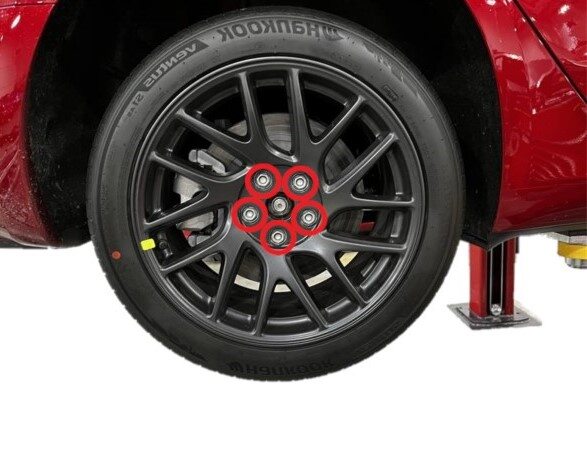

  204. Loosen RH rear wheel nuts
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x nuts, 21mm, 175 Nm

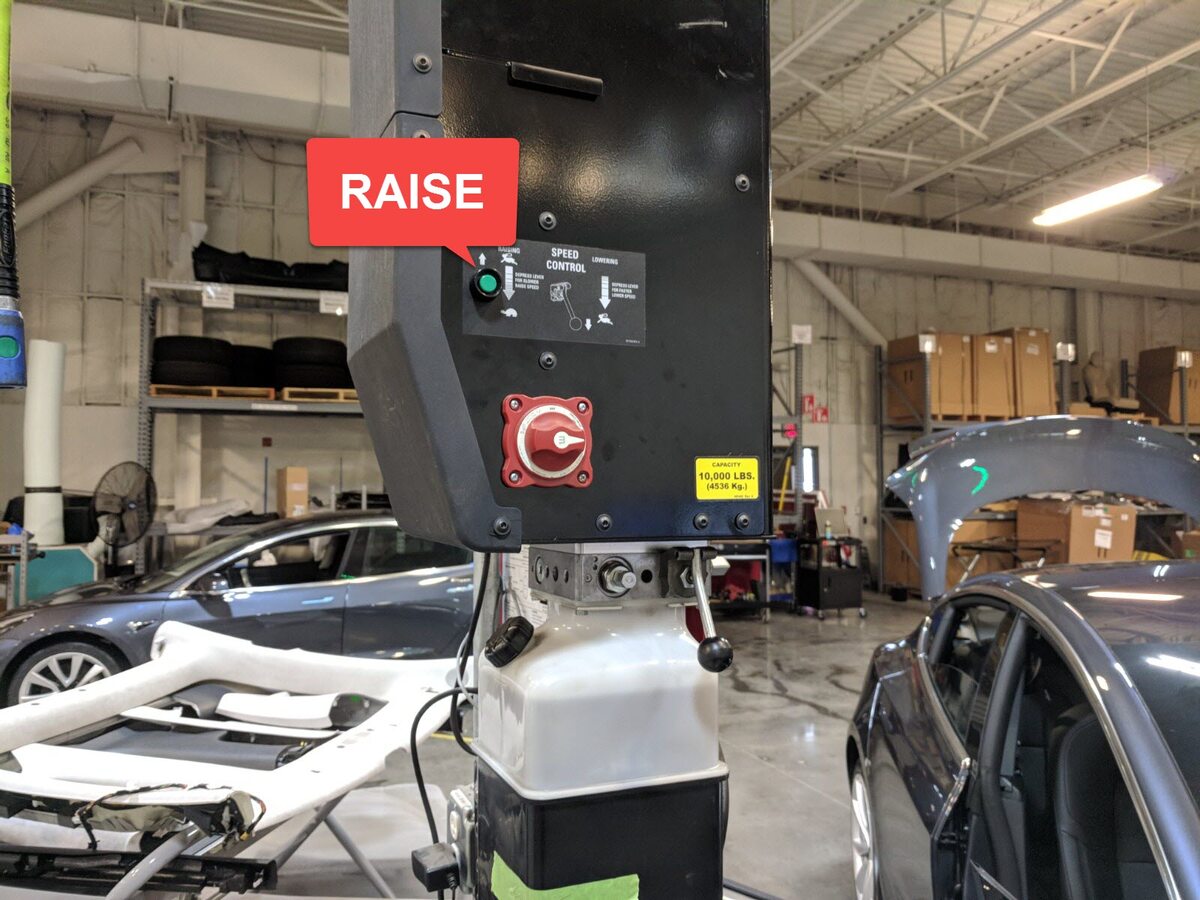

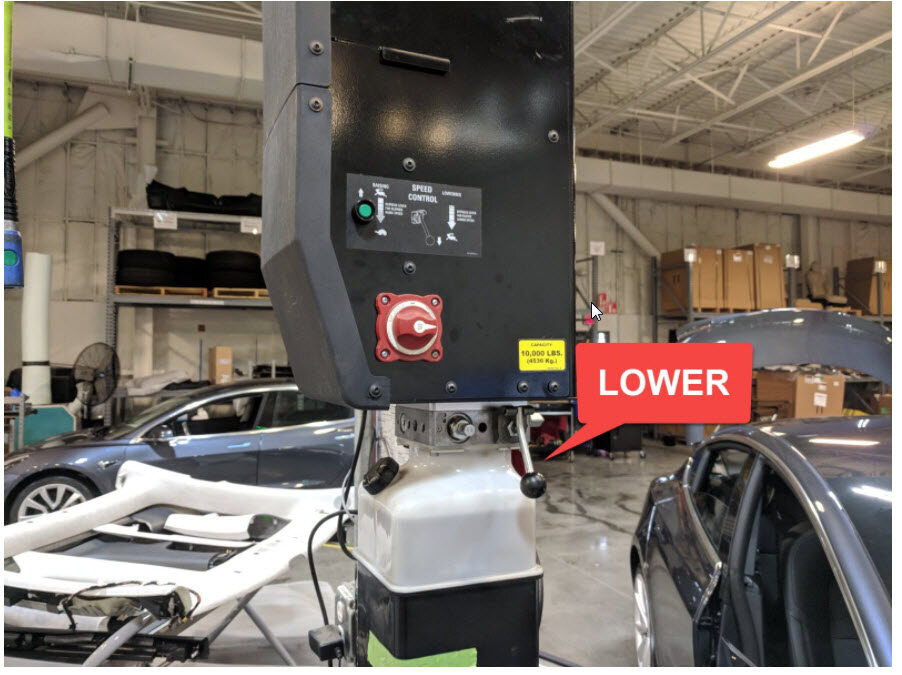

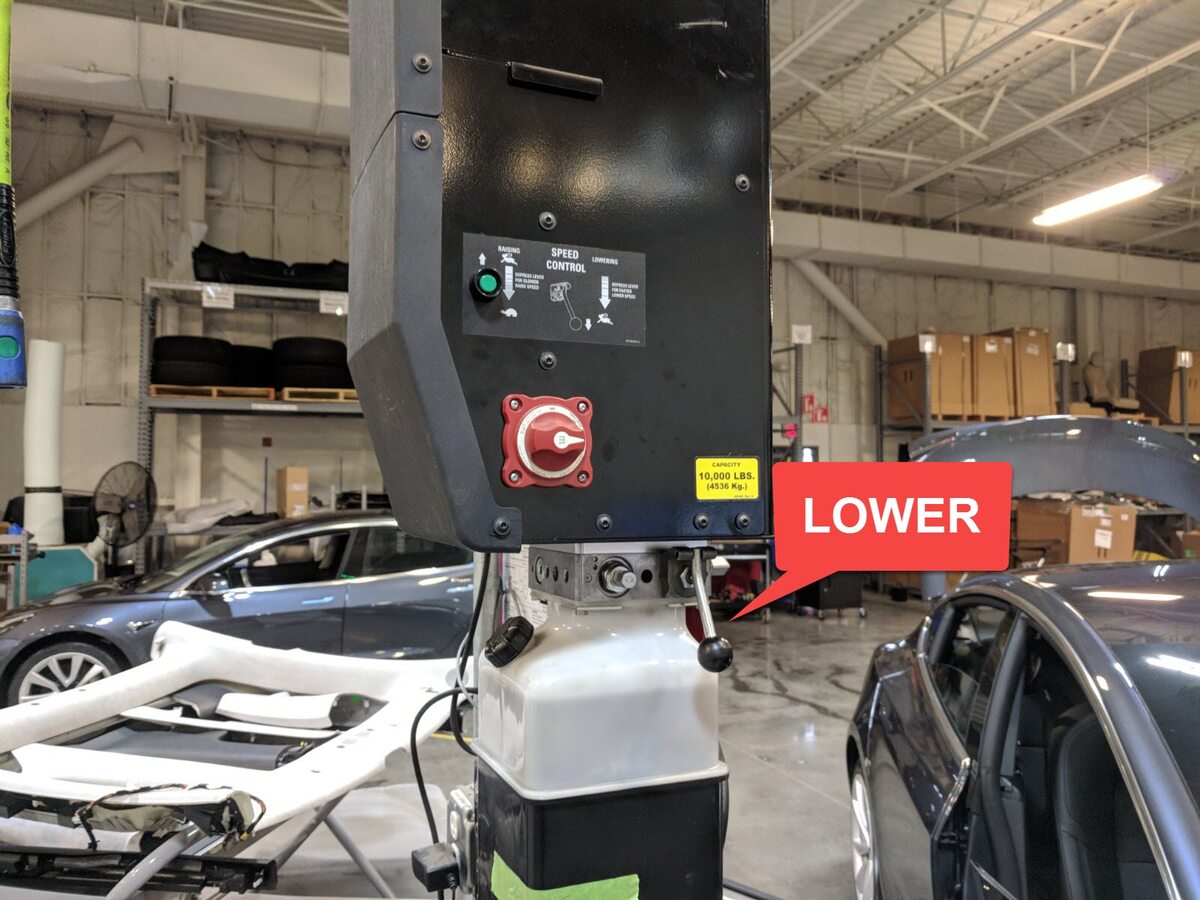

  205. Raise vehicle partially and lower lift onto locks
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Set vehicle to a comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
  206. Remove RH rear wheel
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x nuts, 21mm, 175 Nm

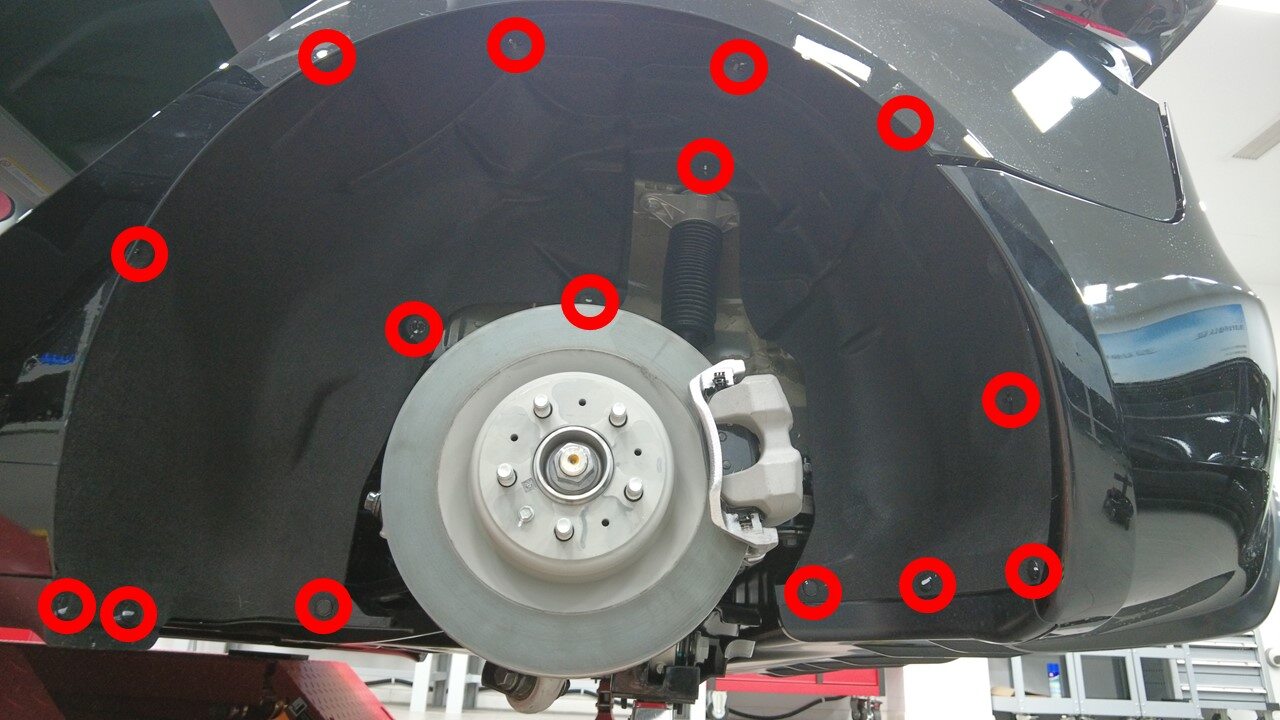

  207. Remove clips securing the RH rear wheel liner to body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    8x push clips, 7x fan clips

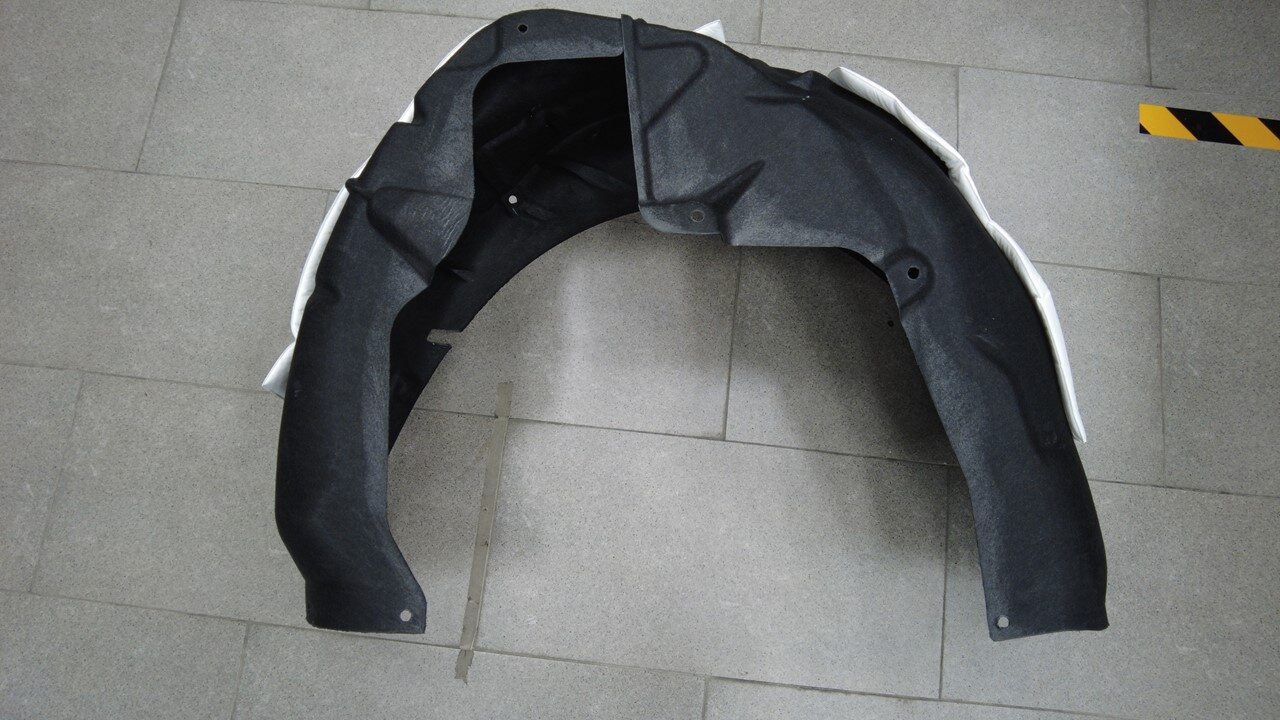

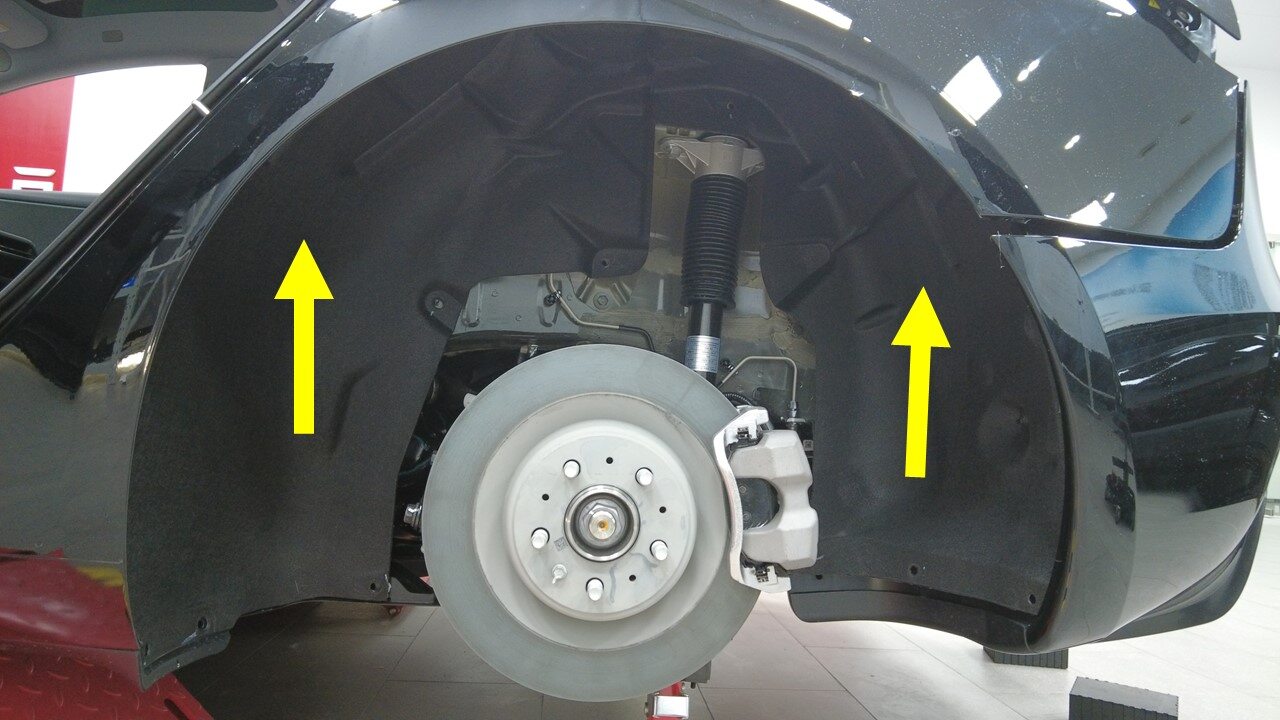

  208. Remove RH rear wheel liner
  209. Disconnect RH side subframe harness connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, Release locking tab

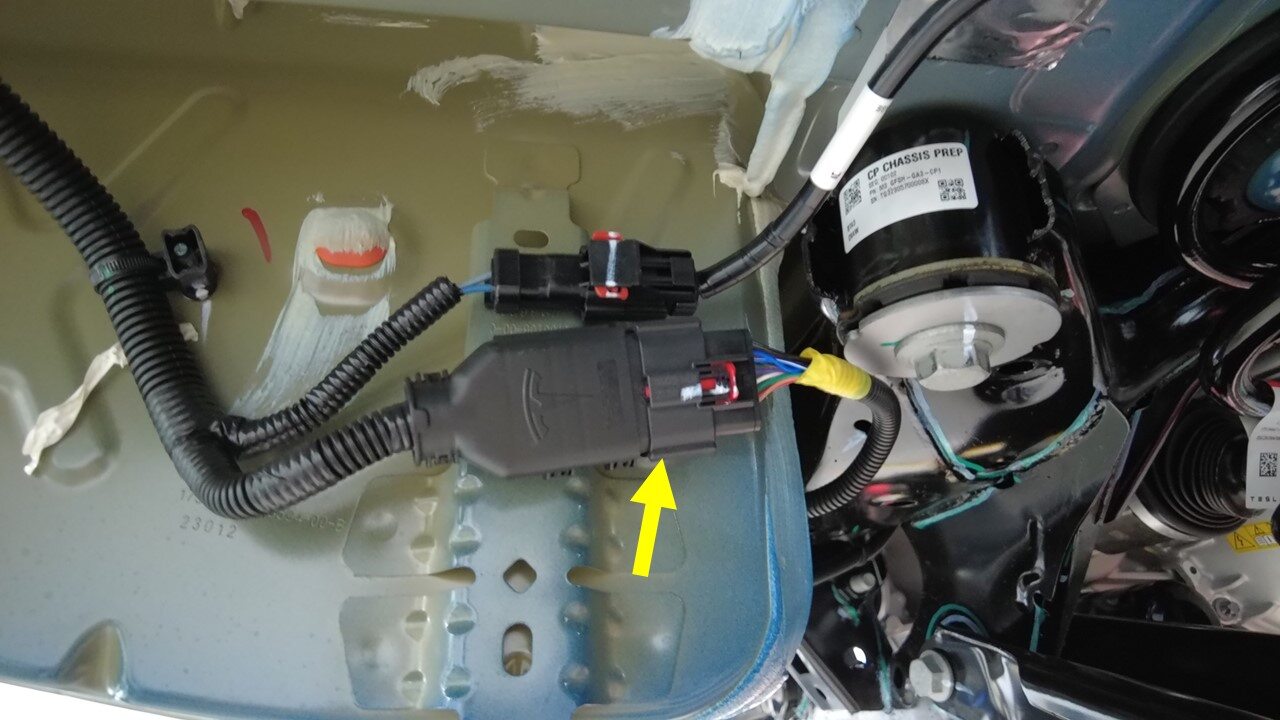

  210. Disconnect RH rear EBP harness from rear main body harness
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, Release locking tab

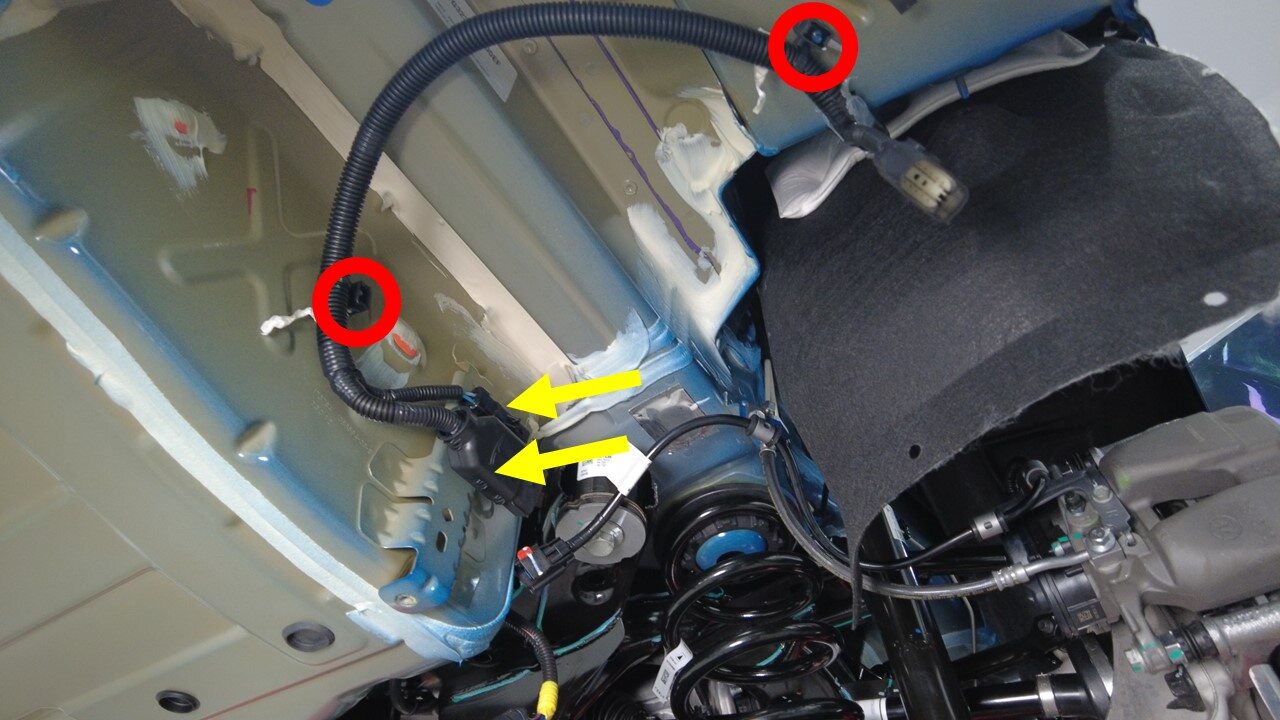

  211. Remove RH body harness clips around RH subwoofer area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x harness clips2x connector bracket
  212. Lower vehicle partially and set lift onto locks
    Informational PurposesAn informational icon, calling your attention
    Remarque

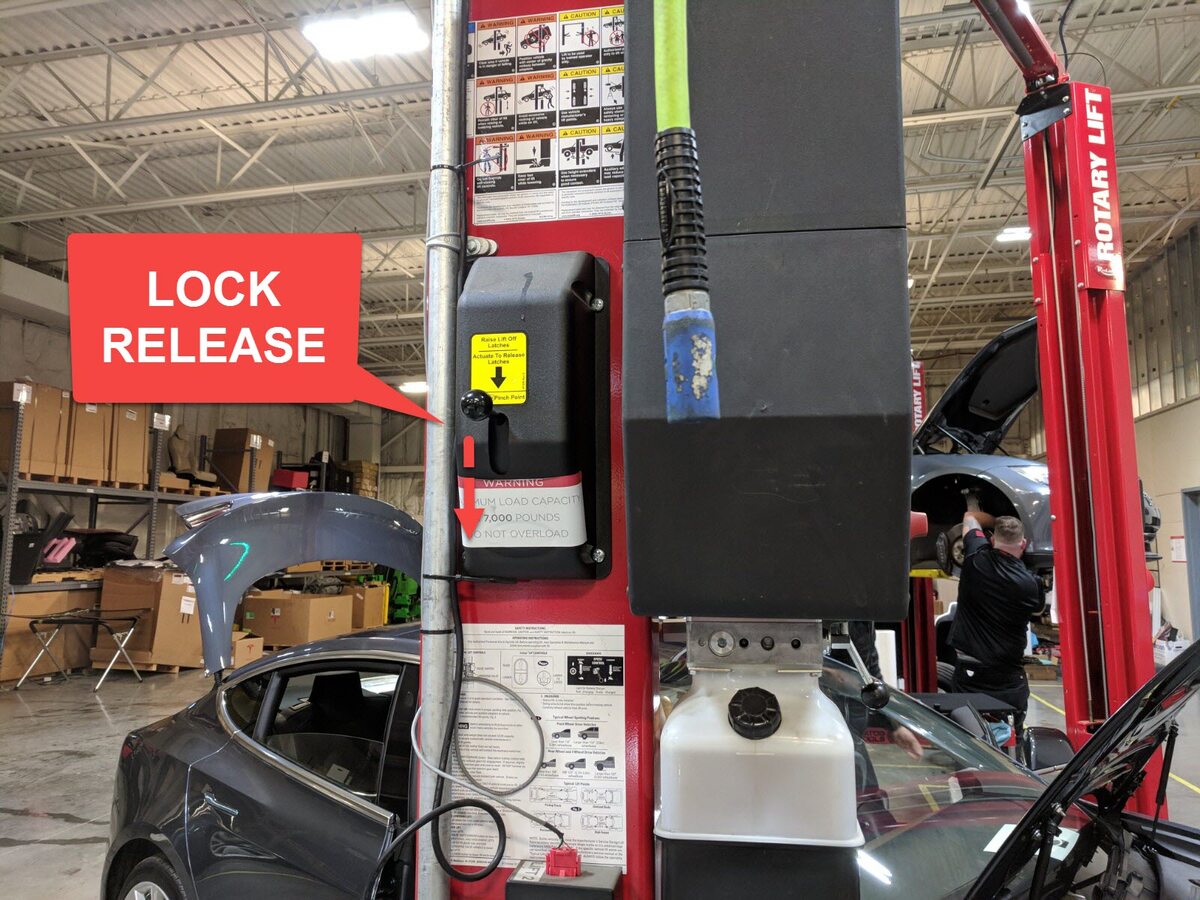

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height

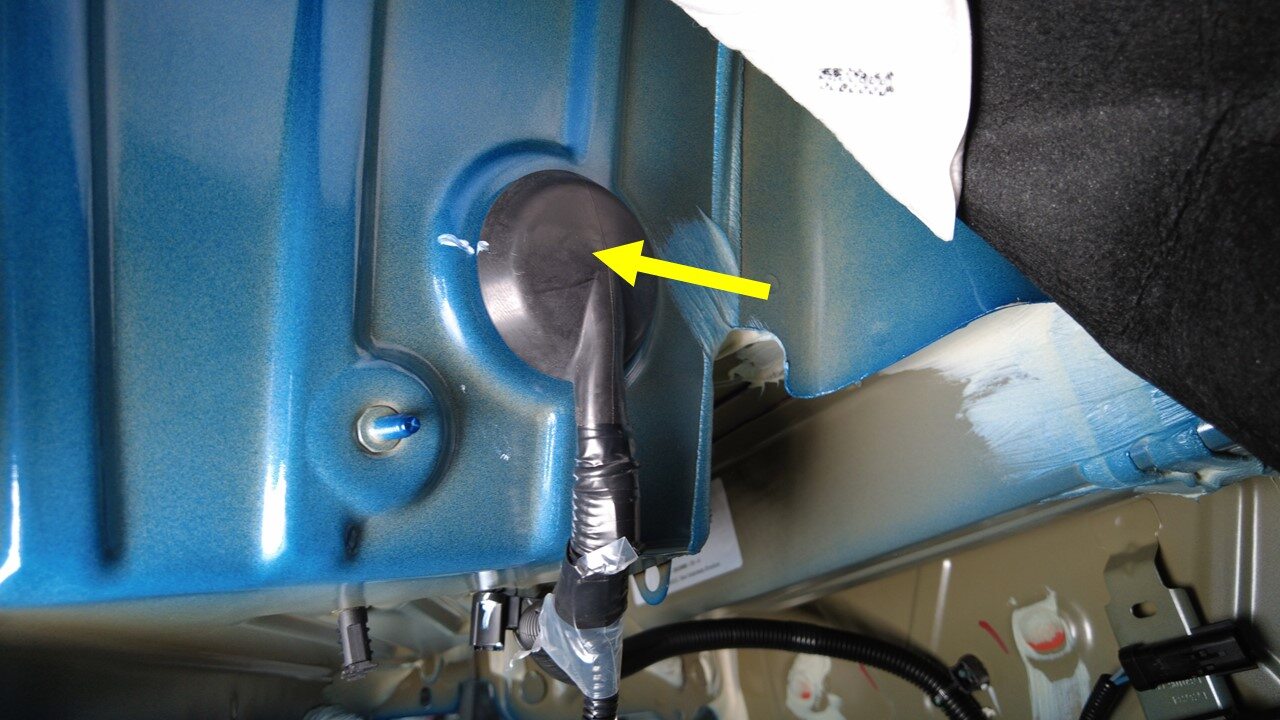

  213. Push grommet through RH side trunk bulkhead and feed harness through
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x grommet, Bulkhead around rear portion RH wheel liner area
  214. Remove RH body wiring harness from vehicle

Installer

  1. Position RH body harness to vehicle for installation
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Layout the position and direction of the new wiring harness on the vehicle for installation

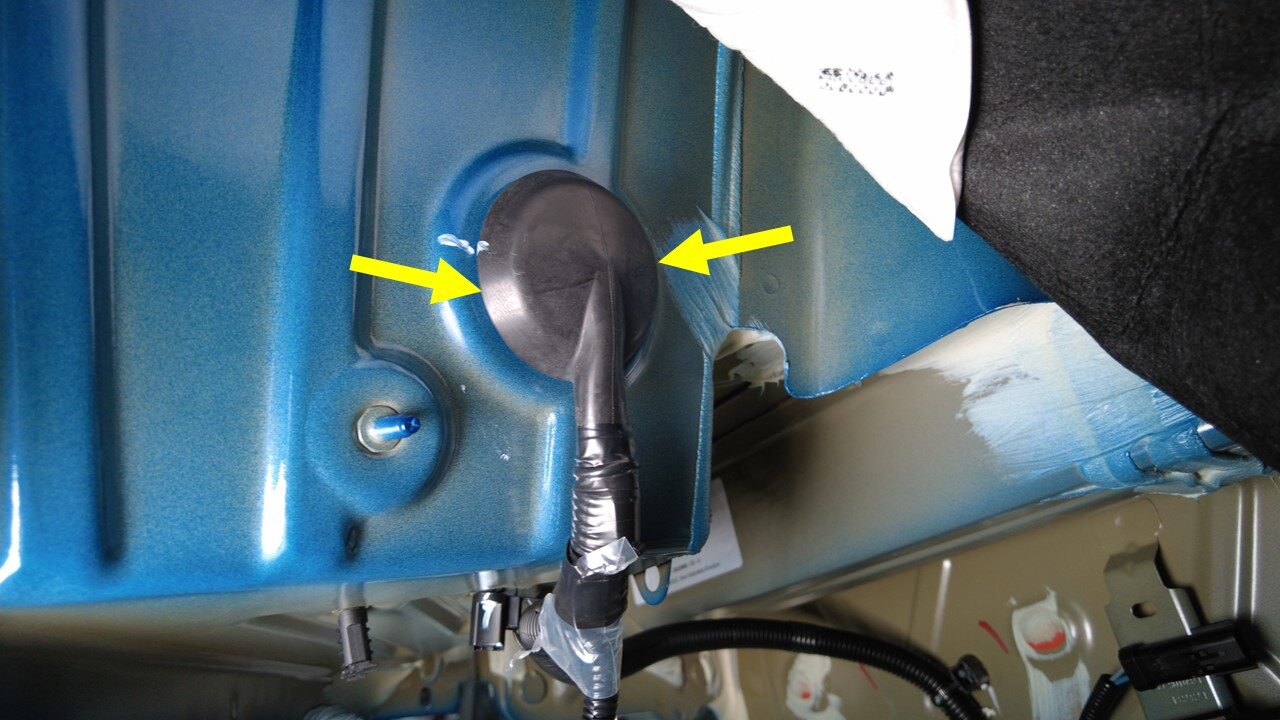

  2. Push rear subframe portion of RH body harness through RH side trunk bulkhead
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Check if the seal is in place after installation
  3. Install RH body harness clips around RH subwoofer area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x harness clips2x connector bracket
  4. Connect RH rear EPB harness to rear main body harness
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, Engage locking tab
  5. Connect RH side subframe harness connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector
  6. Raise vehicle partially and lower lift onto locks
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
  7. Position the RH rear wheel liner for installation
  8. Install the clips securing RH rear wheel liner
    Informational PurposesAn informational icon, calling your attention
    Remarque
    8x push clips, 7x fan clips
  9. Install RH rear wheel
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool
  10. Lower vehicle fully
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
  11. Remove lift arms from below vehicle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Lower rack arms fully and remove them from under vehicle
  12. Torque RH rear wheel
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x nuts, 21mm, 175 Nm
  13. Push vehicle away from lift
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Recommend assistance, Note this vehicle can only be safely pushed for a very short distance and at very slow speed, Chock wheels.
  14. Place wheel chocks to keep vehicle from moving
  15. Connect connector on rearRH audio amplifier
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x connectors
  16. Install RH body harness clips around RH side of trunk area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector bracket3x harness clips
  17. Install ground strap of body harness in RH area of the trunk
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 10mm, 10 Nm
  18. Connect RH power strut connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector
  19. Install RH body harness clips around the upper C-pillar area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    10x clips
  20. Connect LH and RH parcel shelf speaker
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors
  21. Install trunk harness connectors bracket under package tray area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connector bracket
  22. Connect the trunk harness connectors under package tray area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors
  23. Connect RH antenna filter harness connector to RH connector to antenna grid
  24. Connect harness connector for RH side curtain airbag
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector,Press the connector. When the connector is fully seated, you will hear the click sound of the secondary locking pin returning
  25. Connect RH 2nd row seat belt retractor connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, 2 stage locking connectors, Press the connector. When the connector is fully seated, you will hear the click sound of the secondary locking pin returning
  26. Install RH body harness clips around lower C-pillar area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x clips
  27. Secure RH rear right seatbelt buckle harness to vehicle body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x clips
  28. Connect RH rear seat belt buckle connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector
  29. Connect 40 seat back heater harness
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector
  30. Install positive LV output
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 13mm, 9 Nm, Make sure rubber boot is not pinched between cable terminal and pass through
  31. Install positive LV output cover to PCS cable
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x cover
  32. Remove logic cap and connect HVC logic connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, 1x cap, Align connector then pull the handle to locking position get connector fully seated
  33. Install the RH body harness clips to B-pillar area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    7x clips
  34. Connect RH body harness to TCU
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors, secure locking tab
  35. Secure RH upper B-pillar bracket to body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts 10mm2.5 Nm
  36. Install the RH body harness ground strap around lower B-pillar
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 10mm, 10 Nm
  37. Connect B-pillar camera and RH antenna connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors, Secure red locking tab after installing connector
  38. Secure RH B-pillar applique to vehicle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x clip, 2x tabs, Align B-Pillar applique into position and secure clips into body, Use caution not to damage the connectors
  39. Install bolts securing RH B-pillar applique to body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 8mm, 5 Nm
  40. Install the RH B-pillar applique fasteners cover
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x clips, Push clips into body
  41. Install clip securing the RH rear main carpet to vehicle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x clip
  42. Install RH body harness clips from B-pillar area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x clips

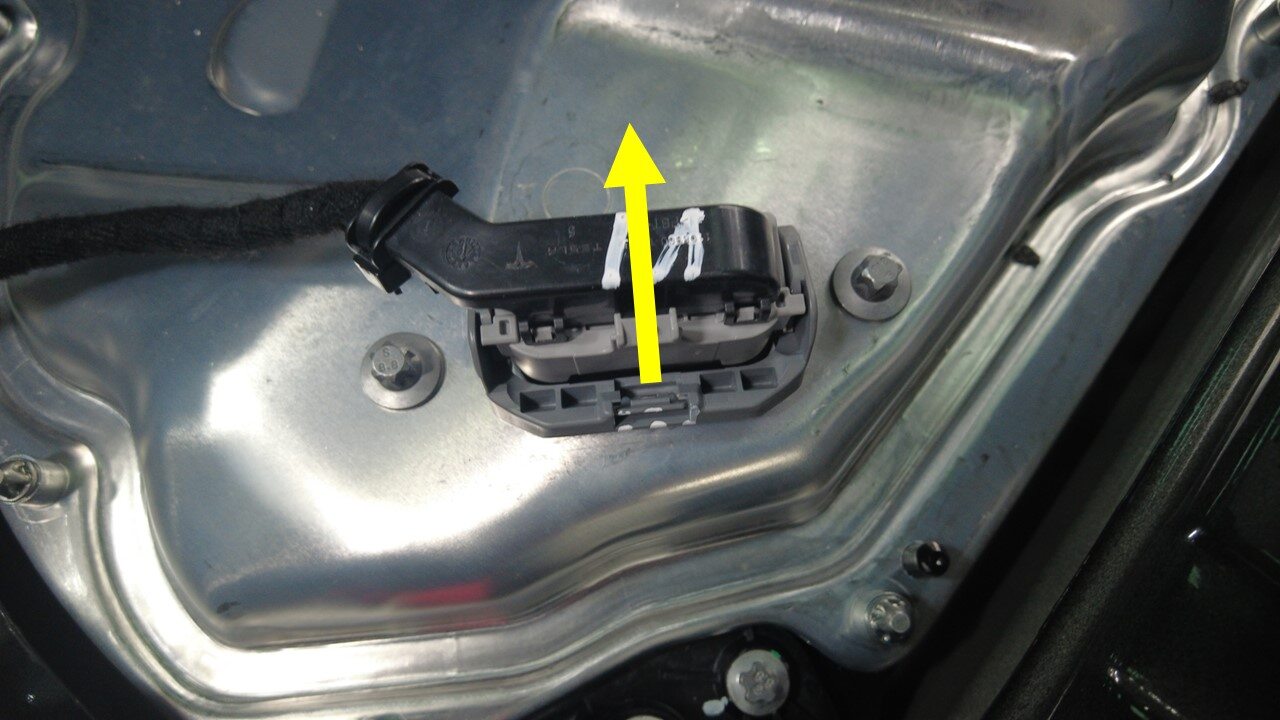

  43. Connect RH body harness connector to RH rear door harness connector B-pillar area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector
  44. Connect RH B-pillar impact accelerometer sensor connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector
  45. Make connections to RH retractor
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors,Press the connector. When the connector is fully seated, you will hear the click sound of the secondary locking pin returning Installing connector, place retriever in B-pillar
  46. Install bolt securing RH retractor to base of B-pillar
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x patch bolt, 15mm, 40 Nm, Install new patch bolt
  47. Install harness retaining bracket to RH B pillar body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector bracket
  48. Connect the LH harness connectors around RH lower B-pillar area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x connectors， Connect the connector and push in the red locking tab
  49. Install RH body harness clips along RH front sill area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x clip
  50. Connect connectors from harness clip at RH lower A-pillar area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x connectors
  51. Secure harness clip to RH body controller
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x clip
  52. Connect connector to right body harness
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector
  53. Connect DCDC positive cable to right body harness
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector,1x clip Connect the connector and push in the red locking tab
  54. Connect J4 connector to RH body controller
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, J4, Fully seat connector then engage lock
  55. Connect J2 connector to RH body controller
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, J2, Fully seat connector then engage lock
  56. Connect J5 connector to RH body controller
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, J5
  57. Connect J12 connector to RH body controller
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, J12
  58. Connect seat connector to RH body controller
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, 1x locking tab, J9
  59. Secure RH body harness to RH body controller and A-pillar
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x clips
  60. Install the right body wiring harness to the vehicle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Thread the right body harness through the HVAC and center floor gap to the left side of the vehicleSecure the plug to the wire harness using adhesive tape
  61. Secure the body wiring harness to the vehicle floor
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x Clips
  62. Secure the wiring harness to the center floor
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x clips
  63. Connect RH side connectors
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x connectors
  64. Install harness connectors on left side of car computer
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x connectors
  65. Remove inflatable bags
  66. Install bolts securing RH cross car beam to body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 15mm, 29 Nm
  67. Install bolts securing LH cross car beam to body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 15mm, 29 Nm
  68. Torque bolt securing cross car beam to upper cowl
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolts, 13mm, 25 Nm

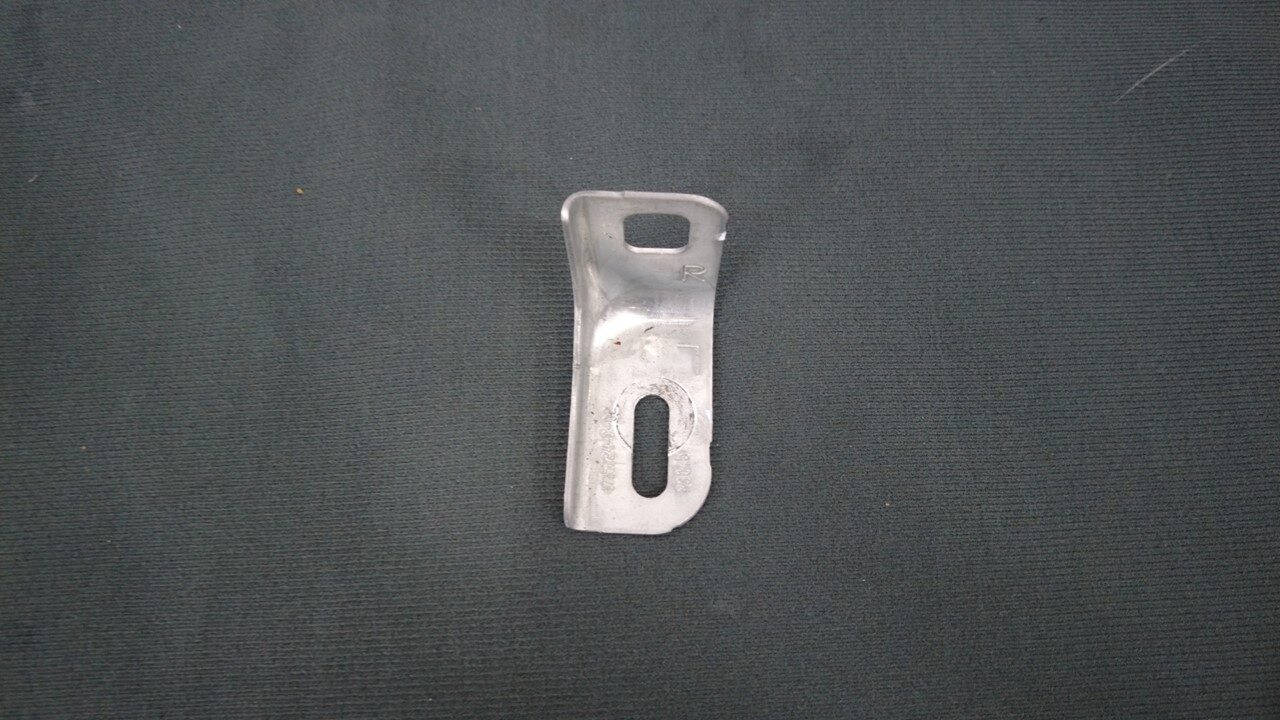

  69. Position RH cross car beam bracket to vehicle for installation
  70. lnstall bolt securing RH cross car beam bracket to cross car beam
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 13mm, 25 Nm
  71. lnstall nut securing RH cross car beam bracket to body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 13mm, 25 Nm
  72. Position LH cross car beam bracket to vehicle for installation
  73. lnstall bolt securing LH cross car beam bracket to cross car beam
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 13mm, 25 Nm
  74. lnstall nut securing LH cross car beam bracket to body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 13mm, 25 Nm

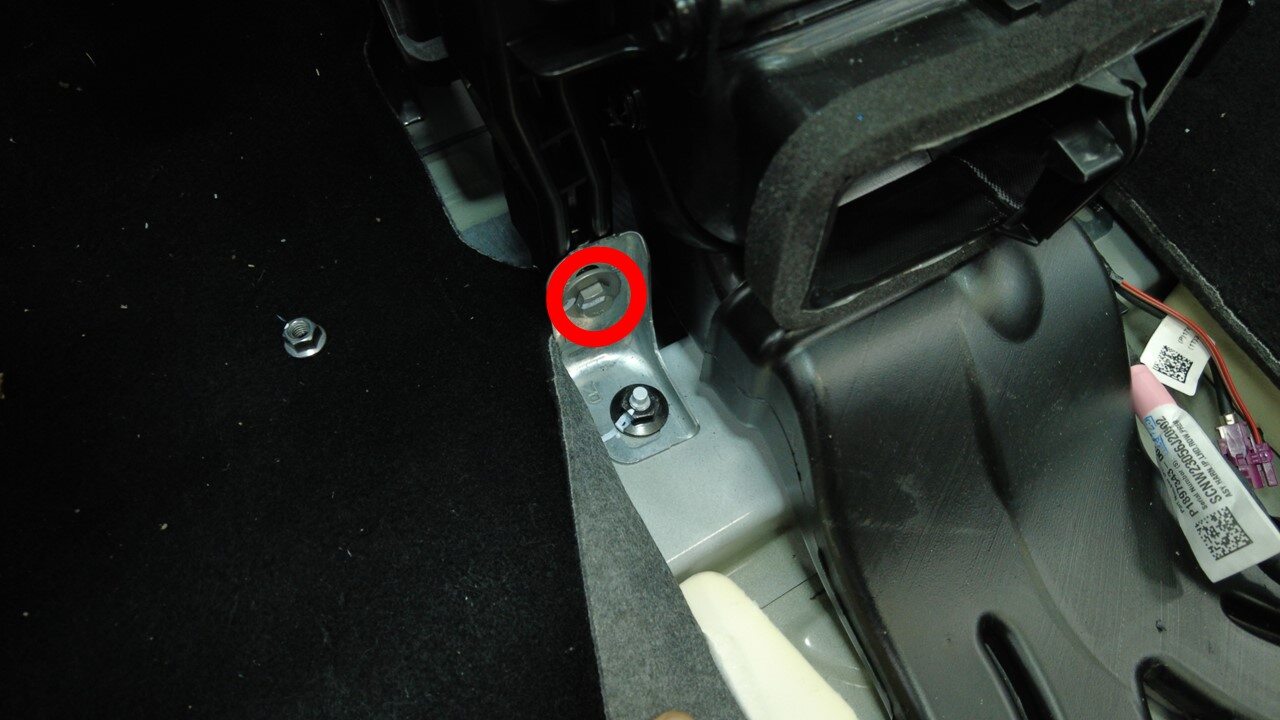

  75. Install the driver's carpet to the vehicle

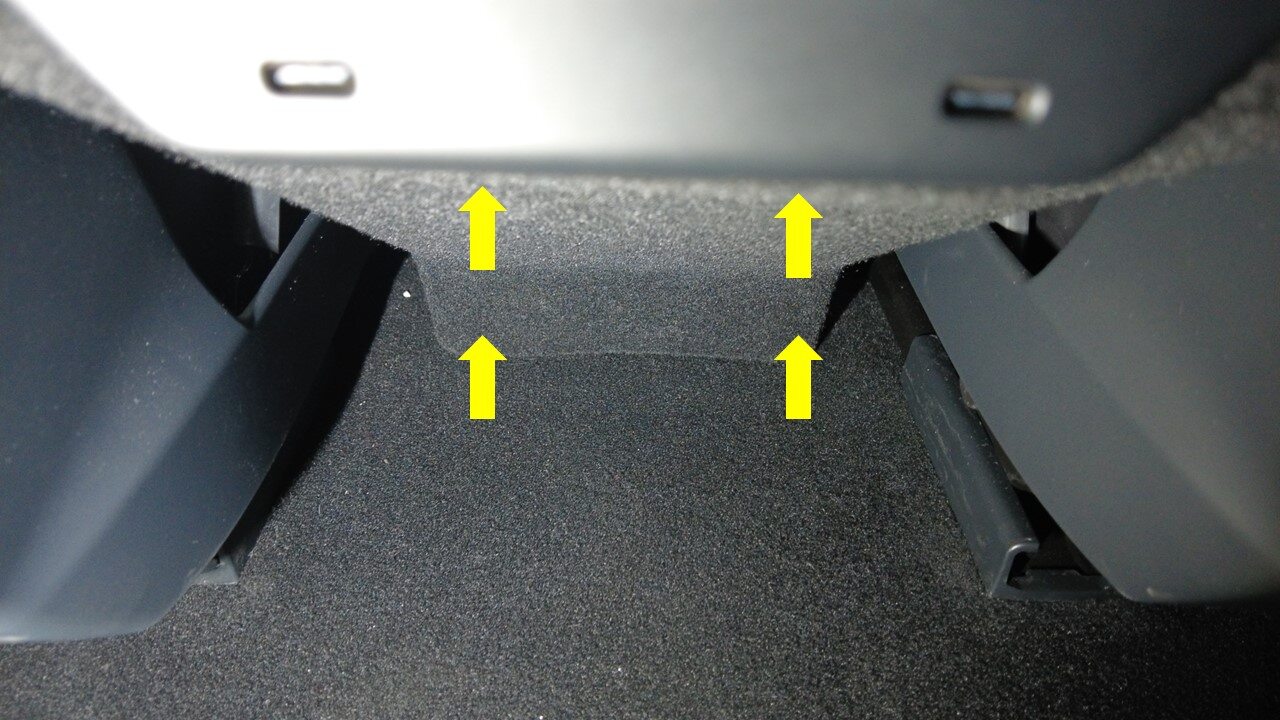

  76. Install clips securing RH front main carpet to vehicle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x push clip, Number of clips on new vehicles may vary
  77. Install bolts securing steering column to body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 13mm, 25 Nm
  78. Install bolt securing HVAC assembly to RH side of bulkhead
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 10mm, 5.5 Nm
  79. Install LH IP air wave duct to HVAC module
  80. Install clips securing LH IP air wave duct
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x push clips
  81. Connect thermistor connector LH IP air wave duct
  82. lnstall IP carrier onto cross car beam
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x guide tabs, 2x tabs, Recommend assistance, Be careful not to press the speaker connector and ambient light connector onto the IP
  83. Install LH IP speaker harness to IP
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Gently pull out the instrument panel and lift it to facilitate installing harness.
  84. Install RH IP speaker harness to IP
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Gently pull out the instrument panel and lift it to facilitate installing harness.
  85. Install screw securing IP assembly to cross car beam on upper RH side
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x screw, T20, 2.3 Nm, 1x datum
  86. Install screws securing IP carrier to cross car beam on RH side
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x screws, T20, 2.3 Nm
  87. Install screws securing IP carrier to cross car beam at lower center
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x screws, T20, 2.3 Nm
  88. Install screws securing IP carrier to cross car beam on LH side
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x screws, T20, 2.3 Nm
  89. Install screw securing IP assembly to cross car beam on upper LH side
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x screw, T20, 2.3 Nm, 1x datum
  90. Connect IP harness connector from IP RH side
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector
  91. Connect IP harness connector from IP LH side
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector
  92. Connect connector for passenger air bag
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, Press the connector. When the connector is fully seated, you will hear the click sound of the secondary locking pin returning
  93. lnstall screws securing IP carrier to cross car beam near passenger air bag
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x patch bolts, E10, 8 Nm, Install new bolts
  94. Install RH IP speaker
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x screws, T20, 2.3 Nm, 1x connector
  95. Install center IP speaker
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x screws, T20, 2.3 Nm, 1x connector
  96. Install LH IP speaker
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x screws, T20, 2.3 Nm, 1x connector
  97. Position defroster grill into position on IP assembly
  98. Connect defroster grill ambient light connectors
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors
  99. Install defroster grill
    Informational PurposesAn informational icon, calling your attention
    Remarque
    9x metal clips, 2x guide tabs
  100. Install SCCM onto steering column
  101. Install SCCM to steering column
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, T20, 2.4 Nm
  102. Connect SCCM assembly connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, Install new orange retaining clip to connector then install SCCM connector, Perform push-pull-push to make sure connector is seated properly
  103. Install lower shroud to steering column
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x locator slot, 2x screws, T20, 1.5 Nm
  104. Install upper screws securing lower shroud to steering column module
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x screws, T20, 1.5 Nm
  105. Align clips then press downward to install upper shroud onto lower shroud
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x alignment clips,4x guide tabs
  106. Align steering wheel to steering column then position it for installation
    Informational PurposesAn informational icon, calling your attention
    Remarque
    The steering wheel and column are keyed
  107. Install bolt securing steering wheel to steering column
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x patch bolt, 10mm hex, 80 Nm, Install new patch bolt
  108. Connect steering wheel connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector
  109. Connect driver airbag connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, Make sure that the driver air bag harness doesn’t get caught between the driver air bag and the horn mechanism
  110. Install driver air bag assembly to steering wheel
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x spring clips, 2x datums, Position driver air bag onto steering wheel, Align datums onto clips, Press down on one side of air bag until clip is fully seated, then repeat on other side, You should hear an audible click, Perform pull test on each side of driver air bag assembly, Confirm the gap and space between driver air bag assembly to steering wheel is symmetrical
  111. Install center console assembly to vehicle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Recommend assistance, Tilt front of console downward, Slide assembly towards front of vehicle and tilt rear of console down into place
  112. Connect harness connector to right front of center console
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, 1x clip
  113. Connect harness to rear of center console
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, 1x clip
  114. Install RH trunk side trim
  115. Connect RH trunk task light connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector
  116. Install clips for RH trunk side trim
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x clips
  117. Install trunk garnish assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x clips, 4x locating tabs, Align locating tabs to slot, Verify trunk seal is fully seated along garnish
  118. Install RH load floor bracket
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x clips, 2x locations
  119. Install trunk sill trim assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x clips, Align striker with center slot then 2 locators to slots then press to secure clips, Manipulate seal to overlap trim
  120. Install load floor
  121. Install package tray
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x tabs, 3 at the rear of panel and 2 on the sides, Slide towards rear of vehicle to install
  122. Connect package tray harness connector to RH body harness
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector
  123. Install package tray harness clips around upper C-pillar area
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x clips
  124. Install rear headliner to body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x clips, 2x locator pins, Remove air bladders if needed, Align the locating pin of the roof liner with the slot, and then push in the direction of the arrow to install the clip, ensuring that the seal overlaps with the trim
  125. Install LH C pillar assembly to body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x clips, 3x tabs, Slide the back tabs into package tray then align clips
  126. Install LH coat hook screw
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x screw, T25, 2.5 Nm
  127. Close LH coat hook screw cover
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x securing tabs
  128. Install tether hook onto LH side rail assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x tether hooks, Install new tether hook
  129. Install LH side rail assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x clips, 2x locations, 2x tether hooks, Align the clips from bottom to top then press clips from top to bottom, Align the seal to sit on top of the trim
  130. Install LH upper B-pillar
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x clips,3x locator pins, Lower the seat belt slider to align it with the B-pillar panel, align the locating pin of the B-pillar upper trim panel with the slot, push in the direction of the arrow to install the clips after aligning them, Make sure the seal sits overlapping the trim
  131. Install LH middle B-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x clips, 3x locator clips,Align the locator clips to slot, Then push in the direction of the arrow to install the clips after aligning them, Make sure the seal sits overlapping the trim
  132. Install LH lower B-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    7x clips, 4x locator clips, Align the locator clips to slot, Then push in the direction of the arrow to install the clips after aligning them, Make sure the seal sits overlapping the trim
  133. Install bolster plastic bracket to LH side bolster
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x tabs, Install new bolster bracket
  134. Install LH side bolster
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x locator clip, 3x guide tabs, Align bottom and side tabs then push inward to install
  135. Return 2nd row 60 seatback to vertical position
  136. Connect glove box assembly connectors
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors
  137. Install glove box into IP carrier
    Informational PurposesAn informational icon, calling your attention
    Remarque
    10x clips, 3x locator pin, 1x datum
  138. Install screws securing glove box assembly to IP carrier
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x screws, T20, 2.3 Nm
  139. Connect glove box USB cable to car computer
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, Engage locking tab
  140. Install LH passenger footwell duct to HVAC module
  141. Install clip securing passenger footwell duct
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x push clip
  142. Install clip securing passenger footwell duct
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x push clip, Ensure that the footwell duct is installed in place
  143. Connect LH footwell cover connectors
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x connectors
  144. Install LH footwell cover
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x clips, 1x guide tab
  145. Install LH lower A-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x clips, 2x guide tabs, Align 2 front tabs then align slot with harness bracket and then push rear clip to secure to lower B-pillar, Fully seat seal along trim
  146. Install clip securing LH lower A-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x push clip
  147. Install LH upper A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x clips, 1x metal clip, 2x guide tabs, 1x alignment pin, Slide bottom of trim along IP and speaker grill, attach tether to body side, Set clips starting at the bottom then work up, Pull seal over trim
  148. Install LH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x clips, 2x guide tabs
  149. lnstall seat lower section of LH front primary seal
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Verify seal is seated properly on all trim panels
  150. Install LH front primary seal
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Verify seal is seated properly on all trim panels
  151. Install RH coat hook screw
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x screw, T25, 2.5 Nm
  152. Close RH coat hook screw cover
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x clips
  153. Push RH coat hook closed
  154. Install the RH upper B-pillar
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x clips,3x locator pins,Lower the seat belt slider to align it with the B-pillar panel, align the locating pin of the B-pillar upper trim panel with the slot, push in the direction of the arrow to install the clips after aligning them, Make sure the seal sits overlapping the trim
  155. Install RH middle B-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x clips, 3x locator clips,Align the locator clips to slot, Then push in the direction of the arrow to install the clips after aligning them, Make sure the seal sits overlapping the trim
  156. Install RH lower B-pillar assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    7x clips, 5x locator clips,Align the locator clips to slot, Then push in the direction of the arrow to install the clips after aligning them, Make sure the seal sits overlapping the trim
  157. Install RH C pillar assembly to body
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x clips, 3x tabs, Slide the back tabs into package tray then align clips
  158. Install tether hook onto RH side rail assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x tether hooks, Install new tether hook
  159. Install RH side rail assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x clips, 2x locations, 2x tether hooks, Align the clips from bottom to top then press clips from top to bottom, Align the seal to sit on top of the trim
  160. Install bolster plastic bracket to RH side bolster
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x tabs, Install new bolster bracket
  161. Install RH side bolster
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x locator clip, 3x guide tabs, Align the bottom and side tabs then push inward to install
  162. Return 2nd row 40 seatback to vertical position
  163. Connect 2nd row seat harness and secure cushion
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x clips, 2x connectors, Insert buckles through holes, Slide rear inward then align front clips, Perform push-pull-push test
  164. Position pedal assembly to vehicle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x studs, Negotiate around iBooster rod then secure onto iBooster studs
  165. Install fasteners securing pedal assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x nyloc nuts, 13mm, 16.5 Nm, 1x bolt, 13mm, 13 Nm, Install new nyloc nuts
  166. Connect accelerator pedal connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, Engage locking tab
  167. Align brake pedal to iBooster rod and install clevis pin to brake pedal assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x pin
  168. Install cotter pin onto clevis pin clip on brake pedal assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x clip
  169. Install RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x clips, 2x guide tabs, Align the 2 front tabs then align the slot with harness bracket and then push rear clip to secure to lower B-pillar, Fully seat seal along trim
  170. Install clip for RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x push clip
  171. Install RH upper A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x clips, 1x tether, 2x guide tabs,1x alignment pin, Slide bottom of trim along IP and speaker grill, attach tether to body side, Set clips starting at the bottom and work up, Pull seal over trim
  172. Install RH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x clips, 2x guide tabs
  173. lnstall seat lower section of RH front primary seal
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Verify seal is seated properly on all trim panels
  174. Connect RH footwell cover light connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector
  175. Install RH footwell cover
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x clips, 1x guide tab
  176. Install clip to footwell cover
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x push clip
  177. Install RH front exterior bolts to center console
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 10mm, 7 Nm
  178. Install RH console side panel carpet
    Informational PurposesAn informational icon, calling your attention
    Remarque
    12x clips, 2x positioning clips, 1x datum, Position side panel and align front datum, Push console panel from front towards rear
  179. Install RH front floor mat
  180. Install LH front exterior bolts to center console
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 10mm, 7 Nm
  181. Install LH console side panel carpet
    Informational PurposesAn informational icon, calling your attention
    Remarque
    11x clips, 2x positioning clips, 1x tab, Position side panel and align the front tab, Push the console panel from the front towards the rear
  182. Install LH front floor mat
  183. Move driver's seat forward
  184. Install rear bolts securing center console to vehicle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 10mm, 7 Nm
  185. Install console rear end panel to center console assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x clips, 2x tabs, First fix the lower tabs, then the upper clips to install rear end panel
  186. Install RH front seat into vehicle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Recommend assistance, Install seat from front RH door opening, Assistant should be ready to support seat back once it is in the vehicle, Caution not to damage any trim
  187. Install RH seat harness to sill trim clips
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x clips, Tuck excess harness between harness bracket and body
  188. Connect RH front seat harness to RH body controller
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector.
  189. Connect first responder loop and LV battery
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated
  190. Install fresh air intake assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Install fresh air intake assembly
  191. Install fresh air gutter assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x clips
  192. Install rear underhood apron
    Informational PurposesAn informational icon, calling your attention
    Remarque
    14x clips, Hold rear wall of frunk to keep from flexing while engaging front clips
  193. Close hood
  194. Install front bolts securing LH front seat to vehicle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x patch bolts, T45P, 33.5 Nm, Install new patch bolts
  195. Adjust RH front seat to full forward
  196. Install rear bolts securing LH front seat to vehicle
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x patch bolts, T45P, 33.5 Nm, Install new patch bolts
  197. Install LH front seat belt retractor to seat
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Insert retractor into seat pre tensioner, Make sure it locks into position with push-pull-push test
  198. Move RH front seat to original position
  199. Move LH front seat to original position
  200. Hold brake pedal and select park on UI to disable EPB service mode
  201. Remove wheel chocks
  202. Raise all windows
  203. Close trunk via interior switch
  204. Close all four doors
