Suspension pneumatique - ensemble - arrière (retrait et remplacement)

Code de correction 31101202 4.56 REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps forfaitaire ci-dessus représentent tout le travail à être fait pour cette procédure, notamment les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez Temps forfaitaires pour en apprendre plus à propos des temps forfaitaires et de leur création. Vous pouvez transmettre par courriel vos commentaires relatifs aux valeurs des temps forfaitaires au LaborTimeFeedback@tesla.com. NOTE: Consultez Protection individuelle pour vous assurer de porter l’ÉPI approprié lorsque vous effectuez la procédure ci-dessous.

Warning IconA warning icon, calling your attention to a possibly risky situation
Avertissement
Cette procédure est une PREMIÈRE VERSION. Bien qu'elle ait été validée, des avertissements et des mises en garde pourraient manquer. Respectez les exigences de sécurité et faites preuve d’une extrême prudence lorsque vous travaillez sur ou près des systèmes et des composants haute tension. Transmettez toute correction ou remarque à ServiceDevelopment@teslamotors.com.

Retirer

  1. Open all doors and lower all windows.
  2. Remove the LH and RH rocker panel scuff plates. See Plaque d’usure – bas de caisse – gauche (retrait et remplacement).
  3. Remove the LH and RH rocker panel moldings. See Moulure – bas de caisse – gauche (retrait et remplacement).
  4. Raise and support the vehicle on a 2 post lift. See Soulever le véhicule - pont élévateur à 2 poteaux.
  5. Remove all wheels. See Roue - avant - gauche (retrait et remplacement).
  6. Connect a laptop with Toolbox 3 to the vehicle. See Toolbox 3.0 (connecter et déconnecter).
  7. Perform the cooling system thermal fluid procedure. See Fluide thermique - système de refroidissement (remplissage/vidange).
  8. Perform the "Deflate All" section of Suspension pneumatique - pressurisation et dépressurisation - système complet.
  9. Remove the rear underhood apron. See Tablier sous le capot - arrière (retirez et remplacez).
  10. Remove the LH and RH underhood aprons. See Tablier sous le capot - gauche (retrait et remplacement).
  11. Remove the front underhood apron. See Tablier sous le capot - avant (retrait et remplacement).
  12. Remove the bolts (x6) that attach the front fascia bracket to the carrier.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Douille de 10 mm
    • Clé à cliquet à tête flexible/clé dynamométrique à tête flexible
    • Rallonge de 4 po
  13. Remove the push clips (x5) that attach the LH front wheel arch liner to the front fascia, and then move the liner to the side for access.
  14. Remove the bolt that attaches the front fascia to the LH fender bracket.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Douille Torx T25
    • Clé à cliquet à tête flexible/clé dynamométrique à tête flexible
    • Rallonge de 4 po
  15. Repeat steps 13 and 14 for the RH side of the vehicle.
  16. Disconnect LV power. See Alimentation 12 BT (déconnecter et connecter).
  17. Disconnect the front fascia electrical connectors (x2).
    Warning IconA warning icon, calling your attention to a possibly risky situation
    ATTENTION
    N'APPUYEZ PAS sur la languette rouge de verrouillage. Tirez sur la languette jusqu’à ce que le connecteur se déverrouille, puis continuer à tirer pour libérer le connecteur.
  18. Remove the bolts (x3) and release the clips that attach the front fascia valance to the front aero shield, and then release the valance from the aero shield.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Do not remove middle bolts (x3).
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • 10mm socket
    • Clé à cliquet à tête flexible/clé dynamométrique à tête flexible
    • Rallonge de 4 po
  19. With assistance, release the front fascia assembly from the fender brackets, and then pull the fascia forward to remove it from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Set fascia on a padded surface.
  20. Effectuez la procédure de désactivation HT du véhicule. Voir Procédure de désactivation HT du véhicule.
  21. Remove the front body controller module. See Module - commande de la carrosserie -avant (retirez et remplacez).
  22. Release the clips (x3 that attach the air suspension rear bundle to the body behind the VC front.
  23. Remove the HV battery. See Batterie HT (AWD) (retirez et installez).
  24. Release the clips (x7) that attach the air suspension rear bundle to the RH side of vehicle body.
  25. Remove the nuts (x3) that attach the rear valance in order to gain access to the air suspension rear bundle.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Douille de 10 mm
  26. While holding down the valance, release the clips (x3) that attach the air suspension rear bundle from behind the rear subframe.
  27. Remove the RH front wheel arch liner. See Doublure d’aile - avant - gauche (retirez et remplacez).
  28. Remove the LH and RH rear wheel arch liners. Doublure d’aile - arrière - gauche (retirez et remplacez).
  29. Disconnect the air suspension valve block electrical connector.
  30. Remove the nuts (x2) that attach the air suspension rear bundle to the valve block, then remove the rear bundle from the valve block, and then release the clip.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • 10 mm 12-point combination wrench
  31. Release the clips (x3) that attach the air suspension rear bundle to the RH front wheel house.
  32. Release the clips (x10) that attach the air suspension rear bundle to the RH rear wheel house.
  33. Remove the nut that attaches the RH rear air strut fitting.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • 10 mm 12-point combination wrench
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Guide the air line out of the wheel house.
  34. Release the clips (x3) that attach the rear bundle air line to the LH rear wheel house.
  35. Remove the nut that attaches the LH rear air strut fitting.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • 10 mm 12-point combination wrench
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Guide the air line out of the wheel house.
  36. Remove the air suspension rear bundle from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Remarque

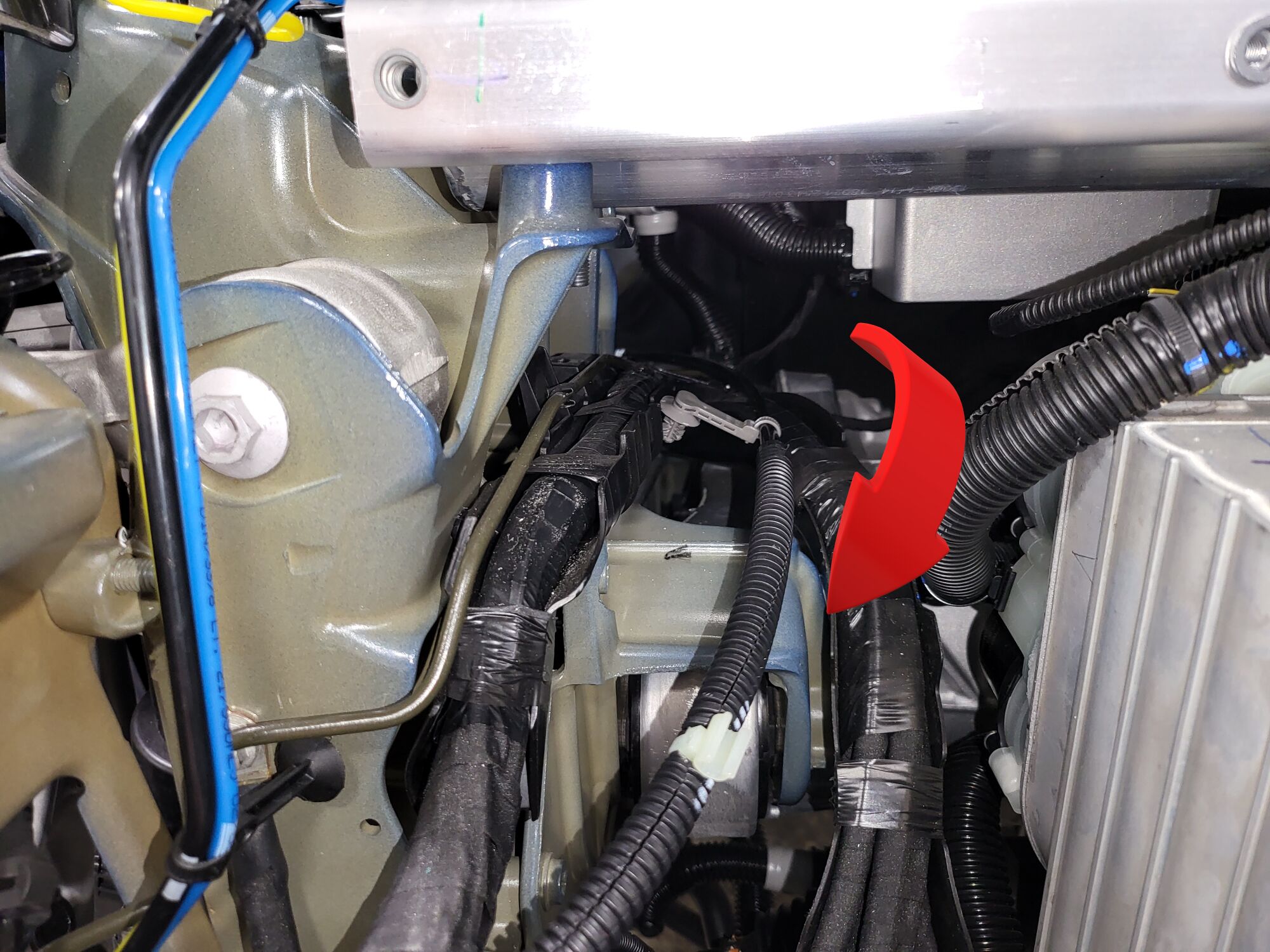

    Guide the bundle through the body into the front trunk area, then guide the bundle below superbeam into the front RH wheel house.

Installer

  1. Install the air suspension rear bundle into the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Guide the bundle into the RH rear wheel house, and then guide the bundle into RH front wheel house.
  2. Install the air suspension rear bundle into the front LH wheel house.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Guide the air lines through wheel house into the front trunk area, and then guide the air lines into the front RH wheel house.
  3. Install new 4 mm VOSS fittings (x2) to the valve block for the rear bundle.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • 10 mm 12-point combination wrench
    • 10 mm open crowfoot socket
  4. Fasten the clip that attaches the rear bundle air lines into the valve block.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Remove the fitting inserts.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Install the air lines into the valve block in corresponding fittings.
  5. Fasten the clips (x3) that attach the rear bundle to the RH front wheel house.
  6. Fasten the clips (x10) that attach the rear bundle air line to the RH rear wheel house.
  7. Install new 4 mm VOSS fittings (x2) to the LH and RH rear struts.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • 10 mm 12-point combination wrench
    • 10 mm open crowfoot socket
  8. Install the nut that attaches the RH rear air strut line.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Douille de 10 mm
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Remove the fitting insert.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Fully insert the air line into the fitting. It should sit between the two white marks on the air lines. Verify air lines are properly seated by performing push-pull test.
  9. Fasten the clips (x3) that attach the rear bundle air line onto the LH rear wheel house.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Guide the air line into wheel house over harness, and then secure the air line to wheel house.
  10. Install the nut that attaches the LH rear air strut line.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Douille de 10 mm
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Remove the fitting insert.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Fully insert the air line into the fitting. It should sit between the two white marks on the air lines. Verify air lines are properly seated by performing push-pull test.
  11. Install the LH and RH rear wheel arch liners. Doublure d’aile - arrière - gauche (retirez et remplacez).
  12. Install the RH front wheel arch liner. See Doublure d’aile - avant - gauche (retirez et remplacez).
  13. Install all wheels. See Ensemble de roue (retrait et installation).
  14. Fasten the clips (x7) that attach the rear bundle to the RH side of the vehicle body.
  15. While holding down the valance, fasten the clips (x3) that attach the rear bundle to the rear subframe.
  16. Install the nuts (x3) that attach the rear valance.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Douille de 10 mm
  17. Install the HV battery. See Batterie HT (AWD) (retirez et installez).
  18. With assistance, install the front fascia onto the vehicle, and then secure the fascia to the fender brackets.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Route the fascia harness while installing. Verify the front fascia valance sits under the front aero shield before proceeding.
  19. Apply Loctite 222 to the fasteners, and then install the bolts (x3) that attach the front fascia valance to the front aero shield panel.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • 10mm socket
    • Clé à cliquet à tête flexible/clé dynamométrique à tête flexible
    • Rallonge de 4 po
  20. Connect the front fascia harness electrical connectors (x2), and then engage the connector lock.
  21. Install the bolt that attaches the front fascia to the RH fender bracket.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Douille Torx T25
    • Clé à cliquet à tête flexible/clé dynamométrique à tête flexible
    • Rallonge de 4 po
  22. Install the bolt that attaches the front fascia to the LH fender bracket.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Douille Torx T25
    • Clé à cliquet à tête flexible/clé dynamométrique à tête flexible
    • Rallonge de 4 po
  23. Install the push clips (x5) that attach the RH front wheel liner to the front fascia.
  24. Install push clips (x5) that attach the LH front wheel liner to the front fascia.
  25. Install the bolts (x6) that attach the front fascia bracket to the carrier.
    4 Nm (2.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Douille de 10 mm
    • Clé à cliquet à tête flexible/clé dynamométrique à tête flexible
    • Rallonge de 4 po
  26. Perform the cooling system refill. See Système de refroidissement (remplissage sous vide).
  27. Install the front body controller module. See Module - commande de la carrosserie -avant (retirez et remplacez).
  28. Refill the air suspension reservoir. See "Refill the Reservoir" section in Suspension pneumatique - pressurisation et dépressurisation - système complet.
  29. Remove the air suspension from "Jack Mode" using the vehicle touchscreen.
  30. Install the front underhood apron. See Tablier sous le capot - avant (retrait et remplacement).
  31. Install the LH and RH underhood aprons. See Tablier sous le capot - gauche (retrait et remplacement).
  32. Install the rear underhood apron. See Tablier sous le capot - arrière (retirez et remplacez).
