HV-Abschaltverfahren des Fahrzeugs
Korrekturcode See the codes below. HINWEIS: Sofern im Verfahren nicht ausdrücklich anders angegeben, spiegeln der obige Korrekturcode und seine zugehörige FRT den gesamten für die Durchführung dieses Verfahrens erforderlichen Aufwand wider, einschließlich der damit verbundenen Verfahren. Schichten Sie keine Korrekturcodes, wenn Sie nicht ausdrücklich dazu aufgefordert werden. HINWEIS: Unter Richtzeiten erfahren Sie mehr über FRTs und wie sie erstellt werden. HINWEIS: Siehe Persönlicher Schutz, um sicherzustellen, dass Sie die richtige persönliche Schutzausrüstung tragen, wenn Sie das folgende Verfahren durchführen. HINWEIS: Siehe Maßnahmen zur Ergonomie für sichere und gesunde Arbeitsmethoden.
- 2026-11-02: Updated this procedure to include both HV disablement methods from the RDU and the ancillary bay.
- 2026-09-10: Updated the procedure to use the amp clamp and voltage measurement method at the rear drive unit cables from underneath the vehicle.
- 2025-11-26: Added note to keep HV gloves on if procedure that required disablement involves touching HV components.
- 2025-10-22: Added info in measurement table on GND point to be used for Negative (-) Lead, modified measurement sequence.
- 2025-03-24: Added warning for regional tooling regulations.
- 2025-01-30: Clarified B+ and B- probe step.
- 2024-10-21: Rearranged multimeter probing images to align with HV measurement table.
- 2024-06-05: Added warning to measure the specified order of locations for high voltage.
- 2023-12-12: Updated voltage measurement order.
- 2023-11-08: Added/updated HV insulating glove steps.
- 2023-06-29: Added the whole procedure video as an overview for supplemental purposes only.
- 2023-08-30: Added a tip about replacing the probe to the multimeter-related step.
For HV disablement from the rear drive unit: Korrekturcode17010000; FRT0.54
For HV disablement from the ancillary bay area: Korrekturcode17010010; FRT0.30
Nur Techniker, die alle erforderlichen Zertifizierungskurse absolviert haben, dürfen dieses Verfahren durchführen. Tesla empfiehlt, dass die Techniker externer Dienstleister entsprechende Schulungen absolvieren, bevor sie dieses Verfahren durchführen. Zu weiteren Informationen über die Anforderungen von Tesla an Techniker oder Beschreibungen der Thematik für Dritte siehe Anforderungen zur HV-Zertifizierung. Beim Umgang mit einem Hochspannungskabel, einer Stromschiene oder eines Hochspannungsanschlusses müssen immer geeignete persönliche Schutzausrüstung (PSA) sowie Isolierhandschuhe mit einer Mindestauslegung von Klasse 0 (1000 V) getragen werden. Weitere Sicherheitsinformationen finden Sie in den Technischen Hinweisen TN-15-92-003, Sorgfaltsregeln beim Umgang mit Hochspannung
.
Equipment:
- 1083188-01-B - Digital Multimeter Unit, EXTECH 355
- 1754057-00-A - CURRENT PROBE, GEN, CLAMP, DC, 600V
- 1140311-00-A - LEVER LOCK, HV CONNECTOR, MODEL 3
- 1115247-01-A - Electronic Test Lead, CAT IV 1000V
- 1130480-02-B - Slim Test Probes, CAT III 1000V
From Rear Drive Unit (RDU)
- Disconnect 12V/LV power. See 12-V-/Niederspannungsversorgung (Trennen und Verbinden).
-
Set the multimeter to
measure voltage, and then measure the voltage across the 12V/LV auxiliary
battery terminals.
NoteFor LV (Li-Ion) auxiliary battery: if the voltage across the battery terminals is 0, the battery may have switched off internally. Use a 12V Lead Acid battery for testing. For mobile technicians: use the 12V Lead Acid battery in the Mobile Service vehicle.CAUTIONFor LV (Li-Ion) auxiliary battery: if the voltage across the battery terminals is less than 13 volts or greater than 16 volts, the multimeter is not measuring reliably and must not be used.CAUTIONFor 12V (Lead Acid) auxiliary battery: if the voltage measured is less than 10 volts or greater than 14 volts, the multimeter is not measuring reliably and must not be used.
- Remove the rear aero shield panel. See Verkleidung – Windabweiser – Hinten (Ausbauen und Ersetzen).
- Remove the rear skid plate. See Rutschplatte – HV-Batterie – Hinten (Ausbauen und Ersetzen).
-
Install the current clamp
meter onto one cable of the rear drive unit HV harness.
NoteMake sure the meter is zeroed out and is facing the correct direction as shown.
-
Measure the current in the
HV cable.
- If the current is within the range of -0.5 A to 0.5 A, continue to the next step.
- If the current is outside the range of -0.5 A to 0.5 A, for example -0.8 A or 1.3 A, re-perform the vehicle electrical isolation again to make sure that all was properly shut down. If the measurement is still outside the range of -0.5 A to 0.5 A, escalate for assistance.
WarningDO NOT DISCONNECT any HV harness when the current measurement is outside the range of -0.5 A to 0.5 A. - Remove the clamp meter from the cable.
-
Remove the nut that attaches
the rear drive unit HV cable bracket to the HV battery.
NoteThe number of the fasteners may vary.TipEs wird empfohlen, die folgenden Werkzeuge zu verwenden:
- Steckschlüssel, 10 mm
- Remove all jewelry and empty your pockets before continuing this procedure.

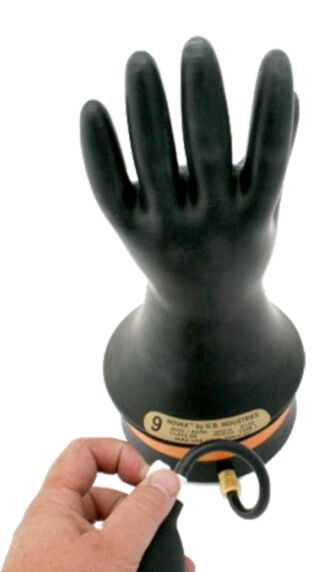

- Inspect and put on HV insulating gloves, leather outer gloves, and safety glasses before continuing this procedure.
-
Disconnect the connector that attaches the rear drive unit HV cable to the
HV battery.
NoteRelease the locking tab and rotate the release lever up to disengage the connector. Do not force the release lever up. Ensure the alignment tabs on the rear drive unit header are not damaged.
-
Use the high voltage
multimeter with CAT III probes to verify that no high voltage is present at
the rear drive unit HV header.
Measure the following voltages:WarningUm den potenziellen Kontakt mit Hochspannung zu begrenzen, messen Sie in der unten angegebenen Reihenfolge auf hohe Spannung.
- B+ to ground
- B- to ground
- B+ to B-
WarningIf any voltage is greater than 10V, the contactors are closed or welded. Escalate to Service Engineering. -
Make sure the connector lock
is 90 degrees from the connector, and then connect the connector that
attaches the rear drive unit HV cable to the HV battery.
NoteUse one hand to support the connector while the other latching the locking tab. Once installed, verify that the latch is not damaged and is fully secured in the latched position.
- Remove the leather over gloves and the HV insulating gloves.
-
Install the nut that
attaches the rear drive unit HV cable bracket to the HV battery.
NoteThe number of the fasteners may vary.TipEs wird empfohlen, die folgenden Werkzeuge zu verwenden:
- Steckschlüssel, 10 mm
- Install the rear skid plate. See Rutschplatte – HV-Batterie – Hinten (Ausbauen und Ersetzen).
- Install the rear aero shield panel. See Verkleidung – Windabweiser – Hinten (Ausbauen und Ersetzen).
-
Return to the procedure that
required the vehicle to be electrically isolated.
WarningBefolgen Sie sämtliche Sicherheitsanweisungen und PSA-Anforderungen für das Verfahren, das eine elektrische Isolation des Fahrzeugs erfordert. Ziehen Sie die Hochspannungs-Isolierhandschuhe nicht aus, wenn das Verfahren eine Handhabung von Hochspannungskabeln, Sammelschienen oder Anschlüssen erfordert.NoteIf you are no longer exposed to high voltage, the HV insulating gloves may be removed.
From Ancillary Bay
- Open all four doors and lower all four windows.
- Move both front seats forward.
- Remove the 2nd row lower seat cushion, if not yet removed in the previous step. See Sitzkissen – Unten – 2. Sitzreihe (Ausbauen und Ersetzen).
- Disconnect 12V/LV power. See 12-V-/Niederspannungsversorgung (Trennen und Verbinden).
-
Set the multimeter to
measure voltage, and then measure the voltage across the 12V/LV auxiliary
battery terminals.
NoteFor LV (Li-Ion) auxiliary battery: if the voltage across the battery terminals is 0, the battery may have switched off internally. Use a 12V Lead Acid battery for testing. For mobile technicians: use the 12V Lead Acid battery in the Mobile Service vehicle.CAUTIONFor LV (Li-Ion) auxiliary battery: if the voltage across the battery terminals is less than 13 volts or greater than 16 volts, the multimeter is not measuring reliably and must not be used.CAUTIONFor 12V (Lead Acid) auxiliary battery: if the voltage measured is less than 10 volts or greater than 14 volts, the multimeter is not measuring reliably and must not be used.
- Remove all jewelry and empty your pockets before continuing this procedure.
- Put on HV insulating gloves, leather outer gloves, and safety glasses before continuing this procedure.
- Remove the HV probe cover. See Abdeckung – HV-Sonde – HV-Batterie (Ausbauen und Ersetzen).
-
Use a multimeter to probe the voltages.
WarningUm den potenziellen Kontakt mit Hochspannung zu begrenzen, messen Sie in der unten angegebenen Reihenfolge auf hohe Spannung.
Measurement Order Component Test
B+
(Probe opening closer to HV DC connector)
B-
(Probe opening, closer to HV Processor Logic connector)
GND
Measured Voltage less than 10 V
Measured Voltage 10 V or more
1 HV battery positive contactor
Positive (+) Lead
Negative (-) Lead on ancillary bay cover
Pass
Fail
HV battery positive contactor might be seized. SeeHV-Batterieschütz, Prüfung auf Klemmen.
2 HV battery negative contactor
Positive (+) Lead
Negative (-) Lead on ancillary bay cover
Pass
Fail
HV battery negative contactor might be seized. SeeHV-Batterieschütz, Prüfung auf Klemmen.
3 HV
Positive (+) Lead
Negative (-) Lead
Pass
Fail
Perform a HV battery contactor seize check. SeeHV-Batterieschütz, Prüfung auf Klemmen.
TipEs wird empfohlen, die folgenden Werkzeuge zu verwenden:- Electrical Protective Gloves
- Slim Test Probes - 1130480-02-B
- Fluke 1587 - 1076921-00-A
Figure 1. B+ to Ground measurement Figure 2. B- to Ground measurement Figure 3. B+ to B- measurement -
Return to the procedure that
required the vehicle to be electrically isolated.
WarningBefolgen Sie sämtliche Sicherheitsanweisungen und PSA-Anforderungen für das Verfahren, das eine elektrische Isolation des Fahrzeugs erfordert. Ziehen Sie die Hochspannungs-Isolierhandschuhe nicht aus, wenn das Verfahren eine Handhabung von Hochspannungskabeln, Sammelschienen oder Anschlüssen erfordert.NoteIf you are no longer exposed to high voltage, the HV insulating gloves may be removed.
