Rim - Steering Wheel (Remove and Replace)

Korrekturcode 32051102 0.36 HINWEIS: Sofern im Verfahren nicht ausdrücklich anders angegeben, spiegeln der obige Korrekturcode und seine zugehörige FRT den gesamten für die Durchführung dieses Verfahrens erforderlichen Aufwand wider, einschließlich der damit verbundenen Verfahren. Schichten Sie keine Korrekturcodes, wenn Sie nicht ausdrücklich dazu aufgefordert werden. HINWEIS: Unter Richtzeiten erfahren Sie mehr über FRTs und wie sie erstellt werden. HINWEIS: Siehe Persönlicher Schutz, um sicherzustellen, dass Sie die richtige persönliche Schutzausrüstung tragen, wenn Sie das folgende Verfahren durchführen. HINWEIS: Siehe Maßnahmen zur Ergonomie für sichere und gesunde Arbeitsmethoden.

  • 2026-11-03: Updated the specification of the bolts (x4) that attach the bright surround to the steering wheel.
  • 2025-07-03: Removed the firmware reinstall step.

Technische Daten zum Drehmoment

Table 1. Technische Daten zum Drehmoment: Rim - Steering Wheel (Remove and Replace)
Beschreibung Drehmomentwert Empfohlene Werkzeuge Wiederverwenden/Ersetzen Hinweise
Bolts (x4) that attach the bright surround to the steering wheel
2.5 Nm (1.8 lbs-ft)
  • Torx T25 bit
Wiederverwenden
Bolt that attaches the steering wheel to the steering column
80 Nm (59.0 lbs-ft)
  • Steckschlüssel, 10 mm
Ersetzen 1036655-00-A

Ausbauen

  1. Disconnect LV power. See 12-V-/Niederspannungsversorgung (Trennen und Verbinden).
  2. Remove the driver airbag. See Airbag – Fahrerseite (Ausbauen und Ersetzen).
  3. Disconnect the steering wheel electrical wiring harness connector.
  4. Release the horn assembly to gain access to the lower connector.
    Note
    Pull the horn assembly straight out to release the clips (x3).
  5. Disconnect the steering wheel heating element connector.
  6. Remove the bolts (x4) that attach the bright surround to the steering wheel, and then release the bright surround and switches assembly from the steering wheel.
    Note
    Pry the lower portion of the bright surround assembly away from the steering wheel, and then work your way around.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T25 bit

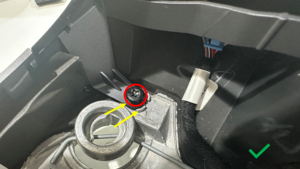

  7. Remove and discard the bolt that attaches the steering wheel to the steering column.
    Tip
    Es wird empfohlen, die folgenden Werkzeuge zu verwenden:
    • Steckschlüssel, 10 mm
  8. If the new steering wheel rim comes without an airbag retention wire: Squeeze the wire towards the middle and remove the airbag retention wire upwards for reuse.
  9. Remove the steering wheel from the steering column.

Montieren

  1. Align the keyed parts of steering wheel and column.
  2. Install a new bolt that attaches the steering wheel to the steering column.
    80 Nm (59.0 lbs-ft)
    Tip
    Es wird empfohlen, die folgenden Werkzeuge zu verwenden:
    • Steckschlüssel, 10 mm
  3. If the new steering wheel rim comes without an airbag retention wire, install the wire removed from the old rim to the new rim.
  4. Install the bolts (x4) that attach the bright surround to the steering wheel.
    2.5 Nm (1.8 lbs-ft)
    Tip
    Es wird empfohlen, die folgenden Werkzeuge zu verwenden:
    • Torx T25 bit
  5. Connect the steering wheel heating element connector.
  6. Install the horn assembly.
  7. Connect the steering wheel electrical wiring harness connector.
  8. Install the driver airbag. See Airbag – Fahrerseite (Ausbauen und Ersetzen).
  9. Connect LV power. See 12-V-/Niederspannungsversorgung (Trennen und Verbinden).
