Korrekturcode 13081102 0.48 HINWEIS: Sofern im Verfahren nicht ausdrücklich anders angegeben, spiegeln der obige Korrekturcode und die FRT den gesamten für die Durchführung dieses Verfahrens erforderlichen Aufwand wider, einschließlich der damit verbundenen Verfahren. Schichten Sie keine Korrekturcodes, wenn Sie nicht ausdrücklich dazu aufgefordert werden.HINWEIS: Unter Richtzeiten erfahren Sie mehr über FRTs und wie sie erstellt werden. Für Rückmeldungen zu den FRT-Werten senden Sie bitte eine E-Mail an LaborTimeFeedback@tesla.com. HINWEIS: Siehe Persönlicher Schutz, um sicherzustellen, dass Sie die richtige persönliche Schutzausrüstung tragen, wenn Sie das folgende Verfahren durchführen.

1. Open all four doors
   Anmerkung

   If vehicle is being powered down, Latch rear doors to prevent accidental closure
2. Lower all four windows
3. Move RH front seat forward
4. Move LH front seat forward
5. Remove 2nd row seat cushion and disconnect harness
   Anmerkung

   2x tabs, 2x connectors, Press tab toward LH side of vehicle on each side to release front edge of seat cushion









6. Fold the 60 seat in down position
   Anmerkung

   Protect the seat cushion



7. Remove LH side bolster
   Anmerkung

   1x clip, 1 tab, Pull outward then slightly upward to remove



8. Fold the 60 seat into vertical position
   Anmerkung

   Remove seat protection



9. Disconnect 60 seat back seat heater harness
   Anmerkung

   1x connector



10. Remove nuts securing 60 seat back hinge bracket to body
    Anmerkung

    2x nuts, 13mm, 18 Nm



11. Remove LH rear seat belt buckle
    Anmerkung

    1x patch bolt, 15mm, 40 Nm, If the bolt is difficult to remove, Use an inductive heating tool to melt the adhesive patch material, Position the inductive heating tool coil around the bolt, then heat the bolt for 20 seconds, Allow the bolt to cool for 2 minutes, Discard after removal





12. Remove 60 seat back by lifting up on LH side and pulling inner pivot out of 40 seat back and set onto padded work surface



13. Release tabs securing pivot sleeve to 60 seat back and remove pivot sleeve
    Anmerkung

    4x tabs





14. Remove seat back hinge bracket from 60 seat back and connector
    Anmerkung

    1x bolt, 13mm, 45 Nm

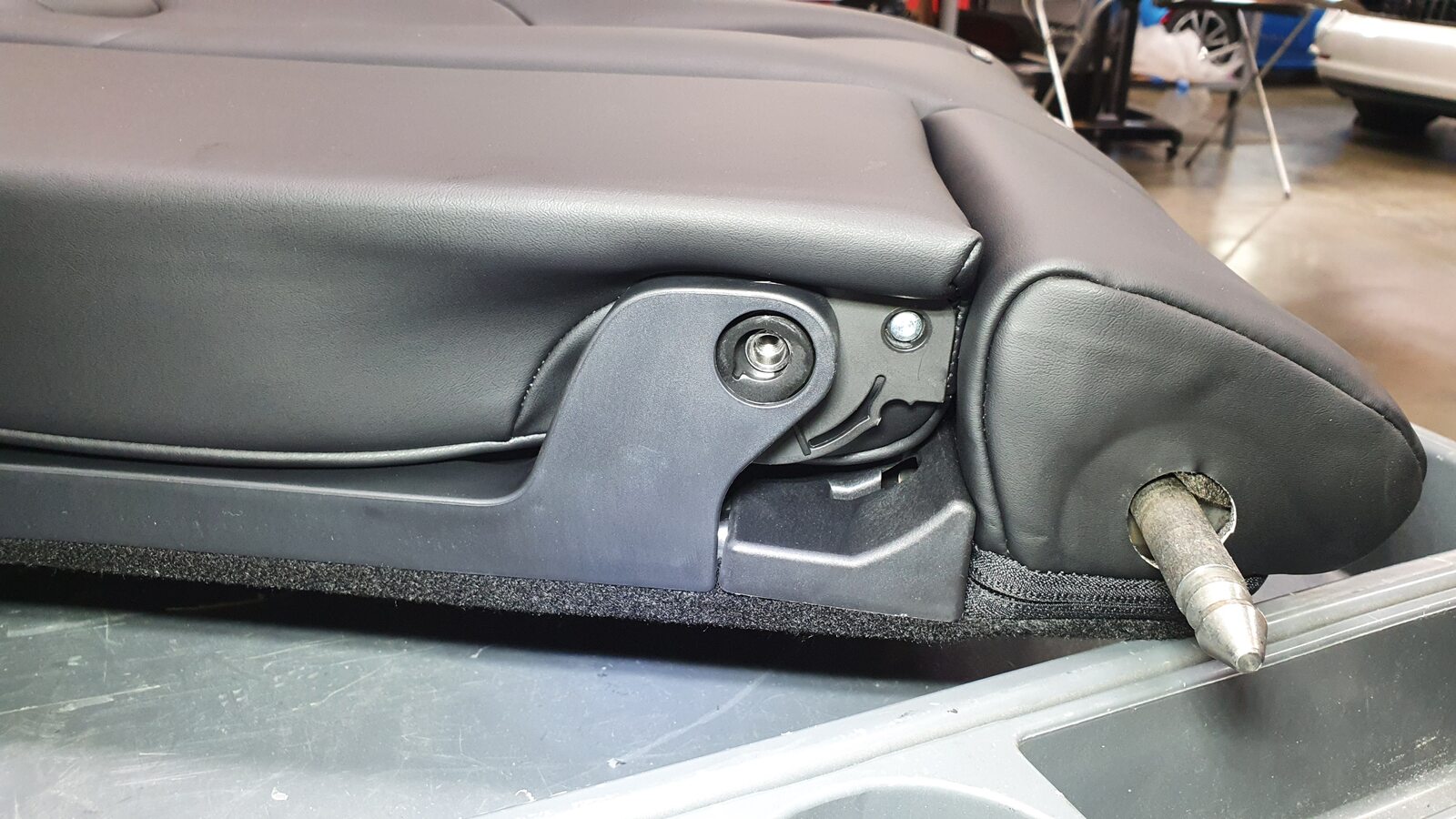

15. Remove bolt securing armrest to 2nd row 60 seat back assembly
    Anmerkung

    1x bolt, T45, 15 Nm





16. Pull RH side of armrest system towards front of seat, and then slide armrest towards RH side of seat to release pivot from 60 seat back
    Anmerkung

    Watch out for the plastic piece in the photo when removing the armrest it may or may not fall off if it does return it to it's original position





17. Release clips securing center headrest to seat back and pull up to remove
    Anmerkung

    2x clips, Press both clip then remove headrest at the simultaneously









18. Remove 2nd row 60 backrest LH and RH center headrest guides
    Anmerkung

    2x tabs, Use trim tool to pull up guides and slide up until they release















19. Remove 2nd row armrest closeout panel from seat frame
    Anmerkung

    3x clips, 2x tabs, Pull up by headrest guides to release clips then slide upwards off to clear tabs and remove closeout panel















20. Remove the 2nd row seat back bezel from seat back
    Anmerkung

    2x clips, Use trim tool to release clip like photo 1 then pull up and off to release the other clip











21. Remove the center escutcheon from seat back
    Anmerkung

    2x clips, Release clips then spread escutcheon to remove from seat belt





22. Remove the 2nd row armrest lower closeout from 2nd row seat frame
    Anmerkung

    2x clips, 2x slide clips, Release the 2x upper clips then pull upward to remove















23. Unzip 2nd row 60 seat back trim cover







24. Release rear side of 2nd row 60 seat back trim cover from frame
    Anmerkung

    Release guide clips from the side and upper left area then pull rear section of trim cover backwards away from frame







25. Release 2nd row 60 seat back from front lower left portion from tabs
    Anmerkung

    Unhook the long metal piece from the tabs to clear seat cover material







26. Release lower section of 2nd row 60 seat back from pivot bar
    Anmerkung

    1x connector, Clear seat cover from pivot bar starting on the right side first then the left









27. Release Velcro securing 2nd row 60 seat back cover from foam pad
    Anmerkung

    Fold back until you reach first row of hog rings





28. Remove front hog rings securing 2nd row 60 seat back trim cover from foam pad
    Anmerkung

    3x hog rings, Push down on foam to allow access to rings, Verify any excess pieces have been removed from foam





29. Release remaining Velcro securing 2nd row 60 seat back trim cover from foam pad
    Anmerkung

    Fold back until all Velcro is completely released



30. Remove 2nd row 60 seat back trim cover from foam pad
    Anmerkung

    Remove seat cover from entire assembly, Carefully clear seat belt and seat release bezel









31. Install 2nd row 60 seat back trim cover to foam pad
    Anmerkung

    Begin with headrest and work your way down











32. Secure upper Velcro of 2nd row 60 seat back trim cover onto foam pad
    Anmerkung

    Attach velcro until the hog rings area on the foam pad







33. Install hog rings securing 2nd row 60 seat back trim cover to foam pad
    Anmerkung

    3x hog rings, Push down on foam pad to allow access for clamping, Place hog ring into pliers prior to installation, Start with center ring and work your way out







34. Secure lower Velcro of 2nd row 60 seat back trim cover onto foam pad
    Anmerkung

    1x connector, Attach remaining velcro all the way down past pivot bar and connect













35. Secure 2nd row 60 seat back to armrest back frame hooks
    Anmerkung

    Secure hooks from seat back cover to the metal piece of the frame by the arm rest towards foam pad







36. Secure rear side of 2nd row 60 seat back trim cover to frame
    Anmerkung

    Secure guide hooks to the side and upper left area of the armrest frame







37. Zip 2nd row 60 seat back trim cover









38. Install 2nd row armrest lower closeout to 2nd row seat frame
    Anmerkung

    2x clips, 2x slide clips, Tuck zip behind armrest lower closeout to cover it









39. Install the center escutcheon to seat back
    Anmerkung

    2x clips, Push to engage both clips onto seat back cover and pad





40. Install the 2nd row seat back bezel to seat back
    Anmerkung

    2x clips, Make sure to push bezel firmly till clips are engage







41. Install armrest closeout panel onto seat frame
    Anmerkung

    3x clips, 2x tabs, Slide tabs in first then line up clips and engage









42. Install 2nd row 60 backrest LH and RH headrest guides onto upper seat assembly
    Anmerkung

    2x tabs, Push until guides bottom out









43. Install center headrest into 2nd row 60 seat back assembly
    Anmerkung

    2x push headrest in until it locks on the clip







44. Install armrest into into original position
    Anmerkung

    Place plastic piece back into position if it falls off as shown in the photos then install armrest assembly









45. Install bolt securing armrest to 2nd row 60 seat back assembly
    Anmerkung

    1x bolt, T45, 15 Nm







46. Secure plastic tab onto pivot sleeve of 2nd row 60 seat back assembly
    Anmerkung

    4x tabs





47. Install seat back hinge bracket onto 2nd row 60 seat back assembly
    Anmerkung

    1x bolt, 13mm, 45 Nm 1x connector, Secure connector to bracket in the process







48. Install 2nd row 60 seat back assembly into vehicle







49. Install nuts securing 60 seat back hinge bracket to body
    Anmerkung

    2x nuts, 13mm, 18 Nm



50. Connect 60 seat back seat heater harness
    Anmerkung

    1x connector



51. This video shows how to properly stack the 2nd row LH seat buckle onto the 2nd row center seat belt anchor:
52. Set the 2nd row center seat belt anchor onto the 2nd row LH inner penthouse rail, with the belt to the RH side.

53. Make sure that the belt is not twisted, and lays flat against the 2nd row seatback.

54. Set the guide pin of the 2nd row LH seat buckle bracket into the hole of the 2nd row LH inner penthouse rail, and pivot the bracket down onto the anchor, aligning the guide pin to the slot in the anchor.

55. Install a new bolt to attach the seat buckle bracket, the seat belt anchor, and the inner penthouse rail to the body.


    40 Nm (29.5 lbs-ft)

56. Verify the stacking.


    Callout	Description
    1	LH 2nd Row Buckle on Top
    2	Center 2nd Row Seatbelt Anchor in the Middle
    3	LH Inner Penthouse Rail at the Bottom

57. Install the plastic bracket that attaches the female side of the electrical connector to the body studs.

58. Connect the electrical harness to the LH rear seat belt buckle connector.

59. Connect 2nd row seat cushion harness and install 2nd row seat cushion
    Anmerkung

    2x connectors, 2x clips, Insert the seat belt buckles through the holes, Slide rear cushion inward then align front guide tabs to locking tabs, Make sure cushion is fully seated with push & pull test near clips







60. Install LH side bolster
    Anmerkung

    1x clip, 1x tab, Align the bottom tab then push inward to install



61. Move RH front seat to original position
62. Move LH front seat to original position
63. Raise all windows
64. Close all four doors
    Anmerkung

    Unlatch rear doors before closing
