Korrekturcode 00030410 HINWEIS: Sofern im Verfahren nicht ausdrücklich anders angegeben, spiegeln der obige Korrekturcode und die FRT den gesamten für die Durchführung dieses Verfahrens erforderlichen Aufwand wider, einschließlich der damit verbundenen Verfahren. Schichten Sie keine Korrekturcodes, wenn Sie nicht ausdrücklich dazu aufgefordert werden. HINWEIS: Unter Richtzeiten erfahren Sie mehr über FRTs und darüber, wie sie erstellt werden. Für Rückmeldungen zu den FRT-Werten senden Sie bitte eine E-Mail an ServiceManualFeedback@tesla.com. HINWEIS: Siehe Persönlicher Schutz, um sicherzustellen, dass Sie die richtige persönliche Schutzausrüstung tragen, wenn Sie das folgende Verfahren durchführen.HINWEIS: Siehe Maßnahmen zur Ergonomie für sichere und gesunde Arbeitsmethoden.

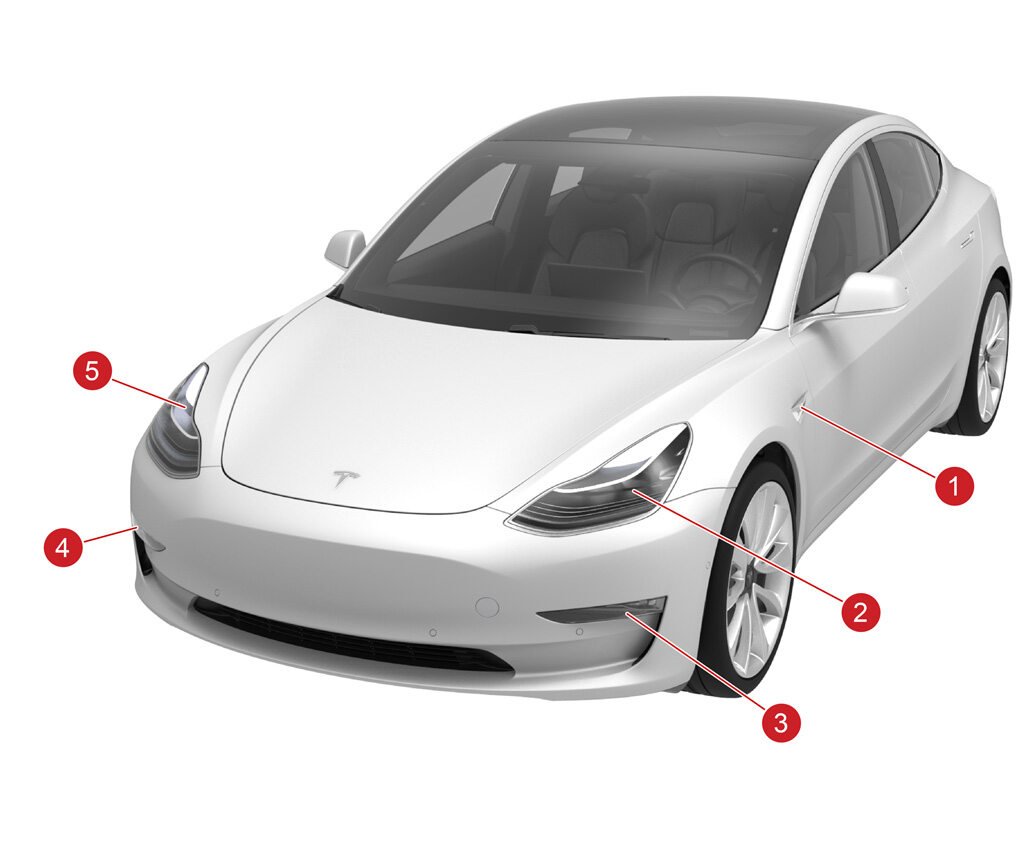

1. Inspect front external lights
   Anmerkung

   Look for cosmetic damages and humidity ingress

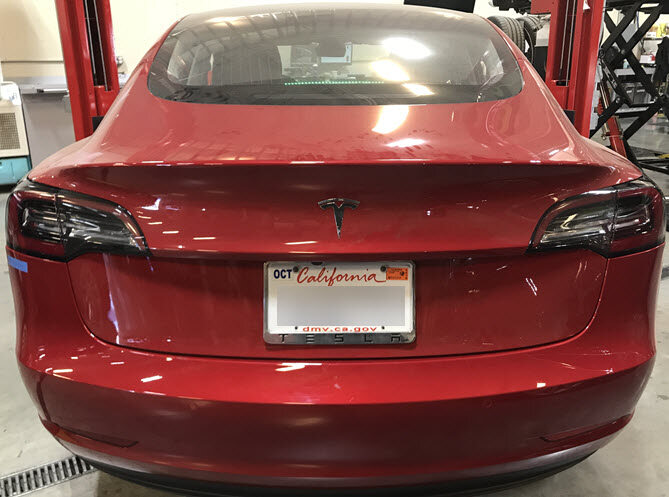

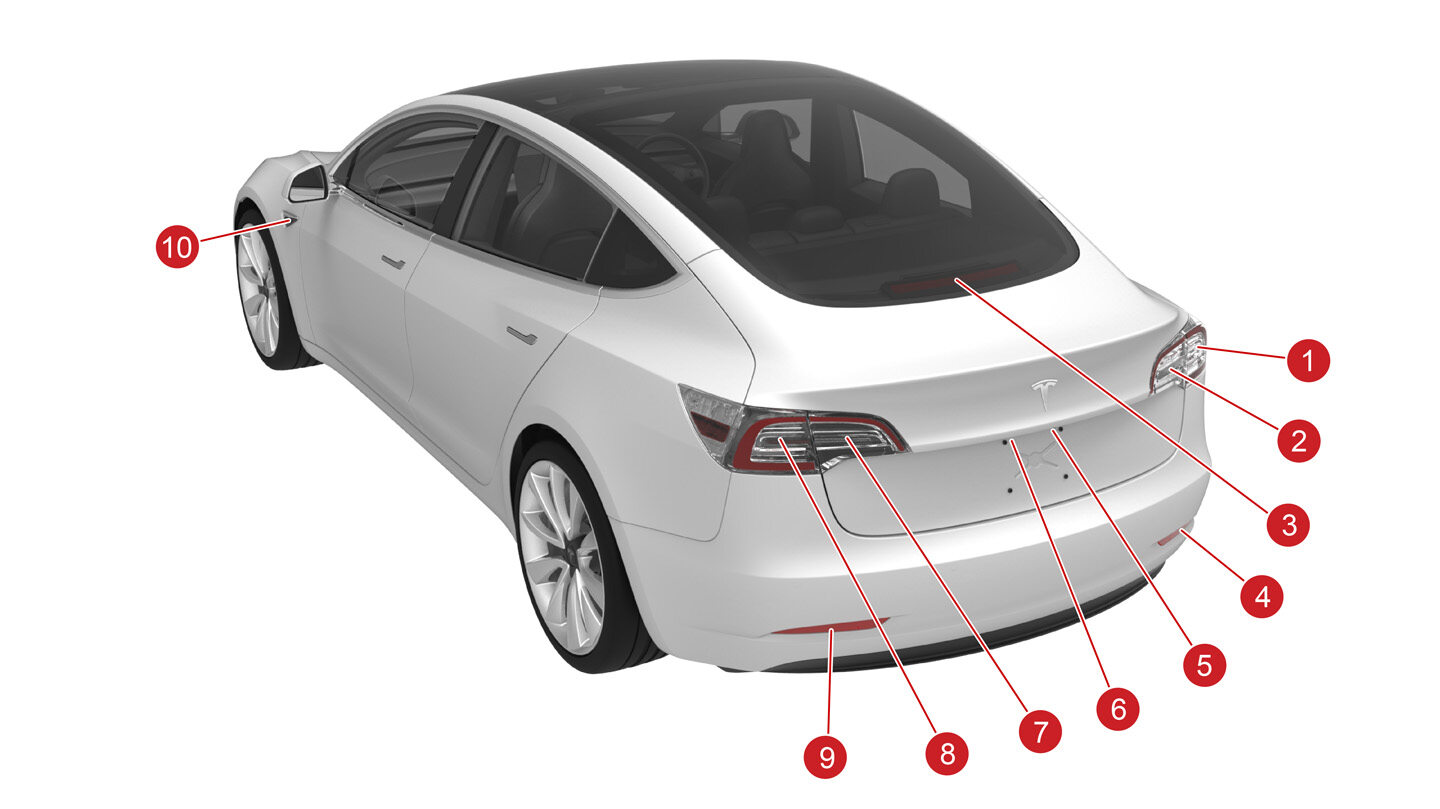

2. Inspect rear external lights
   Anmerkung

   Look for cosmetic damages and humidity ingress, it is acceptable for taillights to have some condensation



3. Link to procedure: 686540f6e03b756b141c53ec

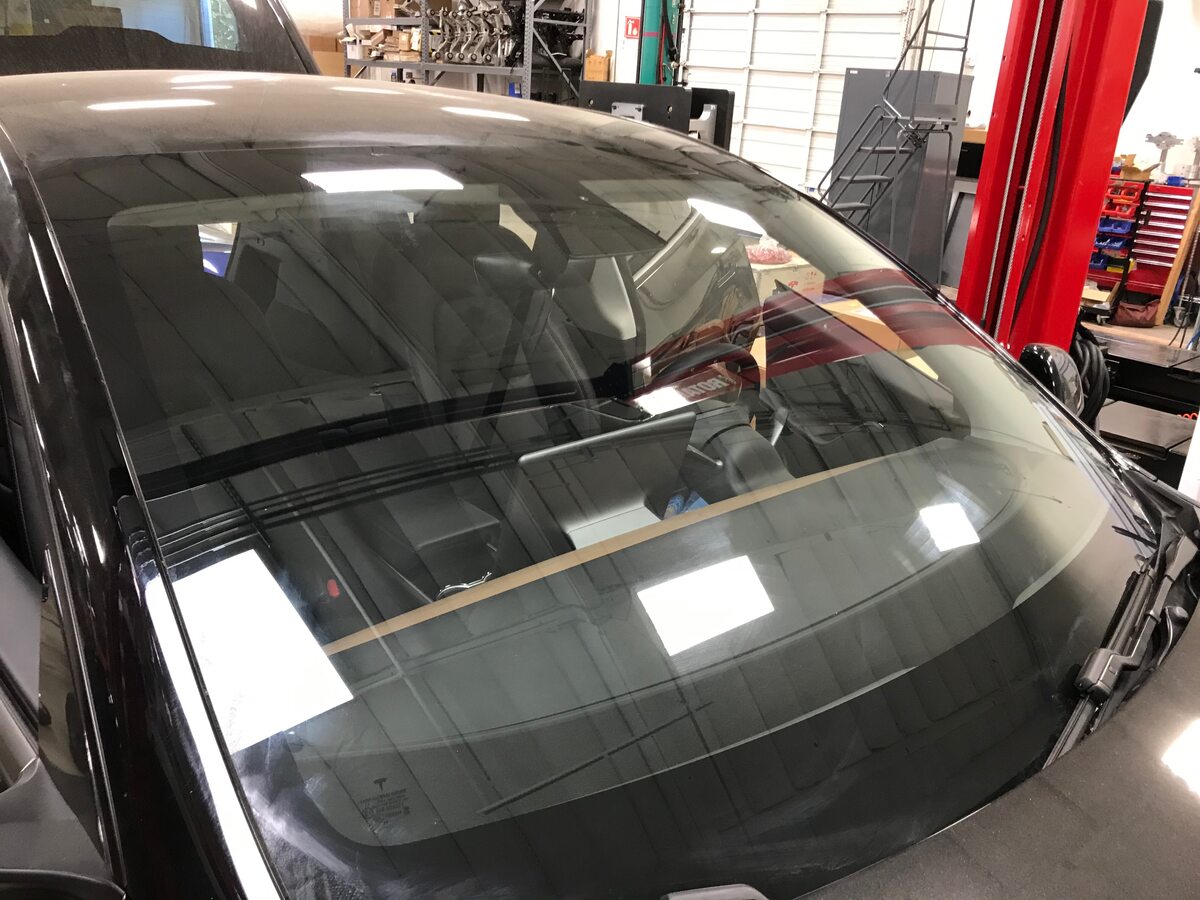

4. Inspect windshield for rock chips and cracks

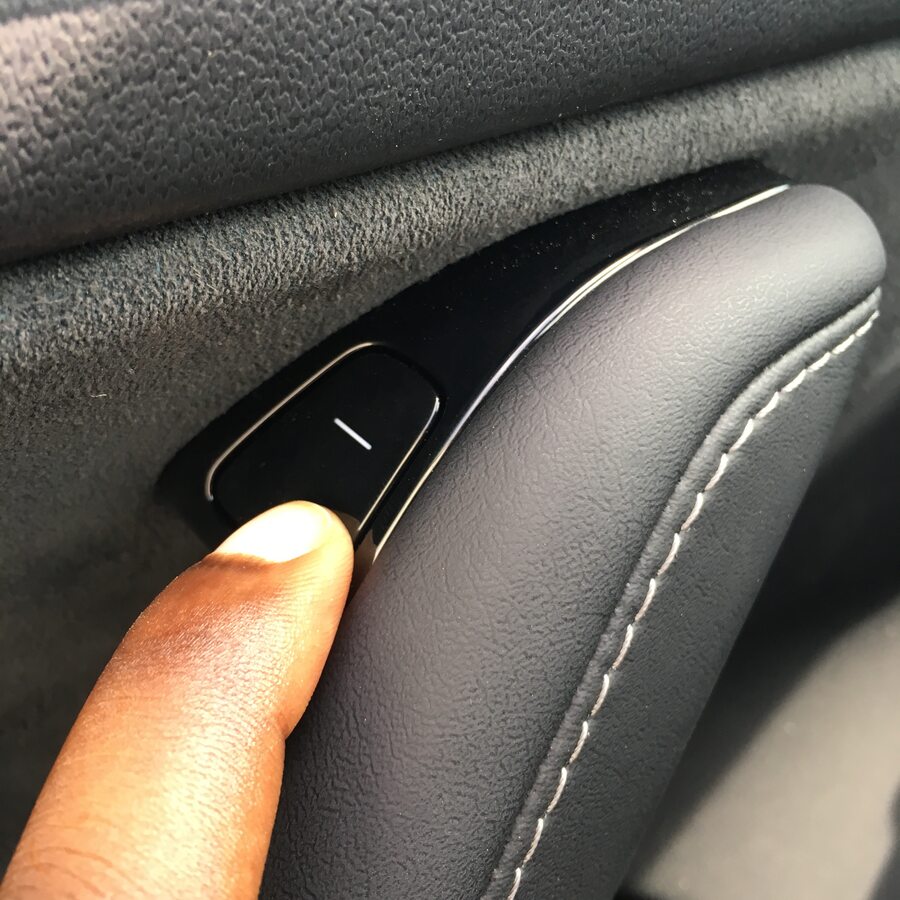

   Anmerkung

   No damage in the driver’s viewing area, airbag impact area, forward camera viewing area, or within 50 mm of the edge allowed, No more than 3 cracks or chips to the glass allowed

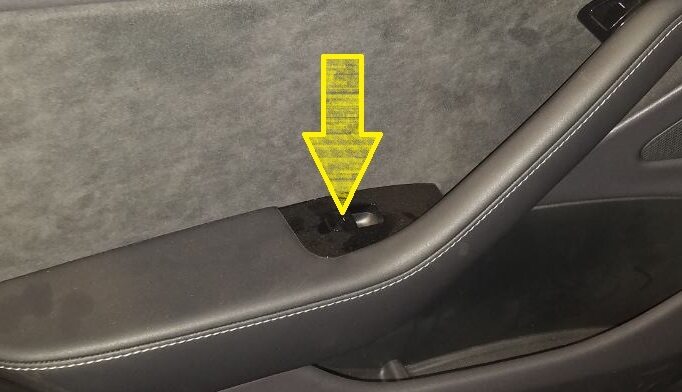

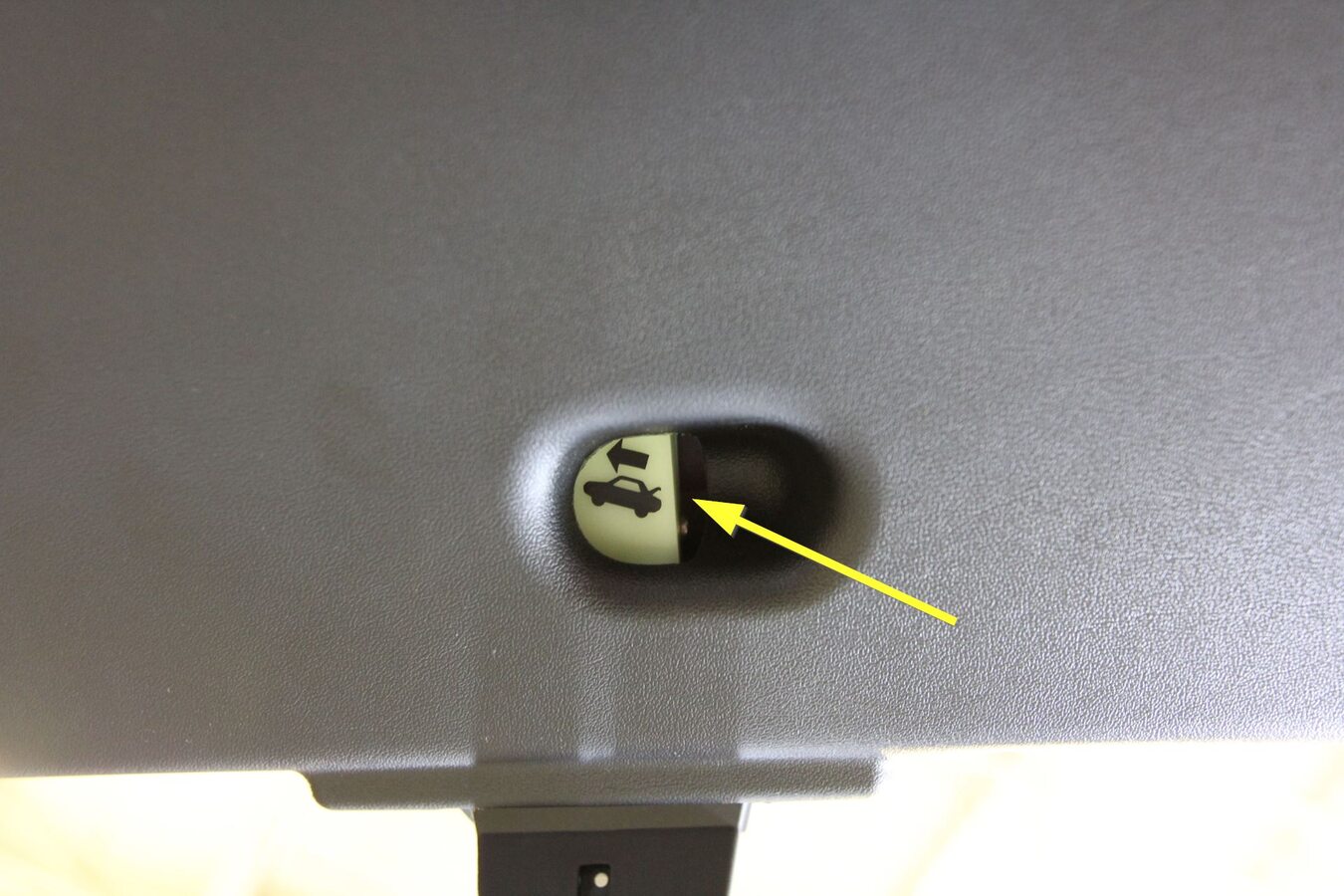

5. Check all emergency release cables and switches
   Anmerkung

   Front door releases, Trunk release, Use caution with front door releases as door glass will not drop and could damage seals or bright molding

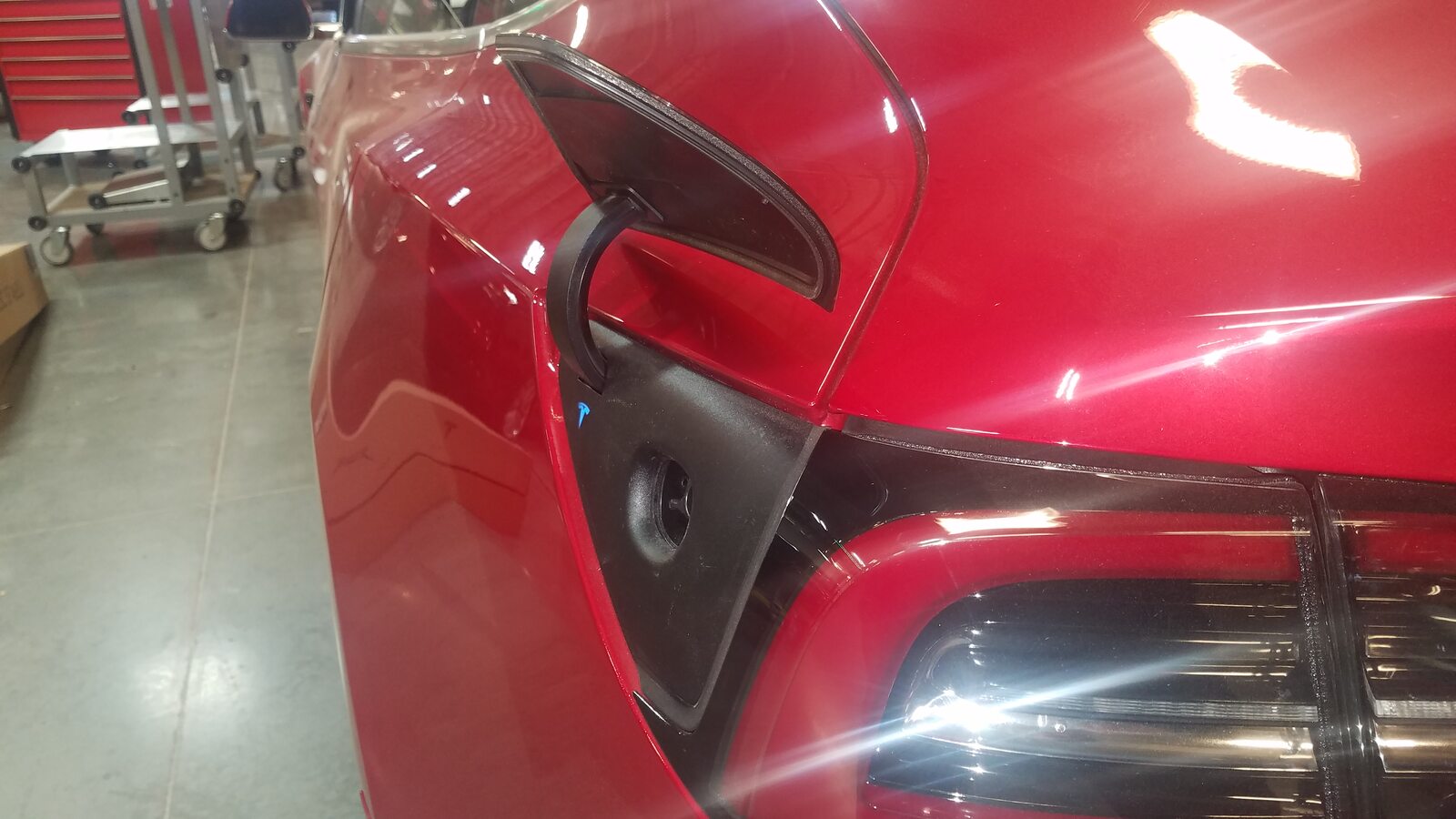

6. Function check chargeport door (5 cycles)
   Anmerkung

   5x cycles, Inspect and note functionality full range of motion, touch to open, and indicator light. Look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions

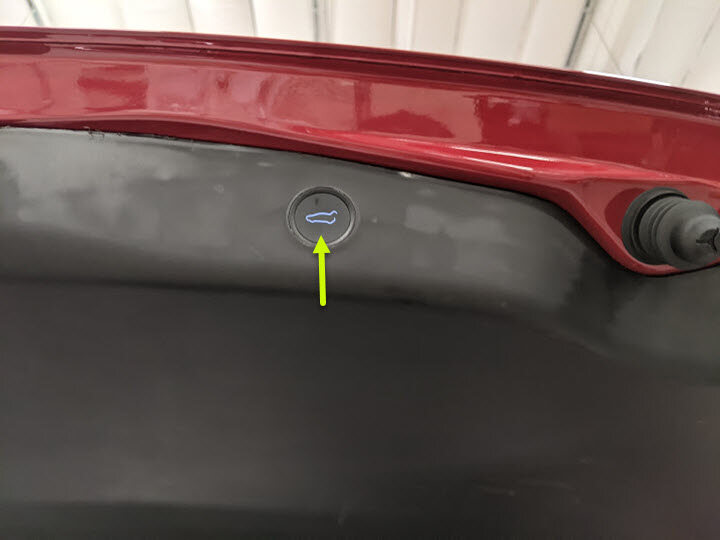

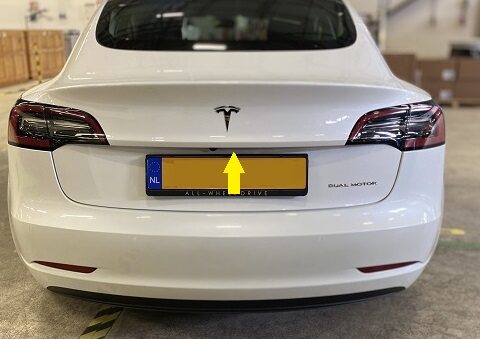

7. Open liftgate
   Anmerkung

   Observe for proper latch operation



8. Close trunk

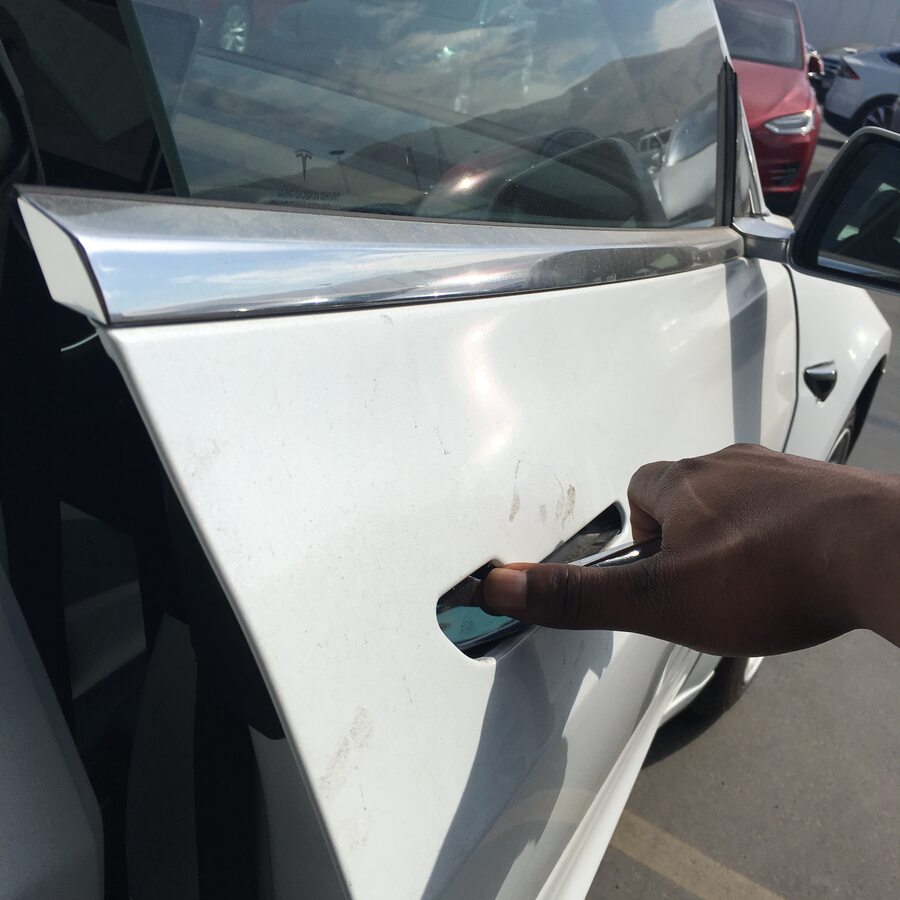

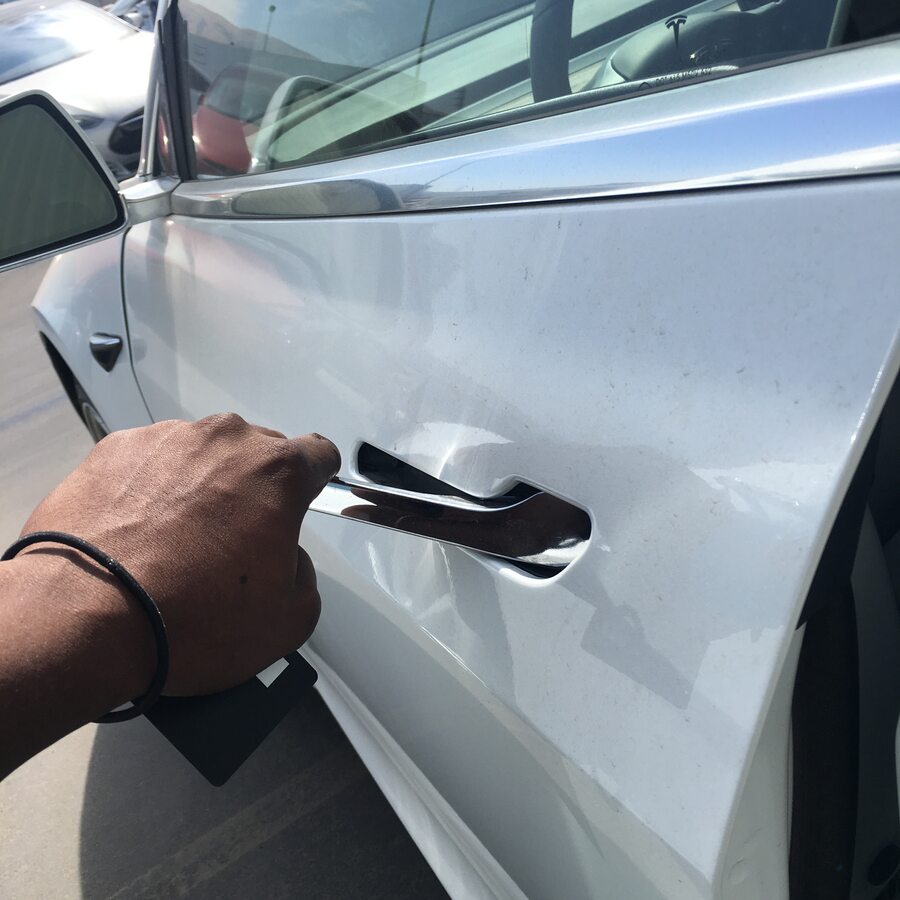

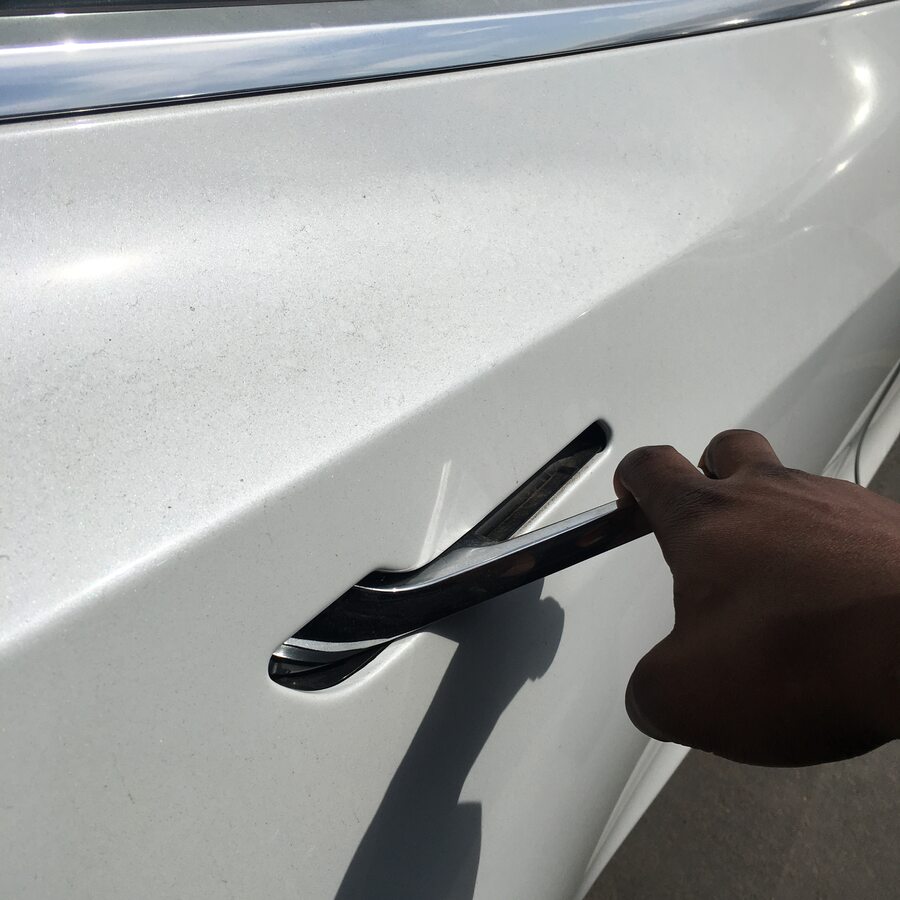

9. Function check LH front door (exterior)
   Anmerkung

   Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note noises such as creaks, groans and clicks, pauses or incomplete actions

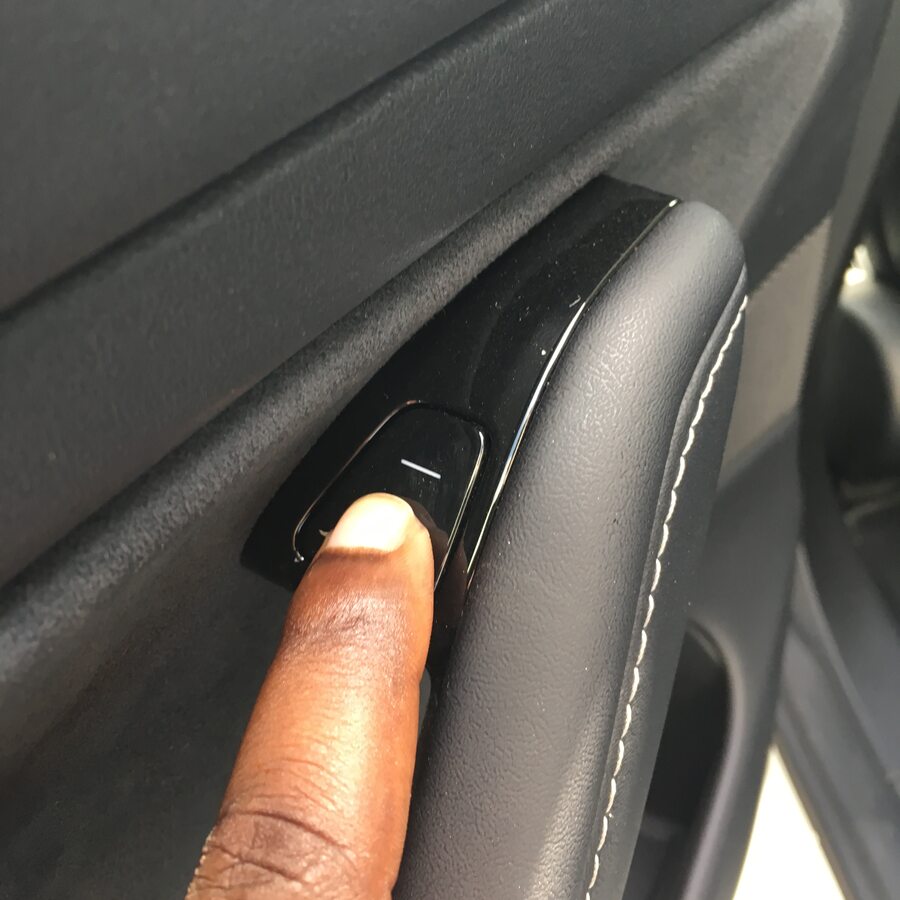

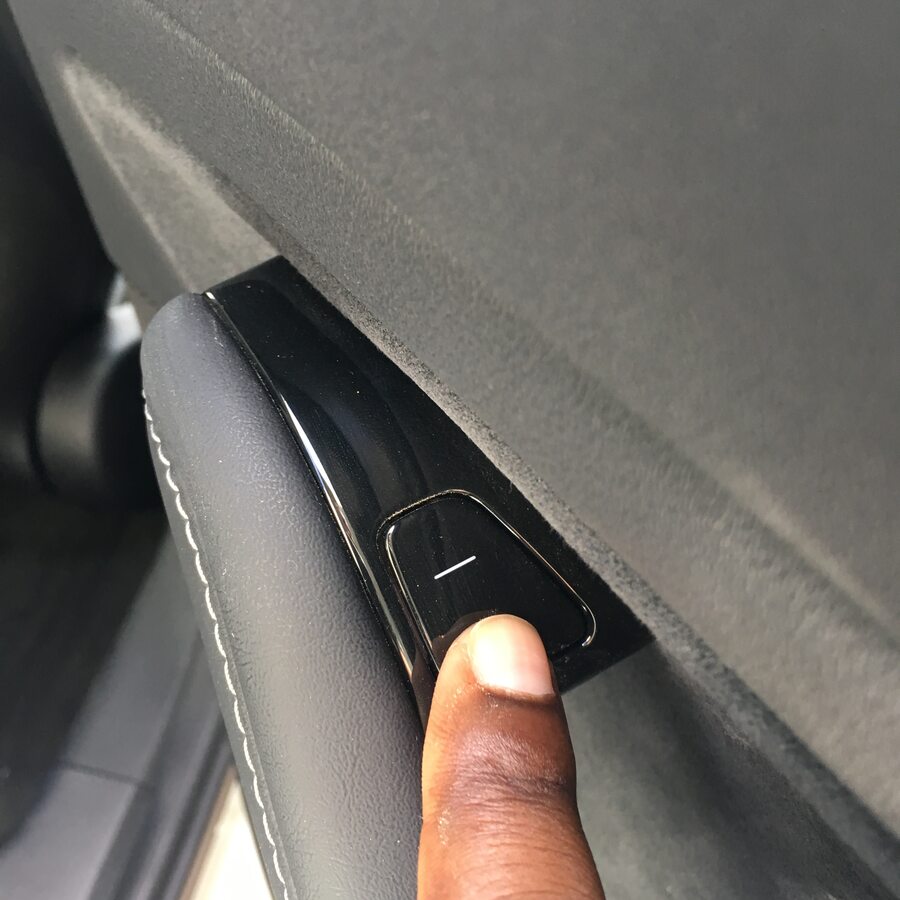

10. Function check LH front door (interior)
    Anmerkung

    Inspect and note functionality for the interior door release, puddle lamps, and manual release cable, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions

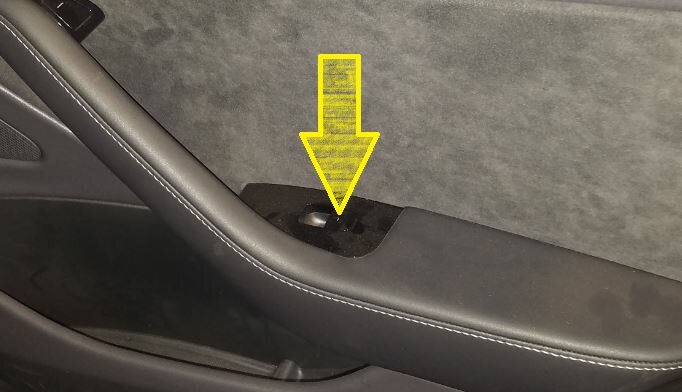

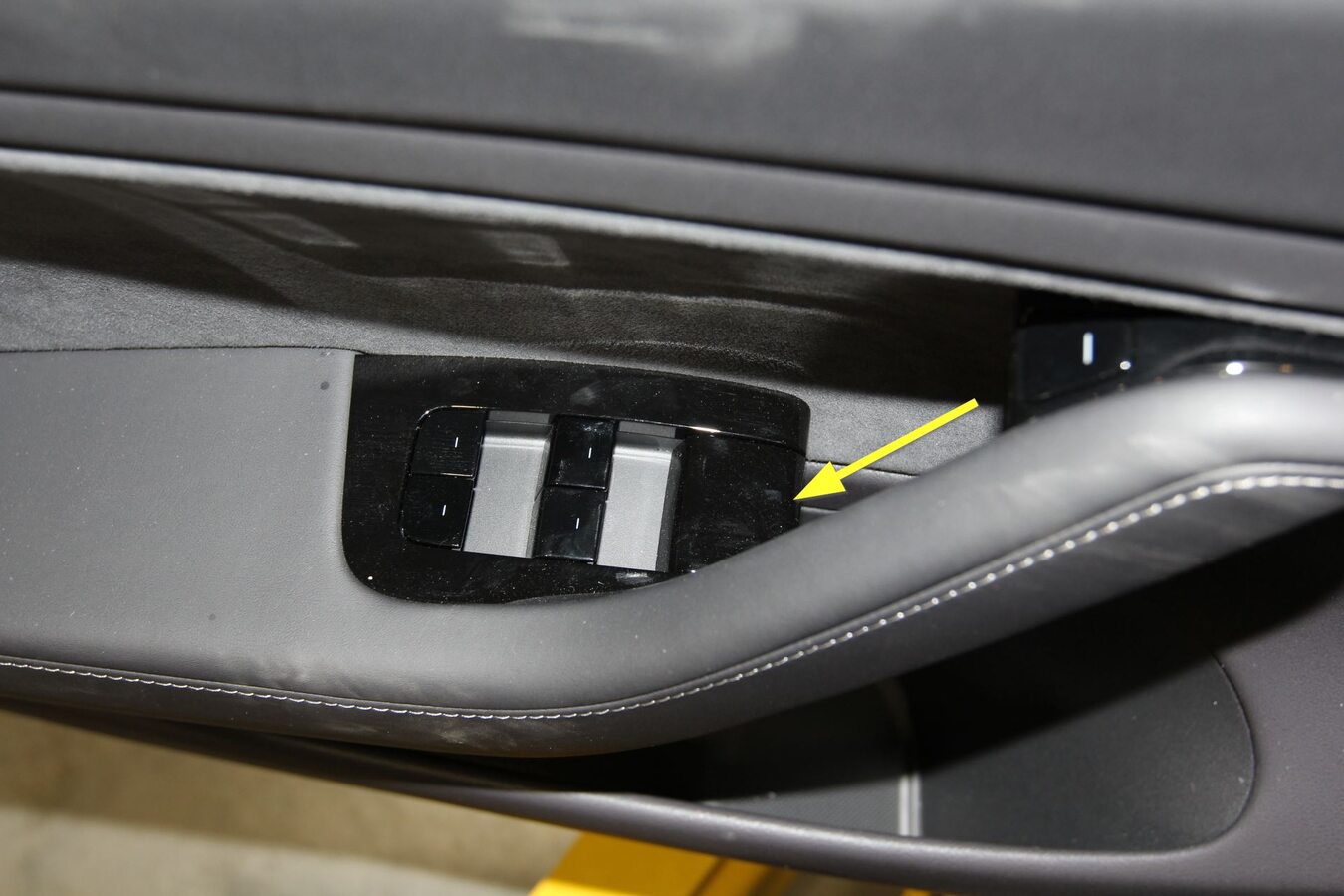

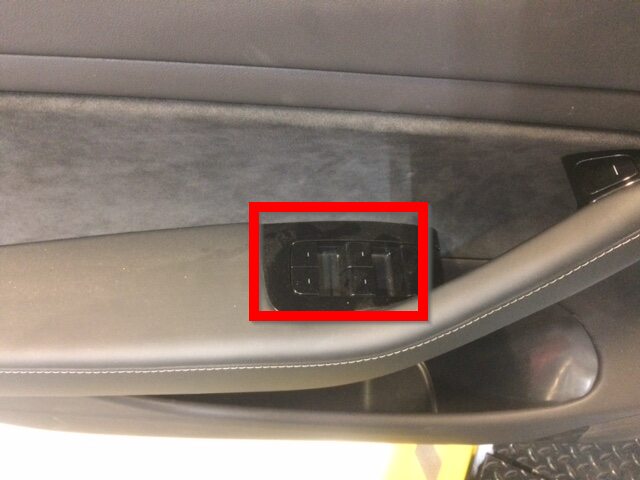

11. Function check all windows from the master switch
    Anmerkung

    Document any abnormal operation/noises

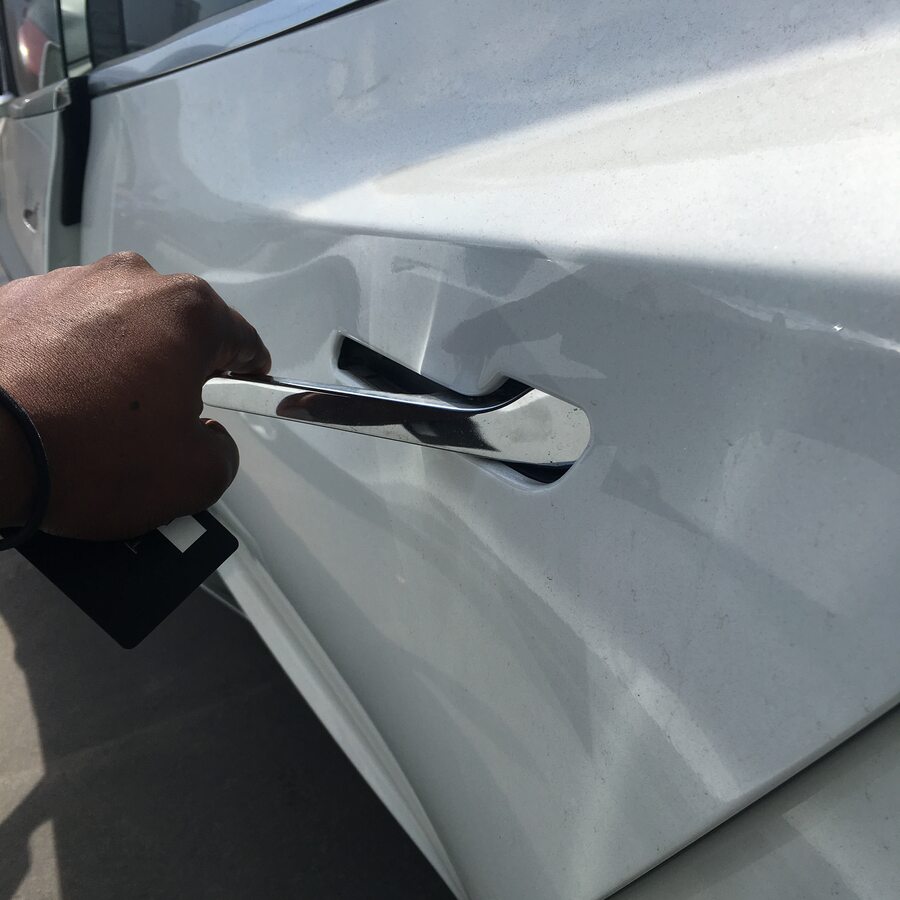

12. Function check LH rear door (exterior)
    Anmerkung

    Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note noises such as creaks, groans and clicks, pauses or incomplete actions



13. Function check LH rear door (interior)
    Anmerkung

    Inspect and note functionality for the interior door release, and puddle lamps, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions



14. Function check LH rear window
    Anmerkung

    Inspect and note functionality for the window switch, and full range of motion of the window with door closed



15. Function check RH rear door (exterior)
    Anmerkung

    Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note noises such as creaks, groans and clicks, pauses or incomplete actions



16. Function check RH rear door (interior)
    Anmerkung

    Inspect and note functionality for the interior door release and puddle lamps, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions



17. Function check RH rear window
    Anmerkung

    Inspect and note functionality for the window switch, and full range of motion of the window with door closed



18. Function check RH front door (exterior)
    Anmerkung

    Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note noises such as creaks, groans and clicks, pauses or incomplete actions



19. Function check RH front door (interior)
    Anmerkung

    Inspect and note functionality for the interior door release, puddle lamps, and manual release cable, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions



20. Function check RH front window
    Anmerkung

    Inspect and note functionality for the window switch, and full range of motion of the window with door closed

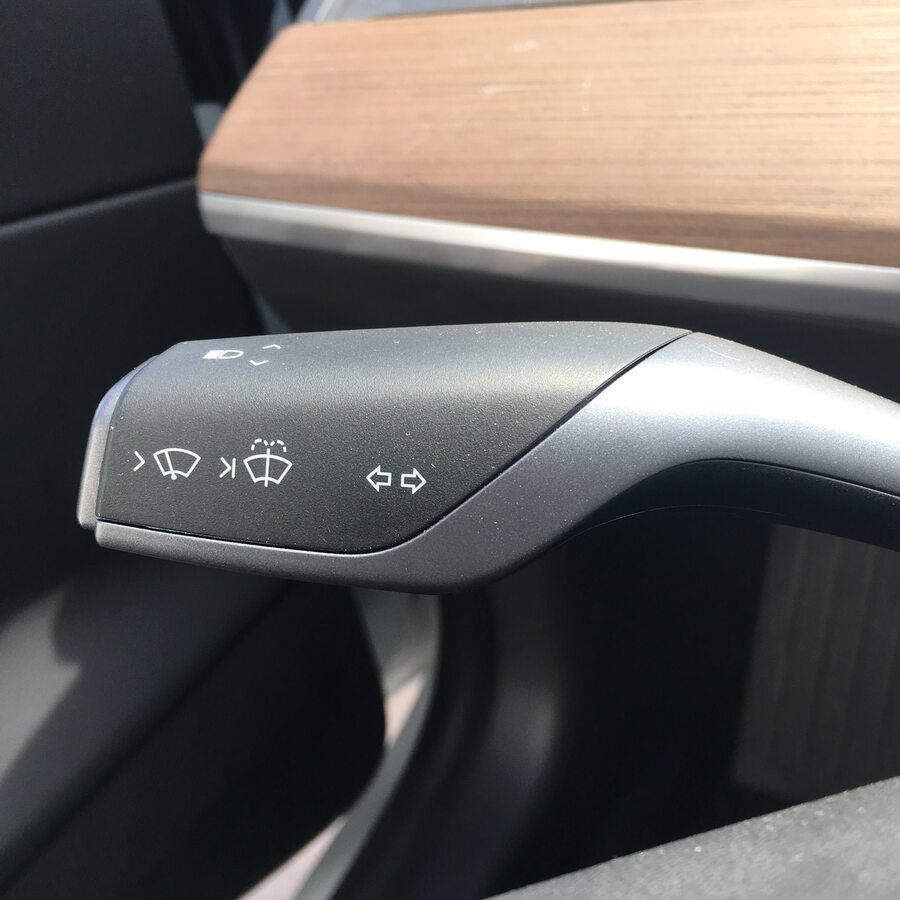

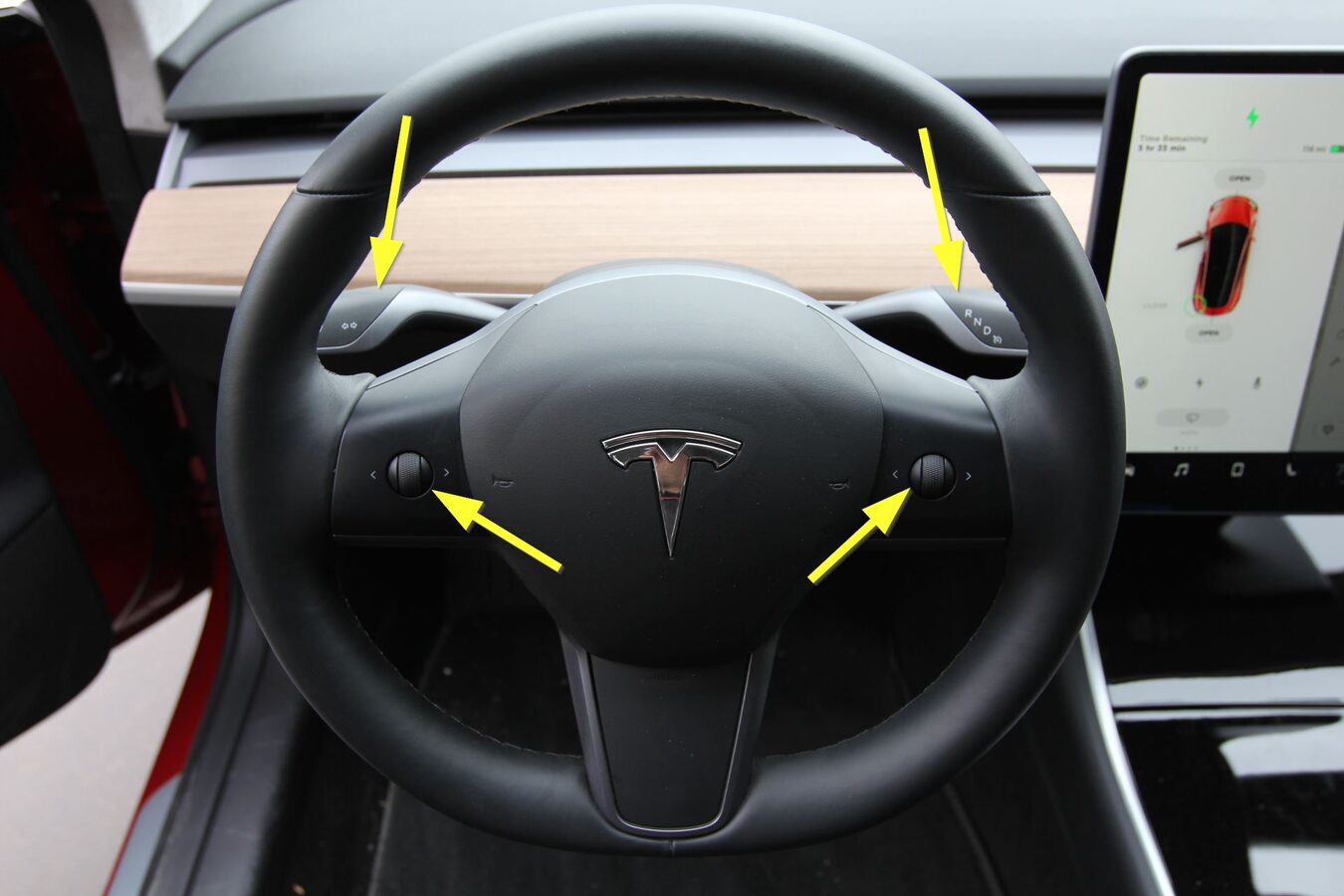

21. Function check all driver controls
    Anmerkung

    Shift stalk, turn signals, steering wheel scroll wheels, horns

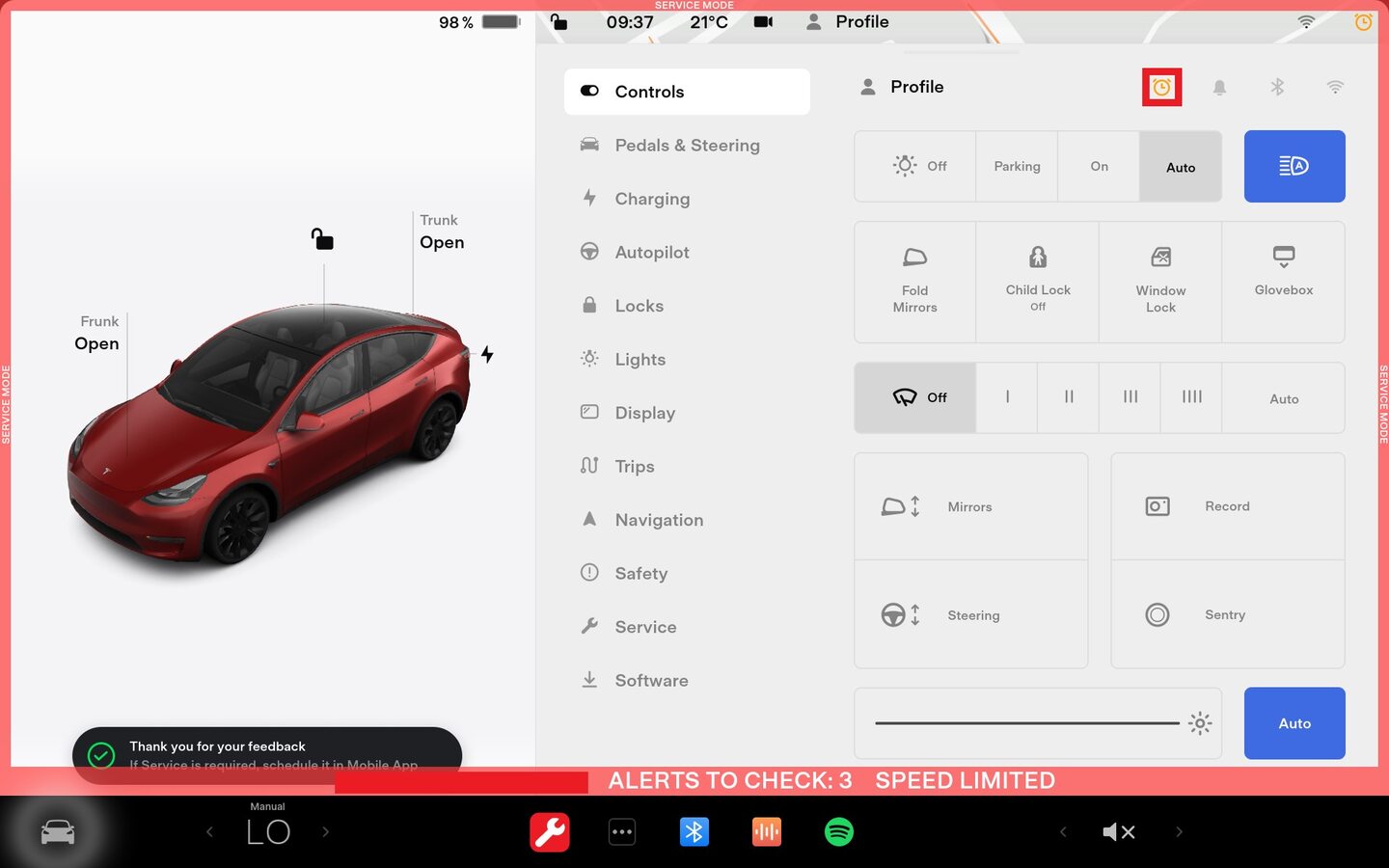

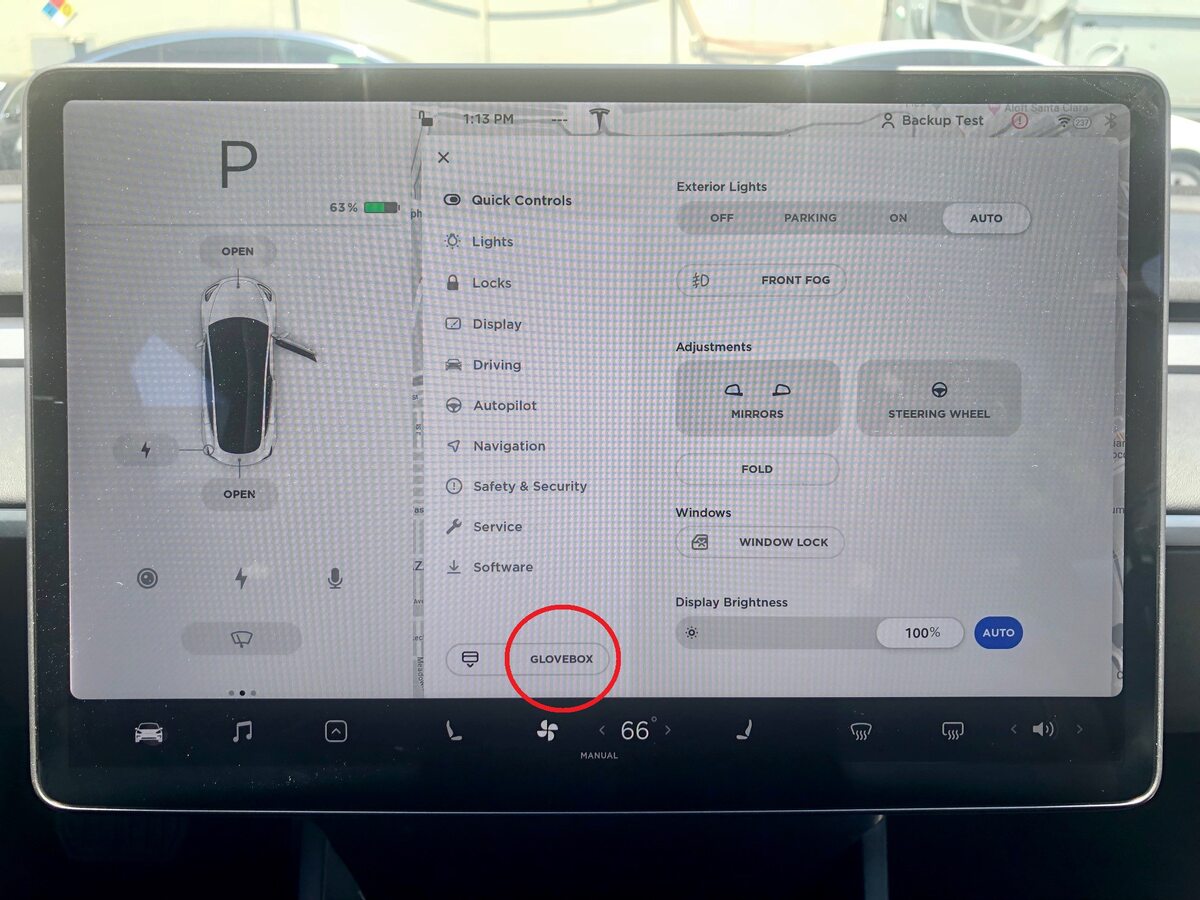

22. Open glove box through UI
    Anmerkung

    via Controls > Glovebox

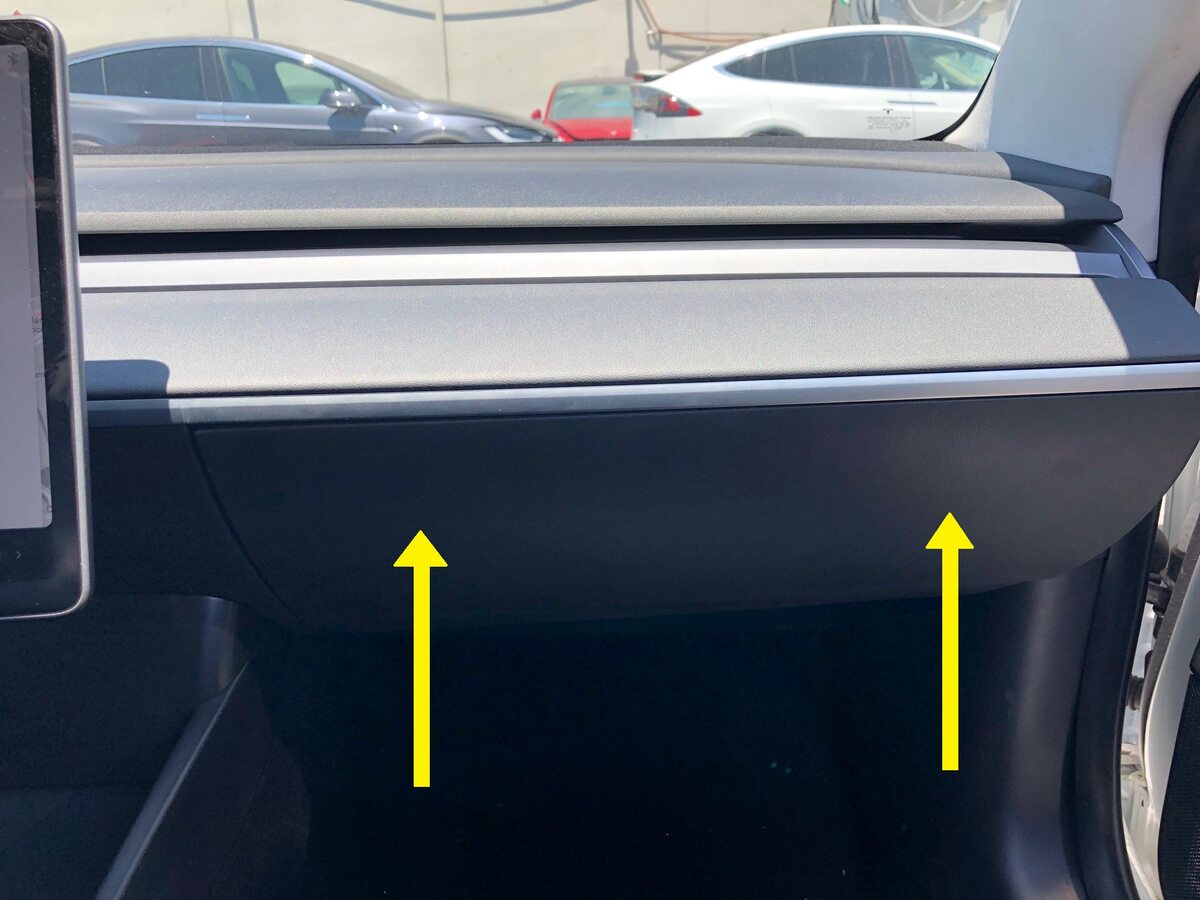

23. Close glove box

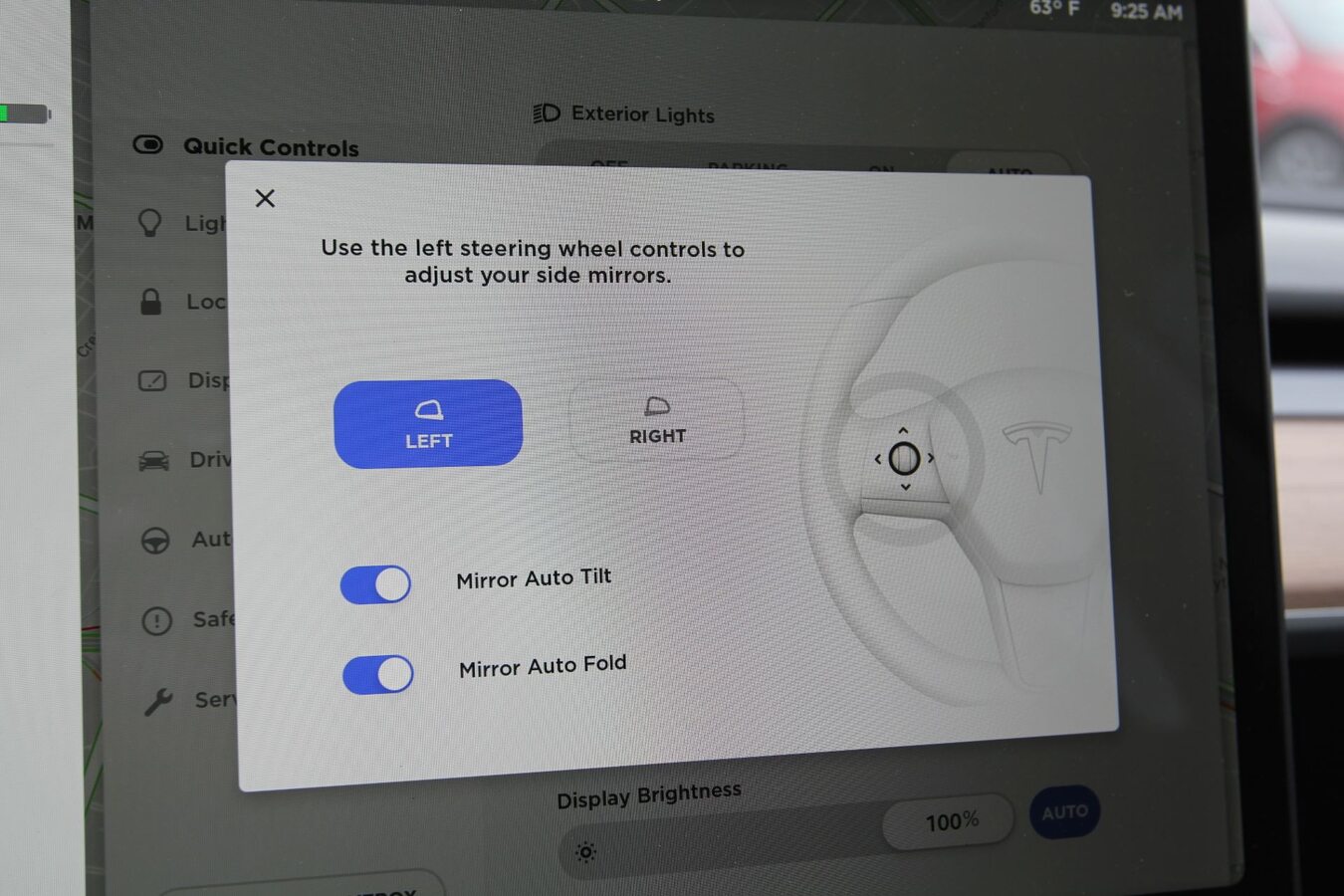

24. Function check power folding side mirrors
    Anmerkung

    Fold mirrors in/out, Check adjustment of glass

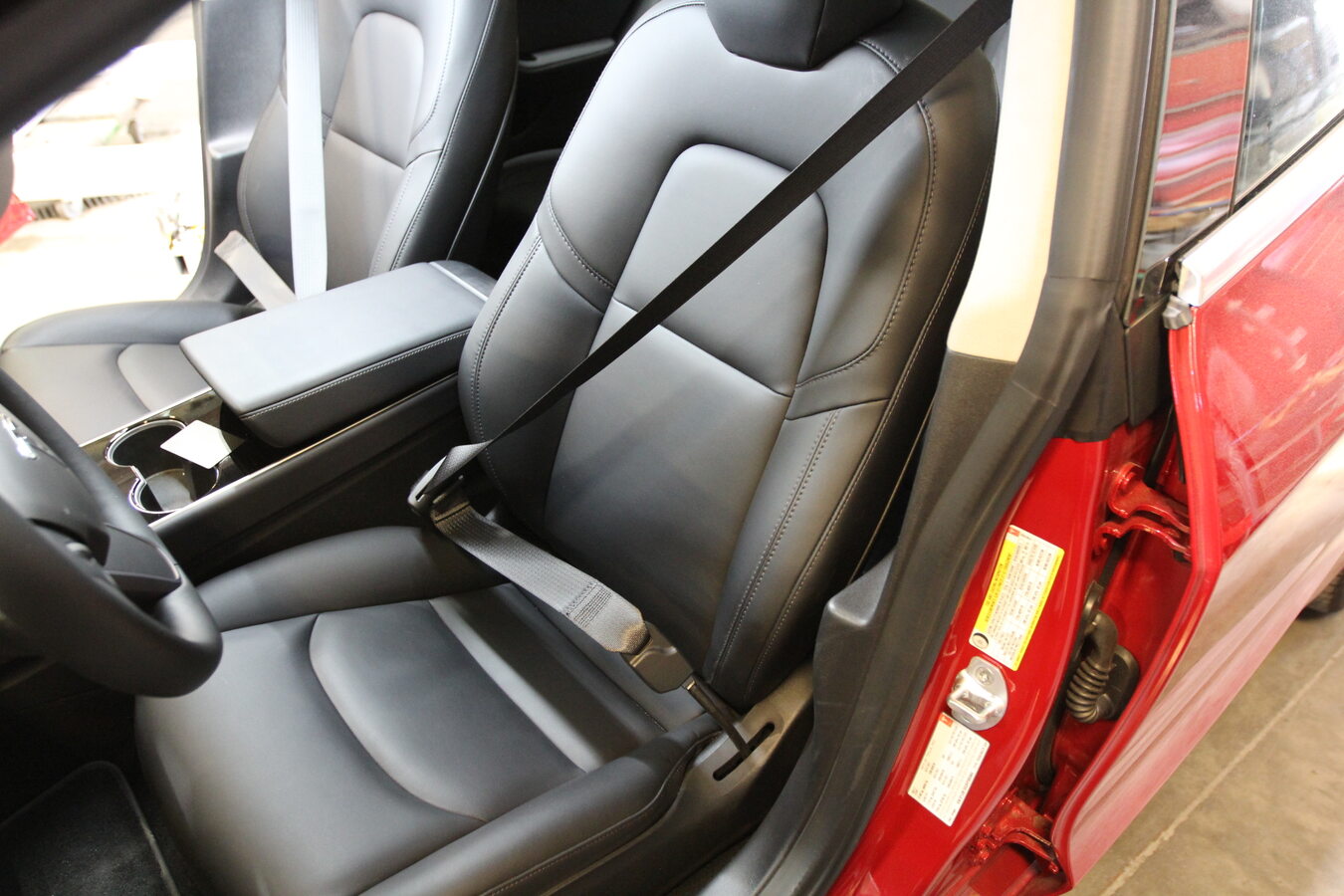

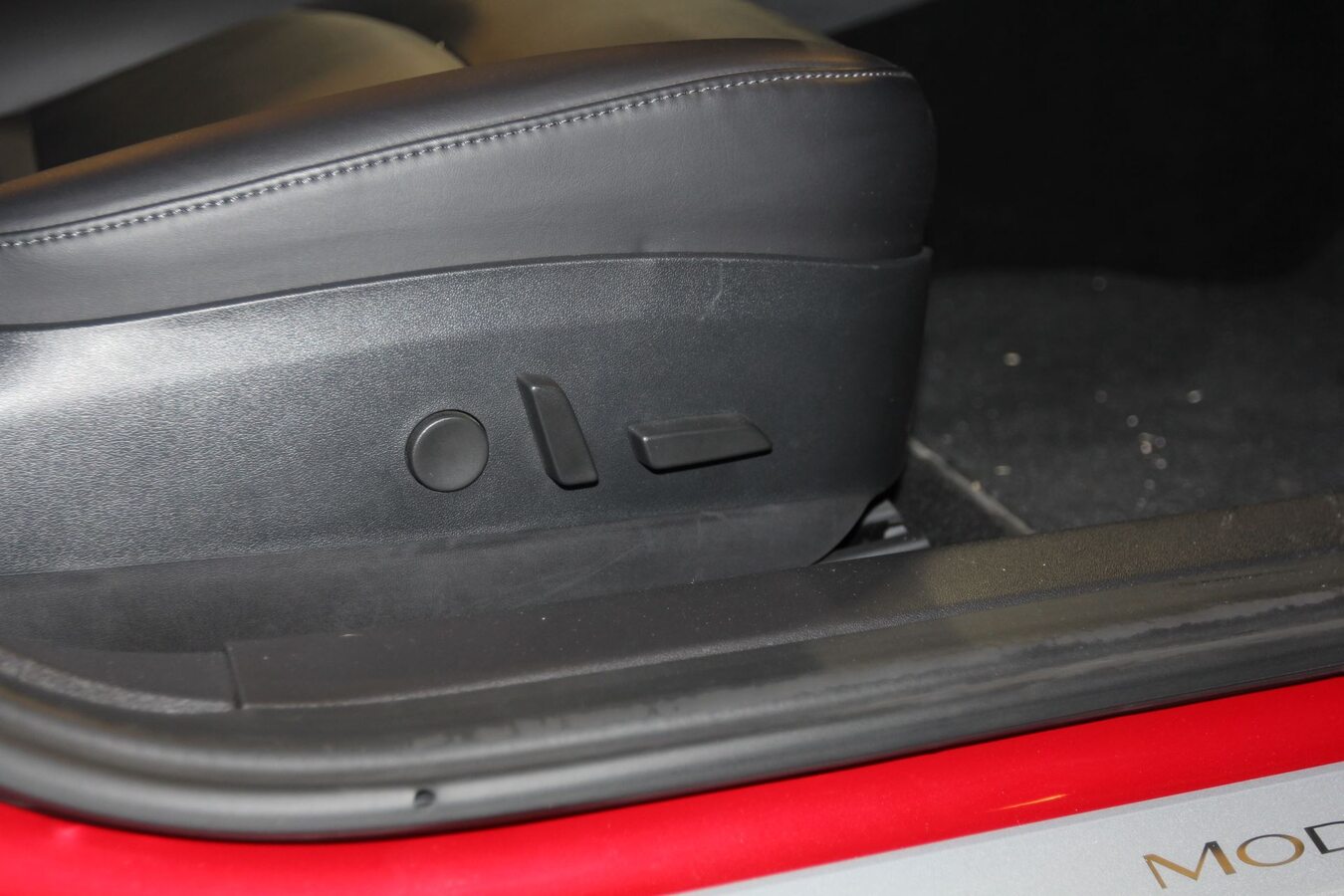

25. Function check LH front seat
    Anmerkung

    Check full range of motion of seat, Test lumbar and seat heat/cooling

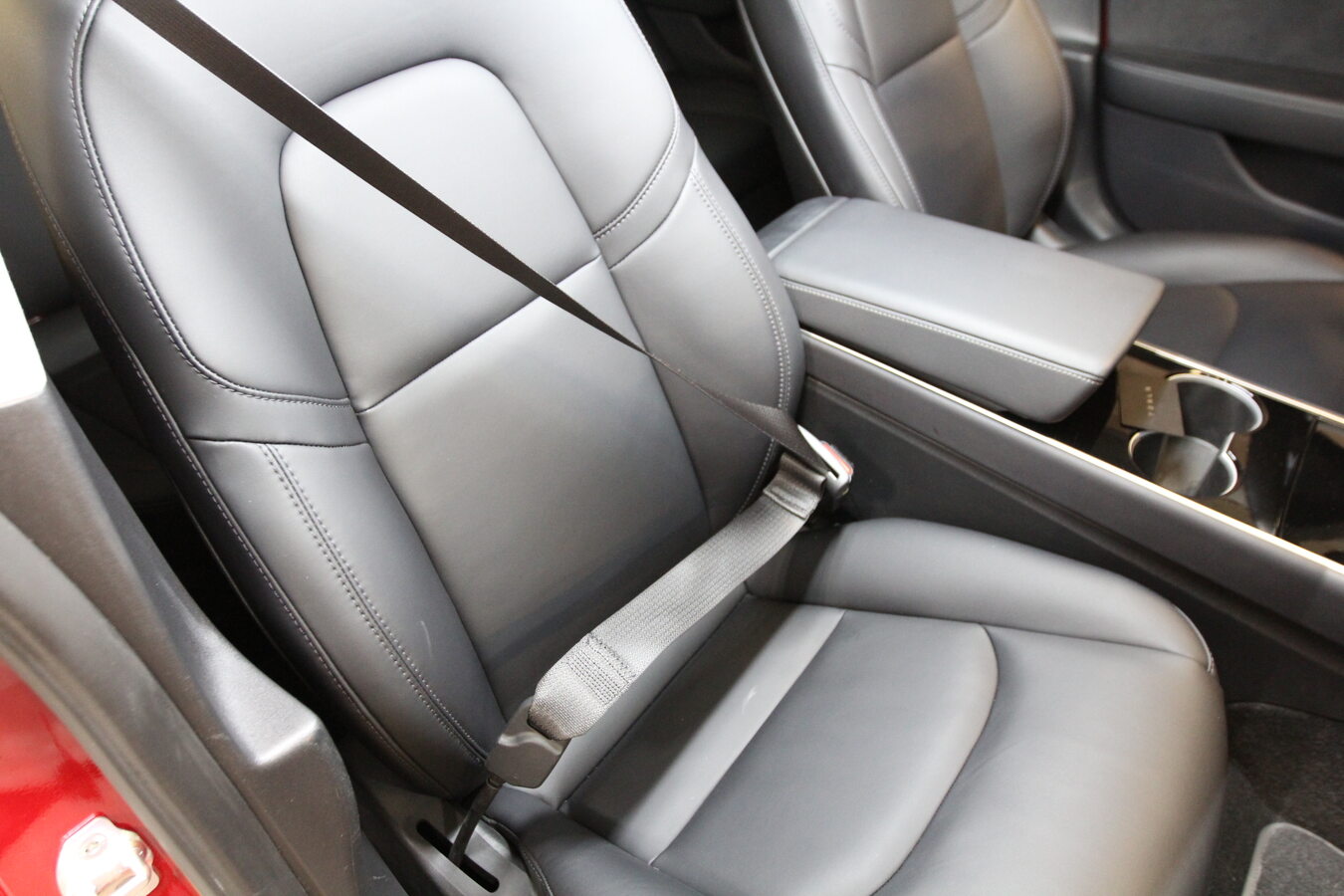

26. Function check LH front seat belt
    Anmerkung

    Latch and unlatch buckle, Quickly pull retractor to check locking function

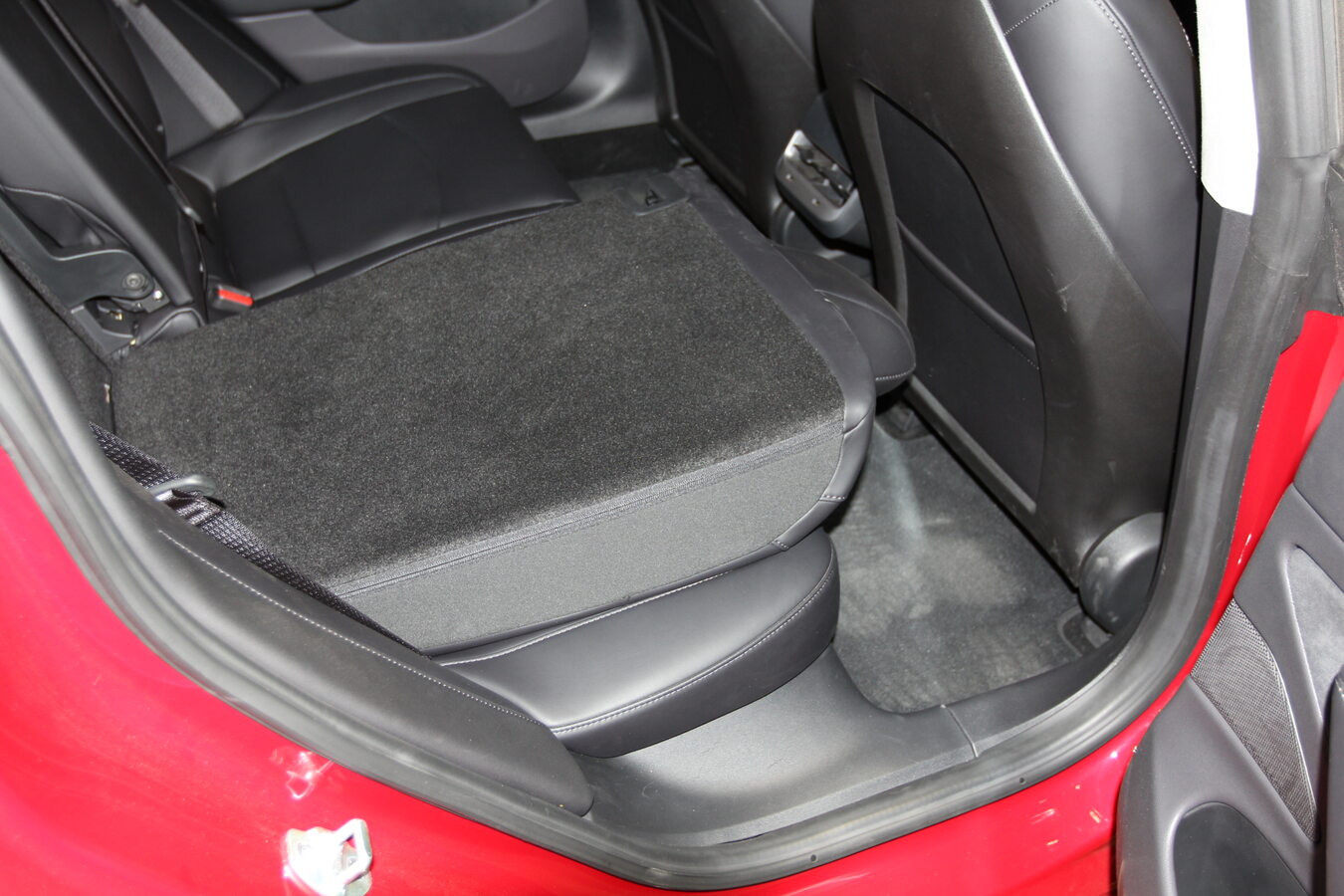

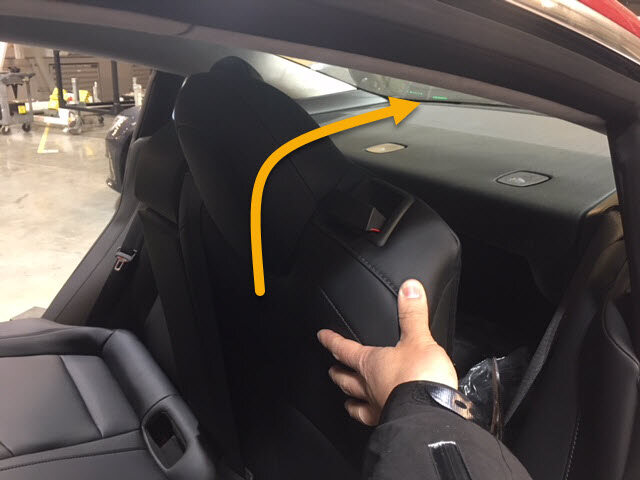

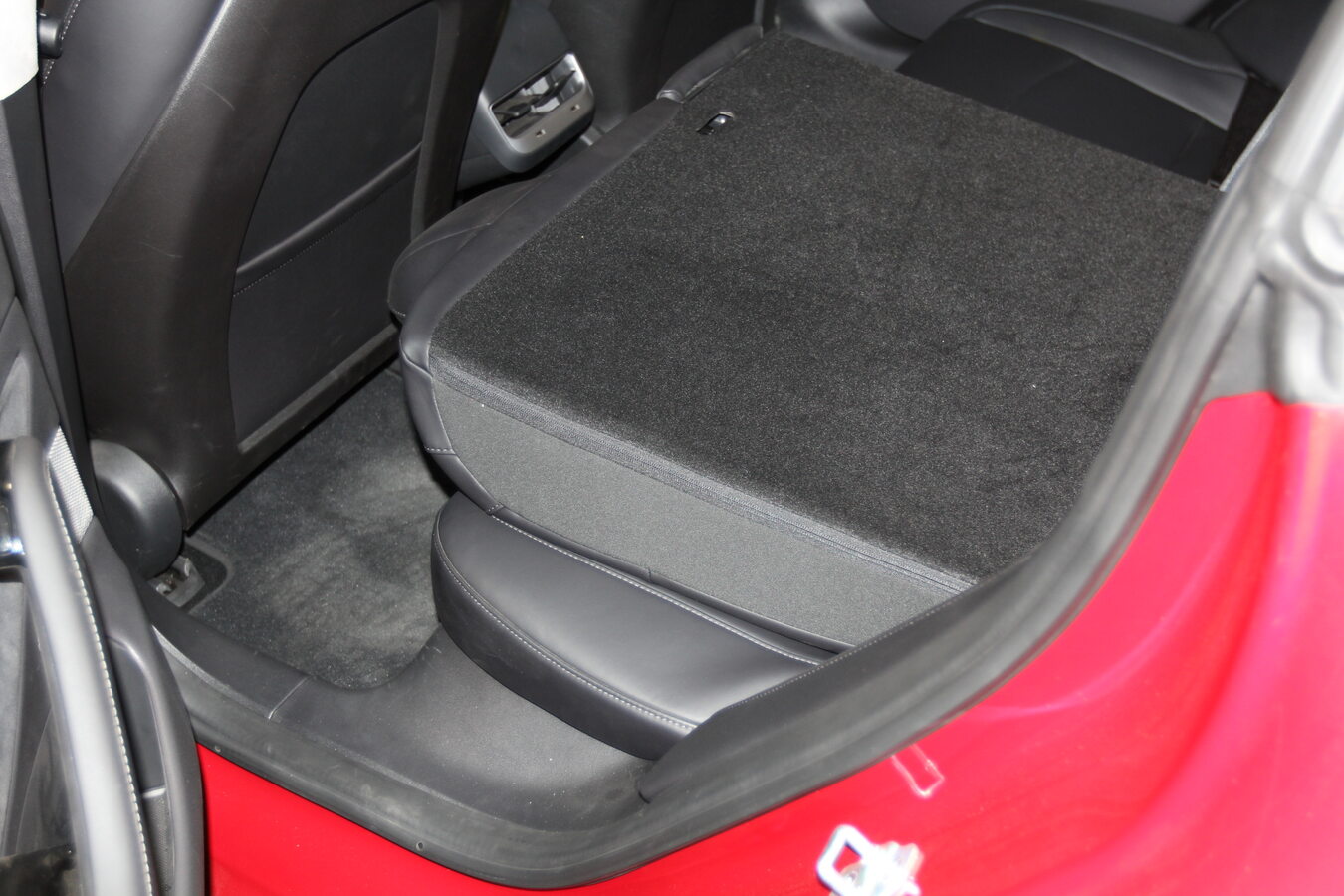

27. Fold the 60 seat in down position



28. Fold 60 seat into vertical position
    Anmerkung

    Remove seat protection



29. Fold the 40 seat in down position



30. Fold the 40 seat into vertical position

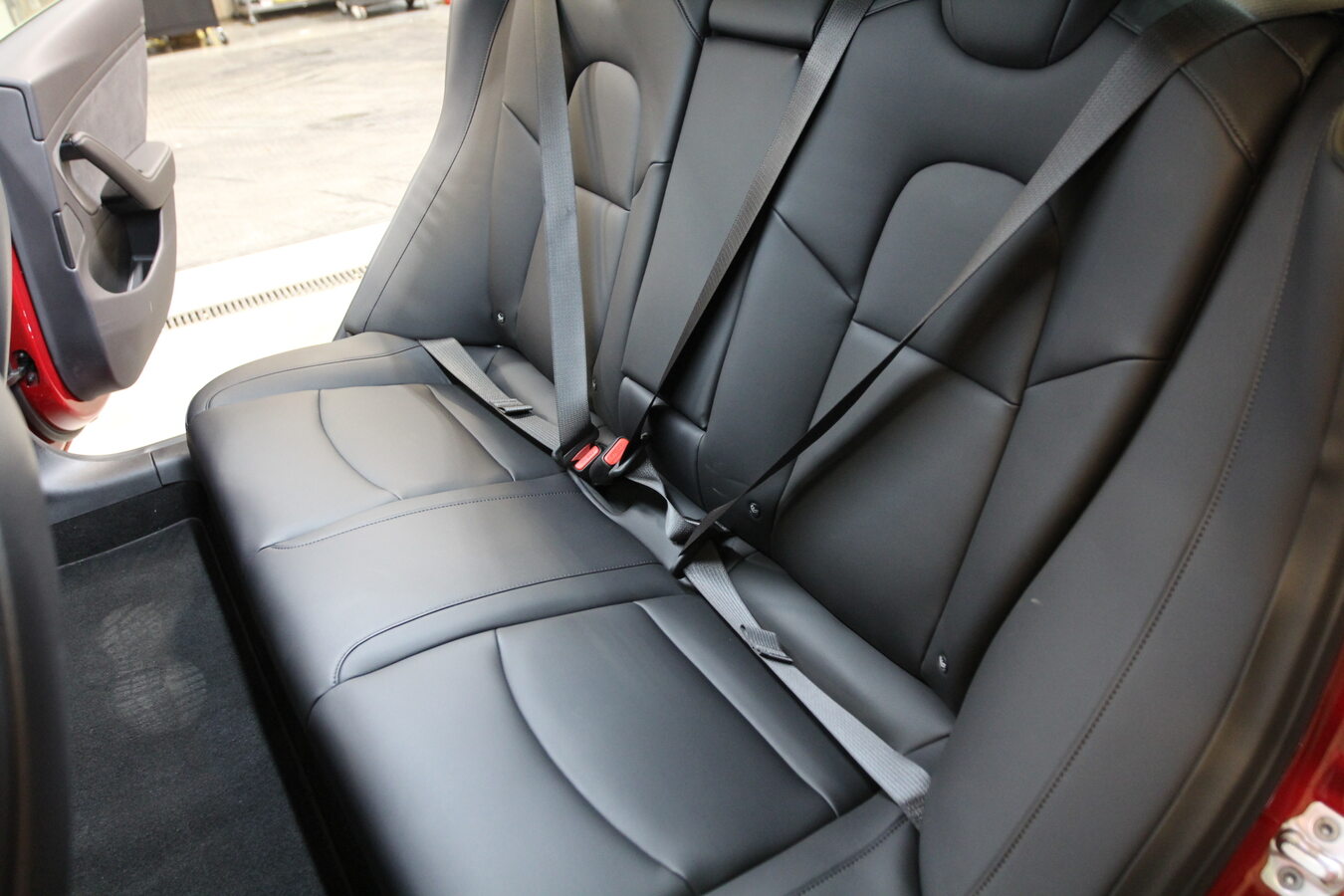

31. Function check the rear seat belts
    Anmerkung

    Latch and unlatch buckles, Quickly pull retractors to check locking function



32. Function check the RH front seat belt
    Anmerkung

    Latch and unlatch buckle, Quickly pull retractor to check locking function

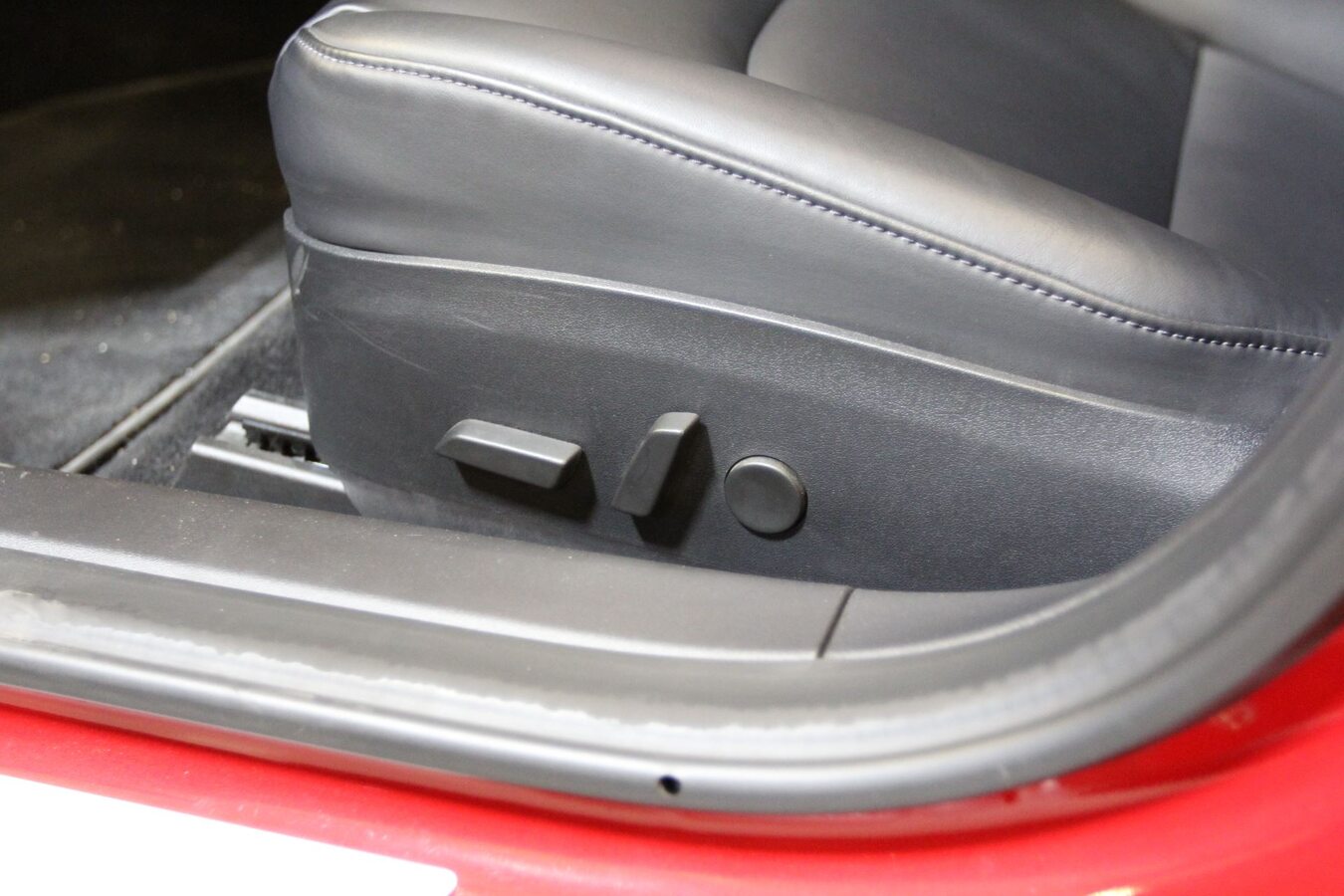

33. Function check RH front seat
    Anmerkung

    Check full range of motion of seat

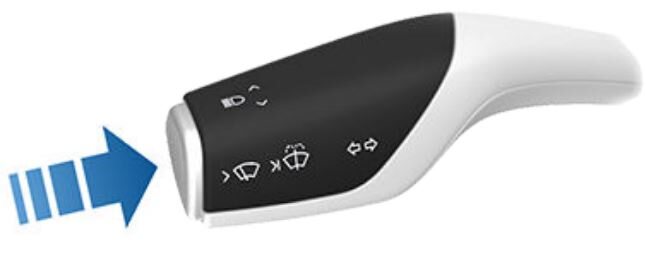

34. Verify operation of windshield wipers and nozzles
    Anmerkung

    Ensure hood and doors are closed prior to activating wipers, Inspect and note functionality for wipers and wiper jets, Check for full range of motion, speed of motion, interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions





35. Link to procedure: 67b88c8a83ed950e257a16e3

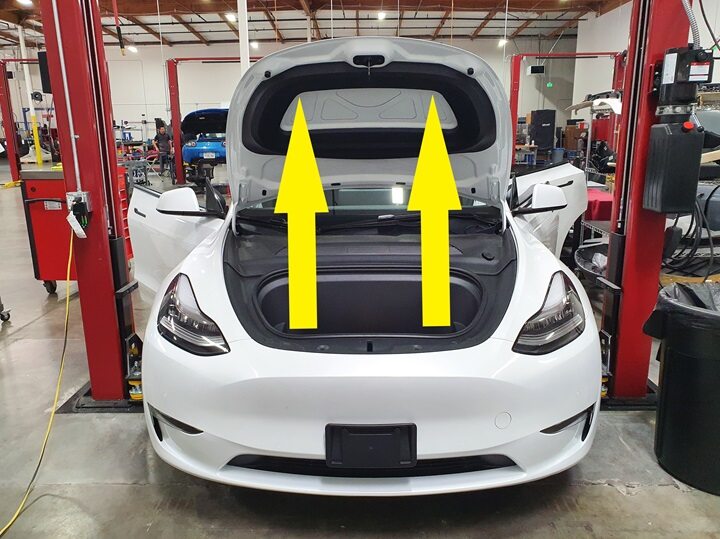

36. Open hood
    Anmerkung

    Press "Open" button on touchscreen to release latch, Lift lid manually

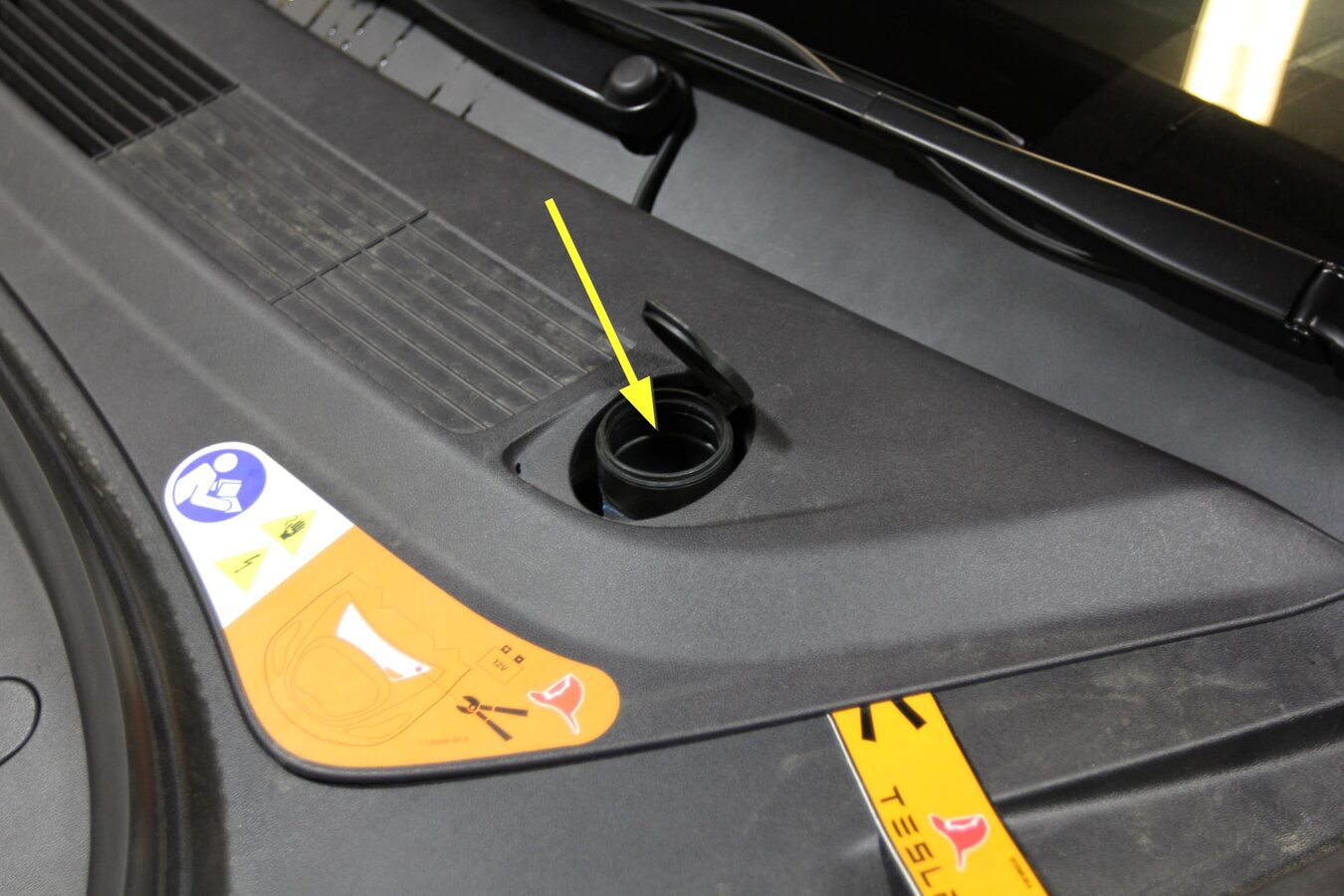

37. Fill washer reservoir with fluid



38. Remove rear apron
    Anmerkung

    12x clips, Only store rear apron visible face upwards

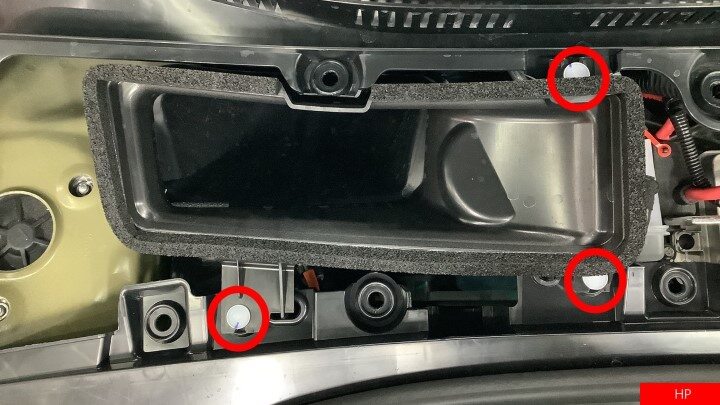

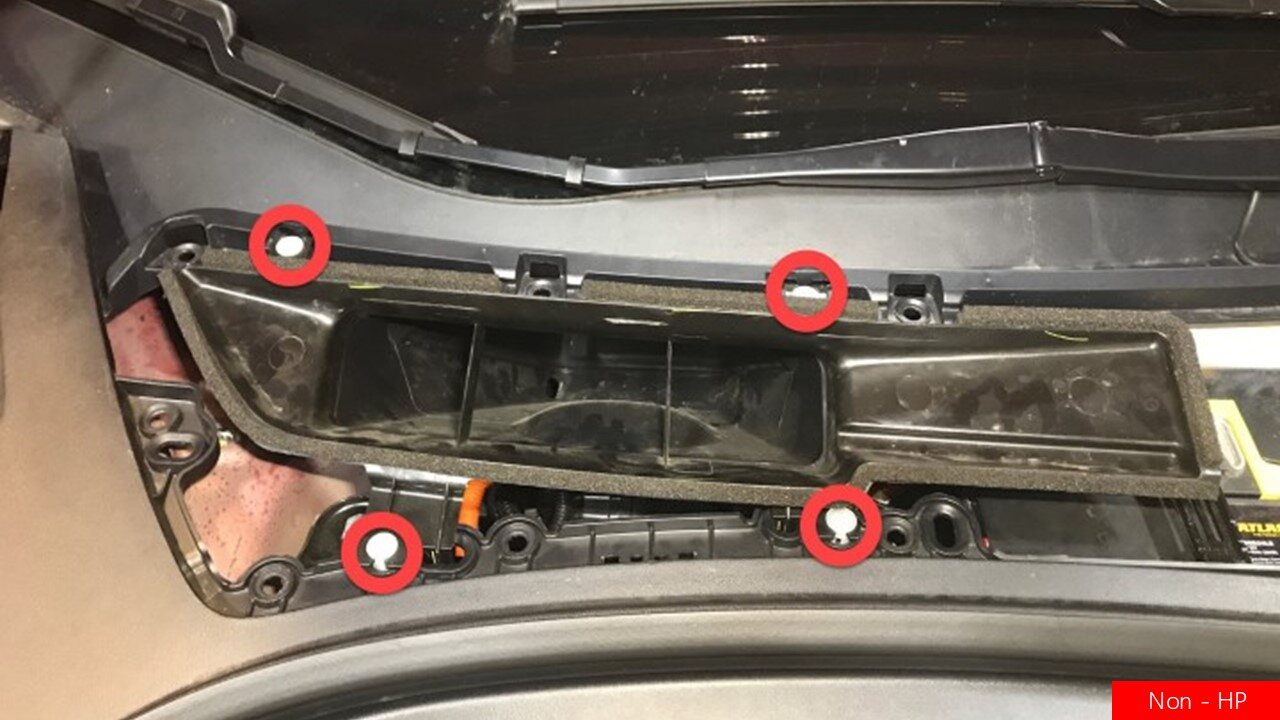

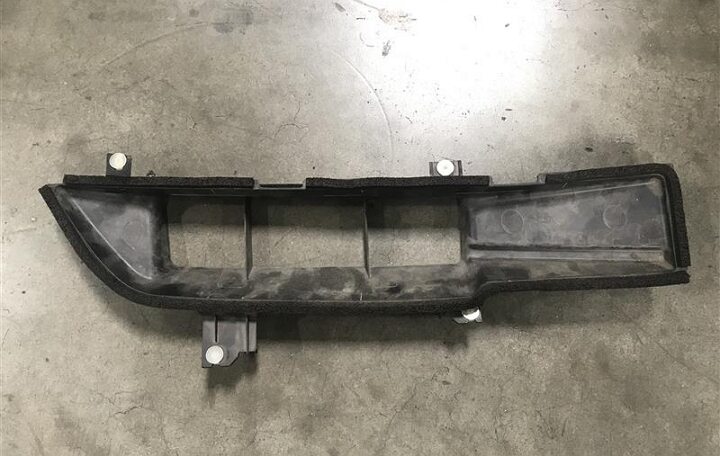

39. Remove cabin intake upper duct assembly
    Anmerkung

    3x clips, Some configurations may come with 4x clips







40. Remove closeout panel from frunk assembly
    Anmerkung

    4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Grab closeout panel from bottom then pull it upward to release clips, Disconnect switch

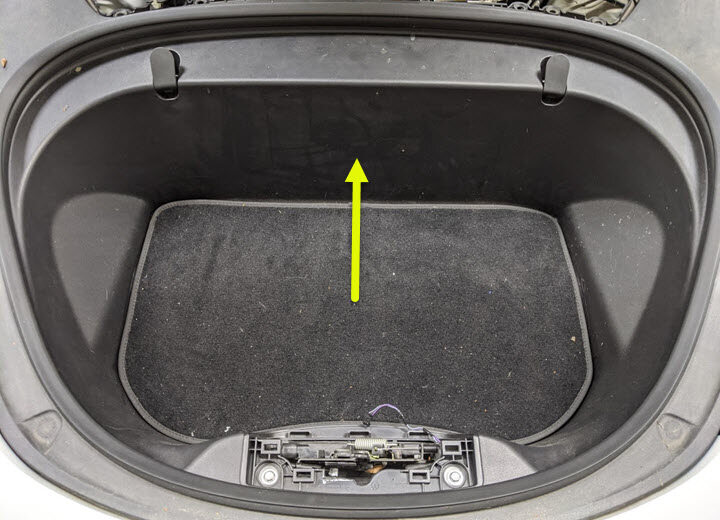

41. Remove frunk assembly carpet
    Anmerkung

    Note: Not all Model 3 vehicles have a frunk carpet installed



42. Remove bolts securing frunk assembly
    Anmerkung

    7x bolts, 10mm, 5 Nm



43. Remove frunk assembly from vehicle
    Anmerkung

    12x clips, Replace any clips if broken or missing, Number of clips may vary on older vehicles

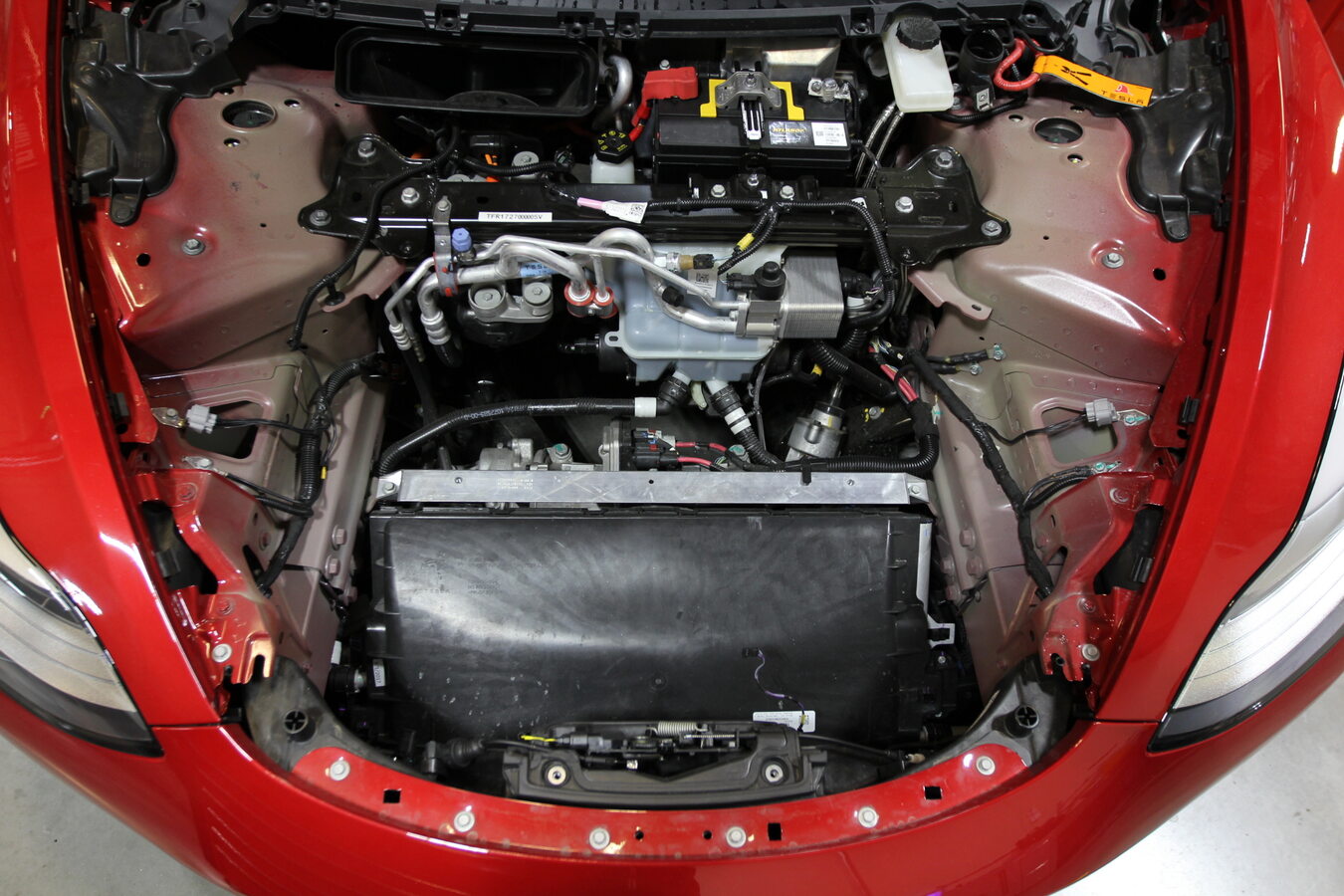

44. Perform inspection of under hood area
    Anmerkung

    Perform inspection of vehicle under hood area, Check for signs of abnormal damage, wear, heavy rust, wiring damage, or impact damage, Pay attention to safety related component and note any items of significance

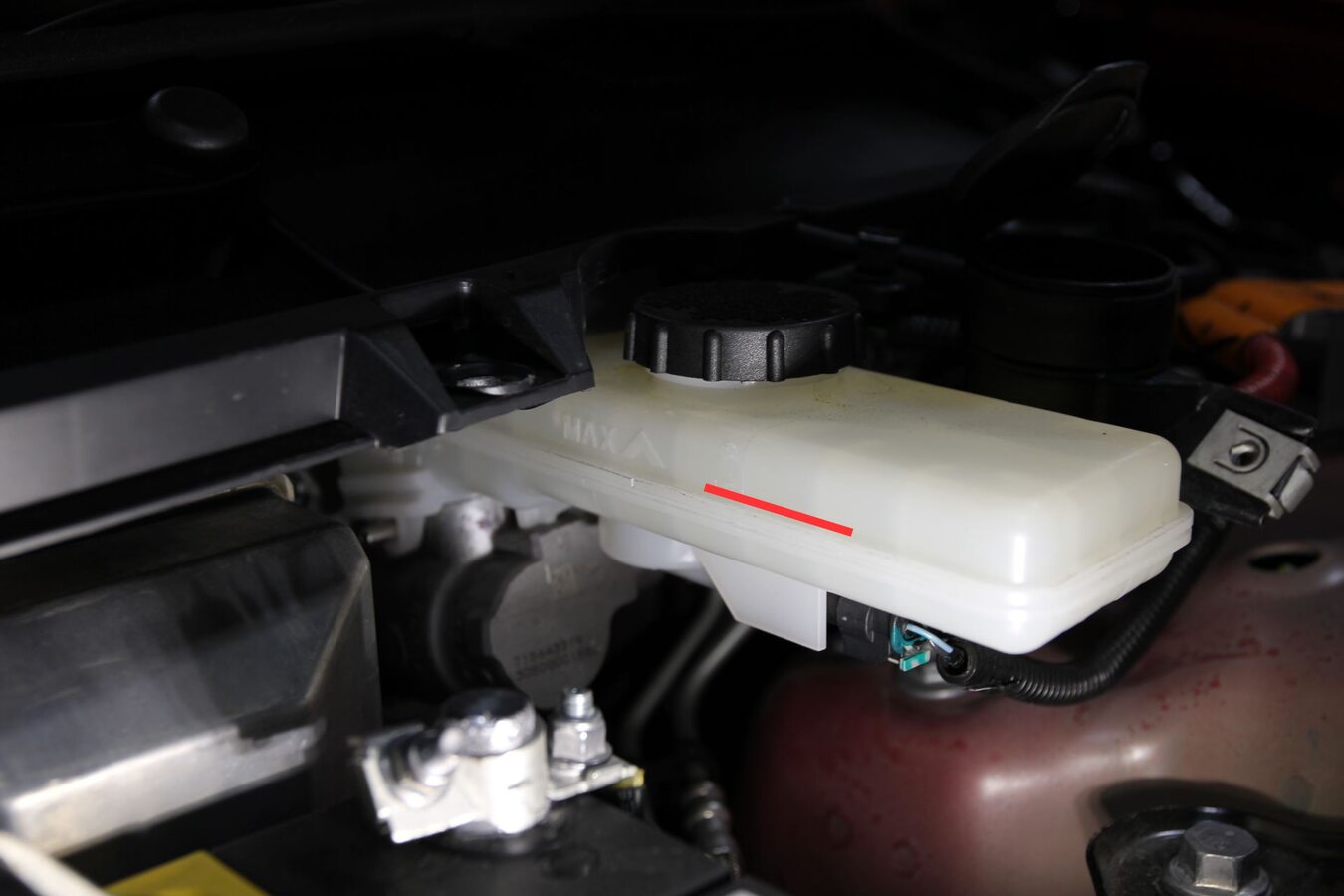

45. Visually inspect brake fluid level

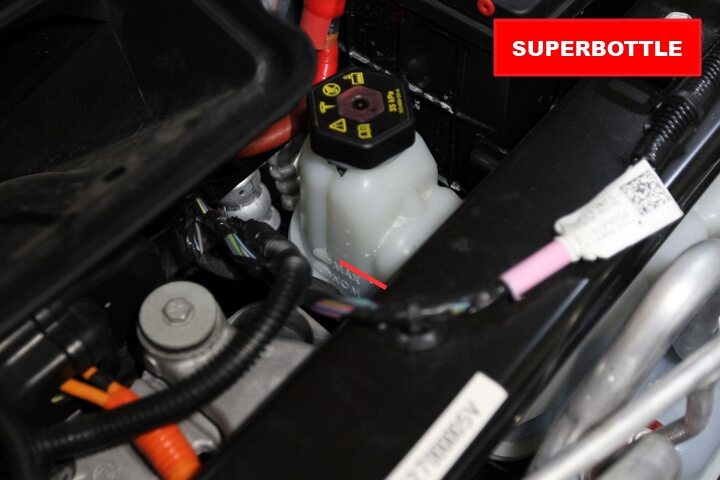

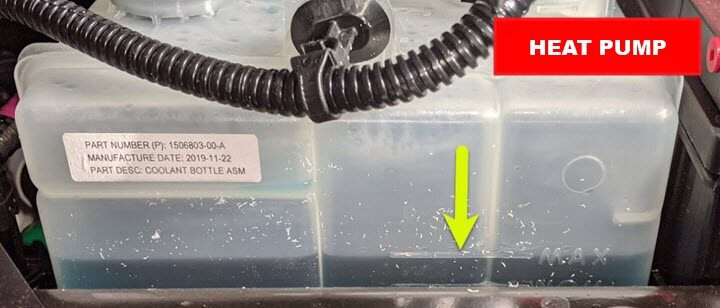

46. Inspect coolant level and top off as necessary
    Anmerkung

    Ensure that fluid level is at Max line





47. Raise and support vehicle

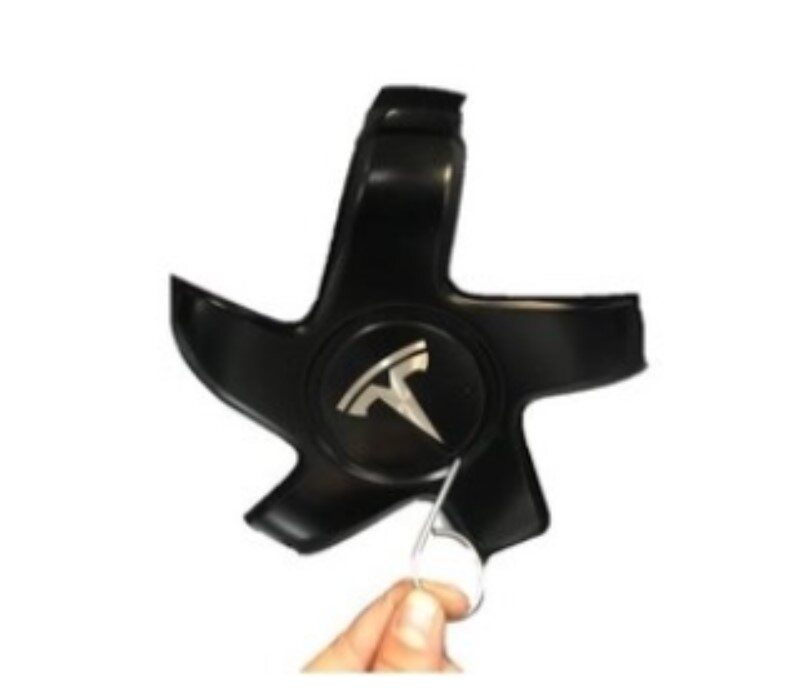

48. Remove LH front wheel center cap
    Anmerkung

    1x cap



49. Remove RH front wheel center cap
    Anmerkung

    1x cap



50. Remove RH rear wheel center cap
    Anmerkung

    1x cap



51. Remove RH rear wheel center cap
    Anmerkung

    1x cap



52. Remove LH rear wheel center cap
    Anmerkung

    1x cap

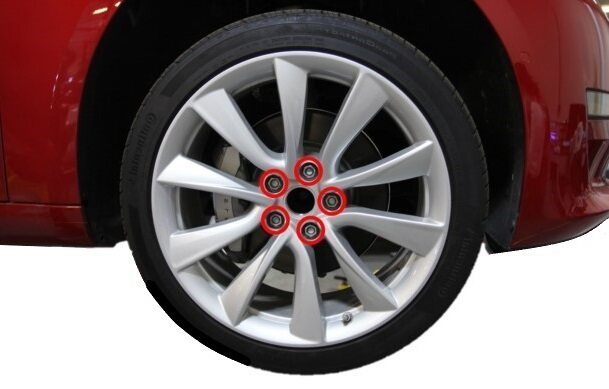

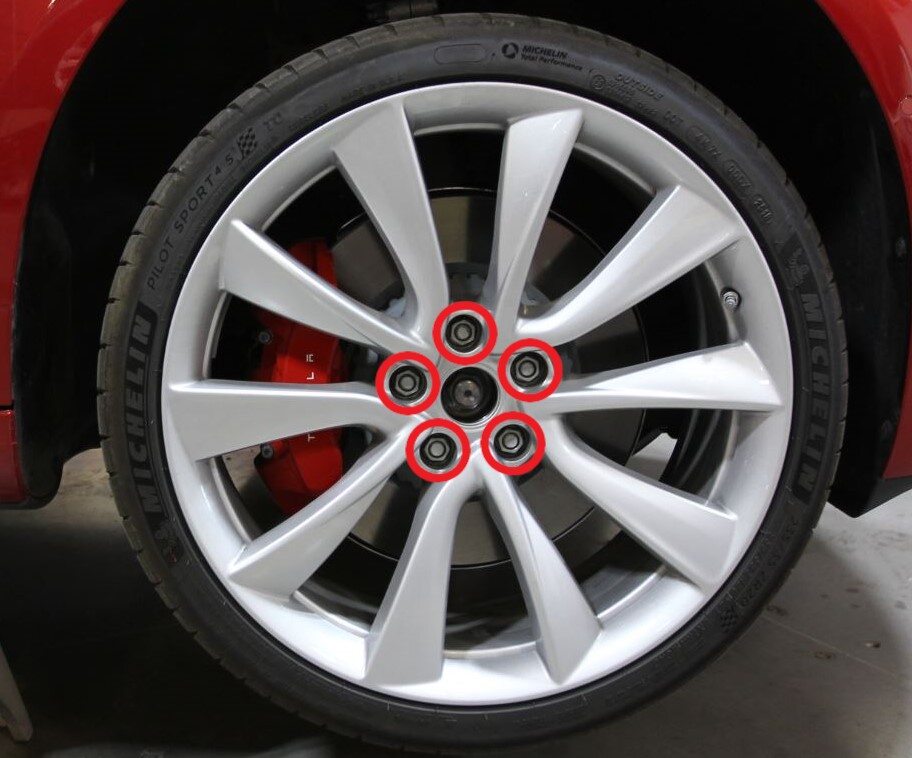

53. Loosen LH front wheel
    Anmerkung

    5x nuts, 21mm, 175 Nm



54. Loosen RH front wheel
    Anmerkung

    5x nuts, 21mm, 175 Nm



55. Loosen RH rear wheel
    Anmerkung

    5x nuts, 21mm, 175 Nm



56. Loosen LH rear wheel
    Anmerkung

    5x nuts, 21mm, 175 Nm



57. Raise vehicle partially and lower lift onto locks
    Anmerkung

    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, Otherwise vehicle may tilt to the side

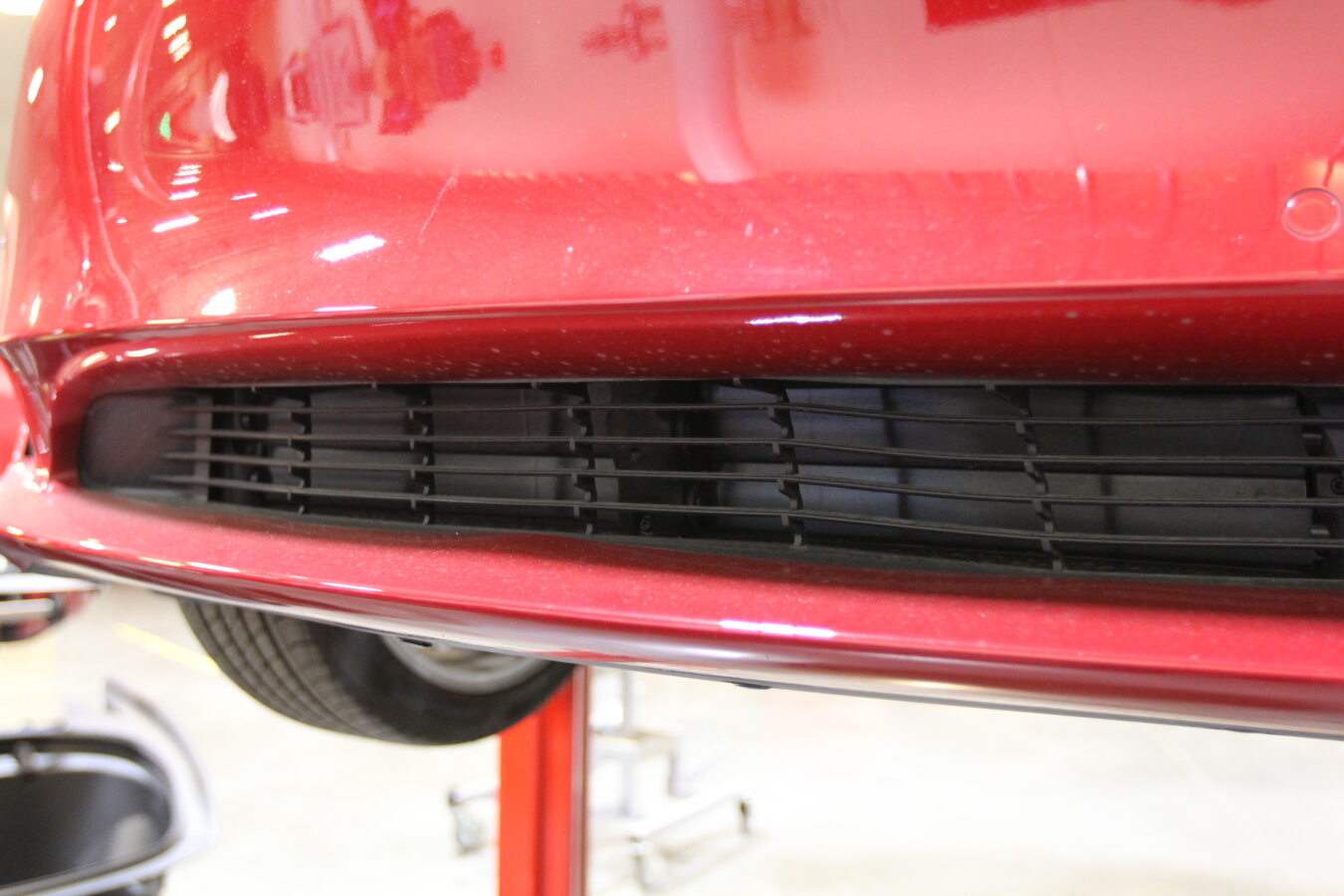

58. Inspect radiator inlet in front fascia for debris
    Anmerkung

    Clear debris if necessary



59. Remove LH front wheel
    Anmerkung

    5x nuts, 21mm, 175 Nm



60. Remove RH front wheel
    Anmerkung

    5x nuts, 21mm, 175 Nm



61. Remove RH rear wheel
    Anmerkung

    5x nuts, 21mm, 175 Nm



62. Remove LH rear wheel
    Anmerkung

    5x nuts, 21mm, 175 Nm

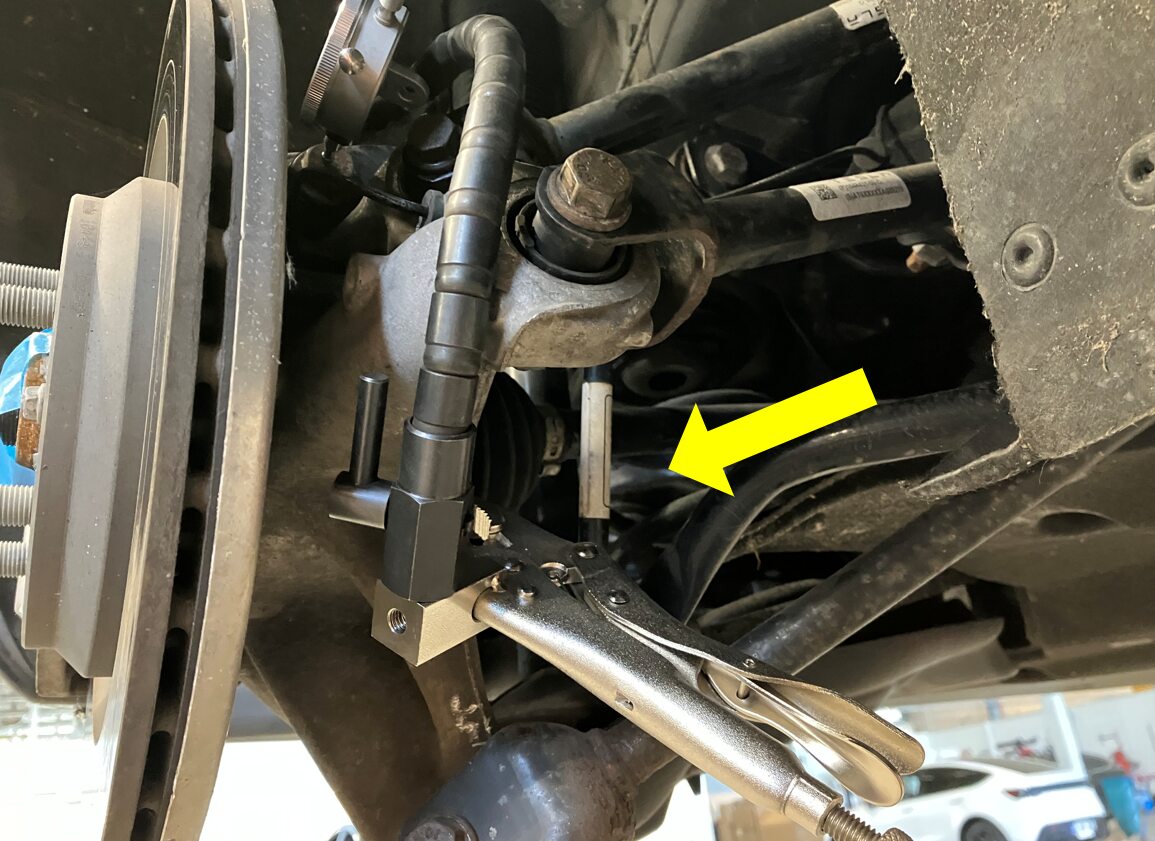

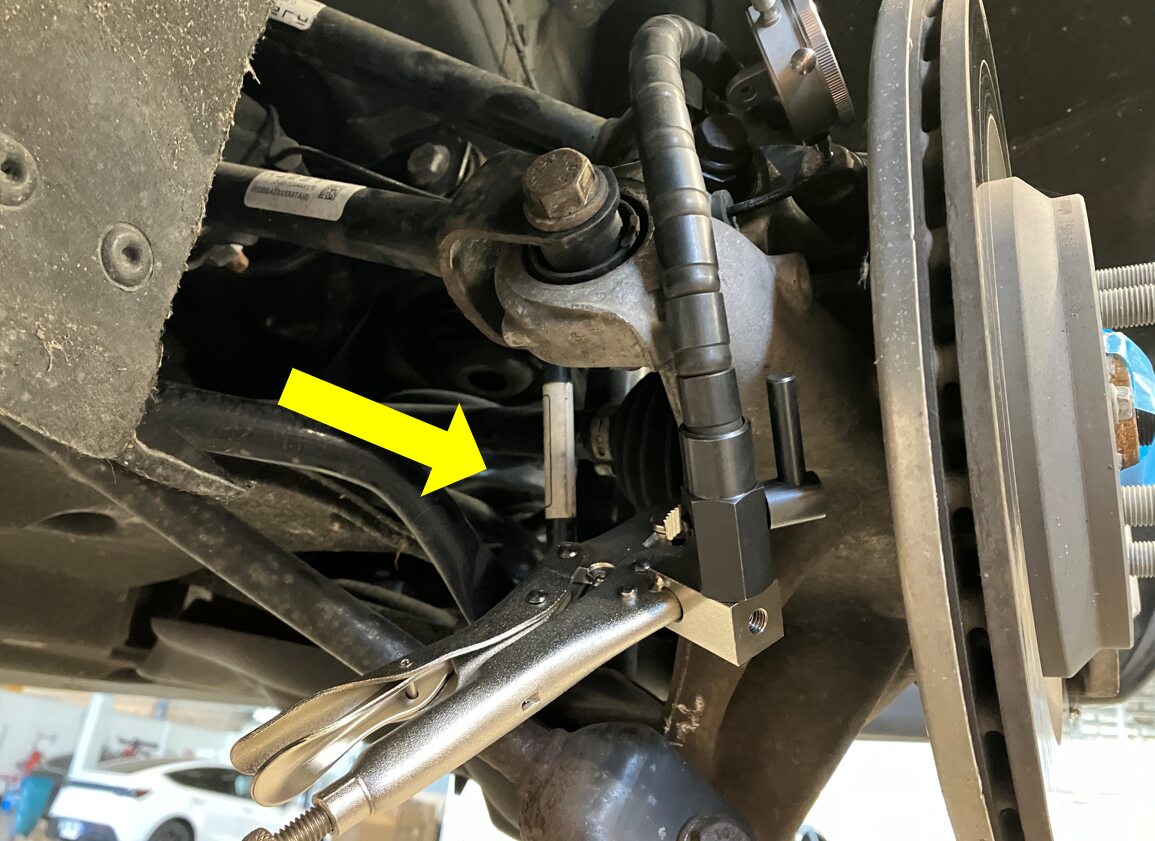

63. Install brake rotor run out flex bar onto LH rear knuckle and setup for reading
    Anmerkung

    Pay attention to the clamp location and the routing of the flex bar, firmly connect the indicator rod to the upper link bolt head, fnsure the indicator rod is properly depressed, allowing travel in both directions without bottoming out and set the measurement to zero





64. Install brake rotor run out flex bar onto LH rear knuckle and setup for reading
    Anmerkung

    Pay attention to the clamp location and the routing of the flex bar, firmly connect the indicator rod to the upper link bolt head, fnsure the indicator rod is properly depressed, allowing travel in both directions without bottoming out and set the measurement to zero





65. Remove brake rotor run out flex bar from LH knuckle assembly



66. Install brake rotor run out flex bar onto RH rear knuckle and setup for reading
    Anmerkung

    Pay attention to the clamp location and the routing of the flex bar, firmly connect the indicator rod to the upper link bolt head, fnsure the indicator rod is properly depressed, allowing travel in both directions without bottoming out and set the measurement to zero

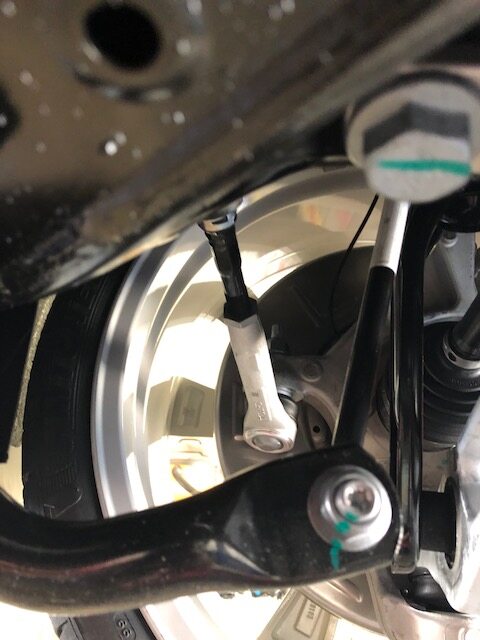

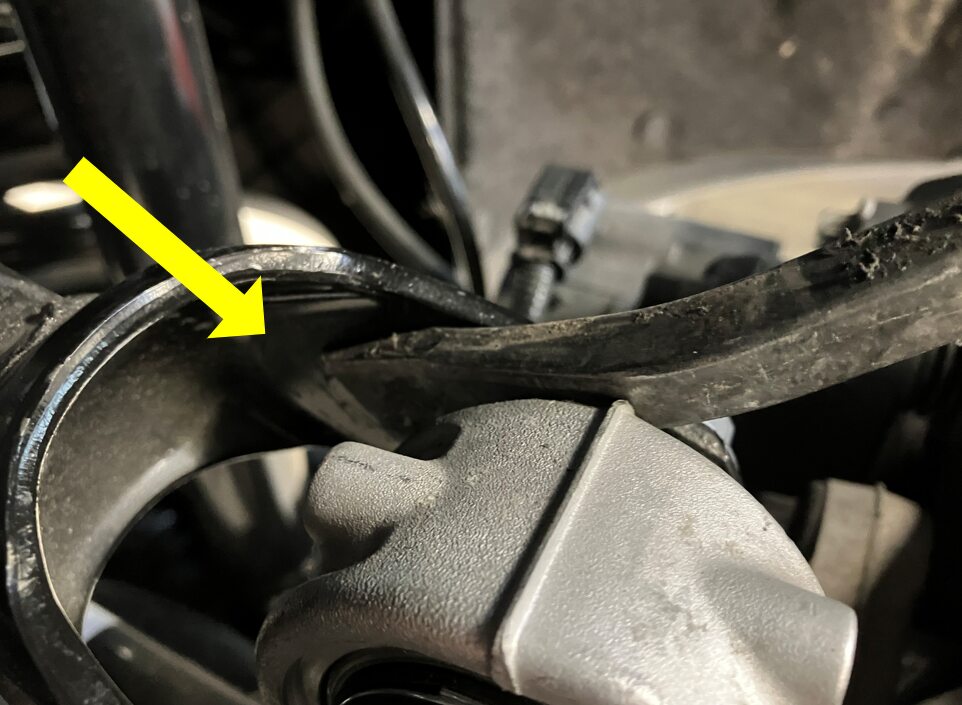

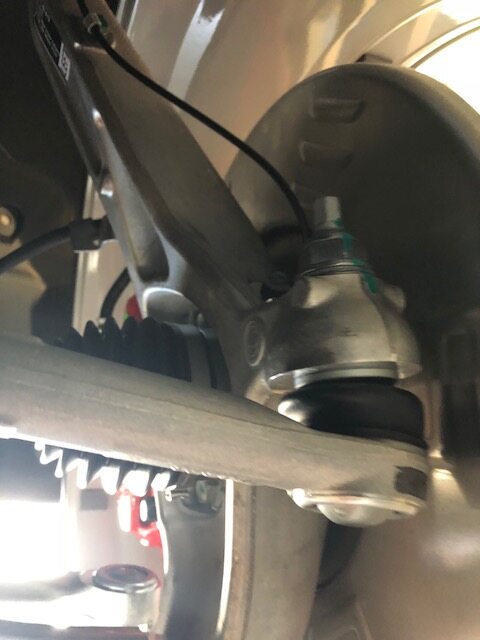

67. Inspect RH Rear Upper Knuckle Ball Joint play
    Anmerkung

    Insert medium size prybar between the aft link and the knuckle and push to check, make sure the prybar is pushing the noted area in the middle of the link's side, this will give proper measurement and avoid link rotation. Note the values of the analog indicator, replace RH Rear Upper Knuckle Ball Joint if the play is greater than 1,00mm







68. Remove brake rotor run out flex bar from RH knuckle assembly

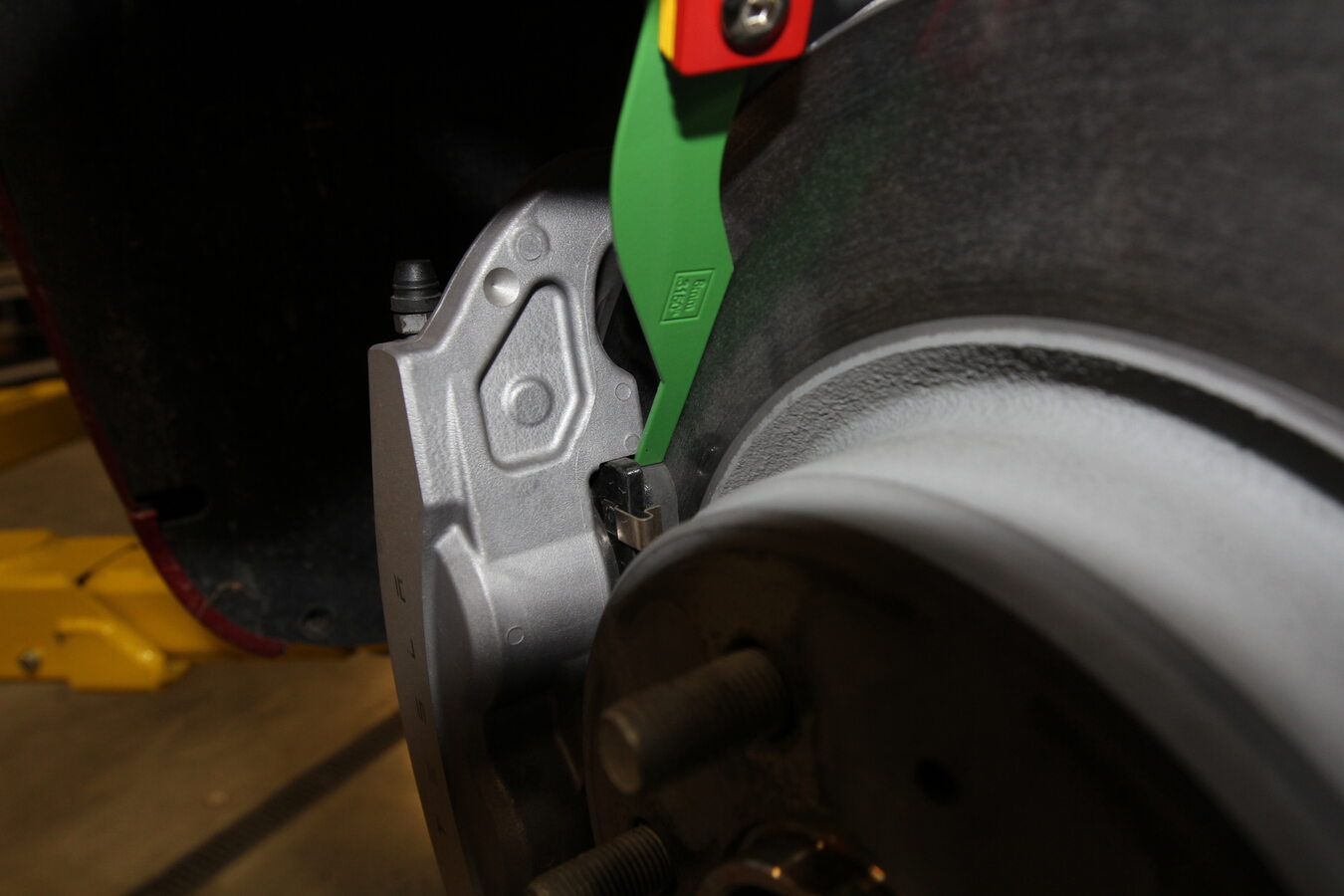

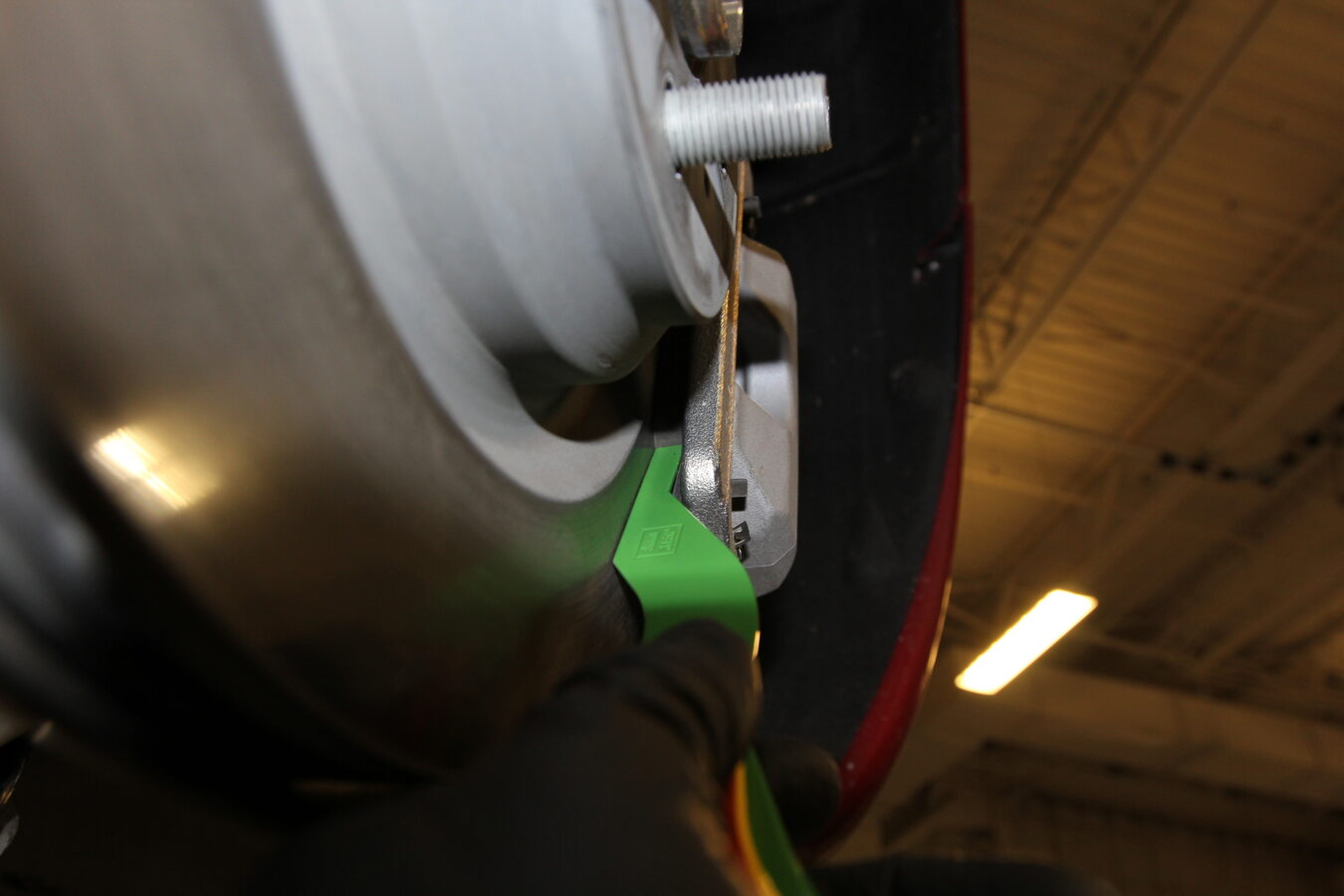

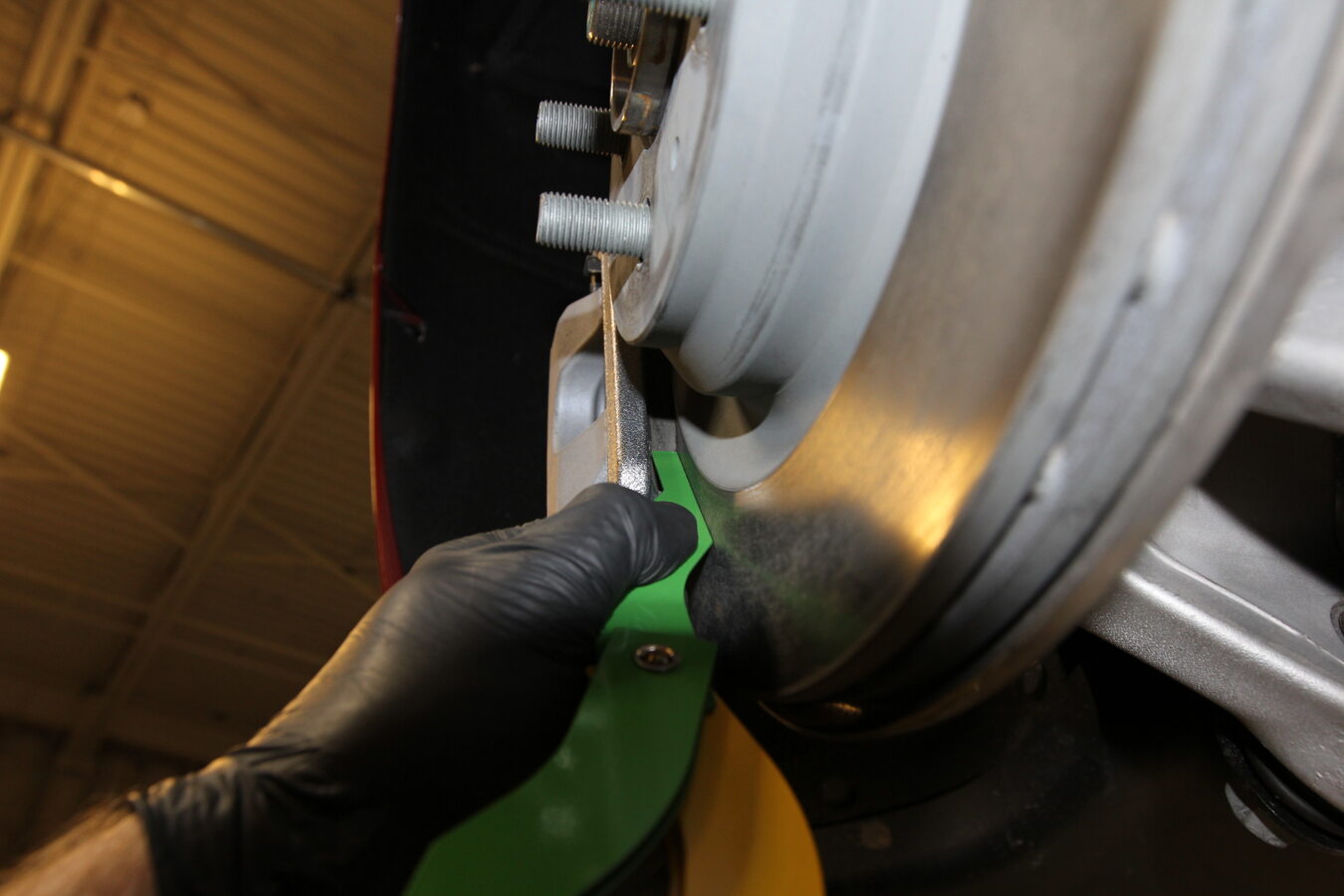

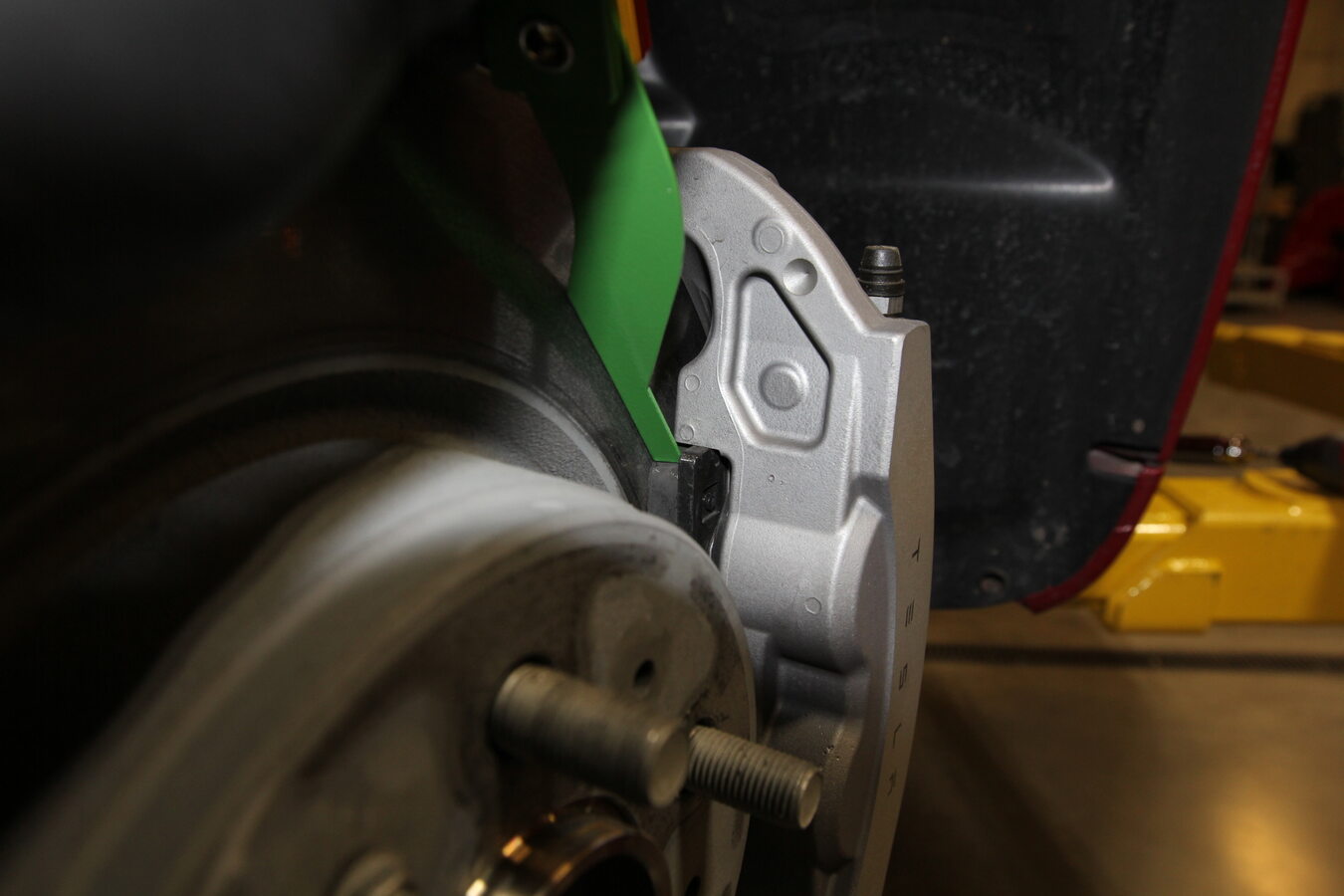

69. Measure and record LH rear brake pad thickness
    Anmerkung

    Recommend replacement if 2mm or less, Check both inboard and outboard pads

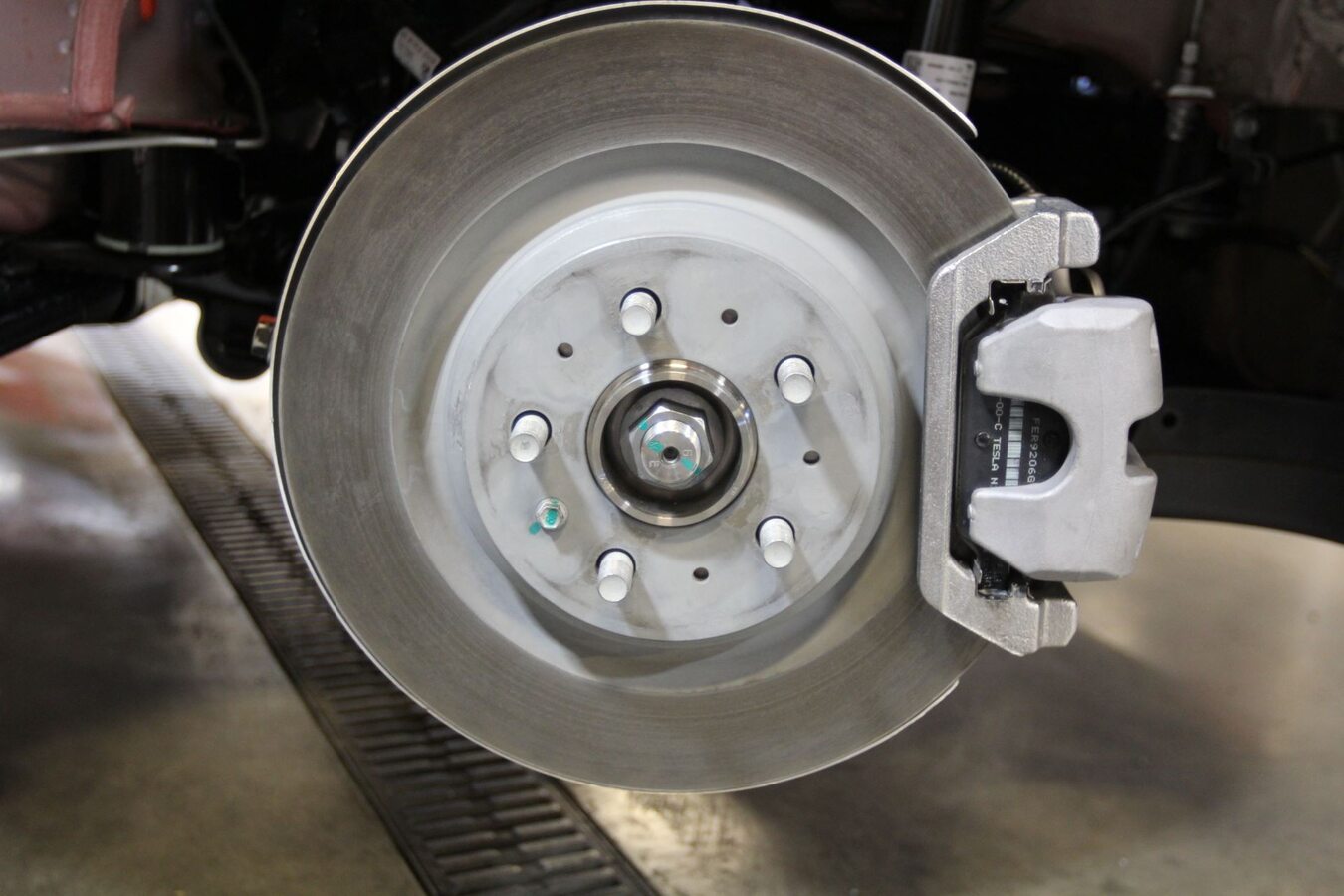

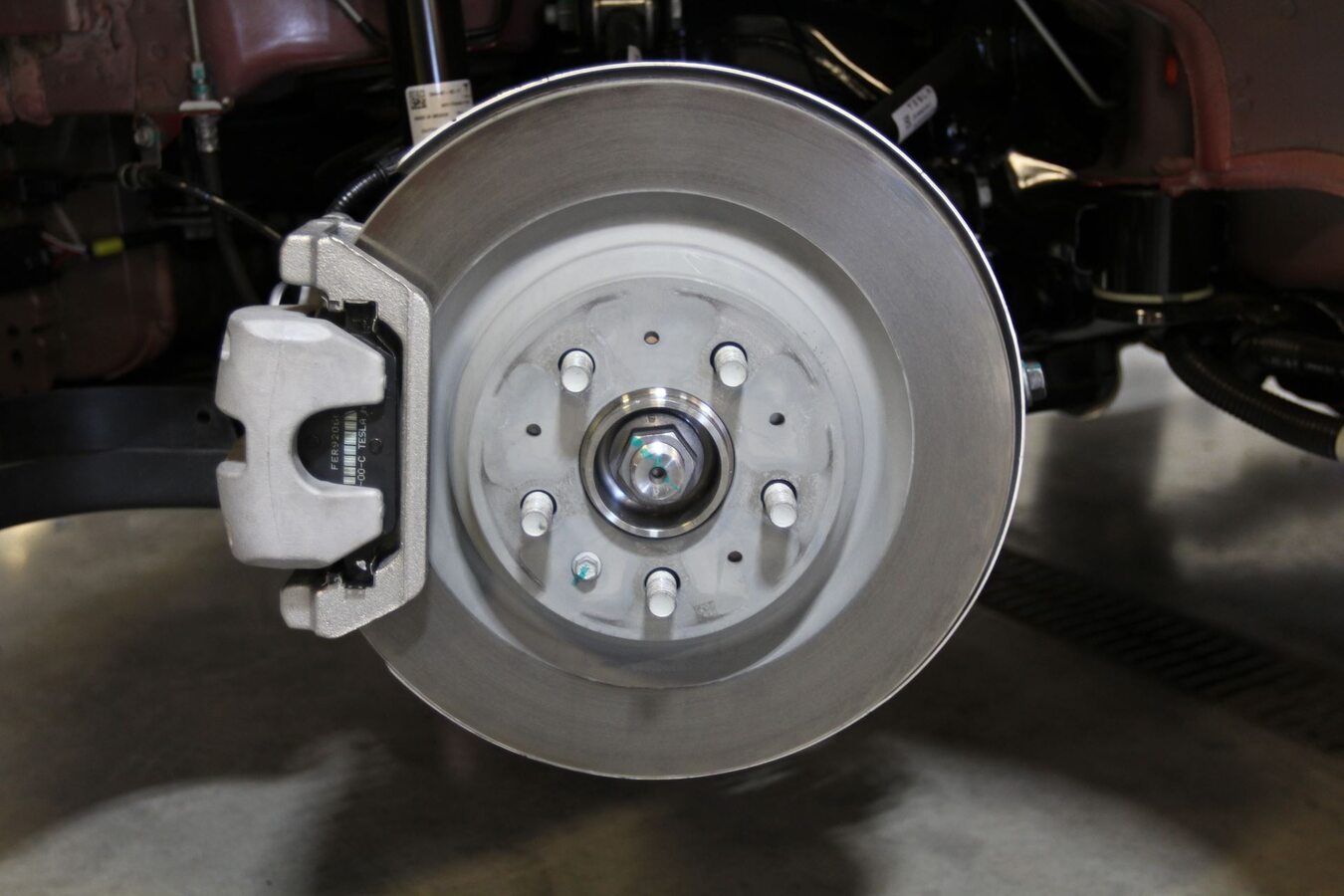

70. Inspect LH rear brake rotor condition
    Anmerkung

    Check for excessive rust or wear, Minimum spec 26mm



71. Measure and record RH rear brake pad thickness
    Anmerkung

    Recommend replacement if 2 mm or less, Check both inboard and outboard pads



72. Inspect RH rear brake rotor condition
    Anmerkung

    Check for excessive rust or wear, Minimum spec 26mm



73. Measure and record RH front brake pad thickness
    Anmerkung

    Recommend replacement if 2mm or less, Check both inboard and outboard pads

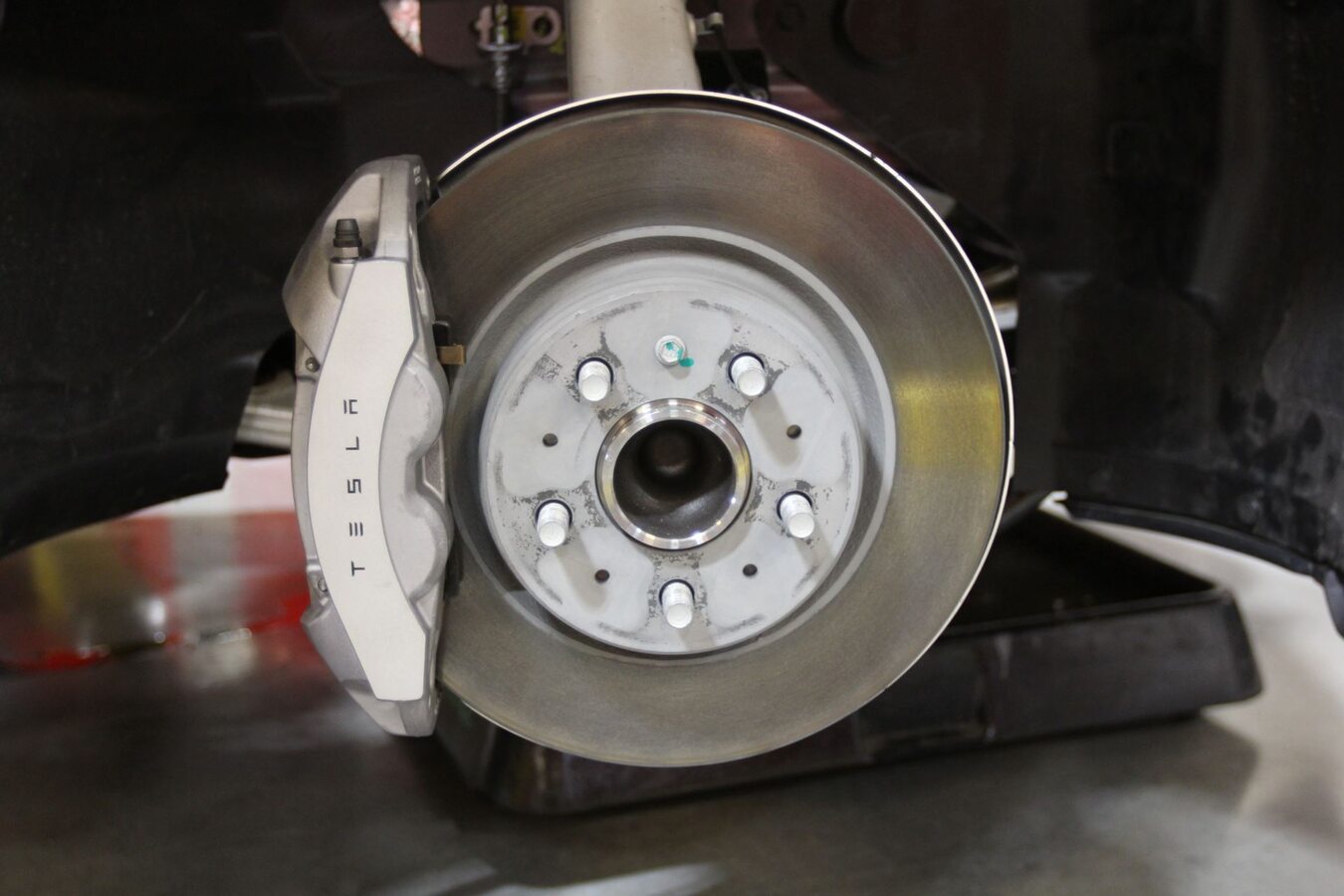

74. Inspect RH front brake rotor condition
    Anmerkung

    Check for excessive rust or wear, Minimum spec 30mm



75. Measure and record LH front brake pad thickness
    Anmerkung

    Recommend replacement if 2mm or less, Check both inboard and outboard pads

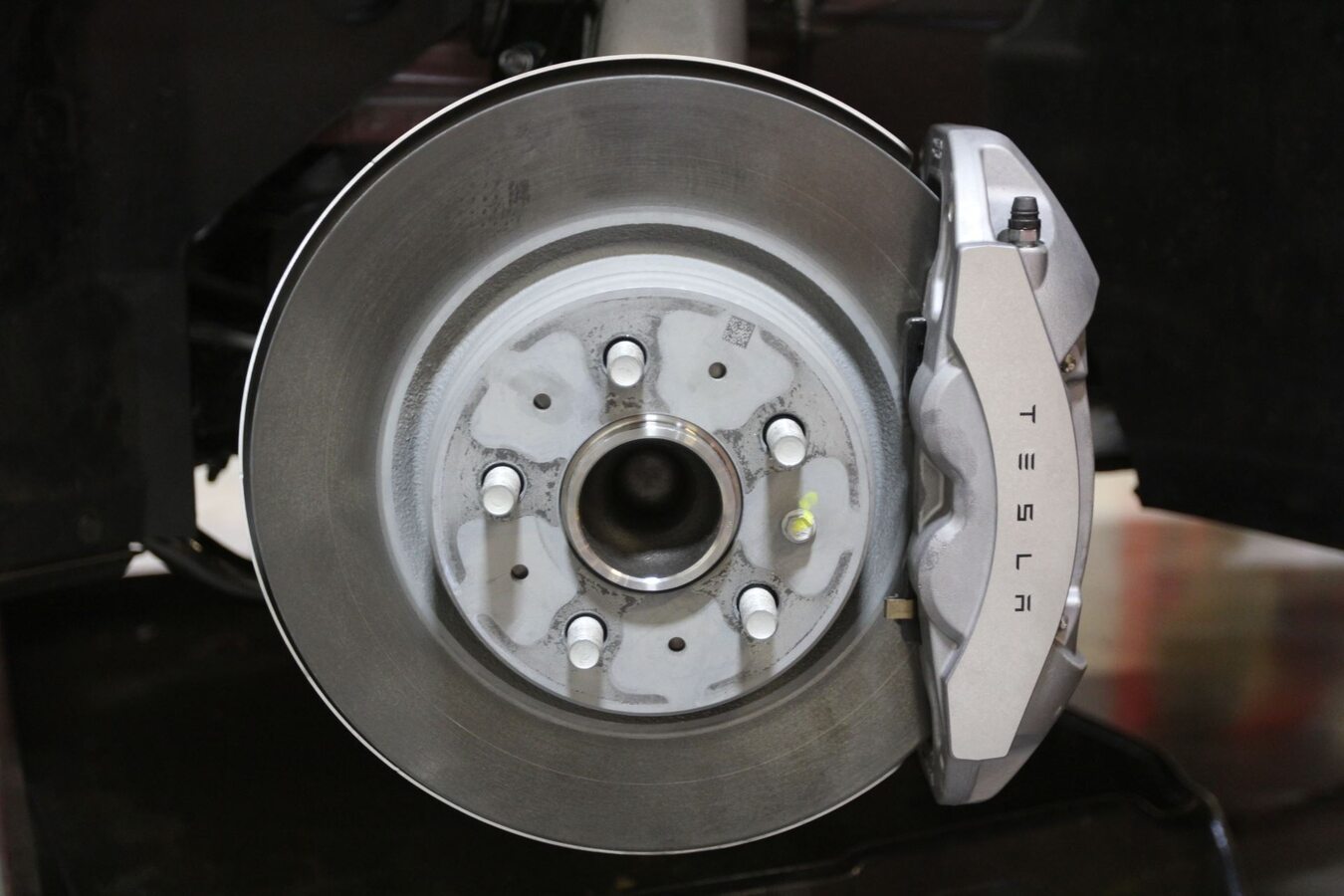

76. Inspect LH front brake rotor condition
    Anmerkung

    Check for excessive rust or wear, Minimum spec 30mm

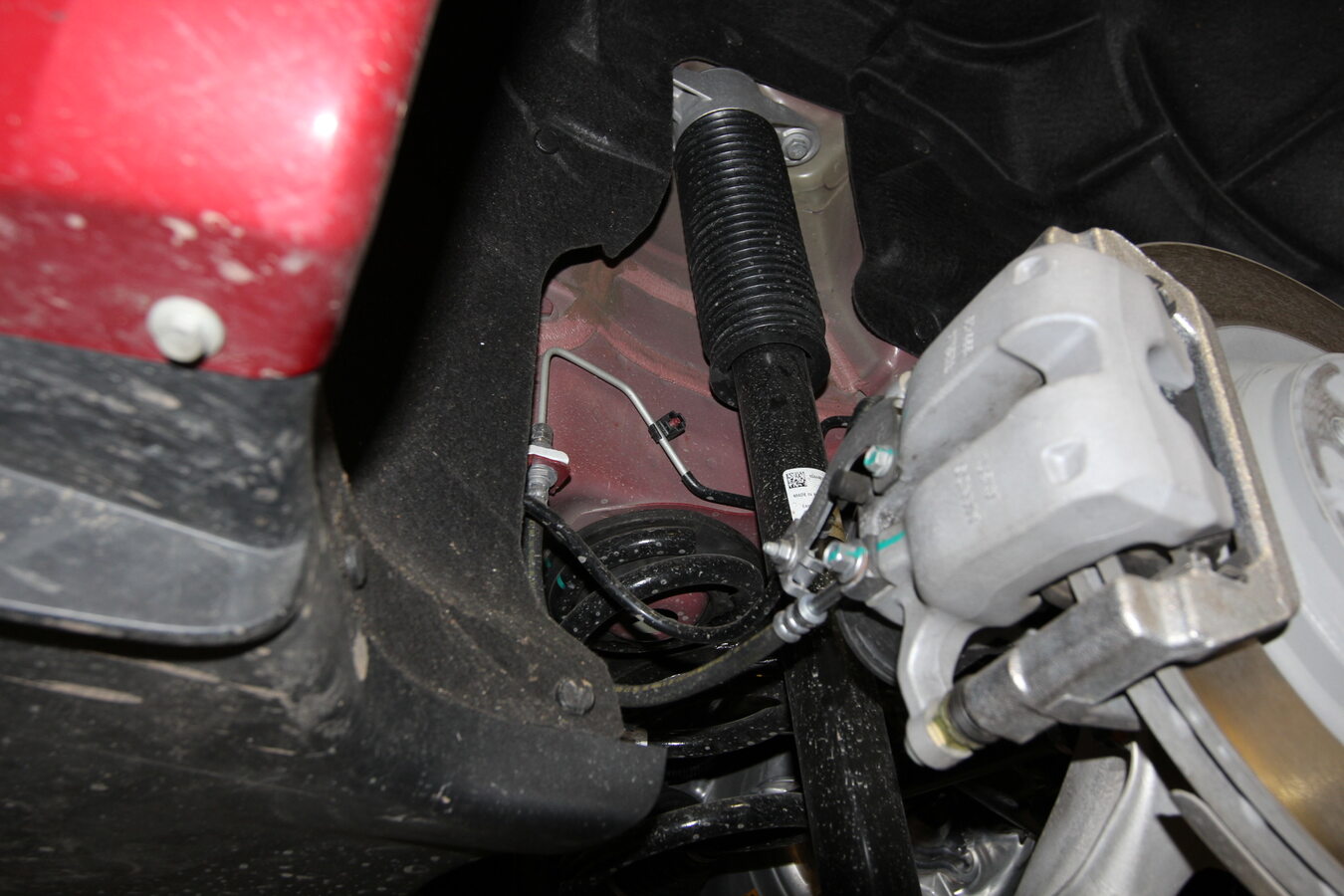

77. Perform visual inspection of all brake pipes and hoses
    Anmerkung

    Pay special attention to brake junction points

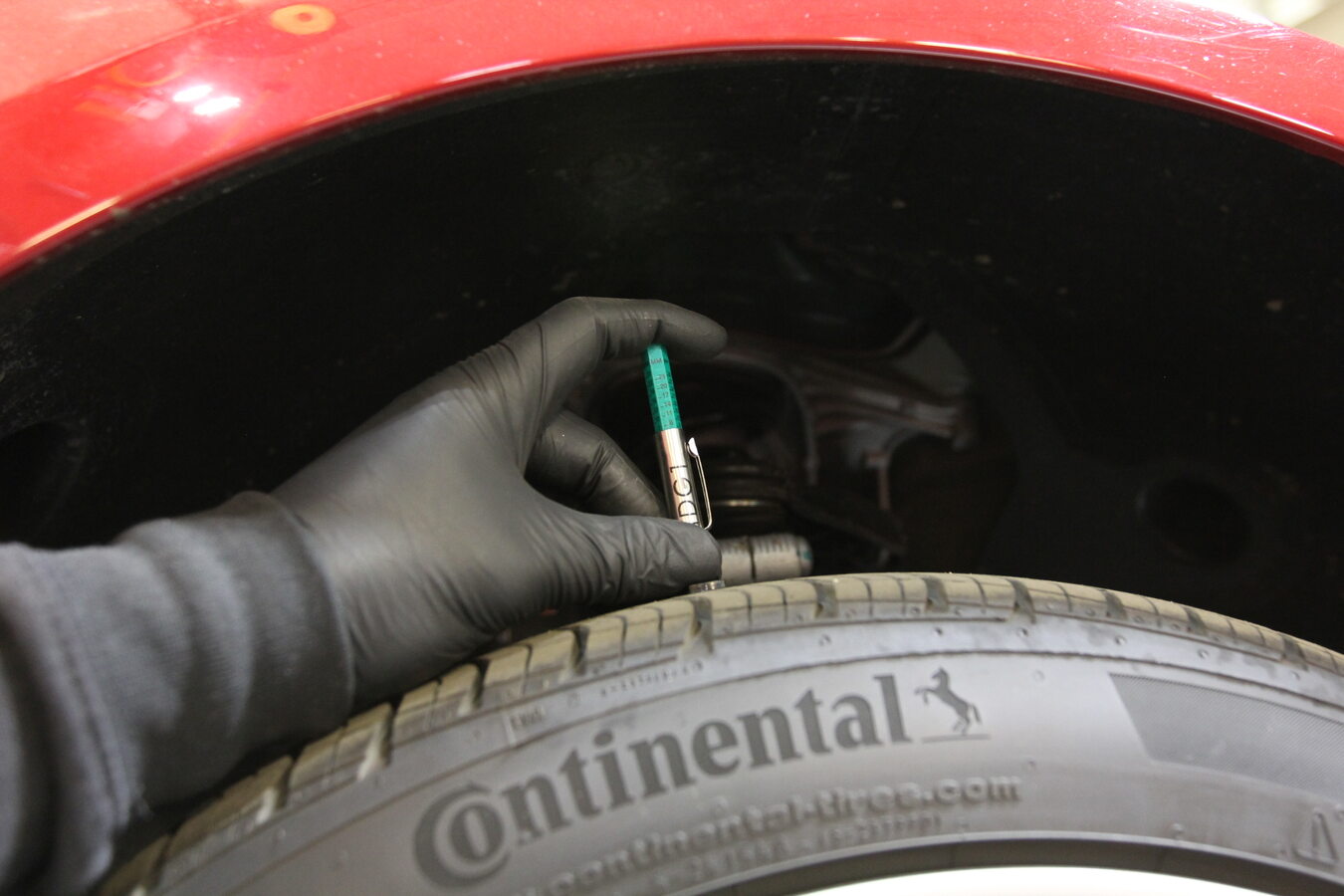

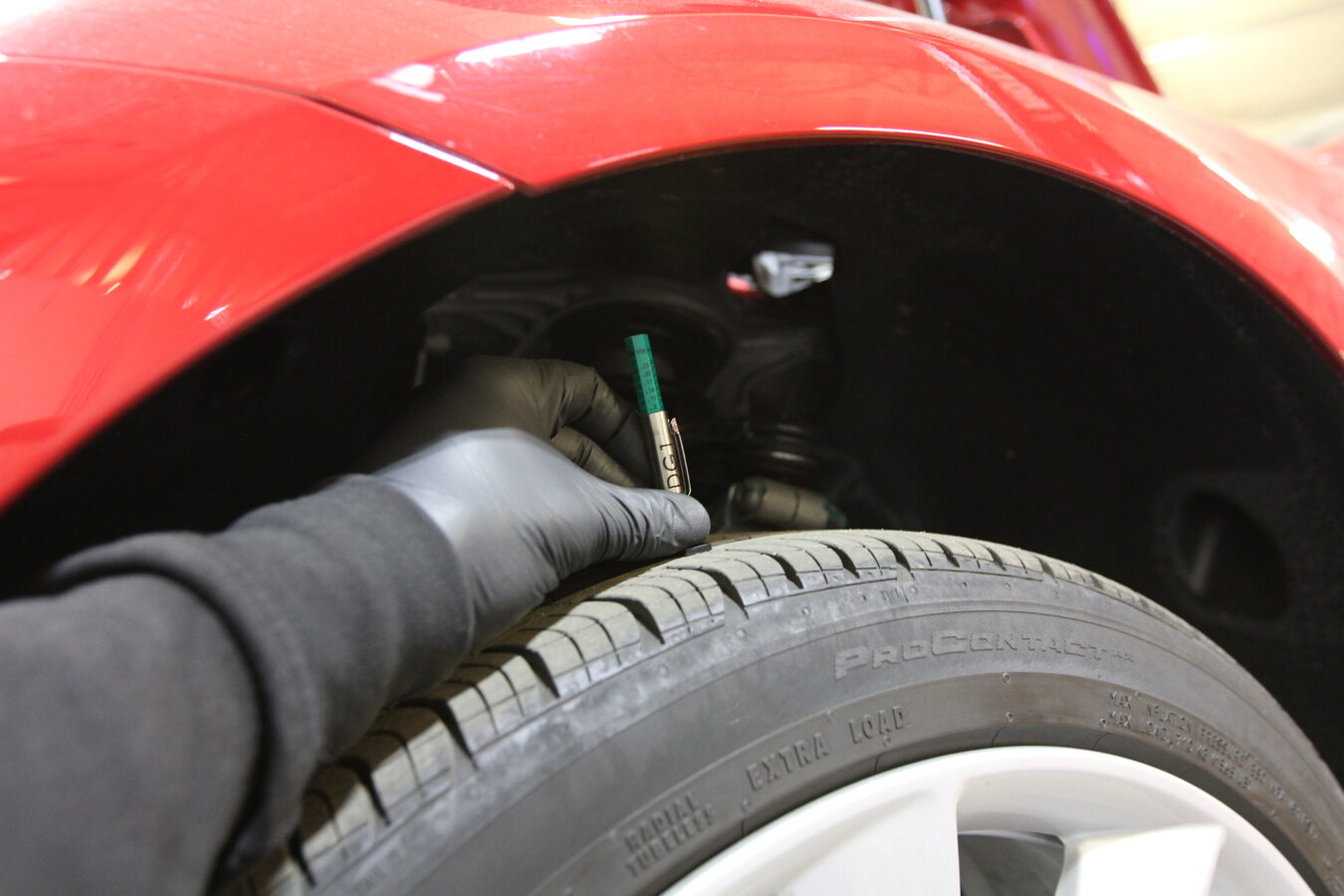

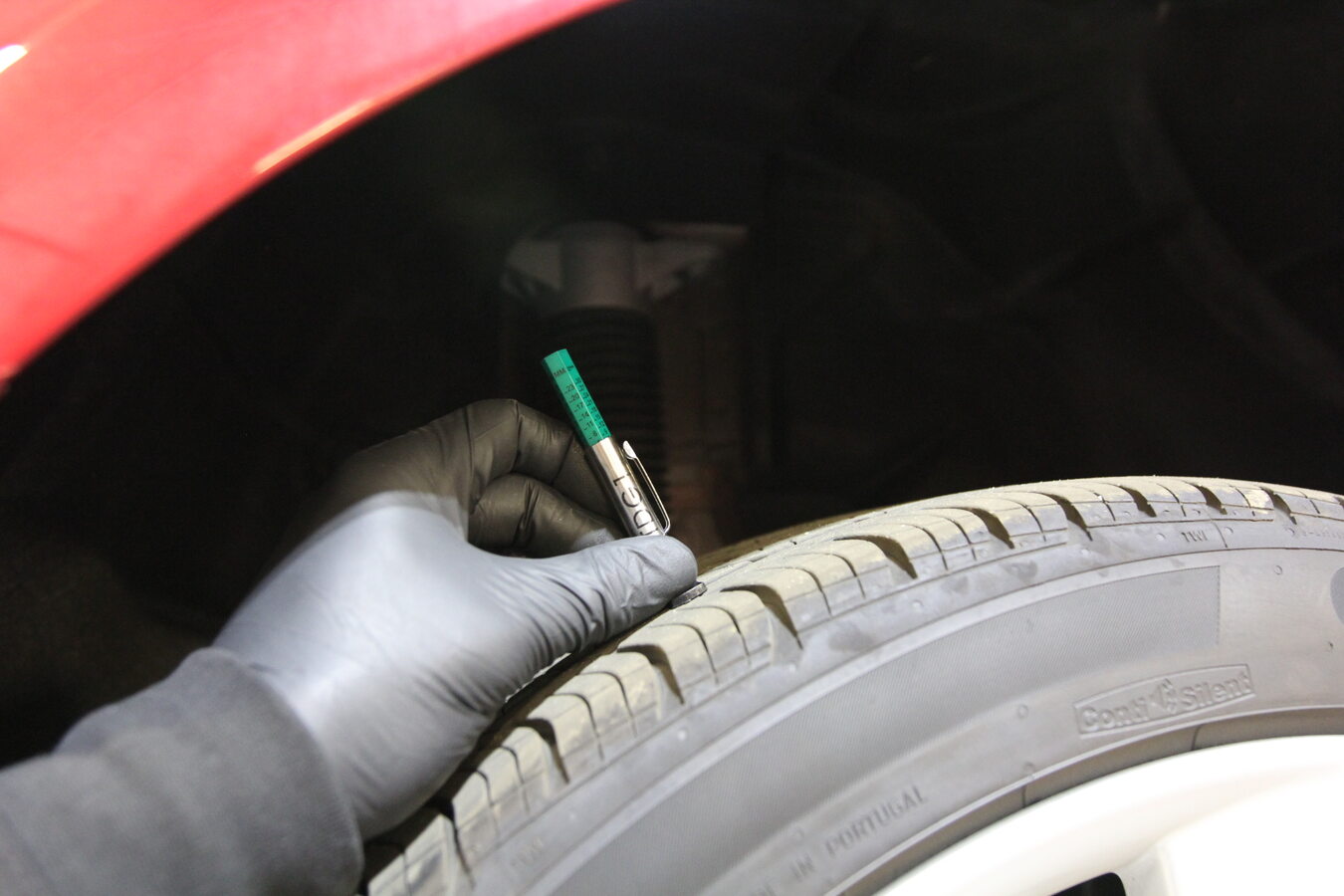

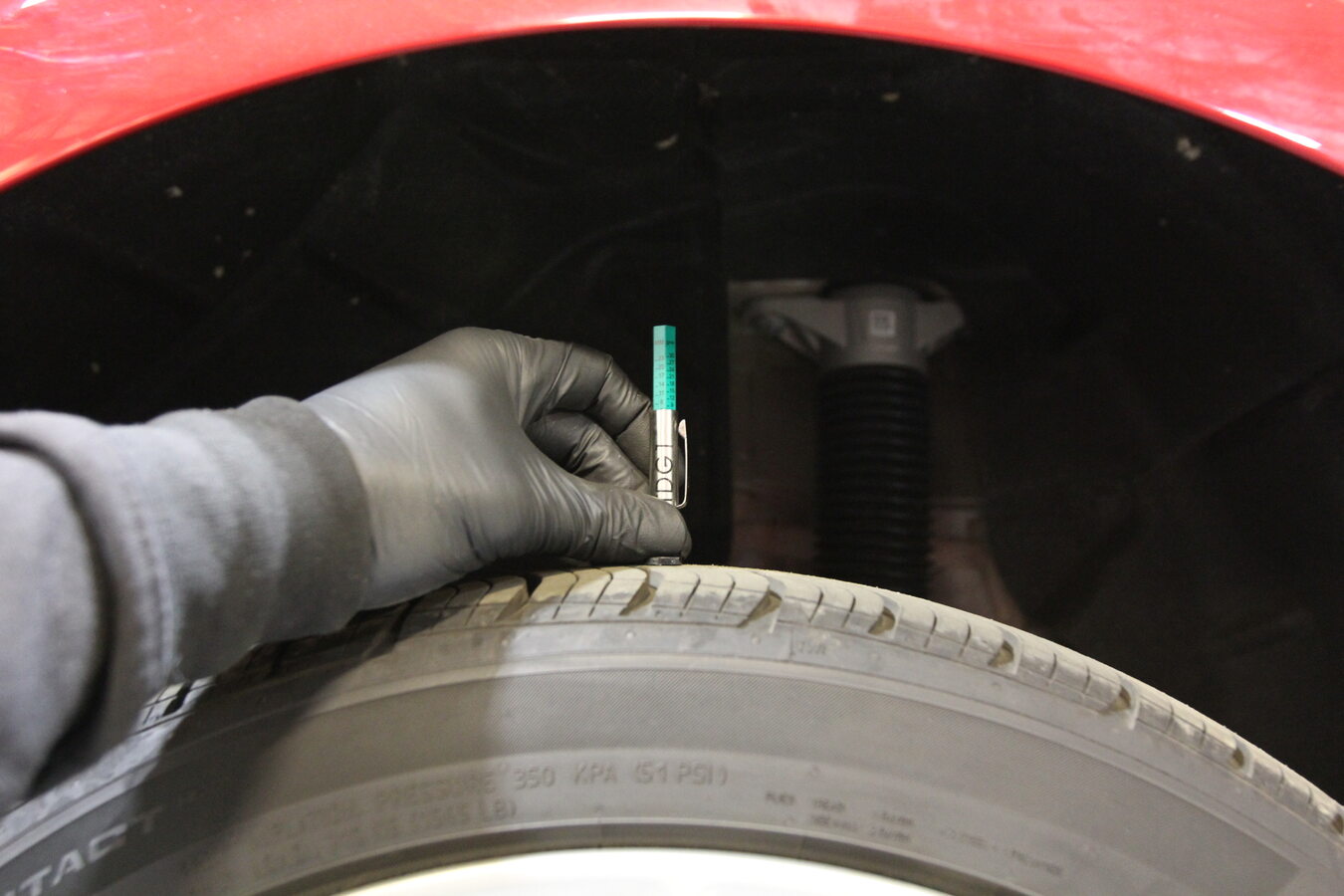

78. Record tread depth for LH front tire
    Anmerkung

    Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less



79. Record tread depth for RH front tire
    Anmerkung

    Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less



80. Record tread depth for LH rear tire
    Anmerkung

    Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less



81. Record tread depth for RH rear tire
    Anmerkung

    Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less

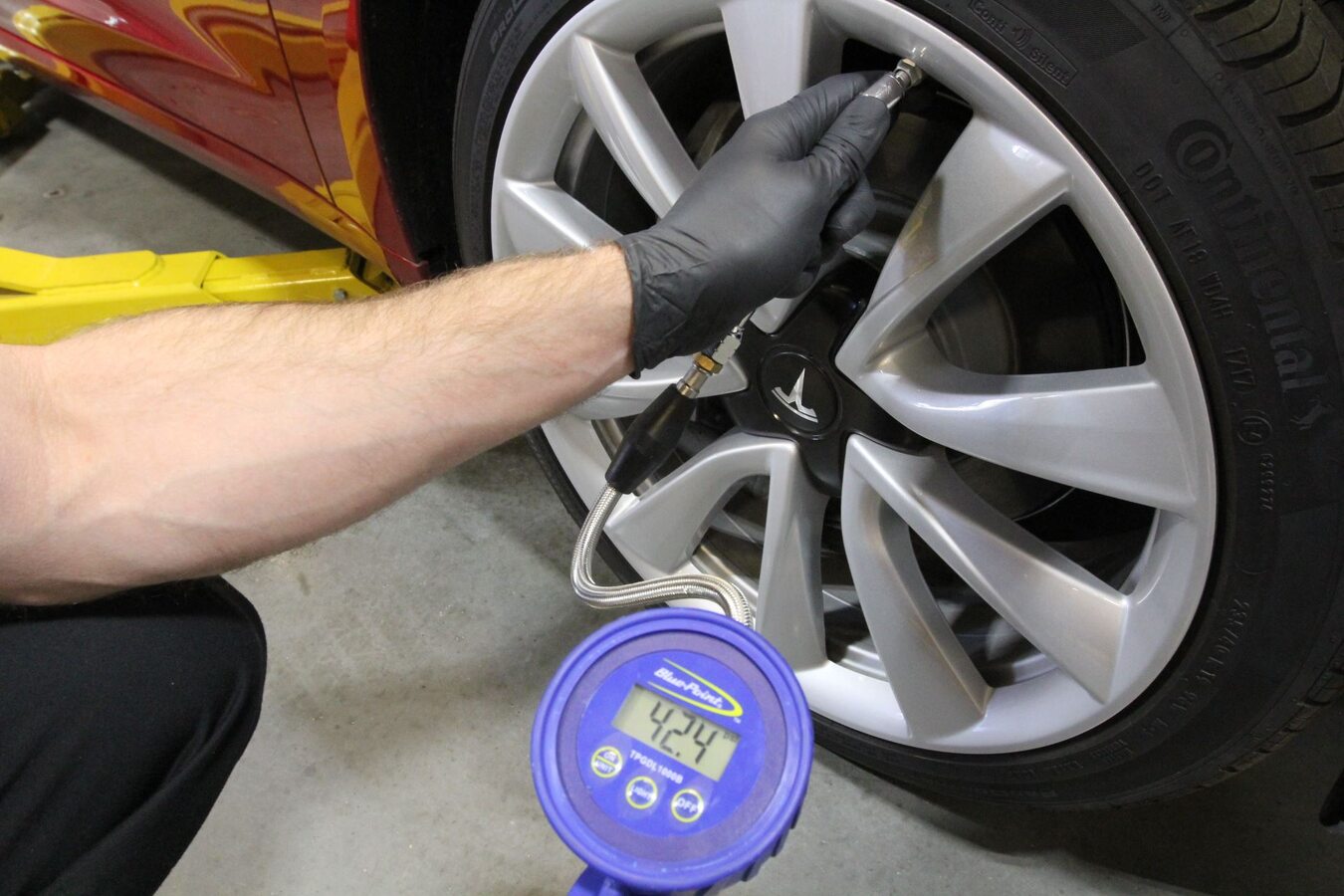

82. Check all four tire pressures manually
    Anmerkung

    4x tires, 4x caps, Set to specification if necessary, Refer to the "Tire and Loading Information" label located on the driver side B-pillar, Inspect wheels and tires for any bulges or damage while checking/setting pressures

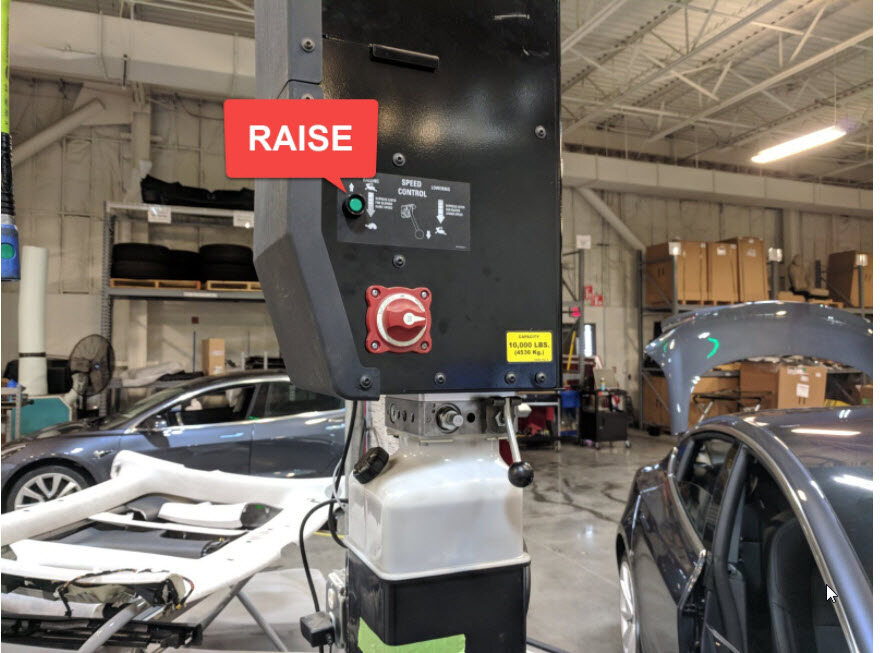

83. Raise vehicle fully and lower lift onto locks
    Anmerkung

    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side

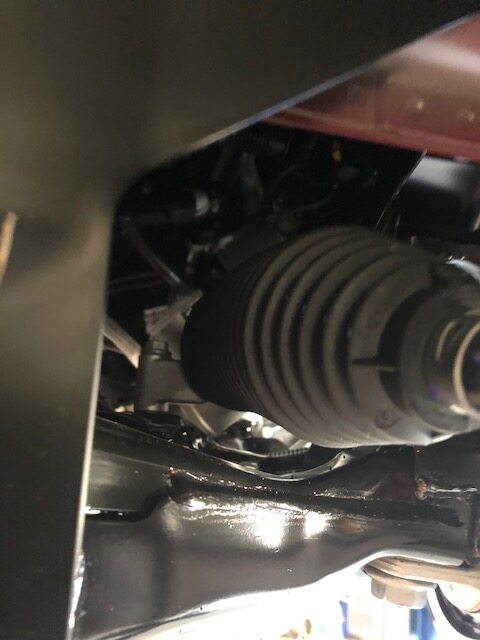

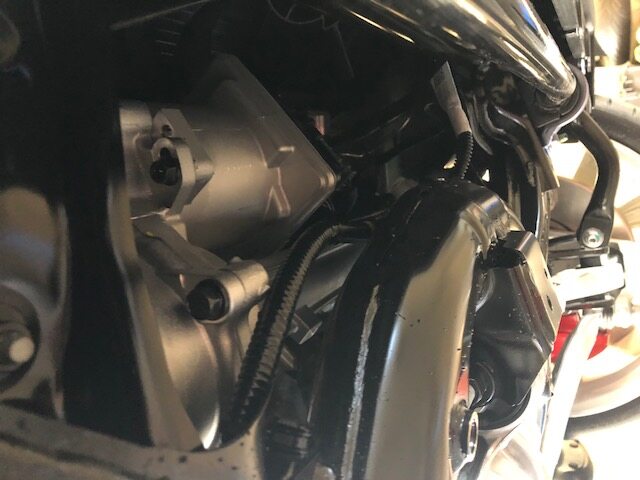

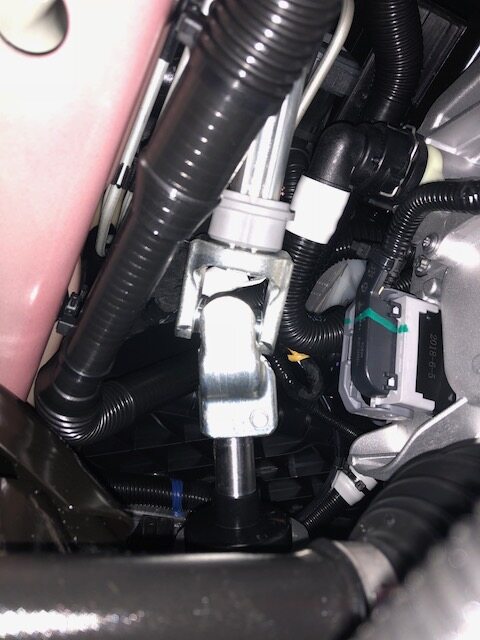

84. Perform inspection of steering components
    Anmerkung

    Check steering gear joints and electrical connections, Verify components are not bent or damaged

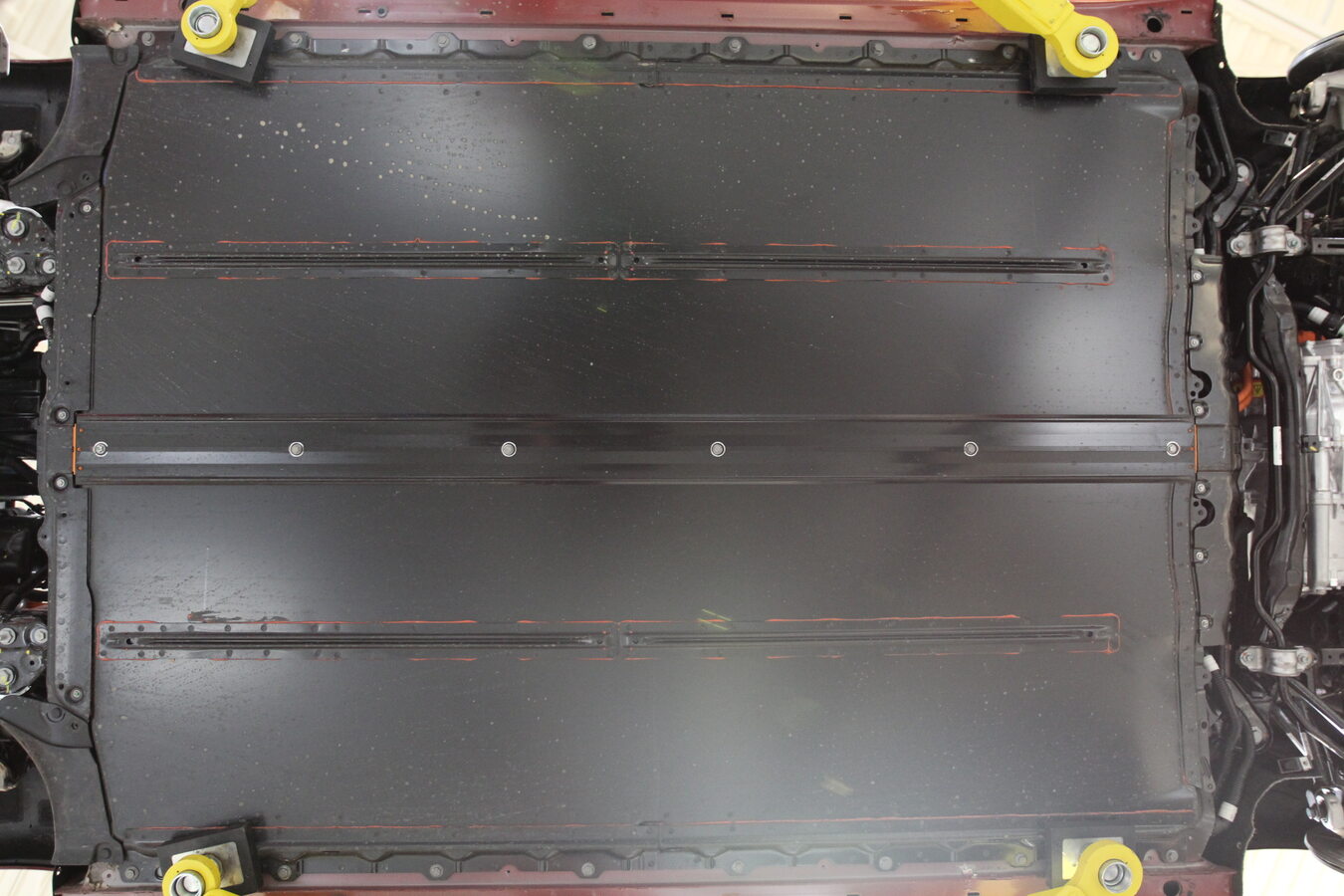

85. Perform visual inspection of HV battery enclosure
    Anmerkung

    Check for any dents, scrapes, or other damage

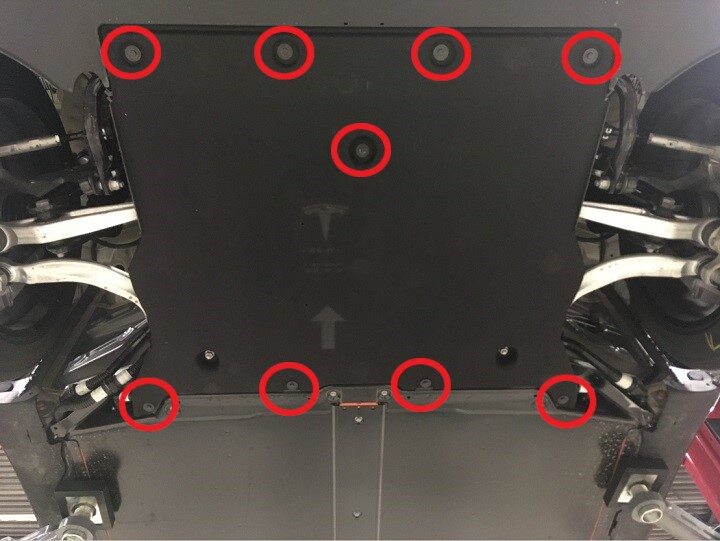

86. Remove outer fasteners securing front aero shield
    Anmerkung

    9x bolts, 10mm, 5 Nm

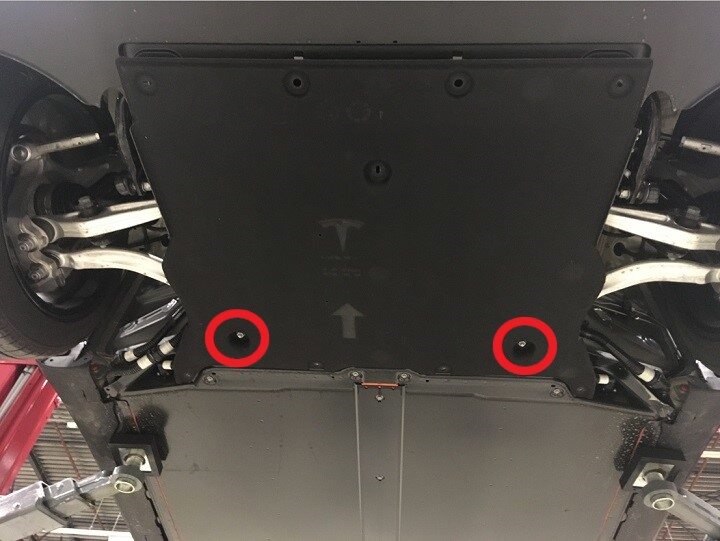

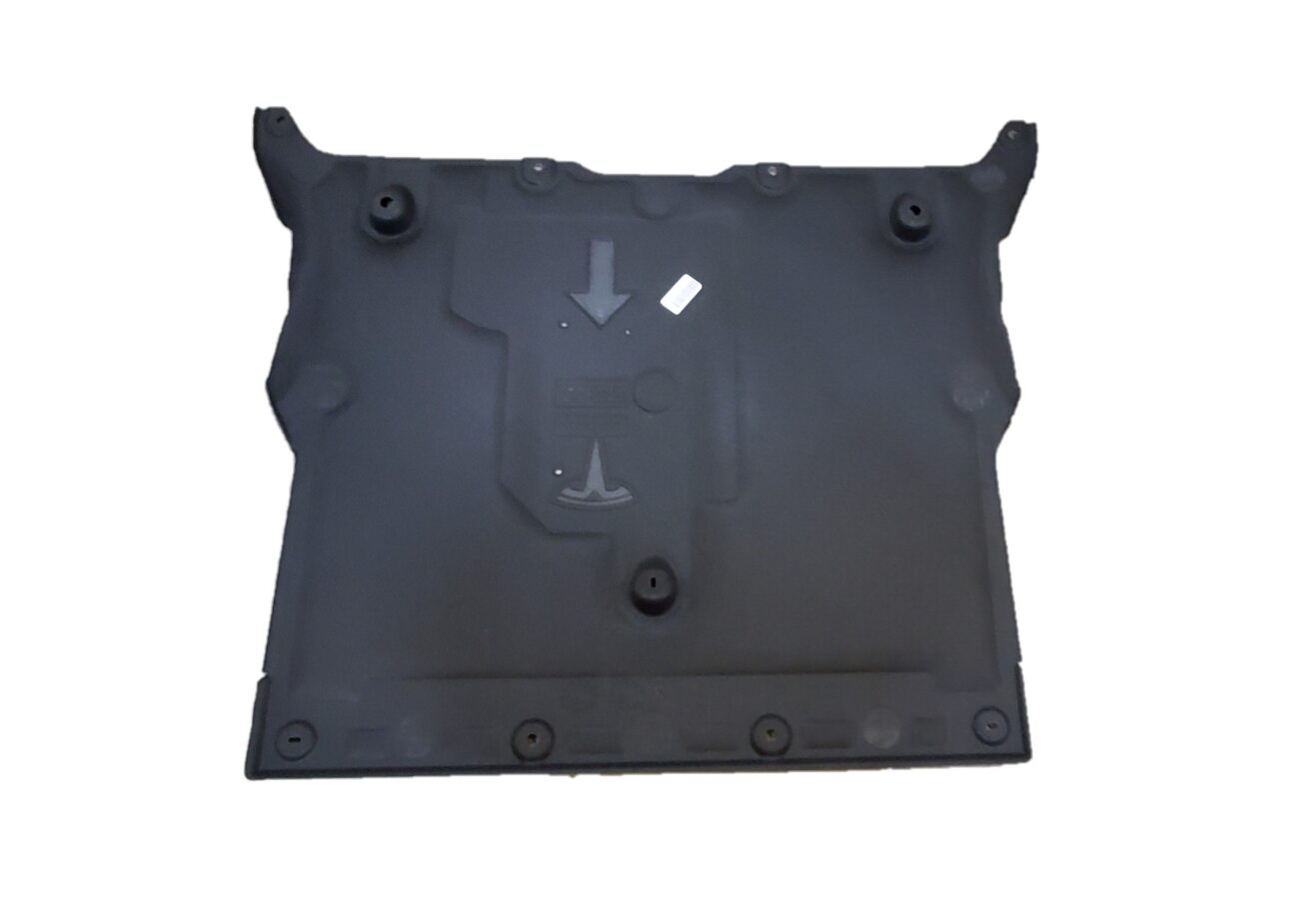

87. Remove front aero shield
    Anmerkung

    2x nuts, 15mm, 5 Nm





88. Remove rear aero shield
    Anmerkung

    13x bolts, 10mm, 5 Nm

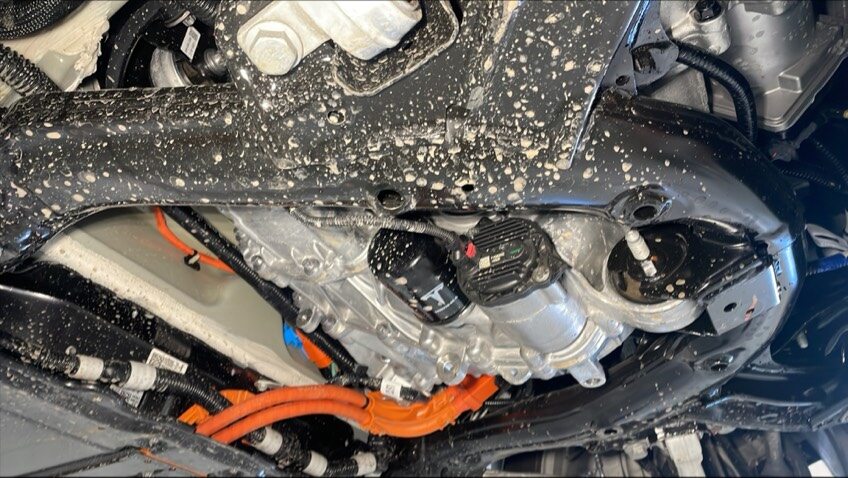

89. Perform visual inspection of underside of vehicle for any coolant leaks
    Anmerkung

    Pay special attention to hose connection points

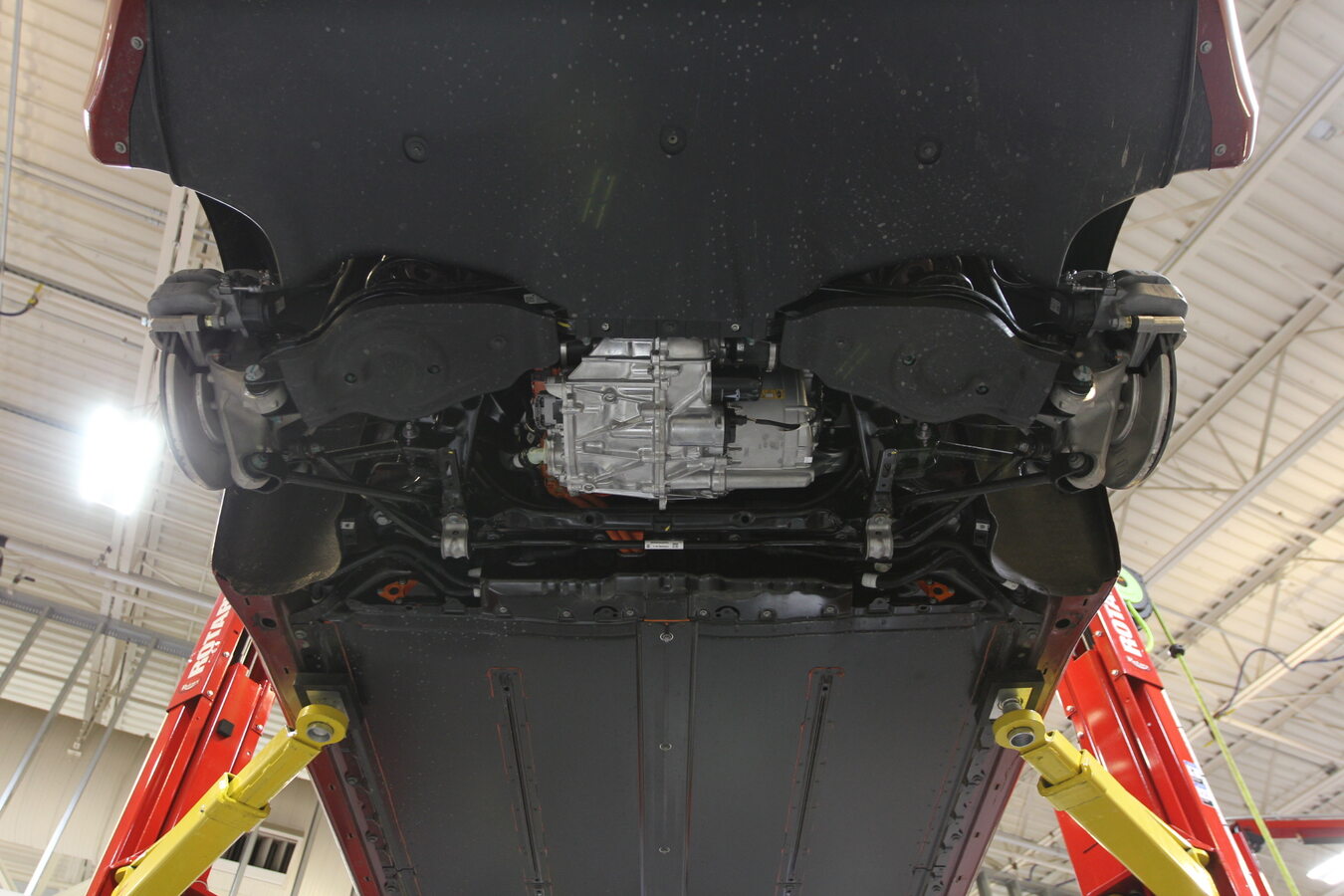

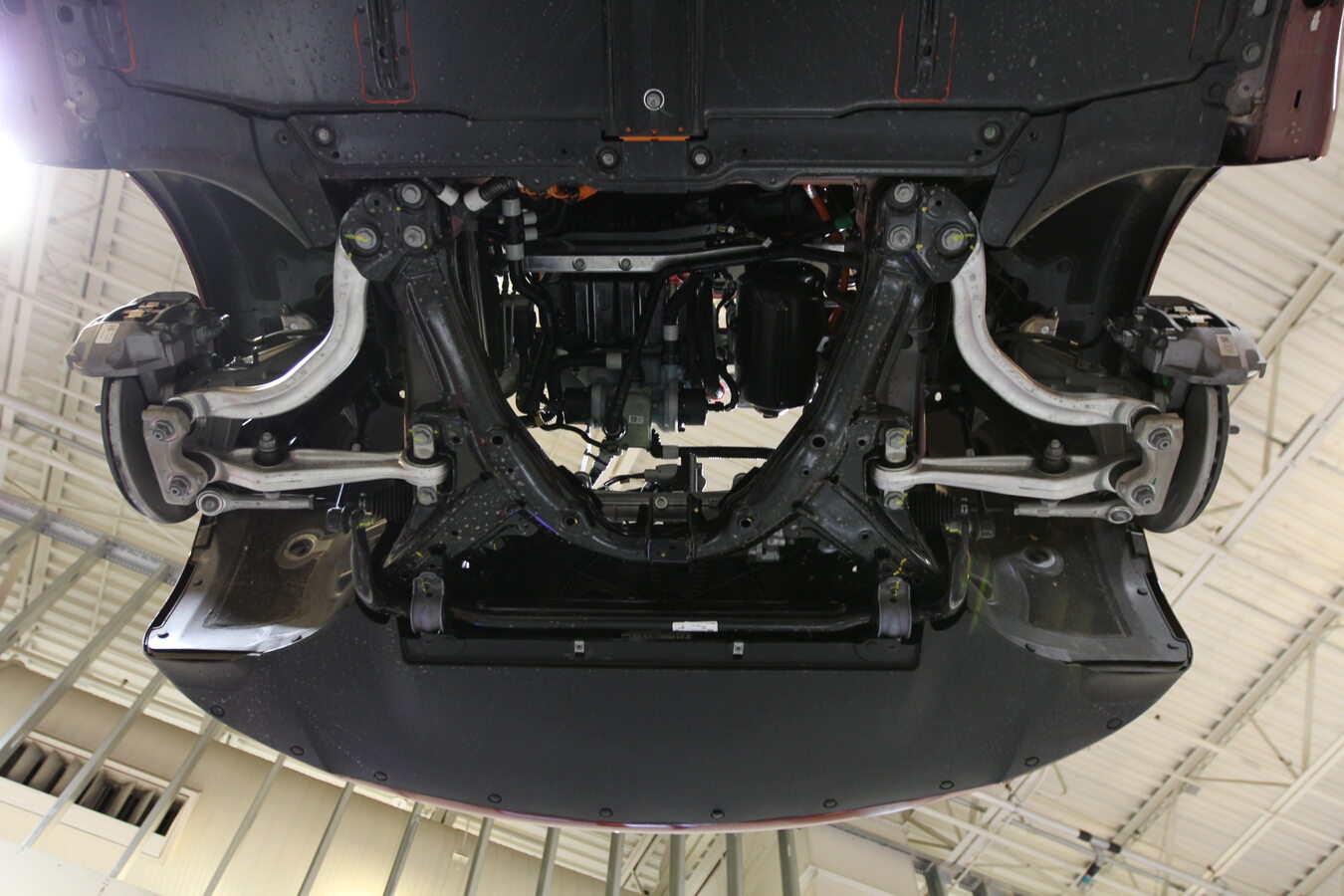

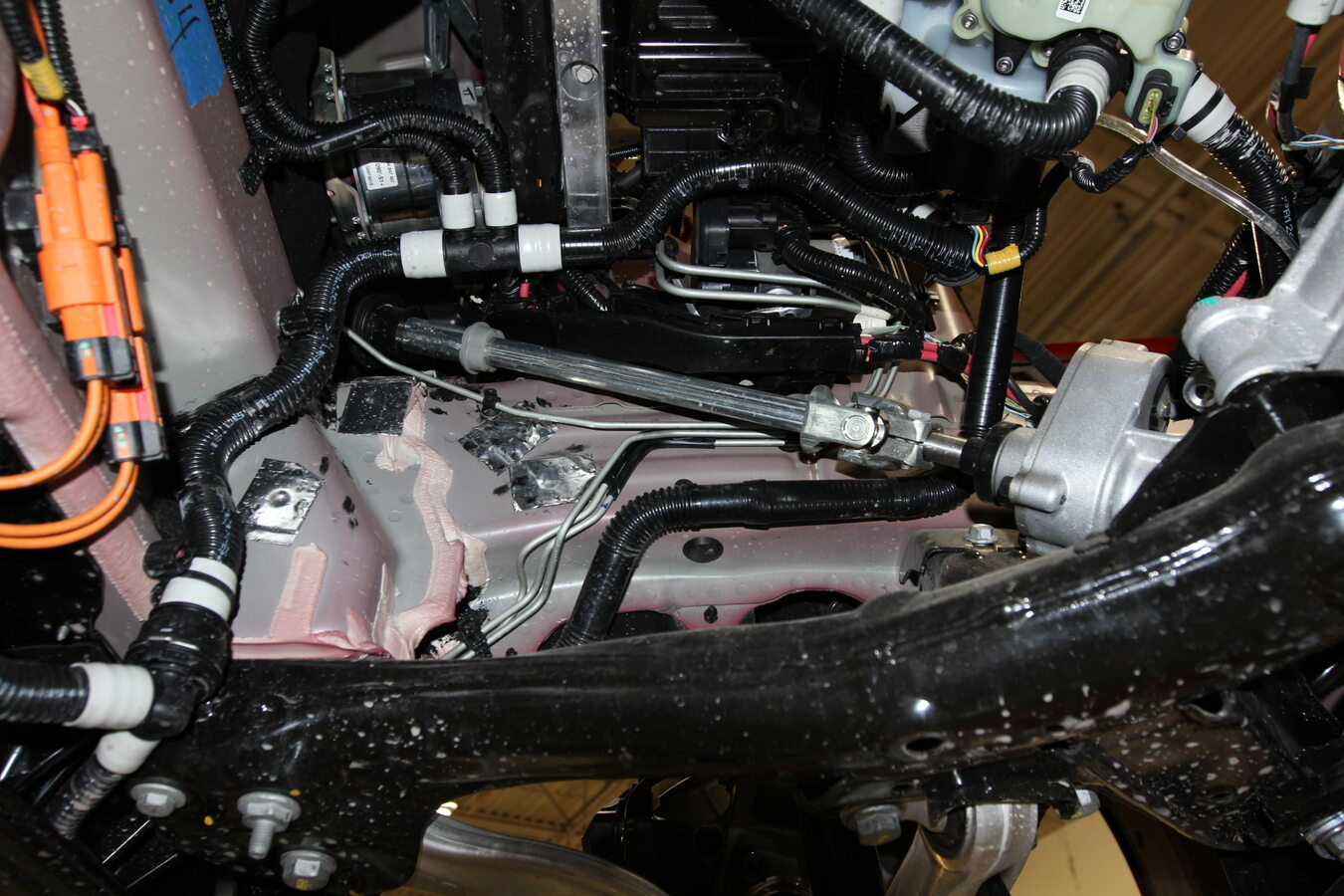

90. Perform inspection of vehicle underside components front and rear
    Anmerkung

    Perform inspection of vehicle underside front and rear, Check for signs of abnormal damage, wear, heavy rust, wiring damage, or impact damage, Pay attention to safety related component and note any items of significance

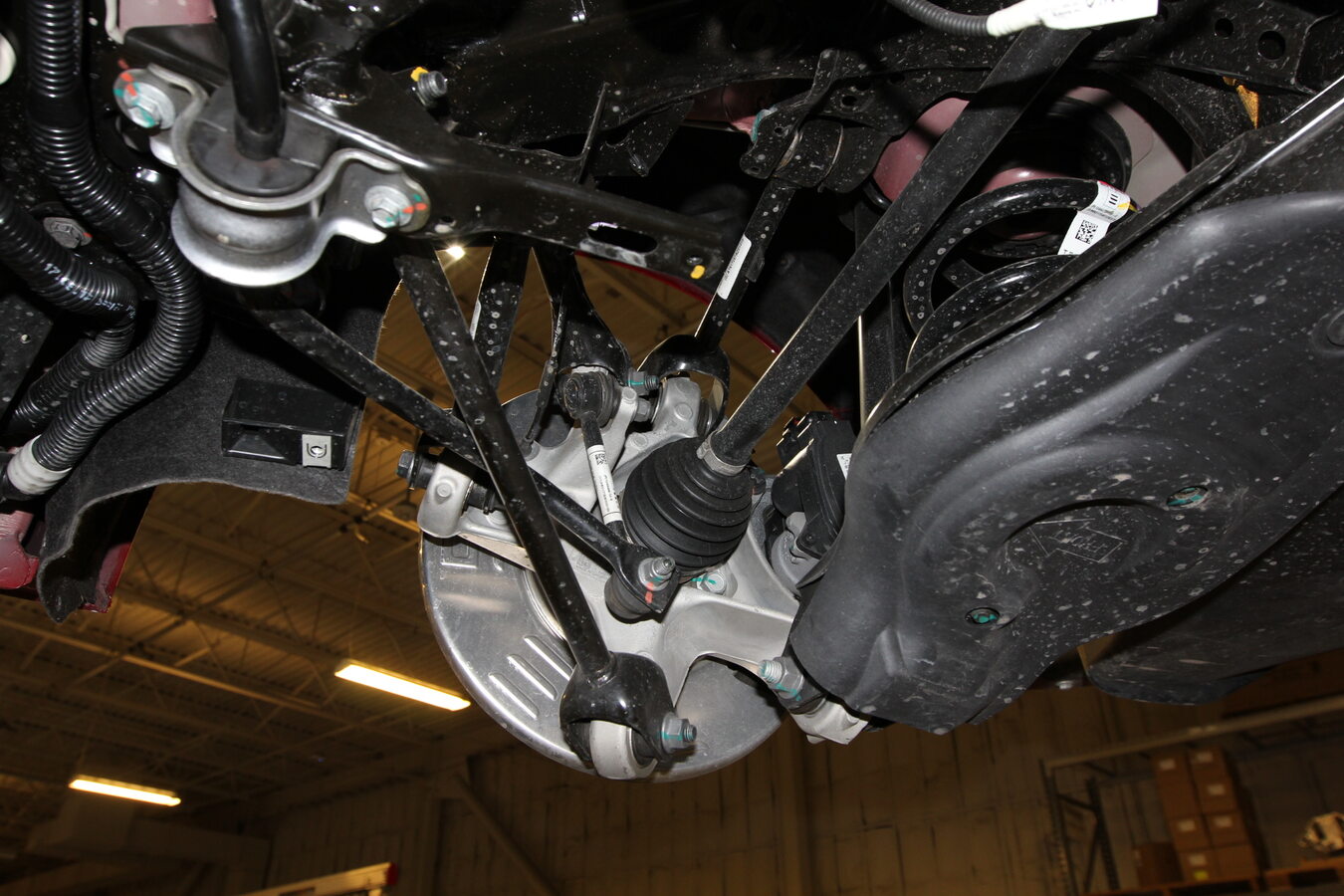

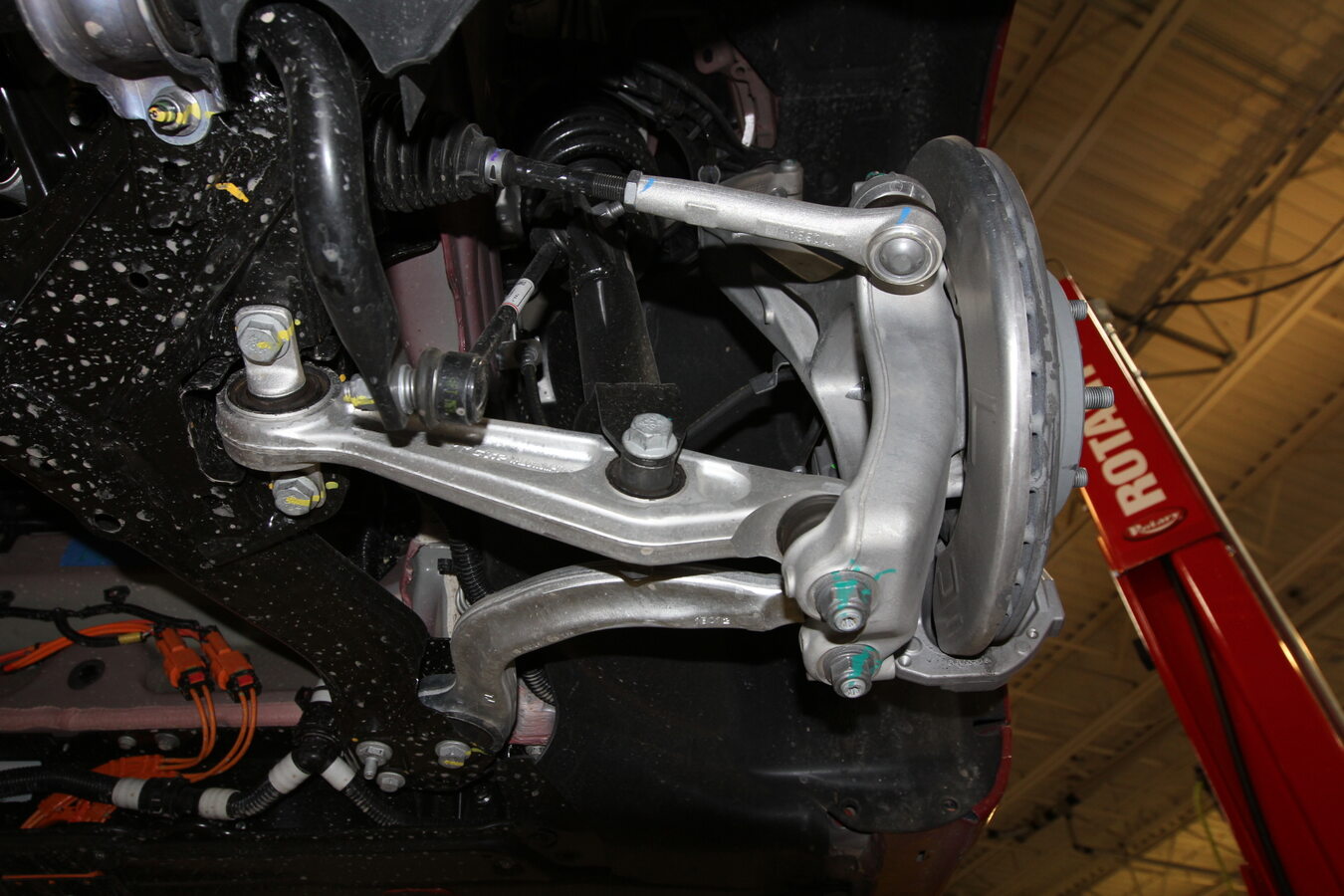

91. Perform inspection of suspension components
    Anmerkung

    Check conditions of ball joints and bushings, etc, Inspect for any loose fasteners, Carefully apply pressure with a pry bar as needed

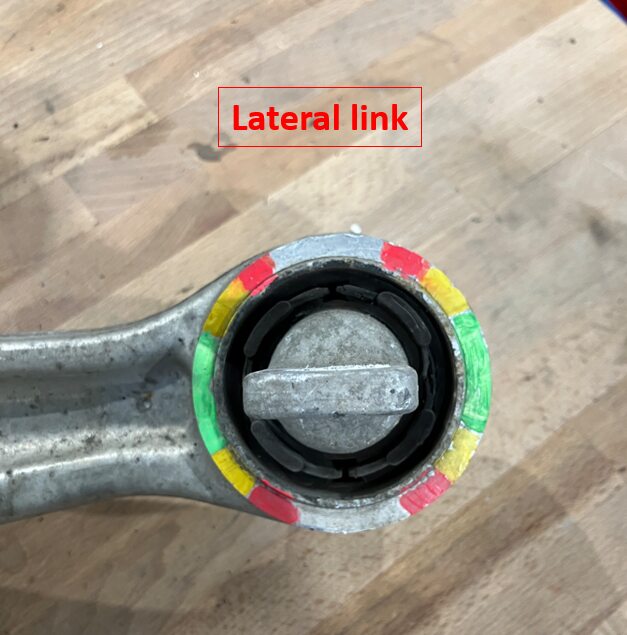

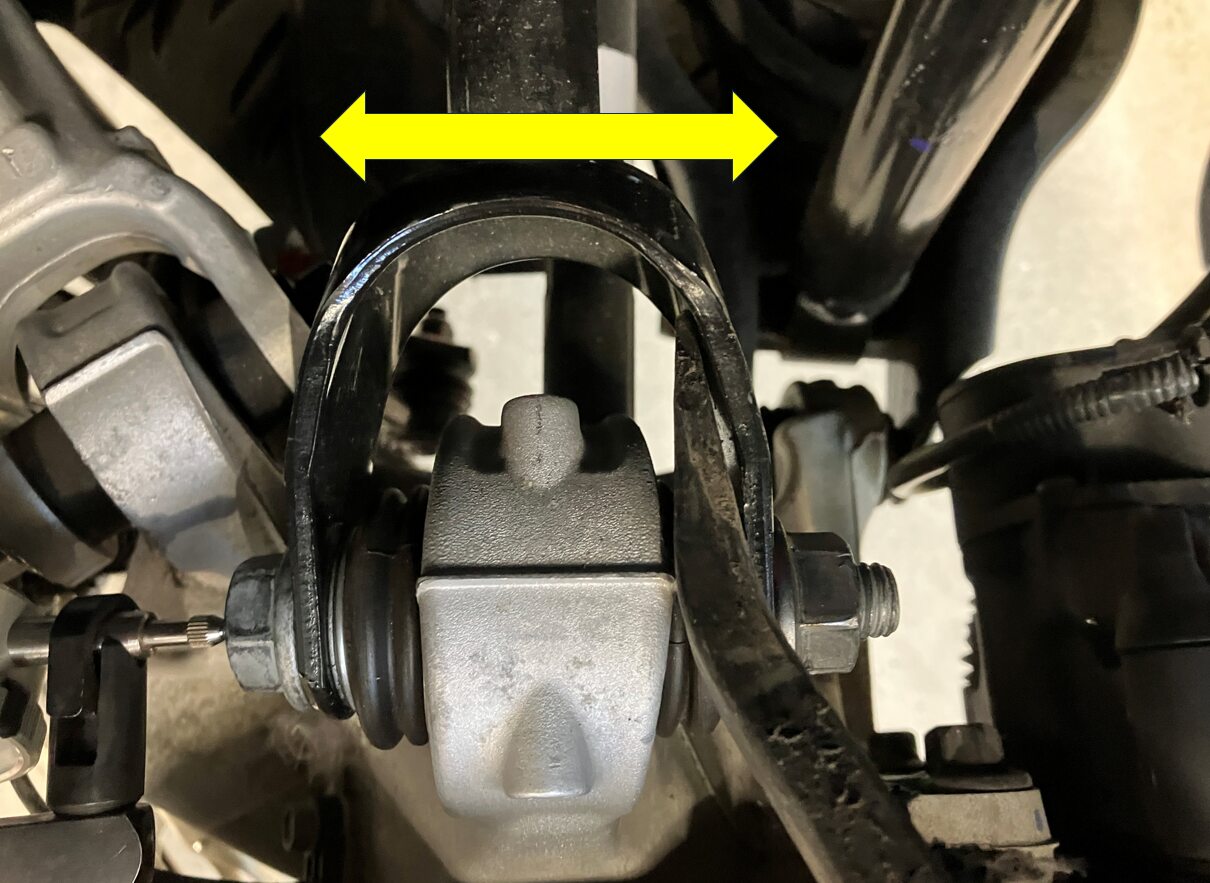

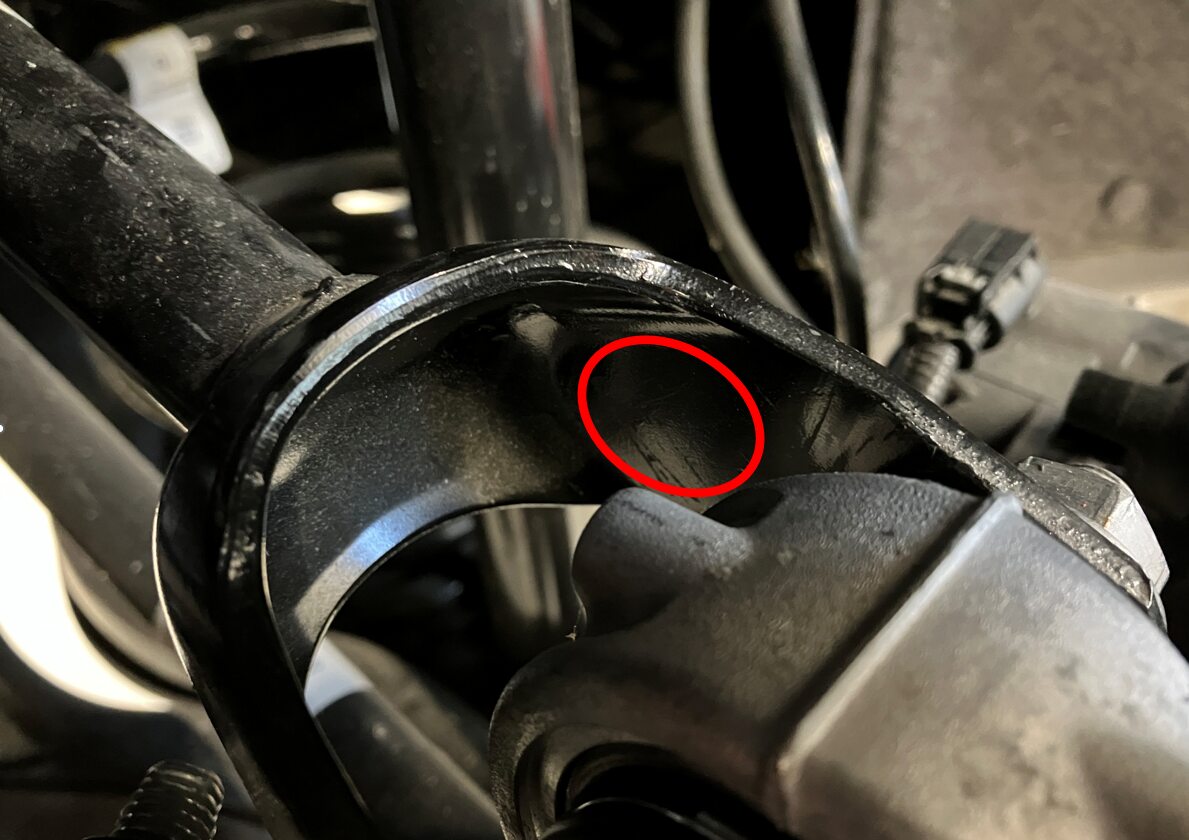

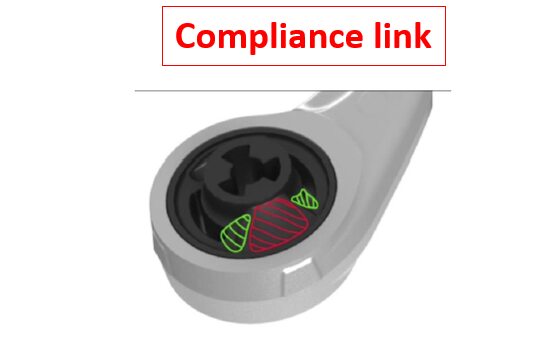

92. Inspect all rear lateral and compliance link's rubber bushing
    Anmerkung

    Look for cracks on the rubber partcompare the location according to the images and follow the guide: Damage is contained to the green zone: Do not replace the part• Damage is in the yellow zone on one side of the bushing: Do not replace the part• Damage is in the yellow zone on both sides of the bushing: Part needs replacement• Damage is in the red zone: Part needs replacement

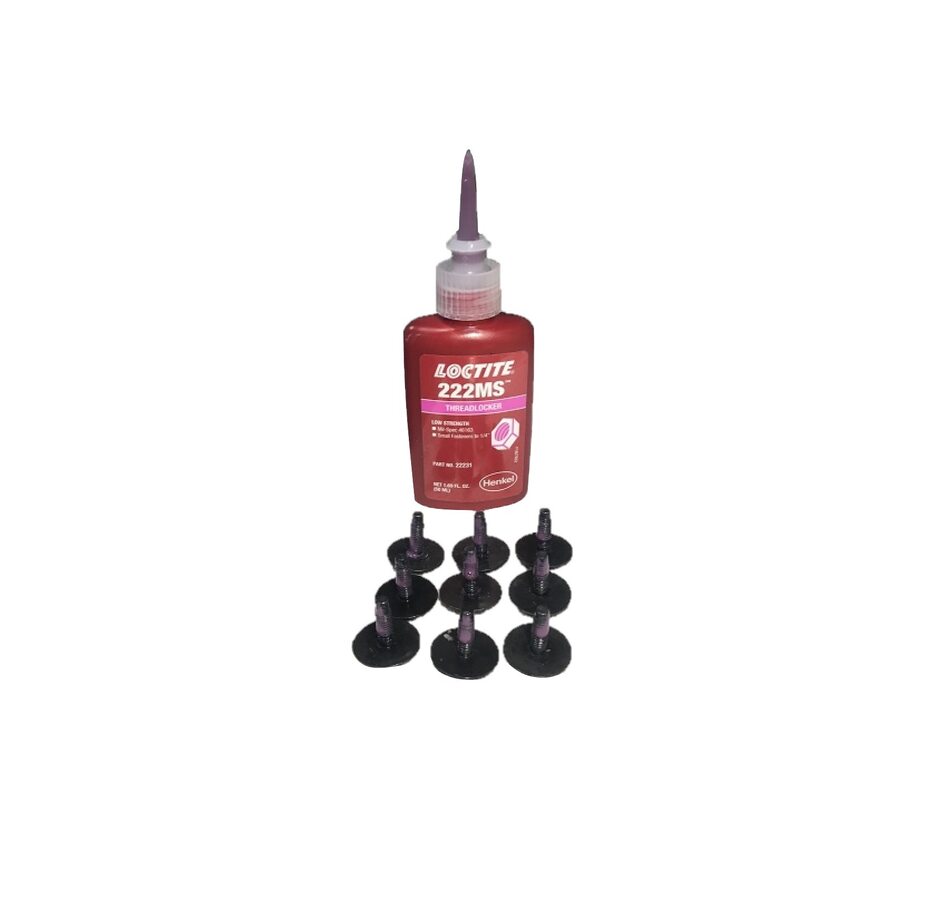

93. Install rear aero shield
    Anmerkung

    13x bolts, 10mm, 5 Nm, Apply Loctite 222 to bolts before installing





94. Position front aero shield to vehicle and install nuts
    Anmerkung

    2x nuts, 15mm, 5 Nm





95. Apply Loctite 222 onto front aero shield bolts and install outer fasteners to front aero shield
    Anmerkung

    9x bolts, 10mm, 5 Nm

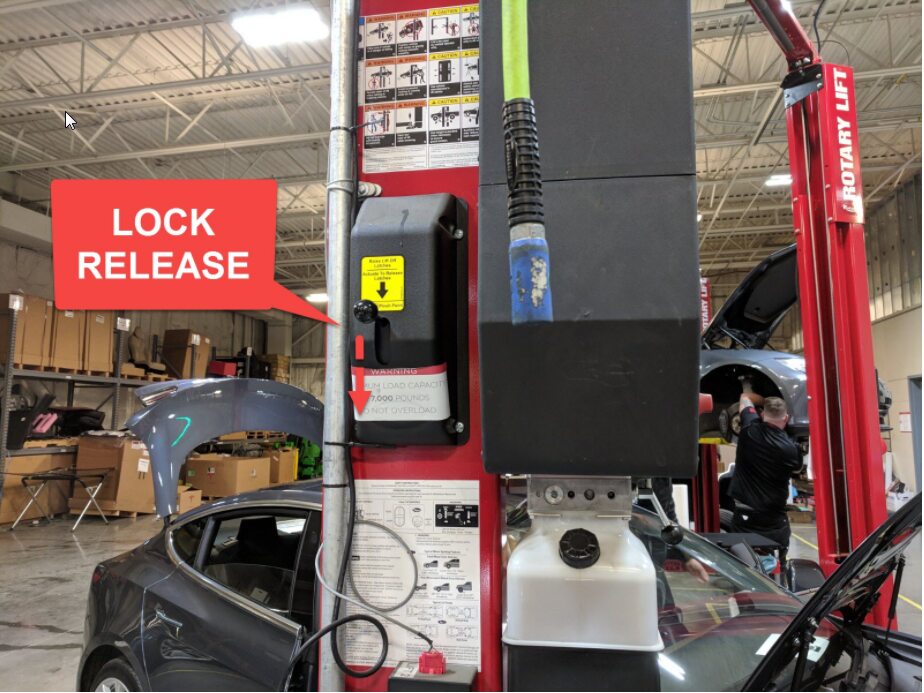

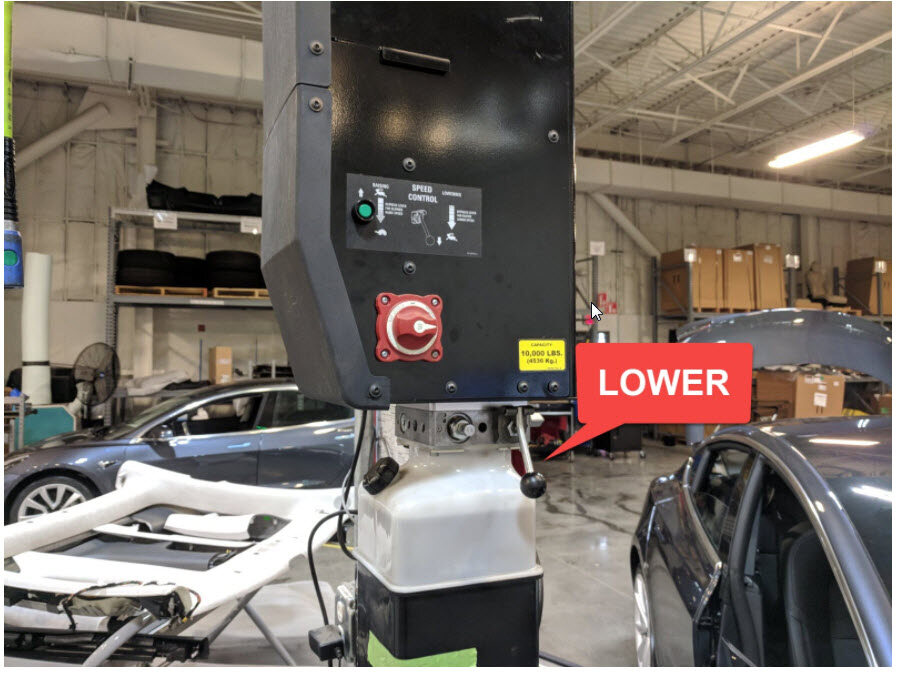

96. Lower vehicle partially
    Anmerkung

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered





97. Install LH rear wheel
    Anmerkung

    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool



98. Install LH front wheel
    Anmerkung

    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool



99. Install RH rear wheel
    Anmerkung

    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool



100. Install RH front wheel
     Anmerkung

     5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool, Torque at later step



101. Lower vehicle until tires are touching ground
     Anmerkung

     Raise lift off locks, Then hold lock release lever to keep locks free while vehicle is lowered







102. Torque LH front wheel
     Anmerkung

     5x nuts, 21mm, 175 Nm



103. Torque RH front wheel
     Anmerkung

     5x nuts, 21mm, 175 Nm



104. Torque RH rear wheel
     Anmerkung

     5x nuts, 21mm, 175 Nm



105. Torque LH rear wheel
     Anmerkung

     5x nuts, 21mm, 175 Nm

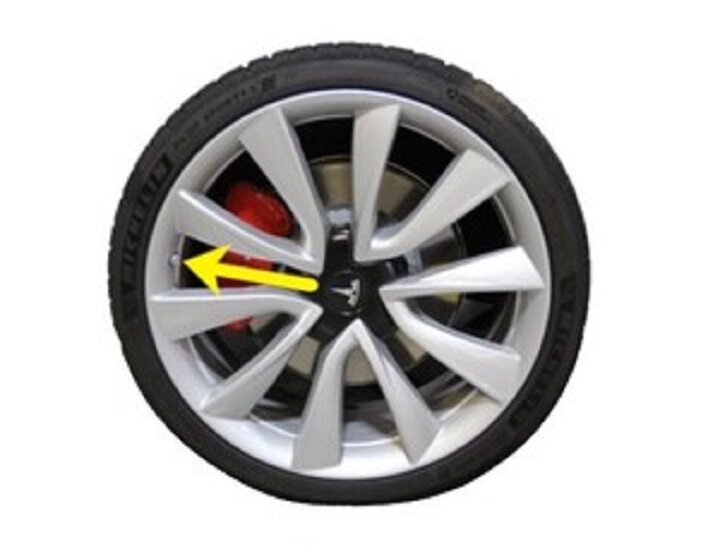

106. Install LH rear wheel center cap
     Anmerkung

     1x cap, Verify emblem is aligned with valve stem



107. Install RH rear wheel center cap
     Anmerkung

     1x cap, Verify emblem is aligned with valve stem



108. Install RH front wheel center cap
     Anmerkung

     1x cap, Verify emblem is aligned with valve stem



109. Install LH front wheel center cap
     Anmerkung

     1x cap, Verify emblem is aligned with valve stem

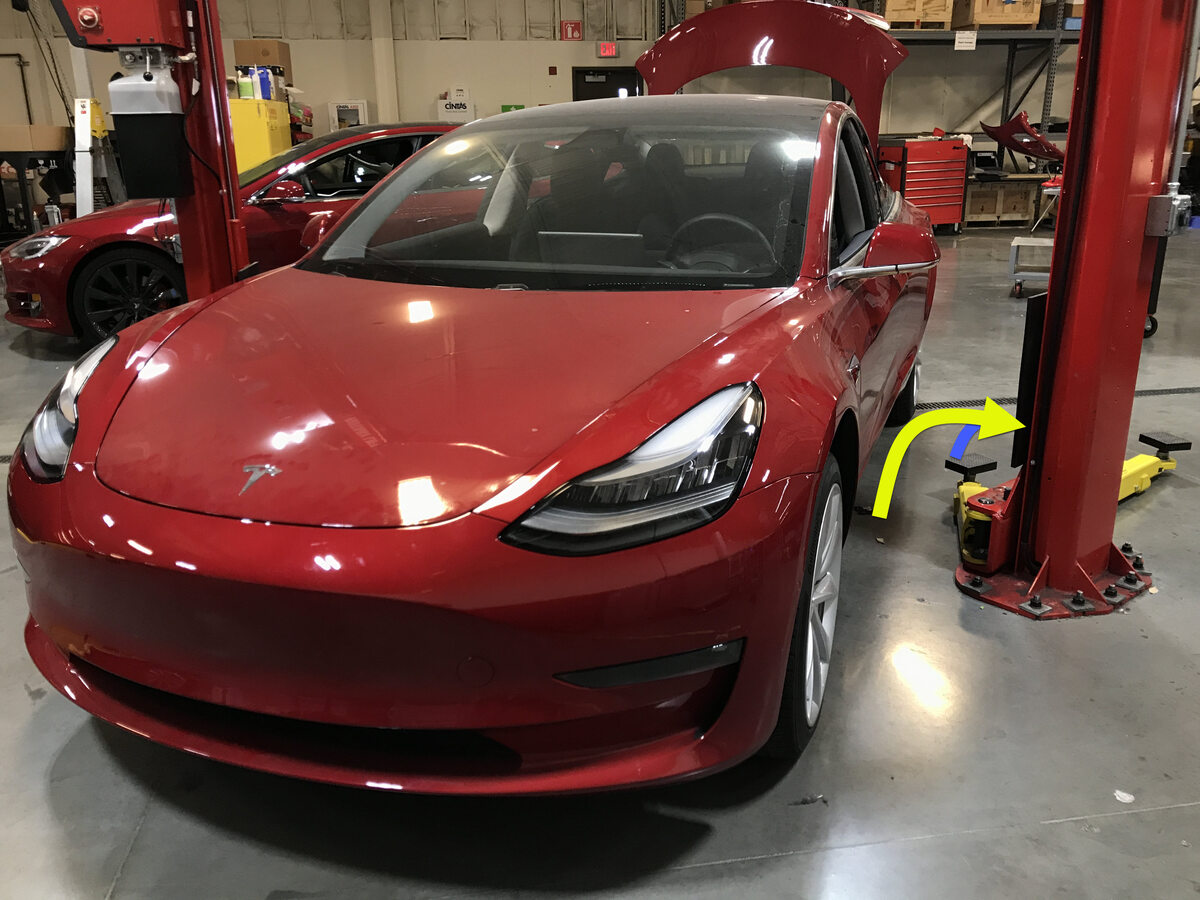

110. Remove vehicle from lift
     Anmerkung

     Lower rack arms fully and remove from under vehicle



111. ODIN-Routine ausführen PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox: (link)

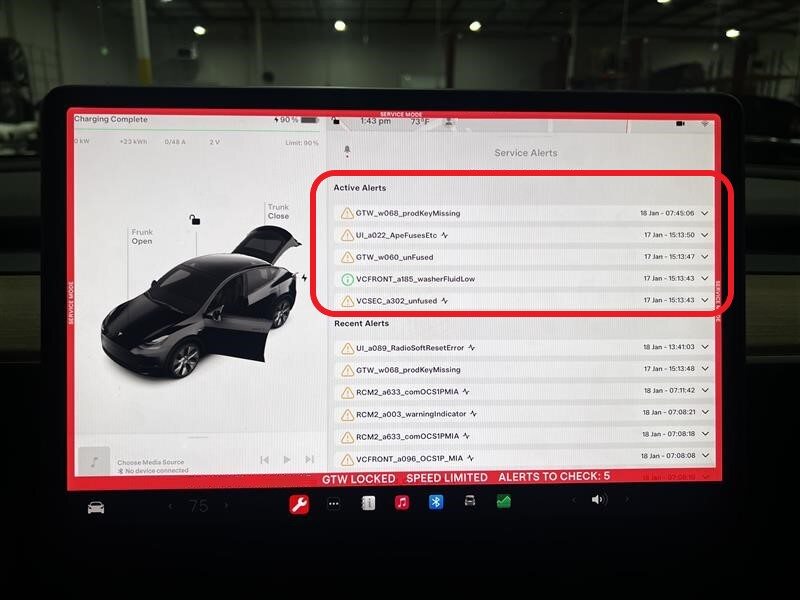

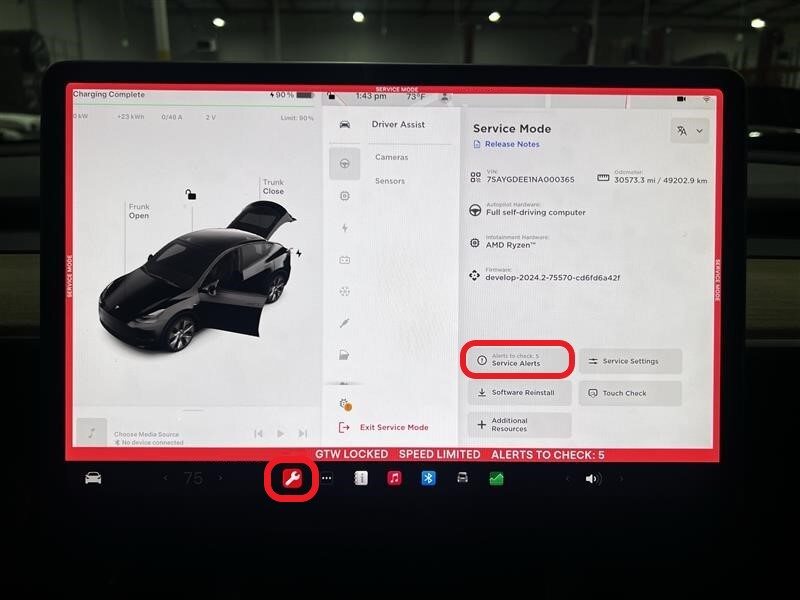

112. Check for active alerts
     Anmerkung

     Check alert using UI via service mode > active alerts" to "Check alerts using UI via Service Mode > Service Alerts > Active Alerts

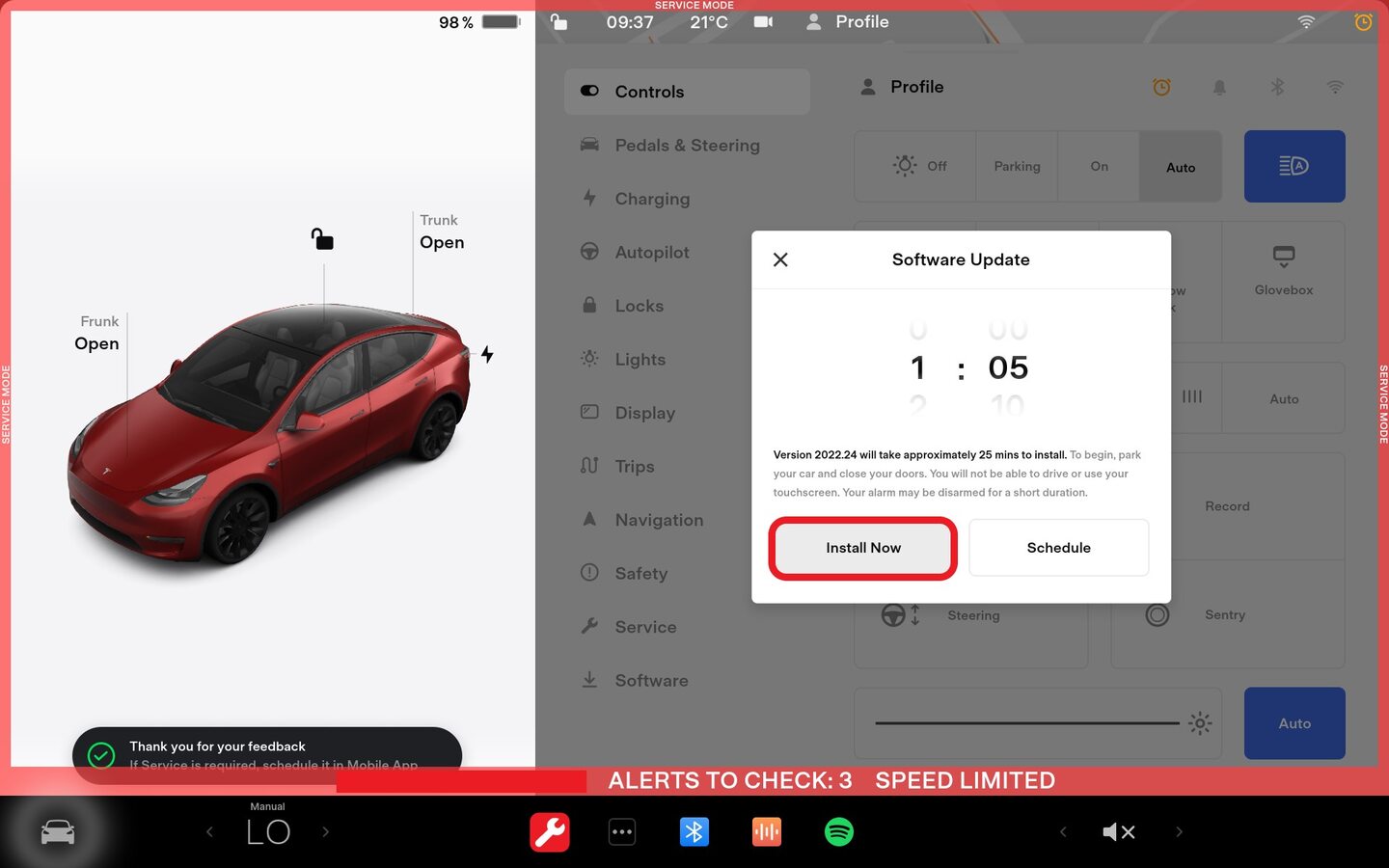

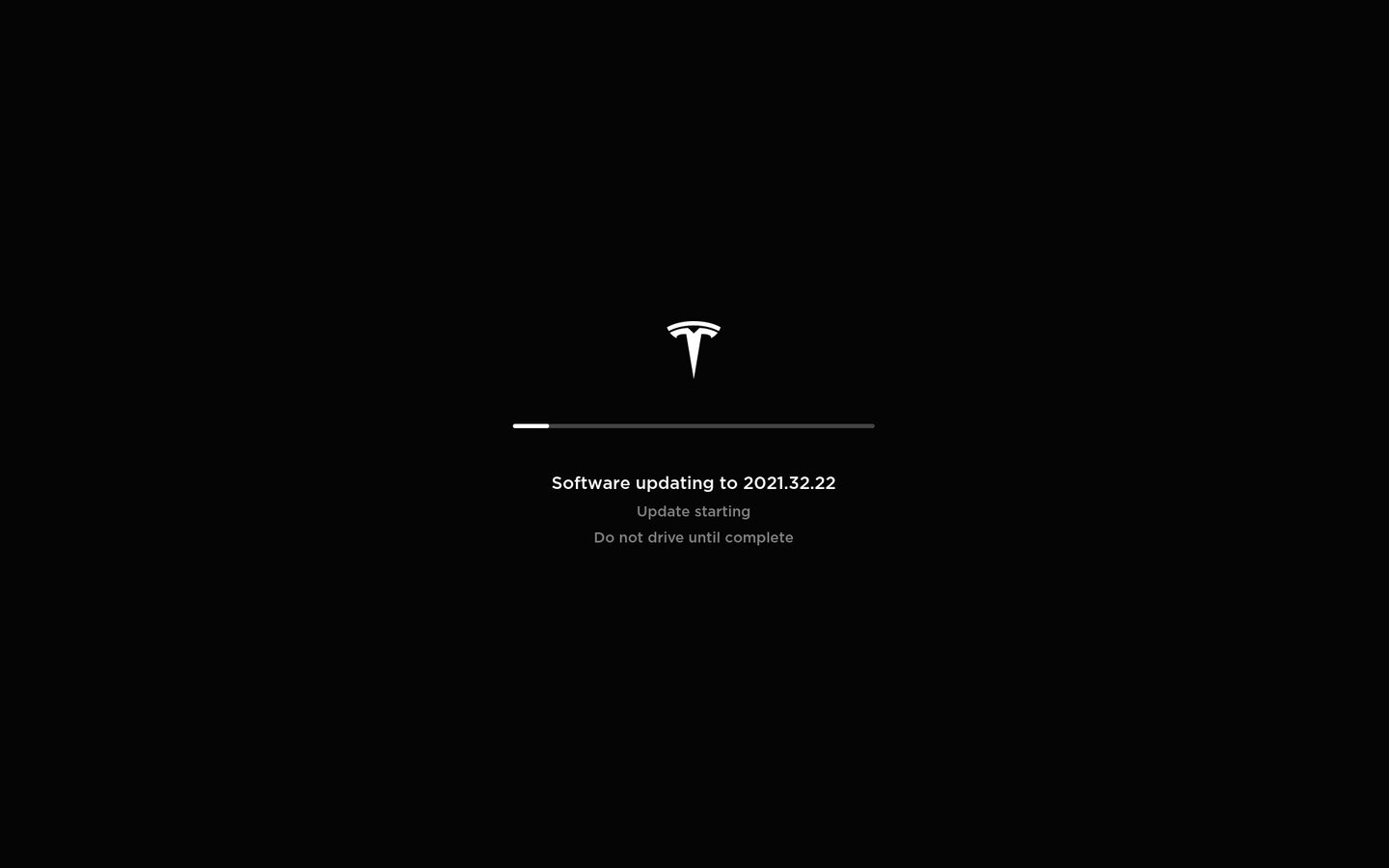

113. Update vehicle firmware if available
     Anmerkung

     Select the clock on the center display, or go to the Software tab, then select install now to start firmware update. Select Install Now, Tap count down timer until clock runs down to 0, Check the center display and ensure the firmware package is installing







114. ODIN-Routine ausführen PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox: (link)
