Korrekturcode 11336802 11336902 FRT 0.48 HINWEIS: Sofern im Verfahren nicht ausdrücklich anders angegeben, spiegeln der obige Korrekturcode und die FRT den gesamten für die Durchführung dieses Verfahrens erforderlichen Aufwand wider, einschließlich der damit verbundenen Verfahren. Schichten Sie keine Korrekturcodes, wenn Sie nicht ausdrücklich dazu aufgefordert werden. HINWEIS: Unter Richtzeiten erfahren Sie mehr über FRTs und darüber, wie sie erstellt werden. Für Rückmeldungen zu den FRT-Werten senden Sie bitte eine E-Mail an ServiceManualFeedback@tesla.com. HINWEIS: Siehe Persönlicher Schutz, um sicherzustellen, dass Sie die richtige persönliche Schutzausrüstung tragen, wenn Sie das folgende Verfahren durchführen. HINWEIS: Siehe Maßnahmen zur Ergonomie für sichere und gesunde Arbeitsmethoden.

1. Open all four doors
   Anmerkung

   If vehicle is being powered down, Latch rear doors to prevent accidental closure



2. Lower all four windows



3. Remove LH IP end cap
   Anmerkung

   3x clips



4. Remove LH mid A-pillar assembly
   Anmerkung

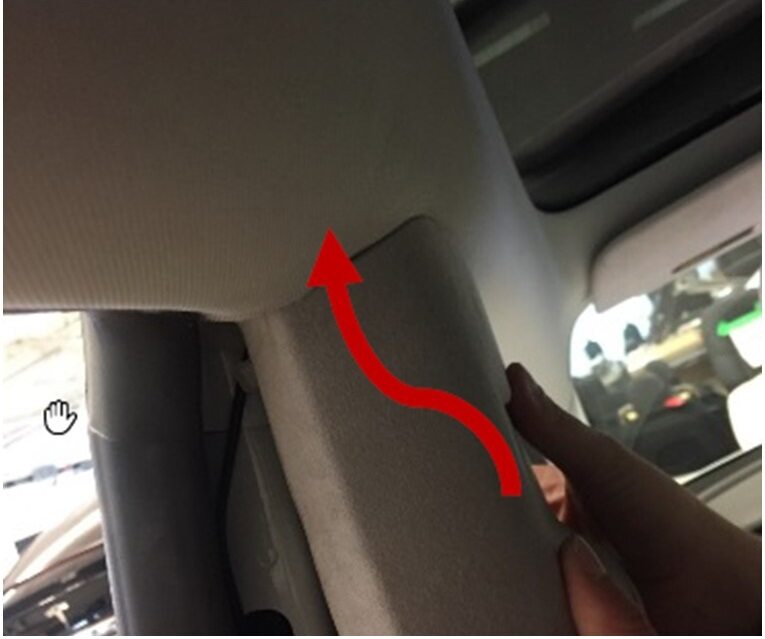

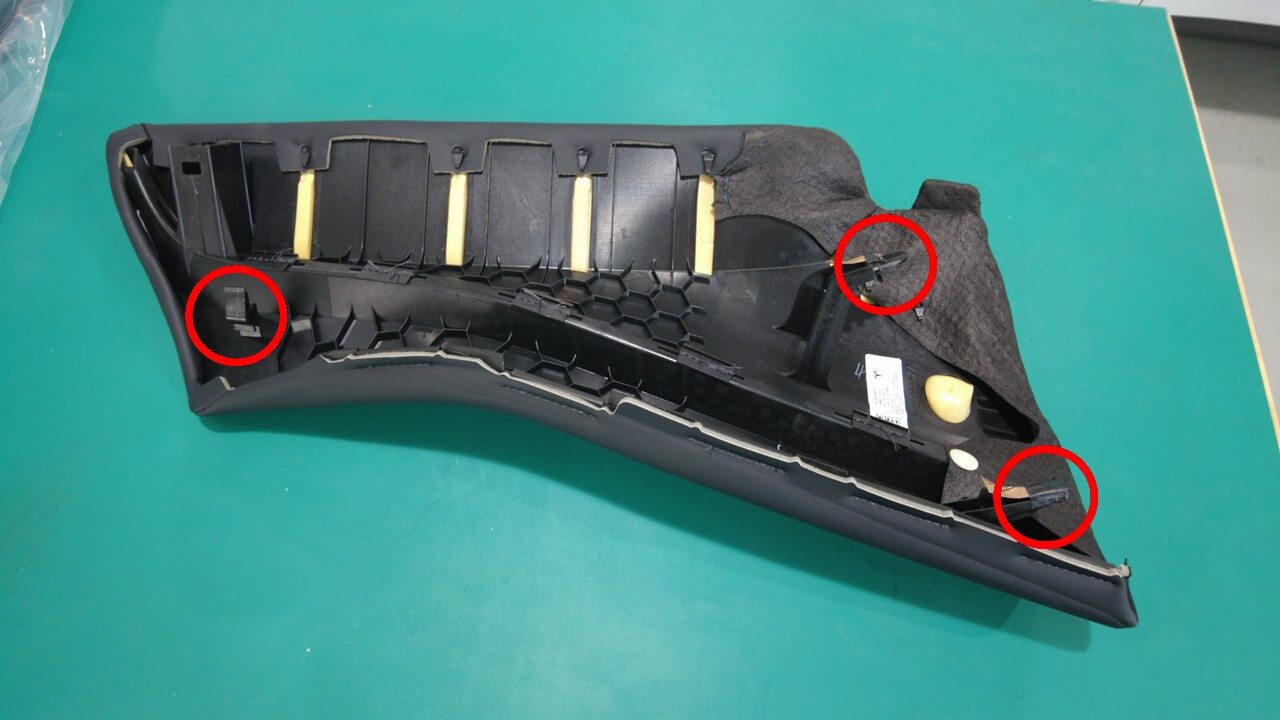

   1x clip, 1x tab, Release the upper clip then pull mid A-pillar upward to remove



5. Remove clip for LH lower A-pillar trim
   Anmerkung

   1x push clip



6. Remove LH lower A-pillar trim
   Anmerkung

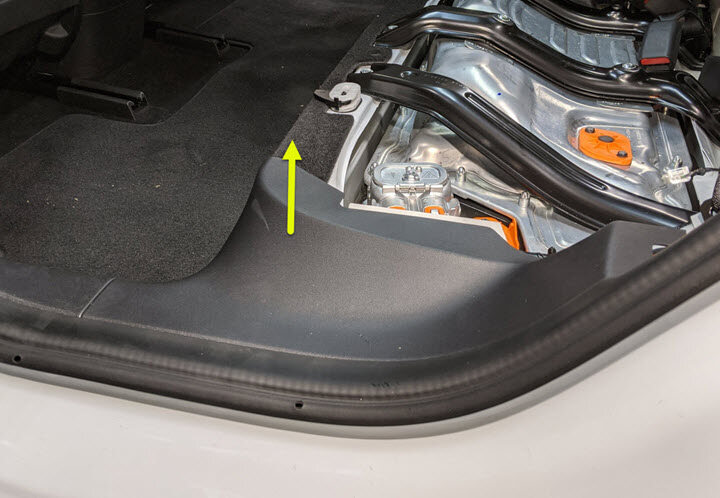

   2x clips, 3 guide tabs, Pull rear of lower A-pillar upward to release clip then pull outward to release front tabs from carpet



7. Move LH front seat forward



8. Move RH front seat forward

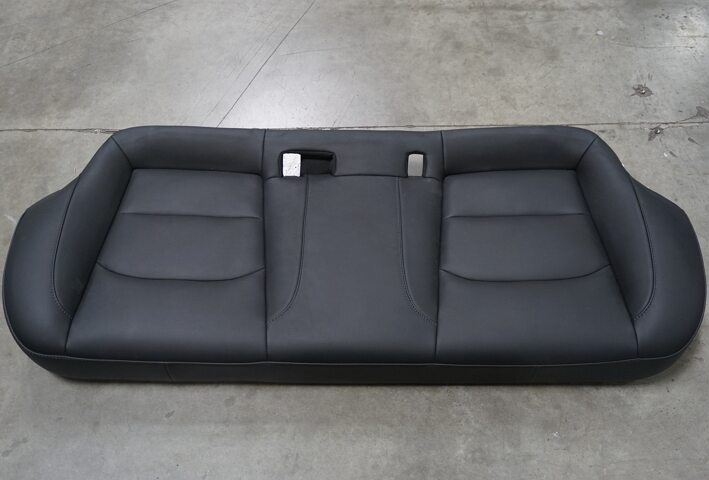

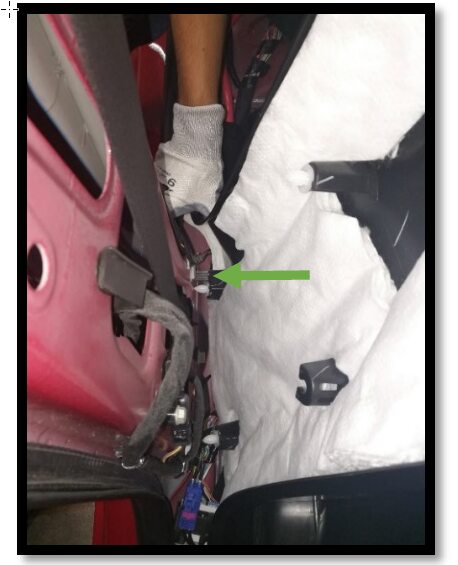

9. Remove 2nd row seat cushion
   Anmerkung

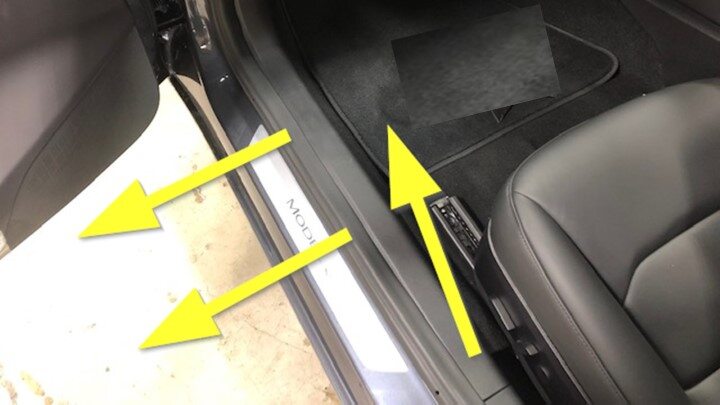

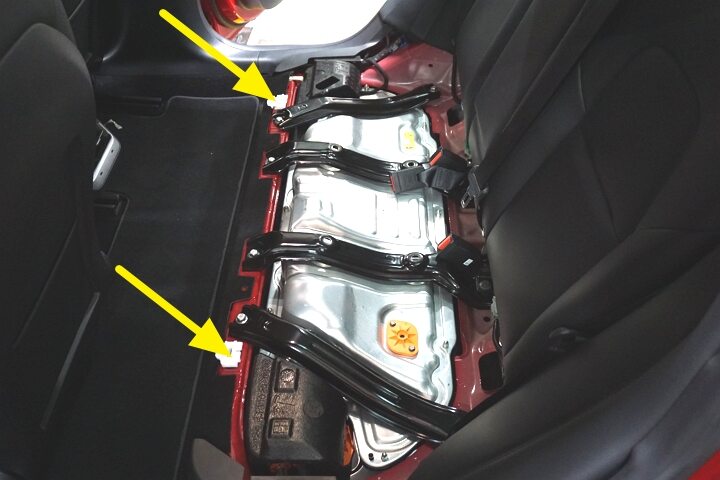

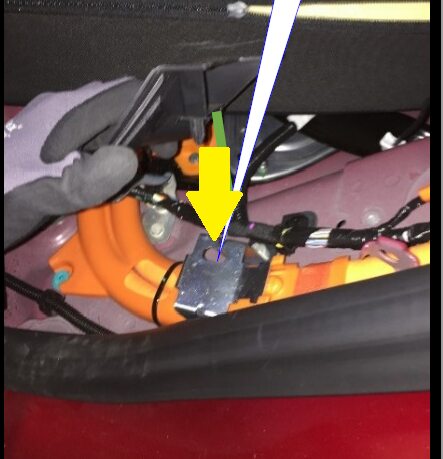

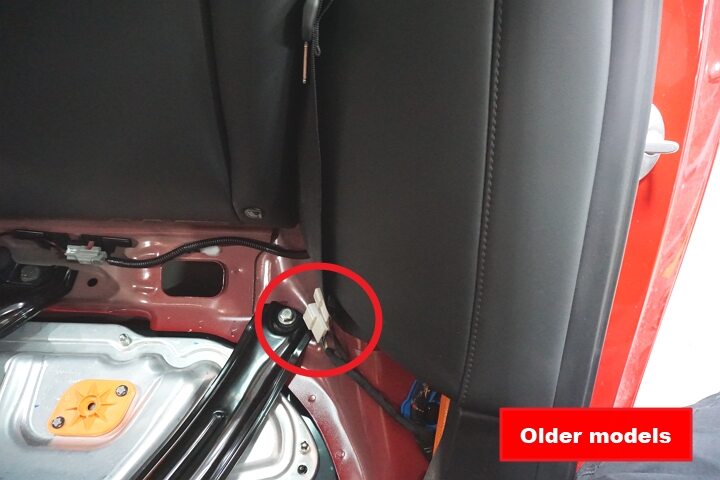

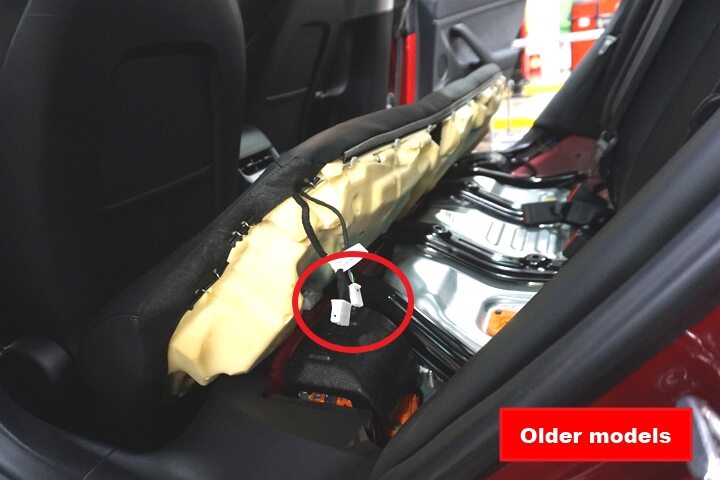

   2x tabs, 2x connectors, Slide locking tabs to left of vehicle while lifting up seat bench. Newer models have connectors on both sides of bench, Older models have 2x connectors on one side of bench

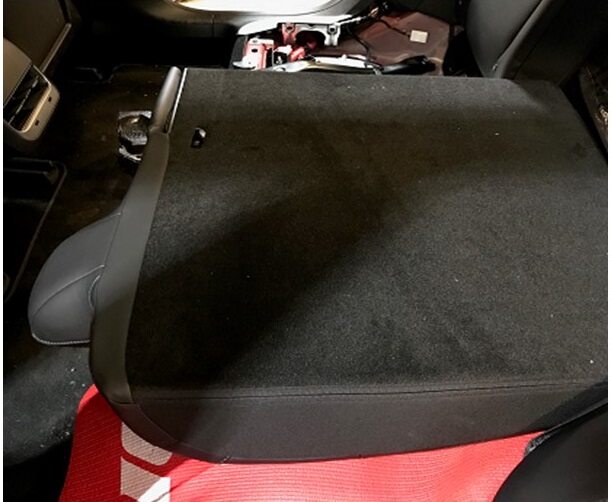

10. Fold 60 seat in down position
    Anmerkung

    Protect the seat cushion



11. Remove LH side bolster
    Anmerkung

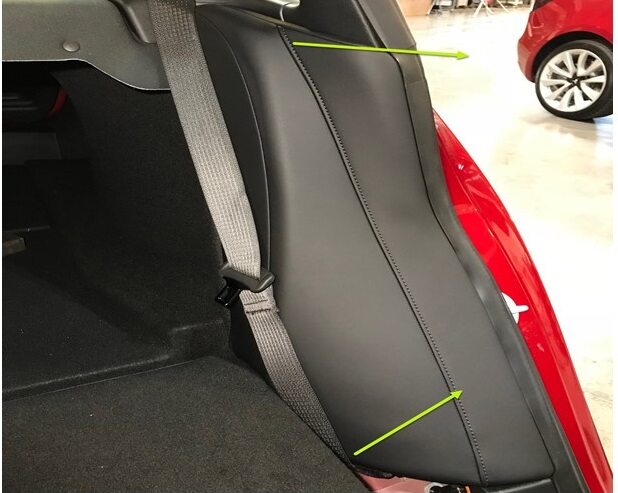

    1x clip, 2x location pins, Pull outward then slightly upward to remove





12. Remove and discard bolster plastic bracket from LH side
    Anmerkung

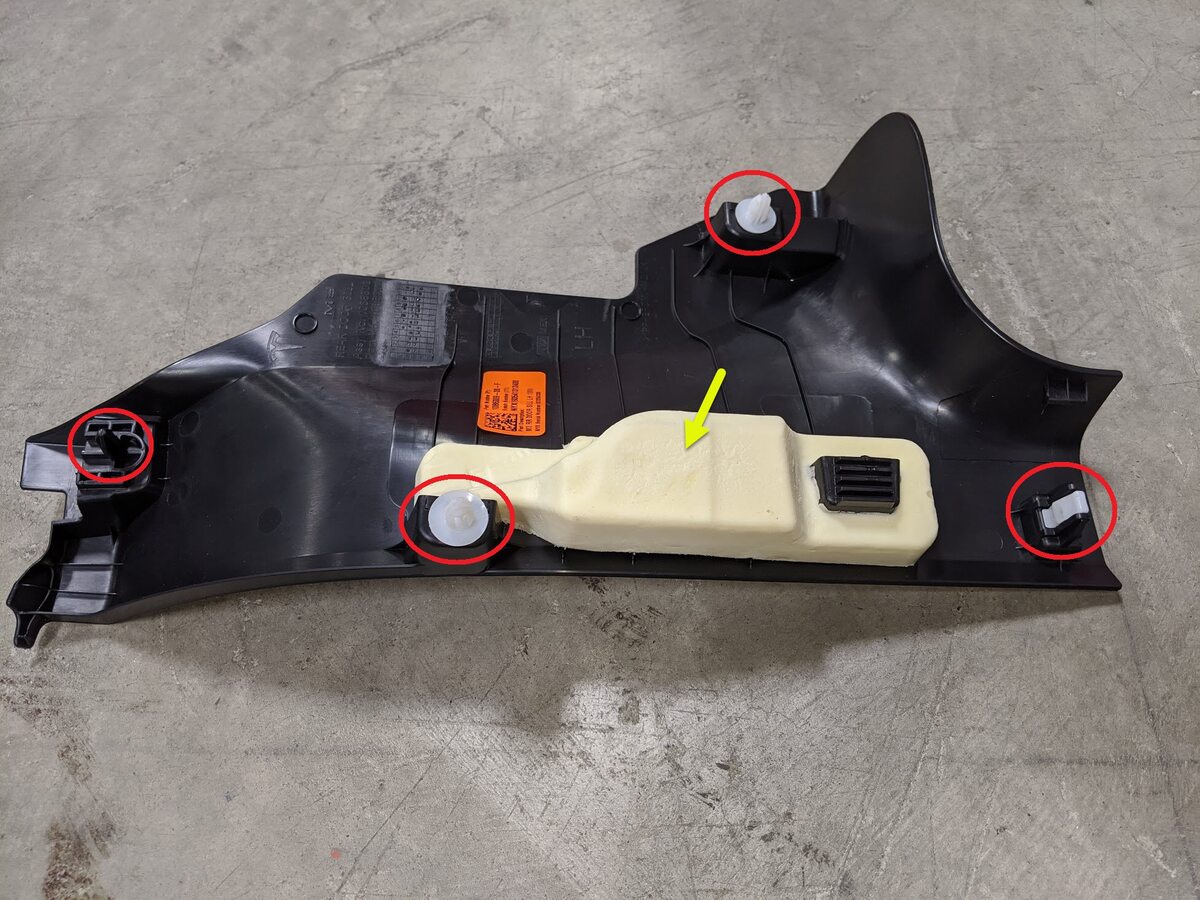

    2x clips, If necessary, depress the clips from behind, This bracket may come out with bolster, Discard after removal

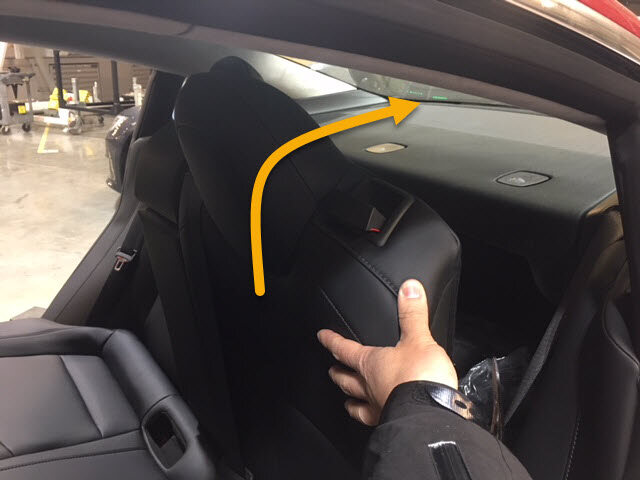

13. Fold 60 seat into vertical position
    Anmerkung

    Remove seat protection



14. Remove LH rear door sill trim panel
    Anmerkung

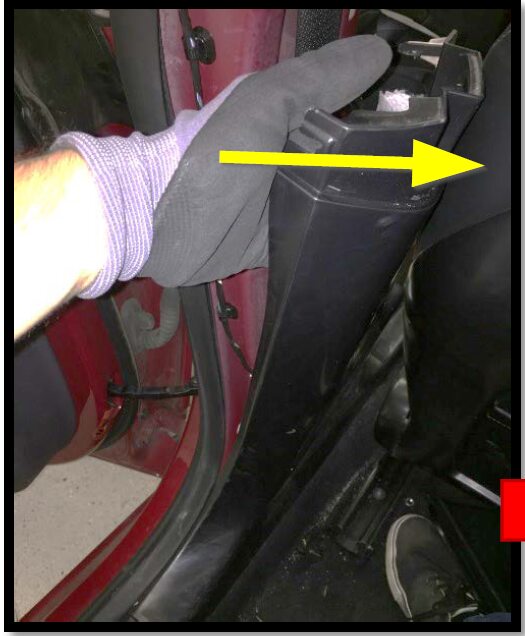

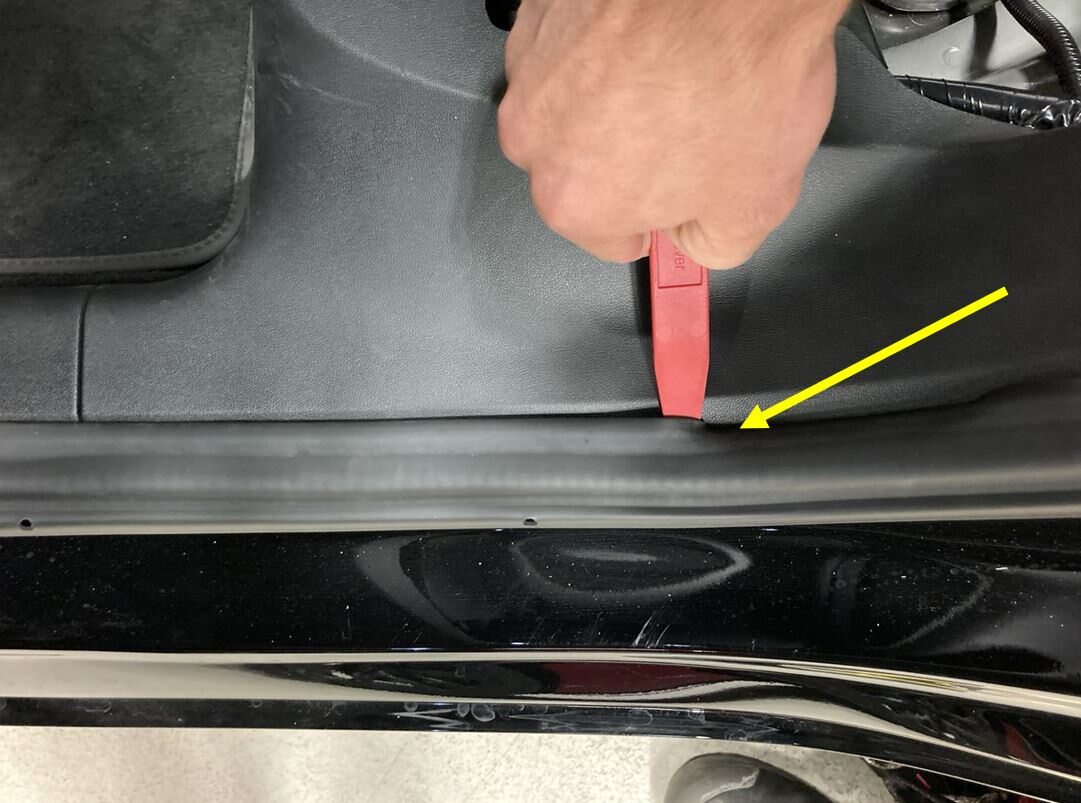

    3x clips, 1x guide tab, Pull upward at the lower corner of sill trim to release clip from lower B-pillar, Then remove the remaining clips by pulling away from the body





15. Release clips securing the LH upper B-pillar assembly and move aside
    Anmerkung

    4x clips, Pull the bottom of the upper B-pillar toward inside of the car, then pull the top to release the remaining clips



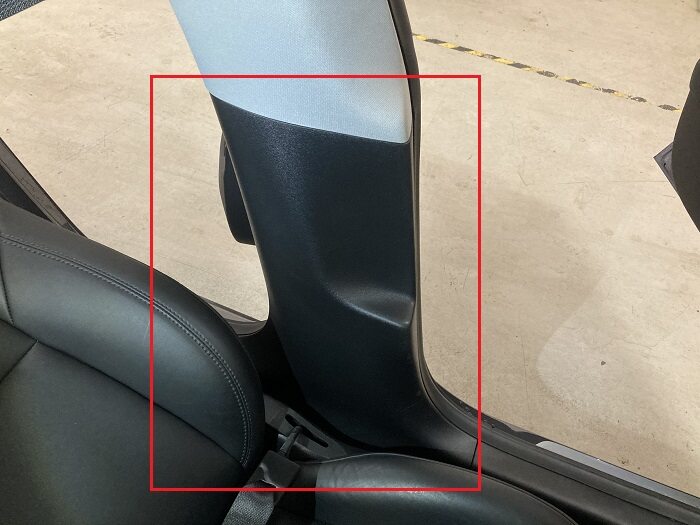

16. Remove the LH lower B-pillar assembly
    Anmerkung

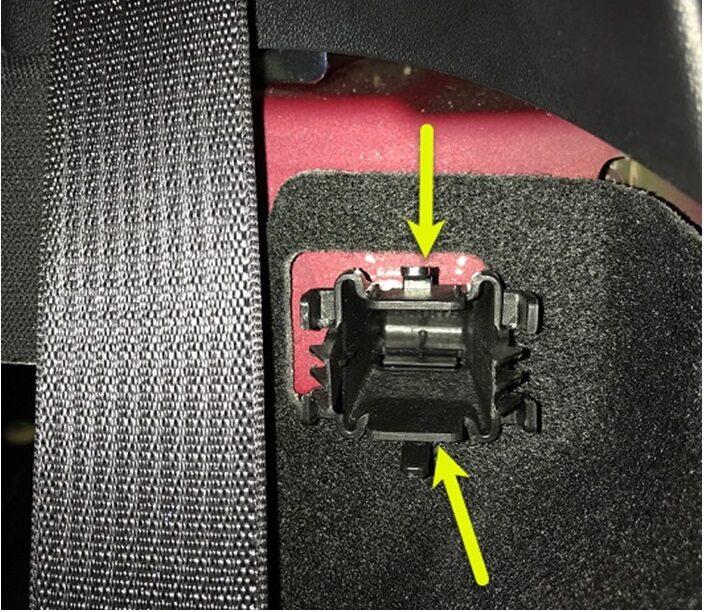

    1x push clip, 6x clips, Remove the front push clip from lower B-pillar, then pull the top of B-pillar to release top clips then work your way to bottom clips







17. Apply tape to LH door side upper hinge location
    Anmerkung

    This will mark where the hinge should align on install

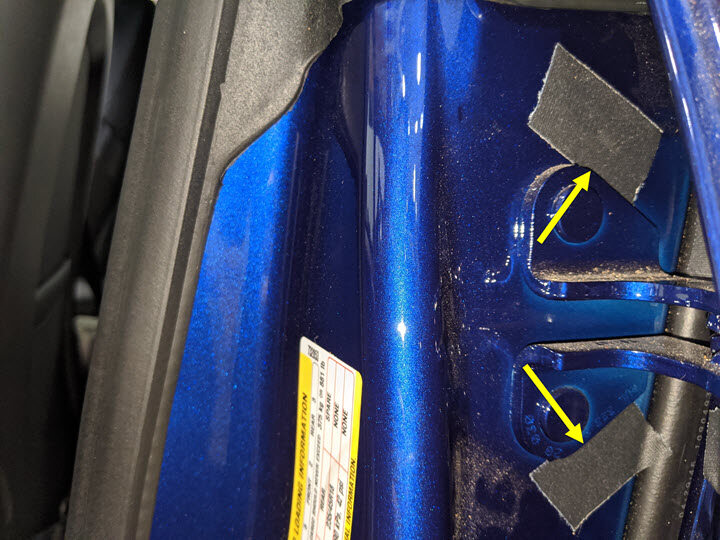

18. Apply tape to LH body side upper hinge location
    Anmerkung

    This will mark where the hinge should align on install



19. Support LH rear door
    Anmerkung

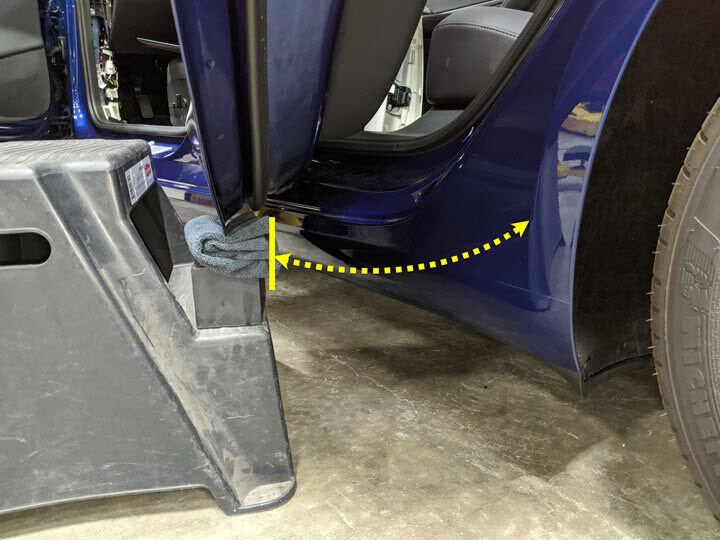

    Rest door at first detent, Use soft material to protect painted surface

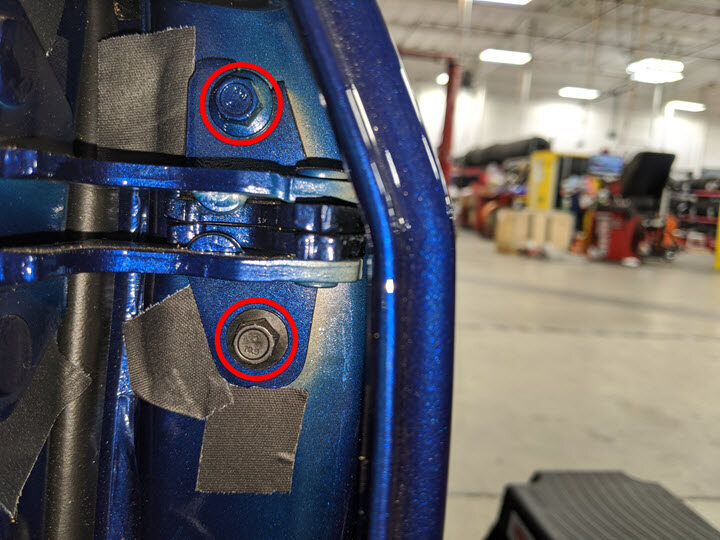

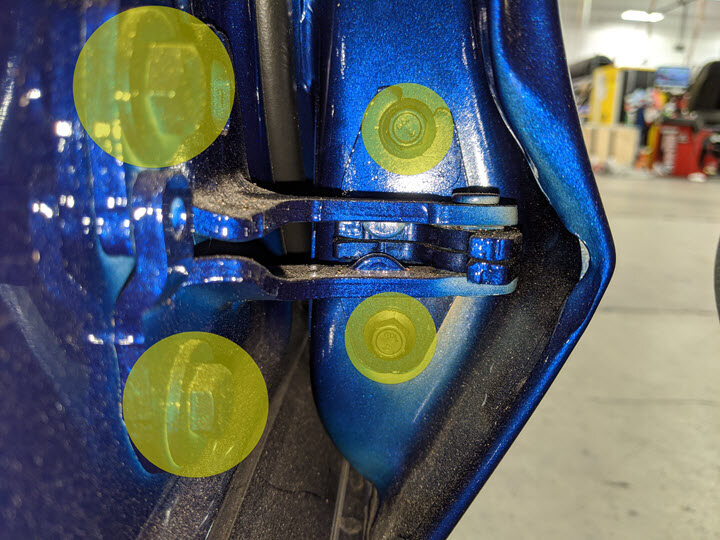

20. Remove fasteners securing LH rear upper door hinge to the LH rear door
    Anmerkung

    2x bolts, 10mm, 27 Nm

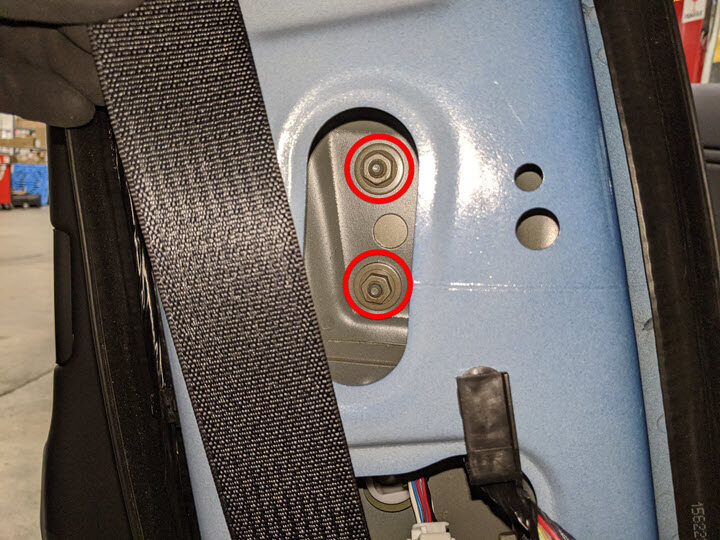

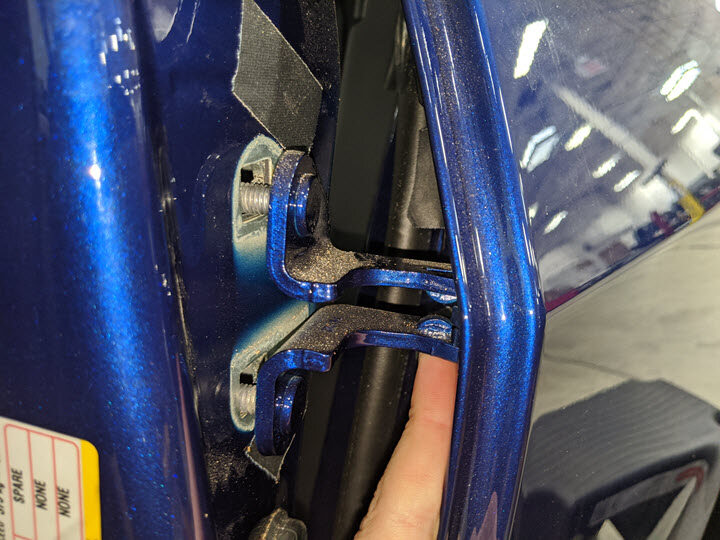

21. Remove fasteners securing LH rear upper door hinge to body
    Anmerkung

    2x nuts, 13mm, 27 Nm, Support door hinge to ensure it does not fall in the door jam



22. Remove LH rear upper door hinge from vehicle
    Anmerkung

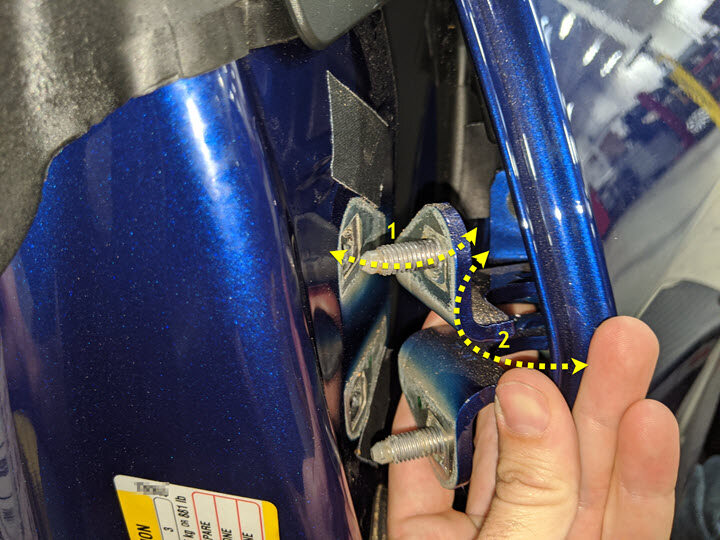

    Shift upper section of door outward slightly to create space to remove studs from body



23. Install LH rear upper door hinge to vehicle
    Anmerkung

    Shift upper section of door outward slightly to create space to remove studs from body



24. Install fasteners securing LH rear upper door hinge to body hand tight
    Anmerkung

    2x nuts, 13mm, 27 Nm, Support door hinge to ensure it does not fall in the door jam, Align hinge with previously applied tape on body



25. Install fasteners securing LH rear upper door hinge to the LH rear door hand tight
    Anmerkung

    2x bolts, 10mm, 27 Nm, Align hinge with previously applied tape on door



26. Torque fasteners securing LH rear upper door hinge to body
    Anmerkung

    2x nuts, 13mm, 27 Nm



27. Torque fasteners securing LH rear upper door hinge to the LH rear door
    Anmerkung

    2x bolts, 10mm, 27 Nm



28. Remove support from LH rear door
    Anmerkung

    Rest door at first detent, Use soft material to protect painted surface

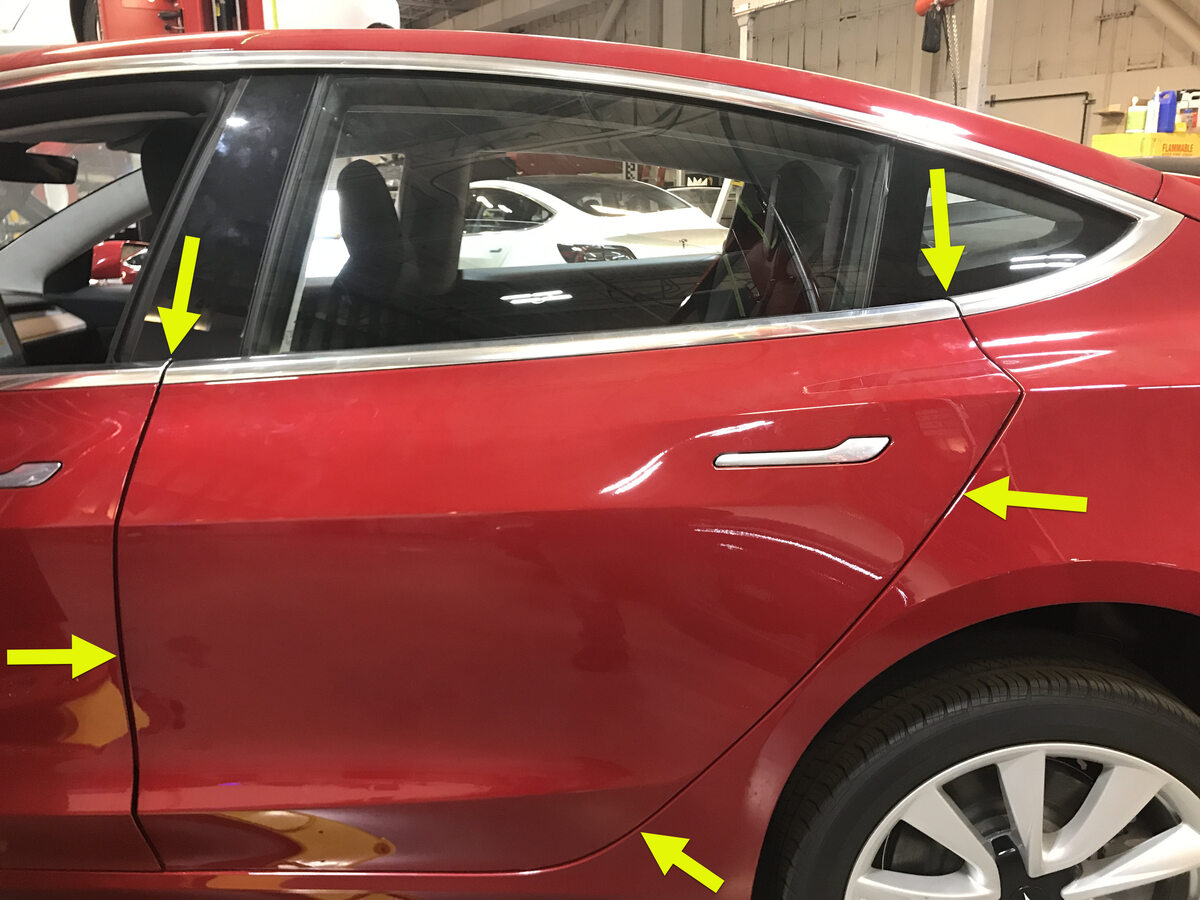

29. Close the LH rear door to check for gap/flushness
    Anmerkung

    Adjust the LH rear door if necessary



30. Remove tape from LH body side upper hinge location



31. Remove tape from LH door side upper hinge location



32. Clean hinge bolts with IPA
    Anmerkung

    Allow 1 minute dry time



33. Apply touch up paint to bolt heads as needed
    Anmerkung

    Make sure to shake touch up paint before applying, Refer to label for dry time instructions

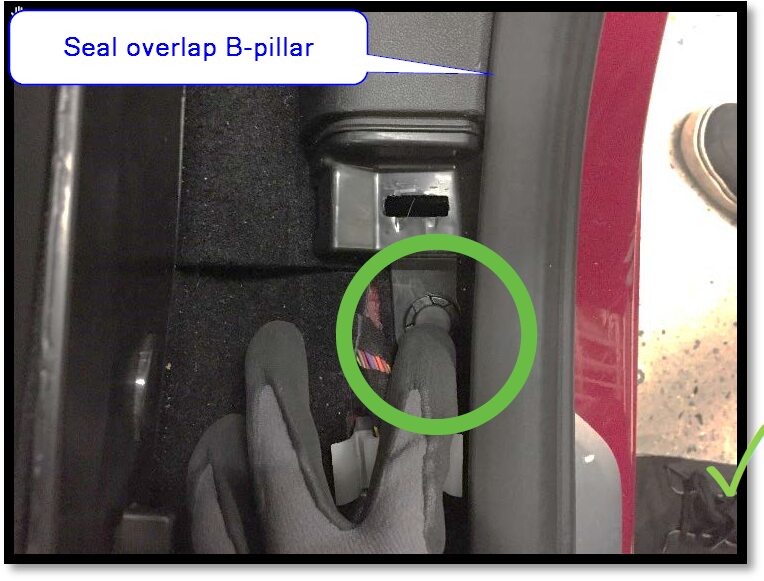

34. Install LH lower B-pillar assembly
    Anmerkung

    1x push clip, 6x clips, Align the bottom guide tab to its slot then press the bottom clips, Work your way to top clips, Install the front push clip then make sure the seal correctly overlaps the trim





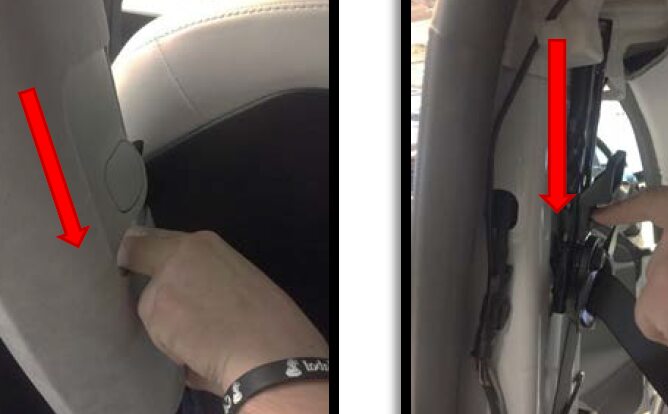

35. Install the LH upper B-pillar assembly
    Anmerkung

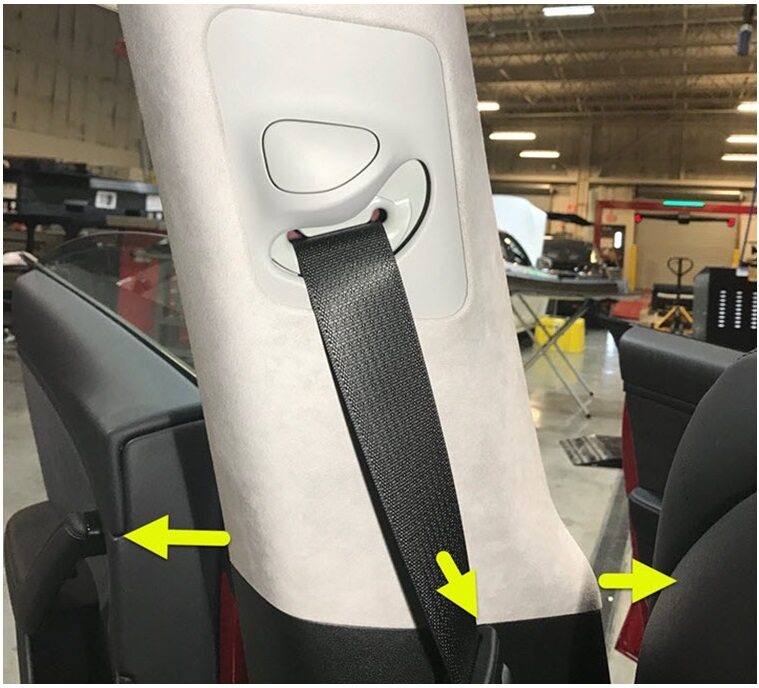

    4x clips, Lower the seat belt slider to align it with the B-pillar panel, Insert top portion of upper B-pillar under the headliner to align the clips, Press the bottom to fully seat upper B-pillar to lower B-pillar, Make sure the seal correctly overlaps the trim







36. Install LH rear door sill trim panel
    Anmerkung

    3x clips, 1x guide tab, Align the guiding tab to slot, Then push downward to install the clips after aligning them, Make sure the seal sits overlapping the trim. Newer vehicles may not be equipped with metal bracket and a foam insert will be present the bottom of trim piece







37. Fold 60 seat in down position
    Anmerkung

    Protect the seat cushion if necessary



38. Install bolster plastic bracket to LH side bolster
    Anmerkung

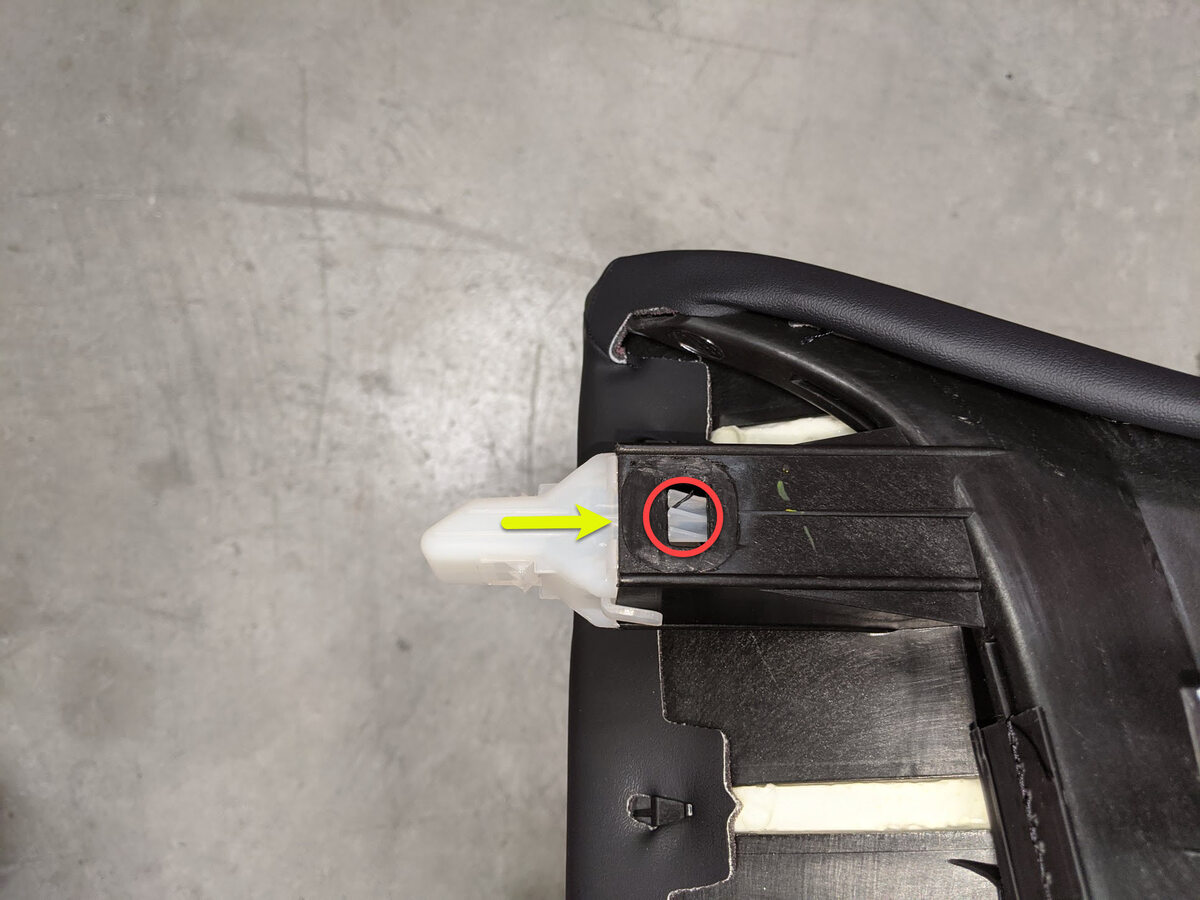

    2x tabs, Install new bolster bracket



39. Install LH side bolster
    Anmerkung

    1x clip, 2x location pins, Align the bottom tab then push inward to install





40. Fold 60 seat into vertical position
    Anmerkung

    Remove seat cushion protection, Be careful not to pinch the seat belt



41. Connect 2nd row seat cushion harness and install 2nd row seat cushion
    Anmerkung

    2x connectors, 2x clips, Insert the seat belt buckles through the holes, Slide rear cushion inward then align front guide tabs to locking tabs, Make sure cushion is fully seated with push pull test near clips

















42. Move RH front seat to original position



43. Move LH front seat to original position



44. Install LH lower A-pillar trim
    Anmerkung

    2x clips, 3 guide tabs, Align the 2 front tabs then align the slot with harness bracket and then push rear clip to secure to lower B-pillar, fully seat seal along trim





45. Install clip for LH lower A-pillar trim
    Anmerkung

    1x push clip



46. Install LH mid A pillar assembly
    Anmerkung

    1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A pillar, Pull seal over trim



47. Install LH IP end cap
    Anmerkung

    3x clips



48. Raise all four windows



49. Close all four doors
