Lenkzahnstange (Dual Motor) (RHD) (Ausbauen und Ersetzen)

Korrekturcode 32012212 3,50 HINWEIS: Sofern im Verfahren nicht ausdrücklich anders angegeben, spiegeln der obige Korrekturcode und die FRT den gesamten für die Durchführung dieses Verfahrens erforderlichen Aufwand wider, einschließlich der damit verbundenen Verfahren. Schichten Sie keine Korrekturcodes, wenn Sie nicht ausdrücklich dazu aufgefordert werden.HINWEIS: Unter Richtzeiten erfahren Sie mehr über FRTs und wie sie erstellt werden. Für Rückmeldungen zu den FRT-Werten senden Sie bitte eine E-Mail an LaborTimeFeedback@tesla.com. HINWEIS: Siehe Persönlicher Schutz, um sicherzustellen, dass Sie die richtige persönliche Schutzausrüstung tragen, wenn Sie das folgende Verfahren durchführen.

Warnung

Bei diesem Verfahren handelt es sich um einen ENTWURF, der jedoch bereits validiert wurde. Warn- und Sicherheitshinweise sind möglicherweise nicht vorhanden. Befolgen Sie die Sicherheitshinweise, und gehen Sie beim Arbeiten an oder in der Nähe von Hochspannungssystemen und -bauteilen äußerst vorsichtig vor. Übermitteln Sie Verbesserungsvorschläge und Feedback an ServiceDevelopment@teslamotors.com.

2023-06-06: Revised procedure

Ausbauen

Raise and support vehicle

Anmerkung
Ensure vehicle is not charging before lifting it off the ground
Open all four doors

Anmerkung
If vehicle is being powered down, Latch rear doors to prevent accidental closure
Lower all four windows
Move LH front seat forward
Move RH front seat forward
Remove 2nd row seat cushion and disconnect harness

Anmerkung
2x tabs, 2x connectors, Press tab toward LH side of vehicle on each side to release front edge of seat cushion
Open hood
Remove rear apron

Anmerkung
12x clips, only store the rear apron visible face upwards
Power off vehicle from center display

Anmerkung
Via Controls > Safety & Security > Vehicle Power > Power Off
Disconnect 12V negative terminal

Anmerkung
1x nut, 10mm, 6 Nm, Ensure the vehicle is in park, climate control system is off, and vehicle is not charging before disconnecting 12V
Remove 12V cap from ancillary bay

Anmerkung
1x cap
Disconnect HVC logic connector and install logic cap

Anmerkung
1x connector, 1x cap, Release locking tab then push the handle downward to release connector
Remove all items from pockets and ensure not wearing metal items
Inspect HV insulating gloves

Anmerkung
Check gloves for damage prior to each use
Put on HV insulating gloves and leather over gloves

Anmerkung
Make sure to wear Electrical Protective Gloves any time Hioki tester is used
Remove bolts securing ancillary bay probe lid cover to ancillary bay cover

Anmerkung
2x bolts, E10 5-Lobe, 6 Nm, Discard after removal
Remove ancillary bay probe lid cover from the ancillary bay cover
Verify no high voltage

Anmerkung
Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering
Inspect ancillary bay probe lid cover gasket then position onto the ancillary bay cover

Anmerkung
Confirm no visual damage present,Good to reuse seal
Inspect ancillary bay probe lid cover gasket then position onto the ancillary bay cover

Anmerkung
Confirm no visual damage present,Good to reuse seal
Install bolts securing ancillary bay probe lid cover to ancillary bay cover

Anmerkung
2x bolts, E10 5-Lobe, 6 Nm, Install new rubber washer bolts
Remove LH front wheel center cap

Anmerkung
1x cap
Remove RH front wheel center cap

Anmerkung
1x cap
Loosen LH front wheel

Anmerkung
5x nuts, 21mm, 175 Nm
Loosen nut securing LH front halfshaft to LH front hub assembly

Anmerkung
1x nut, 32mm, 245 Nm, Discard after removal
Loosen RH front wheel

Anmerkung
5x nuts, 21mm, 175 Nm
Loosen nut securing RH front halfshaft to RH front hub assembly

Anmerkung
1x nut, 32mm, 245 Nm, Discard after removal
Set steering wheel straight ahead
Lock steering wheel into position
Remove cabin intake upper duct assembly

Anmerkung
3x clips, Older vehicles may be equipped with 4x clips
Remove the close out panel from frunk assembly

Anmerkung
4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Grab the closeout panel from the bottom then pull it upward to release clips
Remove frunk assembly carpet
Remove fasteners securing the frunk assembly

Anmerkung
7x bolts, 10mm, 5 Nm, Lift up the RBN covers to access the upper fasteners, Newer vehicles may not be equipped with covers
Remove frunk assembly from vehicle

Anmerkung
12x clips, Replace any clips if broken or missing, Number of clips may vary on older vehicles
Remove bolt securing the steering gear assembly to electric steering column

Anmerkung
1x bolt, 13mm, 18 Nm
Slide the electric steering column upward to remove it from the steering gear assembly

Anmerkung
May need to wiggle or use dead blow to help separate
Disconnect the steering gear assembly connectors

Anmerkung
2x connectors, Two stage connectors, Move the red locking tab to the left then depress the connector release to disconnect the connector
Disconnect the logic connectors at the steering gear area

Anmerkung
2x connectors, Two stage connectors, Slide the grey locking tab away from the connector and depress the grey tab to disconnect the connector
Remove fasteners holding upper portion of front fascia to vehicle

Anmerkung
6x bolts, 10mm, 4 Nm
Raise vehicle partially and lower lift onto locks

Anmerkung
Set vehicle to a comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
Remove LH front wheel

Anmerkung
5x nuts, 21mm, 175 Nm
Remove LH front halfshaft nut and washers

Anmerkung
1x nut, 32mm, 245 Nm, The washers are attached to the nut, Discard after removal
Remove RH front wheel

Anmerkung
5x nuts, 21mm, 175 Nm
Remove RH front halfshaft nut and washers

Anmerkung
1x nut, 32mm, 245 Nm, The washers are attached to the nut, Discard after removal
Raise vehicle fully and lower lift onto locks

Anmerkung
Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side, Verify doors are clear of surrounding objects
Remove outer fasteners securing front aero shield

Anmerkung
9x bolts, 10mm, 5 Nm
Remove remaining nuts and remove front aero shield from vehicle

Anmerkung
2x nuts, 15mm, 5 Nm
Lower vehicle partially and set lift onto locks

Anmerkung
Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height
Remove push clips securing LH front wheel liner

Anmerkung
16x push clips, The number of clips on newer vehicles may vary
Remove LH front wheel liner from vehicle
Remove push clips securing RH front wheel liner

Anmerkung
16x push clips, The number of clips on newer vehicles may vary
Remove RH front wheel liner from vehicle
Loosen forward bolts securing LH corner of front fascia to fender

Anmerkung
2x bolts, 10mm, 4 Nm
Remove bolt securing LH corner of fascia to fender

Anmerkung
1x bolt, 10mm, 3 Nm
Loosen forward bolts securing RH front corner of front _x000A_fascia to fender

Anmerkung
2x bolts, 10mm, 4 Nm
Remove bolt securing RH front corner of front fascia to fender

Anmerkung
1x bolt, 10mm, 3 Nm
Disconnect 12V harness for front fascia

Anmerkung
1x locking connector, Release the locking tab by sliding it away from the connector, Then depress the grey lock to release the connector
Release both front corners then release front of front fascia by pulling upward and away from vehicle and place onto padded surface

Anmerkung
8x clips, Recommend assistance, Use caution not to damage headlamp or fender during removal
Remove nut securing the LH tie rod end to the knuckle

Anmerkung
1x nyloc nut, 22mm, 180 Nm, Discard after removal
Remove LH front tie rod end from LH front knuckle

Anmerkung
Move rotor back and forth to help ease removal

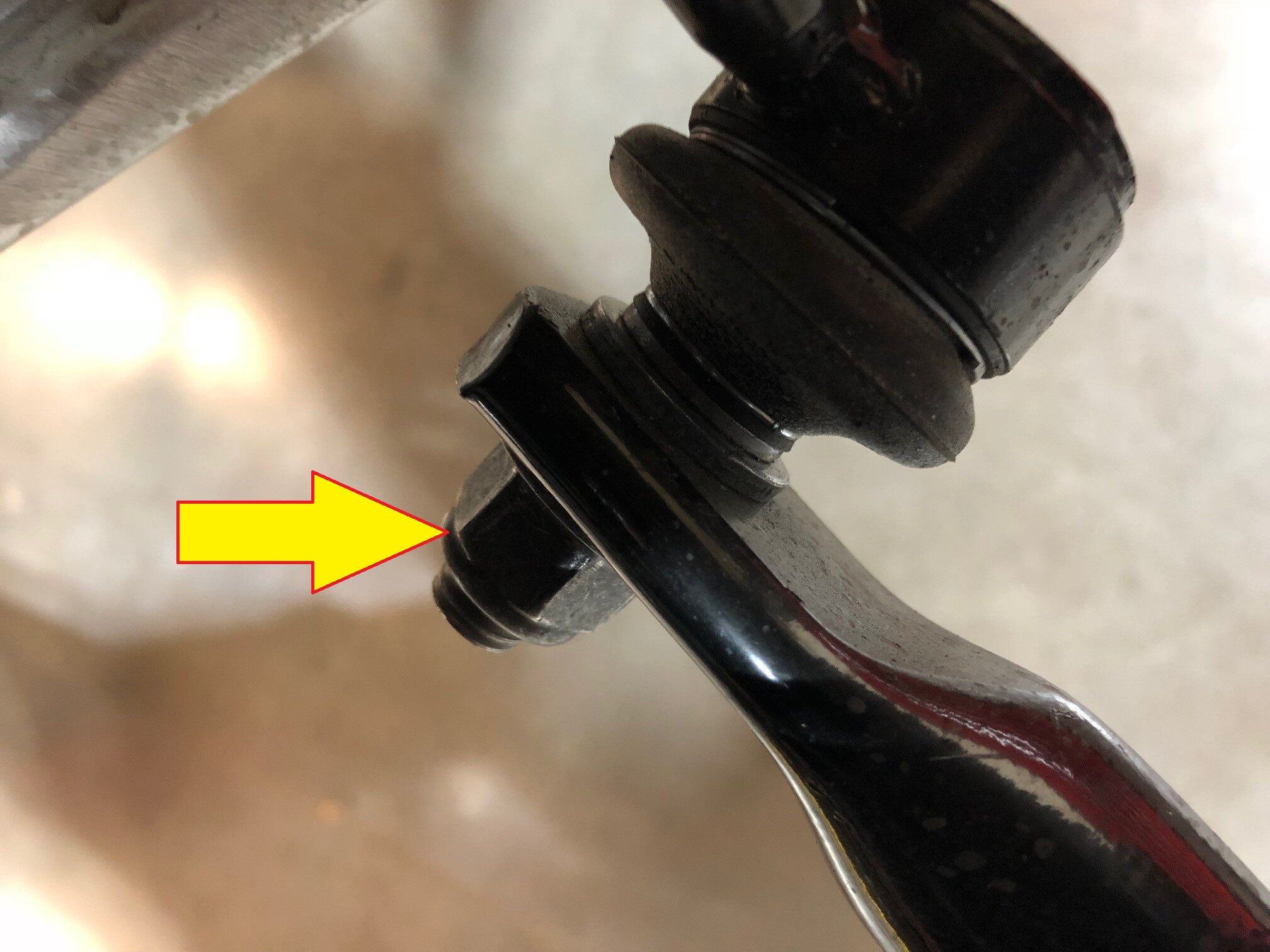

Remove nut securing front stabar link to LH front stabar

Anmerkung
1x nyloc nut, 18mm, 98 Nm, Counter hold ball joint with T40, Discard after removal
Move LH front stabar link assembly aside

Anmerkung
May need to move the stabilizer bar up/down to get the correct angle needed to remove end link
Remove nut securing the RH front tie rod end to RH front knuckle

Anmerkung
1x nyloc nut, 22mm, 180 Nm, Discard after removal
Remove RH front tie rod end from RH front knuckle

Anmerkung
Move rotor back and forth to help ease removal
Remove nut securing front stabar to RH front stabar link assembly

Anmerkung
1x nyloc nut, 18mm, 98 Nm, Counter hold ball joint with T40, Discard after removal
Move RH front stabar link assembly aside

Anmerkung
May be necessary to pull down on the sway bar to allow the end link to disengage
Raise vehicle fully and lower lift onto locks

Anmerkung
Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side, Verify doors are clear of surrounding objects
Position coolant drain container underneath RH front of HV battery
Disconnect FDU coolant inlet hose at the RH side of vehicle and plug female side of hose

Anmerkung
1x spring clip
Remove coolant drain container from underneath vehicle
Remove the hose retaining clip for the FDU inlet coolant hose

Anmerkung
1x barrel clip
Remove bolt securing FDU HV harness to the FDU

Anmerkung
1x bolt, EP10, 10 Nm
Disconnect the FDU HV harness connector

Anmerkung
1x clip, Release locking tab and rotate the release lever up to disengage the connector, Do not force the release lever up, Ensure the alignment tabs on the FDU header are not damaged
Remove the FDU HV harness connector from the FDU and move aside

Anmerkung
1x connector
Remove bolt securing FDU ground strap to FDU

Anmerkung
1x bolt, 10mm, 6 Nm
Remove FDU ground strap harness clip from FDU

Anmerkung
1x clip
Remove FDU ground strap bolt from HV battery and remove ground strap from vehicle

Anmerkung
1x bolt, 10mm, 10 Nm
Remove bolt and nut securing LH front lower comp link to front subframe

Anmerkung
1x bolt, 21mm, 1x nut, 21mm, 115 Nm
Move the LH front lower comp link aside
Remove bolts securing LH front lower lateral link to front subframe

Anmerkung
2x bolts, 21mm, 115 Nm
Remove bolt and nut securing LH strut to LH front lower lateral link

Anmerkung
1x bolt, 21mm, 1x nut, 21mm, 106 Nm
Disconnect horns

Anmerkung
2x connectors
Remove bolt and nut securing RH front lower comp link to front subframe

Anmerkung
1x bolt, 21mm, 1x nut, 21mm, 115 Nm
Move the RH front lower comp link aside
Remove bolts securing RH front lower lateral link to front subframe

Anmerkung
2x bolts, 21mm, 115 Nm
Remove bolt and nut securing RH strut to lower control arm and move the RH front lower lateral link aside

Anmerkung
1x bolt, 21mm, 1x nut, 21mm, 106 Nm
Loosen the bolts securing front subframe to LH front subframe crash can assembly

Anmerkung
2x bolts, 15mm, 53 Nm, This will help when installing the subframe
Loosen the bolts securing front subframe to RH front subframe crash can assembly

Anmerkung
2x bolts, 15mm, 53 Nm, This will help when installing the subframe
Lower vehicle partially and set lift onto locks

Anmerkung
Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height
Place coolant catcher under the front of the vehicle
Install foldable funnel under the coolant connection for the FDU heat exchanger to the superbottle

Anmerkung
Ensure the foldable funnel covers the 12V connection to the FDU oil pump and the steering rack
Disconnect the coolant connection for the FDU heat exchanger from the superbottle and allow coolant to drain

Anmerkung
1x spring clip
Install plugs to both open coolant hose connections
Disconnect the FDU logic connector at the LH frame rail

Anmerkung
1x connector, 2 stage connector, Release the grey locking tab then press on the tab to release the connector
Remove foldable funnel from vehicle
Raise vehicle partially and lower lift onto locks

Anmerkung
Set vehicle to a comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
Install hydraulic hub puller onto LH front wheel studs

Anmerkung
5x nuts, 21mm, Hand tight
Separate the LH front halfshaft from LH front hub assembly and move halfshaft aside

Anmerkung
Turn the screw clockwise to separate the halfshaft from the hub, Counter hold so the tool and hub does not free spin
Remove hydraulic hub puller from LH front wheel studs

Anmerkung
5x nuts, 21mm, Hand tight
Install hydraulic hub puller onto RH front wheel studs

Anmerkung
5x nuts, 21mm, Hand tight
Separate the RH front halfshaft from RH front hub assembly and move halfshaft aside

Anmerkung
Turn the screw clockwise to separate the halfshaft from the hub, Counter hold so the tool and hub does not free spin
Remove the hydraulic hub puller from the RH front wheel studs

Anmerkung
5x nuts, 21mm, Hand tight
Raise vehicle fully and lower lift onto locks

Anmerkung
Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
Remove fluid catcher from underneath vehicle
Move the subframe lifting tool underneath the front subframe area
Connect air supply to subframe lifting tool
Position and support the front subframe with subframe lifting tool

Anmerkung
Recommend assistance, Latch the subframe to subframe lifting tool, Make sure to align the two guides
Position the rear FDU support posts to the FDU

Anmerkung
Both FDU supports need to engage the FDU, The left side post is dimpled and fits into a recess on the FDU and the right side post has a teflon block that sits against the FDU, Both posts are threaded and the handle should be turned until the posts are tight
Remove bolt securing the LH motor mount to the LH motor mount bracket

Anmerkung
1x bolt, E18, 105 Nm
Remove bolt securing the RH motor mount to the RH motor mount bracket

Anmerkung
1x bolt, E18, 105 Nm
Remove bolts securing front end carrier to LH front subframe crash can assembly

Anmerkung
2x bolts, 13mm, 16 Nm
Remove bolts securing front end carrier to RH front subframe crash can assembly

Anmerkung
2x bolts, 13mm, 16 Nm
Remove bolt securing LH mid mount to body

Anmerkung
1x bolt, 15mm, 50 Nm, Discard after removal
Remove bolt securing RH mid mount to body

Anmerkung
1x bolt, 15mm, 50 Nm, Discard after removal
Remove bolts securing the front portion of the front subframe to body

Anmerkung
2x bolts, 18mm, 72 Nm, Discard after removal
Remove smaller bolts securing the rear portion of the front subframe to body

Anmerkung
2x bolts, 15mm, 50 Nm, Discard after removal
Remove larger bolts securing the rear portion of the front subframe to body

Anmerkung
2x bolts, 21mm, 125 Nm, Discard after removal
Lower front subframe from vehicle

Anmerkung
Recommend assistance
Disconnect air supply from subframe lifting tool
Remove subframe lifting tool from under vehicle
Remove the front left bolt securing the steering gear assembly to front subframe

Anmerkung
1x bolt, 15mm, 47 Nm (older version: 13mm, 27 Nm)
Remove the front right bolt securing the steering gear assembly to front subframe

Anmerkung
1x bolt, 15mm, 47 Nm (older version: 13mm, 27 Nm)
Remove the rear left bolt securing the steering gear assembly to front subframe

Anmerkung
1x bolt, 18mm, 75 Nm
Remove the rear right bolt securing the steering gear assembly to front subframe

Anmerkung
1x bolt, 18mm, 75 Nm
Remove the steering gear assembly from front subframe

Montieren

Position the new steering gear assembly onto front subframe for installation
Loosely install the rear right bolt securing the steering gear assembly to front subframe

Anmerkung
1x bolt, 18mm, 75 Nm
Loosely install the rear left bolt securing the steering gear assembly to front subframe

Anmerkung
1x bolt, 18mm, 75 Nm
Install and torque the front right bolt securing the steering gear assembly to front subframe

Anmerkung
1x bolt, 15mm, 47 Nm (older version: 13mm, 27 Nm)
Install and torque the front left bolt securing the steering gear assembly to front subframe

Anmerkung
1x bolt, 15mm, 47 Nm (older version: 13mm, 27 Nm)
Torque inner bolts securing the steering gear assembly to front subframe

Anmerkung
2x bolts, 18mm, 75 Nm
Position lifting tool and subframe under vehicle for installation
Connect air supply to subframe lifting tool
Raise support tool until the front subframe and body meet

Anmerkung
Recommend assistance, Guide the motor mount bushings into the motor mount isolators as the lift is being raised into position, Make sure to line up the rear locating pins on the subframe
Loosely install the RH larger bolt securing rear portion of the front subframe to body

Anmerkung
1x bolt, 21mm, 125 Nm, Install new bolt
Loosely install the LH larger bolt securing rear portion of the front subframe to body

Anmerkung
1x bolt, 21mm, 125 Nm, Install new bolt
Loosely install the LH smaller bolt securing rear portion of the front subframe to body

Anmerkung
1x bolt, 15mm, 50 Nm, Install new bolt
Loosely install the RH smaller bolt securing rear portion of the front subframe to body

Anmerkung
1x bolt, 15mm, 50 Nm, Install new bolt
Loosely install RH bolt securing the front portion of the front subframe to body

Anmerkung
1x bolt, 18mm, 72 Nm, Install new bolt, Adjust subframe lifting tool if necessary
Loosely install LH bolt securing the front portion of the front subframe to body

Anmerkung
1x bolt, 18mm, 72 Nm, Install new bolt, Adjust subframe lifting tool if necessary
Loosely install bolt securing the LH mid mount to body

Anmerkung
1x bolt, 15mm, 50 Nm, Install new bolt
Loosely install bolt securing the RH mid mount to body

Anmerkung
1x bolt, 15mm, 50 Nm, Install new bolt
Loosely install the bolts securing front end carrier to RH front subframe crash can assembly

Anmerkung
2x bolts, 13mm, 16 Nm
Loosely install the bolts securing front end carrier to LH front subframe crash can assembly

Anmerkung
2x bolts, 13mm, 16 Nm
Torque the LH larger bolt securing the rear portion of the front subframe to body

Anmerkung
1x bolt, 21mm, 125 Nm
Torque the RH larger bolt securing the rear portion of the front subframe to body

Anmerkung
1x bolt, 21mm, 125 Nm
Torque the RH smaller bolt securing the rear portion of the front subframe to body

Anmerkung
1x bolt, 15mm, 50 Nm
Torque the LH smaller bolt securing the rear portion of the front subframe to body

Anmerkung
1x bolt, 15mm, 50 Nm
Torque the LH bolt securing the front portion of the front subframe to body

Anmerkung
1x bolt, 18mm, 72 Nm
Torque the RH bolt securing the front portion of the front subframe to body

Anmerkung
1x bolt, 18mm, 72 Nm
Torque the bolt securing the LH mid mount to body

Anmerkung
1x bolt, 15mm, 50 Nm
Torque the bolt securing the RH mid mount to body

Anmerkung
1x bolt, 15mm, 50 Nm
Torque the bolts securing front end carrier to RH front subframe crash can assembly

Anmerkung
2x bolts, 13mm, 16 Nm
Torque the bolts securing front end carrier to LH front subframe crash can assembly

Anmerkung
2x bolts, 13mm, 16 Nm
Install bolt securing the RH motor mount to the RH motor mount bracket

Anmerkung
1x bolt, E18, 105 Nm, May need to lift rear of the motor to line up the bolt holes
Install bolt securing the LH motor mount to the LH motor mount bracket

Anmerkung
1x bolt, E18, 105 Nm, May need to lift rear of the motor to line up the bolt holes
Lower the subframe lifting tool from the vehicle

Anmerkung
Unlatch the subframe lifting tool from front subframe
Disconnect air supply from subframe lifting tool
Remove the subframe lifting tool from under vehicle
Apply Molykote M-77 to outboard side of halfshaft

Anmerkung
Clean if necessary, Apply no more than 1 gram to halfshaft
Loosely install nut securing RH front halfshaft into RH front hub assembly

Anmerkung
1x nut, 1x nut, 32mm, 245 Nm, Torque at later step, Install new halfshaft nut and washer
Apply Molykote M-77 to outboard side of halfshaft

Anmerkung
Clean if necessary, Apply no more than 1 gram to halfshaft
Loosely install nut securing LH front halfshaft to LH front hub assembly

Anmerkung
1x nut, 1x nut, 32mm, 245 Nm, Torque at later step, Install new halfshaft nut and washer
Loosely install bolts securing RH front lower lateral link to front subframe

Anmerkung
2x bolts, 21mm, 115 Nm, Recommend assistance if necessary, Use punch tool to align the fasteners
Install the RH front lower comp link to front subframe
Install bolt and nut securing RH front lower comp link to front subframe

Anmerkung
1x bolt, 21mm, 1x nut, 21mm, 115 Nm, Recommend assistance if necessary
Install the RH front lower lateral link and loosely install bolt and nut securing RH strut to lower control arm

Anmerkung
1x bolt, 21mm, 1x nut, 21mm, 106 Nm
Torque bolts securing RH front lower lateral link to front subframe

Anmerkung
2x bolts, 21mm, 115 Nm
Loosely install bolts securing LH front lower lateral link to front subframe

Anmerkung
2x bolts, 21mm, 115 Nm, Recommend assistance if necessary, Use punch tool to align the fasteners
Install LH front lower comp link to front subframe
Install bolt and nut securing LH front lower comp link to front subframe

Anmerkung
1x bolt, 21mm, 1x nut, 21mm, 115 Nm, Recommend assistance if necessary
Install LH front lower lateral link and loosely install bolt and nut securing LH strut to lower lateral link

Anmerkung
1x bolt, 21mm, 1x nut, 21mm, 106 Nm
Torque bolts securing LH front lower lateral link to front subframe

Anmerkung
2x bolts, 21mm, 115 Nm
Install FDU ground strap and bolt to HV battery

Anmerkung
1x bolt, 10mm, 10 Nm
Install FDU ground strap harness clip to FDU

Anmerkung
1x clip
Install bolt securing FDU ground strap to FDU

Anmerkung
1x bolt, 10mm, 6 Nm
Install FDU HV harness connector to FDU

Anmerkung
1x connector, Ensure the connector is installed far enough on the FDU manifold so the manifold alignment tooth is making contact with the connector lever
Connect the FDU HV harness connector and lock the release lever

Anmerkung
1x clip, Apply slight pressure to the connector as the lever is rotated into position, Move the lever to the closed position slowly and ensure the lever teeth and manifold teeth are properly meshed, There should be a very small gap between the manifold and the connector when fully seated
Install bolt securing FDU HV harness to FDU

Anmerkung
1x bolt, EP10, 10 Nm
Position coolant drain container underneath RH front of HV battery
Remove plugs and connect FDU coolant inlet hose at the RH side of vehicle

Anmerkung
1x spring clip
Install the hose retaining clip for the RH side coolant hose

Anmerkung
1x clip
Remove coolant drain container from underneath vehicle
Lower vehicle partially and set onto locks

Anmerkung
Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height
Position the RH front stabar link assembly to front stabar

Anmerkung
May be necessary to pull down on the sway bar to allow the end link to engage
Install nut securing front stabar to RH front stabar link assembly

Anmerkung
1x nyloc nut, 18mm, 98 Nm, Install new nyloc nut, Counter hold ball joint with T40, Mark with paint pen
Connector horn connectors

Anmerkung
2x connectors
Position LH front stabar link assembly to front stabar

Anmerkung
May be necessary to pull down on the sway bar to allow the end link to engage
Install nut securing front stabar link to LH front stabar

Anmerkung
1x nyloc nut, 18mm, 98 Nm, Install new nyloc nut, Counter hold ball joint with T40, Mark with paint pen
Position LH front tie rod end to LH front knuckle

Anmerkung
Disperse pressure of steering gear to LH side
Install nut securing the LH tie rod end to LH front knuckle

Anmerkung
1x nyloc nut, 22mm, 180 Nm, Install new nyloc nut
Position RH front tie rod end to RH front knuckle
Install nut securing RH front tie rod end to RH front knuckle

Anmerkung
1x nyloc nut, 22mm, 180 Nm, Install new nyloc nut
Install front fascia onto vehicle and secure front clips and both front corners

Anmerkung
8x clips, Recommend assistance, Use caution not to damage headlamp or fender during installation
Connect 12V harness for front fascia

Anmerkung
1x connector, Engage the locking tab
Install rear bolt and tighten all three bolts securing RH front corner of front fascia to fender

Anmerkung
1x bolt, 10mm, 3 Nm, 2x bolts, 10mm, 4 Nm, Most forward bolts, Align fascia to fender before tightening
Install rear bolt and tighten all three bolts securing LH front corner of front fascia to fender

Anmerkung
1x bolts, 10mm, 3 Nm, 2x bolts, 10mm, 4 Nm, Most forward bolts, Align fascia to fender before tightening
Position the RH front wheel liner to body for installation
Install the push clips for the RH front wheel liner

Anmerkung
16x push clips, The number of clips on newer vehicles may vary
Install RH front wheel

Anmerkung
5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool, Torque at later step
Position LH front wheel liner to vehicle for installation
Install the push clips for the LH front wheel liner

Anmerkung
16x push clips, The number of clips on newer vehicles may vary
Install LH front wheel

Anmerkung
5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool
Raise vehicle fully and lower lift onto locks

Anmerkung
Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
Position the front aero shield to vehicle and install nuts

Anmerkung
2x nuts, 15mm, 5 Nm
Apply Loctite 222 onto front aero shield bolts and install outer fasteners to front aero shield

Anmerkung
9x bolts, 10mm, 5 Nm
Lower vehicle until tires are touching the ground

Anmerkung
Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
Install fasteners holding upper portion of front fascia to vehicle

Anmerkung
6x bolts, 10mm, 4 Nm
Connect the logic connectors at the steering gear area

Anmerkung
2x connectors, Engage locking tabs
Connect the steering gear assembly connectors

Anmerkung
2x connectors, Engage locking tabs
Connect the FDU logic connector at the LH frame rail

Anmerkung
1x connector, Engage locking tab
Remove plugs and connect coolant hose to heat exchanger

Anmerkung
1x spring clip
Connect the coolant hose for the FDU heat exchanger to the superbottle

Anmerkung
1x spring clip
Remove logic cap and connect the HVC logic connector

Anmerkung
1x connector, 1x cap, Align connector then pull the handle to locking position get connector fully seated
Install 12V cap to ancillary bay

Anmerkung
1x cap
Connect 12V negative terminal

Anmerkung
1x nut, 10mm, 6 Nm
Type "https://garage.vn.teslamotors.com/_x000A_vehicles" in search field and enter your credentials
Enter the VIN and select the "Firmware" tab
Select Part Replacement Deploy tab and select Reinstall

Anmerkung
If new FW package is required, select Deploy tab and click on OTA icon, If there are no firmware packages available there may already be a package staged on the vehicle, If this is the case, skip to step for selecting the clock on the center display
Select "Jobs" tab and confirm firmware is downloading
Select the clock on the center display, or go to the Software tab, then select install now to start firmware update

Anmerkung
Tap center display next to software update window until clock runs down to 0, After displayed installation time check the center display and ensure the firmware package was successfully installed
Once firmware redeploy is complete, Verify release notes are present on center display

Anmerkung
If the redeploy fails you may receive an error message on UI
Slide the intermediate shaft assembly downward to install it to the steering gear assembly

Anmerkung
Ensure the intermediate shaft is aligned and fully seated, Recommend assistance if necessary to align the shaft to steering gear
Install bolt securing the intermediate shaft assembly to the steering gear assembly

Anmerkung
1x bolt, 13mm, 18 Nm
Torque RH front wheel

Anmerkung
5x nuts, 21mm, 175 Nm
Torque LH front wheel

Anmerkung
5x nuts, 21mm, 175 Nm
Torque RH front halfshaft nut

Anmerkung
1x nut, 32mm, 245 Nm
Torque LH front halfshaft nut

Anmerkung
1x nut, 32mm, 245 Nm
Install the LH front wheel center cap

Anmerkung
1x cap
Install RH rear wheel center cap

Anmerkung
1x cap, Verify emblem is aligned with valve stem
Remove HVAC plenum outer duct

Anmerkung
2x clips
Install frunk assembly to vehicle

Anmerkung
12x clips, Make sure frunk assembly is fully seated onto the clips, Number of clips may vary on older vehicles
Install fasteners securing the frunk assembly

Anmerkung
7x bolts, 10mm, 5 Nm, Lower the RBN covers after installing upper fasteners, Newer vehicles may not be equipped with covers
Install frunk assembly carpet
Install frunk close out panel

Anmerkung
4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Align the 3x tabs then push downward to secure clips
Remove superbottle cap
Fill container with at least 15L of coolant
Place filled coolant container into front storage area
Place refill hose inside filled coolant container

Anmerkung
Make sure hose end is fully submerged into coolant
Install vacuum refill cap onto coolant bottle assembly
Setup vacuum refill tool

Anmerkung
Verify all valves on refill tool are in the closed position, See image for clarity
Position overflow hose into empty container
Connect shop air supply to coolant refill tool

Anmerkung
If not already done, Verify refill valve is set to off
Open air inlet valve to draw a vacuum, Once gauge stabilizes, Fully close valve

Anmerkung
Gauge stabilizes roughly (60-70 cmHg), Vacuum should not drop after the valves are closed
Open air inlet valve to draw a vacuum, Once gauge stabilizes, Fully close valve

Anmerkung
Gauge stabilizes roughly (60-70 cmHg), Vacuum should not drop after the valves are closed
Once the gauge reads zero, close the refill valve
Once the gauge reads zero, close the refill valve
Slowly open the refill valve to allow coolant to be drawn into the system

Anmerkung
Make sure hose end of refill hose is fully submerged during entire process
Once the gauge reads zero, close the refill valve
Remove coolant overflow hose from coolant container
Disconnect shop air supply from coolant refill tool
Remove both coolant containers from inside underhood area
Select "Actions/Autodiag" tab and search for "vcfront"
Select
TEST-RESET_VCFRONT
via Toolbox: (link)via Service Mode Plus:
Low Voltage ➜ Power Distribution ➜ Reset VCFRONT
Mid Voltage ➜ Power Distribution ➜ Reset VCFRONT
, click "Run", and allow routine to complete
Anmerkung
Select ‘X’ at top right of window to close once complete
Select ‘
TEST_VCFRONT_X_THERMAL-COOLANT-AIR-PURGE
via Toolbox: (link)via Service Mode:
Thermal ➜ Actions ➜ Coolant Purge Stop or Coolant Purge Start
Thermal ➜ Coolant System ➜ Coolant Purge Start
via Service Mode Plus:
Drive Inverter ➜ Front Drive Inverter Replacement ➜ Coolant Air Purge
Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Coolant Air Purge
Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Coolant Air Purge
Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Coolant Air Purge
Drive Unit ➜ Front Drive Unit Replacement ➜ Coolant Air Purge
Drive Unit ➜ Rear Drive Unit Replacement ➜ Coolant Air Purge
’, click ‘Run’, and allow routine to complete_x000A__x000A_
Anmerkung
Make sure vehicle is not in drive state, Plan is still running despite the stop message, Coolant pumps will be audible, Test lasts approximately 10 mins, Speeds can be monitored in garage under PT Thermal tab, Idle speed = ~1500 RPM, Test will vary speeds from 3500-6500 RPM and actuate valve between SERIES and PARALLEL, Putting vehicle into drive state will stop this routine, If speeds hover at 7000 RPM, that means the pumps are air locked, perform vacuum fill again, Continue to add coolant and purge until the coolant level reaches between the NOM and MAX Lines on the bottle, Select ‘X’ at top right of window to close once complete_x000A_
Inspect coolant level and top off as necessary

Anmerkung
Ensure that the fluid level is 5mm above the Max line
Install superbottle cap
Install HVAC plenum outer duct

Anmerkung
2x clips, Align tab at bottom of duct before securing clips
Install cabin intake upper duct assembly

Anmerkung
3x clips, Older vehicles may be equipped with 4x clips
Install rear apron

Anmerkung
12x clips, If present untuck cut loop label and make sure it is still visible after apron is installed, Later builds may not have label
Close hood
Connect 2nd row seat cushion harness and install 2nd row seat cushion

Anmerkung
2x connectors, 2x clips, Insert the seat belt buckles through the holes, Slide rear cushion inward then align front guide tabs to locking tabs, Make sure cushion is fully seated with push & pull test near clips
Move RH front seat to original position
Move LH front seat to original position
Remove the steering wheel holder
Remove lift arms from below vehicle

Anmerkung
Lower lift arms fully and remove from under vehicle as necessary
Raise all the windows
Close all four doors

Anmerkung
Unlatch rear doors before closing
Perform a four wheel alignment. See Spureinstellung – Prüfen und Einstellen.
Perform test drive

Anmerkung
Per current FRT (00040100) 0.3 hrs, If alignment was adjusted verify tracking, If DAS components were adjusted verify operation, If brakes were serviced perform burnishing

Model 3 Service Manual

Lenkzahnstange (Dual Motor) (RHD) (Ausbauen und Ersetzen)

Ausbauen

Montieren

Figure 1

Figure 2

Figure 3
