Handschuhfach – Mit Knie-Airbags (Wärmepumpe) (Ausbauen und Ersetzen)

Korrekturcode 14051022 0.42 HINWEIS: Sofern im Verfahren nicht ausdrücklich anders angegeben, spiegeln der obige Korrekturcode und die FRT den gesamten für die Durchführung dieses Verfahrens erforderlichen Aufwand wider, einschließlich der damit verbundenen Verfahren. Schichten Sie keine Korrekturcodes, wenn Sie nicht ausdrücklich dazu aufgefordert werden. HINWEIS: Unter Richtzeiten erfahren Sie mehr über FRTs und darüber, wie sie erstellt werden. Für Rückmeldungen zu den FRT-Werten senden Sie bitte eine E-Mail an LaborTimeFeedback@tesla.com. HINWEIS: Siehe Persönlicher Schutz, um sicherzustellen, dass Sie die richtige persönliche Schutzausrüstung tragen, wenn Sie das folgende Verfahren durchführen.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warnung
Bei diesem Verfahren handelt es sich um einen ENTWURF, der jedoch bereits validiert wurde. Warn- und Sicherheitshinweise sind möglicherweise nicht vorhanden. Befolgen Sie die Sicherheitshinweise, und gehen Sie beim Arbeiten an oder in der Nähe von Hochspannungssystemen und -bauteilen äußerst vorsichtig vor. Übermitteln Sie Verbesserungsvorschläge und Feedback an ServiceDevelopment@teslamotors.com.

Ausbauen

  1. Open both front doors
  2. Lower both front windows
  3. Move RH front seat backward
  4. Open hood
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    Press "Open" button on touchscreen to release latch, Lift lid manually
  5. Remove rear apron
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    12x clips, Only store rear apron visible face upwards
  6. Power off vehicle from center display
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box
  7. Disconnect 12V negative terminal
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    1x nut, 10mm, 6 Nm, Ensure vehicle is in park, climate control system is off, and vehicle is not charging before disconnecting 12V
  8. Disconnect first responder loop
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    1x connector, Release locking tab
  9. Remove LH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    3x clips
  10. Remove LH air wave bezel cap from main decor assembly
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    2x clips, Newer vehicles are equipped with solid bezel.
  11. Remove RH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    3x clips
  12. Remove RH air wave bezel cap from main decor assembly
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    2x clips, Newer vehicles are equipped with solid bezel.
  13. Remove main decor assembly
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    15x clips, Entire decor does not need to come off for glove box removal, If you lift RH side of decor then you will have access to 3x torx screws securing top of glove box, Replace securing clips as needed
  14. Release RH footwell assembly from IP
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    4x push clips
  15. Remove RH footwell assembly
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    2x connectors
  16. Remove bolts securing passenger knee air bag onto vehicle
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    4x patch bolts, T30, 8 Nm, Discard after removal, 2x screws, T20, 2 Nm, 1x push clip, Newer vehicles have 4x E10 patch bolts
  17. Remove passenger knee air bag from vehicle
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    1x connector, Release locking tab, Connector release may vary
  18. Disconnect glove box USB cable from car computer
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    1x connector, Depress latch on top of USB cable to release internal latches, then release from car computer
  19. Remove screws securing glove box assembly to IP carrier
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    6x screws, T20, 2.3 Nm
  20. Remove glove box from IP carrier
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    3x clips
  21. Disconnect glove box assembly connectors
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    3x electrical connectors

Montieren

  1. Connect glove box assembly connectors
    Informational PurposesAn informational icon, calling your attention
    Anmerkung

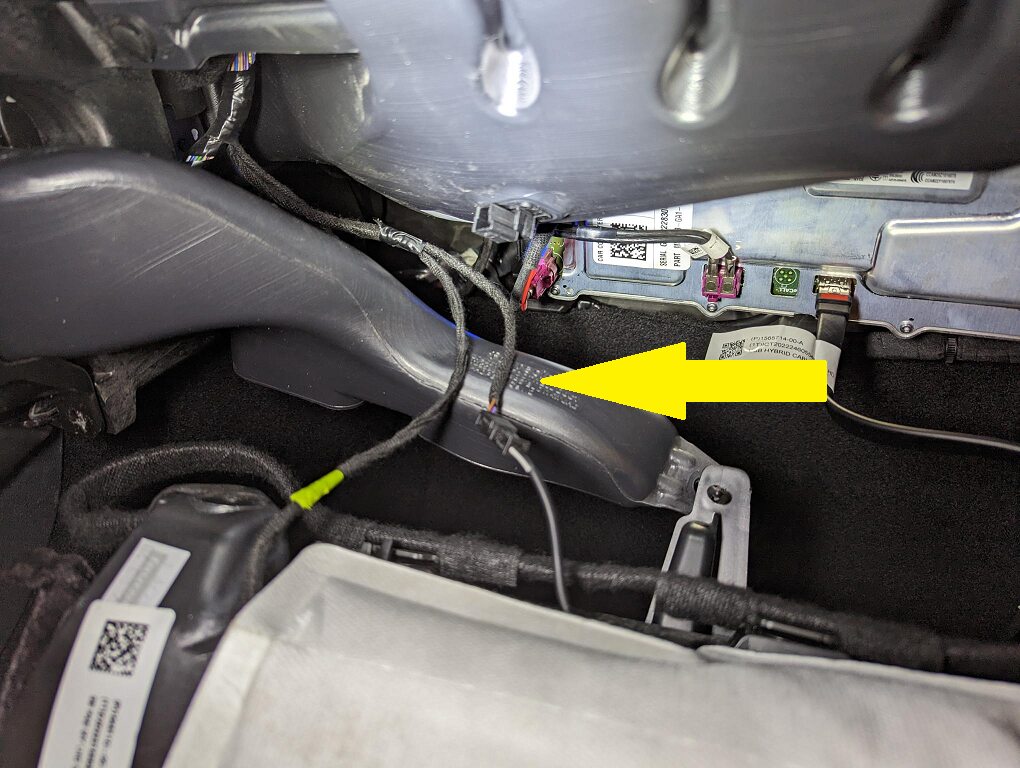

    3x connectors, New puddle lamp harness routing prevent blocking movement of pawls, Make sure harness is routed properly above passenger footwell air duct before connecting
  2. Install glove box into IP carrier
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    3x clips
  3. Install screws securing glove box assembly to IP carrier
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    6x screws, T20, 2.3 Nm
  4. Connect glove box USB cable to car computer
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    1x connector
  5. Install passenger knee air bag onto vehicle
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    1x connector, Use caution not to damage connector and harness, Support knee air bag while connecting connector
  6. Install bolts securing passenger knee air bag to vehicle
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    4x patch bolts, E10, 8 Nm, Install new patch bolts, 2x screws, T20, 2 Nm, 1x push clip, If vehicle equipped with T30 bolts update to E10
  7. Position RH footwell assembly
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    2x connectors
  8. Install RH footwell assembly onto IP
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    4x push clips
  9. Install main decor assembly
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    15x clips, 1x center clip
  10. Install RH air wave bezel cap to main decor assembly
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    2x clips, Newer vehicles are equipped with solid bezel.
  11. Install RH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    3x clips
  12. Install LH air wave bezel cap to main decor assembly
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    2x clips, Newer vehicles are equipped with solid bezel.
  13. Install LH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    3x clips
  14. Connect first responder loop
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    1x connector, Engage locking tab, Connect FRL before connecting 12V to avoid damage to car computer
  15. Connect 12V negative terminal
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    1x nut, 10mm, 6 Nm
  16. Install rear apron
    Informational PurposesAn informational icon, calling your attention
    Anmerkung
    12x clips
  17. Close hood
  18. Move RH front seat to original position
  19. Raise LF and RF windows
  20. Close both front doors
