Código de corrección 1710091022 1710091021 1.80 NOTA: Salvo que se indique lo contrario explícitamente en el procedimiento, el código de corrección anterior y el FRT reflejan todo el trabajo necesario para realizar este procedimiento, incluidos los procedimientos vinculados. No acumule códigos de corrección a menos que se le indique explícitamente que lo haga. NOTA: Consulte Tiempos de tarifa plana para obtener más información sobre los FRT y cómo se crean. Para enviar sus comentarios sobre los valores de FRT, escriba a ServiceManualFeedback@tesla.com. NOTA: Consulte Protección personal para asegurarse de llevar el EPI adecuado al realizar el siguiente procedimiento. Consulte Precauciones ergonómicas para ver prácticas de trabajo seguras.

1. Abra todas las puertas y baje todas las ventanillas.
2. Manually latch all doors to prevent lockout
   Nota

   Engage latch with screwdriver



3. Ejecutar la rutina ODIN PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox: (link)
4. Desplace los asientos delanteros izquierdo y derecho completamente hacia delante.
5. Extraiga el faldón trasero del vano del motor. Consulta Underhood Apron - Rear (Remove and Install).
6. Desconecte la alimentación de media tensión. Consulta Disconnect MV Power (Modify).
7. Remove the front header trim. See Trim - Header - Front (Remove and Install).
8. Close LH and RH visors and retract LH and RH windshield shade assemblies



9. Remove the rear header trim. See Trim - Header - Rear (Remove and Install).
10. Remove the LH mid A-pillar trim. See Trim - A-Pillar - Mid - LH (Remove and Install).
11. Remove instrument panel LH quarter panel. See Quarter Panel Assembly - LH - Instrument Panel (Remove and Replace).
12. Remove the LH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Install).
13. Remove the LH cantrail trim. See Trim - Cantrail - LH (Remove and Install).
14. Remove the RH mid A-pillar trim. See Trim - A-Pillar - Mid - LH (Remove and Install).
15. Remove instrument panel RH quarter panel. See Quarter Panel Assembly - LH - Instrument Panel (Remove and Replace).
16. Remove the RH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Install).
17. Remove the RH cantrail trim. See Trim - Cantrail - LH (Remove and Install).
18. Remove the 2nd row seatback LH outboard bolster. See Bolster - Outboard - LH - 2nd Row Seat Back (Remove and Install).
19. Remove the 2nd row seatback LH inboard bolster. See Bolster - Inboard - LH - 2nd Row Seat Back (Remove and Install).
20. Fold up 2nd row 60 seat
    Nota

    Pull tether to release then lift up until locked in place



21. Partially release LH rear primary door seal



22. Remove the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Install).
23. Remove the LH C-pillar upper trim. See Trim - C-Pillar - Upper - LH (Remove and Install).
24. Remove LH 2nd row shoulder cover
    Nota

    7x clips, 1x datum







25. Remove the 2nd row seatback RH outboard bolster. See Bolster - Outboard - LH - 2nd Row Seat Back (Remove and Install).
26. Remove the 2nd row seatback RH inboard bolster. See Bolster - Inboard - LH - 2nd Row Seat Back (Remove and Install).
27. Fold up 2nd row 40 seat
    Nota

    Pull tether to release then lift up until locked in place





28. Partially release RH rear primary door seal



29. Remove the RH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Install).
30. Remove the RH C-pillar upper trim. See Trim - C-Pillar - Upper - LH (Remove and Install).
31. Release RH 2nd row shoulder cover
    Nota

    7x clips, 1x datum







32. Remove the rear wall lower trim. See Trim - Lower - Rear Wall (Remove and Install).
33. Remove the LH C-pillar subwoofer. See Subwoofer - C-Pillar - LH (Remove and Install).
34. Remove RH subwoofer
    Nota

    1x connector, 2x bolts, 13mm, 8 Nm, Slide towards center of vehicle to release outer port from body





35. Release rear MV controller locking cover
    Nota

    1x bolt, 8mm, 6 Nm, Do not remove locking cover, Loosen until bolt spins freely, Double check that bolt and locking cover are fully released before attempting to release any MV connectors, Plastic Locking CoverUse hand tools on any plastic locking covers, The locking cover may release crooked causing it to get stuck, secure bolt a few turns to loosen the tension then release bolt while assisting plastic locking cover by gently prying on the side that's stuck, Metal Locking CoverYou can use power tools, Quickly disconnecting locking cover helps connectors remove symmetrically,



36. Release connector J3 X0052 from rear vehicle controller
    Nota

    1x connector, 2x tabs, 1x clip, Do not remove locking cover, Each connector has two tabs one on the top right side and one on the left lower side of the connector head, You need to press both tabs in order for the connector head to clear locking cover and release successfully, Using a pocket screwdriver to press one of the connector tabs while pressing the other one yourself makes this process easier







37. Release rear vehicle controller connectors
    Nota

    3x connectors, 6 tabs, Do not remove locking cover, Depress tabs on top and bottom of each connector to release from locking cover, You need to press both tabs in order for the connector head to clear locking cover and release successfully, Using a pocket screwdriver to press one of the connector tabs while pressing the other one yourself makes this process easier



38. Disconnect etherloop connector
    Nota

    1x connector, Release locking tab





39. Remove LH vehicle controller
    Nota

    2x nuts, 10mm, 13 Nm, 1x bolt, 10mm, 10 Nm



40. Release all connections from charge port ecu
    Nota

    3x connectors





41. Remove charge port ECU
    Nota

    1x bolts, 8 mm, 5 Nm, 2x tabs

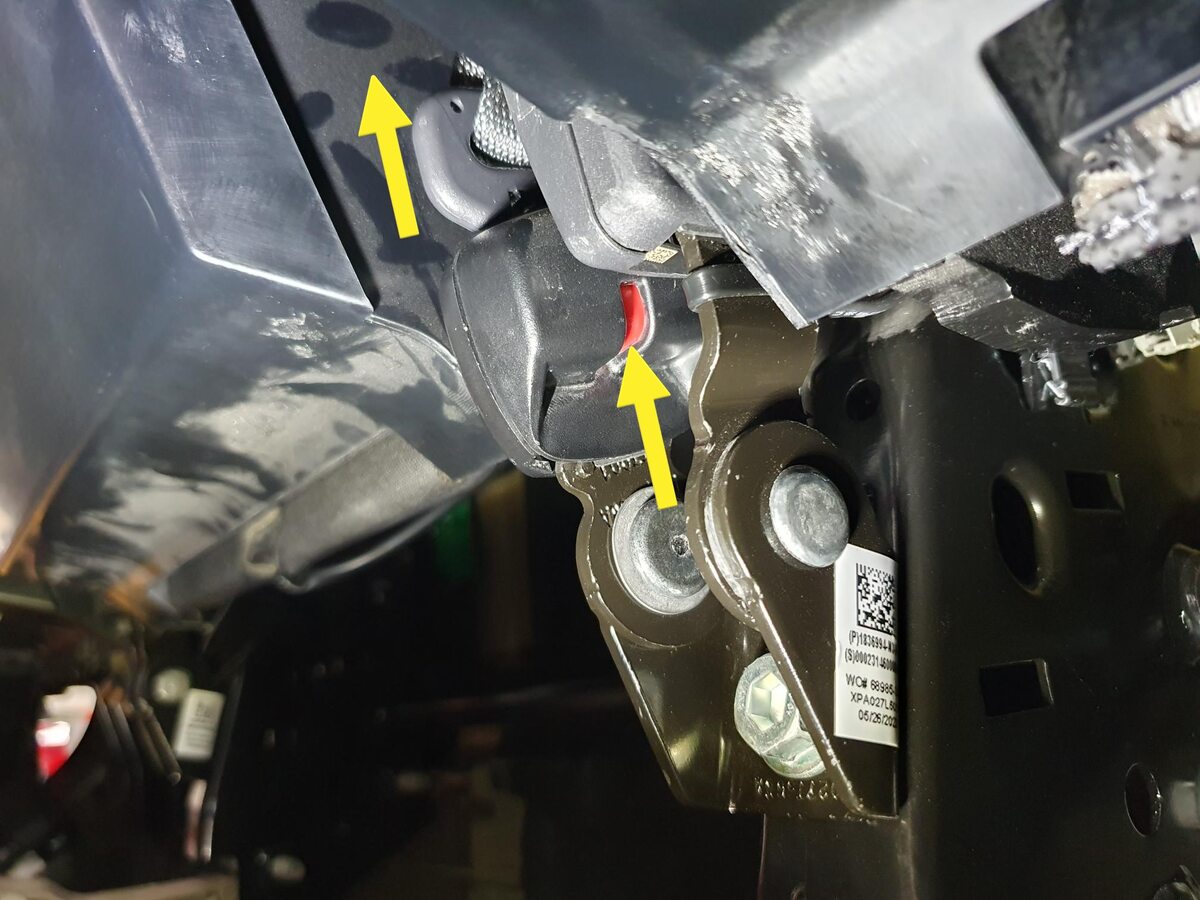

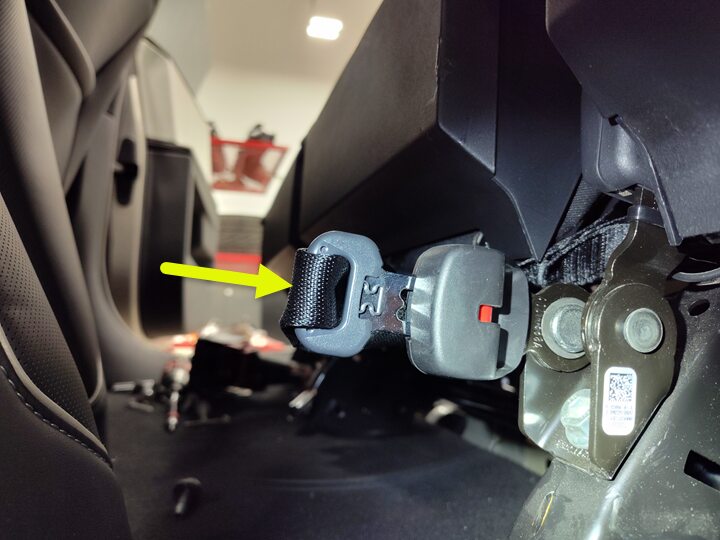

42. Release 2nd row center retractor from 2nd LH row buckle
    Nota

    Push red release mechanism to release retractor

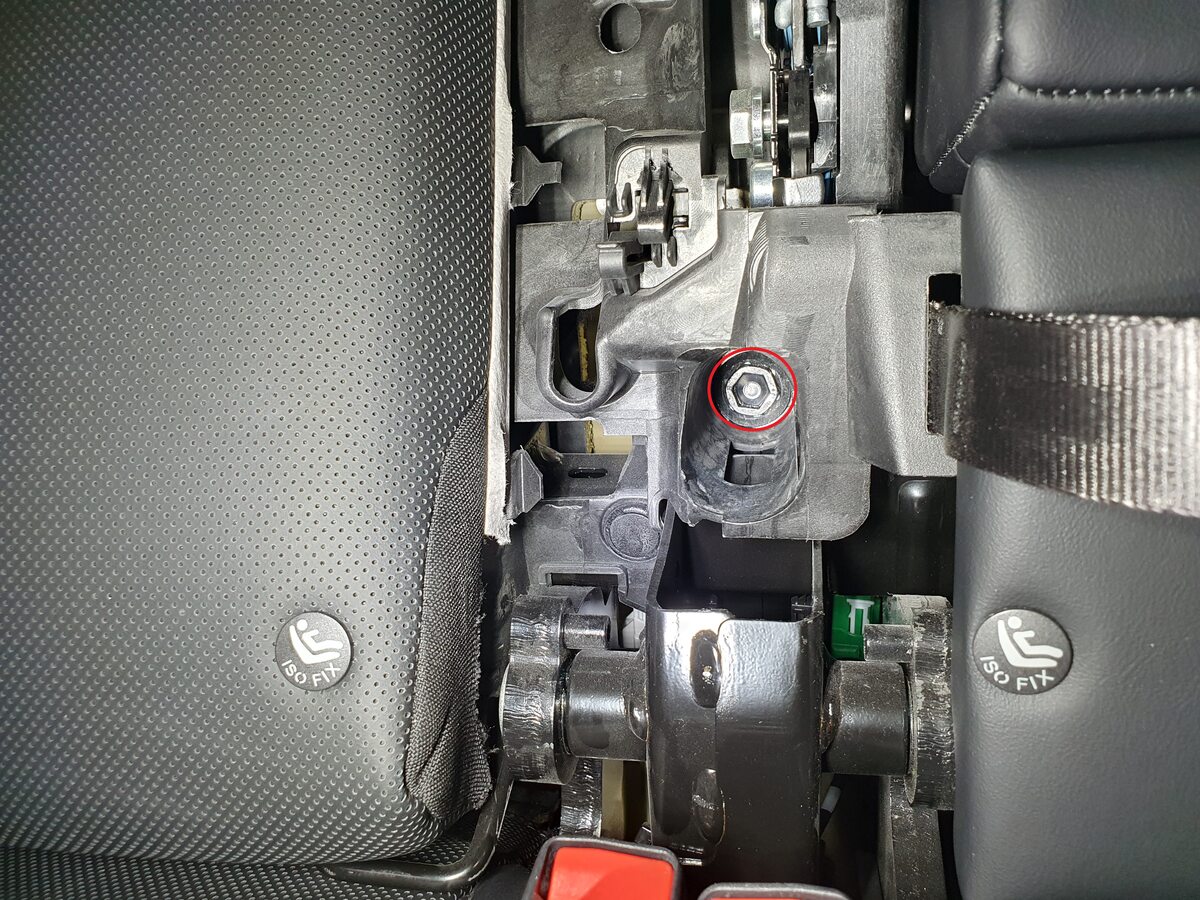

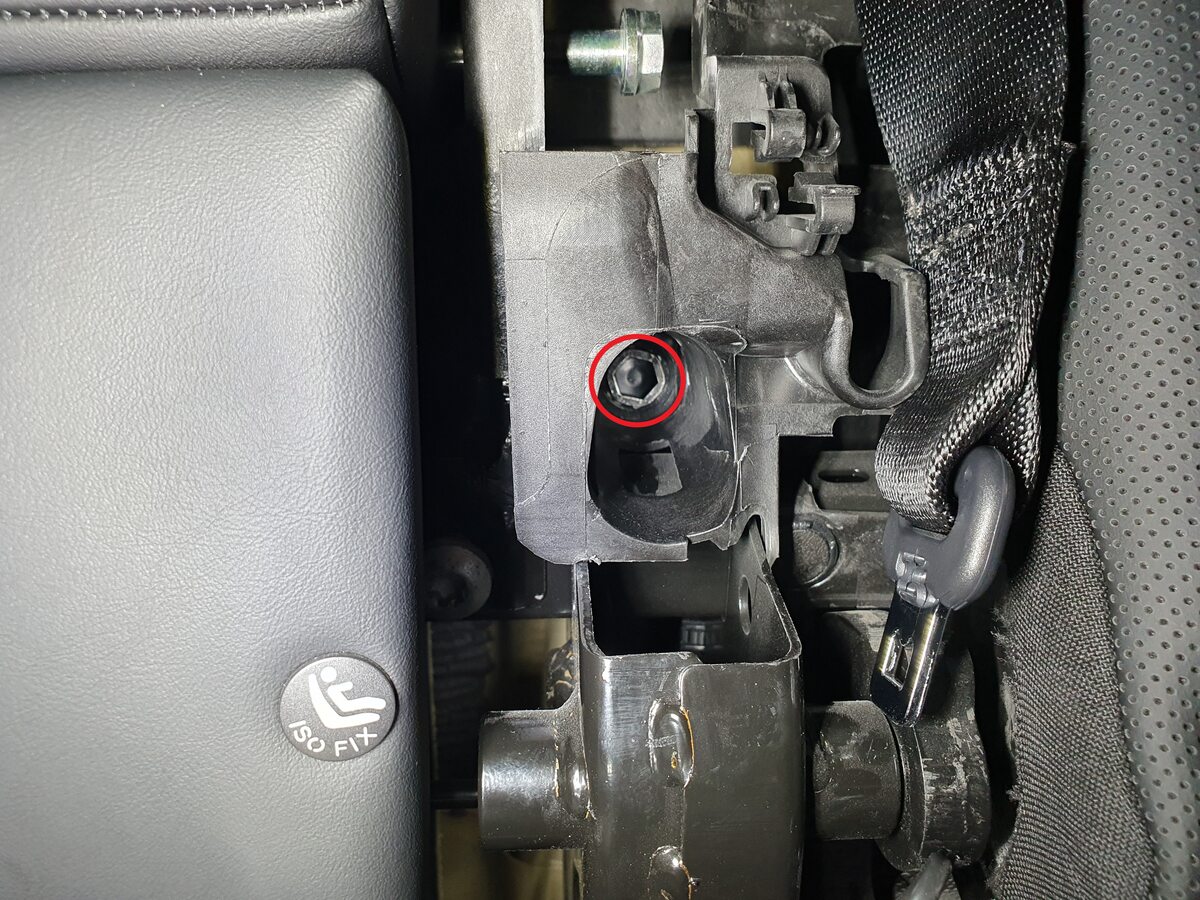

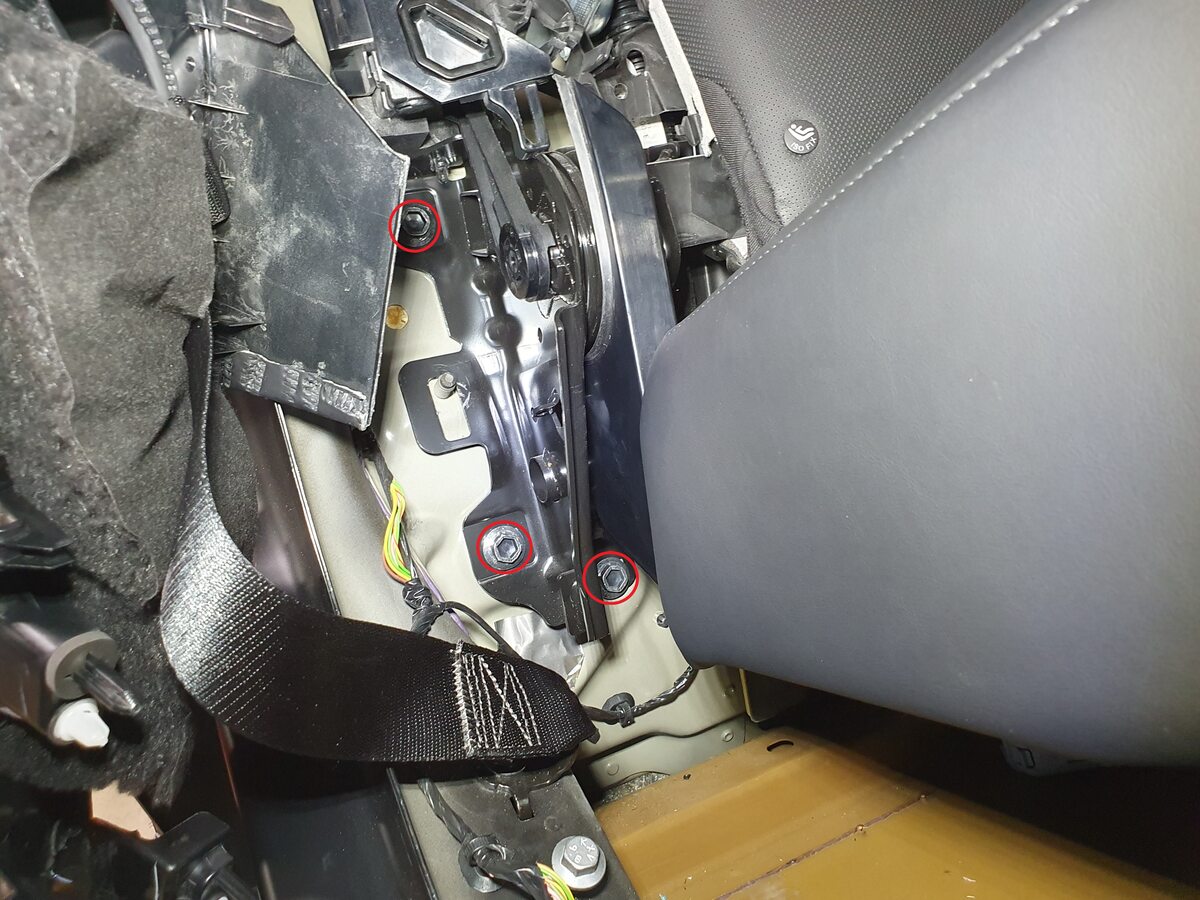

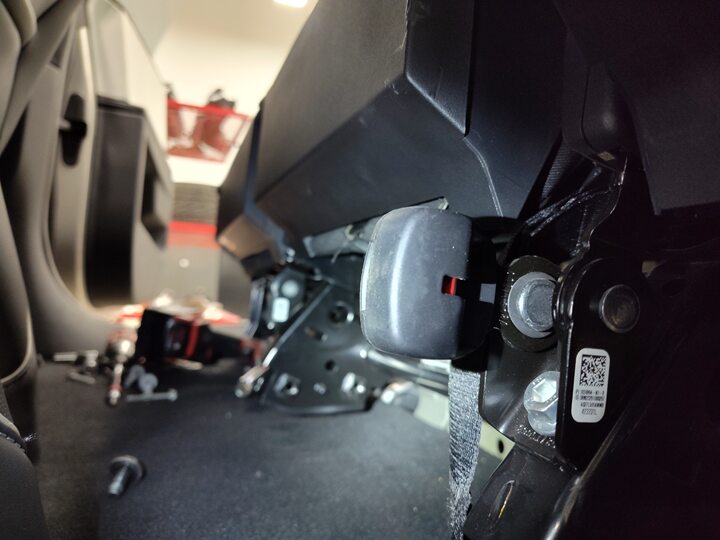

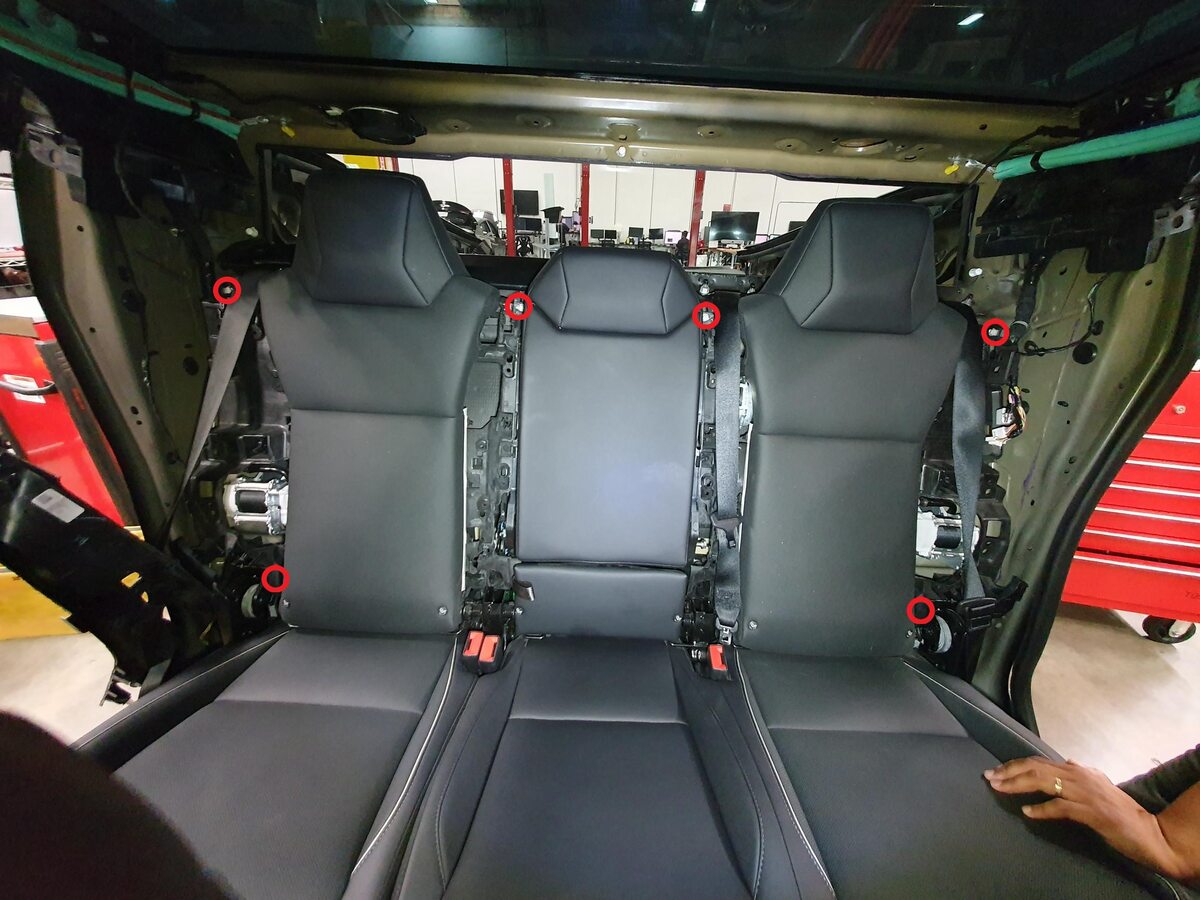

43. Remove bolts securing 2nd row seat back onto the back wall
    Nota

    4x bolts, 10mm, 9 Nm, 2x bolts, 10mm, 7 Nm

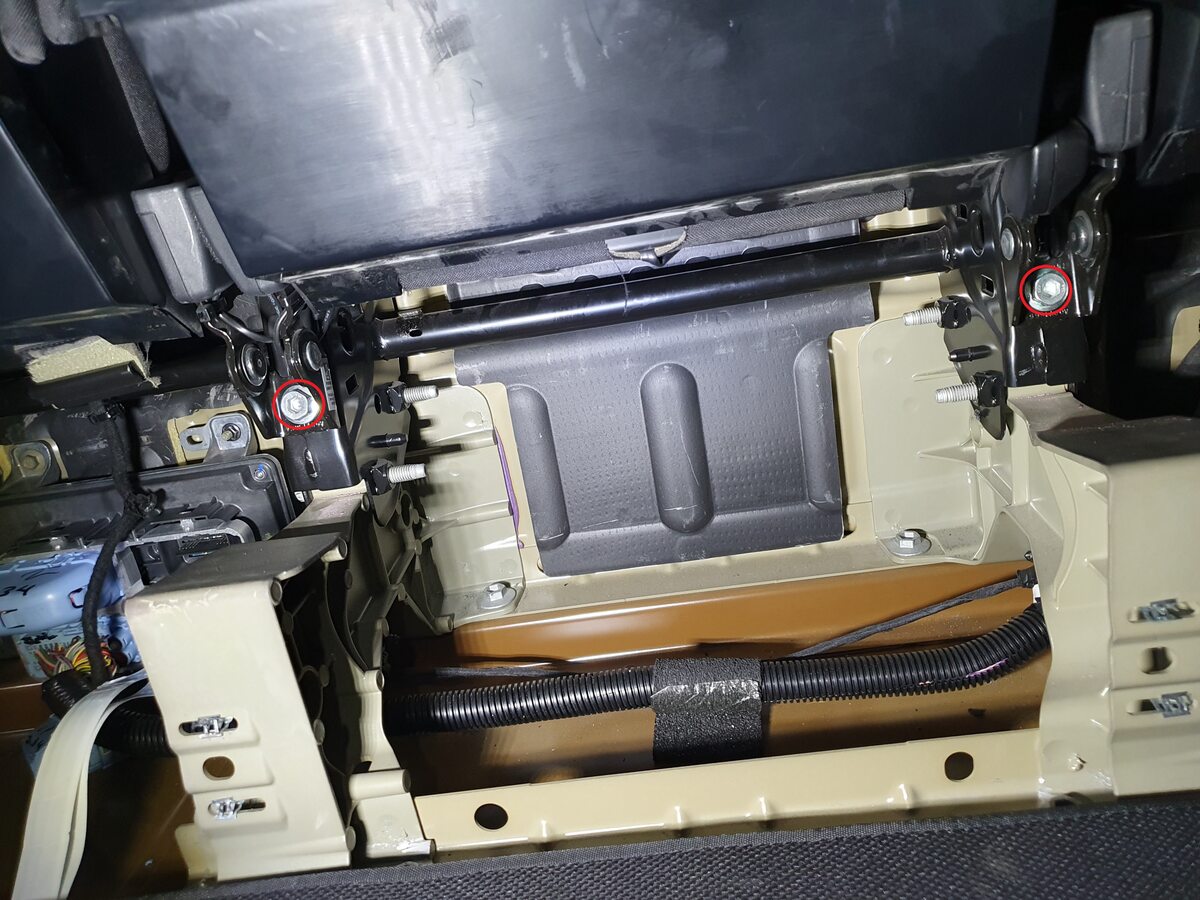

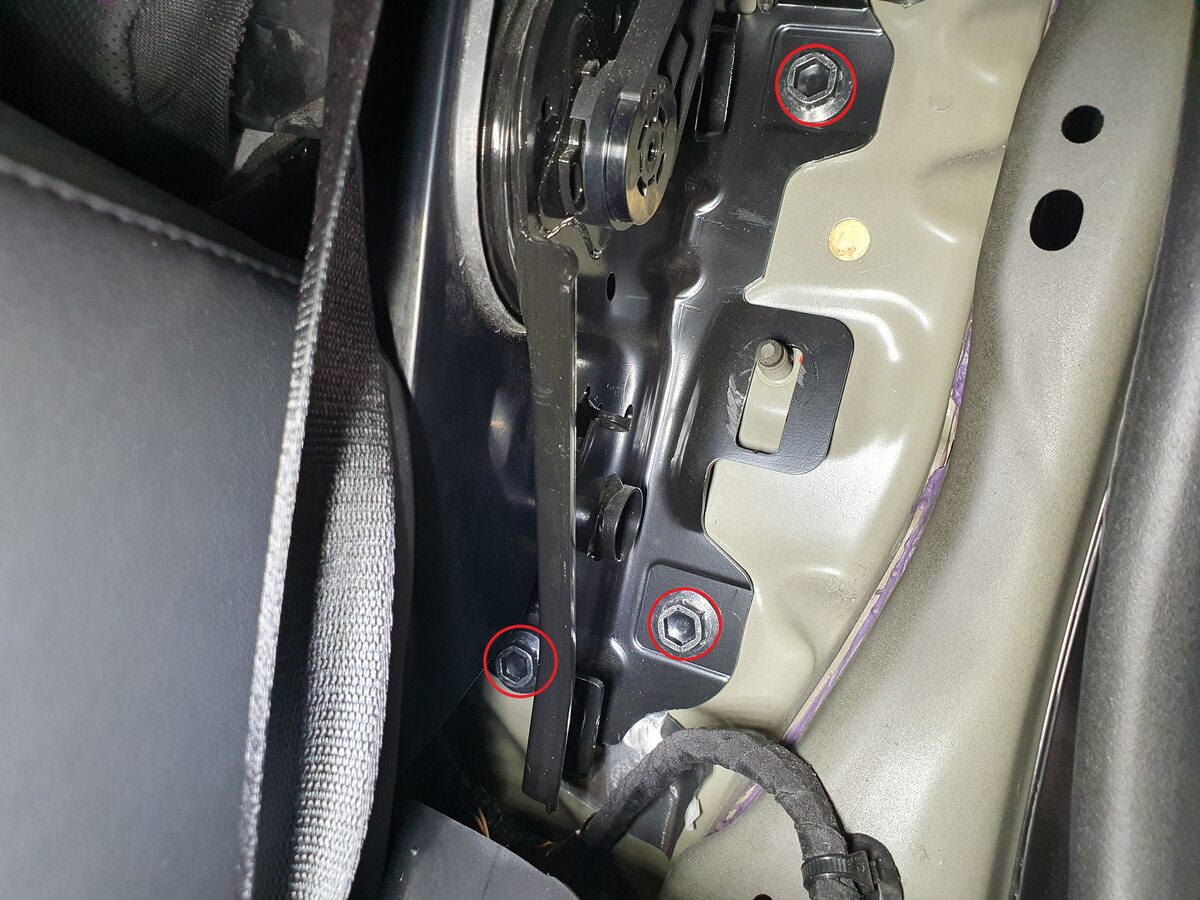

44. Remove bolts securing lower 2nd row full seat assembly onto the back wall
    Nota

    8x bolts, 15mm, 50 Nm

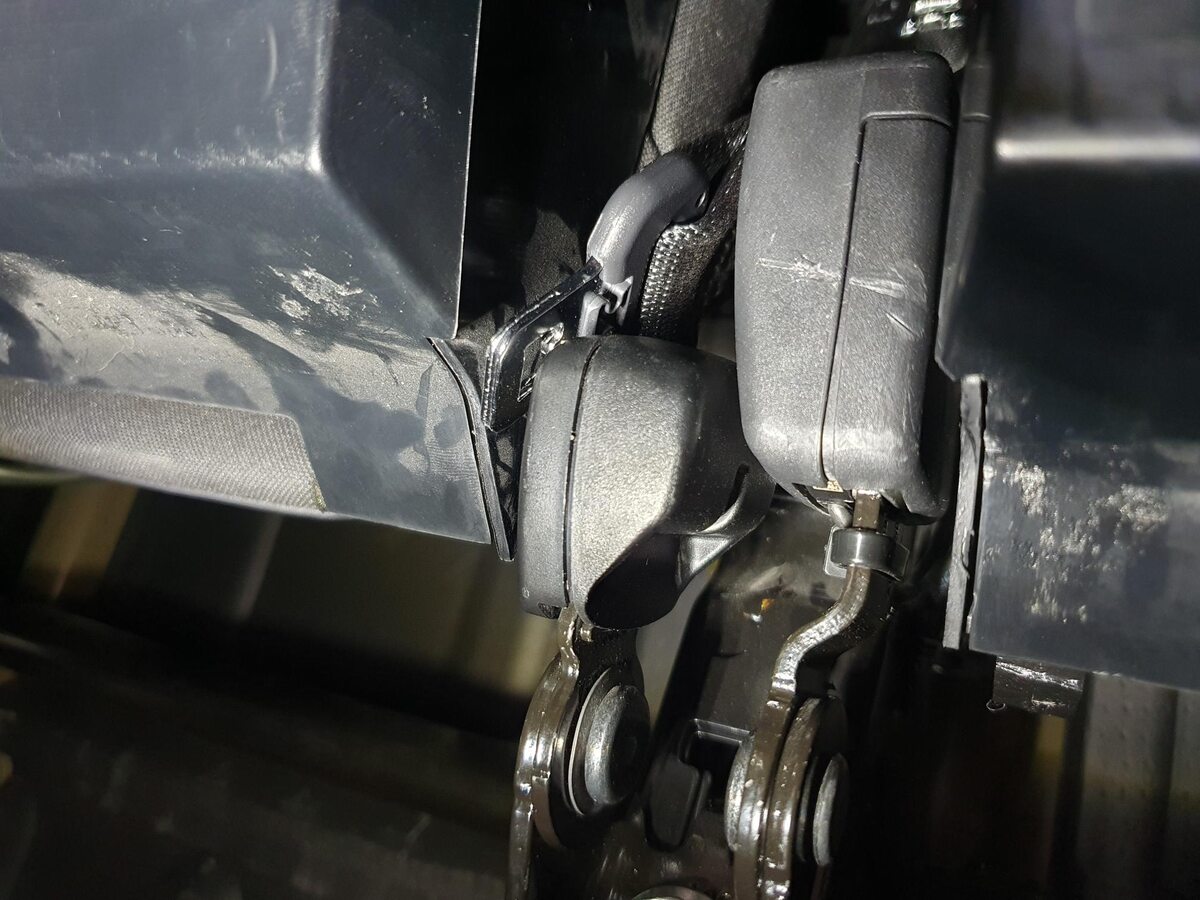

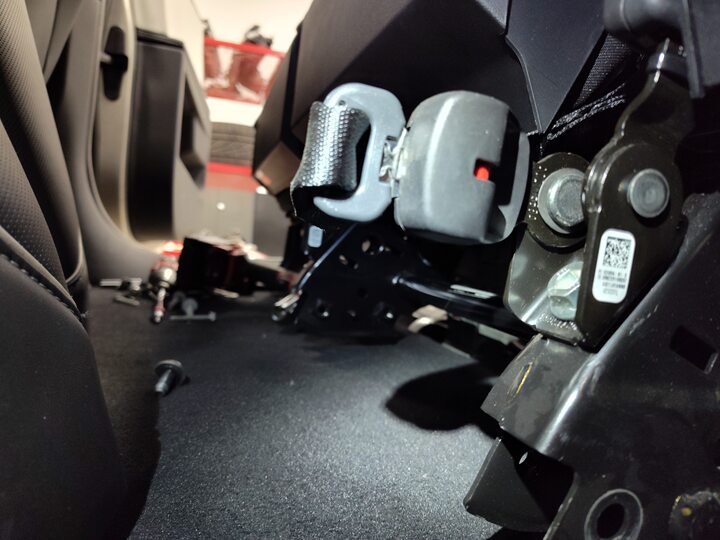

45. Remove bolts securing LH and center/RH 2nd row buckle onto 2nd row seat assembly
    Nota

    2x bolts, 15mm, 40 Nm



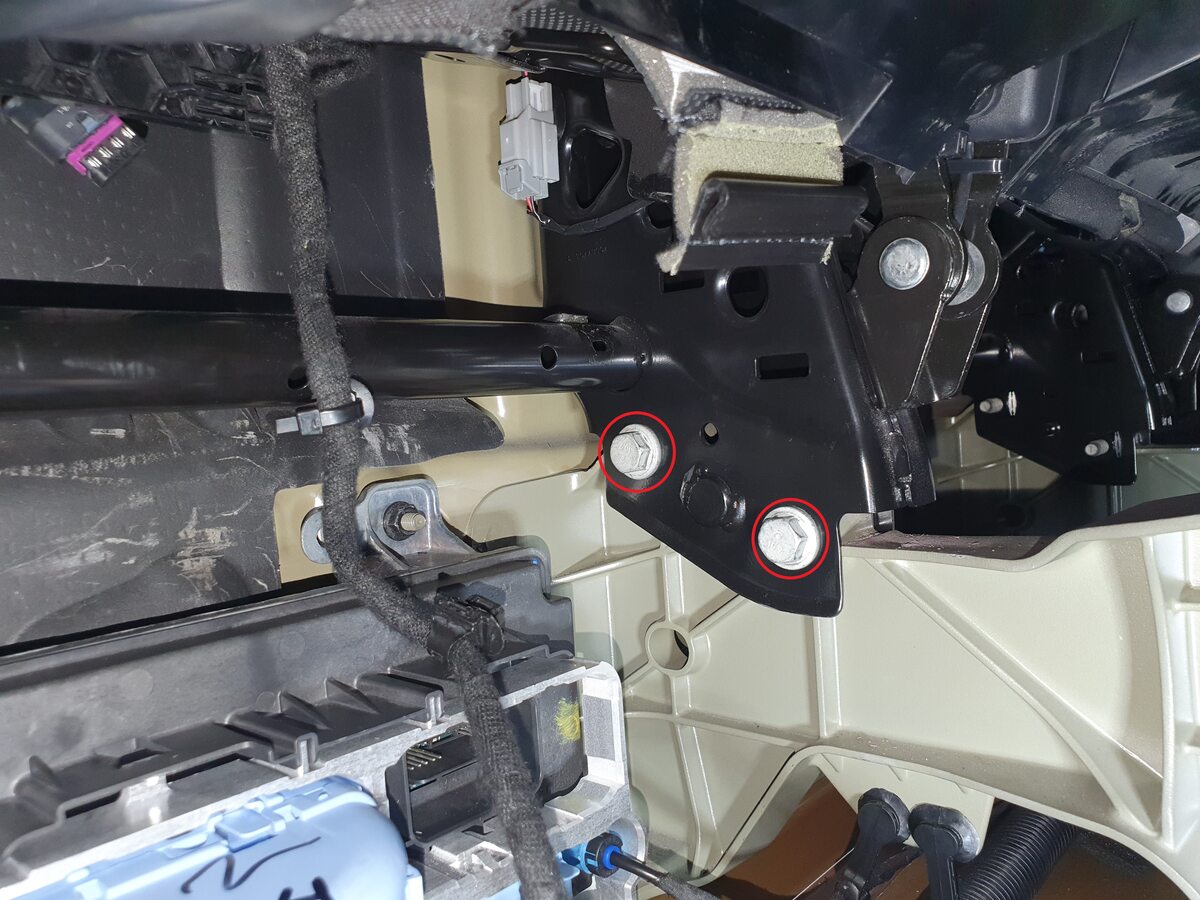

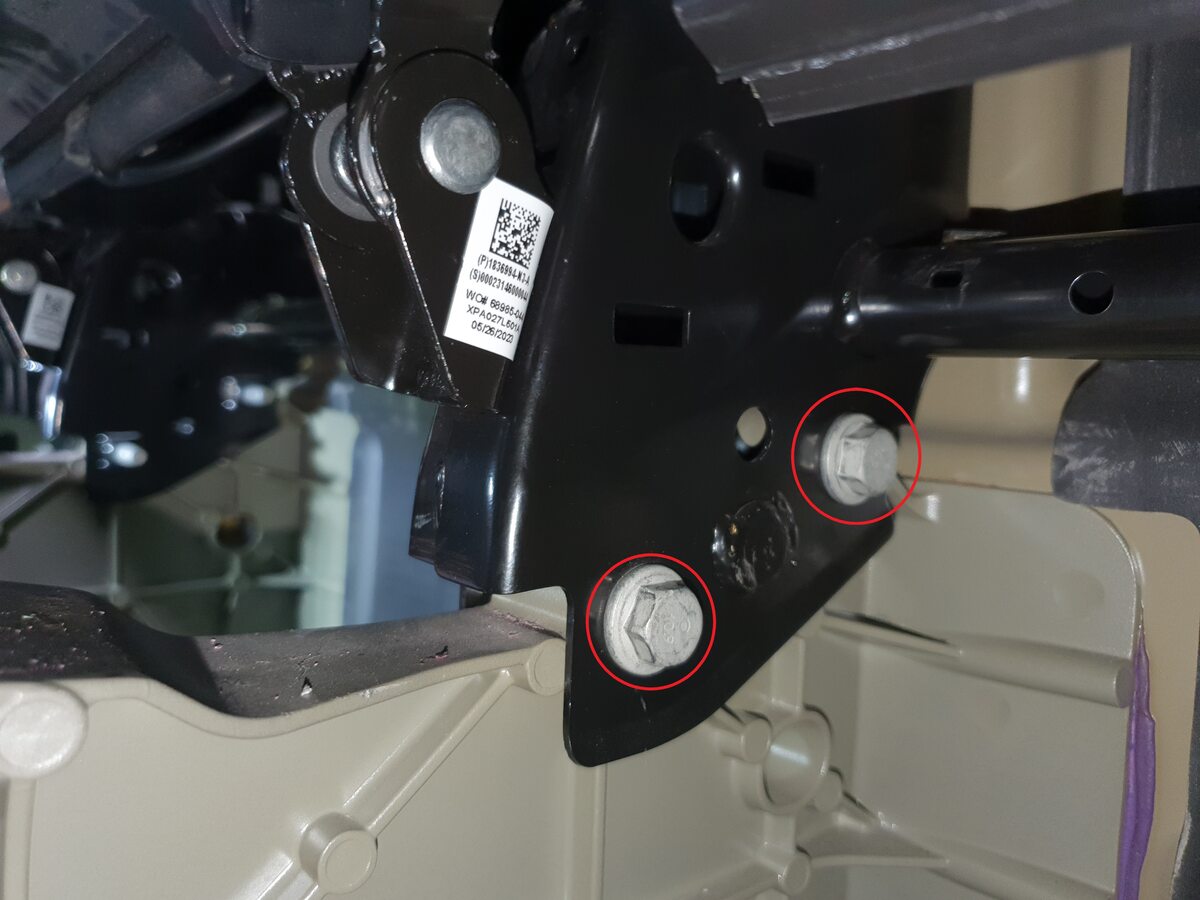

46. Remove bolts securing 2nd row seat assembly onto vehicle structural frame
    Nota

    4x bolts, 15mm, 50 Nm





47. Remove LH 2nd row shoulder cover
    Nota

    7x clips, 1x datum







48. Release RH 2nd row shoulder cover
    Nota

    7x clips, 1x datum

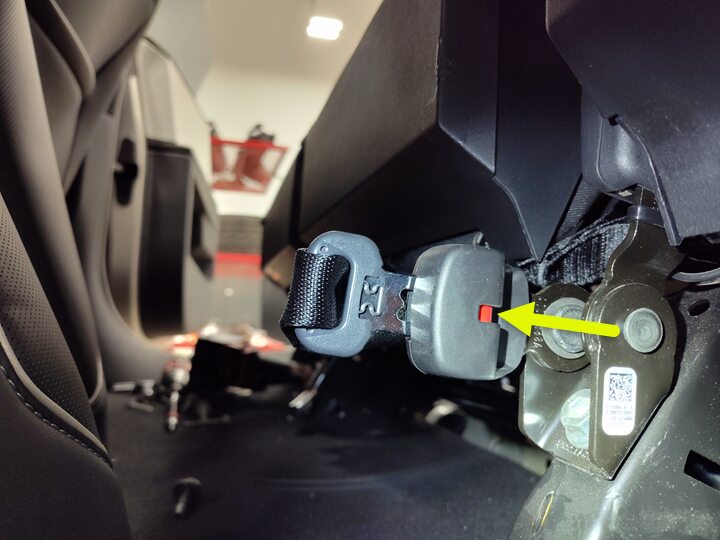

49. Release 2nd row center seat belt from 2nd row seat assembly
    Nota

    1x button

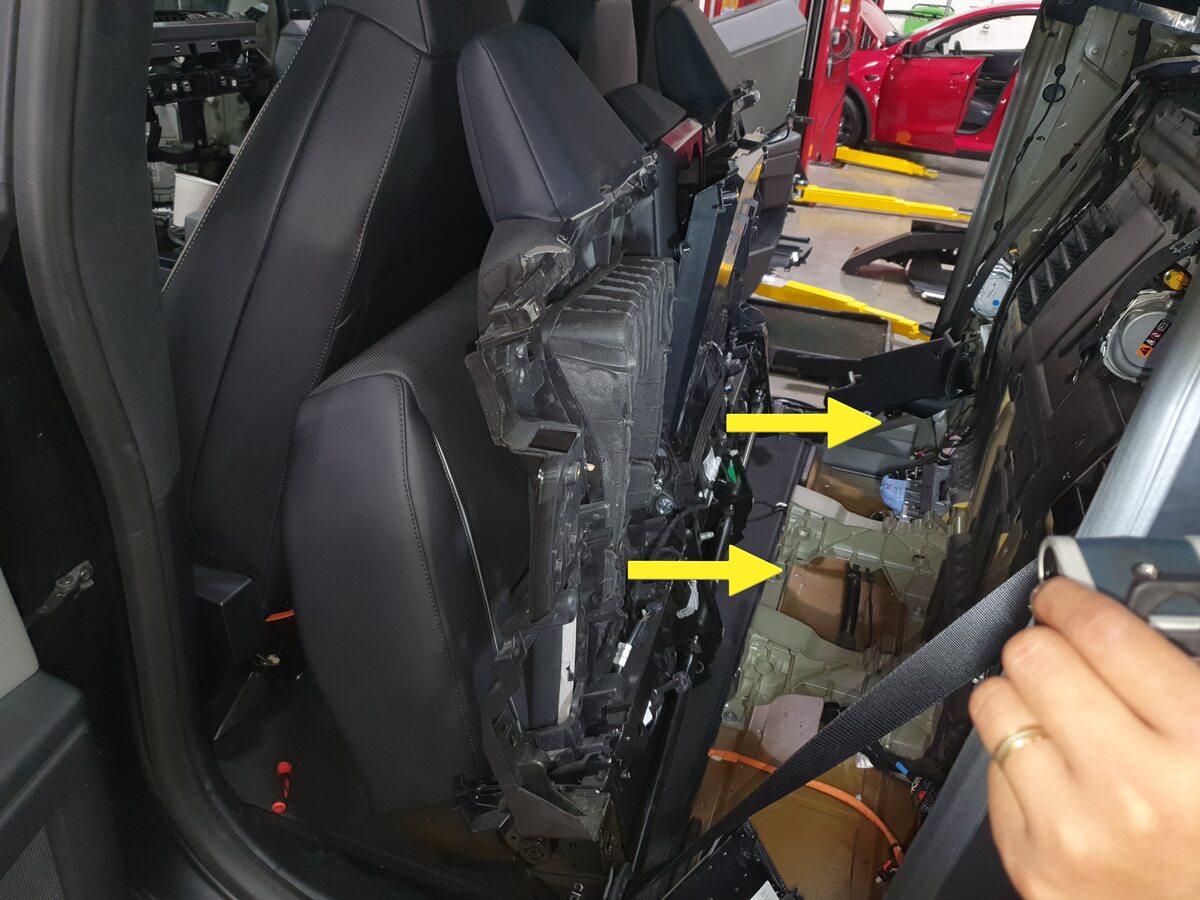

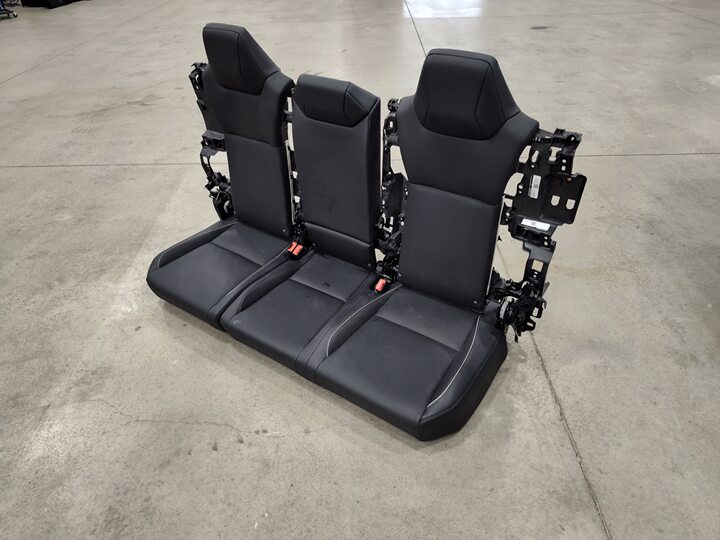

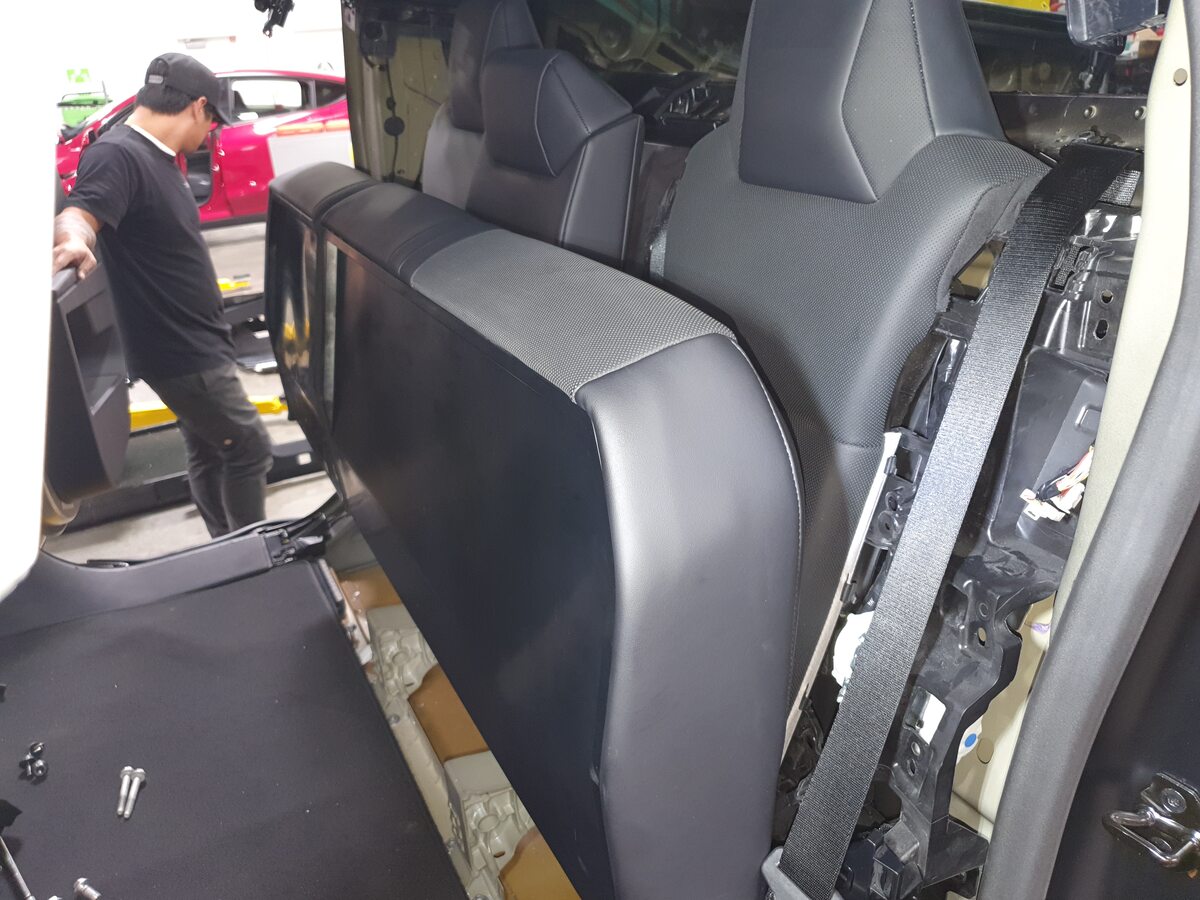

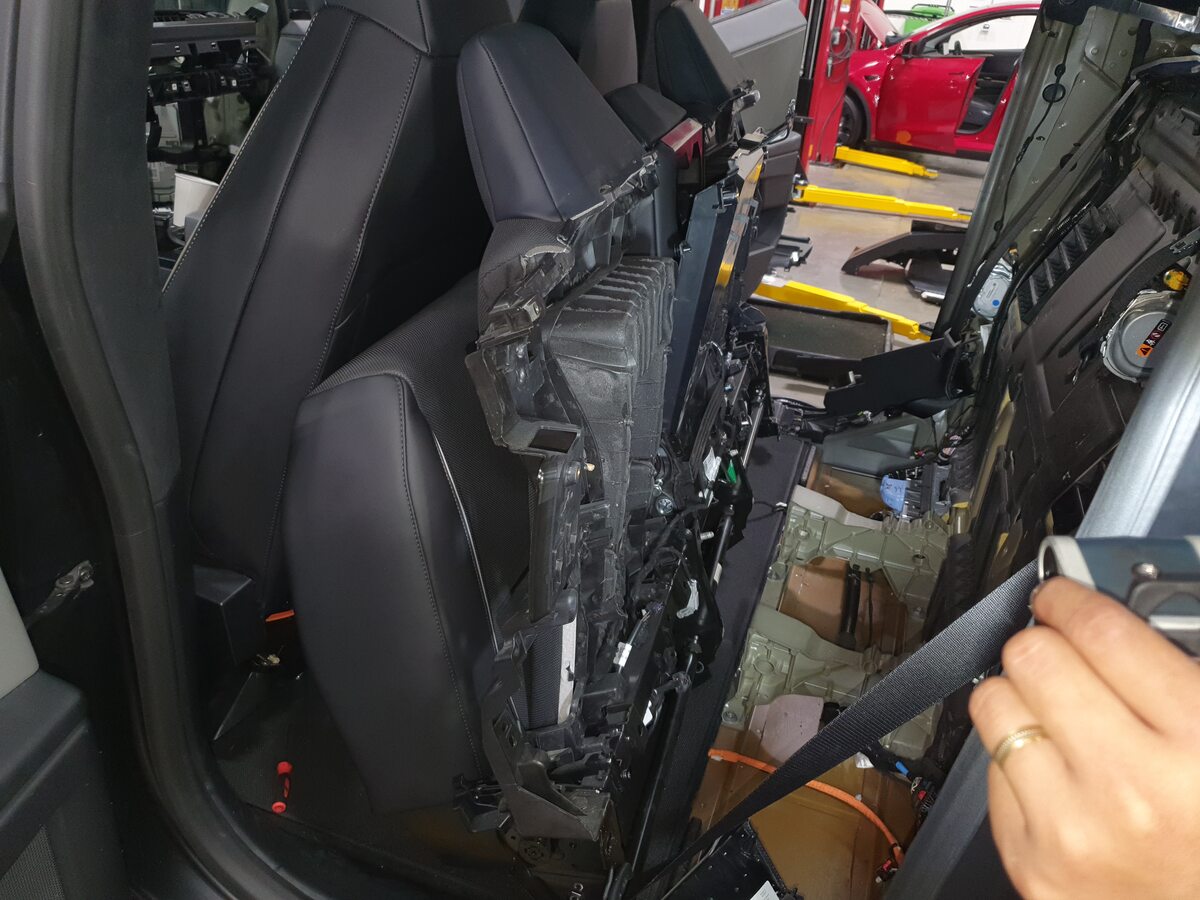

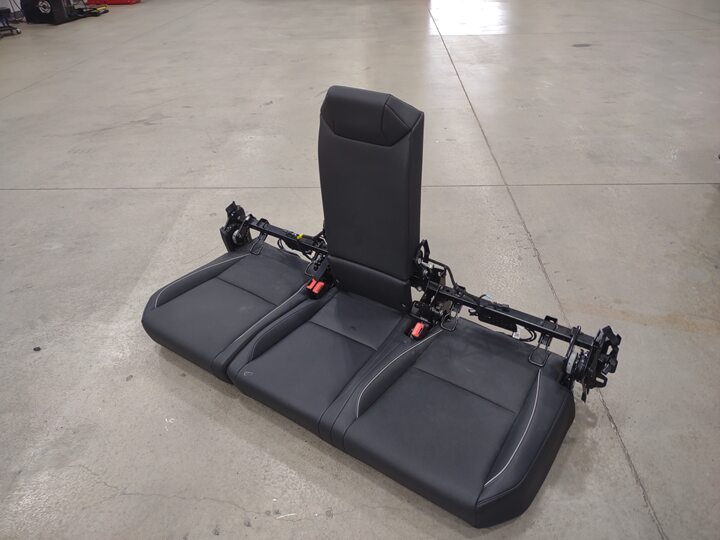

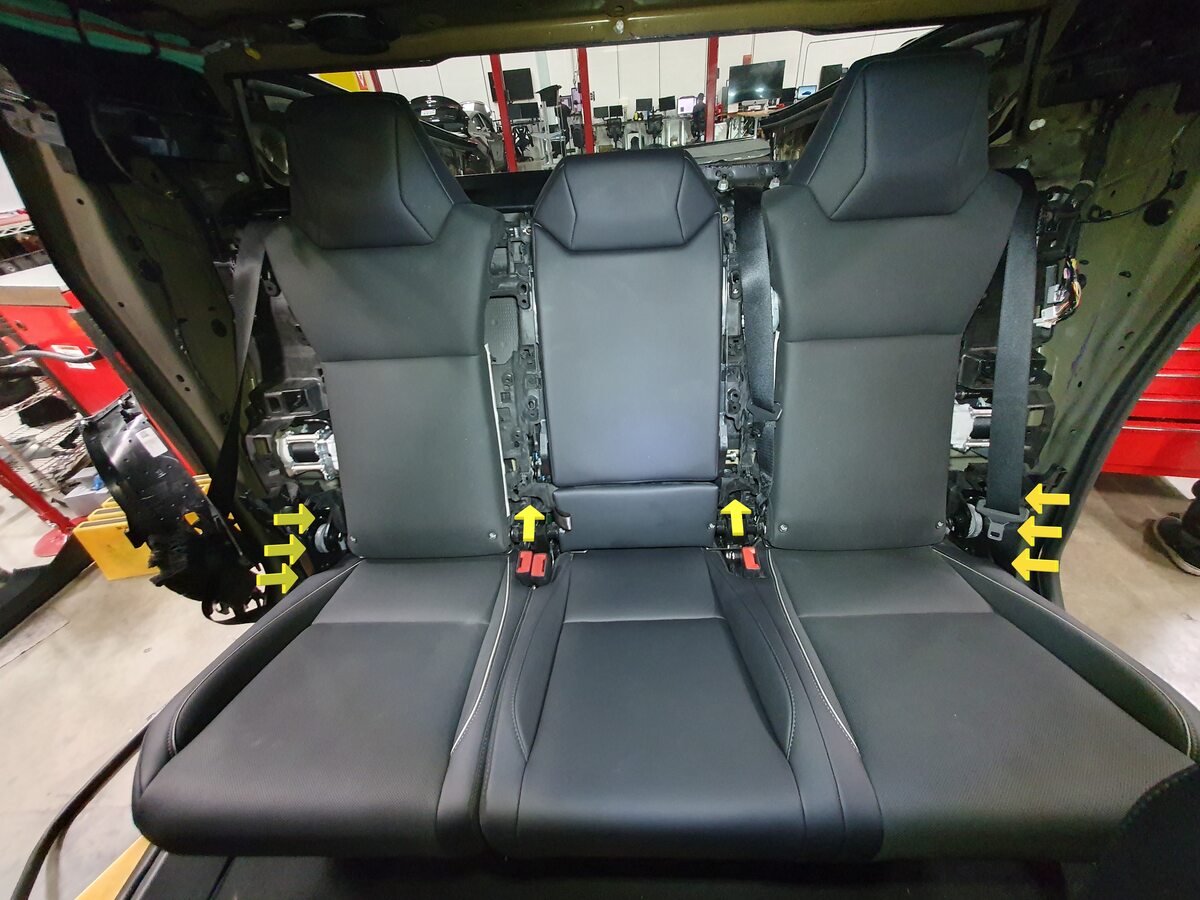

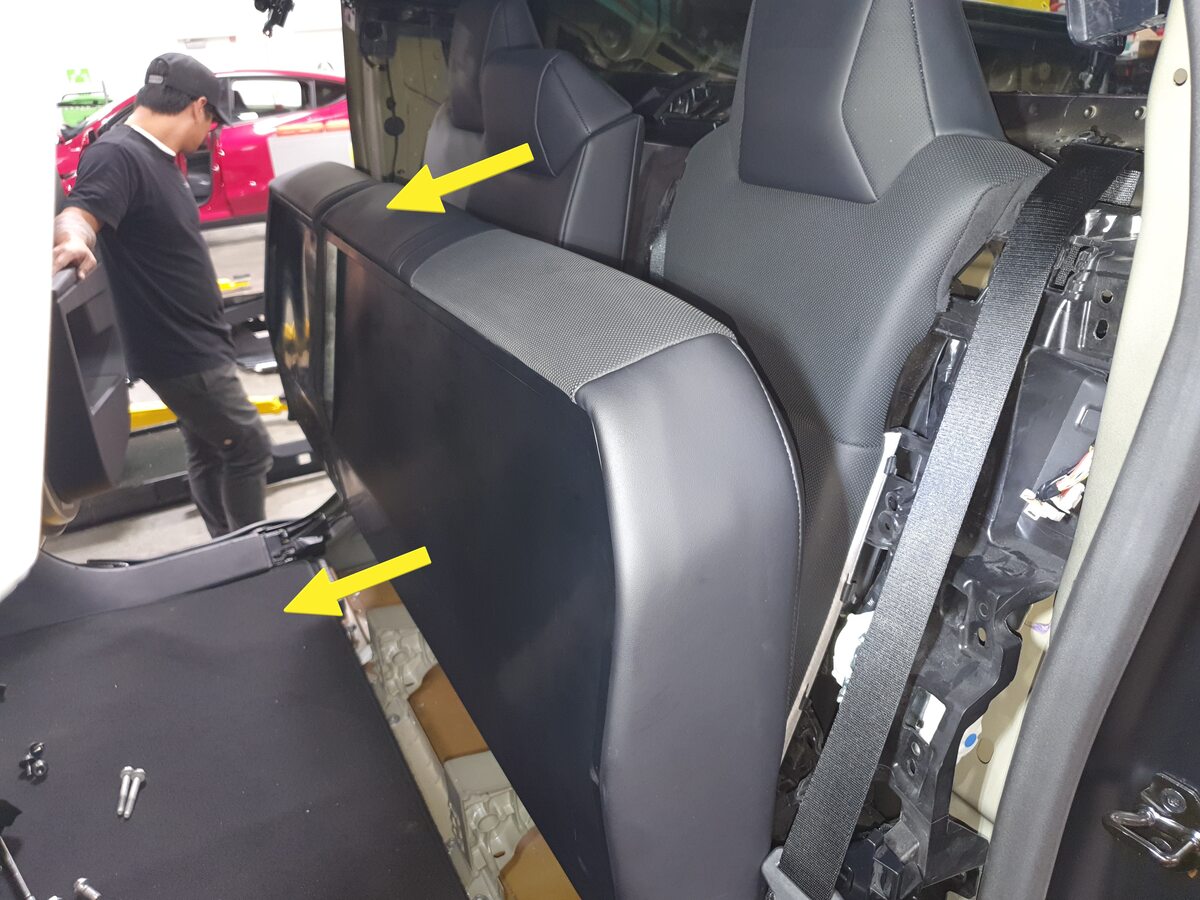

50. Remove 2nd row seat assembly
    Nota

    Recommend assistance

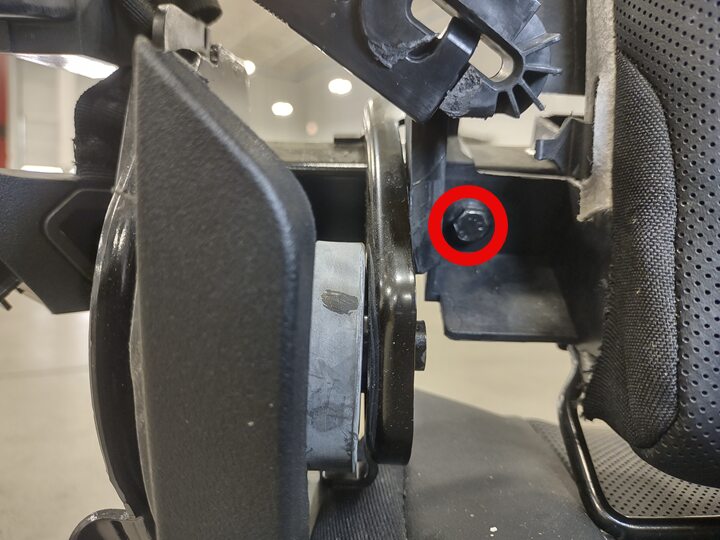

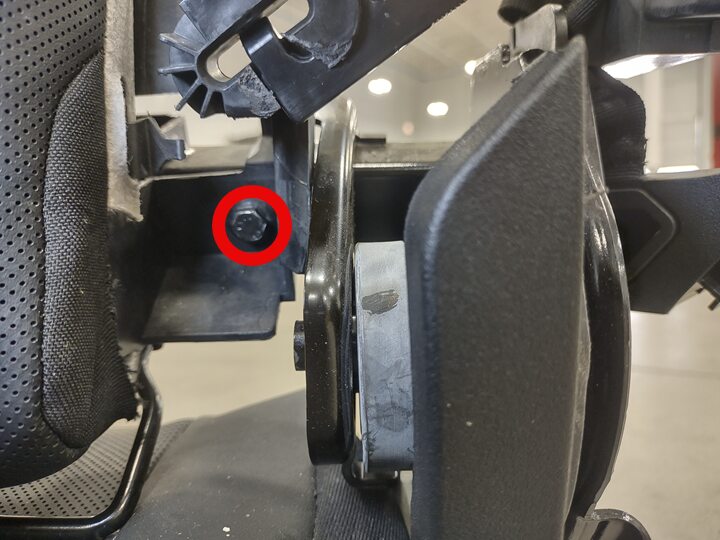

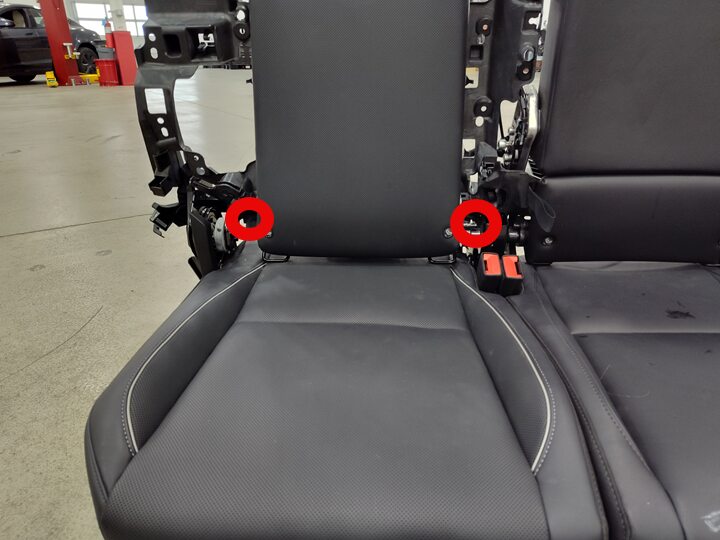

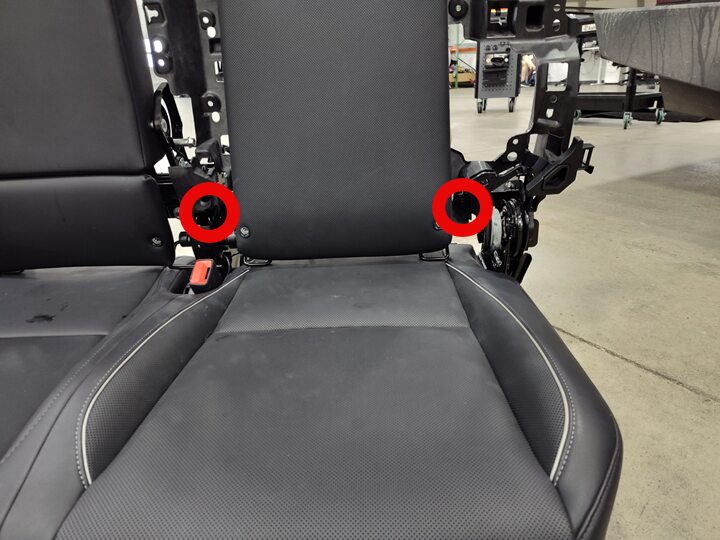

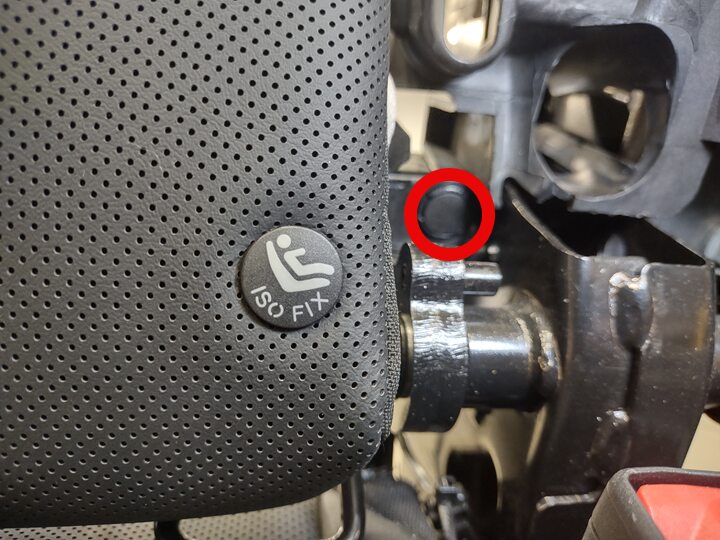

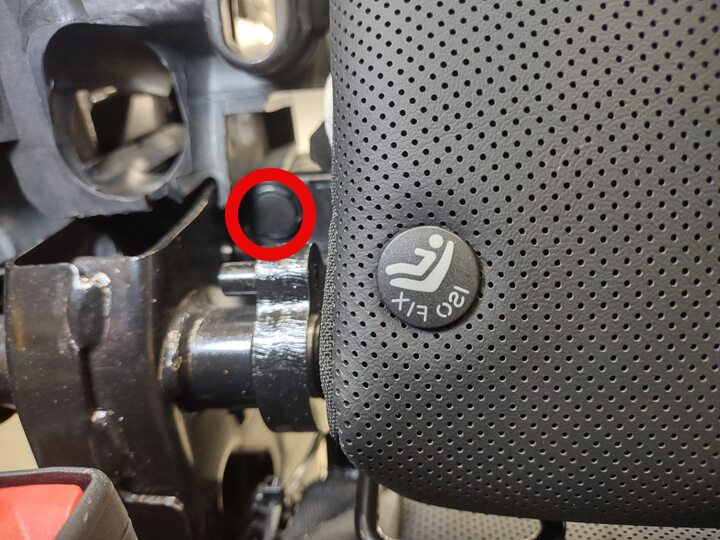

51. Remove 2nd row seat RH and LH seat backrests
    Nota

    2x bolts, 10mm, 9 Nm, 2x clips

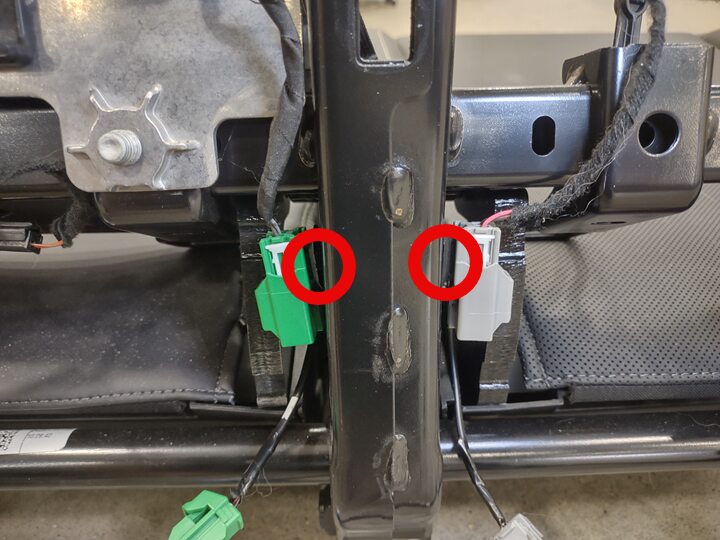

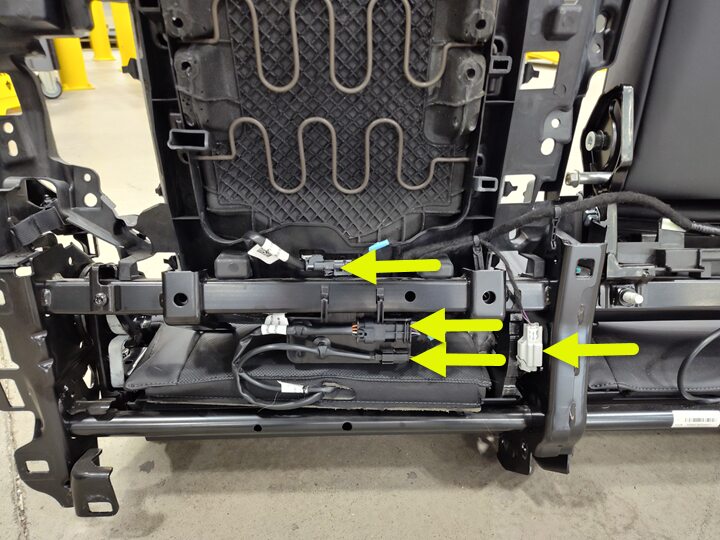

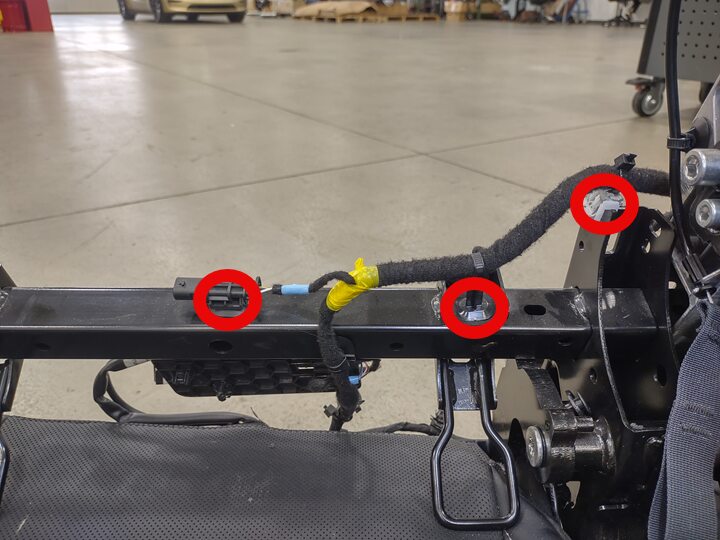

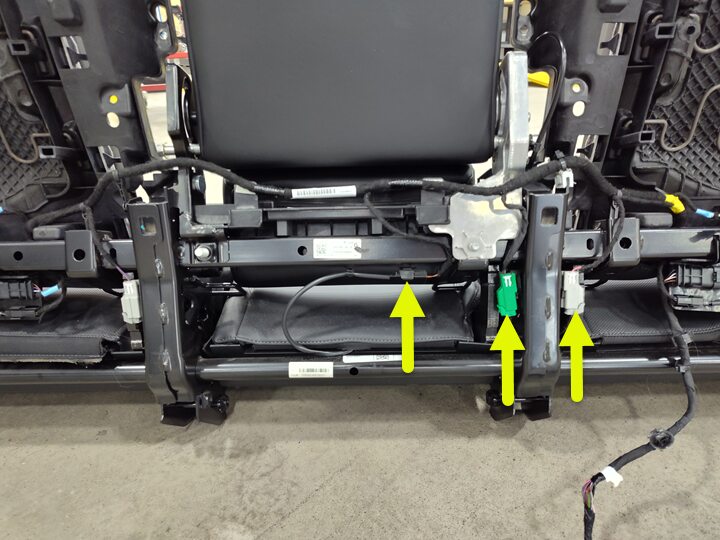

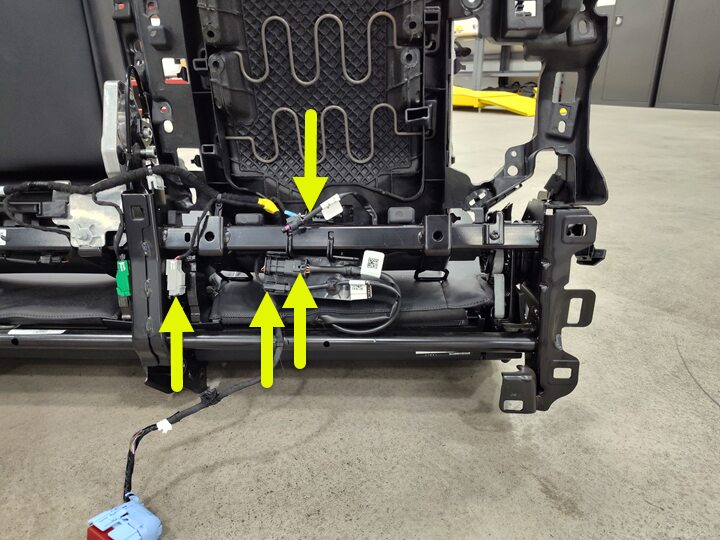

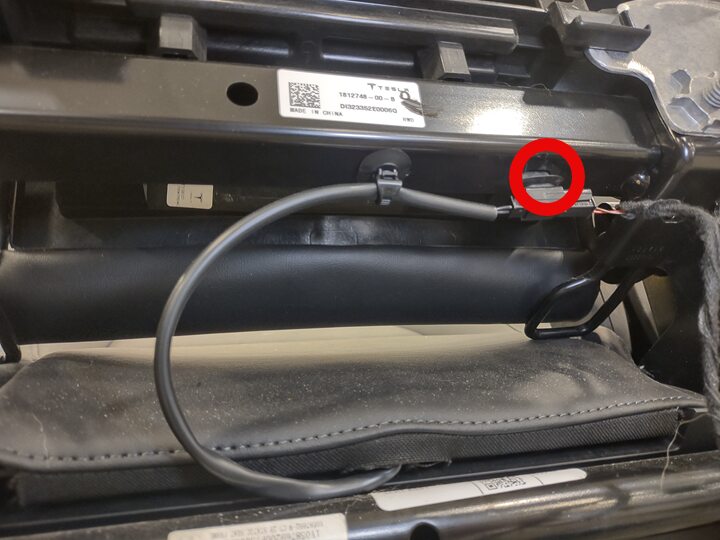

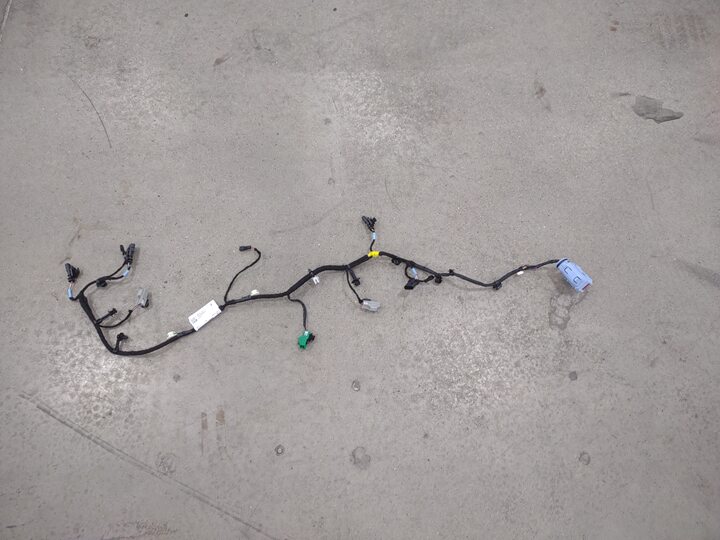

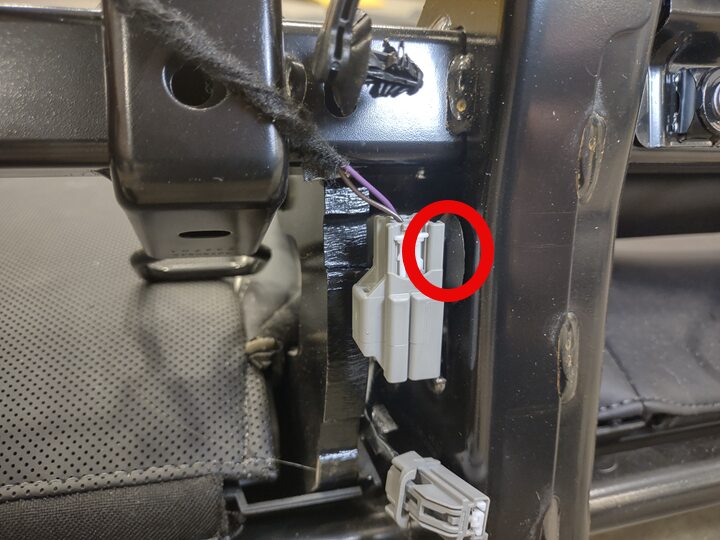

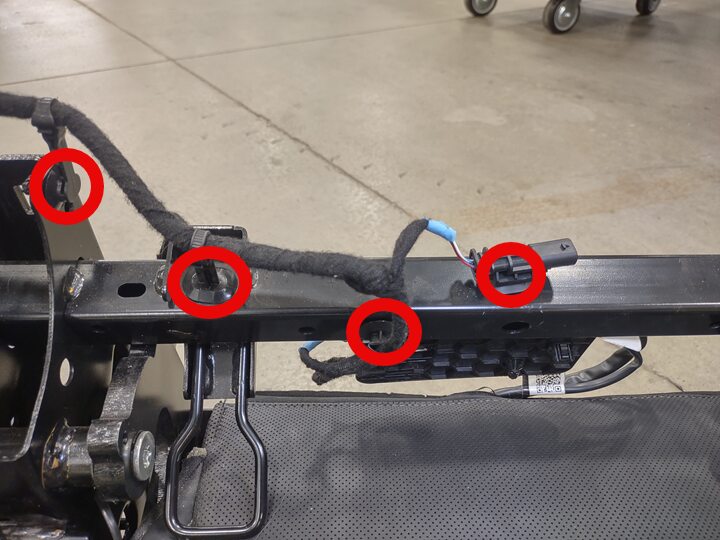

52. Remove 2nd row seat harness
    Nota

    12x clips, 10x connectors



















53. Install 2nd row seat harness
    Nota

    12x clips, 10x connectors



















54. Install 2nd row seat assembly
    Nota

    Assistance recommended for safe installation onto frame







55. Install 2nd row center seat belt onto 2nd row seat assembly
    Nota

    1x button







56. Install RH 2nd row shoulder cover
    Nota

    7x clips, 1x datum







57. Install LH 2nd row shoulder cover
    Nota

    7x clips, 1x datum







58. Install bolts securing 2nd row seat assembly onto vehicle structural frame
    Nota

    4x bolts, 15mm, 50 Nm





59. Install rear MV controller
    Nota

    2x nuts, 10mm, 13 Nm, 1x bolt, 10mm, 10 Nm



60. Connect etherloop connector
    Nota

    1x connector, Engage locking tab





61. Secure connector J3 X0052 to rear vehicle controller locking frame
    Nota

    1x connector, 2x tabs, 1x clip, Carefully insert connector through locking cover, Gently wiggle connector heads to ensure they its correctly inserted, Connector should be slightly loose but tab engagement will prevent it from removing, Consider that pins need to be aligned correctly before you drive the locking cover bolt





62. Secure remaining rear MV controller connectors
    Nota

    3x connectors, 6x tabs, Ensure connectors are aligned before securing bracket, Carefully insert connectors through locking covers, Gently wiggle connector heads to ensure they are correctly inserted, Connectors should be slightly loose but tab engagement will prevent them from removing, Consider that pins need to be alighned correctly before you drive the locking cover bolts



63. Secure rear MV controller locking cover
    Nota

    1x bolt, 8mm, 6 Nm, Ensure connectors are aligned before securing bracket, Secure locking cover bolt by hand initially to prevent thread strippingPlastic Locking CoverUse hand tools on any plastic locking covers, The locking cover may secure crooked causing it to get stuck, release bolt a few turns to loosen the tension then secure bolt while assist plastic locking cover by gently pushing on the side that's stuck, Push connectors too while driving the locking cover bolt to ensure correct seatingMetal Locking CoverYou can use power tools, Slowly drive locking cover, Ensure locking cover and bolt are seated fully



64. Install bolts securing LH and center/RH 2nd row buckle onto 2nd row seat assembly
    Nota

    2x bolts, 15mm, 40 Nm



65. Install bolts securing lower 2nd row full seat assembly onto the back wall
    Nota

    8x bolts, 15mm, 50 Nm











66. Install bolts securing 2nd row seat back assembly onto the back wall
    Nota

    4x bolts, 10mm, 9 Nm, 2x bolts, 10mm, 7 Nm

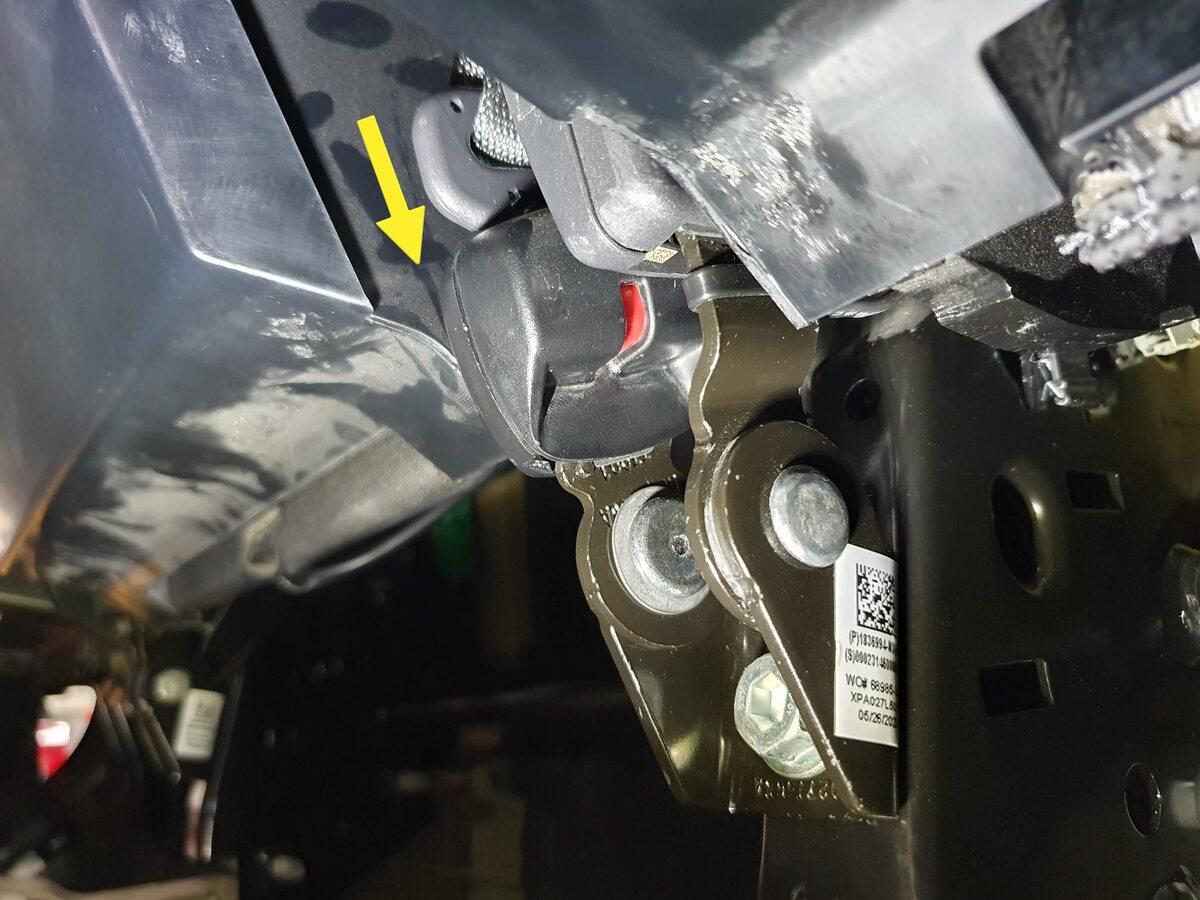

67. Secure 2nd row center retractor onto 2nd LH row buckle
    Nota

    Push red release mechanism to release retractor





68. Install charge port ECU
    Nota

    1x bolt, 8 mm, 5 Nm, 2x tabs, Align charge port ecu into cavity for installation









69. Secure all connections to charge port ecu connectors
    Nota

    3x connectors





70. Install RH subwoofer
    Nota

    1x connector, 2x bolts, 13mm, 8 Nm, Slide towards outside of vehicle to secure port





71. Install the LH C-pillar subwoofer. See Subwoofer - C-Pillar - LH (Remove and Install).
72. Install the rear wall lower trim. See Trim - Lower - Rear Wall (Remove and Install).
73. Install the RH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Install).
74. Install the RH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Install).
75. Secure RH rear primary door seal



76. Fold down 2nd row 40 seat
    Nota

    Pull tether to release then pivot down until locked in place





77. Install the 2nd row RH inboard seatback bolster. See Bolster - Inboard - LH - 2nd Row Seat Back (Remove and Install).
78. Install the 2nd row seatback RH outboard bolster. See Bolster - Outboard - LH - 2nd Row Seat Back (Remove and Install).
79. Install the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Install).
80. Install the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Install).
81. Secure LH rear primary door seal



82. Fold down 2nd row 60 seat
    Nota

    Pull tether to release then pivot down until locked in place





83. Install the 2nd row LH inboard seatback bolster. See Bolster - Inboard - LH - 2nd Row Seat Back (Remove and Install).
84. Install the 2nd row seatback LH outboard bolster. See Bolster - Outboard - LH - 2nd Row Seat Back (Remove and Install).
85. Install the LH cantrail trim. See Trim - Cantrail - LH (Remove and Install).
86. Install the LH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Install).
87. Install the instrument panel LH quarter panel. See Quarter Panel Assembly - LH - Instrument Panel (Remove and Replace).
88. Install the LH mid A-pillar trim. See Trim - A-Pillar - Mid - LH (Remove and Install).
89. Install the RH cantrail trim. See Trim - Cantrail - LH (Remove and Install).
90. Install the RH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Install).
91. Install the instrument panel RH quarter panel. See Quarter Panel Assembly - LH - Instrument Panel (Remove and Replace).
92. Install the RH mid A-pillar trim. See Trim - A-Pillar - Mid - LH (Remove and Install).
93. Install the rear header trim. See Trim - Header - Rear (Remove and Install).
94. Install the front header trim. See Trim - Header - Front (Remove and Install).
95. Vuelva a conectar la alimentación de media tensión. Consulta Disconnect MV Power (Modify).
96. Coloque el faldón trasero del vano del motor. Consulta Underhood Apron - Rear (Remove and Install).
97. Cierre el maletero delantero eléctrico.
98. Mueva los asientos delanteros izquierdo y derecho a su posición original.
99. Ejecutar la rutina ODIN PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox: (link)
100. Suba todas las ventanillas y cierre todas las puertas.
