Código de corrección NA NOTA: Salvo que se indique lo contrario explícitamente en el procedimiento, el código de corrección anterior y el FRT reflejan todo el trabajo necesario para realizar este procedimiento, incluidos los procedimientos vinculados. No acumule códigos de corrección a menos que se le indique explícitamente que lo haga. NOTA: Consulte Tiempos de tarifa plana para obtener más información sobre los FRT y cómo se crean. Para enviar sus comentarios sobre los valores de FRT, escriba a LaborTimeFeedback@tesla.com. NOTA: Consulte Protección personal para asegurarse de llevar el EPI adecuado al realizar el siguiente procedimiento.

1. Eleve y apoye el vehículo. Consulte Elevación del vehículo - Elevador de 2 columnas.
2. Abra la puerta delantera izquierda y baje la ventanilla delantera izquierda.
3. Abra el maletero delantero eléctrico.
4. Connect a laptop with Toolbox 3 to the vehicle. See Toolbox 3 (Conexión y desconexión).
5. Desbloquee la puerta de enlace del vehículo. Consulte Puerta de enlace (Desbloquear).
6. Select 'Procedures'
   Nota

   Lighting Bolt Icon > High Voltage > Procedures





7. Select 'Rear Left Drive Inverter Replacement'
   Nota

   Procedures > Drive-Inverter-Replacement > Rear Left Drive Inverter ReplacementNote, If replacing the Right-Rear inverter then utilize the Right-Rear Inverter Dashboard instead



8. Select ‘Store Boot + App Data and Start Fluid Fill/Drain’, click ‘Run’, and allow routine to complete
   Nota

   Select 'Close' once complete



9. Select 'Procedures'
   Nota

   Lighting Bolt Icon > High Voltage > Procedures





10. Select 'Rear Right Drive Inverter Replacement'
    Nota

    Procedures > Drive-Inverter-Replacement > Rear Right Drive Inverter Replacement



11. Select ‘Store Boot + App Data and Start Fluid Fill/Drain’, click ‘Run’, and allow routine to complete
    Nota

    Select 'Close' once complete



12. Abra la cubierta de la plataforma de carga.
13. Abra el portón trasero.
14. Extraiga el faldón trasero del vano del motor. Consulte Underhood Trim - Rear Apron Assembly (Remove and Install).
15. Desconecte la alimentación de media tensión. Consulte Disconnect MV Power (Modify).
16. Verify operation of multimeter
    Nota

    Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing MV battery, Touch lightly and do not damage terminals





17. Remove frunk assembly
    Nota

    6x bolts, 10mm, 12 Nm, 2x bolt caps, 2x bumpstops, 1x connector, Remove bolt covers from frunk floor, Remove washer fluid cap by gently prying upwards, Rotate bumpstops counter clockwise to release, the 25mm socket from PT Sensor kit can be used, Avoid straining emergency frunk release connector



















18. Raise vehicle fully
    Nota

    Set to a comfortable working height, Lower to locks, Ensure locks engage on both sides to prevent tilting
19. Remove Mid-aero shield
    Nota

    6x clips, 3x bolts, 15mm, 42 Nm, 5x bolts, 13mm, 28 Nm, 2x bolts, 10mm, 6 Nm











20. Remove all items from pockets and ensure not wearing metal items



21. Inspect HV insulating gloves
    Nota

    Check gloves for damage prior to use, Refer to service document TN-15-92-003, for information on inspecting HV gloves. https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC



22. Put on HV insulating gloves and leather over gloves



23. Verify no HV - Install amp clamp to RDU HV harness
    Nota

    Verify meter is zeroed out before performing measurement, Measure single cable. Verify ammeter is installed in correct direction. If current > 0.5A do not proceed with disconnecting HV connector. In this case, start vehicle electrical isolation again to make sure that all was properly shut down. Escalate for assistance as requiredIf current < 0.5A, Ok to disconnect and check voltage at HV plug on the battery side.Release locking tab and rotate the release lever up to disengage the connector, Release harness clip, Do not force the release lever up, Ensure the alignment tabs on the RDU header are not damagedMake sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering













24. Remove leather over gloves and HV insulating gloves
25. Lower vehicle until tires are touching the ground
    Nota

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
26. Open bed cargo tub lid



27. Remove cargo tub struts from cargo lid
    Nota

    2x strut clips





28. Remove bed cargo tub lid
    Nota

    4x bolts, 10mm, 5 Nm, Recommend assistance









29. Remove fastener covers from bed floor assembly
    Nota

    6x covers



30. Remove bed floor assembly
    Nota

    10x bolts, 15mm, 56 Nm, 4x anchors, Open anchors as needed, Lift front edge with trim tool then remove panel, Recommend assistance







31. Remove LH bed closeout panel
    Nota

    6x clips, 1x tab, Release LH tailgate cable by disengaging lock spring from bolt and sliding cable eyelet off to allow removal of bed closeout panel from vehicle









32. Remove LH upper bed side wall assembly
    Nota

    8x clips, Start from rear, Lift tonneau seal as required. Pull from the bottom downwards.





33. Remove LH lower bed side wall
    Nota

    1x bolt, 15mm, 46 Nm, 2x bolts, T45, 36 Nm, 4x bolts, 10mm, 11 Nm, 2x nuts, 10mm, 7 Nm, 4x clips, 1x fastener cover, 1x connector, Release locking tabs, Disconnect bed outlet connectors from bed side wall and ground strap, 1x bolt, 10mm, 10 Nm, 2x connectors, Release locking tabs, Slide lock to release, Recommend assistance





















34. Remove RH bed closeout panel
    Nota

    6x clips, 1x tab, Release RH tailgate cable by disengaging lock spring from bolt and sliding cable eyelet off in order to remove bed closeout panel from vehicle









35. Remove RH upper bed side wall assembly
    Nota

    8x clips, 1x connector. Pull downwards





36. Remove RH bed side wall
    Nota

    1x bolt, 15mm, 46 Nm, 2x bolts, T40, 36 Nm, 4x bolts, 10mm, 11 Nm, 2x nuts, 10mm, 7 Nm, 4x clips, 1x fastener cover, 1x connector, Release locking tabs



















37. Remove bolts securing bed cargo tub
    Nota

    2x bolts, 10mm, 8 Nm



38. Remove bed cargo tub from vehicle
    Nota

    Recommend assistance







39. Position coolant catcher below rear drive unit



40. Release LH RDU inverter to heat exchange hose from drive inverter
    Nota

    1x clip, 1x hose, Plug both ends, Use a flathead to release clip on hose and release hose, Move aside as needed, Use a shop towel to clean and remove remaining coolant residue from driver inverter



41. Release RDU supply hose from drive unit
    Nota

    2x clip, 2x hose, Plug both ends, Use a flathead to release clip on hose and release hose, Move aside as needed, Use a shop towel to clean and remove remaining coolant residue from driver inverter







42. Remove bolt securing LH RDU HV harness onto RDU
    Nota

    1x bolts, 10mm, 11 Nm



43. Disconnect LH RDU HV cable from RDU
    Nota

    1x connector, Disengage locking tab then release connector body, Move aside as needed



44. Disconnect LH RDU logic connection
    Nota

    1x harness clip, 1x connector, Release locking tab, Do not get coolant ingress into this connector, Move aside as needed



45. Remove phase access cover label
    Nota

    Label is one time use, Discard after removal







46. Remove bolts securing phase out cover assembly
    Nota

    2x bolts, EP10, 14 Nm





47. Remove phase out cover assembly
    Nota

    Use a plastic trim tool to aid in removal, If phase out cover or O-rings are damaged then replace with a new unit





48. Remove bolts securing 3 phase busbars to rear inverter assembly
    Nota

    3x bolts, 10mm, 11.5 Nm, Fasteners should be reused, If fasteners need to be replaced then follow torque sequence, Tighten to 12.5 Nm then reverse 180 degrees then tighten to 5 Nm



49. Put on ESD wrist strap and secure it to inverter housing



50. Remove bolts securing LH RDU inverter to gearbox assembly
    Nota

    9x bolts, EP10, 12.5 Nm





51. Remove LH drive inverter from RDU and drain coolant
    Nota

    Take caution to avoid damage to PCBA





52. Place drive inverter onto ESD mat



53. Remove ESD wrist strap from old inverter



54. Prepare new drive inverter
    Nota

    Prepare new drive inverter, Save packaging to MRB old drive inverter, Remove any red protective covers







55. Secure ESD strap onto new inverter housing

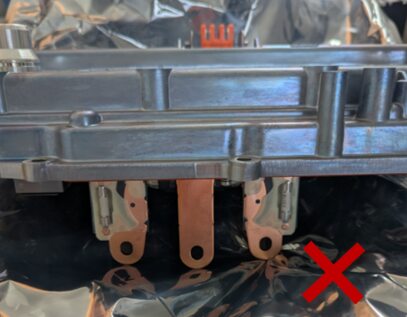

56. Wipe HV cable lugs to ensure contact surfaces are free of debris
    Nota

    Allow 1 minute dry time





57. Install fasteners securing inverter to gearbox assembly
    Nota

    9x bolts, EP10, Install hand tight, Torque at a later step



58. Torque fasteners securing inverter to gearbox assembly

    Nota

    9x bolts, EP10, 12.5 Nm, Torque two fasteners nearest alignment dowels first



59. Install bolts securing LH drive inverter to 3 phase lugs
    Nota

    3x bolts, 10mm, 11.5 Nm, Fasteners should be reused, If fasteners need to be replaced then follow torque sequence, Tighten to 12.5 Nm then reverse 180 degrees then tighten to 5 Nm



60. Install phase out cover assembly
    Nota

    If phase out cover or O-rings are damaged then replace with a new unit





61. Install bolts securing RDU phase out cover assembly
    Nota

    2x bolts, EP10, 14 Nm





62. Install phase out cover label
    Nota

    One time use, install new label







63. Remove ESD wrist strap from inverter



64. Take old inverter and prepare for MRB, Label properly for return or disposal
    Nota

    Use ESD wrist strap, Label inverter for MRB and return to packaging, Secure any protective red caps, Return or dispose of packaging through proper channels, Label the part as MRB







65. Install leak test adapter plug to 12V connector at inverter - placeholder



66. Install leak test adapter to RDU HV connector - placeholder





67. Connect regulator to adapter at HV connector



68. Close both valves on the regulator test tool



69. Connect regulator to air supply



70. Open inlet valve on regulator valve



71. Set regulator to 1 psi



72. Open the outlet valve



73. Wait 45 seconds for pressure to settle
74. Close the inlet valve



75. Record value of starting pressure
76. Wait 60 seconds for test
77. Record value of end pressure
    Nota

    If pressure did not drop more than 0.04 psi, continue to next step. If pressure dropped more than 0.04 psi, then inspect for leaks.
78. Close both valves



79. Disconnect air supply from regulator tool



80. Disconnect regulator from leak test adapter at HV connector



81. Remove leak test adapter from HV connector



82. Remove leak test adapter plug from 12V connector at inverter - placeholder



83. Remove bolt securing RH RDU HV harness onto RDU
    Nota

    1x bolts, 10mm, 11 Nm



84. Disconnect RH RDU HV cable from RDU
    Nota

    1x connector, Disengage locking tab then release connector body, Move aside as needed



85. Disconnect RH RDU logic connection
    Nota

    1x harness clip, 1x connector, Release locking tab, Do not get coolant ingress into this connector, Move aside as needed



86. Remove phase access cover label
    Nota

    Label is one time use, Discard after removal







87. Remove bolts securing phase out cover assembly
    Nota

    2x bolts, EP10, 14 Nm





88. Remove phase out cover assembly
    Nota

    Use a plastic trim tool to aid in removal, If phase out cover or O-rings are damaged then replace with a new unit





89. Remove bolts securing 3 phase busbars to rear inverter assembly
    Nota

    3x bolts, 10mm, 11.5 Nm, Fasteners should be reused, If fasteners need to be replaced then follow torque sequence, Tighten to 12.5 Nm then reverse 180 degrees then tighten to 5 Nm



90. Put on ESD wrist strap and secure it to inverter housing



91. Remove bolts securing RH RDU inverter to gearbox assembly
    Nota

    9x bolts, EP10, 12.5 Nm



92. Remove RH drive inverter from RDU and drain coolant
    Nota

    Take caution to avoid damage to PCBA





93. Place drive inverter onto ESD mat



94. Remove ESD wrist strap from old inverter



95. Prepare new drive inverter
    Nota

    Prepare new drive inverter, Save packaging to MRB old drive inverter, Remove any red protective covers







96. Secure ESD strap onto new inverter housing





97. Wipe HV cable lugs to ensure contact surfaces are free of debris
    Nota

    Allow 1 minute dry time





98. Install fasteners securing inverter to gearbox assembly
    Nota

    9x bolts, EP10, Install hand tight, Torque at a later step



99. Torque fasteners securing inverter to gearbox assembly
    Nota

    9x bolts, EP10, 12.5 Nm, Torque two fasteners nearest alignment dowels first



100. Install bolts securing LH drive inverter to 3 phase lugs
     Nota

     3x bolts, 10mm, 11.5 Nm, Fasteners should be reused, If fasteners need to be replaced then follow torque sequence, Tighten to 12.5 Nm then reverse 180 degrees then tighten to 5 Nm



101. Install phase out cover assembly
     Nota

     If phase out cover or O-rings are damaged then replace with a new unit





102. Install bolts securing RDU phase out cover assembly
     Nota

     2x bolts, EP10, 14 Nm





103. Install phase out cover label
     Nota

     One time use, install new label







104. Remove ESD wrist strap from inverter



105. Take old inverter and prepare for MRB, Label properly for return or disposal
     Nota

     Use ESD wrist strap, Label inverter for MRB and return to packaging, Secure any protective red caps, Return or dispose of packaging through proper channels, Label the part as MRB







106. Install leak test adapter plug to 12V connector at inverter - placeholder



107. Install leak test adapter to RDU HV connector - placeholder





108. Connect regulator to adapter at HV connector



109. Close both valves on the regulator test tool



110. Connect regulator to air supply



111. Open inlet valve on regulator valve



112. Set regulator to 1 psi



113. Open the outlet valve



114. Wait 45 seconds for pressure to settle
115. Close the inlet valve



116. Record value of starting pressure
117. Wait 60 seconds for test
118. Record value of end pressure
     Nota

     If pressure did not drop more than 0.04 psi, continue to next step. If pressure dropped more than 0.04 psi, then inspect for leaks.
119. Close both valves



120. Disconnect air supply from regulator tool



121. Disconnect regulator from leak test adapter at HV connector



122. Remove leak test adapter from HV connector



123. Remove leak test adapter plug from 12V connector at inverter - placeholder



124. Connect RH RDU logic connection
     Nota

     1x connector, verify lever is fully engaged, 1x harness clip, Inspect for any fluid in connector and clean before installation



125. Connect RH RDU HV connector
     Nota

     1x connector, Engage locking tab



126. Install bolt securing RH RDU HV harness onto RDU
     Nota

     1x bolt, 10mm, 11 Nm



127. Connect LH RDU logic connection
     Nota

     1x connector, verify lever is fully engaged, 1x harness clip, Inspect for any fluid in connector and clean before installation



128. Connect LH RDU HV connector
     Nota

     1x connector, Engage locking tab



129. Install bolt securing LH RDU HV harness onto RDU
     Nota

     1x bolt, 10mm, 11 Nm



130. Secure RDU supply hose onto drive inverters
     Nota

     2x clip, 2x hose, Re-secure clip if it detached from hose, Engage hose and verify the hose is fully and properly secured, Perform push-pull-push test



131. Secure LH RDU inverter to heat exchange hose from drive inverter
     Nota

     1x clip, 1x hose, Re-secure clip if it detached from hose, Engage hose and verify the hose is fully and properly secured, Perform push-pull-push test



132. Secure RH RDU inverter to heat exchange hose from drive inverter
     Nota

     1x clip, 1x hose, Re-secure clip if it detached from hose, Engage hose and verify the hose is fully and properly secured, Perform push-pull-push test



133. Raise vehicle fully
     Nota

     Set to a comfortable working height, Lower to locks, Ensure locks engage on both sides to prevent tilting
134. Remove coolant catcher from below vehicle
135. Install Mid-aero shield
     Nota

     6x clips, 3x bolts, 15mm, 42 Nm, 5x bolts, 13mm, 28 Nm, 2x bolts, 10mm, 6 Nm, Apply Loctite 222 onto mid aeroshield bolts and install fasteners











136. Install vacuum refill cap onto coolant bottle assembly



137. Place empty coolant container into front storage area
     Nota

     If frunk is not installed take caution, CFM fan shroud assembly cannot support a full coolant container, Ensure overflow container is empty, Place fender cover over FEM and front fascia



138. Fill container with at least 15L of coolant



139. Place filled coolant container onto coolant drain & fill cart
     Nota

     Do not place container with 15L of coolant on top of CFM fan shroud, Position cart as close as possible to front of vehicle



140. Setup coolant refill tool
     Nota

     Verify all valves on refill tool are in the closed position, See image for clarity





141. Install vacuum refill hose to refill cap on coolant bottle
     Nota

     Perform push-pull-push test to verify hose is fully installed



142. Position overflow hose into empty container



143. Place refill hose inside filled coolant container
     Nota

     Make sure hose end is fully submerged into coolant



144. Connect shop air supply to coolant refill tool
     Nota

     If not already done, Verify refill valve is set to off



145. Open air inlet valve to draw a vacuum, Once gauge stabilizes, Fully close valve
     Nota

     Gauge stabilizes roughly (60-70 cmHg), Vacuum should not drop after the valves are closed





146. Slowly open the refill valve to allow coolant to be drawn into the system
     Nota

     Make sure hose end of refill hose is fully submerged during entire process



147. Once the gauge reads zero, close the coolant refill valve





148. Remove shop air supply to coolant refill tool
     Nota

     If not already done, Verify refill valve is set to off



149. Remove coolant refill hose from coolant container



150. Remove coolant overflow hose from coolant container



151. Remove vacuum refill hose from refill cap on coolant bottle



152. Remove vacuum refill cap from coolant bottle assembly



153. Remove coolant refill tool from vehicle
     Nota

     Move coolant drain & fill cart away from vehicle





154. Remove coolant container from inside underhood area



155. Vuelva a conectar la alimentación de media tensión. Consulte Disconnect MV Power (Modify).
156. Select 'Procedures'
     Nota

     Lighting Bolt Icon > High Voltage > Procedures





157. Select 'Rear Left Drive Inverter Replacement'
     Nota

     Procedures > Drive-Inverter-Replacement > Rear Left Drive Inverter ReplacementNote, If replacing the Right-Rear inverter then utilize the Right-Rear Inverter Dashboard instead



158. Select ‘Stop Thermal Fluid Fill/Drain’, click ‘Run’, and allow routine to complete
     Nota

     Select 'Close' once complete



159. Select "Restore Bootloader Data", click "Run", and allow routine to complete
     Nota

     Select 'Close' once complete, Bootloader data restore must be completed before a CAN redeploy is performed



160. Select 'Procedures'
     Nota

     Lighting Bolt Icon > High Voltage > Procedures





161. Select 'Rear Right Drive Inverter Replacement'
     Nota

     Procedures > Drive-Inverter-Replacement > Rear Right Drive Inverter Replacement



162. Select "Restore Bootloader Data", click "Run", and allow routine to complete
     Nota

     Select 'Close' once complete, Bootloader data restore must be completed before a CAN redeploy is performed



163. Select 'Procedures'
     Nota

     Lighting Bolt Icon > High Voltage > Procedures





164. Select 'Rear Left Drive Inverter Replacement'
     Nota

     Procedures > Drive-Inverter-Replacement > Rear Left Drive Inverter ReplacementNote, If replacing the Right-Rear inverter then utilize the Right-Rear Inverter Dashboard instead



165. Run 'CAN Redeploy' routine
     Nota

     CAN redeploy will start immediately



166. Select "Restore Application Data", click "Run", and allow routine to complete
     Nota

     Select 'Close' once complete



167. Select 'Procedures'
     Nota

     Lighting Bolt Icon > High Voltage > Procedures





168. Select 'Rear Right Drive Inverter Replacement'
     Nota

     Procedures > Drive-Inverter-Replacement > Rear Right Drive Inverter Replacement



169. Select "Restore Application Data", click "Run", and allow routine to complete
     Nota

     Select 'Close' once complete



170. Run 'Coolant Air Purge' routine
     Nota

     Touch time only, wait until coolant pumps stop running (audible noise), Routine Passed will appear, but pumps will run for 10 minutes, If you start next another routine during this time it will fail, Make sure vehicle is not in "Drive", Routine is still running despite the completed message, Speeds can be monitored in garage under PT Thermal tab, Idle speed = ~1500 RPM, Test will vary speeds from 3500-6500 RPM and actuate valves between SERIES and PARALLEL, Putting vehicle into "Drive" will stop this routine, If speeds hover at 7000 RPM, this indicates the pumps are air locked, perform a vacuum fill, Continue to add coolant and purge until the coolant level reaches between the NOM and MAX Lines on the bottle



171. Inspect coolant level and top off as necessary
     Nota

     Ensure that the fluid level is at the Max line, Top off fluid as required



172. Install coolant bottle cap



173. Run 'Thermal Performance' routine
     Nota

     Via Front Drive Unit Replacement dashboard, Ensure result is 'Passed'



174. Coloque el faldón trasero del vano del motor. Consulte Underhood Trim - Rear Apron Assembly (Remove and Install).
175. Place stanchions around vehicle and set up a safety perimeter before performing resolver error learn
     Nota

     Use safety stanchions to section off vehicle before driving vehicle on a lift
176. Raise vehicle partially and lower lift onto locks
     Nota

     Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
177. Select 'Procedures'
     Nota

     Lighting Bolt Icon > High Voltage > Procedures





178. Select 'Rear Right Drive Inverter Replacement'
     Nota

     Procedures > Drive-Inverter-Replacement > Rear Right Drive Inverter Replacement



179. Ejecutar la rutina ODIN PROC_DIR_X_RESOLVER-ERROR-LEARNvia Toolbox: (link)via Service Mode Plus: Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Resolver Error Learn
180. Lower vehicle until tires are touching the ground
     Nota

     Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
181. Remove safety stanchions from around vehicle after resolver learn is completed
     Nota

     Remove all stanchions after vehicle is finished with the resolver error learn
182. Install bed cargo tub into vehicle
     Nota

     Recommend assistance









183. Install bolts securing bed cargo tub
     Nota

     2x bolts, 10mm, 8 Nm, Align tub as needed



184. Install RH bed side wall
     Nota

     1x bolt, 15mm, 46 Nm, 2x bolts, T40, 36 Nm, 4x bolts, 10mm, 11 Nm, 2x nuts, 10mm, 7 Nm, 4x clips, 1x fastener cover, 1x connector, Recommend assistance

















185. Install RH bed closeout panel
     Nota

     6x clips, 1x tab, Release RH tailgate cable to install bed closeout panel from vehicle







186. Install RH upper bed side wall assembly
     Nota

     8x clips, Replace any missing or damaged clips, Lift tonneau seal as required





187. Install LH lower bed side wall
     Nota

     1x bolt, 15mm, 46 Nm, 2x bolts, 13mm, 36 Nm, 4x bolts, 10mm, 11 Nm, 2x nuts, 10mm, 7 Nm, 4x clips, 1x fastener cover, 1x connector, Secure locking tabs, Connect bed outlet connectors onto bed side wall and ground strap, 1x bolt, 10mm, 10 Nm, 2x connectors, Secure locking tabs, Slide lock to secure, Recommend assistance



















188. Install LH bed closeout panel
     Nota

     6x clips, 1x tab, Secure LH tailgate cable once closeout installed







189. Install LH upper bed side wall assembly
     Nota

     8x clips, Replace any missing or damaged clips, Lift tonneau seal as required





190. Install bed floor assembly
     Nota

     10x bolts, 15mm, 56 Nm, 4x anchors, Open and close anchors as needed, Recommend assistance







191. Install fastener covers onto bed floor assembly
     Nota

     6x covers



192. Install bed cargo tub lid
     Nota

     4x bolts, 10mm, 6 Nm, Snug bolts, Torque will be done at later step, Position bed cargo tub lid onto vehicle, Install bolts securing bed cargo tub lid onto hinges, Recommend assistance









193. Install cargo tub struts onto cargo lid
     Nota

     2x strut clips





194. Close bed cargo tub lid



195. Cierre la cubierta de la plataforma de carga.
196. Cierre el portón trasero.
197. Ejecutar la rutina ODIN PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox: (link)
198. Retire el vehículo del elevador. Consulte Elevación del vehículo - Elevador de 2 columnas.
199. Suba la ventanilla delantera izquierda y cierre la puerta delantera izquierda.
200. Review wheel alignment requirements and add correction code as needed
