Mud Flap - Rear - LH (Remove and Install)

Código de corrección 12207401 12207402 12207601 12207602 0.12 NOTA: Salvo que se indique lo contrario explícitamente en el procedimiento, el código de corrección anterior y el FRT reflejan todo el trabajo necesario para realizar este procedimiento, incluidos los procedimientos vinculados. No acumule códigos de corrección a menos que se le indique explícitamente que lo haga. NOTA: Consulte Tiempos de tarifa plana para obtener más información sobre los FRT y cómo se crean. Para enviar sus comentarios sobre los valores de FRT, escriba a LaborTimeFeedback@tesla.com. NOTA: Consulte Protección personal para asegurarse de llevar el EPI adecuado al realizar el siguiente procedimiento.

Warning IconA warning icon, calling your attention to a possibly risky situation
Aviso
Este procedimiento están en fase PRELIMINAR. Aunque se ha validado, es posible que falten advertencias y precauciones. Siga los requisitos de seguridad y tenga mucho cuidado cuando trabaje en sistemas y componentes de alta tensión o cerca de ellos. Envíe sus correcciones y comentarios a ServiceDevelopment@teslamotors.com.

Retirar

  1. Open the LH front door and lower the LH front window.
  2. Turn the steering wheel fully to the right to provide access to the working area.
  3. Remove the bolts (x3) that attach the LH rear mud flap to the LH rear wheel arch liner.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Se recomienda utilizar las siguientes herramientas:
    • Vaso de 10 mm de cuello largo
    • Destornillador de impacto/carraca sin cable

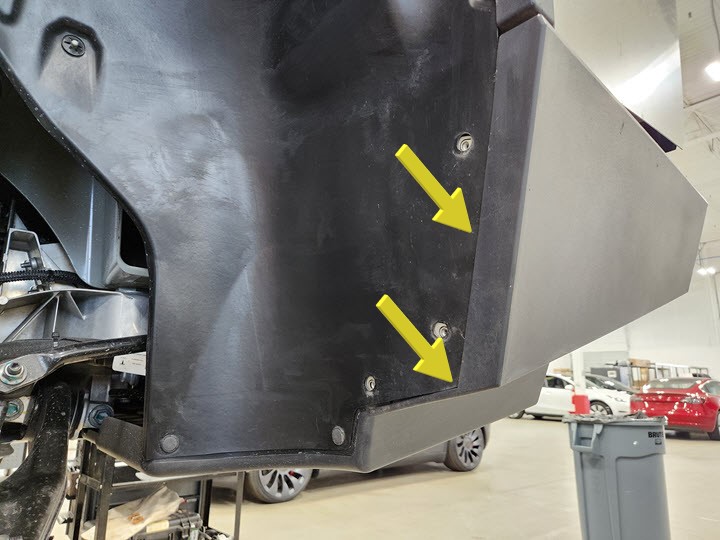

    Figura 1. LH shown; RH similar
  4. Remove the bolt that attaches the LH rear mud flap to the LH rear diffuser, and then remove the mud flap from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Se recomienda utilizar las siguientes herramientas:
    • Vaso de 10 mm de cuello largo
    • Destornillador de impacto/carraca sin cable

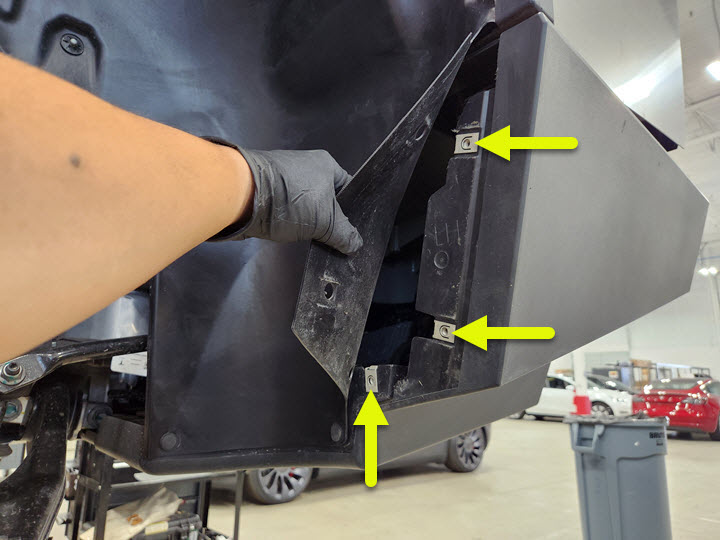

    Figura 2. LH shown; RH similar
    Figura 3. LH shown; RH similar

Instalar

  1. Position the LH rear mud flap on the vehicle, and then install the bolt that attaches the mud flap to the LH rear diffuser.
    2.2 Nm (1.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Se recomienda utilizar las siguientes herramientas:
    • Vaso de 10 mm de cuello largo
    • Destornillador de impacto/carraca sin cable
    • Llave dinamométrica con medición de ángulos
    Figura 4. LH shown; RH similar
    Figura 5. LH shown; RH similar
  2. Install the bolts (x3) that attach the LH rear mud flap to the LH rear wheel arch liner.
    2.2 Nm (1.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Se recomienda utilizar las siguientes herramientas:
    • Vaso de 10 mm de cuello largo
    • Destornillador de impacto/carraca sin cable
    • Llave dinamométrica con medición de ángulos
    Figura 6. LH shown; RH similar
  3. Raise the LH front window and close the LH front door.
