Harness - Seat - 1st Row - LH (Remove and Replace)

Código de corrección 1710091002 1710091001 0.90 NOTA: Salvo que se indique lo contrario explícitamente en el procedimiento, el código de corrección anterior y el FRT reflejan todo el trabajo necesario para realizar este procedimiento, incluidos los procedimientos vinculados. No acumule códigos de corrección a menos que se le indique explícitamente que lo haga. NOTA: Consulte Tiempos de tarifa plana para obtener más información sobre los FRT y cómo se crean. Para enviar sus comentarios sobre los valores de FRT, escriba a ServiceManualFeedback@tesla.com. NOTA: Consulte Protección personal para asegurarse de llevar el EPI adecuado al realizar el siguiente procedimiento. Consulte Precauciones ergonómicas para ver prácticas de trabajo seguras.

Warning IconA warning icon, calling your attention to a possibly risky situation
Aviso
Este procedimiento están en fase PRELIMINAR. Aunque se ha validado, es posible que falten advertencias y precauciones. Siga los requisitos de seguridad y tenga mucho cuidado cuando trabaje en sistemas y componentes de alta tensión o cerca de ellos. Envíe sus correcciones y comentarios a ServiceDevelopment@teslamotors.com.
Warning IconA warning icon, calling your attention to a possibly risky situation
Aviso
Los componentes electrónicos del Cybertruck están alimentados por una arquitectura de media tensión de 48 V diseñada para mejorar la eficiencia. El mantenimiento de los componentes de media tensión requiere un conocimiento y cuidado adicionales para evitar daños personales o en el vehículo. Lea y comprenda las precauciones relacionadas con la media tensión en Precauciones eléctricas y asegúrese de realizar todos los cursos de formación necesarios, según corresponda.
  • 2025-08-07: Released new procedure.
  1. Remove the LH 1st row seat assembly from the vehicle, and then place it on a protected surface. See Seat Assembly - 1st Row - LH (Remove and Install).
    Informational PurposesAn informational icon, calling your attention
    Nota
    Recommended assistance. Position so that the underside of the seat is accessible.
  2. Remove the LH 1st row seat outboard side shield. See Side Shield - Outboard - 1st Row Seat - LH (Remove and Install).
  3. Remove LH front seat outboard side shield carrier
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x clips, 2x tabs, Release leading edge of trim and slide away from seat frame
  4. Remove the LH 1st row seat inboard side shield. See Side Shield - Inboard - 1st Row Seat - LH (Remove and Install).
  5. Remove LH front seat inboard side shield carrier
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x clips, 1x datums, Release leading edge of trim and slide away from seat frame

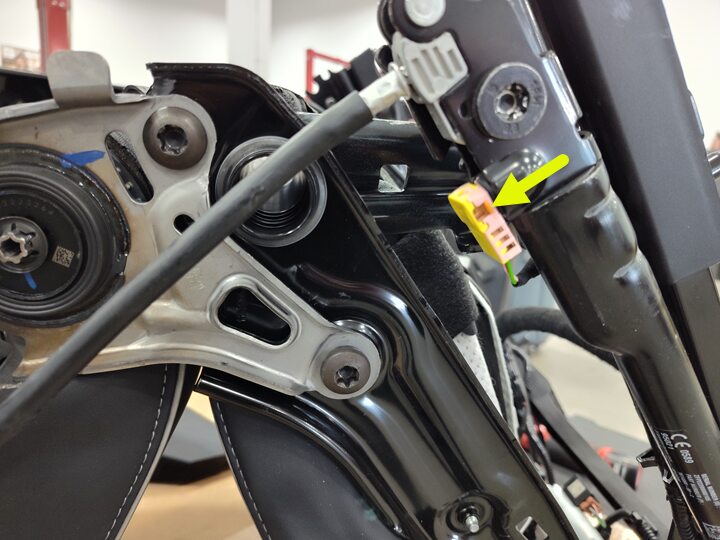

  6. Disconnect LH front seat buckle harness
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x connector
  7. Release seat back elastic straps from seat frame
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x straps
  8. Unzip LH front seatback trim
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x zippers, Pull tails of zippers outside seatback then unzip, Use of a straight pick can aid in moving zipper pulls
  9. Fold LH front seat back trim
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x clips, Fold material upward

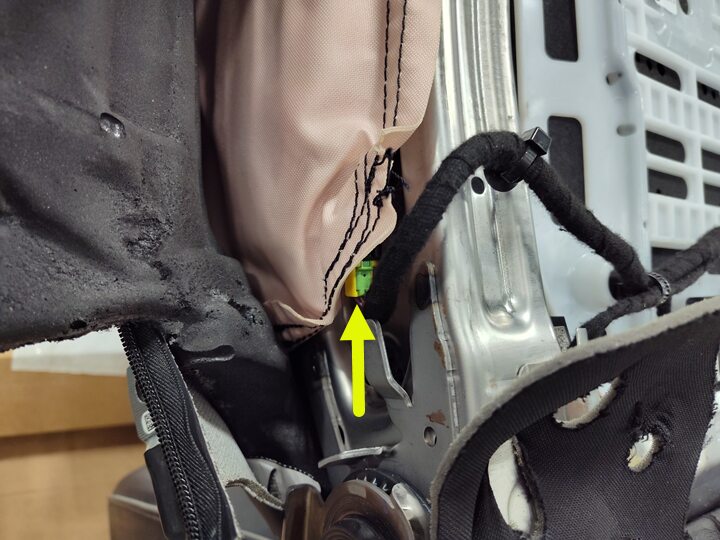

  10. Disconnect LH front seat harness connectors
    Informational PurposesAn informational icon, calling your attention
    Nota
    14x connectors
  11. Remove LH front seat harness
    Informational PurposesAn informational icon, calling your attention
    Nota
    15x clips
  12. Install LH front seat harness
    Informational PurposesAn informational icon, calling your attention
    Nota
    15x clips
  13. Connect LH front seat harness connectors
    Informational PurposesAn informational icon, calling your attention
    Nota
    14x connectors
  14. Unfold LH front seat back trim
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x clips,
  15. Zip LH front seatback trim
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x zippers, Zip each side of seatback trim then tuck in tails, Use of a straight pick can aid in moving zipper pulls
  16. Install seat back elastic straps onto seat frame
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x straps
  17. Install LH front inboard side shield carrier
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x clips, 2x tabs, Position leading edge of trim and slide into seat frame
  18. Install the LH 1st row seat inboard side shield. See Side Shield - Inboard - 1st Row Seat - LH (Remove and Install).
  19. Install LH side shield carrier onto LH front seat
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x clips, 2x tabs, Slide forward onto seat frame aligning clips and tabs
  20. Install the LH 1st row seat outboard side shield. See Side Shield - Outboard - 1st Row Seat - LH (Remove and Install).
  21. Install the LH 1st row seat assembly. See Seat Assembly - 1st Row - LH (Remove and Install).
