Brake Hose - Rear - LH (Remove and Replace)

Código de corrección 3303020302 3303020502 0.78 NOTA: Salvo que se indique lo contrario explícitamente en el procedimiento, el código de corrección anterior y el FRT reflejan todo el trabajo necesario para realizar este procedimiento, incluidos los procedimientos vinculados. No acumule códigos de corrección a menos que se le indique explícitamente que lo haga. NOTA: Consulte Tiempos de tarifa plana para obtener más información sobre los FRT y cómo se crean. Para enviar sus comentarios sobre los valores de FRT, escriba a ServiceManualFeedback@tesla.com. NOTA: Consulte Protección personal para asegurarse de llevar el EPI adecuado al realizar el siguiente procedimiento. Consulte Precauciones ergonómicas para ver prácticas de trabajo seguras.

Warning IconA warning icon, calling your attention to a possibly risky situation
Aviso
Este procedimiento están en fase PRELIMINAR. Aunque se ha validado, es posible que falten advertencias y precauciones. Siga los requisitos de seguridad y tenga mucho cuidado cuando trabaje en sistemas y componentes de alta tensión o cerca de ellos. Envíe sus correcciones y comentarios a ServiceDevelopment@teslamotors.com.
  • 2025-06-09: Released new procedure.
  1. Abra la puerta delantera izquierda y baje la ventanilla.
  2. Eleve y apoye el vehículo. Consulta Elevación del vehículo - Elevador de 2 columnas.
  3. Extraiga el faldón trasero del vano del motor. Consulta Underhood Apron - Rear (Remove and Install).
  4. Connect to the vehicle using Toolbox 3. See Toolbox 3 (Conexión y desconexión).
  5. Select "Actions" and search for "EPB"
  6. Select PROC_EPBL_START-SERVICE-MODE, click 'Run', and allow routine to complete
    Informational PurposesAn informational icon, calling your attention
    Nota
    Chock wheel if necessary, Select ‘X’ at top right of window to close once complete
  7. Remove the LH rear wheel. See Conjunto de rueda (Desinstalación e instalación).
  8. Remove the LH rear wheel liner. See Wheel Liner - Rear - LH (Remove and Install)
  9. Position oil drain under LH rear brake caliper

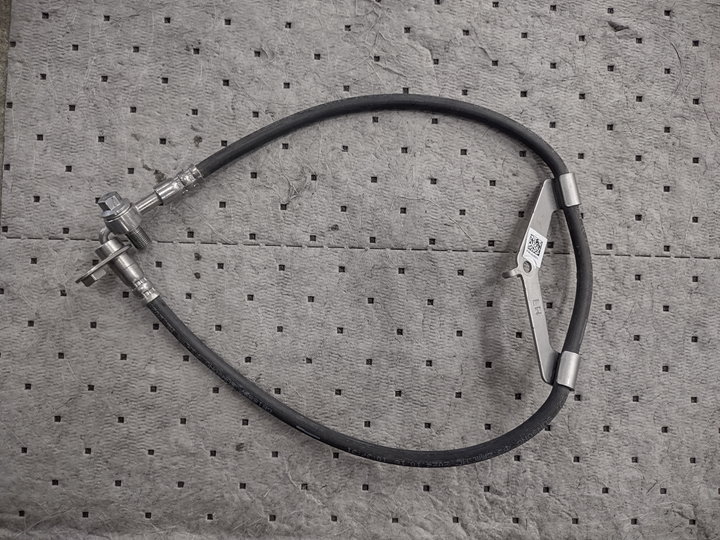

  10. Remove LH rear brake hose
    Informational PurposesAn informational icon, calling your attention
    Nota

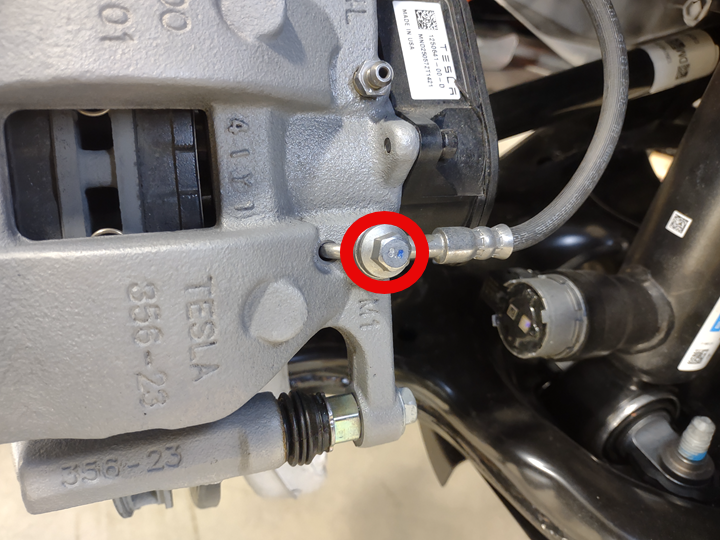

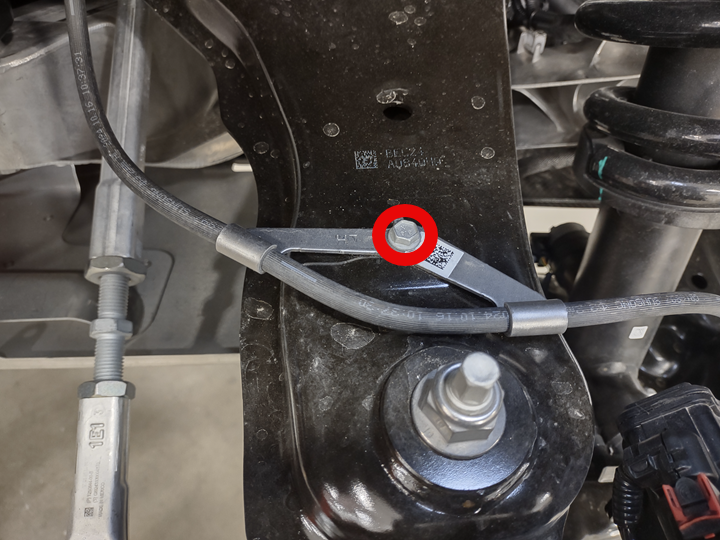

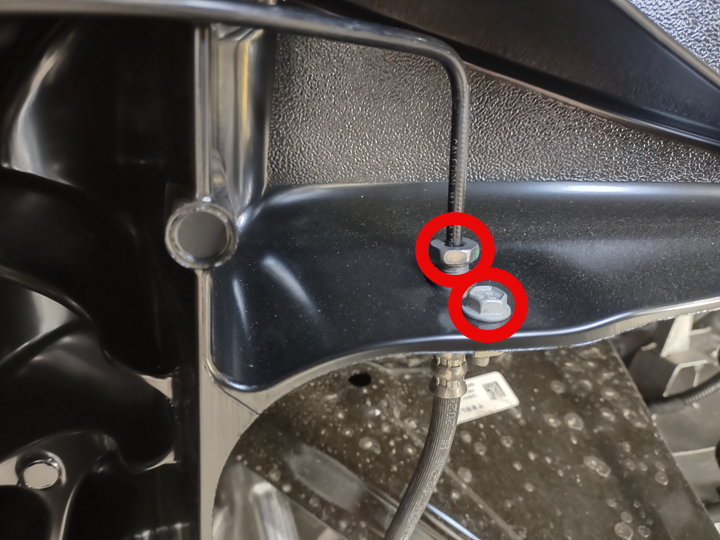

    1x bolt, 11mm, 42 Nm, 1x bolt, 10mm, 10 Nm, 1x flare nut, 14mm, 16 Nm
  11. Install LH rear brake hose
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x bolt, 11mm, 42 Nm, 1x bolt, 10mm, 10 Nm, 1x flare nut, 14mm, 16 Nm
  12. Remove oil drain from underneath vehicle
  13. Install the LH rear wheel liner. See Wheel Liner - Rear - LH (Remove and Install).
  14. Hold brake pedal and select park on UI to disable EPB service mode
  15. Bleed the LH rear brake using Toolbox 3. See Purga del líquido de frenos - Una pinza.
  16. Coloque el faldón trasero del vano del motor. Consulta Underhood Apron - Rear (Remove and Install).
  17. Install the LH rear wheel. See Conjunto de rueda (Desinstalación e instalación).
  18. Retire el vehículo del elevador. Consulta Elevación del vehículo - Elevador de 2 columnas.
  19. Suba la ventanilla delantera izquierda y cierre la puerta delantera izquierda.
