Door - Rear - LH (Remove and Replace)

Código de corrección 1010025042 1010025052 0.90 NOTA: Salvo que se indique lo contrario explícitamente en el procedimiento, el código de corrección anterior y el FRT reflejan todo el trabajo necesario para realizar este procedimiento, incluidos los procedimientos vinculados. No acumule códigos de corrección a menos que se le indique explícitamente que lo haga. NOTA: Consulte Tiempos de tarifa plana para obtener más información sobre los FRT y cómo se crean. Para enviar sus comentarios sobre los valores de FRT, escriba a ServiceManualFeedback@tesla.com. NOTA: Consulte Protección personal para asegurarse de llevar el EPI adecuado al realizar el siguiente procedimiento. Consulte Precauciones ergonómicas para ver prácticas de trabajo seguras.

  • 2025-08-28: Linked door panel procedure that includes door panel and door assembly rework steps.
Warning IconA warning icon, calling your attention to a possibly risky situation
Aviso
Este procedimiento están en fase PRELIMINAR. Aunque se ha validado, es posible que falten advertencias y precauciones. Siga los requisitos de seguridad y tenga mucho cuidado cuando trabaje en sistemas y componentes de alta tensión o cerca de ellos. Envíe sus correcciones y comentarios a ServiceDevelopment@teslamotors.com.
Warning IconA warning icon, calling your attention to a possibly risky situation
Aviso
Los componentes electrónicos del Cybertruck están alimentados por una arquitectura de media tensión de 48 V diseñada para mejorar la eficiencia. El mantenimiento de los componentes de media tensión requiere un conocimiento y cuidado adicionales para evitar daños personales o en el vehículo. Lea y comprenda las precauciones relacionadas con la media tensión en Precauciones eléctricas y asegúrese de realizar todos los cursos de formación necesarios, según corresponda.
  1. Open LH front door
    Informational PurposesAn informational icon, calling your attention
    Nota
    Push LH B-pillar door trigger to release
  2. Lower all 4 windows
  3. Open LH rear door
    Informational PurposesAn informational icon, calling your attention
    Nota
    Push LH C-pillar door trigger to release
  4. Remove LH rear beltline assembly
    Informational PurposesAn informational icon, calling your attention
    Nota
    16x clips, 2x datums, 2x connectors
  5. Remove LH rear door inner waist belt seal
    Informational PurposesAn informational icon, calling your attention
    Nota
    7x rubber grommets, Release grommets from each end, Lift LH rear door inner waist belt seal upwards to remove from door assembly

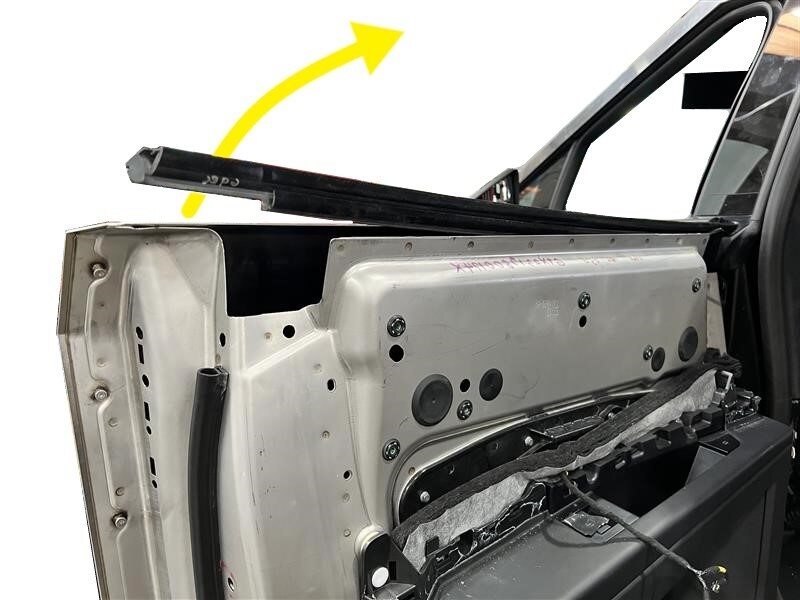

  6. Remove LH rear door outer waist belt seal
    Informational PurposesAn informational icon, calling your attention
    Nota

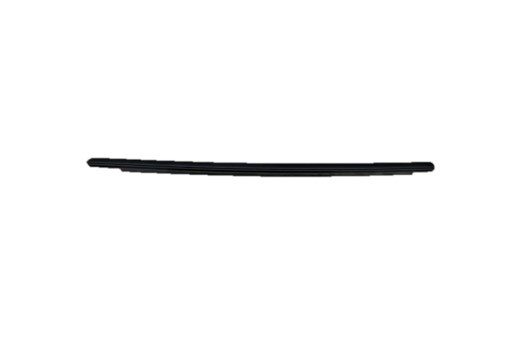

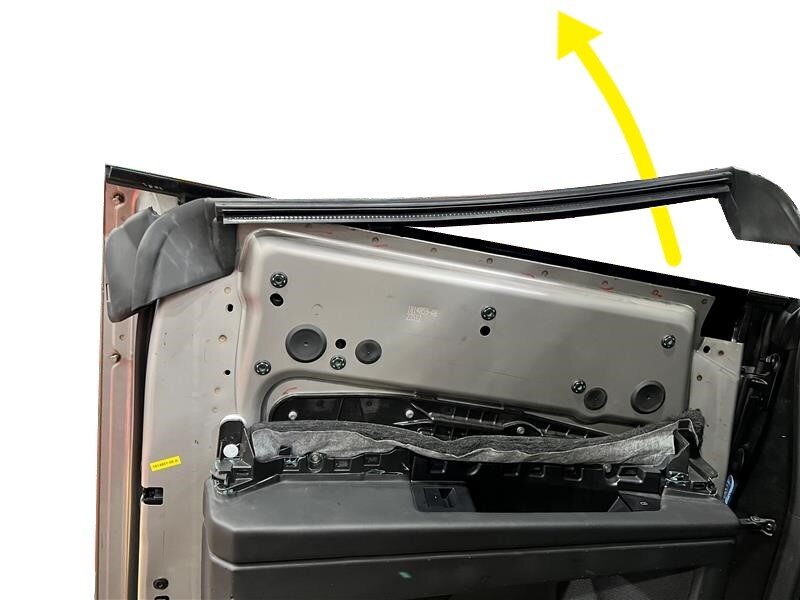

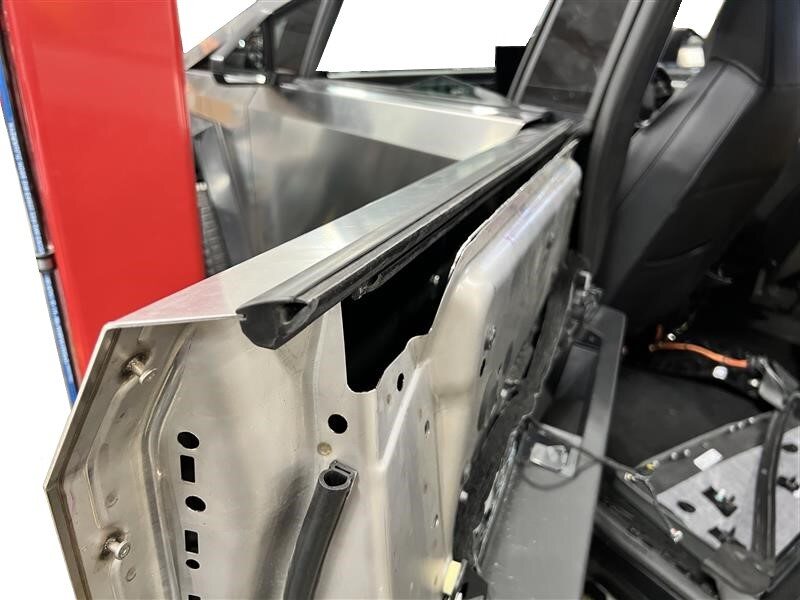

    Pull outwards to remove LH rear door outer waist belt seal from door assembly
  7. Raise LH rear window
  8. Manually latch LH rear door
  9. Remove bolts securing LH rear door trim
    Informational PurposesAn informational icon, calling your attention
    Nota
    3x bolts, 8mm, 4Nm
  10. Release LH rear door trim
    Informational PurposesAn informational icon, calling your attention
    Nota
    15x clips, 2x connectors, Replace any broken clips
  11. Remove LH rear door grommets
    Informational PurposesAn informational icon, calling your attention
    Nota

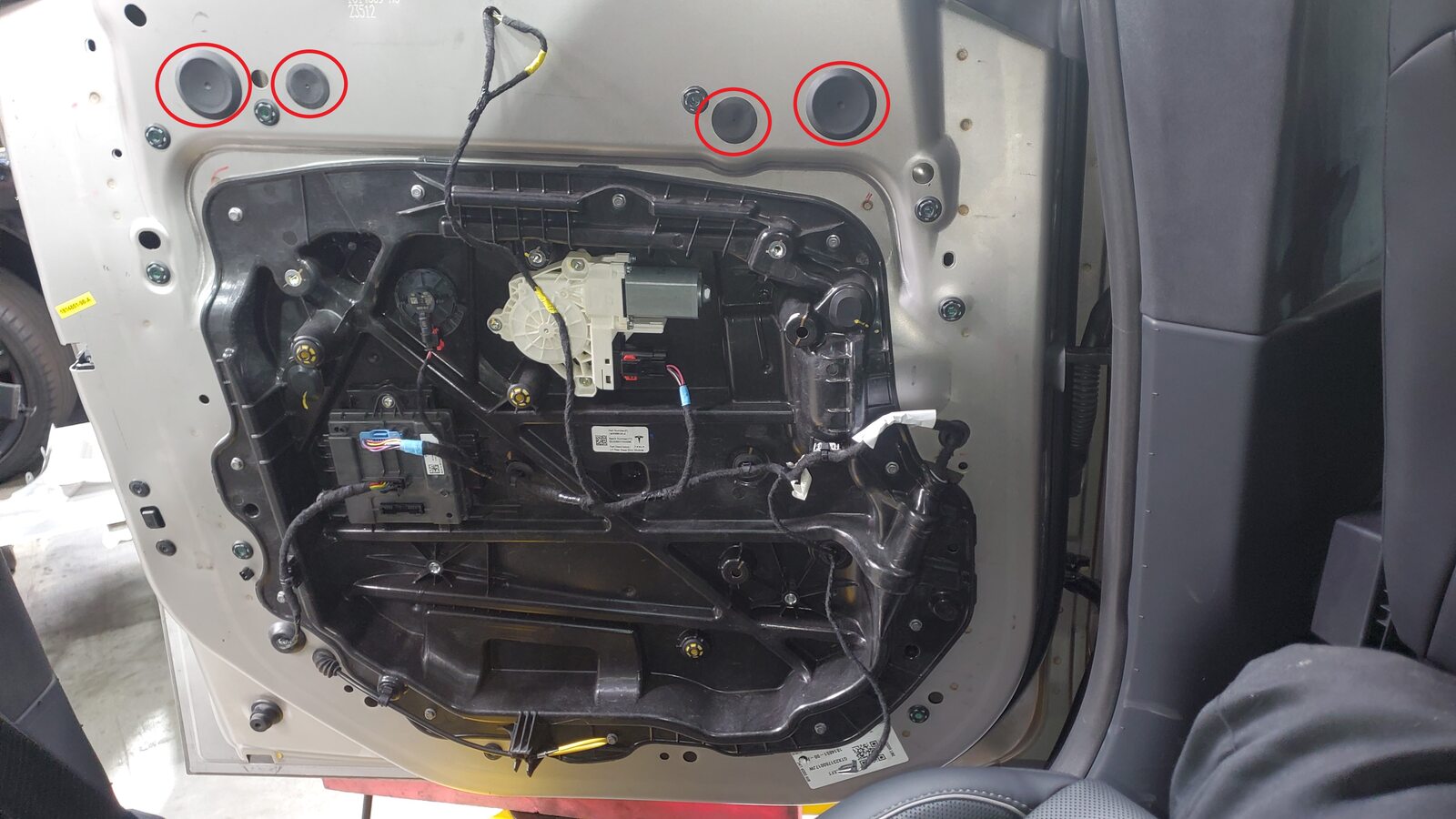

    4x grommets
  12. Remove LH rear door glass
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x bolts, 10mm, 4 Nm, Recommend assistance, Clamps do not hold whole base of regulator
  13. Extraiga el faldón trasero del vano del motor. Consulta Underhood Apron - Rear (Remove and Install).
  14. Desconecte la alimentación de media tensión. Consulta Disconnect MV Power (Modify).

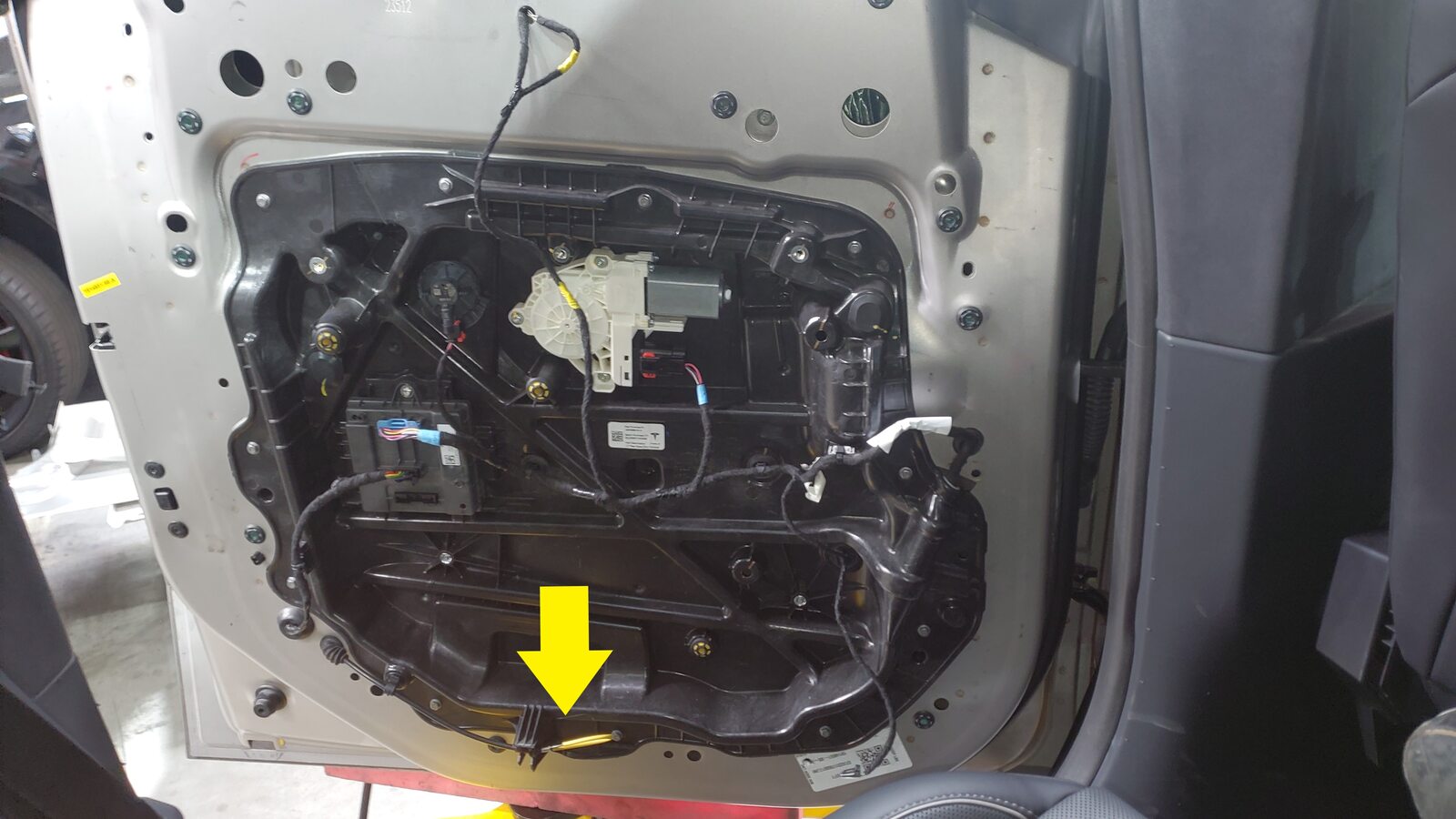

  15. Release LH rear door harness from close out panel
    Informational PurposesAn informational icon, calling your attention
    Nota
    5x clips, 4x connectors, Release locking tabs

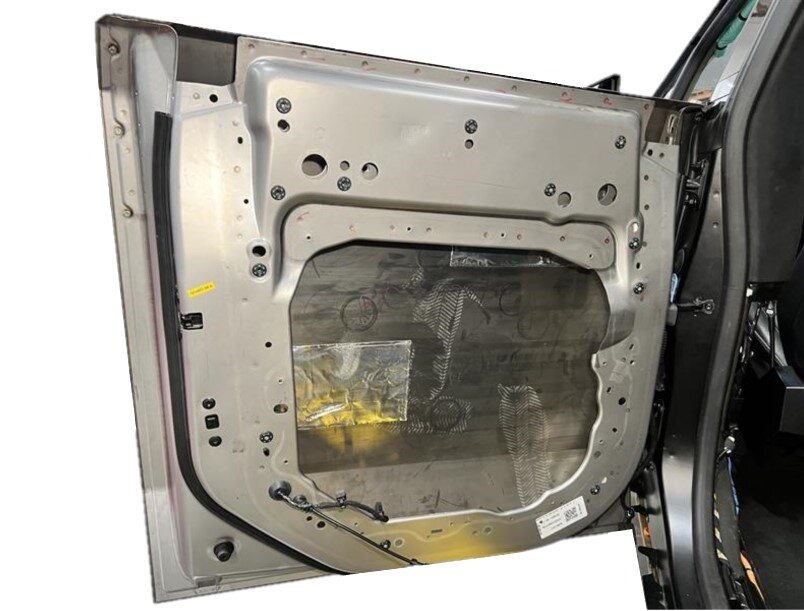

  16. Remove LH rear door closeout panel
    Informational PurposesAn informational icon, calling your attention
    Nota

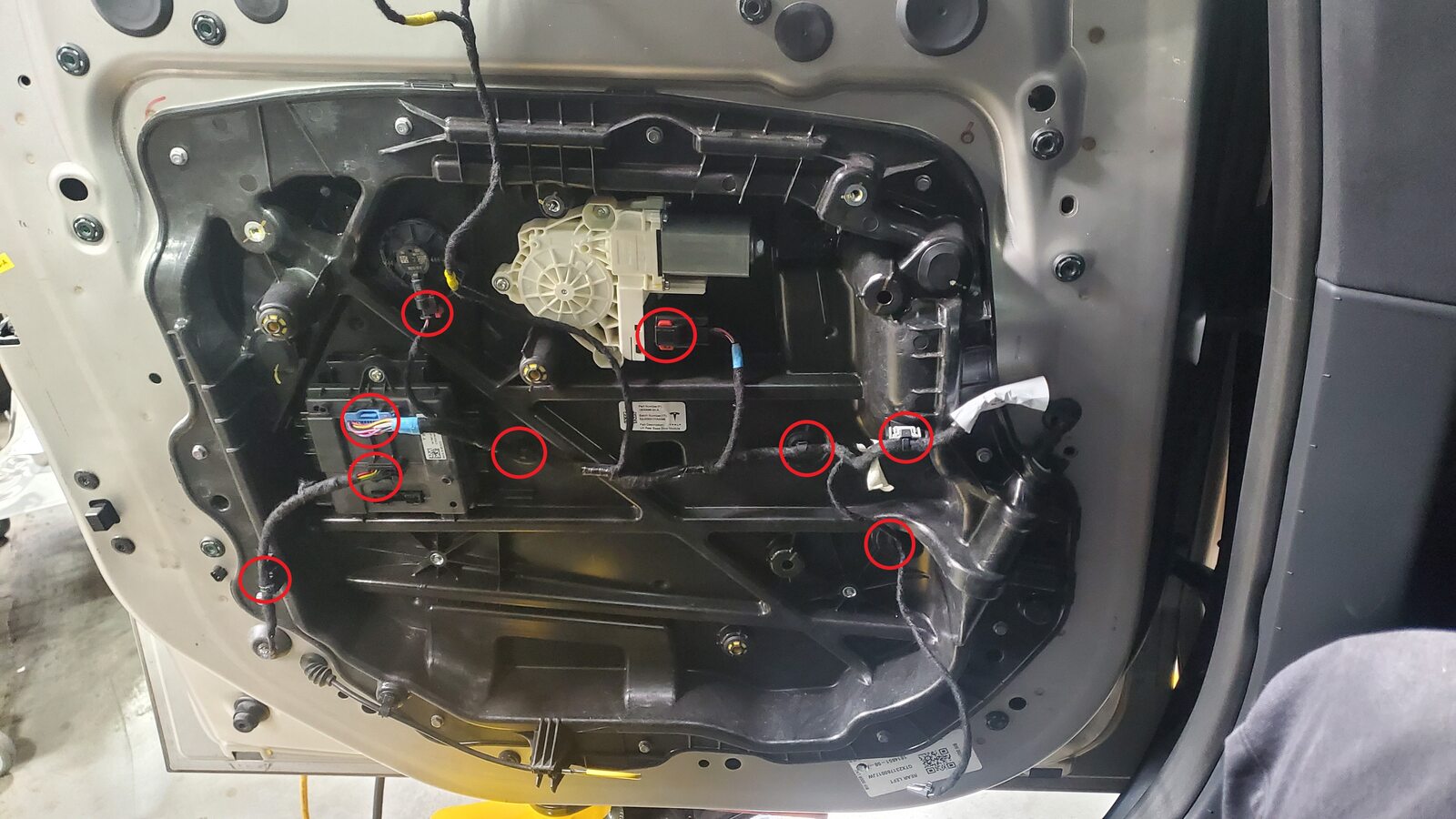

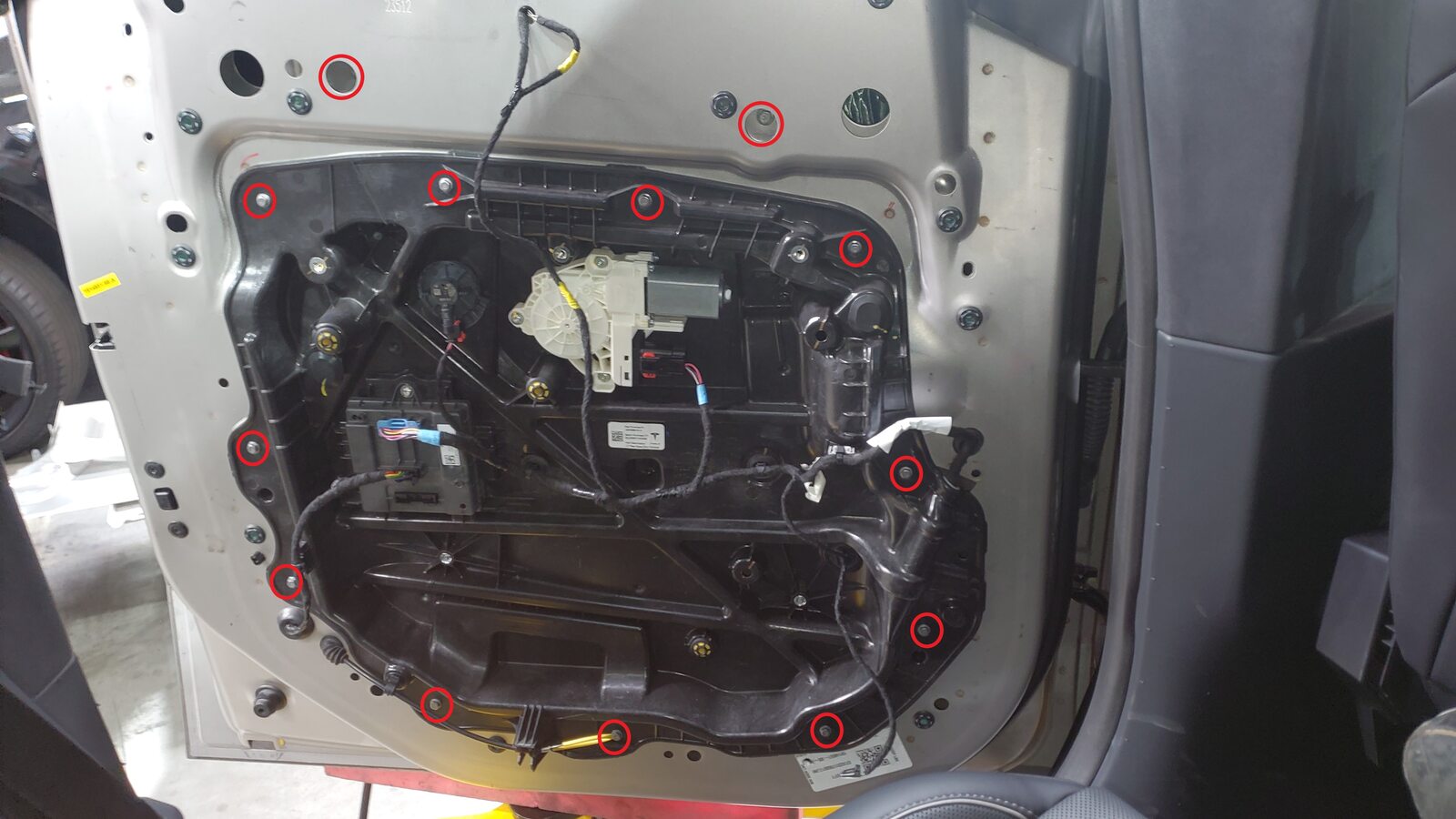

    11x bolts, 8mm, 4 Nm, 2x bolts, 10mm, Torque?, 2x datums, Gently pry panel to release datums, Pull bottom portion outwards and lower assembly to allow clearance for regulator rails

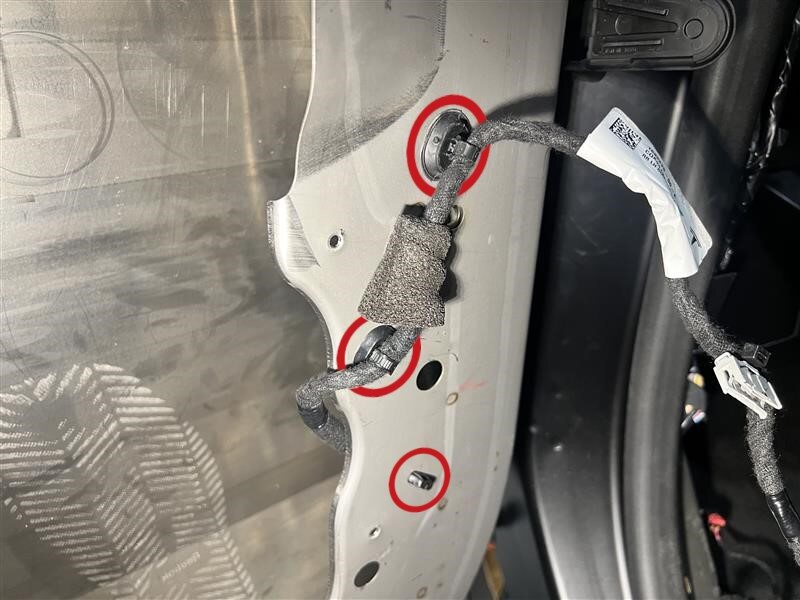

  17. Partially remove LH rear door harness
    Informational PurposesAn informational icon, calling your attention
    Nota

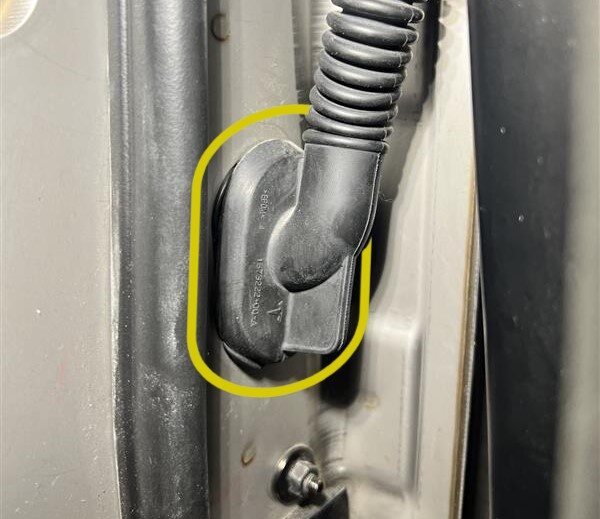

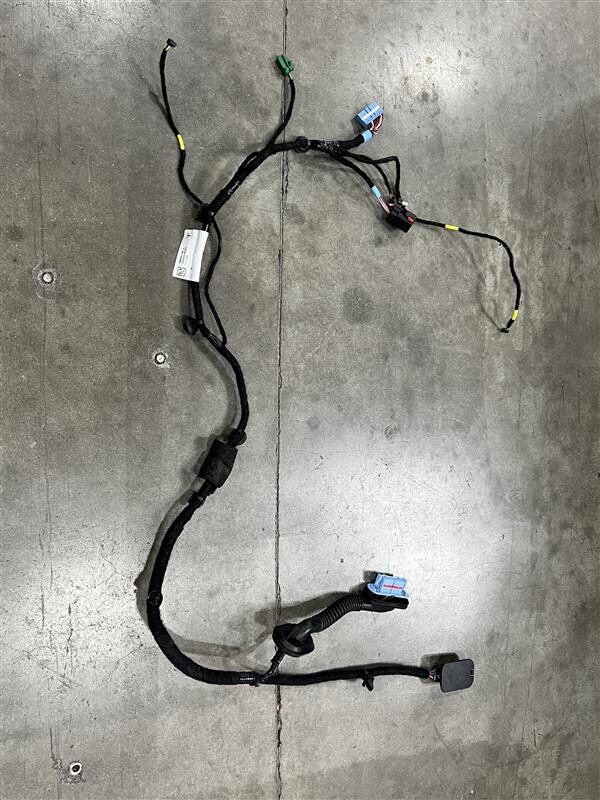

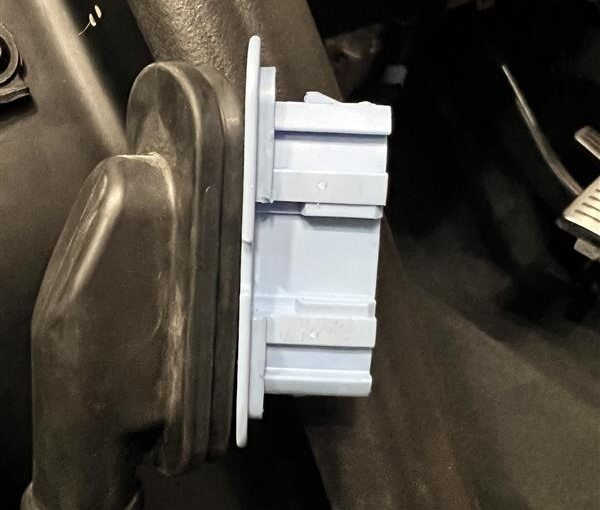

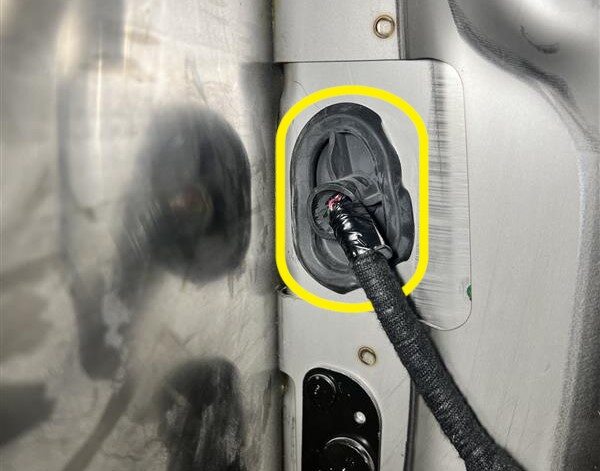

    1x grommet, 3x clips, Do not disconnect door harness to B-pillar connection, Position harness to the side
  18. Disconnect LH rear door latch harness connector
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x connector, Release locking tab

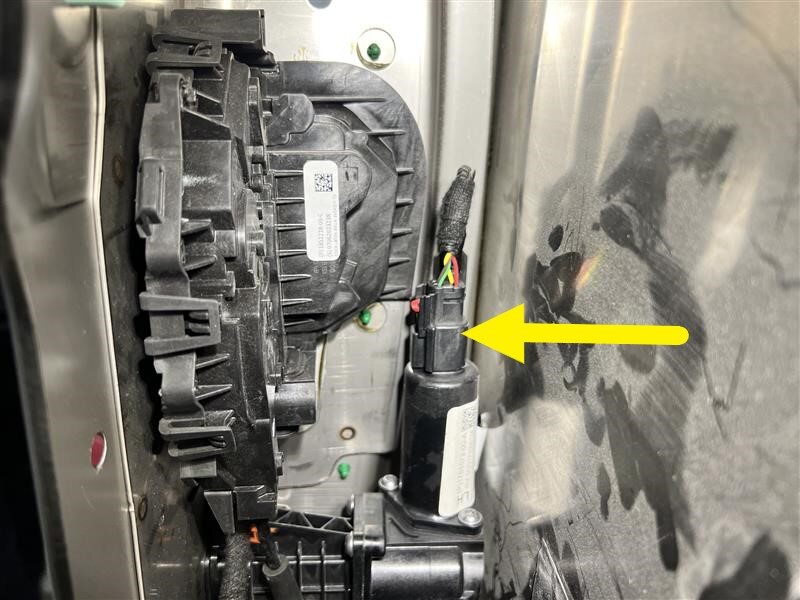

  19. Disconnect LH rear door presenter harness connector
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x connector, Release locking tab

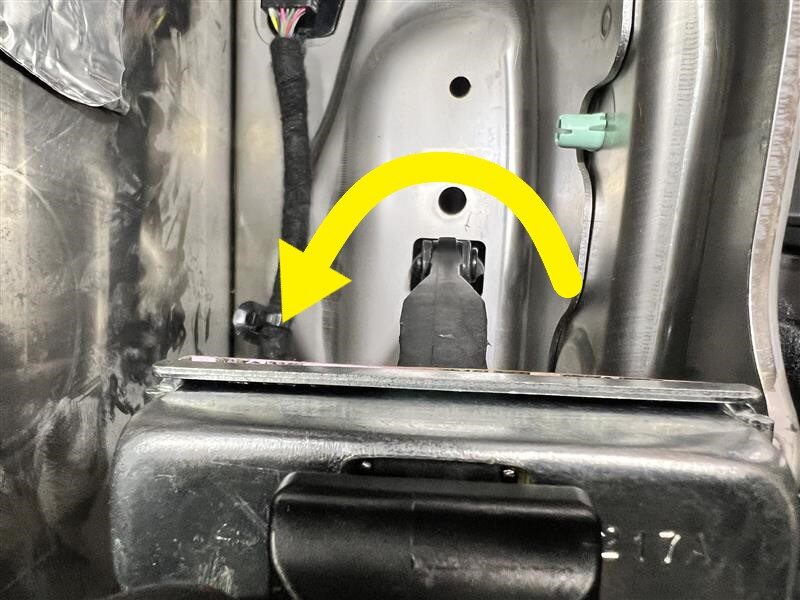

  20. Remove LH rear closure device harness
    Informational PurposesAn informational icon, calling your attention
    Nota

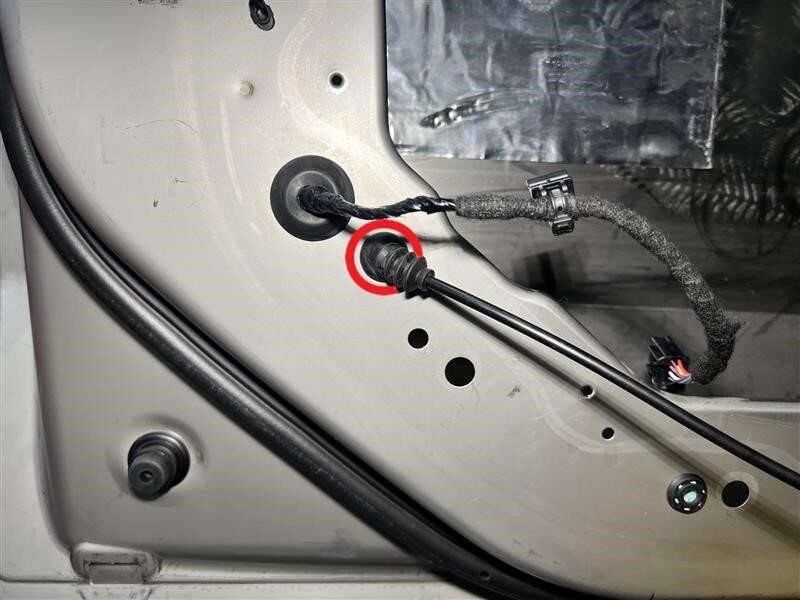

    3x clips 1x grommet
  21. Remove LH rear door latch
    Informational PurposesAn informational icon, calling your attention
    Nota

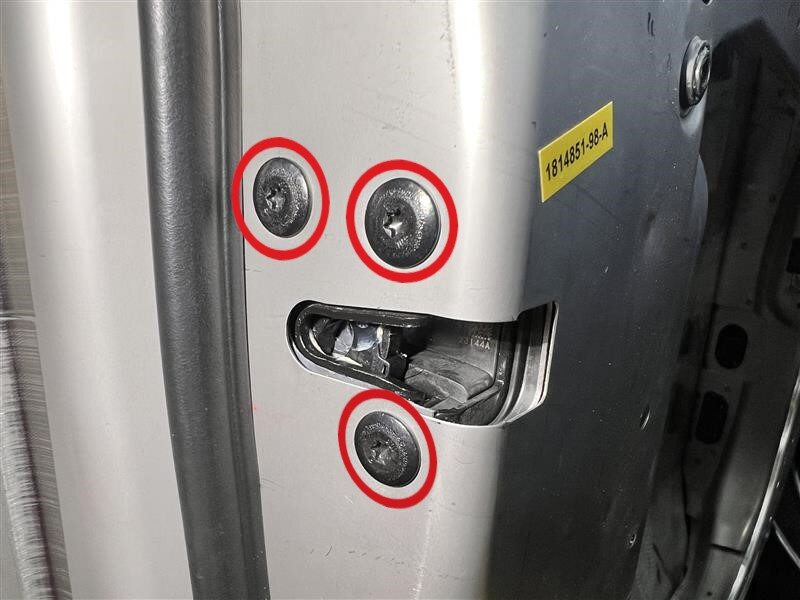

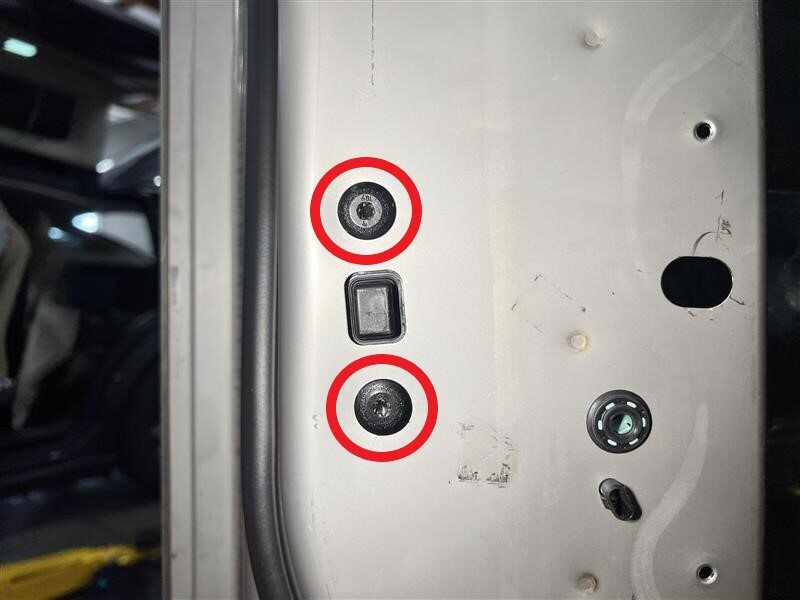

    1x grommet, 3x bolts, T30, 13 Nm
  22. Remove LH rear door presenter
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x bolts, T30, 13 Nm

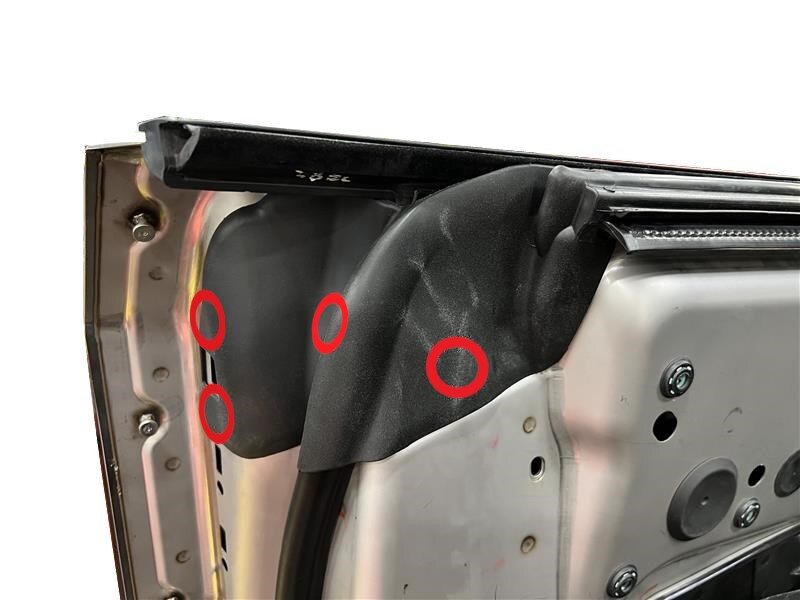

  23. Remove LH rear secondary seal
    Informational PurposesAn informational icon, calling your attention
    Nota

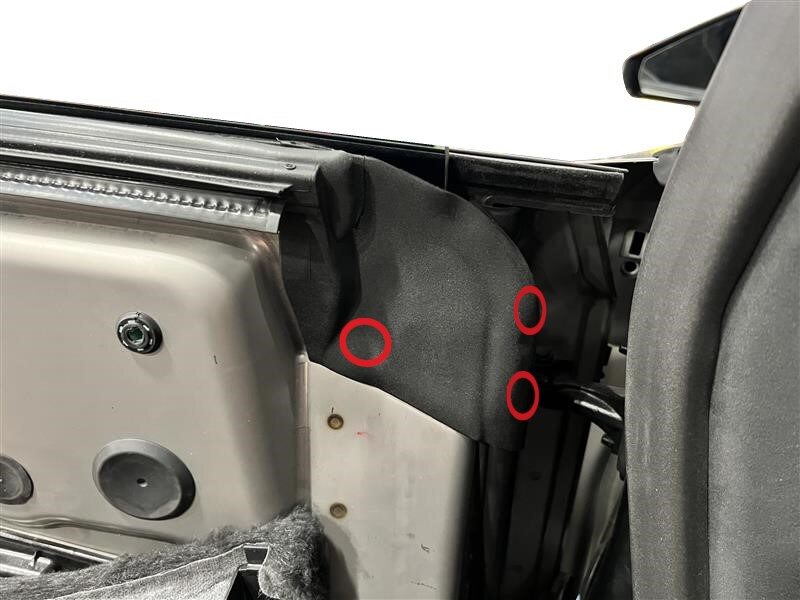

    16x clips, Start from outer edge, Use trim pry tool to prevent clips from breaking inside door
  24. Remove LH rear door overslam bumper
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x tabs

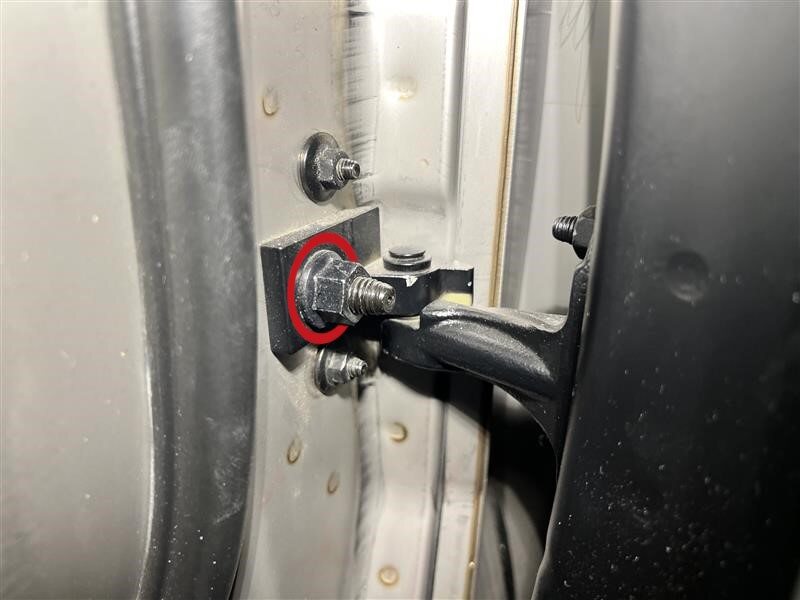

  25. Remove LH rear check strap and check strap close out
    Informational PurposesAn informational icon, calling your attention
    Nota

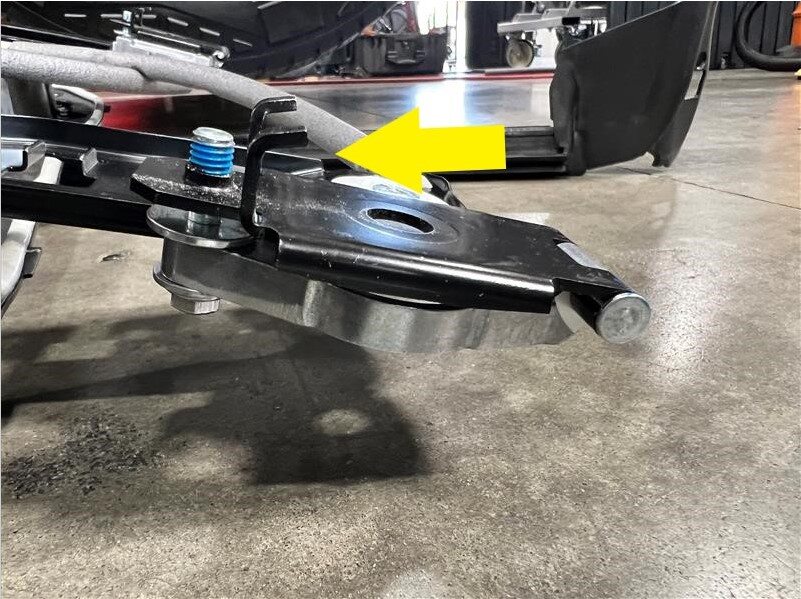

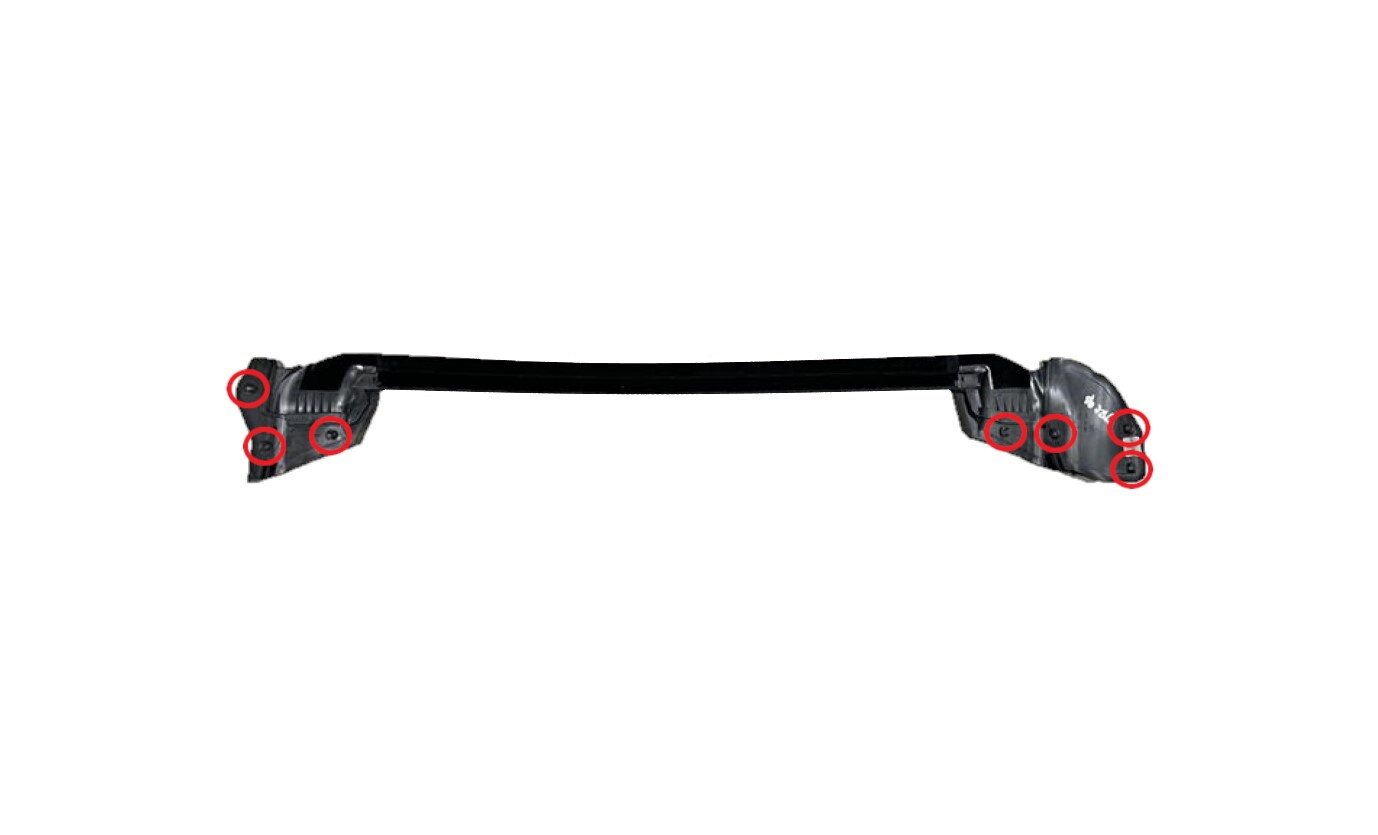

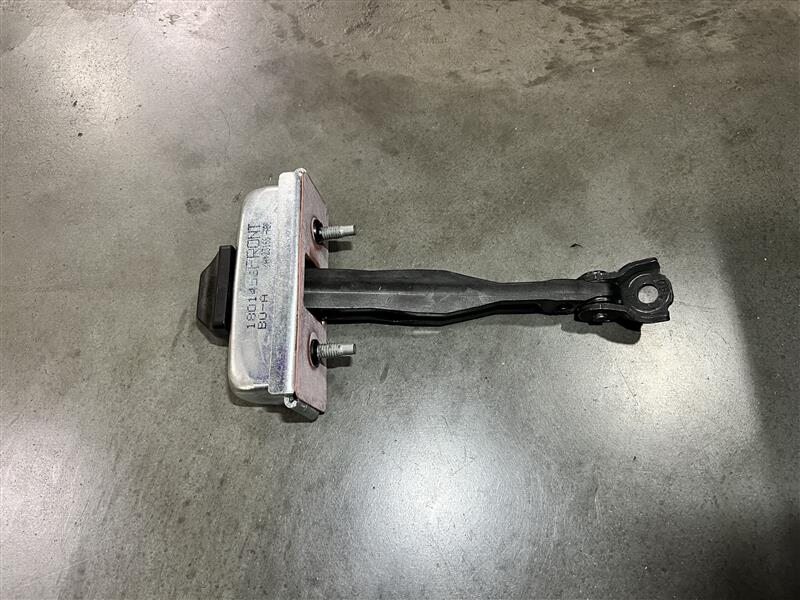

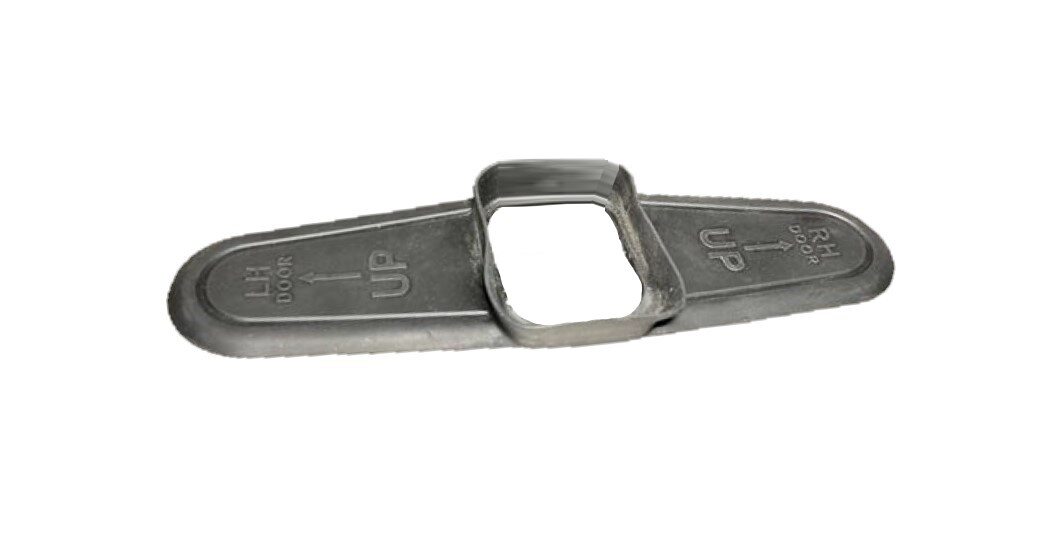

    1x bolt, T40, 23 Nm, 2x nuts, 10mm, 8.5 Nm, Remove rubber then nuts, Rotate device 90 degrees to remove
  26. Remove LH rear door
    Informational PurposesAn informational icon, calling your attention
    Nota

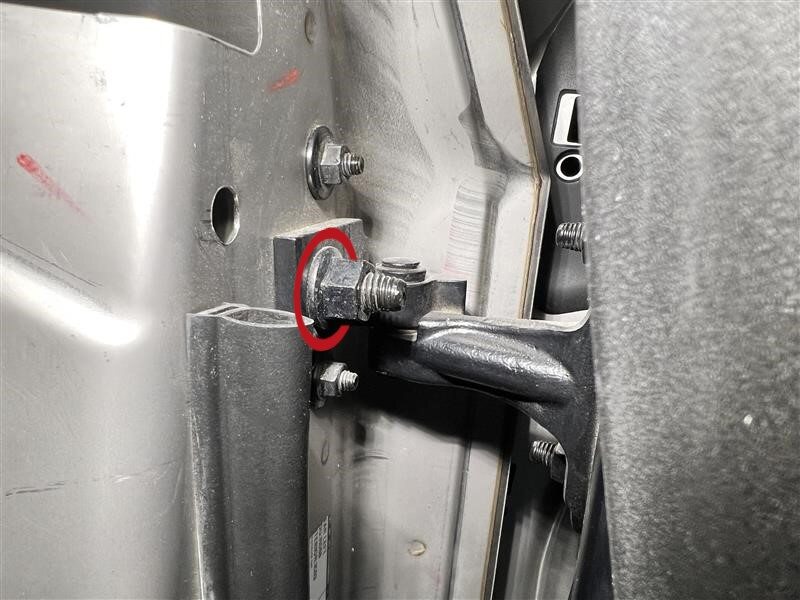

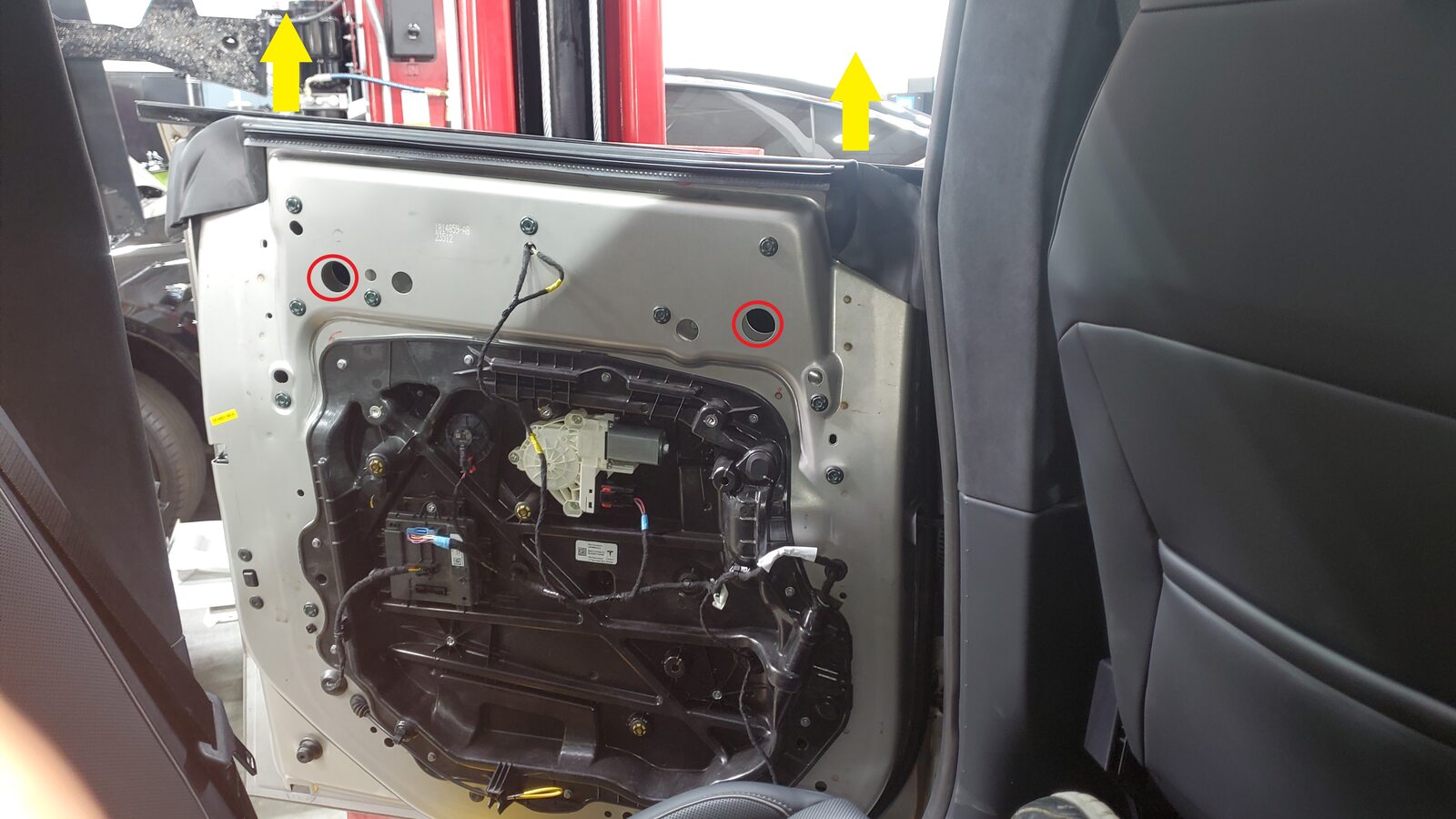

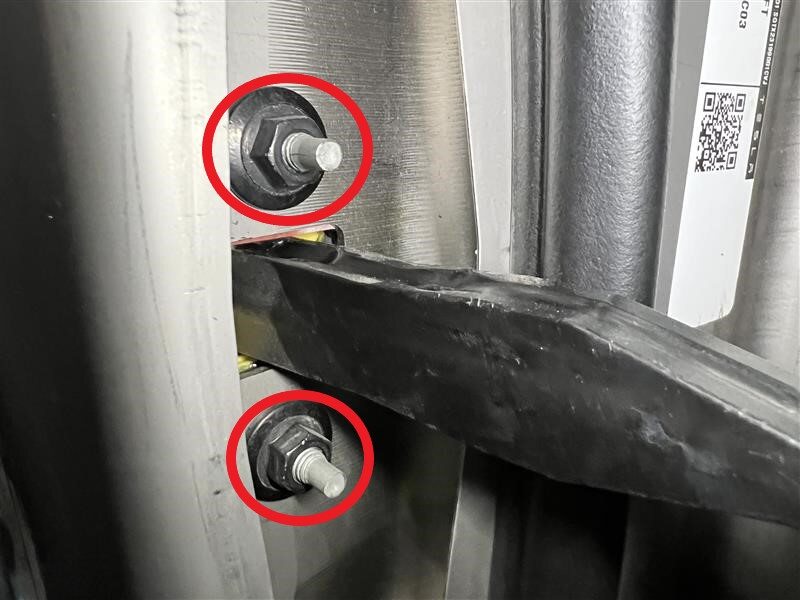

    2x nuts, 15mm, 38 Nm, Recommend assistance
  27. Install LH rear door
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x nuts, 15mm, 38 Nm, Recommend assistance
  28. Install LH rear check strap and check strap close out
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x bolt, T40, 23 Nm, 2x nuts, 10mm, 8.5 Nm, Rotate device 90 degrees to position, Slide device through rubber then install fasteners
  29. Install LH rear door overslam bumper
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x tabs
  30. Install LH rear secondary seal
    Informational PurposesAn informational icon, calling your attention
    Nota
    16x clips, Note that ONE pin is different color, that begins on the outer edge
  31. Install LH rear door presenter
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x bolts, T30, 13 Nm
  32. Install LH rear door latch
    Informational PurposesAn informational icon, calling your attention
    Nota
    3x bolts, T30, 13 Nm, Use tab on emergency release to guide grommet
  33. Install LH rear closure device harness
    Informational PurposesAn informational icon, calling your attention
    Nota
    3x clips, 1x grommet
  34. Connect LH rear door presenter harness connector
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x connector, Secure locking tab
  35. Connect LH rear door latch harness connector
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x connector, Push in locking tab
  36. Install LH rear door harness
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x connector, 1x grommet, 3x clips
  37. Install LH rear door closeout panel
    Informational PurposesAn informational icon, calling your attention
    Nota
    11x bolts, 8mm, 4 Nm, 2x bolts,10mm, 12 Nm, 2x grommets
  38. Secure LH rear door harness onto close out panel
    Informational PurposesAn informational icon, calling your attention
    Nota
    5x clips, 4x connectors
  39. Connect external window switch
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x connector
  40. Install LH rear door glass
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x bolts, 10mm, 4 Nm, Torque at later step, Make sure to properly secure onto regulator mount
  41. Install LH rear door outer waist belt seal
    Informational PurposesAn informational icon, calling your attention
    Nota

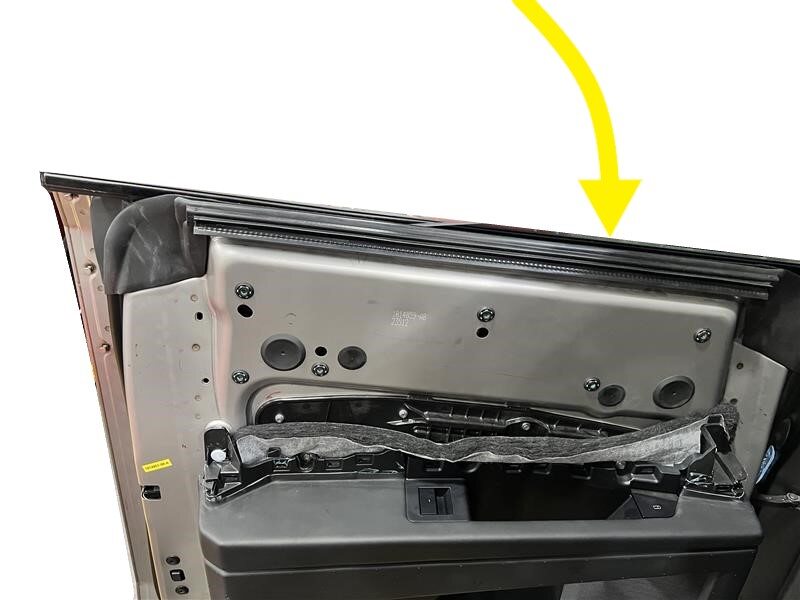

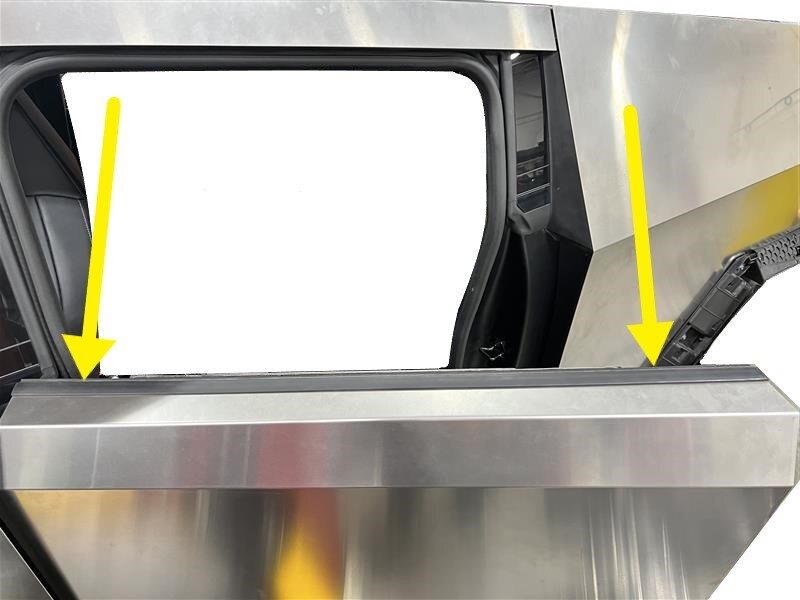

    Align LH rear door outer waist belt seal onto door assembly for installation, Ensure seal is properly seated onto door assembly
  42. Install LH rear door inner waist belt seal
    Informational PurposesAn informational icon, calling your attention
    Nota
    7x rubber grommets, Ensure LH rear door inner waist belt seal is properly installed onto door assembly
  43. Manually unlatch LH rear door
    Informational PurposesAn informational icon, calling your attention
    Nota
    Pull on the emergency cable to unlatch, If applicable
  44. Connect FRL connector then connect MV battery connector
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x connectors, Connect FRL connector then secure locking tab, Position lever to secure MV battery connector then slide eCPA to right, Early production trucks may have black FRL connector, If power cycling vehicle then ensure at least 60 seconds has passed since powering down
  45. Close LH rear door
  46. Check and adjust gap and flushness
    Informational PurposesAn informational icon, calling your attention
    Nota
    Connect external window switch to help with adjustment, Reference CVIS for specification
  47. Open LH rear door
    Informational PurposesAn informational icon, calling your attention
    Nota
    Push LH C-pillar door trigger to release
  48. Torque bolts securing LH rear window to regulator
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x bolts, 10mm, 13 Nm
  49. Install LH rear door grommets
    Informational PurposesAn informational icon, calling your attention
    Nota
    4x grommets
  50. Disconnect external window switch
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x connector
  51. Install the LH front door trim panel. See Panel - Door Trim - Rear - LH (Remove and Install).
    Informational PurposesAn informational icon, calling your attention
    Nota
    Follow steps to inspect and rework the door panel and/or the door assembly, if required.
  52. Raise all 4 windows
  53. Coloque el faldón trasero del vano del motor. Consulta Underhood Apron - Rear (Remove and Install).
  54. Close LH rear door
  55. Close LH front door
  56. Check LH rear door gap and flushness
    Informational PurposesAn informational icon, calling your attention
    Nota
    Verify door alignment, If adjustment is needed then reference current CVIS specifications
