Event Data Recorder Retrieval

Special tool required for this procedure:

Part Number Description
1094601-00-B EDR Harness, RCM, Molex, MX-M3
1129348-00-B Jump Start, XP-20 (Heavy Duty)
1016990-00-A PCAN USB to CAN Adapter
Warning IconA warning icon, calling your attention to a possibly risky situation
Avertissement
Cette procédure est un BROUILLON, même si elle a été validée. Il peut manquer des avertissements et des mises en garde. Respectez les exigences de sécurité et faites preuve d’une extrême prudence lorsque vous travaillez sur ou près de systèmes et de composants haute tension. Transmettez toute correction ou remarque à ServiceDevelopment@teslamotors.com.
Informational PurposesAn informational icon, calling your attention
Remarque
Refer to CD-18-20-003 for Model X Event Data Recorder (EDR) guide.
Informational PurposesAn informational icon, calling your attention
Remarque
Use the following procedure(s) for Model X EDR retrieval as required:

Establish a Direct-to-Module Connection

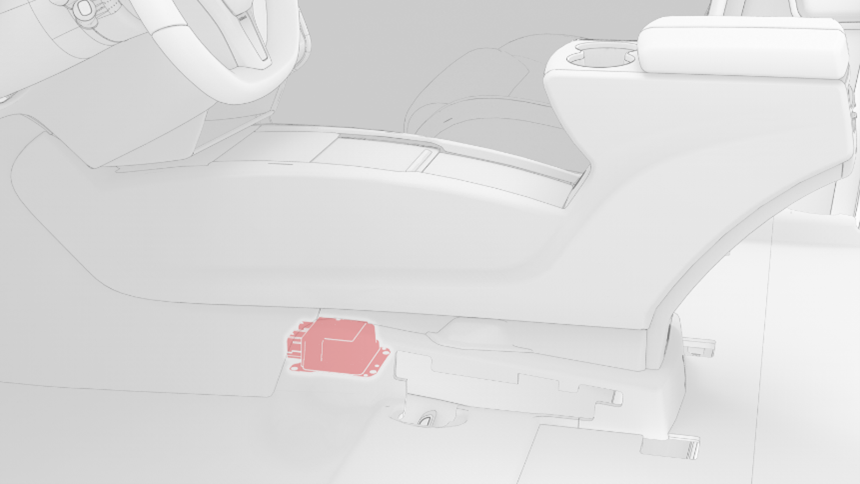

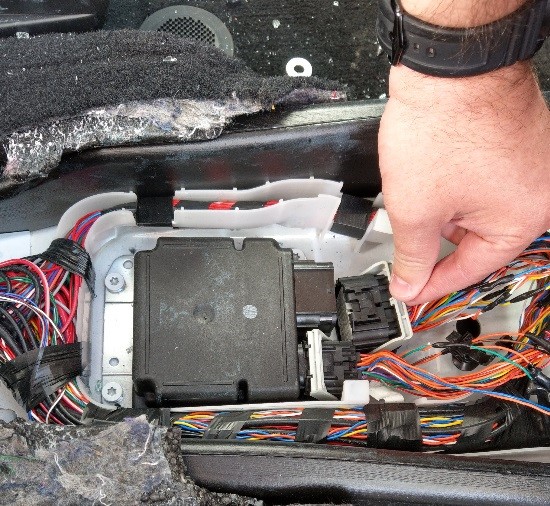

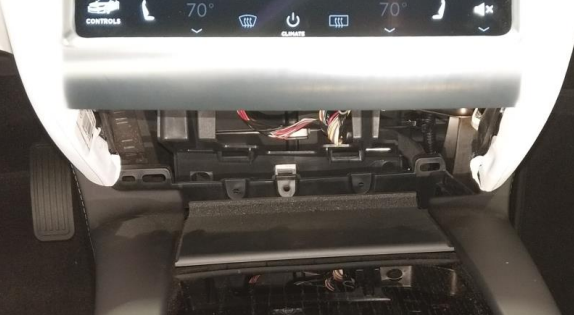

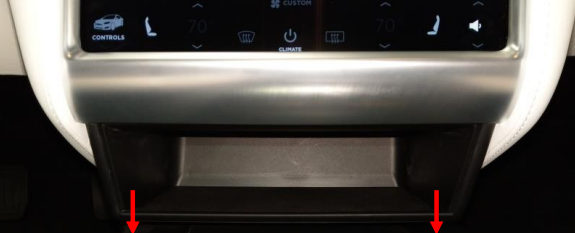

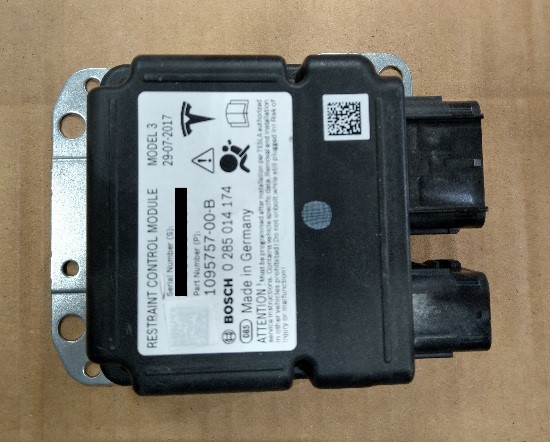

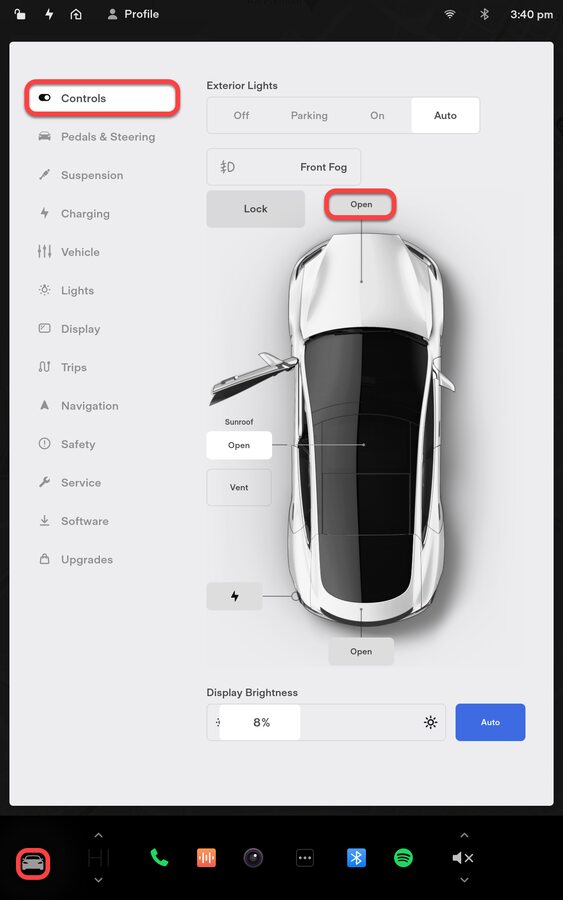

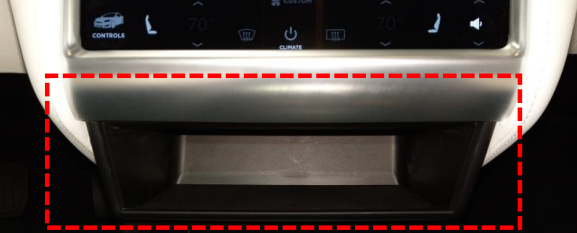

  1. Remove the Restraint Control Module (RCM). See Module – commande de retenue – MCR (retrait et remplacement).

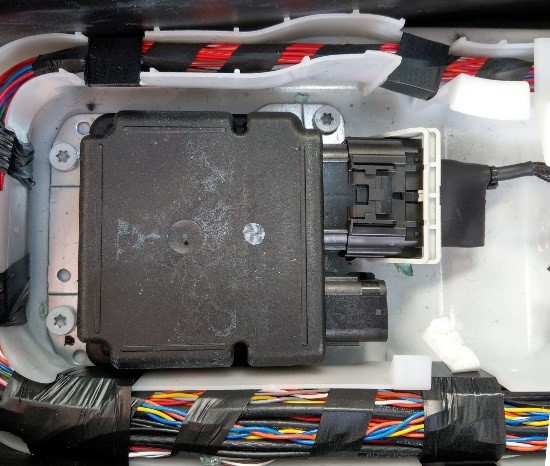

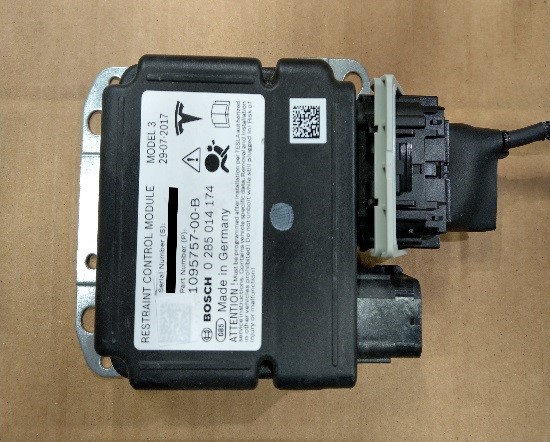

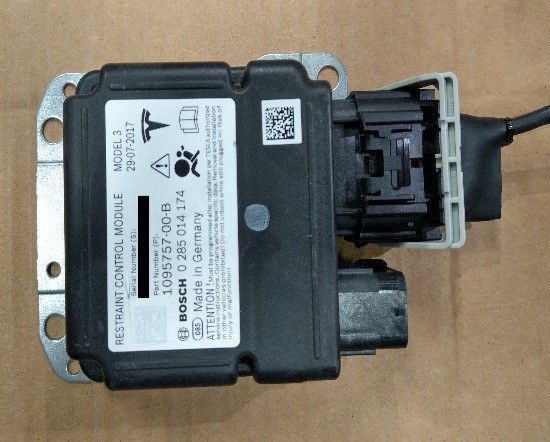

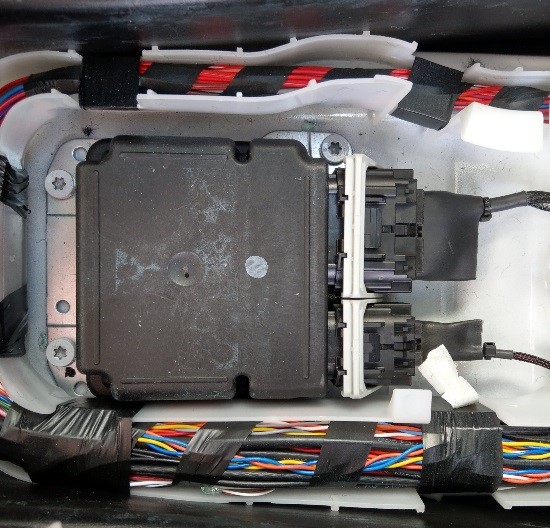

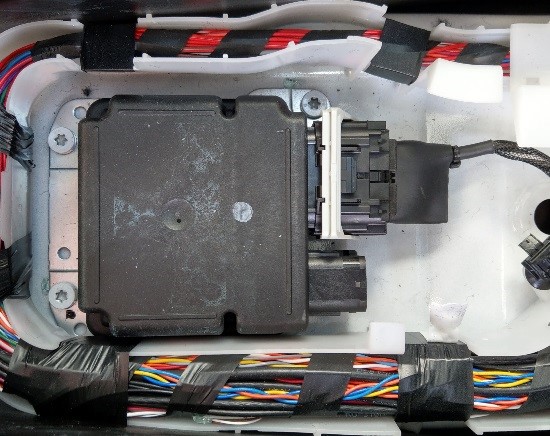

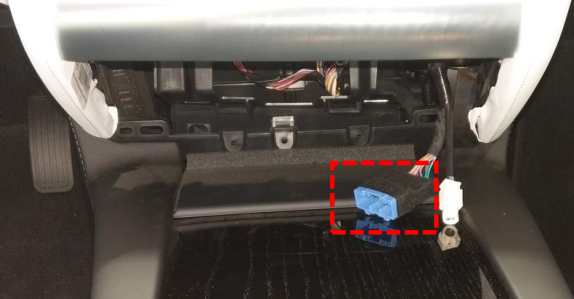

  2. Connect the EDR extraction harness connectors (x2) to the RCM.

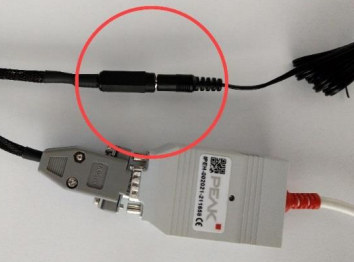

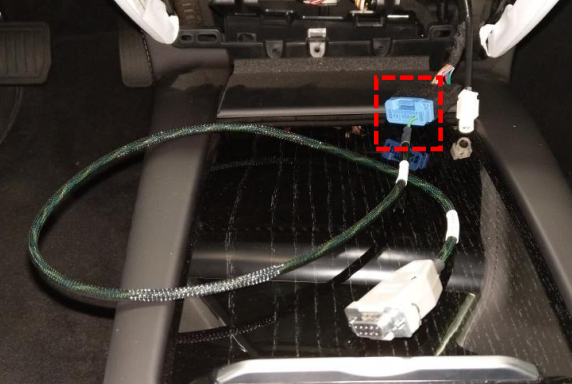

  3. Connect the EDR extraction harness to the PCAN-USB adapter.

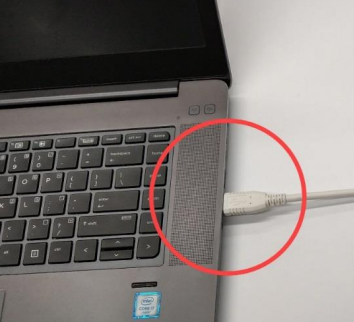

  4. Connect the PCAN-USB adapter to the computer used for data retrieval.

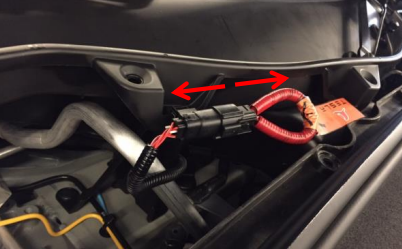

  5. Connect the EDR extraction harness to the XP-20 jump pack to establish external power.
  6. Open the Tesla EDR Retrieval Program. The program automatically attempts to connect to the RCM.
    Informational PurposesAn informational icon, calling your attention
    Remarque

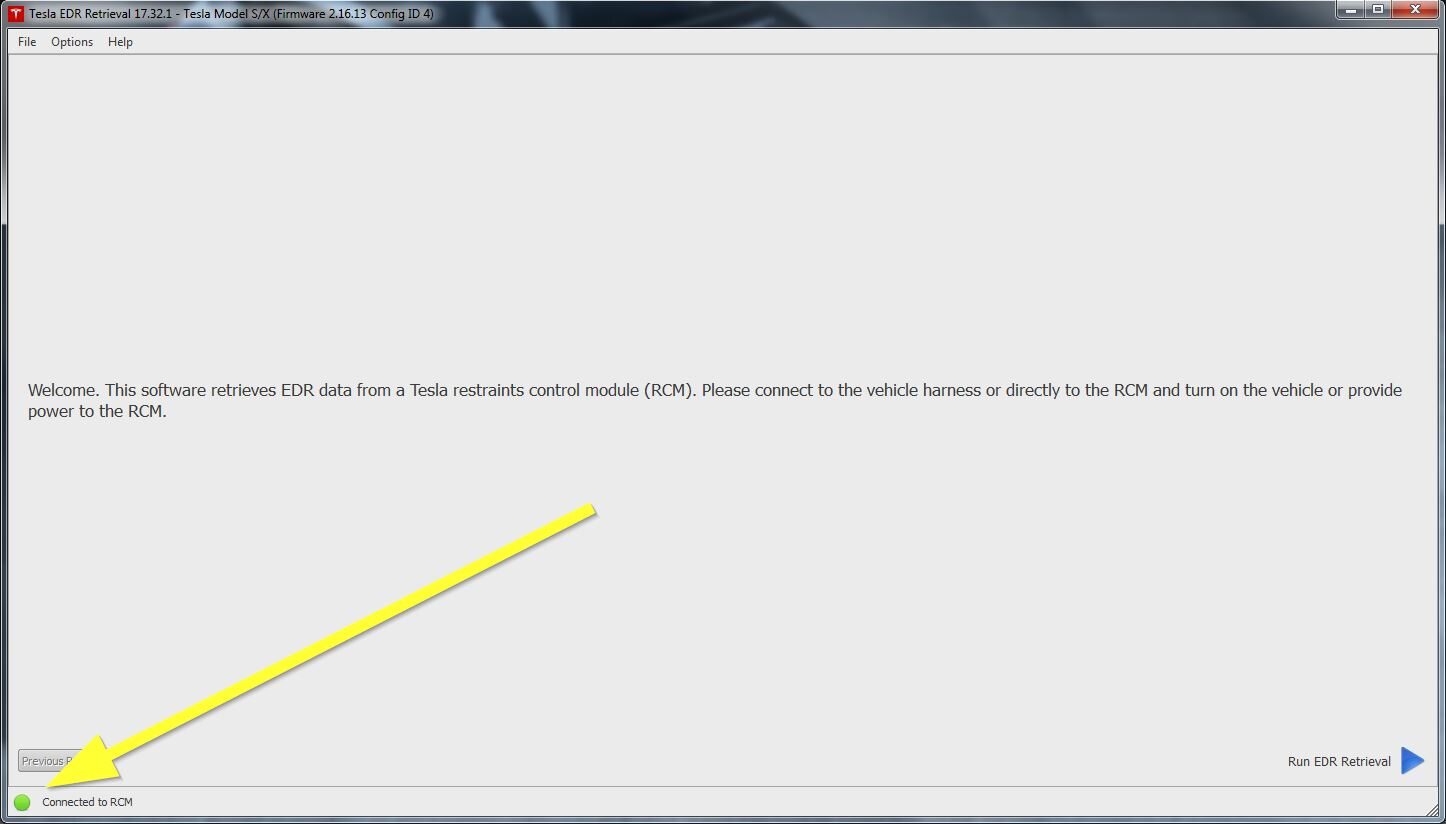

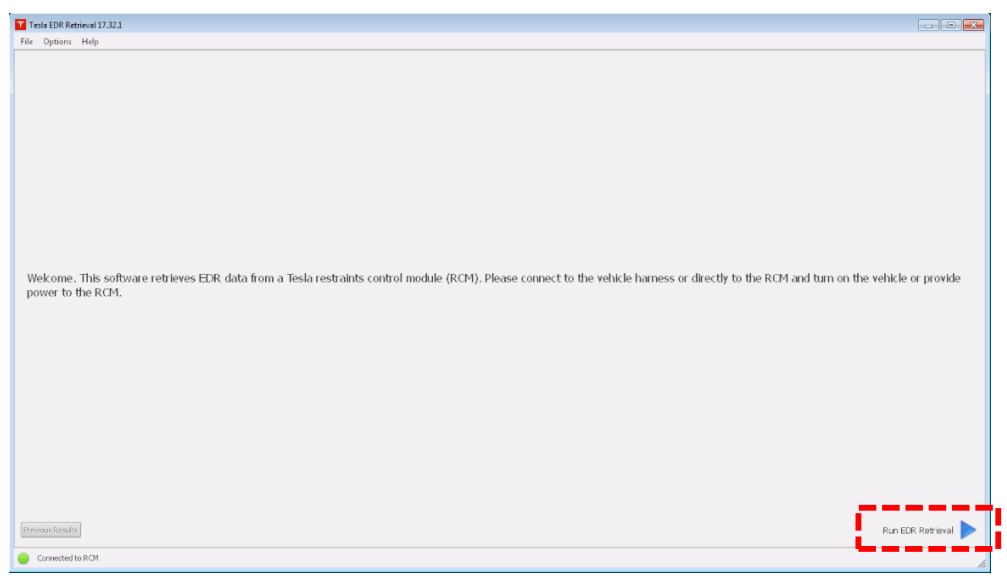

    When connected properly, a green circle and the message “Connected to RCM” displays on the bottom left corner of the window.

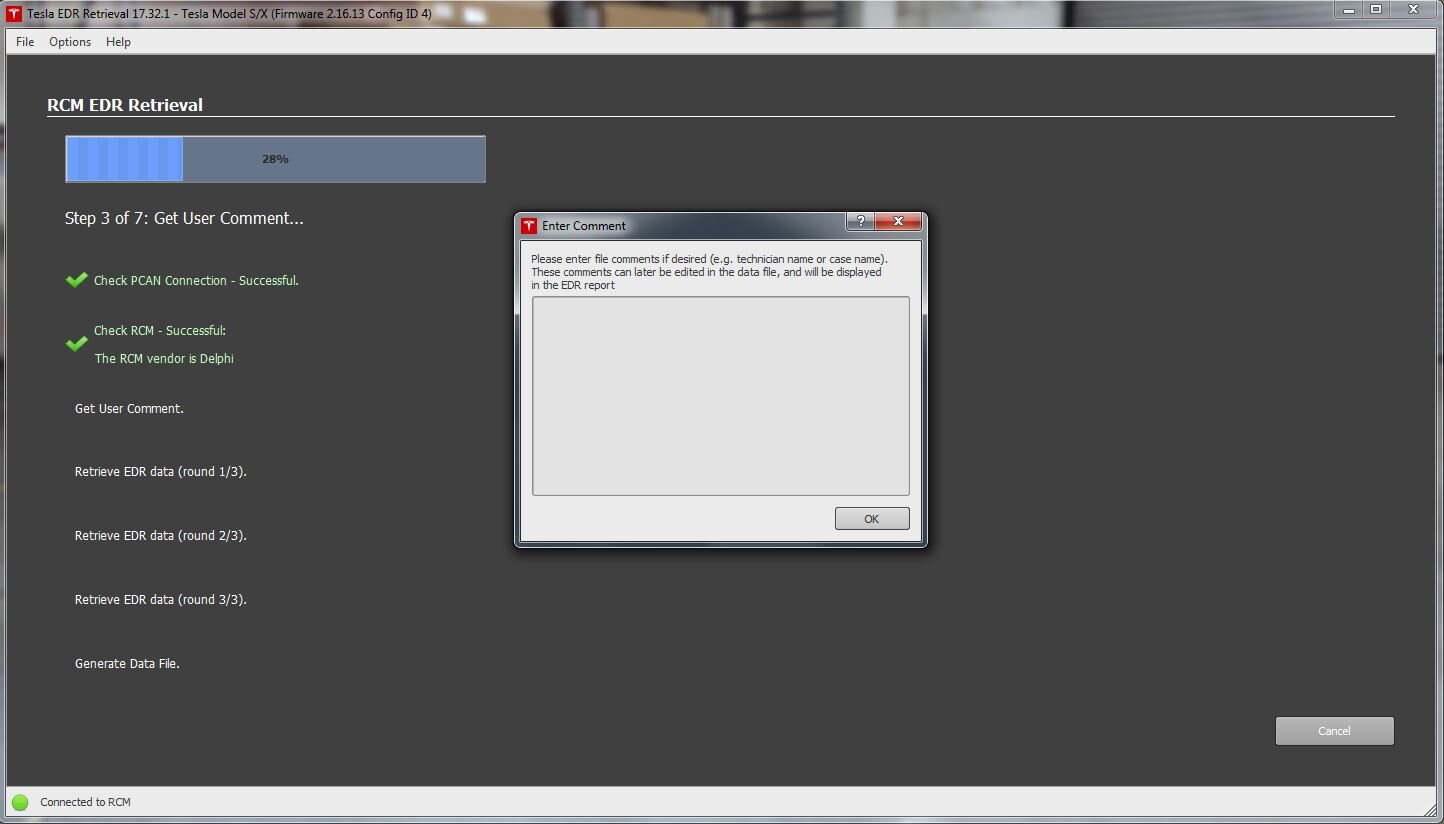

  7. Once connected to the EDR, click “Run EDR Retrieval” and follow the on-screen prompts to retrieve and save EDR data.
  8. The retrieved *.edr data file can be used to generate a Tesla EDR Report at https://edr.tesla.com/.

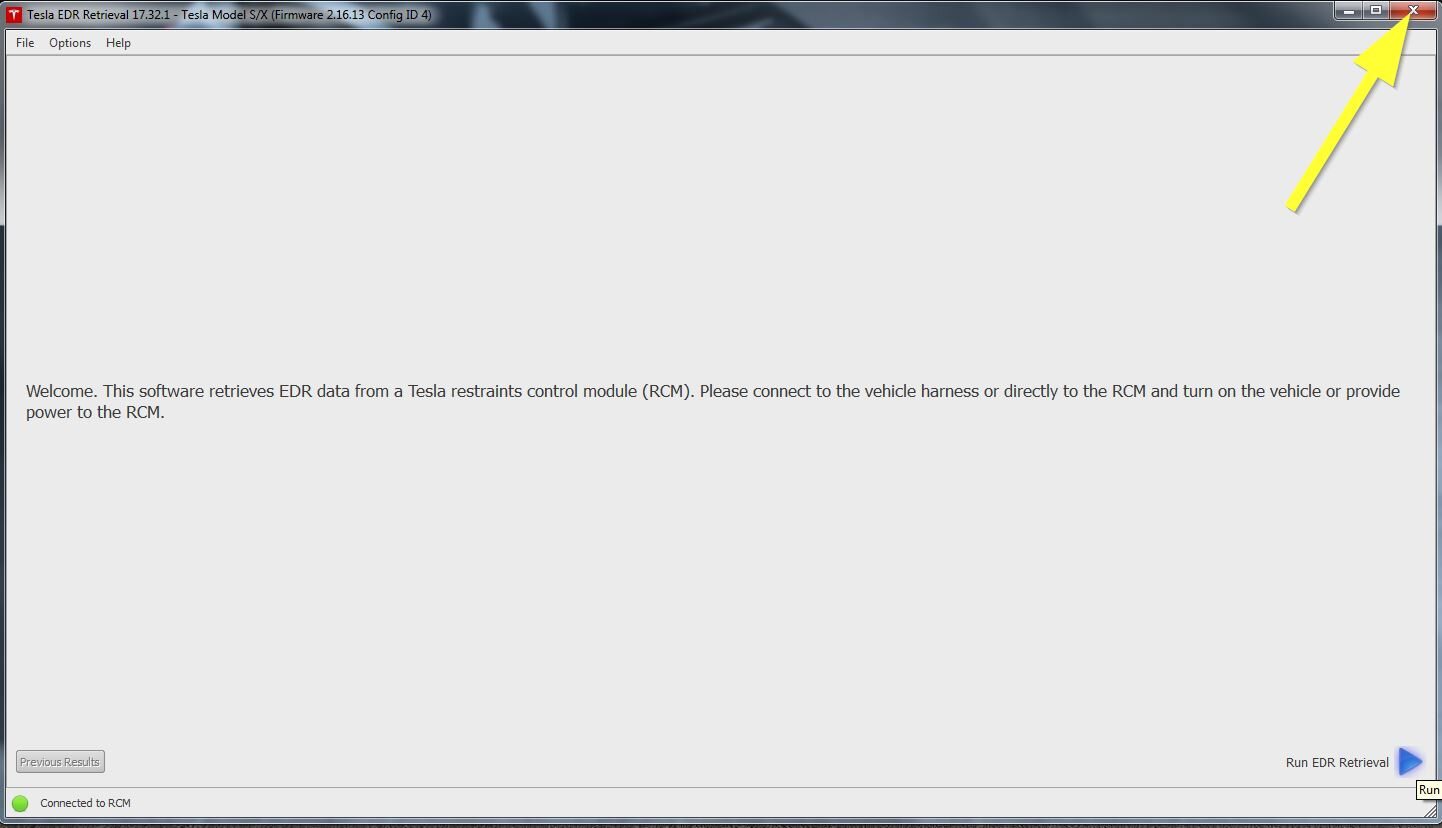

  9. Close the Tesla EDR Retrieval Program.
  10. Disconnect the EDR extraction harness from the XP-20 jump pack.
  11. Disconnect the PCAN-USB adapter from the computer used for data retrieval.
  12. Disconnect the EDR extraction harness from the PCAN-USB adapter.

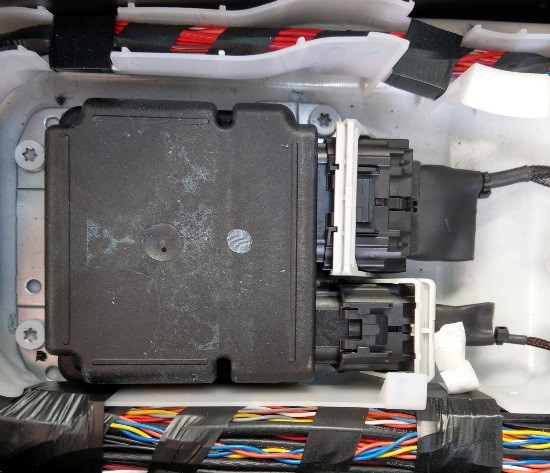

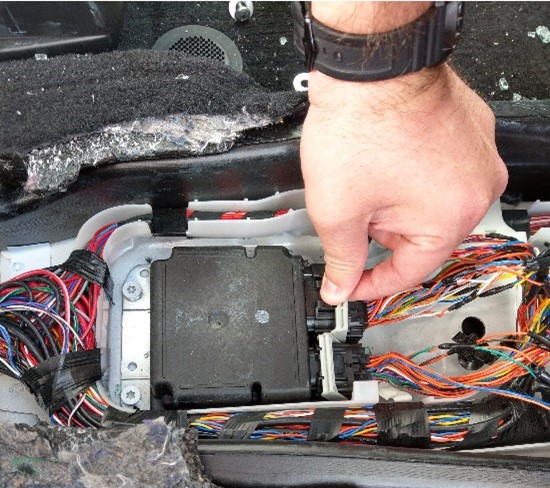

  13. Disconnect the EDR extraction harness connectors (x2) from the RCM.
  14. Install the RCM. See Module – commande de retenue – MCR (retrait et remplacement).
