Inverter - Front Drive Unit (Remove & Replace)

Code de correction 39200602 REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps forfaitaire ci-dessus représentent tout le travail à être fait pour cette procédure, notamment les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez pour en apprendre plus à propos des temps forfaitaires et de leur création. Vous pouvez transmettre par courriel vos commentaires relatifs aux valeurs des temps forfaitaires à LaborTimeFeedback@tesla.com. REMARQUE : Consultez pour vous assurer de porter l’équipement de protection individuelle adéquat lors vous effectuez la procédure ci-dessous.

  • 2024-03-05: Fixed images and link to Alignment Requirements.
Warning IconA warning icon, calling your attention to a possibly risky situation
Avertissement
Cette procédure est un BROUILLON, même si elle a été validée. Il peut manquer des avertissements et des mises en garde. Respectez les exigences de sécurité et faites preuve d’une extrême prudence lorsque vous travaillez sur ou près de systèmes et de composants haute tension. Transmettez toute correction ou remarque à ServiceDevelopment@teslamotors.com.

Dépose

  1. Verify there is no abnormal tire wear per Courtesy Inspection.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    SC-14-00-001 Standard Courtesy Inspection Checklist, While performing courtesy inspection, Note any abnormal tire wear that could indicate the need for an alignment.
  2. Set up A/C machine and perform hose flush.
  3. Open LH front door.
  4. Remove cubby under MCU and connect laptop to vehicle with a tethered Ethernet connection via Toolbox 2.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x clips, 1x connector, Drive rail must be ON, Toolbox 2 program must be in current service default. Toolbox 2.0 vehicle connection will enable diagnostic mode.
  5. In toolbox, save Drive Inverter information to hard drive.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Navigate to Panels > Drive Inverter > Drive Inverter Replacement > Select save Drive Inverter info and press Play. In the interface drop down you need to select which Inverter you are replacing (DI or DIS), Make sure drive rails are on.
  6. Verify drop down menu says "Start fluid drain/fill".
  7. Raise and support vehicle.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Set air suspension to Jack Mode, Via Controls > Service > Jack Mode, Raise lift until arms contact the lift points.
  8. Install steering wheel lock to ensure proper placement of the steering wheel.
  9. Open hood.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Via center display > Controls > Front Trunk.
  10. Remove underhood aprons.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x aprons, LH and RH aprons have 1x clip each.
  11. Remove dust caps from vehicle’s high-side and low-side service ports.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x threaded caps.
  12. Connect hoses to vehicle and perform A/C recovery.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    (Touch time only) Ensure quick connects are fully engaged, turn connector dials clockwise to fully connect to A/C service ports.
  13. Remove frunk carpet.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors.
  14. Remove underhood storage unit.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    10x bolts, 10mm, 4 Nm, 10x bolts, 10mm, 7 Nm.
  15. Remove HEPA filter.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Lift up from bottom and pull out.
  16. Remove LH outer hood hinge cover.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x clips.
  17. Remove RH outer hood hinge cover.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x clips.
  18. Disconnect cowl drain hose from cowl trim.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x clamp.
  19. Disconnect wiper arm hose from cowl.
  20. Remove LH wiper arm.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 17mm, 35 Nm, Disconnect washer hose at cowl.
  21. Remove RH wiper arm.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x nuts, 17mm, 35 Nm, Disconnect washer hose at cowl.
  22. Release cowl screen washer supply hose.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x one way valve.
  23. Remove wiper cowl screen panel.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x push clips, 1x windshield washer hose, 1x drain hose clamp.
  24. Remove HEPA filter duct.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x clip.
  25. Overlap time for A/C recovery.
  26. Remove A/C lines from vehicle.
  27. Power down vehicle.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Via center display > Controls > Safety > Power Off.
  28. Disconnect 12V negative terminal.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 10mm, 5 Nm.
  29. Disconnect first responder loop.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, push to release.
  30. Raise vehicle fully and lower onto locks.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side.
  31. Remove LH shear plate.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x push clips, 3x screws, T25, 6 Nm, 1x bolt, 10mm, 4 Nm, 1x nylon nut, 15mm, 35 Nm Discard nylon nut after removal.
  32. Remove RH shear plate.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x screws, T25, 6 Nm, 1x bolt, 10mm, 4 Nm, 2x push clips, 1x nylon nut, 15mm, 35 Nm Discard nylon nut after removal.
  33. Remove mid aero shield.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    20x bolts, 10mm, 4 Nm, 2x push clips.
  34. Remove front bash plate extrusion.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, T30, 16 Nm.
  35. Remove LH ski side covers.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    14x clips, 3x covers.
  36. Remove RH ski side covers.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    14x push clips, 3x covers.
  37. Remove four center bolts securing HV battery.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x patch bolts, E12, 38 Nm, Discard bolts after removal.
  38. Position battery table beneath vehicle.
  39. Lower vehicle to table.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Recommend assistance, Align table to vehicle and raise casters to level table if necessary.
  40. Remove and discard remaining eight center bolts securing HV battery.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    8x bolts, E12, 38 Nm, Discard after removal.
  41. Remove front four HV battery bolts.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x patch bolts, 13mm, 30 Nm, Discard after removal.
  42. Remove and discard 21mm bolts securing front of HV battery.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 21mm, 115 Nm, Discard after removal.
  43. Remove and discard LH rocker bolts.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    8x patch bolts, 13mm, 55 Nm, Discard after removal.
  44. Remove and discard RH rocker bolts.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    8x patch bolts, 13mm, 55 Nm, Discard after removal.
  45. Raise vehicle and remove battery table.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Recommend assistance.
  46. Move battery away from vehicle.
  47. Remove all items from pockets and ensure not wearing metal items.
  48. Inspect HV insulating gloves.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Check gloves for damage prior to use, Refer to service document TN-15-92-003.
  49. Put on HV insulating gloves and leather over gloves.
  50. Verify no high voltage at HV rapid mate.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering.
  51. Install HV and LV Rapid Mate covers.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x covers, If covers not available then use masking tape to protect Rapid Mate from debris.
  52. Remove front aero shield.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x bolts, 10mm, 3 Nm, 14x clips.
  53. Lower vehicle partially and set lift onto locks.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height.
  54. Remove cover and disconnect positive12V terminal.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 10mm, 5 Nm.
  55. Remove edge clips from battery cage.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x edge clips.
  56. Remove barrel clip from battery cage.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x barrel tree clip.
  57. Remove plastic harness clip.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x clip.
  58. Remove battery vent tube.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x vent tube.
  59. Release bolts securing lower portion of 12v battery cage.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 10mm, 6 Nm.
  60. Release bolts securing top portion of 12v battery cage.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 13mm, 15 Nm, Be careful and do not to get cordless impact stuck in between window motor casting.
  61. Remove 12v battery cage assembly from vehicle.
  62. Remove coolant reservoir cap.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x cap.
  63. Use vacuum suction tool to remove coolant from reservoir.
  64. Disconnect electrical connector for coolant level sensor.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector.
  65. Remove coolant reservoir fasteners and wire harness edge clip.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x bolts, 10mm, 6 Nm, 1x edge clip.
  66. Clamp and remove coolant hose and move reservoir off to the side.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x coolant hose, Place absorbent material below hose to capture fluid.
  67. Disconnect A/C compressor harness at FJB and release cable from drive unit.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, 1x fir tree clip.
  68. Disconnect the A/C compressor logic connector.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector.
  69. Release edge clip for the A/C compressor logic connector.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x clip.
  70. Release the ground connection at the A/C compressor mount bracket.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, T25, 7 Nm.
  71. Remove A/C lines from compressor.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x nuts, 10mm, 10 Nm, Discard O-rings after removal.
  72. Remove A/C compressor from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x bolts, E10, 10 Nm.
  73. Clamp coolant hoses and remove from drive unit.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x coolant hoses.
  74. Disconnect ground strap from body.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 13mm, 9 Nm.
  75. Disconnector logic connector from drive unit.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector with lock tab.
  76. Remove LH front wheel center cap.

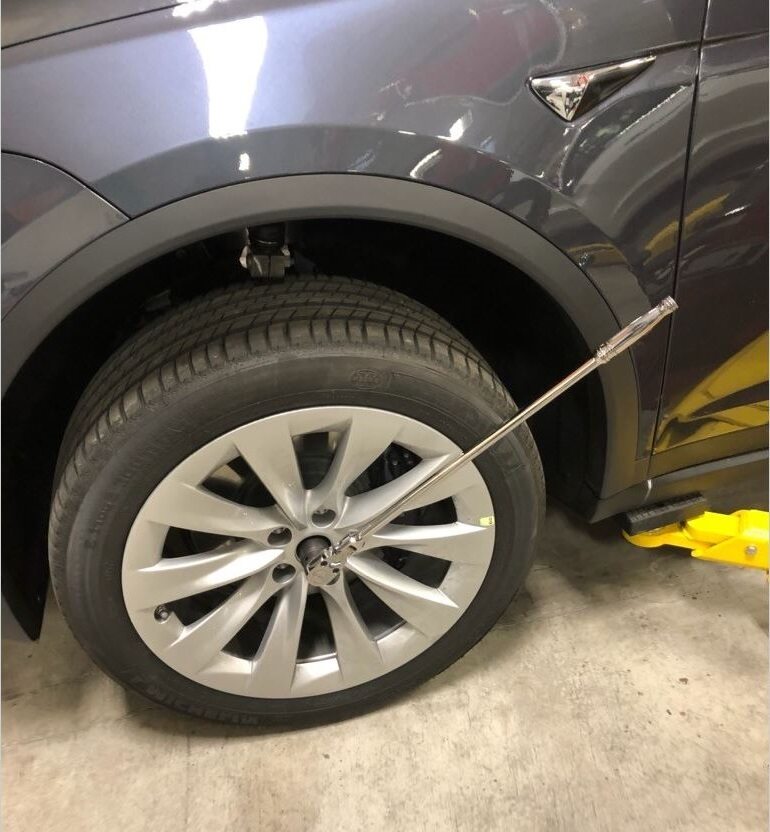

  77. Loosen LH front axle nut.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 32mm, 245 Nm.
  78. Remove LH front lug nut covers.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x lug nut covers.
  79. Loosen LH front lug nuts.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x nuts, 21mm, 175 Nm.
  80. Remove RH front wheel center cap.
  81. Loosen RH front axle nut.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 32mm, 245 Nm.
  82. Remove RH front lug nut covers.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x lug nut cover.
  83. Loosen RH front lug nuts.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x nuts, 21mm, 175 Nm.
  84. Raise vehicle partially and lower onto locks.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side.
  85. Remove RH front wheel.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x nuts, 21mm, 175 Nm.
  86. Remove LH front wheel.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x nuts, 21mm, 175 Nm.
  87. Release LH front wheel liner from body.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    11x push clips, 2x nuts, 10mm, 6 Nm.
  88. Remove LH front wheel liner from vehicle.
  89. Release power train pump 2 from bracket and disconnect harness.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector.
  90. Clamp hose and remove hose from pump and push towards the drive unit.
  91. Remove HV cables from DU.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x patch bolts, T30, 7 Nm, Discard after removal.
  92. Remove LH tie rod nut and move tie rod end away.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x Nyloc nut, 21mm, 103 Nm, Discard after removal.
  93. Remove RH tie rod nut and move tie rod end away.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nyloc nut, 21mm, 103 Nm, Discard after removal.
  94. Raise vehicle fully and lower onto locks.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side.
  95. Remove skid bar from front subframe.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x bolts, 10mm, 10 Nm.
  96. Remove skid plate from front subframe.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 10mm, 9 Nm.
  97. Remove the fastener to steering gear and disconnect steering shaft from the rack and pinon.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 13mm, 30 Nm.
  98. Disconnect 12v connection to rack and pinion.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors.
  99. Release chiller from subframe.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 13mm, 12 Nm.
  100. Disconnect battery pump 1 release coolant hose from subframe and remove pump from subframe bracket.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, 1x fur tree clip.
  101. Release cowl drain hose from subframe.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x edge clip.
  102. Remove and discard the nut that secures the LH stabar to the stabar end links and remove end link from bar.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nyloc nut, 15mm, 70 Nm, Discard after removal.
  103. Remove the RH stabar from the stabar end link and remove end link from bar.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nyloc nut, 15mm, 70 Nm, Discard after removal.
  104. Remove nut and bolt securing LH front air spring module to front lower aft link.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 21mm, 1x bolt, 21mm, 140 Nm.
  105. Remove the bolt and nut that secure the RH front shock absorber to the rear lower control arm.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 21mm, 1x bolt, 21mm, 140 Nm.
  106. Remove LH side lower control arm nuts.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x nyloc nuts, 21mm, 196 Nm, 2x washers, Discard after removal, Need to hold ball joint to prevent damage.
  107. Remove RH side lower control arm nuts.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x nyloc nuts, 21mm, 196 Nm, 2x washers, Discard after removal, Need to hold ball joint to prevent damage.
  108. Position subframe fixture beneath vehicle and raise fixture.
  109. Remove the bolts that secure the subframe to the chassis.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 13mm, 20 Nm, 2x bolts, 16mm, 80 Nm, 2x bolts, 18mm, 115 Nm.
  110. Lower subframe and move it away from vehicle.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Need to tilt subframe back to remove from carrier, Be mindful of coolant hoses and chiller, may need to feed them past the sway bar.
  111. Remove axle nut and washer securing LH drive axle to hub assembly.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 32mm, 245 Nm, 1x washer, Discard washer after removal, Nut can be reused.
  112. Install the hub puller onto the LH front brake rotor.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x lug nuts, 21mm, Hand tight.
  113. Use hub puller to free LH halfshaft from hub splines.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Counter hold hub puller.
  114. Remove hub puller from LH hub assembly.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x lug nuts, Hand tight.
  115. Remove axle nut and washer securing RH drive axle to hub assembly.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 32mm, 245 Nm, 1x washer, Discard washer after removal, nut can be reused.
  116. Setup hub puller onto RH hub assembly.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x lug nuts, 21mm, Hand tight.
  117. Use hub puller to free RH halfshaft from hub splines.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Counter hold hub puller.
  118. Remove hub puller from RH hub assembly.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x lug nuts, Hand tight.
  119. Remove LH axle from drive unit hub.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x axle.
  120. Remove RH axle from jack shaft and hub.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x axle.
  121. Remove jack shaft.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 15mm, 30 Nm.
  122. Disconnect chiller harness.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector.
  123. Remove coolant hose from battery pump 2 to chillere.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x coolant hose.
  124. Disconnect and remove battery pump 2 from frame rail.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, 1x screw, T30, 10 Nm.
  125. Remove NVH pad from drive unit to access drain plug.
  126. Drain drive unit oil.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x hex bolt, 8mm, 28 Nm, position oil drain under vehicle to reduce spilling as needed.
  127. Remove the lower RH section of the NVH pad.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    This will allow the drive unit fixture to fit.
  128. Position transmission jack fixture under drive unit.
  129. Remove bolts that secure clevis to LH front rail.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts with washers, 15mm, 65 Nm, Discard after removal.
  130. Remove RH mount bolts to DU.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x bolts, 15mm, 35 Nm.
  131. Lower front drive unit with jack out of vehicle.
  132. Remove coolant hoses from drive unit.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x hose clamp.
  133. Remove the remaining NVH covers.
  134. Remove ground strap from drive unit.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 10mm, 6 Nm.
  135. Move drive unit over to the gantry.
  136. Attach lifting sling to drive unit.
  137. Raise drive unit to gain access to HV lugs cover.
  138. Remove the inverter breather cover.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 10mm, 6 Nm.
  139. Remove the sticker from HV lug cover.
  140. Remove the HV lug cover.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 8mm, 5 Nm.
  141. Remove the HV lug fasteners.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x bolts, 10mm, 7 Nm.
  142. Support the inverter and remove all inverter fasteners.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    10x bolts, 8mm, 12 Nm.
  143. Pull inverter back to gain access to disconnect the connector.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector.
  144. Remove inverter from drive unit and place on an ESD mat.

Installation

  1. While supporting the inverter connect the drive unit connector.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector.
  2. Install inverter fasteners but leave them loose.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    10x bolts, 8mm, 12 Nm.
  3. With the inverter loose install the HV lug fasteners - don't torque yet.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x patch bolts, 10mm, 7 Nm, Install new bolts.
  4. Torque inverter cover down.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    10x bolts, 8mm, 12 Nm.
  5. Torque HV lug fasteners.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x patch bolts, 10mm, 7 Nm, install new bolts.
  6. Mark the HV lugs with a paint pen.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Pink paint pen.
  7. Apply a small amount of O-ring lubricant to the O-rings on 1 HV lug cover.
  8. Install HV lug cover and install the fasteners.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Makes sure cover is flush, 2x bolts, 8mm, 5 Nm.
  9. Install HV lug cover sticker.
  10. Push drive unit back to the vehicle.
  11. Install logic plug.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x plug.
  12. Install HV plugs.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x plugs.
  13. Install breather plug.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x plug.
  14. Connect air line to pressure regulator . Set pressure to 1 psi.
  15. Connect pressure regulator to hose in the breather hole. Open valve and fill inverter. Let it settle for 1 min.
  16. Run a 1 min leak down test.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Max leak down in 1 min is .2 psi.
  17. Remove pressure tester from hose.
  18. Remove breather plug.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x hose.
  19. Remove logic connector plug.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x plug.
  20. Remove HV plugs.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x plug.
  21. Install new breather valve.
  22. Install breather cover.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 10mm, 5 Nm.
  23. Install ground strap to drive unit.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 10mm, 6 Nm.
  24. Install NVH pad on to the drive unit.
  25. Install coolant hose to drive unit.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x coolant hoses.
  26. Move drive unit under vehicle, lift into place and loosely install bolts by hand.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts with washers, 15mm, 50 Nm, 4x bolts, 15mm, 35 Nm, Do not torque at this time.
  27. Check shim fitment and adjust prior to torquing mounts.
  28. Torque both drive unit mounts and check shim fitment.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts with washers, 15mm, 50 Nm, 4x bolts, 15mm, 35 NmSet the torque + angle wrench to the correct angle value. For vehicles with a front drive unit with a part number of: 1035000-01-J or later, set the torque angle to 55 degrees, 1035000-00-J or earlier, set the torque angle to 75 degrees.
  29. Remove transmission jack from under vehicle.
  30. Install the lower RH section of the NVH pad.
  31. Install jack shaft.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 15mm, 30 Nm.
  32. Apply Molykote M-77 to outboard side of LH axle shaft.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Clean if necessary, Apply no more than 1 gram to axle only.
  33. Install RH axle and loosely install axle nut.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 32mm, 245 Nm, 1x washer, Install new nut and washer, Recommend assistance, Torque at a later step.
  34. Apply Molykote M-77 to outboard side of LH axle shaft.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Clean if necessary, Apply no more than 1 gram to axle only.
  35. Install LH axle and loose install axle nut will be torqued at a later step.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 32mm, 205 Nm, 1x washer, Install new nut and washer, Assistance required, Torque at a later step.
  36. Install NVH covers on front of DU.
  37. Install battery pump 2 to frame rail and connect harness.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, 1x bolt, T30, 10 Nm.
  38. Connect coolant hose from chiller to battery pump 2.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x coolant hose.
  39. Connect chiller harness.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector.
  40. Install subframe in position for install.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Need to tilt subframe back to remove from carrier, Be mindful of coolant hoses and chiller, may need to feed them past the sway bar.
  41. Install the bolts that secure the subframe to the chassis.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 13mm, 20 Nm, 2x bolts, 16mm, 80 Nm, 2x bolts, 18mm, 115 Nm.
  42. Remove subframe fixture from under vehicle.
  43. Install RH side lower control arm nuts.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x nyloc nuts and washers, 21mm, 195 Nm, Install new nuts and washers, Need to hold ball joint to prevent damage.
  44. Install RH side lower control arm nuts.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x nyloc nuts and washers, 21mm, 196 Nm, Install new nuts and washers, Need to hold ball joint to prevent damage.
  45. Loosely install the bolt and nut that secure the RH front shock absorber to the rear lower control arm.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 21mm, 1x bolt, 21mm, 140 Nm, Torqued at a later step.
  46. Install nut and bolt securing LH front air spring module to front lower aft link.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 21mm, 1x nut, 21mm, 140 Nm, Torque at ride height on alignment rack.
  47. Install the RH stabar to the stabar end link.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nyloc nut, 15mm, 70 Nm, Install new nut, Counter hold stud with 5mm hex socket.
  48. Install the LH stabar to the stabar end link.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nyloc nut, 15mm, 70 Nm, Install new nut, Counter hold stud with 5mm hex socket.
  49. Install cowl drain hose to subframe.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x edge clip.
  50. Connect battery pump 1 to bracket and connect harness.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, 1x fur tree clip.
  51. Secure chiller to subframe.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 13mm, 12 Nm.
  52. Connect 12v connection to rack and pinion.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors.
  53. Connect steering shaft to the rack pinon and install the fastener.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 13mm, 30 Nm.
  54. Install skid plate to front subframe.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 10mm, 9 Nm. Note: start bolts with cordless, torque using torque wrench. .
  55. Install skid bar to front subframe.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x bolts, 10mm, 10 Nm.
  56. Lower vehicle partially and set lift onto locks.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height.
  57. Install the nut that secures RH tie rod end to the knuckle.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nyloc nut, 21mm, 103 Nm, Install new nut.
  58. Install nut that secures LH tie rod end to the knuckle.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nyloc nut, 21mm, 103 Nm, Install new nut.
  59. Lower vehicle to comfortable working height.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered.
  60. Install hub jack adapter onto LH front hub.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x lug nuts, 21mm, Hand tight, Use modified hydraulic hub tool if correct adapter is not available.
  61. Position and raise support stand to simulate LH front suspension at ride height.
  62. Set ride height tool onto LH front upper control arm.
  63. Torque LH fore link to subframe.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 21mm, 1x nut, 22mm, 130 Nm.
  64. Remove the existing paint mark from LH fore link.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Clean the area thoroughly so the new marking is not confused with the previous marking.
  65. Mark the LH fore link nut and subframe to show the component has been torqued.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Use a high visibility paint pen when marking components.
  66. Torque LH aft link to subframe.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 21mm, 1x nut, 22mm, 130 Nm.
  67. Remove the existing paint mark from LH aft link.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Clean the area thoroughly so the new marking is not confused with the previous marking.
  68. Mark LH front aft link bolt and subframe to show the component has been torqued.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Use a high visibility paint pen when marking components.
  69. Remove existing paint mark from LH air spring module bolt.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Clean nut and surrounding area thoroughly so the new marking is not confused with the previous marking.
  70. Torque LH air spring module nut and bolt to LH aft link assembly.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 21mm, 1x nut, 21mm, 140 Nm.
  71. Mark LH air spring module nut to show the component has been torqued.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Use a high visibility paint pen when marking components.
  72. Remove ride height tool from LH front upper control arm.
  73. Remove support stand from underneath LH front suspension.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Lower stand until suspension is unladen before removal.
  74. Remove hub jack adapter from LH front hub.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x lug nuts, 21mm, Hand tight.
  75. Install LH front wheel liner onto vehicle.
  76. Secure LH front wheel liner to body.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    11x push clips, 2x nuts, 10mm, 6 Nm.
  77. Release RH front wheel liner from body.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    11x push clips, 2x nuts, 10mm, 6 Nm.
  78. Remove RH front wheel liner from vehicle.
  79. Install hub jack adapter onto RH front hub.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x lug nuts, 21mm, Hand tight, Use modified hydraulic hub tool if correct adapter is not available.
  80. Position and raise support stand to simulate RH front suspension at ride height.
  81. Set ride height tool onto RH front upper control arm.
  82. Torque RH fore link to subframe.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 21mm, 1x nut, 22mm, 130 Nm.
  83. Remove the existing paint mark from RH fore link.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Clean the area thoroughly so the new marking is not confused with the previous marking.
  84. Mark the RH fore link nut and subframe to show the component has been torqued.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Use a high visibility paint pen when marking components.
  85. Torque RH front aft link subframe.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 21mm, 1x nut, 22mm, 130 Nm.
  86. Remove the existing paint mark from RH aft link.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Clean the area thoroughly so the new marking is not confused with the previous marking.
  87. Mark the RH front aft link bolt and subframe to show the component has been torqued.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Use a high visibility paint pen when marking components.
  88. Torque RH air spring module nut and bolt to RH aft link assembly.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 21mm, 1x nut, 21mm, 140 Nm.
  89. Remove the existing paint mark from RH air spring module.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Clean the area thoroughly so the new marking is not confused with the previous marking.
  90. Mark RH air spring module nut to show the component has been torqued.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Use a high visibility paint pen when marking components.
  91. Remove ride height tool from RH front upper control arm.
  92. Remove support stand from underneath RH front suspension.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Lower stand until suspension is unladen before removal.
  93. Remove hub jack adapter from RH front hub.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x lug nuts, 21mm, Hand tight.
  94. Install RH front wheel liner onto vehicle.
  95. Secure RH front wheel liner to body.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    11x push clips, 2x nuts, 10mm, 6 Nm.
  96. Lower vehicle partially and set lift onto locks.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height.
  97. Install HV cables into DU.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x patch bolts, T30, 7 Nm, Install new bolts.
  98. Connect coolant hose to powertrain pump 2.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x coolant hose.
  99. Install pump on to bracket and connect harness.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector.
  100. Lower vehicle partially and set lift onto locks.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height.
  101. Connect Front Drive Unit logic connector.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector with locking tab.
  102. Connect ground strap to body.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 13mm, 9 Nm.
  103. Connect coolant hose from drive unit.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x coolant hoses.
  104. Install A/C compressor.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x bolts, E10, 10 Nm.
  105. Install both A/C lines to compressor.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x nuts, 10mm, 10 Nm, Replace the O-rings.
  106. Secure the ground connection at the A/C compressor mount bracket.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, T25, 7 Nm.
  107. Secure edge clip for the A/C compressor logic connector.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x edge clip.
  108. Connect the A/C compressor logic connector.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector.
  109. Connect A/C compressor harness to FJB .
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector.
  110. Connect coolant hose to reservoir and remove hose clamp.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x coolant hose.
  111. Install fasteners securing coolant reservoir to shock tower cross member.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x bolts, 10mm, 6 Nm.
  112. Install battery cage assembly into vehicle.
  113. Install bolts into top of battery cage assembly.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 13mm, 15 Nm.
  114. Install bolts in bottom of battery cage assembly.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 10mm, 6 Nm.
  115. Install battery vent tube back into battery.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x vent tube.
  116. Install plastic harness clip.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x clip.
  117. Install clip onto battery cage.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x barrel clip.
  118. Install edge clips onto battery cage.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x edge clips.
  119. Connect 12V positive terminal.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 10mm, 5 Nm.
  120. Install positive 12V terminal cover.
  121. Raise vehicle fully and lower onto locks.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side. Ensure the vehicle is stable by rocking the vehicle on the lift immediately after the tires have left the ground. Always lower the lift arms onto the locks after raising the vehicle.
  122. Remove HV and LV Rapid Mate covers.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x covers.
  123. Position HV battery underneath vehicle.
  124. Lower vehicle onto HV battery pack.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Before lowering fully use assistance to align the pack using the alignment rods and guide via the borescope camera or a flexible inspection mirror checking HV and LV rapid mates.
  125. Loosely install 4 new front bolts for HV battery.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x patch bolts, 13mm, 30 Nm, Install new patch bolts.
  126. Install LH rocker bolts hand tight.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    8x patch bolts, 13mm, 55 Nm, Install new patch bolts.
  127. Install RH rocker bolts hand tight.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    8x patch bolts, 13mm, 55 Nm, Install new patch bolts.
  128. Install 21mm bolts at front of HV battery hand tight.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 21mm, 115 Nm, Install new bolts.
  129. Install eight outer center bolts hand tight.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    8x patch bolts, E12, 38 Nm, Install new patch bolts.
  130. Torque rocker HV battery bolts on both sides.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    16x bolts, 13mm, 55 Nm.
  131. Torque remaining HV battery bolts.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    8x bolts, E12, 38 Nm, 2x bolts, 21mm, 115 Nm, 4x bolts, 13mm, 30 Nm.
  132. Raise vehicle off of HV battery.
  133. Install inner center HV battery bolts with battery powered drill .
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x patch bolts, E12, 38 Nm, Install new patch bolts, Do not over tighten bolts.
  134. Install LH ski side covers.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    14x clips, 3x covers.
  135. Install RH ski side covers.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    14x clips, 3x covers.
  136. Install front bash plate extrusion.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, T30, 16 Nm.
  137. Install front aero shield.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x bolts, 10mm, 3 Nm, 14x clips.
  138. Install mid aero shield.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    20x bolts, 10mm, 4 Nm, 2x push clips. Start bolts with cordless, torque with 1/4 torque wrench.
  139. Install LH shear plate.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x screws, T25, 6 Nm, 1x bolt, 10mm, 4 Nm, 2x push clips, Install new nyloc nut, 15mm, 35 Nm.
  140. Install RH shear plate.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x screws, T25, 6 Nm, 1x bolt, 10mm, 4 Nm, 2x push clips, Install new nyloc nut, 15mm, 35 Nm.
  141. Lower vehicle partially and set lift onto locks.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height.
  142. Install LH front wheel.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool.
  143. Install RH rear wheel.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x nuts, 21mm, 175 Nm.
  144. Lower vehicle until tires are touching ground.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered.
  145. Torque LH front wheel.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x nuts, 21mm, 175 Nm.
  146. Torque RH front wheel.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x nuts, 21mm, 175 Nm.
  147. Torque LH front axle nut.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 32mm, 245 Nm.
  148. Torque RH front axle nut.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 32mm, 245 Nm.
  149. Install LH front wheel center cap.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x cap, Verify emblem is aligned with valve stem.
  150. Install LH front lug nut covers.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x covers.
  151. Install RH front wheel center cap.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x cap, Verify emblem is aligned with valve stem.
  152. Install RH front lug nut covers.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x covers.
  153. Connect first responder loop and then 12V negative terminal.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, 1x nut, 10mm, 5 Nm.
  154. In toolbox, run the refrigerant drain and fill routine to enable A/C filling.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Click Panels > Thermal > ''Fluid Drain and Fill'' > Select > Refrigerant Fill > Select > ''Start Fluid Drain and Fill'' and press Play.
  155. Connect hoses to vehicle and perform A/C vacuum and leak test.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    (Touch time only)30 minute vacuum, 10 minute leak testEnsure quick connects are fully engaged, turn the connector dials clockwise to fully connect to A/C service ports.
  156. Remove fill plug.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x hex bolt, 8mm, 28 Nm.
  157. Fill front small drive unit with oil.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1.8 quarts, Front drive unit part number 1035000-00-F and earlier: Mobil SHC 629, Front drive unit part number 1035000-00-J and later: Automatic transmission fluid - SK lubricant 212-B – quart (part number 1031106-00-A).
  158. Install fill plug.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x hex bolt, 8mm, 28 Nm.
  159. Install HEPA filter duct.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x clip.
  160. Remove wiper cowl screen panel.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x push clips, 1x windshield washer hose, 1x drain hose clamp.
  161. Connect cowl drain hose onto cowl trim.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x clamp.
  162. Conenct cowl screen washer supply hose.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x one way valve.
  163. Install RH wiper arm.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x nuts, 17mm, 35 Nm, Align tip of wiper blade to mark on windshield, connect washer hose at cowl.
  164. Install LH wiper arm.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x nut, 17mm, 35 Nm, Align tip of wiper blade to mark on windshield, connect washer hose at cowl.
  165. Connect wiper arm hoses to cowl.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x washer hoses.
  166. Install LH outer hood hinge cover.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x clips.
  167. Install RH outer hood hinge cover.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x clips.
  168. Remove coolant reservoir cap.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x cap.
  169. Fill reservoir to "NOM" line .
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Monitor the coolant level once the purge routine is running, adding coolant as required using G-48 coolant.
  170. Remove steering wheel holder from vehicle.
  171. Place vehicle in service mode with touchscreen.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Select Controls > Software, Touch and hold "Model" for 2 seconds then release, Use the screen keyboard to type "service" into dialog box and select "OK" button, Select "X" at upper left corner to exit "Service Settings" dialogue box.
  172. Unlock vehicle Gateway.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    After vehicle has been put into "Service Mode", hold down the brake pedal, while holding down break pedal simultaneously hold the turn signal stalk fully up for at least 10 seconds, "GTW UNLOCKING" should pop up on the instrument cluster right below the VIN during these 10 seconds, once gateway is unlocked "GTW UNLOCKED 5400" will be displayed on the instrument cluster underneath the VIN, the gateway will remain unlocked for 90 minutes.
  173. Remove cubby under MCU and connect laptop to vehicle with a tethered Ethernet connection via Toolbox 3.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Remove cubby under MCU and connect laptop to vehicle, Open Toolbox 3 website and establish connection to vehicle.
  174. Select TEST_VCFRONT_X_THERMAL-COOLANT-AIR-PURGEvia Toolbox: (link)via Service Mode:
    • Thermal ➜ Actions ➜ Coolant Purge Stop or Coolant Purge Start
    • Thermal ➜ Coolant System ➜ Coolant Purge Start
    via Service Mode Plus:
    • Drive Inverter ➜ Front Drive Inverter Replacement ➜ Coolant Air Purge
    • Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Coolant Air Purge
    • Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Coolant Air Purge
    • Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Coolant Air Purge
    • Drive Unit ➜ Front Drive Unit Replacement ➜ Coolant Air Purge
    • Drive Unit ➜ Rear Drive Unit Replacement ➜ Coolant Air Purge
    , click "Run", and allow routine to complete.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Make sure vehicle is not in drive state, Routine is still running despite the stop message, Coolant pumps will be audible, Test lasts approximately 10 mins, Putting vehicle into drive state will stop this routine, Monitor levels as required.
  175. Top off the reservoir to the "NOM" line with G-48 coolant.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Ensure coolant is filled to nominal level.
  176. Install coolant reservoir cap .
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x cap.
  177. Install HEPA filter housing.
  178. Install underhood storage unit.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    10x bolts, 10mm, 4 Nm, 10x bolts, 10mm, 7 Nm.
  179. Install frunk carpet.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x connectors.
  180. Inject oil into the system.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Refill with the amount removed during recovery.
  181. Perform A/C refrigerant refill.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Run time, per fluid capacity spec.
  182. Remove A/C lines from vehicle.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Press clear lines once lines have been removed.
  183. Install dust caps onto vehicle high and low side service ports.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x threaded caps.
  184. Test A/C functions in vehicle to ensure cabin cooling functions as designed.
  185. Perform A/C hose flush.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Touch time only. No overlap from this since the machine is disconnected from the vehicle.
  186. In toolbox, run routine to write Drive Inverter Information to the new Inverter.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Go to Panels > Drive Inverter > Drive Inverter Replacement > Select Write Drive Inverter Information and press Play. In the interface drop down you need to select which Inverter you are replacing (DI or DIS), Make sure drive rails are on.
  187. Perform firmware update.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Per current FRT (00020007) 0.3 hrs.
  188. Disconnect laptop from vehicle and install storage cubby.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, 2x clips, Ensure diagnostic cables are tucked into the appropriate position then engage cubby.
  189. Install lower storage cubby.
  190. Install under hood aprons.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x aprons.
  191. Close hood.
  192. Calibrate falcon doors via UI.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Via Controls > Calibrate, Required after 12V and FRL disconnect.
  193. Close LH front door.
  194. Remove vehicle from lift.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Lower rack arms fully and move them from under vehicle, Remove air suspension from "Jack Mode", Via Controls > Service > Jack Mode.
  195. Review wheel alignment requirements and add correction code as needed. See Exigences de réglage de la géométrie - Suspension.
