Code de correction 20056312

1. Open all doors and liftgate
   Remarque

   Using MCU touchscreen > Controls > Trunk , touchscreen > Controls > Front doors
2. Move LH front seat forward
3. Move RH front seat forward
4. Open hood
   Remarque

   Using MCU touchscreen > Controls > Frunk Trunk
5. Remove underhood aprons
   Remarque

   4x aprons



6. Remove frunk carpet
   Remarque

   2x connectors



7. Remove underhood storage unit
   Remarque

   10x bolts, 10mm, 4 Nm, 10x bolts, 10mm, 7 Nm







8. Remove HEPA filter
   Remarque

   Lift up from bottom and pull out



9. Disconnect 12V negative terminal and First Responder Loop
   Remarque

   1x nut, 10mm, 5 Nm, 1x connector, Wait at least 2 minutes before disconnecting modules or HV components





10. Remove 2nd row floor mat



11. Fold down 60 seatback



12. Remove LH rear welcome plate
    Remarque

    8x clips





13. Remove LH rear door sill
    Remarque

    1x patch bolt, T25, 2.5 Nm, 2x clips



14. Tape the LH lower C-pillar area around the 2nd row seat side trim area



15. Apply tape to LH racetrack to avoid damage



16. Remove front screw securing LH lower C-pillar
    Remarque

    1x screw, T25, 2.5 Nm, Discard patch bolt



17. Remove rear load floor



18. Remove flat trunk load floor panel



19. Remove gap hider



20. Remove LH trunk sill side trim
    Remarque

    4x clips





21. Remove screw securing LH C-pillar mid trim
    Remarque

    1x screw, T20, 2 Nm



22. Remove LH trunk side nub



23. Remove fasteners securing C-pillar lower panel to LH parcel shelf support
    Remarque

    2x screws, T20, 2 Nm



24. Remove LH lower C-pillar seat bottom
    Remarque

    1x clip





25. Remove RH trunk sill side trim
    Remarque

    4x clips

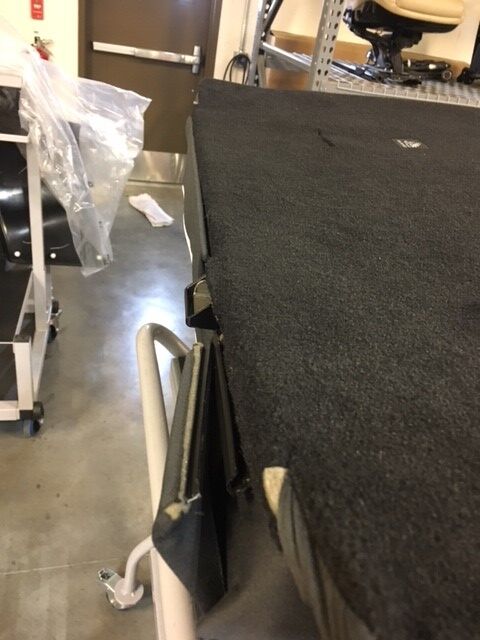

26. Remove RH mid C-pillar trim
    Remarque

    1x screw, T20, 2 Nm





27. Remove load floor support from RH lower C-pillar



28. Remove rear screws securing RH lower C-pillar
    Remarque

    2x screws, T20, 2 Nm, Do not fully remove trim



29. Fold down 40 seat



30. Tape the RH lower C-pillar area around the 2nd row seat side trim area



31. Remove RH rear welcome plate
    Remarque

    8x clips





32. Remove front screw securing RH lower C-pillar
    Remarque

    1x screw, T25, 2.5 Nm



33. Remove RH lower C-pillar seat bottom
    Remarque

    1x clip





34. Remove RH rear door sill trim
    Remarque

    1x patch bolt, T25, 2.5 Nm, 2x clips



35. Tape rear center console cup holder trim to prevent from damage



36. Lift the front of mid 2nd row panel toward the rear of the vehicle, then pull the floor panel out of the vehicle
    Remarque

    6x clips, replace any broken clips





37. Roll liftgate carpet back out of the way to access 2nd row rear floor panel



38. Remove 2nd row floor panel 3
    Remarque

    2x clips, Release clips from front edge of panel, Once free, lift rear of panel and slide out from behind seats





39. Remove foam floor from the LH 60 seat
    Remarque

    3x foam blocks



40. Disconnect LH 60 seat harness
    Remarque

    3x connectors



41. Release harness from beaver dam



42. Remove fasteners securing the LH 60 seat bench
    Remarque

    10x bolts, 11mm, 45 Nm









43. Remove 60 seat assembly from vehicle
    Remarque

    Recommend assistance



44. Unfold the 60 seat assembly



45. Remove 60 seat inside side cover
    Remarque

    Carefully pull out



46. Remove 60 seat inner seat buckle
    Remarque

    1x bolt, T50, 45 Nm, 1x connector, 1x edge clip





47. Remove the 60 seat release handle







48. Remove 60 seat outer side trim
    Remarque

    1x push clip, 1x bolt, 10mm, 6 Nm, 4x clips









49. Remove the outer 60 seat belt from the seat
    Remarque

    1x bolt, T50, 45 Nm



50. Release upholstery from under side of 60 seat assembly
    Remarque

    11x J-hooks













51. Disconnect 60 seat heat pads and occupancy sensors
    Remarque

    4x connectors







52. Remove 60 seat lower seat cushion assembly
    Remarque

    Use caution feeding J-hooks and connectors through seat frame



53. Release the outer escutcheon and remove from seat belt
    Remarque

    2x clips, Pry up at base of escutcheon to release



54. Release the center escutcheon and remove from seat
    Remarque

    3x clips





55. Unbolt the center seat belt from seat
    Remarque

    1x patch bolt, T50, 45 Nm, Discard after removal



56. Fold 60 seat back down
    Remarque

    Install handle back on but remove the spring



57. Unzip the seat back on both sides.
    Remarque

    Using a pick will aid in moving the zipper



58. Release the back over and flip
    Remarque

    There J hooks holding the back down also the edges wrap around the corners



59. Remove plastic seat back from seat. Clips are secured to wired seat back
    Remarque

    (x11) Clips



60. Disconnect seat back heaters
    Remarque

    2x connectors



61. Unfold the seat



62. Disconnect the air bag harness
    Remarque

    1x connector, 1x clip



63. Remove the fasteners securing the airbag
    Remarque

    2x nuts, 13mm, 20 Nm, Discard nuts after removal



64. Remove leather and cushion from seat to gain access to seat belt retractor



65. Remove center seat belt cover and split the cover
    Remarque

    4x bolts, 10mm, 6 Nm, 4x tabs











66. Remove center seat belt assembly from seat frame
    Remarque

    1x patch bolt, T50, 45 Nm, Discard after removal



67. Install center seat belt assembly onto seat frame
    Remarque

    1x patch bolt, T50, 45 Nm, Install new patch bolt



68. Install center seat belt cover assembly onto seat frame
    Remarque

    4x bolts, 10mm, 6 Nm, 4x tabs









69. Install seat back cushion and feed seat belts through



70. Install the fasteners securing the airbag to seat frame
    Remarque

    2x bolts, 13mm, 20 Nm, Install new patch nuts



71. Fold seat down
    Remarque

    May need to adjust the cushion when folding



72. Connect seat back heaters
    Remarque

    2x connectors



73. Connect air bag harness
    Remarque

    1x connector, 1x clip



74. Install plastic seat back onto 60 seat assembly
    Remarque

    13x clips, Clips are secured to wired seat back



75. Zip up the seat back over
76. Secure lower portion of 60 seat back upholstery
    Remarque

    Secure J-hook along lower edge



77. Unfold the seat
78. Install center escutcheon
    Remarque

    3x clips





79. Install outer escutcheon
    Remarque

    2x clips



80. Install the center seat belt
    Remarque

    1x patch bolt, T50, 45 Nm, Install new patch bolt



81. Install 60 seat lower seat cushion assembly
    Remarque

    Use caution feeding J-hooks and connectors through seat frame



82. Connect 60 seat heat pads and occupancy sensors
    Remarque

    4x connectors







83. Secure upholstery to under side of LH 60 seat assembly
    Remarque

    11x J-hooks













84. Install the outer 60seat belt to the seat
    Remarque

    1x bolt, T50, 45 Nm



85. Install the 60 seat outer trim
    Remarque

    1x push clip, 1x bolt, 10mm, 3.8 Nm, 4x clips









86. Install LH 60 seat release handle
    Remarque

    1x spring clip





87. Install 60 seat inner seat buckle
    Remarque

    1x bolt, T50, 45 Nm, 1x connector, 1x edge clip





88. Install 60 seat inside side cover



89. Fold 60 seat back down



90. Install seat into vehicle
    Remarque

    Recommend assistance
91. Install the fasteners that secure the 60 bench
    Remarque

    (x13) 11mm bolt???Nm
92. Secure LH 60 seat harness to LH floor support bracket
    Remarque

    2x clips



93. Connect LH 60 seat harness
    Remarque

    3x Connectors



94. Install the foam floor pieces
    Remarque

    (x3) pieces
95. Install 2nd row rear floor panel
    Remarque

    2x clips, Replace any damaged clips





96. Fully seat liftgate carpet



97. Install the middle 2nd row floor panel
    Remarque

    Replace any broken clips



98. Remove tape from rear center console trim



99. Install RH rear door sill trim
    Remarque

    1x patch bolt, T25, 2.5 Nm, 2x clips



100. Move RH front seat to original position



101. Install RH lower C-pillar seat bottom
     Remarque

     1x clip





102. Install RH lower C-pillar and secure front bolt
     Remarque

     1x bolt, T25, 2.5 Nm



103. Install RH welcome plate
     Remarque

     8x clips





104. Remove masking tape from the RH lower C-pillar



105. Lift 40 seatback into home position



106. Install fasteners securing C-pillar lower panel to RH parcel shelf support
     Remarque

     2x screws, T20, 2 Nm



107. Install RH trunk side nub to lower C-pillar



108. Install RH C-pillar mid trim
     Remarque

     9x clips, Install front section first, then work around to rear





109. Install RH trunk sill side trim
     Remarque

     4x clips



110. Install LH lower C-pillar seat bottom
     Remarque

     1x clip





111. Install LH lower C-pillar and secure clips along front edge
     Remarque

     9x clips, 1x magnet



112. Install LH trunk load floor support to lower C-pillar



113. Install LH C-pillar mid trim and secure clips
     Remarque

     9x clips, Install front section first, then work around to rear





114. Install LH trunk sill side trim
     Remarque

     4x clips





115. Install gap hider
     Remarque

     Lightly tap the gap hider if necessary to get it flush with carpet



116. Install flat trunk load floor panel



117. Install rear load floor



118. Install bolt securing front of LH lower C-pillar
     Remarque

     1x patch bolt, T25, 2.5 Nm



119. Install LH rear door sill trim
     Remarque

     1x patch bolt, T25, 2.5 Nm, 2x clips



120. Install LH welcome plate
     Remarque

     8x clips





121. Remove masking tape from the LH lower C-pillar and from the race tracks



122. Move 60 seatback to home position



123. Connect first responder loop and then 12V negative terminal
     Remarque

     1x connector, 1x nut, 10mm, 5 Nm





124. Install HEPA filter housing



125. Install underhood storage unit
     Remarque

     10x bolts, 10mm, 4 Nm, 10x bolts, 10mm, 7 Nm







126. Install frunk carpet
     Remarque

     2x connectors



127. Install under hood aprons
     Remarque

     4x aprons



128. Close hood
129. Calibrate falcon doors using MCU
     Remarque

     Required after 12V and FRL disconnect



130. Move LH front seat to original position
131. Using MCU close all doors and liftgate
