Code de correction 00030410 REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps forfaitaire ci-dessus représentent tout le travail à être fait pour cette procédure, notamment les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez pour en apprendre plus à propos des temps forfaitaires et de leur création. Vous pouvez transmettre par courriel vos commentaires relatifs aux valeurs des temps forfaitaires à ServiceManualFeedback@tesla.com. REMARQUE : Consultez Protection individuelle pour vous assurer de porter l’équipement de protection individuelle adéquat lors vous effectuez la procédure ci-dessous. REMARQUE : Voir Précautions ergonomiquespour consulter les pratiques de travail sécuritaires et saines.

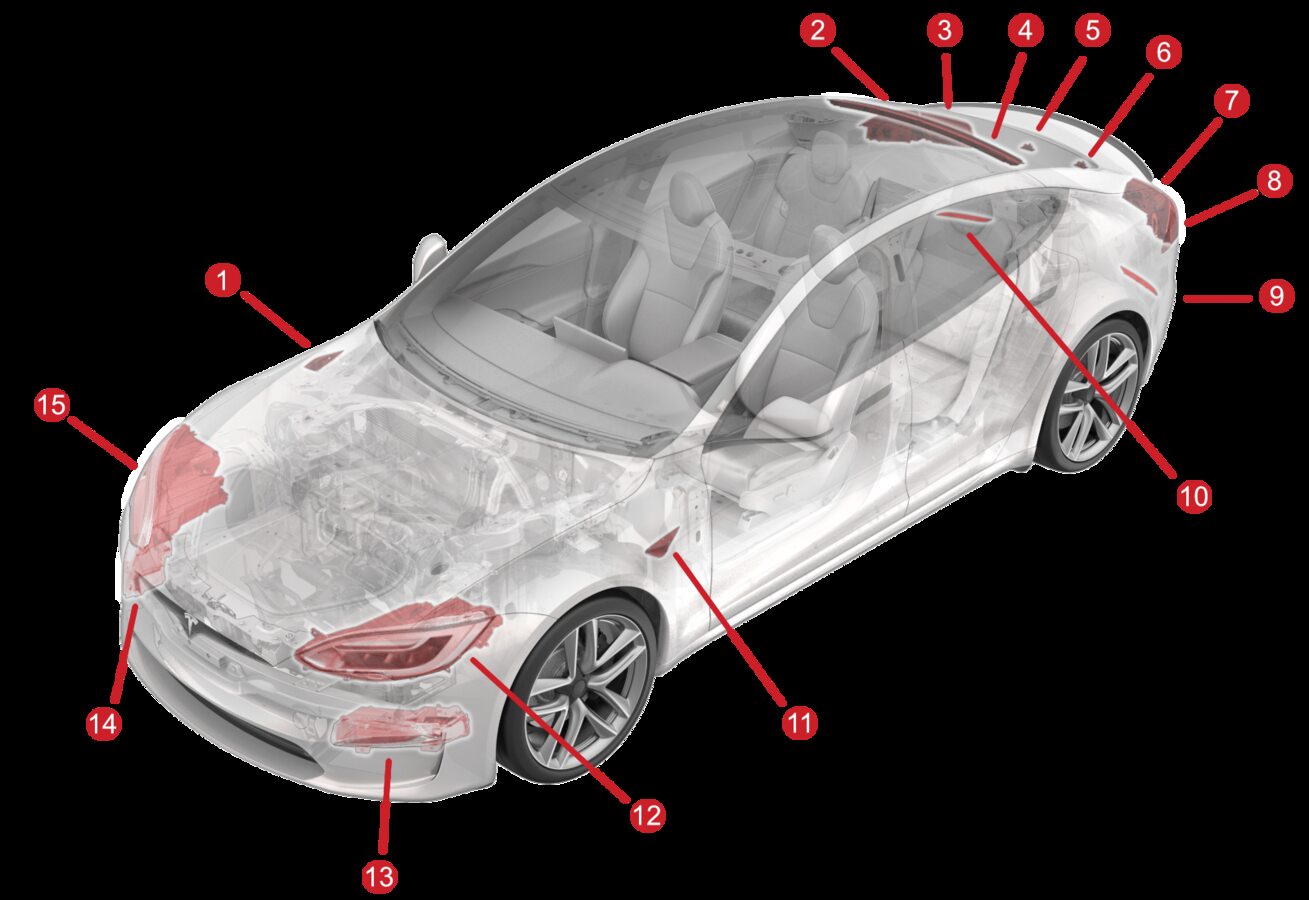

1. Inspect front external lights
   Remarque

   Look for cosmetic damages and humidity ingress



2. Inspect rear external lights
   Remarque

   Look for cosmetic damages and humidity ingress, it is acceptable for taillights to have some condensation



3. Link to procedure: 626061776614a10016a6bf0d

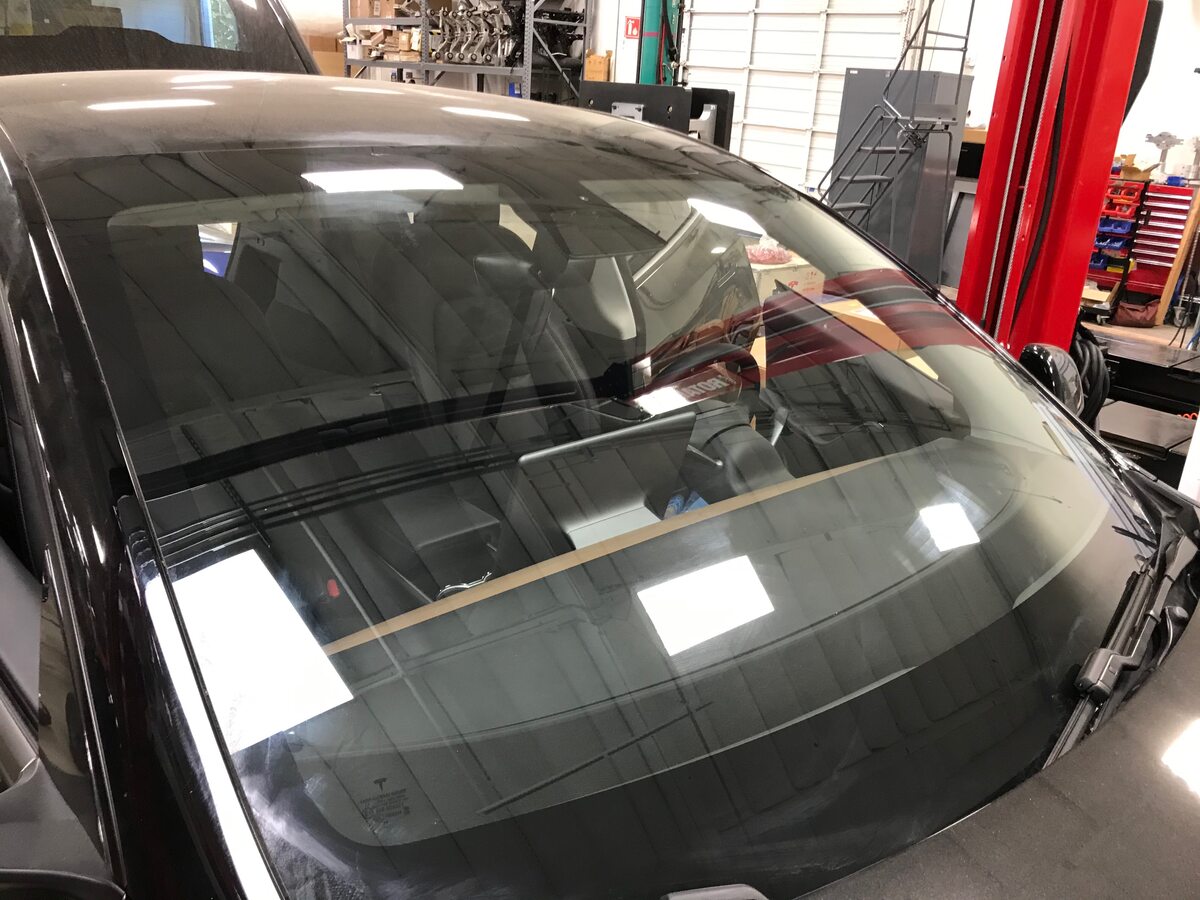

4. Inspect windshield for rock chips and cracks
   Remarque

   No damage in driver’s viewing area, airbag impact area, forward camera viewing area, or within 50 mm of edge allowed, No more than 3 cracks or chips to glass allowed



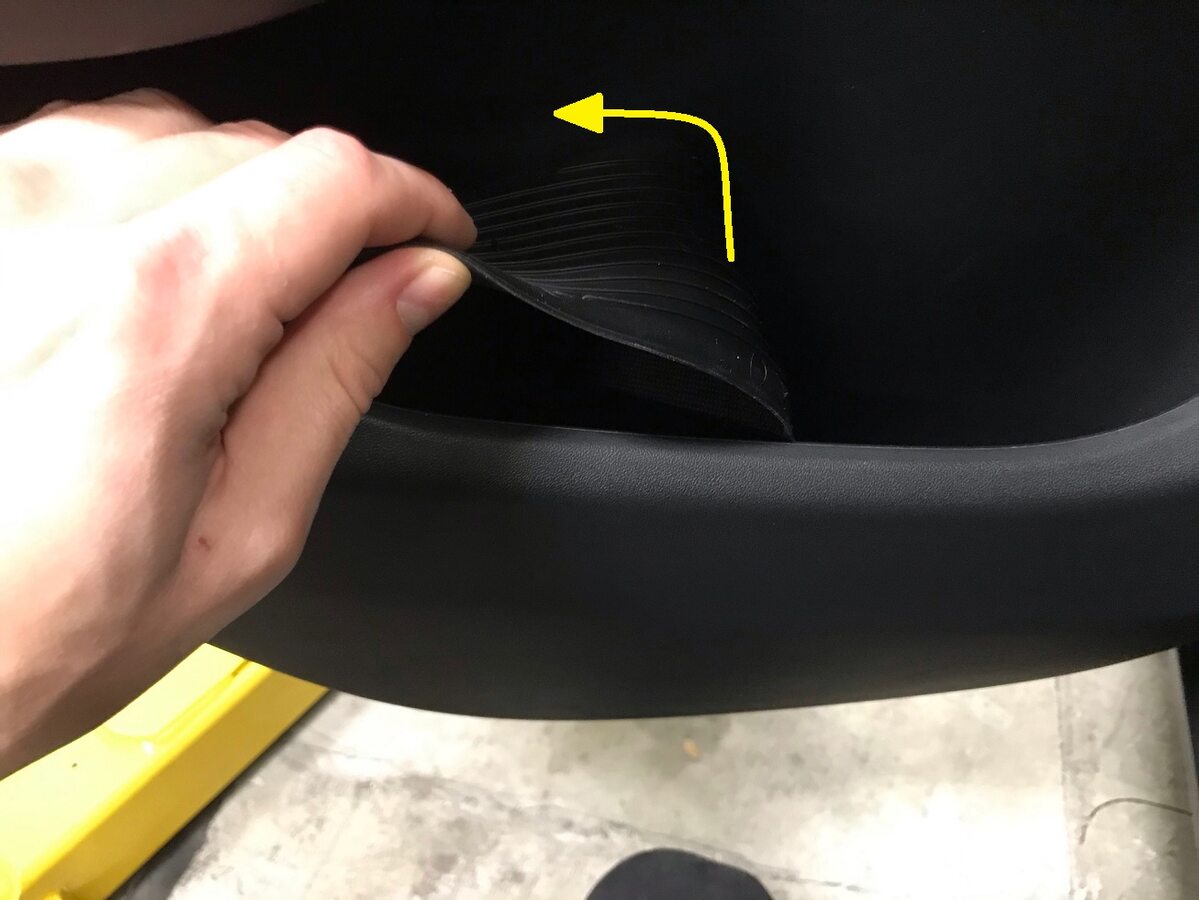

5. Check all emergency release cables and switches
   Remarque

   Front door releases, Use caution with front door releases as door glass will not drop and could damage seals or bright molding, Remove 2nd row door panel pocket cover to reveal emergency cable

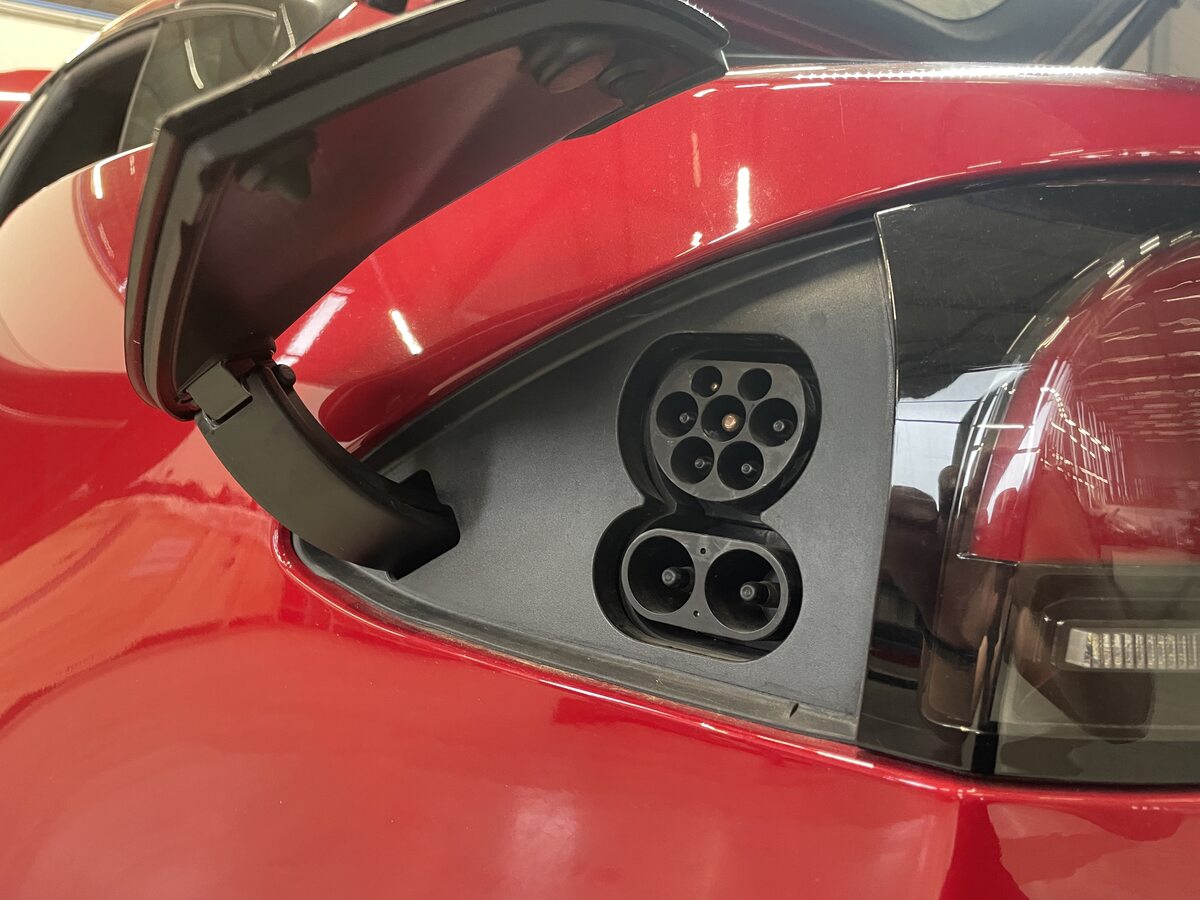

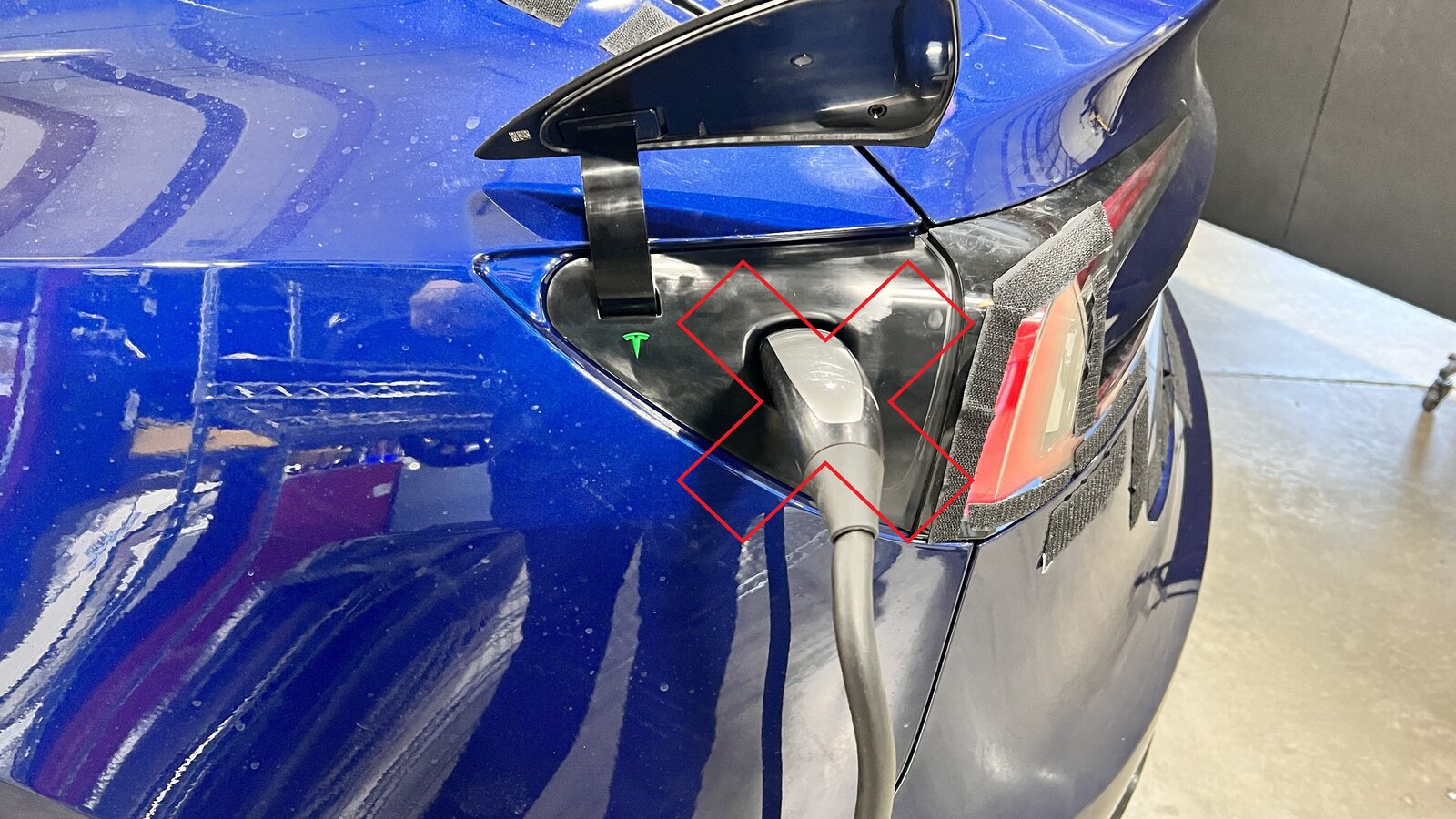

6. Function check chargeport door (5 cycles)
   Remarque

   5x cycles, Inspect and note functionality full range of motion, touch to open, and indicator light. Look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions

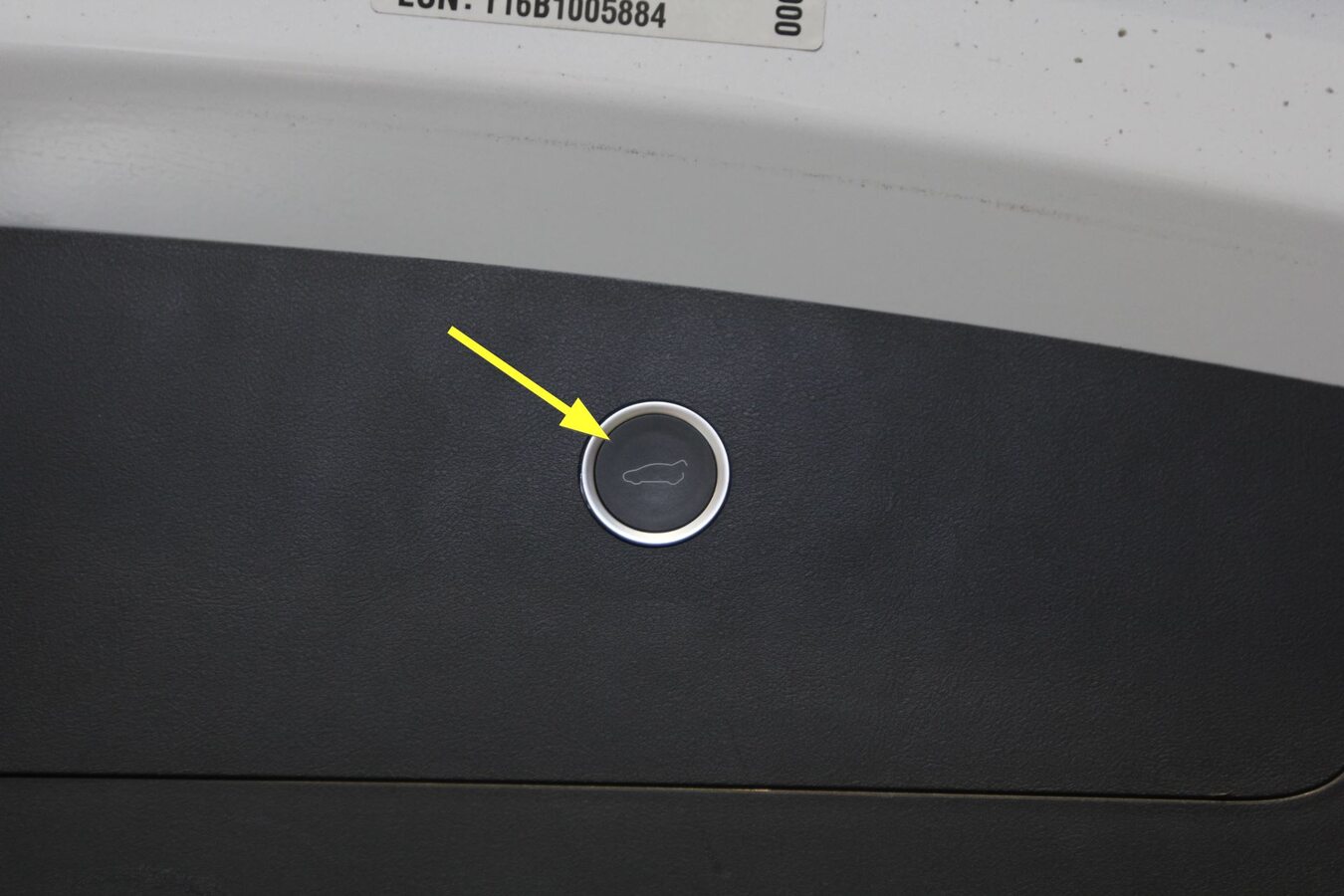

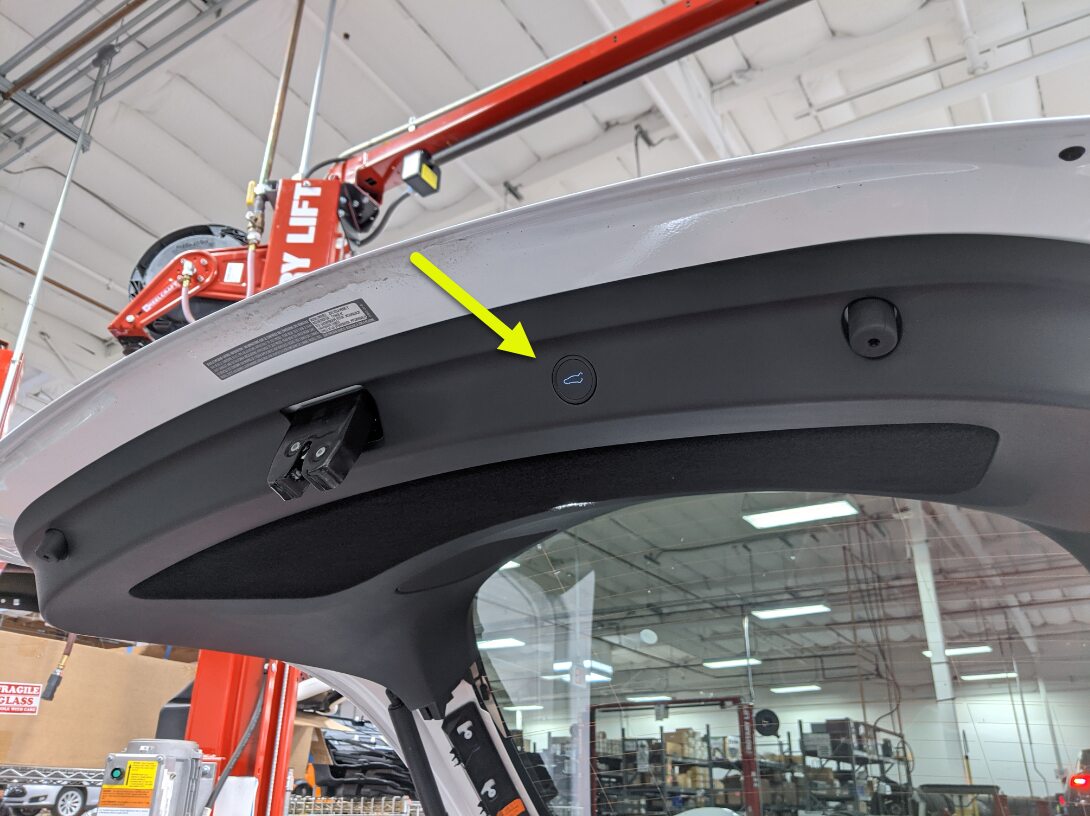

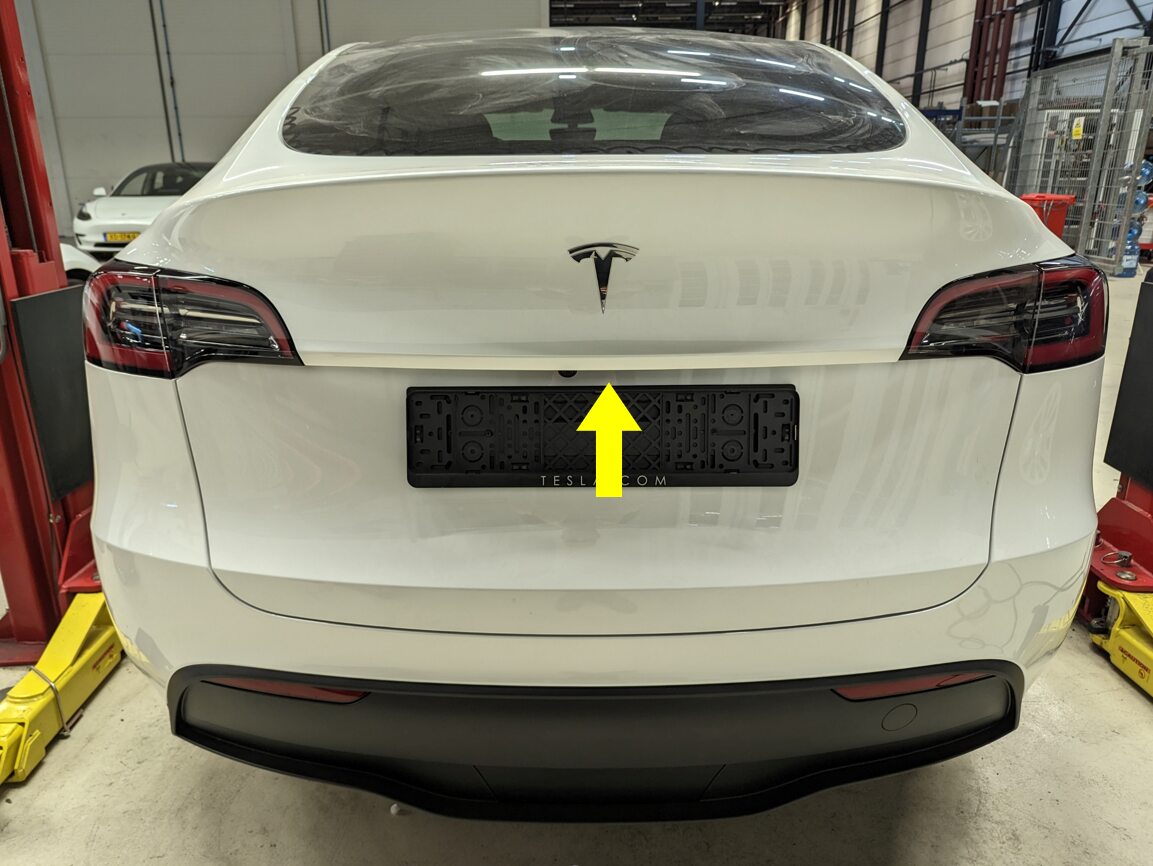

7. Open liftgate from exterior switch



8. Close liftgate

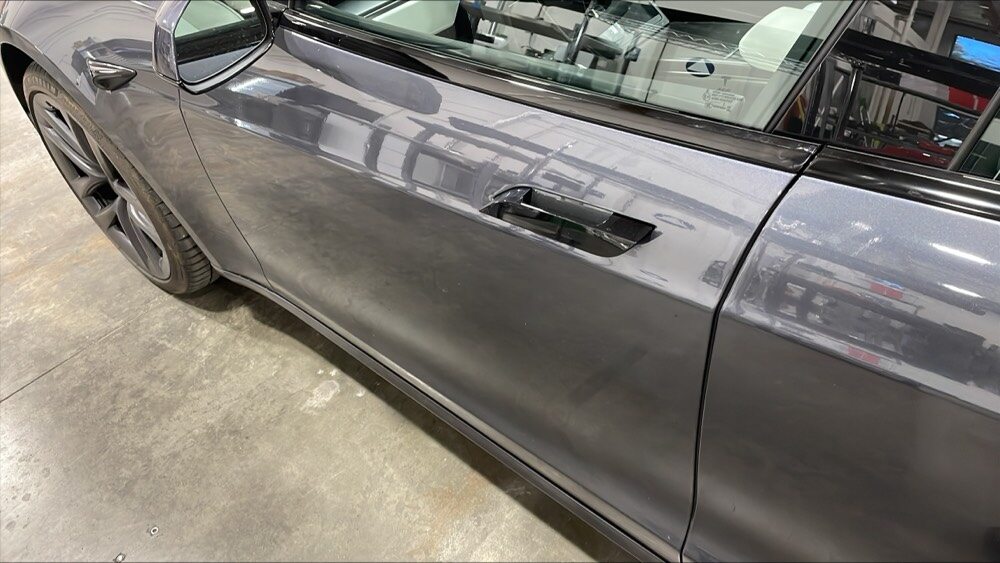

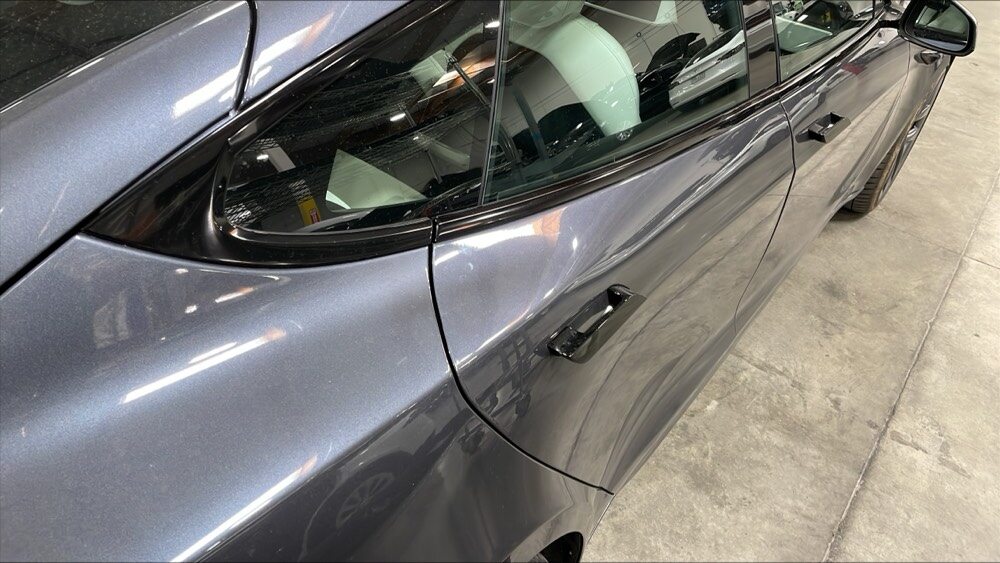

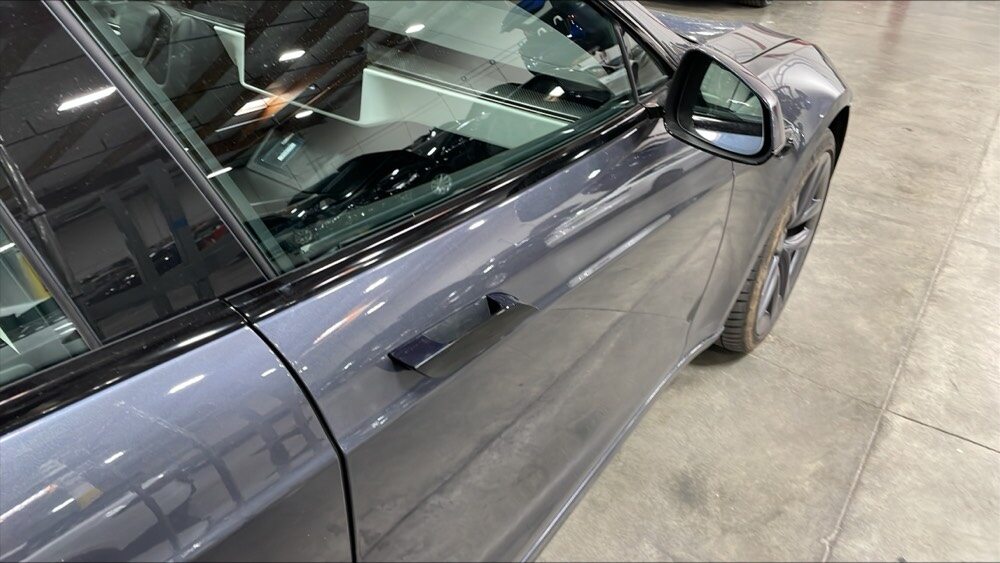

9. Function check LH front door (exterior)
   Remarque

   Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note any abnormalities

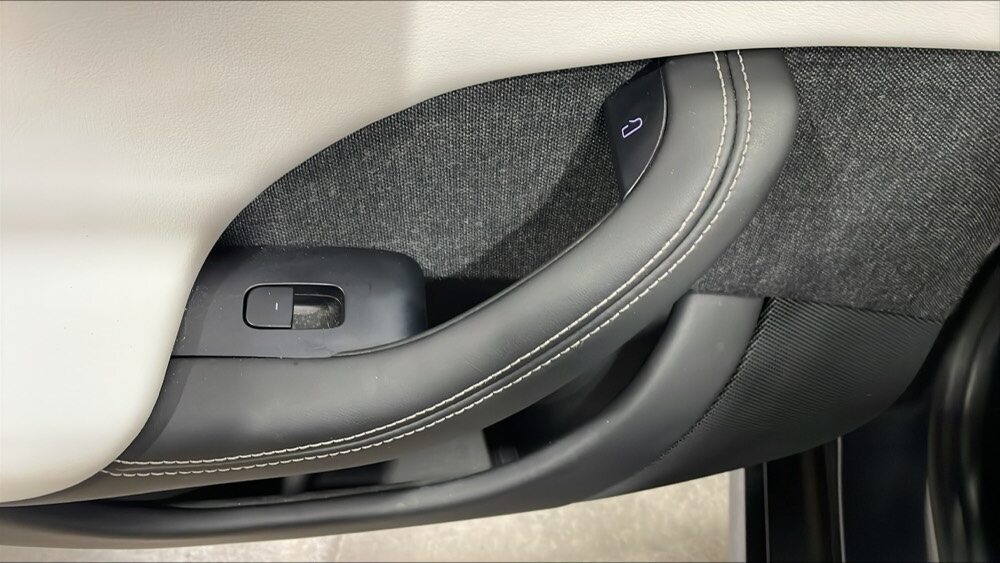

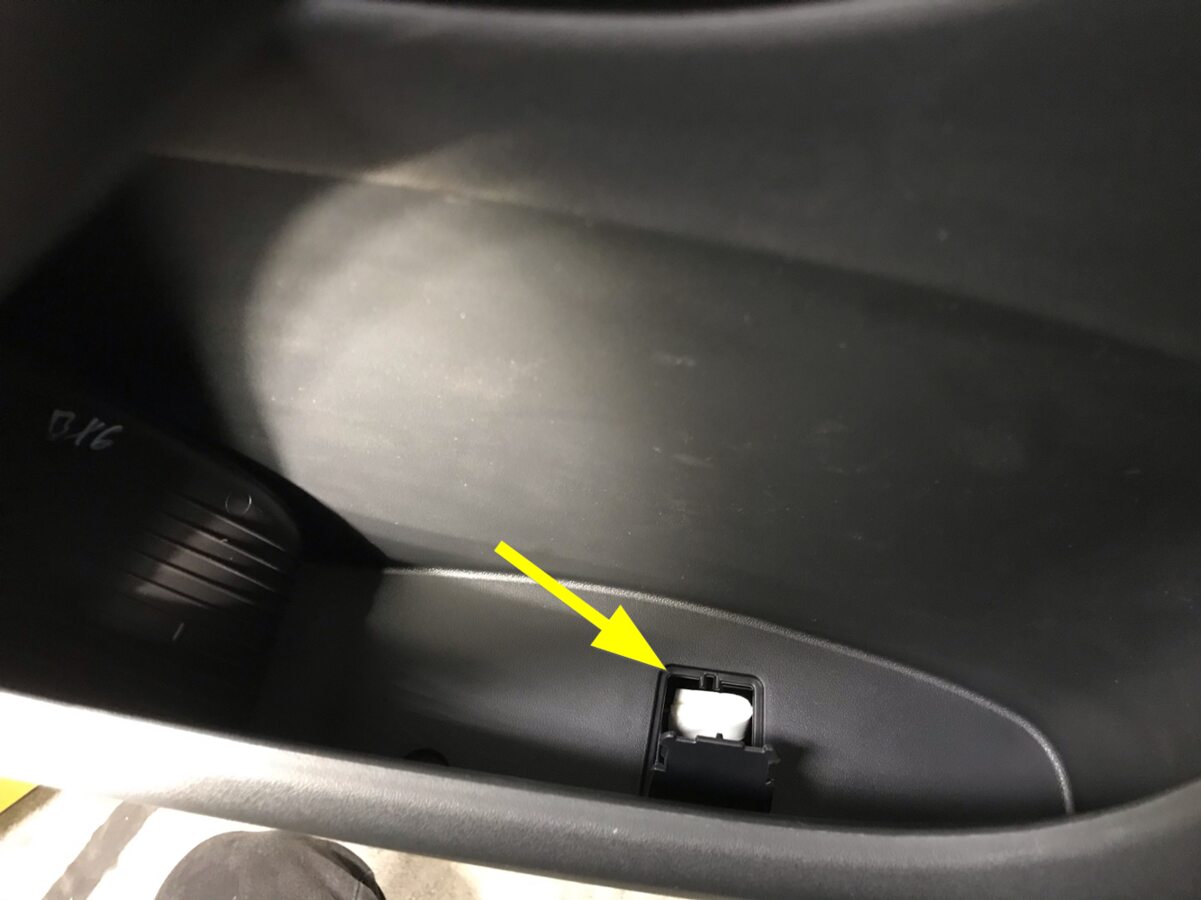

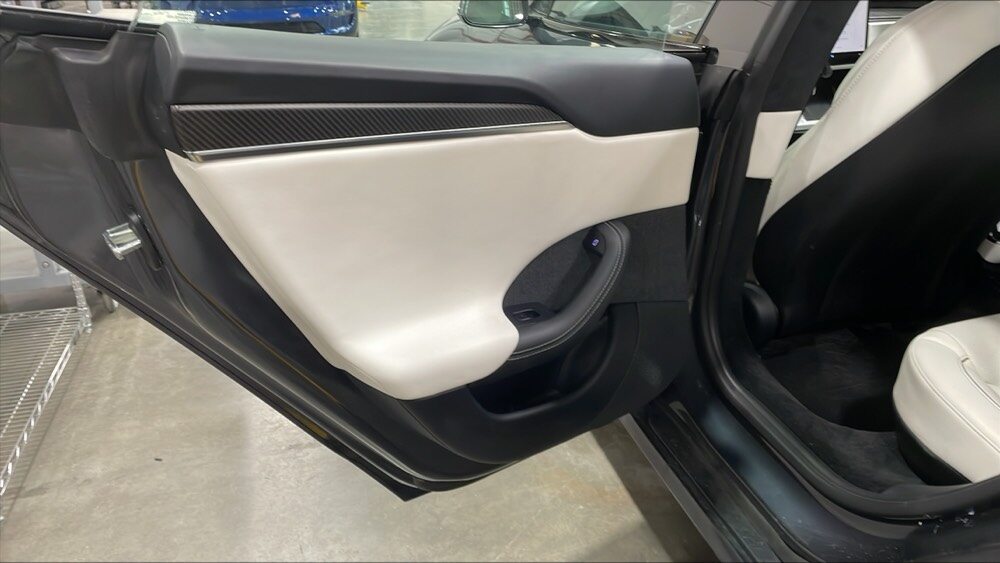

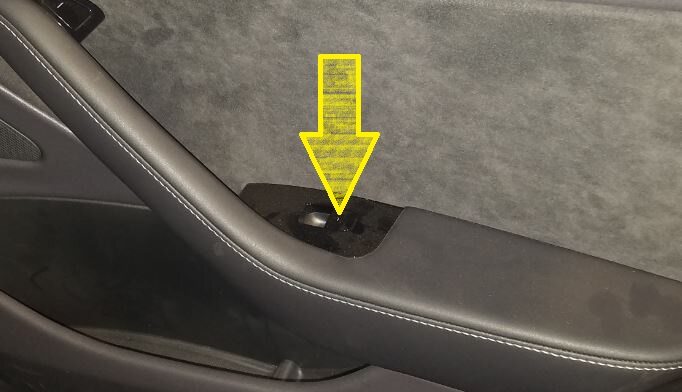

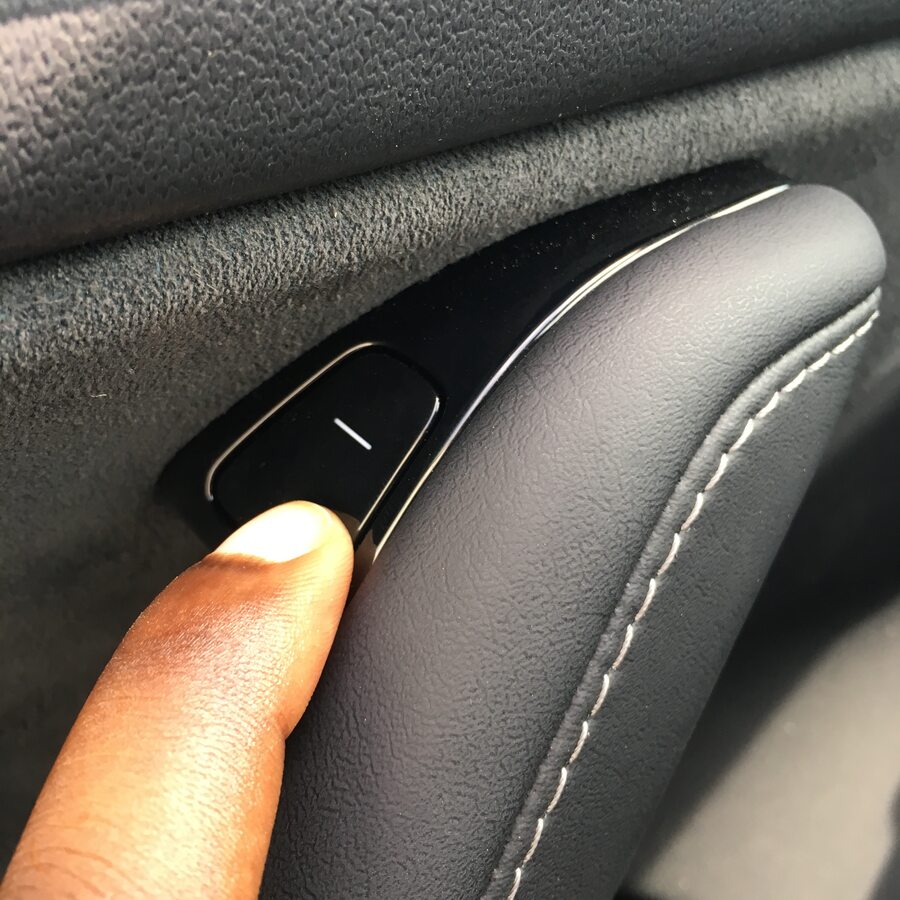

10. Function check LH front door (interior)
    Remarque

    Inspect and note functionality for the interior door release, puddle lamps, and manual release cable, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions

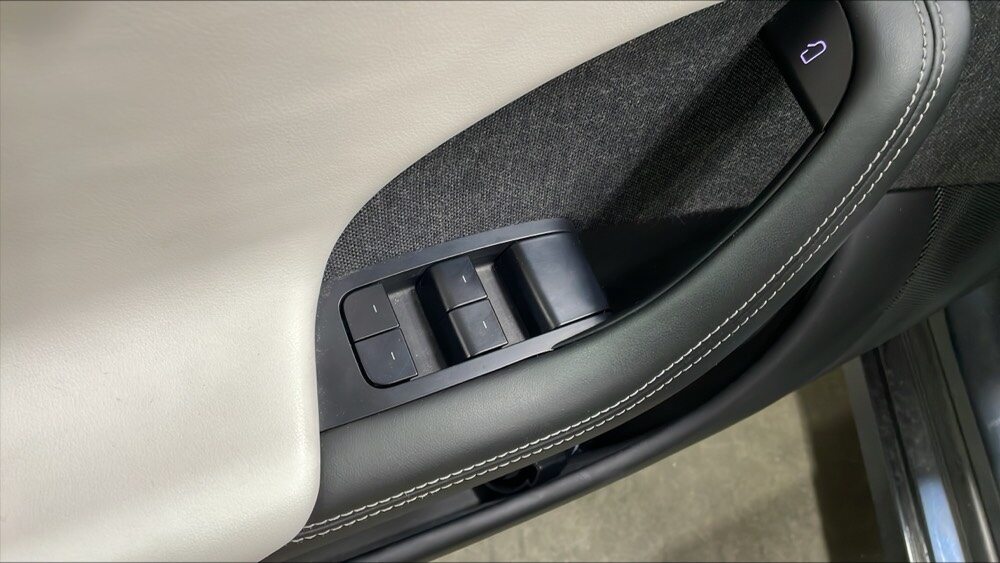

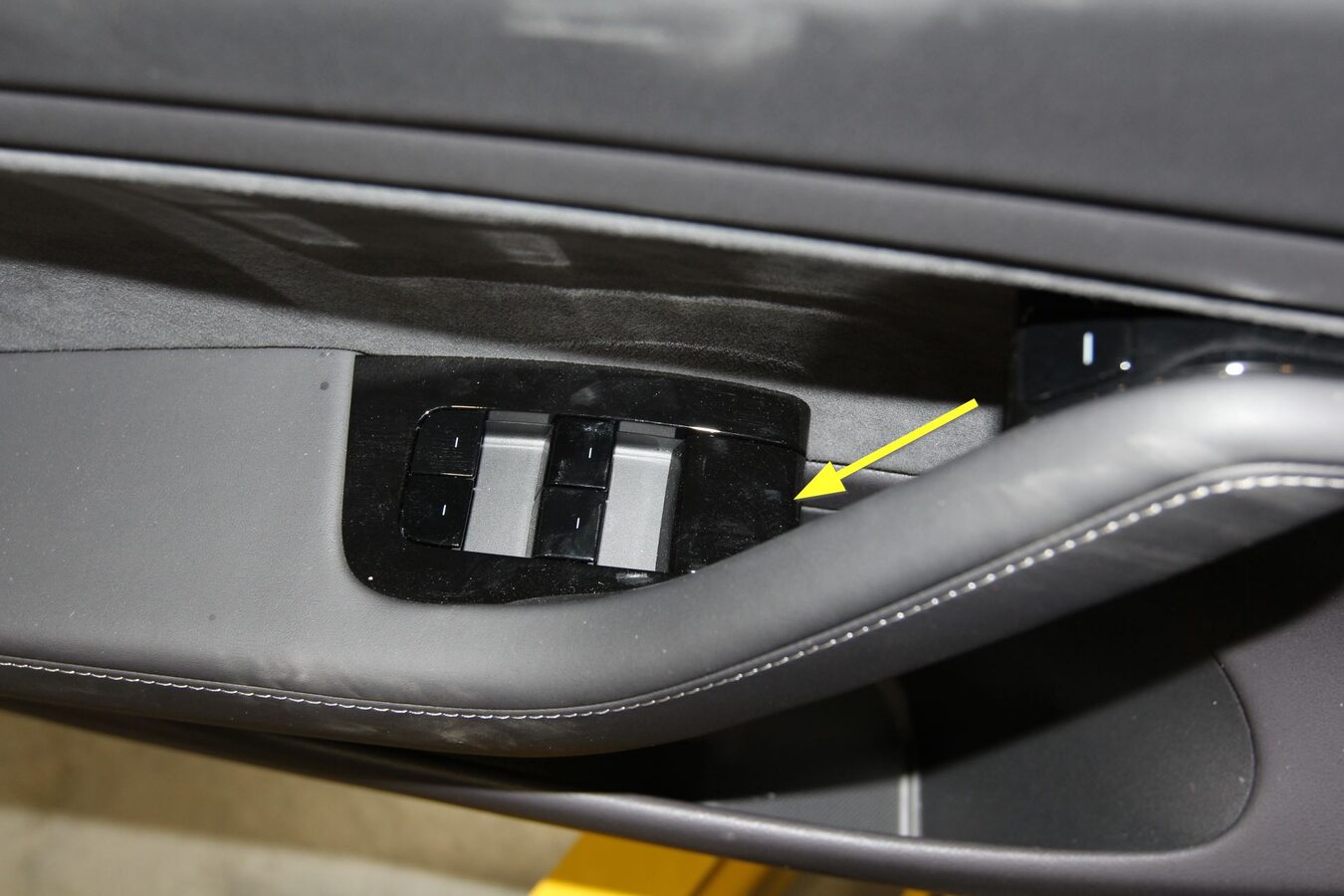

11. Function check all windows from the master switch
    Remarque

    Check operation with door closed, Document any abnormal operation/noises

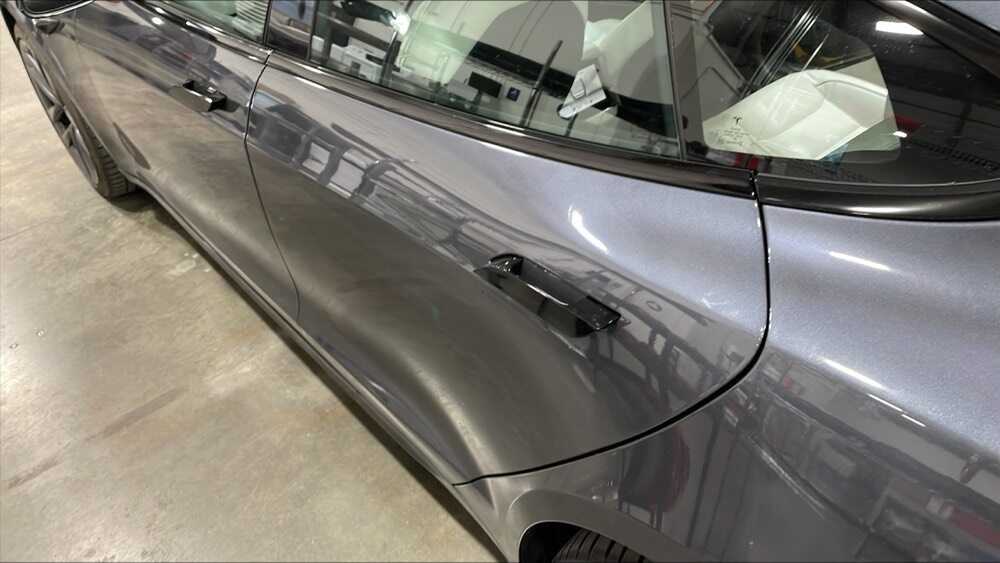

12. Function check RH rear door (exterior)
    Remarque

    Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note any abnormalities



13. Function check RH rear door (interior)
    Remarque

    Inspect and note functionality for the interior door release and puddle lamps, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions



14. Function check RH rear window
    Remarque

    Inspect and note functionality for the window switch, and full range of motion of the window with door closed



15. Function check LH rear door (exterior)
    Remarque

    Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note any abnormalities



16. Function check LH rear door (interior)
    Remarque

    Inspect and note functionality for the interior door switch, From inside look for interference with other components, Note any abnormalities



17. Function check LH rear window
    Remarque

    Inspect and note functionality for the window switch, and full range of motion of the window with door closed



18. Function check RH front door (exterior)
    Remarque

    Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note any abnormalities



19. Function check RH front door (interior)
    Remarque

    Inspect and note functionality for the interior door release, puddle lamps, and manual release cable, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions



20. Function check RH front window
    Remarque

    Inspect and note functionality for the window switch, and full range of motion of the window with door closed

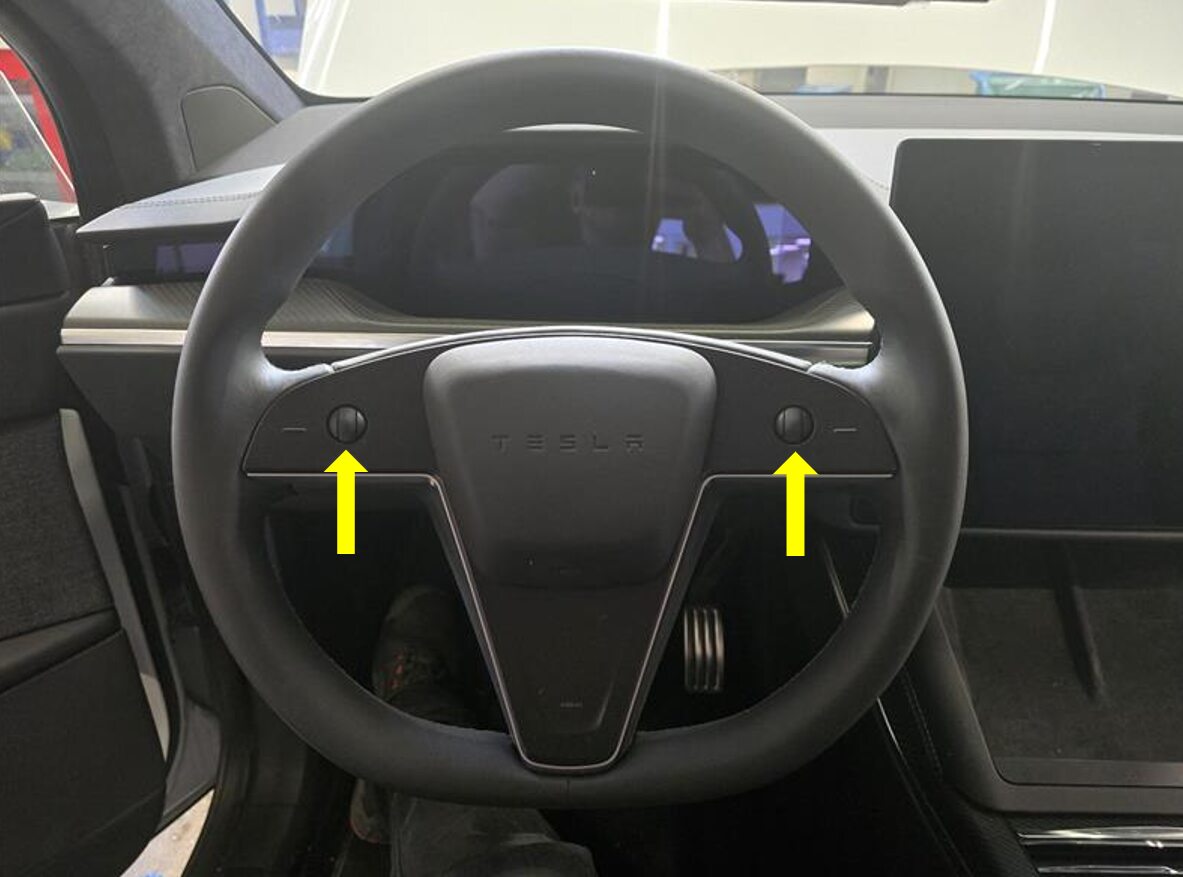

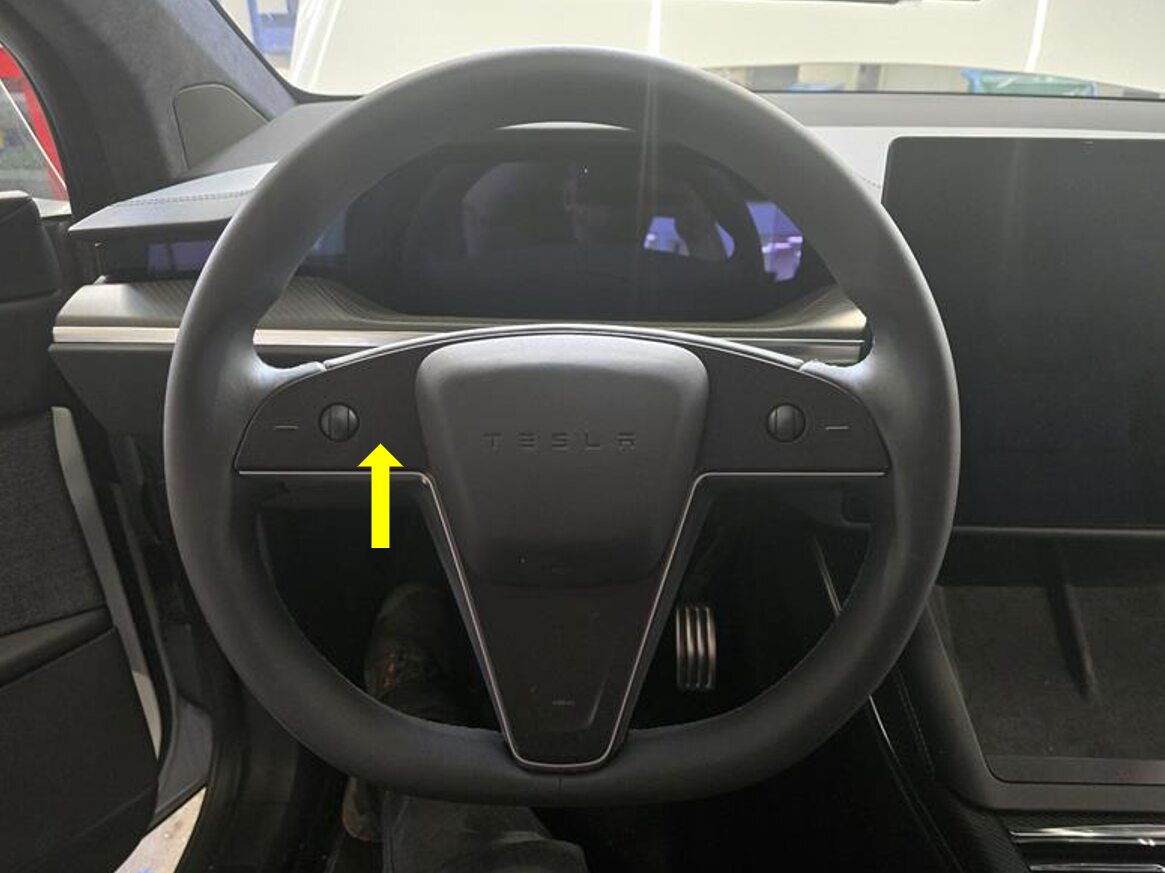

21. Function check all driver controls
    Remarque

    Turn signals, steering wheel scroll wheels, horn

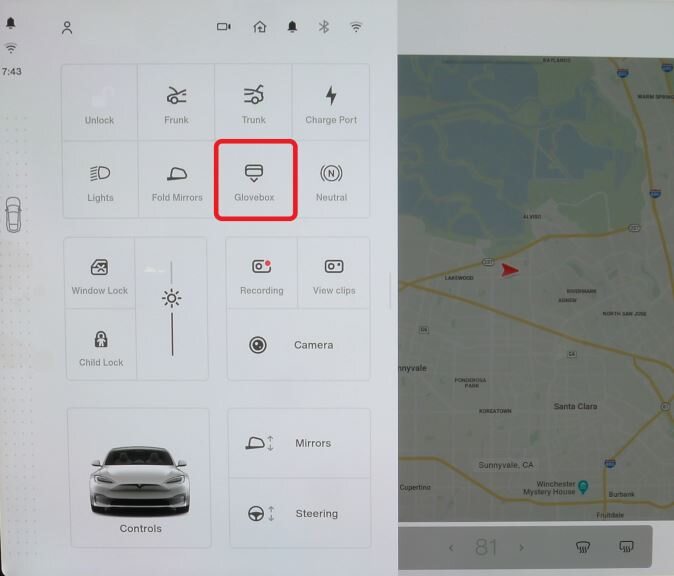

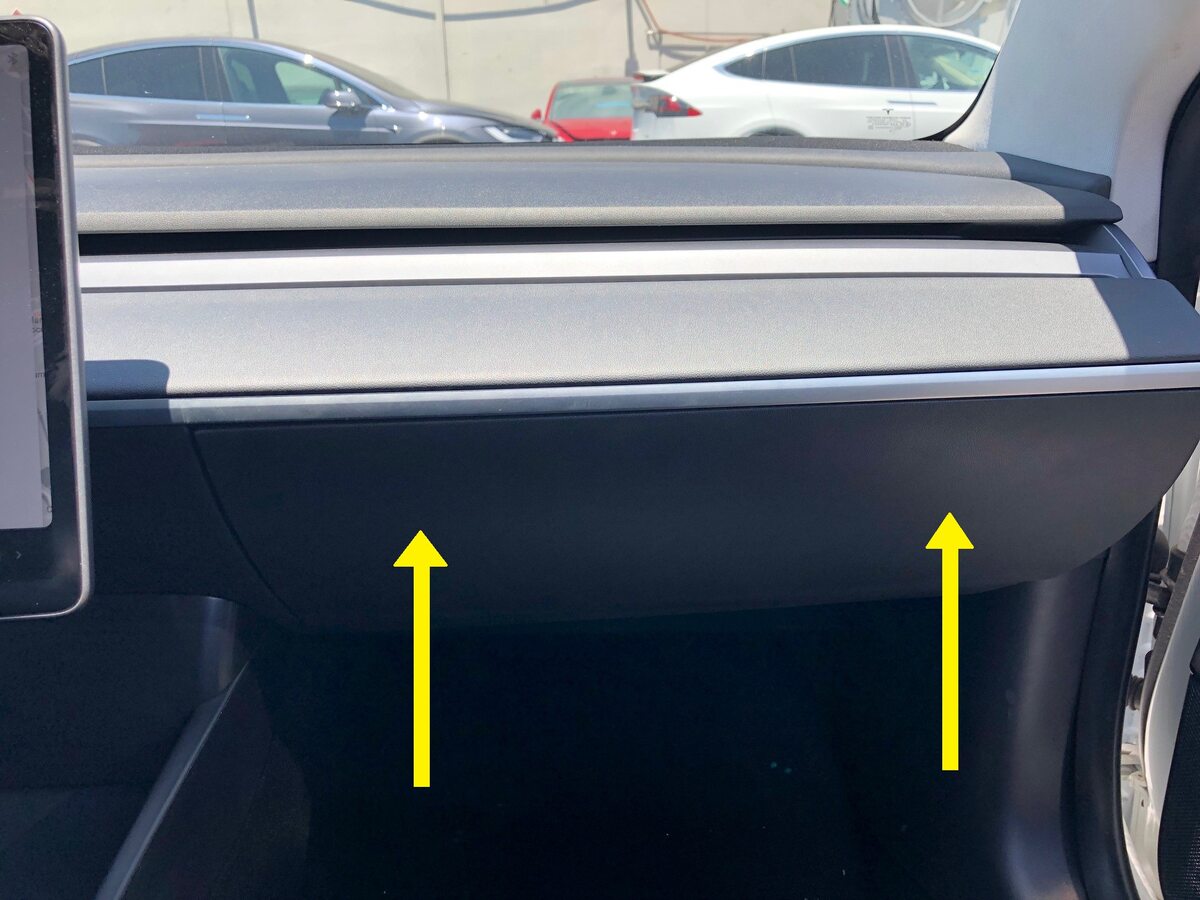

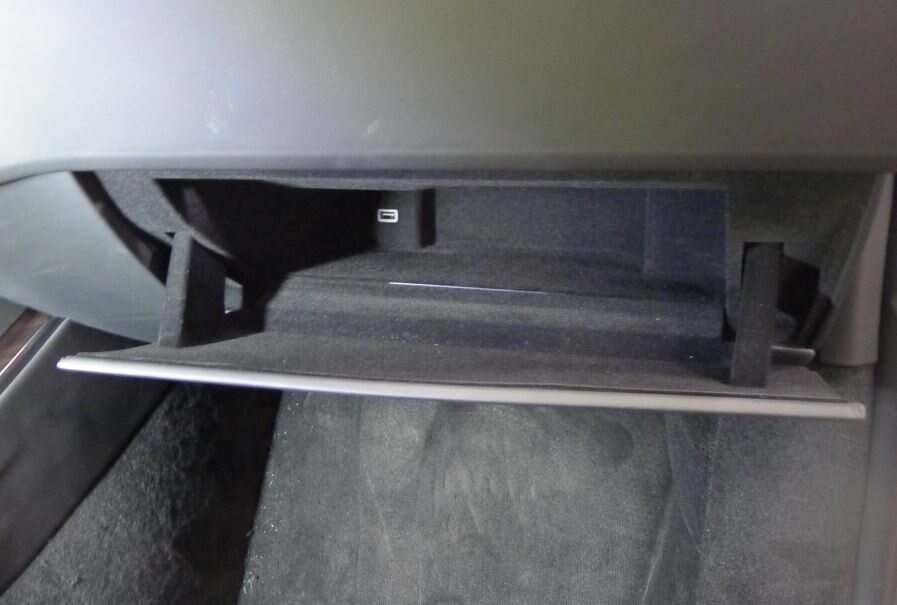

22. Open glove box through UI
    Remarque

    Via Controls > Glovebox





23. Close glove box

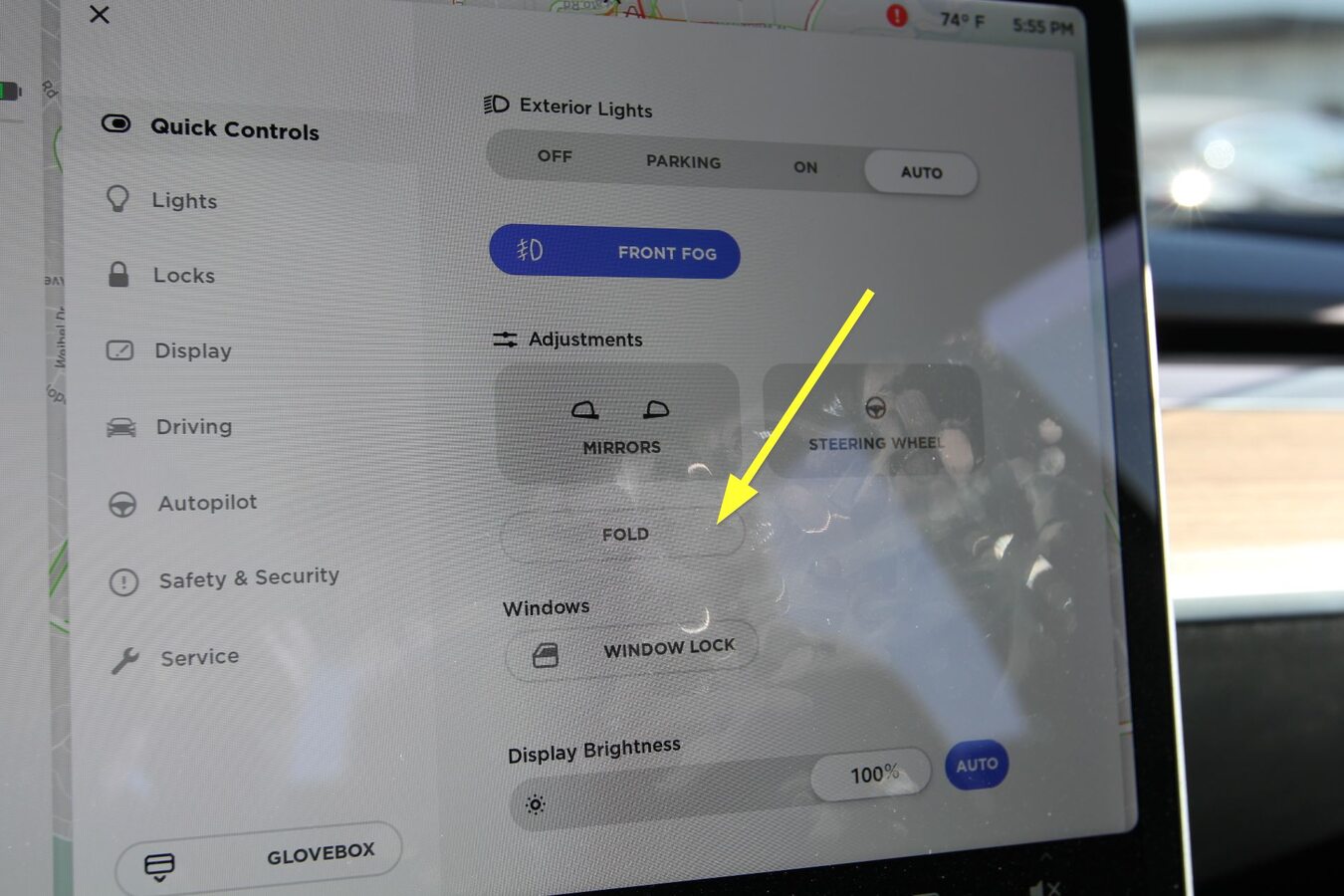

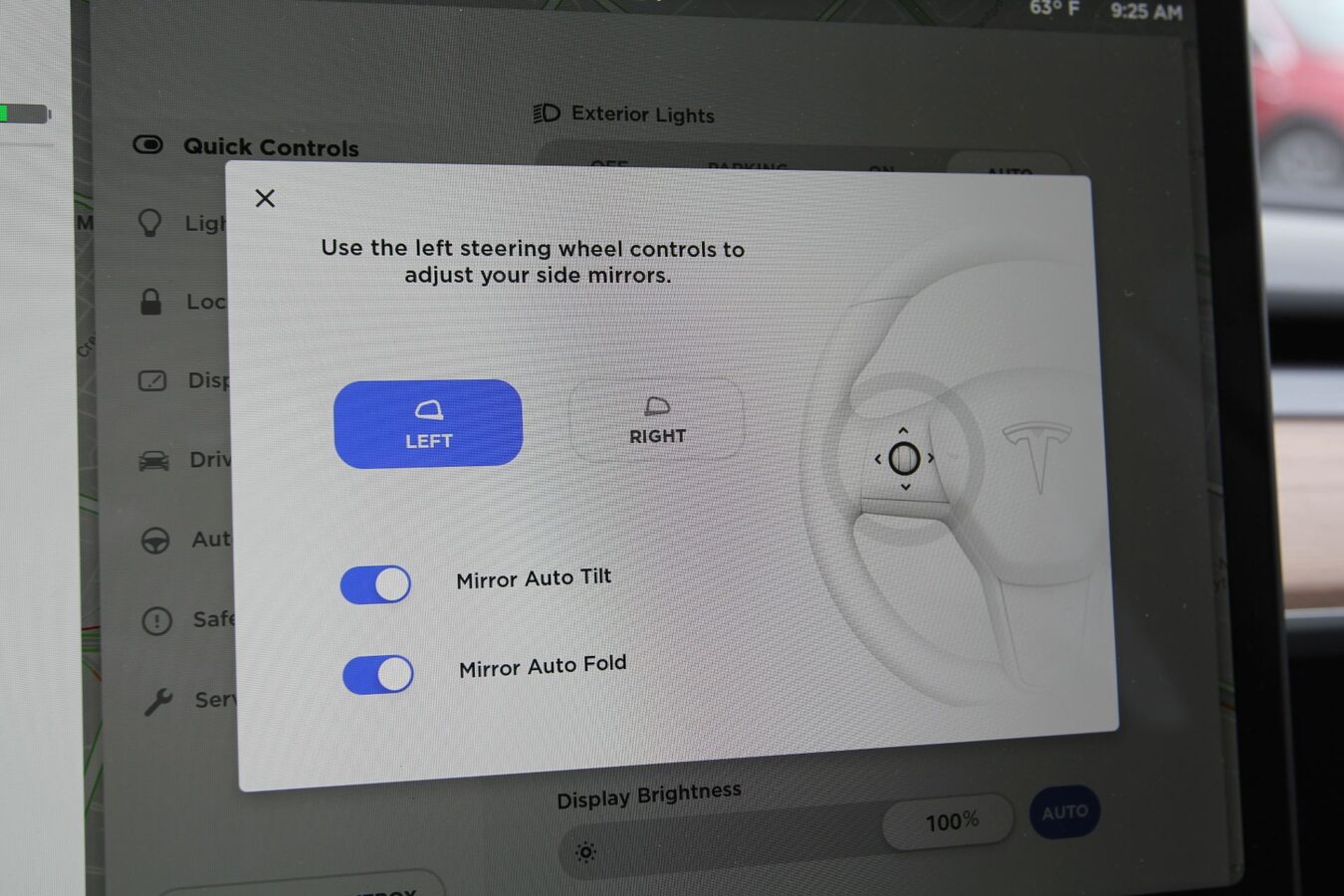

24. Function check power folding side mirrors
    Remarque

    Fold mirrors in/out, Check adjustment of glass

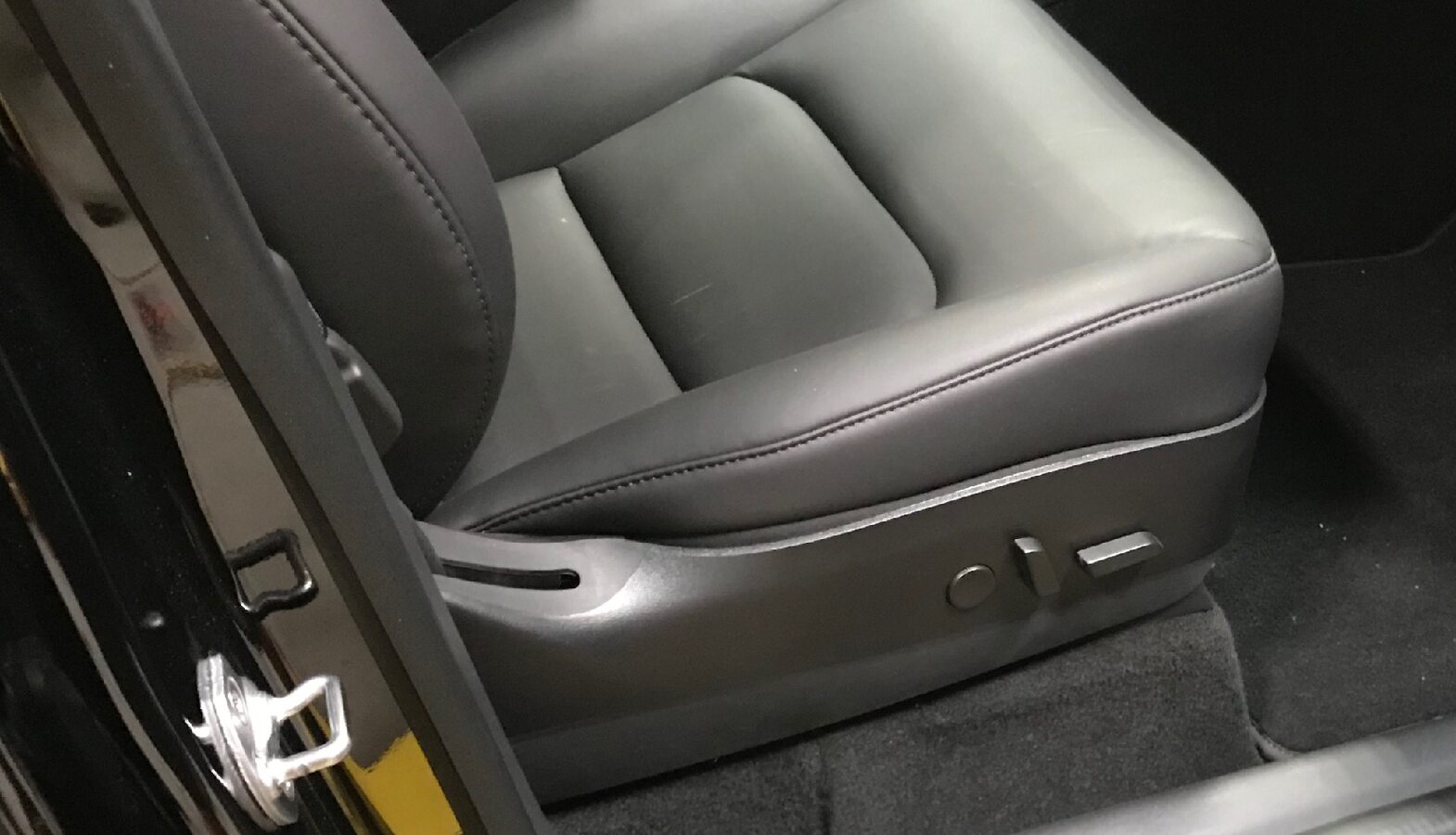

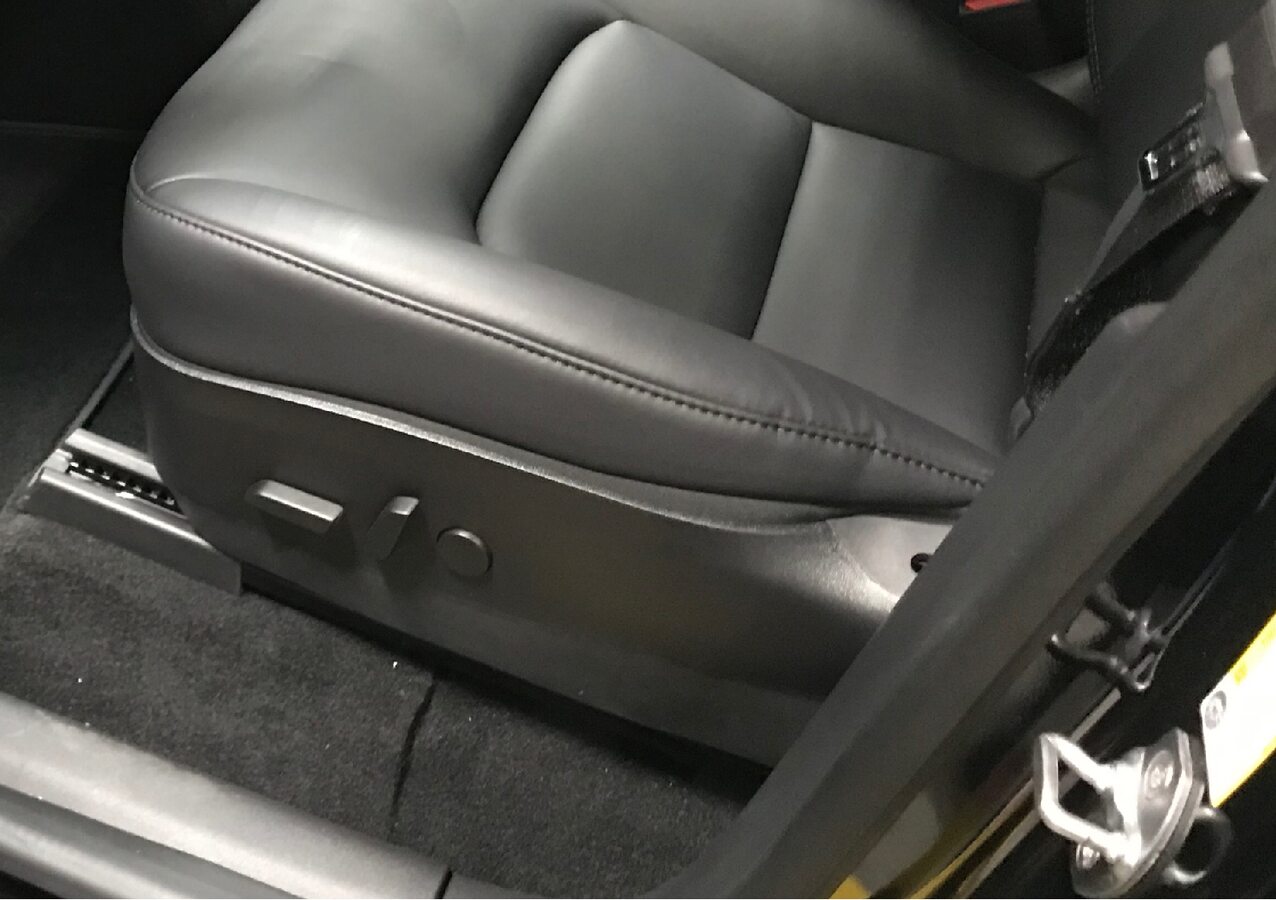

25. Function check LH front seat
    Remarque

    Check full range of motion of seat, Test lumbar and seat heat/cooling

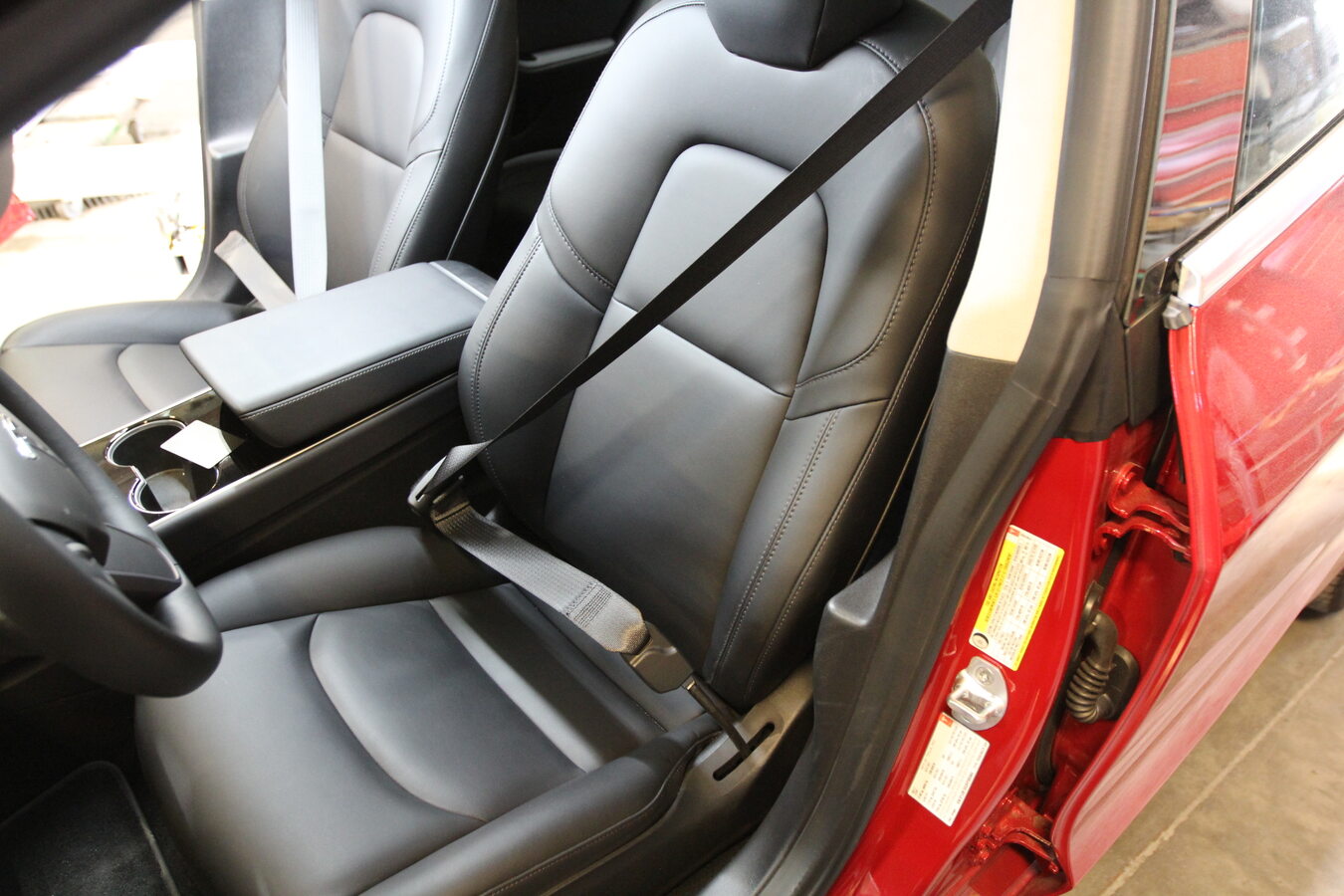

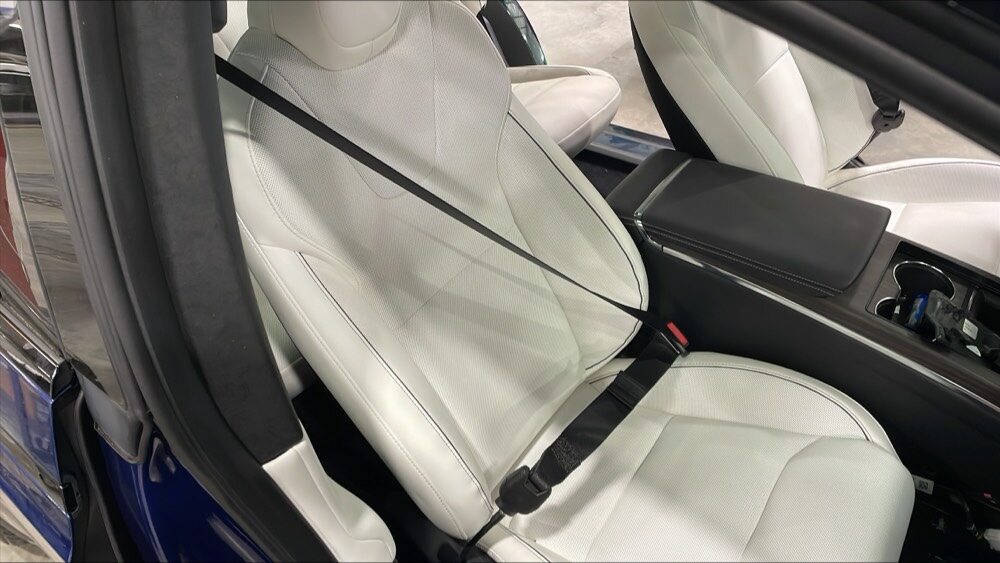

26. Function check LH front seat belt
    Remarque

    Latch and unlatch buckle, Quickly pull retractor to check locking function

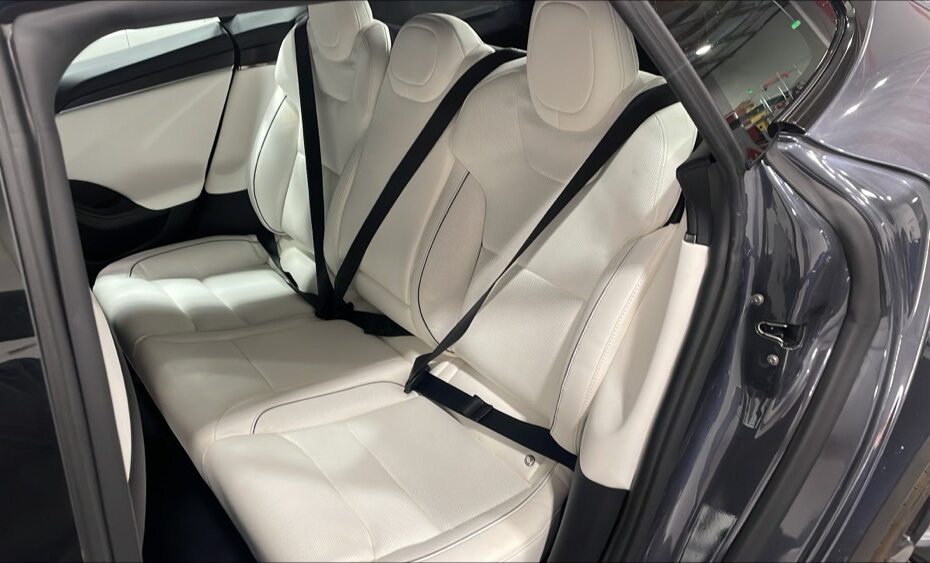

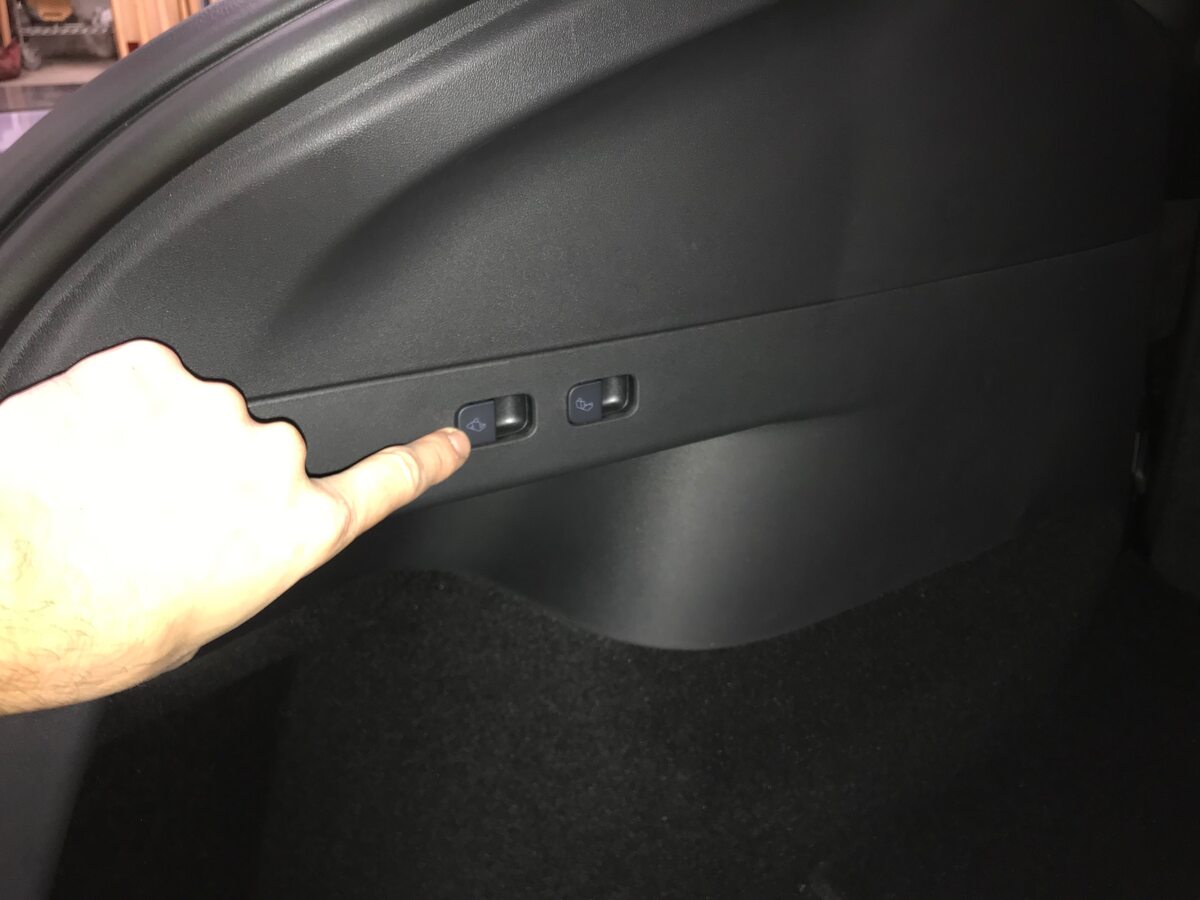

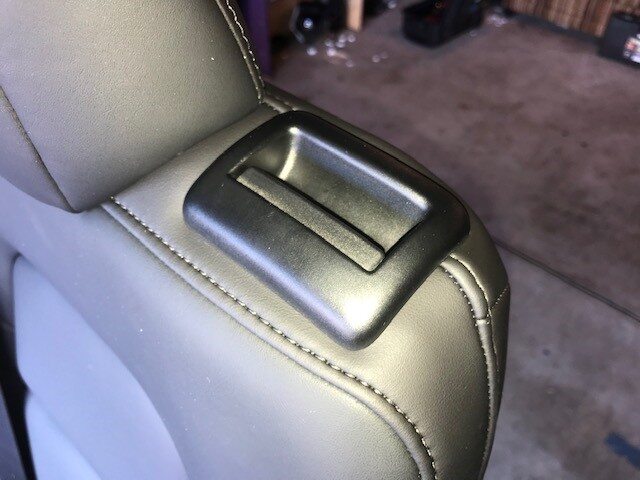

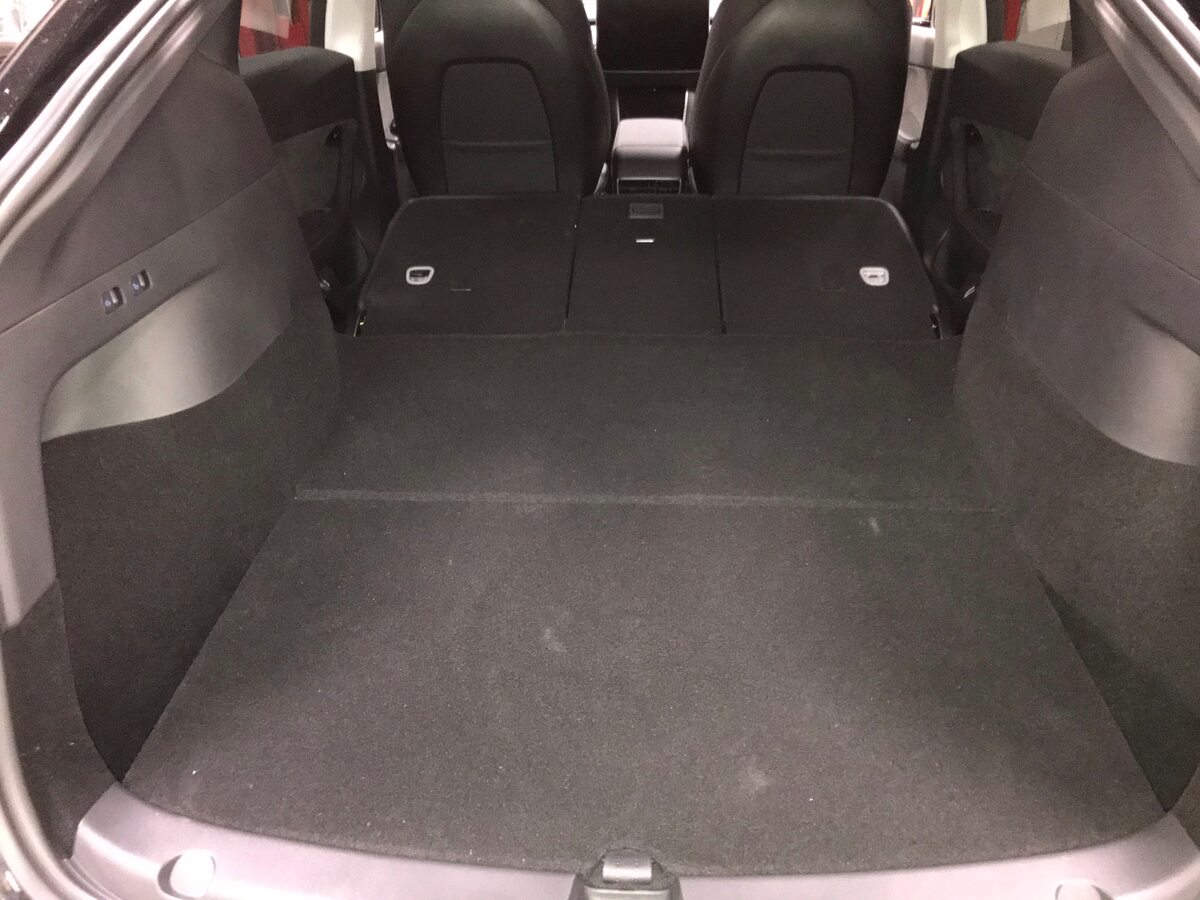

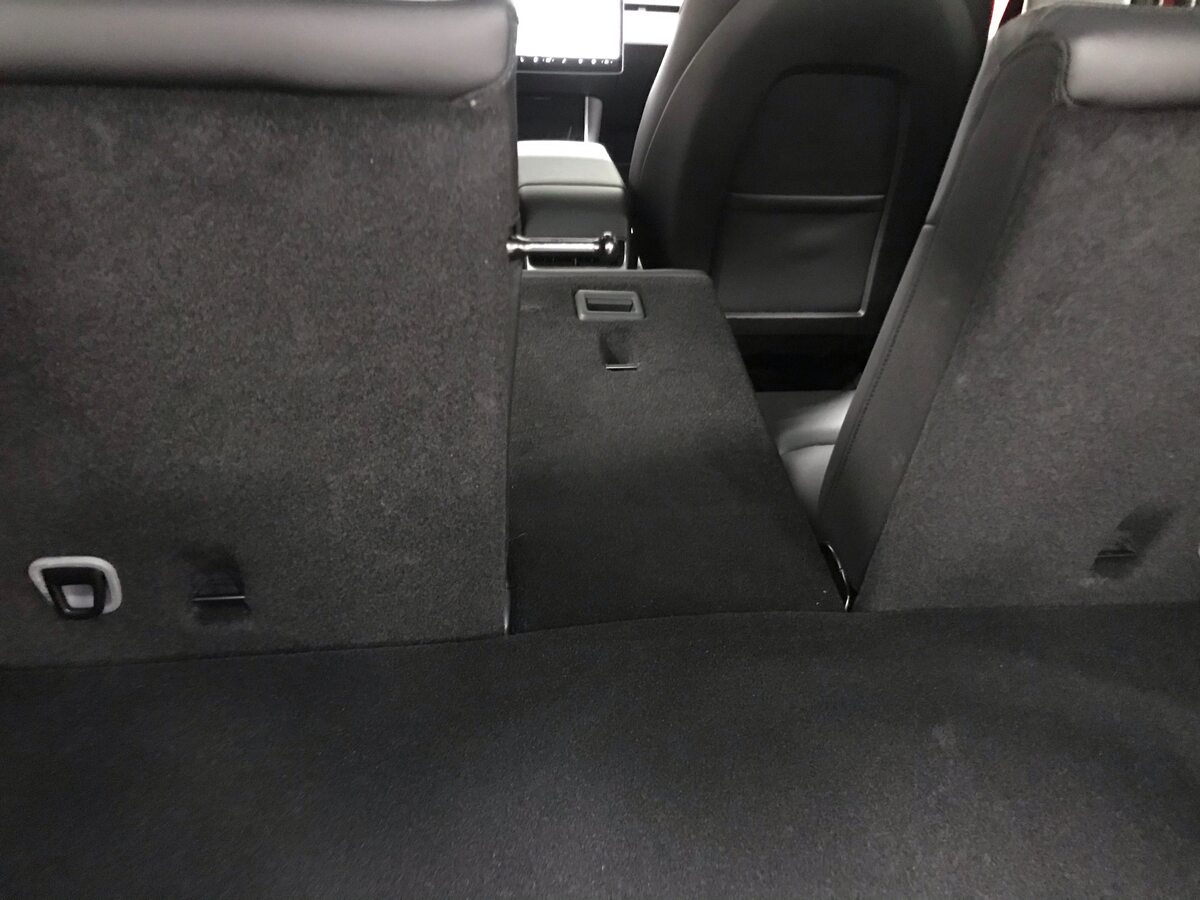

27. Function check folding/latching of 2nd row seats
    Remarque

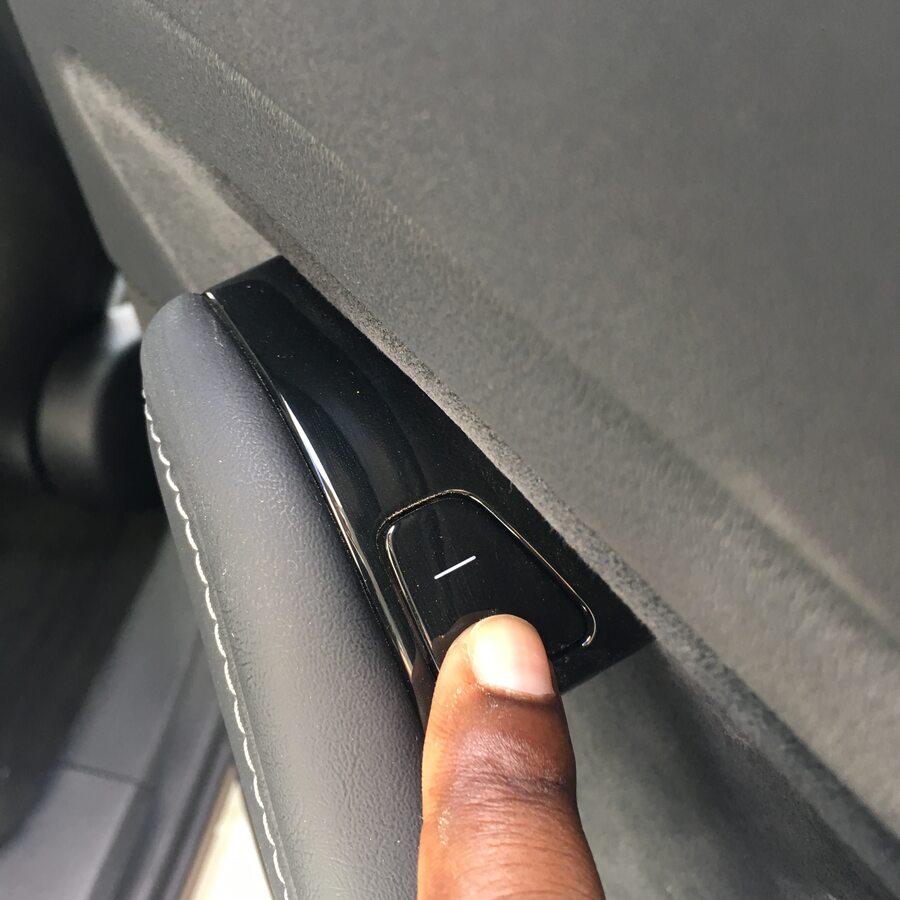

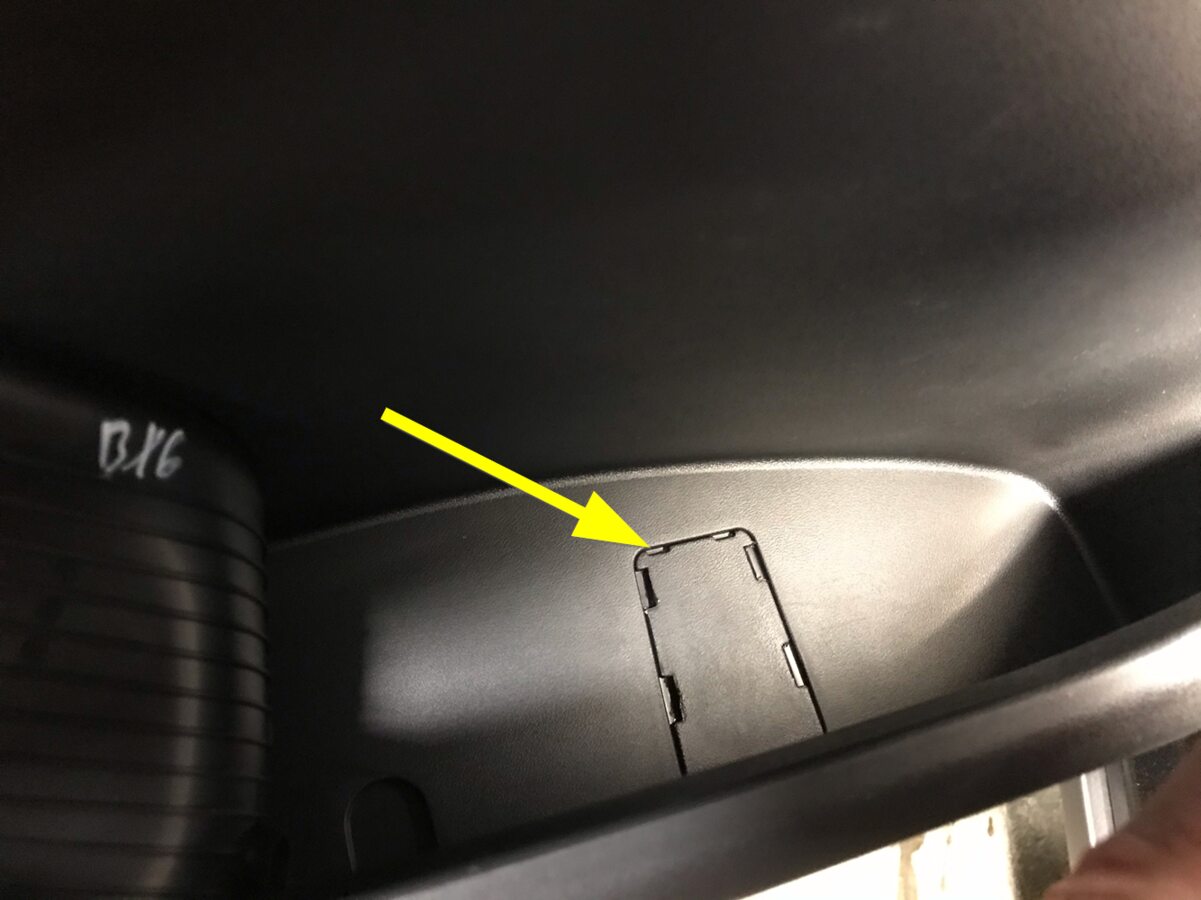

    Make sure seat shoulder switches, center seat switch and trunk side trim seat switches operate as expected









28. Function check the rear seat belts
    Remarque

    Latch and unlatch buckles, Quickly pull retractor to check locking function



29. Function check the RH front seat belt
    Remarque

    Latch and unlatch buckle, Quickly pull retractor to check locking function



30. Function check RH front seat
    Remarque

    Check full range of motion of seat, Test lumbar and seat heat/cooling



31. Function check wipers and spray jets
    Remarque

    Ensure hood and doors are closed prior to activating wipers, Inspect and note functionality for wipers and wiper jets, Check for full range of motion, speed of motion, interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions

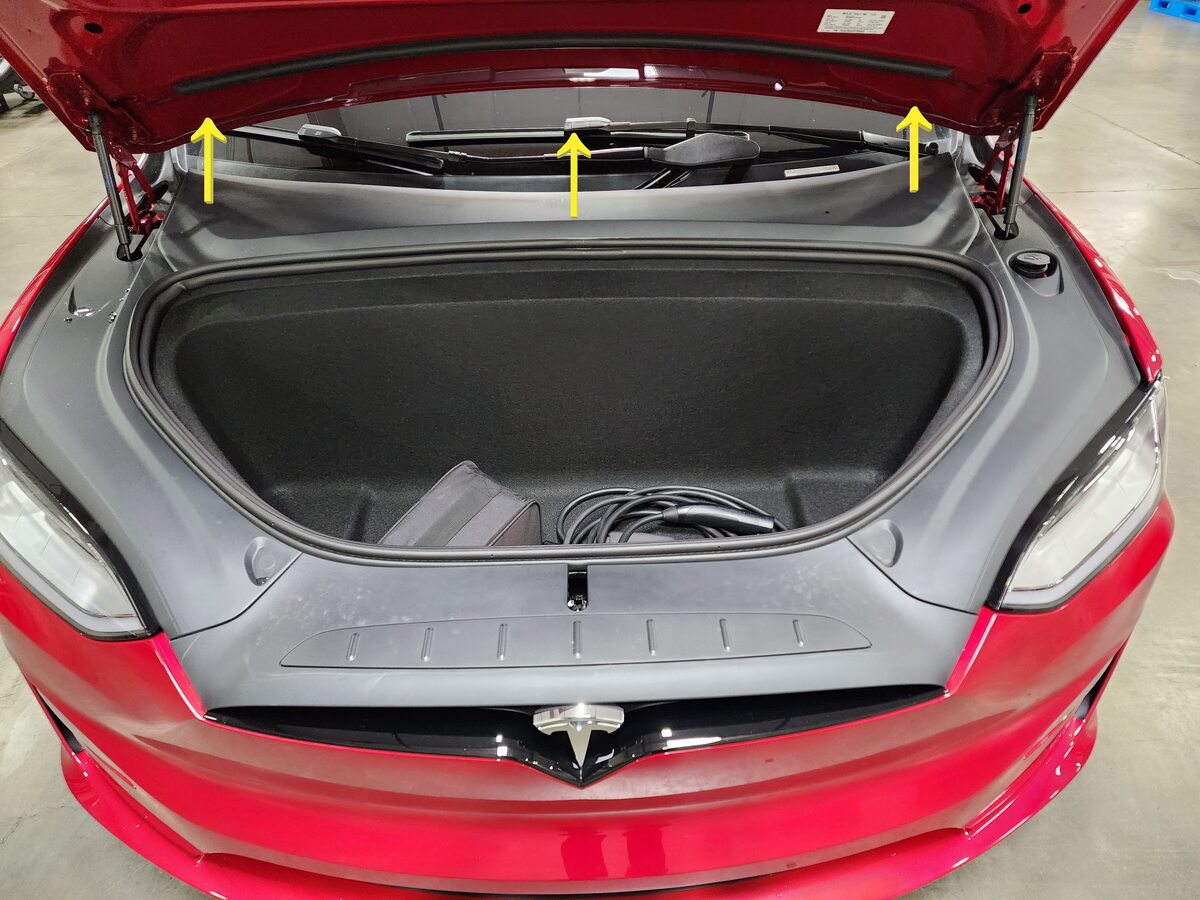

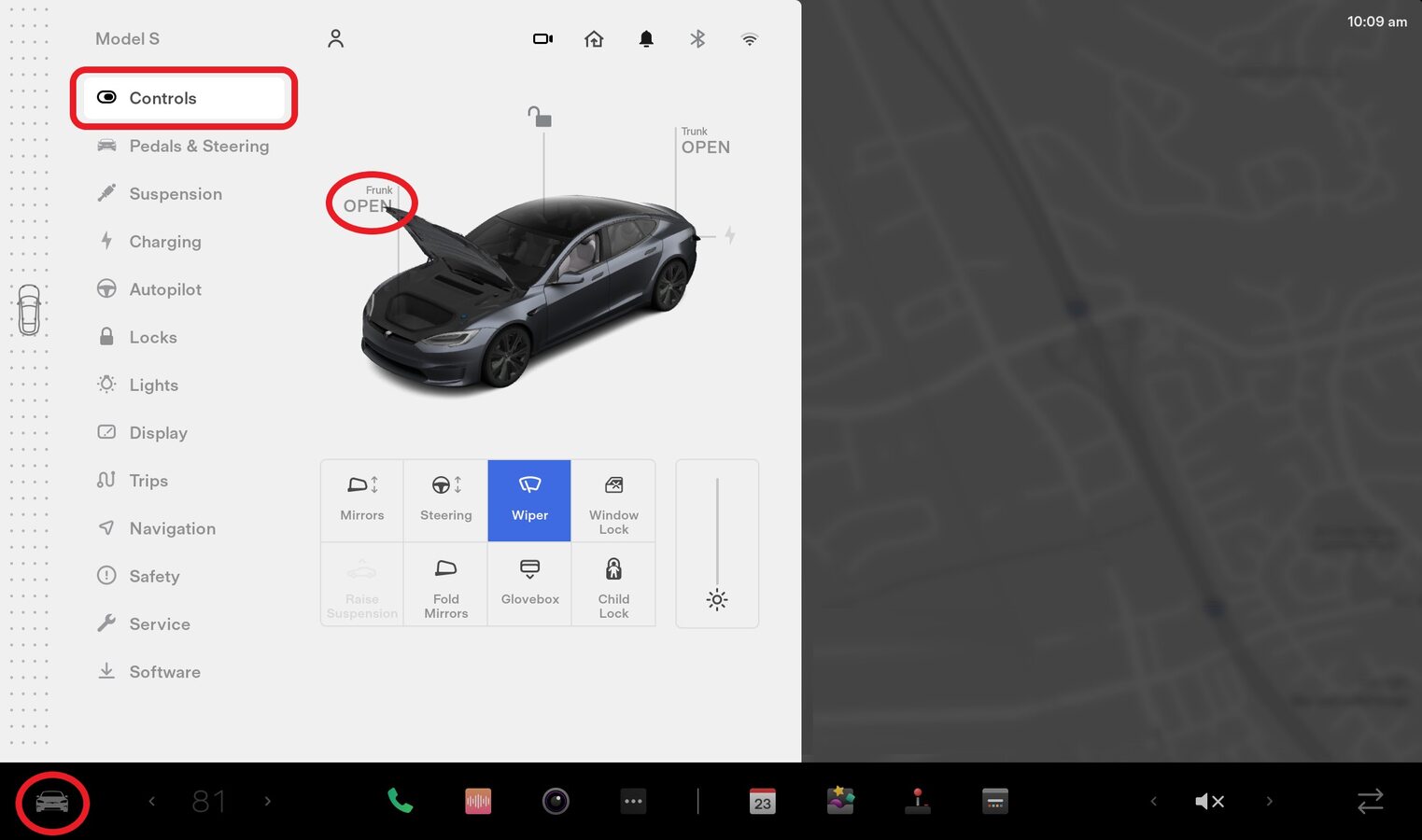

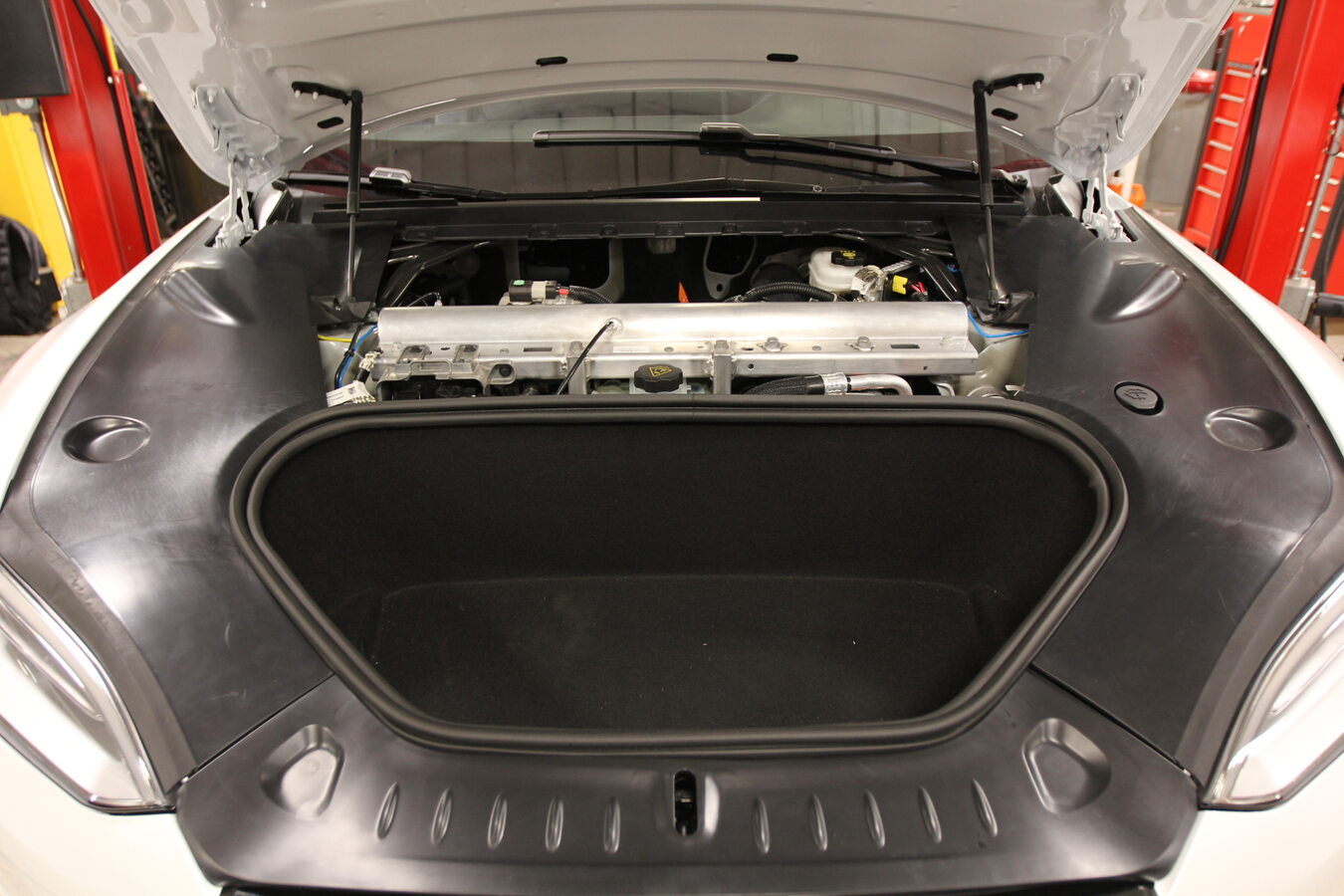

32. Open hood
    Remarque

    Select Controls > Frunk Open

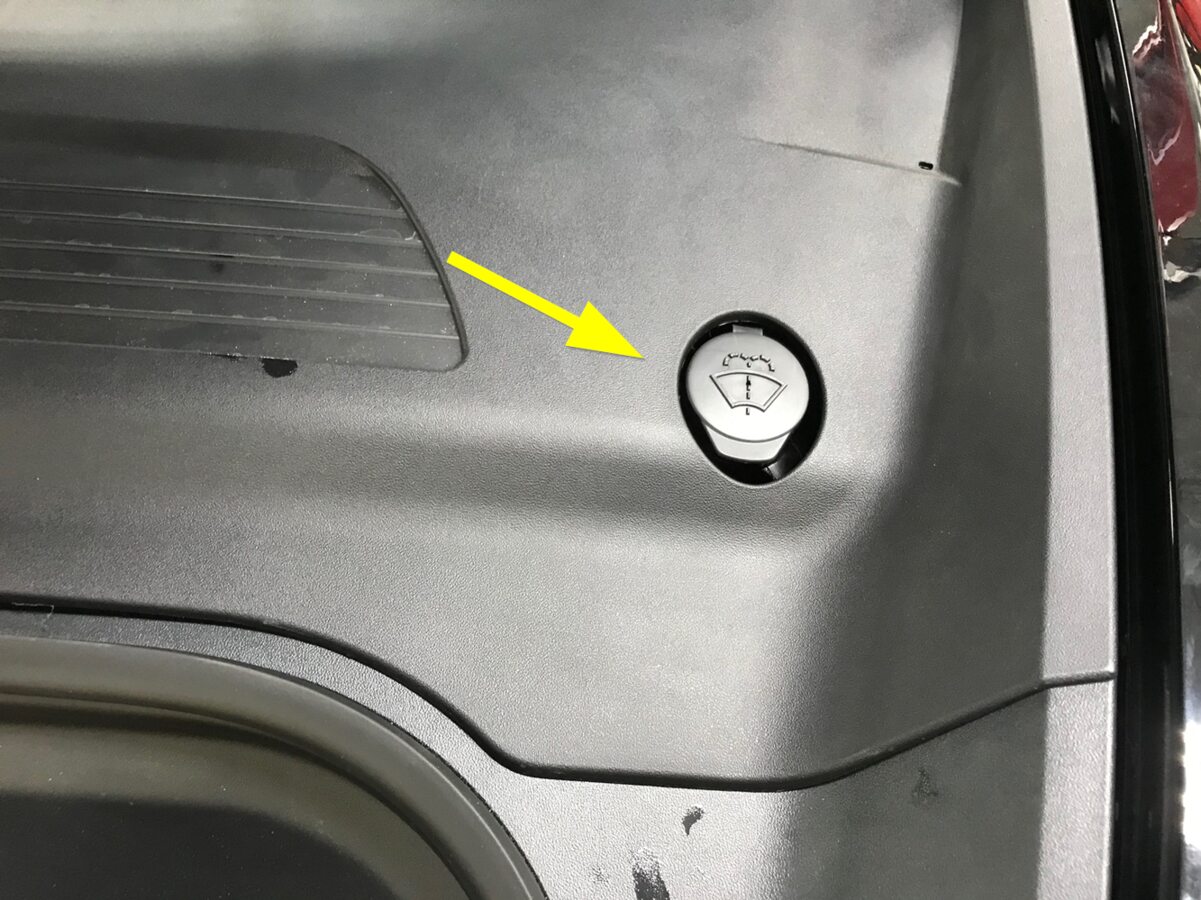

33. Fill washer reservoir with fluid

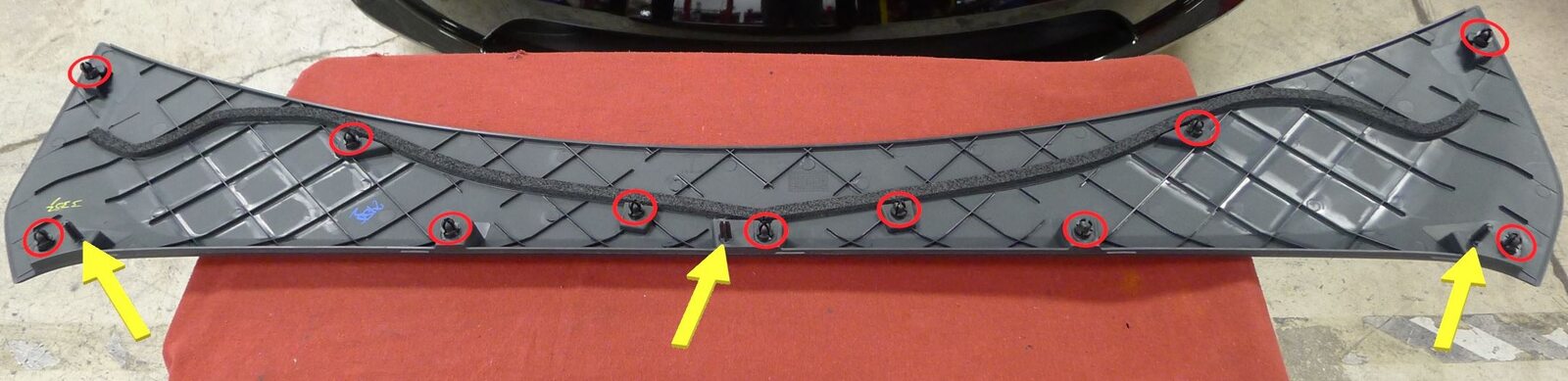

34. Remove rear underhood apron
    Remarque

    11x clips, 3x datums

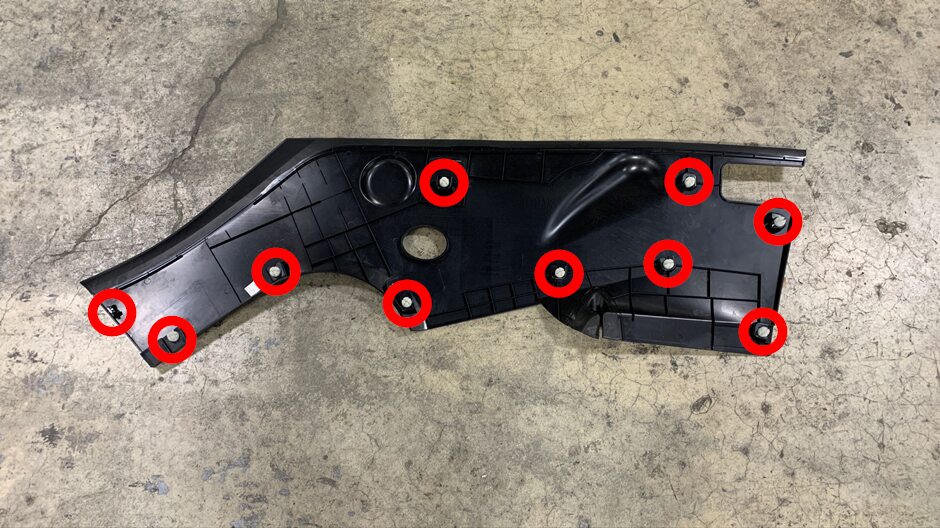

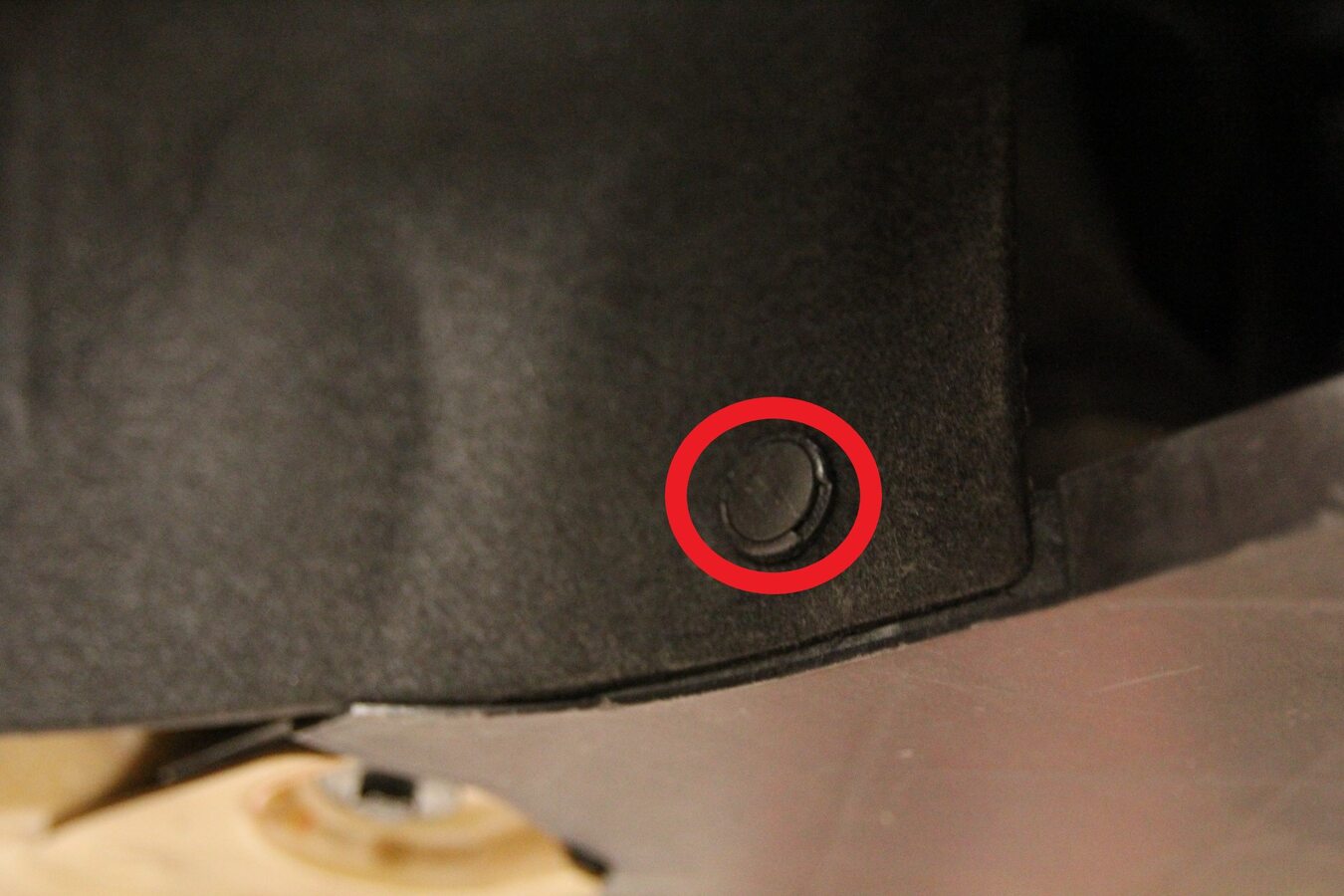

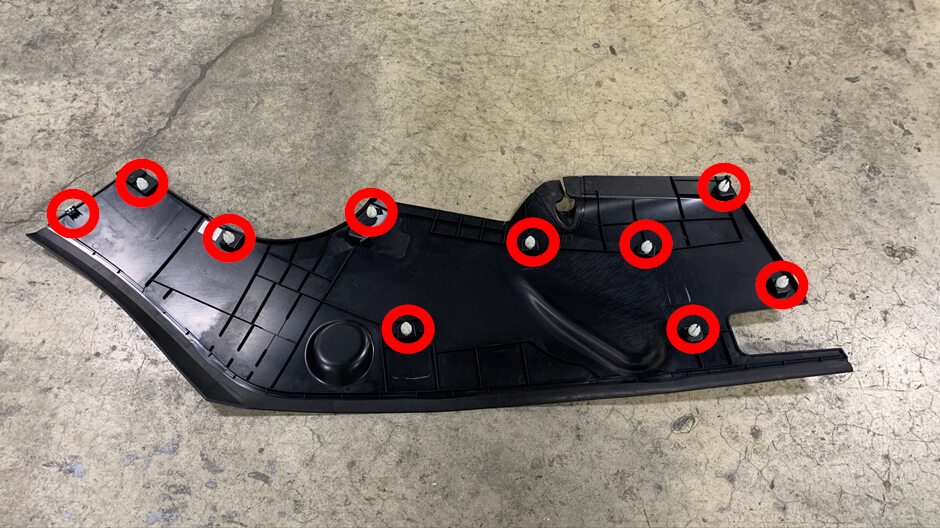

35. Remove LH underhood apron
    Remarque

    10x clips, (*Use this step for Palladium S procedures)





36. Remove RH underhood apron
    Remarque

    10x clips





37. Remove front underhood apron
    Remarque

    7x clips

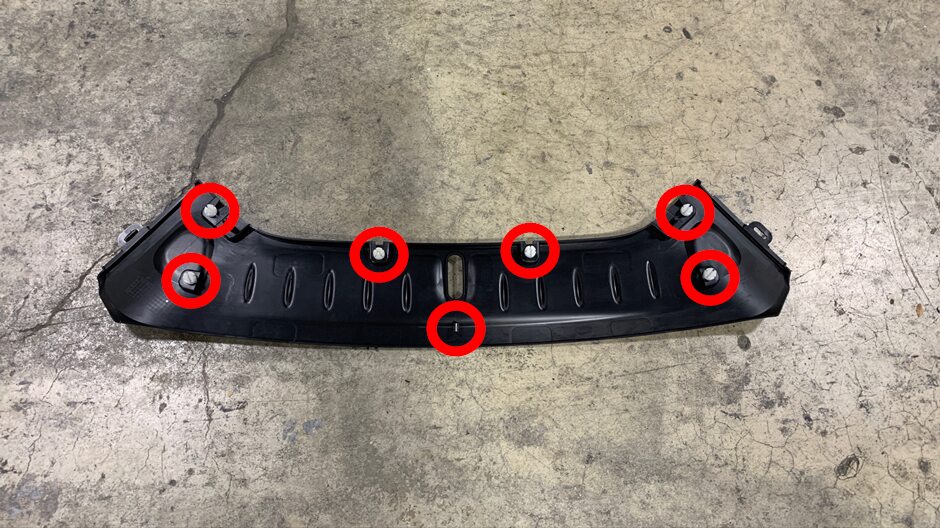

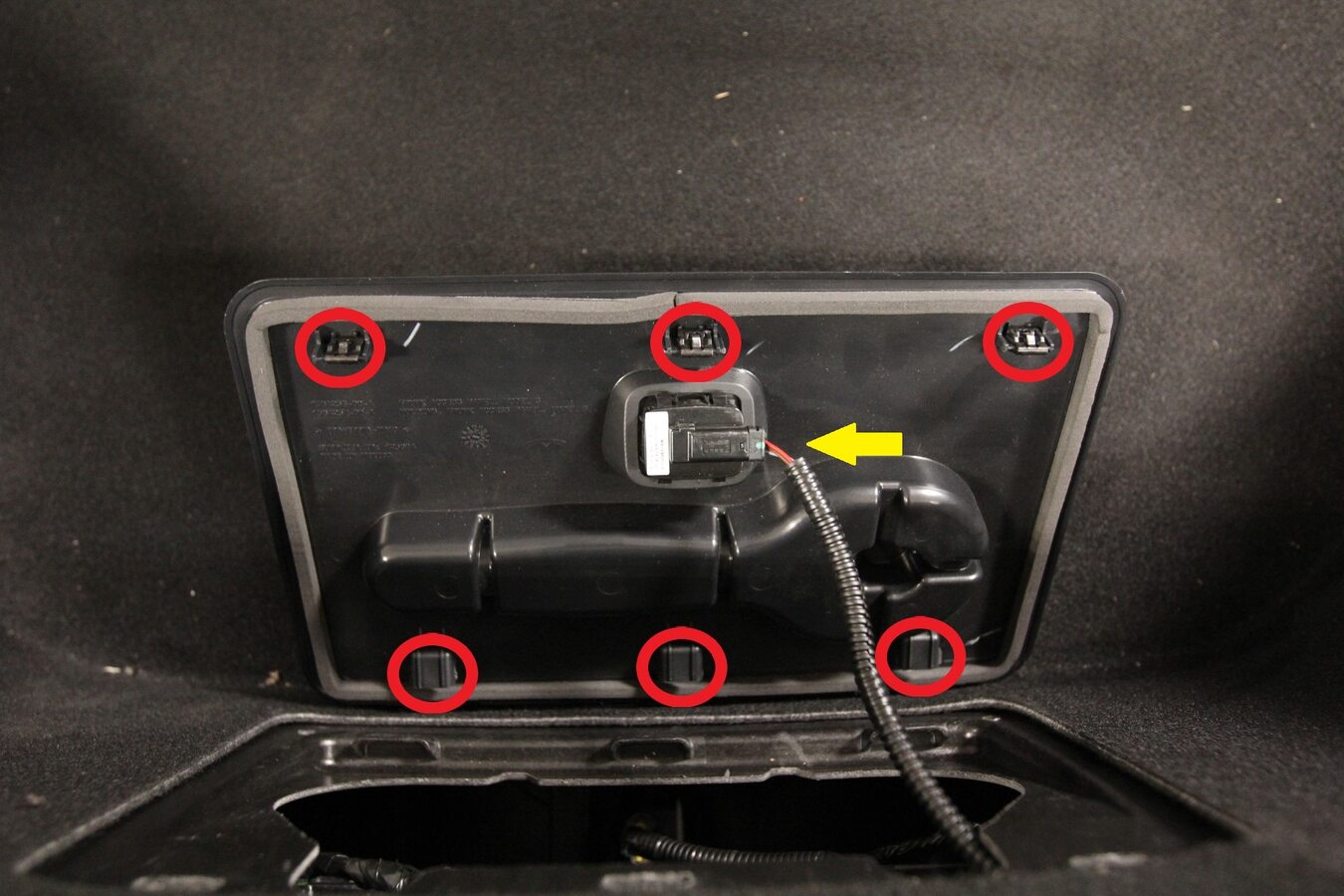

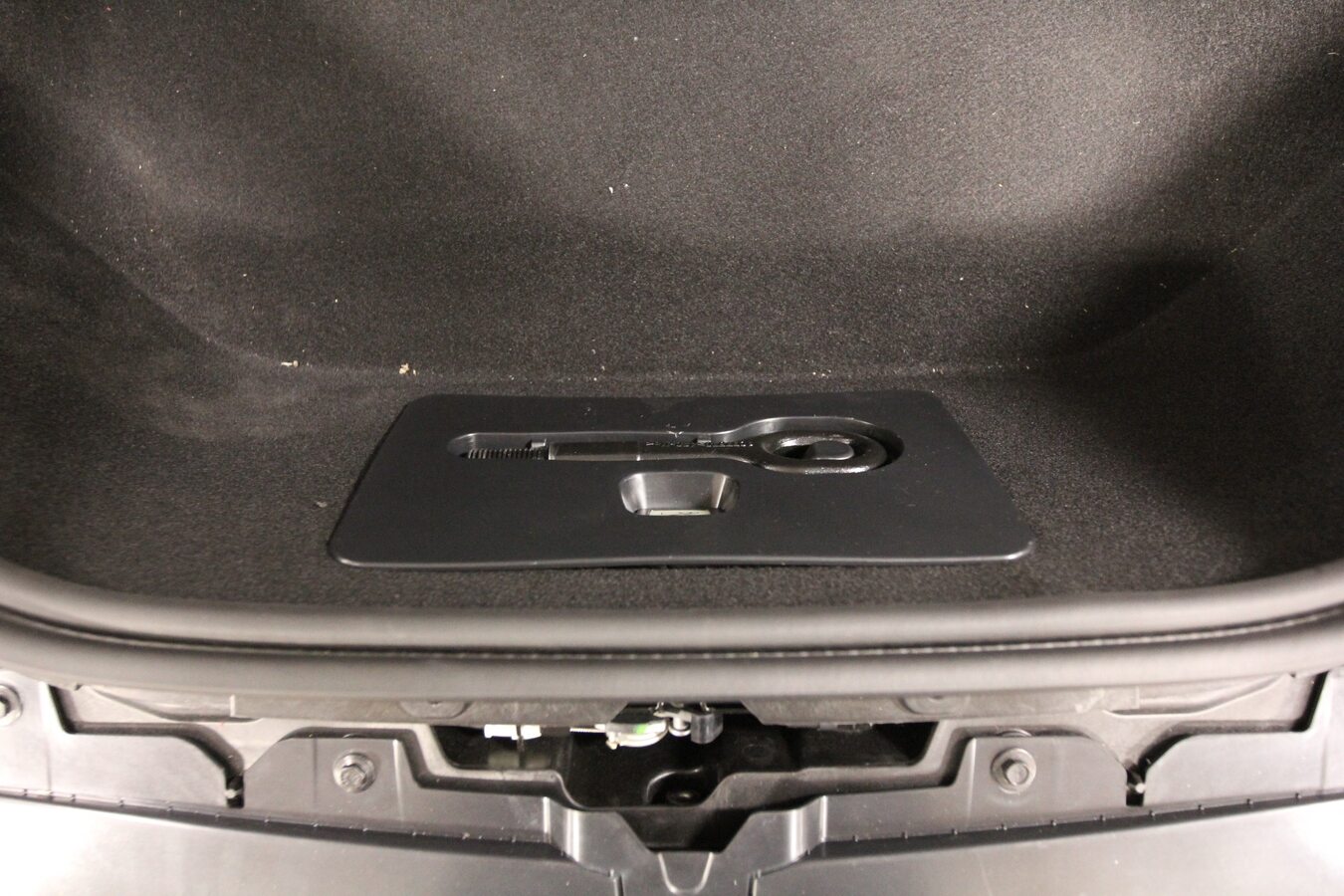

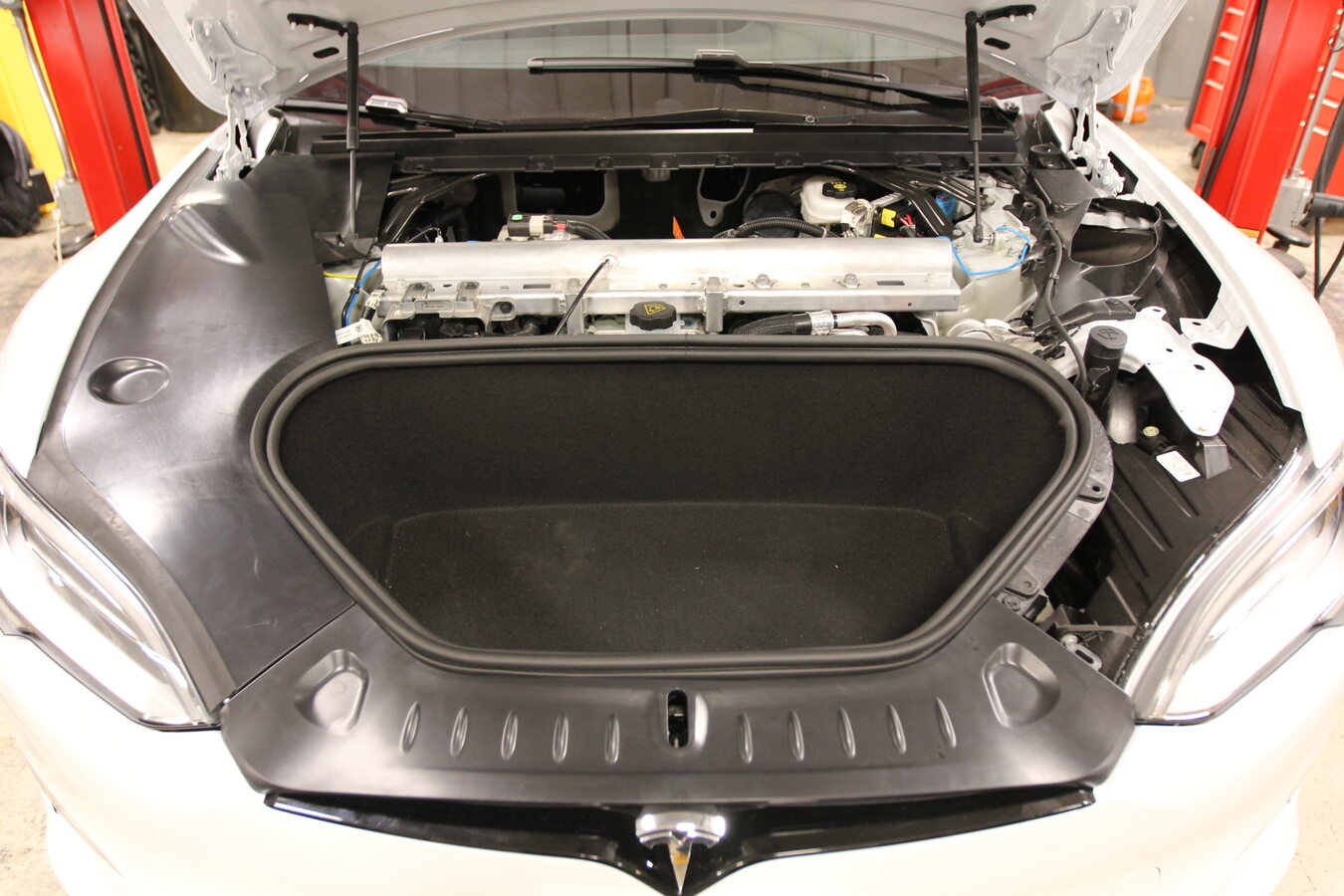

38. Remove frunk access panel
    Remarque

    3x clips, 3x hooks, 1x connector

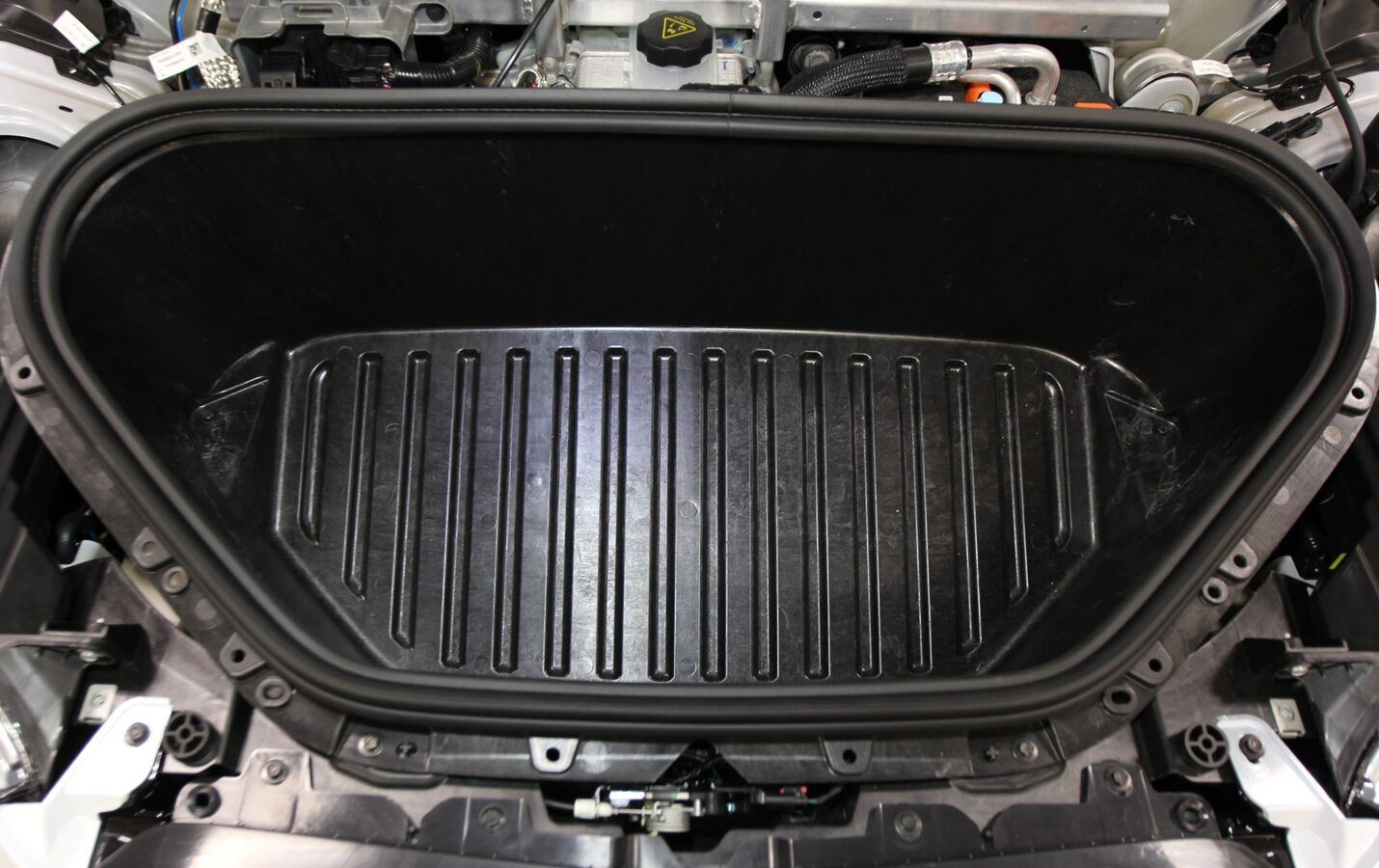

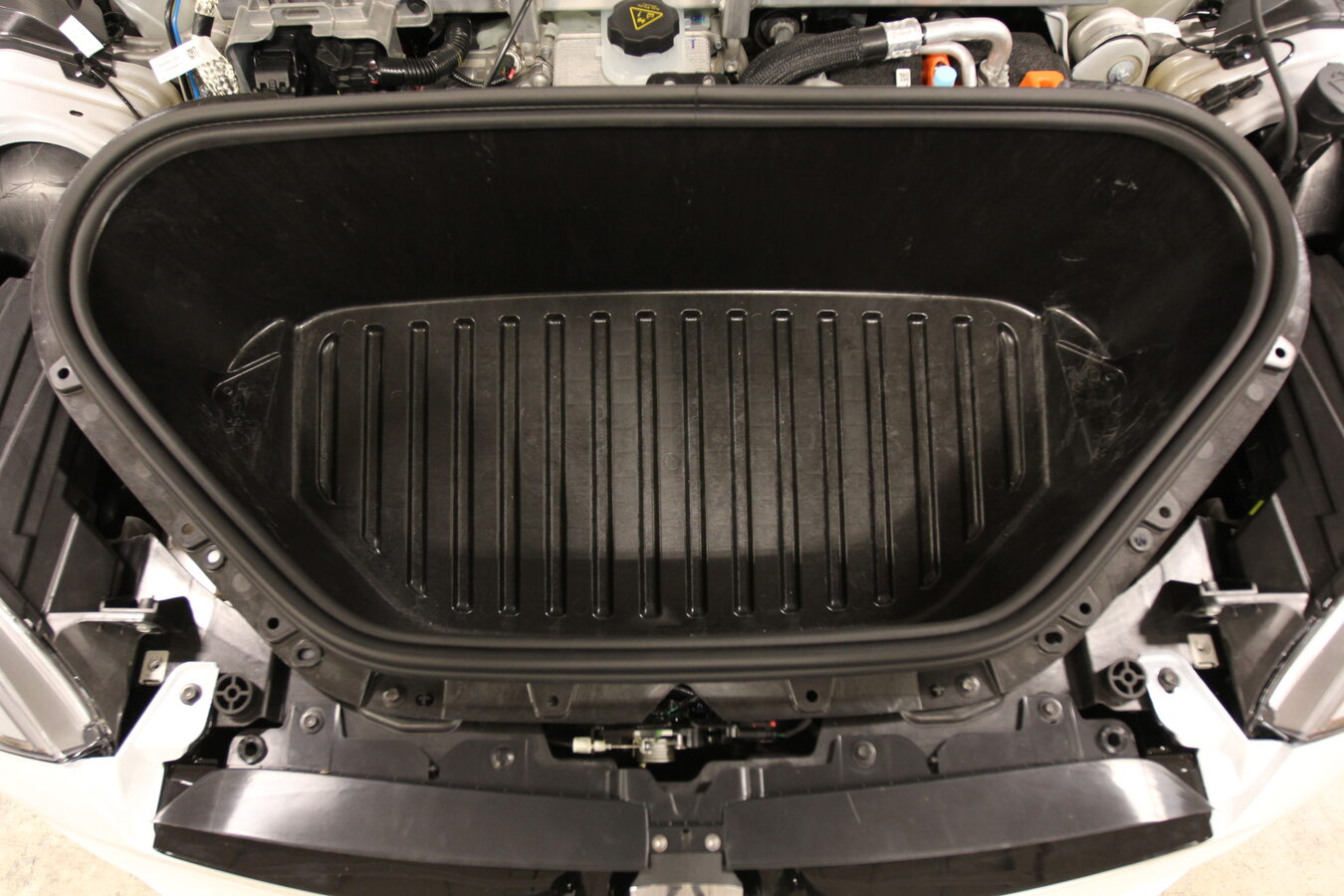

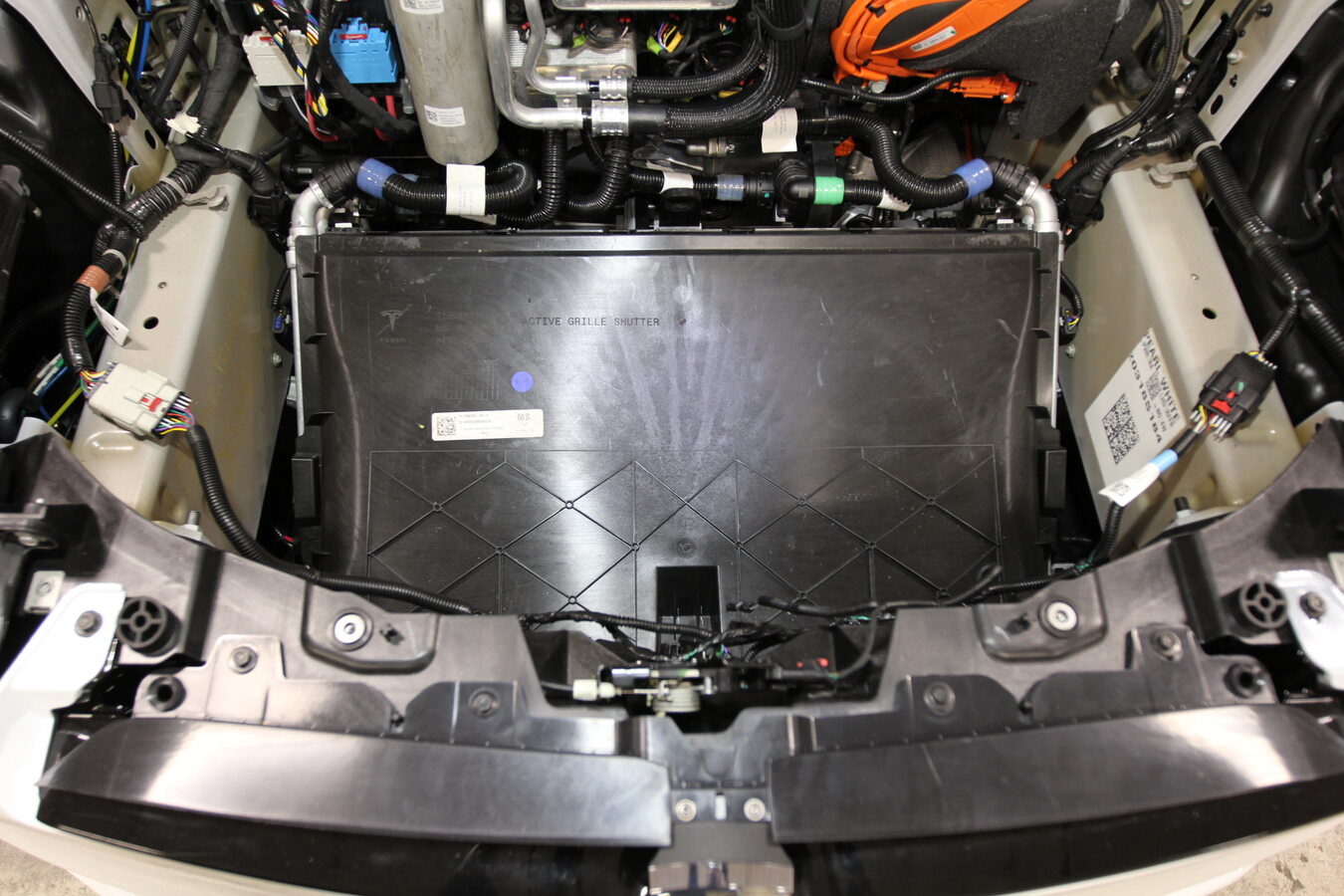

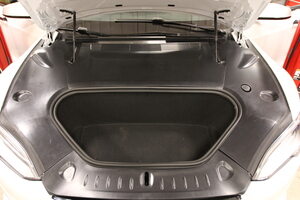

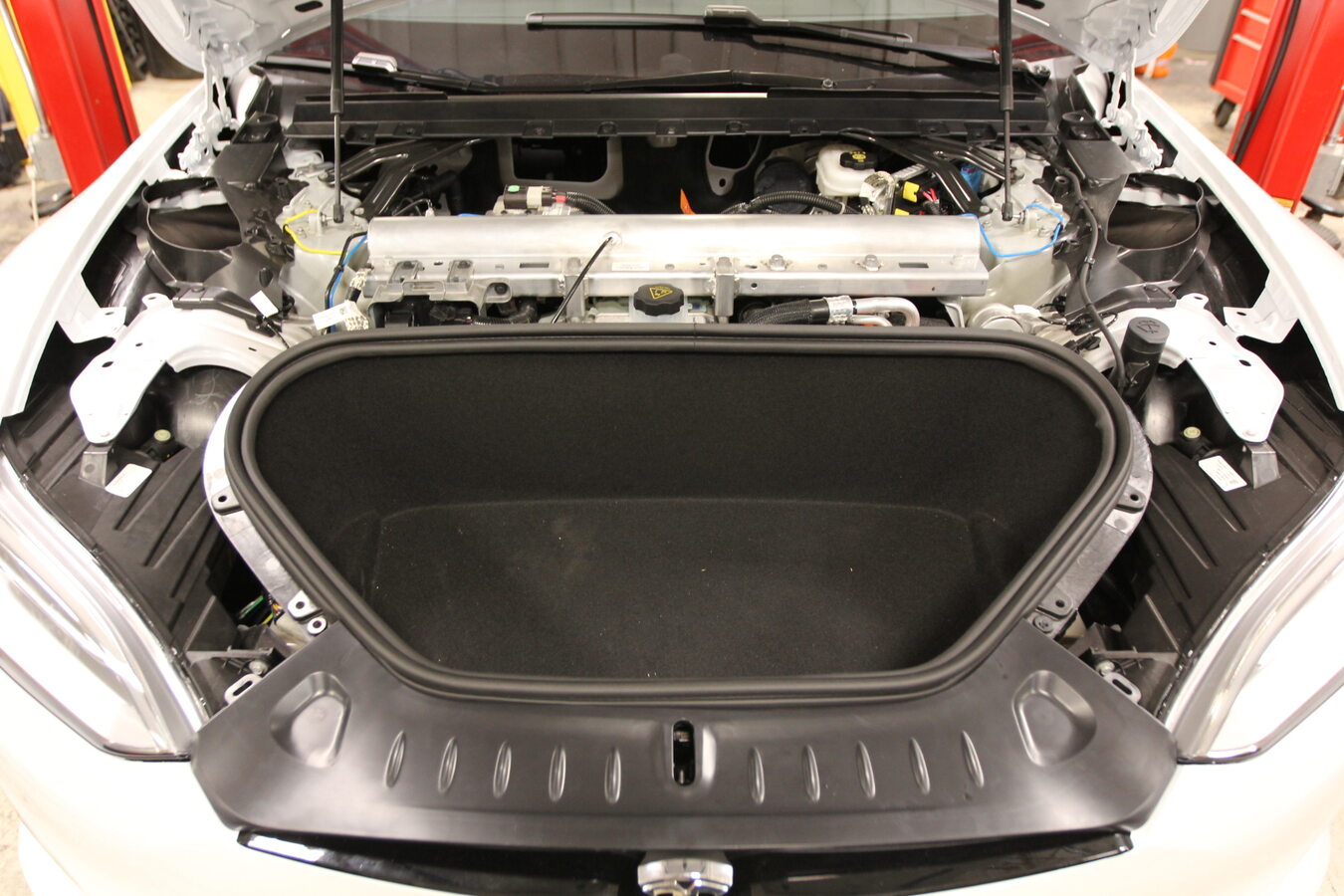

39. Remove frunk carpet





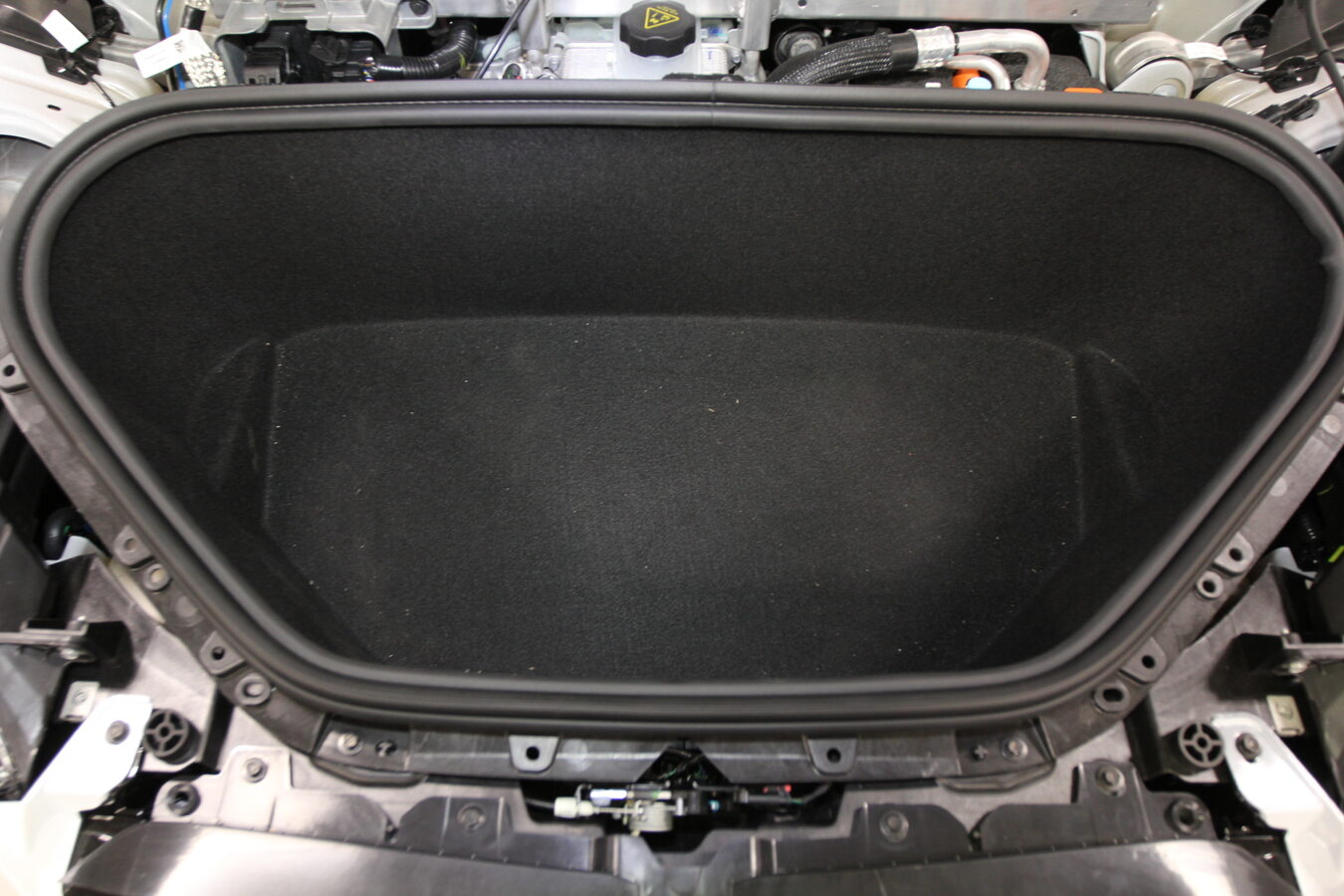

40. Remove frunk assembly
    Remarque

    4x bolts, 10mm, 5 Nm

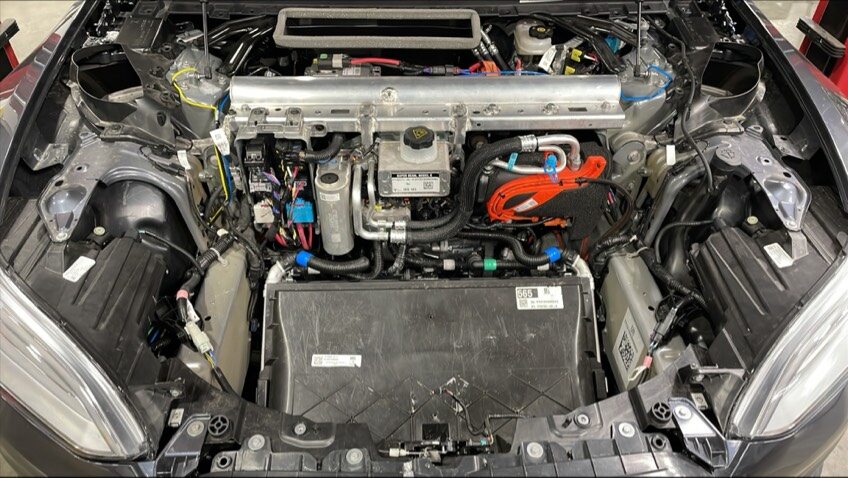

41. Perform inspection of under hood area
    Remarque

    Perform inspection of vehicle under hood area, Check for signs of abnormal damage, wear, heavy rust, wiring damage, or impact damage, Pay attention to safety related component and note any items of significance

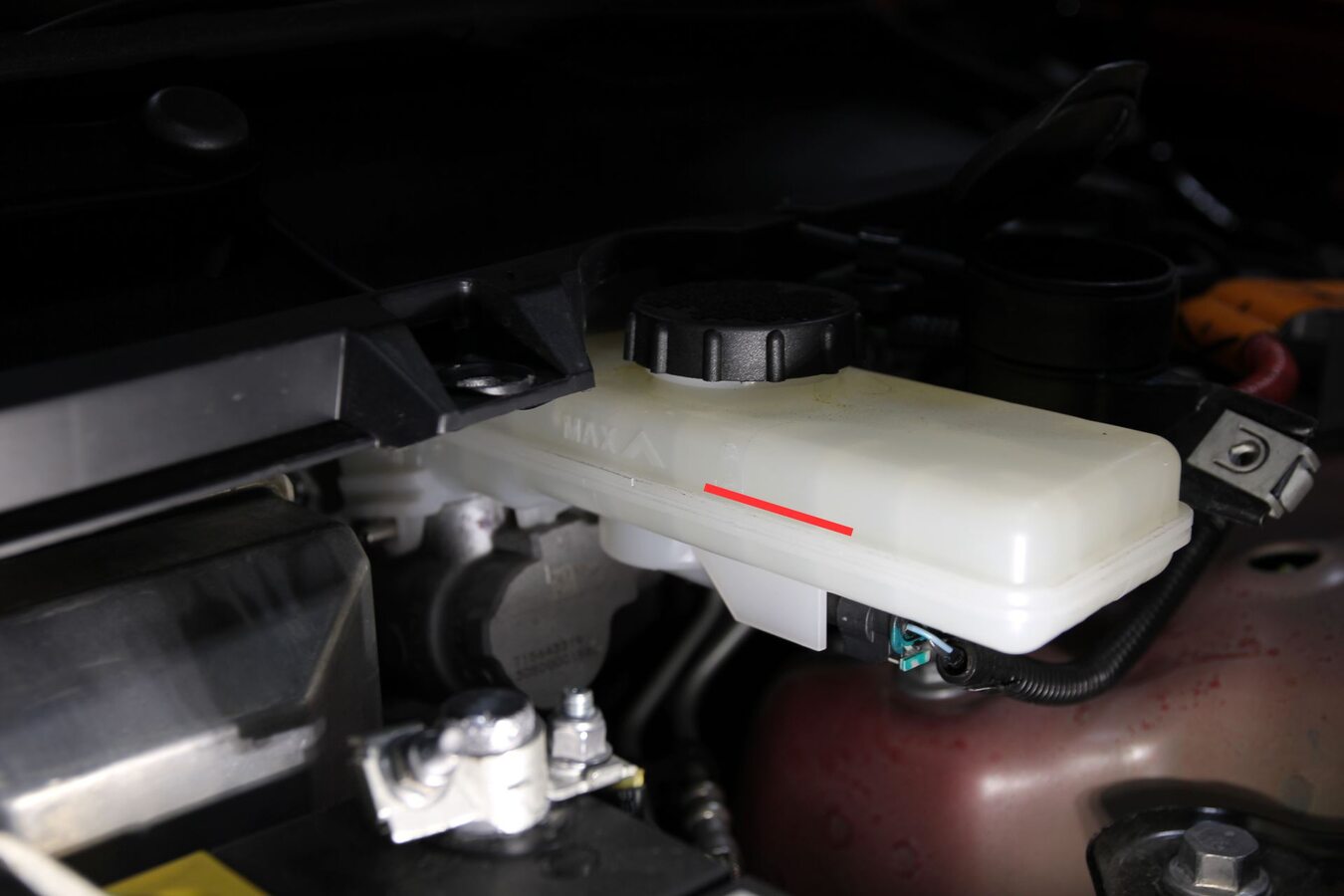

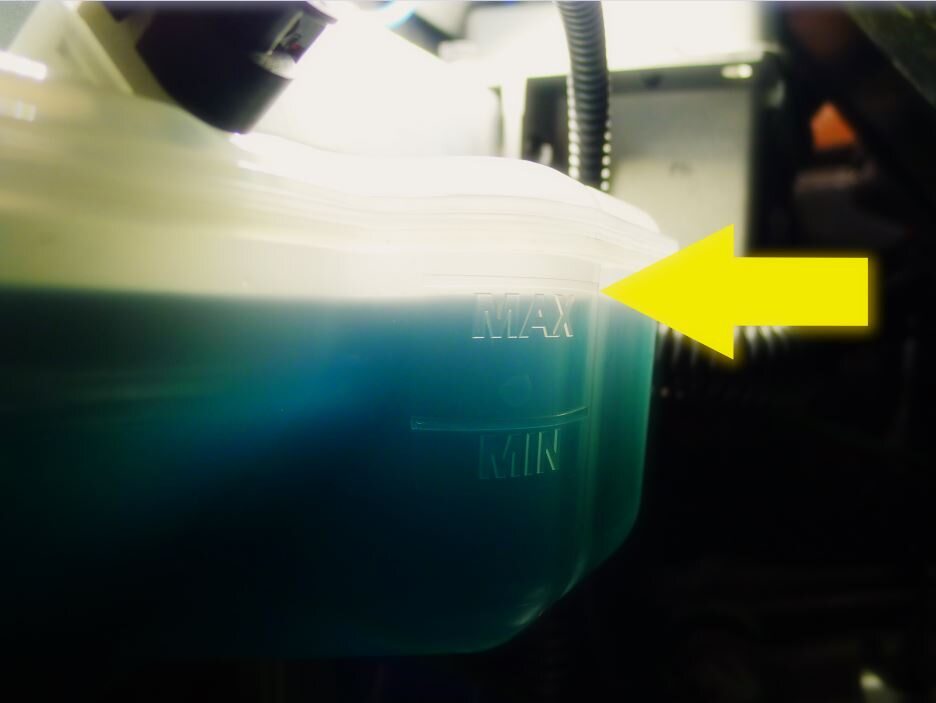

42. Visually inspect brake fluid level

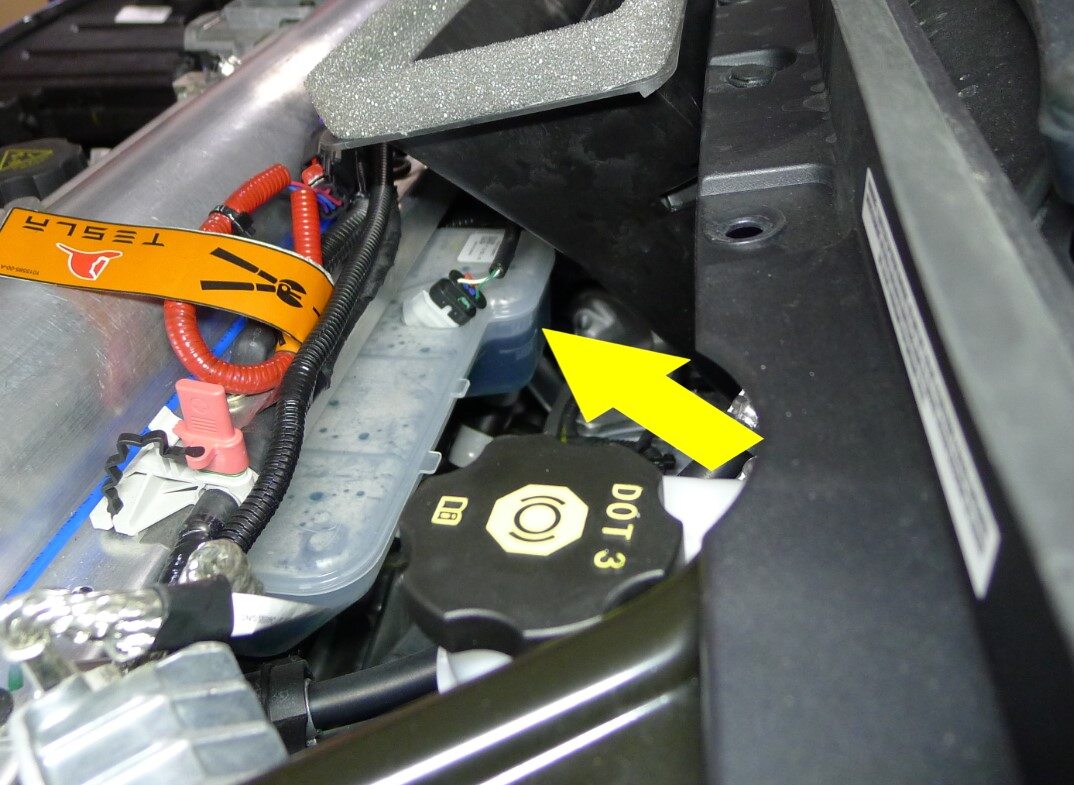

43. Inspect coolant level and top off as necessary
    Remarque

    Ensure that the fluid level is at the Max line, Top off fluid as required

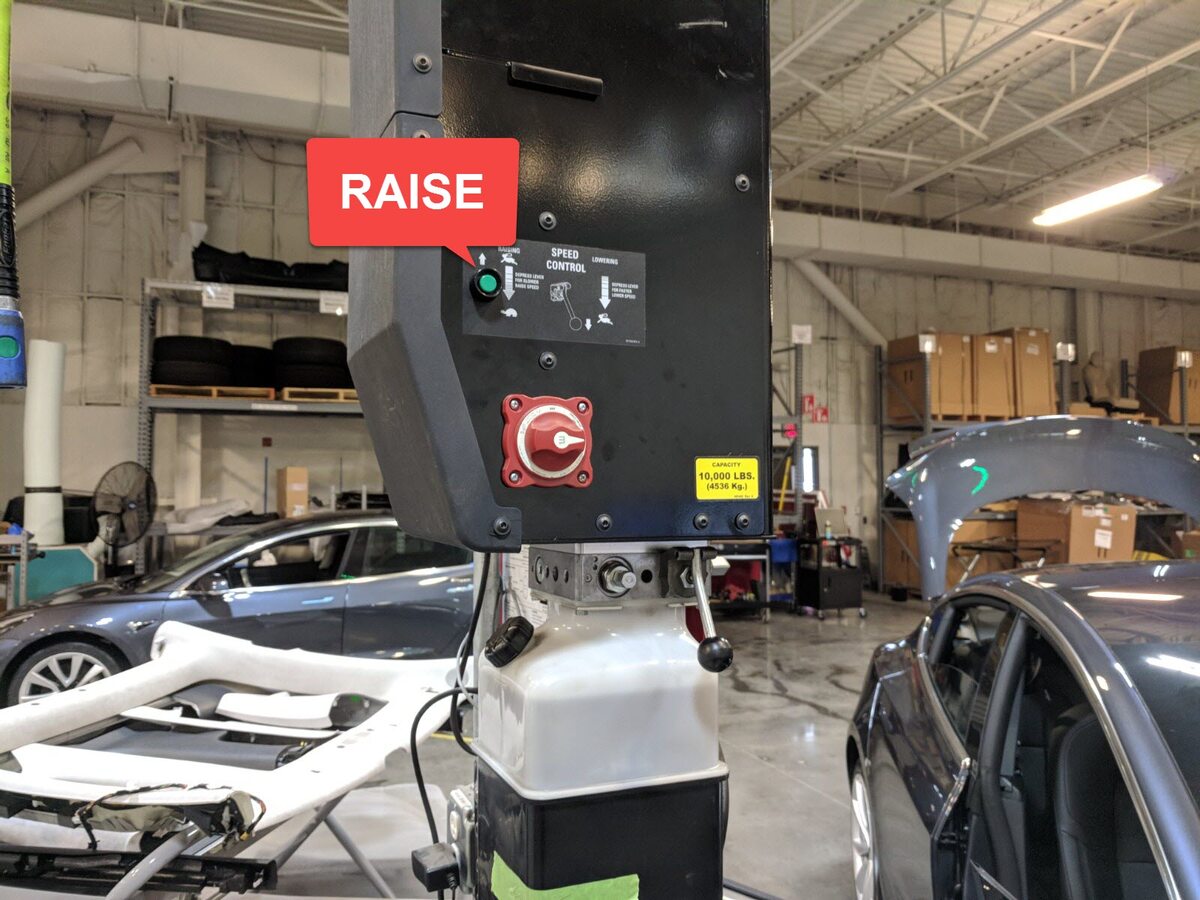

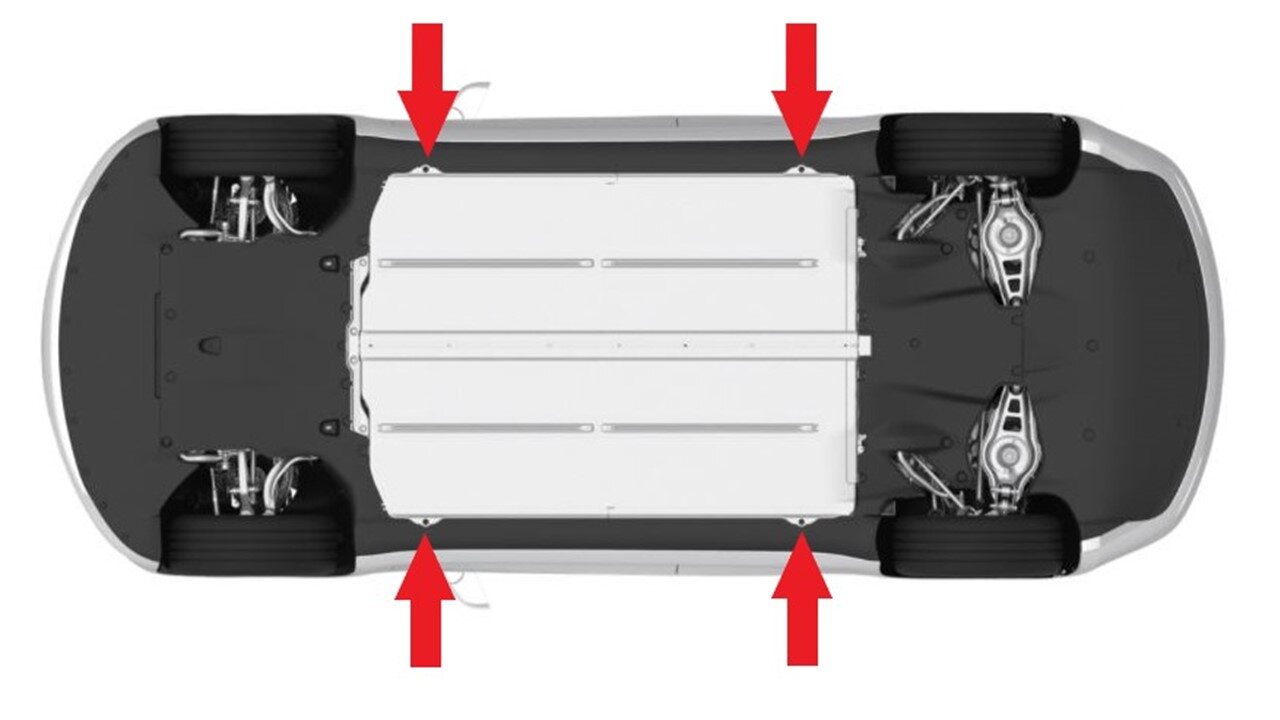

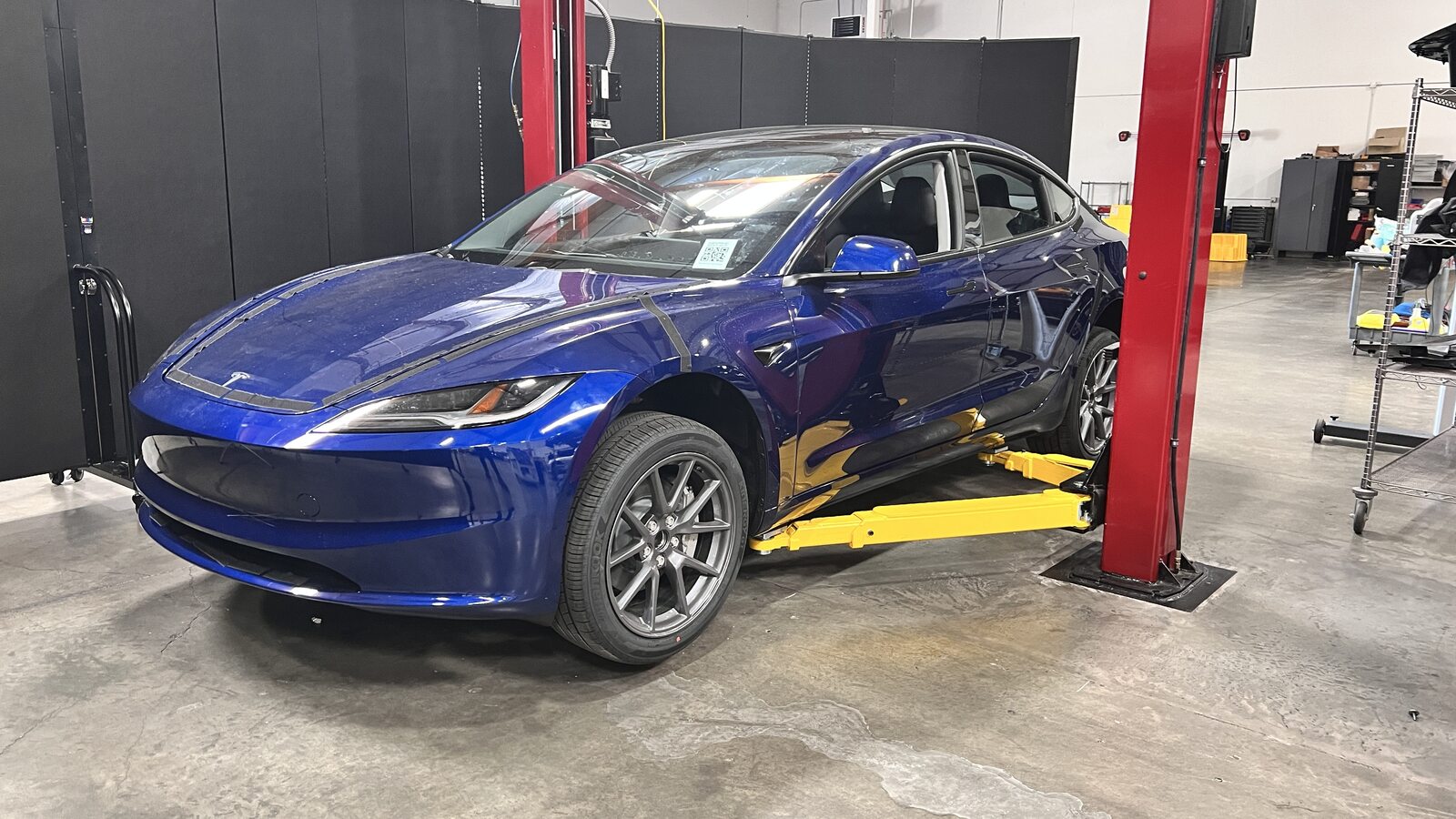

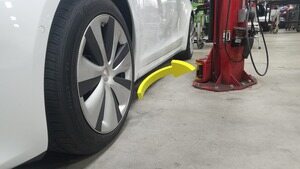

44. Raise and support vehicle
    Remarque

    Ensure vehicle is not charging

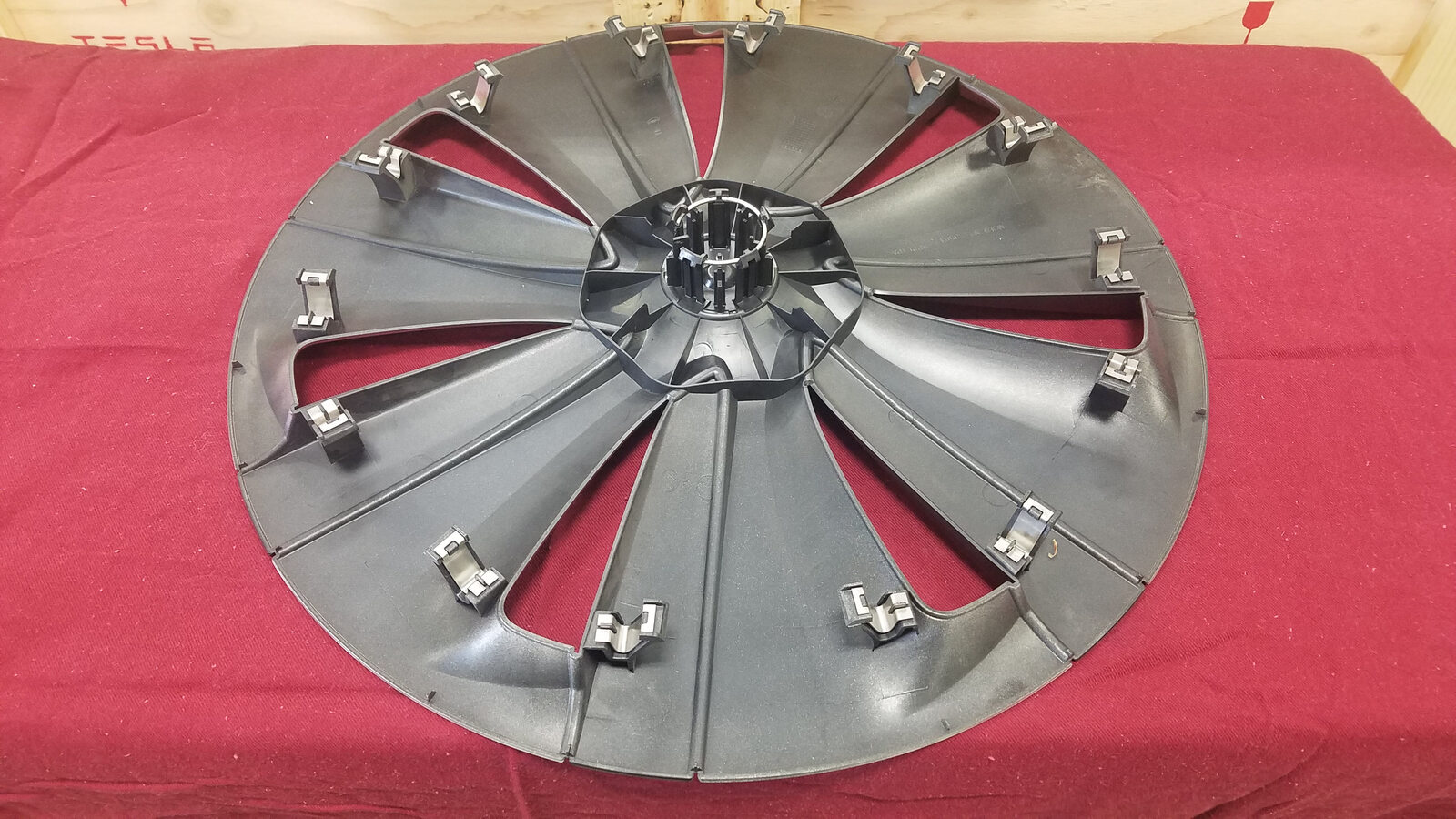

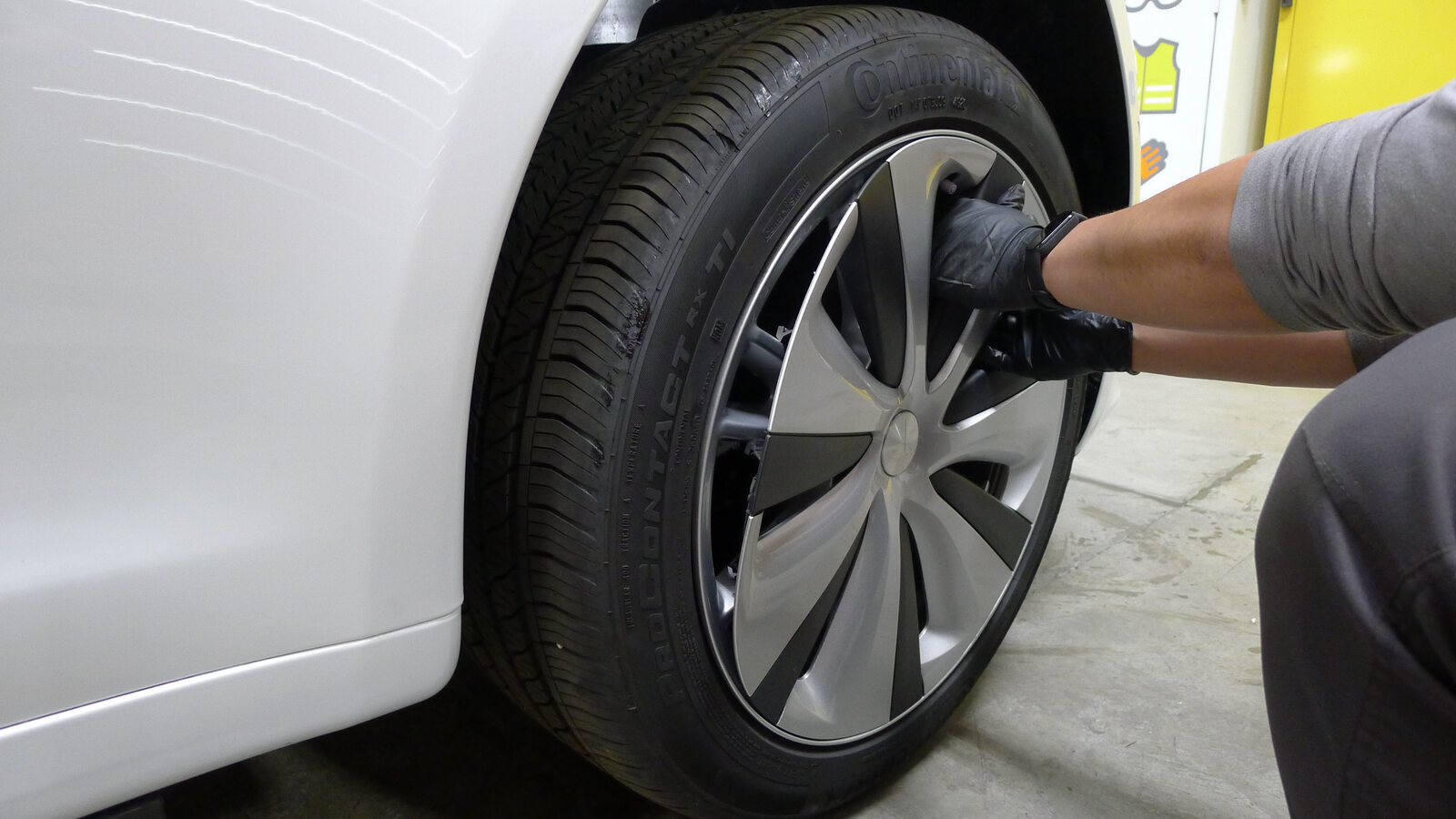

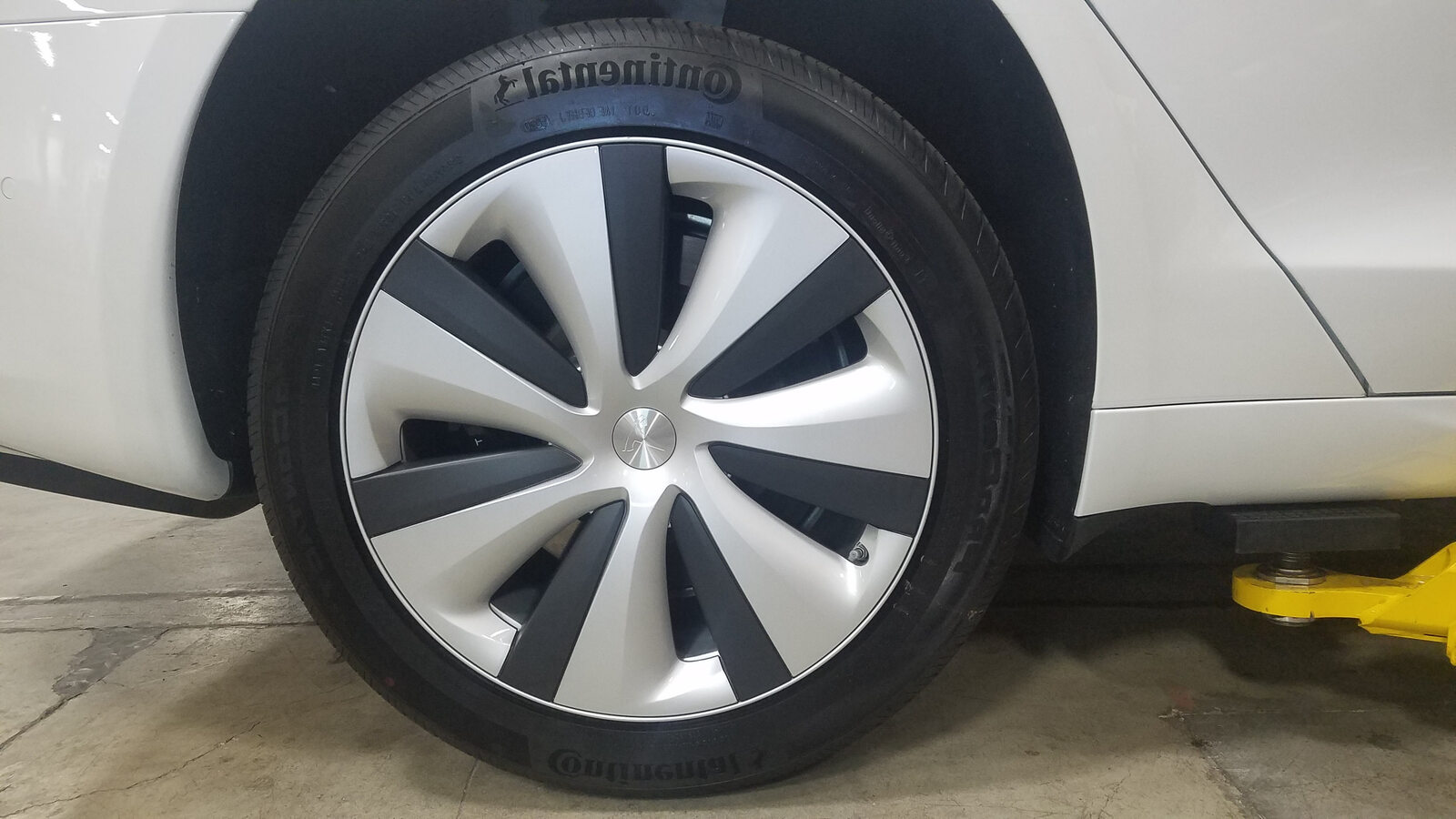

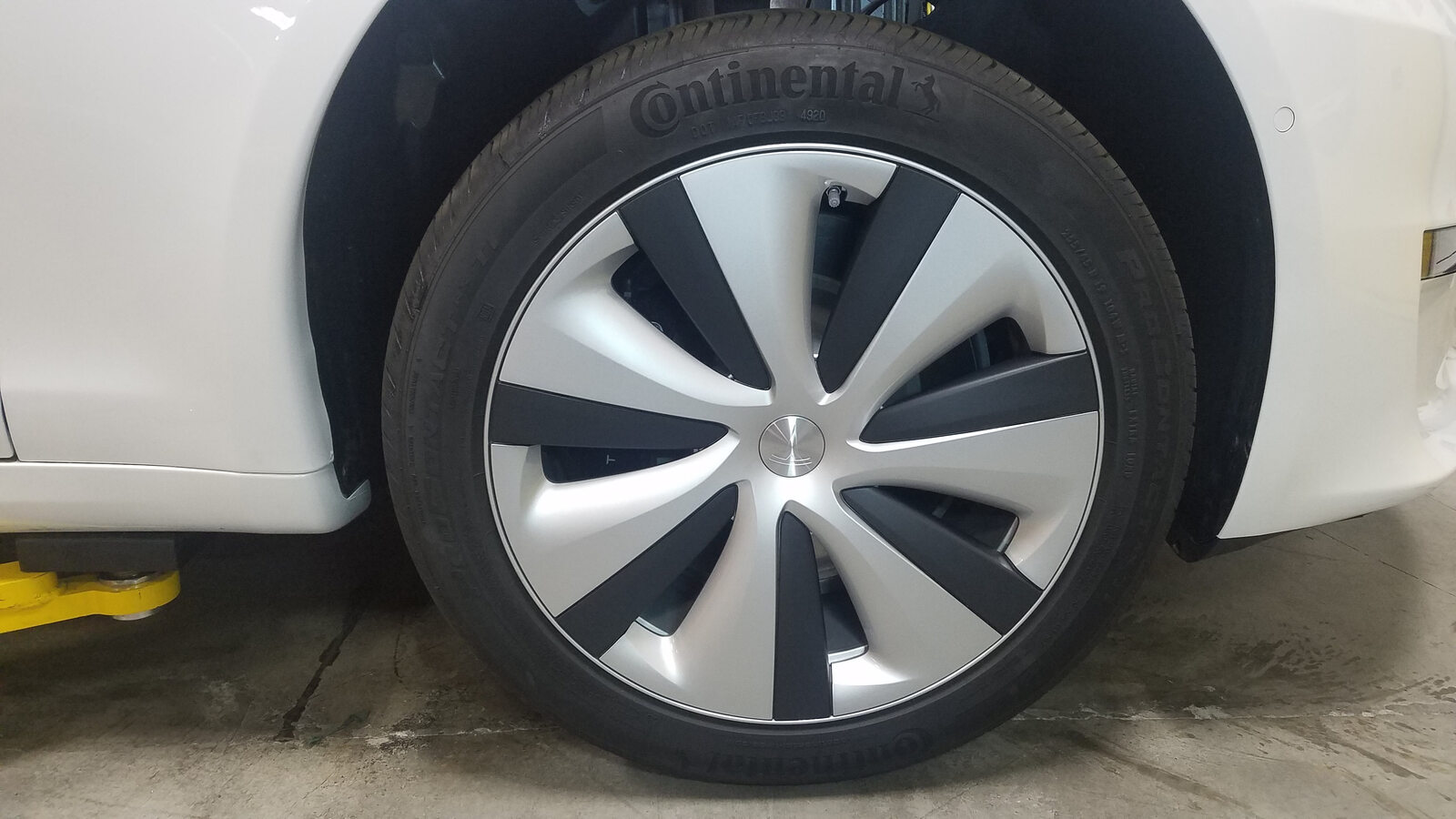

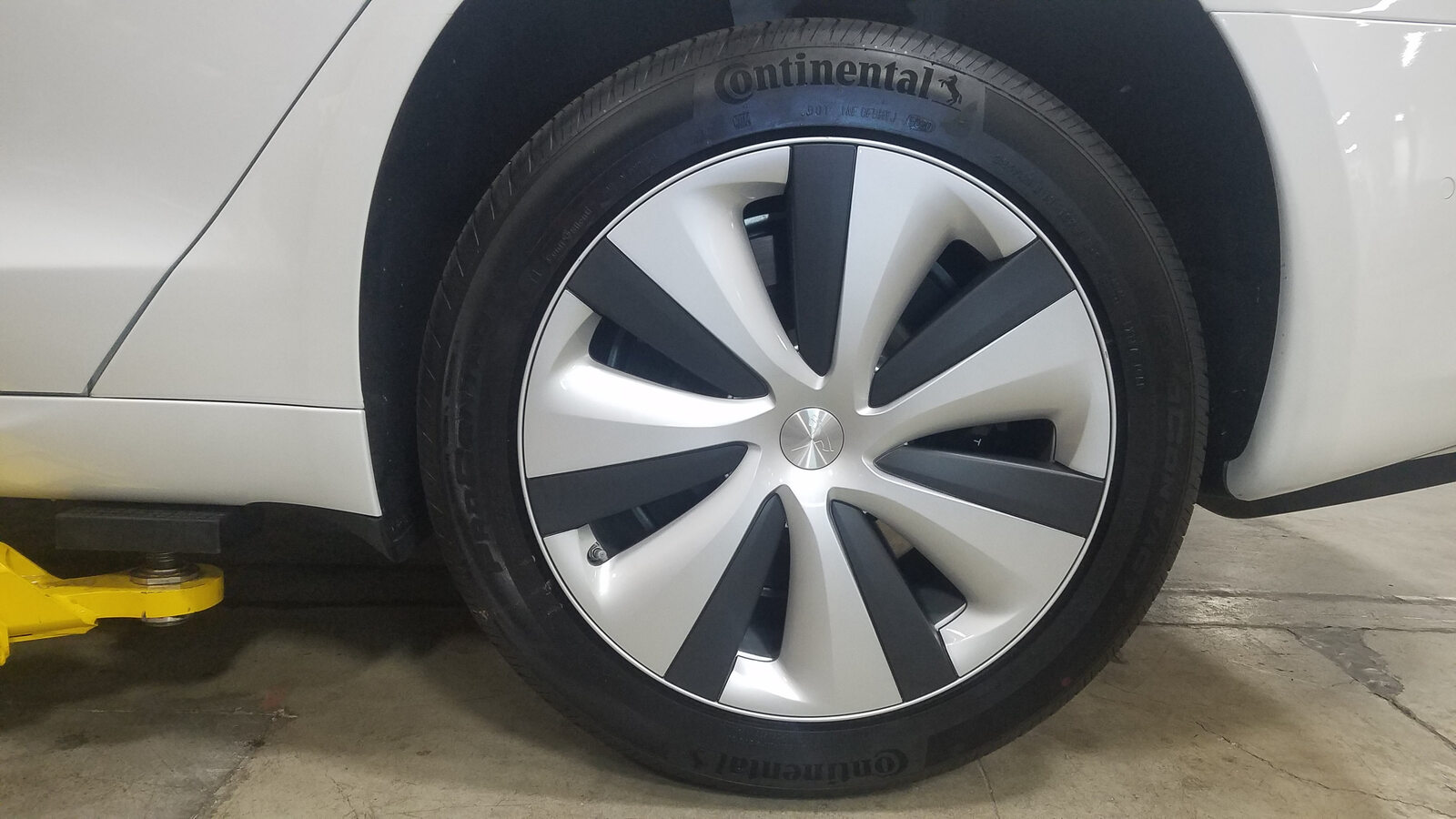

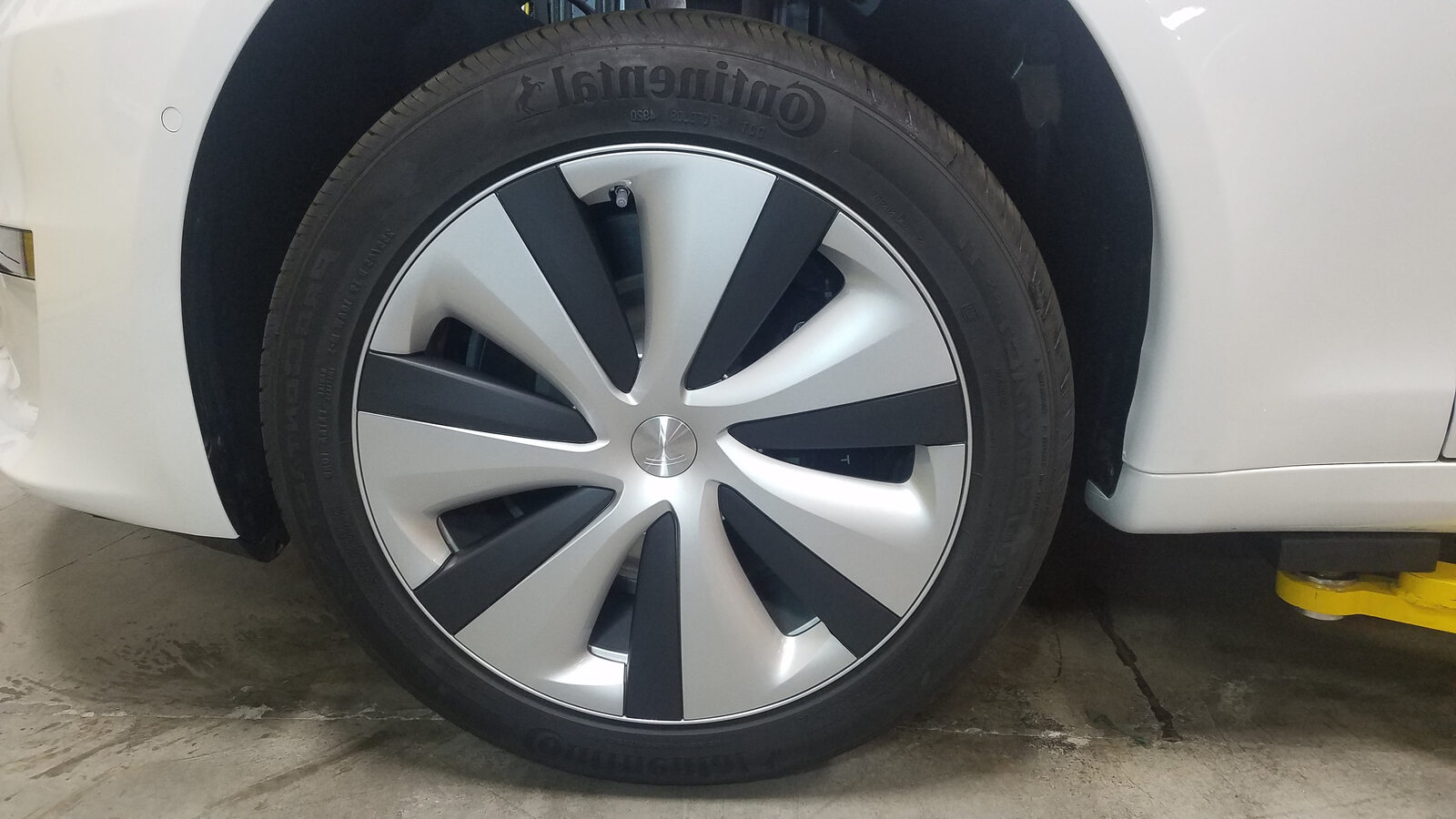

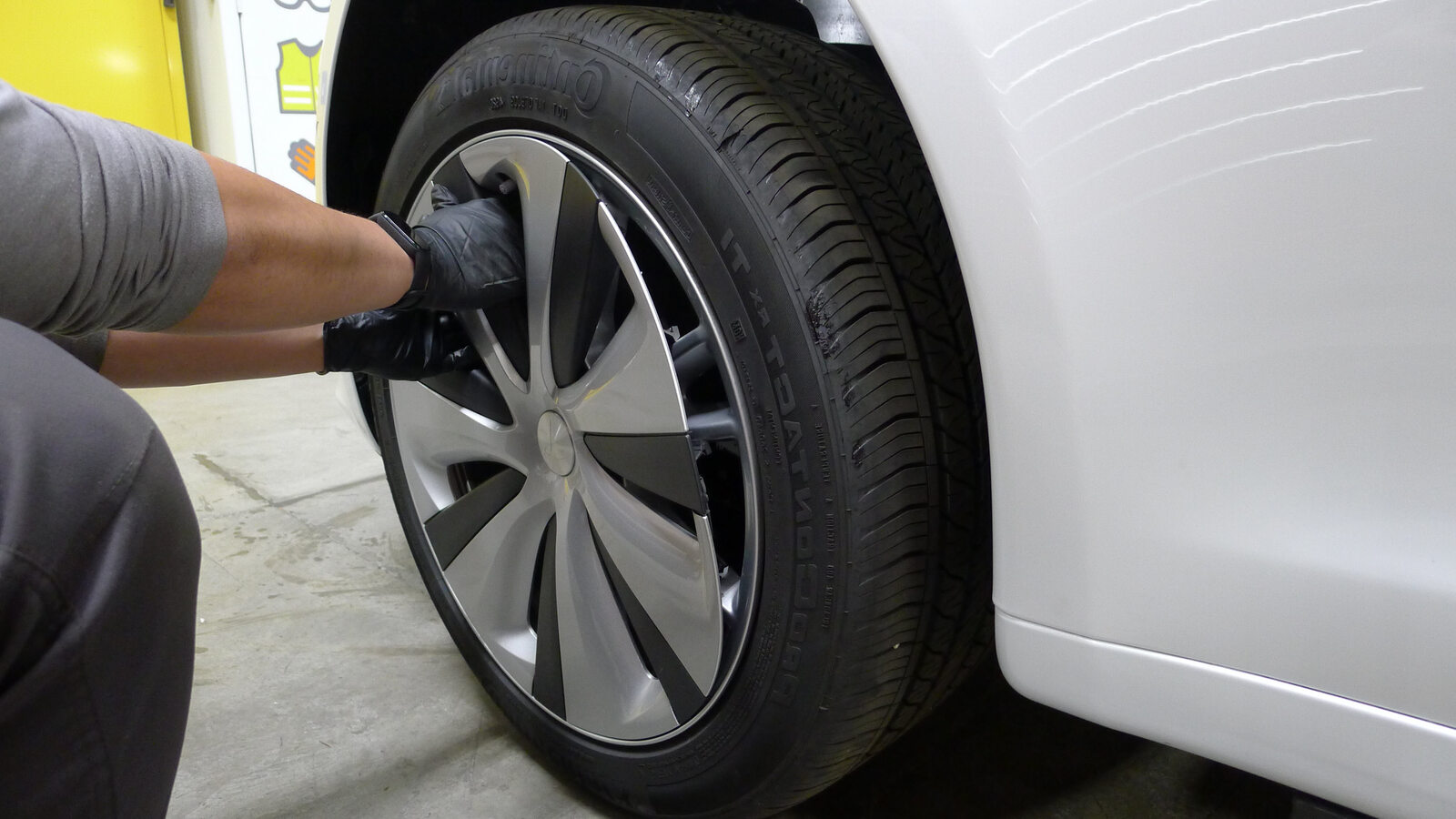

45. Remove LH front wheel cap
    Remarque

    Lift every other spoke at a time until cap is released from rim







46. Remove RH front wheel cap
    Remarque

    Lift every other spoke at a time until cap is released from rim







47. Remove RH rear wheel cap
    Remarque

    Lift every other spoke at a time until cap is released from rim







48. Remove LH rear wheel cap
    Remarque

    Lift every other spoke at a time until cap is released from rim

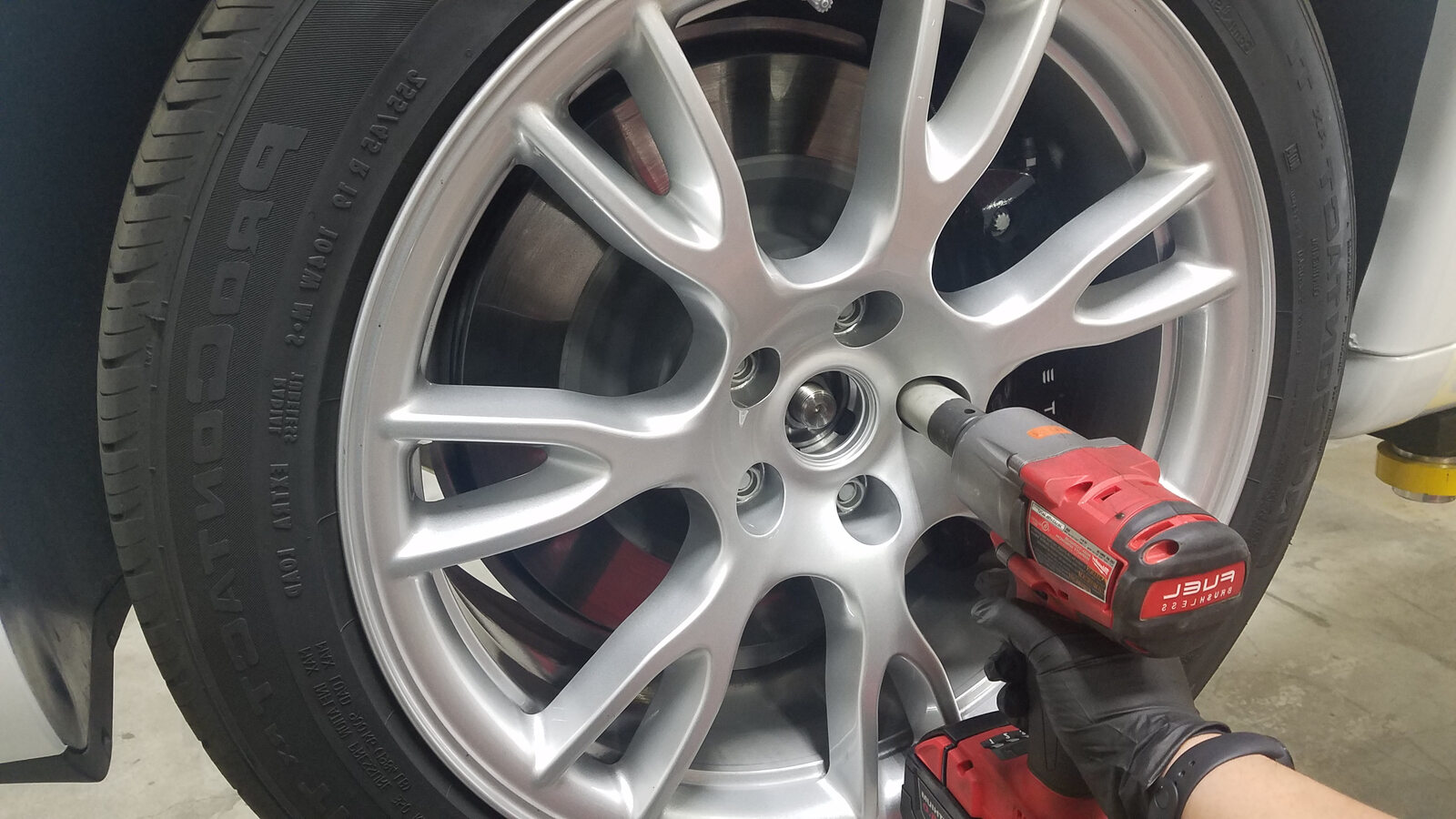

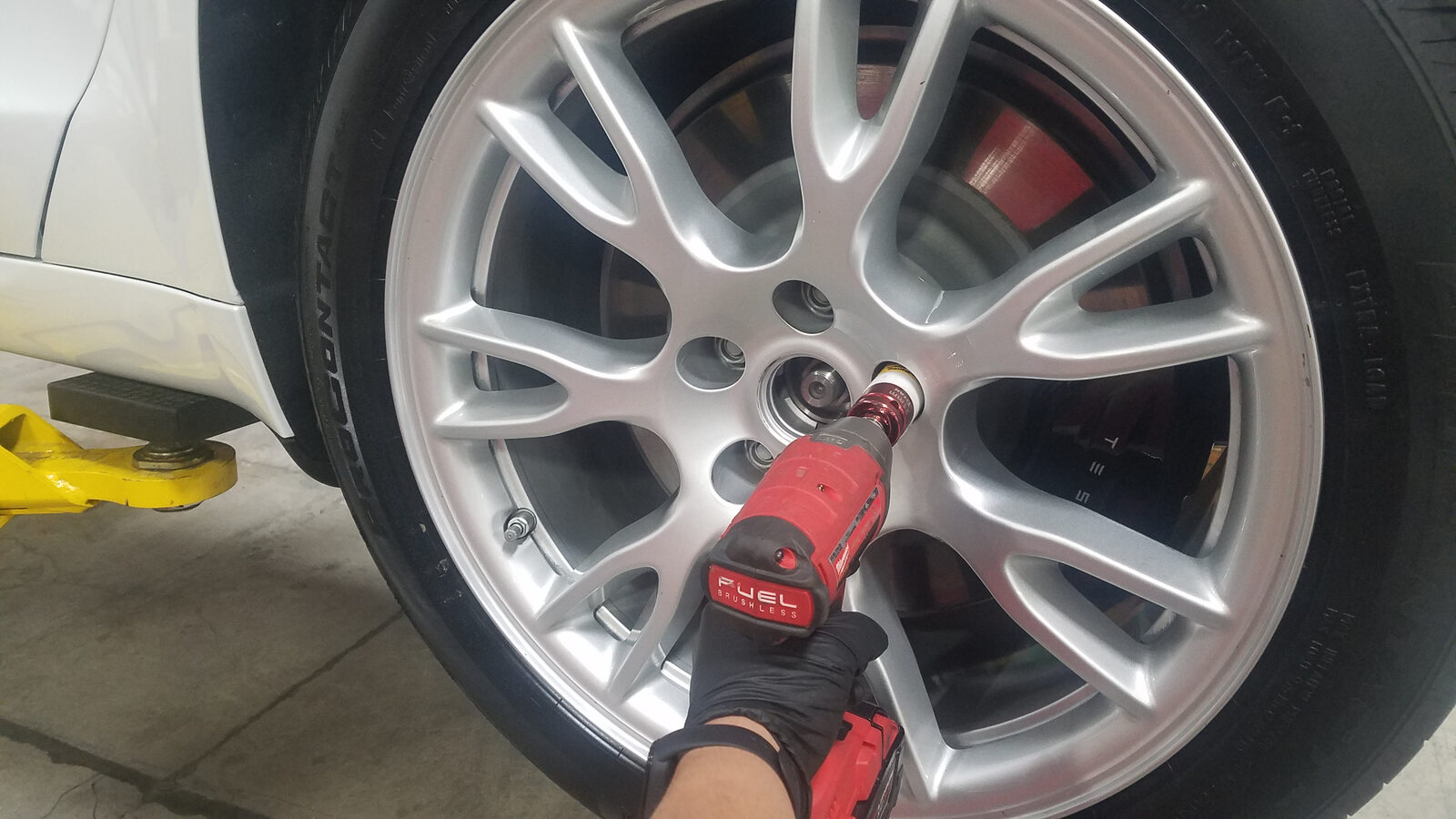

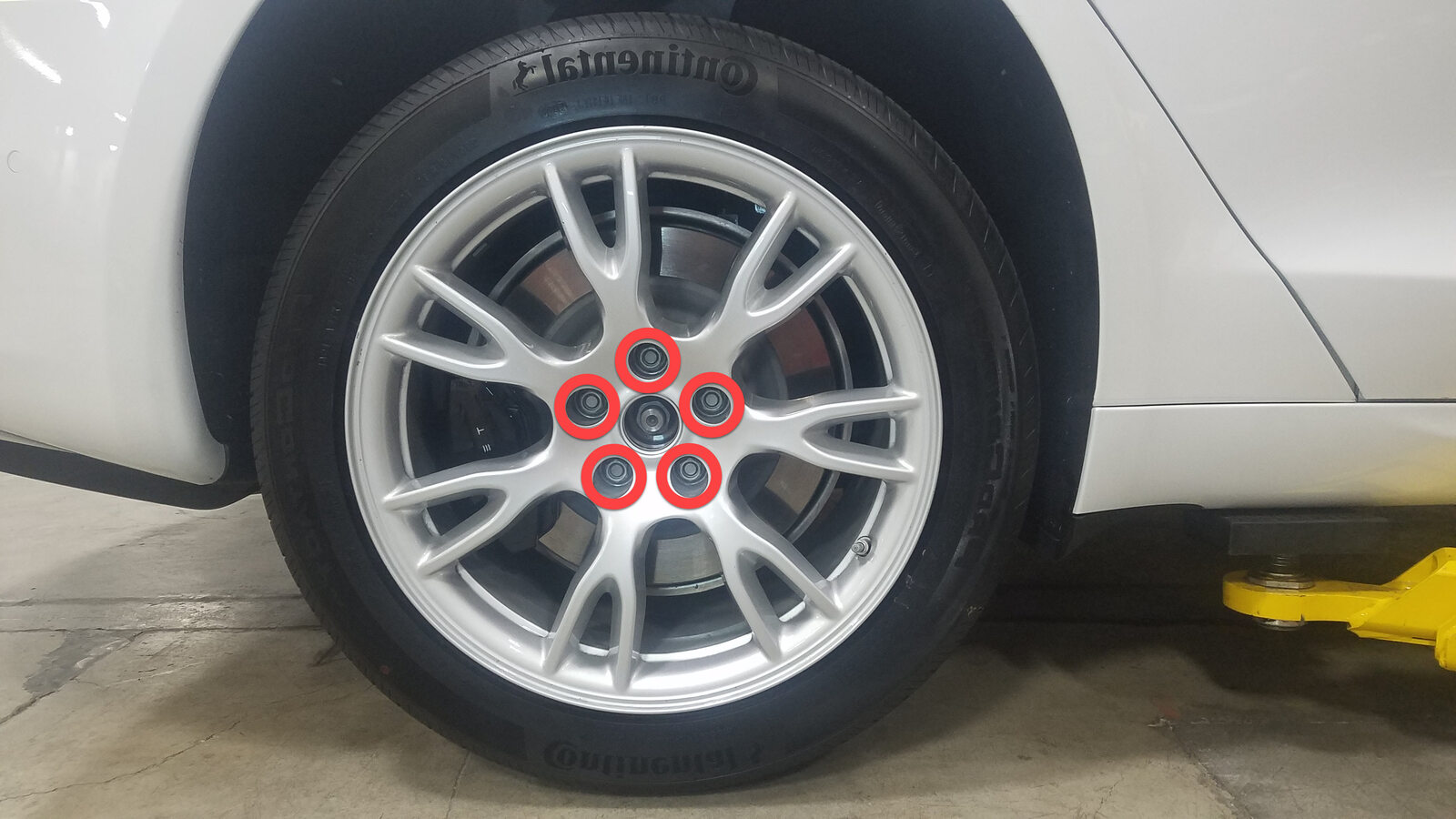

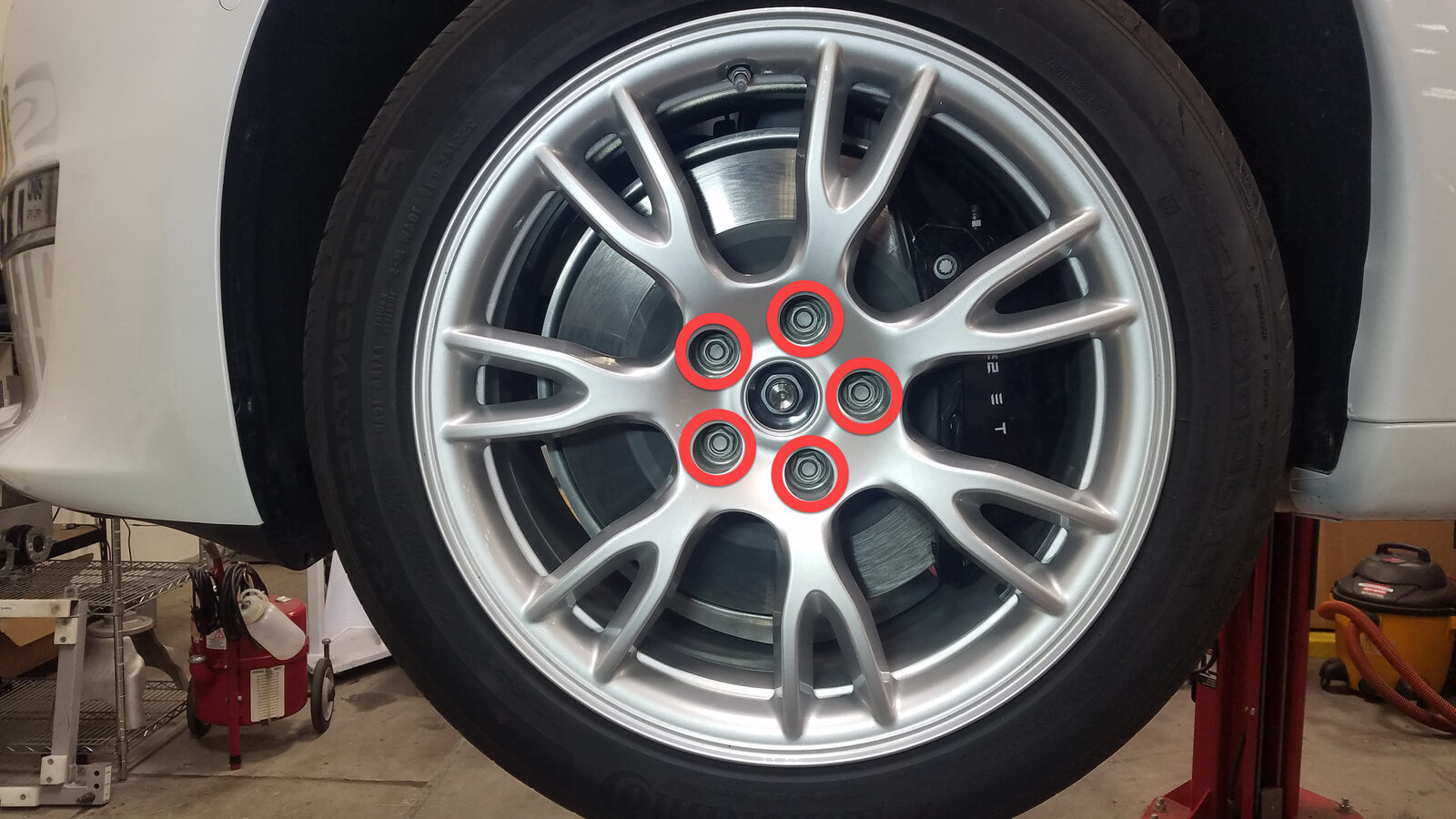

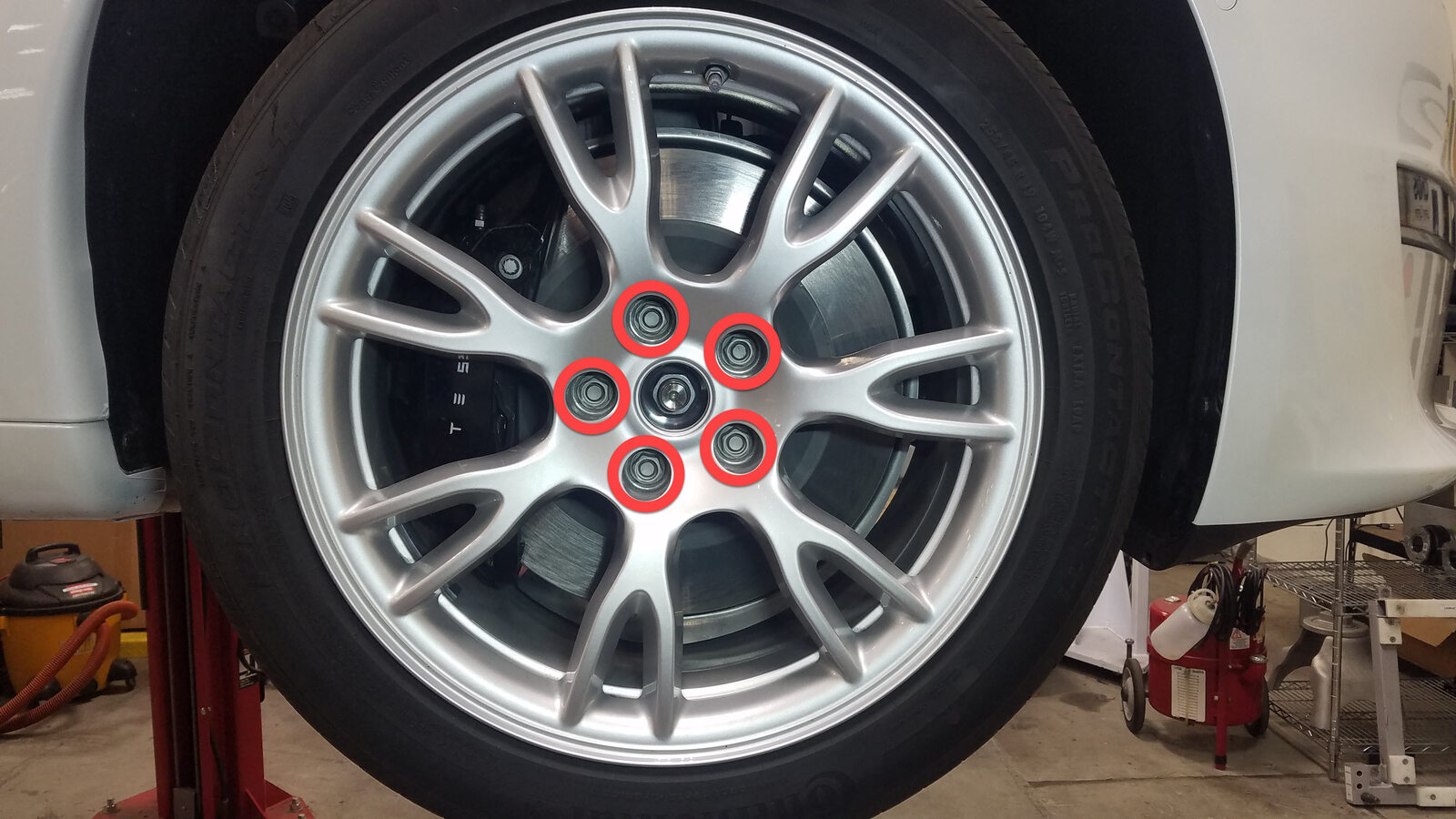

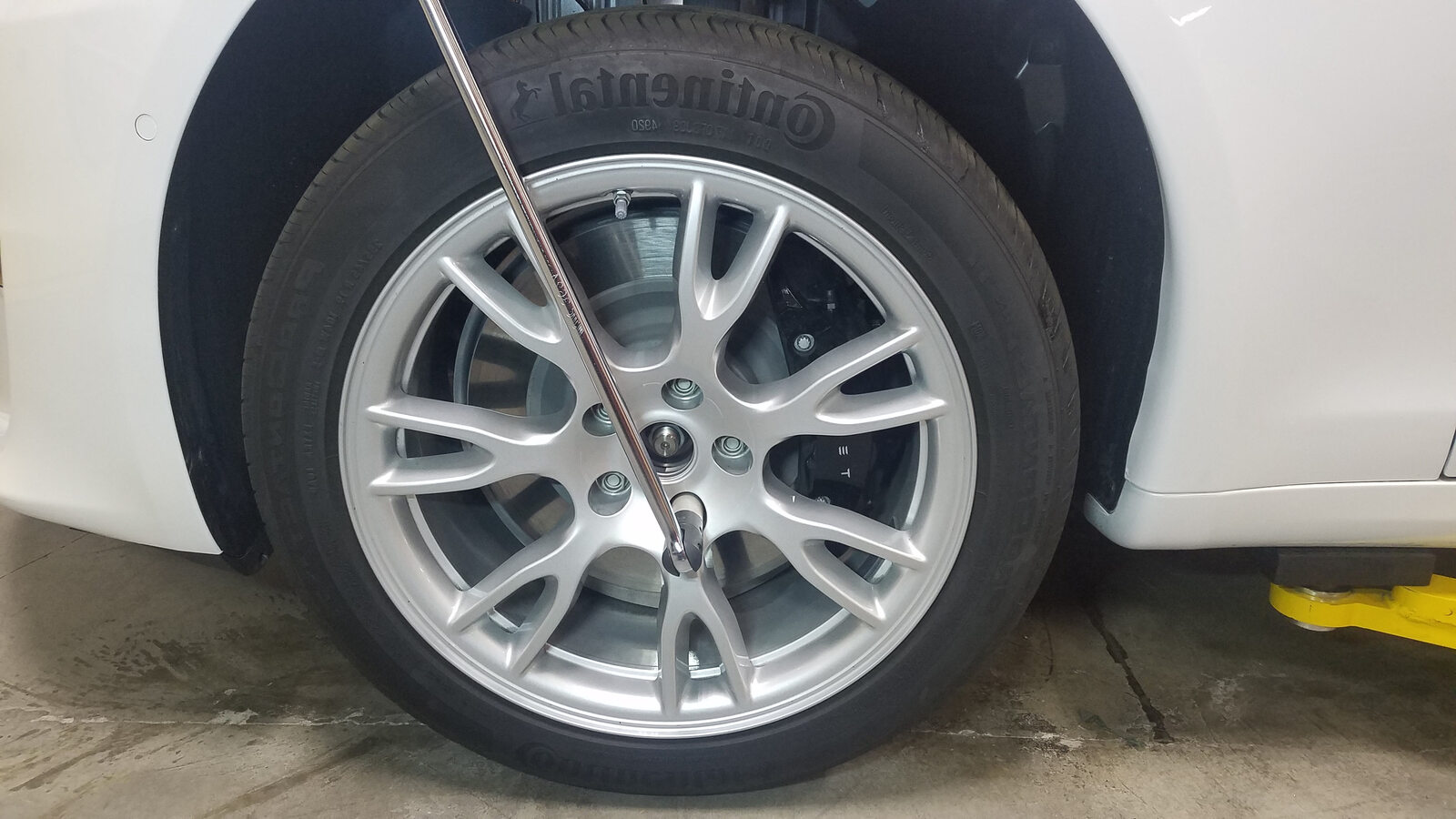

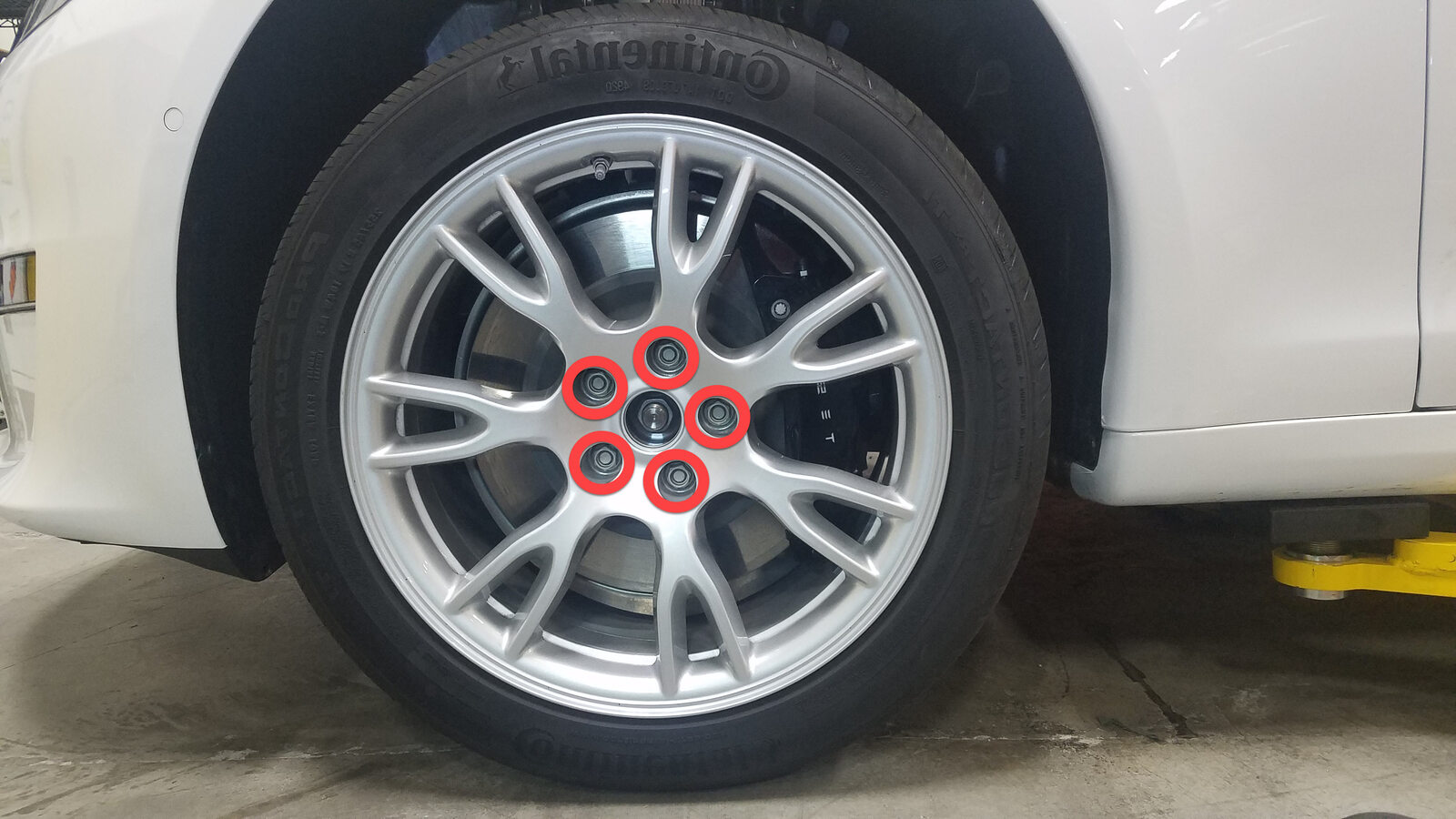

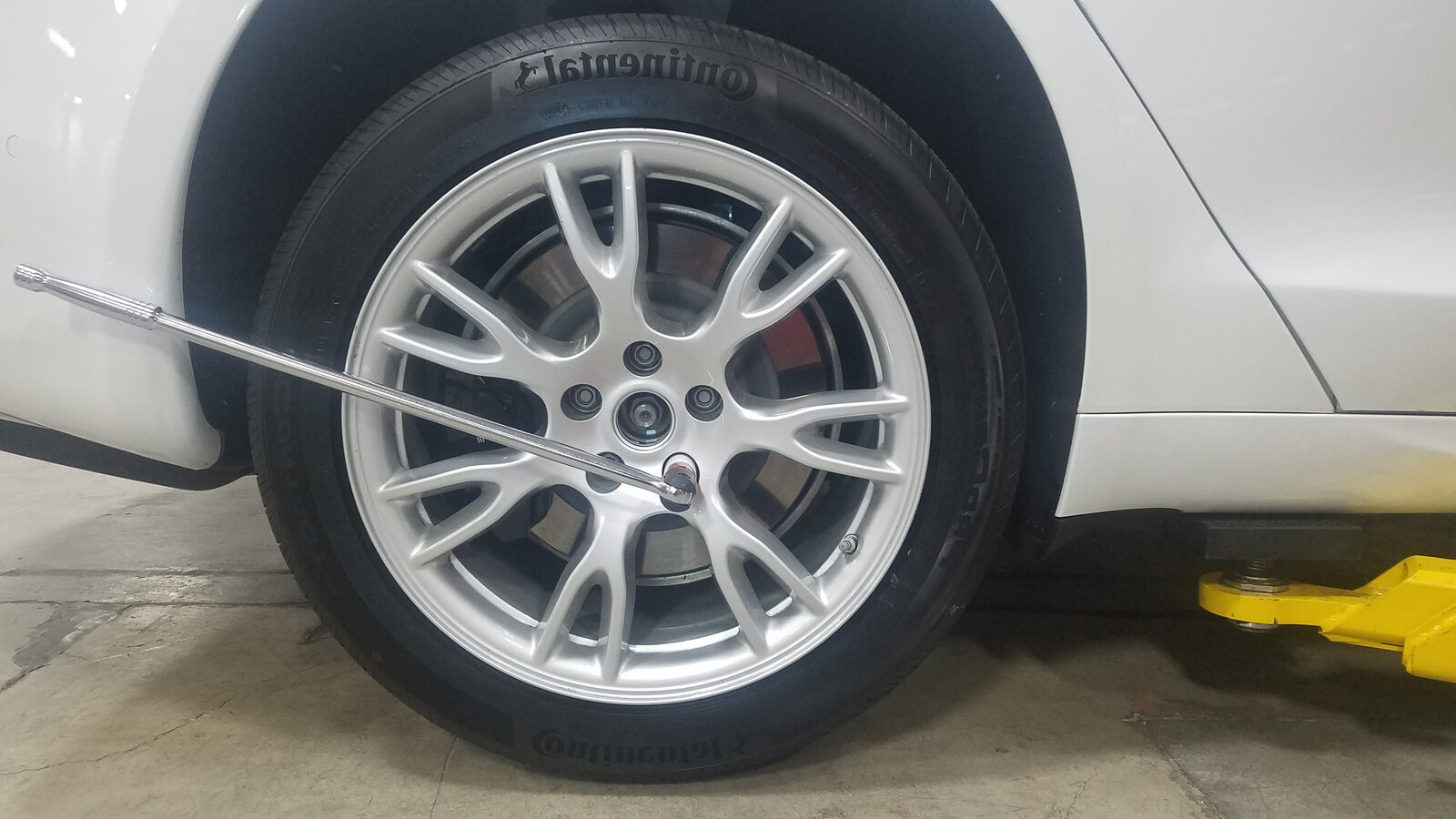

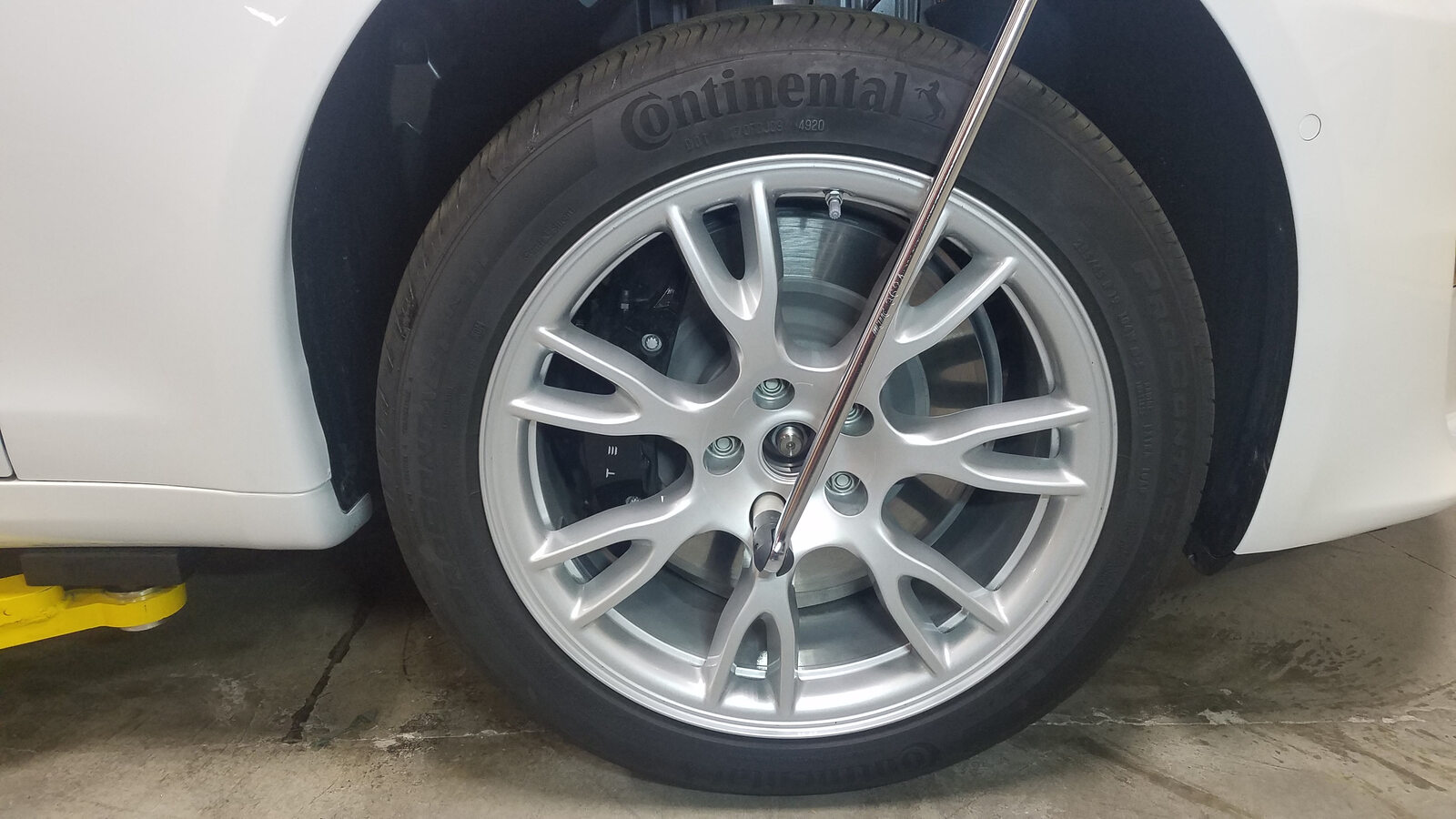

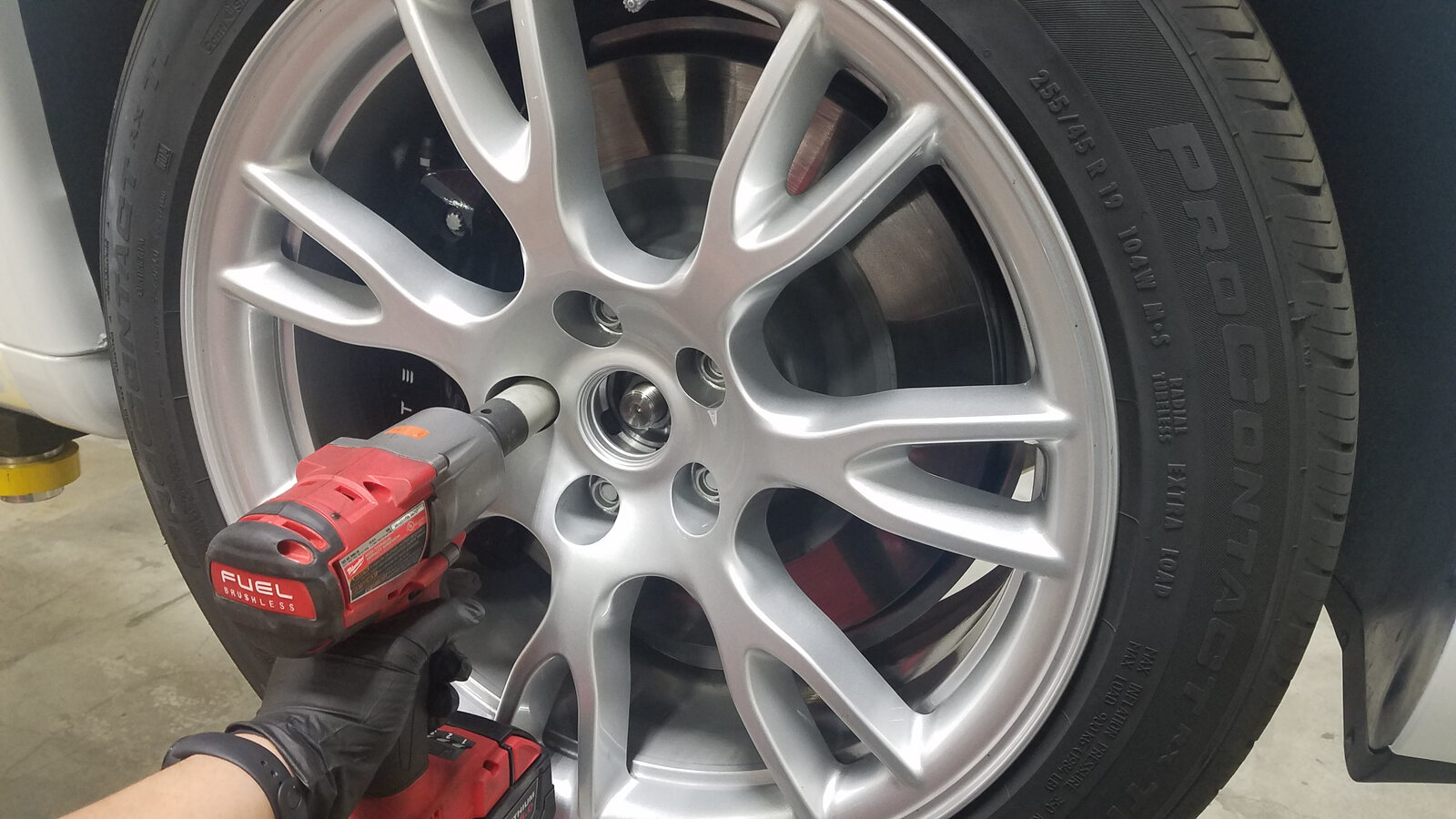

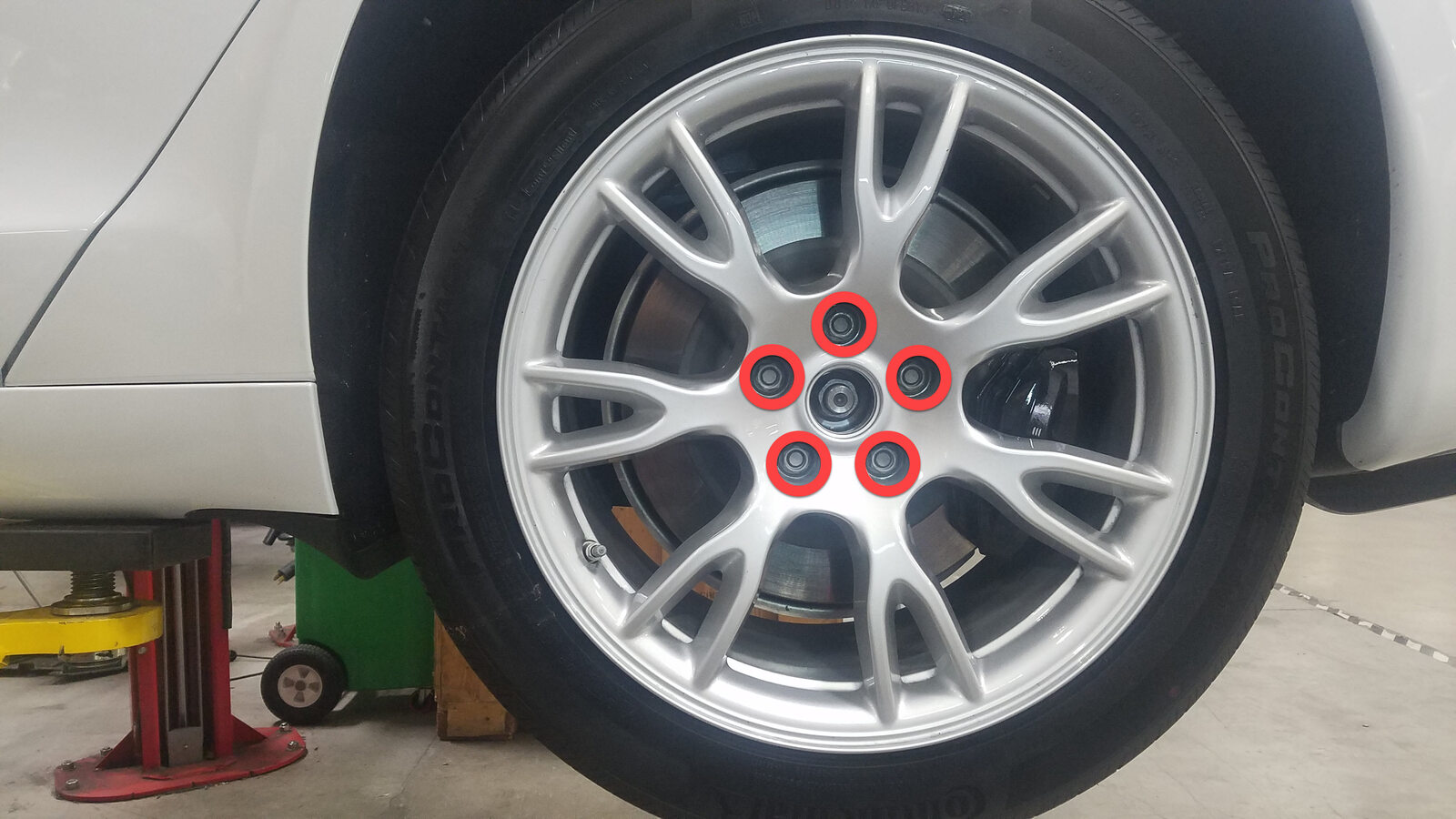

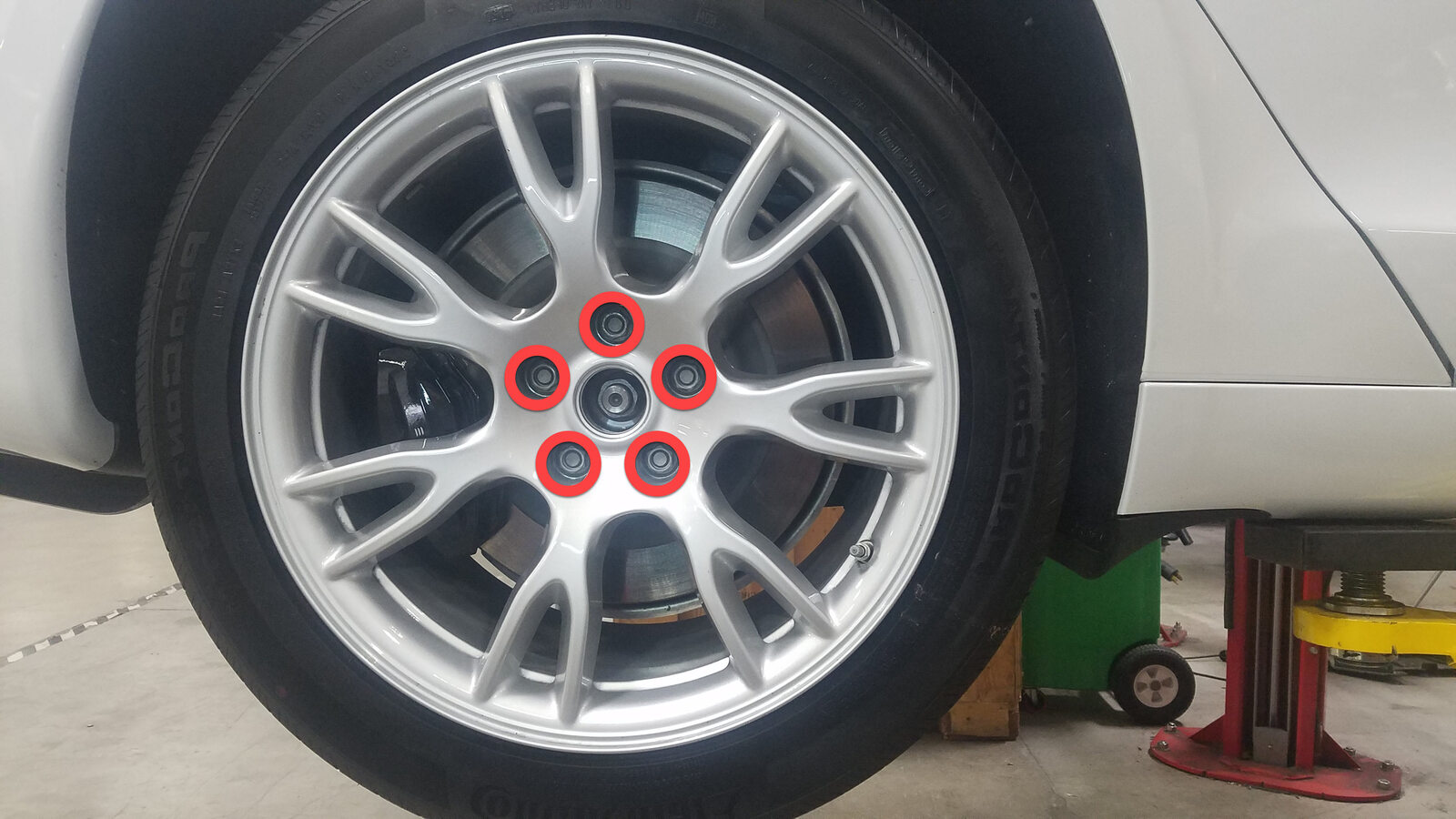

49. Loosen LH front wheel
    Remarque

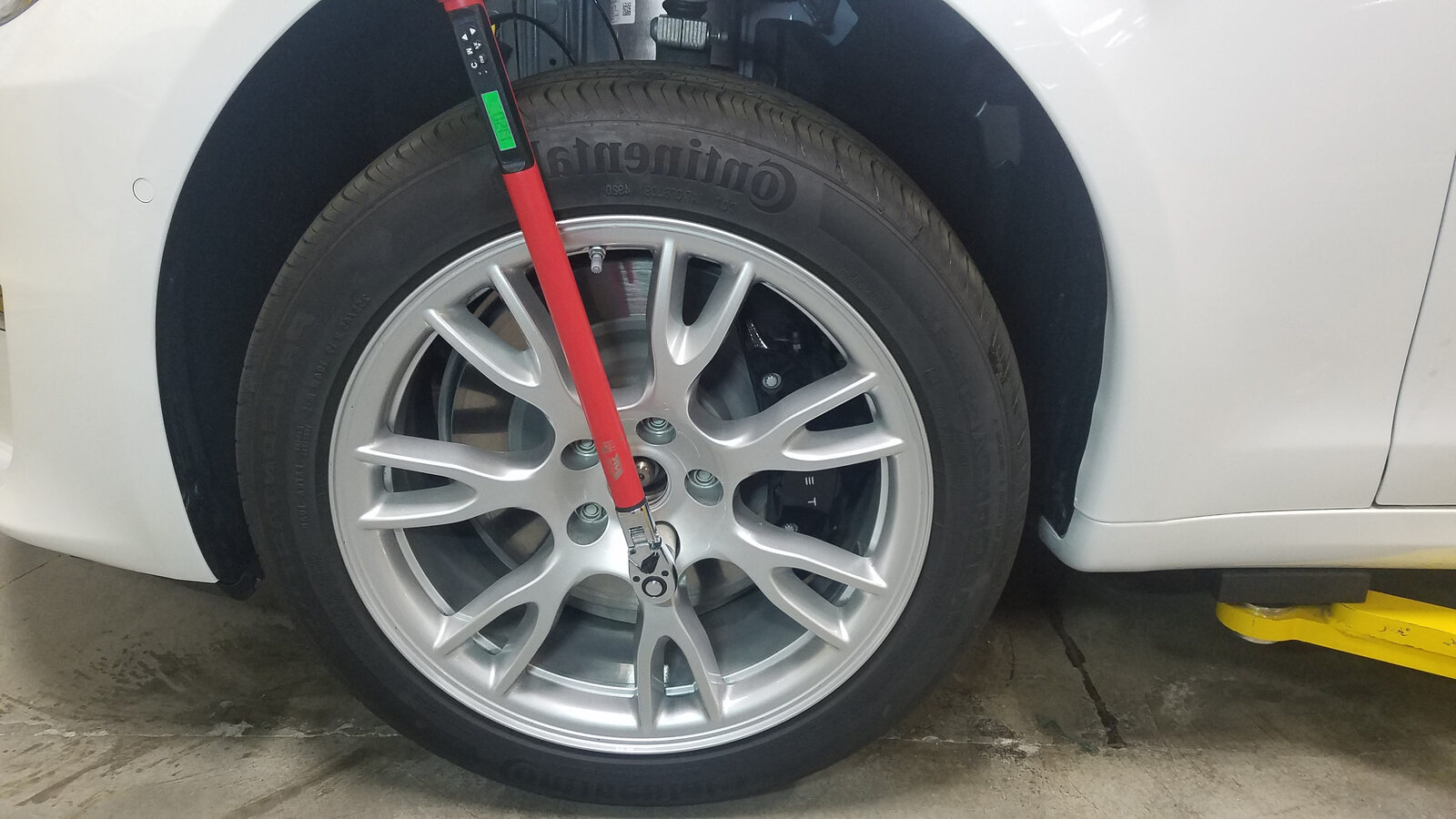

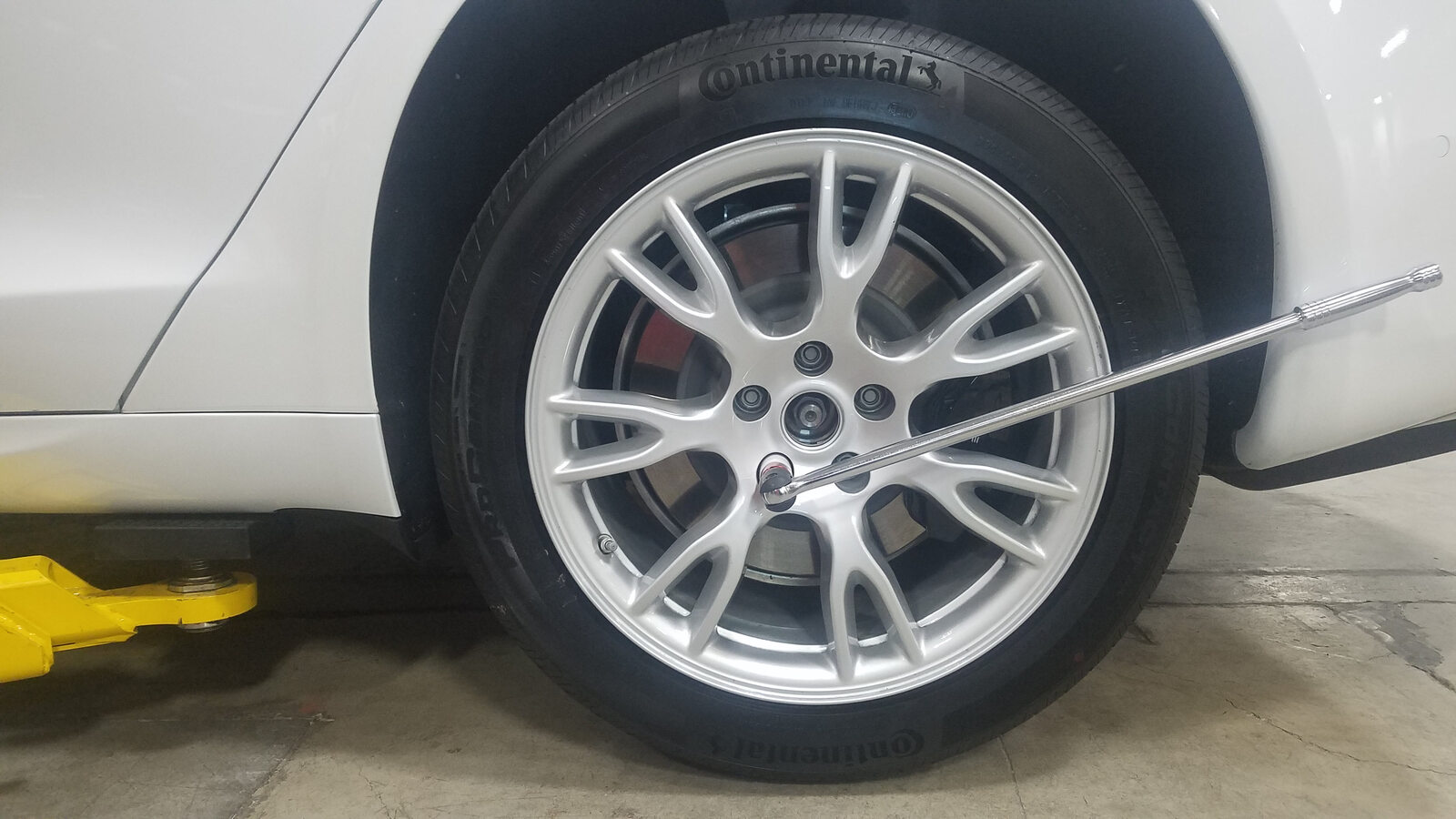

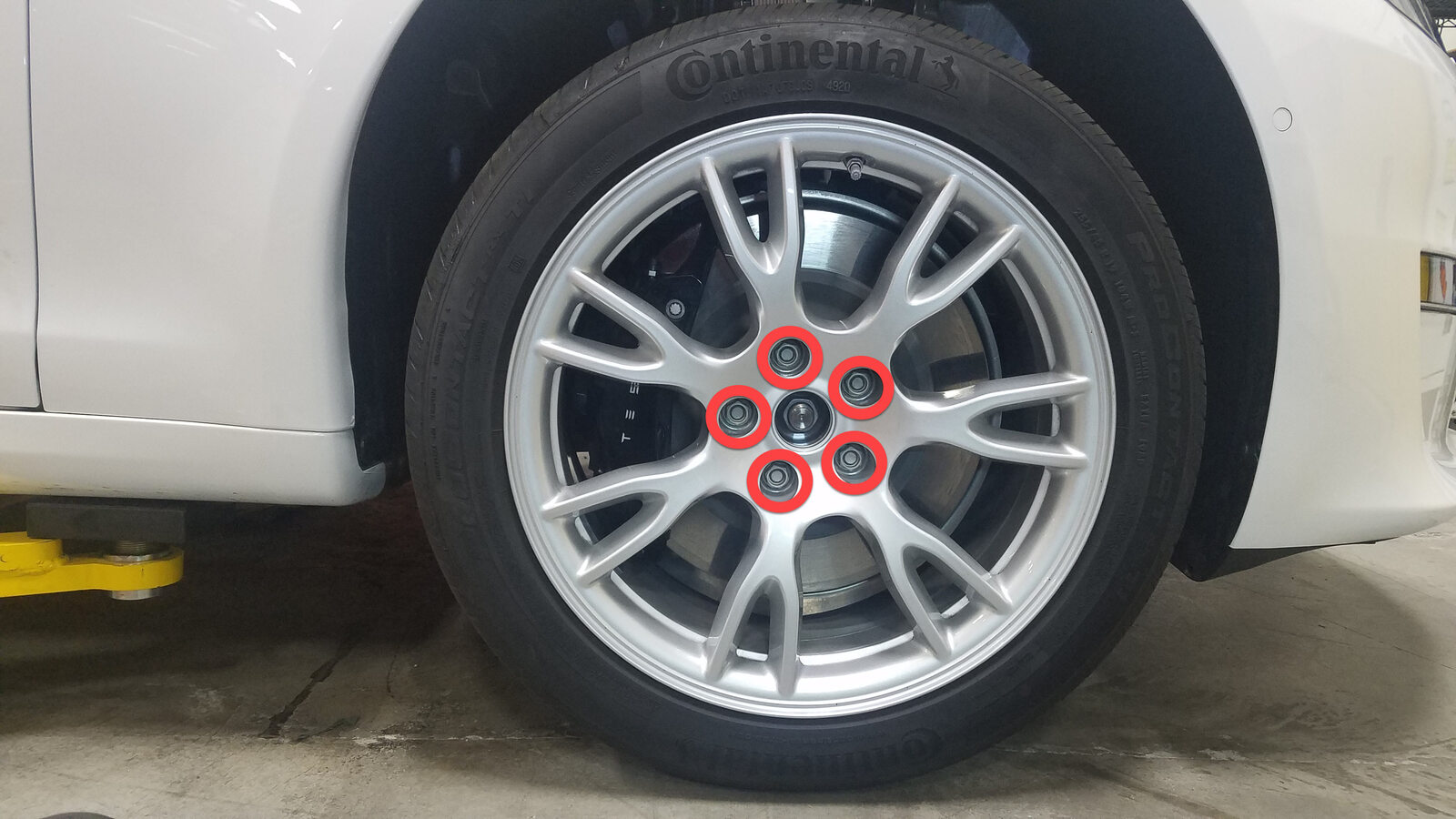

    5x nuts, 21mm, 175 Nm





50. Loosen RH front wheel
    Remarque

    5x nuts, 21mm, 175 Nm





51. Loosen RH rear wheel
    Remarque

    5x nuts, 21mm, 175 Nm





52. Loosen LH rear wheel
    Remarque

    5x nuts, 21mm, 175 Nm

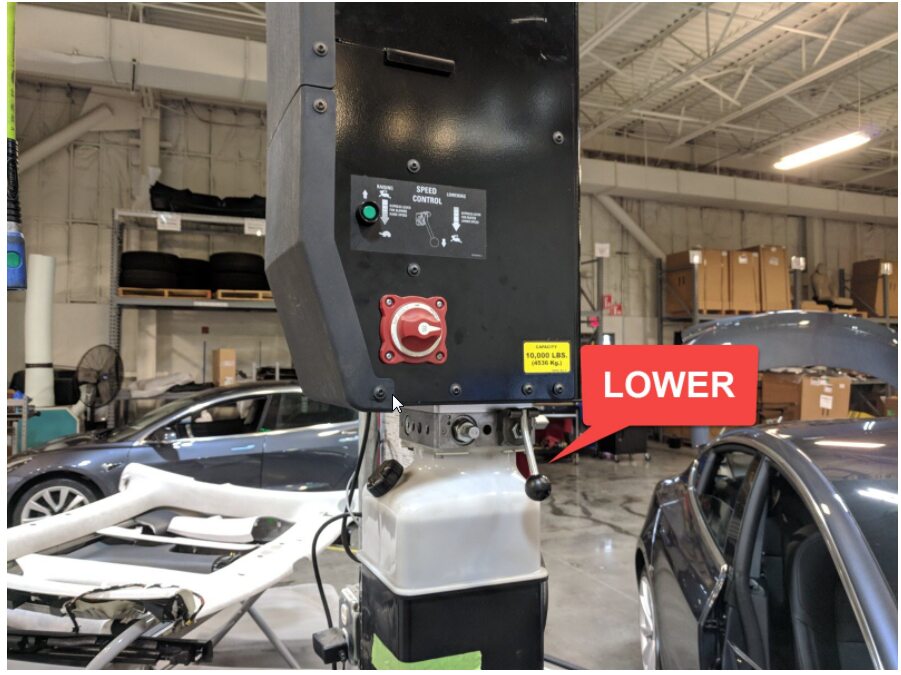

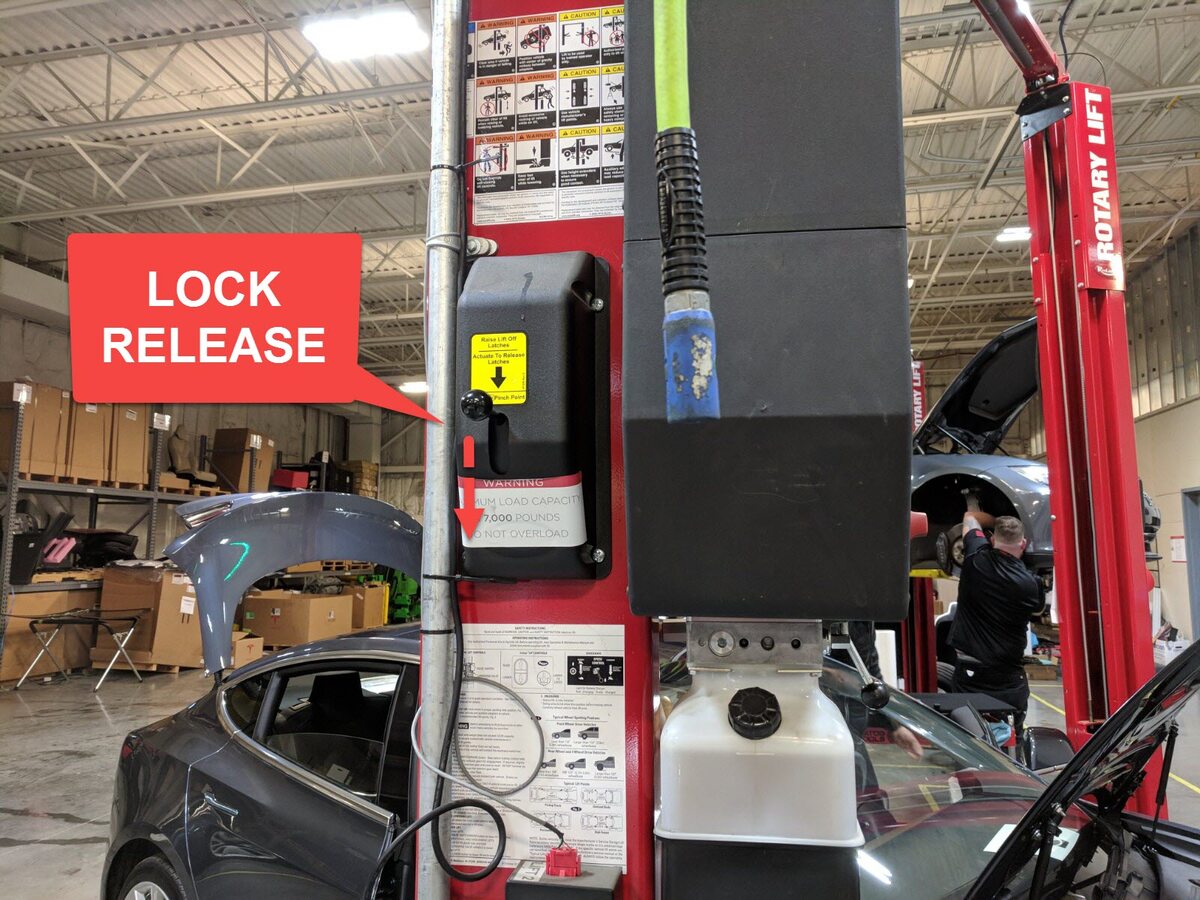

53. Raise vehicle partially and lower lift onto locks
    Remarque

    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, Otherwise vehicle may tilt to the side





54. Remove LH front wheel
    Remarque

    5x nuts, 21mm, 175 Nm





55. Remove RH front wheel
    Remarque

    5x nuts, 21mm, 175 Nm





56. Remove RH rear wheel
    Remarque

    5x nuts, 21mm, 175 Nm





57. Remove LH rear wheel
    Remarque

    5x nuts, 21mm, 175 Nm

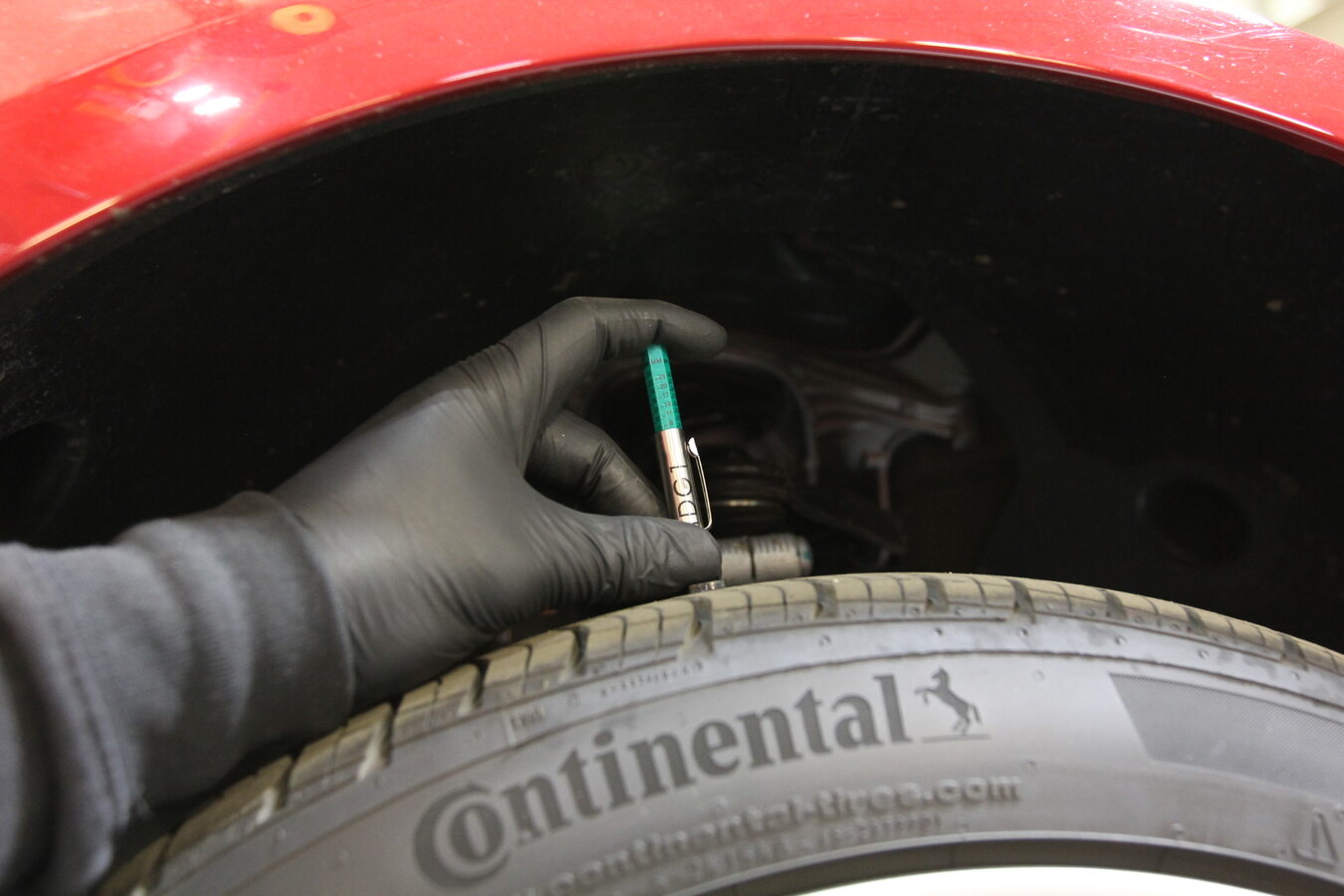

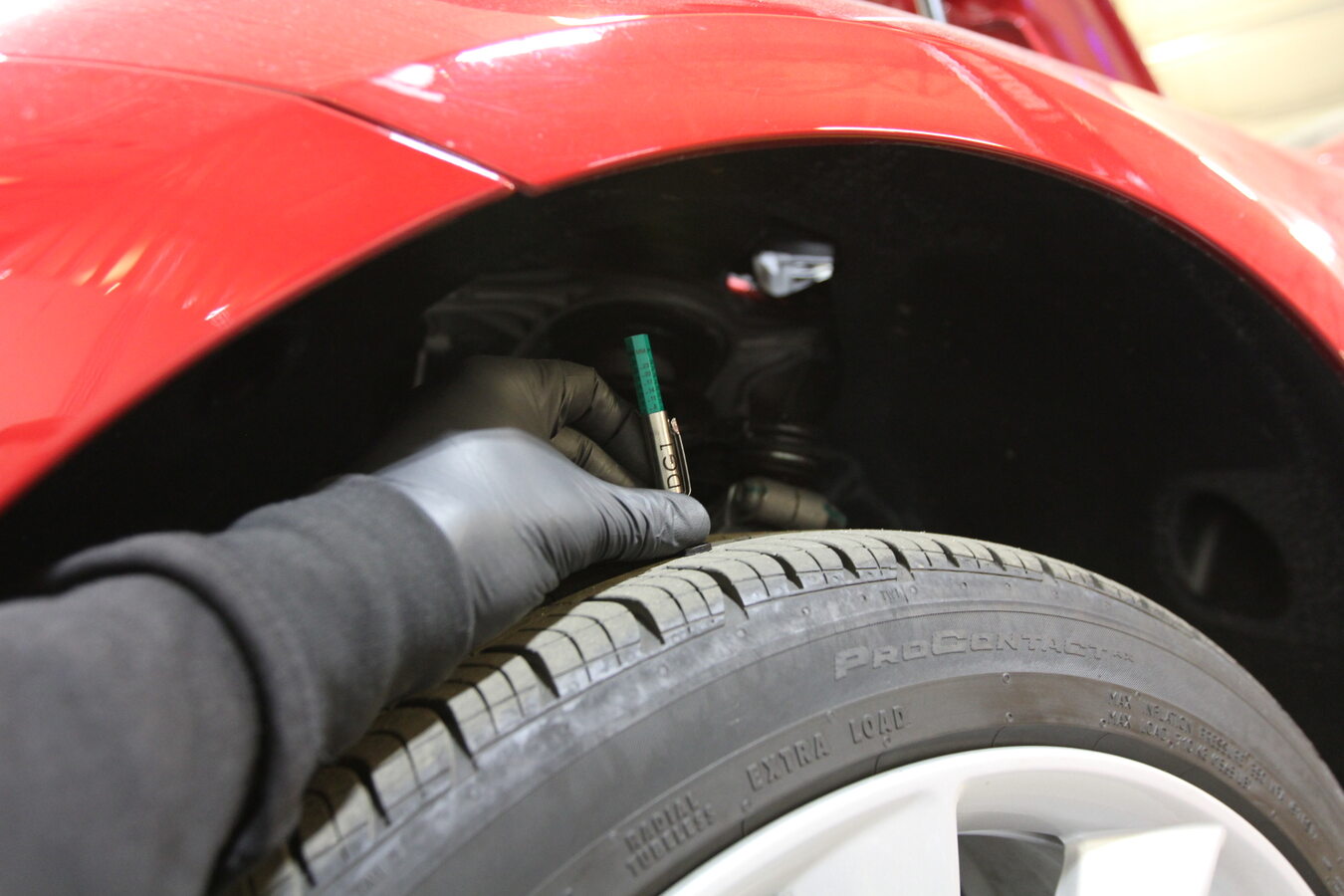

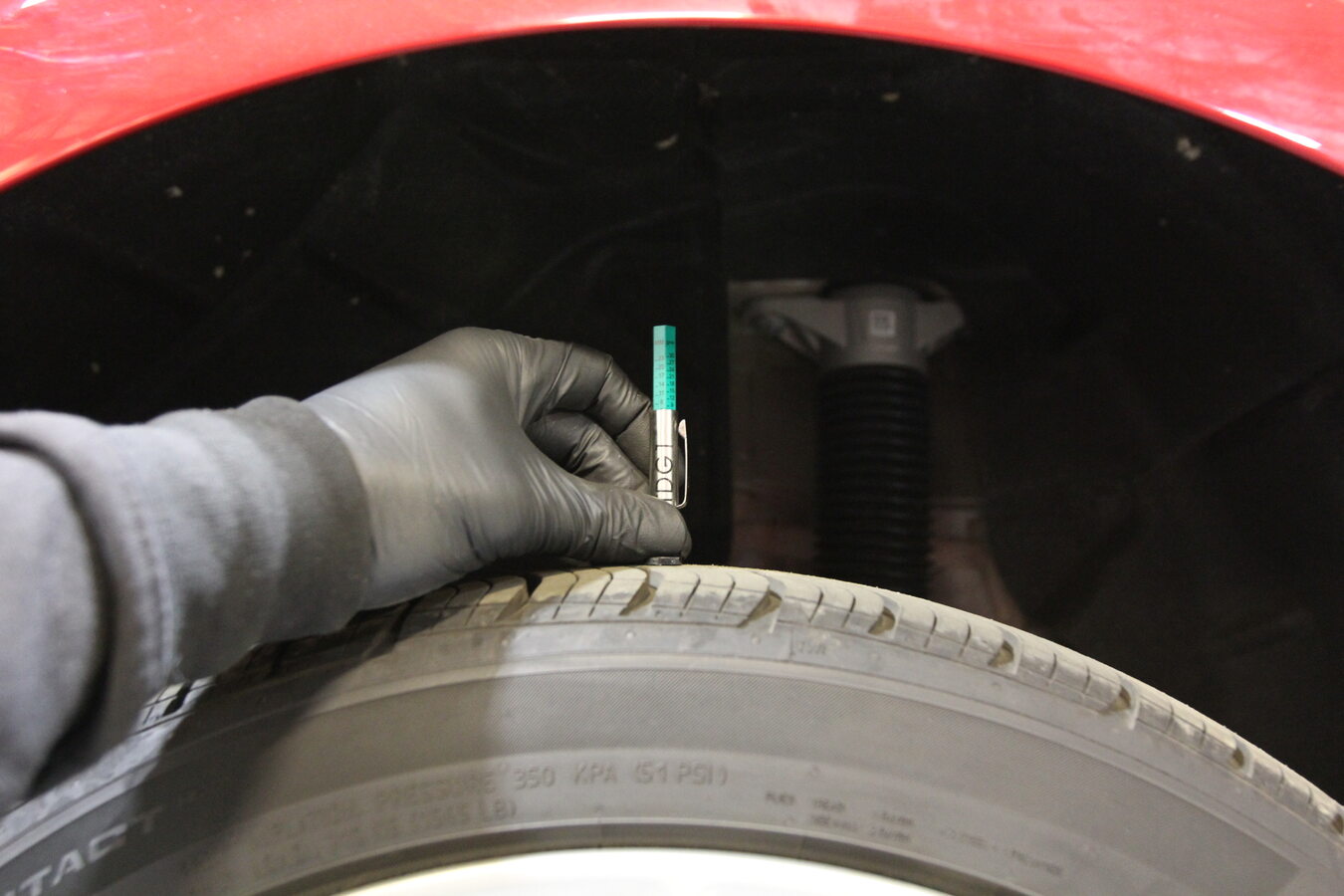

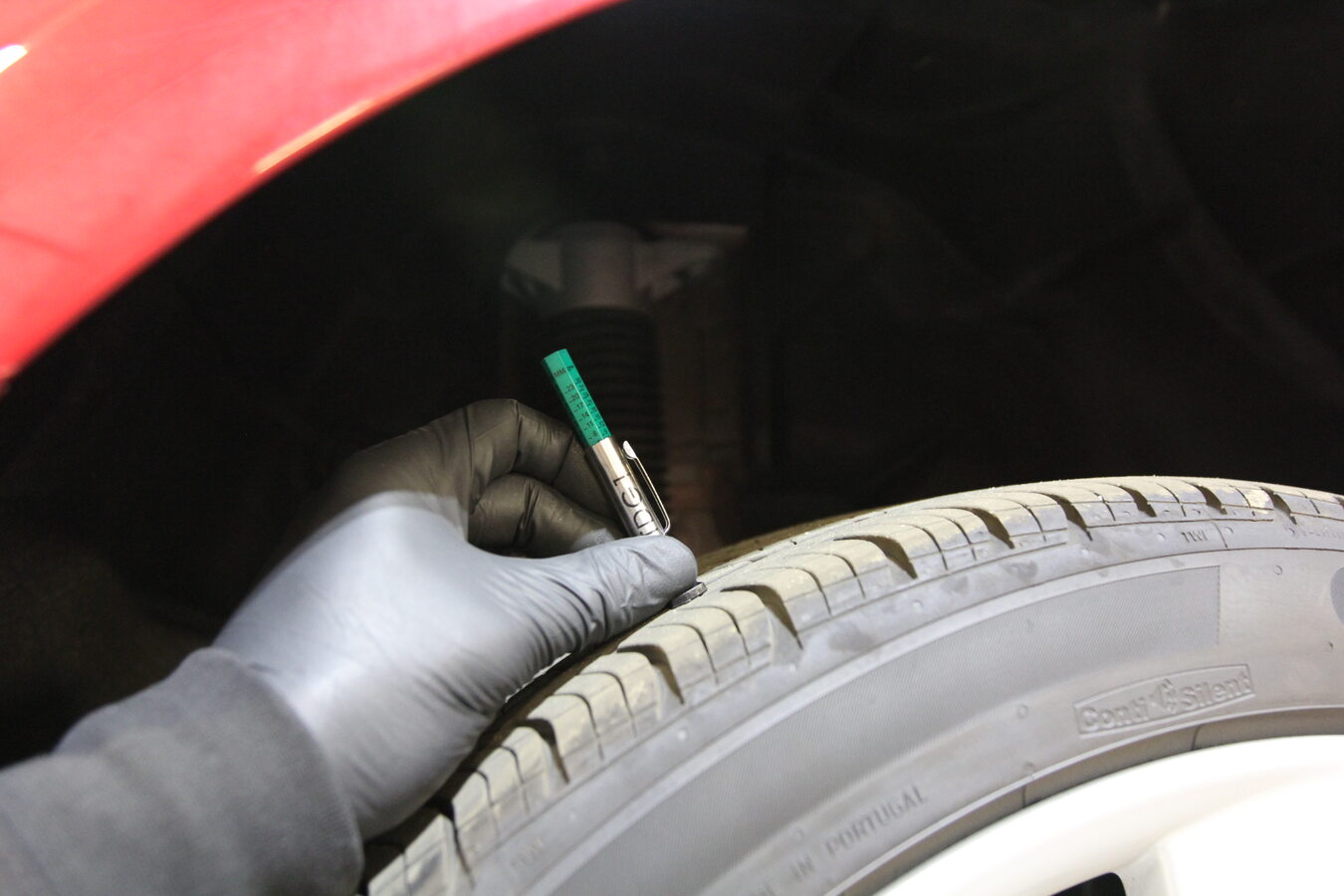

58. Record tread depth for LH rear tire
    Remarque

    Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less

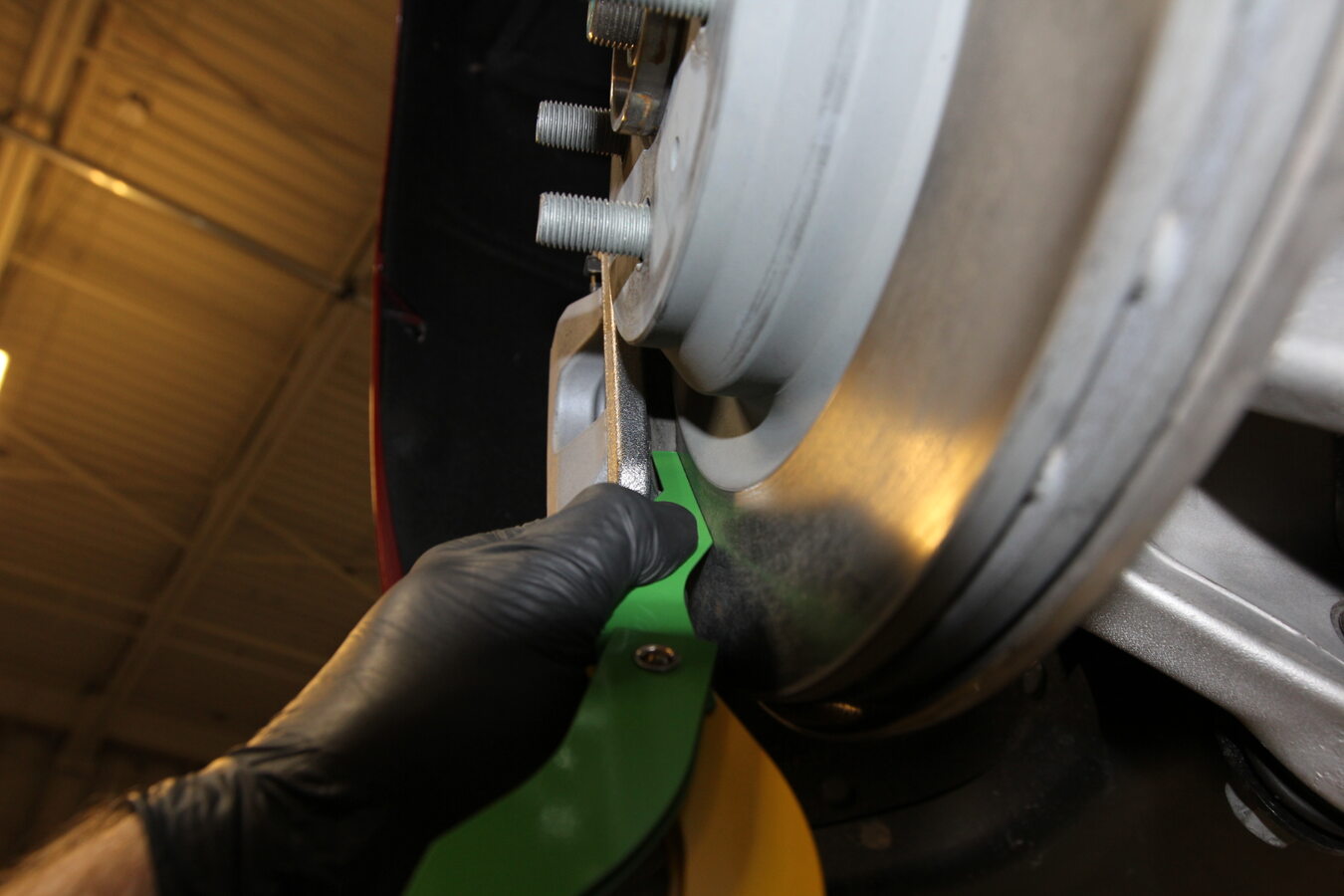

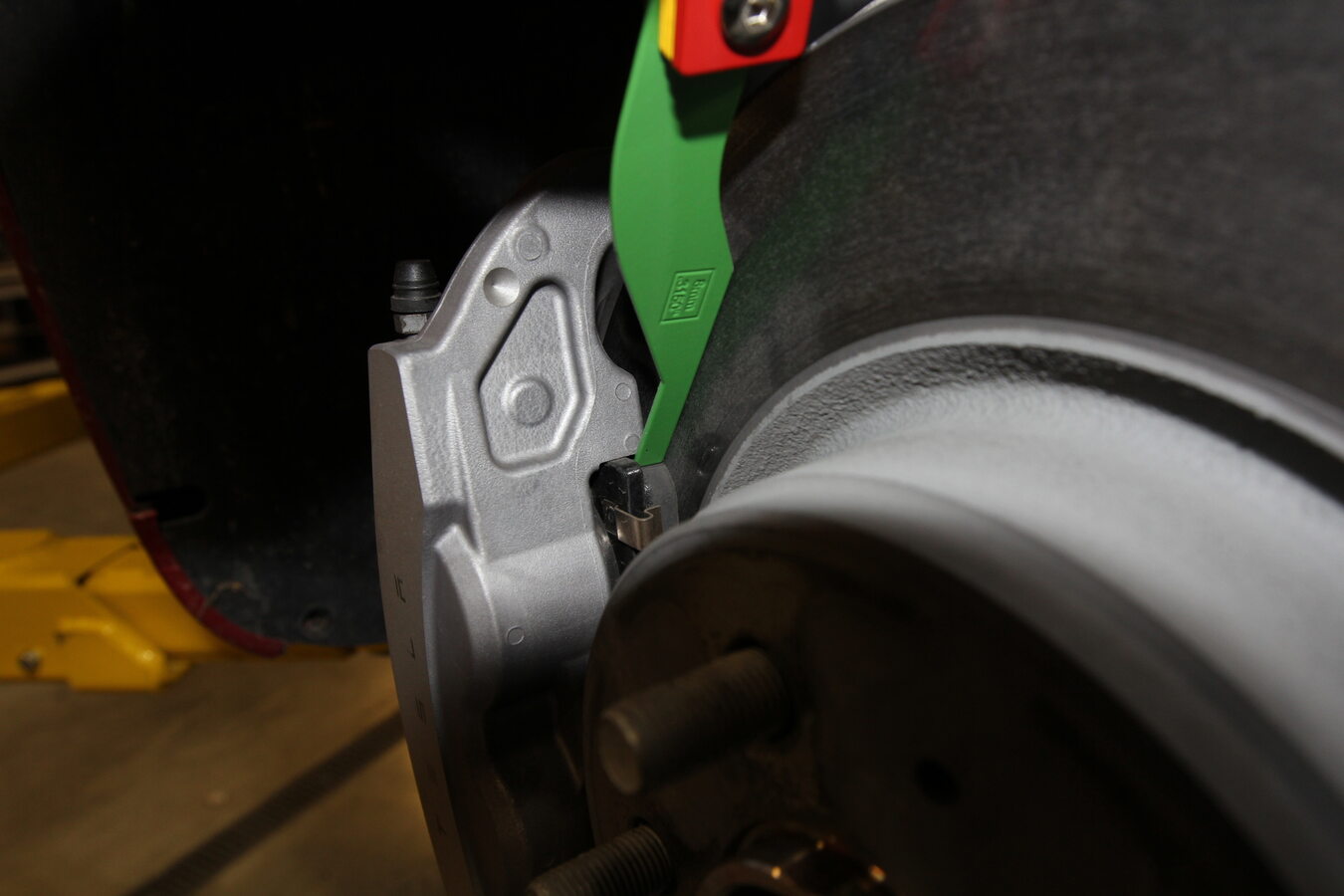

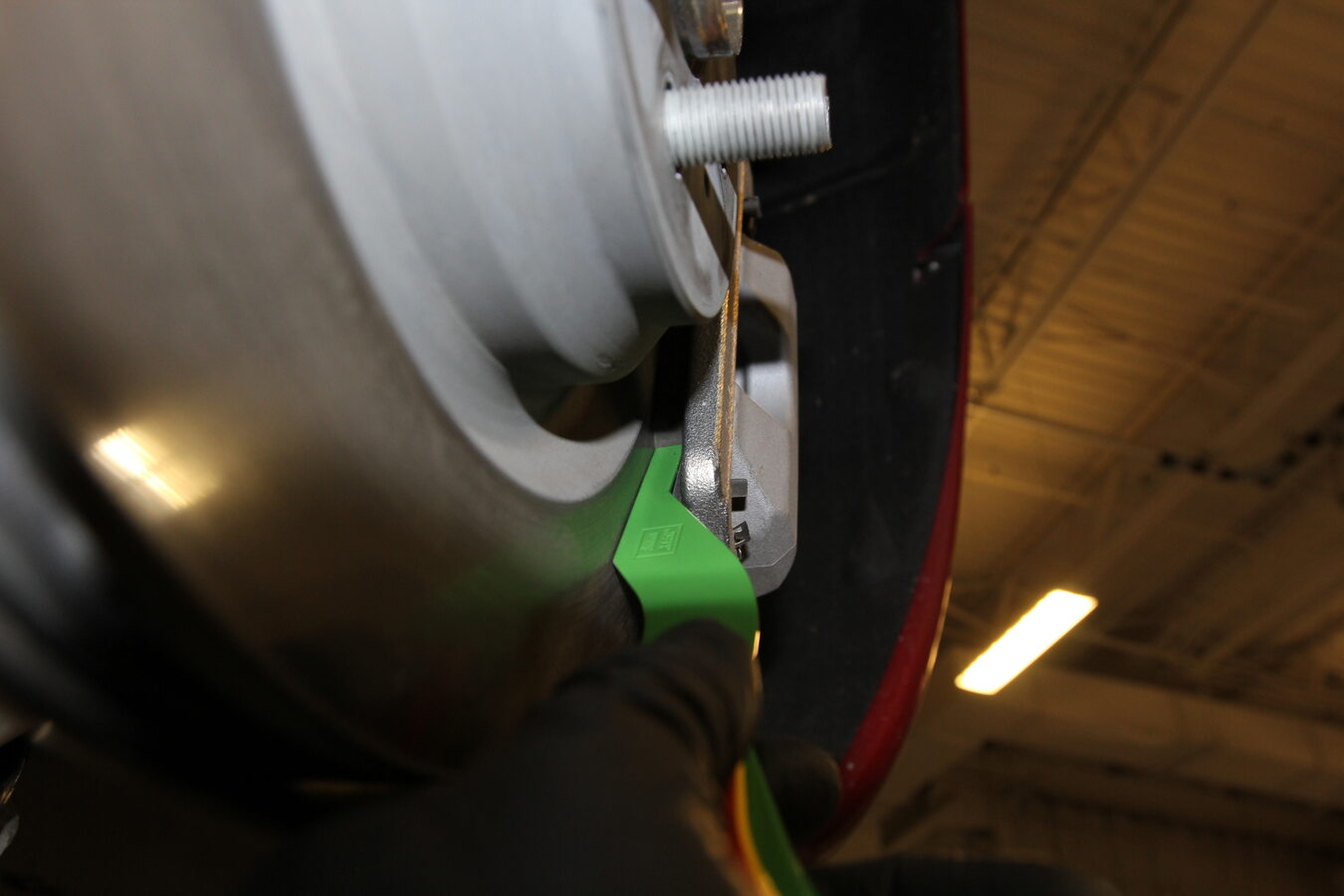

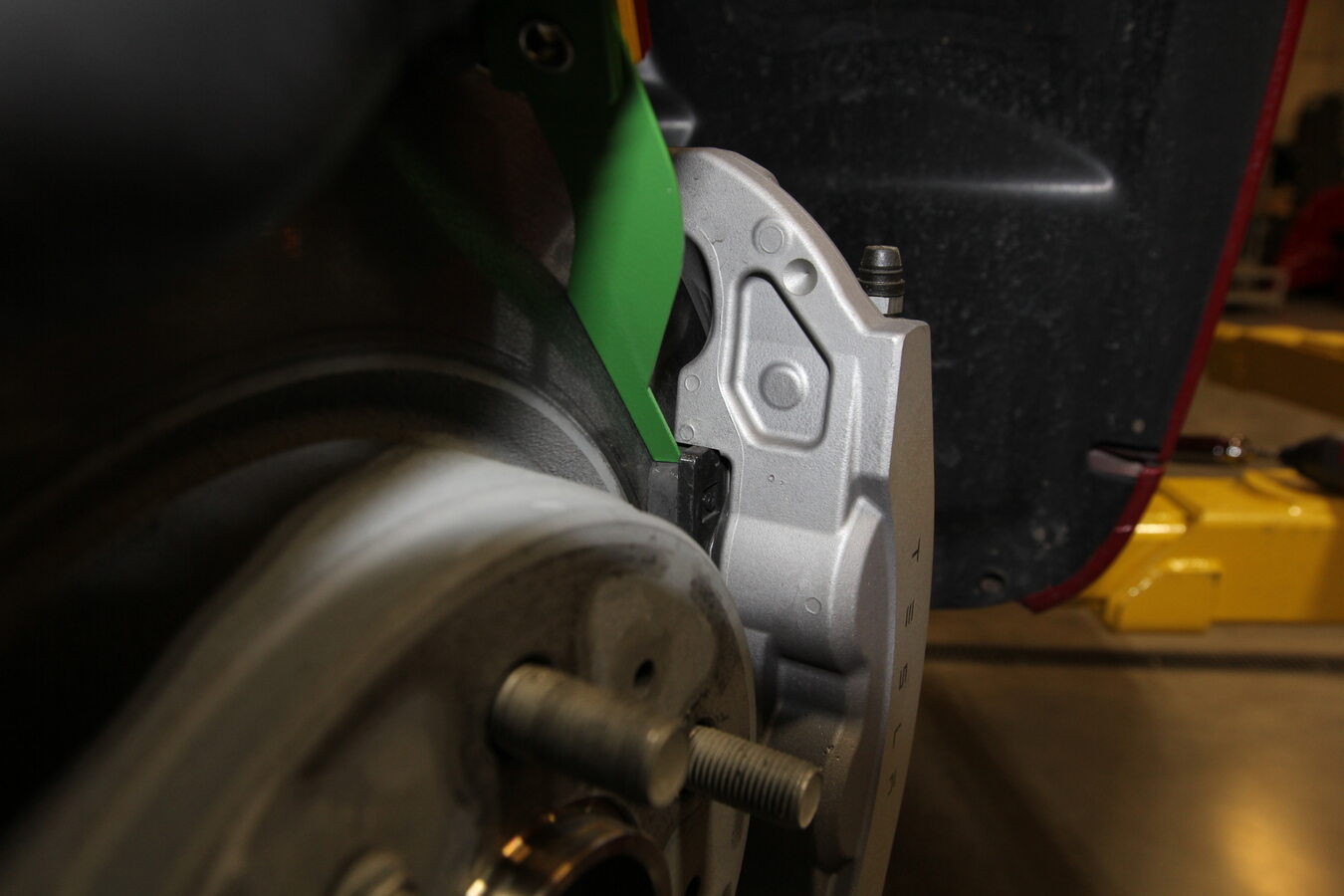

59. Measure and record LH rear brake pad thickness
    Remarque

    Recommend replacement if 2mm or less, Check both inboard and outboard pads

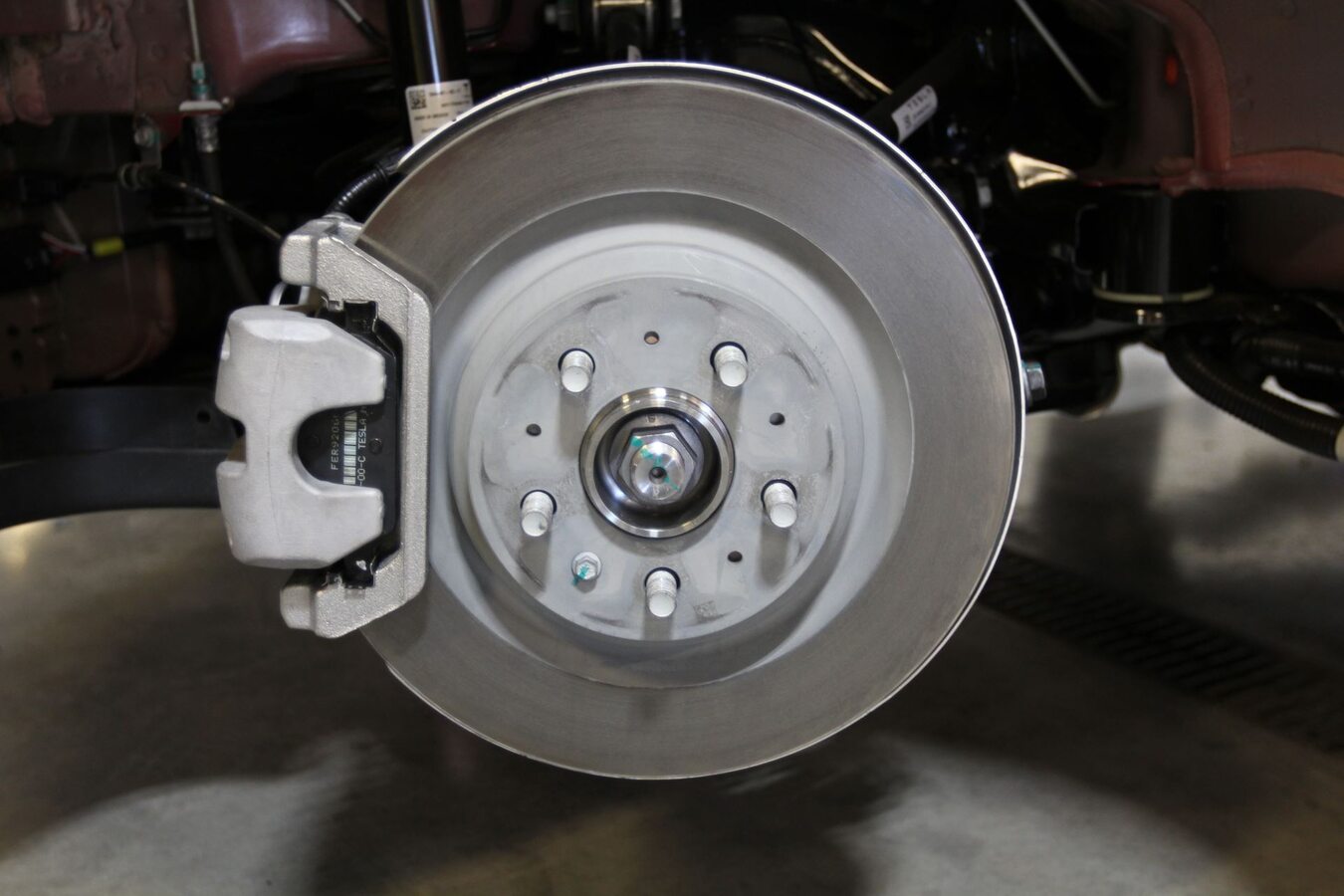

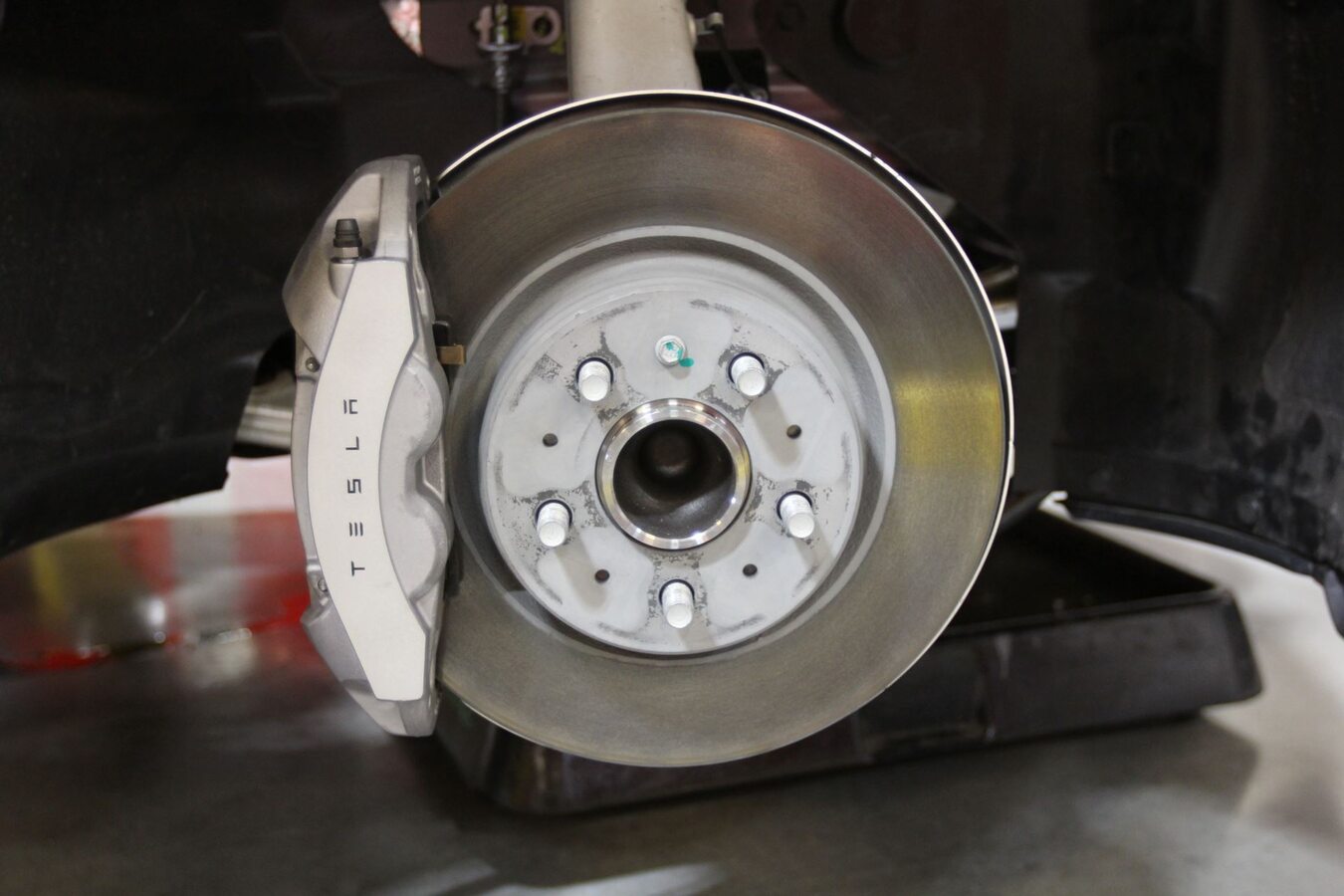

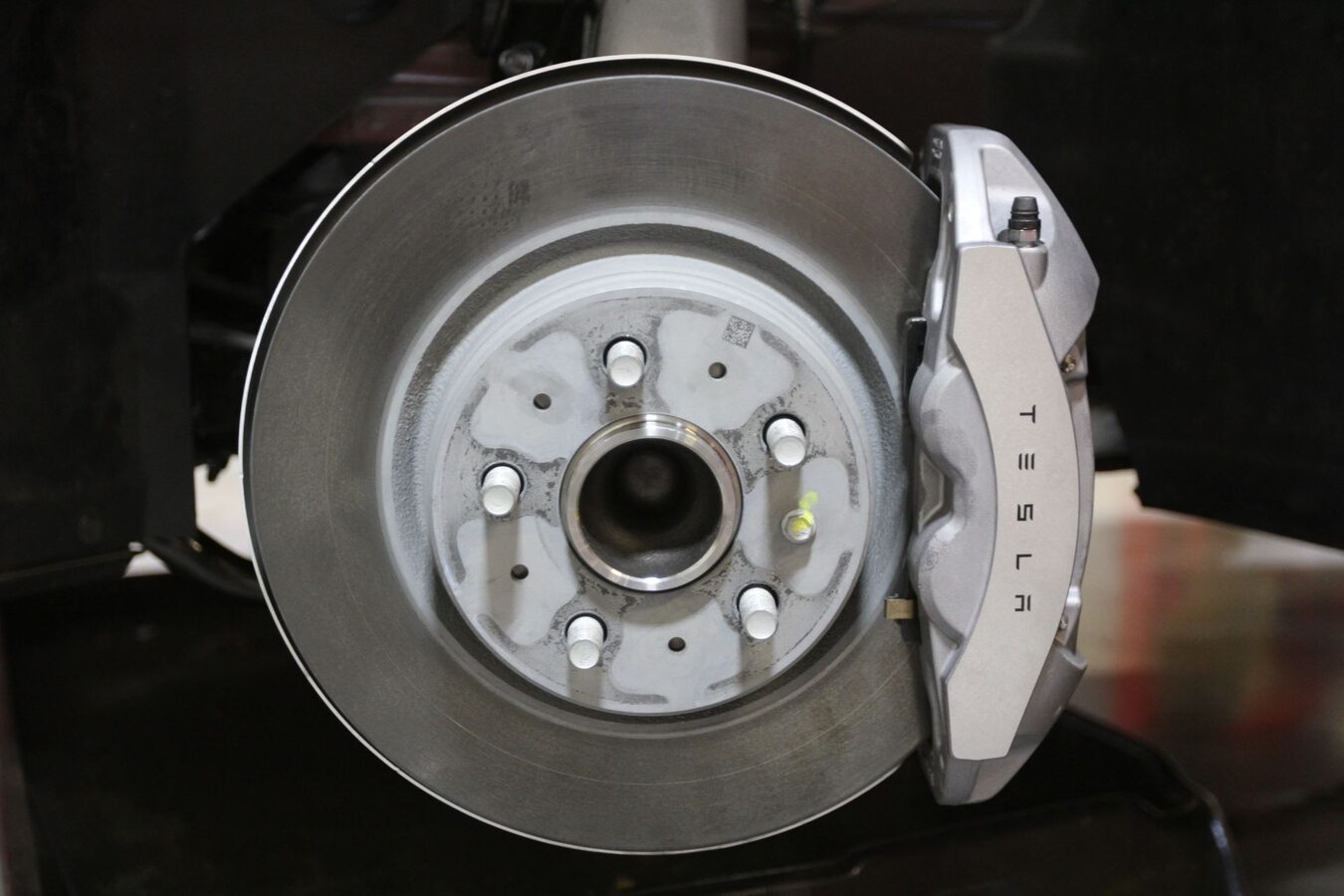

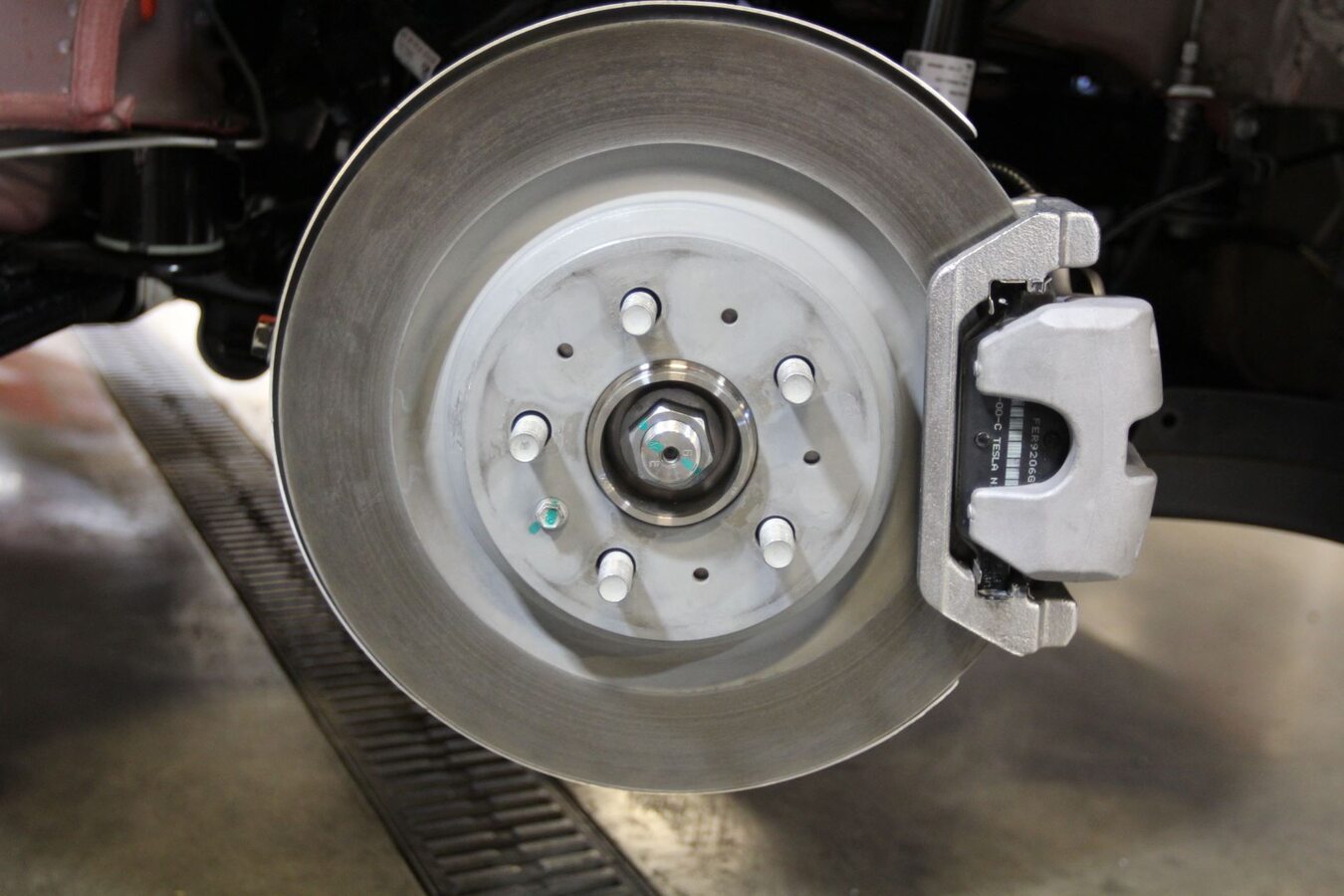

60. Inspect LH rear brake rotor condition
    Remarque

    Check for excessive rust or wear, Minimum spec 26mm



61. Record tread depth for RH rear tire
    Remarque

    Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less



62. Measure and record RH rear brake pad thickness
    Remarque

    Recommend replacement if 2 mm or less, Check both inboard and outboard pads



63. Inspect RH rear brake rotor condition
    Remarque

    Check for excessive rust or wear, Minimum spec 26mm



64. Record tread depth for RH front tire
    Remarque

    Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less



65. Measure and record RH front brake pad thickness
    Remarque

    Recommend replacement if 2mm or less, Check both inboard and outboard pads



66. Inspect RH front brake rotor condition
    Remarque

    Check for excessive rust or wear, Minimum spec 30mm



67. Record tread depth for LH front tire
    Remarque

    Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less



68. Measure and record LH front brake pad thickness
    Remarque

    Recommend replacement if 2mm or less, Check both inboard and outboard pads



69. Inspect LH front brake rotor condition
    Remarque

    Check for excessive rust or wear, Minimum spec 30mm



70. Perform visual inspection of all brake pipes and hoses
    Remarque

    Pay special attention to brake junction points

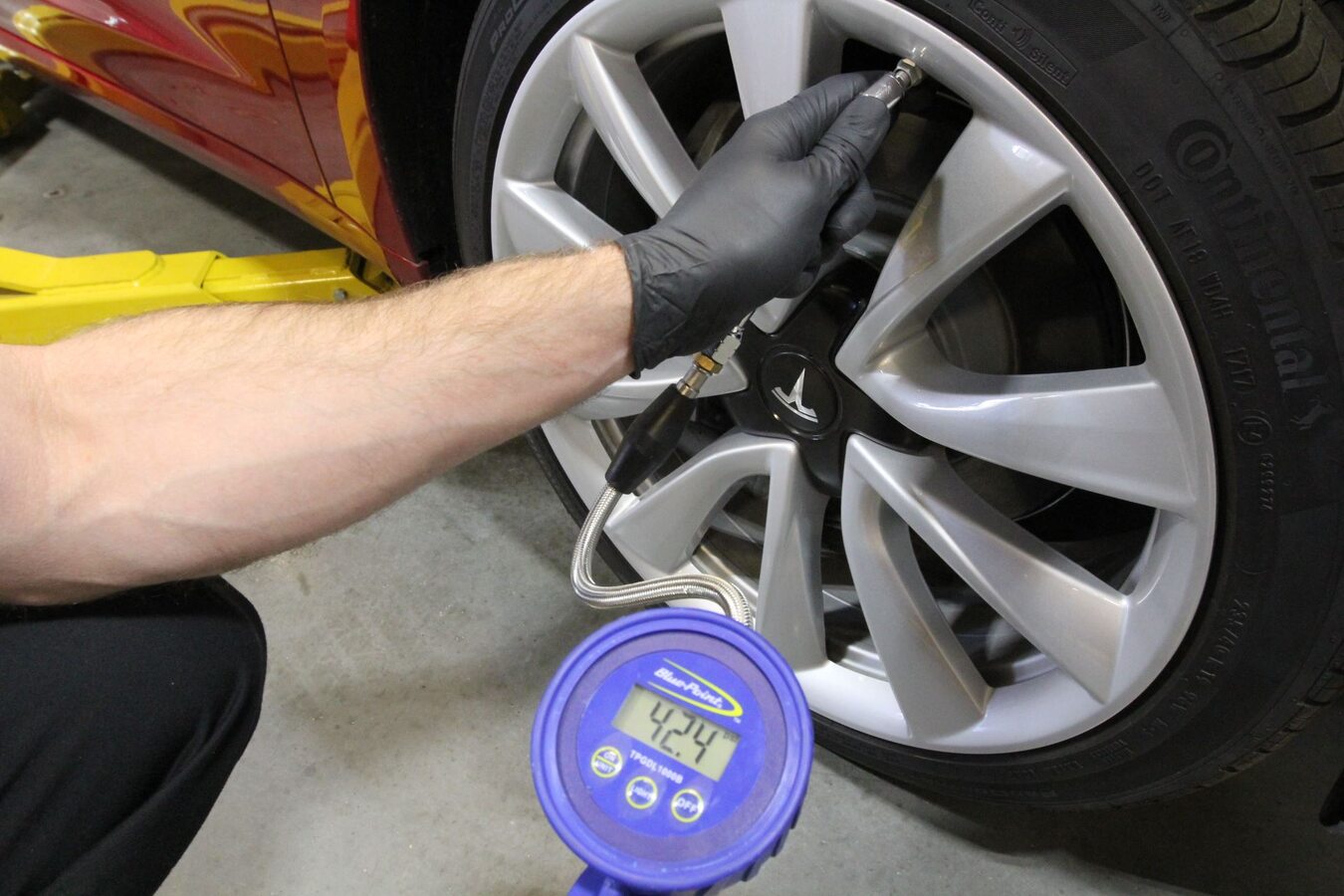

71. Check all four tire pressures manually
    Remarque

    4x tires, Set to specification if necessary, Refer to the "Tire and Loading Information" label located on the driver side B-pillar, Inspect wheels and tires for any bulges or damage while checking/setting pressures



72. Raise vehicle fully and lower lift onto locks
    Remarque

    Set vehicle to comfortable working height, Make sure there's an audible click of locks on both sides before lowering, otherwise vehicle may tilt to side

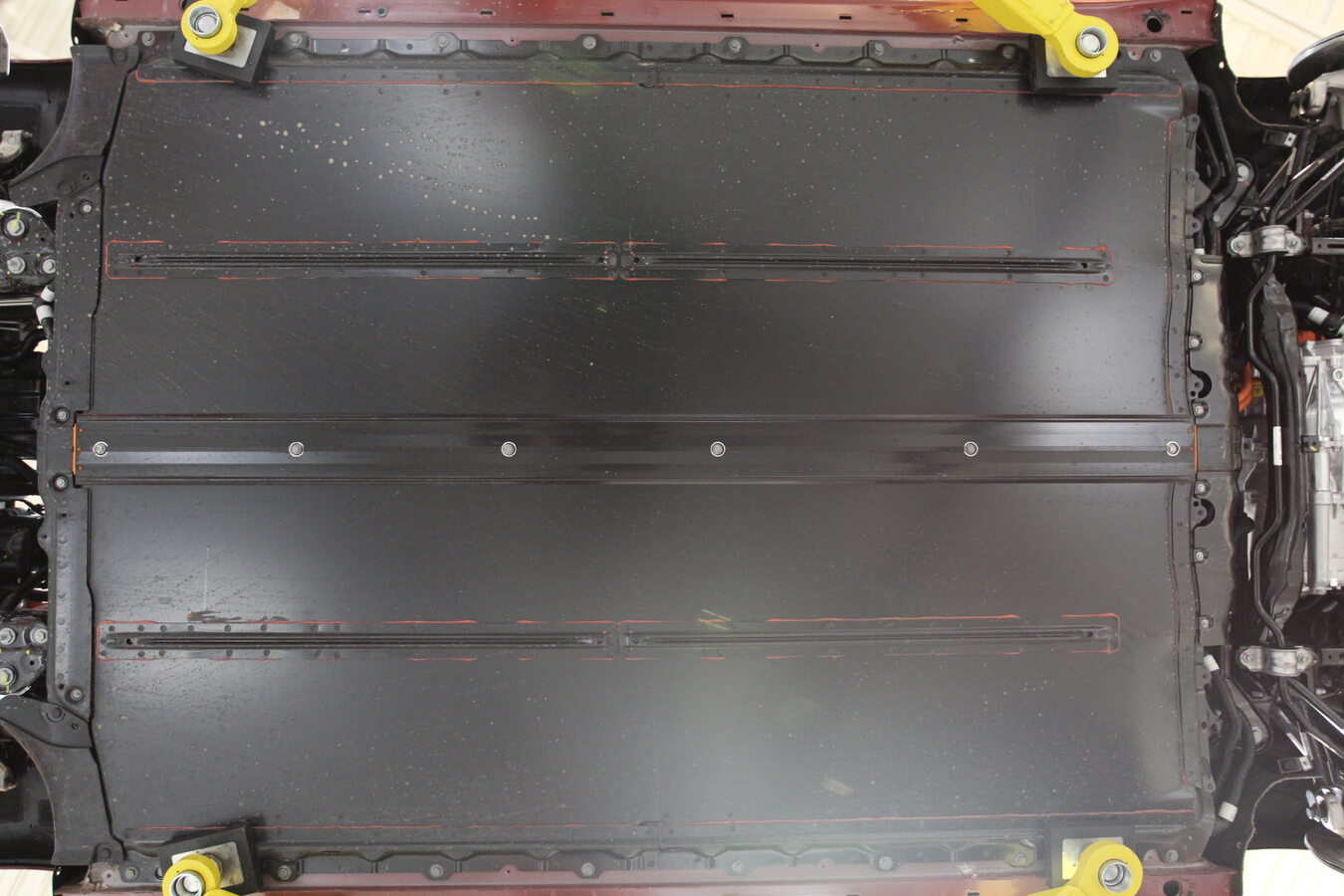

73. Perform visual inspection of HV battery enclosure
    Remarque

    Check for any dents, scrapes, or other damage

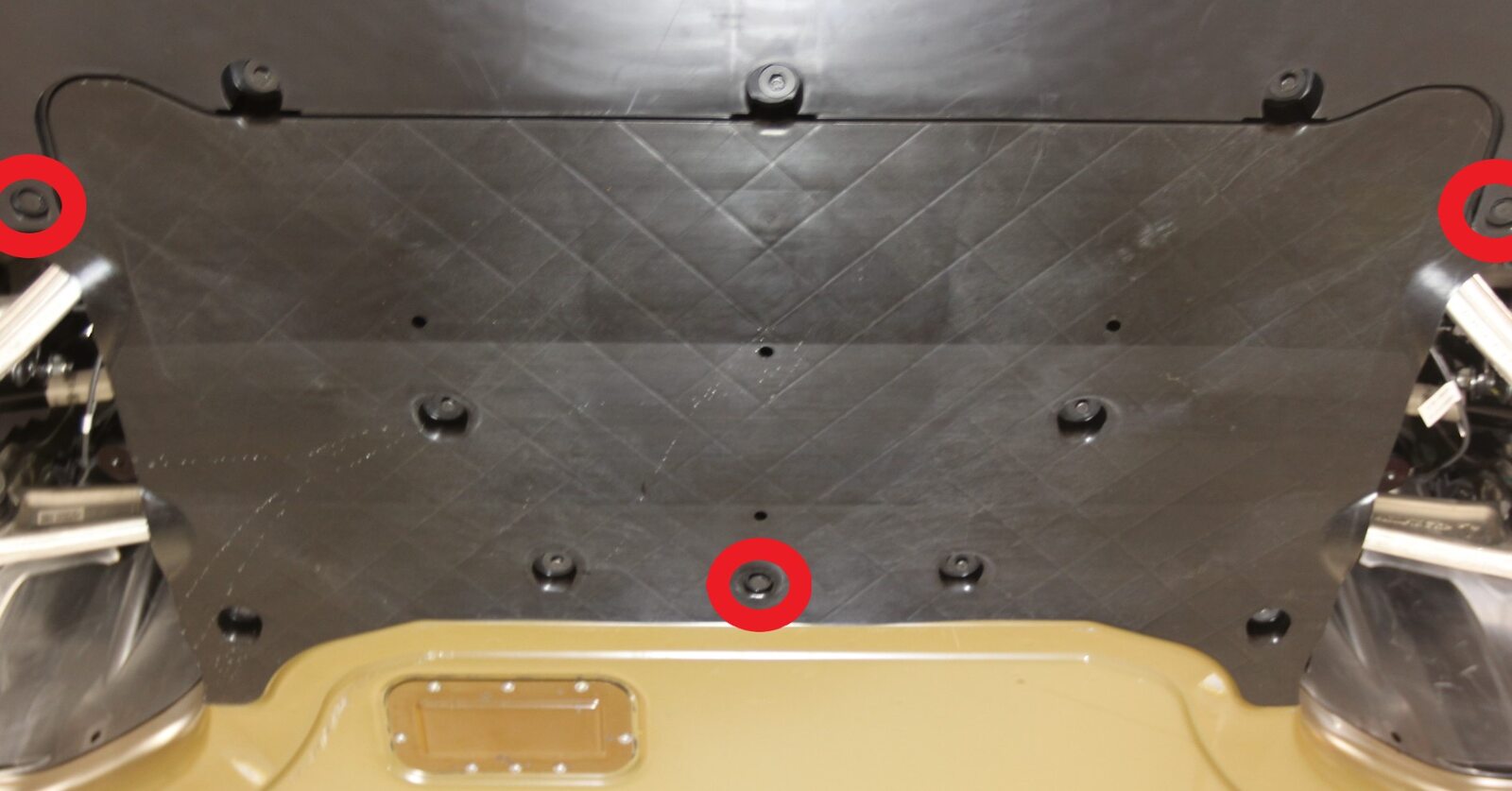

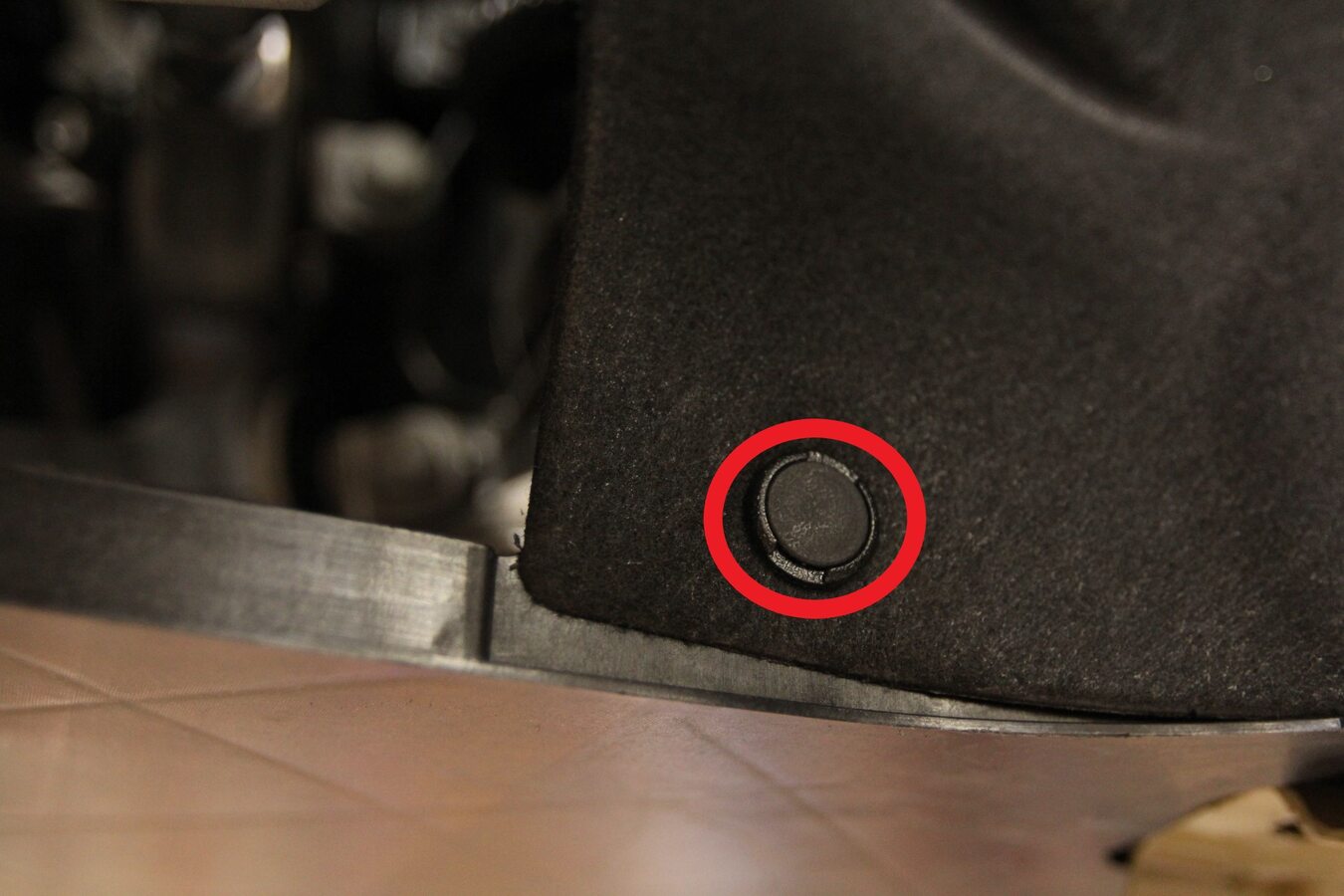

74. Release mid aero shield
    Remarque

    4x push clips







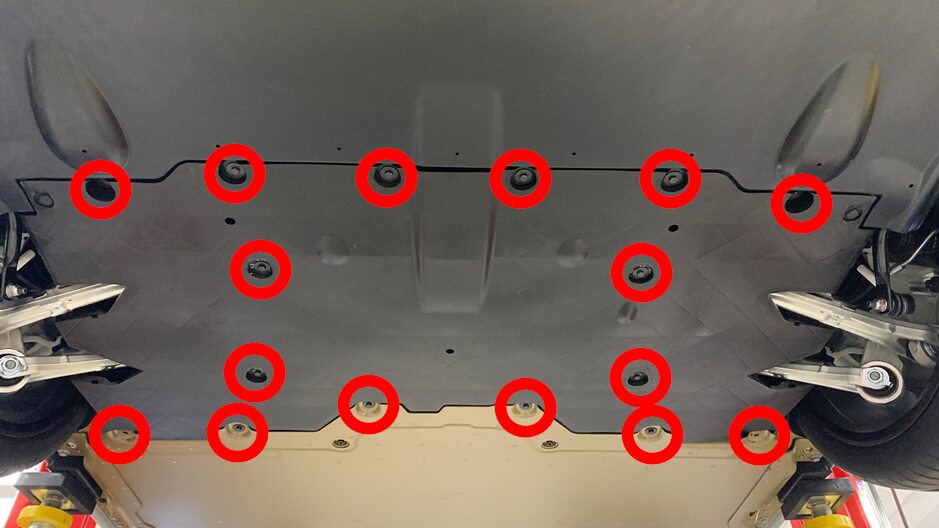

75. Remove mid aero shield
    Remarque

    16x bolts, 10mm, 6 Nm



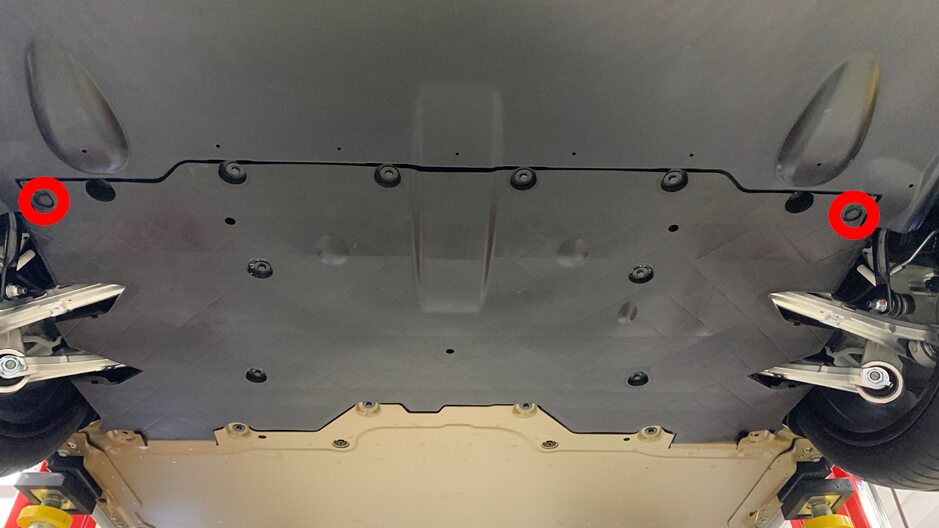

76. Release front aero shield
    Remarque

    9x bolts, 10mm, 6 Nm



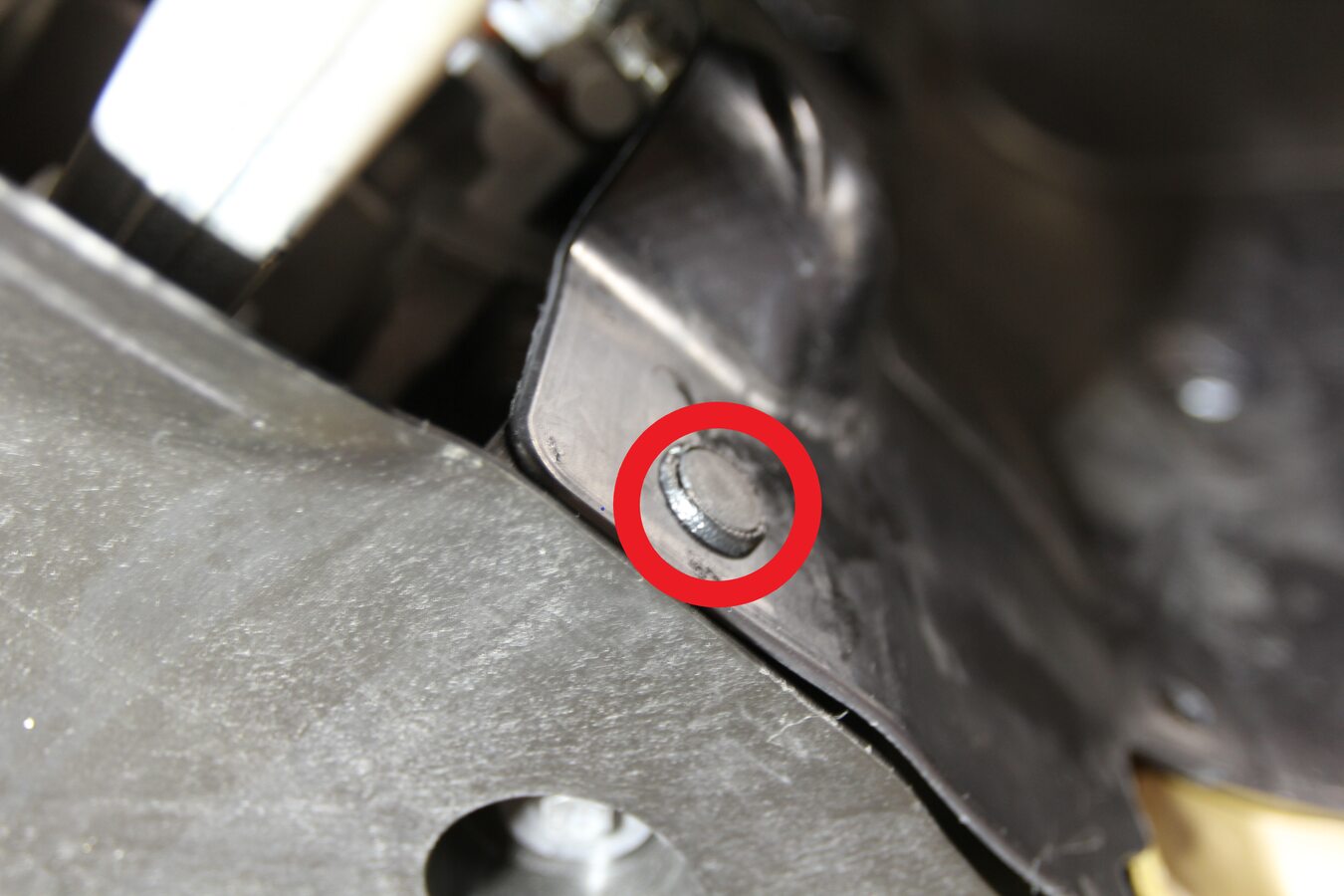

77. Remove front aero shield
    Remarque

    5x push clips

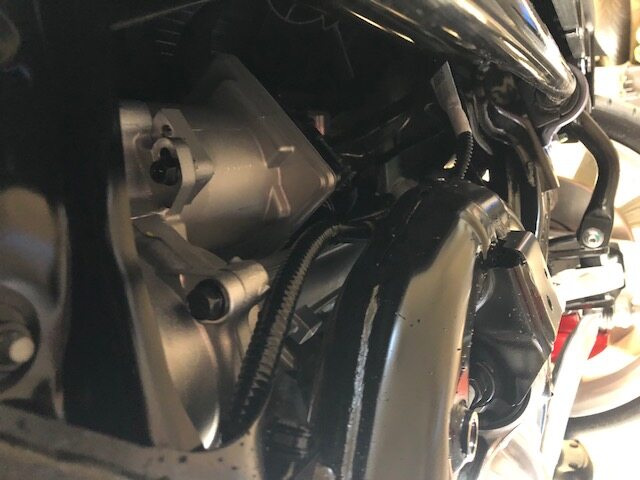

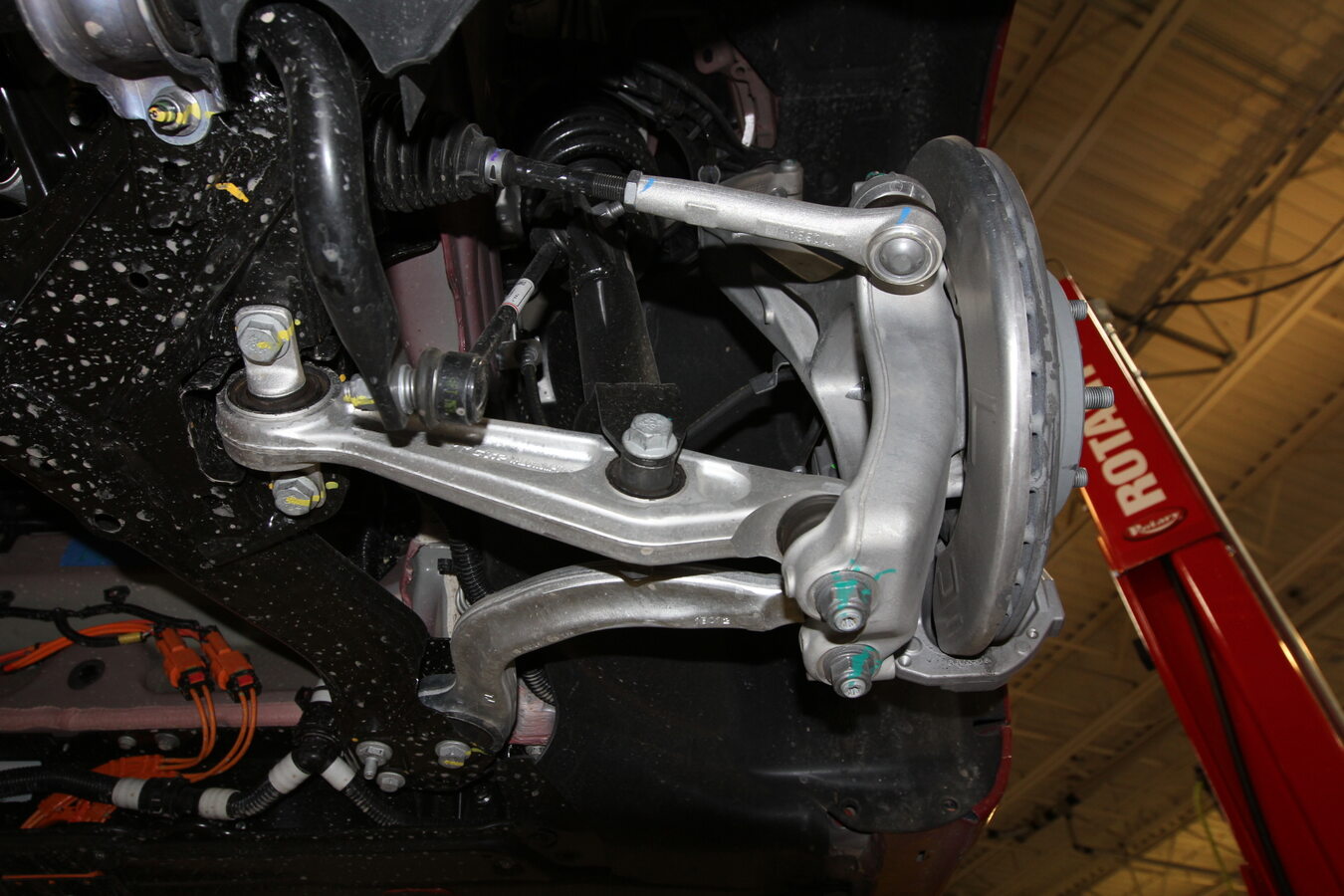

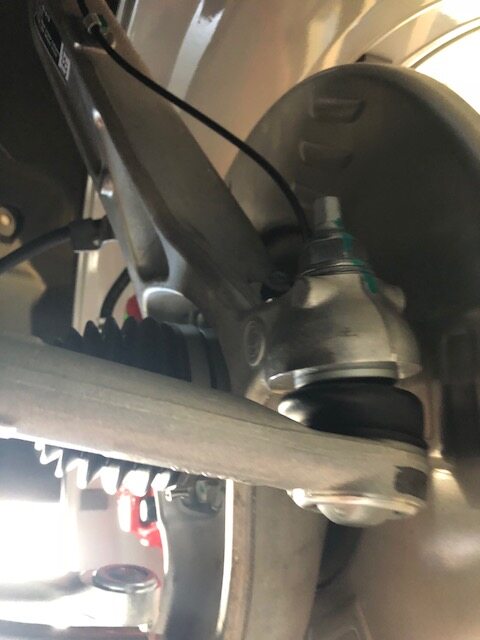

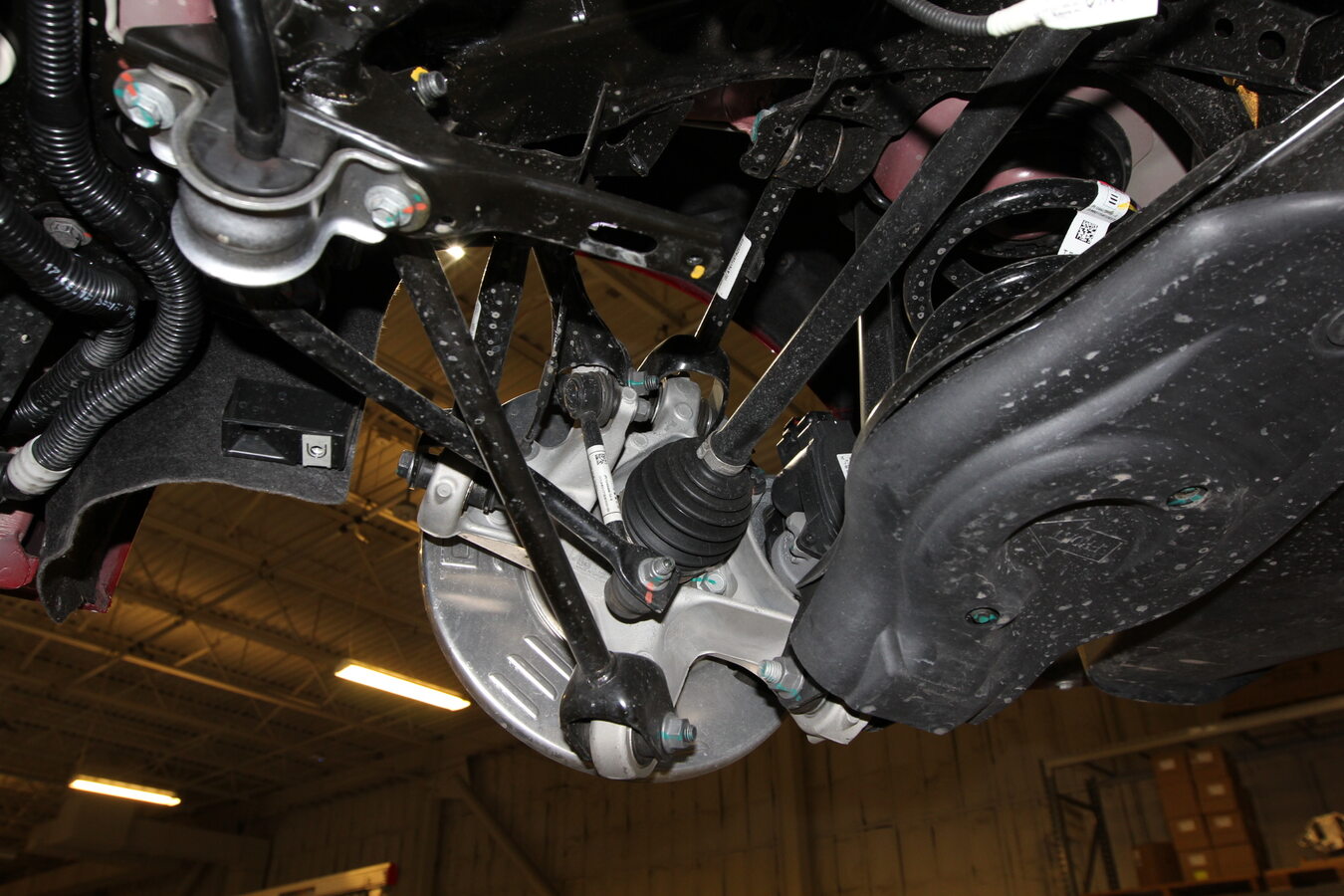

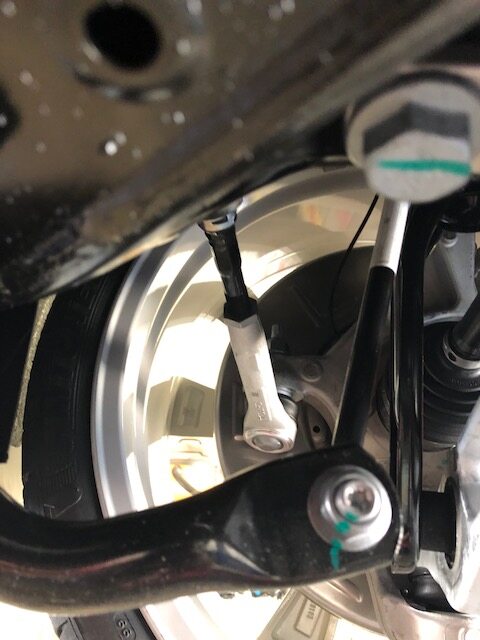

78. Perform inspection of suspension components
    Remarque

    Check conditions of ball joints and bushings, etc, Inspect for any loose fasteners, Carefully apply pressure with a pry bar as needed

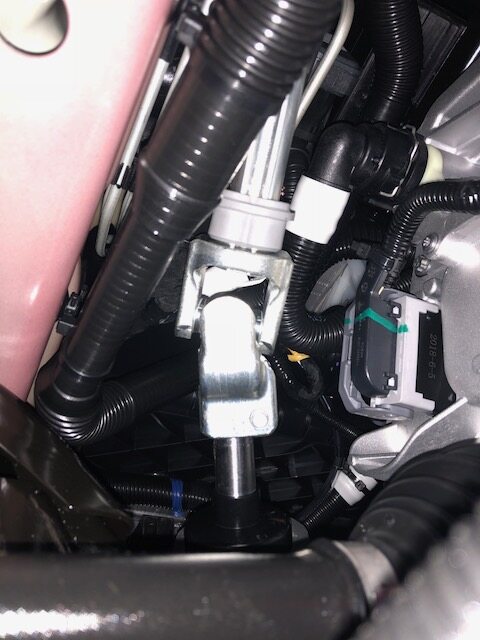

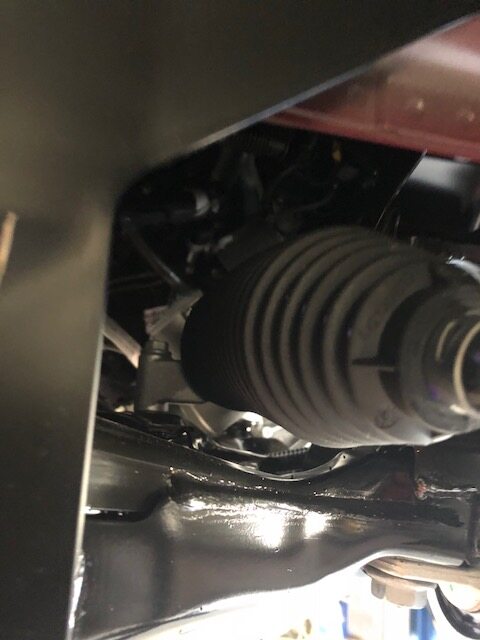

79. Perform inspection of steering components
    Remarque

    Check steering gear joints and electrical connections, Verify components are not bent or damaged

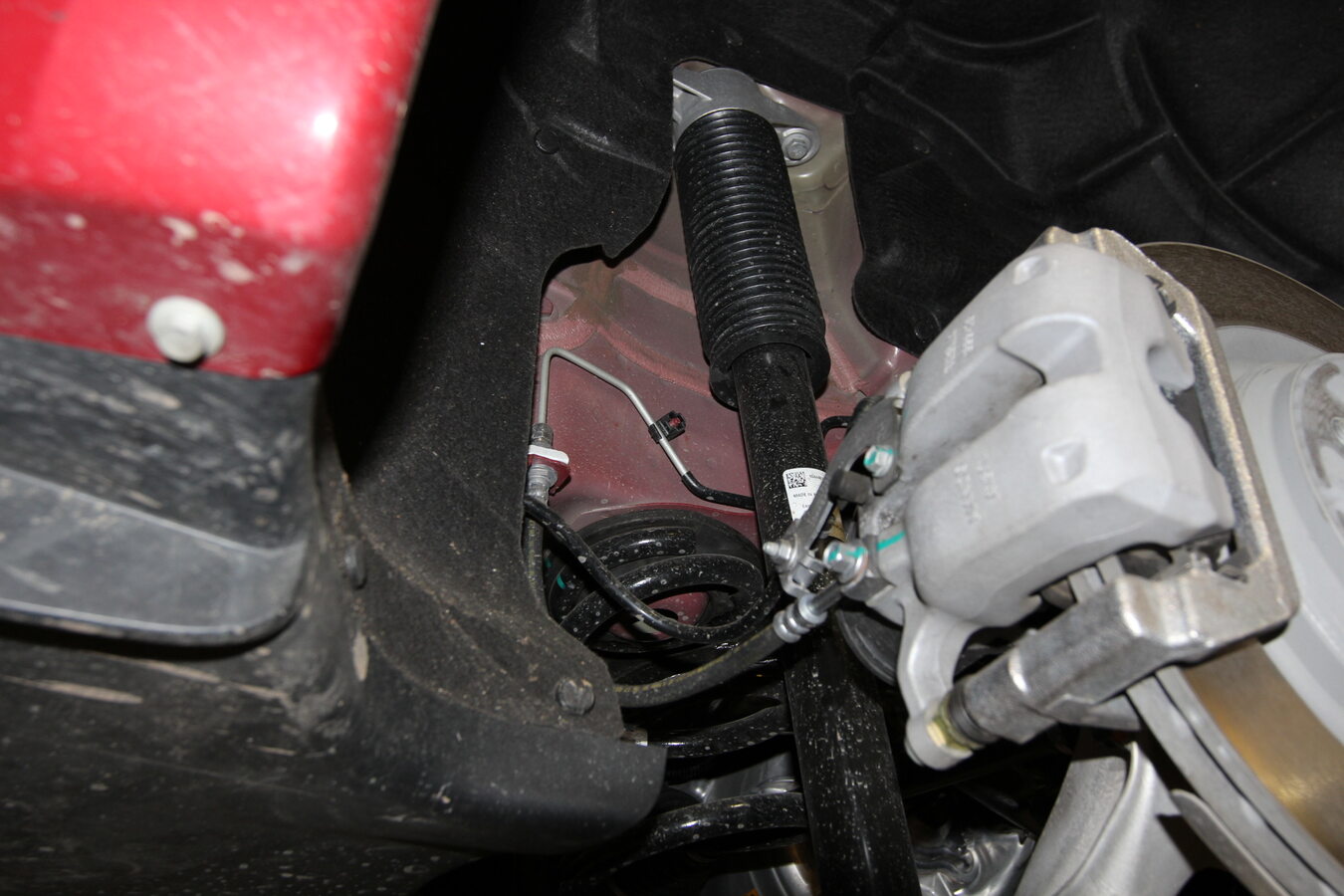

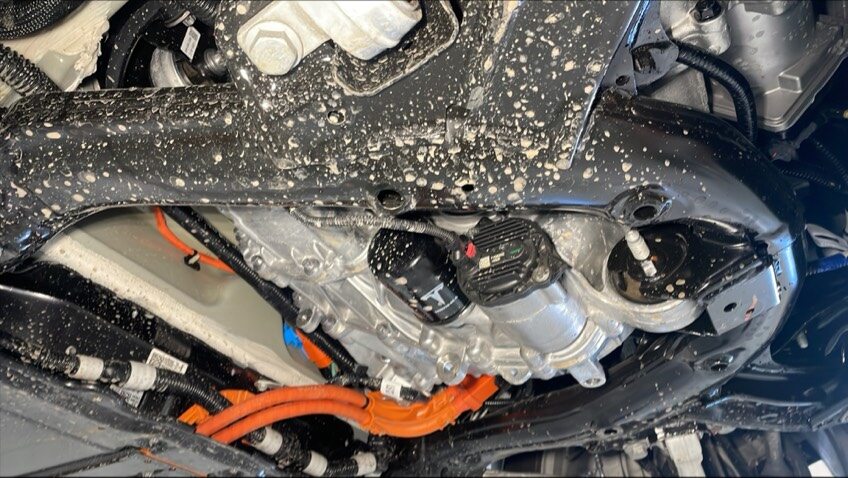

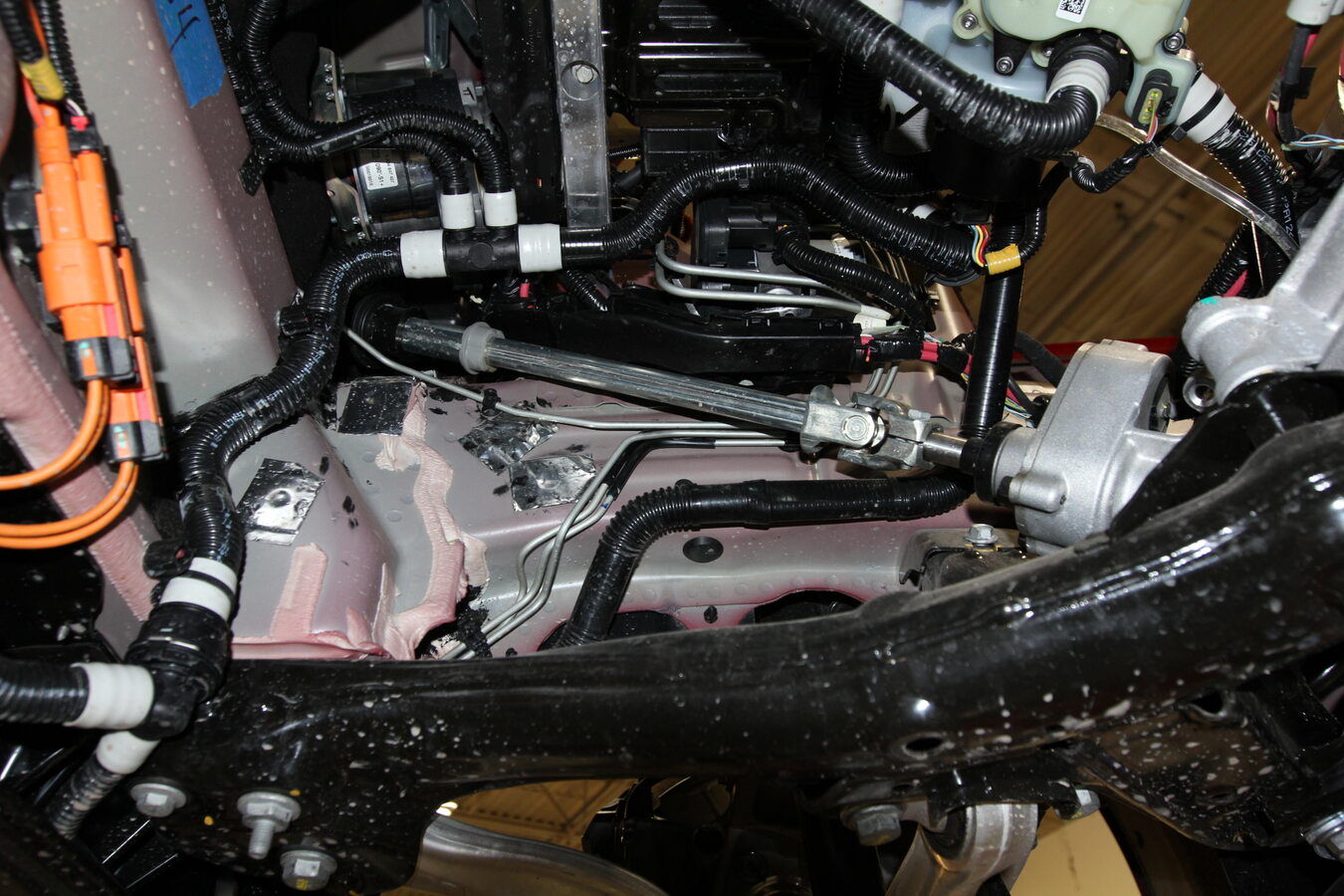

80. Perform visual inspection of underside of vehicle for any coolant leaks
    Remarque

    Pay special attention to hose connection points

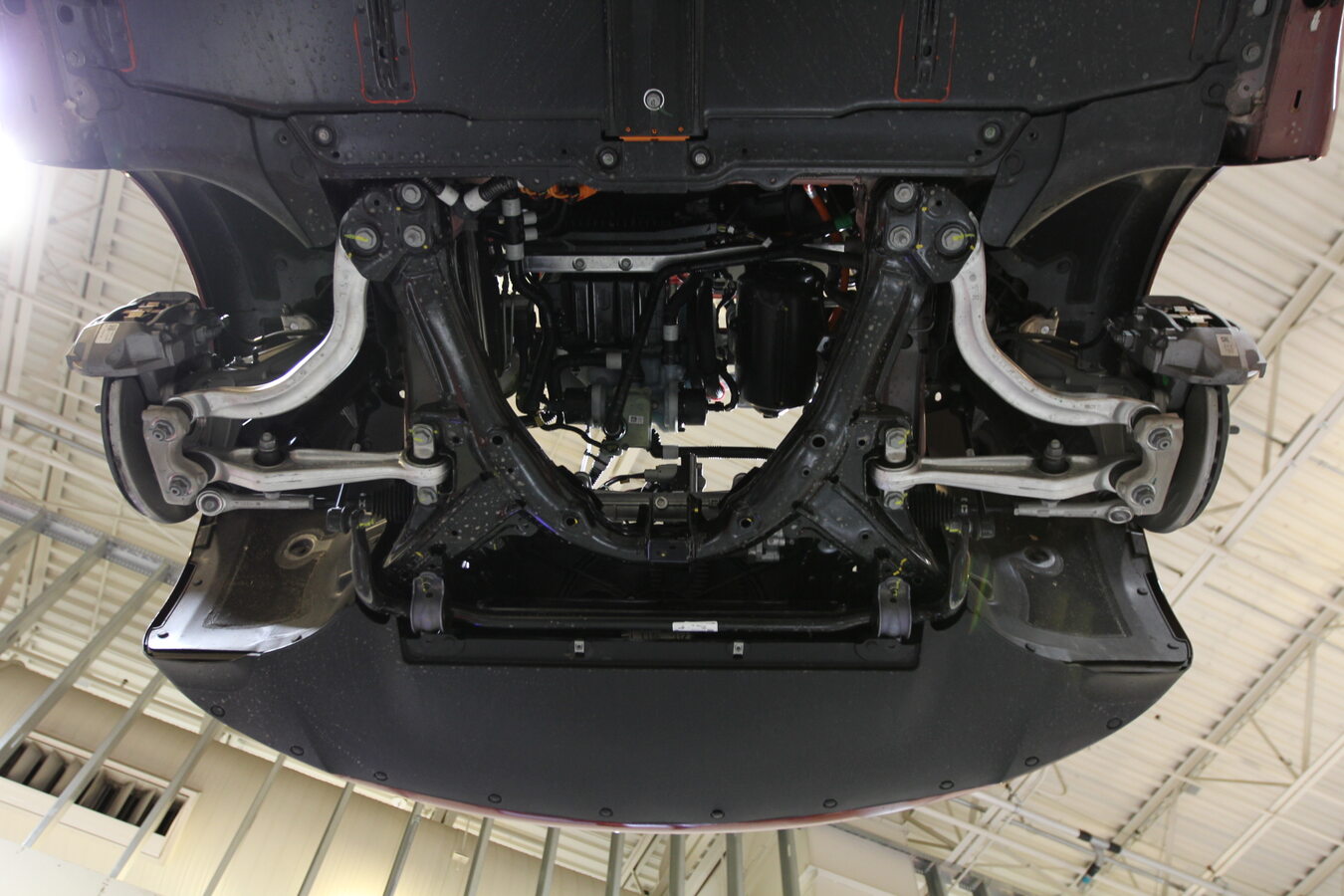

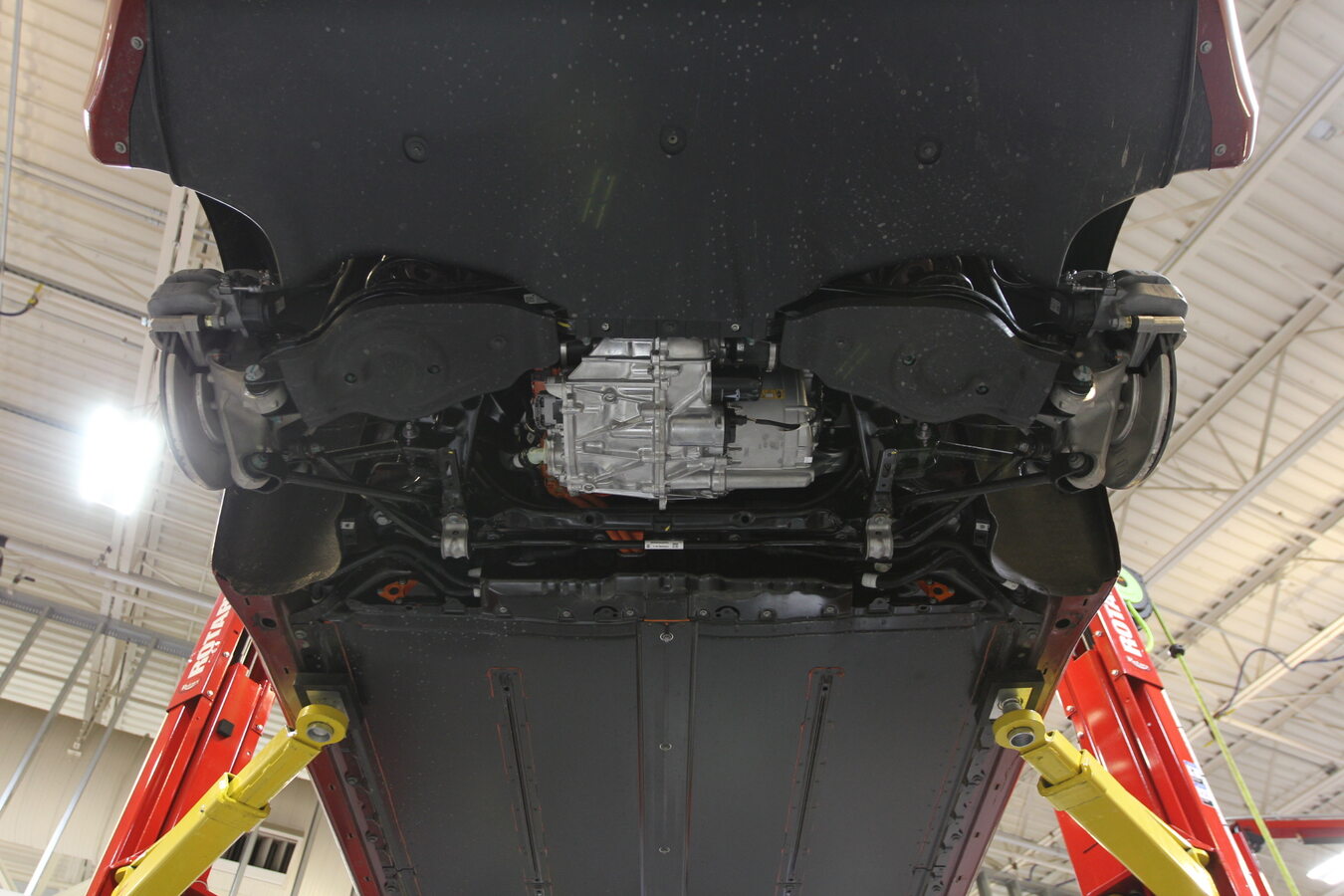

81. Perform inspection of vehicle underside components front and rear
    Remarque

    Perform inspection of vehicle underside front and rear, Check for signs of abnormal damage, wear, heavy rust, wiring damage, or impact damage, Pay attention to safety related component and note any items of significance

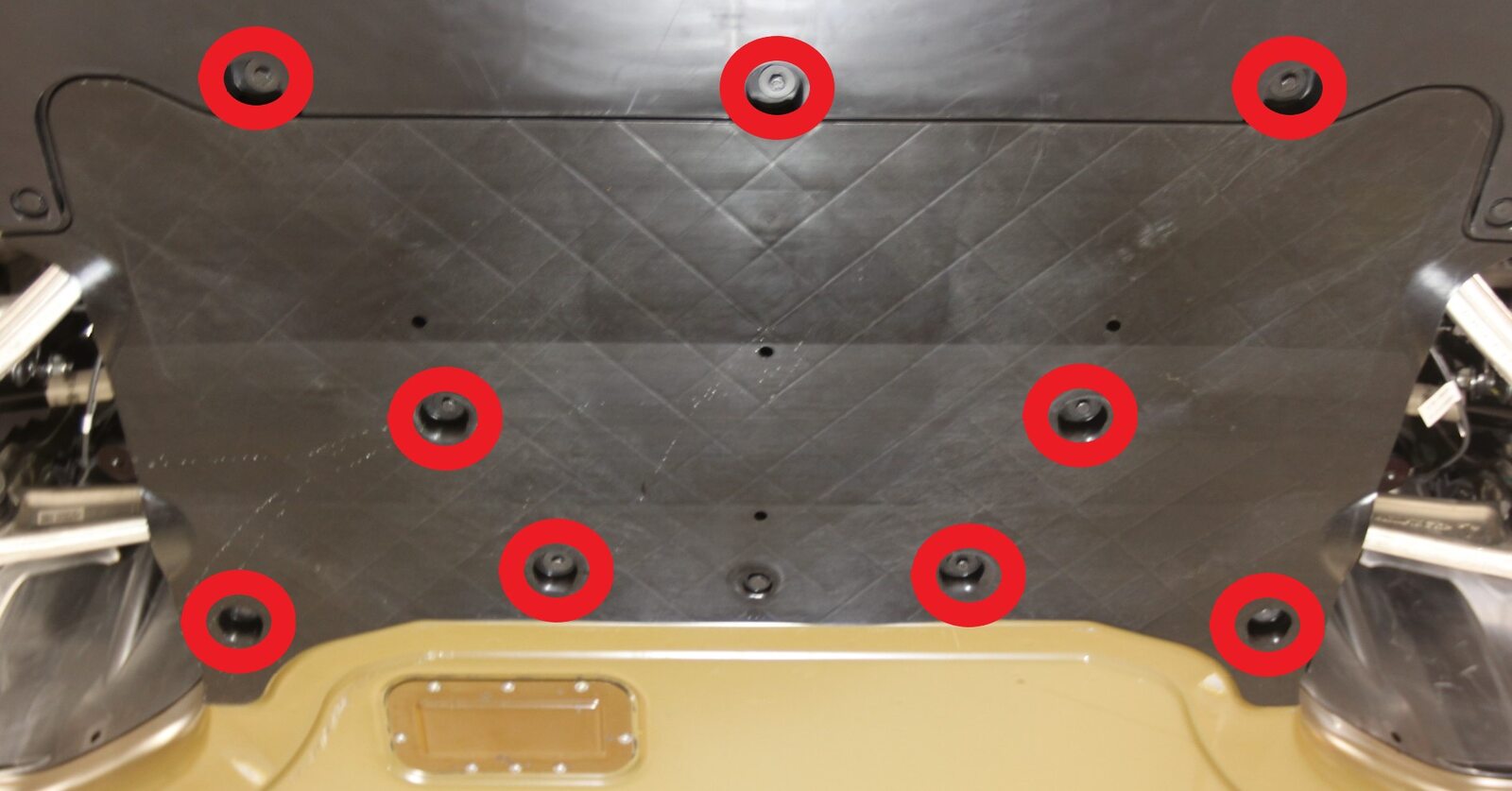

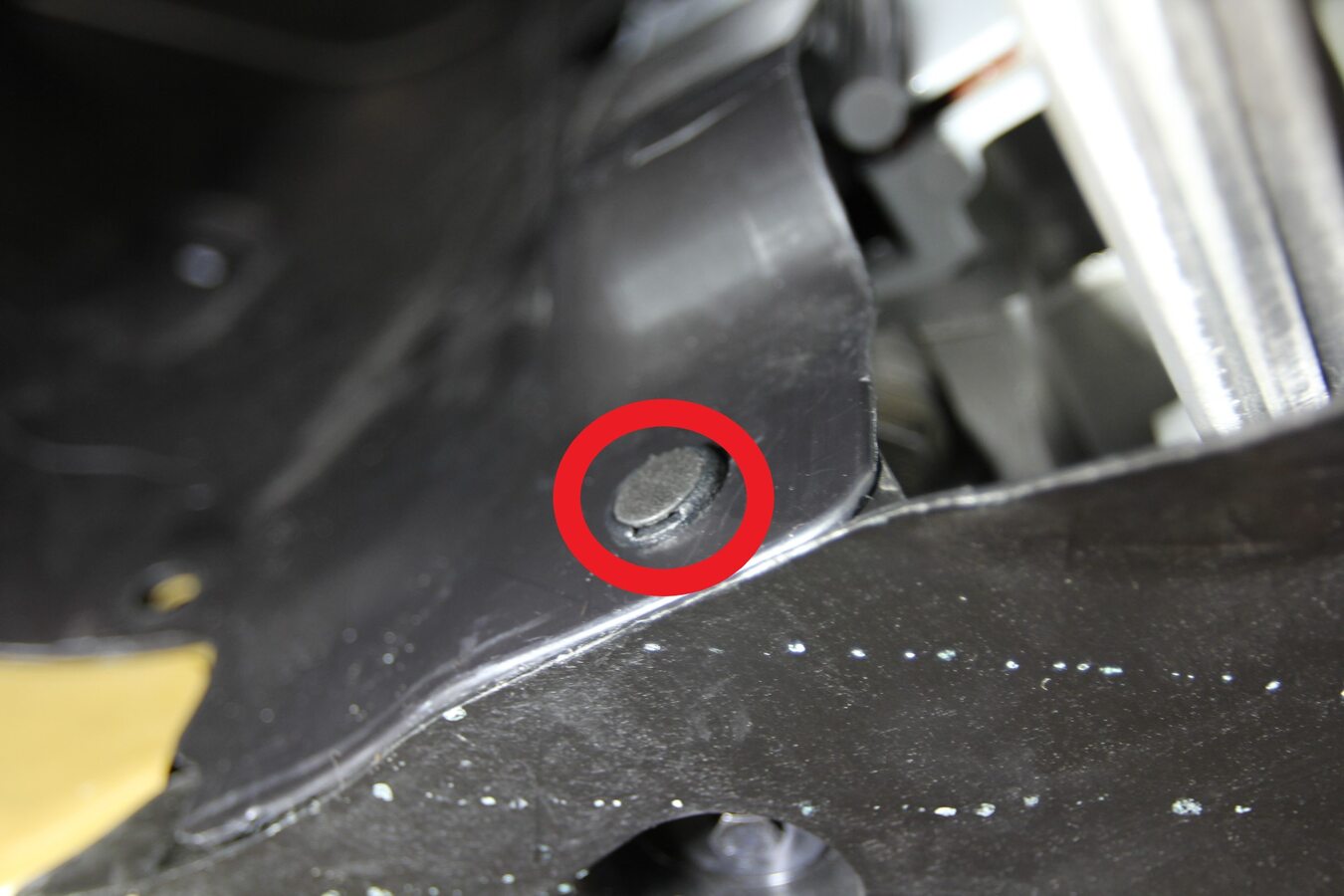

82. Install front aero shield
    Remarque

    5x push clips







83. Secure front aero shield to vehicle
    Remarque

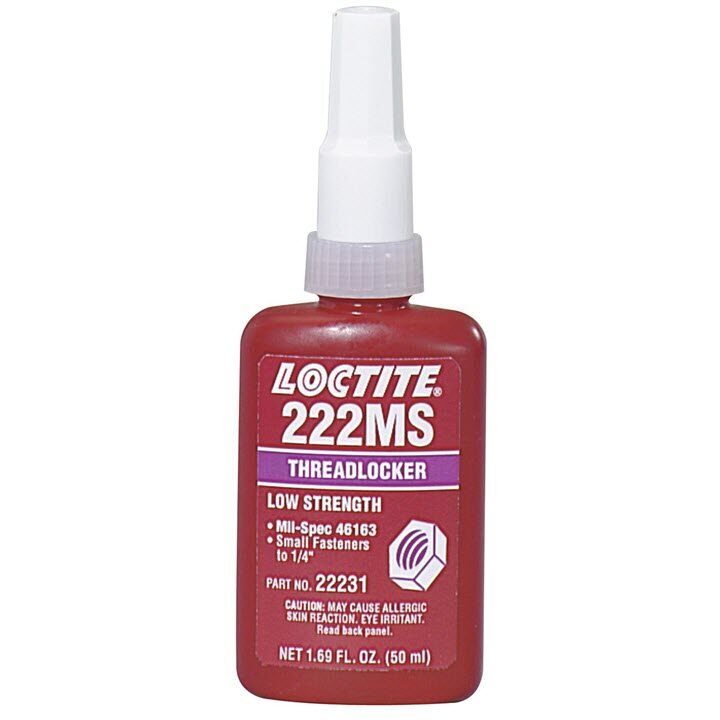

    9x bolts, 10mm, 6 Nm, Apply Loctite 222 onto front aero shield bolts





84. Position mid aero shield
    Remarque

    4x push clips







85. Install mid aero shield
    Remarque

    16x bolts, 10mm, 6 Nm, Apply Loctite 222 onto mid aero shield bolts and install fasteners securing mid aero shield to vehicle

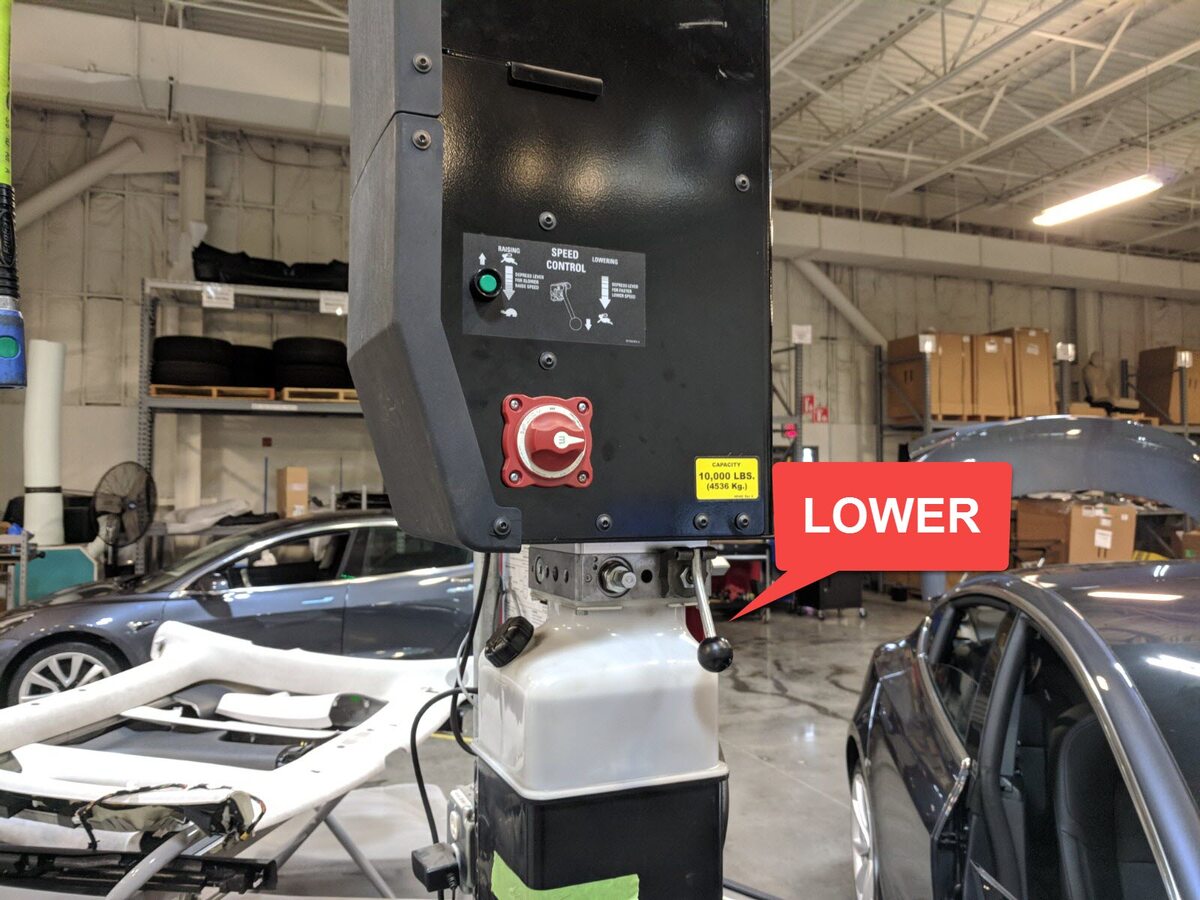

86. Lower vehicle partially and set onto locks
    Remarque

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height

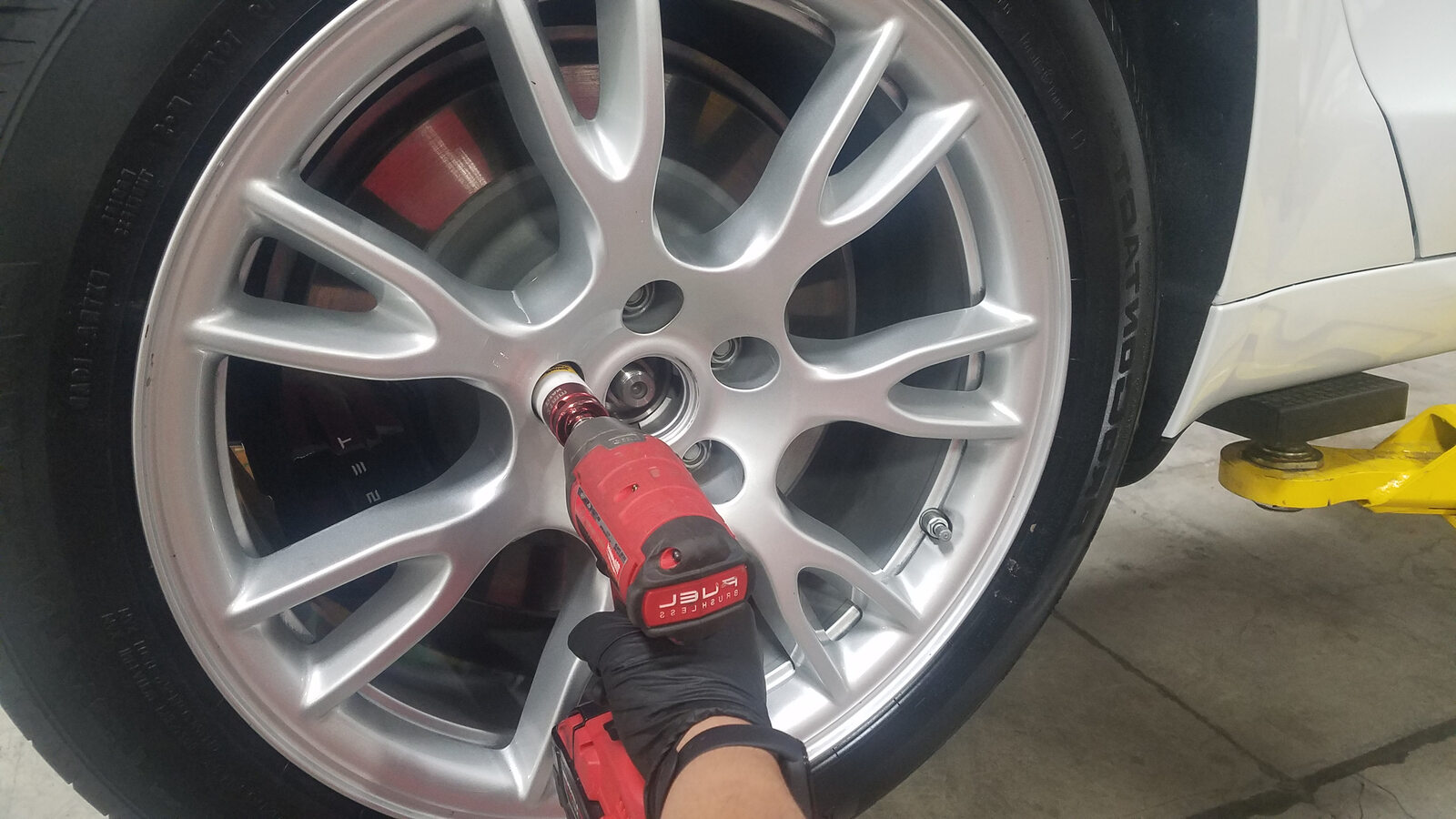

87. Install LH rear wheel
    Remarque

    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool





88. Install LH front wheel
    Remarque

    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool





89. Install RH rear wheel
    Remarque

    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool





90. Install RH front wheel
    Remarque

    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool





91. Lower vehicle until tires are touching ground
    Remarque

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered

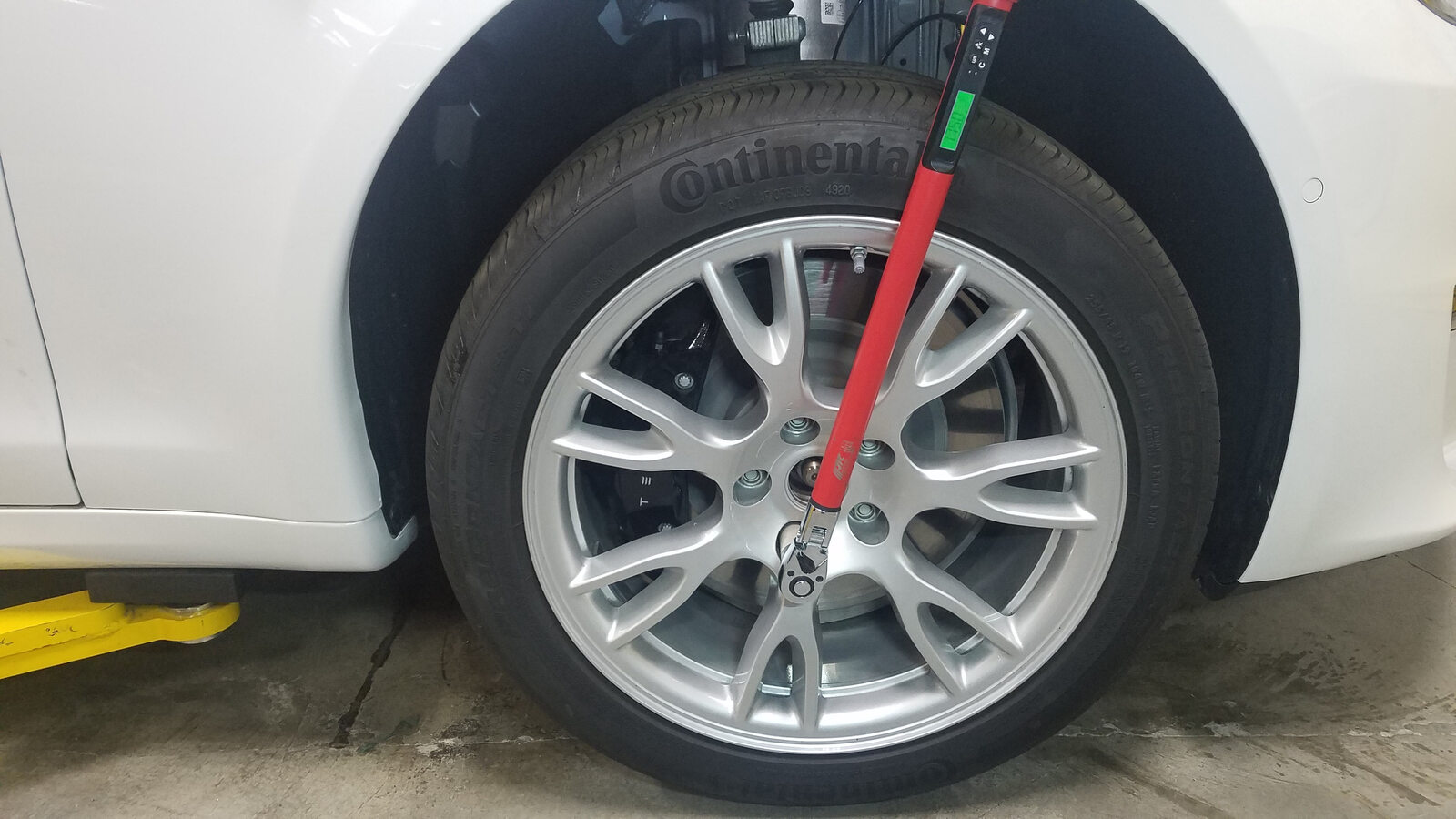

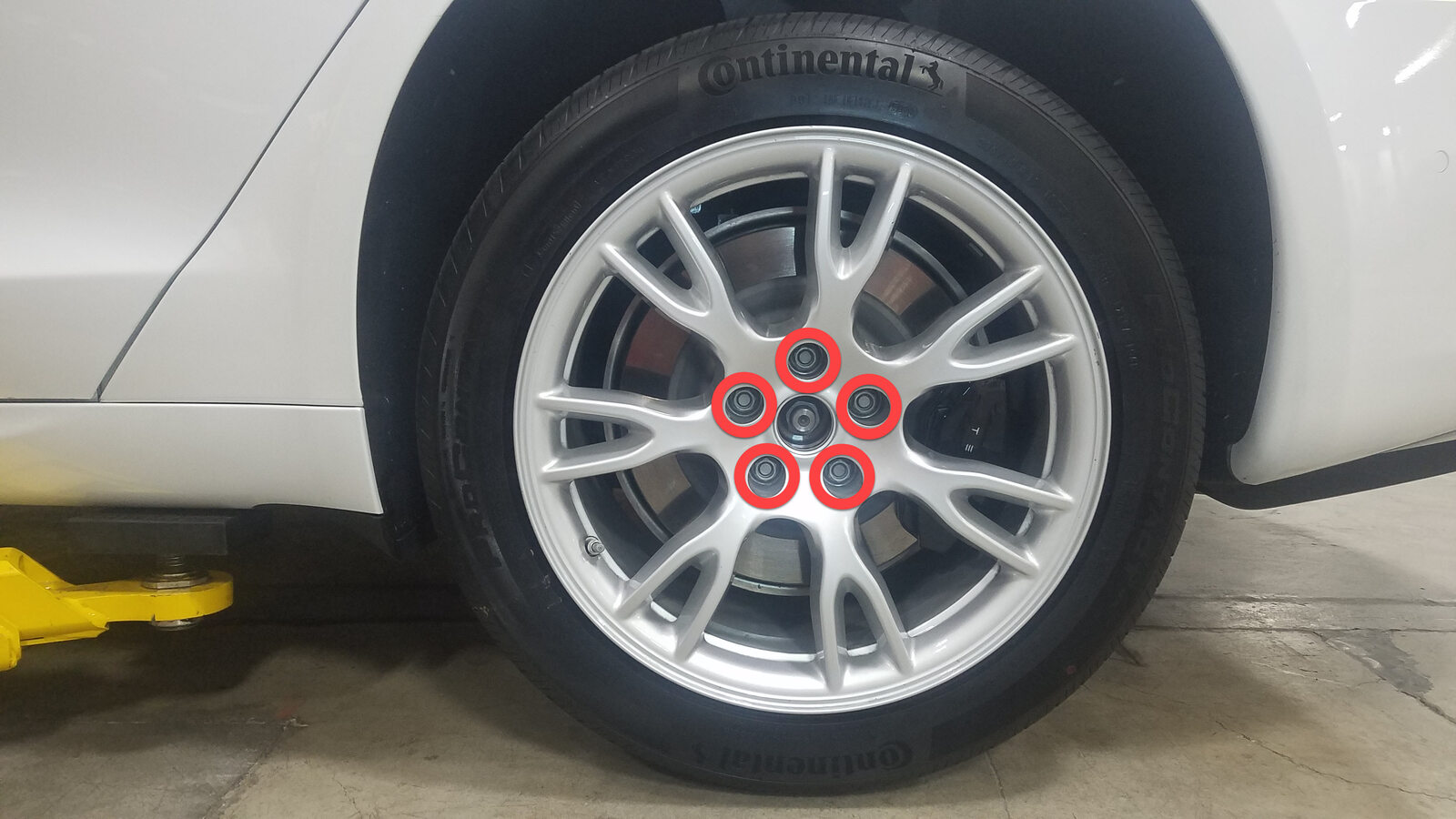

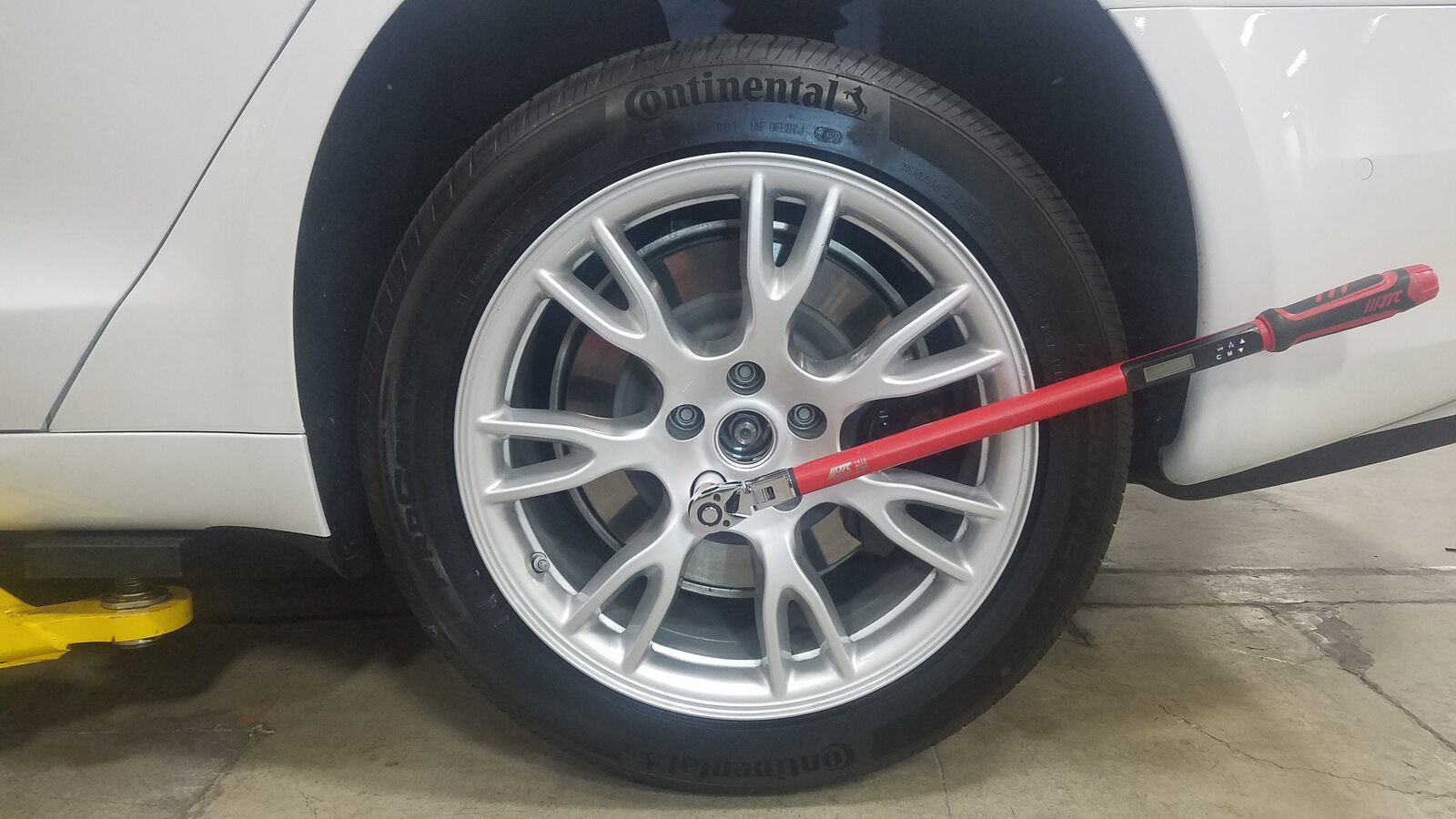

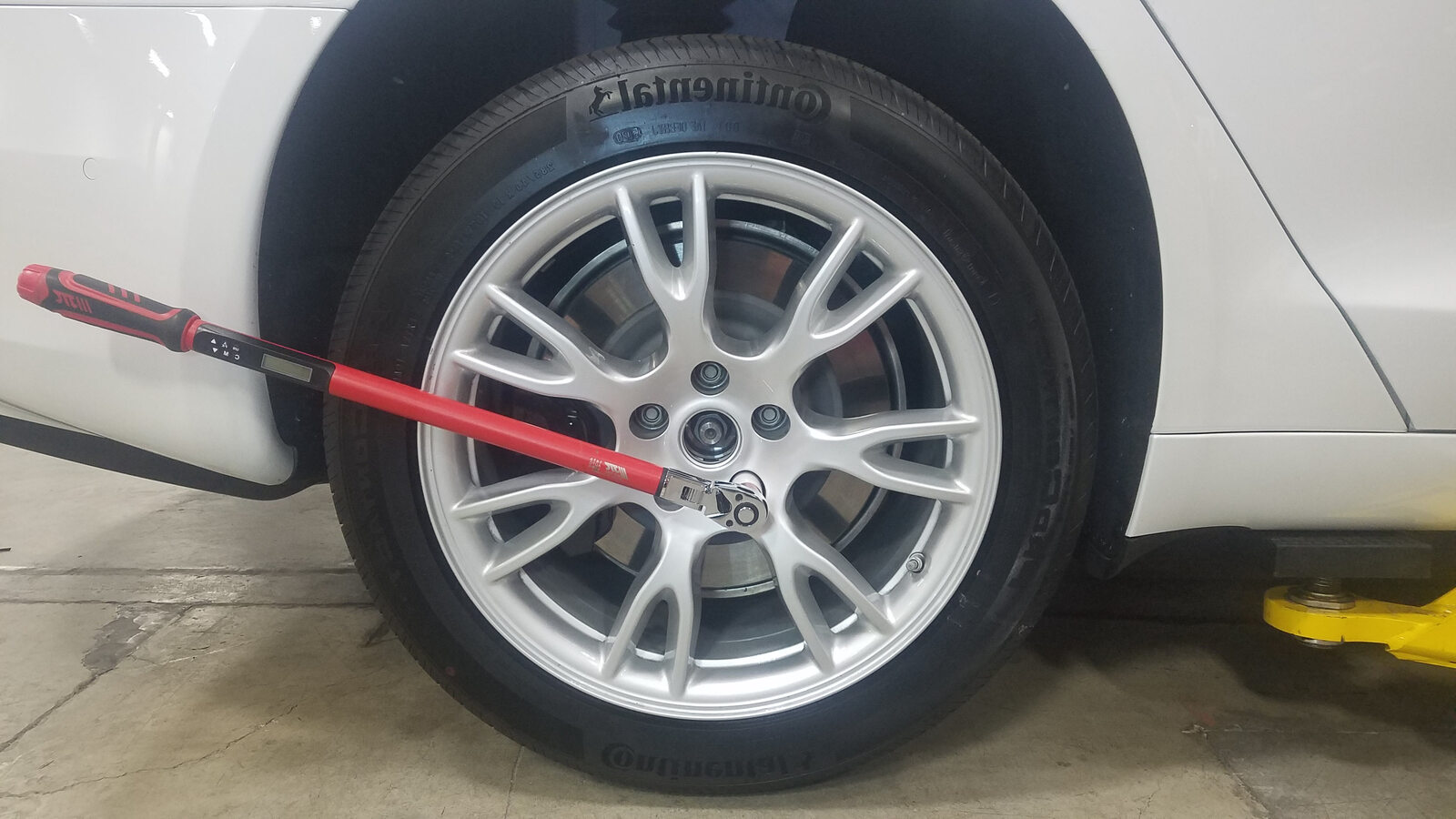

92. Torque LH front wheel
    Remarque

    5x nuts, 21mm, 175 Nm

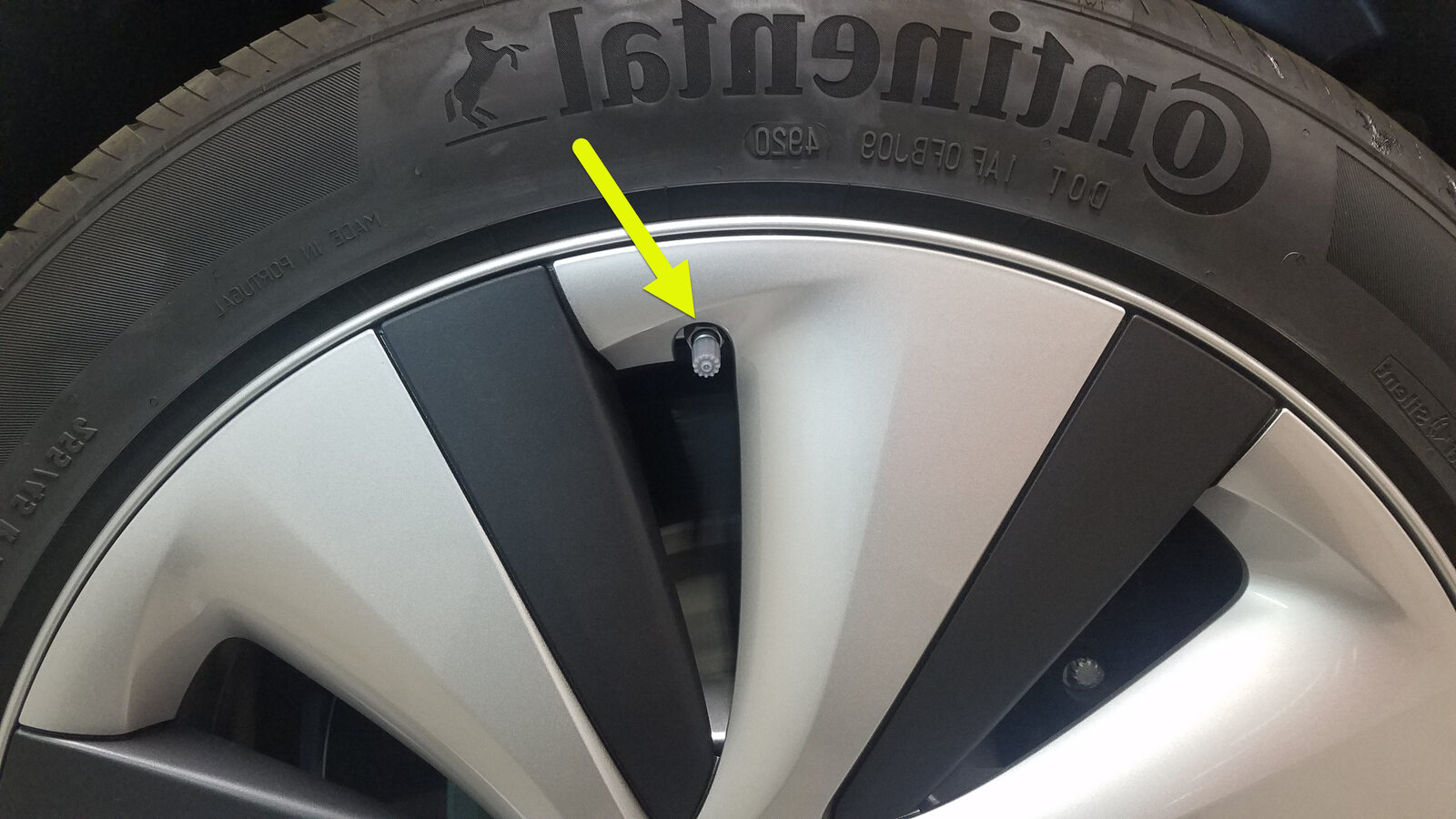

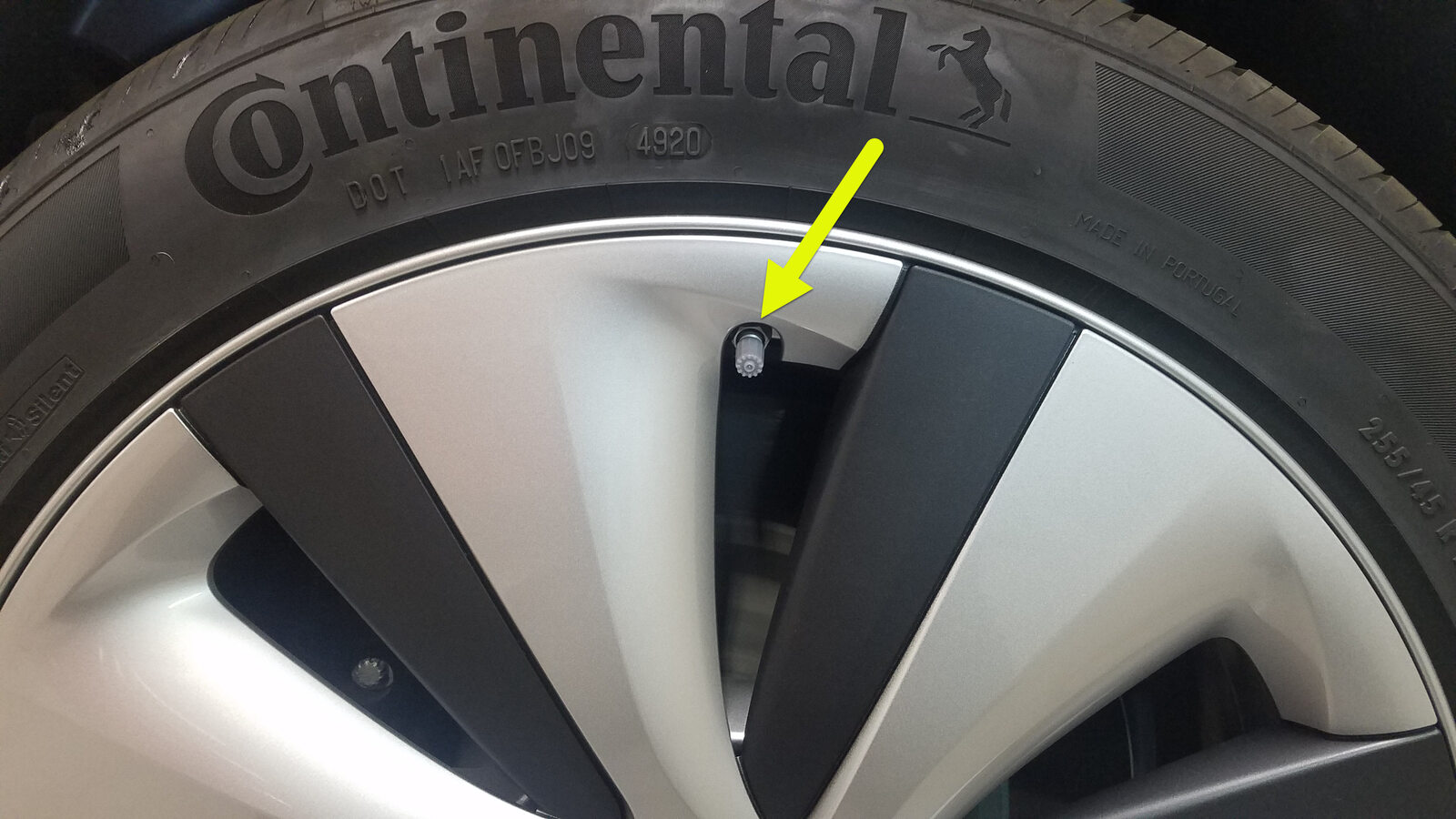

93. Install LH front wheel cap
    Remarque

    Align valve stem with cap





94. Torque RH front wheel
    Remarque

    5x nuts, 21mm, 175 Nm





95. Install RH front wheel cap
    Remarque

    Align valve stem with cap





96. Torque RH rear wheel
    Remarque

    5x nuts, 21 mm, 175 Nm





97. Install RH rear wheel cap
    Remarque

    Align valve stem with cap





98. Torque LH rear wheel
    Remarque

    5x nuts, 21 mm, 175 Nm





99. Install LH rear wheel cap
    Remarque

    Align valve stem with cap





100. Install frunk assembly
     Remarque

     4x bolts, 10mm, 5 Nm





101. Install frunk carpet
     Remarque

     Verify carpet is properly seated under the seal





102. Install frunk access panel
     Remarque

     3x clips, 3x hooks, 1x connector





103. Install front underhood apron
     Remarque

     7x clips





104. Install RH underhood apron
     Remarque

     10x clips





105. Install LH underhood apron
     Remarque

     10x clips





106. Remove vehicle from lift
     Remarque

     Lower lift arms fully and remove them from under vehicle, Remove air suspension from "Jack Mode"

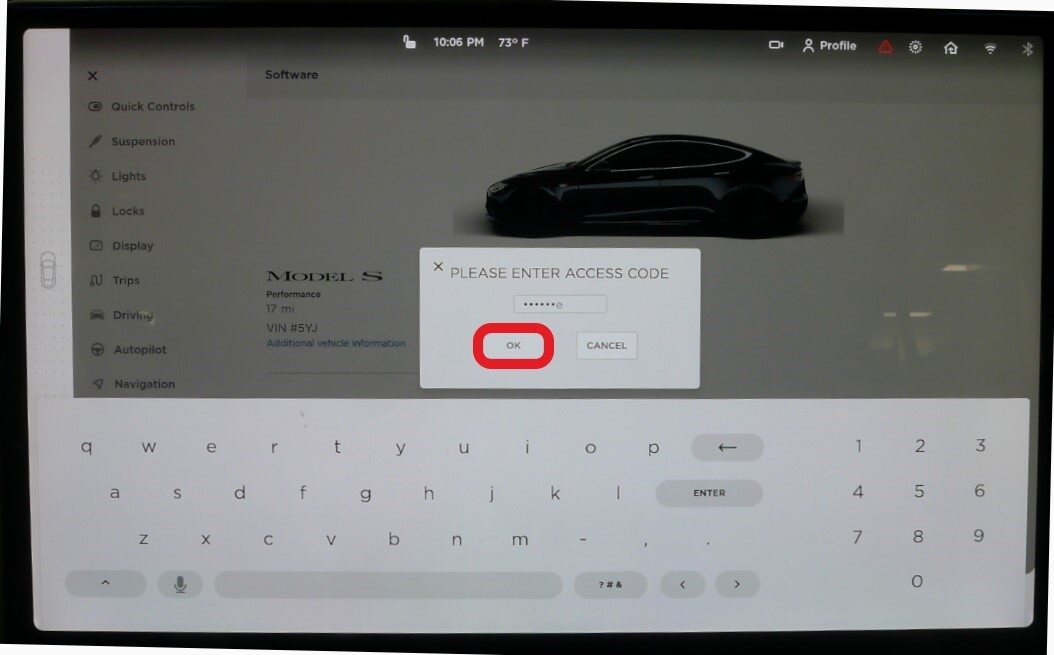

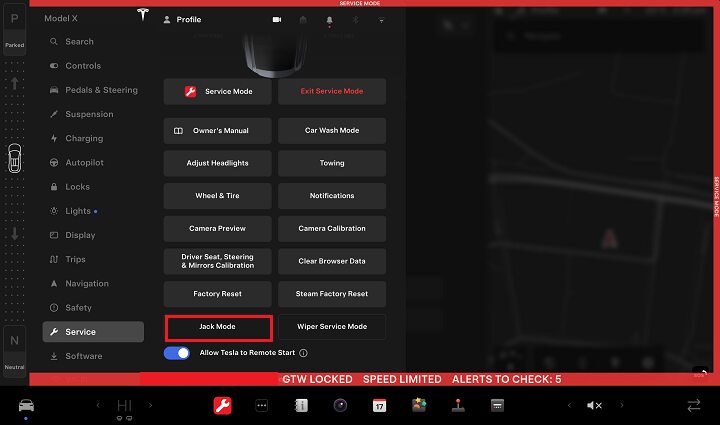

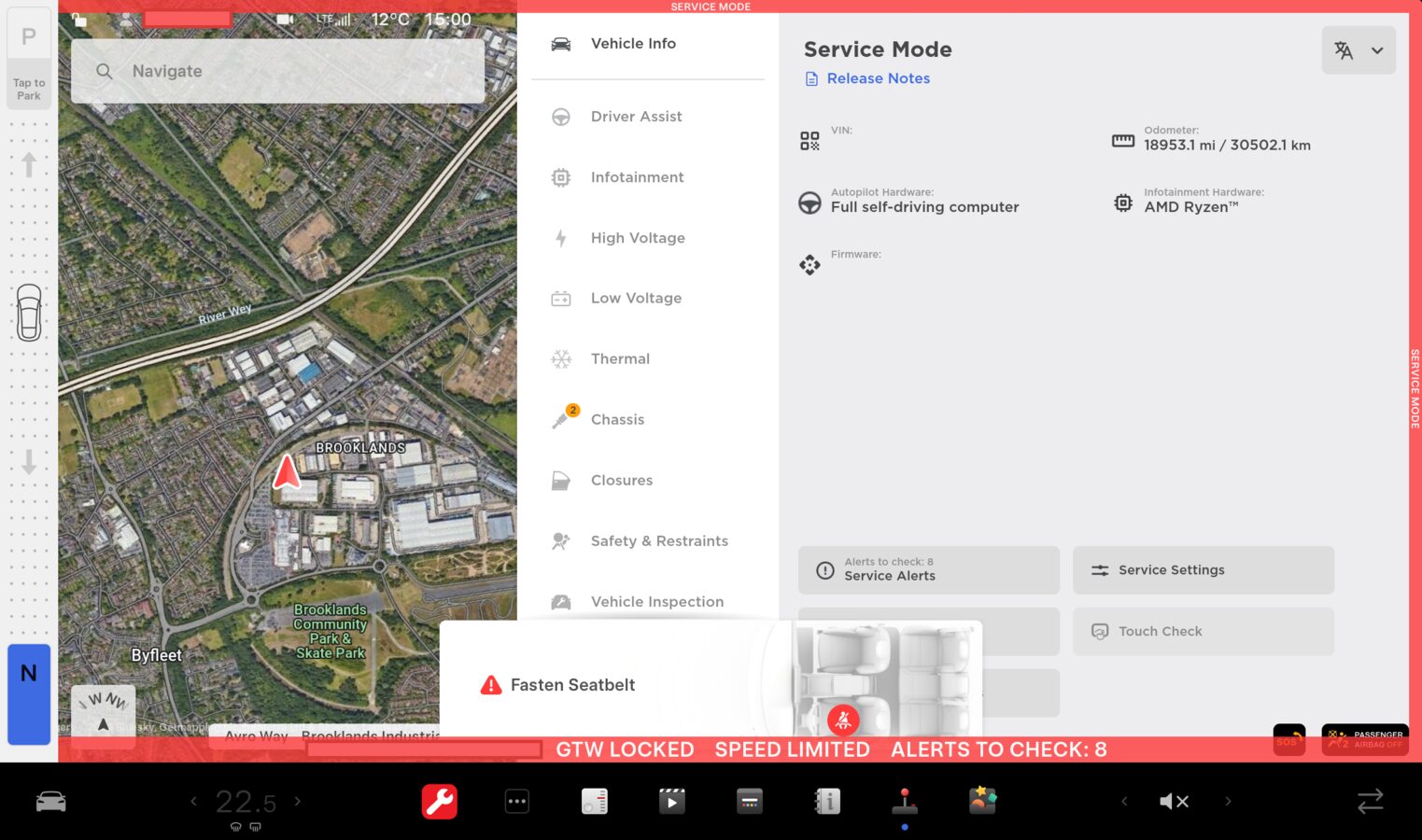

107. Place vehicle in service mode

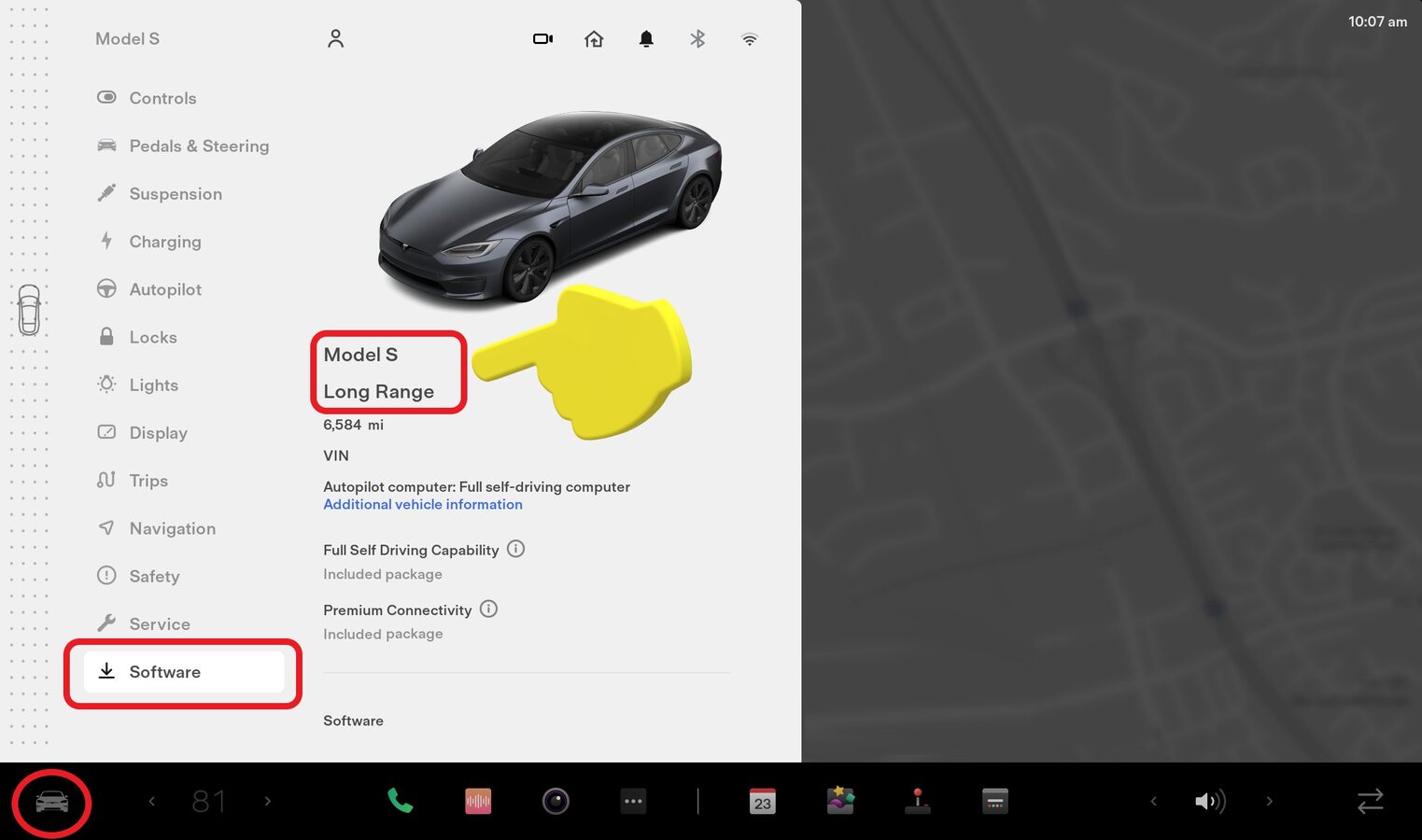

     Remarque

     Via Controls > Software, Touch and hold "Model" for 2 seconds then release, Use screen keyboard to type "service" into dialog box and select OK button

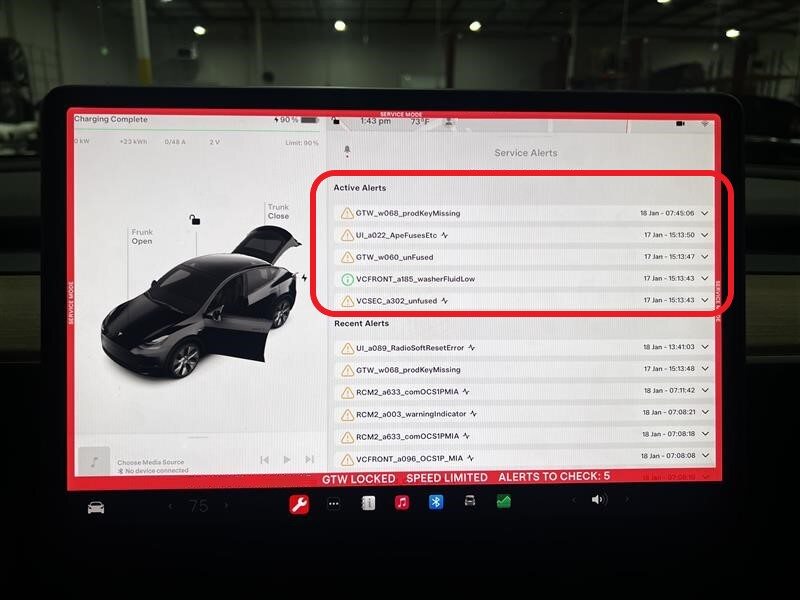

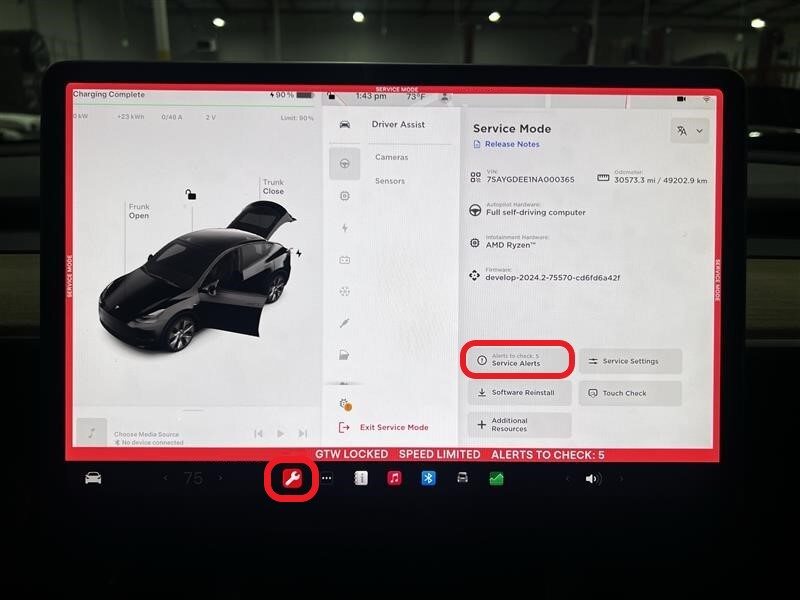

108. Check for active alerts
     Remarque

     Check alert using UI via service mode > active alerts" to "Check alerts using UI via Service Mode > Service Alerts > Active Alerts

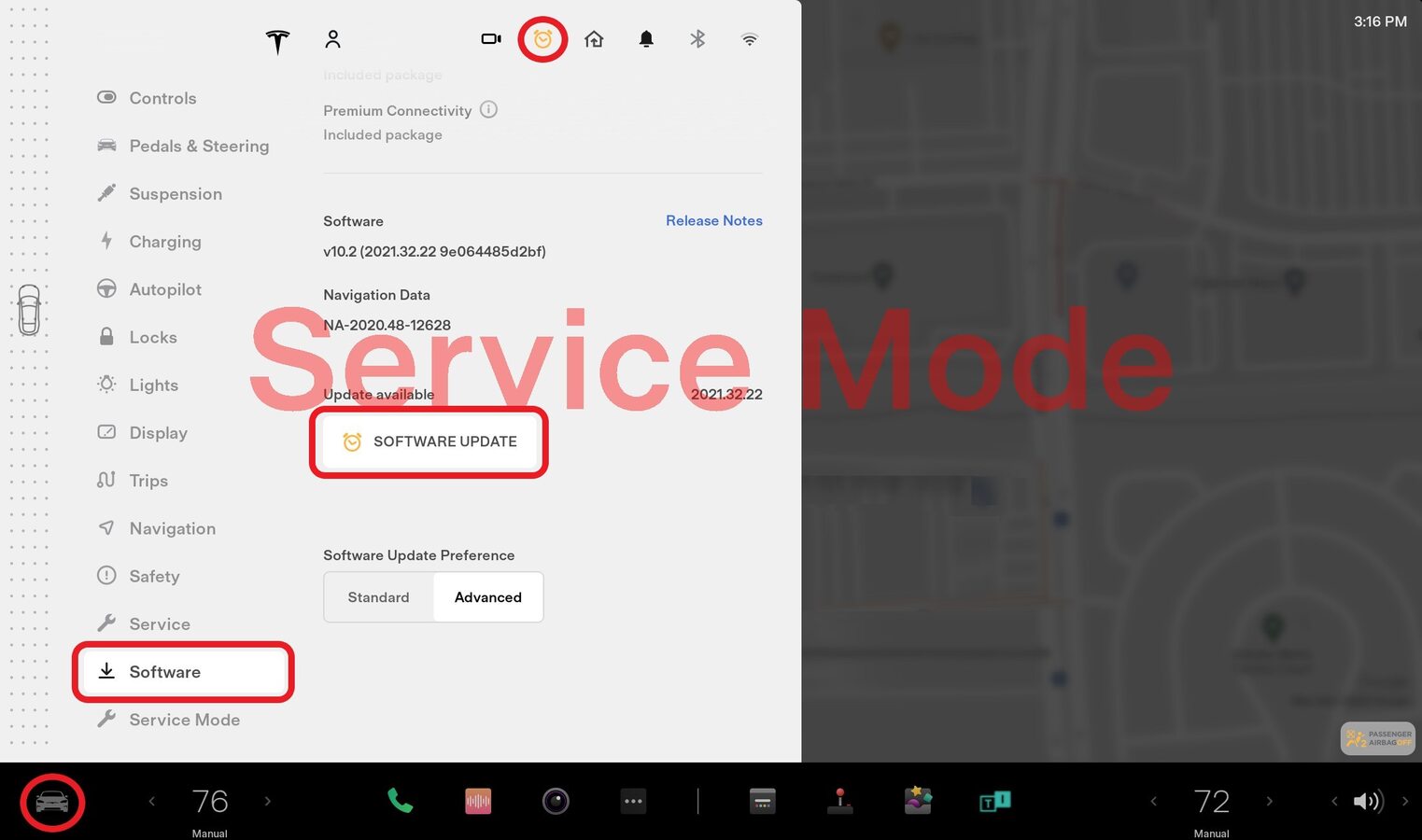

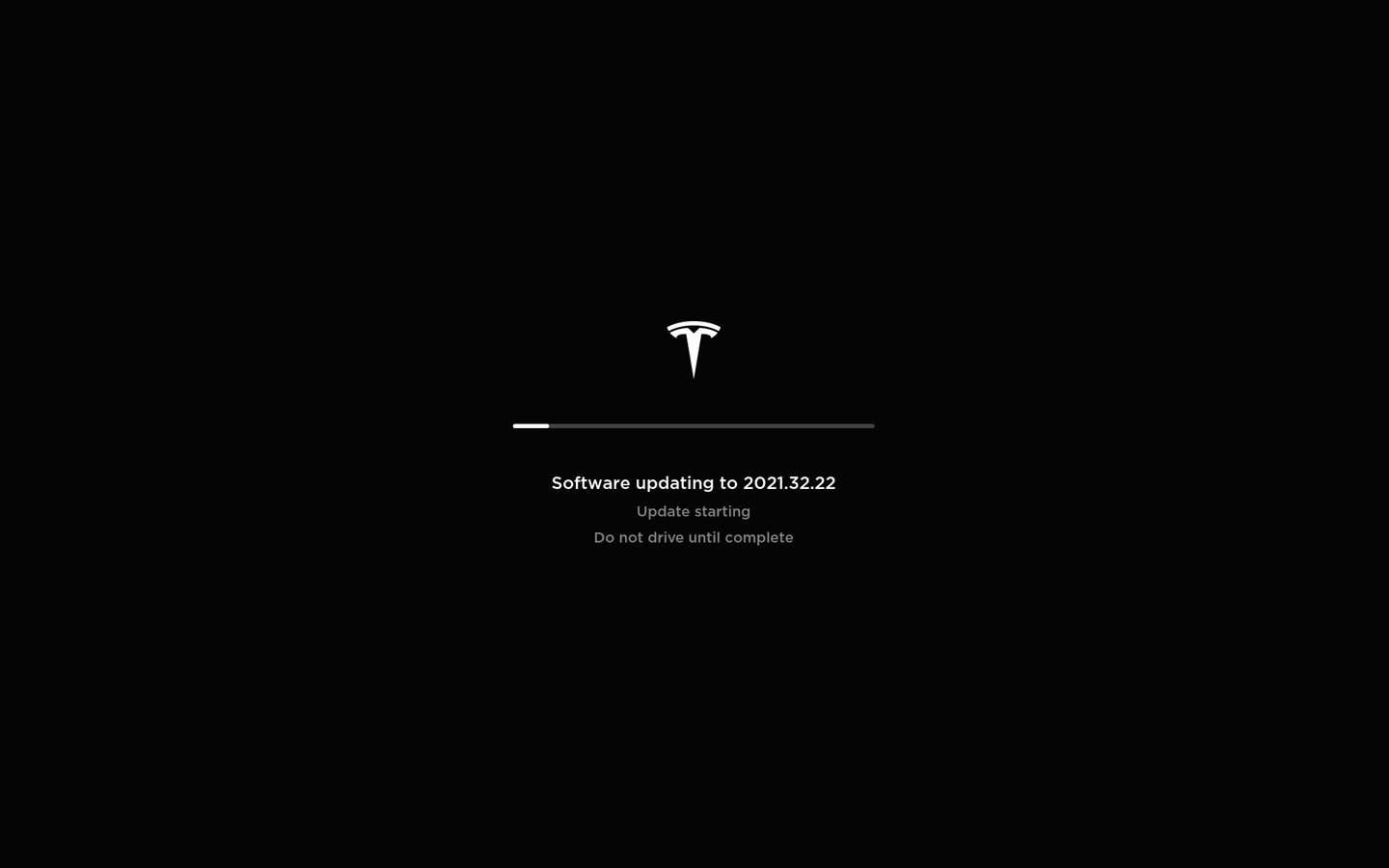

109. Update vehicle firmware if available
     Remarque

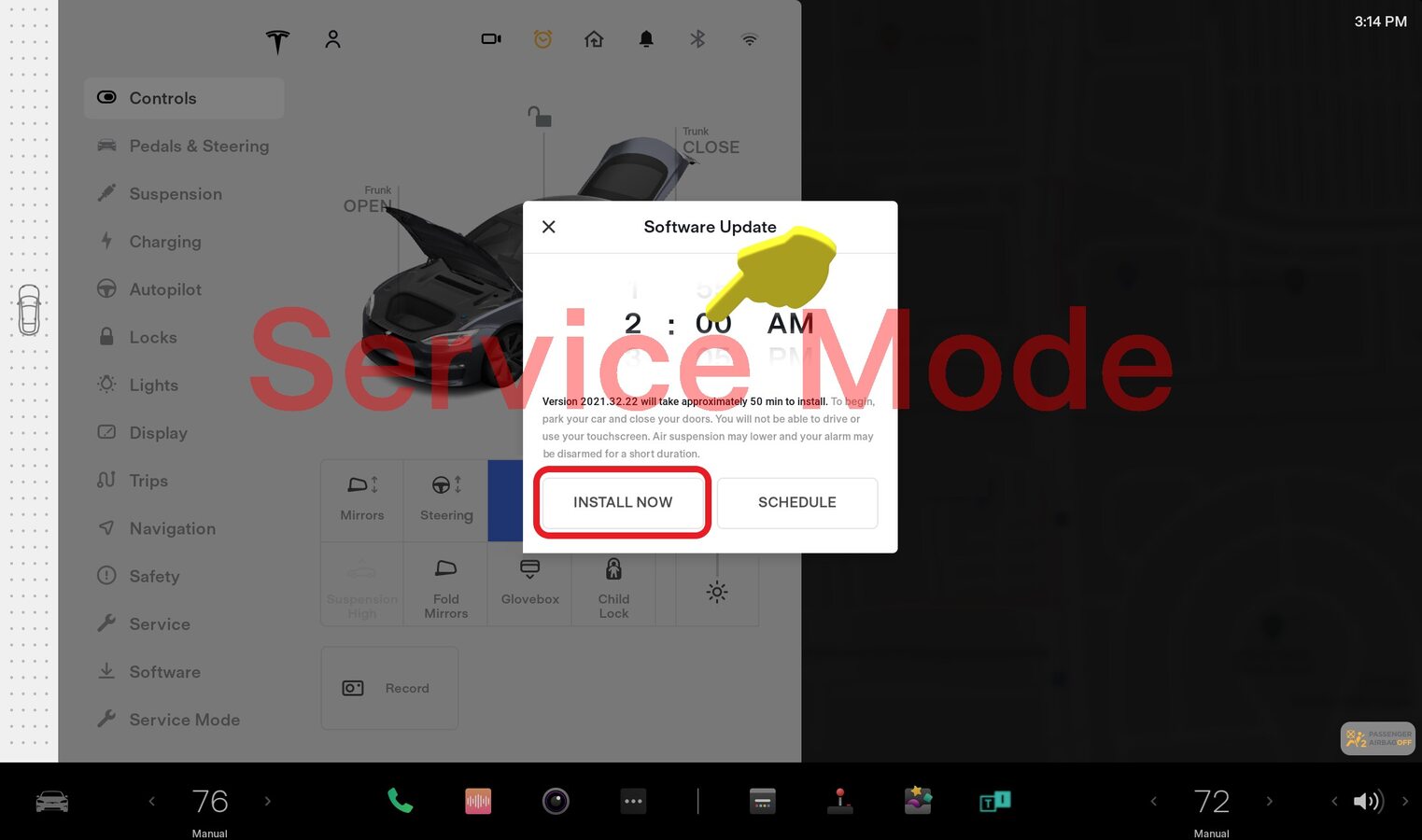

     Select the clock on the center display, or go to the Software tab, then select install now to start firmware update. Select Install Now, Tap count down timer until clock runs down to 0, Check the center display and ensure the firmware package is installing

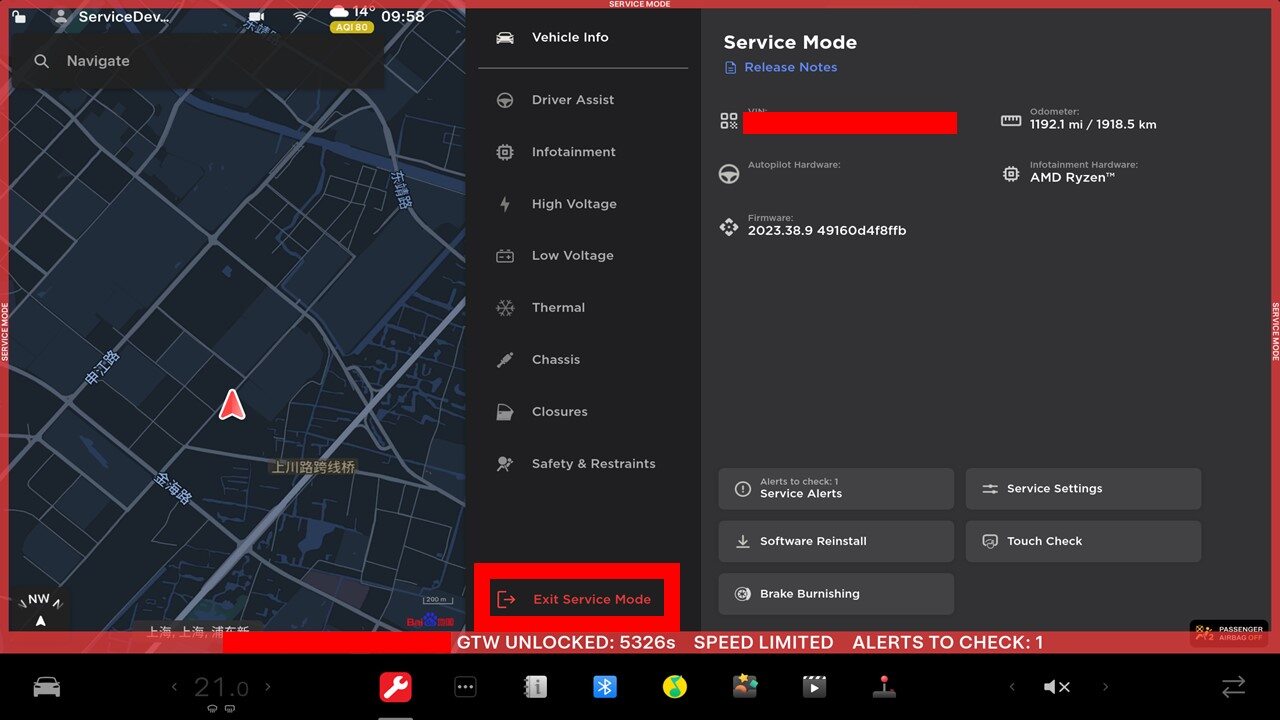

110. Exit Service Mode through UI
     Remarque

     Press and hold the Exit Service Mode button for 3 seconds
