Code de correction 18301300 REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps forfaitaire indiqués ci-dessus représentent tout le travail à être fait pour cette procédure, notamment les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez Temps forfaitaires pour en apprendre plus à propos des temps forfaitaires et de leur création. NOTE : Consultez Protection individuelle pour vous assurer de porter l’équipement de protection individuelle adéquat lorsque vous effectuez la procédure ci-dessous. REMARQUE : Voir Précautions ergonomiques pour consulter les pratiques de travail sécuritaires et saines.

1. This procedure requires refrigerant evacuation and recharge, Please add specific evacuation and recharge correction code as needed
   Remarque

   18200102,18033302,18033305,18200122**Always use this Step ID**



2. Set up AC machine
   Remarque

   Touch time only, Connect to power, Turn power switch on







3. Open LH front door



4. Lower LH front window



5. Connect laptop to vehicle with a tethered Ethernet connection via Toolbox 3
   Remarque

   1x connector, 2x clips, Newer models will access connector below MCU with cubby removed, Older models will access port at LH side of IP with end cap removed. Open Toolbox 3 website and establish connection to vehicle, Select connection status icon at top right corner and select Connect Locally (icon will turn green when vehicle is connected), Local connection will enable service mode plus on display







6. Exécutez la routine ODIN
7. Select "Start Thermal Fluid Fill/Drain", Click Run and allow routine to complete
   Remarque

   Select ‘X’ at top right of window to close once complete, For AC related repairs verify all EXV's are in proper position, For all coolant related repairs verify vehicle is in Series, Thermal Fluid Fill/Drain routine has a 5 hour timeout, Routine will continuously run and not end







8. Exécutez la routine ODIN
9. Open hood
   Remarque

   Via center display > Controls > Front Trunk





10. Remove underhood aprons
    Remarque

    4x aprons, LH and RH aprons have 1x clip each



11. Remove dust caps from vehicle’s high-side and low-side service ports
    Remarque

    2x threaded caps



12. Connect AC hoses to vehicle



13. Perform refrigerant system recovery
    Remarque

    Note or print the amount of refrigerant and oil recovered, If drained oil level increased more than 1.01 oz (30 mL) refer to drained oil loss chart https://toolbox.teslamotors.com/articles/353700







14. Remove frunk carpet
    Remarque

    2x connectors





15. Remove frunk assembly
    Remarque

    10x bolts, 10mm, 4 Nm, 10x bolts, 10mm, 7 Nm









16. Remove HEPA filter housing
    Remarque

    Lift up from bottom and pull out, *Note: There may or may not be a filter in housing based on vehicle configuration





17. Remove AC hoses from vehicle



18. Release vacuum from AC lines
    Remarque

    2x Schrader valves, Carefully depress the schrader valves to release vacuum from AC lines





19. Power off vehicle via UI
    Remarque

    Via center display > Controls > Safety > Power Off





20. Disconnect 12V negative terminal
    Remarque

    1x nut, 10mm, 5 Nm



21. Disconnect first responder loop
    Remarque

    1x connector, push to release



22. Remove LH front lug nut covers
    Remarque

    5x lug nut covers



23. Loosen LH front lug nuts
    Remarque

    5x nuts, 21mm, 175 Nm



24. Remove RH front lug nut covers
    Remarque

    5x lug nut cover



25. Loosen RH front lug nuts
    Remarque

    5x nuts, 21mm, 175 Nm



26. Raise vehicle partially and lower onto locks
    Remarque

    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side





27. Remove LH front wheel
    Remarque

    5x nuts, 21mm, 175 Nm



28. Remove RH front wheel
    Remarque

    5x nuts, 21mm, 175 Nm



29. Remove front aero shield
    Remarque

    6x bolts, 10mm, 3 Nm, 14x clips



30. Remove clips and pull back on LH front wheelhouse liner
    Remarque

    4x push clips



31. Remove clip securing LH wheel fairing
    Remarque

    1x push clip



32. Remove bolts securing LH wheel fairing
    Remarque

    2x bolts, 10mm, 1.5 Nm



33. Release clips securing front half of LH front fender garnish
    Remarque

    8x clips, Be cautious of parking sensor





34. Disconnect LH fender garnish parking sensor
    Remarque

    1x connector, Pull red tab to disengage lock



35. Release clips securing rear half of LH front garnish and remove from vehicle
    Remarque

    5x clips





36. Remove screw securing LH fascia to fender
    Remarque

    1x screw, T25, 1.5 Nm





37. Remove clips and pull back on RH front wheelhouse liner
    Remarque

    4x push clips



38. Remove clip securing RH front wheel fairing
    Remarque

    1x push clip



39. Remove bolts securing RH front wheel fairing
    Remarque

    2x bolts, 10mm, 1.5 Nm



40. Release clips securing front half of RH front fender garnish
    Remarque

    8x clips, Be cautious of park sensor



41. Disconnect LH parking sensor
    Remarque

    1x connector



42. Release clips securing rear half of RH front garnish and remove from vehicle
    Remarque

    5x clips



43. Remove screw securing RH fascia to fender
    Remarque

    1x screw, T25, 1.5 Nm





44. Remove bolts securing fascia to upper grill
    Remarque

    2x bolts, 10mm, 4 Nm





45. Remove front fascia assembly
    Remarque

    2x clips, 1x connector, Place fascia onto padded surface, Recommend assistance





46. Place fascia on padded surface
    Remarque

    Ensure the front of the fascia is facing down



47. Release edge clips securing active louver harness to active louver assembly
    Remarque

    2x edge clips



48. Disconnect active louver connector and move harness aside
    Remarque

    1x connector, Pull red tab to disengage lock, Pull again to release connector







49. Remove active shutter assembly from vehicle
    Remarque

    2x retaining clips





50. Lower vehicle partially and set lift onto locks
    Remarque

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height







51. Clamp hose on LH side of radiator
    Remarque

    Ensure the hose is not clamped too close to the radiator, allow ample space to manipulate the hose clamp



52. Clamp hose on RH side of radiator
    Remarque

    Ensure the hose is not clamped too close to the radiator, allow ample space to manipulate the hose clamp



53. Position coolant drain container under LH front corner of vehicle to catch vehicle coolant



54. Remove radiator outlet hose from LH side of radiator
    Remarque

    1x hose clamp



55. Remove FDU outlet hose from RH side of radiator
    Remarque

    1x hose clamp



56. Remove clip securing cooling fan harness to cooling fan shroud
    Remarque

    1x fir tree clip



57. Disconnect cooling fan electrical connector
    Remarque

    1x connector



58. Remove bolts securing cooling fan shroud to support beam
    Remarque

    2x bolts, 13mm, 12 Nm



59. Remove upper and lower nuts securing high and low pressure pipes to condenser
    Remarque

    2x nuts, 13mm, 10 Nm (upper), 20 Nm (lower), Install new O-rings



60. Remove cooling fan module from vehicle
    Remarque

    Lift the rear of the module (FDU side) up and slide the assembly away from the FEM to remove





61. Remove coolant drain container from under front of vehicle

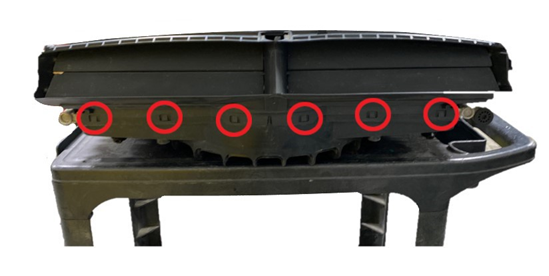

62. Remove active louver from fan shroud assembly
    Remarque

    12x clips, Release clips securing active louver onto fan shroud assembly







63. Remove radiator from fan shroud assembly
    Remarque

    2x retaining clips, Release retaining clips securing radiator onto fan shroud bracket



64. Clean debris from radiator
    Remarque

    Vacuum both sides of radiator, Do not damage fins of radiator





65. Clean radiator with compressed air
    Remarque

    Clean both sides of radiator with compressed air, Do not damage fins of radiator







66. Install radiator onto fan shroud assembly
    Remarque

    2x retaining clips, Secure radiator onto fan shroud bracket



67. Install active louver onto fan shroud assembly
    Remarque

    12x clips, Secure active louver onto fan shroud assembly







68. Install cooling fan module into vehicle
    Remarque

    Install the cooling fan module at an angle ensuring the isolators are engaged, The isolator alignment can be checked at a later step and adjusted if needed





69. Install upper and lower nuts securing high and low pressure pipes to condenser
    Remarque

    2x nuts, 13mm, 10 Nm (upper), 20 Nm (lower), Install new O-rings



70. Install bolts securing cooling fan module to support beam
    Remarque

    2x bolts, 13mm, 12 Nm



71. Connect cooling fan electrical connector
    Remarque

    1x connector



72. install clip securing cooling fan harness to cooling fan shroud
    Remarque

    1x fir tree clip



73. Install coolant hose on RH side of radiator
    Remarque

    1x hose clamp



74. Remove coolant hose clamp for RH side radiator hose



75. Install coolant hose on LH side of radiator
    Remarque

    1x hose clamp



76. Remove coolant hose clamp for LH side radiator hose



77. Install active shutter assembly onto vehicle
    Remarque

    2x retaining clips





78. Connect active shutter
    Remarque

    1x connector



79. Install edge clips securing active shutter harness to active shutter assembly
    Remarque

    2x edge clips



80. Install front fascia assembly to vehicle
    Remarque

    1x connector, Recommend assistance





81. Install bolts securing fascia to upper grill
    Remarque

    2x bolts, 10mm, 4 Nm





82. Install screw securing RH fascia to fender
    Remarque

    1x screw, T25, 1.5 Nm



83. Install rear half of RH front fender garnish
    Remarque

    5x clips



84. Connect RH front fender garnish parking sensor
    Remarque

    1x connector



85. Install front half of RH front garnish
    Remarque

    8x clips, Be cautious of parking sensor, Be sure to align fender ducts



86. Secure bolts for RH front wheel fairing
    Remarque

    2x bolts, 10mm, 1.5 Nm



87. Secure clip for RH front wheel fairing
    Remarque

    1x push clip



88. Fully secure RH front wheelhouse liner to fender garnish
    Remarque

    4x push clips



89. Install screw securing LH fascia to fender
    Remarque

    1x screw, T25, 1.5 Nm



90. Install rear half of LH front fender garnish
    Remarque

    5x clips





91. Connect RH front fender garnish parking sensor
    Remarque

    1x connector



92. Install front half of LH front garnish
    Remarque

    8x clips, Be cautious of parking sensor, Be sure to align fender ducts





93. Install bolts securing LH front wheel fairing to front aero shield
    Remarque

    2x bolts, 10mm, 1.5 Nm



94. Install clip securing LH front wheel fairing to front aero shield
    Remarque

    1x push clip



95. Fully secure LH front wheelhouse liner to fender garnish
    Remarque

    4x push clips



96. Install RH front wheel
    Remarque

    5x nuts, 21mm, 175 Nm, Thread nuts on by hand



97. Install LH front wheel
    Remarque

    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool



98. Raise vehicle fully and lower lift onto locks
    Remarque

    Set vehicle to comfortable working height, Ensure an audible click of locks on both sides is heard before lowering, Vehicle may tilt to the side if both locks are not engaged





99. Install front aero shield
    Remarque

    6x bolts, 10mm, 3 Nm, 14x clips



100. Lower vehicle until tires are touching ground
     Remarque

     Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered







101. Torque RH front wheel
     Remarque

     5x nuts, 21mm, 175 Nm



102. Install RH front lug nut covers
     Remarque

     5x covers



103. Torque LH front wheel
     Remarque

     5x nuts, 21mm, 175 Nm



104. Install LH front lug nut covers
     Remarque

     5x covers



105. Connect first responder loop and then 12V negative terminal
     Remarque

     1x connector, 1x nut, 10mm, 5 Nm









106. Remove coolant reservoir cap
     Remarque

     1x cap



107. Inspect coolant level and top off as necessary
     Remarque

     Ensure coolant is filled using G-48 coolant





108. Place vehicle in Service Mode
     Remarque

     Enter Service mode through touchscreen. Press Car icon => Go to Software tab=> Press and hold ''Model'' for 3 seconds=>In new window type ''service'' or press voice command button on steering wheel and say ''service''=>Press ''OK'' button. Car is in service mode now







109. Access Thermal System routines using UI
     Remarque

     Select Service mode > Thermal





110. Select "Action" through UI
     Remarque

     Select Service mode > Thermal> Action





111. Select " Coolant Air Purge " through UI
     Remarque

     Select Thermal > Action > Coolant Air Purge





112. Exécutez la routine ODIN PROC_THC_X_COOLANT-AIR-PURGEvia Service Mode:Thermal ➜ Actions ➜ Coolant Air Purgevia Toolbox:(link)
113. Top off coolant reservoir
     Remarque

     Ensure coolant is filled to nominal level



114. Install coolant reservoir cap
     Remarque

     1x cap



115. Reconnect AC hoses to vehicle



116. Perform system vacuum and refrigerant refill
     Remarque

     Select 20 mins of Vacuum, Recharge refrigerant to car's specs, add oil quantity as needed, select both HP and LP for charging











117. Install HEPA filter housing
     Remarque

     Align opening on back of housing to HEPA filter outlet duct opening, *Note: There may or may not be a filter in housing based on vehicle configuration





118. Install frunk assembly
     Remarque

     10x bolts, 10mm, 4 Nm, 10x bolts, 10mm, 7 Nm, Hand start all bolts first then tighten with tools









119. Install frunk carpet
     Remarque

     2x connectors





120. Remove A/C lines from vehicle



121. Install dust caps onto vehicle high and low side service ports
     Remarque

     2x threaded caps



122. Re-establish vehicle connection to Toolbox 3
     Remarque

     Open Toolbox 3 website and establish connection to the vehicle. https://toolbox.teslamotors.com, Select connection status icon at top right corner, and select connect locally (icon will turn green when vehicle is connected)



123. Exécutez la routine ODIN PROC_VCFRONT_X_STOP-THERMAL-FILL-DRAINvia Service Mode:
     • Thermal ➜ Actions ➜ Stop Thermal Fill/Drain
     • Thermal ➜ Coolant System ➜ Stop Coolant Fill/Drain
     • Thermal ➜ Refrigerant System ➜ Stop Refrigerant Fill/Drain
     via Service Mode Plus:
     • Drive Inverter ➜ Front Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
     • Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
     • Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
     • Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
     • Drive Unit ➜ Front Drive Unit Replacement ➜ Stop Coolant Fill/Drain
     • Drive Unit ➜ Rear Drive Unit Replacement ➜ Stop Coolant Fill/Drain
     via Toolbox:(link)
124. Exécutez la routine ODIN PROC_THC_X_THERMAL-TESTvia Service Mode:Thermal ➜ Actions ➜ Thermal Testvia Toolbox:(link)
125. Install under hood aprons
     Remarque

     4x aprons



126. Close hood



127. Disconnect Toolbox from vehicle and install cubby under MCU
     Remarque

     1x connector, 2x clips, Ensure diagnostic cables are tucked into appropriate position then engage cubby





128. Calibrate falcon doors via UI
     Remarque

     Via Controls > Calibrate, Required after 12V and FRL disconnect



129. Remove vehicle from lift
     Remarque

     Lower rack arms fully and move them from under vehicle, Remove air suspension from "Jack Mode", Via Controls > Service > Jack Mode





130. Exécutez la routine ODIN PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox:(link)
131. Raise LH front window



132. Close LH front door



133. This procedure requires refrigerant evacuation and recharge, Please add specific evacuation and recharge correction code as needed
     Remarque

     18200102,18033302,18033305,18200122**Always use this Step ID**
