Protección lateral - Exterior - Asiento del conductor (Desinstalación y sustitución)

Código de corrección 13074202 0.17 NOTA: Salvo que se indique lo contrario explícitamente en el procedimiento, el código de corrección y el FRT asociado reflejan todo el trabajo necesario para realizar este procedimiento, incluidos los procedimientos vinculados. No acumule códigos de corrección a menos que se le indique explícitamente que lo haga. NOTA: Consulte Tiempos de tarifa plana (FRT) para obtener más información sobre los FRT y cómo se crean. NOTA: Consulte Protección personal para asegurarse de llevar el EPI adecuado al realizar el siguiente procedimiento. NOTA: Consulte Precauciones ergonómicas para ver prácticas de trabajo seguras.

  • 2026-11-02: Added information about the tab that attaches the side shield to the front seat.
  • 2026-07-29: Added skills of releasing the side shield clip, and added images and notes for side shields with different clip versions.
  • 2023-06-12: Updated notes on adjusting seat height for access to the seat belt and side shield fastener.
Equipment:
  • 1133787-00-A Llave, liberación del cinturón de seguridad, Model 3

Retirar

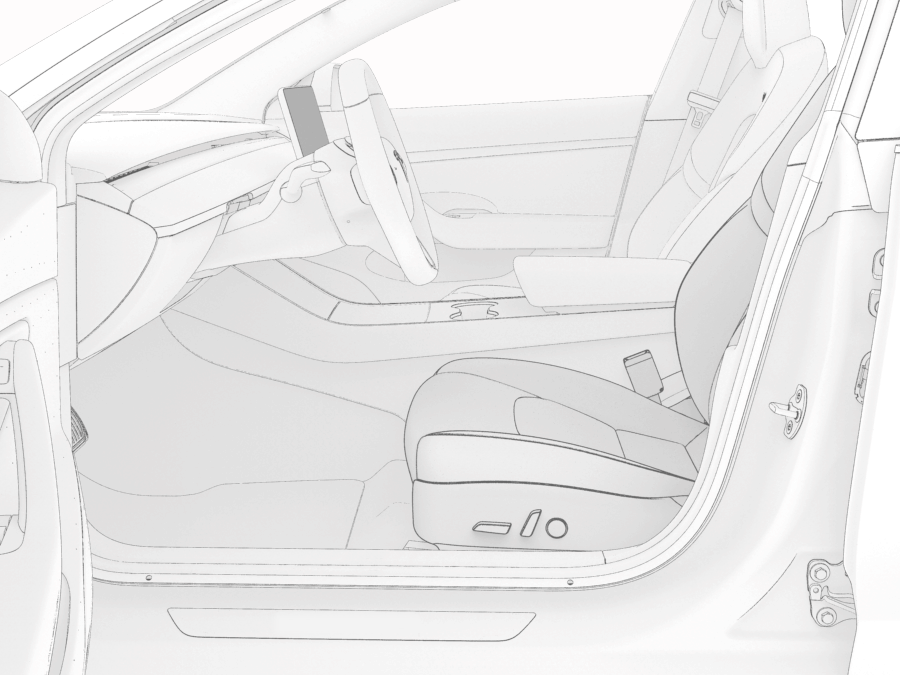

Figure 1. Animated demonstration
  1. Open the LH doors and lower the LH windows.
  2. Move the driver's seat fully forward.
  3. Inserte la llave de liberación del cinturón de seguridad (1133787-00-A) en la parte inferior del acoplamiento del pretensor del cinturón de seguridad para soltar el cinturón de seguridad del pretensor.
    Tip
    Lower/raise the seat as needed for access.
    CAUTION
    Do not allow the seat headrest to compress the sun visor as it might crack the mirror.
  4. Raise the LH front seat cushion to the maximum height.
    CAUTION
    Adjust the seat back if needed to avoid contacting the headliner.
    CAUTION
    Do not allow the seat headrest to compress the sun visor as it might crack the mirror.
  5. Remove the screw that attaches the driver seat outboard side shield to the seat frame, and then pull outward to release the seat outboard side shield assembly tab from front seat assembly
    Note
    Some vehicles may equip with 8mm bolt with a torque of 5 Nm.
    Tip
    Se recomienda utilizar las siguientes herramientas:
    • Vaso Torx T20
  6. Use a clip prytool to release the clip tabs (x2) from the seat bottom, and then pull the driver seat outboard side shield away from the seat frame to release the clip that attaches the side shield to the center of the seat frame.
    CAUTION
    Do not forcefully release the trim clip, as this may damage the clip.
    CAUTION
    Do not fully remove the side shield at this time as this might damage the trim, switch pack or and/or harness.
    Note
    Vehicles built after 2023.6.30 have side shields with 7 clips.
    Figure 2. For vehicles built on 2023.6.30 or before
    Figure 3. For vehicles built after 2023.6.30
  7. Disconnect the electrical harness from the backrest and cushion adjust switch connector, if so equipped.
  8. Pull the driver seat outboard side shield outward and lift it off from the vehicle.
  9. If the driver seat outboard side shield is being replaced, remove the back rest and cushion adjust switch from the outboard side shield. See Interruptor - Ajuste del respaldo y el cojín - Asiento del conductor (Desinstalación y sustitución).

Instalar

  1. If a new driver seat outboard side shield is being installed, install the back rest and cushion adjust switch to the outboard side shield. See Interruptor - Ajuste del respaldo y el cojín - Asiento del conductor (Desinstalación y sustitución).
  2. Connect the electrical harness to the backrest and cushion adjust switch connector, if so equipped.
  3. Push the driver seat outboard side shield into the seat frame to fasten the clip that attaches the side shield to the center of the seat frame.
    Note
    Vehicles built after 2023.6.30 have side shields with 7 clips.
    Figure 4. For vehicles built on 2023.6.30 or before
    Figure 5. For vehicles built after 2023.6.30
  4. Push inward to secure the outboard side shield assembly tab to the front seat assembly, and then install the screw that attaches the driver seat outboard side shield to the seat frame.
    4 Nm (2.9 lbs-ft)
    CAUTION
    Carefully push the outboard side shield assembly to avoid damage.
    Note
    Some vehicles may equip with 8mm bolt with a torque of 5 Nm.
    Tip
    Se recomienda utilizar las siguientes herramientas:
    • Vaso Torx T20
  5. Move the LH front seat to its original position.
  6. Install the LH front seat belt pretensioner coupling onto the LH front seat pretensioner.
    Note
    Perform a pull-push-pull test to verify the pretensioner and coupling are fully engaged.
  7. Raise the LH windows and close the LH doors.
