Coax Cable - Side Repeater - Front - RH (Overlay) (Remove and Replace)

Código de corrección 17403112 FRT 1.50 NOTA: Salvo que se indique lo contrario explícitamente en el procedimiento, el código de corrección y el FRT mencionados anteriormente reflejan todo el trabajo necesario para realizar este procedimiento, incluidos los procedimientos vinculados. No acumule códigos de corrección a menos que se le indique explícitamente que lo haga. NOTA: Consulte Tiempos de tarifa plana para obtener más información sobre los FRT y cómo se crean. NOTA: Consulte Protección personal para asegurarse de llevar el EPI adecuado al realizar el siguiente procedimiento. NOTA: Consulte Precauciones ergonómicas para ver información sobre prácticas de trabajo seguras.

Warning IconA warning icon, calling your attention to a possibly risky situation
Aviso
Este procedimiento están en fase PRELIMINAR. Aunque se ha validado, es posible que falten advertencias y precauciones. Siga los requisitos de seguridad y tenga mucho cuidado cuando trabaje en sistemas y componentes de alta tensión o cerca de ellos.
  • 2026-07-09: Released new procedure.

Overlay

  1. Raise and support the vehicle.
  2. Open both front doors and lower both front windows.
  3. Open the hood.
  4. Remove the rear apron.

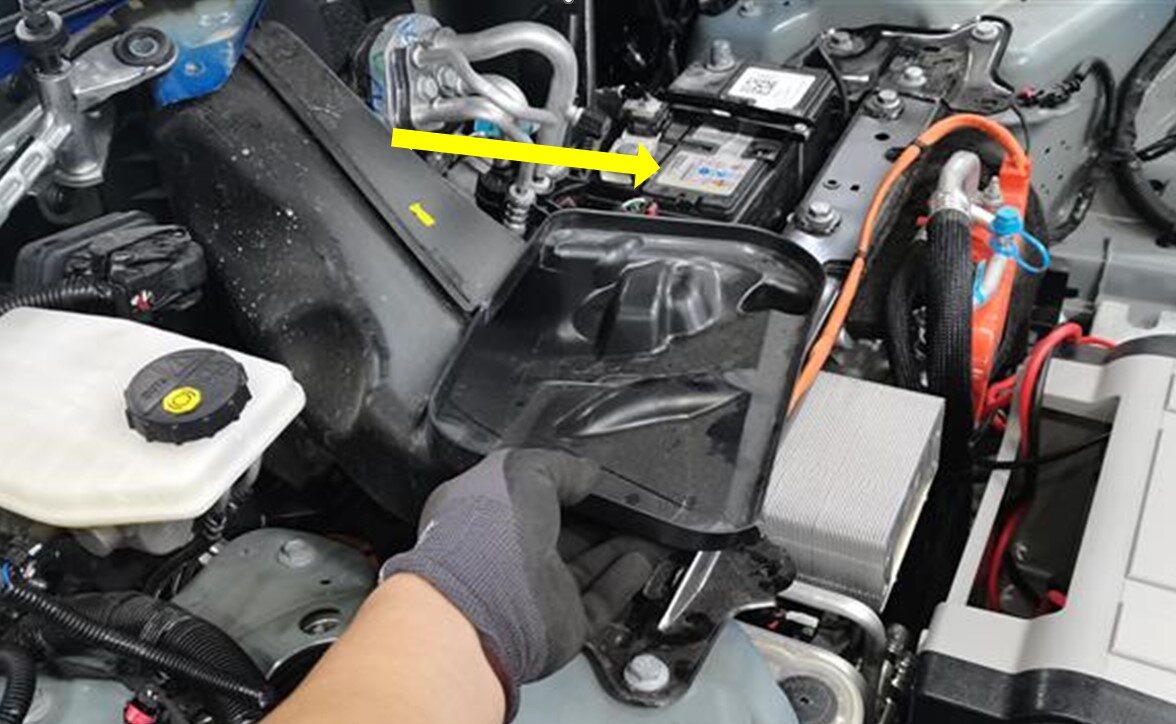

  5. Remove HEPA filter assembly
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x bolts, 10mm, 5 Nm, Pivot rearward edge up and past brake reservoir, Then lift up to clear frunk assembly, Note: Not all Model Y vehicles have a HEPA filter assembly installed
  6. Remove frunk access panel
    Informational PurposesAn informational icon, calling your attention
    Nota
    3x clips, 3x guide tabs, 1x connector
  7. Remove fasteners securing frunk assembly
    Informational PurposesAn informational icon, calling your attention
    Nota
    (*Use this ALL MODELS version of the step for multiple-model type procedures) 5x bolts, 10mm, 5 Nm, Newer vehicles may be equipped with 4x bolts and 1x push clip securing frunk to reservoir neck
  8. Remove clip securing frunk to washer fluid reservoir neck
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x push clip
  9. Remove frunk assembly from vehicle
    Informational PurposesAn informational icon, calling your attention
    Nota
    4x clips, Replace any clips if broken or missing
  10. Remove the cowl screen. See Panel - Pantalla de la cubierta (Desinstalación y sustitución).
  11. Remove RH mid A pillar assembly
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x clip, 1x tab, Release the upper clip then pull mid A pillar upward to remove
  12. Remove clip securing RH lower A pillar trim
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x push clip
  13. Remove RH lower A pillar trim to release seat harness.
    Informational PurposesAn informational icon, calling your attention
    Nota
    6x clips, 2 guide tabs, Pull rear of lower A pillar upward to release clip then pull rearward to release trim panel
  14. Move the RH front seat back.
  15. Remove RH front floor mat
  16. Release RH footwell assembly from IP
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x screw, T20, 1.2 Nm, 1x push clip, 8x tabs, carefully pull out to release tabs
  17. Disconnect RH footwell lighting and speaker connectors
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x connectors
  18. Remove RH console side panel carpet
    Informational PurposesAn informational icon, calling your attention
    Nota
    11x clips, 1x guide pin, Use trim tool starting at top edge to release upper clips, Pull bottom to release remaining clips, Use caution and pull panel straight away from console, if panel is peeled off it could be damaged
  19. Remove clip securing RH front cabin carpet to body
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x clip
  20. Fold RH front cabin carpet rearward
    Informational PurposesAn informational icon, calling your attention
    Nota
    Newer Vins may be equipped with additional foam installed below carpet
  21. Remove RH front wheel cap
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x cap, Use both hands to gently pull wheel cap to release clips, Wheels may be equipped with center caps
  22. Loosen RH front wheel
    Informational PurposesAn informational icon, calling your attention
    Nota
    5x nuts, 21mm, 175 Nm
  23. Raise vehicle partially and lower lift onto locks
    Informational PurposesAn informational icon, calling your attention
    Nota
    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, Otherwise vehicle may tilt to the side
  24. Remove RH front wheel
    Informational PurposesAn informational icon, calling your attention
    Nota
    5x nuts, 21mm, 175 Nm
  25. Release RH front wheel liner from vehicle and set aside
    Informational PurposesAn informational icon, calling your attention
    Nota
    8x clips, 3x tabs, 1x bolt, 10mm, 6 Nm
  26. Disconnect RH side repeater and camera
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x connectors
  27. Lower vehicle partially and set lift onto locks
    Informational PurposesAn informational icon, calling your attention
    Nota
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height
  28. Remove fresh air intake duct
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x bolt, 10mm bolt, 4 Nm, 1x datum, 2x ears, Set ears on bulkhead studs, Secure to thermal bar
  29. Release windshield heater connecter
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x connector
  30. Release RH grommet from body
  31. Remove electrical tape securing harness bundle to rubber dust boot
    Informational PurposesAn informational icon, calling your attention
    Nota
    Use a razor blaze, carefully cut electrical tape away to expose rubber dust boot
  32. Remove locking pin from connector
    Informational PurposesAn informational icon, calling your attention
    Nota
    Carefully pry pin out of connector and fully remove locking pin
  33. Remove coax cable needed for the side repeater overlay MY terminal 2 (RHS)
    Informational PurposesAn informational icon, calling your attention
    Nota
    Inspect all components for damage
  34. Apply harness tape onto RH coax overlay cable before installation
    Informational PurposesAn informational icon, calling your attention
    Nota
    Use Anti-abrasion tape and wrap the entire length of the coax cable to protect the cable for damage when it is in the vehicle
  35. Position MY RH coax overlay cable into place, Place through RH wheel liner
    Informational PurposesAn informational icon, calling your attention
    Nota
    Pull till you have roughly 12 inches of cable towards the interior of the vehicle
  36. Pull RH coax overlay cable through RH grommet harness
    Informational PurposesAn informational icon, calling your attention
    Nota
    Pull harness toward car computer under RH grommet main harness
  37. Tape coax overlay onto fish nylon tape
  38. Pull RH coax overlay cable through bulkhead and into interior cabin
  39. Remove nylon fish tape
    Informational PurposesAn informational icon, calling your attention
    Nota
    Remove tape the pull nylon fish tape out of vehicle
  40. Release side repeater cameras connector X870 from car computer
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x connector, Release red tab before removing connector
  41. Remove locking pin from side repeater cameras connector
    Informational PurposesAn informational icon, calling your attention
    Nota
    Carefully pry pin out of connector and fully remove locking pin
  42. Remove MY coax terminal 2 (RHS) cable from connector
    Informational PurposesAn informational icon, calling your attention
    Nota
    Inspect all components for damage
  43. Insert new side repeater coax terminal 2 (RHS) cable onto side repeater cameras connector
    Informational PurposesAn informational icon, calling your attention
    Nota
    Ensure both coax cables are fully seated into connector, Audible locking and flush mounting to confirm
  44. Secure locking pin to connector
    Informational PurposesAn informational icon, calling your attention
    Nota
    Align tabs of lock in connector housing, Ensure flush installation of locking pin to connector housing
  45. Install side repeater cameras connector x870 onto car computer
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x connector
  46. Position MY RH coax overlay cable onto frunk main harness, Secure cable onto harness using zip ties
    Informational PurposesAn informational icon, calling your attention
    Nota
    5x zip-ties, Trim off excess material after harness has been secured
  47. Cut off the vehicle side repeater coax terminal and tape to vehicle harness
    Informational PurposesAn informational icon, calling your attention
    Nota
    Cut the coax connector only
  48. Conect the front harness connectors for the RH side repeater and camera
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x connectors
  49. Secure RH grommet from body
    Informational PurposesAn informational icon, calling your attention
    Nota
    Use electrical tape to wrap the end of the dust boot
  50. Secure RH front wheel liner onto vehicle
    Informational PurposesAn informational icon, calling your attention
    Nota
    8x clips, 3x tabs, 1x bolt, 10mm, 6 Nm, Route liner under garnish clips, Align studs then install clips
  51. Install RH front wheel
    Informational PurposesAn informational icon, calling your attention
    Nota
    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool
  52. Lower vehicle until tires are touching ground
    Informational PurposesAn informational icon, calling your attention
    Nota
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
  53. Torque RH front wheel nuts
    Informational PurposesAn informational icon, calling your attention
    Nota
    5x nuts, 21mm, 175 Nm
  54. Install RH front wheel cap
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x cap, Align valve stem with wheel cap cavity
  55. Install the cowl screen. See Panel - Pantalla de la cubierta (Desinstalación y sustitución).
  56. Install fresh air intake duct
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x bolt, 10mm bolt, 4 Nm, 2x clips, 1x pin, Set clips on bulkhead studs, Secure to thermal bar
  57. Install HEPA filter assembly
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x bolts, 10mm, 5 Nm, Pivot forward edge down past frunk assembly, Then carefully move rear edge past brake reservoir and into position, Gently press on RH side of filter to seat seal onto duct, Note: Not all Model Y vehicles have a HEPA filter assembly installed
  58. Install frunk assembly to vehicle
    Informational PurposesAn informational icon, calling your attention
    Nota
    4x clips, 3x locator pins, Replace any clips if broken or missing
  59. Secure frunk to washer fluid reservoir neck
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x push clip
  60. Install fasteners securing frunk assembly
    Informational PurposesAn informational icon, calling your attention
    Nota
    5x bolts, 10mm, 5 Nm, Newer vehicles may be equipped with 1x push clip securing frunk to washer bottle neck
  61. Install frunk access panel
    Informational PurposesAn informational icon, calling your attention
    Nota
    3x clips, 1x connector
  62. Install the rear apron.
  63. Close the hood.
  64. Fold RH main carpet back in place
  65. Install clip securing RH front cabin carpet to body
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x push clip
  66. Install RH console side panel carpet
    Informational PurposesAn informational icon, calling your attention
    Nota
    11x clips, 1x guide pin, Position side panel and align the locator, then the rear locator, Push side panel towards console to install
  67. Install RH footwell assembly
    Informational PurposesAn informational icon, calling your attention
    Nota
    2x connectors
  68. Secure RH footwell assembly onto IP
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x screw, T20, 1.2 Nm, 1x push clip, 8x tabs, carefully align tabs and push to secure in place
  69. Install RH lower A pillar trim
    Informational PurposesAn informational icon, calling your attention
    Nota
    6x clips, 2x locating pins, Align front locating pin first
  70. Install clip securing RH lower A pillar trim
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x push clip
  71. Install RH mid A pillar assembly
    Informational PurposesAn informational icon, calling your attention
    Nota
    1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A pillar, Make sure the seal seat on top of the trim
  72. Move RH front seat to original position
  73. Install RH front floor mat
  74. Clear DAS Calibration through UI
    Informational PurposesAn informational icon, calling your attention
    Nota
    Controls > Service > Camera Calibration, Select Clear Calibration, Verify calibration was cleared successfully, Wait for prompt to disappear automatically before continuing, Calibration in Progress message and progress icon will appear during the next drive cycle
  75. Verify operation of windshield washers and wipers
    Informational PurposesAn informational icon, calling your attention
    Nota
    Fully press and hold the button on the end of the left-hand steering column lever to spray washer fluid onto the windshield, While spraying the windshield the wipers turn on, After releasing the button the wipers perform two additional wipes then a third wipe a few seconds later
  76. Raise all windows and close all doors.
