Brake Line Assembly - Side Sill (Remove and Replace)

Código de corrección 3303010032 3.66 NOTA: Salvo que se indique lo contrario explícitamente en el procedimiento, el código de corrección anterior y el FRT reflejan todo el trabajo necesario para realizar este procedimiento, incluidos los procedimientos vinculados. No acumule códigos de corrección a menos que se le indique explícitamente que lo haga. NOTA: Consulte Tiempos de tarifa plana para obtener más información sobre los FRT y cómo se crean. Para enviar sus comentarios sobre los valores de FRT, escriba a ServiceManualFeedback@tesla.com. NOTA: Consulte Protección personal para asegurarse de llevar el EPI adecuado al realizar el siguiente procedimiento.NOTA: Consulte Precauciones ergonómicas para ver prácticas de trabajo seguras.

  • 2025-08-18: Released new procedure.

Retirar

  1. Remove the front and rear wheels. See Conjunto de rueda (Desinstalación e instalación).
  2. Remove the HV battery. See HV Battery (RWD) (Remove and Replace) or HV Battery (AWD) (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Nota
    Do not follow the steps to discharge the HV battery outlined in the referenced procedures.

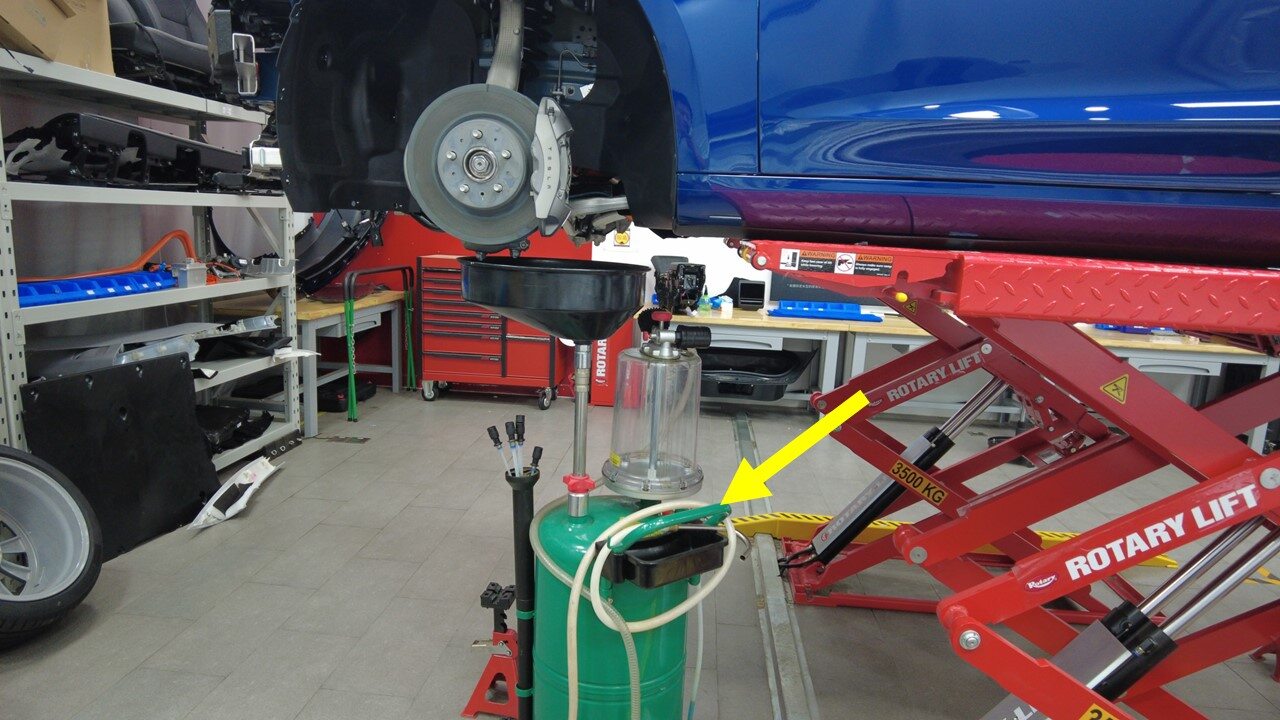

  3. Position an oil drain container under the LH front brake line area.
  4. Remove the LH front wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace).

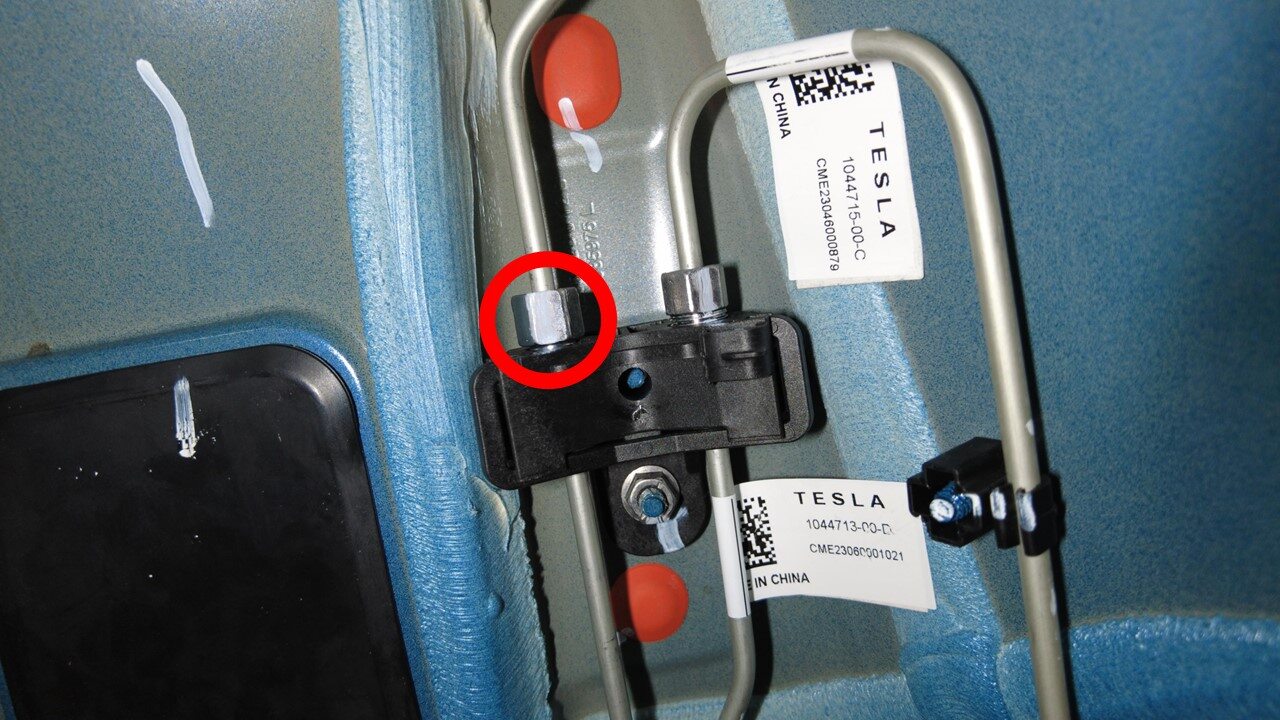

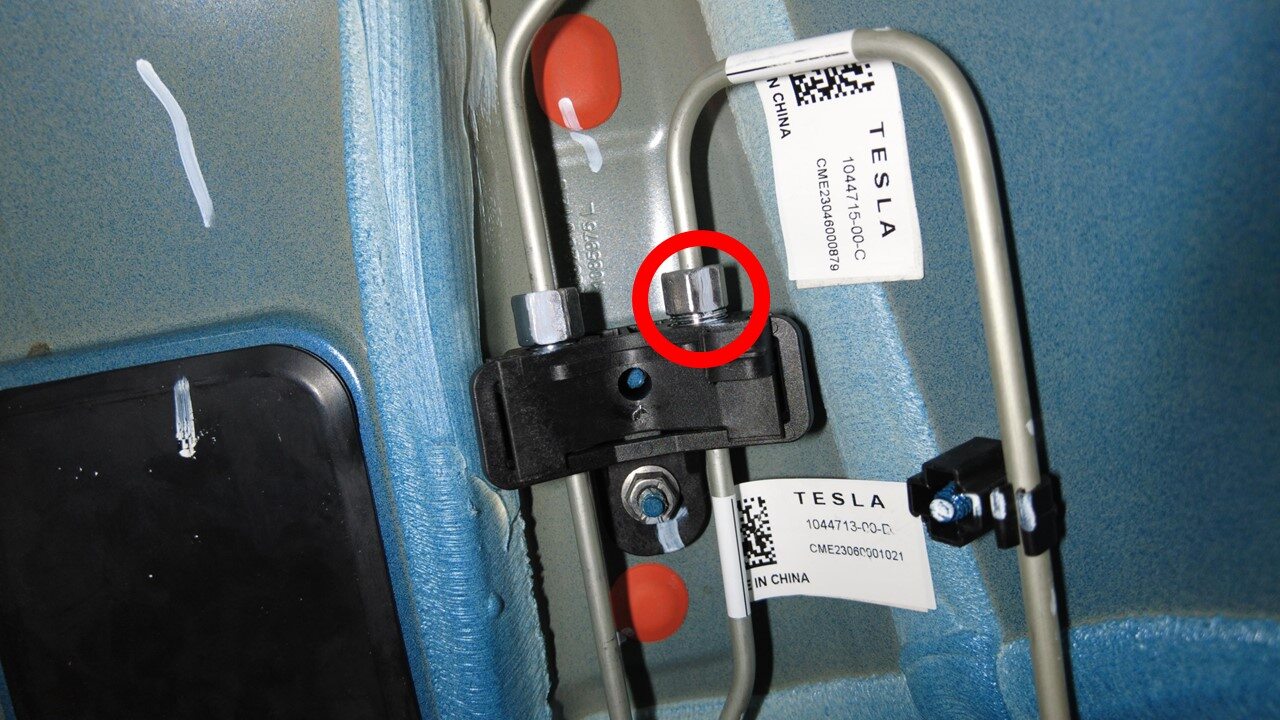

  5. Remove the top and bottom side sill brake line tube nuts from the front brake pipe junction block.

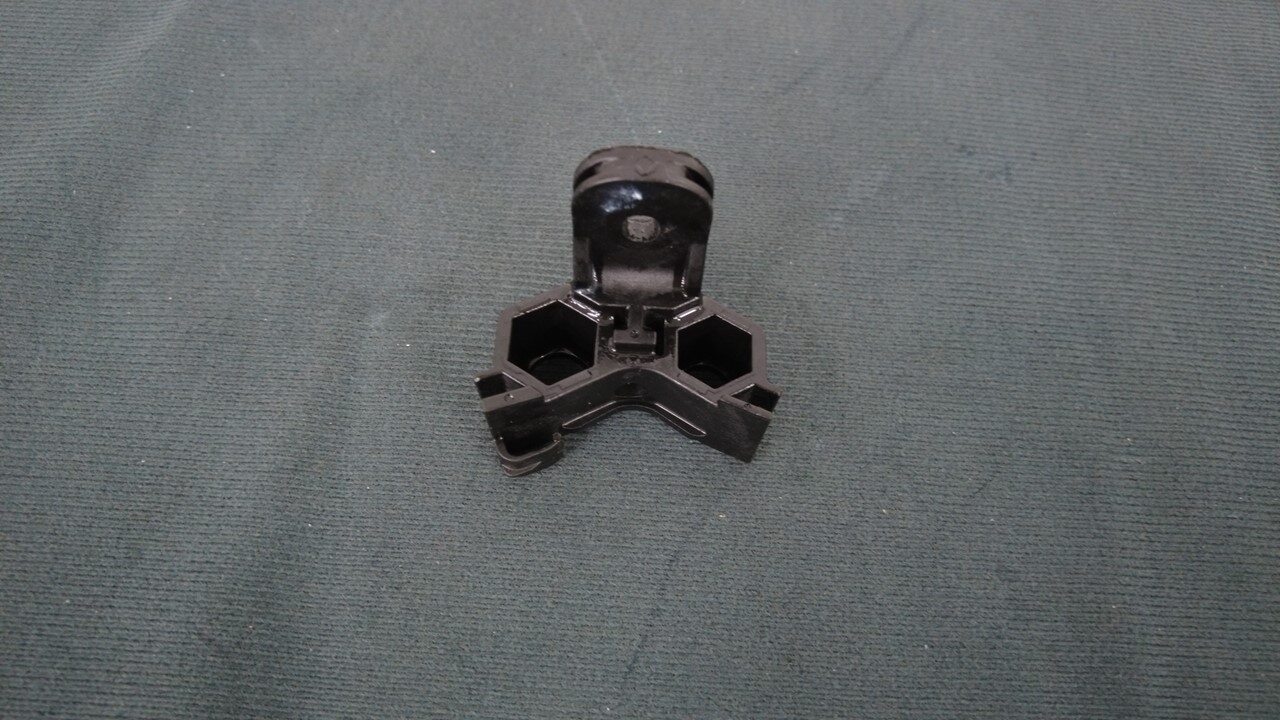

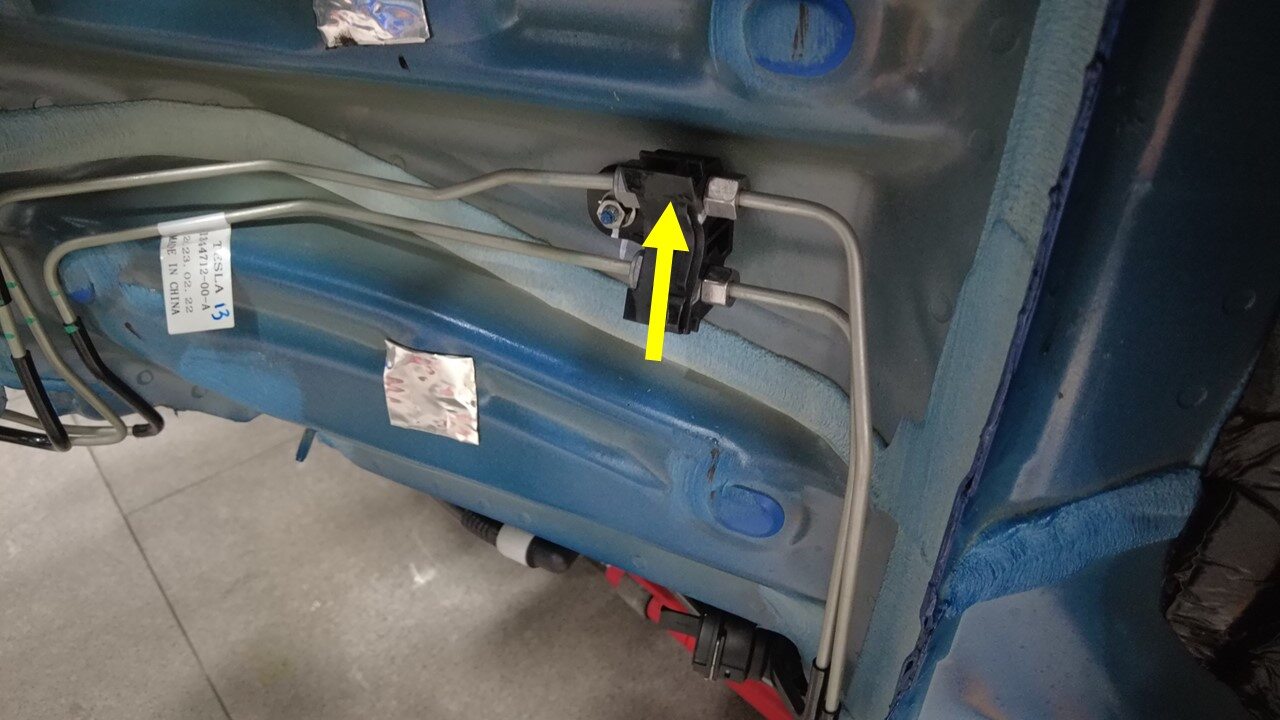

  6. Remove the clip from the LH front junction block.

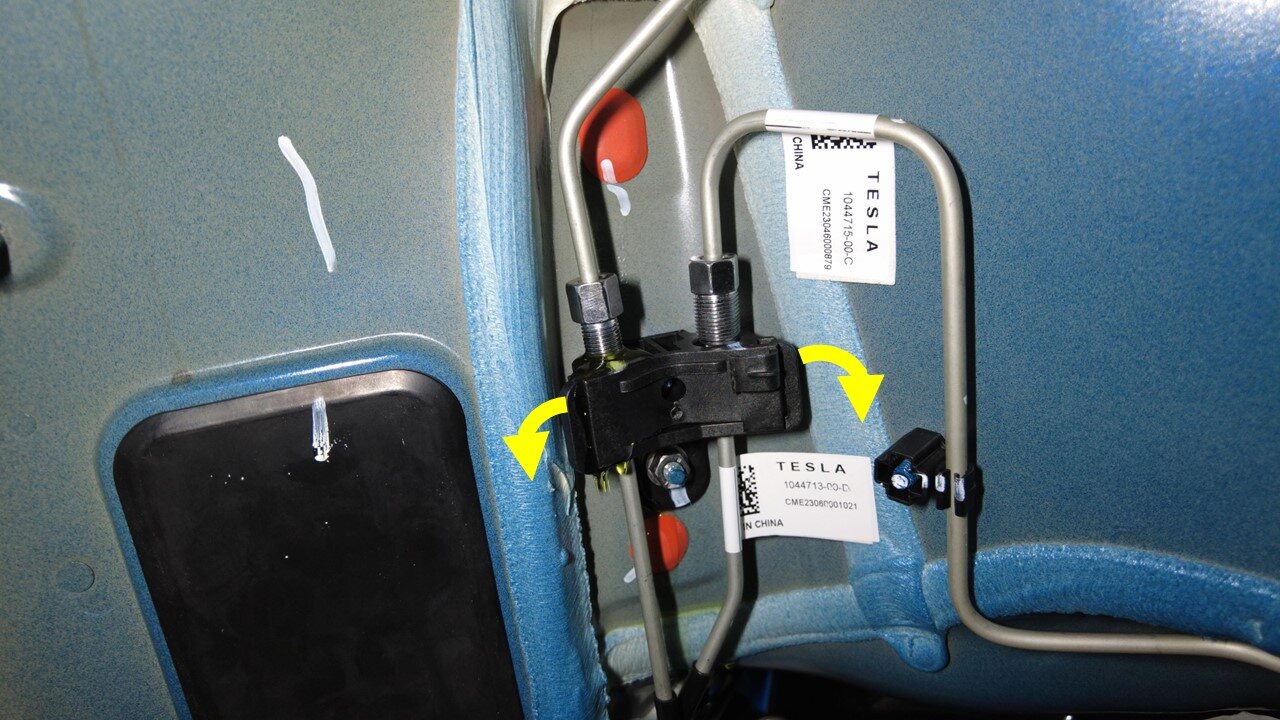

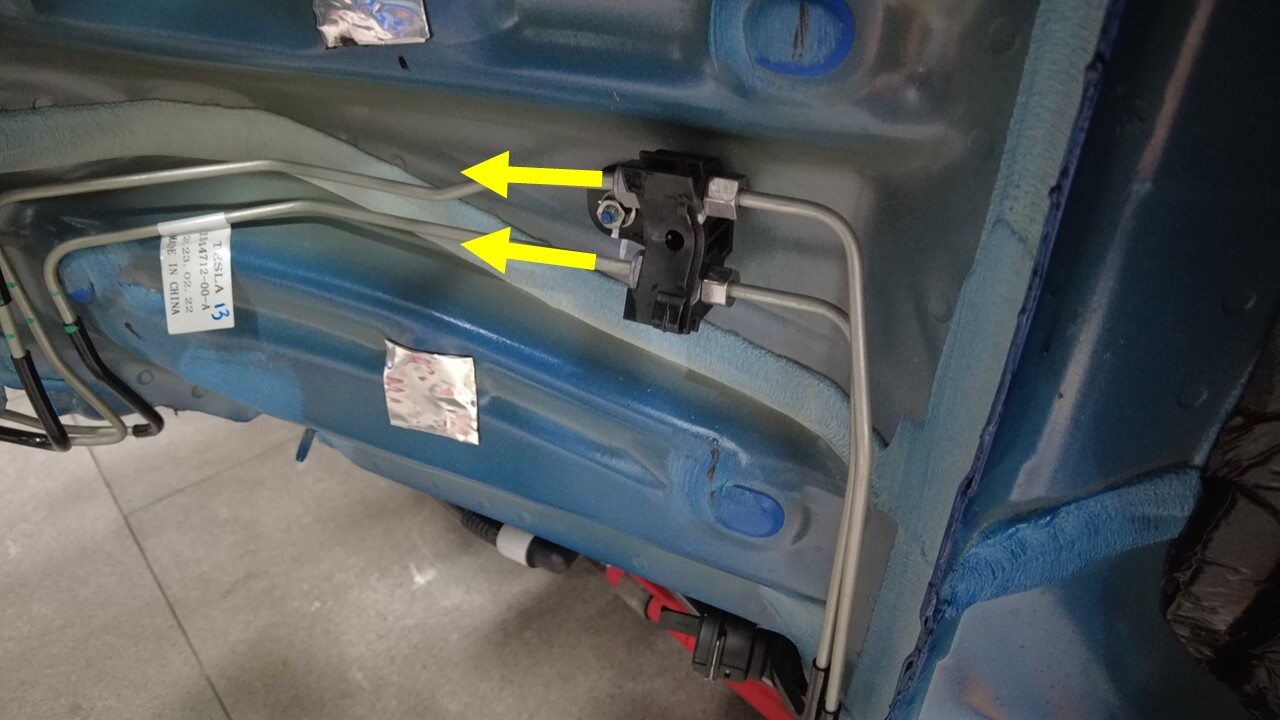

  7. Release the brake lines from the LH front junction block.
  8. Remove the LH rear wheel arch liner. See Wheel Arch Liner - Rear - LH (Remove and Replace).
  9. Place an oil drain container under the rear brake line junction box.

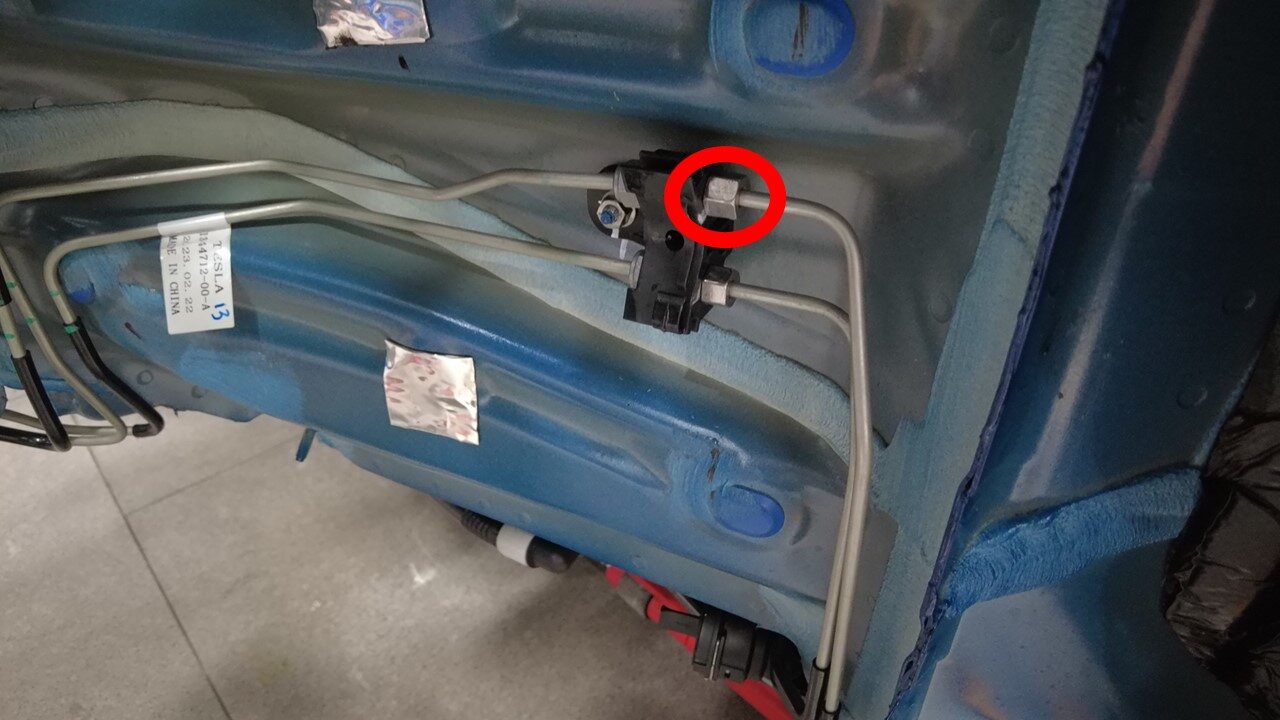

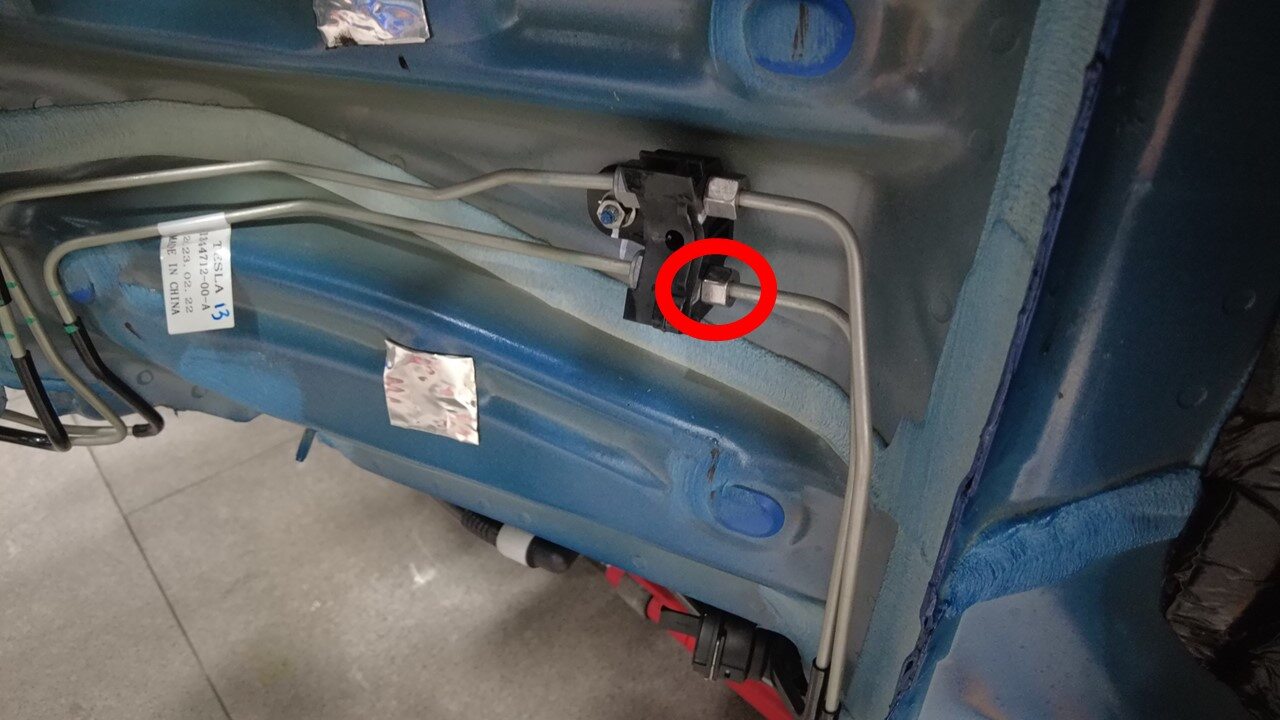

  10. Remove the LH and RH rear brake line tube nuts from the rear brake pipe junction block.
  11. Remove the clip from the LH rear junction block.

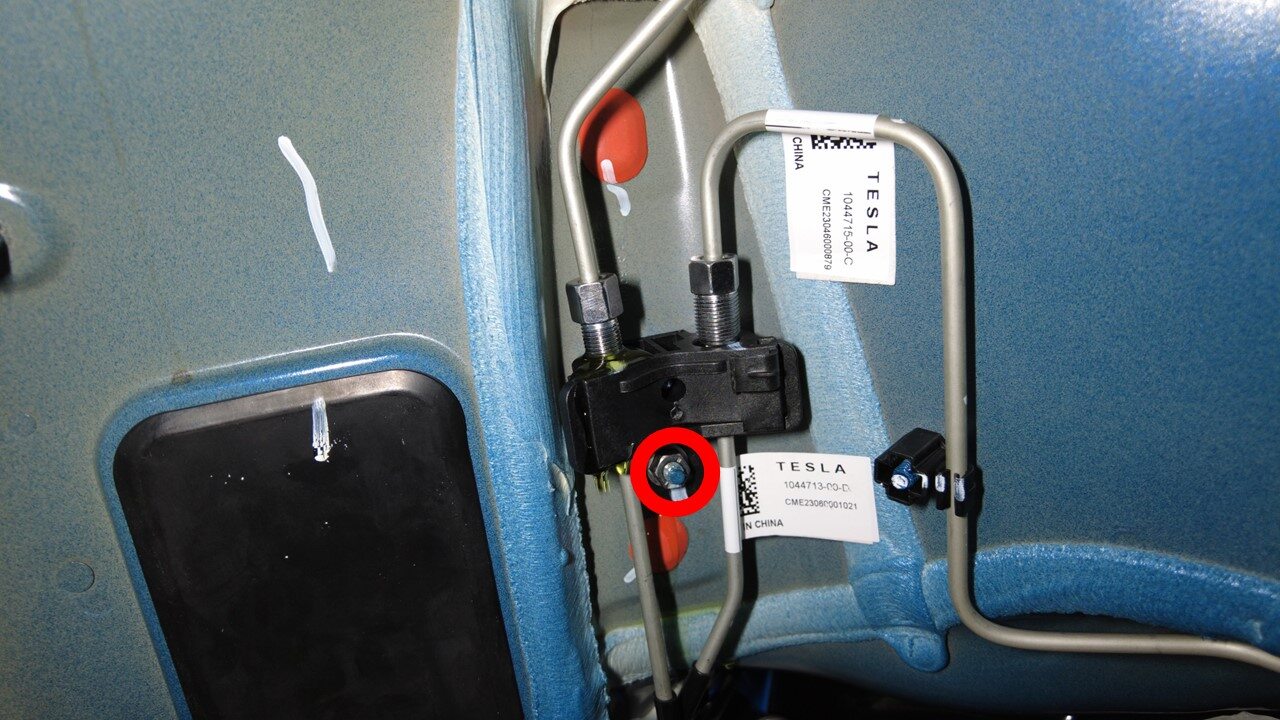

  12. Remove nut that attaches the LH rear junction block to the vehicle.
  13. Remove the LH rear junction block from the vehicle.

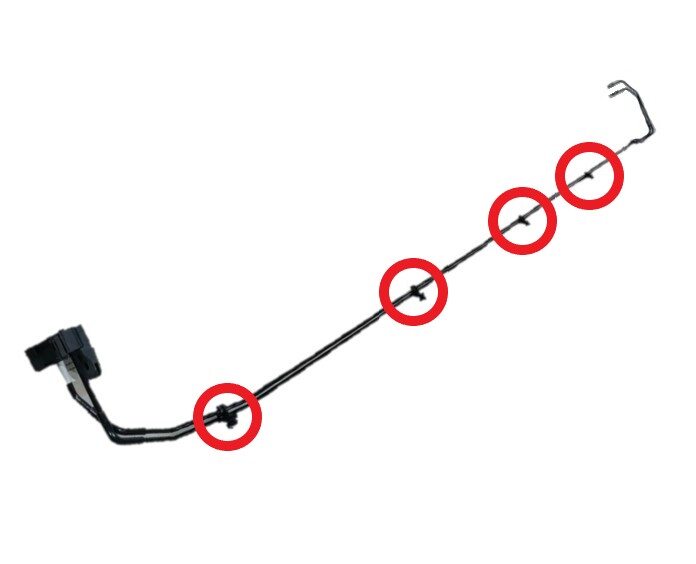

  14. Remove the clips that attache the side sill brake pipe assembly to the body.
  15. Remove the side sill brake pipe assembly.

  1. Position the side sill brake pipe assembly to the vehicle for installation.
  2. Install the clips (x4) that attach the side sill brake pipe assembly to the vehicle.
  3. Install the LH rear junction block to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Nota

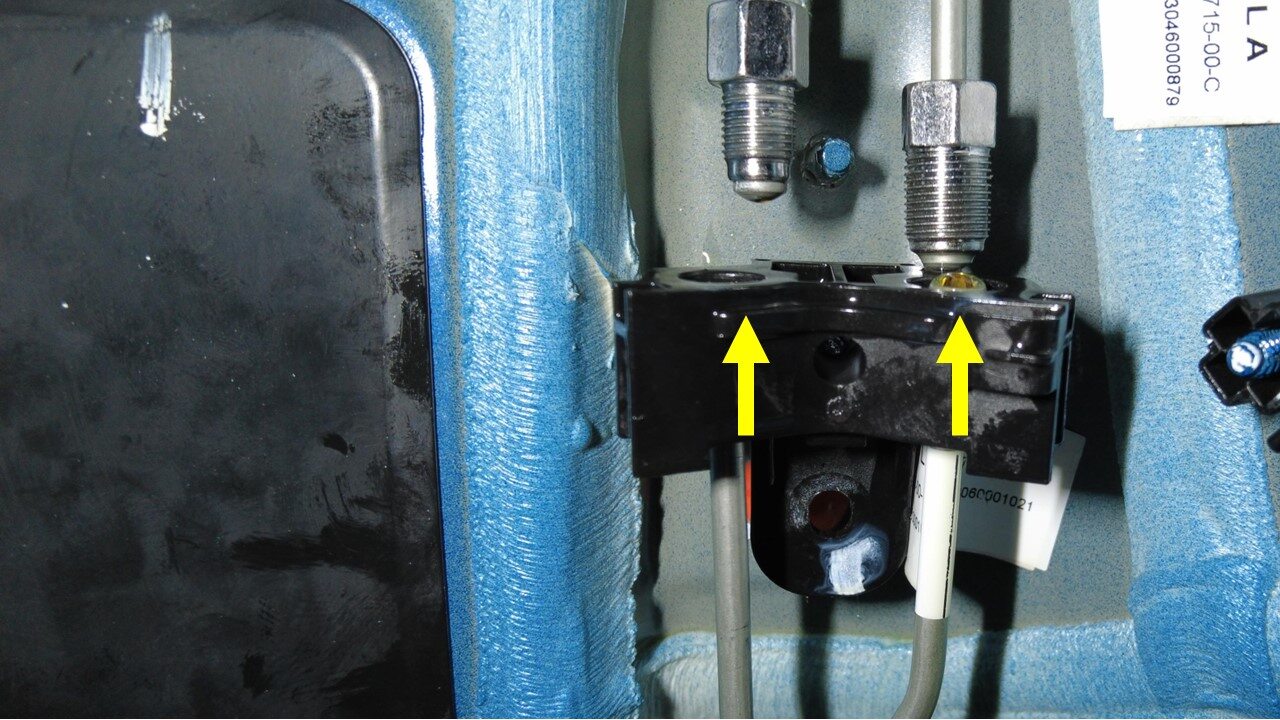

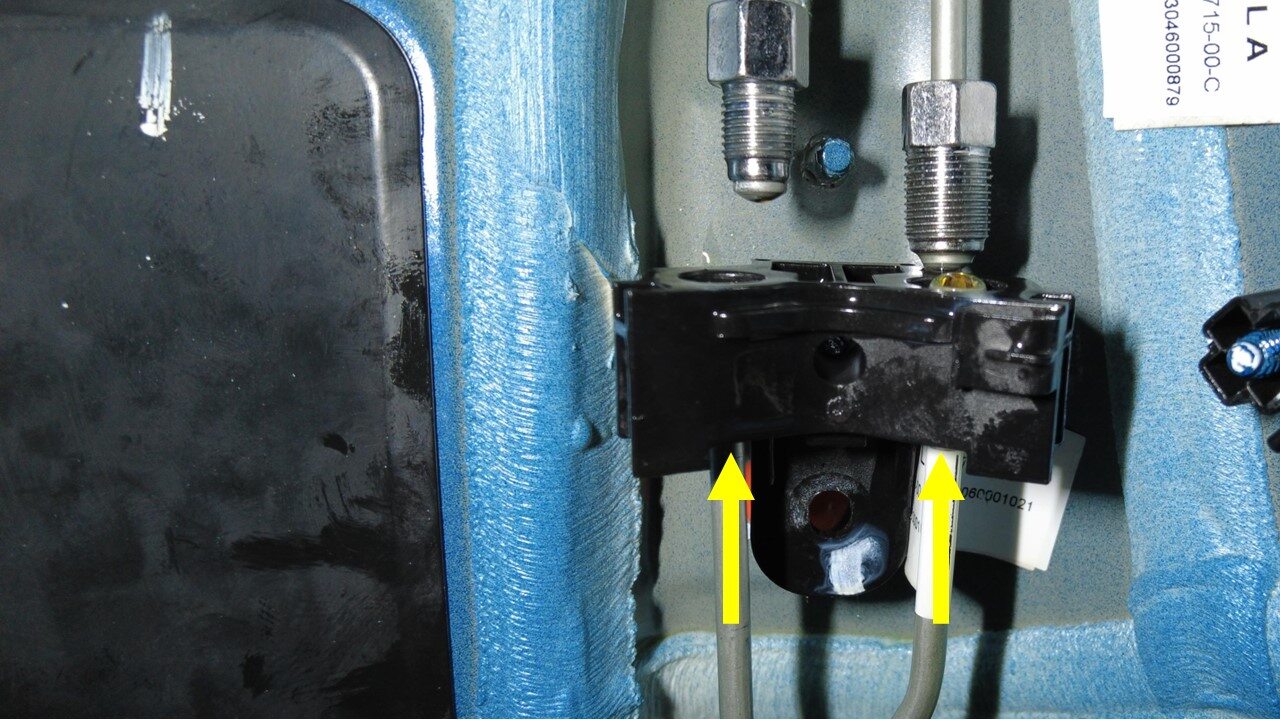

    Put the LH and RH rear brake pipes in the connector.
  4. Install the nut that attaches the LH rear junction block to the vehicle.
  5. Install the black clip that attaches the brake lines at the LH rear junction block.
  6. Install the LH and RH rear brake line tube nuts to the LH rear brake pipe junction block.
  7. Install the LH rear wheel arch liner. See Wheel Arch Liner - Rear - LH (Remove and Replace).
  8. Install the brake lines into the LH front junction block.
  9. Install the clip that attaches the brake lines at LH front junction block.
  10. Install the side sill brake line tube nuts to the LH front brake pipe junction block.
  11. Install the LH front wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace).

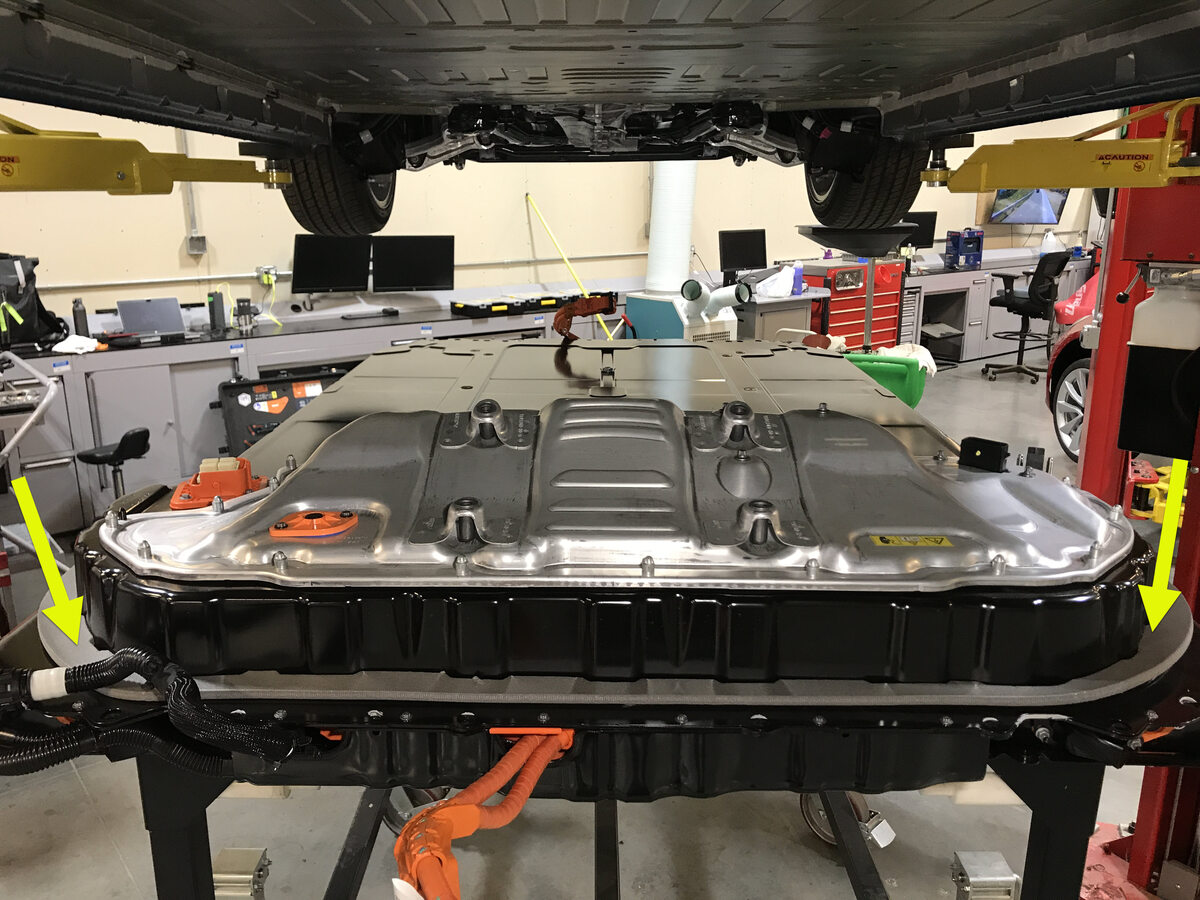

  12. Install a new penthouse engagement seal onto the HV battery pack.
    Informational PurposesAn informational icon, calling your attention
    Nota
    This seal is a one time use item and should be replaced each time a HV battery pack is removed from the vehicle.
  13. Install the HV battery. See HV Battery (RWD) (Remove and Replace) or HV Battery (AWD) (Remove and Replace).
  14. Install the LH front and rear wheel arch liners. See Wheel Arch Liner - Front - LH (Remove and Replace).
  15. Install the front and rear wheels. See Conjunto de rueda (Desinstalación e instalación).
