Bracket - License Plate - Front (NA) (Remove and Replace)

Código de corrección 1207010012 FRT 0.12 NOTA: Salvo que se indique lo contrario explícitamente en el procedimiento, el código de corrección anterior y el FRT reflejan todo el trabajo necesario para realizar este procedimiento, incluidos los procedimientos vinculados. No acumule códigos de corrección a menos que se le indique explícitamente que lo haga. NOTA: Consulte Tiempos de tarifa plana para obtener más información sobre los FRT y cómo se crean. Para enviar sus comentarios sobre los valores de FRT, escriba a ServiceManualFeedback@tesla.com. NOTA: Consulte Protección personal para asegurarse de llevar el EPI adecuado al realizar el siguiente procedimiento.NOTA: Consulte Precauciones ergonómicas para ver prácticas de trabajo seguras.

Retirar

  1. Remove front license plate from license plate bracket.
    Informational PurposesAn informational icon, calling your attention
    Nota
    4x screws, PH2, 3 Nm
  2. Apply masking tape around front license plate bracket.
  3. Remove front license plate bracket.
  4. Clean surface area of front license plate bracket on front fascia.
    Informational PurposesAn informational icon, calling your attention
    Nota
    Allow one minute dry time.

Instalar

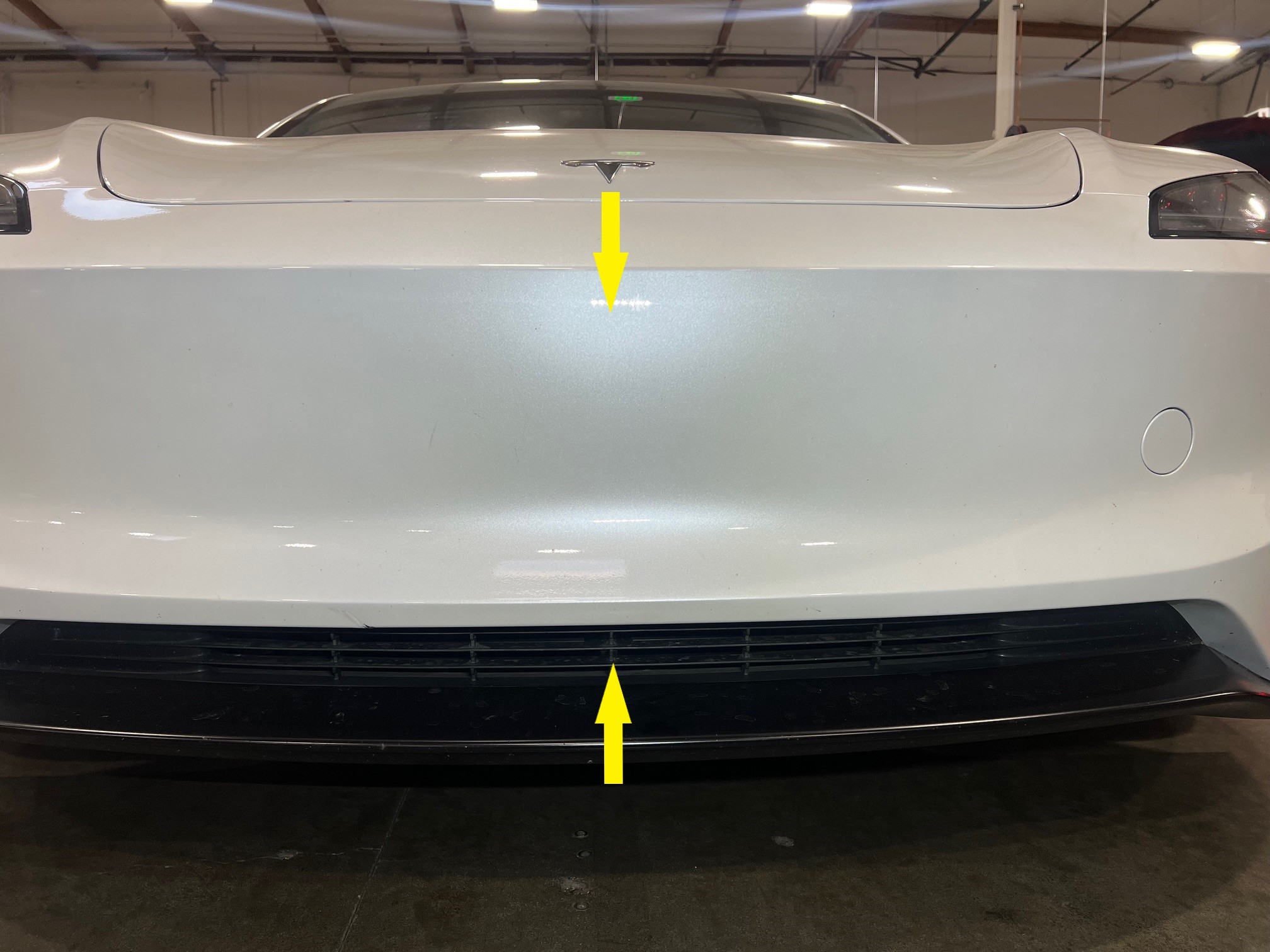

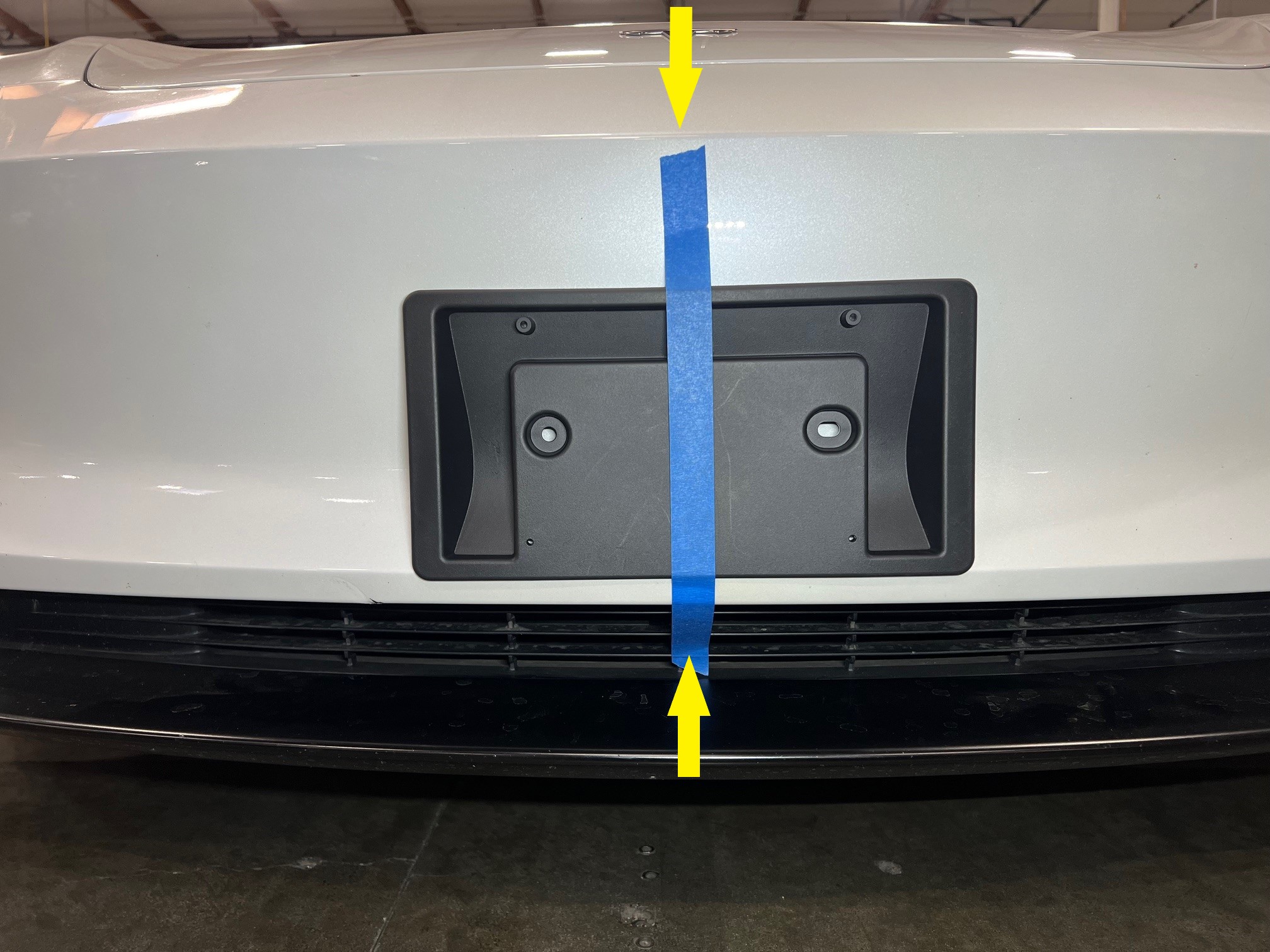

  1. Use the center grille rib as a reference point, then align tape centrally onto center mold injection onto bracket up to T badge.

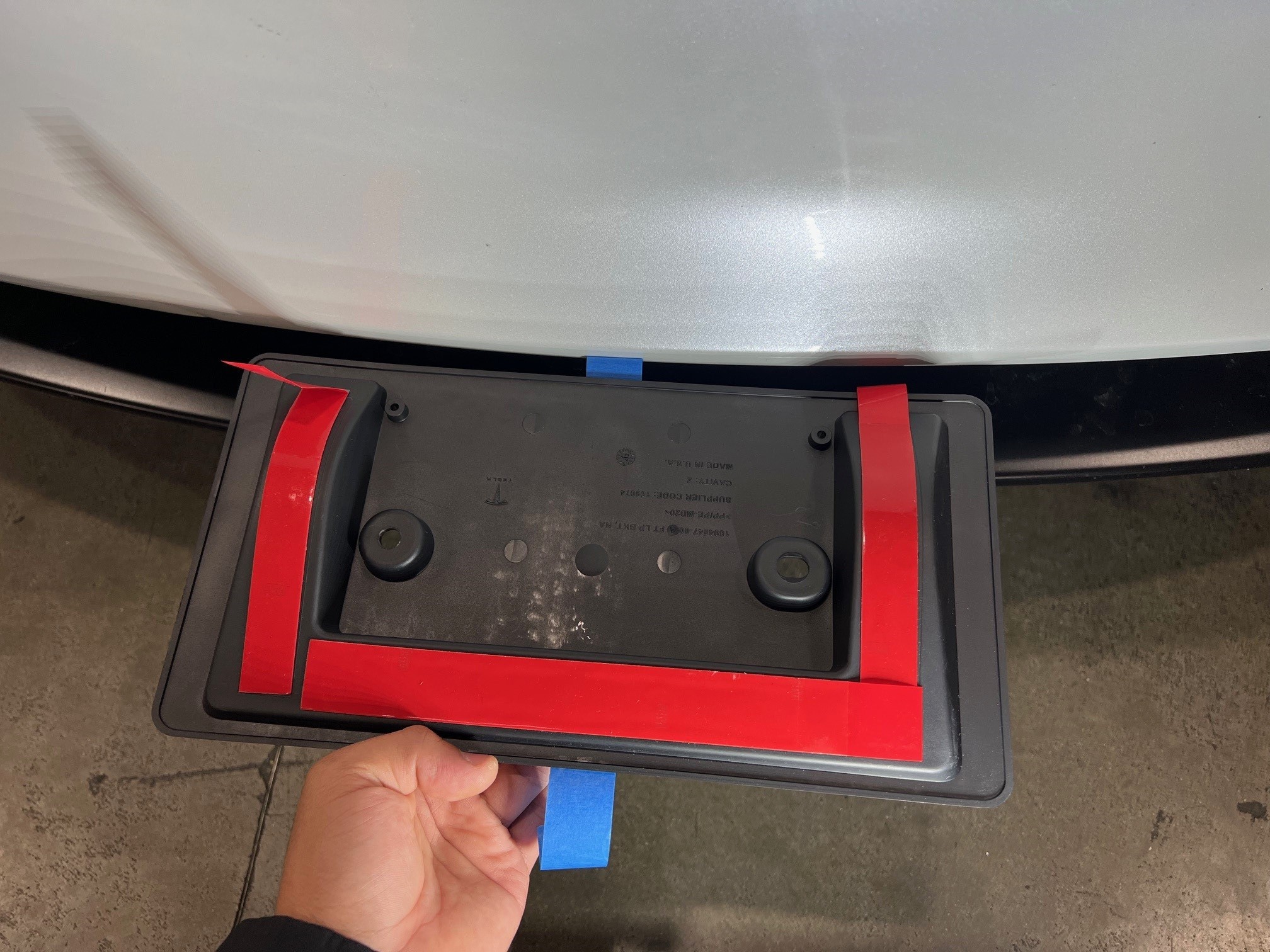

  2. Remove backing from horizontal double-sided tape and top portion of vertical double-sided tapes, bending it outboard of the bracket.

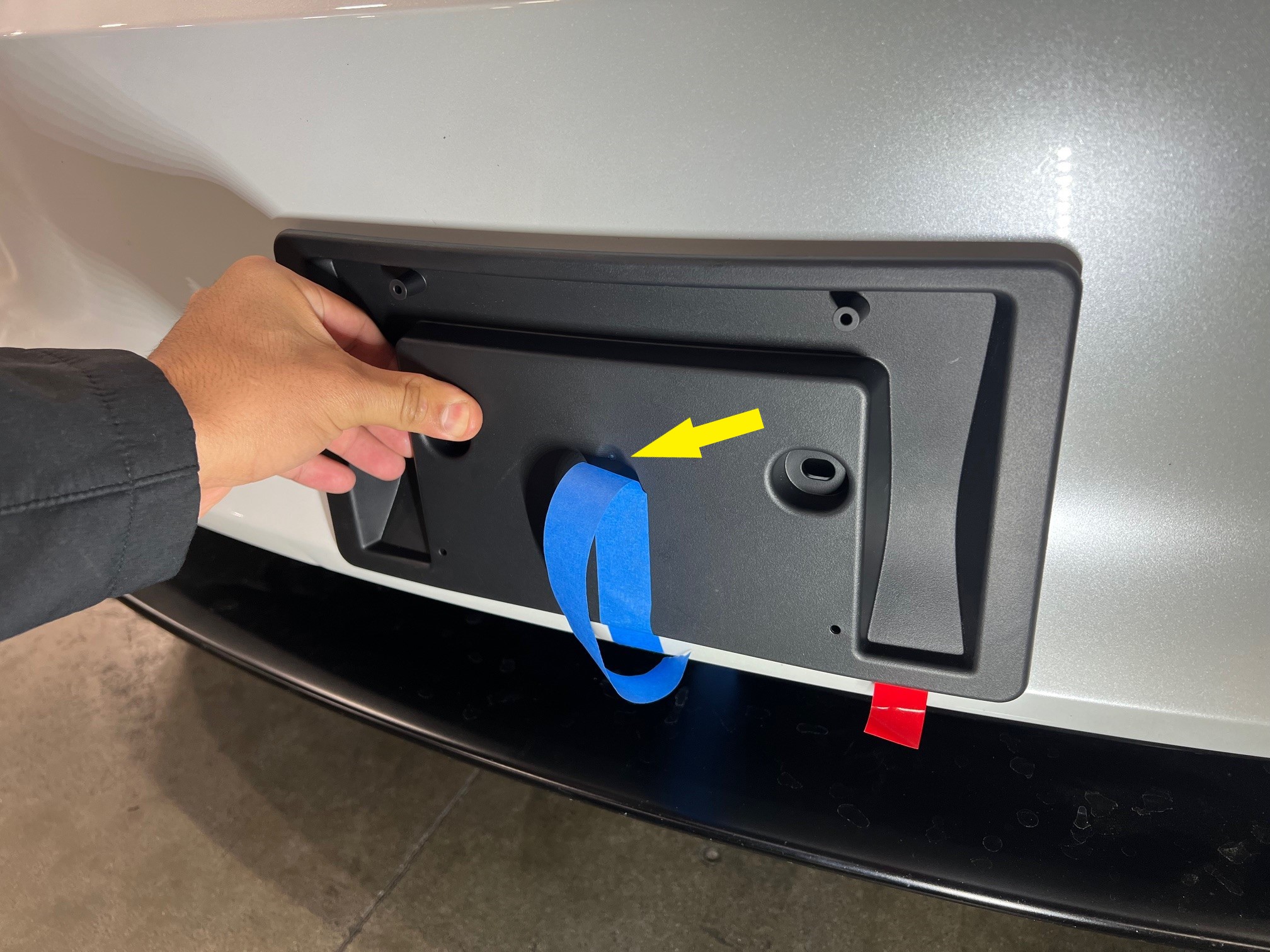

  3. Install front license plate bracket onto fascia.
    Informational PurposesAn informational icon, calling your attention
    Nota
    Position front license plate bracket onto fascia, Remove remaining backing from double-sided tape
  4. Press license plate bracket onto fascia to wet-out double-sided tape.

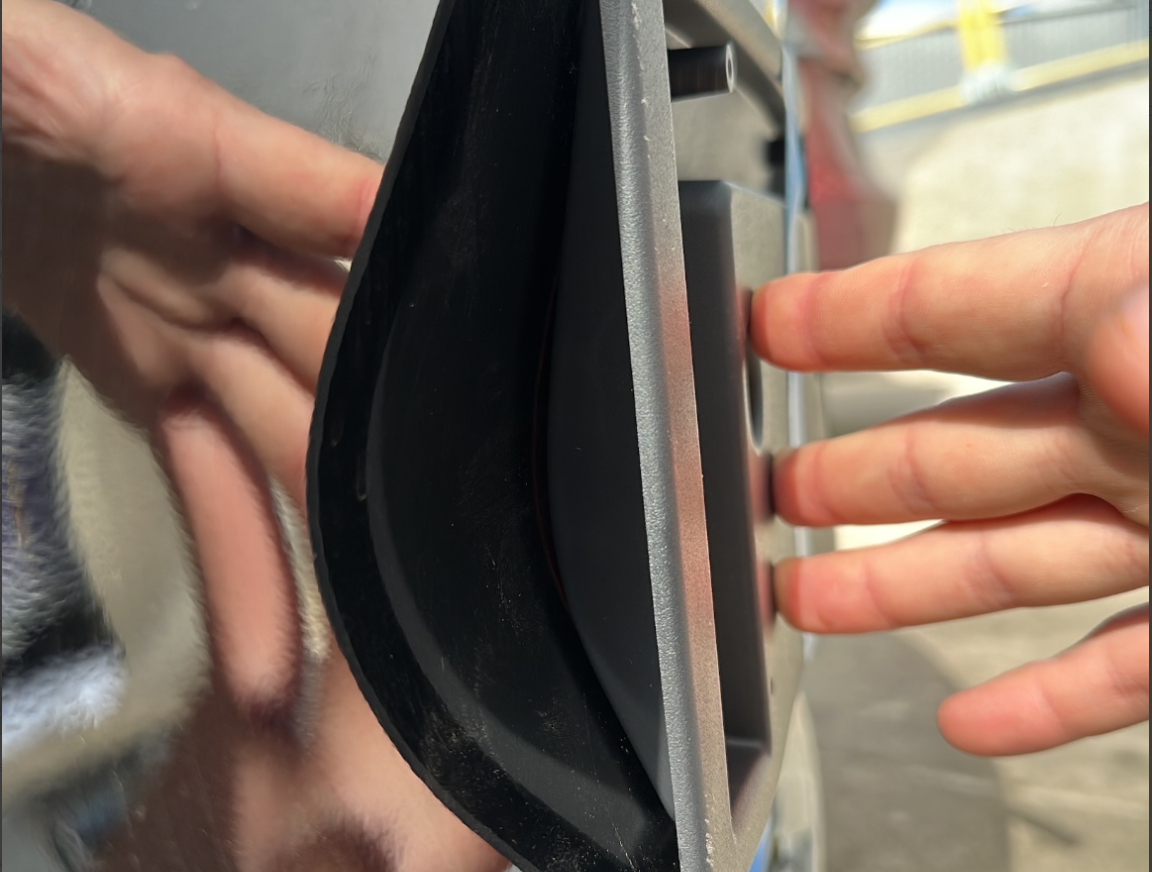

  5. Verify curvature is flush onto fascia.
