Harness - Body - RH (LHD) (Remove and Replace)

Código de corrección 1710040042 FRT 2.46 NOTA: Salvo que se indique lo contrario explícitamente en el procedimiento, el código de corrección anterior y el FRT reflejan todo el trabajo necesario para realizar este procedimiento, incluidos los procedimientos vinculados. No acumule códigos de corrección a menos que se le indique explícitamente que lo haga. NOTA: Consulte Tiempos de tarifa plana para obtener más información sobre los FRT y cómo se crean. Para enviar sus comentarios sobre los valores de FRT, escriba a LaborTimeFeedback@tesla.com. NOTA: Consulte Protección personal para asegurarse de llevar el EPI adecuado al realizar el siguiente procedimiento.

Open all four doors

Nota
If vehicle is being powered down, Latch rear doors to prevent accidental closure
Open trunk from exterior switch
Lower all four windows.
Place vehicle into tow mode

Nota
Via Controls > Service > ''Towing''
Place wheel chocks to keep vehicle from moving
Disconnect the LV battery power. See LV Battery - Li-lon (Disconnect and Connect).
Remove RH IP end cap

Nota
5x clips, 2x guide tabs
Release RH footwell cover

Nota
2x magnets, 1x guide tab, 1x connector
Remove connectors from RH footwell cover

Nota
1x puddle light connector, 1x Speaker connector
Remove clips securing passenger footwell duct

Nota
2x clips
Disconnect glove box USB cable from car computer

Nota
1x connector, Release locking tab then release connector
Remove screws securing glove box to IP

Nota
4x screws, T20, 2.3 Nm
Release glove box from IP carrier

Nota
10x clips, 3x locator pins, 1x datum, Avoid damage to electromagnetic switch
Disconnect the glove box connectors (x2).
Remove RH passenger footwell duct from HVAC module
Remove RH upper A-pillar trim

Nota
6x clips, 1x tether, 2x guide tabs,1x alignment pin, Pull inside of the upper portion of upper A-pillar, Depress 2x tabs to remove tether from body side, Then pull upper A-pillar upward to remove
Remove RH sun visor bracket cover

Nota
4x clips, Extending the sun visor may allow for extra working room
Remove RH sun visor fastener

Nota
1x screw, T25, 3.5 Nm, Extending the sun visor may allow for extra working room
Remove RH sun visor from headliner area

Nota
Fold sun visor to the closed and folded down position but do not latch in place
Disconnect RH sun visor connector

Nota
1x connector
Remove clip for RH lower A-pillar trim

Nota
1x push clip
Remove RH lower A-pillar trim

Nota
4x clips, 2x guide tabs, Pull rear of lower A-pillar upward to release clip then pull rearward to release front tabs from carpet
Remove RH side rail assembly

Nota
4x clips, 2x locations, 4x tethers, Pull the upper corner of the side rail then work your way to bottom, Pull the lower side rail toward RH to release clips, Release tethers from bolted bungee tether
Remove tether hooks from RH body

Nota
2x tether hooks, Discard after removal
Push open RH coat hook
Pry open RH coat hook screw cover

Nota
2x clips
Remove RH coat hook screw

Nota
1x screw, T25, 2.5 Nm
Release 2nd row seat cushion and disconnect harness

Nota
2x clips, 2x connectors, Press tabs backward then pull front edge up
Fold 2nd row 40 seatback down
Remove RH side bolster

Nota
1x locator clip, 3x guide tabs, Pull outward then slightly upward to remove
Remove bolster plastic bracket from RH side body

Nota
2x clips, If necessary, depress the clips from behind, this bracket may come out with bolster. Discard after removal
Remove RH C pillar assembly and move it aside

Nota
3x clips, 3x tabs, Pull rear C-pillar inward then forward to remove
Remove RH lower B-pillar assembly

Nota
7x clips, 5x locator clips, Pull the trim panel outward in the direction of the arrow to release clip from lower B-pillar
Remove RH middle B-pillar assembly

Nota
5x clips, 3x locator clips, Pull the bottom of the B-pillar middle trim panel into the vehicle, and then pull the upper part to release the remaining clips
Release clips securing RH upper B-pillar assembly and move aside

Nota
3x clips,3x locator pins,Pull the bottom of the upper B-pillar toward inside of the car, then pull the top to release the remaining clips
Remove LH side rail assembly

Nota
4x clips, 2x locations, 4x tethers, Pull the upper corner of the side rail then work your way to bottom, Pull the lower side rail toward RH to release clips, Release tethers from bolted bungee tether
Remove tether hooks from LH body

Nota
2x tether hooks, Discard after removal
Push open LH coat hook
Pry open LH coat hook screw cover

Nota
2x clips
Remove LH coat hook screw

Nota
1x screw, T25, 2.5 Nm
Fold 2nd row 60 seatback down

Nota
Pull release, Fold down, Protect the seat cushion if necessary
Remove LH side bolster

Nota
1x locator clip, 3x guide tabs, Pull outward then slightly upward to remove
Remove bolster plastic bracket from LH side body

Nota
2x clips, If necessary, depress the clips from behind, this bracket may come out with bolster. Discard after removal
Remove LH C pillar assembly and move it aside

Nota
3x clips, 3x tabs, Pull rear C-pillar inward then forward to remove
Remove LH IP end cap

Nota
5x clips, 2x guide tabs
Remove clip securing LH lower A-pillar assembly

Nota
1x push clip
Remove LH lower A-pillar assembly

Nota
4x clips, 2x guide tabs, Pull rear of lower A-pillar upward to release clip then pull rearward to release front tabs from carpet
Remove LH lower B-pillar assembly

Nota
7x clips, 4x locator clips, Pull the trim panel outward in the direction of the arrow to release clip from lower B-pillar
Remove LH middle B-pillar assembly

Nota
5x clips, 3x locator clips, Pull the bottom of the B-pillar middle trim panel into the vehicle, and then pull the upper part to release the remaining clips
Release clips securing the LH upper B-pillar assembly and move aside

Nota
3x clips,3x locator pins,Pull the bottom of the upper B-pillar toward inside of the car, then pull the top to release the remaining clips
Release rear headliner from body

Nota
4x clips, 2x locator pins,loosen the rear of the headliner to facilitate the next step
Remove package tray harness clips around C-pillar area

Nota
2x clips
Disconnect package tray harness connector from RH body harness

Nota
1x connector
Remove package tray

Nota
5x tabs, 3 at the rear of panel and 2 on the sides, Slide towards front of vehicle to remove
Remove load floor

Nota
Use pull tab located at rear edge of panel
Remove trunk sill trim assembly

Nota
4x clips, Pull corner upward to release clip on end then pull away from body for remaining clips
Remove RH load floor bracket

Nota
4x clips, 2x locations, Release bracket front clips, then release clips at the bracket rear, and remove the floor bracket
Remove trunk garnish assembly

Nota
6x clips, 4x locating tabs
Remove clips for RH trunk side trim

Nota
2x clips
Disconnect RH trunk task light connector

Nota
1x connector
Remove RH trunk side trim
Release harness connectors on left side of car computer

Nota
3x connectors, Release locking tab, then remove connector body
Release harness clips from left of car computer

Nota
1x clips
Release harness clips from lower of car computer

Nota
2x clips
Disconnect connectors from car computer

Nota
4x connector
Release RH body harness from RH body controller and A-pillar and move aside

Nota
3x clips
Remove the nut securing the RH body controller to vehicle

Nota
1x nyloc nut, 10mm, 6 Nm,Discard nyloc nut
Remove RH body controller from vehicle

Nota
Move RH controller up and away from the vehicle body for easier access to the connector in the next step
Disconnect J2 connector from RH body controller

Nota
1x connector, 1x locking tab, J2
Disconnect J5 connector from RH body controller

Nota
1x connector, J5
Disconnect J4 connector from RH body controller

Nota
1x connector, 1x locking tab, J4
Disconnect J12 connector from RH body controller

Nota
1x connector, J12
Disconnect seat connector from RH body controller

Nota
1x connector, 1x locking tab, J9
Disconnect connector from the right body harness

Nota
1x connector
Fold RH front main cabin carpet aside for access

Nota
1x clip
Release harness clip from RH body controller

Nota
1x clip
Disconnect connectors from harness clip at RH lower A-pillar area

Nota
3x connectors
Disconnect DCDC positive cable from right body harness

Nota
1x connector, 1x clip. Pull up the red locking tab and then press
Release the LH front seat harness from sill trim clips (x5).
Disconnect LH harness connectors around RH lower B-pillar area

Nota
3x connectors
Remove fixed harness connector bracket from RH b pillar area

Nota
1x connector bracket
Remove bolt securing RH retractor to base of B-pillar

Nota
1x patch bolt, 15mm, 40 Nm, Discard patch bolt
Disconnect harness connectors from RH retractor

Nota
2x connectors, 2 stage locking connectors, Lift the red tab to release the connector Disconnect connector after removing retractor from B-pillar
Remove RH B-pillar impact accelerometer sensor

Nota
1x connector
Disconnect RH body wiring harness and RH rear door wiring harness connectors from RH B-pillar area

Nota
1x connector
Remove RH body harness clips from B-pillar area

Nota
3x clips
Remove clip securing RH rear carpet of vehicle to body

Nota
1x clip
Remove RH body harness ground strap around lower B-pillar

Nota
1x bolt, 10mm, 10 Nm
Release RH body harness clips along RH front sill area

Nota
1x clip
Remove RH B-pillar applique fasteners cover

Nota
4x clips, 1x tab, Release upper clips first, then slide tab out of body
Remove bolts securing RH B-pillar applique to body

Nota
2x bolts, 8mm, 5 Nm
Release RH B-pillar applique from vehicle

Nota
1x clip, 2x tabs, Release the bottom of the applique and slide the applique downward to remove, Use caution not to damage the connectors
Disconnect B-pillar camera and RH antenna connector

Nota
2x connectors, Release red locking tab first before removing connector
Release RH upper B-pillar bracket form body

Nota
2x bolts 10mm2.5 Nm
Remove the RH body harness clips from B-pillar area

Nota
7x clips
Disconnect RH body harness to the TCU connector

Nota
2x connector
Disconnect HVC logic connector and install logic cap

Nota
1x connector, 1x cap, Release locking tab then push the handle downward to release connector
Release positive LV output cover from PCS cable

Nota
1x cover
Remove nut securing positive LV output from PCS cable and move cable aside

Nota
1x nut, 13mm, 15 Nm, Discard after removal
Disconnect 40 seat back heater harness

Nota
1x connector
Disconnect RH rear seat belt buckle connector

Nota
1x connector
Remove clip securing RH rear seatbelt buckle harness to vehicle body

Nota
2x clips
Remove RH body harness clips around lower C-pillar area

Nota
6x clips
Disconnect RH 2nd row seat belt retractor connector

Nota
1x connector, 2 stage locking connectors, Lift the red tab to release the connector
Disconnect harness connector for RH side curtain airbag

Nota

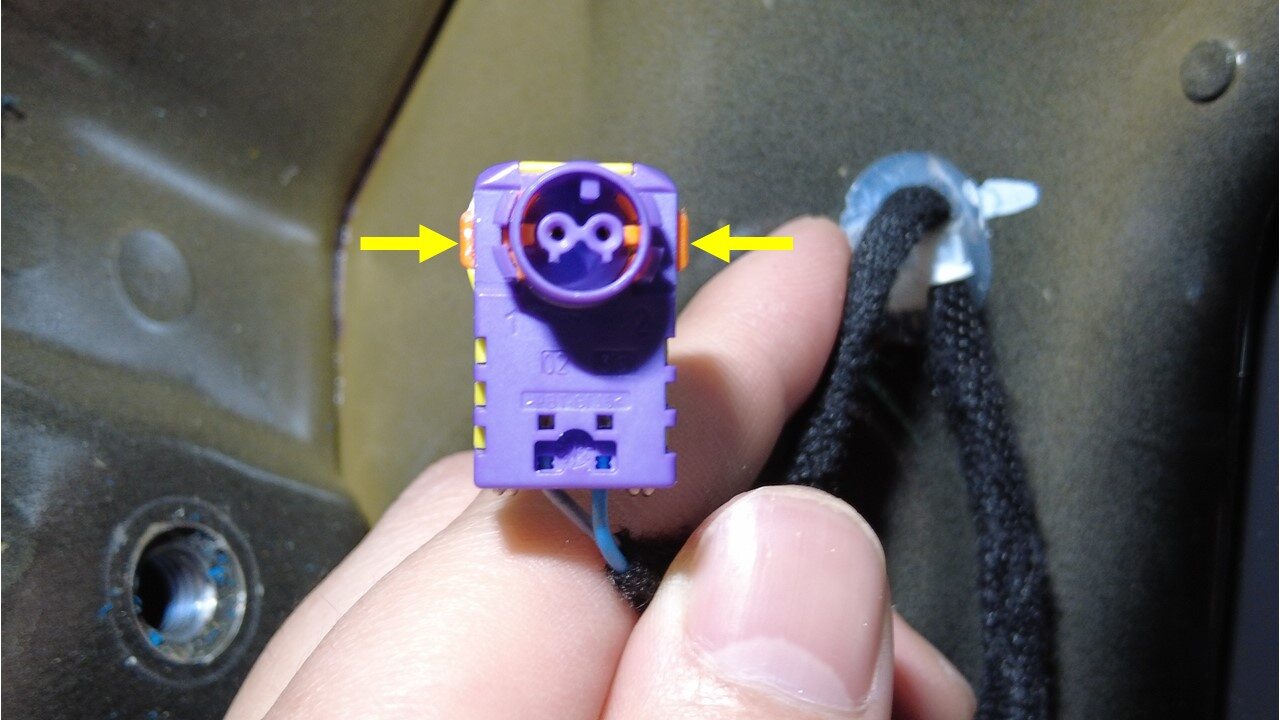

1x connector, 2 stage locking connectors, Lift the white tab to release the connector
Disconnect RH antenna filter harness connector

Nota
1x connector. Gently disconnect the harness. Do not damage the heater grid
Release the trunk harness connectors under package tray area

Nota
2x connectors
Release trunk harness connectors bracket under package tray area

Nota
2x connector bracket
Disconnect LH and RH parcel shelf speaker connectors

Nota
2x connector
Remove the RH body harness clips around the upper C-pillar area

Nota
10x clips
Disconnect RH power strut connector

Nota
1x connector
Remove ground strap of body harness in RH area of the trunk

Nota
1x bolt, 10mm, 10 Nm
Remove RH body harness clips around RH side of trunk area

Nota
1x connector bracket3x harness clips
Disconnect connector from RH rear audio amplifier

Nota
3x connectors
Remove wheel chocks
Push vehicle onto lift

Nota
Recommend assistance, Note this vehicle can only be safely pushed for a very short distance and at very slow speed
Raise and support the vehicle. See GUID-0ECF2493-88F6-48E9-ADBB-9AE1D52E217C.html.
Loosen RH rear wheel

Nota
5x nuts, 21mm, 175 Nm
Raise vehicle partially and lower lift onto locks

Nota
Set vehicle to a comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
Remove RH rear wheel

Nota
5x nuts, 21mm, 175 Nm
Remove clips securing the RH rear wheel liner to body

Nota
8x push clips, 7x fan clips
Remove RH rear wheel liner
Disconnect RH side subframe harness connector

Nota
1x connector, Release locking tab
Disconnect RH rear EBP harness from rear main body harness

Nota
1x connector, Release locking tab
Remove RH body harness clips around RH subwoofer area

Nota
2x harness clips2x connector bracket
Lower vehicle partially and set lift onto locks

Nota
Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height
Push grommet through RH side trunk bulkhead and feed harness through

Nota
1x grommet, Bulkhead around rear portion RH wheel liner area
Remove RH body wiring harness from vehicle
Position RH body harness to vehicle for installation

Nota
Layout the position and direction of the new wiring harness on the vehicle for installation
Push rear subframe portion of RH body harness through RH side trunk bulkhead

Nota
Check if the seal is in place after installation
Install RH body harness clips around RH subwoofer area

Nota
2x harness clips2x connector bracket
Connect RH rear EPB harness to rear main body harness

Nota
1x connector, Engage locking tab
Connect RH side subframe harness connector

Nota
1x connector
Raise the vehicle to a comfortable working height, and lower the lift onto locks.

PRECAUCIÓN

Make sure there is an audible click of the locks on both sides before lowering, otherwise the vehicle may tilt to one side.

Make sure that the doors are clear of surrounding objects.
Position the RH rear wheel liner for installation
Install the clips securing RH rear wheel liner

Nota
8x push clips, 7x fan clips
Install RH rear wheel

Nota
5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool
Lower vehicle fully

Nota
Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
Remove lift arms from below vehicle

Nota
Lower rack arms fully and remove them from under vehicle
Torque RH rear wheel

Nota
5x nuts, 21mm, 175 Nm
Push vehicle away from lift

Nota
Recommend assistance, Note this vehicle can only be safely pushed for a very short distance and at very slow speed, Chock wheels.
Place wheel chocks to keep vehicle from moving
Connect connector on rear RH audio amplifier

Nota
3x connectors
Install RH body harness clips around RH side of trunk area

Nota
1x connector bracket3x harness clips
Install ground strap of body harness in RH area of the trunk

Nota
1x bolt, 10mm, 10 Nm
Connect RH power strut connector

Nota
1x connector
Install RH body harness clips around the upper C-pillar area

Nota
10x clips
Connect LH and RH parcel shelf speaker

Nota
2x connectors
Install trunk harness connectors bracket under package tray area

Nota
2x connector bracket
Connect the trunk harness connectors under package tray area

Nota
2x connectors
Connect RH antenna filter harness connector to RH connector to antenna grid
Connect harness connector for RH side curtain airbag

Nota
1x connector,Press the connector. When the connector is fully seated, you will hear the click sound of the secondary locking pin returning
Connect RH 2nd row seat belt retractor connector

Nota
1x connector, 2 stage locking connectors, Press the connector. When the connector is fully seated, you will hear the click sound of the secondary locking pin returning
Install RH body harness clips around lower C-pillar area

Nota
6x clips
Secure RH rear right seatbelt buckle harness to vehicle body

Nota
2x clips
Connect RH rear seat belt buckle connector

Nota
1x connector
Connect 40 seat back heater harness

Nota
1x connector
Install positive LV output

Nota
1x nut, 13mm, 9 Nm, Make sure rubber boot is not pinched between cable terminal and pass through
Install positive LV output cover to PCS cable

Nota
1x cover
Remove logic cap and connect HVC logic connector

Nota
1x connector, 1x cap, Align connector then pull the handle to locking position get connector fully seated
Install the RH body harness clips to B-pillar area

Nota
7x clips
Connect RH body harness to TCU connector

Nota
2x connector
Secure RH upper B-pillar bracket to body

Nota
2x bolts 10mm2.5 Nm
Install the RH body harness ground strap around lower B-pillar

Nota
1x bolt, 10mm, 10 Nm
Connect B-pillar camera and RH antenna connector

Nota
2x connectors, Secure red locking tab after installing connector
Secure RH B-pillar applique to vehicle

Nota
1x clip, 2x tabs, Align B-Pillar applique into position and secure clips into body, Use caution not to damage the connectors
Install bolts securing RH B-pillar applique to body

Nota
2x bolts, 8mm, 5 Nm
Install RH B-pillar applique fasteners cover

Nota
4x clips, 1x tab, Slide tab into body first, then engage clips
Install clip securing the RH rear main carpet to vehicle

Nota
1x clip
Install RH body harness clips from B-pillar area

Nota
3x clips
Connect RH body harness connector to RH rear door harness connector B-pillar area

Nota
1x connector
Connect RH B-pillar impact accelerometer sensor connector

Nota
1x connector
Make connections to RH retractor

Nota
2x connectors,Press the connector. When the connector is fully seated, you will hear the click sound of the secondary locking pin returning Installing connector, place retriever in B-pillar
Install bolt securing RH retractor to base of B-pillar

Nota
1x patch bolt, 15mm, 40 Nm, Install new patch bolt
Install harness retaining bracket to RH B pillar body

Nota
1x connector bracket
Connect the LH harness connectors around RH lower B-pillar area

Nota
3x connectors， Connect the connector and push in the red locking tab
Install RH body harness clips along RH front sill area

Nota
1x clip
Install clips securing LH seat harness to sill trim

Nota
5x clips, Tuck excess harness between harness bracket and body
Connect connectors from harness clip at RH lower A-pillar area

Nota
3x connectors
Secure harness clip to RH body controller

Nota
1x clip
Connect connector to the right body harness

Nota
1x connector
Unfold RH front main cabin carpet back to original position

Nota
1x clip
Connect DCDC positive cable to right body harness

Nota
1x connector,1x clip Connect the connector and push in the red locking tab
Connect J4 connector to RH body controller

Nota
1x connector, J4, Fully seat connector then engage lock
Connect J2 connector to RH body controller

Nota
1x connector, J2, Fully seat connector then engage lock
Connect J5 connector to RH body controller

Nota
1x connector, J5
Connect J12 connector to RH body controller

Nota
1x connector, J12
Connect seat connector to RH body controller

Nota
1x connector, 1x locking tab, J9
Install RH body controller

Nota
1x W clip, Maneuver right body controller into position under IP carrier and align the W clip with body cut out, Then slide down controller to secure
Install the nut securing the right controller to body

Nota
1x nyloc nut, 10mm, 6 Nm, Install new nyloc nut
Secure RH body harness to RH body controller and A-pillar

Nota
3x clips
Connect connectors to car computer

Nota
4x connector
Instal harness connectors on left side of car computer

Nota
3x connectors. Install the plug in place and lock the locking tab
Install harness clips from left of car computer

Nota
1x clips
Install harness clips from lower of car computer

Nota
2x clips
Install RH trunk side trim
Connect RH trunk task light connector

Nota
1x connector
Install clips for RH trunk side trim

Nota
2x clips
Install trunk garnish assembly

Nota
6x clips, 4x locating tabs, Align locating tabs to slot, Verify trunk seal is fully seated along garnish
Install RH load floor bracket

Nota
4x clips, 2x locations
Install trunk sill trim assembly

Nota
4x clips, Align striker with center slot then 2 locators to slots then press to secure clips, Manipulate seal to overlap trim
Install load floor
Install package tray

Nota
5x tabs, 3 at the rear of panel and 2 on the sides, Slide towards rear of vehicle to install
Connect package tray harness connector to RH body harness

Nota
1x connector
Install package tray harness clips around upper C-pillar area

Nota
2x clips
Install rear headliner to body

Nota
4x clips, 2x locator pins,Align the locating pin of the roof liner with the slot, and then push in the direction of the arrow to install the clip, ensuring that the seal overlaps with the trim
Install LH coat hook screw

Nota
1x screw, T25, 2.5 Nm
Close LH coat hook screw cover

Nota
2x securing tabs
Install tether hook onto LH side rail assembly

Nota
2x tether hooks, Install new tether hook
Install LH side rail assembly

Nota
4x clips, 2x locations, 2x tether hooks, Align the clips from bottom to top then press clips from top to bottom, Align the seal to sit on top of the trim
Install LH upper B-pillar

Nota
3x clips,3x locator pins, Lower the seat belt slider to align it with the B-pillar panel, align the locating pin of the B-pillar upper trim panel with the slot, push in the direction of the arrow to install the clips after aligning them, Make sure the seal sits overlapping the trim
Install LH middle B-pillar assembly

Nota
5x clips, 3x locator clips,Align the locator clips to slot, Then push in the direction of the arrow to install the clips after aligning them, Make sure the seal sits overlapping the trim
Install LH lower B-pillar assembly

Nota
7x clips, 4x locator clips, Align the locator clips to slot, Then push in the direction of the arrow to install the clips after aligning them, Make sure the seal sits overlapping the trim
Install LH C pillar assembly to body

Nota
3x clips, 3x tabs, Slide the back tabs into package tray then align clips
Install bolster plastic bracket to LH side bolster

Nota
2x tabs, Install new bolster bracket
Install LH side bolster

Nota
1x locator clip, 3x guide tabs, Align the bottom and side tabs then push inward to install
Return 2nd row 60 seatback to vertical position
Install LH lower A-pillar assembly

Nota
4x clips, 2x guide tabs, Align the 2 front tabs then align the slot with harness bracket and then push rear clip to secure to lower B-pillar, Fully seat seal along trim
Install clip securing LH lower A-pillar assembly

Nota
1x push clip
Install LH IP end cap

Nota
5x clips, 2x guide tabs
Install LH front primary seal

Nota
Verify seal is seated properly on all trim panels
Install RH upper A-pillar trim

Nota
6x clips, 1x tether, 2x guide tabs,1x alignment pin, Slide bottom of trim along IP and speaker grill, attach tether to body side, Set clips starting at the bottom and work up, Pull seal over trim
Connect RH sun visor connector

Nota
1x connector
Install RH sun visor into headliner area

Nota
First push the connector and wire harness backward, then fold sun visor to the closed and folded down position but do not latch in place
Install RH sun visor fastener

Nota
1x screw, T25, 3.5 Nm
Install RH sun visor bracket cover

Nota
4x tabs
Install RH coat hook screw

Nota
1x screw, T25, 2.5 Nm
Close RH coat hook screw cover

Nota
2x clips
Push RH coat hook closed
Install the RH upper B-pillar

Nota
3x clips,3x locator pins,Lower the seat belt slider to align it with the B-pillar panel, align the locating pin of the B-pillar upper trim panel with the slot, push in the direction of the arrow to install the clips after aligning them, Make sure the seal sits overlapping the trim
Install RH middle B-pillar assembly

Nota
5x clips, 3x locator clips,Align the locator clips to slot, Then push in the direction of the arrow to install the clips after aligning them, Make sure the seal sits overlapping the trim
Install RH lower B-pillar assembly

Nota
7x clips, 5x locator clips,Align the locator clips to slot, Then push in the direction of the arrow to install the clips after aligning them, Make sure the seal sits overlapping the trim
Install RH C pillar assembly to body

Nota
3x clips, 3x tabs, Slide the back tabs into package tray then align clips
Install tether hook onto RH side rail assembly

Nota
2x tether hooks, Install new tether hook
Install RH side rail assembly

Nota
4x clips, 2x locations, 2x tether hooks, Align the clips from bottom to top then press clips from top to bottom, Align the seal to sit on top of the trim
Install bolster plastic bracket to RH side bolster

Nota
2x tabs, Install new bolster bracket
Install RH side bolster

Nota
1x locator clip, 3x guide tabs, Align the bottom and side tabs then push inward to install
Return 2nd row 40 seatback to vertical position
Connect 2nd row seat harness and secure cushion

Nota
2x clips, 2x connectors, Insert buckles through holes, Slide rear inward then align front clips, Perform push-pull-push test
Install RH lower A-pillar trim

Nota
4x clips, 2x guide tabs, Align the 2 front tabs then align the slot with harness bracket and then push rear clip to secure to lower B-pillar, Fully seat seal along trim
Install clip for RH lower A-pillar trim

Nota
1x push clip
Install RH passenger footwell duct to HVAC module
Connect glove box assembly connectors

Nota
2x connectors
Install glove box into IP carrier

Nota
10x clips, 3x locator pin, 1x datum
Install screws securing glove box assembly to IP carrier

Nota
4x screws, T20, 2.3 Nm
Connect glove box USB cable to car computer

Nota
1x connector, Engage locking tab
Install clips securing passenger footwell duct

Nota
2x push clips
Connect RH footwell cover connectors

Nota
3x connectors
Install RH footwell cover

Nota
5x clips, 1x guide tab
Install RH IP end cap

Nota
5x clips, 2x guide tabs
Connect the LV battery power. See LV Battery - Li-lon (Disconnect and Connect).
Close trunk via interior switch
Hold brake pedal and select park on UI to disable EPB service mode
Remove wheel chocks
Raise all windows
Close all four doors

Harness - Body - RH (LHD) (Remove and Replace)

Figure 1

Figure 2

Figure 3
