Shell - Seat Back - 2nd Row - RH (Remove and Replace)

Código de corrección 1308011902 FRT 0.42 NOTA: Salvo que se indique lo contrario explícitamente en el procedimiento, el código de corrección anterior y el FRT reflejan todo el trabajo necesario para realizar este procedimiento, incluidos los procedimientos vinculados. No acumule códigos de corrección a menos que se le indique explícitamente que lo haga. NOTA: Consulte Tiempos de tarifa plana (FRT) para obtener más información sobre los FRT y cómo se crean. Para enviar sus comentarios sobre los valores de FRT, escriba a ServiceManualFeedback@tesla.com. NOTA: Consulte Protección personal para asegurarse de llevar el EPI adecuado al realizar el siguiente procedimiento. NOTA: Consulte Precauciones ergonómicas para ver información sobre prácticas de trabajo seguras.

Retirar

  1. Remove the 2nd row RH seat assembly. See 2nd Row Seat 5 Seater - RH (Remove and Install).
  2. Remove the 2nd row LH height adjuster guide. See 2nd Row Headrest Guide Lock - LH (Remove and Replace).
  3. Remove the 2nd row RH height adjuster guide. See 2nd Row Height Adjuster Guide - RH (Remove and Replace).

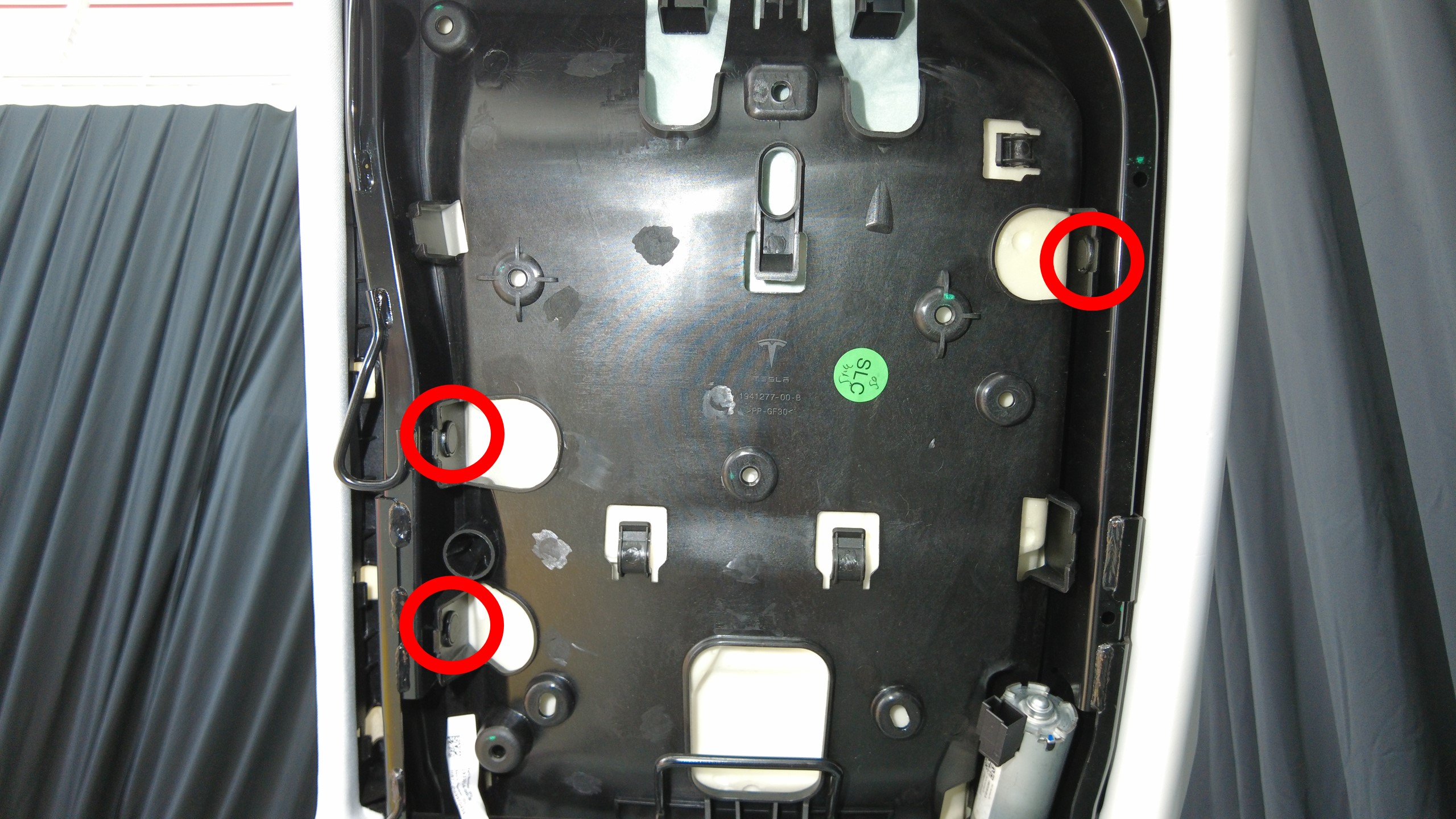

  4. Remove clips securing 2nd row 40 seatback substrate to frame.

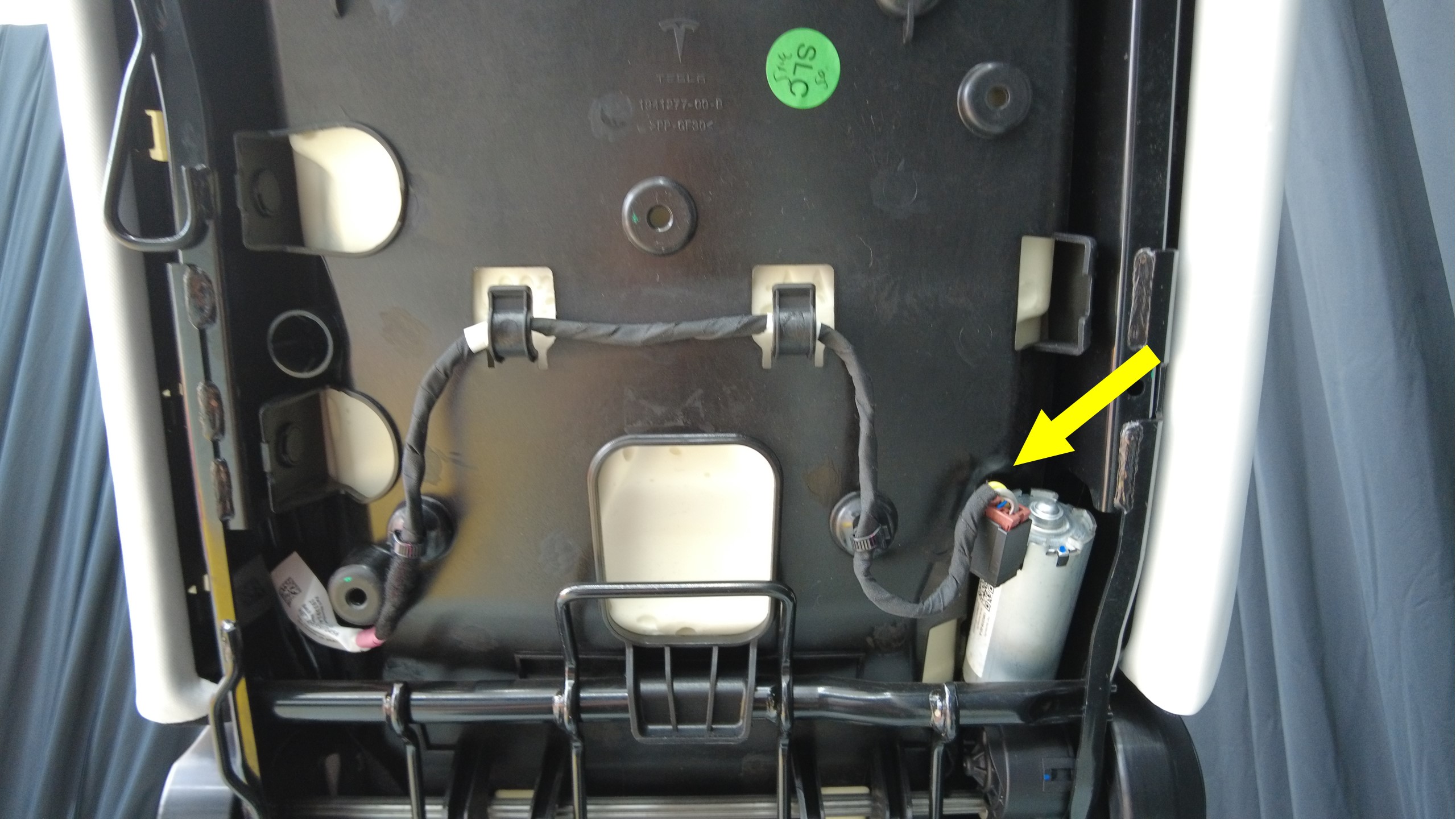

  5. Disconnect 2nd row 40 seat backrest adjustment motor connector.

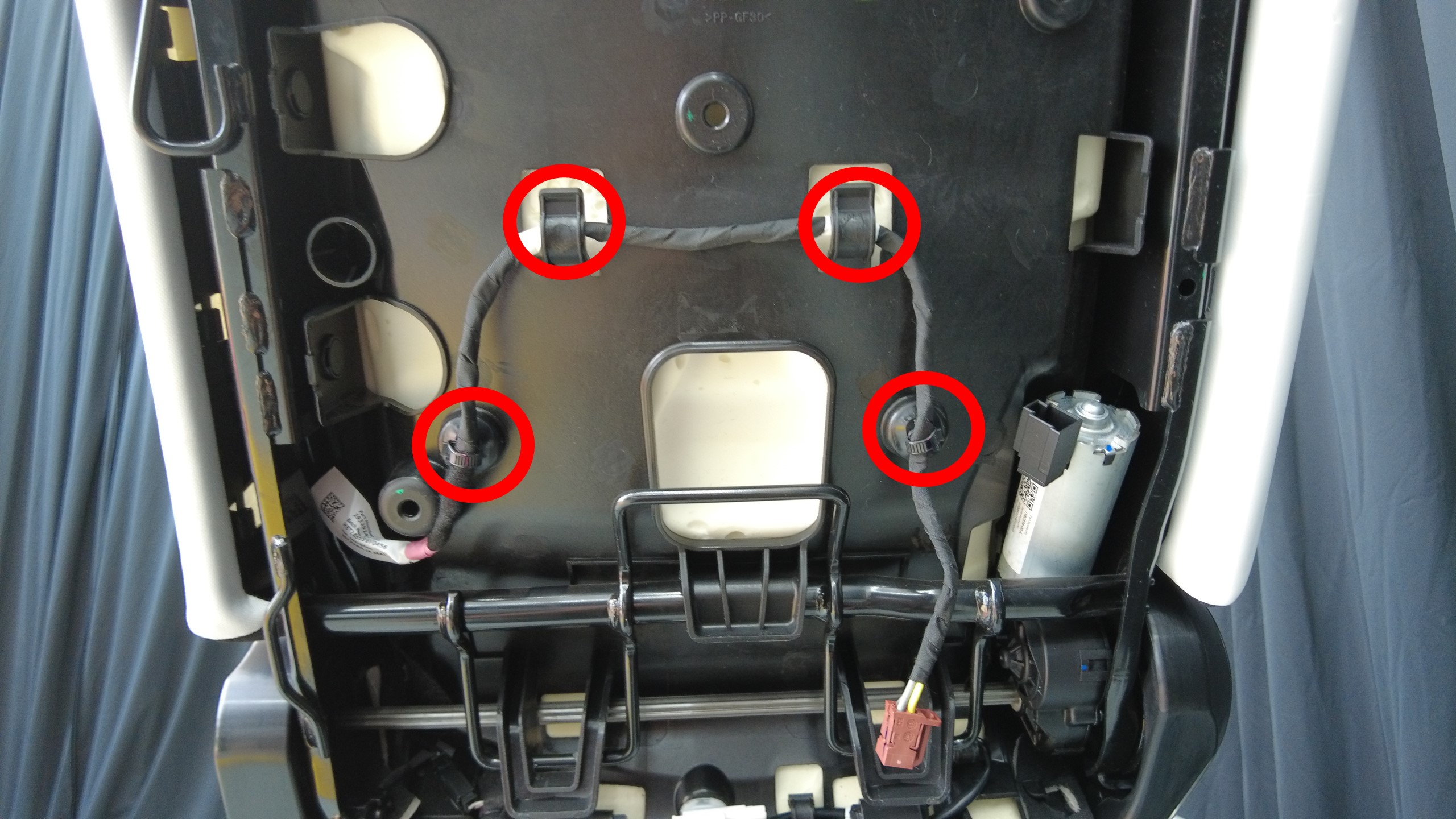

  6. Release 2nd row 40 seat backrest adjustment motor harness from substrate.

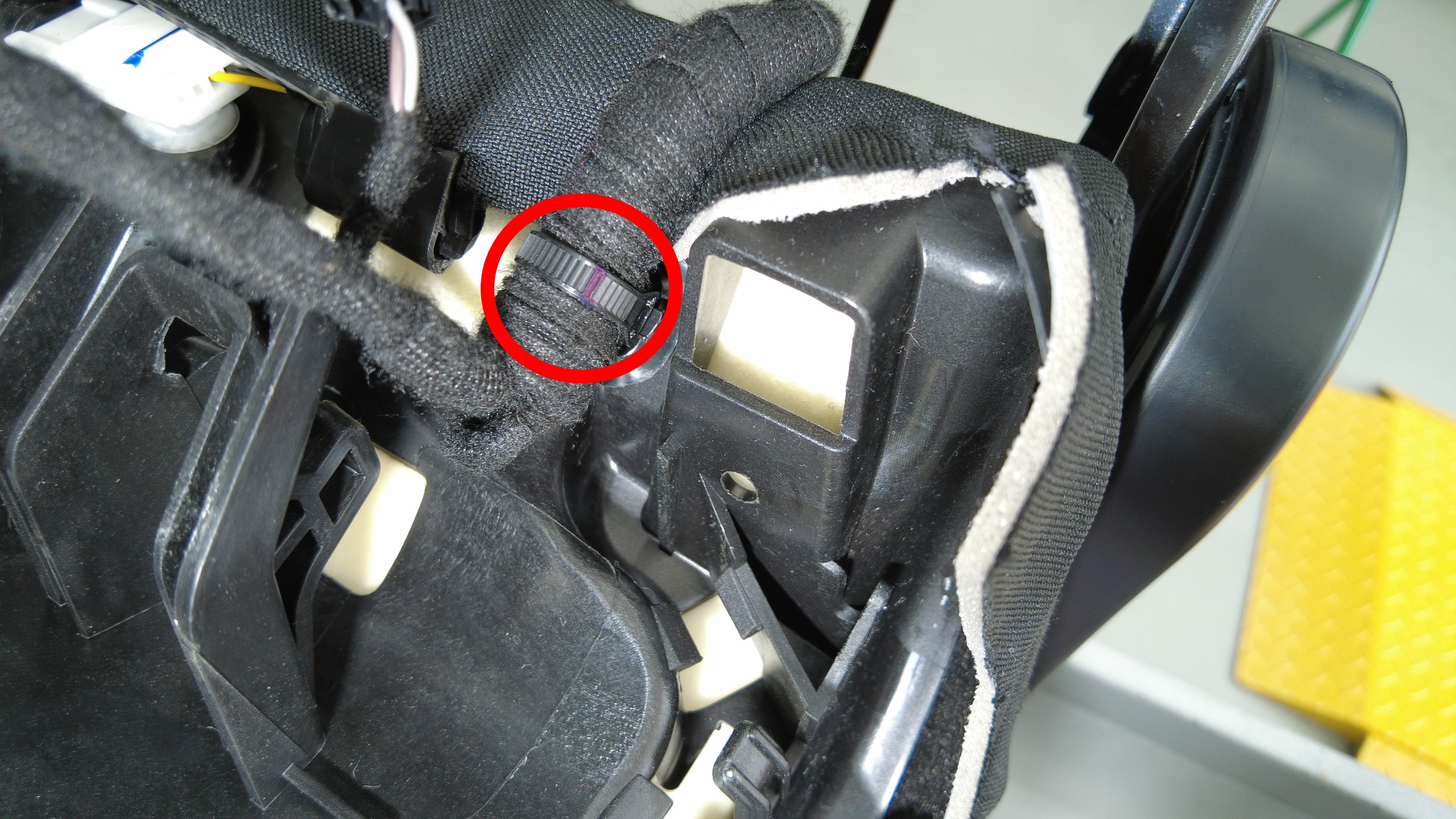

  7. Remove clip securing 2nd row 40 seat position sensor connector.

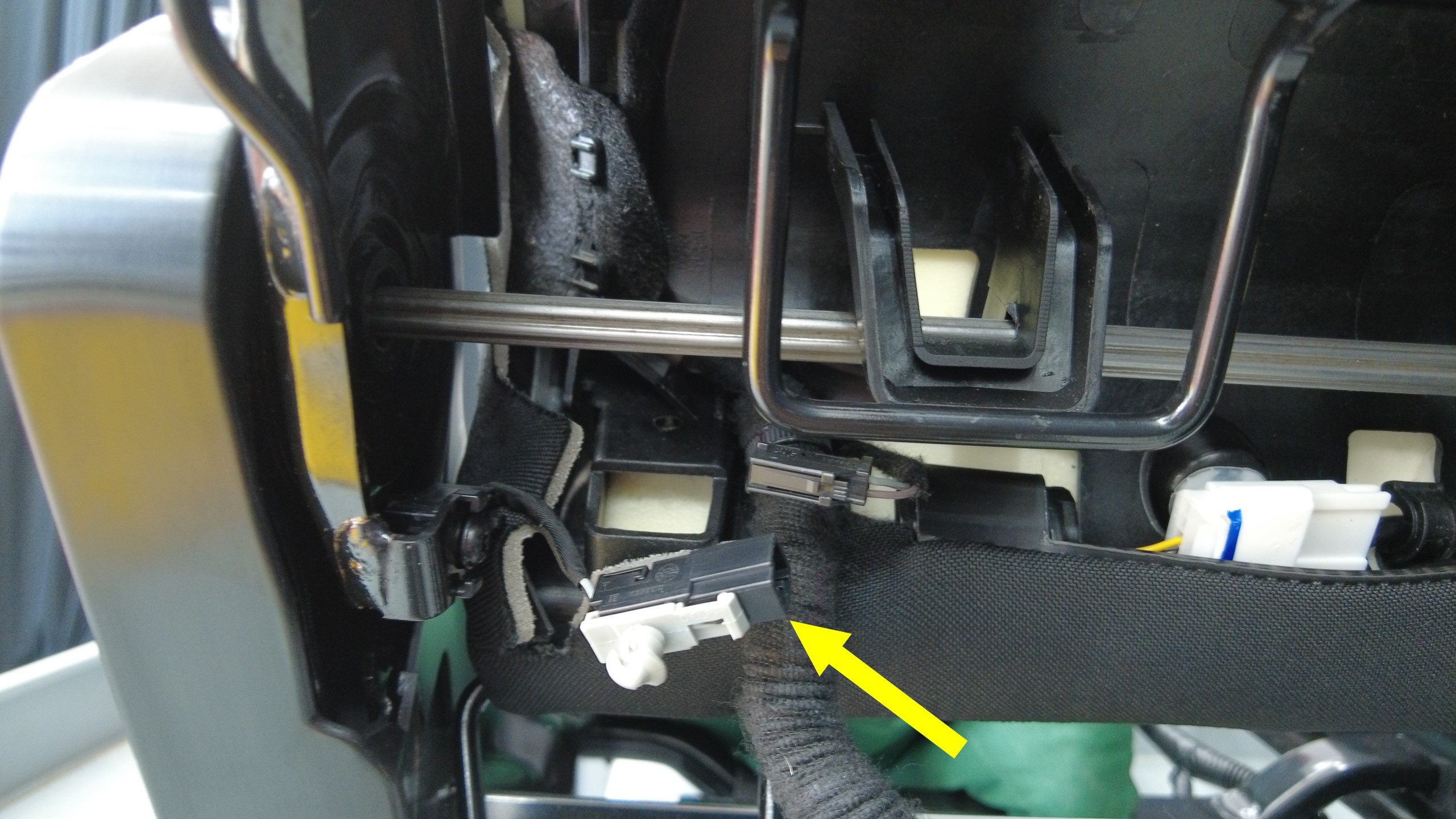

  8. Disconnect 2nd row 40 seat position sensor connector.
  9. Remove 2nd row 40 seat substrate from frame.
    Informational PurposesAn informational icon, calling your attention
    Nota

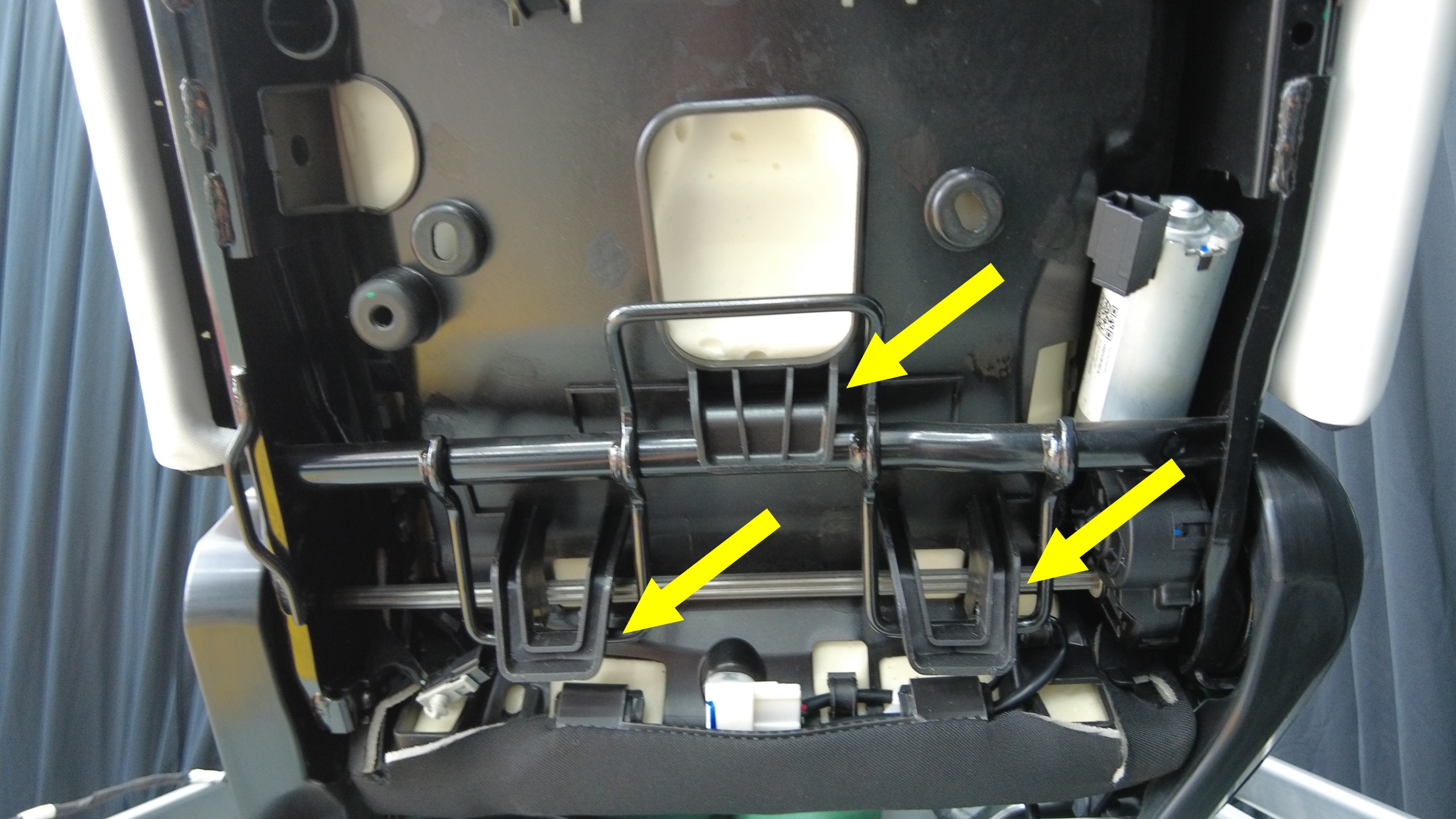

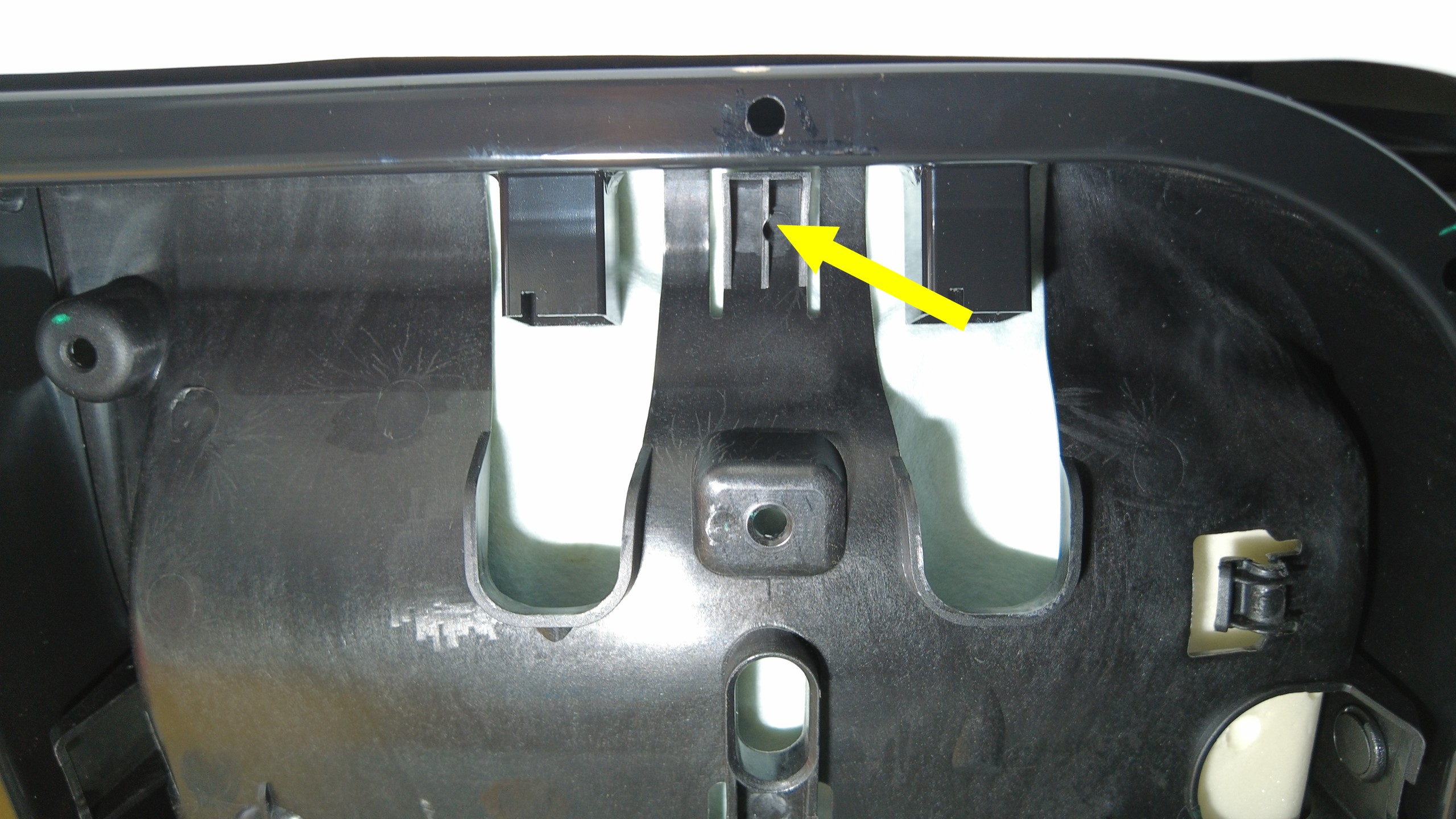

    3x hooks, 1x tab, Push tab forward, and Lift up and unhook from seat railing.

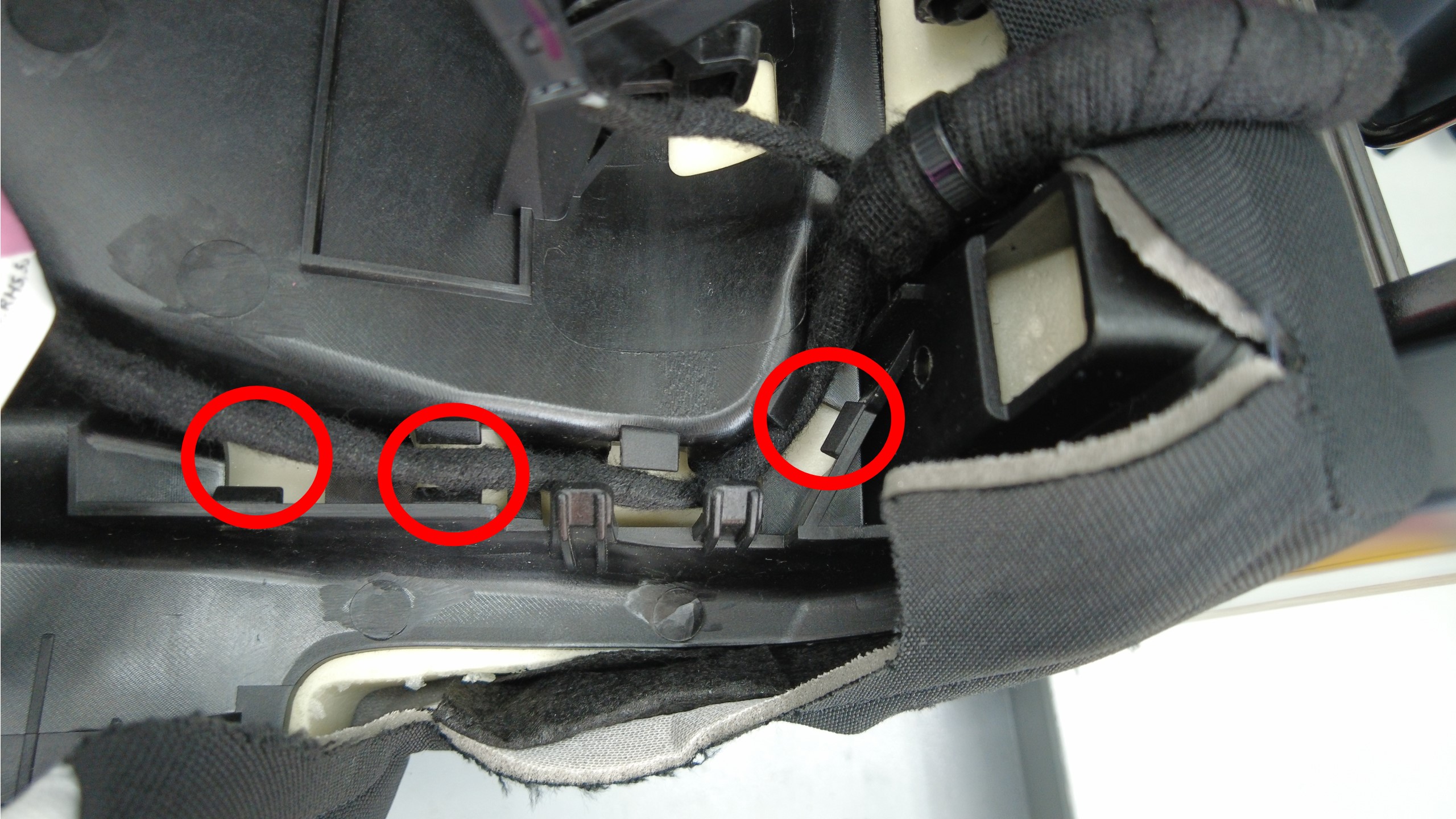

  10. Remove 2nd row 40 seatback harness from shell and pull the assembly from rail.

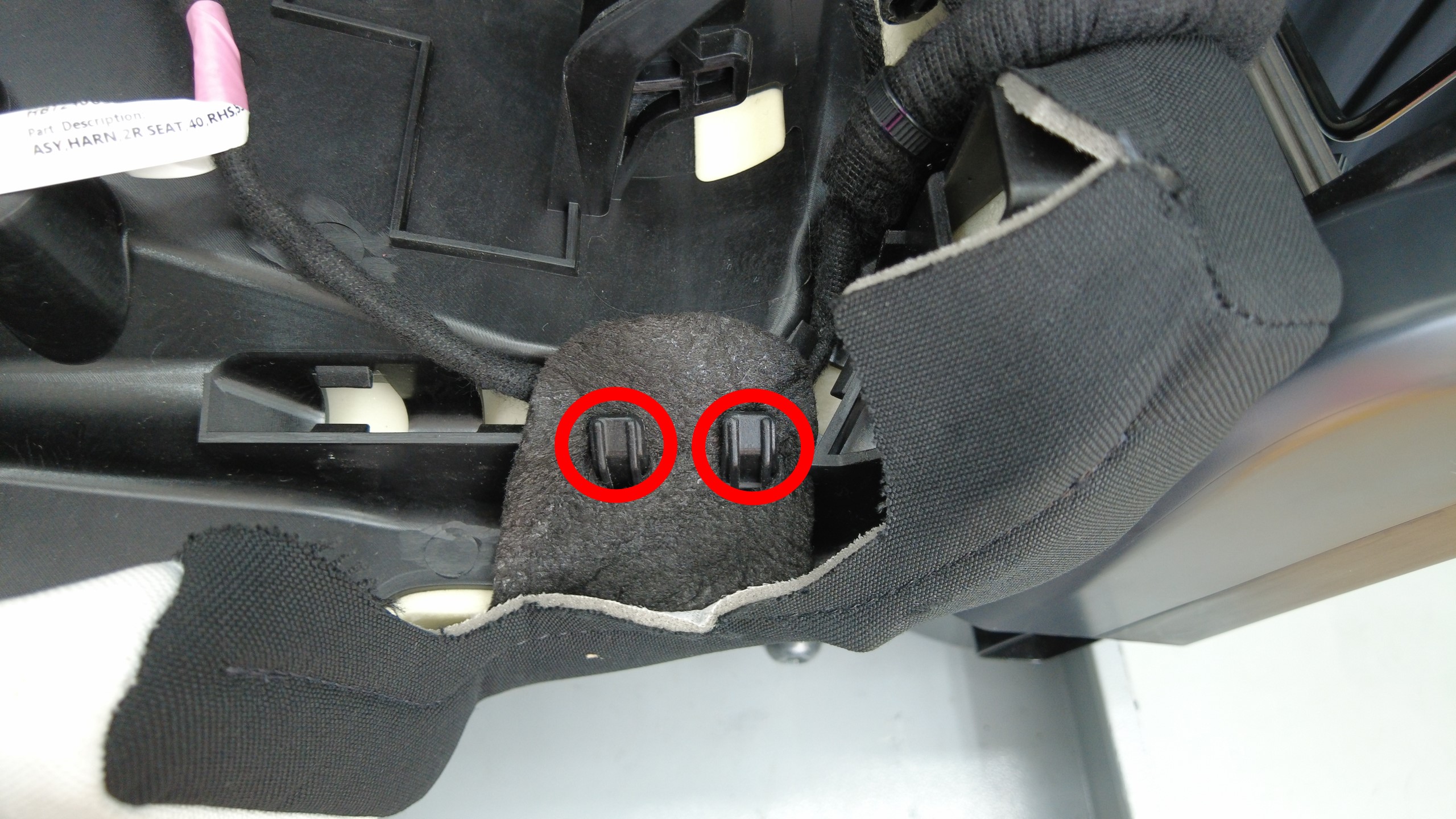

  11. Release RH seat back assembly trim flaps from RH seat back shell.
  12. Remove 40 seat back heat pad harness from RH seat back shell

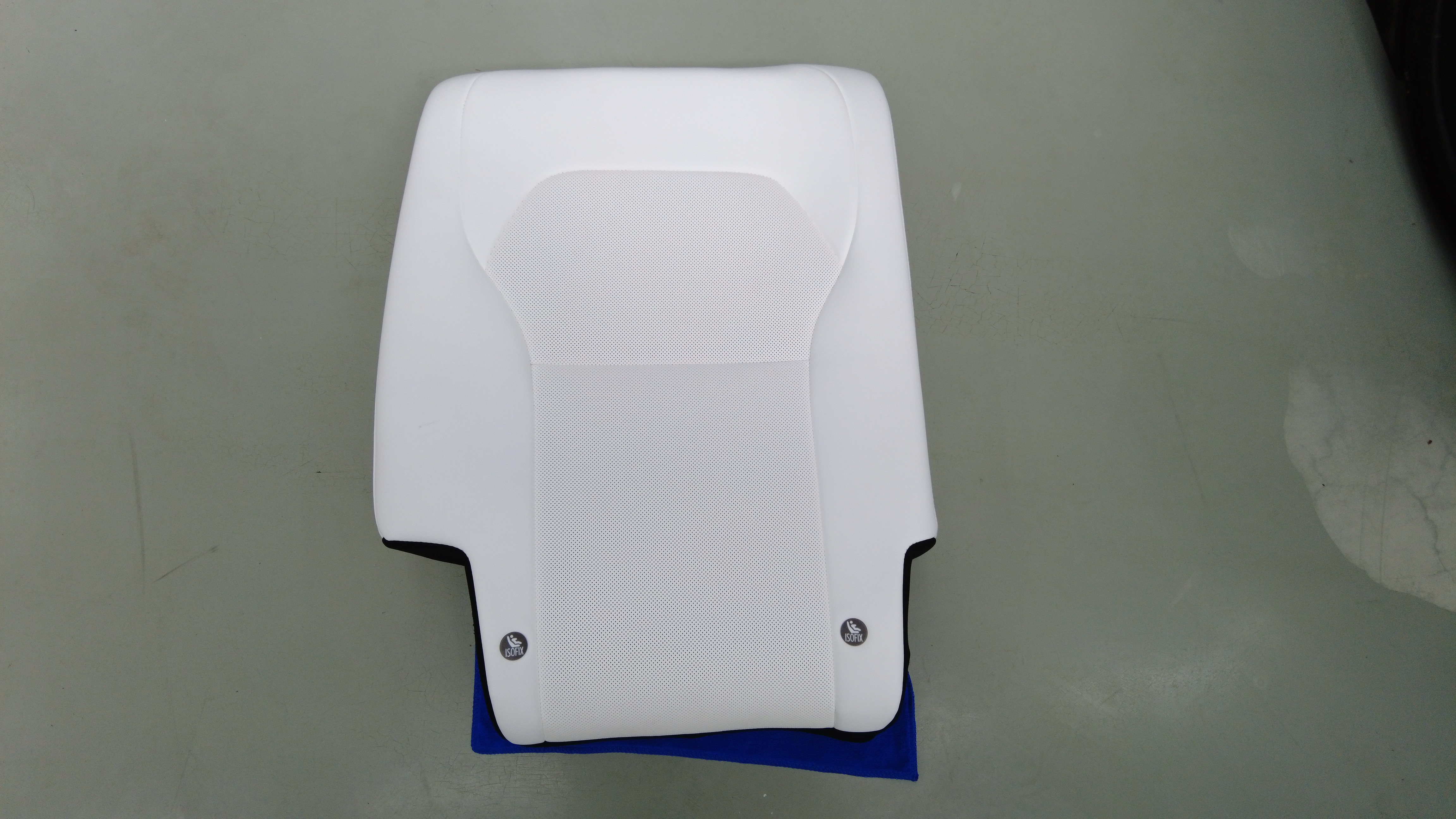

  13. Remove RH seat back shell from foam trim assembly.

Instalar

  1. Install RH seat back shell to foam trim assembly.
  2. Install 40 seat back heat pad harness to RH seat back shell
  3. Connect RH seat back assembly trim flaps to RH seat back shell.
  4. Routine 2nd row 40 seatback harness to shell and insert assembly into rail.
  5. Install 2nd row 40 seat substrate to frame.
  6. Connect 2nd row 40 seat position sensor connector.
  7. Install clip securing 2nd row 40 seat position sensor connector.
  8. Install 2nd row 40 seat backrest adjustment motor harness onto substrate.
  9. Connect 2nd row 40 seat backrest adjustment motor connector.
  10. Install clips securing 2nd row 40 seatback substrate to frame.
  11. Install the 2nd row LH height adjuster guide. See 2nd Row Headrest Guide Lock - LH (Remove and Replace).
  12. Install the 2nd row RH height adjuster guide. See 2nd Row Height Adjuster Guide - RH (Remove and Replace).
  13. Install the 2nd row RH seat assembly. See 2nd Row Seat 5 Seater - RH (Remove and Install).
