Side Shield - Outboard - Driver Seat (Remove and Replace)

Código de corrección 1307010502 FRT 0.18 NOTA: Salvo que se indique lo contrario explícitamente en el procedimiento, el código de corrección y el FRT asociado reflejan todo el trabajo necesario para realizar este procedimiento, incluidos los procedimientos vinculados. No acumule códigos de corrección a menos que se le indique explícitamente que lo haga. NOTA: Consulte Tiempos de tarifa plana para obtener más información sobre los FRT y cómo se crean. NOTA: Consulte Protección personal para asegurarse de llevar el EPI adecuado al realizar el siguiente procedimiento. NOTA: Consulte Precauciones ergonómicas para ver prácticas de trabajo seguras.

  • 2026-11-04: Added information about the tab that attaches the side shield to the front seat.
  • 2025-10-29: Added information for Performance model.
Equipment:
  • 1133787-00-A - KEY, SEAT BELT RELEASE, MODEL 3

Especificaciones de apriete

Table 1. Especificaciones de apriete: Side Shield - Outboard - Driver Seat (Remove and Replace)
Descripción Valor de apriete Herramientas recomendadas Reutilizar/Sustituir Notas
Perno que sujeta el protector lateral exterior del asiento del conductor al bastidor del asiento
5 Nm (3.7 lbs-ft)
  • Llave de carraca/dinamométrica
  • Extensión de 2 pulg.
  • Dado de 8 mm
Reutilizar
Tornillos (3 uds.) que fijan el conjunto de interruptor de 8 posiciones y de apoyo lumbar al protector exterior delantero izquierdo
0.7 Nm (6 lbs-in)
  • Broca Torx T20
  • Extensión de 2 pulg.
  • Llave de carraca/dinamométrica
Reutilizar

Retirar

  1. Open the LH doors and lower the LH windows.
  2. Move the driver's seat fully forward, and adjust the seat cushion height to maximum.
    CAUTION
    Do not allow the seat headrest to compress the sun visor as it might crack the mirror.
  3. Inserte la llave de liberación del cinturón de seguridad (1133787-00-A) en la parte inferior del acoplamiento del pretensor del cinturón de seguridad para soltar el cinturón de seguridad del pretensor.
  4. Remove the bolt that attaches the driver seat outboard side shield to the seat frame.
    Note
    Ensure the front of the seat is high enough to access the bolt.
    Tip
    Se recomienda utilizar las siguientes herramientas:
    • Llave de carraca/dinamométrica
    • Extensión de 2 pulg.
    • Dado de 8 mm
  5. Pull the driver seat outboard side shield away from the seat frame to release the clip that attaches the side shield to the front of the seat frame.
    Note
    Do not fully remove at this time to avoid damage to the trim/switch pack/harness.
  6. Pull the driver seat outboard side shield away from the seat frame to release the clips (x3) that attach the side shield to the upper part of the seat frame.
    CAUTION
    Do not fully remove at this time to avoid damage to the trim/switch pack/harness.
    Note
    Remove the lower clips first, and then remove the upper positioning clip.

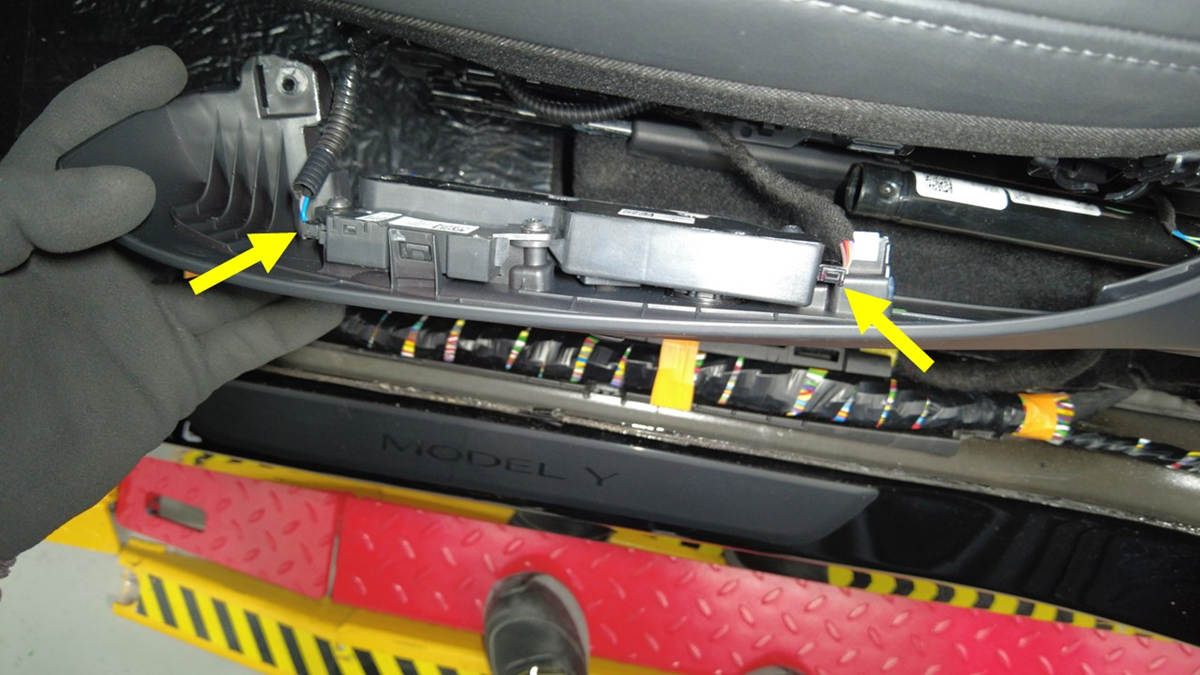

  7. Disconnect the electrical harness from the backrest and cushion adjust switch connector and the thigh extension switch on Performance models.
    Figure 1. Model Y Premium
    Figure 2. Model Y Performance
  8. Pull the rear of the outboard side shield outward and then upward to release the clips (x5) that attach the driver seat outboard side shield to the vehicle.

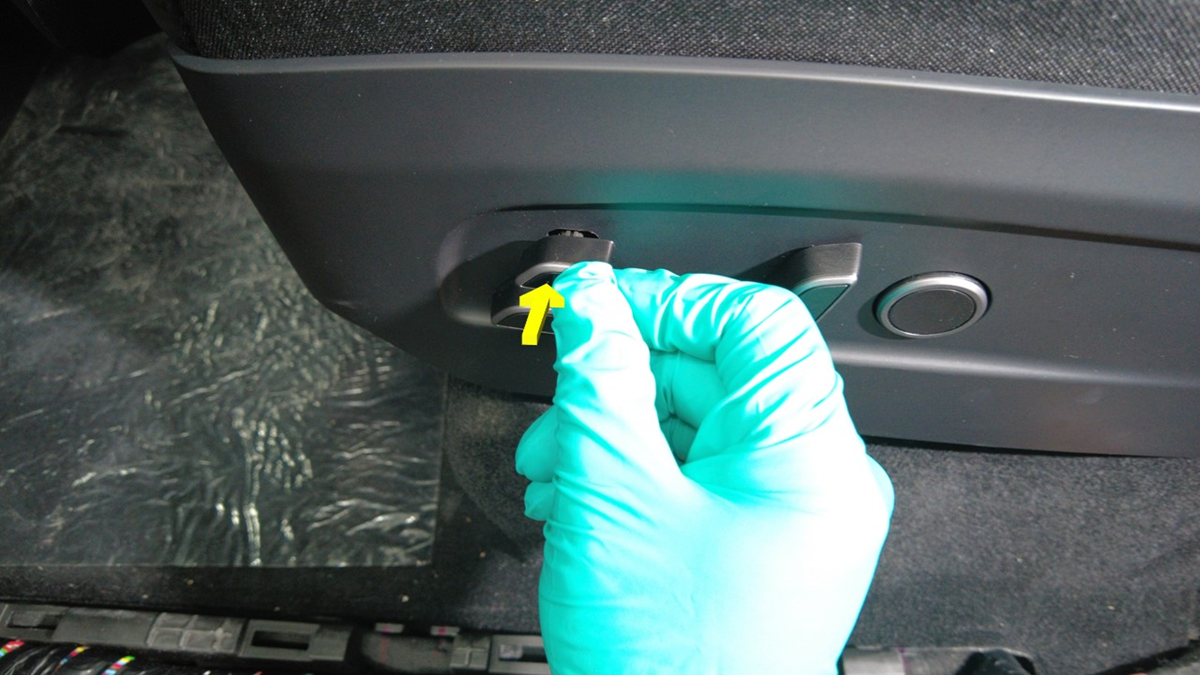

  9. Performance models only: remove the thigh extension switch button.
    CAUTION
    Make sure that the trim and the switch are not damaged during removal.
    Figure 3. Model Y Performance

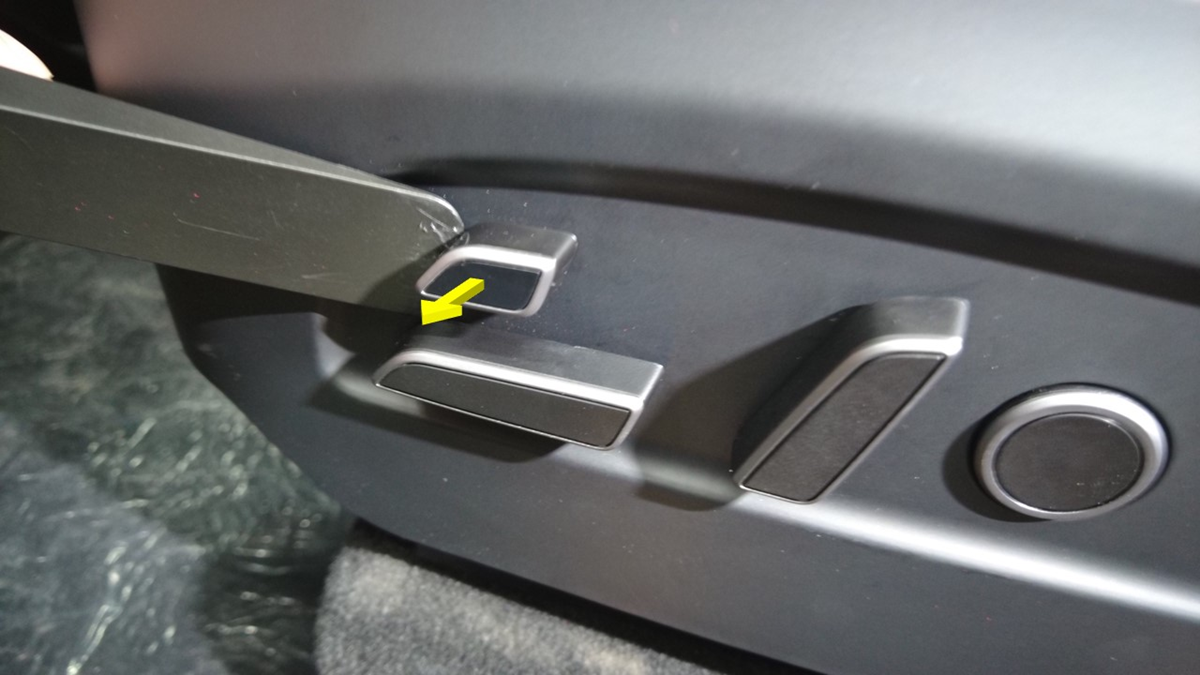

  10. Remove the clips (x5) that attach the seat cushion button switch and the recliner button switch to the driver seat outboard shield.
    CAUTION
    Make sure that the trim and the switch are not damaged during removal.

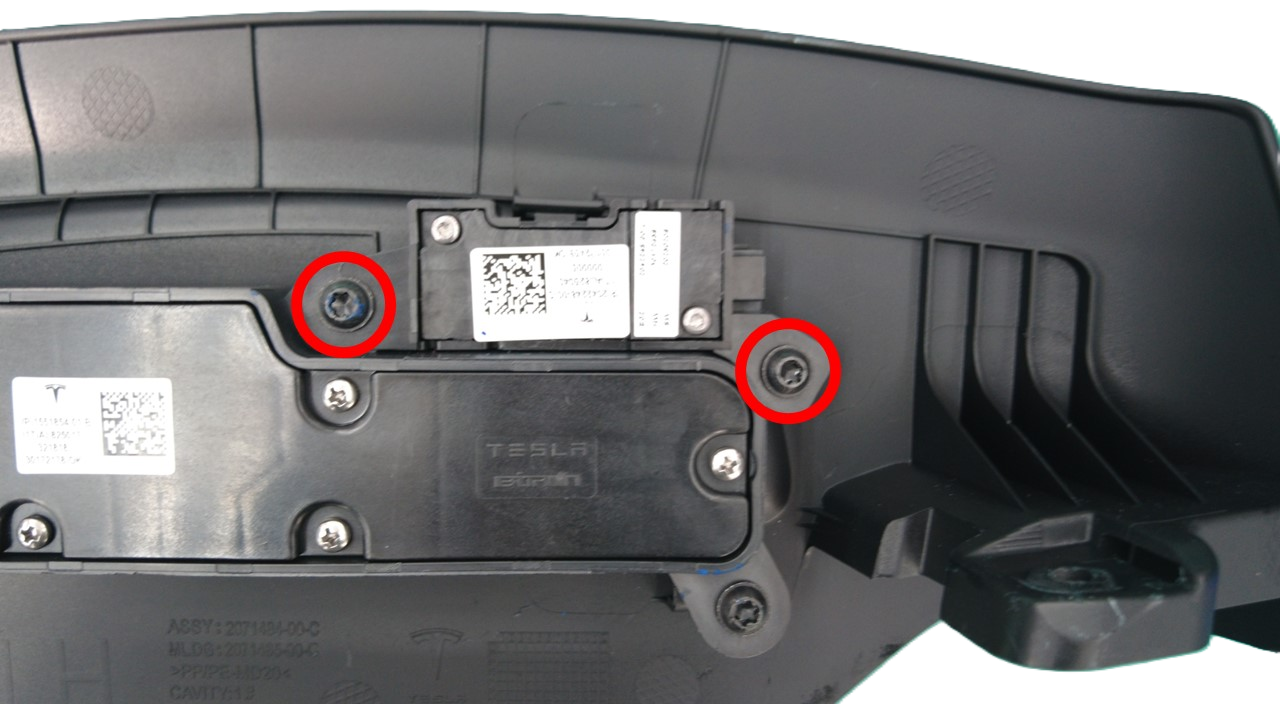

  11. Performance models only: remove the screws (x2) that attach the thigh extension switch to the driver seat outboard side shield.
  12. Remove the screws (x2 or x3) that attach the 8 way and lumbar switch assembly to the driver seat outboard side shield.
    Tip
    Se recomienda utilizar las siguientes herramientas:
    • Broca Torx T20
    • Extensión de 2 pulg.
    • Llave de carraca/dinamométrica

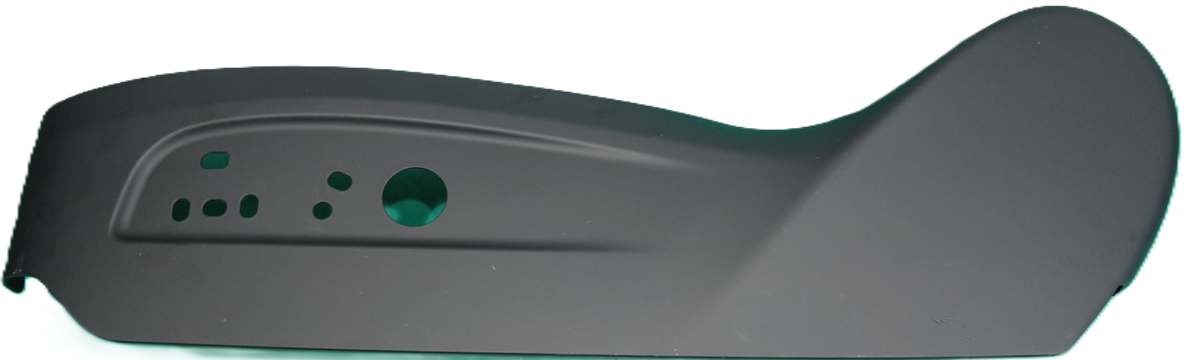

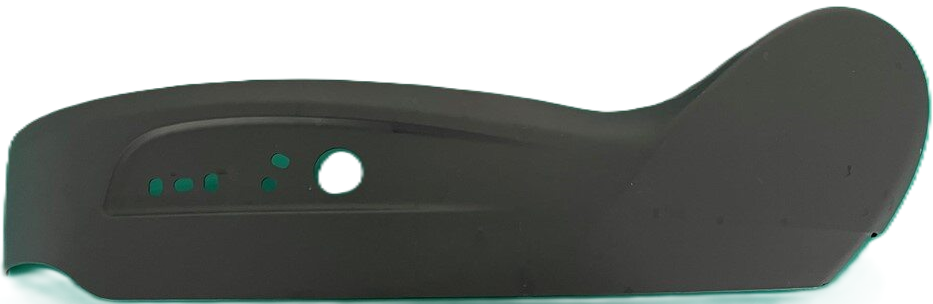

  13. Remove the driver seat outboard side shield.
    Figure 4. Model Y Premium
    Figure 5. Model Y Performance

Instalar

  1. Install the screws (x2 or x3) that attach the 8 way and lumbar switch assembly to the LH front outboard side shield.
    0.7 Nm (6 lbs-in)
    Tip
    Se recomienda utilizar las siguientes herramientas:
    • Broca Torx T20
    • Extensión de 2 pulg.
    • Llave de carraca/dinamométrica
  2. Performance models only: install the screws (x2) that attach the thigh extension switch to the driver seat outboard side shield.
    0.7 Nm (6 lbs-in)
    Tip
    Se recomienda utilizar las siguientes herramientas:
    • Broca Torx T20
    • Extensión de 2 pulg.
    • Llave de carraca/dinamométrica
  3. Install the clips (x5) that attach the seat cushion button switch and the recliner button switch to the driver seat outboard side shield.
  4. Performance models only: install the thigh extension switch button.
  5. Align the side shield with the contour of the seatback, and then apply light pressure to the rear of the side shield to seat it fully on the seat frame.
  6. Connect the electrical harness to the backrest and cushion adjust switch connector.
    Figure 6. Model Y Premium
    Figure 7. Model Y Performance
  7. Install the clips (x3) that attach the side shield to the upper part of the seat frame.
    Note
    Install the upper positioning clip first, and then install the lower clips.
    Note
    Ensure the trim and the switch are not damaged.
  8. Push inward to secure the outboard side shield assembly tab to the front seat assembly, and then install the bolt that attaches the driver seat outboard side shield to the seat frame.
    5 Nm (3.7 lbs-ft)
    CAUTION
    Carefully push the outboard side shield assembly to avoid damage.
    Tip
    Se recomienda utilizar las siguientes herramientas:
    • Llave de carraca/dinamométrica
    • Extensión de 2 pulg.
    • Dado de 8 mm
  9. Move the driver seat to original position.
  10. Insert the seat belt retractor to the driver seat pretensioner, and perform a push-pull-push test to make sure it is fully secured.
  11. Raise the LH windows and close the LH doors.
