Umbrella Valve - Set (Remove and Replace)

Código de corrección 16102742 0.66 NOTA: Salvo que se indique lo contrario explícitamente en el procedimiento, el código de corrección anterior y el FRT reflejan todo el trabajo necesario para realizar este procedimiento, incluidos los procedimientos vinculados. No acumule códigos de corrección a menos que se le indique explícitamente que lo haga. NOTA: Consulte Tiempos de tarifa plana para obtener más información sobre los FRT y cómo se crean. Para enviar sus comentarios sobre los valores de FRT, escriba a ServiceManualFeedback@tesla.com. NOTA: Consulte Protección personal para asegurarse de llevar el EPI adecuado al realizar el siguiente procedimiento.

Warning IconA warning icon, calling your attention to a possibly risky situation
Aviso
Este procedimiento están en fase PRELIMINAR. Aunque se ha validado, es posible que falten advertencias y precauciones. Siga los requisitos de seguridad y tenga mucho cuidado cuando trabaje en sistemas y componentes de alta tensión o cerca de ellos. Envíe sus correcciones y comentarios a ServiceDevelopment@teslamotors.com.
  • 2025-05-12: Released new procedure.

Retirar

  1. Open the front doors and lower the front windows.
  2. Open the RH rear door.
  3. Remove the RH rocker panel molding. See Moldura - Panel del estribo - Lado izquierdo (Desinstalación y sustitución).
  4. Raise and support the vehicle. See Elevación del vehículo - Elevador de 2 columnas.
  5. Remove the mid aero shield panel. See Panel - Deflector aerodinámico - Parte trasera (Desinstalación y sustitución).

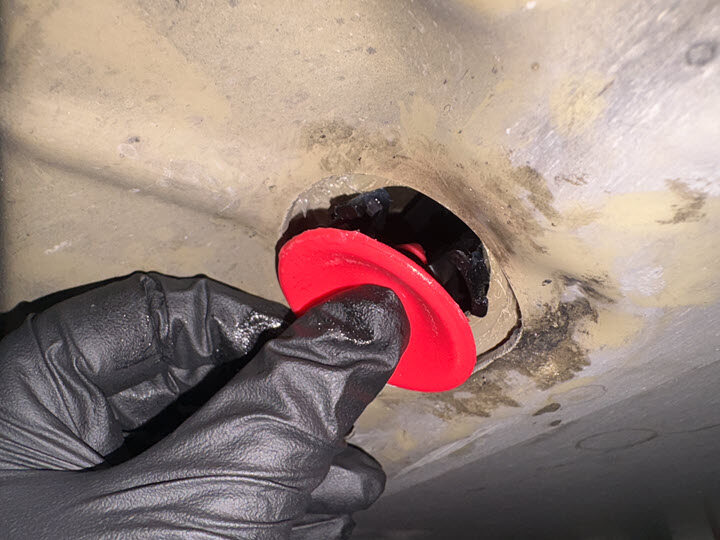

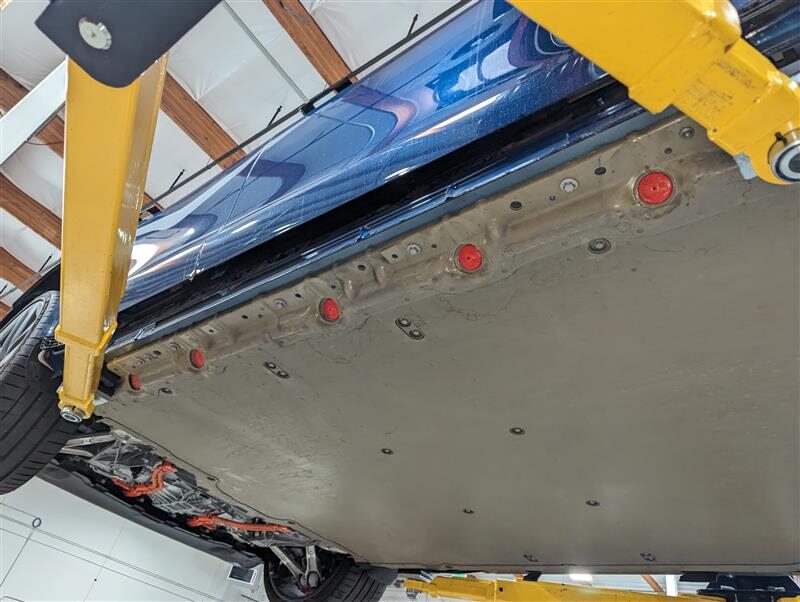

  6. Remove the umbrella valves (x5) from the RH side of the HV battery.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Aviso
    If liquid is observed leaking from the valve during removal, immediately halt the procedure and consult Toolbox article 5401800 for further instructions.
    Informational PurposesAn informational icon, calling your attention
    Nota

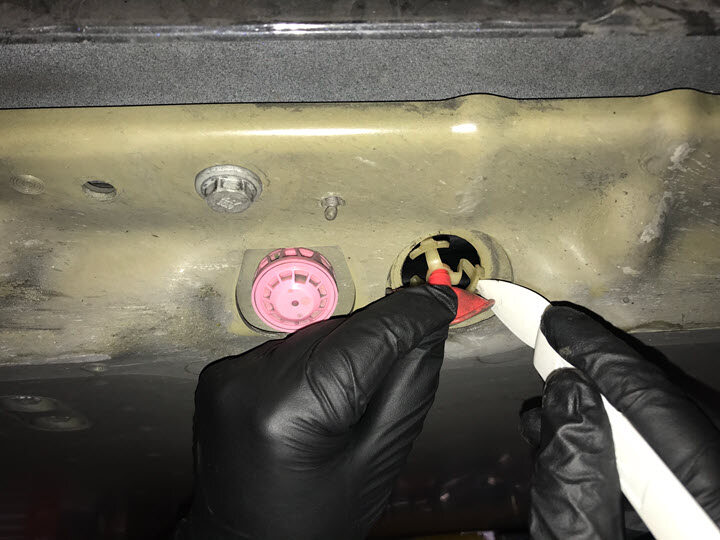

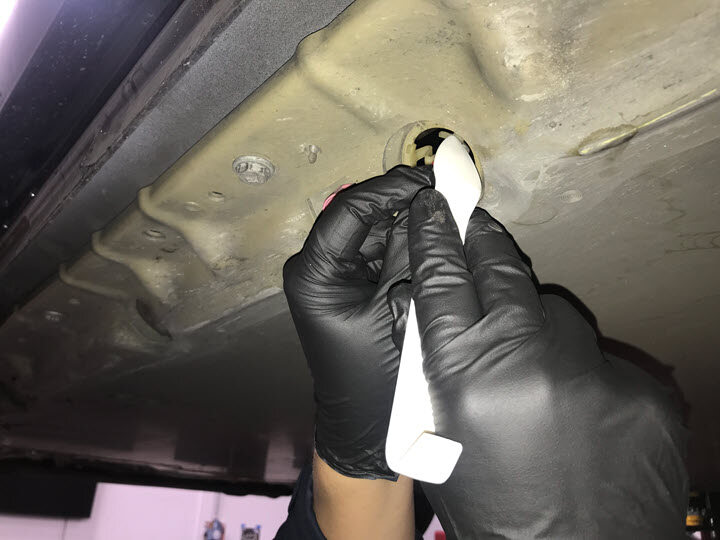

    Use a plastic trim tool to unlock the umbrella valve clips from the thermal vent.

Instalar

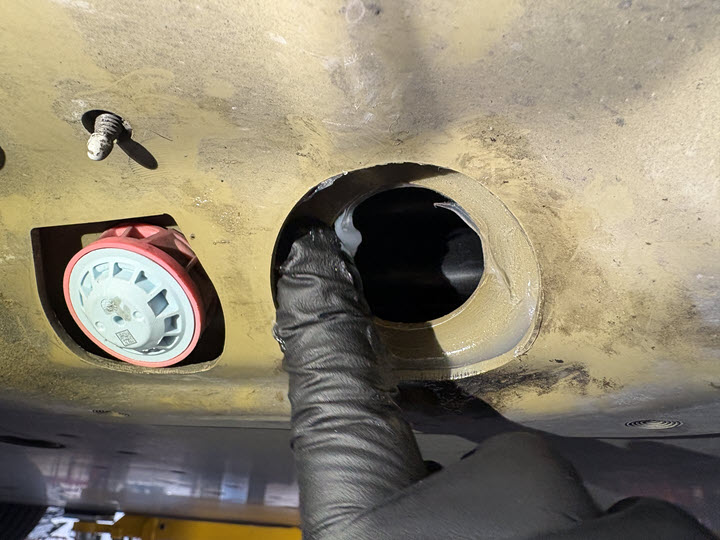

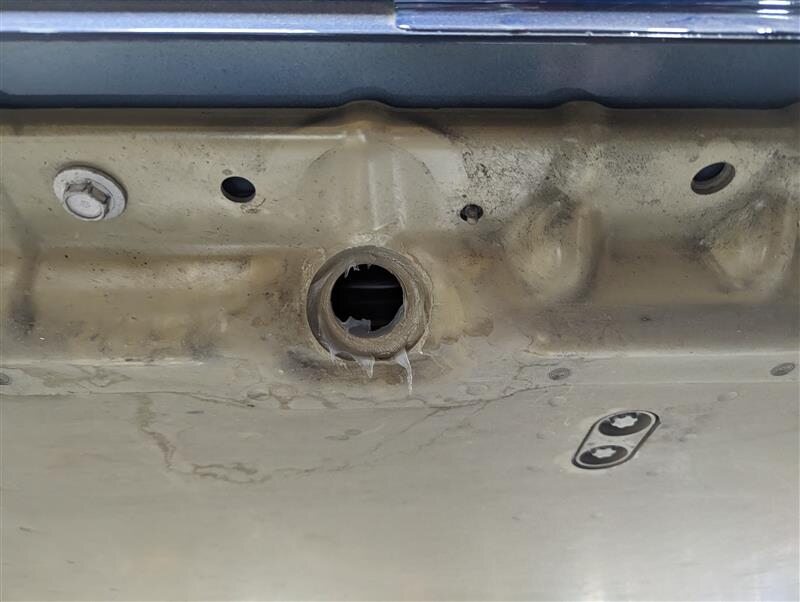

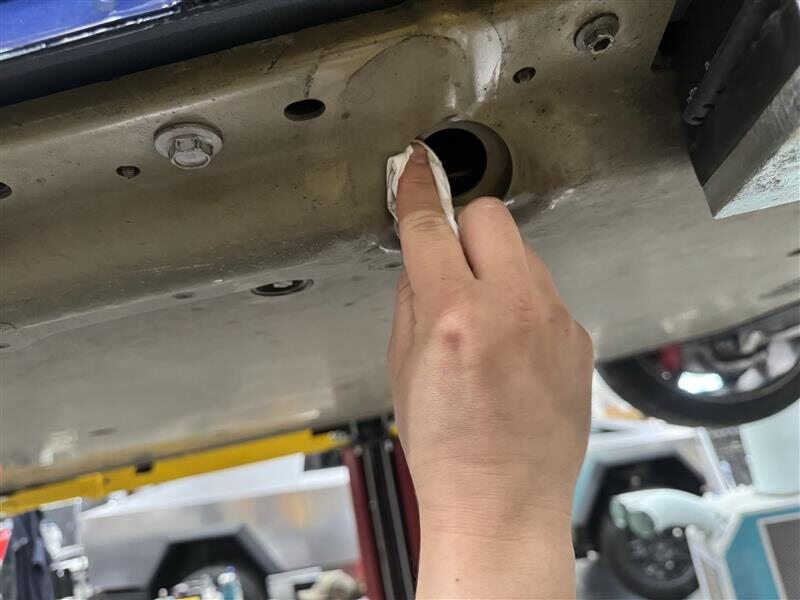

  1. Use IPA wipes to thoroughly clean the thermal vent openings (x5).
    Warning IconA warning icon, calling your attention to a possibly risky situation
    PRECAUCIÓN
    Make sure no dirt or debris enters the HV battery enclosure during cleaning.
    Informational PurposesAn informational icon, calling your attention
    Nota
    Remove any debris that may have built up. Allow 1 minute of dry time.

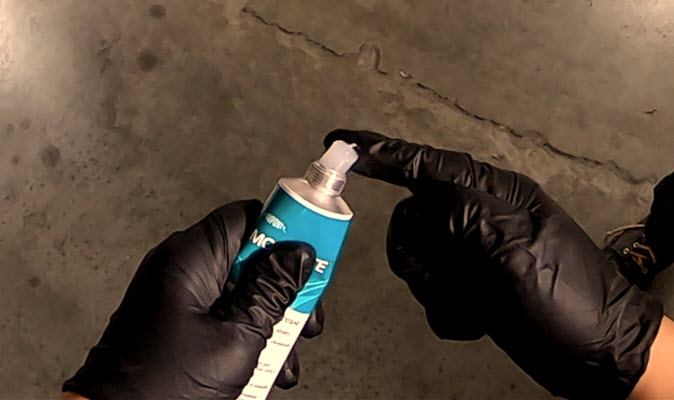

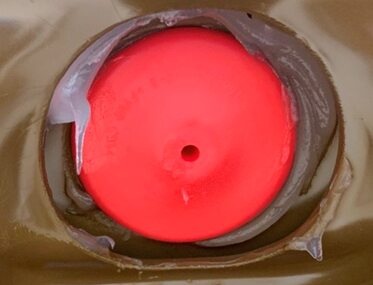

  2. Use a gloved finger to apply grease (PN: 1024173-00-A) around the perimeter of each thermal vent opening (x5).
    Warning IconA warning icon, calling your attention to a possibly risky situation
    PRECAUCIÓN

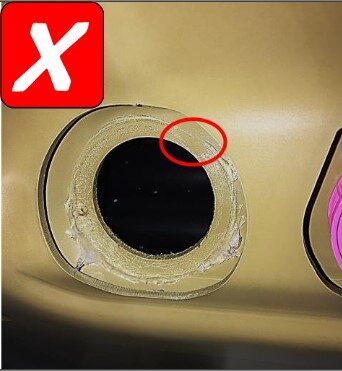

    Make sure that there are no empty gaps in the grease application.

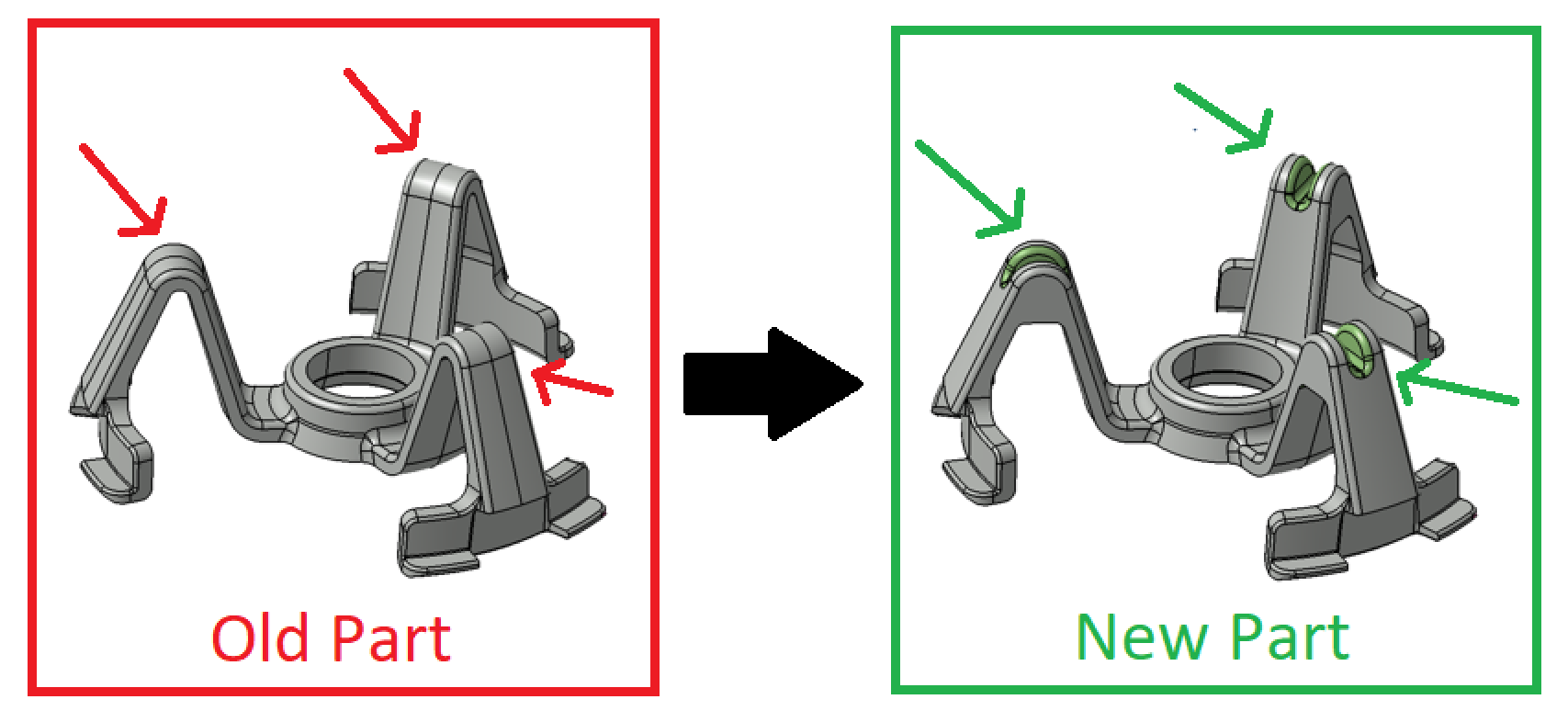

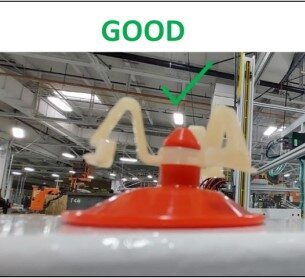

  3. Make sure to only use new umbrella valves. Refer to image for how to identify new parts.
  4. Inspect the new umbrella valves for proper assembly.
    Informational PurposesAn informational icon, calling your attention
    Nota
    Reject any incorrectly assembled parts. Only use reworked parts if they match the “Good” requirements. To check if the thermal vent is properly pre-assembled, rotate the umbrella around the clamp. If it rotates smoothly without any resistance, the installation is correct. If there is any resistance, even slight, the installation is incorrect. To fix it, push the umbrella more firmly onto the clamp.
  5. Install the new umbrella valves (x5) into the HV Battery.
    Informational PurposesAn informational icon, calling your attention
    Nota

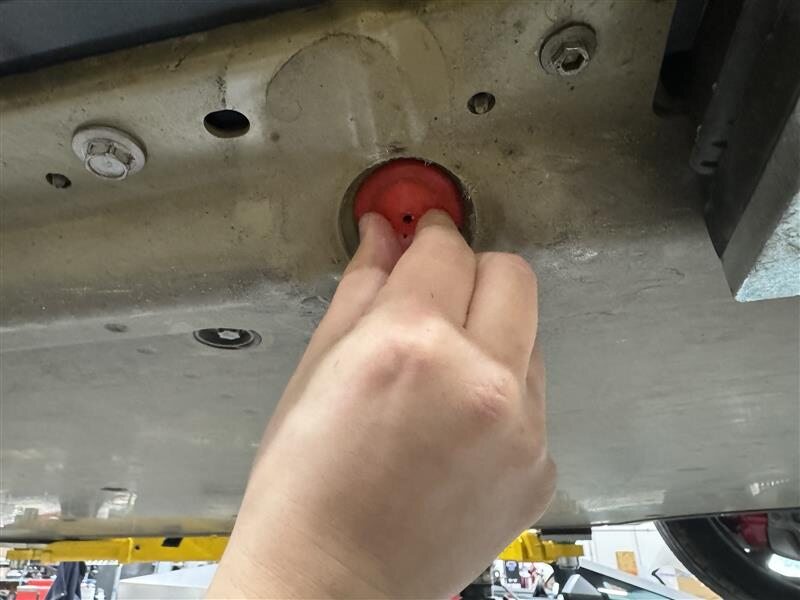

    Push the valve into the thermal vent opening with the legs facing inward. Confirm all three legs are clipped into the opening with an audible click. Push the umbrella into HV battery enclosure after verification.
  6. Perform the HV battery leak test. See Prueba de fugas de aire en la batería de alta tensión (en vehículo).
    Warning IconA warning icon, calling your attention to a possibly risky situation
    PRECAUCIÓN
    While the HV battery is pressurized, inspect each umbrella valve for escaping air. Perform the following test regardless of leak test results.
    • Place a hand over each umbrella valve to feel for escaping air.

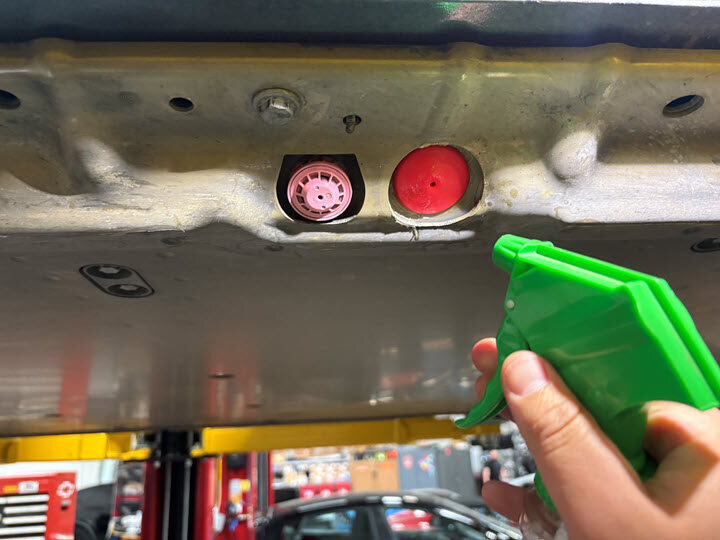

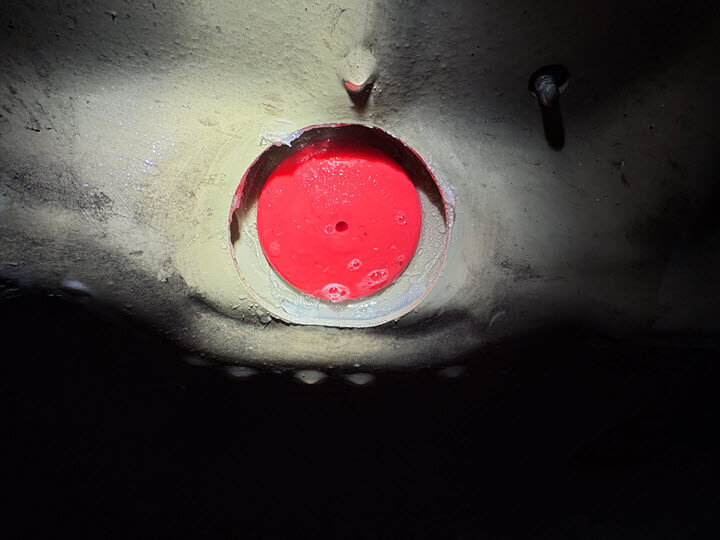

    • Spray soapy water over each umbrella valve and inspect for bubbles.

    If leaks are found, replace the umbrella valve as needed.

    If no leaks from any of the umbrella valves are found, but the HV battery leak test is failing, refer to Toolbox article 5402000 for further diagnoses.

  7. Install the mid aero shield panel. See Panel - Deflector aerodinámico - Parte trasera (Desinstalación y sustitución).
  8. Remove the vehicle from the lift. See Elevación del vehículo - Elevador de 2 columnas.
  9. Install the RH rocker panel molding. See Moldura - Panel del estribo - Lado izquierdo (Desinstalación y sustitución).
  10. Close the doors and raise the windows.
