Código de corrección 00030410 NOTA: Salvo que se indique lo contrario explícitamente en el procedimiento, el código de corrección anterior y el FRT reflejan todo el trabajo necesario para realizar este procedimiento, incluidos los procedimientos vinculados. No acumule códigos de corrección a menos que se le indique explícitamente que lo haga. NOTA: Consulte Tiempos de tarifa plana para obtener más información sobre los FRT y cómo se crean. Para enviar sus comentarios sobre los valores de FRT, escriba a ServiceManualFeedback@tesla.com. NOTA: Consulte Protección personal para asegurarse de llevar el EPI adecuado al realizar el siguiente procedimiento.NOTA: Consulte Precauciones ergonómicas para ver prácticas de trabajo seguras.

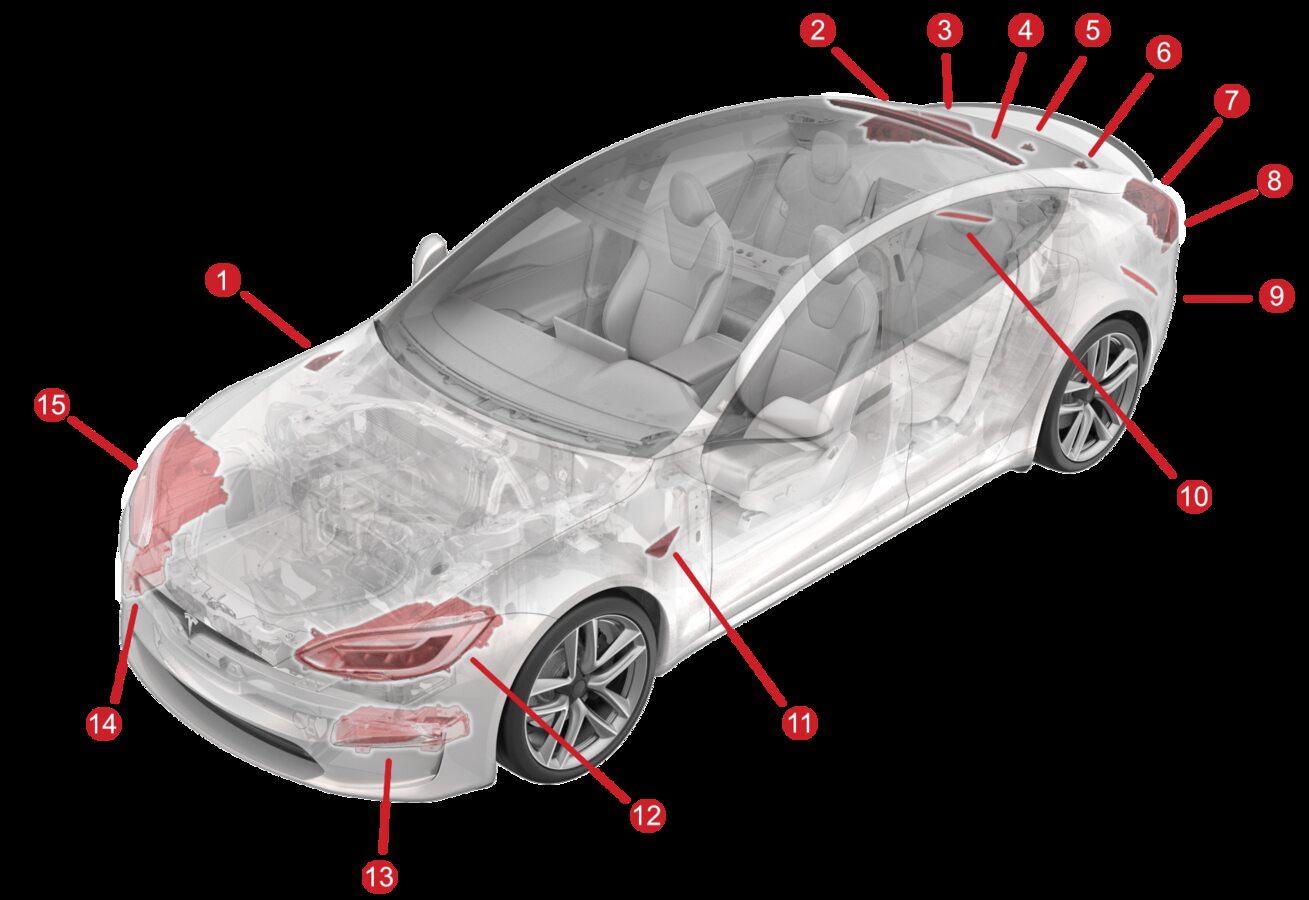

1. Inspect front external lights
   Nota

   Look for cosmetic damages and humidity ingress



2. Inspect rear external lights
   Nota

   Look for cosmetic damages and humidity ingress, it is acceptable for taillights to have some condensation



3. Link to procedure: 626061776614a10016a6bf0d

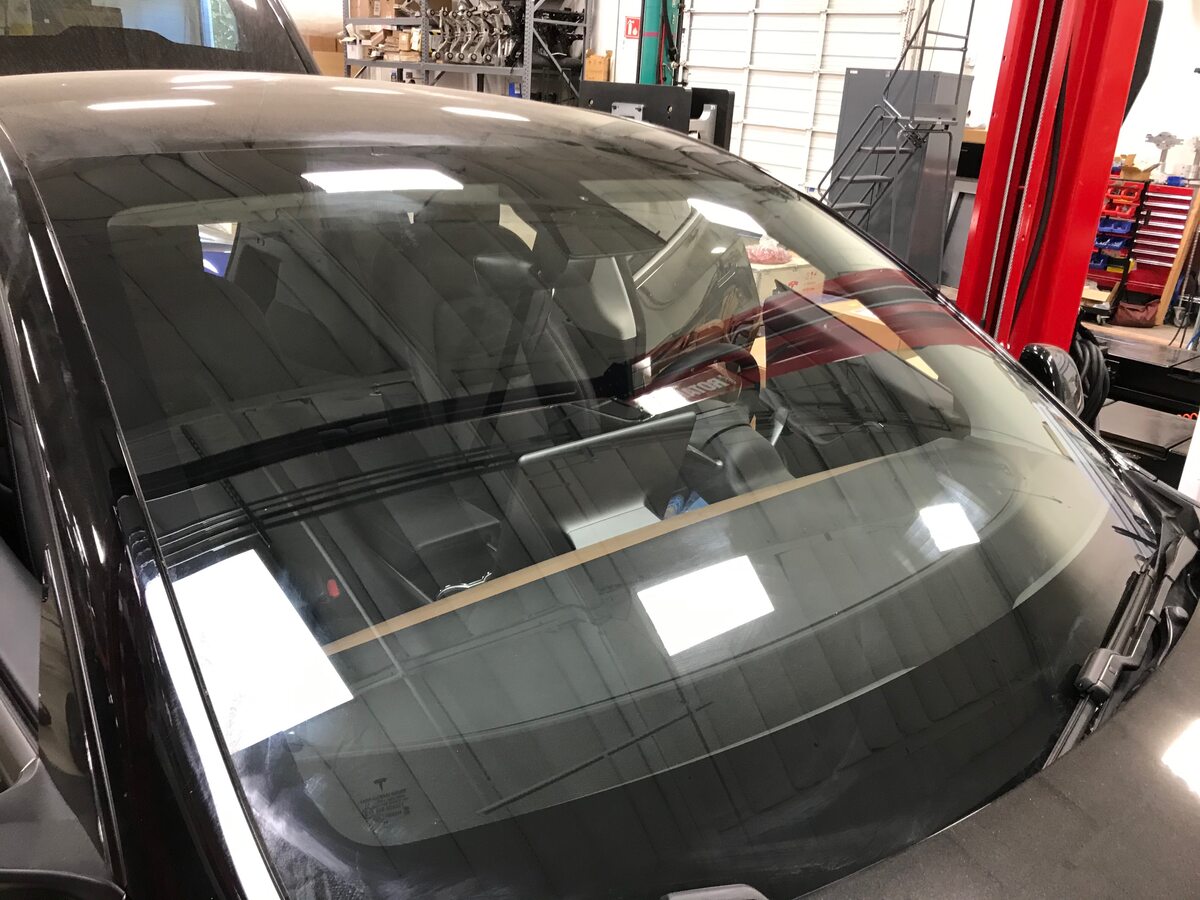

4. Inspect windshield for rock chips and cracks
   Nota

   No damage in driver’s viewing area, airbag impact area, forward camera viewing area, or within 50 mm of edge allowed, No more than 3 cracks or chips to glass allowed

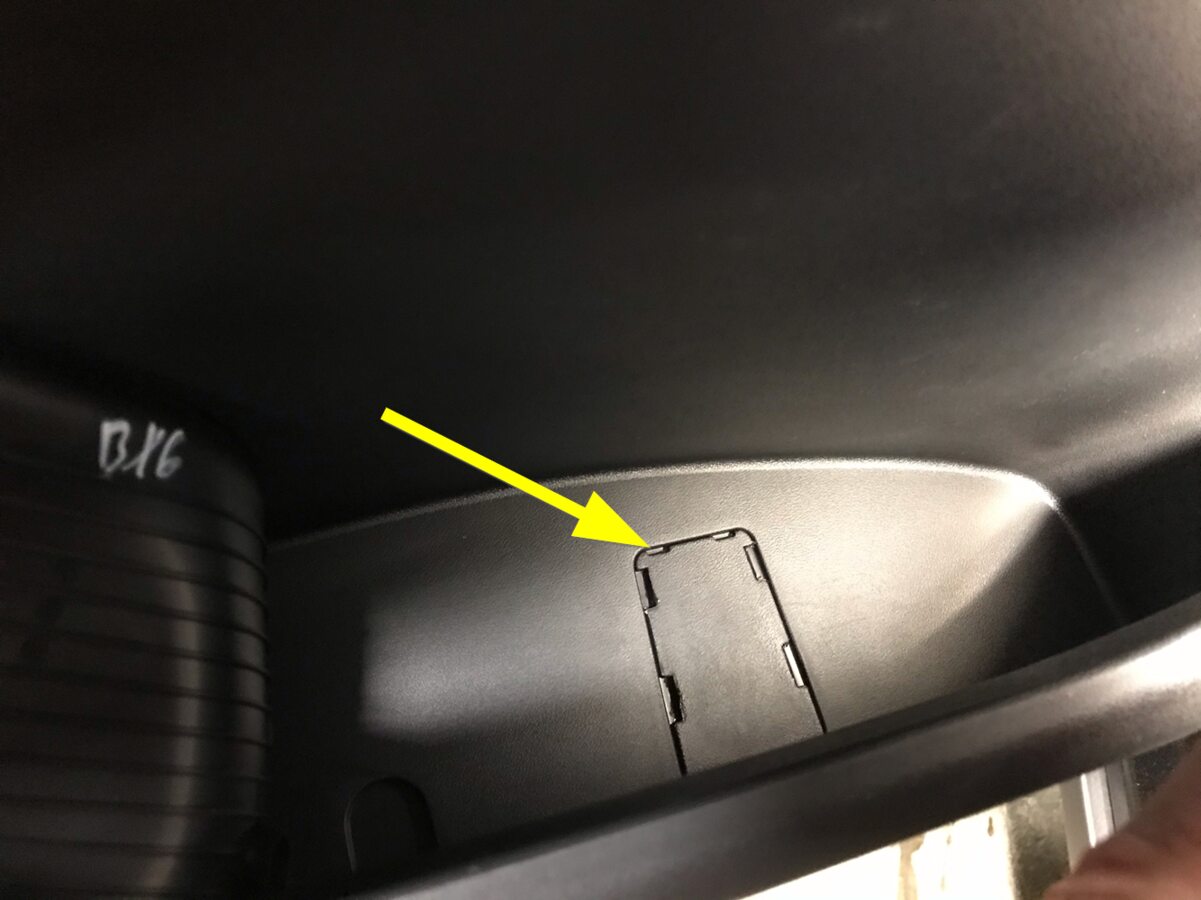

5. Check all emergency release cables and switches
   Nota

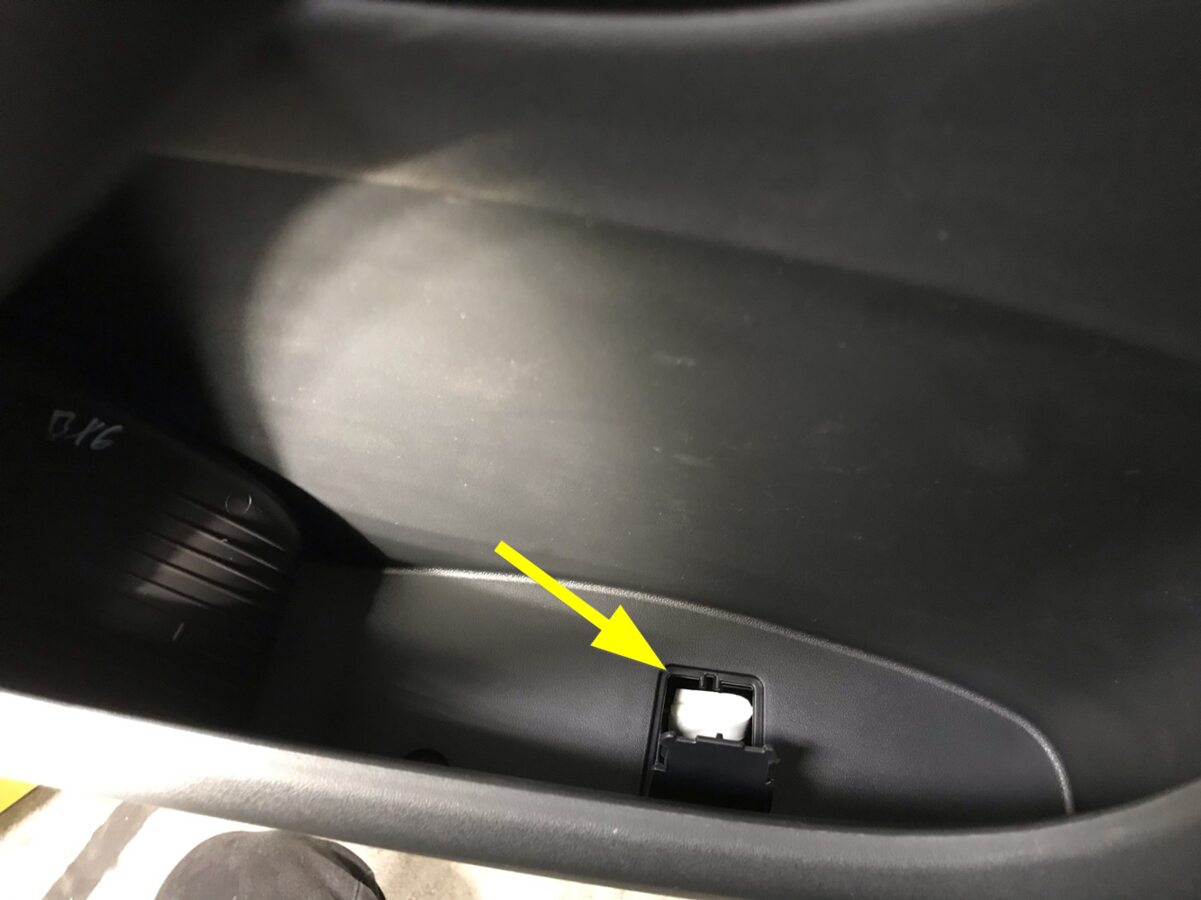

   Front door releases, Use caution with front door releases as door glass will not drop and could damage seals or bright molding, Remove 2nd row door panel pocket cover to reveal emergency cable

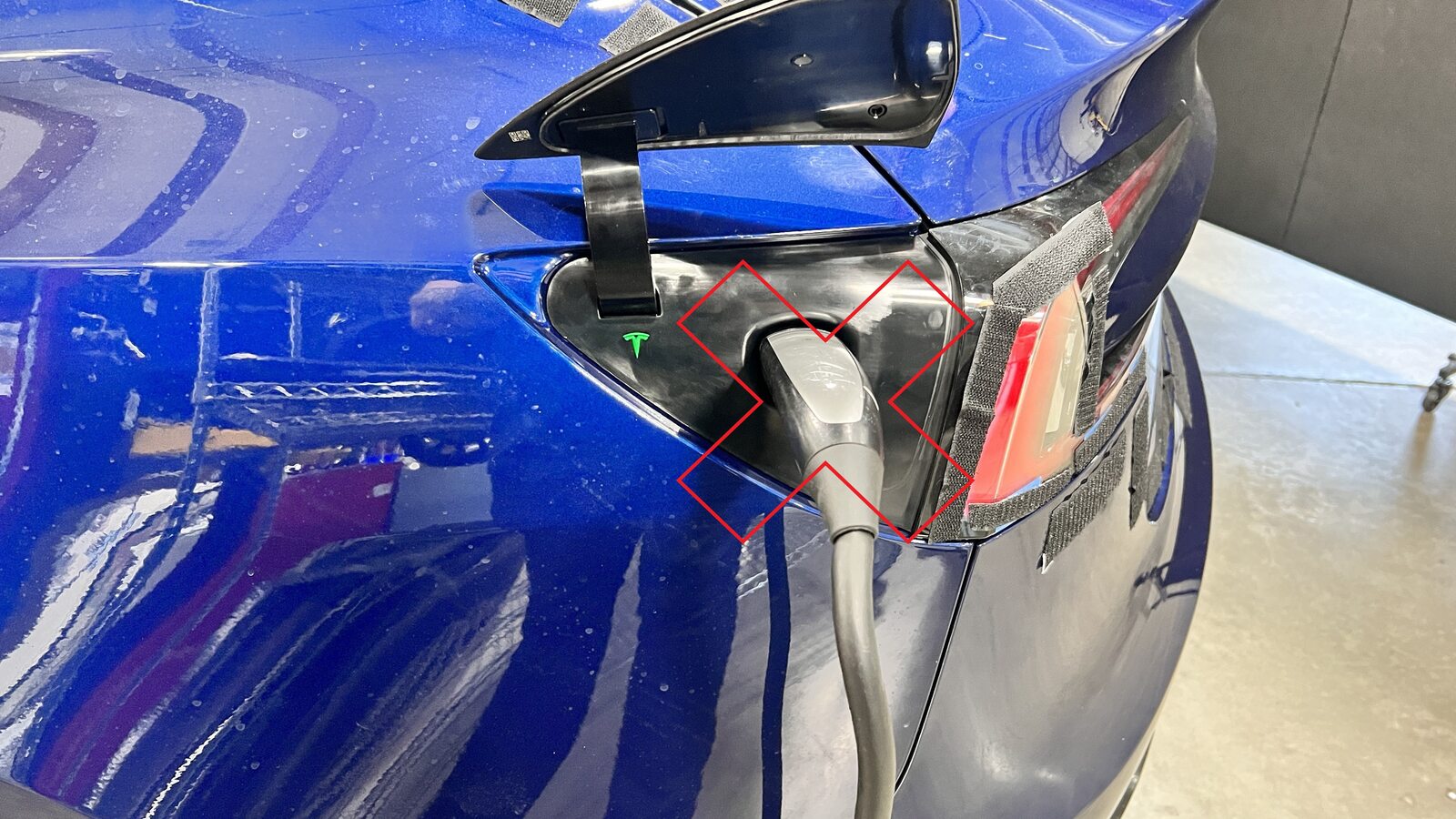

6. Function check chargeport door (5 cycles)
   Nota

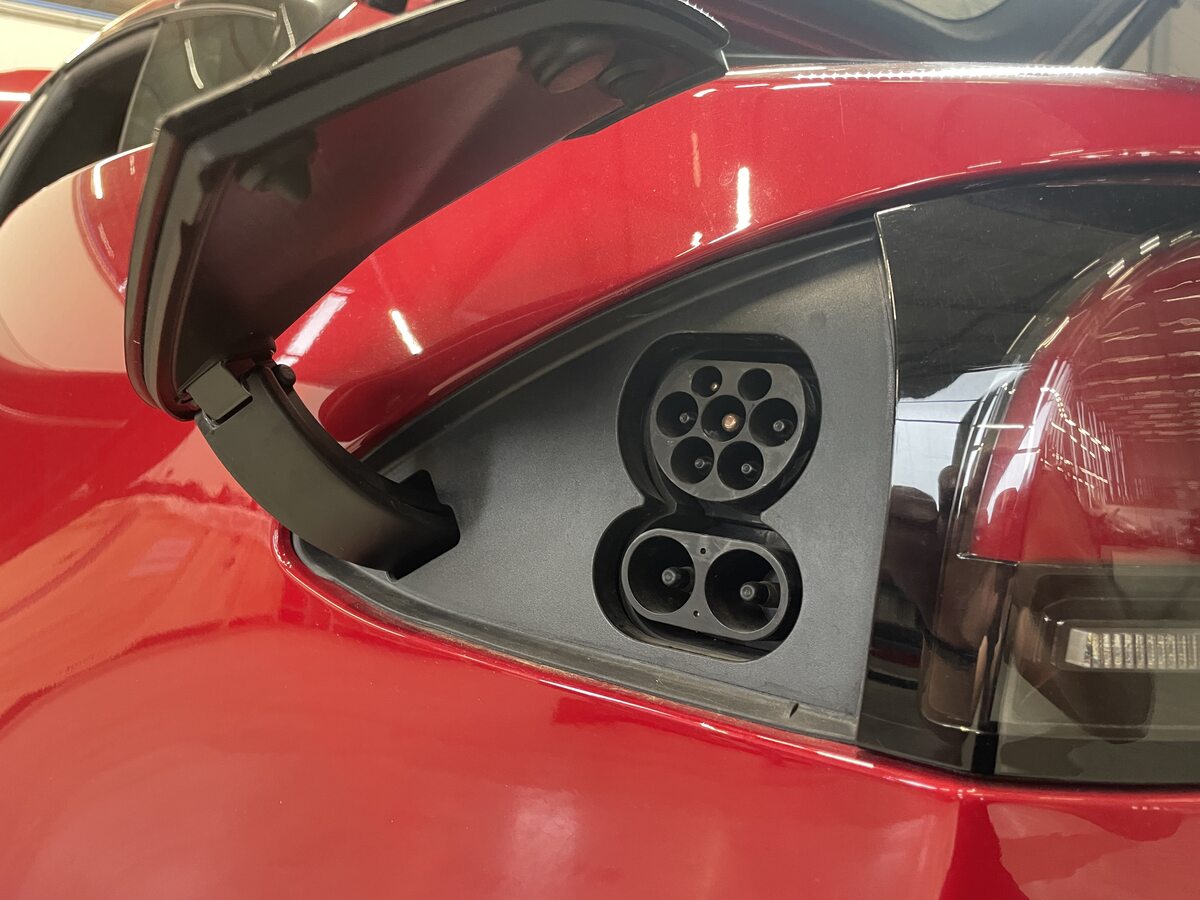

   5x cycles, Inspect and note functionality full range of motion, touch to open, and indicator light. Look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions

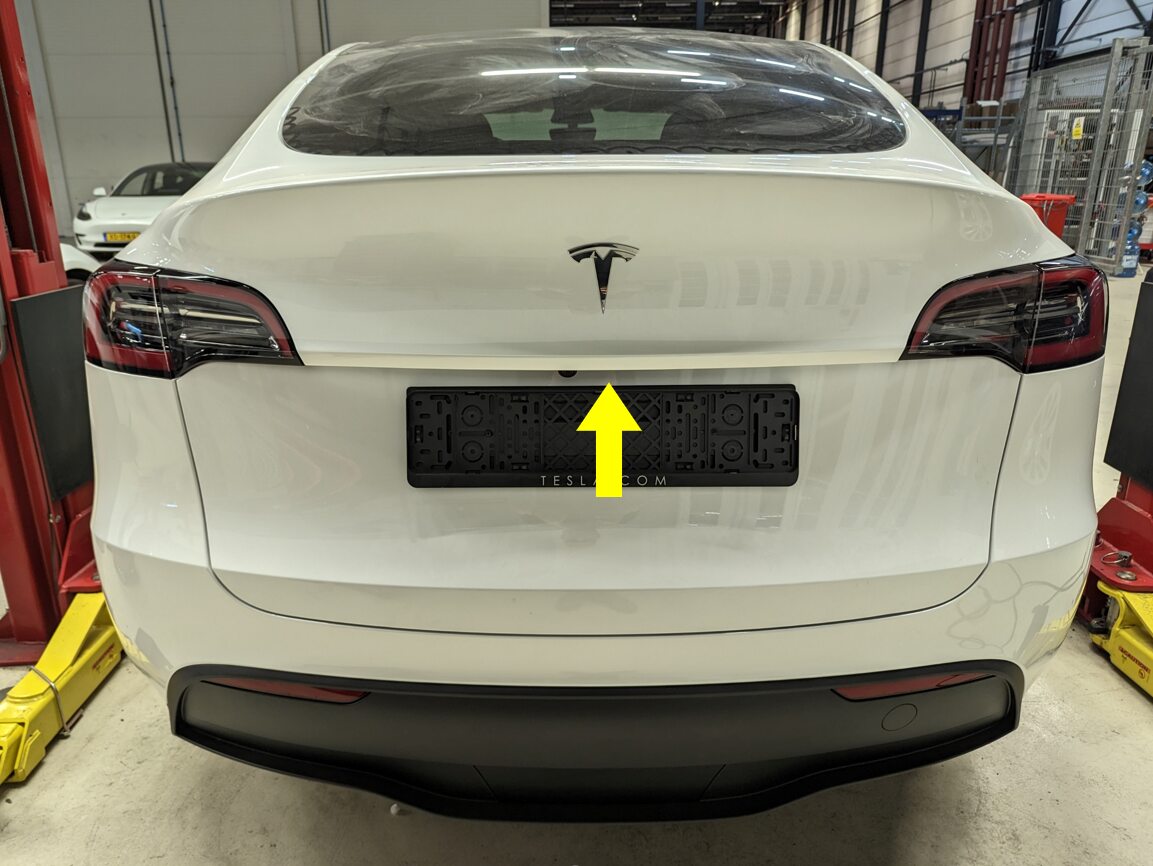

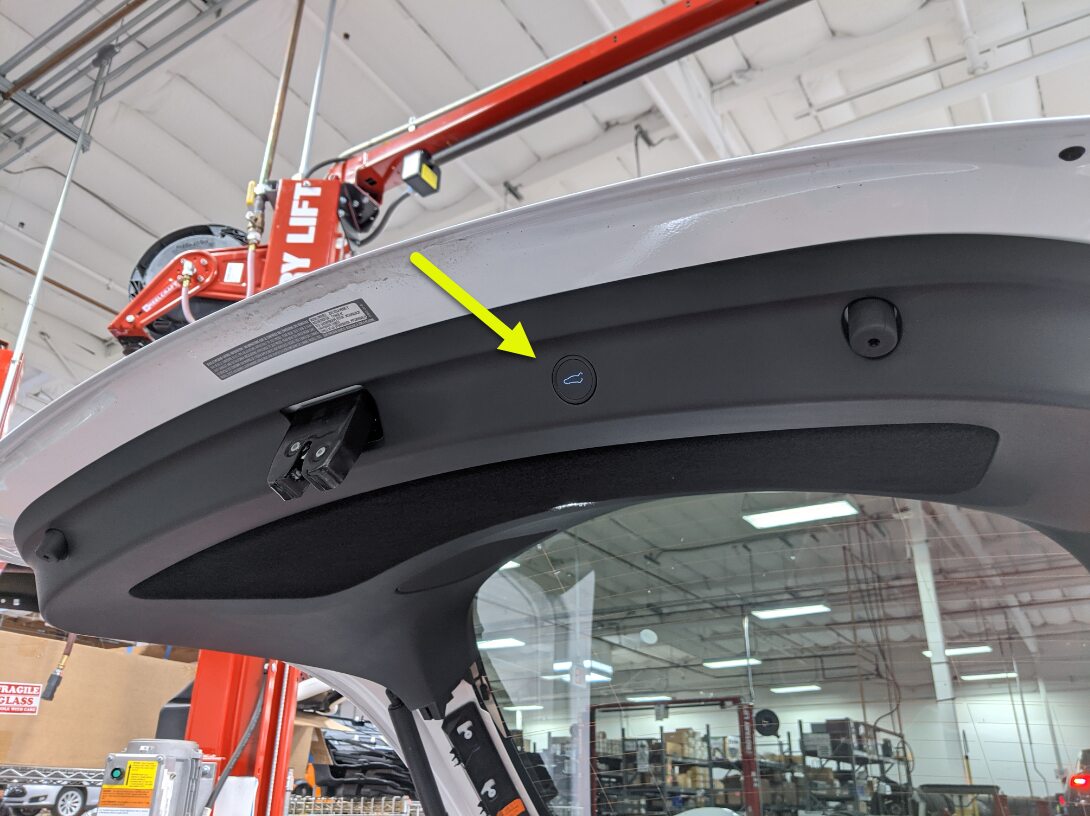

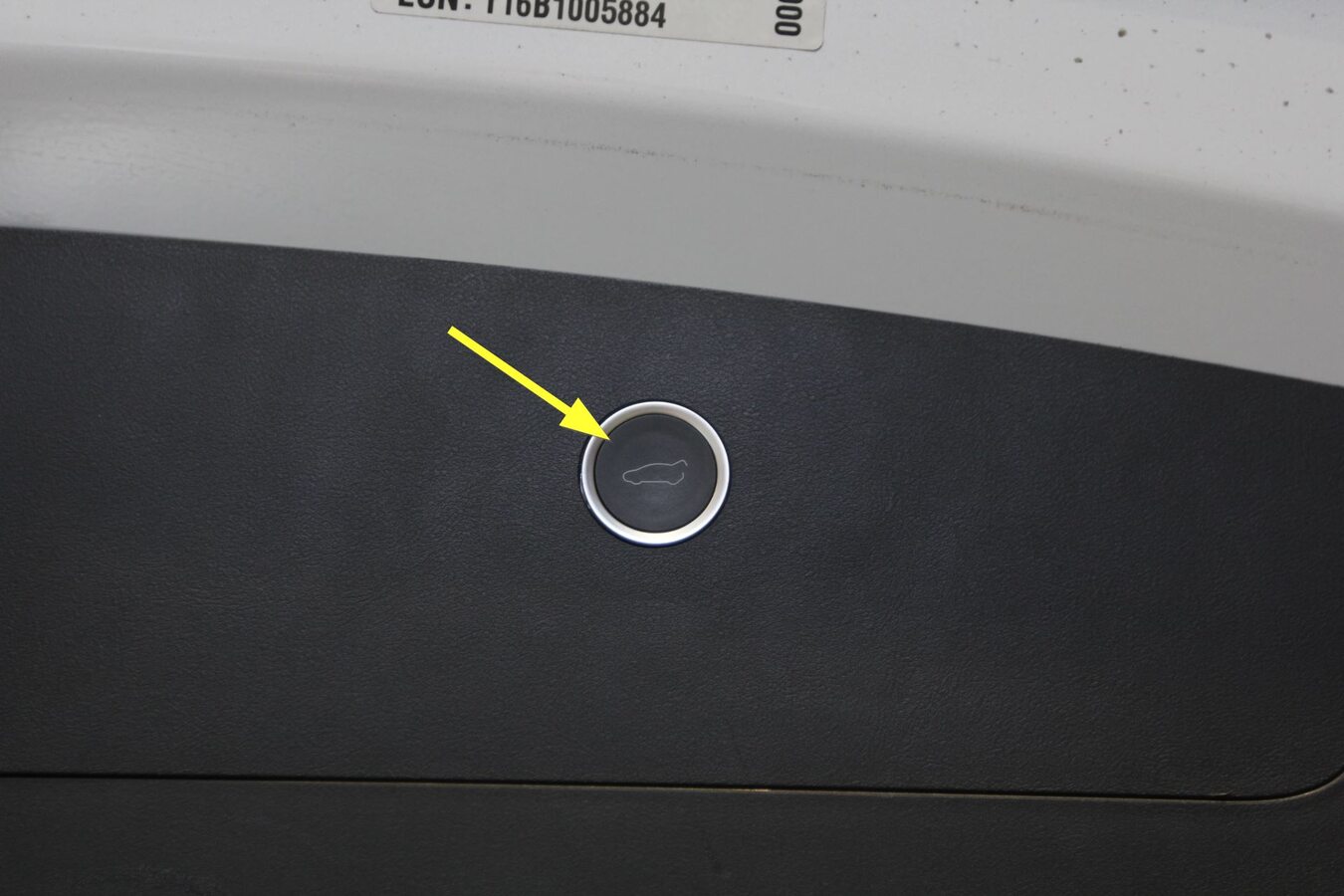

7. Open liftgate from exterior switch



8. Close liftgate

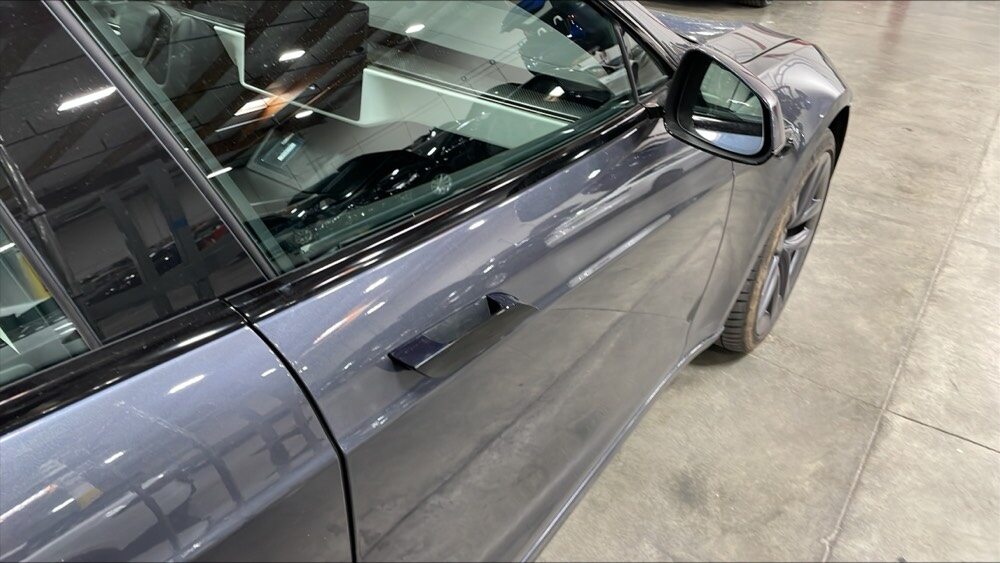

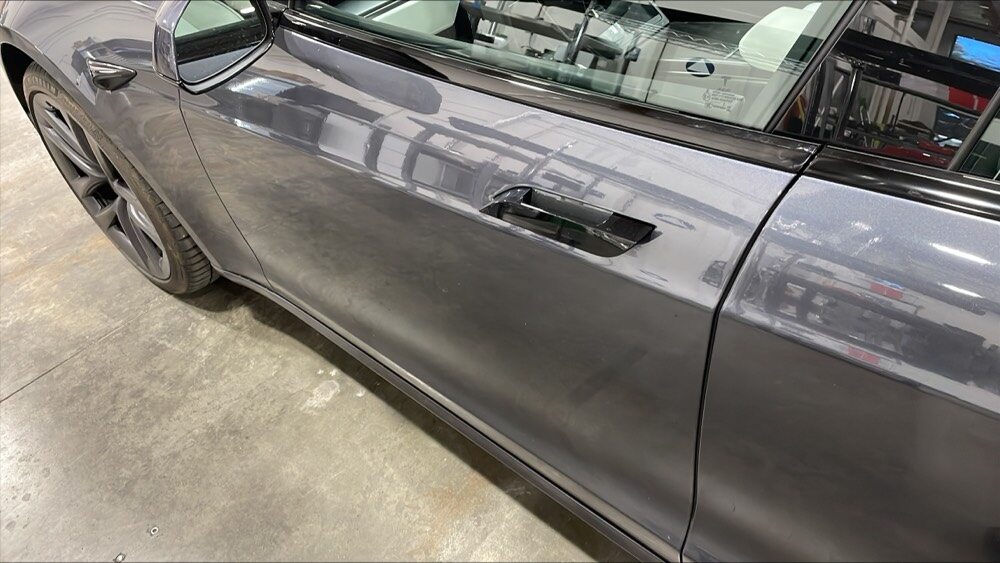

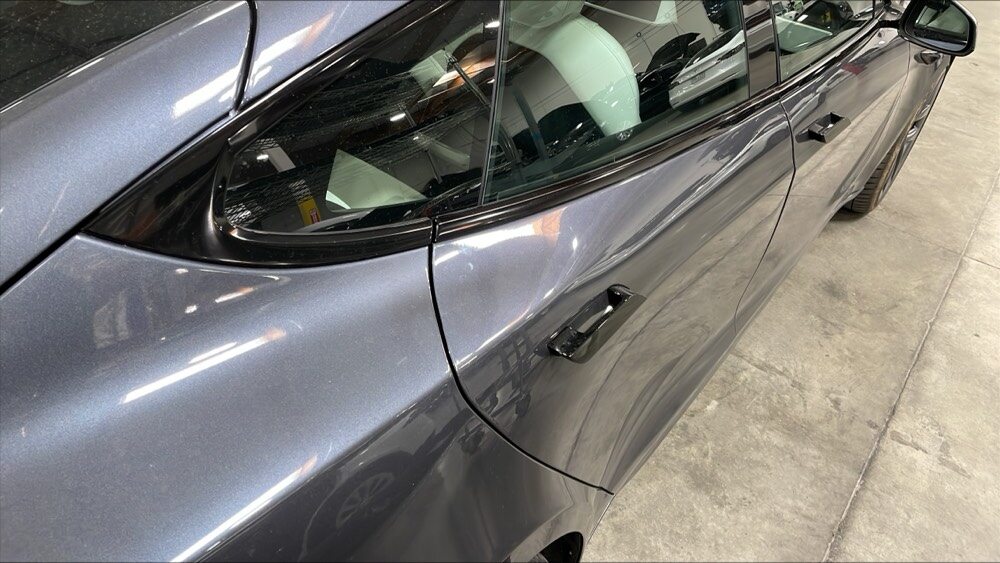

9. Function check LH front door (exterior)
   Nota

   Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note any abnormalities



10. Function check LH front door (interior)
    Nota

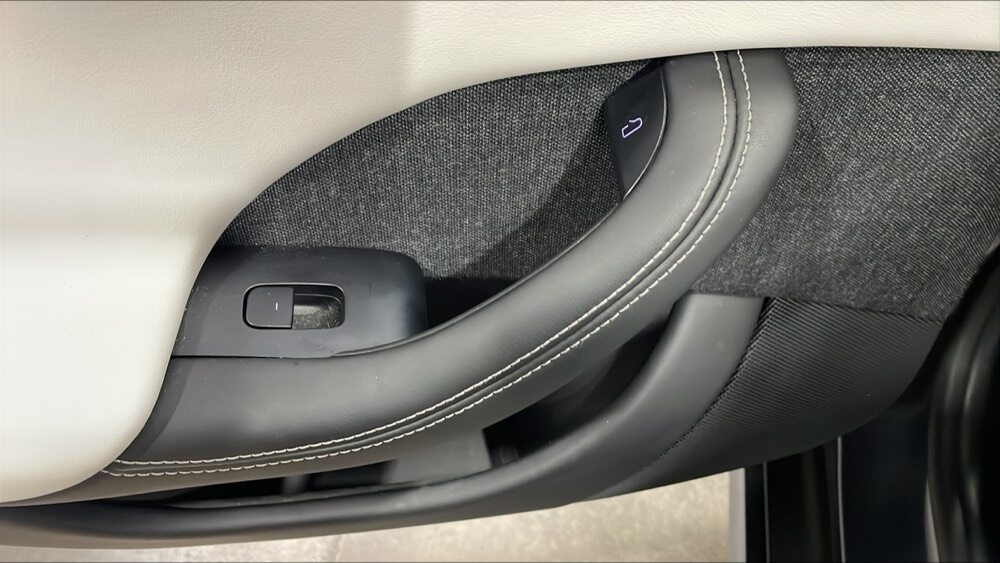

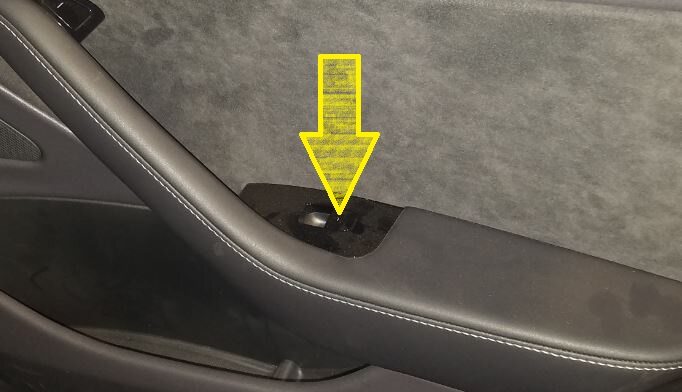

    Inspect and note functionality for the interior door release, puddle lamps, and manual release cable, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions

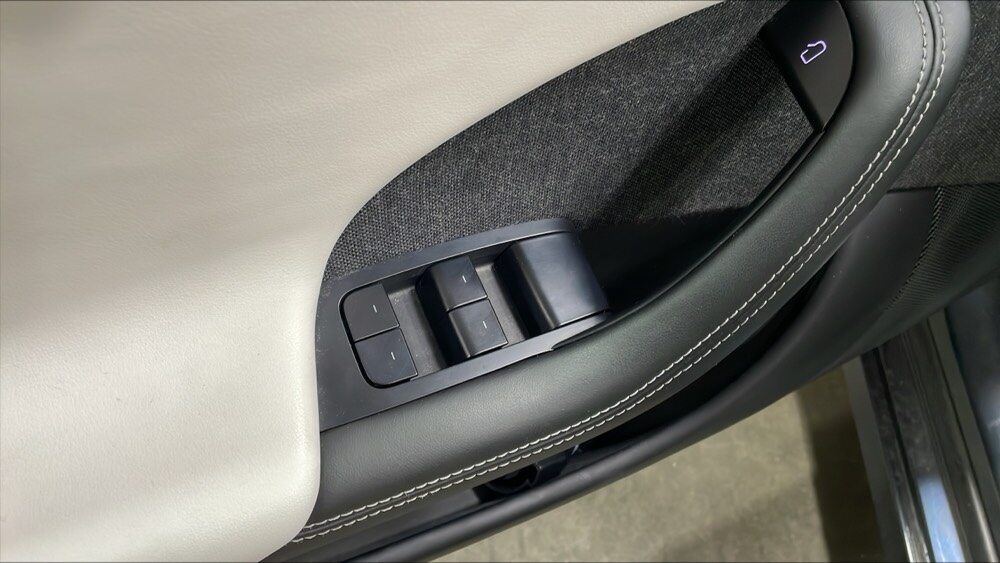

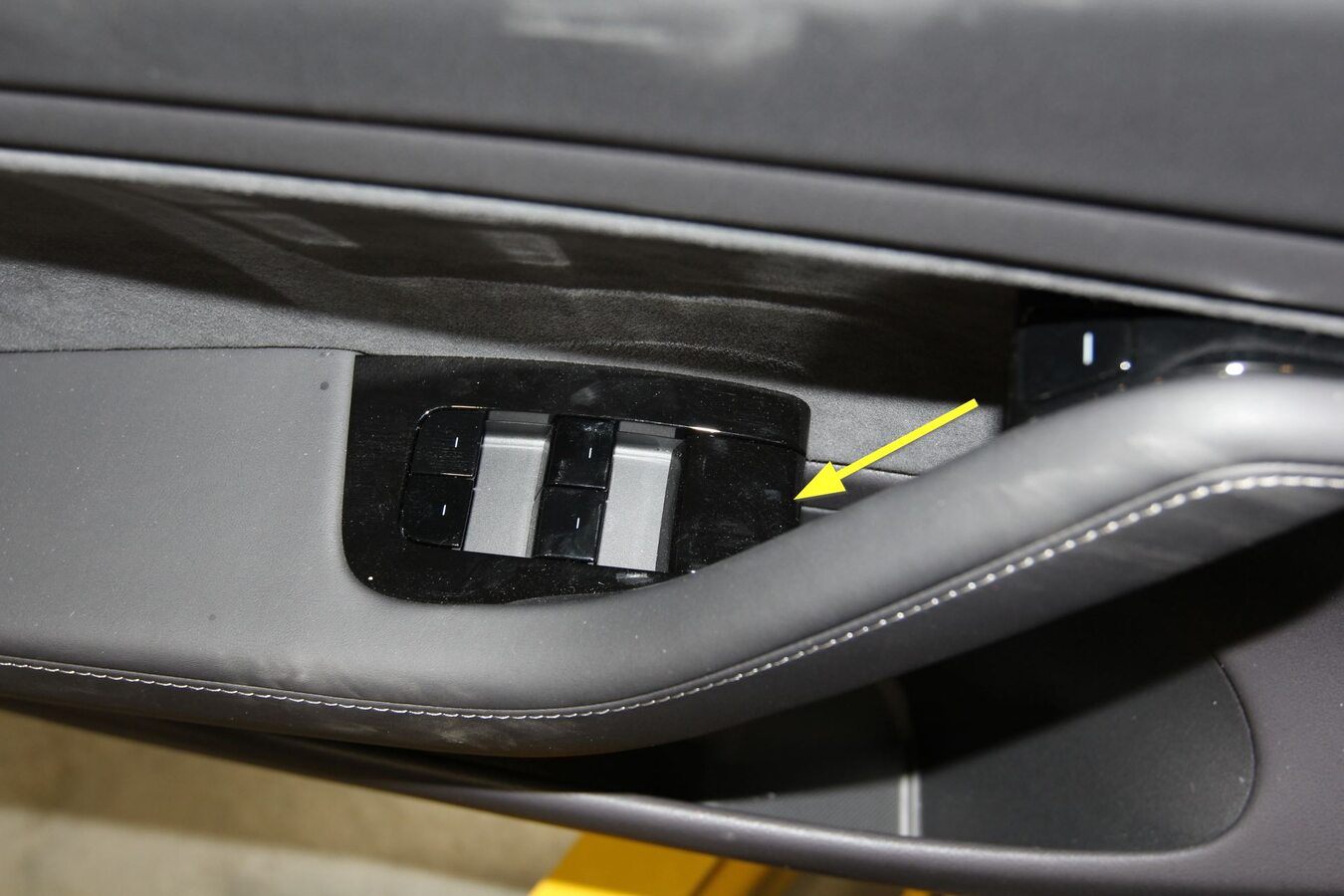

11. Function check all windows from the master switch
    Nota

    Check operation with door closed, Document any abnormal operation/noises

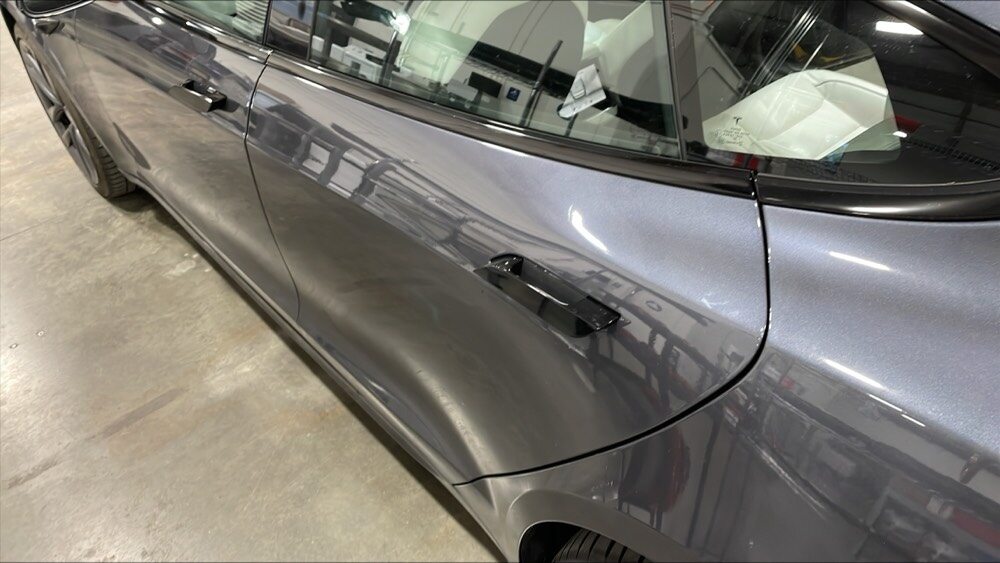

12. Function check RH rear door (exterior)
    Nota

    Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note any abnormalities



13. Function check RH rear door (interior)
    Nota

    Inspect and note functionality for the interior door release and puddle lamps, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions



14. Function check RH rear window
    Nota

    Inspect and note functionality for the window switch, and full range of motion of the window with door closed



15. Function check LH rear door (exterior)
    Nota

    Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note any abnormalities



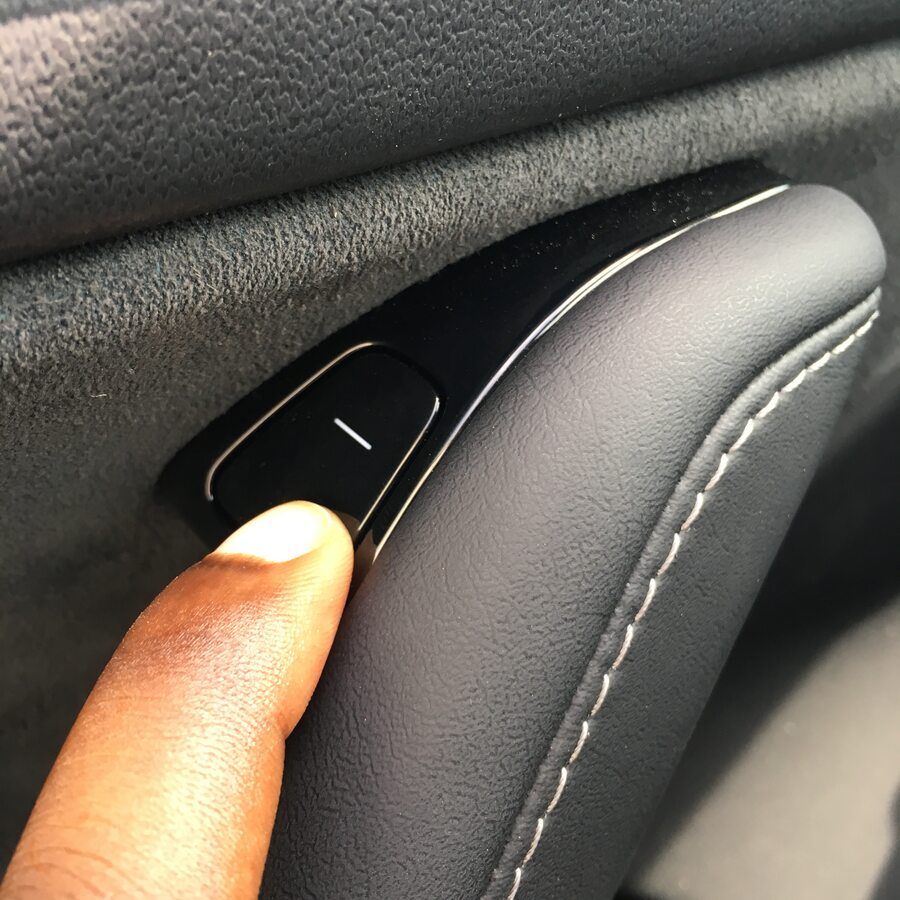

16. Function check LH rear door (interior)
    Nota

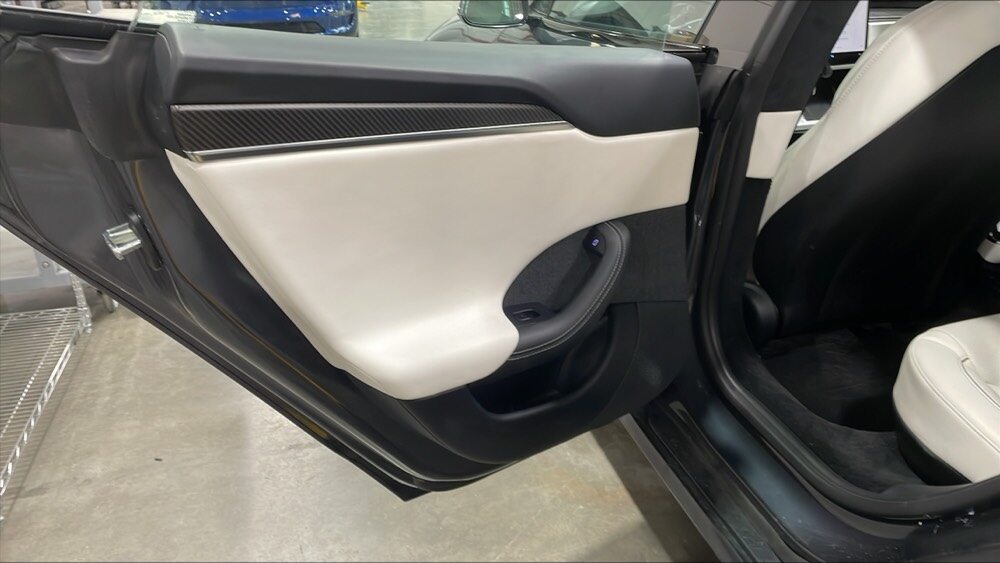

    Inspect and note functionality for the interior door switch, From inside look for interference with other components, Note any abnormalities



17. Function check LH rear window
    Nota

    Inspect and note functionality for the window switch, and full range of motion of the window with door closed



18. Function check RH front door (exterior)
    Nota

    Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note any abnormalities



19. Function check RH front door (interior)
    Nota

    Inspect and note functionality for the interior door release, puddle lamps, and manual release cable, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions



20. Function check RH front window
    Nota

    Inspect and note functionality for the window switch, and full range of motion of the window with door closed

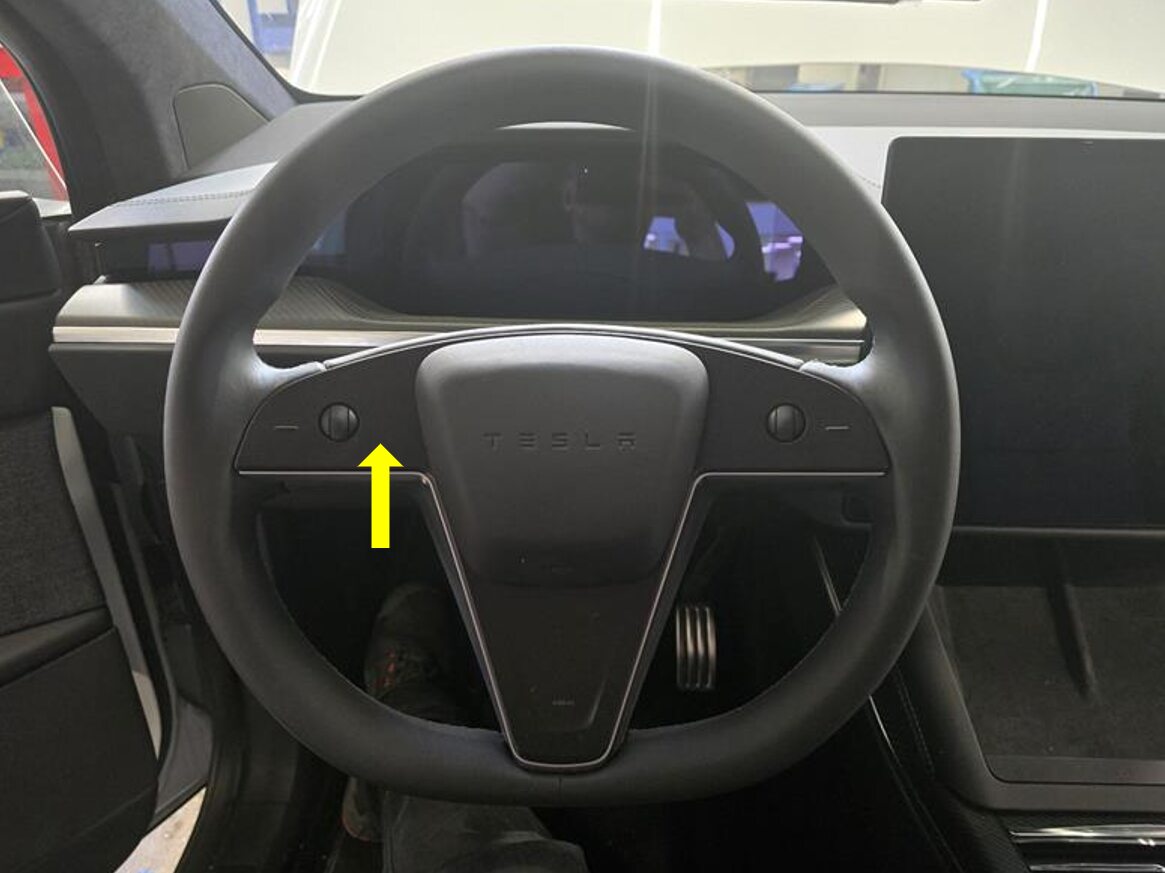

21. Function check all driver controls
    Nota

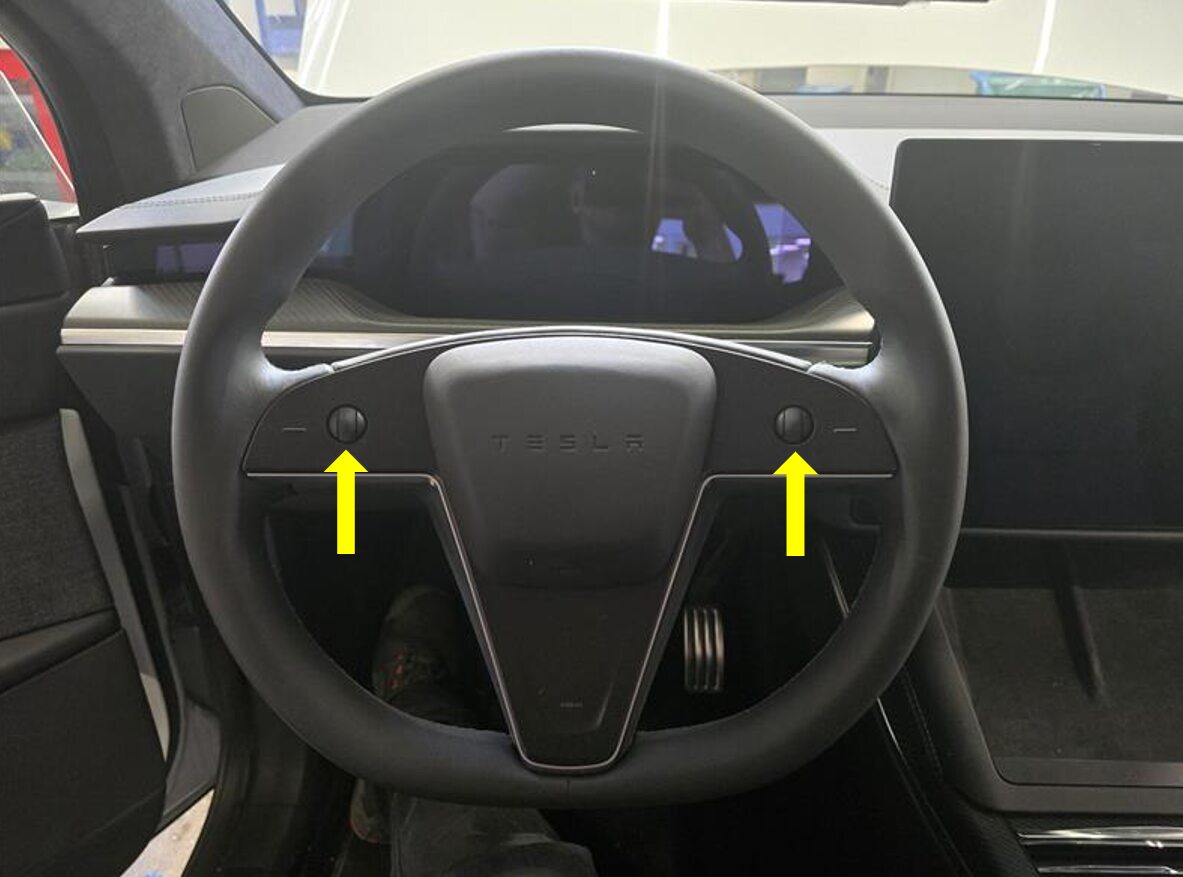

    Turn signals, steering wheel scroll wheels, horn

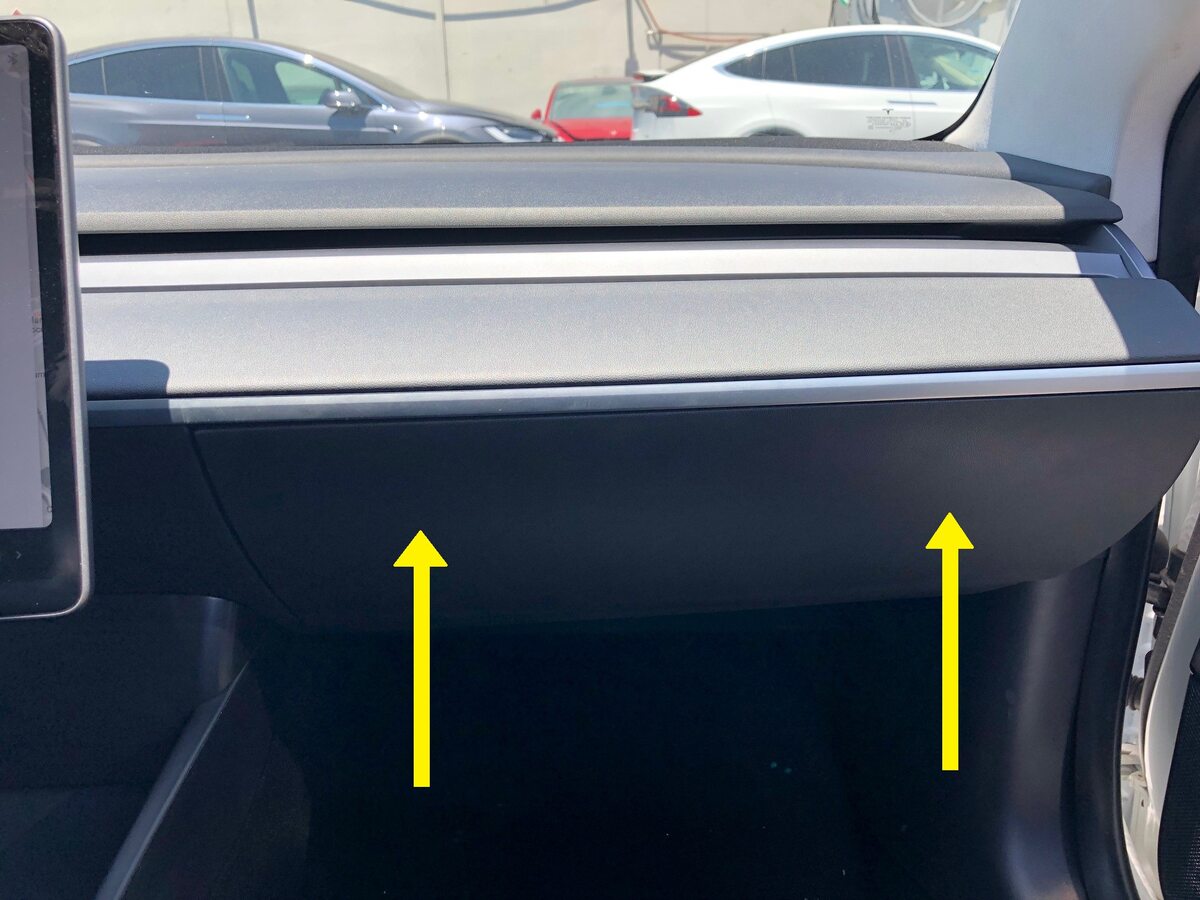

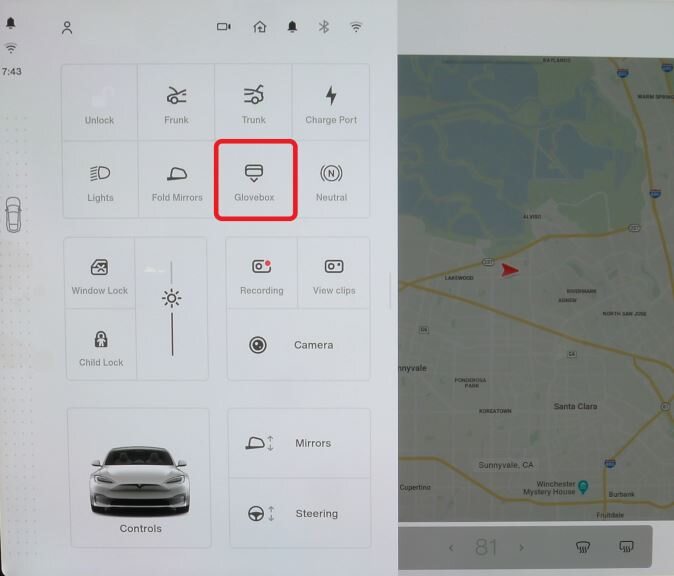

22. Open glove box through UI
    Nota

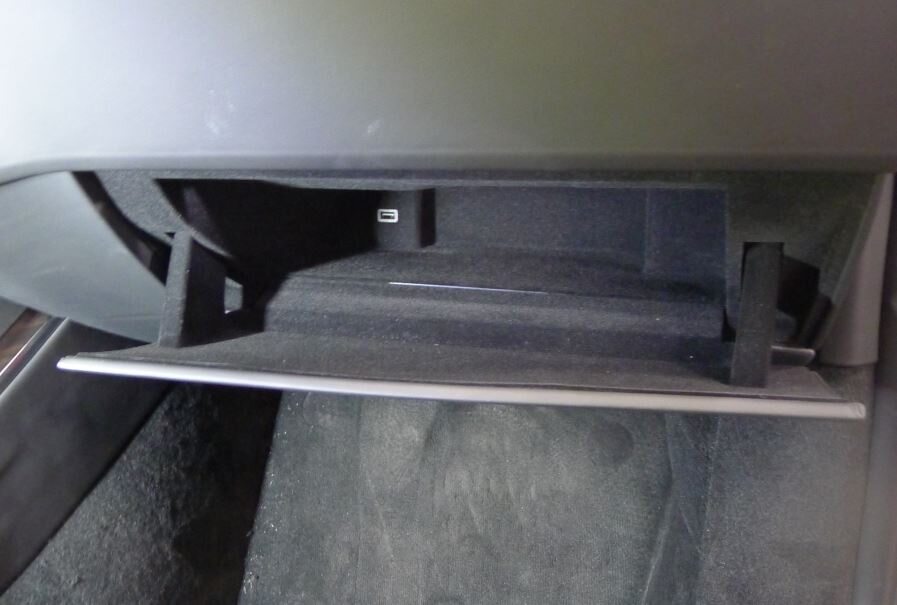

    Via Controls > Glovebox





23. Close glove box

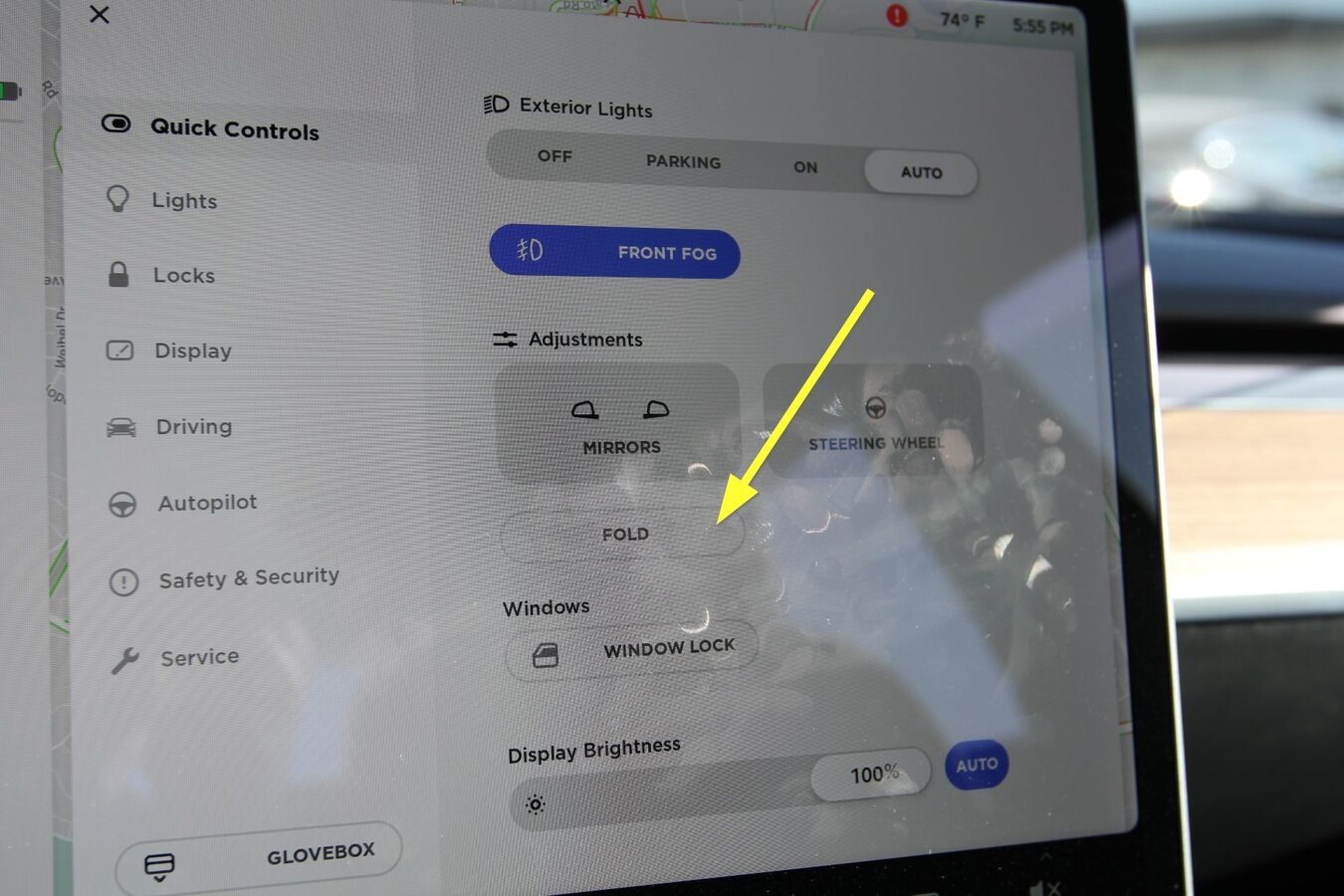

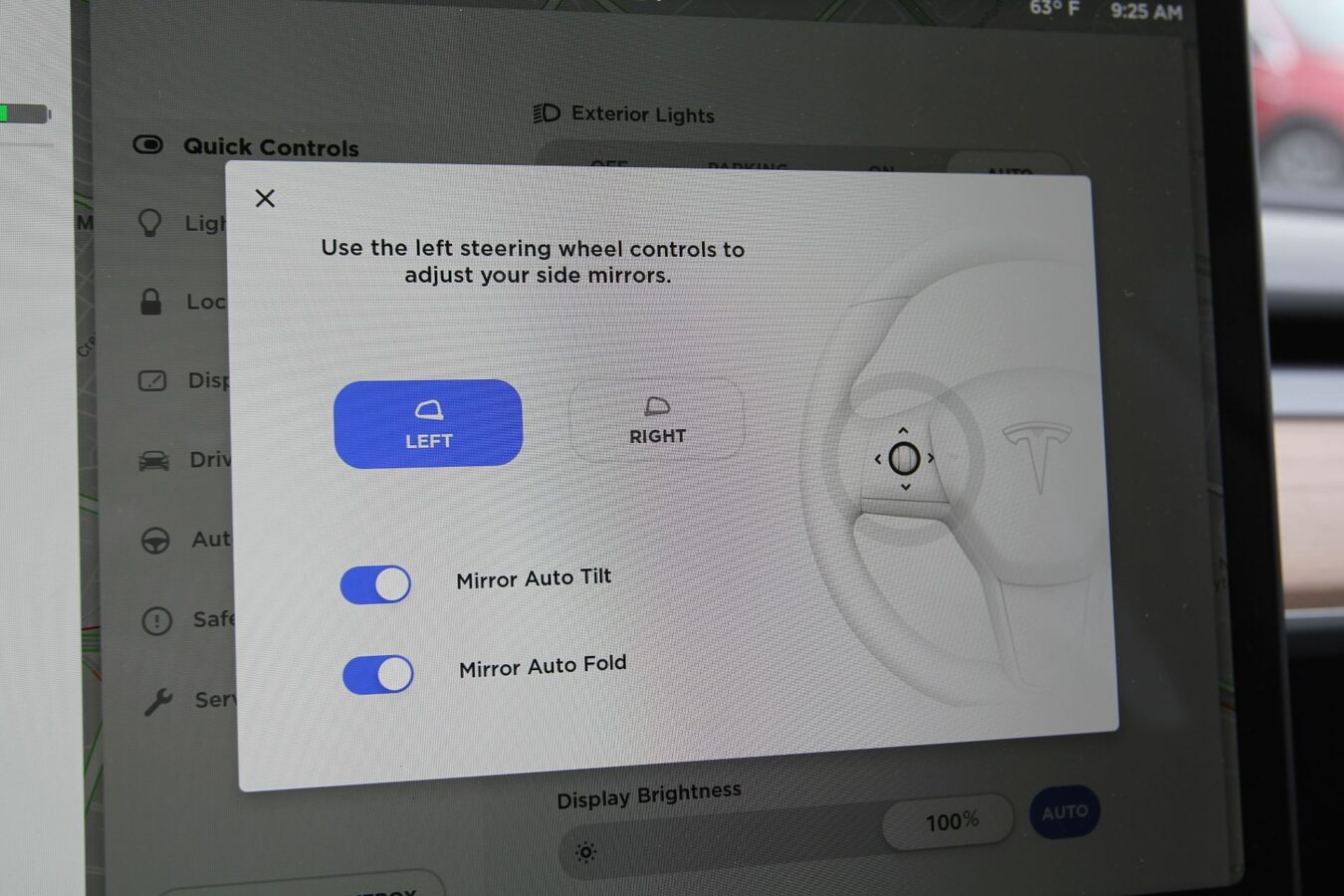

24. Function check power folding side mirrors
    Nota

    Fold mirrors in/out, Check adjustment of glass

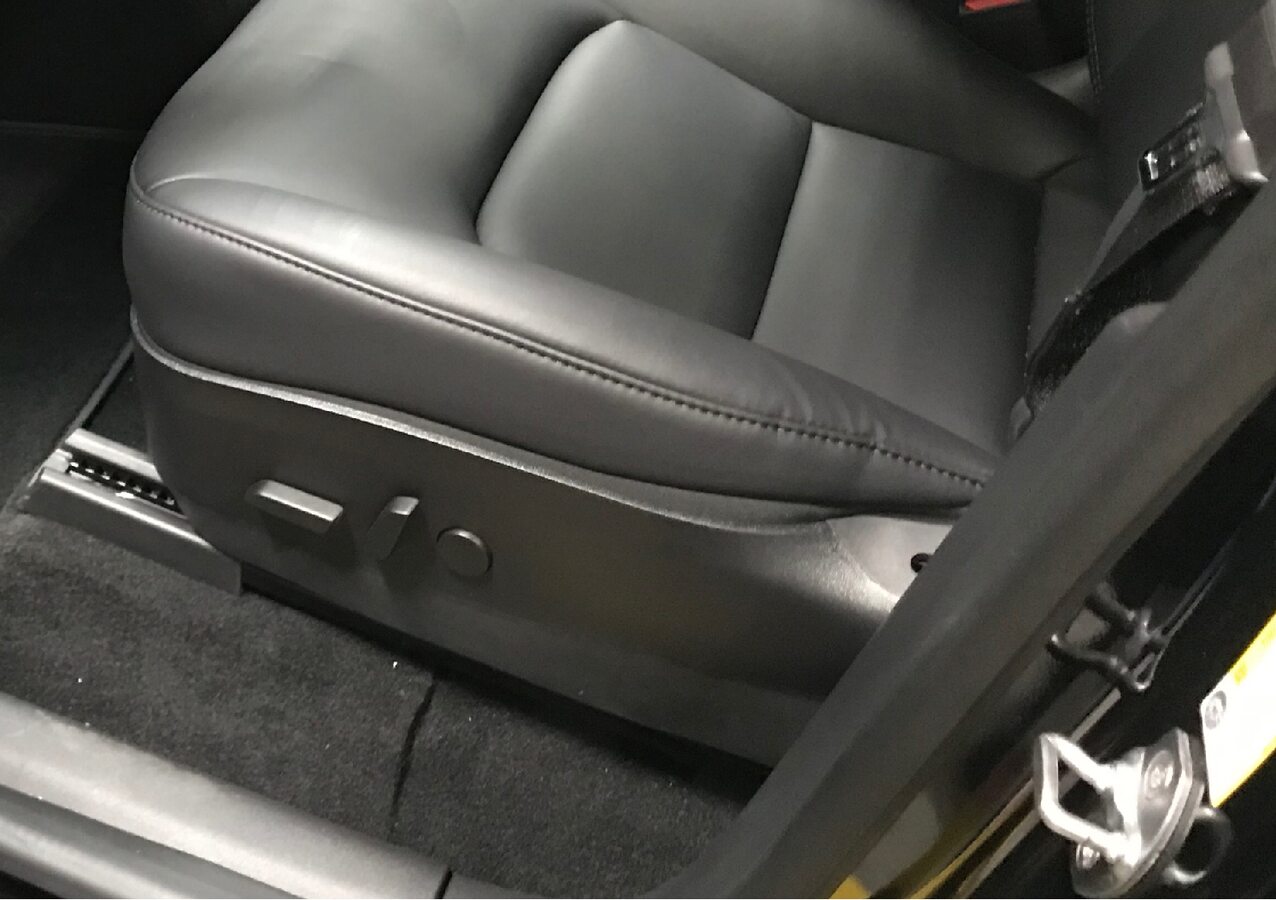

25. Function check LH front seat
    Nota

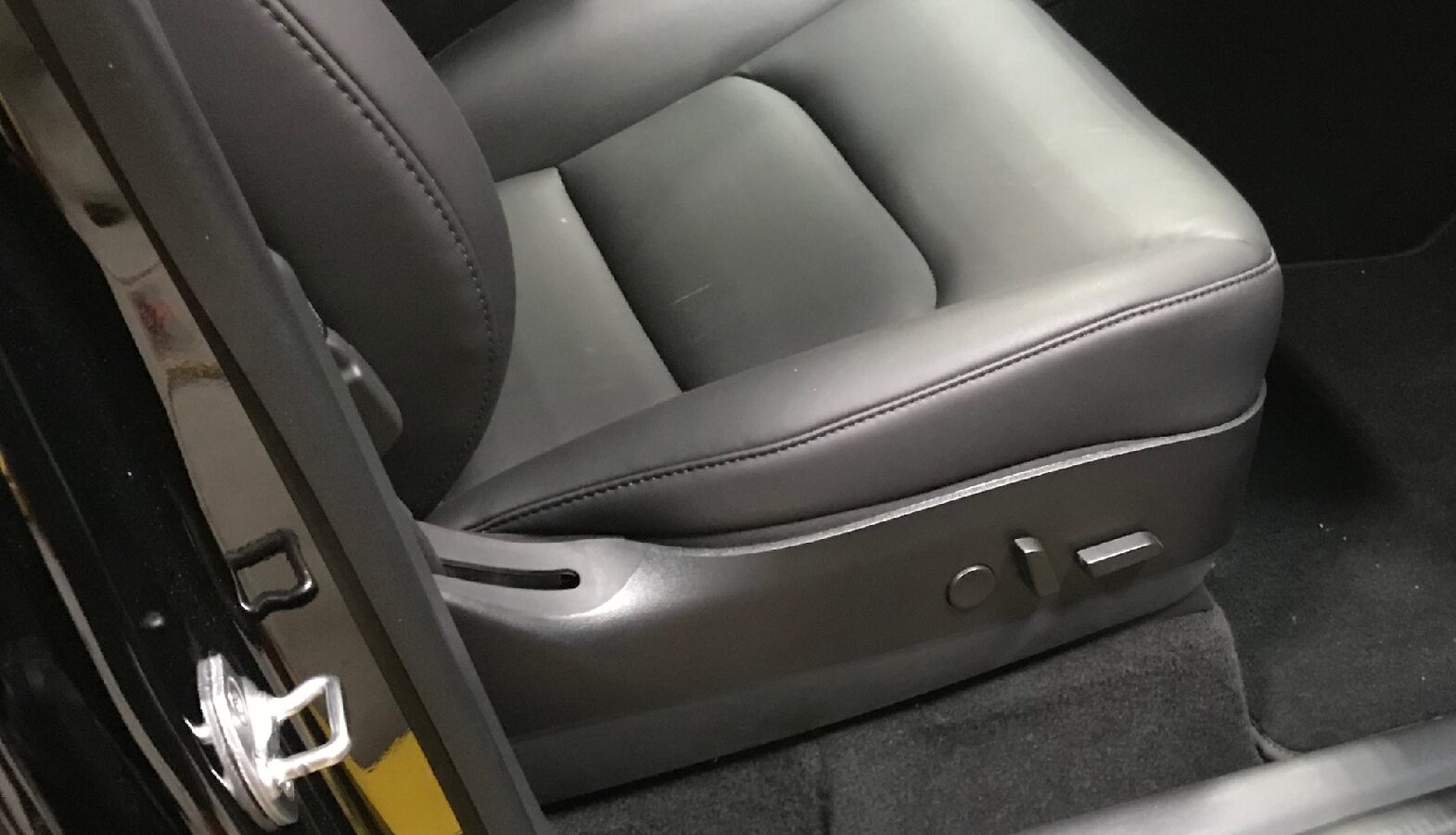

    Check full range of motion of seat, Test lumbar and seat heat/cooling

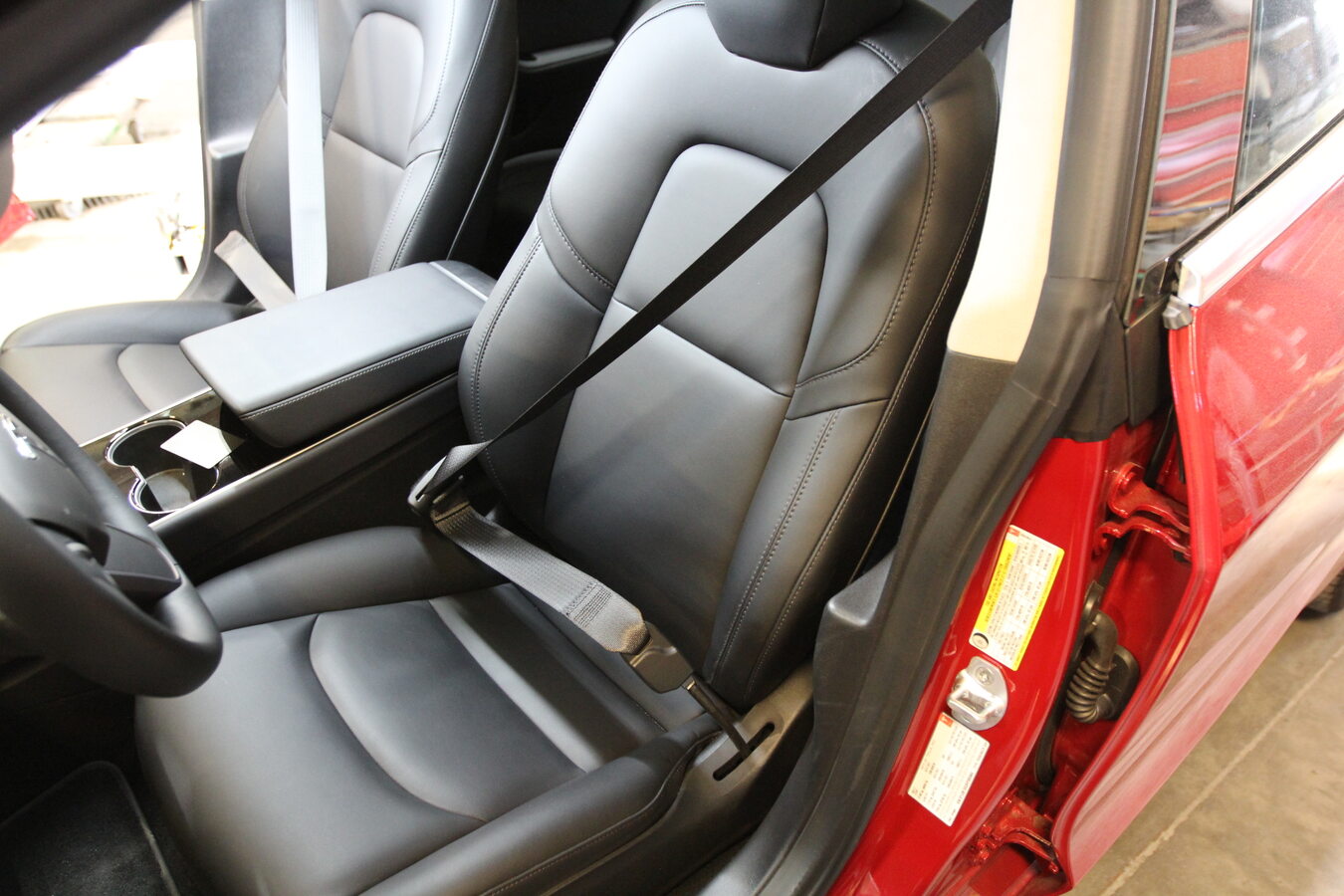

26. Function check LH front seat belt
    Nota

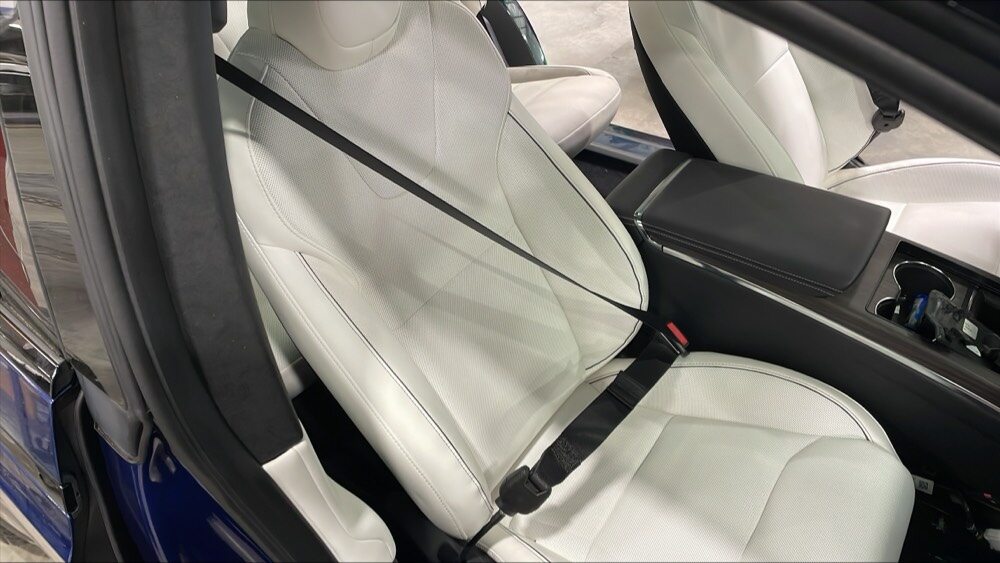

    Latch and unlatch buckle, Quickly pull retractor to check locking function

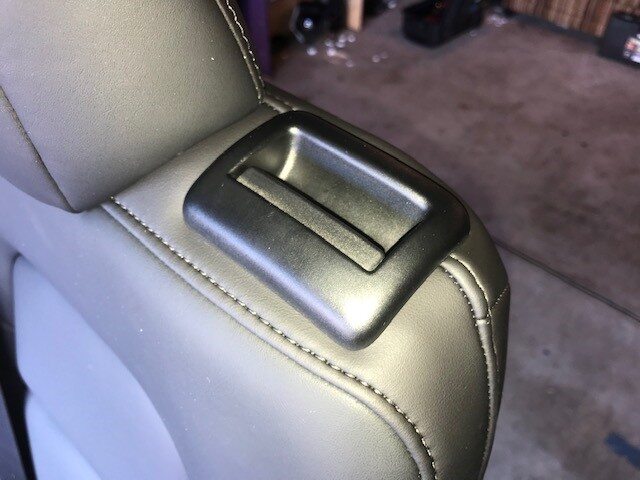

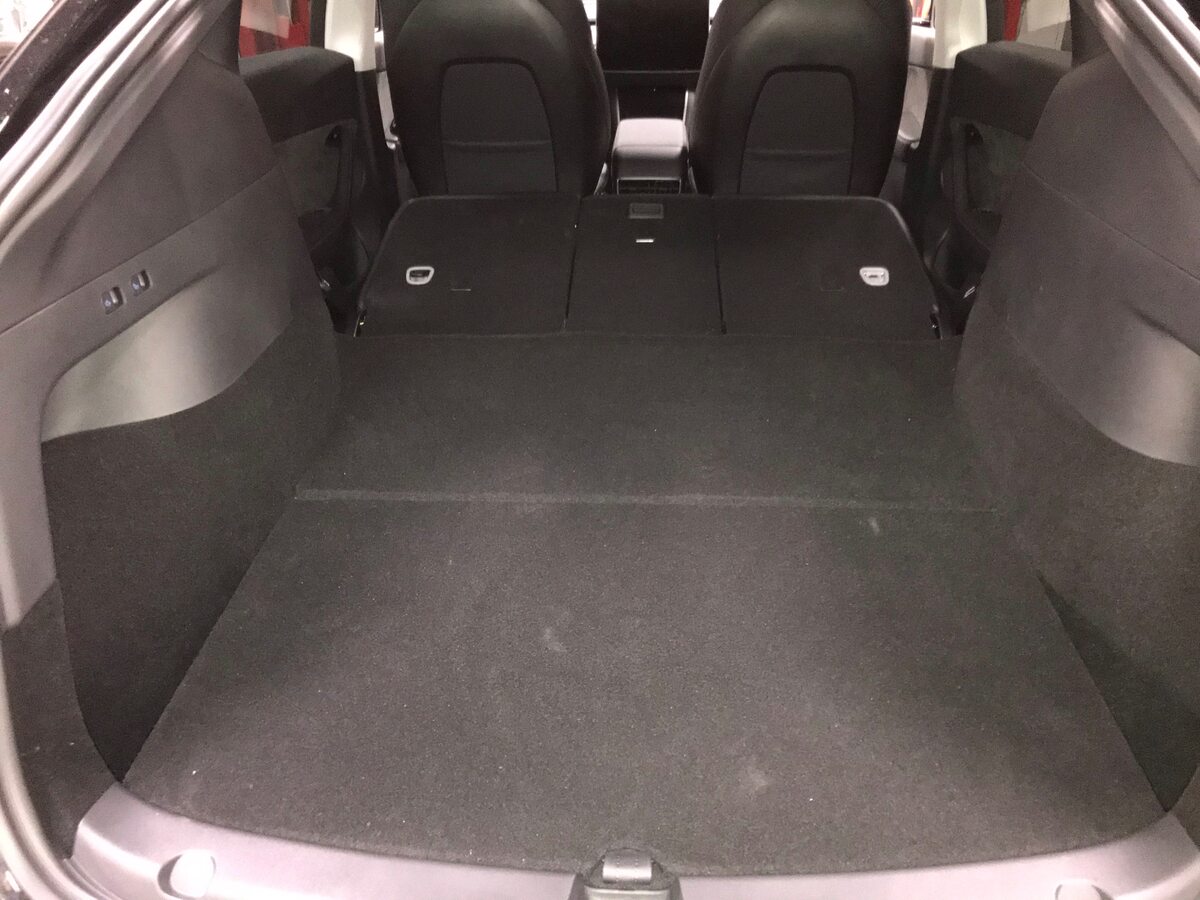

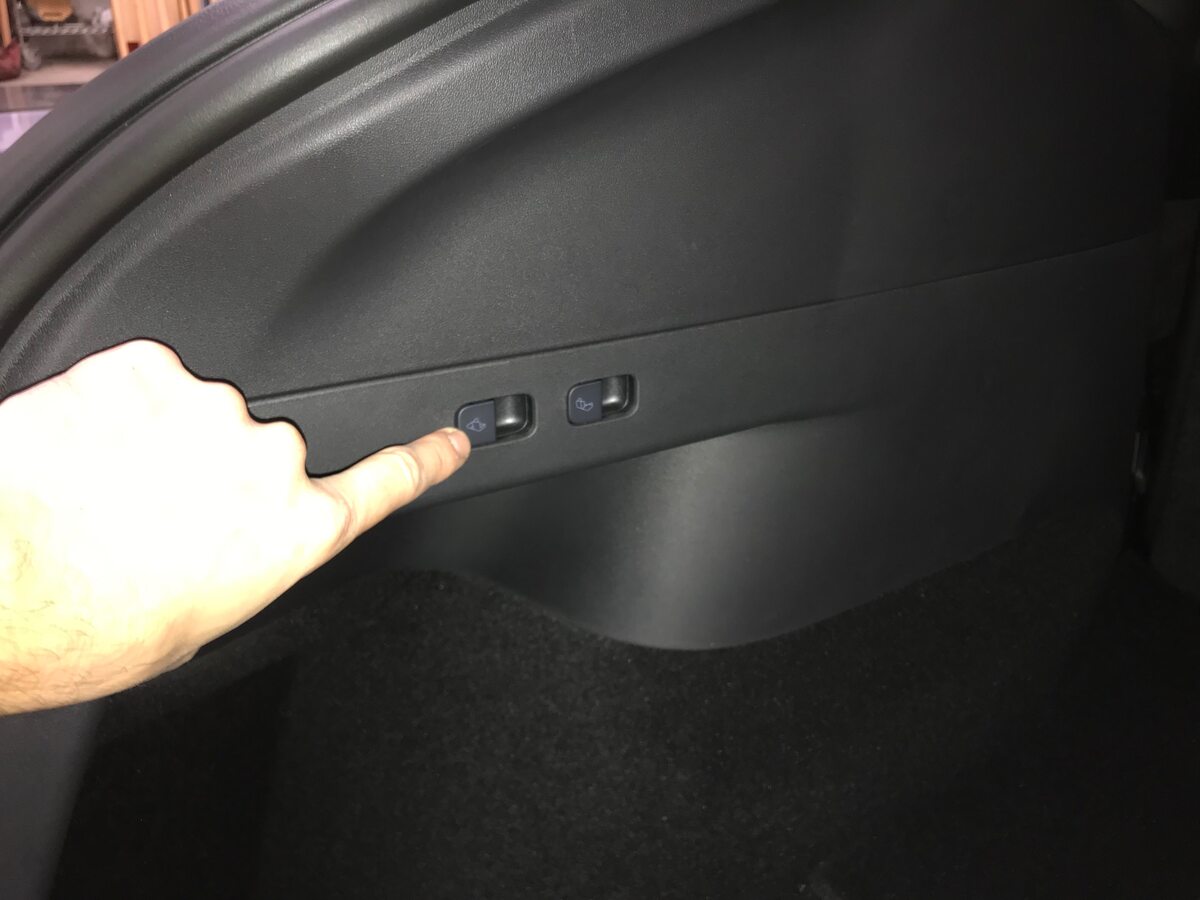

27. Function check folding/latching of 2nd row seats
    Nota

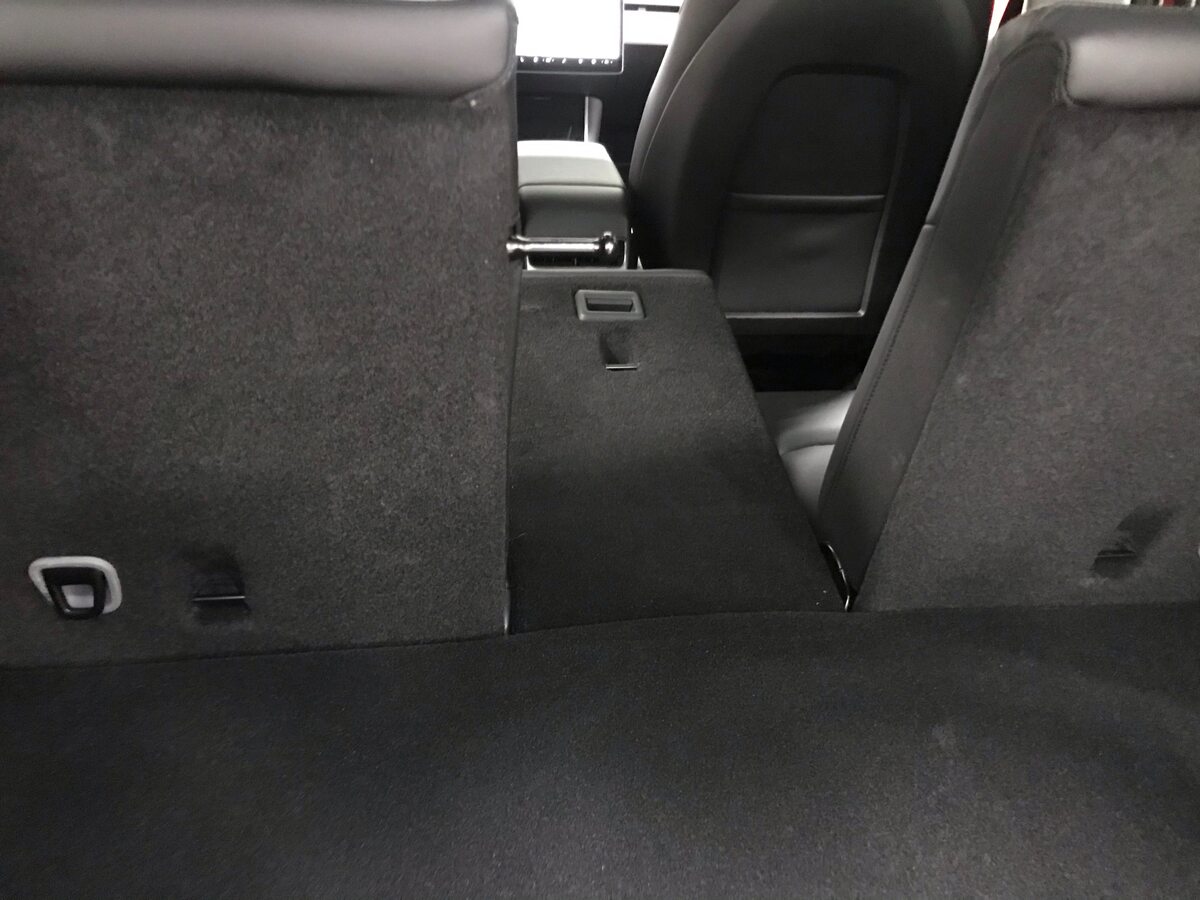

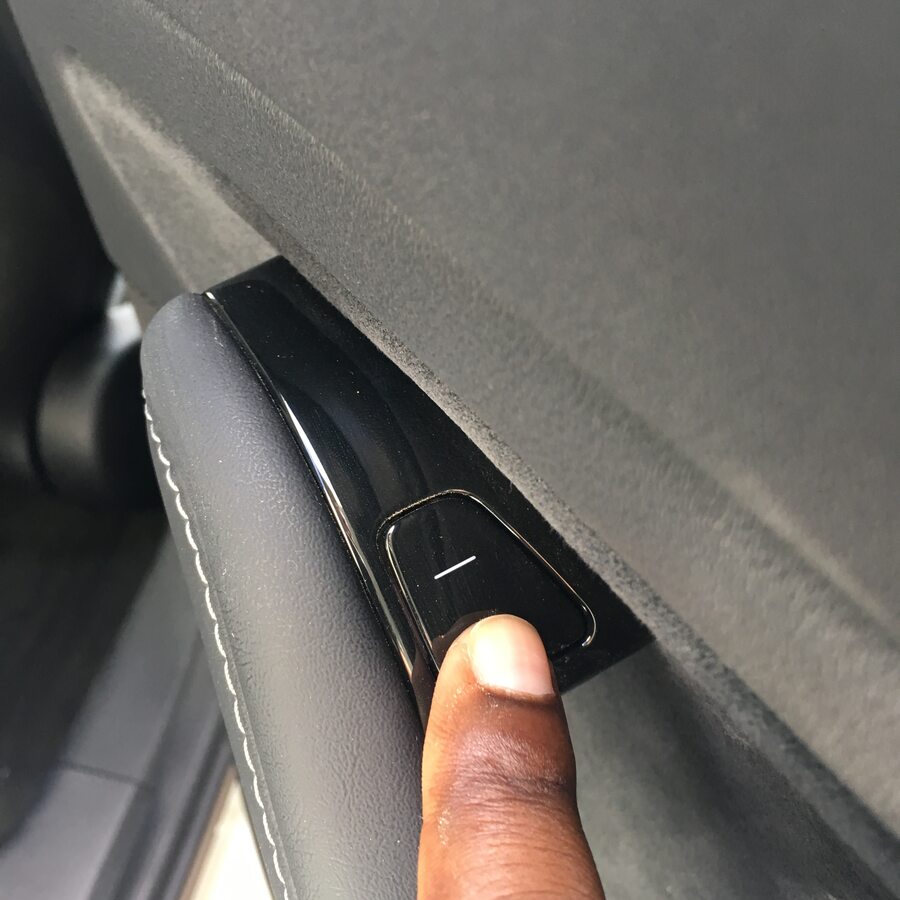

    Make sure seat shoulder switches, center seat switch and trunk side trim seat switches operate as expected

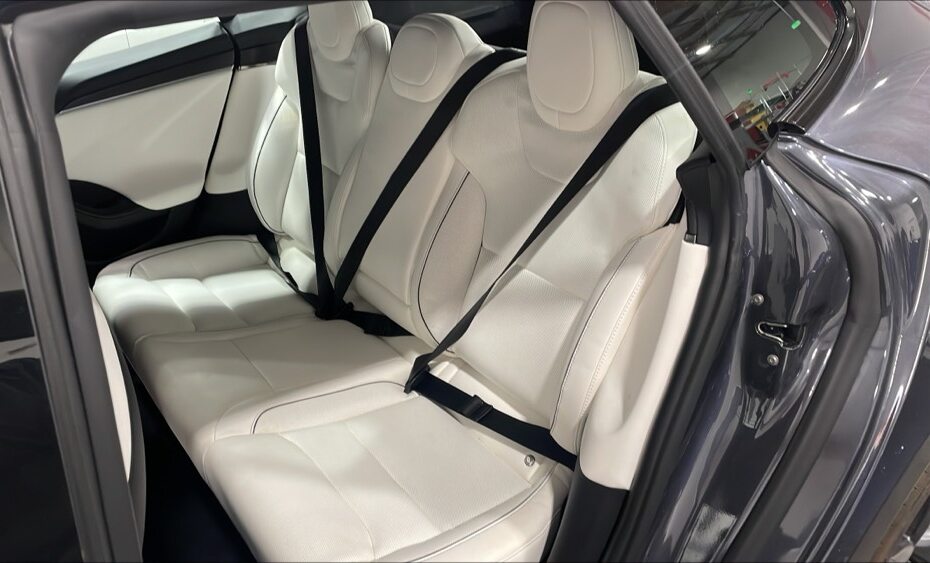

28. Function check the rear seat belts
    Nota

    Latch and unlatch buckles, Quickly pull retractor to check locking function



29. Function check the RH front seat belt
    Nota

    Latch and unlatch buckle, Quickly pull retractor to check locking function



30. Function check RH front seat
    Nota

    Check full range of motion of seat, Test lumbar and seat heat/cooling



31. Function check wipers and spray jets
    Nota

    Ensure hood and doors are closed prior to activating wipers, Inspect and note functionality for wipers and wiper jets, Check for full range of motion, speed of motion, interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions

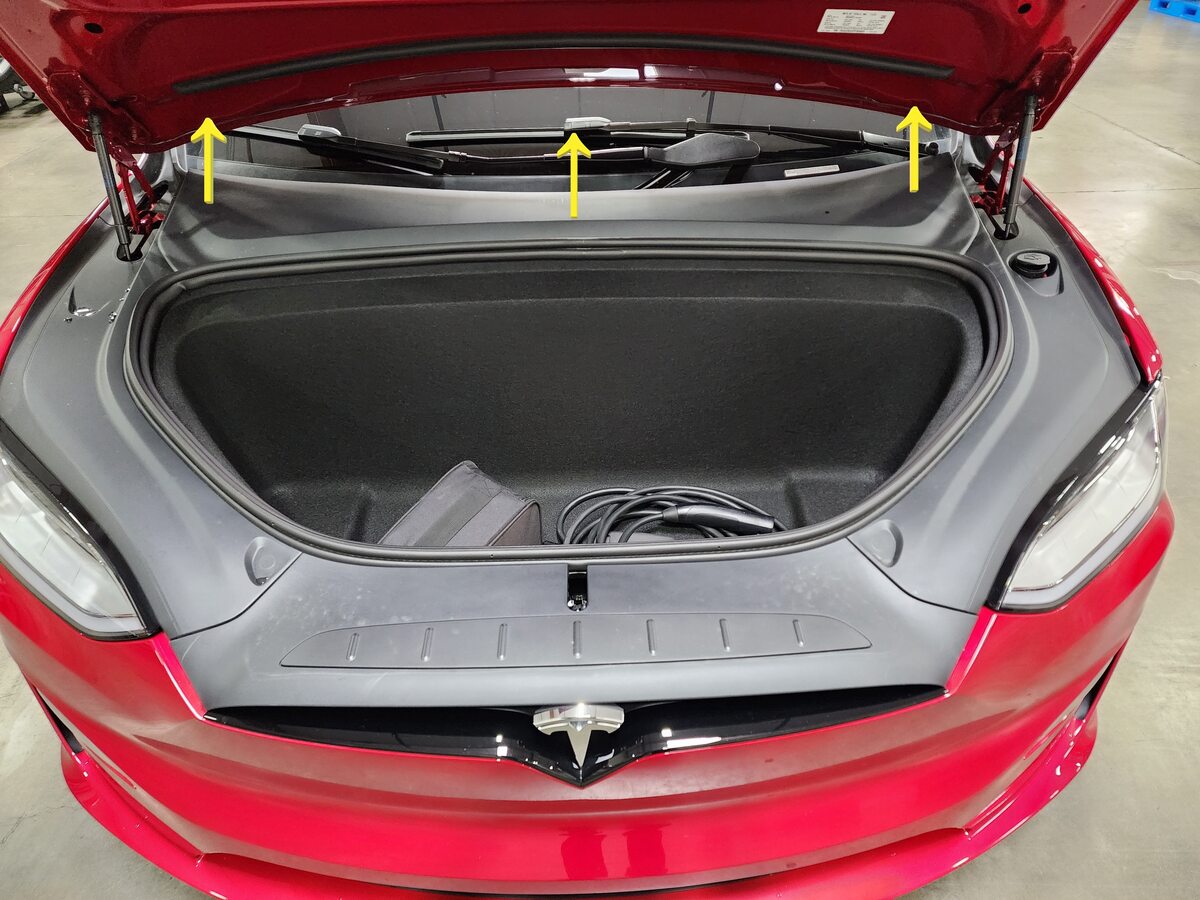

32. Open hood
    Nota

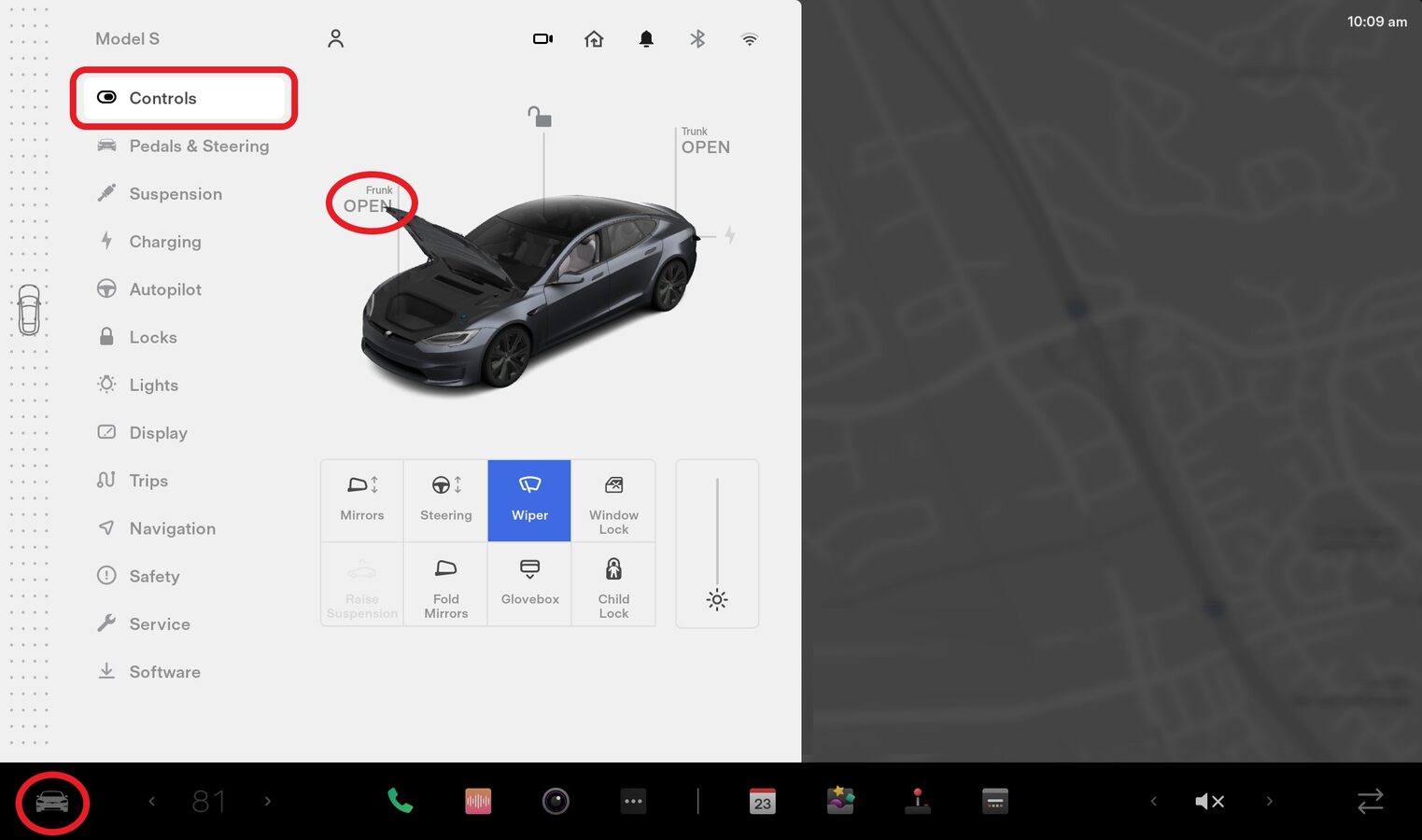

    Select Controls > Frunk Open

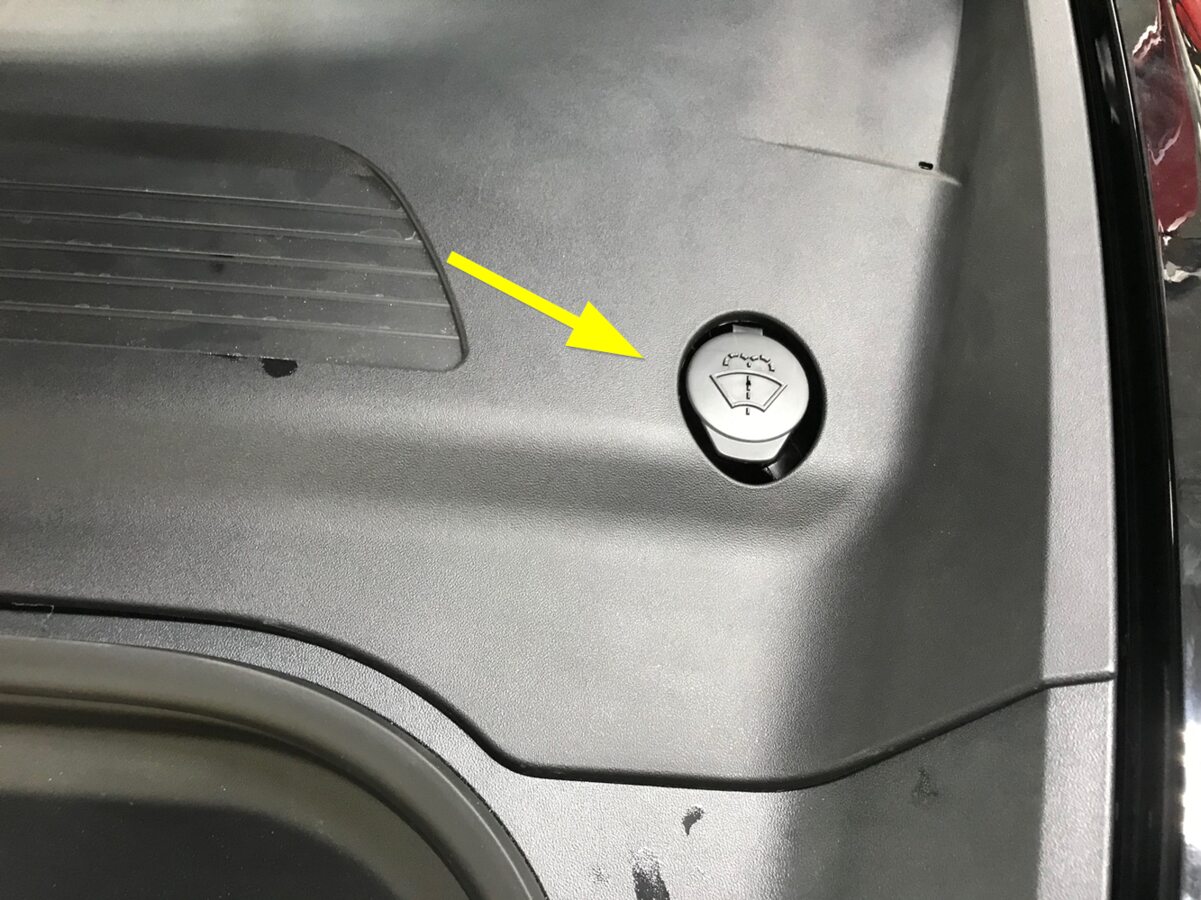

33. Fill washer reservoir with fluid



34. Remove rear underhood apron
    Nota

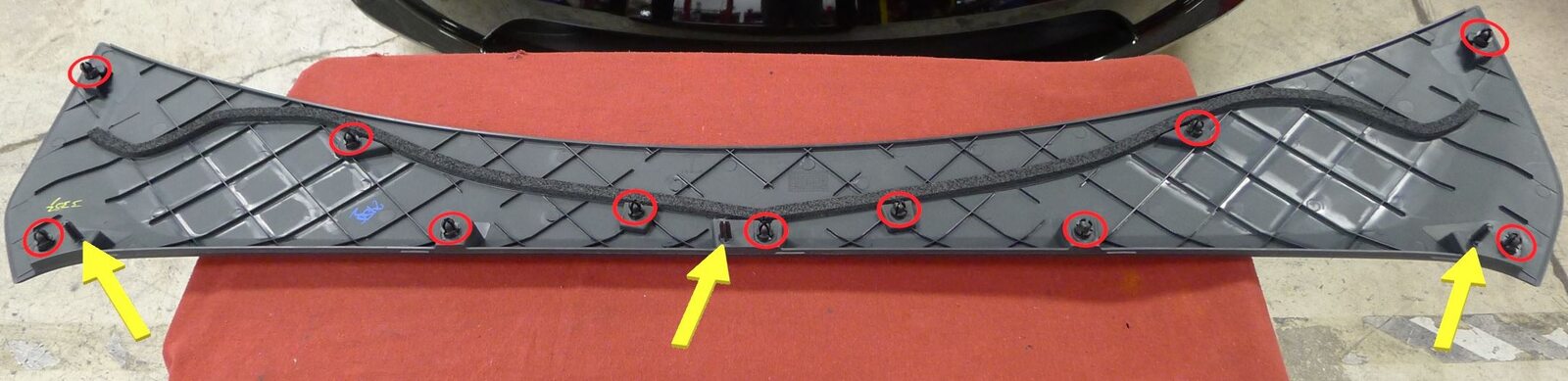

    11x clips, 3x datums

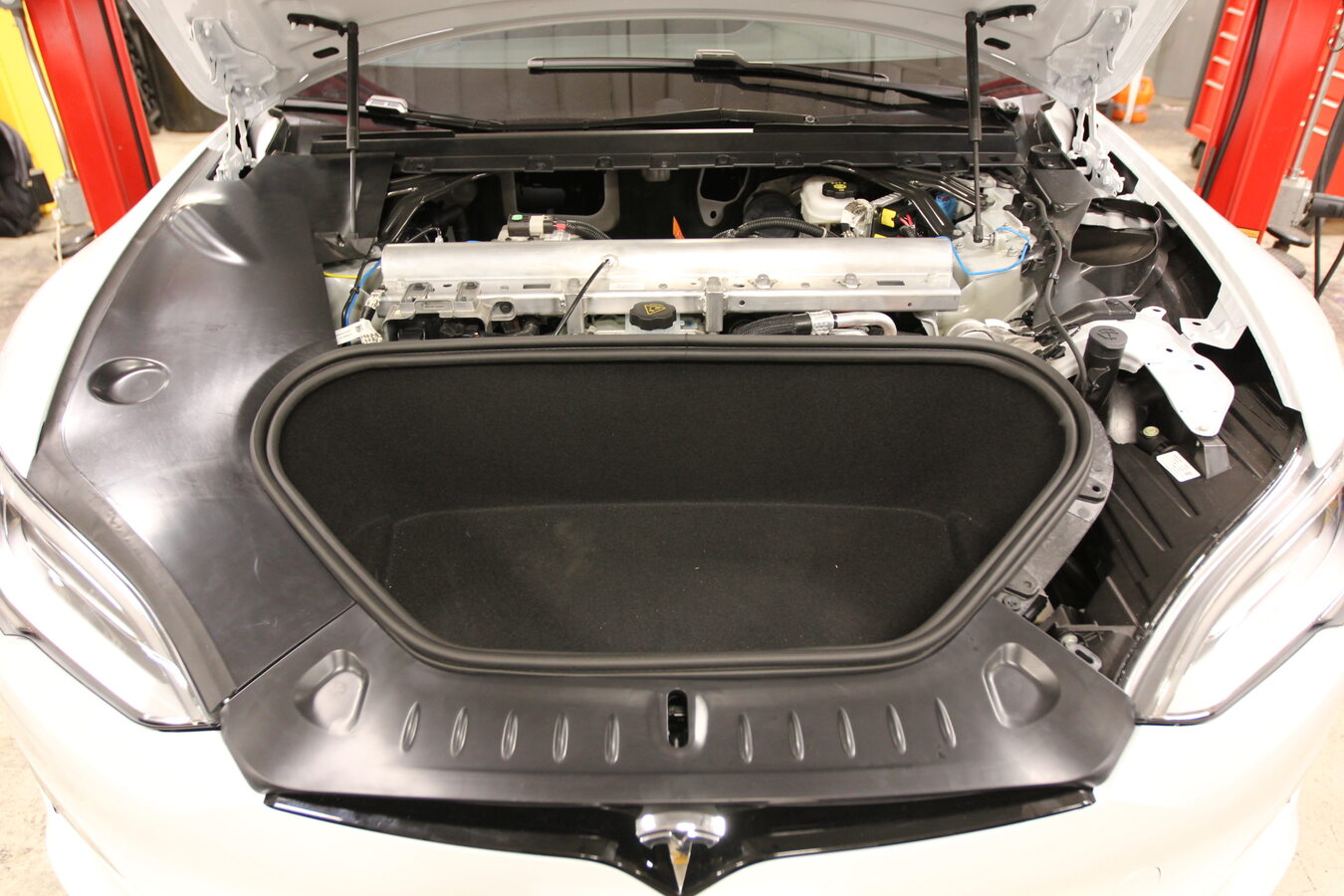

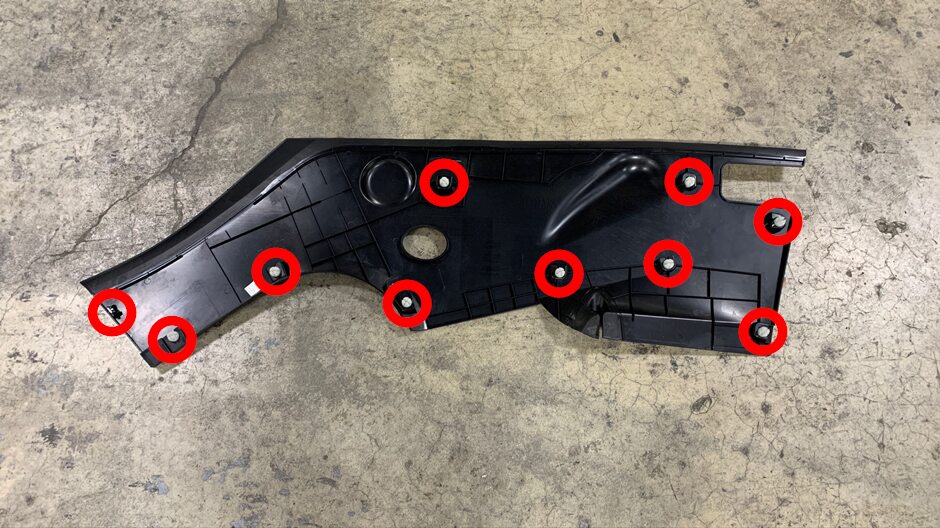

35. Remove LH underhood apron
    Nota

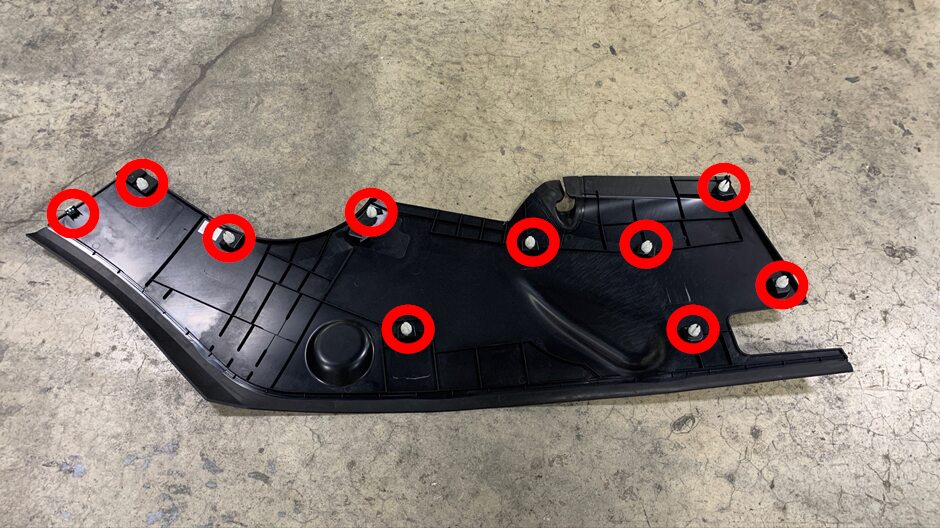

    10x clips, (*Use this step for Palladium S procedures)





36. Remove RH underhood apron
    Nota

    10x clips

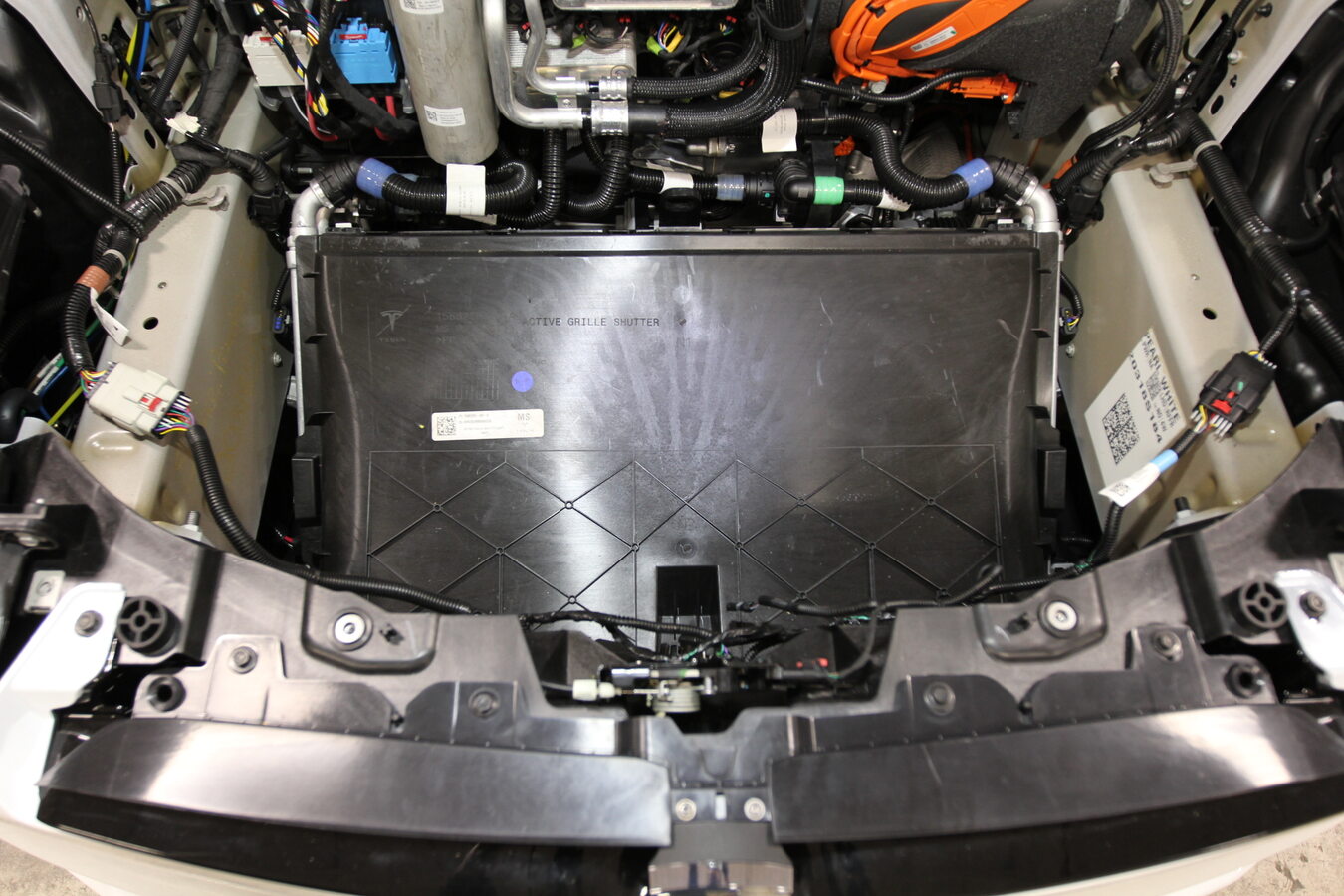

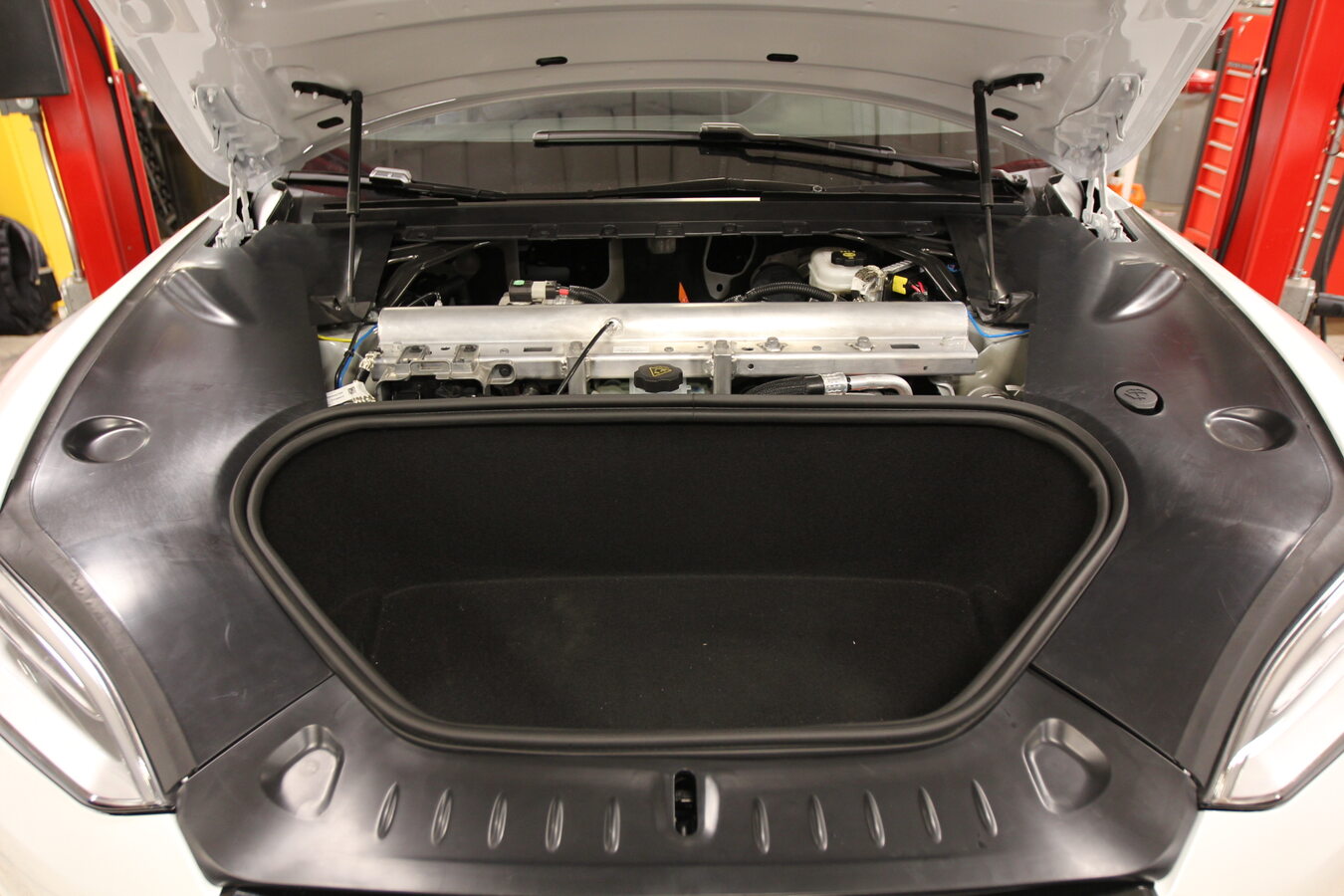

37. Remove front underhood apron
    Nota

    7x clips

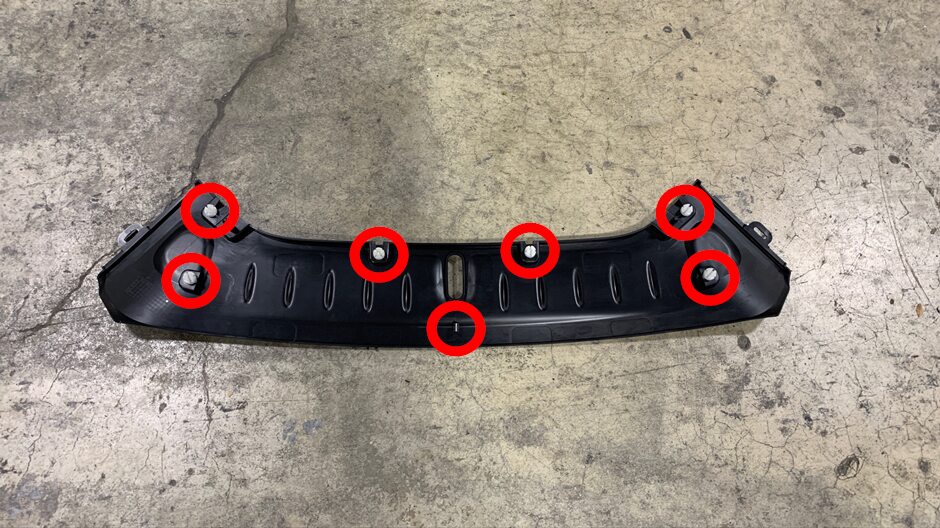

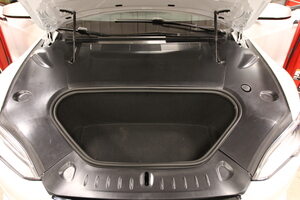

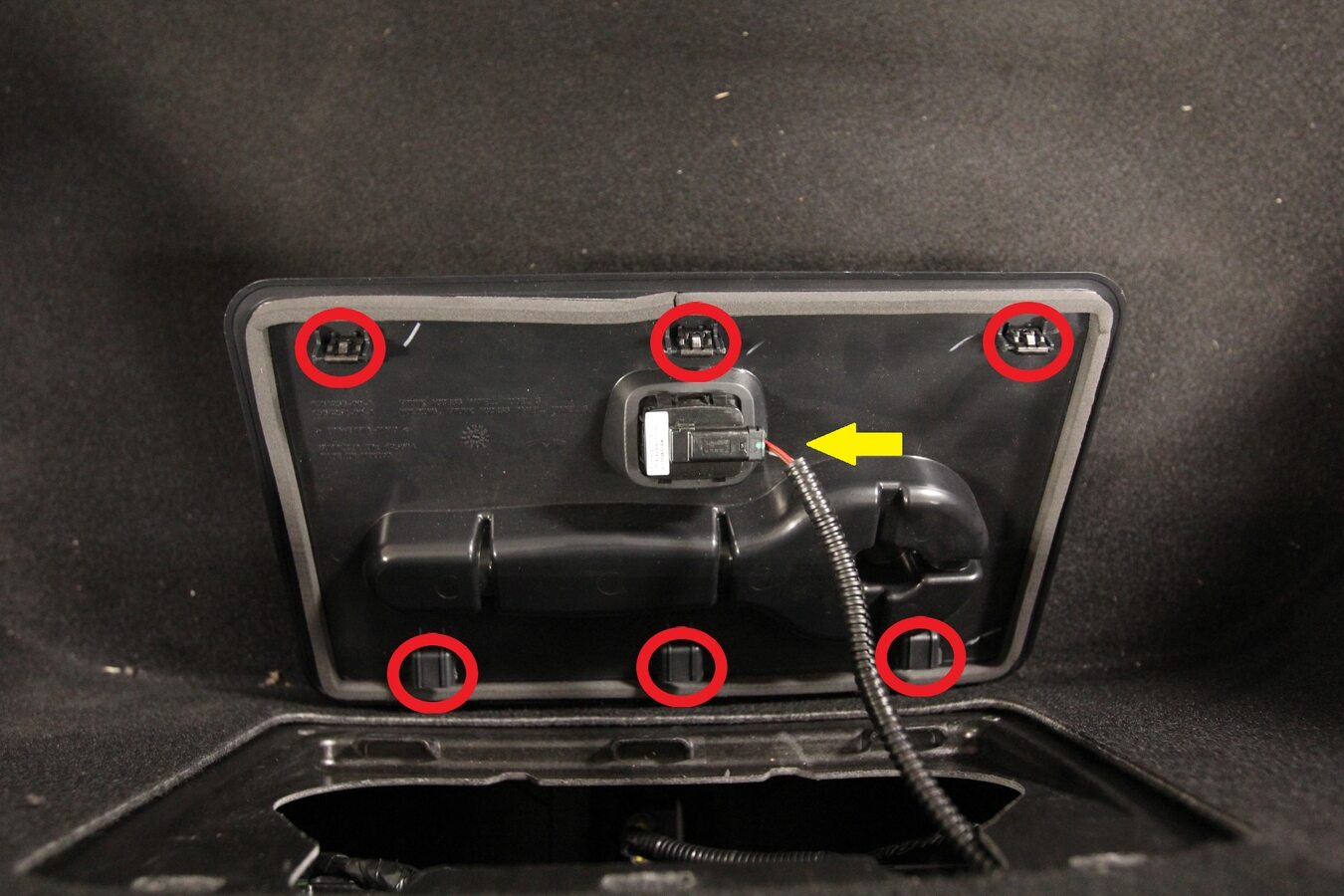

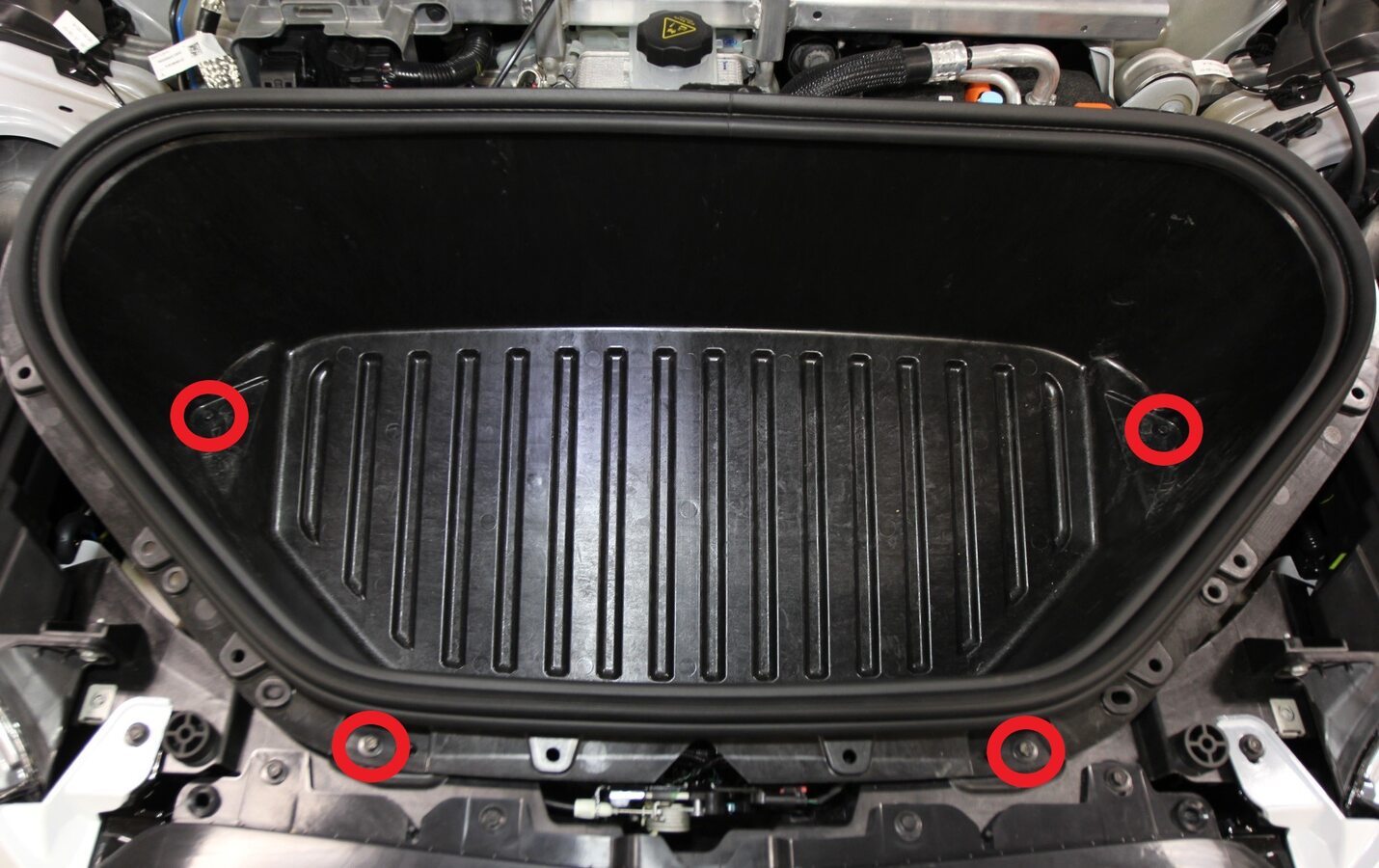

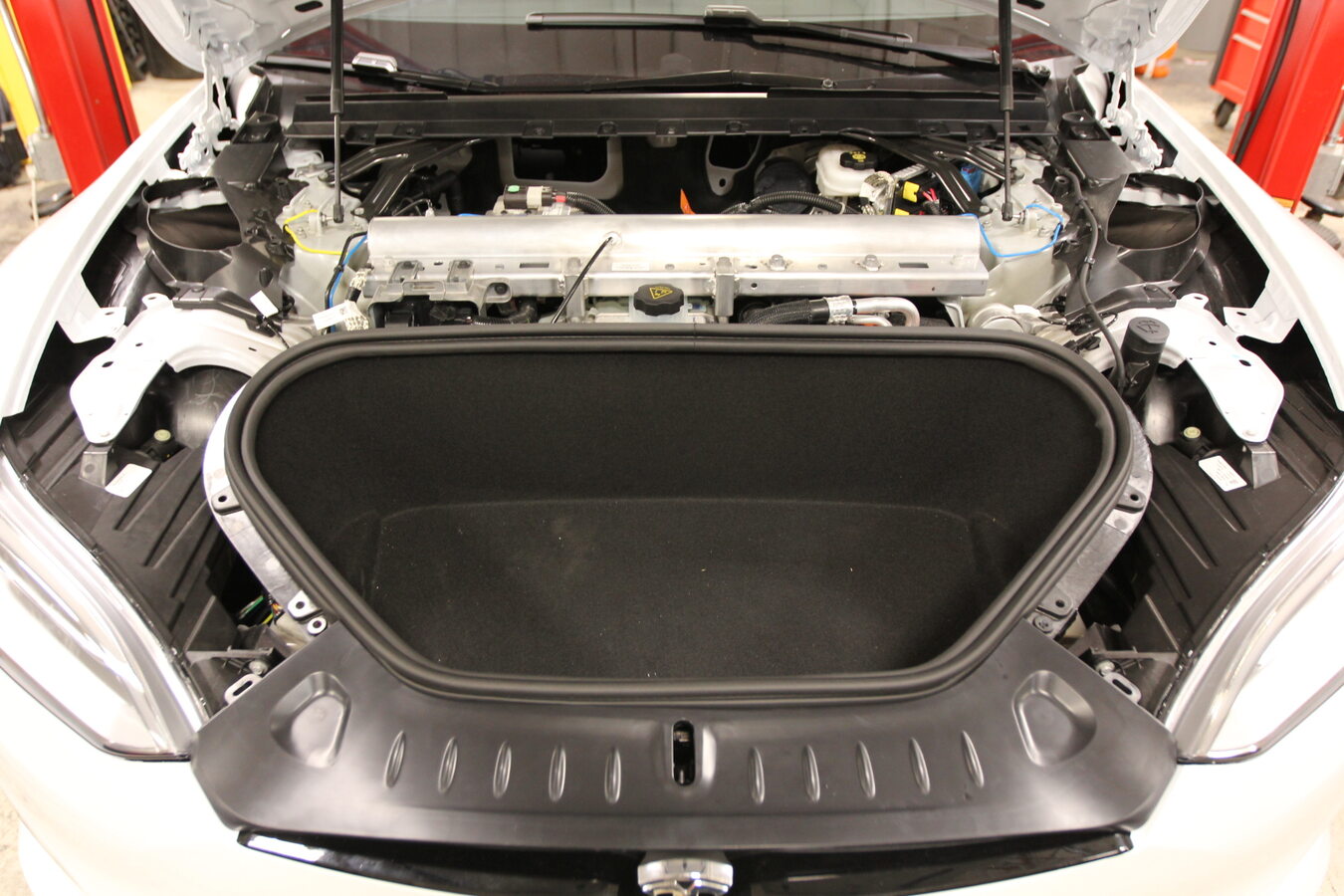

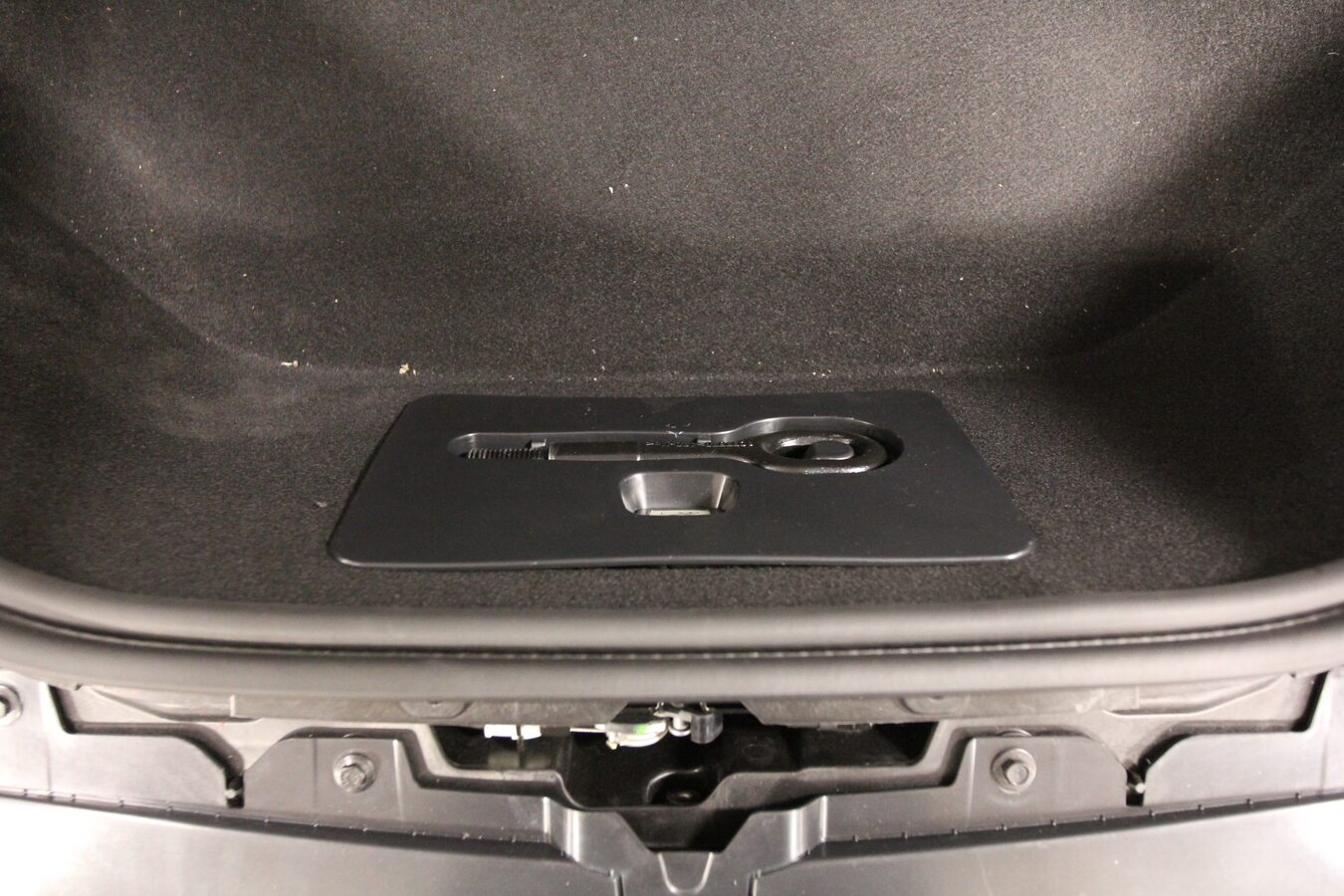

38. Remove frunk access panel
    Nota

    3x clips, 3x hooks, 1x connector

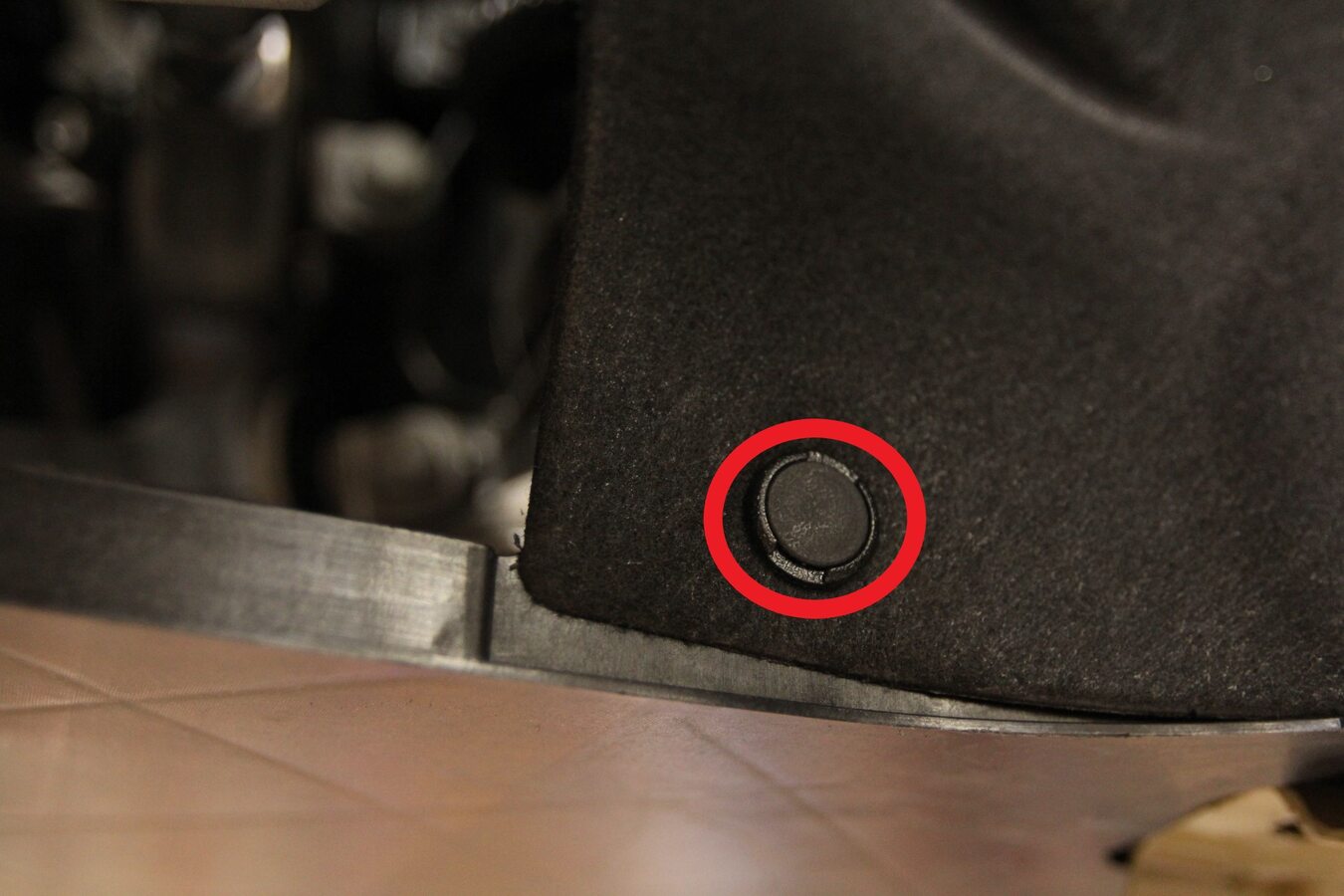

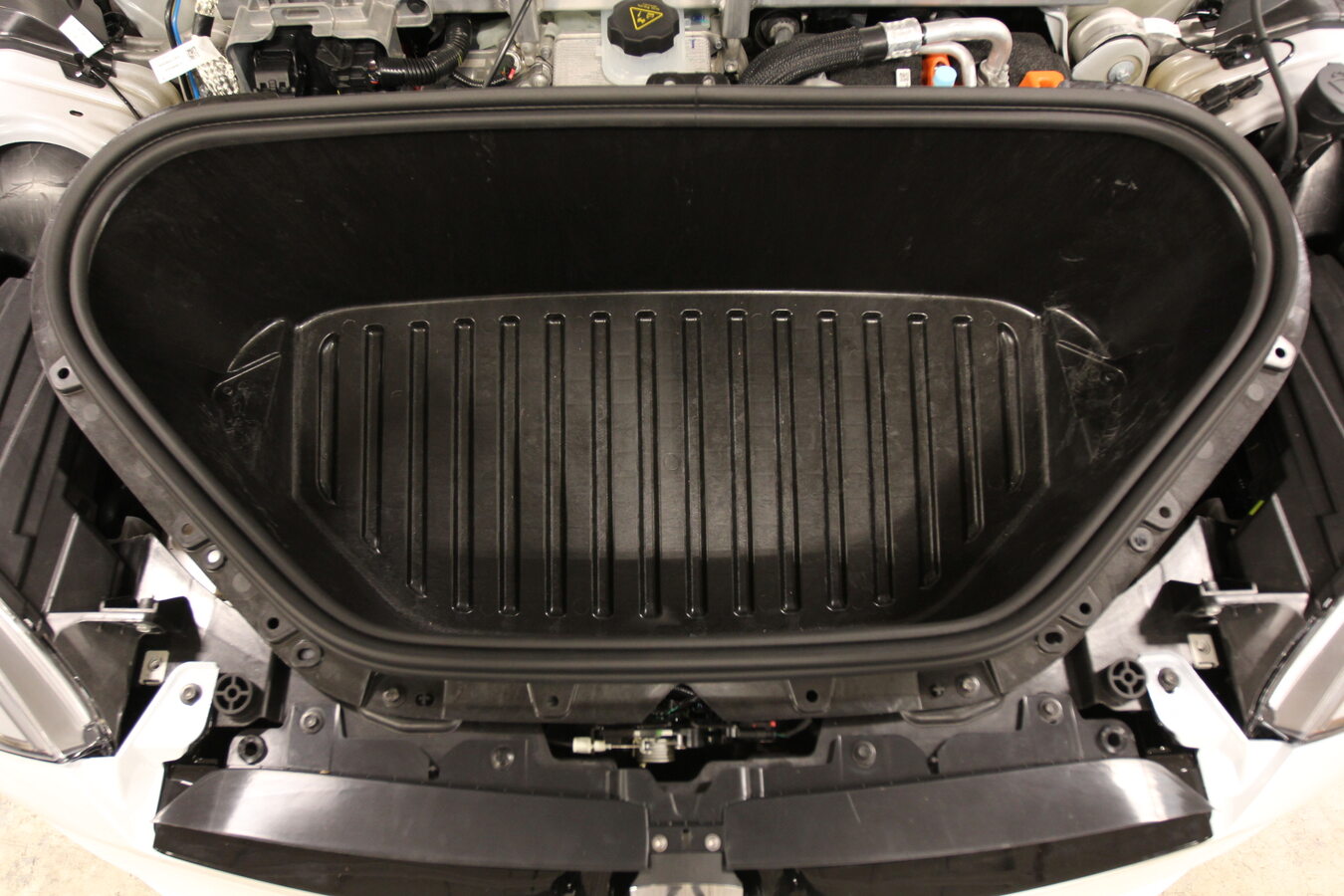

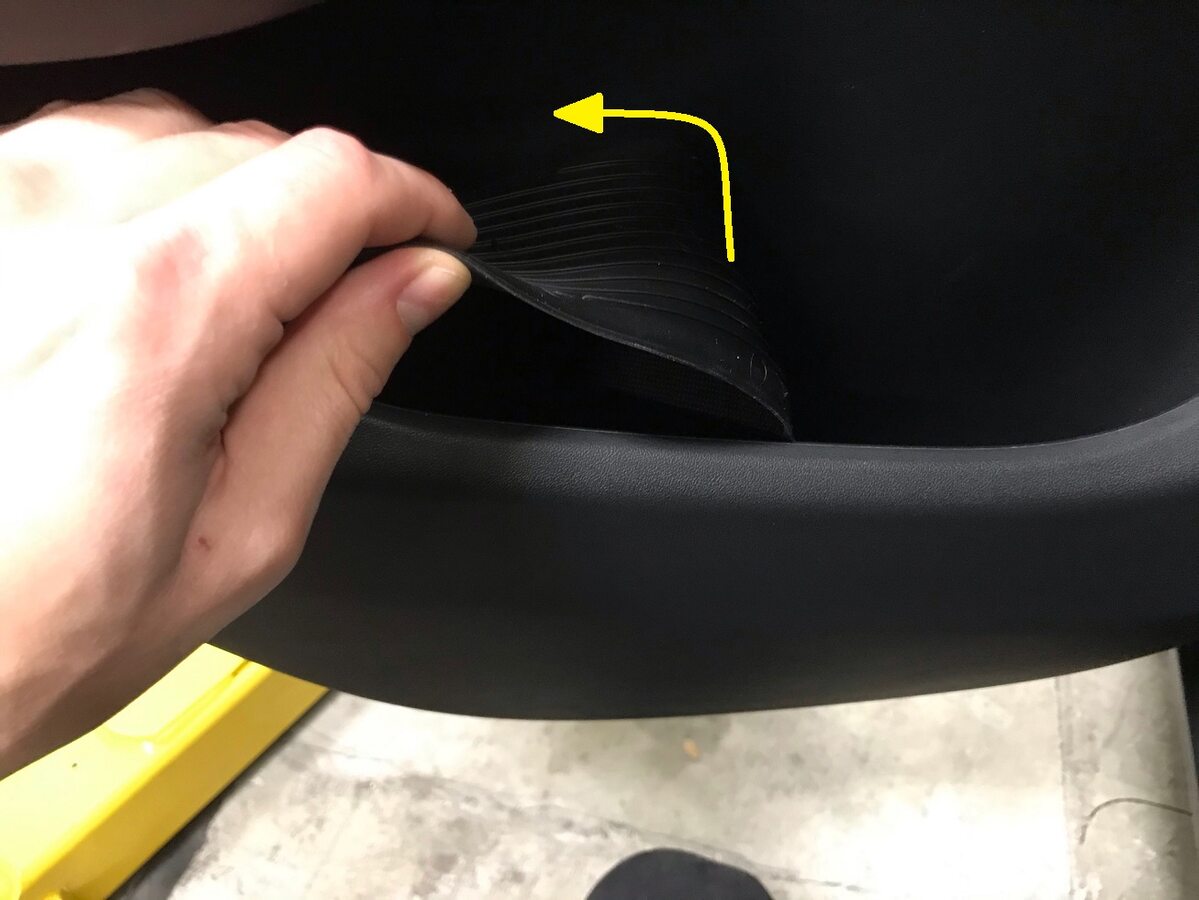

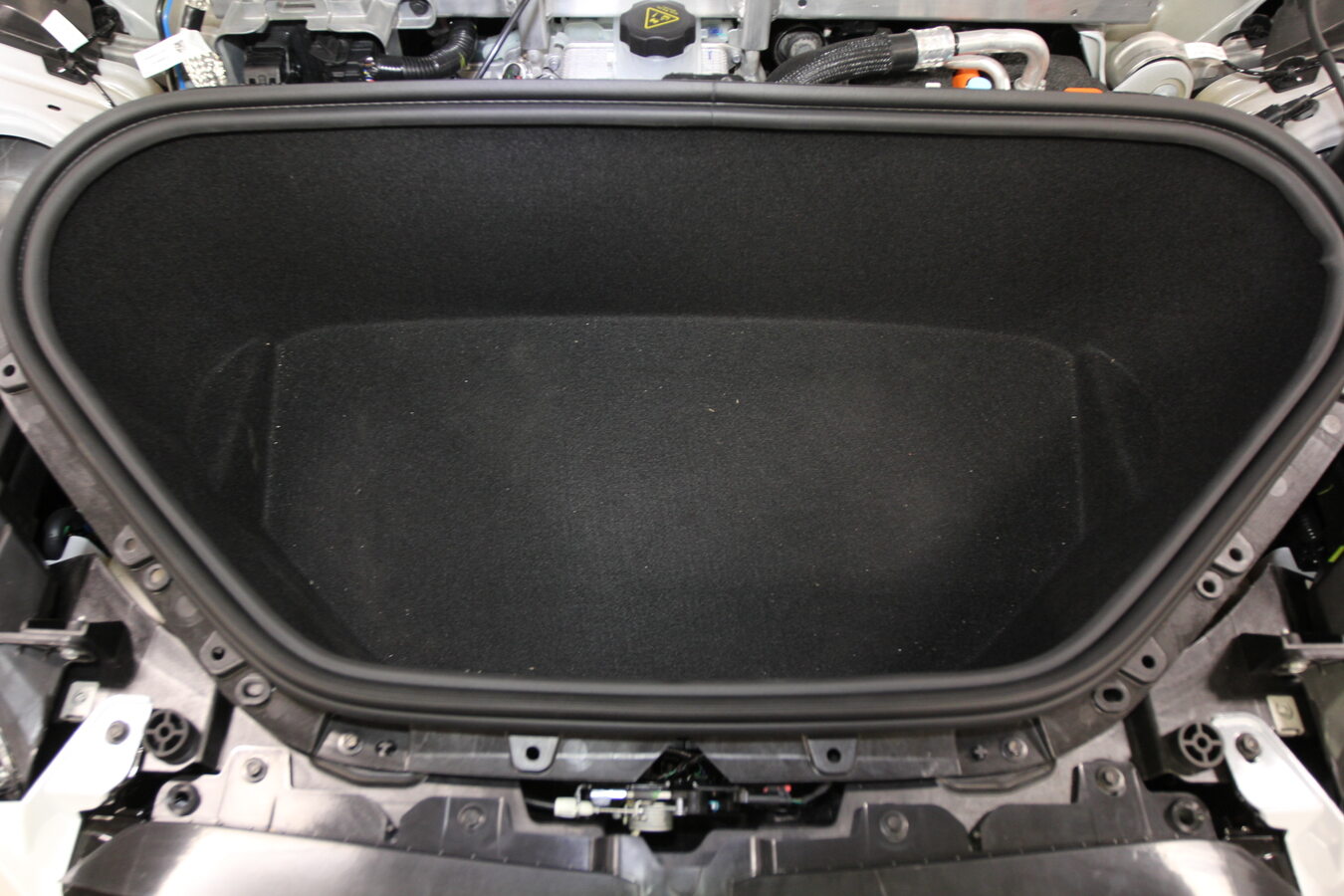

39. Remove frunk carpet





40. Remove frunk assembly
    Nota

    4x bolts, 10mm, 5 Nm

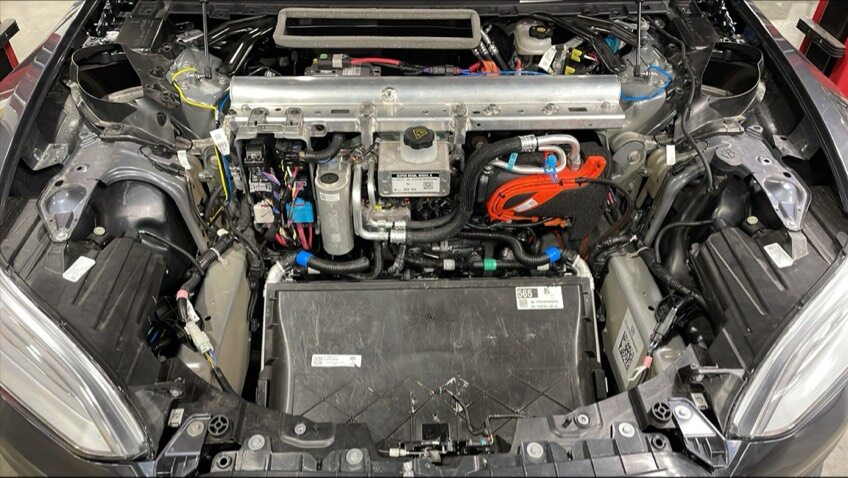

41. Perform inspection of under hood area
    Nota

    Perform inspection of vehicle under hood area, Check for signs of abnormal damage, wear, heavy rust, wiring damage, or impact damage, Pay attention to safety related component and note any items of significance

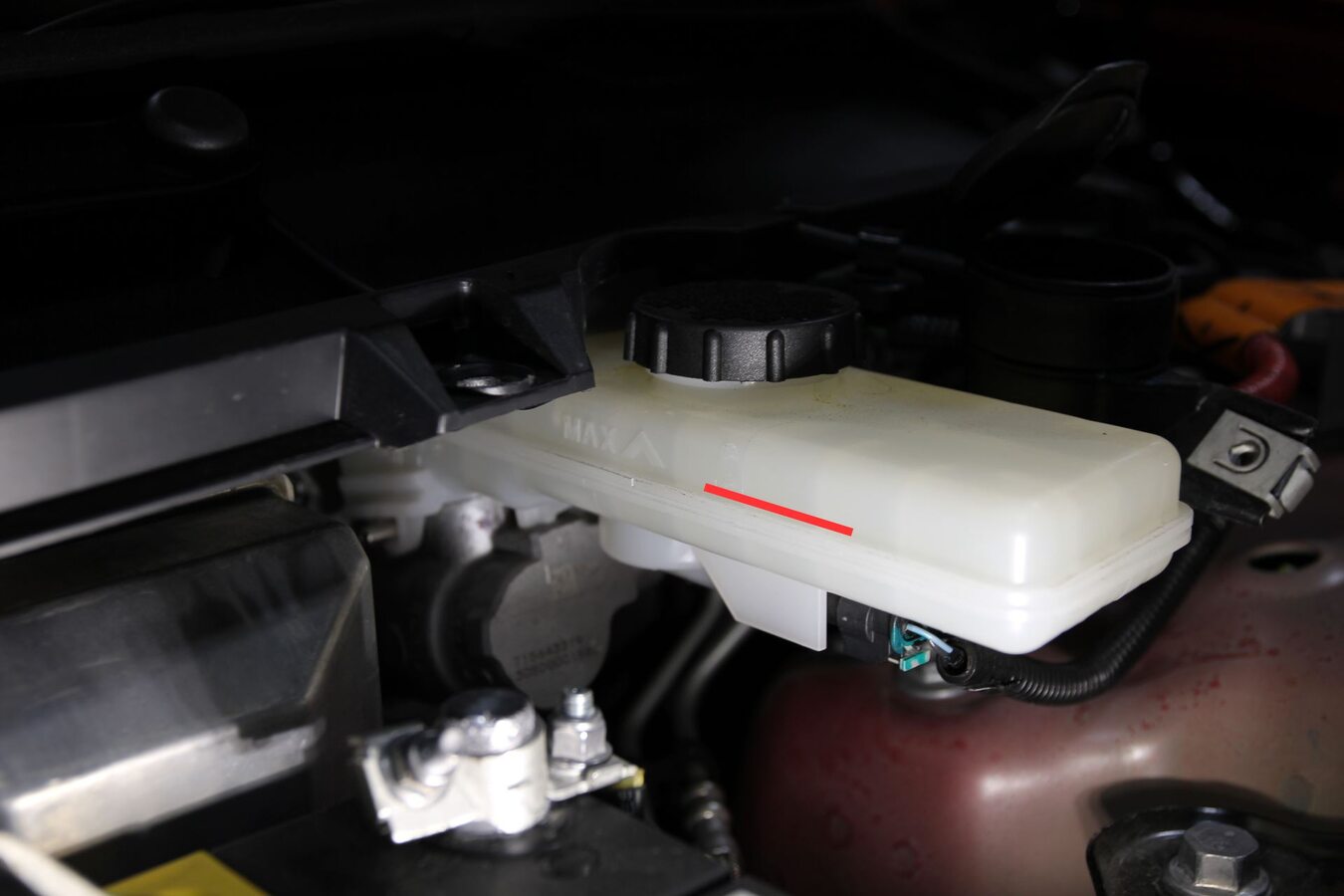

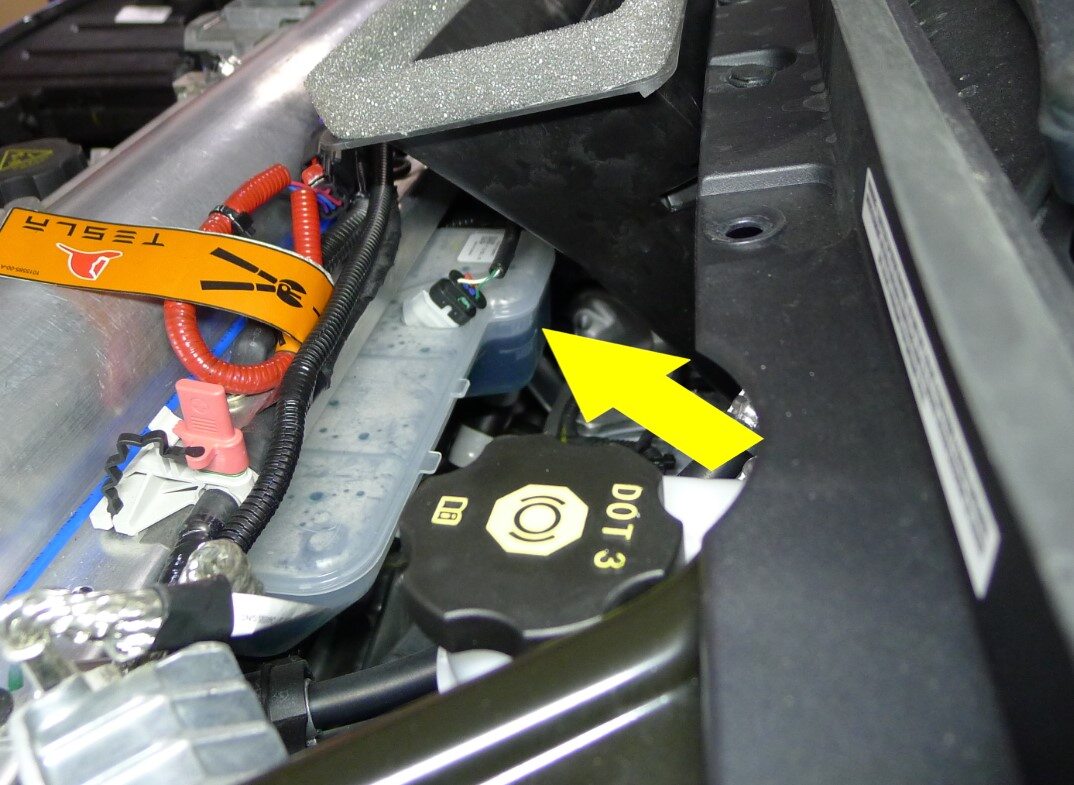

42. Visually inspect brake fluid level

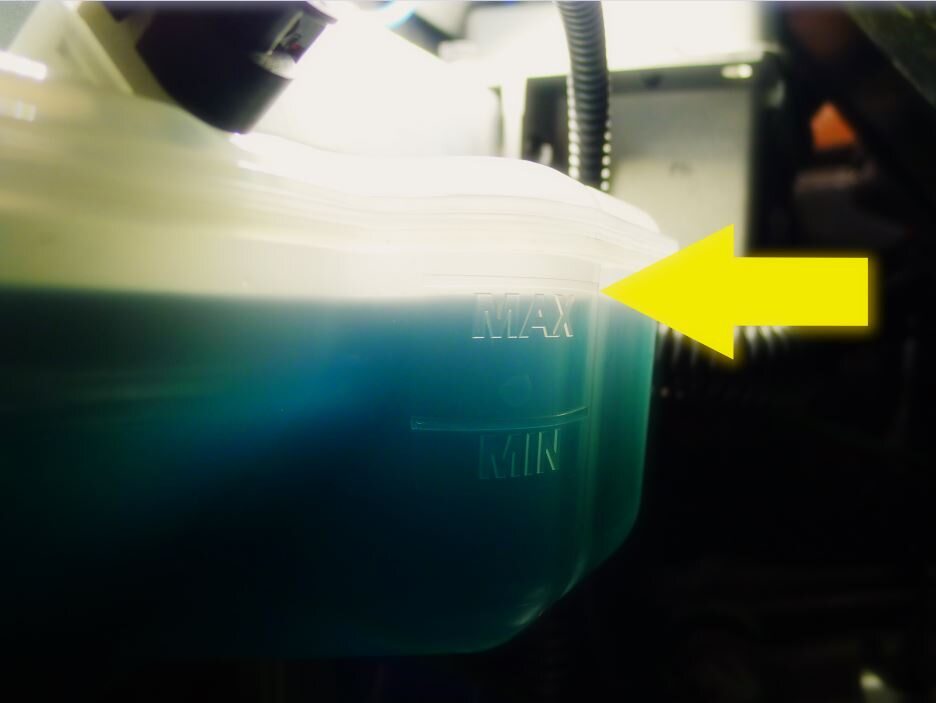

43. Inspect coolant level and top off as necessary
    Nota

    Ensure that the fluid level is at the Max line, Top off fluid as required

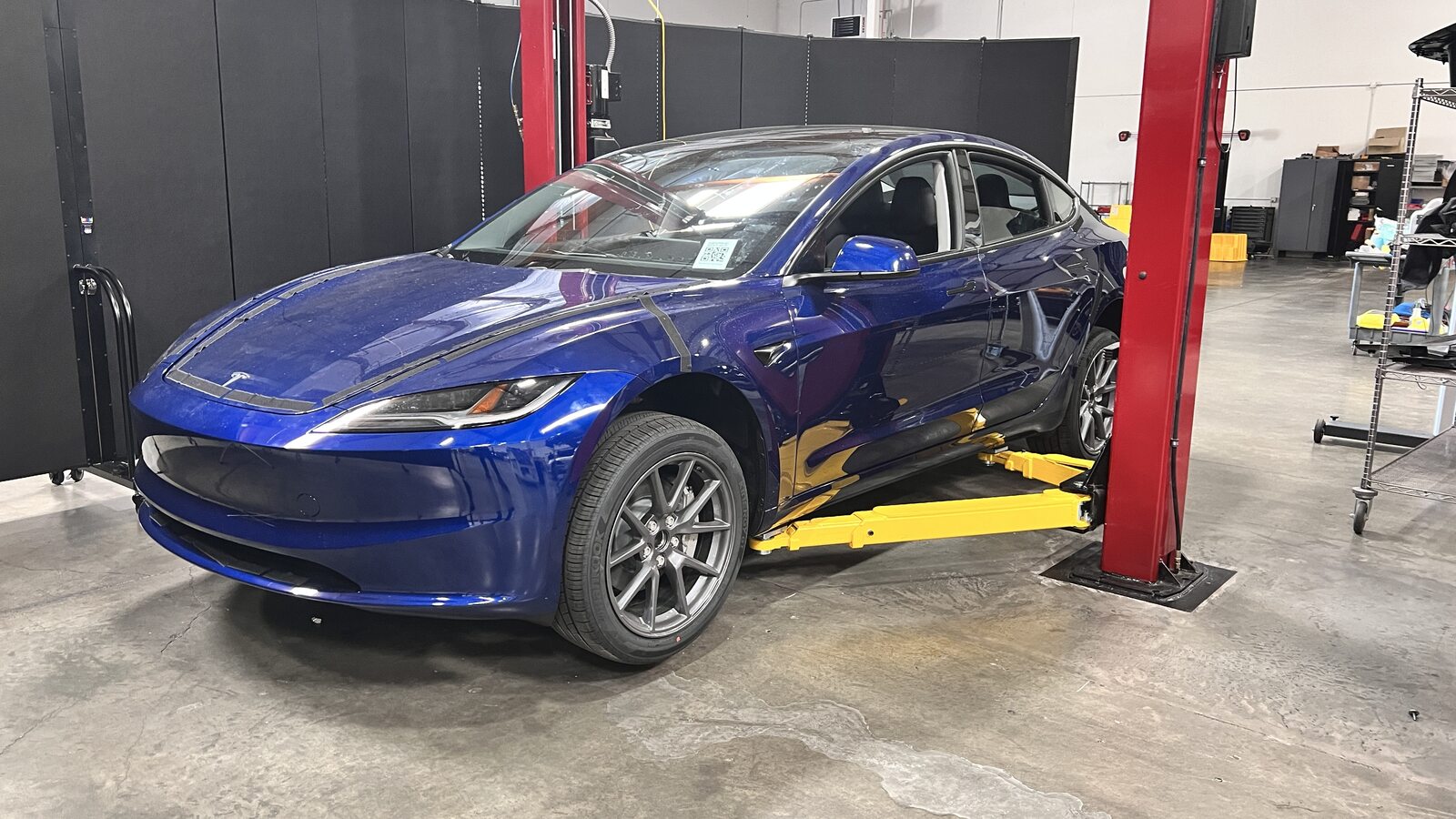

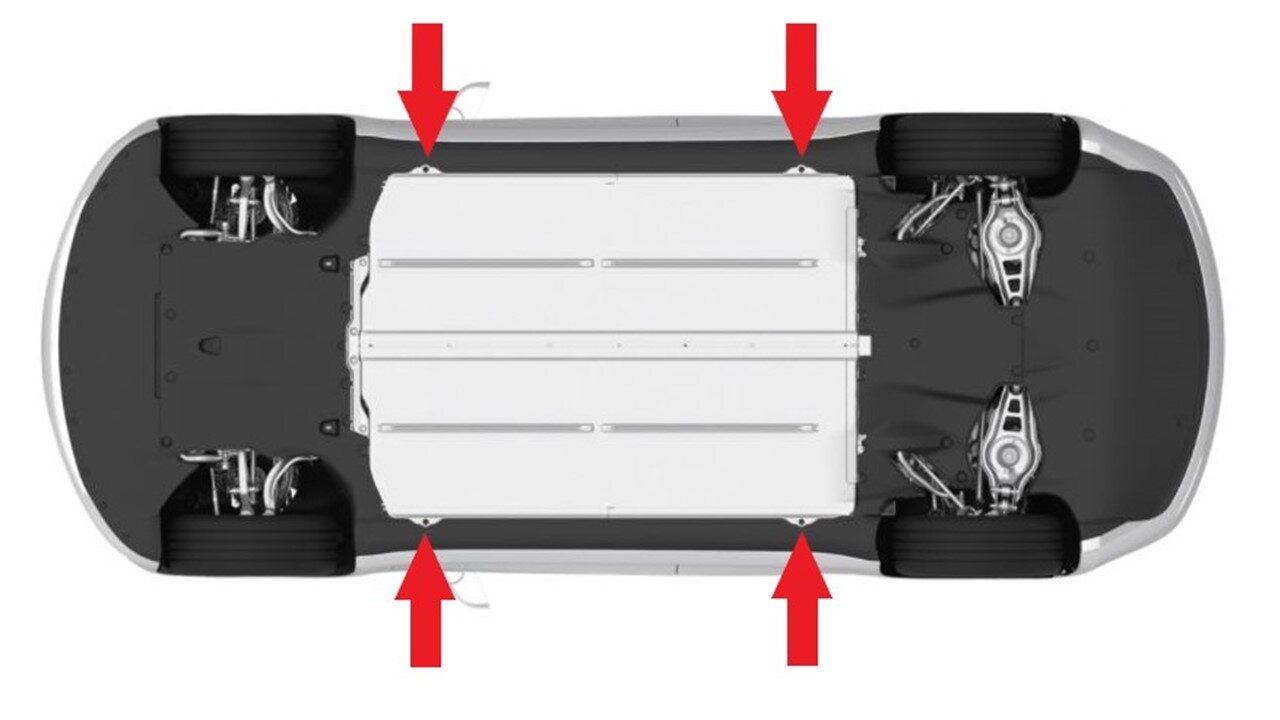

44. Raise and support vehicle
    Nota

    Ensure vehicle is not charging

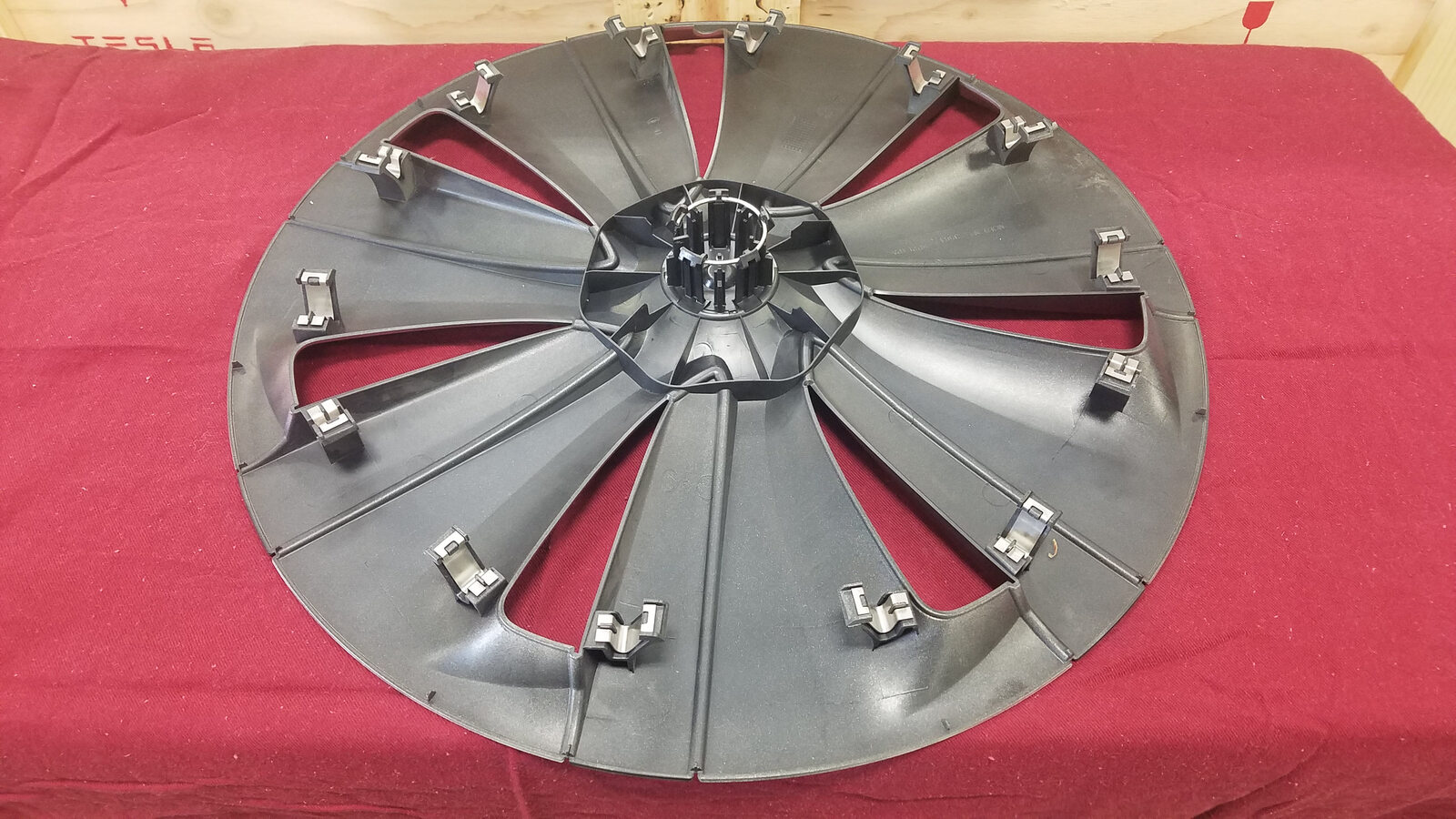

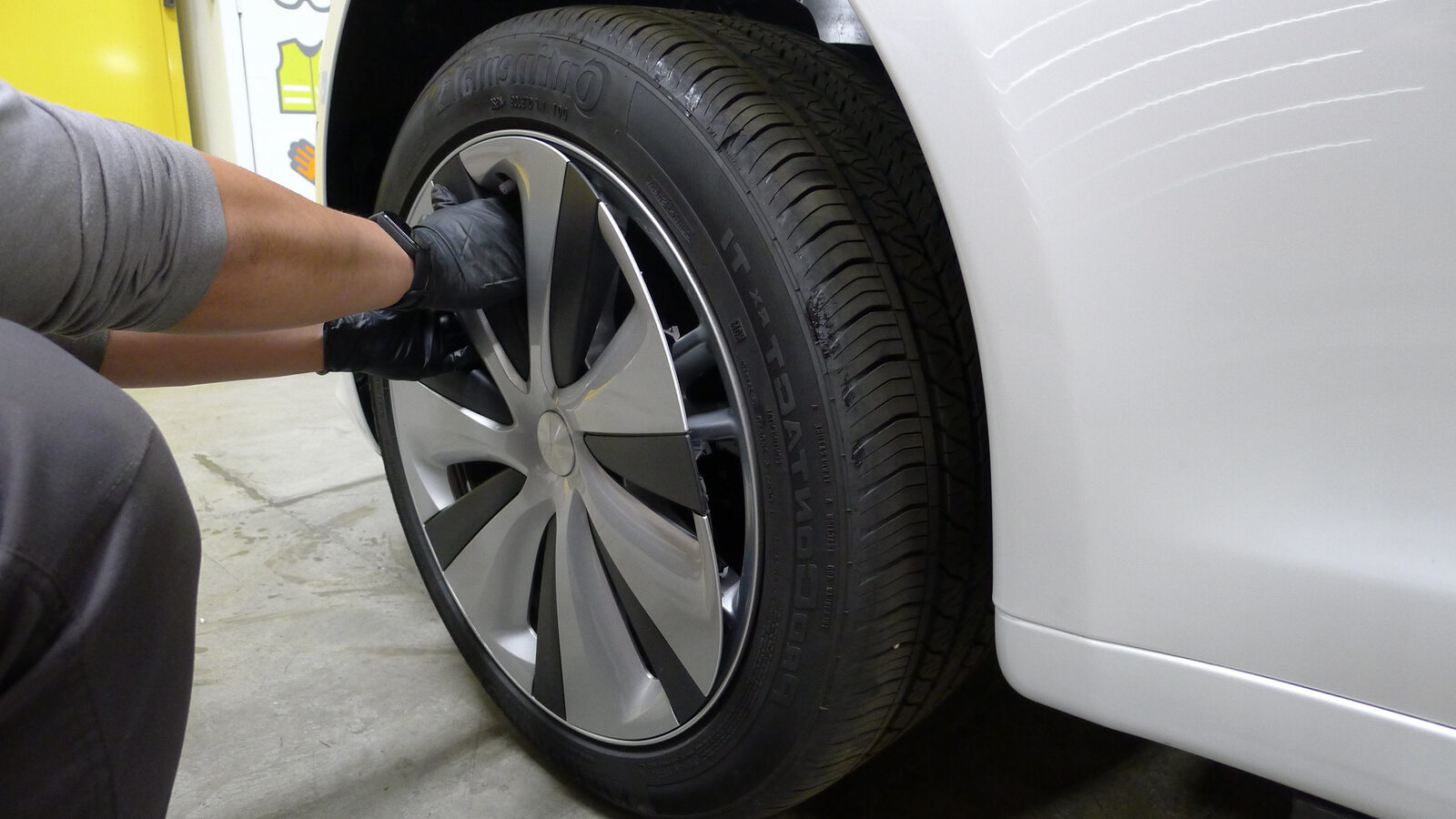

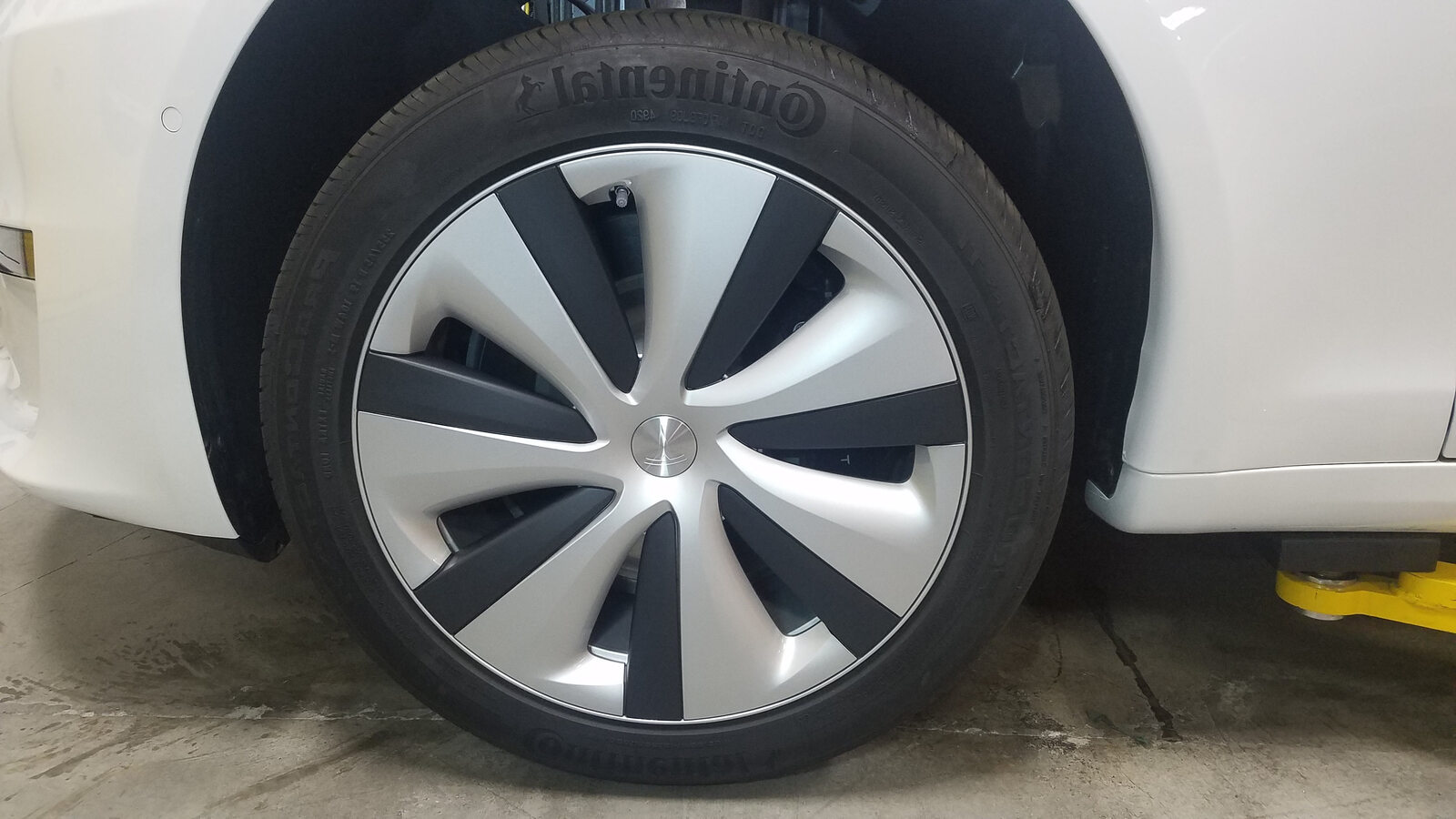

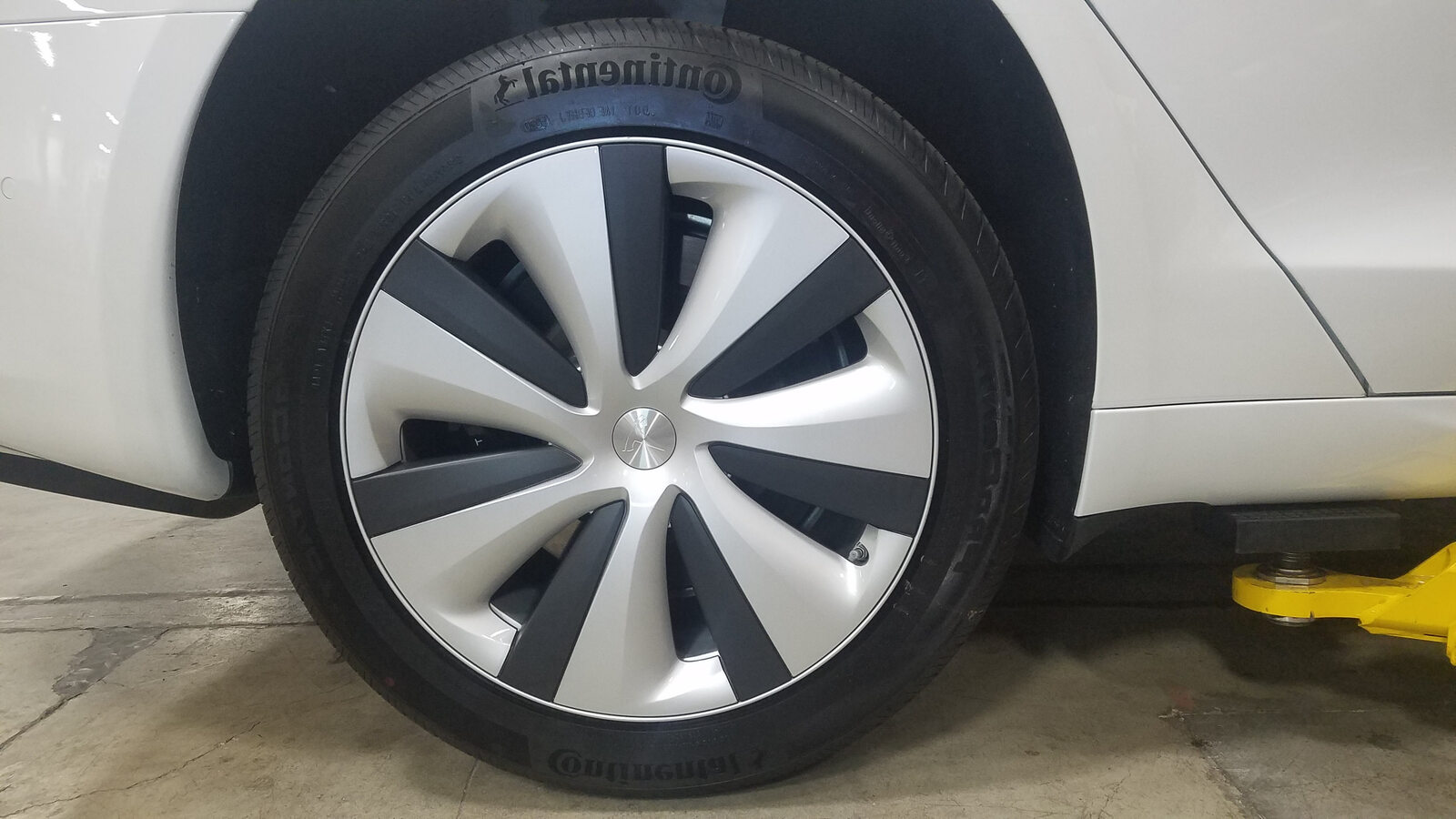

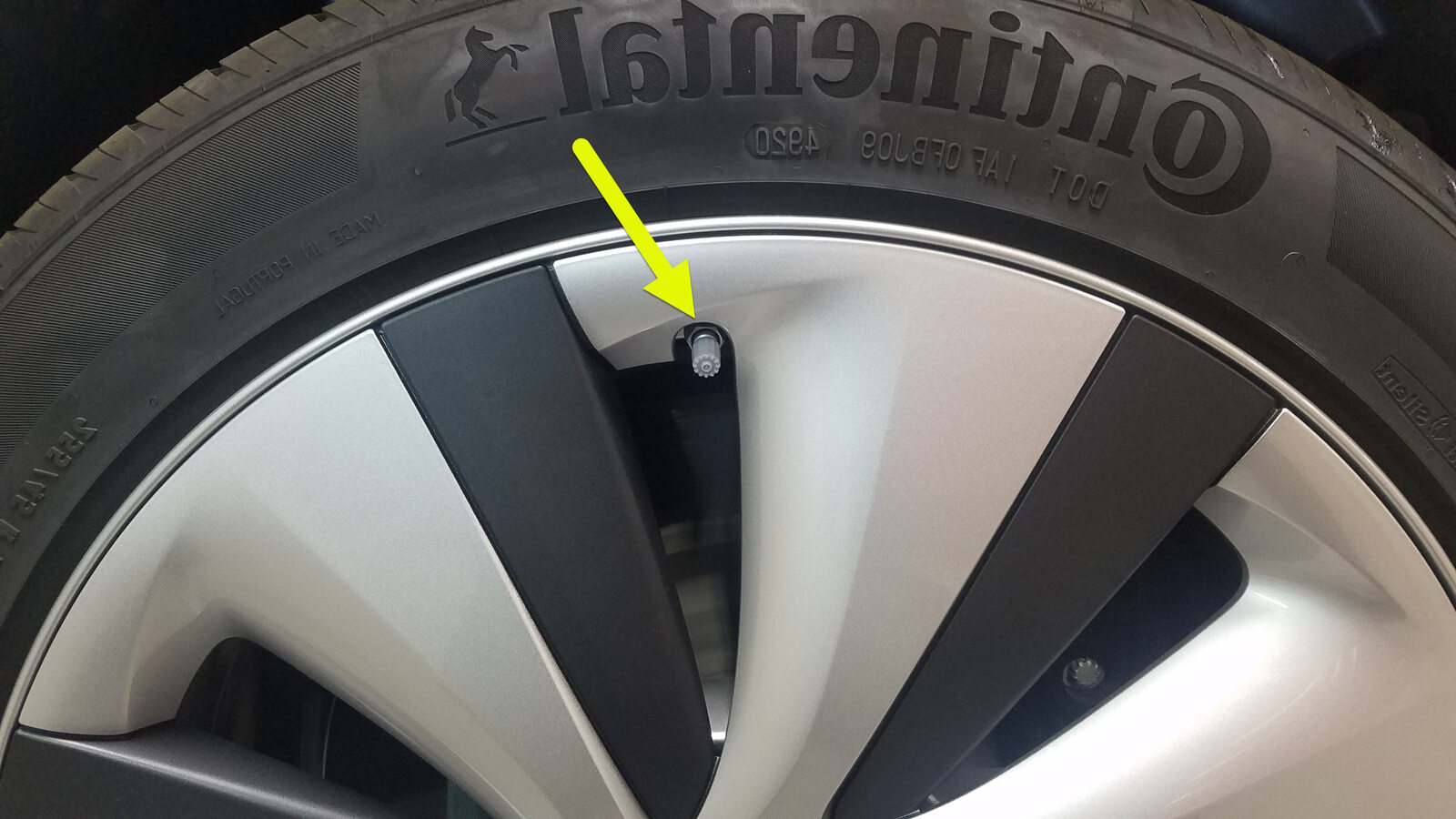

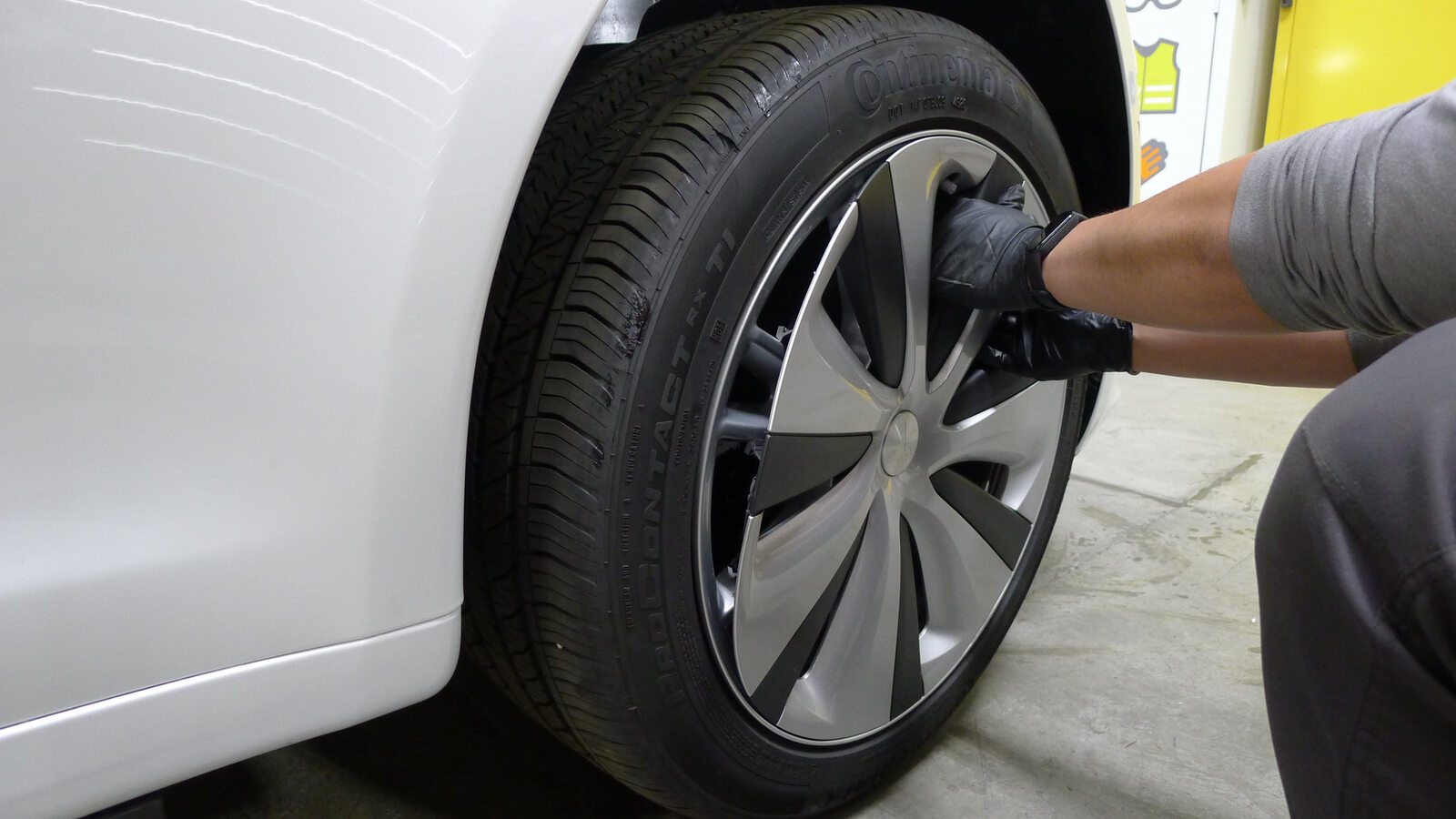

45. Remove LH front wheel cap
    Nota

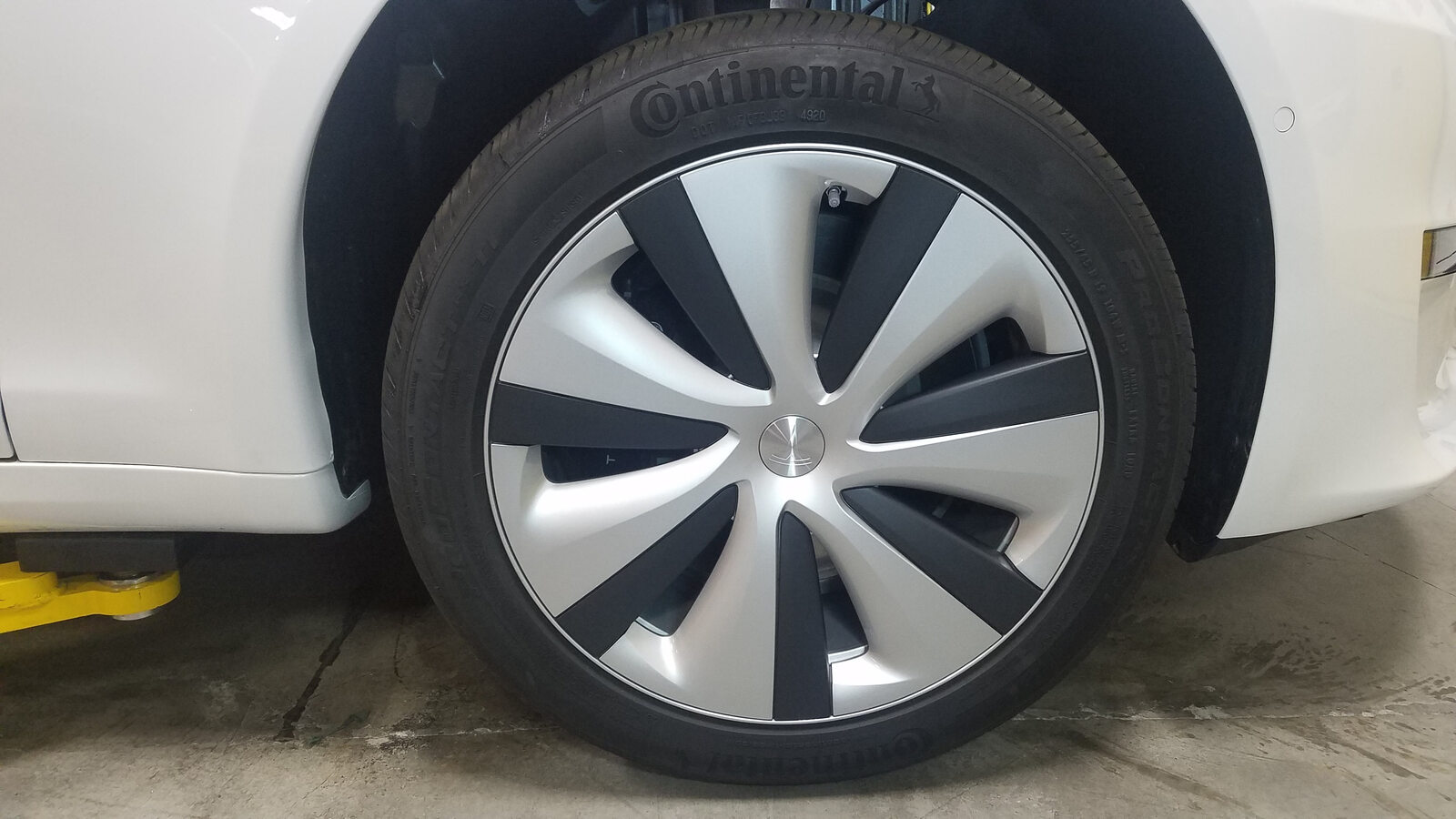

    Lift every other spoke at a time until cap is released from rim







46. Remove RH front wheel cap
    Nota

    Lift every other spoke at a time until cap is released from rim

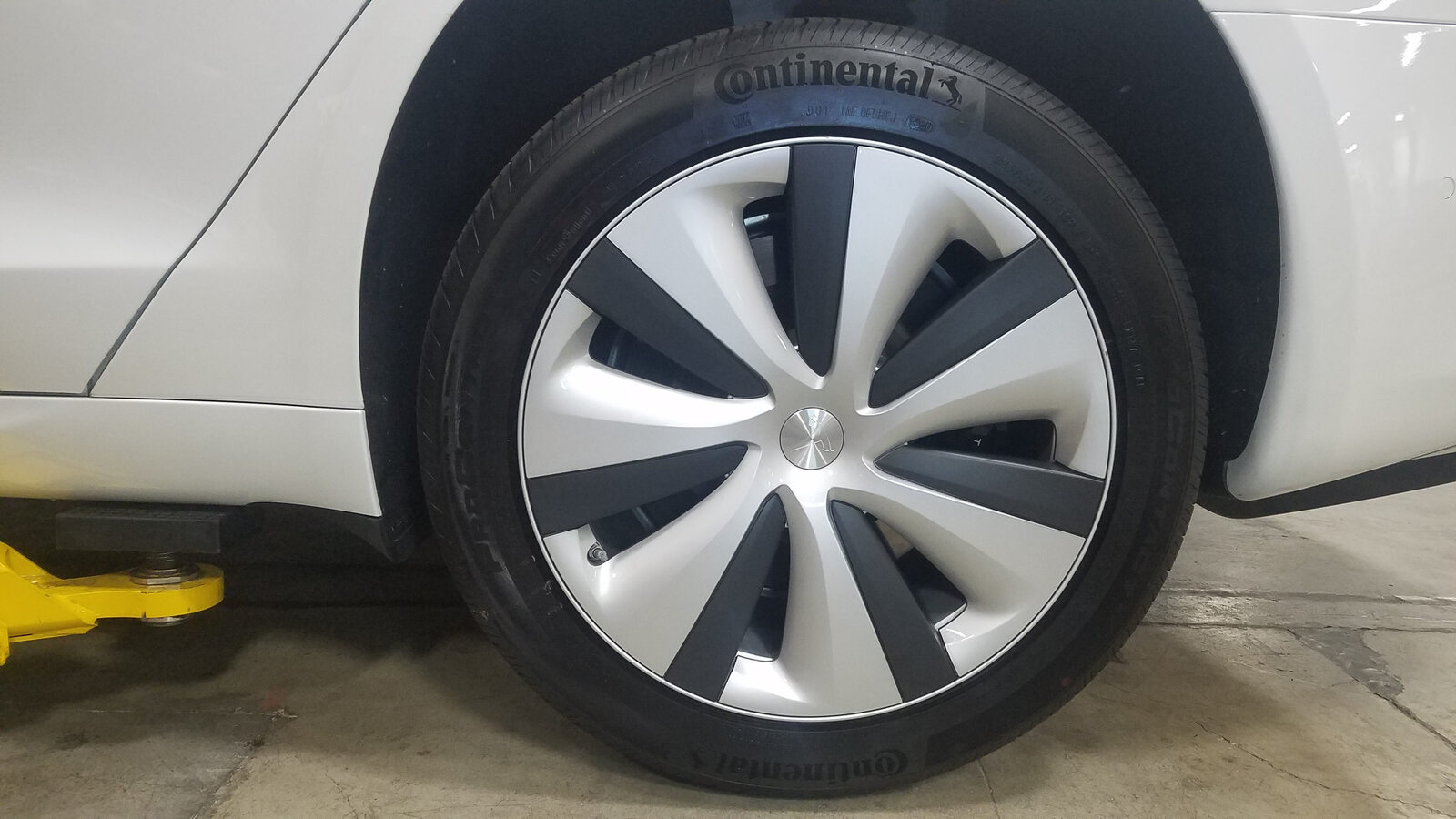

47. Remove RH rear wheel cap
    Nota

    Lift every other spoke at a time until cap is released from rim







48. Remove LH rear wheel cap
    Nota

    Lift every other spoke at a time until cap is released from rim

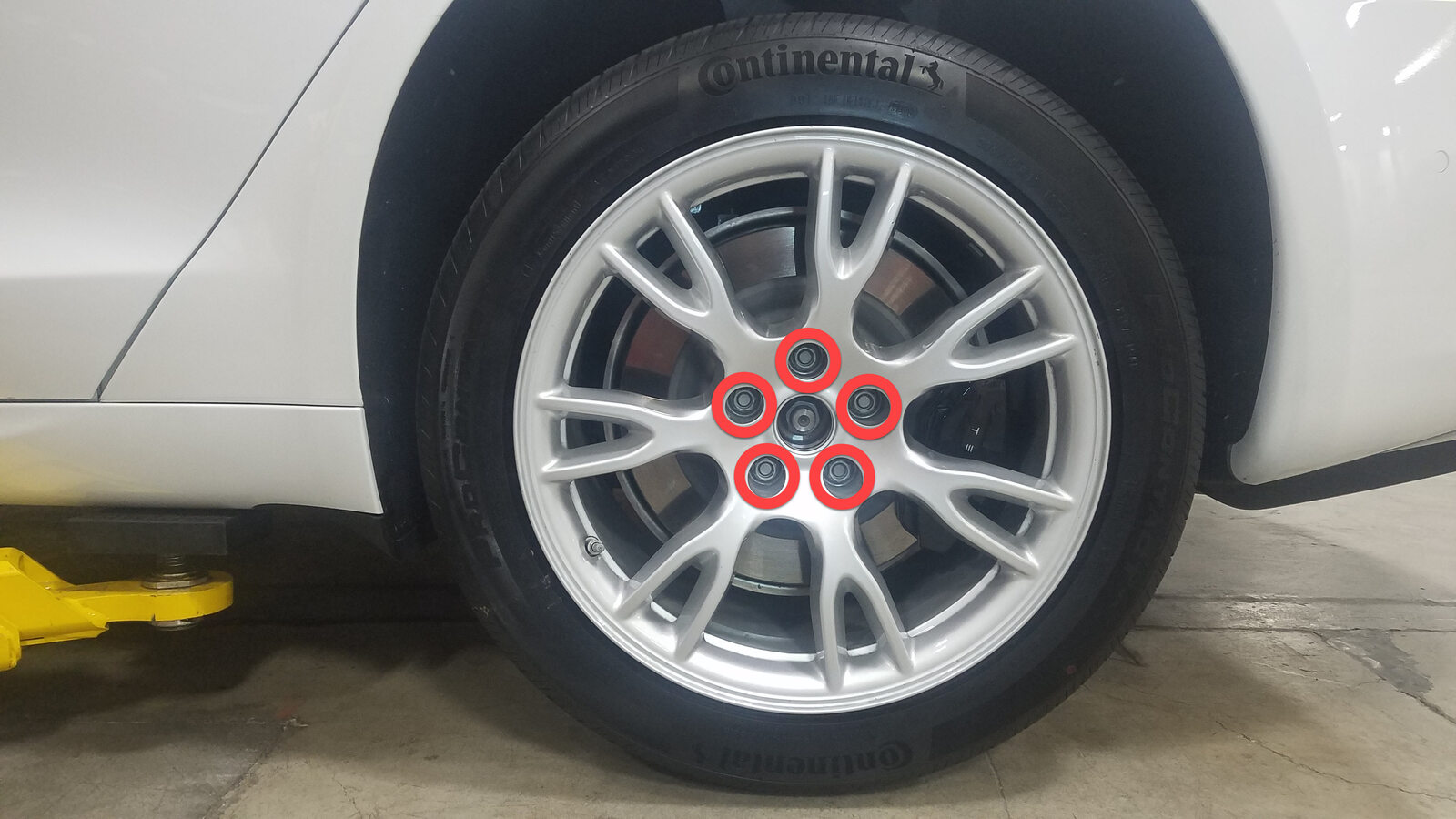

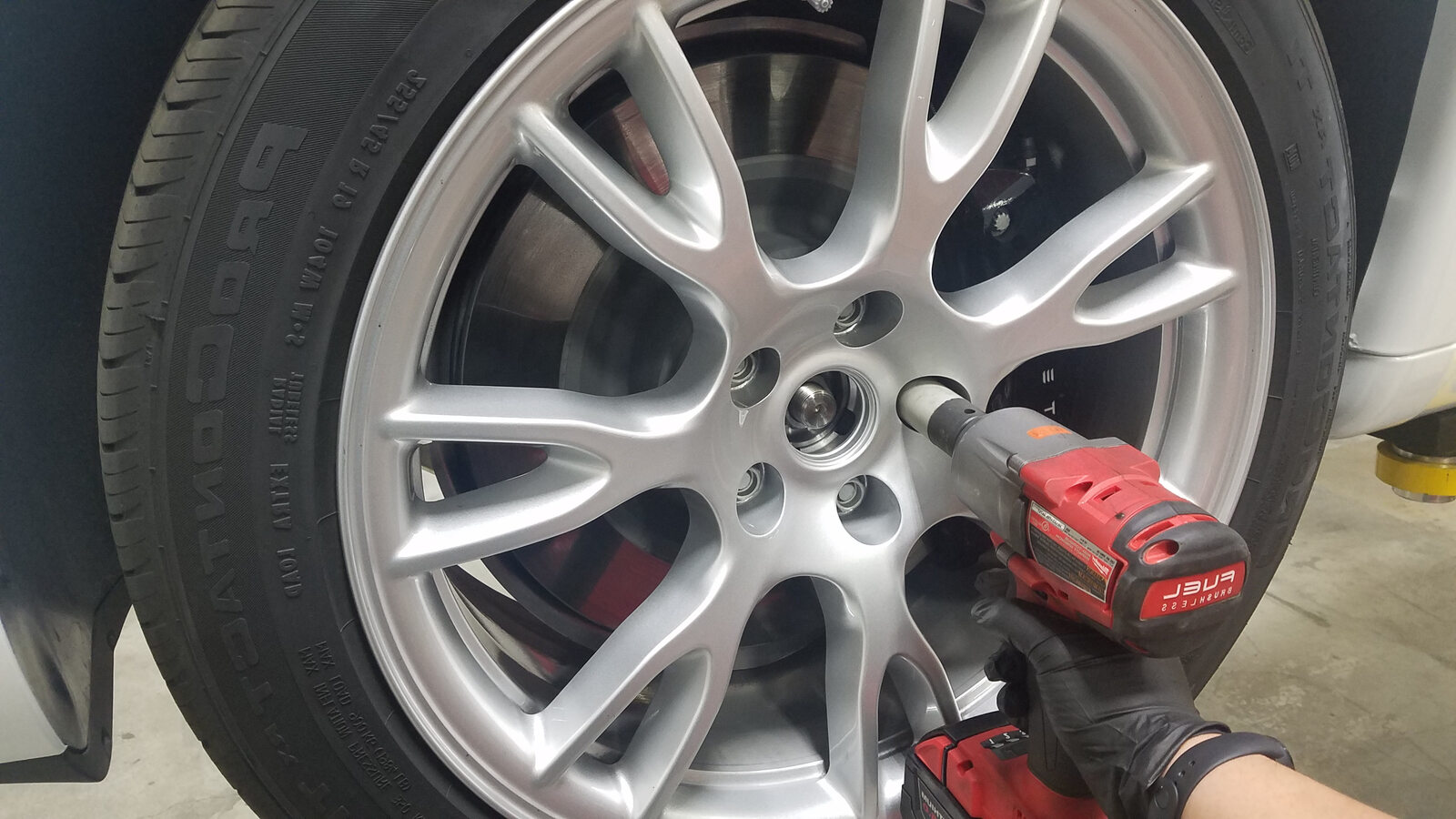

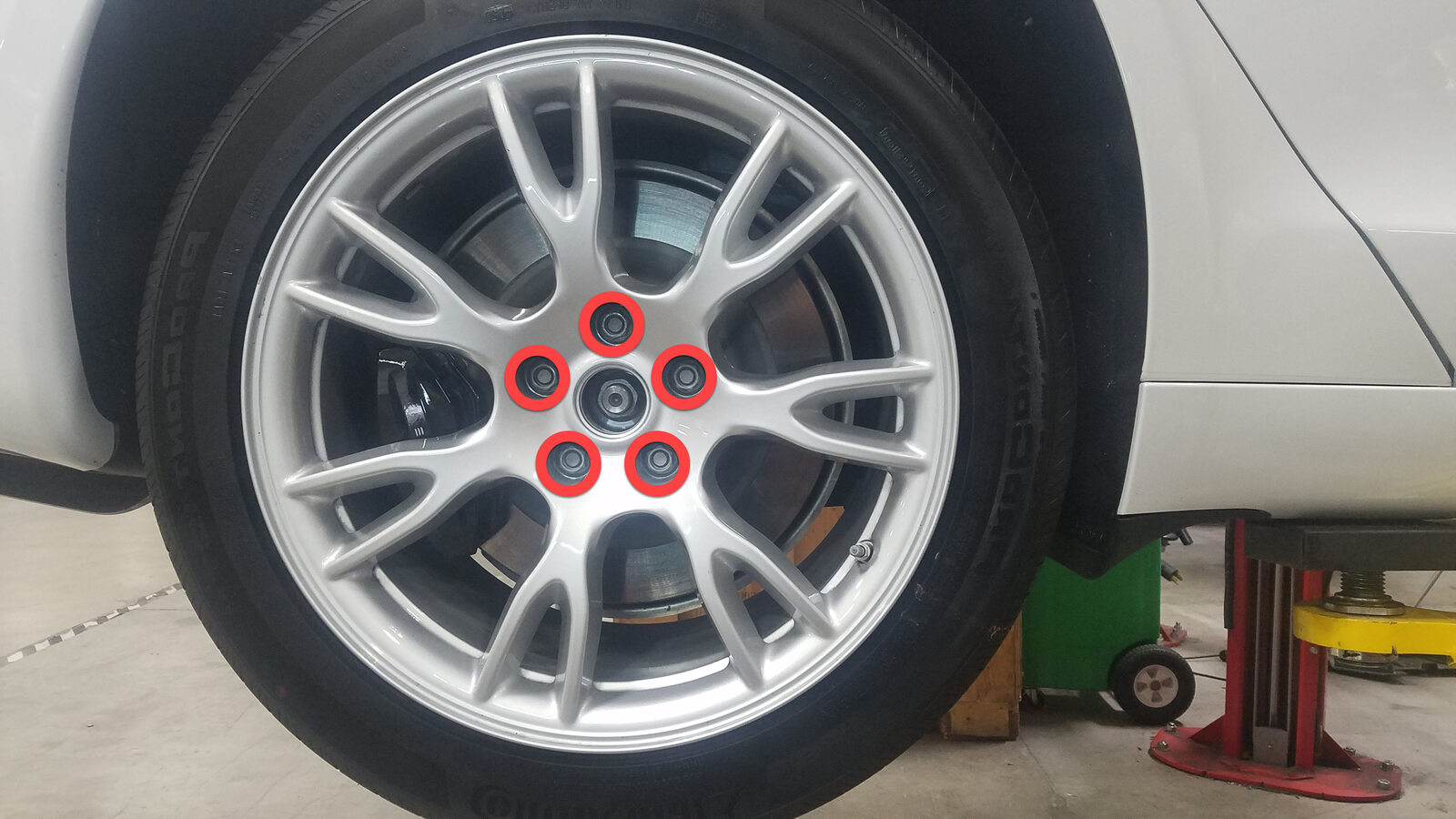

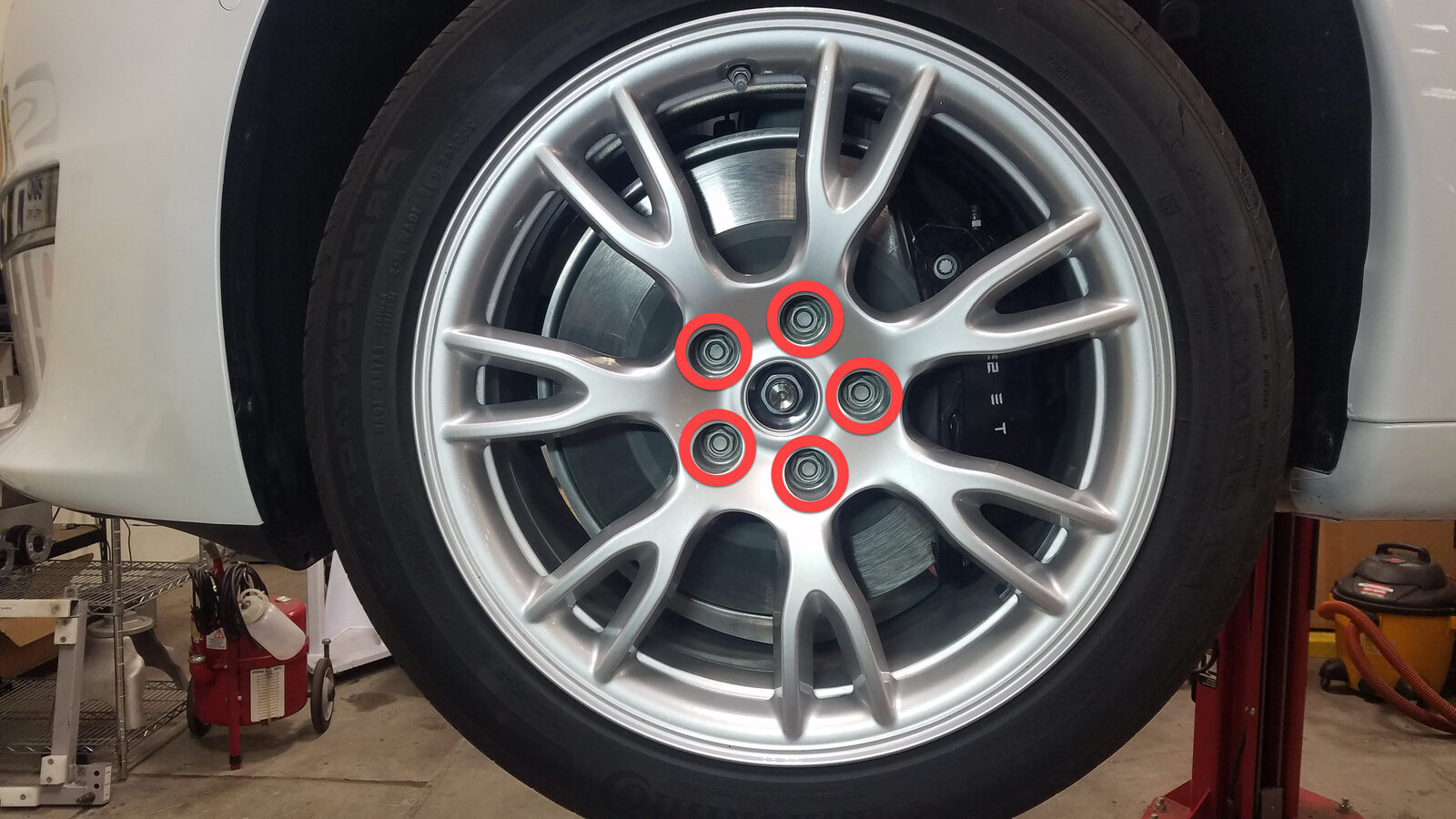

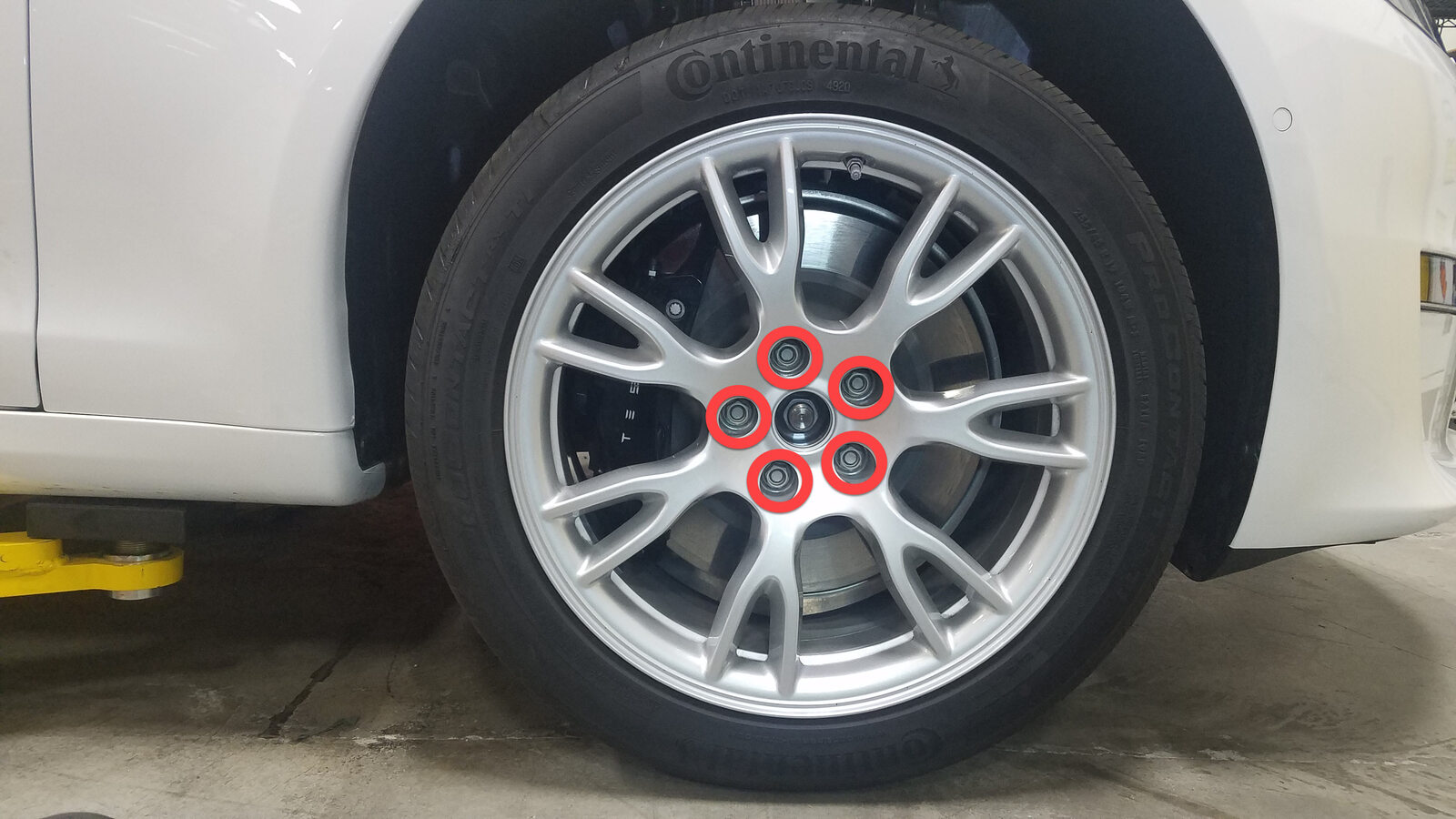

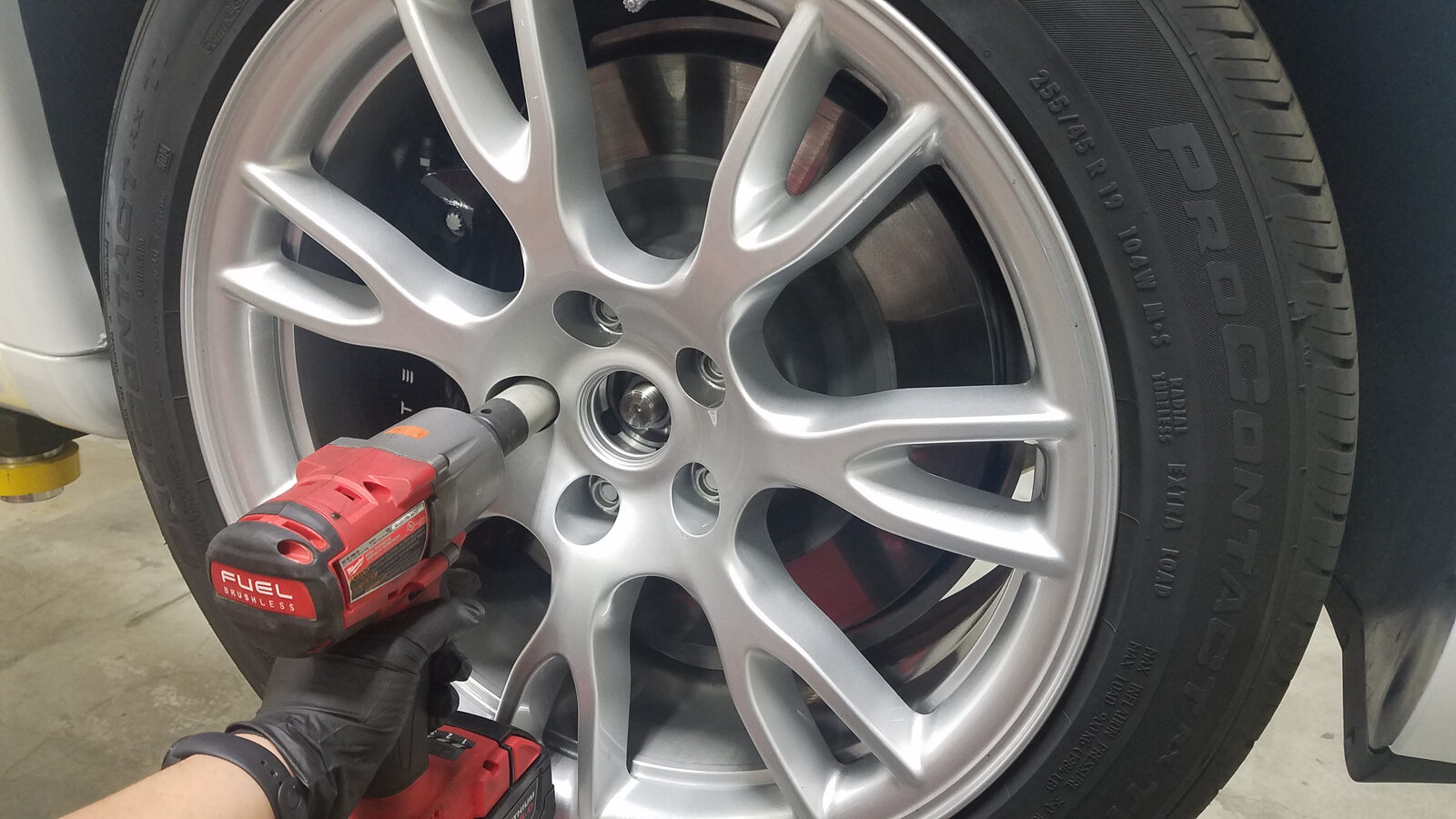

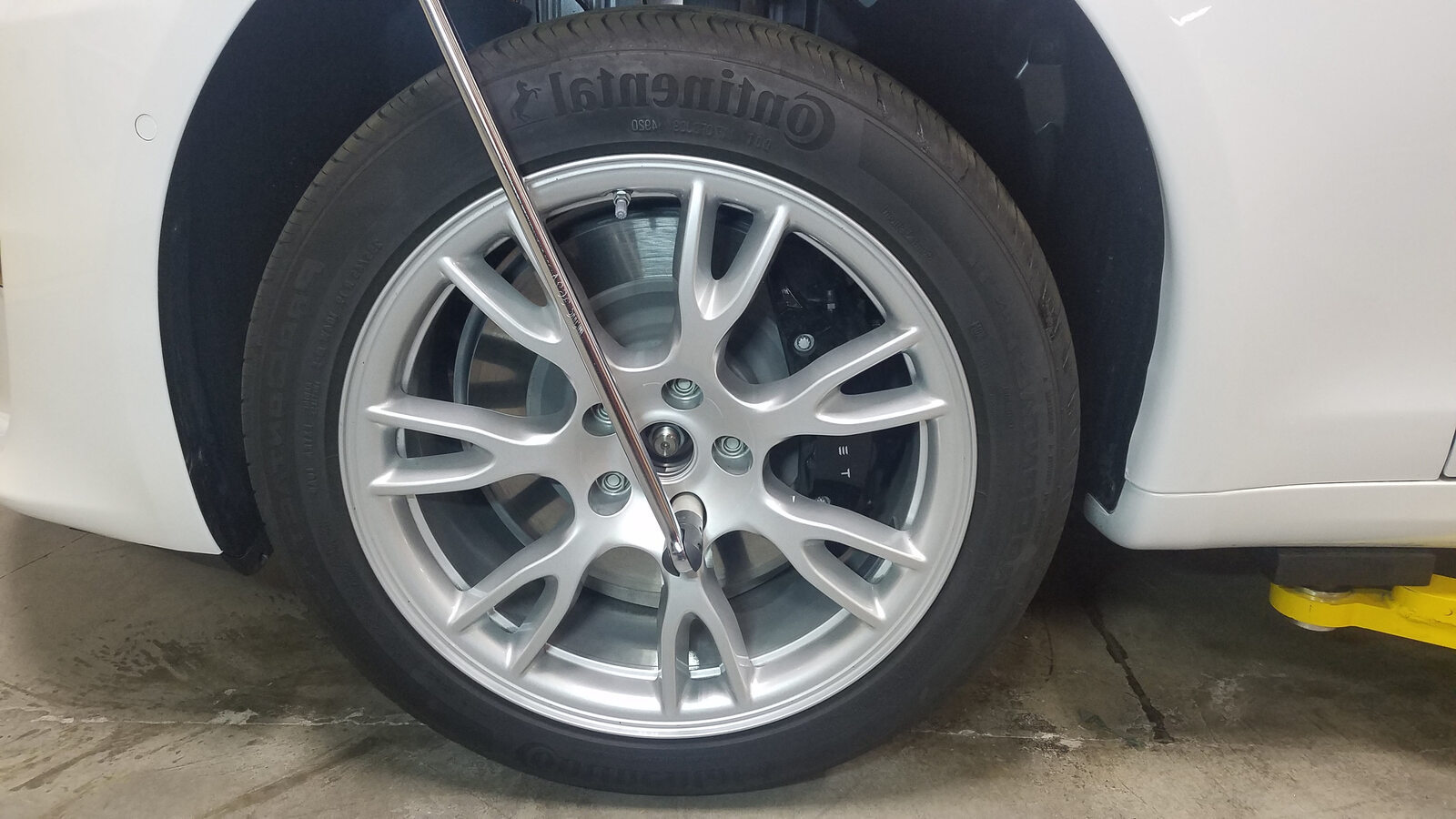

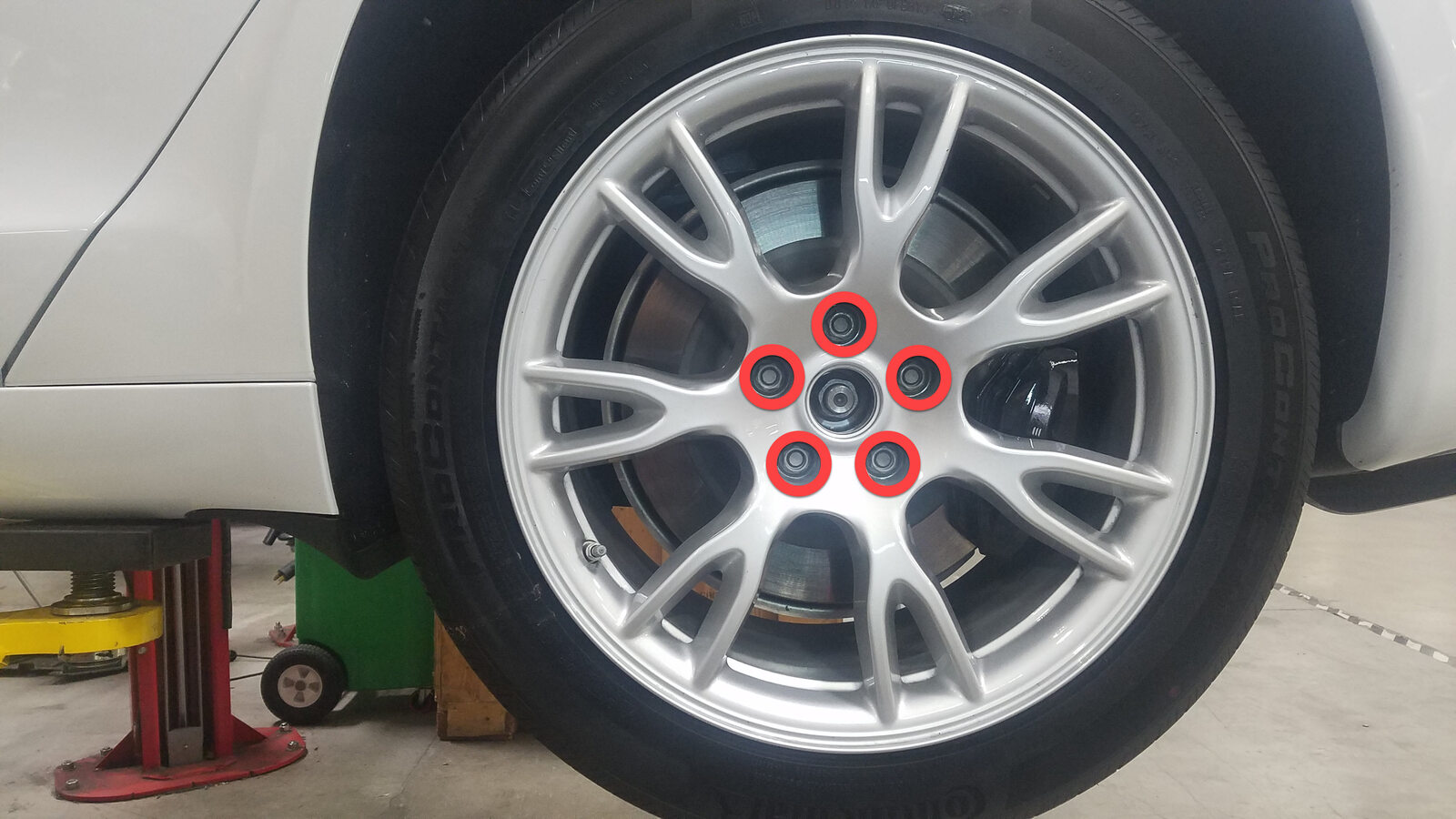

49. Loosen LH front wheel
    Nota

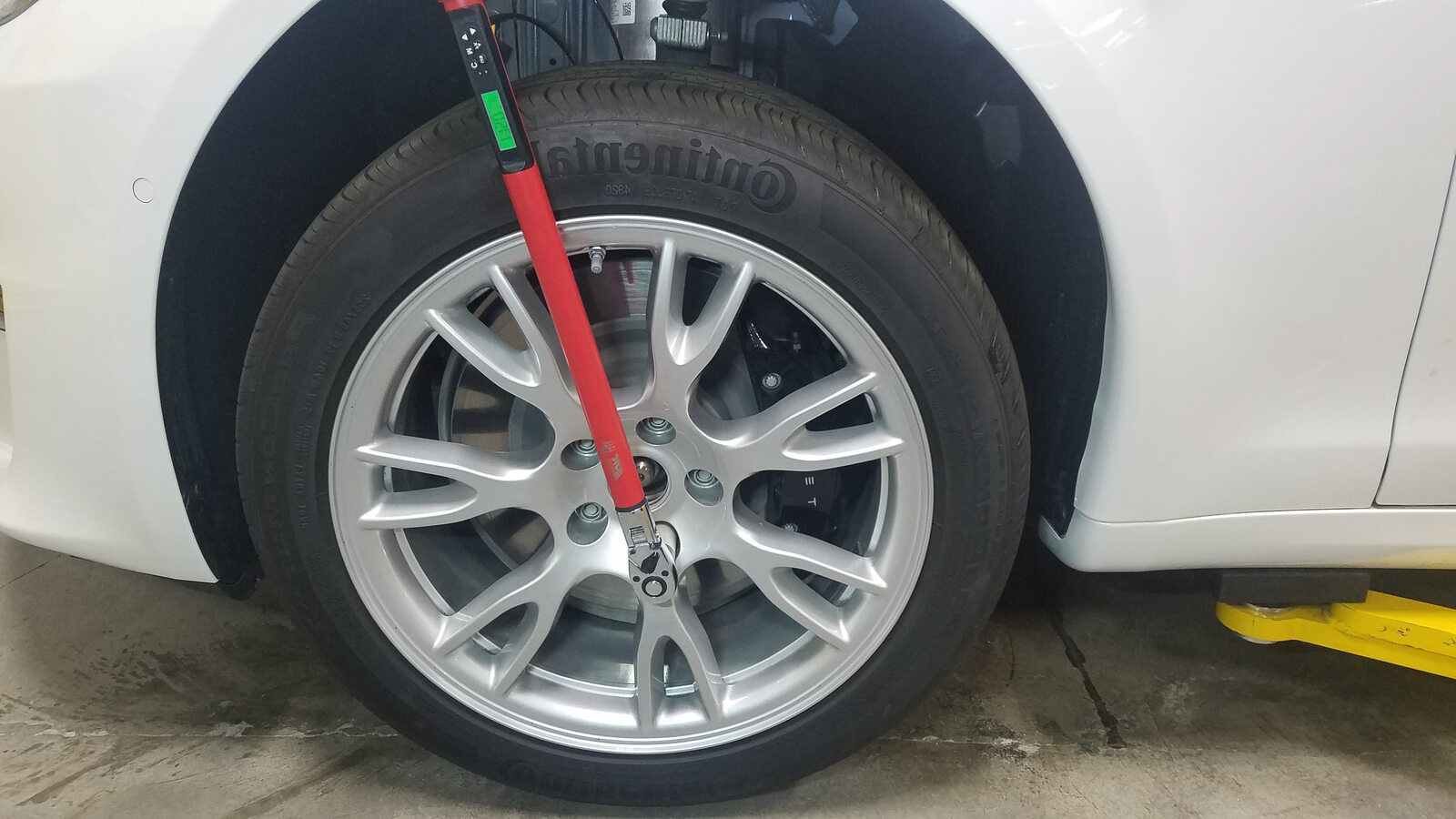

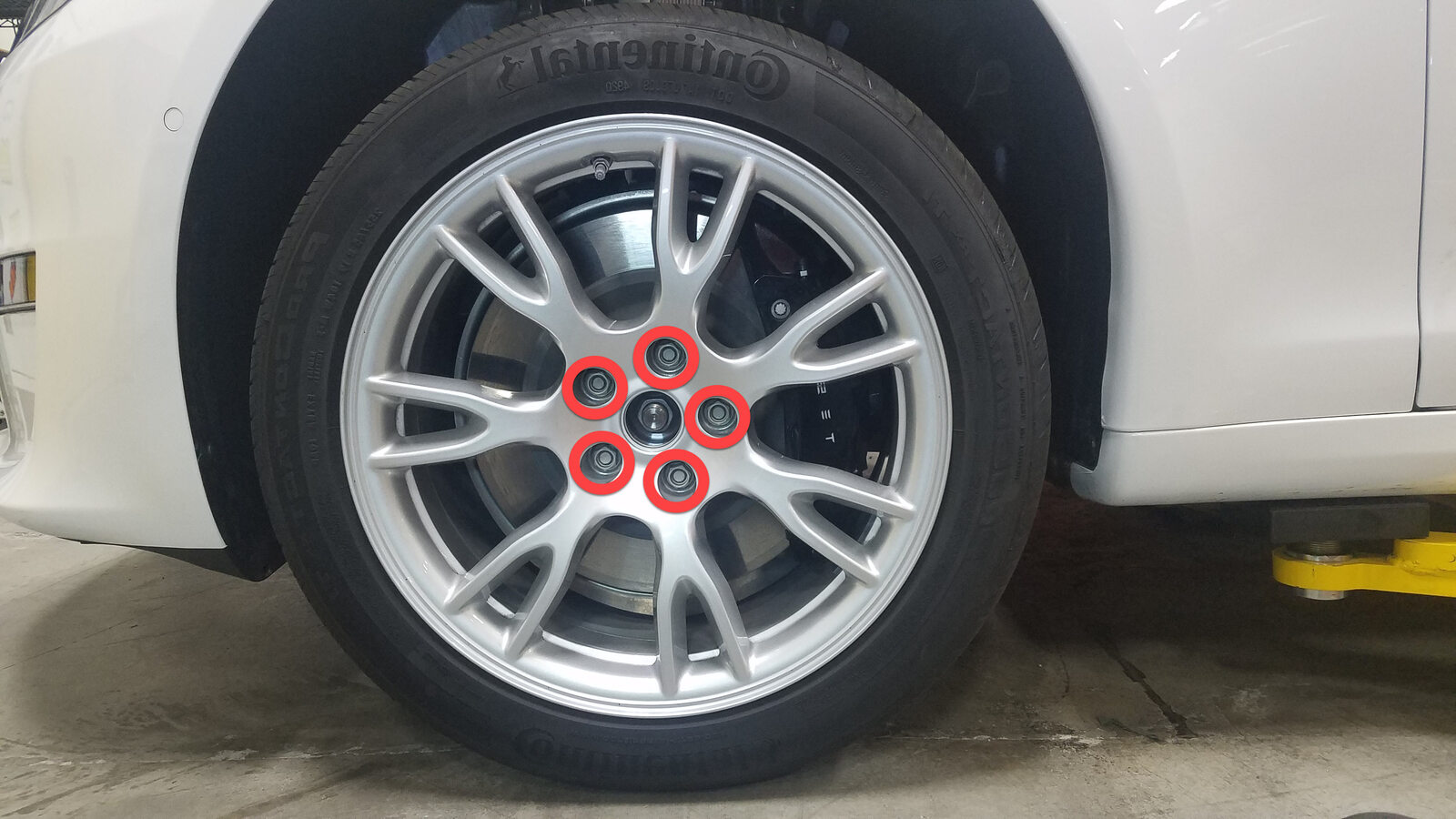

    5x nuts, 21mm, 175 Nm





50. Loosen RH front wheel
    Nota

    5x nuts, 21mm, 175 Nm





51. Loosen RH rear wheel
    Nota

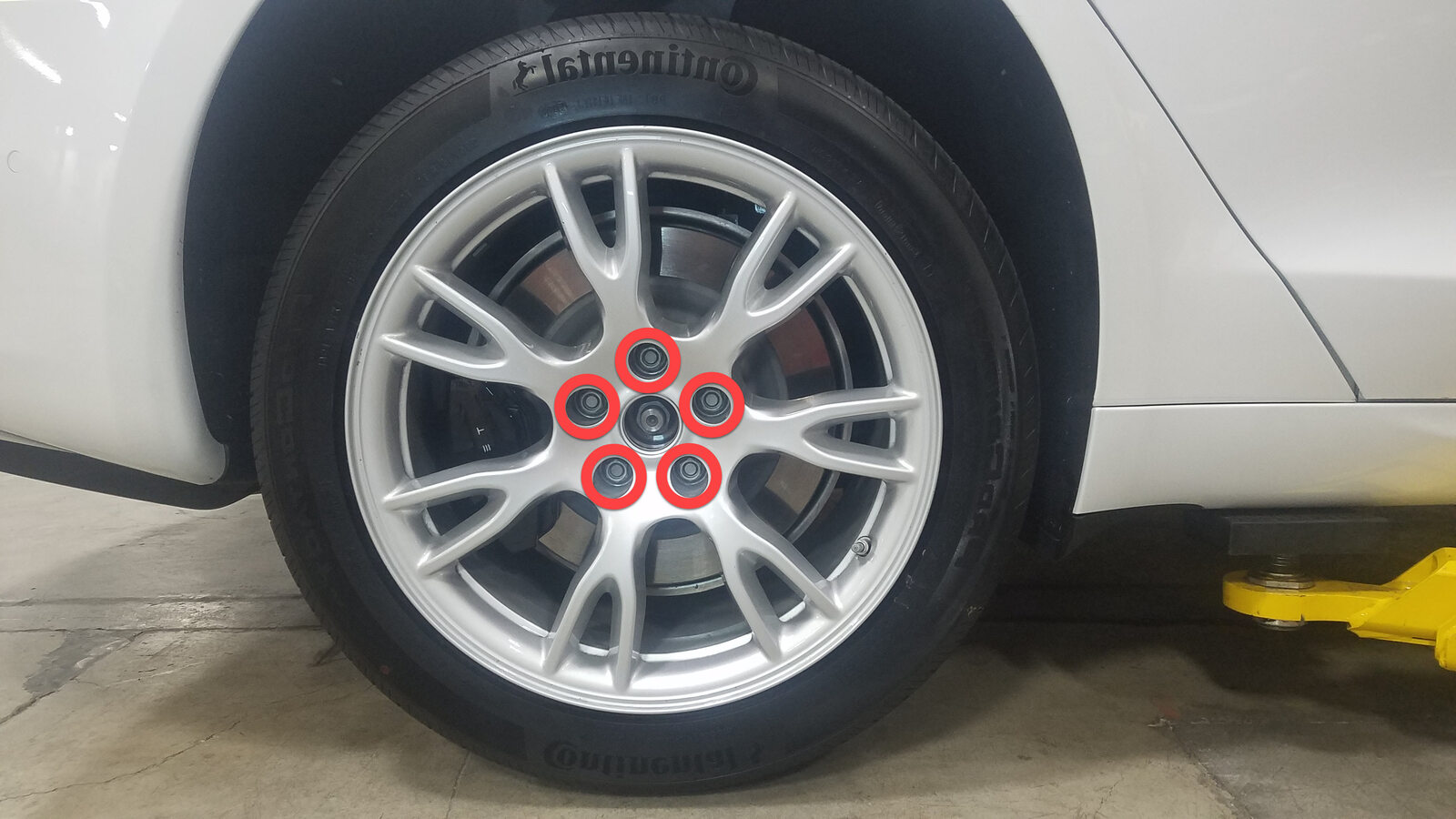

    5x nuts, 21mm, 175 Nm





52. Loosen LH rear wheel
    Nota

    5x nuts, 21mm, 175 Nm

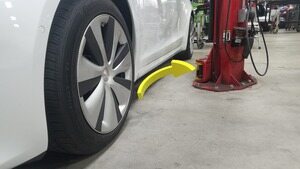

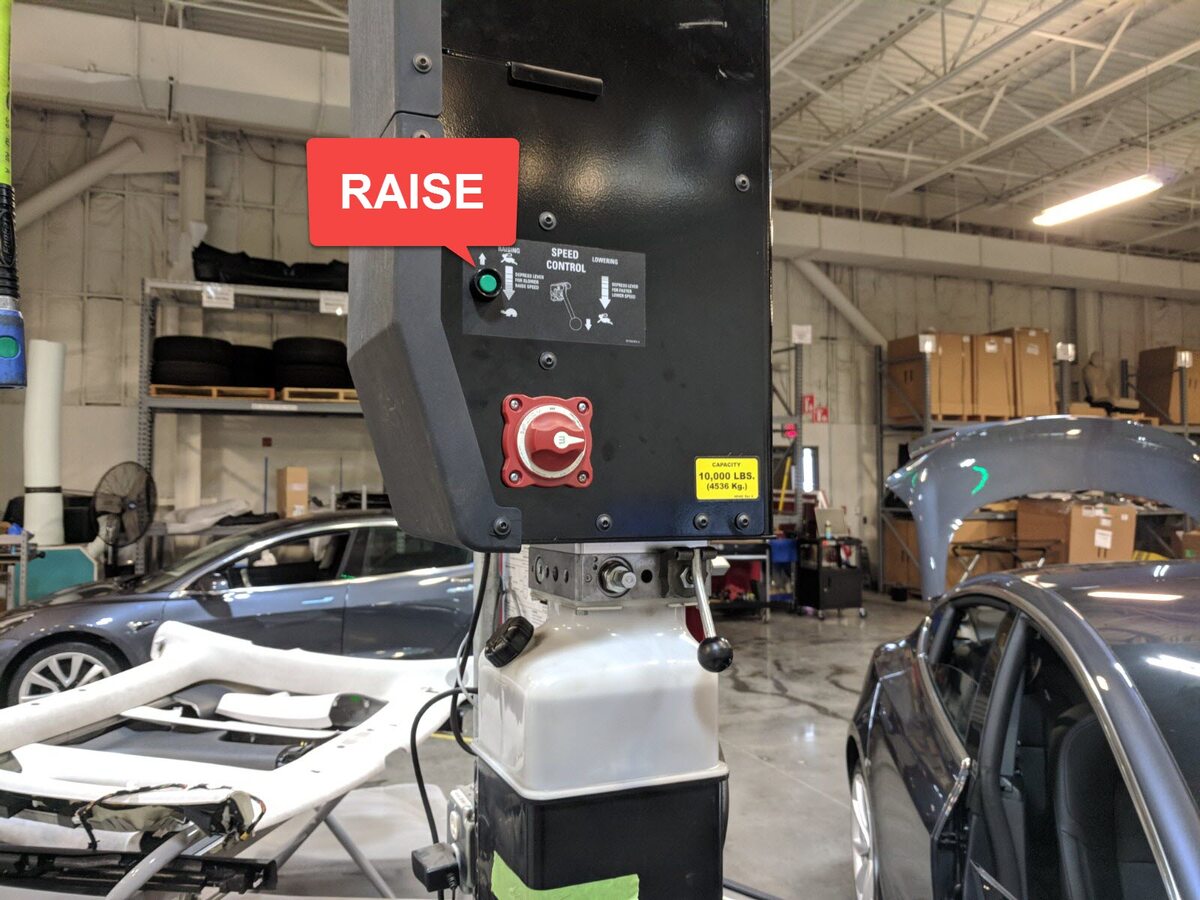

53. Raise vehicle partially and lower lift onto locks
    Nota

    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, Otherwise vehicle may tilt to the side

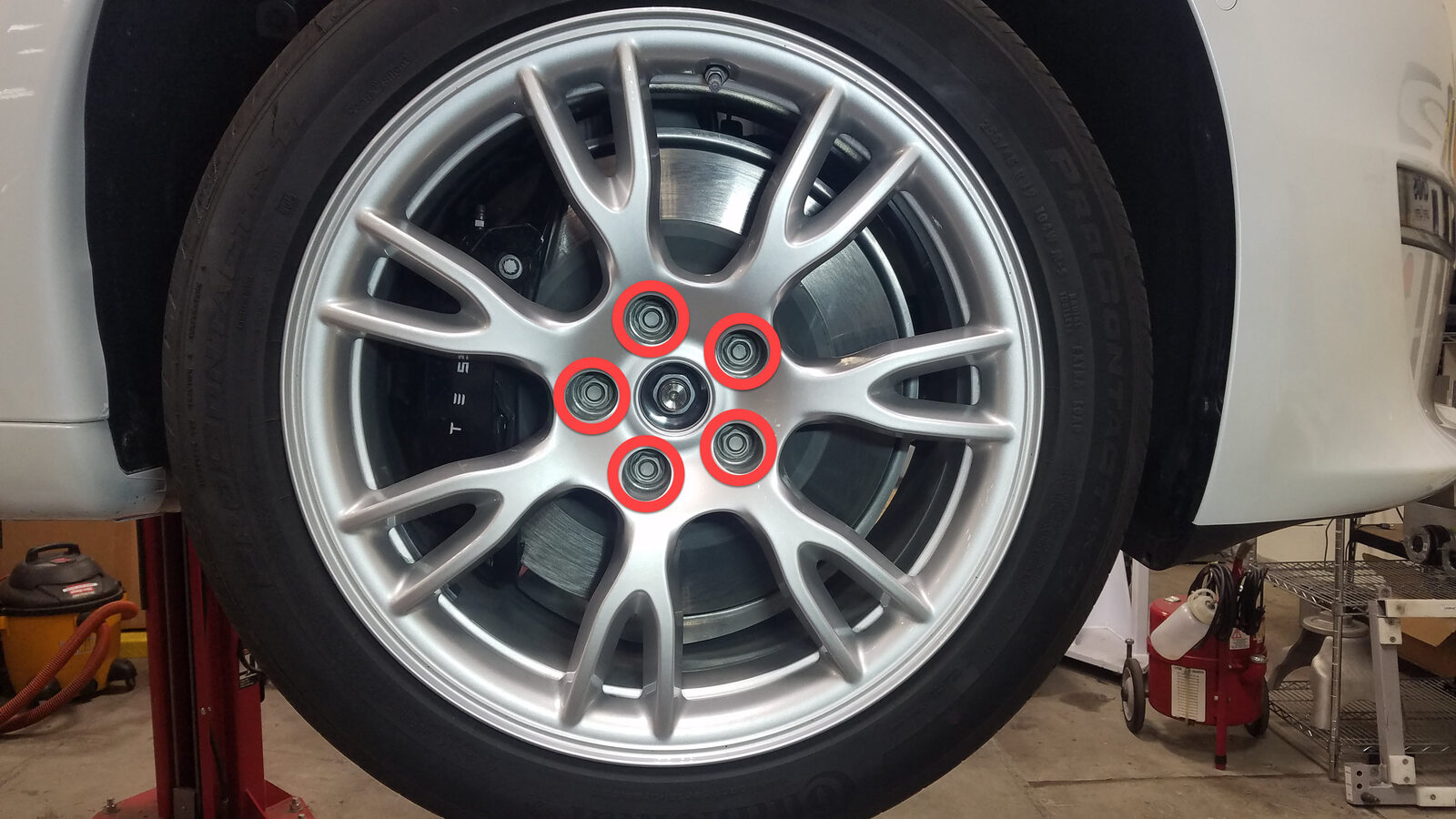

54. Remove LH front wheel
    Nota

    5x nuts, 21mm, 175 Nm





55. Remove RH front wheel
    Nota

    5x nuts, 21mm, 175 Nm





56. Remove RH rear wheel
    Nota

    5x nuts, 21mm, 175 Nm





57. Remove LH rear wheel
    Nota

    5x nuts, 21mm, 175 Nm

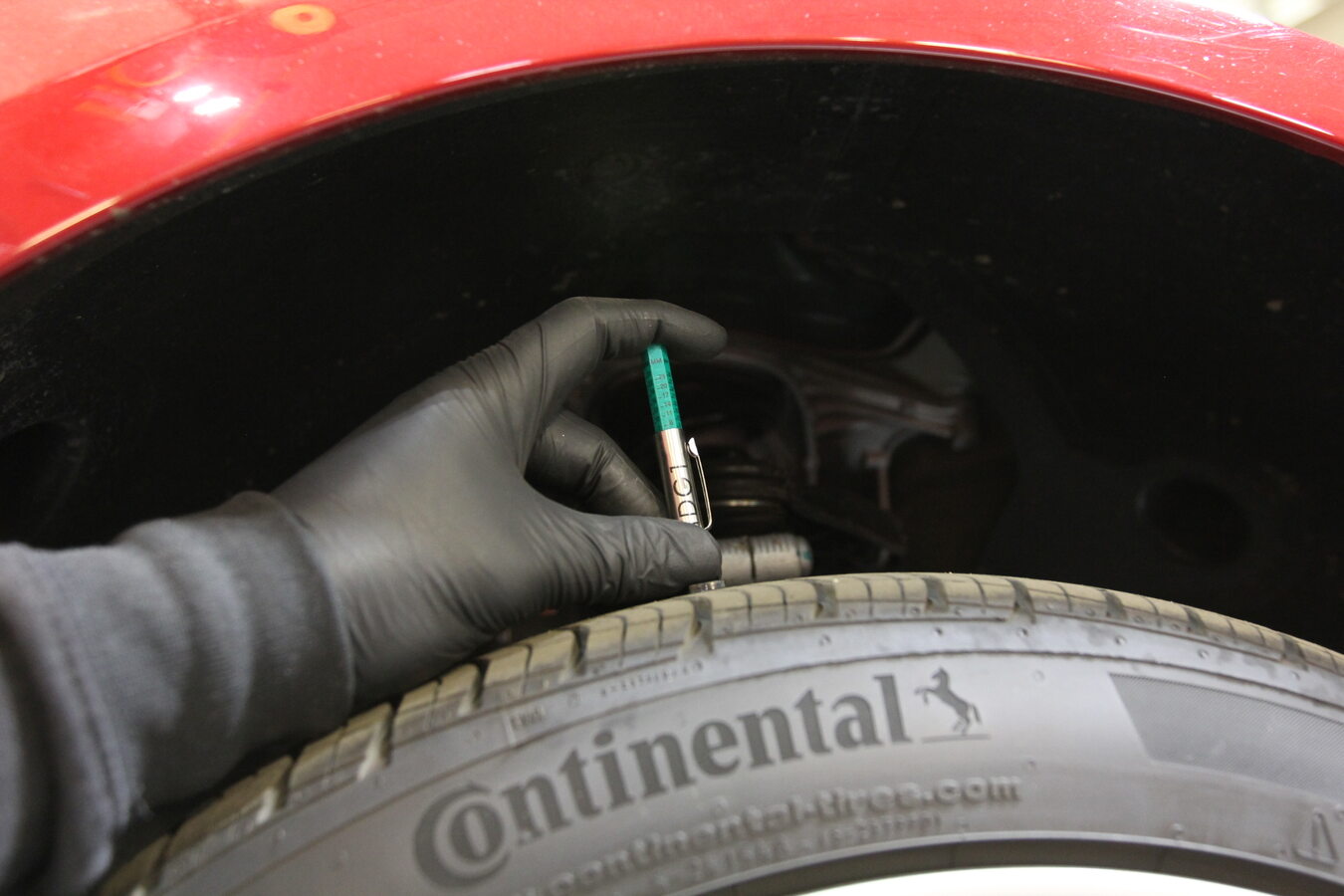

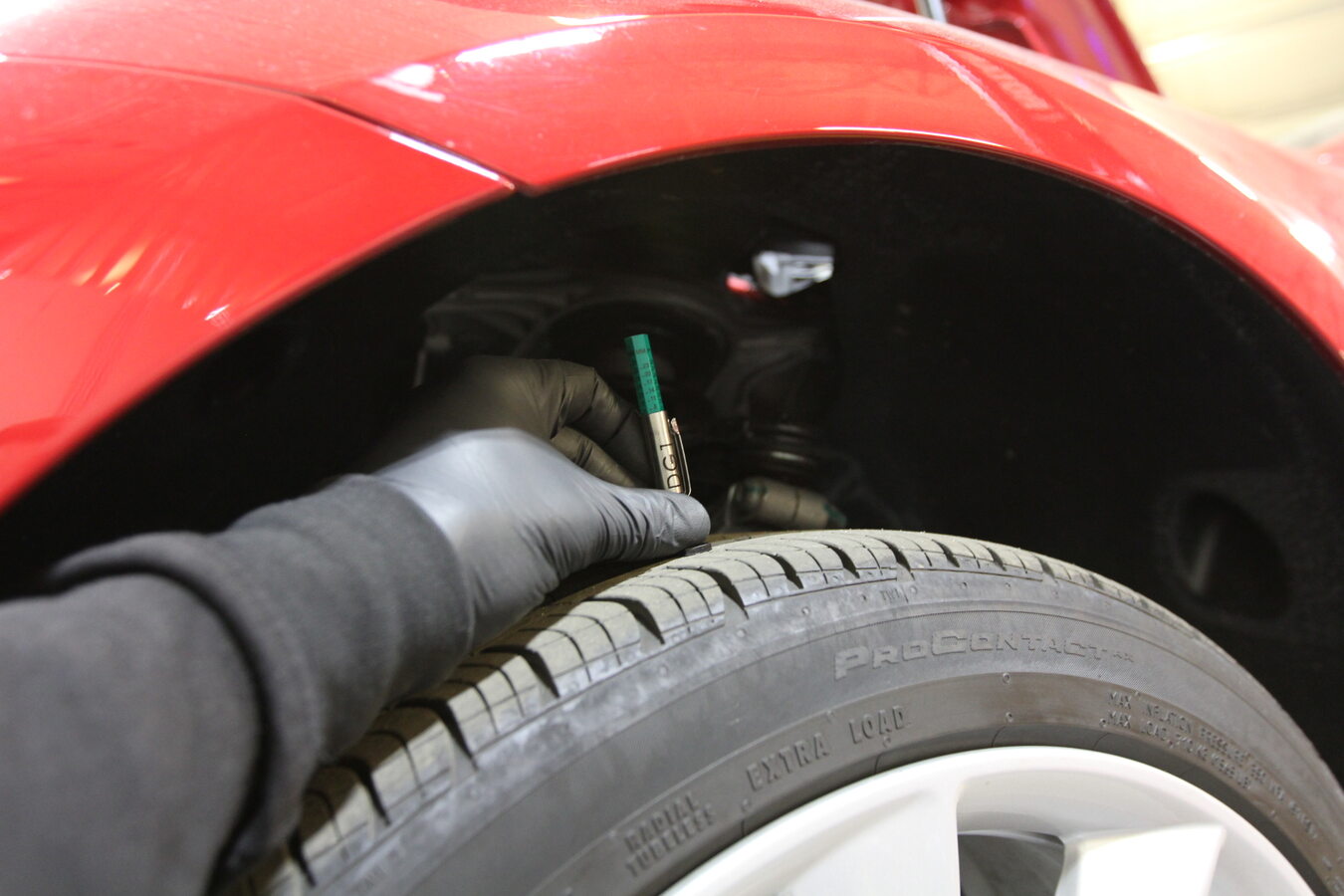

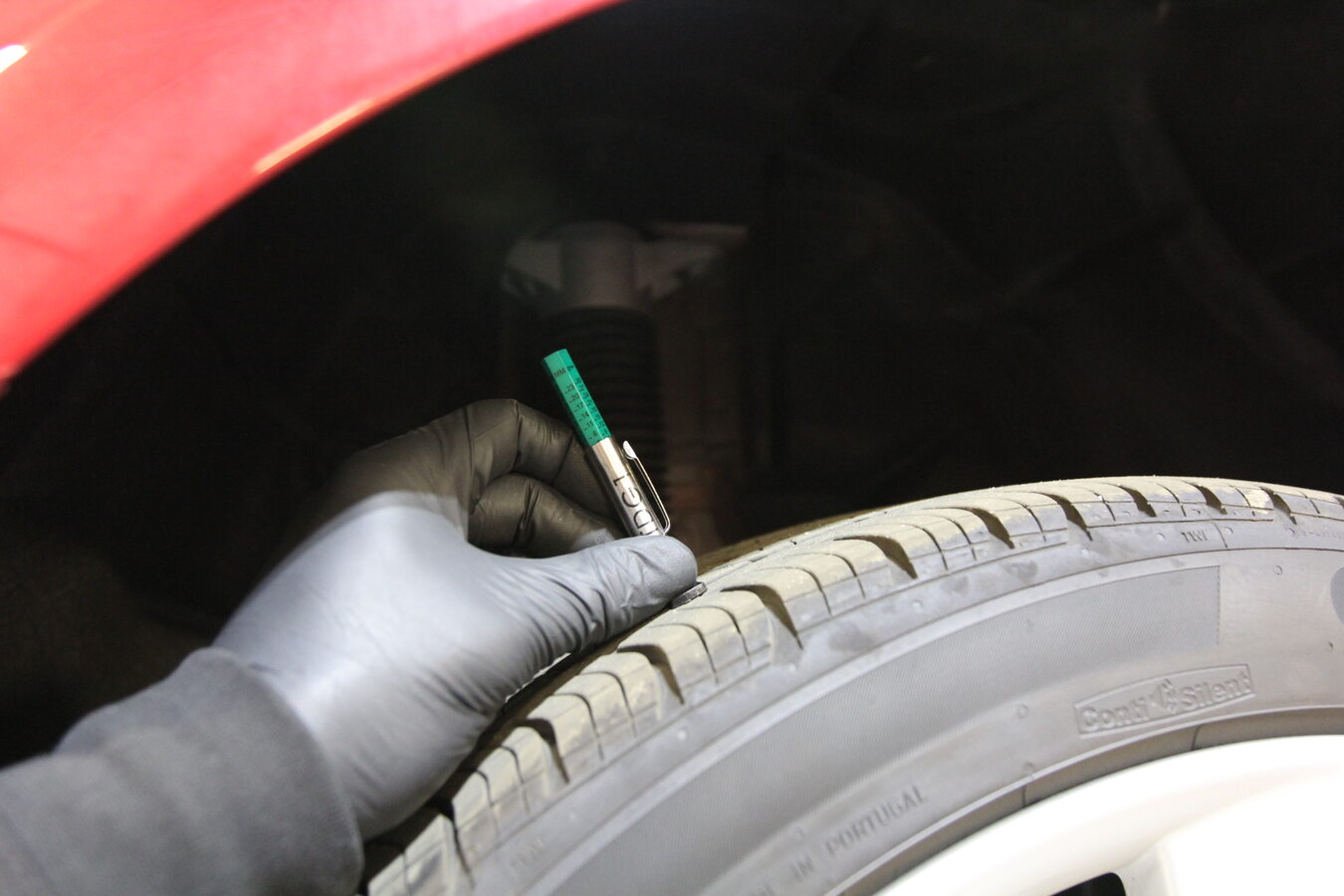

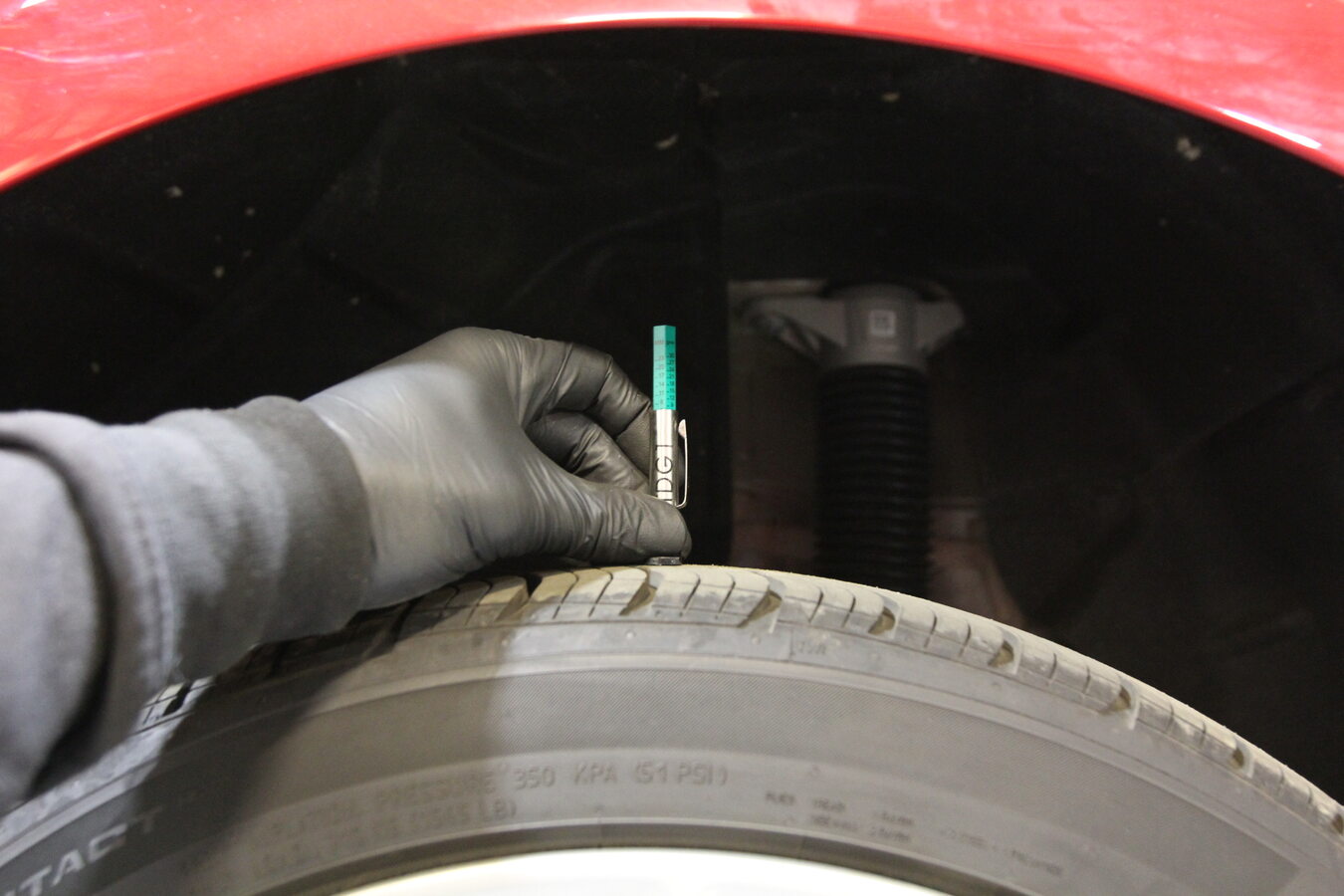

58. Record tread depth for LH rear tire
    Nota

    Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less

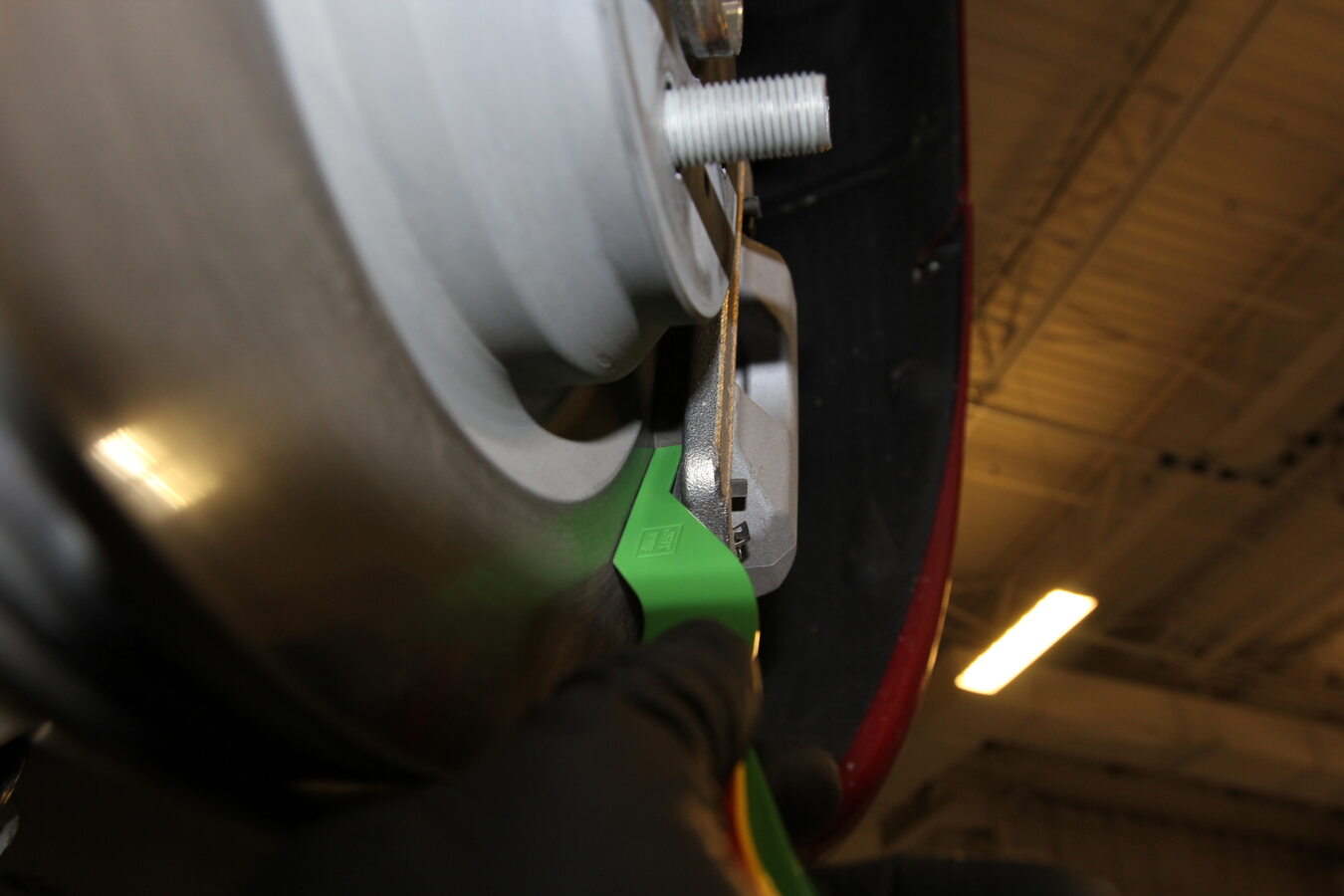

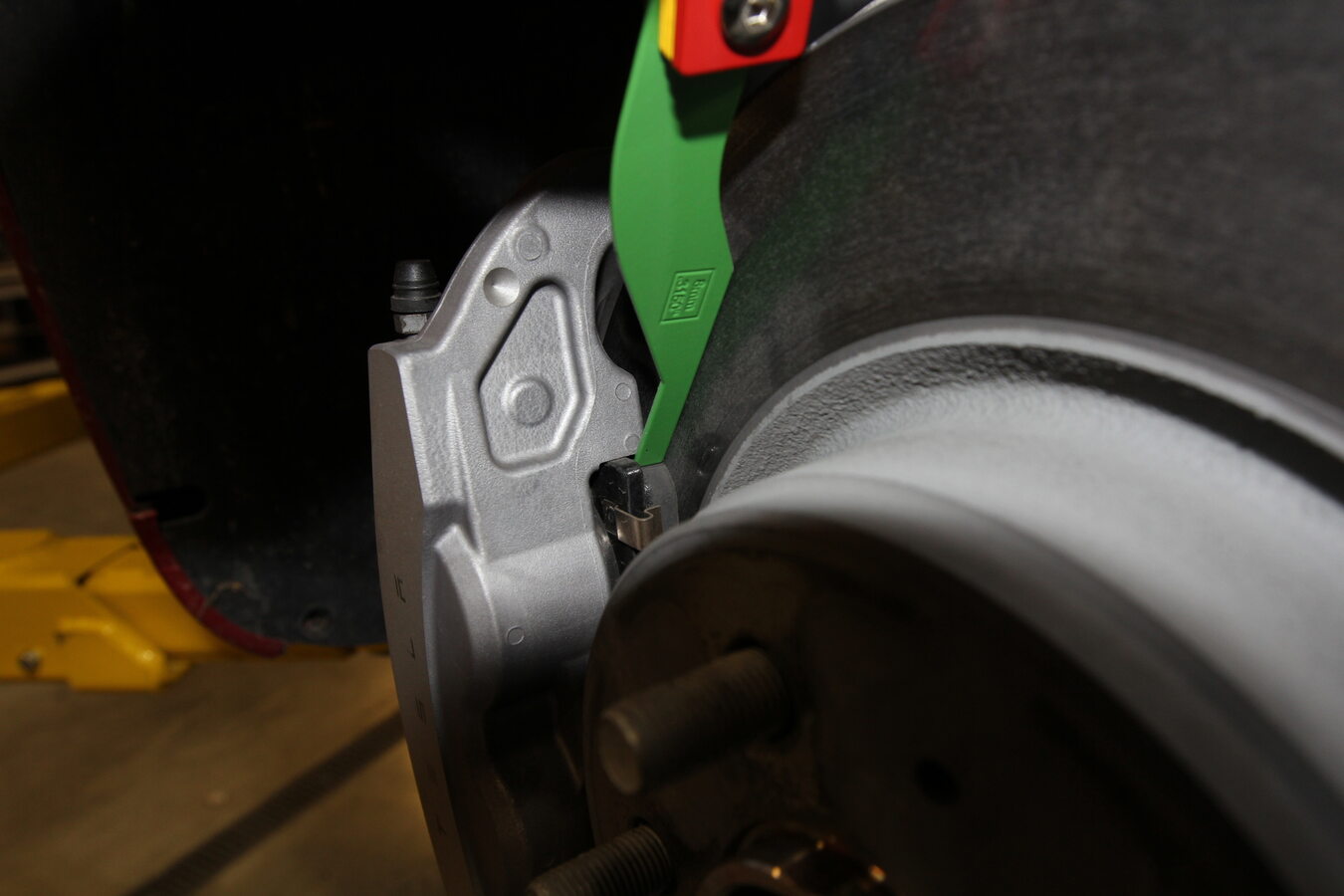

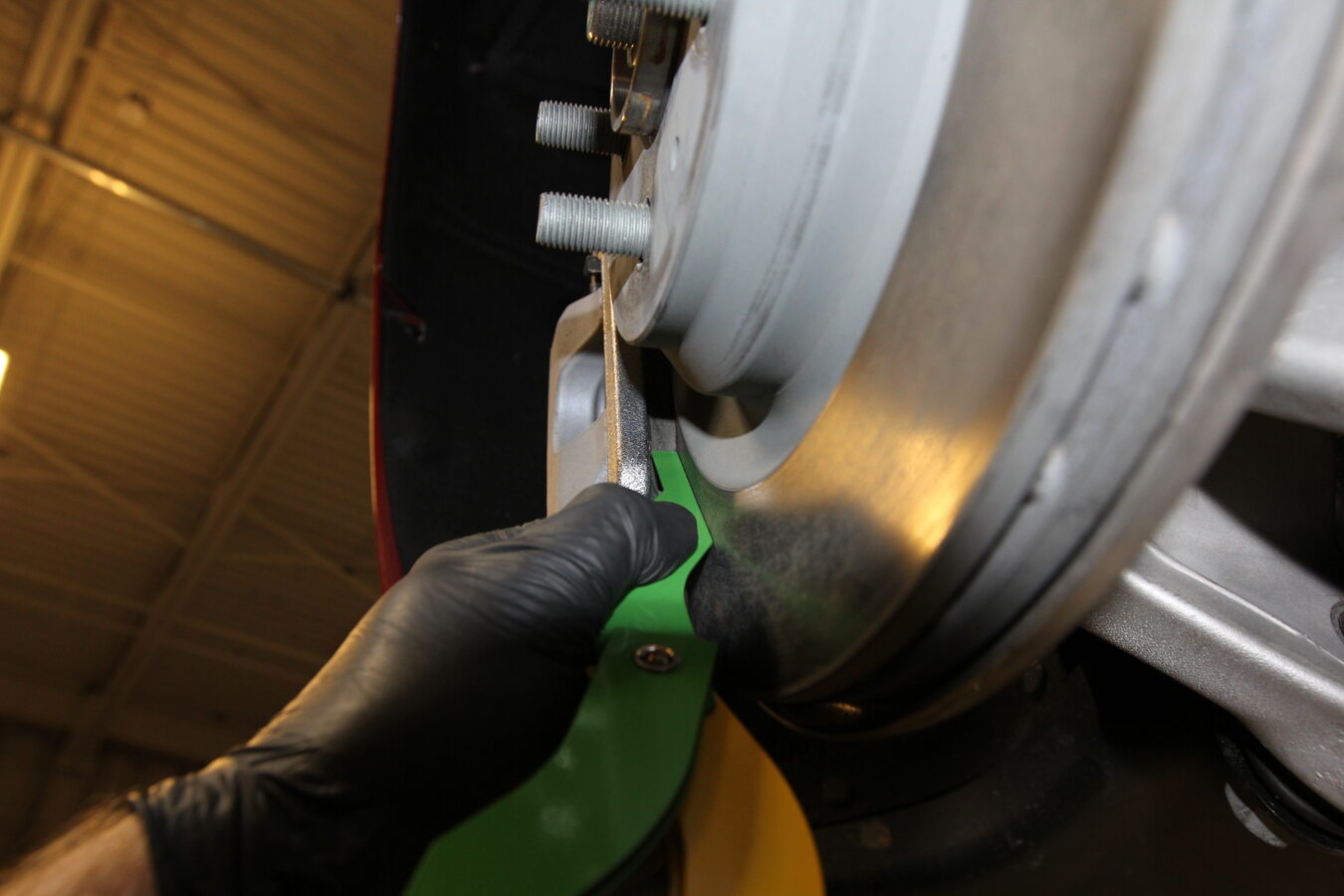

59. Measure and record LH rear brake pad thickness
    Nota

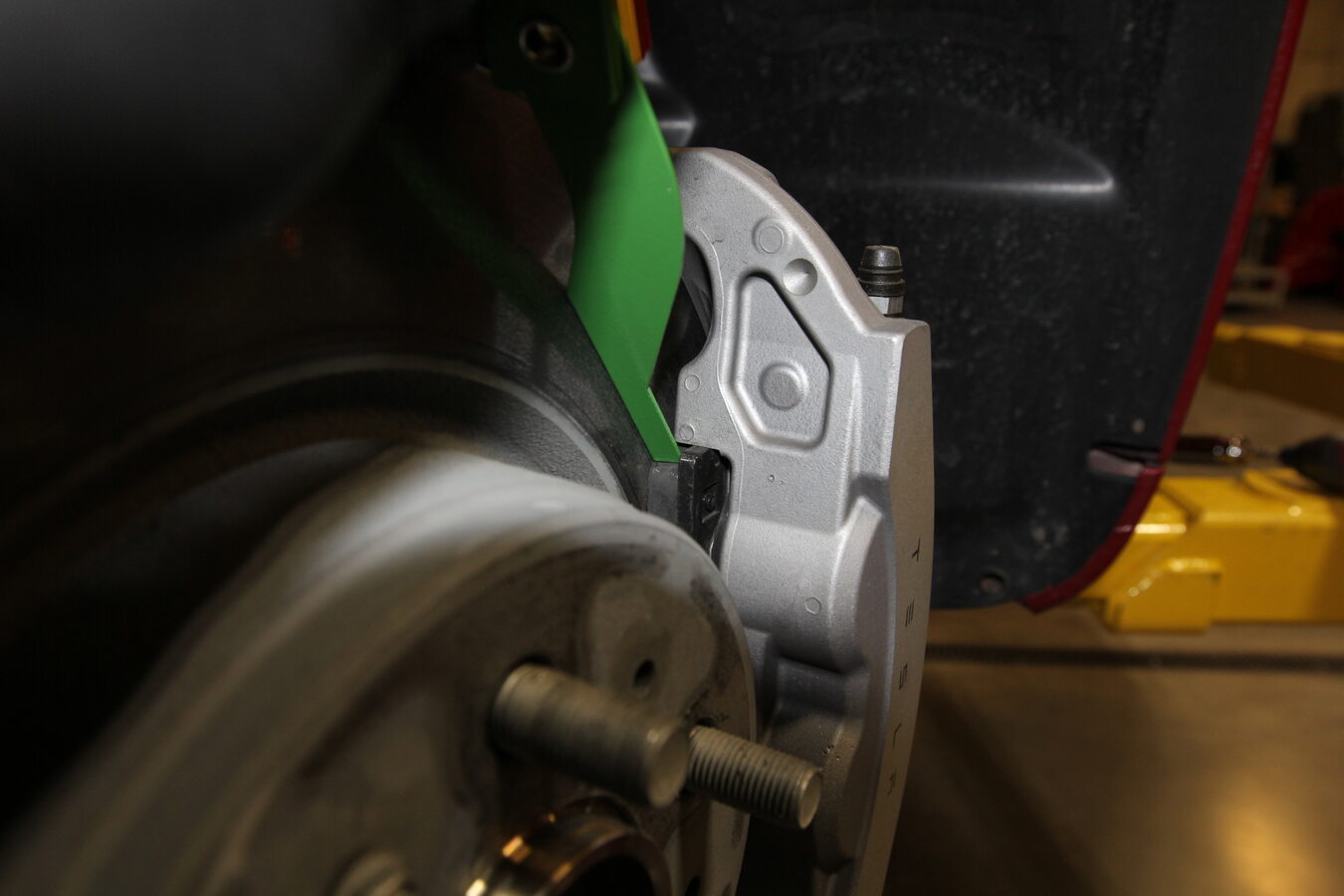

    Recommend replacement if 2mm or less, Check both inboard and outboard pads

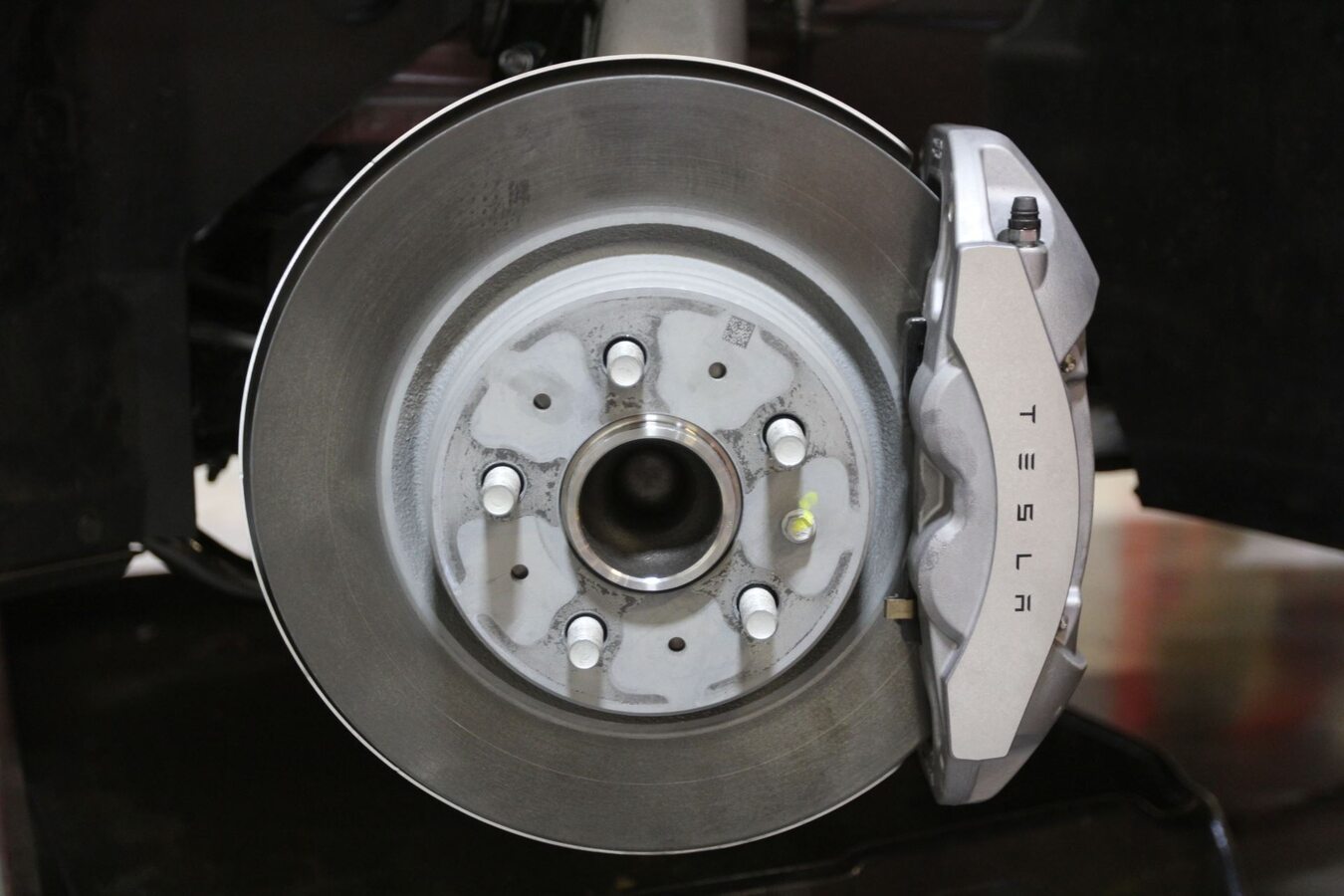

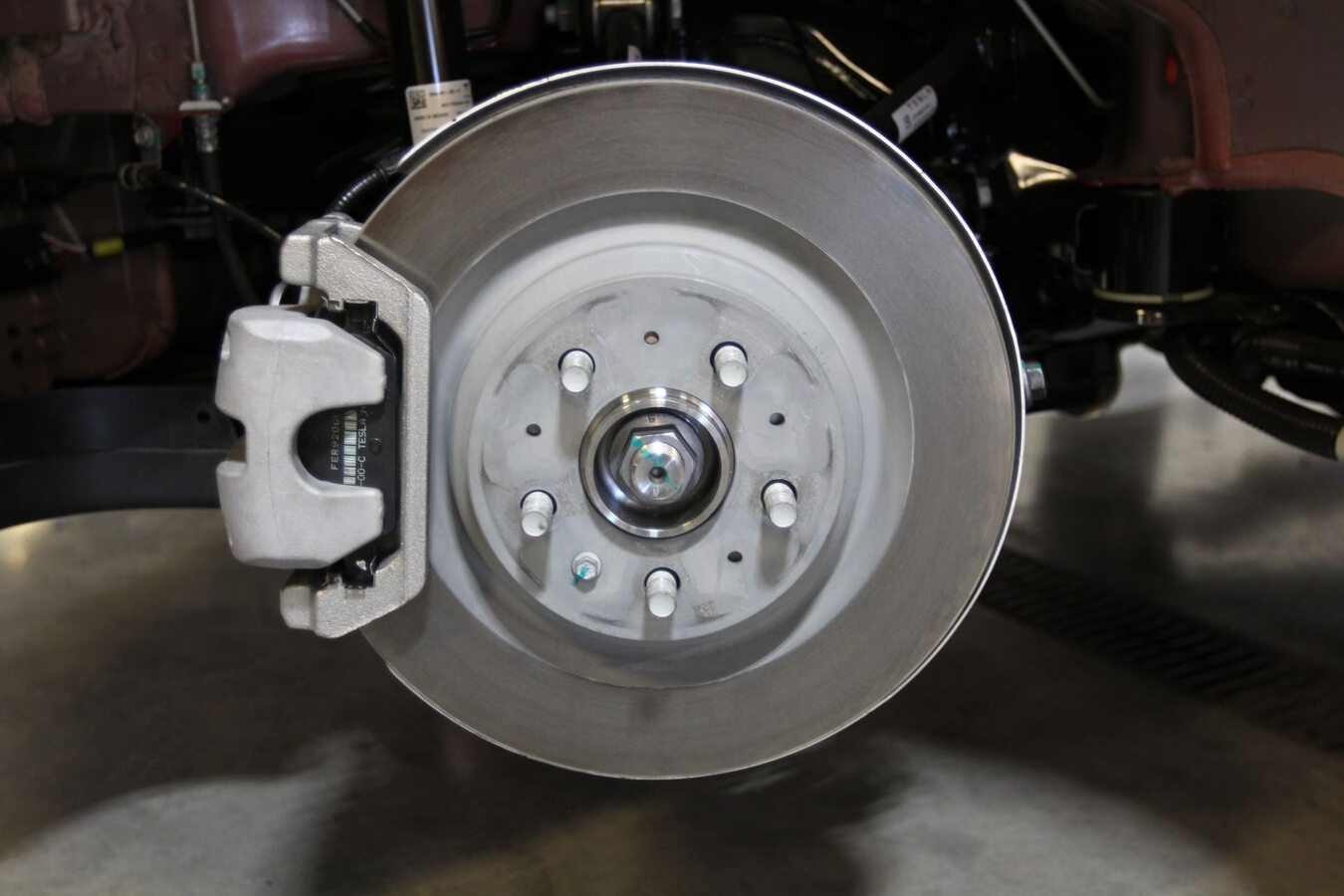

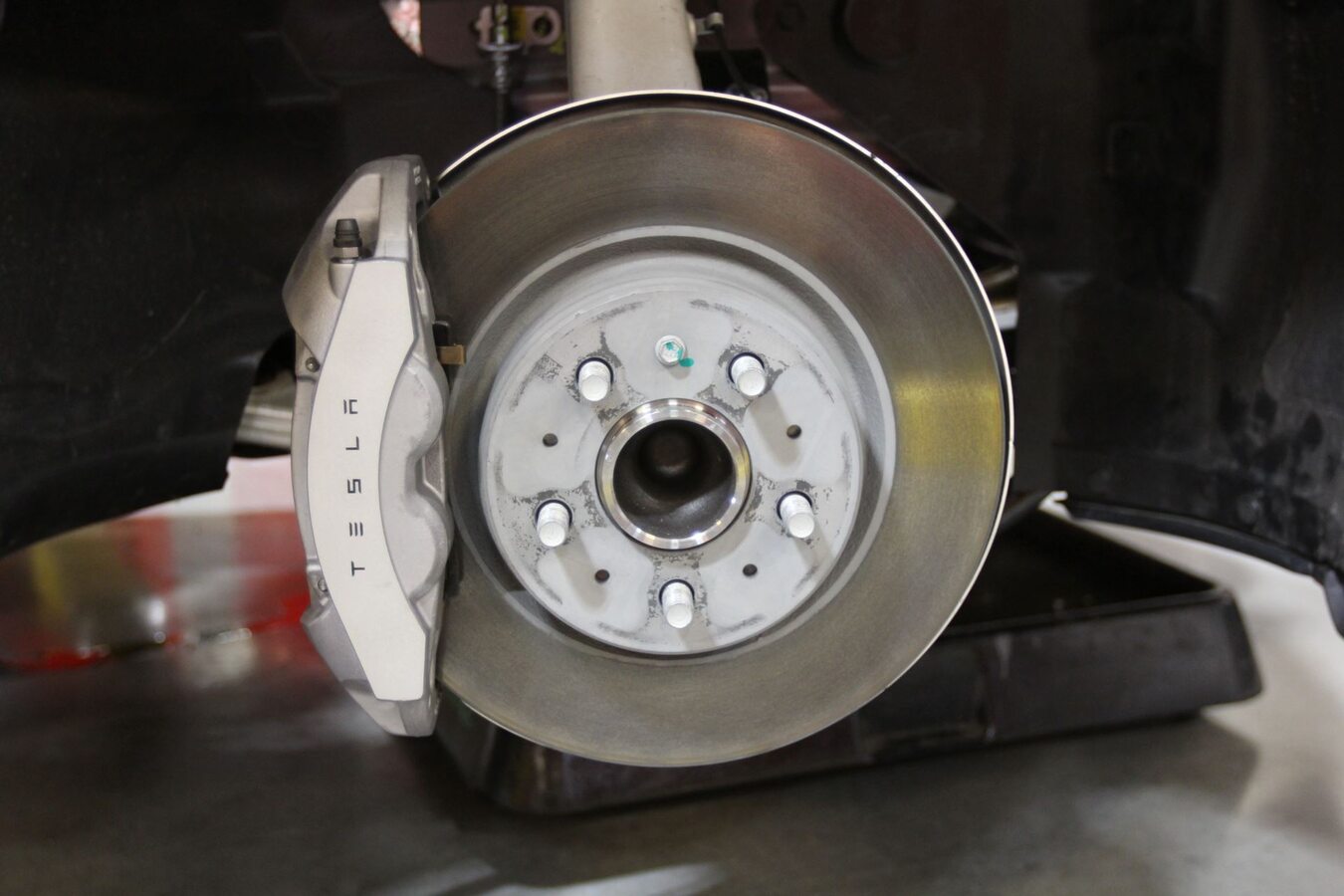

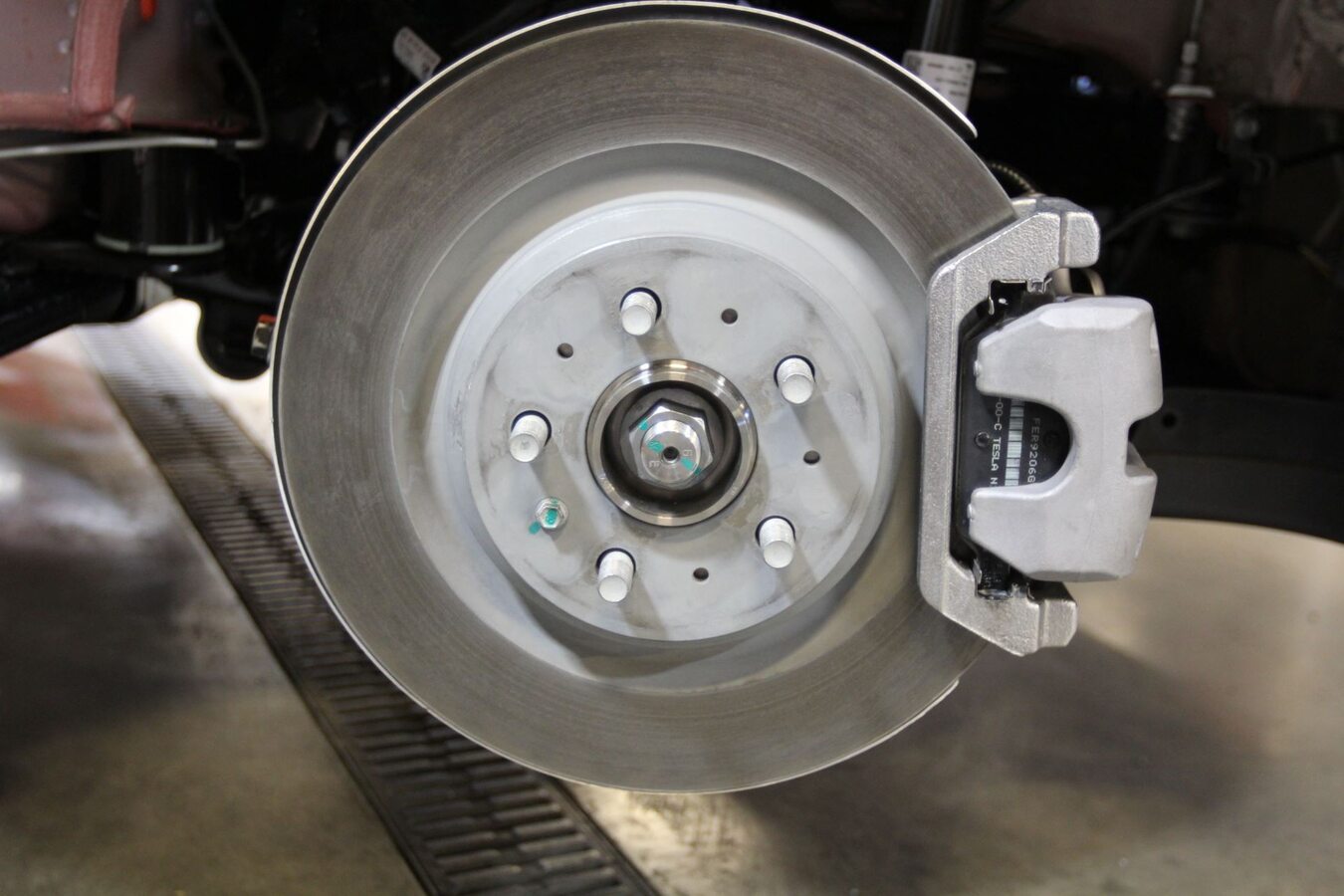

60. Inspect LH rear brake rotor condition
    Nota

    Check for excessive rust or wear, Minimum spec 26mm



61. Record tread depth for RH rear tire
    Nota

    Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less



62. Measure and record RH rear brake pad thickness
    Nota

    Recommend replacement if 2 mm or less, Check both inboard and outboard pads



63. Inspect RH rear brake rotor condition
    Nota

    Check for excessive rust or wear, Minimum spec 26mm



64. Record tread depth for RH front tire
    Nota

    Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less



65. Measure and record RH front brake pad thickness
    Nota

    Recommend replacement if 2mm or less, Check both inboard and outboard pads



66. Inspect RH front brake rotor condition
    Nota

    Check for excessive rust or wear, Minimum spec 30mm



67. Record tread depth for LH front tire
    Nota

    Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less



68. Measure and record LH front brake pad thickness
    Nota

    Recommend replacement if 2mm or less, Check both inboard and outboard pads



69. Inspect LH front brake rotor condition
    Nota

    Check for excessive rust or wear, Minimum spec 30mm

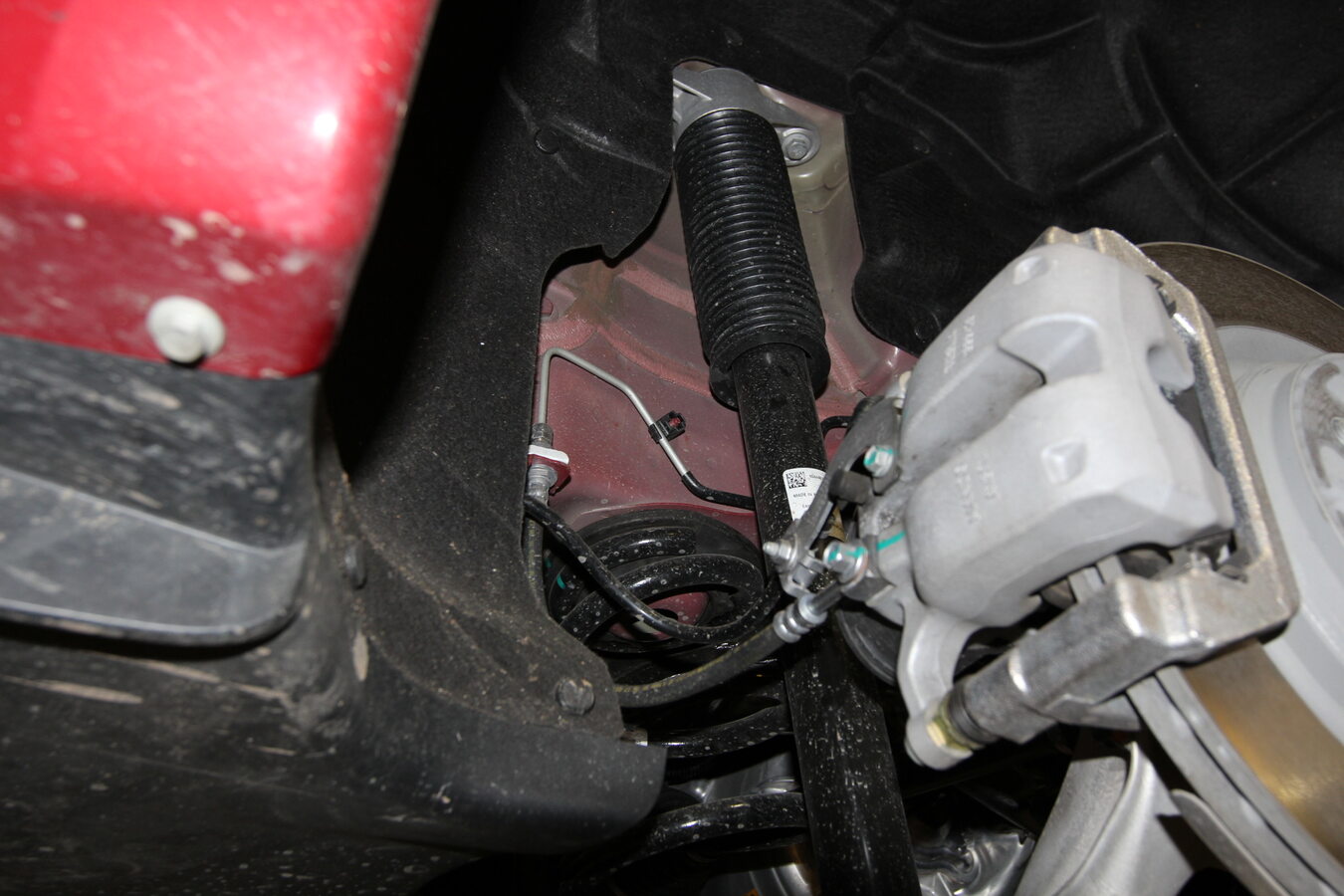

70. Perform visual inspection of all brake pipes and hoses
    Nota

    Pay special attention to brake junction points

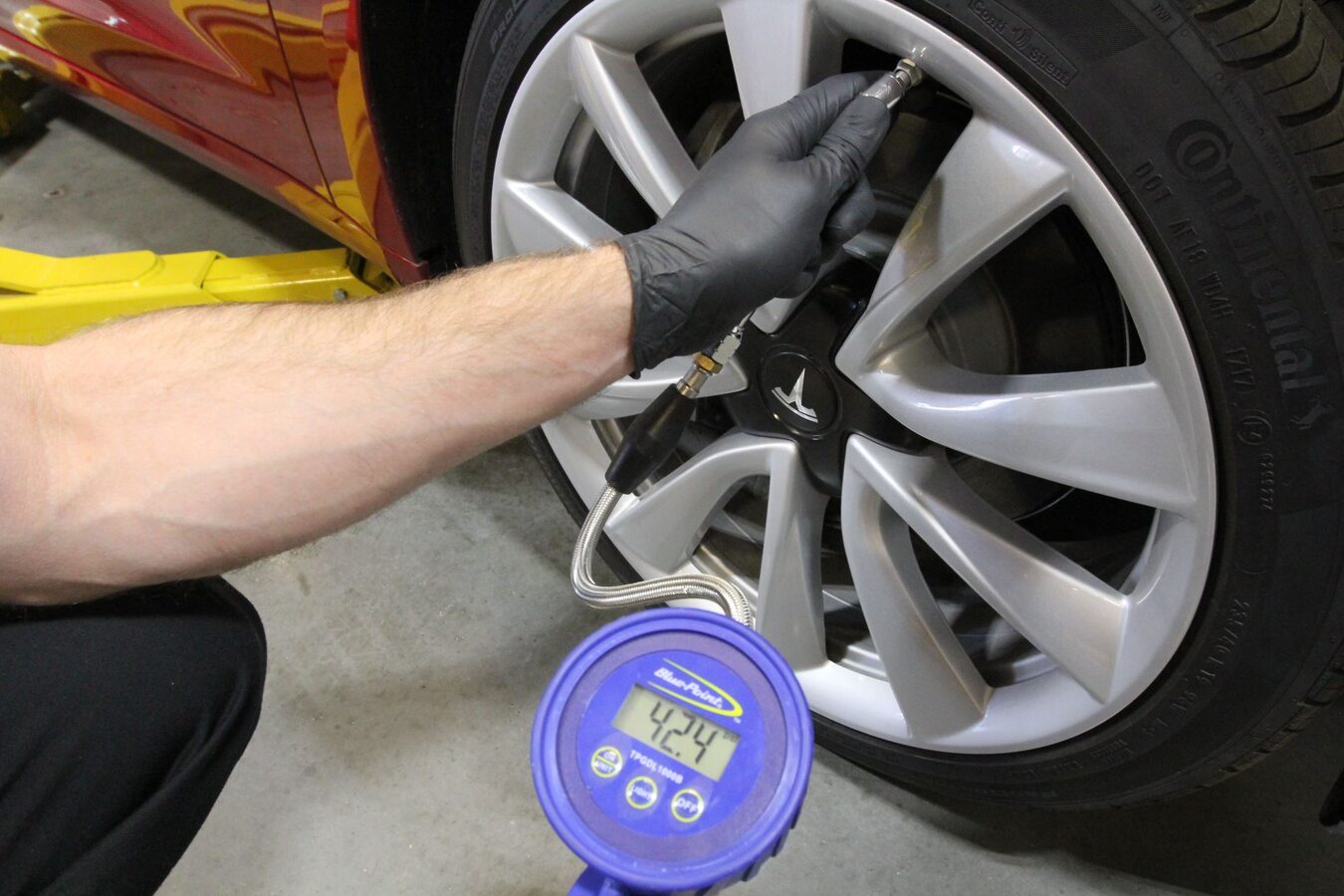

71. Check all four tire pressures manually
    Nota

    4x tires, Set to specification if necessary, Refer to the "Tire and Loading Information" label located on the driver side B-pillar, Inspect wheels and tires for any bulges or damage while checking/setting pressures



72. Raise vehicle fully and lower lift onto locks
    Nota

    Set vehicle to comfortable working height, Make sure there's an audible click of locks on both sides before lowering, otherwise vehicle may tilt to side

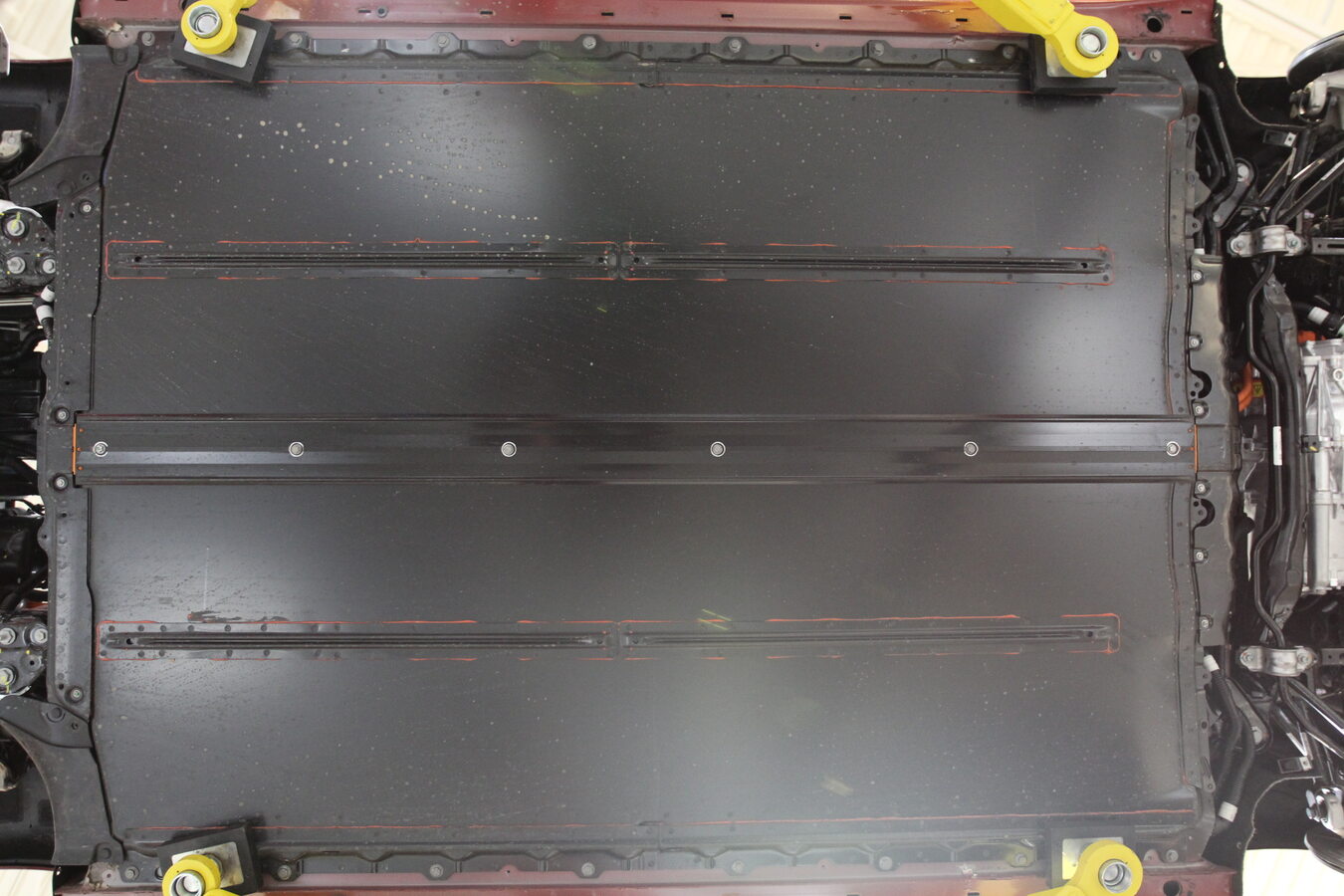

73. Perform visual inspection of HV battery enclosure
    Nota

    Check for any dents, scrapes, or other damage

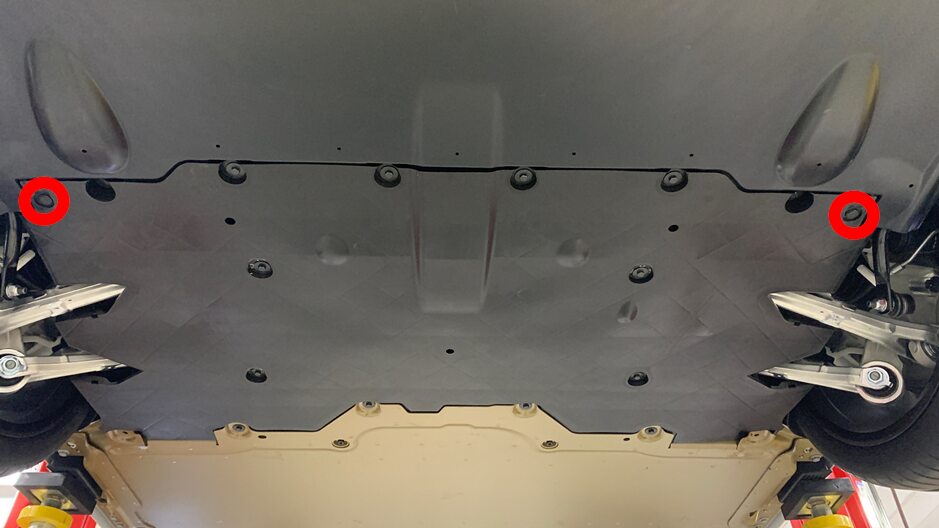

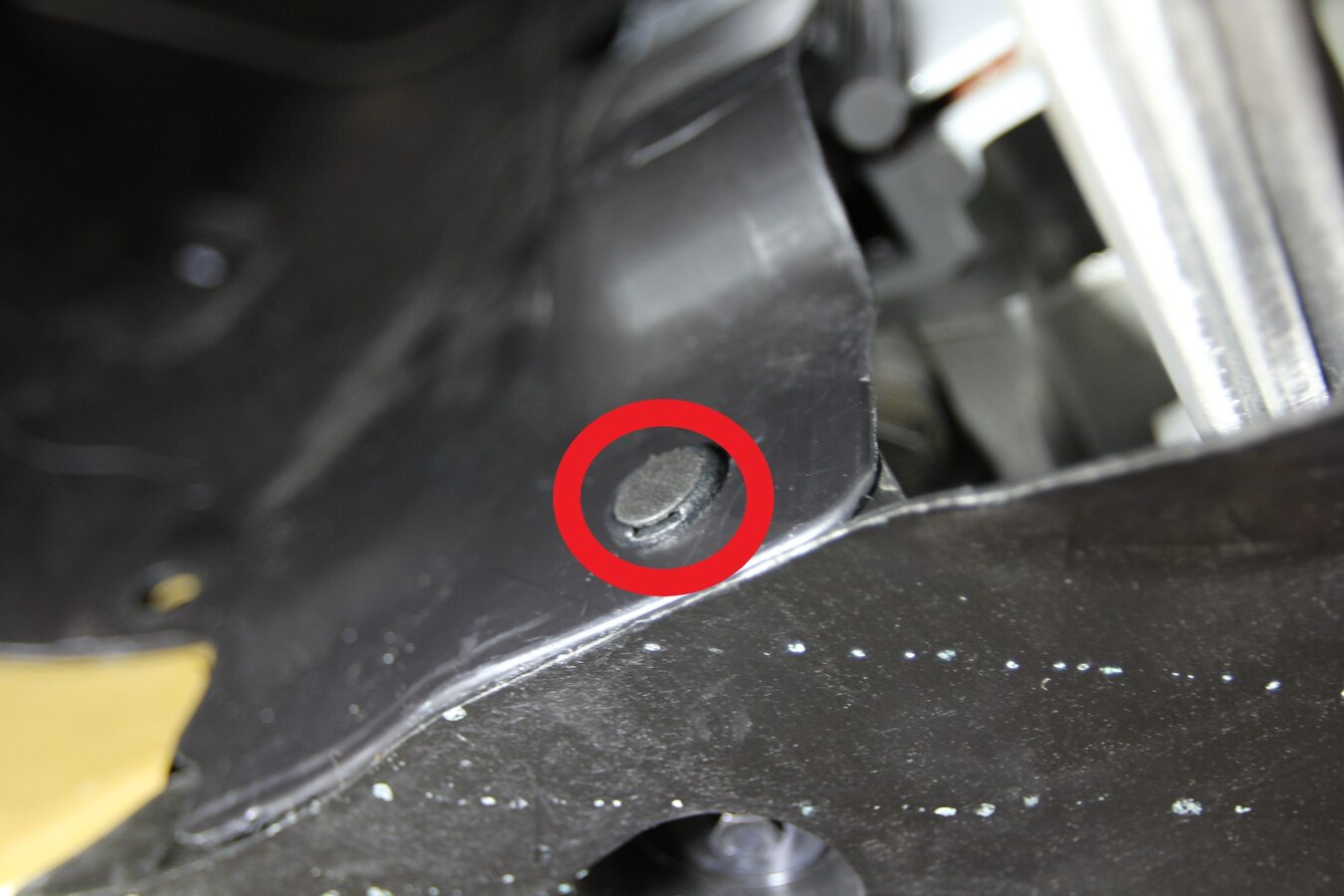

74. Release mid aero shield
    Nota

    4x push clips







75. Remove mid aero shield
    Nota

    16x bolts, 10mm, 6 Nm

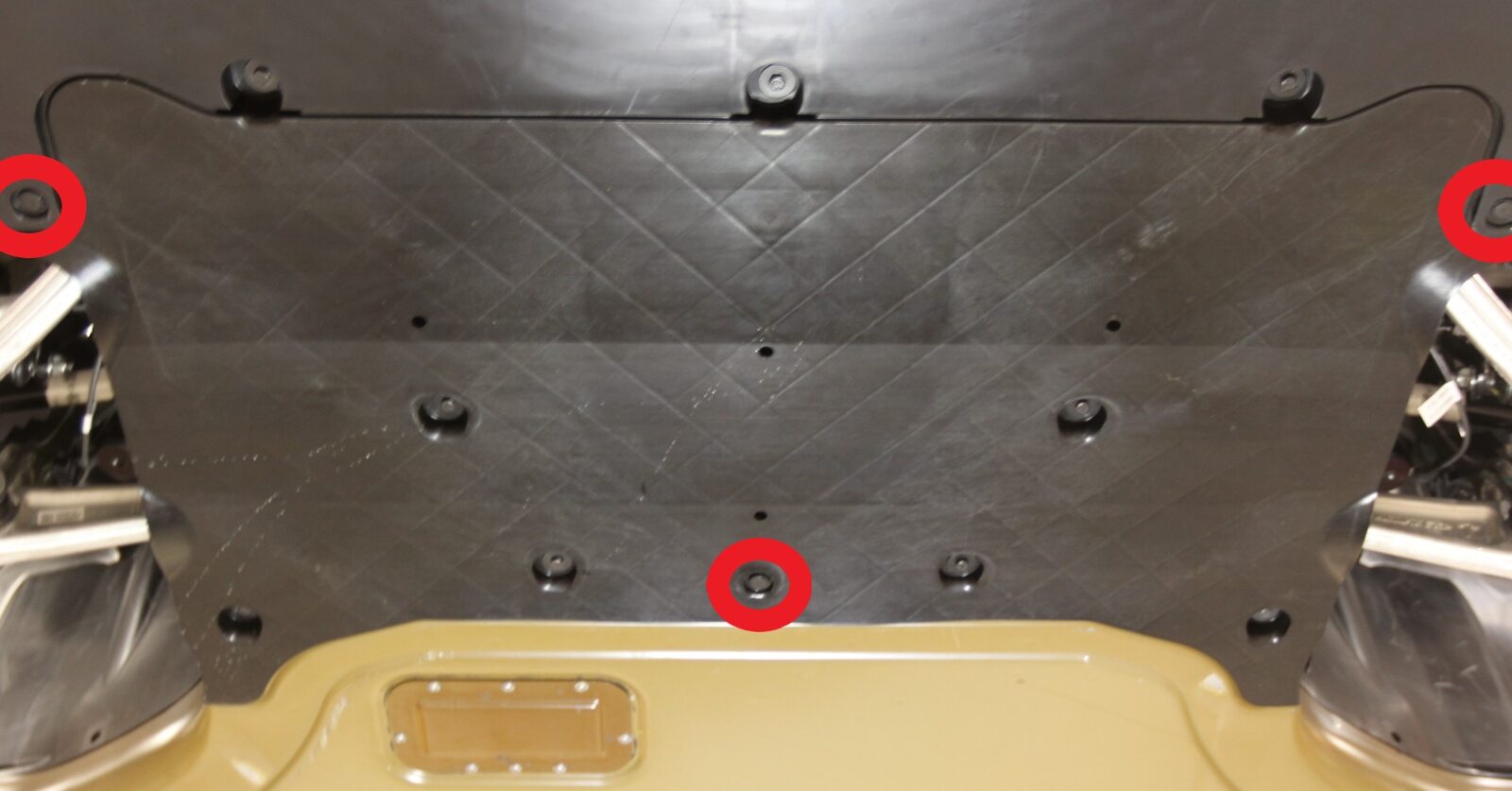

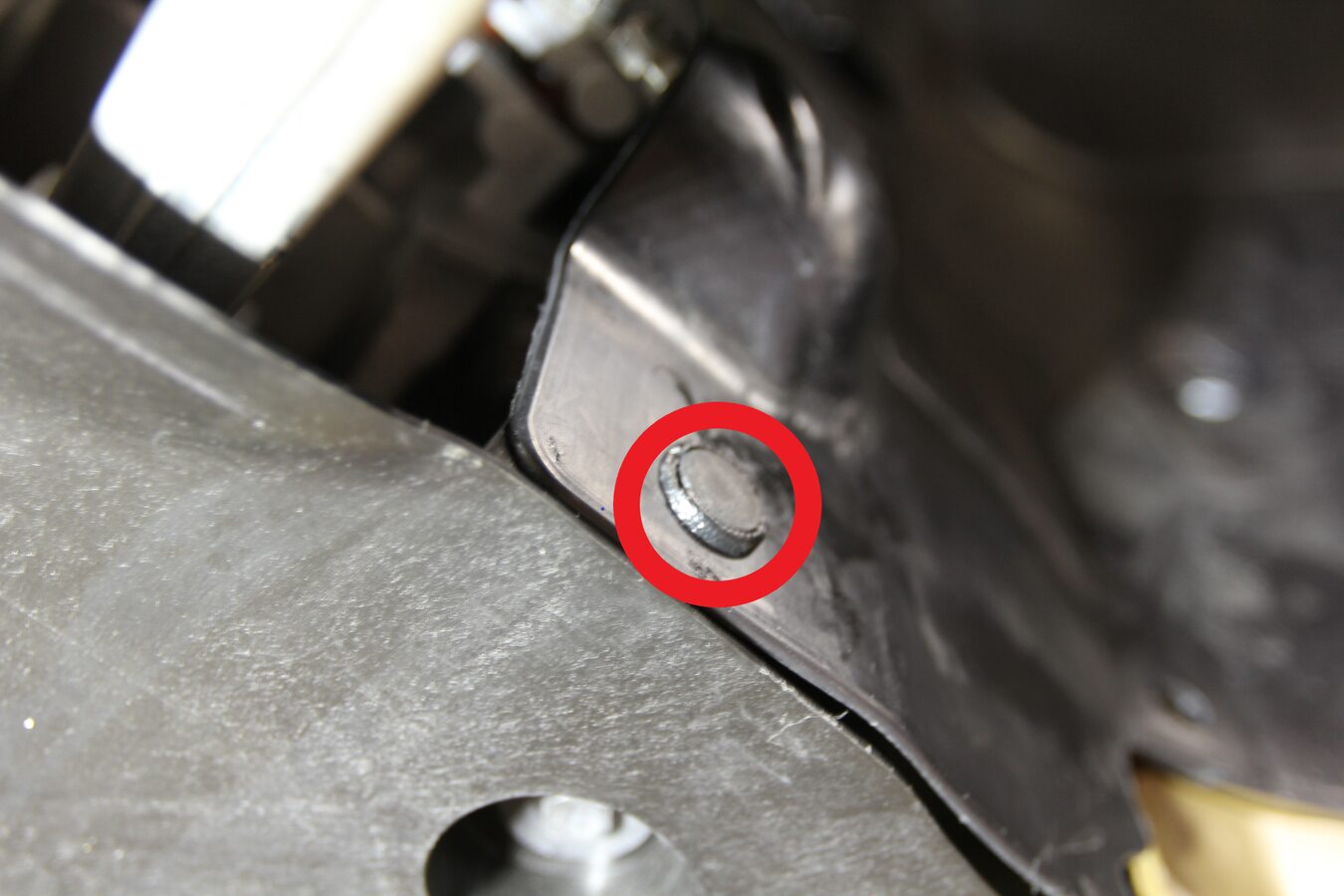

76. Release front aero shield
    Nota

    9x bolts, 10mm, 6 Nm

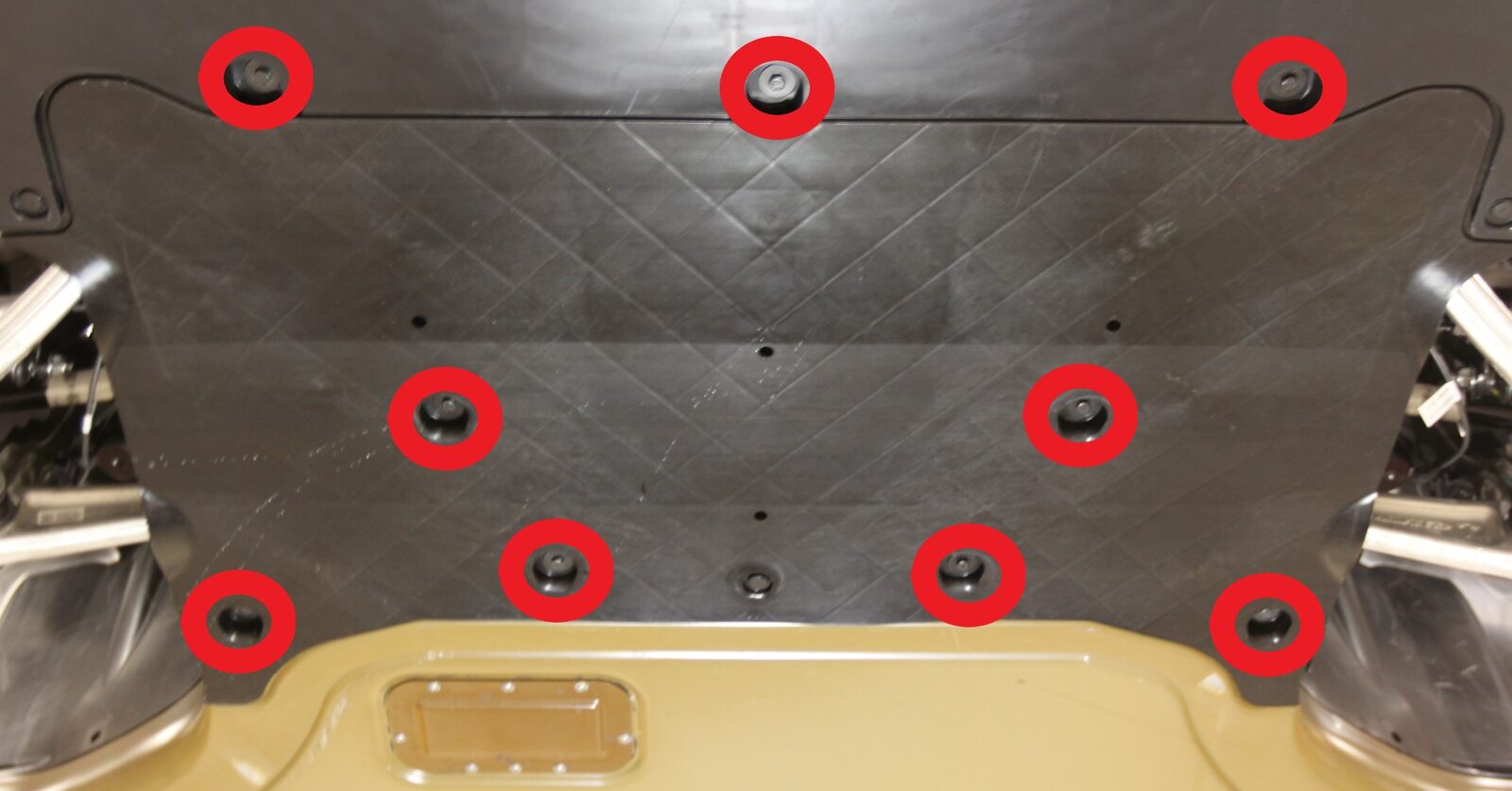

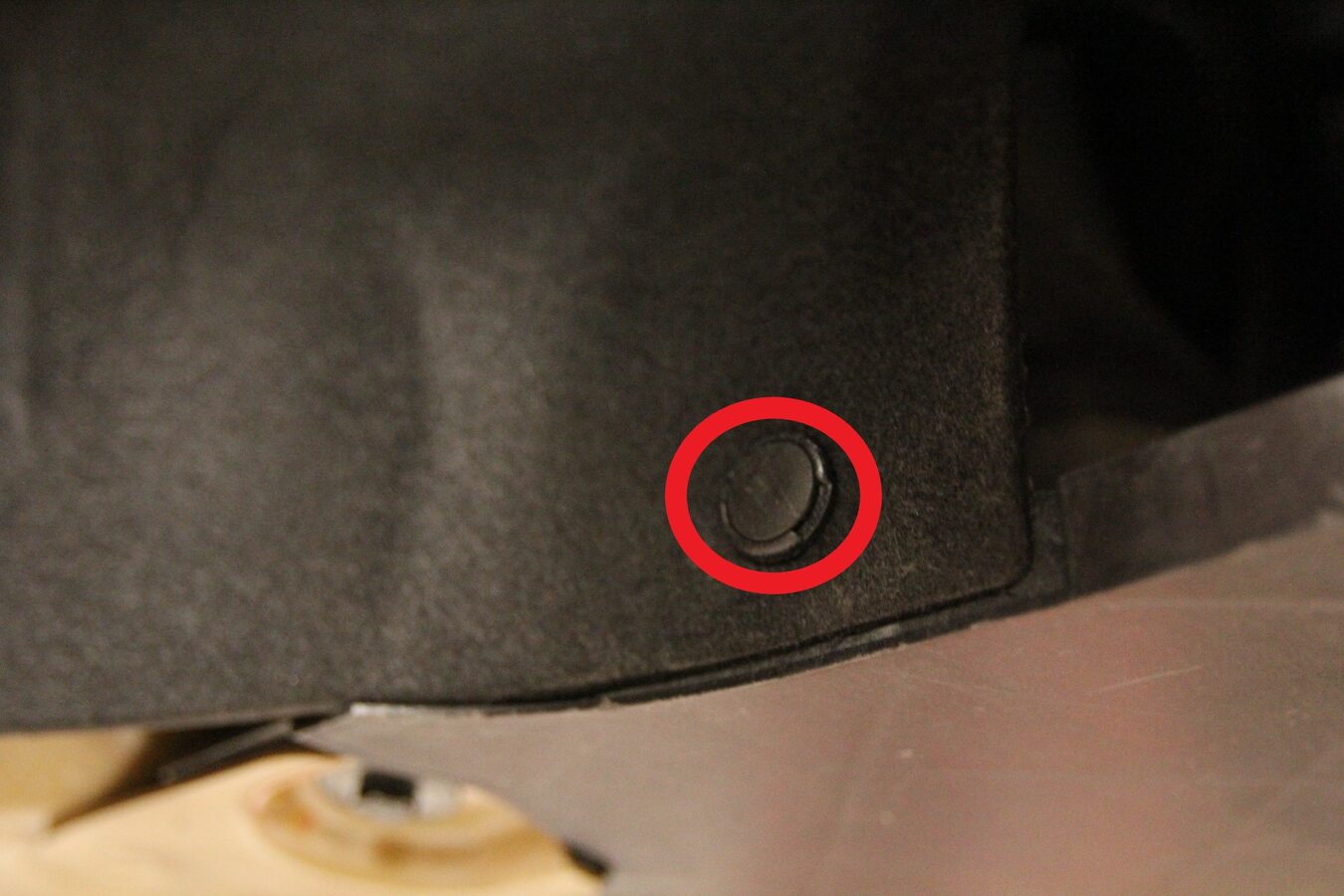

77. Remove front aero shield
    Nota

    5x push clips

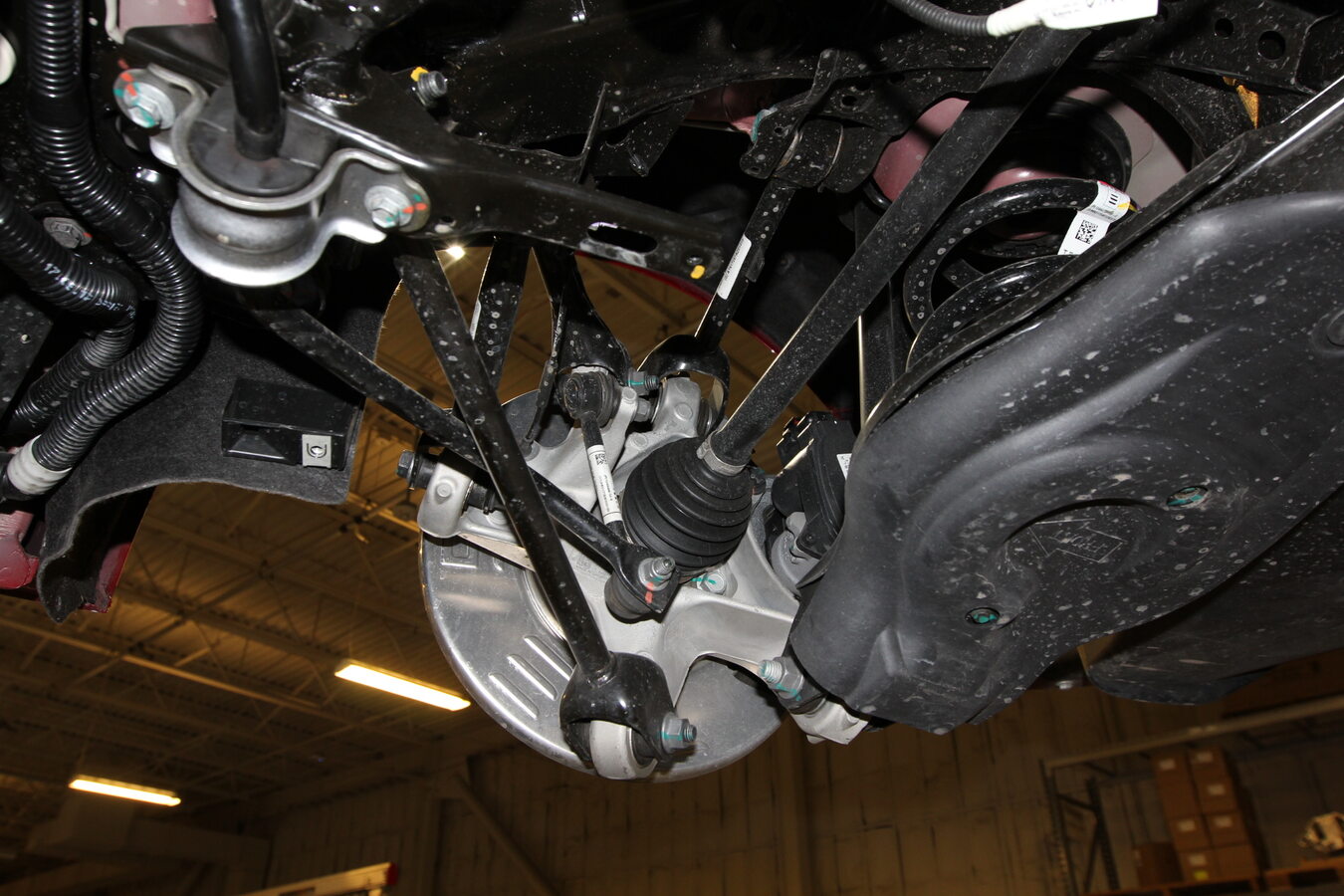

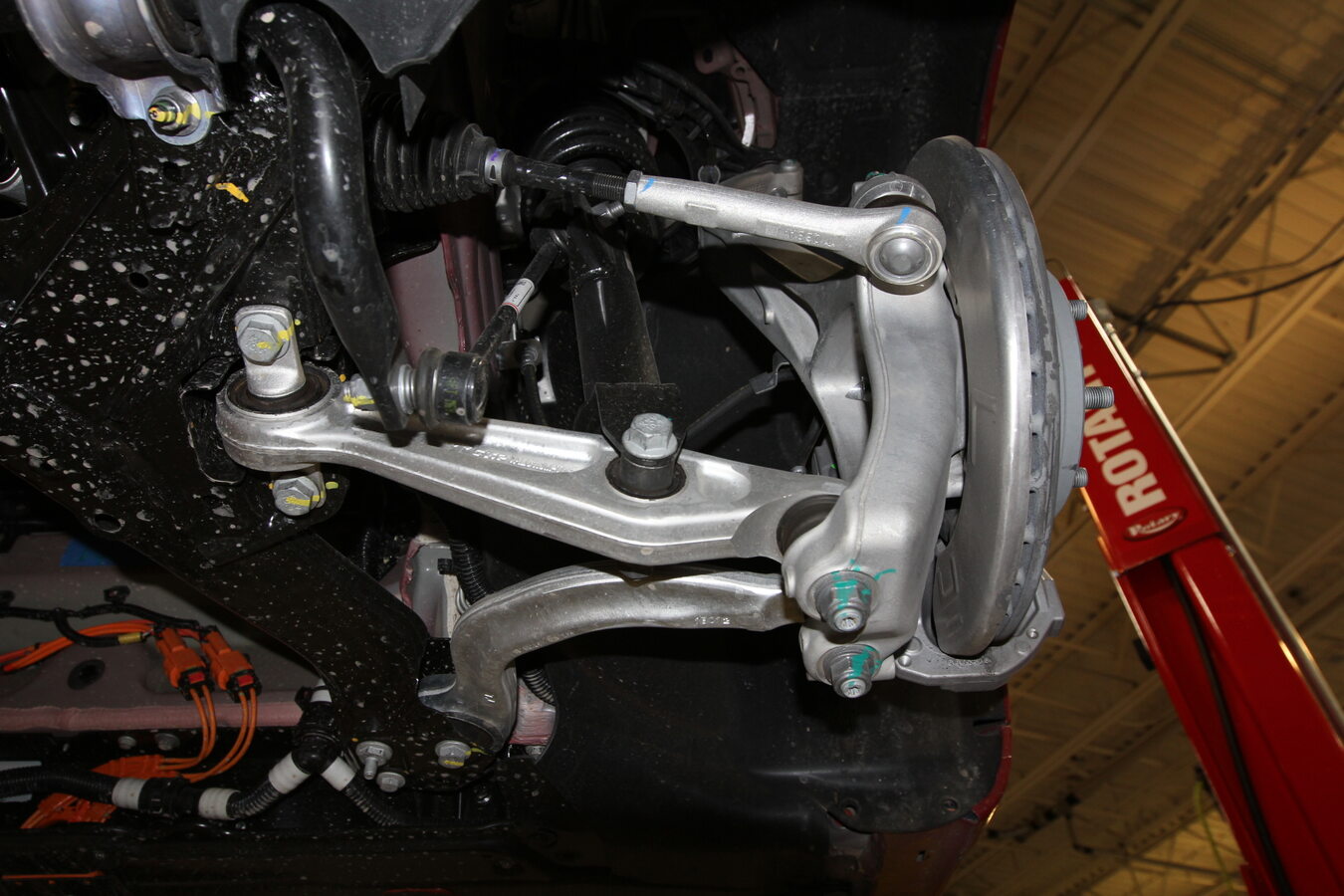

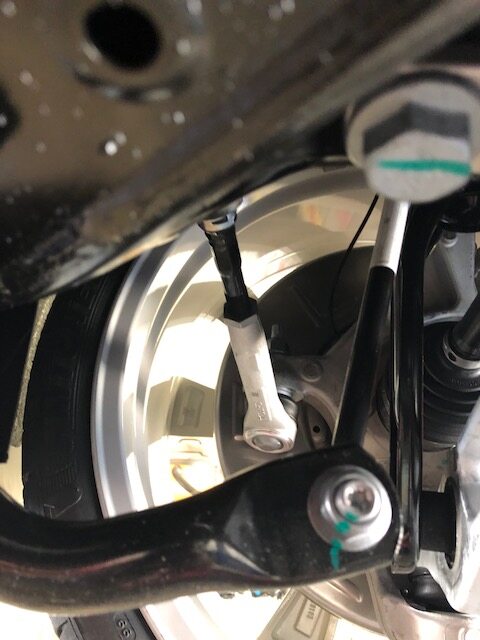

78. Perform inspection of suspension components
    Nota

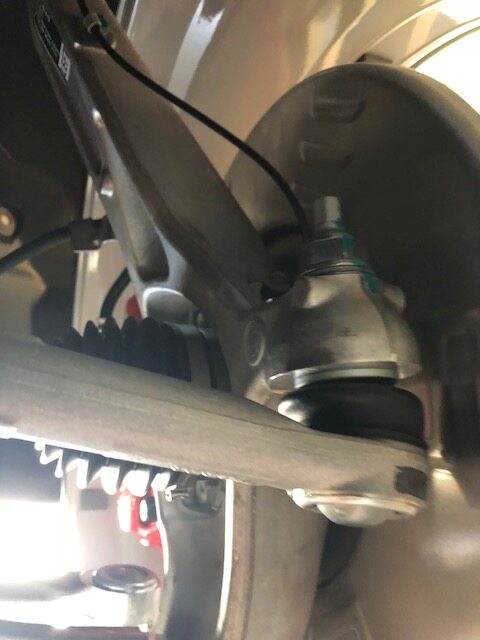

    Check conditions of ball joints and bushings, etc, Inspect for any loose fasteners, Carefully apply pressure with a pry bar as needed

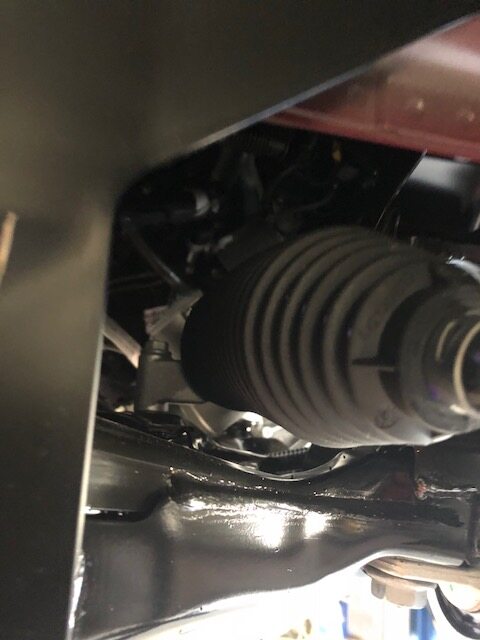

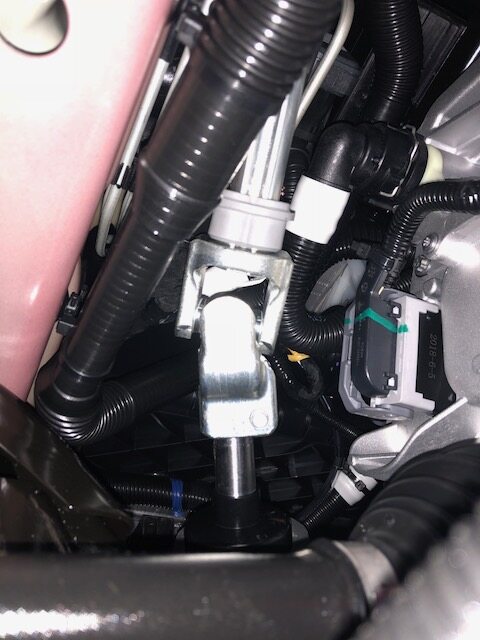

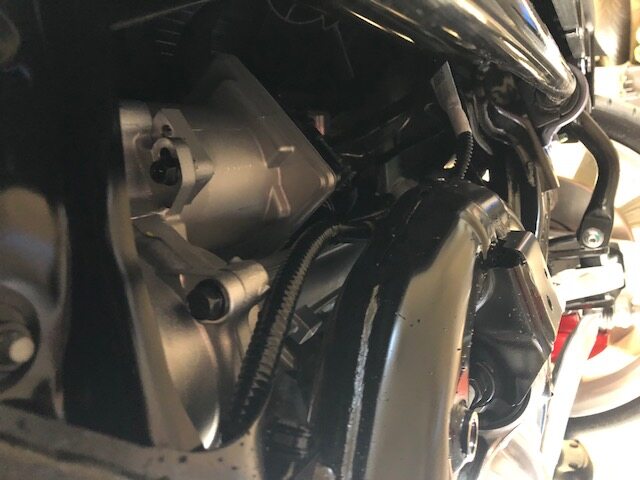

79. Perform inspection of steering components
    Nota

    Check steering gear joints and electrical connections, Verify components are not bent or damaged

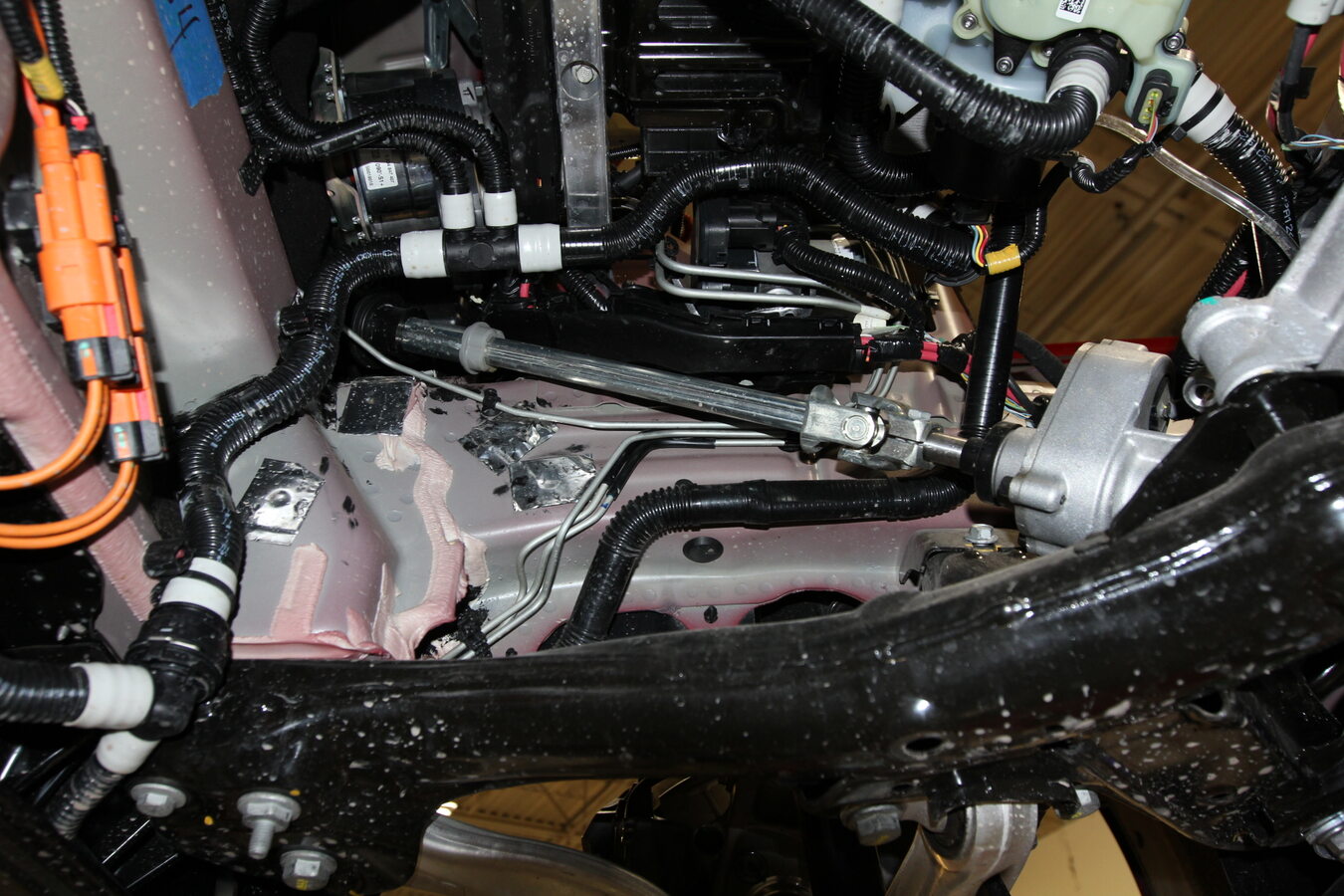

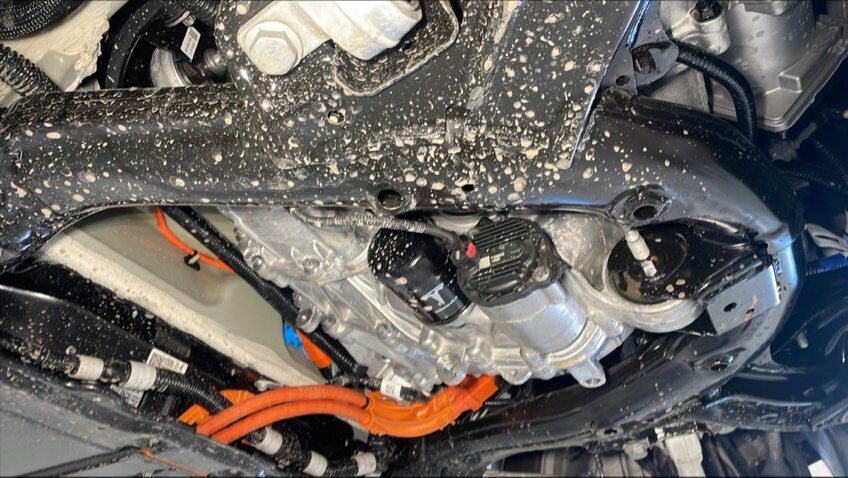

80. Perform visual inspection of underside of vehicle for any coolant leaks
    Nota

    Pay special attention to hose connection points

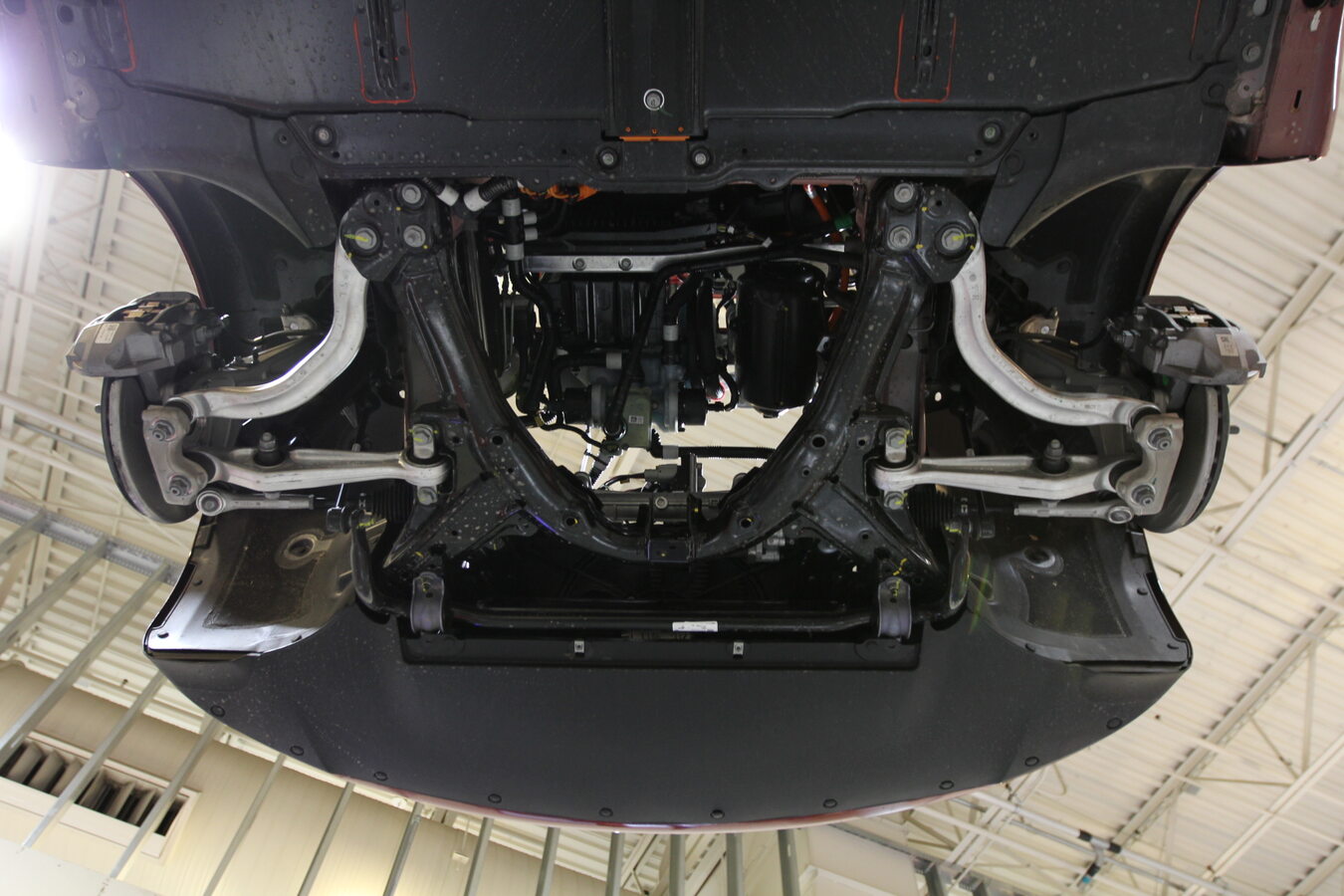

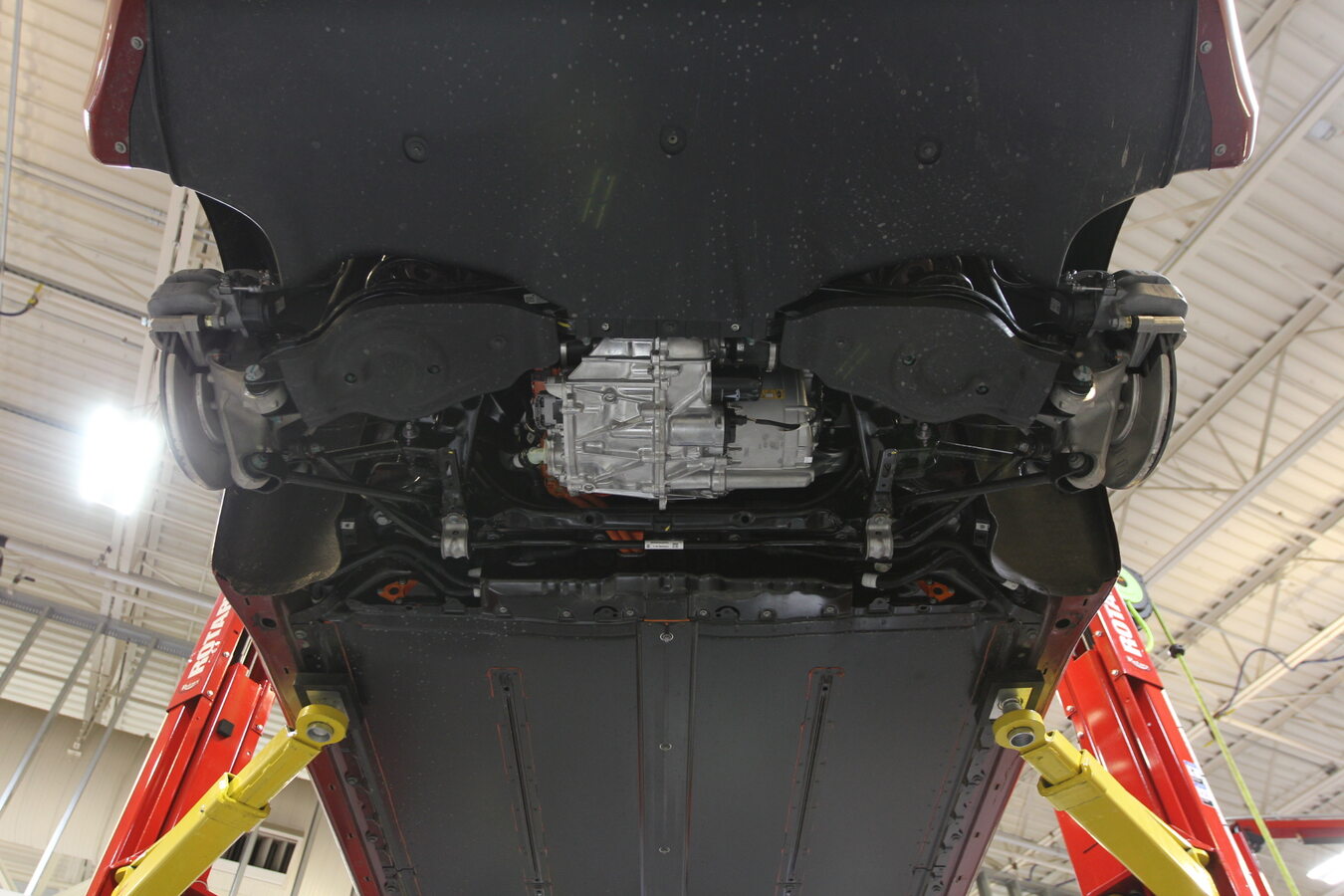

81. Perform inspection of vehicle underside components front and rear
    Nota

    Perform inspection of vehicle underside front and rear, Check for signs of abnormal damage, wear, heavy rust, wiring damage, or impact damage, Pay attention to safety related component and note any items of significance





82. Install front aero shield
    Nota

    5x push clips







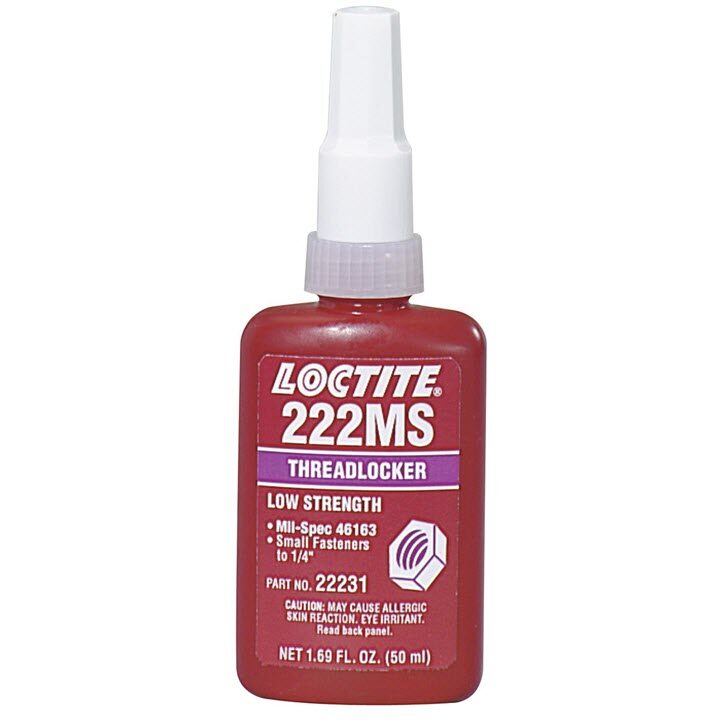

83. Secure front aero shield to vehicle
    Nota

    9x bolts, 10mm, 6 Nm, Apply Loctite 222 onto front aero shield bolts





84. Position mid aero shield
    Nota

    4x push clips

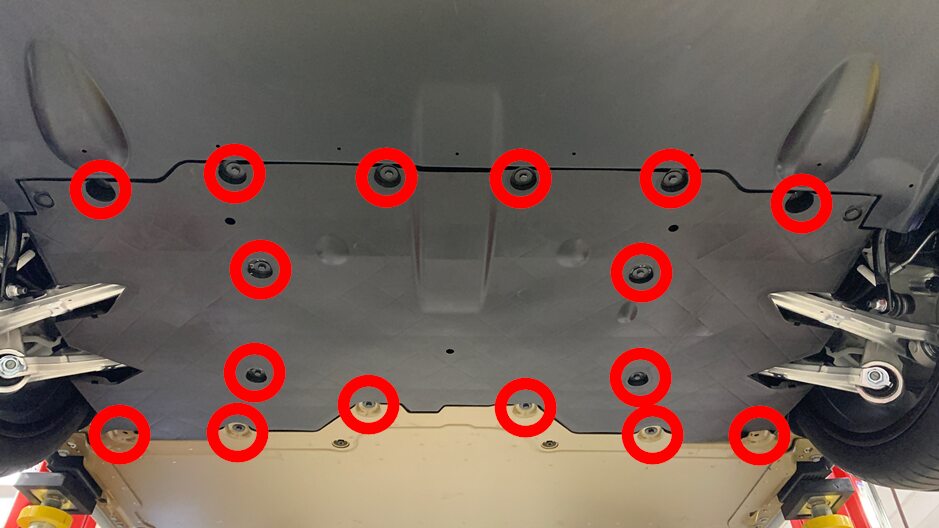

85. Install mid aero shield
    Nota

    16x bolts, 10mm, 6 Nm, Apply Loctite 222 onto mid aero shield bolts and install fasteners securing mid aero shield to vehicle

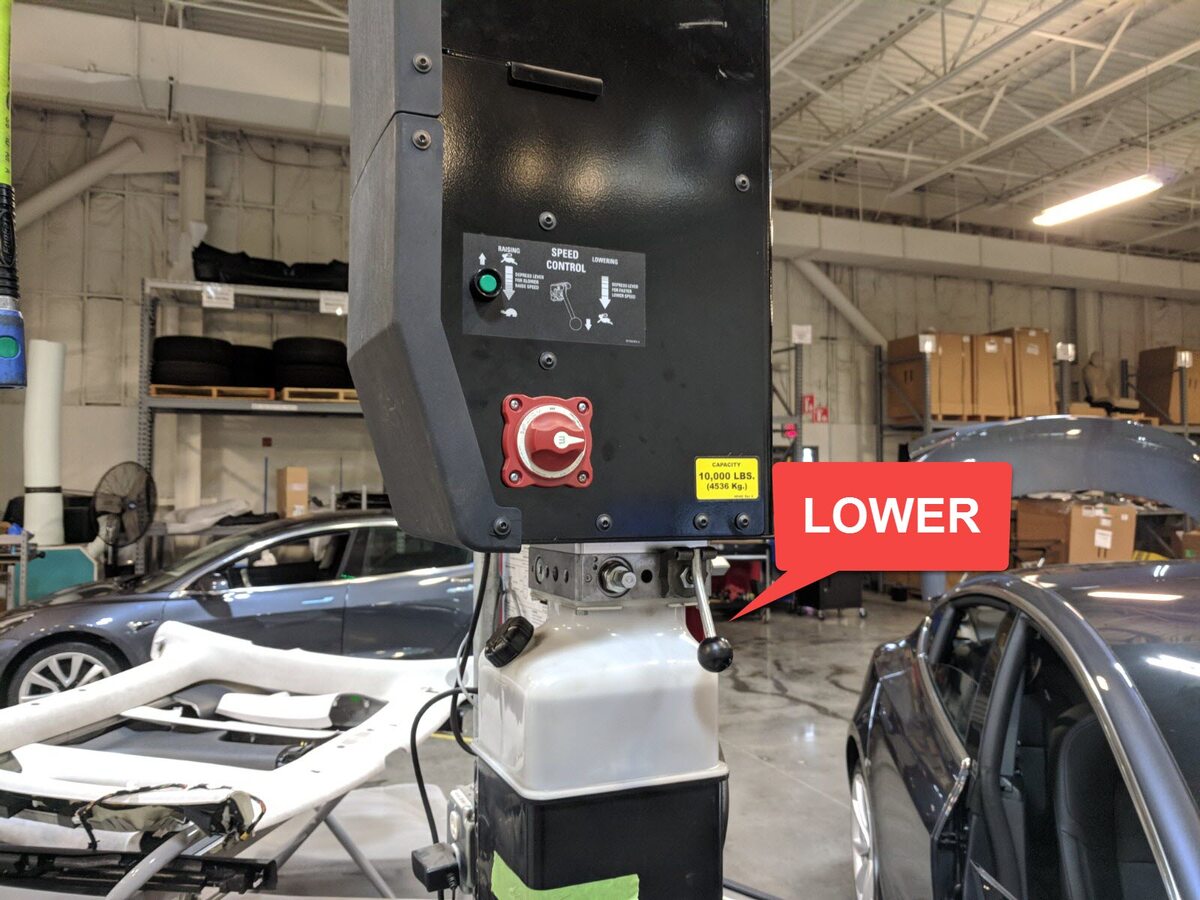

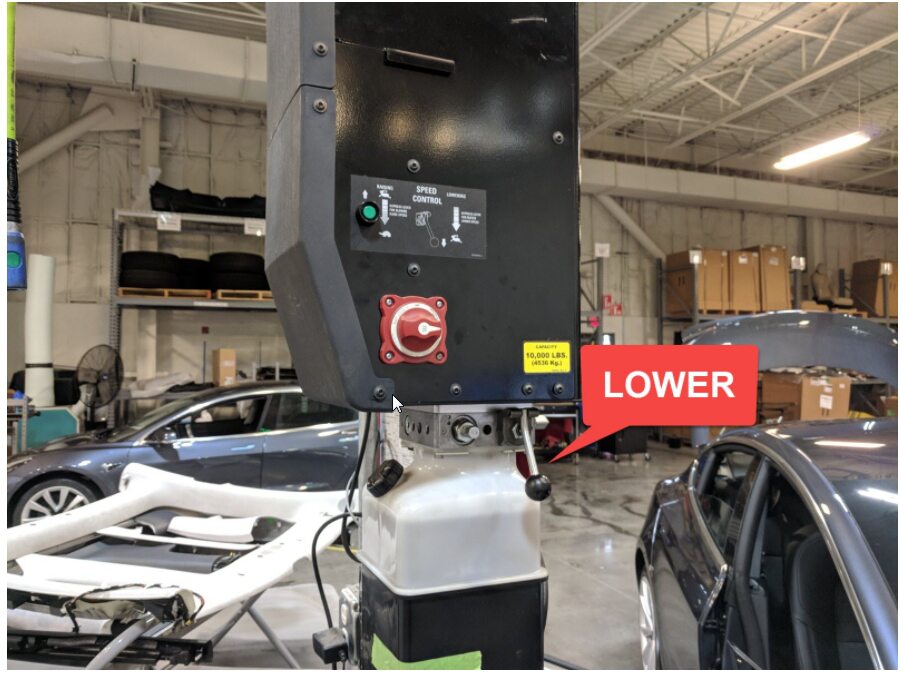

86. Lower vehicle partially and set onto locks
    Nota

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height

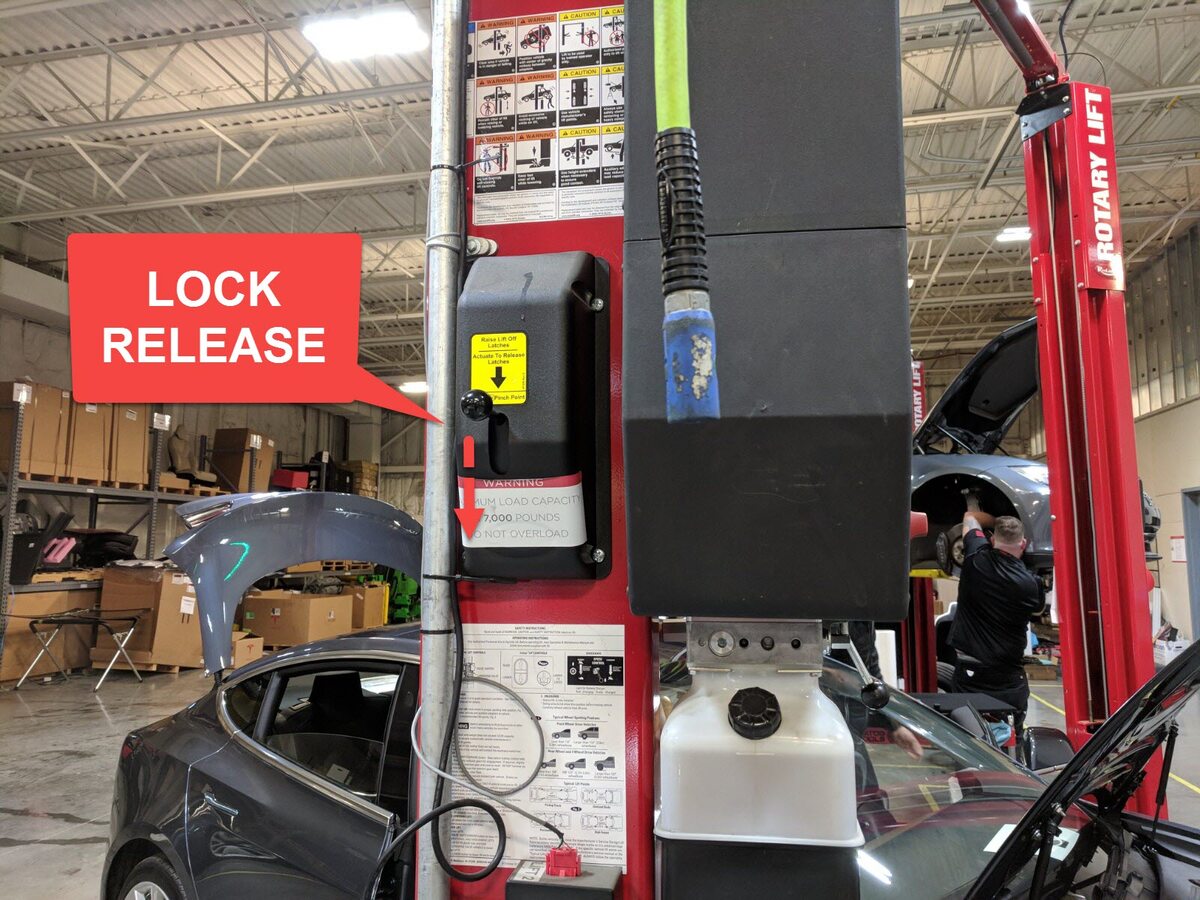

87. Install LH rear wheel
    Nota

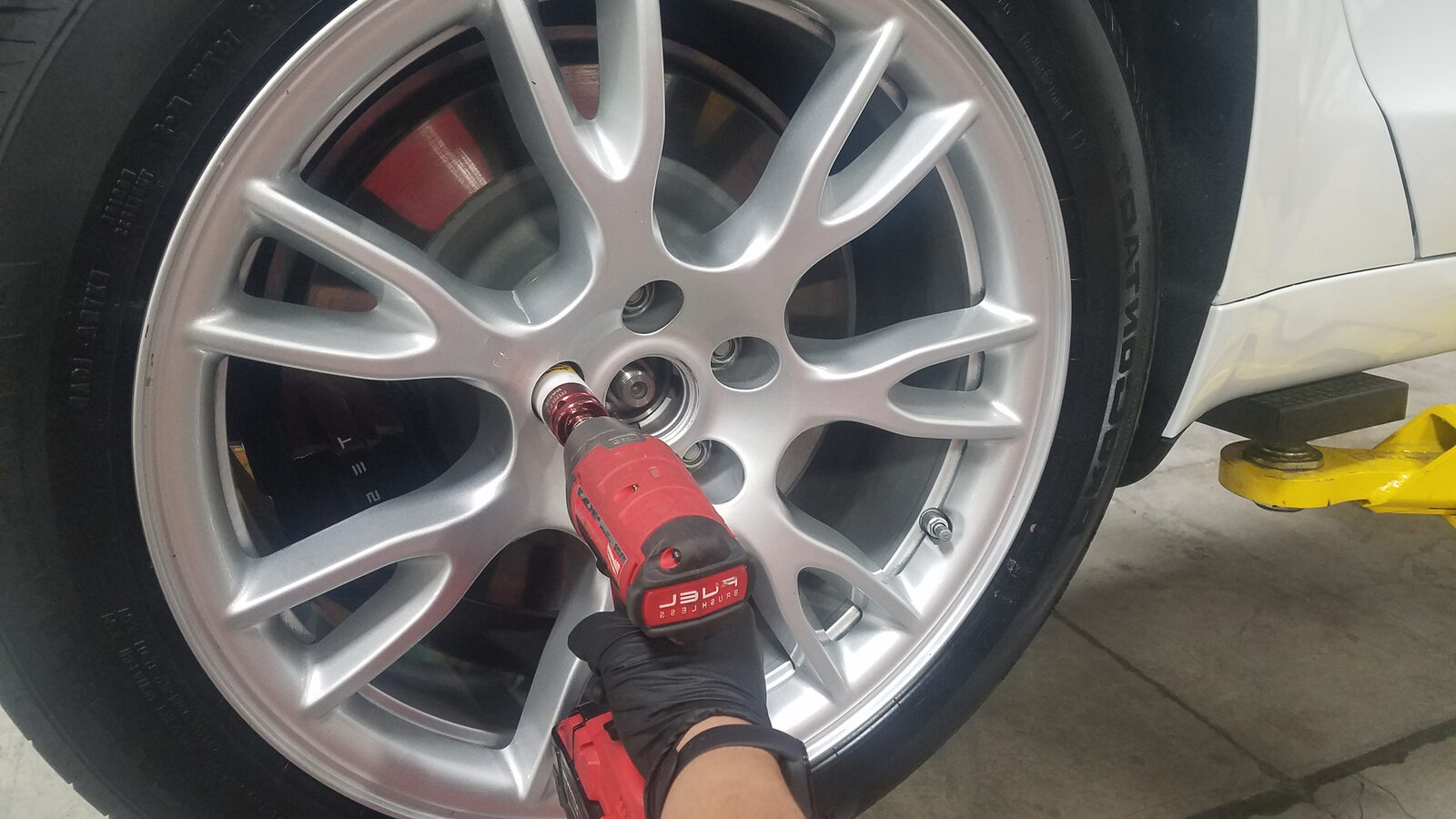

    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool





88. Install LH front wheel
    Nota

    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool





89. Install RH rear wheel
    Nota

    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool





90. Install RH front wheel
    Nota

    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool





91. Lower vehicle until tires are touching ground
    Nota

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered

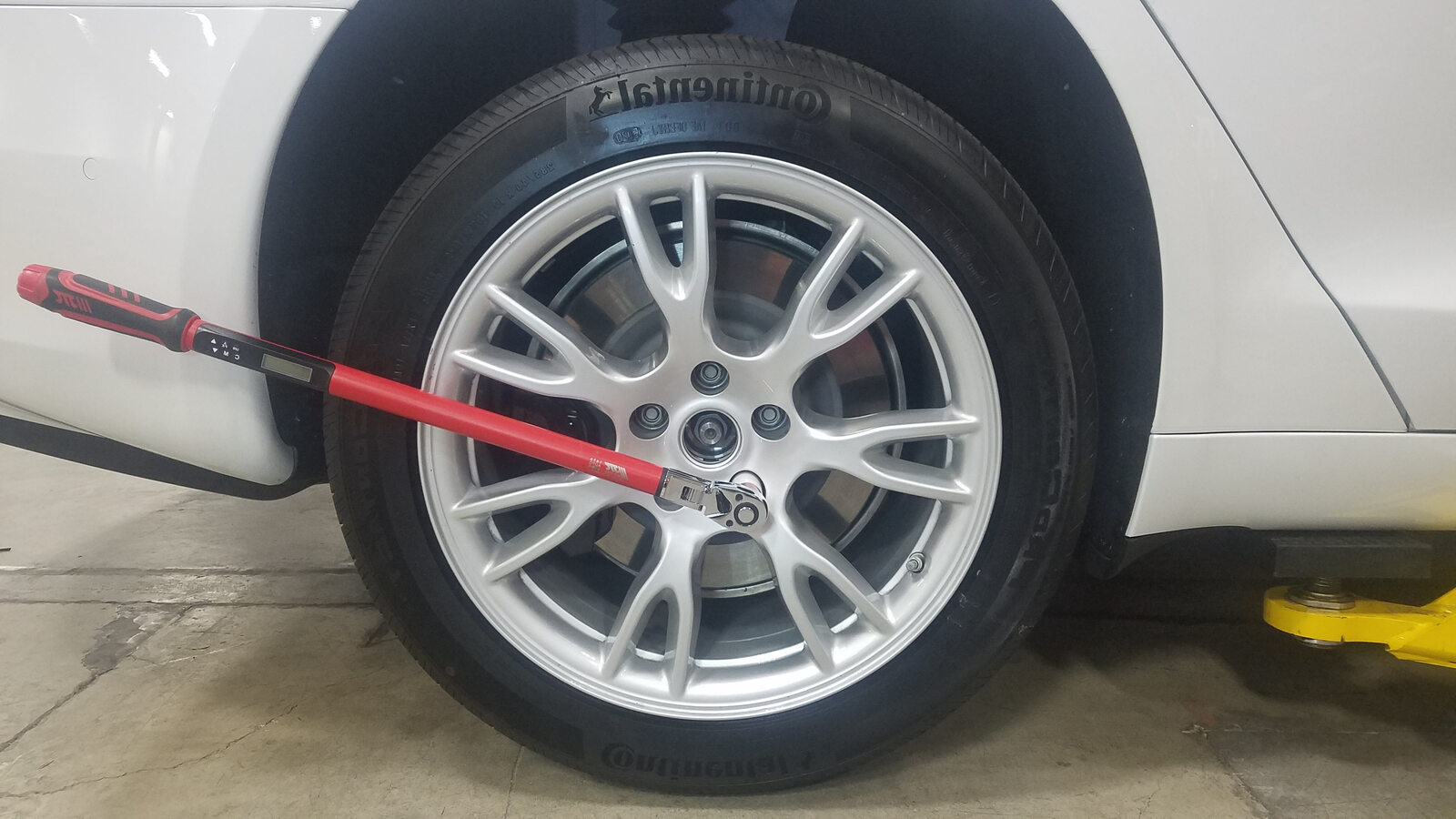

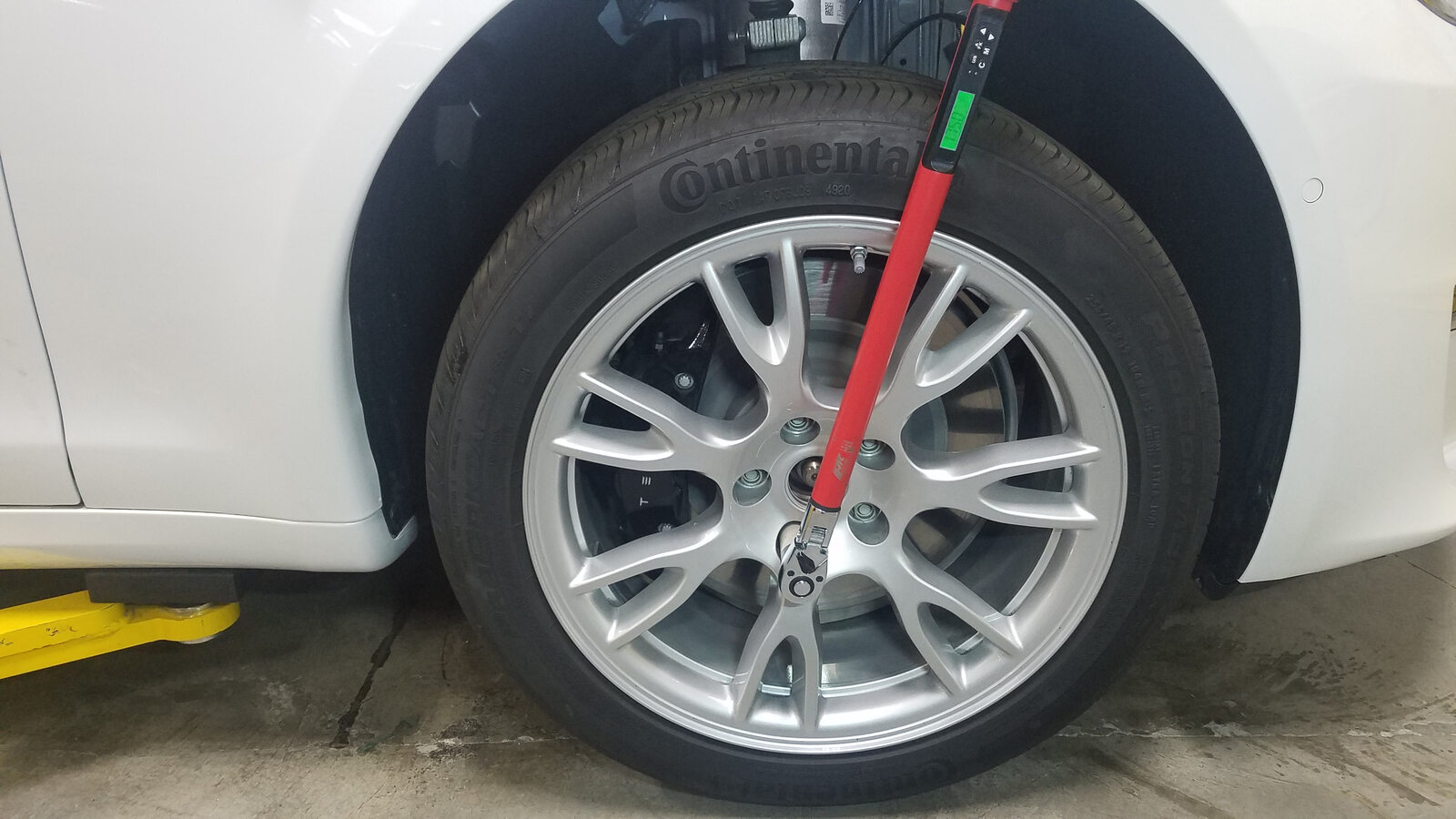

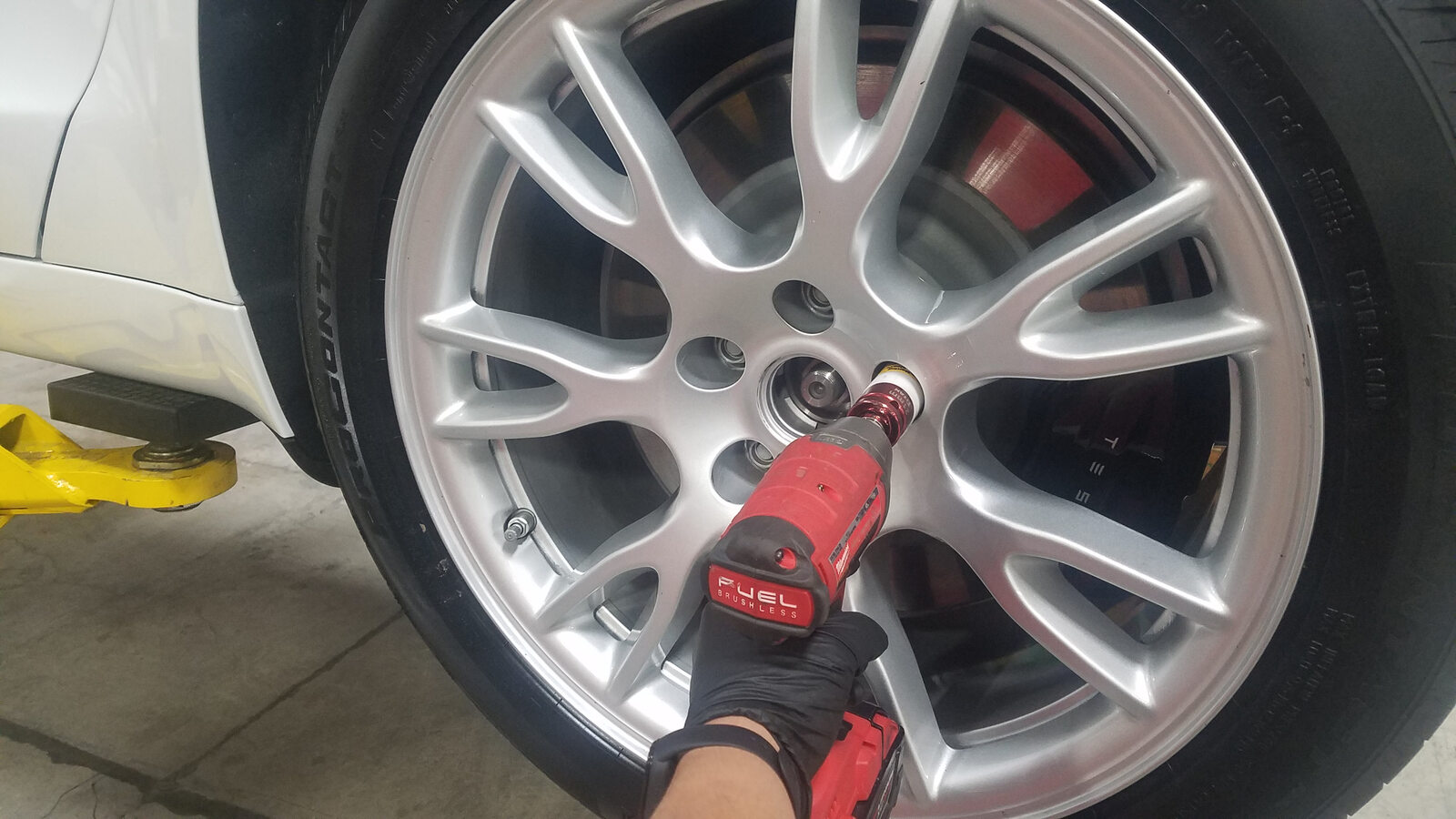

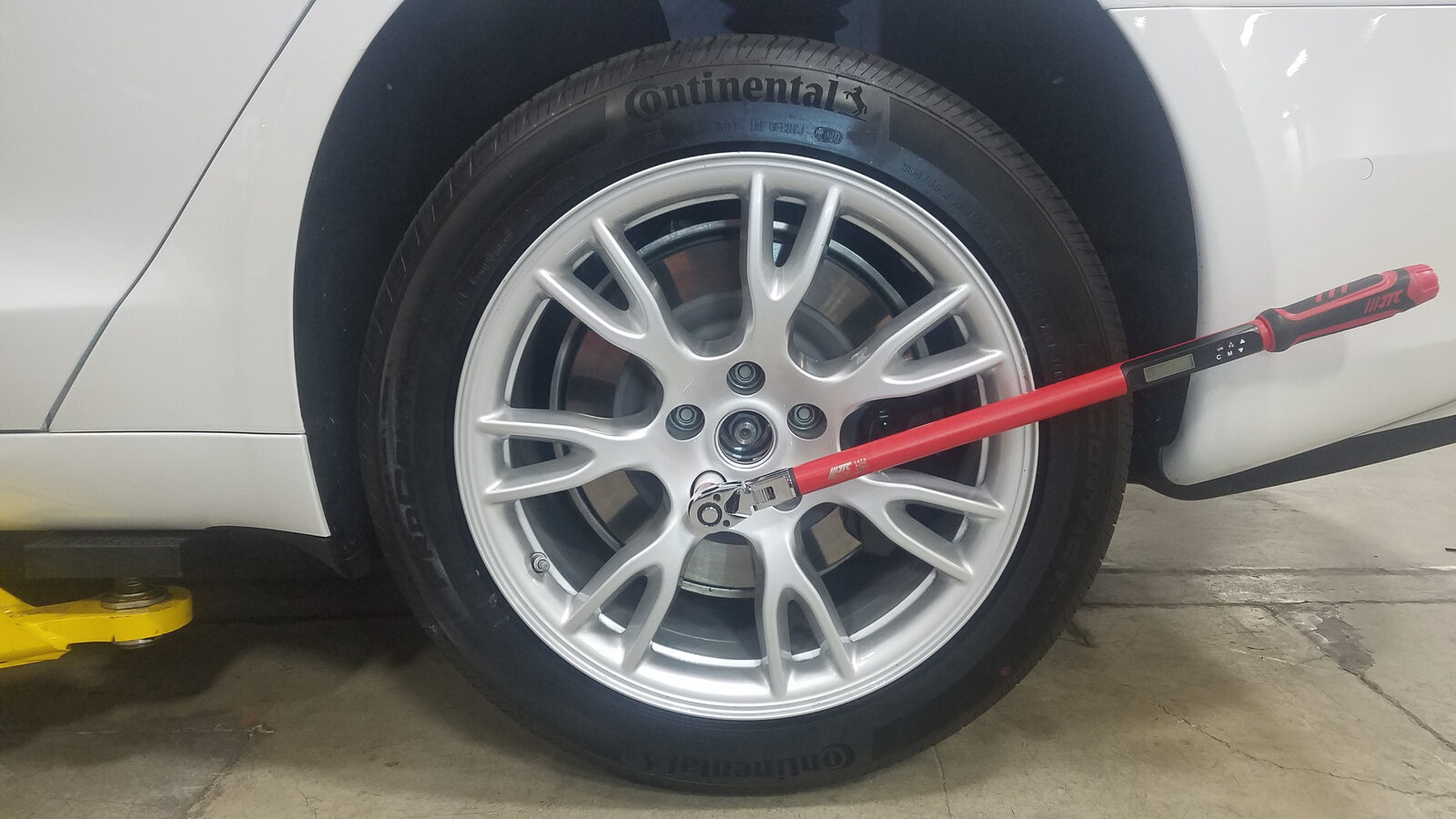

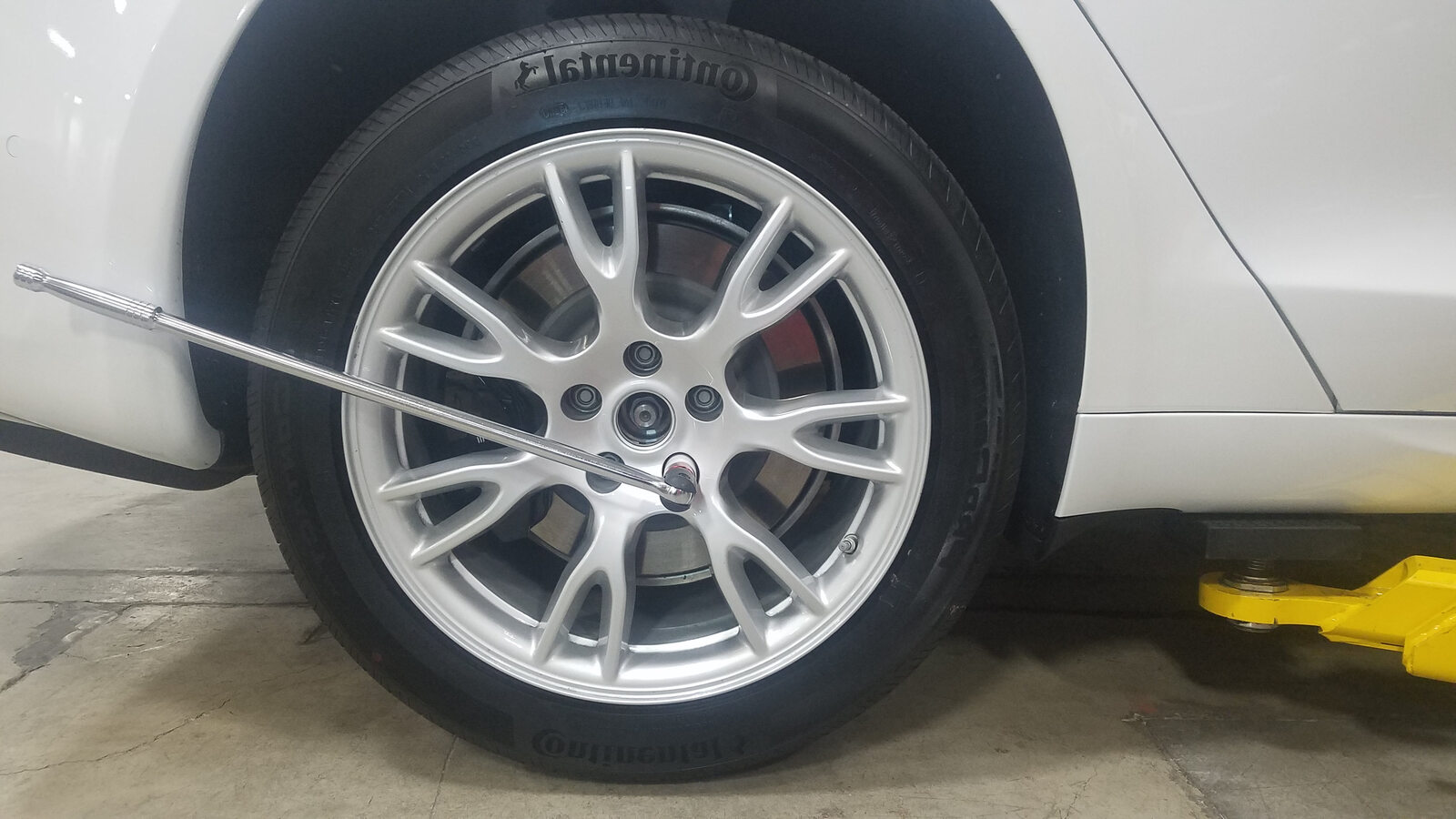

92. Torque LH front wheel
    Nota

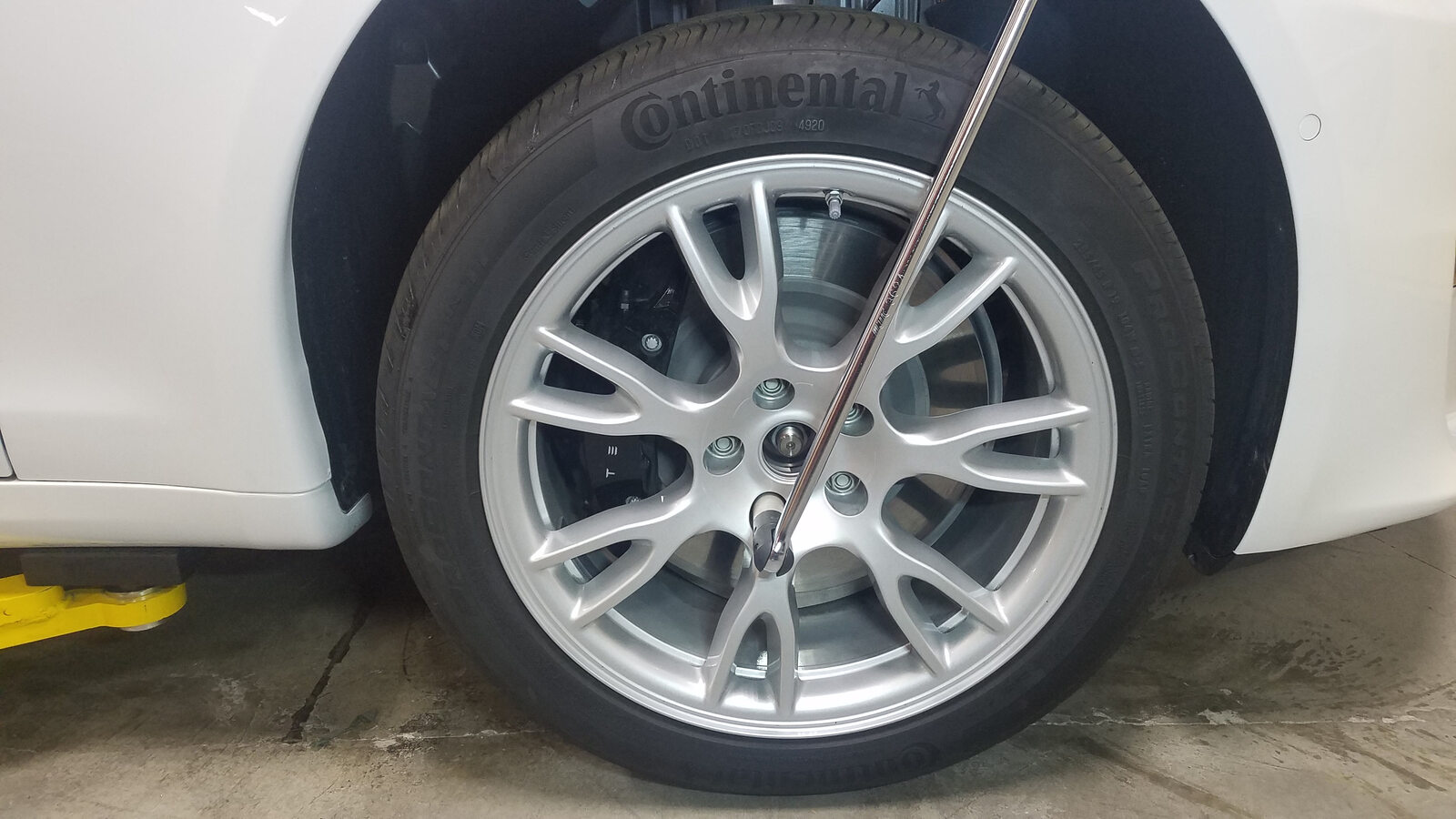

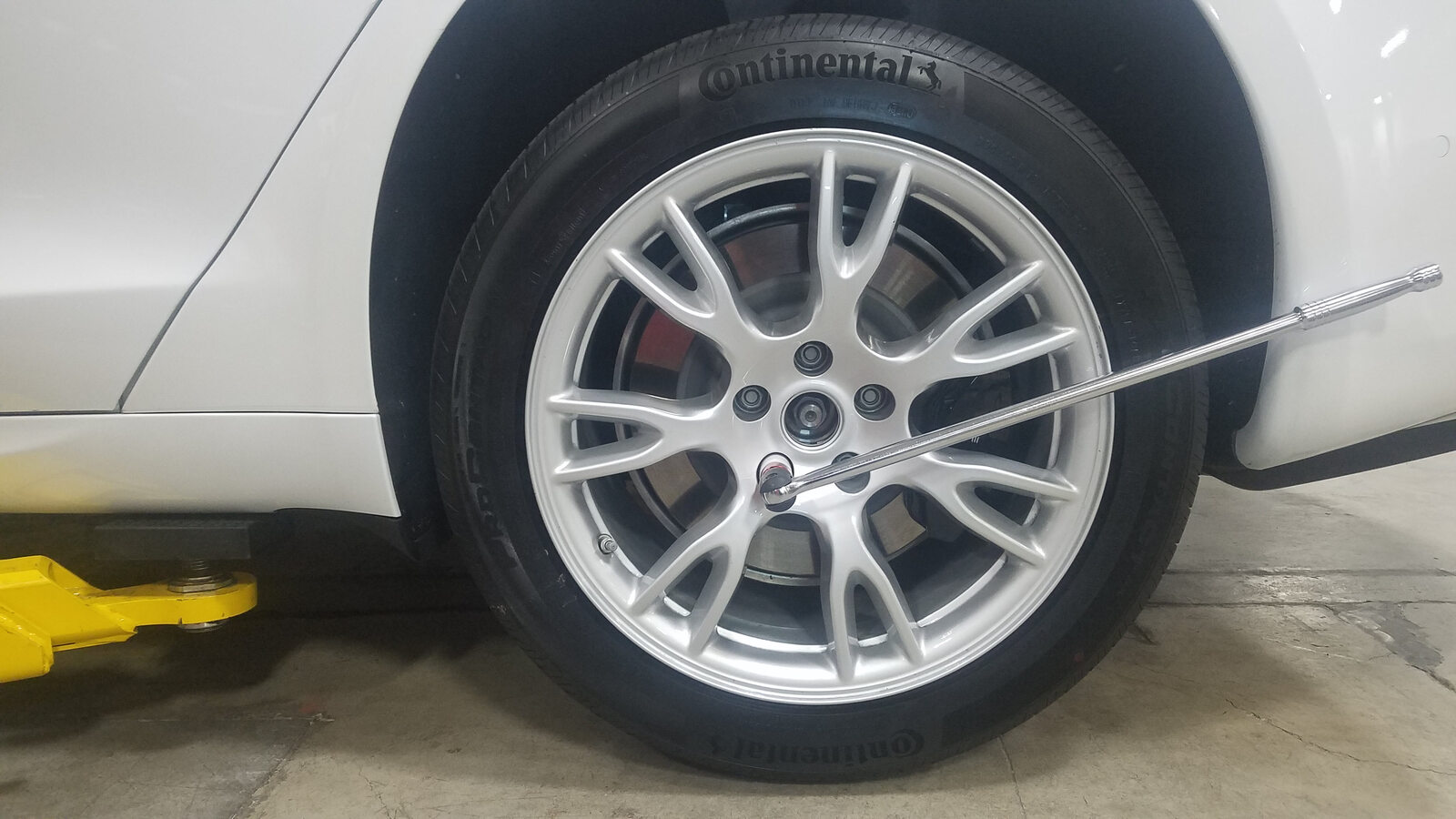

    5x nuts, 21mm, 175 Nm

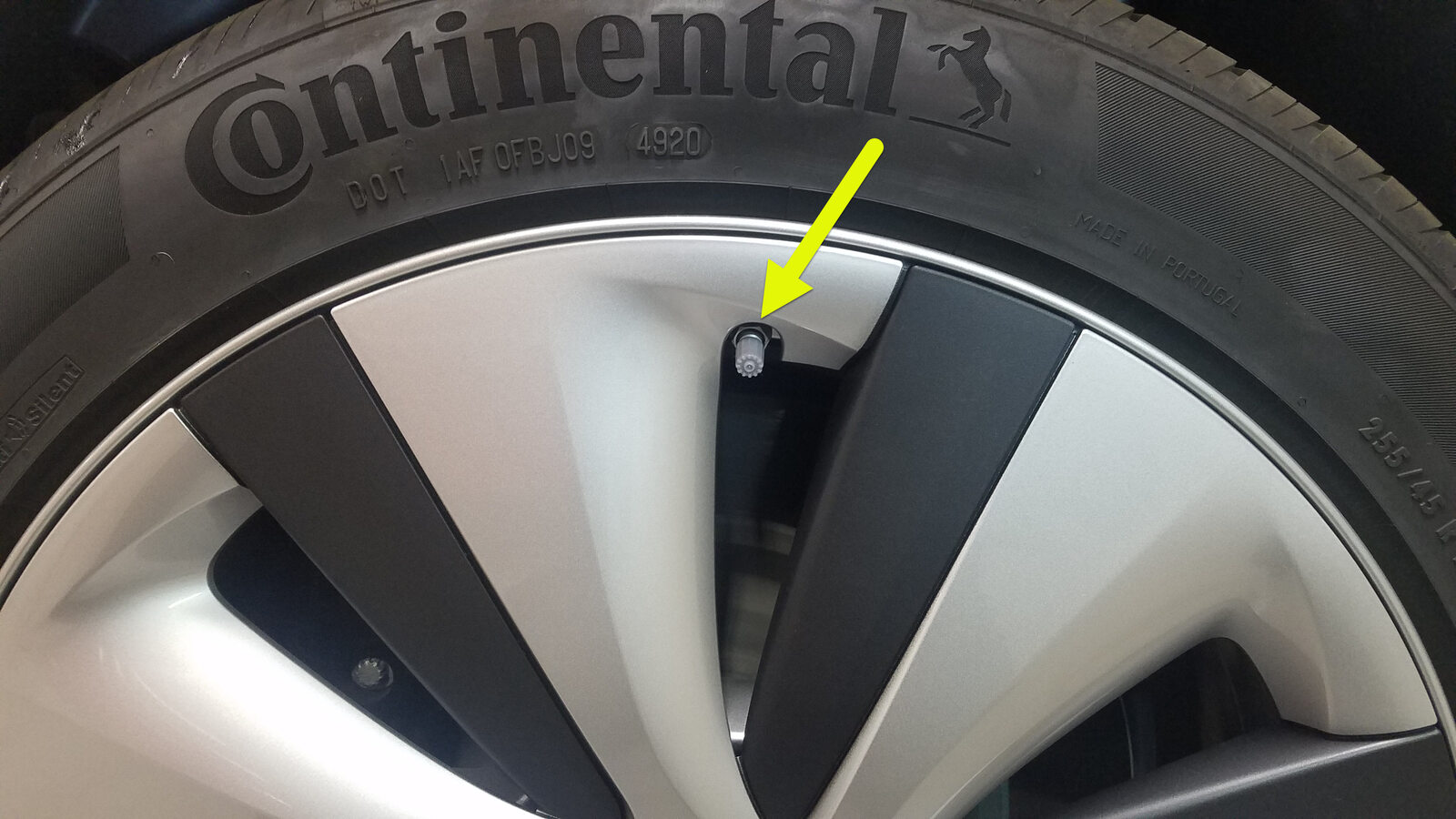

93. Install LH front wheel cap
    Nota

    Align valve stem with cap





94. Torque RH front wheel
    Nota

    5x nuts, 21mm, 175 Nm





95. Install RH front wheel cap
    Nota

    Align valve stem with cap





96. Torque RH rear wheel
    Nota

    5x nuts, 21 mm, 175 Nm





97. Install RH rear wheel cap
    Nota

    Align valve stem with cap





98. Torque LH rear wheel
    Nota

    5x nuts, 21 mm, 175 Nm





99. Install LH rear wheel cap
    Nota

    Align valve stem with cap





100. Install frunk assembly
     Nota

     4x bolts, 10mm, 5 Nm





101. Install frunk carpet
     Nota

     Verify carpet is properly seated under the seal





102. Install frunk access panel
     Nota

     3x clips, 3x hooks, 1x connector





103. Install front underhood apron
     Nota

     7x clips





104. Install RH underhood apron
     Nota

     10x clips





105. Install LH underhood apron
     Nota

     10x clips





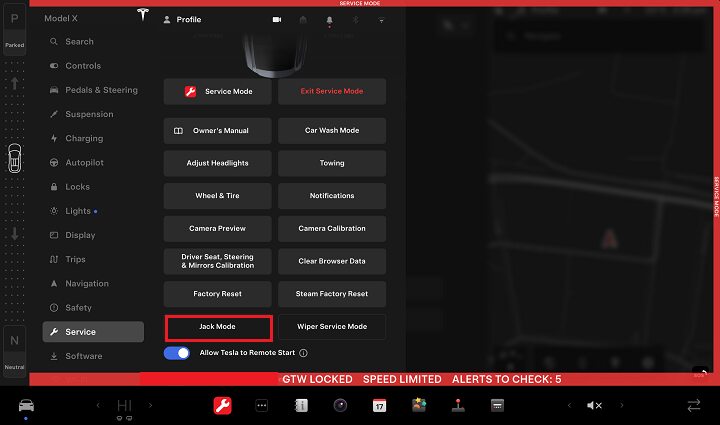

106. Remove vehicle from lift
     Nota

     Lower lift arms fully and remove them from under vehicle, Remove air suspension from "Jack Mode"

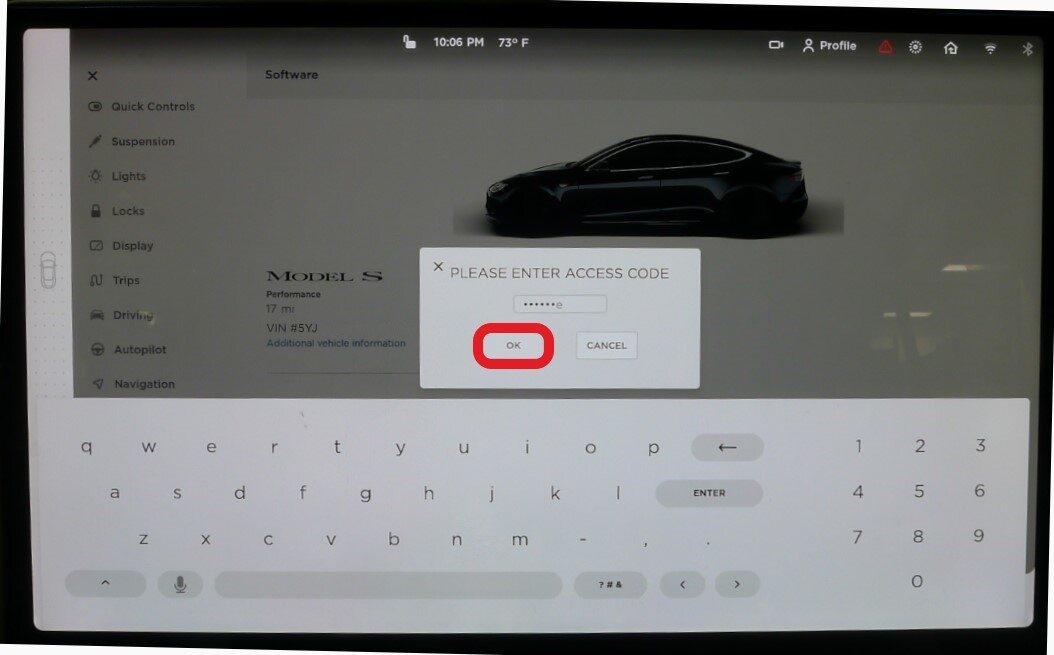

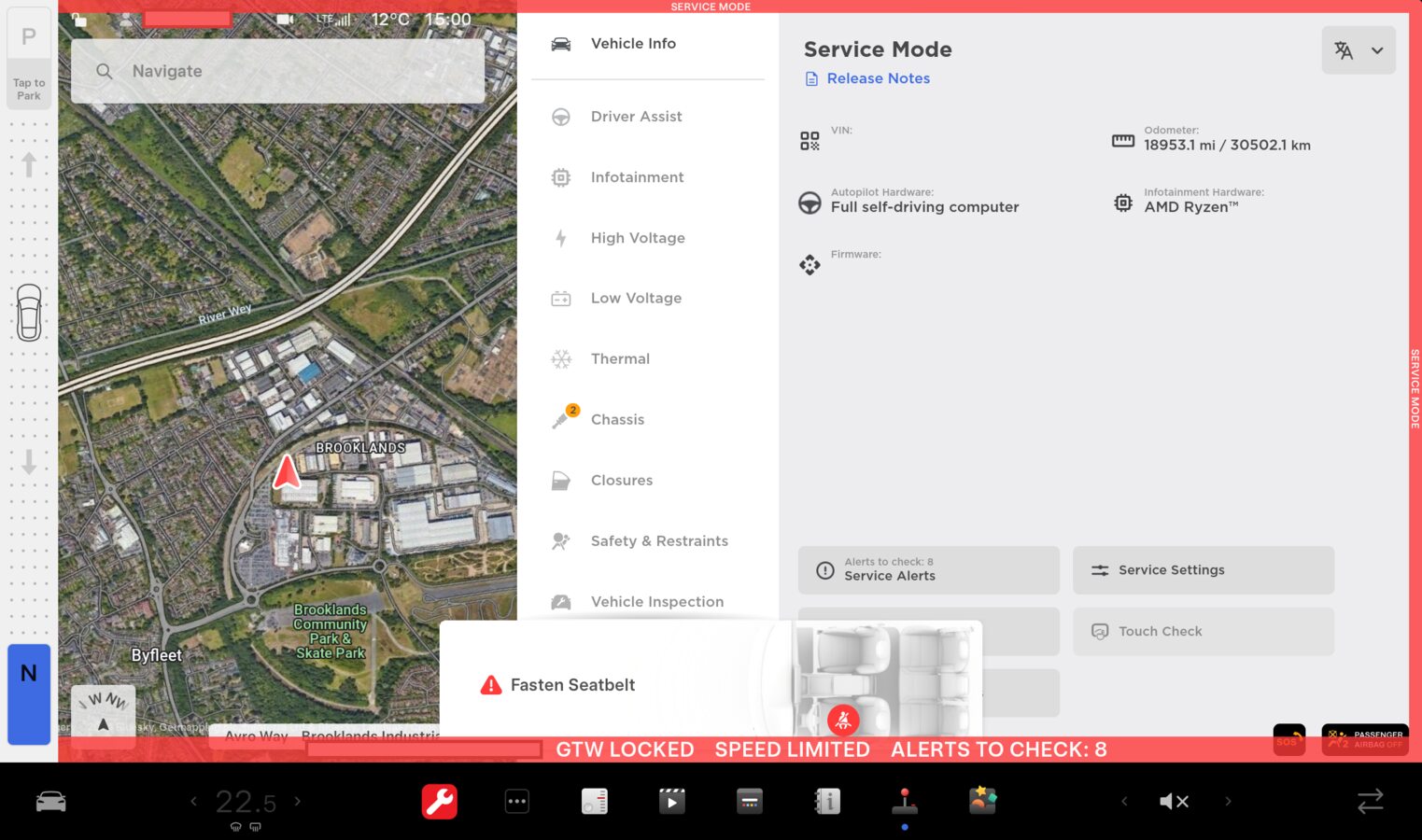

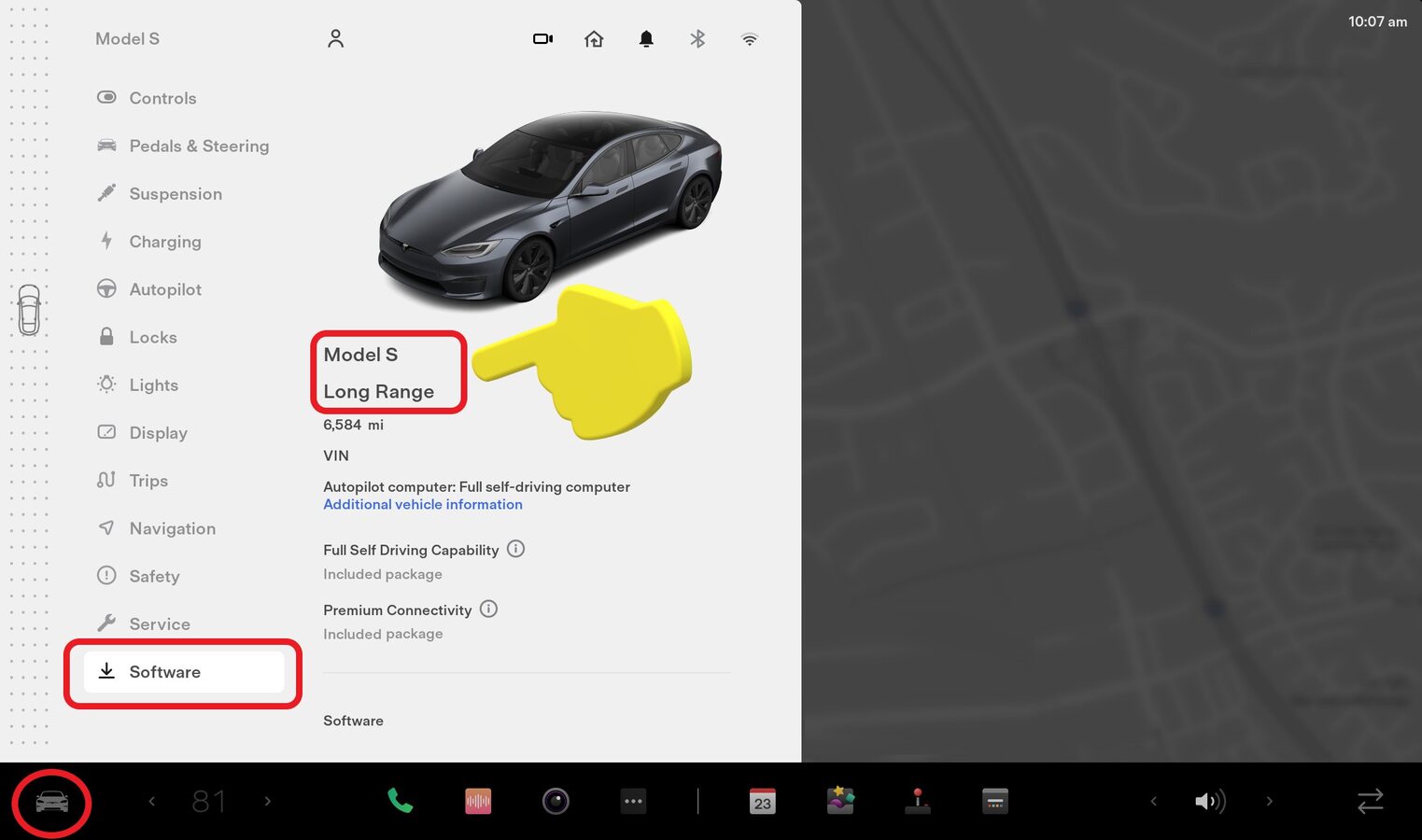

107. Place vehicle in service mode
     Nota

     Via Controls > Software, Touch and hold "Model" for 2 seconds then release, Use screen keyboard to type "service" into dialog box and select OK button

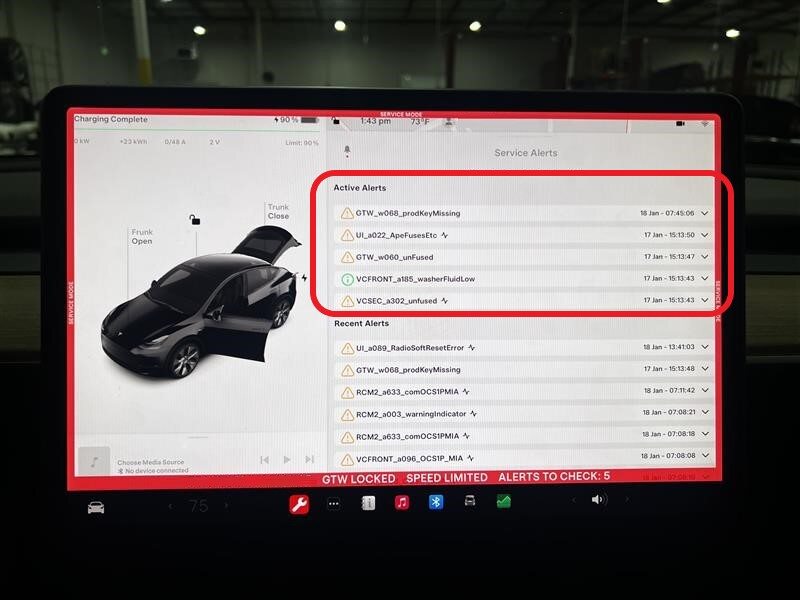

108. Check for active alerts
     Nota

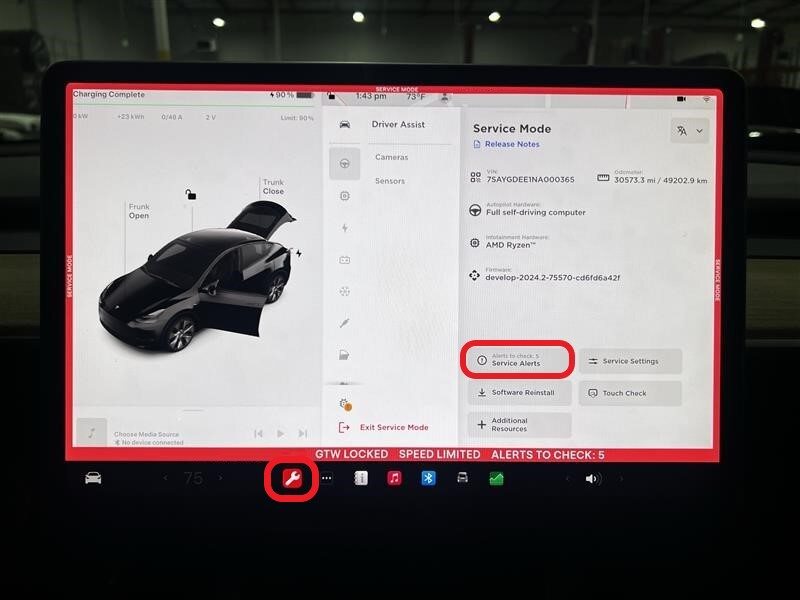

     Check alert using UI via service mode > active alerts" to "Check alerts using UI via Service Mode > Service Alerts > Active Alerts

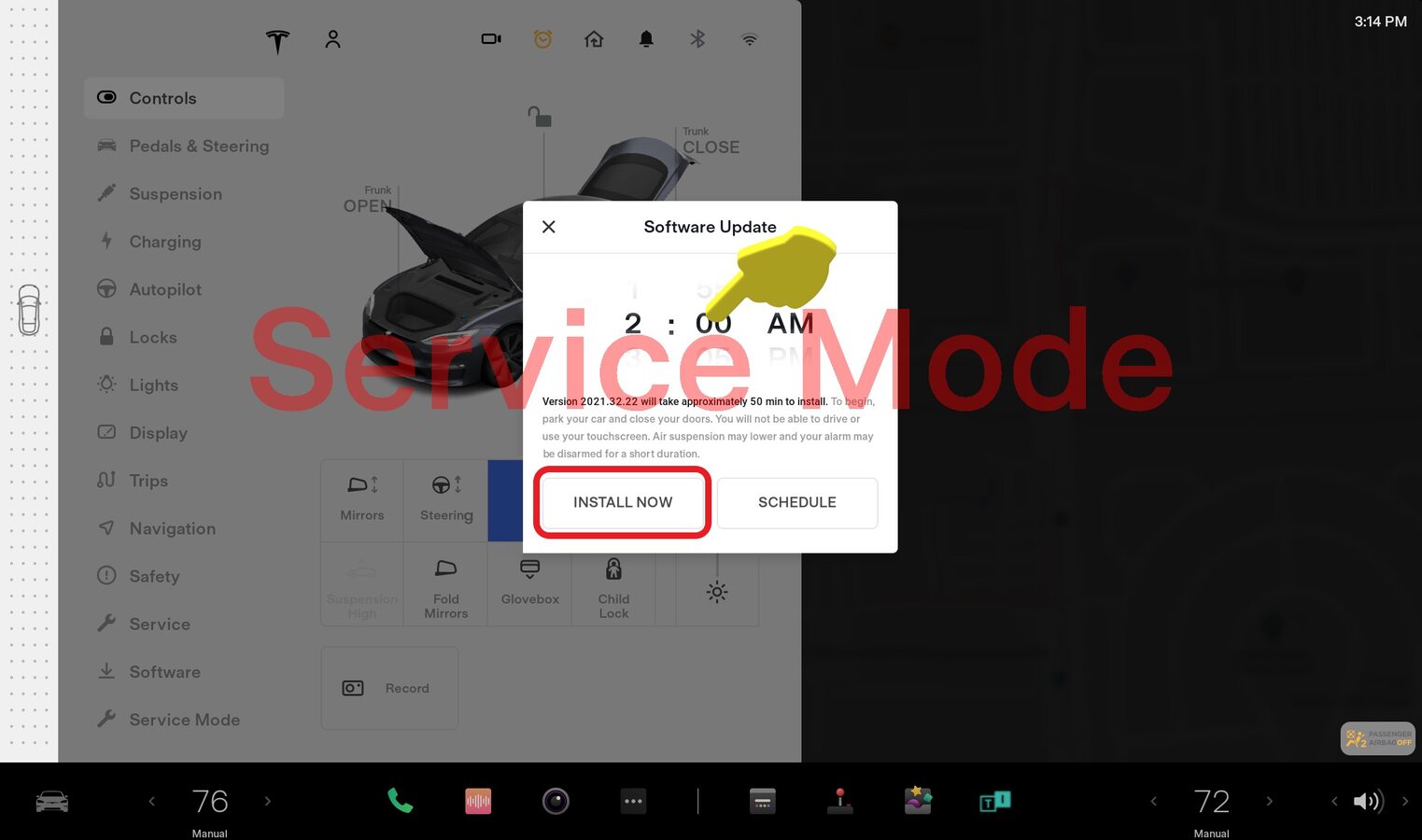

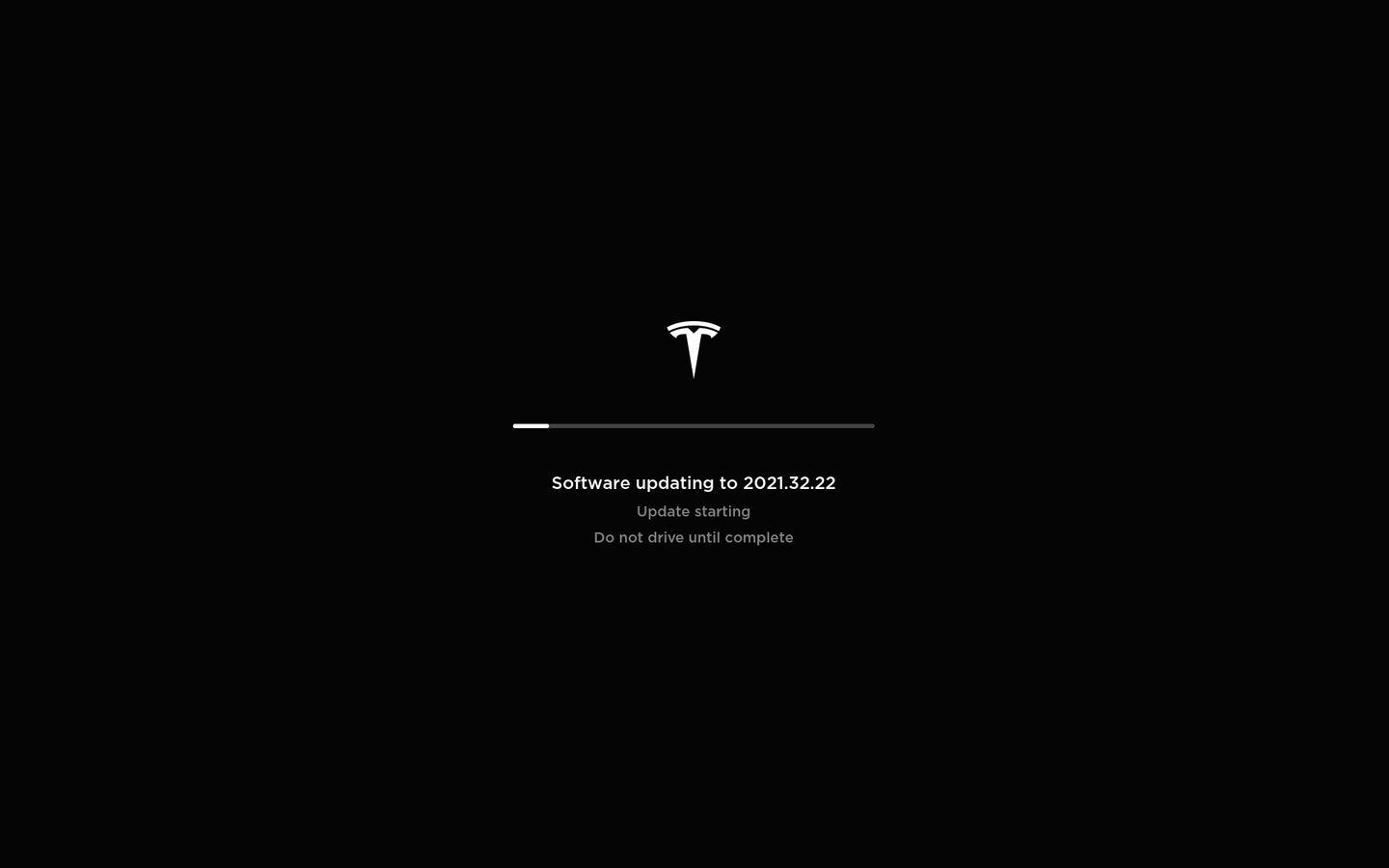

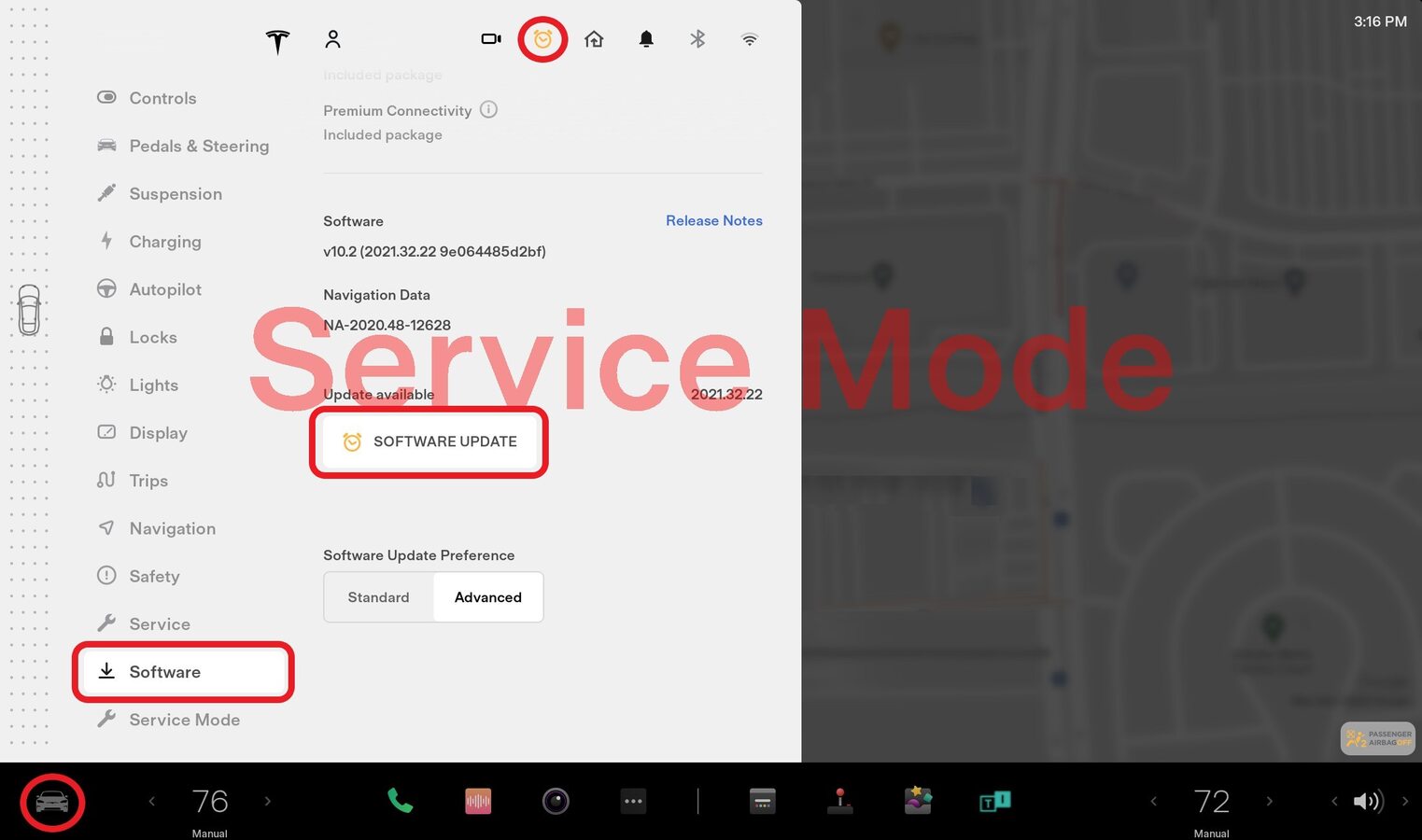

109. Update vehicle firmware if available
     Nota

     Select the clock on the center display, or go to the Software tab, then select install now to start firmware update. Select Install Now, Tap count down timer until clock runs down to 0, Check the center display and ensure the firmware package is installing

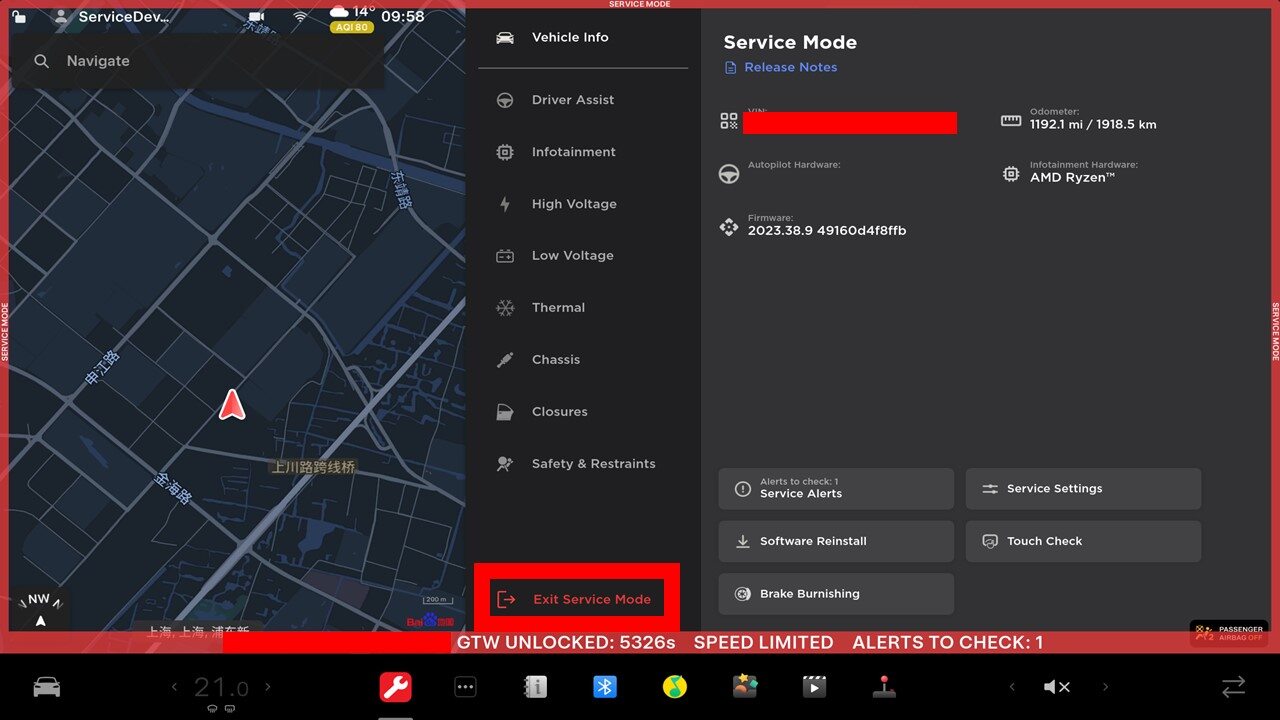

110. Exit Service Mode through UI
     Nota

     Press and hold the Exit Service Mode button for 3 seconds
