Event Data Recorder Retrieval

Warning IconA warning icon, calling your attention to a possibly risky situation
Aviso
Este procedimiento están en fase PRELIMINAR. Aunque se ha validado, es posible que falten advertencias y precauciones. Siga los requisitos de seguridad y tenga mucho cuidado cuando trabaje en sistemas y componentes de alta tensión o cerca de ellos. Envíe sus correcciones y comentarios a ServiceDevelopment@teslamotors.com.
Informational PurposesAn informational icon, calling your attention
Nota
Refer to CD-23-20-001 for 2021+ Model S Event Data Recorder (EDR) guide.
Informational PurposesAn informational icon, calling your attention
Nota
Use the following procedure(s) for 2021+ Model S EDR retrieval as required:

Establish an In-Vehicle Connection (OBD2 Port)

  1. Open the LH front door.
  2. Lower the LH front window.

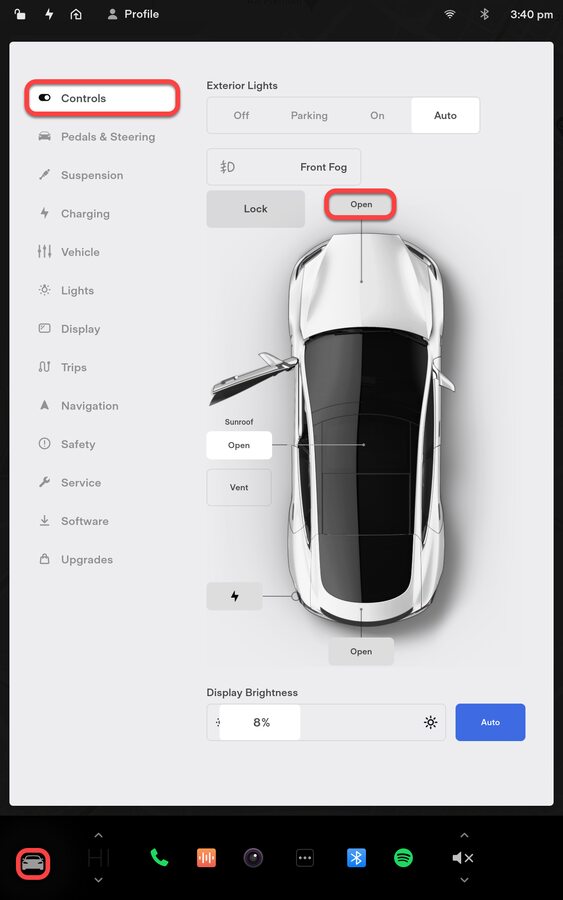

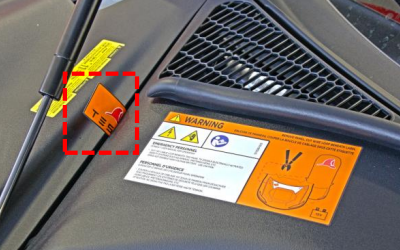

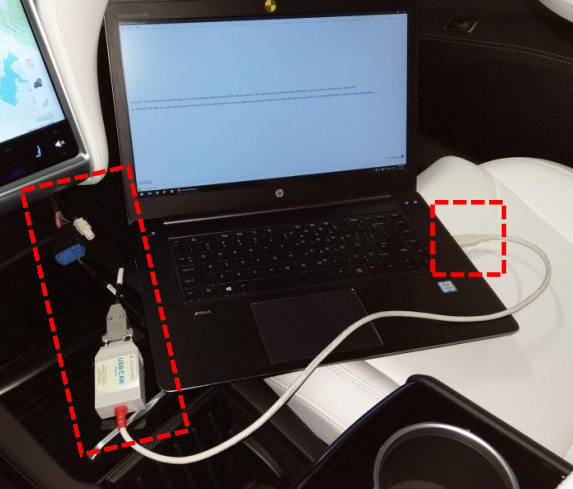

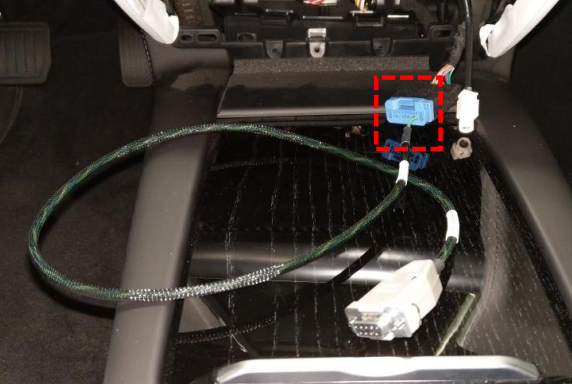

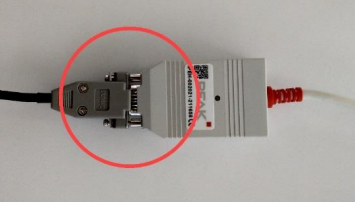

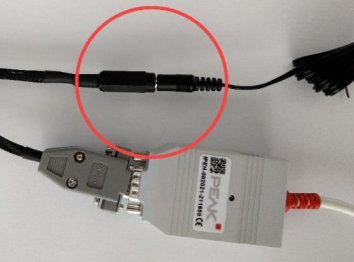

  3. Connect the OBD2 diagnostics cable to the PCAN-USB adapter.
    Consejo: Se recomienda utilizar las siguientes herramientas:
    • OBD2 Diagnostics Cable - 2077826-00-A
    • PCAN-USB Adapter - 1016990-00-A

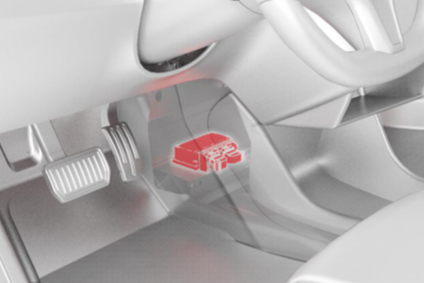

  4. Connect the OBD2 diagnostics cable to the vehicle's OBD2 port.
  5. Connect the PCAN-USB adapter to the laptop USB port.

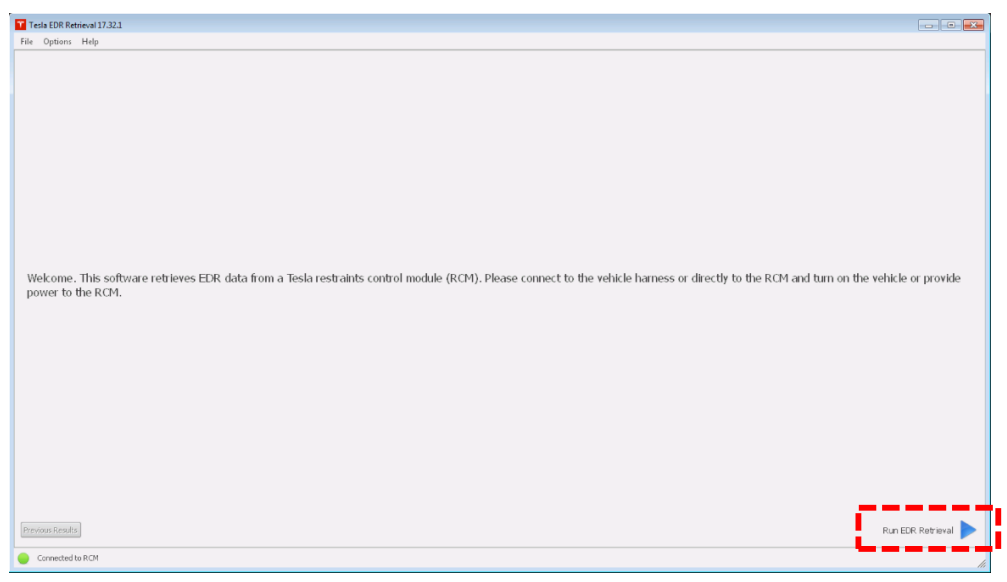

  6. Open the Tesla EDR Retrieval Program. The program automatically attempts to connect to the RCM.
    Informational PurposesAn informational icon, calling your attention
    Nota

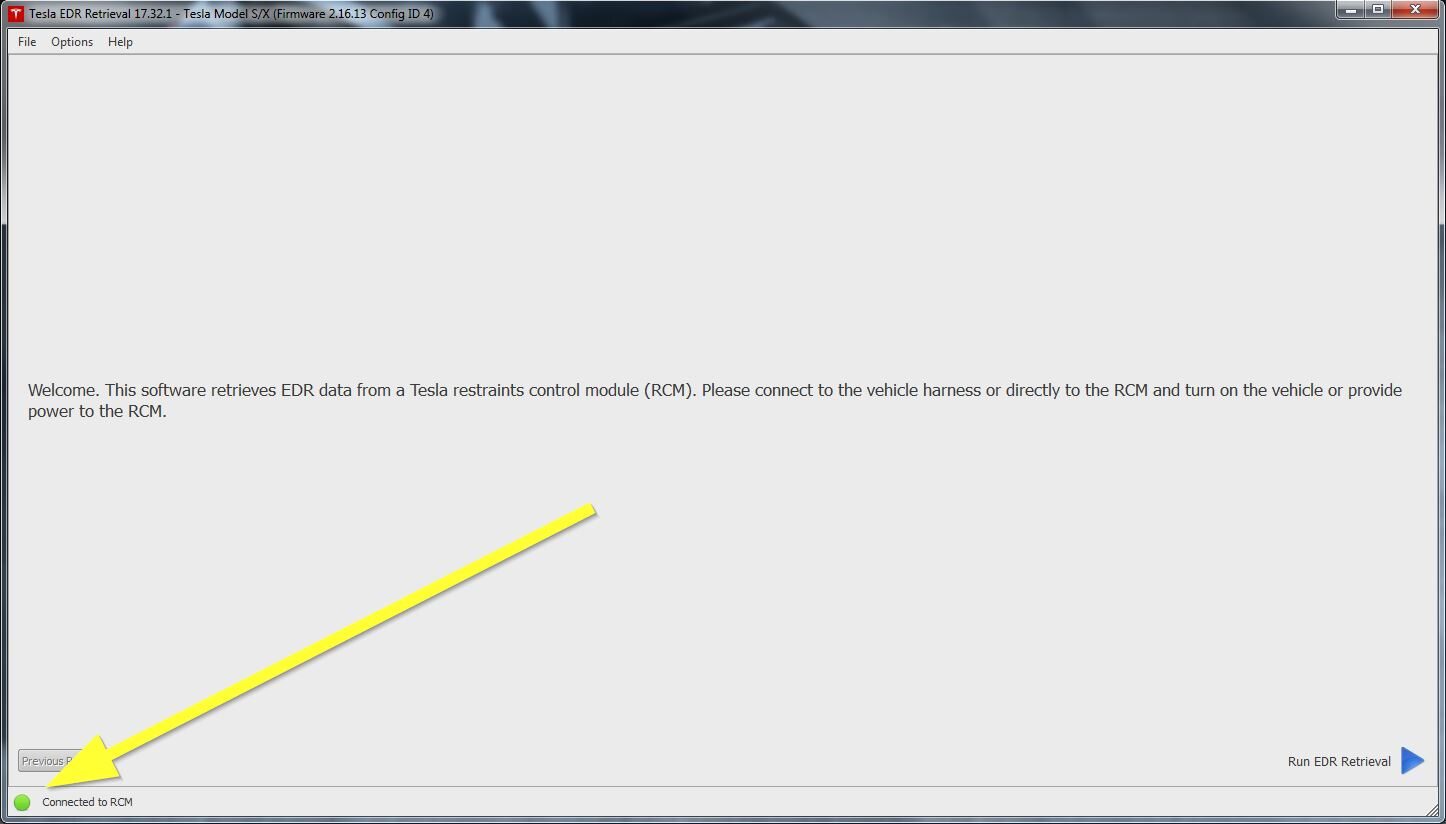

    When connected properly, a green circle and the message “Connected to RCM” displays on the bottom left corner of the window.

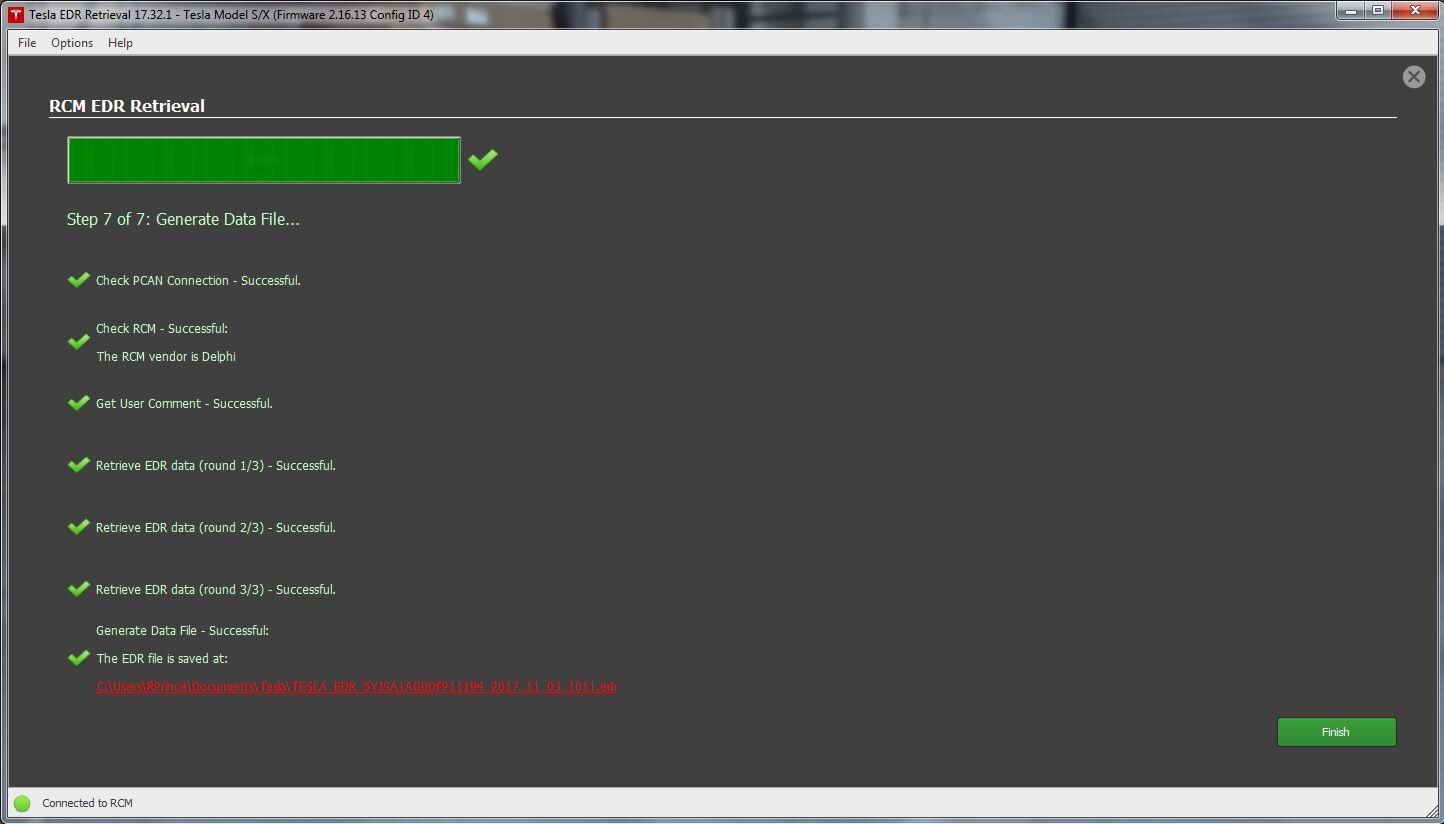

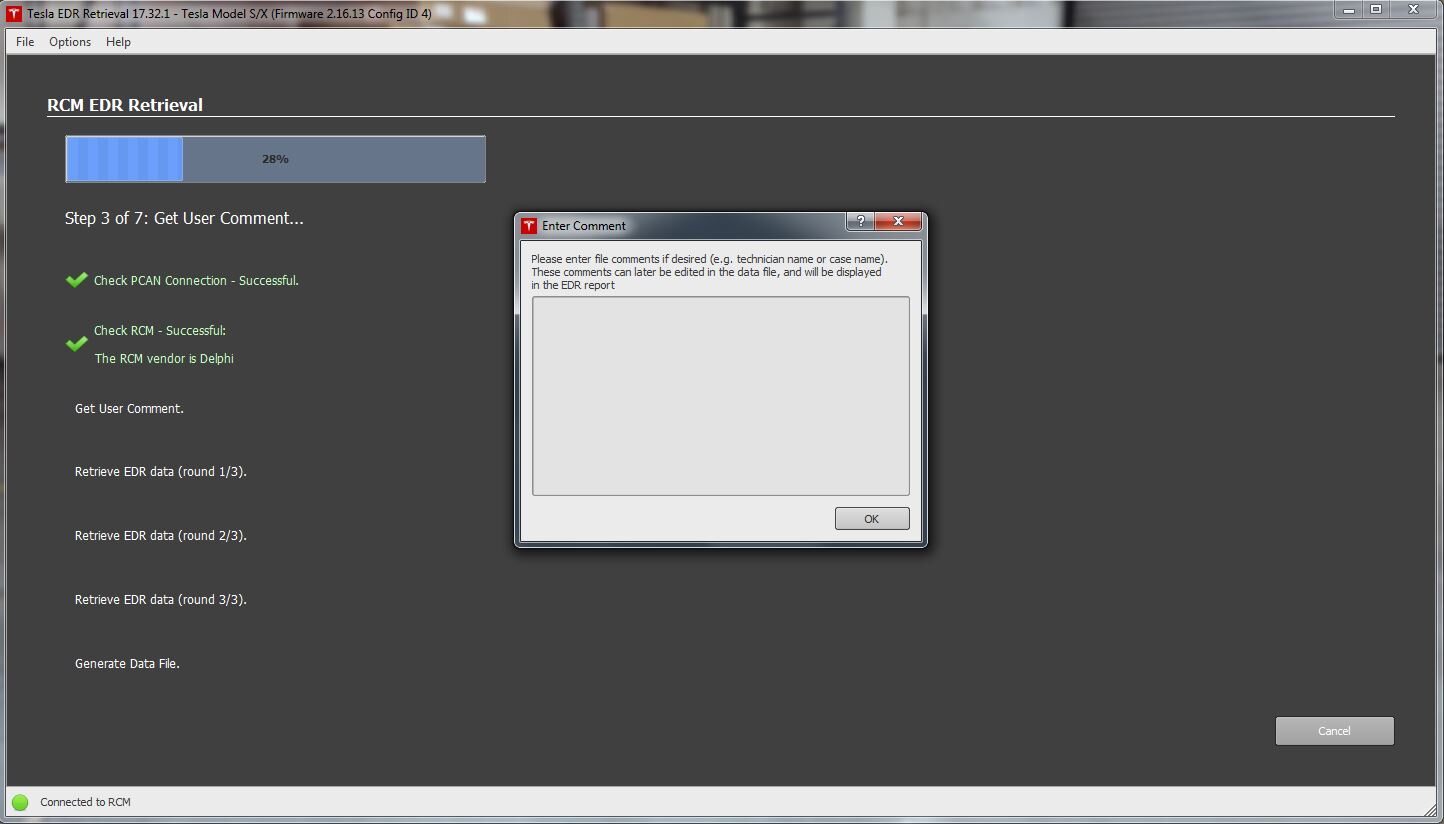

  7. Once connected to the EDR, click “Run EDR Retrieval” and follow the on-screen prompts to retrieve and save EDR data.

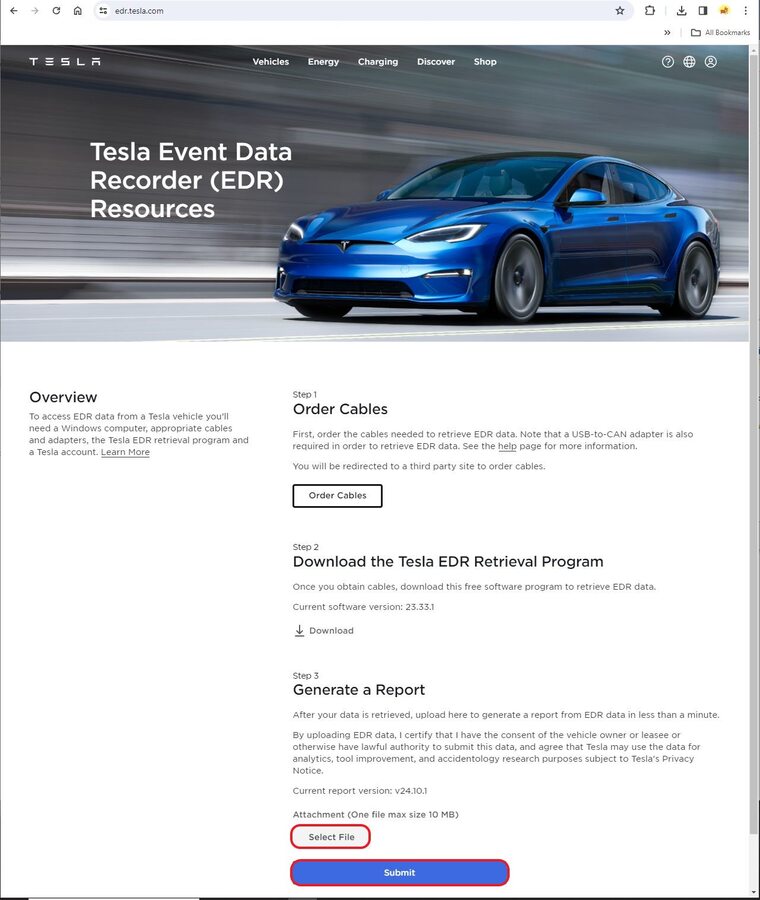

  8. The retrieved *.edr data file can be used to generate a Tesla EDR Report at https://edr.tesla.com.

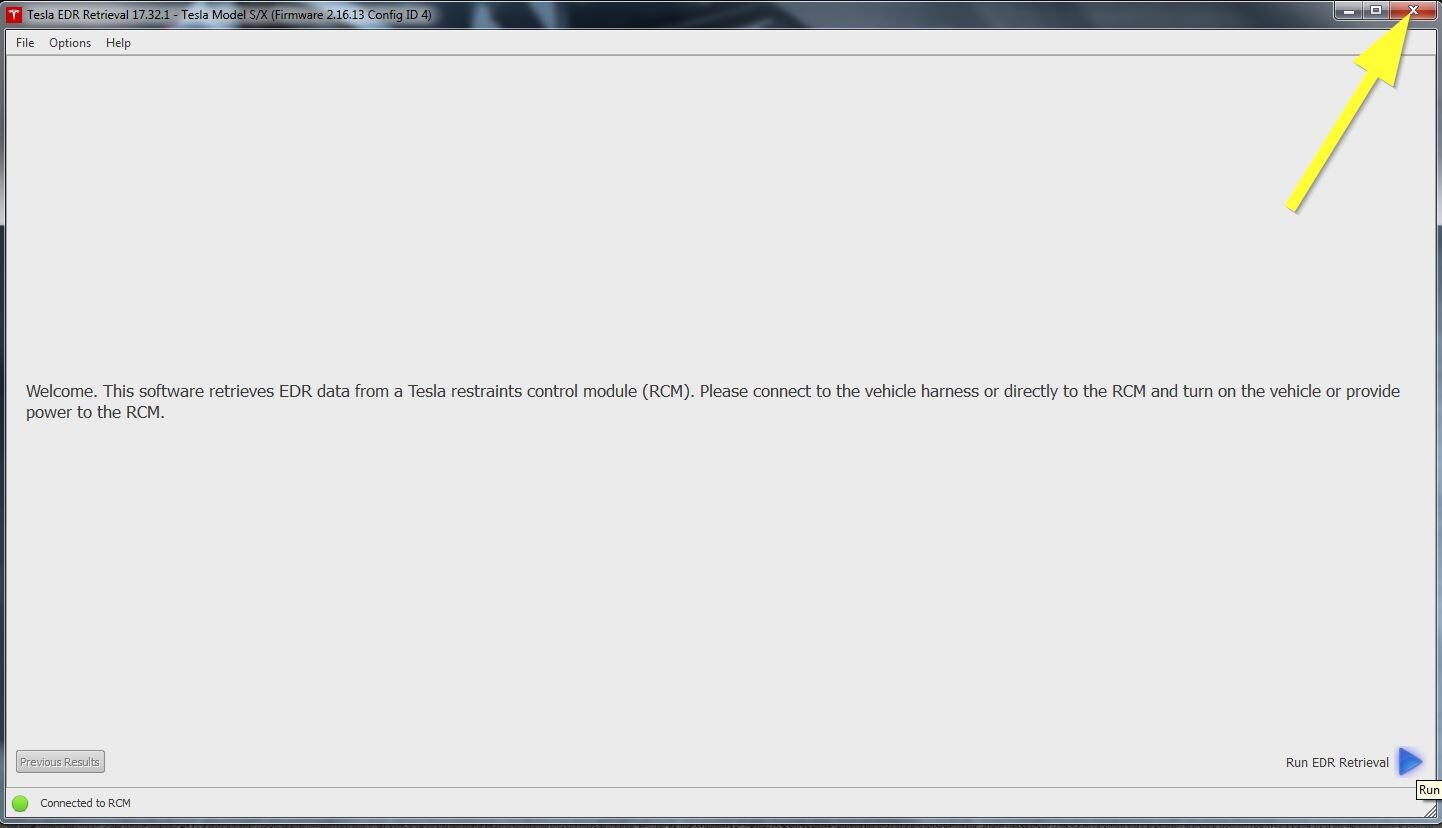

  9. Close the Tesla EDR Retrieval Program.
  10. Disconnect the PCAN-USB adapter from the laptop USB port.
  11. Disconnect the OBD2 diagnostics cable from the vehicle's OBD2 port.
  12. Disconnect the OBD2 diagnostics cable from the PCAN-USB adapter.
  13. Raise the LH front window.
  14. Close the LH front door.
