Código de corrección 17100812 3.42 NOTA: Salvo que se indique lo contrario explícitamente en el procedimiento, el código de corrección anterior y el FRT reflejan todo el trabajo necesario para realizar este procedimiento, incluidos los procedimientos vinculados. No acumule códigos de corrección a menos que se le indique explícitamente que lo haga. NOTA: Consulte Tiempos de tarifa plana para obtener más información sobre los FRT y cómo se crean. Para enviar sus comentarios sobre los valores de FRT, escriba a LaborTimeFeedback@tesla.com. NOTA: Consulte Protección personal para asegurarse de que se lleva puesto el EPI adecuado al realizar el siguiente procedimiento.

1. Open all four doors
2. Lower all four windows
3. Set air suspension ride height to “Very High”
   Nota

   Using center display > Controls > Suspension > ''Very High''
4. Open hood
   Nota

   Via Center Display > Controls > Frunk Open
5. Open liftgate through UI
   Nota

   Using center display touchscreen > Quick Controls > Trunk Open
6. Remove LH front floor mat
7. Move LH front seat forward
8. Use un destornillador de cabeza plana para girar el mecanismo de bloqueo de la sujeción del cinturón de seguridad del asiento delantero hacia la izquierda para soltarlo del pretensor y deslice después la fijación del pretensor para extraerla y ponerla a un lado.
   PRECAUCIÓN

   NO la gire hacia la derecha para evitar daños en el mecanismo.

   Nota

   El diseño de la fijación puede variar, pero el funcionamiento es el mismo.

   Nota

   El tornillo de bloqueo seguirá en posición horizontal cuando se suelte.

   Nota

   Se escuchará un ligero clic cuando se suelte la fijación.





9. Remove bolts securing rear of LH front seat tracks to the floor panel
   Nota

   2x patch bolts, T45P, 34 Nm, Discard after removal



10. Move LH front seat backward
11. Remove bolts securing front of LH front seat tracks to the floor panel
    Nota

    2x patch bolts, T45P, 34 Nm, Discard after removal



12. Adjust position of LH front seat for easy removal
    Nota

    Move seat to middle of track at most upright position with seat fully up off floor
13. Fold 60 seat into down position
    Nota

    Seat can be folded from the backrest button or trunk switch, If seat cushion is not present, protect the seat as required
14. Remove RH front floor mat
15. Move RH front seat forward
16. Remove bolts securing rear of RH front seat tracks to the floor panel
    Nota

    2x patch bolts, T45P, 34 Nm, Discard after removal



17. Move RH front seat backward
18. Remove bolts securing front of RH front seat tracks to the floor panel
    Nota

    2x patch bolts, T45P, 34 Nm, Discard after removal



19. Adjust position of RH front seat for easy removal
    Nota

    Move seat to middle of track at most upright position with seat fully up off floor
20. Power off vehicle from center display
    Nota

    Via Controls > Safety & Security > Power Off
21. Remove rear underhood apron
    Nota

    8x clips





22. Disconnect LV battery connector and First Responder Loop
    Nota

    2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection









23. Position LH seat to gain access below seat bottom and disconnect body harness from seat controller
    Nota

    2x connectors, 1x clip, Release red locking tab on black connector



24. Remove LH front seat from vehicle
    Nota

    Recommend assistance, Use caution to not damage other components
25. Remove LH front seat risers
    Nota

    2x risers, 2x clips per riser





26. Remove LH mid A-pillar trim
    Nota

    1x clip, 2x tabs





27. Remove LH lower A-pillar trim
    Nota

    7x clips







28. Remove LH footwell cover
    Nota

    1x connector, 2x magnets





29. Remove LH console side carpet
    Nota

    11x clips





30. Remove fasteners securing LH knee air bag assembly to vehicle
    Nota

    2x patch bolts, E10, 8 Nm, Discard after removal



31. Remove the LH knee air bag assembly from vehicle
    Nota

    3x connectors, 1x clip, 6x tabs, Release 2x locking tab on airbag connector







32. Fold LH front cabin carpet aside for access





33. Position RH seat to gain access below seat bottom and disconnect body harness from seat controller
    Nota

    2x connectors, 1x clip, Release red locking tab on black connector



34. Remove RH front seat from vehicle
    Nota

    Recommend assistance, Use caution to not damage other components



35. Remove RH first row seat risers from cabin floor
    Nota

    2x risers, 2x clips per riser





36. Remove RH mid A-pillar trim
    Nota

    1x clip, 2x tabs





37. Remove RH lower A-pillar trim
    Nota

    7x clips







38. Remove RH footwell cover
    Nota

    3x magnets, 1x connector



39. Remove RH console side carpet
    Nota

    11x clips





40. Fold RH front cabin carpet aside for access





41. Release harness from RH footrest panel
    Nota

    1x clip



42. Remove RH footrest panel
    Nota

    2x bolts, 10mm, 5 Nm, 1x nut, 10mm, 5 Nm





43. Remove RH side bolster trim
    Nota

    1x clip, 1x tab, Start by releasing upper portion







44. Remove LH side bolster trim
    Nota

    1x clip, 1x tab, Start by releasing upper portion







45. Remove 2nd row seat cushion assembly
    Nota

    2x clips, 2x connectors, Disengage locking clips and lift up on seat cushion, Release connections, If 2nd row seats are folded down then fold up for time being











46. Remove parcel shelf



47. Remove trunk load floor



48. Remove side load floor trim



49. Remove the trunk sill panel
    Nota

    6x clips, 4x guides Corners or bottom edge are good grabbing points for removal. Can use plastic trim tool or just your hands.







50. Remove rear wall trim
    Nota

    4x push clips, 2x datums







51. Remove LH trunk bracket assembly
    Nota

    4x clips, 1 datum, Pull bracket straight up







52. Remove trunk side wall trim
    Nota

    3x Velcro strips





53. Remove LH lower C-pillar trim
    Nota

    8x clips





54. Remove LH mid C-pillar trim
    Nota

    3x clips







55. Remove LH lower B-pillar
    Nota

    6x clips, 2x datums, Release from upper trim and body







56. Remove LH upper B-pillar
    Nota

    7x clips, Release clips and route seatbelt through B-pillar, Be cautious not to separate the upper B-pillar, There are plastic welds near the center of trim holding upper and lower portion together





57. Release LH upper C-pillar trim and move aside
    Nota

    7x clips







58. Release clips securing LH trunk side trim and remove
    Nota

    3x push clips, 3x clips, 2x connectors









59. Remove butyl patch covering LH access hole



60. Remove LH nut securing rear fascia assembly to body
    Nota

    1x nut, 10mm, 4 Nm



61. Remove RH trunk bracket assembly
    Nota

    3x clips, 1 datum, Pull bracket straight up





62. Peel back RH trunk side trim and secure against upper C-pillar trim





63. Disconnect RH trunk puddle lamp
    Nota

    1x connector



64. Remove butyl patch covering RH access hole



65. Remove RH nut securing rear fascia assembly to body
    Nota

    1x nut, 10mm, 4 Nm



66. Remove push clips securing LH rear wheel arch liner to fascia and move to the side for access
    Nota

    4x push clips



67. Remove screw securing rear fascia to LH fender bracket
    Nota

    1x screw, T25, 5 Nm, Flex liner against tire





68. Remove push clips securing RH rear wheel arch liner to fascia and move to the side for access
    Nota

    4x push clips



69. Remove screw securing rear fascia to RH fender bracket
    Nota

    1x screw, T25, 5 Nm, Flex liner against tire





70. Remove rear diffuser nuts
    Nota

    3x nuts, 10mm, 3 Nm



71. Release rear diffuser from mid aero shield
    Nota

    8x bolts, 10mm, 6 Nm, 2x clips, 2x datums





72. Release LH and RH fascia edges from fender brackets





73. Pull fascia rearward to release from body
    Nota

    Pull edges straight back to release fascia, Set fascia on protected surface, Recommend assistance







74. Disconnect rear fascia harness
    Nota

    1x connector, Pull red tab to disengage lock then disconnect, Located behind RH rear wheel arch liner



75. Remove rear fascia assembly from vehicle
    Nota

    Disconnect fascia harness before removing fascia, Set fascia on protected surface, Recommend assistance





76. Release LH door harness connectors and clip from VC left
    Nota

    2x connectors, 1x clip



77. Release IP harness connectors and clip by VC left
    Nota

    1x locking connector, 1x lever connector, 1x clip, Disengage red locking tab, Disengage lever to release



78. Release connector on VC left
    Nota

    1x locking connector, Disengage red locking tab



79. Disconnect J1/J2 X030A/B Body 1 connector
    Nota

    1x connector, Release lock then remove





80. Disconnect J4 X032 Body 3 Connector
    Nota

    1x connector





81. Disconnect J6/J7 X038A/B Body 5 connector
    Nota

    1x connector, Release lock then remove





82. Disconnect J5 X034 Body 4 connector
    Nota

    1x connector, Release lock then remove





83. Disconnect J3 X031 Body 2 connector
    Nota

    1x connector, Release lock then remove





84. Disconnect J8 X039 Body 6 Connector
    Nota

    1x connector





85. Remove LH upper A-pillar trim
    Nota

    2x tethered clips, 1x clip, 1x connector, Pull inside of the upper portion of upper A-pillar, Depress 2x tabs to remove each tether from body side, Disconnect tweeter, Then pull upper A-pillar upward to remove









86. Disconnect headliner harness at LH front A-pillar
    Nota

    1x connector



87. Release clips for A-pillar branch of LH side body harness
    Nota

    4x clips, Release clips and route harness branch down





88. Release LH body harness ground from lower A-pillar
    Nota

    1x bolt, 10mm, 9 Nm



89. Release LH body harness bracket from VC left and body
    Nota

    3x clips



90. Remove driver floor jumper air duct
    Nota

    1x tab



91. Disconnect LH body harness from brake switch
    Nota

    1x connector



92. Disconnect accelerator pedal connector
    Nota

    1x connector, Do not push down on red tab, Pull red tab to disengage lock, Pull again to release connector



93. Release LH body harness from pedal assembly
    Nota

    1x harness clip



94. Release clips securing LH body harness to driver footwell
    Nota

    2x clips



95. Remove LH toeboard bracket from vehicle
    Nota

    2x bolts, E14, 9 Nm, 1x bolt 10mm, 10 Nm, 1x bolt 13mm, 20 Nm, Be cautious and do not damage nearby harness





96. Release clips securing LH body harness under IP
    Nota

    2x clips



97. Disconnect RCM connectors
    Nota

    2x connectors, Disconnect right connector first by swinging release arm up then disconnect left connector in same manner











98. Release LH body harness connector and clip by passenger footwell area
    Nota

    1x locking connector, 1x clip, Disengage red locking tab, Route harness back towards driver side







99. Release LH body harness connectors and clip by passenger side center console
    Nota

    2x connectors, 1x clip, Disengage locking tab, Route harness back towards driver side





100. Disconnect RH body harness from LH body harness under RH front carpet
     Nota

     3x connectors, Release red locking tabs



101. Release clips securing LH body harness to passenger seat area
     Nota

     4x clips, Route harness back towards driver side





102. Release clips securing LH body harness to LH driver side area
     Nota

     9x clips, Route any branches out as required









103. Release B-pillar accelerometer connection
     Nota

     1x connector, Disengage red tab and pull red tab outwards again to release



104. Disconnect LH front retractor connectors
     Nota

     2x connectors, 2x tabs per connector, Simultaneously disengage tabs on both sides of each connector to release housing







105. Release LH body harness connector and clip to LH rear door
     Nota

     1x connector, 1x clip, Route harness out from B-pillar



106. Remove LH B-Pillar applique cover
     Nota

     2x clips, 2x tabs, Use a plastic trim tool to release upper clips then slide downwards to release from bottom tabs secured to B-Pillar applique





107. Remove bolts securing LH B-Pillar applique
     Nota

     2x bolts, T25, 4 Nm



108. Pull down to release LH applique from upper clips
     Nota

     Use caution as camera harness does not have much slack





109. Remove LH B-Pillar applique
     Nota

     2x connectors, Hold LH applique away from body and carefully disconnect camera harness connectors, then remove applique





110. Release LH body harness clips to b-pillar
     Nota

     5x clips, Route away as needed







111. Release clips securing LH body harness to second row area
     Nota

     5x clips





112. Disconnect RH body harness from LH body harness under 2nd row cushion
     Nota

     2x connectors, Release red locking tab



113. Disconnect 2nd row LH seat belt buckle connector
     Nota

     1x connector



114. Release clips securing LH body harness for 2nd row seat belt buckle branch
     Nota

     2x clips, Route branch out from under busbar



115. Release LH C-pillar lower bottom BIW bracket
     Nota

     1x harness clip, 2x clips





116. Release LH C-pillar mid and lower BIW bracket
     Nota

     3x clips





117. Remove closeout panel for LH rear door latch assembly
     Nota

     1x cover, Fold trim aside for access





118. Disconnect LH rear door latch assembly connector
     Nota

     1x connector, release locking tab



119. Release LH body harness ground from C-pillar
     Nota

     1x bolt, 10mm, 9 Nm



120. Remove LH sun visor bracket cover
     Nota

     4x clips, Extending the sun visor may allow for extra working room



121. Remove LH sun visor fastener
     Nota

     1x screw, T25, 3.5 Nm, Extending the sun visor may allow for extra working room



122. Remove LH sun visor from headliner area
     Nota

     Fold sun visor to the closed and folded down position but do not latch in place



123. Disconnect LH sun visor connector
     Nota

     1x connector







124. Push open LH coat hook



125. Pry open LH coat hook screw cover
     Nota

     2x tabs



126. Remove LH coat hook screw
     Nota

     1x screw, T25, 2.5 Nm



127. Remove LH bolt securing rear headliner to body
     Nota

     1x bolts, 10mm, 3 Nm



128. Partially release headliner from LH side body
     Nota

     4x clips, 1x hook, 3x tether clips, Headliner will be supported by tethers when released, Push upward and inward to release hooks on the coat hook assemblies from the body





129. Disconnect LH side curtain air bag connector
     Nota

     1x connector, Pull back on tab to release connector from LH side curtain air bag assembly





130. Release LH body harness clips to curtain airbag
     Nota

     7x clips, Route harness away but take note of original routing as it will need to be re-routed correctly during install









131. Release LH body harness clips to C-pillar area
     Nota

     5x clips







132. Release LH body harness connections from charge port ECU
     Nota

     2x connectors



133. Release charge port latch connection
     Nota

     1x connector, Take note of harness routing, Pull red locking tab outwards to release lock, pull again to release connector_x000A_







134. Release charge port connection
     Nota

     1x connector, Carefully remove white locking tab, Depress tab to release connection from the charge port, Continue to pull off connector, The connection is intended to disengage the safety cap when released









135. Remove charge port safety cap
     Nota

     2x hooks





136. Release LH tail lamp connection
     Nota

     1x locking connector, Disengage red locking tab





137. Release clips securing LH body harness to LH trunk area
     Nota

     6x clips, Take note of harness routing for install





138. Release LH body harness connectors to rear subframe and chassis harness
     Nota

     3x locking connectors, 3x clips, Disengage red locking tabs





139. Release connectors for tow hitch and tow hitch ECU
     Nota

     2x connectors



140. Release LH body harness clips for subframe and tow hitch branch
     Nota

     6x clips







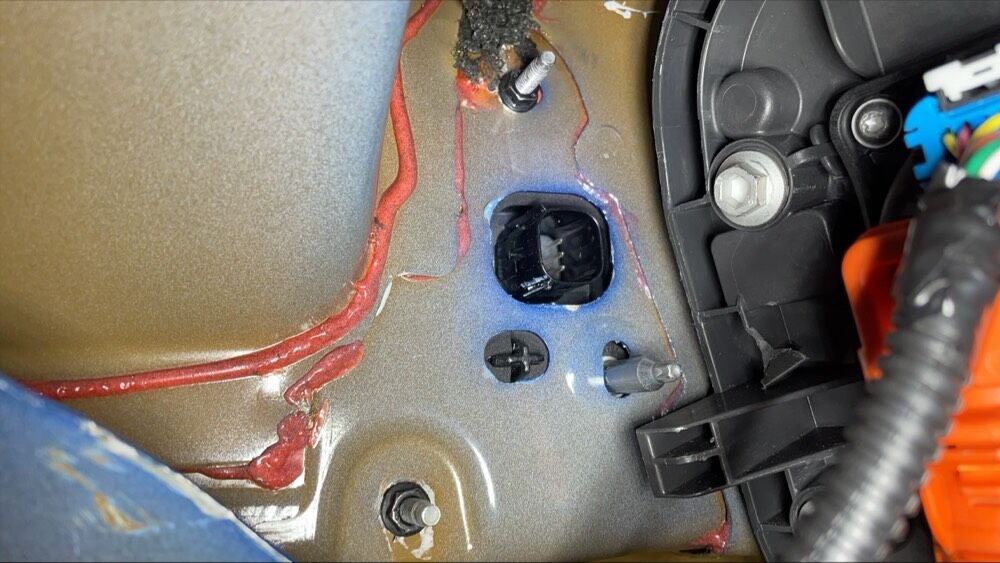

141. Release LH body harness grommet from trunk and feed harness out
     Nota

     1x grommet





142. Remove LH body harness from vehicle
     Nota

     Note original routing, Maneuver out any remaining branches and remove harness from vehicle, Route out behind busbar and retractor











143. Install LH body harness to vehicle
     Nota

     Position harness for install, Route in behind retractor and busbar, Return to original routing













144. Secure LH body harness grommet in trunk and feed harness in
     Nota

     1x grommet





145. Secure connectors for tow hitch and tow hitch ECU
     Nota

     2x connectors



146. Secure LH body harness clips for subframe and tow hitch branch
     Nota

     6x clips







147. Secure LH body harness connectors to rear subframe and chassis harness
     Nota

     3x locking connectors, 3x clips, Engage red locking tabs





148. Fasten clips securing LH body harness to LH trunk area
     Nota

     6x clips





149. Secure LH tail tamp connection
     Nota

     1x locking connector, Engage red locking tab





150. Install charge port safety cap
     Nota

     2x hooks, Safety cap will click into position





151. Secure charge port connection
     Nota

     1x connector, Fully engage connection and white locking tab, The connector is intended to lock the safety cap in place







152. Secure charge port latch connection
     Nota

     1x connector, Return harness to original routing, Harness sits in front of busbar, Fully engage connector and red locking tab







153. Secure LH body harness connections onto charge port ECU
     Nota

     2x connectors



154. Secure LH body harness clips to C-pillar area
     Nota

     5x clips







155. Secure LH body harness clips to curtain airbag
     Nota

     7x clips, Route harness in and return to original location, Secure all clips









156. Connect LH side curtain air bag connector
     Nota

     1x connector, Secure safety lock





157. Release tether clips from LH roof body
     Nota

     3x tether clips





158. Secure LH tether clips to headliner
     Nota

     Listen for audible click when seated properly



159. Release LH coat hook bracket from body
     Nota

     1x bolt, T20, 1 Nm, 1x clip, Release bolt and tether and then release clip from body





160. Secure LH coat hook bracket to headliner
     Nota

     1x bolt, T20, 1 Nm, 3x tabs, Secure bolt and tether to bracket, Pivot bracket onto headliner tabs







161. Install LH coat hook screw
     Nota

     1x screw, T25, 2.5 Nm



162. Close LH coat hook screw cover
     Nota

     2x tabs



163. Install partially release headliner to LH side body
     Nota

     4x clips, 3x tether clips, 1x coat hook clip





164. Install LH bolt securing rear headliner to body
     Nota

     1x bolt, 10mm, 3 Nm



165. Connect LH sun visor connector
     Nota

     1x connector







166. Install LH sun visor into headliner area



167. Install LH sun visor fastener
     Nota

     1x screw, T25, 3.5 Nm



168. Install LH sun visor bracket cover
     Nota

     4x clips



169. Secure LH body harness ground onto C-pillar
     Nota

     1x bolt, 10mm, 9 Nm



170. Connect LH rear door latch assembly connector
     Nota

     1x connector, secure locking tab



171. Secure closeout panel for LH rear door latch assembly
     Nota

     1x cover, Fold trim aside for access





172. Secure LH C-pillar mid and lower BIW bracket
     Nota

     3x clips





173. Secure LH C-pillar lower bottom BIW bracket
     Nota

     1x harness clip, 2x clips





174. Fasten clips securing LH body harness for 2nd row seat belt buckle branch
     Nota

     2x clips, Route branch under busbar



175. Connect 2nd row LH seat belt buckle connector
     Nota

     1x connector



176. Connect RH body harness from LH body harness under 2nd row cushion
     Nota

     2x connectors, Secure red locking tab



177. Install clips securing LH body harness to second row area
     Nota

     5x clips





178. Secure LH body harness clips to B-pillar
     Nota

     5x clips







179. Connect camera and install LH side applique
     Nota

     2x connector, Slide applique up into clips and align to mounting holes for installation









180. Reinstall screws securing LH side applique
     Nota

     2x screws, T25, 4 Nm



181. Install LH B-Pillar applique cover
     Nota

     2x clips, 2x tabs, Make sure all clips are fully seated, Secure bottom tabs onto LH B-Pillar applique then engage the upper clips





182. Secure LH B-pillar seals to applique
     Nota

     Use P-80 emulsion grease to assist with seal installation



183. Secure LH body harness connector and clip to LH rear door
     Nota

     1x connector, 1x clip, Tuck harness back into B-pillar



184. Secure LH front retractor connectors
     Nota

     2x connectors, 2x tabs per connector, Fully secure connectors, Verify they are properly seated







185. Secure B-pillar accelerometer connection
     Nota

     1x connector, Secure connector and fully engage red locking tab



186. Install clips securing LH body harness to LH driver side area
     Nota

     9x clips, Route branches as needed and secure clips, Use tooling to help secure clips as required









187. Install clips securing LH body harness to passenger seat area
     Nota

     4x clips, Route harness towards passenger side





188. Connect RH body harness to LH body harness under RH front carpet
     Nota

     3x connectors, Release red locking tabs



189. Secure LH body harness connectors and clip by passenger side center console
     Nota

     2x connectors, 1x clip, Route harness back towards driver side, Secure locking tabs, Use tooling to help secure clip as required





190. Release LH body harness connector and clip by passenger footwell area
     Nota

     1x connector, 1x clip, Route harness back towards passenger side







191. Install clips securing LH body harness beneath IP
     Nota

     2x clips



192. Connect RCM connectors
     Nota

     2x connectors, Connect left connector first by aligning connector and swinging release arm down then align right connector and connect in same manner











193. Install LH toeboard bracket to vehicle
     Nota

     2x bolts, E14, 9 Nm, 1x bolt 10mm, 10 Nm, 1x bolt 13mm, 20 Nm, Be cautious and do not damage nearby harness





194. Install clips securing LH body harness to driver footwell
     Nota

     2x clips



195. Secure LH body harness to pedal assembly
     Nota

     1x harness clip



196. Connect LH body harness to brake switch
     Nota

     1x connector



197. Connect accelerator pedal connector
     Nota

     1x locking connector, Secure red locking tab



198. Install driver floor jumper air duct
     Nota

     1x tab



199. Secure LH body harness bracket onto VC left and body
     Nota

     3x clips



200. Secure LH body harness ground onto lower A-pillar
     Nota

     1x bolt, 10mm, 9 Nm



201. Secure clips for A-pillar branch of LH side body harness
     Nota

     4x clips, Secure clips and route harness up





202. Connect headliner harness at LH front A-pillar
     Nota

     1x connector



203. Install LH upper A-pillar trim
     Nota

     2x tethered clips, 1x clip, 1x connector, Slide bottom of trim along IP and speaker grill, attach each tether to body side, Set clips starting at the bottom and work up, Pull seal over trim









204. Connect J8 X039 Body 6 Connector
     Nota

     1x connector





205. Connect J3 X031 Body 2 connector
     Nota

     1x connector, Fully seat connector then engage lock





206. Connect J5 X034 Body 4 connector
     Nota

     1x connector, Fully seat connector then engage lock





207. Connect J6/J7 X038A/B Body 5 connector
     Nota

     1x connector, Fully seat connector then engage lock





208. Connect J4 X032 Body 3 Connector
     Nota

     1x connector





209. Connect J1/J2 X030A/B Body 1 connector
     Nota

     1x connector, Fully seat connector then engage lock





210. Secure connector on VC left
     Nota

     1x locking connector, Engage red locking tab



211. Secure IP harness connectors and clip by VC left
     Nota

     1x locking connector, 1x lever connector, 1x clip, Engage red locking tab, Engage lever to release



212. Secure LH door harness connectors and clip from VC left
     Nota

     2x connectors, 1x clip



213. Install rear fascia assembly onto vehicle
     Nota

     Recommend Assistance, Route fascia harness while installing, Verify rear diffuser sits under mid aero shield before proceeding





214. Connect rear fascia harness
     Nota

     1x connector, Engage locking tab, Located behind RH rear wheel arch liner



215. Secure rear fascia assembly onto body
     Nota

     Secure fascia edges onto fender brackets







216. Apply Loctite 222 to fasteners and secure rear diffuser to mid aero shield
     Nota

     8x bolts, 10mm, 6 Nm, 2x clips, 2x datums





217. Install rear diffuser nuts
     Nota

     3x nuts, 10mm, 3 Nm



218. Install bolt securing rear fascia to RH fender bracket
     Nota

     1x bolt, T25, 5 Nm



219. Install push clips securing RH rear wheel arch liner to fascia
     Nota

     4x push clips



220. Install bolt securing rear fascia to LH fender bracket
     Nota

     1x bolt, T25, 5 Nm



221. Install push clips securing LH rear wheel arch liner to fascia
     Nota

     5x push clips



222. Install LH nut securing rear fascia assembly to body
     Nota

     1x nut, 10mm, 4 Nm



223. Install butyl patch covering LH access hole



224. Install RH nut securing rear fascia assembly to body
     Nota

     1x nut, 10mm, 4 Nm



225. Install butyl patch covering RH access hole



226. Connect RH trunk puddle lamp
     Nota

     1x connector



227. Secure RH trunk side trim back into place



228. Install RH trunk bracket assembly
     Nota

     3x clips, 1 datum





229. Install LH trunk side trim and secure clips
     Nota

     3x push clips, 3x clips, 2x connections









230. Install LH upper C-pillar trim
     Nota

     7x clips, Replace any damaged clips







231. Install LH upper B-pillar
     Nota

     7x clips, Route seatbelt through B-pillar, Replace any damaged or missing clips





232. Install LH lower B-pillar
     Nota

     6x clips, 2x datums, Align datums then engage all clips Replace any damaged or missing clips







233. Install LH mid C-pillar trim
     Nota

     3x clips, Replace any damaged clips







234. Install LH lower C-pillar trim
     Nota

     8x clips, Properly seat door seal





235. Install trunk side wall trim
     Nota

     3x Velcro strips





236. Install LH trunk bracket assembly
     Nota

     4x clips, 1 datum







237. Install rear wall trim
     Nota

     4x push clips, 2x datums







238. Install trunk sill panel
     Nota

     6x clips, 4x guides







239. Install side load floor



240. Install trunk load floor



241. Install parcel shelf



242. Install 2nd row seat cushion assembly
     Nota

     2x clips, 2x connectors, Secure connections and slide seat belt buckles through seat cushion, Engage clips











243. Install LH side bolster trim
     Nota

     1x clip, 1x tab, Replace clip if damaged, Hook bottom portion and then secure the top





244. Install RH side bolster trim
     Nota

     1x clip, 1x tab, Replace clip if damaged, Hook bottom portion and then secure the top





245. Install RH footrest panel
     Nota

     2x bolts, 10mm, 5 Nm, 1x nut, 10mm, 5 Nm





246. Secure harness to RH footrest panel
     Nota

     1x clip



247. Fold RH front cabin carpet back into position





248. Install RH console side carpet
     Nota

     11x clips





249. Install RH footwell cover
     Nota

     3x magnets, 1x connectors



250. Install RH lower A-pillar trim
     Nota

     7x clips, Verify weather seal is seated properly







251. Install RH mid A-pillar trim
     Nota

     1x clip, 2x tabs, Verify weather seal is seated properly





252. Install RH first row seat risers to cabin floor
     Nota

     2x risers, 2x clips per riser





253. Install RH front seat into vehicle
     Nota

     Recommend Assistance, If seat is being replaced take note of OCS module revision, as this will determine the way firmware is installed to vehicle. Be cautious to avoid damage to surrounding components while lifting the seat into the vehicle.



254. Position chair to gain access below seat bottom and connect RH side body harness to seat controller
     Nota

     2x connectors, 1x clip, Engage red locking tab on black connector



255. Fold LH front cabin carpet back into position





256. Install the LH knee air bag assembly into vehicle
     Nota

     1x clip, 3x connectors, 6x tabs, Hook tabs before fully seating, Use caution not to damage the connector/harness, Support the knee air bag while connecting the connectors





257. Install fasteners securing LH knee air bag assembly to vehicle
     Nota

     2x patch bolts, E10, 8 Nm, Install new fasteners



258. Install LH console side carpet
     Nota

     11x clips





259. Install LH footwell cover
     Nota

     1x connector, 2x magnets



260. Install LH lower A-pillar trim
     Nota

     7x clips, Verify weather seal is seated properly







261. Install LH mid A-pillar trim
     Nota

     1x clip, 2x tabs, Verify weather seal is seated properly





262. Secure H front seat risers
     Nota

     2x riser, 2x clips per riser





263. Install LH front seat into vehicle
     Nota

     Recommend Assistance, Take care not to damage surrounding components while lifting the seat into the vehicle



264. Position chair to gain access below seat bottom and connect LH side body harness to seat controller
     Nota

     2x connectors, 1x clip, Engage red locking tab on black connector



265. Connect First Responder Loop and LV battery connector
     Nota

     2x connectors Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated









266. Install rear underhood apron
     Nota

     8x clips





267. Close hood
     Nota

     Press firmly in green highlighted areas (see image), Damage may result from pressure elsewhere on hood
268. Move LH front seat forward
269. Secure LH front seat belt
     Nota

     Ensure audible click is heard during install, perform pull test to confirm secure



270. Install bolts securing LH front seat rear tracks to vehicle
     Nota

     2x patch bolts, T45P, 34 Nm, Install new bolts



271. Move LH front seat backward
272. Install bolts securing both LH front seat front tracks to vehicle
     Nota

     2x patch bolts, T45P, 34 Nm, Install new bolts



273. Move LH front seat to original position
274. Install LH front floor mat



275. Move RH front seat forward
276. Instale la sujeción del cinturón de seguridad del asiento delantero en el pretensor:
     1. Asegúrese de que el tornillo de bloqueo está en posición horizontal. Si no lo está, siga las instrucciones de liberación para desbloquearlo.
     2. Compruebe que no hay enredos en el cinturón en el tramo que va del guarnecido del pilar B superior hasta el pretensor.
     3. Instale la fijación en el cable del pretensor.
        Nota

        Se oirá un clic.

        Nota

        El tornillo de bloqueo girará para volver a la posición de bloqueo.
     4. Realice una prueba de tensión firme en el cinturón de seguridad, con al menos 15 libras de fuerza.



277. Install bolts securing RH front seat rear tracks to vehicle
     Nota

     2x patch bolts, T45P, 34 Nm, Install new bolts



278. Move RH front seat backward
279. Install bolts securing both RH front seat front tracks to vehicle
     Nota

     2x patch bolts, T45P, 34 Nm, Install new bolts



280. Move RH front seat to original position
281. Install RH front floor mat



282. Fold 60 seat into vertical position
     Nota

     Remove seat cushion protection





283. Close liftgate
284. Set air suspension ride height to “Medium”
     Nota

     Using center display, Controls > Suspension > ''Medium'
285. Raise all four windows
286. Close all four doors
