Desecante (Desinstalación y sustitución)

Código de corrección 18202002 0.42 NOTA: Salvo que se indique lo contrario explícitamente en el procedimiento, el código de corrección anterior y el FRT reflejan todo el trabajo necesario para realizar este procedimiento, incluidos los procedimientos vinculados. No acumule códigos de corrección a menos que se le indique explícitamente que lo haga. NOTA: Consulte Tiempos de tarifa plana para obtener más información sobre los FRT y cómo se crean. Para enviar sus comentarios sobre los valores de FRT, escriba a ServiceManualFeedback@tesla.com. NOTA: Consulte Protección personal para asegurarse de que lleva puesto el EPI adecuado al realizar el siguiente procedimiento.

  • 2025-05-08: Added additional step to check refrigerant system pressure on the touchscreen after refrigerant recovery.
  • 2025-01-22: Added Note on adding correction code 18200102 as a separate activity to the Service Visit, fixed typo reported by field.
  • 2024-09-10: Added warnings to wear suitable protective clothing, consisting of face and eye protection, heat-proof gloves, rubber boots and apron or waterproof overalls must be worn when carrying out operations on the air conditioning system.
  • 2024-05-15: Updated accumulator cap removal step so that the cap is removed with a slide hammer and female-to-female threaded adapter.
  • 2024-04-02: Added reminding of checking the pressure of A/C system before opening the accumulator.
  • 2024-04-10: Added reminding of wearing PPEs.
Warning IconA warning icon, calling your attention to a possibly risky situation
Aviso
HFO-R1234yf y R134a se consideran peligrosos y, si se manejan de modo incorrecto, pueden provocar lesiones graves. Debe utilizar equipos de protección individual apropiados que incluyan protección para el rostro y ojos, gafas de seguridad, protector facial, guantes aislantes, guantes resistentes a productos químicos, botas de goma y mono o delantal impermeable cuando vaya a trabajar en el sistema de aire acondicionado.
Informational PurposesAn informational icon, calling your attention
Nota
Para poder realizar este procedimiento, debe haberse realizado el de Refrigerante del aire acondicionado (Recuperación y recarga). Si no se ha hecho automáticamente, añada el código de corrección 18200102 como una actividad independiente a la visita de servicio.

Retirar

  1. Connect the A/C machine to power and switch on.
    Informational PurposesAn informational icon, calling your attention
    Nota
    The machine will run various background tasks. Wait until Main Menu comes up before continuing.
  2. Select as shown when the following panels prompted.
  3. Connect the couplers to the A/C machine and open the couplers by turning clockwise.
  4. Select Main Menu > Next > Menu > Flush hoses to verify hose connection.
  5. Flush the A/C hoses.
    Informational PurposesAn informational icon, calling your attention
    Nota
    Machine will chime once the process is complete.
  6. Open the LH front door and lower the LH front window.
  7. Turn off the A/C and Blower motor.
  8. Place the vehicle in Service Mode by using the touchscreen. See Modo de servicio (Activación y desactivación).
  9. On the touchscreen, tap Service Mode > DIAGNOSTICS > Thermal, authorize the routines by holding the right turn signal and depressing the brake pedal for 10 seconds with a key on the phone dock, then tap Refrigerant System > Start Refrigerant Fill/Drain, select Run, and allow the routine to complete.
  10. Remove the underhood storage unit. See Unidad de almacenamiento del vano del motor (Desinstalación e instalación).
  11. Perform A/C recovery. See Recovery.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Aviso
    Asegúrese de que no hay exceso de presión en el sistema de aire acondicionado antes de realizar los siguientes pasos. De lo contrario, se pueden producir daños en los componentes o lesiones personales.

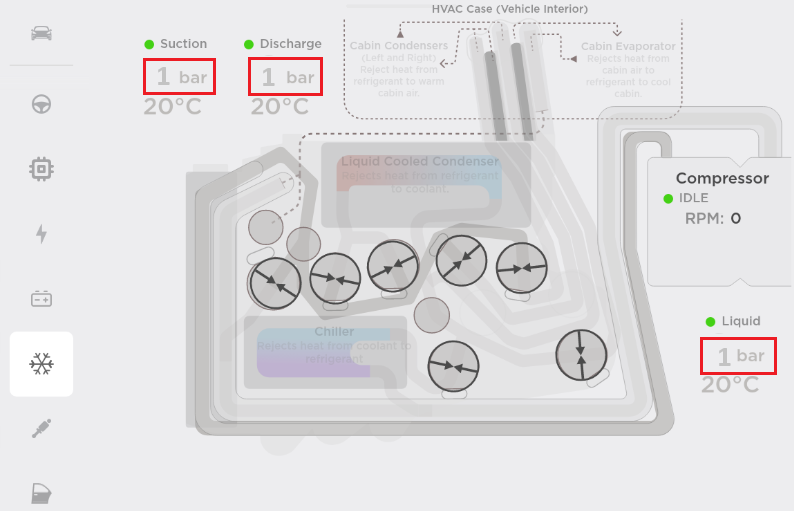

  12. En la pantalla táctil, asegúrese de que la presión del sistema de refrigerante está a nivel atmosférico (aprox. 1 bar).
    Informational PurposesAn informational icon, calling your attention
    Nota
    En la pantalla táctil, toque Modo de servicio > Térmico > Sistema de refrigerante.

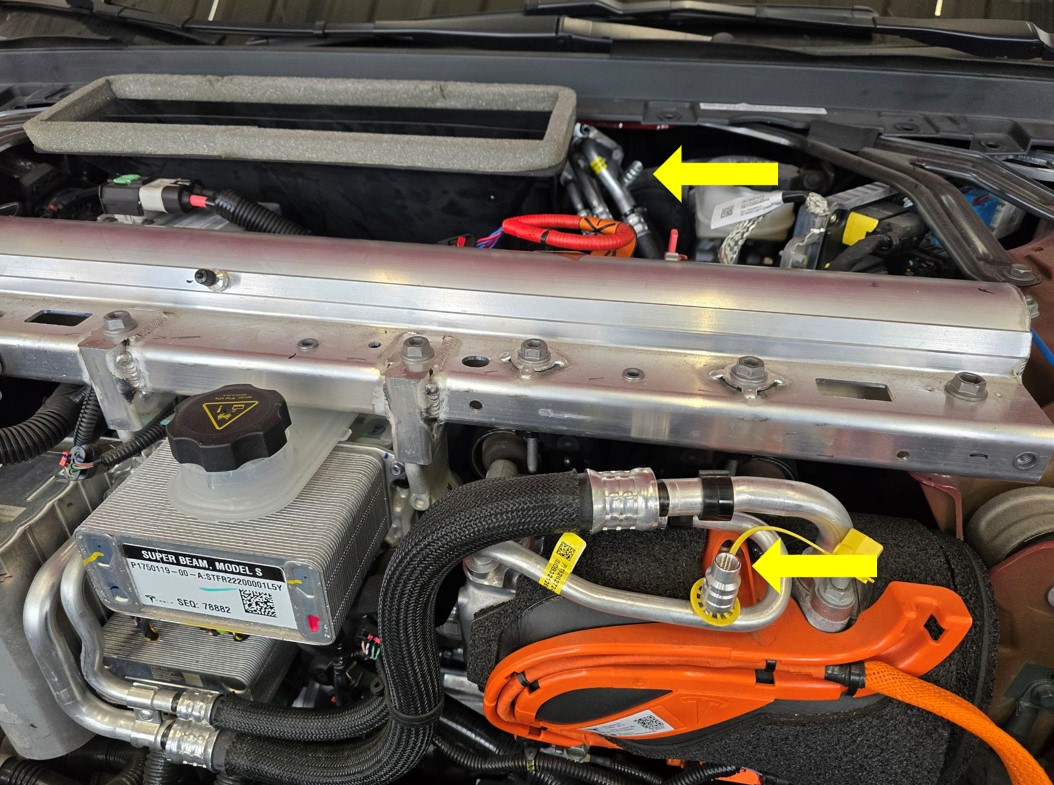

  13. Disconnect the A/C lines from the vehicle.
  14. Presione con cuidado las válvulas Schrader (2 uds.) para nivelar cualquier diferencia de presión entre la presión del sistema de aire acondicionado y la presión atmosférica ambiente real.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    PRECAUCIÓN
    Asegúrese de presionar las dos válvulas Schrader. De lo contrario, podría sufrir lesiones.
  15. Disconnect LV power. See Alimentación de baja tensión (Desconexión y conexión).
  16. Remove and discard the dust cap from the accumulator.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Se recomienda utilizar las siguientes herramientas:
    • Vaso Torx T30
  17. Use snap ring pliers to remove and discard the accumulator cap snap ring.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Aviso
    Asegúrese de llevar el protector facial durante todo el proceso para evitar el impacto de objetos extraños que salgan despedidos.
  18. Use slide hammer (1081547-00-B) with female-to-female threaded adapter 1985068-00-A to remove and discard the accumulator cap.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Aviso
    Asegúrese de llevar el protector facial durante todo el proceso para evitar el impacto de objetos extraños que salgan despedidos.
  19. Use needle nose pliers to remove the desiccant cartridge from the accumulator.
  20. Weigh the desiccant cartridge and record the value. This is considered the "wet weight."
  21. Determine the "dry weight" of the desiccant bag: Inspect the bag for a label that contains the Part Number (P), Serial Number (S), and Dry Weight (W). If the label is missing, or if the dry weight is not visible, assume the dry weight is 90.4 grams.
  22. Subtract the dry weight from the wet weight. This is the amount of oil that must be added to the system in addition to the oil that was removed during refrigerant recovery. Note this amount for later.

Instalar

  1. Prepare desiccant service kit.

    The kit contains the following:

    • Desiccant Cartridge (1539844-00-C) x1
    • Accumulator Cap (1500490-00-B) x1
    • Retaining ring (1541626-00-A) x1
    • Dust cover (1541624-00-A) x1
    Informational PurposesAn informational icon, calling your attention
    Nota
    Do not open the vacuum sealed desiccant kit until the cartridge installation step.
  2. Install the desiccant cartridge into the accumulator.
    Informational PurposesAn informational icon, calling your attention
    Nota
    The desiccant cartridge is uni-directionally slotted. Align the slot with notch in the accumulator.
  3. Lubricate the new accumulator cap O-rings with the appropriate A/C oil. See Capacidades de líquidos for A/C oil specifications. Then install the cap on the accumulator.
    Informational PurposesAn informational icon, calling your attention
    Nota
    Ensure the cap is fully seated past the retaining ring landing.
  4. Use the snap ring pliers to install the new accumulator cap snap ring.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Aviso
    Asegúrese de llevar el protector facial durante todo el proceso para evitar el impacto de objetos extraños que salgan despedidos.
    Informational PurposesAn informational icon, calling your attention
    Nota
    Make sure the snap ring is fully seated in the groove on the inside of the accumulator bore.
  5. Hand-tighten the new dust cap to the accumulator.
    Informational PurposesAn informational icon, calling your attention
    Nota
    Screw the dust cap until it bottoms out on the accumulator.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Se recomienda utilizar las siguientes herramientas:
    • Vaso Torx T30
  6. Install A/C hoses to the vehicle.
  7. Initiate and complete the vacuum leak test, then return to this procedure. See Vacuum Leak Test and Oil Injection.
  8. Inject the amount of oil that was lost to:
    Warning IconA warning icon, calling your attention to a possibly risky situation
    PRECAUCIÓN
    DO NOT forget to inject the amount of oil that was lost to removal of the old desiccant bag. Failure to do so might cause catastrophic damage to the thermal system.
  9. Connect LV power. See Alimentación de baja tensión (Desconexión y conexión).
  10. On the touchscreen, tap Service Mode > DIAGNOSTICS > Thermal, authorize the routines by holding the right turn signal and depressing the brake pedal for 10 seconds with a key on the phone dock, then tap Sensors and Valves > Run Heat Pump Commissioning, select Run, and allow the routine to complete.
  11. Recharge the A/C refrigerant. See Recharge.
  12. Disable Service Mode. See Modo de servicio (Activación y desactivación).
  13. Install the underhood storage unit. See Unidad de almacenamiento del vano del motor (Desinstalación e instalación).
  14. Raise the LH front window and close the LH front door.
