ECE Headlights - Adjust - Model Y Standard (Tool Method) (Test/Adjust)

Código de corrección 17409150 0.24 NOTA: Salvo que se indique lo contrario explícitamente en el procedimiento, el código de corrección anterior y el FRT reflejan todo el trabajo necesario para realizar este procedimiento, incluidos los procedimientos vinculados. No acumule códigos de corrección a menos que se le indique explícitamente que lo haga. NOTA: Consulte Tiempos de tarifa plana (FRT) para obtener más información sobre los FRT y cómo se crean. Para enviar sus comentarios sobre los valores de FRT, escriba a ServiceManualFeedback@tesla.com. NOTA: Consulte Protección personal para asegurarse de llevar el EPI adecuado al realizar el siguiente procedimiento. NOTA: Consulte Precauciones ergonómicas para ver información sobre prácticas de trabajo seguras.

  • 2025-10-23: Released new procedure.

Special tools required for this procedure:

Supplier Part Number Description
Tesla 1133367-00-A Beissbarth Headlight Tester, Model 815

Adjust Headlights using a Headlight Tester

  1. Open the hood.
  2. Enable Service Mode. See Modo de servicio.
  3. Enter the headlight aiming mode through the touchscreen.
    Informational PurposesAn informational icon, calling your attention
    Nota

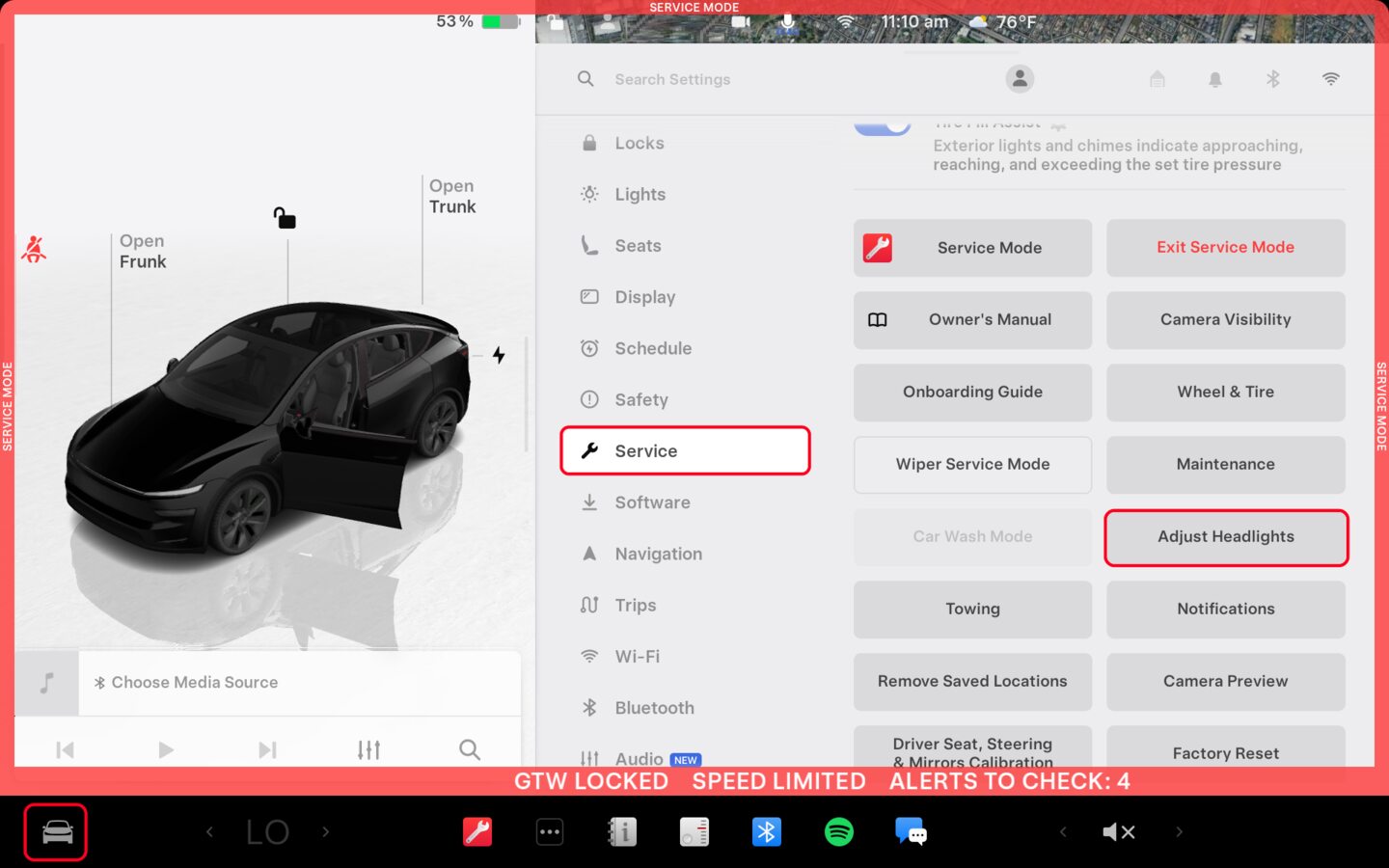

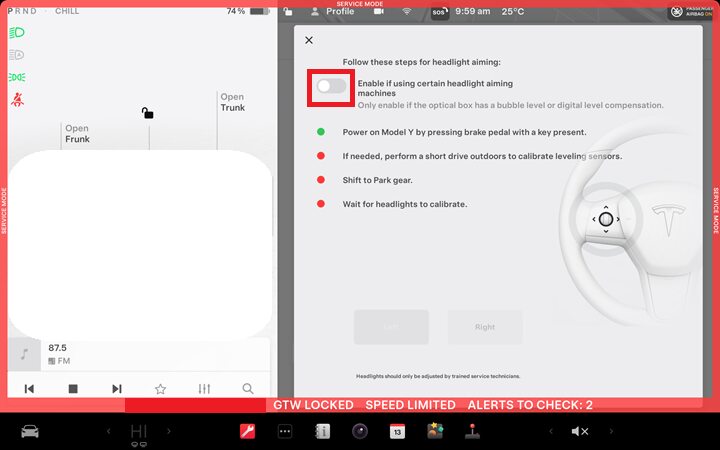

    Via Controls > Service > Adjust Headlights.
  4. Enable testdrive override through the touchscreen.
  5. Position the headlight aimer in front of the LH headlight.
    Informational PurposesAn informational icon, calling your attention
    Nota

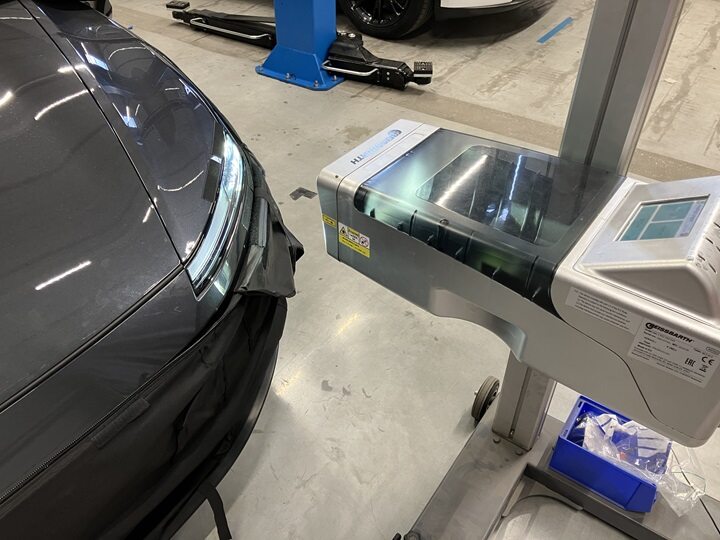

    Position the aimer at approx. 30 cm distance from the surface of the headlamp lens, Adjust the height as necessary to match the center point of the headlamp (~78cm). Make sure that the headlight aimer is on a surface, level with the vehicle.
  6. Power on the headlight aimer.

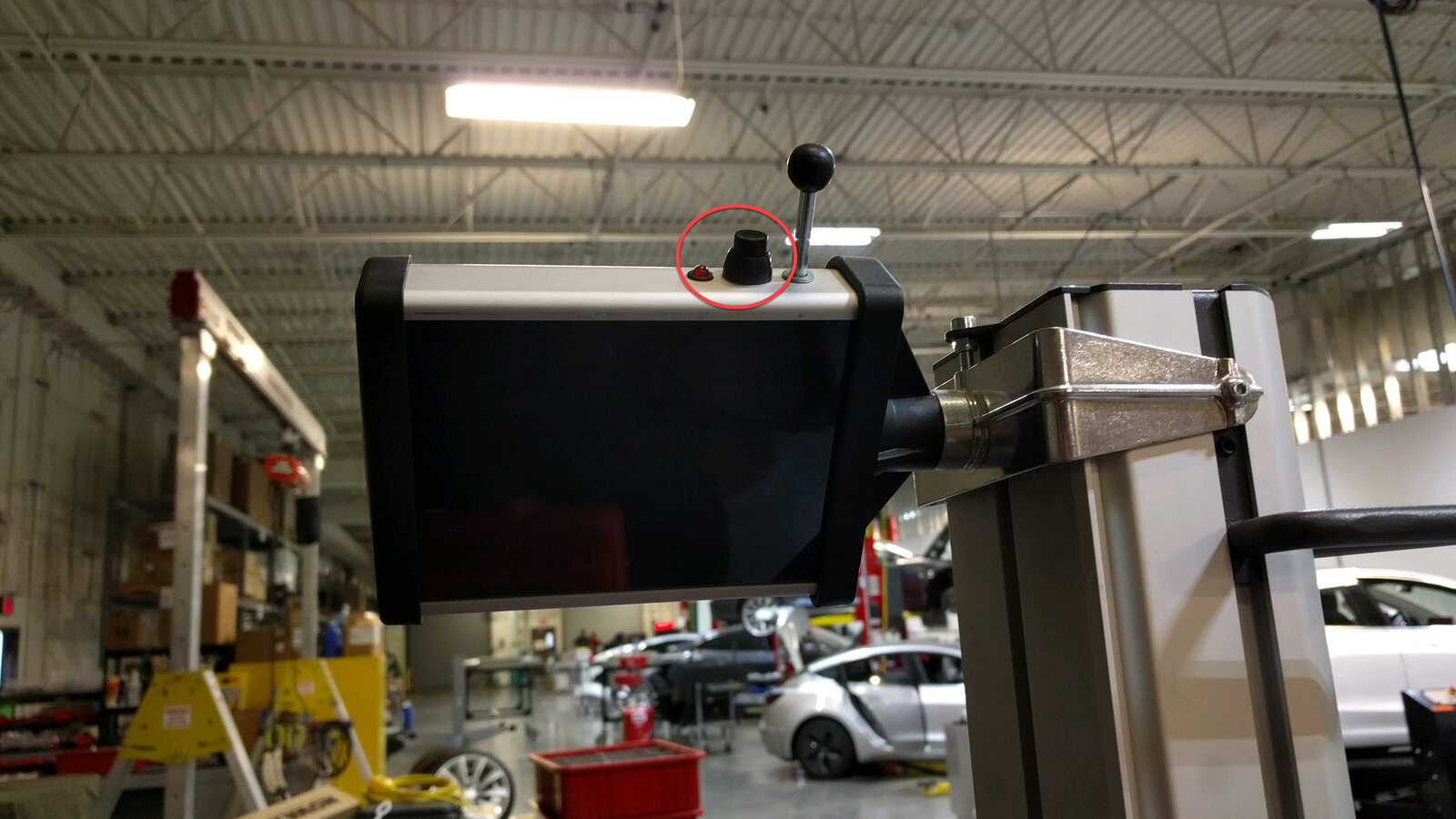

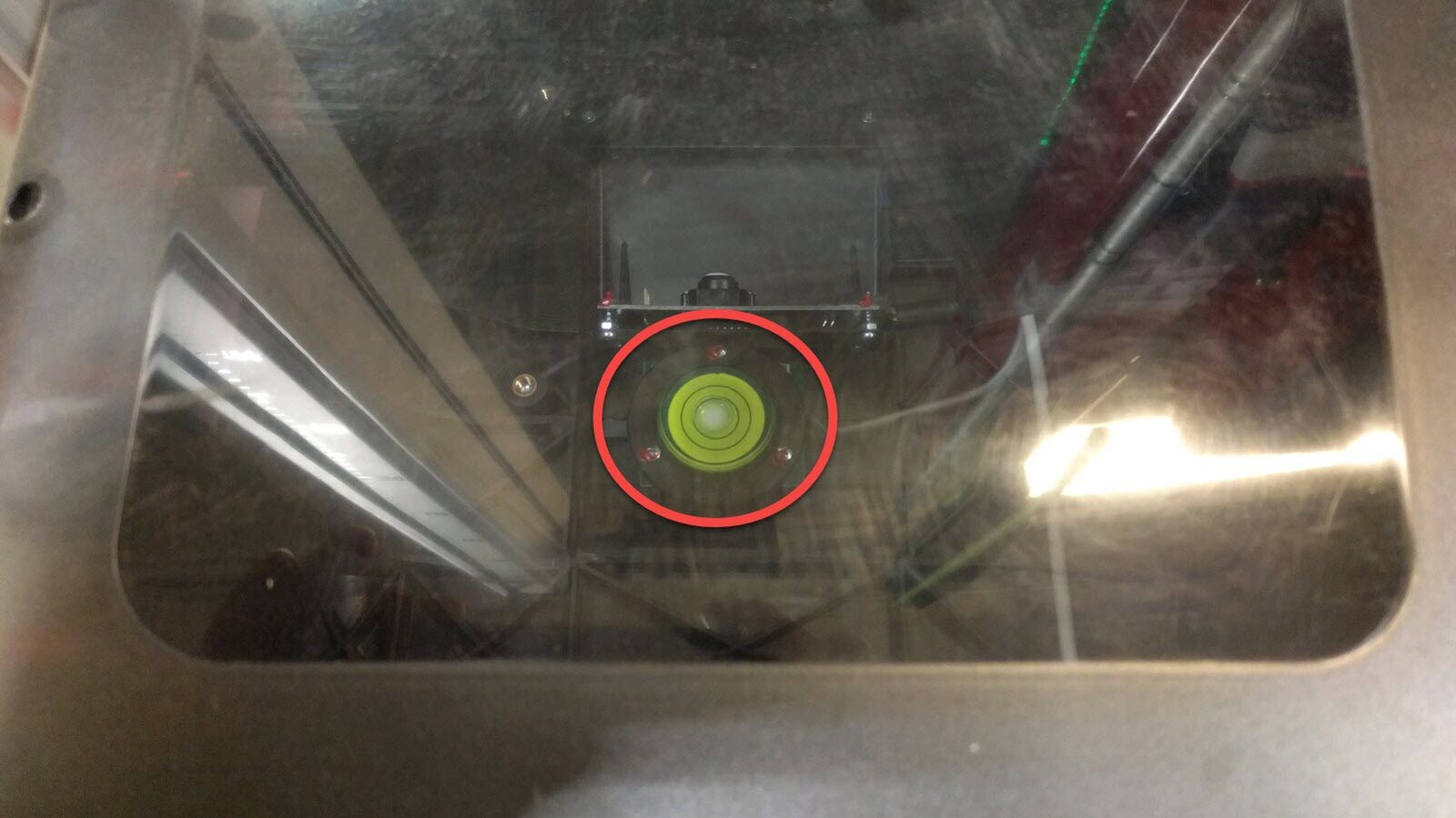

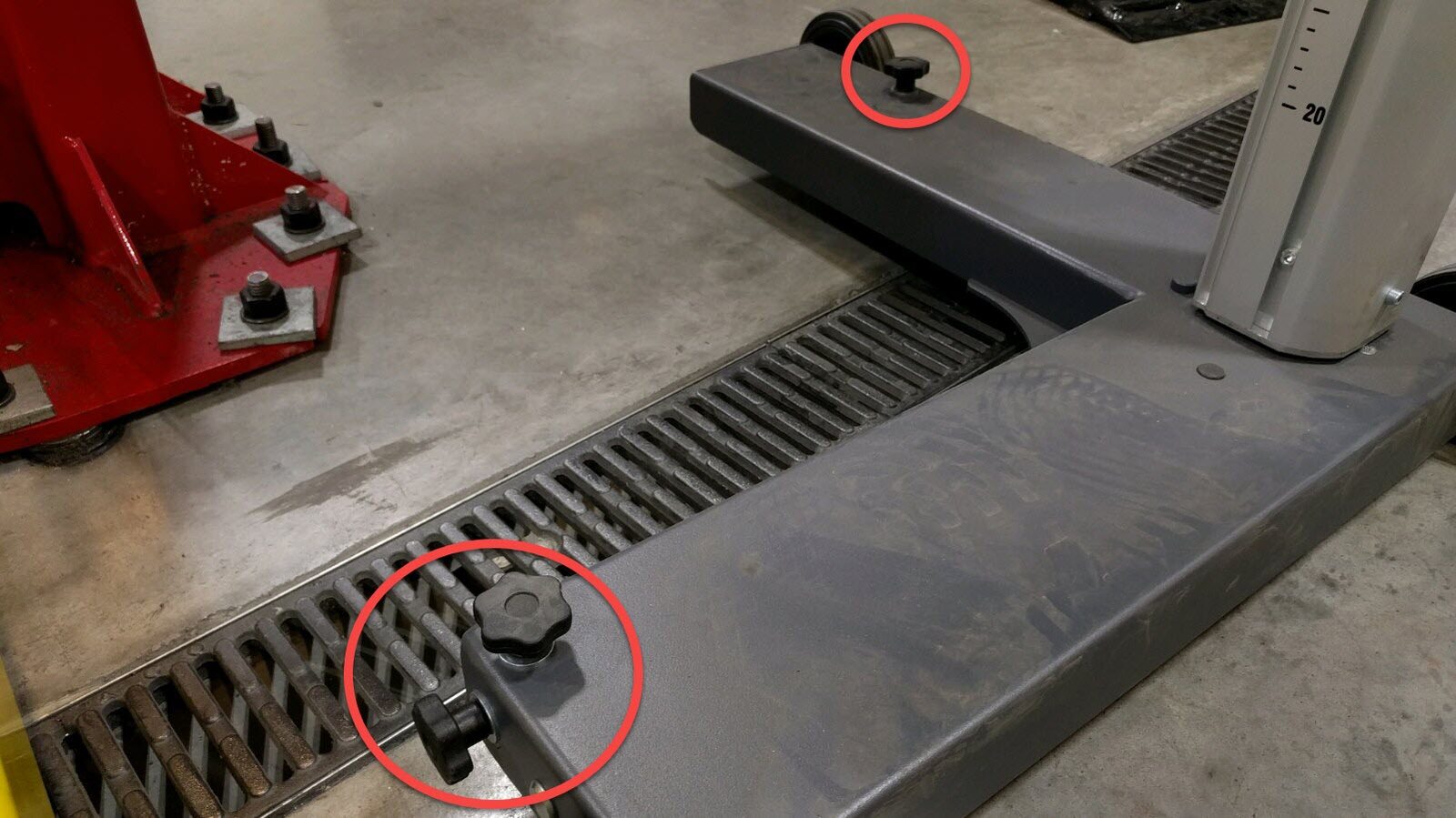

  7. Use the knobs on the base to adjust headlight aimer level.
  8. Align the headlight aimer perpendicular to vehicle.
    Informational PurposesAn informational icon, calling your attention
    Nota

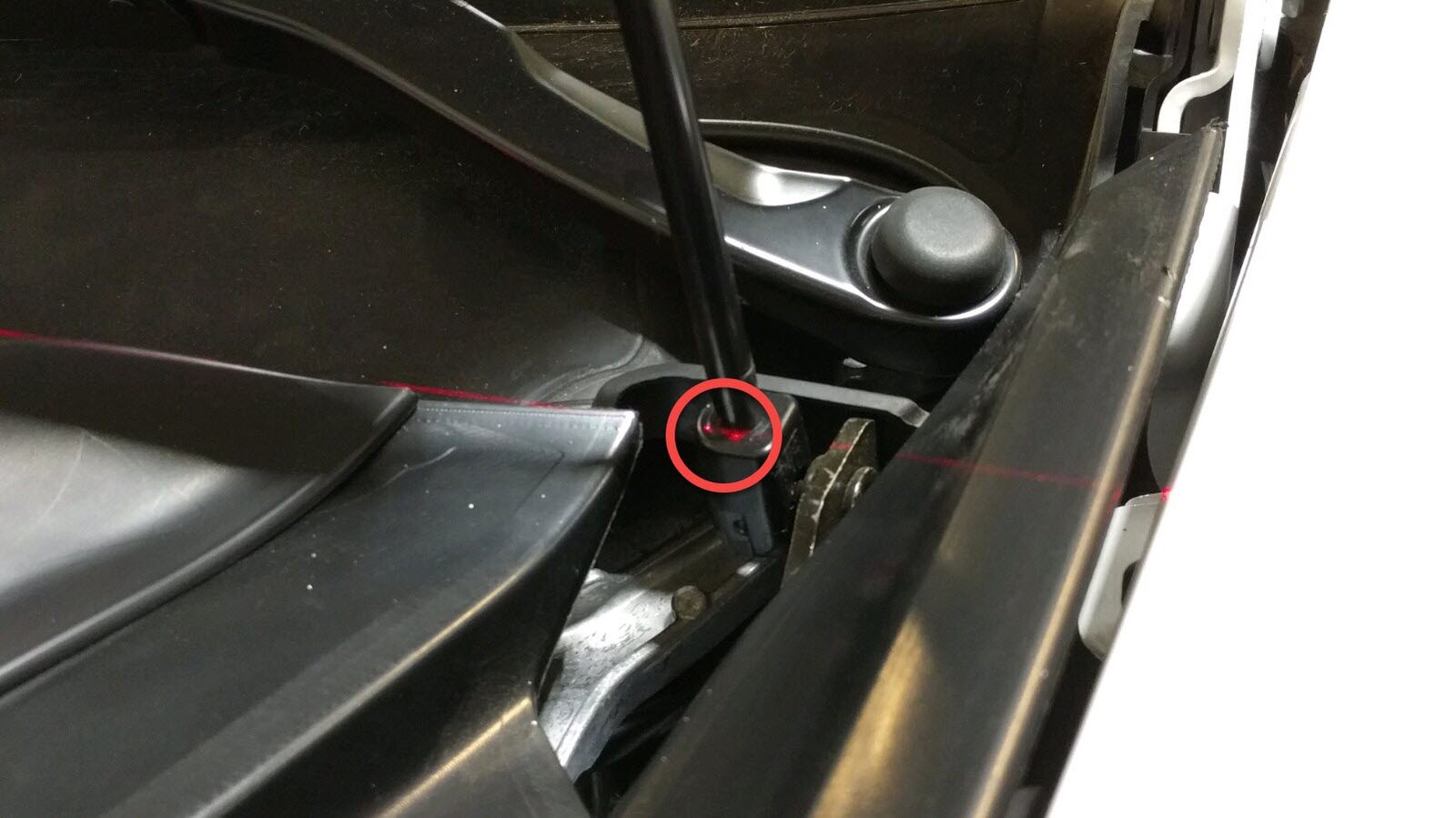

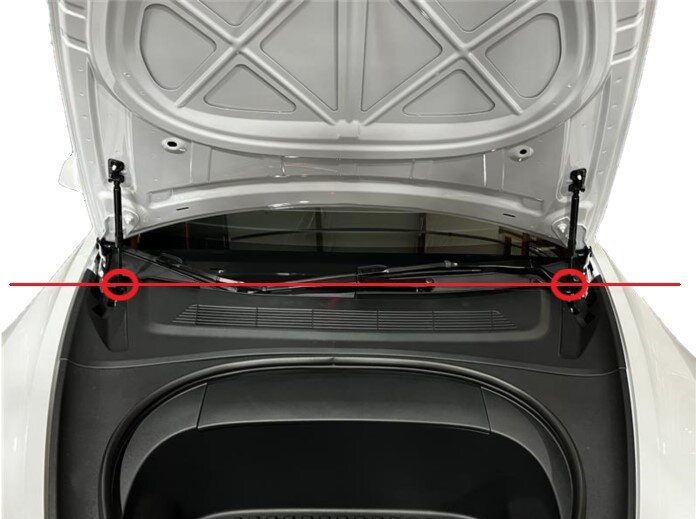

    Use visor/laser to line up the tester perpendicular to the axis between furthest fender bolts. If the headlight aimer can move between the RH and LH headlights while maintaining the same laser angle projected onto the fender bolts, it is set correctly (perpendicular) to the vehicle.
  9. Initiate the test on the headlight aimer.
    Informational PurposesAn informational icon, calling your attention
    Nota

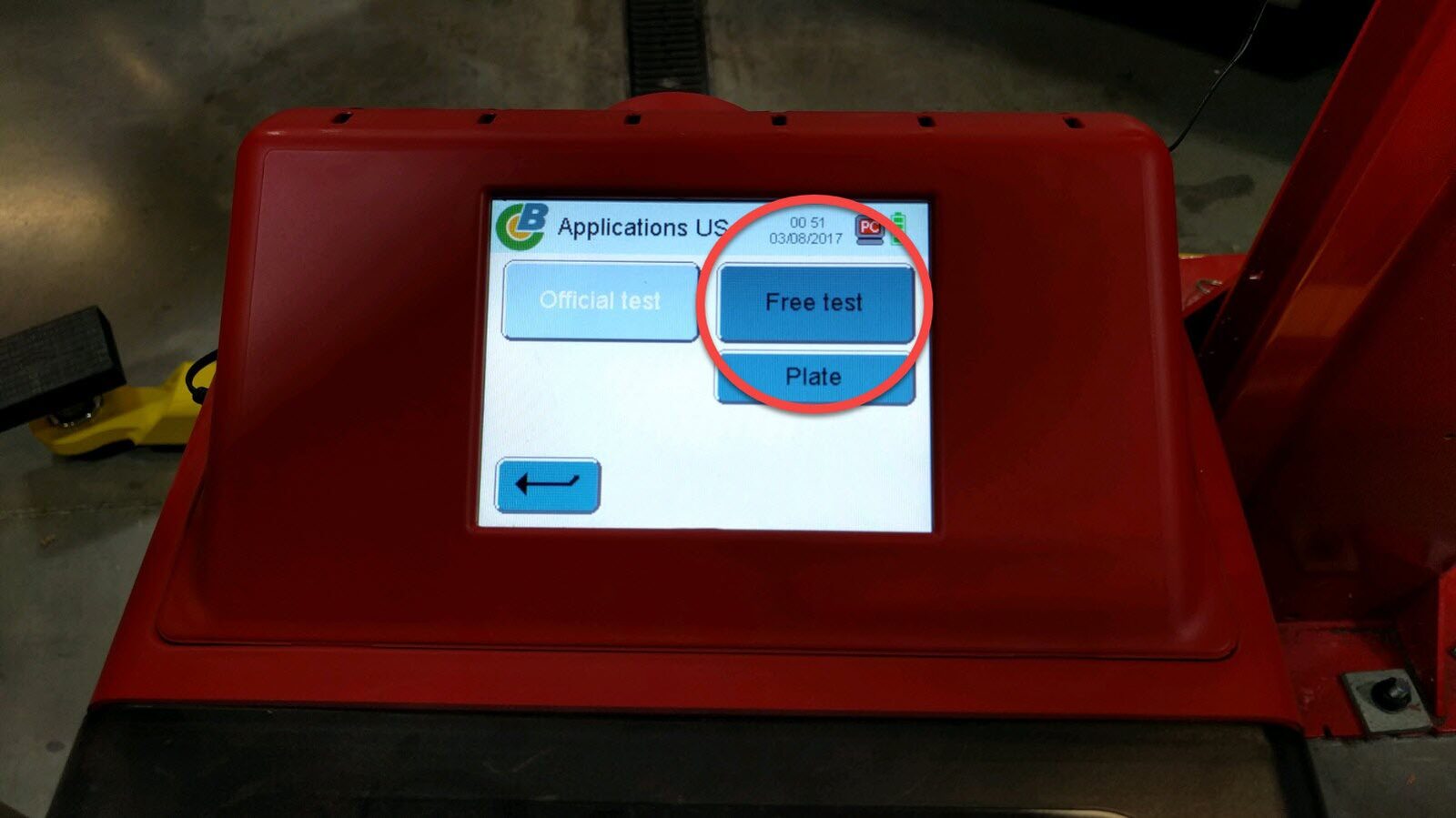

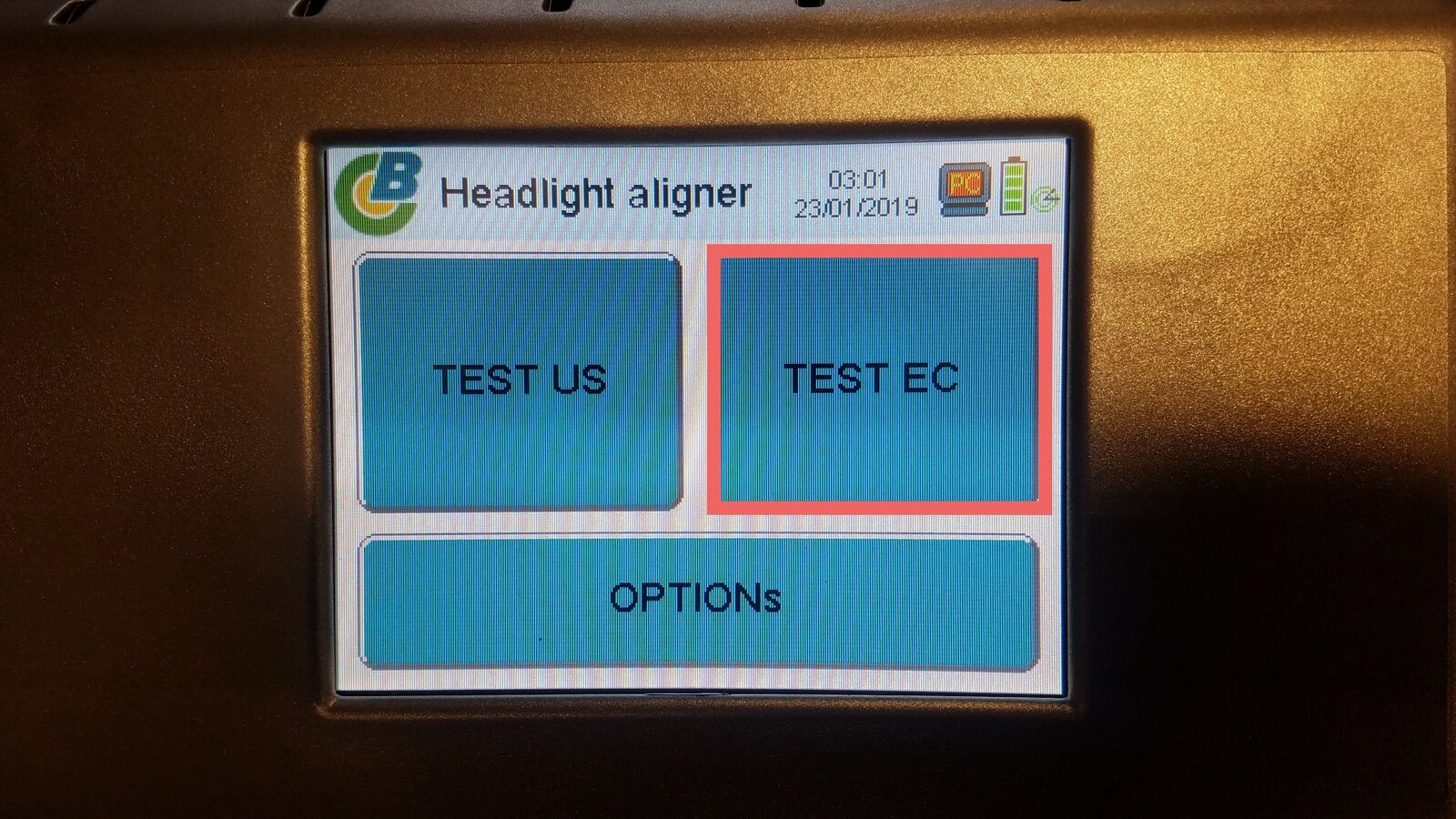

    Select Test EC > Free Test.
  10. Set up the headlight aimer.

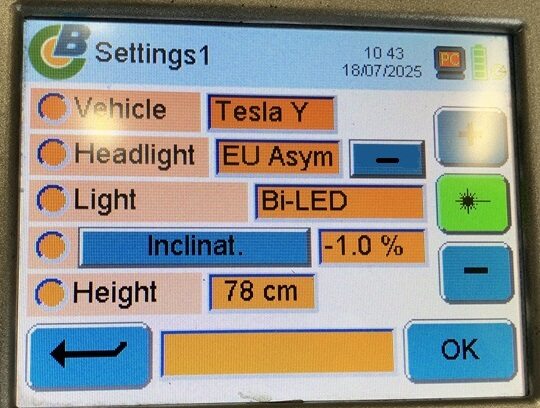

    • Vehicle: Tesla Y
    • Headlight: LHD - EU Asym, RHD - UK
    • Light: Bi-LED
    • Inclinat.: -1.0 %
    • Height: 78 cm
    Informational PurposesAn informational icon, calling your attention
    Nota
    Press OK to proceed.

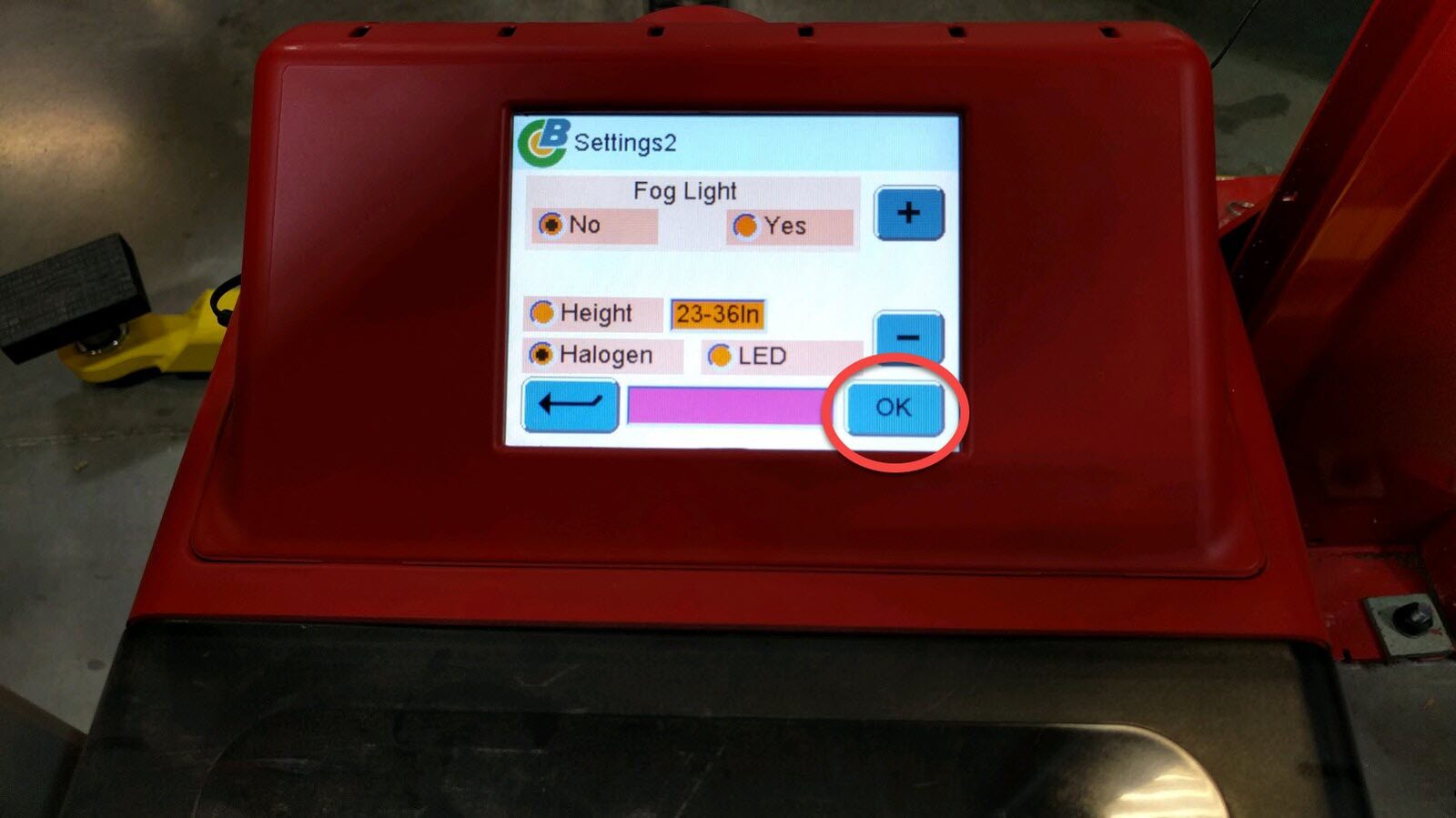

  11. Select OK again to pass fog light settings.
  12. Adjust the headlight aimer to the LH headlight marking.
    Informational PurposesAn informational icon, calling your attention
    Nota

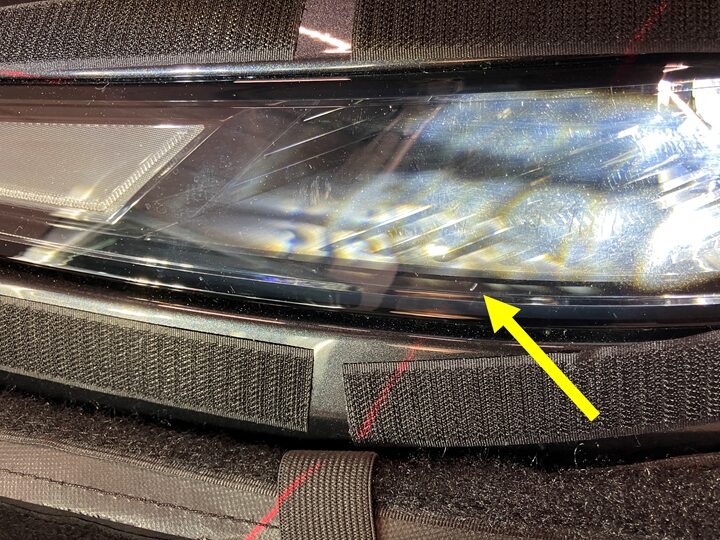

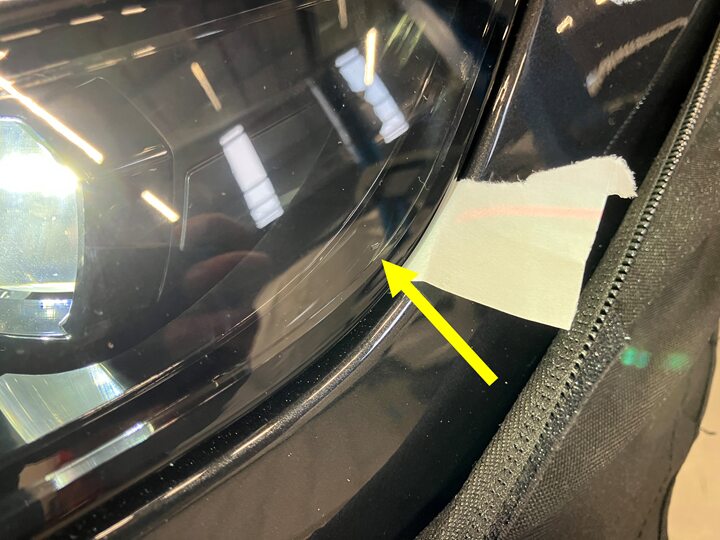

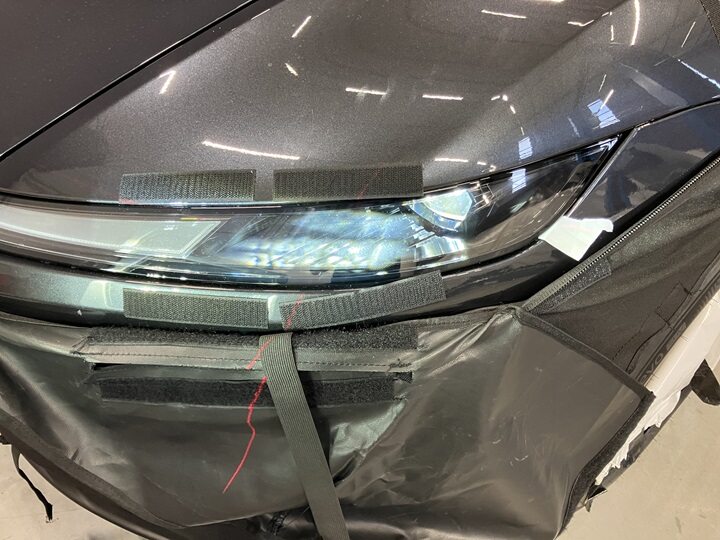

    Turn on the laser aimer to adjust the tester's horizontal and vertical position to the LH headlamp marking. Markings can be difficult to spot. Use of a piece of paper can aid in finding the center. Turn off the laser aimer before proceeding to the next step.
  13. Start LH headlight aiming.
    Informational PurposesAn informational icon, calling your attention
    Nota

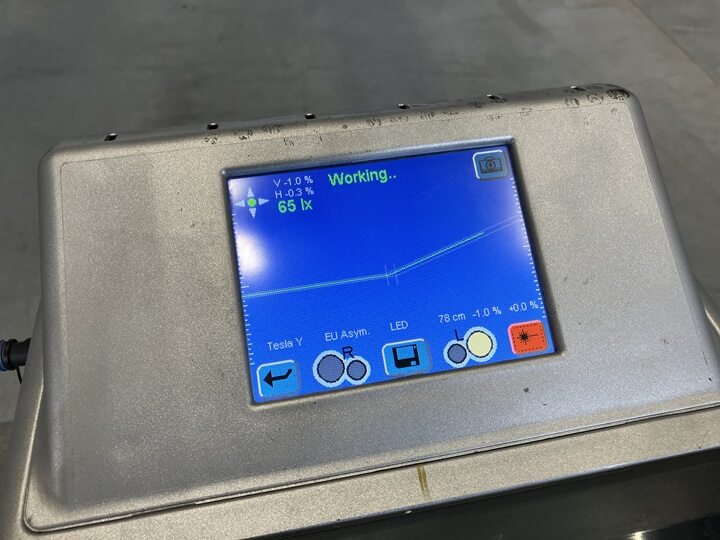

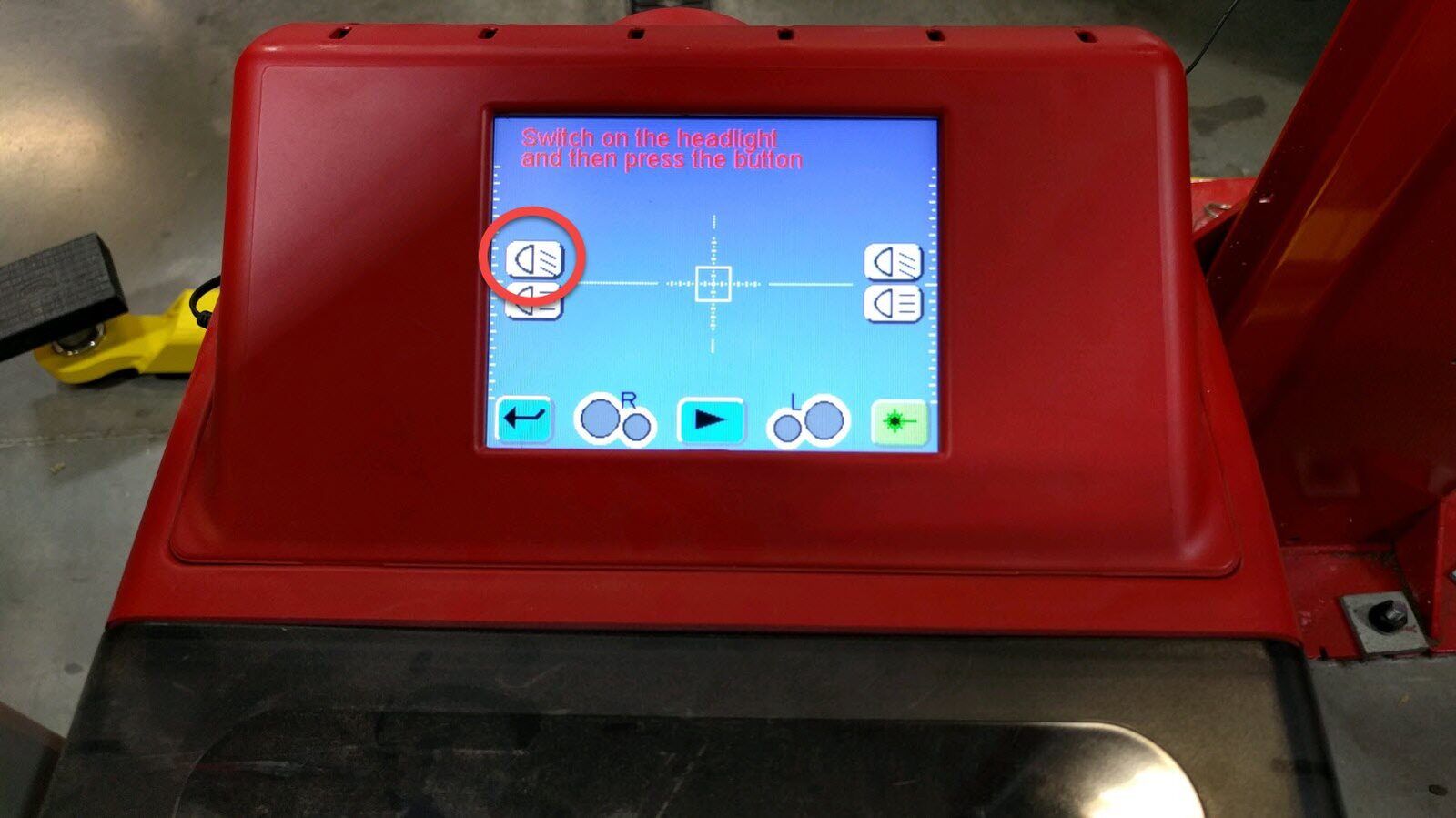

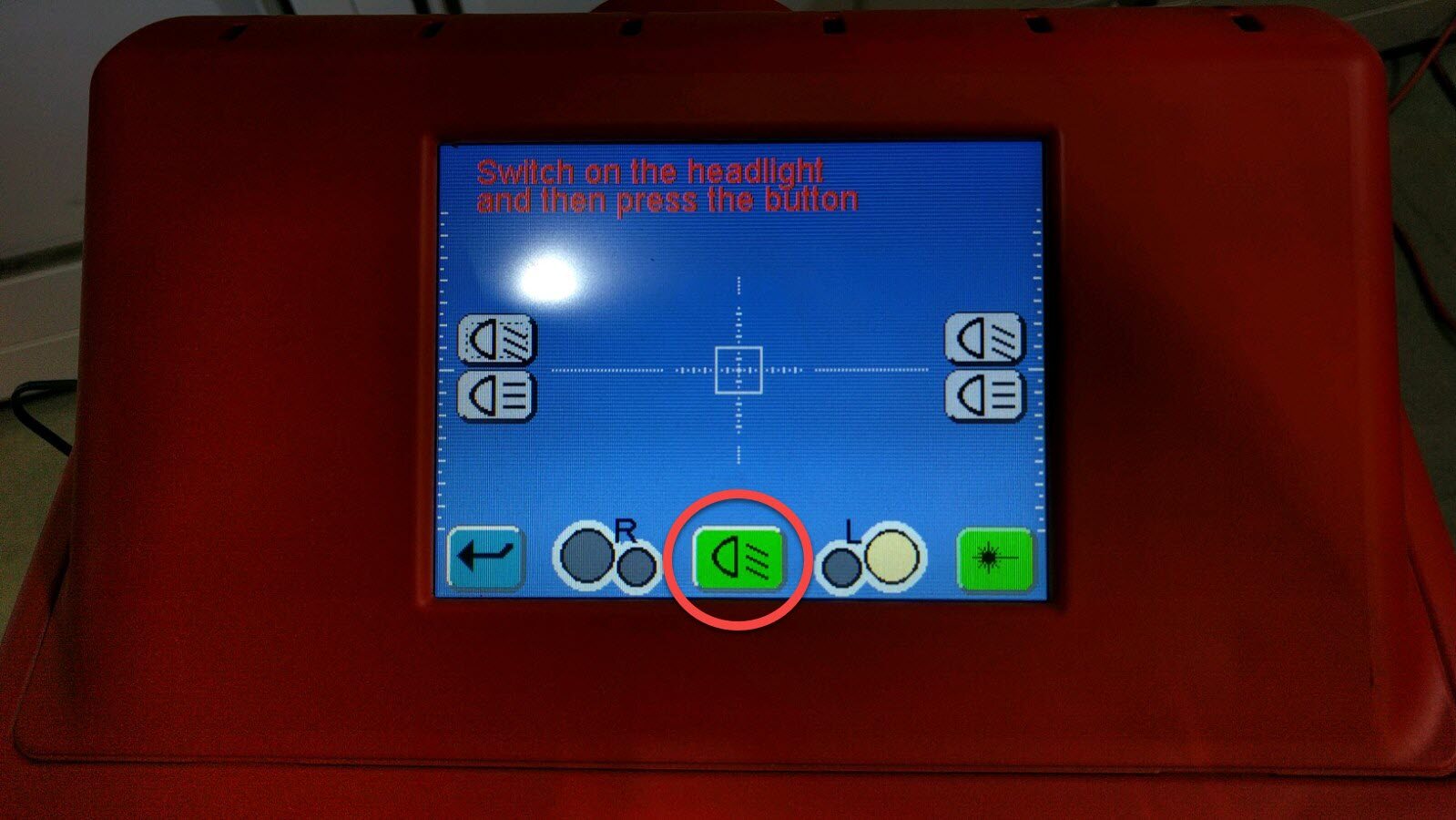

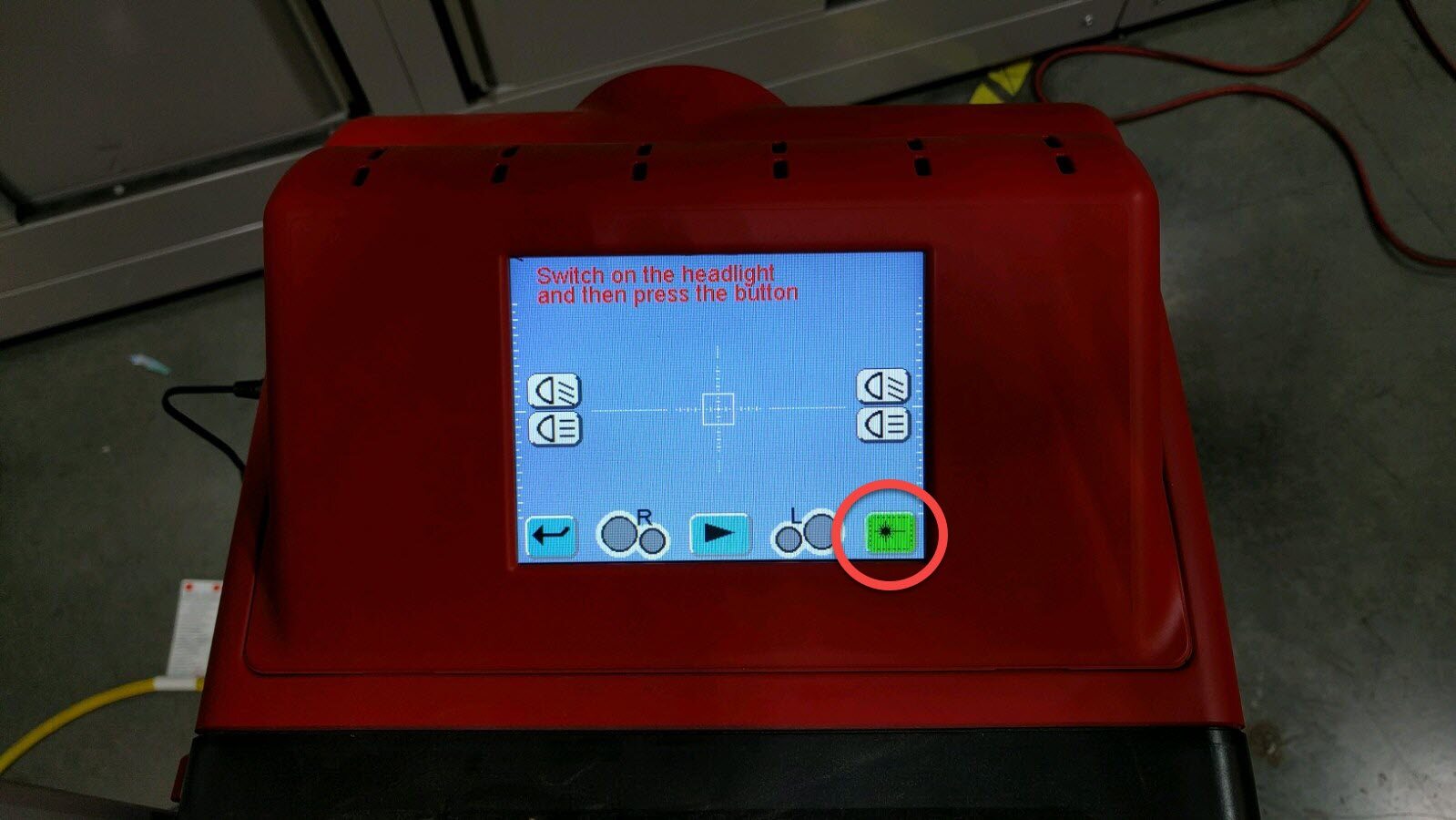

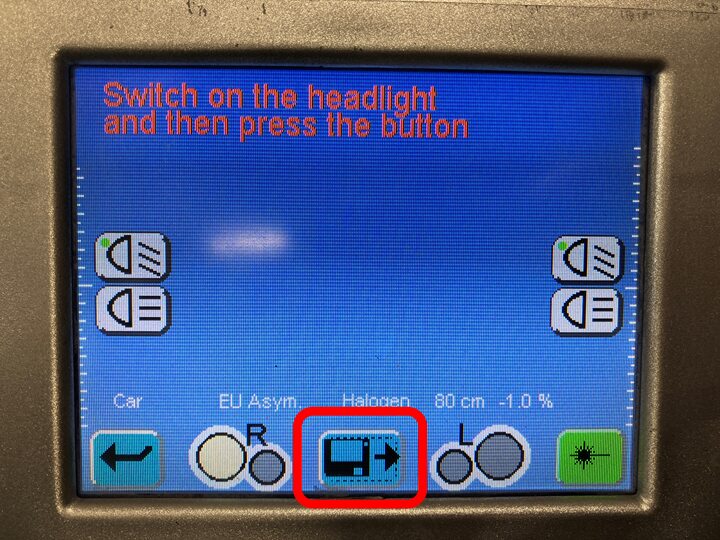

    Select the LH low beam icon and select the low beam button at the bottom of the screen.
  14. Adjust the LH headlight
    Informational PurposesAn informational icon, calling your attention
    Nota

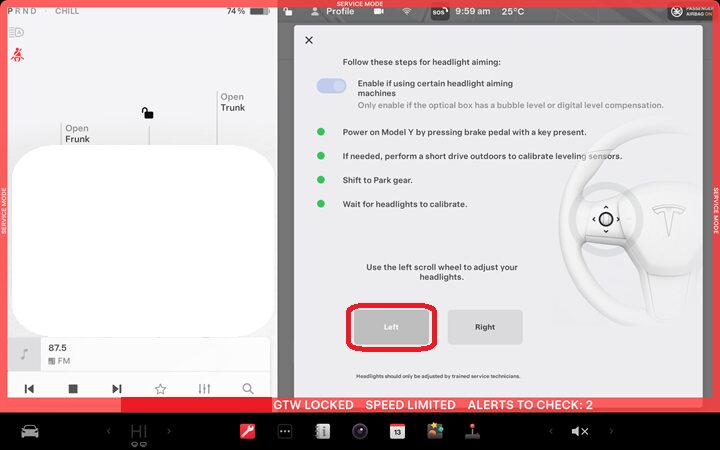

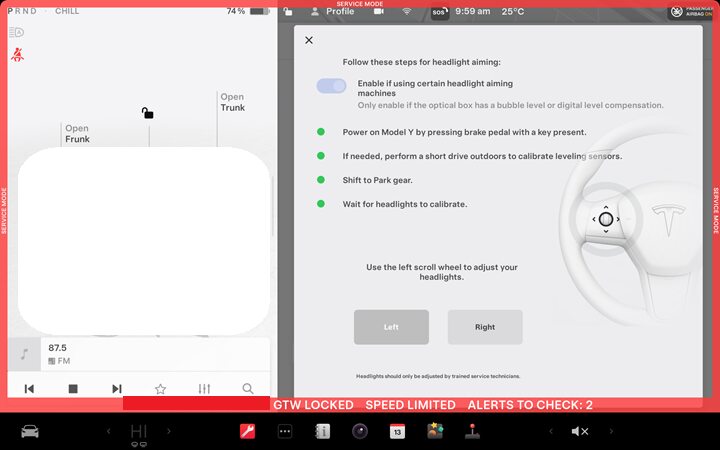

    Select Left on the touchscreen, then use the left scroll wheel on the steering wheel to adjust the beam. Target V = -1.0% and H = 0 %. There may be a delay between scroll wheel input and actual light adjustment output. Do not sit in the vehicle as this will affect the headlight height.
  15. Record the results of the headlight aiming.
    Informational PurposesAn informational icon, calling your attention
    Nota

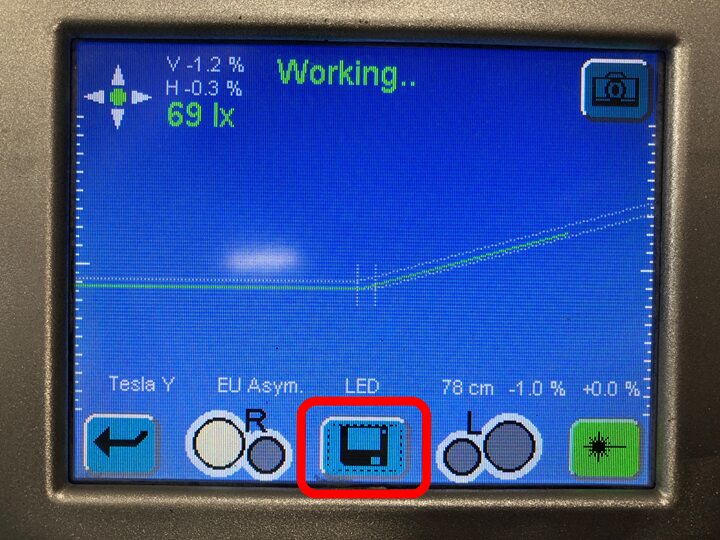

    Press the "save" icon.
  16. Position the headlight aimer in front of the RH headlight, and then repeat steps 12 to 15 for the RH headlight.

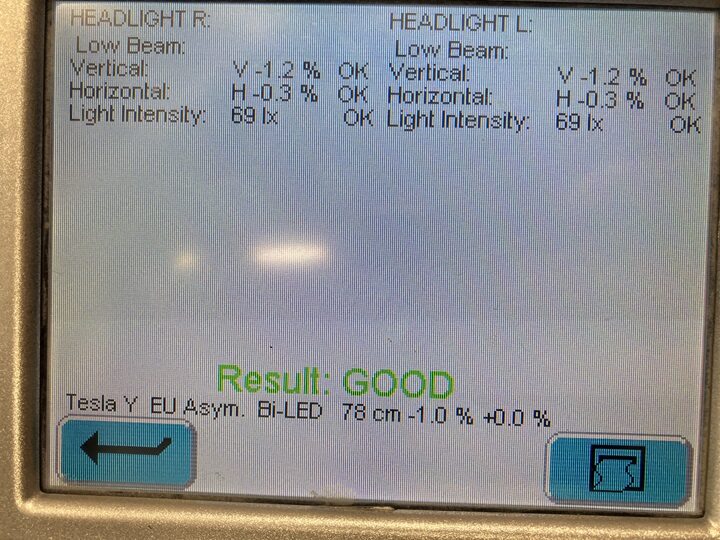

  17. Review the test results of the headlight aiming.
    Informational PurposesAn informational icon, calling your attention
    Nota
    Select the "Save" icon
  18. Move the headlight aimer away from the vehicle.

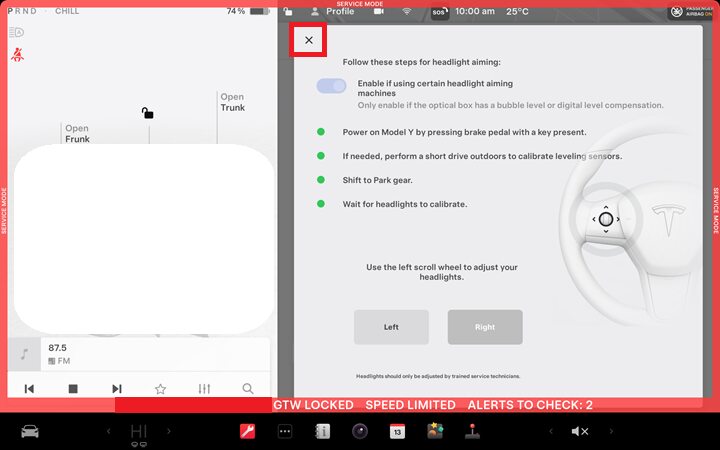

  19. Exit headlight adjustment mode from the touchscreen.
  20. Exit Service Mode. See Modo de servicio.
