Código de corrección 15302602 15302601 FRT 0.42 NOTA: Salvo que se indique lo contrario explícitamente en el procedimiento, el código de corrección anterior y el FRT reflejan todo el trabajo necesario para realizar este procedimiento, incluidos los procedimientos vinculados. No acumule códigos de corrección a menos que se le indique explícitamente que lo haga. NOTA: Consulte Tiempos de tarifa plana (FRT) para obtener más información sobre los FRT y cómo se crean. Para enviar sus comentarios sobre los valores de FRT, escriba a ServiceManualFeedback@tesla.com. NOTA: Consulte Protección personal para asegurarse de llevar el EPI adecuado al realizar el siguiente procedimiento. NOTA: Consulte Precauciones ergonómicas para ver información sobre prácticas de trabajo seguras.

1. Open all four doors
   Nota

   If vehicle is being powered down, Latch rear doors to prevent accidental closure



2. Lower all four windows

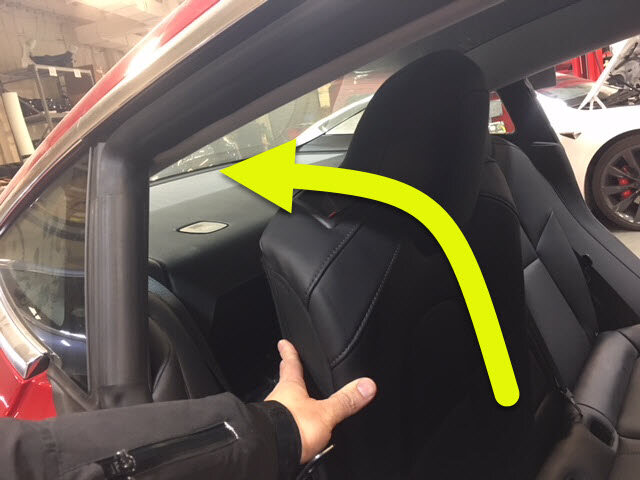

3. Move LH front seat forward



4. Move RH front seat forward



5. Remove 2nd row seat cushion
   Nota

   2x tabs, 2x connectors, Slide locking tabs to left of vehicle while lifting up seat bench. Newer models have connectors on both sides of bench, Older models have 2x connectors on one side of bench

















6. Open liftgate from exterior switch



7. Remove load floor
   Nota

   Use pull tab located at rear edge of panel





8. Remove trunk sill trim assembly
   Nota

   4x clips, 1x location pin, Pull corner upward release clip on the end the away from body for remaining clips





9. Remove clips securing rear trunk carpet
   Nota

   2x push clips

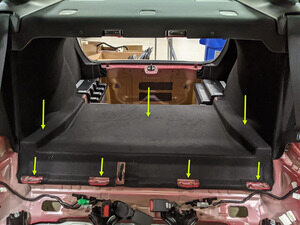

10. Remove rear trunk carpet from vehicle
    Nota

    4x velcro strips

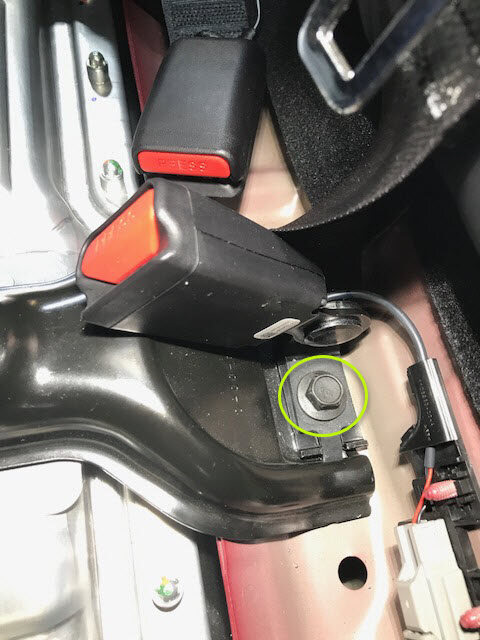

11. Remove LH rear seat belt buckle
    Nota

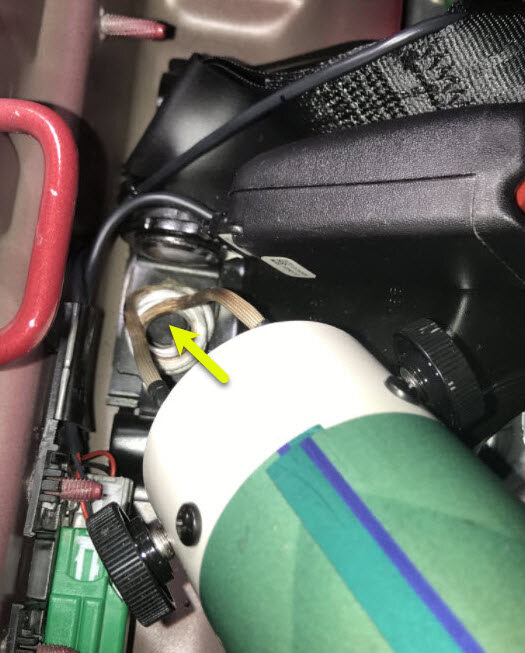

    1x patch bolt, 15mm, 40 Nm, If the bolt is difficult to remove, Use an inductive heating tool to melt the adhesive patch material, Position the inductive heating tool coil around the bolt, then heat the bolt for 20 seconds, Allow the bolt to cool for 2 minutes, Discard after removal

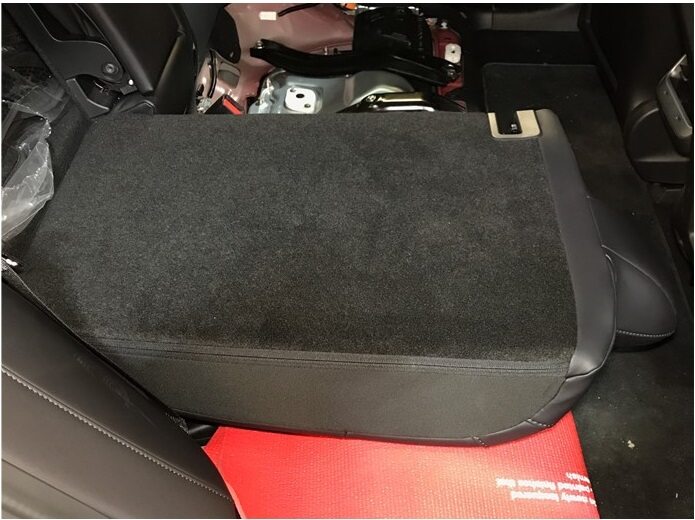

12. Fold 60 seat in down position
    Nota

    Protect the seat cushion

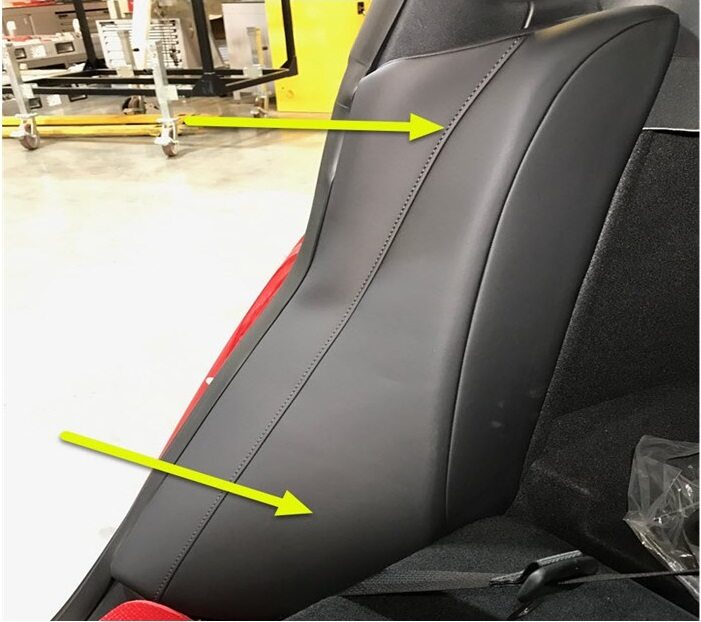

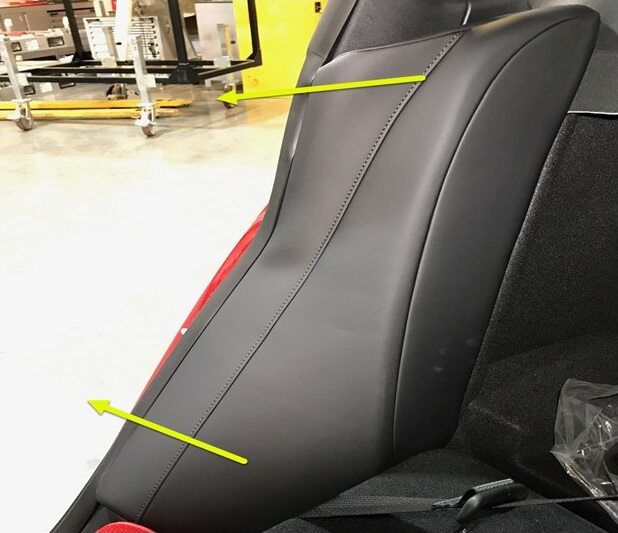

13. Remove LH side bolster
    Nota

    1x clip, 2x location pins, Pull outward then slightly upward to remove

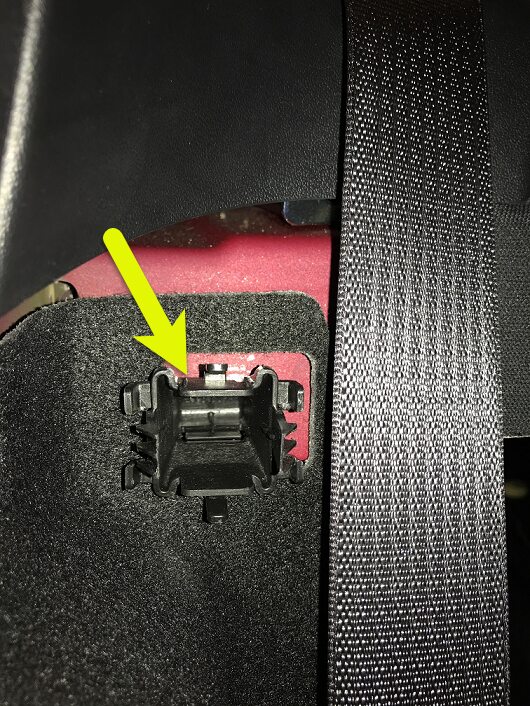

14. Remove and discard bolster plastic bracket from RH side
    Nota

    2x clips, If necessary, depress the clips from behind, this bracket may come out with bolster. Discard after removal



15. Fold 60 seat into vertical position
    Nota

    Remove seat protection

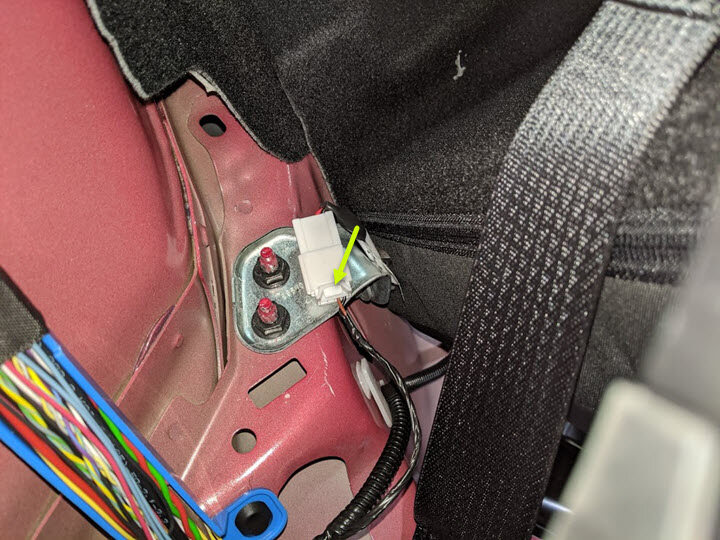

16. Disconnect 60 seat back seat heater harness
    Nota

    1x connector

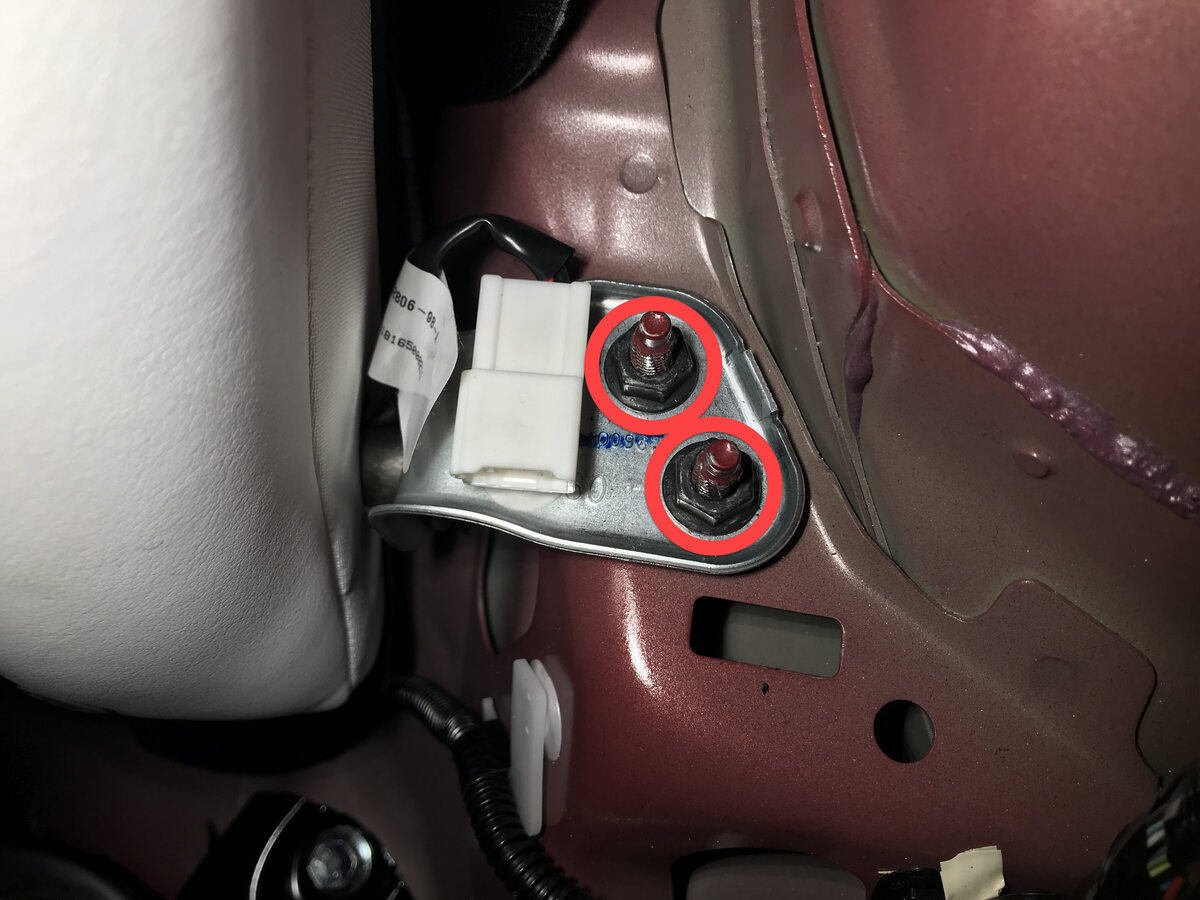

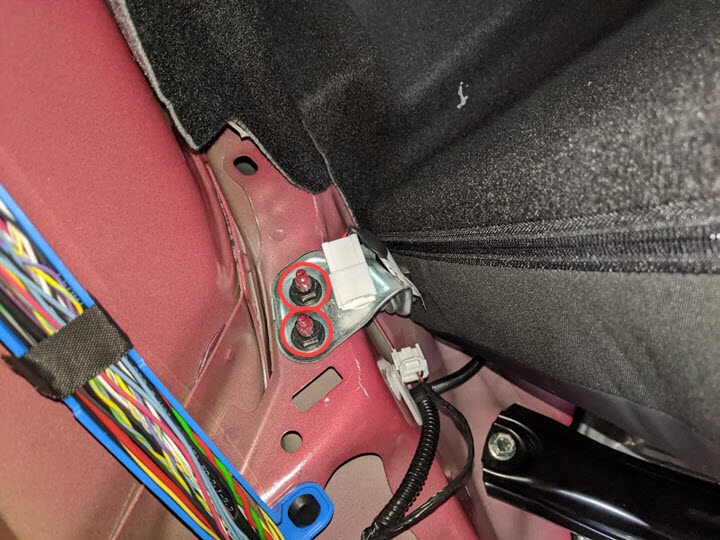

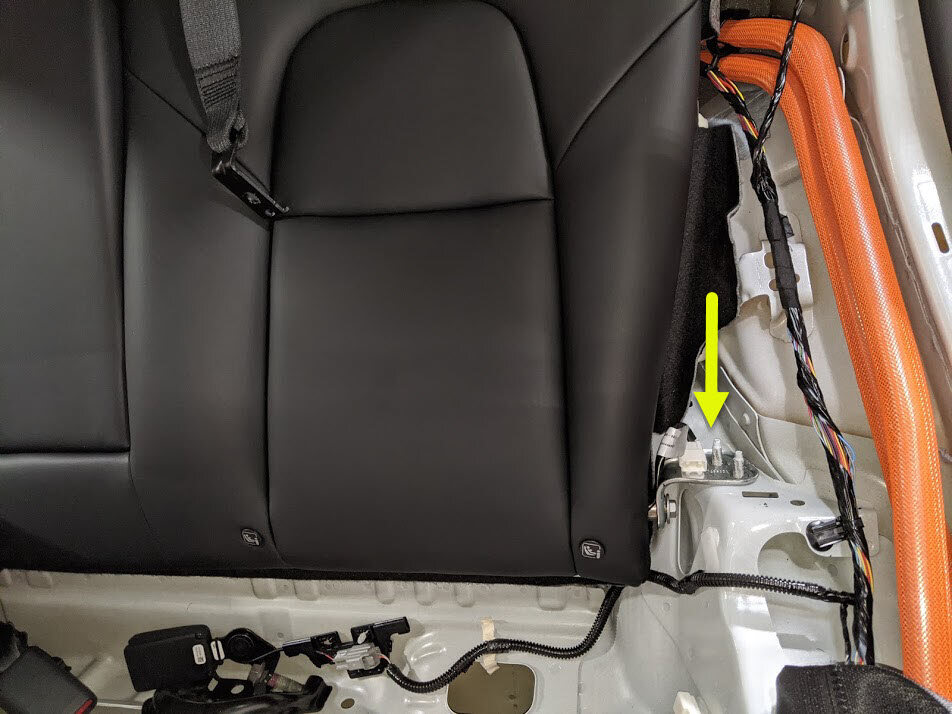

17. Remove nuts securing 60 seat back hinge bracket to body
    Nota

    2x nuts, 13mm, 18 Nm

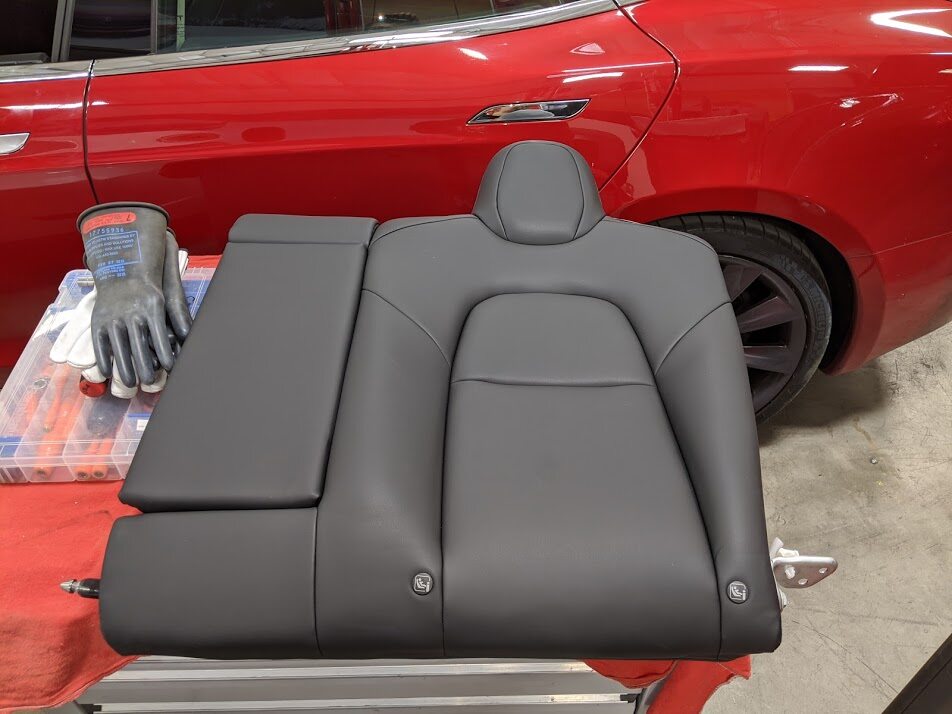

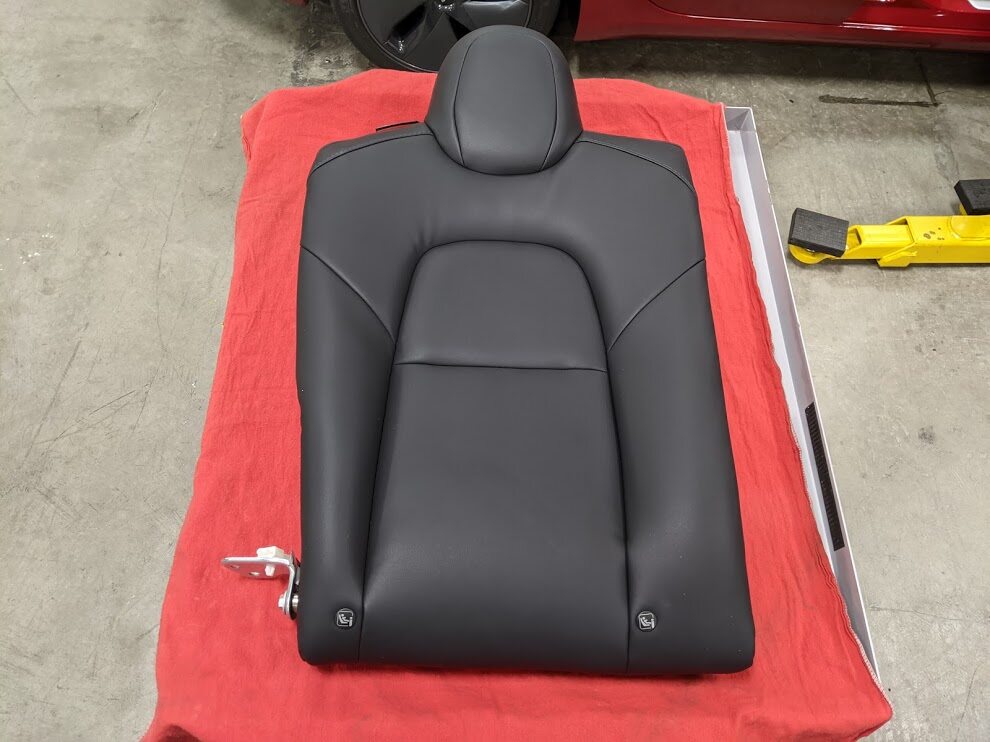

18. Remove 60 seat back by lifting up on LH side and pulling inner pivot out of 40 seat back and set onto padded work surface



19. Fold 40 seat in down position
    Nota

    Protect the seat cushion



20. Remove RH side bolster
    Nota

    1x clip, 1 tab, Pull outward then slightly upward to remove



21. Remove and discard bolster plastic bracket from LH side
    Nota

    2x clips, If necessary, depress the clips from behind, This bracket may come out with bolster, Discard after removal

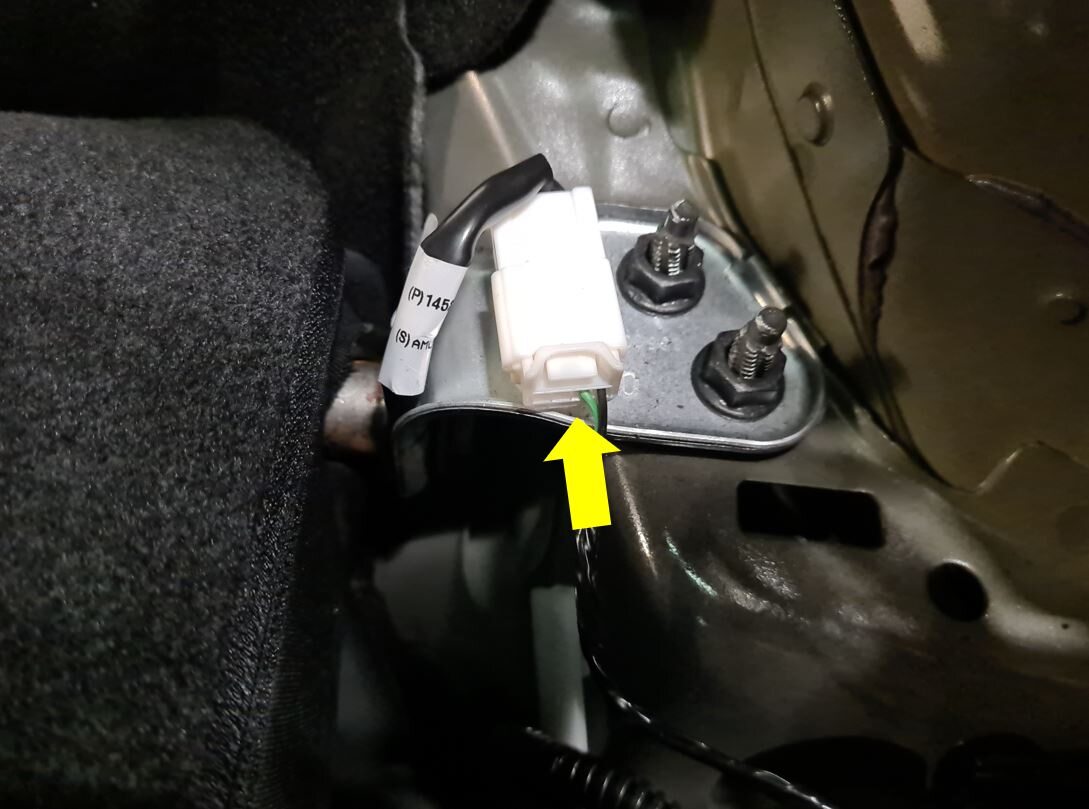

22. Disconnect 40 seat back seat heater harness
    Nota

    1x connector



23. Remove nuts securing 40 seat back hinge bracket to body
    Nota

    2x nuts, 13mm, 18 Nm



24. Remove 40 seat back from vehicle
    Nota

    Lift bracket from studs and slide outward

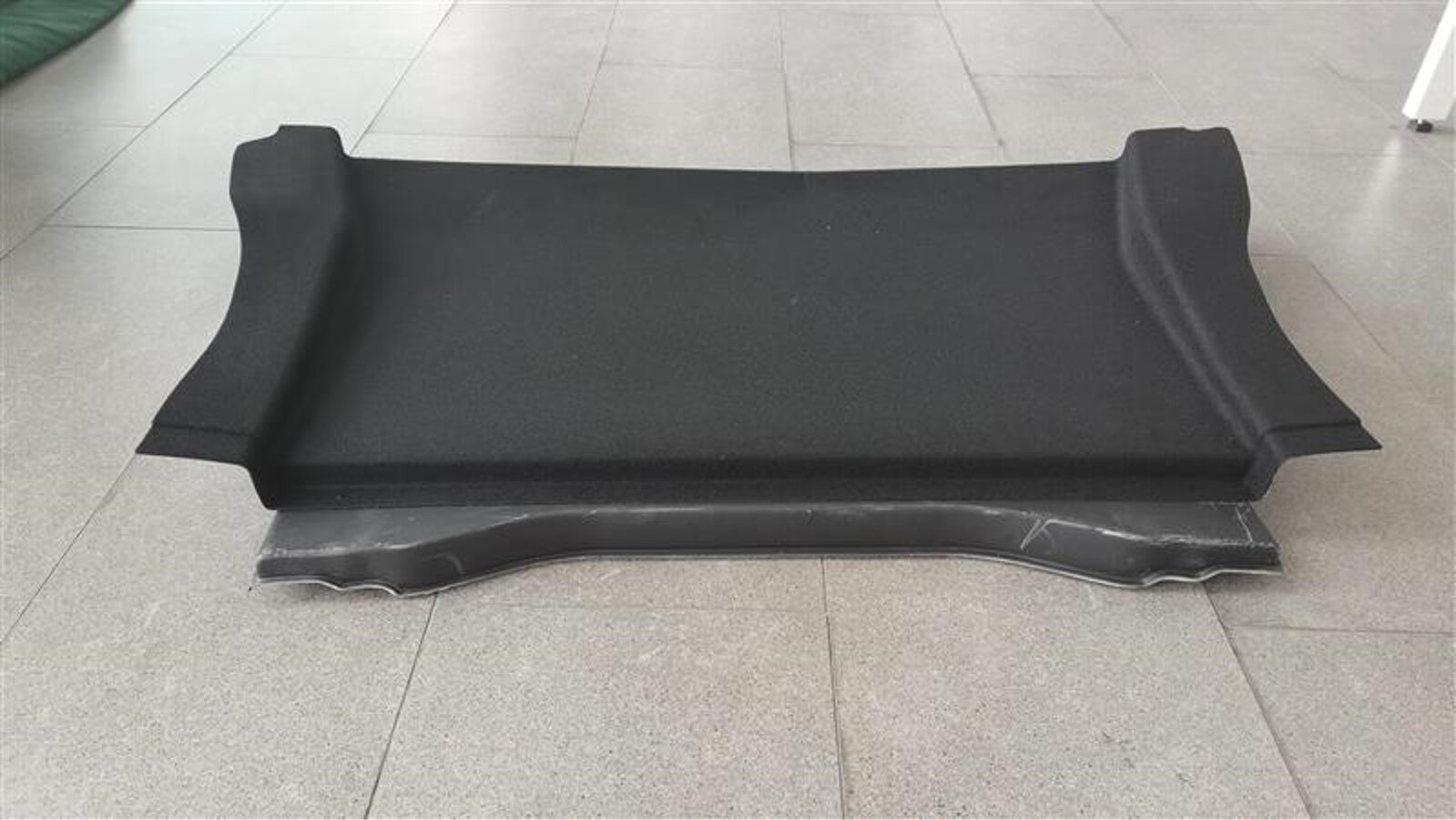

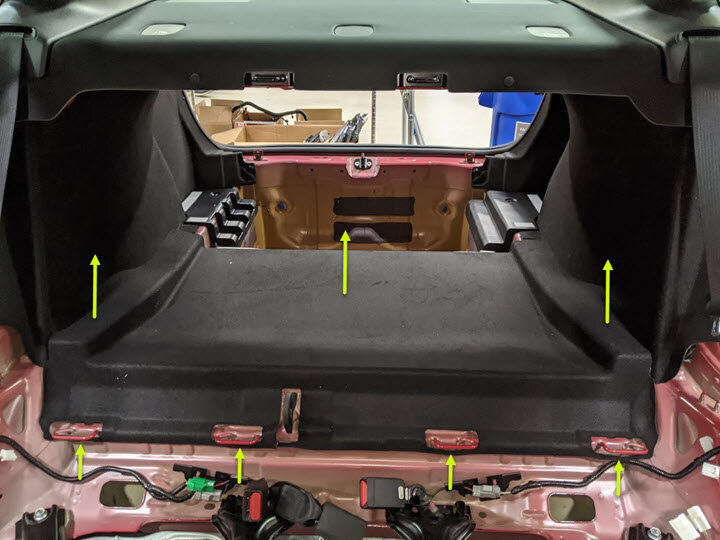

25. Remove front trunk carpet from vehicle
    Nota

    2x clips, Lift trunk carpet off of isofix bars





26. Install front trunk carpet into vehicle
    Nota

    2x clips, Align the trunk carpet to isofix bars





27. Install 60 seat back to vehicle
    Nota

    Align center and outer pivot locations



28. Install nuts securing 60 seat back hinge bracket to body
    Nota

    2x nuts, 13mm, 18 Nm



29. Connect 60 seat back seat heater harness
    Nota

    1x connector

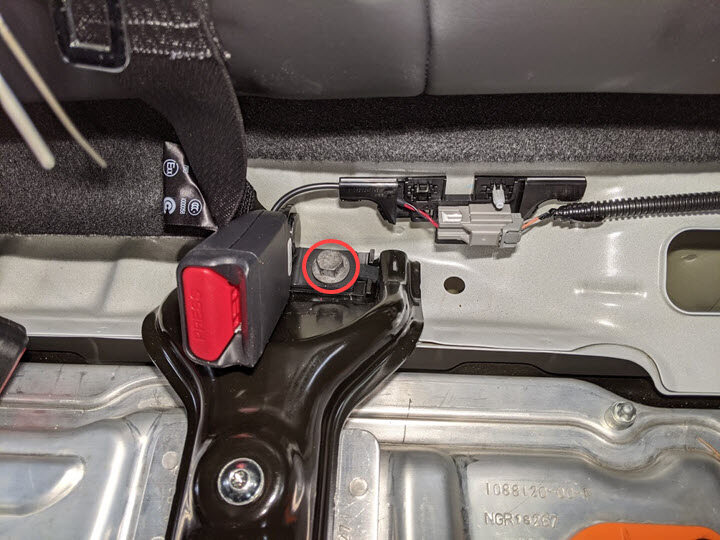

30. Install bolt securing LH seat belt catch and center seat belt to vehicle
    Nota

    1x patch bolt, 15mm, 40 Nm, Install new patch bolt, Position center seat belt under buckle, Make sure the guide pin is aligned



31. Fold 60 seat in down position
    Nota

    Protect the seat cushion if necessary

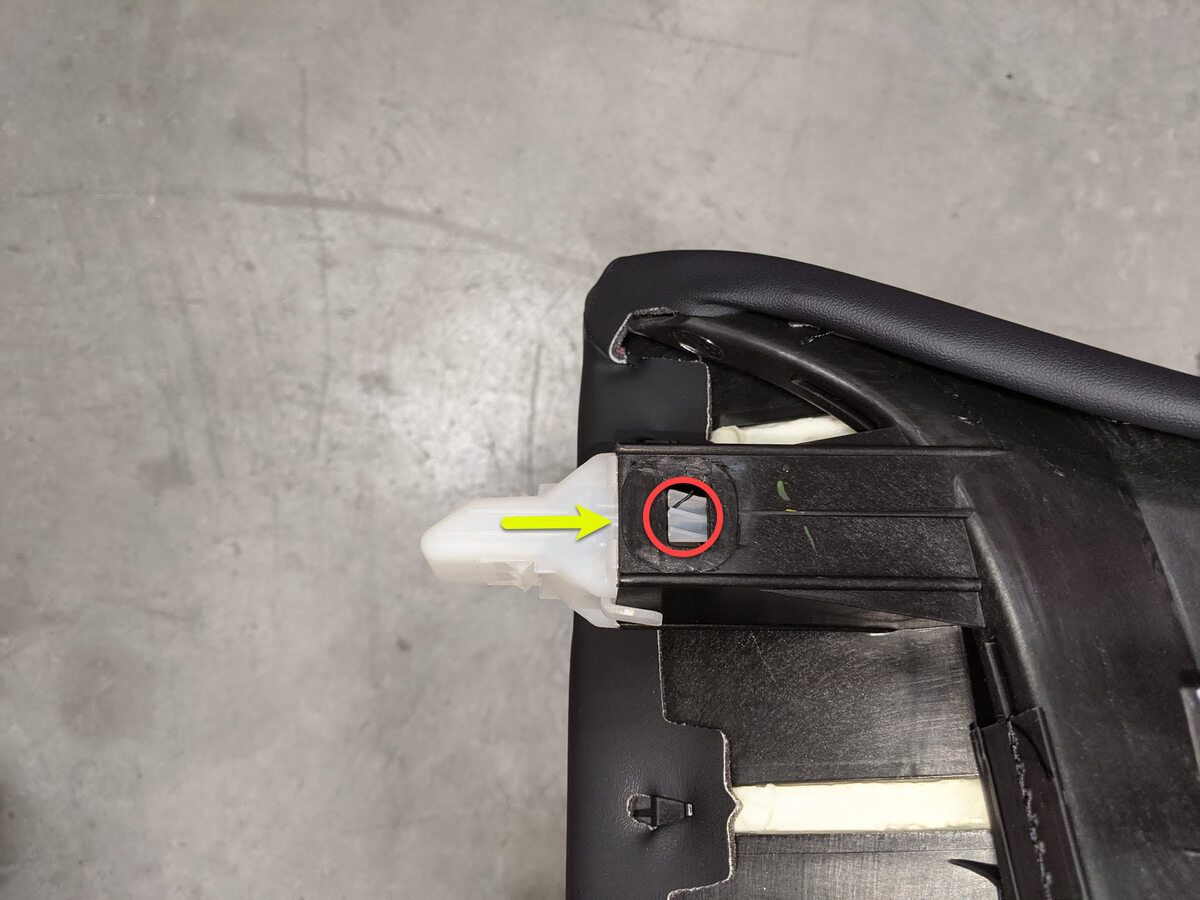

32. Install bolster plastic bracket to LH side bolster
    Nota

    2x tabs, Install new bolster bracket



33. Install LH side bolster
    Nota

    1x clip, 2x location pins, Align the bottom tab then push inward to install





34. Fold 60 seat into vertical position
    Nota

    Remove seat cushion protection, Be careful not to pinch the seat belt



35. Install 40 seat back to vehicle
    Nota

    Align center and outer pivot locations



36. Install nuts securing 40 seat back hinge bracket to body
    Nota

    2x nuts, 13mm, 18 Nm



37. Connect 40 seat back seat heater harness
    Nota

    1x connector



38. Fold the 40 seat in down position
    Nota

    Protect the seat cushion if necessary



39. Install bolster plastic bracket to RH side bolster
    Nota

    2x tabs, Install new bolster bracket



40. Install RH side bolster
    Nota

    1x clip, 1x tab, Align the bottom tab then push inward to install



41. Fold seat into vertical position
    Nota

    Remove seat cushion protection



42. Install rear trunk carpet into vehicle
    Nota

    4x velcro strips, Fully seat carpet at velcro strips





43. Install clips securing trunk carpet
    Nota

    2x push clips



44. Install trunk sill trim assembly
    Nota

    4x clips, 1x location pin, Align the latch with center slot then 2 locator to their slot and then press to secure the clips, Adjust the seal to overlap the trim









45. Install load floor





46. Close trunk





47. Connect 2nd row seat cushion harness and install 2nd row seat cushion
    Nota

    2x connectors, 2x clips, Insert the seat belt buckles through the holes, Slide rear cushion inward then align front guide tabs to locking tabs, Make sure cushion is fully seated with push pull test near clips

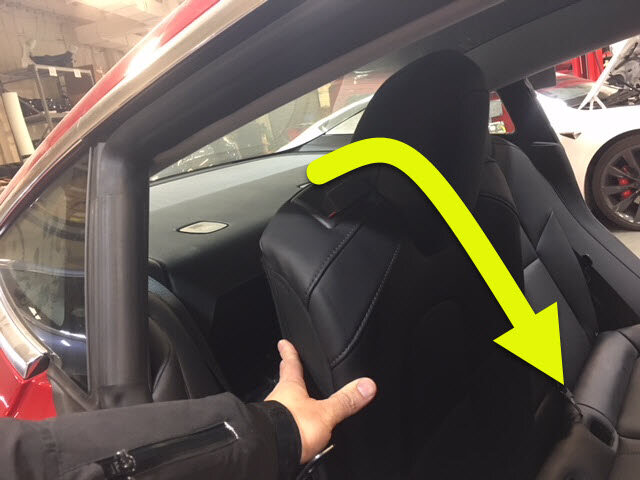

48. Move RH front seat to original position



49. Move LH front seat to original position



50. Raise all four windows



51. Close all four doors
