Korrigeringskode 33100222 1.26 MERK: Hvis ikke noe annet er uttrykkelig oppgitt i prosedyren, gjenspeiler korrigeringskoden og FRT ovenfor alt arbeidet som kreves for å gjennomføre denne prosedyren, inkludert de tilknyttede prosedyrene. Ikke stable korrigeringskoder med mindre du bli uttrykkelig bedt om det.MERK: Se Flat rate-tider for å lære mer om FRT-er og hvordan de lages. Hvis du vil gi tilbakemelding om FRT-verdier, kan du sende en e-post til LaborTimeFeedback@tesla.com. MERK: Se Personlig beskyttelse for å forsikre deg om at du bruker riktig PVU når du gjennomfører prosedyren nedenfor.

1. Raise and support vehicle with wheels still touching the ground
   Merk

   Ensure vehicle is not charging
2. Open LH front door
3. Lower LH front window
4. Open hood
5. Remove the rear underhood apron. See Deksel under panser – bak (fjerne og skifte ut).
6. Remove the underhood storage unit. See Oppbevaringsrom under panser (fjerne og skifte ut).
7. Remove the HEPA filter. See Enhet – filter – HEPA (fjerne og skifte ut).
8. Power off vehicle from center display
   Merk

   Via Controls > Safety & Security > Vehicle Power > Power Off
9. Disconnect LV battery connector and First Responder Loop
   Merk

   2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge







10. Verify operation of multimeter
    Merk

    Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing LV battery, Touch lightly and do not damage terminals





11. Raise vehicle fully and lower lift onto locks
    Merk

    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
12. Remove the mid aero shield panel. See Panel – luftskjerm – midtre (fjerne og skifte ut).
13. Remove all items from pockets and ensure not wearing metal items





14. Inspect HV insulating gloves
    Merk

    Check gloves for damage prior to use, Refer to service document TN-15-92-003 R1, for information on inspecting HV gloves. https://service.teslamotors.com/protected-doc/ServiceBulletins/External/TN/TN-15-92-003_High_Voltage_Awareness_Care_Points_R4.pdf



15. Put on HV insulating gloves and leather over gloves
    Merk

    Make sure to wear Electrical Protective Gloves any time Hioki tester is used



16. Install amp clamp to RDU HV harness
    Merk

    Verify meter is zeroed out before performing measurement, Measure single cable. Verify ammeter is installed in correct direction. If current > 0.5A do not proceed with disconnecting HV connector. In this case, start vehicle electrical isolation again to make sure that all was properly shut down. Escalate for assistance as required If current < 0.5A, Ok to disconnect and check voltage at HV plug on the battery side.





17. Release RDU HV harness from HV battery
    Merk

    1x connector, Release locking tab and rotate the release lever up to disengage the connector, Do not force the release lever up, Ensure the alignment tabs on the RDU header are not damaged



18. Verify no high voltage at RDU HV header
    Merk

    Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering









19. Lower vehicle for access to underhood area
    Merk

    Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
20. Remove clip securing negative terminal cable to AC compressor bracket
    Merk

    1x clip



21. Remove fasteners securing the LV battery
    Merk

    3x bolts, 8mm, 6 Nm Early production vehicle may have 3x bolts, M6, 10mm, 10 Nm





22. Remove LV battery from vehicle
    Merk

    Raise up LV battery vertically from the vehicle

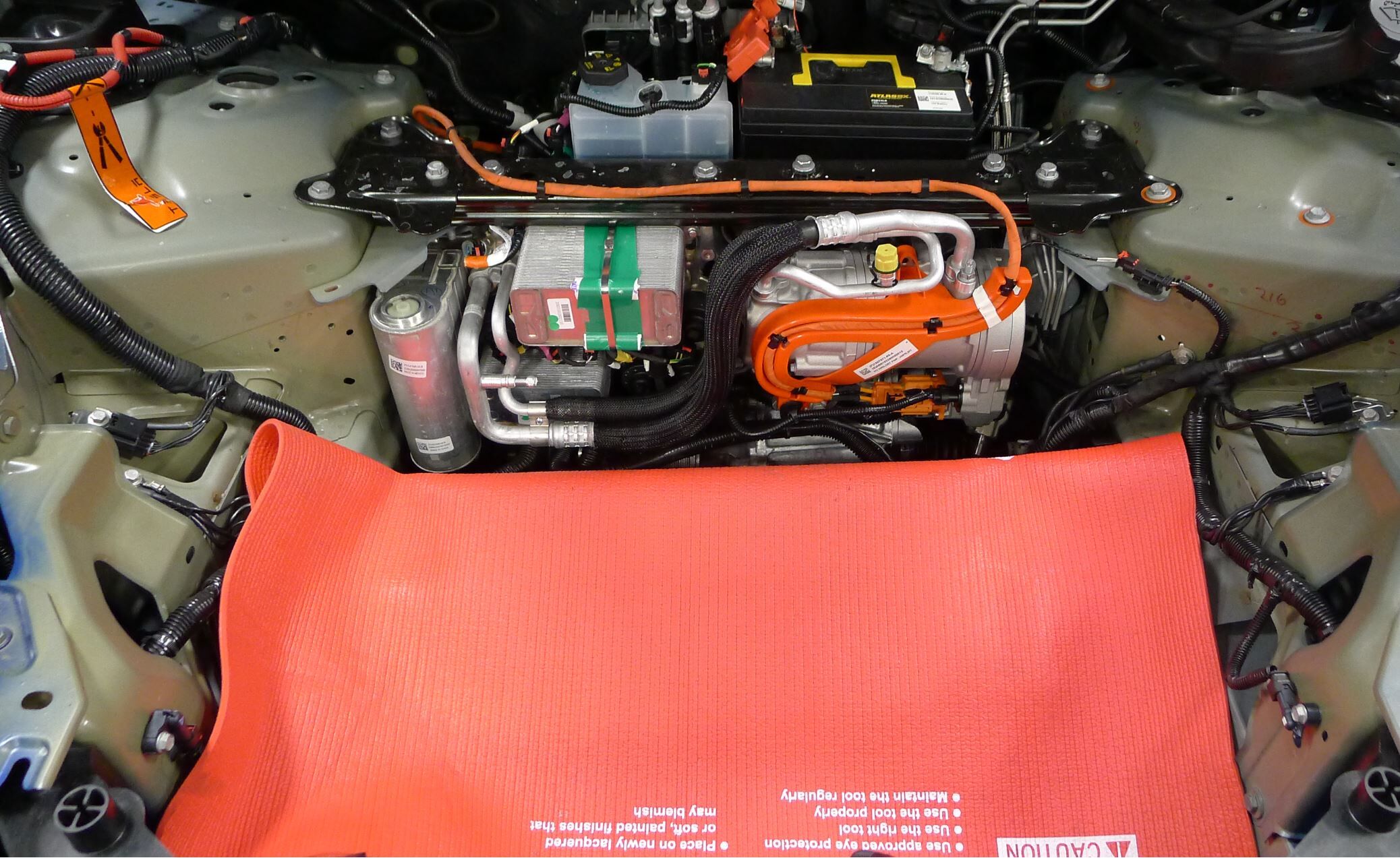

23. Position protective fender cover over fan shroud and support



24. Remove clips securing PT supply hose to AC compressor bracket
    Merk

    2x clips



25. Release clip securing HV compressor harness to plastic connector housing
    Merk

    1x clip, Take note of original routing



26. Release clip securing AC compressor logic connector to HV harness
    Merk

    1x fir tree clip





27. Release AC compressor logic connector
    Merk

    1x locking connector, Pull red tab to disengage lock and pull again to release connector, Do not push down on red tab



28. Remove fastener securing compressor HV harness to AC compressor
    Merk

    1x bolt, 13mm, 9 Nm



29. Release HV harness connector from AC compressor
    Merk

    1x locking connector, Disengage black locking tab and release connector





30. Remove AC compressor ground strap
    Merk

    1x bolt, 10mm, 7 Nm, MYSP uses T25 bolt



31. Remove the clip securing the coolant hose to the AC compressor bracket
    Merk

    1x fir tree clip



32. Remove AC compressor and AC compressor bracket assembly from strut tower support brace
    Merk

    2x bolts, 15mm, 31 Nm, Recommend assistance, Support the AC compressor while removing the fasteners, Carefully remove the AC compressor and AC compressor bracket towards the front of the vehicle, under the strut tower support brace and rest on fender cover





33. Disconnect HCU connector
    Merk

    1x connector, Release red locking tab, Press black release tab and rotate lever upward to remove





34. Release the master cylinder brake lines from clip at rear of hydraulic control unit bracket
    Merk

    1x harness clip



35. Remove fasteners securing hydraulic control unit to hydraulic control unit bracket
    Merk

    2x nuts, 10mm, 8 Nm, Discard nuts after removal



36. Remove the bolts securing the hydraulic control unit to frame rail
    Merk

    2x bolts, 10mm, 10 Nm



37. Release hydraulic control unit bracket from hydraulic control unit
    Merk

    Slide trim tool between hydraulic control unit bracket and hydraulic control unit and use for leverage, Position 20 in clip panel tool between trim tool and hydraulic control unit and gently pry to release bracket, Release bracket far enough to access hydraulic control unit ECU bolts







38. Remove upper bolts securing hydraulic control unit ECU to hydraulic control unit
    Merk

    2x bolts, E5, 3 Nm, Discard bolts after removal



39. Remove lower bolts securing hydraulic control unit ECU to hydraulic control unit
    Merk

    2x bolts, E5, 3 Nm, Discard nuts after removal



40. Remove hydraulic control unit ECU from hydraulic control unit
    Merk

    Gently release ECU towards rear of vehicle, Do not use any tools to pry the ECU away from the hydraulic control unit







41. Clean surface on hydraulic control unit
    Merk

    Use a lint free cloth to clean any debris from hydraulic control unit, Do not use any chemicals, Do not allow any debris to fall into connecting hole of pump motor, Do not touch pressure sensor with fingers







42. Install hydraulic control unit ECU into hydraulic control unit
    Merk

    Align pump motor on ECU with connecting hole on hydraulic control unit







43. Install upper right bolt securing hydraulic control unit ECU to hydraulic control unit hand tight
    Merk

    1x bolt, E5, 3 Nm, Install new bolt, Hydraulic control unit bolts must be installed in sequence, Torque at later step,





44. Install lower left bolt securing hydraulic control unit ECU to hydraulic control unit hand tight
    Merk

    1x bolt, E5, 3 Nm, Install new bolt, Hydraulic control unit bolts must be installed in sequence, Torque at later step





45. Install upper left bolt securing hydraulic control unit ECU to hydraulic control unit hand tight
    Merk

    1x bolt, E5, 3 Nm, Install new bolt, Hydraulic control unit bolts must be installed in sequence, Torque at later step





46. Install lower right bolt securing hydraulic control unit ECU to hydraulic control unit hand tight
    Merk

    1x bolt, E5, 3 Nm, Install new bolt, Hydraulic control unit bolts must be installed in sequence, Torque at later step





47. Torque upper right bolt securing hydraulic control unit ECU to hydraulic control unit
    Merk

    1x bolt, E5, 3 Nm, Hydraulic control unit bolts must be torqued in sequence





48. Torque lower left bolt securing hydraulic control unit ECU to hydraulic control unit
    Merk

    1x bolt, E5, 3 Nm, Hydraulic control unit bolts must be torqued in sequence





49. Torque upper left bolt securing hydraulic control unit ECU to hydraulic control unit
    Merk

    1x bolt, E5, 3 Nm, Hydraulic control unit bolts must be torqued in sequence





50. Torque lower right bolt securing hydraulic control unit ECU to hydraulic control unit
    Merk

    1x bolt, E5, 3 Nm, Hydraulic control unit bolts must be torqued in sequence





51. Install hydraulic control unit bracket to hydraulic control unit
    Merk

    Support HCU while installing bracket, Avoid bending or damaging brake lines



52. Install the bolts securing the hydraulic control unit to frame rail
    Merk

    2x bolts, 10mm, 10 Nm



53. Install the fasteners securing hydraulic control unit to the hydraulic control unit bracket
    Merk

    2x nuts, 10mm, 8 Nm



54. Position the master cylinder brake lines to clip at rear of hydraulic control unit bracket
    Merk

    1x harness clip



55. Connect HCU connector
    Merk

    1x connector, Seat connection and rotate lever downward, Secure red locking tab





56. Position the AC compressor and AC compressor bracket assembly into the vehicle for assembly and install the fasteners securing the AC compressor assembly to the strut tower support brace
    Merk

    2x bolts, 15mm, 31 Nm, Recommend assistance, Support the AC compressor while installing the fasteners, Carefully install the AC compressor and AC compressor bracket towards the rear of the vehicle, under the strut tower support brace







57. Install the clip securing the coolant hose to the AC compressor bracket
    Merk

    1x fir tree clip



58. Install AC compressor ground strap
    Merk

    1x bolt, 10mm, 7 Nm



59. Install clip securing HV compressor harness to plastic connector housing
    Merk

    1x clip, Take note of original routing



60. Secure HV harness connector onto AC compressor
    Merk

    1x locking connector, Secure connector and engage black locking tab, Verify fully seated





61. Install fastener securing AC compressor HV harness bracket to AC compressor
    Merk

    1x bolt, 13mm, 9 Nm



62. Secure AC compressor logic connector
    Merk

    1x locking connector, secure connection and engage red locking tab



63. Install clip securing AC compressor logic connector to HV harness
    Merk

    1x fir tree clip



64. Install clips securing PT supply hose to AC compressor bracket
    Merk

    2x clips



65. Remove protective fender cover over fan shroud and support



66. Raise vehicle fully and lower lift onto locks
    Merk

    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
67. Secure RDU HV harness onto HV battery
    Merk

    1x connector, Verify lever is in the upright and open position, Carefully seat connector and allow lever to engage, Fully secure lever and verify red tab is locked, Do not damage any pins



68. Remove HV insulating gloves
69. Install the mid aero shield panel. See Panel – luftskjerm – midtre (fjerne og skifte ut).
70. Lower vehicle fully
    Merk

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
71. Position LV battery into vehicle
    Merk

    Lower vertically LV battery into the vehicle





72. Install fasteners securing LV battery
    Merk

    3x bolts, 8mm, 6 Nm Early production vehicle may have 3x bolts, M6, 10mm, 10 Nm



73. Install clip securing negative terminal cable to AC compressor bracket
    Merk

    1x clip



74. Connect first responder loop and LV battery
    Merk

    2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated







75. Install the HEPA filter. See Enhet – filter – HEPA (fjerne og skifte ut).
76. Install the underhood storage unit. See Oppbevaringsrom under panser (fjerne og skifte ut).
77. Install the rear underhood apron. See Deksel under panser – bak (fjerne og skifte ut).
78. Close hood
79. Remove vehicle from lift
    Merk

    Lower rack arms fully and remove from under vehicle
80. Connect to vehicle using Toolbox 3.0
    Merk

    Vehicle connection is integrated into drivers footwell cover, Open Toolbox 3 website and establish connection to the vehicle. https://toolbox.teslamotors.com, Select connection status icon at top right corner, and select connect locally (icon will turn green when vehicle is connected)
81. Select ‘Actions/Autodiag’ and search for ‘Service_Redeploy’
82. Select ‘UPDATE_CAN-REDEPLOYvia Toolbox: (link)via Service Mode Plus:
    • Drive Inverter Replacement ➜ Drive Inverter DIRE1L Replacement ➜ CAN Redeploy
    • Drive Inverter Replacement ➜ Drive Inverter DIRE1R Replacement ➜ CAN Redeploy
    • Drive Inverter Replacement ➜ Drive Inverter DIRE2 Replacement ➜ CAN Redeploy
    • Drive Inverter ➜ Front Drive Inverter Replacement ➜ CAN Redeploy
    • Drive Inverter ➜ Rear Drive Inverter Replacement ➜ CAN Redeploy
    • Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ CAN Redeploy
    • Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ CAN Redeploy
    • Drive Unit ➜ Front Drive Unit Replacement ➜ CAN Redeploy
    • Drive Unit ➜ Rear Drive Unit Replacement ➜ CAN Redeploy
    ’, click ‘Run’, and allow routine to complete
    Merk

    Select ‘X’ at top right of window to close once complete
83. Remove ethernet cable from Ethernet port to disconnect Toolbox 3.0 from vehicle
84. Once firmware redeploy is complete, Verify on center display release notes are present
    Merk

    If the redeploy fails you may receive an error message on UI
85. Raise LH front window
86. Close LH front door
