校正代码 17100812 3.42 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。 注意：执行下述程序时，请参阅人员保护确认已穿戴适当的个人防护装备 (PPE)。

1. Open all four doors
2. Lower all four windows
3. Set air suspension ride height to “Very High”
   注

   Using center display > Controls > Suspension > ''Very High''
4. Open hood
   注

   Via Center Display > Controls > Frunk Open
5. Open liftgate through UI
   注

   Using center display touchscreen > Quick Controls > Trunk Open
6. Remove LH front floor mat
7. Move LH front seat forward
8. 用一字螺丝刀逆时针转动前座椅安全带联动装置的锁止机构，以便将其从预紧器松开，然后将联动装置从预紧器上滑下并将其放置在一旁。
   警告

   请勿顺时针旋转，以免损坏锁止机构。

   注

   联动装置的设计可能有所不同，但功能相同。

   注

   松开时，锁定螺钉将保持在水平位置。

   注

   联动装置松开时会发出轻微的咔嗒声。





9. Remove bolts securing rear of LH front seat tracks to the floor panel
   注

   2x patch bolts, T45P, 34 Nm, Discard after removal



10. Move LH front seat backward
11. Remove bolts securing front of LH front seat tracks to the floor panel
    注

    2x patch bolts, T45P, 34 Nm, Discard after removal



12. Adjust position of LH front seat for easy removal
    注

    Move seat to middle of track at most upright position with seat fully up off floor
13. Fold 60 seat into down position
    注

    Seat can be folded from the backrest button or trunk switch, If seat cushion is not present, protect the seat as required
14. Remove RH front floor mat
15. Move RH front seat forward
16. Remove bolts securing rear of RH front seat tracks to the floor panel
    注

    2x patch bolts, T45P, 34 Nm, Discard after removal



17. Move RH front seat backward
18. Remove bolts securing front of RH front seat tracks to the floor panel
    注

    2x patch bolts, T45P, 34 Nm, Discard after removal



19. Adjust position of RH front seat for easy removal
    注

    Move seat to middle of track at most upright position with seat fully up off floor
20. Power off vehicle from center display
    注

    Via Controls > Safety & Security > Power Off
21. Remove rear underhood apron
    注

    8x clips





22. Disconnect LV battery connector and First Responder Loop
    注

    2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection









23. Position LH seat to gain access below seat bottom and disconnect body harness from seat controller
    注

    2x connectors, 1x clip, Release red locking tab on black connector



24. Remove LH front seat from vehicle
    注

    Recommend assistance, Use caution to not damage other components
25. Remove LH front seat risers
    注

    2x risers, 2x clips per riser





26. Remove LH mid A-pillar trim
    注

    1x clip, 2x tabs





27. Remove LH lower A-pillar trim
    注

    7x clips







28. Remove LH footwell cover
    注

    1x connector, 2x magnets





29. Remove LH console side carpet
    注

    11x clips





30. Remove fasteners securing LH knee air bag assembly to vehicle
    注

    2x patch bolts, E10, 8 Nm, Discard after removal



31. Remove the LH knee air bag assembly from vehicle
    注

    3x connectors, 1x clip, 6x tabs, Release 2x locking tab on airbag connector







32. Fold LH front cabin carpet aside for access





33. Position RH seat to gain access below seat bottom and disconnect body harness from seat controller
    注

    2x connectors, 1x clip, Release red locking tab on black connector



34. Remove RH front seat from vehicle
    注

    Recommend assistance, Use caution to not damage other components



35. Remove RH first row seat risers from cabin floor
    注

    2x risers, 2x clips per riser





36. Remove RH mid A-pillar trim
    注

    1x clip, 2x tabs





37. Remove RH lower A-pillar trim
    注

    7x clips







38. Remove RH footwell cover
    注

    3x magnets, 1x connector



39. Remove RH console side carpet
    注

    11x clips





40. Fold RH front cabin carpet aside for access





41. Release harness from RH footrest panel
    注

    1x clip



42. Remove RH footrest panel
    注

    2x bolts, 10mm, 5 Nm, 1x nut, 10mm, 5 Nm





43. Remove RH side bolster trim
    注

    1x clip, 1x tab, Start by releasing upper portion







44. Remove LH side bolster trim
    注

    1x clip, 1x tab, Start by releasing upper portion







45. Remove 2nd row seat cushion assembly
    注

    2x clips, 2x connectors, Disengage locking clips and lift up on seat cushion, Release connections, If 2nd row seats are folded down then fold up for time being











46. Remove parcel shelf



47. Remove trunk load floor



48. Remove side load floor trim



49. Remove the trunk sill panel
    注

    6x clips, 4x guides Corners or bottom edge are good grabbing points for removal. Can use plastic trim tool or just your hands.







50. Remove rear wall trim
    注

    4x push clips, 2x datums







51. Remove LH trunk bracket assembly
    注

    4x clips, 1 datum, Pull bracket straight up







52. Remove trunk side wall trim
    注

    3x Velcro strips





53. Remove LH lower C-pillar trim
    注

    8x clips





54. Remove LH mid C-pillar trim
    注

    3x clips







55. Remove LH lower B-pillar
    注

    6x clips, 2x datums, Release from upper trim and body







56. Remove LH upper B-pillar
    注

    7x clips, Release clips and route seatbelt through B-pillar, Be cautious not to separate the upper B-pillar, There are plastic welds near the center of trim holding upper and lower portion together





57. Release LH upper C-pillar trim and move aside
    注

    7x clips







58. Release clips securing LH trunk side trim and remove
    注

    3x push clips, 3x clips, 2x connectors

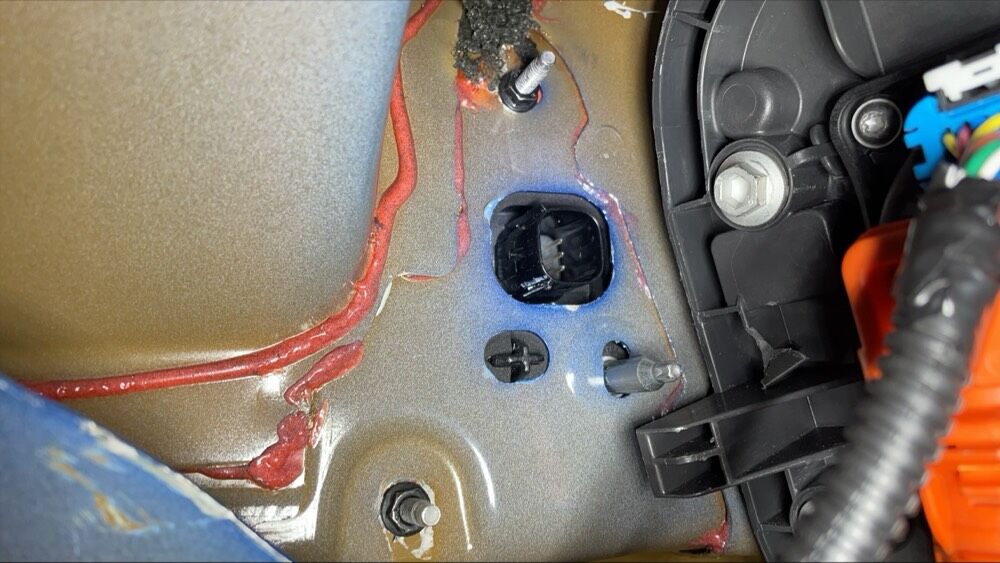

59. Remove butyl patch covering LH access hole



60. Remove LH nut securing rear fascia assembly to body
    注

    1x nut, 10mm, 4 Nm



61. Remove RH trunk bracket assembly
    注

    3x clips, 1 datum, Pull bracket straight up





62. Peel back RH trunk side trim and secure against upper C-pillar trim





63. Disconnect RH trunk puddle lamp
    注

    1x connector



64. Remove butyl patch covering RH access hole



65. Remove RH nut securing rear fascia assembly to body
    注

    1x nut, 10mm, 4 Nm



66. Remove push clips securing LH rear wheel arch liner to fascia and move to the side for access
    注

    4x push clips



67. Remove screw securing rear fascia to LH fender bracket
    注

    1x screw, T25, 5 Nm, Flex liner against tire





68. Remove push clips securing RH rear wheel arch liner to fascia and move to the side for access
    注

    4x push clips



69. Remove screw securing rear fascia to RH fender bracket
    注

    1x screw, T25, 5 Nm, Flex liner against tire





70. Remove rear diffuser nuts
    注

    3x nuts, 10mm, 3 Nm



71. Release rear diffuser from mid aero shield
    注

    8x bolts, 10mm, 6 Nm, 2x clips, 2x datums





72. Release LH and RH fascia edges from fender brackets





73. Pull fascia rearward to release from body
    注

    Pull edges straight back to release fascia, Set fascia on protected surface, Recommend assistance







74. Disconnect rear fascia harness
    注

    1x connector, Pull red tab to disengage lock then disconnect, Located behind RH rear wheel arch liner



75. Remove rear fascia assembly from vehicle
    注

    Disconnect fascia harness before removing fascia, Set fascia on protected surface, Recommend assistance





76. Release LH door harness connectors and clip from VC left
    注

    2x connectors, 1x clip



77. Release IP harness connectors and clip by VC left
    注

    1x locking connector, 1x lever connector, 1x clip, Disengage red locking tab, Disengage lever to release



78. Release connector on VC left
    注

    1x locking connector, Disengage red locking tab



79. Disconnect J1/J2 X030A/B Body 1 connector
    注

    1x connector, Release lock then remove





80. Disconnect J4 X032 Body 3 Connector
    注

    1x connector





81. Disconnect J6/J7 X038A/B Body 5 connector
    注

    1x connector, Release lock then remove





82. Disconnect J5 X034 Body 4 connector
    注

    1x connector, Release lock then remove





83. Disconnect J3 X031 Body 2 connector
    注

    1x connector, Release lock then remove





84. Disconnect J8 X039 Body 6 Connector
    注

    1x connector





85. Remove LH upper A-pillar trim
    注

    2x tethered clips, 1x clip, 1x connector, Pull inside of the upper portion of upper A-pillar, Depress 2x tabs to remove each tether from body side, Disconnect tweeter, Then pull upper A-pillar upward to remove









86. Disconnect headliner harness at LH front A-pillar
    注

    1x connector



87. Release clips for A-pillar branch of LH side body harness
    注

    4x clips, Release clips and route harness branch down





88. Release LH body harness ground from lower A-pillar
    注

    1x bolt, 10mm, 9 Nm



89. Release LH body harness bracket from VC left and body
    注

    3x clips



90. Remove driver floor jumper air duct
    注

    1x tab



91. Disconnect LH body harness from brake switch
    注

    1x connector



92. Disconnect accelerator pedal connector
    注

    1x connector, Do not push down on red tab, Pull red tab to disengage lock, Pull again to release connector



93. Release LH body harness from pedal assembly
    注

    1x harness clip



94. Release clips securing LH body harness to driver footwell
    注

    2x clips



95. Remove LH toeboard bracket from vehicle
    注

    2x bolts, E14, 9 Nm, 1x bolt 10mm, 10 Nm, 1x bolt 13mm, 20 Nm, Be cautious and do not damage nearby harness





96. Release clips securing LH body harness under IP
    注

    2x clips



97. Disconnect RCM connectors
    注

    2x connectors, Disconnect right connector first by swinging release arm up then disconnect left connector in same manner











98. Release LH body harness connector and clip by passenger footwell area
    注

    1x locking connector, 1x clip, Disengage red locking tab, Route harness back towards driver side







99. Release LH body harness connectors and clip by passenger side center console
    注

    2x connectors, 1x clip, Disengage locking tab, Route harness back towards driver side





100. Disconnect RH body harness from LH body harness under RH front carpet
     注

     3x connectors, Release red locking tabs



101. Release clips securing LH body harness to passenger seat area
     注

     4x clips, Route harness back towards driver side





102. Release clips securing LH body harness to LH driver side area
     注

     9x clips, Route any branches out as required









103. Release B-pillar accelerometer connection
     注

     1x connector, Disengage red tab and pull red tab outwards again to release



104. Disconnect LH front retractor connectors
     注

     2x connectors, 2x tabs per connector, Simultaneously disengage tabs on both sides of each connector to release housing







105. Release LH body harness connector and clip to LH rear door
     注

     1x connector, 1x clip, Route harness out from B-pillar



106. Remove LH B-Pillar applique cover
     注

     2x clips, 2x tabs, Use a plastic trim tool to release upper clips then slide downwards to release from bottom tabs secured to B-Pillar applique





107. Remove bolts securing LH B-Pillar applique
     注

     2x bolts, T25, 4 Nm



108. Pull down to release LH applique from upper clips
     注

     Use caution as camera harness does not have much slack





109. Remove LH B-Pillar applique
     注

     2x connectors, Hold LH applique away from body and carefully disconnect camera harness connectors, then remove applique





110. Release LH body harness clips to b-pillar
     注

     5x clips, Route away as needed







111. Release clips securing LH body harness to second row area
     注

     5x clips





112. Disconnect RH body harness from LH body harness under 2nd row cushion
     注

     2x connectors, Release red locking tab



113. Disconnect 2nd row LH seat belt buckle connector
     注

     1x connector



114. Release clips securing LH body harness for 2nd row seat belt buckle branch
     注

     2x clips, Route branch out from under busbar



115. Release LH C-pillar lower bottom BIW bracket
     注

     1x harness clip, 2x clips





116. Release LH C-pillar mid and lower BIW bracket
     注

     3x clips





117. Remove closeout panel for LH rear door latch assembly
     注

     1x cover, Fold trim aside for access





118. Disconnect LH rear door latch assembly connector
     注

     1x connector, release locking tab



119. Release LH body harness ground from C-pillar
     注

     1x bolt, 10mm, 9 Nm



120. Remove LH sun visor bracket cover
     注

     4x clips, Extending the sun visor may allow for extra working room



121. Remove LH sun visor fastener
     注

     1x screw, T25, 3.5 Nm, Extending the sun visor may allow for extra working room



122. Remove LH sun visor from headliner area
     注

     Fold sun visor to the closed and folded down position but do not latch in place



123. Disconnect LH sun visor connector
     注

     1x connector







124. Push open LH coat hook



125. Pry open LH coat hook screw cover
     注

     2x tabs



126. Remove LH coat hook screw
     注

     1x screw, T25, 2.5 Nm



127. Remove LH bolt securing rear headliner to body
     注

     1x bolts, 10mm, 3 Nm



128. Partially release headliner from LH side body
     注

     4x clips, 1x hook, 3x tether clips, Headliner will be supported by tethers when released, Push upward and inward to release hooks on the coat hook assemblies from the body





129. Disconnect LH side curtain air bag connector
     注

     1x connector, Pull back on tab to release connector from LH side curtain air bag assembly





130. Release LH body harness clips to curtain airbag
     注

     7x clips, Route harness away but take note of original routing as it will need to be re-routed correctly during install









131. Release LH body harness clips to C-pillar area
     注

     5x clips







132. Release LH body harness connections from charge port ECU
     注

     2x connectors



133. Release charge port latch connection
     注

     1x connector, Take note of harness routing, Pull red locking tab outwards to release lock, pull again to release connector_x000A_







134. Release charge port connection
     注

     1x connector, Carefully remove white locking tab, Depress tab to release connection from the charge port, Continue to pull off connector, The connection is intended to disengage the safety cap when released









135. Remove charge port safety cap
     注

     2x hooks





136. Release LH tail lamp connection
     注

     1x locking connector, Disengage red locking tab





137. Release clips securing LH body harness to LH trunk area
     注

     6x clips, Take note of harness routing for install





138. Release LH body harness connectors to rear subframe and chassis harness
     注

     3x locking connectors, 3x clips, Disengage red locking tabs





139. Release connectors for tow hitch and tow hitch ECU
     注

     2x connectors



140. Release LH body harness clips for subframe and tow hitch branch
     注

     6x clips







141. Release LH body harness grommet from trunk and feed harness out
     注

     1x grommet





142. Remove LH body harness from vehicle
     注

     Note original routing, Maneuver out any remaining branches and remove harness from vehicle, Route out behind busbar and retractor











143. Install LH body harness to vehicle
     注

     Position harness for install, Route in behind retractor and busbar, Return to original routing













144. Secure LH body harness grommet in trunk and feed harness in
     注

     1x grommet





145. Secure connectors for tow hitch and tow hitch ECU
     注

     2x connectors



146. Secure LH body harness clips for subframe and tow hitch branch
     注

     6x clips







147. Secure LH body harness connectors to rear subframe and chassis harness
     注

     3x locking connectors, 3x clips, Engage red locking tabs





148. Fasten clips securing LH body harness to LH trunk area
     注

     6x clips





149. Secure LH tail tamp connection
     注

     1x locking connector, Engage red locking tab





150. Install charge port safety cap
     注

     2x hooks, Safety cap will click into position





151. Secure charge port connection
     注

     1x connector, Fully engage connection and white locking tab, The connector is intended to lock the safety cap in place







152. Secure charge port latch connection
     注

     1x connector, Return harness to original routing, Harness sits in front of busbar, Fully engage connector and red locking tab







153. Secure LH body harness connections onto charge port ECU
     注

     2x connectors



154. Secure LH body harness clips to C-pillar area
     注

     5x clips







155. Secure LH body harness clips to curtain airbag
     注

     7x clips, Route harness in and return to original location, Secure all clips









156. Connect LH side curtain air bag connector
     注

     1x connector, Secure safety lock





157. Release tether clips from LH roof body
     注

     3x tether clips





158. Secure LH tether clips to headliner
     注

     Listen for audible click when seated properly



159. Release LH coat hook bracket from body
     注

     1x bolt, T20, 1 Nm, 1x clip, Release bolt and tether and then release clip from body





160. Secure LH coat hook bracket to headliner
     注

     1x bolt, T20, 1 Nm, 3x tabs, Secure bolt and tether to bracket, Pivot bracket onto headliner tabs







161. Install LH coat hook screw
     注

     1x screw, T25, 2.5 Nm



162. Close LH coat hook screw cover
     注

     2x tabs



163. Install partially release headliner to LH side body
     注

     4x clips, 3x tether clips, 1x coat hook clip





164. Install LH bolt securing rear headliner to body
     注

     1x bolt, 10mm, 3 Nm



165. Connect LH sun visor connector
     注

     1x connector







166. Install LH sun visor into headliner area



167. Install LH sun visor fastener
     注

     1x screw, T25, 3.5 Nm



168. Install LH sun visor bracket cover
     注

     4x clips



169. Secure LH body harness ground onto C-pillar
     注

     1x bolt, 10mm, 9 Nm



170. Connect LH rear door latch assembly connector
     注

     1x connector, secure locking tab



171. Secure closeout panel for LH rear door latch assembly
     注

     1x cover, Fold trim aside for access





172. Secure LH C-pillar mid and lower BIW bracket
     注

     3x clips





173. Secure LH C-pillar lower bottom BIW bracket
     注

     1x harness clip, 2x clips





174. Fasten clips securing LH body harness for 2nd row seat belt buckle branch
     注

     2x clips, Route branch under busbar



175. Connect 2nd row LH seat belt buckle connector
     注

     1x connector



176. Connect RH body harness from LH body harness under 2nd row cushion
     注

     2x connectors, Secure red locking tab



177. Install clips securing LH body harness to second row area
     注

     5x clips





178. Secure LH body harness clips to B-pillar
     注

     5x clips







179. Connect camera and install LH side applique
     注

     2x connector, Slide applique up into clips and align to mounting holes for installation









180. Reinstall screws securing LH side applique
     注

     2x screws, T25, 4 Nm



181. Install LH B-Pillar applique cover
     注

     2x clips, 2x tabs, Make sure all clips are fully seated, Secure bottom tabs onto LH B-Pillar applique then engage the upper clips





182. Secure LH B-pillar seals to applique
     注

     Use P-80 emulsion grease to assist with seal installation



183. Secure LH body harness connector and clip to LH rear door
     注

     1x connector, 1x clip, Tuck harness back into B-pillar



184. Secure LH front retractor connectors
     注

     2x connectors, 2x tabs per connector, Fully secure connectors, Verify they are properly seated







185. Secure B-pillar accelerometer connection
     注

     1x connector, Secure connector and fully engage red locking tab



186. Install clips securing LH body harness to LH driver side area
     注

     9x clips, Route branches as needed and secure clips, Use tooling to help secure clips as required









187. Install clips securing LH body harness to passenger seat area
     注

     4x clips, Route harness towards passenger side





188. Connect RH body harness to LH body harness under RH front carpet
     注

     3x connectors, Release red locking tabs



189. Secure LH body harness connectors and clip by passenger side center console
     注

     2x connectors, 1x clip, Route harness back towards driver side, Secure locking tabs, Use tooling to help secure clip as required





190. Release LH body harness connector and clip by passenger footwell area
     注

     1x connector, 1x clip, Route harness back towards passenger side







191. Install clips securing LH body harness beneath IP
     注

     2x clips



192. Connect RCM connectors
     注

     2x connectors, Connect left connector first by aligning connector and swinging release arm down then align right connector and connect in same manner











193. Install LH toeboard bracket to vehicle
     注

     2x bolts, E14, 9 Nm, 1x bolt 10mm, 10 Nm, 1x bolt 13mm, 20 Nm, Be cautious and do not damage nearby harness





194. Install clips securing LH body harness to driver footwell
     注

     2x clips



195. Secure LH body harness to pedal assembly
     注

     1x harness clip



196. Connect LH body harness to brake switch
     注

     1x connector



197. Connect accelerator pedal connector
     注

     1x locking connector, Secure red locking tab



198. Install driver floor jumper air duct
     注

     1x tab



199. Secure LH body harness bracket onto VC left and body
     注

     3x clips



200. Secure LH body harness ground onto lower A-pillar
     注

     1x bolt, 10mm, 9 Nm



201. Secure clips for A-pillar branch of LH side body harness
     注

     4x clips, Secure clips and route harness up





202. Connect headliner harness at LH front A-pillar
     注

     1x connector



203. Install LH upper A-pillar trim
     注

     2x tethered clips, 1x clip, 1x connector, Slide bottom of trim along IP and speaker grill, attach each tether to body side, Set clips starting at the bottom and work up, Pull seal over trim









204. Connect J8 X039 Body 6 Connector
     注

     1x connector





205. Connect J3 X031 Body 2 connector
     注

     1x connector, Fully seat connector then engage lock





206. Connect J5 X034 Body 4 connector
     注

     1x connector, Fully seat connector then engage lock





207. Connect J6/J7 X038A/B Body 5 connector
     注

     1x connector, Fully seat connector then engage lock





208. Connect J4 X032 Body 3 Connector
     注

     1x connector





209. Connect J1/J2 X030A/B Body 1 connector
     注

     1x connector, Fully seat connector then engage lock





210. Secure connector on VC left
     注

     1x locking connector, Engage red locking tab



211. Secure IP harness connectors and clip by VC left
     注

     1x locking connector, 1x lever connector, 1x clip, Engage red locking tab, Engage lever to release



212. Secure LH door harness connectors and clip from VC left
     注

     2x connectors, 1x clip



213. Install rear fascia assembly onto vehicle
     注

     Recommend Assistance, Route fascia harness while installing, Verify rear diffuser sits under mid aero shield before proceeding





214. Connect rear fascia harness
     注

     1x connector, Engage locking tab, Located behind RH rear wheel arch liner



215. Secure rear fascia assembly onto body
     注

     Secure fascia edges onto fender brackets







216. Apply Loctite 222 to fasteners and secure rear diffuser to mid aero shield
     注

     8x bolts, 10mm, 6 Nm, 2x clips, 2x datums





217. Install rear diffuser nuts
     注

     3x nuts, 10mm, 3 Nm



218. Install bolt securing rear fascia to RH fender bracket
     注

     1x bolt, T25, 5 Nm



219. Install push clips securing RH rear wheel arch liner to fascia
     注

     4x push clips



220. Install bolt securing rear fascia to LH fender bracket
     注

     1x bolt, T25, 5 Nm



221. Install push clips securing LH rear wheel arch liner to fascia
     注

     5x push clips



222. Install LH nut securing rear fascia assembly to body
     注

     1x nut, 10mm, 4 Nm



223. Install butyl patch covering LH access hole



224. Install RH nut securing rear fascia assembly to body
     注

     1x nut, 10mm, 4 Nm



225. Install butyl patch covering RH access hole



226. Connect RH trunk puddle lamp
     注

     1x connector



227. Secure RH trunk side trim back into place



228. Install RH trunk bracket assembly
     注

     3x clips, 1 datum





229. Install LH trunk side trim and secure clips
     注

     3x push clips, 3x clips, 2x connections









230. Install LH upper C-pillar trim
     注

     7x clips, Replace any damaged clips







231. Install LH upper B-pillar
     注

     7x clips, Route seatbelt through B-pillar, Replace any damaged or missing clips





232. Install LH lower B-pillar
     注

     6x clips, 2x datums, Align datums then engage all clips Replace any damaged or missing clips







233. Install LH mid C-pillar trim
     注

     3x clips, Replace any damaged clips







234. Install LH lower C-pillar trim
     注

     8x clips, Properly seat door seal





235. Install trunk side wall trim
     注

     3x Velcro strips





236. Install LH trunk bracket assembly
     注

     4x clips, 1 datum







237. Install rear wall trim
     注

     4x push clips, 2x datums







238. Install trunk sill panel
     注

     6x clips, 4x guides







239. Install side load floor



240. Install trunk load floor



241. Install parcel shelf



242. Install 2nd row seat cushion assembly
     注

     2x clips, 2x connectors, Secure connections and slide seat belt buckles through seat cushion, Engage clips











243. Install LH side bolster trim
     注

     1x clip, 1x tab, Replace clip if damaged, Hook bottom portion and then secure the top





244. Install RH side bolster trim
     注

     1x clip, 1x tab, Replace clip if damaged, Hook bottom portion and then secure the top





245. Install RH footrest panel
     注

     2x bolts, 10mm, 5 Nm, 1x nut, 10mm, 5 Nm





246. Secure harness to RH footrest panel
     注

     1x clip



247. Fold RH front cabin carpet back into position





248. Install RH console side carpet
     注

     11x clips





249. Install RH footwell cover
     注

     3x magnets, 1x connectors



250. Install RH lower A-pillar trim
     注

     7x clips, Verify weather seal is seated properly







251. Install RH mid A-pillar trim
     注

     1x clip, 2x tabs, Verify weather seal is seated properly





252. Install RH first row seat risers to cabin floor
     注

     2x risers, 2x clips per riser





253. Install RH front seat into vehicle
     注

     Recommend Assistance, If seat is being replaced take note of OCS module revision, as this will determine the way firmware is installed to vehicle. Be cautious to avoid damage to surrounding components while lifting the seat into the vehicle.



254. Position chair to gain access below seat bottom and connect RH side body harness to seat controller
     注

     2x connectors, 1x clip, Engage red locking tab on black connector



255. Fold LH front cabin carpet back into position





256. Install the LH knee air bag assembly into vehicle
     注

     1x clip, 3x connectors, 6x tabs, Hook tabs before fully seating, Use caution not to damage the connector/harness, Support the knee air bag while connecting the connectors





257. Install fasteners securing LH knee air bag assembly to vehicle
     注

     2x patch bolts, E10, 8 Nm, Install new fasteners



258. Install LH console side carpet
     注

     11x clips





259. Install LH footwell cover
     注

     1x connector, 2x magnets



260. Install LH lower A-pillar trim
     注

     7x clips, Verify weather seal is seated properly







261. Install LH mid A-pillar trim
     注

     1x clip, 2x tabs, Verify weather seal is seated properly





262. Secure H front seat risers
     注

     2x riser, 2x clips per riser





263. Install LH front seat into vehicle
     注

     Recommend Assistance, Take care not to damage surrounding components while lifting the seat into the vehicle



264. Position chair to gain access below seat bottom and connect LH side body harness to seat controller
     注

     2x connectors, 1x clip, Engage red locking tab on black connector



265. Connect First Responder Loop and LV battery connector
     注

     2x connectors Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated









266. Install rear underhood apron
     注

     8x clips





267. Close hood
     注

     Press firmly in green highlighted areas (see image), Damage may result from pressure elsewhere on hood
268. Move LH front seat forward
269. Secure LH front seat belt
     注

     Ensure audible click is heard during install, perform pull test to confirm secure



270. Install bolts securing LH front seat rear tracks to vehicle
     注

     2x patch bolts, T45P, 34 Nm, Install new bolts



271. Move LH front seat backward
272. Install bolts securing both LH front seat front tracks to vehicle
     注

     2x patch bolts, T45P, 34 Nm, Install new bolts



273. Move LH front seat to original position
274. Install LH front floor mat



275. Move RH front seat forward
276. 将前座椅安全带联动装置安装到预紧器上：
     1. 确保锁定螺钉处于水平位置。如果锁定螺钉未处于水平位置，则按照松开说明将其解锁。
     2. 确认 B 柱上饰板至预紧器处的座椅安全带没有扭曲。
     3. 将联动装置安装到预紧器拉索上。
        注

        此时将听到咔嗒声。

        注

        锁定螺钉将转回到锁定位置。
     4. 用至少 15 磅的力对座椅安全带进行拉力测试。



277. Install bolts securing RH front seat rear tracks to vehicle
     注

     2x patch bolts, T45P, 34 Nm, Install new bolts



278. Move RH front seat backward
279. Install bolts securing both RH front seat front tracks to vehicle
     注

     2x patch bolts, T45P, 34 Nm, Install new bolts



280. Move RH front seat to original position
281. Install RH front floor mat



282. Fold 60 seat into vertical position
     注

     Remove seat cushion protection





283. Close liftgate
284. Set air suspension ride height to “Medium”
     注

     Using center display, Controls > Suspension > ''Medium'
285. Raise all four windows
286. Close all four doors
