校正代码 New 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至ServiceManualFeedback@tesla.com。 注意：请参阅 人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 注意：请参阅人体工程学注意事项查看安全健康的作业规程。

1. Open all four doors
2. Lower both front windows
3. Move LH front seat forward
4. Move RH front seat forward
5. Release console back panel assembly
   注

   7x clips, 6x datums







6. Remove console back panel assembly
   注

   2x connectors, 2x Datums, Slide panel rearward to disengage from console assembly, Connector lock for lamp located underneath bracket, Connector may vary on build











7. Release LH and RH rear console carrier
   注

   2x bolts, 10mm, 12 Nm





8. Move LH front seat backward
9. Move RH front seat backward

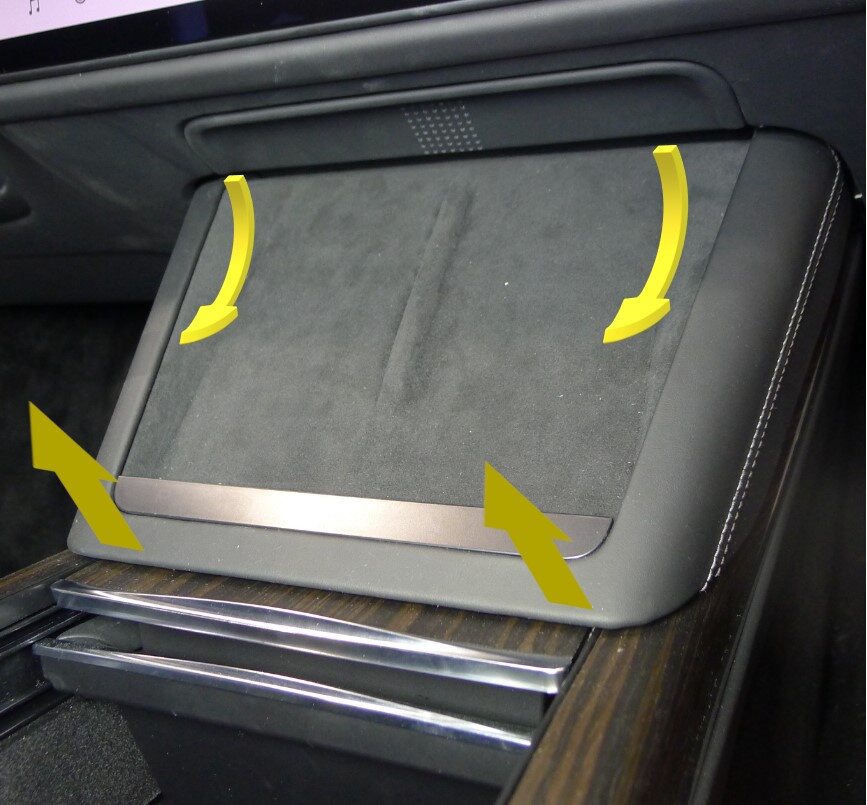

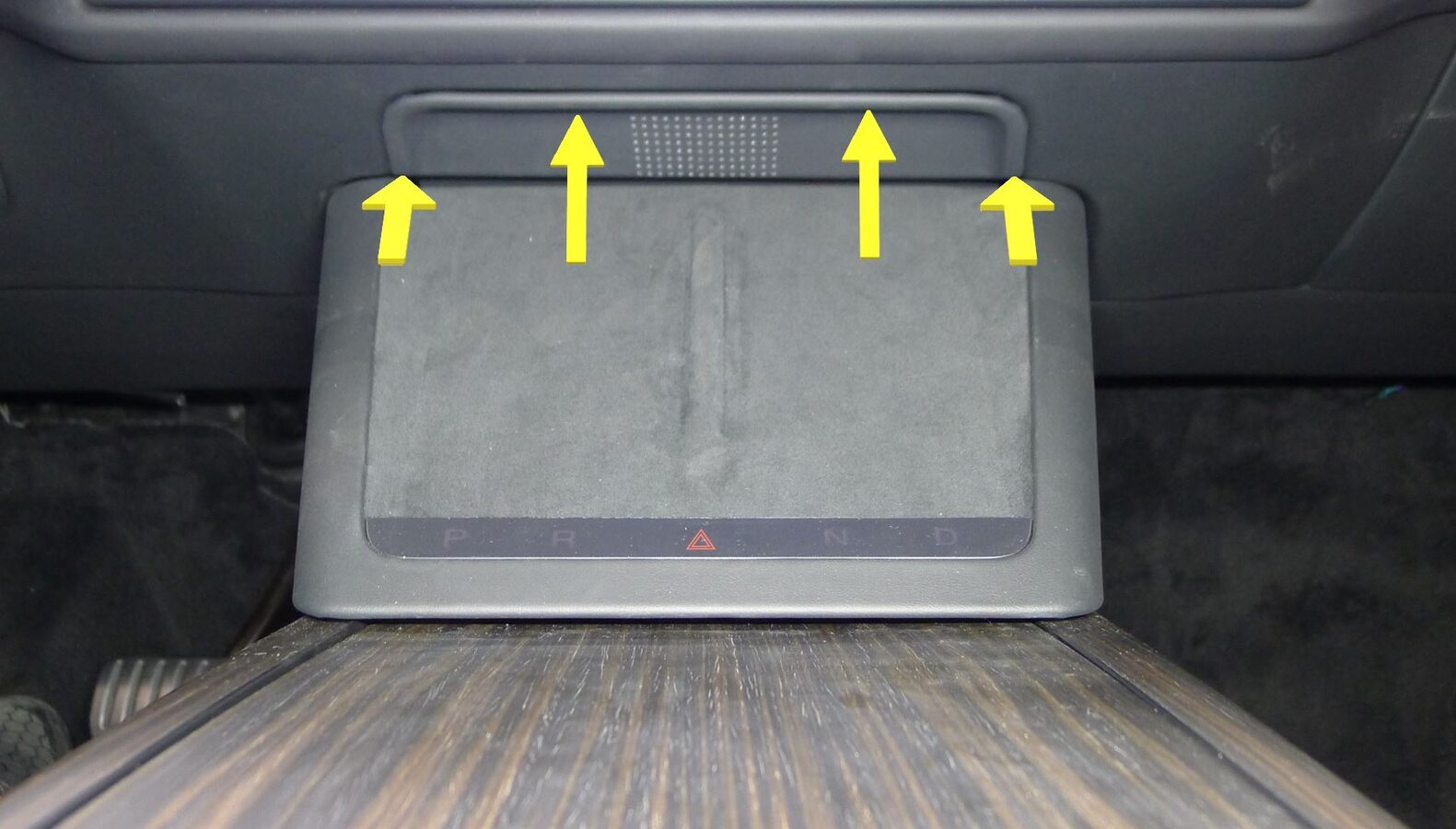

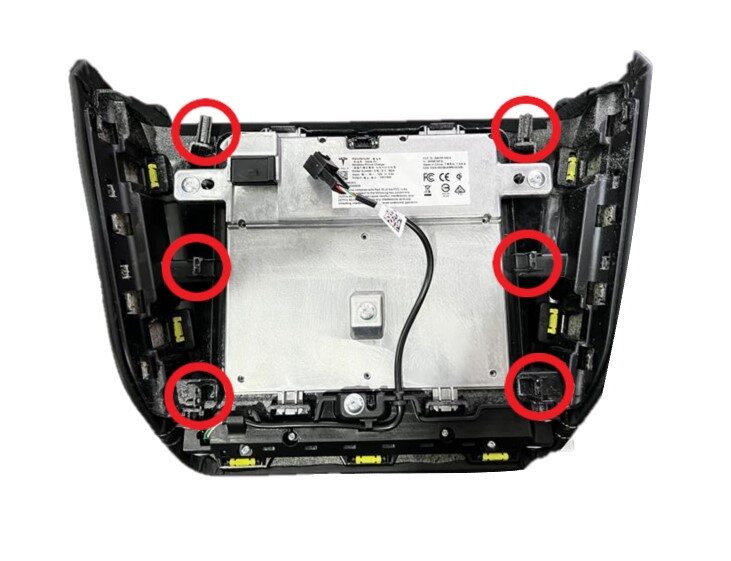

10. Release phone dock
    注

    4x clips, 2x datums, Pull up at bottom and swing out from under instrument panel

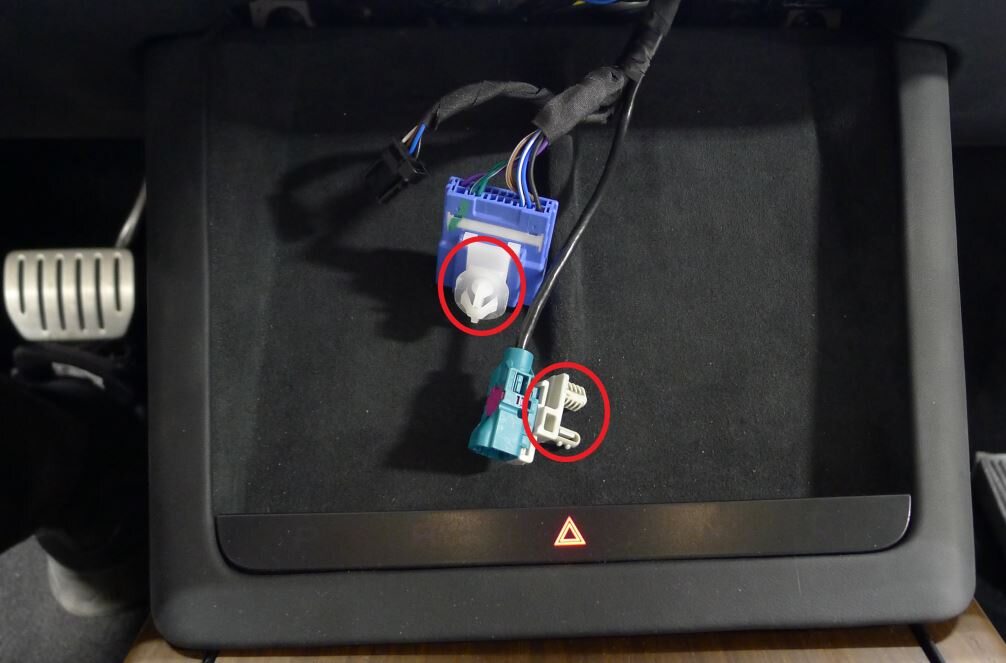

11. Remove phone dock
    注

    3x connectors, 1x clip, Take caution to release connector locks before pulling straight out of each socket to avoid damage

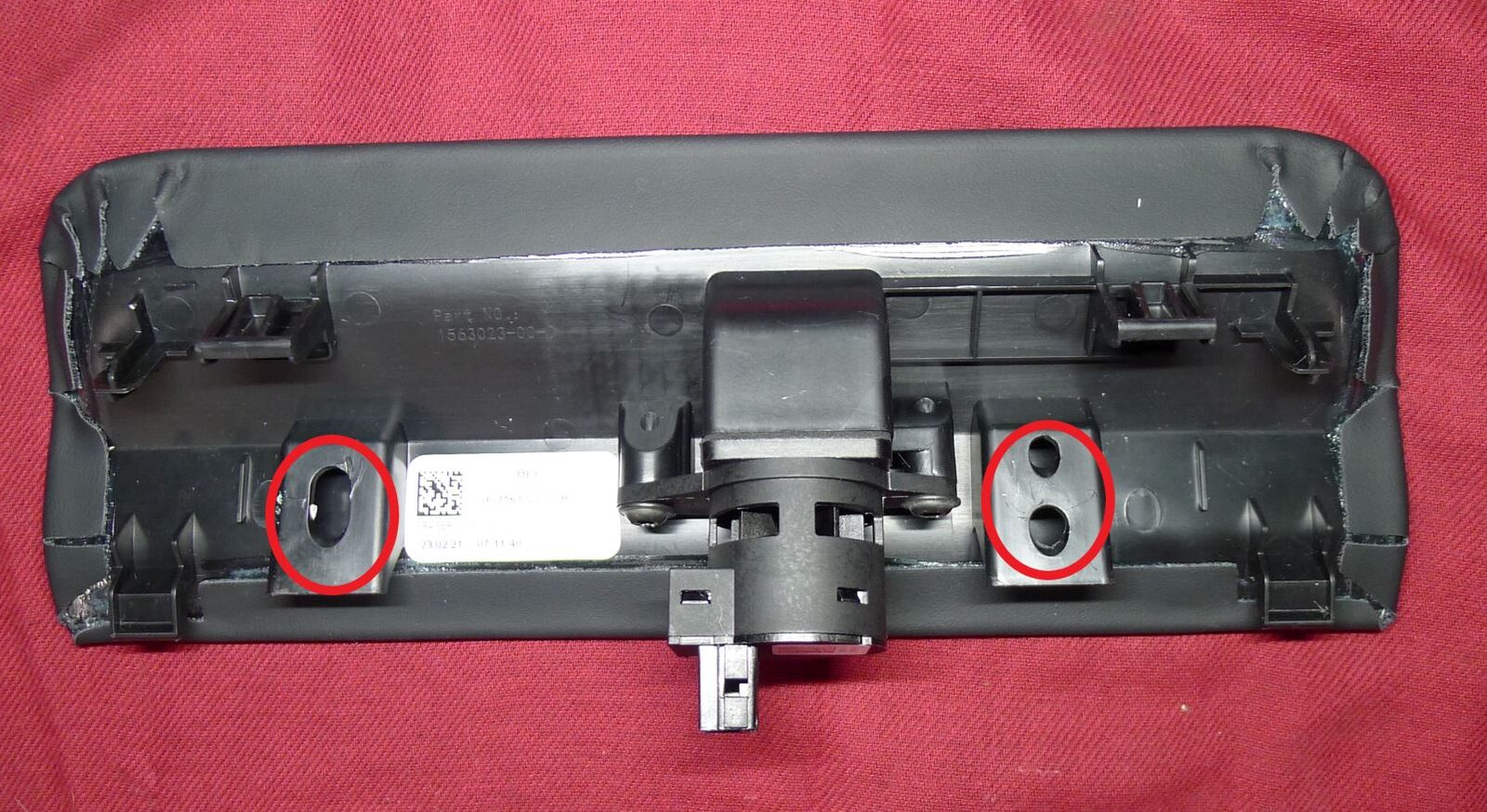

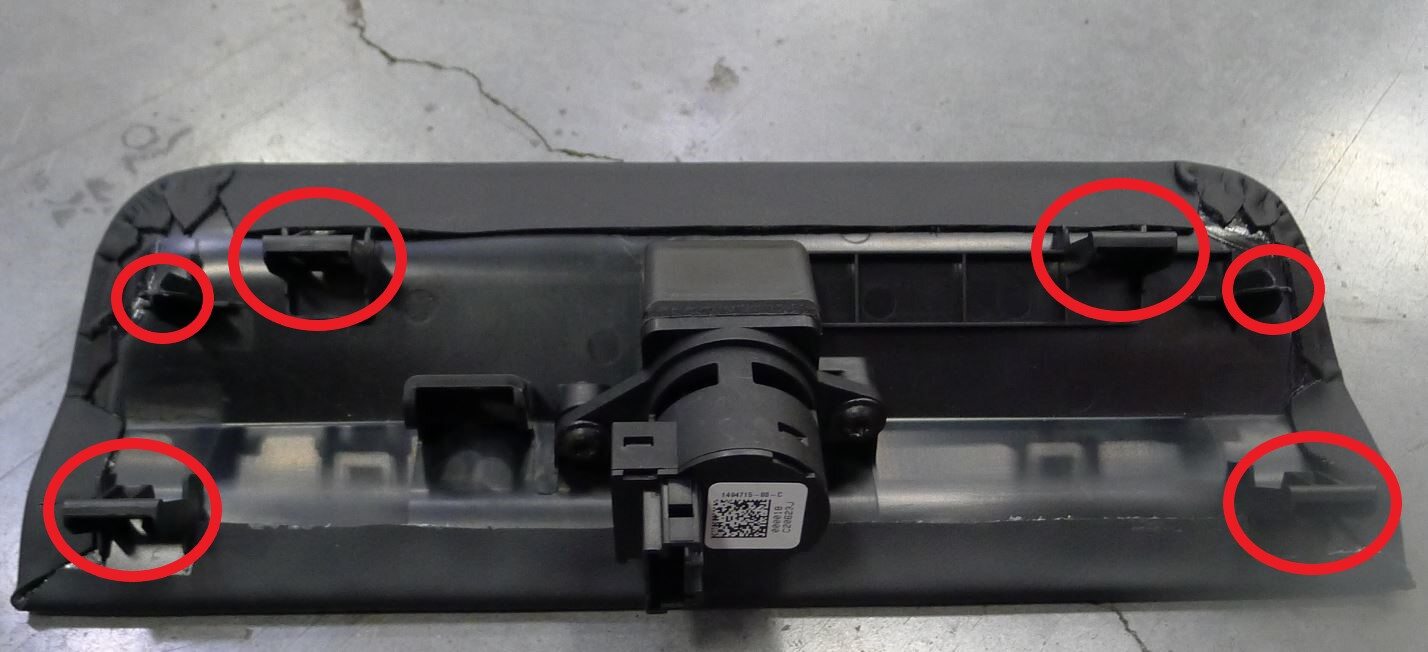

12. Release IP service panel
    注

    2x tabs, 4x datums, Release top tabs and slide rearward

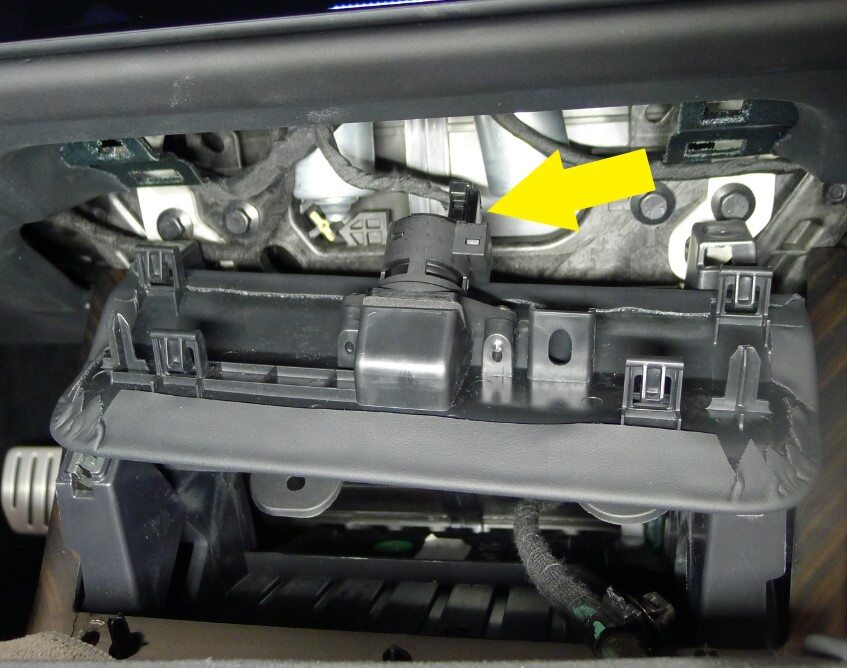

13. Release diagnostic and CAN harnesses from IP service panel
    注

    2x clips





14. Remove IP service panel
    注

    1x connector





15. Remove LH front floor mat

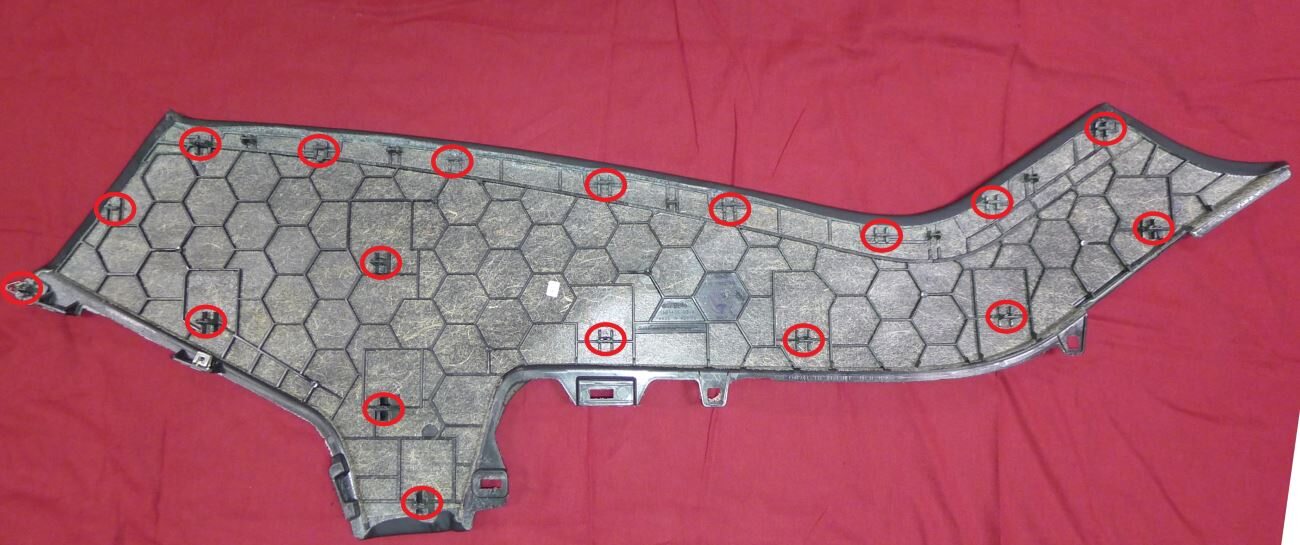

16. Remove LH console side carpet
    注

    11x clips





17. Release LH toeboard lower bracket from center console
    注

    1x bolt, 10mm, 10 Nm



18. Remove RH front floor mat



19. Remove RH console side carpet
    注

    11x clips





20. Release RH toeboard lower bracket from center console
    注

    1x bolt, 10mm, 10 Nm



21. Release center console connectors to body harness
    注

    4x connectors, 2x clips



22. Release LH and RH console carrier center bracket
    注

    2x bolts, 10mm, 12 Nm





23. Remove console assembly
    注

    Lift at rear, rotate front from under IP and out passenger door, Take care not to scratch seats, IP or inner door panel, Recommend assistance if needed





24. Remove LH and RH console side panels
    注

    17x clips each side

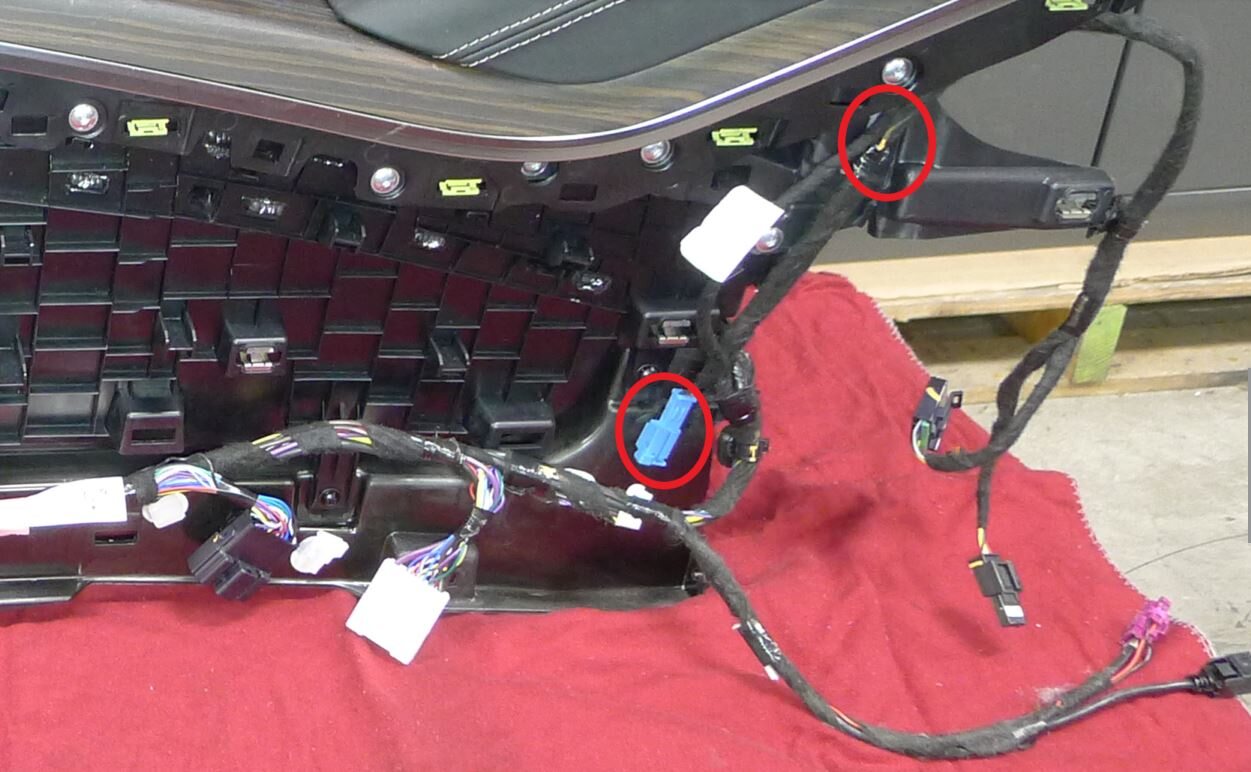

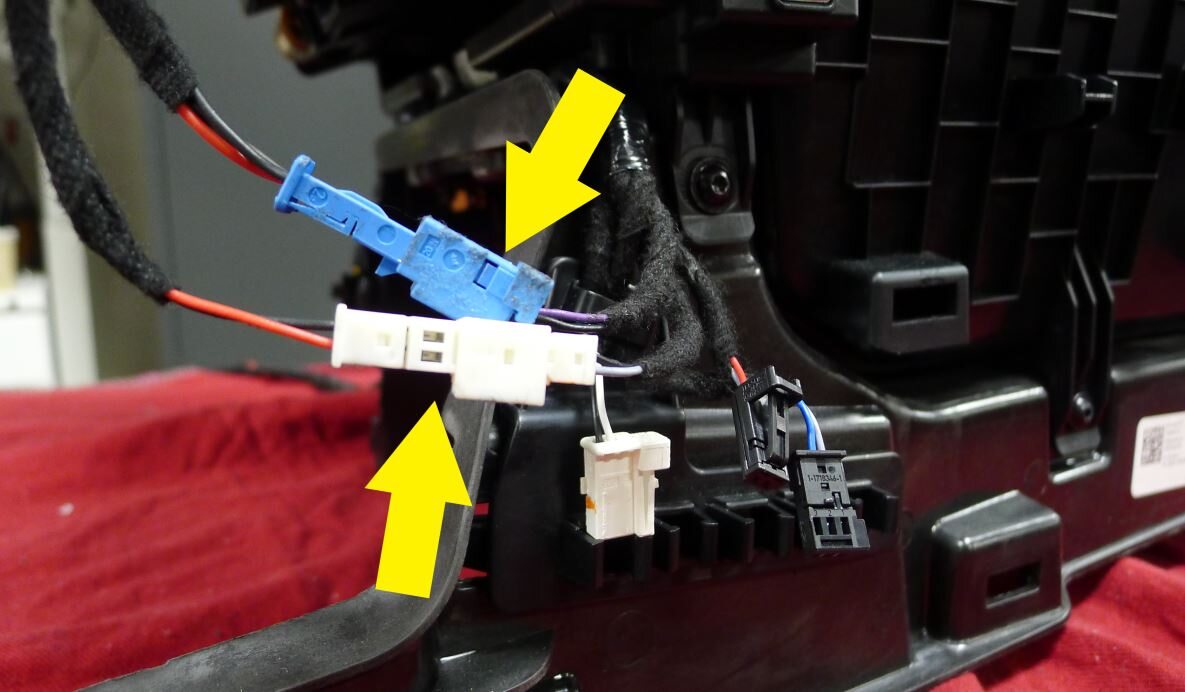

25. Release decor harness from console assembly
    注

    6x connectors, 2x clips, 2x connectors wrapped in felt tape, Wrap connecters in felt tape after re-assembly, Connectors may very on build

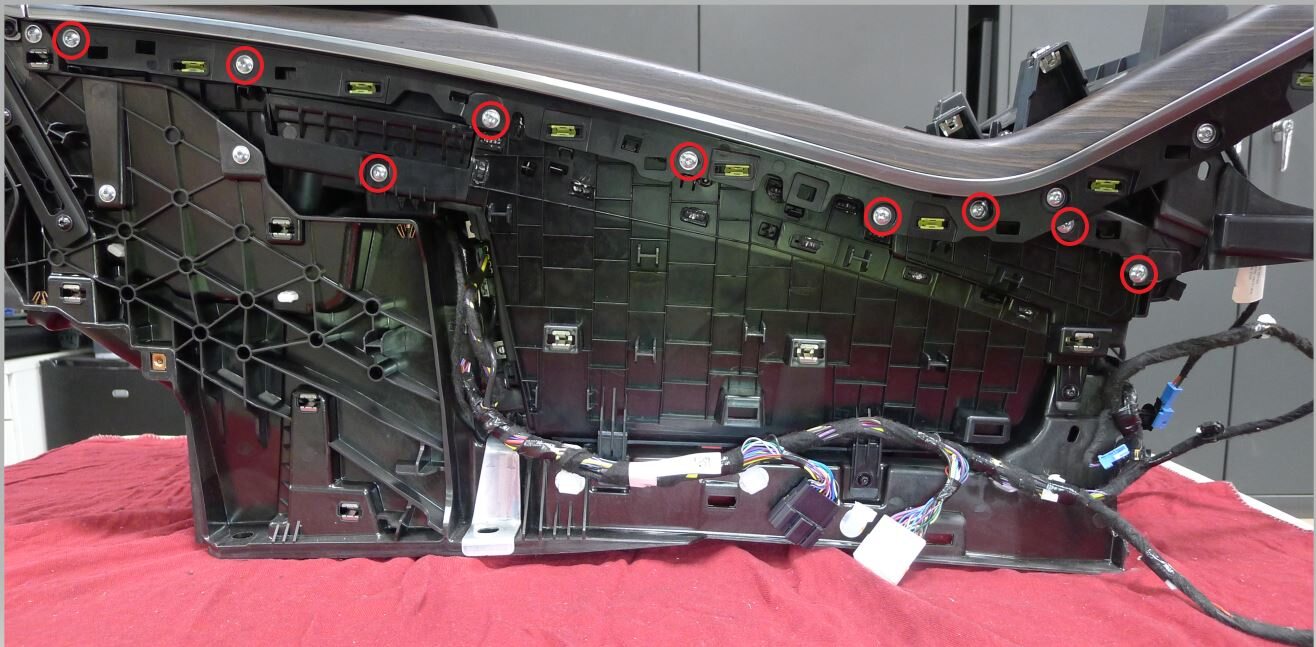

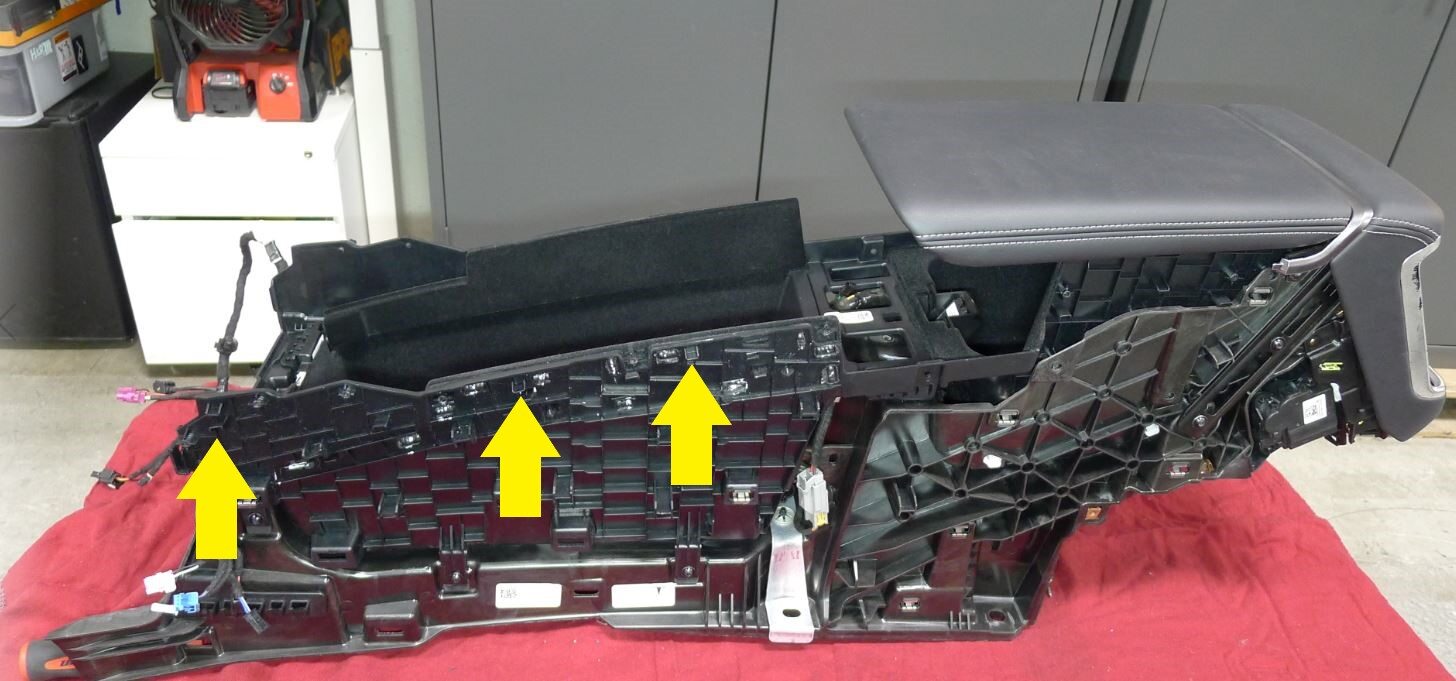

26. Release decor from console assembly
    注

    18x screws, T20, 1 Nm

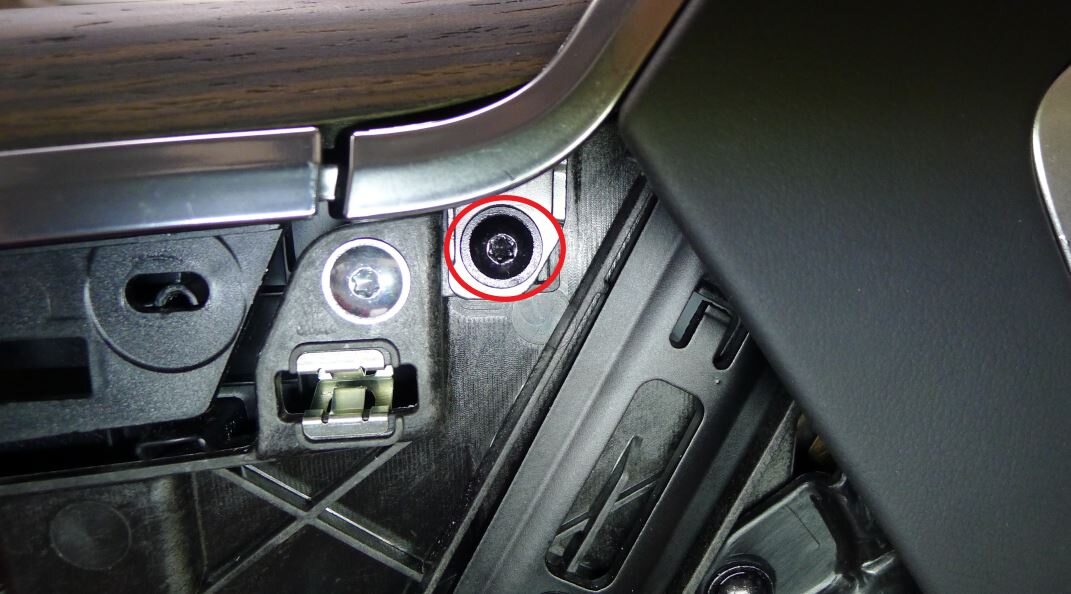

27. Remove rear bright strip screws
    注

    2x screws, T20, 1 Nm, Removal of screws allows flexibility to disengage decor bright

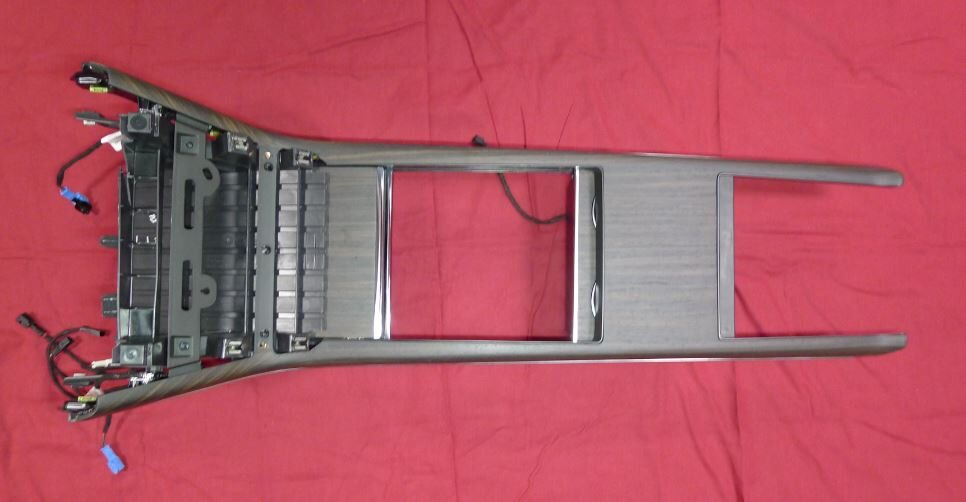

28. Remove console decor assembly
    注

    6x datums, 1x connector, Lift up at front and slide out of rear bright strip









29. Install console decor assembly
    注

    6x datums, 1x connector, Slide into rear bright strip and down into console assembly, Ensure all 6 datums engage and bright strip is aligned









30. Install rear bright strip screws
    注

    2x screws, T20, 1 Nm, Confirm alignment of decor bright with rear bright trim





31. Secure decor to console assembly
    注

    18x screws, T20, 1 Nm

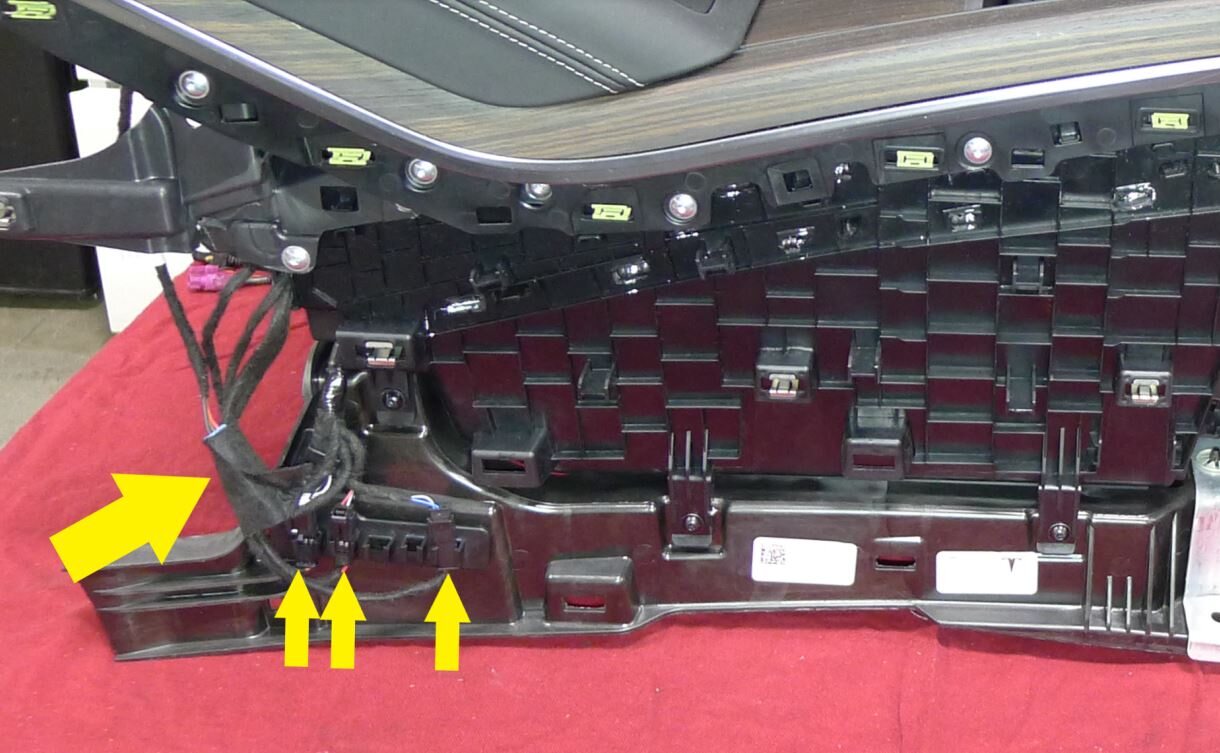

32. Secure decor harness to console assembly
    注

    6x connectors, 2x clips, 2x connectors wrapped in felt tape, Wrap connecters in felt tape after re-assembly, Connector may vary on build









33. Install LH and RH console side panels
    注

    17x clips each side







34. Install console assemby
    注

    Carefully maneuver front of assembly under and into IP carrier and lower rear into place, Recommend assistance if needed





35. Secure LH toeboard lower bracket to center console
    注

    1x bolt, 10mm, 10 Nm



36. Secure RH toeboard lower bracket to center console
    注

    1x bolt, 10mm, 10 Nm



37. Secure center console connectors to body harness
    注

    4x connectors, 2x clips, Ensure all connector locks engaged



38. Secure LH and RH console carrier center bracket
    注

    2x bolts, 10mm, 12 Nm





39. Install RH console side carpet
    注

    11x clips





40. Install RH front floor mat



41. Install LH console side carpet
    注

    11x clips





42. Install LH front floor mat



43. Secure IP service panel connector
    注

    1x connector





44. Secure diagnostic and CAN harnesses to IP service panel
    注

    2x clips







45. Secure IP service panel
    注

    2x tabs, 4 datums, Slide forward engaging datums then secure tabs upward into IP





46. Install phone dock connections
    注

    3x connectors, 1x clip

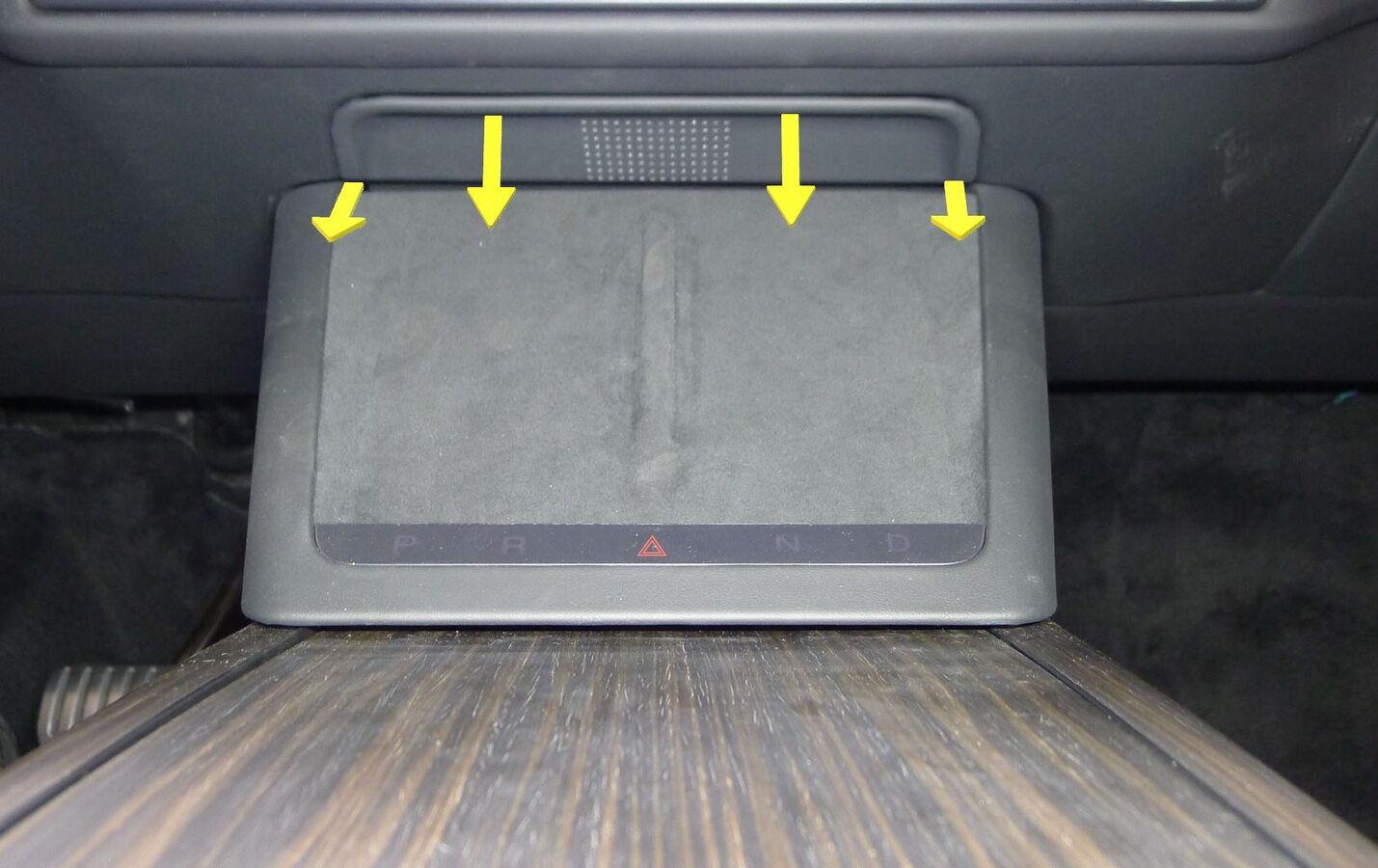

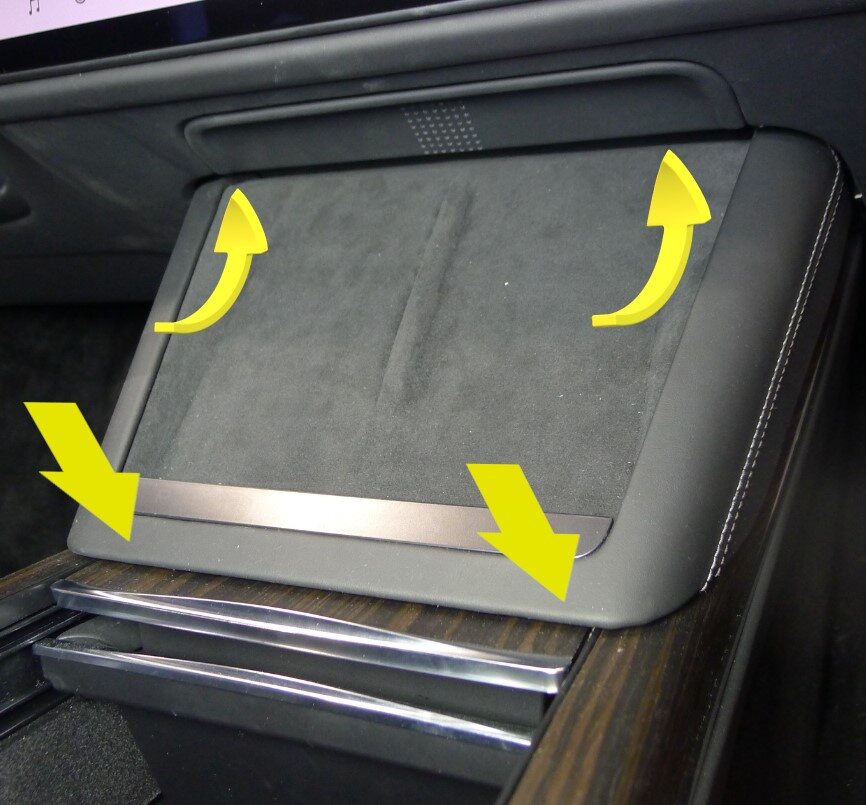

47. Install phone dock
    注

    2x datums, 4 tabs, Slide datums forward into IP and secure tabs down into center console





48. Move LH front seat forward
49. Move RH front seat forward
50. Secure LH and RH rear console carrier
    注

    2x bolts, 10mm, 12 Nm





51. Install console back panel assembly
    注

    2x connectors, 2x datums, Engage datums into console carrier slots, Connectors may vary on build









52. Secure console back panel assembly
    注

    7x clips, 6x datums







53. Close RH rear door
54. Move RH front seat to original position
55. Raise RH front window
56. Close RH front door
57. Move LH front seat to original position
58. Raise LH front window
59. Close LH front door
    注

    Close doors
60. Close LH rear door
