하네스 - 차체 - LH(유럽/중동/아프리카)(탈거 및 교체)

교정 코드 17100812 3.42 참고: 절차에서 명시적으로 언급하지 않는 한 위 교정 코드 및 FRT는 연결된 절차를 포함하여 이 절차를 수행하는 데 필요한 모든 작업을 반영합니다. 명시적으로 지시하지 않는 한 교정 코드를 누적하지 마십시오. 참고: FRT에 대한 자세한 내용과 FRT가 만들어진 방법은 표준 정비 작업시간을(를) 참조하십시오. FRT 값에 대한 피드백을 제공하려면 LaborTimeFeedback@tesla.com으로 이메일을 보내십시오. 참고: 아래 절차를 수행할 때 적절한 PPE를 착용했는지 확인하려면 개인 보호의 내용을 참조하십시오.

Warning IconA warning icon, calling your attention to a possibly risky situation
경고
이 절차는 초안입니다. 따라서 검증은 되었지만 경고 및 주의 사항이 누락되었을 수 있습니다. 고전압 시스템 및 구성 요소에서 또는 그 근처에서 작업하는 경우에는 안전 요구 사항을 준수하고 최고 수준의 주의를 기울여야 합니다. 수정 사항 및 기타 의견이 있으면 ServiceDevelopment@teslamotors.com으로 알려 주십시오.
Informational PurposesAn informational icon, calling your attention
참고
이 절차는 이 부품의 전역 새로 고침 버전을 위한 것입니다. 이 부품의 원래 버전에 대한 절차는 여기에 있습니다. 하네스 - 차체 - LH(탈거 및 교체).
  1. Open all four doors
  2. Lower all four windows
  3. Set air suspension ride height to “Very High”
    Informational PurposesAn informational icon, calling your attention
    참고
    Using center display > Controls > Suspension > ''Very High''
  4. Open hood
    Informational PurposesAn informational icon, calling your attention
    참고
    Via Center Display > Controls > Frunk Open
  5. Open liftgate through UI
    Informational PurposesAn informational icon, calling your attention
    참고
    Using center display touchscreen > Quick Controls > Trunk Open
  6. Remove LH front floor mat
  7. Move LH front seat forward
  8. 일자 드라이버를 사용하여 전면 안전벨트 링키지의 잠금 장치를 시계 반대 방향으로 돌려 프리텐셔너에서 분리한 다음 링키지를 프리텐셔너에서 밀어 꺼낸 후 한쪽으로 치워둡니다.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    경고
    장치가 손상되지 않도록 시계 방향으로 돌리지 마십시오.
    Informational PurposesAn informational icon, calling your attention
    참고
    링키지 디자인은 다를 수 있지만 기능은 동일합니다.
    Informational PurposesAn informational icon, calling your attention
    참고
    분리할 때 잠금 나사는 수평 위치를 유지합니다.
    Informational PurposesAn informational icon, calling your attention
    참고
    링키지가 분리되면 가벼운 딸깍 소리가 들립니다.
  9. Remove bolts securing rear of LH front seat tracks to the floor panel
    Informational PurposesAn informational icon, calling your attention
    참고
    2x patch bolts, T45P, 34 Nm, Discard after removal
  10. Move LH front seat backward
  11. Remove bolts securing front of LH front seat tracks to the floor panel
    Informational PurposesAn informational icon, calling your attention
    참고
    2x patch bolts, T45P, 34 Nm, Discard after removal
  12. Adjust position of LH front seat for easy removal
    Informational PurposesAn informational icon, calling your attention
    참고
    Move seat to middle of track at most upright position with seat fully up off floor
  13. Fold 60 seat into down position
    Informational PurposesAn informational icon, calling your attention
    참고
    Seat can be folded from the backrest button or trunk switch, If seat cushion is not present, protect the seat as required
  14. Remove RH front floor mat
  15. Move RH front seat forward
  16. Remove bolts securing rear of RH front seat tracks to the floor panel
    Informational PurposesAn informational icon, calling your attention
    참고
    2x patch bolts, T45P, 34 Nm, Discard after removal
  17. Move RH front seat backward
  18. Remove bolts securing front of RH front seat tracks to the floor panel
    Informational PurposesAn informational icon, calling your attention
    참고
    2x patch bolts, T45P, 34 Nm, Discard after removal
  19. Adjust position of RH front seat for easy removal
    Informational PurposesAn informational icon, calling your attention
    참고
    Move seat to middle of track at most upright position with seat fully up off floor
  20. Power off vehicle from center display
    Informational PurposesAn informational icon, calling your attention
    참고
    Via Controls > Safety & Security > Power Off
  21. Remove rear underhood apron
    Informational PurposesAn informational icon, calling your attention
    참고
    8x clips
  22. Disconnect LV battery connector and First Responder Loop
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection
  23. Position LH seat to gain access below seat bottom and disconnect body harness from seat controller
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors, 1x clip, Release red locking tab on black connector
  24. Remove LH front seat from vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    Recommend assistance, Use caution to not damage other components
  25. Remove LH front seat risers
    Informational PurposesAn informational icon, calling your attention
    참고
    2x risers, 2x clips per riser
  26. Remove LH mid A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clip, 2x tabs
  27. Remove LH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    참고
    7x clips
  28. Remove LH footwell cover
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, 2x magnets
  29. Remove LH console side carpet
    Informational PurposesAn informational icon, calling your attention
    참고
    11x clips
  30. Remove fasteners securing LH knee air bag assembly to vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    2x patch bolts, E10, 8 Nm, Discard after removal
  31. Remove the LH knee air bag assembly from vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    3x connectors, 1x clip, 6x tabs, Release 2x locking tab on airbag connector
  32. Fold LH front cabin carpet aside for access
  33. Position RH seat to gain access below seat bottom and disconnect body harness from seat controller
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors, 1x clip, Release red locking tab on black connector
  34. Remove RH front seat from vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    Recommend assistance, Use caution to not damage other components
  35. Remove RH first row seat risers from cabin floor
    Informational PurposesAn informational icon, calling your attention
    참고
    2x risers, 2x clips per riser
  36. Remove RH mid A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clip, 2x tabs
  37. Remove RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    참고
    7x clips
  38. Remove RH footwell cover
    Informational PurposesAn informational icon, calling your attention
    참고
    3x magnets, 1x connector
  39. Remove RH console side carpet
    Informational PurposesAn informational icon, calling your attention
    참고
    11x clips
  40. Fold RH front cabin carpet aside for access
  41. Release harness from RH footrest panel
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clip
  42. Remove RH footrest panel
    Informational PurposesAn informational icon, calling your attention
    참고
    2x bolts, 10mm, 5 Nm, 1x nut, 10mm, 5 Nm
  43. Remove RH side bolster trim
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clip, 1x tab, Start by releasing upper portion
  44. Remove LH side bolster trim
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clip, 1x tab, Start by releasing upper portion
  45. Remove 2nd row seat cushion assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips, 2x connectors, Disengage locking clips and lift up on seat cushion, Release connections, If 2nd row seats are folded down then fold up for time being
  46. Remove parcel shelf
  47. Remove trunk load floor
  48. Remove side load floor trim
  49. Remove the trunk sill panel
    Informational PurposesAn informational icon, calling your attention
    참고
    6x clips, 4x guides Corners or bottom edge are good grabbing points for removal. Can use plastic trim tool or just your hands.
  50. Remove rear wall trim
    Informational PurposesAn informational icon, calling your attention
    참고
    4x push clips, 2x datums
  51. Remove LH trunk bracket assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, 1 datum, Pull bracket straight up
  52. Remove trunk side wall trim
    Informational PurposesAn informational icon, calling your attention
    참고
    3x Velcro strips
  53. Remove LH lower C-pillar trim
    Informational PurposesAn informational icon, calling your attention
    참고
    8x clips
  54. Remove LH mid C-pillar trim
    Informational PurposesAn informational icon, calling your attention
    참고
    3x clips
  55. Remove LH lower B-pillar
    Informational PurposesAn informational icon, calling your attention
    참고
    6x clips, 2x datums, Release from upper trim and body
  56. Remove LH upper B-pillar
    Informational PurposesAn informational icon, calling your attention
    참고
    7x clips, Release clips and route seatbelt through B-pillar, Be cautious not to separate the upper B-pillar, There are plastic welds near the center of trim holding upper and lower portion together
  57. Release LH upper C-pillar trim and move aside
    Informational PurposesAn informational icon, calling your attention
    참고
    7x clips
  58. Release clips securing LH trunk side trim and remove
    Informational PurposesAn informational icon, calling your attention
    참고
    3x push clips, 3x clips, 2x connectors

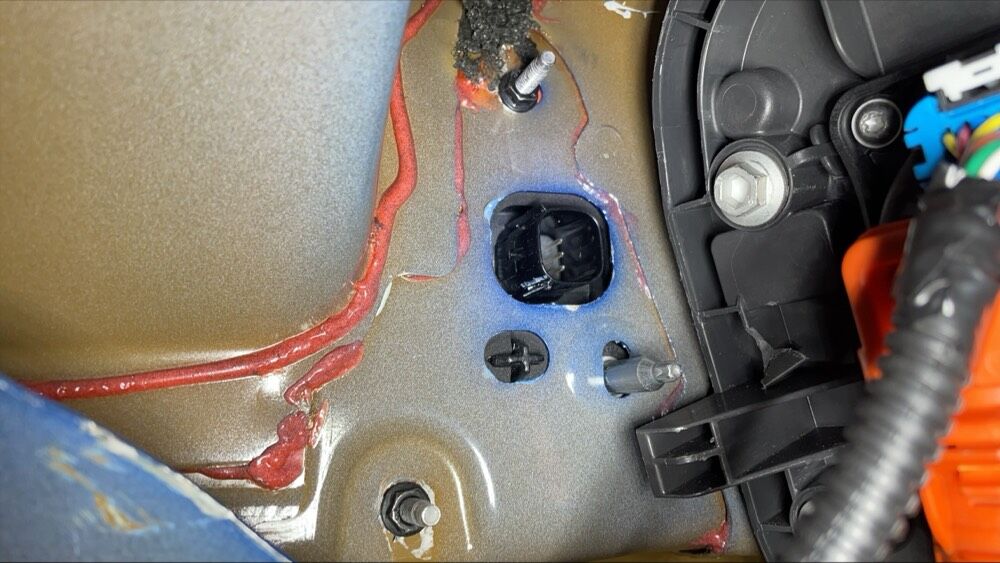

  59. Remove butyl patch covering LH access hole
  60. Remove LH nut securing rear fascia assembly to body
    Informational PurposesAn informational icon, calling your attention
    참고
    1x nut, 10mm, 4 Nm
  61. Remove RH trunk bracket assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    3x clips, 1 datum, Pull bracket straight up
  62. Peel back RH trunk side trim and secure against upper C-pillar trim
  63. Disconnect RH trunk puddle lamp
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  64. Remove butyl patch covering RH access hole
  65. Remove RH nut securing rear fascia assembly to body
    Informational PurposesAn informational icon, calling your attention
    참고
    1x nut, 10mm, 4 Nm
  66. Remove push clips securing LH rear wheel arch liner to fascia and move to the side for access
    Informational PurposesAn informational icon, calling your attention
    참고
    4x push clips
  67. Remove screw securing rear fascia to LH fender bracket
    Informational PurposesAn informational icon, calling your attention
    참고
    1x screw, T25, 5 Nm, Flex liner against tire
  68. Remove push clips securing RH rear wheel arch liner to fascia and move to the side for access
    Informational PurposesAn informational icon, calling your attention
    참고
    4x push clips
  69. Remove screw securing rear fascia to RH fender bracket
    Informational PurposesAn informational icon, calling your attention
    참고
    1x screw, T25, 5 Nm, Flex liner against tire
  70. Remove rear diffuser nuts
    Informational PurposesAn informational icon, calling your attention
    참고
    3x nuts, 10mm, 3 Nm
  71. Release rear diffuser from mid aero shield
    Informational PurposesAn informational icon, calling your attention
    참고
    8x bolts, 10mm, 6 Nm, 2x clips, 2x datums
  72. Release LH and RH fascia edges from fender brackets
  73. Pull fascia rearward to release from body
    Informational PurposesAn informational icon, calling your attention
    참고
    Pull edges straight back to release fascia, Set fascia on protected surface, Recommend assistance
  74. Disconnect rear fascia harness
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Pull red tab to disengage lock then disconnect, Located behind RH rear wheel arch liner
  75. Remove rear fascia assembly from vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    Disconnect fascia harness before removing fascia, Set fascia on protected surface, Recommend assistance
  76. Release LH door harness connectors and clip from VC left
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors, 1x clip
  77. Release IP harness connectors and clip by VC left
    Informational PurposesAn informational icon, calling your attention
    참고
    1x locking connector, 1x lever connector, 1x clip, Disengage red locking tab, Disengage lever to release
  78. Release connector on VC left
    Informational PurposesAn informational icon, calling your attention
    참고
    1x locking connector, Disengage red locking tab
  79. Disconnect J1/J2 X030A/B Body 1 connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Release lock then remove
  80. Disconnect J4 X032 Body 3 Connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  81. Disconnect J6/J7 X038A/B Body 5 connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Release lock then remove
  82. Disconnect J5 X034 Body 4 connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Release lock then remove
  83. Disconnect J3 X031 Body 2 connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Release lock then remove
  84. Disconnect J8 X039 Body 6 Connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  85. Remove LH upper A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    참고
    2x tethered clips, 1x clip, 1x connector, Pull inside of the upper portion of upper A-pillar, Depress 2x tabs to remove each tether from body side, Disconnect tweeter, Then pull upper A-pillar upward to remove
  86. Disconnect headliner harness at LH front A-pillar
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  87. Release clips for A-pillar branch of LH side body harness
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, Release clips and route harness branch down
  88. Release LH body harness ground from lower A-pillar
    Informational PurposesAn informational icon, calling your attention
    참고
    1x bolt, 10mm, 9 Nm
  89. Release LH body harness bracket from VC left and body
    Informational PurposesAn informational icon, calling your attention
    참고
    3x clips
  90. Remove driver floor jumper air duct
    Informational PurposesAn informational icon, calling your attention
    참고
    1x tab
  91. Disconnect LH body harness from brake switch
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  92. Disconnect accelerator pedal connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Do not push down on red tab, Pull red tab to disengage lock, Pull again to release connector
  93. Release LH body harness from pedal assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    1x harness clip
  94. Release clips securing LH body harness to driver footwell
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips
  95. Remove LH toeboard bracket from vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    2x bolts, E14, 9 Nm, 1x bolt 10mm, 10 Nm, 1x bolt 13mm, 20 Nm, Be cautious and do not damage nearby harness
  96. Release clips securing LH body harness under IP
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips
  97. Disconnect RCM connectors
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors, Disconnect right connector first by swinging release arm up then disconnect left connector in same manner
  98. Release LH body harness connector and clip by passenger footwell area
    Informational PurposesAn informational icon, calling your attention
    참고
    1x locking connector, 1x clip, Disengage red locking tab, Route harness back towards driver side
  99. Release LH body harness connectors and clip by passenger side center console
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors, 1x clip, Disengage locking tab, Route harness back towards driver side
  100. Disconnect RH body harness from LH body harness under RH front carpet
    Informational PurposesAn informational icon, calling your attention
    참고
    3x connectors, Release red locking tabs
  101. Release clips securing LH body harness to passenger seat area
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, Route harness back towards driver side
  102. Release clips securing LH body harness to LH driver side area
    Informational PurposesAn informational icon, calling your attention
    참고
    9x clips, Route any branches out as required
  103. Release B-pillar accelerometer connection
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Disengage red tab and pull red tab outwards again to release
  104. Disconnect LH front retractor connectors
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors, 2x tabs per connector, Simultaneously disengage tabs on both sides of each connector to release housing
  105. Release LH body harness connector and clip to LH rear door
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, 1x clip, Route harness out from B-pillar
  106. Remove LH B-Pillar applique cover
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips, 2x tabs, Use a plastic trim tool to release upper clips then slide downwards to release from bottom tabs secured to B-Pillar applique
  107. Remove bolts securing LH B-Pillar applique
    Informational PurposesAn informational icon, calling your attention
    참고
    2x bolts, T25, 4 Nm
  108. Pull down to release LH applique from upper clips
    Informational PurposesAn informational icon, calling your attention
    참고
    Use caution as camera harness does not have much slack
  109. Remove LH B-Pillar applique
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors, Hold LH applique away from body and carefully disconnect camera harness connectors, then remove applique
  110. Release LH body harness clips to b-pillar
    Informational PurposesAn informational icon, calling your attention
    참고
    5x clips, Route away as needed
  111. Release clips securing LH body harness to second row area
    Informational PurposesAn informational icon, calling your attention
    참고
    5x clips
  112. Disconnect RH body harness from LH body harness under 2nd row cushion
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors, Release red locking tab
  113. Disconnect 2nd row LH seat belt buckle connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  114. Release clips securing LH body harness for 2nd row seat belt buckle branch
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips, Route branch out from under busbar
  115. Release LH C-pillar lower bottom BIW bracket
    Informational PurposesAn informational icon, calling your attention
    참고
    1x harness clip, 2x clips
  116. Release LH C-pillar mid and lower BIW bracket
    Informational PurposesAn informational icon, calling your attention
    참고
    3x clips
  117. Remove closeout panel for LH rear door latch assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    1x cover, Fold trim aside for access
  118. Disconnect LH rear door latch assembly connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, release locking tab
  119. Release LH body harness ground from C-pillar
    Informational PurposesAn informational icon, calling your attention
    참고
    1x bolt, 10mm, 9 Nm
  120. Remove LH sun visor bracket cover
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, Extending the sun visor may allow for extra working room
  121. Remove LH sun visor fastener
    Informational PurposesAn informational icon, calling your attention
    참고
    1x screw, T25, 3.5 Nm, Extending the sun visor may allow for extra working room
  122. Remove LH sun visor from headliner area
    Informational PurposesAn informational icon, calling your attention
    참고
    Fold sun visor to the closed and folded down position but do not latch in place
  123. Disconnect LH sun visor connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  124. Push open LH coat hook
  125. Pry open LH coat hook screw cover
    Informational PurposesAn informational icon, calling your attention
    참고
    2x tabs
  126. Remove LH coat hook screw
    Informational PurposesAn informational icon, calling your attention
    참고
    1x screw, T25, 2.5 Nm
  127. Remove LH bolt securing rear headliner to body
    Informational PurposesAn informational icon, calling your attention
    참고
    1x bolts, 10mm, 3 Nm
  128. Partially release headliner from LH side body
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, 1x hook, 3x tether clips, Headliner will be supported by tethers when released, Push upward and inward to release hooks on the coat hook assemblies from the body
  129. Disconnect LH side curtain air bag connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Pull back on tab to release connector from LH side curtain air bag assembly
  130. Release LH body harness clips to curtain airbag
    Informational PurposesAn informational icon, calling your attention
    참고
    7x clips, Route harness away but take note of original routing as it will need to be re-routed correctly during install
  131. Release LH body harness clips to C-pillar area
    Informational PurposesAn informational icon, calling your attention
    참고
    5x clips
  132. Release LH body harness connections from charge port ECU
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors
  133. Release charge port latch connection
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Take note of harness routing, Pull red locking tab outwards to release lock, pull again to release connector_x000A_
  134. Release charge port connection
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Carefully remove white locking tab, Depress tab to release connection from the charge port, Continue to pull off connector, The connection is intended to disengage the safety cap when released
  135. Remove charge port safety cap
    Informational PurposesAn informational icon, calling your attention
    참고
    2x hooks
  136. Release LH tail lamp connection
    Informational PurposesAn informational icon, calling your attention
    참고
    1x locking connector, Disengage red locking tab
  137. Release clips securing LH body harness to LH trunk area
    Informational PurposesAn informational icon, calling your attention
    참고
    6x clips, Take note of harness routing for install
  138. Release LH body harness connectors to rear subframe and chassis harness
    Informational PurposesAn informational icon, calling your attention
    참고
    3x locking connectors, 3x clips, Disengage red locking tabs
  139. Release connectors for tow hitch and tow hitch ECU
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors
  140. Release LH body harness clips for subframe and tow hitch branch
    Informational PurposesAn informational icon, calling your attention
    참고
    6x clips
  141. Release LH body harness grommet from trunk and feed harness out
    Informational PurposesAn informational icon, calling your attention
    참고
    1x grommet
  142. Remove LH body harness from vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    Note original routing, Maneuver out any remaining branches and remove harness from vehicle, Route out behind busbar and retractor
  143. Install LH body harness to vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    Position harness for install, Route in behind retractor and busbar, Return to original routing
  144. Secure LH body harness grommet in trunk and feed harness in
    Informational PurposesAn informational icon, calling your attention
    참고
    1x grommet
  145. Secure connectors for tow hitch and tow hitch ECU
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors
  146. Secure LH body harness clips for subframe and tow hitch branch
    Informational PurposesAn informational icon, calling your attention
    참고
    6x clips
  147. Secure LH body harness connectors to rear subframe and chassis harness
    Informational PurposesAn informational icon, calling your attention
    참고
    3x locking connectors, 3x clips, Engage red locking tabs
  148. Fasten clips securing LH body harness to LH trunk area
    Informational PurposesAn informational icon, calling your attention
    참고
    6x clips
  149. Secure LH tail tamp connection
    Informational PurposesAn informational icon, calling your attention
    참고
    1x locking connector, Engage red locking tab
  150. Install charge port safety cap
    Informational PurposesAn informational icon, calling your attention
    참고
    2x hooks, Safety cap will click into position
  151. Secure charge port connection
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Fully engage connection and white locking tab, The connector is intended to lock the safety cap in place
  152. Secure charge port latch connection
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Return harness to original routing, Harness sits in front of busbar, Fully engage connector and red locking tab
  153. Secure LH body harness connections onto charge port ECU
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors
  154. Secure LH body harness clips to C-pillar area
    Informational PurposesAn informational icon, calling your attention
    참고
    5x clips
  155. Secure LH body harness clips to curtain airbag
    Informational PurposesAn informational icon, calling your attention
    참고
    7x clips, Route harness in and return to original location, Secure all clips
  156. Connect LH side curtain air bag connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Secure safety lock
  157. Release tether clips from LH roof body
    Informational PurposesAn informational icon, calling your attention
    참고
    3x tether clips
  158. Secure LH tether clips to headliner
    Informational PurposesAn informational icon, calling your attention
    참고
    Listen for audible click when seated properly
  159. Release LH coat hook bracket from body
    Informational PurposesAn informational icon, calling your attention
    참고
    1x bolt, T20, 1 Nm, 1x clip, Release bolt and tether and then release clip from body
  160. Secure LH coat hook bracket to headliner
    Informational PurposesAn informational icon, calling your attention
    참고
    1x bolt, T20, 1 Nm, 3x tabs, Secure bolt and tether to bracket, Pivot bracket onto headliner tabs
  161. Install LH coat hook screw
    Informational PurposesAn informational icon, calling your attention
    참고
    1x screw, T25, 2.5 Nm
  162. Close LH coat hook screw cover
    Informational PurposesAn informational icon, calling your attention
    참고
    2x tabs
  163. Install partially release headliner to LH side body
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, 3x tether clips, 1x coat hook clip
  164. Install LH bolt securing rear headliner to body
    Informational PurposesAn informational icon, calling your attention
    참고
    1x bolt, 10mm, 3 Nm
  165. Connect LH sun visor connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  166. Install LH sun visor into headliner area
  167. Install LH sun visor fastener
    Informational PurposesAn informational icon, calling your attention
    참고
    1x screw, T25, 3.5 Nm
  168. Install LH sun visor bracket cover
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips
  169. Secure LH body harness ground onto C-pillar
    Informational PurposesAn informational icon, calling your attention
    참고
    1x bolt, 10mm, 9 Nm
  170. Connect LH rear door latch assembly connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, secure locking tab
  171. Secure closeout panel for LH rear door latch assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    1x cover, Fold trim aside for access
  172. Secure LH C-pillar mid and lower BIW bracket
    Informational PurposesAn informational icon, calling your attention
    참고
    3x clips
  173. Secure LH C-pillar lower bottom BIW bracket
    Informational PurposesAn informational icon, calling your attention
    참고
    1x harness clip, 2x clips
  174. Fasten clips securing LH body harness for 2nd row seat belt buckle branch
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips, Route branch under busbar
  175. Connect 2nd row LH seat belt buckle connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  176. Connect RH body harness from LH body harness under 2nd row cushion
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors, Secure red locking tab
  177. Install clips securing LH body harness to second row area
    Informational PurposesAn informational icon, calling your attention
    참고
    5x clips
  178. Secure LH body harness clips to B-pillar
    Informational PurposesAn informational icon, calling your attention
    참고
    5x clips
  179. Connect camera and install LH side applique
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connector, Slide applique up into clips and align to mounting holes for installation
  180. Reinstall screws securing LH side applique
    Informational PurposesAn informational icon, calling your attention
    참고
    2x screws, T25, 4 Nm
  181. Install LH B-Pillar applique cover
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips, 2x tabs, Make sure all clips are fully seated, Secure bottom tabs onto LH B-Pillar applique then engage the upper clips
  182. Secure LH B-pillar seals to applique
    Informational PurposesAn informational icon, calling your attention
    참고
    Use P-80 emulsion grease to assist with seal installation
  183. Secure LH body harness connector and clip to LH rear door
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, 1x clip, Tuck harness back into B-pillar
  184. Secure LH front retractor connectors
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors, 2x tabs per connector, Fully secure connectors, Verify they are properly seated
  185. Secure B-pillar accelerometer connection
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Secure connector and fully engage red locking tab
  186. Install clips securing LH body harness to LH driver side area
    Informational PurposesAn informational icon, calling your attention
    참고
    9x clips, Route branches as needed and secure clips, Use tooling to help secure clips as required
  187. Install clips securing LH body harness to passenger seat area
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, Route harness towards passenger side
  188. Connect RH body harness to LH body harness under RH front carpet
    Informational PurposesAn informational icon, calling your attention
    참고
    3x connectors, Release red locking tabs
  189. Secure LH body harness connectors and clip by passenger side center console
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors, 1x clip, Route harness back towards driver side, Secure locking tabs, Use tooling to help secure clip as required
  190. Release LH body harness connector and clip by passenger footwell area
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, 1x clip, Route harness back towards passenger side
  191. Install clips securing LH body harness beneath IP
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips
  192. Connect RCM connectors
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors, Connect left connector first by aligning connector and swinging release arm down then align right connector and connect in same manner
  193. Install LH toeboard bracket to vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    2x bolts, E14, 9 Nm, 1x bolt 10mm, 10 Nm, 1x bolt 13mm, 20 Nm, Be cautious and do not damage nearby harness
  194. Install clips securing LH body harness to driver footwell
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips
  195. Secure LH body harness to pedal assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    1x harness clip
  196. Connect LH body harness to brake switch
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  197. Connect accelerator pedal connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x locking connector, Secure red locking tab
  198. Install driver floor jumper air duct
    Informational PurposesAn informational icon, calling your attention
    참고
    1x tab
  199. Secure LH body harness bracket onto VC left and body
    Informational PurposesAn informational icon, calling your attention
    참고
    3x clips
  200. Secure LH body harness ground onto lower A-pillar
    Informational PurposesAn informational icon, calling your attention
    참고
    1x bolt, 10mm, 9 Nm
  201. Secure clips for A-pillar branch of LH side body harness
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, Secure clips and route harness up
  202. Connect headliner harness at LH front A-pillar
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  203. Install LH upper A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    참고
    2x tethered clips, 1x clip, 1x connector, Slide bottom of trim along IP and speaker grill, attach each tether to body side, Set clips starting at the bottom and work up, Pull seal over trim
  204. Connect J8 X039 Body 6 Connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  205. Connect J3 X031 Body 2 connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Fully seat connector then engage lock
  206. Connect J5 X034 Body 4 connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Fully seat connector then engage lock
  207. Connect J6/J7 X038A/B Body 5 connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Fully seat connector then engage lock
  208. Connect J4 X032 Body 3 Connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  209. Connect J1/J2 X030A/B Body 1 connector
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Fully seat connector then engage lock
  210. Secure connector on VC left
    Informational PurposesAn informational icon, calling your attention
    참고
    1x locking connector, Engage red locking tab
  211. Secure IP harness connectors and clip by VC left
    Informational PurposesAn informational icon, calling your attention
    참고
    1x locking connector, 1x lever connector, 1x clip, Engage red locking tab, Engage lever to release
  212. Secure LH door harness connectors and clip from VC left
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors, 1x clip
  213. Install rear fascia assembly onto vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    Recommend Assistance, Route fascia harness while installing, Verify rear diffuser sits under mid aero shield before proceeding
  214. Connect rear fascia harness
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, Engage locking tab, Located behind RH rear wheel arch liner
  215. Secure rear fascia assembly onto body
    Informational PurposesAn informational icon, calling your attention
    참고
    Secure fascia edges onto fender brackets
  216. Apply Loctite 222 to fasteners and secure rear diffuser to mid aero shield
    Informational PurposesAn informational icon, calling your attention
    참고
    8x bolts, 10mm, 6 Nm, 2x clips, 2x datums
  217. Install rear diffuser nuts
    Informational PurposesAn informational icon, calling your attention
    참고
    3x nuts, 10mm, 3 Nm
  218. Install bolt securing rear fascia to RH fender bracket
    Informational PurposesAn informational icon, calling your attention
    참고
    1x bolt, T25, 5 Nm
  219. Install push clips securing RH rear wheel arch liner to fascia
    Informational PurposesAn informational icon, calling your attention
    참고
    4x push clips
  220. Install bolt securing rear fascia to LH fender bracket
    Informational PurposesAn informational icon, calling your attention
    참고
    1x bolt, T25, 5 Nm
  221. Install push clips securing LH rear wheel arch liner to fascia
    Informational PurposesAn informational icon, calling your attention
    참고
    5x push clips
  222. Install LH nut securing rear fascia assembly to body
    Informational PurposesAn informational icon, calling your attention
    참고
    1x nut, 10mm, 4 Nm
  223. Install butyl patch covering LH access hole
  224. Install RH nut securing rear fascia assembly to body
    Informational PurposesAn informational icon, calling your attention
    참고
    1x nut, 10mm, 4 Nm
  225. Install butyl patch covering RH access hole
  226. Connect RH trunk puddle lamp
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector
  227. Secure RH trunk side trim back into place
  228. Install RH trunk bracket assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    3x clips, 1 datum
  229. Install LH trunk side trim and secure clips
    Informational PurposesAn informational icon, calling your attention
    참고
    3x push clips, 3x clips, 2x connections
  230. Install LH upper C-pillar trim
    Informational PurposesAn informational icon, calling your attention
    참고
    7x clips, Replace any damaged clips
  231. Install LH upper B-pillar
    Informational PurposesAn informational icon, calling your attention
    참고
    7x clips, Route seatbelt through B-pillar, Replace any damaged or missing clips
  232. Install LH lower B-pillar
    Informational PurposesAn informational icon, calling your attention
    참고
    6x clips, 2x datums, Align datums then engage all clips Replace any damaged or missing clips
  233. Install LH mid C-pillar trim
    Informational PurposesAn informational icon, calling your attention
    참고
    3x clips, Replace any damaged clips
  234. Install LH lower C-pillar trim
    Informational PurposesAn informational icon, calling your attention
    참고
    8x clips, Properly seat door seal
  235. Install trunk side wall trim
    Informational PurposesAn informational icon, calling your attention
    참고
    3x Velcro strips
  236. Install LH trunk bracket assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    4x clips, 1 datum
  237. Install rear wall trim
    Informational PurposesAn informational icon, calling your attention
    참고
    4x push clips, 2x datums
  238. Install trunk sill panel
    Informational PurposesAn informational icon, calling your attention
    참고
    6x clips, 4x guides
  239. Install side load floor
  240. Install trunk load floor
  241. Install parcel shelf
  242. Install 2nd row seat cushion assembly
    Informational PurposesAn informational icon, calling your attention
    참고
    2x clips, 2x connectors, Secure connections and slide seat belt buckles through seat cushion, Engage clips
  243. Install LH side bolster trim
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clip, 1x tab, Replace clip if damaged, Hook bottom portion and then secure the top
  244. Install RH side bolster trim
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clip, 1x tab, Replace clip if damaged, Hook bottom portion and then secure the top
  245. Install RH footrest panel
    Informational PurposesAn informational icon, calling your attention
    참고
    2x bolts, 10mm, 5 Nm, 1x nut, 10mm, 5 Nm
  246. Secure harness to RH footrest panel
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clip
  247. Fold RH front cabin carpet back into position
  248. Install RH console side carpet
    Informational PurposesAn informational icon, calling your attention
    참고
    11x clips
  249. Install RH footwell cover
    Informational PurposesAn informational icon, calling your attention
    참고
    3x magnets, 1x connectors
  250. Install RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    참고
    7x clips, Verify weather seal is seated properly
  251. Install RH mid A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clip, 2x tabs, Verify weather seal is seated properly
  252. Install RH first row seat risers to cabin floor
    Informational PurposesAn informational icon, calling your attention
    참고
    2x risers, 2x clips per riser
  253. Install RH front seat into vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    Recommend Assistance, If seat is being replaced take note of OCS module revision, as this will determine the way firmware is installed to vehicle. Be cautious to avoid damage to surrounding components while lifting the seat into the vehicle.
  254. Position chair to gain access below seat bottom and connect RH side body harness to seat controller
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors, 1x clip, Engage red locking tab on black connector
  255. Fold LH front cabin carpet back into position
  256. Install the LH knee air bag assembly into vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clip, 3x connectors, 6x tabs, Hook tabs before fully seating, Use caution not to damage the connector/harness, Support the knee air bag while connecting the connectors
  257. Install fasteners securing LH knee air bag assembly to vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    2x patch bolts, E10, 8 Nm, Install new fasteners
  258. Install LH console side carpet
    Informational PurposesAn informational icon, calling your attention
    참고
    11x clips
  259. Install LH footwell cover
    Informational PurposesAn informational icon, calling your attention
    참고
    1x connector, 2x magnets
  260. Install LH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    참고
    7x clips, Verify weather seal is seated properly
  261. Install LH mid A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    참고
    1x clip, 2x tabs, Verify weather seal is seated properly
  262. Secure H front seat risers
    Informational PurposesAn informational icon, calling your attention
    참고
    2x riser, 2x clips per riser
  263. Install LH front seat into vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    Recommend Assistance, Take care not to damage surrounding components while lifting the seat into the vehicle
  264. Position chair to gain access below seat bottom and connect LH side body harness to seat controller
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors, 1x clip, Engage red locking tab on black connector
  265. Connect First Responder Loop and LV battery connector
    Informational PurposesAn informational icon, calling your attention
    참고
    2x connectors Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated
  266. Install rear underhood apron
    Informational PurposesAn informational icon, calling your attention
    참고
    8x clips
  267. Close hood
    Informational PurposesAn informational icon, calling your attention
    참고
    Press firmly in green highlighted areas (see image), Damage may result from pressure elsewhere on hood
  268. Move LH front seat forward
  269. Secure LH front seat belt
    Informational PurposesAn informational icon, calling your attention
    참고
    Ensure audible click is heard during install, perform pull test to confirm secure
  270. Install bolts securing LH front seat rear tracks to vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    2x patch bolts, T45P, 34 Nm, Install new bolts
  271. Move LH front seat backward
  272. Install bolts securing both LH front seat front tracks to vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    2x patch bolts, T45P, 34 Nm, Install new bolts
  273. Move LH front seat to original position
  274. Install LH front floor mat
  275. Move RH front seat forward
  276. 전면 시트 안전벨트 링키지를 프리텐셔너에 장착합니다.
    1. 잠금 나사가 수평 위치에 있는지 확인하십시오. 잠금 나사가 수평 위치에 있지 않으면 해제 지침에 따라 잠금을 해제합니다.
    2. 상단 B필러 트림부터 프리텐셔너까지 안전벨트에 꼬인 부분이 없는지 확인하십시오.
    3. 링키지를 프리텐셔너 케이블에 장착합니다.
      Informational PurposesAn informational icon, calling your attention
      참고
      딸깍 소리가 들립니다.
      Informational PurposesAn informational icon, calling your attention
      참고
      잠금 나사가 다시 잠금 위치로 돌아갑니다.
    4. 최소 15파운드의 힘으로 안전벨트를 강하게 당기는 검사를 수행합니다.
  277. Install bolts securing RH front seat rear tracks to vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    2x patch bolts, T45P, 34 Nm, Install new bolts
  278. Move RH front seat backward
  279. Install bolts securing both RH front seat front tracks to vehicle
    Informational PurposesAn informational icon, calling your attention
    참고
    2x patch bolts, T45P, 34 Nm, Install new bolts
  280. Move RH front seat to original position
  281. Install RH front floor mat
  282. Fold 60 seat into vertical position
    Informational PurposesAn informational icon, calling your attention
    참고
    Remove seat cushion protection
  283. Close liftgate
  284. Set air suspension ride height to “Medium”
    Informational PurposesAn informational icon, calling your attention
    참고
    Using center display, Controls > Suspension > ''Medium'
  285. Raise all four windows
  286. Close all four doors
