校正代码 14051502 1.68 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至 ServiceManualFeedback@tesla.com。。 注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

1. Open both front doors
2. Lower both front windows
3. Move LH front seat backward
4. Move RH front seat backward
5. Clear DAS Calibration through UI
   注

   Controls > Service > Camera Calibration, Select Clear Calibration, Verify calibration was cleared successfully, Wait for prompt to disappear automatically before continuing, Calibration in Progress message and progress icon will appear during the next drive cycle
6. Open hood
   注

   Press "Open" button on the touchscreen to release the latch, Lift the lid manually
7. Remove rear apron
   注

   12x clips, Only store rear apron visible face upwards







8. Remove cabin intake upper duct assembly
   注

   4x clips, Heat pump vehicles have 3x clips





9. Remove closeout panel from frunk assembly
   注

   4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Grab closeout panel from bottom then pull it upward to release clips, Disconnect the switch





10. Remove frunk assembly carpet



11. Remove bolts securing frunk assembly
    注

    7x bolts, 10mm, 5 Nm, Lift up RBN covers to access upper fasteners, Newer vehicles may not be equipped with covers



12. Remove frunk assembly from vehicle
    注

    12x clips, Replace any clips if broken or missing, Number of clips may vary on older vehicles







13. Remove LH wiper arm nut cover
    注

    1x cover



14. Disconnect washer hose from LH wiper arm to Y-tube fitting and release washer hose clips
    注

    2x clips, 1x hose





15. Remove the nut securing the LH wiper arm to wiper module
    注

    1x nut, 15mm, 25 Nm



16. Remove LH wiper arm and hose assembly from vehicle



17. Remove RH wiper arm nut cover
    注

    1x cover



18. Disconnect washer hose from RH wiper arm to Y-tube fitting and release washer hose clips
    注

    2x clips, 1x hose





19. Remove the nut securing the RH wiper arm to wiper module
    注

    1x nut, 15mm, 25 Nm



20. Remove RH wiper arm and hose assembly from vehicle



21. Remove the LH shock tower cover
    注

    2x push clips



22. Remove the RH shock tower cover
    注

    2x push clips

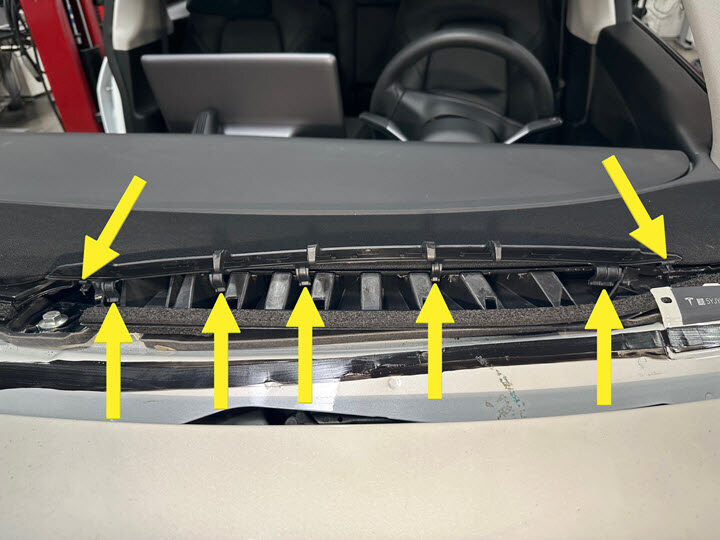

23. Release cowl screen from windshield and remove from vehicle
    注

    2x push clips, 6x clips

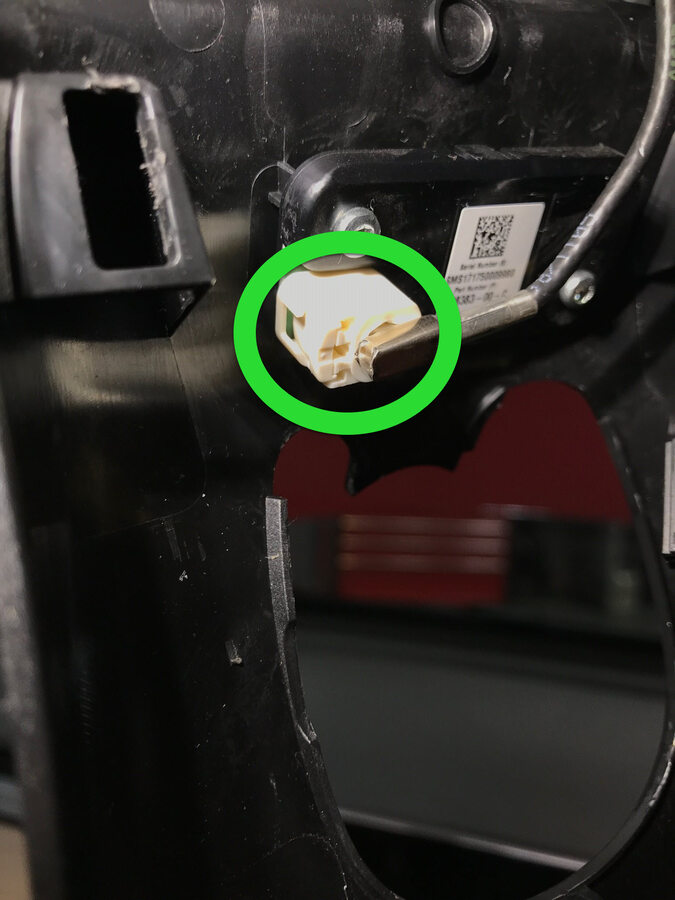

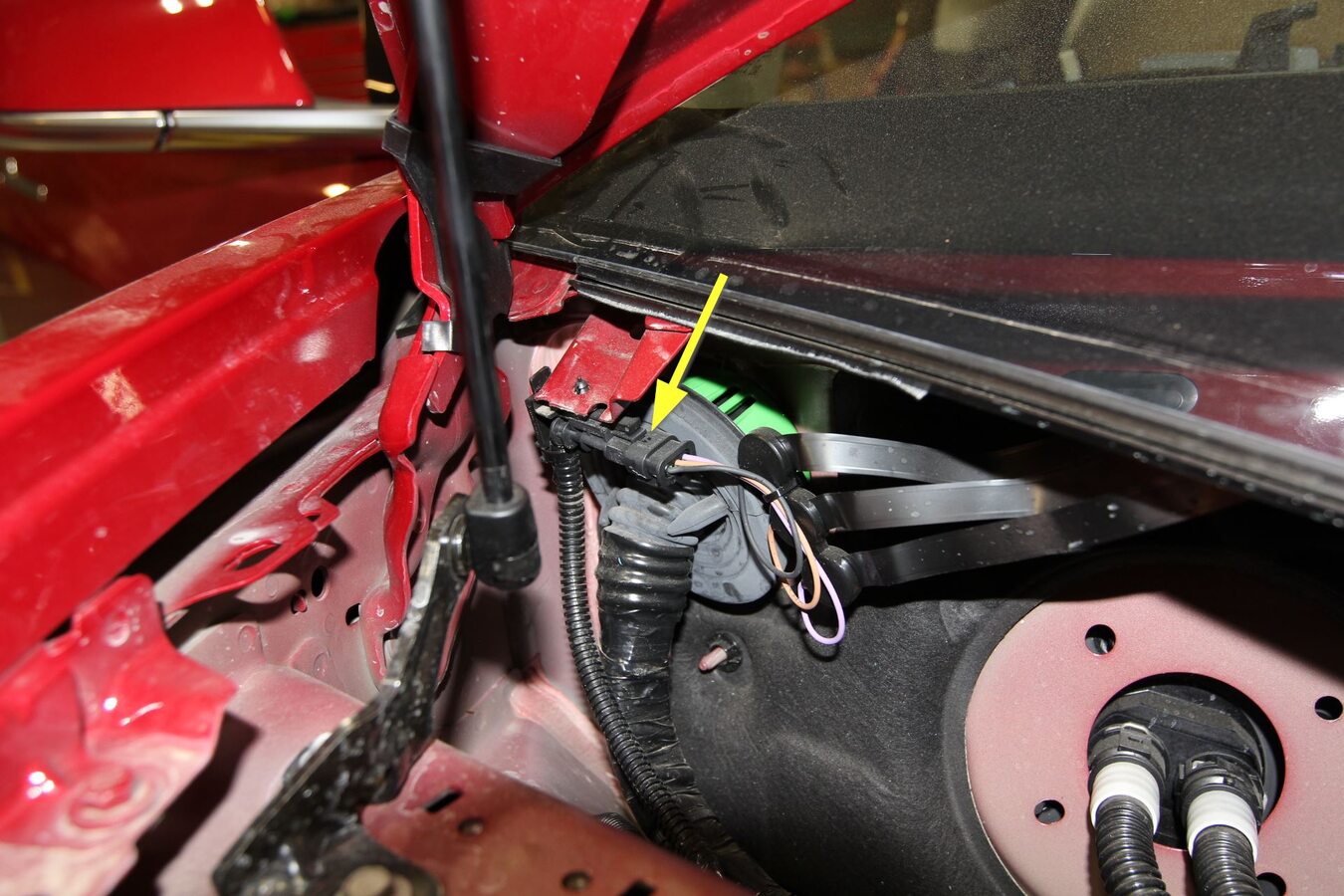

24. Disconnect windshield heater connector
    注

    1x connector

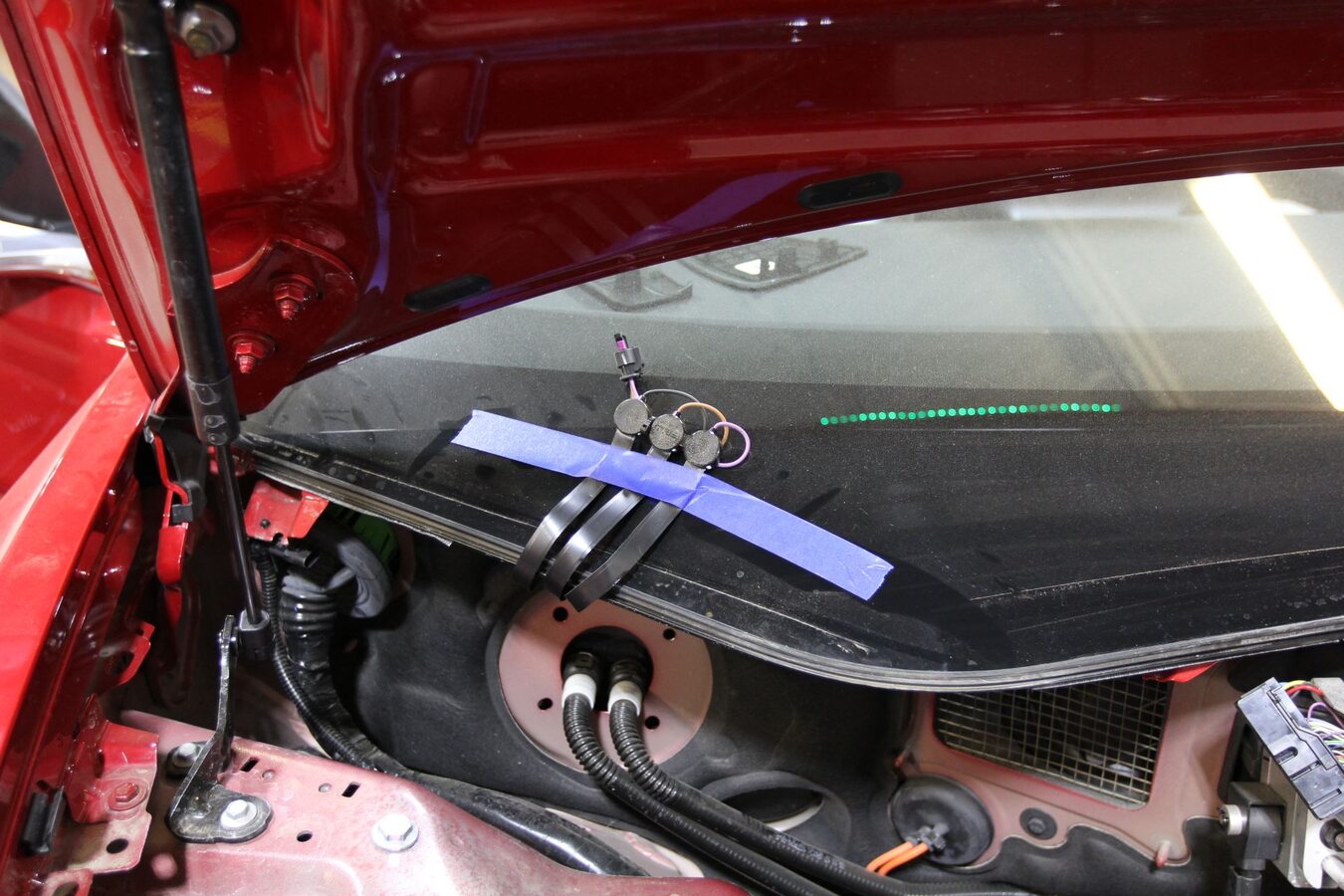

25. Secure heater harness onto windshield

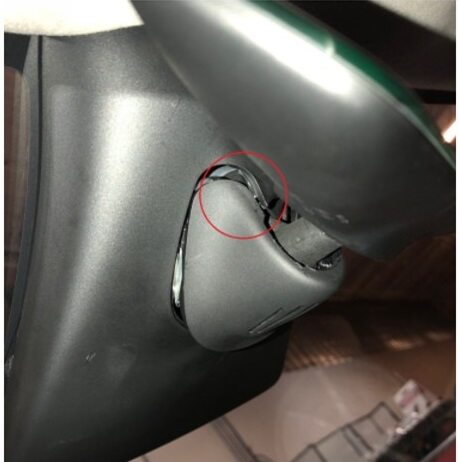

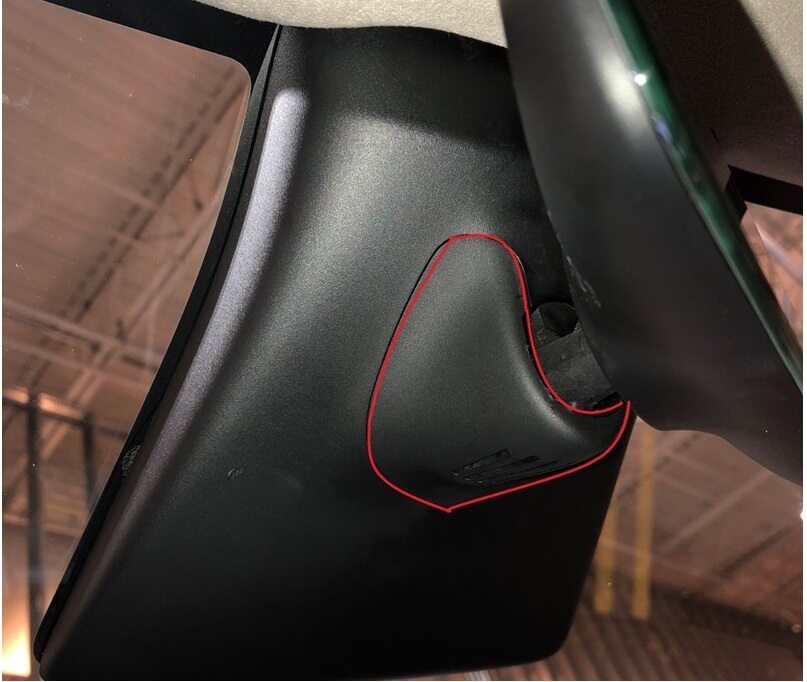

26. Remove lower quad camera cover
    注

    4x tabs, Press on the side of the cover with a trim tool to release some of the tabs



27. Remove tether from lower quad camera cover
    注

    2x tabs, Depress tabs to remove tether

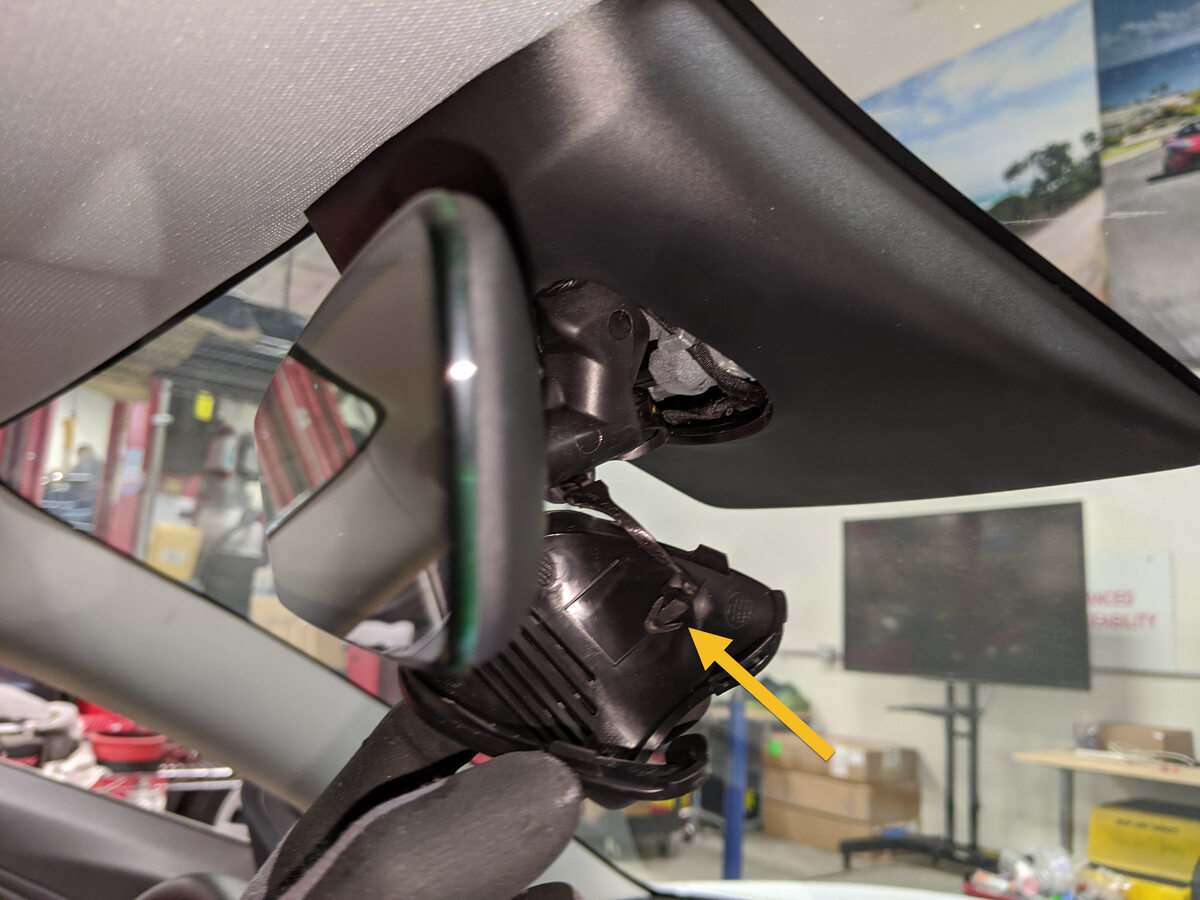

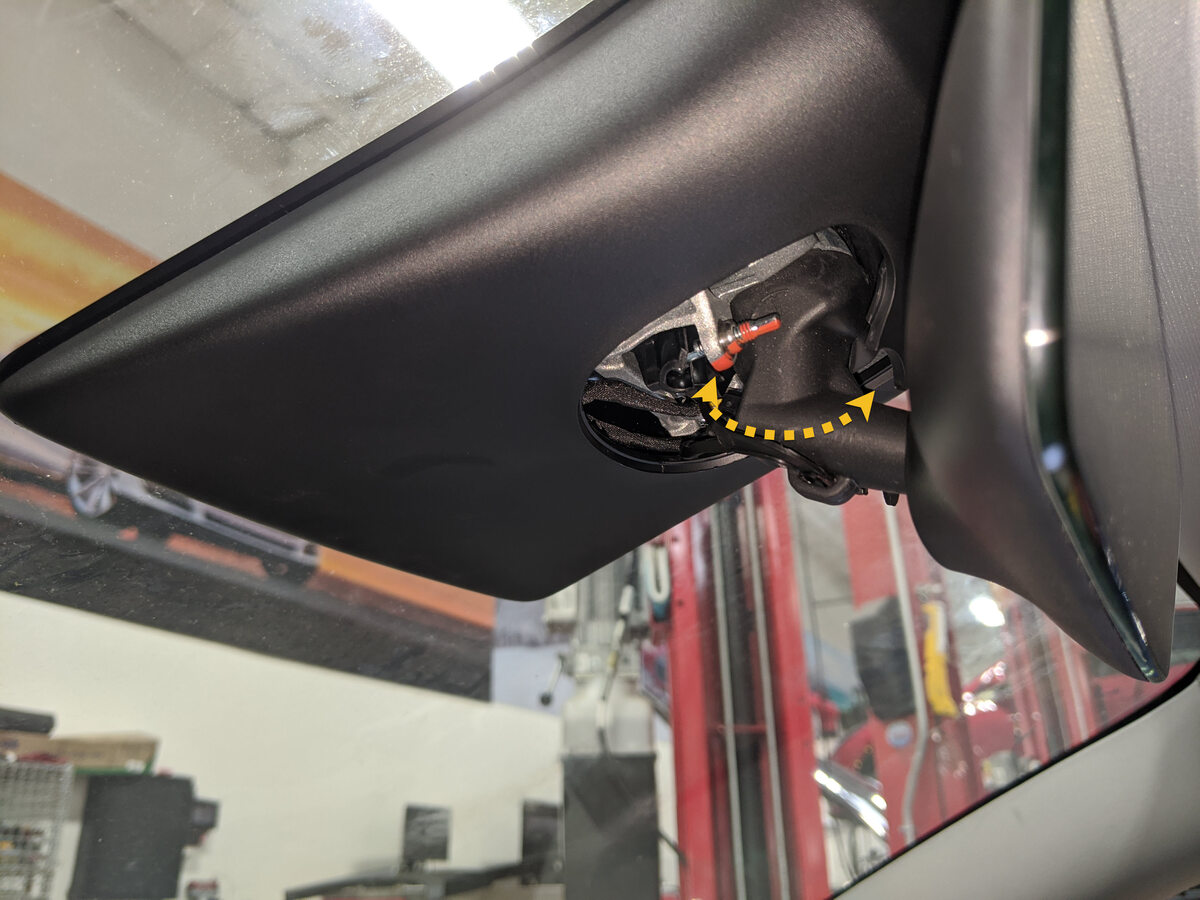

28. Remove rear view mirror
    注

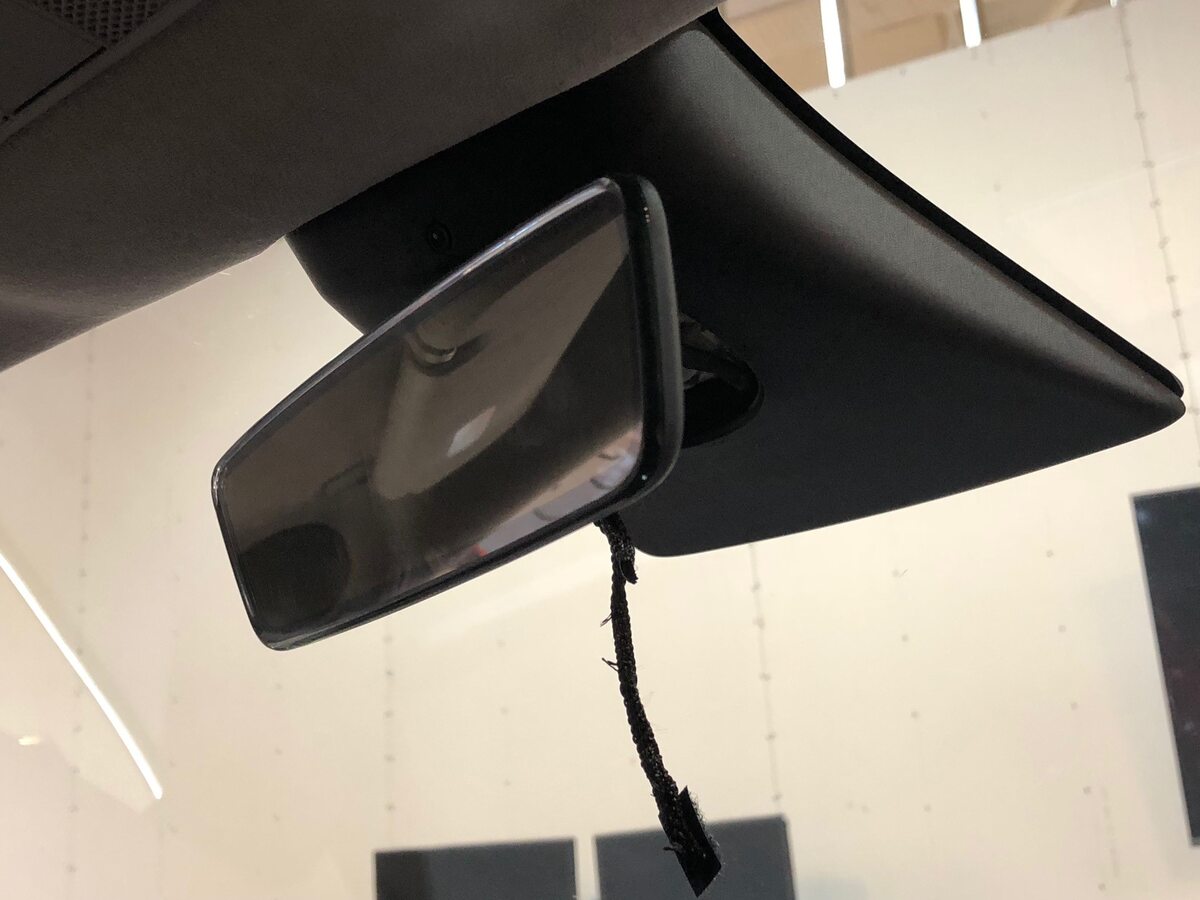

    Turn mirror counterclockwise to remove, do not twist by holding the mirror itself, it will separate from the stalk, twist from the stalk connecting the mirror to the mount

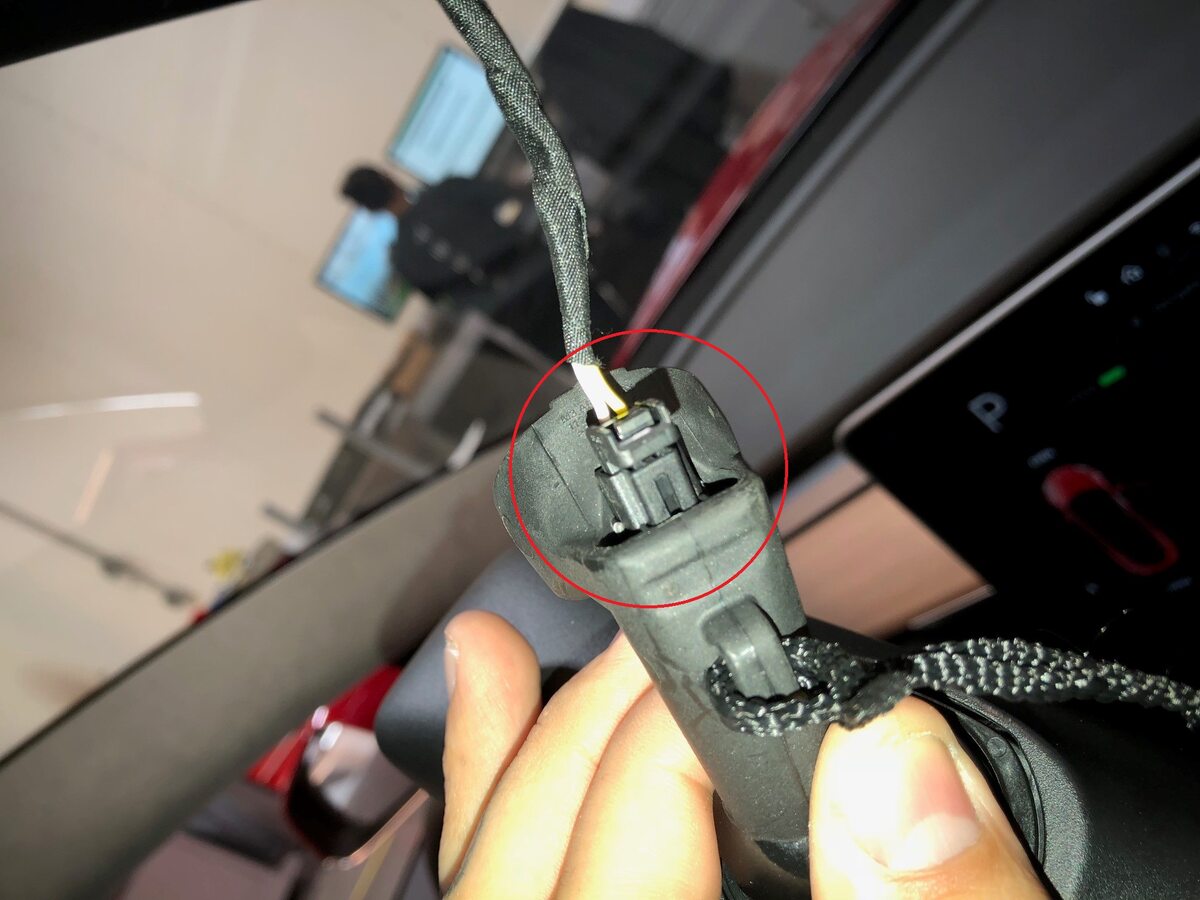

29. Disconnect rear view mirror connector
    注

    1x connector

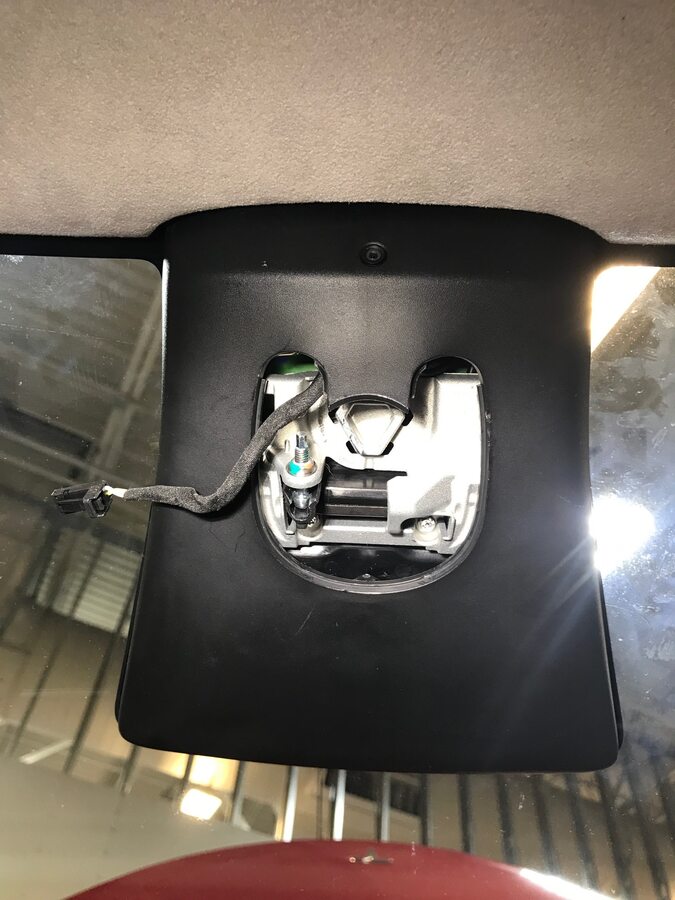

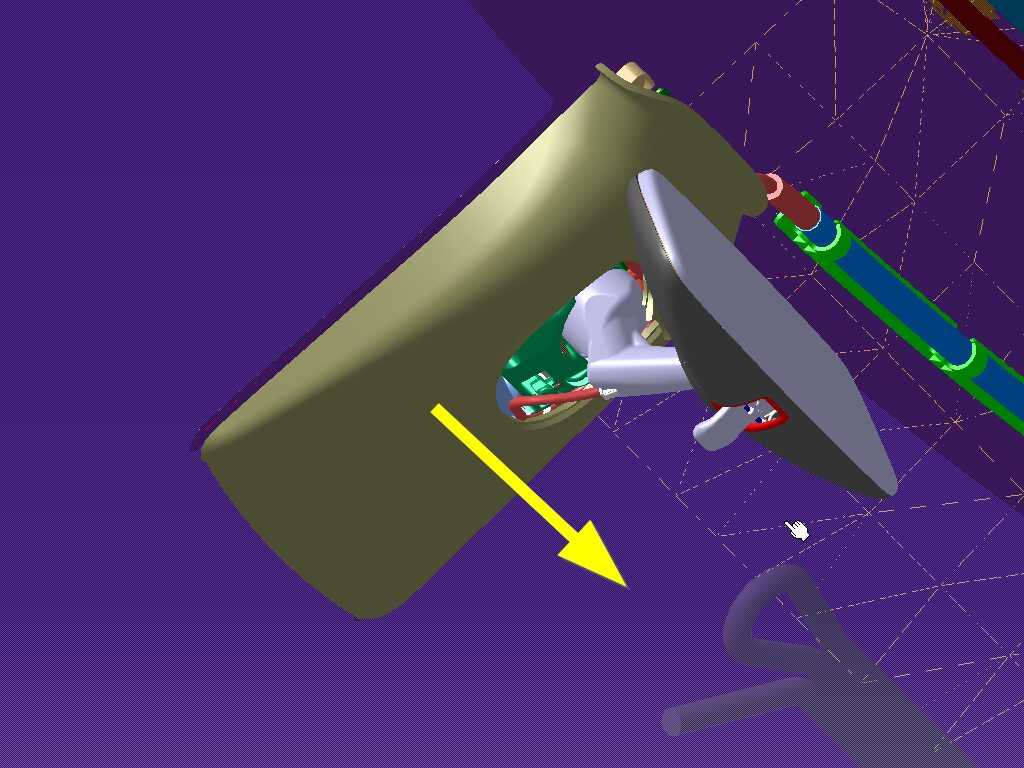

30. Remove quad camera upper cover
    注

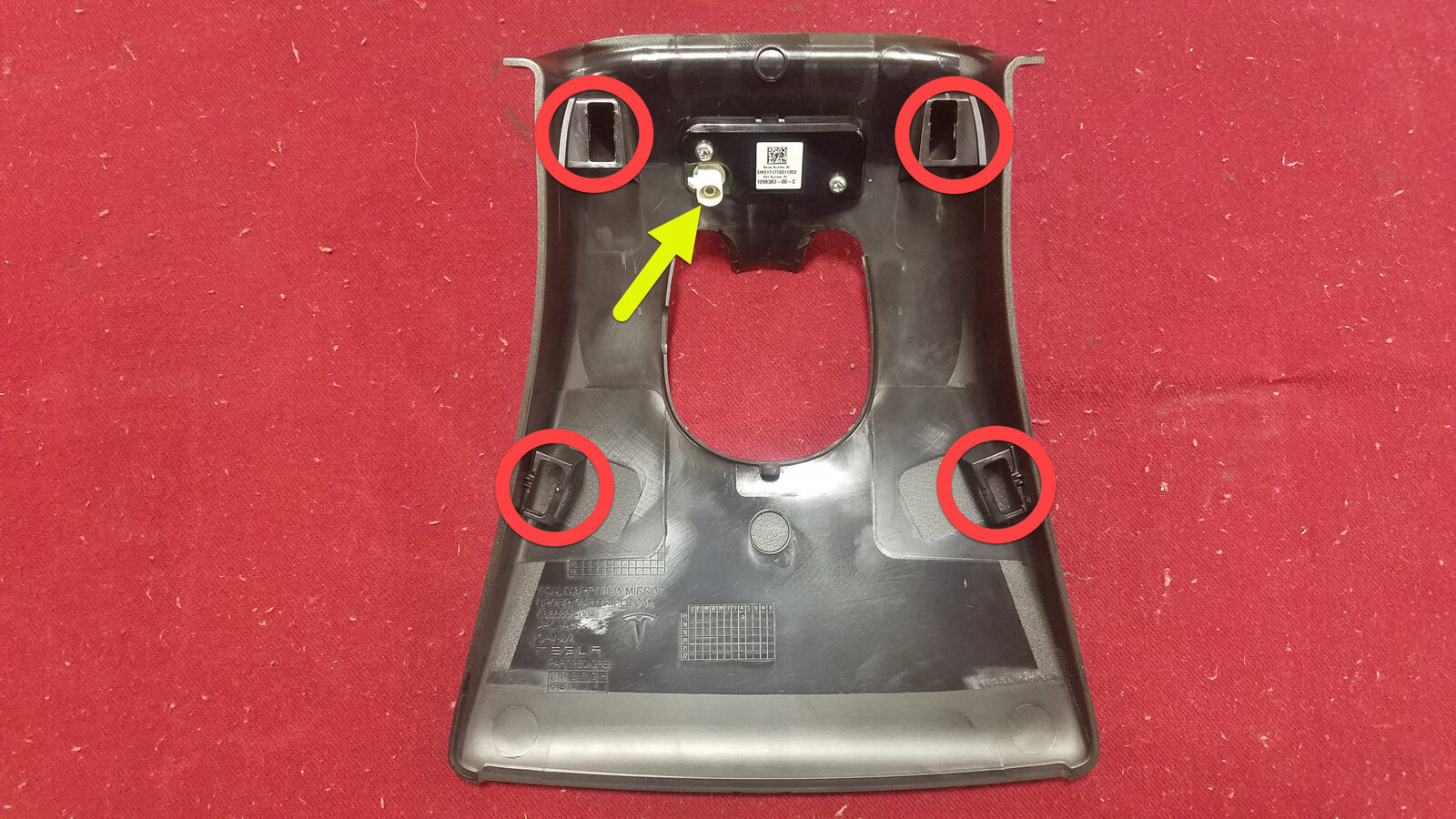

    4x clips, 1x connector, Pull the cover down to remove and then disconnect interior camera

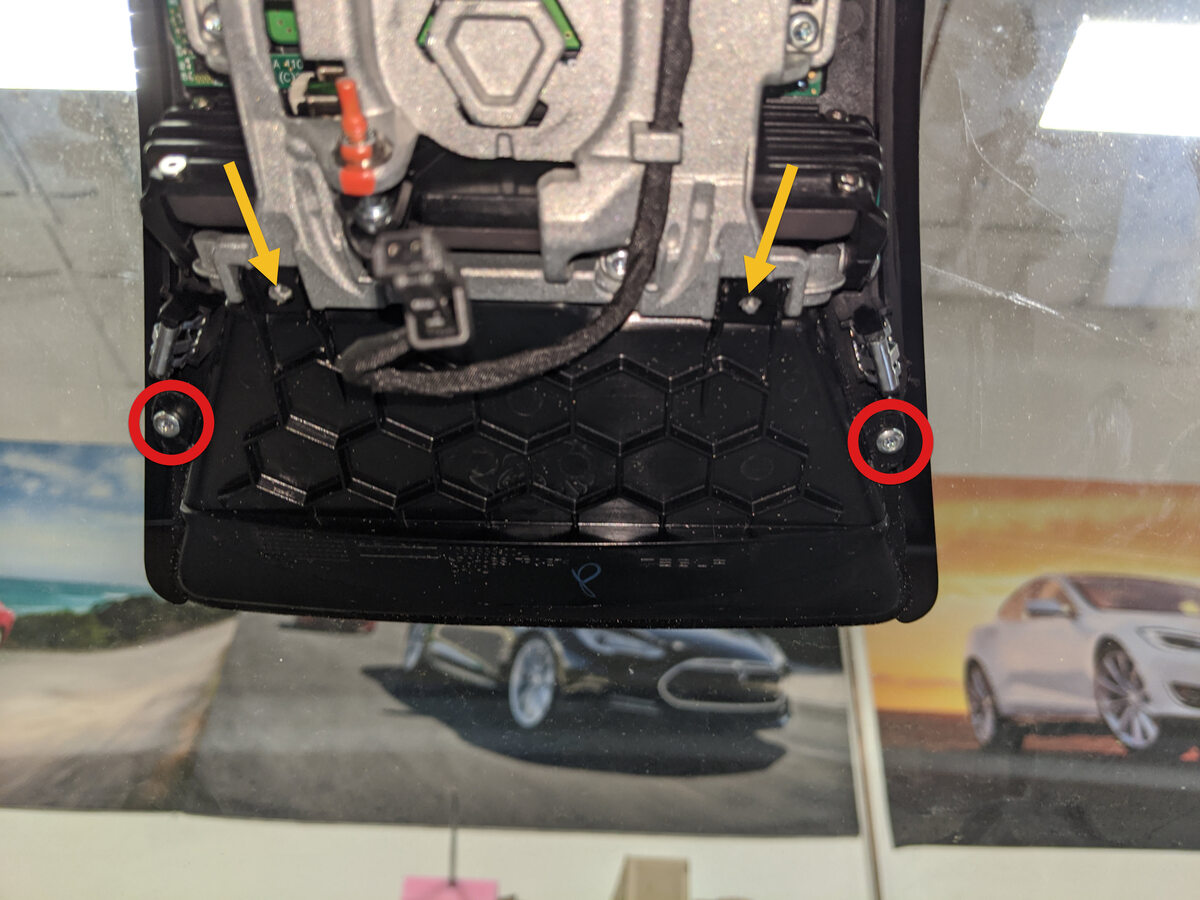

31. Remove triple camera hood
    注

    2x patch screws, T10, 1 Nm, 2x alignment pins, Discard fasteners after removal

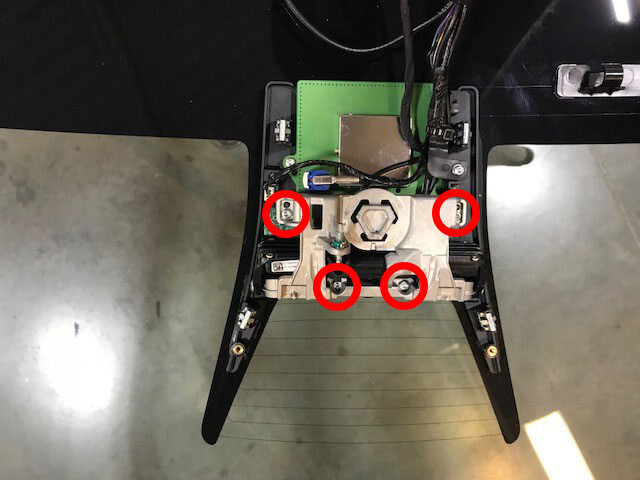

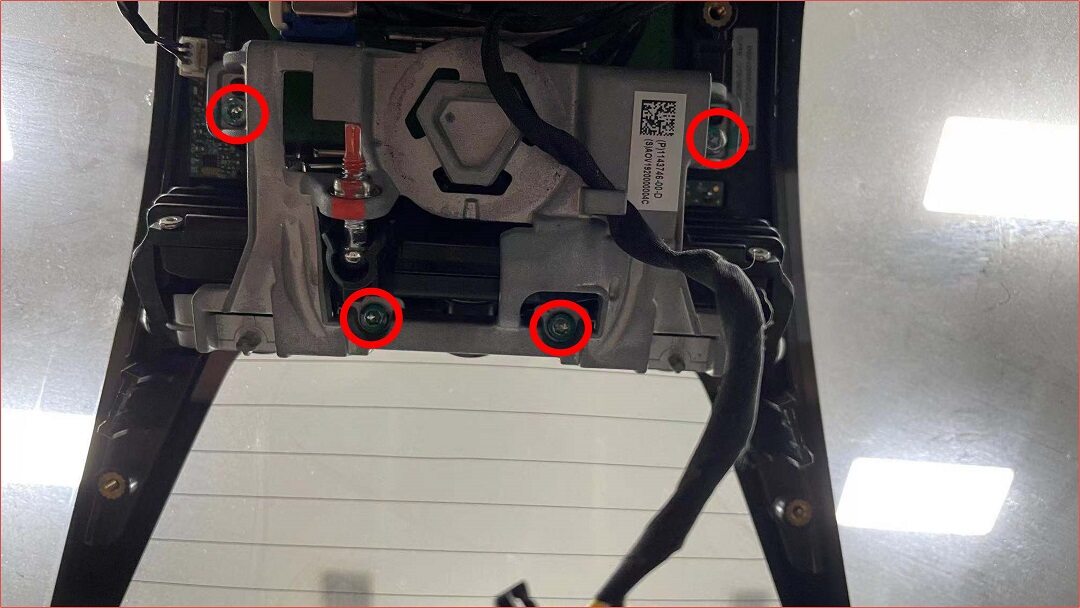

32. Remove triple camera assembly
    注

    4x screws, T10, 1 Nm

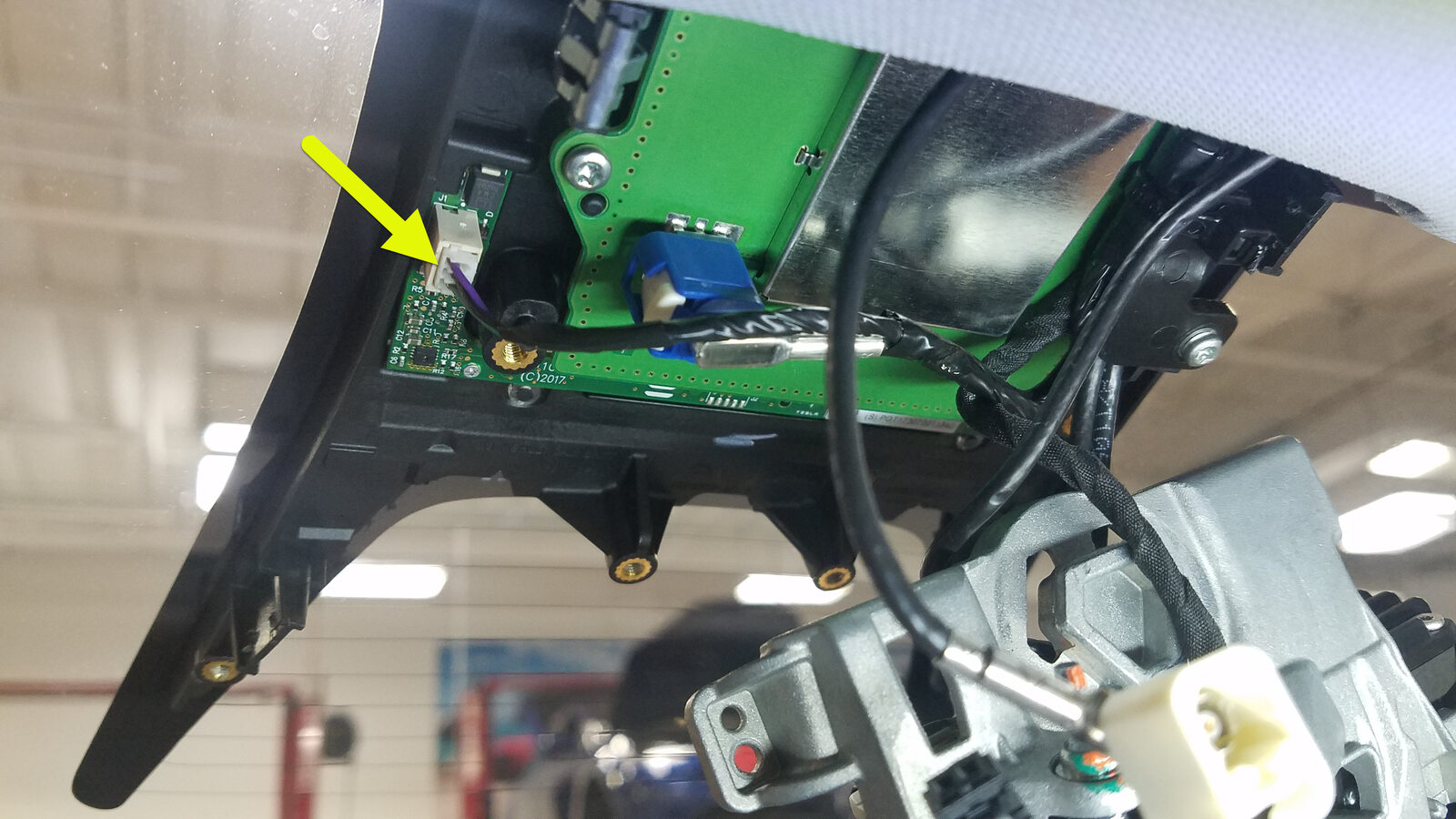

33. Disconnect humidity and temperature sensor harness connector
    注

    1x connector

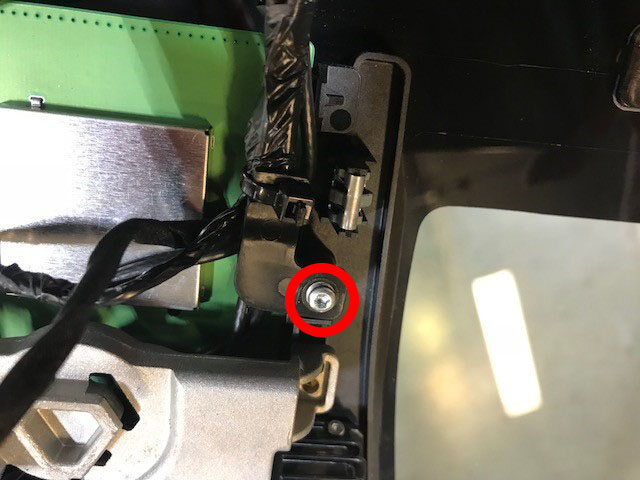

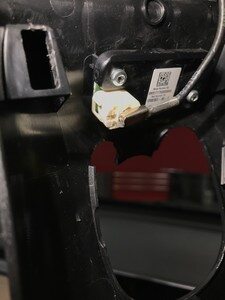

34. Remove screw securing windshield harness to windshield bracket and move harness aside
    注

    1x screw, T10, 1 Nm

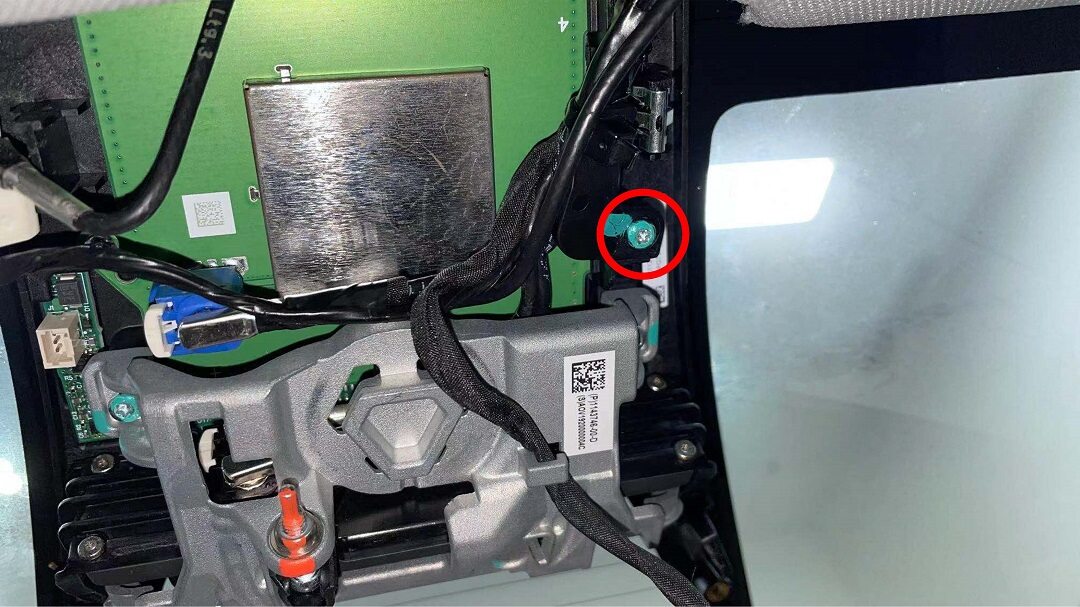

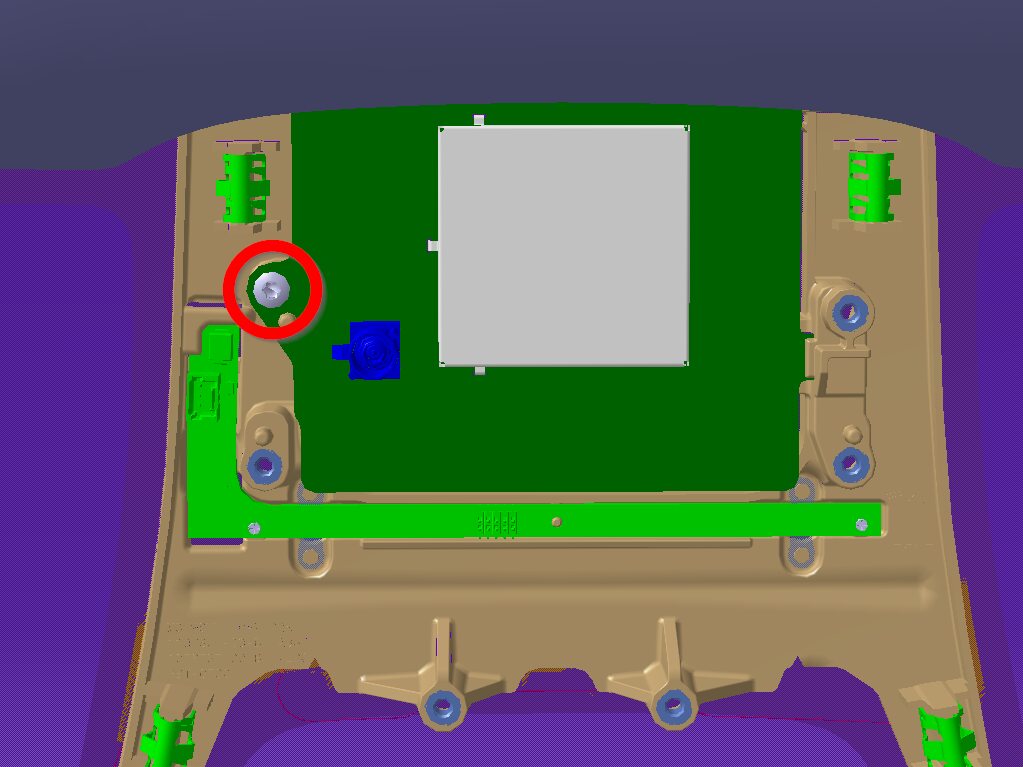

35. Remove GPS/GNSS antenna from bracket
    注

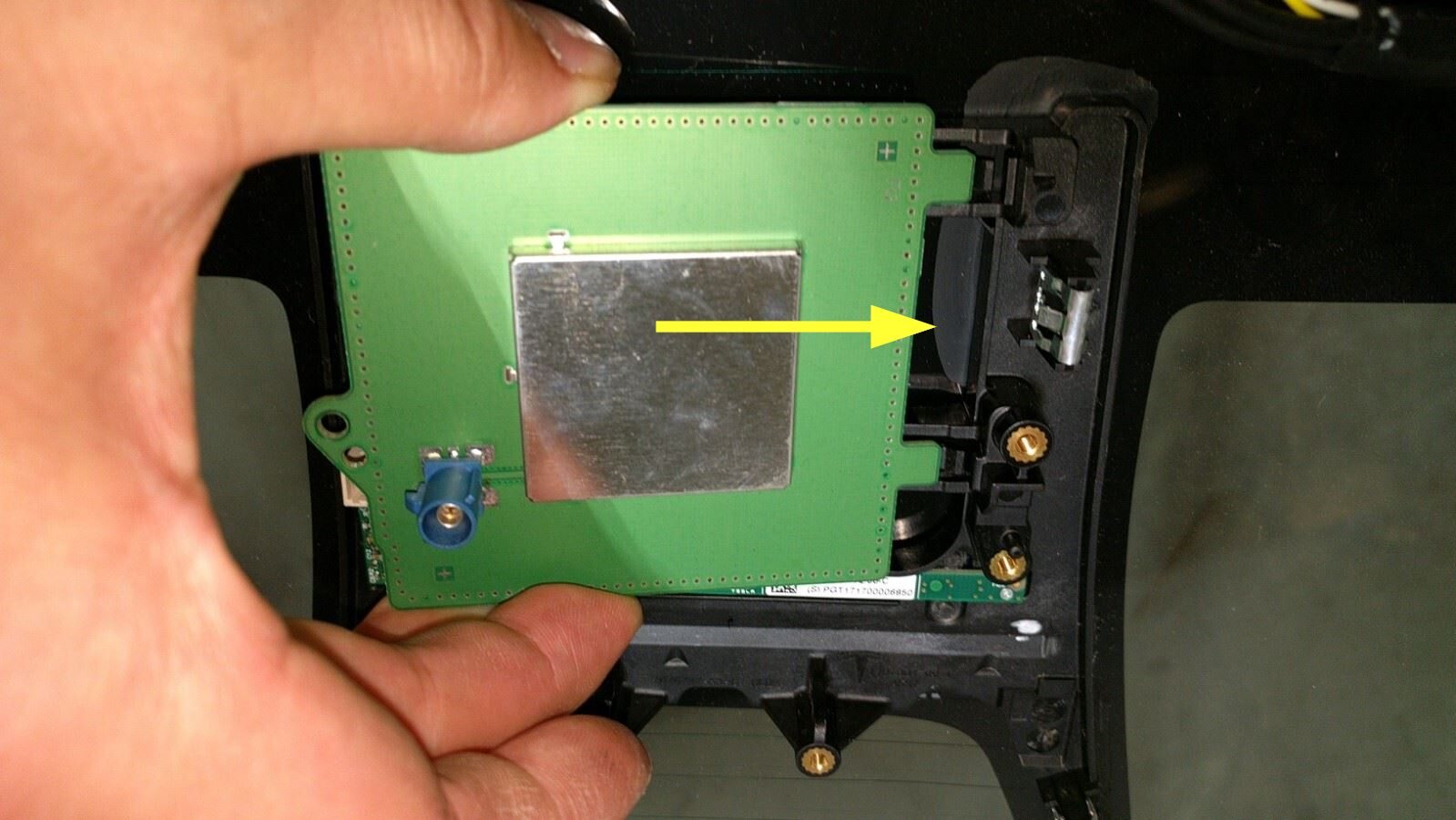

    1x screw, T10, 1 Nm, 2x tabs, Slide antenna to LH side to release from bracket





36. Separate harness track from windshield
    注

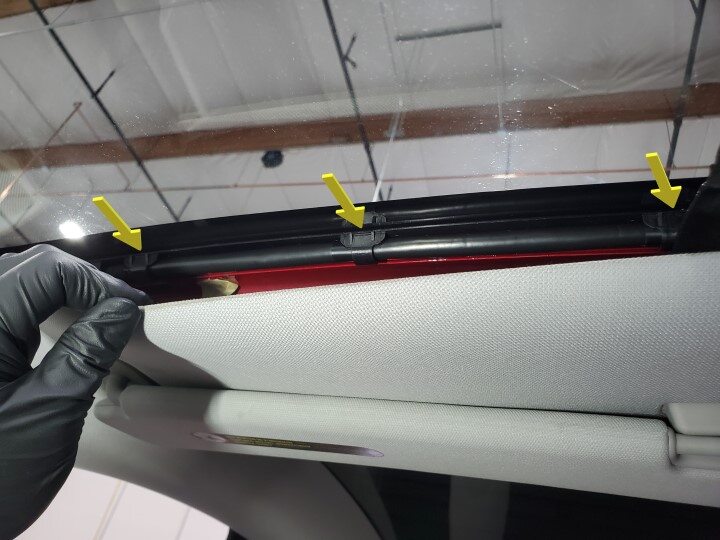

    Located above RH visor under headliner, Slide equalizer up against track and carefully tap equalizer to separate from windshield

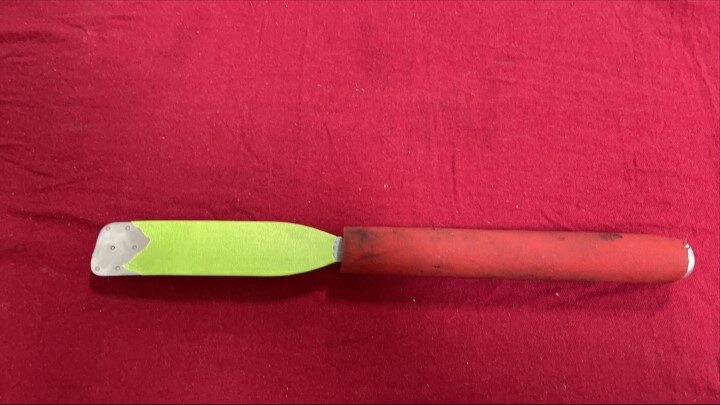

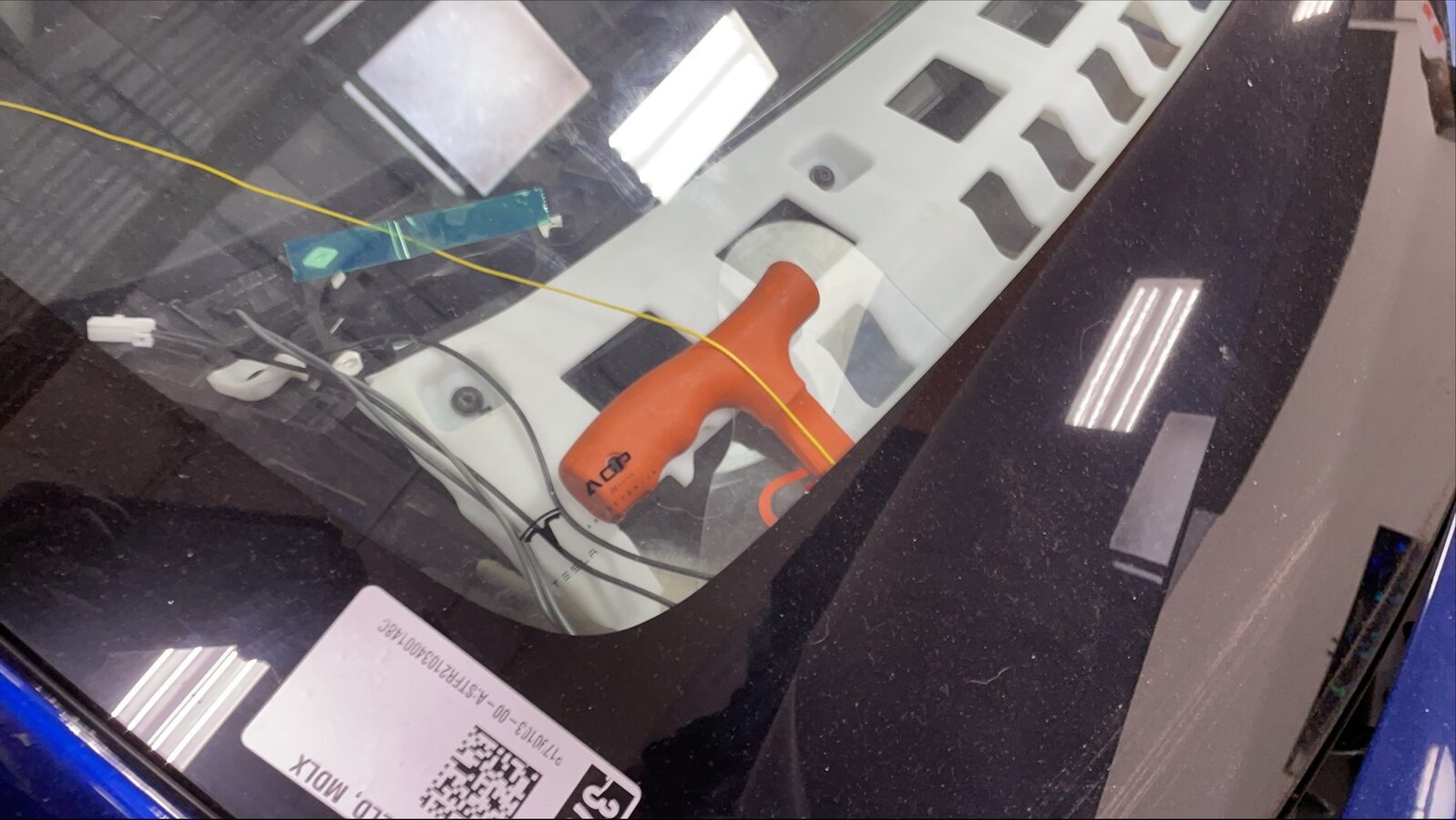

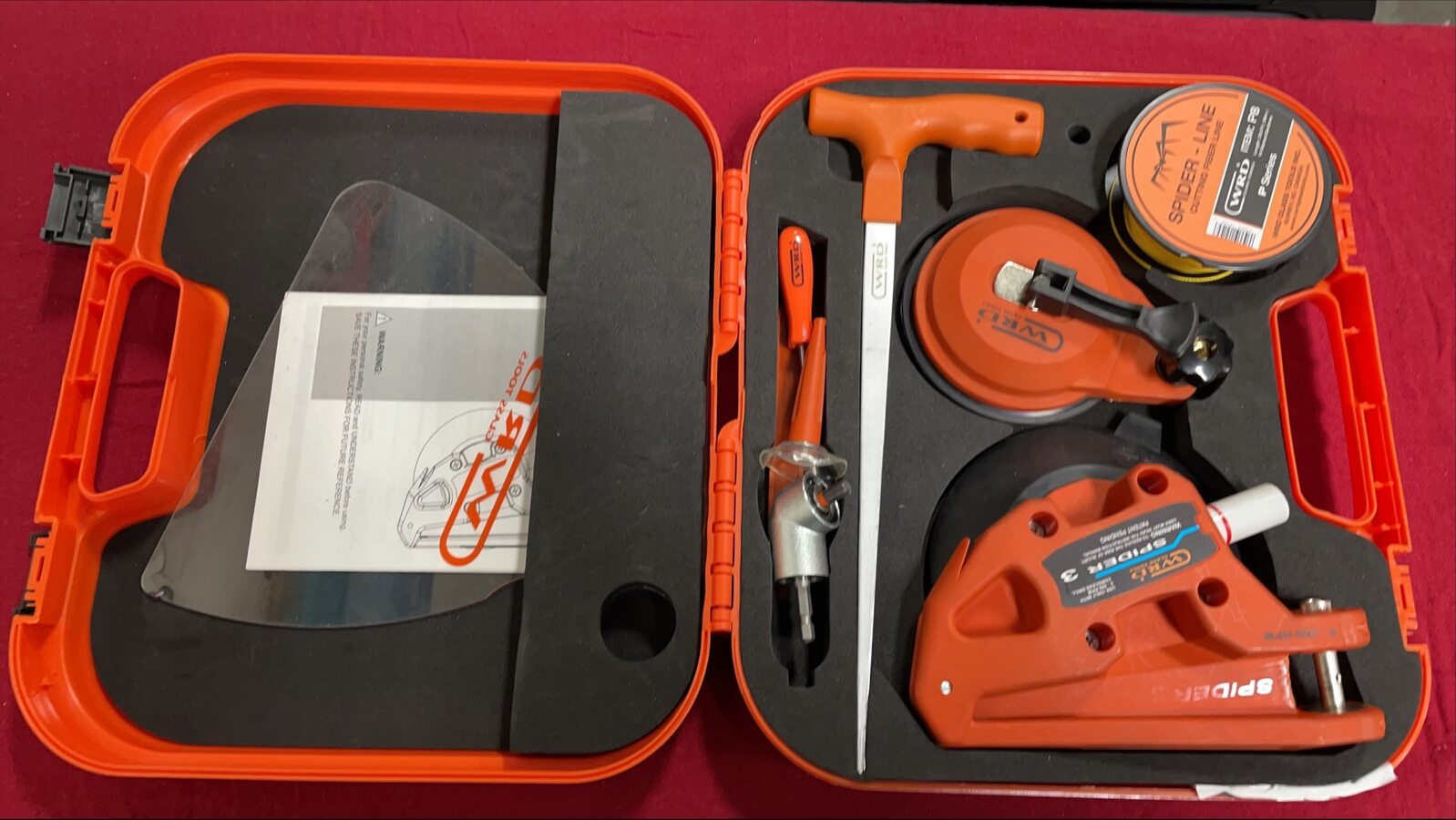

37. Prepare WRD Spider 3 glass removal kit

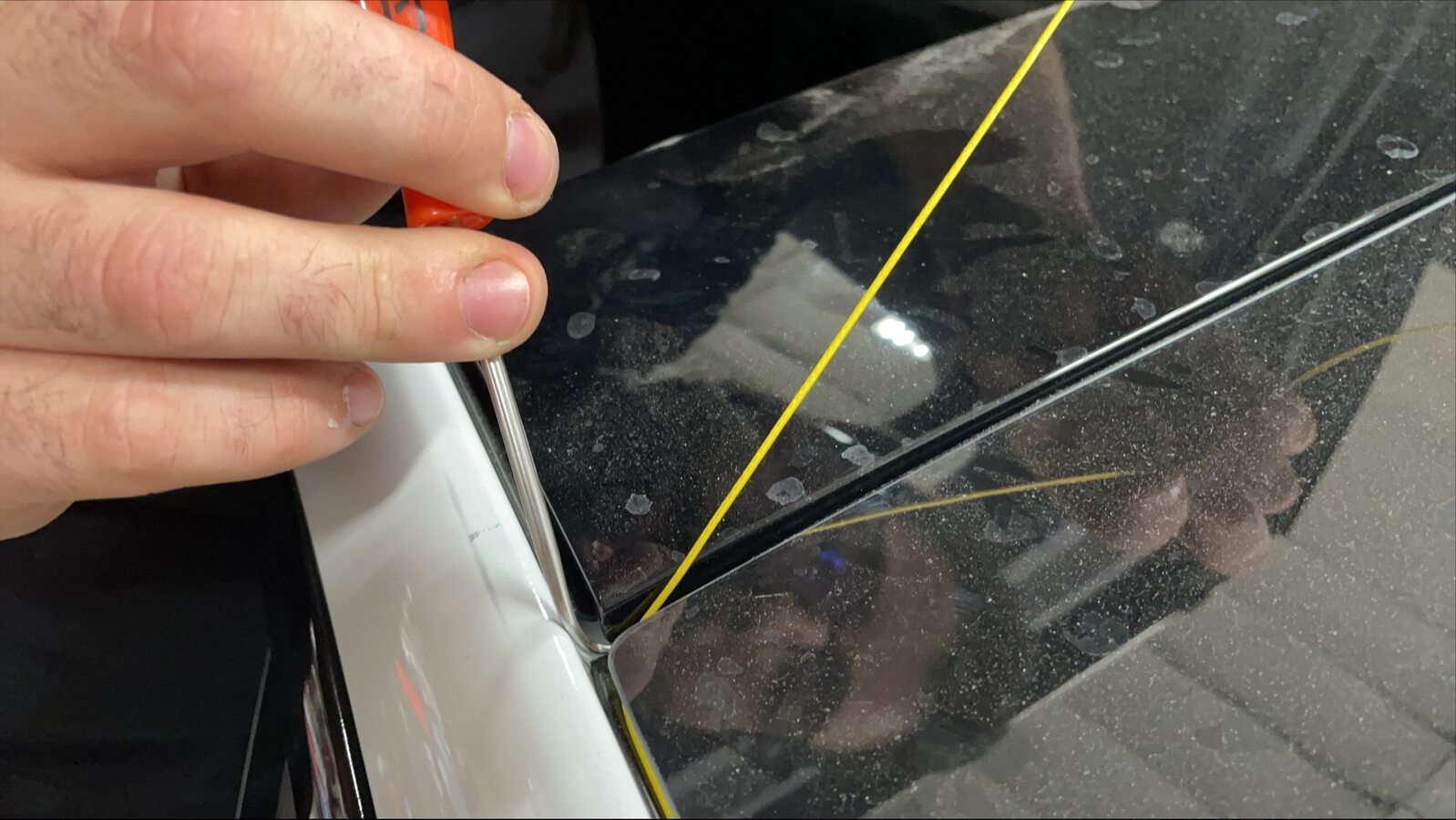

38. Secure line to starter tool and push tool through urethane at lower RH side of winshield
    注

    Use the guard to prevent damage to dash pad while using starter tool

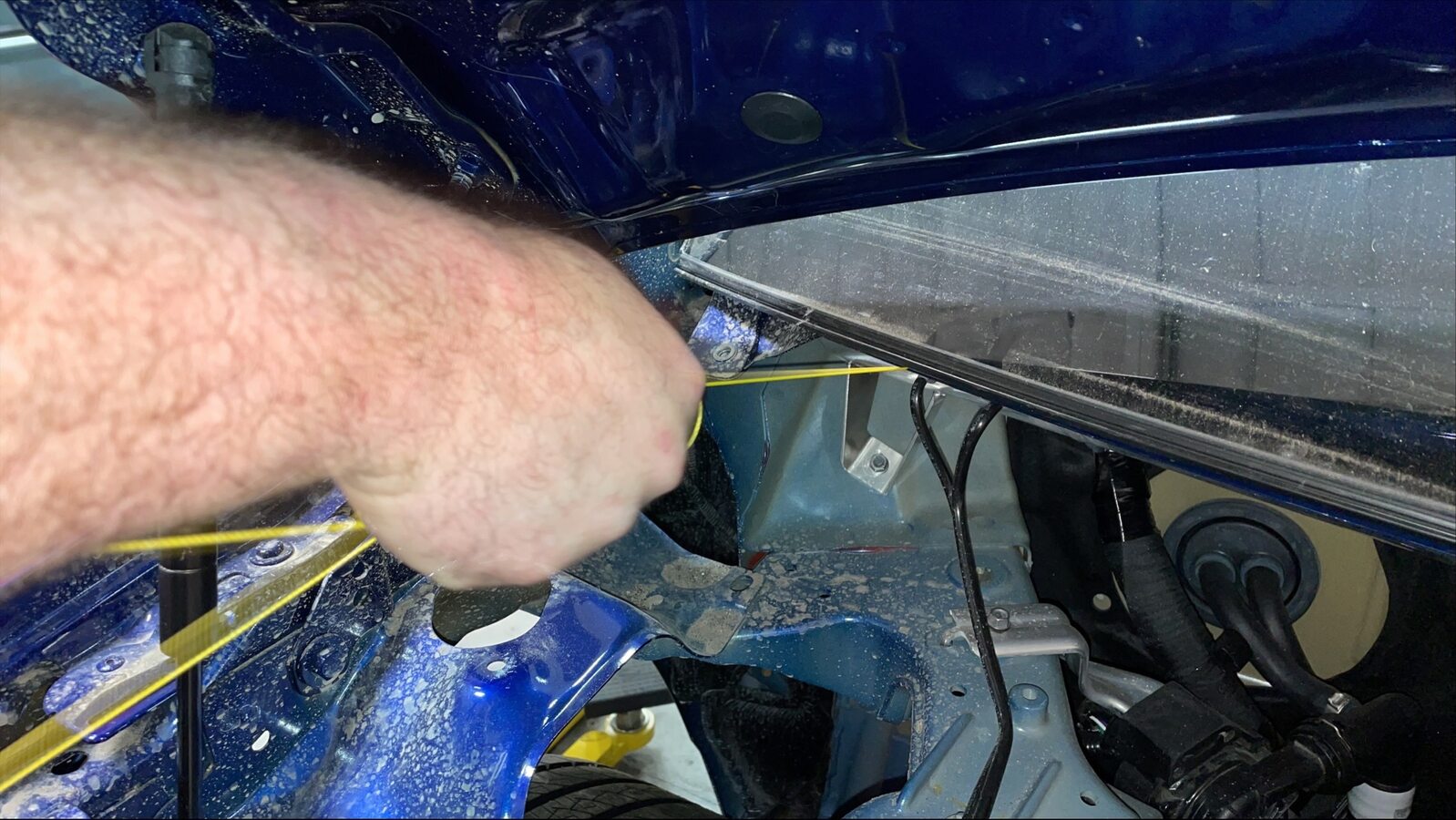

39. Release line from starter tool and wrap line around exterior of windshield
    注

    Pull line away from starter tool, Ensure enough length is pulled through, Wrap spider line up and around the exterior of windshield, Verify the line sits underneath the glass







40. Attach anchor point to exterior of windshield and secure line
    注

    Attach line to anchor once fully wrapped around windshield, Place anchor near starting point of the handle tool

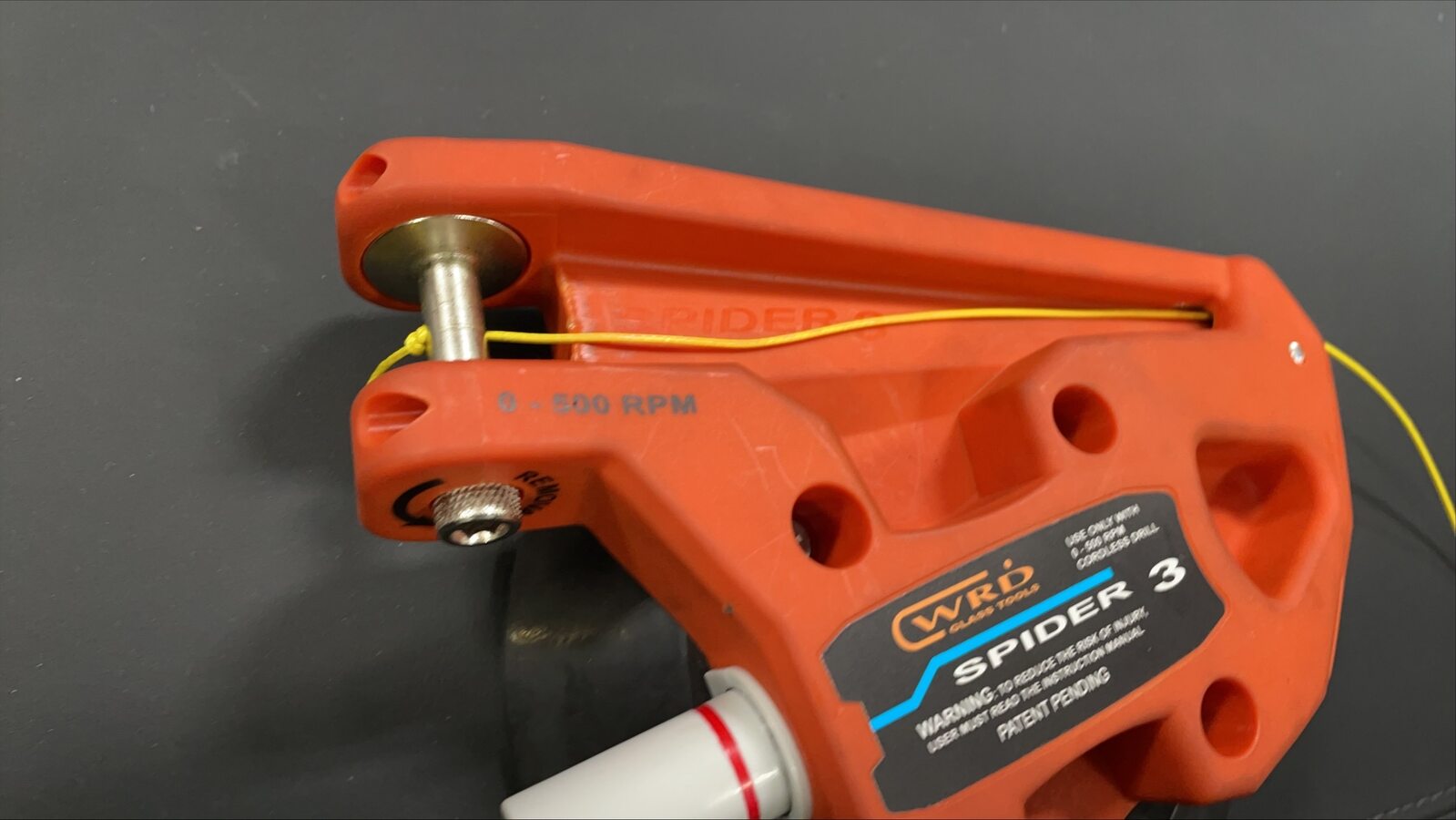

41. Secure interior side of line to the spider cutting tool
    注

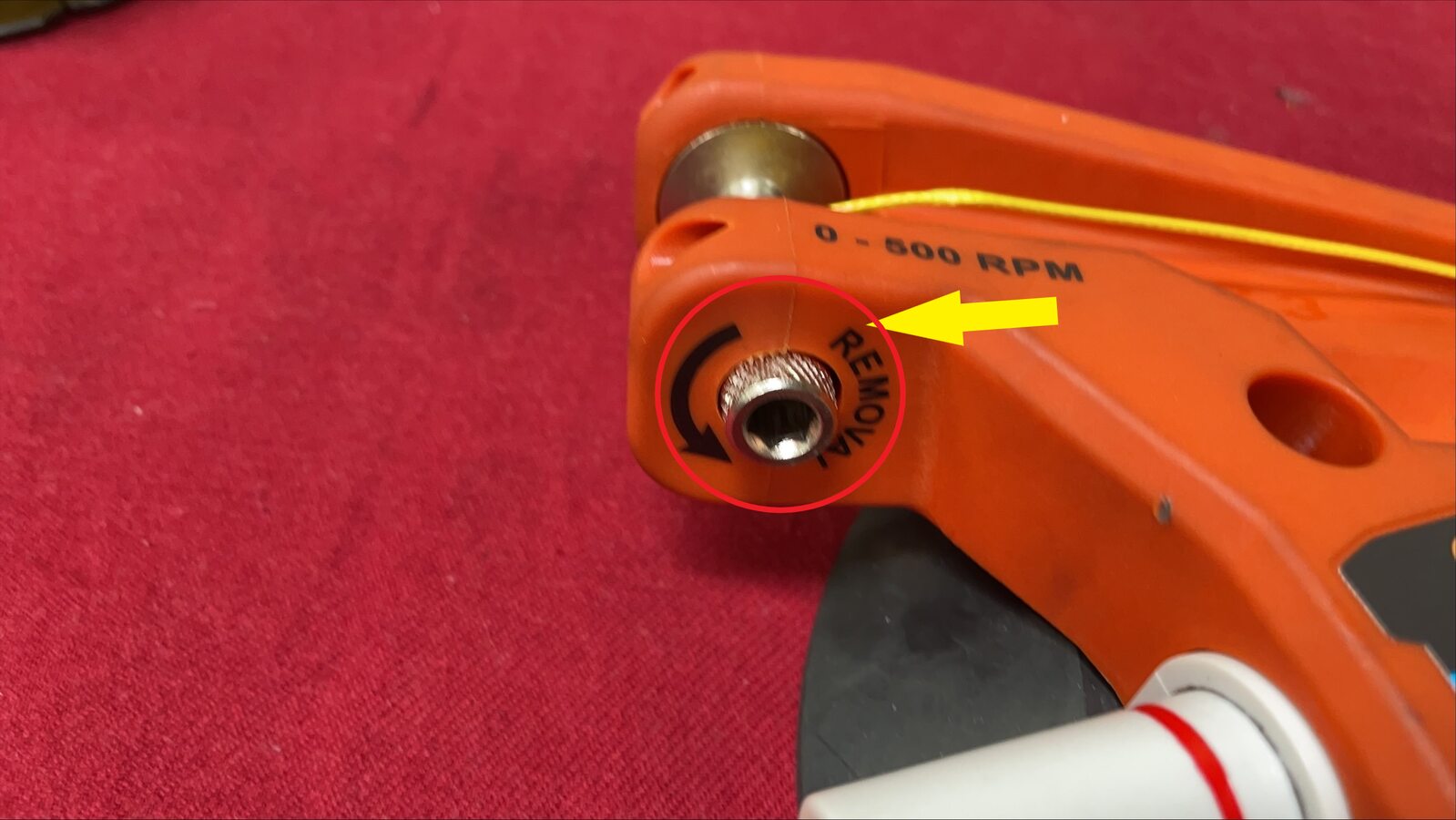

    Follow instructions on spider tool, Feed line through opening of the cutting tool and tie a knot to secure in place, If spindle is not turned the proper direction the cutting tool will be damaged

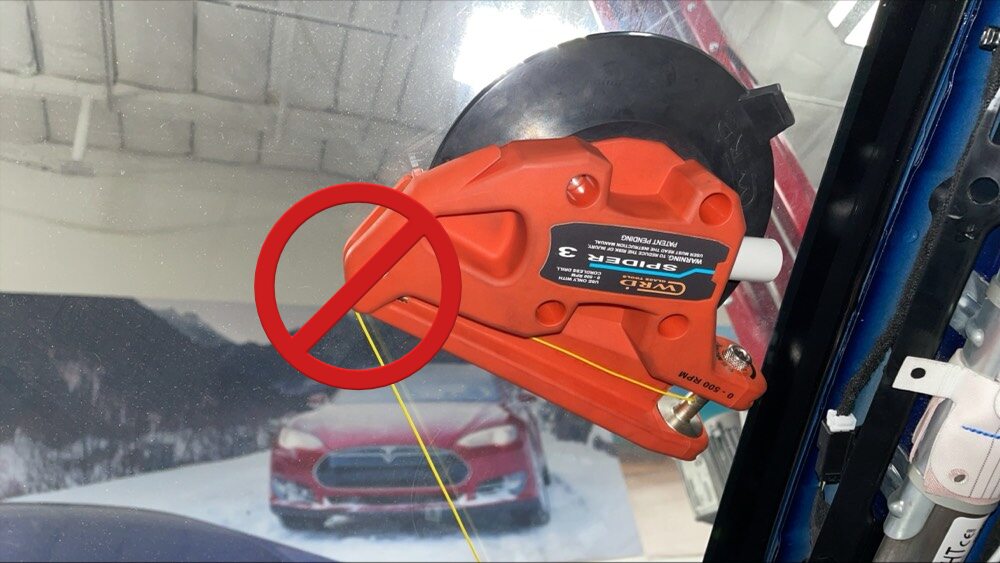

42. Secure spider cutting tool to interior side of windshield
    注

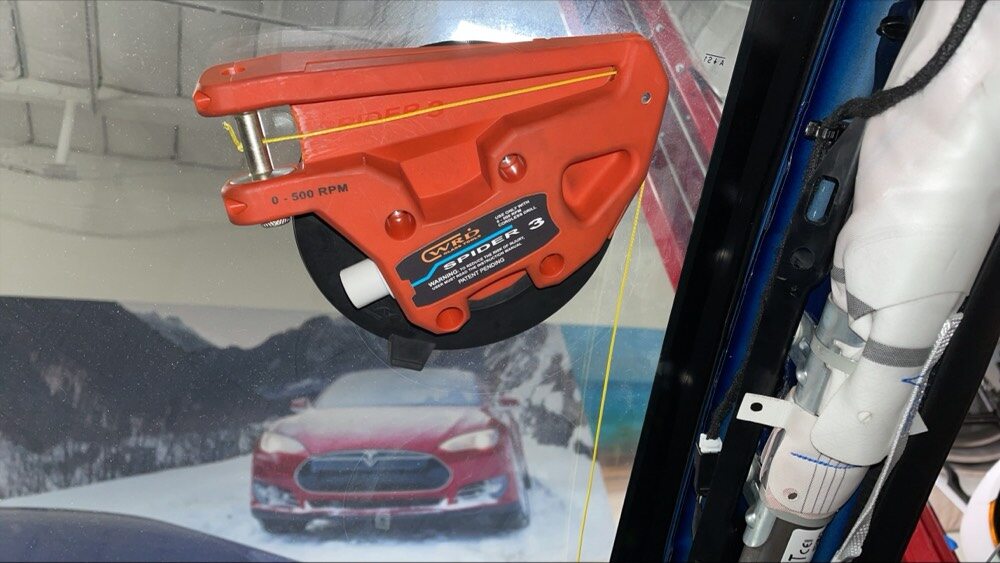

    Note orientation of the cutting line, Make sure line warps over large pully and holds at a 90 degree angle

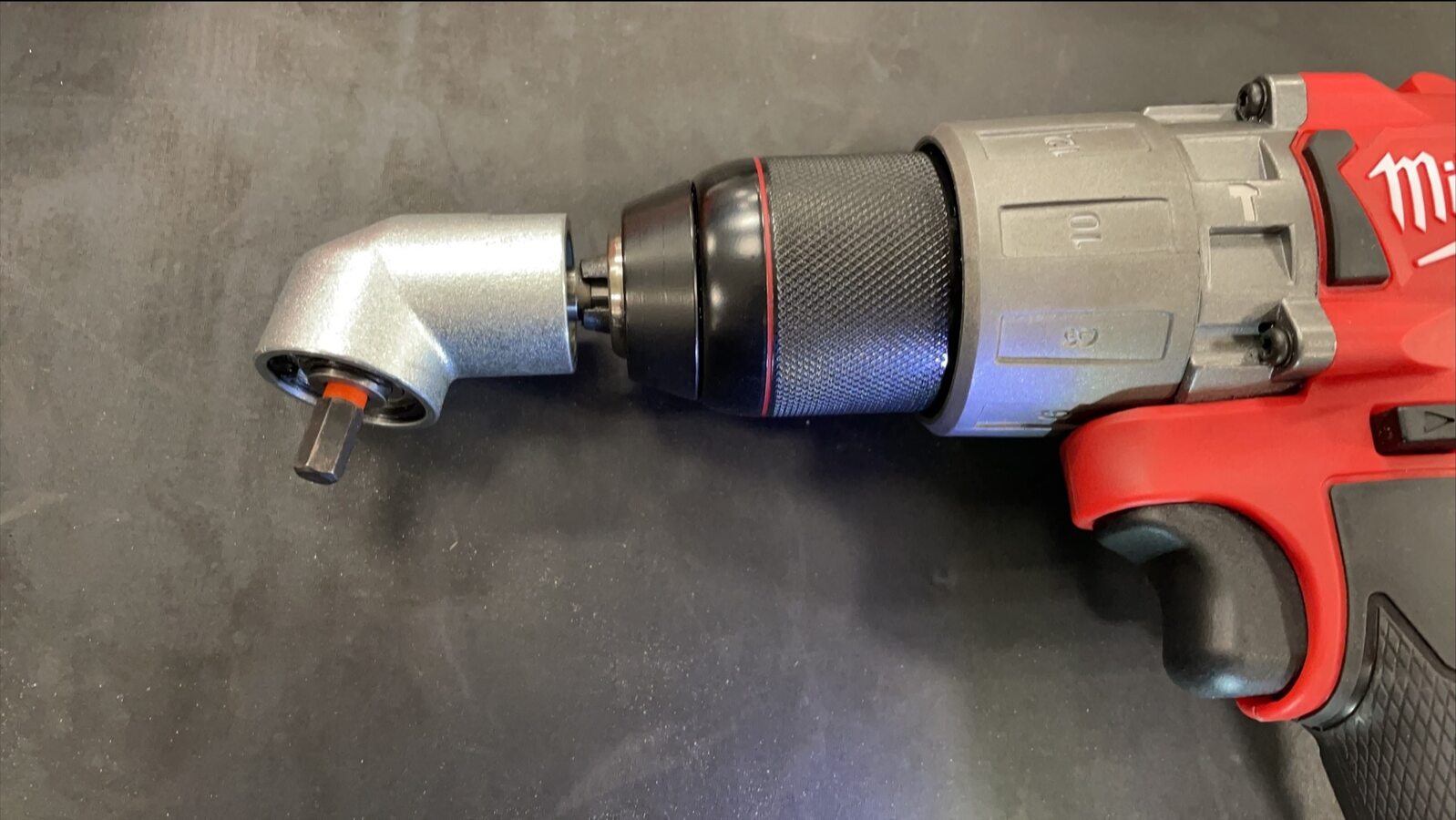

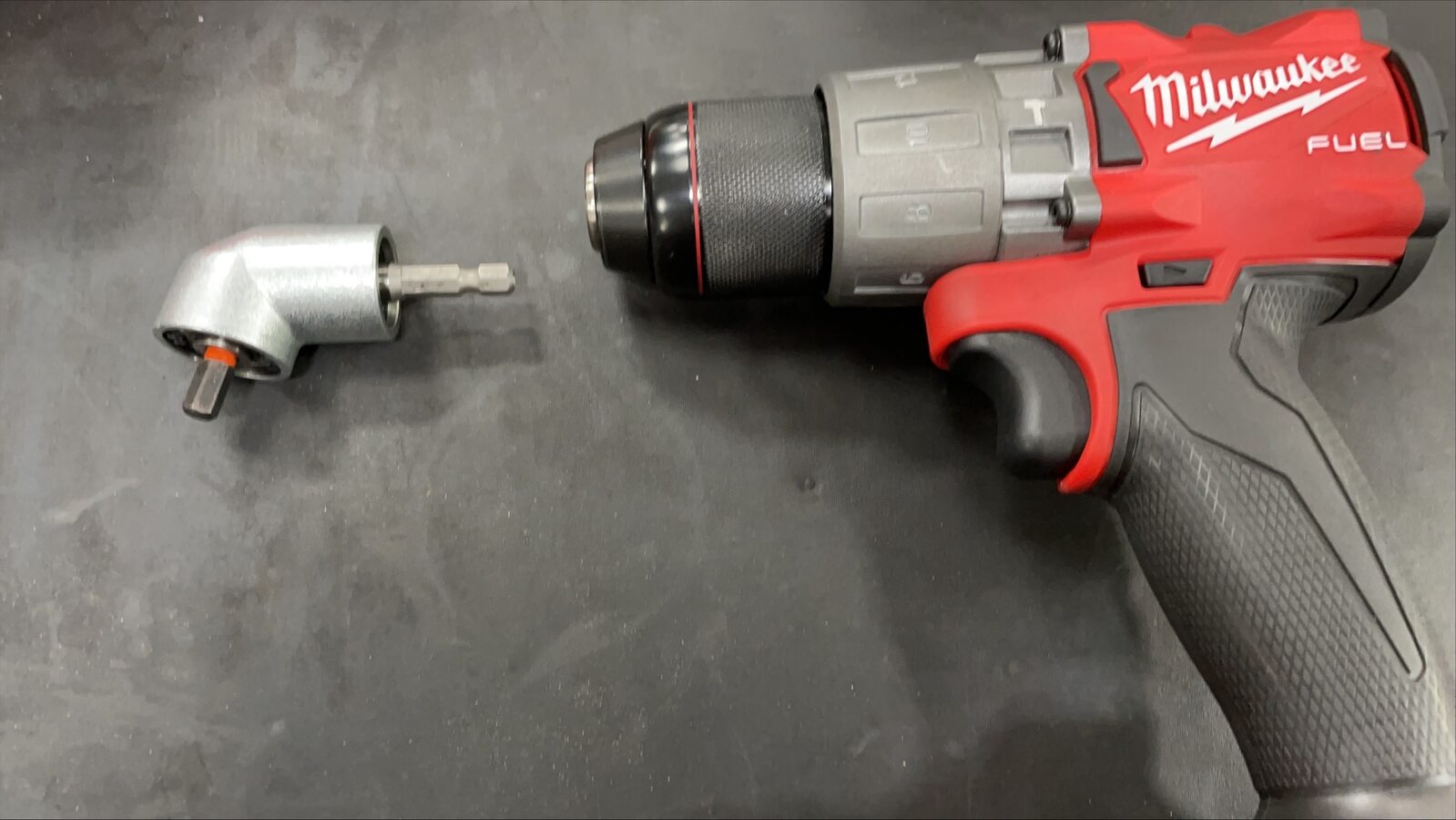

43. Secure angle driver to electric drill

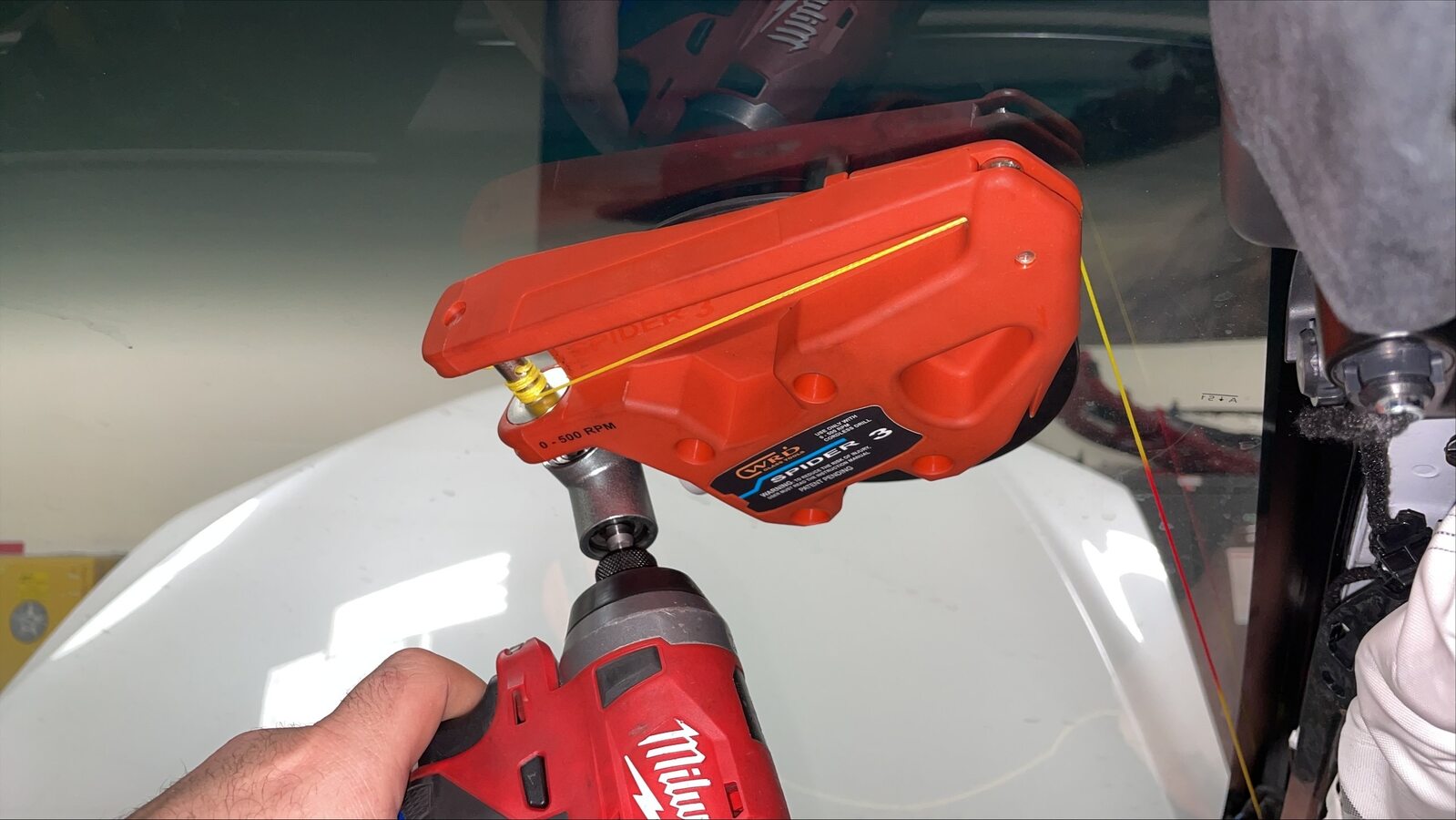

44. Turn the spindle on the cutting tool with the drill to start removing the windshield
    注

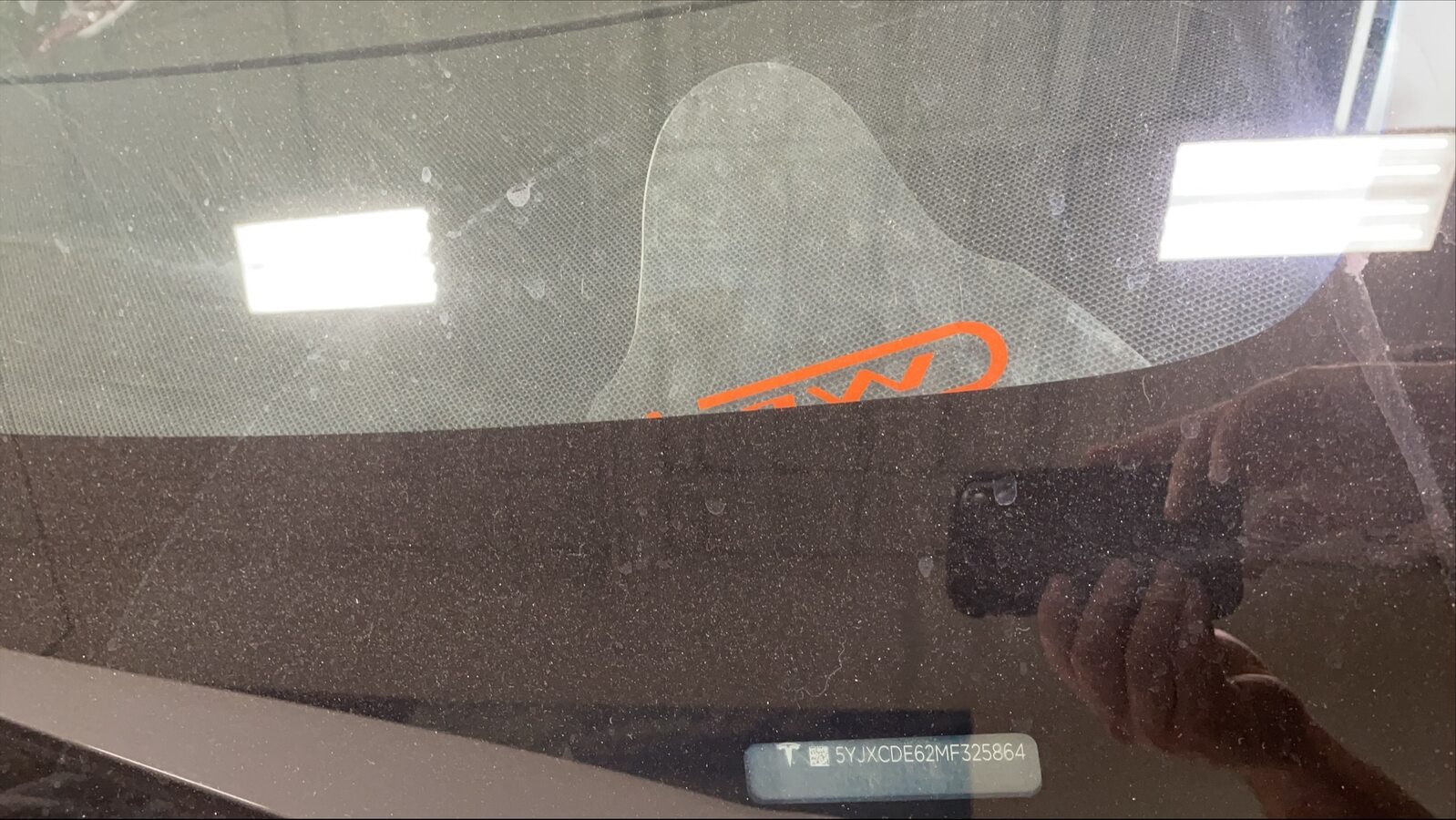

    Move the cutting tool as needed keeping the line close to a 90 degree angle, When passing vin plate use guard to guide line over vin to prevent damage

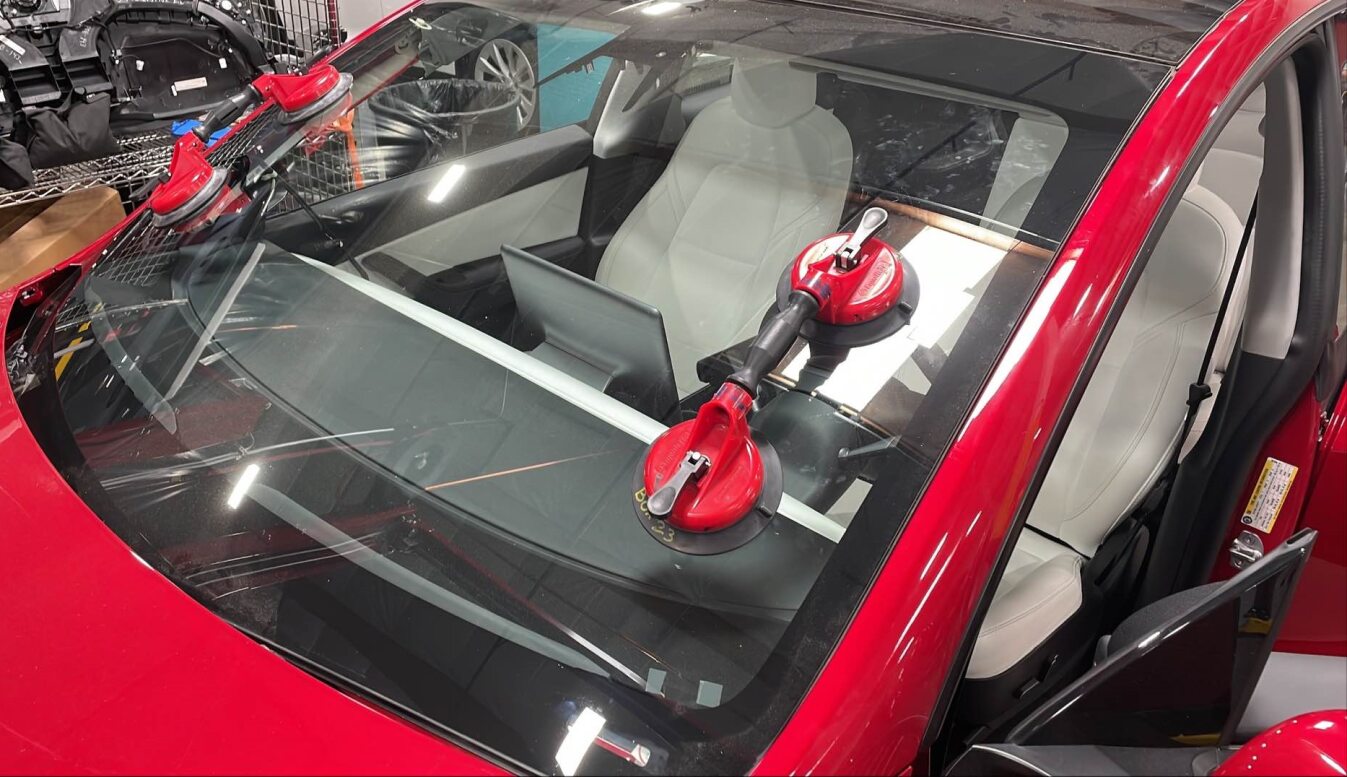

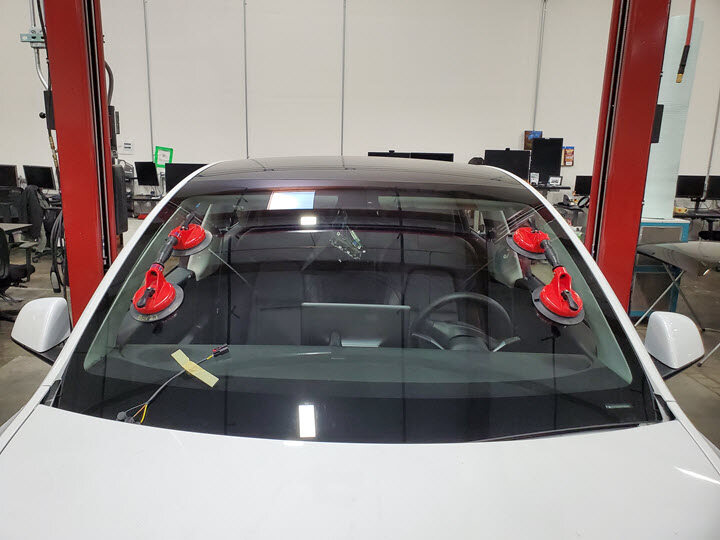

45. Attach suction cups to windshield on both sides

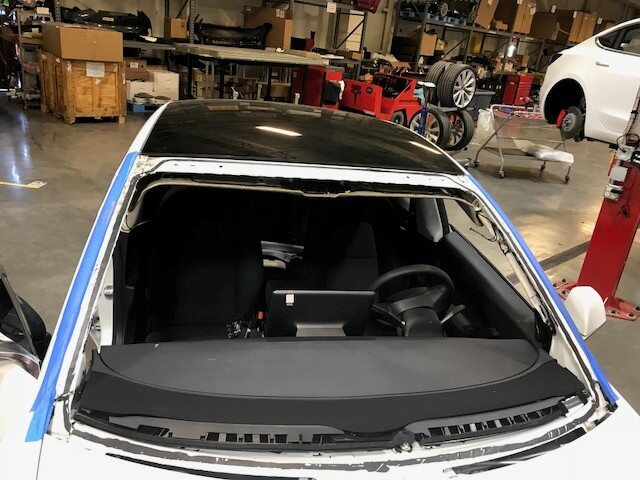

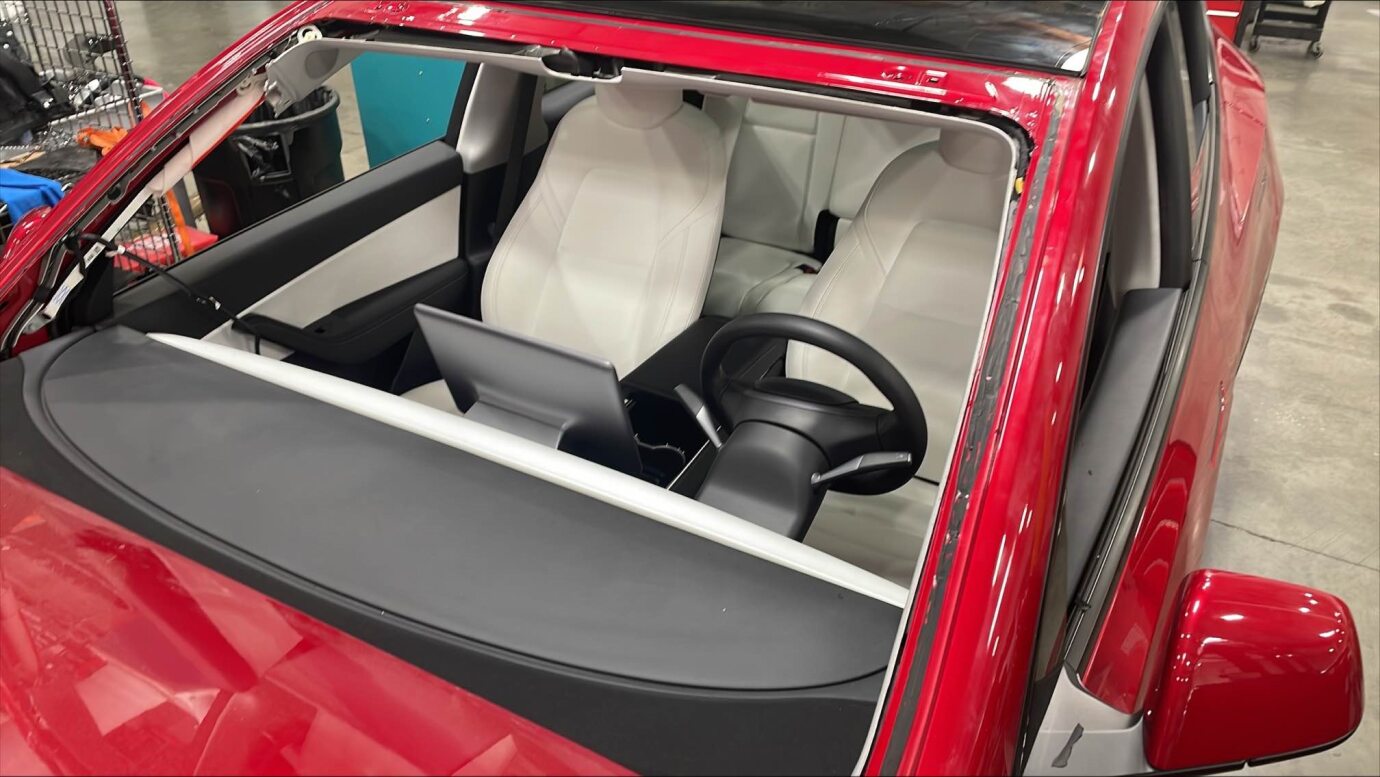

46. Lift up to remove windshield from vehicle
    注

    Recommend assistance, use caution with windshield harness, Partially close hood for clearance

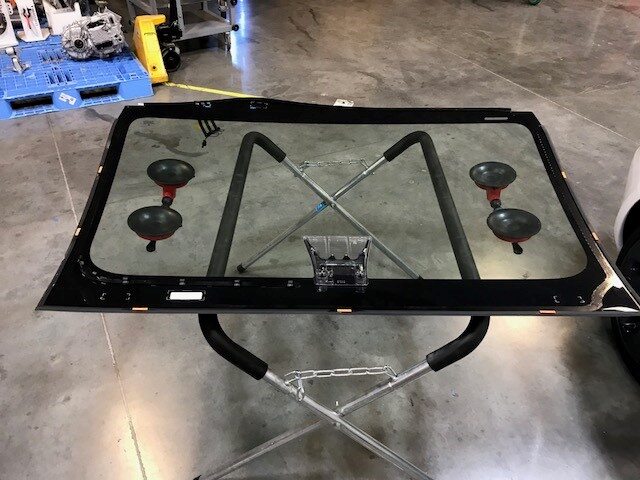

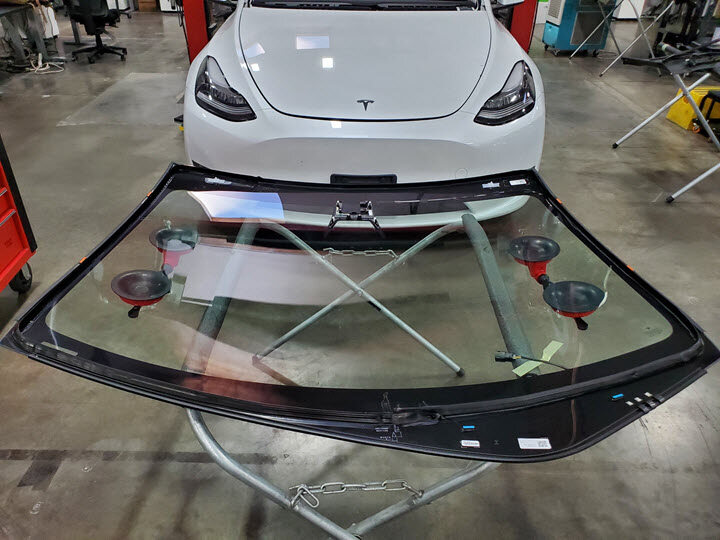

47. Place windshield on support stand
    注

    Recommend assistance



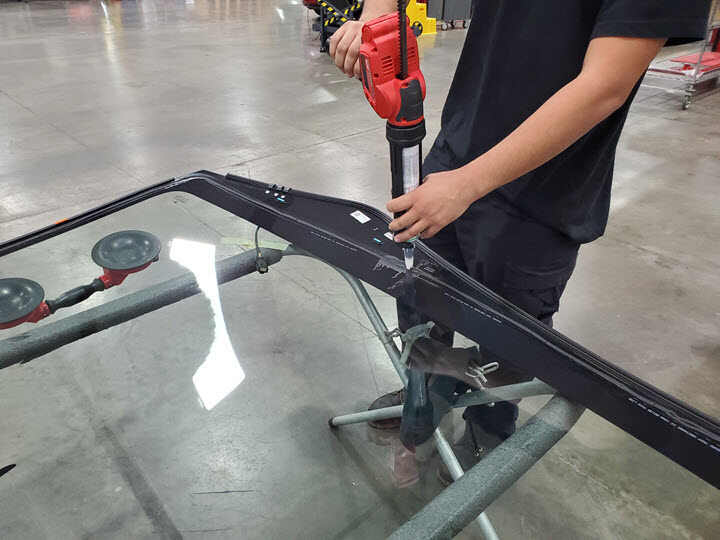

48. Remove old urethane from windshield

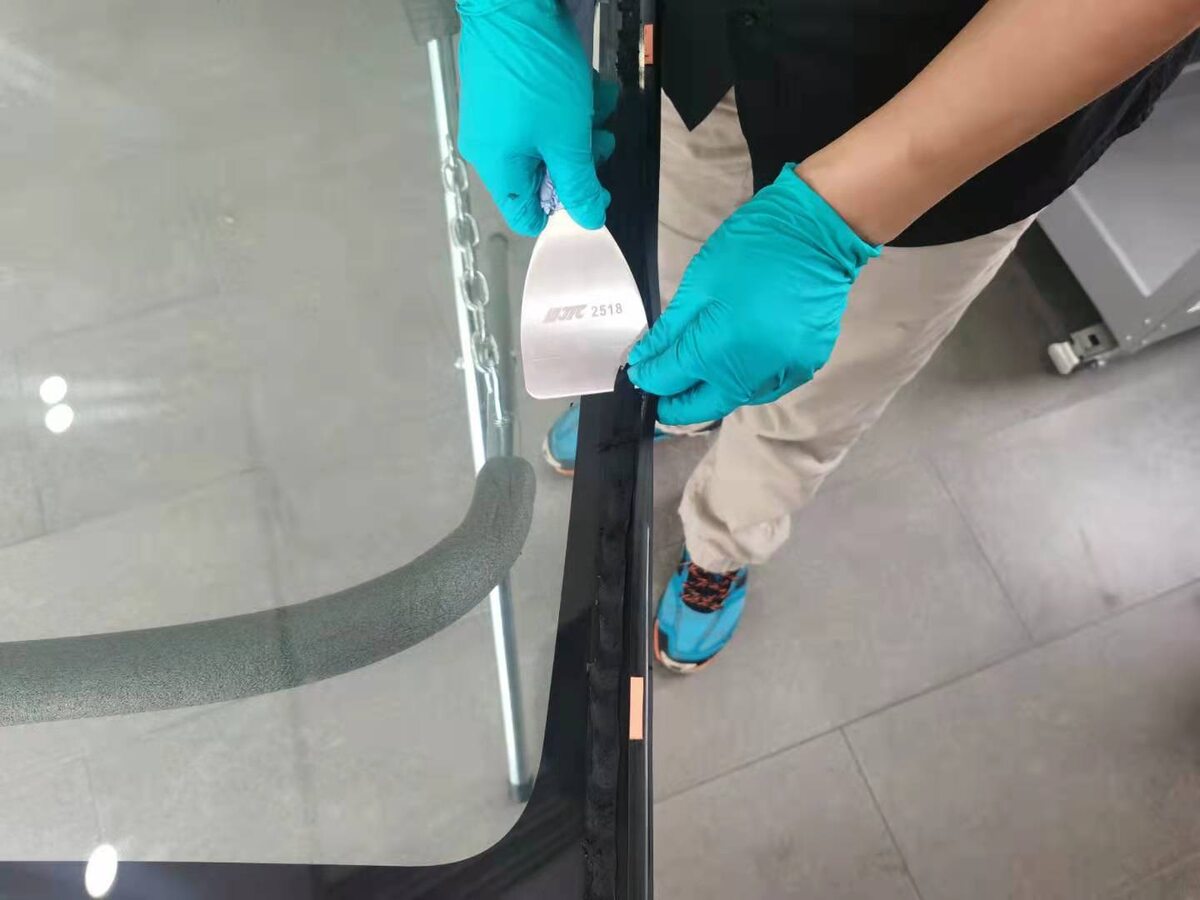

49. Remove sealing strip from windshield

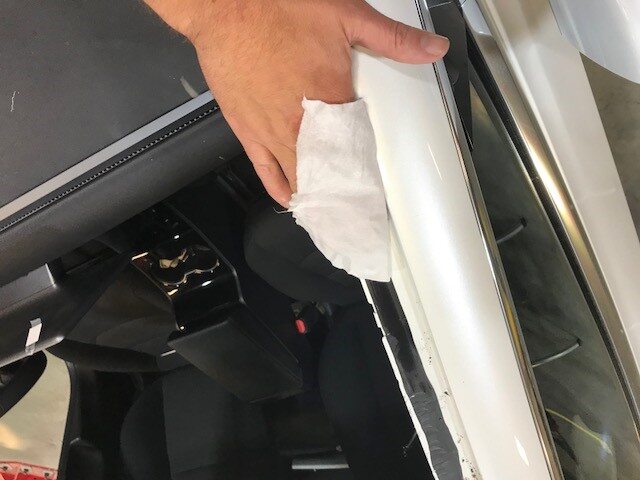

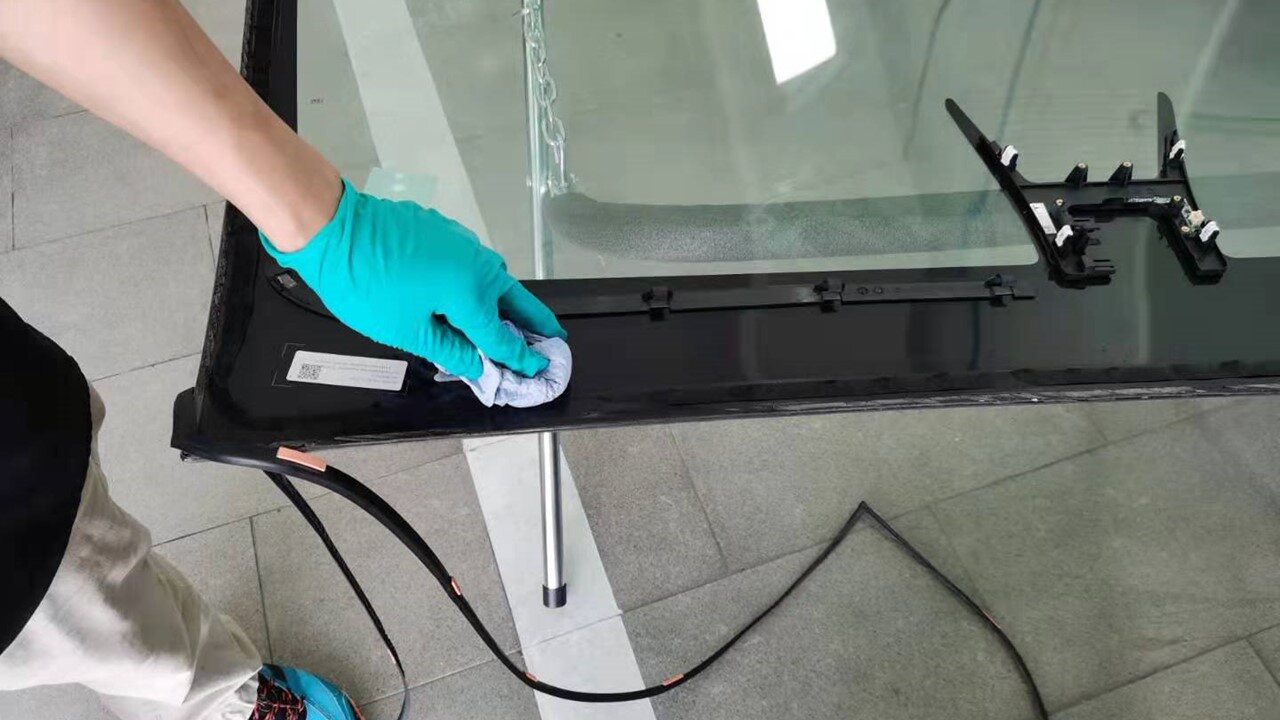

50. Clean urethane residue from windshield
    注

    Allow 1 minute dry time



51. Remove old urethane from vehicle





52. Remove IP cowl foam

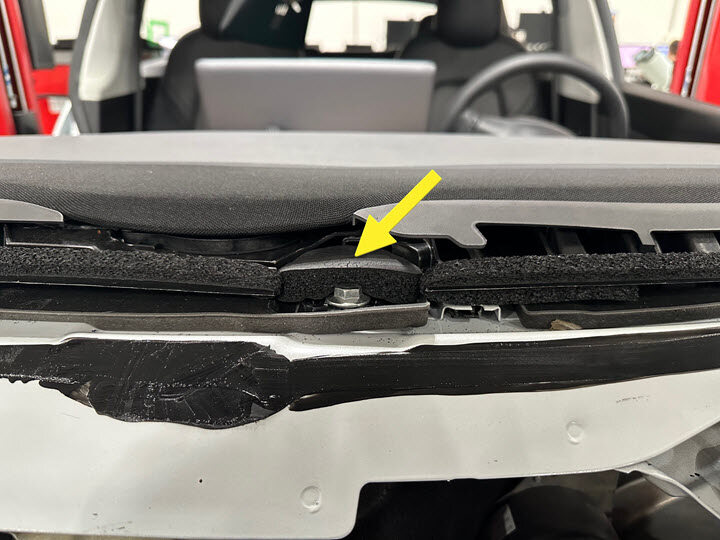

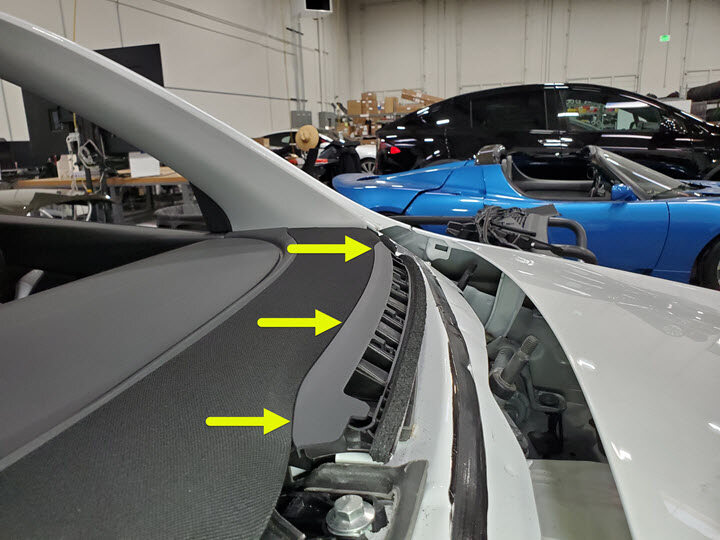

53. Remove LH defrost cover
    注

    11x tabs





54. Install LH defrost cover
    注

    11x tabs, Secure 2x middle tabs first then secure tabs from middle to LH side of IP, Make sure cover is flush with speaker grill

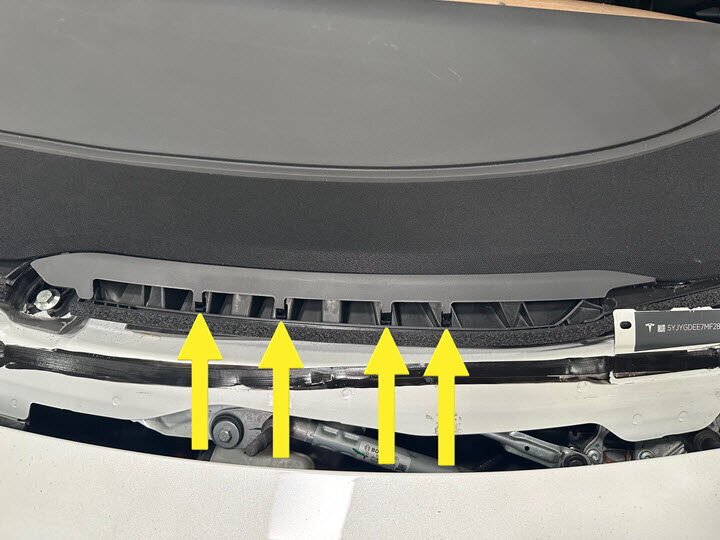

55. Install IP cowl foam

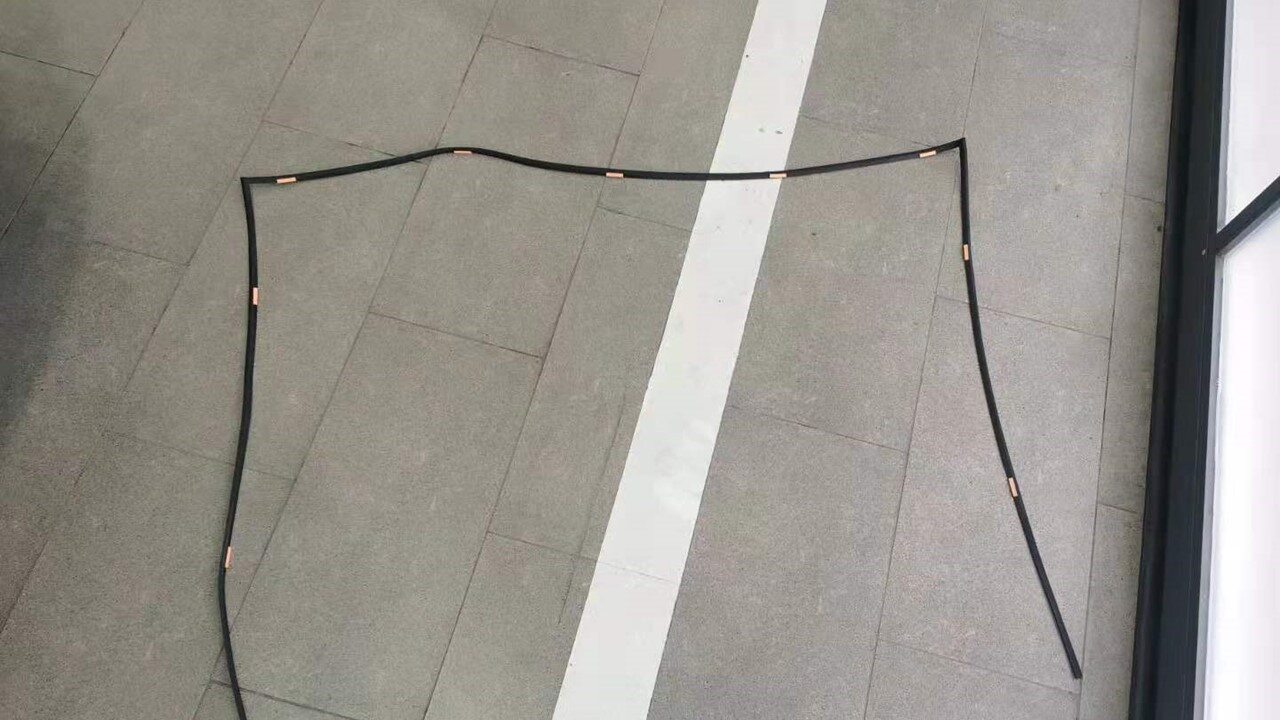

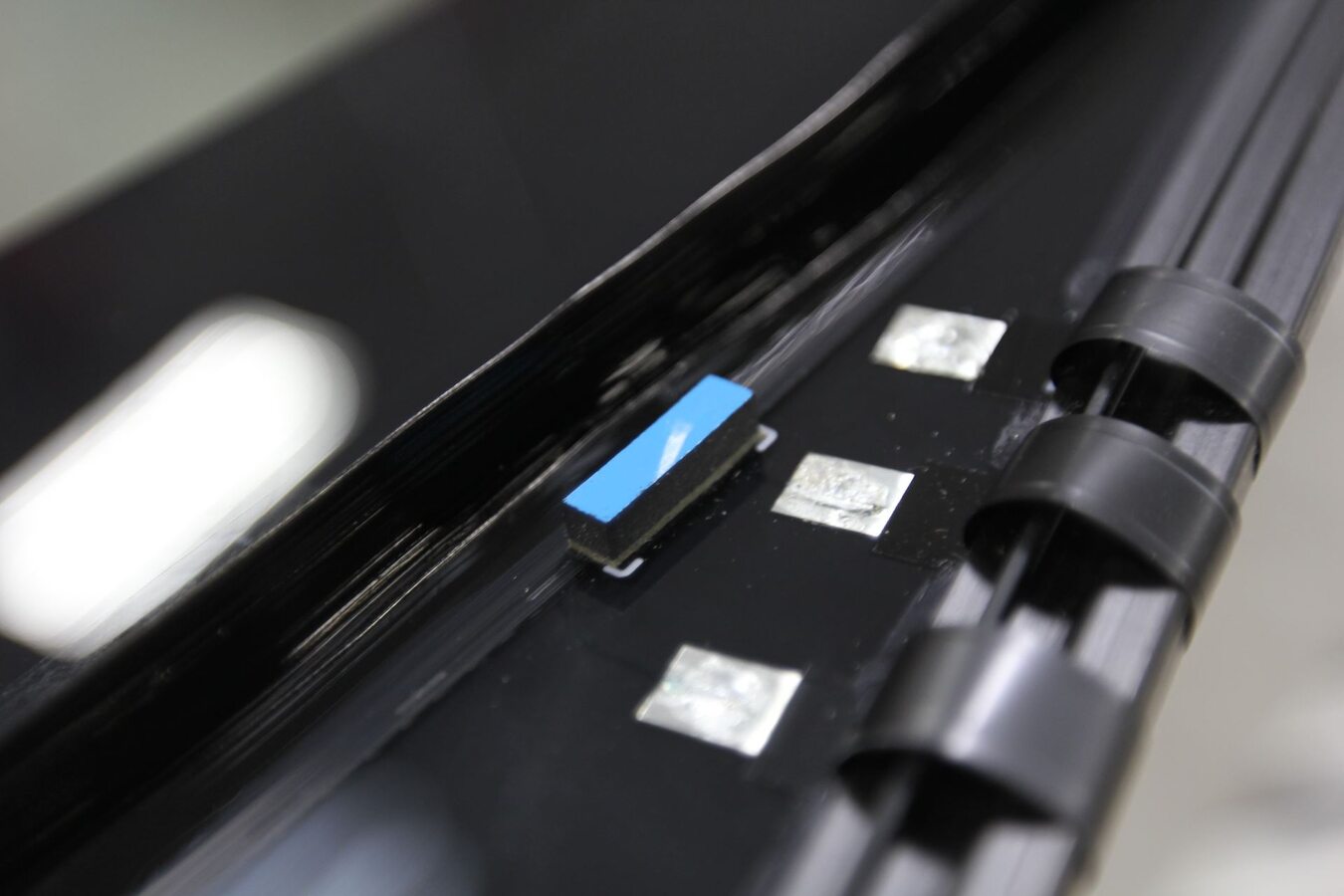

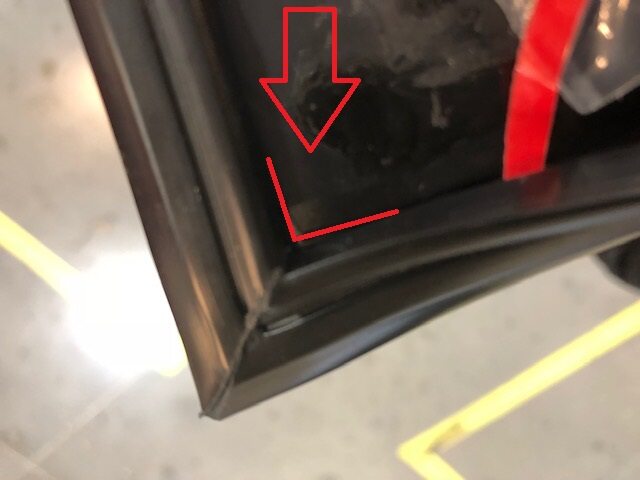

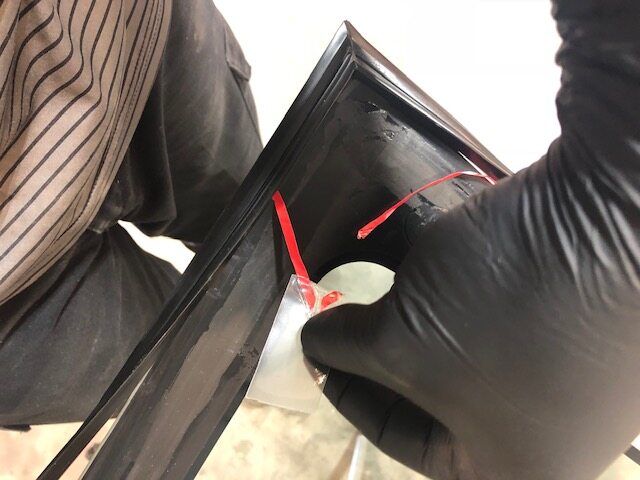

56. Install sealing strip onto windshield
    注

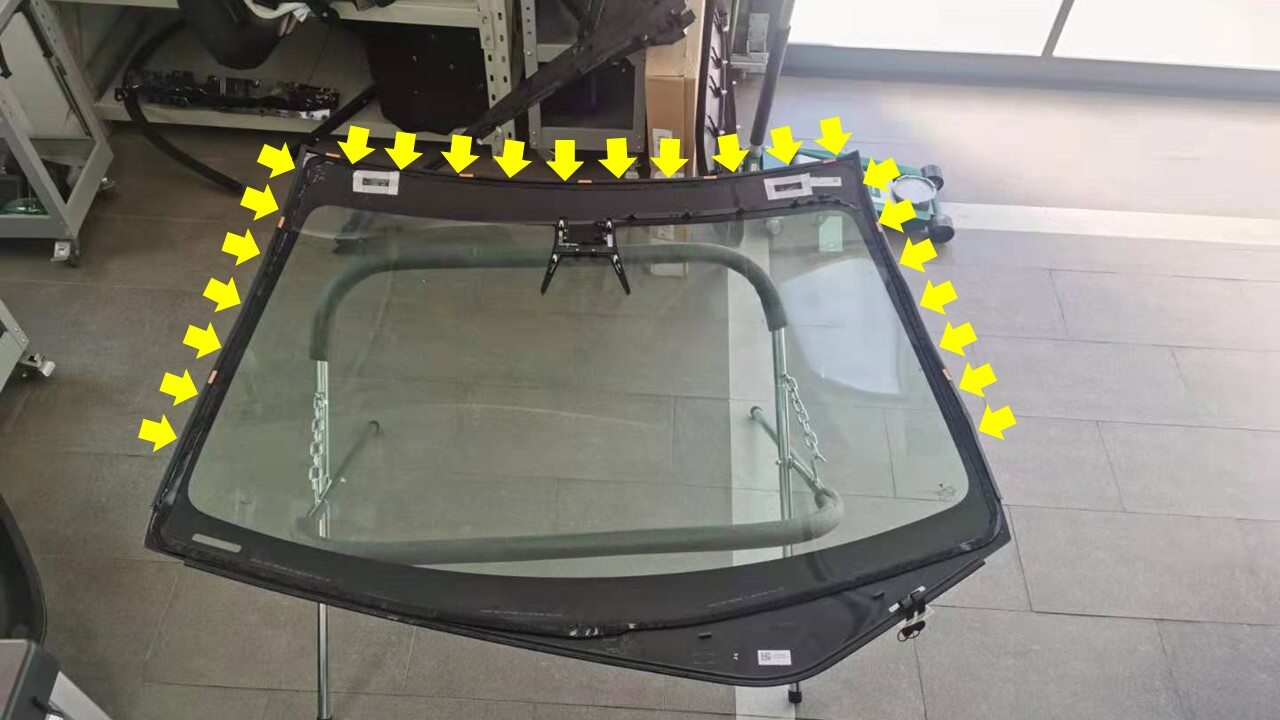

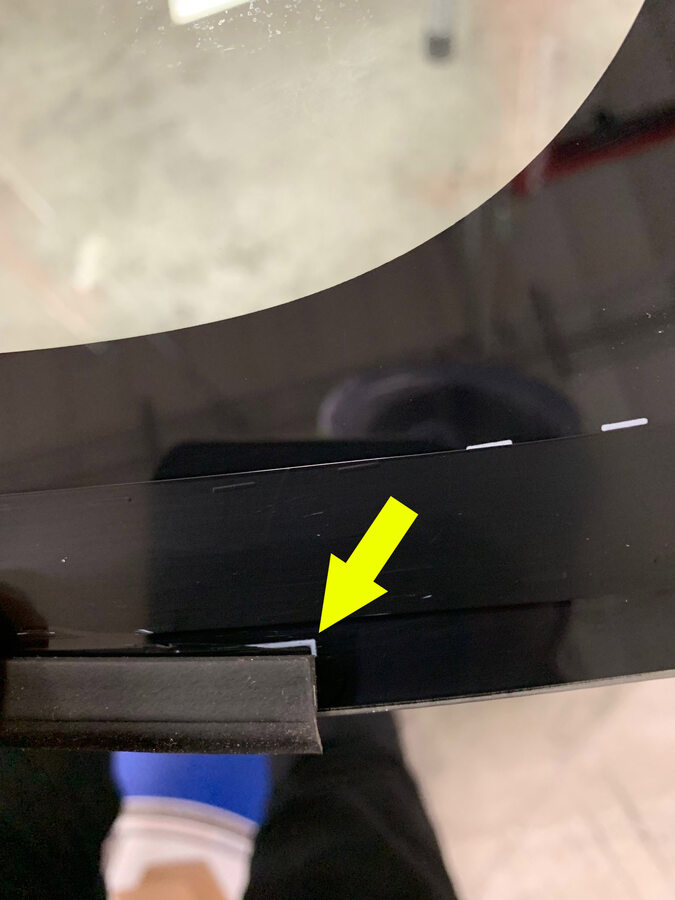

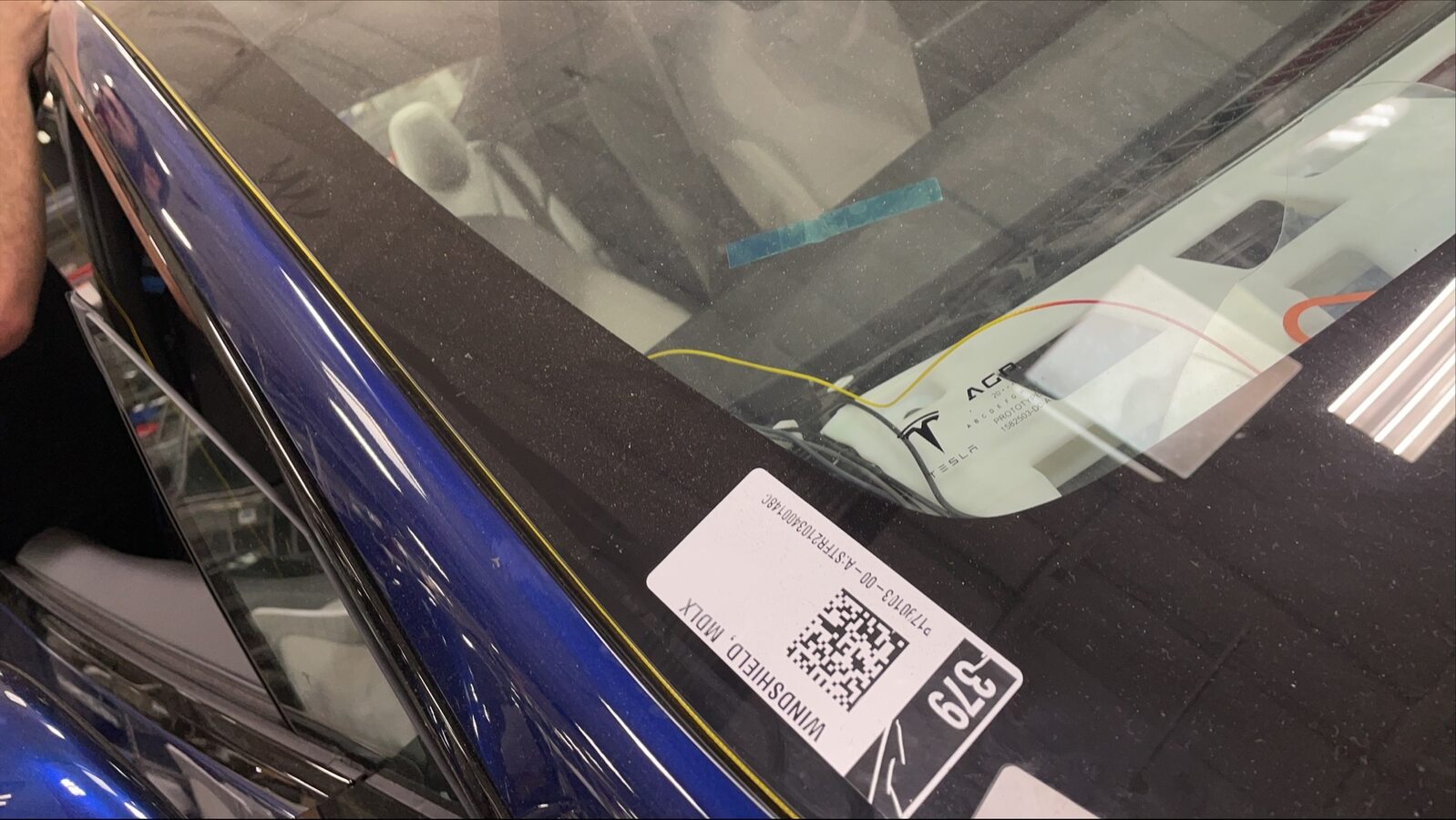

    Follow windshield alignment marks at upper corners of glass, Start from one corner and peel tape as you apply inch by inch to ensure proper fitment











57. Measure resistance of heater grid to check continuity
    注

    Measured at ambient temperature, Tolerance 5.6Ω+/-10%, Check from pin 1 to pin 2 on X304, If resistance is outside tolerance then replace windshield



58. Perform windshield dry fit
    注

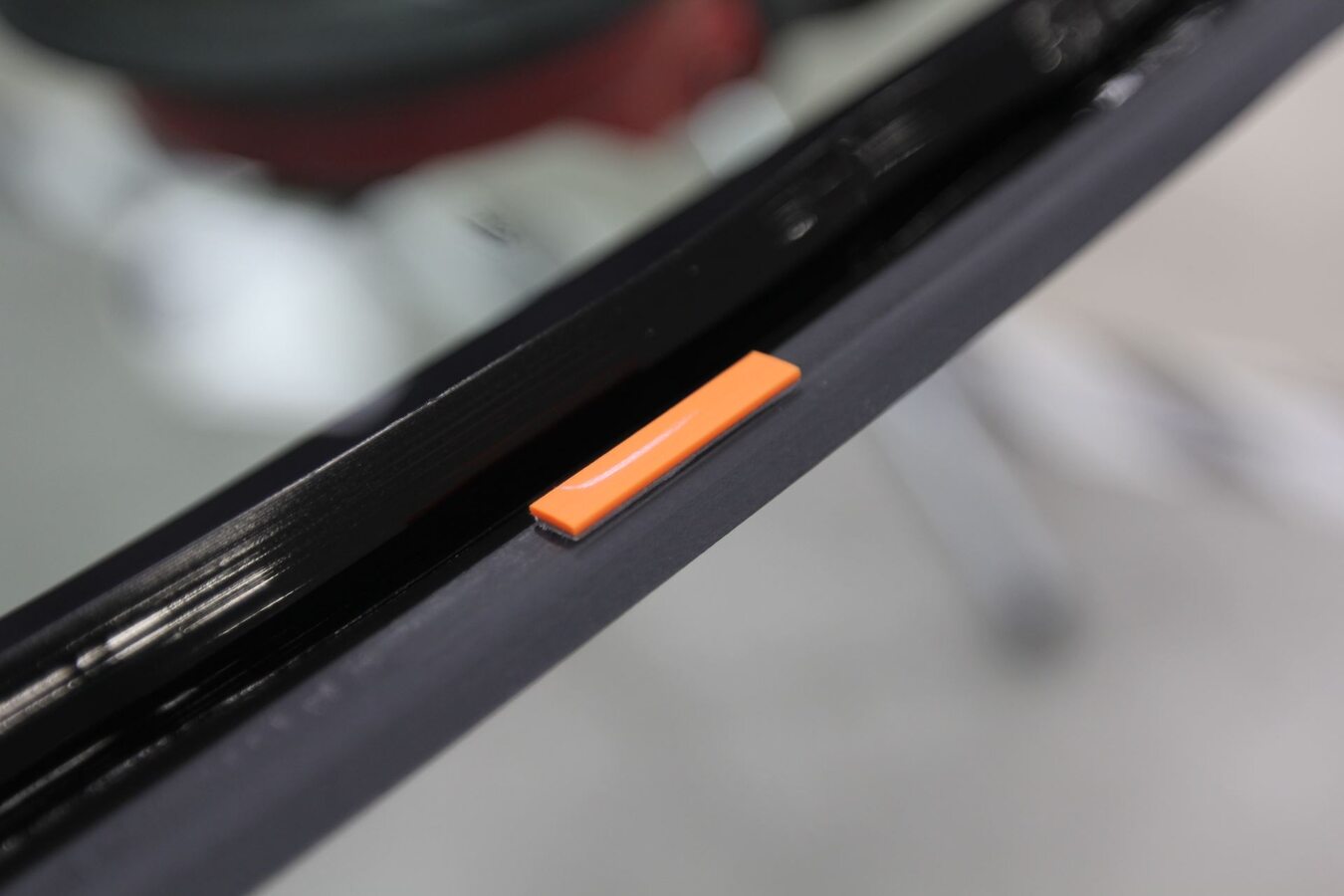

    Note any locations where net pads need to be adjusted

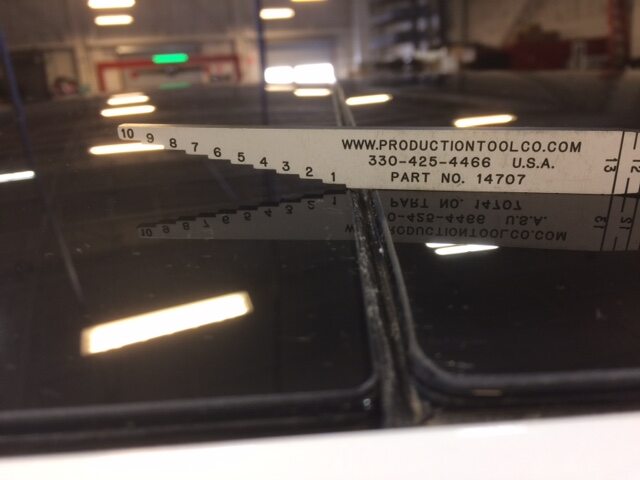

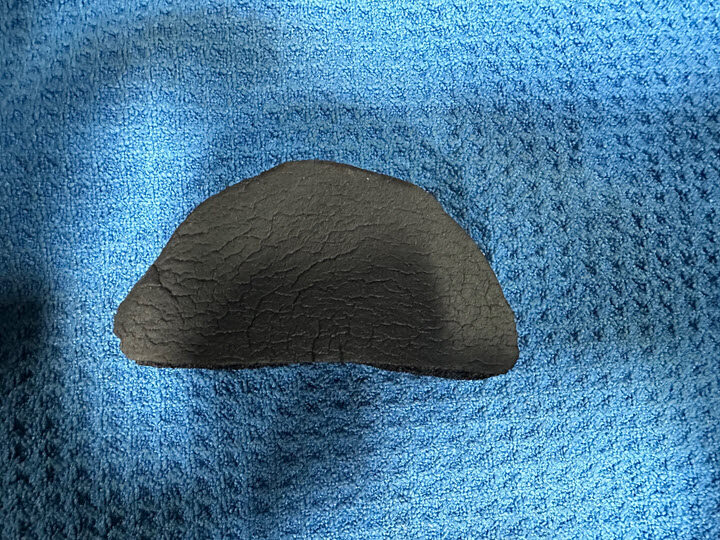

59. Perform any net pad adjustments for windshield
    注

    Add or remove to adjust flush condition if necessary, No time recorded as it was not necessary during validation





60. Wipe urethane path on vehicle
    注

    Allow 1 minute dry time



61. Apply urethane primer to windshield and vehicle body along old urethane path
    注

    Make sure to add primer over any areas that were scratched during windshield removal, Allow primer to dry for 2 minutes before applying urethane

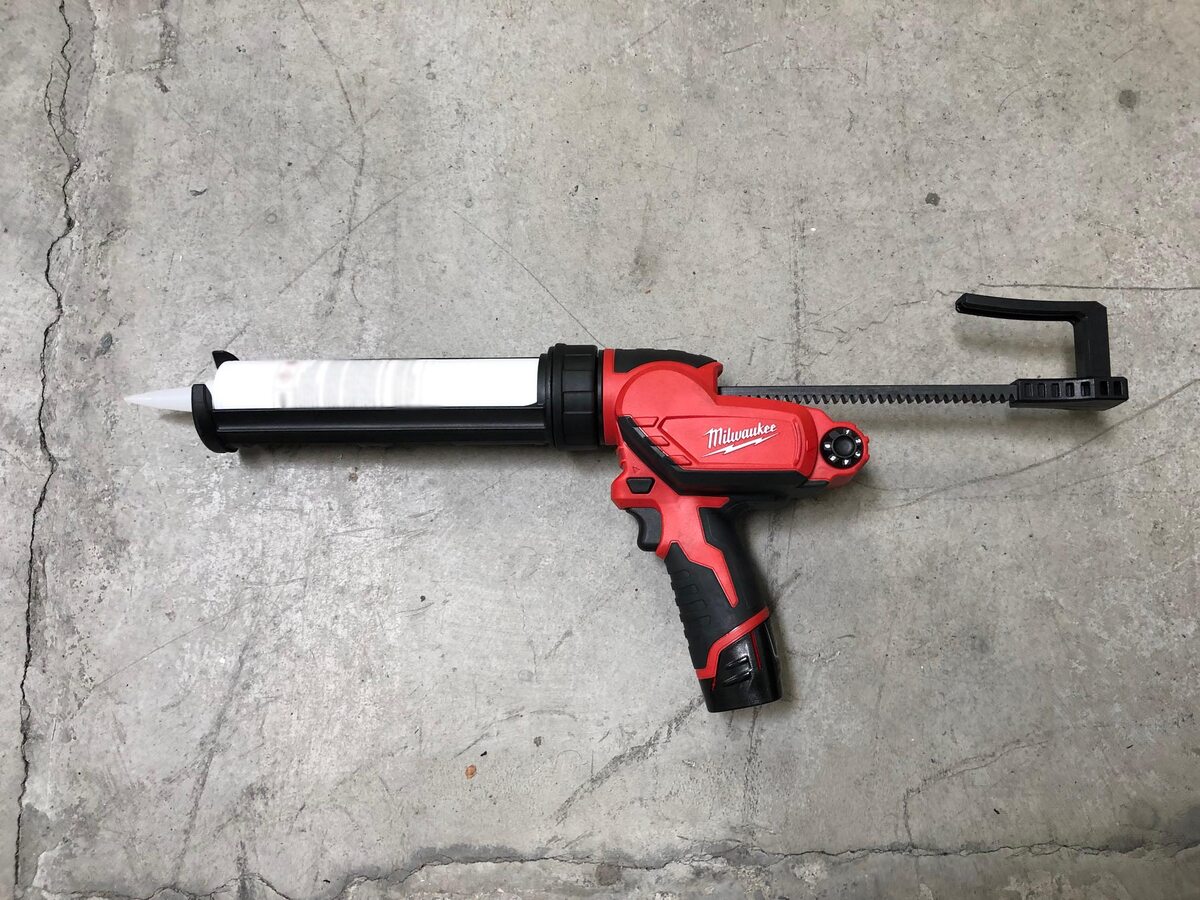

62. Prepare caulking gun and urethane
    注

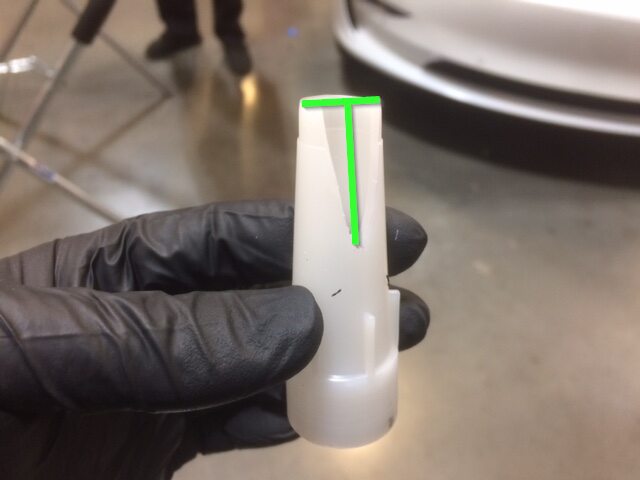

    Opening must be 8mm wide and 13mm tall





63. Apply urethane to windshield following primer path





64. Install windshield onto vehicle
    注

    Recommend assistance

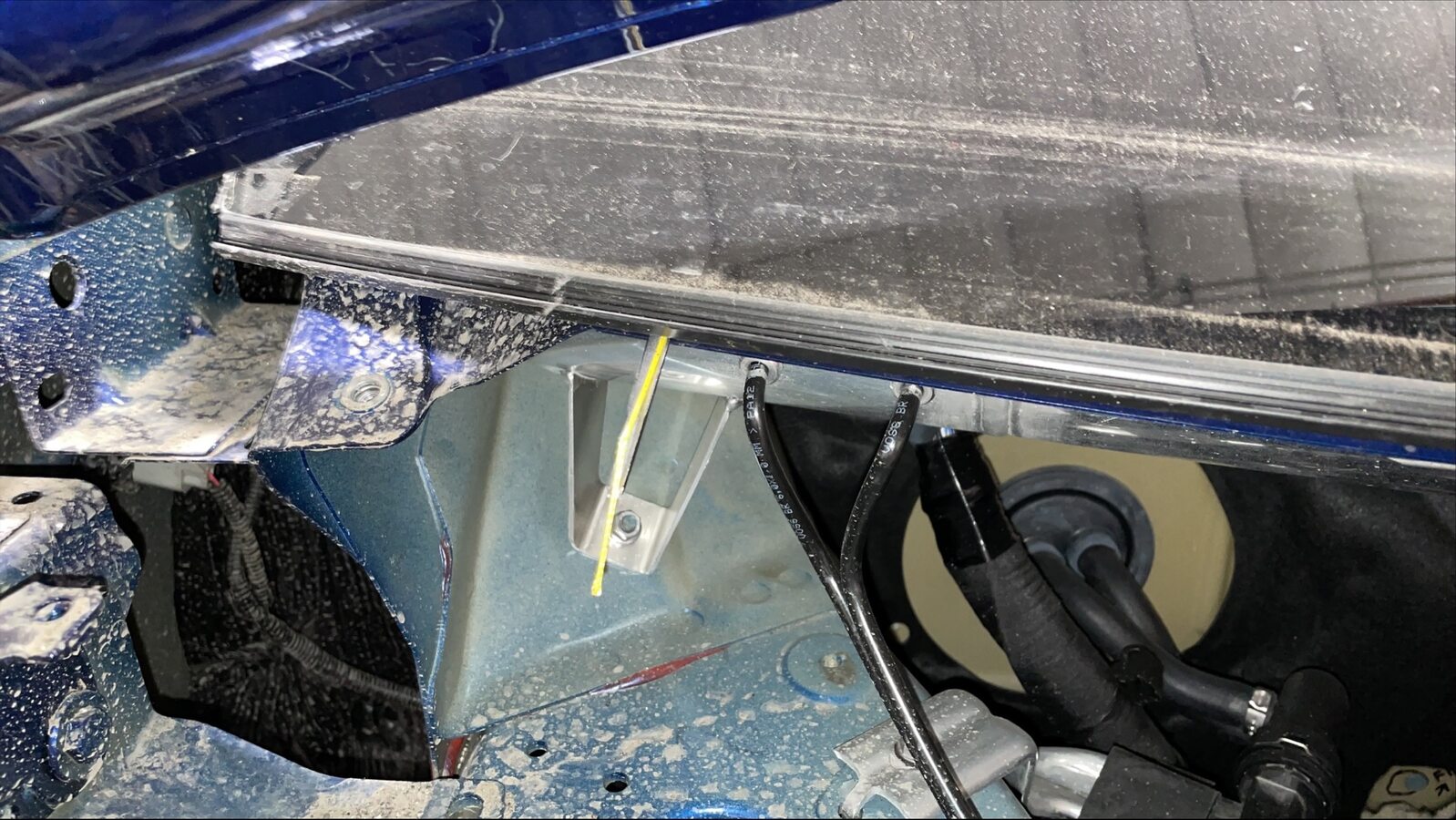

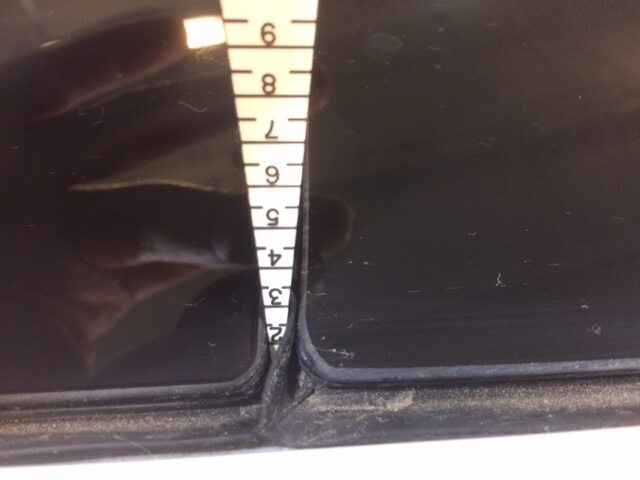

65. Check gaps and flushness to vehicle before fully seating windshield
    注

    Adjust glass as needed

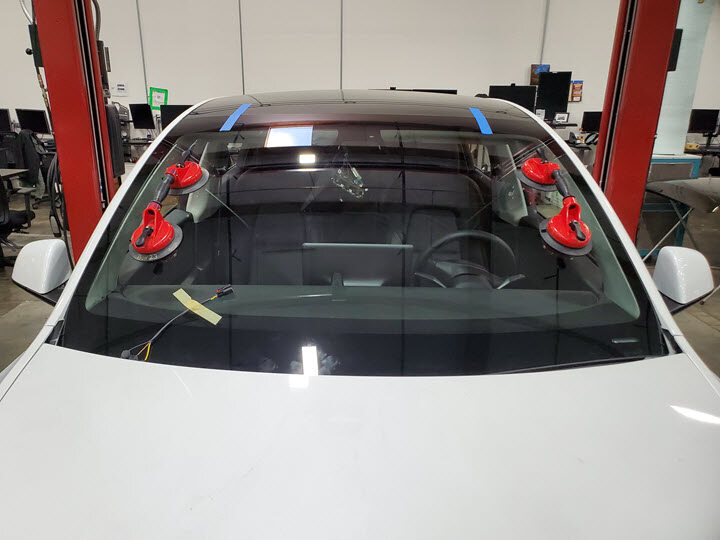

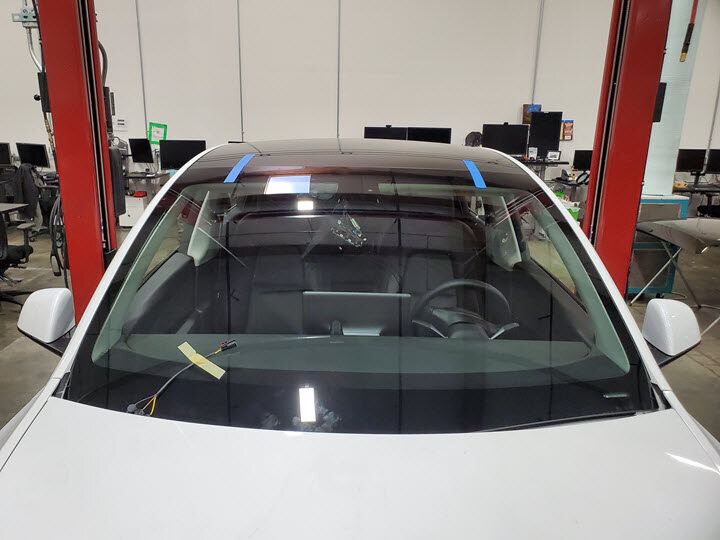

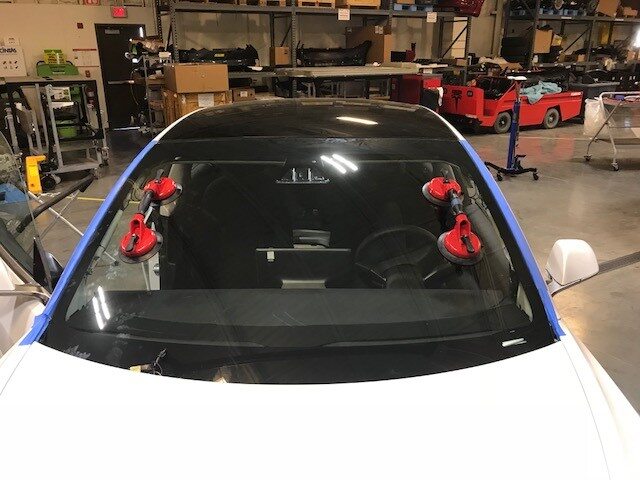

66. Apply tape to secure windshield to body while urethane cures



67. Remove suction cups from windshield



68. Install GPS/GNSS antenna onto bracket
    注

    1x screw, T10, 1 Nm, 2x tabs, Slide antenna towards RH side to secure tabs





69. Install screw securing windshield harness to windshield bracket
    注

    1x screw, T10, 1 Nm, Make sure harness is routed inside of bracket



70. Connect humidity and temperature sensor harness connector
    注

    1x connector



71. Secure trilobe and triple camera assembly onto windshield bracket
    注

    4x screws, T10, 1 Nm



72. Install triple camera hood
    注

    2x patch screws, T10, 1 Nm, 2x alignment pins, Install new fasteners



73. Install quad camera upper cover
    注

    4x clips, 1x connector, Connect interior camera then push the cover up to secure







74. Connect rear view mirror connector
    注

    1x connector



75. Install rear view mirror
    注

    Turn mirror clockwise to install, do not twist by holding the mirror itself, it will separate from the stalk, twist from the stalk connecting the mirror to the mount



76. Install tether onto lower quad camera cover
    注

    2x tabs



77. Install quad camera lower cover
    注

    4x tabs, Install the tabs closest to the rearview mirror assembly and push the cover up to secure



78. Move RH front seat to original position



79. Move LH front seat to original position



80. Release heater harness from windshield



81. Connect windshield heater connector
    注

    1x connector



82. Install cowl screen assembly
    注

    2x push clips, 6x clips











83. Install the RH shock tower cover
    注

    2x push clips



84. Install the LH shock tower cover
    注

    2x push clips



85. Install the RH wiper arm and hose assembly onto vehicle



86. Install the nut securing the RH wiper arm to wiper module
    注

    1x nut, 15mm, 25 Nm, Make sure the wiper tip is aligned between the two indicators at corner of windshield



87. Connect washer hose from RH wiper arm to Y-tube fitting and secure washer hose clips
    注

    2x clips, 1x hose



88. Install RH wiper arm nut cover
    注

    1x cover



89. Install LH wiper arm and hose assembly onto vehicle
    注

    The washer hose shall be routed over the arm pivot joint, not under





90. Install the nut securing the LH wiper arm to wiper module
    注

    1x nut, 15mm, 25 Nm, Make sure the wiper tip is aligned between the two indicators at windshield



91. Connect washer hose from LH wiper arm to Y-tube fitting and secure washer hose clips
    注

    2x clips, 1x hose



92. Install LH wiper arm nut cover
    注

    1x cover



93. Install frunk assembly to vehicle
    注

    12x clips, Make sure frunk assembly is fully seated onto clips, Number of clips may vary on older vehicles





94. Install bolts securing frunk assembly
    注

    7x bolts, 10mm, 5 Nm, Lower RBN covers after installing upper fasteners, Newer vehicles may not be equipped with covers



95. Install frunk assembly carpet



96. Install frunk close out panel
    注

    4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Align 3x tabs then push downward to secure clips



97. Install cabin intake upper duct assembly
    注

    4x clips, Heat pump vehicles have 3x clips





98. Install rear apron
    注

    12x clips





99. Close hood
100. Raise both front windows
101. Close both front doors
102. Vehicle will need to be driven by customer to complete the calibration procedure. During this time DAS functions will be completely unavailable
     注

     No time was recorded as this will be completed by the customer
