교정 코드 1630012122 FRT 1.38 바고: 절차에서 명시적으로 언급하지 않는 한 위 교정 코드 및 FRT는 연결된 절차를 포함하여 이 절차를 수행하는 데 필요한 모든 작업을 반영합니다. 명시적으로 지시하지 않는 한 교정 코드를 누적하지 마십시오. 참고: FRT와 그 생성 방법에 대한 자세한 내용은 표준 정비 작업시간을 참조하십시오. FRT 값에 대한 피드백을 제공하려면 ServiceManualFeedback@tesla.com으로 이메일을 보내십시오. 참고: 아래 절차를 수행할 때 개인 보호의 내용을 참조하여 적절한 PPE를 착용했는지 확인하십시오.참고: 안전하고 건강한 작업 사례는 인체공학적 주의 사항의 내용을 참조하십시오.

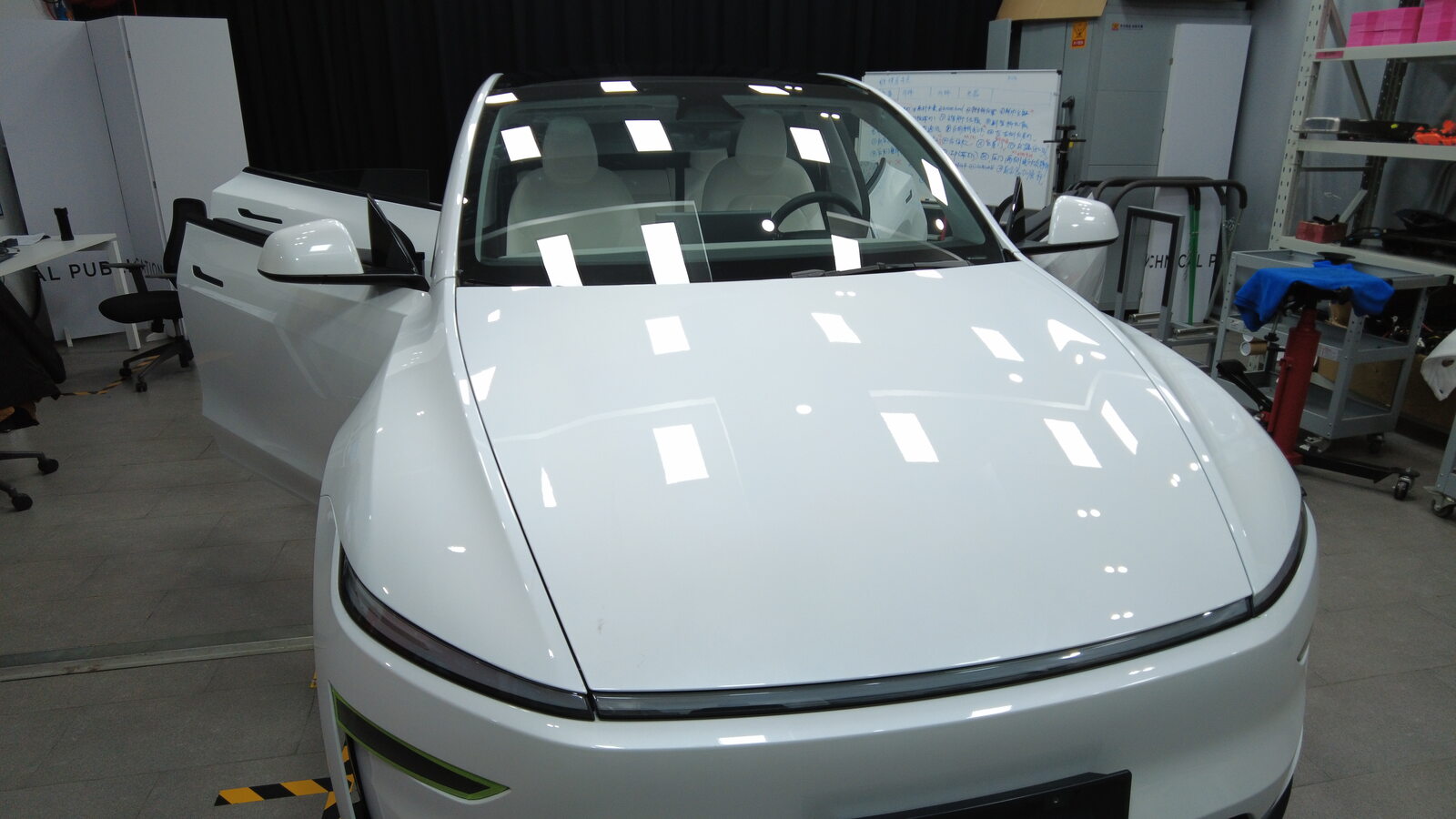

1. Open all four doors

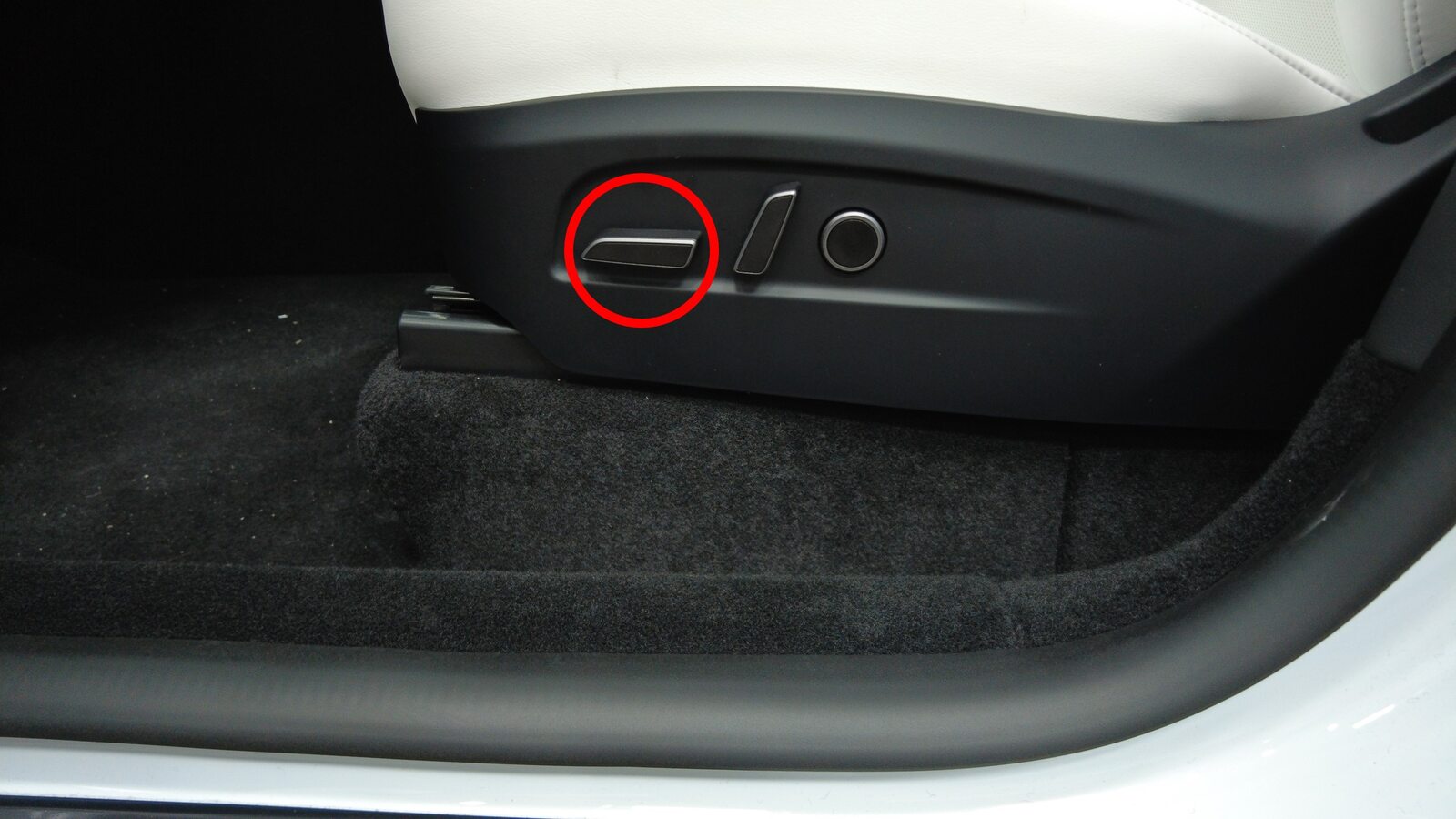

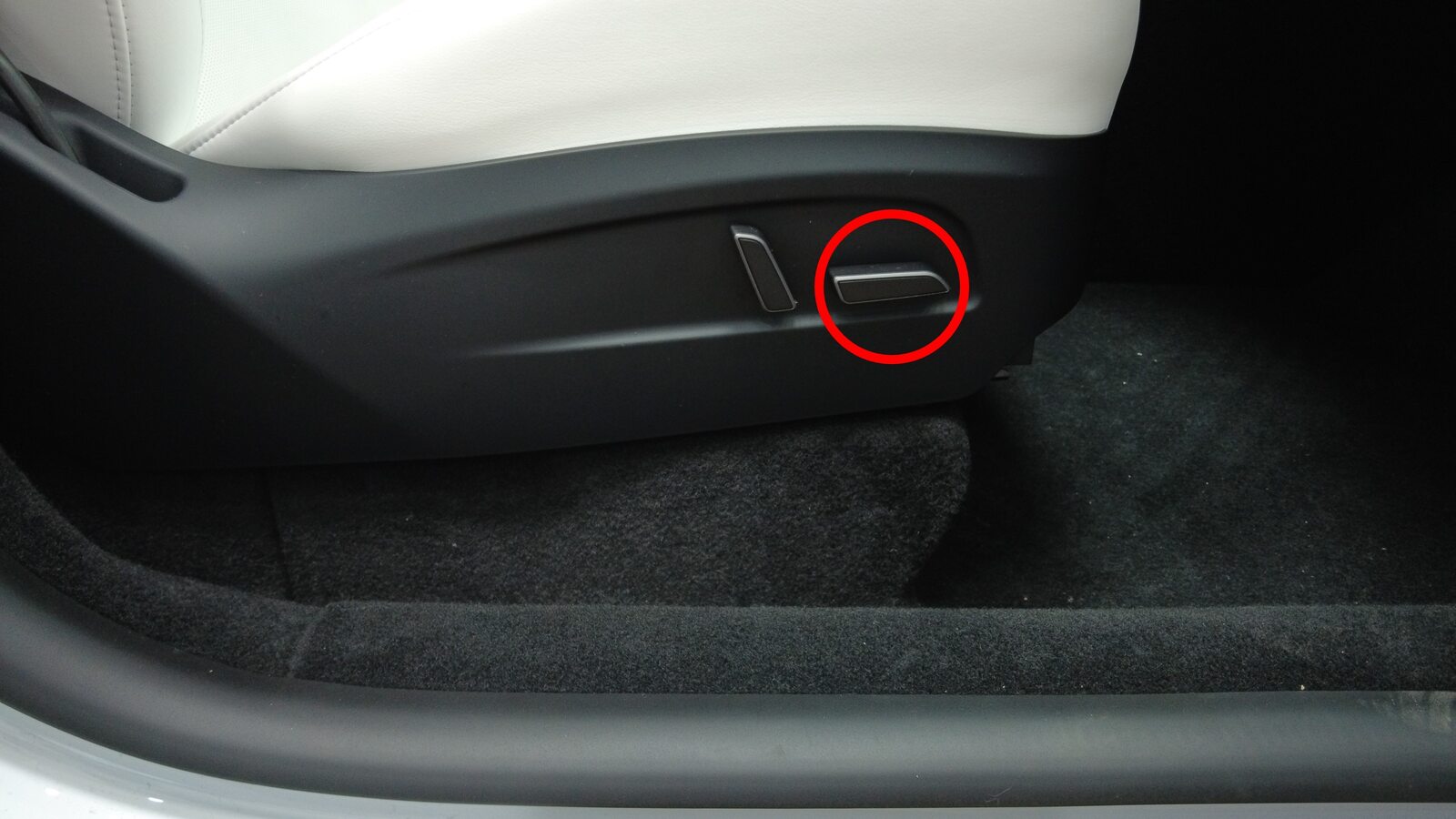

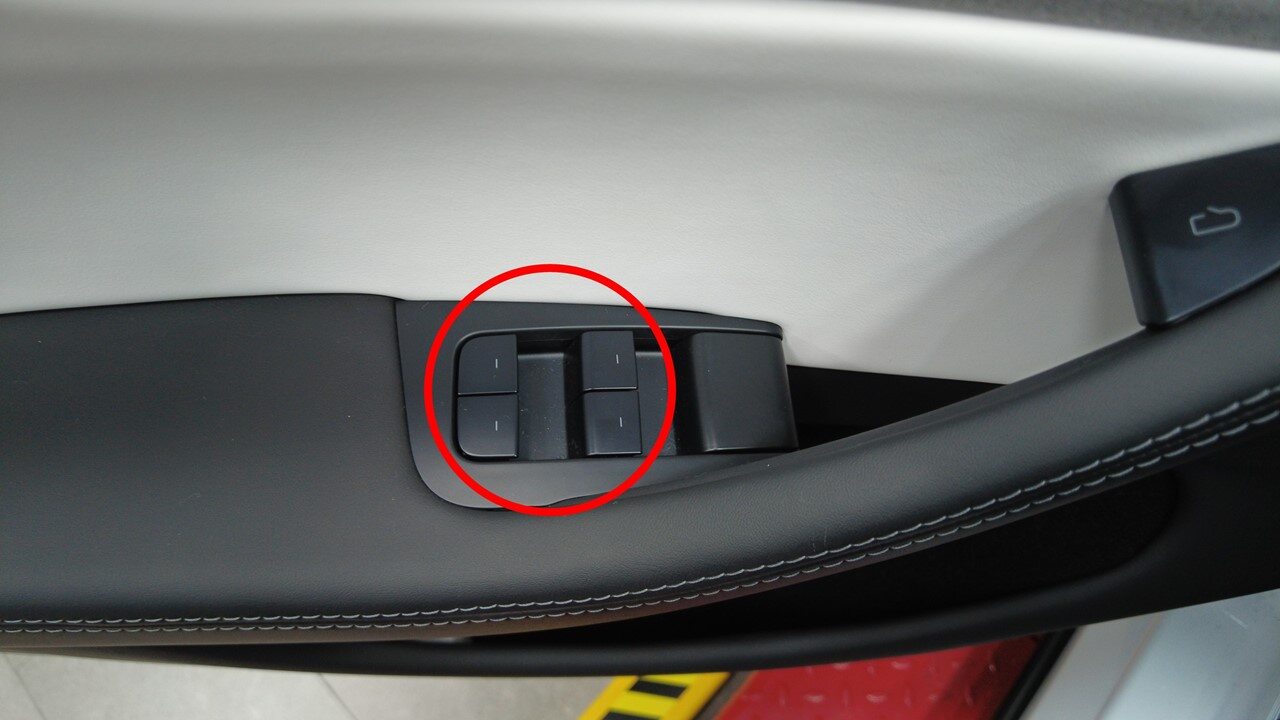

2. Lower all four windows



3. Move LH front seat forward
   참고

   Adjust seat back if needed to avoid contacting headliner



4. Move RH front seat forward
   참고

   Adjust seatback if needed to avoid contacting headliner

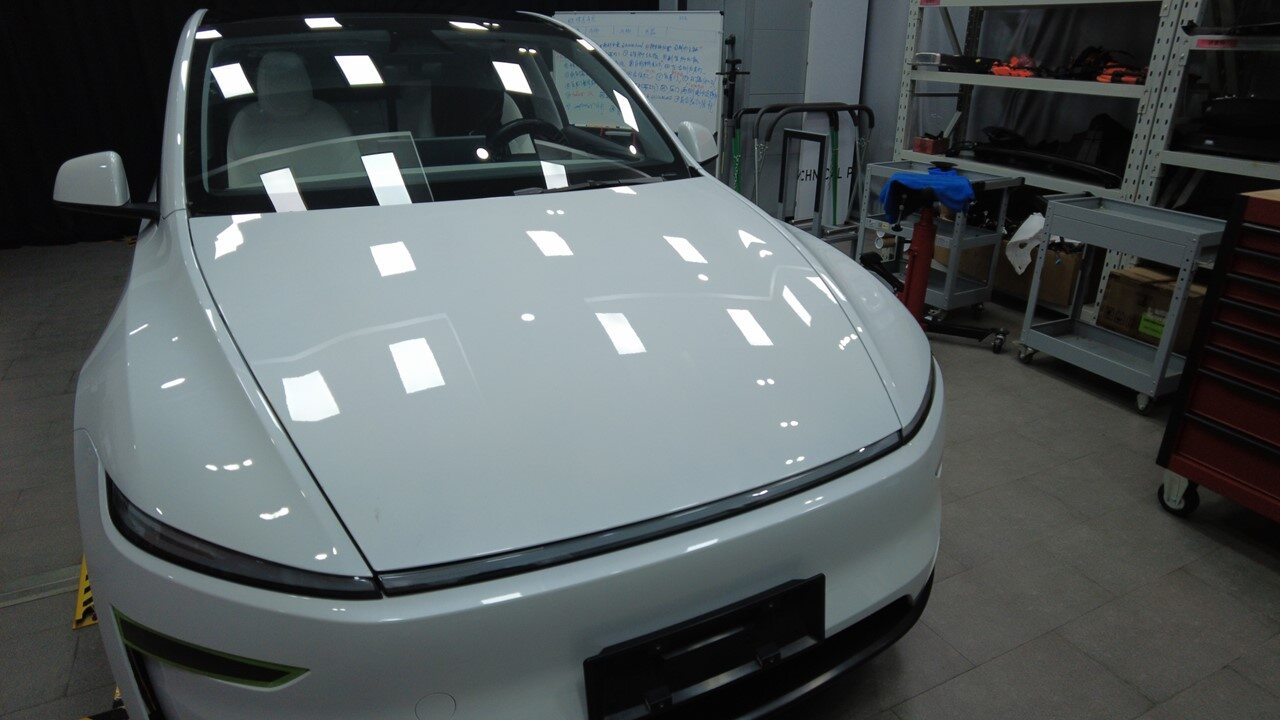

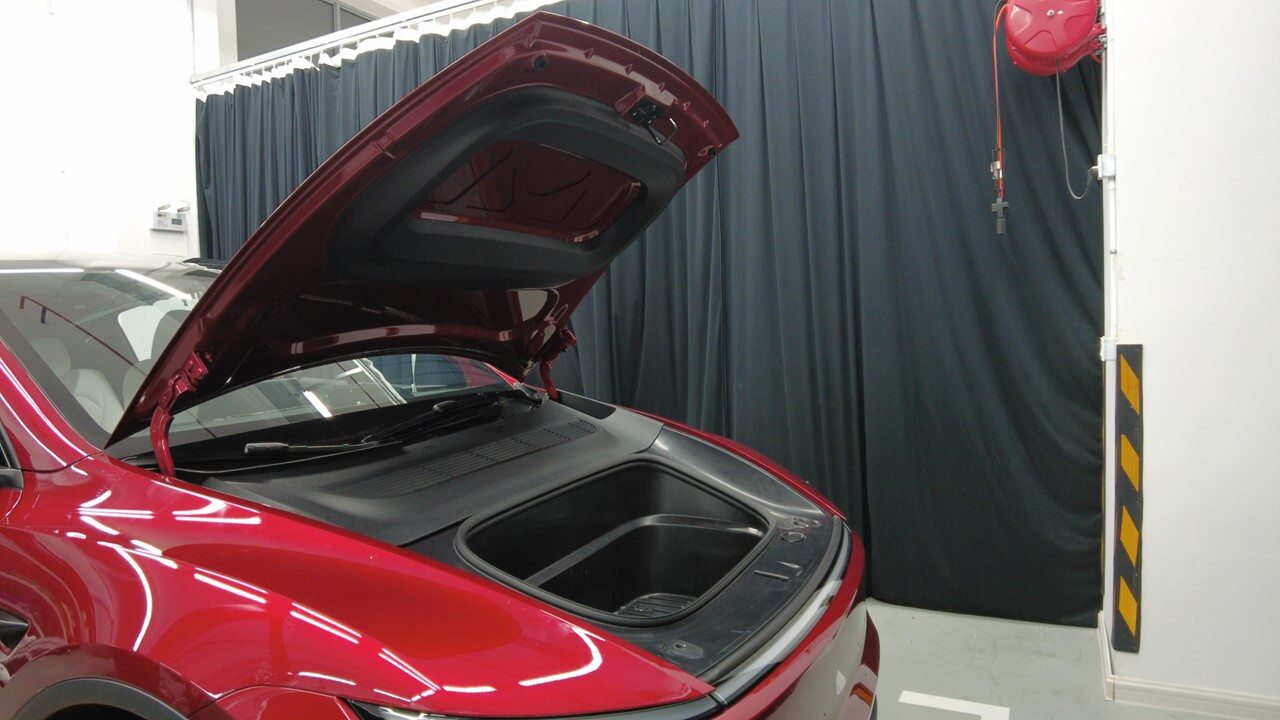

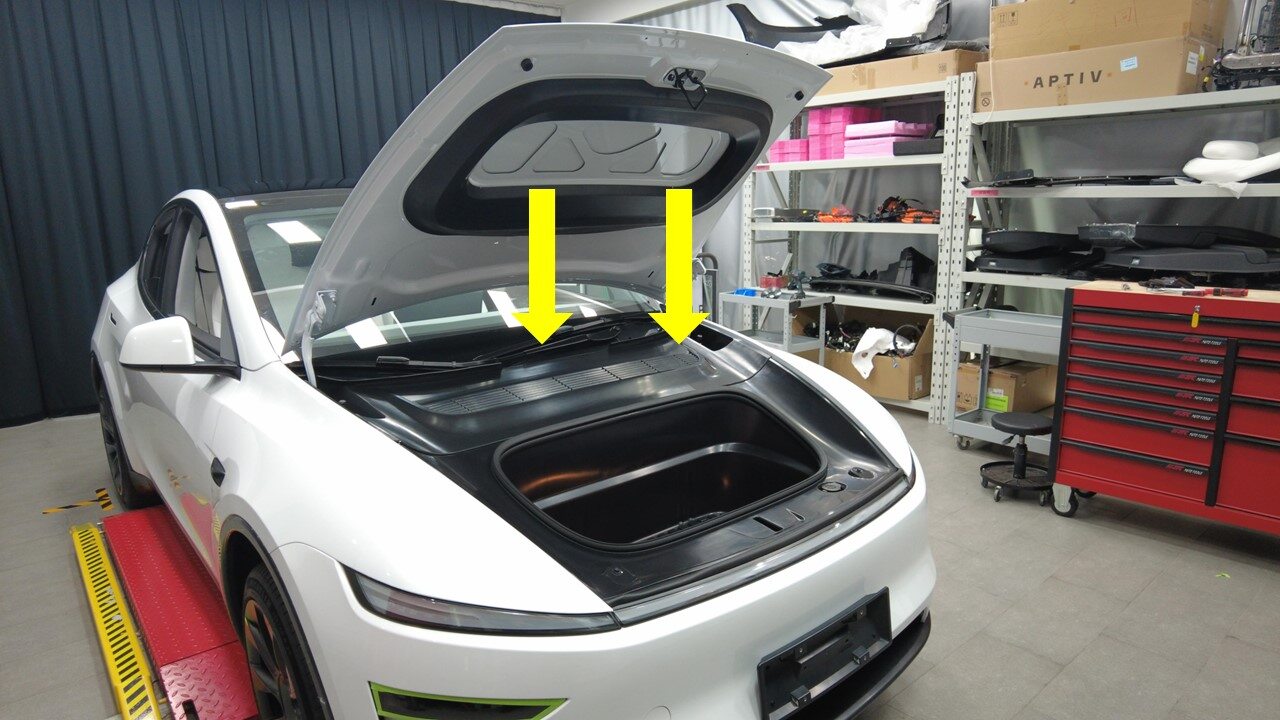

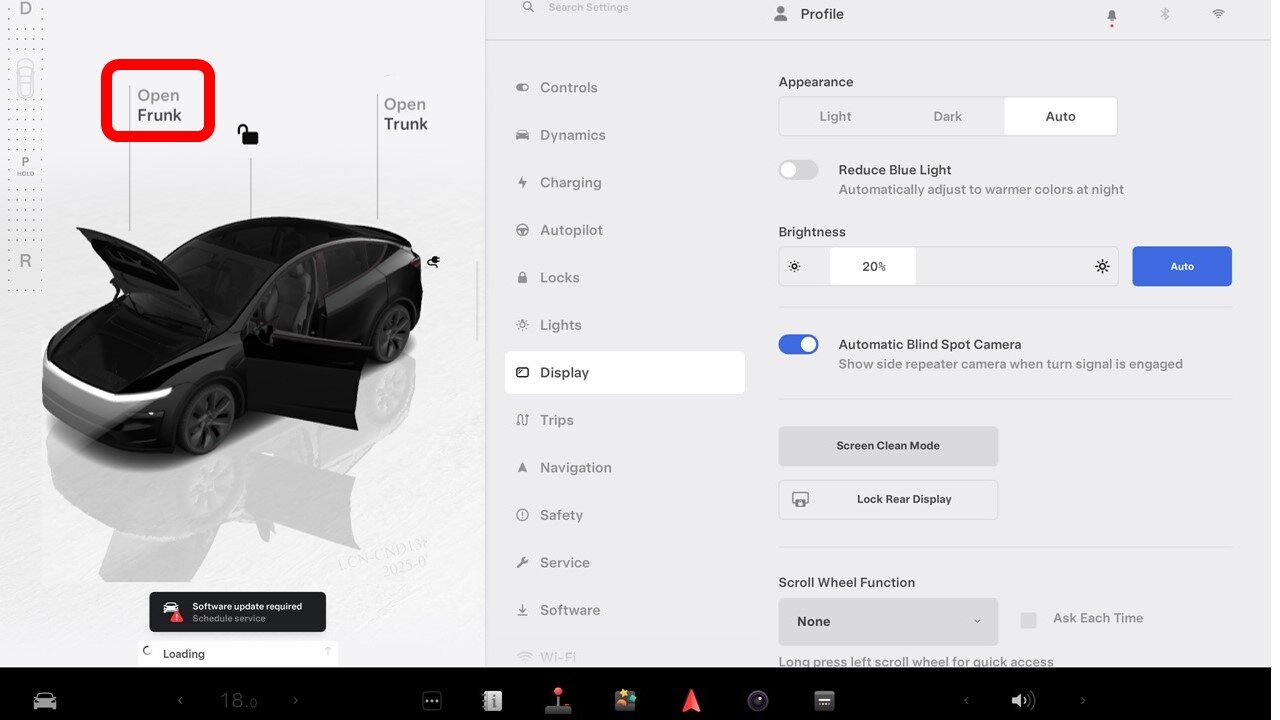

5. Open hood

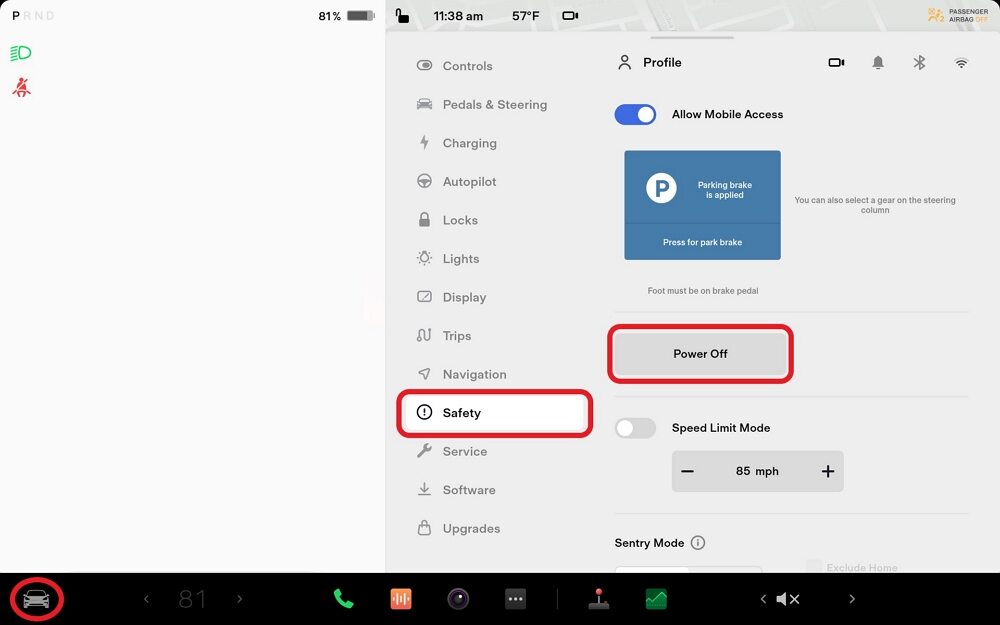

6. Power off vehicle from center display
   참고

   Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box

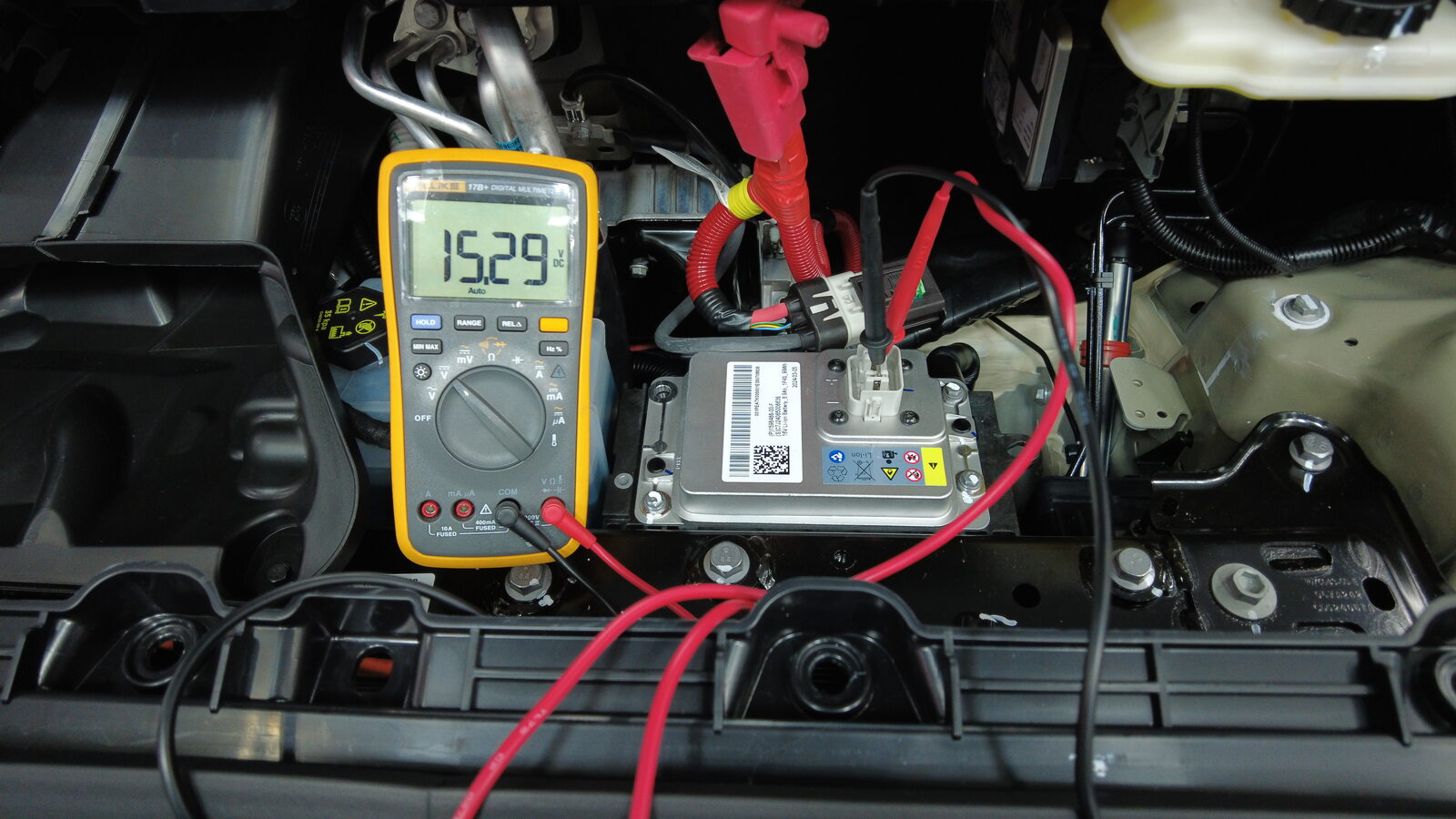

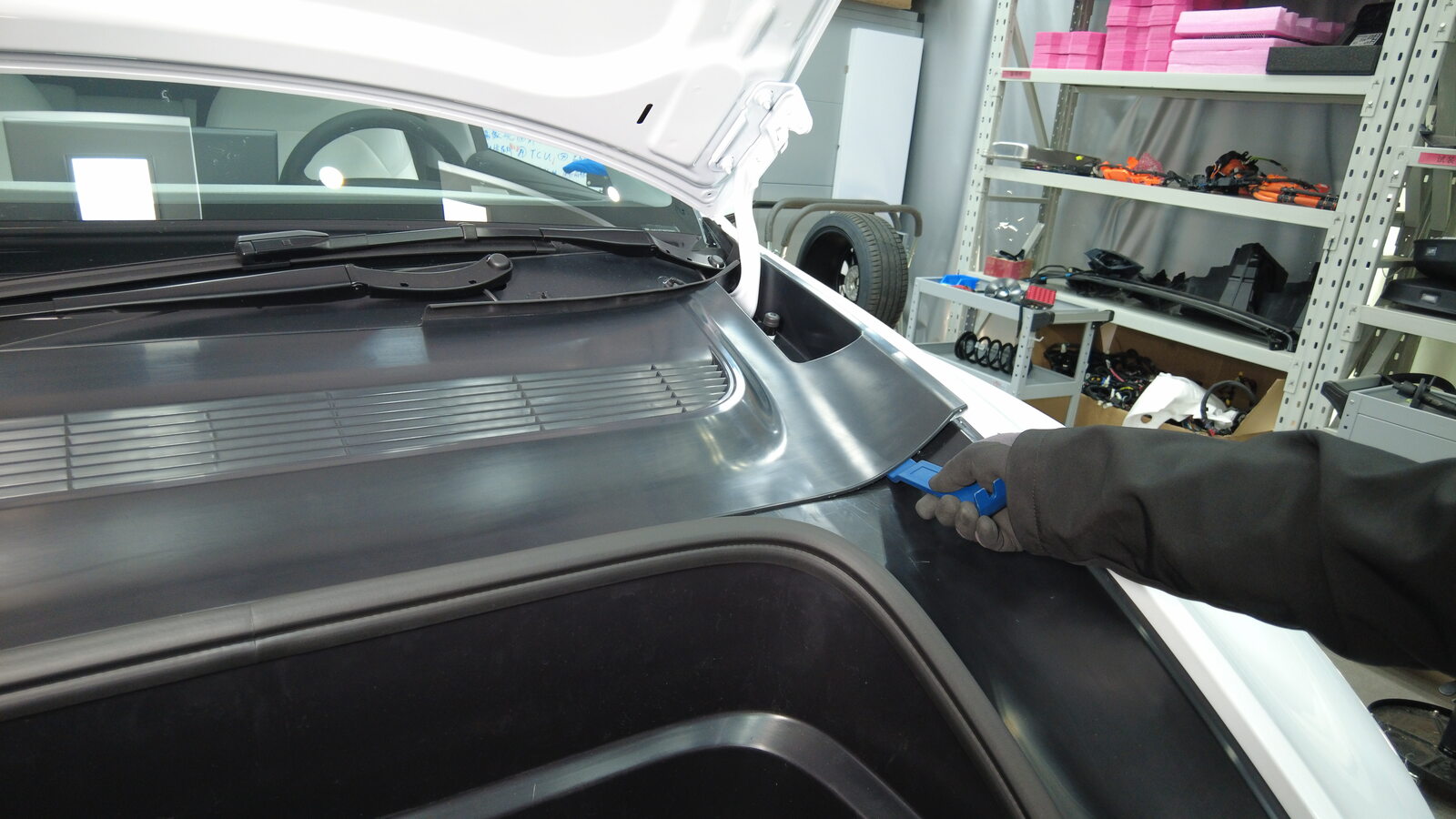

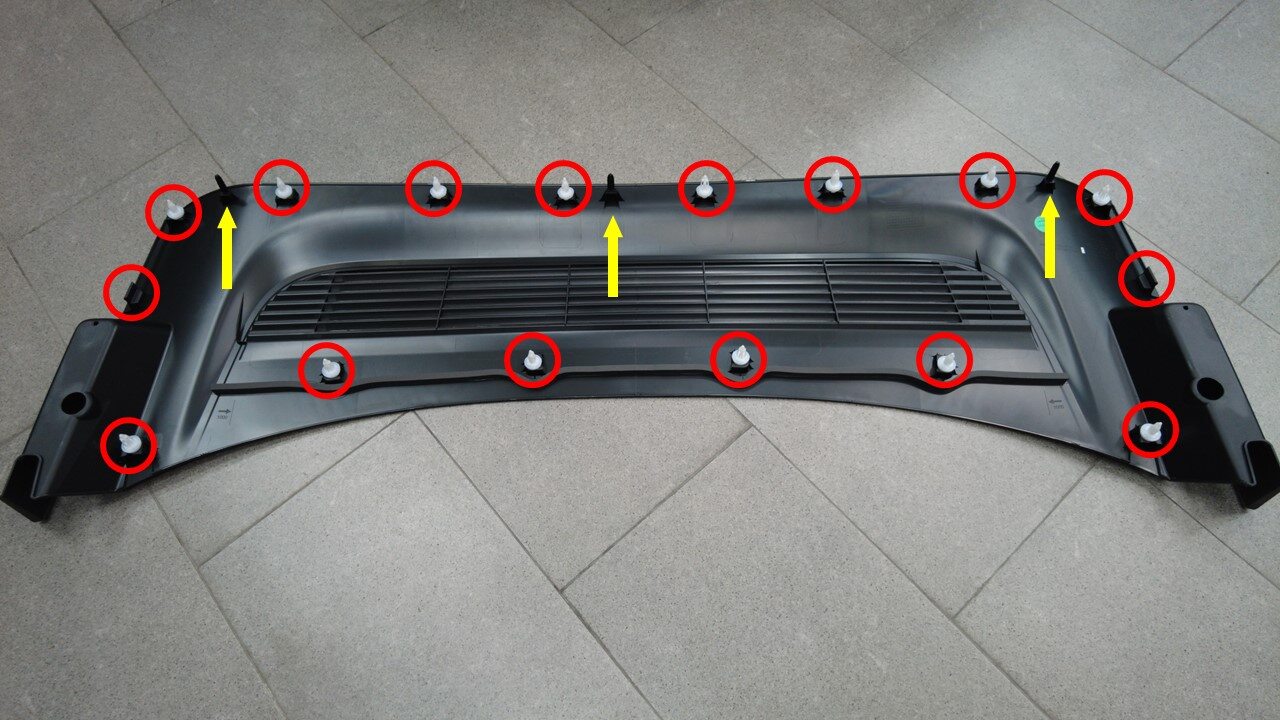

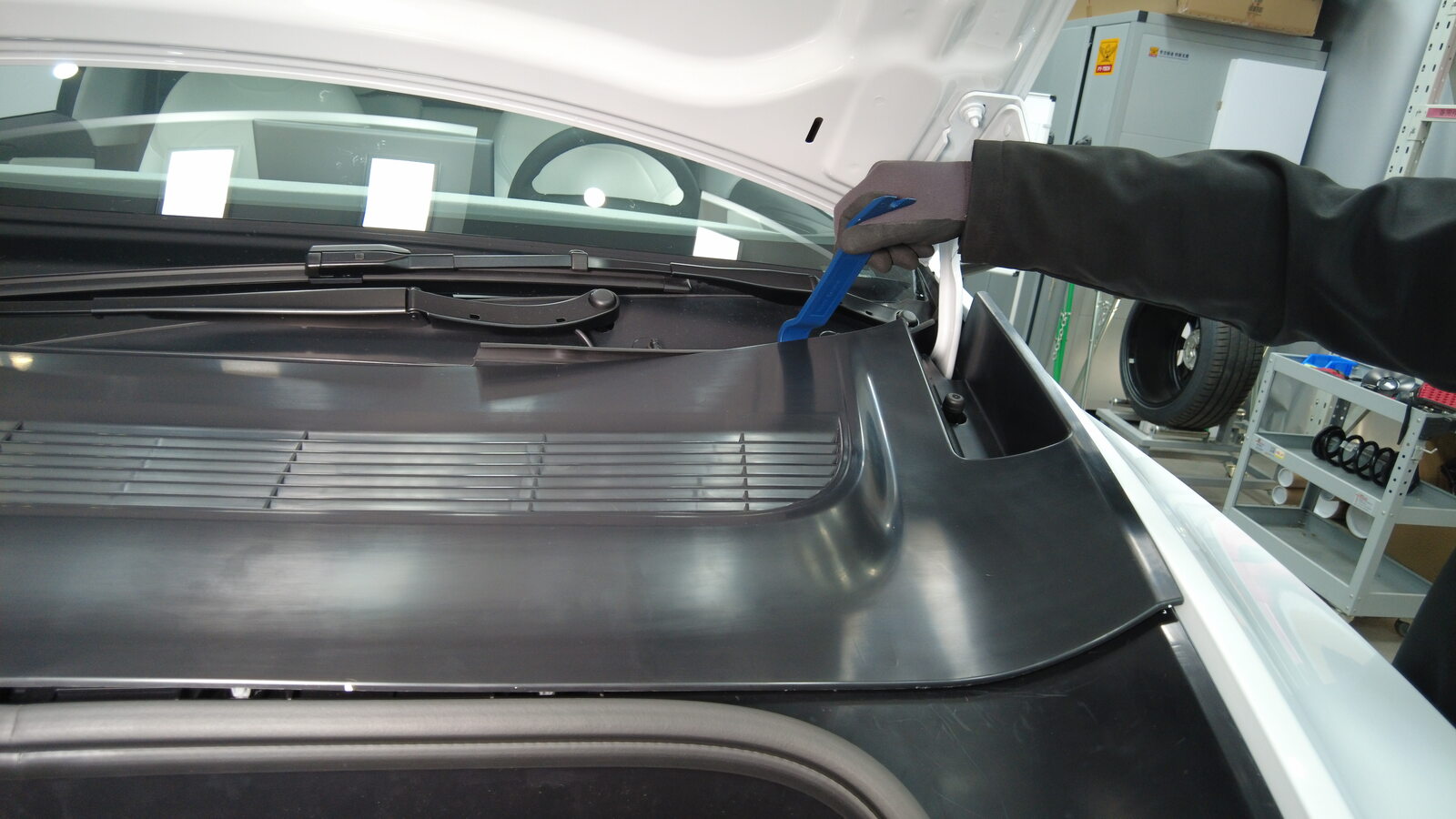

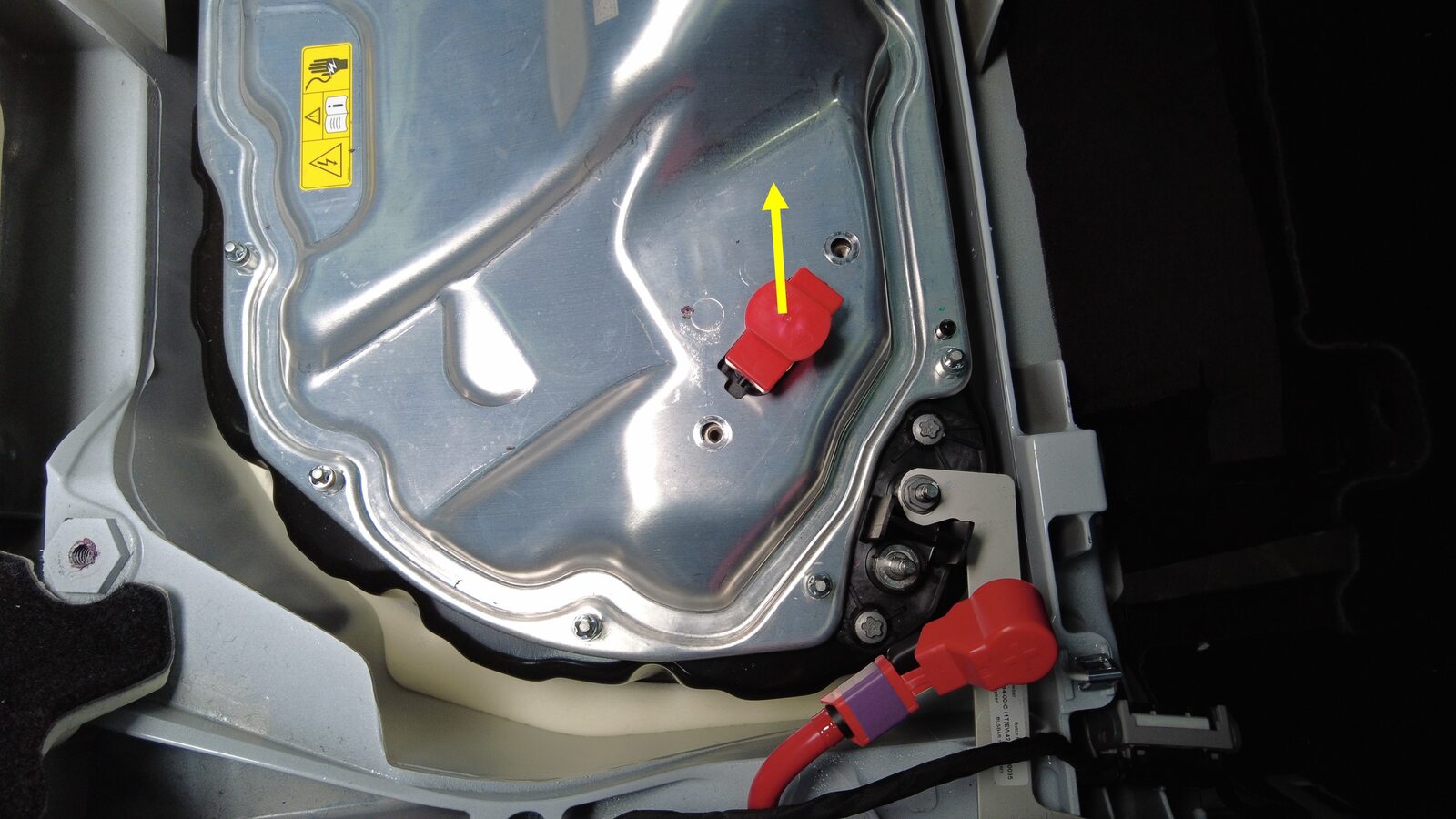

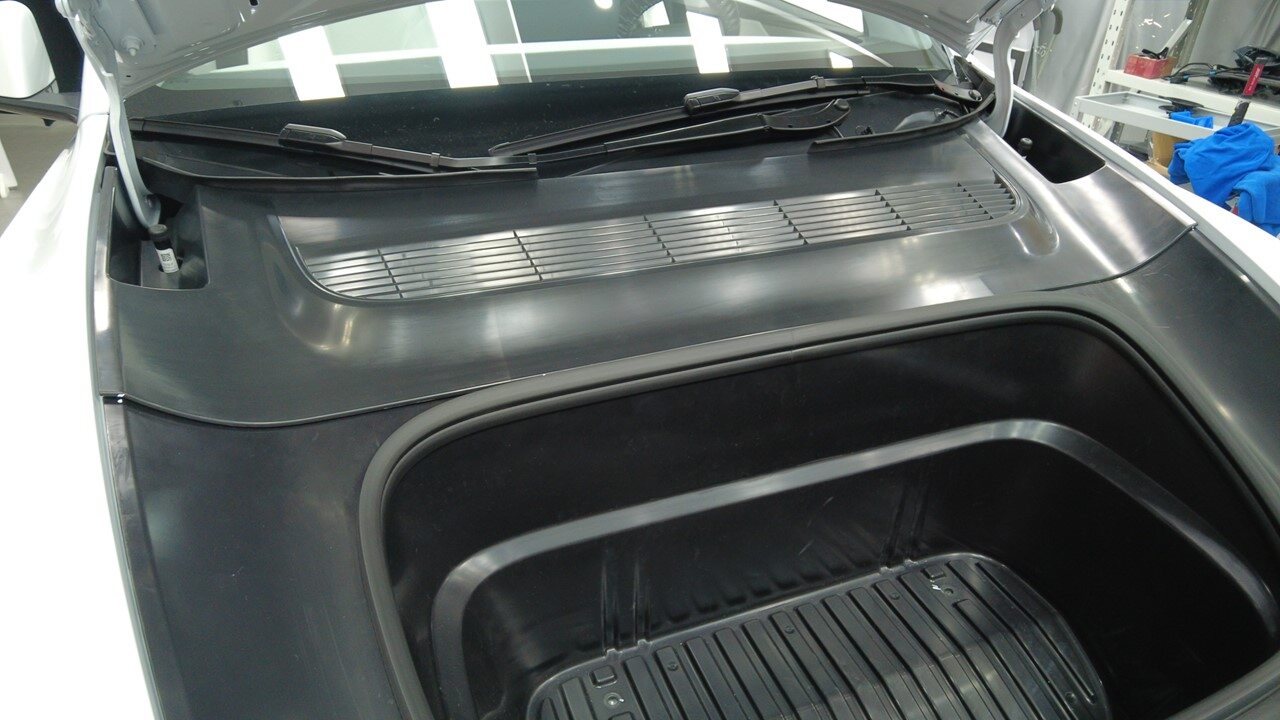

7. Remove rear apron

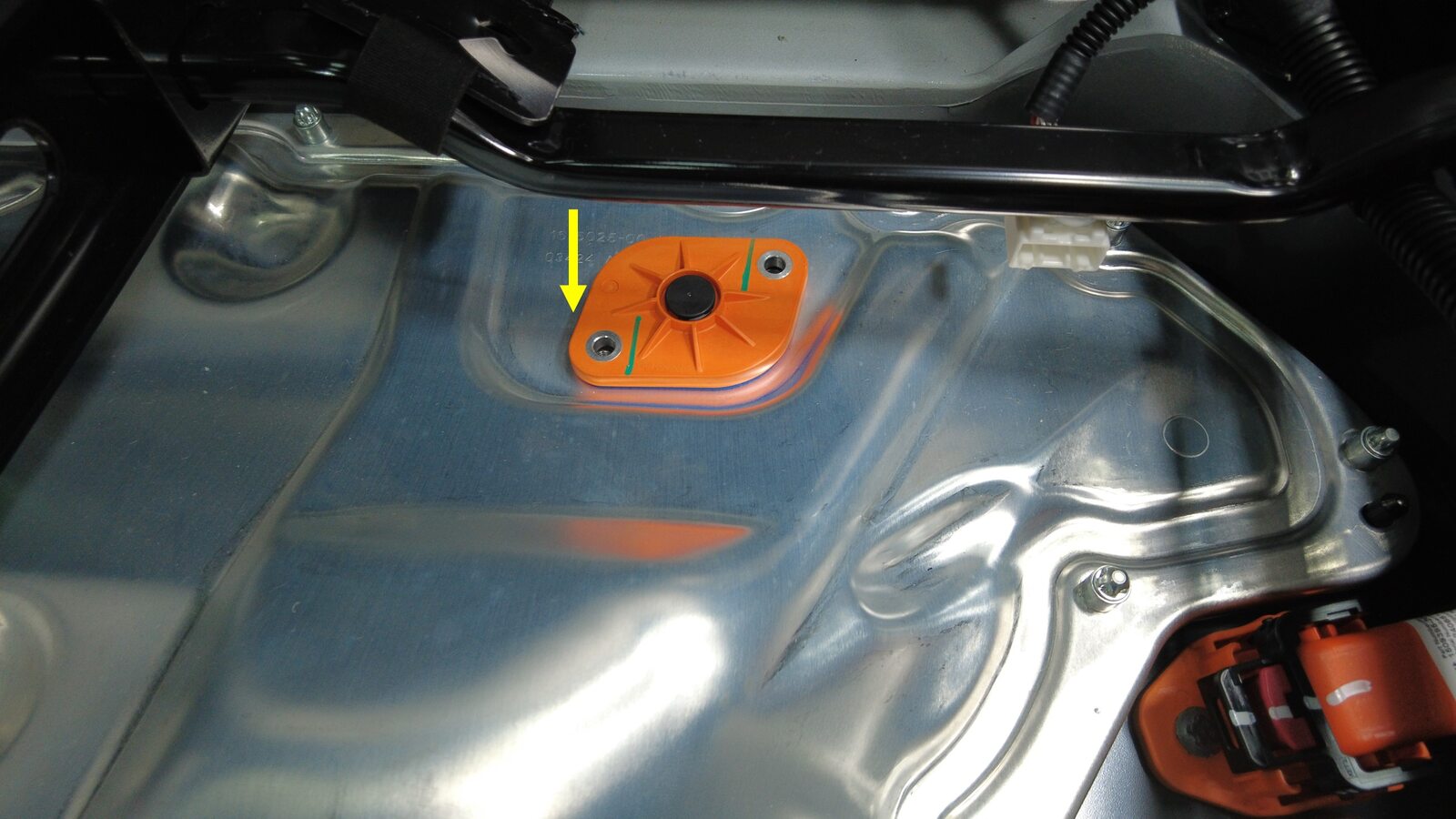

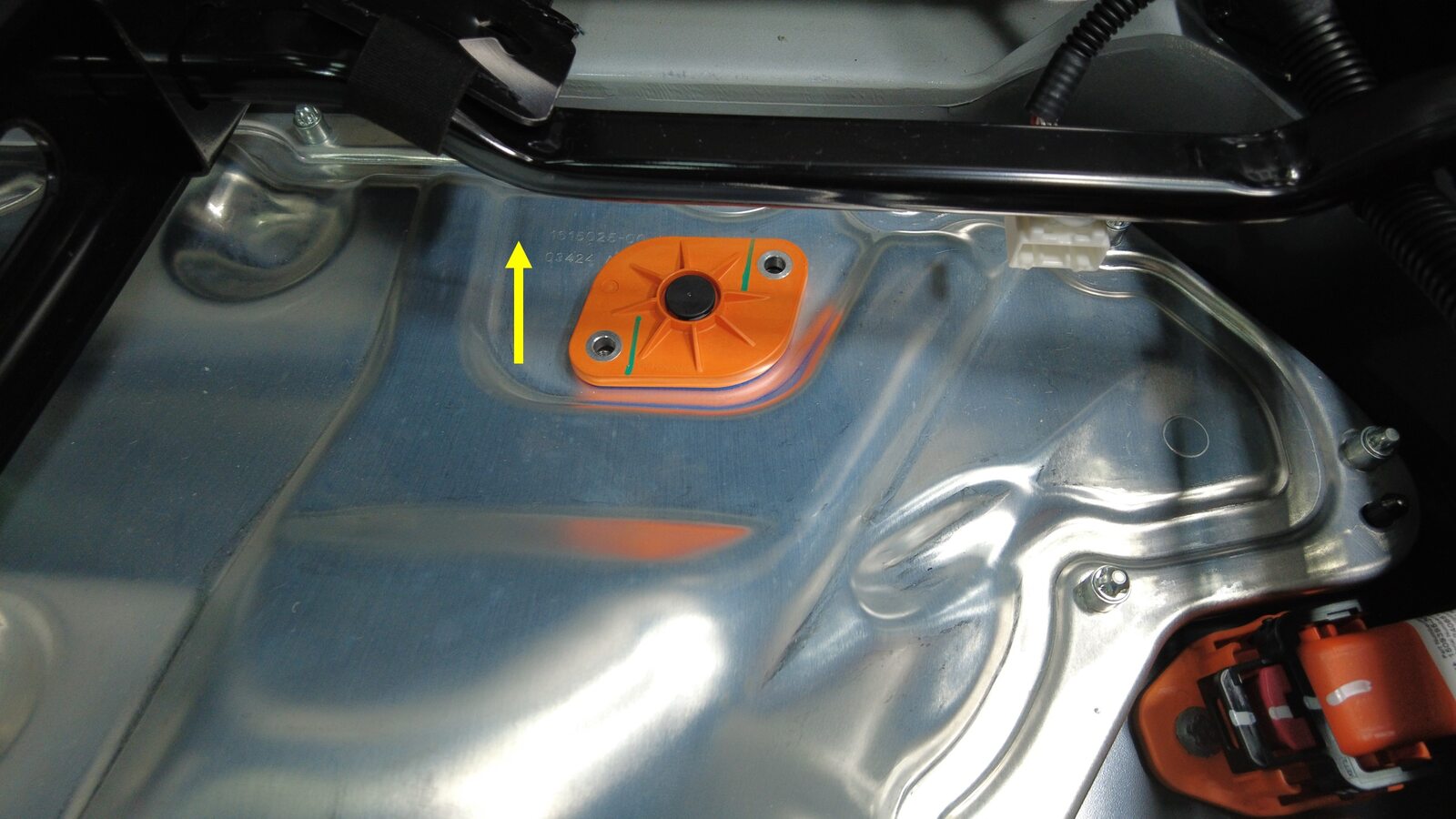

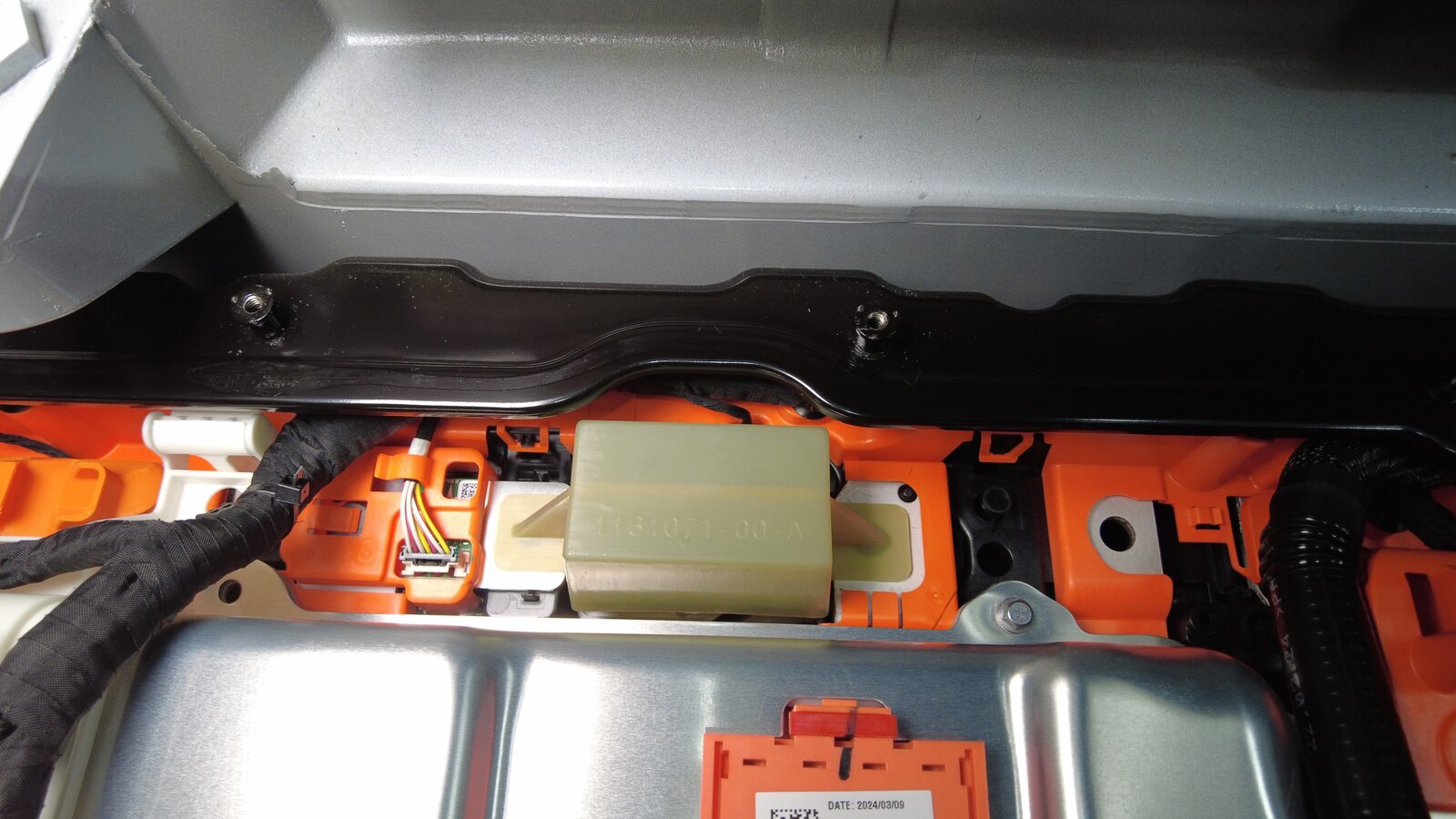

   참고

   16x trim clips, 3x datums, 2x clips

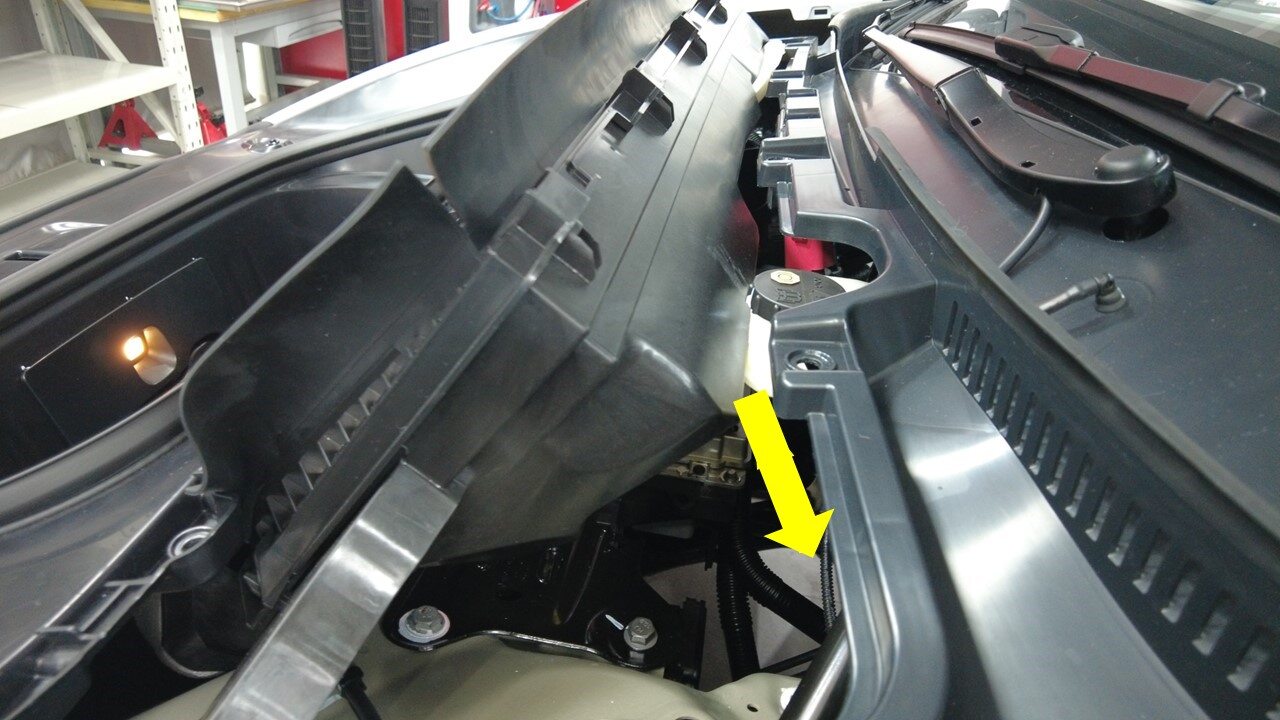

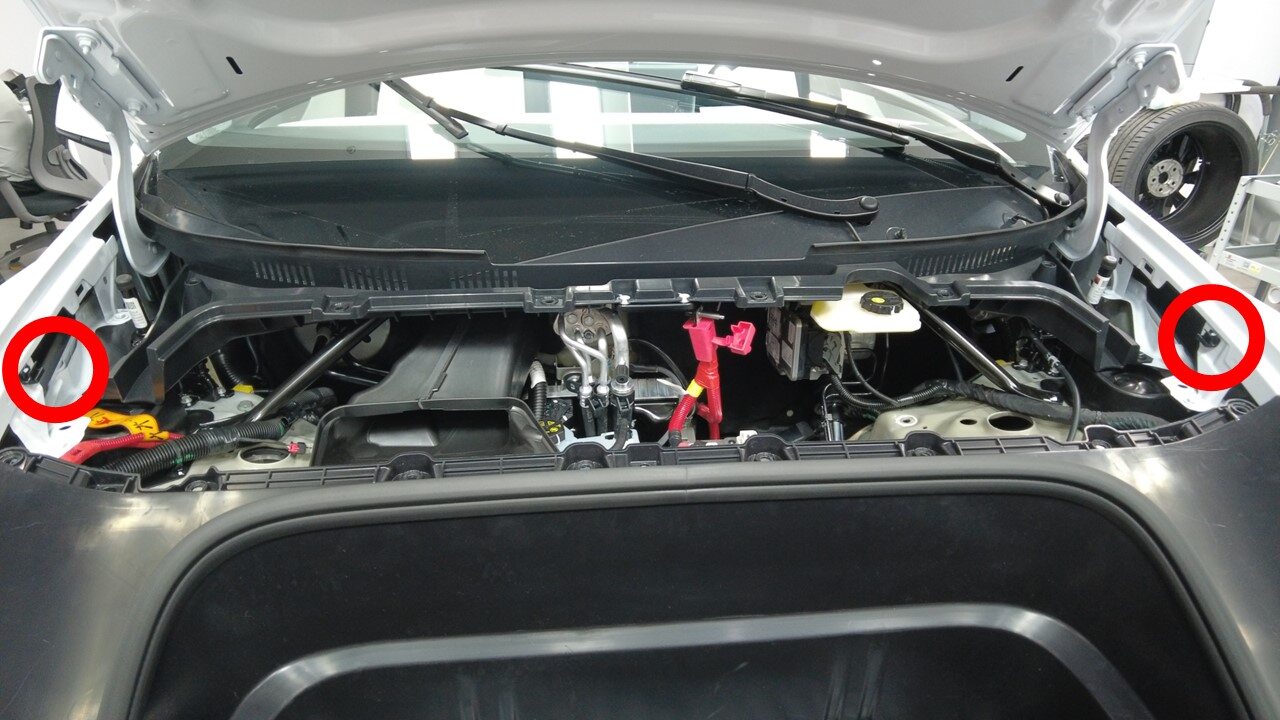

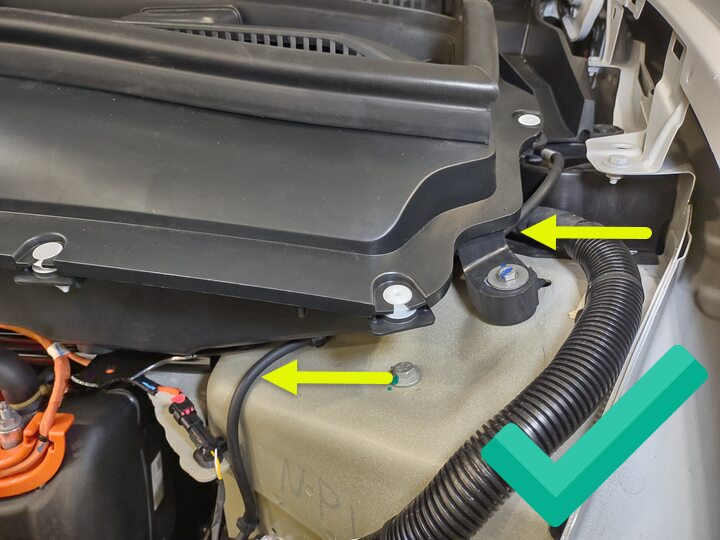

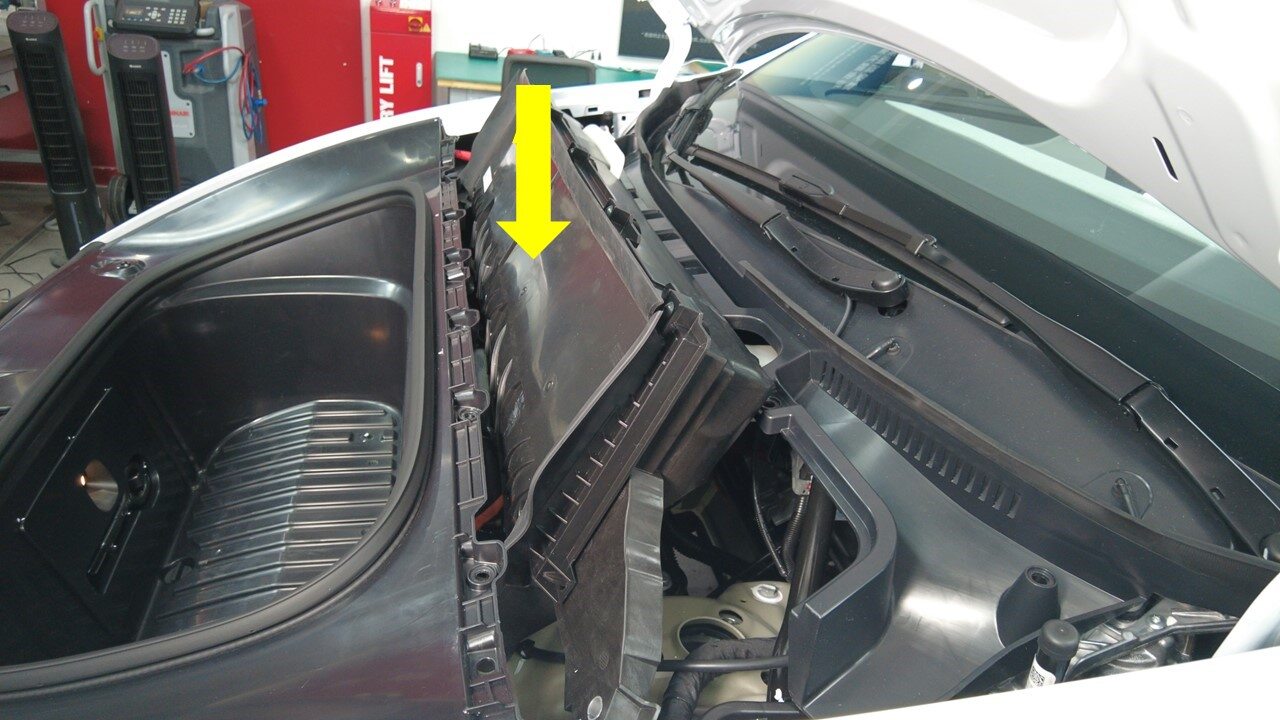

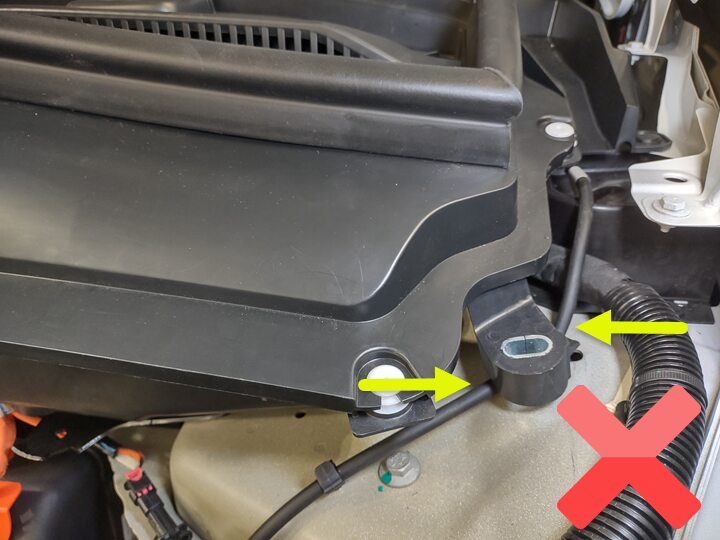

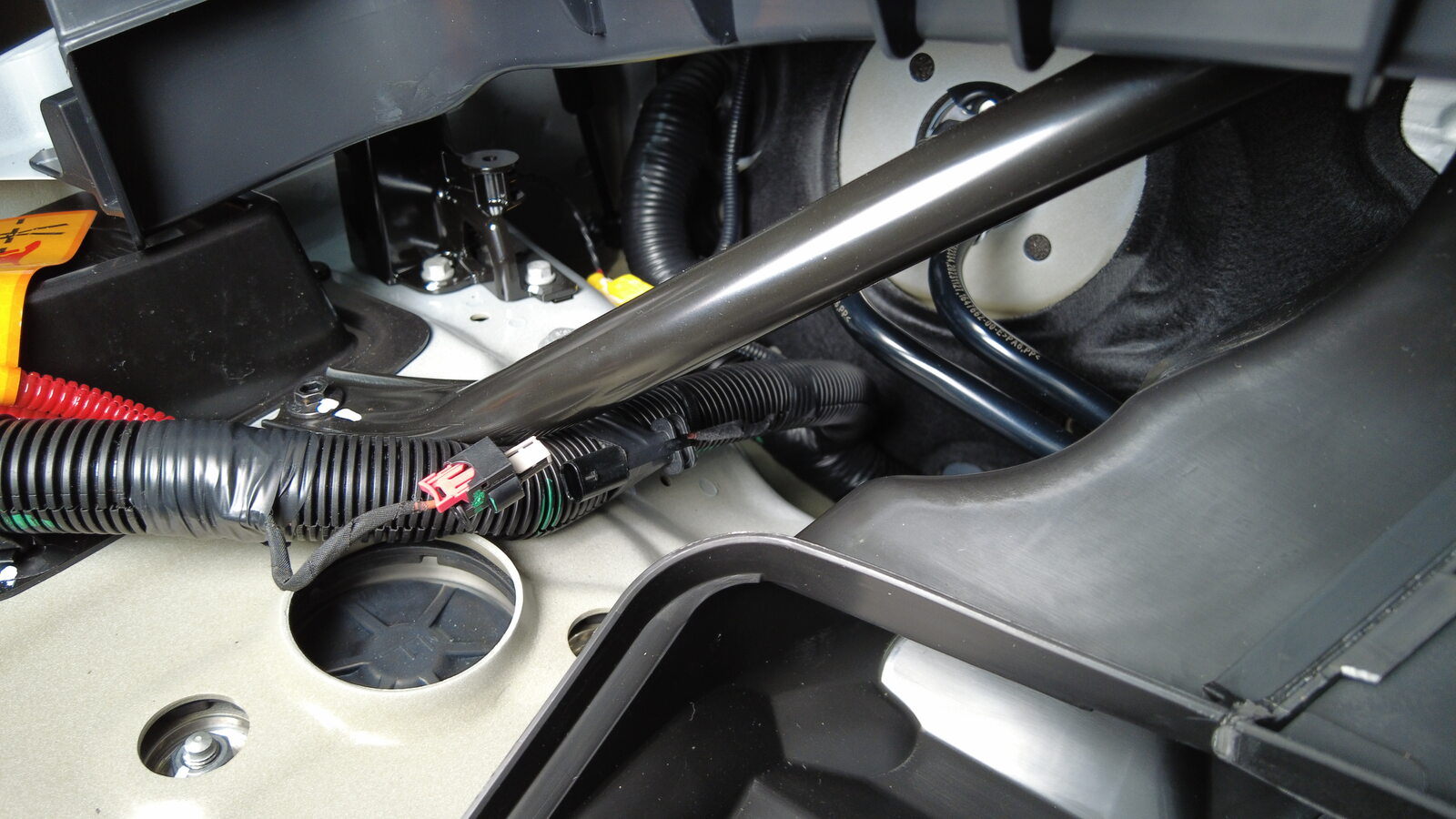

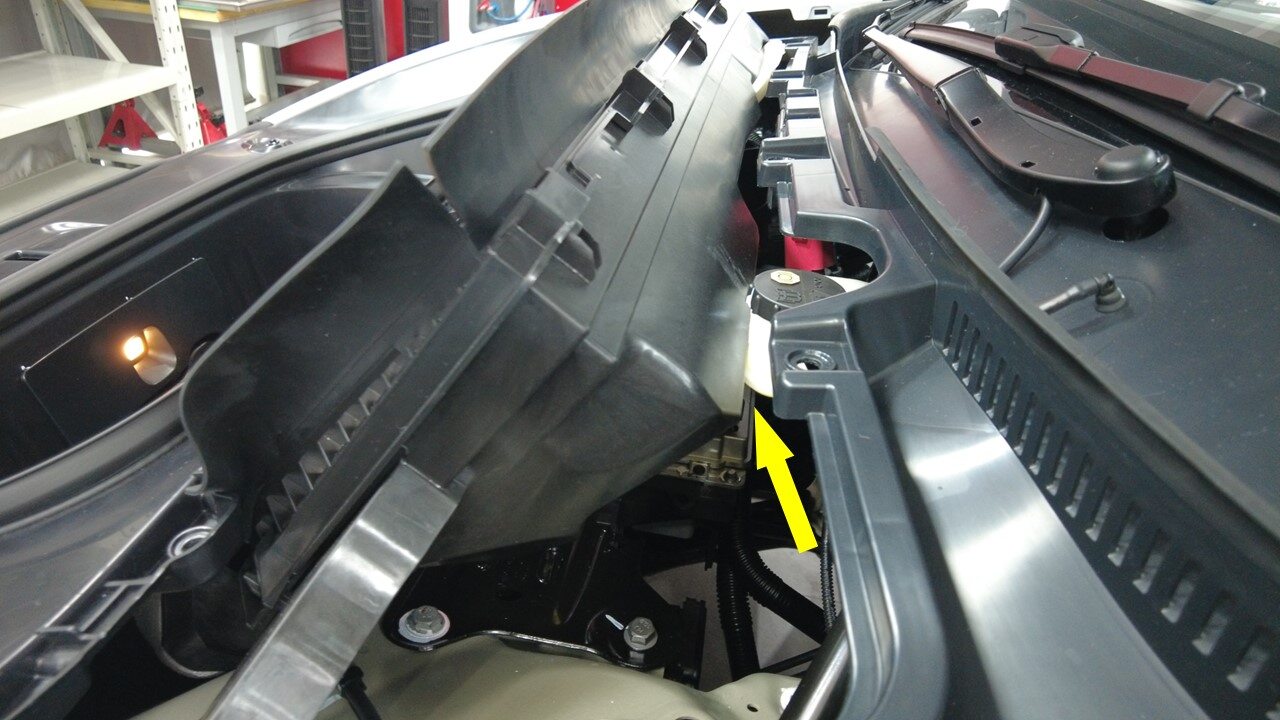

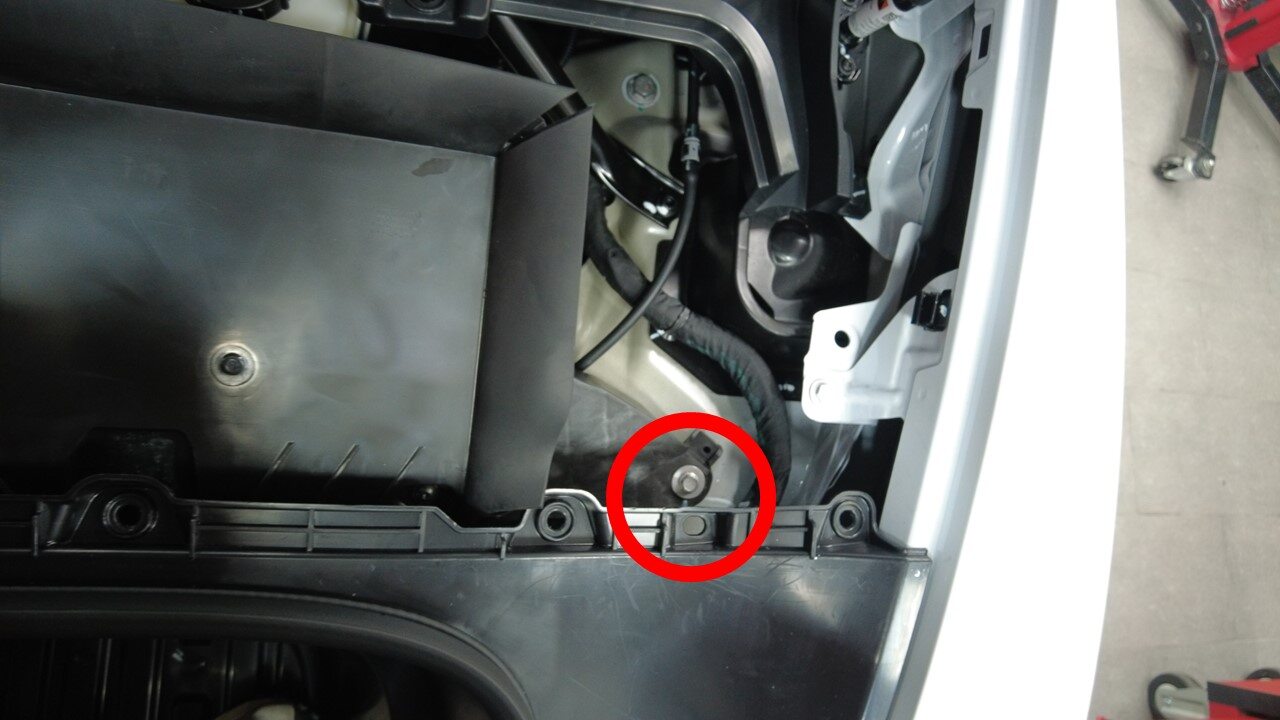

8. Remove HEPA filter assembly
   참고

   2x bolts, 10mm, 10 Nm, Pivot rear edge up past brake reservoir then lift up to clear frunk assembly

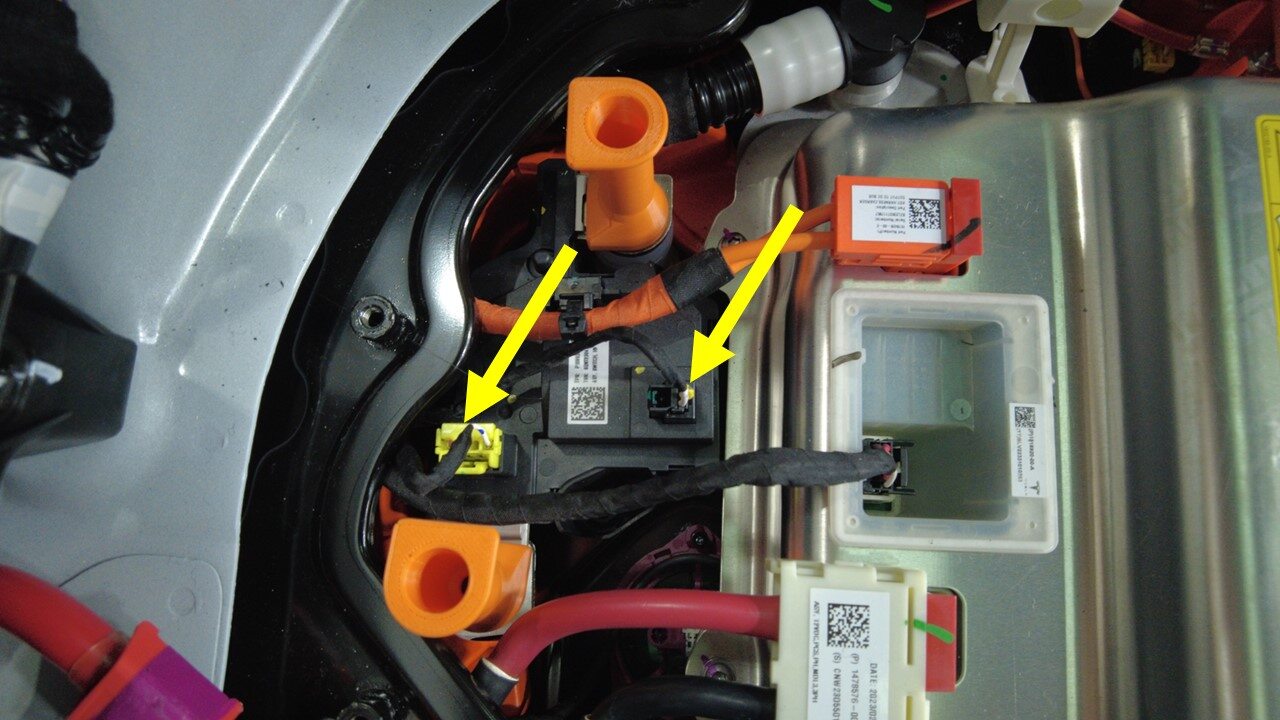

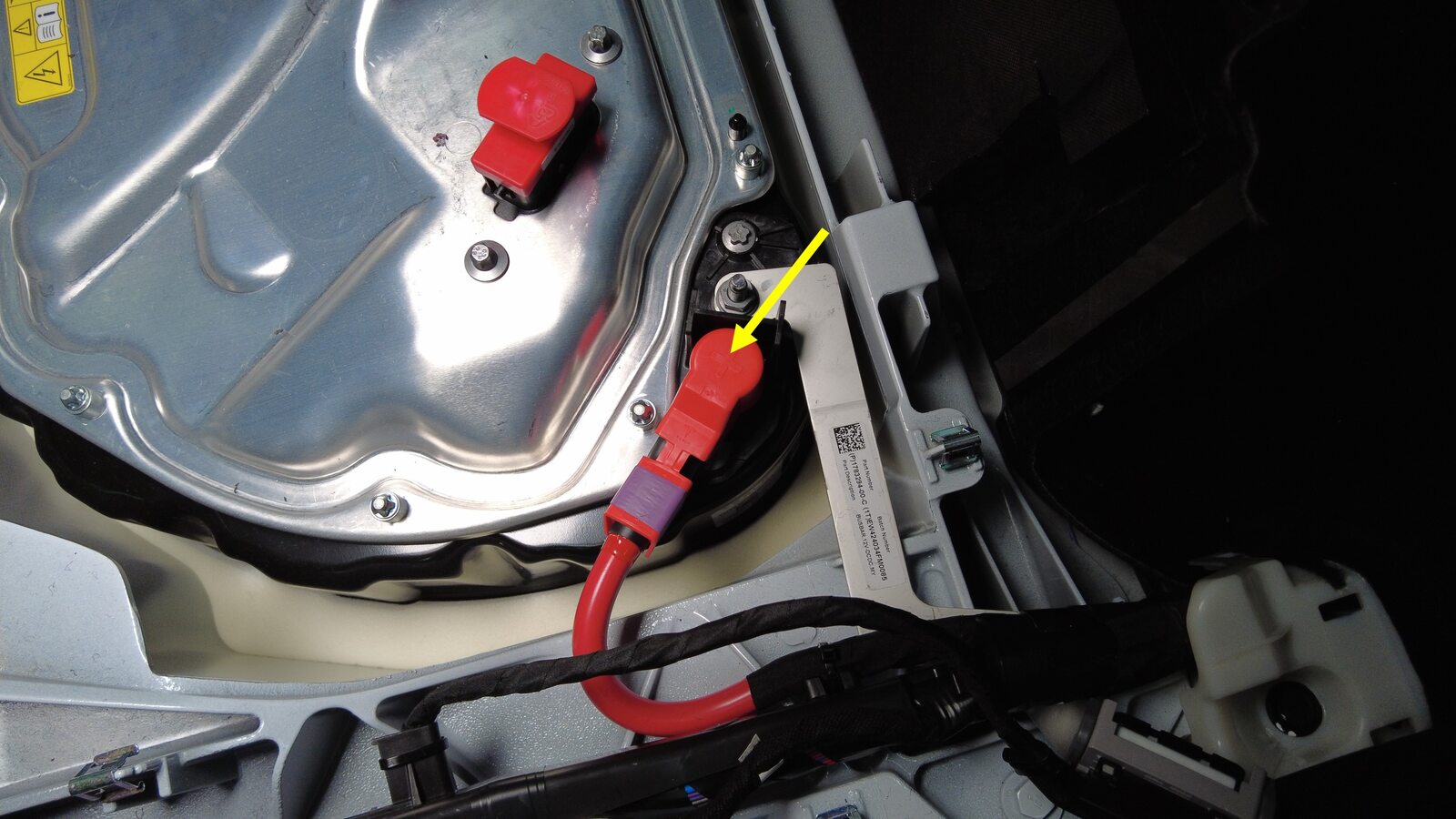

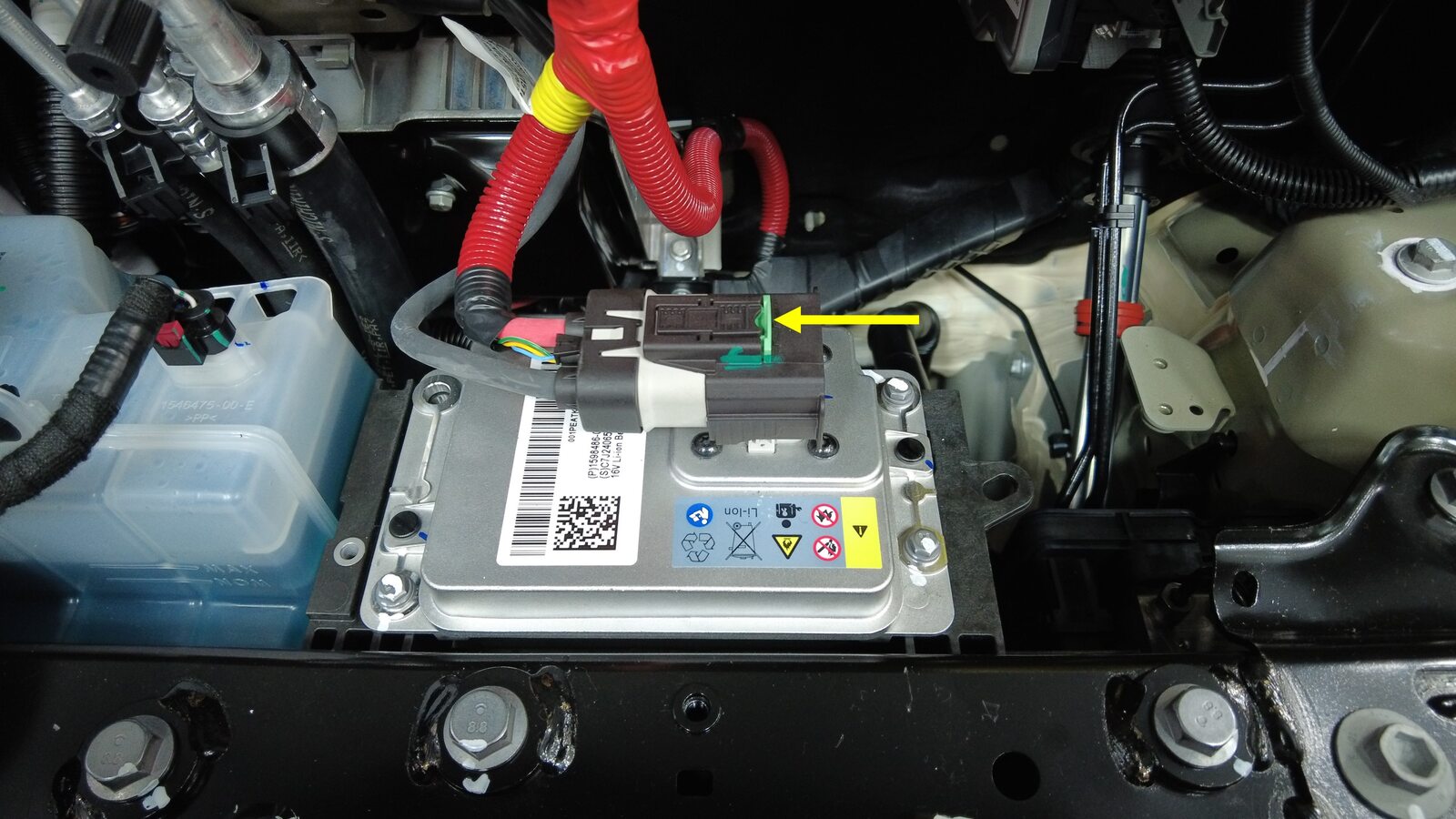

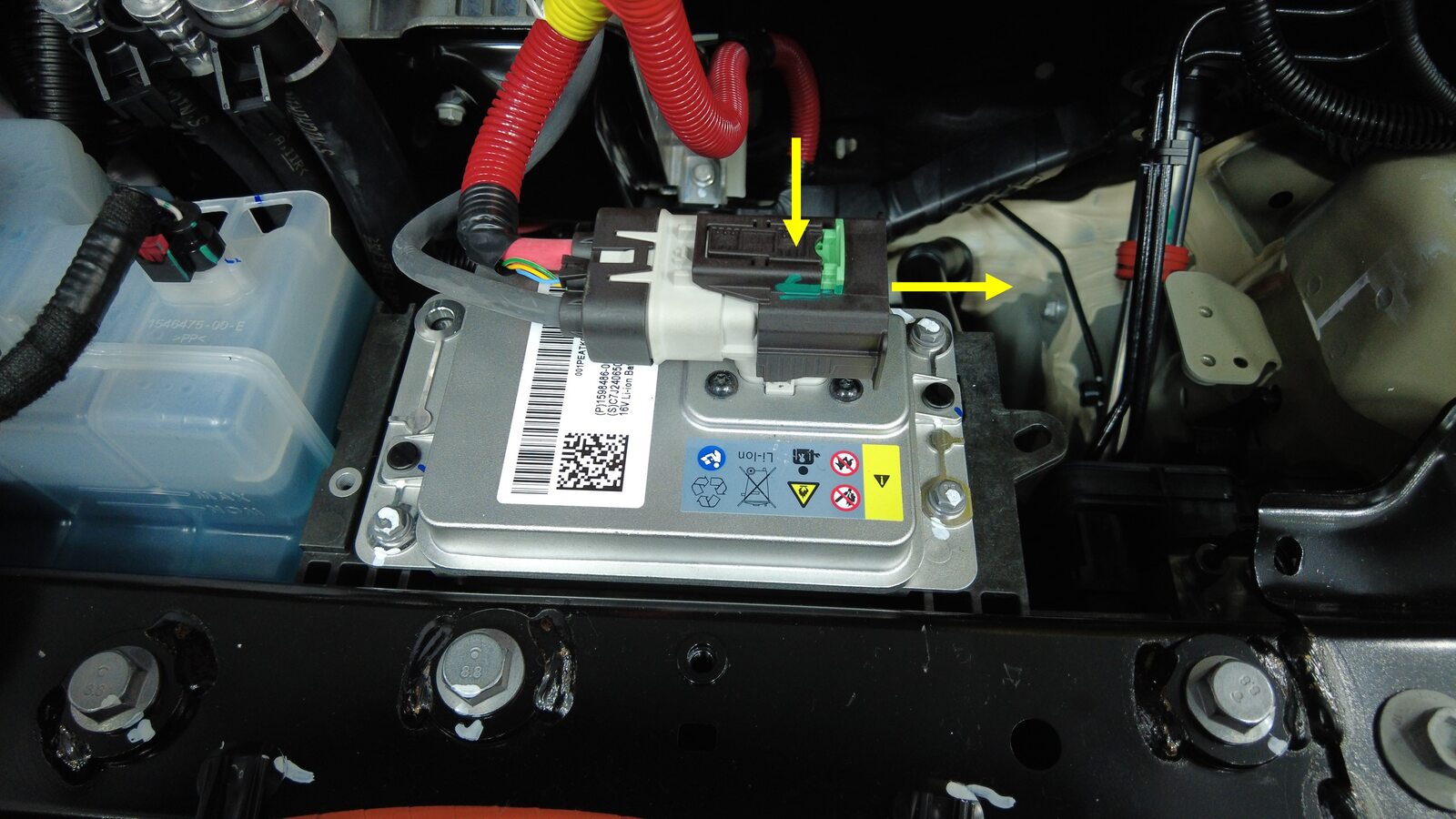

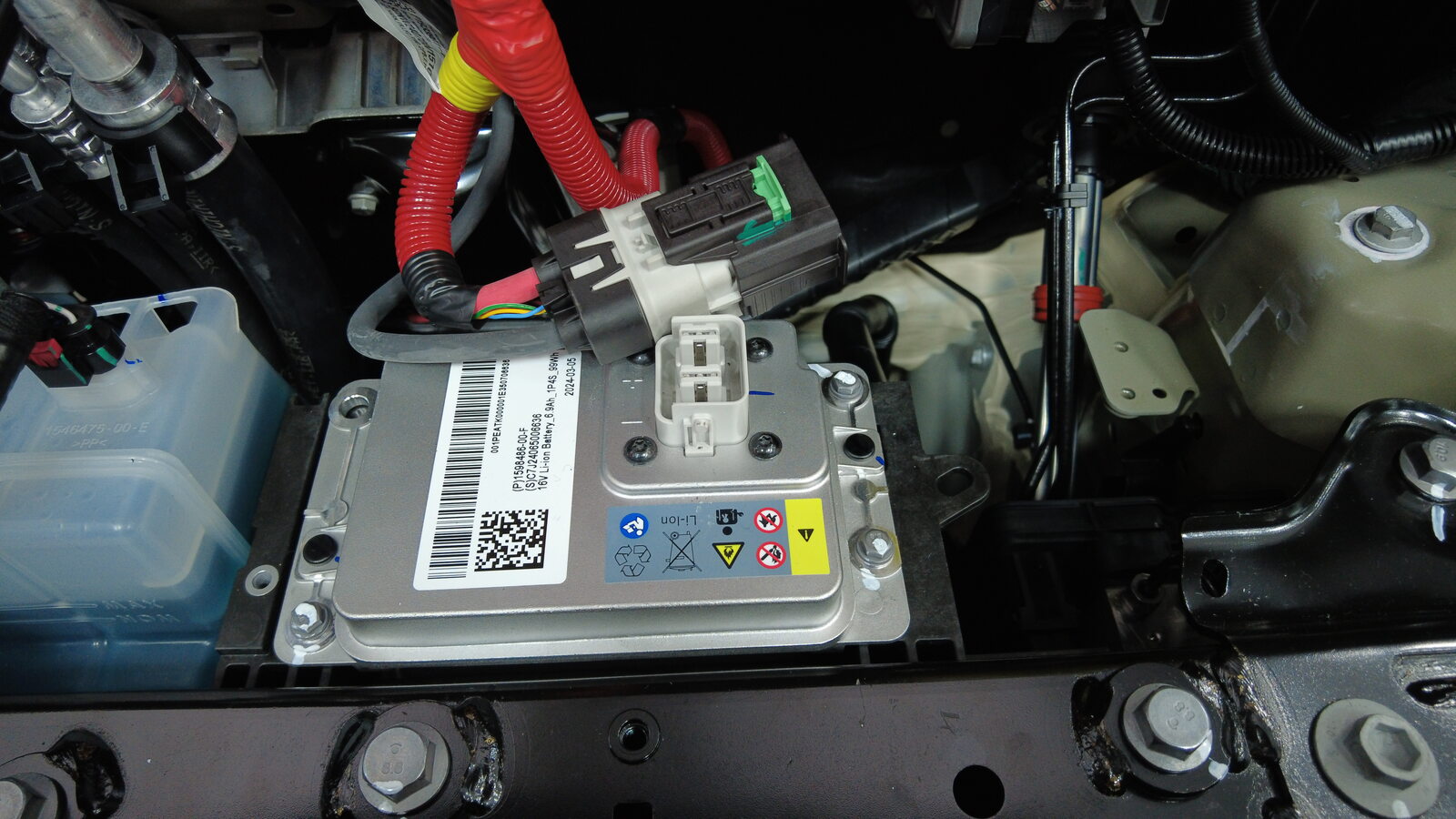

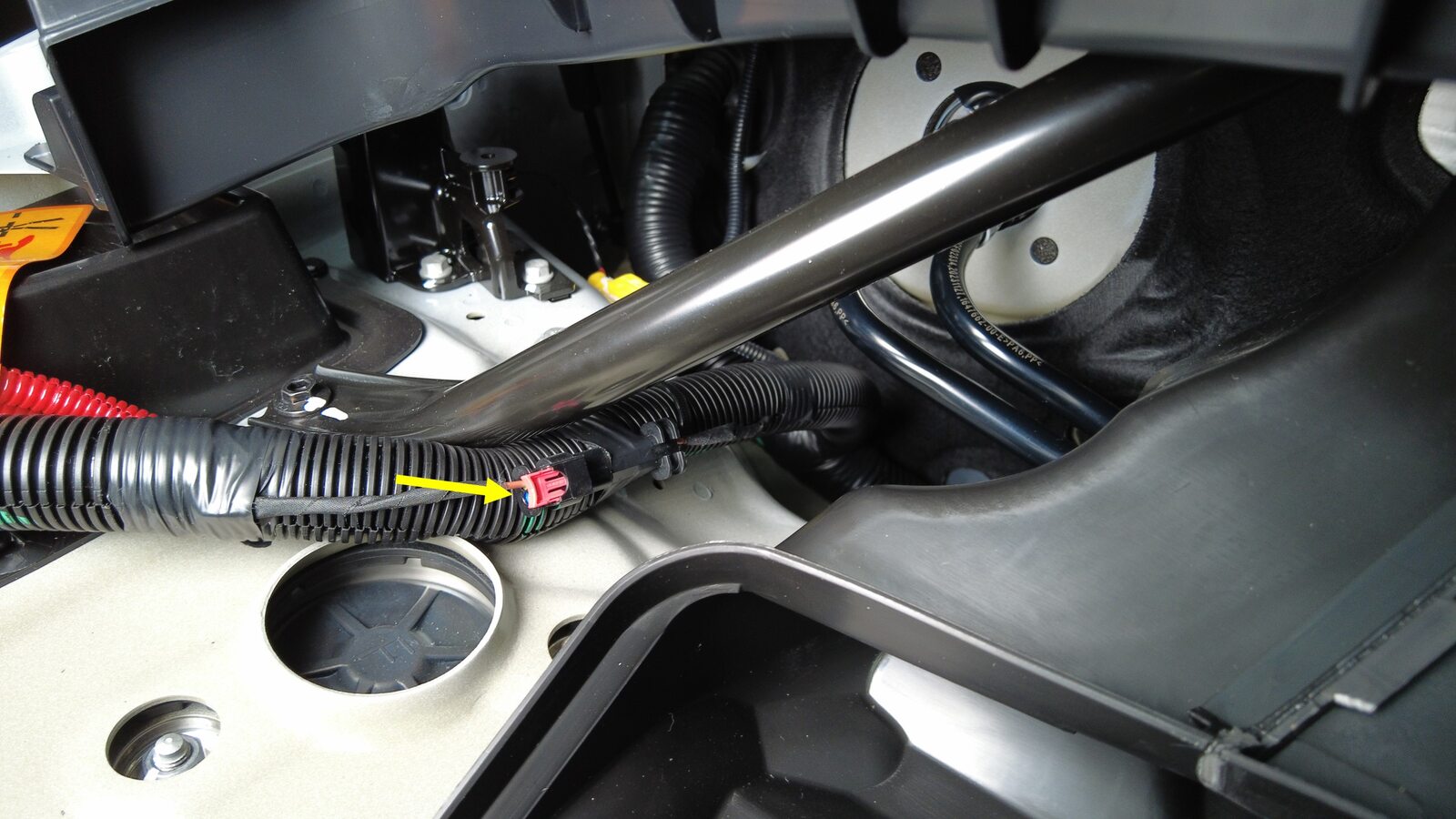

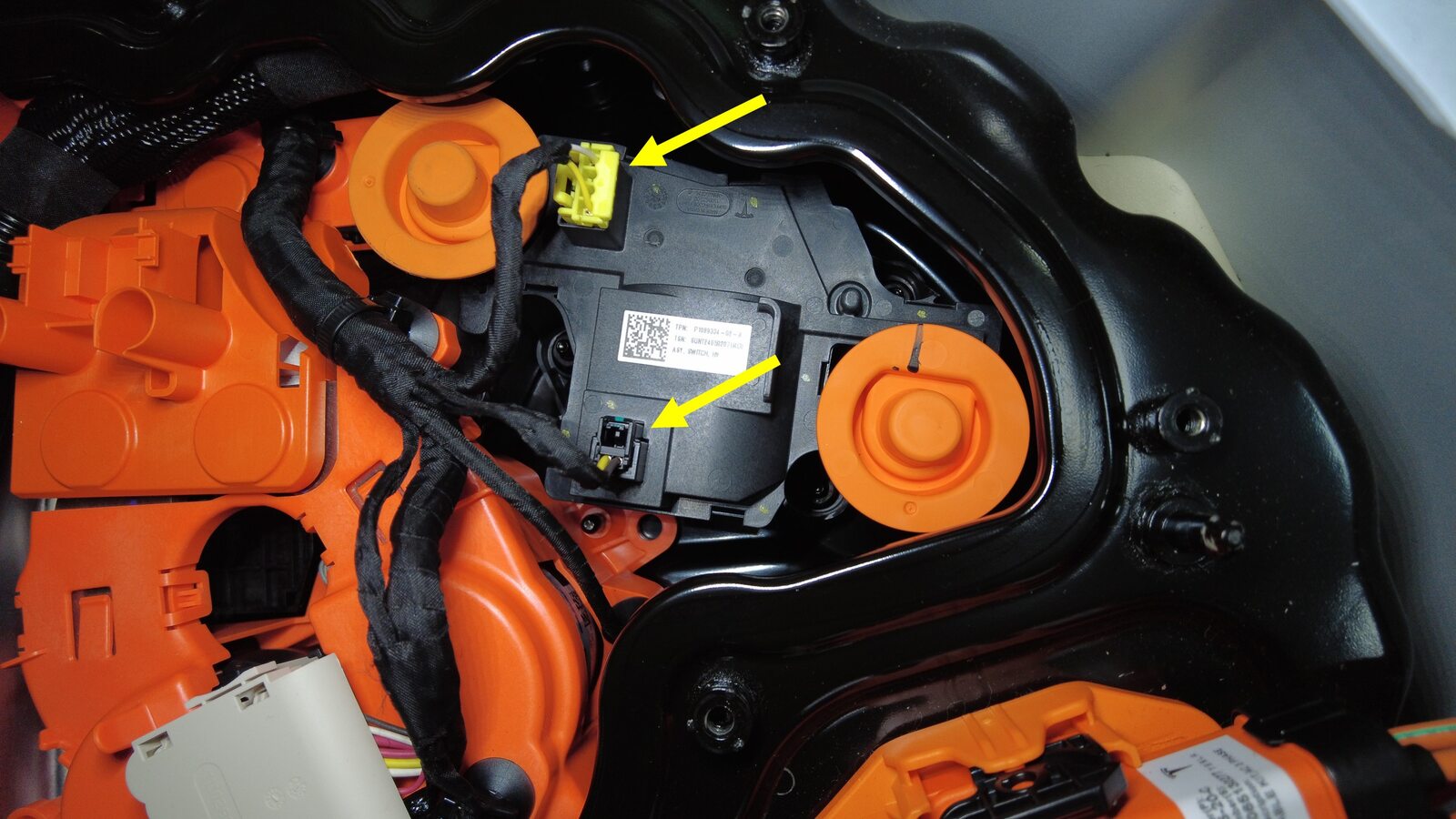

9. Disconnect LV battery and first responder loop
   참고

   2x connectors, Release green locking tab, Press black tab then pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge

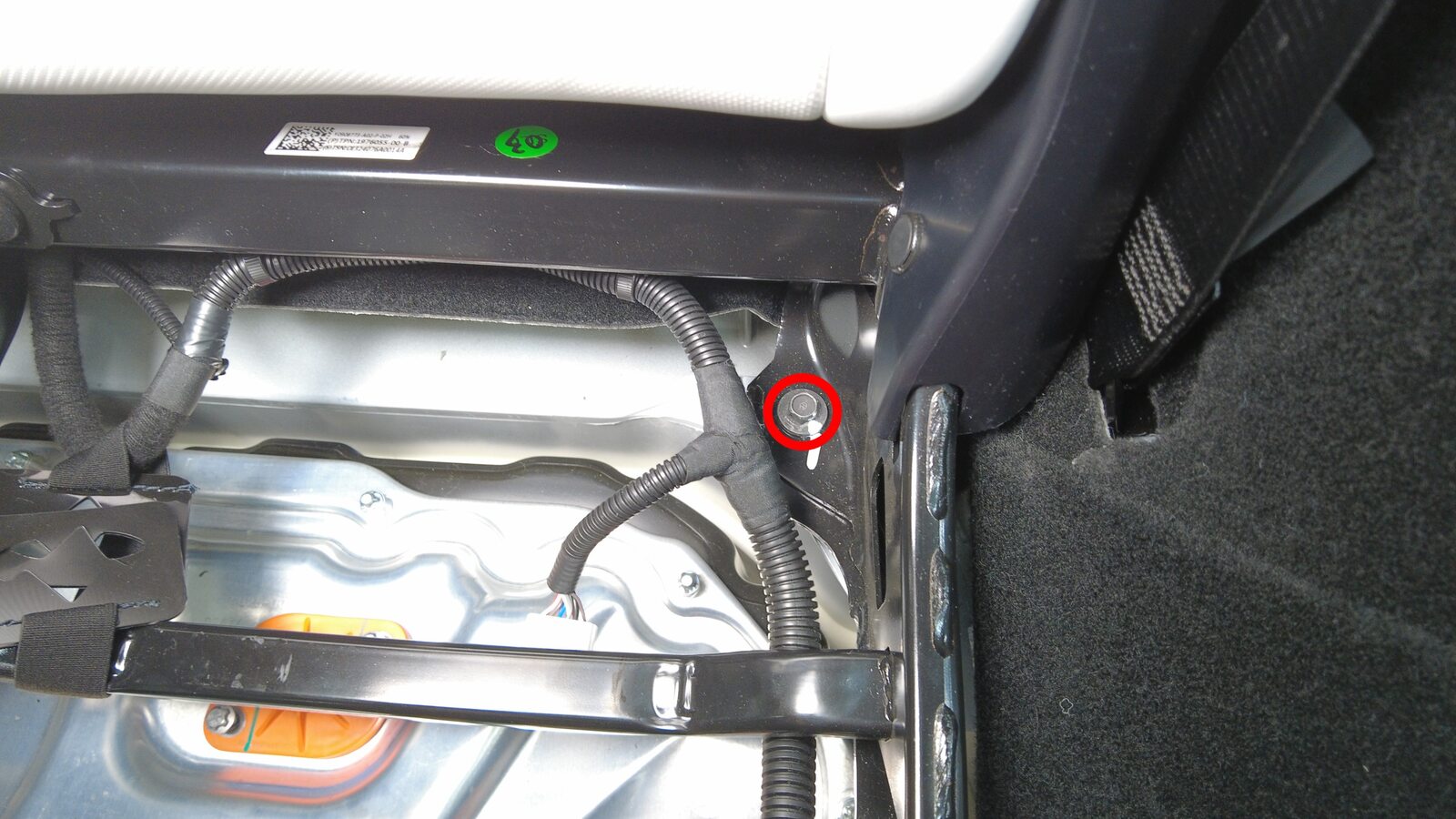

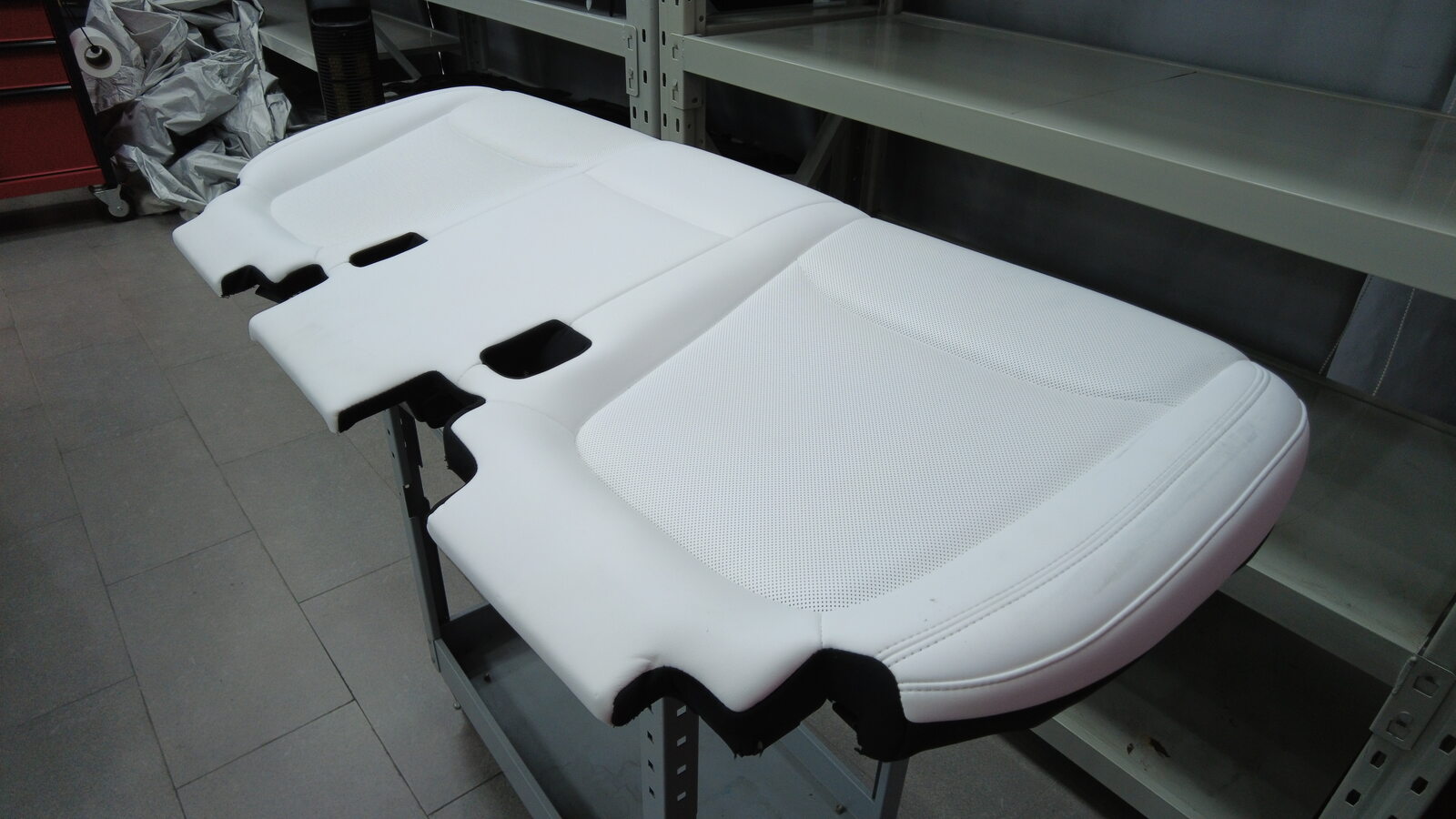

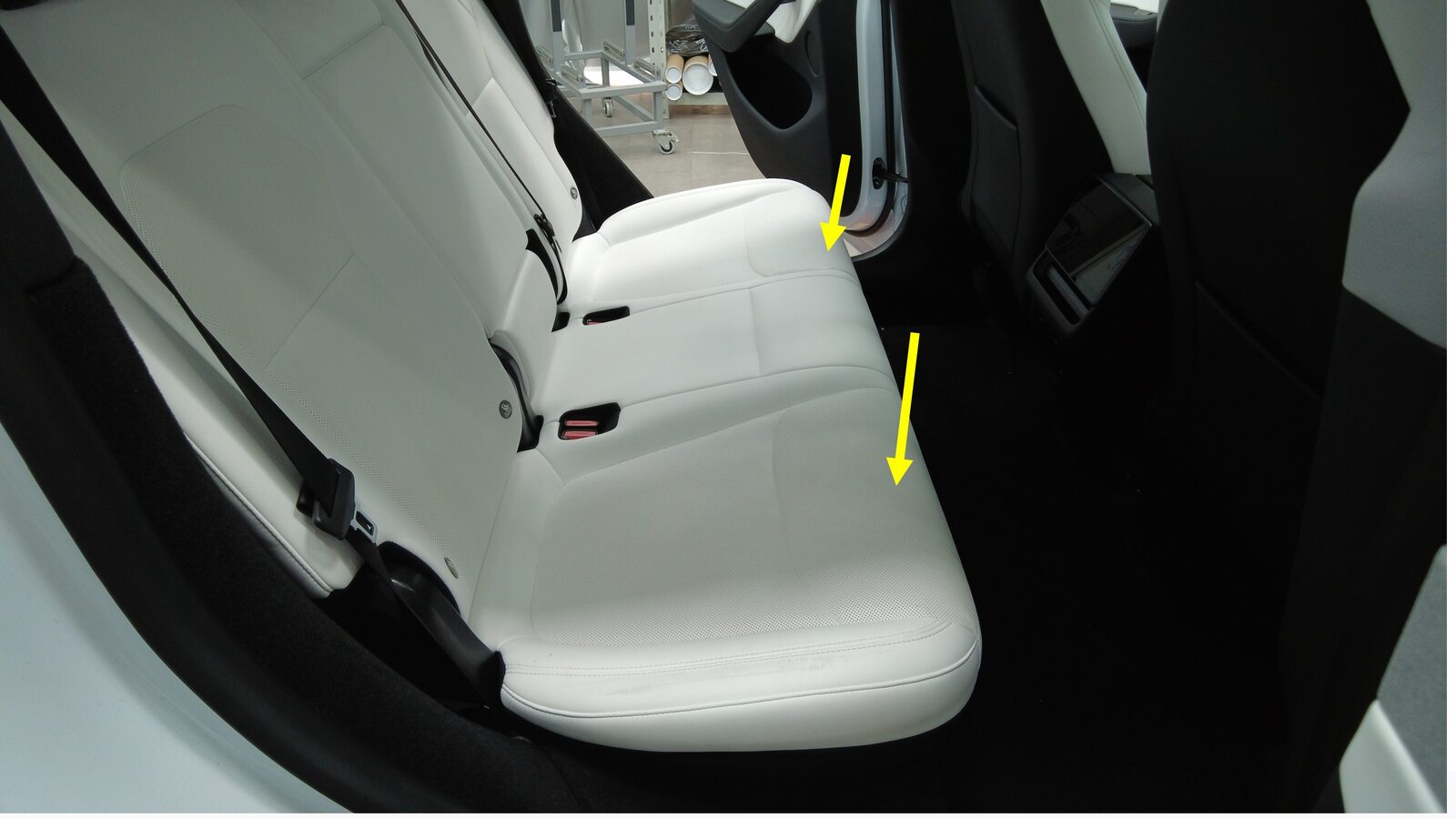

10. Remove 2nd row seat cushion
    참고

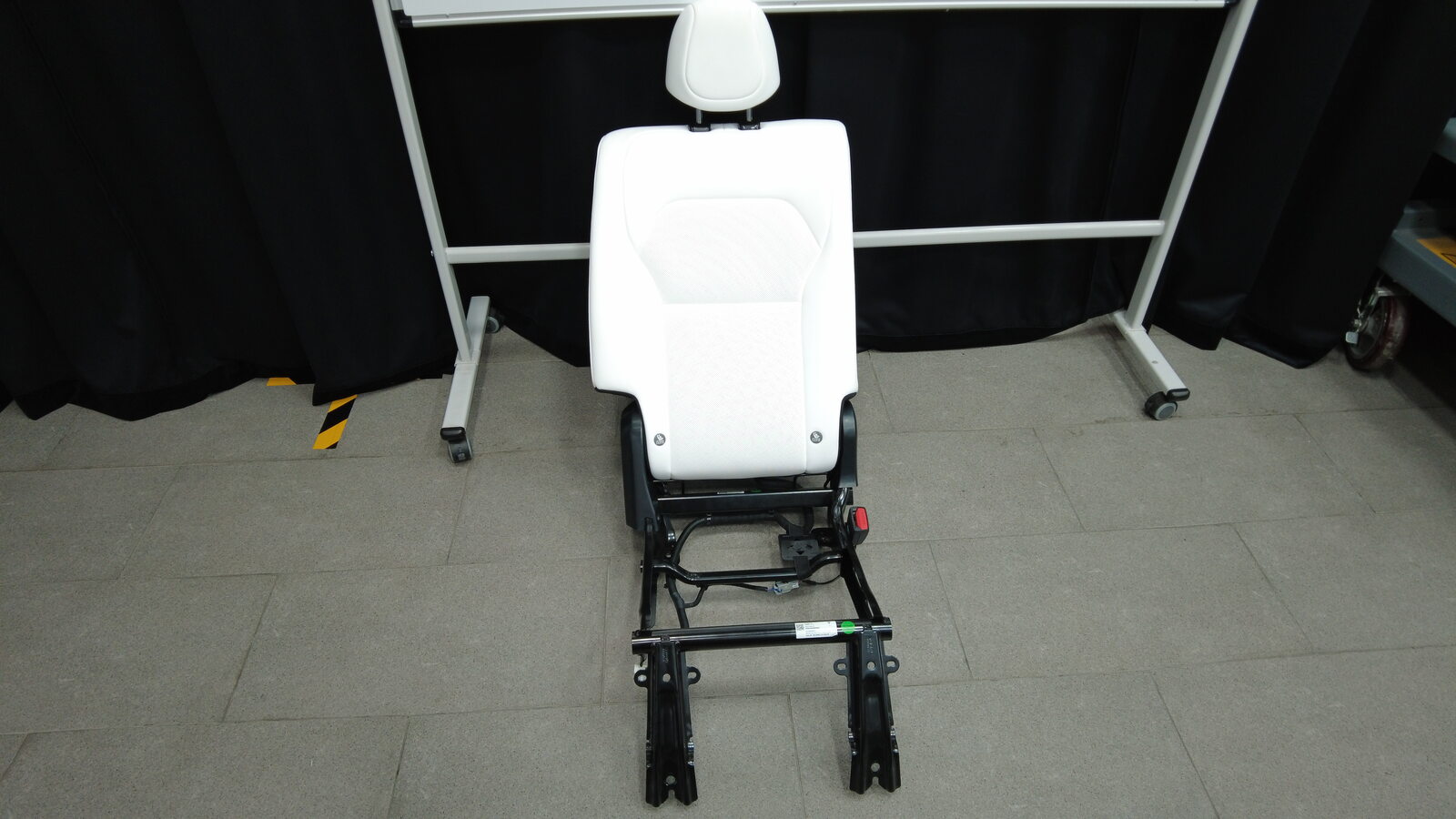

    1x connector, Lift front edge of seat cushion upward to release foam from frame, Adjust the backrest to the appropriate position as needed







11. Remove all items from pockets and ensure not wearing metal items

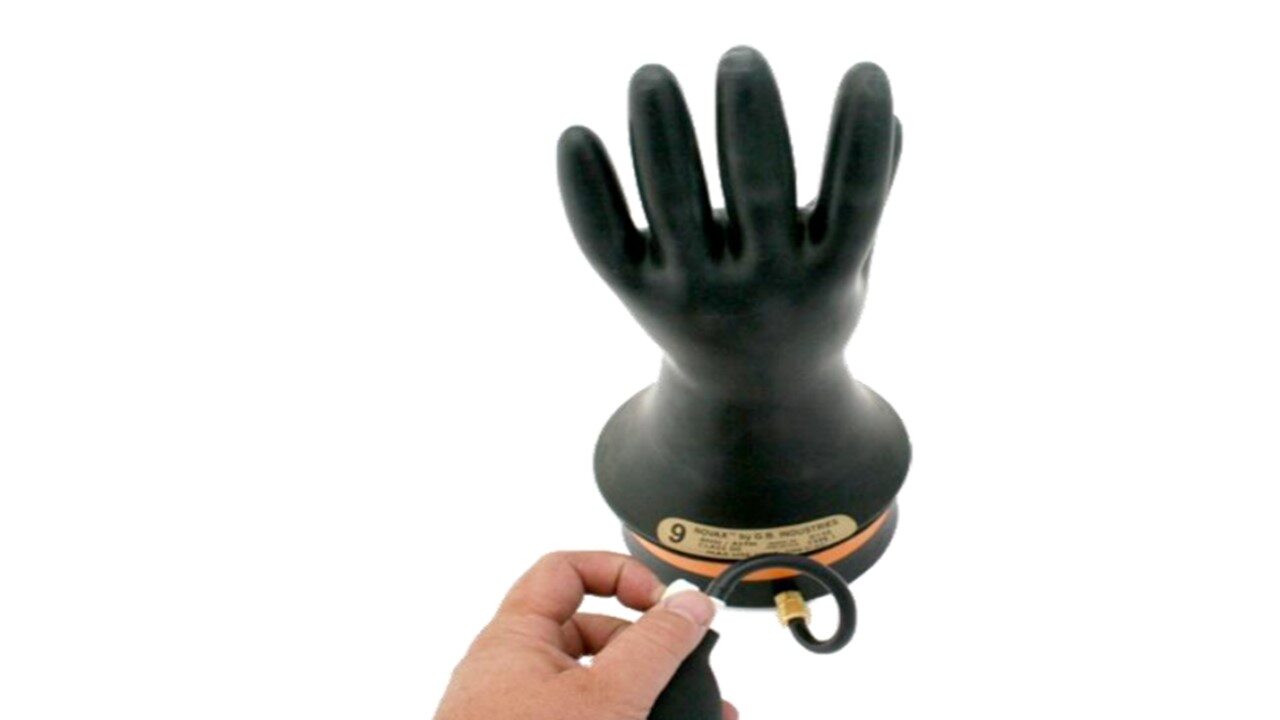

12. Inspect HV insulating gloves
    참고

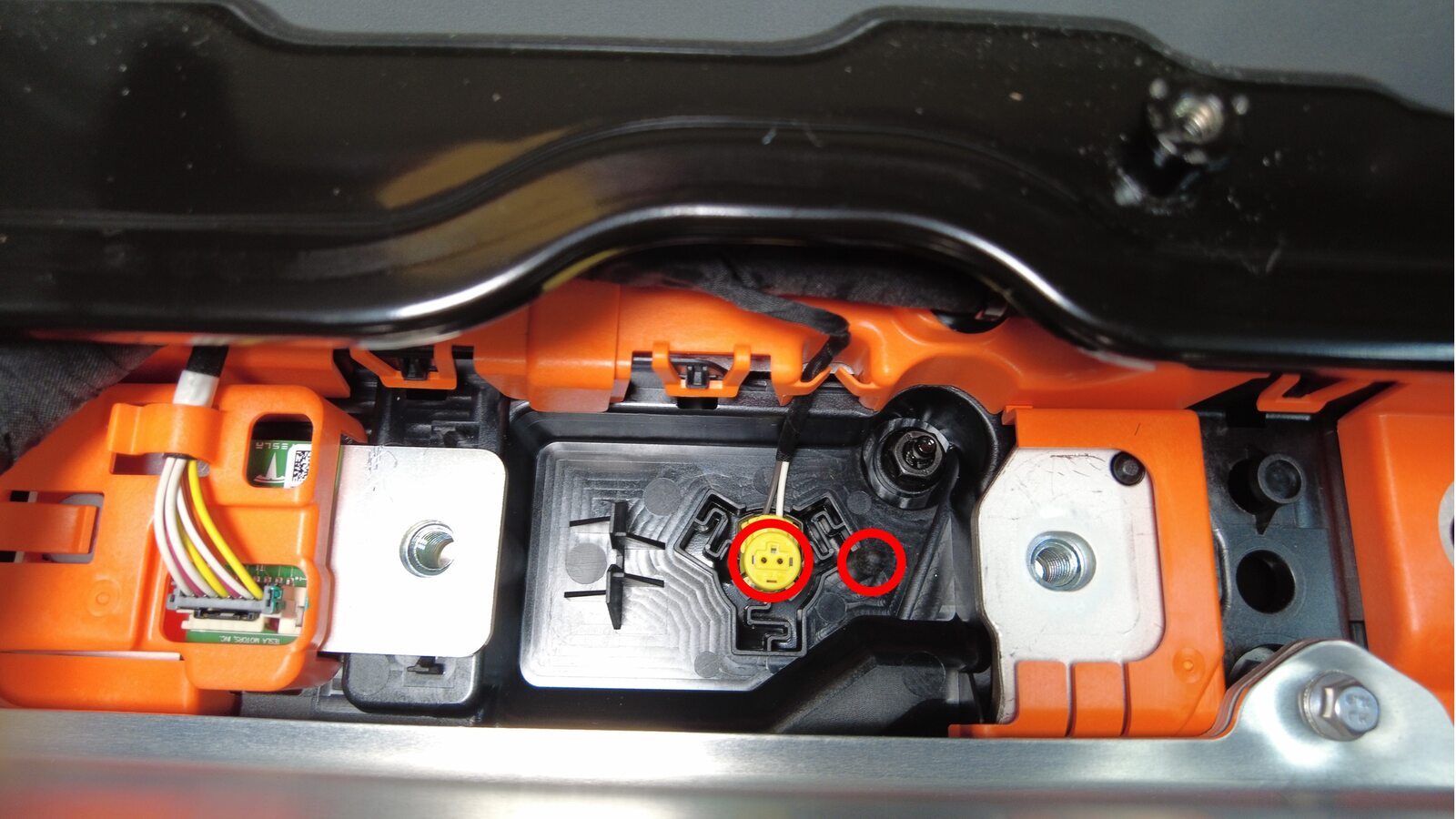

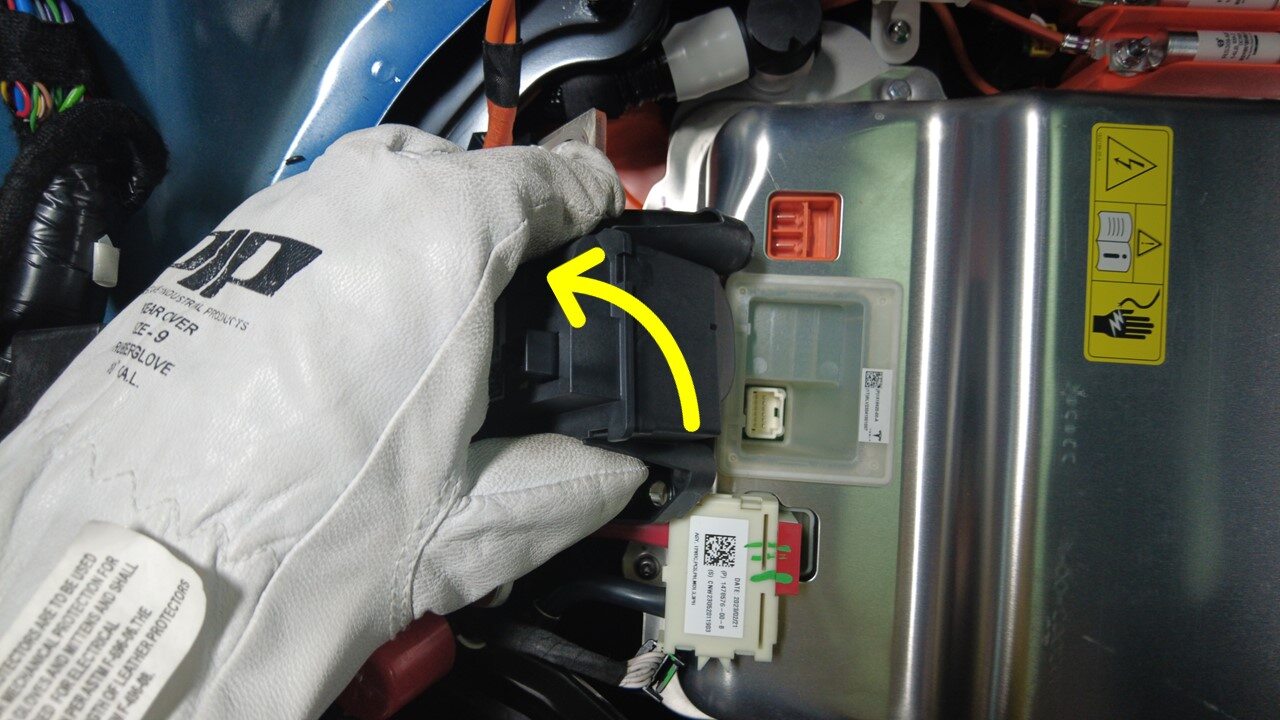

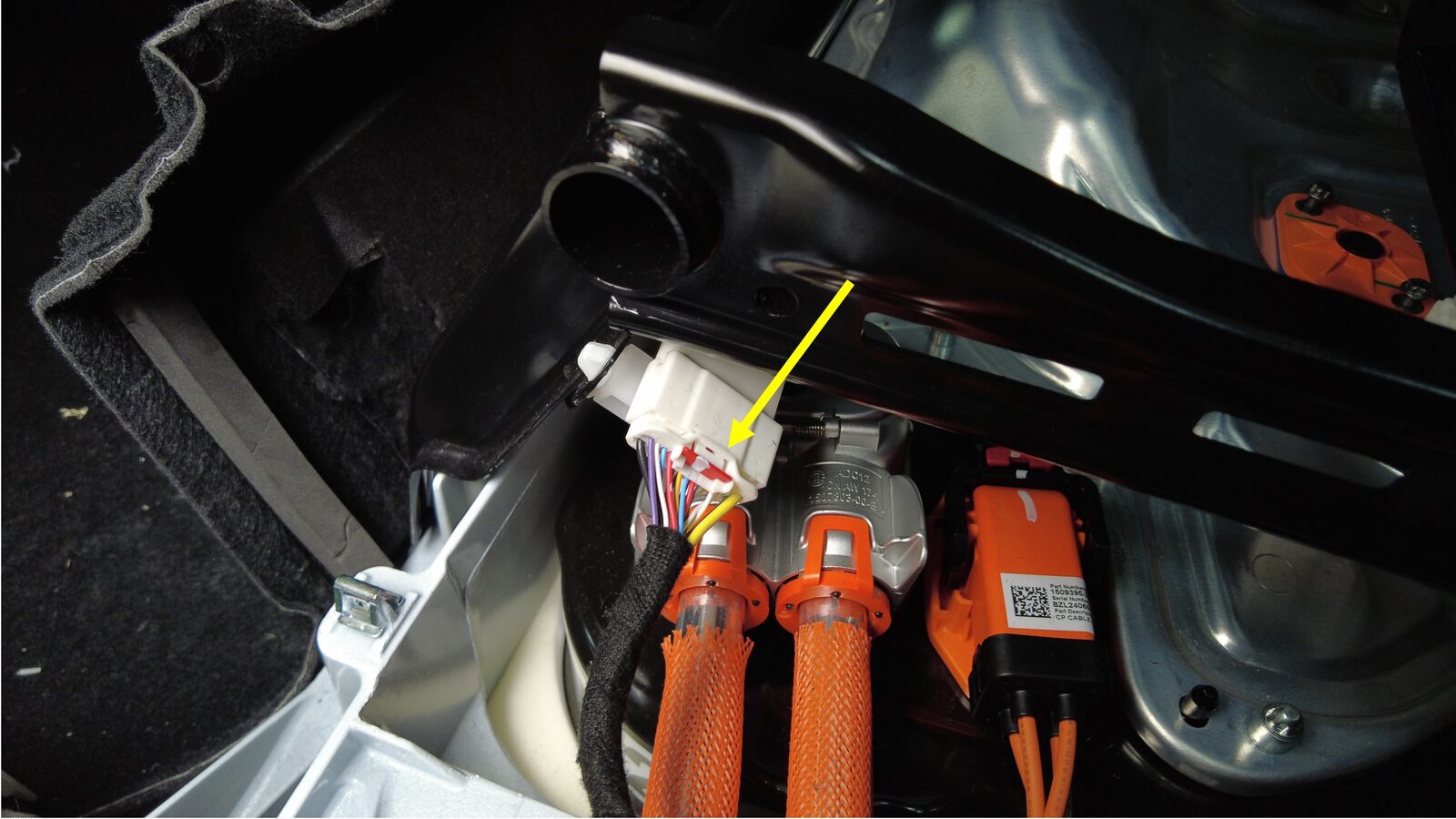

    Check gloves for damage prior to use, Refer to service document TN-15-92-003, For information on inspecting HV gloves. https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC

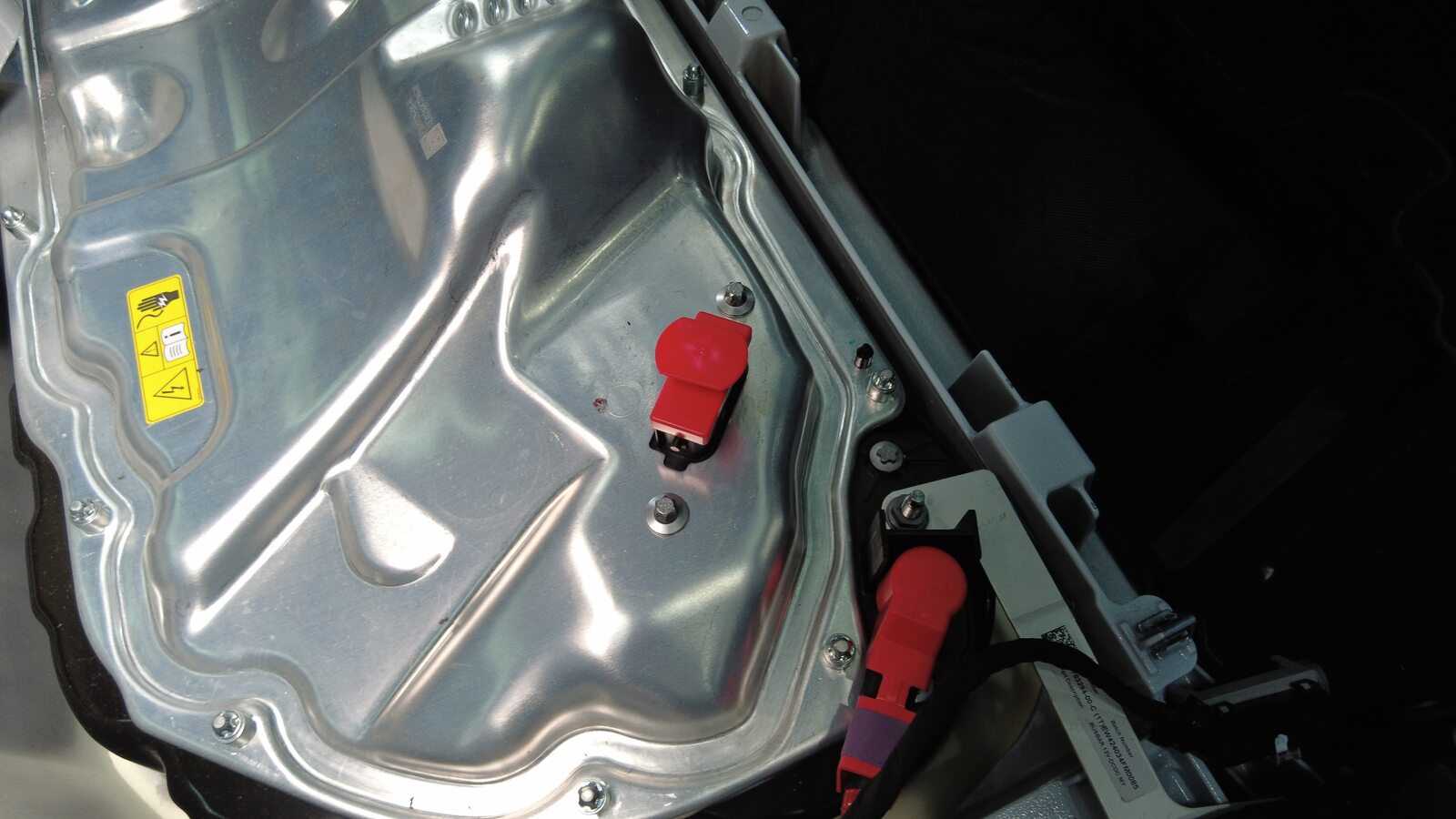

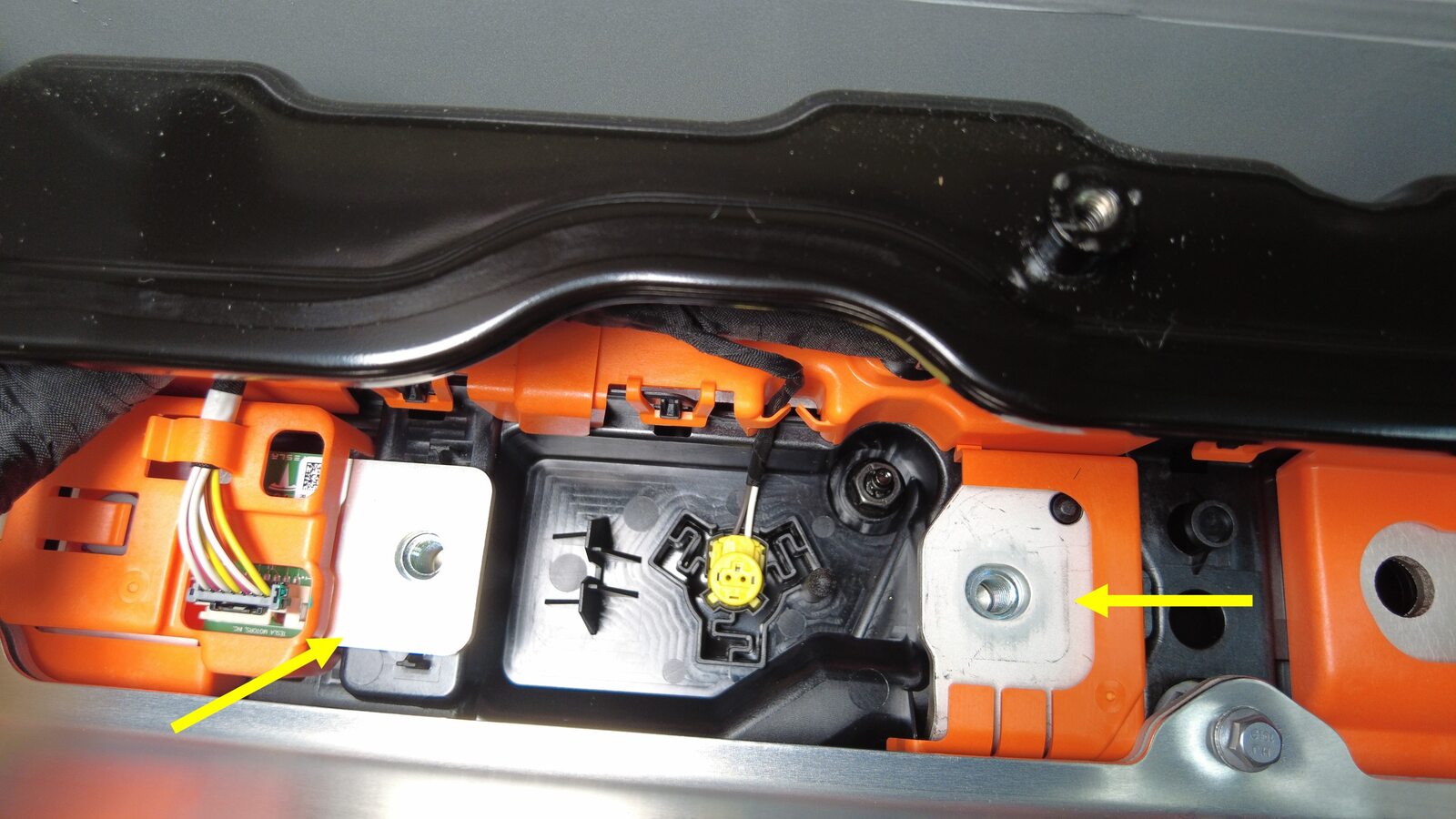

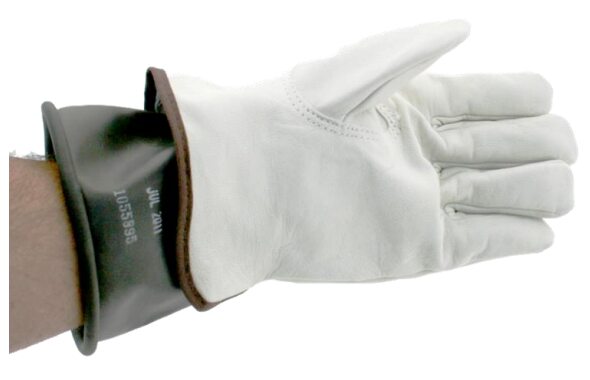

13. Put on HV insulating gloves and leather over gloves



14. Verify operation of multimeter

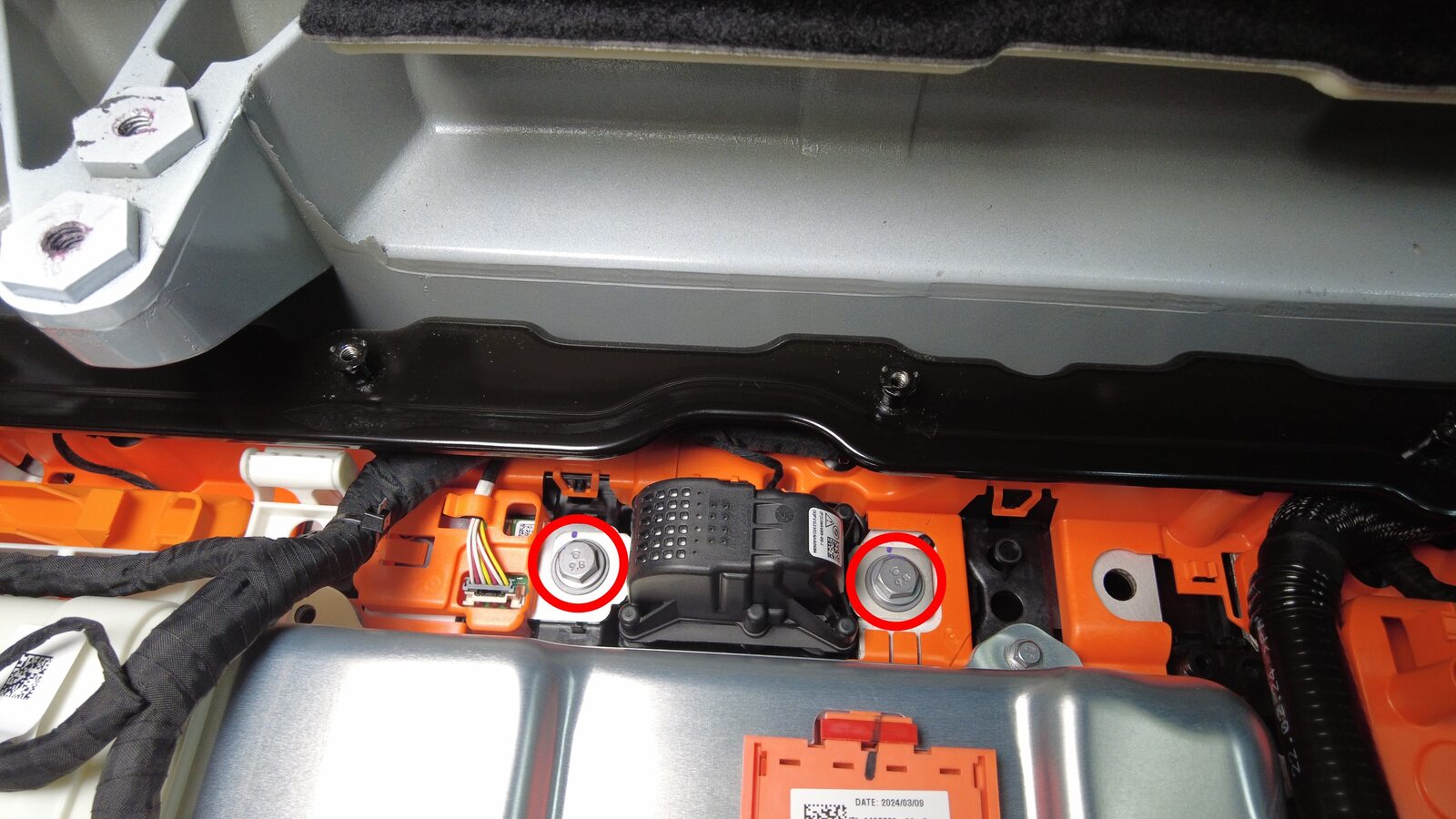

    참고

    Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing the 16v battery

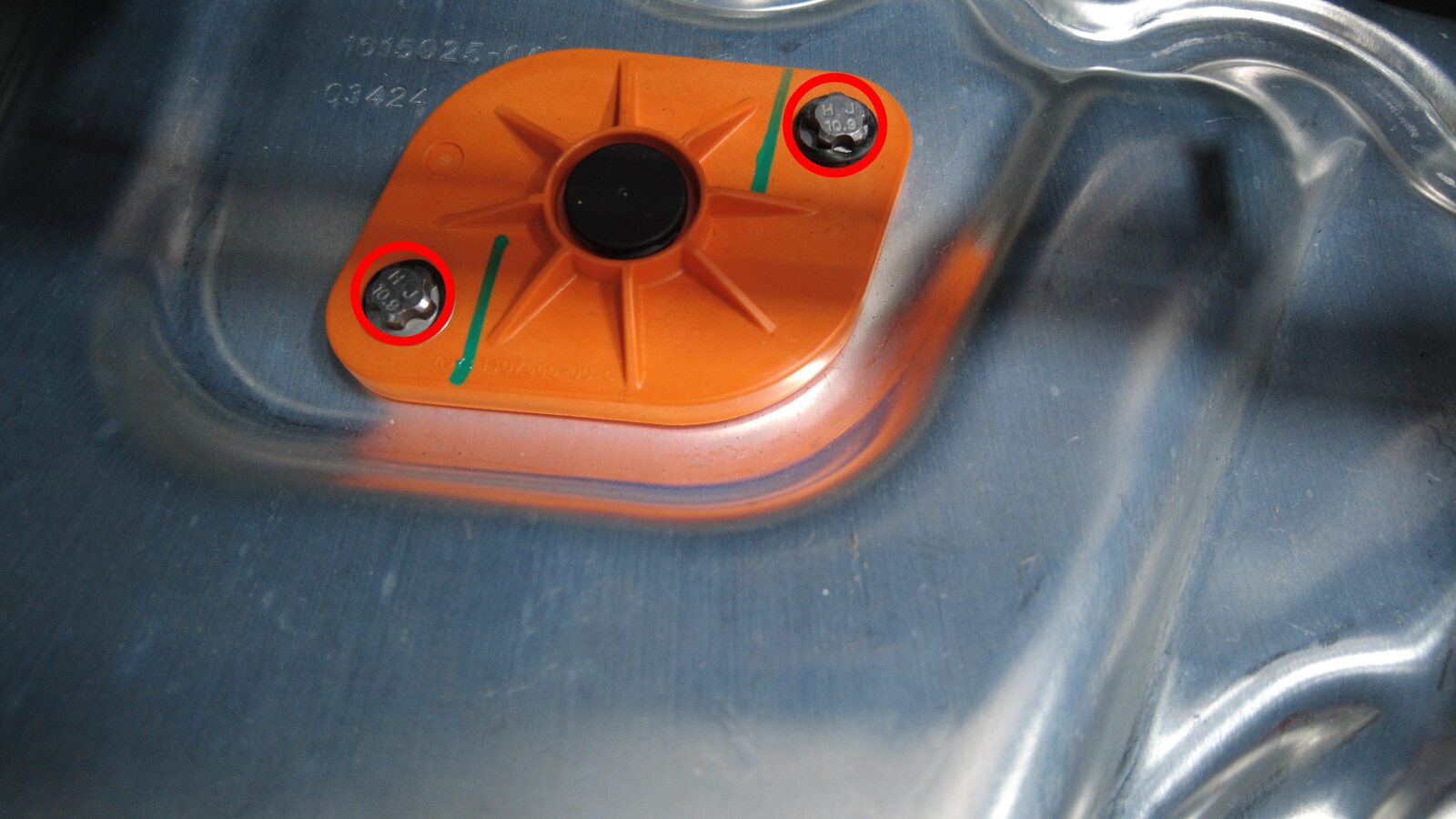

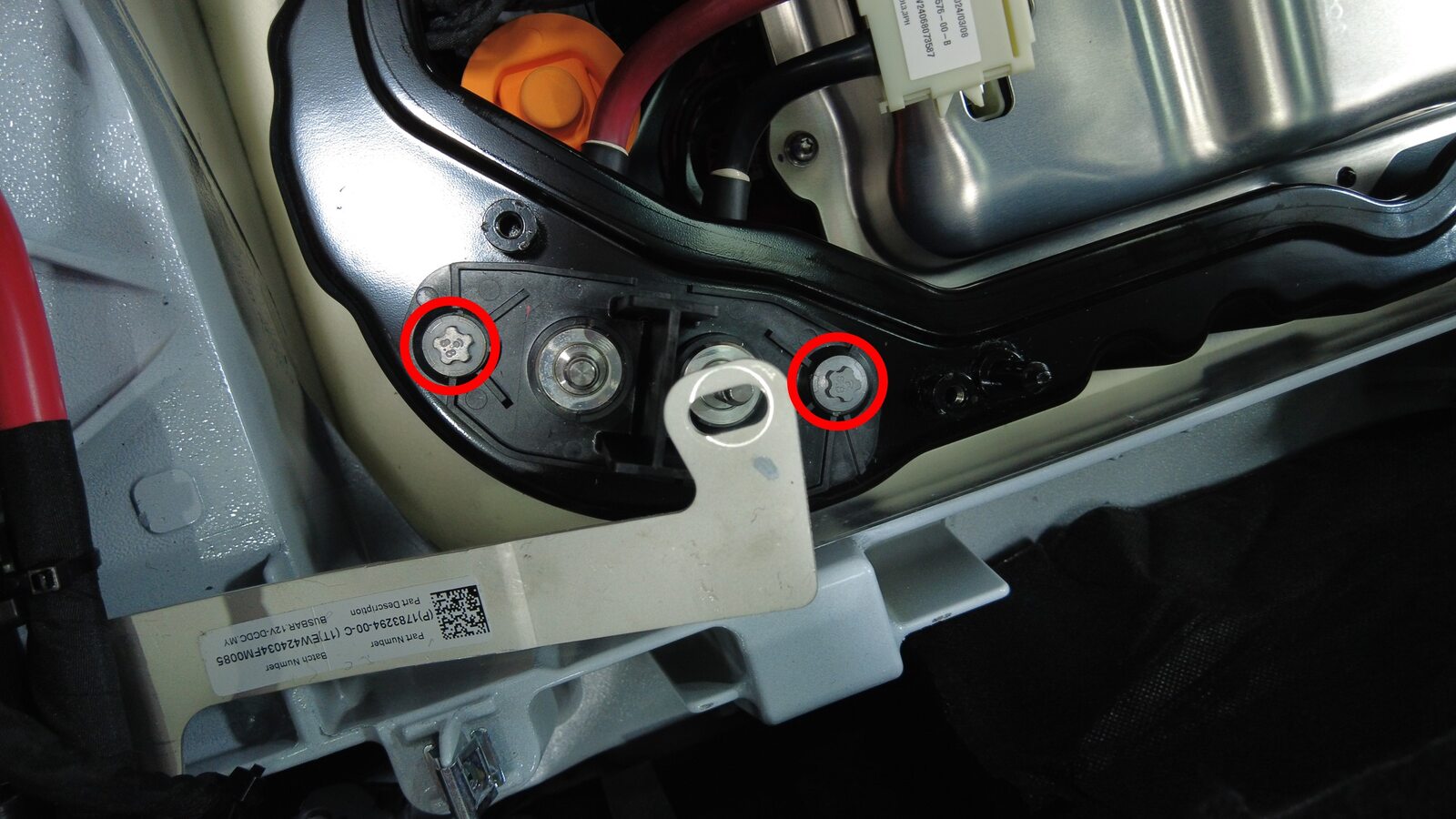

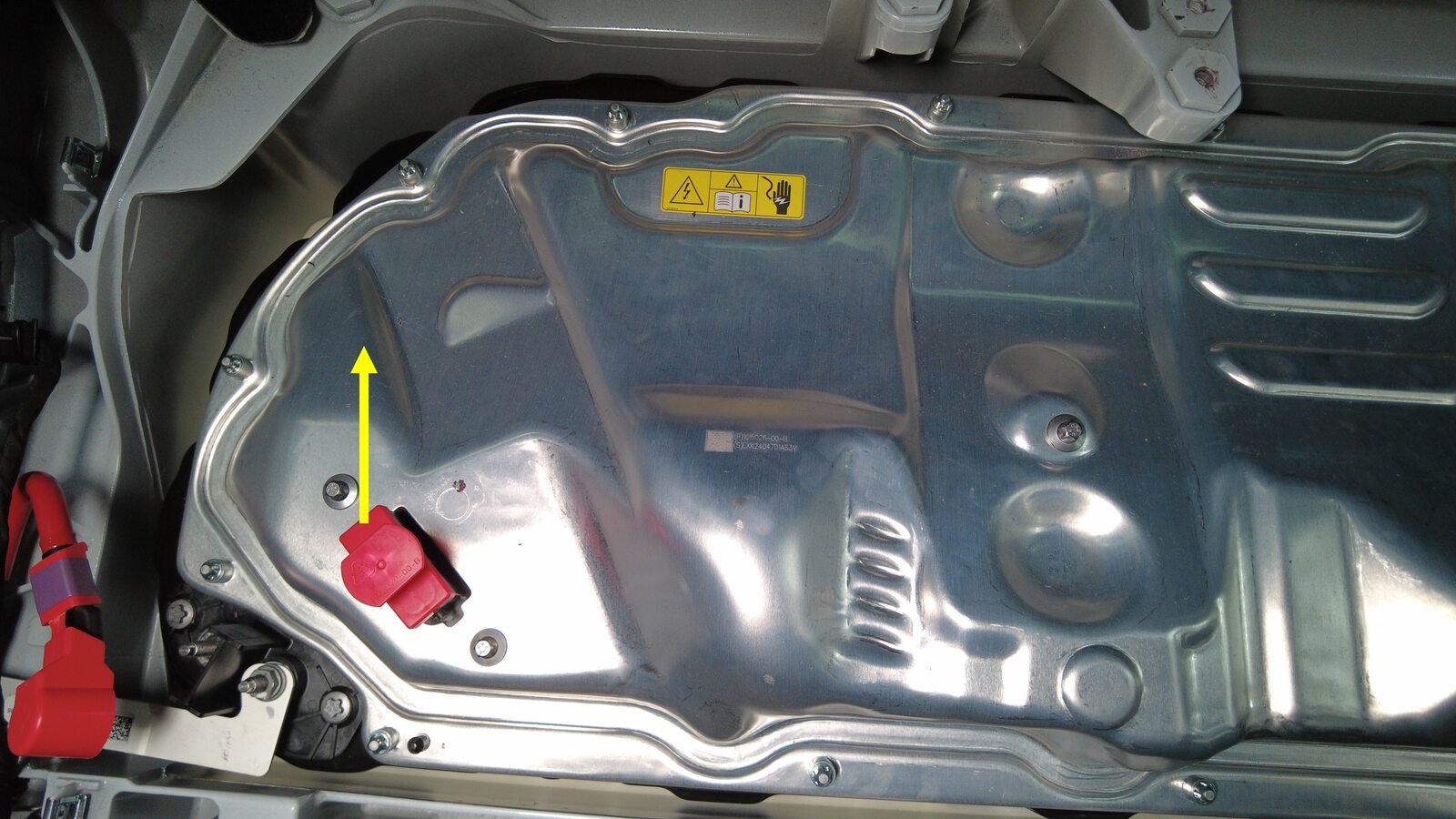

15. Remove bolts securing ancillary bay probe lid cover to ancillary bay cover
    참고

    2x bolts, EP10 5-Lobe, 6 Nm, Discard after removal

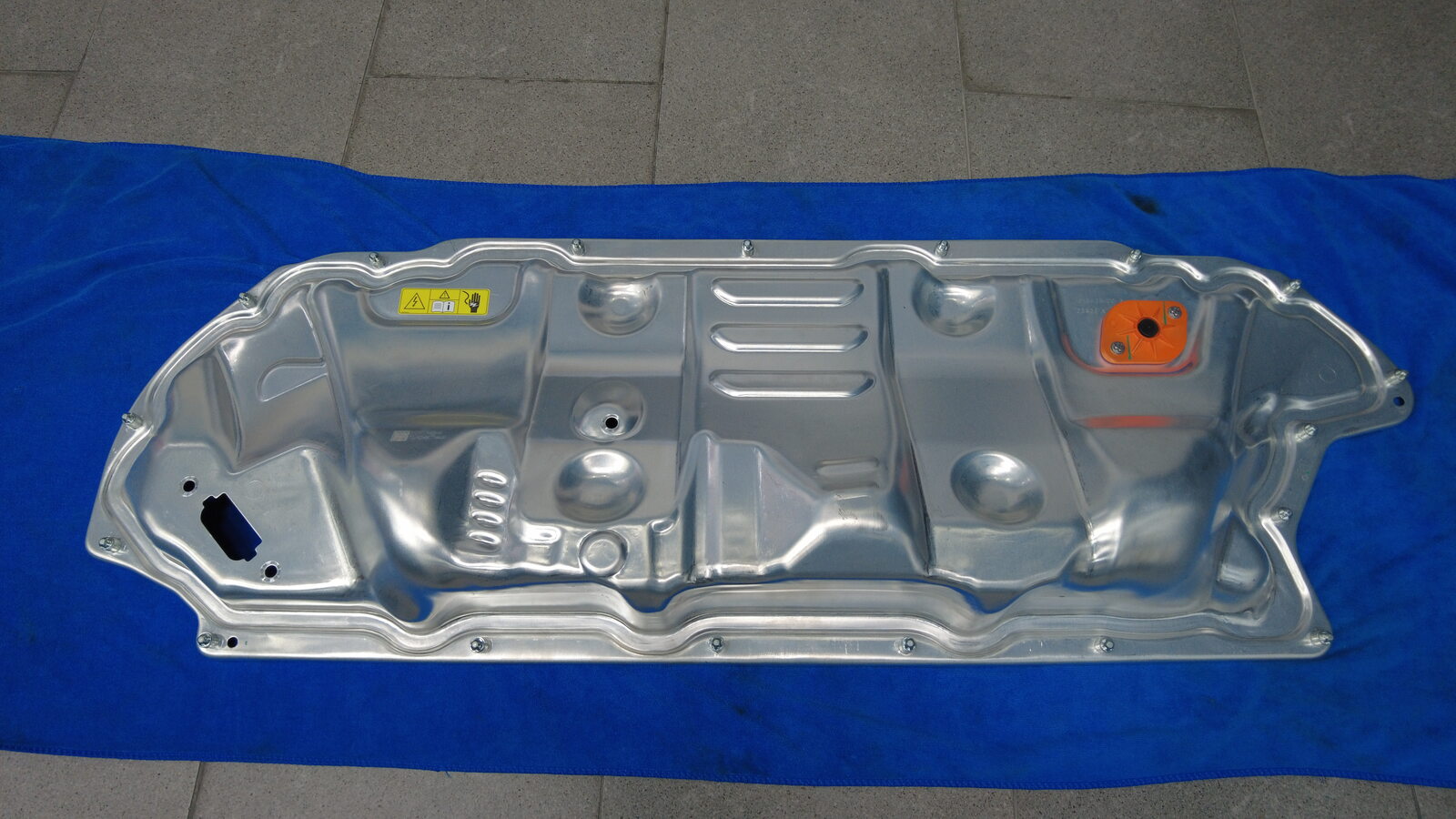

16. Remove ancillary bay probe lid cover from ancillary bay cover

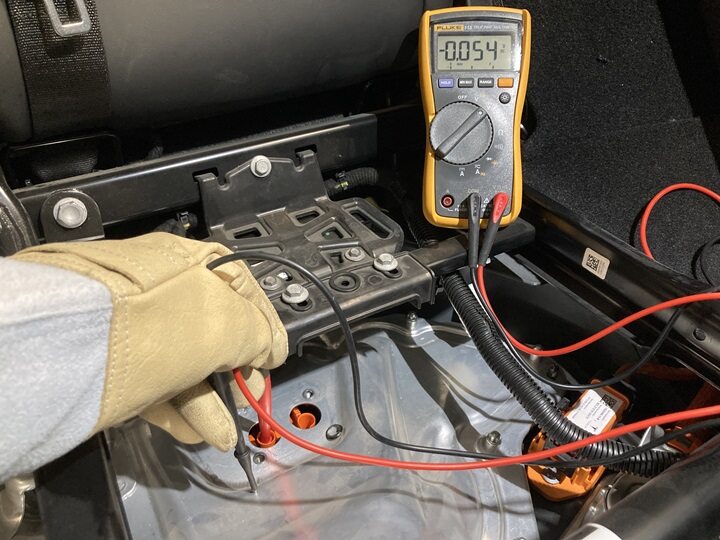

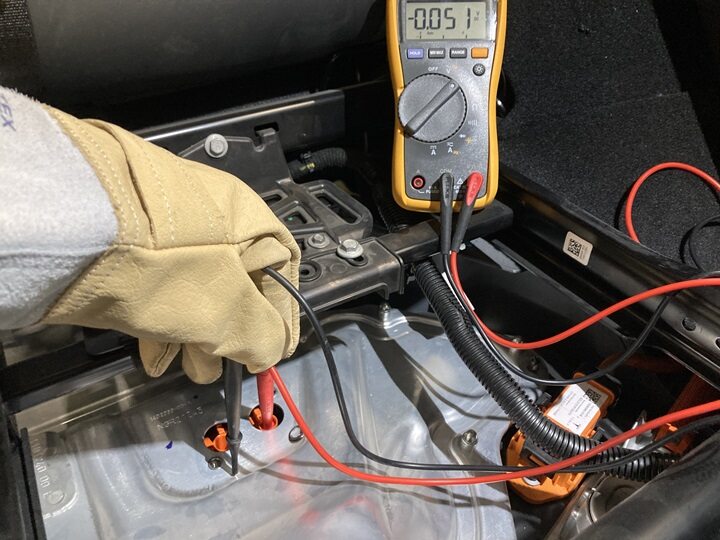

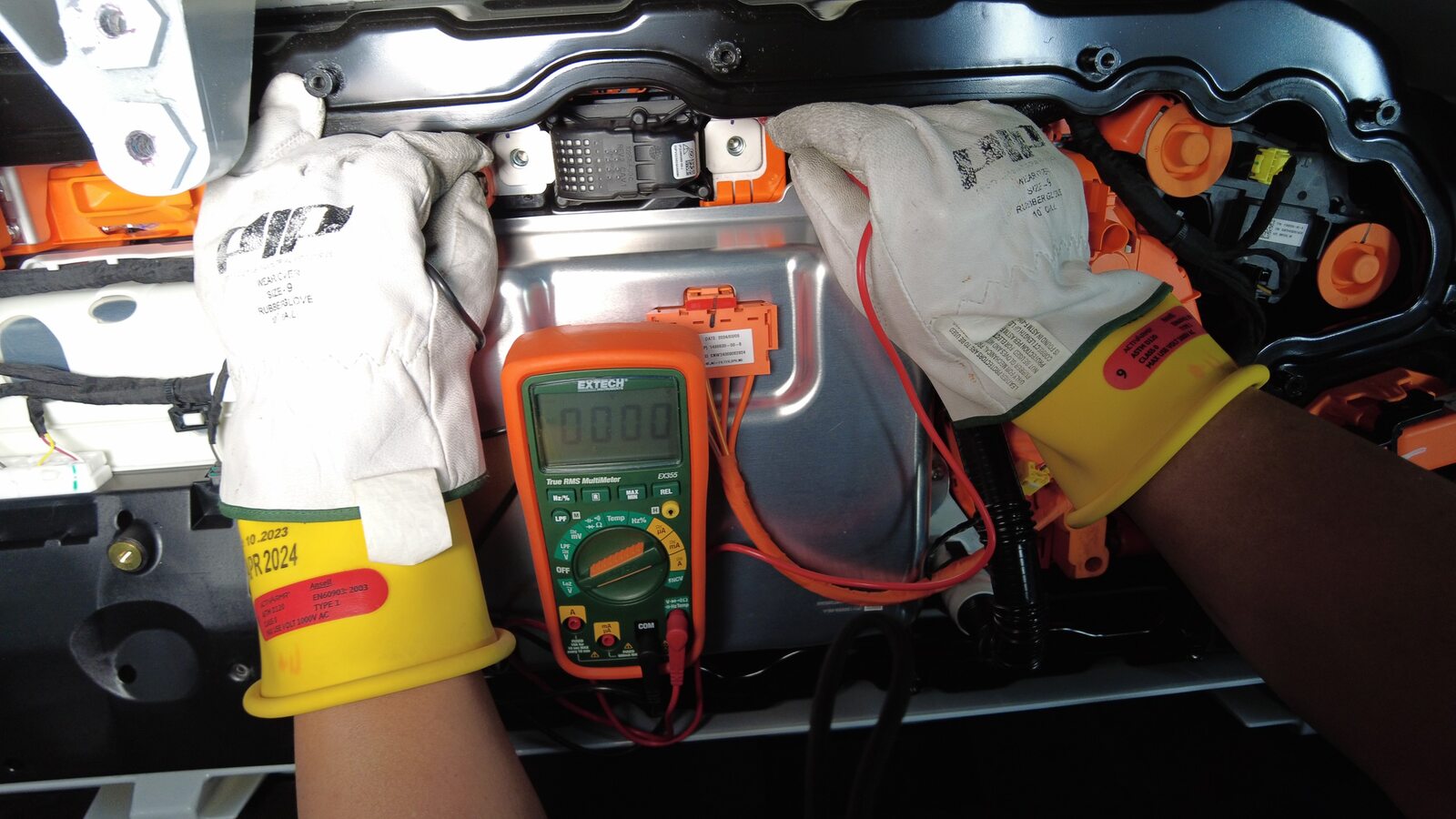

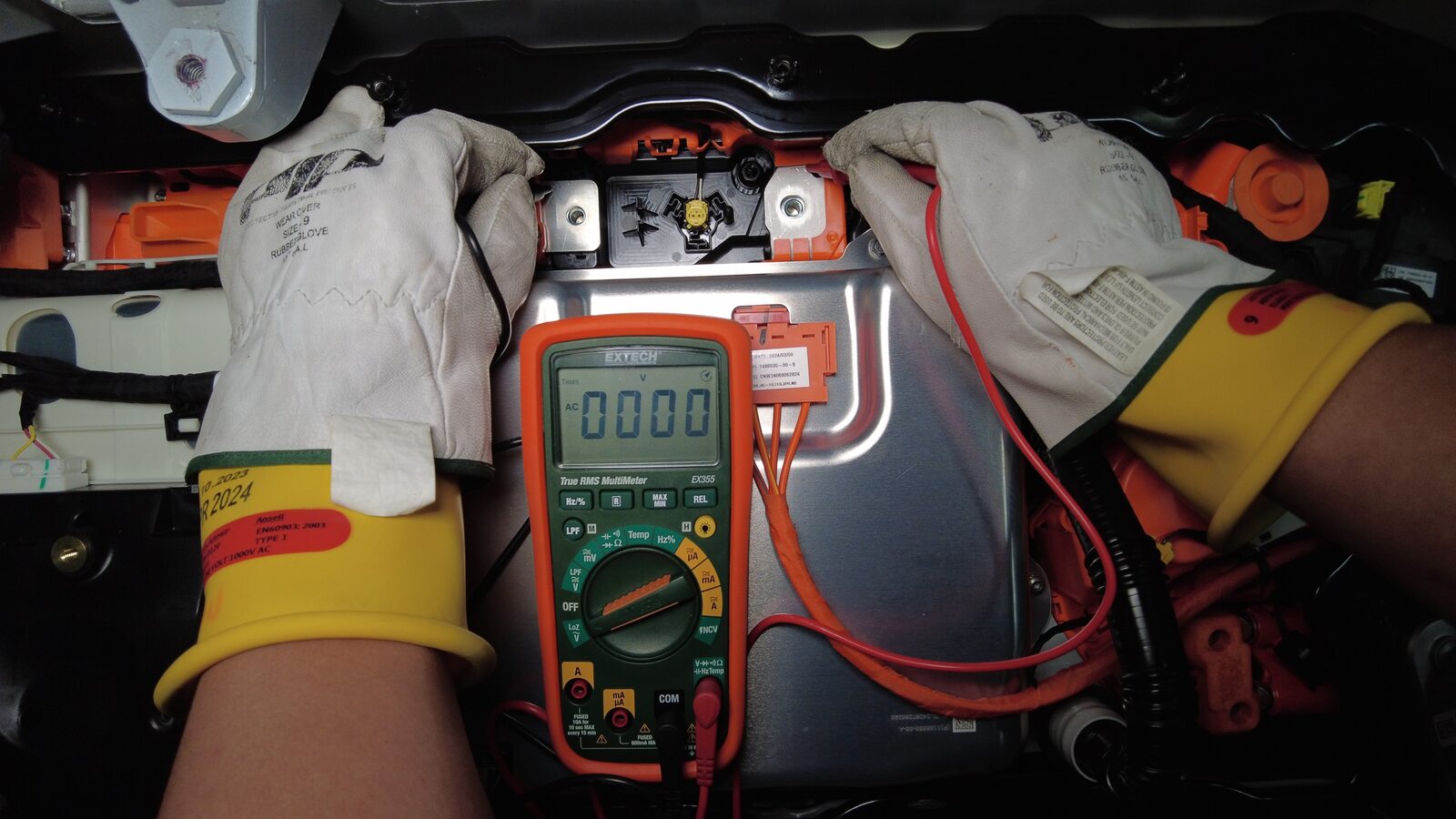

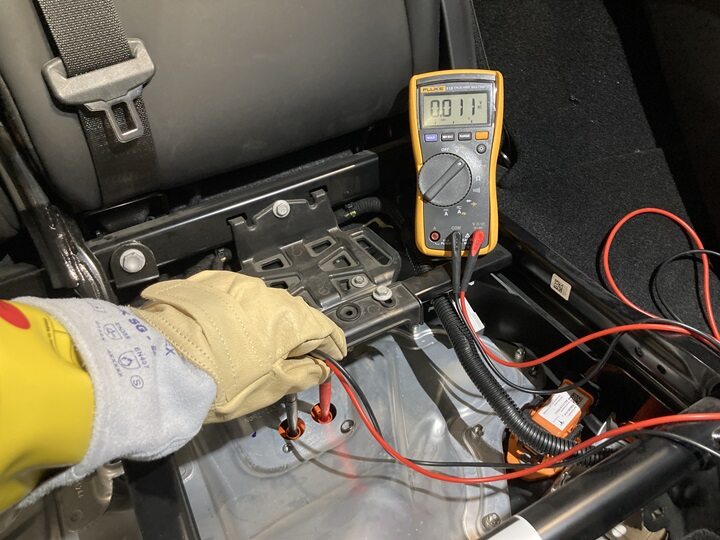

17. Verify no high voltage
    참고

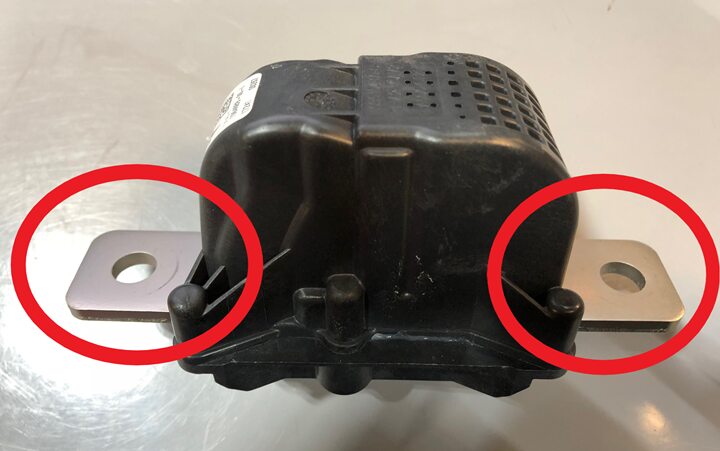

    Make sure to wear PPE (HV gloves, Safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering

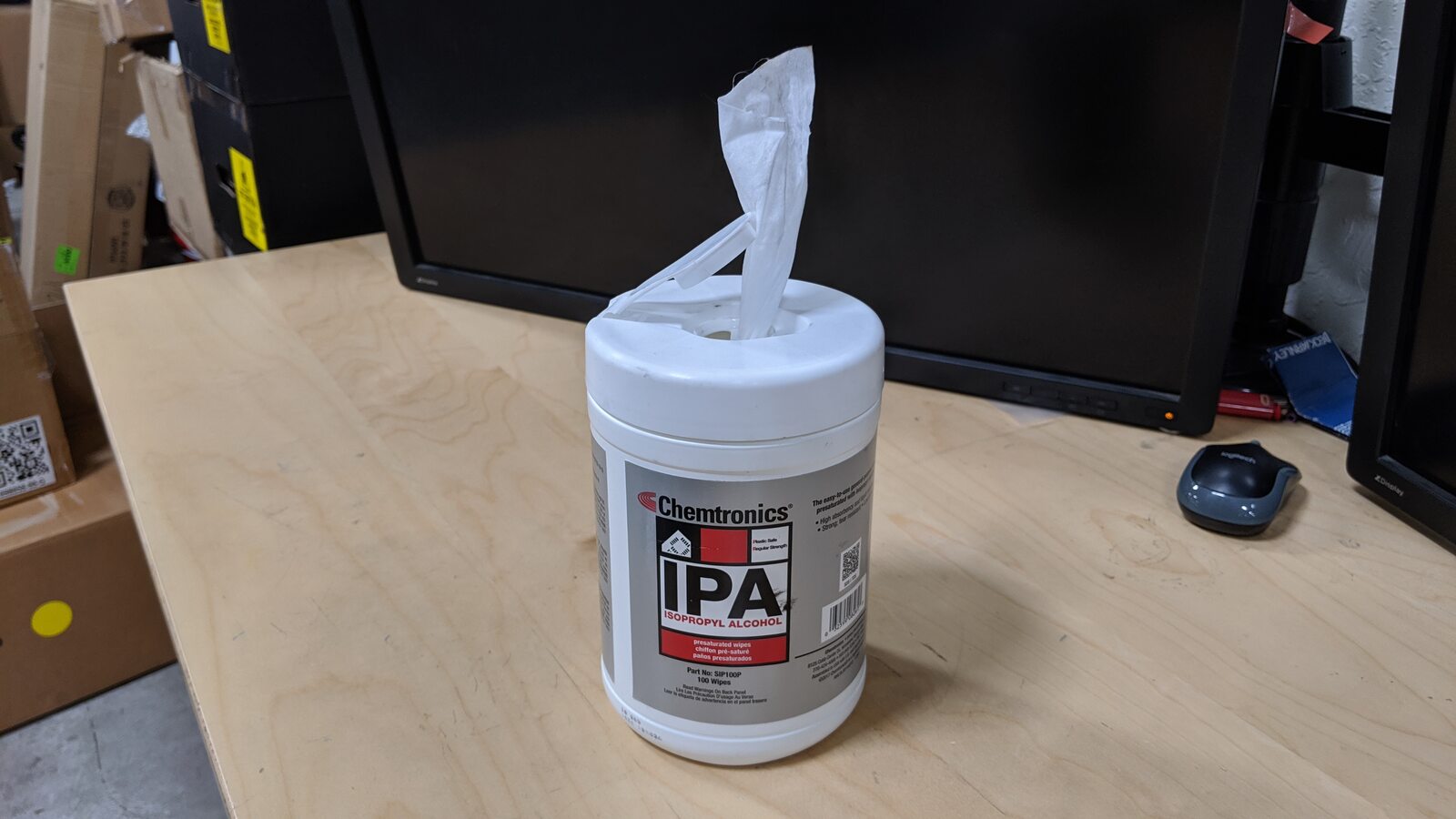

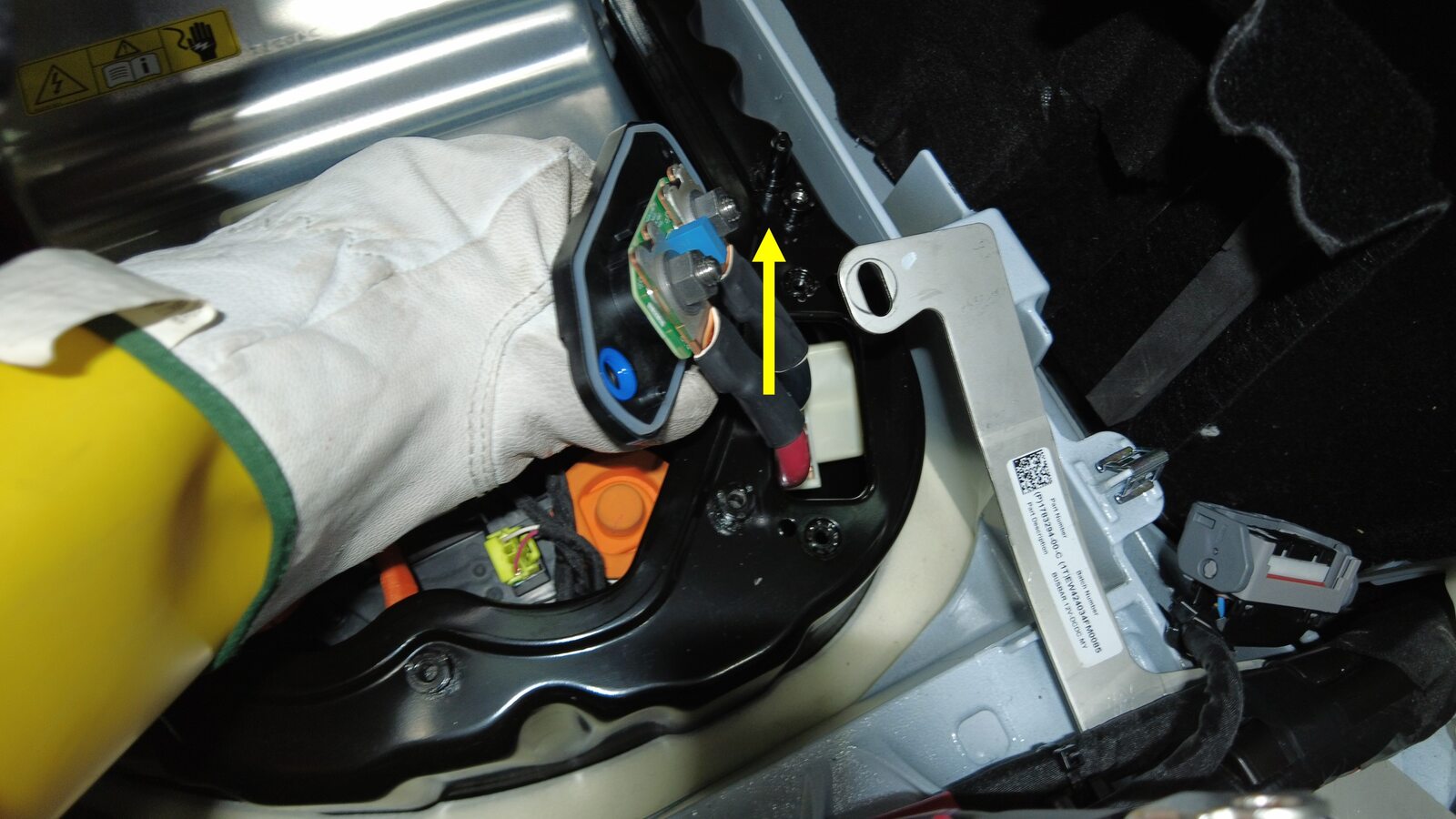

18. Wipe ancillary bay cover with IPA to clean surface
    참고

    Allow to 1 minute dry time

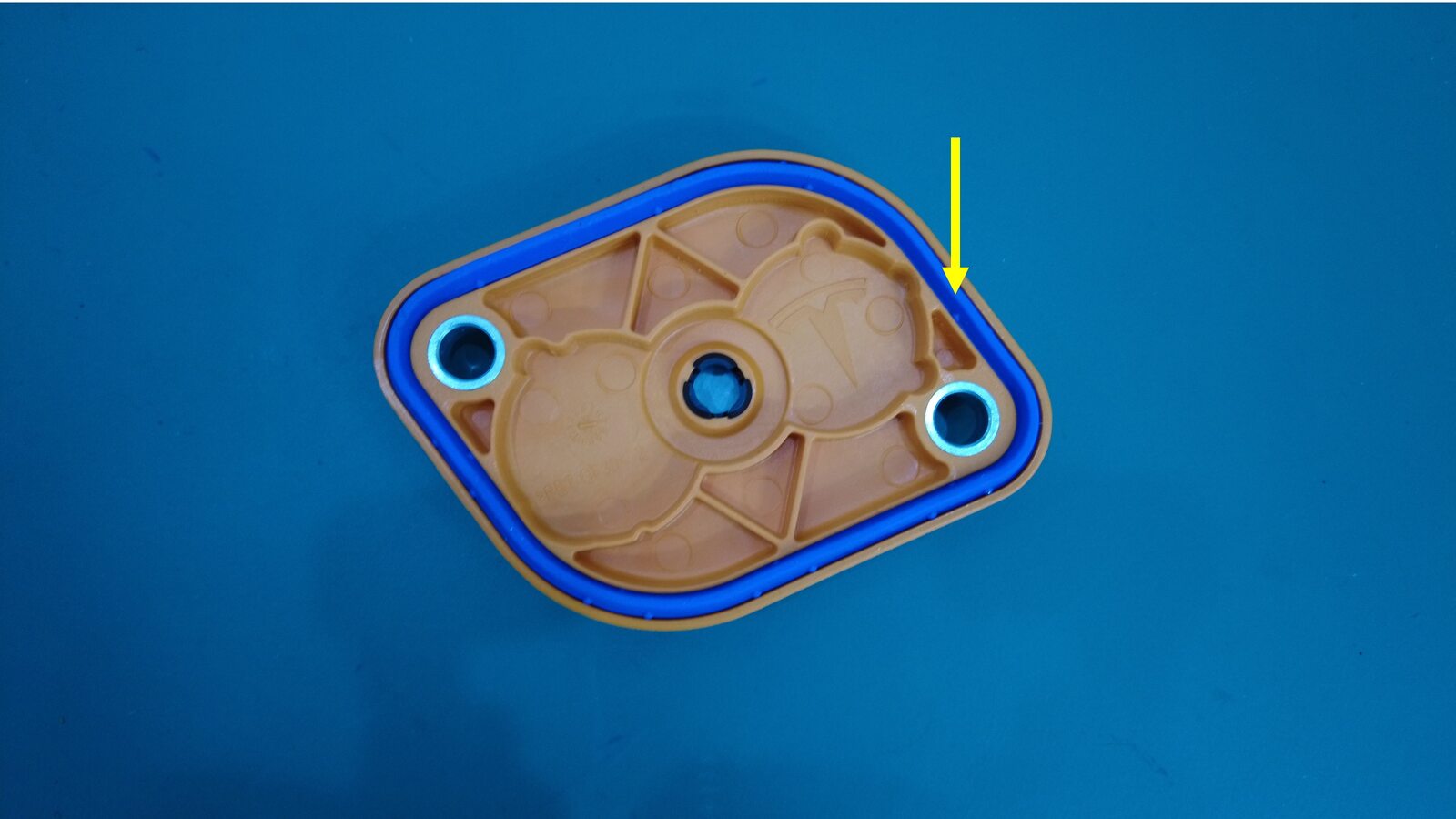

19. Inspect ancillary bay probe lid cover gasket then position onto ancillary bay cover
    참고

    Confirm no visual damage present, Wipe ancillary bay with IPA to clean surface, Allow to 1 minute dry time





20. Install bolts securing ancillary bay probe lid cover to ancillary bay cover
    참고

    2x bolts, EP10 5-Lobe, 6 Nm, Install new bolts



21. Remove leather over gloves and HV insulating gloves



22. Remove clips securing rear main cabin carpet to vehicle
    참고

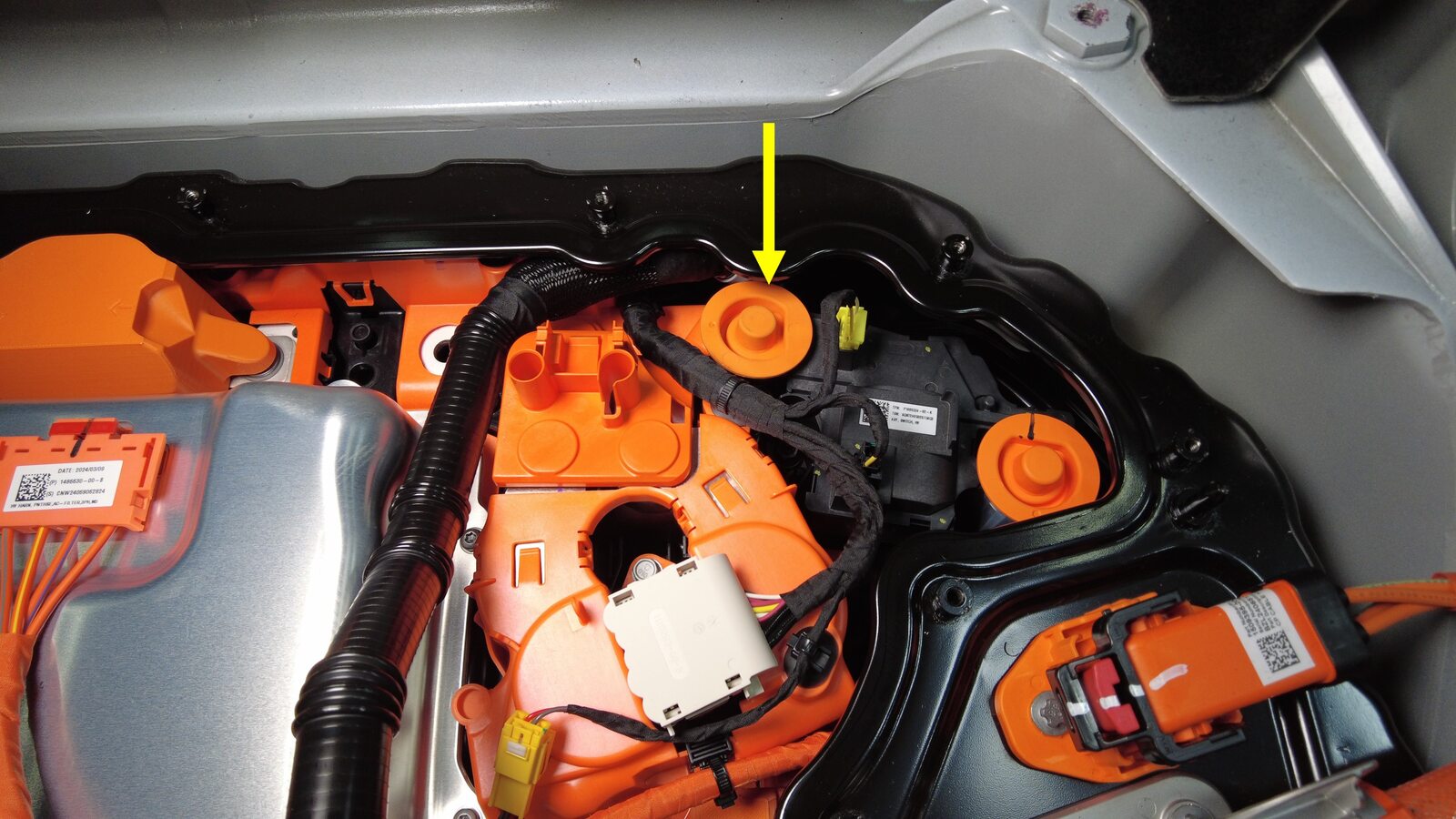

    3x push clips

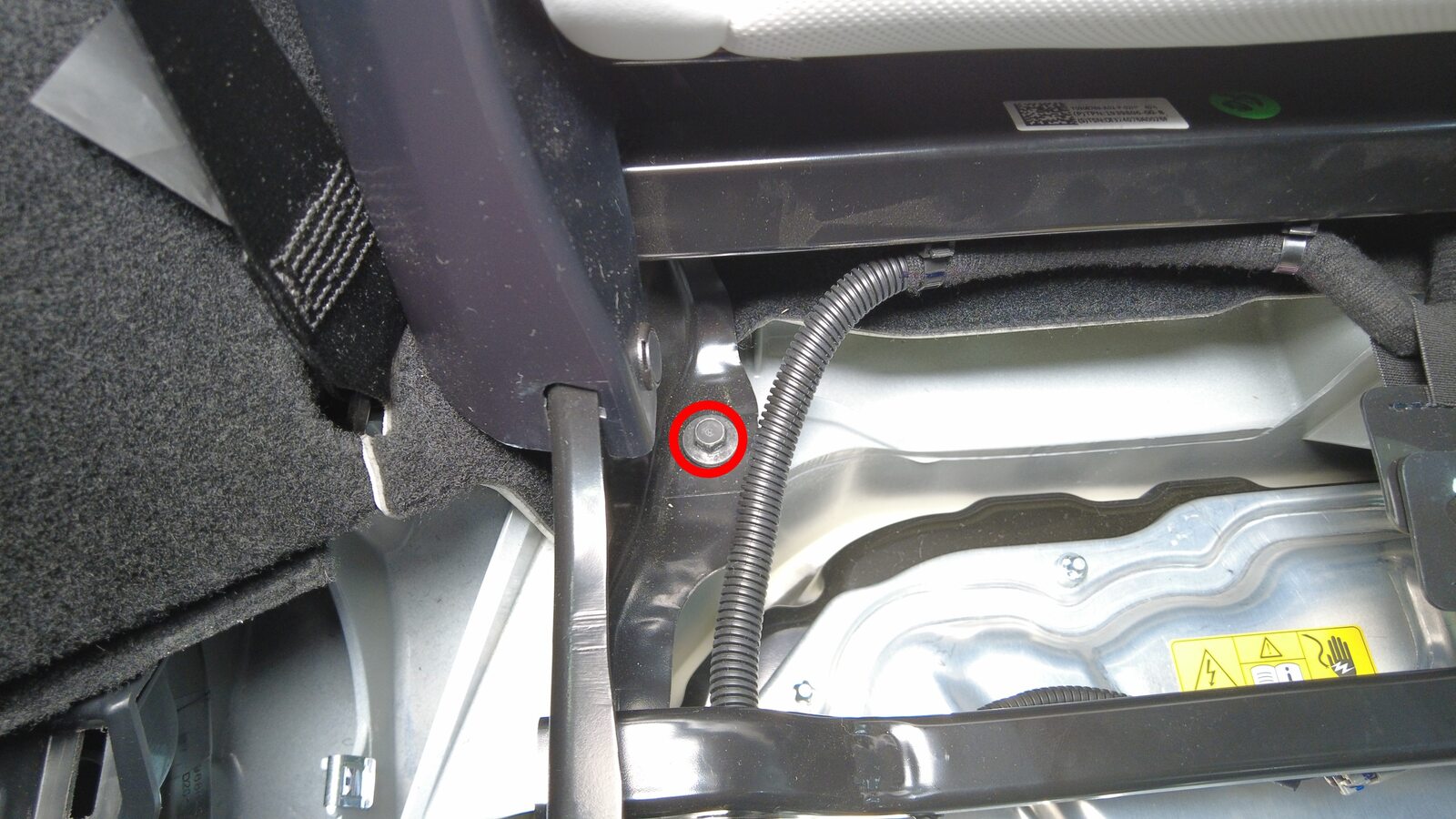

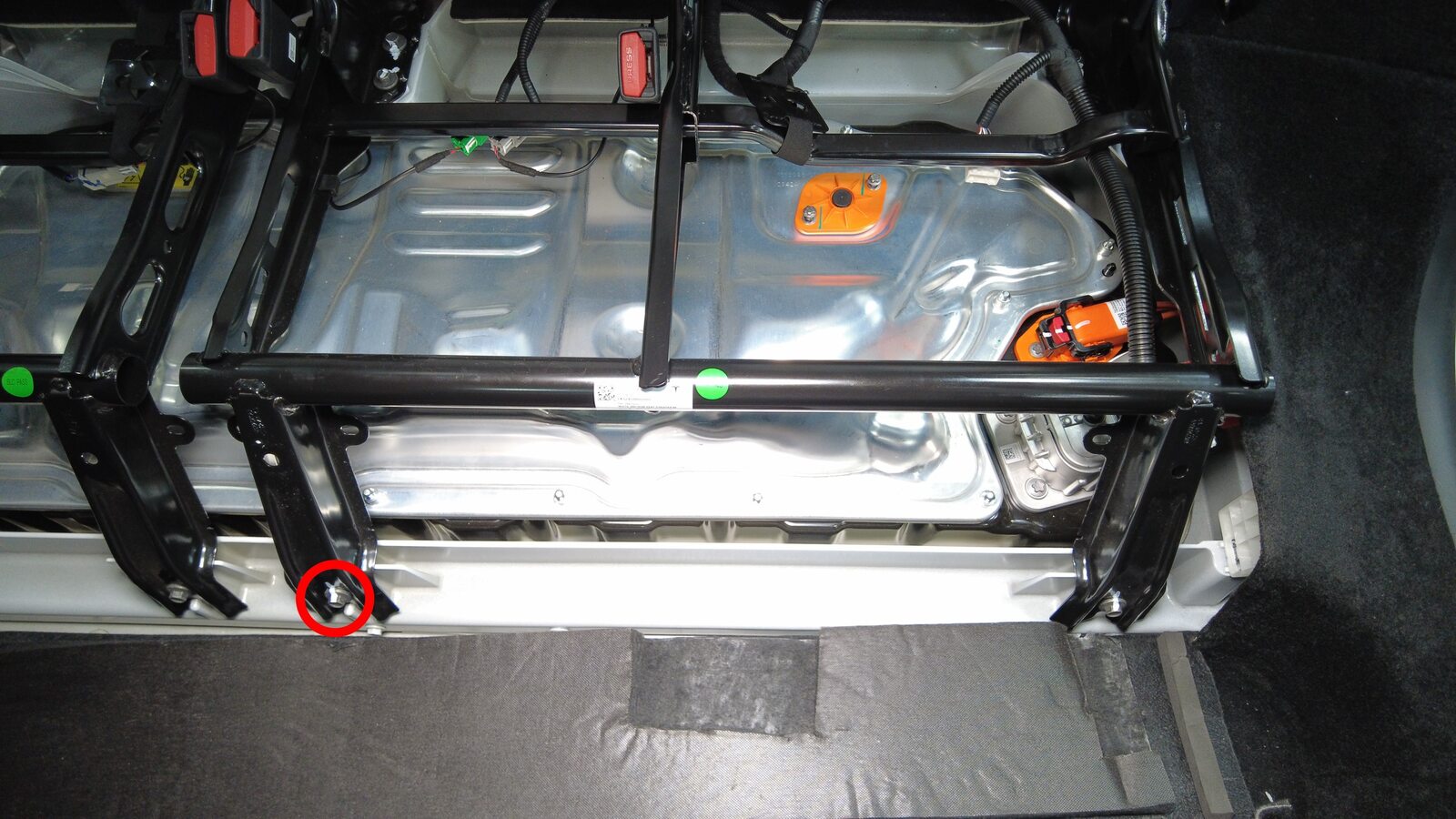

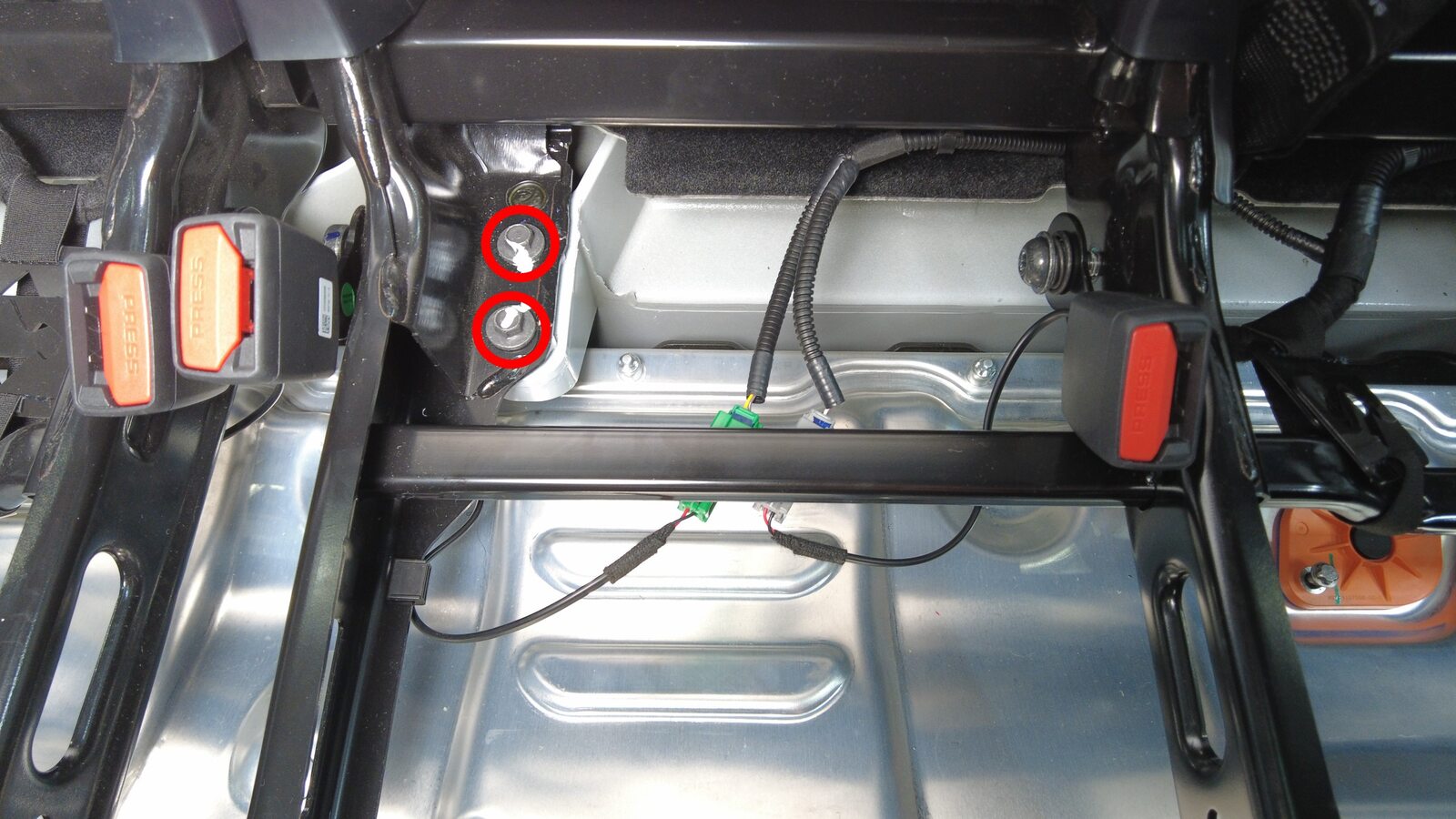

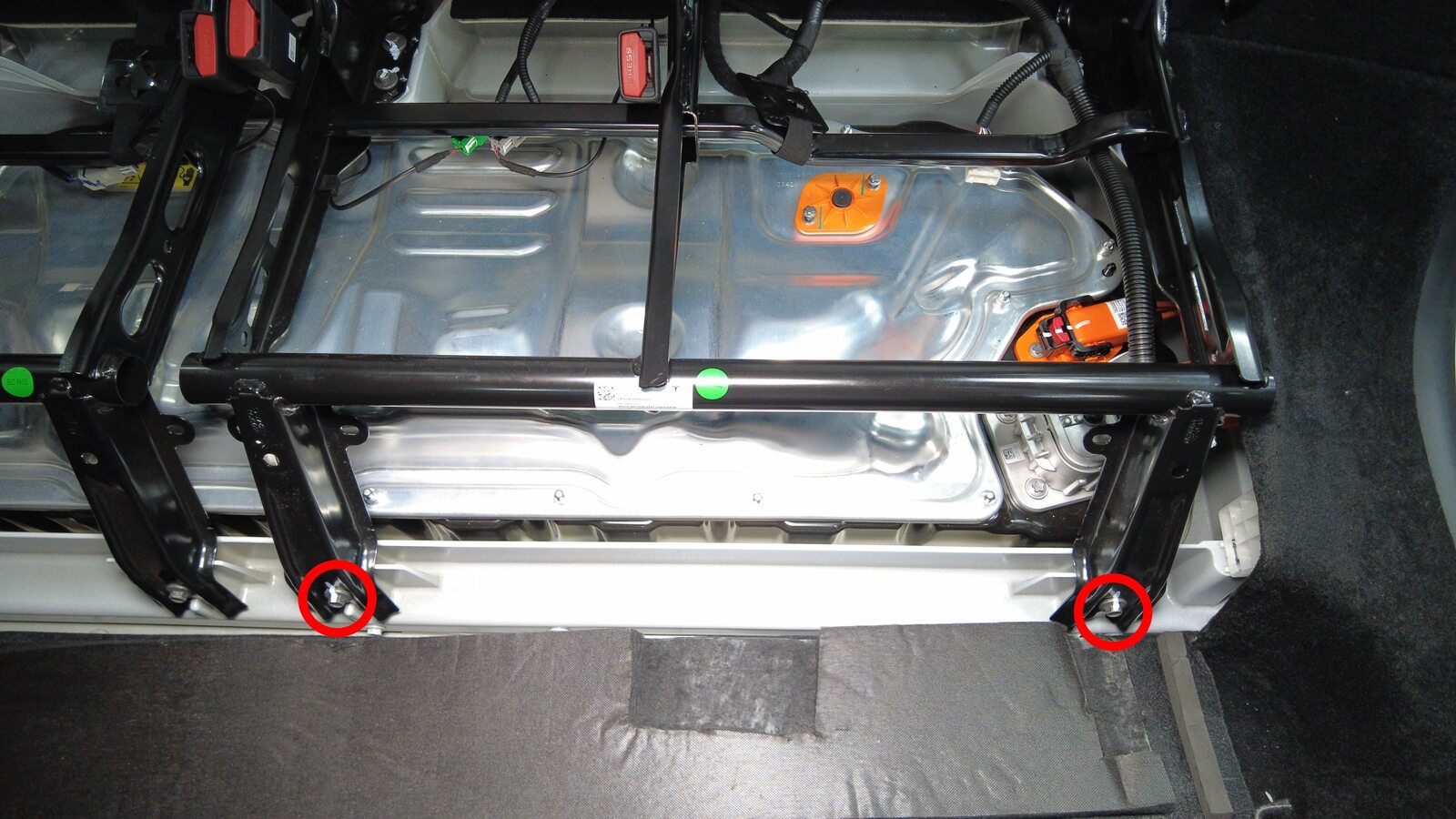

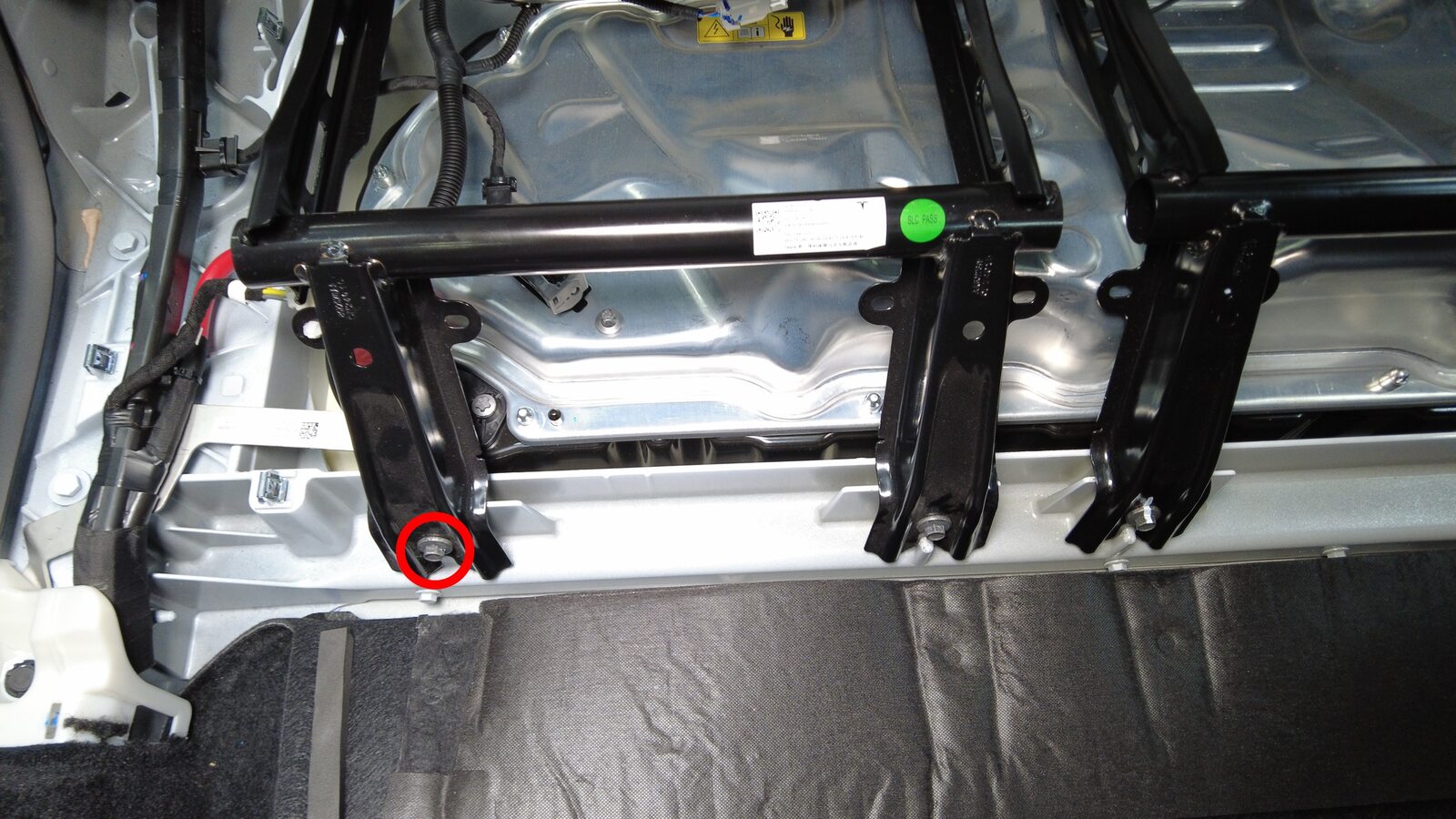

23. Remove fasteners securing 2nd row 40 seat frame to body
    참고

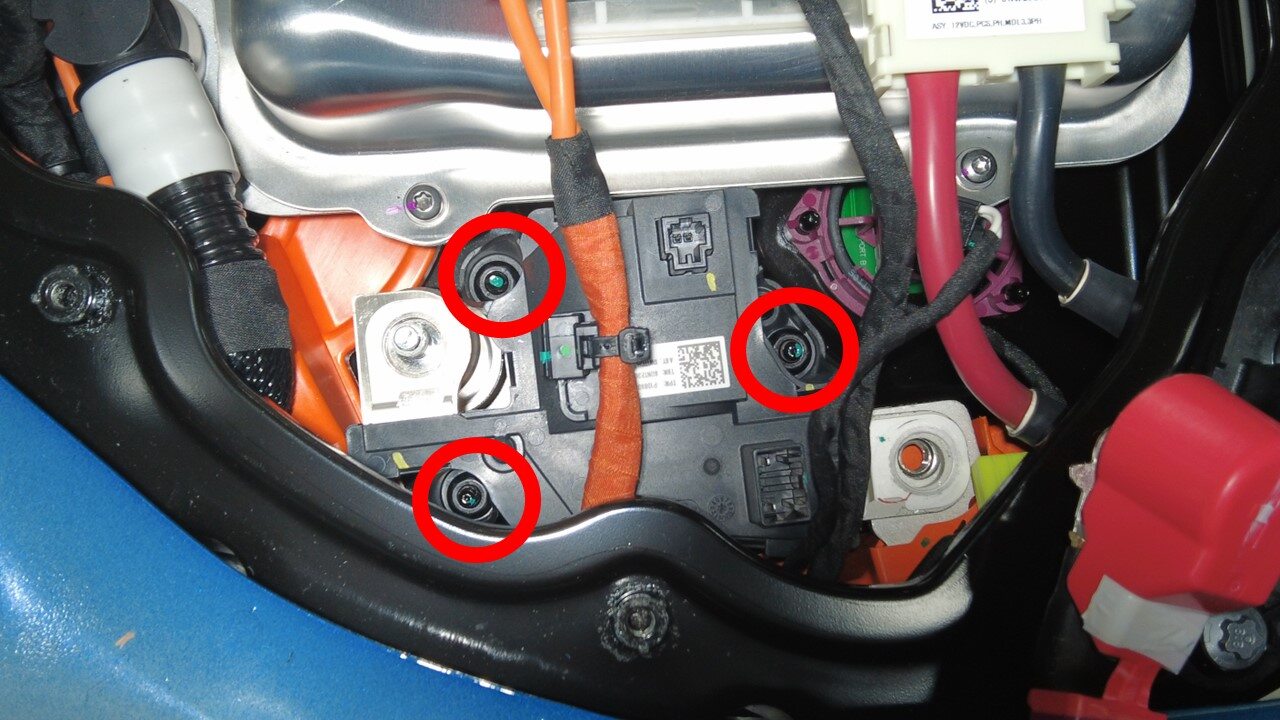

    4x bolts, 11mm, 37 Nm, Bottom seat bolts located behind main carpet, Discard after removal

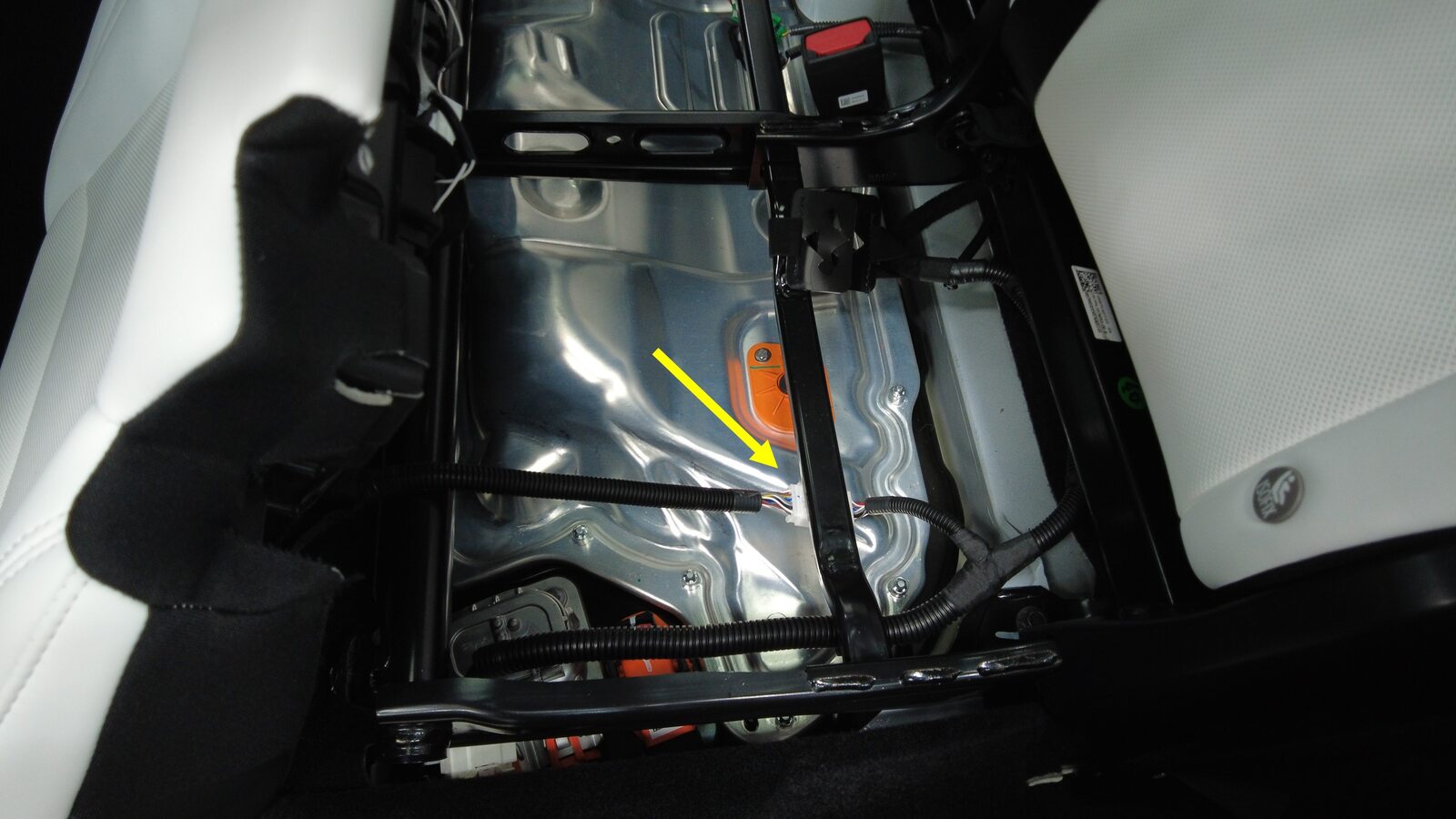

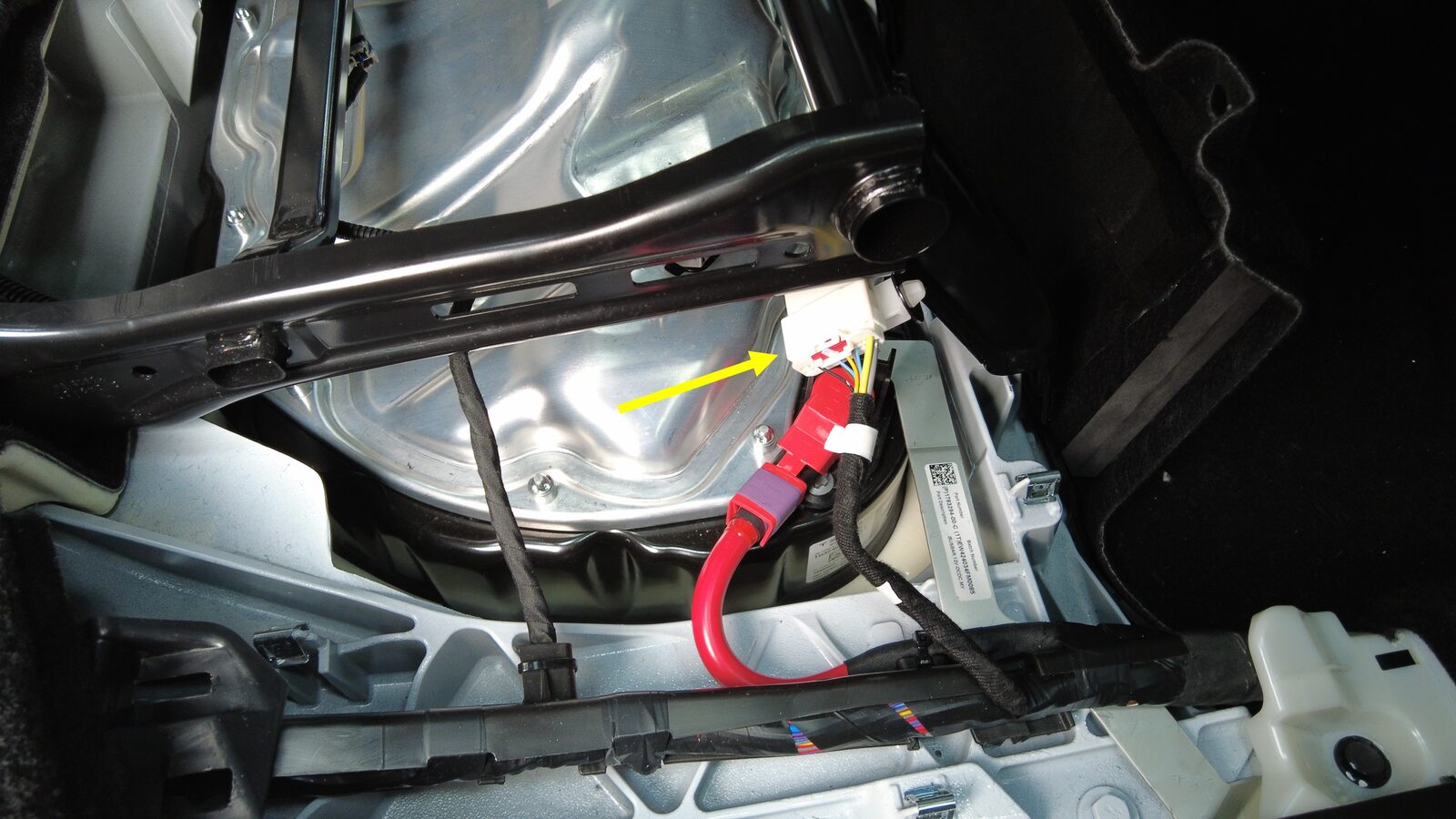

24. Disconnect 2nd row 40 seat connector
    참고

    1x connector, Disengage the tab

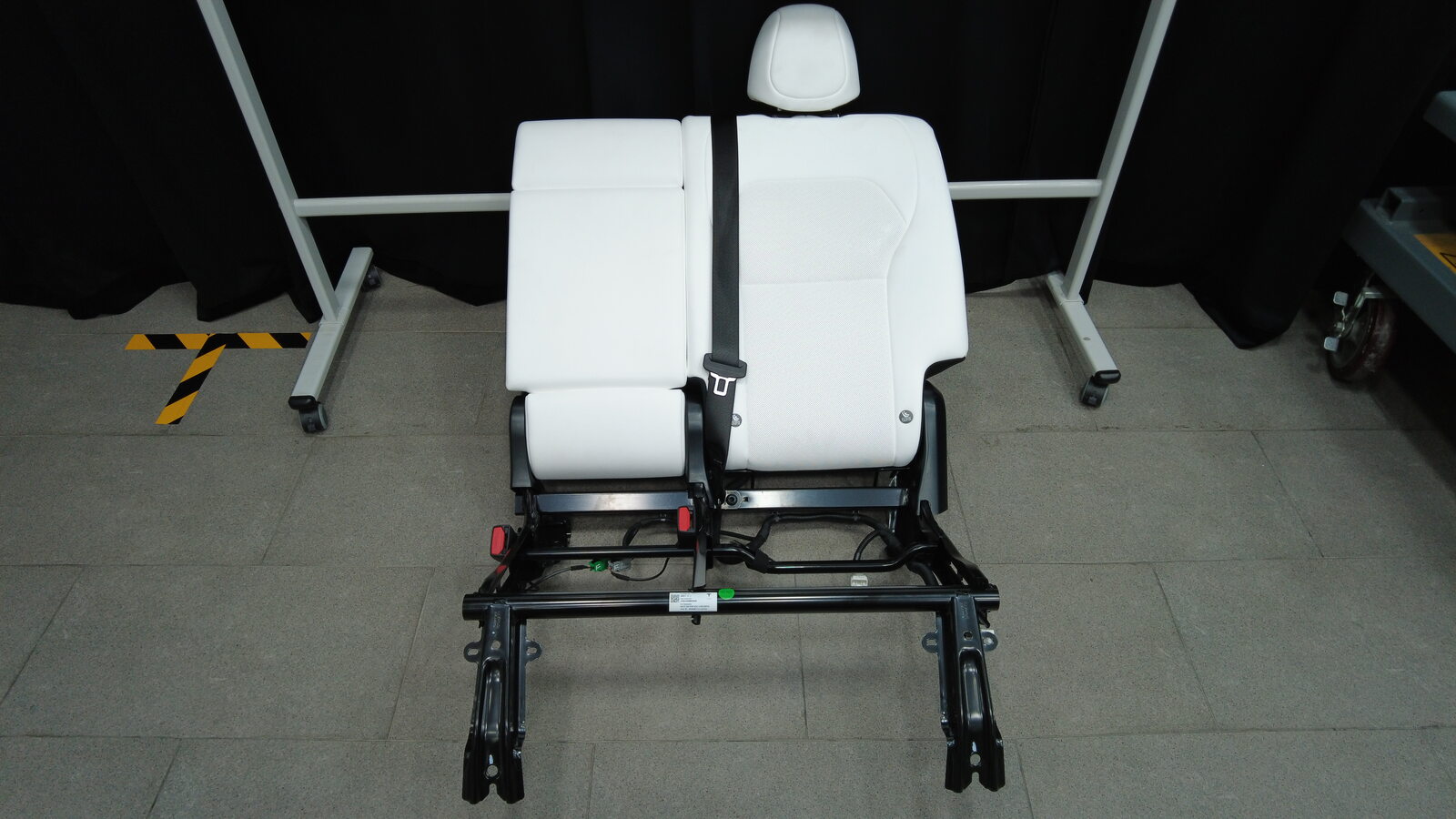

25. Remove 2nd row 40 seat assembly from vehicle
    참고

    Recommend assistance

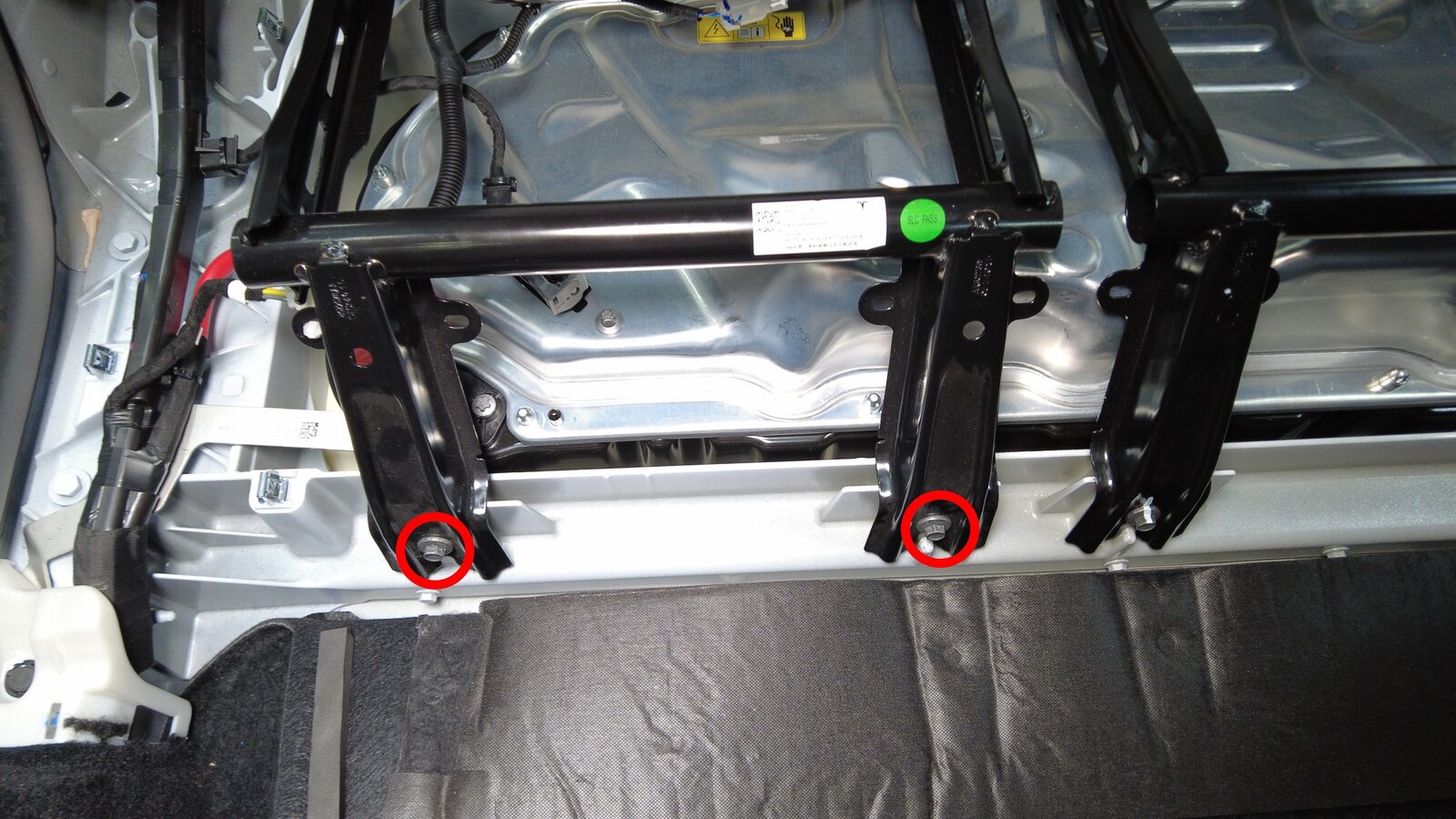

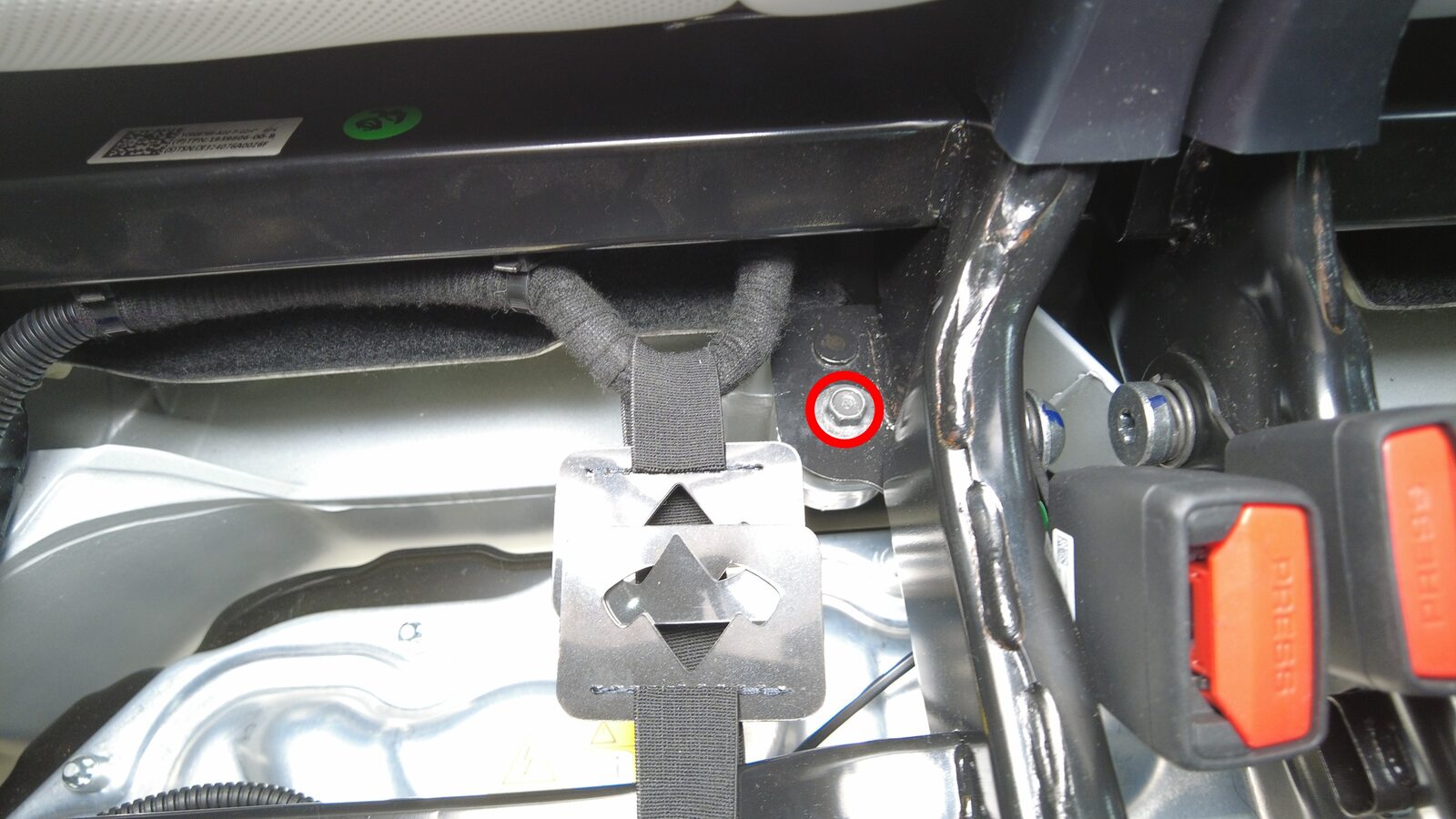

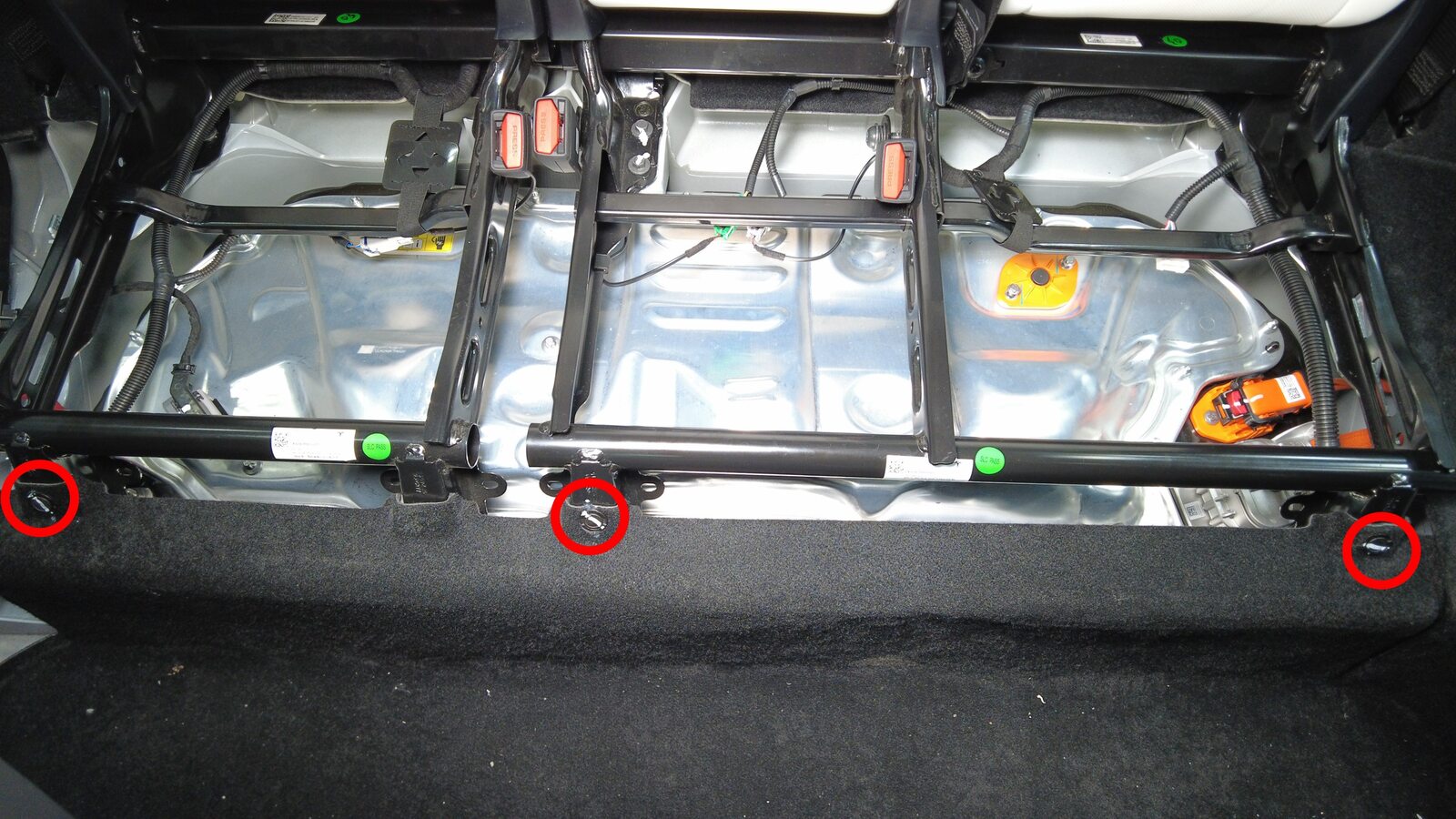

26. Remove fasteners securing 2nd row 60 seat frame to body
    참고

    5x bolts, 11mm, 37 Nm, Bottom seat bolts located behind main carpet, Discard after removal







27. Disconnect 2nd row 60 seat connector
    참고

    1x connector, Disengage locking tab

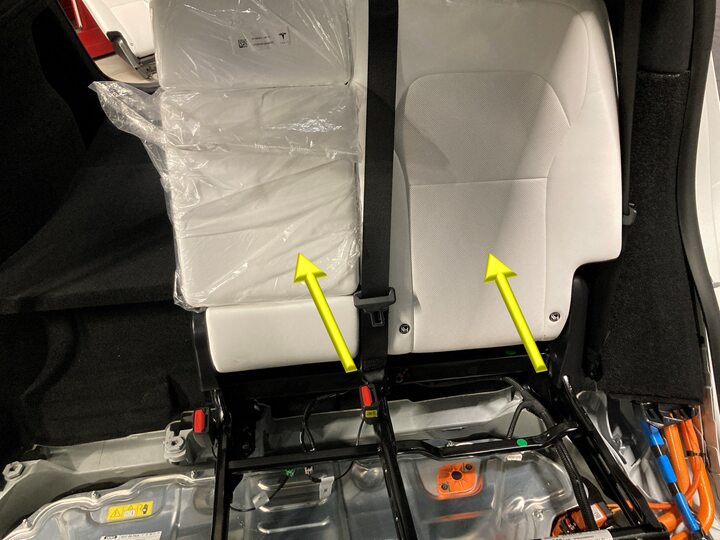

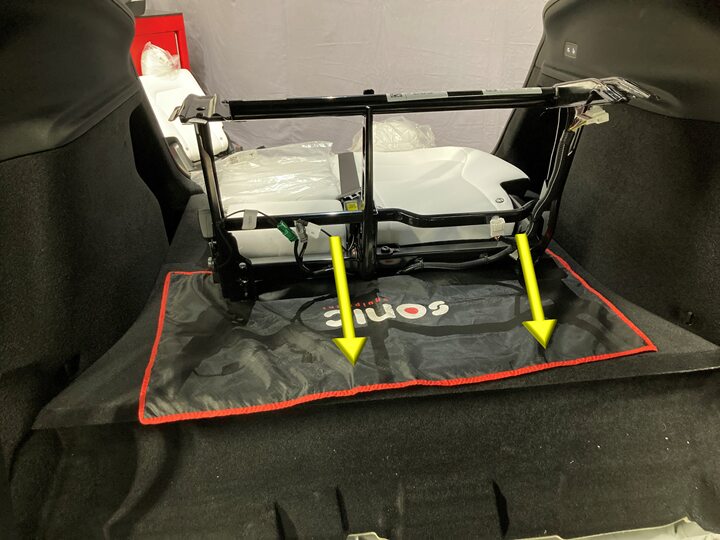

28. Remove 2nd row 60 seat assembly from vehicle
    참고

    Set 60 seat assembly onto rear load floor, Then remove the seat assembly from the rear side of the vehicle, Use fender cover to avoid damaging trims, Recommend assistance

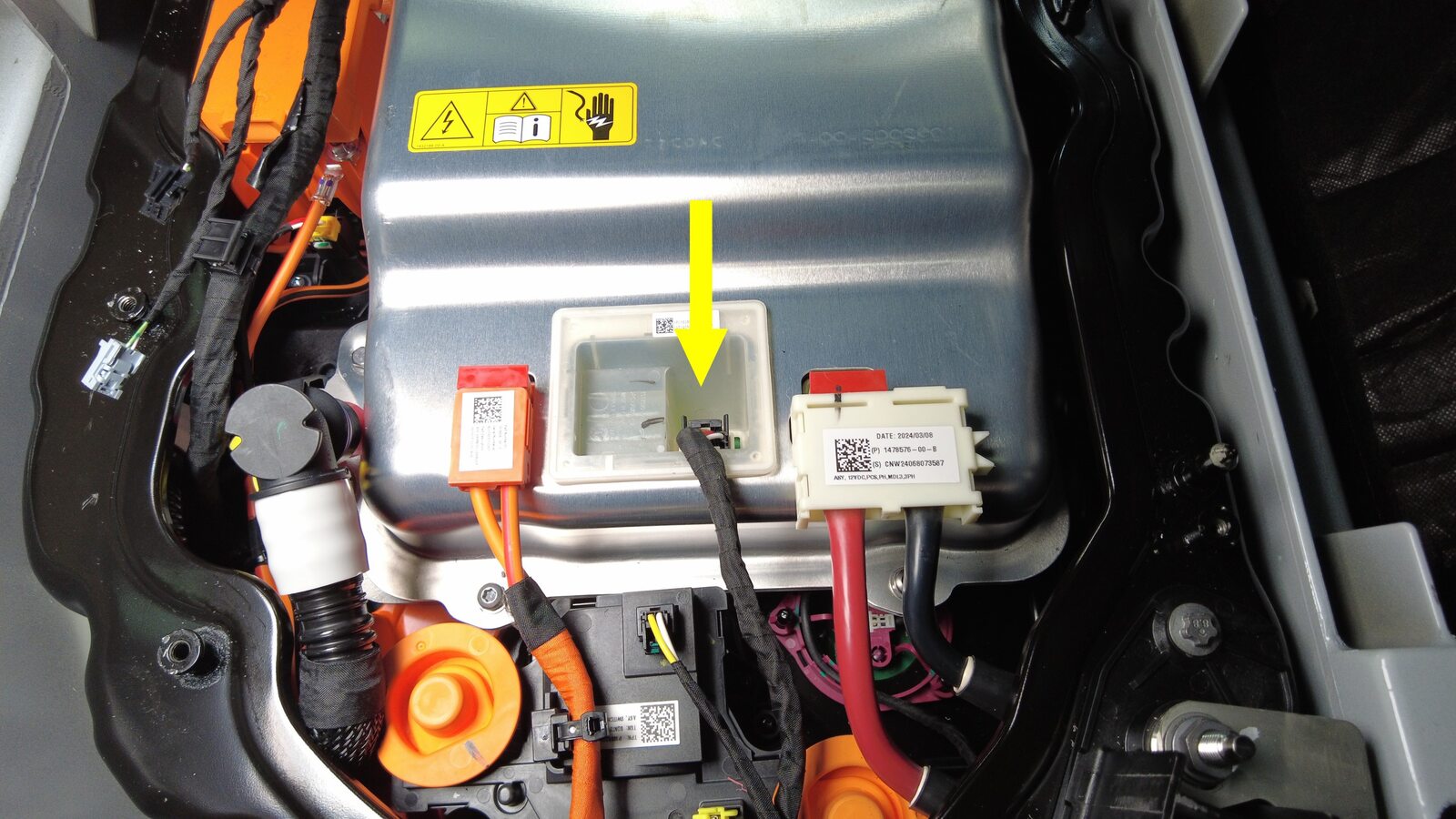

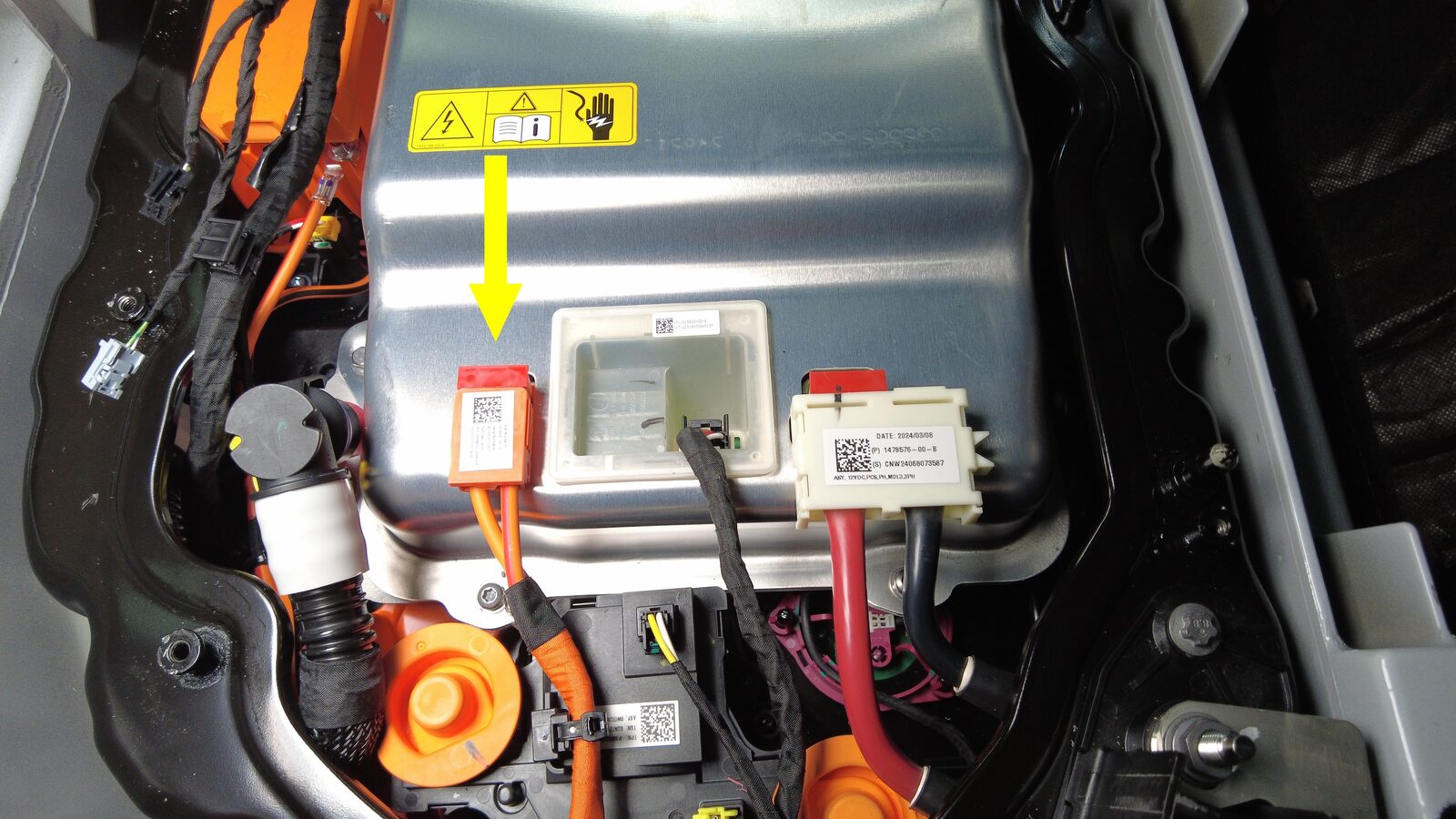

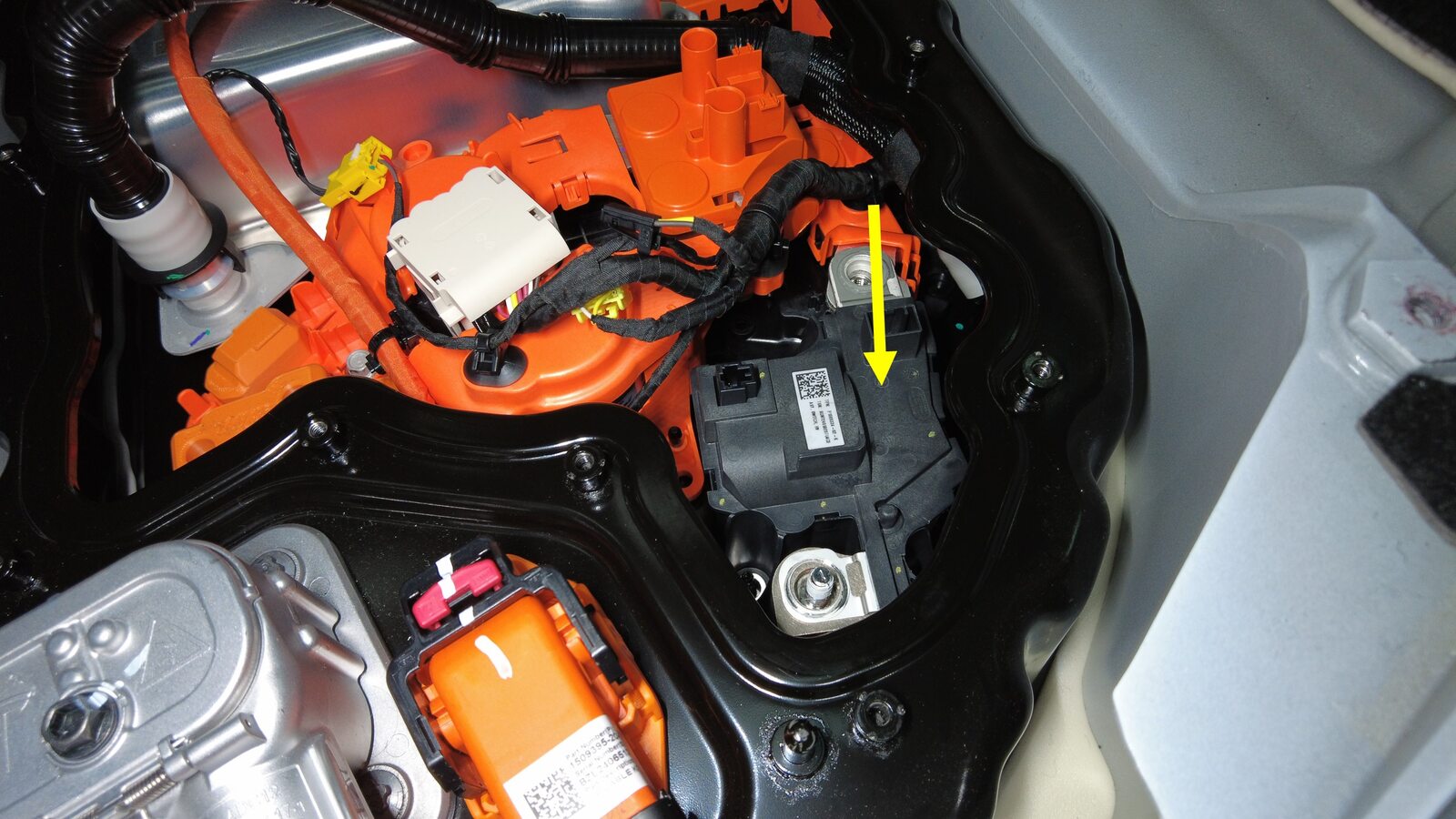

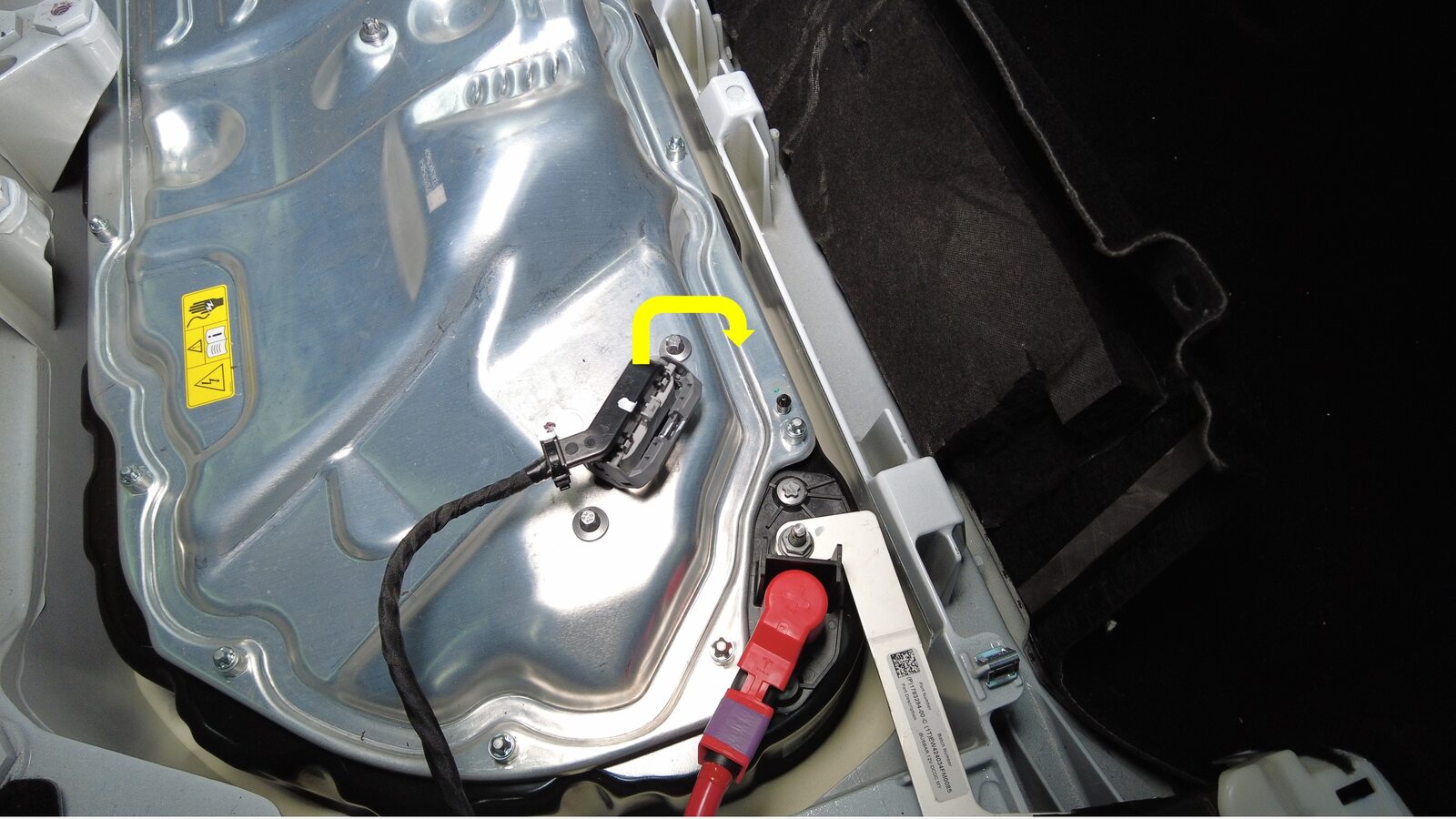

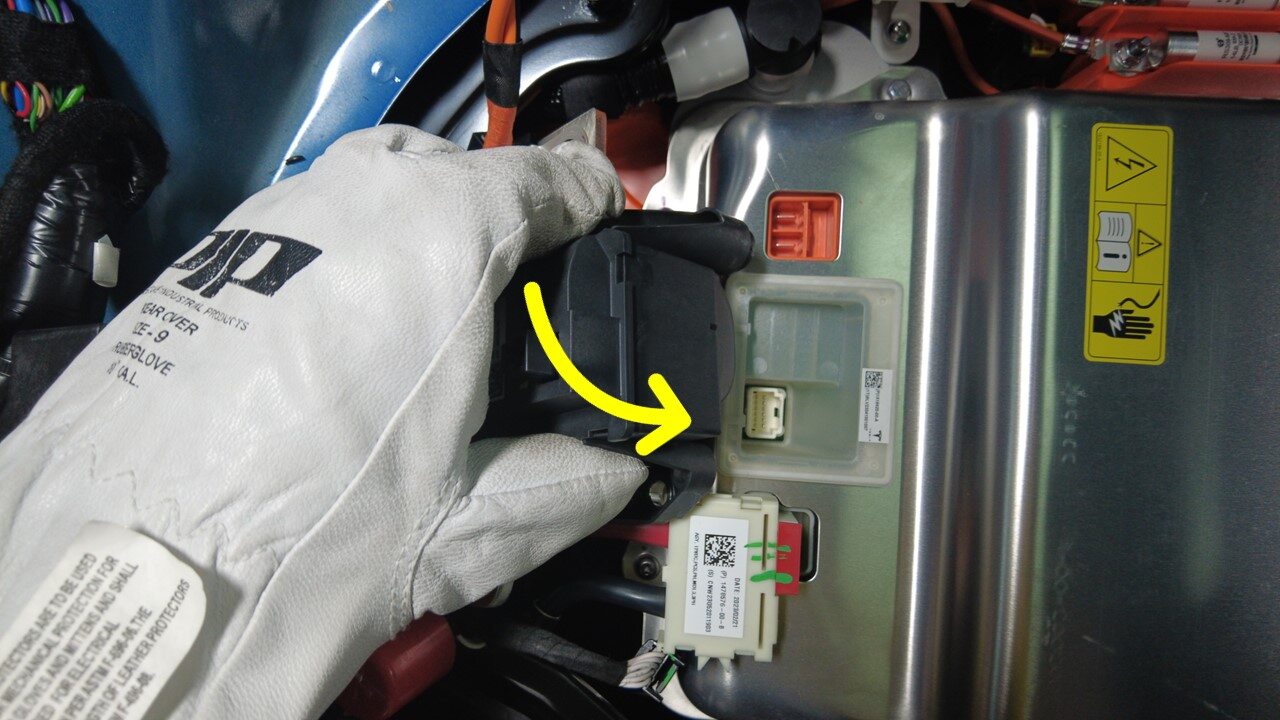

29. Disconnect HVC logic connector and install logic cap
    참고

    1x connector, 1x cap, Release locking tab then push the handle downward to release connector





30. Release positive LV output cover from PCS cable
    참고

    1x cover

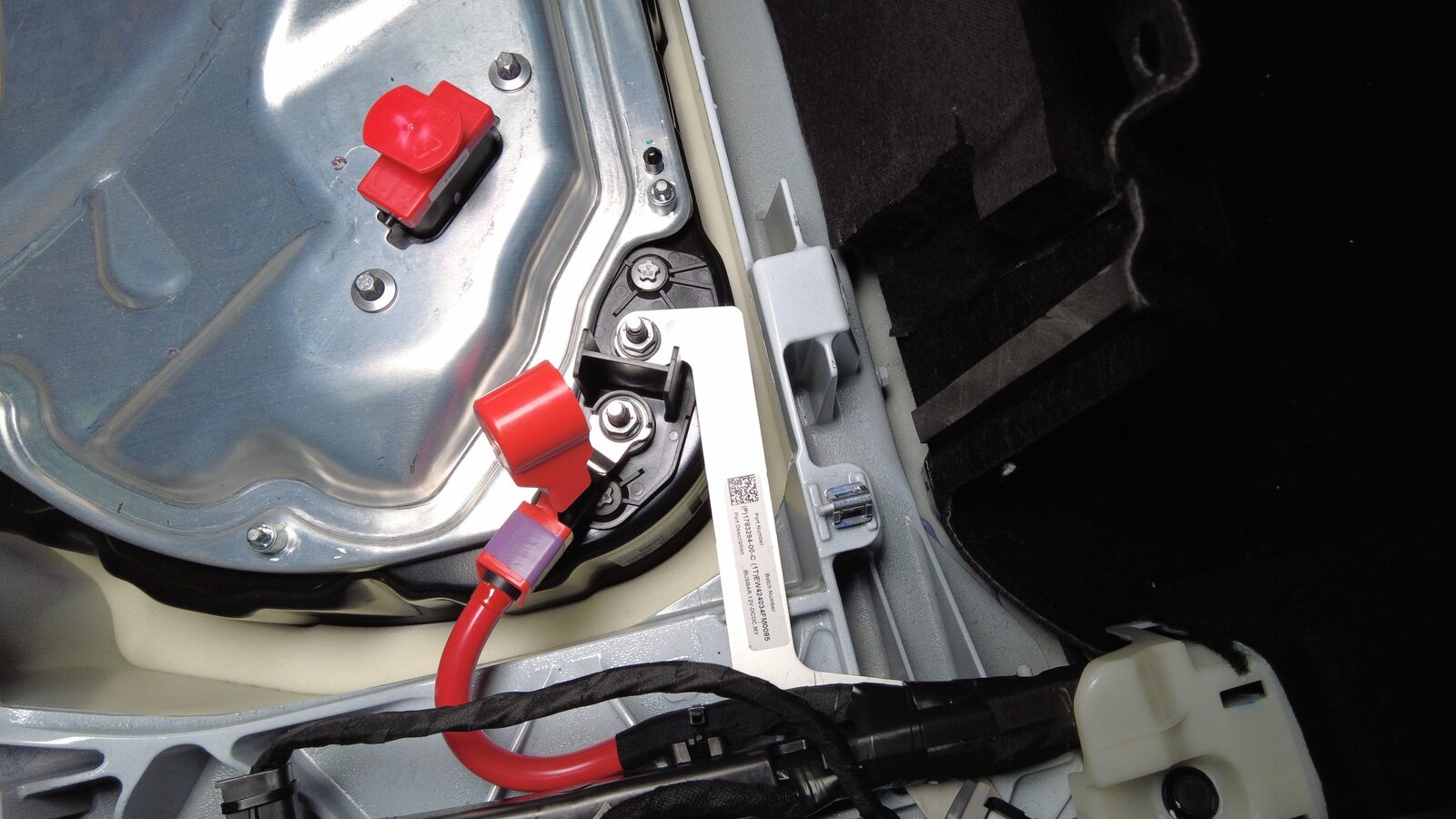

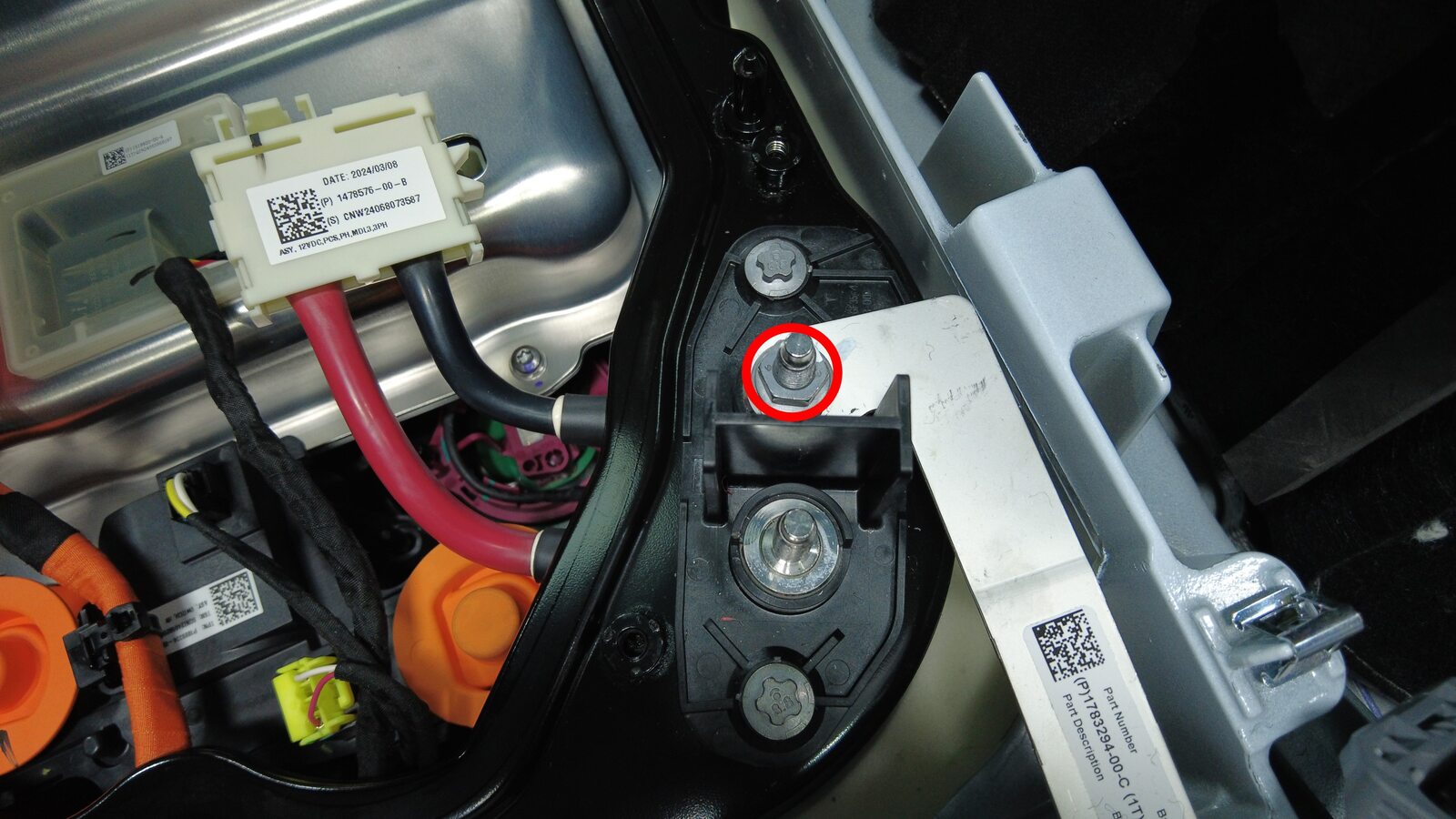

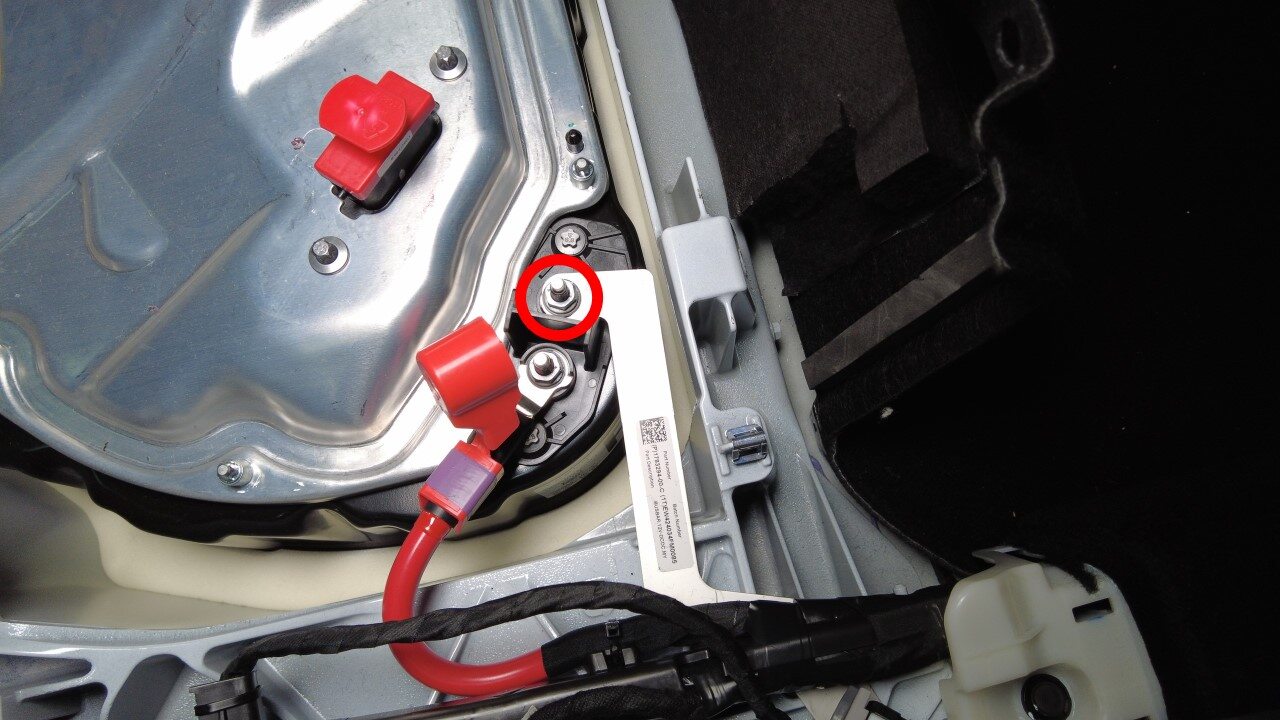

31. Remove PCS cable from LV passthrough output
    참고

    1x nut, 13mm, 9 Nm, Discard nut after removal

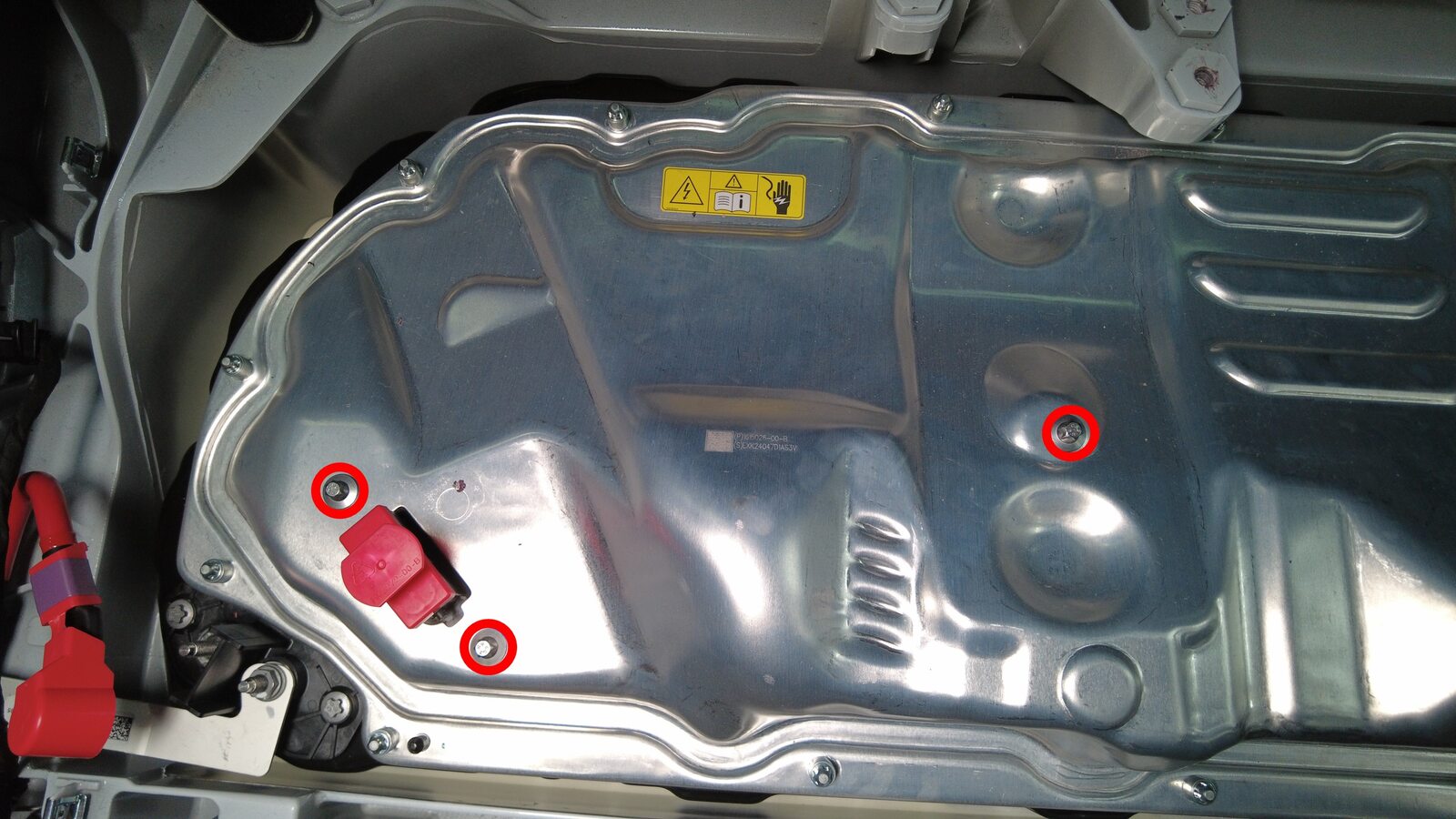

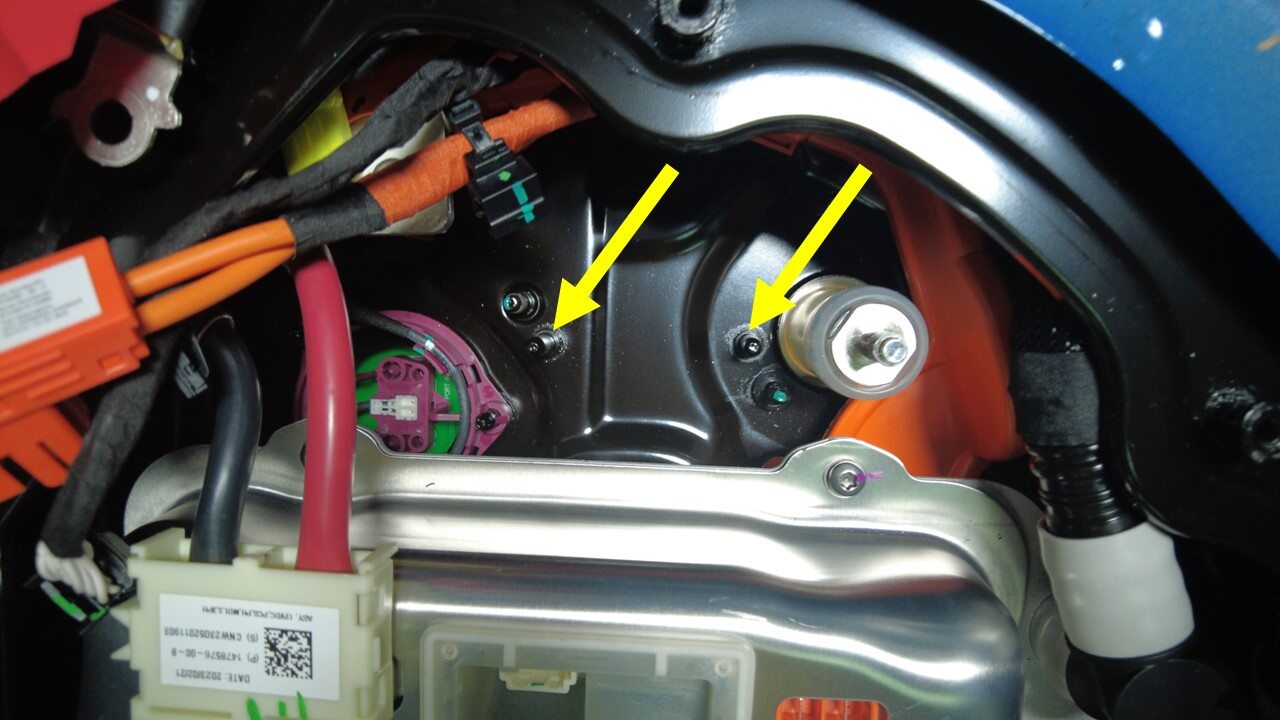

32. Remove bolts securing ancillary bay cover to HVC
    참고

    3x bolts, E10, 5 Nm + 30 degrees



33. Remove bolts securing ancillary bay cover to HV battery
    참고

    18x bolts, E10 5-Lobe, 8 Nm, Use E10 5-Lobe socket without magnet, The fasteners are captive and will stay attached to the ancillary bay cover





34. Remove HVC logic cap
    참고

    1x logic cap



35. Inspect HV insulating gloves
    참고

    Check gloves for damage prior to use, Refer to service document TN-15-92-003, For information on inspecting HV gloves. https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC



36. Put on HV insulating gloves and leather over gloves

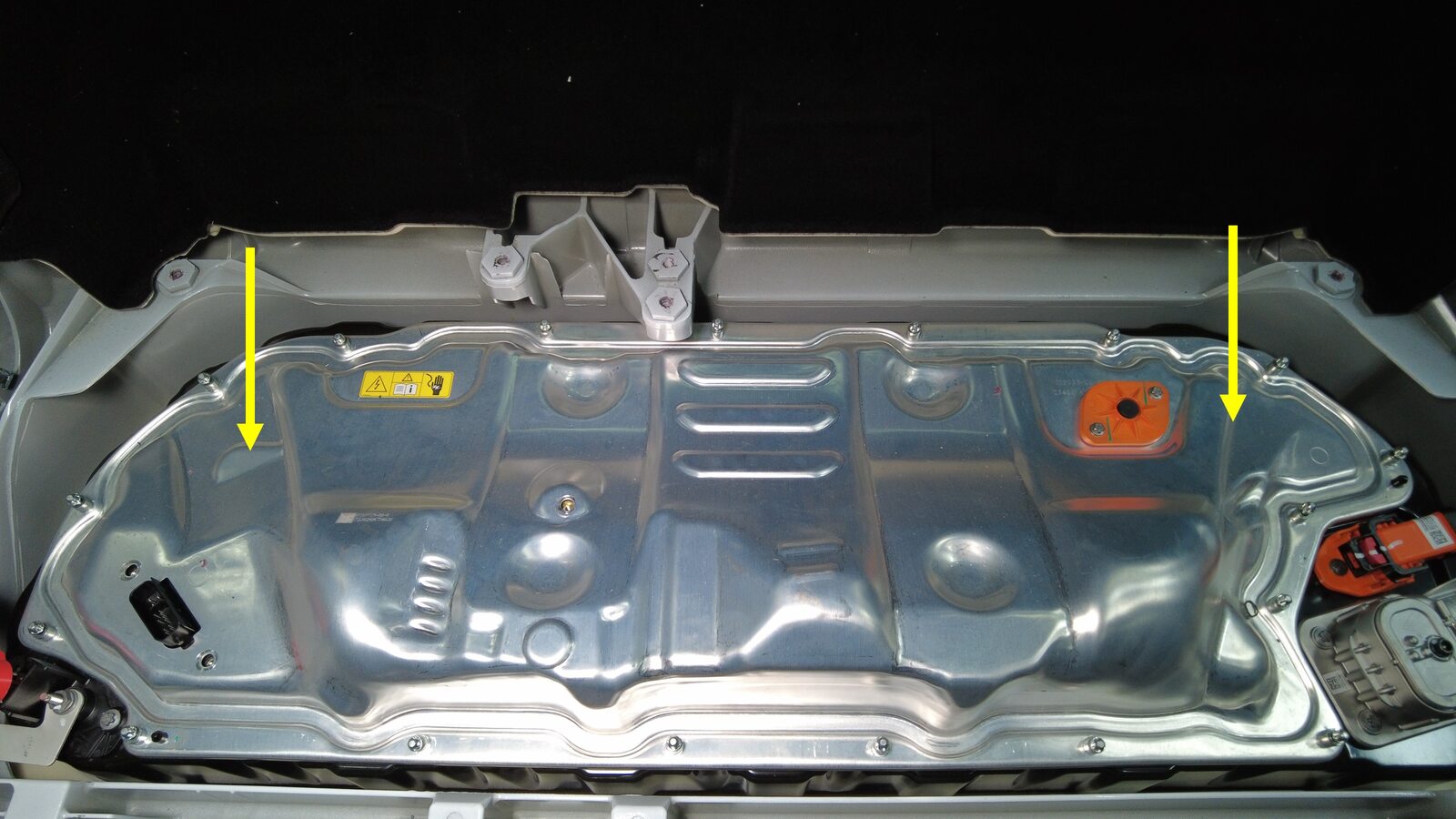

37. Remove ancillary bay cover from HV battery





38. Install HVC logic cap
    참고

    1x logic cap



39. Inspect ancillary bay for any missing insulators

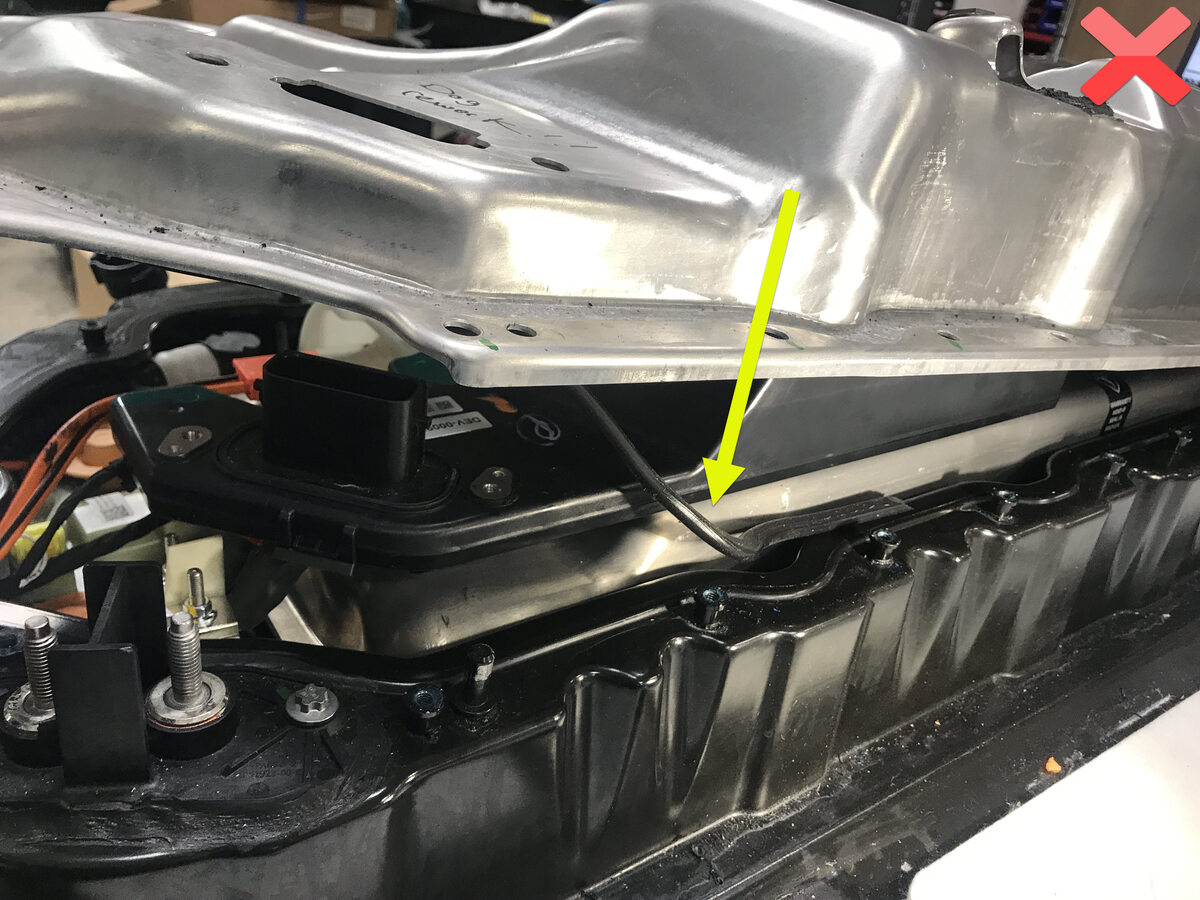

    참고

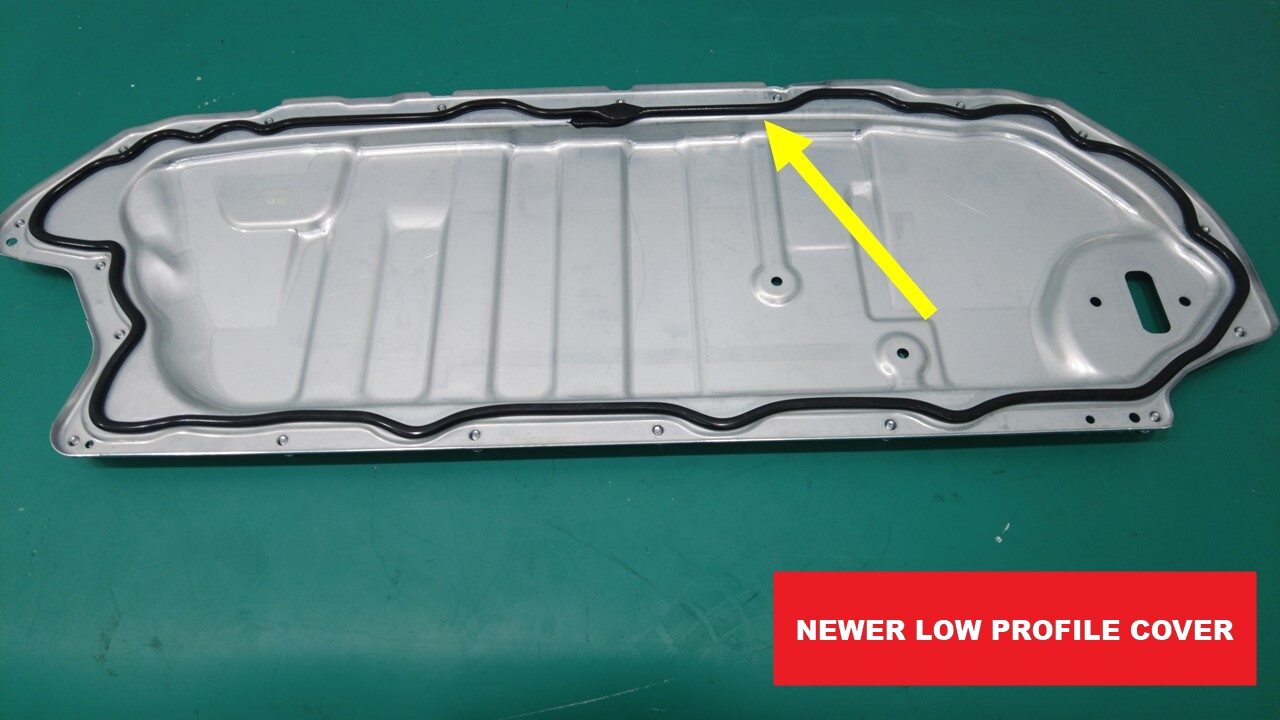

    Install service insulator kit before continuing to next step

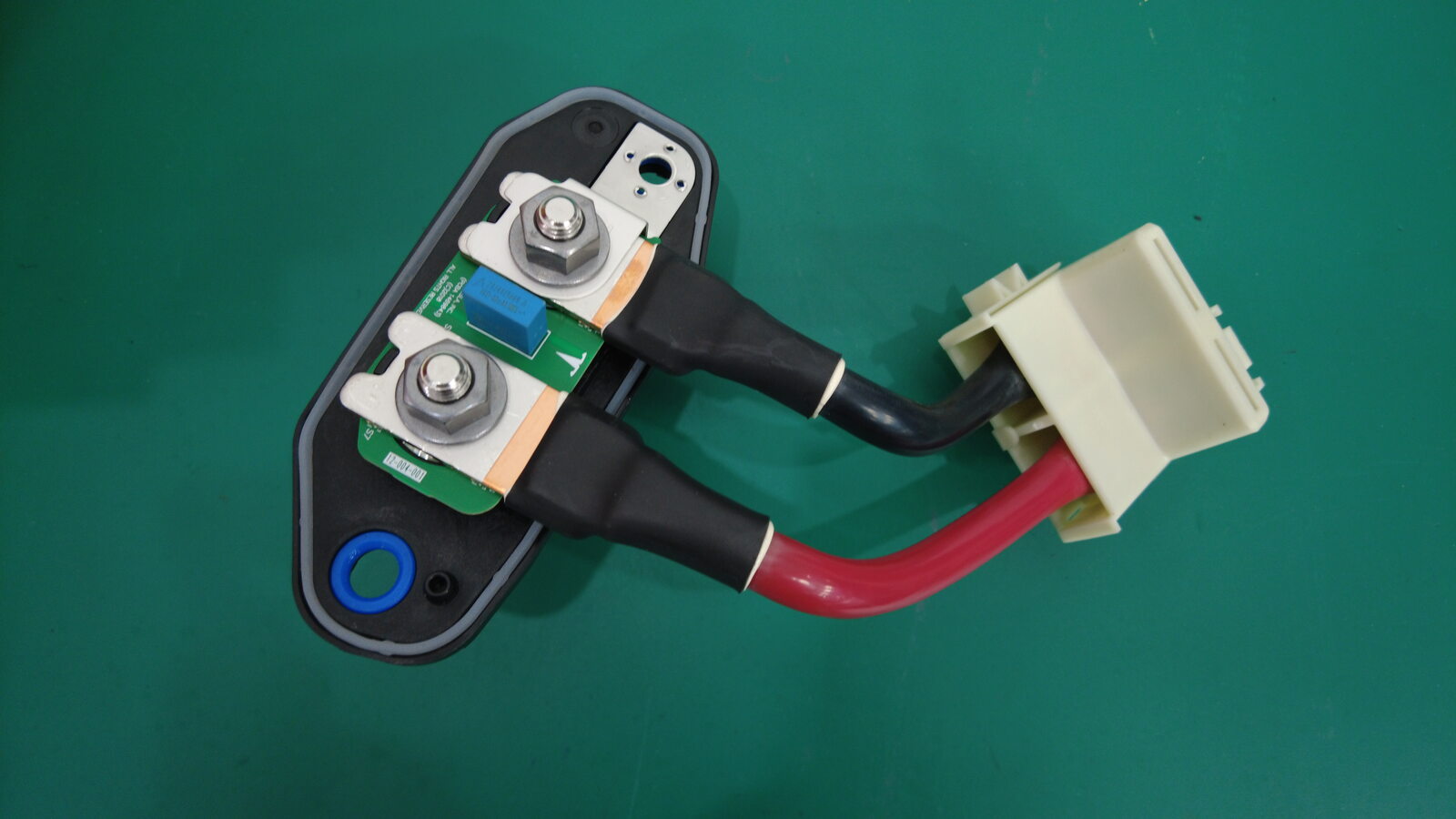

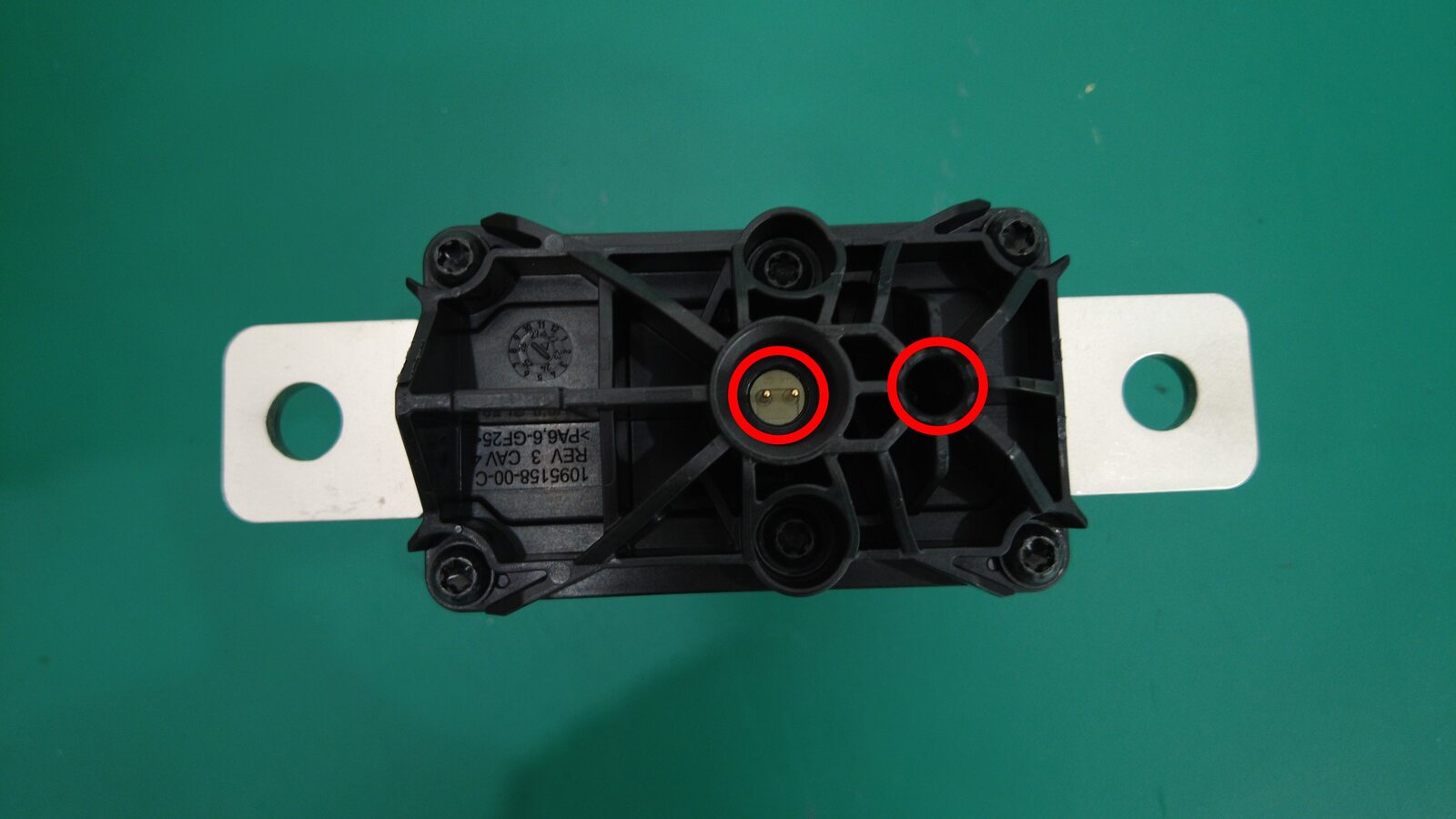

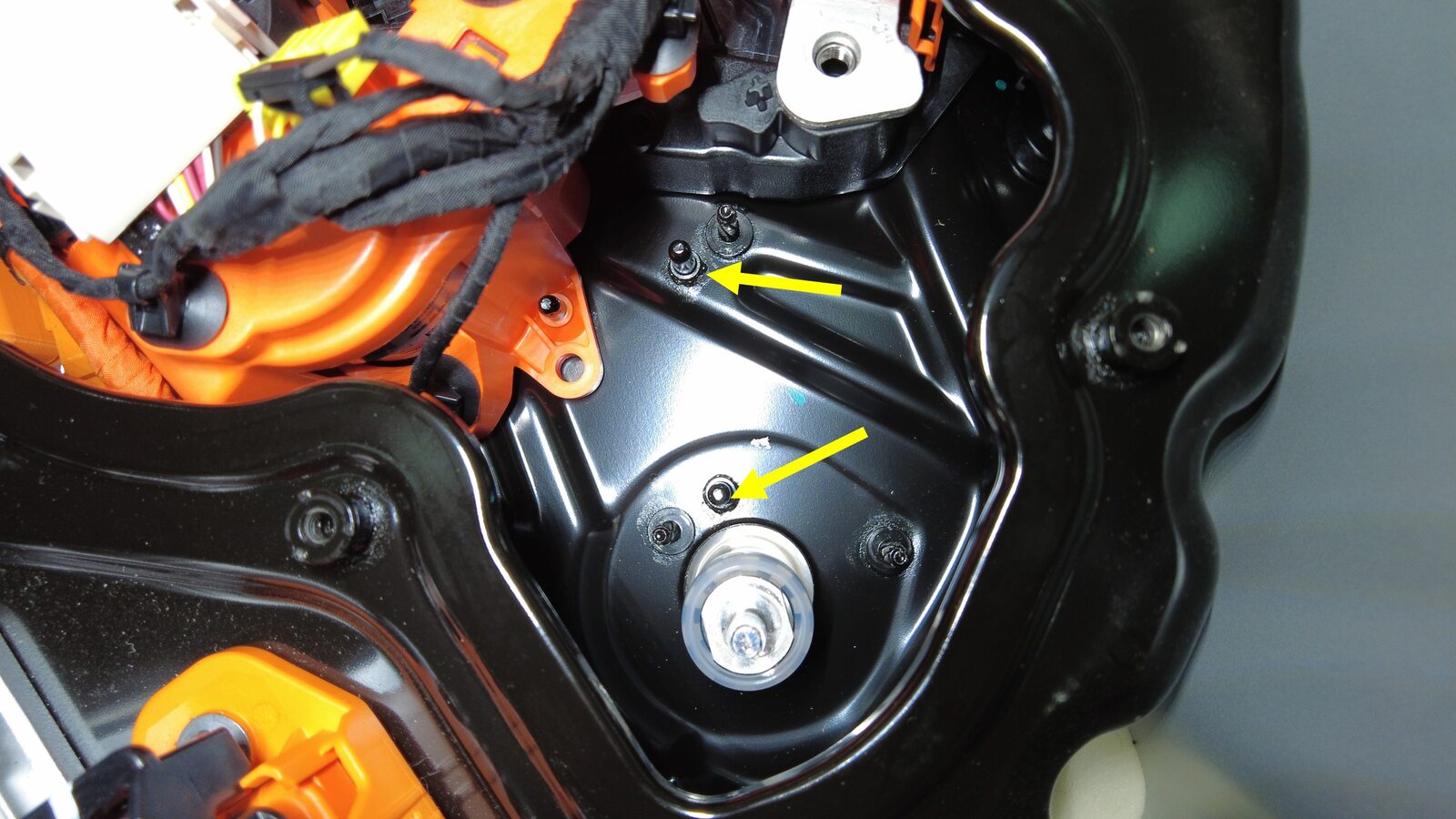

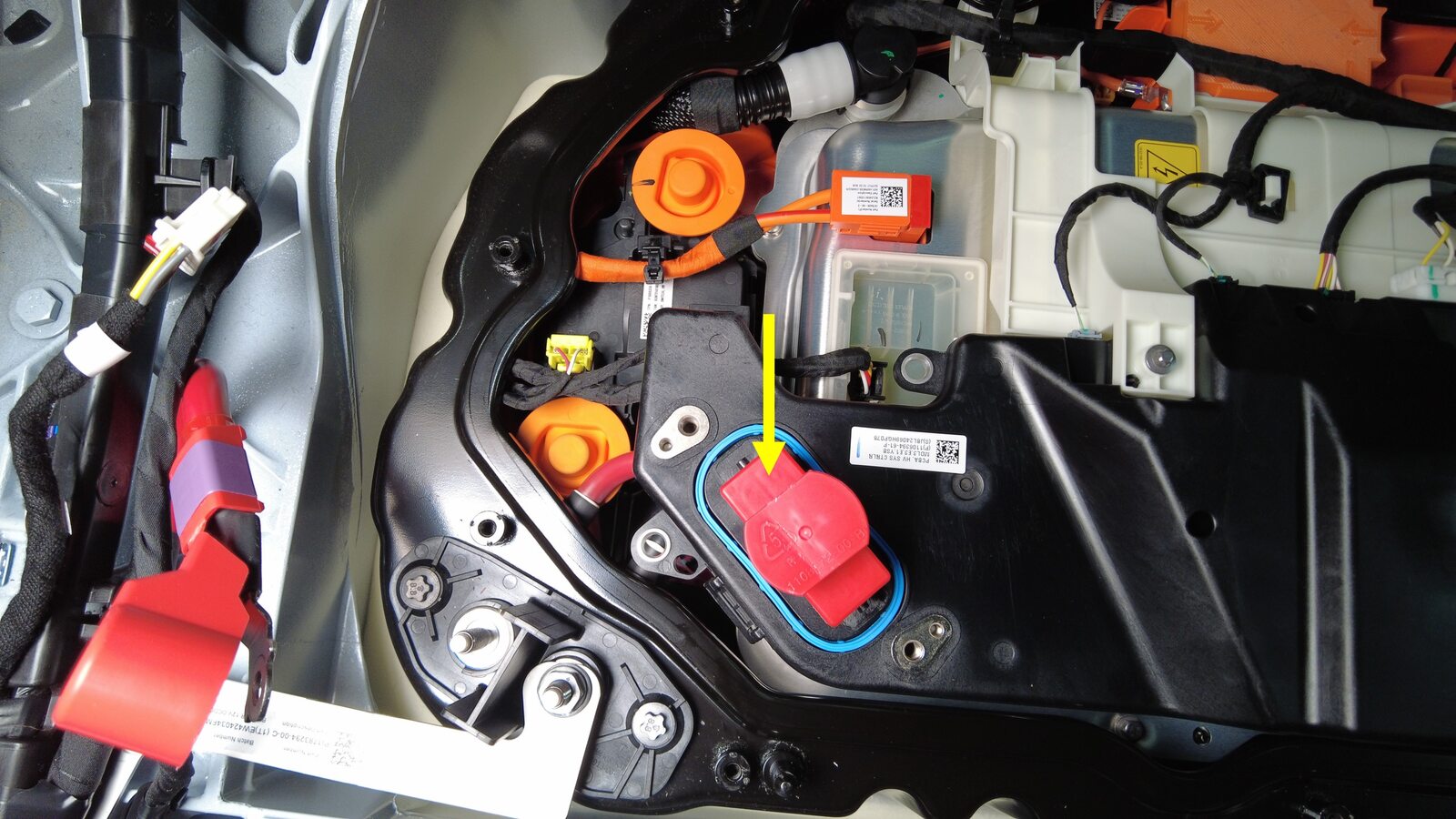

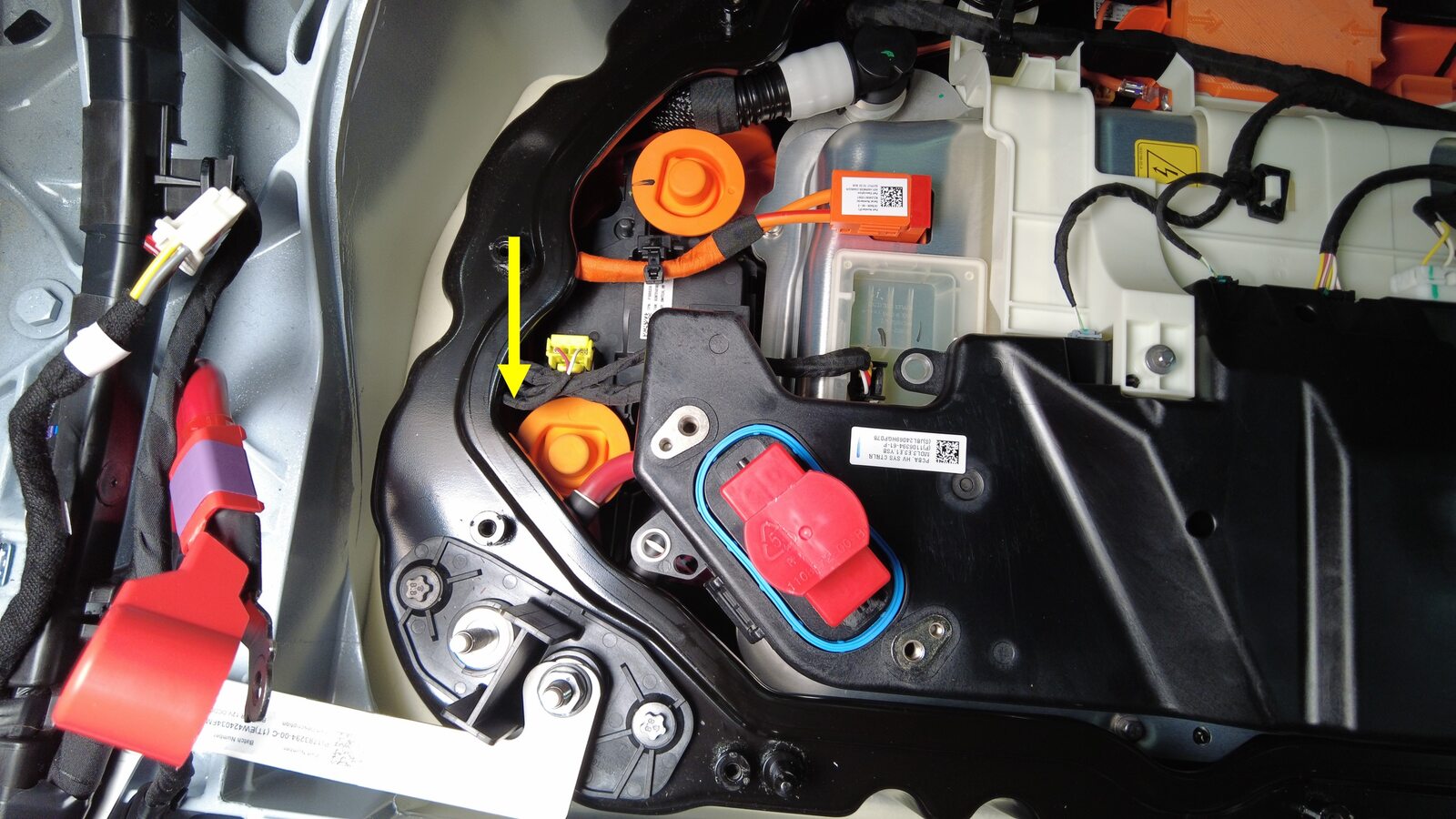

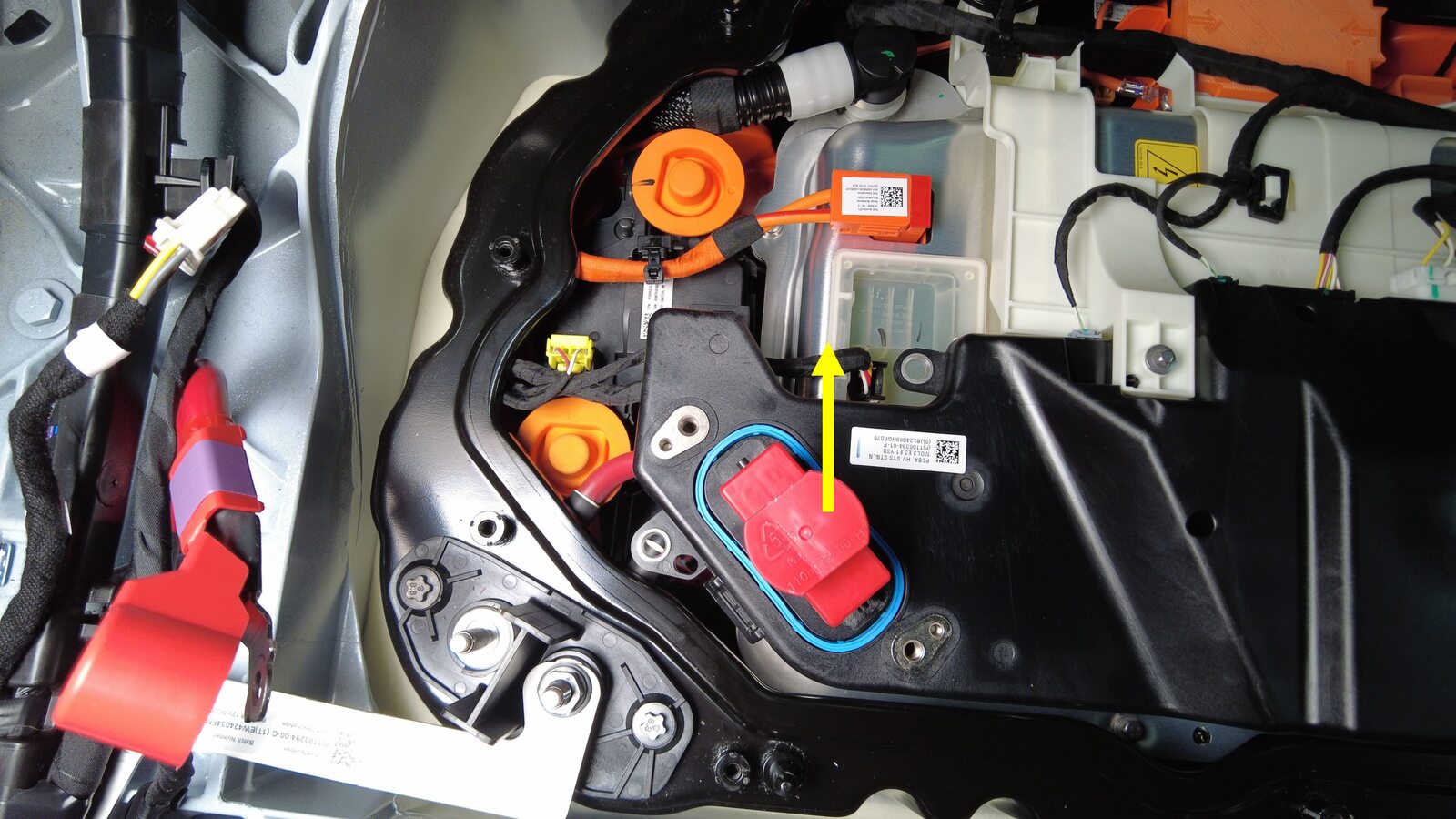

40. Remove bolts securing pyro disconnect to ancillary bay
    참고

    1x insulator, 2x patch bolts, 13mm, 9 Nm, Discard after removal

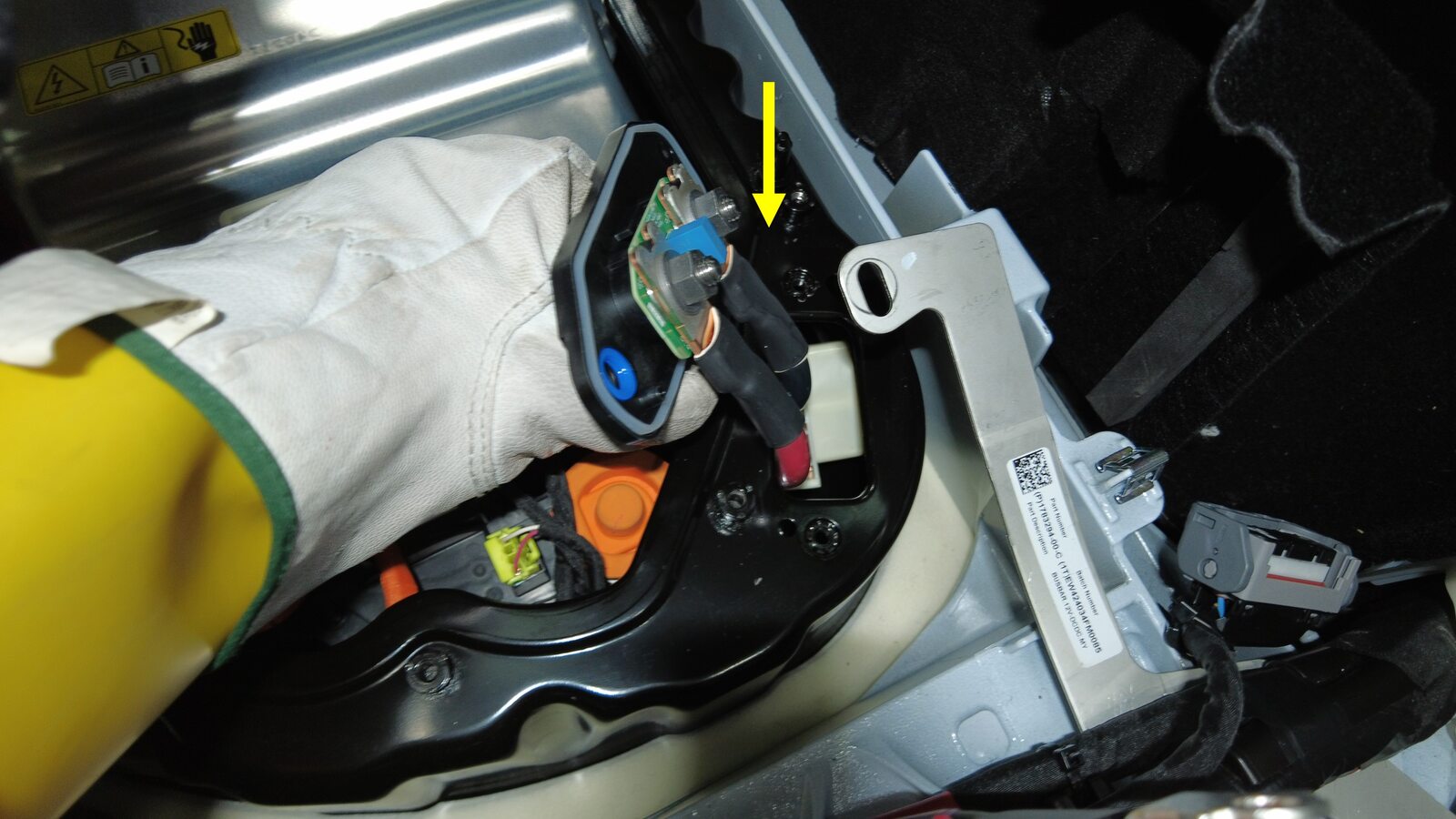

41. Remove pyro disconnect from ancillary bay
    참고

    1x connector, From the bottom, Lift pyro disconnect straight up and out of the ancillary bay





42. Install pyro disconnect dummy

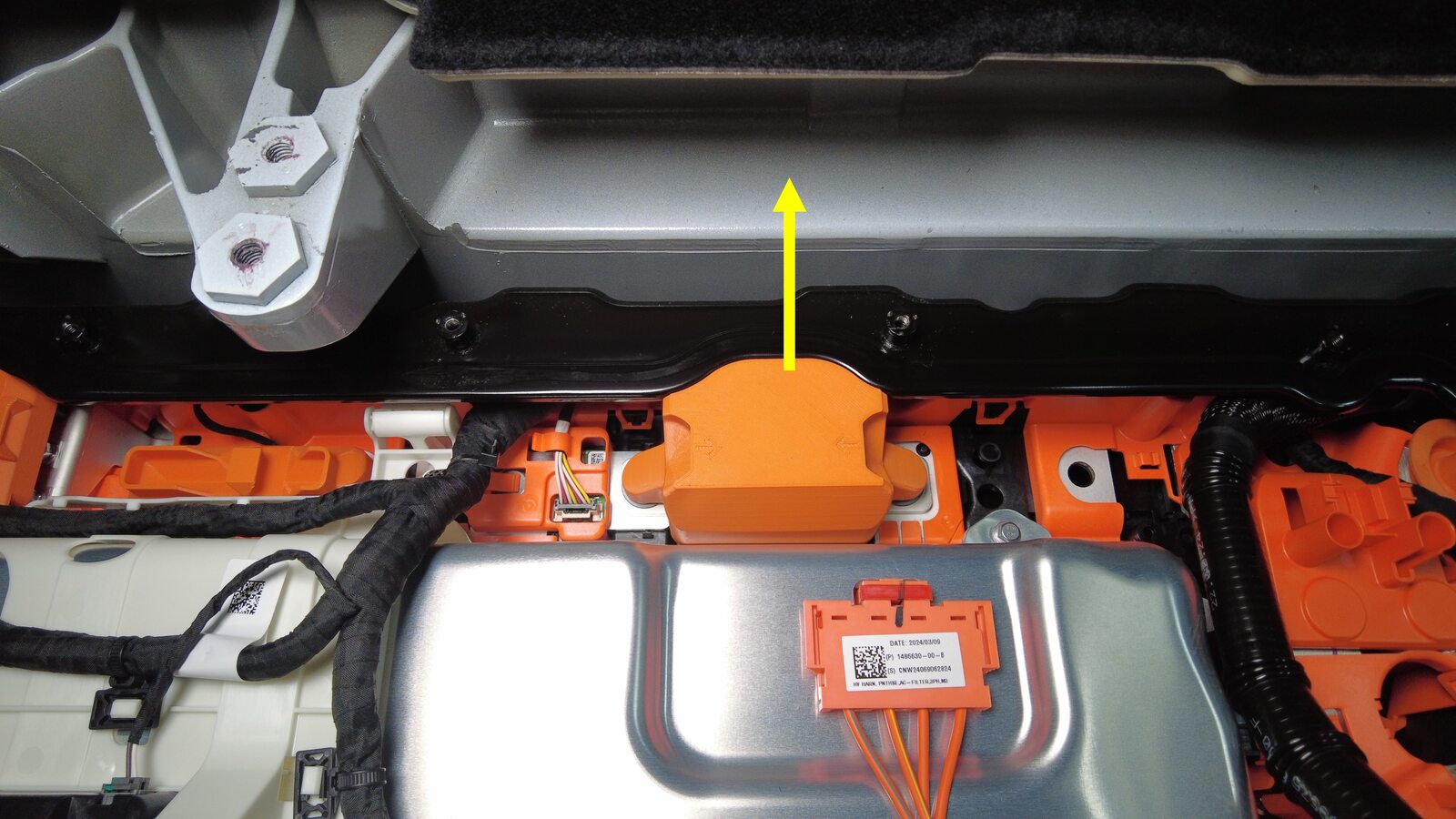

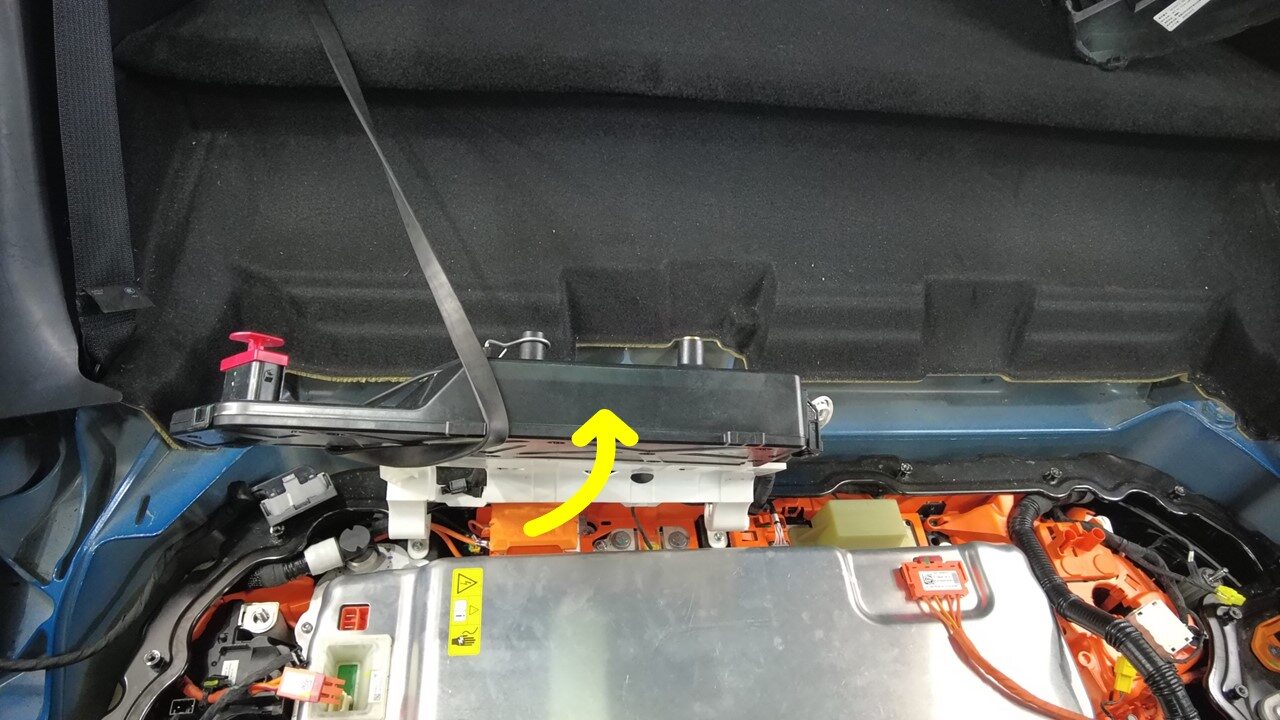

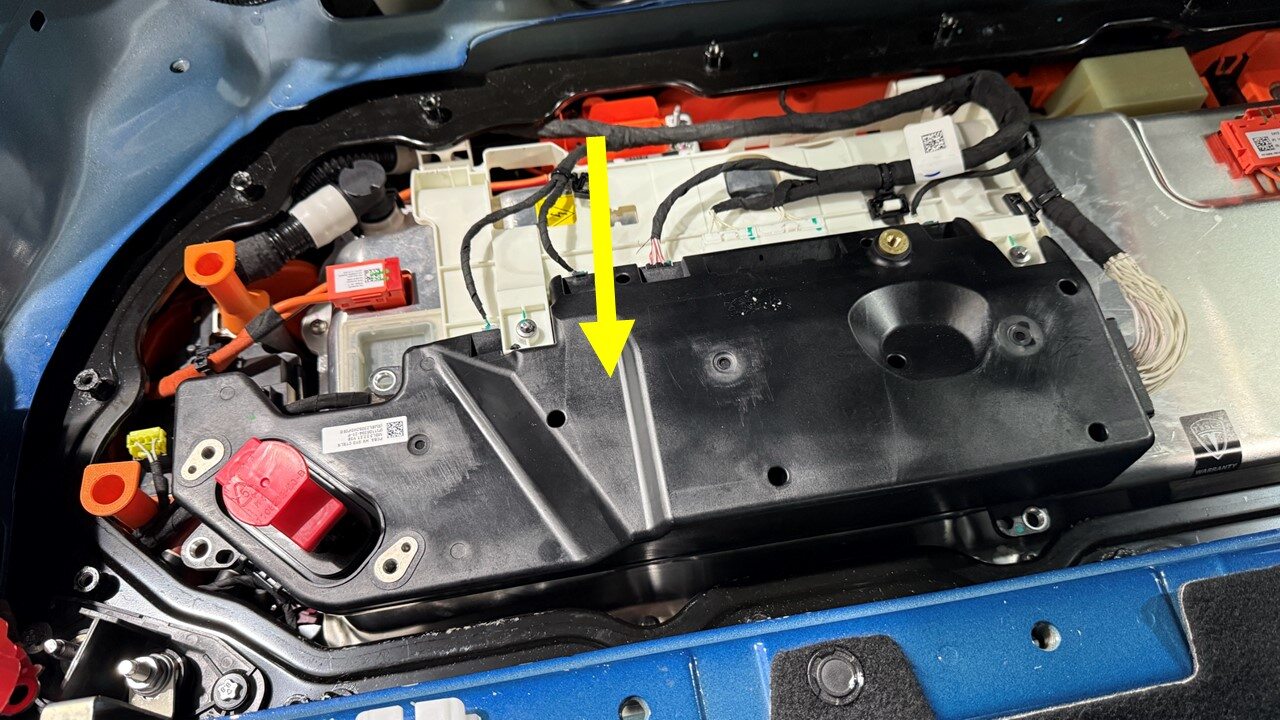

43. Lift HV Controller up
    참고

    Hold HVC assembly and tray in upward positition with rubber bungee

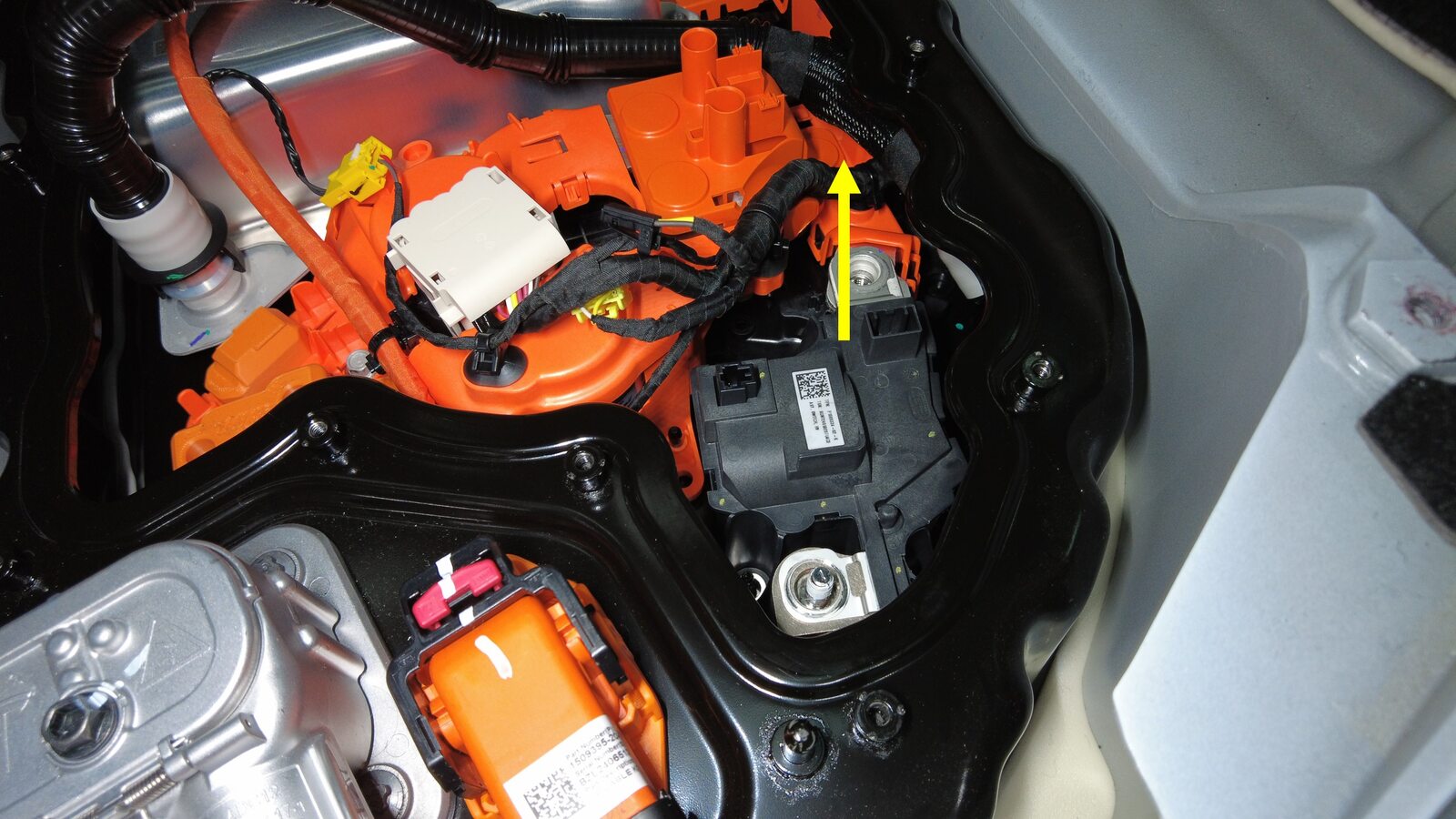

44. Disconnect PCS to DC bus HV connector
    참고

    1x connector, Release the locking tab by pulling upward, May need plastic trim tool to help lift the connector upward



45. Disconnect PCS logic connector from PCS
    참고

    1x connector



46. Disconnect PCS LV connector from PCS
    참고

    1x connector, Release the locking tab by pulling upward, May need plastic trim tool to help lift the connector upward



47. Remove nut securing DCDC ground busbar to HV battery
    참고

    1x nut, 13mm, 9 Nm, Discard nut after removal



48. Gently lift the DCDC ground busbar upwards



49. Remove bolts securing DCDC pass through to ancillary bay
    참고

    2x bolts, E10 5-Lobe, 10 Nm



50. Remove DCDC pass through from ancillary bay
    참고

    Attention: To avoid metal damage to the cable insulation layer

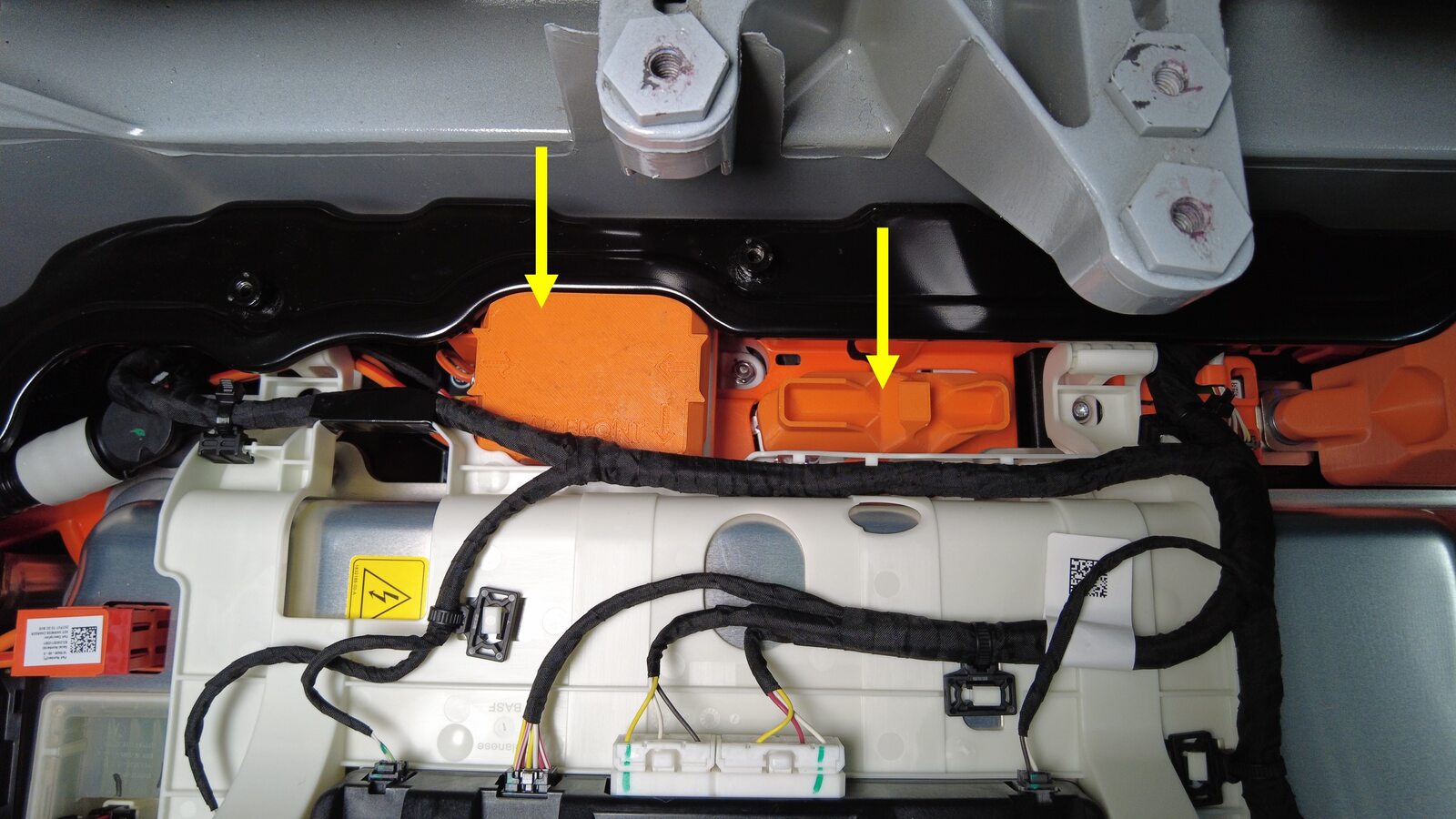

51. Disconnect ancillary bay harness connectors from positive pack contactor
    참고

    2x connectors

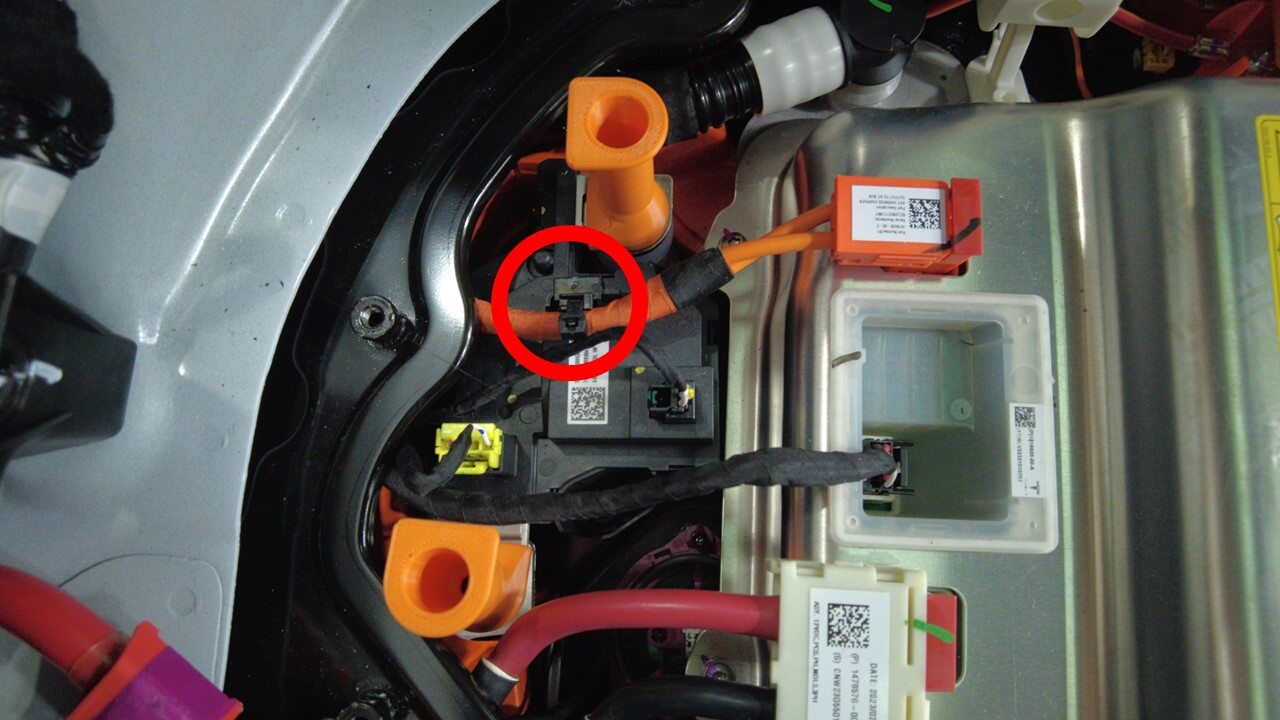

52. Remove HV PCS to DC Bus harness clip from positive pack contactor
    참고

    1x clip

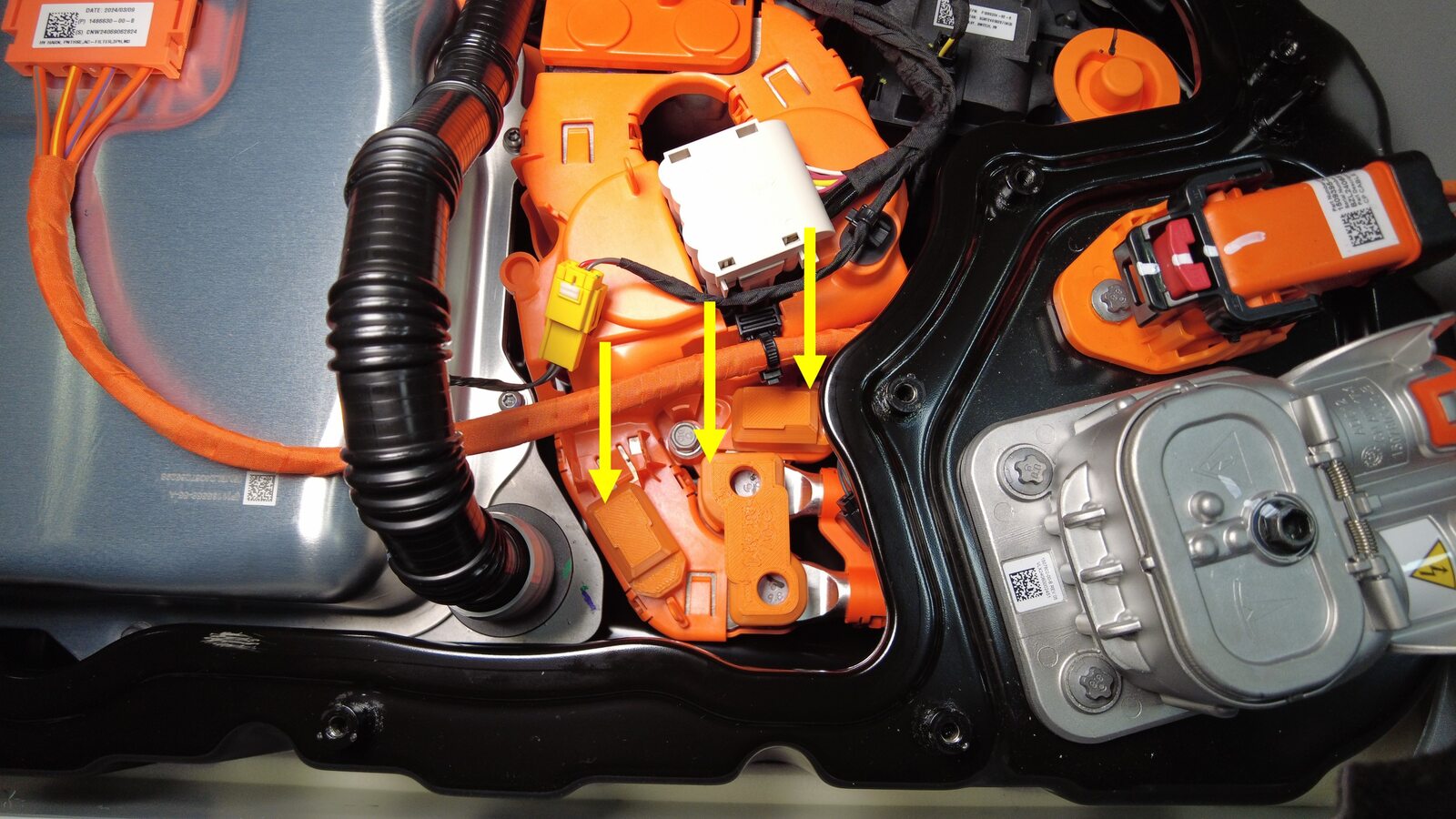

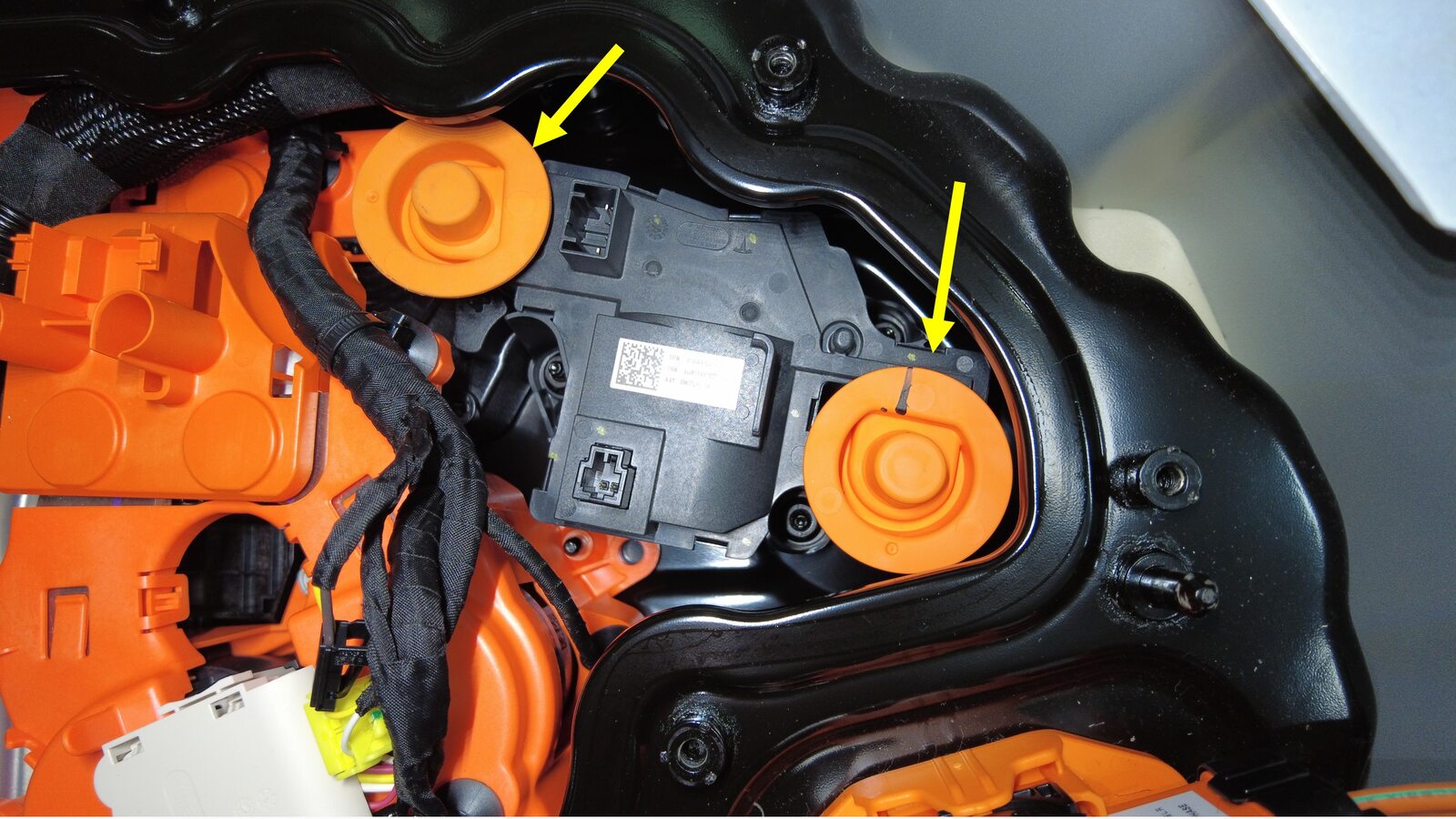

53. Remove HV joint insulators from positive HV switch
    참고

    2x insulators

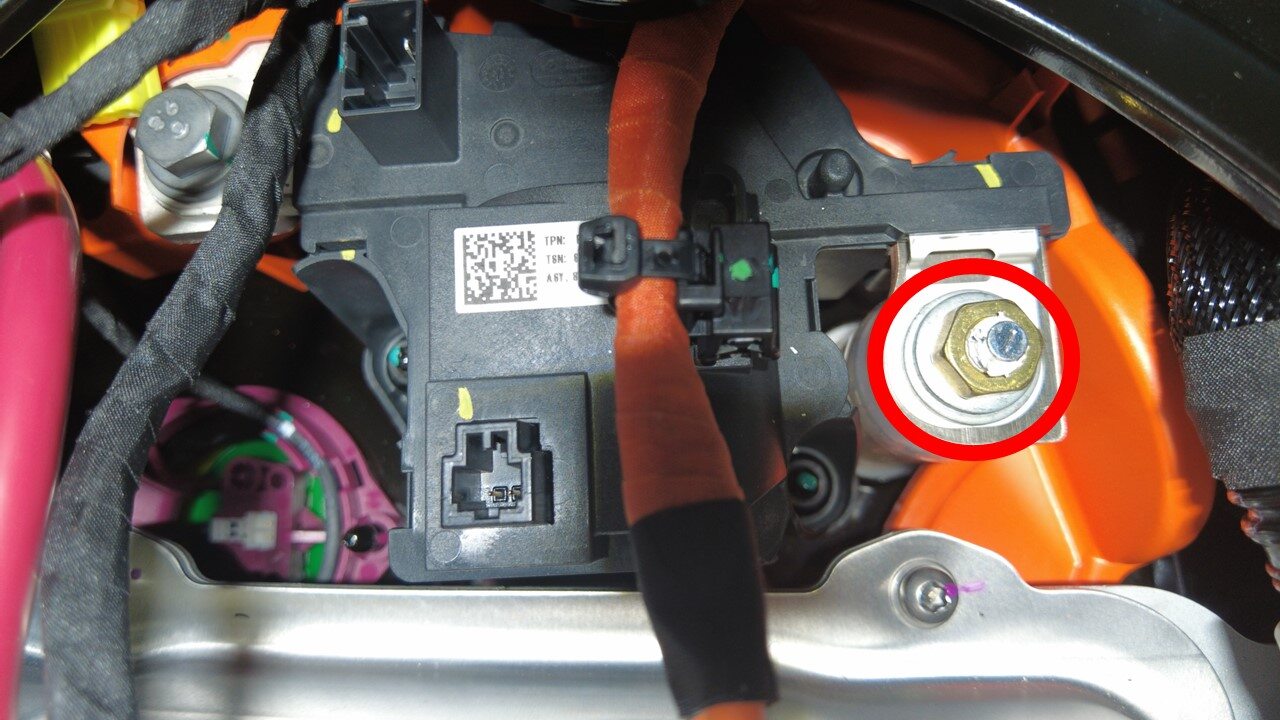

54. Remove bolt securing positive pack contactor to positive busbar
    참고

    1x patch bolt, 13mm, 9 Nm, Discard after removal

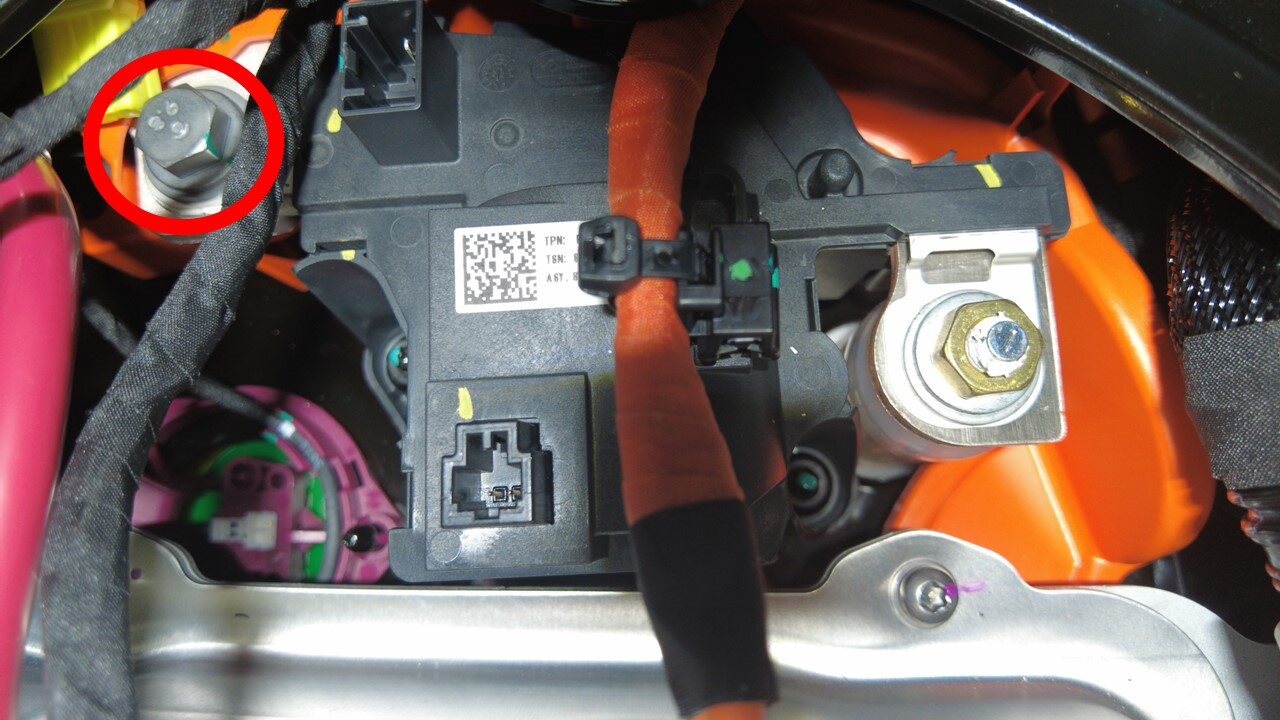

55. Remove nut securing positive pack contactor to module 4 rear terminal
    참고

    1x patch nut, 13mm, 9 Nm, Discard after removal

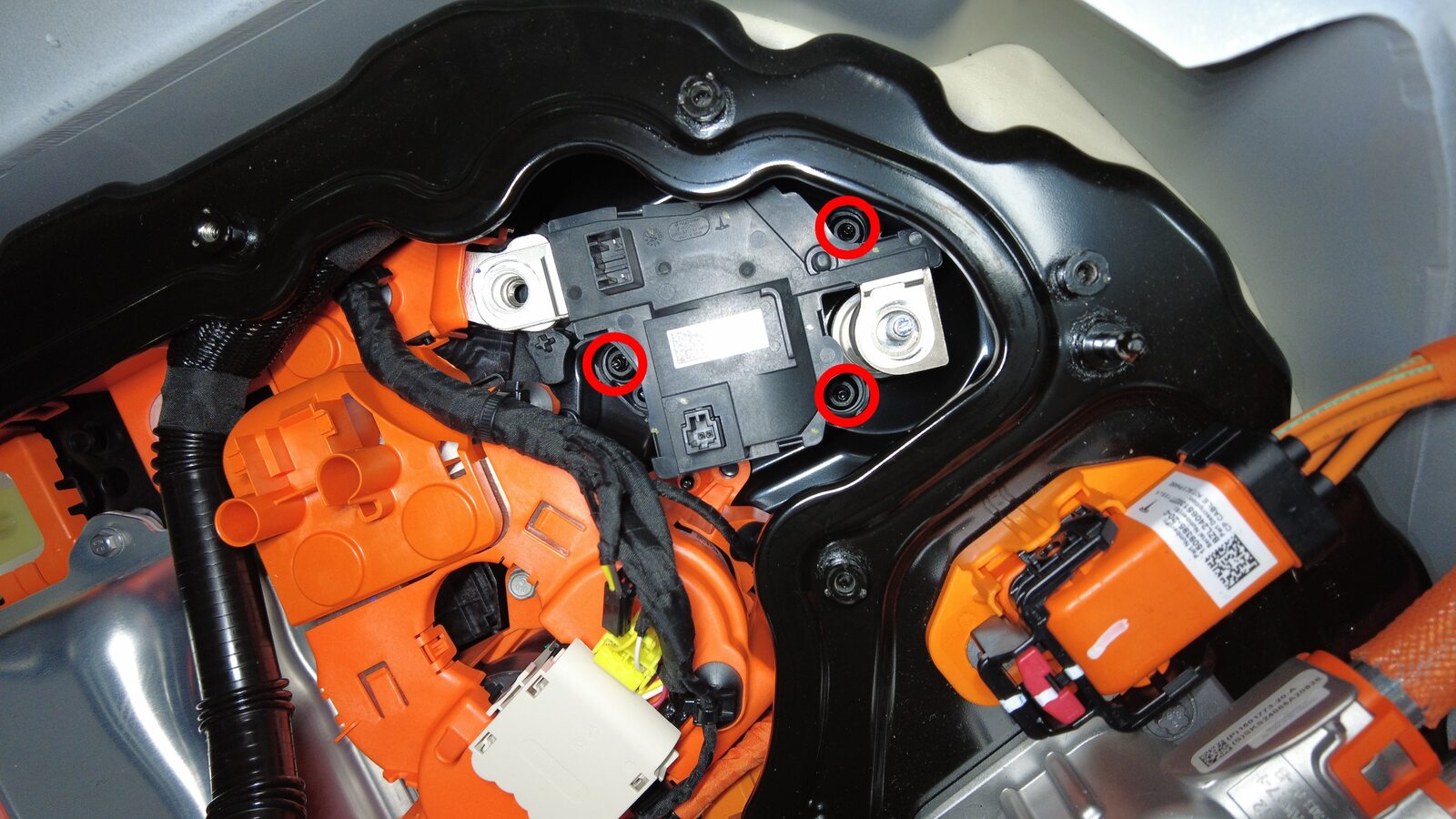

56. Remove nuts securing positive pack contactor to ancillary bay
    참고

    3x nuts, 10mm, 8 Nm, Use insulated magnet to retrieve the nuts after removal, The number of nuts on newer vehicles may vary

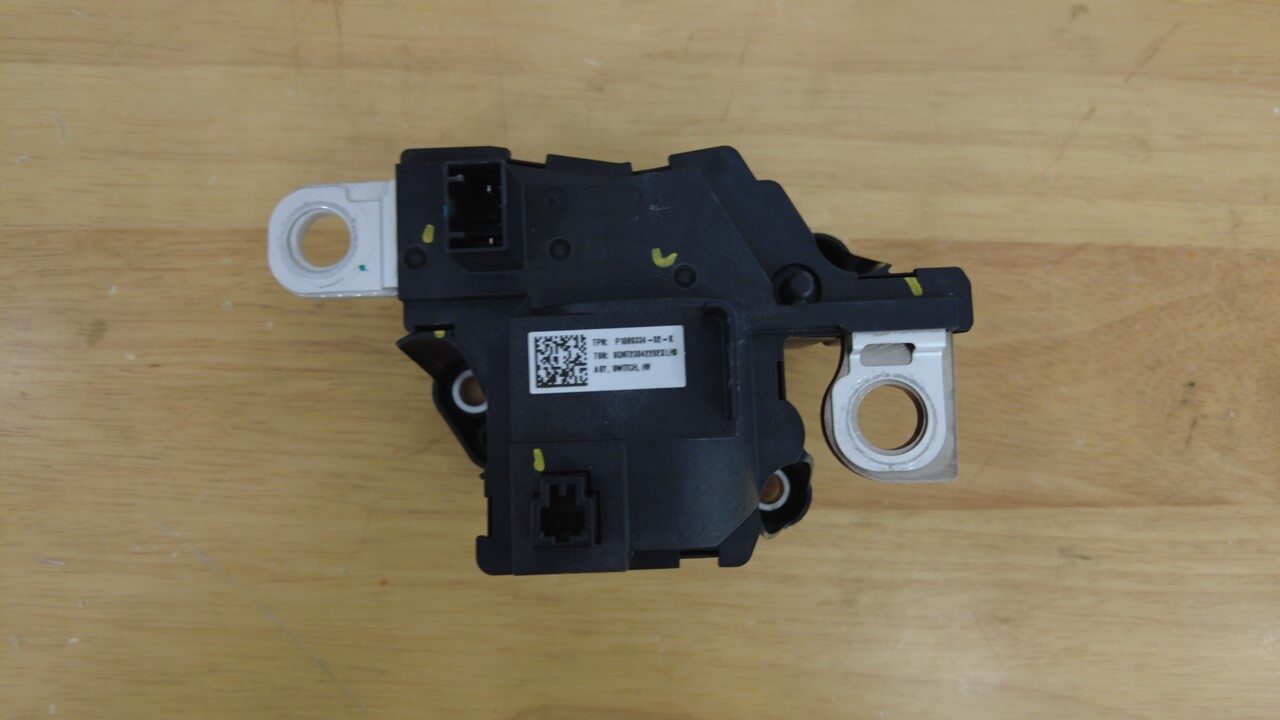

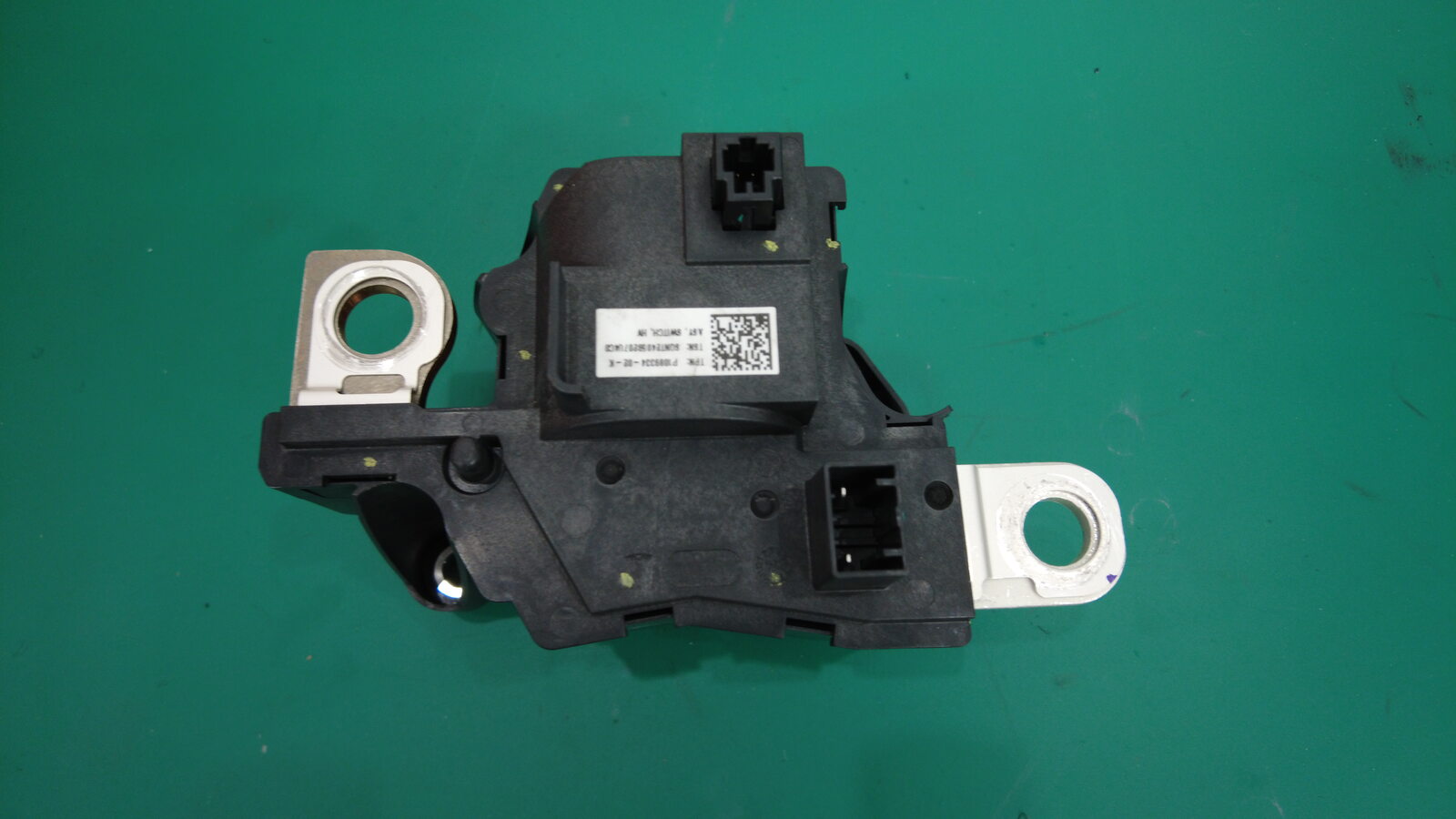

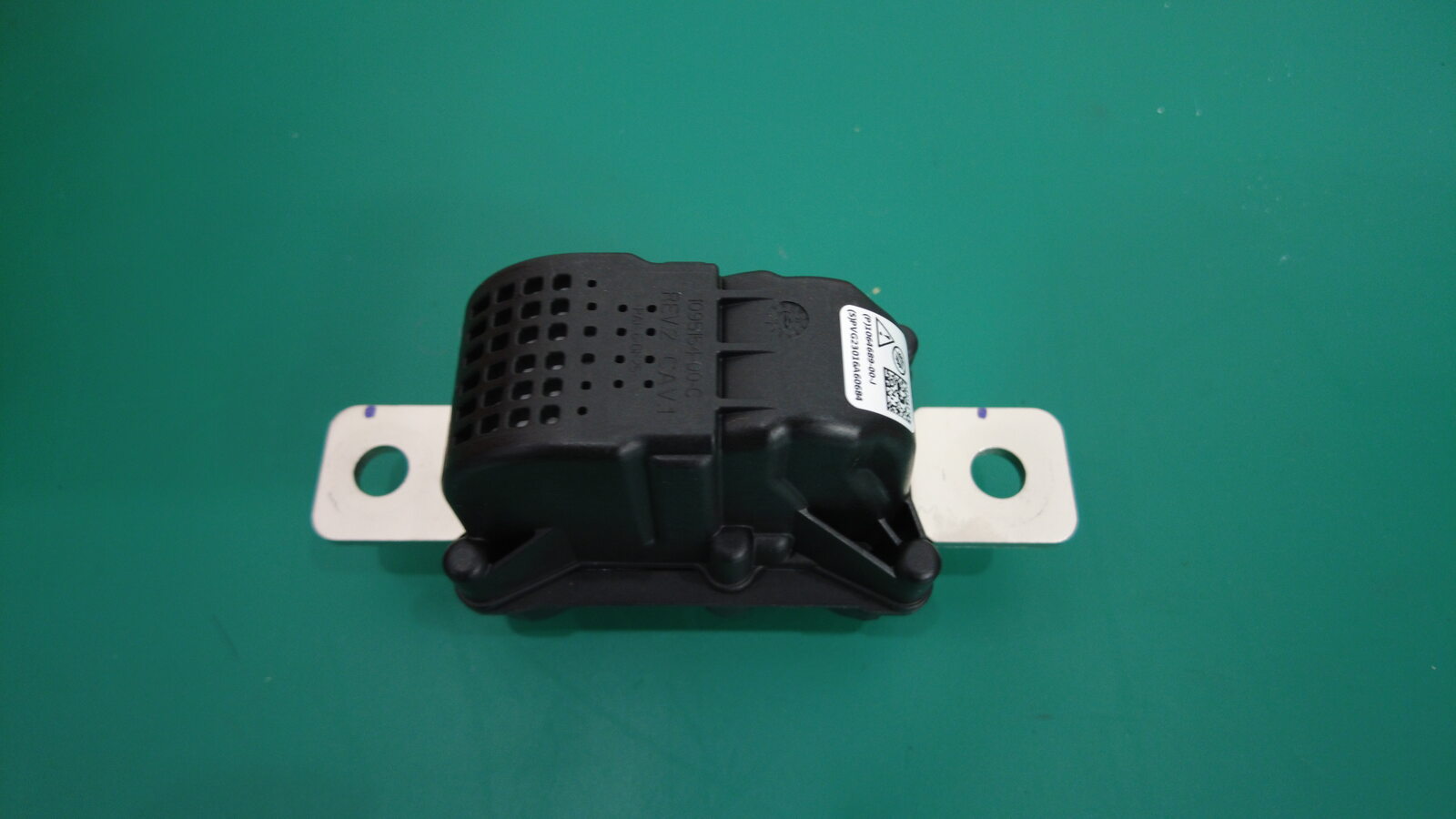

57. Remove positive pack contactor from ancillary bay
    참고

    2x guide pins







58. Position positive pack contactor to ancillary bay for installation
    참고

    2x guide pins







59. Install nuts securing positive pack contactor to ancillary bay
    참고

    3x nuts, 10mm, 8 Nm, Use insulated magnet as needed to position nuts onto studs, The number of nuts on newer vehicles may vary



60. Install bolt securing positive pack contactor to positive busbar
    참고

    1x patch bolt, 13mm. 9 Nm, Install new patch bolt, Mark after torque



61. Install nut securing positive pack contactor to HV battery tall terminal to module 4 rear terminal
    참고

    1x patch nut, 13mm, 9 Nm, Install new patch nut, Mark after torque

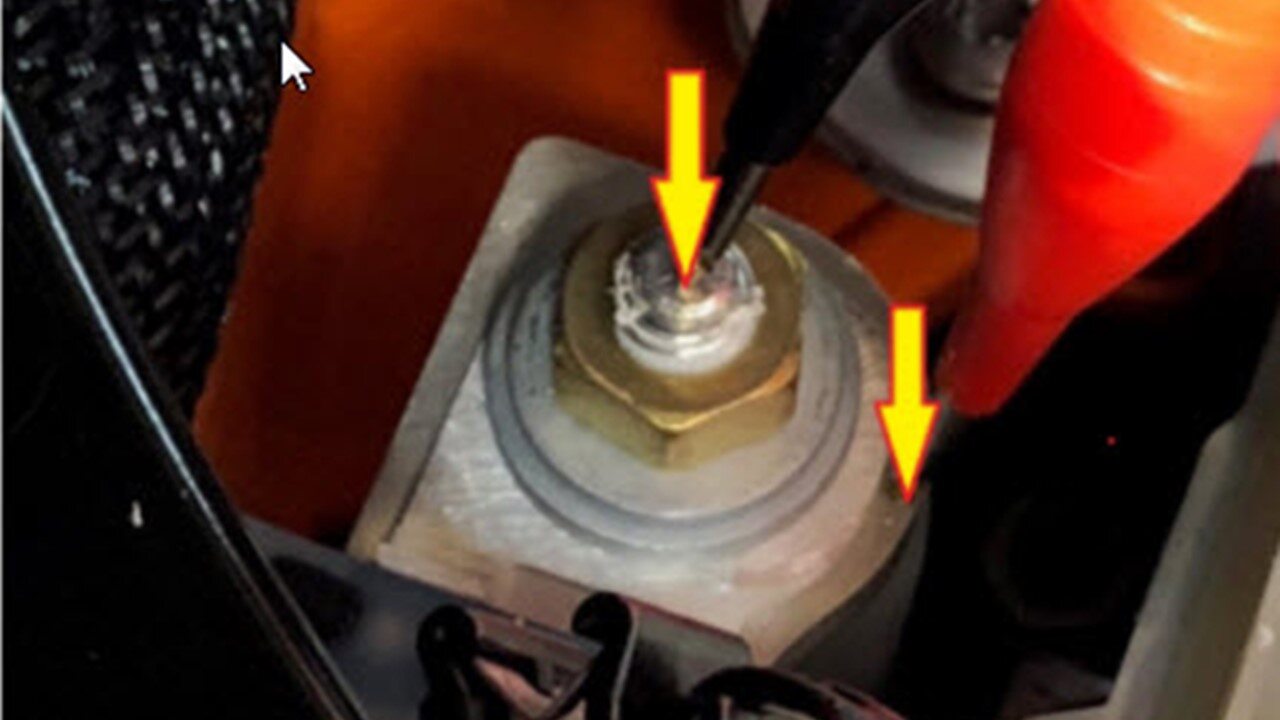

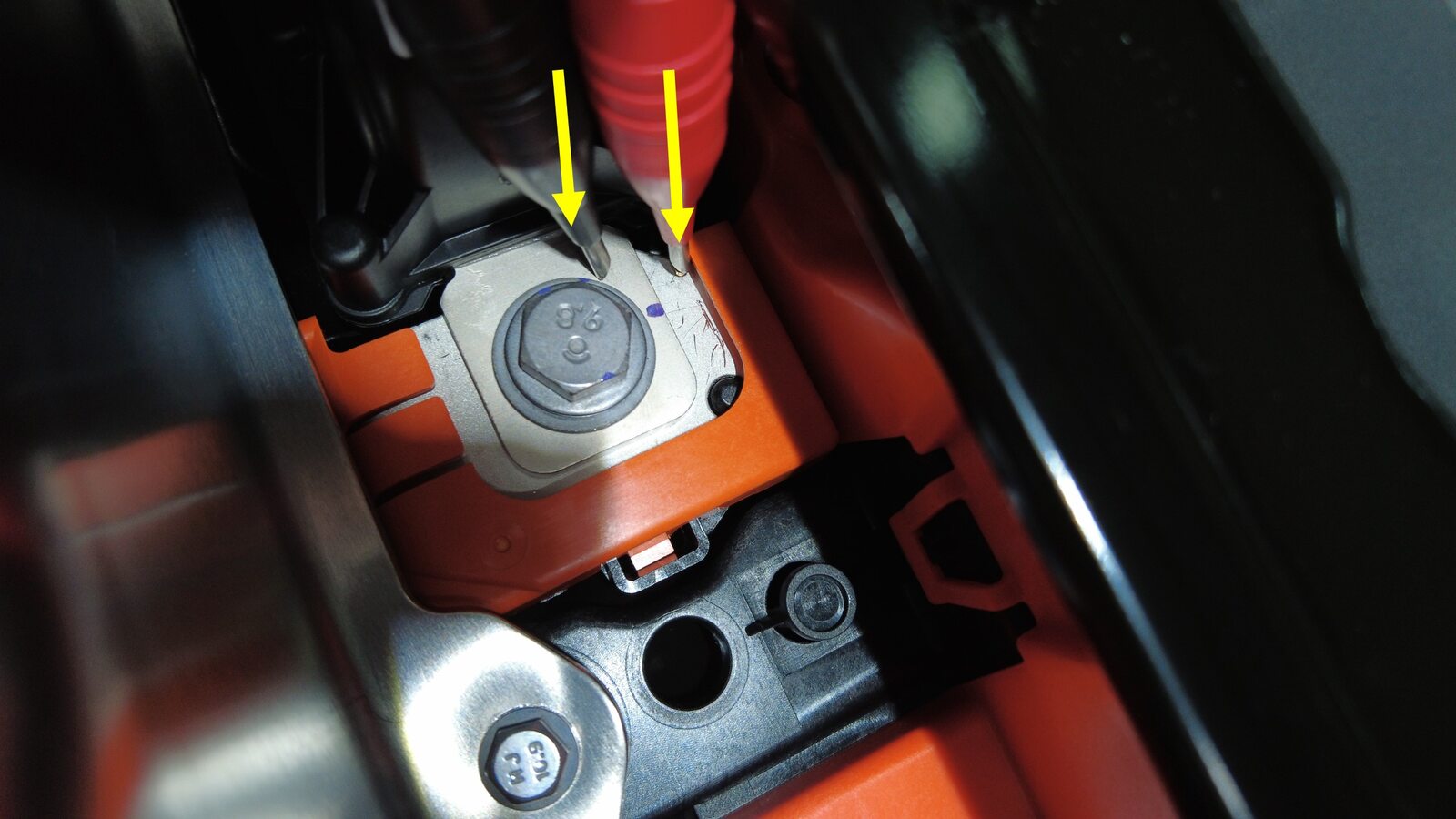

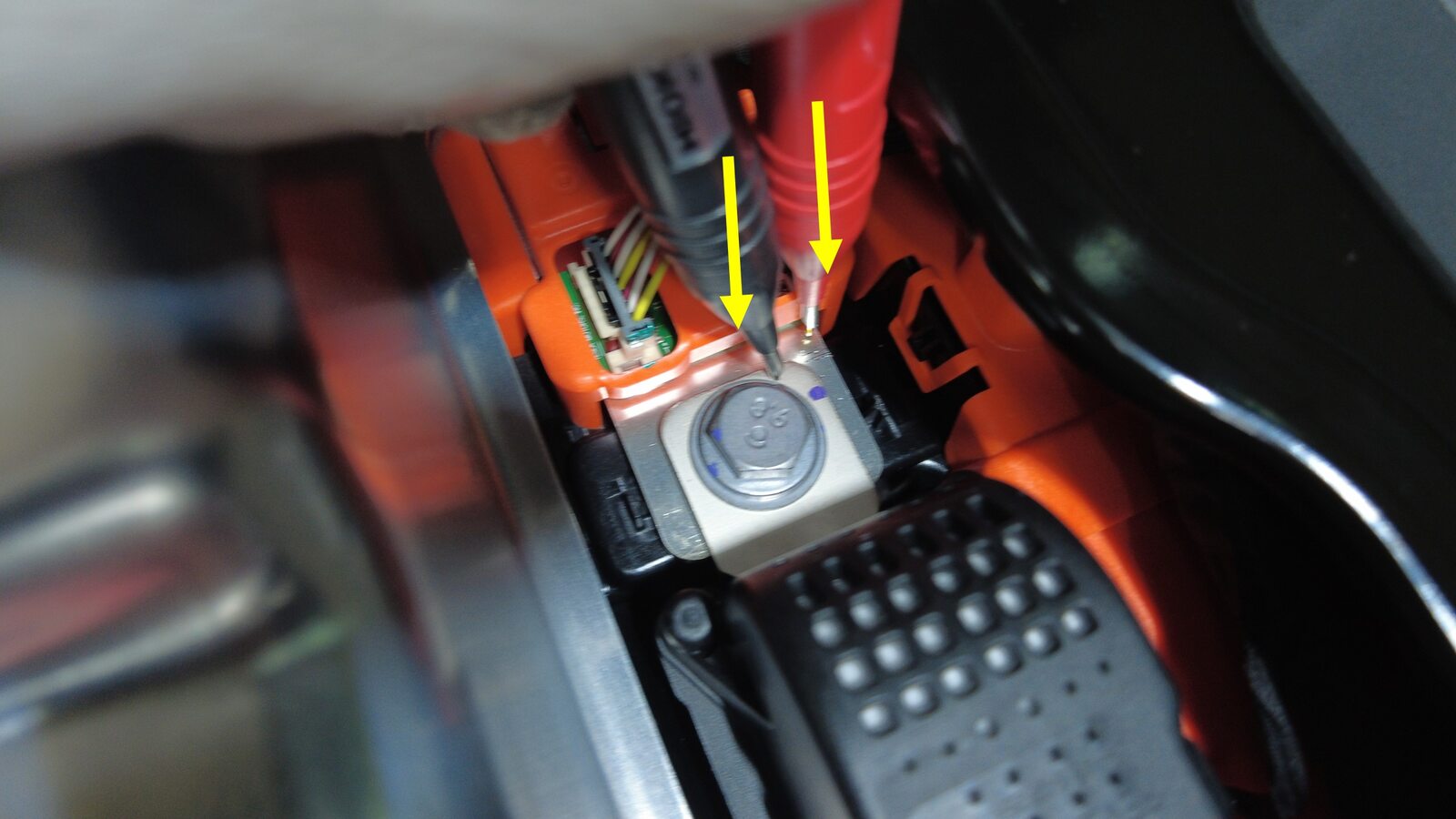

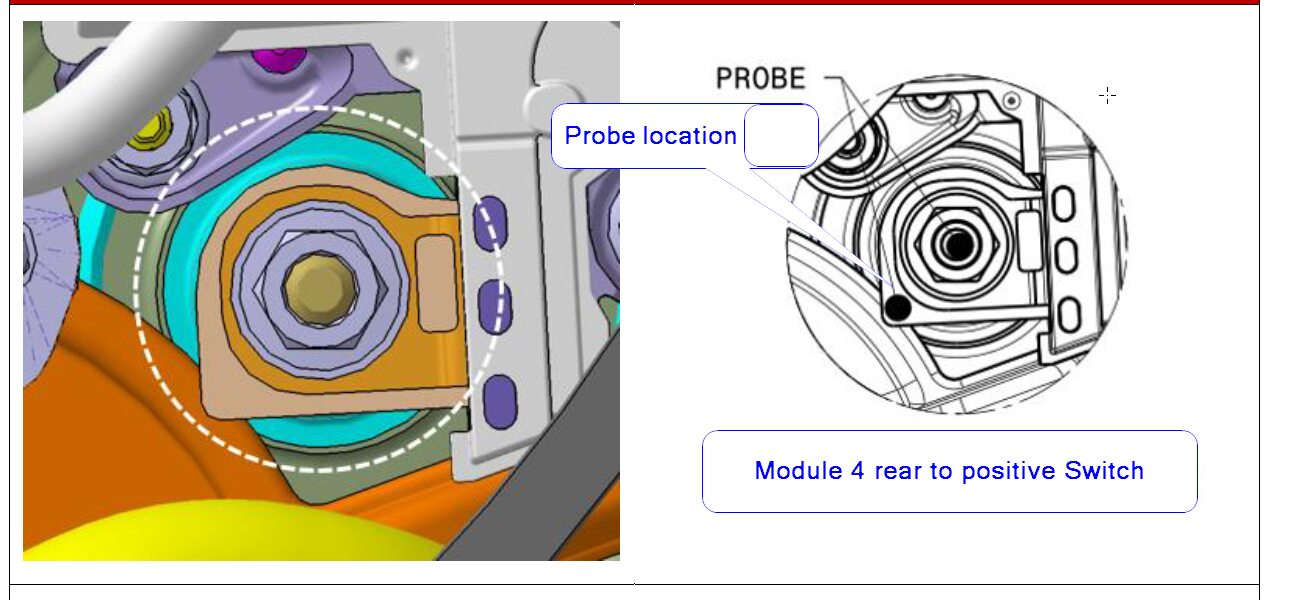

62. Measure resistance from HV joint between HV battery positive contactor and center of HV battery positive terminal
    참고

    1x HV joint, 110μΩ or less

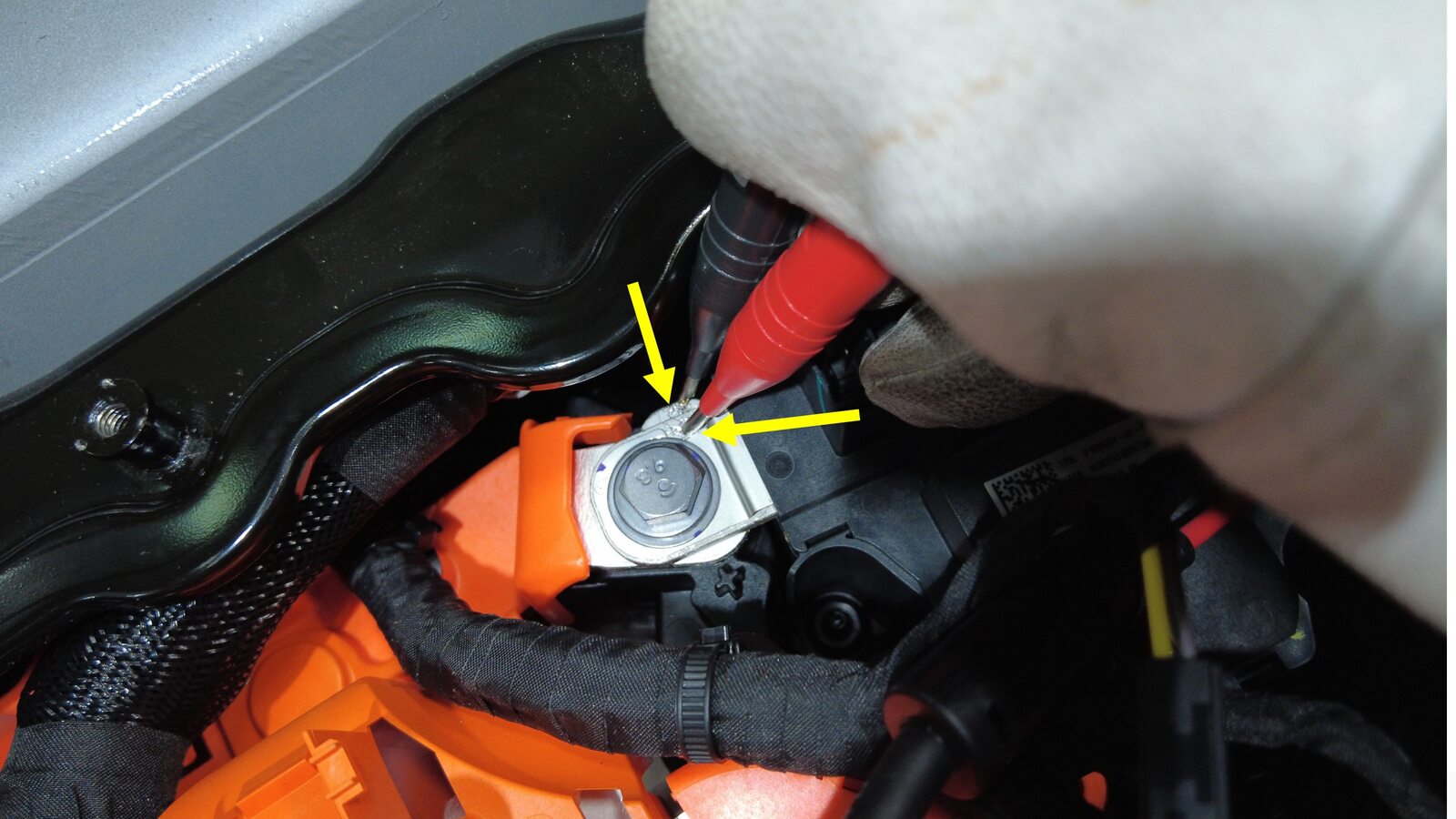

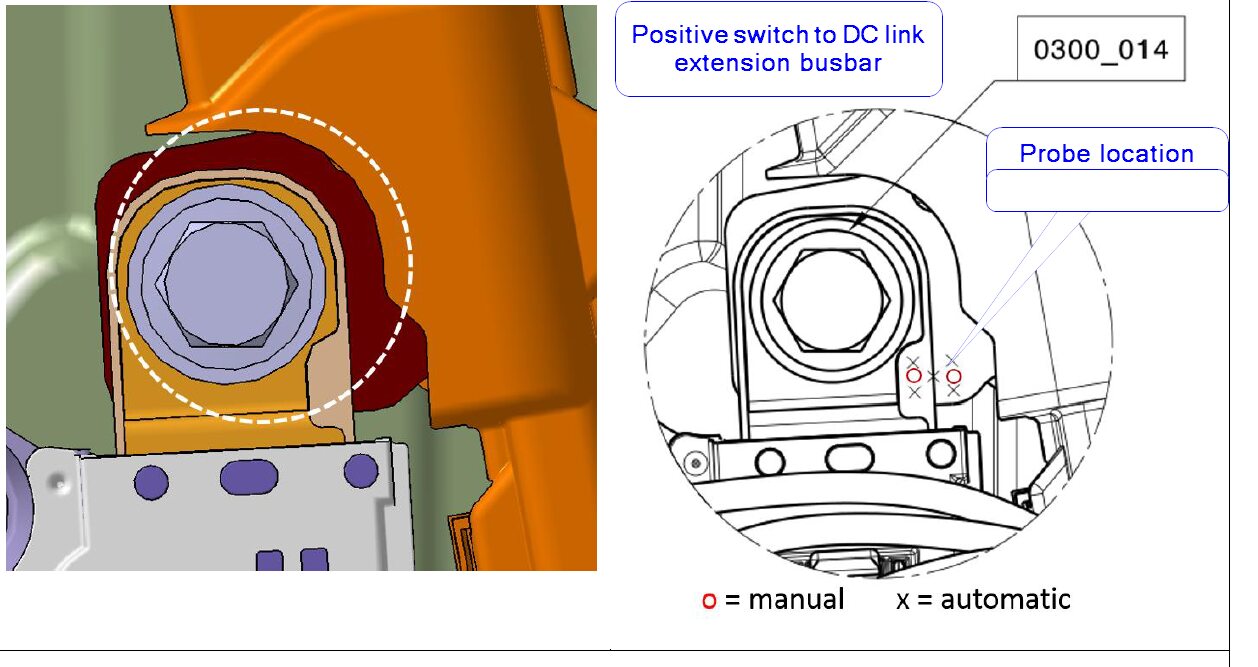

63. Perform Hioki impedance test at HV joint of positive pack contactor to DC link busbar
    참고

    1x HV joint, The acceptable resistance is between 0.020 mΩ (20 μΩ) and 0.060 mΩ (60 μΩ), If the resistance is greater than 0.060 mΩ (60 μΩ), stop work and escalate a Toolbox session. If the resistance is less than 0.020 mΩ (20 μΩ), reposition the probes and measure again.





64. Install HV joint insulators onto positive pack contactor
    참고

    2x insulators



65. Install ancillary bay harness clip to positive pack contactor
    참고

    1x clip



66. Connect ancillary bay harness connectors to positive pack contactor
    참고

    2x connectors

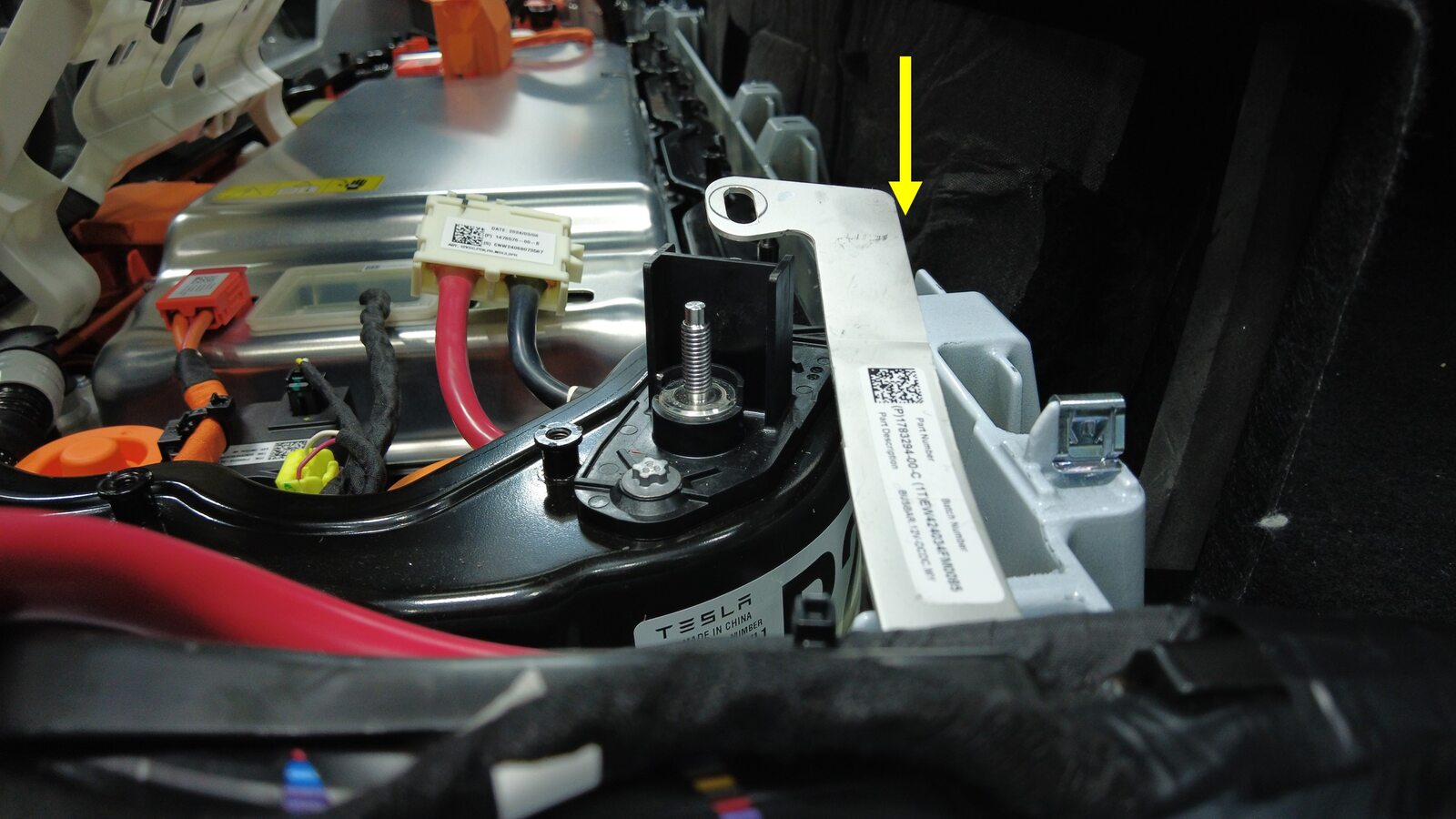

67. Position DCDC pass through to ancillary bay for installation
    참고

    Attention: To avoid metal damage to the cable insulation layer





68. Install bolts securing DCDC pass through to ancillary bay
    참고

    2x bolts, E10 5-Lobe, 10 Nm, Mark the bolts after torque



69. Install DCDC ground busbar to HV battery
    참고

    Gently press down



70. Install nut securing DCDC ground busbar to HV battery
    참고

    1x nut, 13mm, 9 Nm, Install new nut



71. Connect PCS LV connector to PCS
    참고

    1x connector, Push connector downward then push the locking tab downward to install connector, Make sure the connector is fully seated



72. Connect PCS logic connector to PCS
    참고

    1x connector



73. Connect PCS to DC bus HV connector
    참고

    1x connector, Push connector downward then push the locking tab downward to install connector, Make sure the connector is fully seated



74. Lower HV Controller back into place
    참고

    Remove bungee and slowly lower controller



75. Disconnect ancillary bay harness connectors from negative pack contactor
    참고

    2x connectors



76. Remove HV joint insulators from negative pack contactor
    참고

    2x insulators



77. Remove bolt securing negative pack contactor to DC link busbar joint
    참고

    1x patch bolt, 13mm, 9 Nm, Discard after removal



78. Remove nut securing negative pack contactor to HV battery tall silicon terminal
    참고

    1x patch nut, 13mm, 9 Nm, Discard after removal



79. Remove nuts securing negative pack contactor to ancillary bay
    참고

    3x nuts, 10mm, 8 Nm, Use insulated magnet to retrieve the nuts after removal, The number of nuts on newer vehicles may vary



80. Remove negative pack contactor from ancillary bay
    참고

    2x guide pins







81. Position negative pack contactor to ancillary bay for installation
    참고

    2x guide pins







82. Install nuts securing negative pack contactor to ancillary bay
    참고

    3x nuts, 10mm, 8 Nm, Use insulated magnet as needed to position nuts onto studs



83. Install nut securing negative pack contactor to HV battery tall terminal
    참고

    1x patch nut, 13mm, 9 Nm, Install new patch nut, Mark after torque



84. Install bolt securing negative pack contactor to DC link busbar joint
    참고

    1x patch bolt, 13mm, 9 Nm, Install new patch bolt, Mark after torque

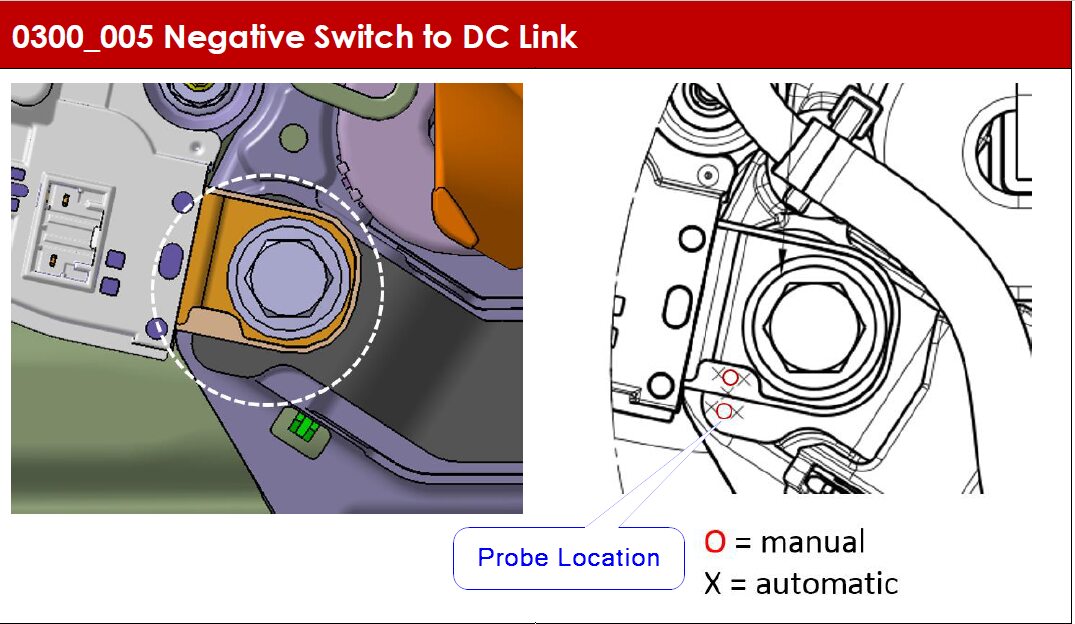

85. Perform Hioki impedance test at HV joint of negative pack contactor to negative DC link busbar
    참고

    1x HV joint, The acceptable resistance is between 0.020 mΩ (20 μΩ) and 0.060 mΩ (60 μΩ), If the resistance is greater than 0.060 mΩ (60 μΩ), stop work and escalate a Toolbox session. If the resistance is less than 0.020 mΩ (20 μΩ), reposition the probes and measure again.

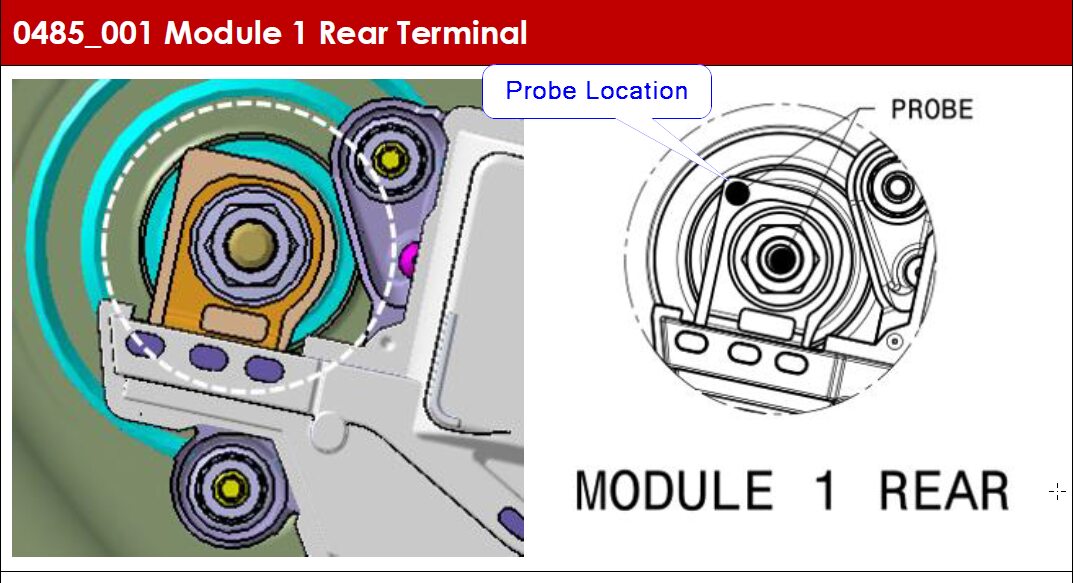

86. Perform Hioki impedance test at negative pack contactor to module 1 rear terminal
    참고

    1x HV joint, 110μΩ or less





87. Install HV joint insulators to negative pack contactor
    참고

    2x insulators



88. Connect ancillary bay harness connectors to negative pack contactor
    참고

    2x connectors



89. Remove pyro disconnect dummy



90. Clean mating surface of pyro
    참고

    Allow to 1 minute dry time, Use an IPA wipe to clean the HV mating surfaces of the shunt, Busbar, And the pyrotechnic battery disconnect

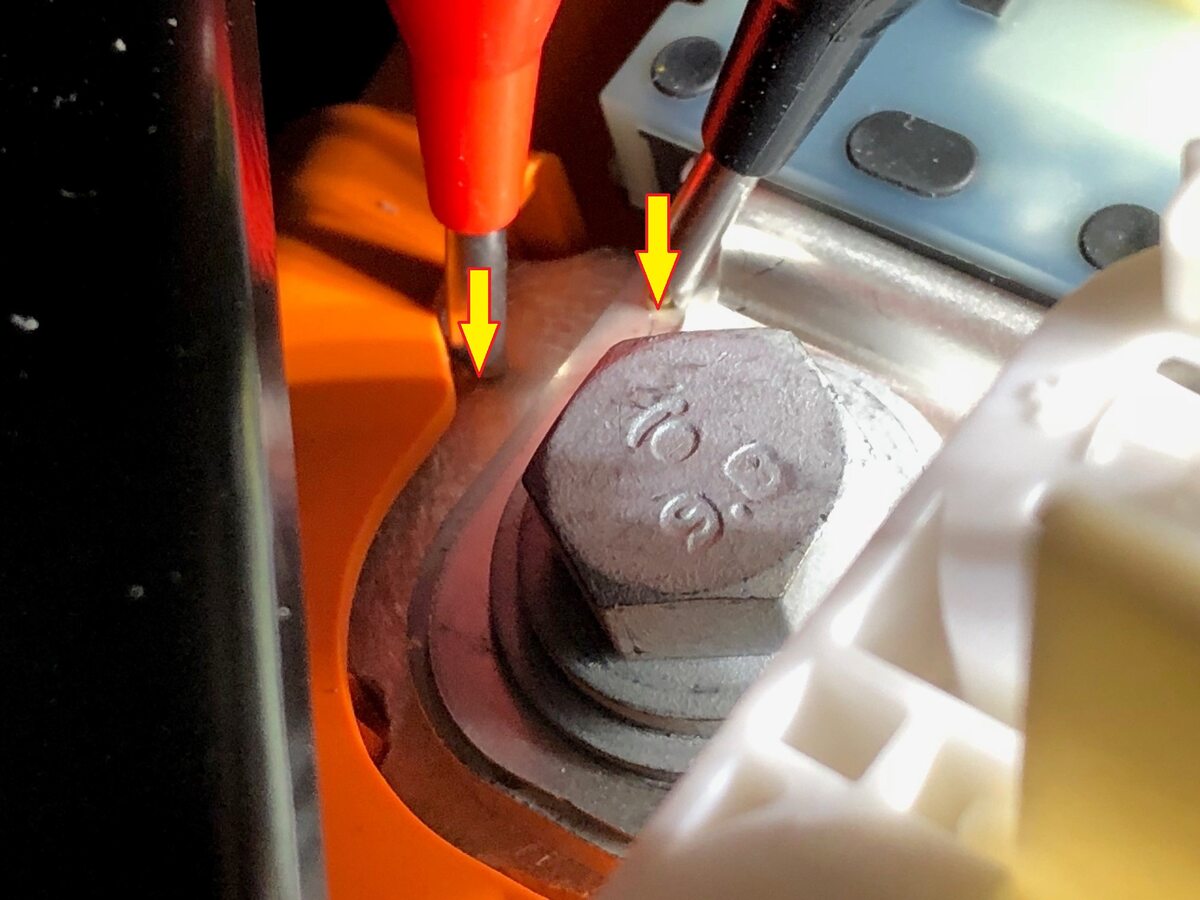

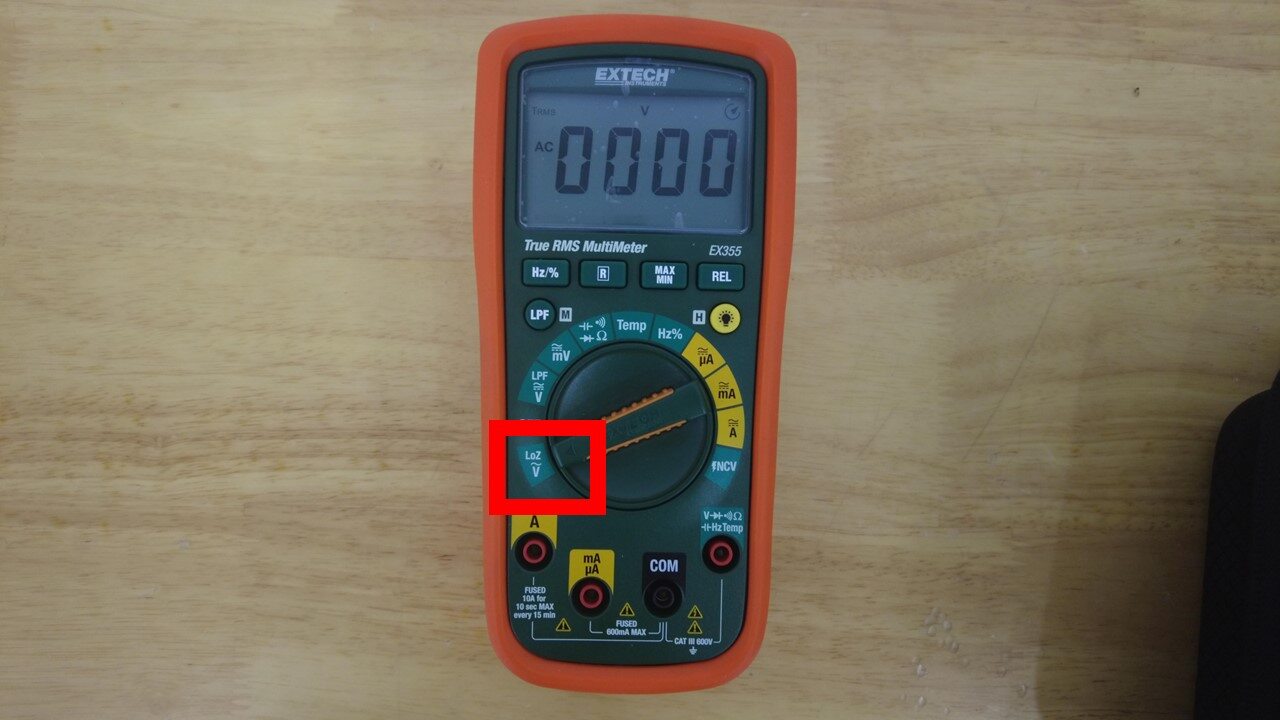

91. Set multimeter to "LoZ" (low impedance) mode



92. Measure voltage between busbar and shunt
    참고

    Measure the voltage between the busbar (left) and shunt (right) for at least 10 seconds, so as to balance the voltage across the pyrotechnic battery disconnect mount points, Note: The voltage displayed on the multimeter is not as important as balancing the mount points

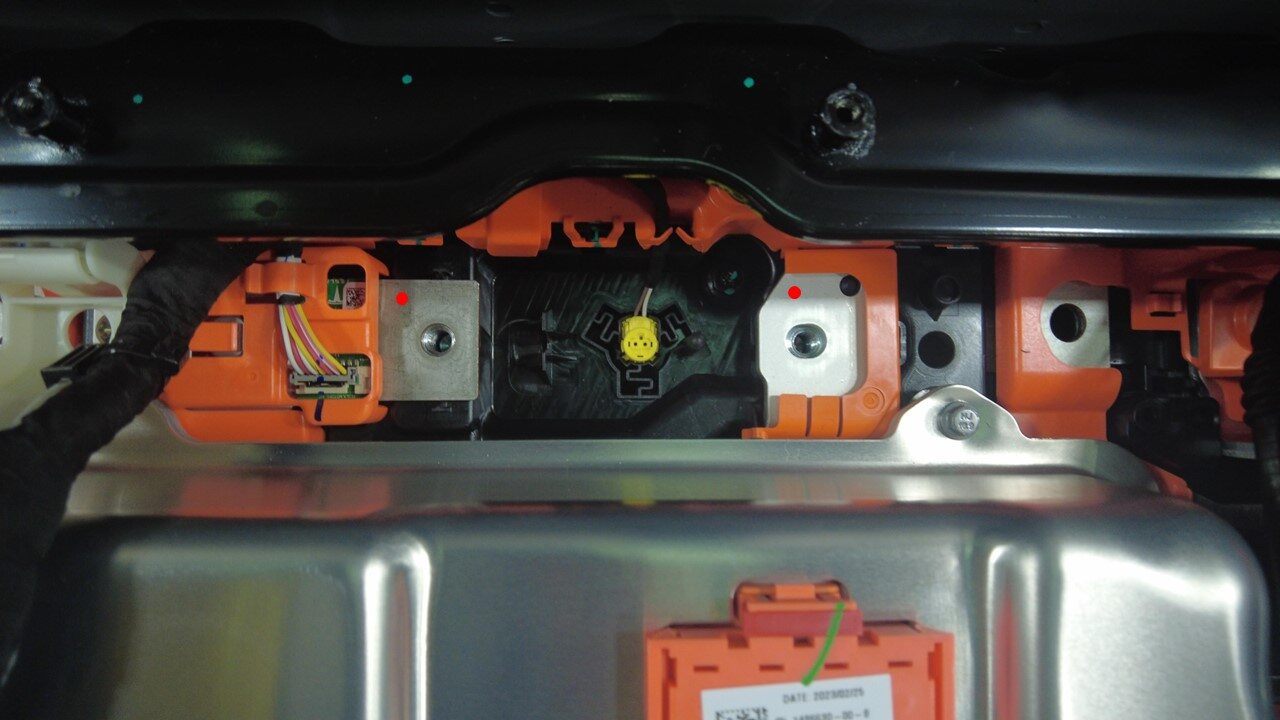

93. Position pyro disconnect to ancillary bay for installation
    참고

    1x connector, While still measuring the voltage, Have an assistant position the pyrotechnic battery disconnect into the HV battery for installation. Make sure to align the pins of the connector with the new pyrotechnic battery disconnect, And then press the pyrotechnic battery disconnect down onto the busbars, The pyro disconnect can only be installed one way









94. Install bolts securing pyro disconnect to ancillary bay
    참고

    2x patch bolts, 13mm, 9 Nm, Install new patch bolt, Mark with paint pen

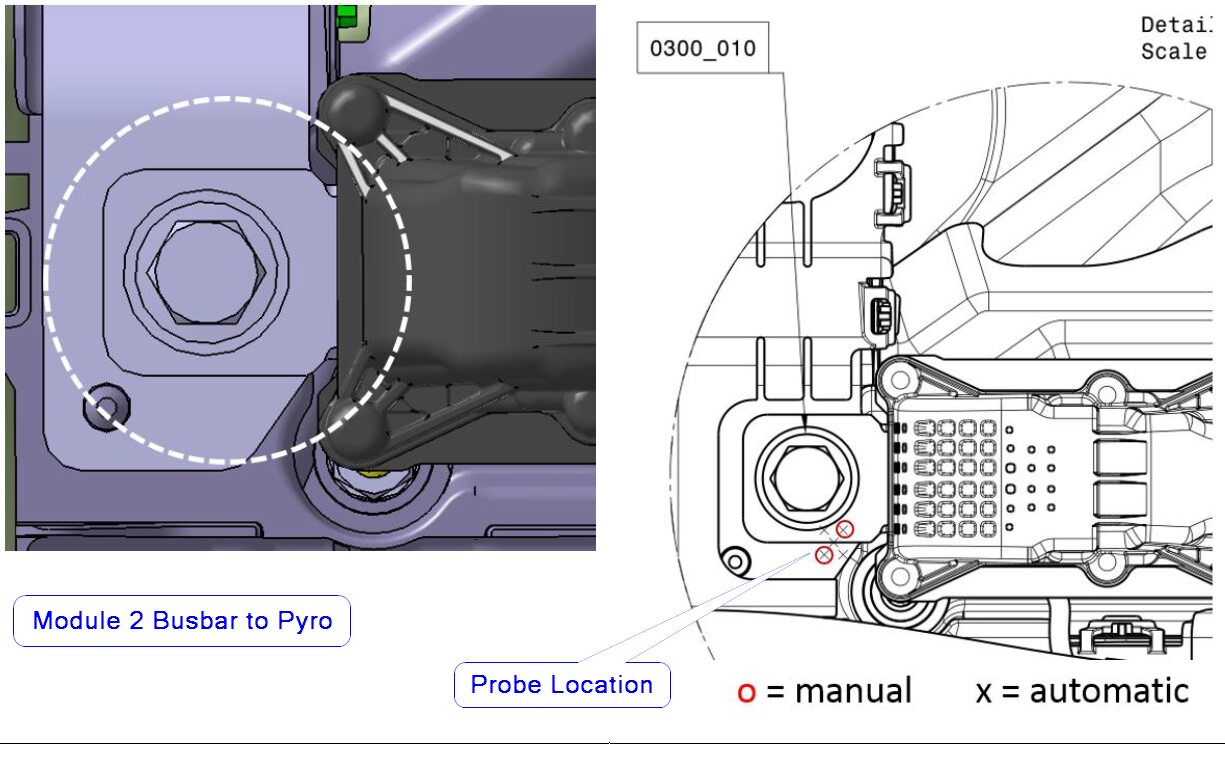

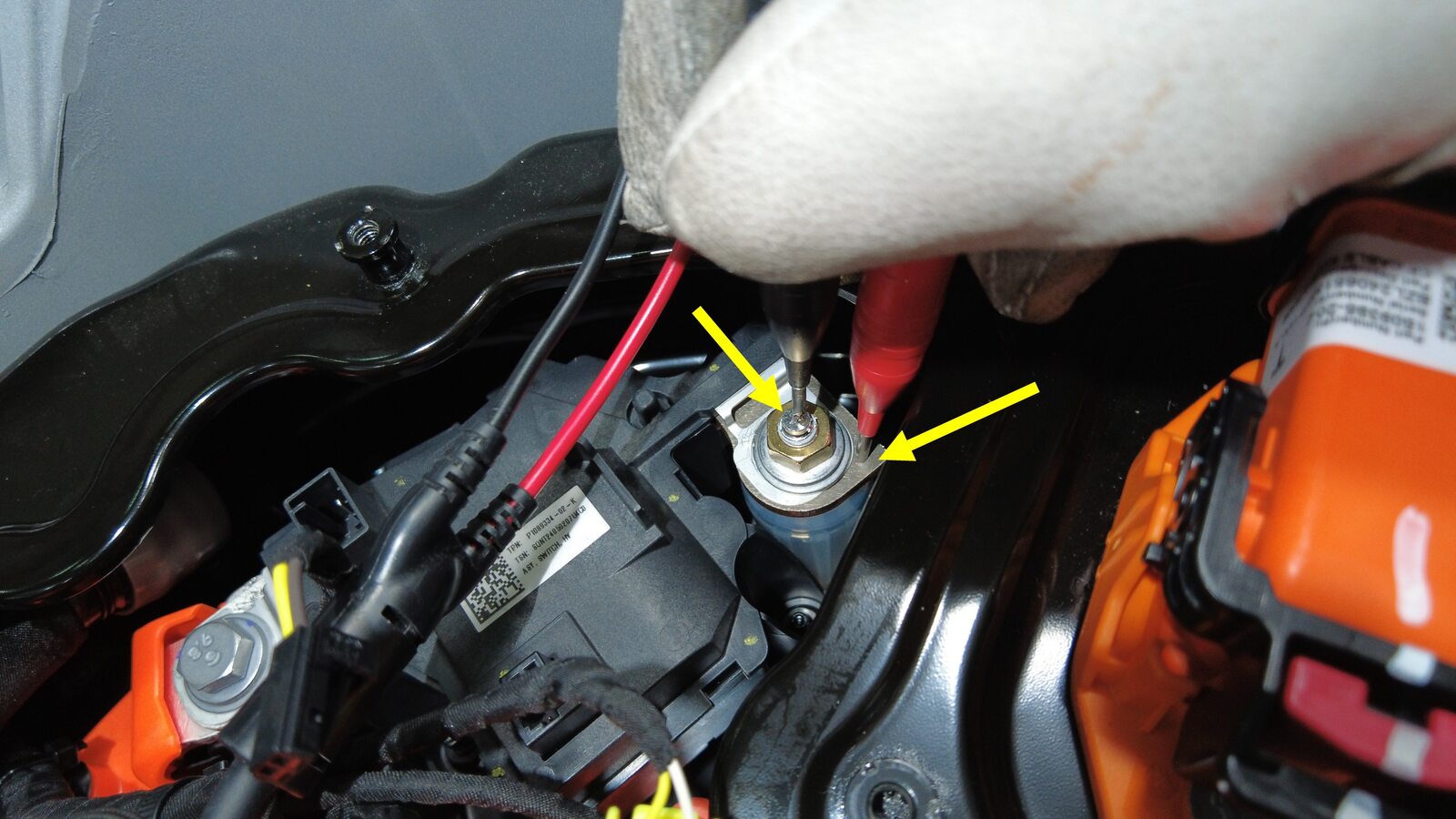

95. Measure resistance from module 2 busbar to pyro disconnect
    참고

    1x HV joint, 60μΩ or less, Perform zero adjust to Hioki meter prior to testing

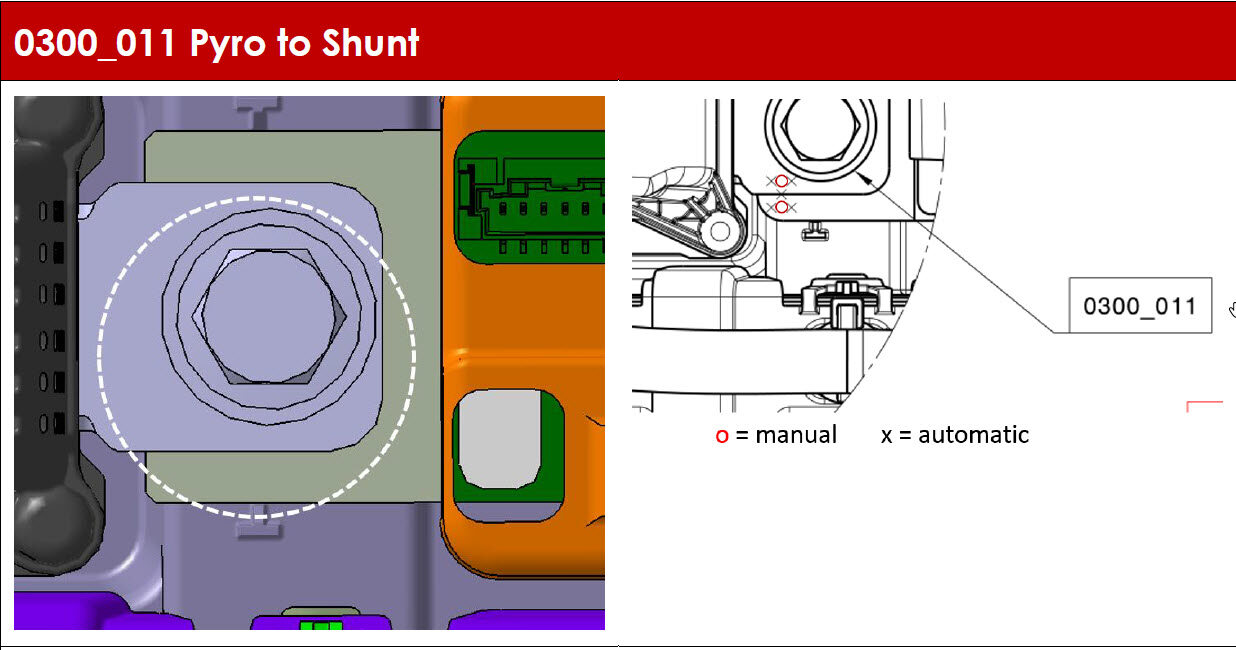

96. Measure resistance from pyro disconnect to shunt
    참고

    1x HV joint, 45μΩ or less, Perform zero adjust to Hioki meter prior to testing





97. Remove service insulator kit









98. Remove HVC logic cap
    참고

    1x logic cap

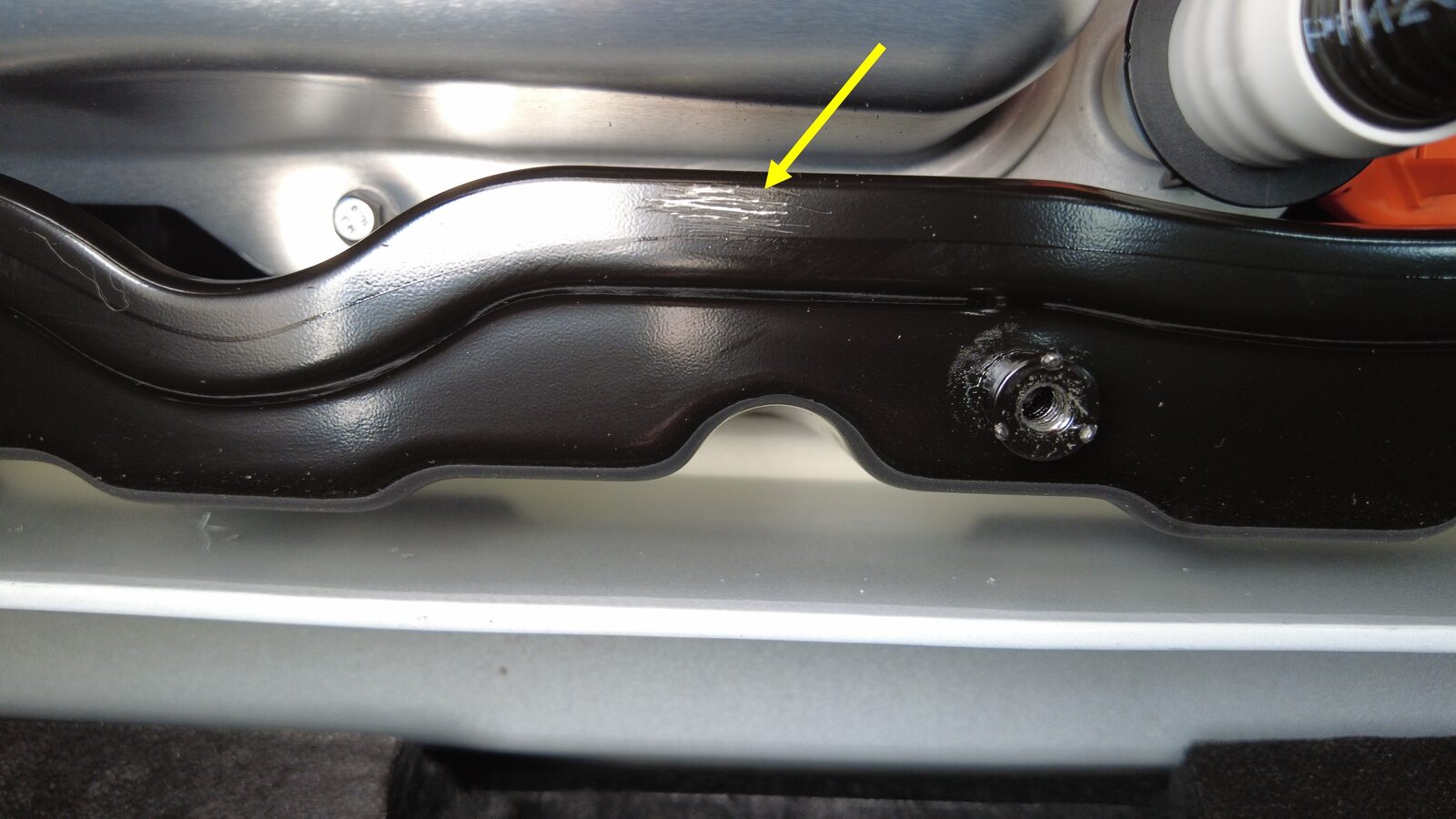

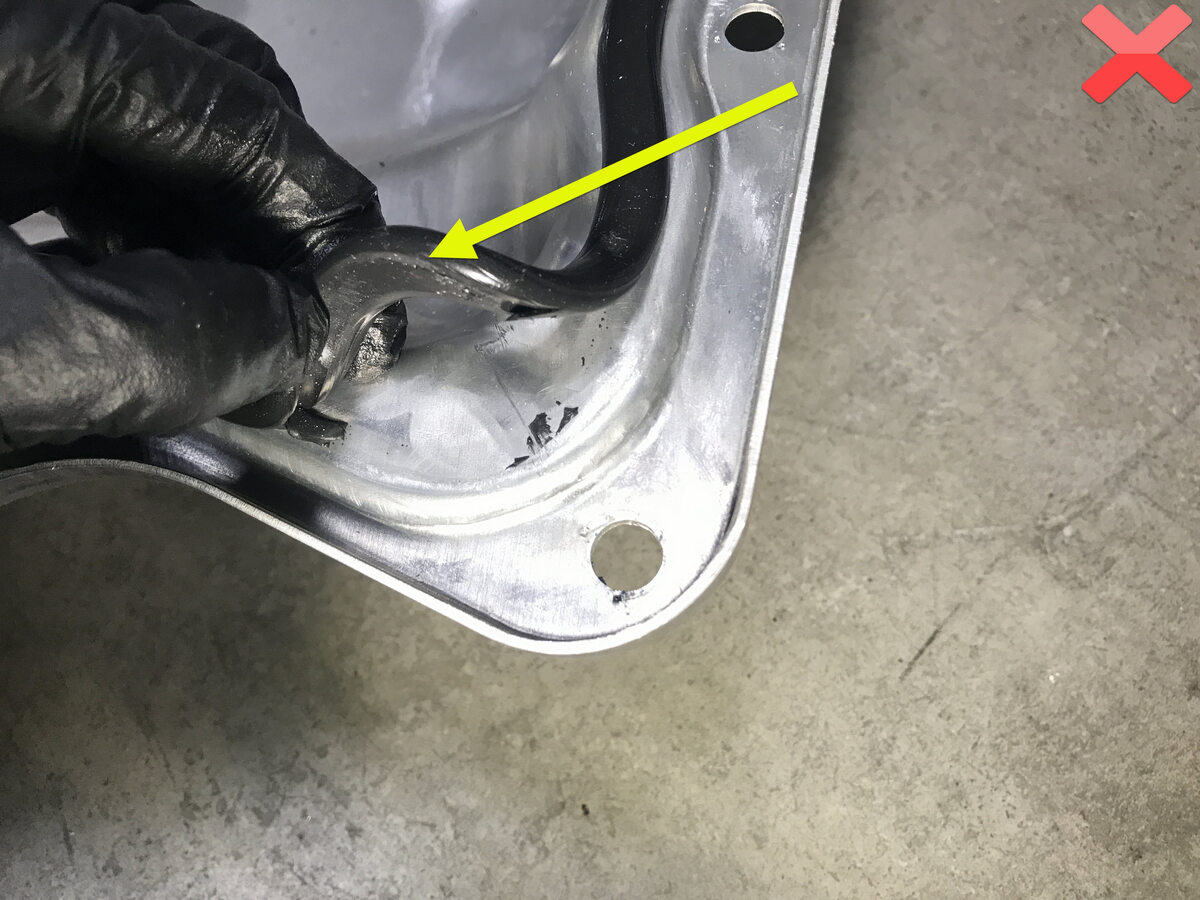

99. Inspect ancillary bay walls for damage
    참고

    Any dent or depression in the sealing surface that causes it to not be flat will result in a leak, Any paint that comes off the ancillary bay wall, Whether or not it sticks to the seal, Will require enclosure leak test when reassembled, It can still be reused

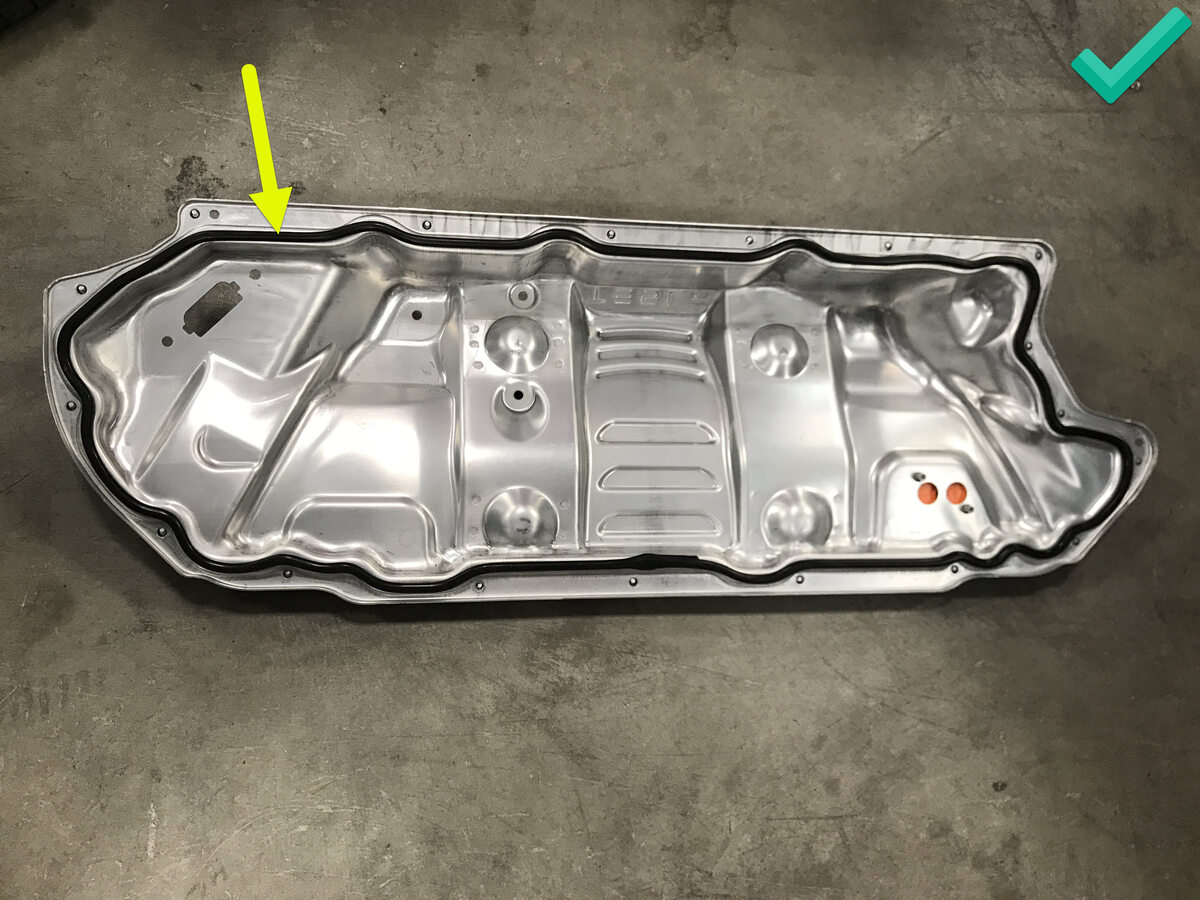

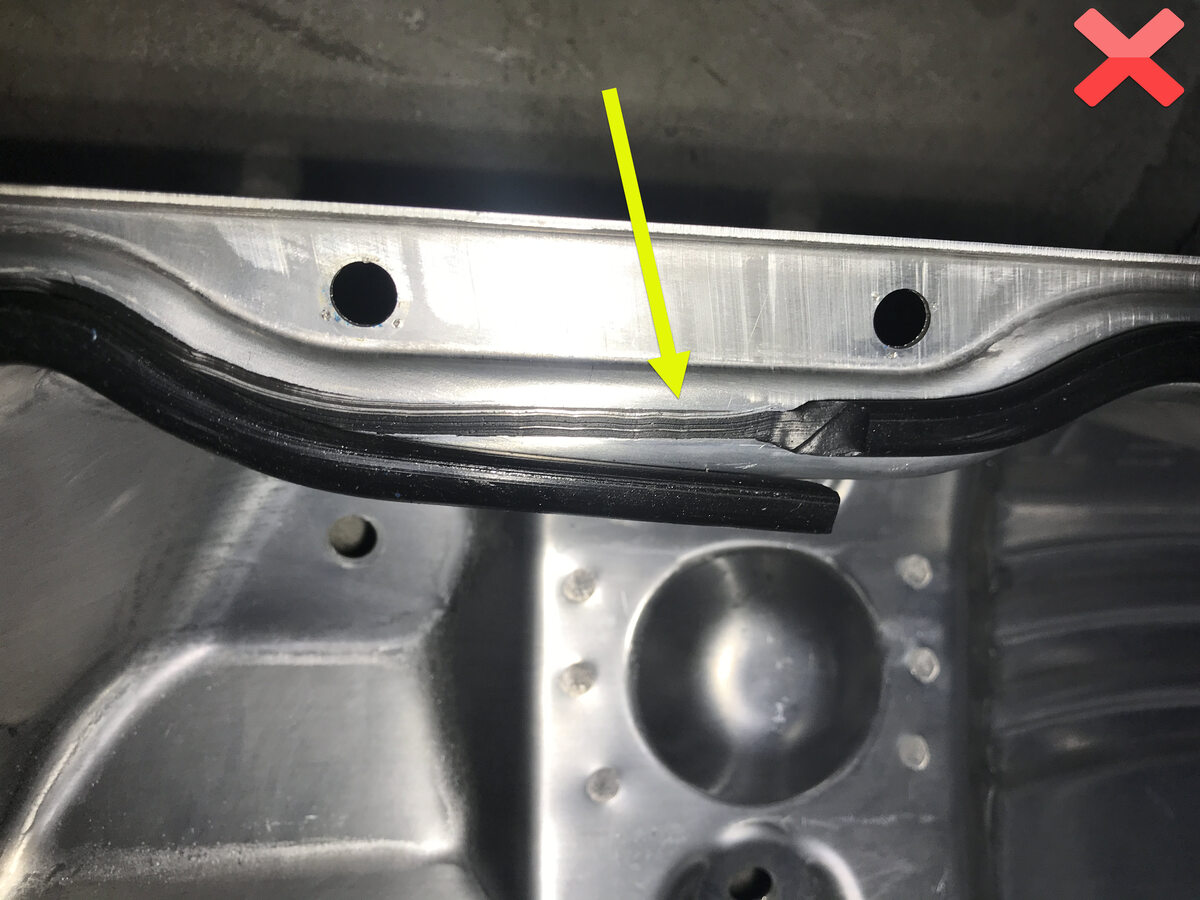

100. Inspect ancillary bay cover seal to confirm it has no visual damage
     참고

     Image up close for clarity, Delaminated and torn seals cannot be reused











101. Wipe ancillary bay cover with IPA to clean surface
     참고

     Allow to 1 minute dry time



102. Position ancillary bay cover to HV battery for installation
     참고

     Ensure all accessible insulators are present, Wearing Electrical Protective Gloves is not necessary once all HV components are covered.





103. Remove leather over gloves and HV insulating gloves



104. Install HVC logic cap
     참고

     1x logic cap

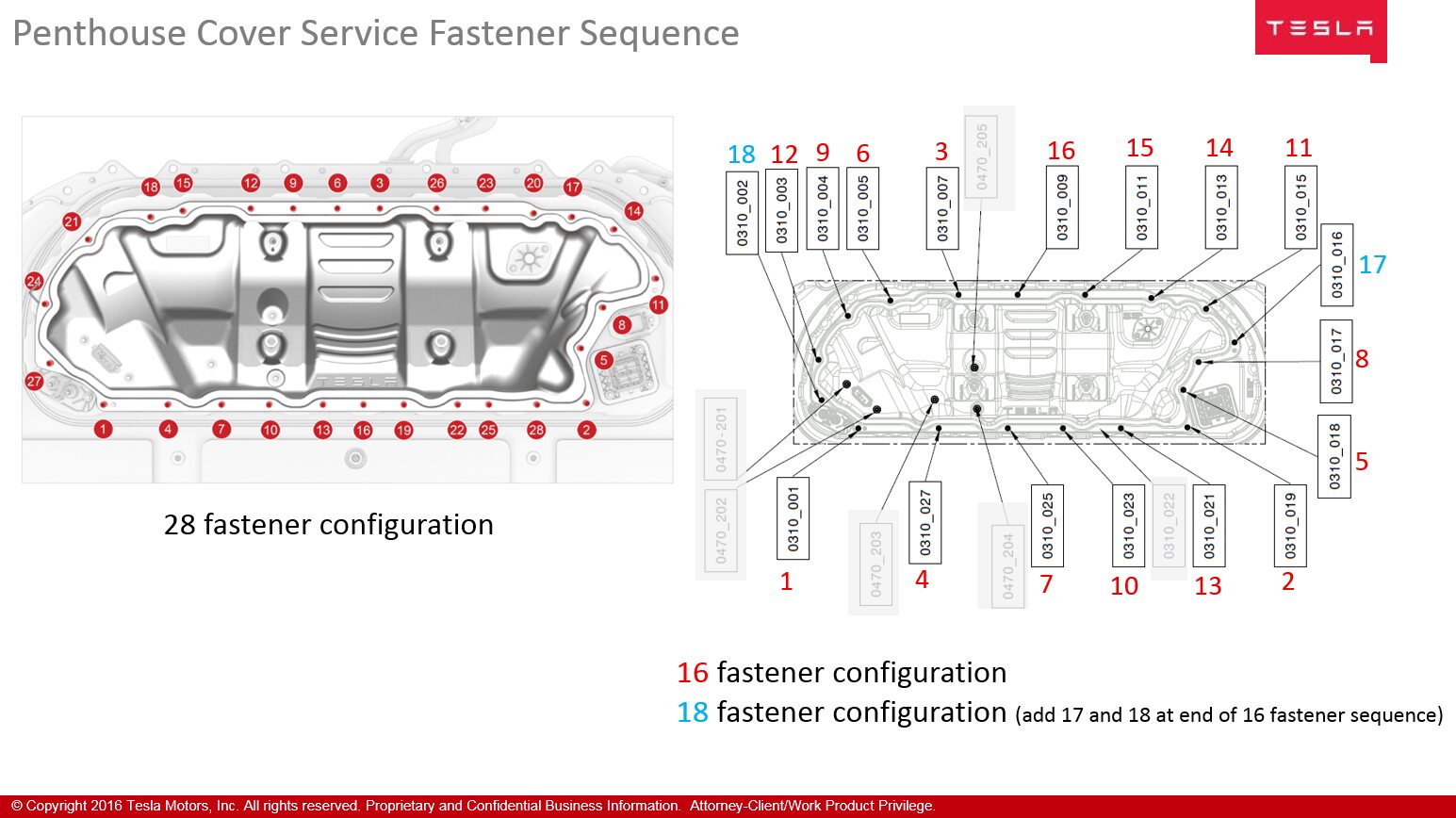

105. Install bolts securing ancillary bay cover to HV battery
     참고

     18x bolts, EP10 5-Lobe, 8 Nm, Fasteners are captive, Follow torque sequence per image





106. Install bolts securing ancillary bay cover to HVC
     참고

     3x bolts, E10, 5 Nm + 30 degrees



107. Install positive LV output from PCS cable and torque nut securing it
     참고

     1x nut, 13mm, 9 Nm, Install new nut, Mark the nut after torque



108. Install positive LV output cover to PCS cable
     참고

     1x cover



109. Remove logic cap and connect HVC logic connector
     참고

     1x connector, 1x logic cap, Align connector then pull the handle to locking position get connector fully seated





110. Position 2nd row 40 seat assembly into vehicle
     참고

     Recommend assistance

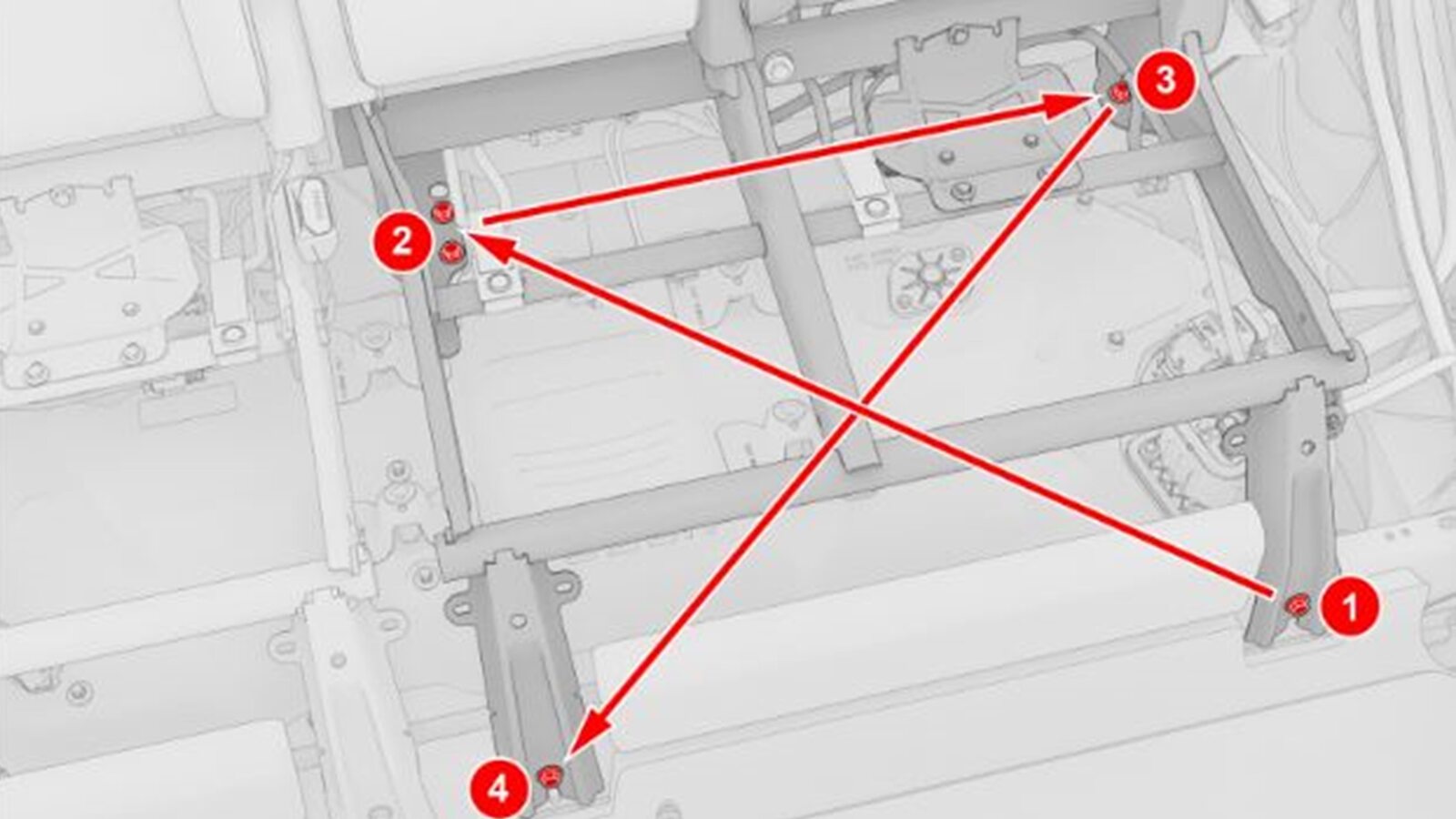

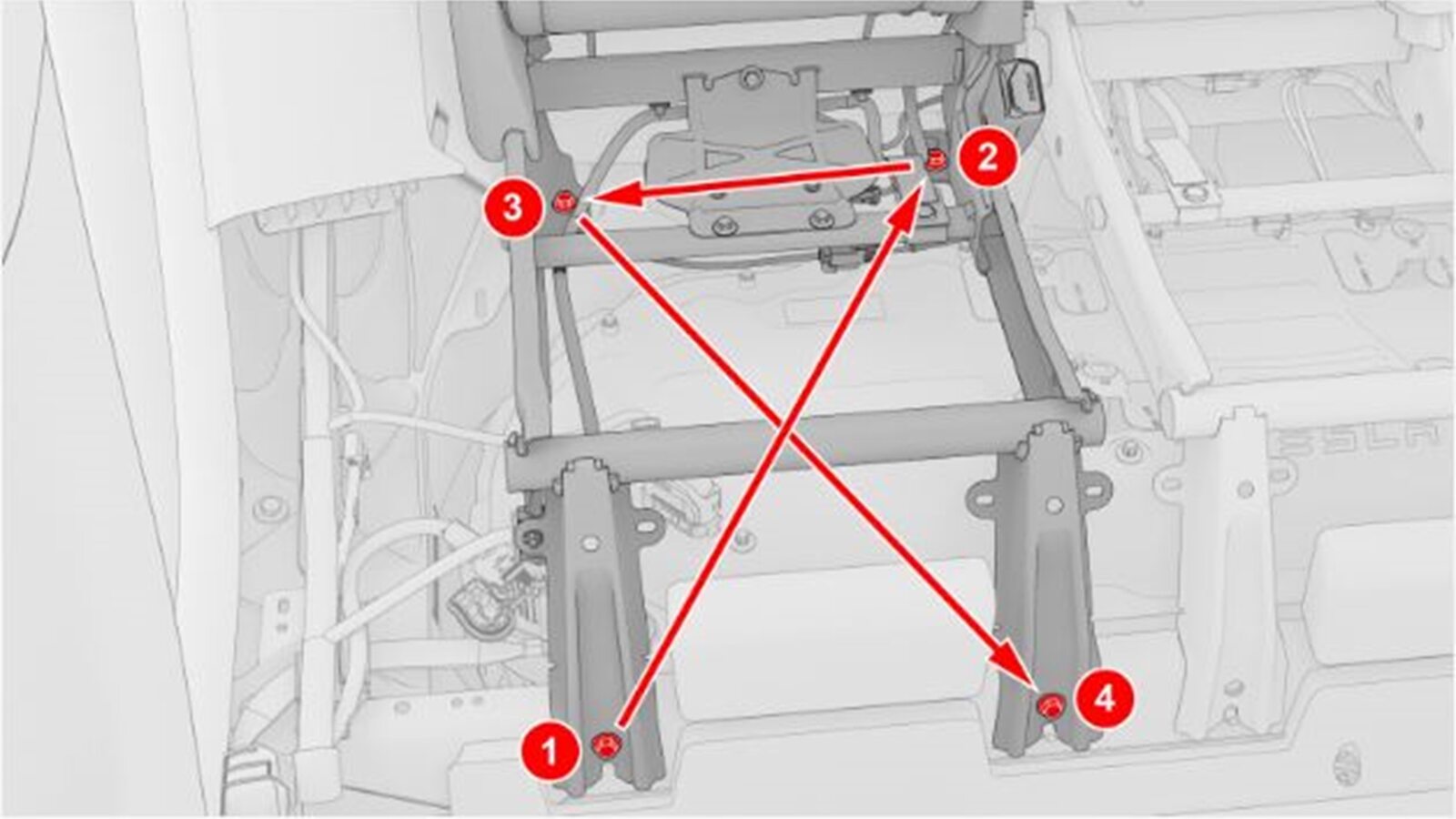

111. Install 2nd row 40 seat frame to vehicle
     참고

     4x bolts, 11mm, 37 Nm, Install new bolts, Bottom seat bolts located behind main carpet, Torque in sequence; Outboard front -> Inboard rear -> Outboard rear -> Inboard front











112. Connect 2nd row 40 seat connector
     참고

     1x connector, Engage the tab



113. Position 2nd row 60 seat assembly
     참고

     Set 60 seat assembly onto rear load floor through the rear side of the vehicle, Then install the seat assembly onto body, Use fender cover to avoid damaging trims, Recommend assistance







114. Install 2nd row 60 seat frame to body
     참고

     5x bolts, 11mm, 37 Nm, Install new bolts, Bottom seat bolts located behind main carpet, Torque in sequence; Outboard front -> Both inboard rear -> Outboard rear -> Inboard front











115. Connect 2nd row 60 seat connector
     참고

     1x connector, Engage the tab



116. Install clips securing rear main cabin carpet to vehicle
     참고

     3x push clips



117. Install 2nd row seat cushion
     참고

     1x connector, Slide rear cushion rearward then align foam with seat rail, Make sure cushion is fully seated with push & pull test, And ensure the buckles get stuck under the 2nd row cushion





118. Connect first responder loop and LV battery
     참고

     2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated

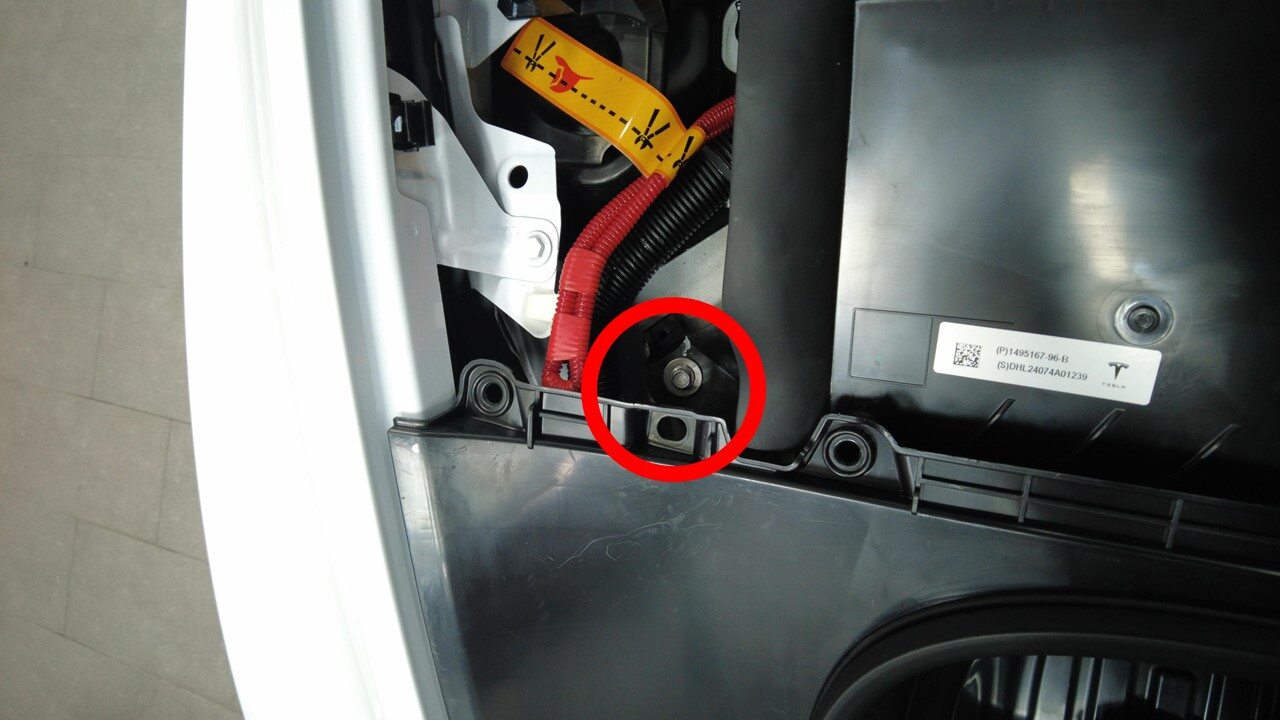

119. Install HEPA filter assembly
     참고

     2x bolts, 10mm, 10 Nm, Pivot forward edge down past frunk assembly, Then carefully move rear edge past brake reservoir and into position, Gently press on RH side of filter to seat seal onto duct, Do not pinch washer hose inbetween HEPA filter assembly and body













120. Install rear apron
     참고

     16x trim clips, 3x locator pins, 2x clips, Replace any missing or damaged clips, Ensure pyrotechnic hood actuators are aligned with openings in apron







121. Close hood





122. Move RH front seat to original position



123. Move LH front seat to original position



124. Raise all four window



125. Close all four doors
     참고

     Unlatch doors before closing if necessary
